This document summarizes a research paper that proposes using orthogonal nonnegative matrix tri-factorization (ONMTF) to fuse model-based and memory-based collaborative filtering approaches. ONMTF is used to co-cluster users and items to obtain centroids that are then used to select similar users and items for predicting unknown ratings. Experimental results on movie rating datasets show the ONMTF approach improves prediction accuracy over other collaborative filtering methods.

1. COLLABORATIVE
FILTERING USING
ORTHOGONAL
NONNEGATIVE MATRIX
Presenter: Meng-Lun Wu
Authors: Gang Chen, Fei Wang and Changshui Zhang
Source: Information Processing and Management
(2009), pp. 368-379
1

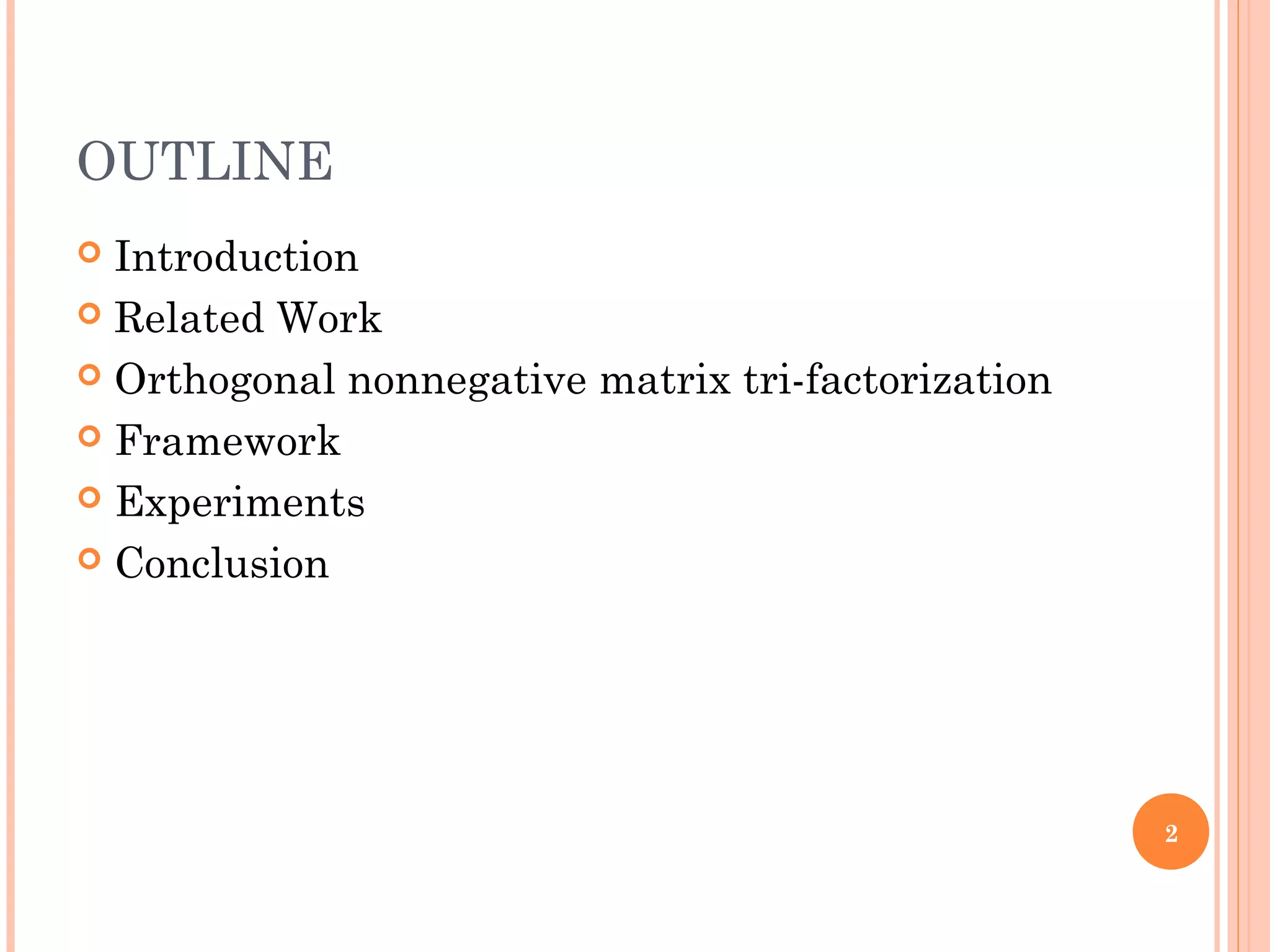

2. OUTLINE
 Introduction
 Related Work
 Orthogonal nonnegative matrix tri-factorization
 Framework
 Experiments
 Conclusion
2

3. INTRODUCTION
 Collaborative filtering can predict a test user’s
rating for new items based on similar users.
 Collaborative filtering can be categorized into…
 Memory-based (similarity)
 user-based and item-based
 Model-based
 Establish a model using training examples.
3

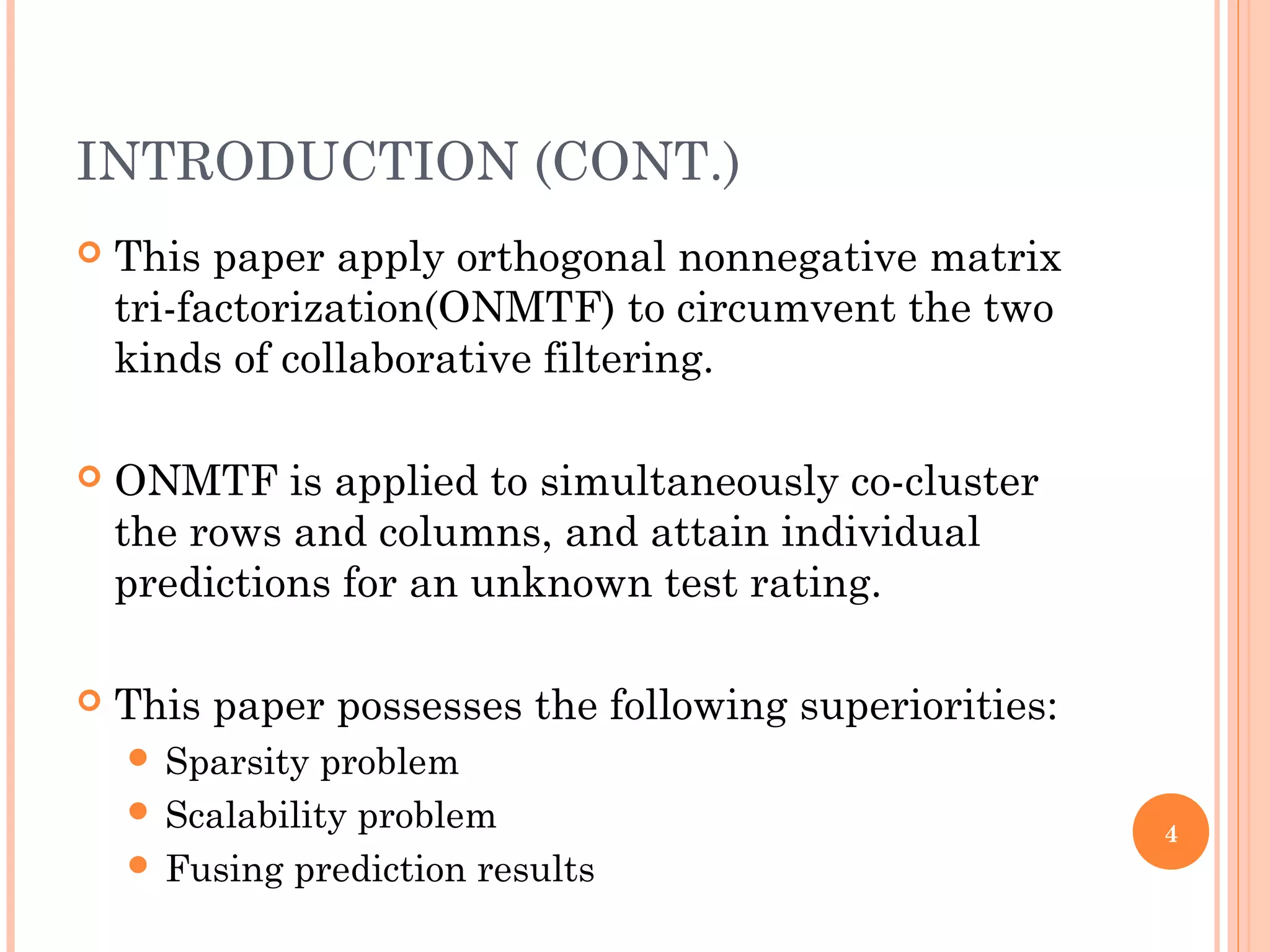

4. INTRODUCTION (CONT.)
 This paper apply orthogonal nonnegative matrix
tri-factorization(ONMTF) to circumvent the two
kinds of collaborative filtering.
 ONMTF is applied to simultaneously co-cluster
the rows and columns, and attain individual
predictions for an unknown test rating.
 This paper possesses the following superiorities:
 Sparsity problem
 Scalability problem
 Fusing prediction results
4

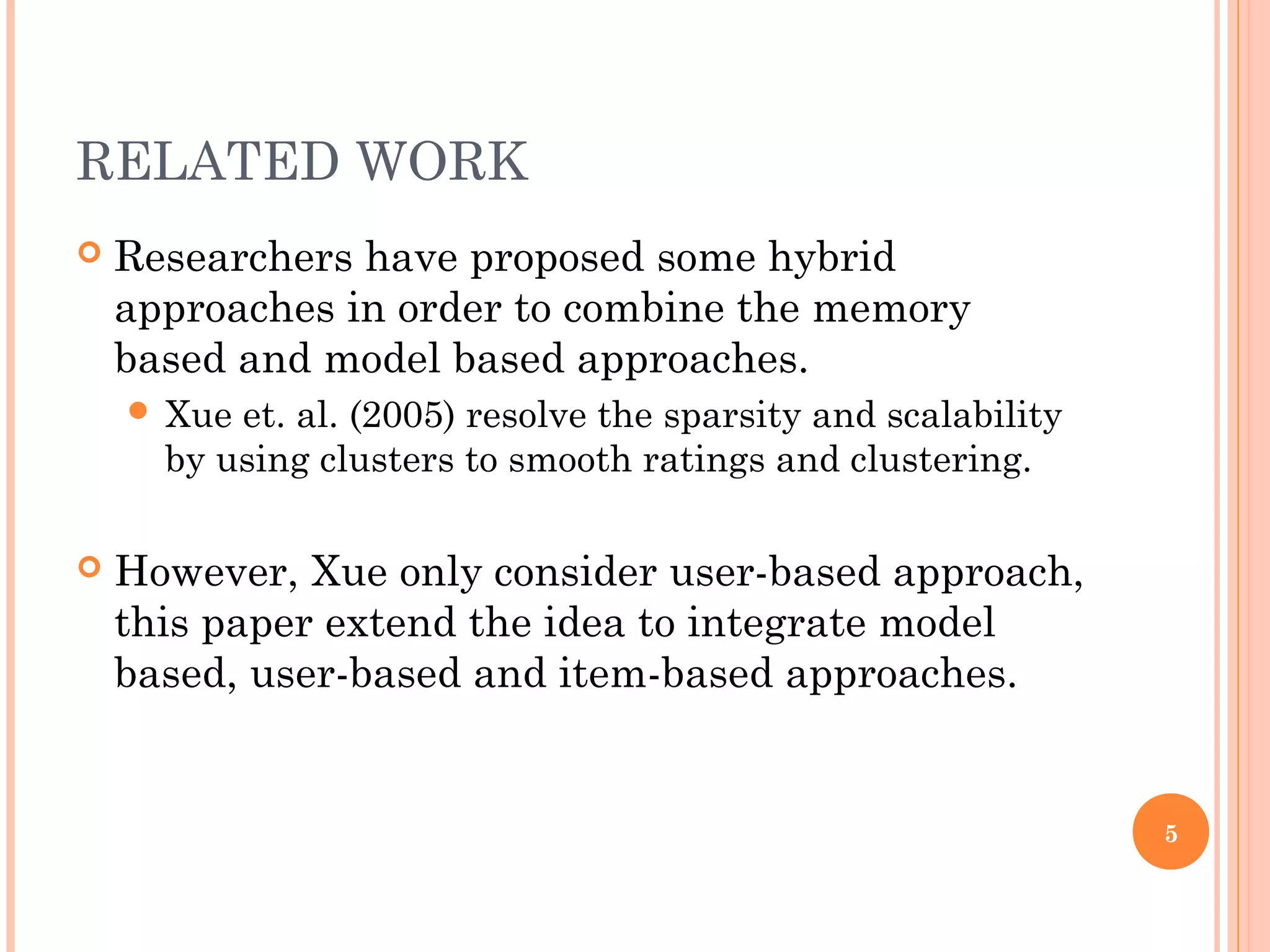

5. RELATED WORK
 Researchers have proposed some hybrid
approaches in order to combine the memory
based and model based approaches.
 Xue et. al. (2005) resolve the sparsity and scalability
by using clusters to smooth ratings and clustering.
 However, Xue only consider user-based approach,
this paper extend the idea to integrate model
based, user-based and item-based approaches.
5

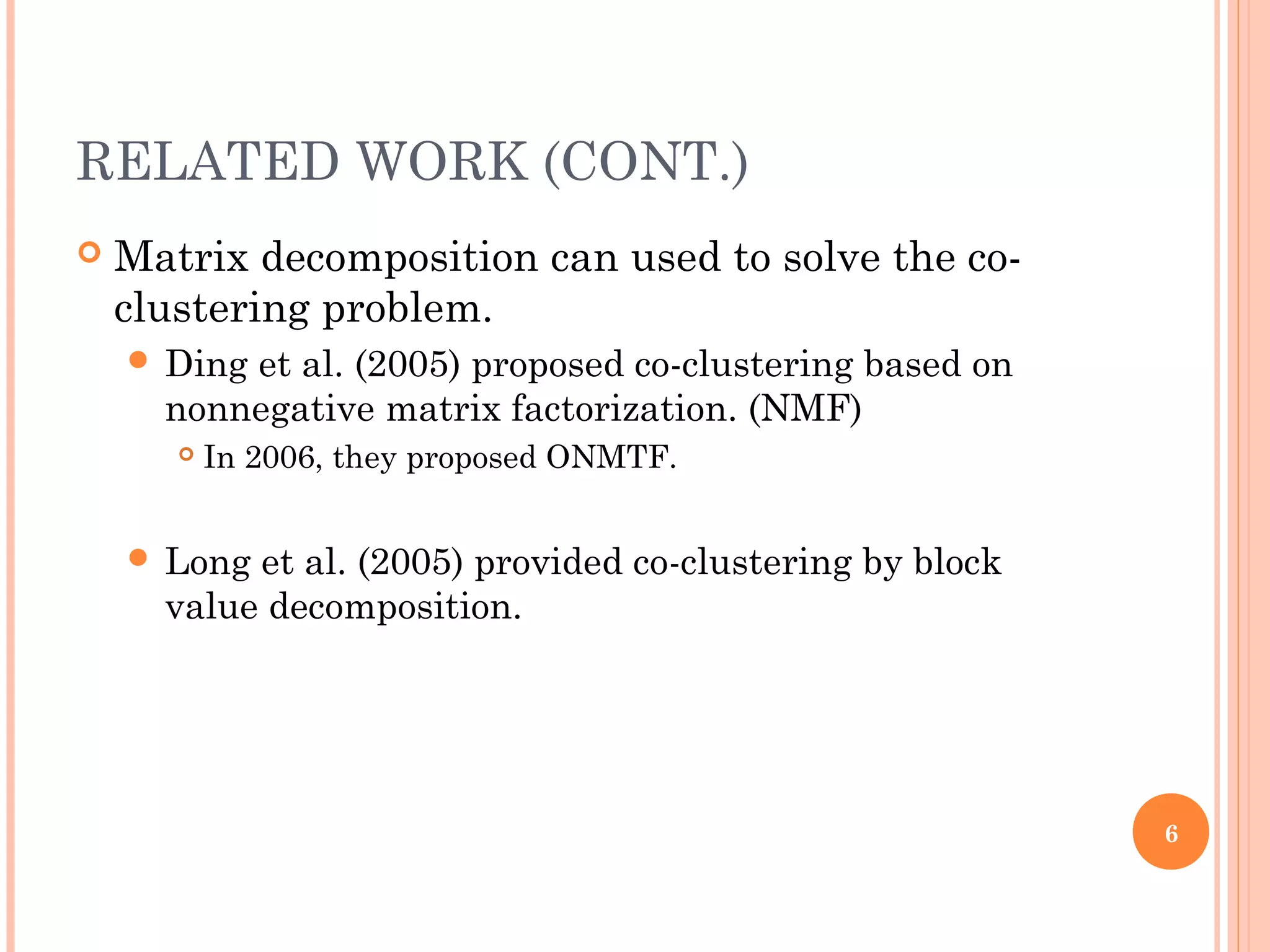

6. RELATED WORK (CONT.)
 Matrix decomposition can used to solve the co-
clustering problem.
 Ding et al. (2005) proposed co-clustering based on
nonnegative matrix factorization. (NMF)
 In 2006, they proposed ONMTF.
 Long et al. (2005) provided co-clustering by block
value decomposition.
6

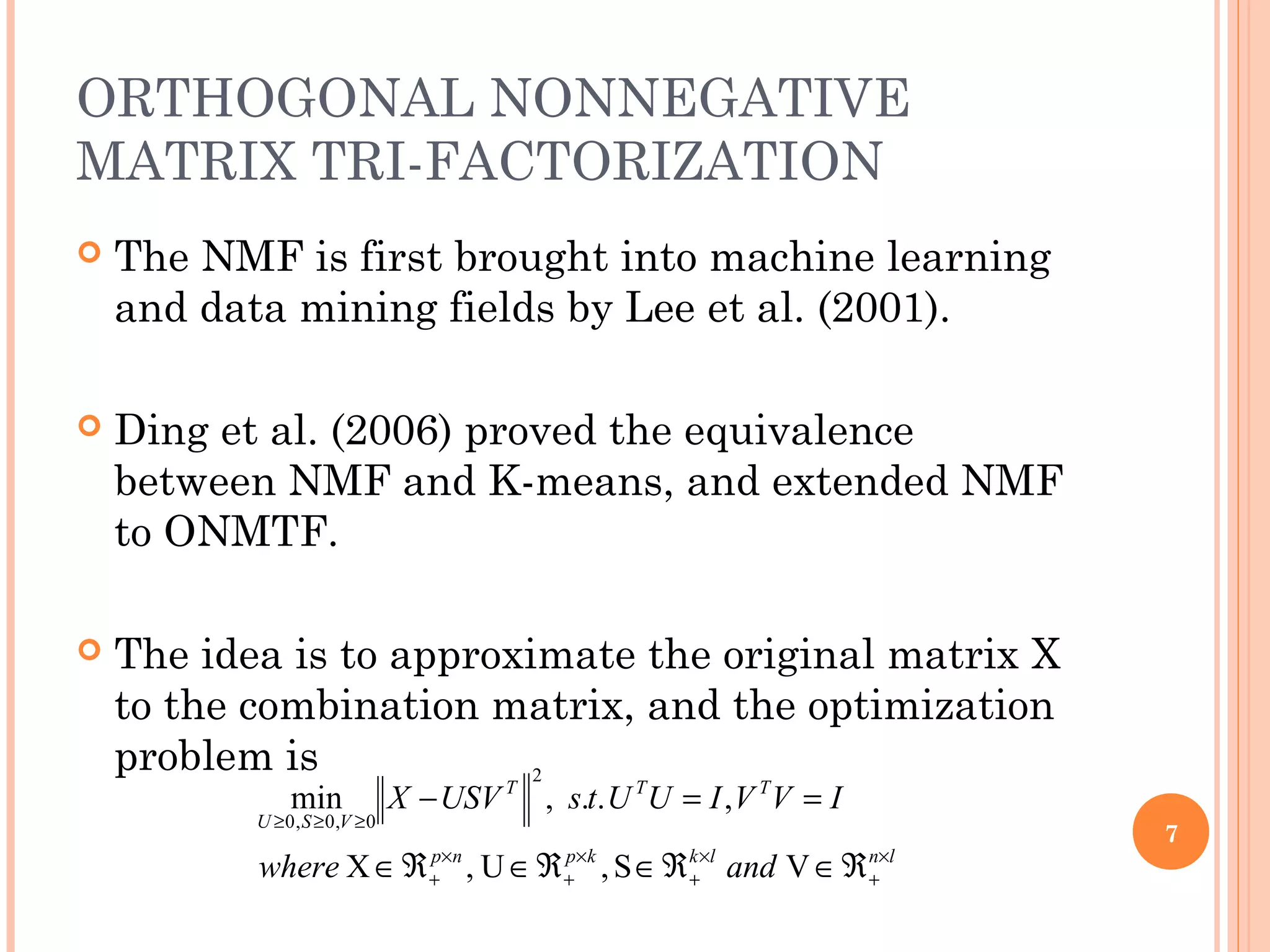

7. ORTHOGONAL NONNEGATIVE
MATRIX TRI-FACTORIZATION
 The NMF is first brought into machine learning
and data mining fields by Lee et al. (2001).
 Ding et al. (2006) proved the equivalence
between NMF and K-means, and extended NMF
to ONMTF.
 The idea is to approximate the original matrix X
to the combination matrix, and the optimization
problem is
7
lnlkkpnp
TTT
VSU
andwhere
IVVIUUtsUSVX
×
+
×
+
×
+
×
+
≥≥≥
ℜ∈ℜ∈ℜ∈ℜ∈
==−
VS,U,X
,..,min
2
0,0,0

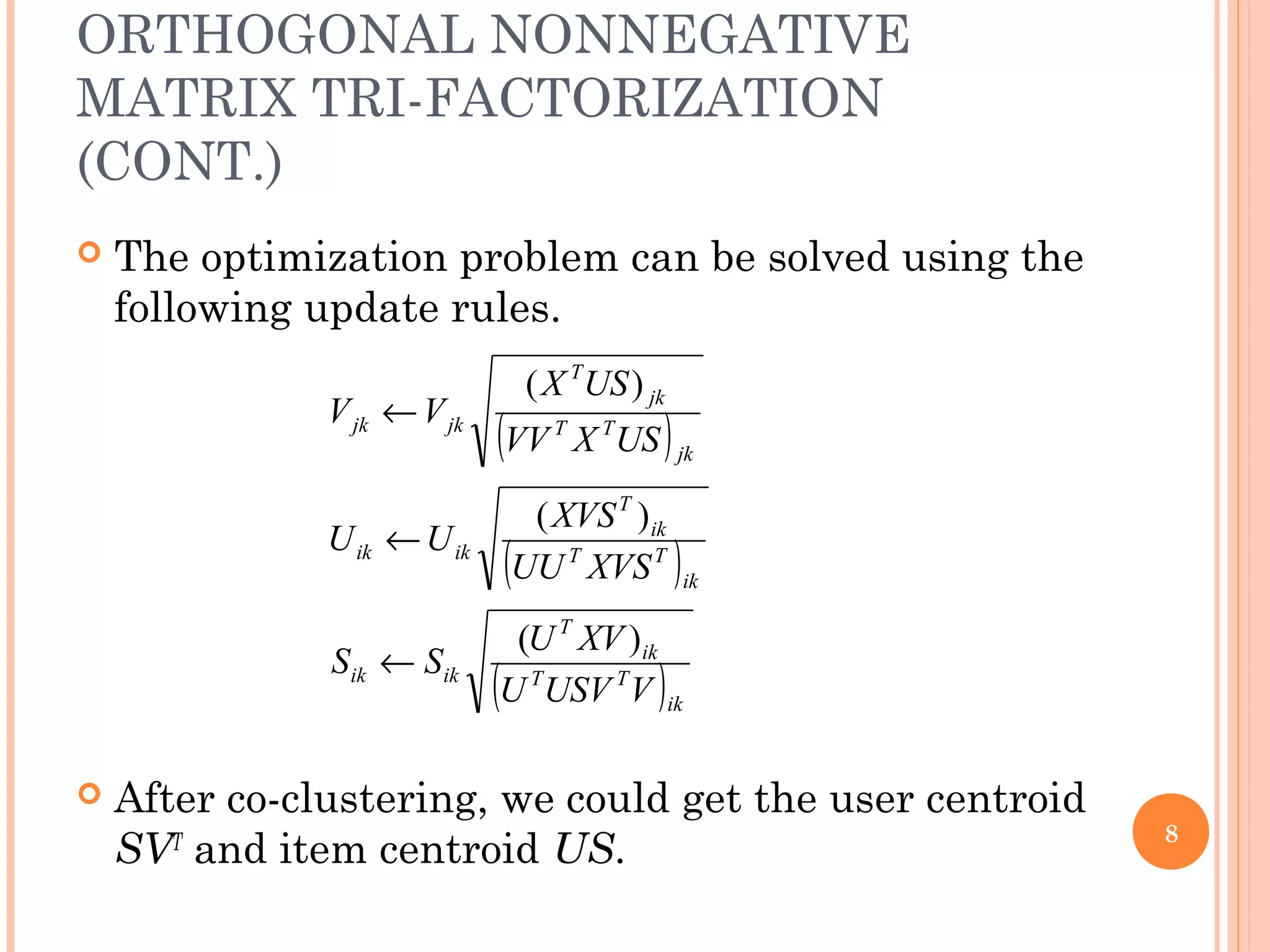

8. ORTHOGONAL NONNEGATIVE
MATRIX TRI-FACTORIZATION
(CONT.)
 The optimization problem can be solved using the
following update rules.
 After co-clustering, we could get the user centroid
SVT
and item centroid US. 8
( )
( )
( )ik
TT
ik
T
ikik
ik
TT
ik
T
ikik
jk
TT
jk
T
jkjk
VUSVU
XVU
SS
XVSUU
XVS
UU
USXVV
USX
VV
)(
)(
)(
←
←
←

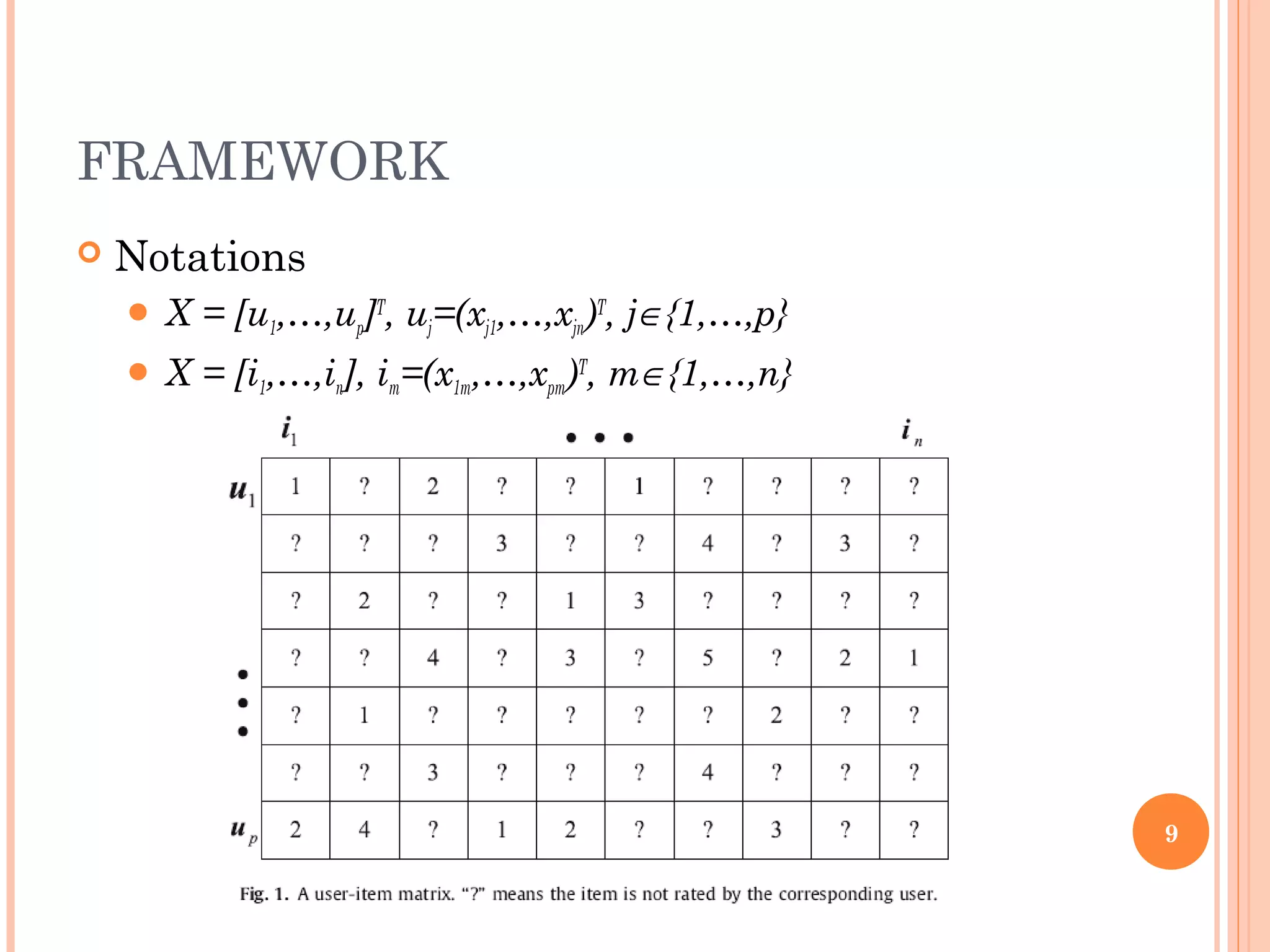

9. FRAMEWORK
 Notations
 X = [u1,…,up]T
, uj=(xj1,…,xjn)T
, j∈{1,…,p}
 X = [i1,…,in], im=(x1m,…,xpm)T
, m∈{1,…,n}
9

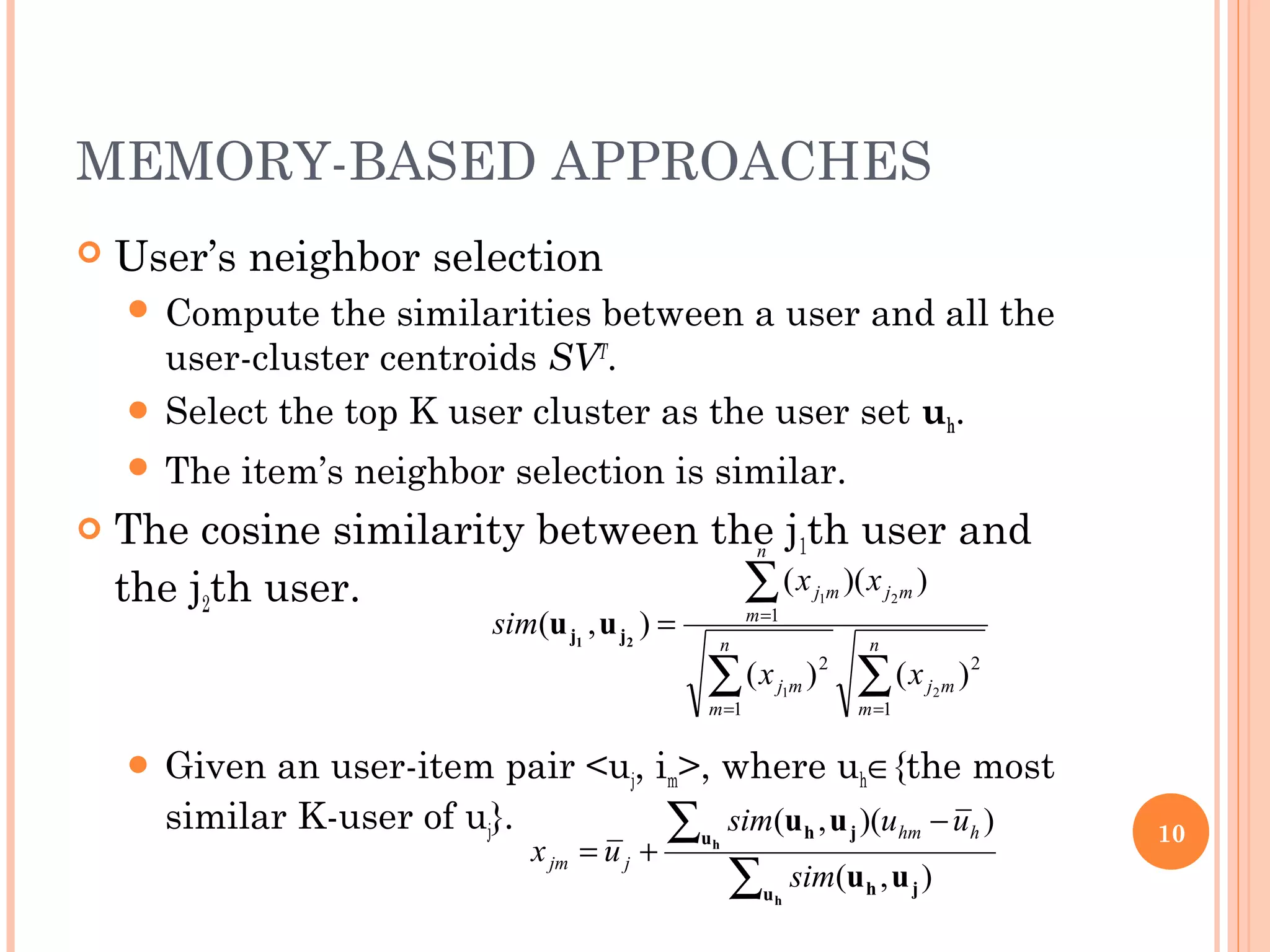

10. MEMORY-BASED APPROACHES
 User’s neighbor selection
 Compute the similarities between a user and all the
user-cluster centroids SVT
.
 Select the top K user cluster as the user set uh.
 The item’s neighbor selection is similar.
 The cosine similarity between the j1th user and
the j2th user.
 Given an user-item pair <uj, im>, where uh∈{the most
similar K-user of uj}. 10
∑∑
∑
==
=
=
n
m
mj
n
m
mj
n
m
mjmj
xx
xx
sim
1
2
1
2
1
)()(
))((
),(
21
21
21 jj uu
∑
∑ −
+=
h
h
u jh
u jh
uu
uu
),(
))(,(
sim
uusim
ux
hhm
jjm

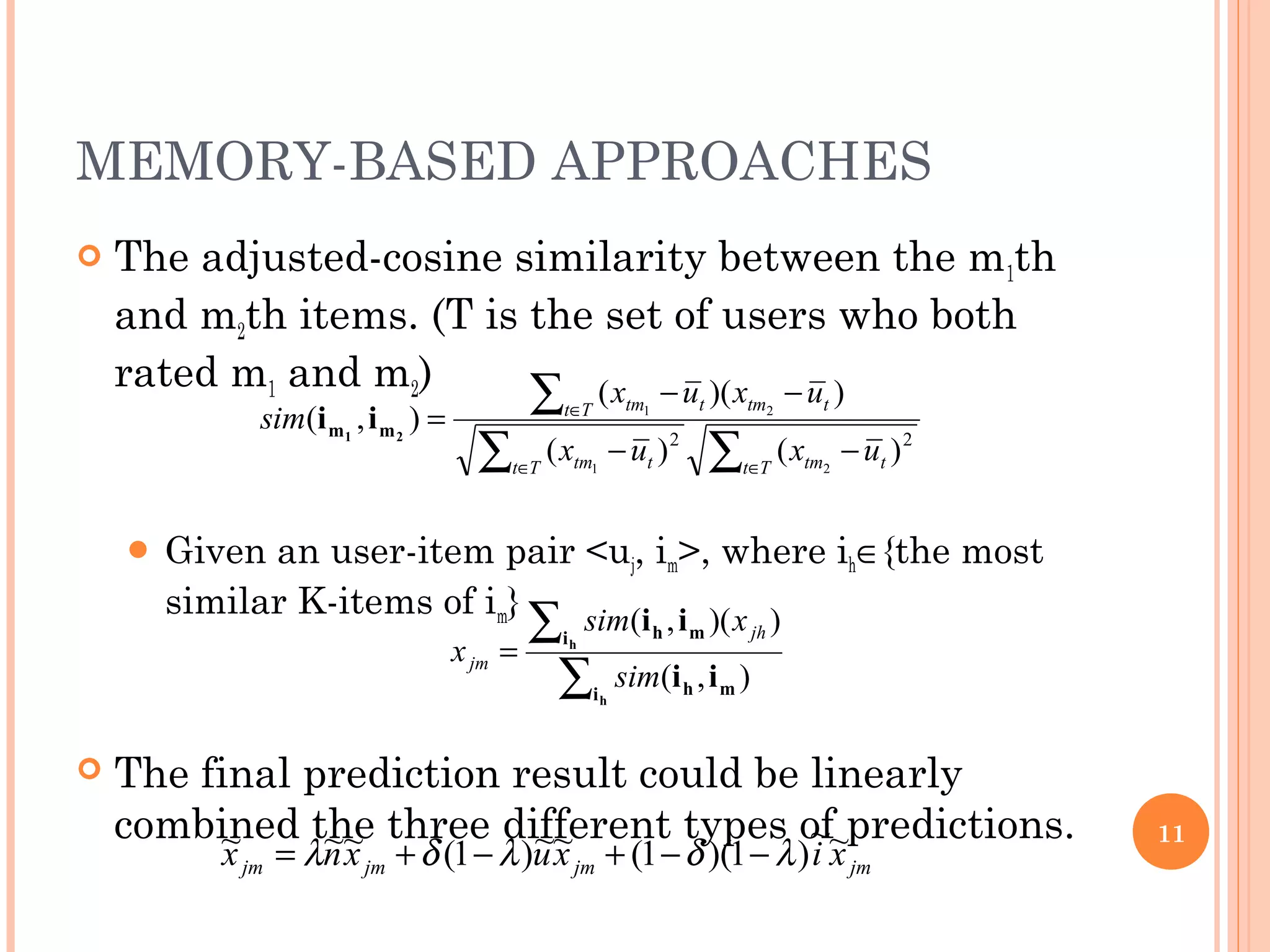

11. MEMORY-BASED APPROACHES
 The adjusted-cosine similarity between the m1th
and m2th items. (T is the set of users who both
rated m1 and m2)
 Given an user-item pair <uj, im>, where ih∈{the most
similar K-items of im}
 The final prediction result could be linearly
combined the three different types of predictions. 11
∑∑
∑
∈∈
∈
−−
−−
=
Tt ttmTt ttm
Tt ttmttm
uxux
uxux
sim
22
)()(
))((
),(
21
21
21 mm ii
∑
∑=
h
h
i mh
i mh
ii
ii
),(
))(,(
sim
xsim
x
jh
jm
jmjmjmjm xixuxnx ~~
)1)(1(~~)1(~~~ λδλδλ −−+−+=

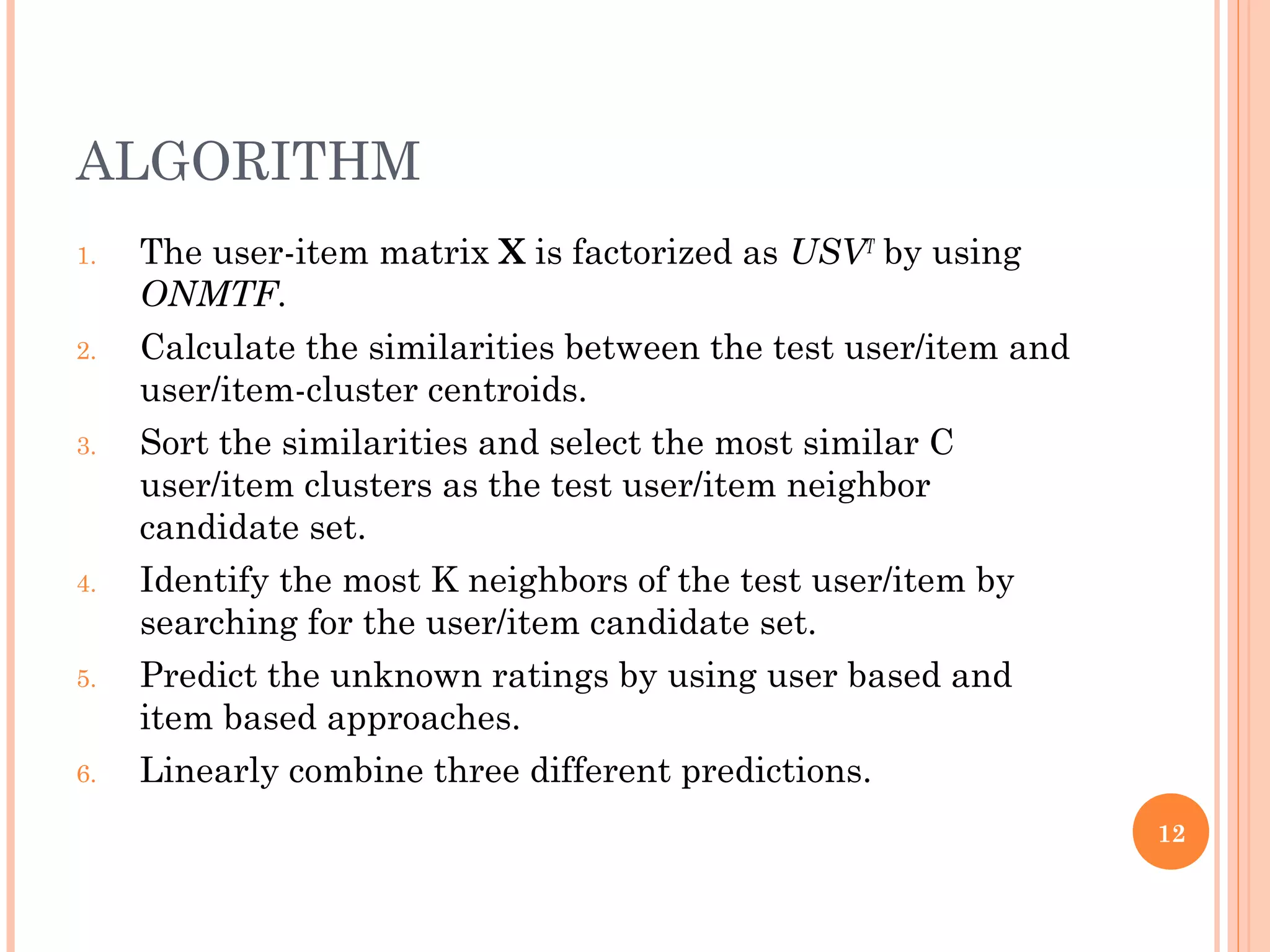

12. ALGORITHM
1. The user-item matrix X is factorized as USVT
by using
ONMTF.
2. Calculate the similarities between the test user/item and
user/item-cluster centroids.
3. Sort the similarities and select the most similar C
user/item clusters as the test user/item neighbor
candidate set.
4. Identify the most K neighbors of the test user/item by
searching for the user/item candidate set.
5. Predict the unknown ratings by using user based and
item based approaches.
6. Linearly combine three different predictions.
12

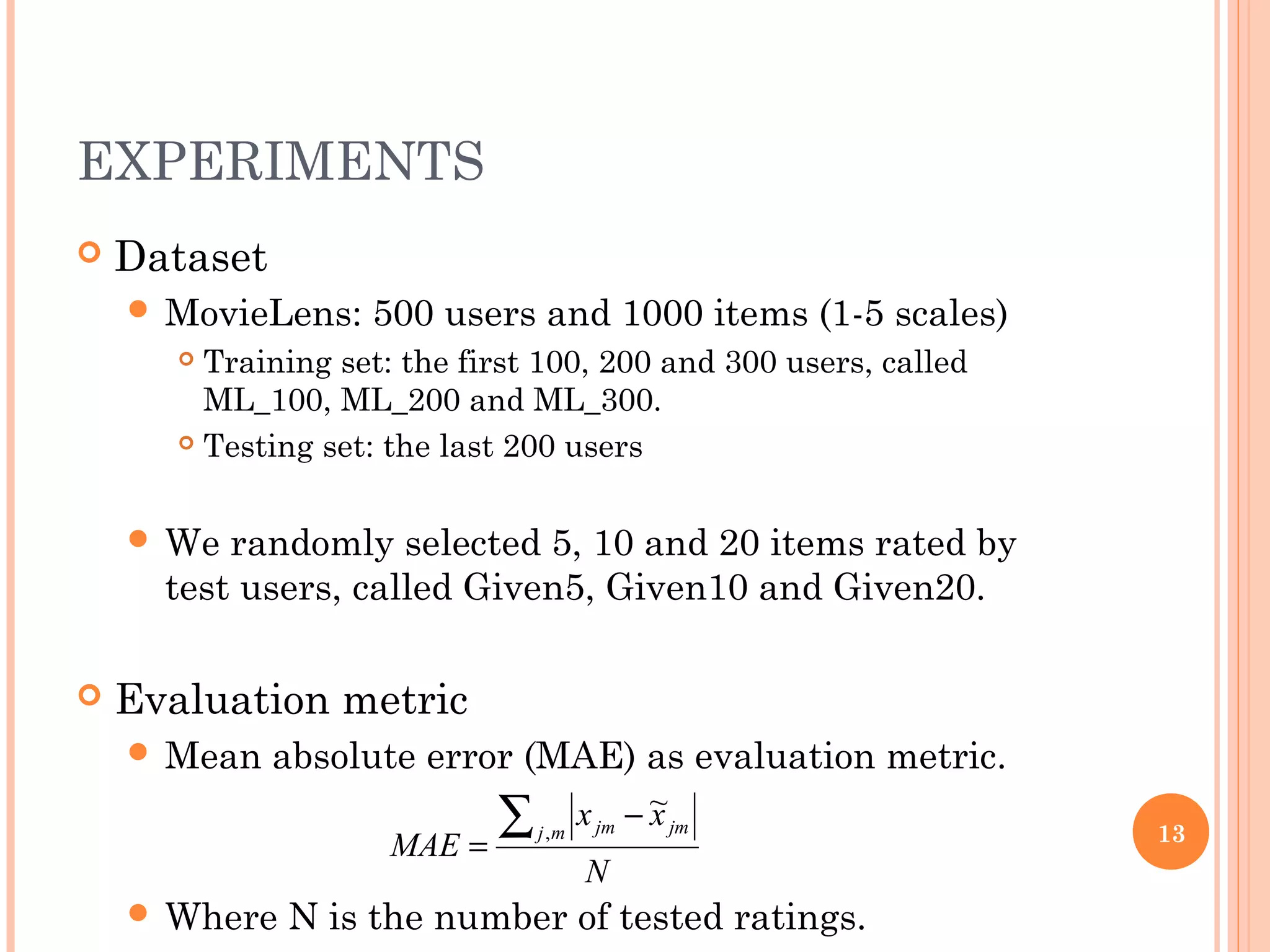

13. EXPERIMENTS
 Dataset
 MovieLens: 500 users and 1000 items (1-5 scales)
 Training set: the first 100, 200 and 300 users, called
ML_100, ML_200 and ML_300.
 Testing set: the last 200 users
 We randomly selected 5, 10 and 20 items rated by
test users, called Given5, Given10 and Given20.
 Evaluation metric
 Mean absolute error (MAE) as evaluation metric.
 Where N is the number of tested ratings.
13
N
xx
MAE
mj jmjm∑ −
=
,
~

14. DIFFERENT CLUSTER
14
 The ML_300 dataset is used for training, and try
10 different values of k or l (2,5,10,20,…,80)

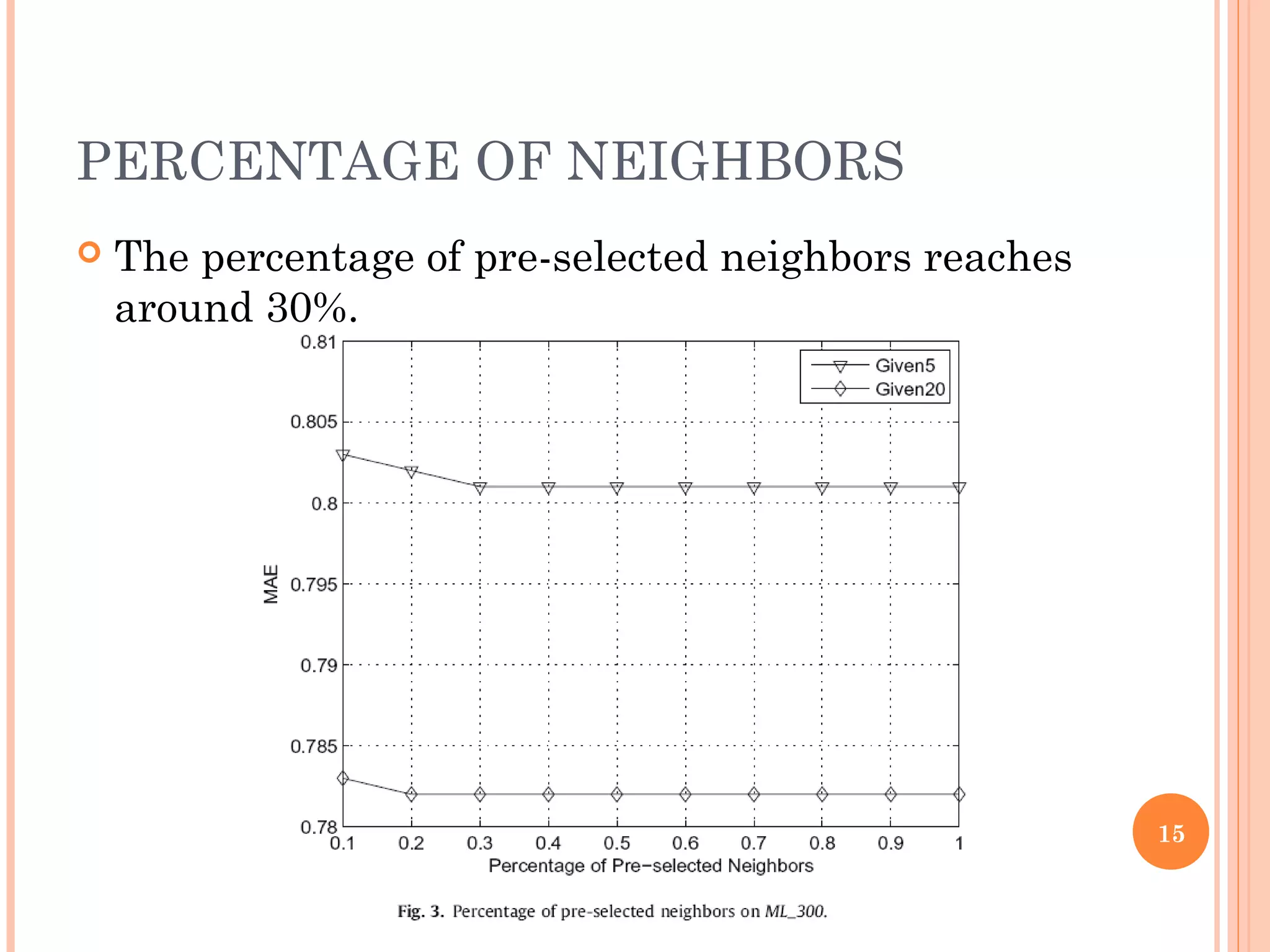

15. PERCENTAGE OF NEIGHBORS
 The percentage of pre-selected neighbors reaches
around 30%.
15

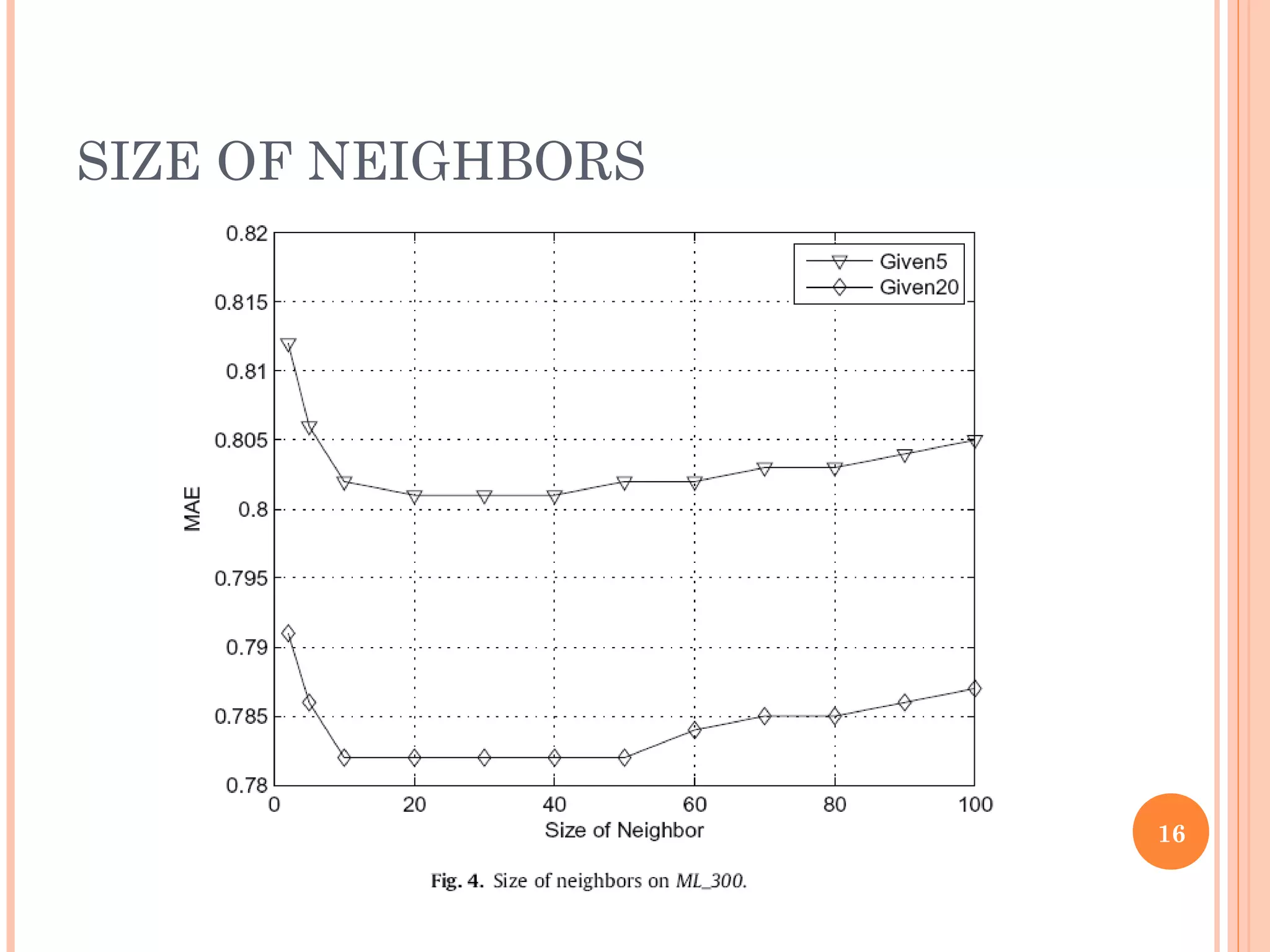

16. SIZE OF NEIGHBORS
16

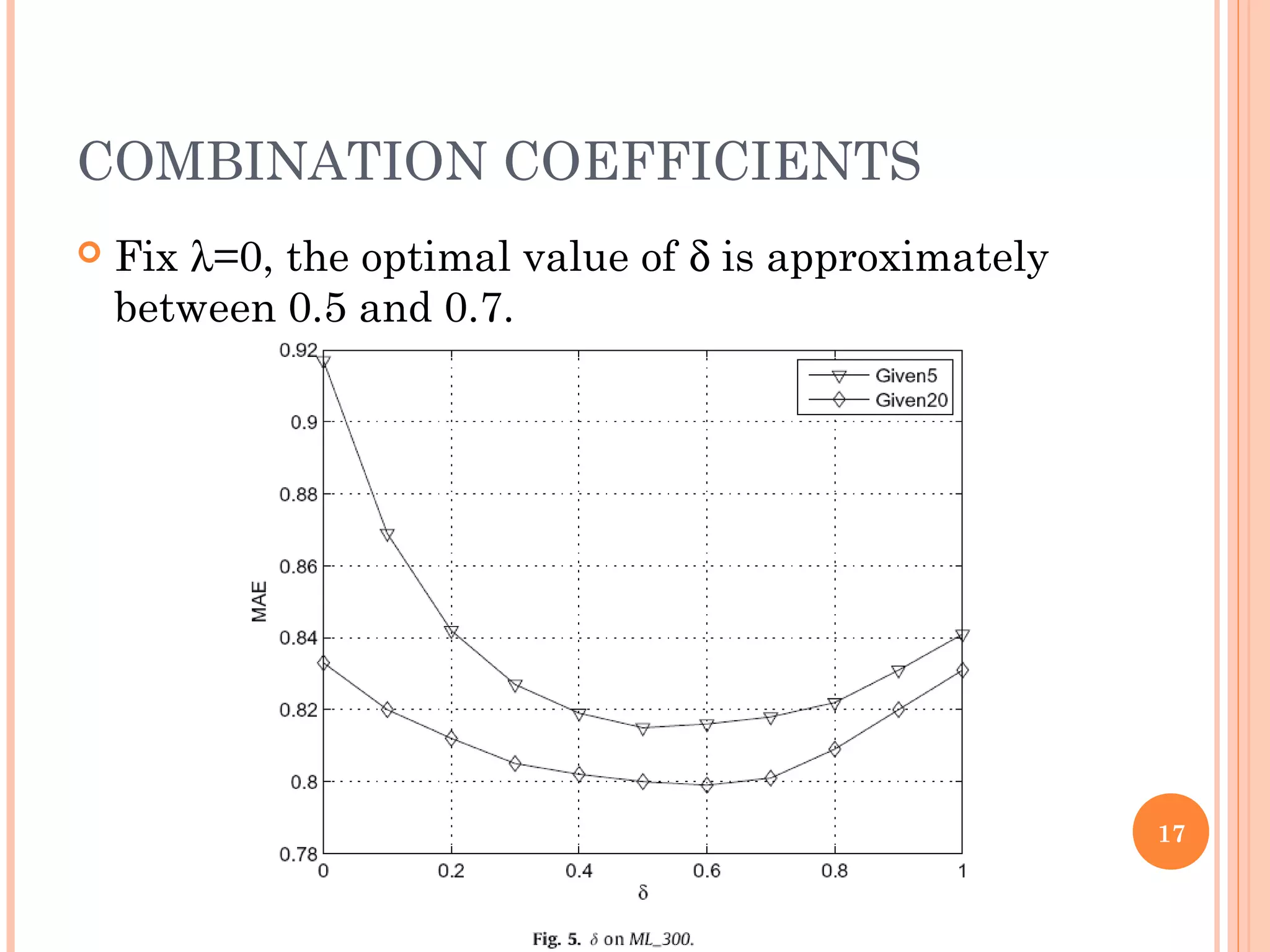

17. COMBINATION COEFFICIENTS
 Fix λ=0, the optimal value of δ is approximately
between 0.5 and 0.7.
17

18. COMBINATION COEFFICIENTS
(CONT.)
 Fix δ=0.6, the optimal value of λ is approximately
between 0.2 and 0.4.
18

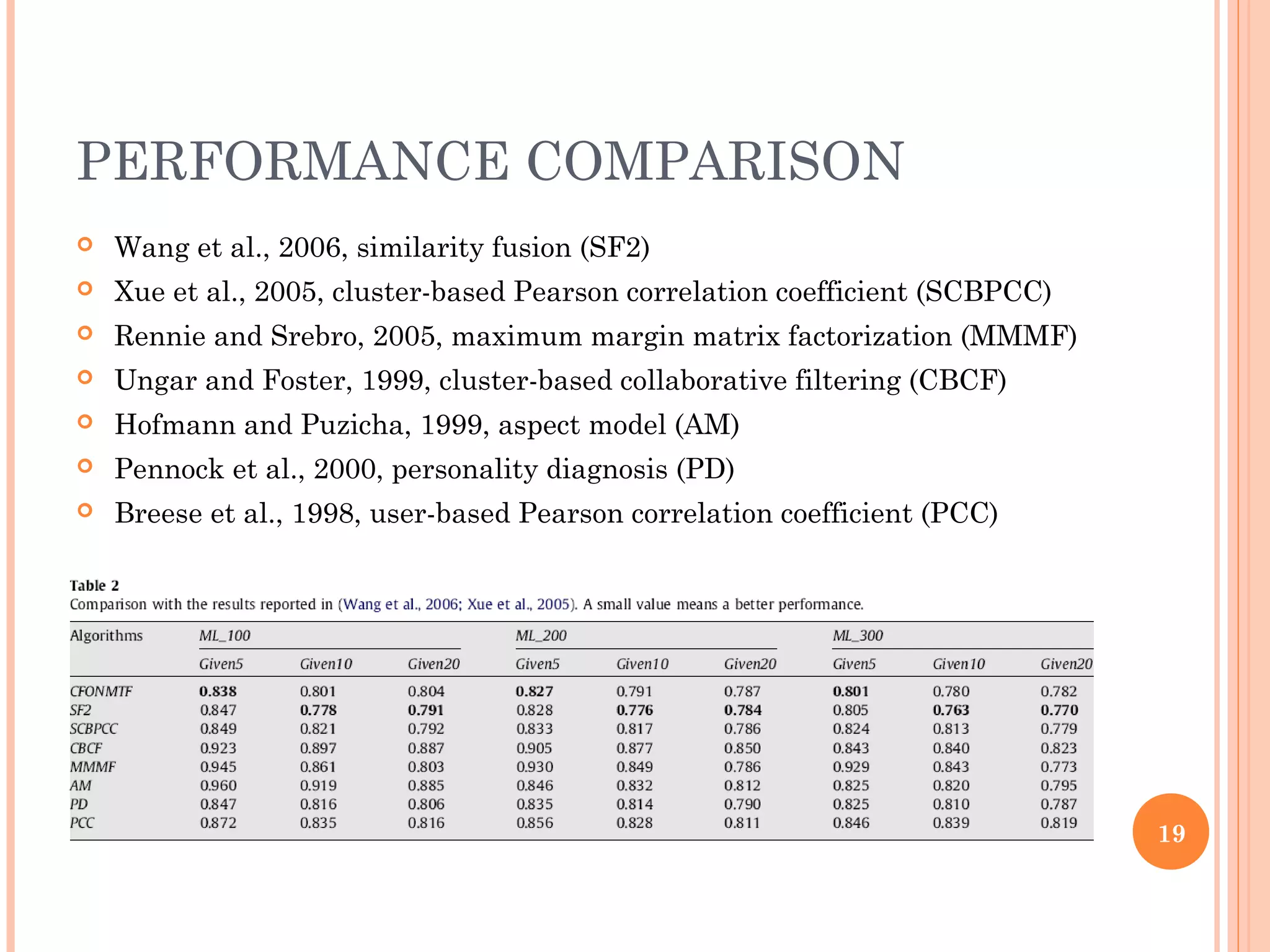

19. PERFORMANCE COMPARISON
19
 Wang et al., 2006, similarity fusion (SF2)
 Xue et al., 2005, cluster-based Pearson correlation coefficient (SCBPCC)
 Rennie and Srebro, 2005, maximum margin matrix factorization (MMMF)
 Ungar and Foster, 1999, cluster-based collaborative filtering (CBCF)
 Hofmann and Puzicha, 1999, aspect model (AM)
 Pennock et al., 2000, personality diagnosis (PD)
 Breese et al., 1998, user-based Pearson correlation coefficient (PCC)

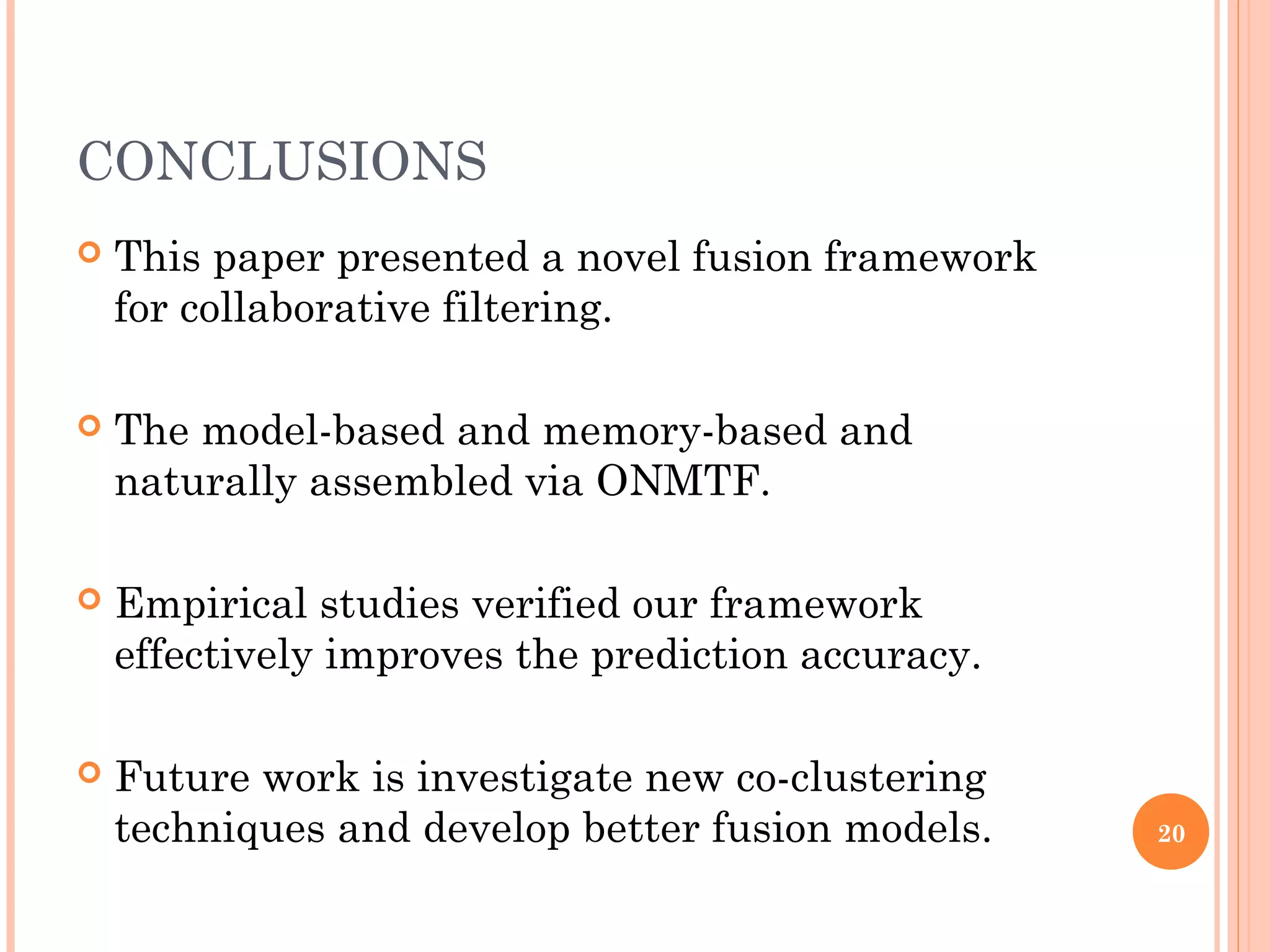

20. CONCLUSIONS
 This paper presented a novel fusion framework
for collaborative filtering.
 The model-based and memory-based and
naturally assembled via ONMTF.
 Empirical studies verified our framework
effectively improves the prediction accuracy.
 Future work is investigate new co-clustering
techniques and develop better fusion models. 20
