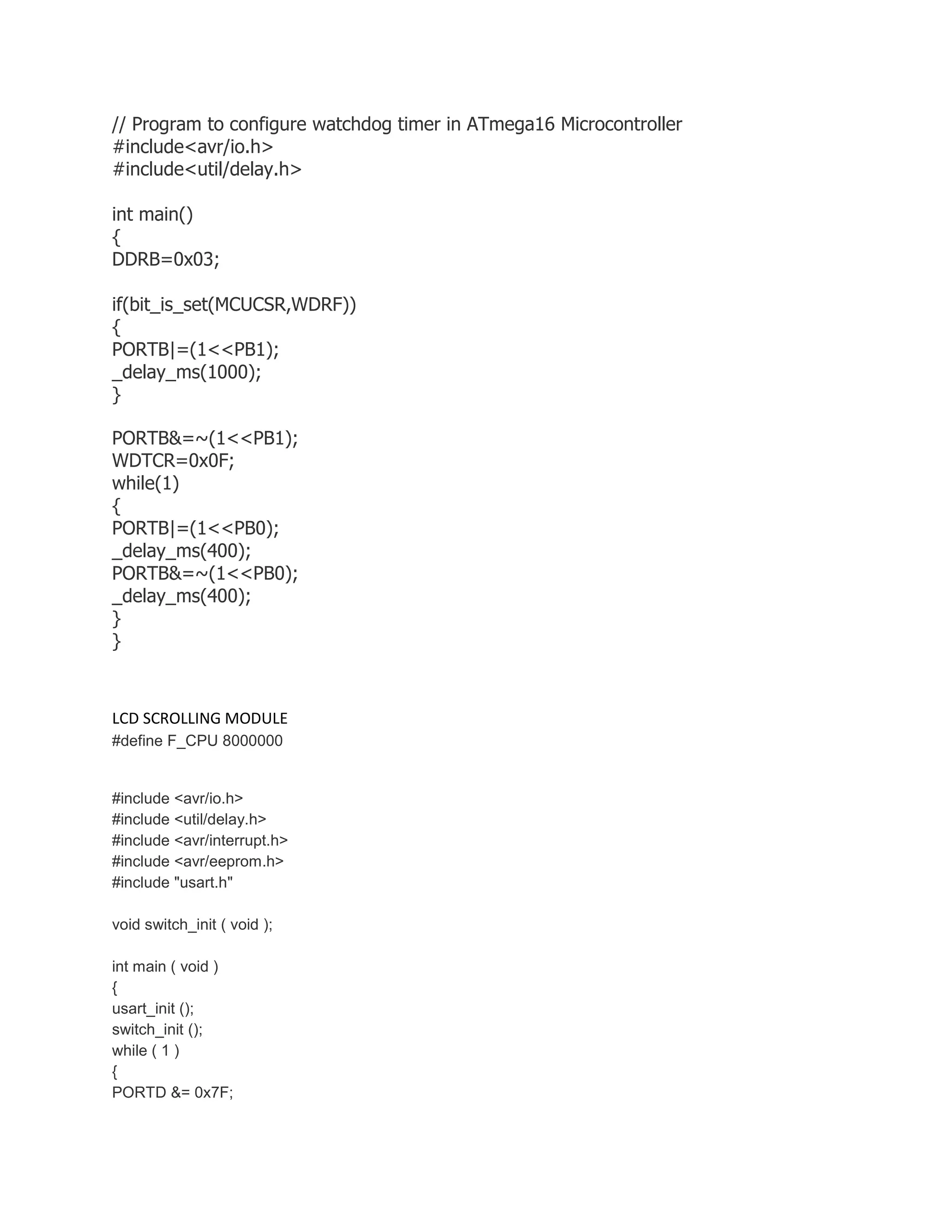

1. // Program to configure watchdog timer in ATmega16 Microcontroller
#include<avr/io.h>
#include<util/delay.h>
int main()
{
DDRB=0x03;
if(bit_is_set(MCUCSR,WDRF))
{
PORTB|=(1<<PB1);
_delay_ms(1000);
}
PORTB&=~(1<<PB1);
WDTCR=0x0F;
while(1)
{
PORTB|=(1<<PB0);
_delay_ms(400);
PORTB&=~(1<<PB0);
_delay_ms(400);
}
}
LCD SCROLLING MODULE
#define F_CPU 8000000
#include <avr/io.h>
#include <util/delay.h>
#include <avr/interrupt.h>
#include <avr/eeprom.h>
#include "usart.h"
void switch_init ( void );
int main ( void )
{
usart_init ();
switch_init ();
while ( 1 )
{
PORTD &= 0x7F;

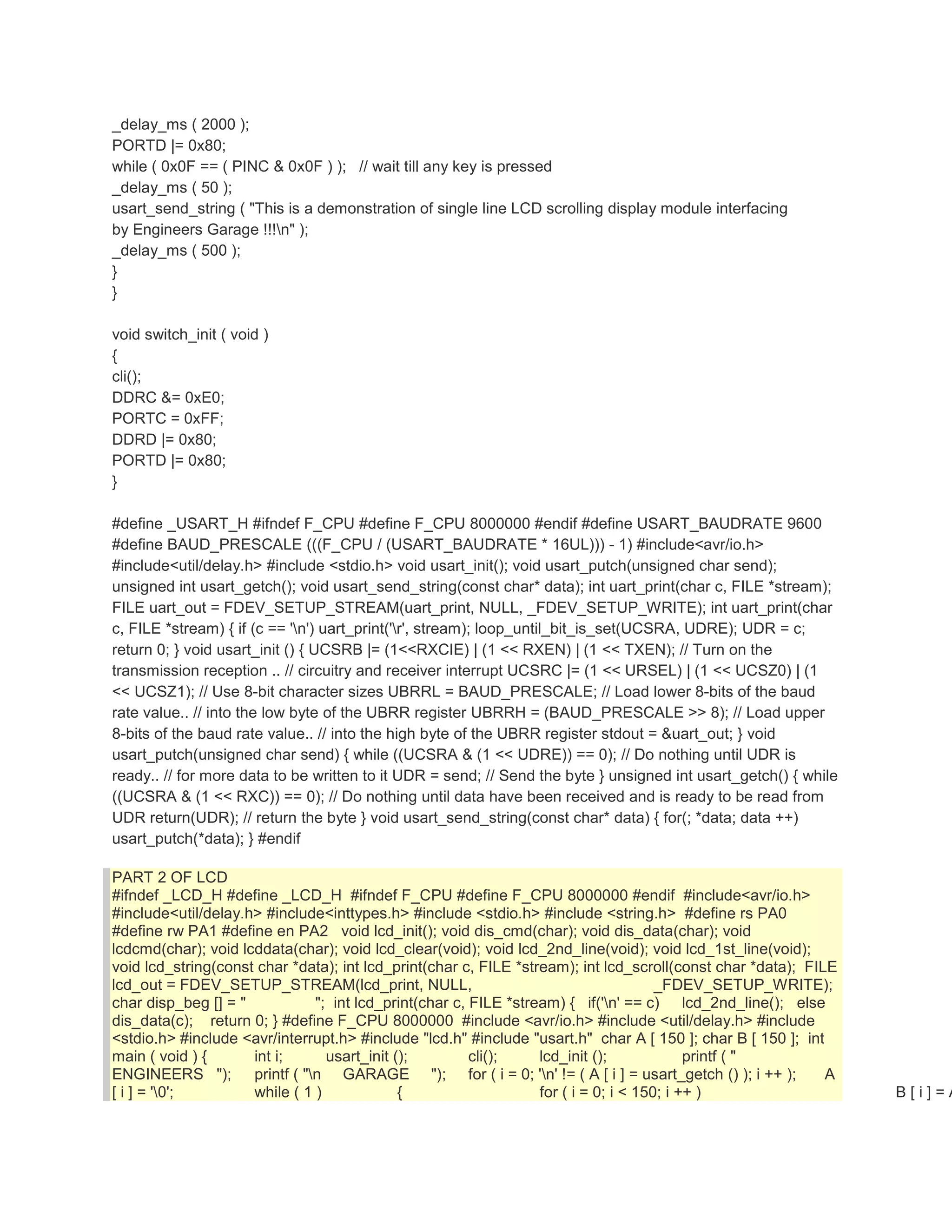

2. _delay_ms ( 2000 );
PORTD |= 0x80;
while ( 0x0F == ( PINC & 0x0F ) ); // wait till any key is pressed
_delay_ms ( 50 );
usart_send_string ( "This is a demonstration of single line LCD scrolling display module interfacing
by Engineers Garage !!!n" );
_delay_ms ( 500 );
}
}
void switch_init ( void )
{
cli();
DDRC &= 0xE0;
PORTC = 0xFF;
DDRD |= 0x80;
PORTD |= 0x80;
}
#define _USART_H #ifndef F_CPU #define F_CPU 8000000 #endif #define USART_BAUDRATE 9600
#define BAUD_PRESCALE (((F_CPU / (USART_BAUDRATE * 16UL))) - 1) #include<avr/io.h>
#include<util/delay.h> #include <stdio.h> void usart_init(); void usart_putch(unsigned char send);
unsigned int usart_getch(); void usart_send_string(const char* data); int uart_print(char c, FILE *stream);
FILE uart_out = FDEV_SETUP_STREAM(uart_print, NULL, _FDEV_SETUP_WRITE); int uart_print(char
c, FILE *stream) { if (c == 'n') uart_print('r', stream); loop_until_bit_is_set(UCSRA, UDRE); UDR = c;
return 0; } void usart_init () { UCSRB |= (1<<RXCIE) | (1 << RXEN) | (1 << TXEN); // Turn on the
transmission reception .. // circuitry and receiver interrupt UCSRC |= (1 << URSEL) | (1 << UCSZ0) | (1
<< UCSZ1); // Use 8-bit character sizes UBRRL = BAUD_PRESCALE; // Load lower 8-bits of the baud
rate value.. // into the low byte of the UBRR register UBRRH = (BAUD_PRESCALE >> 8); // Load upper
8-bits of the baud rate value.. // into the high byte of the UBRR register stdout = &uart_out; } void
usart_putch(unsigned char send) { while ((UCSRA & (1 << UDRE)) == 0); // Do nothing until UDR is
ready.. // for more data to be written to it UDR = send; // Send the byte } unsigned int usart_getch() { while
((UCSRA & (1 << RXC)) == 0); // Do nothing until data have been received and is ready to be read from
UDR return(UDR); // return the byte } void usart_send_string(const char* data) { for(; *data; data ++)
usart_putch(*data); } #endif
PART 2 OF LCD
#ifndef _LCD_H #define _LCD_H #ifndef F_CPU #define F_CPU 8000000 #endif #include<avr/io.h>
#include<util/delay.h> #include<inttypes.h> #include <stdio.h> #include <string.h> #define rs PA0
#define rw PA1 #define en PA2 void lcd_init(); void dis_cmd(char); void dis_data(char); void
lcdcmd(char); void lcddata(char); void lcd_clear(void); void lcd_2nd_line(void); void lcd_1st_line(void);
void lcd_string(const char *data); int lcd_print(char c, FILE *stream); int lcd_scroll(const char *data); FILE
lcd_out = FDEV_SETUP_STREAM(lcd_print, NULL, _FDEV_SETUP_WRITE);
char disp_beg [] = " "; int lcd_print(char c, FILE *stream) { if('n' == c) lcd_2nd_line(); else
dis_data(c); return 0; } #define F_CPU 8000000 #include <avr/io.h> #include <util/delay.h> #include
<stdio.h> #include <avr/interrupt.h> #include "lcd.h" #include "usart.h" char A [ 150 ]; char B [ 150 ]; int
main ( void ) { int i; usart_init (); cli(); lcd_init (); printf ( "
ENGINEERS "); printf ( "n GARAGE "); for ( i = 0; 'n' != ( A [ i ] = usart_getch () ); i ++ ); A
[ i ] = '0'; while ( 1 ) { for ( i = 0; i < 150; i ++ ) B [ i ] = A

3. #ifndef _USART_H
#define _USART_H
#ifndef F_CPU
#define F_CPU 8000000
#endif
#define USART_BAUDRATE 9600
#define BAUD_PRESCALE (((F_CPU / (USART_BAUDRATE * 16UL))) - 1)
#include<avr/io.h>
#include<util/delay.h>
#include <stdio.h>
void usart_init();
void usart_putch(unsigned char send);
unsigned int usart_getch();
void usart_send_string(const char* data);
int uart_print(char c, FILE *stream);
FILE uart_out = FDEV_SETUP_STREAM(uart_print, NULL,
_FDEV_SETUP_WRITE);
int uart_print(char c, FILE *stream)
{
if (c == 'n')
uart_print('r', stream);
loop_until_bit_is_set(UCSRA, UDRE);
UDR = c;
return 0;
}

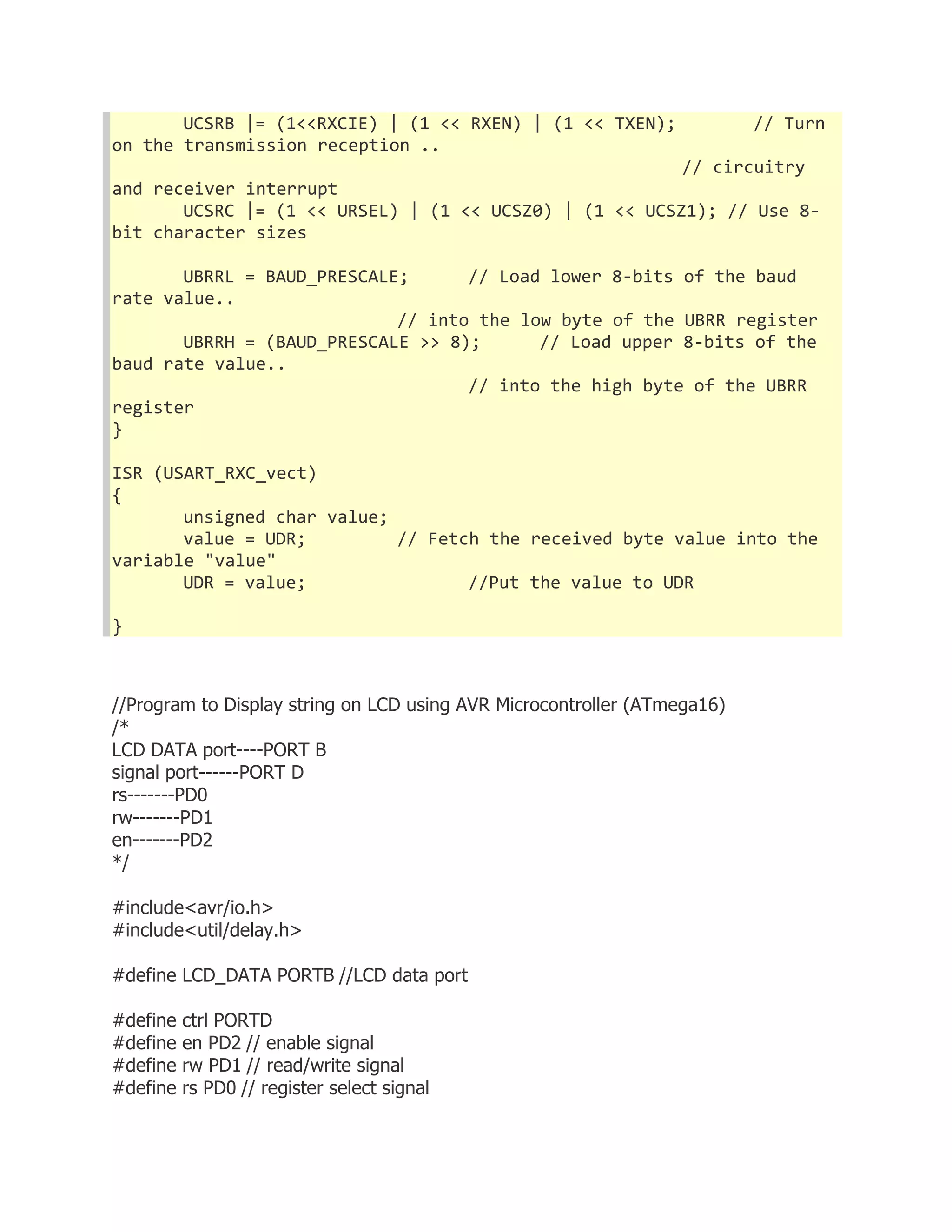

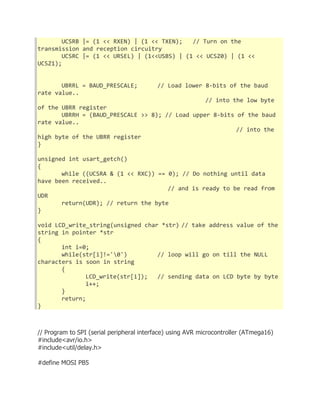

void usart_init ()
{
UCSRB |= (1<<RXCIE) | (1 << RXEN) | (1 << TXEN); // Turn on the transmission reception ..
// circuitry and receiver interrupt
UCSRC |= (1 << URSEL) | (1 << UCSZ0) | (1 << UCSZ1); // Use 8-bit character sizes
UBRRL = BAUD_PRESCALE; // Load lower 8-bits of the baud rate value..
// into the low byte of the UBRR register
UBRRH = (BAUD_PRESCALE >> 8); // Load upper 8-bits of the baud rate value..
// into the high byte of the UBRR register
stdout = &uart_out;
}
void usart_putch(unsigned char send)
{

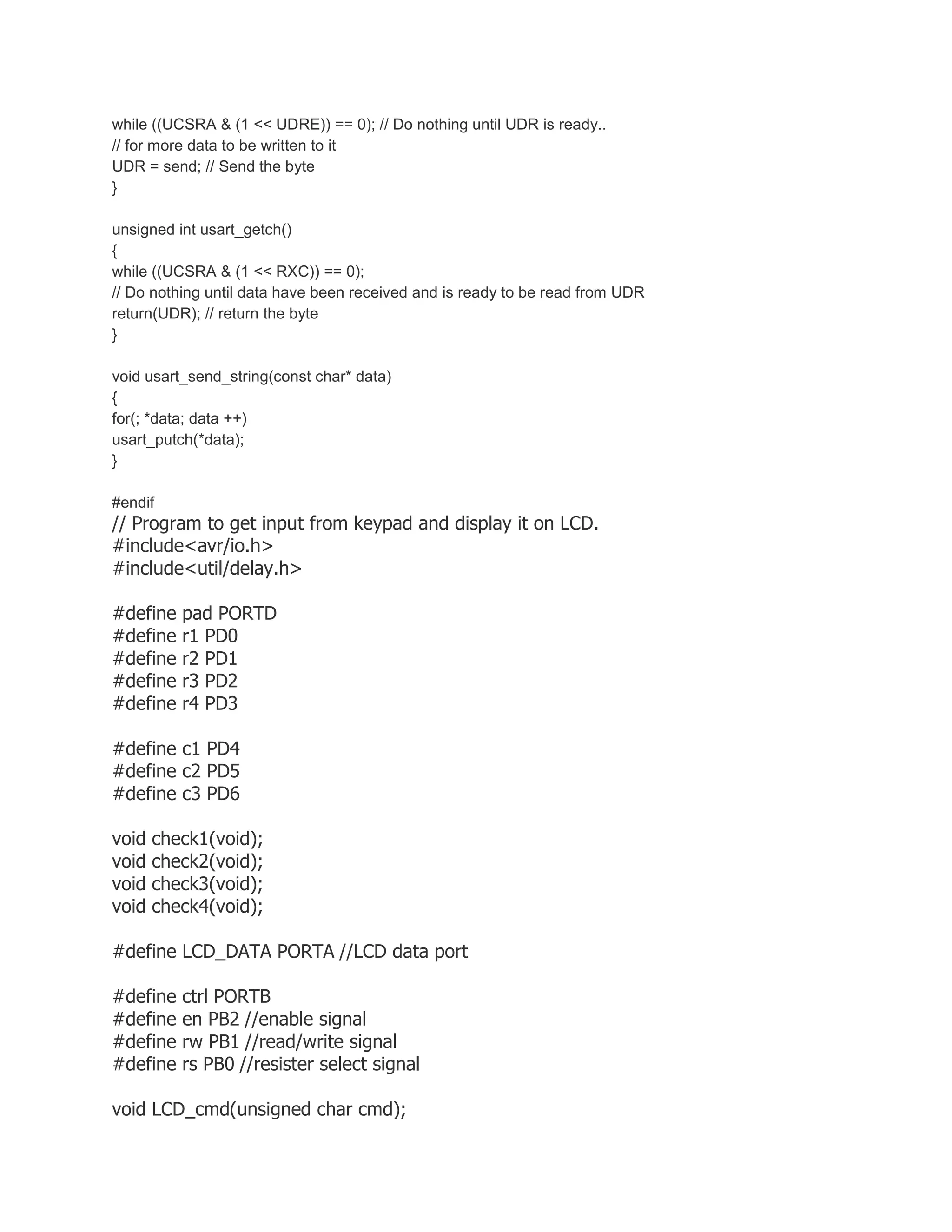

4. while ((UCSRA & (1 << UDRE)) == 0); // Do nothing until UDR is ready..
// for more data to be written to it
UDR = send; // Send the byte
}
unsigned int usart_getch()
{
while ((UCSRA & (1 << RXC)) == 0);
// Do nothing until data have been received and is ready to be read from UDR
return(UDR); // return the byte
}
void usart_send_string(const char* data)
{
for(; *data; data ++)
usart_putch(*data);
}
#endif
// Program to get input from keypad and display it on LCD.
#include<avr/io.h>
#include<util/delay.h>
#define pad PORTD
#define r1 PD0
#define r2 PD1
#define r3 PD2
#define r4 PD3
#define c1 PD4
#define c2 PD5
#define c3 PD6
void check1(void);
void check2(void);
void check3(void);
void check4(void);

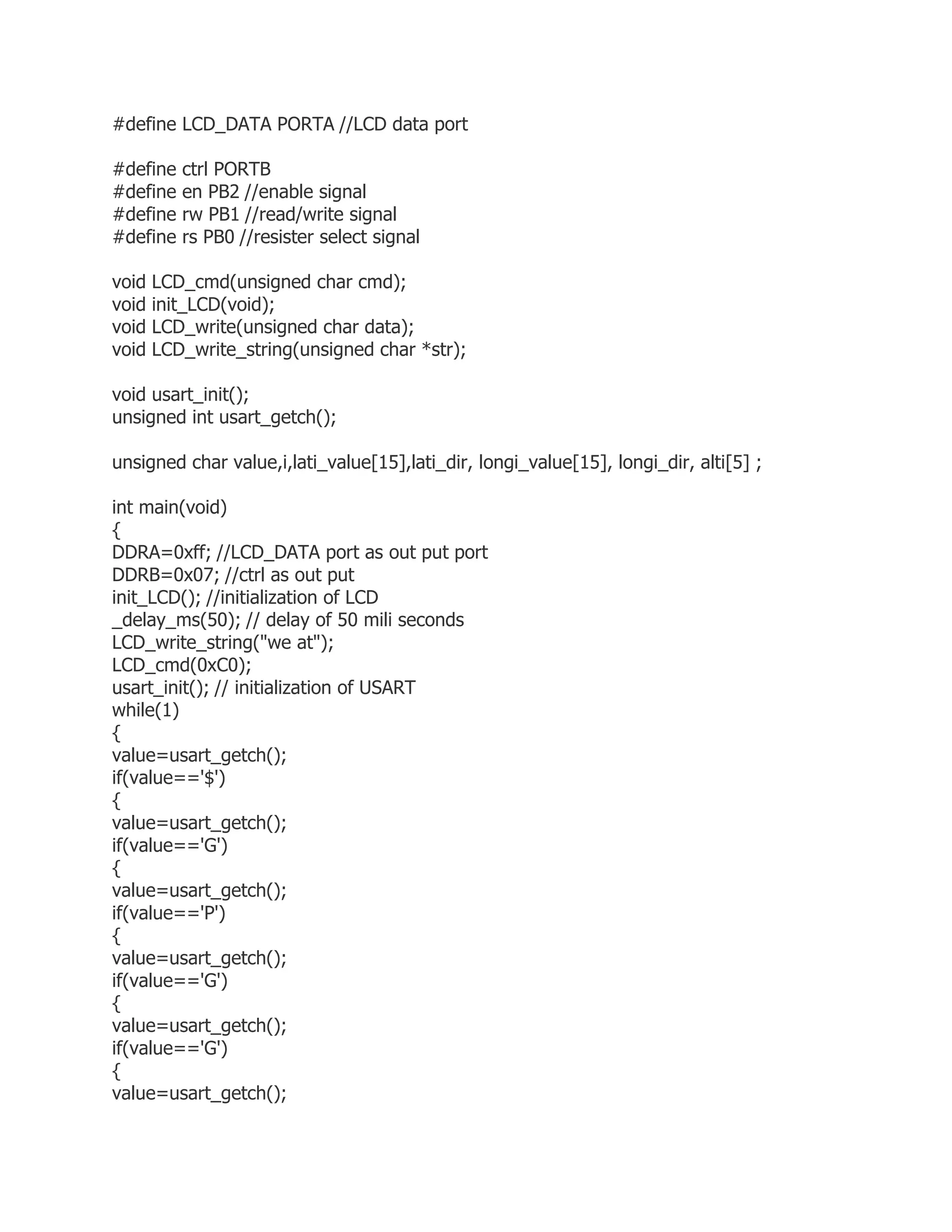

#define LCD_DATA PORTA //LCD data port
#define ctrl PORTB
#define en PB2 //enable signal
#define rw PB1 //read/write signal
#define rs PB0 //resister select signal
void LCD_cmd(unsigned char cmd);

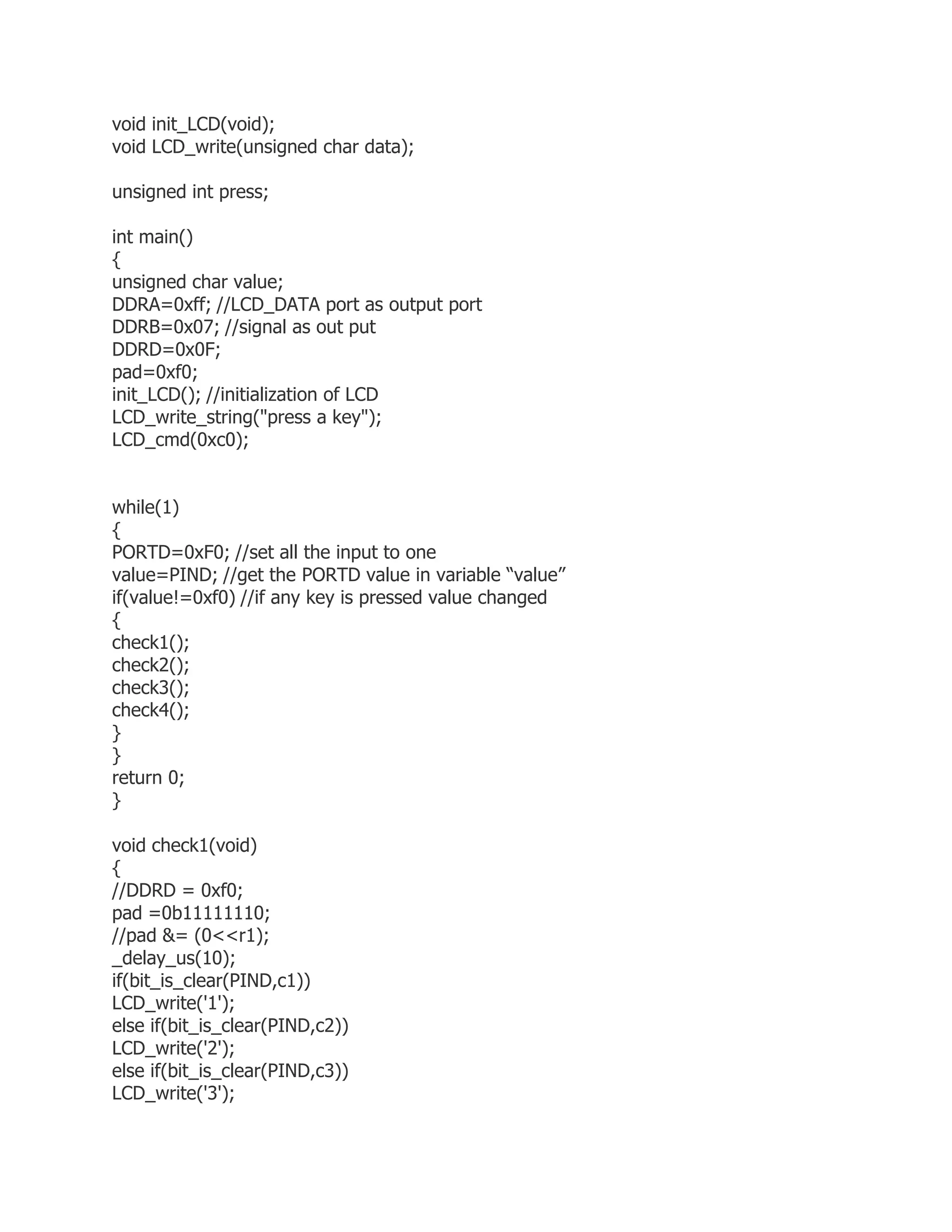

5. void init_LCD(void);
void LCD_write(unsigned char data);
unsigned int press;
int main()
{
unsigned char value;
DDRA=0xff; //LCD_DATA port as output port
DDRB=0x07; //signal as out put
DDRD=0x0F;
pad=0xf0;
init_LCD(); //initialization of LCD
LCD_write_string("press a key");
LCD_cmd(0xc0);
while(1)
{
PORTD=0xF0; //set all the input to one
value=PIND; //get the PORTD value in variable “value”
if(value!=0xf0) //if any key is pressed value changed
{
check1();
check2();
check3();
check4();
}
}
return 0;
}
void check1(void)
{
//DDRD = 0xf0;
pad =0b11111110;
//pad &= (0<<r1);
_delay_us(10);
if(bit_is_clear(PIND,c1))
LCD_write('1');
else if(bit_is_clear(PIND,c2))
LCD_write('2');
else if(bit_is_clear(PIND,c3))
LCD_write('3');

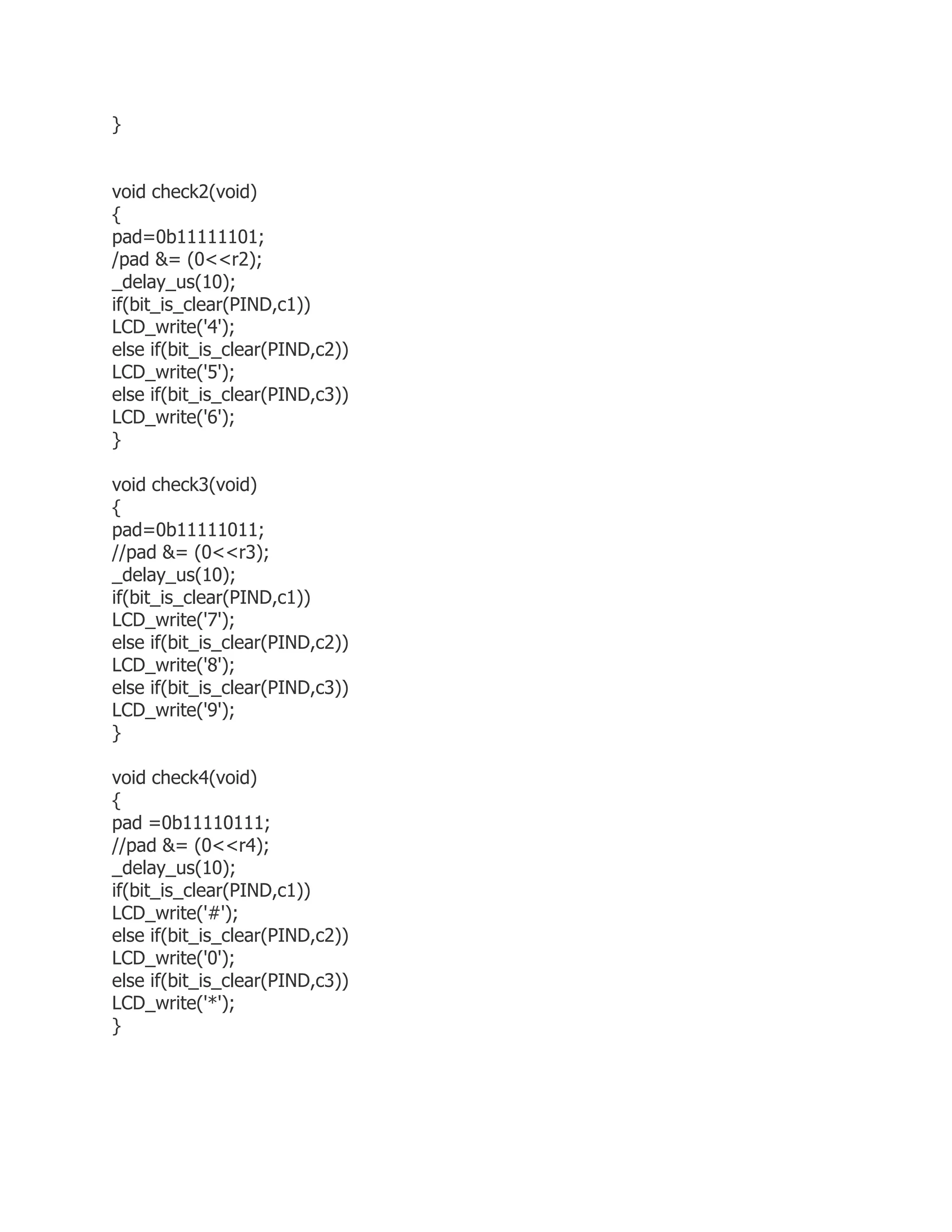

6. }
void check2(void)
{
pad=0b11111101;
/pad &= (0<<r2);
_delay_us(10);
if(bit_is_clear(PIND,c1))
LCD_write('4');
else if(bit_is_clear(PIND,c2))
LCD_write('5');
else if(bit_is_clear(PIND,c3))
LCD_write('6');
}
void check3(void)
{
pad=0b11111011;
//pad &= (0<<r3);
_delay_us(10);
if(bit_is_clear(PIND,c1))
LCD_write('7');
else if(bit_is_clear(PIND,c2))
LCD_write('8');
else if(bit_is_clear(PIND,c3))
LCD_write('9');
}
void check4(void)
{
pad =0b11110111;
//pad &= (0<<r4);
_delay_us(10);
if(bit_is_clear(PIND,c1))
LCD_write('#');
else if(bit_is_clear(PIND,c2))
LCD_write('0');
else if(bit_is_clear(PIND,c3))
LCD_write('*');
}

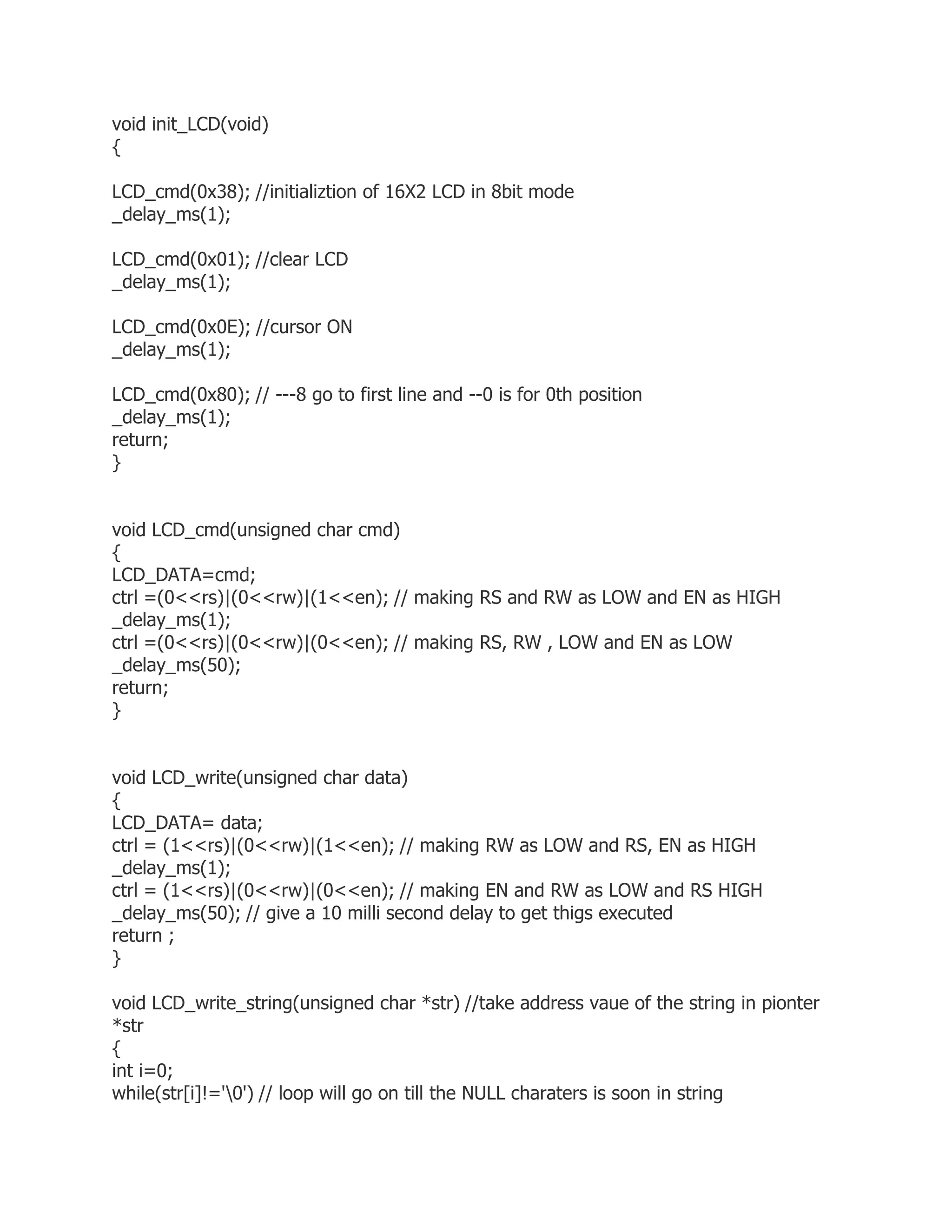

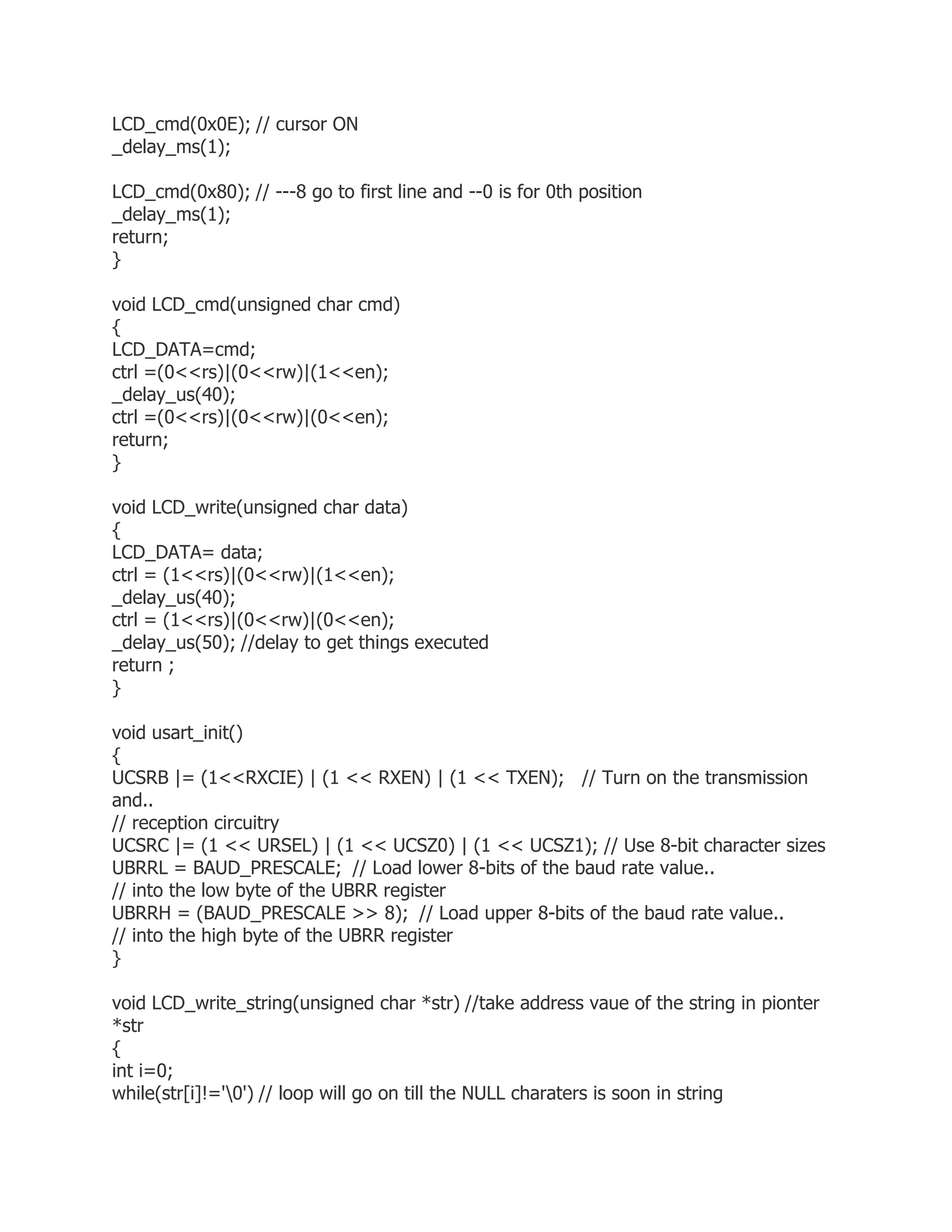

7. void init_LCD(void)
{
LCD_cmd(0x38); //initializtion of 16X2 LCD in 8bit mode
_delay_ms(1);
LCD_cmd(0x01); //clear LCD
_delay_ms(1);
LCD_cmd(0x0E); //cursor ON
_delay_ms(1);
LCD_cmd(0x80); // ---8 go to first line and --0 is for 0th position
_delay_ms(1);
return;
}
void LCD_cmd(unsigned char cmd)
{
LCD_DATA=cmd;
ctrl =(0<<rs)|(0<<rw)|(1<<en); // making RS and RW as LOW and EN as HIGH
_delay_ms(1);
ctrl =(0<<rs)|(0<<rw)|(0<<en); // making RS, RW , LOW and EN as LOW
_delay_ms(50);
return;
}
void LCD_write(unsigned char data)
{
LCD_DATA= data;
ctrl = (1<<rs)|(0<<rw)|(1<<en); // making RW as LOW and RS, EN as HIGH
_delay_ms(1);
ctrl = (1<<rs)|(0<<rw)|(0<<en); // making EN and RW as LOW and RS HIGH
_delay_ms(50); // give a 10 milli second delay to get thigs executed
return ;
}
void LCD_write_string(unsigned char *str) //take address vaue of the string in pionter
*str
{
int i=0;
while(str[i]!='0') // loop will go on till the NULL charaters is soon in string

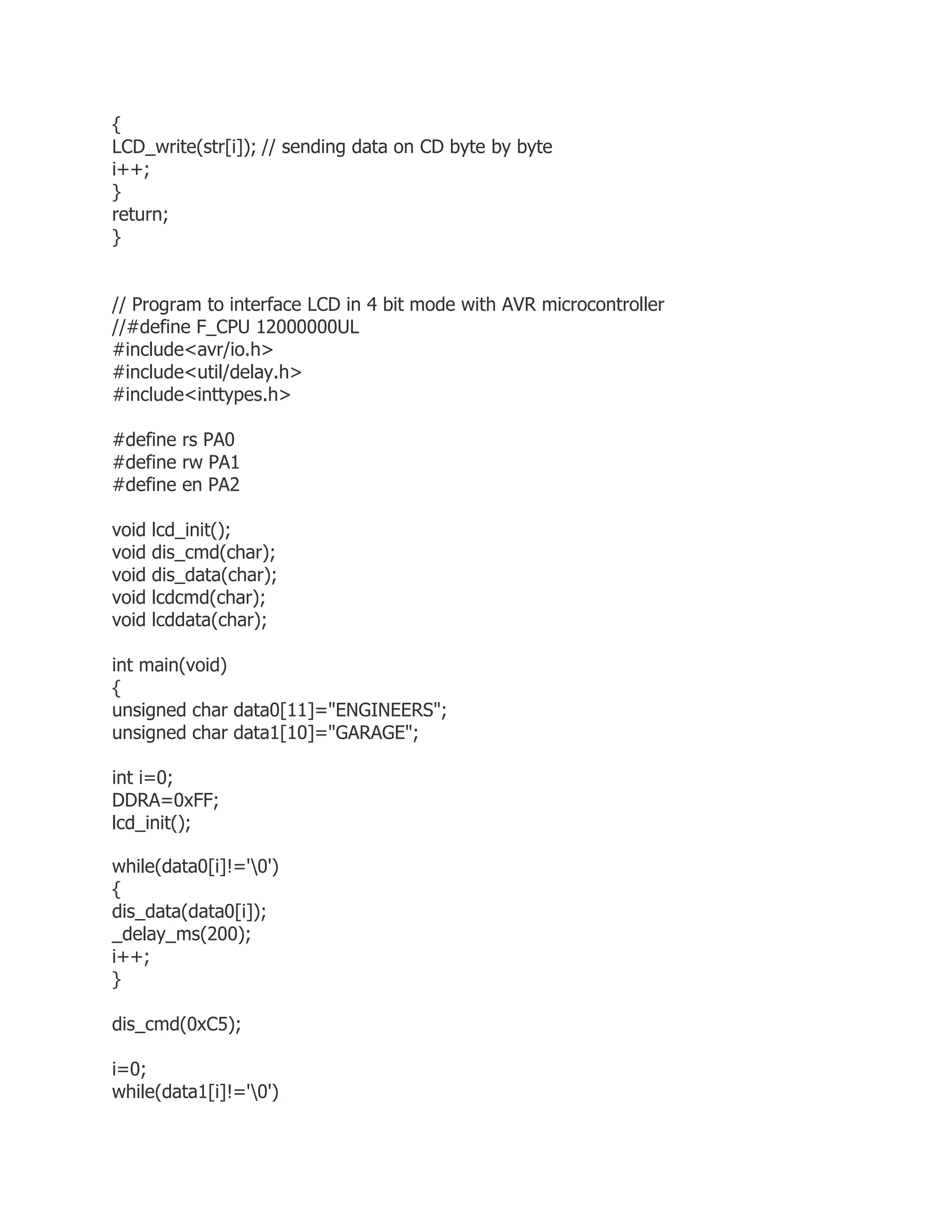

8. {
LCD_write(str[i]); // sending data on CD byte by byte
i++;
}
return;
}
// Program to interface LCD in 4 bit mode with AVR microcontroller
//#define F_CPU 12000000UL
#include<avr/io.h>
#include<util/delay.h>
#include<inttypes.h>
#define rs PA0
#define rw PA1
#define en PA2
void lcd_init();
void dis_cmd(char);
void dis_data(char);
void lcdcmd(char);
void lcddata(char);
int main(void)
{
unsigned char data0[11]="ENGINEERS";
unsigned char data1[10]="GARAGE";
int i=0;
DDRA=0xFF;
lcd_init();
while(data0[i]!='0')
{
dis_data(data0[i]);
_delay_ms(200);
i++;
}
dis_cmd(0xC5);
i=0;
while(data1[i]!='0')

9. {
dis_data(data1[i]);
_delay_ms(200);
i++;
}
while(1);
}

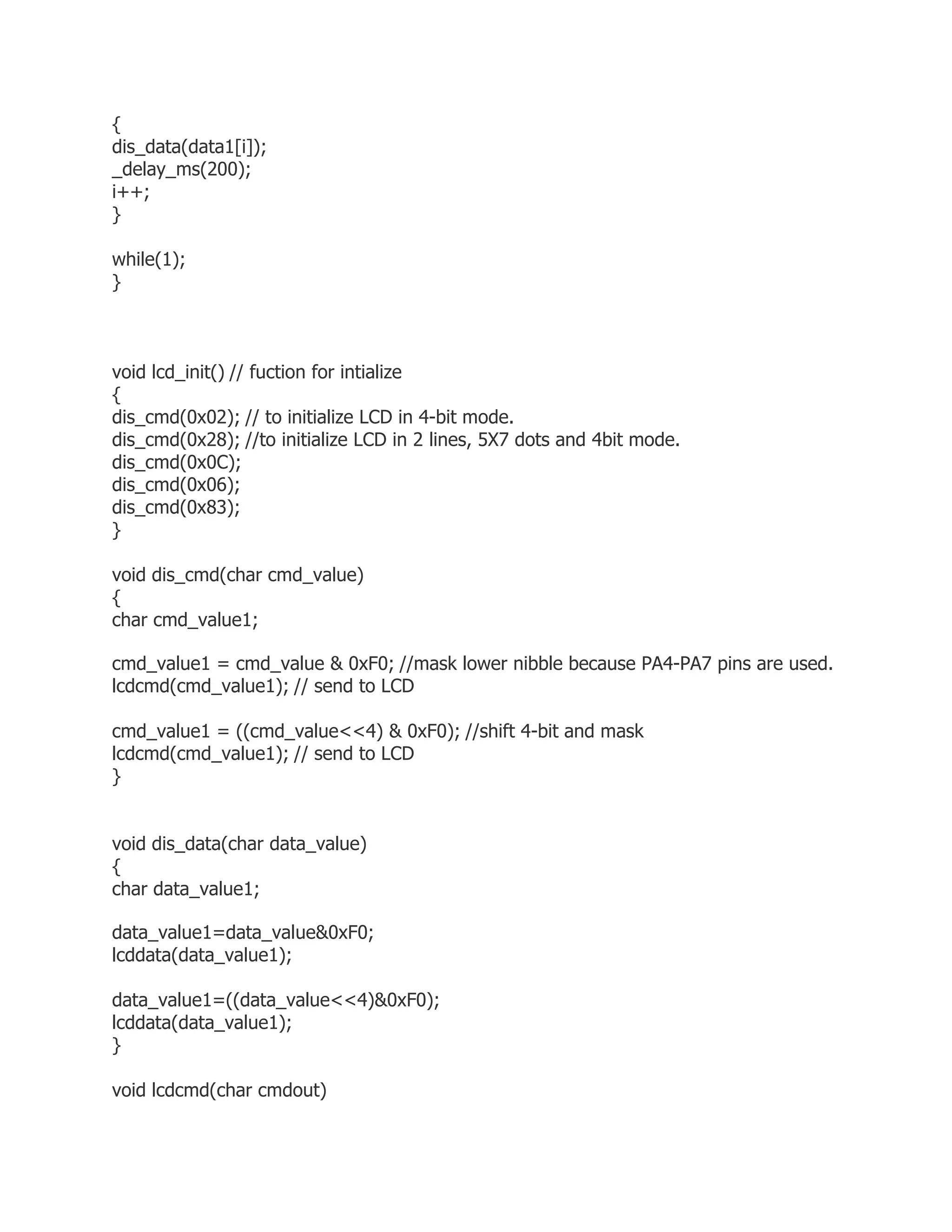

void lcd_init() // fuction for intialize
{
dis_cmd(0x02); // to initialize LCD in 4-bit mode.
dis_cmd(0x28); //to initialize LCD in 2 lines, 5X7 dots and 4bit mode.
dis_cmd(0x0C);
dis_cmd(0x06);
dis_cmd(0x83);
}
void dis_cmd(char cmd_value)
{
char cmd_value1;
cmd_value1 = cmd_value & 0xF0; //mask lower nibble because PA4-PA7 pins are used.
lcdcmd(cmd_value1); // send to LCD
cmd_value1 = ((cmd_value<<4) & 0xF0); //shift 4-bit and mask
lcdcmd(cmd_value1); // send to LCD
}
void dis_data(char data_value)
{
char data_value1;
data_value1=data_value&0xF0;
lcddata(data_value1);
data_value1=((data_value<<4)&0xF0);
lcddata(data_value1);
}

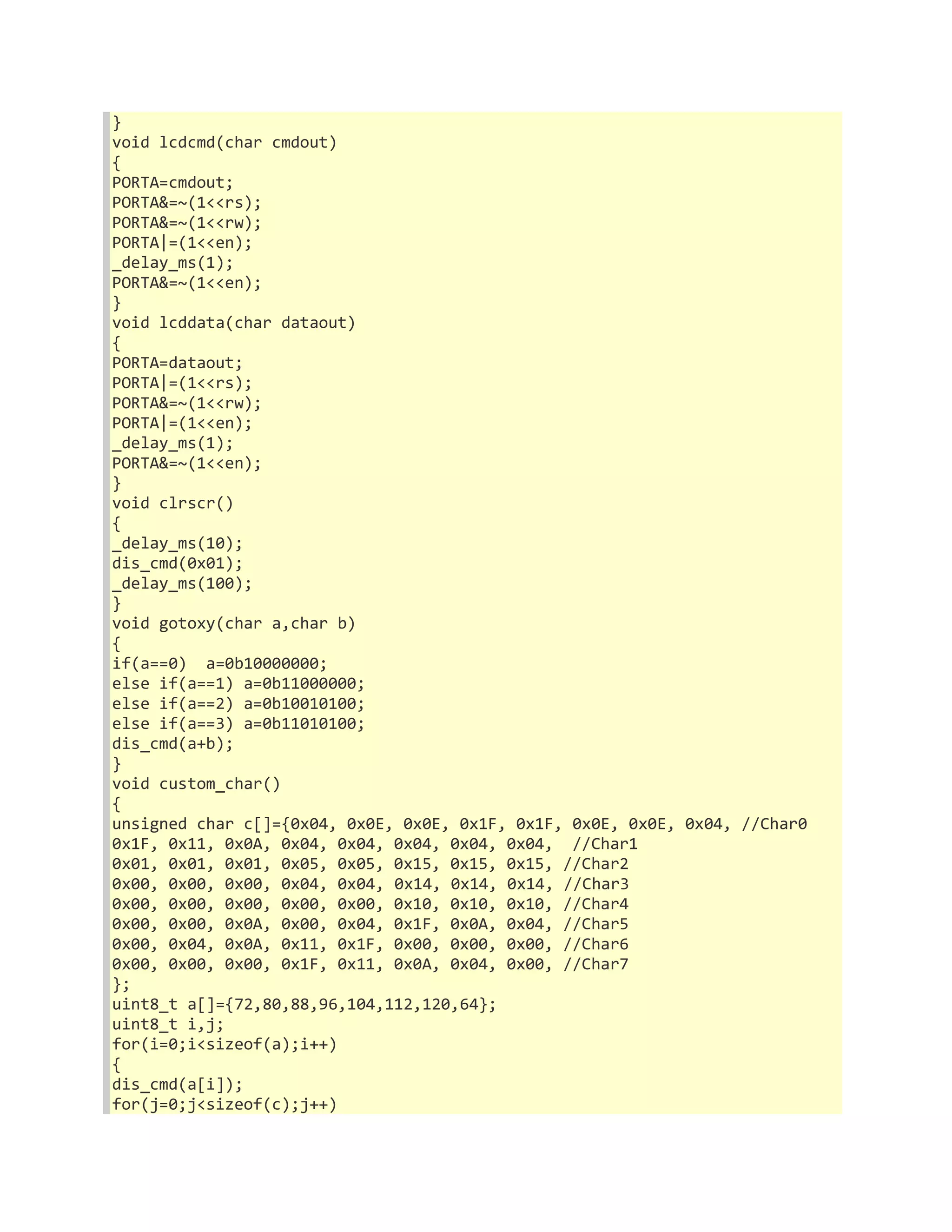

void lcdcmd(char cmdout)

10. {
PORTA=cmdout;
PORTA&=~(1<<rs);
PORTA&=~(1<<rw);
PORTA|=(1<<en);
_delay_ms(1);
PORTA&=~(1<<en);
}
void lcddata(char dataout)
{
PORTA=dataout;
PORTA|=(1<<rs);
PORTA&=~(1<<rw);
PORTA|=(1<<en);
_delay_ms(1);
PORTA&=~(1<<en);
}
//Program to Display string on LCD using AVR Microcontroller (ATmega16)
/*
LCD DATA port----PORT B
signal port------PORT D
rs-------PD0
rw-------PD1
en-------PD2
*/
#include<avr/io.h>
#include<util/delay.h>
#define LCD_DATA PORTB //LCD data port
#define ctrl PORTD
#define en PD2 // enable signal
#define rw PD1 // read/write signal
#define rs PD0 // register select signal

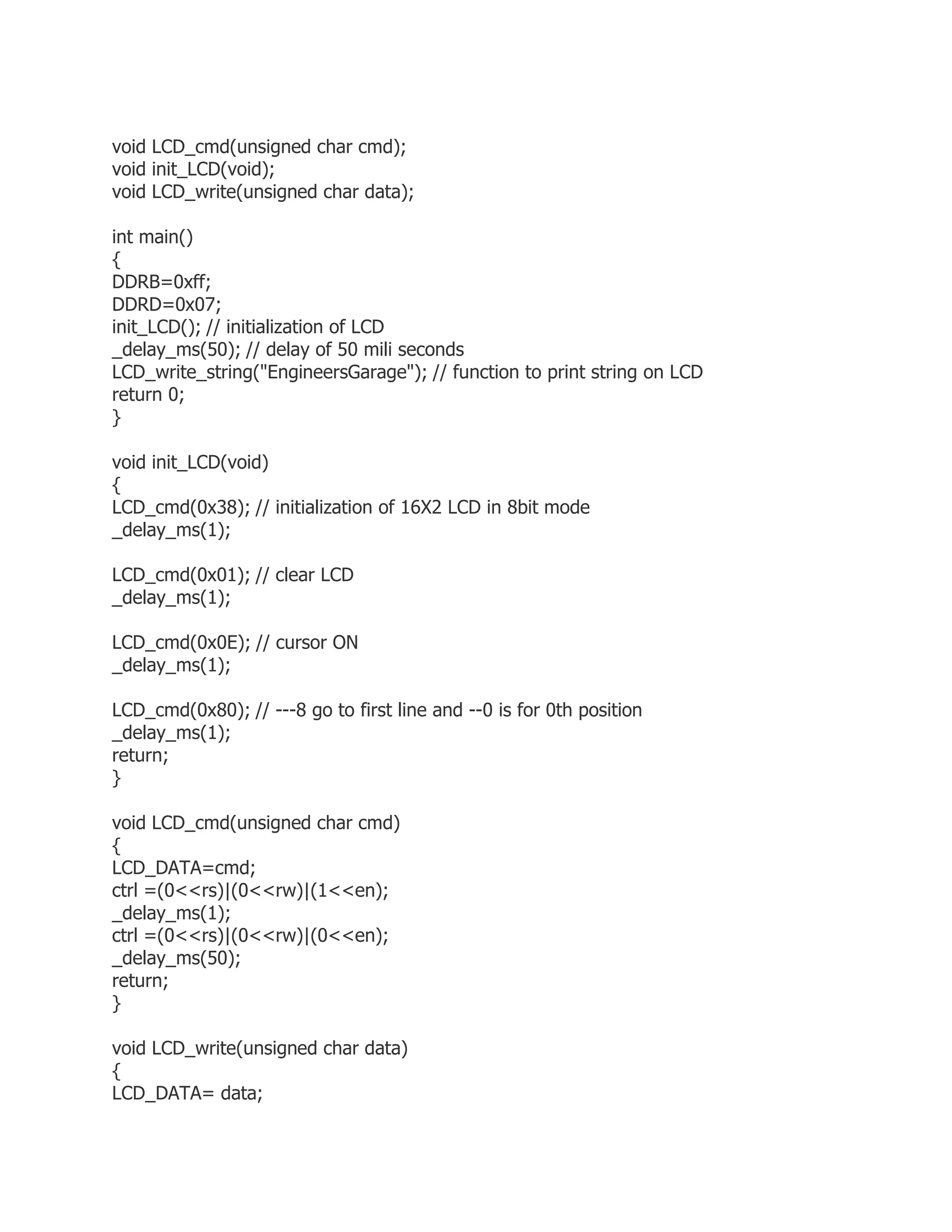

void LCD_cmd(unsigned char cmd);
void init_LCD(void);
void LCD_write(unsigned char data);
int main()
{

11. DDRB=0xff;
DDRD=0x07;
init_LCD(); // initialization of LCD
_delay_ms(50); // delay of 50 mili seconds
LCD_write_string("EngineersGarage"); // function to print string on LCD
return 0;
}
void init_LCD(void)
{
LCD_cmd(0x38); // initialization of 16X2 LCD in 8bit mode
_delay_ms(1);
LCD_cmd(0x01); // clear LCD
_delay_ms(1);
LCD_cmd(0x0E); // cursor ON
_delay_ms(1);
LCD_cmd(0x80); // ---8 go to first line and --0 is for 0th position
_delay_ms(1);
return;
}
void LCD_cmd(unsigned char cmd)
{
LCD_DATA=cmd;
ctrl =(0<<rs)|(0<<rw)|(1<<en);
_delay_ms(1);
ctrl =(0<<rs)|(0<<rw)|(0<<en);
_delay_ms(50);
return;
}
void LCD_write(unsigned char data)
{
LCD_DATA= data;
ctrl = (1<<rs)|(0<<rw)|(1<<en);
_delay_ms(1);
ctrl = (1<<rs)|(0<<rw)|(0<<en);
_delay_ms(50);
return ;
}

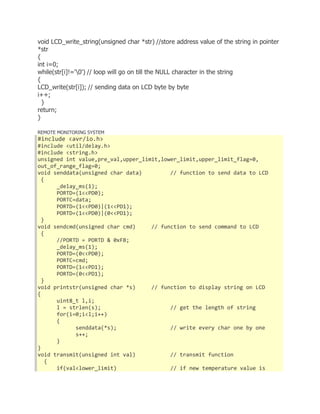

12. void LCD_write_string(unsigned char *str) //store address value of the string in pointer
*str
{
int i=0;
while(str[i]!='0') // loop will go on till the NULL character in the string
{
LCD_write(str[i]); // sending data on LCD byte by byte
i++;
}
return;
}
REMOTE MONITORING SYSTEM
#include <avr/io.h>
#include <util/delay.h>
#include <string.h>
unsigned int value,pre_val,upper_limit,lower_limit,upper_limit_flag=0,
out_of_range_flag=0;
void senddata(unsigned char data) // function to send data to LCD
{
_delay_ms(1);
PORTD=(1<<PD0);
PORTC=data;
PORTD=(1<<PD0)|(1<<PD1);
PORTD=(1<<PD0)|(0<<PD1);
}
void sendcmd(unsigned char cmd) // function to send command to LCD
{
//PORTD = PORTD & 0xFB;
_delay_ms(1);
PORTD=(0<<PD0);
PORTC=cmd;
PORTD=(1<<PD1);
PORTD=(0<<PD1);
}
void printstr(unsigned char *s) // function to display string on LCD
{

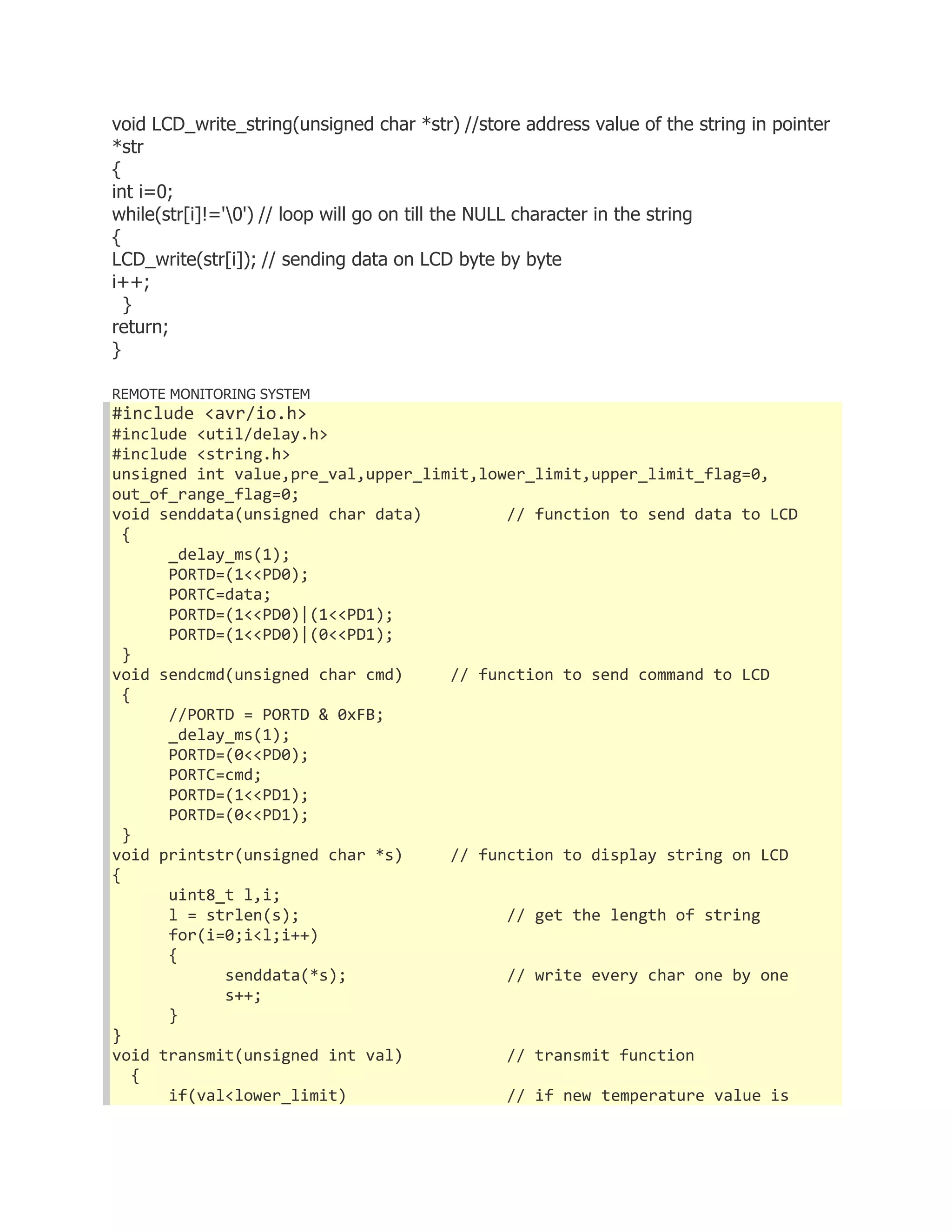

uint8_t l,i;
l = strlen(s); // get the length of string
for(i=0;i<l;i++)
{
senddata(*s); // write every char one by one
s++;
}
}

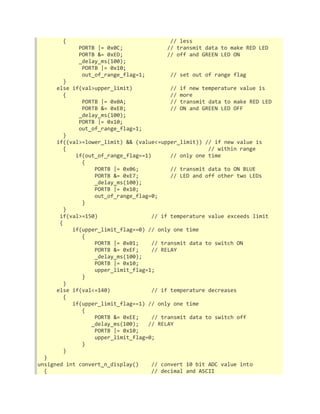

void transmit(unsigned int val) // transmit function
{
if(val<lower_limit) // if new temperature value is

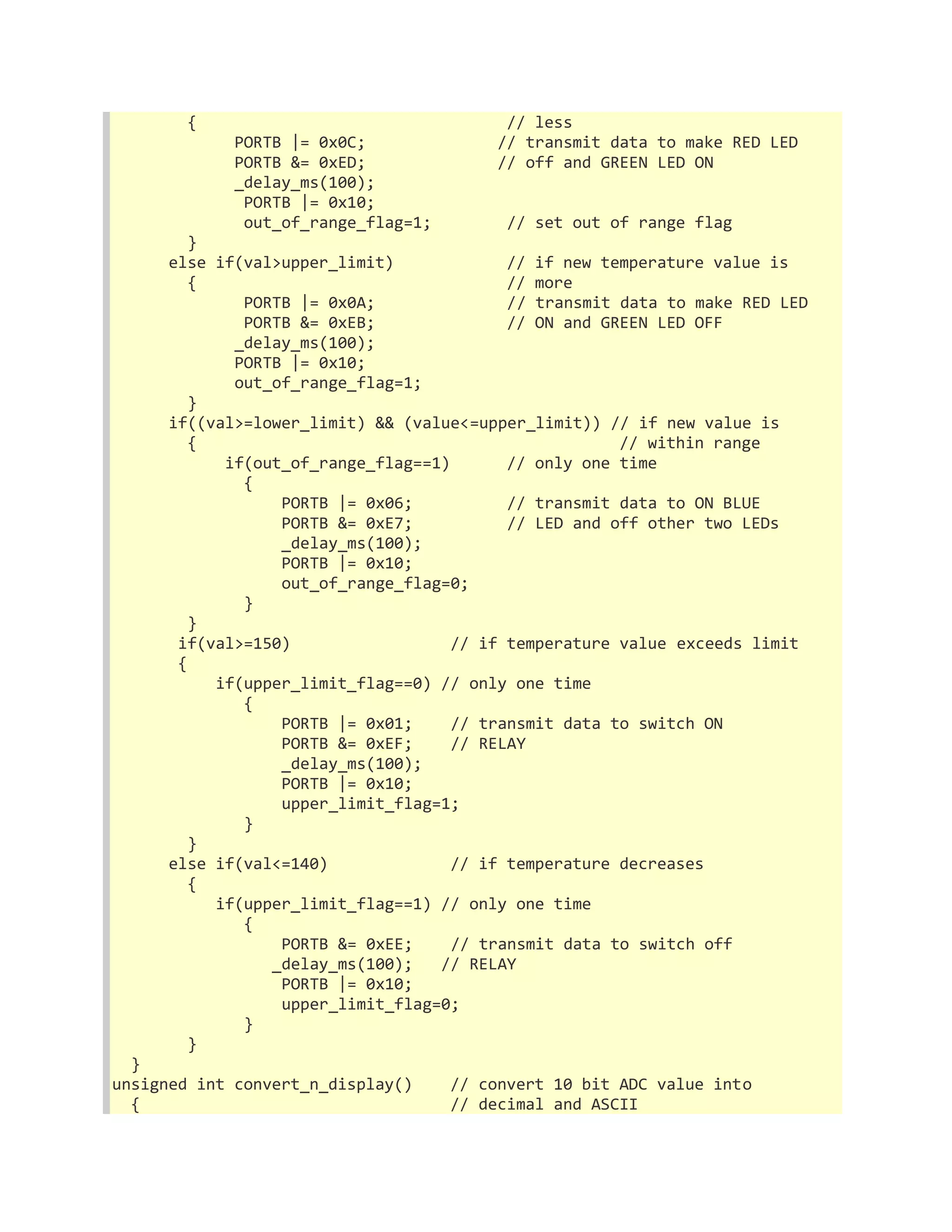

13. { // less
PORTB |= 0x0C; // transmit data to make RED LED
PORTB &= 0xED; // off and GREEN LED ON
_delay_ms(100);
PORTB |= 0x10;
out_of_range_flag=1; // set out of range flag
}
else if(val>upper_limit) // if new temperature value is
{ // more
PORTB |= 0x0A; // transmit data to make RED LED
PORTB &= 0xEB; // ON and GREEN LED OFF
_delay_ms(100);
PORTB |= 0x10;
out_of_range_flag=1;
}
if((val>=lower_limit) && (value<=upper_limit)) // if new value is
{ // within range
if(out_of_range_flag==1) // only one time
{
PORTB |= 0x06; // transmit data to ON BLUE
PORTB &= 0xE7; // LED and off other two LEDs
_delay_ms(100);
PORTB |= 0x10;
out_of_range_flag=0;
}
}
if(val>=150) // if temperature value exceeds limit
{
if(upper_limit_flag==0) // only one time
{
PORTB |= 0x01; // transmit data to switch ON
PORTB &= 0xEF; // RELAY
_delay_ms(100);
PORTB |= 0x10;
upper_limit_flag=1;
}
}
else if(val<=140) // if temperature decreases
{
if(upper_limit_flag==1) // only one time
{
PORTB &= 0xEE; // transmit data to switch off
_delay_ms(100); // RELAY
PORTB |= 0x10;
upper_limit_flag=0;
}
}
}
unsigned int convert_n_display() // convert 10 bit ADC value into
{ // decimal and ASCII

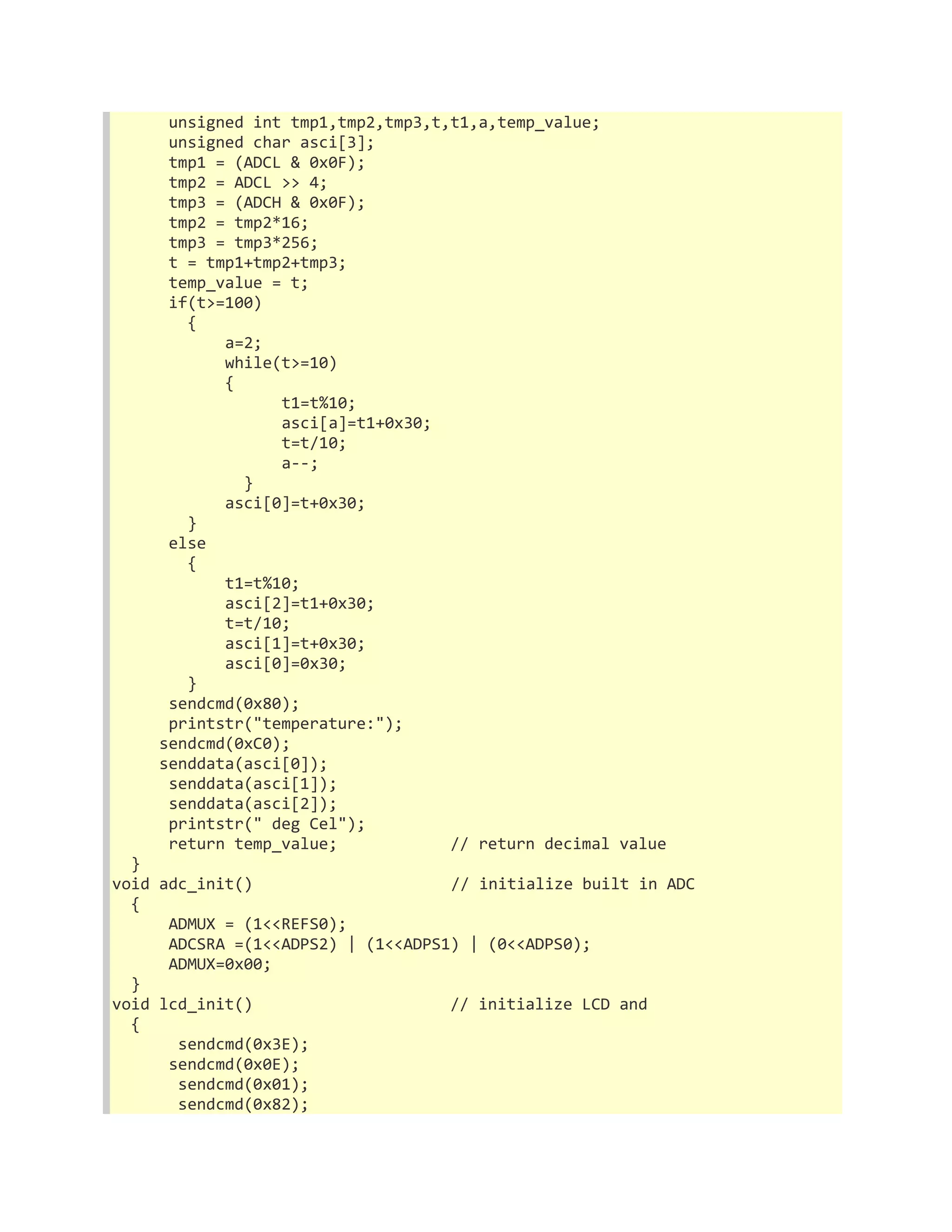

14. unsigned int tmp1,tmp2,tmp3,t,t1,a,temp_value;
unsigned char asci[3];
tmp1 = (ADCL & 0x0F);
tmp2 = ADCL >> 4;
tmp3 = (ADCH & 0x0F);
tmp2 = tmp2*16;
tmp3 = tmp3*256;
t = tmp1+tmp2+tmp3;
temp_value = t;
if(t>=100)
{
a=2;
while(t>=10)
{
t1=t%10;
asci[a]=t1+0x30;
t=t/10;
a--;
}
asci[0]=t+0x30;
}
else
{
t1=t%10;
asci[2]=t1+0x30;
t=t/10;
asci[1]=t+0x30;
asci[0]=0x30;
}
sendcmd(0x80);
printstr("temperature:");
sendcmd(0xC0);
senddata(asci[0]);
senddata(asci[1]);
senddata(asci[2]);
printstr(" deg Cel");
return temp_value; // return decimal value
}
void adc_init() // initialize built in ADC
{
ADMUX = (1<<REFS0);
ADCSRA =(1<<ADPS2) | (1<<ADPS1) | (0<<ADPS0);
ADMUX=0x00;
}
void lcd_init() // initialize LCD and
{
sendcmd(0x3E);
sendcmd(0x0E);
sendcmd(0x01);
sendcmd(0x82);

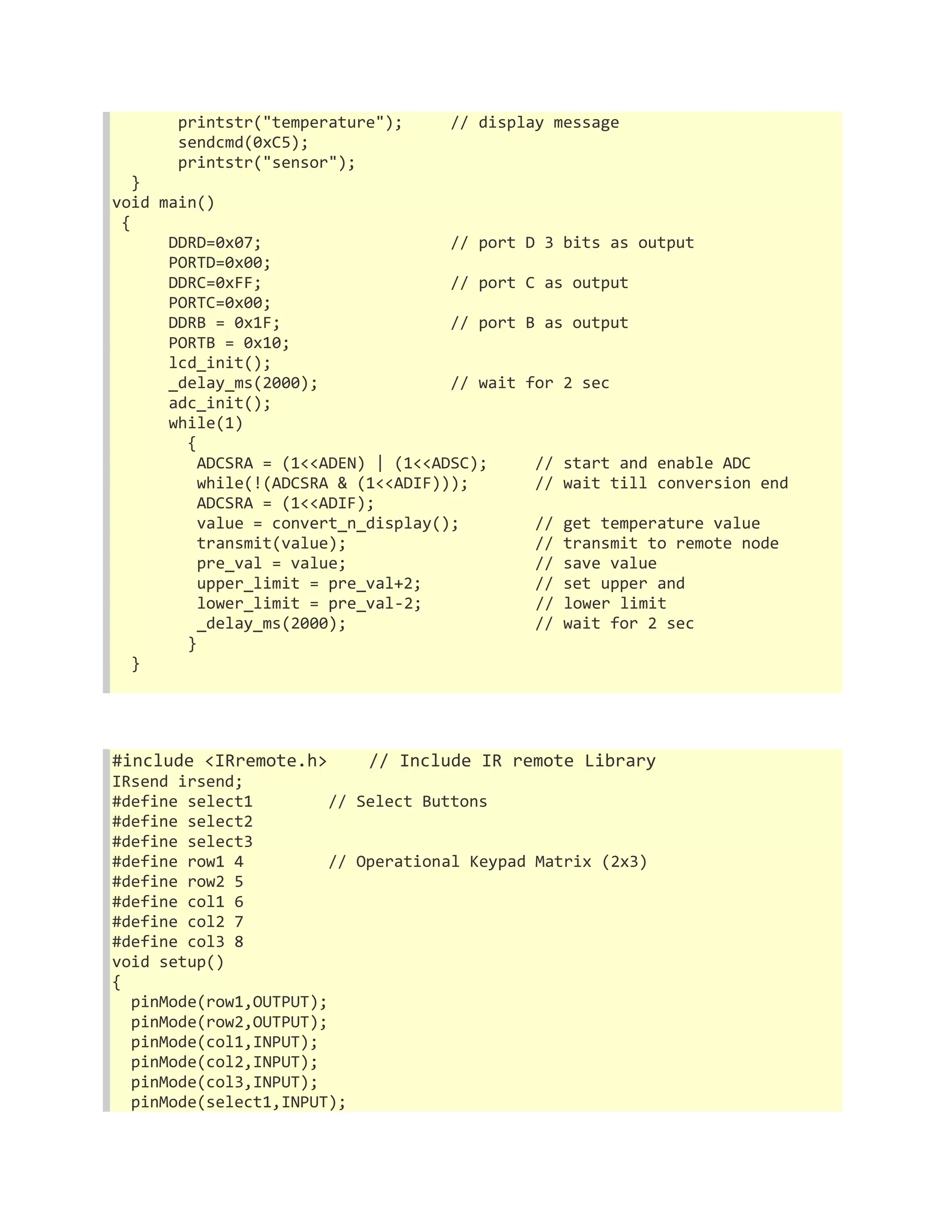

15. printstr("temperature"); // display message
sendcmd(0xC5);
printstr("sensor");
}
void main()
{
DDRD=0x07; // port D 3 bits as output
PORTD=0x00;
DDRC=0xFF; // port C as output
PORTC=0x00;
DDRB = 0x1F; // port B as output
PORTB = 0x10;
lcd_init();
_delay_ms(2000); // wait for 2 sec
adc_init();
while(1)
{
ADCSRA = (1<<ADEN) | (1<<ADSC); // start and enable ADC
while(!(ADCSRA & (1<<ADIF))); // wait till conversion end
ADCSRA = (1<<ADIF);
value = convert_n_display(); // get temperature value
transmit(value); // transmit to remote node
pre_val = value; // save value
upper_limit = pre_val+2; // set upper and
lower_limit = pre_val-2; // lower limit
_delay_ms(2000); // wait for 2 sec
}
}
#include <IRremote.h> // Include IR remote Library
IRsend irsend;
#define select1 // Select Buttons
#define select2
#define select3
#define row1 4 // Operational Keypad Matrix (2x3)
#define row2 5
#define col1 6
#define col2 7
#define col3 8
void setup()
{
pinMode(row1,OUTPUT);
pinMode(row2,OUTPUT);
pinMode(col1,INPUT);
pinMode(col2,INPUT);
pinMode(col3,INPUT);
pinMode(select1,INPUT);

16. pinMode(select2,INPUT);
pinMode(select3,INPUT);
}
void loop()
{

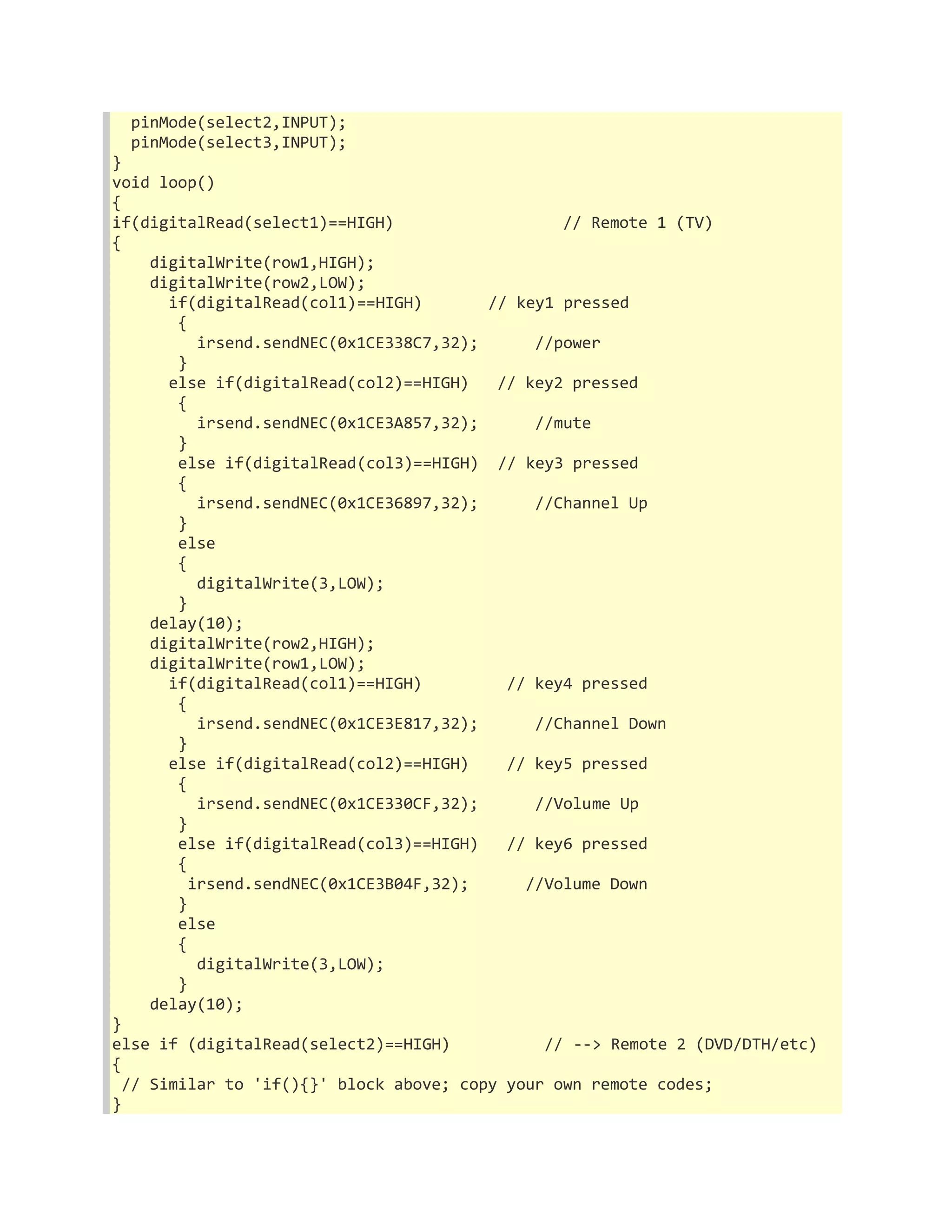

if(digitalRead(select1)==HIGH) // Remote 1 (TV)
{
digitalWrite(row1,HIGH);
digitalWrite(row2,LOW);
if(digitalRead(col1)==HIGH) // key1 pressed
{
irsend.sendNEC(0x1CE338C7,32); //power
}
else if(digitalRead(col2)==HIGH) // key2 pressed
{
irsend.sendNEC(0x1CE3A857,32); //mute
}
else if(digitalRead(col3)==HIGH) // key3 pressed
{
irsend.sendNEC(0x1CE36897,32); //Channel Up
}
else
{
digitalWrite(3,LOW);
}
delay(10);
digitalWrite(row2,HIGH);
digitalWrite(row1,LOW);
if(digitalRead(col1)==HIGH) // key4 pressed
{
irsend.sendNEC(0x1CE3E817,32); //Channel Down
}
else if(digitalRead(col2)==HIGH) // key5 pressed
{
irsend.sendNEC(0x1CE330CF,32); //Volume Up
}
else if(digitalRead(col3)==HIGH) // key6 pressed
{
irsend.sendNEC(0x1CE3B04F,32); //Volume Down
}
else
{
digitalWrite(3,LOW);
}
delay(10);
}
else if (digitalRead(select2)==HIGH) // --> Remote 2 (DVD/DTH/etc)
{
// Similar to 'if(){}' block above; copy your own remote codes;
}

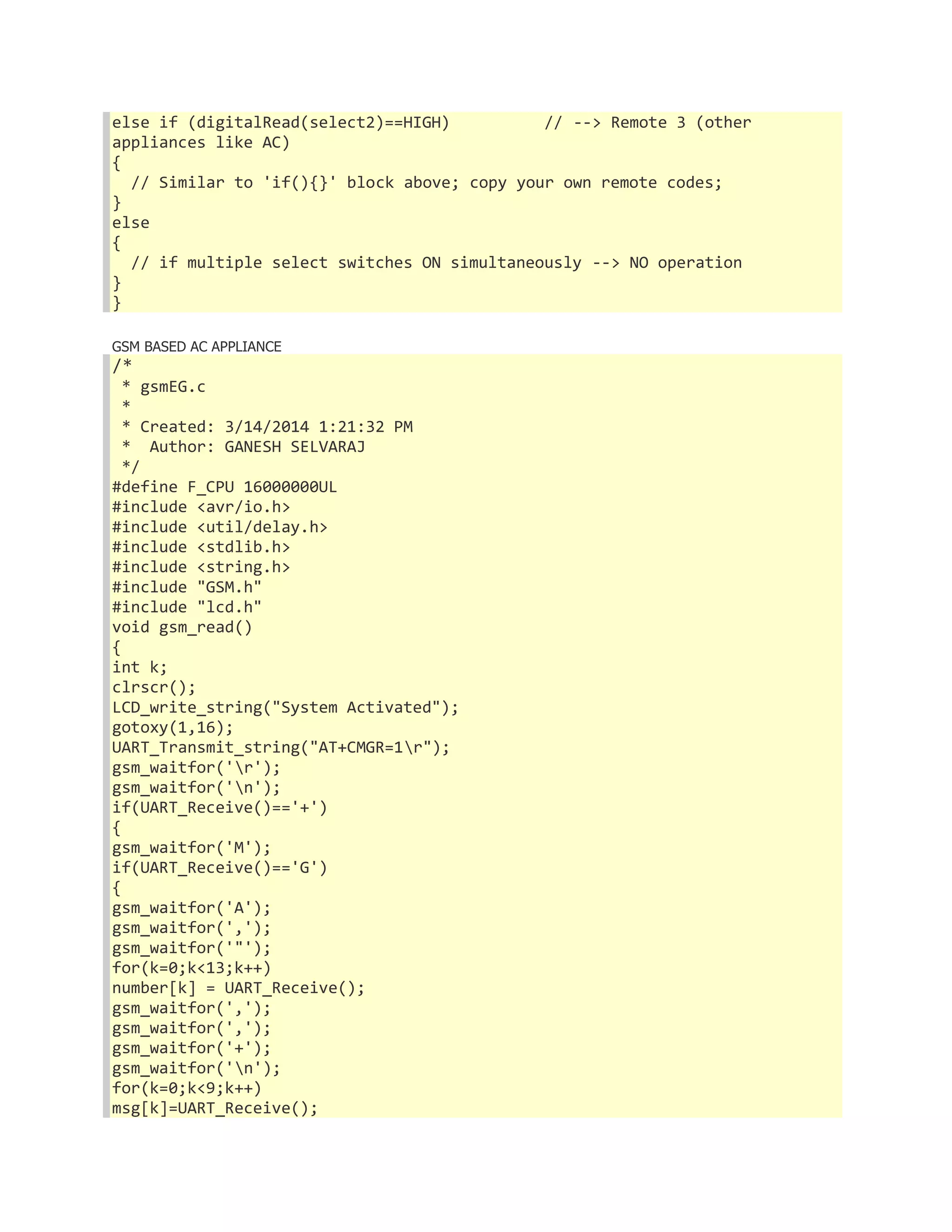

17. else if (digitalRead(select2)==HIGH) // --> Remote 3 (other
appliances like AC)
{
// Similar to 'if(){}' block above; copy your own remote codes;
}
else
{
// if multiple select switches ON simultaneously --> NO operation
}
}
GSM BASED AC APPLIANCE
/*
* gsmEG.c
*
* Created: 3/14/2014 1:21:32 PM
* Author: GANESH SELVARAJ
*/
#define F_CPU 16000000UL
#include <avr/io.h>
#include <util/delay.h>
#include <stdlib.h>
#include <string.h>
#include "GSM.h"
#include "lcd.h"
void gsm_read()
{
int k;
clrscr();
LCD_write_string("System Activated");
gotoxy(1,16);
UART_Transmit_string("AT+CMGR=1r");
gsm_waitfor('r');
gsm_waitfor('n');
if(UART_Receive()=='+')
{
gsm_waitfor('M');
if(UART_Receive()=='G')
{
gsm_waitfor('A');

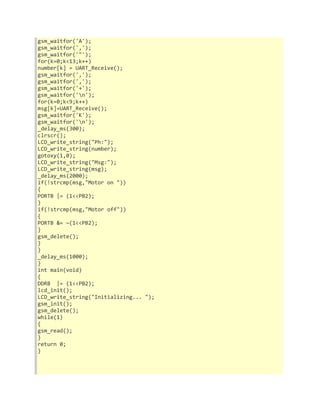

gsm_waitfor(',');
gsm_waitfor('"');
for(k=0;k<13;k++)
number[k] = UART_Receive();
gsm_waitfor(',');
gsm_waitfor(',');
gsm_waitfor('+');
gsm_waitfor('n');
for(k=0;k<9;k++)
msg[k]=UART_Receive();

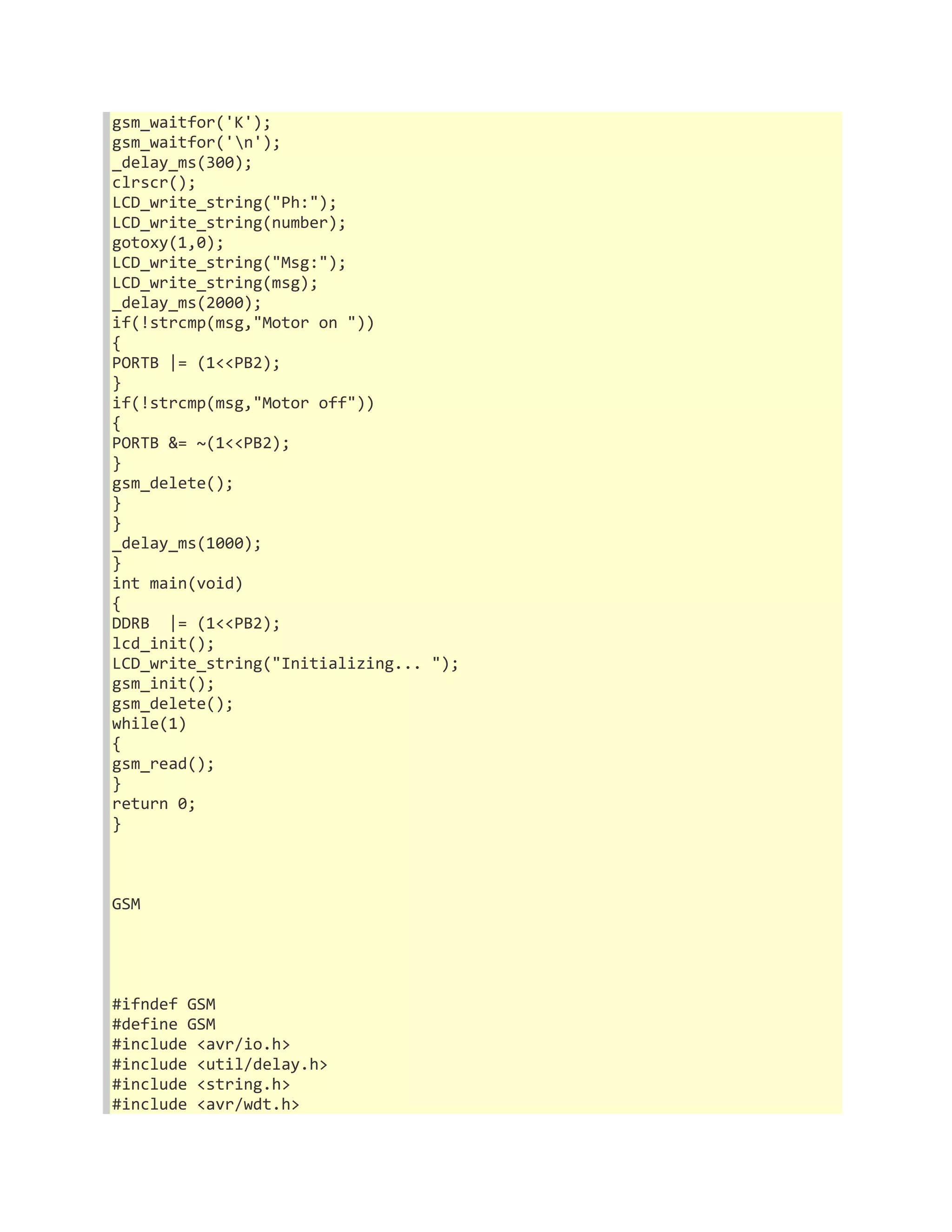

18. gsm_waitfor('K');
gsm_waitfor('n');
_delay_ms(300);
clrscr();
LCD_write_string("Ph:");
LCD_write_string(number);
gotoxy(1,0);
LCD_write_string("Msg:");
LCD_write_string(msg);
_delay_ms(2000);
if(!strcmp(msg,"Motor on "))
{
PORTB |= (1<<PB2);
}
if(!strcmp(msg,"Motor off"))
{
PORTB &= ~(1<<PB2);
}
gsm_delete();
}
}
_delay_ms(1000);
}
int main(void)
{
DDRB |= (1<<PB2);
lcd_init();
LCD_write_string("Initializing... ");
gsm_init();
gsm_delete();
while(1)
{
gsm_read();
}
return 0;
}
GSM
#ifndef GSM
#define GSM
#include <avr/io.h>
#include <util/delay.h>
#include <string.h>
#include <avr/wdt.h>

19. #include <avr/interrupt.h>
#include "lcd.h"
char msg[10];
char number[14];
int i,j;
void UART_Init( unsigned int baud );
void UART_Transmit_char( unsigned char data );
unsigned char UART_Receive( void );
void UART_Transmit_string( char *string );
void UART_Init( unsigned int baud )
{
/* Set baud rate */
UBRRH = (unsigned char)(baud>>8);
UBRRL = (unsigned char)baud;
/* Enable receiver and transmitter */
UCSRB = (1<<RXEN)|(1<<TXEN);
/* Set frame format: 8data, 1stop bit */
UCSRC = (1<<URSEL)|(0<<USBS)|(3<<UCSZ0);
}
void UART_Transmit_char( unsigned char data )
{
/* Wait for empty transmit buffer */
while ( !( UCSRA & (1<<UDRE)) )
;
/* Put data into buffer, sends the data */
UDR = data;
}
unsigned char UART_Receive( void )
{
/* Wait for data to be received */
while ( !(UCSRA & (1<<RXC)) )
;
/* Get and return received data from buffer */
return UDR;
}
void UART_Transmit_string( char string[] )
{
int i=0;
while ( string[i] > 0)
UART_Transmit_char(string[i++]);
}
/*************************************************************/

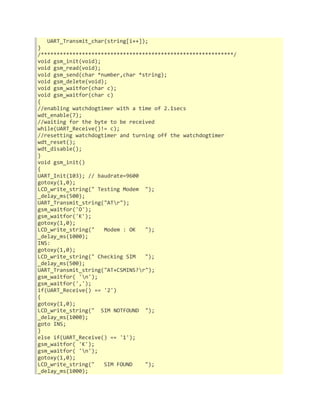

void gsm_init(void);
void gsm_read(void);
void gsm_send(char *number,char *string);
void gsm_delete(void);
void gsm_waitfor(char c);

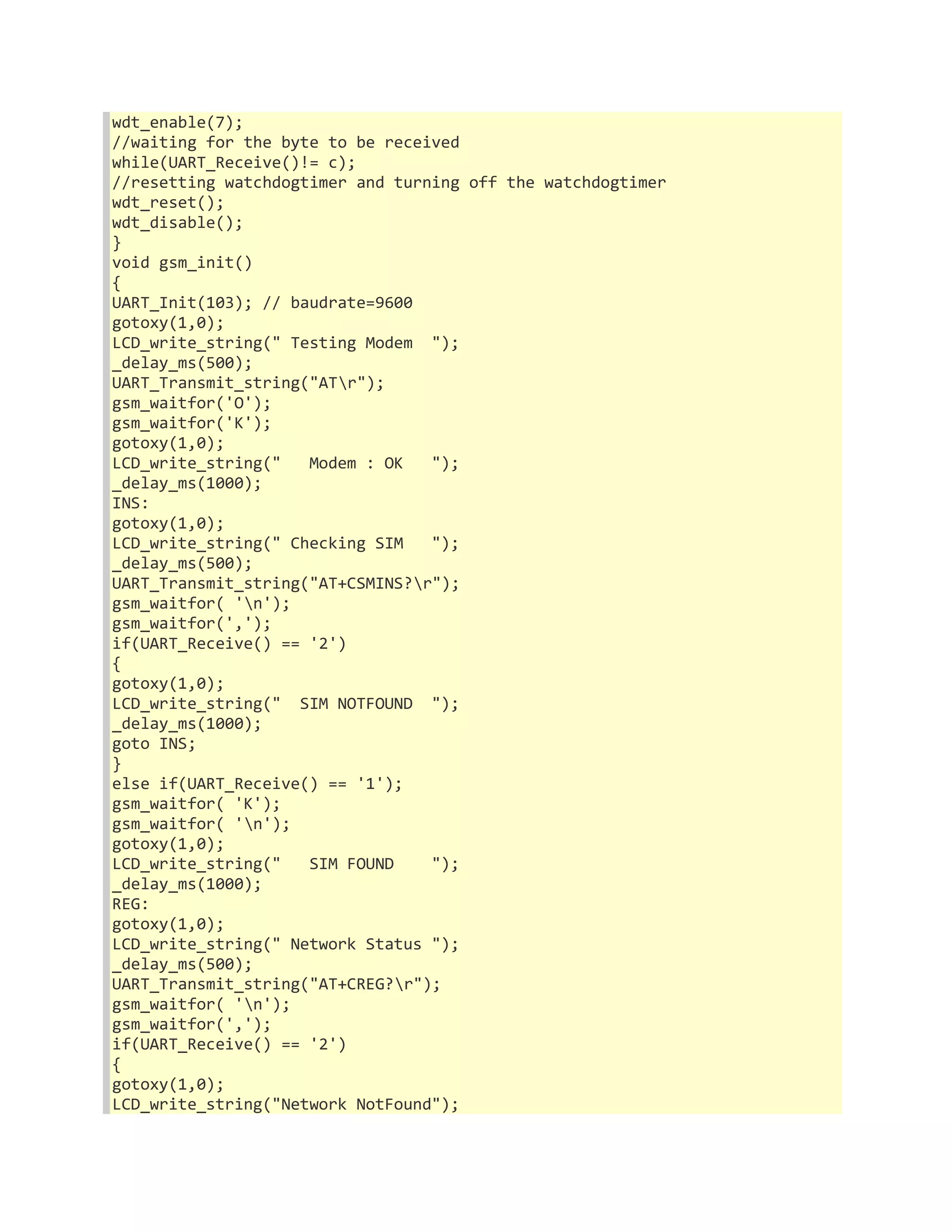

void gsm_waitfor(char c)
{
//enabling watchdogtimer with a time of 2.1secs

20. wdt_enable(7);
//waiting for the byte to be received
while(UART_Receive()!= c);
//resetting watchdogtimer and turning off the watchdogtimer
wdt_reset();
wdt_disable();
}
void gsm_init()
{
UART_Init(103); // baudrate=9600
gotoxy(1,0);
LCD_write_string(" Testing Modem ");
_delay_ms(500);
UART_Transmit_string("ATr");
gsm_waitfor('O');
gsm_waitfor('K');
gotoxy(1,0);
LCD_write_string(" Modem : OK ");
_delay_ms(1000);
INS:
gotoxy(1,0);
LCD_write_string(" Checking SIM ");
_delay_ms(500);
UART_Transmit_string("AT+CSMINS?r");
gsm_waitfor( 'n');
gsm_waitfor(',');
if(UART_Receive() == '2')
{
gotoxy(1,0);
LCD_write_string(" SIM NOTFOUND ");
_delay_ms(1000);
goto INS;
}
else if(UART_Receive() == '1');
gsm_waitfor( 'K');
gsm_waitfor( 'n');
gotoxy(1,0);
LCD_write_string(" SIM FOUND ");
_delay_ms(1000);

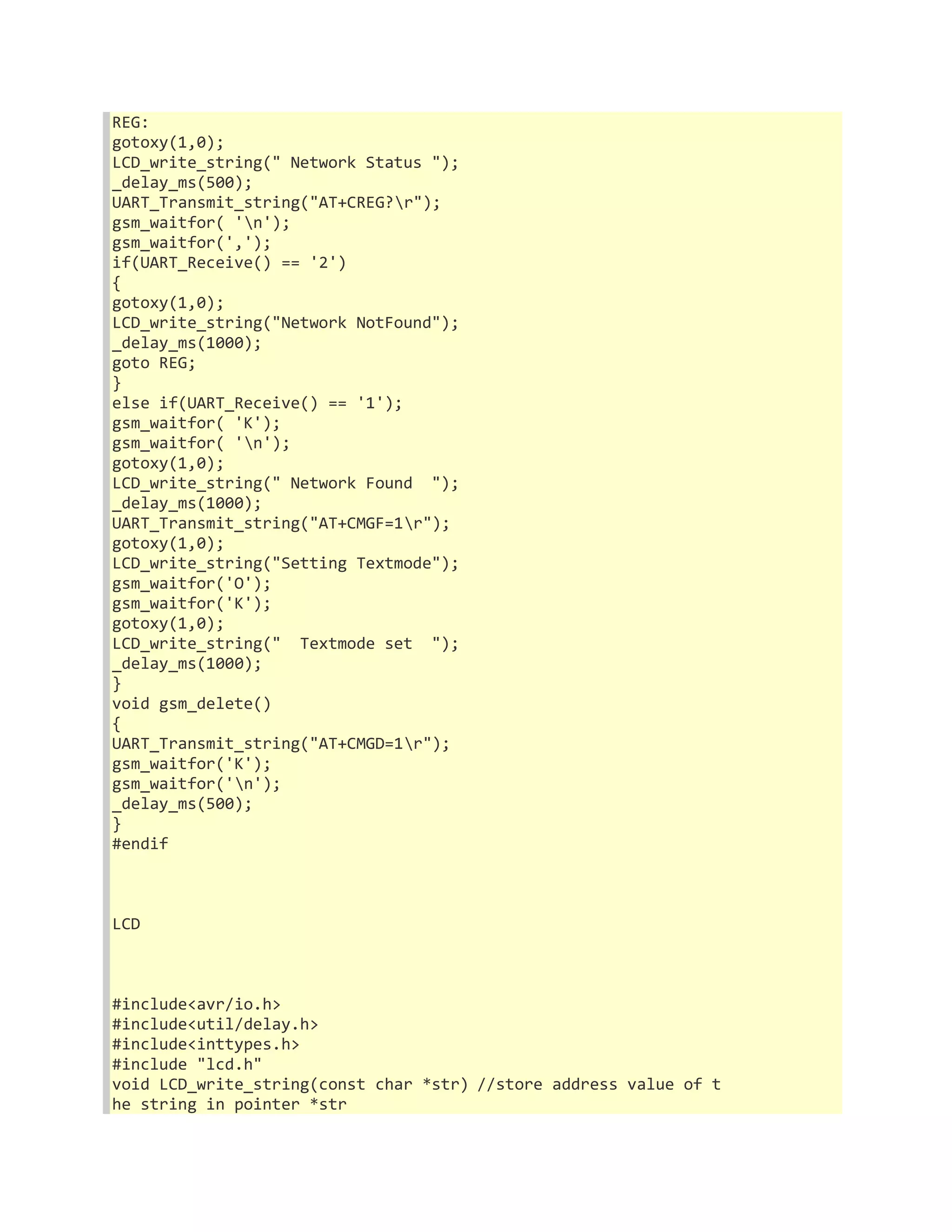

REG:
gotoxy(1,0);
LCD_write_string(" Network Status ");
_delay_ms(500);
UART_Transmit_string("AT+CREG?r");
gsm_waitfor( 'n');
gsm_waitfor(',');
if(UART_Receive() == '2')
{
gotoxy(1,0);
LCD_write_string("Network NotFound");

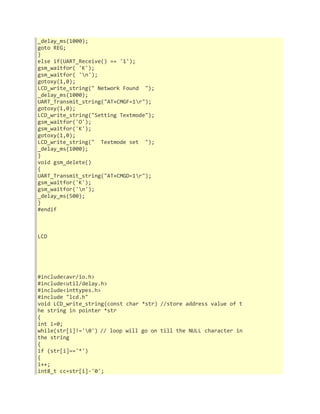

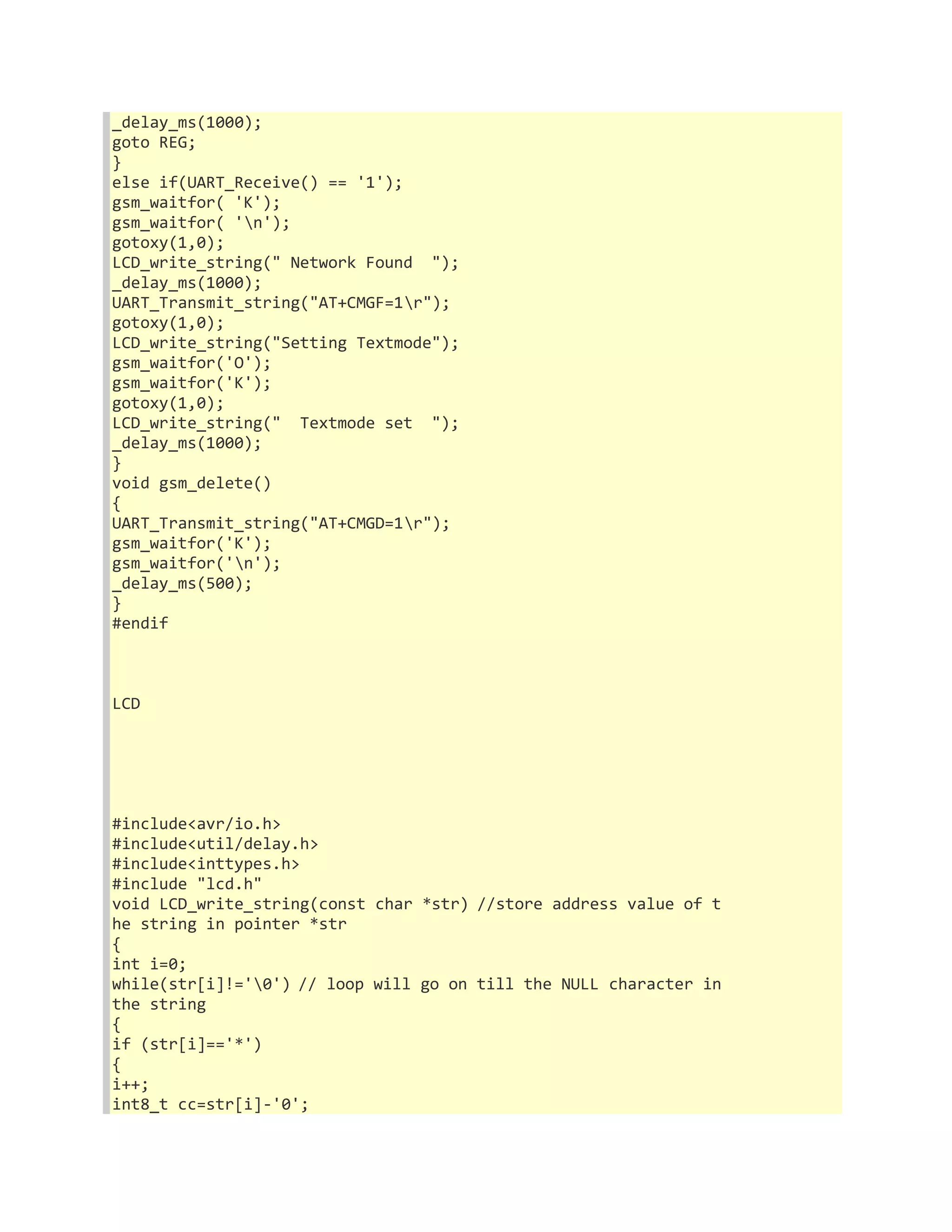

21. _delay_ms(1000);
goto REG;
}
else if(UART_Receive() == '1');
gsm_waitfor( 'K');
gsm_waitfor( 'n');
gotoxy(1,0);
LCD_write_string(" Network Found ");
_delay_ms(1000);
UART_Transmit_string("AT+CMGF=1r");
gotoxy(1,0);
LCD_write_string("Setting Textmode");
gsm_waitfor('O');
gsm_waitfor('K');
gotoxy(1,0);
LCD_write_string(" Textmode set ");
_delay_ms(1000);
}
void gsm_delete()
{
UART_Transmit_string("AT+CMGD=1r");
gsm_waitfor('K');
gsm_waitfor('n');
_delay_ms(500);
}
#endif

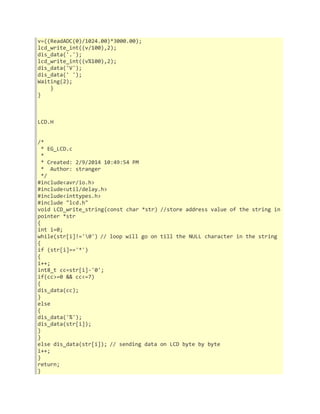

LCD
#include<avr/io.h>
#include<util/delay.h>
#include<inttypes.h>
#include "lcd.h"
void LCD_write_string(const char *str) //store address value of t
he string in pointer *str
{
int i=0;
while(str[i]!='0') // loop will go on till the NULL character in
the string
{
if (str[i]=='*')
{
i++;
int8_t cc=str[i]-'0';

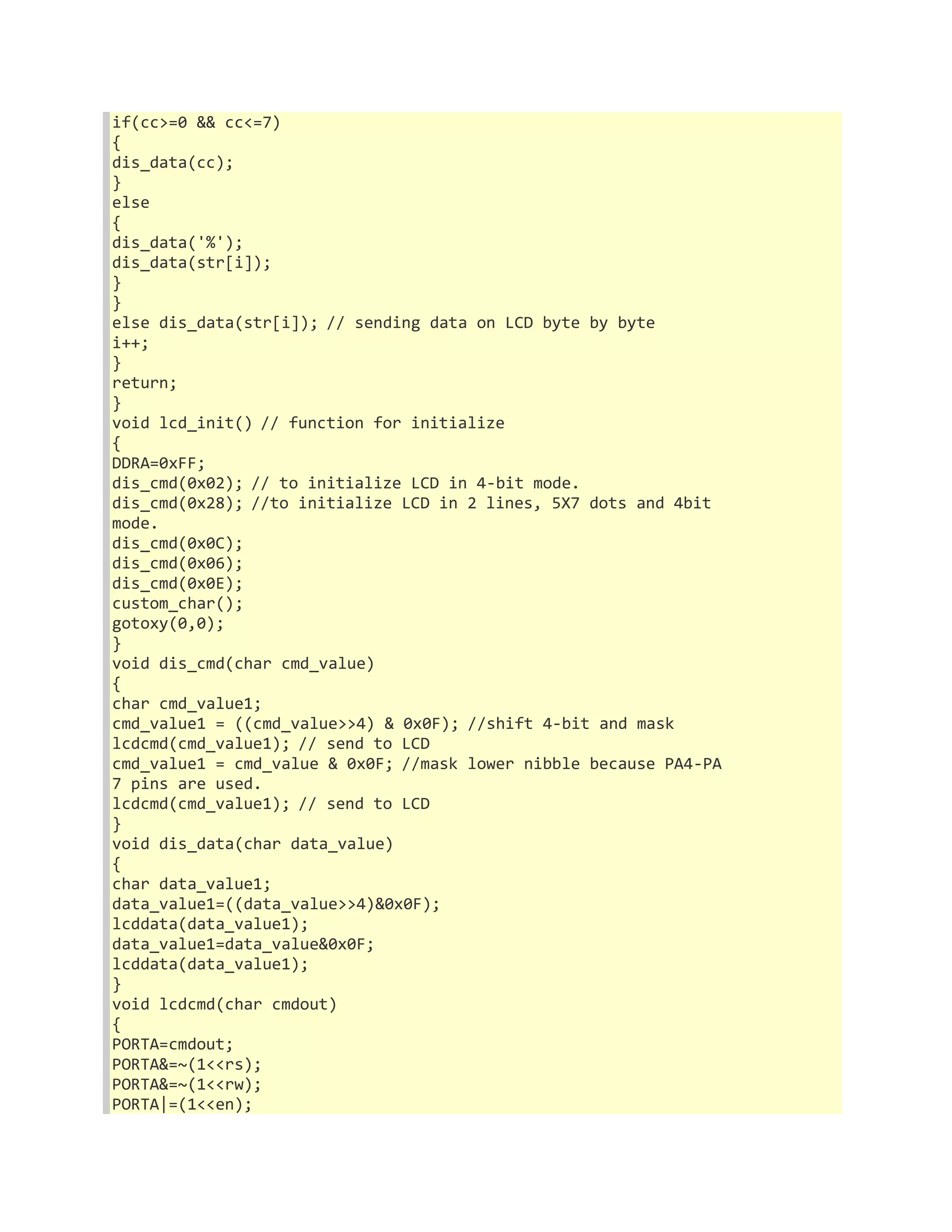

22. if(cc>=0 && cc<=7)
{
dis_data(cc);
}
else
{
dis_data('%');
dis_data(str[i]);
}
}
else dis_data(str[i]); // sending data on LCD byte by byte
i++;
}
return;
}

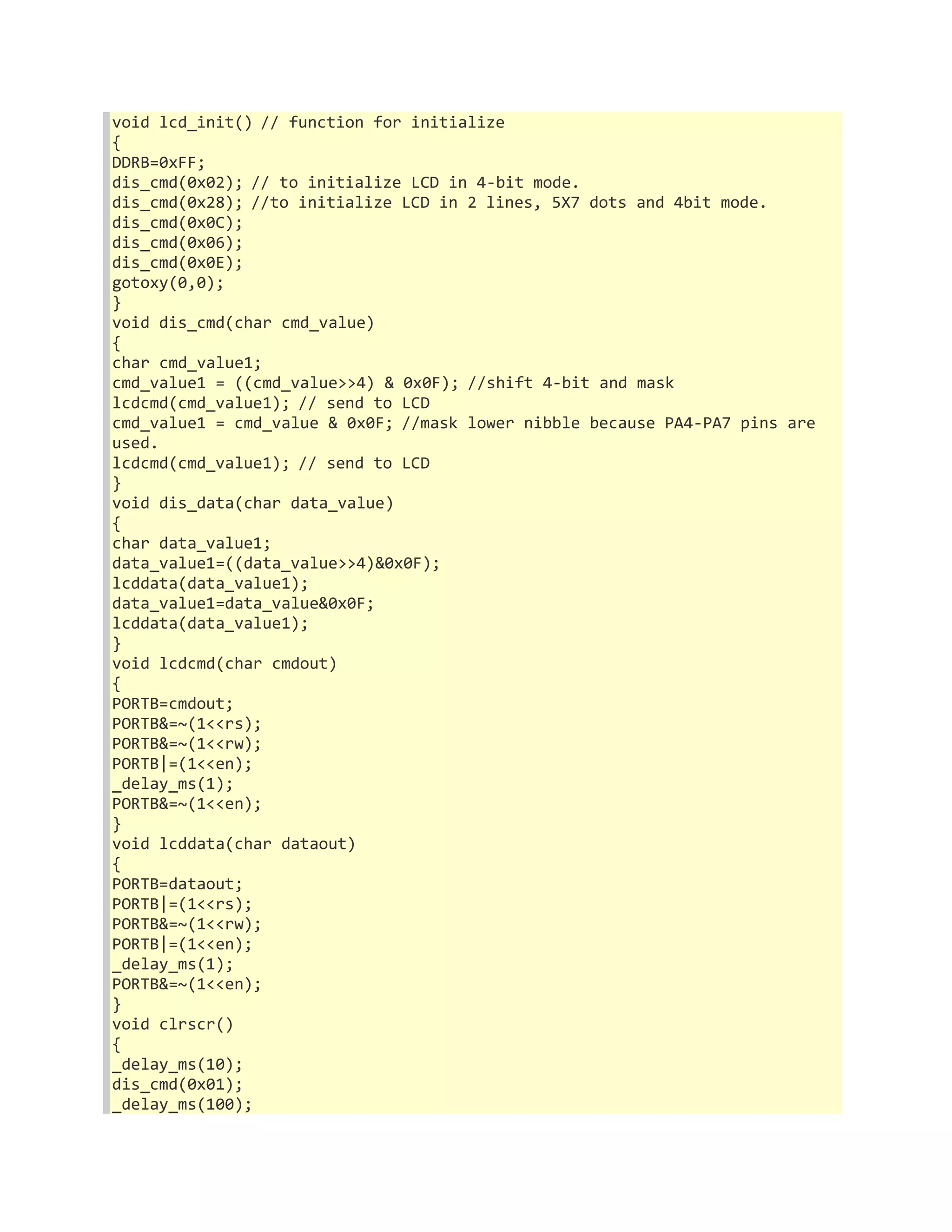

void lcd_init() // function for initialize
{
DDRA=0xFF;
dis_cmd(0x02); // to initialize LCD in 4-bit mode.
dis_cmd(0x28); //to initialize LCD in 2 lines, 5X7 dots and 4bit
mode.
dis_cmd(0x0C);
dis_cmd(0x06);
dis_cmd(0x0E);
custom_char();
gotoxy(0,0);
}
void dis_cmd(char cmd_value)
{
char cmd_value1;
cmd_value1 = ((cmd_value>>4) & 0x0F); //shift 4-bit and mask
lcdcmd(cmd_value1); // send to LCD
cmd_value1 = cmd_value & 0x0F; //mask lower nibble because PA4-PA
7 pins are used.
lcdcmd(cmd_value1); // send to LCD
}
void dis_data(char data_value)
{
char data_value1;
data_value1=((data_value>>4)&0x0F);
lcddata(data_value1);
data_value1=data_value&0x0F;
lcddata(data_value1);
}

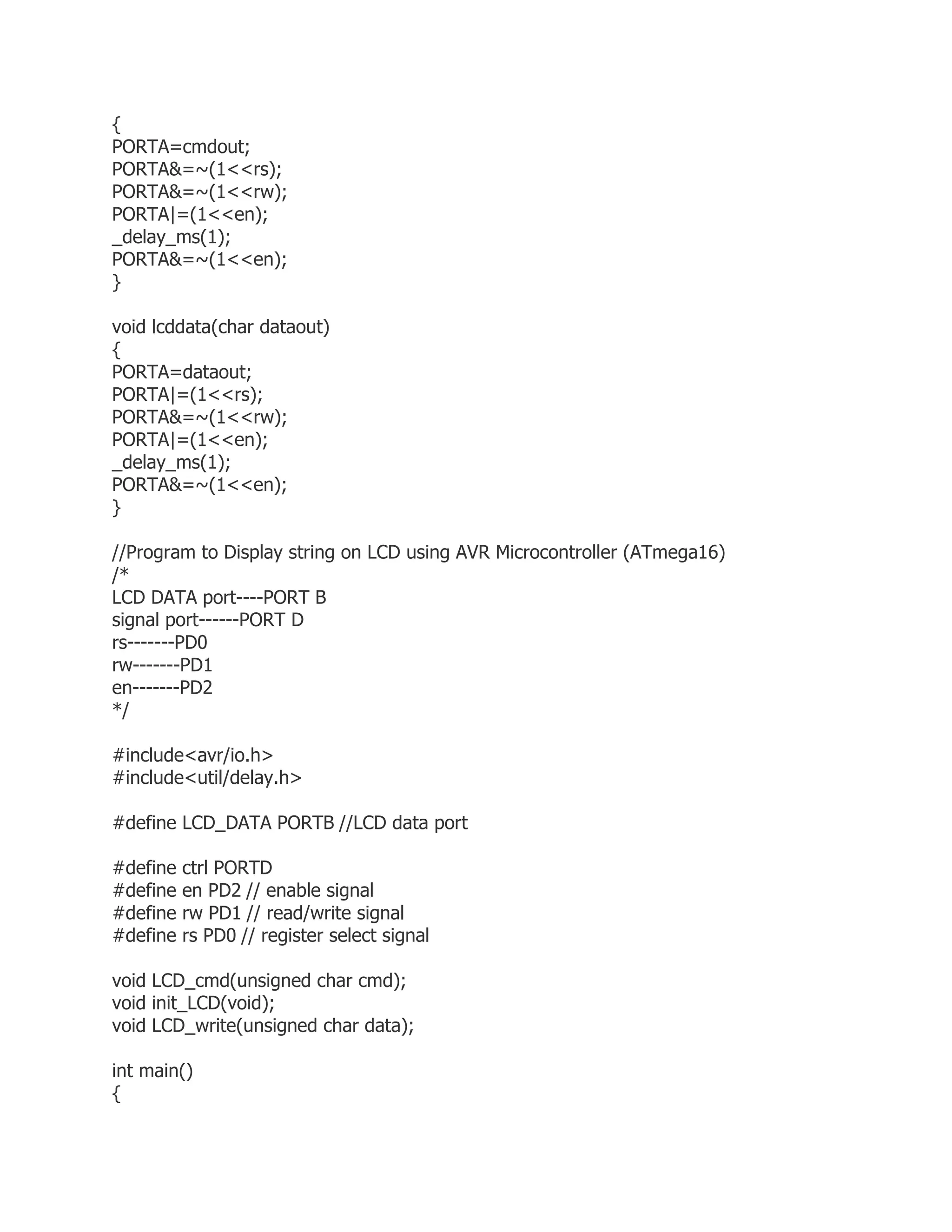

void lcdcmd(char cmdout)
{
PORTA=cmdout;
PORTA&=~(1<<rs);
PORTA&=~(1<<rw);
PORTA|=(1<<en);

23. _delay_ms(1);
PORTA&=~(1<<en);
}

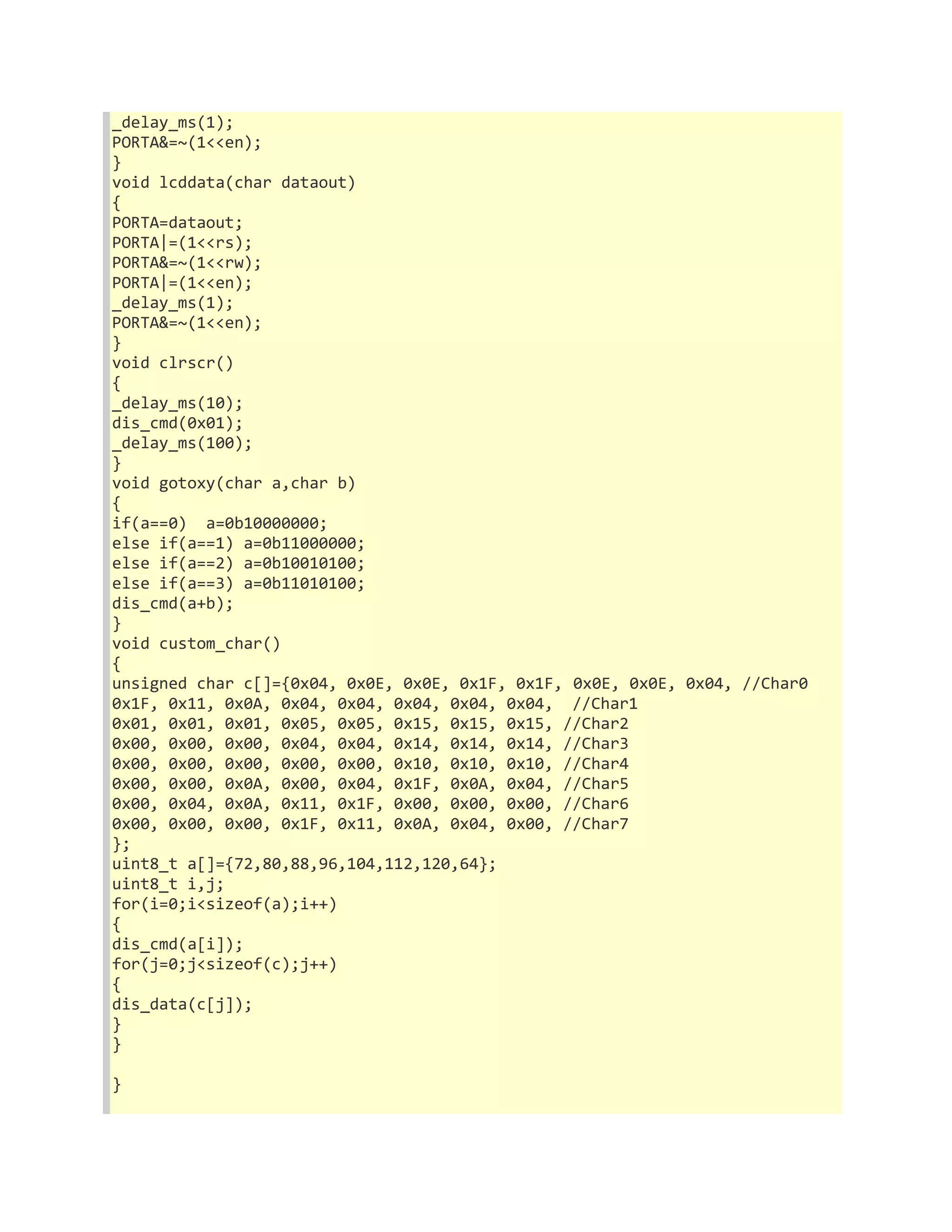

void lcddata(char dataout)
{
PORTA=dataout;
PORTA|=(1<<rs);
PORTA&=~(1<<rw);
PORTA|=(1<<en);
_delay_ms(1);
PORTA&=~(1<<en);
}
void clrscr()
{
_delay_ms(10);
dis_cmd(0x01);
_delay_ms(100);
}

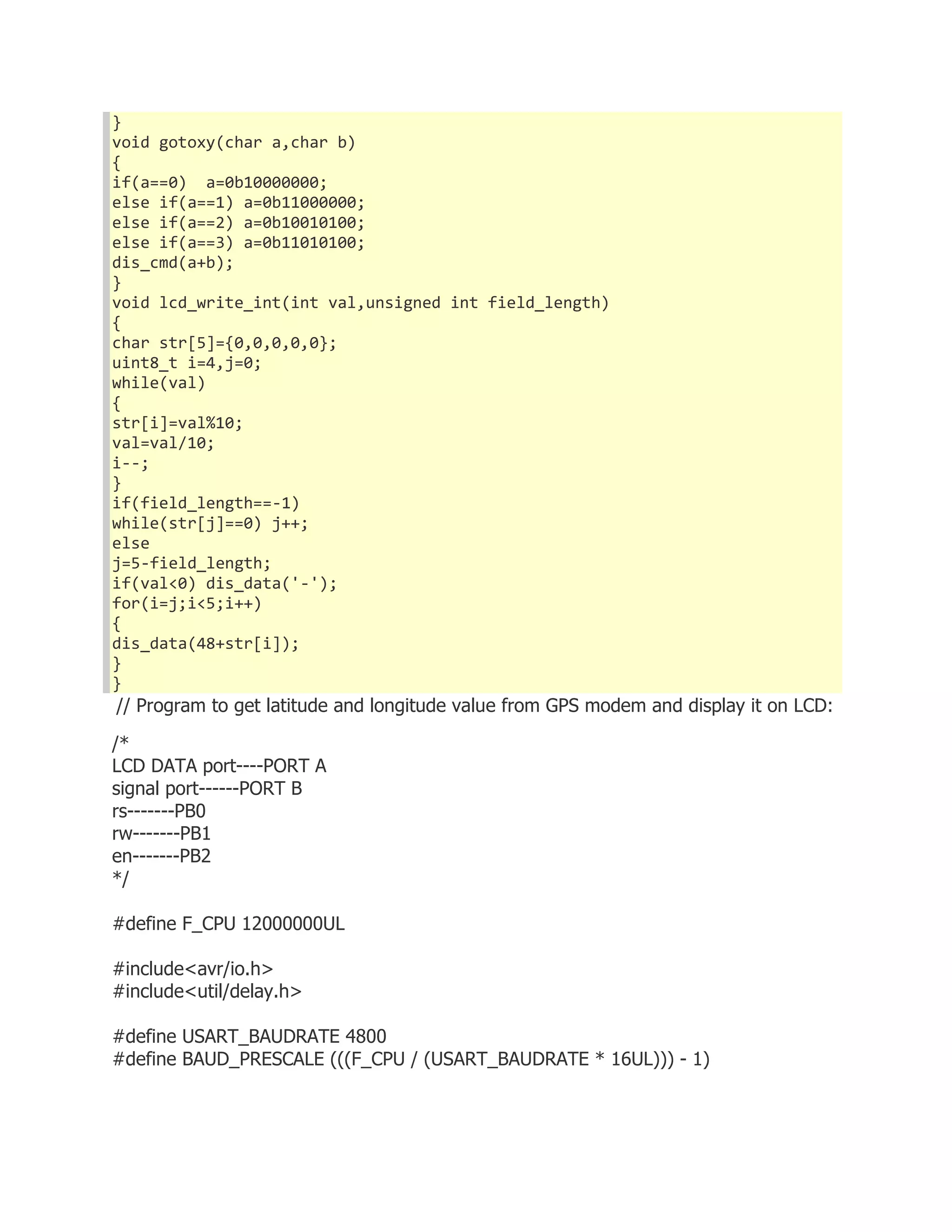

void gotoxy(char a,char b)
{
if(a==0) a=0b10000000;
else if(a==1) a=0b11000000;
else if(a==2) a=0b10010100;
else if(a==3) a=0b11010100;
dis_cmd(a+b);
}

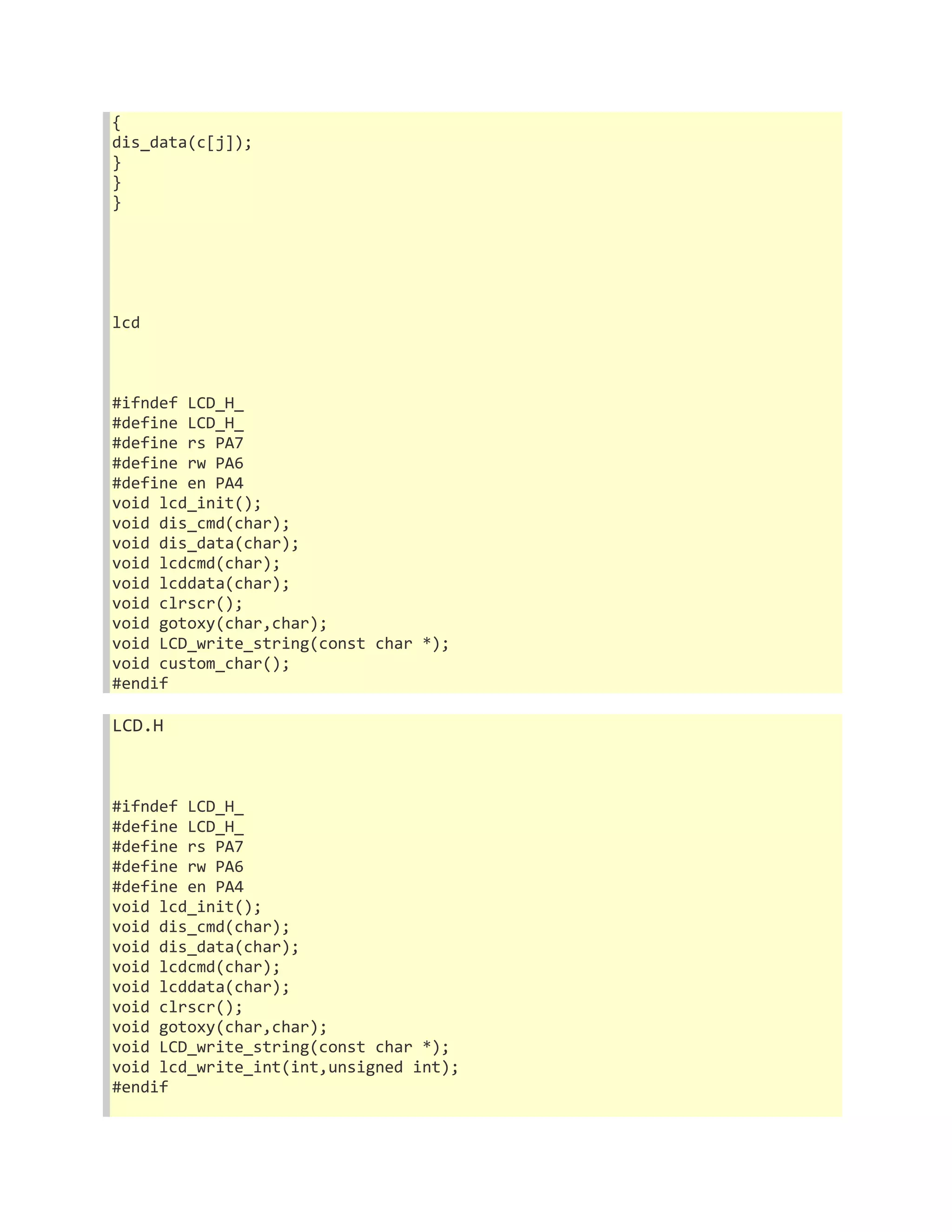

void custom_char()
{
unsigned char c[]={0x04, 0x0E, 0x0E, 0x1F, 0x1F, 0x0E, 0x0E, 0x04, //Char0
0x1F, 0x11, 0x0A, 0x04, 0x04, 0x04, 0x04, 0x04, //Char1
0x01, 0x01, 0x01, 0x05, 0x05, 0x15, 0x15, 0x15, //Char2
0x00, 0x00, 0x00, 0x04, 0x04, 0x14, 0x14, 0x14, //Char3
0x00, 0x00, 0x00, 0x00, 0x00, 0x10, 0x10, 0x10, //Char4
0x00, 0x00, 0x0A, 0x00, 0x04, 0x1F, 0x0A, 0x04, //Char5
0x00, 0x04, 0x0A, 0x11, 0x1F, 0x00, 0x00, 0x00, //Char6
0x00, 0x00, 0x00, 0x1F, 0x11, 0x0A, 0x04, 0x00, //Char7
};
uint8_t a[]={72,80,88,96,104,112,120,64};
uint8_t i,j;
for(i=0;i<sizeof(a);i++)
{
dis_cmd(a[i]);
for(j=0;j<sizeof(c);j++)
{
dis_data(c[j]);
}
}
}

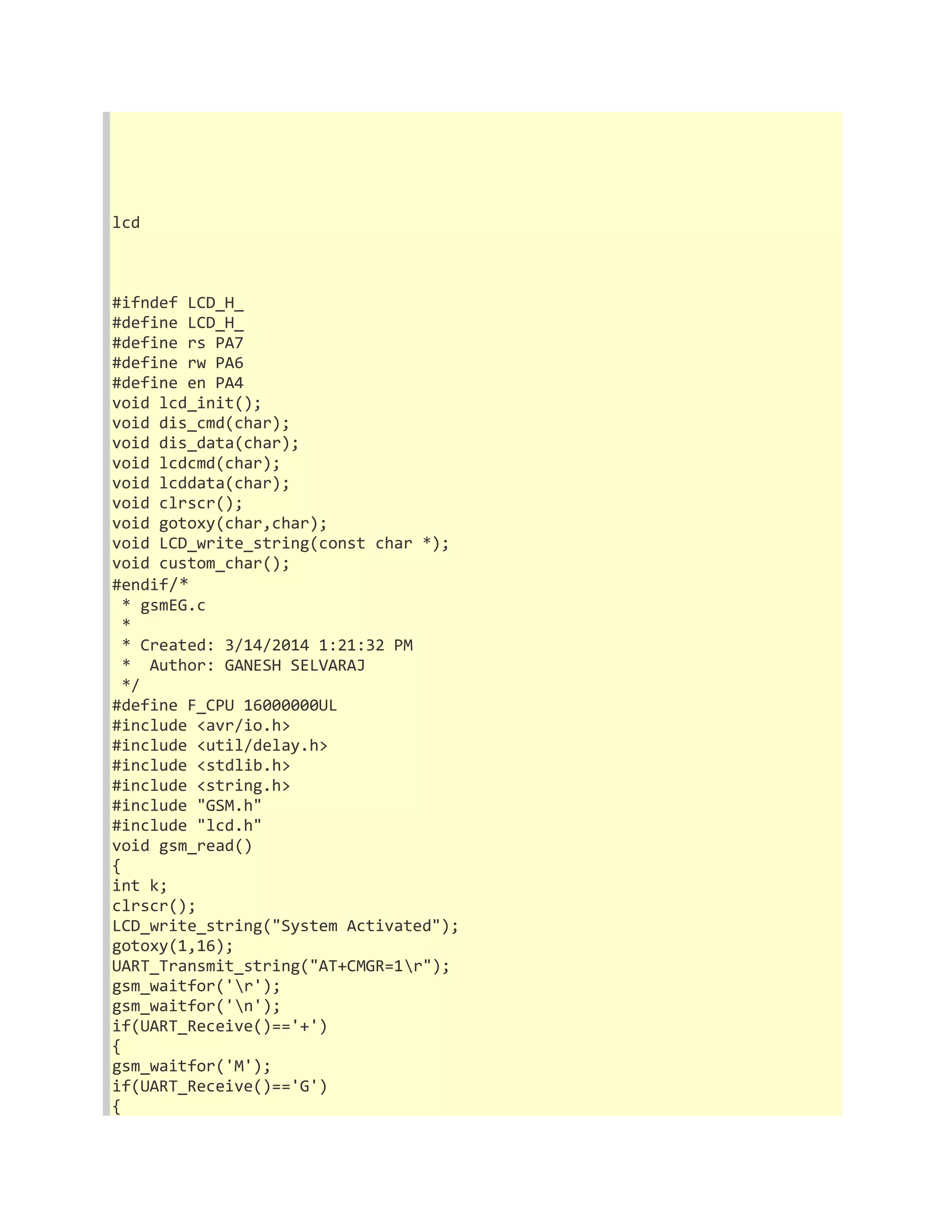

24. lcd
#ifndef LCD_H_
#define LCD_H_
#define rs PA7
#define rw PA6
#define en PA4
void lcd_init();
void dis_cmd(char);
void dis_data(char);
void lcdcmd(char);
void lcddata(char);
void clrscr();
void gotoxy(char,char);
void LCD_write_string(const char *);
void custom_char();
#endif/*
* gsmEG.c
*
* Created: 3/14/2014 1:21:32 PM
* Author: GANESH SELVARAJ
*/
#define F_CPU 16000000UL
#include <avr/io.h>
#include <util/delay.h>
#include <stdlib.h>
#include <string.h>
#include "GSM.h"
#include "lcd.h"
void gsm_read()
{
int k;
clrscr();
LCD_write_string("System Activated");
gotoxy(1,16);
UART_Transmit_string("AT+CMGR=1r");
gsm_waitfor('r');
gsm_waitfor('n');
if(UART_Receive()=='+')
{
gsm_waitfor('M');
if(UART_Receive()=='G')
{

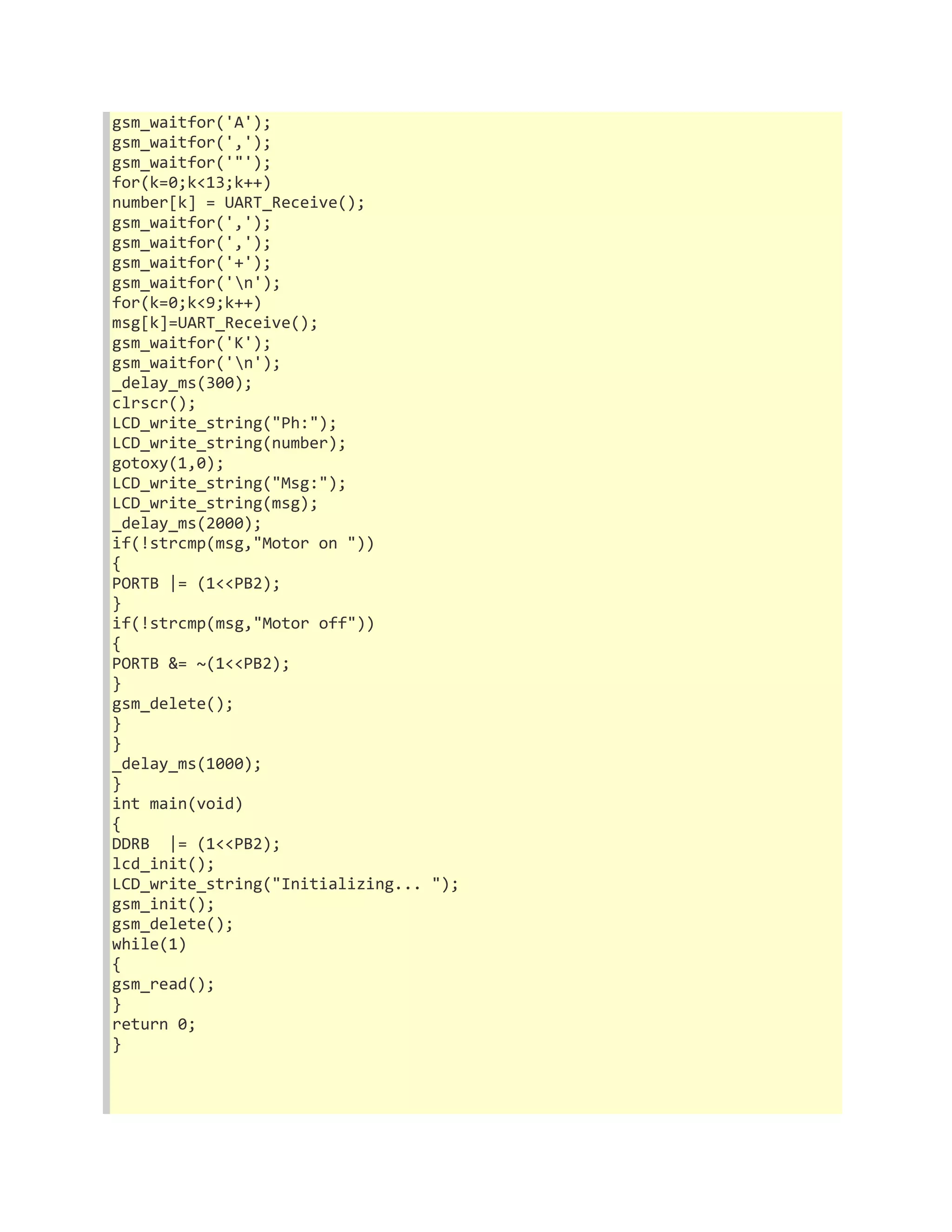

25. gsm_waitfor('A');
gsm_waitfor(',');
gsm_waitfor('"');
for(k=0;k<13;k++)
number[k] = UART_Receive();
gsm_waitfor(',');
gsm_waitfor(',');
gsm_waitfor('+');
gsm_waitfor('n');
for(k=0;k<9;k++)
msg[k]=UART_Receive();
gsm_waitfor('K');
gsm_waitfor('n');
_delay_ms(300);
clrscr();
LCD_write_string("Ph:");
LCD_write_string(number);
gotoxy(1,0);
LCD_write_string("Msg:");
LCD_write_string(msg);
_delay_ms(2000);
if(!strcmp(msg,"Motor on "))
{
PORTB |= (1<<PB2);
}
if(!strcmp(msg,"Motor off"))
{
PORTB &= ~(1<<PB2);
}
gsm_delete();
}
}
_delay_ms(1000);
}
int main(void)
{
DDRB |= (1<<PB2);
lcd_init();
LCD_write_string("Initializing... ");
gsm_init();
gsm_delete();
while(1)
{
gsm_read();
}
return 0;
}

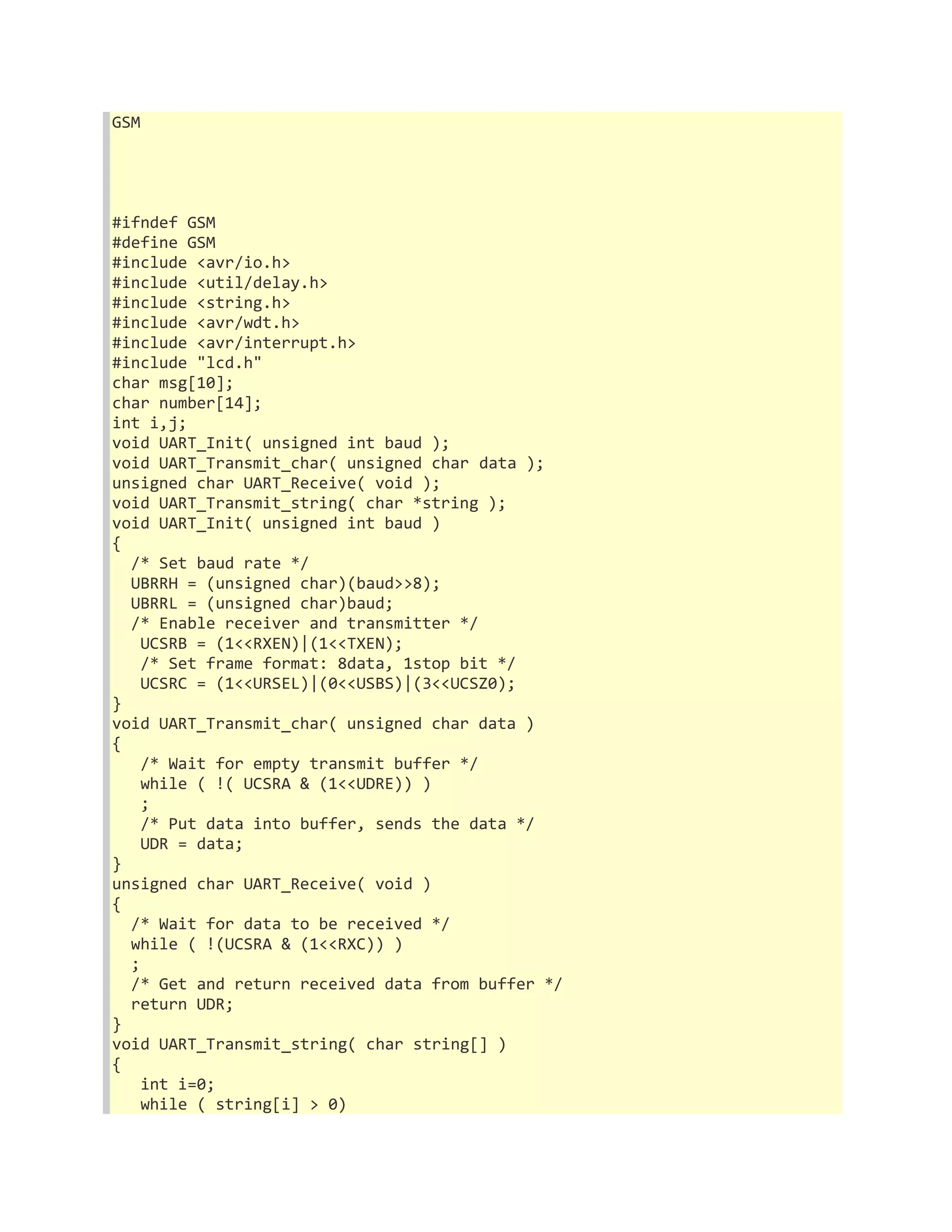

26. GSM
#ifndef GSM
#define GSM
#include <avr/io.h>
#include <util/delay.h>
#include <string.h>
#include <avr/wdt.h>
#include <avr/interrupt.h>
#include "lcd.h"
char msg[10];
char number[14];
int i,j;

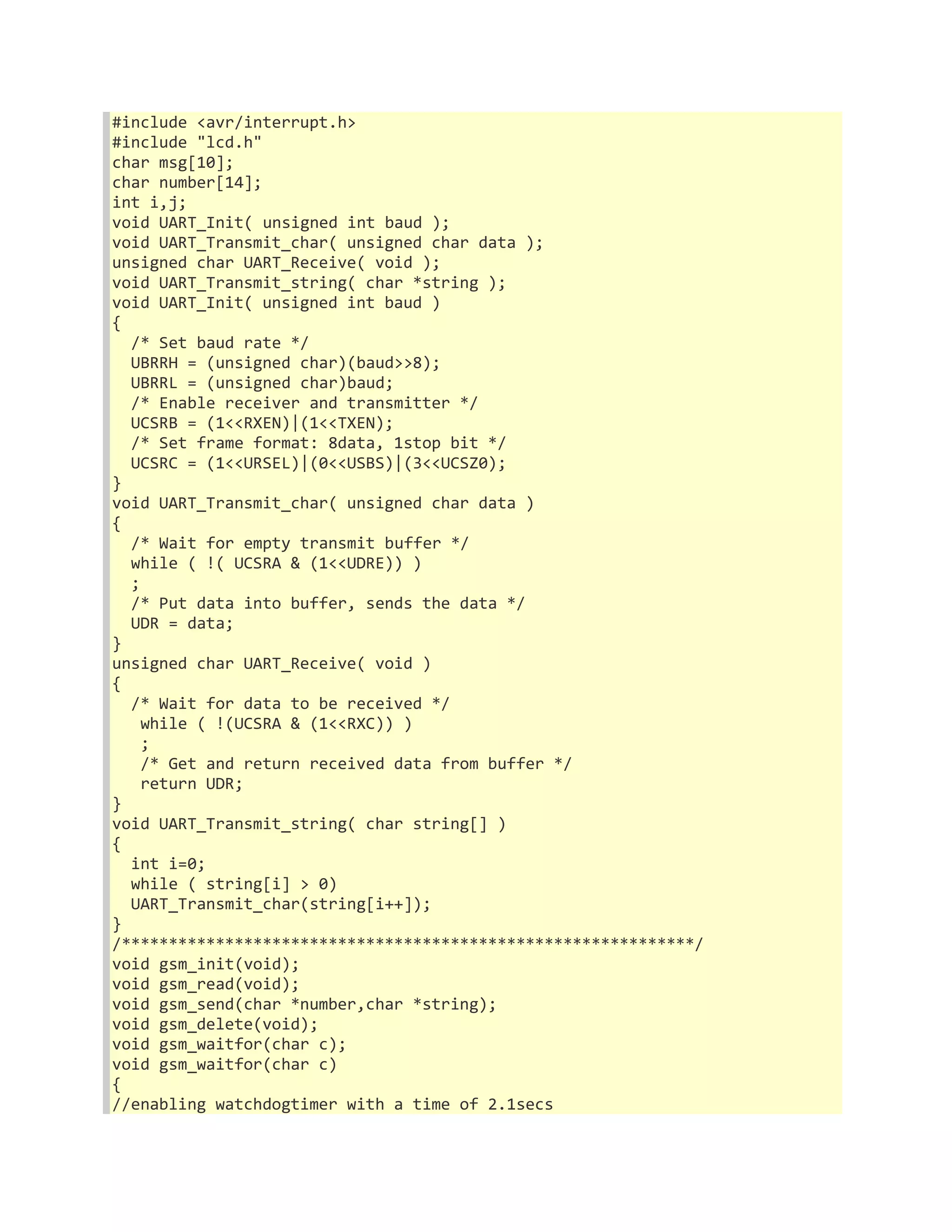

void UART_Init( unsigned int baud );
void UART_Transmit_char( unsigned char data );
unsigned char UART_Receive( void );
void UART_Transmit_string( char *string );
void UART_Init( unsigned int baud )
{
/* Set baud rate */
UBRRH = (unsigned char)(baud>>8);
UBRRL = (unsigned char)baud;
/* Enable receiver and transmitter */
UCSRB = (1<<RXEN)|(1<<TXEN);
/* Set frame format: 8data, 1stop bit */
UCSRC = (1<<URSEL)|(0<<USBS)|(3<<UCSZ0);
}
void UART_Transmit_char( unsigned char data )
{
/* Wait for empty transmit buffer */
while ( !( UCSRA & (1<<UDRE)) )
;
/* Put data into buffer, sends the data */
UDR = data;
}
unsigned char UART_Receive( void )
{
/* Wait for data to be received */
while ( !(UCSRA & (1<<RXC)) )
;
/* Get and return received data from buffer */
return UDR;
}

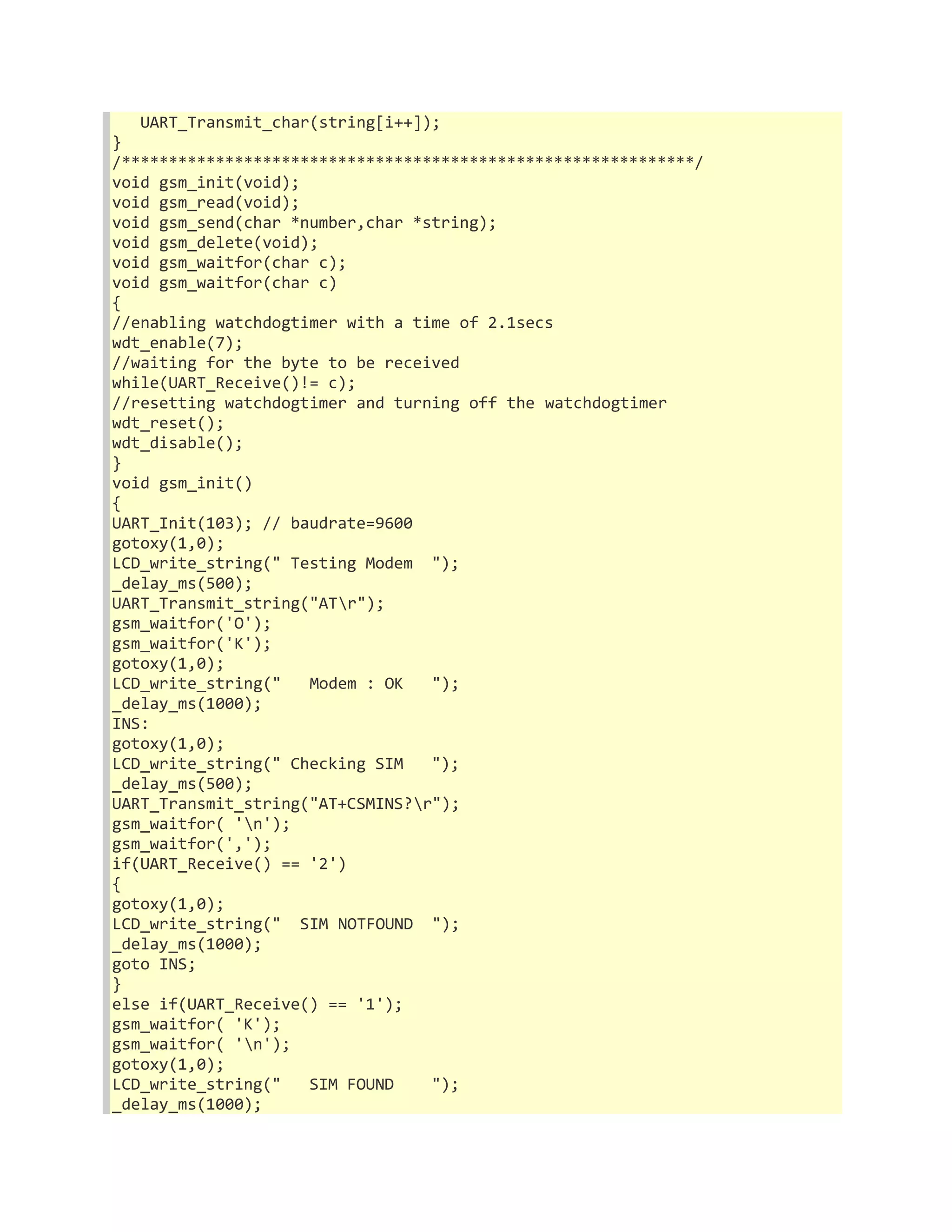

void UART_Transmit_string( char string[] )
{
int i=0;
while ( string[i] > 0)

27. UART_Transmit_char(string[i++]);
}
/*************************************************************/
void gsm_init(void);
void gsm_read(void);
void gsm_send(char *number,char *string);
void gsm_delete(void);
void gsm_waitfor(char c);

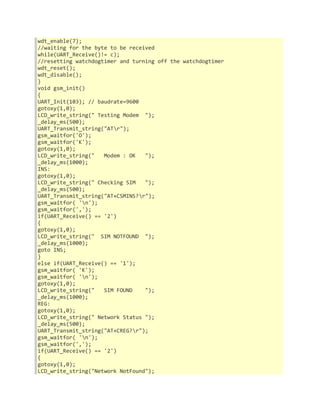

void gsm_waitfor(char c)
{
//enabling watchdogtimer with a time of 2.1secs
wdt_enable(7);
//waiting for the byte to be received
while(UART_Receive()!= c);
//resetting watchdogtimer and turning off the watchdogtimer
wdt_reset();
wdt_disable();
}
void gsm_init()
{
UART_Init(103); // baudrate=9600
gotoxy(1,0);
LCD_write_string(" Testing Modem ");
_delay_ms(500);
UART_Transmit_string("ATr");
gsm_waitfor('O');
gsm_waitfor('K');
gotoxy(1,0);
LCD_write_string(" Modem : OK ");
_delay_ms(1000);
INS:
gotoxy(1,0);
LCD_write_string(" Checking SIM ");
_delay_ms(500);
UART_Transmit_string("AT+CSMINS?r");
gsm_waitfor( 'n');
gsm_waitfor(',');
if(UART_Receive() == '2')
{
gotoxy(1,0);
LCD_write_string(" SIM NOTFOUND ");
_delay_ms(1000);
goto INS;
}
else if(UART_Receive() == '1');
gsm_waitfor( 'K');
gsm_waitfor( 'n');
gotoxy(1,0);
LCD_write_string(" SIM FOUND ");
_delay_ms(1000);

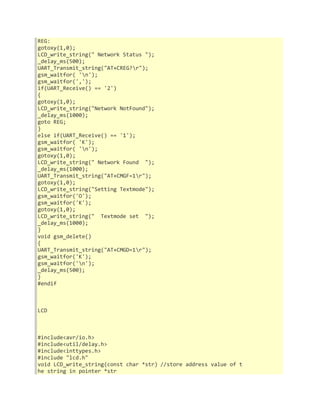

28. REG:
gotoxy(1,0);
LCD_write_string(" Network Status ");
_delay_ms(500);
UART_Transmit_string("AT+CREG?r");
gsm_waitfor( 'n');
gsm_waitfor(',');
if(UART_Receive() == '2')
{
gotoxy(1,0);
LCD_write_string("Network NotFound");
_delay_ms(1000);
goto REG;
}
else if(UART_Receive() == '1');
gsm_waitfor( 'K');
gsm_waitfor( 'n');
gotoxy(1,0);
LCD_write_string(" Network Found ");
_delay_ms(1000);
UART_Transmit_string("AT+CMGF=1r");
gotoxy(1,0);
LCD_write_string("Setting Textmode");
gsm_waitfor('O');
gsm_waitfor('K');
gotoxy(1,0);
LCD_write_string(" Textmode set ");
_delay_ms(1000);
}
void gsm_delete()
{
UART_Transmit_string("AT+CMGD=1r");
gsm_waitfor('K');
gsm_waitfor('n');
_delay_ms(500);
}
#endif
LCD
#include<avr/io.h>
#include<util/delay.h>
#include<inttypes.h>
#include "lcd.h"

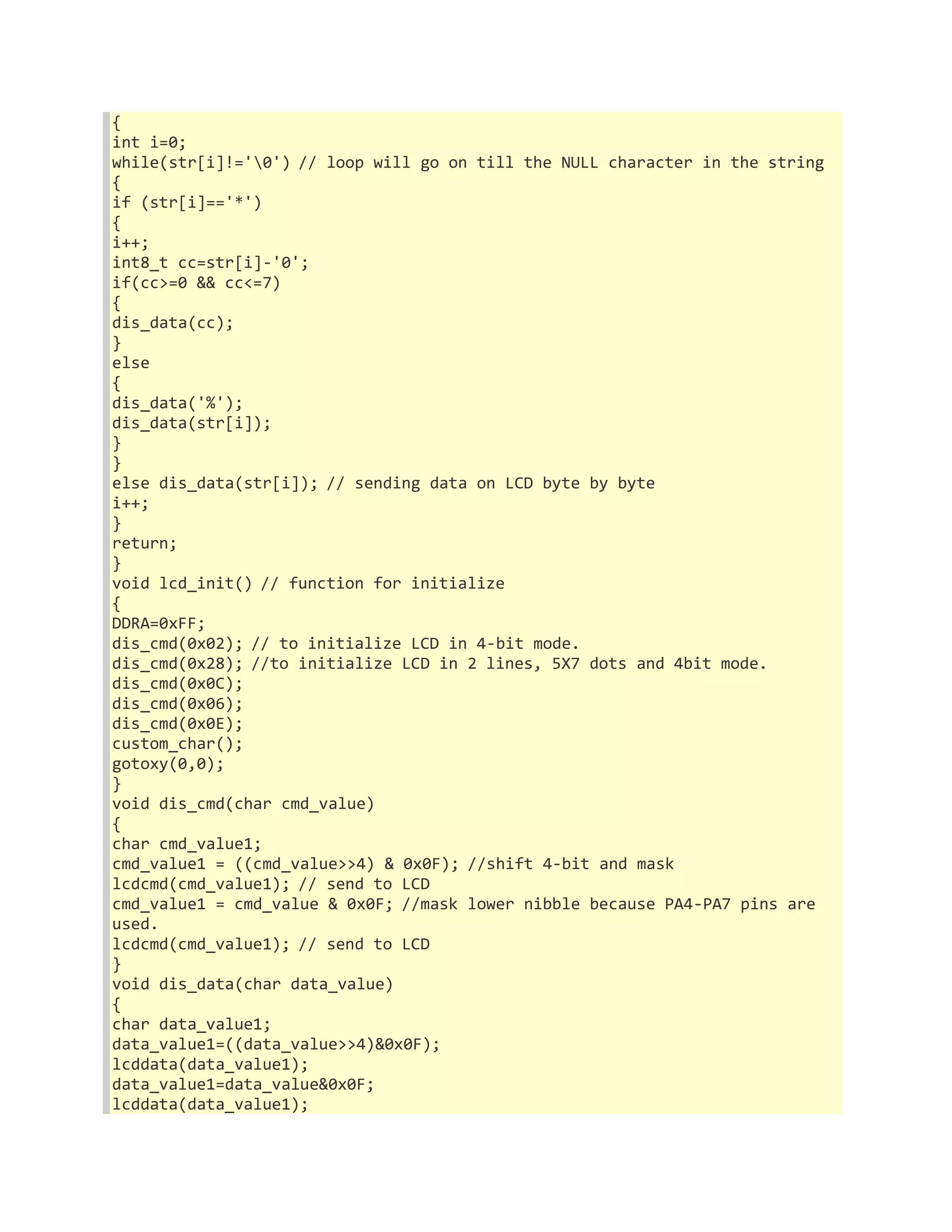

void LCD_write_string(const char *str) //store address value of t
he string in pointer *str

29. {
int i=0;
while(str[i]!='0') // loop will go on till the NULL character in the string
{
if (str[i]=='*')
{
i++;
int8_t cc=str[i]-'0';
if(cc>=0 && cc<=7)
{
dis_data(cc);
}
else
{
dis_data('%');
dis_data(str[i]);
}
}
else dis_data(str[i]); // sending data on LCD byte by byte
i++;
}
return;
}
void lcd_init() // function for initialize
{
DDRA=0xFF;
dis_cmd(0x02); // to initialize LCD in 4-bit mode.
dis_cmd(0x28); //to initialize LCD in 2 lines, 5X7 dots and 4bit mode.
dis_cmd(0x0C);
dis_cmd(0x06);
dis_cmd(0x0E);
custom_char();
gotoxy(0,0);
}
void dis_cmd(char cmd_value)
{
char cmd_value1;
cmd_value1 = ((cmd_value>>4) & 0x0F); //shift 4-bit and mask
lcdcmd(cmd_value1); // send to LCD
cmd_value1 = cmd_value & 0x0F; //mask lower nibble because PA4-PA7 pins are
used.
lcdcmd(cmd_value1); // send to LCD
}
void dis_data(char data_value)
{
char data_value1;
data_value1=((data_value>>4)&0x0F);
lcddata(data_value1);
data_value1=data_value&0x0F;
lcddata(data_value1);

30. }
void lcdcmd(char cmdout)
{
PORTA=cmdout;
PORTA&=~(1<<rs);
PORTA&=~(1<<rw);
PORTA|=(1<<en);
_delay_ms(1);
PORTA&=~(1<<en);
}
void lcddata(char dataout)
{
PORTA=dataout;
PORTA|=(1<<rs);
PORTA&=~(1<<rw);
PORTA|=(1<<en);
_delay_ms(1);
PORTA&=~(1<<en);
}
void clrscr()
{
_delay_ms(10);
dis_cmd(0x01);
_delay_ms(100);
}
void gotoxy(char a,char b)
{
if(a==0) a=0b10000000;
else if(a==1) a=0b11000000;
else if(a==2) a=0b10010100;
else if(a==3) a=0b11010100;
dis_cmd(a+b);
}
void custom_char()
{
unsigned char c[]={0x04, 0x0E, 0x0E, 0x1F, 0x1F, 0x0E, 0x0E, 0x04, //Char0
0x1F, 0x11, 0x0A, 0x04, 0x04, 0x04, 0x04, 0x04, //Char1
0x01, 0x01, 0x01, 0x05, 0x05, 0x15, 0x15, 0x15, //Char2
0x00, 0x00, 0x00, 0x04, 0x04, 0x14, 0x14, 0x14, //Char3
0x00, 0x00, 0x00, 0x00, 0x00, 0x10, 0x10, 0x10, //Char4
0x00, 0x00, 0x0A, 0x00, 0x04, 0x1F, 0x0A, 0x04, //Char5
0x00, 0x04, 0x0A, 0x11, 0x1F, 0x00, 0x00, 0x00, //Char6
0x00, 0x00, 0x00, 0x1F, 0x11, 0x0A, 0x04, 0x00, //Char7
};
uint8_t a[]={72,80,88,96,104,112,120,64};
uint8_t i,j;
for(i=0;i<sizeof(a);i++)
{
dis_cmd(a[i]);

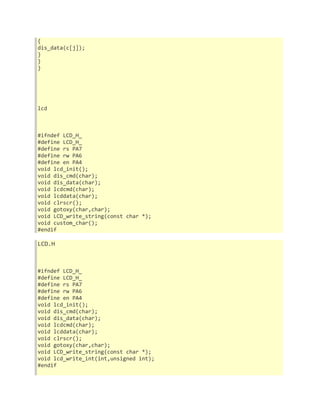

for(j=0;j<sizeof(c);j++)

31. {
dis_data(c[j]);
}
}
}
lcd
#ifndef LCD_H_
#define LCD_H_
#define rs PA7
#define rw PA6
#define en PA4
void lcd_init();
void dis_cmd(char);
void dis_data(char);
void lcdcmd(char);
void lcddata(char);
void clrscr();
void gotoxy(char,char);
void LCD_write_string(const char *);
void custom_char();
#endif
LCD.H
#ifndef LCD_H_
#define LCD_H_
#define rs PA7
#define rw PA6
#define en PA4
void lcd_init();
void dis_cmd(char);
void dis_data(char);
void lcdcmd(char);
void lcddata(char);
void clrscr();
void gotoxy(char,char);
void LCD_write_string(const char *);
void lcd_write_int(int,unsigned int);
#endif

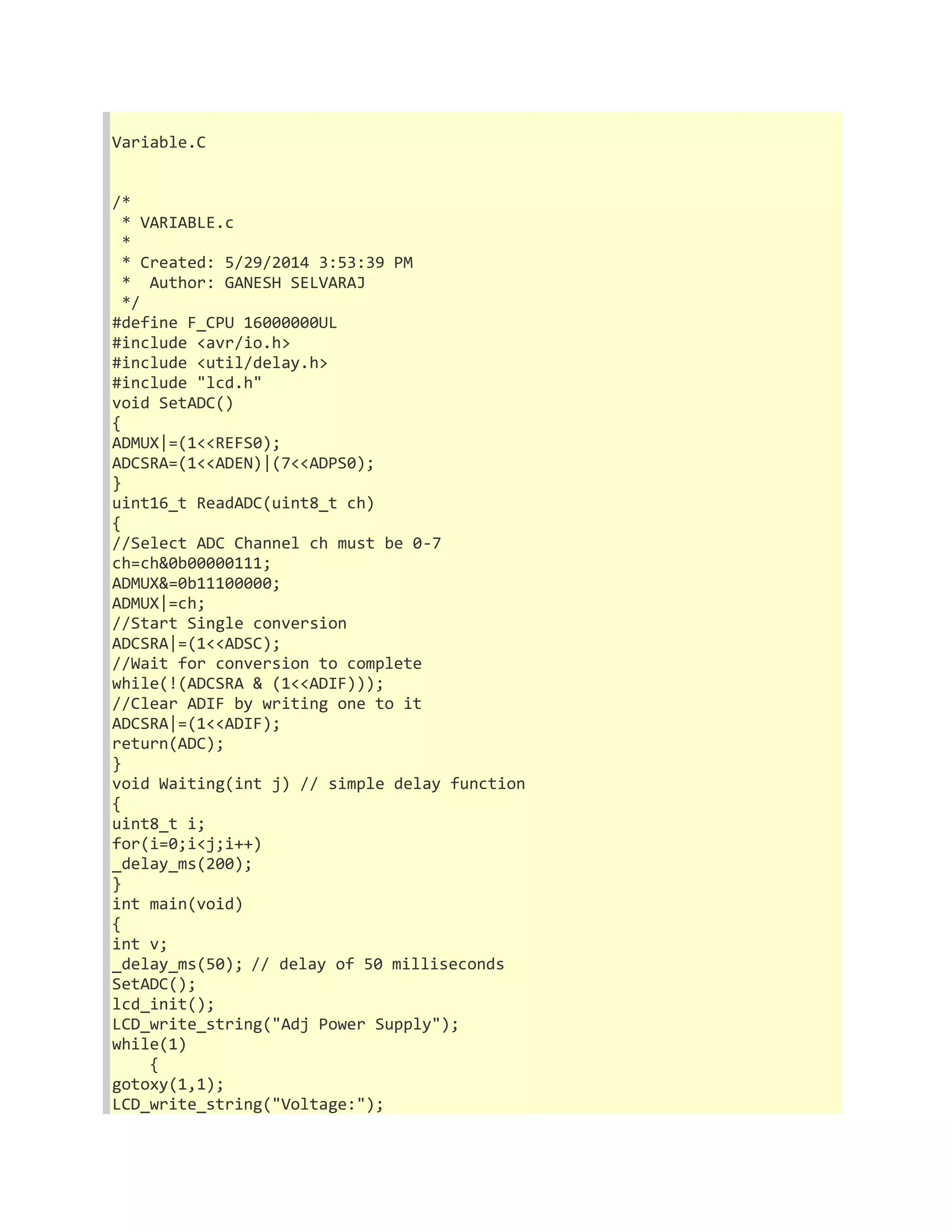

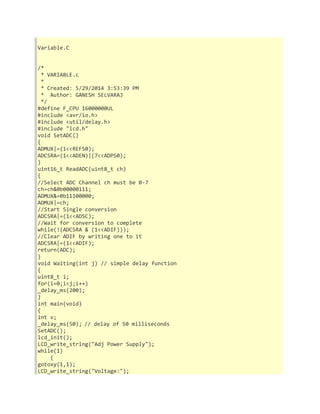

32. Variable.C
/*
* VARIABLE.c
*
* Created: 5/29/2014 3:53:39 PM
* Author: GANESH SELVARAJ
*/
#define F_CPU 16000000UL
#include <avr/io.h>
#include <util/delay.h>
#include "lcd.h"
void SetADC()
{
ADMUX|=(1<<REFS0);
ADCSRA=(1<<ADEN)|(7<<ADPS0);
}
uint16_t ReadADC(uint8_t ch)
{
//Select ADC Channel ch must be 0-7
ch=ch&0b00000111;
ADMUX&=0b11100000;
ADMUX|=ch;
//Start Single conversion
ADCSRA|=(1<<ADSC);
//Wait for conversion to complete
while(!(ADCSRA & (1<<ADIF)));
//Clear ADIF by writing one to it
ADCSRA|=(1<<ADIF);
return(ADC);
}
void Waiting(int j) // simple delay function
{
uint8_t i;
for(i=0;i<j;i++)
_delay_ms(200);
}
int main(void)
{
int v;
_delay_ms(50); // delay of 50 milliseconds
SetADC();
lcd_init();
LCD_write_string("Adj Power Supply");
while(1)
{
gotoxy(1,1);
LCD_write_string("Voltage:");

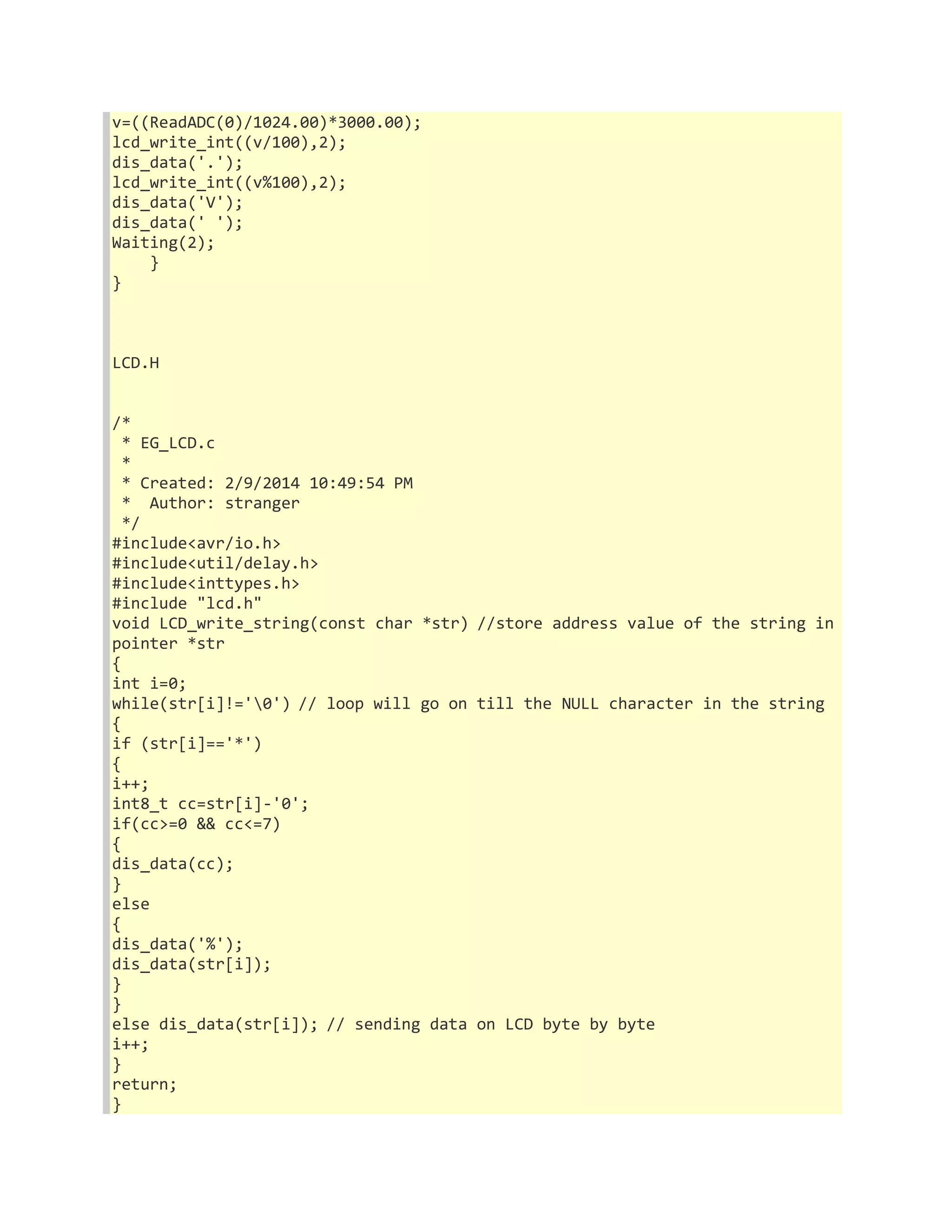

33. v=((ReadADC(0)/1024.00)*3000.00);
lcd_write_int((v/100),2);
dis_data('.');
lcd_write_int((v%100),2);
dis_data('V');
dis_data(' ');
Waiting(2);
}
}
LCD.H
/*
* EG_LCD.c
*
* Created: 2/9/2014 10:49:54 PM
* Author: stranger
*/
#include<avr/io.h>
#include<util/delay.h>
#include<inttypes.h>
#include "lcd.h"
void LCD_write_string(const char *str) //store address value of the string in
pointer *str
{
int i=0;
while(str[i]!='0') // loop will go on till the NULL character in the string
{
if (str[i]=='*')
{
i++;
int8_t cc=str[i]-'0';
if(cc>=0 && cc<=7)
{
dis_data(cc);
}
else
{
dis_data('%');
dis_data(str[i]);
}
}
else dis_data(str[i]); // sending data on LCD byte by byte
i++;
}
return;
}

34. void lcd_init() // function for initialize
{
DDRB=0xFF;
dis_cmd(0x02); // to initialize LCD in 4-bit mode.
dis_cmd(0x28); //to initialize LCD in 2 lines, 5X7 dots and 4bit mode.
dis_cmd(0x0C);
dis_cmd(0x06);
dis_cmd(0x0E);
gotoxy(0,0);
}
void dis_cmd(char cmd_value)
{
char cmd_value1;
cmd_value1 = ((cmd_value>>4) & 0x0F); //shift 4-bit and mask
lcdcmd(cmd_value1); // send to LCD
cmd_value1 = cmd_value & 0x0F; //mask lower nibble because PA4-PA7 pins are
used.
lcdcmd(cmd_value1); // send to LCD
}
void dis_data(char data_value)
{
char data_value1;
data_value1=((data_value>>4)&0x0F);
lcddata(data_value1);
data_value1=data_value&0x0F;
lcddata(data_value1);
}
void lcdcmd(char cmdout)
{
PORTB=cmdout;
PORTB&=~(1<<rs);
PORTB&=~(1<<rw);
PORTB|=(1<<en);
_delay_ms(1);
PORTB&=~(1<<en);
}
void lcddata(char dataout)
{
PORTB=dataout;
PORTB|=(1<<rs);
PORTB&=~(1<<rw);
PORTB|=(1<<en);
_delay_ms(1);
PORTB&=~(1<<en);
}
void clrscr()
{
_delay_ms(10);
dis_cmd(0x01);
_delay_ms(100);

35. }

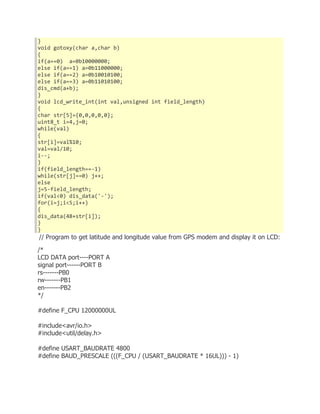

void gotoxy(char a,char b)
{
if(a==0) a=0b10000000;
else if(a==1) a=0b11000000;
else if(a==2) a=0b10010100;
else if(a==3) a=0b11010100;
dis_cmd(a+b);
}
void lcd_write_int(int val,unsigned int field_length)
{
char str[5]={0,0,0,0,0};
uint8_t i=4,j=0;
while(val)
{
str[i]=val%10;
val=val/10;
i--;
}
if(field_length==-1)
while(str[j]==0) j++;
else
j=5-field_length;
if(val<0) dis_data('-');
for(i=j;i<5;i++)
{
dis_data(48+str[i]);
}
}

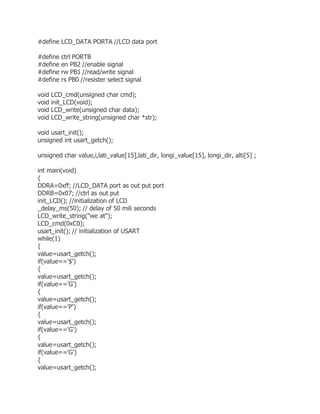

// Program to get latitude and longitude value from GPS modem and display it on LCD:
/*
LCD DATA port----PORT A
signal port------PORT B
rs-------PB0
rw-------PB1
en-------PB2
*/
#define F_CPU 12000000UL
#include<avr/io.h>
#include<util/delay.h>
#define USART_BAUDRATE 4800

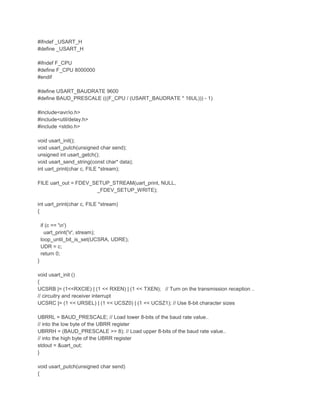

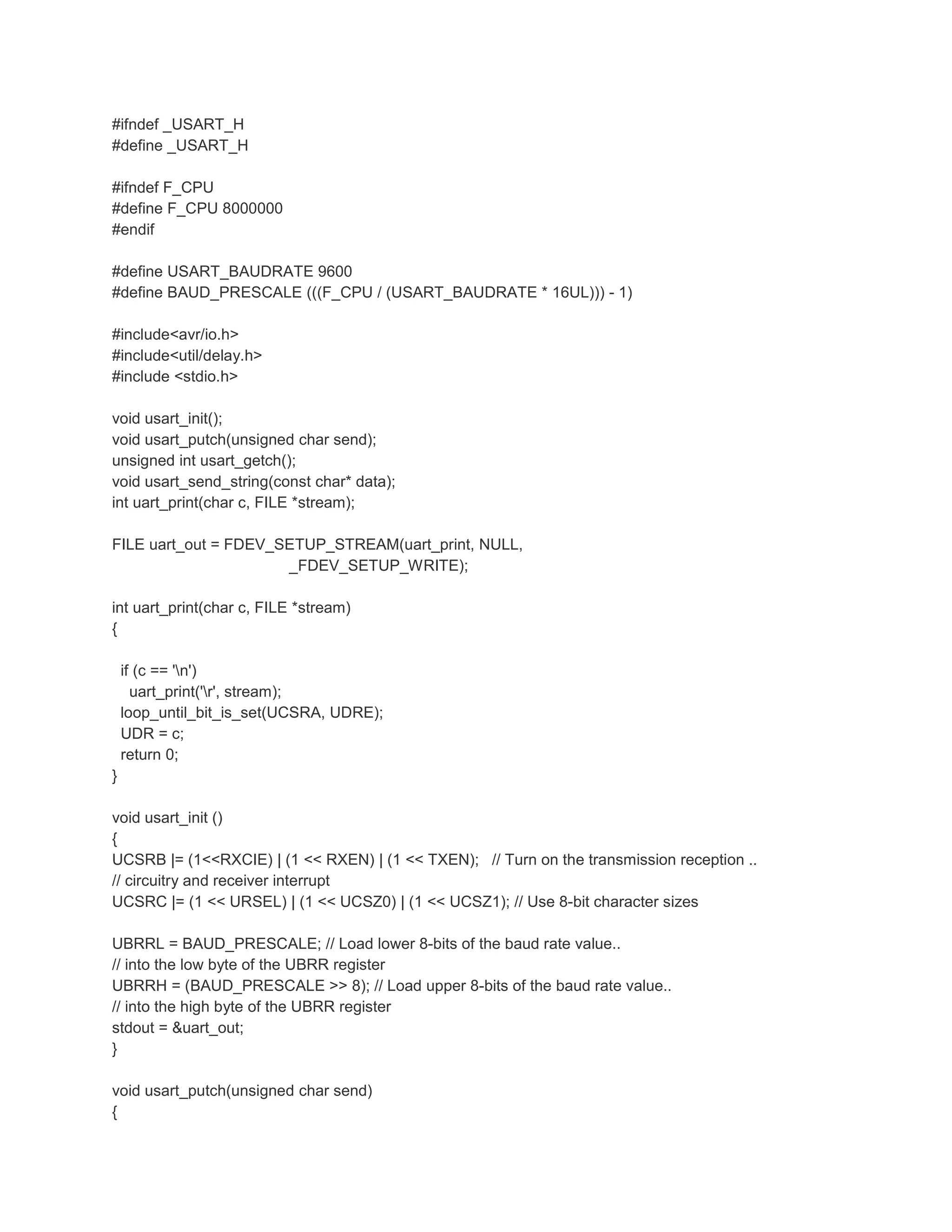

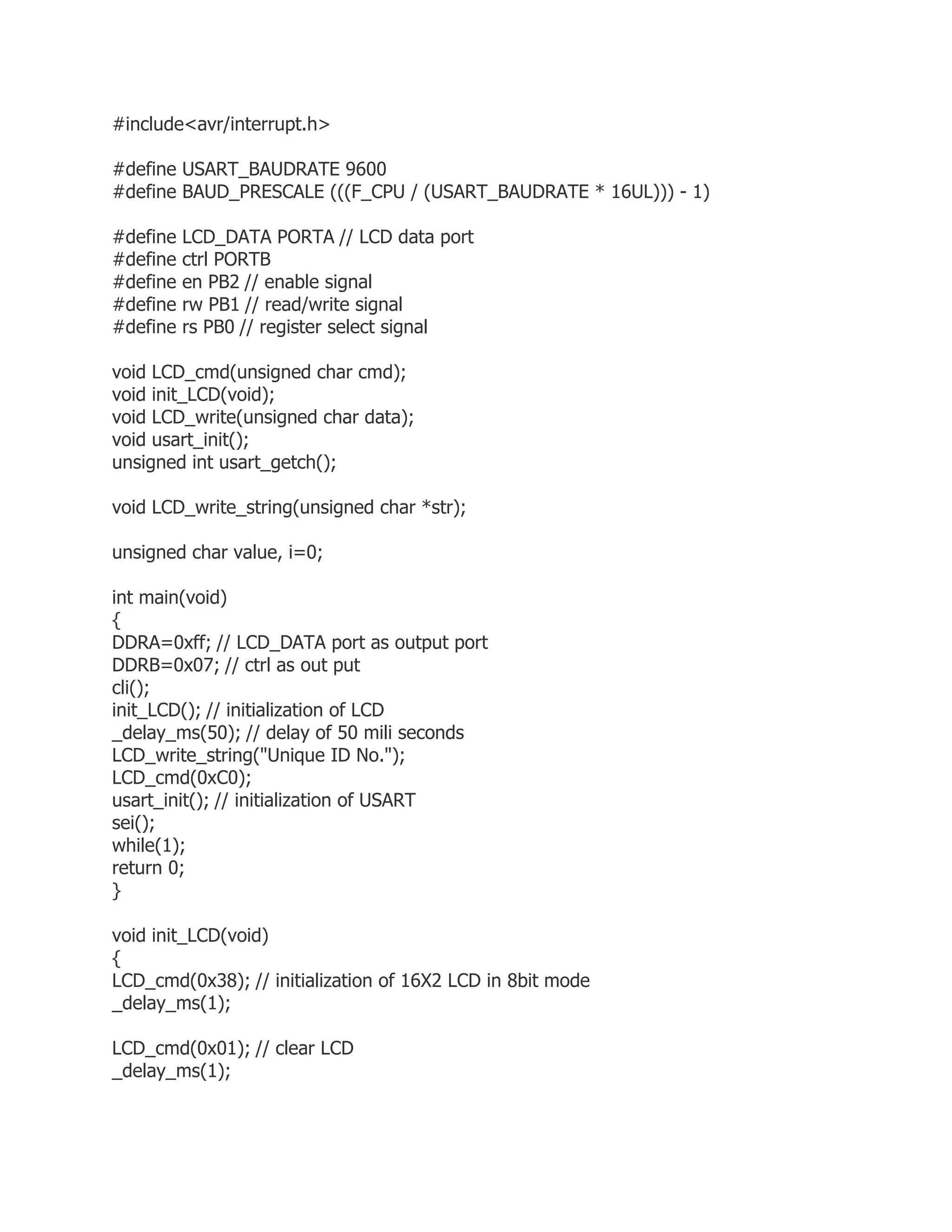

#define BAUD_PRESCALE (((F_CPU / (USART_BAUDRATE * 16UL))) - 1)

36. #define LCD_DATA PORTA //LCD data port
#define ctrl PORTB
#define en PB2 //enable signal
#define rw PB1 //read/write signal
#define rs PB0 //resister select signal
void LCD_cmd(unsigned char cmd);
void init_LCD(void);
void LCD_write(unsigned char data);
void LCD_write_string(unsigned char *str);
void usart_init();
unsigned int usart_getch();
unsigned char value,i,lati_value[15],lati_dir, longi_value[15], longi_dir, alti[5] ;
int main(void)
{
DDRA=0xff; //LCD_DATA port as out put port
DDRB=0x07; //ctrl as out put
init_LCD(); //initialization of LCD
_delay_ms(50); // delay of 50 mili seconds
LCD_write_string("we at");
LCD_cmd(0xC0);
usart_init(); // initialization of USART
while(1)
{
value=usart_getch();
if(value=='$')
{
value=usart_getch();
if(value=='G')
{
value=usart_getch();
if(value=='P')
{
value=usart_getch();
if(value=='G')
{
value=usart_getch();
if(value=='G')
{
value=usart_getch();

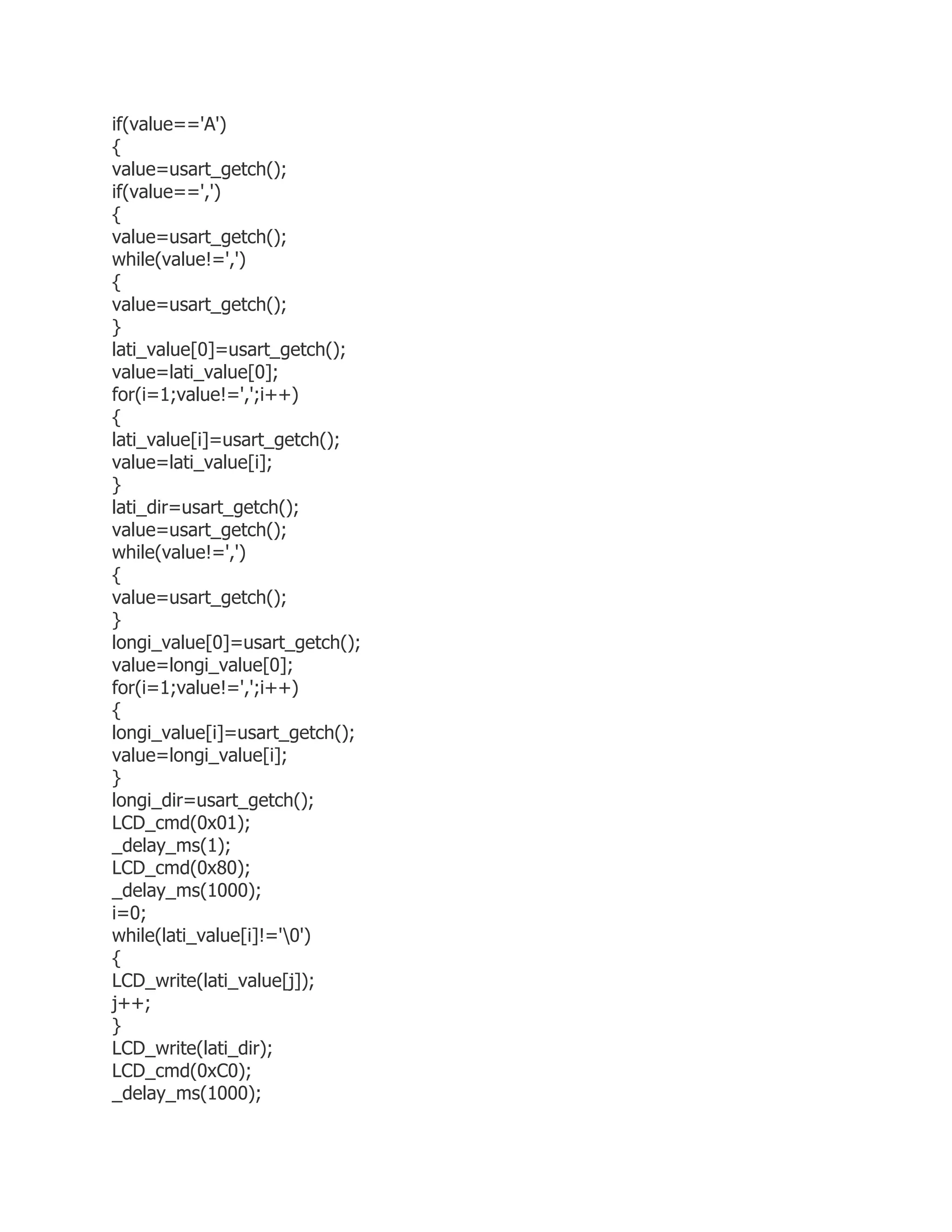

37. if(value=='A')
{
value=usart_getch();
if(value==',')
{
value=usart_getch();
while(value!=',')
{
value=usart_getch();
}
lati_value[0]=usart_getch();
value=lati_value[0];
for(i=1;value!=',';i++)
{
lati_value[i]=usart_getch();
value=lati_value[i];
}
lati_dir=usart_getch();
value=usart_getch();
while(value!=',')
{
value=usart_getch();
}
longi_value[0]=usart_getch();
value=longi_value[0];
for(i=1;value!=',';i++)
{
longi_value[i]=usart_getch();
value=longi_value[i];
}
longi_dir=usart_getch();
LCD_cmd(0x01);
_delay_ms(1);
LCD_cmd(0x80);
_delay_ms(1000);
i=0;
while(lati_value[i]!='0')
{
LCD_write(lati_value[j]);
j++;
}
LCD_write(lati_dir);
LCD_cmd(0xC0);
_delay_ms(1000);

38. i=0;

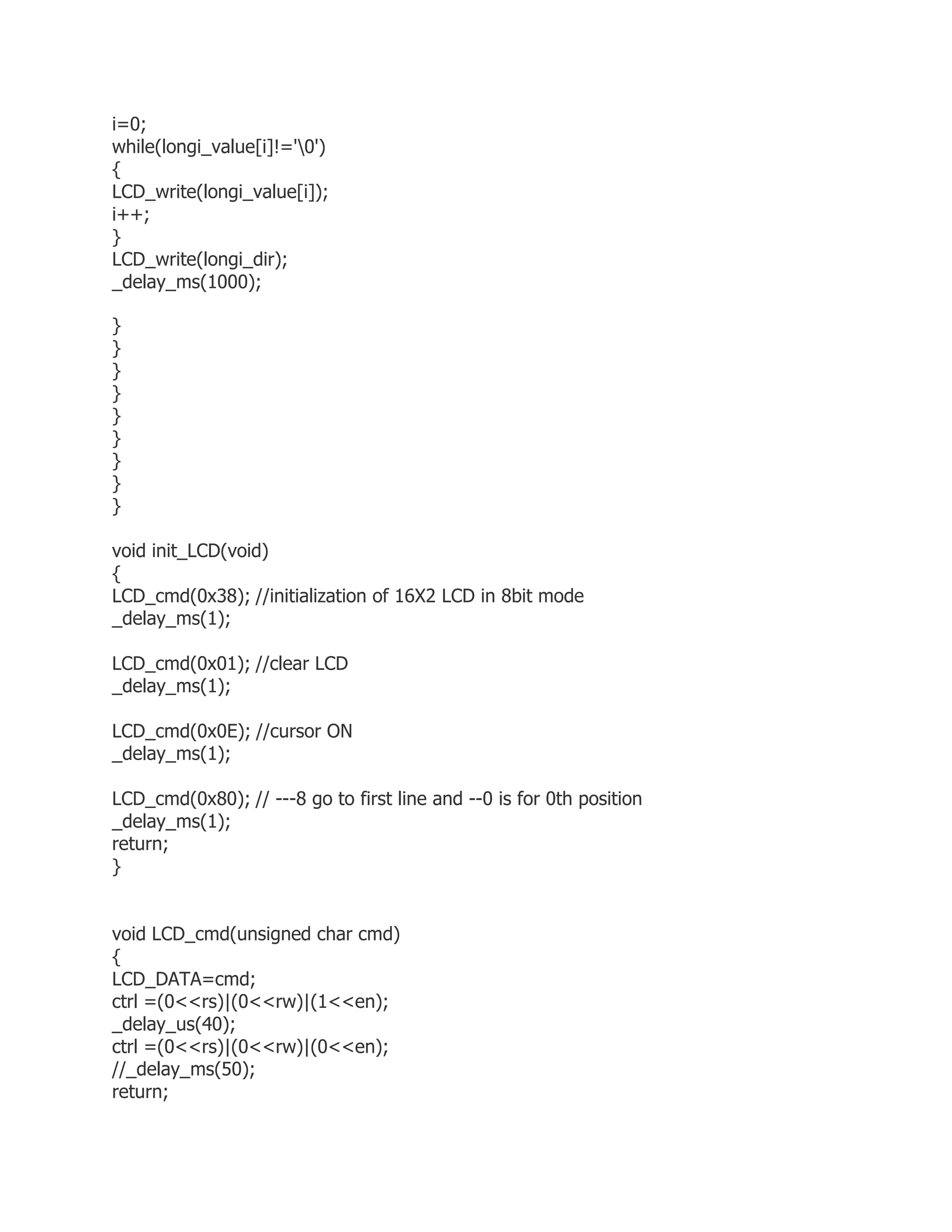

while(longi_value[i]!='0')
{
LCD_write(longi_value[i]);
i++;
}
LCD_write(longi_dir);
_delay_ms(1000);
}
}
}
}
}
}
}
}
}

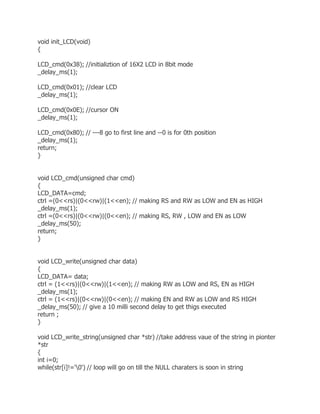

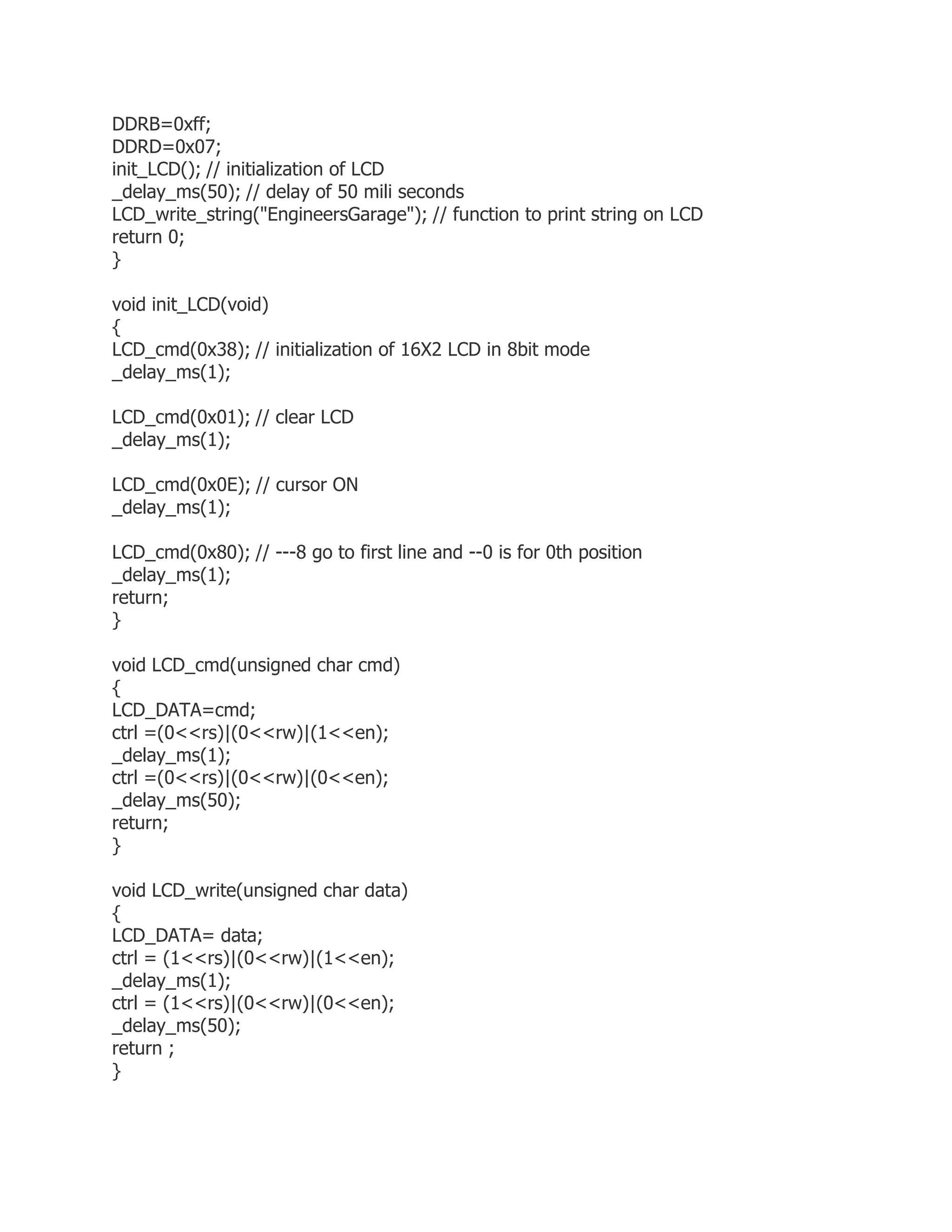

void init_LCD(void)
{
LCD_cmd(0x38); //initialization of 16X2 LCD in 8bit mode
_delay_ms(1);
LCD_cmd(0x01); //clear LCD
_delay_ms(1);
LCD_cmd(0x0E); //cursor ON
_delay_ms(1);
LCD_cmd(0x80); // ---8 go to first line and --0 is for 0th position
_delay_ms(1);
return;
}
void LCD_cmd(unsigned char cmd)
{
LCD_DATA=cmd;
ctrl =(0<<rs)|(0<<rw)|(1<<en);
_delay_us(40);
ctrl =(0<<rs)|(0<<rw)|(0<<en);
//_delay_ms(50);
return;

39. }

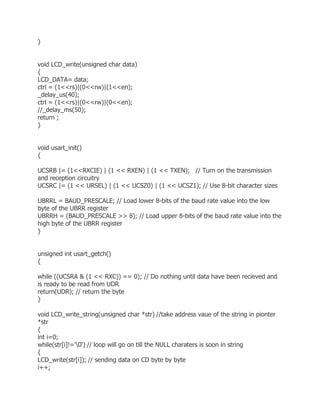

void LCD_write(unsigned char data)
{
LCD_DATA= data;
ctrl = (1<<rs)|(0<<rw)|(1<<en);
_delay_us(40);
ctrl = (1<<rs)|(0<<rw)|(0<<en);
//_delay_ms(50);
return ;
}
void usart_init()
{

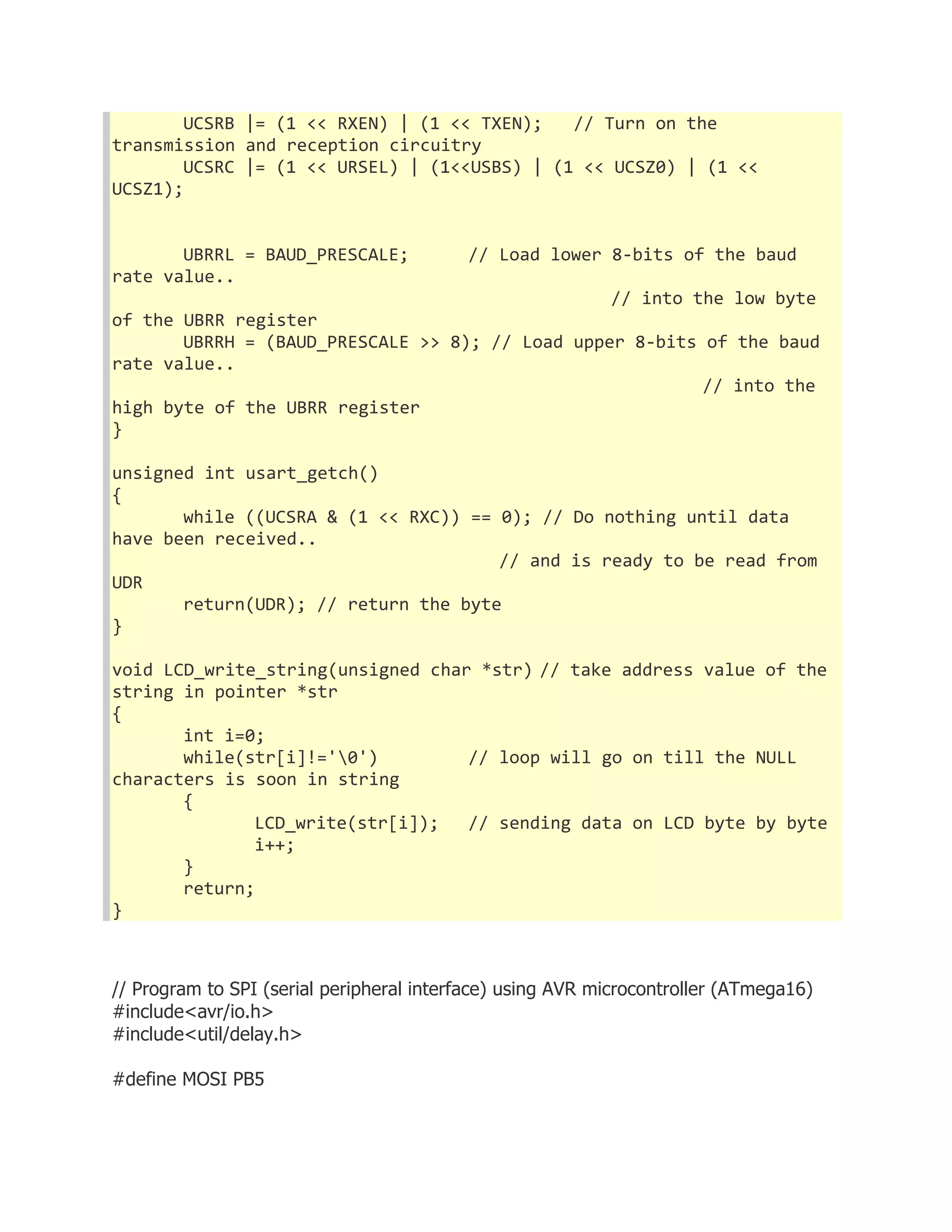

UCSRB |= (1<<RXCIE) | (1 << RXEN) | (1 << TXEN); // Turn on the transmission
and reception circuitry
UCSRC |= (1 << URSEL) | (1 << UCSZ0) | (1 << UCSZ1); // Use 8-bit character sizes
UBRRL = BAUD_PRESCALE; // Load lower 8-bits of the baud rate value into the low
byte of the UBRR register
UBRRH = (BAUD_PRESCALE >> 8); // Load upper 8-bits of the baud rate value into the
high byte of the UBRR register
}
unsigned int usart_getch()
{
while ((UCSRA & (1 << RXC)) == 0); // Do nothing until data have been recieved and
is ready to be read from UDR
return(UDR); // return the byte
}

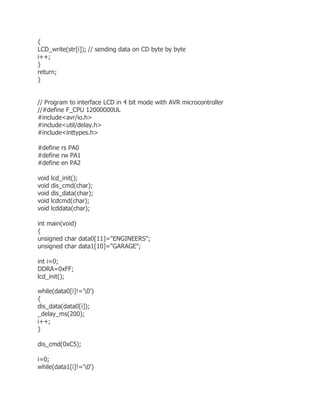

void LCD_write_string(unsigned char *str) //take address vaue of the string in pionter
*str
{
int i=0;
while(str[i]!='0') // loop will go on till the NULL charaters is soon in string
{
LCD_write(str[i]); // sending data on CD byte by byte
i++;

40. }
return;
}

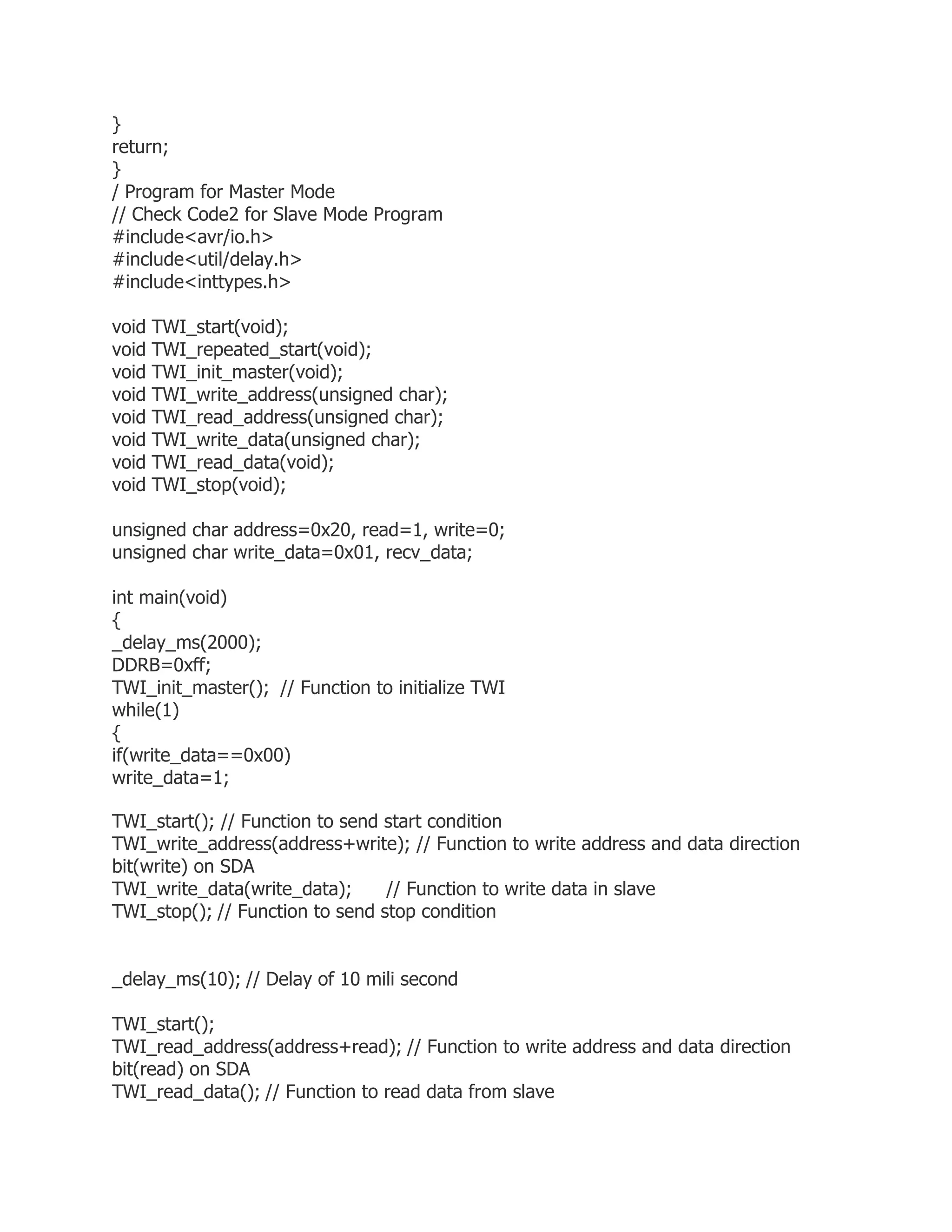

/ Program for Master Mode
// Check Code2 for Slave Mode Program
#include<avr/io.h>
#include<util/delay.h>
#include<inttypes.h>
void TWI_start(void);
void TWI_repeated_start(void);
void TWI_init_master(void);
void TWI_write_address(unsigned char);
void TWI_read_address(unsigned char);
void TWI_write_data(unsigned char);
void TWI_read_data(void);
void TWI_stop(void);
unsigned char address=0x20, read=1, write=0;
unsigned char write_data=0x01, recv_data;
int main(void)
{
_delay_ms(2000);
DDRB=0xff;
TWI_init_master(); // Function to initialize TWI
while(1)
{
if(write_data==0x00)
write_data=1;
TWI_start(); // Function to send start condition
TWI_write_address(address+write); // Function to write address and data direction
bit(write) on SDA
TWI_write_data(write_data); // Function to write data in slave
TWI_stop(); // Function to send stop condition
_delay_ms(10); // Delay of 10 mili second
TWI_start();
TWI_read_address(address+read); // Function to write address and data direction
bit(read) on SDA
TWI_read_data(); // Function to read data from slave

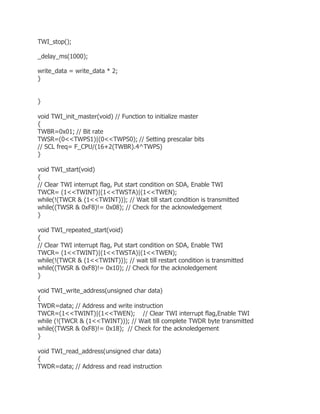

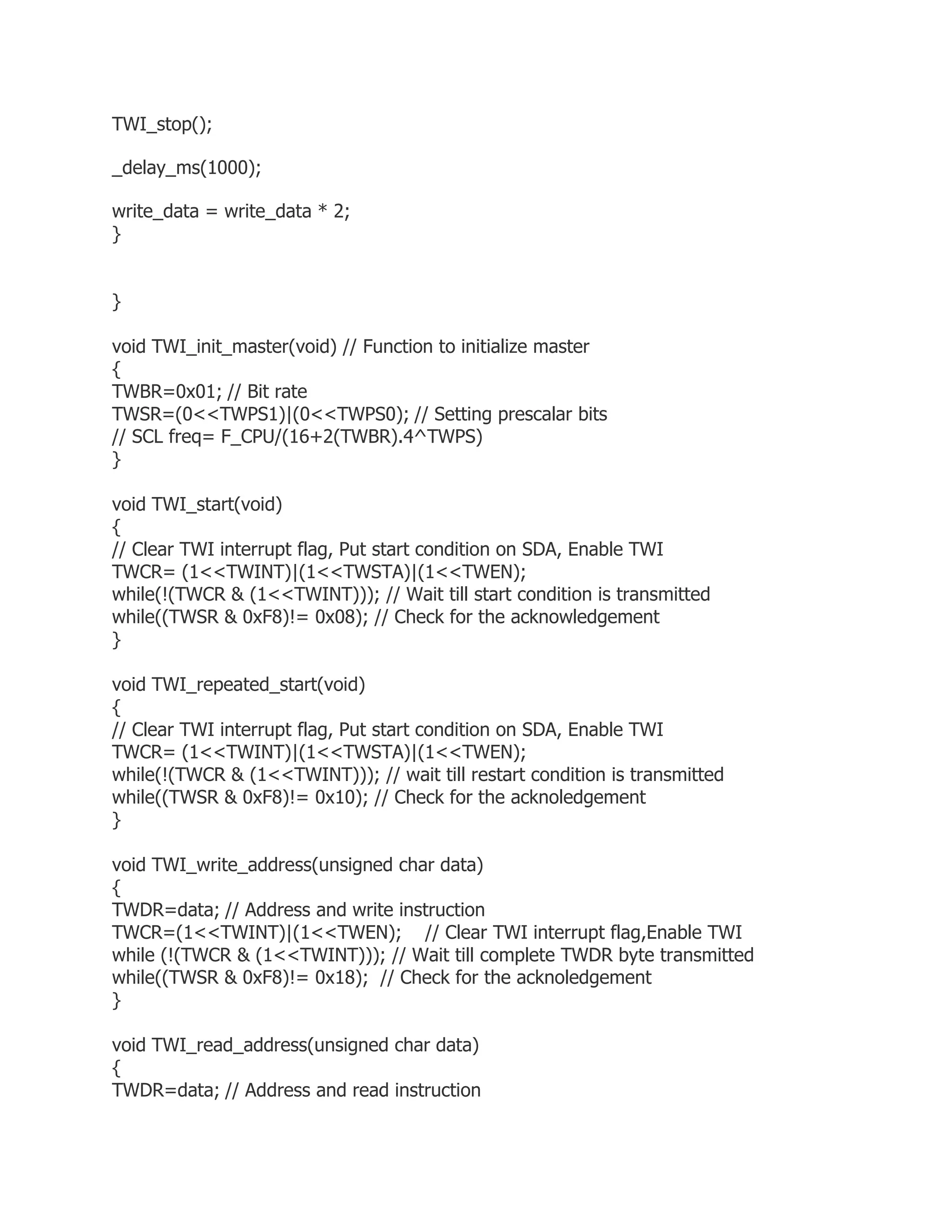

41. TWI_stop();
_delay_ms(1000);
write_data = write_data * 2;
}
}
void TWI_init_master(void) // Function to initialize master
{
TWBR=0x01; // Bit rate
TWSR=(0<<TWPS1)|(0<<TWPS0); // Setting prescalar bits
// SCL freq= F_CPU/(16+2(TWBR).4^TWPS)
}
void TWI_start(void)
{
// Clear TWI interrupt flag, Put start condition on SDA, Enable TWI
TWCR= (1<<TWINT)|(1<<TWSTA)|(1<<TWEN);
while(!(TWCR & (1<<TWINT))); // Wait till start condition is transmitted
while((TWSR & 0xF8)!= 0x08); // Check for the acknowledgement
}
void TWI_repeated_start(void)
{
// Clear TWI interrupt flag, Put start condition on SDA, Enable TWI
TWCR= (1<<TWINT)|(1<<TWSTA)|(1<<TWEN);
while(!(TWCR & (1<<TWINT))); // wait till restart condition is transmitted
while((TWSR & 0xF8)!= 0x10); // Check for the acknoledgement
}
void TWI_write_address(unsigned char data)
{
TWDR=data; // Address and write instruction
TWCR=(1<<TWINT)|(1<<TWEN); // Clear TWI interrupt flag,Enable TWI
while (!(TWCR & (1<<TWINT))); // Wait till complete TWDR byte transmitted
while((TWSR & 0xF8)!= 0x18); // Check for the acknoledgement
}
void TWI_read_address(unsigned char data)
{
TWDR=data; // Address and read instruction

42. TWCR=(1<<TWINT)|(1<<TWEN); // Clear TWI interrupt flag,Enable TWI
while (!(TWCR & (1<<TWINT))); // Wait till complete TWDR byte received
while((TWSR & 0xF8)!= 0x40); // Check for the acknoledgement
}

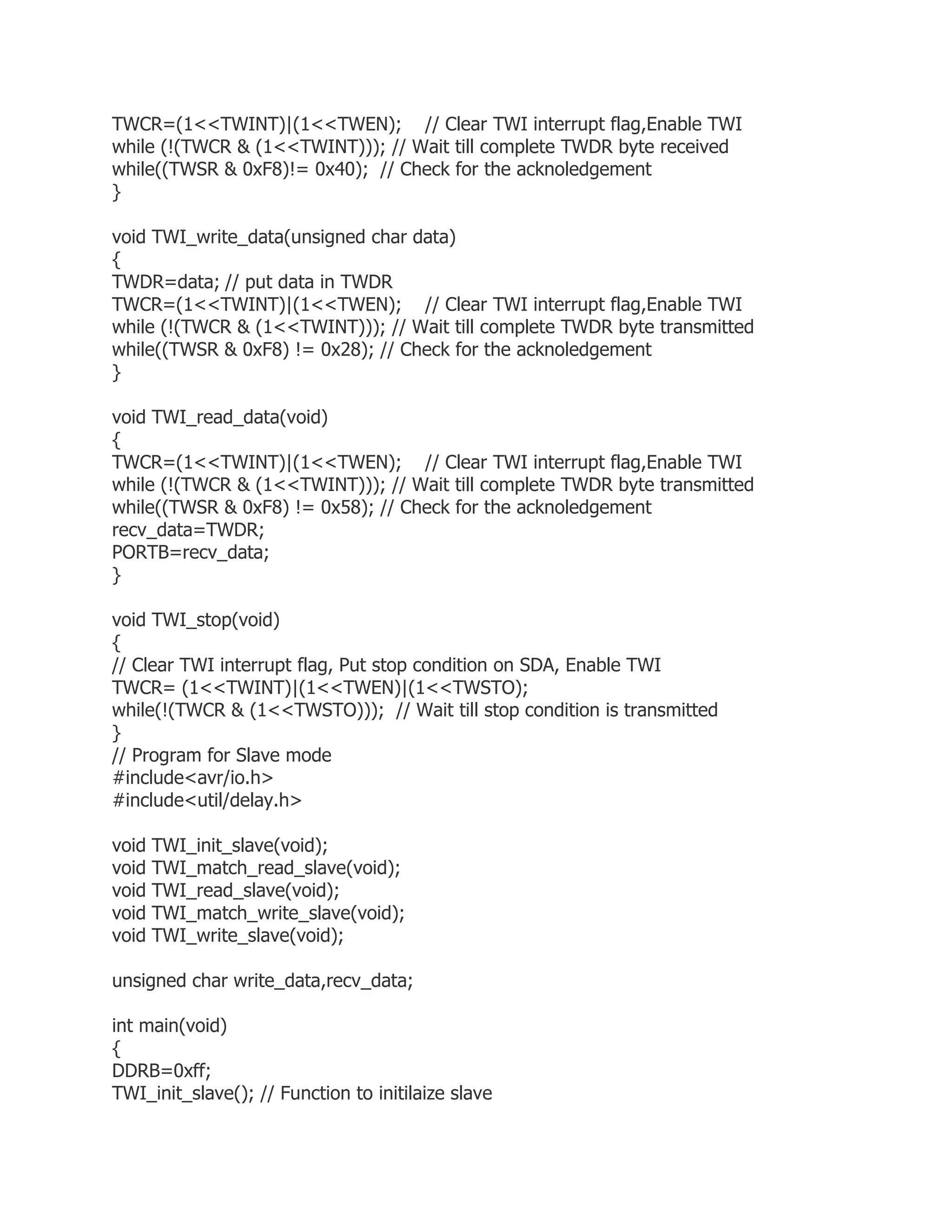

void TWI_write_data(unsigned char data)
{
TWDR=data; // put data in TWDR
TWCR=(1<<TWINT)|(1<<TWEN); // Clear TWI interrupt flag,Enable TWI
while (!(TWCR & (1<<TWINT))); // Wait till complete TWDR byte transmitted
while((TWSR & 0xF8) != 0x28); // Check for the acknoledgement
}
void TWI_read_data(void)
{
TWCR=(1<<TWINT)|(1<<TWEN); // Clear TWI interrupt flag,Enable TWI
while (!(TWCR & (1<<TWINT))); // Wait till complete TWDR byte transmitted
while((TWSR & 0xF8) != 0x58); // Check for the acknoledgement
recv_data=TWDR;
PORTB=recv_data;
}
void TWI_stop(void)
{
// Clear TWI interrupt flag, Put stop condition on SDA, Enable TWI
TWCR= (1<<TWINT)|(1<<TWEN)|(1<<TWSTO);
while(!(TWCR & (1<<TWSTO))); // Wait till stop condition is transmitted
}
// Program for Slave mode
#include<avr/io.h>
#include<util/delay.h>
void TWI_init_slave(void);
void TWI_match_read_slave(void);
void TWI_read_slave(void);
void TWI_match_write_slave(void);
void TWI_write_slave(void);
unsigned char write_data,recv_data;
int main(void)
{
DDRB=0xff;
TWI_init_slave(); // Function to initilaize slave

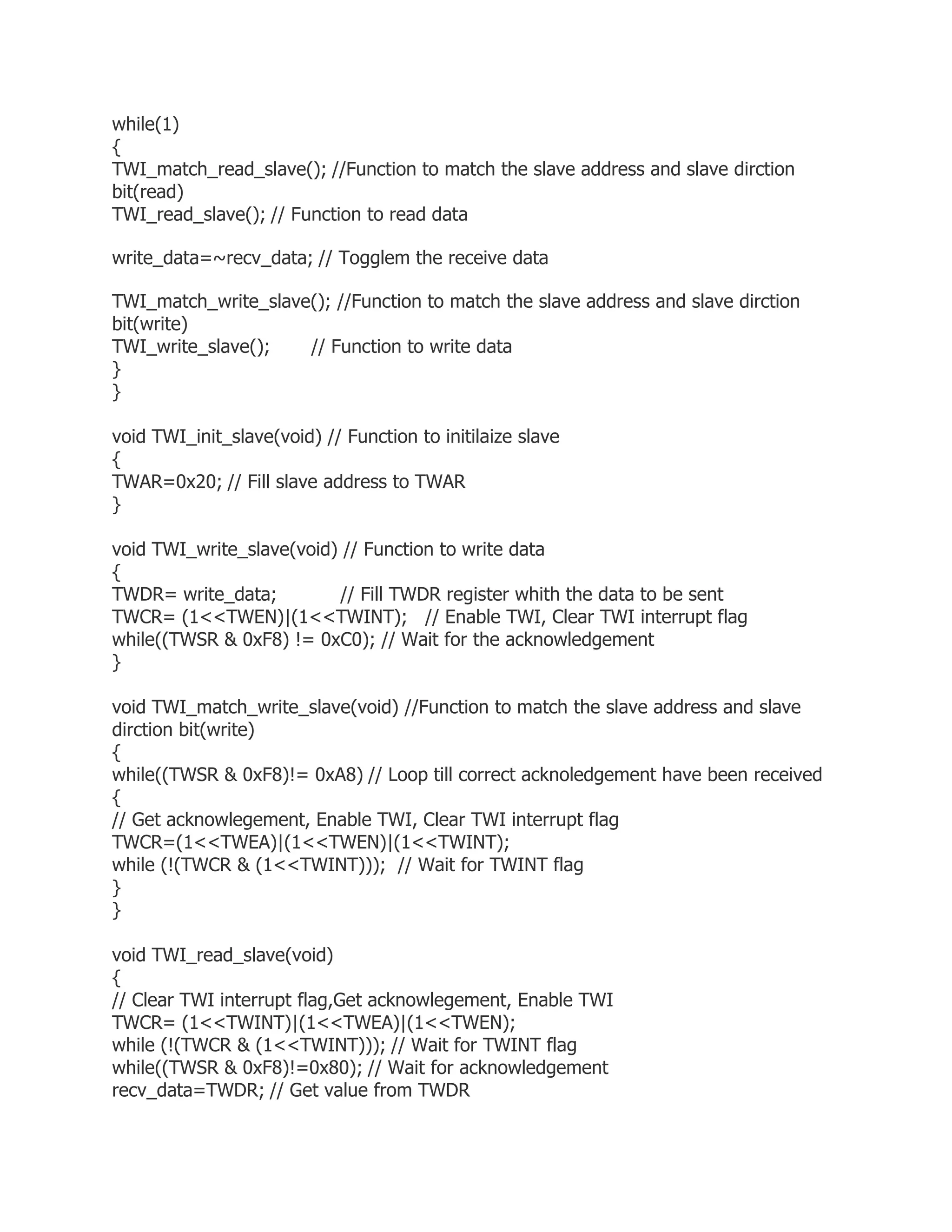

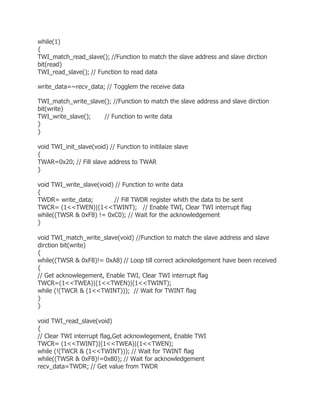

43. while(1)
{
TWI_match_read_slave(); //Function to match the slave address and slave dirction
bit(read)
TWI_read_slave(); // Function to read data
write_data=~recv_data; // Togglem the receive data
TWI_match_write_slave(); //Function to match the slave address and slave dirction
bit(write)
TWI_write_slave(); // Function to write data
}
}
void TWI_init_slave(void) // Function to initilaize slave
{
TWAR=0x20; // Fill slave address to TWAR
}
void TWI_write_slave(void) // Function to write data
{
TWDR= write_data; // Fill TWDR register whith the data to be sent
TWCR= (1<<TWEN)|(1<<TWINT); // Enable TWI, Clear TWI interrupt flag
while((TWSR & 0xF8) != 0xC0); // Wait for the acknowledgement
}
void TWI_match_write_slave(void) //Function to match the slave address and slave
dirction bit(write)
{
while((TWSR & 0xF8)!= 0xA8) // Loop till correct acknoledgement have been received
{
// Get acknowlegement, Enable TWI, Clear TWI interrupt flag
TWCR=(1<<TWEA)|(1<<TWEN)|(1<<TWINT);
while (!(TWCR & (1<<TWINT))); // Wait for TWINT flag
}
}
void TWI_read_slave(void)
{
// Clear TWI interrupt flag,Get acknowlegement, Enable TWI
TWCR= (1<<TWINT)|(1<<TWEA)|(1<<TWEN);
while (!(TWCR & (1<<TWINT))); // Wait for TWINT flag
while((TWSR & 0xF8)!=0x80); // Wait for acknowledgement
recv_data=TWDR; // Get value from TWDR

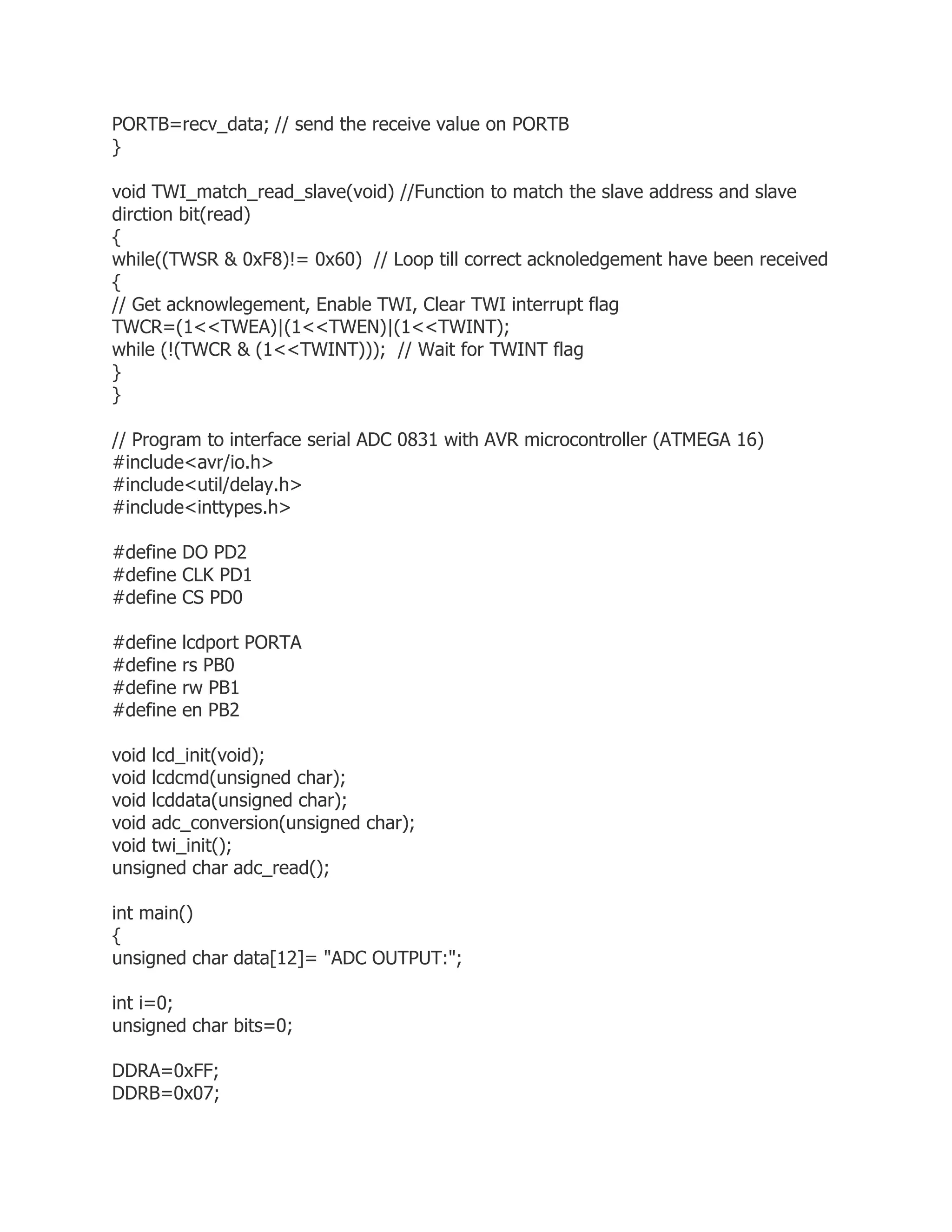

44. PORTB=recv_data; // send the receive value on PORTB
}
void TWI_match_read_slave(void) //Function to match the slave address and slave
dirction bit(read)
{
while((TWSR & 0xF8)!= 0x60) // Loop till correct acknoledgement have been received
{
// Get acknowlegement, Enable TWI, Clear TWI interrupt flag
TWCR=(1<<TWEA)|(1<<TWEN)|(1<<TWINT);
while (!(TWCR & (1<<TWINT))); // Wait for TWINT flag
}
}
// Program to interface serial ADC 0831 with AVR microcontroller (ATMEGA 16)
#include<avr/io.h>
#include<util/delay.h>
#include<inttypes.h>
#define DO PD2
#define CLK PD1
#define CS PD0
#define lcdport PORTA
#define rs PB0
#define rw PB1
#define en PB2
void lcd_init(void);
void lcdcmd(unsigned char);
void lcddata(unsigned char);
void adc_conversion(unsigned char);
void twi_init();
unsigned char adc_read();
int main()
{
unsigned char data[12]= "ADC OUTPUT:";
int i=0;
unsigned char bits=0;
DDRA=0xFF;
DDRB=0x07;

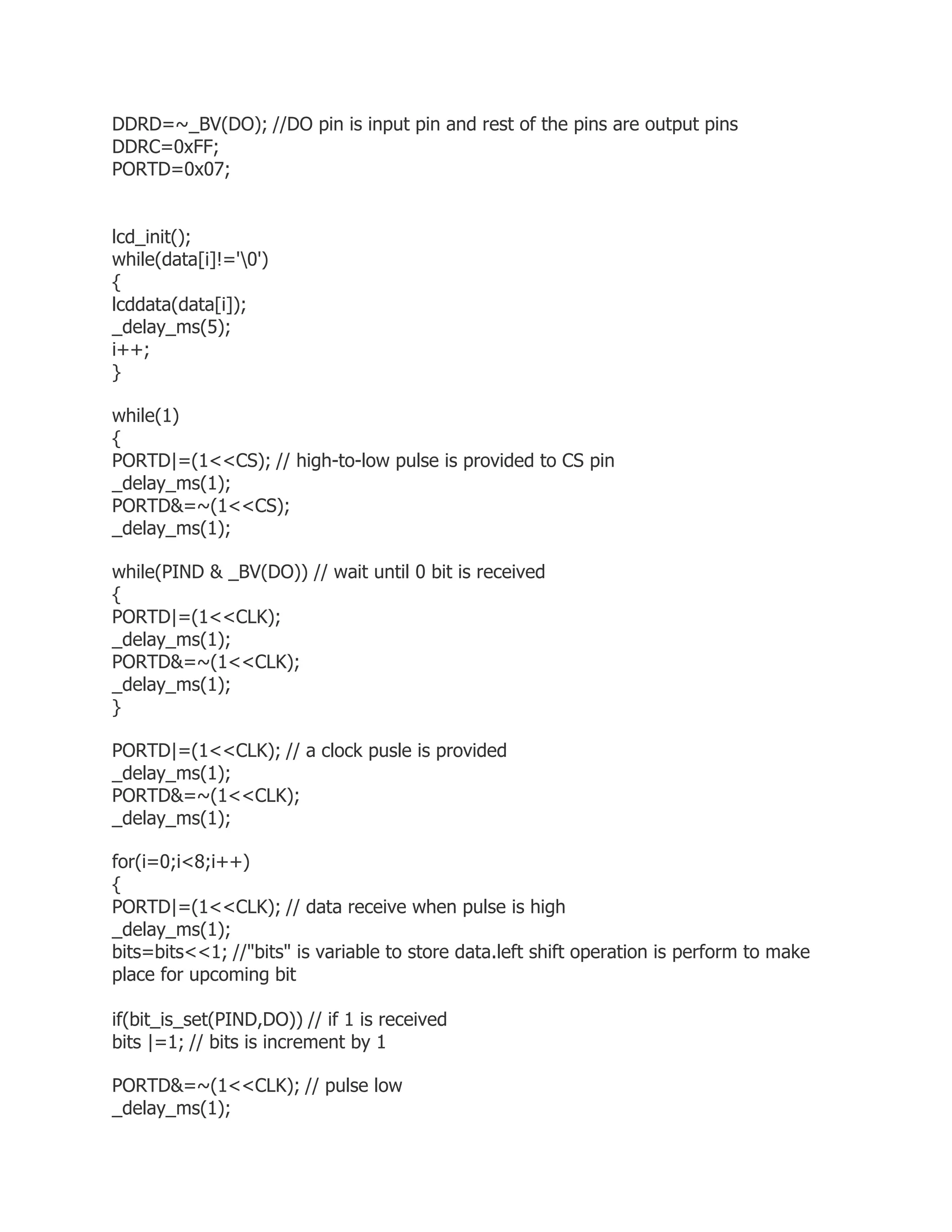

45. DDRD=~_BV(DO); //DO pin is input pin and rest of the pins are output pins
DDRC=0xFF;
PORTD=0x07;
lcd_init();
while(data[i]!='0')
{
lcddata(data[i]);
_delay_ms(5);
i++;
}
while(1)
{
PORTD|=(1<<CS); // high-to-low pulse is provided to CS pin
_delay_ms(1);
PORTD&=~(1<<CS);
_delay_ms(1);
while(PIND & _BV(DO)) // wait until 0 bit is received
{
PORTD|=(1<<CLK);
_delay_ms(1);
PORTD&=~(1<<CLK);
_delay_ms(1);
}
PORTD|=(1<<CLK); // a clock pusle is provided
_delay_ms(1);
PORTD&=~(1<<CLK);
_delay_ms(1);
for(i=0;i<8;i++)
{
PORTD|=(1<<CLK); // data receive when pulse is high
_delay_ms(1);
bits=bits<<1; //"bits" is variable to store data.left shift operation is perform to make
place for upcoming bit
if(bit_is_set(PIND,DO)) // if 1 is received
bits |=1; // bits is increment by 1
PORTD&=~(1<<CLK); // pulse low
_delay_ms(1);

46. }
adc_conversion(bits); //
}
}

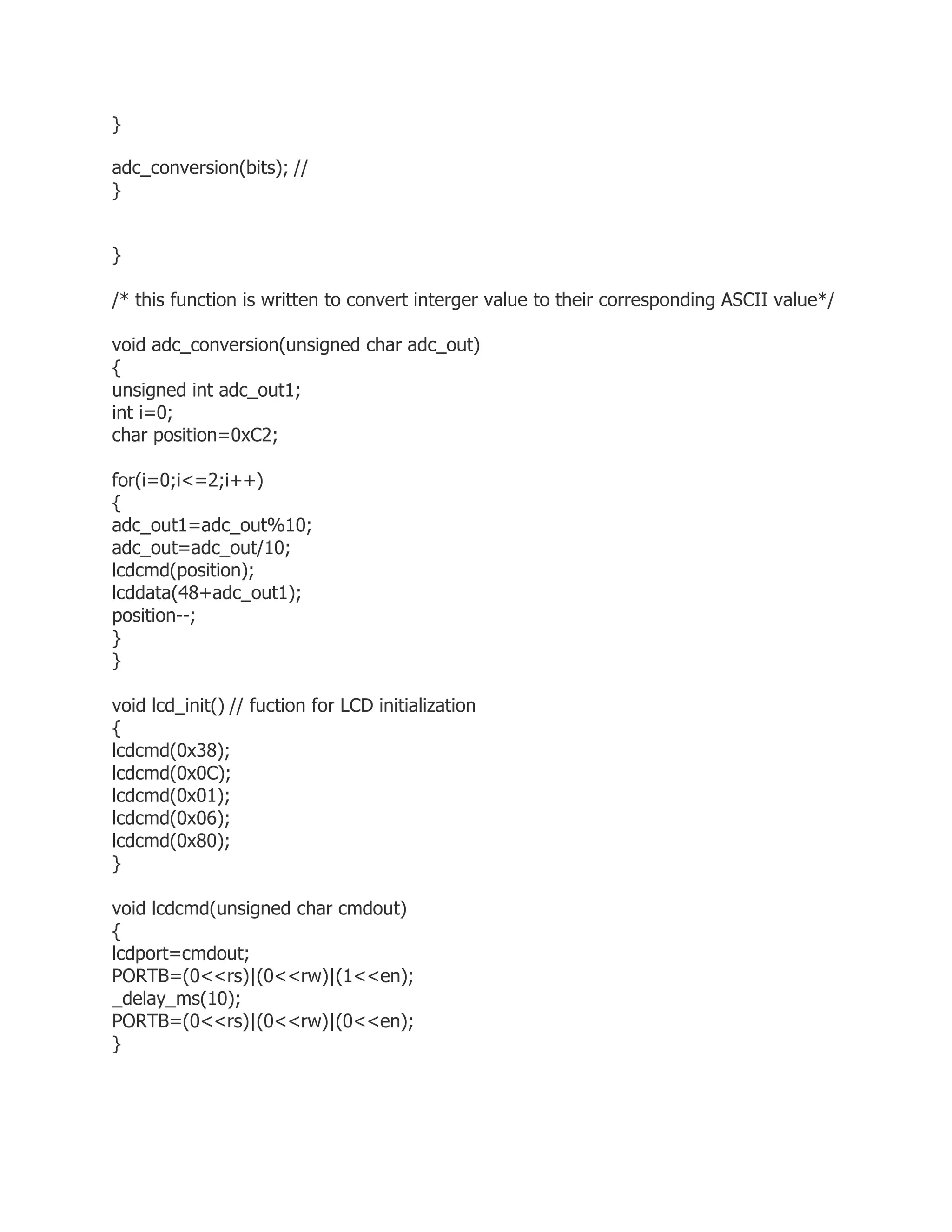

/* this function is written to convert interger value to their corresponding ASCII value*/
void adc_conversion(unsigned char adc_out)
{
unsigned int adc_out1;
int i=0;
char position=0xC2;
for(i=0;i<=2;i++)
{
adc_out1=adc_out%10;
adc_out=adc_out/10;
lcdcmd(position);
lcddata(48+adc_out1);
position--;
}
}
void lcd_init() // fuction for LCD initialization
{
lcdcmd(0x38);
lcdcmd(0x0C);
lcdcmd(0x01);
lcdcmd(0x06);
lcdcmd(0x80);
}
void lcdcmd(unsigned char cmdout)
{
lcdport=cmdout;
PORTB=(0<<rs)|(0<<rw)|(1<<en);
_delay_ms(10);
PORTB=(0<<rs)|(0<<rw)|(0<<en);
}

47. void lcddata(unsigned char dataout)
{
lcdport=dataout;
PORTB=(1<<rs)|(0<<rw)|(1<<en);
_delay_ms(10);
PORTB=(1<<rs)|(0<<rw)|(0<<en);
}

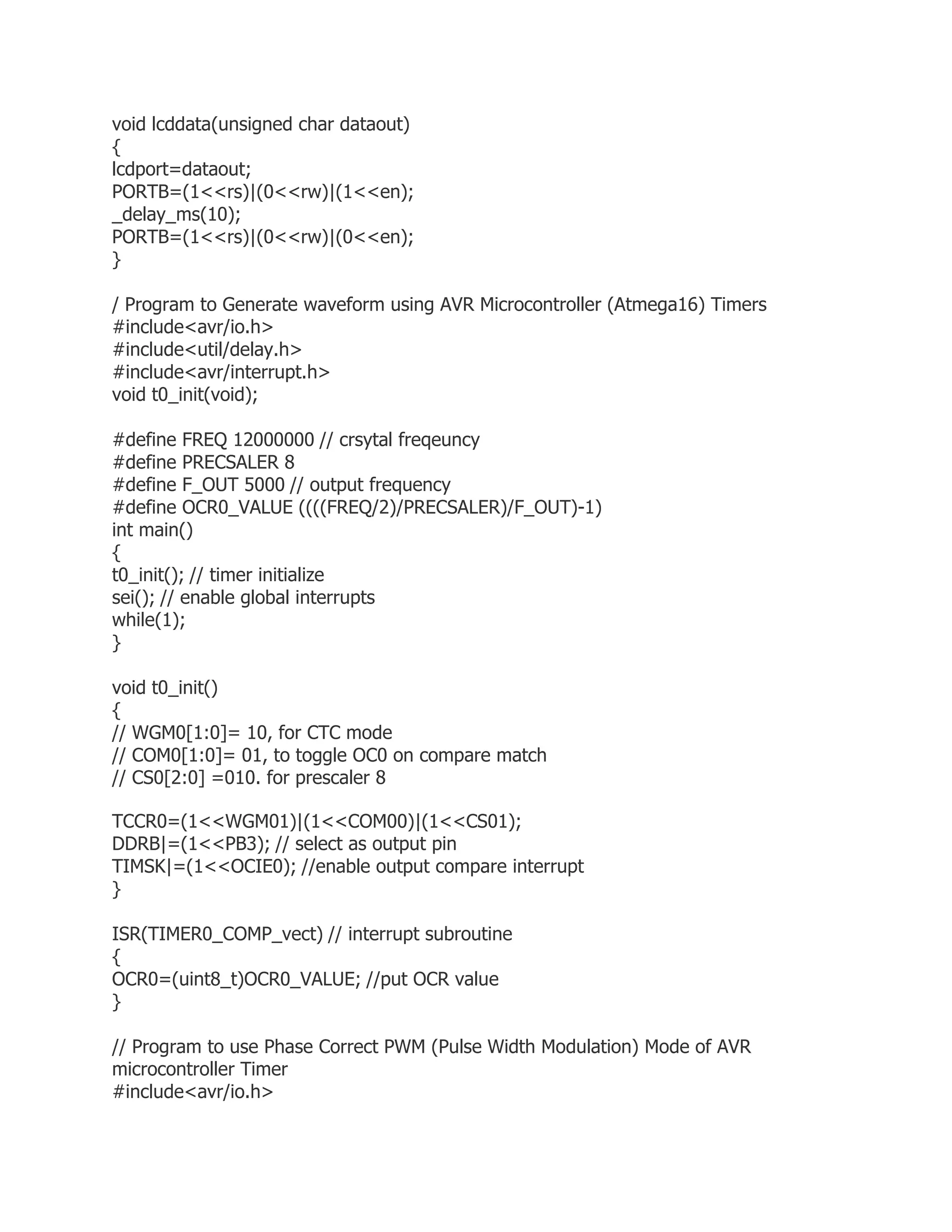

/ Program to Generate waveform using AVR Microcontroller (Atmega16) Timers
#include<avr/io.h>
#include<util/delay.h>
#include<avr/interrupt.h>
void t0_init(void);
#define FREQ 12000000 // crsytal freqeuncy
#define PRECSALER 8
#define F_OUT 5000 // output frequency
#define OCR0_VALUE ((((FREQ/2)/PRECSALER)/F_OUT)-1)
int main()
{
t0_init(); // timer initialize
sei(); // enable global interrupts
while(1);
}
void t0_init()
{
// WGM0[1:0]= 10, for CTC mode
// COM0[1:0]= 01, to toggle OC0 on compare match
// CS0[2:0] =010. for prescaler 8
TCCR0=(1<<WGM01)|(1<<COM00)|(1<<CS01);
DDRB|=(1<<PB3); // select as output pin
TIMSK|=(1<<OCIE0); //enable output compare interrupt
}
ISR(TIMER0_COMP_vect) // interrupt subroutine
{
OCR0=(uint8_t)OCR0_VALUE; //put OCR value
}
// Program to use Phase Correct PWM (Pulse Width Modulation) Mode of AVR
microcontroller Timer
#include<avr/io.h>

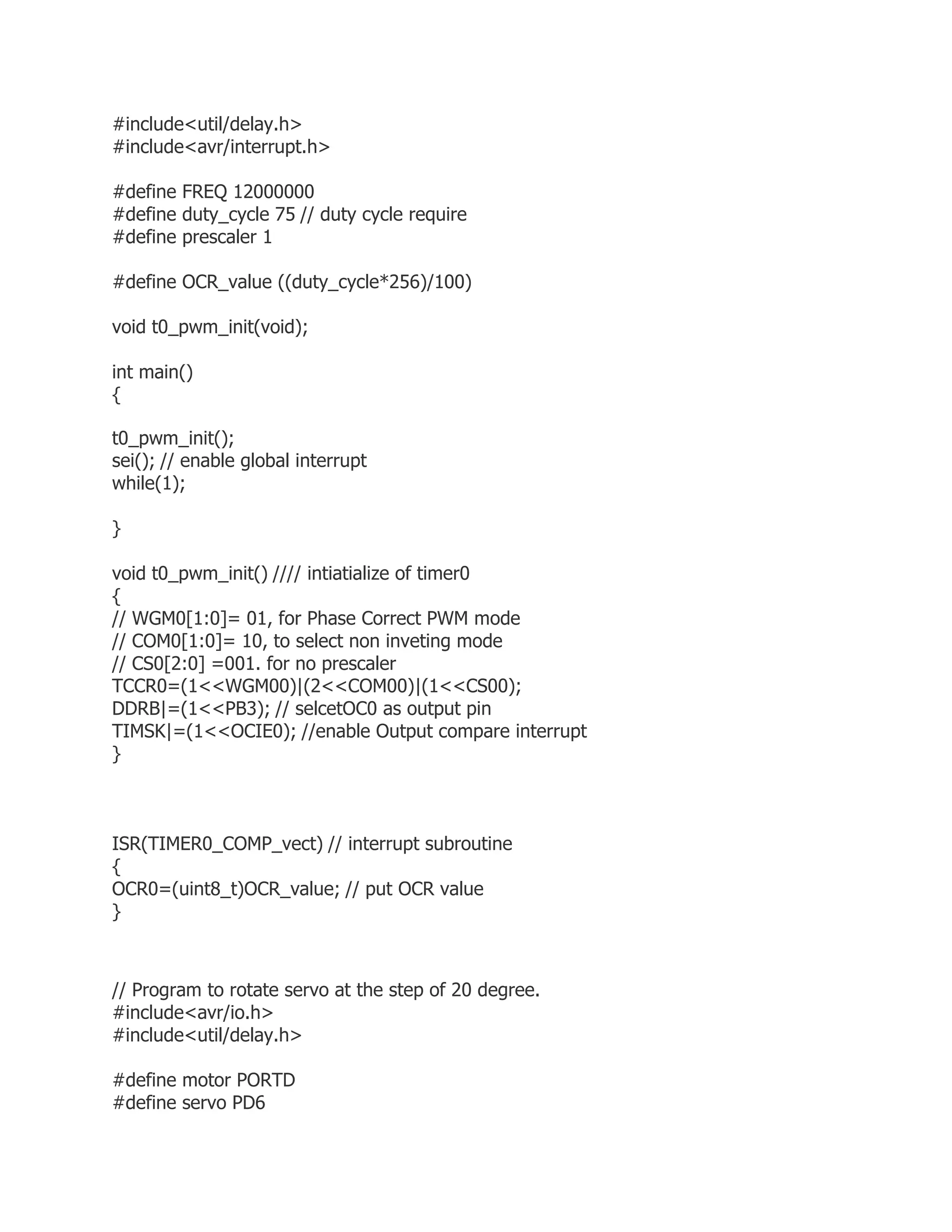

48. #include<util/delay.h>
#include<avr/interrupt.h>
#define FREQ 12000000
#define duty_cycle 75 // duty cycle require
#define prescaler 1
#define OCR_value ((duty_cycle*256)/100)
void t0_pwm_init(void);
int main()
{
t0_pwm_init();
sei(); // enable global interrupt
while(1);
}
void t0_pwm_init() //// intiatialize of timer0
{
// WGM0[1:0]= 01, for Phase Correct PWM mode
// COM0[1:0]= 10, to select non inveting mode
// CS0[2:0] =001. for no prescaler
TCCR0=(1<<WGM00)|(2<<COM00)|(1<<CS00);
DDRB|=(1<<PB3); // selcetOC0 as output pin
TIMSK|=(1<<OCIE0); //enable Output compare interrupt
}
ISR(TIMER0_COMP_vect) // interrupt subroutine
{
OCR0=(uint8_t)OCR_value; // put OCR value
}
// Program to rotate servo at the step of 20 degree.
#include<avr/io.h>
#include<util/delay.h>
#define motor PORTD
#define servo PD6

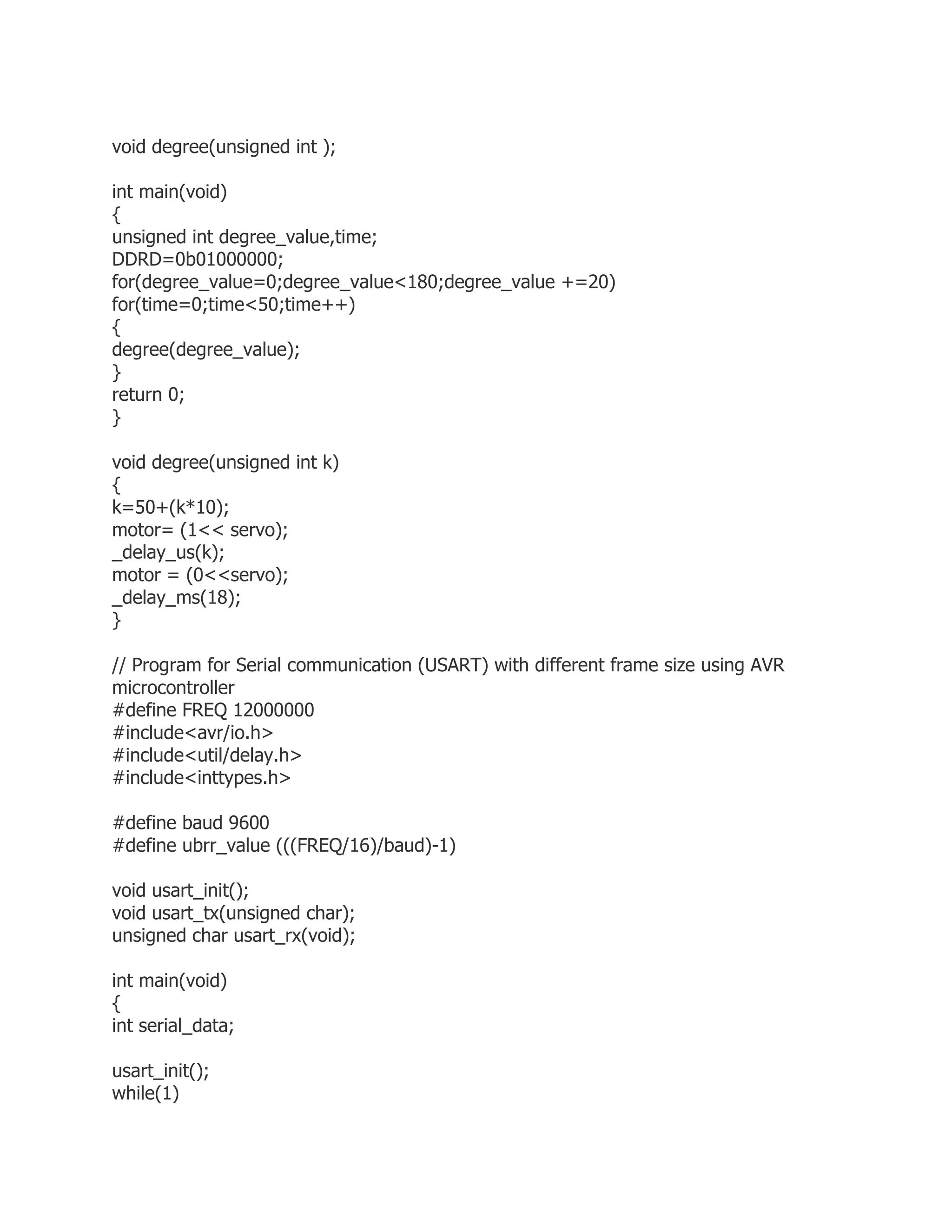

49. void degree(unsigned int );
int main(void)
{
unsigned int degree_value,time;
DDRD=0b01000000;
for(degree_value=0;degree_value<180;degree_value +=20)
for(time=0;time<50;time++)
{
degree(degree_value);
}
return 0;
}
void degree(unsigned int k)
{
k=50+(k*10);
motor= (1<< servo);
_delay_us(k);
motor = (0<<servo);
_delay_ms(18);
}
// Program for Serial communication (USART) with different frame size using AVR
microcontroller
#define FREQ 12000000
#include<avr/io.h>
#include<util/delay.h>
#include<inttypes.h>
#define baud 9600
#define ubrr_value (((FREQ/16)/baud)-1)
void usart_init();
void usart_tx(unsigned char);
unsigned char usart_rx(void);
int main(void)
{
int serial_data;
usart_init();
while(1)

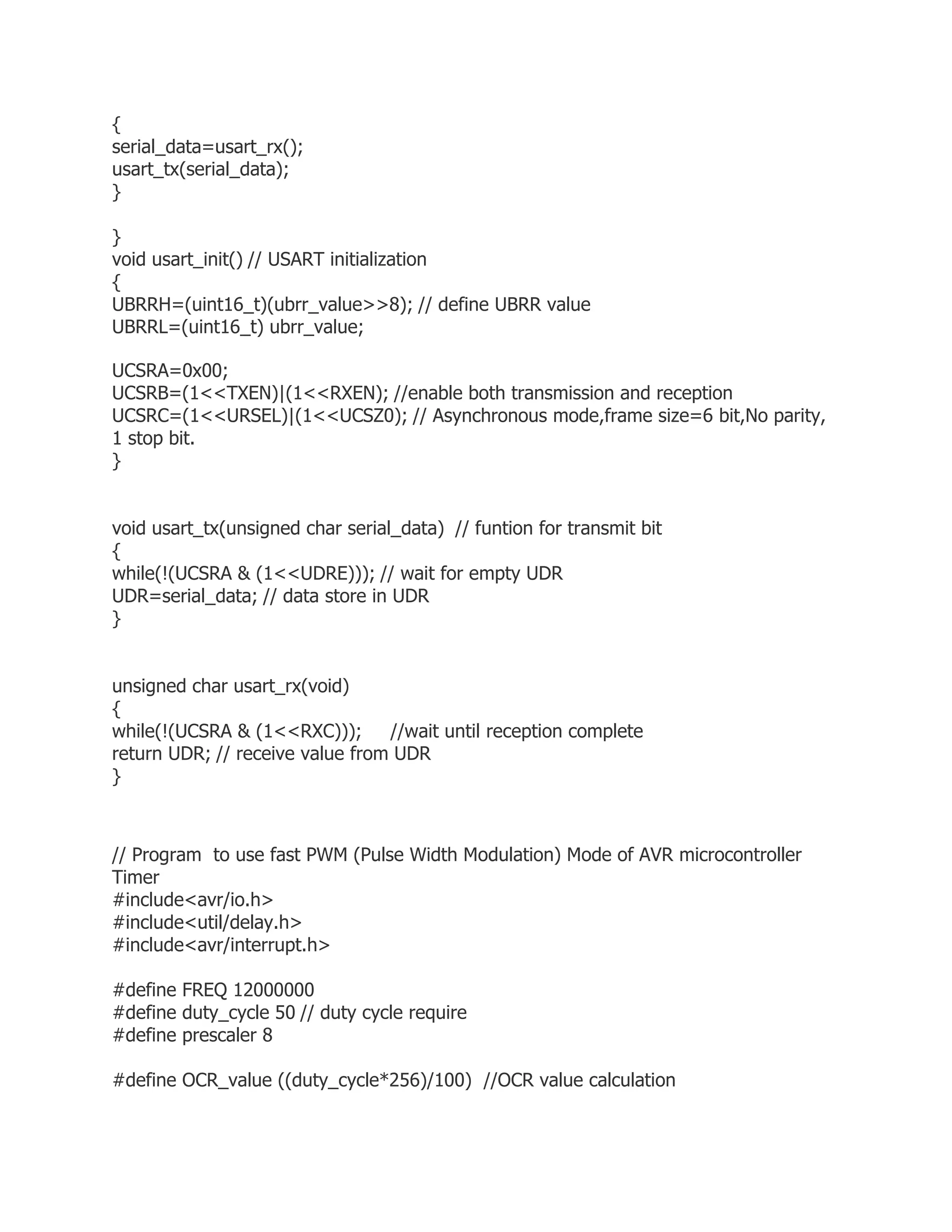

50. {
serial_data=usart_rx();
usart_tx(serial_data);
}
}
void usart_init() // USART initialization
{
UBRRH=(uint16_t)(ubrr_value>>8); // define UBRR value
UBRRL=(uint16_t) ubrr_value;
UCSRA=0x00;
UCSRB=(1<<TXEN)|(1<<RXEN); //enable both transmission and reception
UCSRC=(1<<URSEL)|(1<<UCSZ0); // Asynchronous mode,frame size=6 bit,No parity,
1 stop bit.
}
void usart_tx(unsigned char serial_data) // funtion for transmit bit
{
while(!(UCSRA & (1<<UDRE))); // wait for empty UDR
UDR=serial_data; // data store in UDR
}
unsigned char usart_rx(void)
{
while(!(UCSRA & (1<<RXC))); //wait until reception complete
return UDR; // receive value from UDR
}
// Program to use fast PWM (Pulse Width Modulation) Mode of AVR microcontroller
Timer
#include<avr/io.h>
#include<util/delay.h>
#include<avr/interrupt.h>
#define FREQ 12000000
#define duty_cycle 50 // duty cycle require
#define prescaler 8
#define OCR_value ((duty_cycle*256)/100) //OCR value calculation

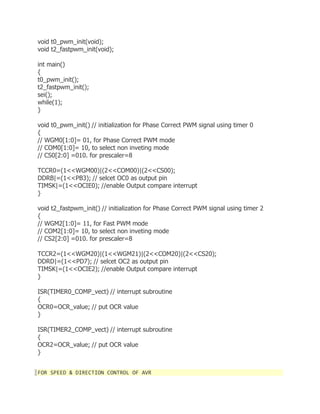

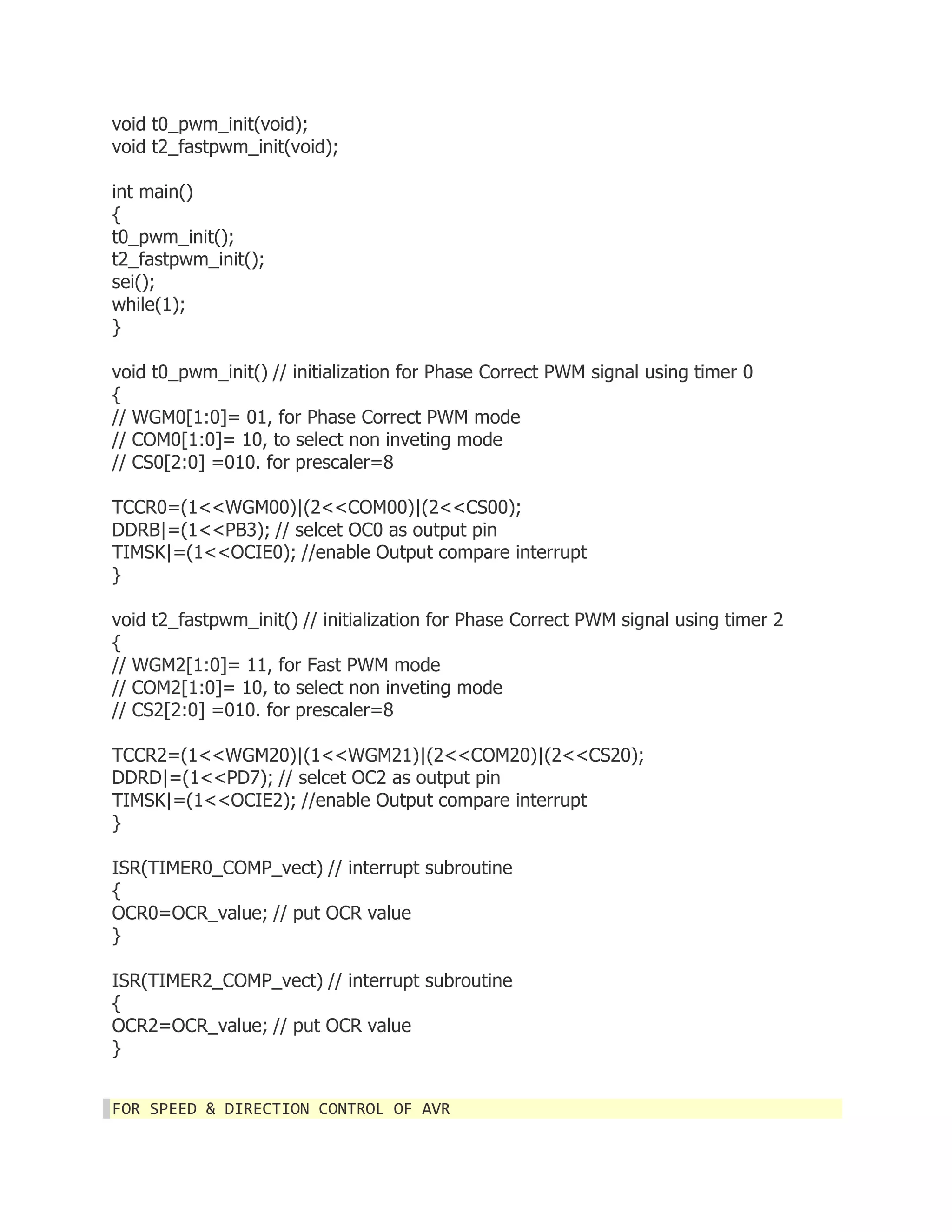

51. void t0_pwm_init(void);
void t2_fastpwm_init(void);
int main()
{
t0_pwm_init();
t2_fastpwm_init();
sei();
while(1);
}
void t0_pwm_init() // initialization for Phase Correct PWM signal using timer 0
{
// WGM0[1:0]= 01, for Phase Correct PWM mode
// COM0[1:0]= 10, to select non inveting mode
// CS0[2:0] =010. for prescaler=8
TCCR0=(1<<WGM00)|(2<<COM00)|(2<<CS00);
DDRB|=(1<<PB3); // selcet OC0 as output pin
TIMSK|=(1<<OCIE0); //enable Output compare interrupt
}
void t2_fastpwm_init() // initialization for Phase Correct PWM signal using timer 2
{
// WGM2[1:0]= 11, for Fast PWM mode
// COM2[1:0]= 10, to select non inveting mode
// CS2[2:0] =010. for prescaler=8
TCCR2=(1<<WGM20)|(1<<WGM21)|(2<<COM20)|(2<<CS20);
DDRD|=(1<<PD7); // selcet OC2 as output pin
TIMSK|=(1<<OCIE2); //enable Output compare interrupt
}
ISR(TIMER0_COMP_vect) // interrupt subroutine
{
OCR0=OCR_value; // put OCR value
}
ISR(TIMER2_COMP_vect) // interrupt subroutine
{
OCR2=OCR_value; // put OCR value
}
FOR SPEED & DIRECTION CONTROL OF AVR

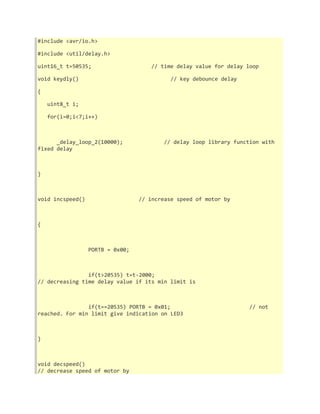

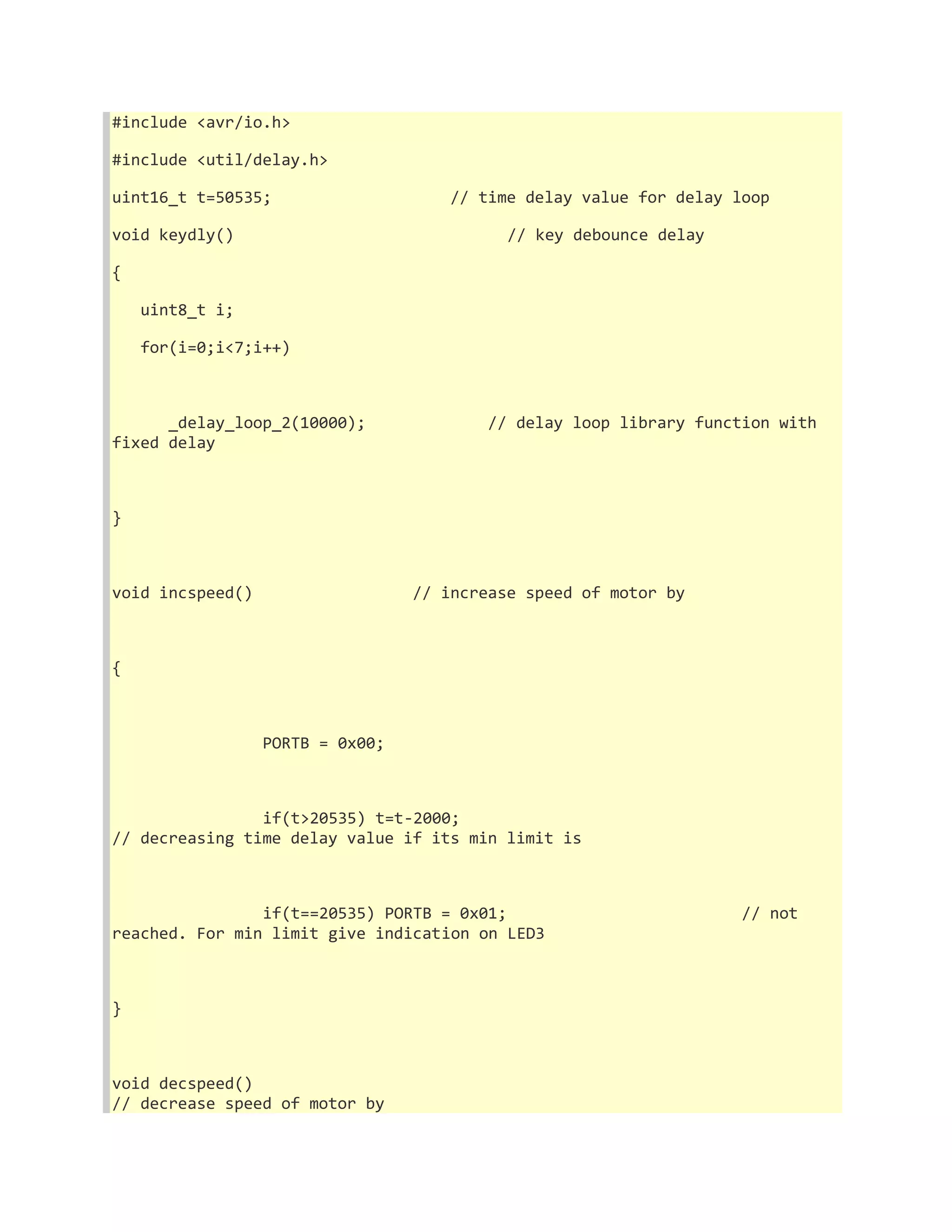

52. #include <avr/io.h>
#include <util/delay.h>
uint16_t t=50535; // time delay value for delay loop
void keydly() // key debounce delay
{
uint8_t i;
for(i=0;i<7;i++)
_delay_loop_2(10000); // delay loop library function with
fixed delay
}
void incspeed() // increase speed of motor by
{
PORTB = 0x00;
if(t>20535) t=t-2000;
// decreasing time delay value if its min limit is
if(t==20535) PORTB = 0x01; // not
reached. For min limit give indication on LED3
}
void decspeed()
// decrease speed of motor by

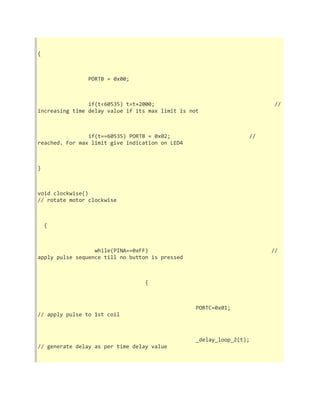

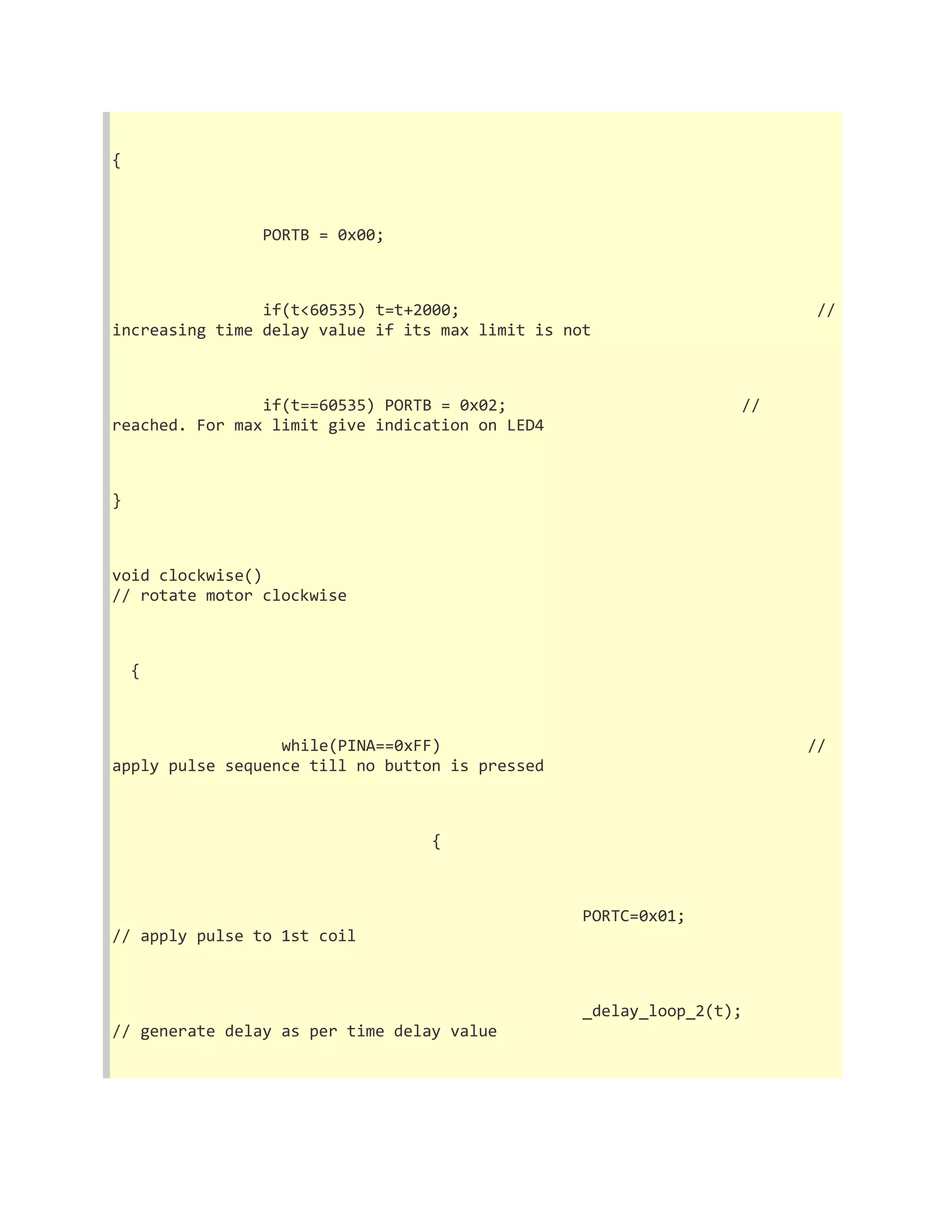

53. {
PORTB = 0x00;
if(t<60535) t=t+2000; //
increasing time delay value if its max limit is not
if(t==60535) PORTB = 0x02; //
reached. For max limit give indication on LED4
}
void clockwise()
// rotate motor clockwise
{
while(PINA==0xFF) //
apply pulse sequence till no button is pressed
{
PORTC=0x01;
// apply pulse to 1st coil
_delay_loop_2(t);
// generate delay as per time delay value

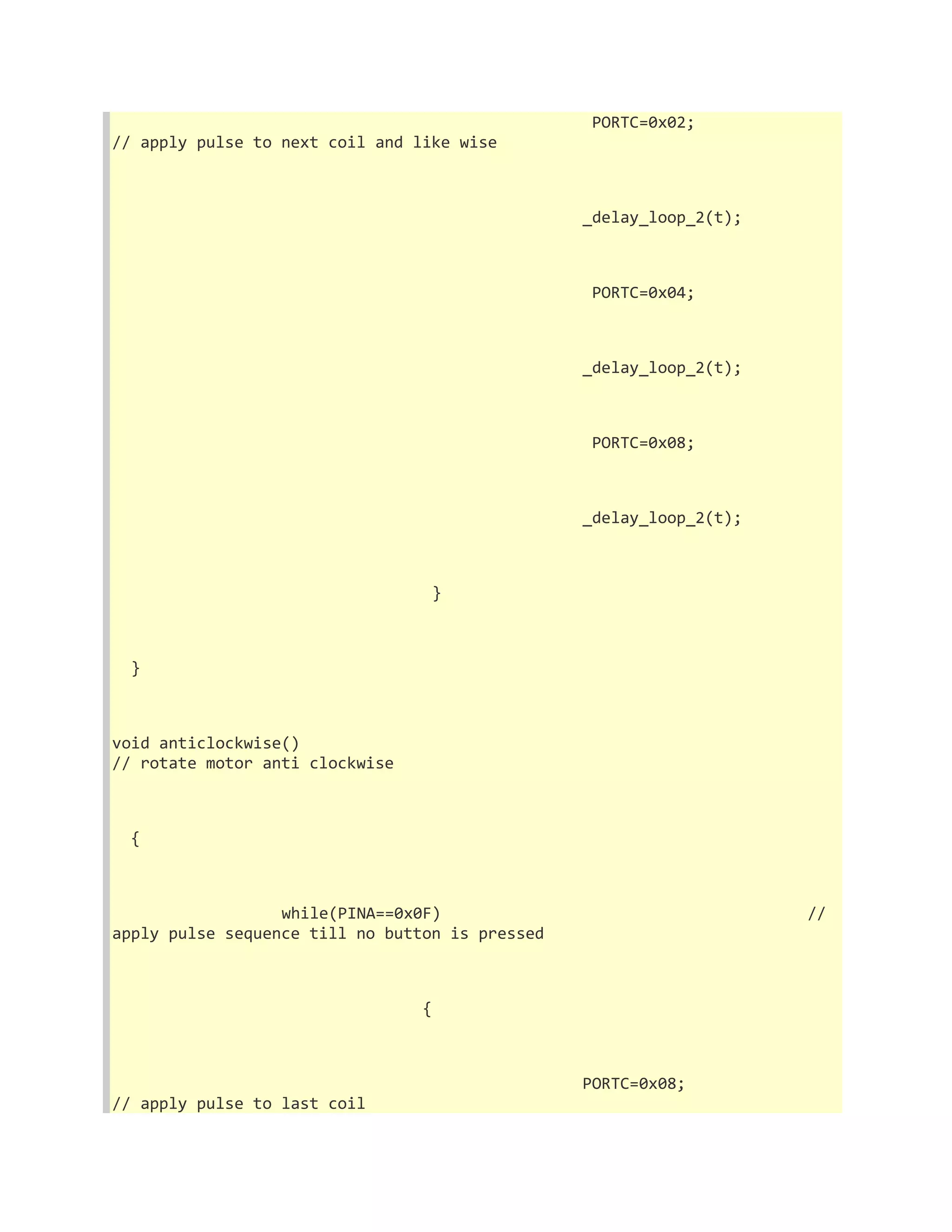

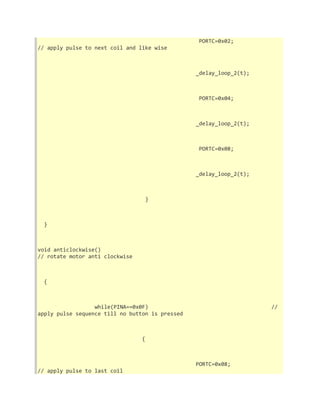

54. PORTC=0x02;
// apply pulse to next coil and like wise
_delay_loop_2(t);
PORTC=0x04;
_delay_loop_2(t);
PORTC=0x08;
_delay_loop_2(t);
}
}
void anticlockwise()
// rotate motor anti clockwise
{
while(PINA==0x0F) //
apply pulse sequence till no button is pressed
{
PORTC=0x08;
// apply pulse to last coil

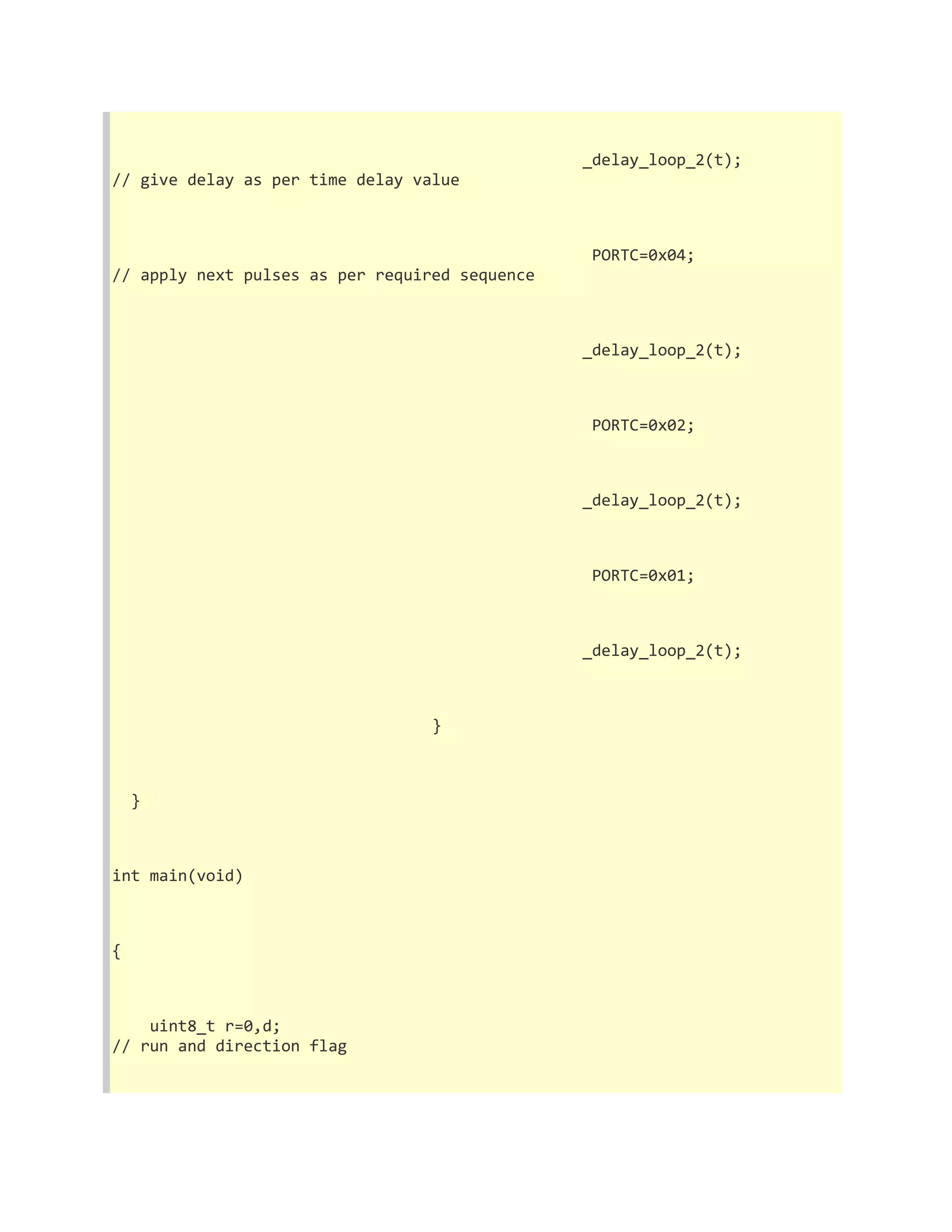

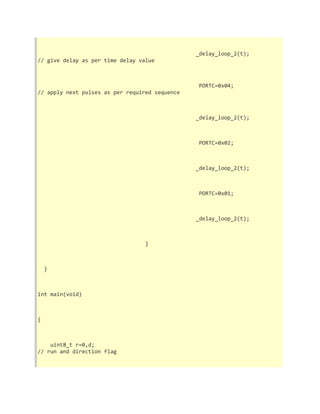

55. _delay_loop_2(t);
// give delay as per time delay value
PORTC=0x04;
// apply next pulses as per required sequence
_delay_loop_2(t);
PORTC=0x02;
_delay_loop_2(t);
PORTC=0x01;
_delay_loop_2(t);
}
}
int main(void)
{
uint8_t r=0,d;
// run and direction flag

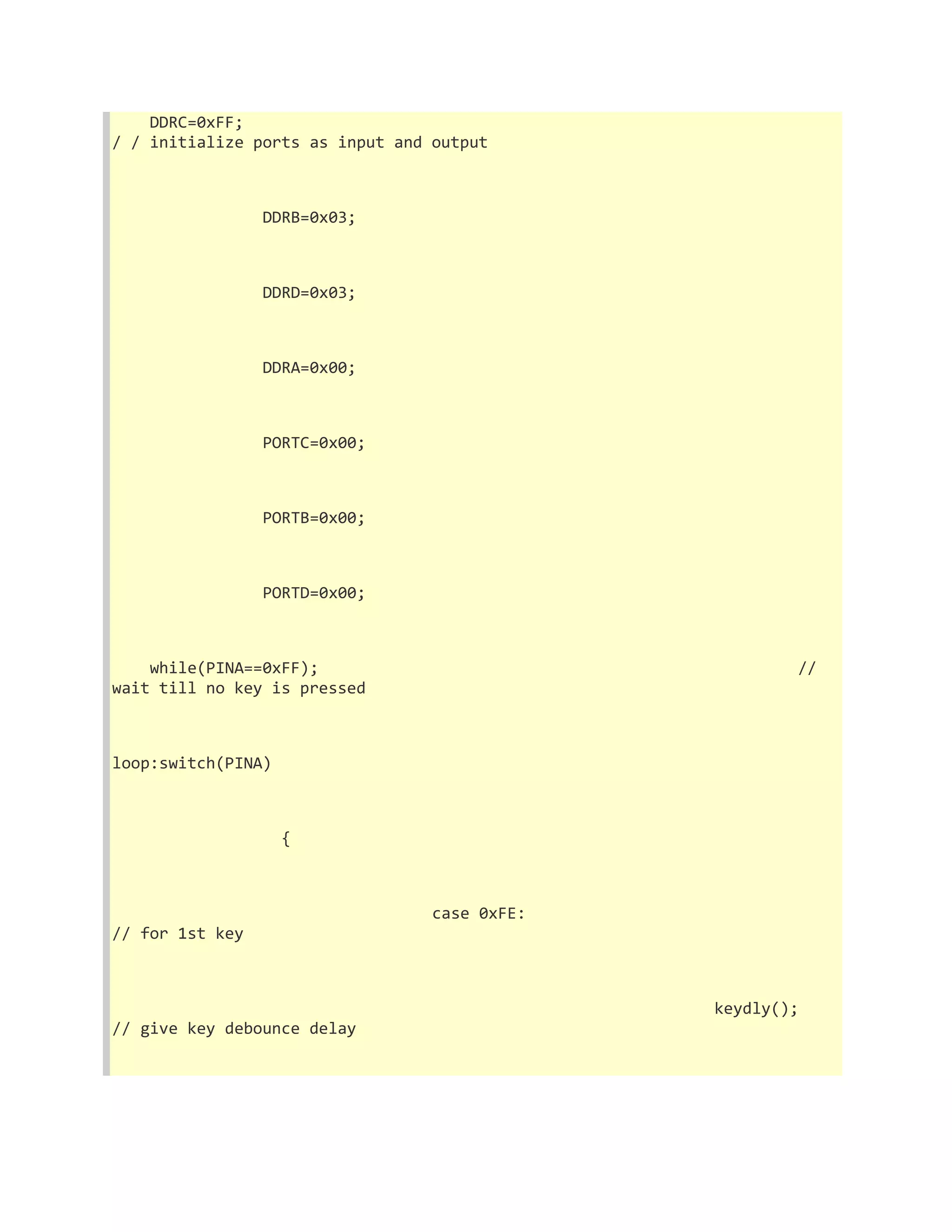

56. DDRC=0xFF;
/ / initialize ports as input and output
DDRB=0x03;
DDRD=0x03;
DDRA=0x00;
PORTC=0x00;
PORTB=0x00;
PORTD=0x00;
while(PINA==0xFF); //
wait till no key is pressed
loop:switch(PINA)
{
case 0xFE:
// for 1st key
keydly();
// give key debounce delay

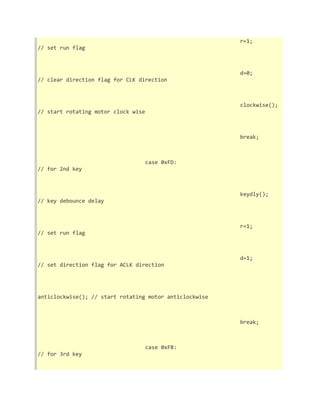

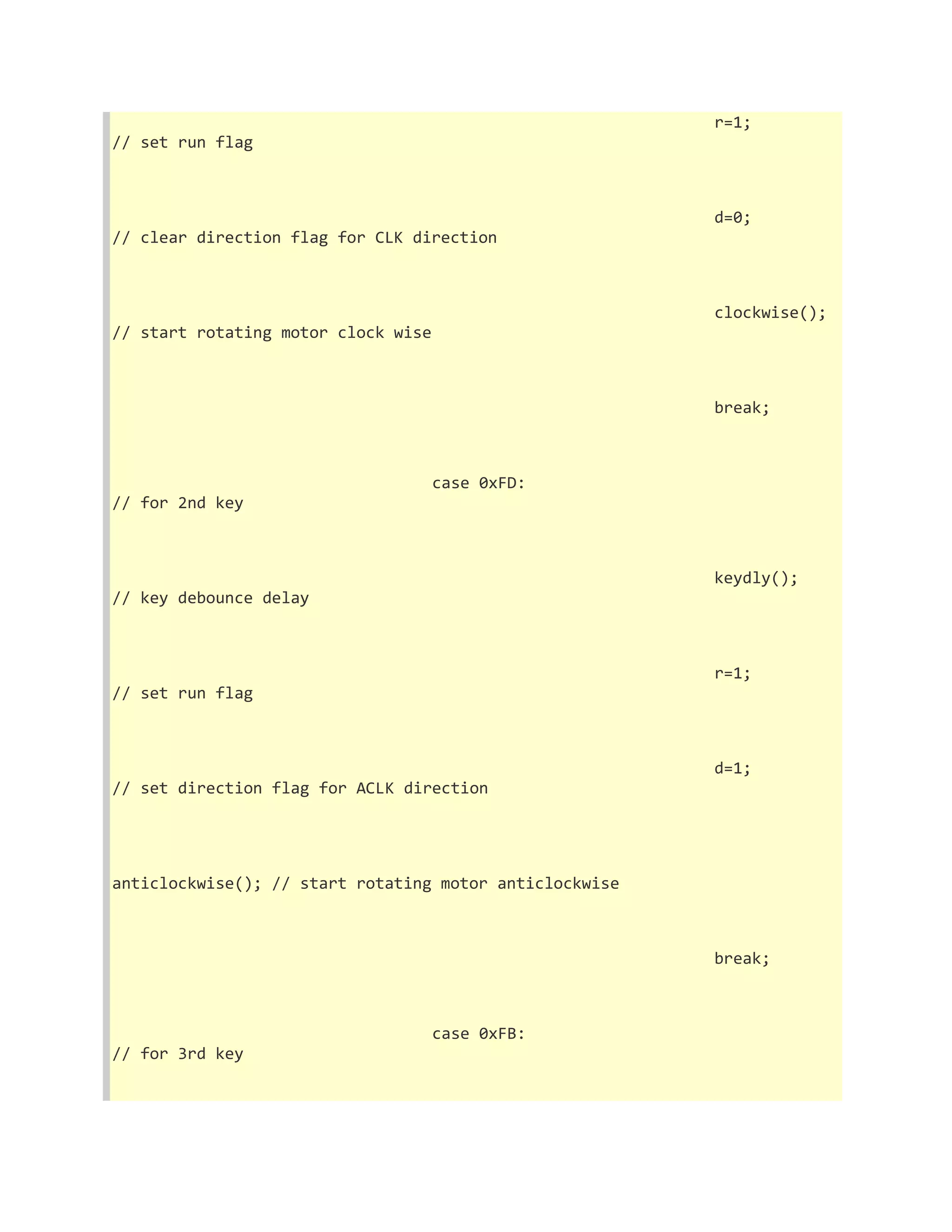

57. r=1;
// set run flag
d=0;
// clear direction flag for CLK direction
clockwise();
// start rotating motor clock wise
break;
case 0xFD:
// for 2nd key
keydly();
// key debounce delay
r=1;
// set run flag
d=1;
// set direction flag for ACLK direction
anticlockwise(); // start rotating motor anticlockwise
break;
case 0xFB:
// for 3rd key

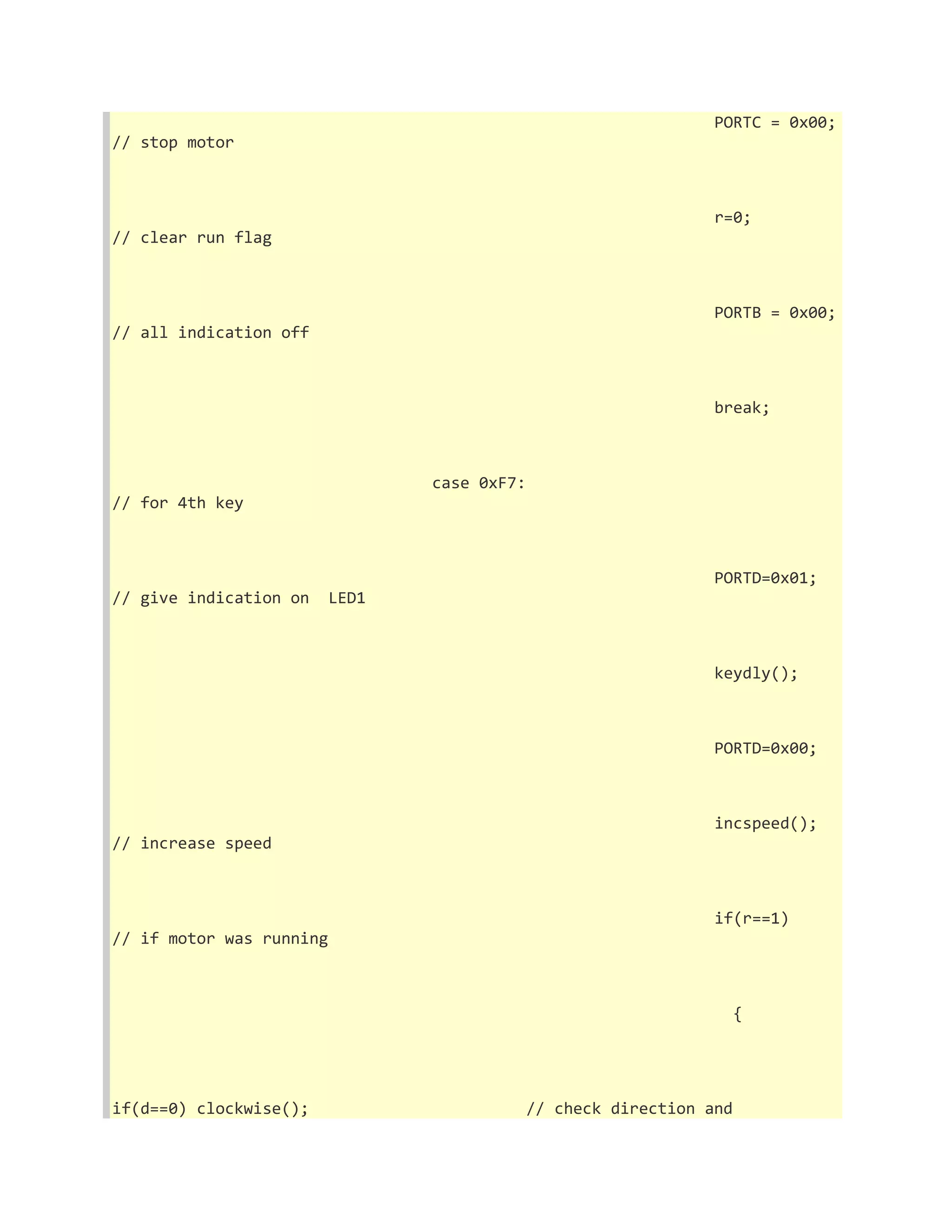

58. PORTC = 0x00;
// stop motor
r=0;
// clear run flag
PORTB = 0x00;
// all indication off
break;
case 0xF7:
// for 4th key
PORTD=0x01;
// give indication on LED1
keydly();
PORTD=0x00;
incspeed();
// increase speed
if(r==1)
// if motor was running
{
if(d==0) clockwise(); // check direction and

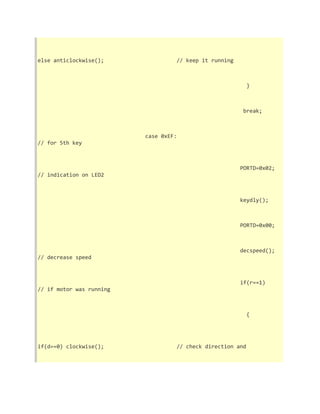

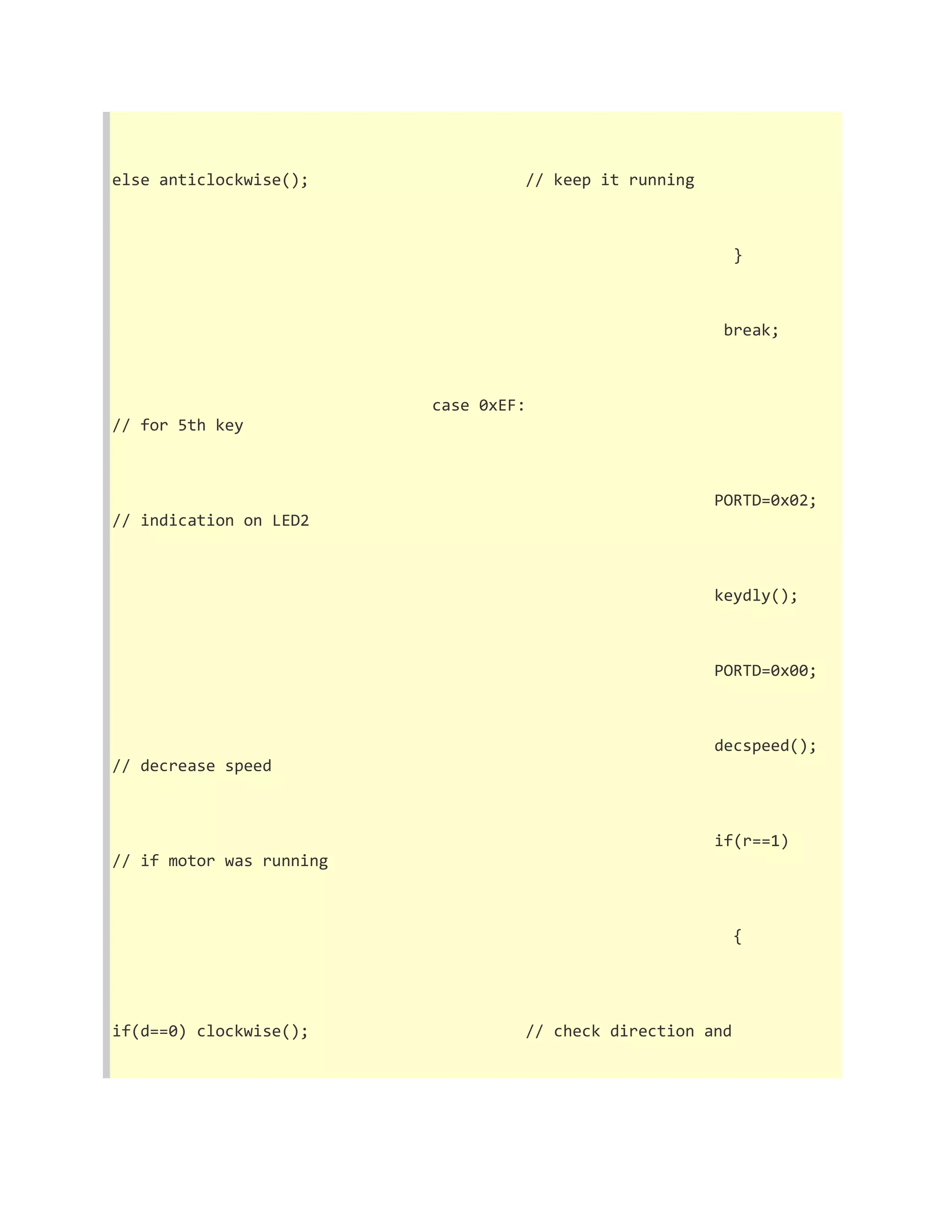

59. else anticlockwise(); // keep it running
}
break;
case 0xEF:
// for 5th key
PORTD=0x02;
// indication on LED2
keydly();
PORTD=0x00;
decspeed();
// decrease speed
if(r==1)
// if motor was running
{
if(d==0) clockwise(); // check direction and

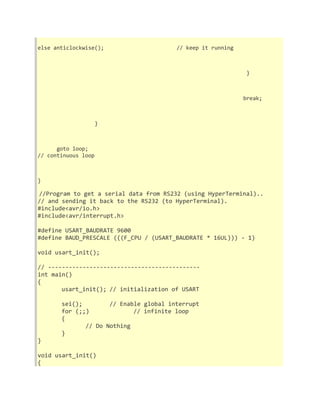

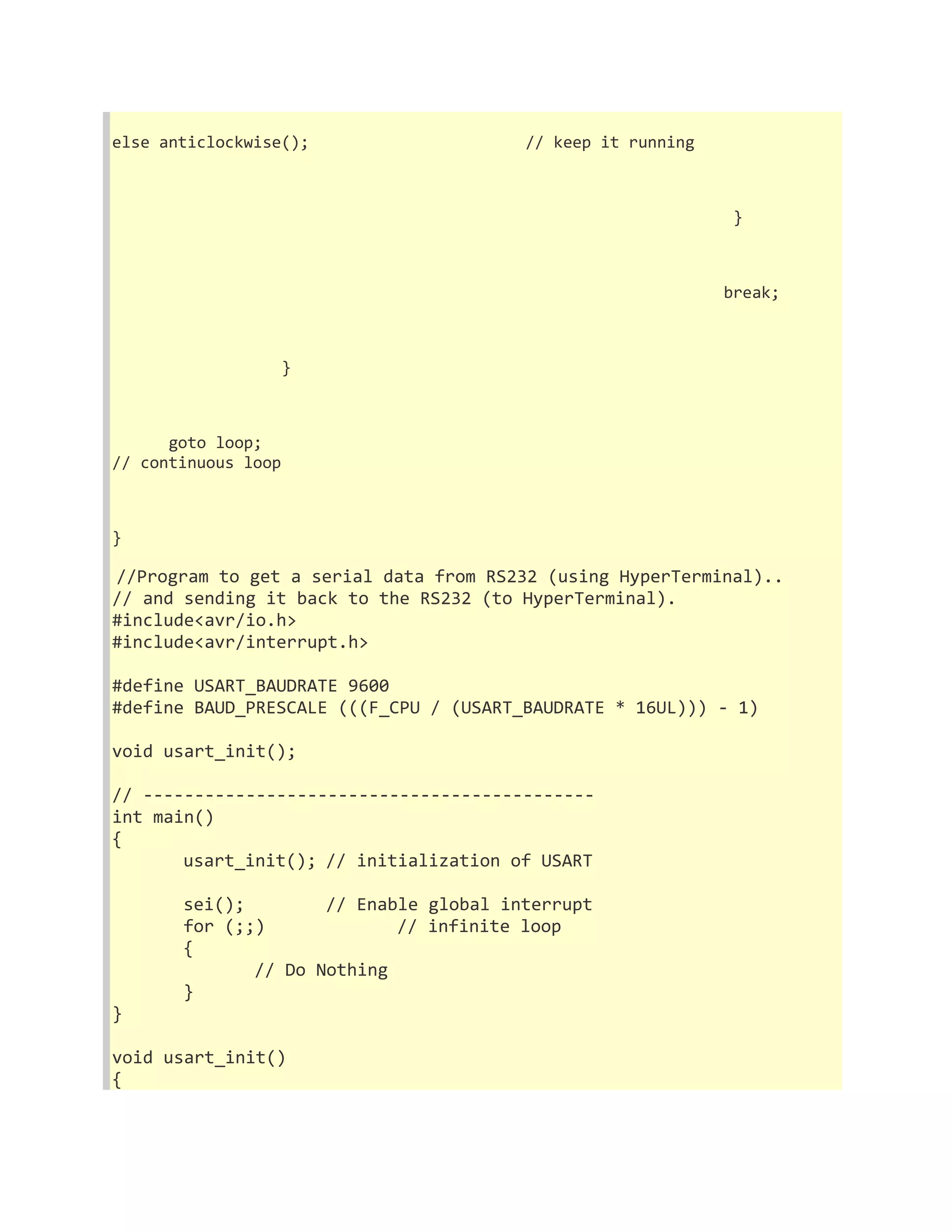

60. else anticlockwise(); // keep it running
}
break;
}
goto loop;
// continuous loop
}
//Program to get a serial data from RS232 (using HyperTerminal)..
// and sending it back to the RS232 (to HyperTerminal).
#include<avr/io.h>
#include<avr/interrupt.h>
#define USART_BAUDRATE 9600
#define BAUD_PRESCALE (((F_CPU / (USART_BAUDRATE * 16UL))) - 1)
void usart_init();
// --------------------------------------------
int main()
{
usart_init(); // initialization of USART
sei(); // Enable global interrupt
for (;;) // infinite loop
{
// Do Nothing
}
}
void usart_init()
{

61. UCSRB |= (1<<RXCIE) | (1 << RXEN) | (1 << TXEN); // Turn
on the transmission reception ..
// circuitry
and receiver interrupt
UCSRC |= (1 << URSEL) | (1 << UCSZ0) | (1 << UCSZ1); // Use 8-
bit character sizes
UBRRL = BAUD_PRESCALE; // Load lower 8-bits of the baud
rate value..
// into the low byte of the UBRR register
UBRRH = (BAUD_PRESCALE >> 8); // Load upper 8-bits of the
baud rate value..
// into the high byte of the UBRR
register
}
ISR (USART_RXC_vect)
{
unsigned char value;
value = UDR; // Fetch the received byte value into the
variable "value"
UDR = value; //Put the value to UDR
}
//Program to Display string on LCD using AVR Microcontroller (ATmega16)
/*
LCD DATA port----PORT B
signal port------PORT D
rs-------PD0
rw-------PD1
en-------PD2
*/
#include<avr/io.h>
#include<util/delay.h>
#define LCD_DATA PORTB //LCD data port
#define ctrl PORTD
#define en PD2 // enable signal
#define rw PD1 // read/write signal
#define rs PD0 // register select signal

62. void LCD_cmd(unsigned char cmd);
void init_LCD(void);
void LCD_write(unsigned char data);
int main()
{
DDRB=0xff;
DDRD=0x07;
init_LCD(); // initialization of LCD
_delay_ms(50); // delay of 50 mili seconds
LCD_write_string("EngineersGarage"); // function to print string on LCD
return 0;
}
void init_LCD(void)
{
LCD_cmd(0x38); // initialization of 16X2 LCD in 8bit mode
_delay_ms(1);
LCD_cmd(0x01); // clear LCD
_delay_ms(1);
LCD_cmd(0x0E); // cursor ON
_delay_ms(1);
LCD_cmd(0x80); // ---8 go to first line and --0 is for 0th position
_delay_ms(1);
return;
}
void LCD_cmd(unsigned char cmd)
{
LCD_DATA=cmd;
ctrl =(0<<rs)|(0<<rw)|(1<<en);
_delay_ms(1);
ctrl =(0<<rs)|(0<<rw)|(0<<en);
_delay_ms(50);
return;
}
void LCD_write(unsigned char data)
{
LCD_DATA= data;

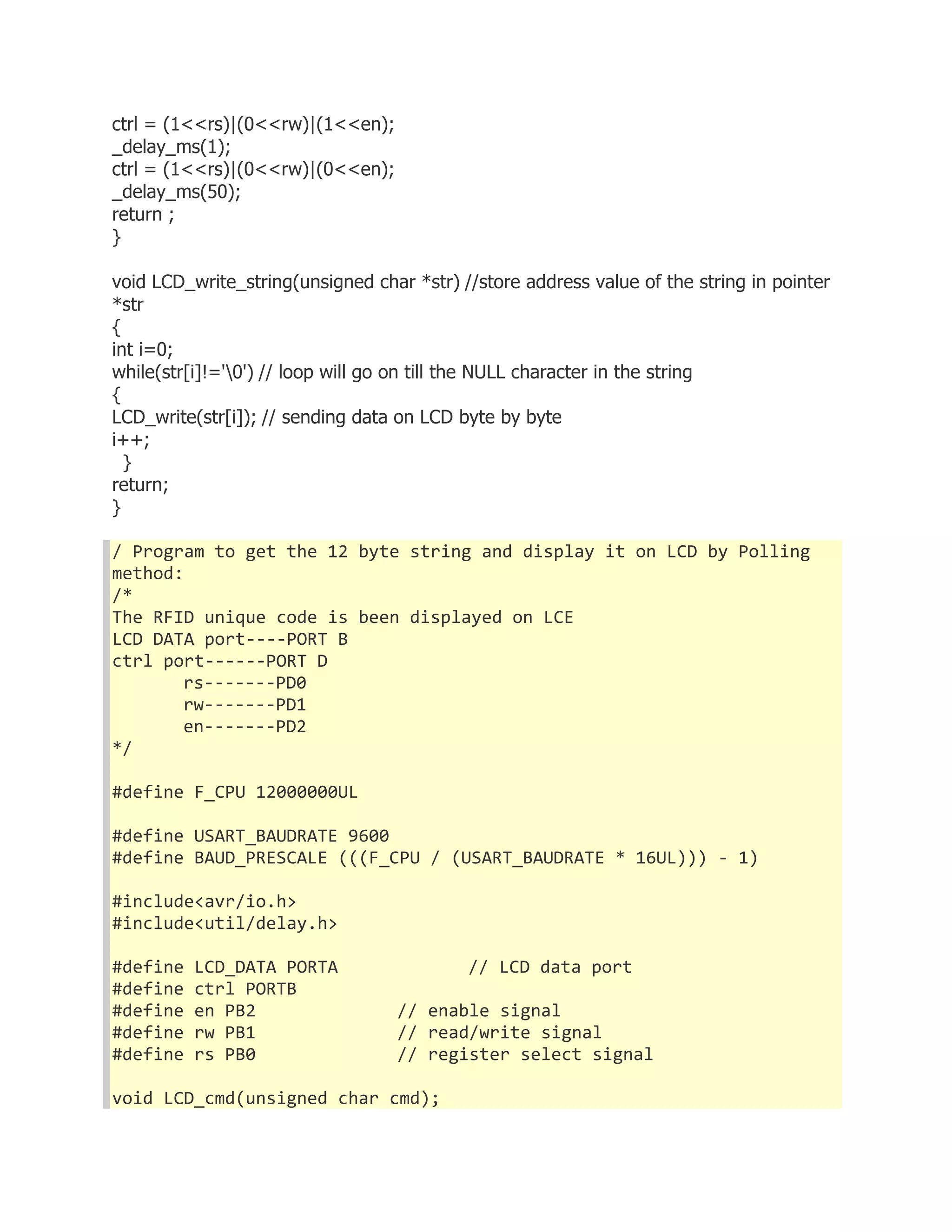

63. ctrl = (1<<rs)|(0<<rw)|(1<<en);
_delay_ms(1);
ctrl = (1<<rs)|(0<<rw)|(0<<en);
_delay_ms(50);
return ;
}
void LCD_write_string(unsigned char *str) //store address value of the string in pointer
*str
{
int i=0;
while(str[i]!='0') // loop will go on till the NULL character in the string
{
LCD_write(str[i]); // sending data on LCD byte by byte
i++;
}
return;
}
/ Program to get the 12 byte string and display it on LCD by Polling
method:
/*
The RFID unique code is been displayed on LCE
LCD DATA port----PORT B
ctrl port------PORT D
rs-------PD0
rw-------PD1
en-------PD2
*/
#define F_CPU 12000000UL
#define USART_BAUDRATE 9600
#define BAUD_PRESCALE (((F_CPU / (USART_BAUDRATE * 16UL))) - 1)
#include<avr/io.h>
#include<util/delay.h>
#define LCD_DATA PORTA // LCD data port
#define ctrl PORTB
#define en PB2 // enable signal
#define rw PB1 // read/write signal
#define rs PB0 // register select signal
void LCD_cmd(unsigned char cmd);

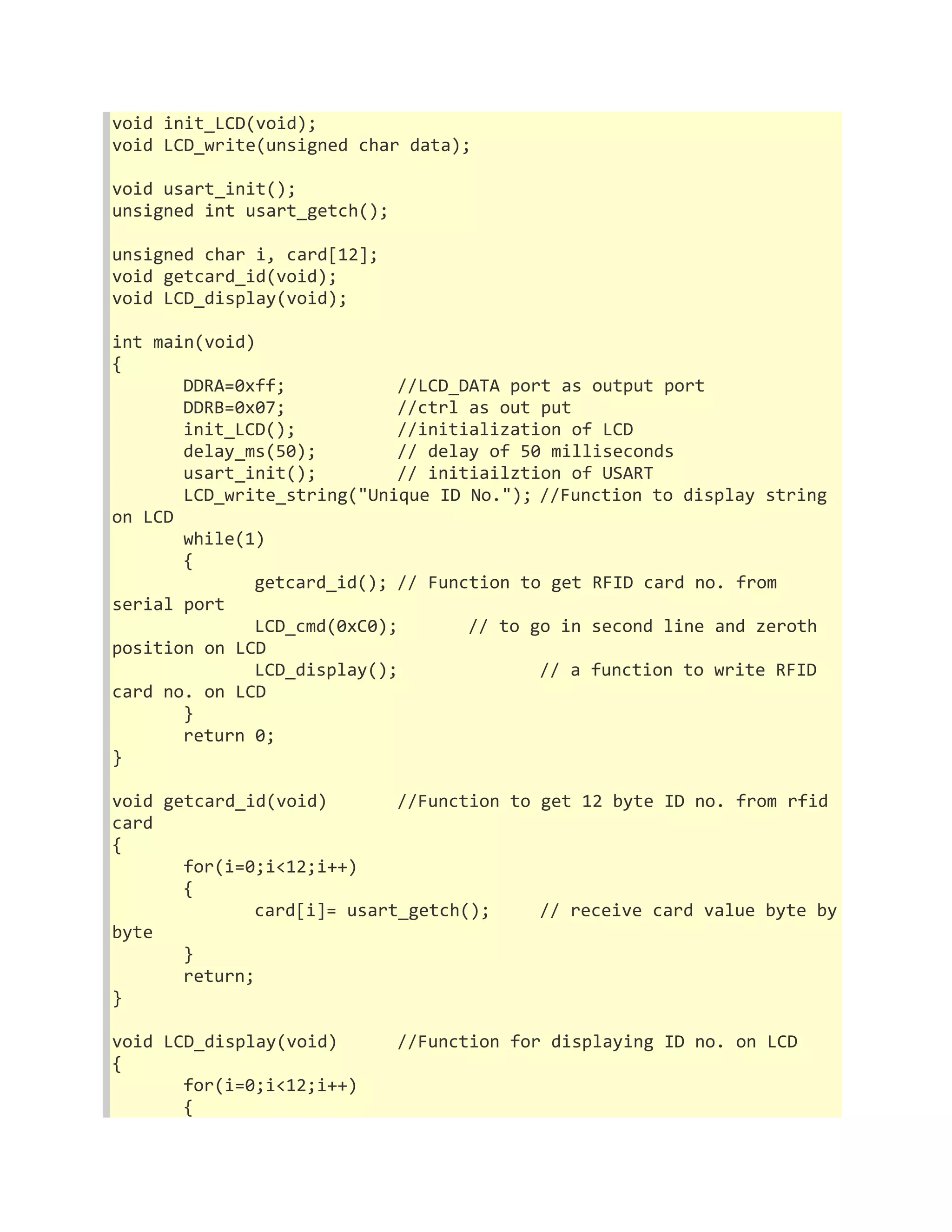

64. void init_LCD(void);
void LCD_write(unsigned char data);
void usart_init();
unsigned int usart_getch();
unsigned char i, card[12];
void getcard_id(void);
void LCD_display(void);
int main(void)
{
DDRA=0xff; //LCD_DATA port as output port
DDRB=0x07; //ctrl as out put
init_LCD(); //initialization of LCD
delay_ms(50); // delay of 50 milliseconds
usart_init(); // initiailztion of USART
LCD_write_string("Unique ID No."); //Function to display string
on LCD
while(1)
{
getcard_id(); // Function to get RFID card no. from
serial port
LCD_cmd(0xC0); // to go in second line and zeroth
position on LCD
LCD_display(); // a function to write RFID
card no. on LCD
}
return 0;
}
void getcard_id(void) //Function to get 12 byte ID no. from rfid
card
{
for(i=0;i<12;i++)
{
card[i]= usart_getch(); // receive card value byte by
byte
}
return;
}
void LCD_display(void) //Function for displaying ID no. on LCD
{
for(i=0;i<12;i++)
{

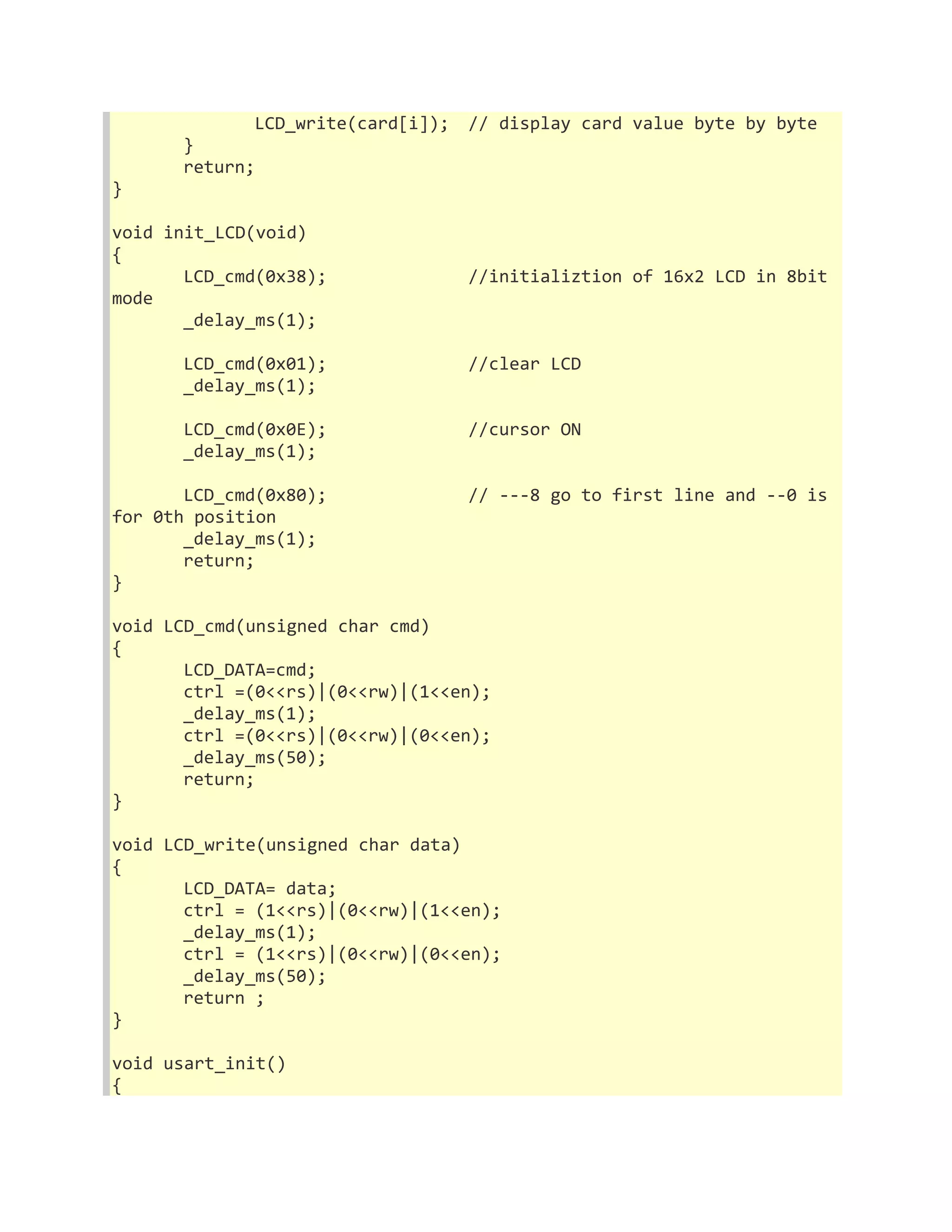

65. LCD_write(card[i]); // display card value byte by byte
}
return;
}
void init_LCD(void)
{
LCD_cmd(0x38); //initializtion of 16x2 LCD in 8bit
mode
_delay_ms(1);
LCD_cmd(0x01); //clear LCD
_delay_ms(1);
LCD_cmd(0x0E); //cursor ON
_delay_ms(1);
LCD_cmd(0x80); // ---8 go to first line and --0 is
for 0th position
_delay_ms(1);
return;
}
void LCD_cmd(unsigned char cmd)
{
LCD_DATA=cmd;
ctrl =(0<<rs)|(0<<rw)|(1<<en);
_delay_ms(1);
ctrl =(0<<rs)|(0<<rw)|(0<<en);
_delay_ms(50);
return;
}
void LCD_write(unsigned char data)
{
LCD_DATA= data;
ctrl = (1<<rs)|(0<<rw)|(1<<en);
_delay_ms(1);
ctrl = (1<<rs)|(0<<rw)|(0<<en);
_delay_ms(50);
return ;
}
void usart_init()
{

66. UCSRB |= (1 << RXEN) | (1 << TXEN); // Turn on the
transmission and reception circuitry
UCSRC |= (1 << URSEL) | (1<<USBS) | (1 << UCSZ0) | (1 <<
UCSZ1);
UBRRL = BAUD_PRESCALE; // Load lower 8-bits of the baud
rate value..
// into the low byte
of the UBRR register
UBRRH = (BAUD_PRESCALE >> 8); // Load upper 8-bits of the baud
rate value..
// into the
high byte of the UBRR register
}
unsigned int usart_getch()
{
while ((UCSRA & (1 << RXC)) == 0); // Do nothing until data
have been received..
// and is ready to be read from
UDR
return(UDR); // return the byte
}
void LCD_write_string(unsigned char *str) // take address value of the
string in pointer *str
{
int i=0;
while(str[i]!='0') // loop will go on till the NULL
characters is soon in string
{
LCD_write(str[i]); // sending data on LCD byte by byte
i++;
}
return;
}
// Program to SPI (serial peripheral interface) using AVR microcontroller (ATmega16)
#include<avr/io.h>
#include<util/delay.h>
#define MOSI PB5

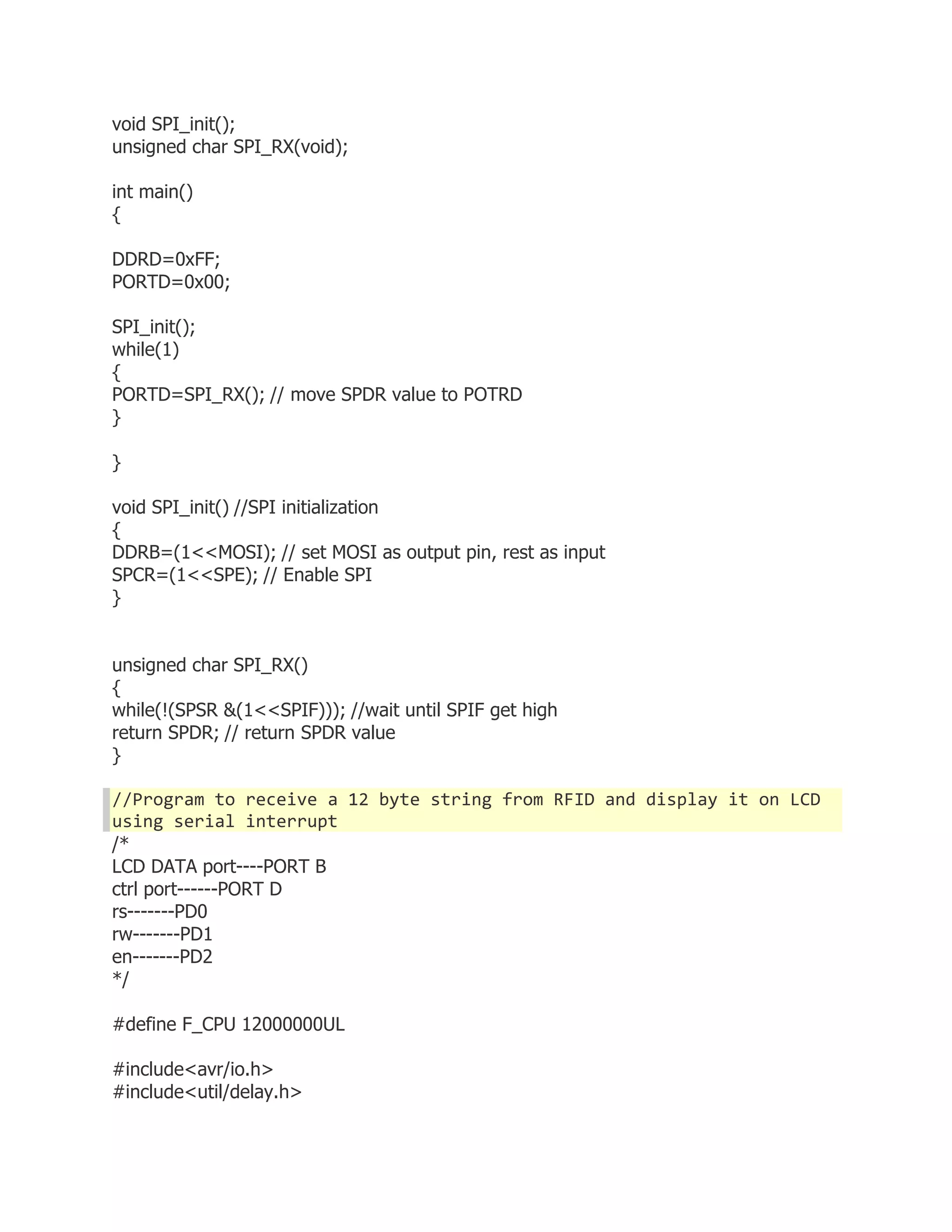

67. void SPI_init();
unsigned char SPI_RX(void);
int main()
{
DDRD=0xFF;
PORTD=0x00;
SPI_init();
while(1)
{
PORTD=SPI_RX(); // move SPDR value to POTRD
}
}
void SPI_init() //SPI initialization
{
DDRB=(1<<MOSI); // set MOSI as output pin, rest as input
SPCR=(1<<SPE); // Enable SPI
}
unsigned char SPI_RX()
{
while(!(SPSR &(1<<SPIF))); //wait until SPIF get high
return SPDR; // return SPDR value
}
//Program to receive a 12 byte string from RFID and display it on LCD
using serial interrupt
/*
LCD DATA port----PORT B
ctrl port------PORT D
rs-------PD0
rw-------PD1
en-------PD2
*/
#define F_CPU 12000000UL
#include<avr/io.h>
#include<util/delay.h>

68. #include<avr/interrupt.h>
#define USART_BAUDRATE 9600
#define BAUD_PRESCALE (((F_CPU / (USART_BAUDRATE * 16UL))) - 1)
#define LCD_DATA PORTA // LCD data port
#define ctrl PORTB
#define en PB2 // enable signal
#define rw PB1 // read/write signal
#define rs PB0 // register select signal
void LCD_cmd(unsigned char cmd);
void init_LCD(void);
void LCD_write(unsigned char data);
void usart_init();
unsigned int usart_getch();
void LCD_write_string(unsigned char *str);
unsigned char value, i=0;
int main(void)
{
DDRA=0xff; // LCD_DATA port as output port
DDRB=0x07; // ctrl as out put
cli();
init_LCD(); // initialization of LCD
_delay_ms(50); // delay of 50 mili seconds
LCD_write_string("Unique ID No.");
LCD_cmd(0xC0);
usart_init(); // initialization of USART
sei();
while(1);
return 0;
}
void init_LCD(void)
{
LCD_cmd(0x38); // initialization of 16X2 LCD in 8bit mode
_delay_ms(1);
LCD_cmd(0x01); // clear LCD
_delay_ms(1);

69. LCD_cmd(0x0E); // cursor ON
_delay_ms(1);
LCD_cmd(0x80); // ---8 go to first line and --0 is for 0th position
_delay_ms(1);
return;
}
void LCD_cmd(unsigned char cmd)
{
LCD_DATA=cmd;
ctrl =(0<<rs)|(0<<rw)|(1<<en);
_delay_us(40);
ctrl =(0<<rs)|(0<<rw)|(0<<en);
return;
}
void LCD_write(unsigned char data)
{
LCD_DATA= data;
ctrl = (1<<rs)|(0<<rw)|(1<<en);
_delay_us(40);
ctrl = (1<<rs)|(0<<rw)|(0<<en);
_delay_us(50); //delay to get things executed
return ;
}
void usart_init()
{
UCSRB |= (1<<RXCIE) | (1 << RXEN) | (1 << TXEN); // Turn on the transmission
and..
// reception circuitry
UCSRC |= (1 << URSEL) | (1 << UCSZ0) | (1 << UCSZ1); // Use 8-bit character sizes
UBRRL = BAUD_PRESCALE; // Load lower 8-bits of the baud rate value..
// into the low byte of the UBRR register
UBRRH = (BAUD_PRESCALE >> 8); // Load upper 8-bits of the baud rate value..
// into the high byte of the UBRR register
}
void LCD_write_string(unsigned char *str) //take address vaue of the string in pionter
*str
{
int i=0;
while(str[i]!='0') // loop will go on till the NULL charaters is soon in string

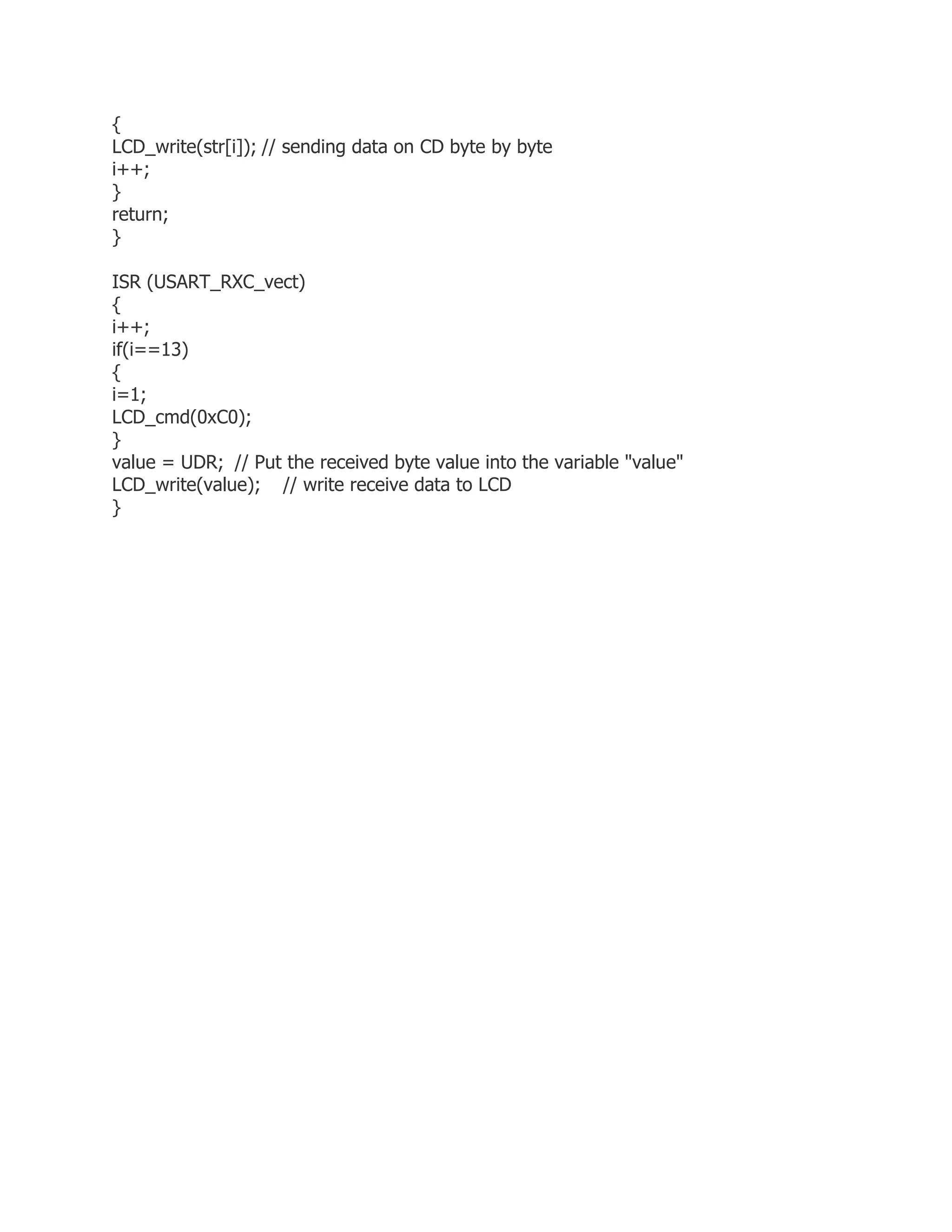

70. {
LCD_write(str[i]); // sending data on CD byte by byte
i++;
}
return;
}
ISR (USART_RXC_vect)
{
i++;
if(i==13)
{
i=1;
LCD_cmd(0xC0);
}
value = UDR; // Put the received byte value into the variable "value"
LCD_write(value); // write receive data to LCD
}
