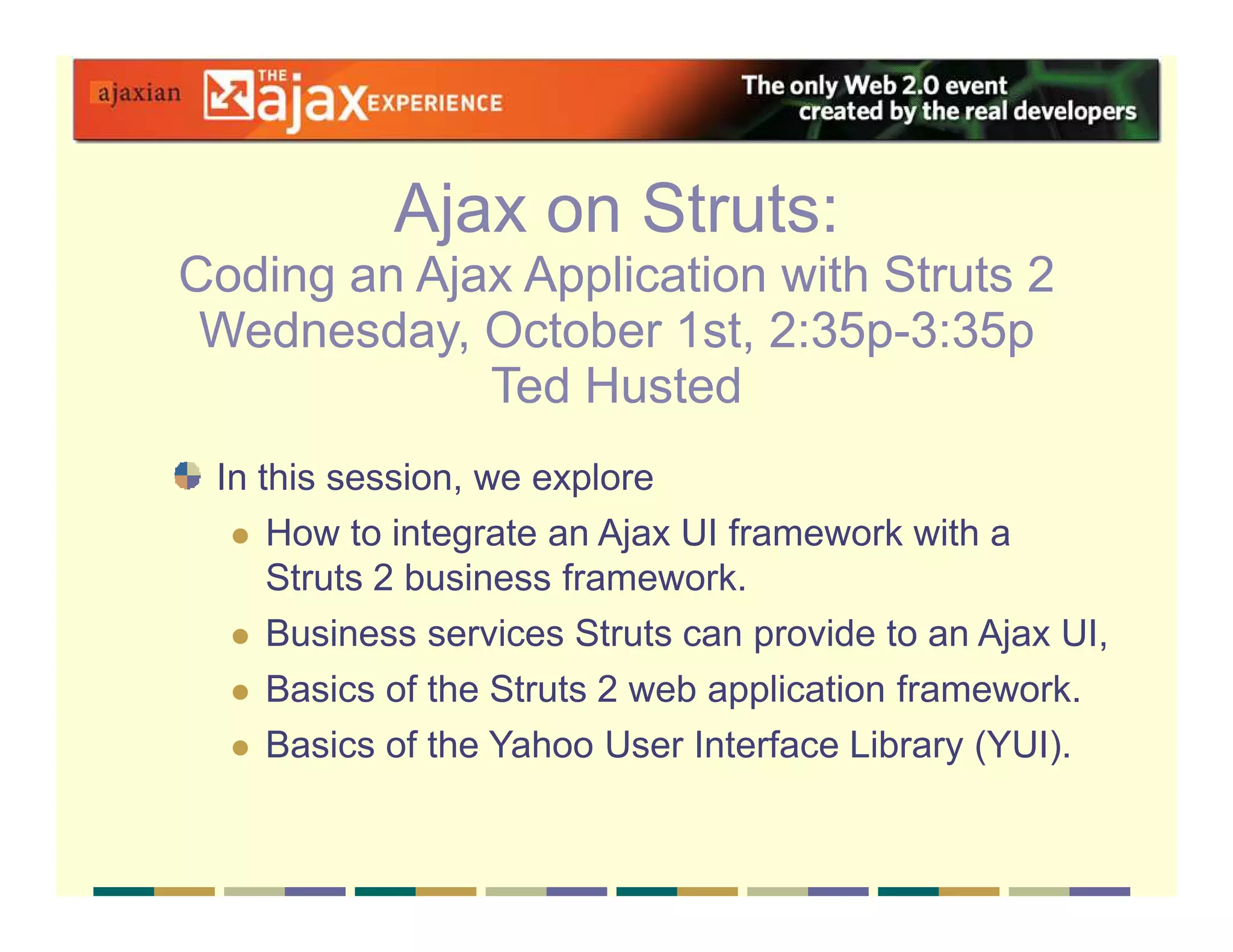

Ajax on Struts:
Coding an Ajax Application with Struts 2
 Wednesday, October 1st, 2:35p-3:35p
             Ted Husted
 In this session, we explore
     How to integrate an Ajax UI framework with a
     Struts 2 business framework.
     Business services Struts can provide to an Ajax UI,
     Basics of the Struts 2 web application framework.
     Basics of the Yahoo User Interface Library (YUI).
Ajax on Struts:
Coding an Ajax Application with Struts 2




                       Square One University Series

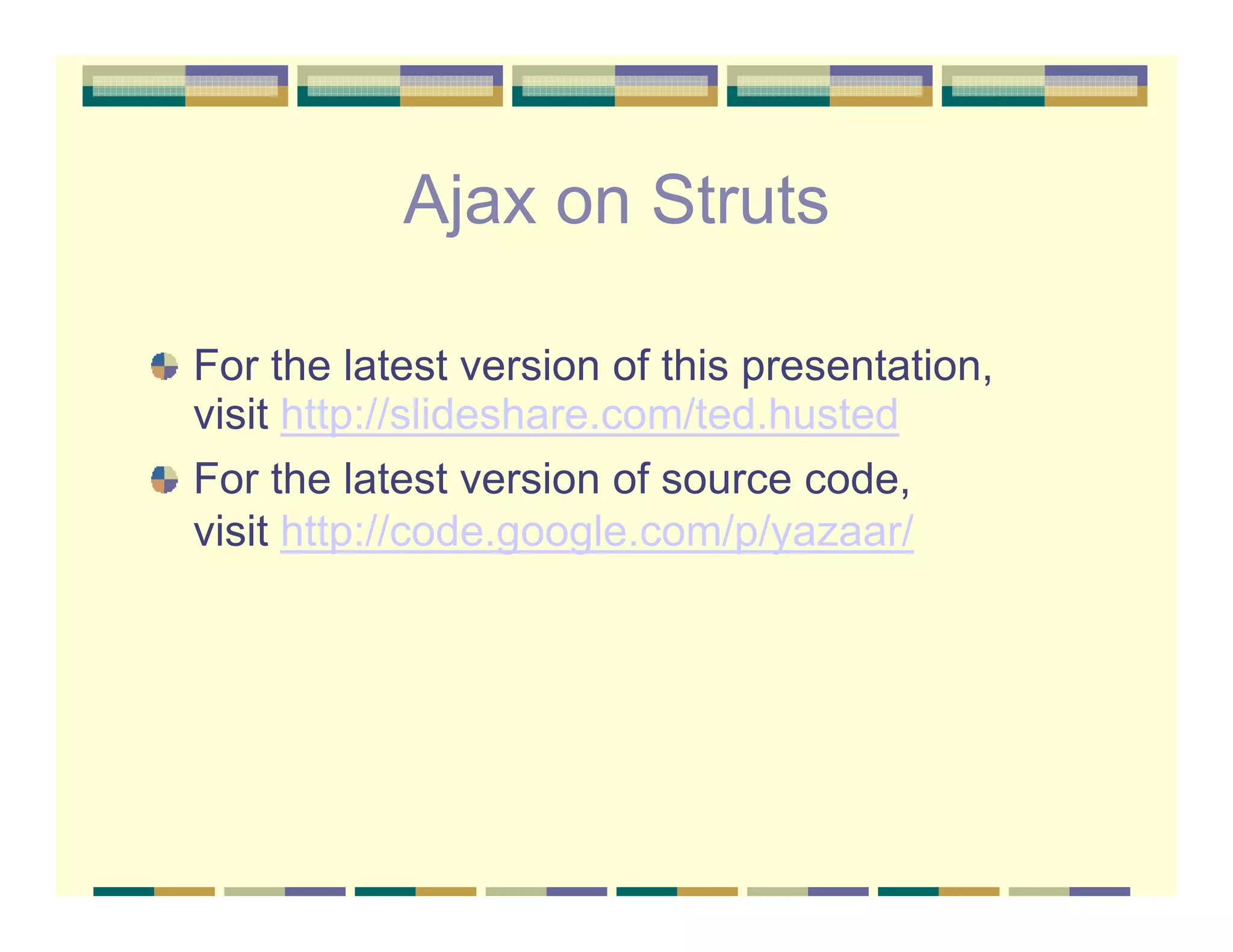

Ajax on Struts

For the latest version of this presentation,
visit http://slideshare.com/ted.husted
For the latest version of source code,

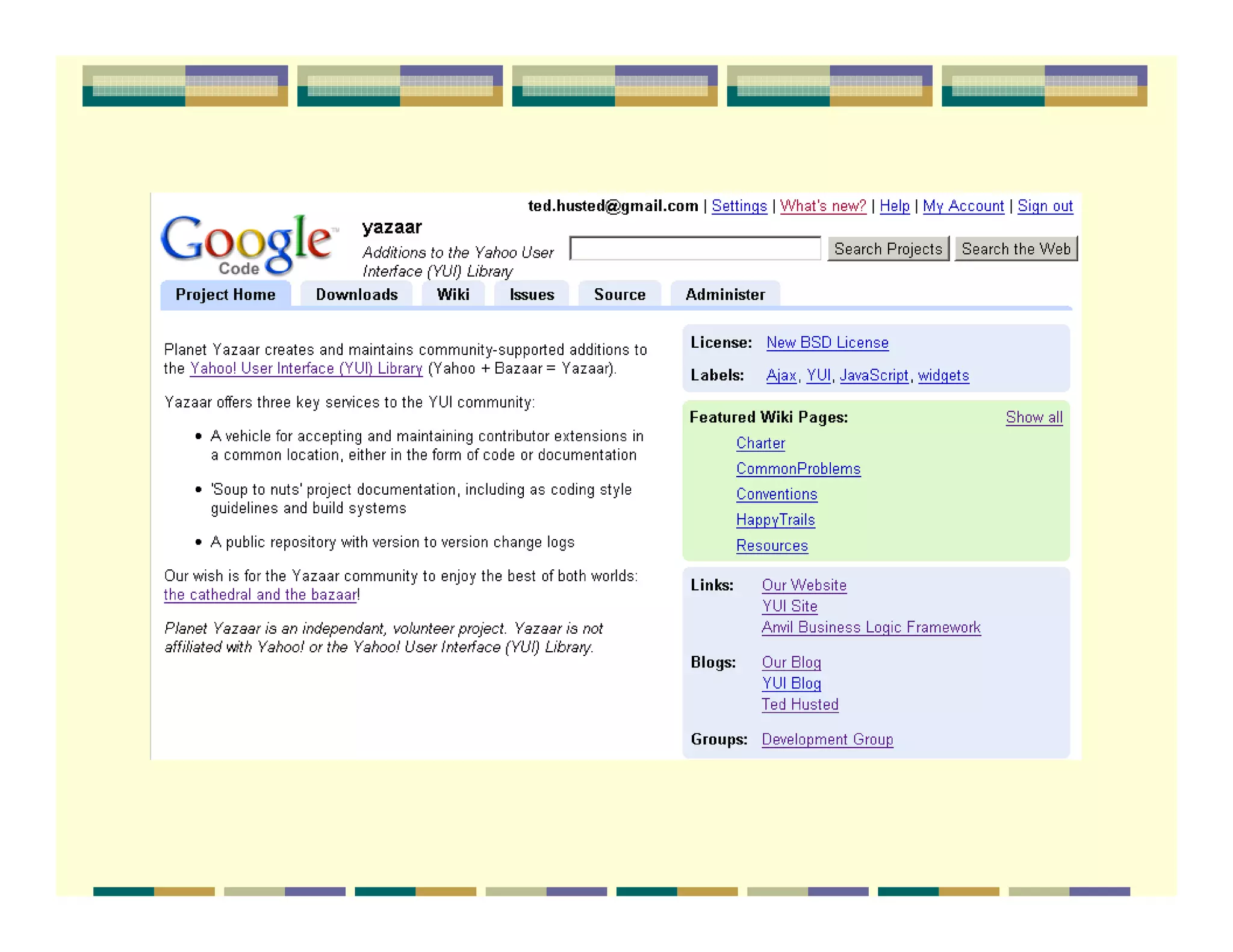

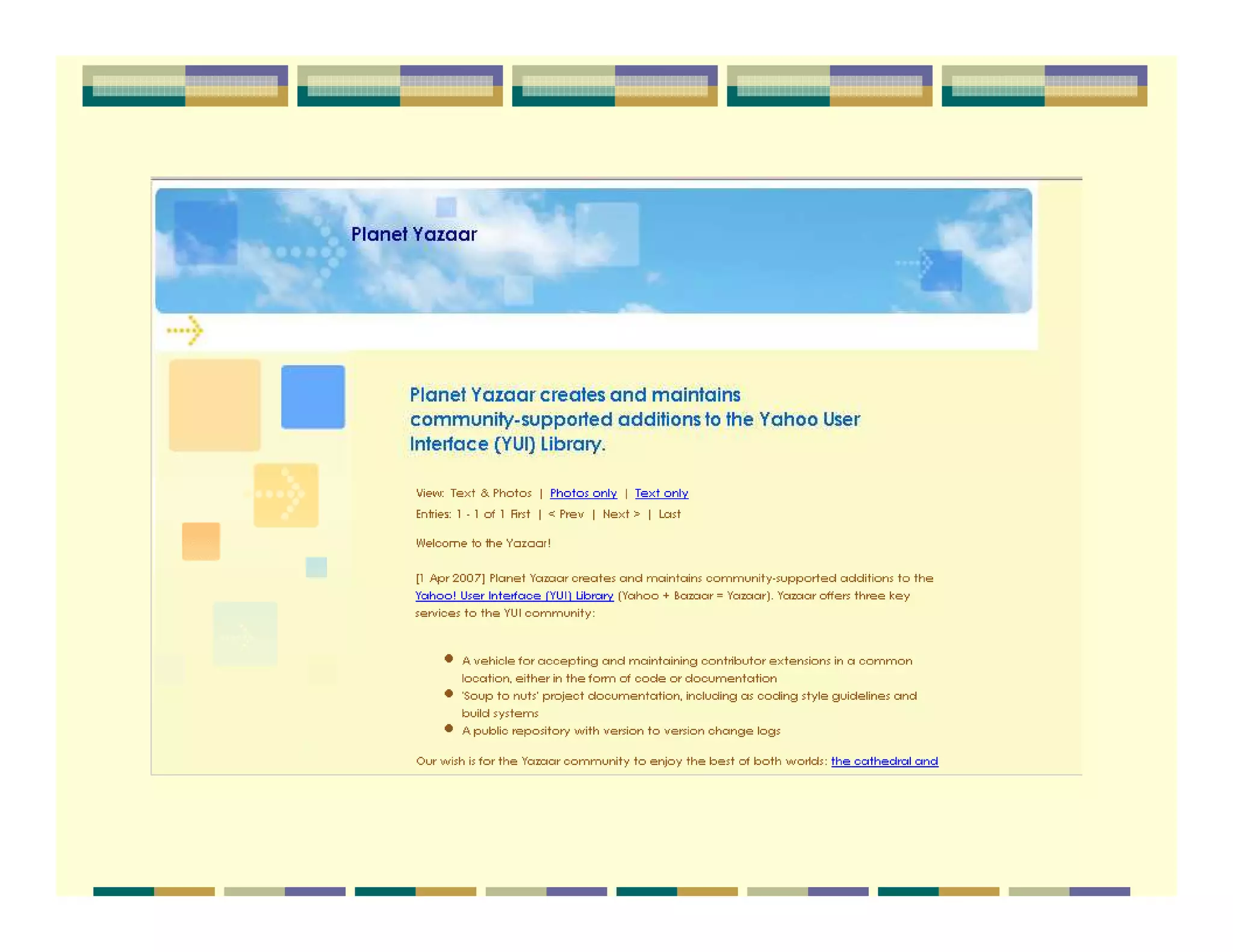

visit http://code.google.com/p/yazaar/

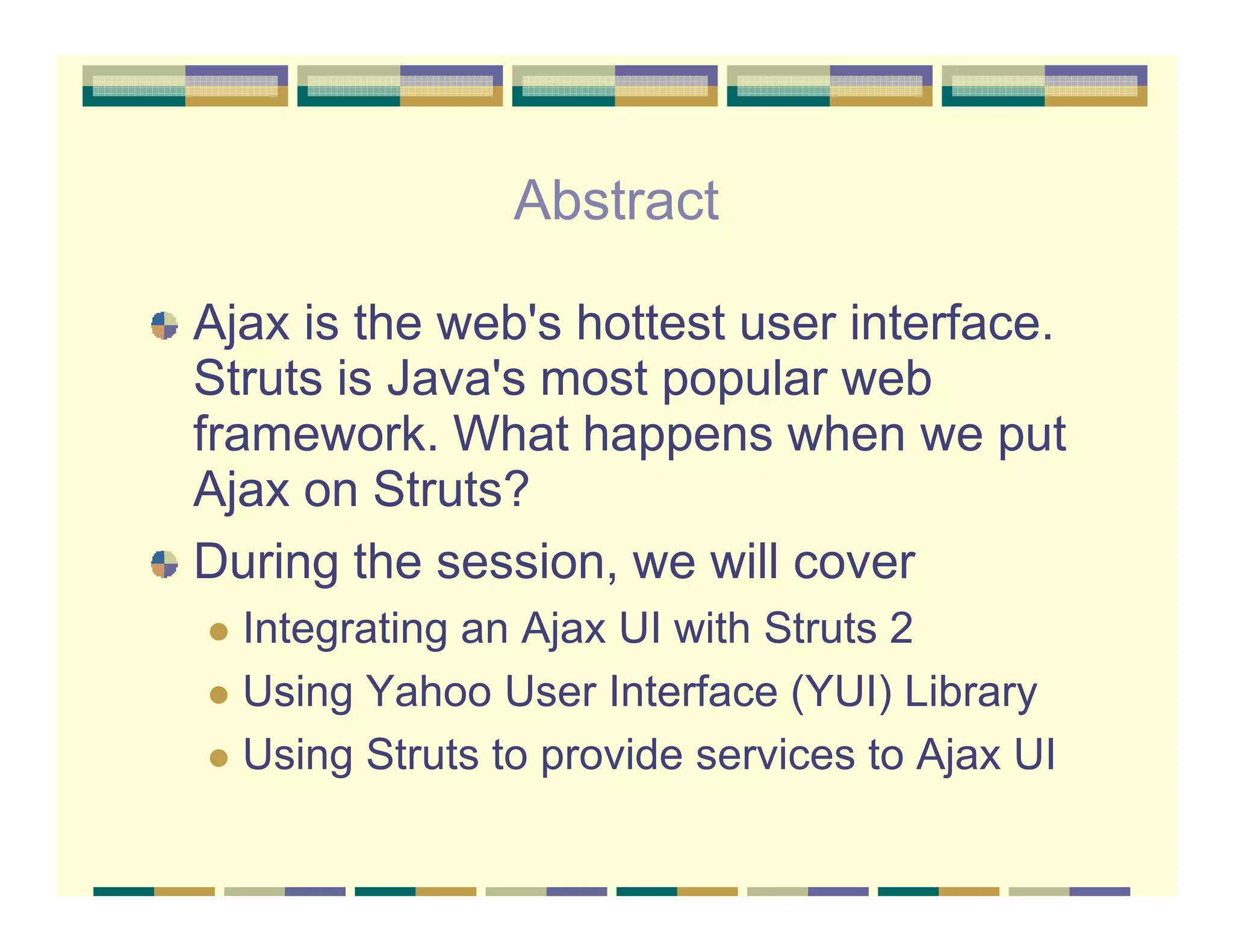

Abstract

Ajax is the web's hottest user interface.
Struts is Java's most popular web
framework. What happens when we put
Ajax on Struts?
During the session, we will cover
  Integrating an Ajax UI with Struts 2
  Using Yahoo User Interface (YUI) Library
  Using Struts to provide services to Ajax UI

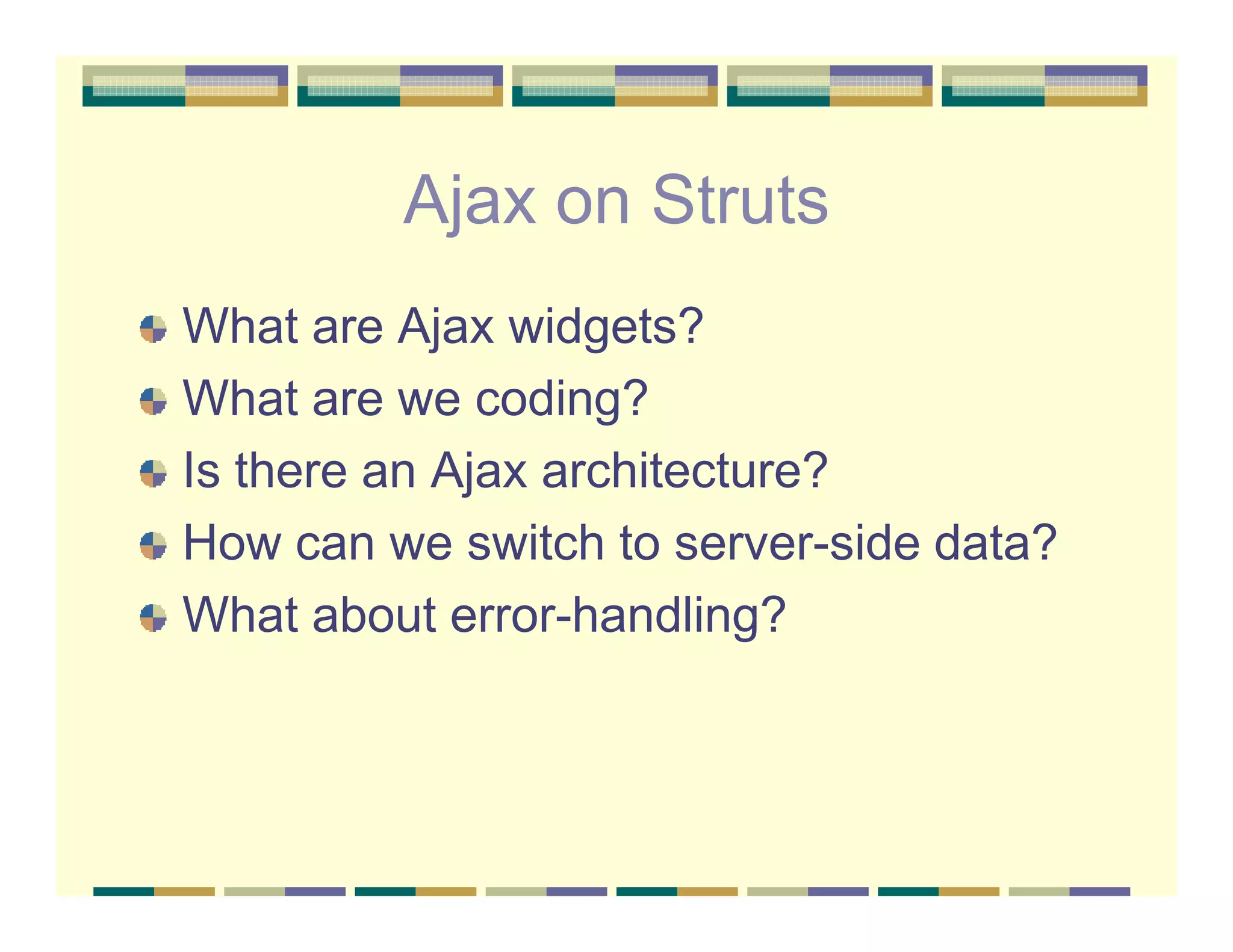

Ajax on Struts
What are Ajax widgets?
What are we coding?
Is there an Ajax architecture?
How can we switch to server-side data?
What about error-handling?

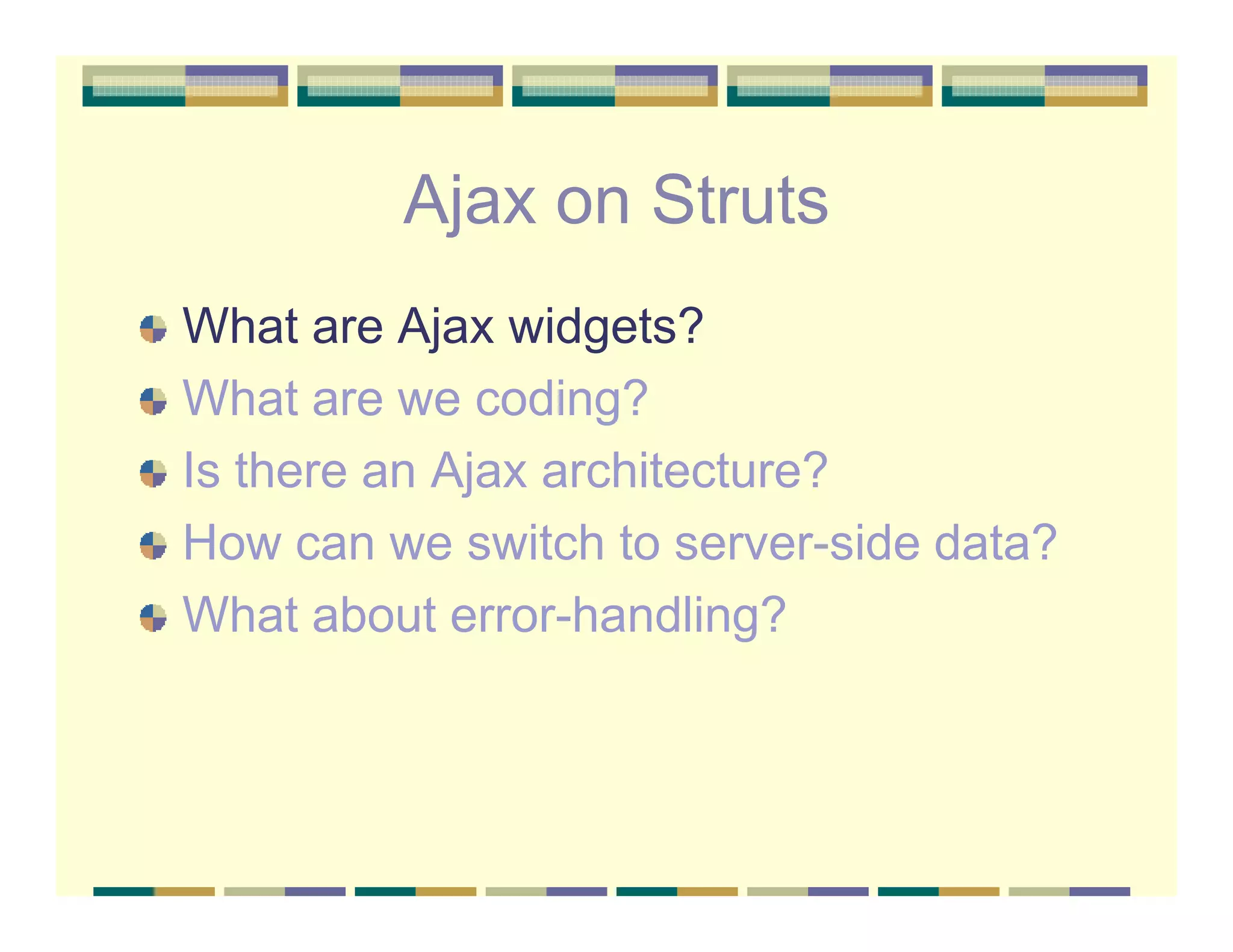

Ajax on Struts
What are Ajax widgets?
What are we coding?
Is there an Ajax architecture?
How can we switch to server-side data?
What about error-handling?

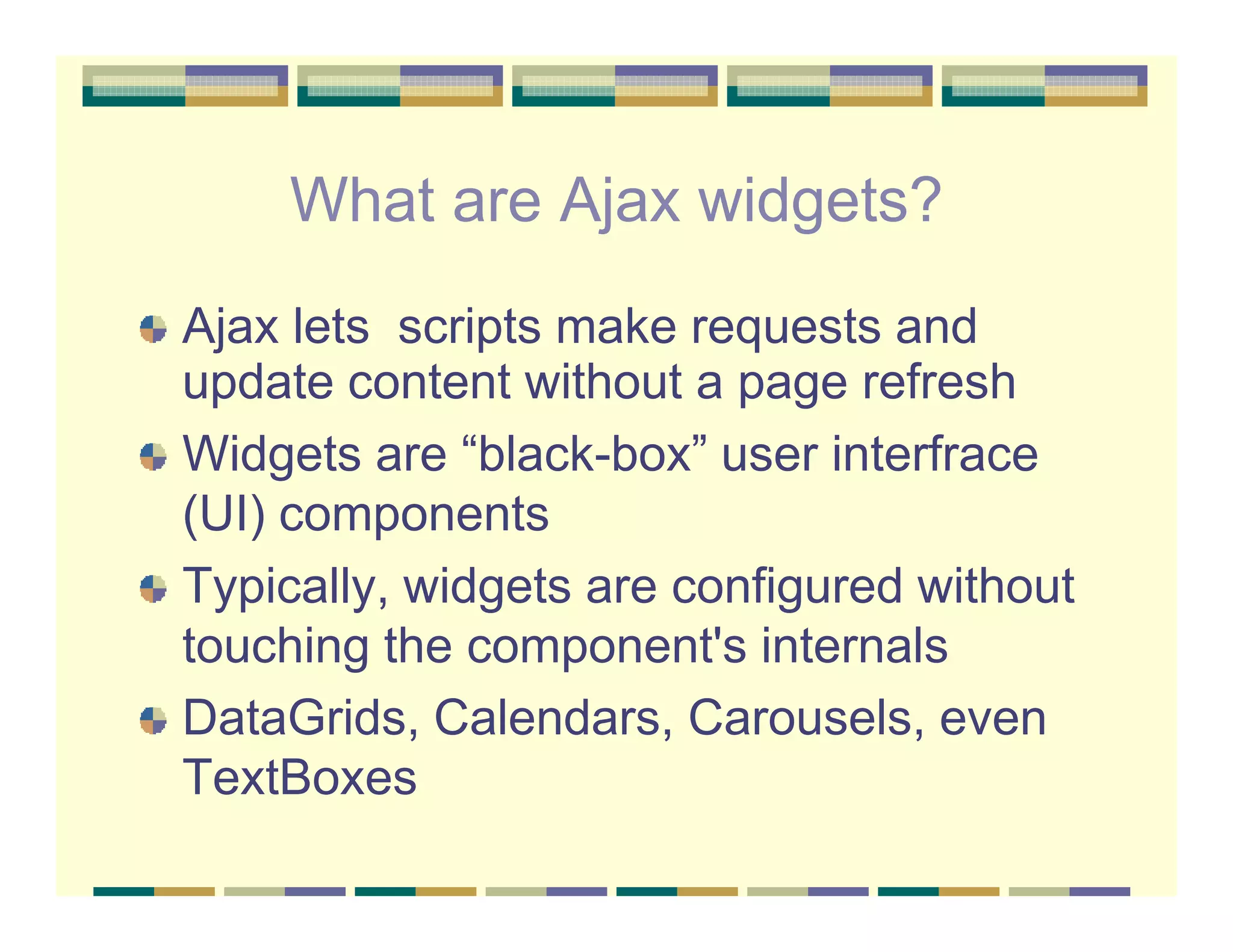

What are Ajax widgets?
Ajax lets scripts make requests and
update content without a page refresh
Widgets are “black-box” user interfrace
(UI) components
Typically, widgets are configured without
touching the component's internals
DataGrids, Calendars, Carousels, even
TextBoxes

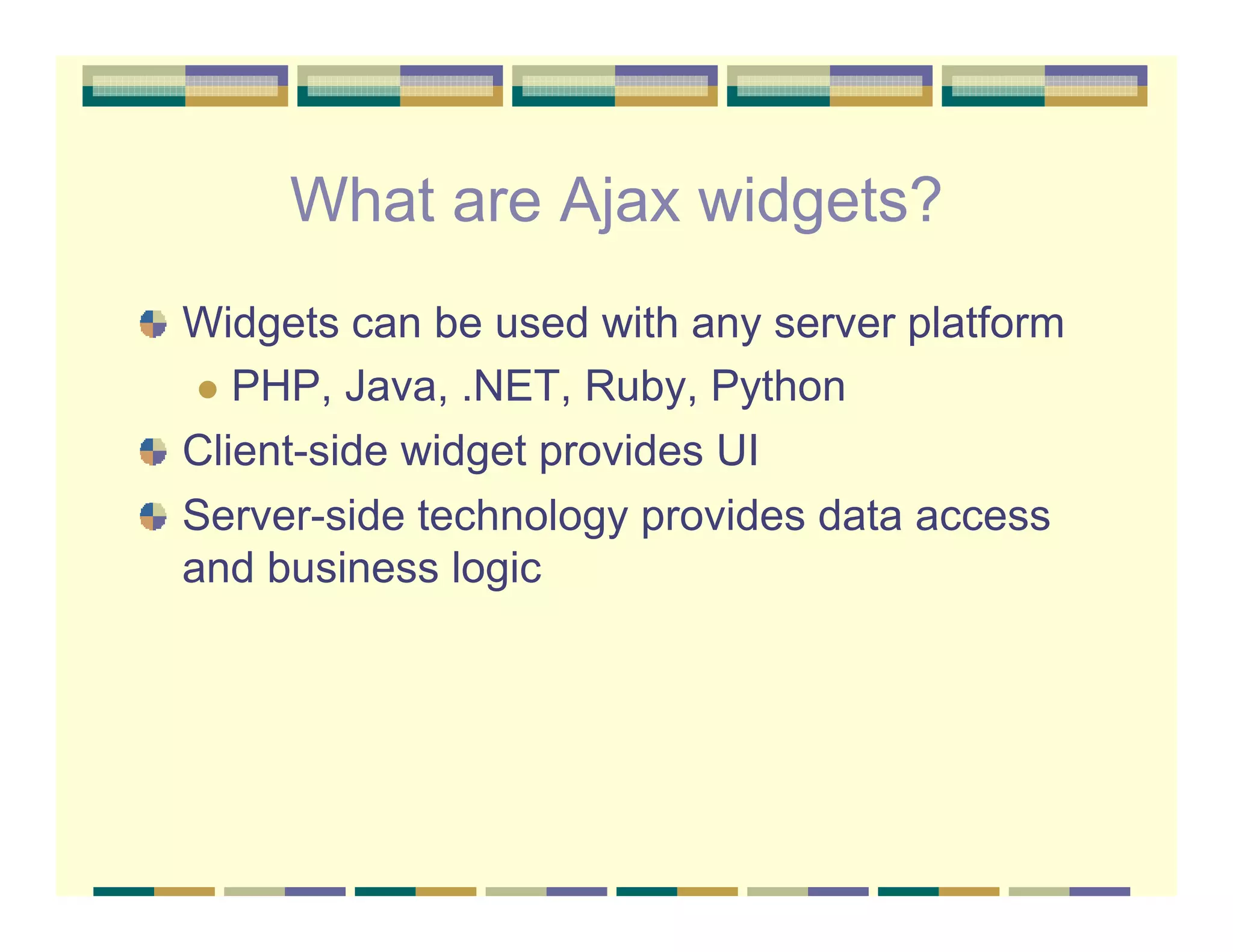

What are Ajax widgets?
Widgets can be used with any server platform
   PHP, Java, .NET, Ruby, Python
Client-side widget provides UI
Server-side technology provides data access
and business logic

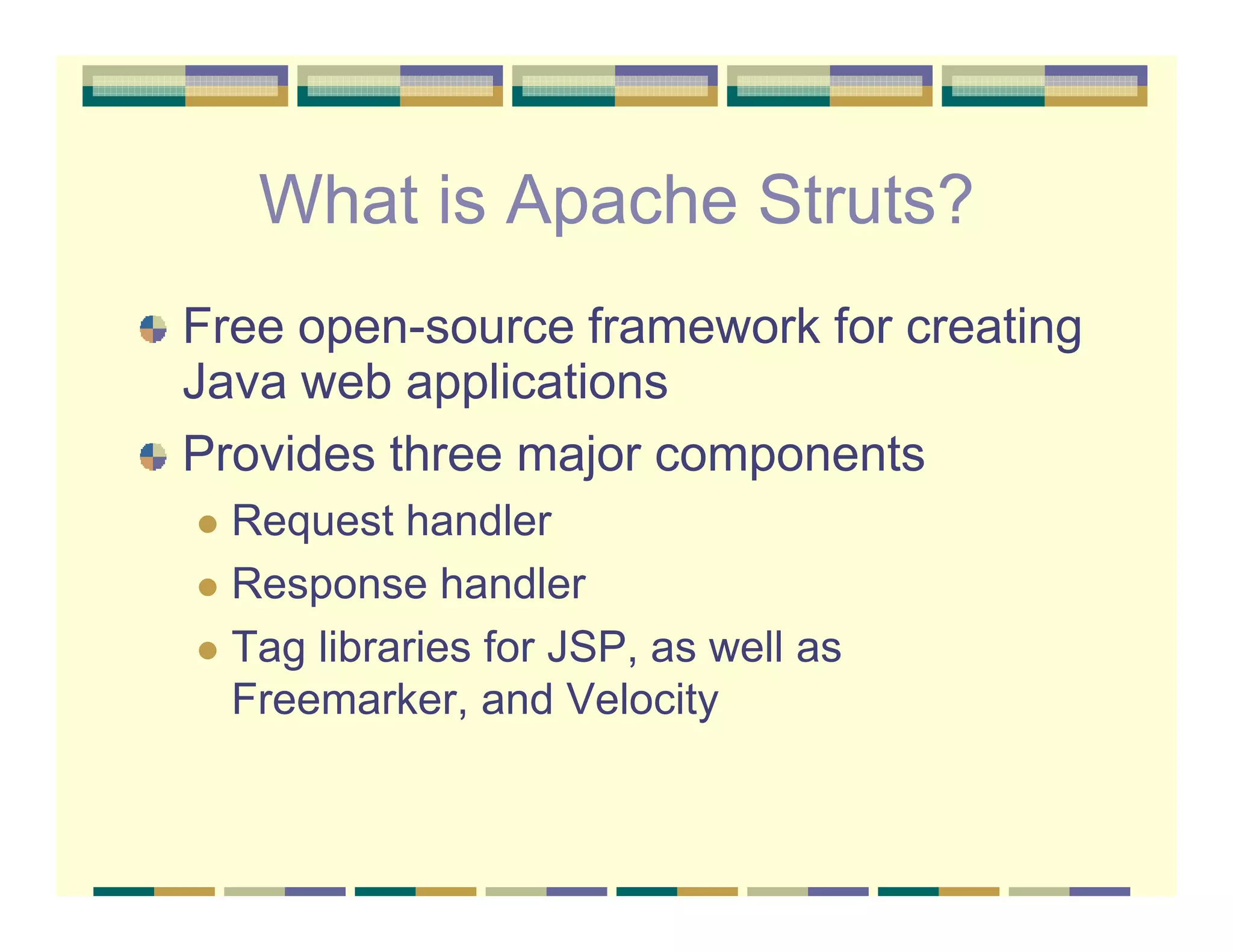

What is Apache Struts?
Free open-source framework for creating
Java web applications
Provides three major components
  Request handler
  Response handler
  Tag libraries for JSP, as well as
  Freemarker, and Velocity

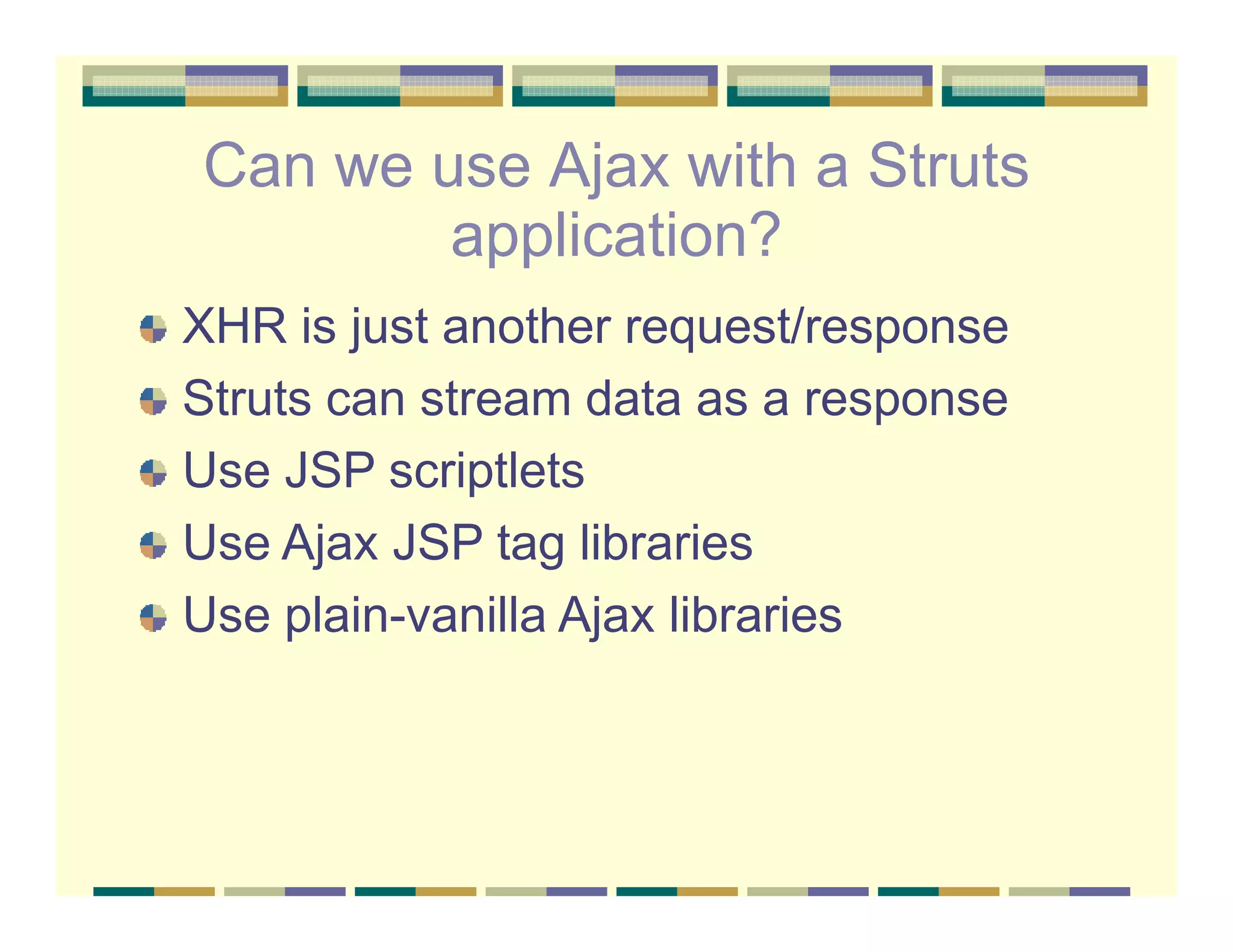

Can we use Ajax with a Struts
        application?
XHR is just another request/response
Struts can stream data as a response
Use JSP scriptlets
Use Ajax JSP tag libraries
Use plain-vanilla Ajax libraries

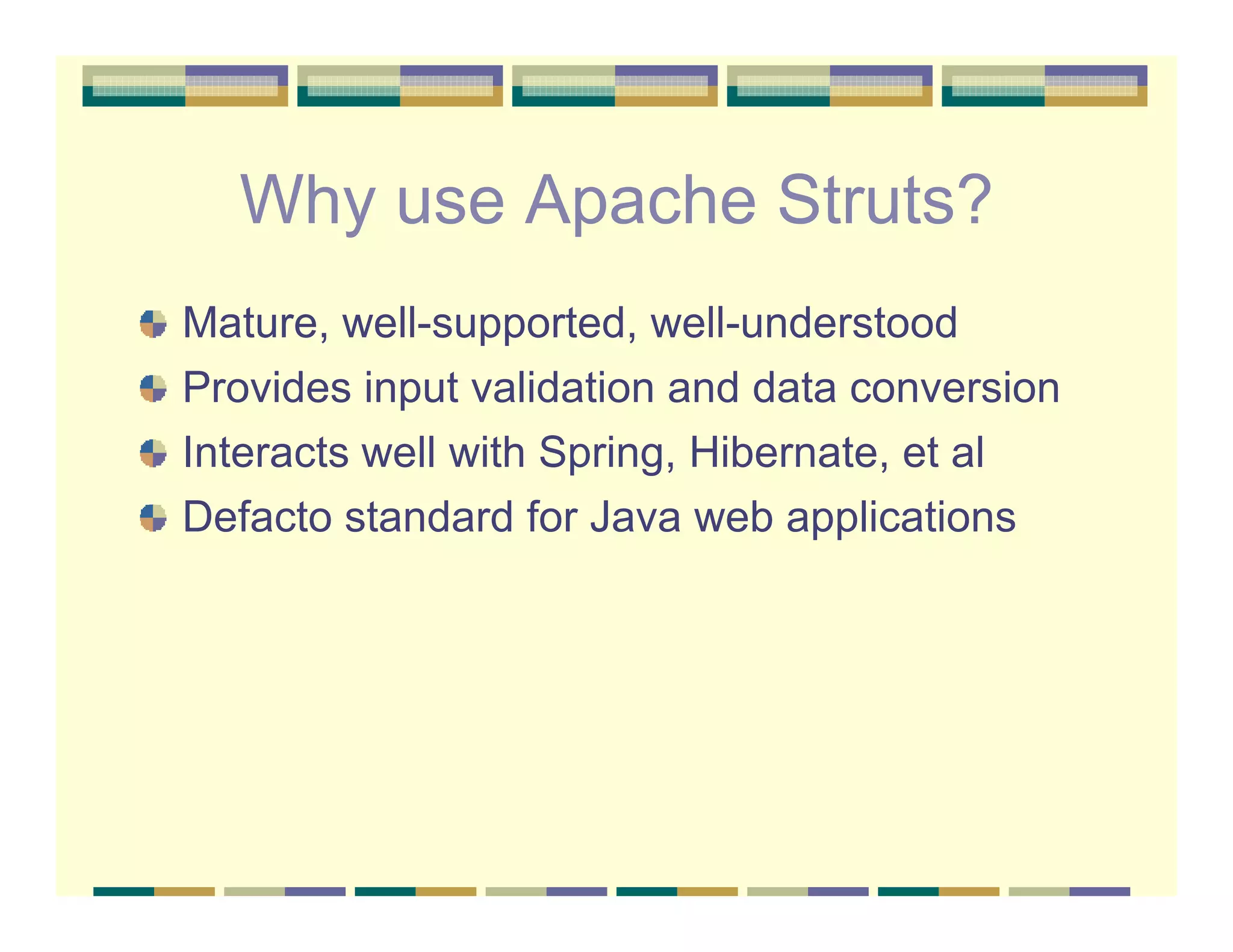

Why use Apache Struts?
Mature, well-supported, well-understood
Provides input validation and data conversion
Interacts well with Spring, Hibernate, et al
Defacto standard for Java web applications

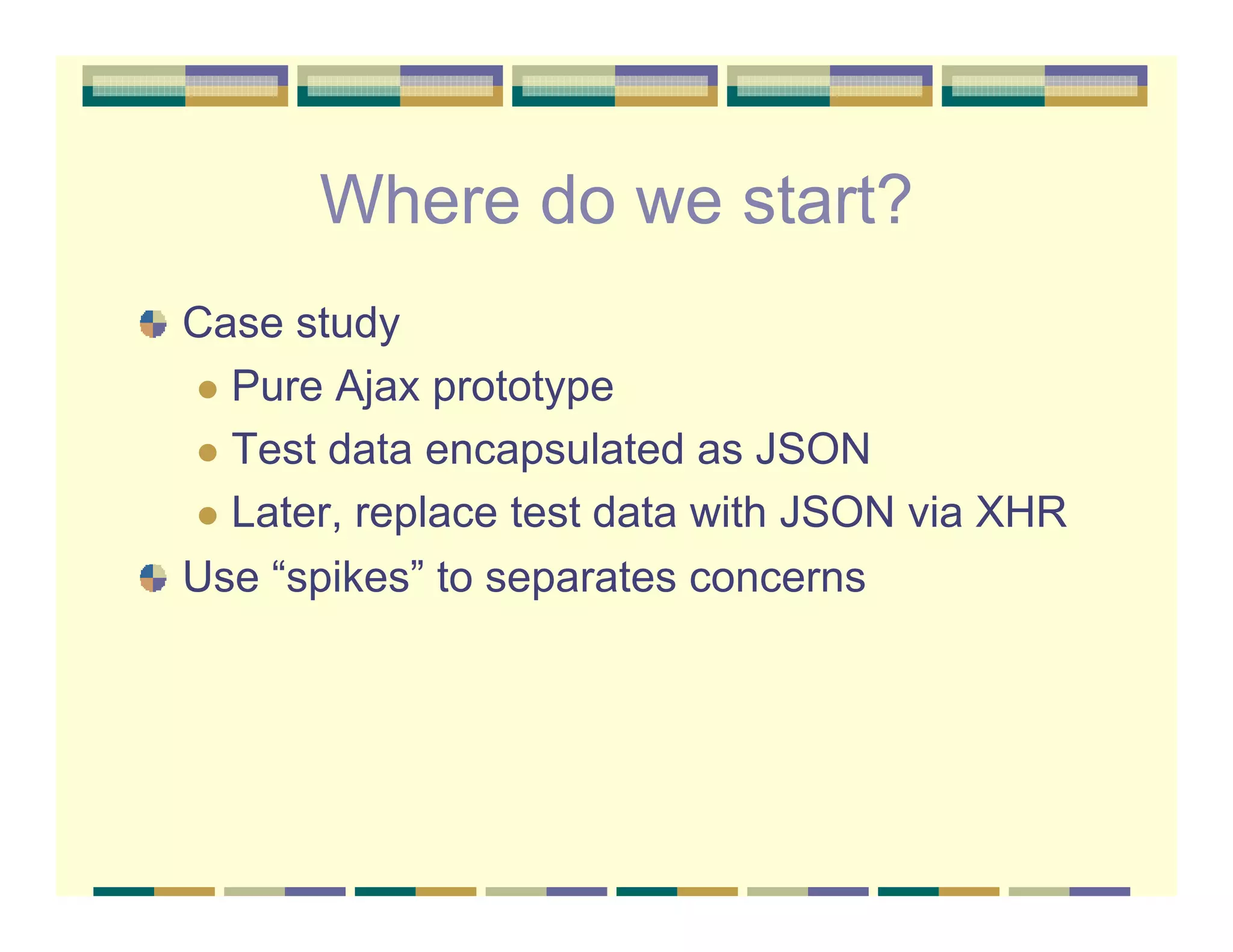

Where do we start?
Case study
  Pure Ajax prototype
  Test data encapsulated as JSON
  Later, replace test data with JSON via XHR
Use “spikes” to separates concerns

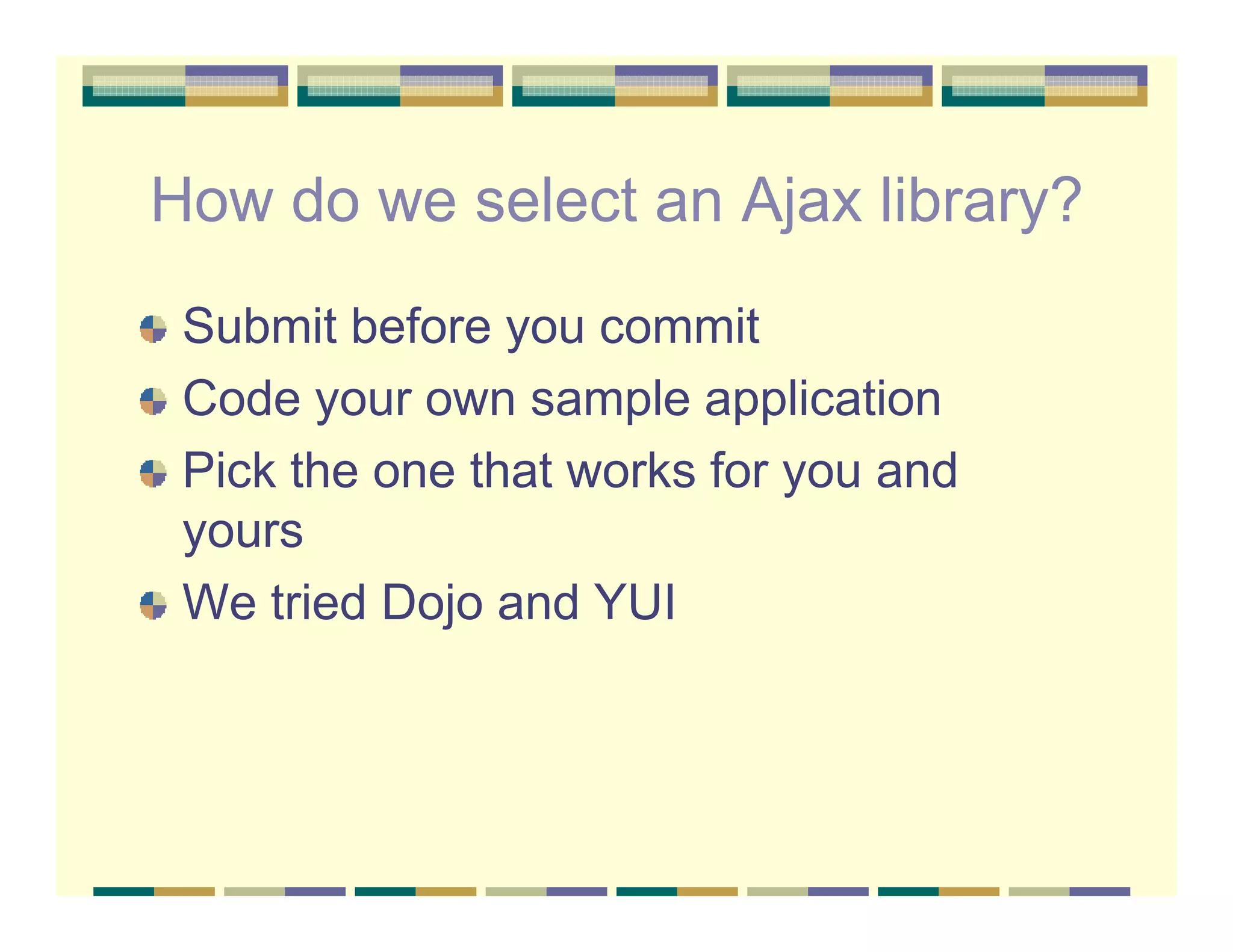

How do we select an Ajax library?
 Submit before you commit
 Code your own sample application
 Pick the one that works for you and
 yours
 We tried Dojo and YUI

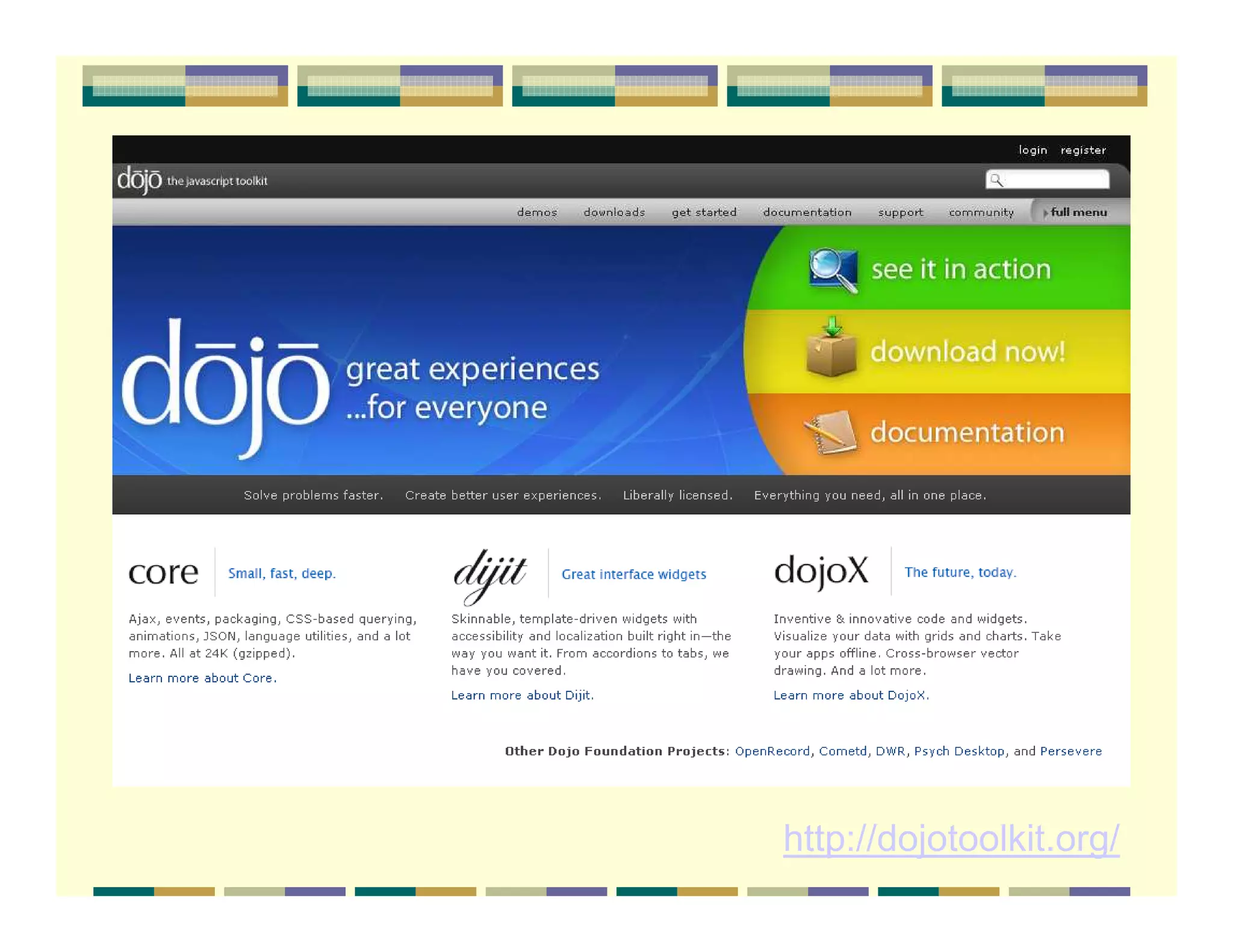

http://dojotoolkit.org/

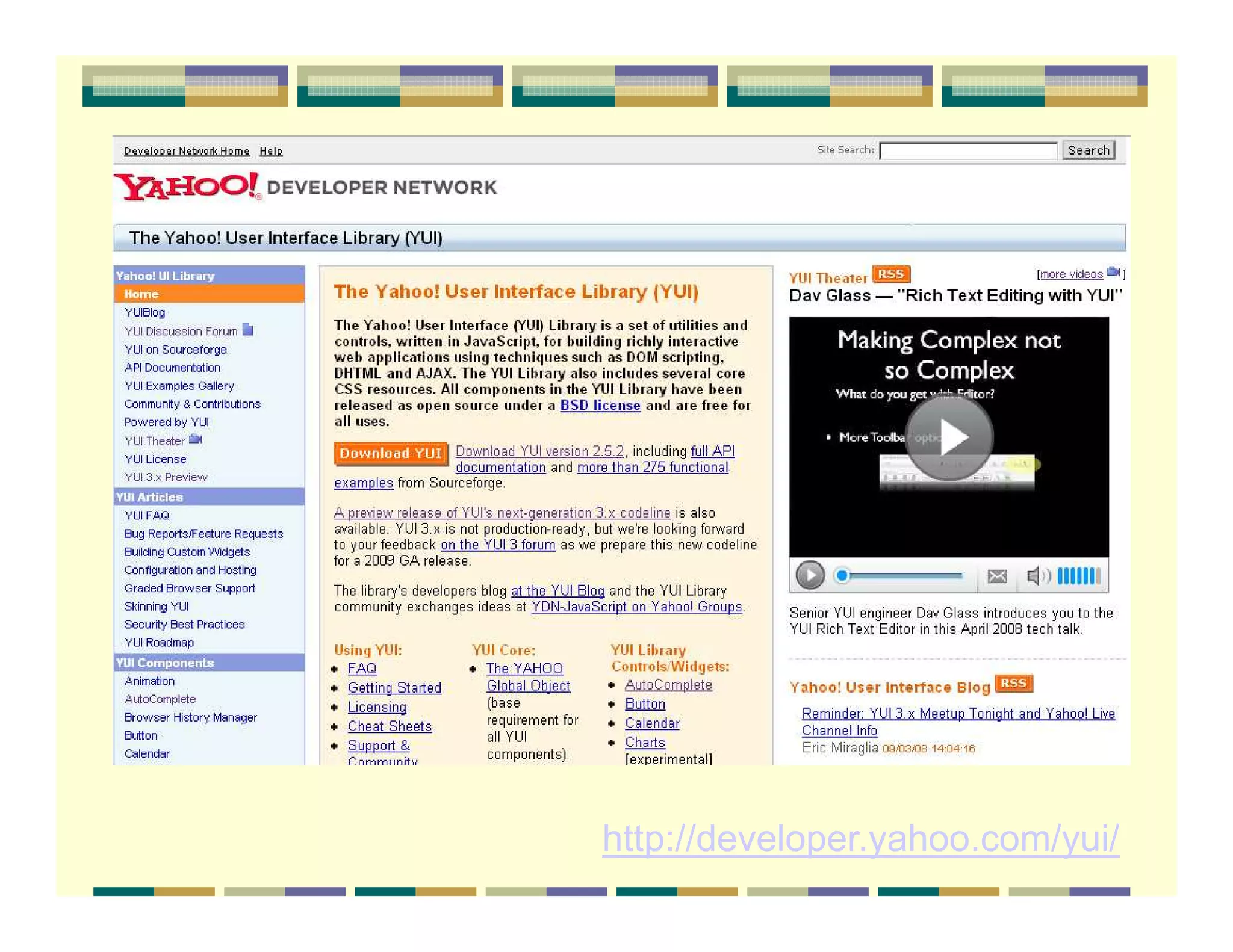

http://developer.yahoo.com/yui/

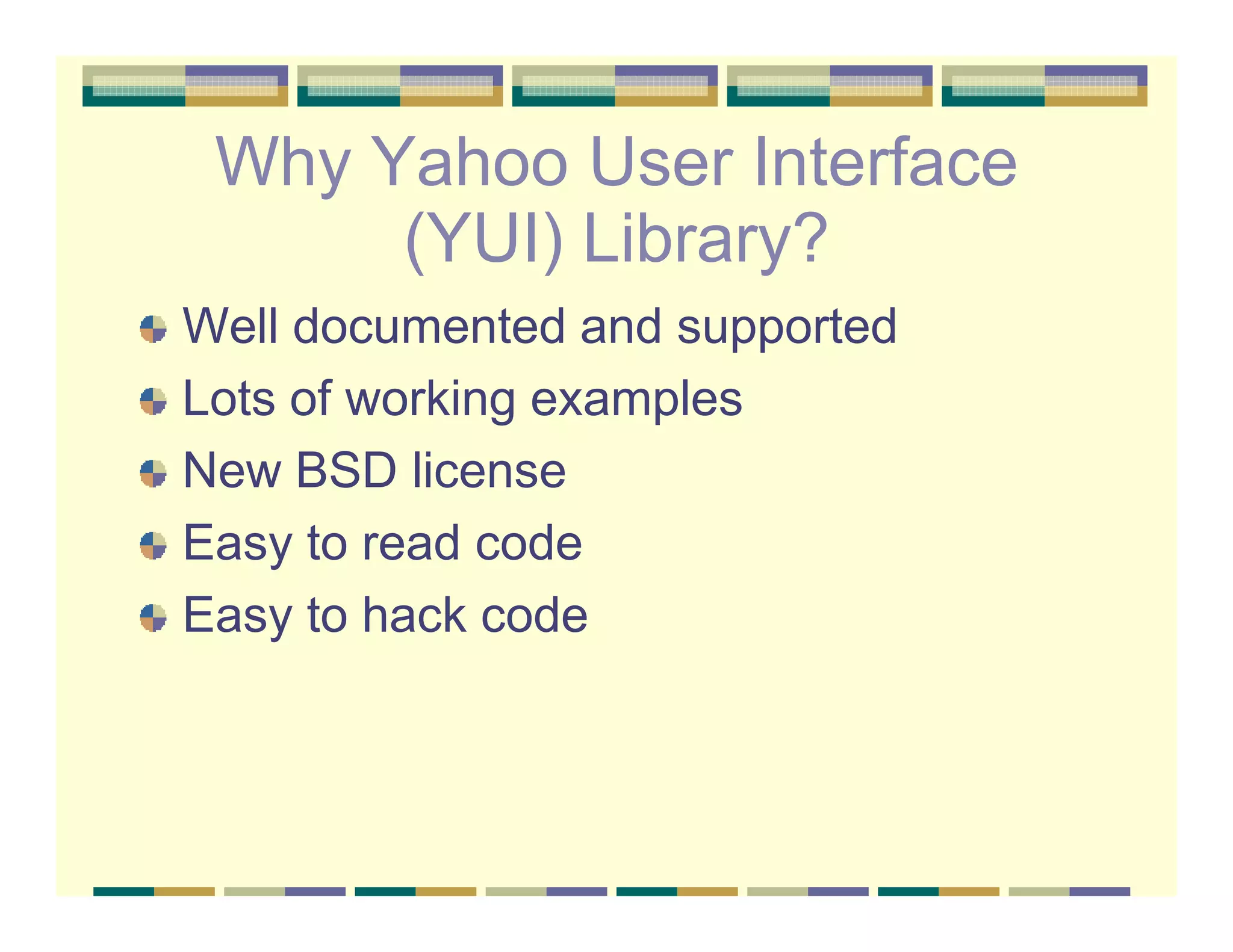

Why Yahoo User Interface
      (YUI) Library?
Well documented and supported
Lots of working examples
New BSD license
Easy to read code
Easy to hack code

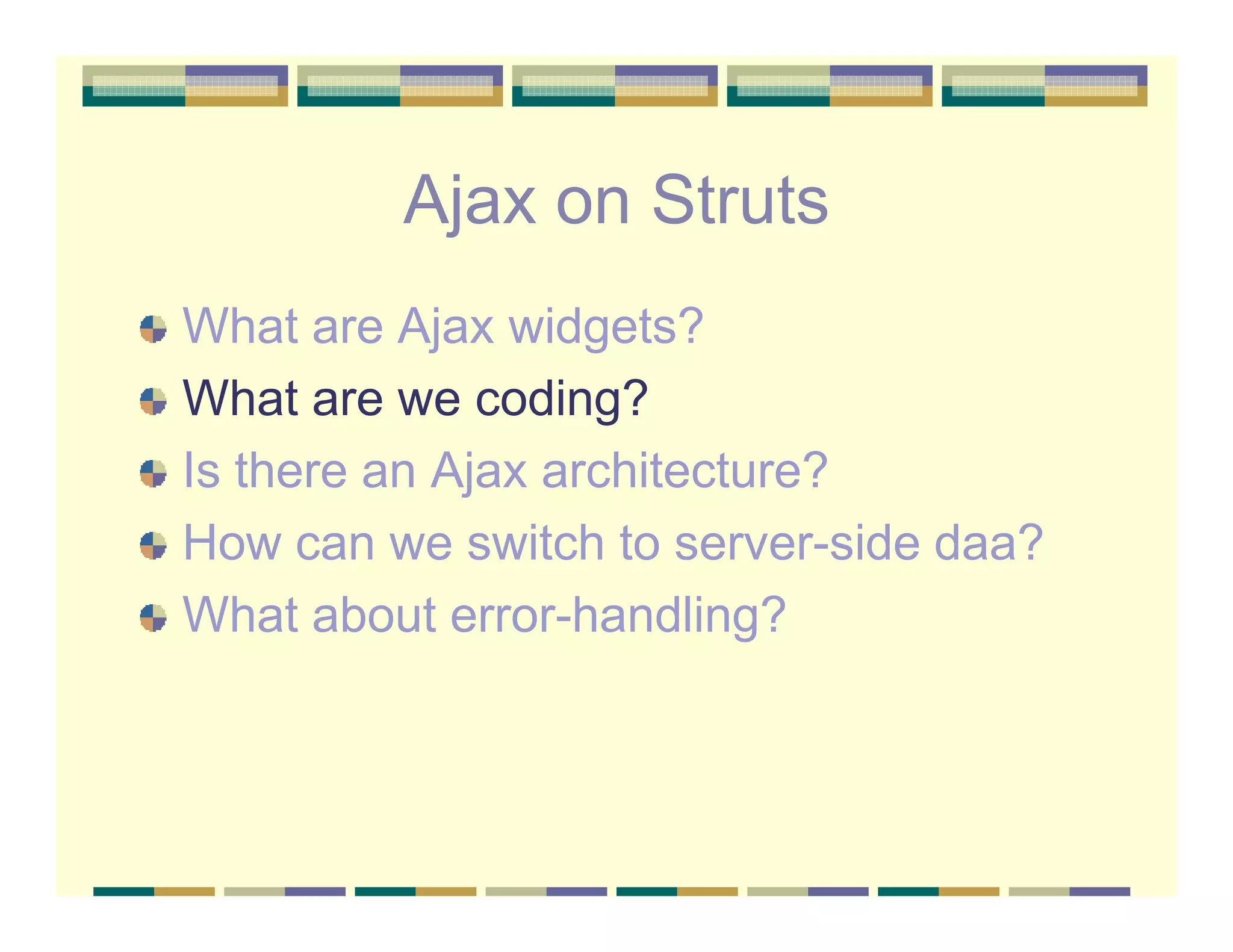

Ajax on Struts
What are Ajax widgets?
What are we coding?
Is there an Ajax architecture?
How can we switch to server-side daa?
What about error-handling?

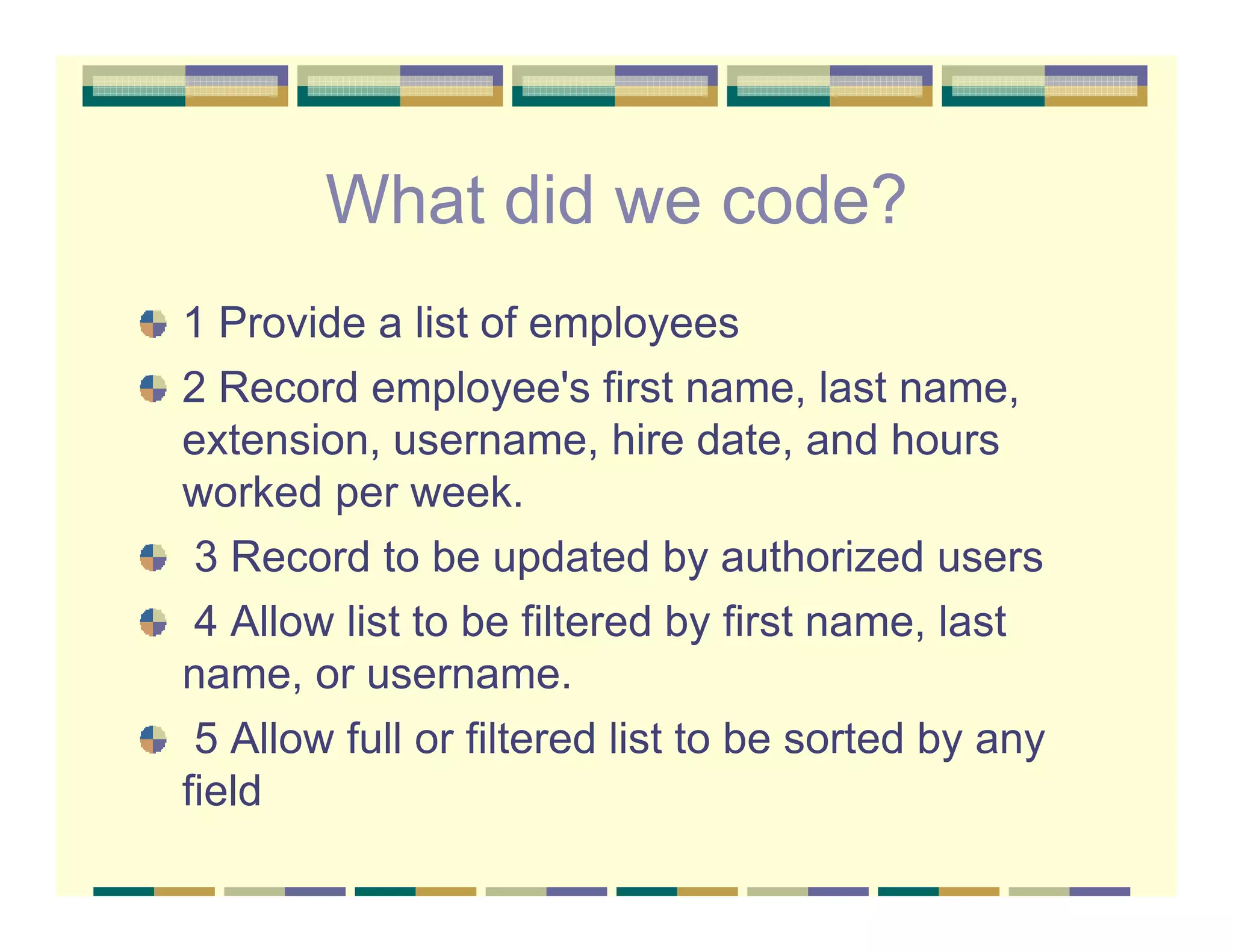

What did we code?
1 Provide a list of employees
2 Record employee's first name, last name,
extension, username, hire date, and hours
worked per week.
 3 Record to be updated by authorized users
 4 Allow list to be filtered by first name, last
name, or username.
 5 Allow full or filtered list to be sorted by any
field

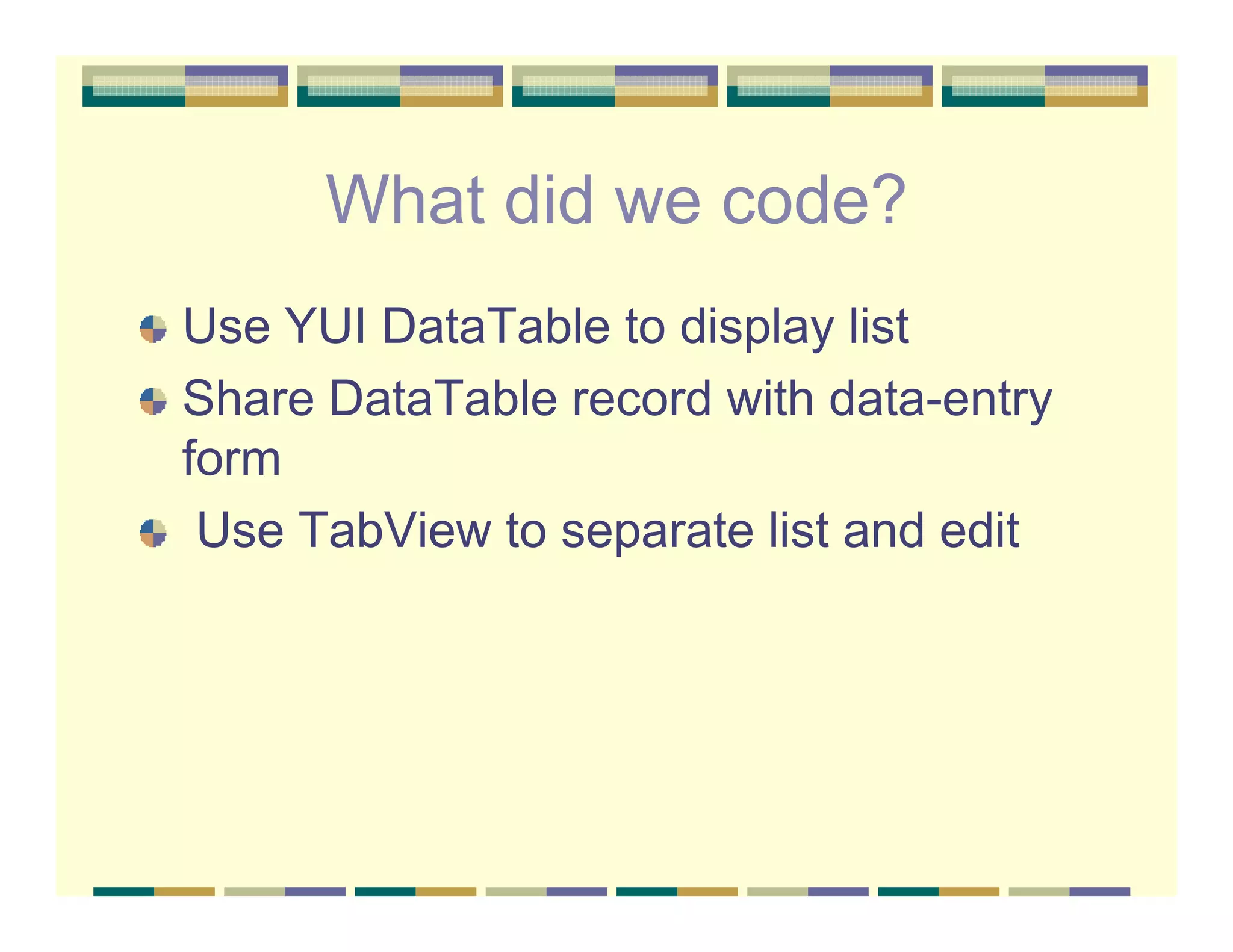

What did we code?
Use YUI DataTable to display list
Share DataTable record with data-entry
form
 Use TabView to separate list and edit

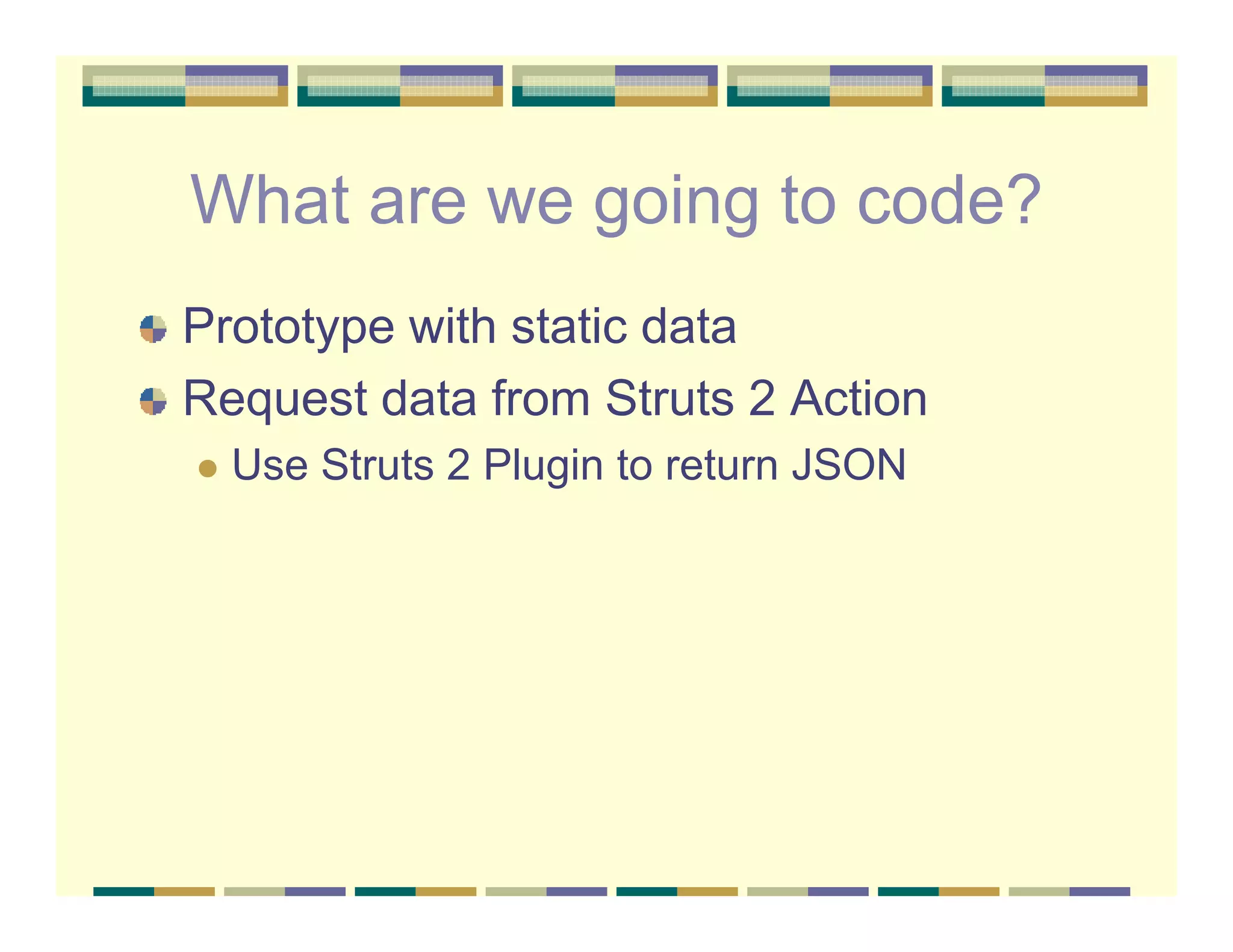

What are we going to code?
Prototype with static data
Request data from Struts 2 Action
  Use Struts 2 Plugin to return JSON

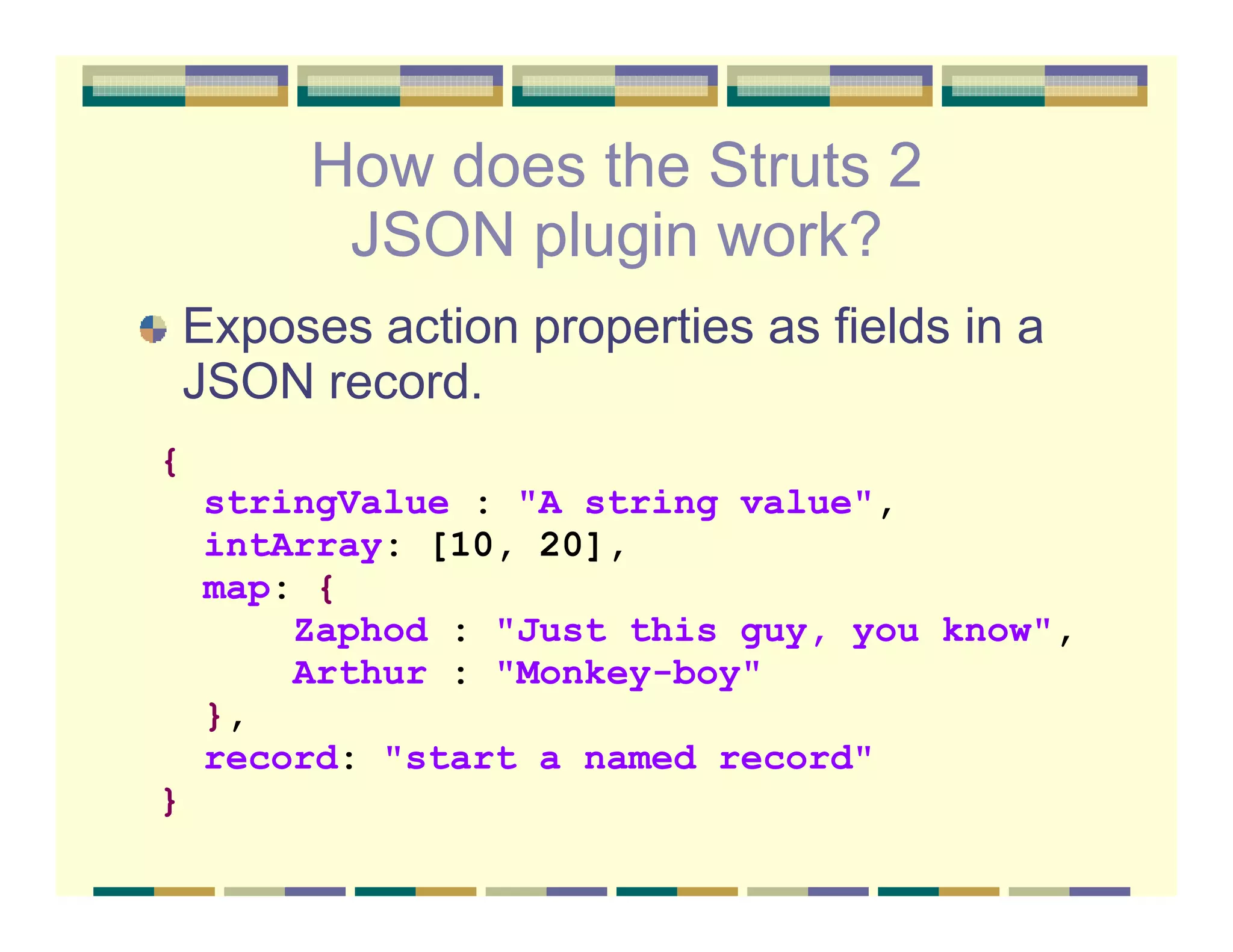

How does the Struts 2
          JSON plugin work?
    Exposes action properties as fields in a
    JSON record.
{
    stringValue : quot;A string valuequot;,
    intArray: [10, 20],
    map: {
        Zaphod : quot;Just this guy, you knowquot;,
        Arthur : quot;Monkey-boyquot;
    },
    record: quot;start a named recordquot;
}

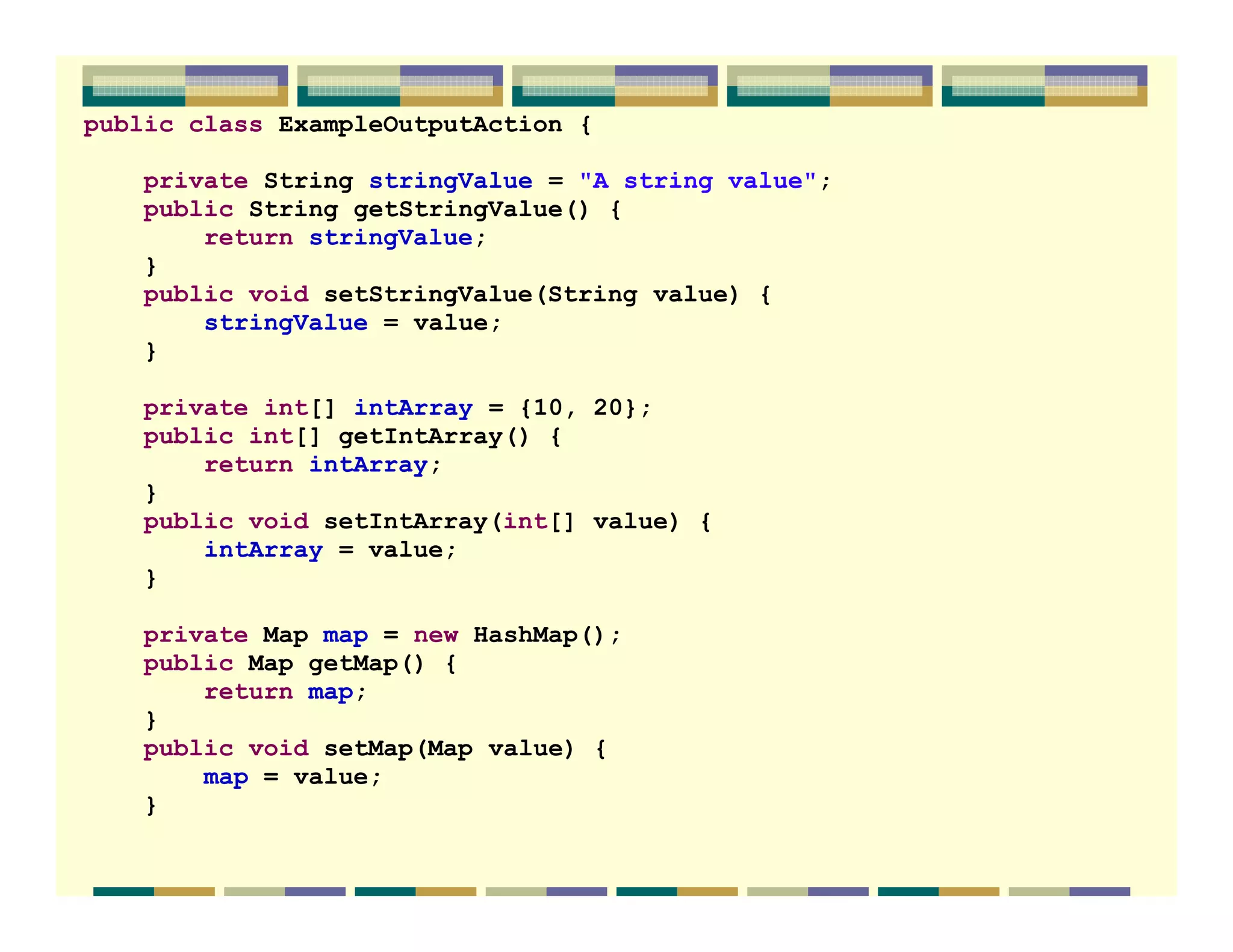

public class ExampleOutputAction {

   private String stringValue = quot;A string valuequot;;
   public String getStringValue() {
       return stringValue;
   }
   public void setStringValue(String value) {
       stringValue = value;
   }

   private int[] intArray = {10, 20};
   public int[] getIntArray() {
       return intArray;
   }
   public void setIntArray(int[] value) {
       intArray = value;
   }

   private Map map = new HashMap();
   public Map getMap() {
       return map;
   }
   public void setMap(Map value) {
       map = value;
   }

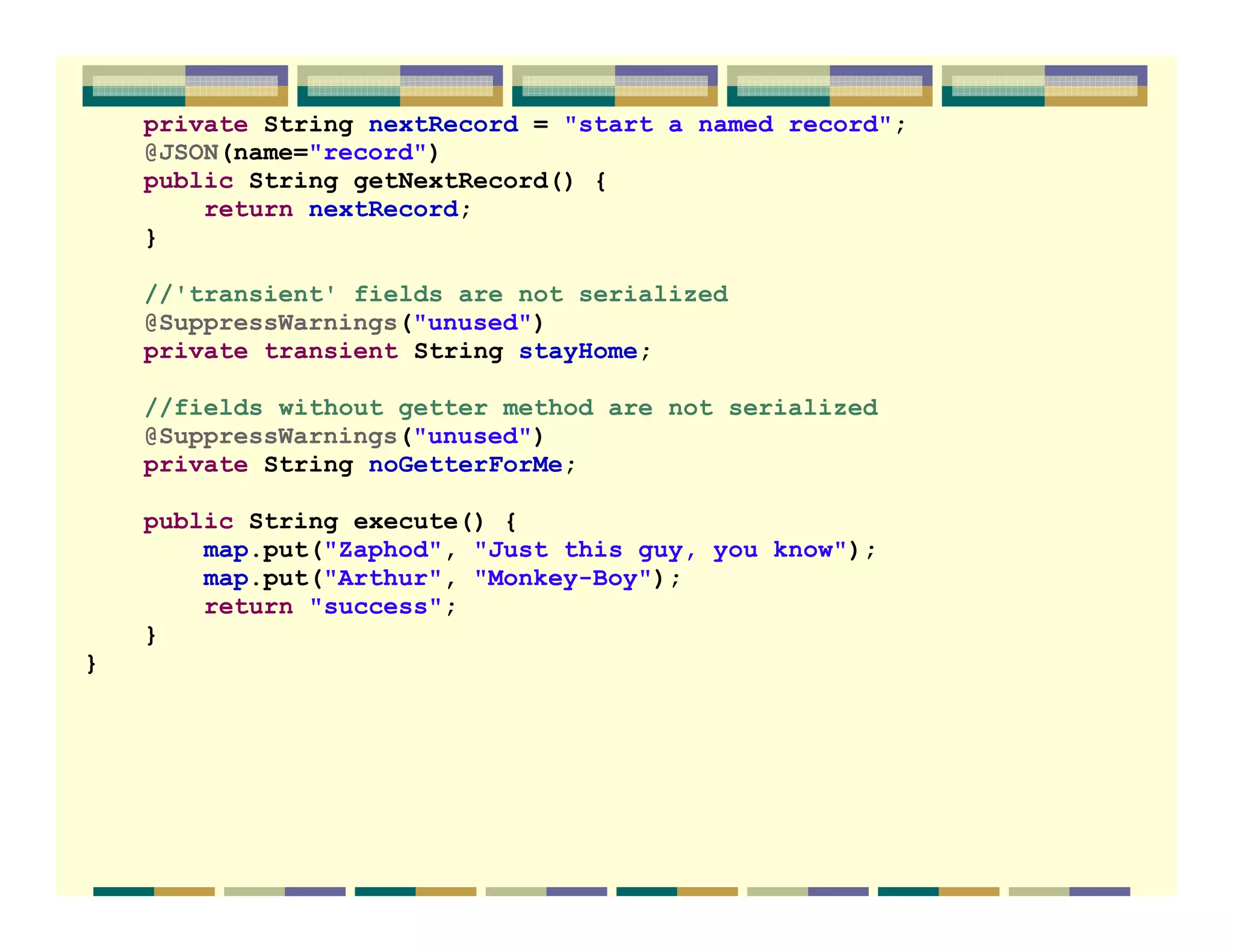

private String nextRecord = quot;start a named recordquot;;
    @JSON(name=quot;recordquot;)
    public String getNextRecord() {
        return nextRecord;
    }

    //'transient' fields are not serialized
    @SuppressWarnings(quot;unusedquot;)
    private transient String stayHome;

    //fields without getter method are not serialized
    @SuppressWarnings(quot;unusedquot;)
    private String noGetterForMe;

    public String execute() {
        map.put(quot;Zaphodquot;, quot;Just this guy, you knowquot;);
        map.put(quot;Arthurquot;, quot;Monkey-Boyquot;);
        return quot;successquot;;
    }
}
{

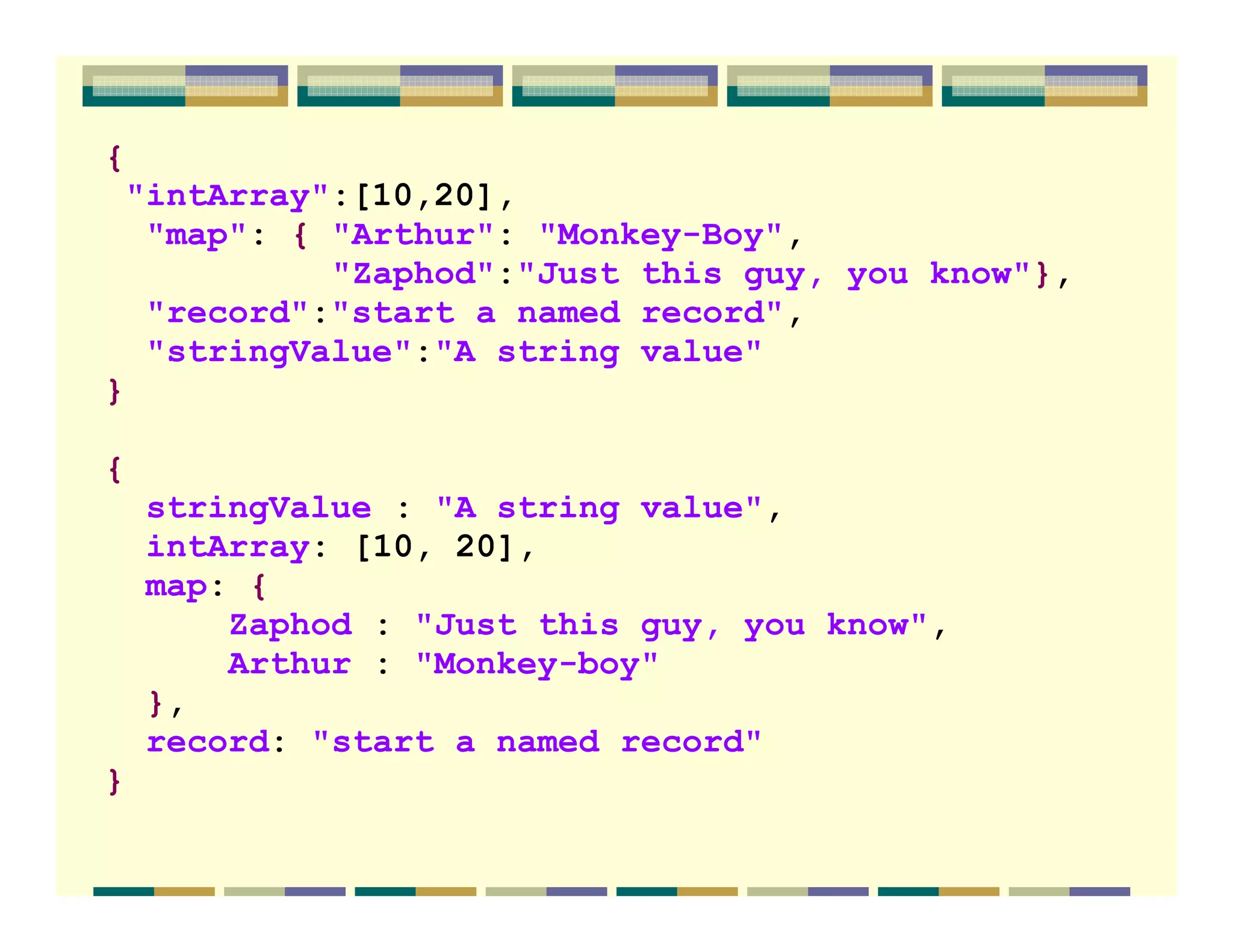

    quot;intArrayquot;:[10,20],
     quot;mapquot;: { quot;Arthurquot;: quot;Monkey-Boyquot;,
              quot;Zaphodquot;:quot;Just this guy, you knowquot;},
     quot;recordquot;:quot;start a named recordquot;,
     quot;stringValuequot;:quot;A string valuequot;
}

{
    stringValue : quot;A string valuequot;,
    intArray: [10, 20],
    map: {
        Zaphod : quot;Just this guy, you knowquot;,
        Arthur : quot;Monkey-boyquot;
    },
    record: quot;start a named recordquot;
}

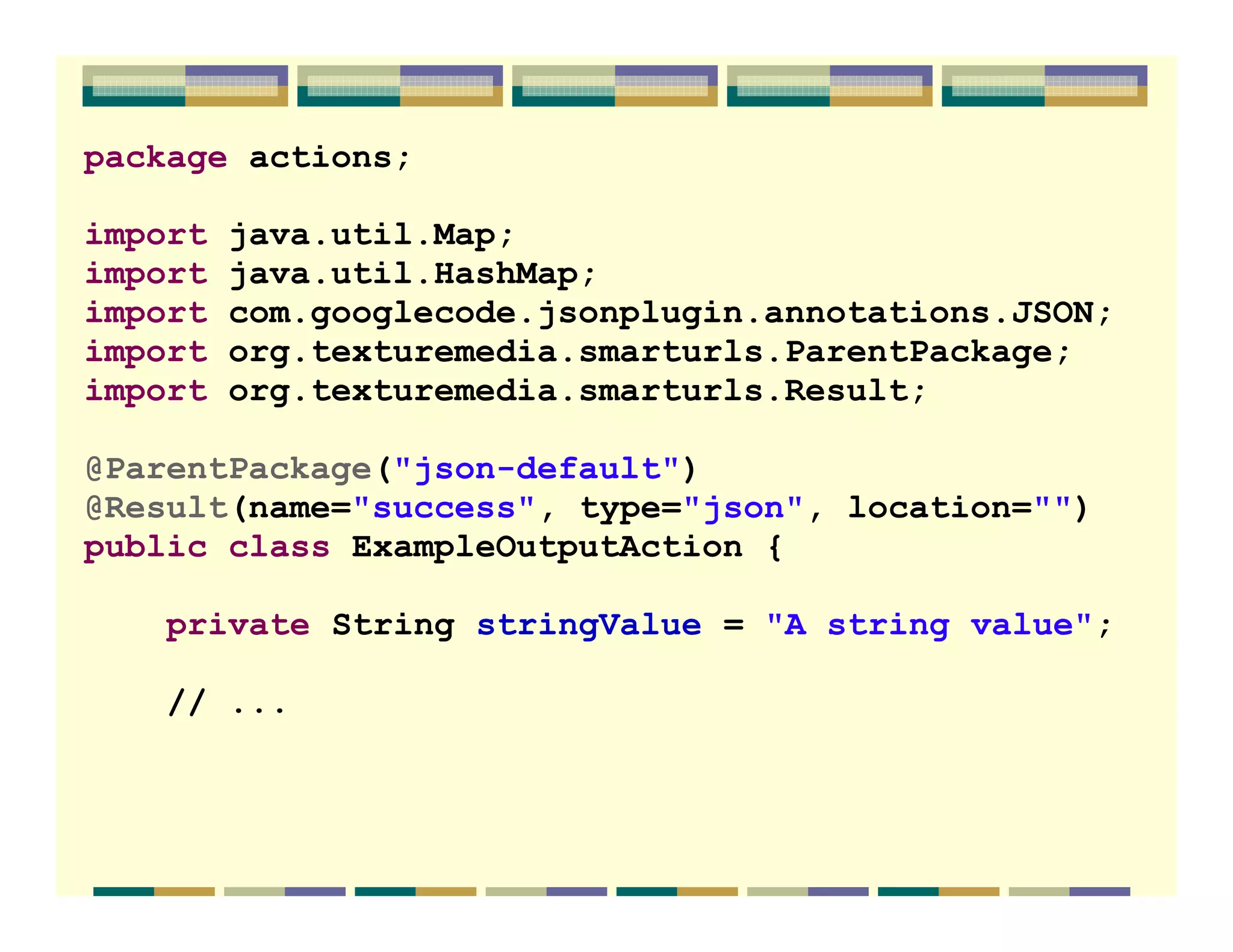

package actions;

import   java.util.Map;
import   java.util.HashMap;
import   com.googlecode.jsonplugin.annotations.JSON;
import   org.texturemedia.smarturls.ParentPackage;
import   org.texturemedia.smarturls.Result;

@ParentPackage(quot;json-defaultquot;)
@Result(name=quot;successquot;, type=quot;jsonquot;, location=quot;quot;)
public class ExampleOutputAction {

    private String stringValue = quot;A string valuequot;;

    // ...

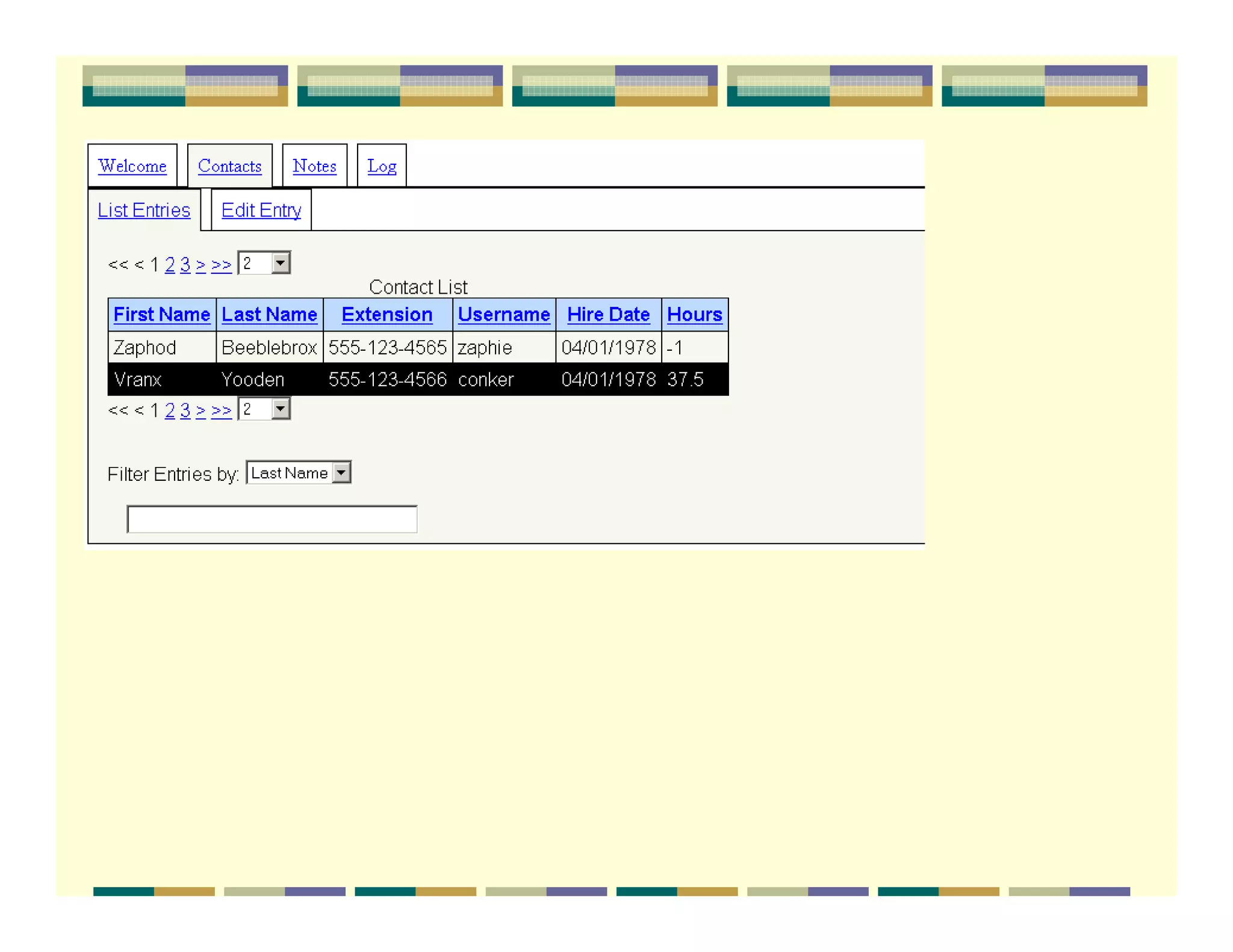

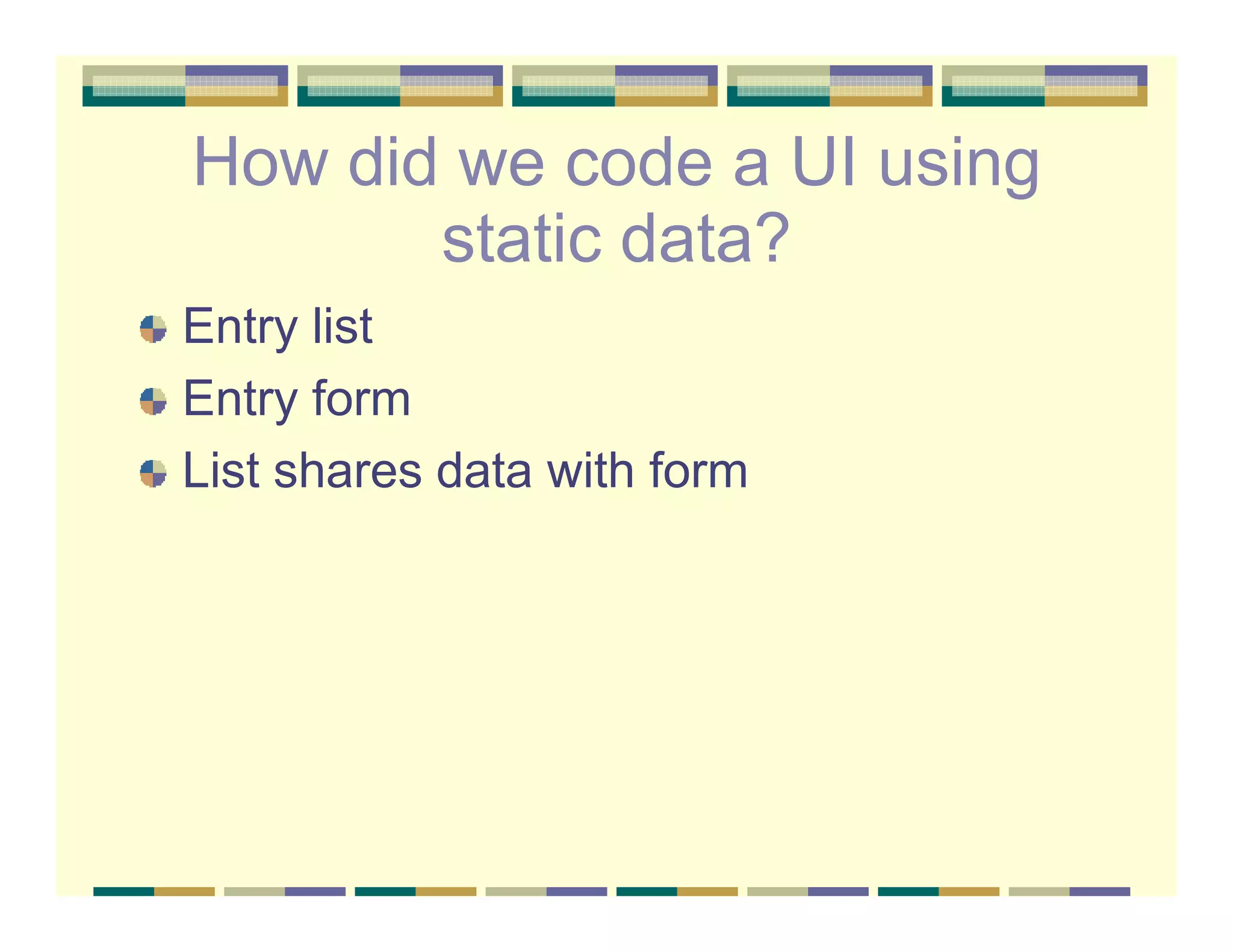

How did we code a UI using
       static data?
Entry list

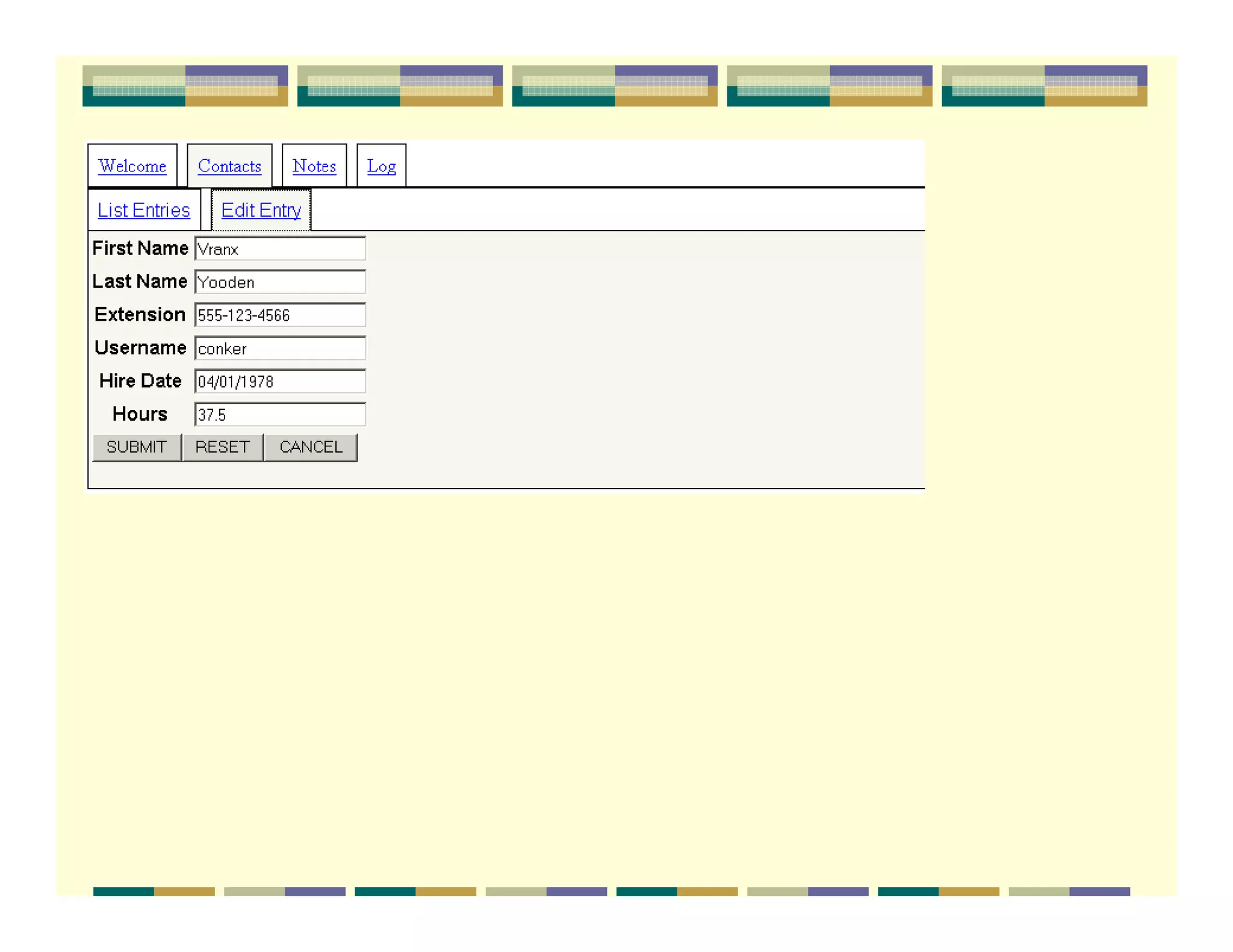

Entry form
List shares data with form

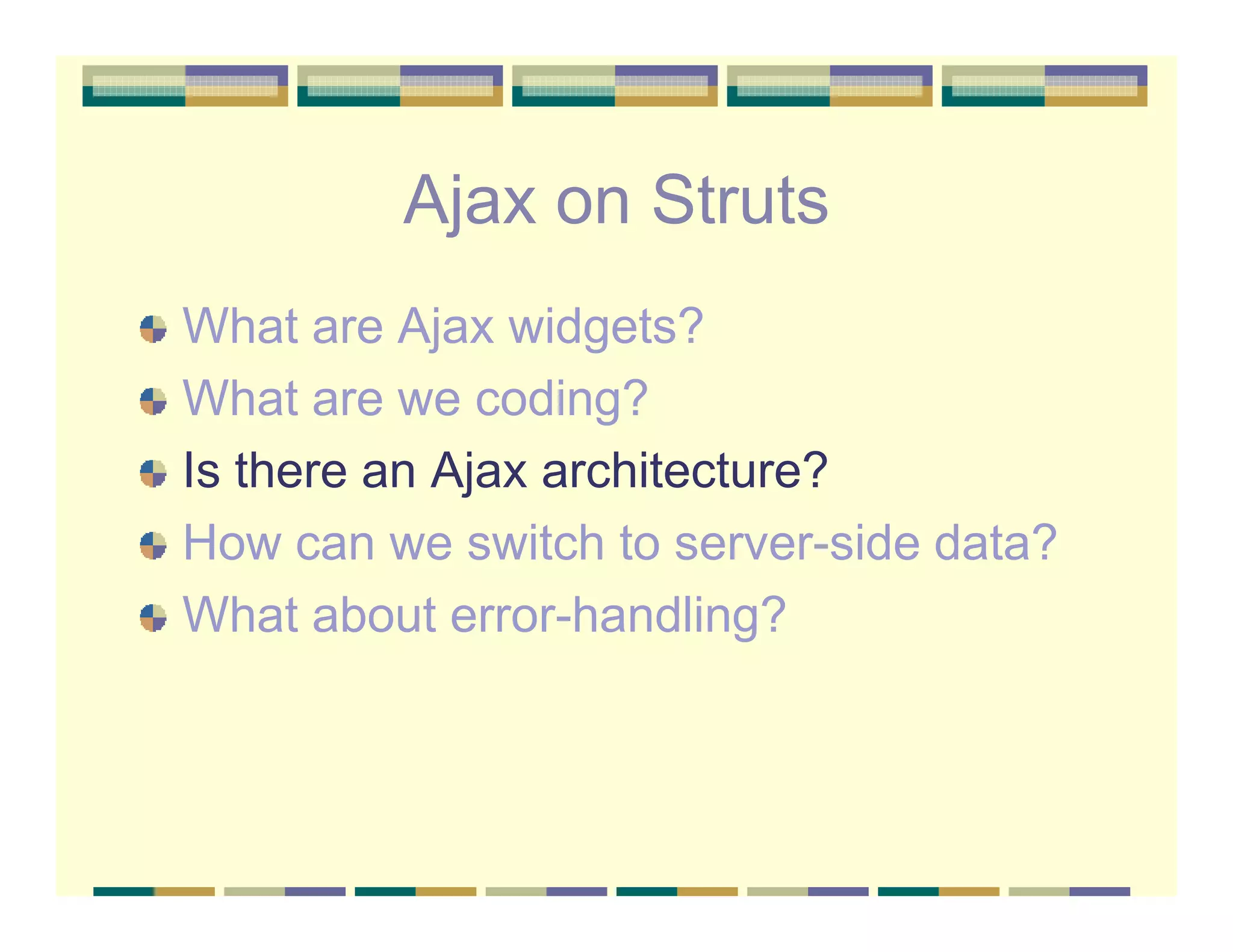

Ajax on Struts
What are Ajax widgets?
What are we coding?
Is there an Ajax architecture?
How can we switch to server-side data?
What about error-handling?

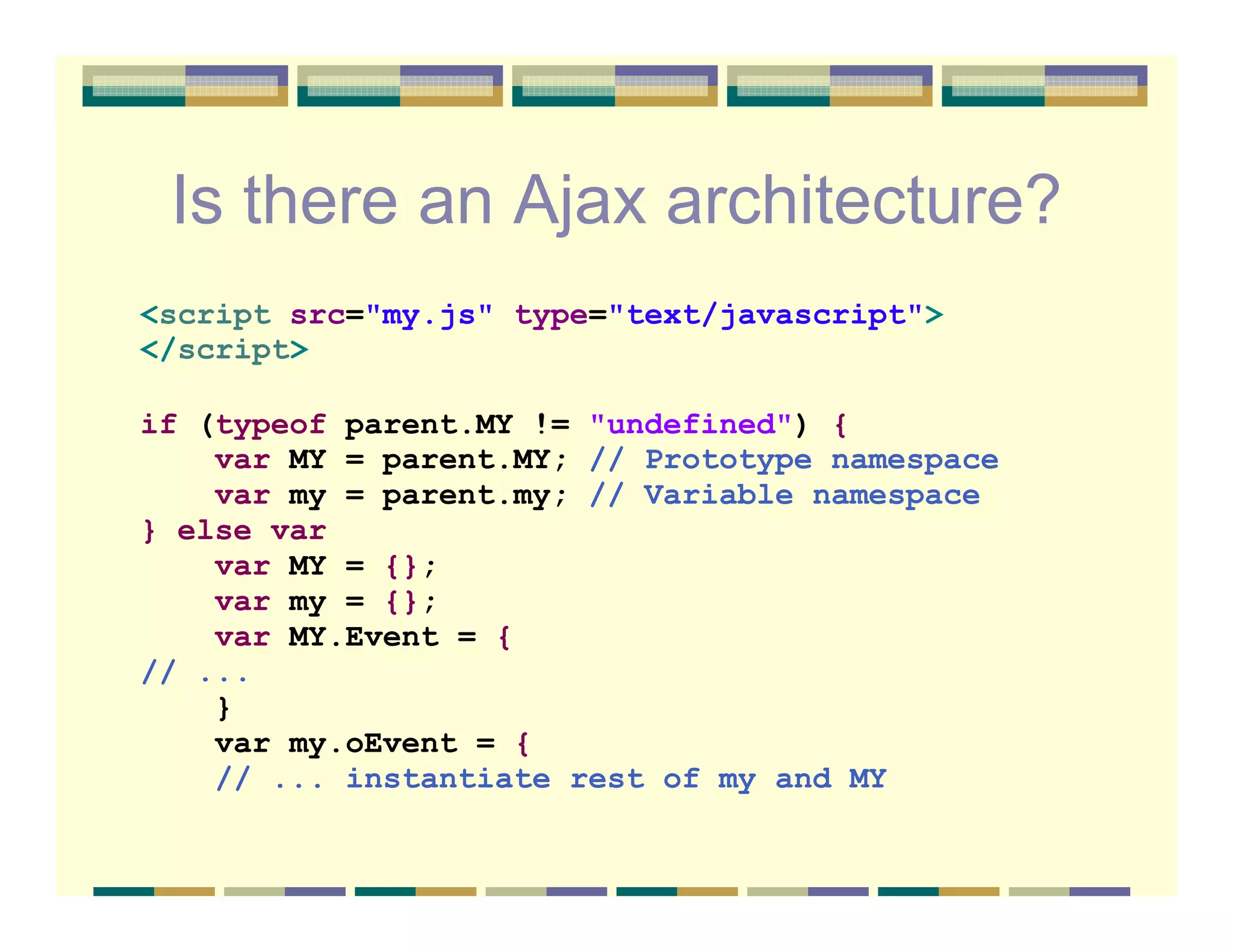

Is there an Ajax architecture?
<script src=quot;my.jsquot; type=quot;text/javascriptquot;>
</script>

if (typeof parent.MY != quot;undefinedquot;) {
    var MY = parent.MY; // Prototype namespace
    var my = parent.my; // Variable namespace
} else var
    var MY = {};
    var my = {};
    var MY.Event = {
// ...
    }
    var my.oEvent = {
    // ... instantiate rest of my and MY

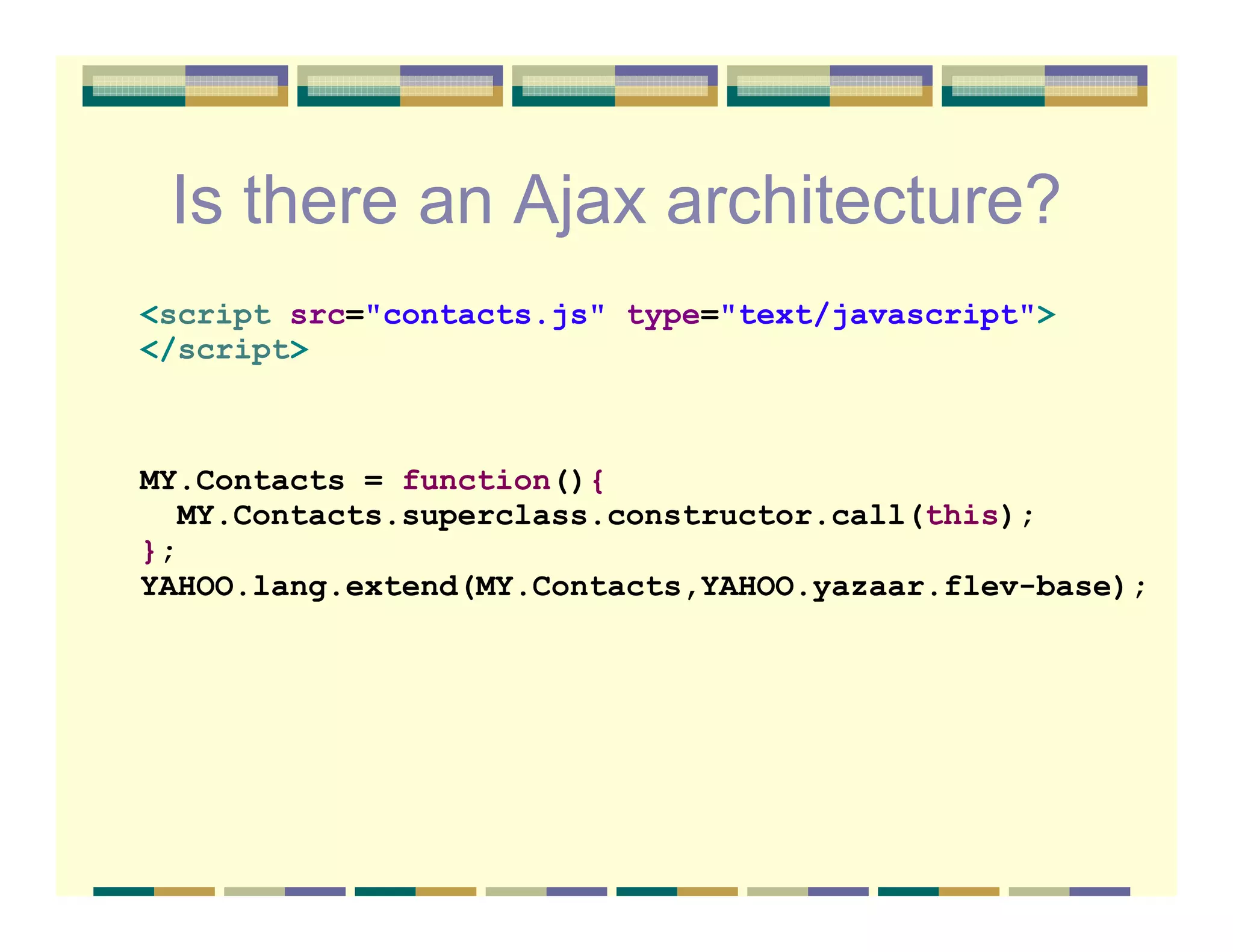

Is there an Ajax architecture?
<script src=quot;contacts.jsquot; type=quot;text/javascriptquot;>
</script>



MY.Contacts = function(){
  MY.Contacts.superclass.constructor.call(this);
};
YAHOO.lang.extend(MY.Contacts,YAHOO.yazaar.flev-base);

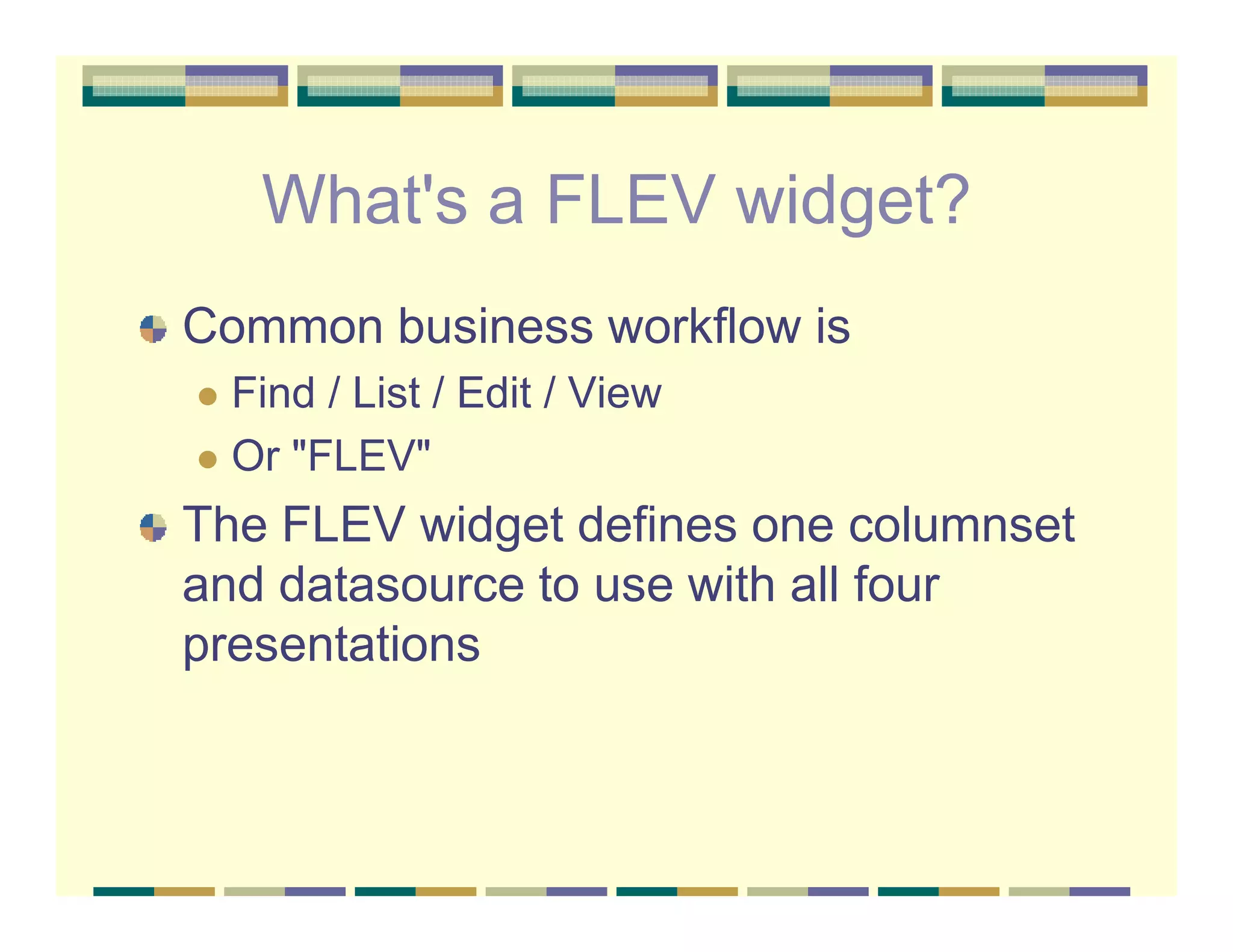

What's a FLEV widget?
Common business workflow is
  Find / List / Edit / View
  Or quot;FLEVquot;
The FLEV widget defines one columnset
and datasource to use with all four
presentations

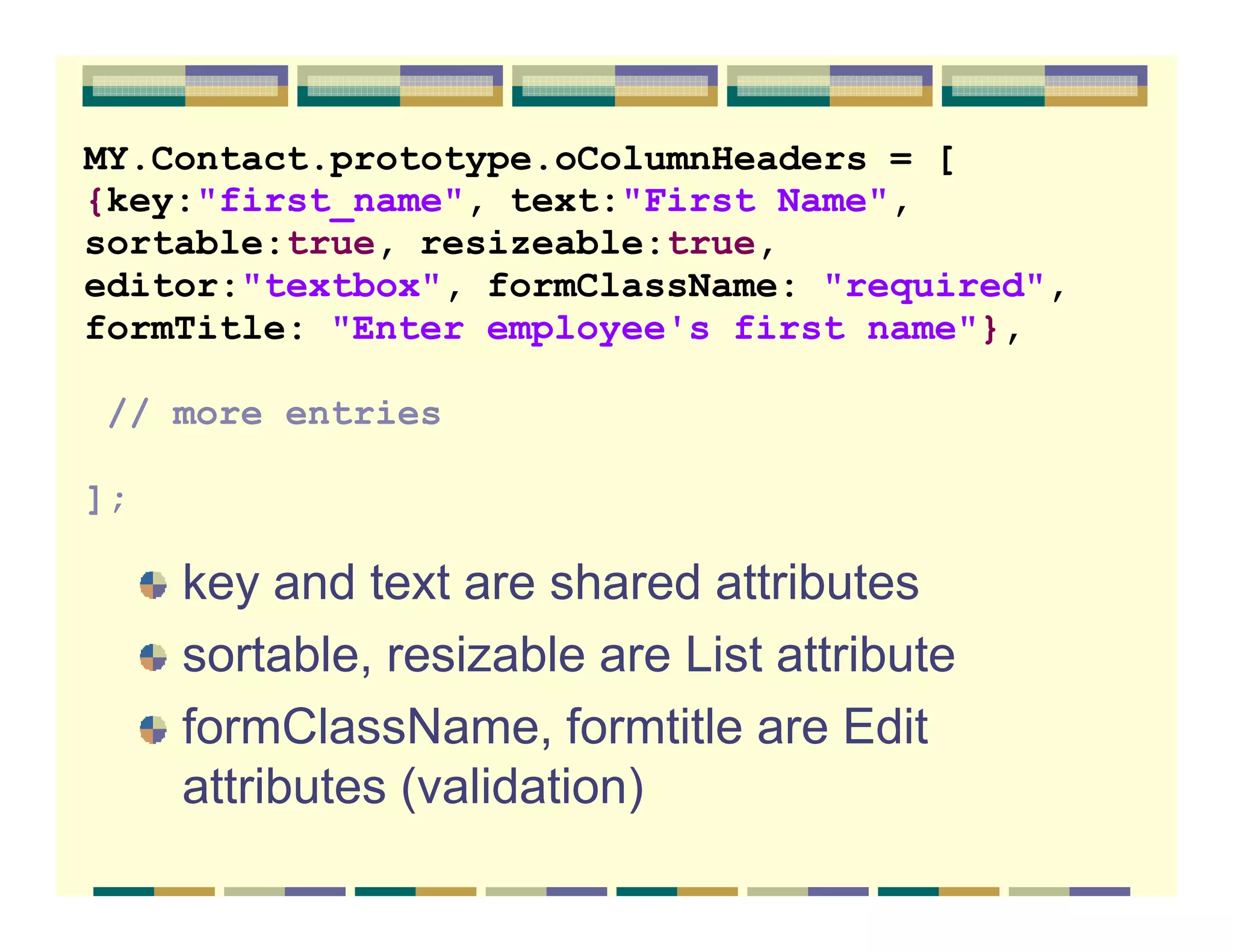

MY.Contact.prototype.oColumnHeaders = [
{key:quot;first_namequot;, text:quot;First Namequot;,
sortable:true, resizeable:true,
editor:quot;textboxquot;, formClassName: quot;requiredquot;,
formTitle: quot;Enter employee's first namequot;},

// more entries

];

     key and text are shared attributes
     sortable, resizable are List attribute
     formClassName, formtitle are Edit
     attributes (validation)

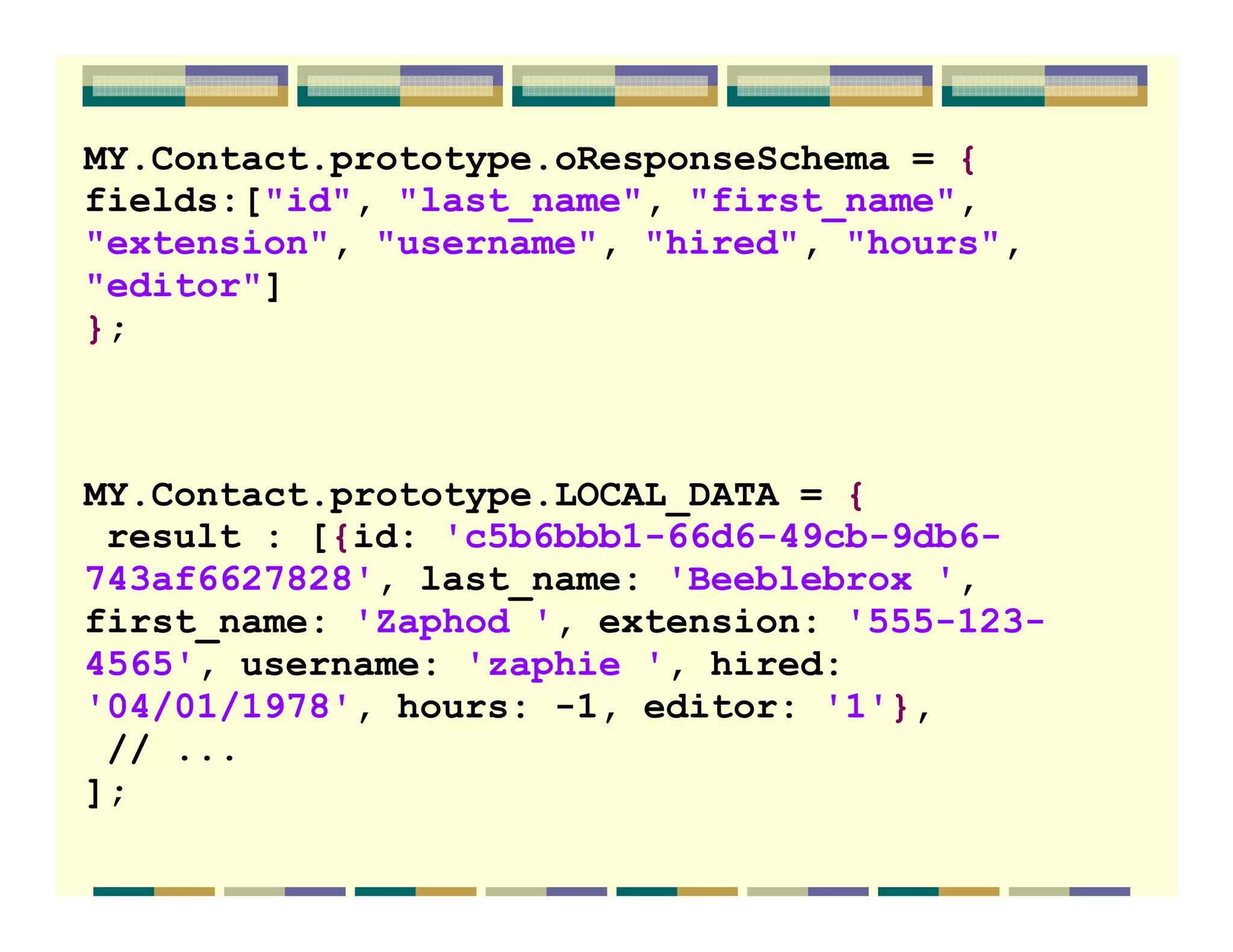

MY.Contact.prototype.oResponseSchema = {
fields:[quot;idquot;, quot;last_namequot;, quot;first_namequot;,
quot;extensionquot;, quot;usernamequot;, quot;hiredquot;, quot;hoursquot;,
quot;editorquot;]
};



MY.Contact.prototype.LOCAL_DATA = {
 result : [{id: 'c5b6bbb1-66d6-49cb-9db6-
743af6627828', last_name: 'Beeblebrox ',
first_name: 'Zaphod ', extension: '555-123-
4565', username: 'zaphie ', hired:
'04/01/1978', hours: -1, editor: '1'},
 // ...
];

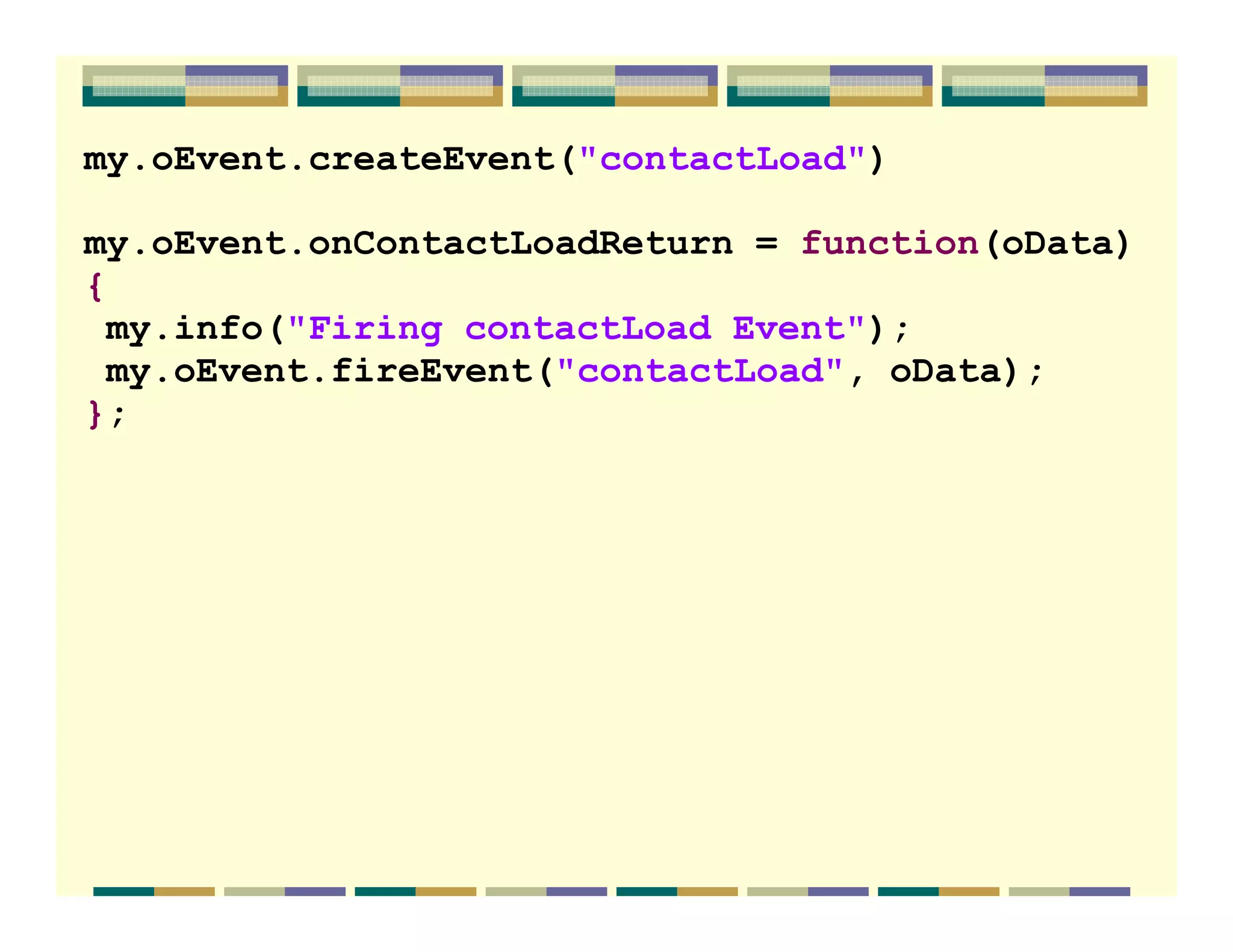

my.oEvent.createEvent(quot;contactLoadquot;)

my.oEvent.onContactLoadReturn = function(oData)
{
 my.info(quot;Firing contactLoad Eventquot;);
 my.oEvent.fireEvent(quot;contactLoadquot;, oData);
};

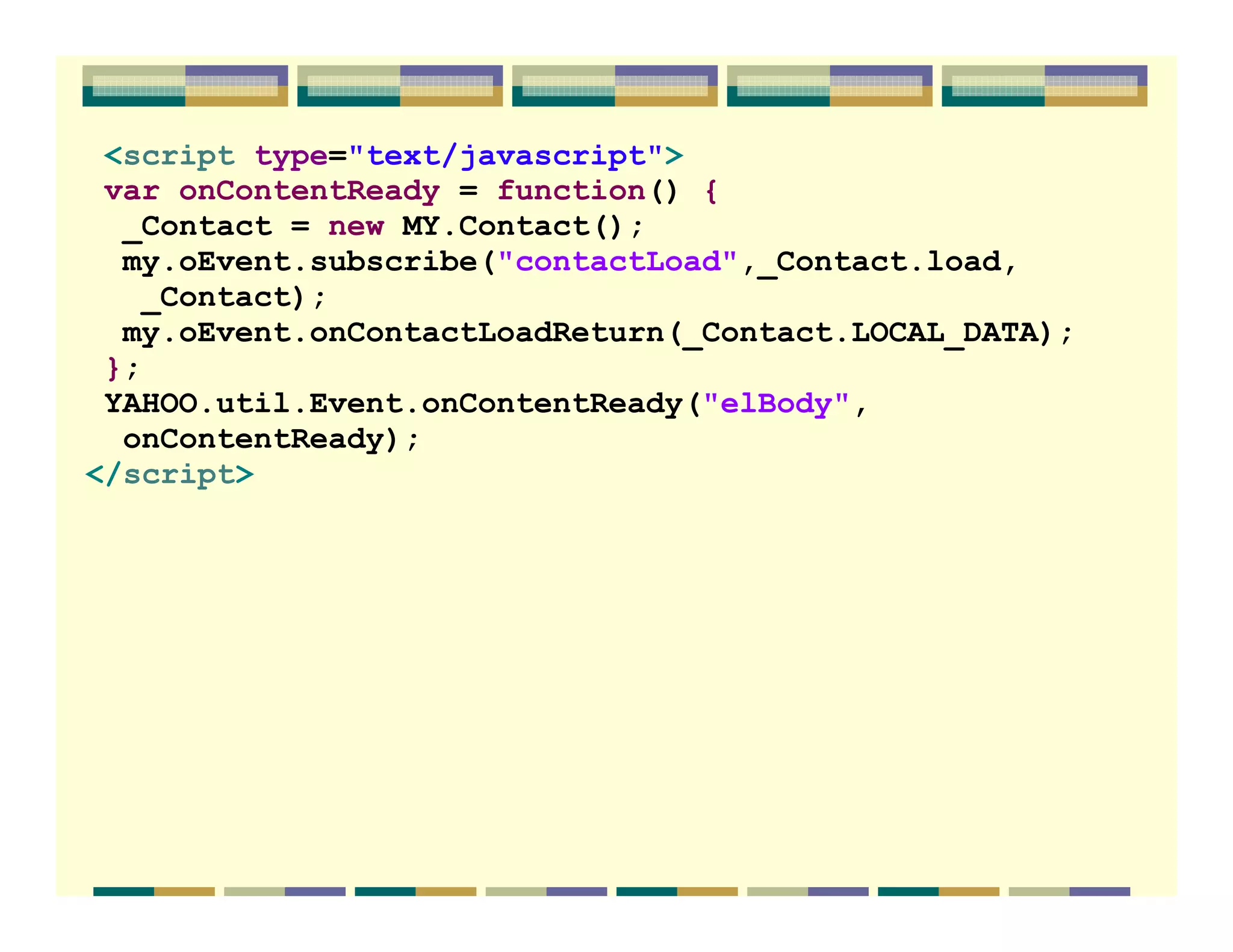

<script type=quot;text/javascriptquot;>
 var onContentReady = function() {
  _Contact = new MY.Contact();
  my.oEvent.subscribe(quot;contactLoadquot;,_Contact.load,
   _Contact);
  my.oEvent.onContactLoadReturn(_Contact.LOCAL_DATA);
 };
 YAHOO.util.Event.onContentReady(quot;elBodyquot;,
  onContentReady);
</script>

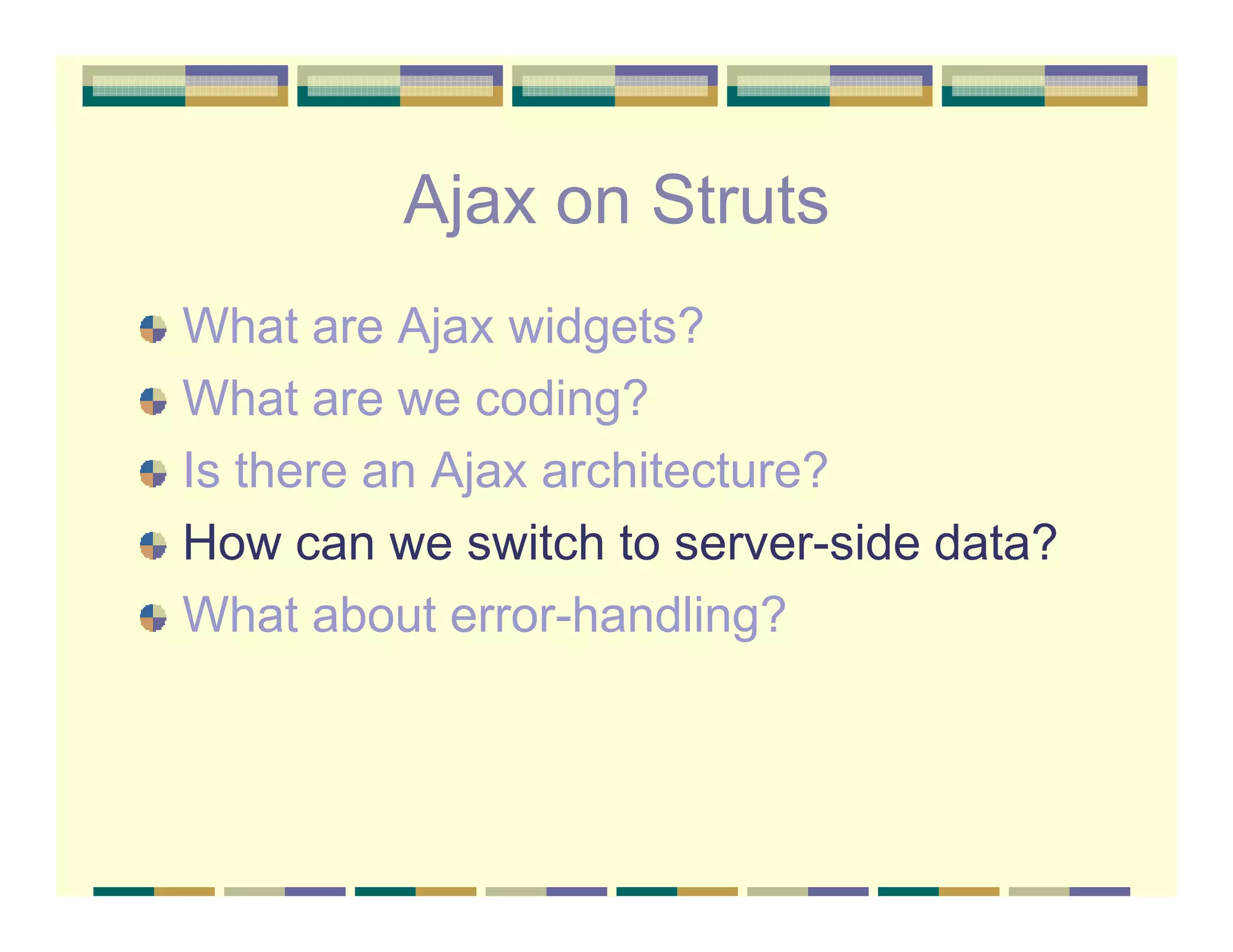

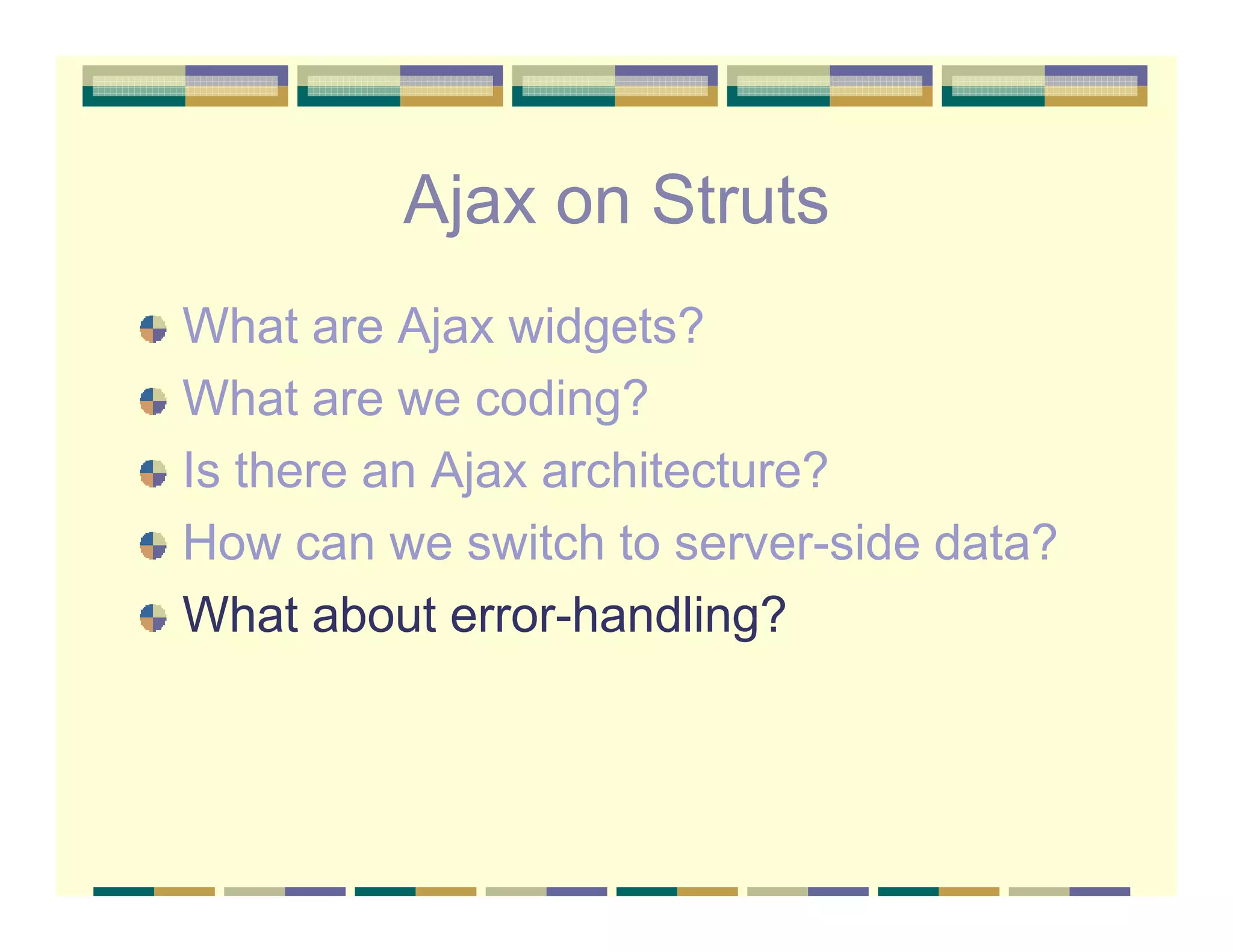

Ajax on Struts
What are Ajax widgets?
What are we coding?
Is there an Ajax architecture?
How can we switch to server-side data?
What about error-handling?

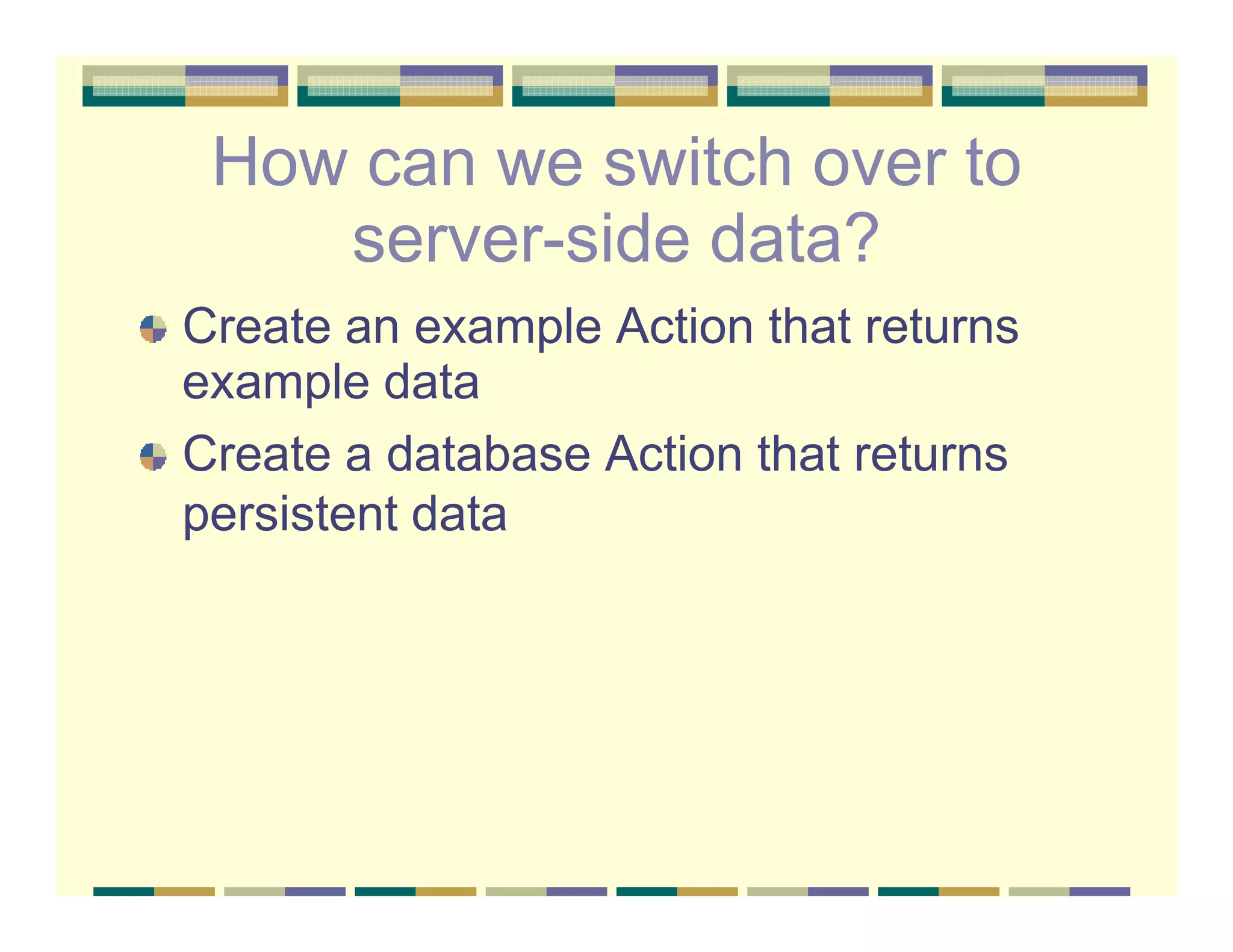

How can we switch over to
    server-side data?
Create an example Action that returns
example data
Create a database Action that returns
persistent data

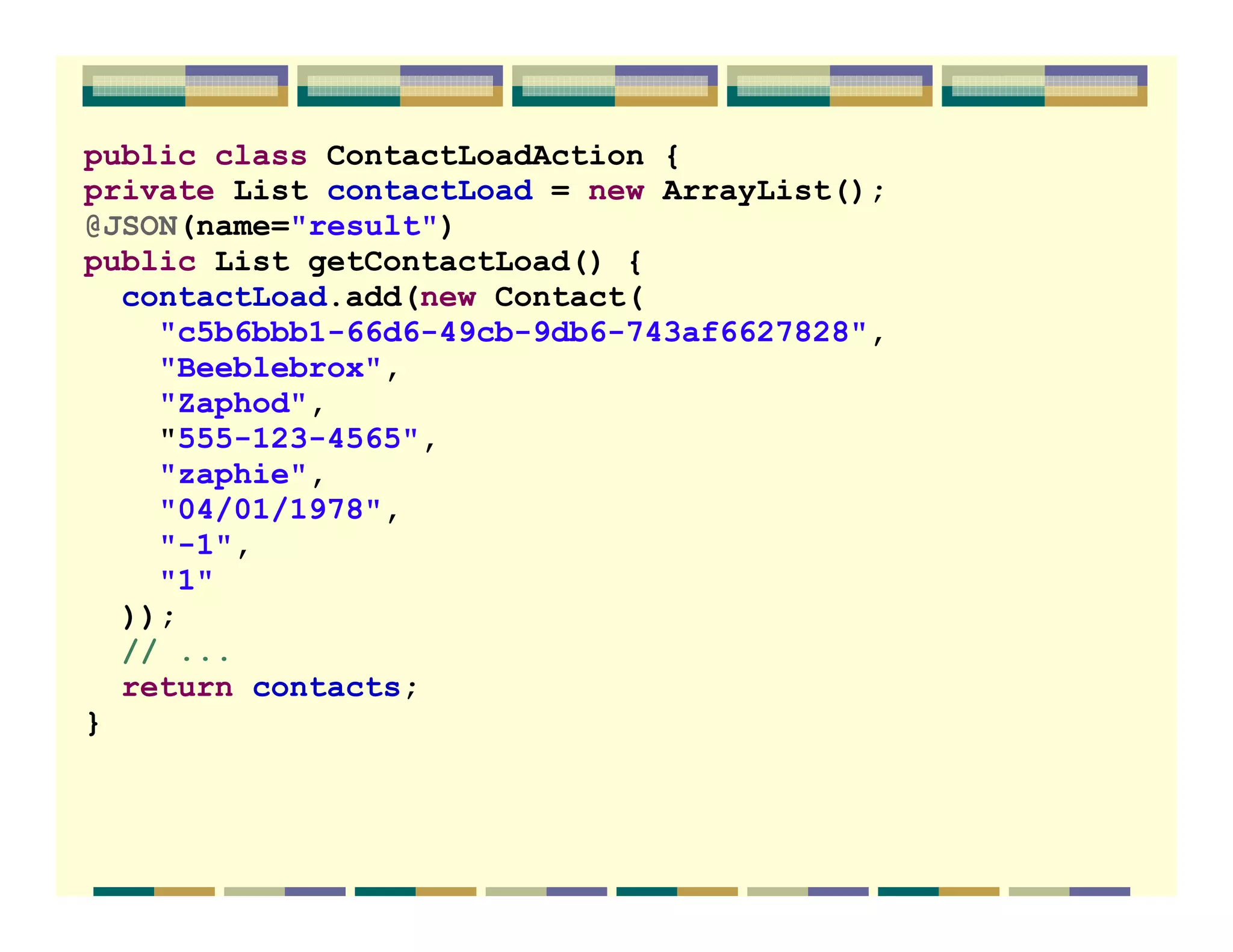

public class ContactLoadAction {
private List contactLoad = new ArrayList();
@JSON(name=quot;resultquot;)
public List getContactLoad() {
  contactLoad.add(new Contact(
    quot;c5b6bbb1-66d6-49cb-9db6-743af6627828quot;,
    quot;Beeblebroxquot;,
    quot;Zaphodquot;,
    quot;555-123-4565quot;,
    quot;zaphiequot;,
    quot;04/01/1978quot;,
    quot;-1quot;,
    quot;1quot;
  ));
  // ...
  return contacts;
}

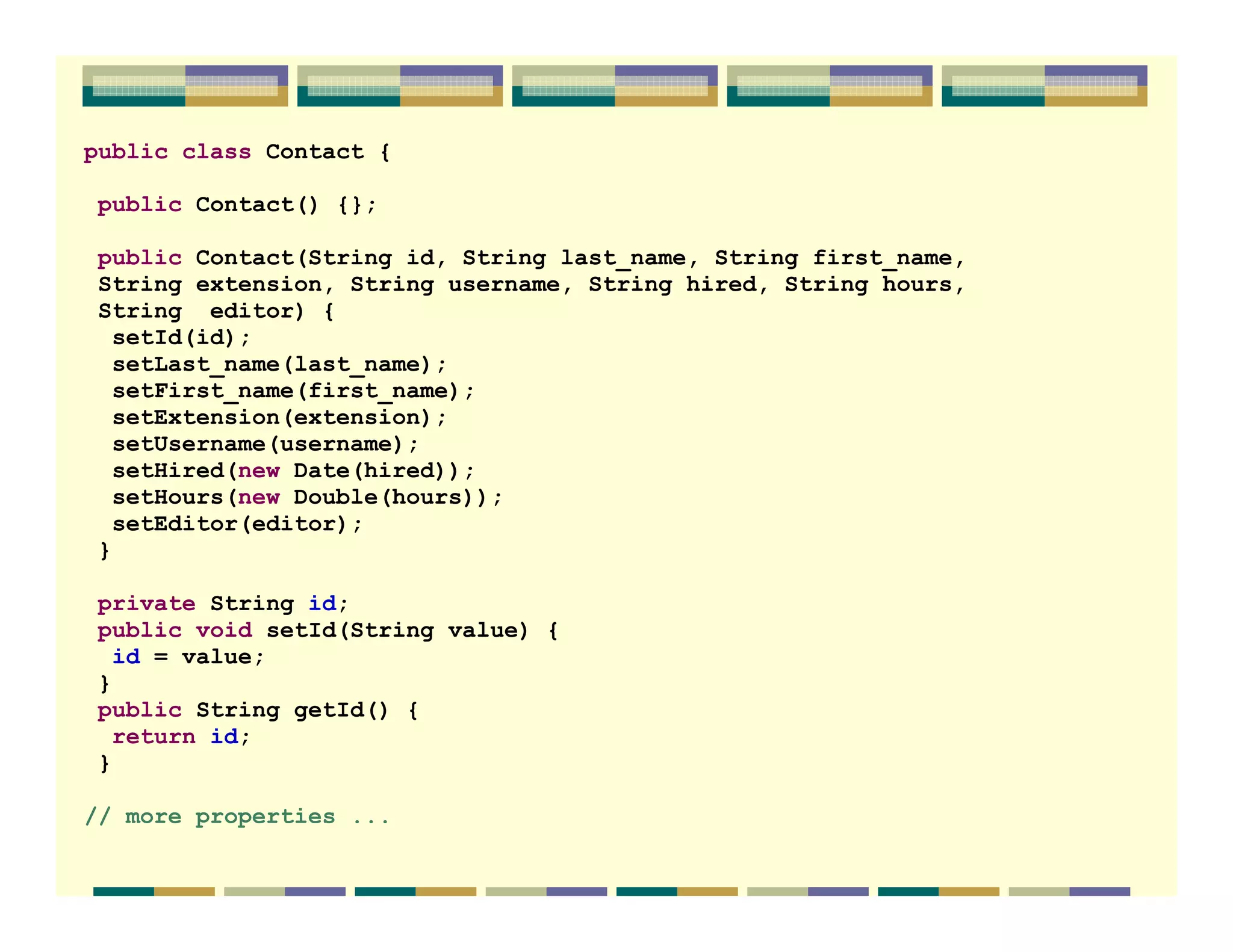

public class Contact {

public Contact() {};

public Contact(String id, String last_name, String first_name,
String extension, String username, String hired, String hours,
String editor) {
 setId(id);
 setLast_name(last_name);
 setFirst_name(first_name);
 setExtension(extension);
 setUsername(username);
 setHired(new Date(hired));
 setHours(new Double(hours));
  setEditor(editor);
}

private String id;
public void setId(String value) {
  id = value;
}
public String getId() {
  return id;
}

// more properties ...

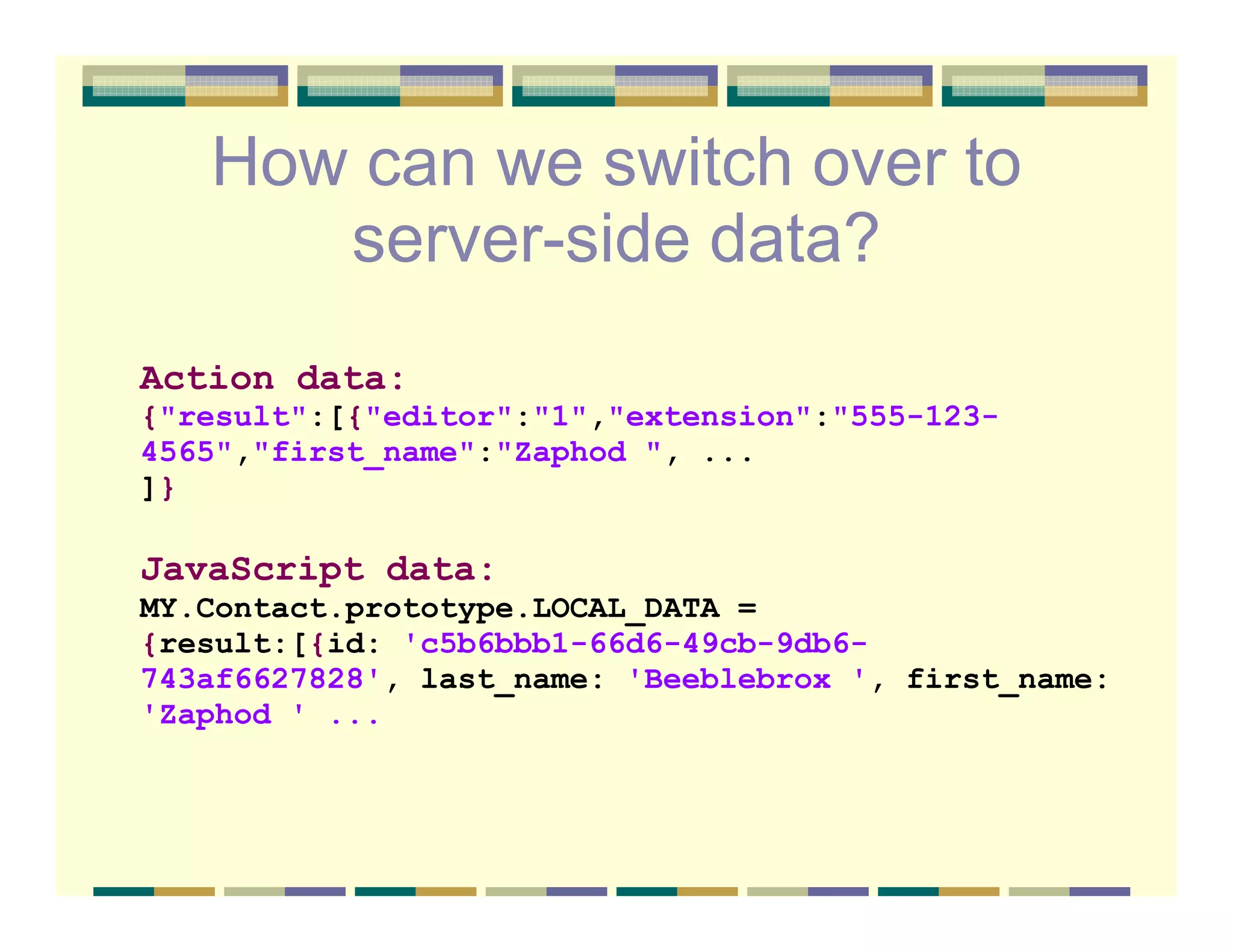

How can we switch over to
      server-side data?
Action data:
{quot;resultquot;:[{quot;editorquot;:quot;1quot;,quot;extensionquot;:quot;555-123-
4565quot;,quot;first_namequot;:quot;Zaphod quot;, ...
]}

JavaScript data:
MY.Contact.prototype.LOCAL_DATA =
{result:[{id: 'c5b6bbb1-66d6-49cb-9db6-
743af6627828', last_name: 'Beeblebrox ', first_name:
'Zaphod ' ...

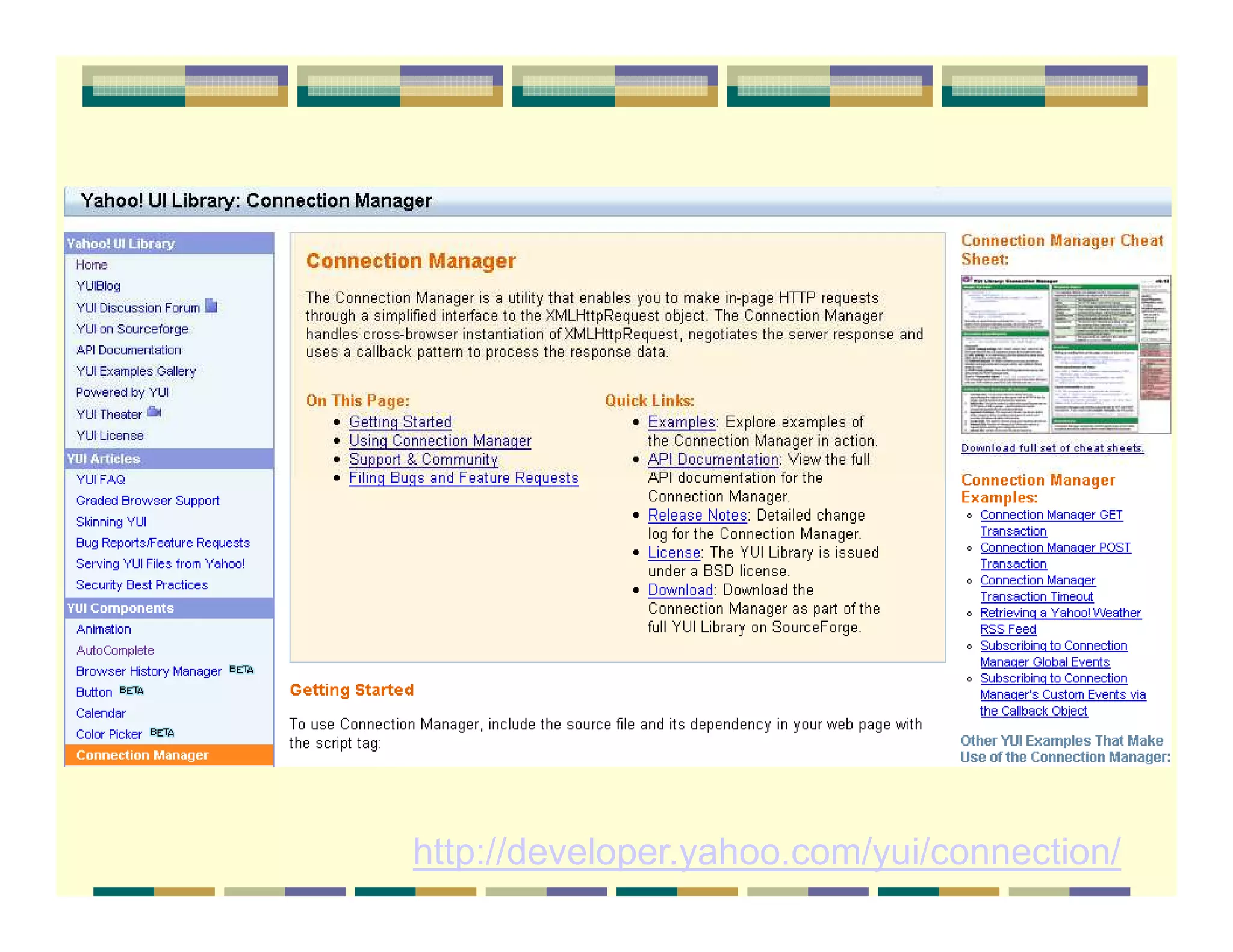

http://developer.yahoo.com/yui/connection/

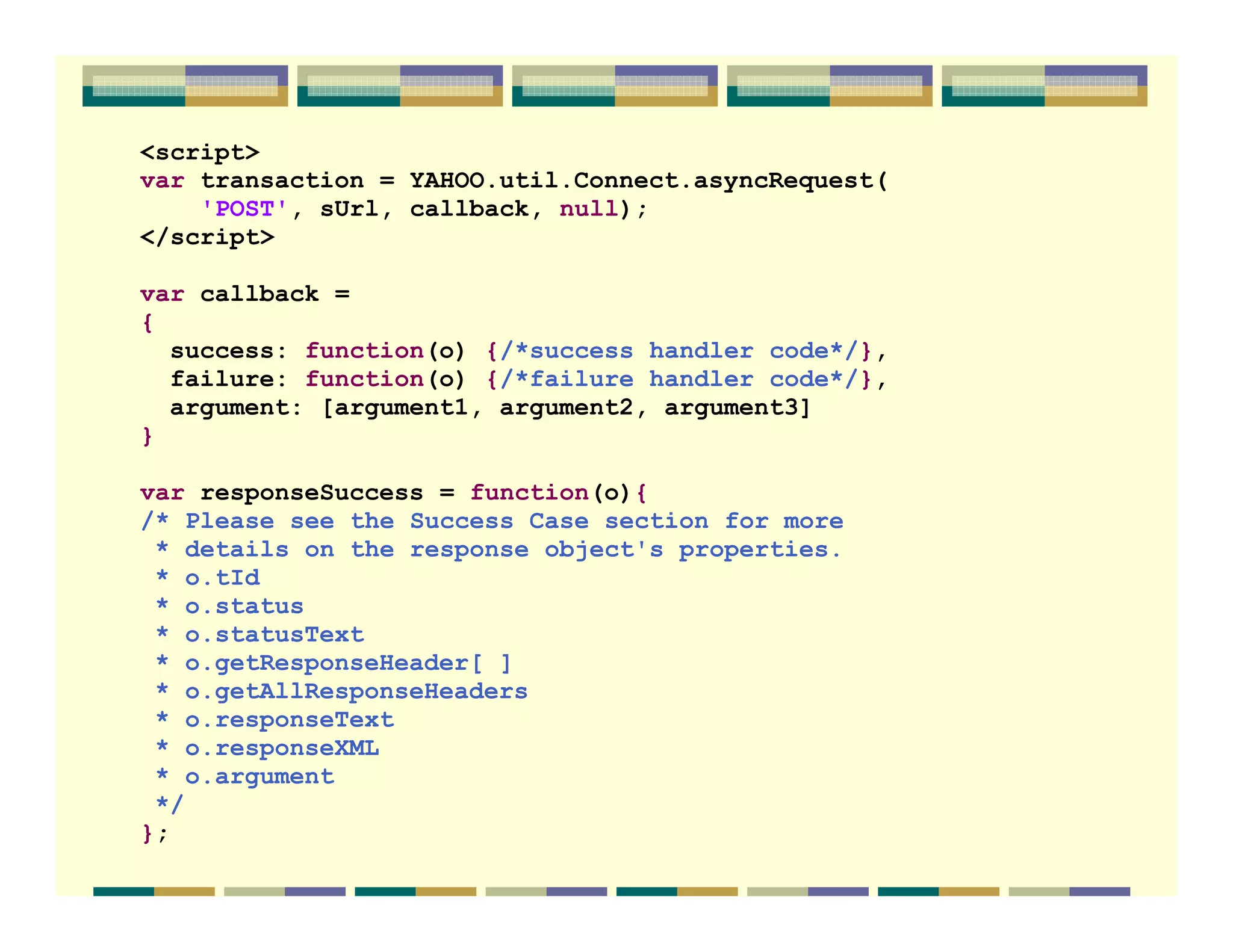

<script>
var transaction = YAHOO.util.Connect.asyncRequest(
    'POST', sUrl, callback, null);
</script>

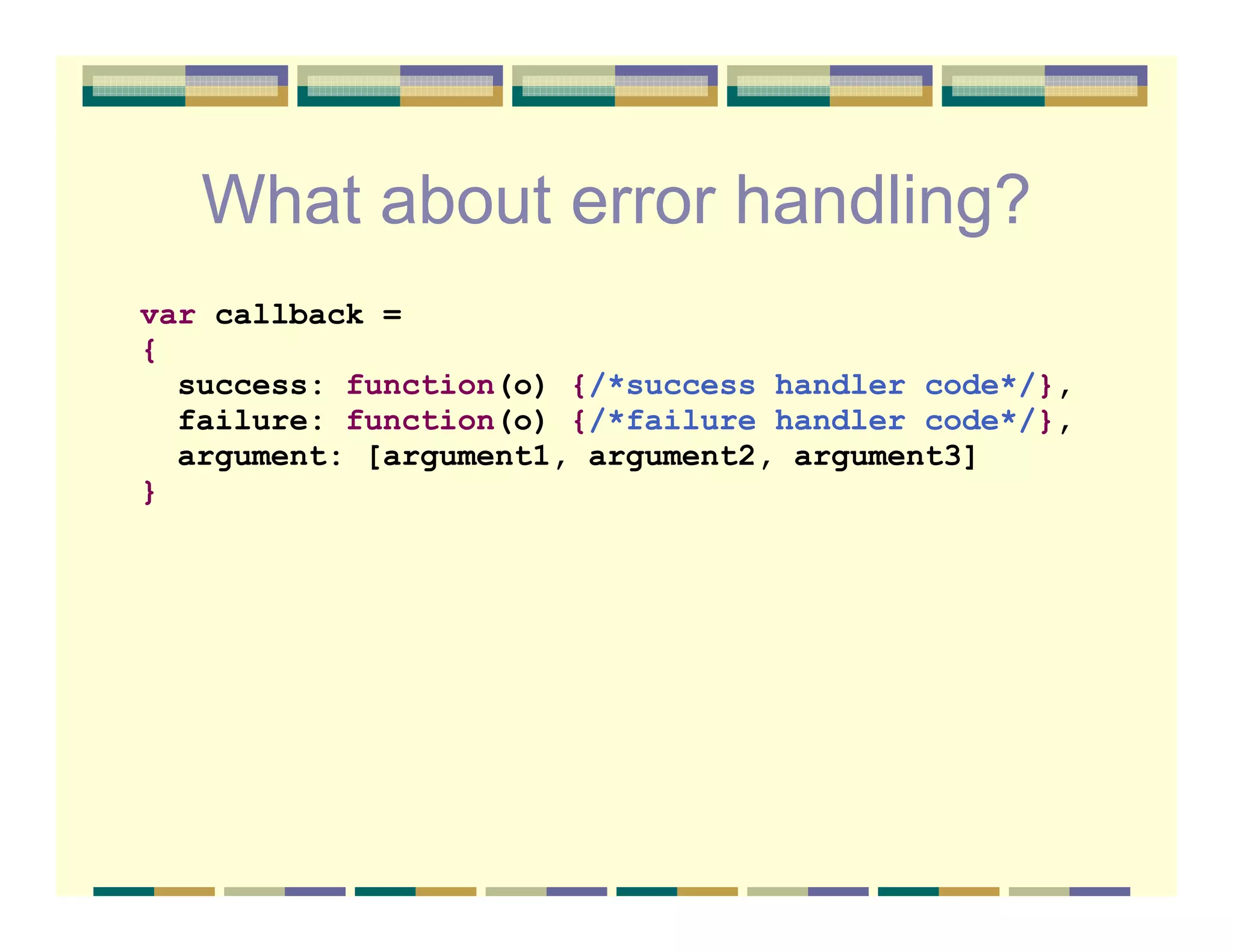

var callback =
{
  success: function(o) {/*success handler code*/},
  failure: function(o) {/*failure handler code*/},
  argument: [argument1, argument2, argument3]
}

var responseSuccess = function(o){
/* Please see the Success Case section for more
 * details on the response object's properties.
 * o.tId
 * o.status
 * o.statusText
 * o.getResponseHeader[ ]
 * o.getAllResponseHeaders
 * o.responseText
 * o.responseXML
 * o.argument
 */
};

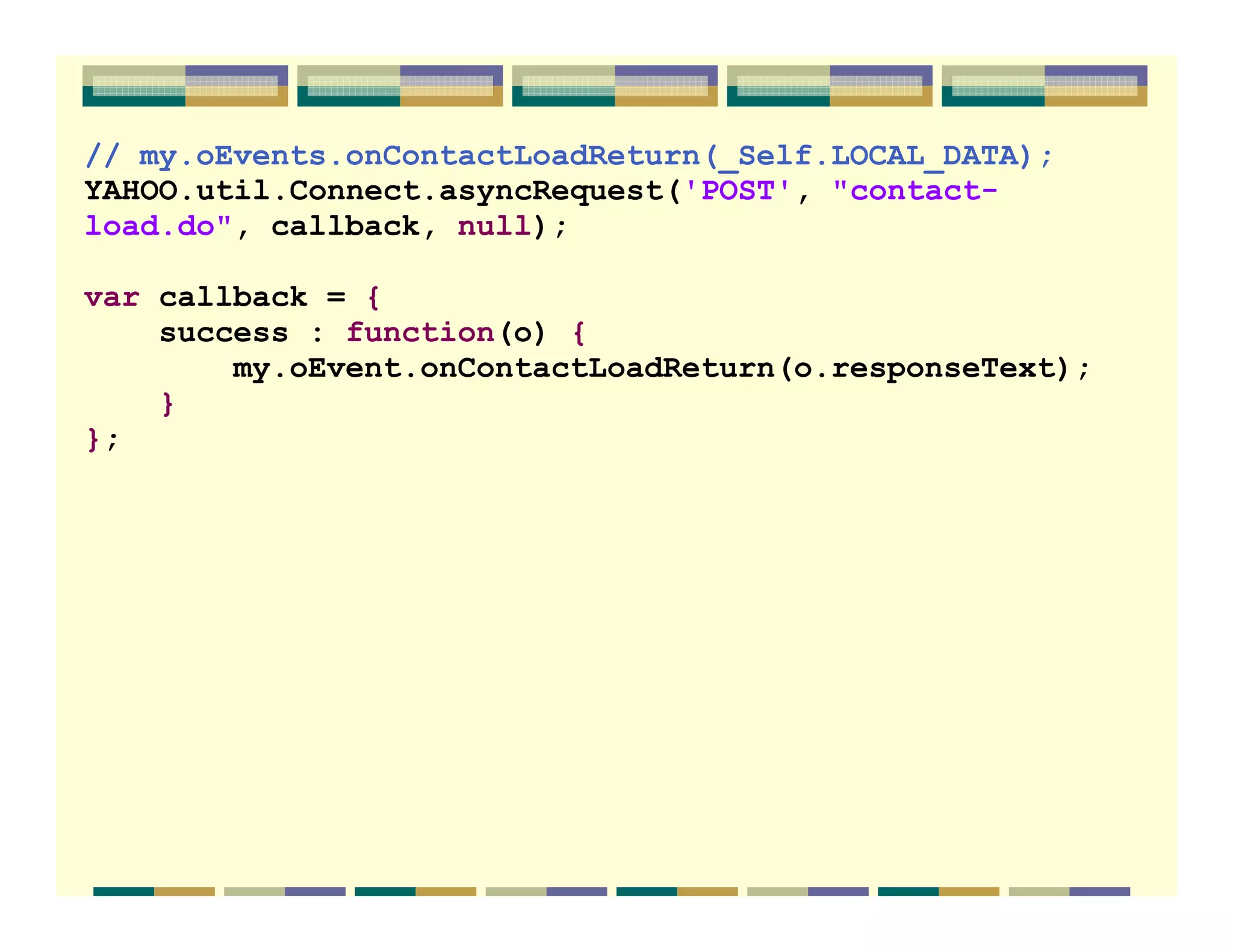

// my.oEvents.onContactLoadReturn(_Self.LOCAL_DATA);
YAHOO.util.Connect.asyncRequest('POST', quot;contact-
load.doquot;, callback, null);

var callback = {
    success : function(o) {
        my.oEvent.onContactLoadReturn(o.responseText);
    }
};

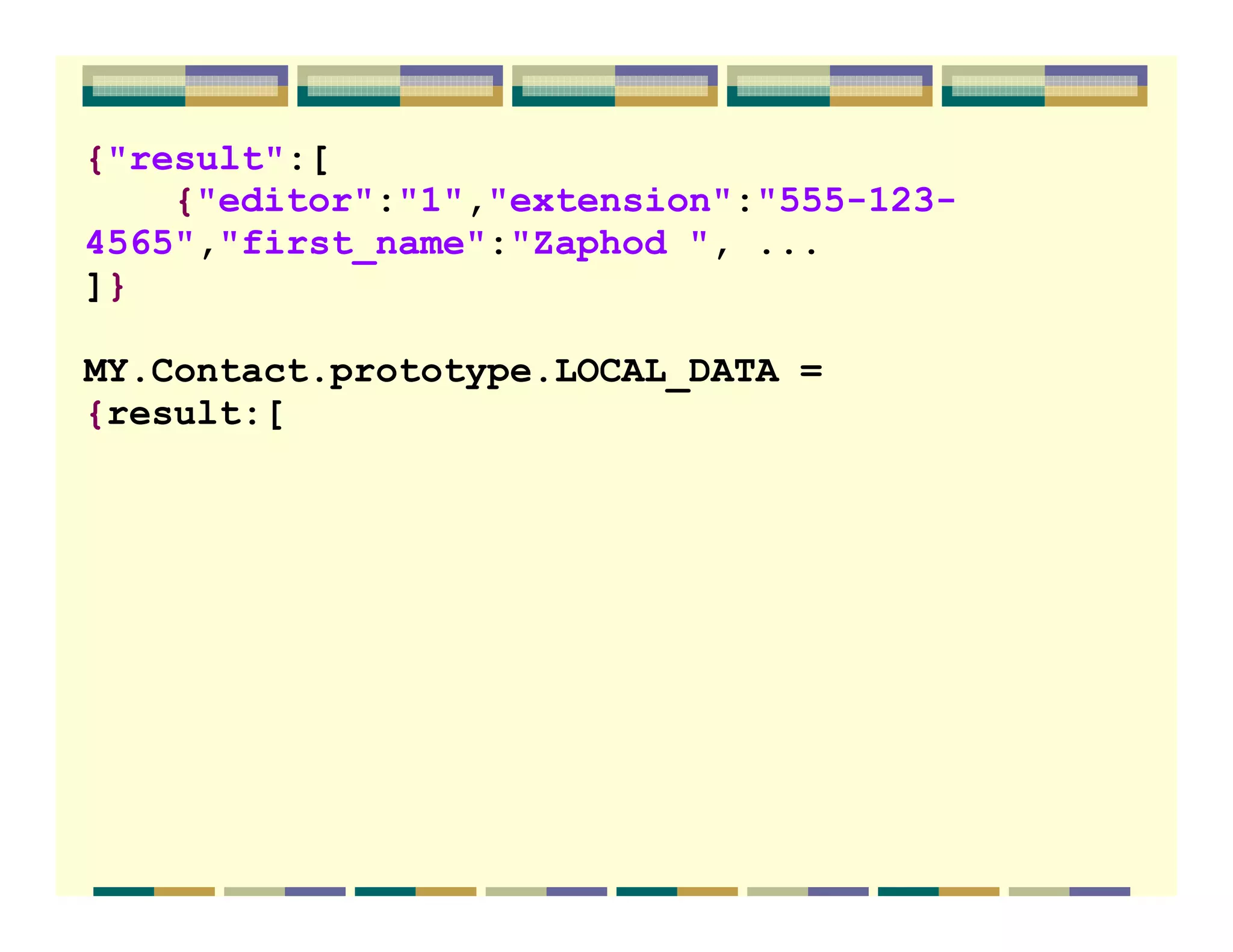

{quot;resultquot;:[
    {quot;editorquot;:quot;1quot;,quot;extensionquot;:quot;555-123-
4565quot;,quot;first_namequot;:quot;Zaphod quot;, ...
]}

MY.Contact.prototype.LOCAL_DATA =
{result:[

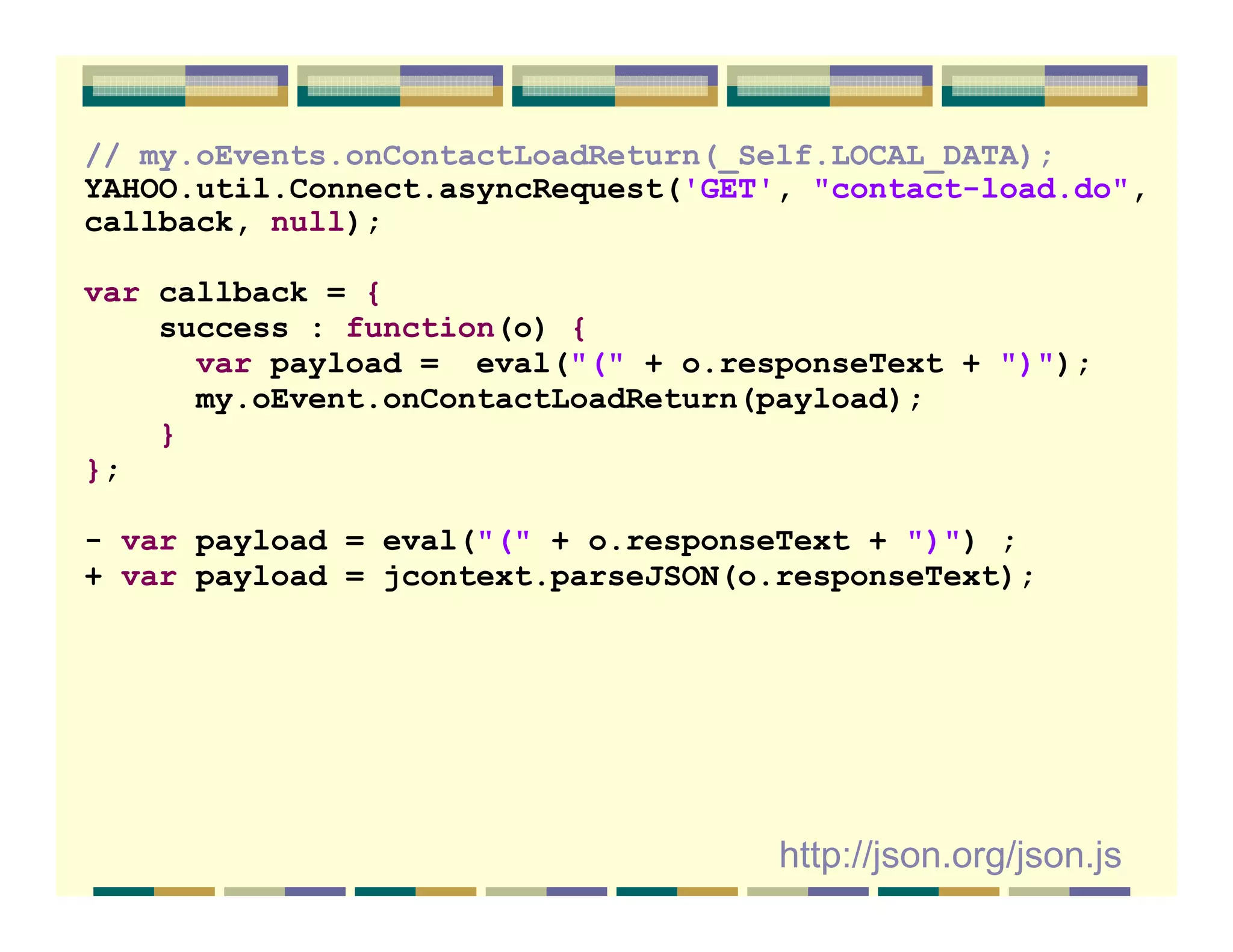

// my.oEvents.onContactLoadReturn(_Self.LOCAL_DATA);
YAHOO.util.Connect.asyncRequest('GET', quot;contact-load.doquot;,
callback, null);

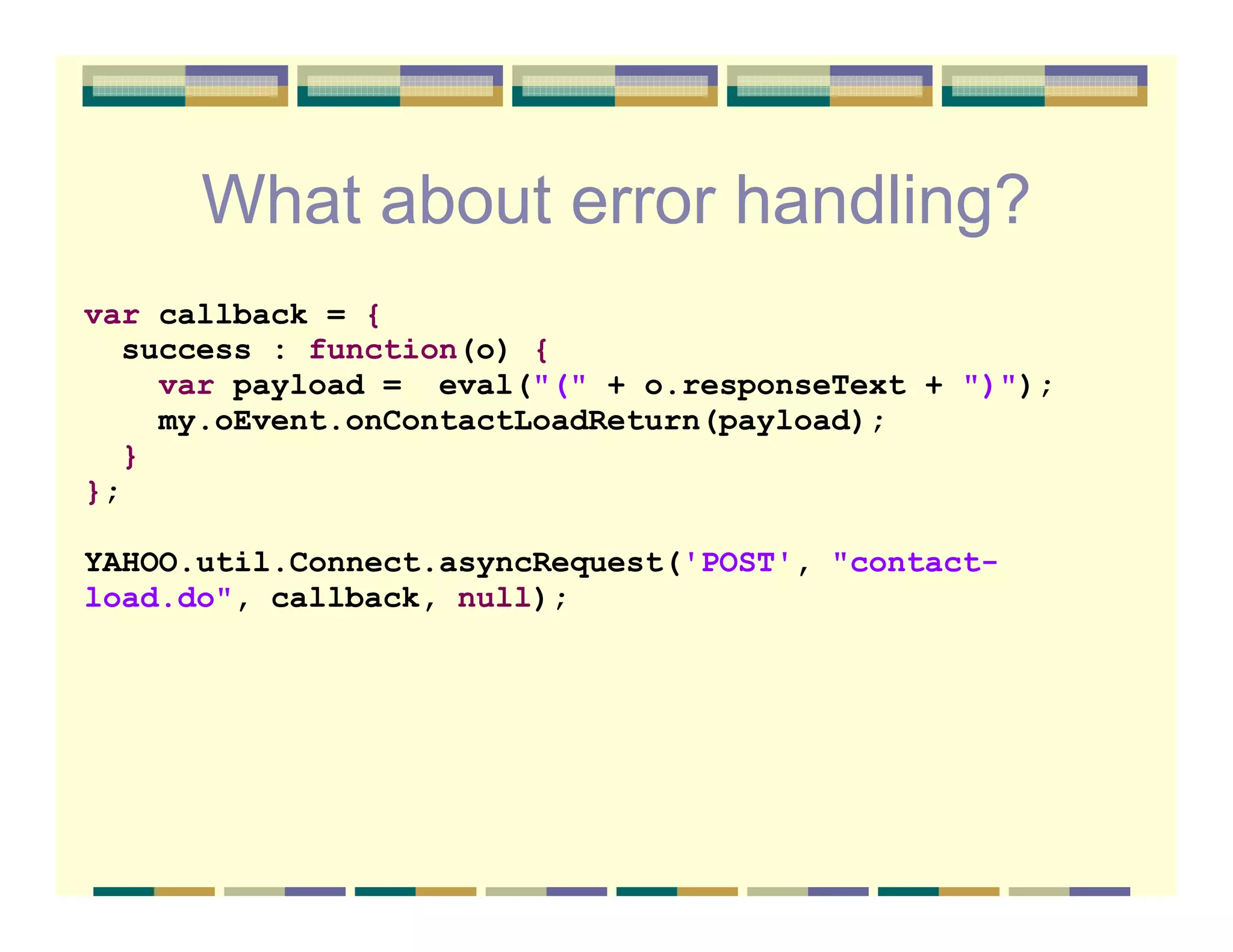

var callback = {
    success : function(o) {
      var payload = eval(quot;(quot; + o.responseText + quot;)quot;);
      my.oEvent.onContactLoadReturn(payload);
    }
};

- var payload = eval(quot;(quot; + o.responseText + quot;)quot;) ;
+ var payload = jcontext.parseJSON(o.responseText);




                                     http://json.org/json.js

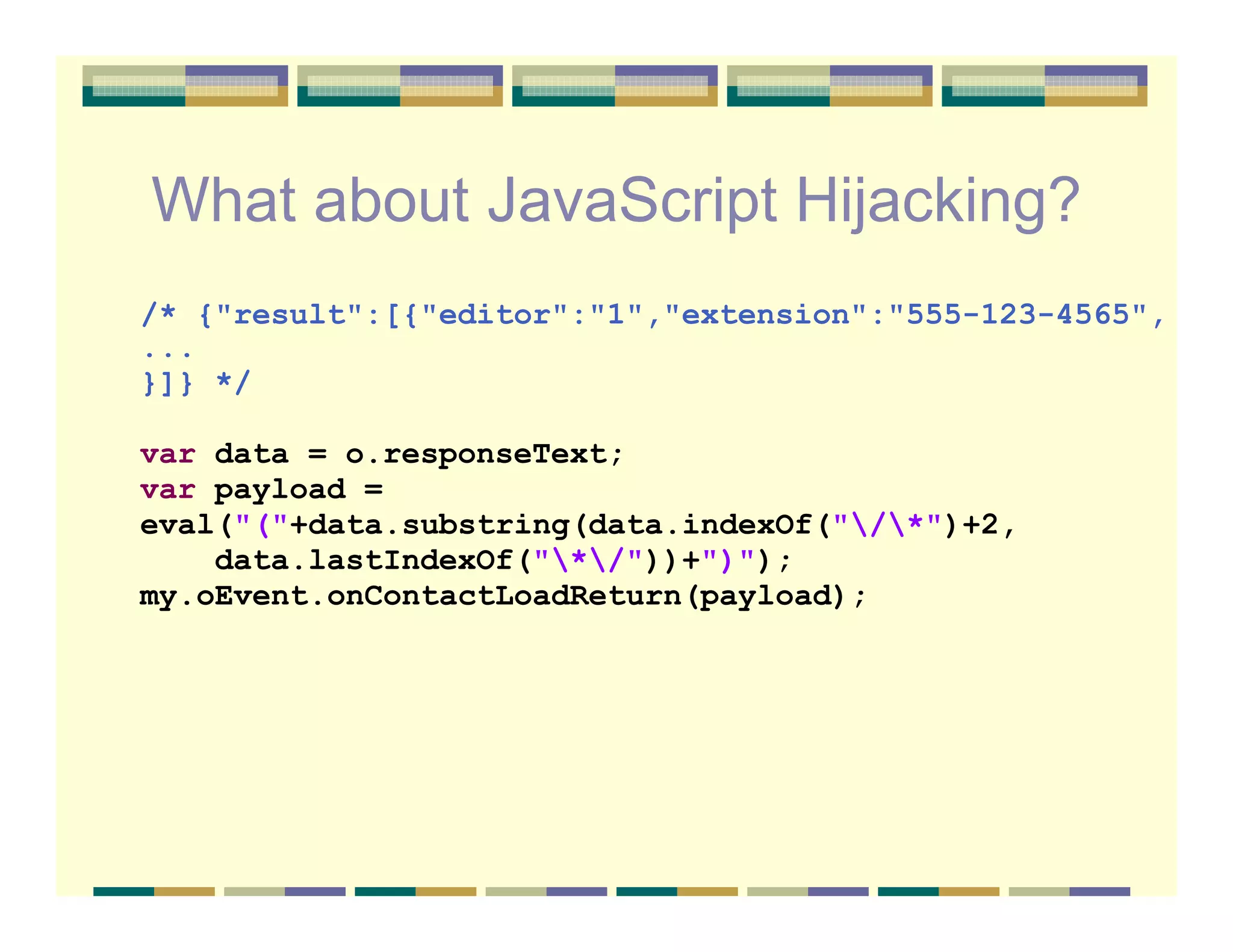

What about JavaScript Hijacking?
/* {quot;resultquot;:[{quot;editorquot;:quot;1quot;,quot;extensionquot;:quot;555-123-4565quot;,
...
}]} */

var data = o.responseText;
var payload =
eval(quot;(quot;+data.substring(data.indexOf(quot;/*quot;)+2,
    data.lastIndexOf(quot;*/quot;))+quot;)quot;);
my.oEvent.onContactLoadReturn(payload);

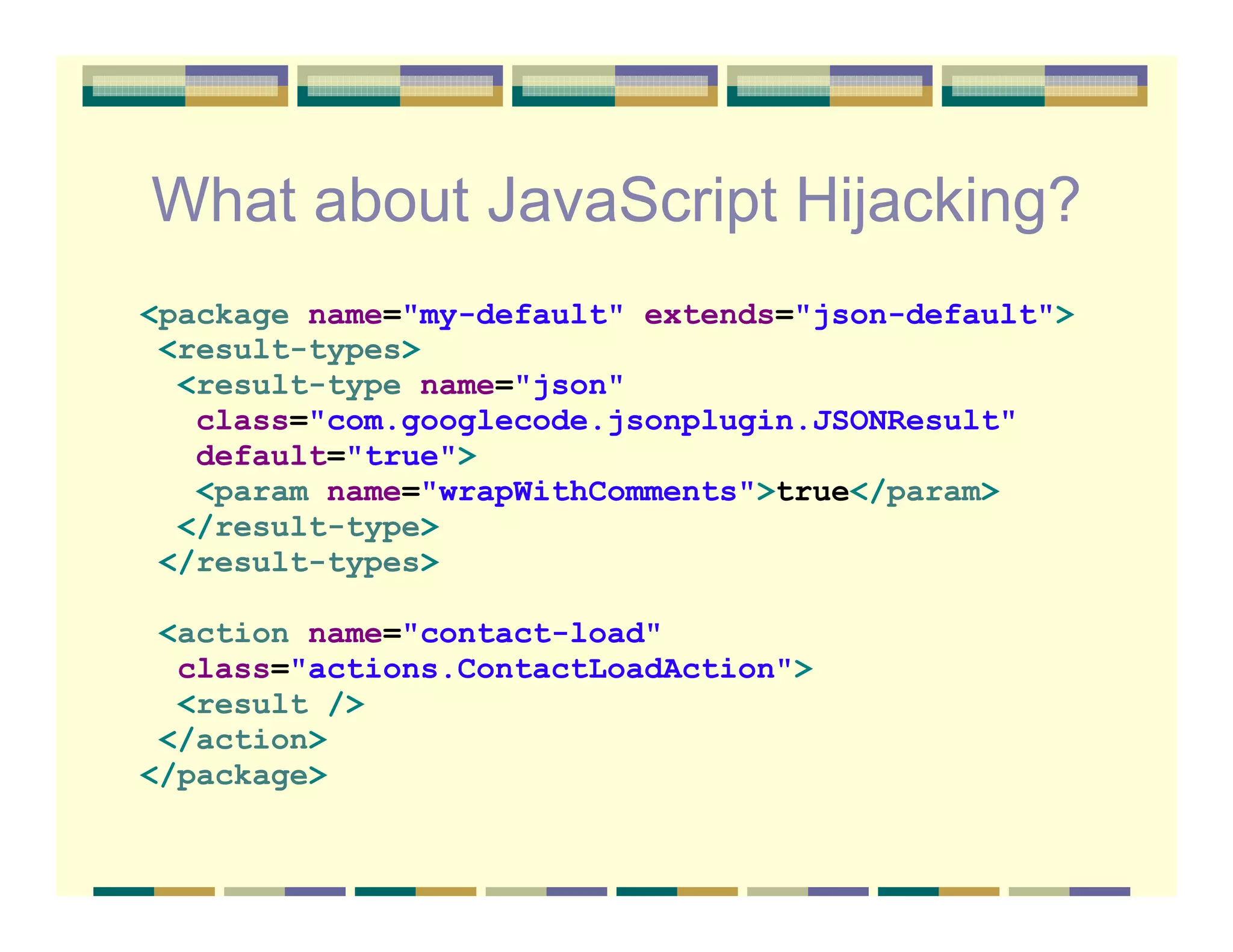

What about JavaScript Hijacking?
<package name=quot;my-defaultquot; extends=quot;json-defaultquot;>
 <result-types>
  <result-type name=quot;jsonquot;
   class=quot;com.googlecode.jsonplugin.JSONResultquot;
   default=quot;truequot;>
   <param name=quot;wrapWithCommentsquot;>true</param>
  </result-type>
 </result-types>

 <action name=quot;contact-loadquot;
  class=quot;actions.ContactLoadActionquot;>
  <result />
 </action>
</package>
Ajax on Struts
What are Ajax widgets?
What are we coding?
Is there an Ajax architecture?
How can we switch to server-side data?
What about error-handling?
What about error handling?
var callback = {
  success : function(o) {
    var payload = eval(quot;(quot; + o.responseText + quot;)quot;);
    my.oEvent.onContactLoadReturn(payload);
  }
};

YAHOO.util.Connect.asyncRequest('POST', quot;contact-
load.doquot;, callback, null);
What about error handling?
var callback =
{
  success: function(o) {/*success handler code*/},
  failure: function(o) {/*failure handler code*/},
  argument: [argument1, argument2, argument3]
}

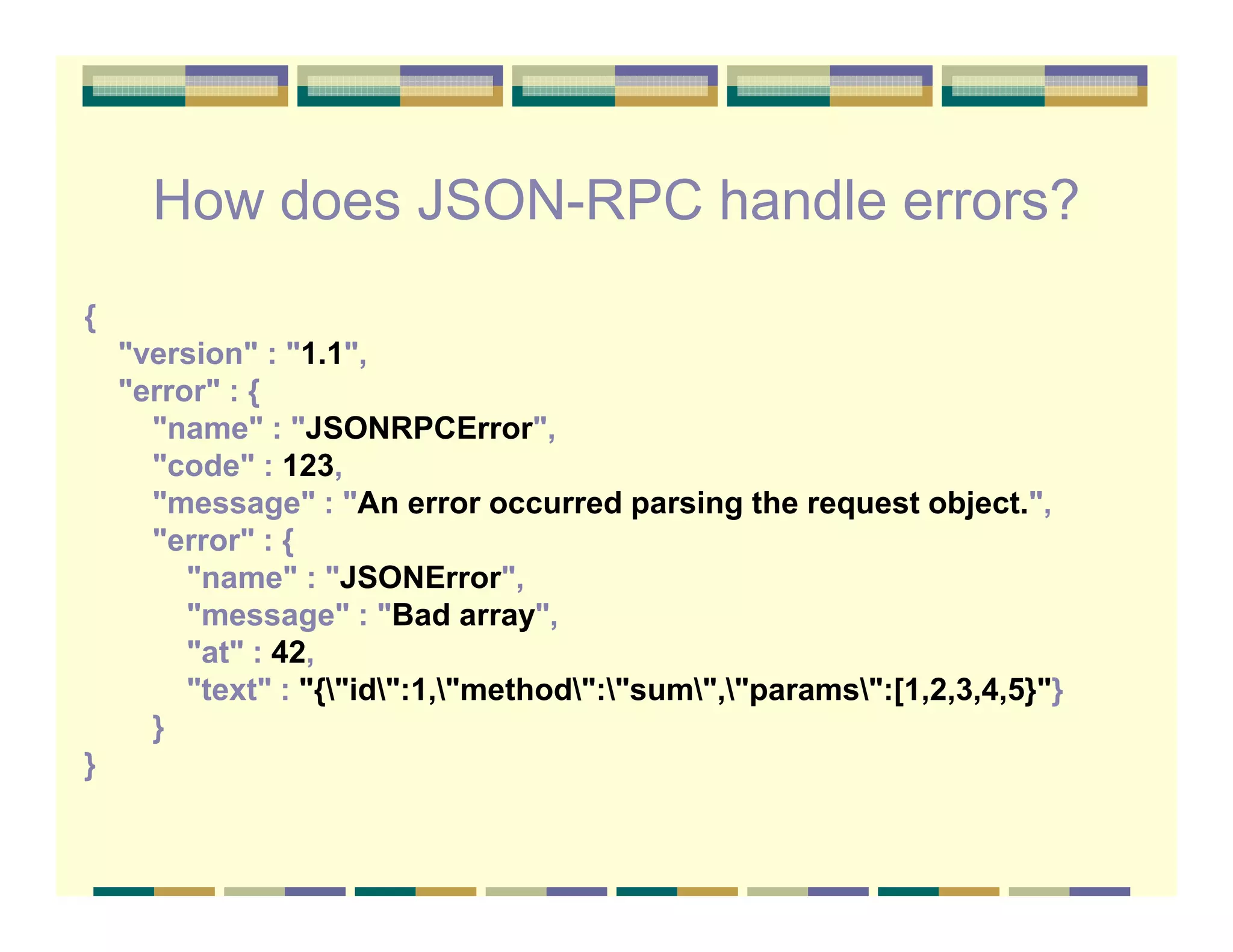

How does JSON-RPC handle errors?
{
    quot;versionquot; : quot;1.1quot;,
    quot;errorquot; : {
      quot;namequot; : quot;JSONRPCErrorquot;,
      quot;codequot; : 123,
      quot;messagequot; : quot;An error occurred parsing the request object.quot;,
      quot;errorquot; : {
         quot;namequot; : quot;JSONErrorquot;,
         quot;messagequot; : quot;Bad arrayquot;,
         quot;atquot; : 42,
         quot;textquot; : quot;{quot;idquot;:1,quot;methodquot;:quot;sumquot;,quot;paramsquot;:[1,2,3,4,5}quot;}
      }
}

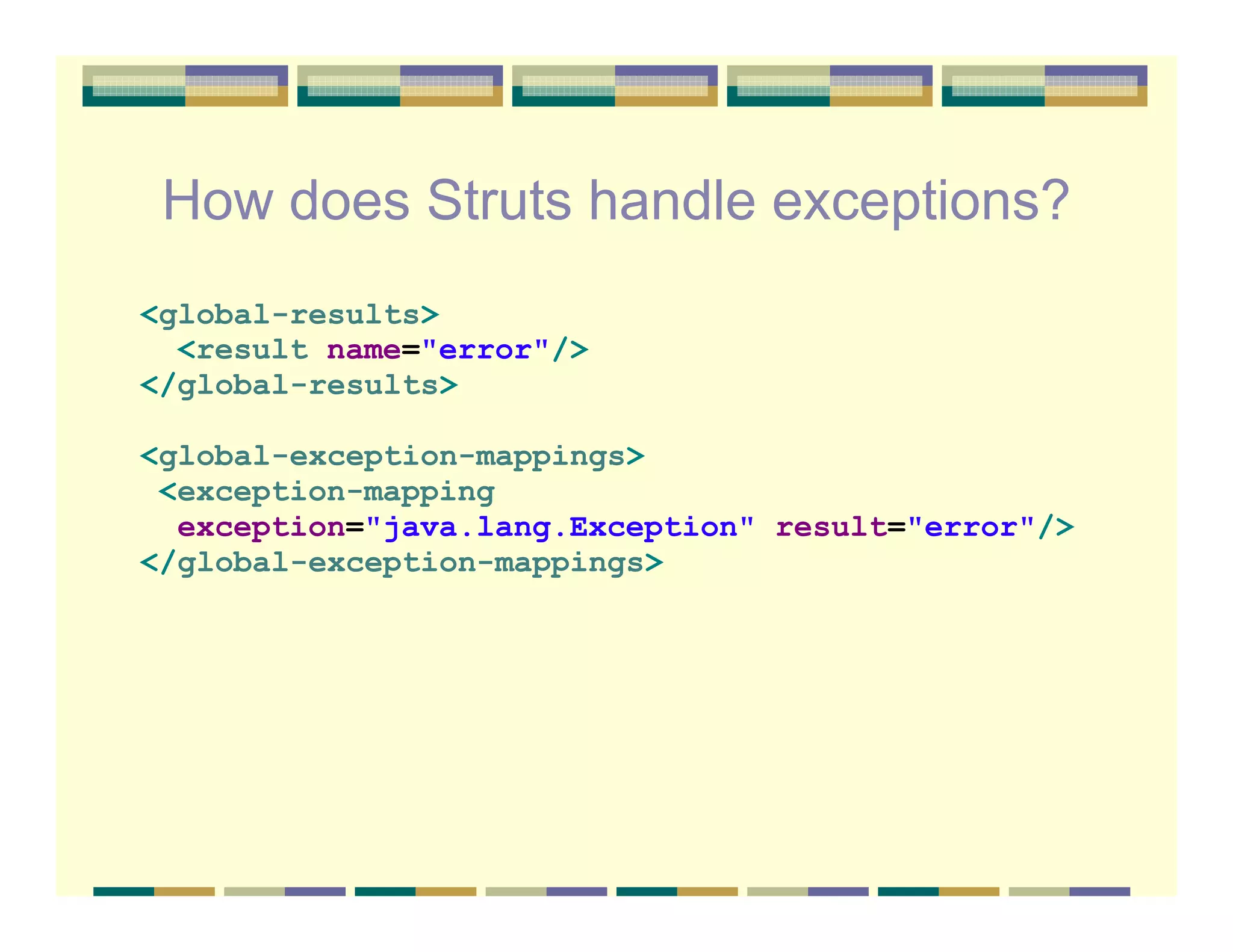

How does Struts handle exceptions?
<global-results>
  <result name=quot;errorquot;/>
</global-results>

<global-exception-mappings>
 <exception-mapping
  exception=quot;java.lang.Exceptionquot; result=quot;errorquot;/>
</global-exception-mappings>

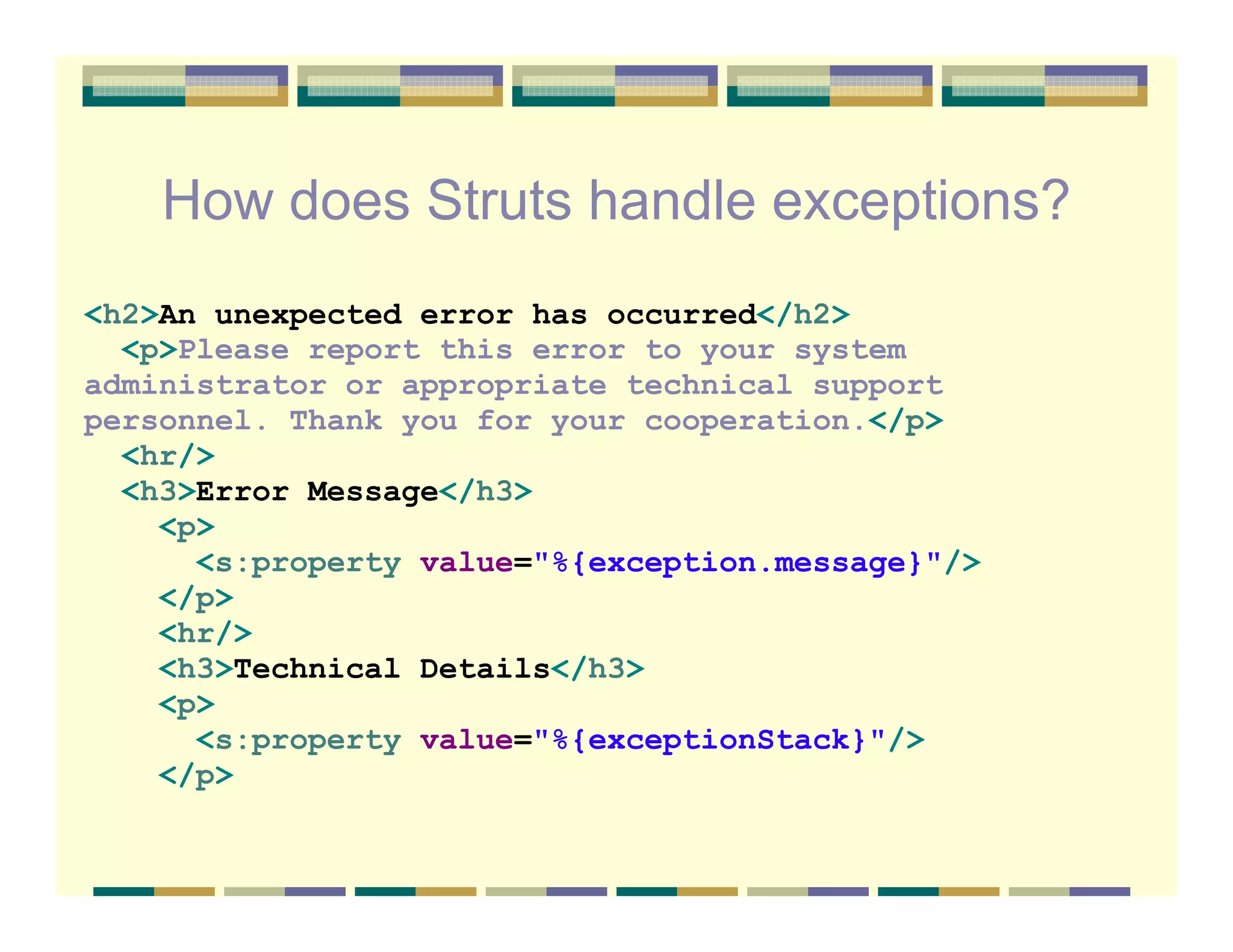

How does Struts handle exceptions?
<h2>An unexpected error has occurred</h2>
  <p>Please report this error to your system
administrator or appropriate technical support
personnel. Thank you for your cooperation.</p>
  <hr/>
  <h3>Error Message</h3>
    <p>
      <s:property value=quot;%{exception.message}quot;/>
    </p>
    <hr/>
    <h3>Technical Details</h3>
    <p>
      <s:property value=quot;%{exceptionStack}quot;/>
    </p>

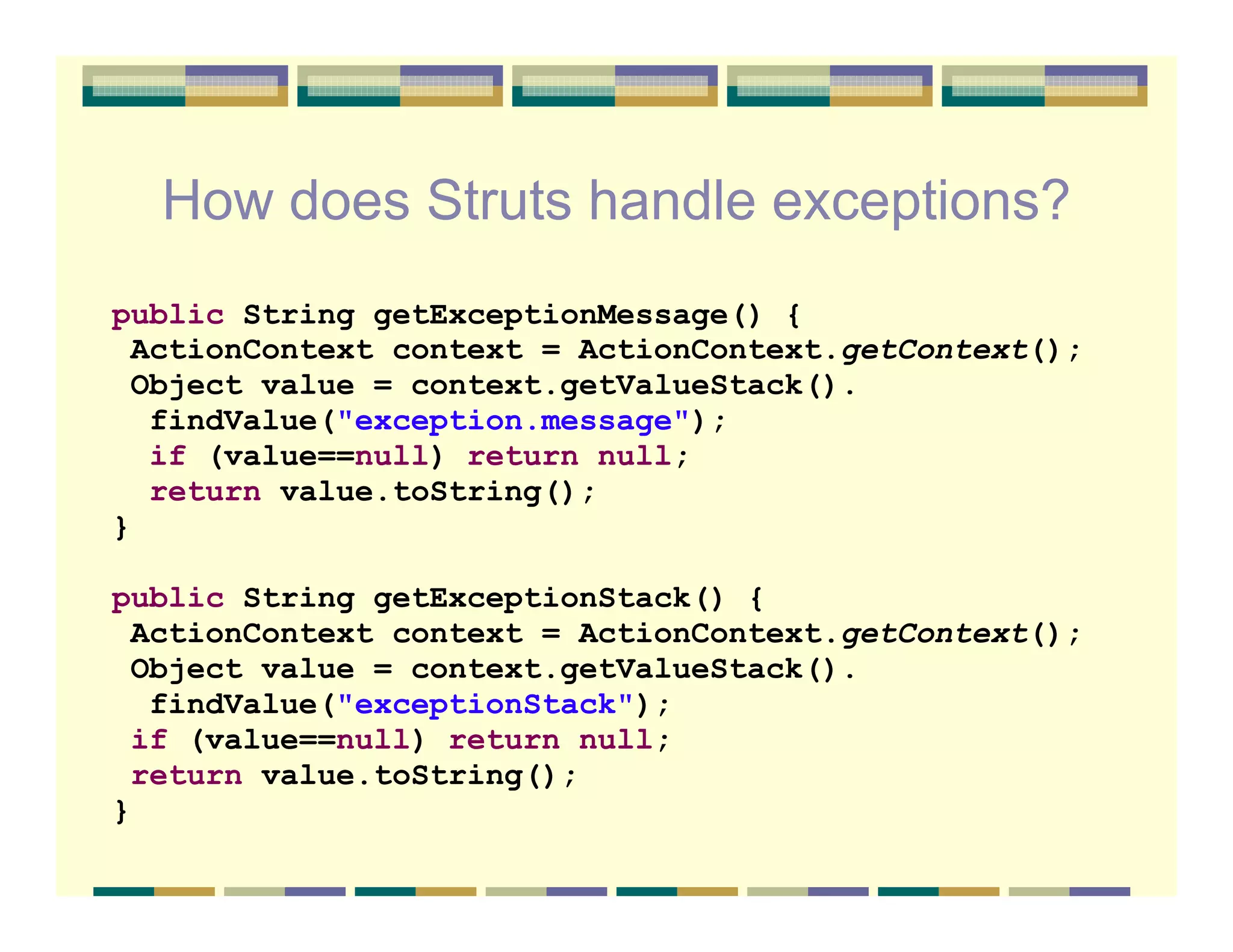

How does Struts handle exceptions?
public String getExceptionMessage() {
 ActionContext context = ActionContext.getContext();
 Object value = context.getValueStack().
  findValue(quot;exception.messagequot;);
  if (value==null) return null;
  return value.toString();
}

public String getExceptionStack() {
 ActionContext context = ActionContext.getContext();
 Object value = context.getValueStack().
  findValue(quot;exceptionStackquot;);
 if (value==null) return null;
 return value.toString();
}

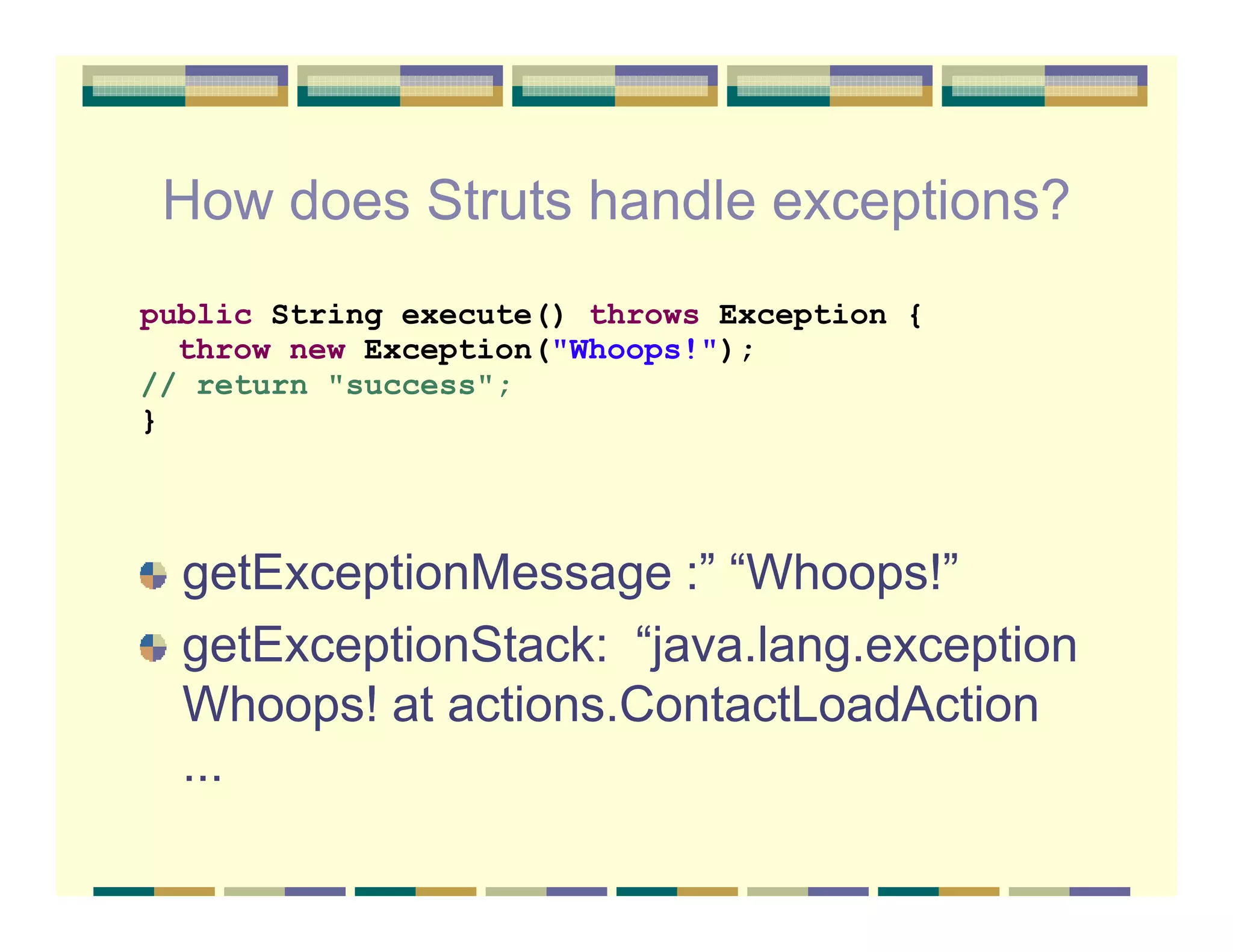

How does Struts handle exceptions?
public String execute() throws Exception {
  throw new Exception(quot;Whoops!quot;);
// return quot;successquot;;
}




  getExceptionMessage :” “Whoops!”
  getExceptionStack: “java.lang.exception
  Whoops! at actions.ContactLoadAction
  ...

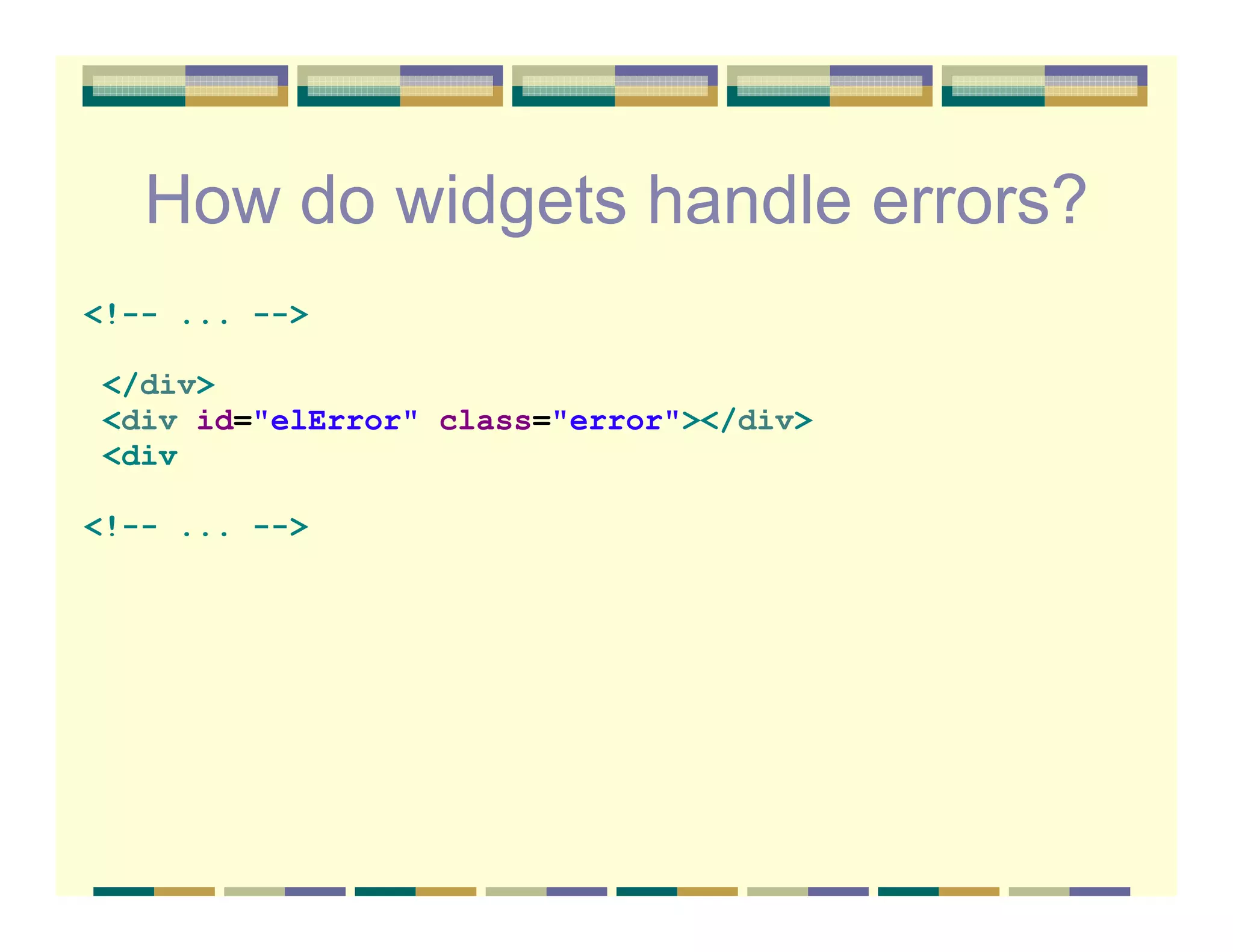

How do widgets handle errors?
<!-- ... -->

</div>
<div id=quot;elErrorquot; class=quot;errorquot;></div>
<div

<!-- ... -->

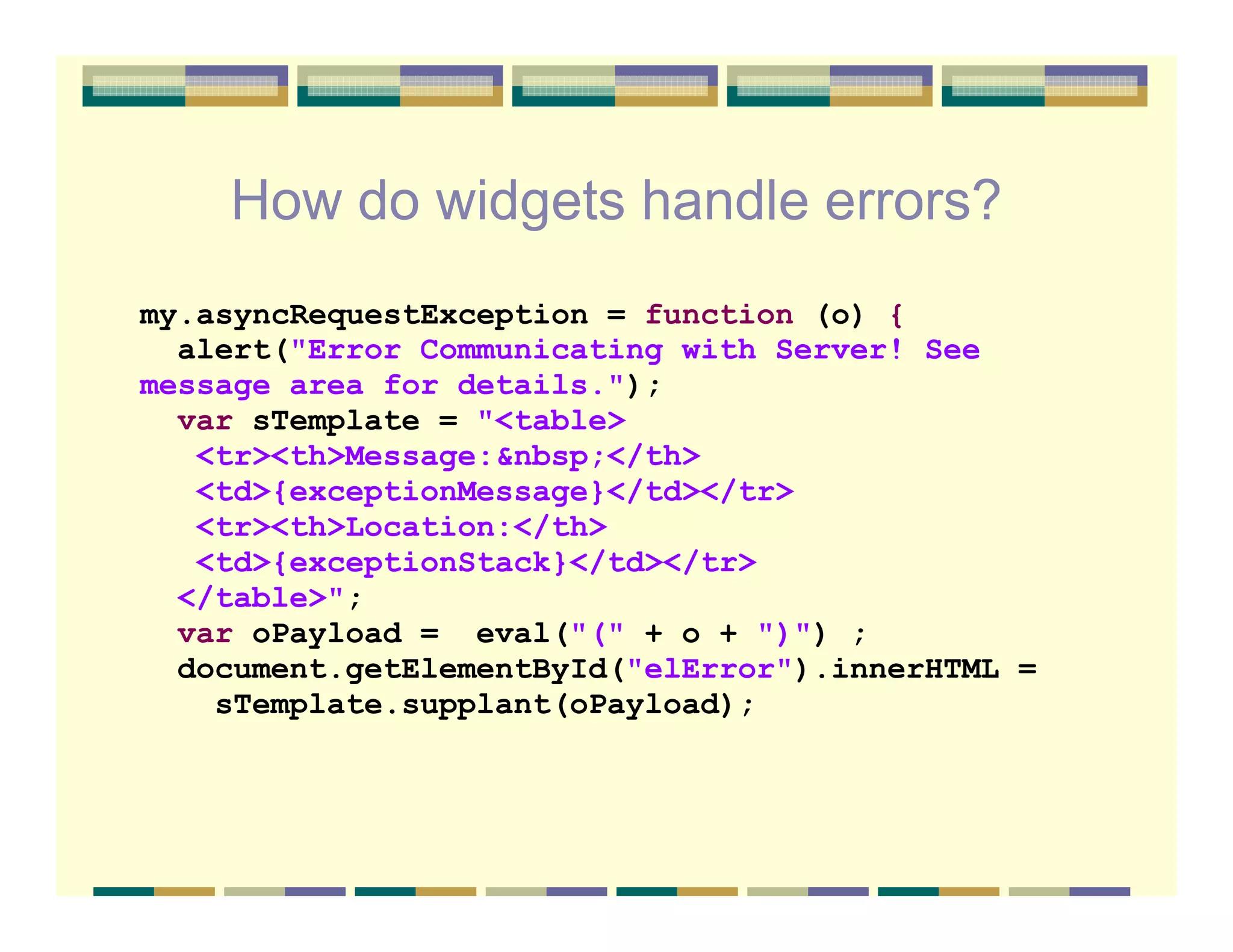

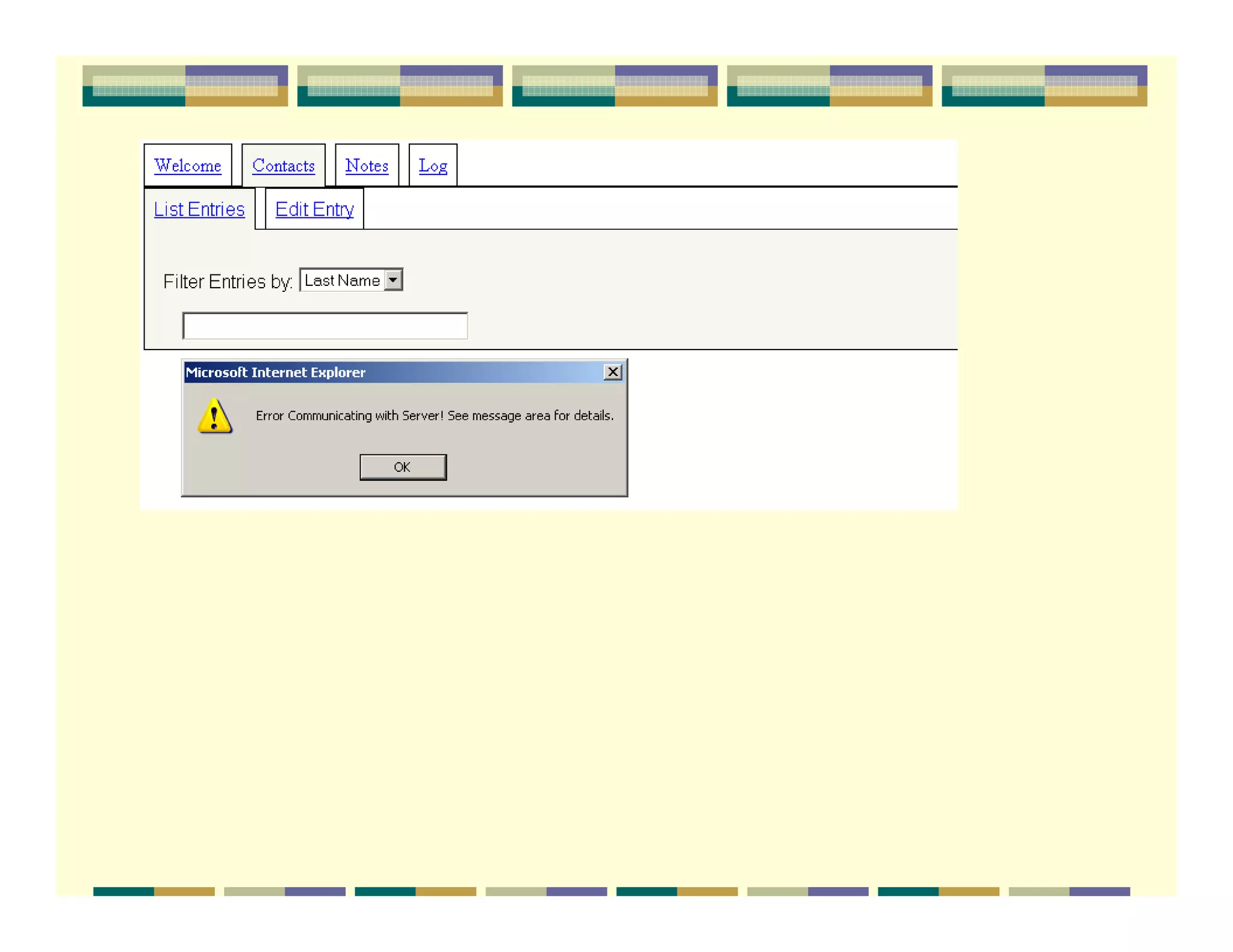

How do widgets handle errors?
my.asyncRequestException = function (o) {
  alert(quot;Error Communicating with Server! See
message area for details.quot;);
  var sTemplate = quot;<table>
   <tr><th>Message:&nbsp;</th>
   <td>{exceptionMessage}</td></tr>
   <tr><th>Location:</th>
   <td>{exceptionStack}</td></tr>
  </table>quot;;
  var oPayload = eval(quot;(quot; + o + quot;)quot;) ;
  document.getElementById(quot;elErrorquot;).innerHTML =
    sTemplate.supplant(oPayload);

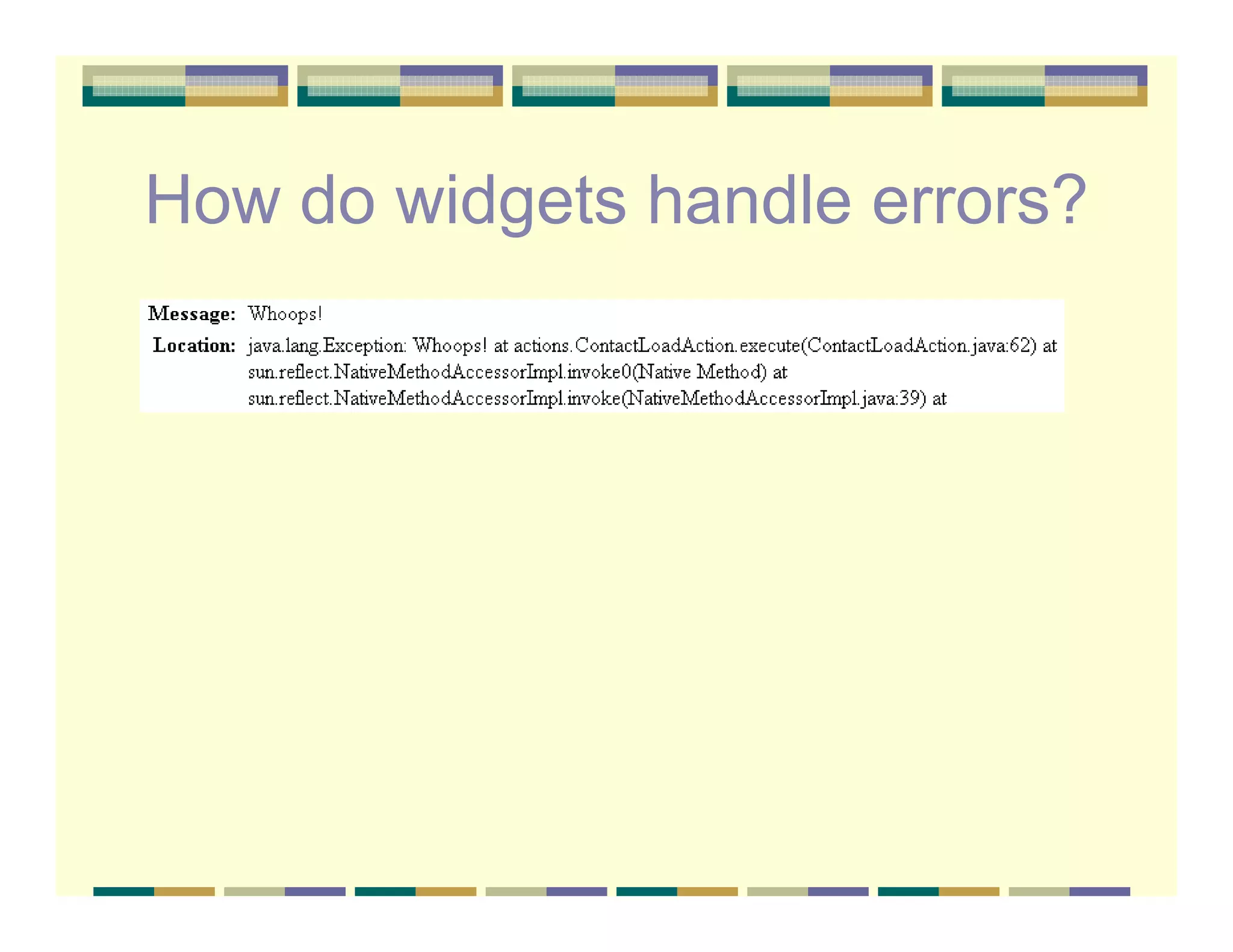

How do widgets handle errors?

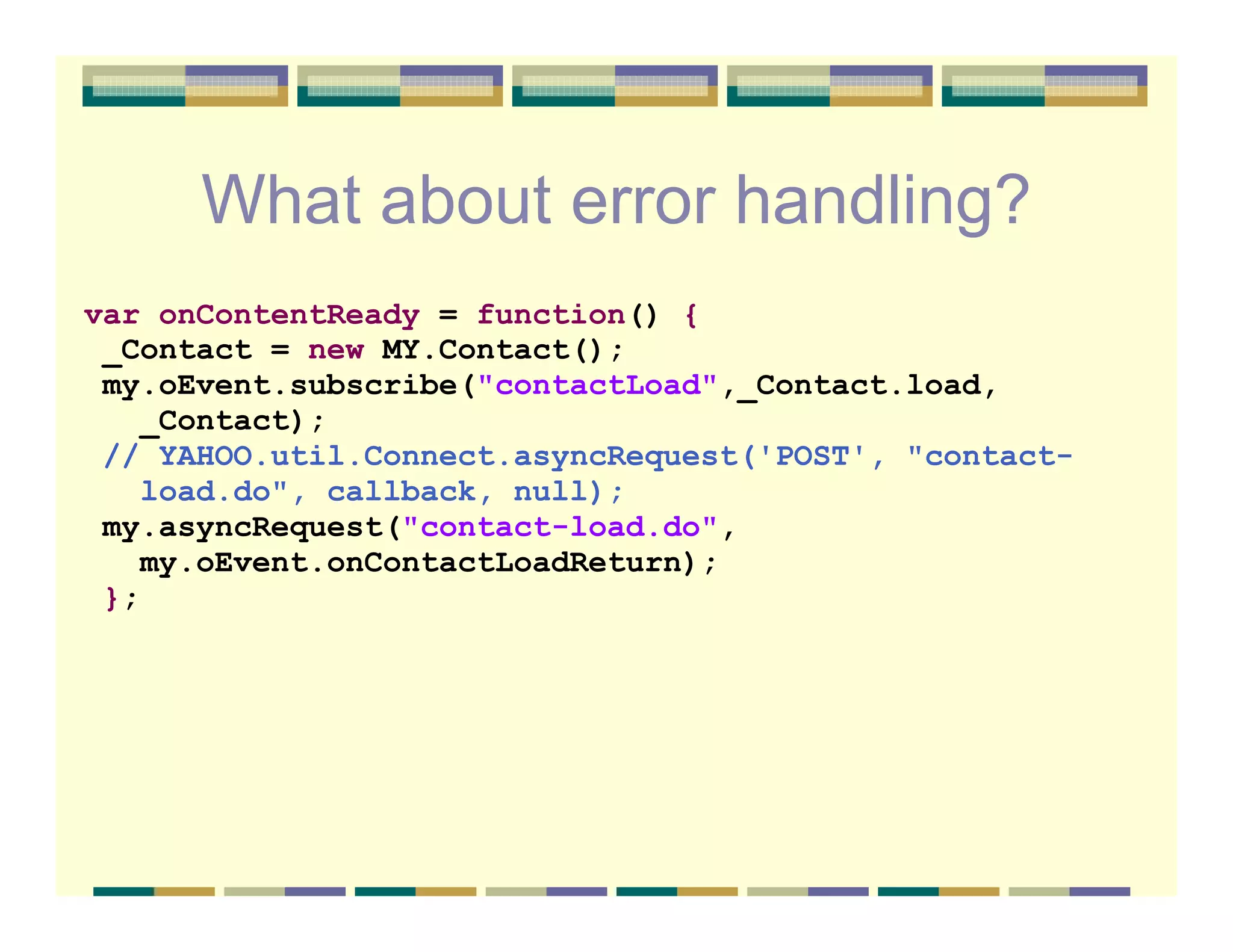

What about error handling?
var onContentReady = function() {
 _Contact = new MY.Contact();
 my.oEvent.subscribe(quot;contactLoadquot;,_Contact.load,
   _Contact);
 // YAHOO.util.Connect.asyncRequest('POST', quot;contact-
   load.doquot;, callback, null);
 my.asyncRequest(quot;contact-load.doquot;,
   my.oEvent.onContactLoadReturn);
 };

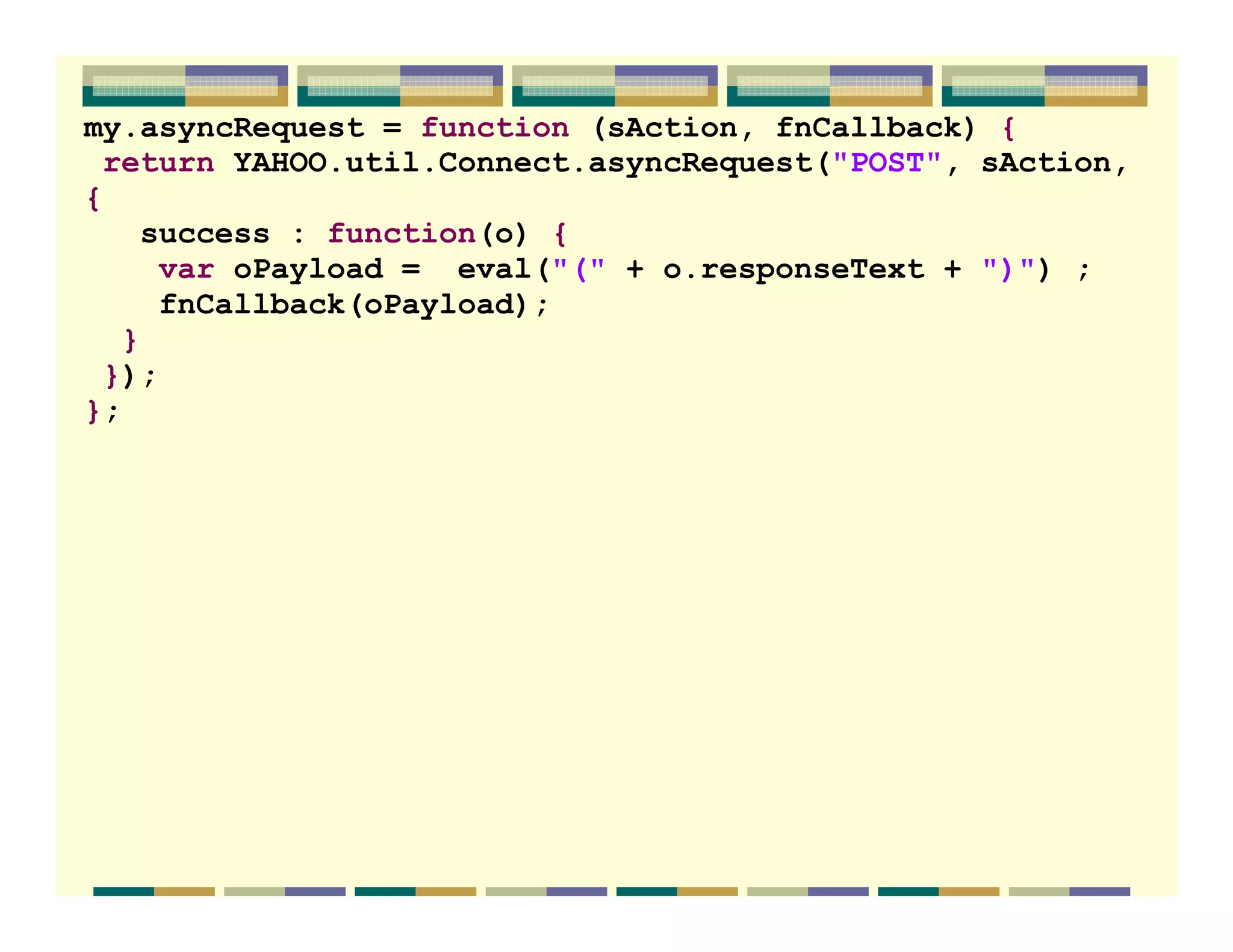

my.asyncRequest = function (sAction, fnCallback) {
 return YAHOO.util.Connect.asyncRequest(quot;POSTquot;, sAction,
{
   success : function(o) {
    var oPayload = eval(quot;(quot; + o.responseText + quot;)quot;) ;
    fnCallback(oPayload);
  }
 });
};

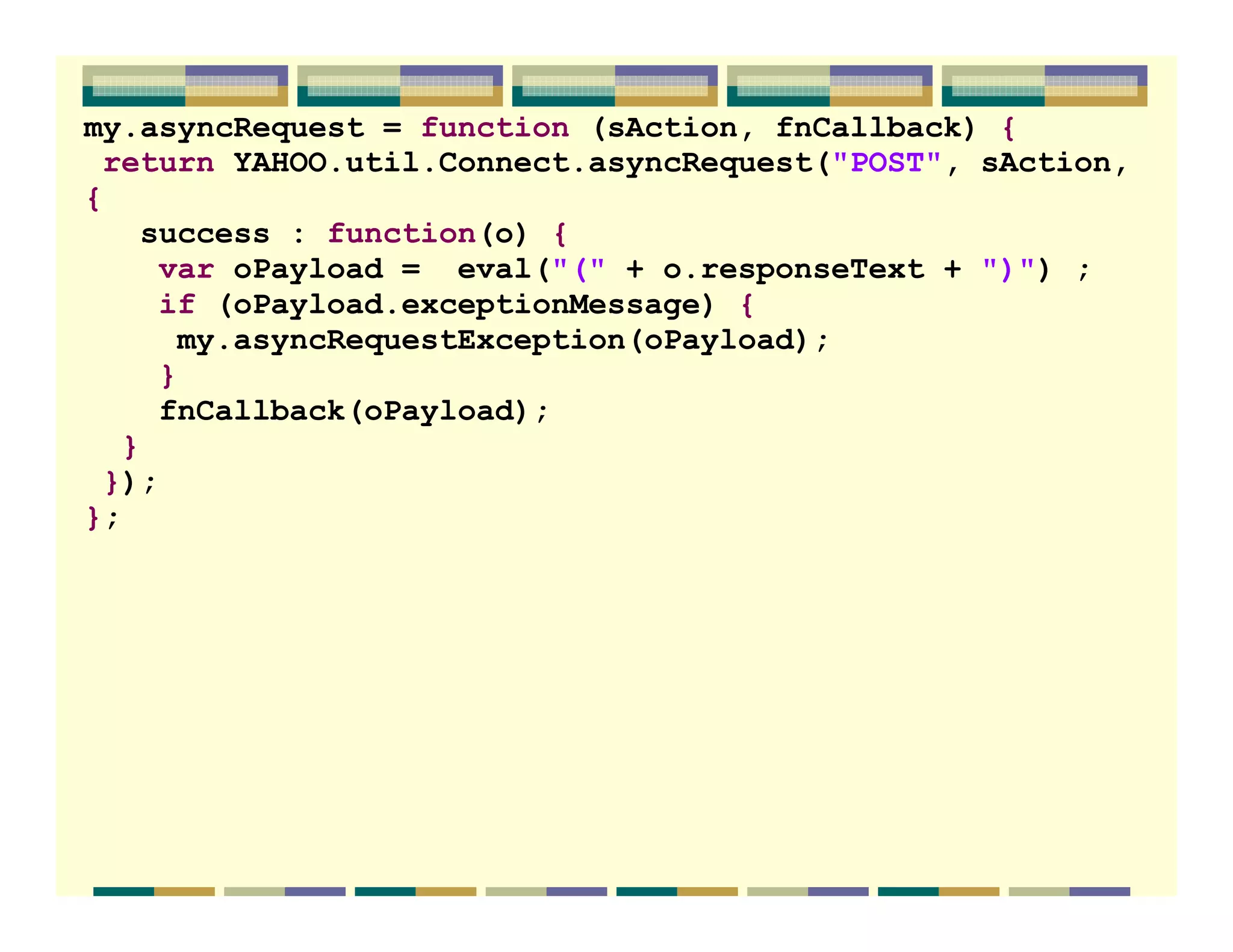

my.asyncRequest = function (sAction, fnCallback) {
 return YAHOO.util.Connect.asyncRequest(quot;POSTquot;, sAction,
{
   success : function(o) {
    var oPayload = eval(quot;(quot; + o.responseText + quot;)quot;) ;
    if (oPayload.exceptionMessage) {
     my.asyncRequestException(oPayload);
    }
    fnCallback(oPayload);
  }
 });
};

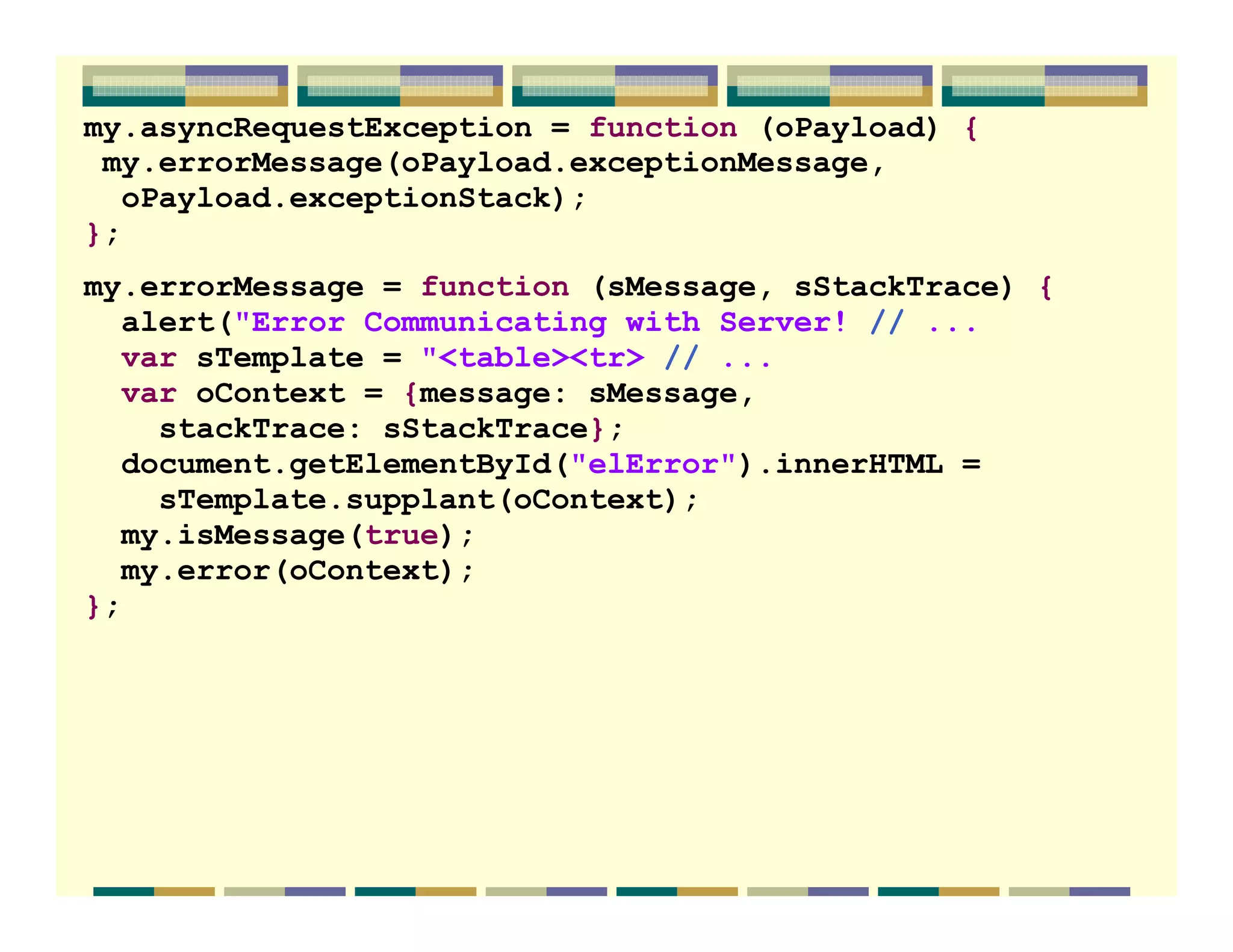

my.asyncRequestException = function (oPayload) {
 my.errorMessage(oPayload.exceptionMessage,
  oPayload.exceptionStack);
};
my.errorMessage = function (sMessage, sStackTrace) {
  alert(quot;Error Communicating with Server! // ...
  var sTemplate = quot;<table><tr> // ...
  var oContext = {message: sMessage,
    stackTrace: sStackTrace};
  document.getElementById(quot;elErrorquot;).innerHTML =
    sTemplate.supplant(oContext);
  my.isMessage(true);
  my.error(oContext);
};

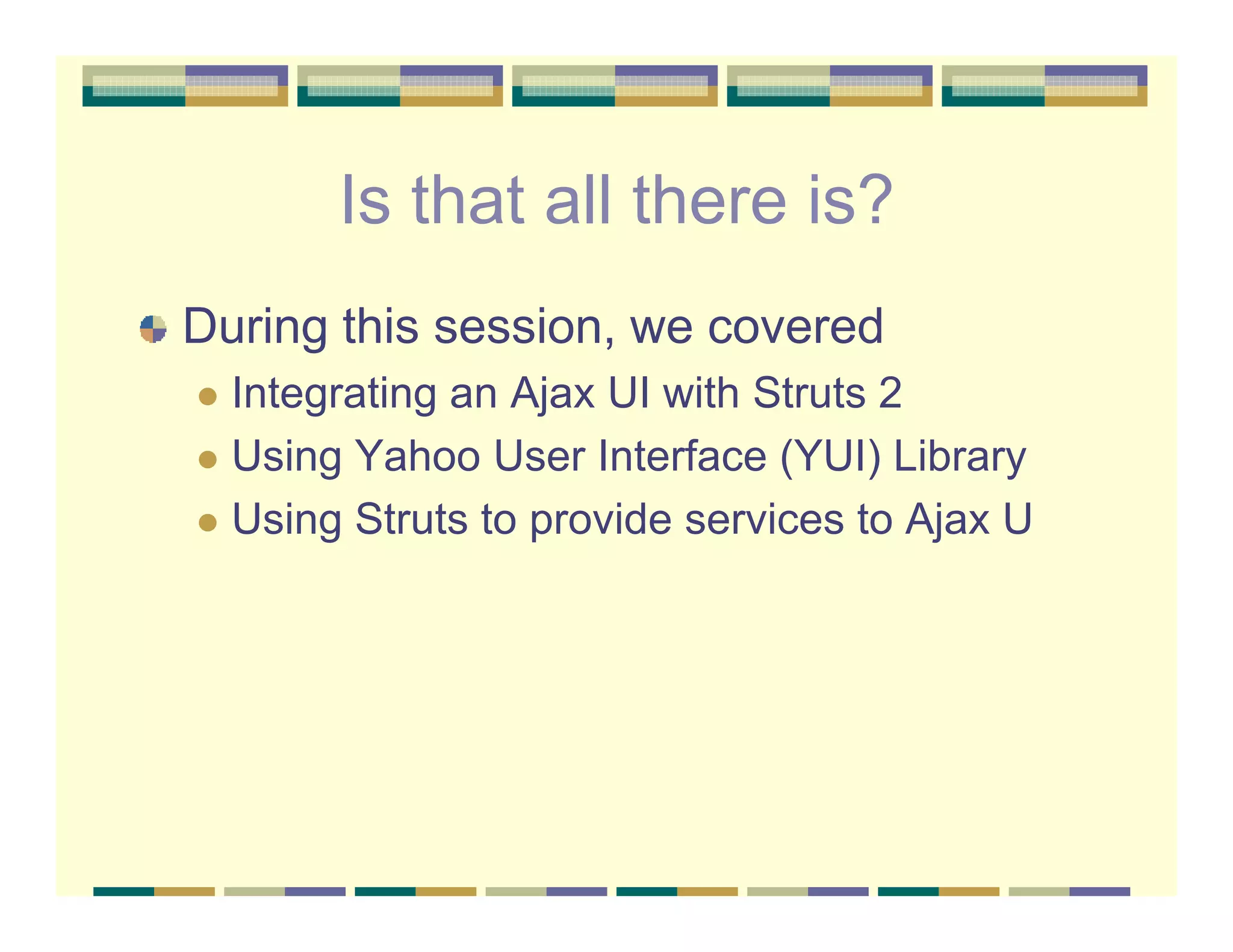

Is that all there is?
During this session, we covered
  Integrating an Ajax UI with Struts 2
  Using Yahoo User Interface (YUI) Library
  Using Struts to provide services to Ajax U
Struts University Series

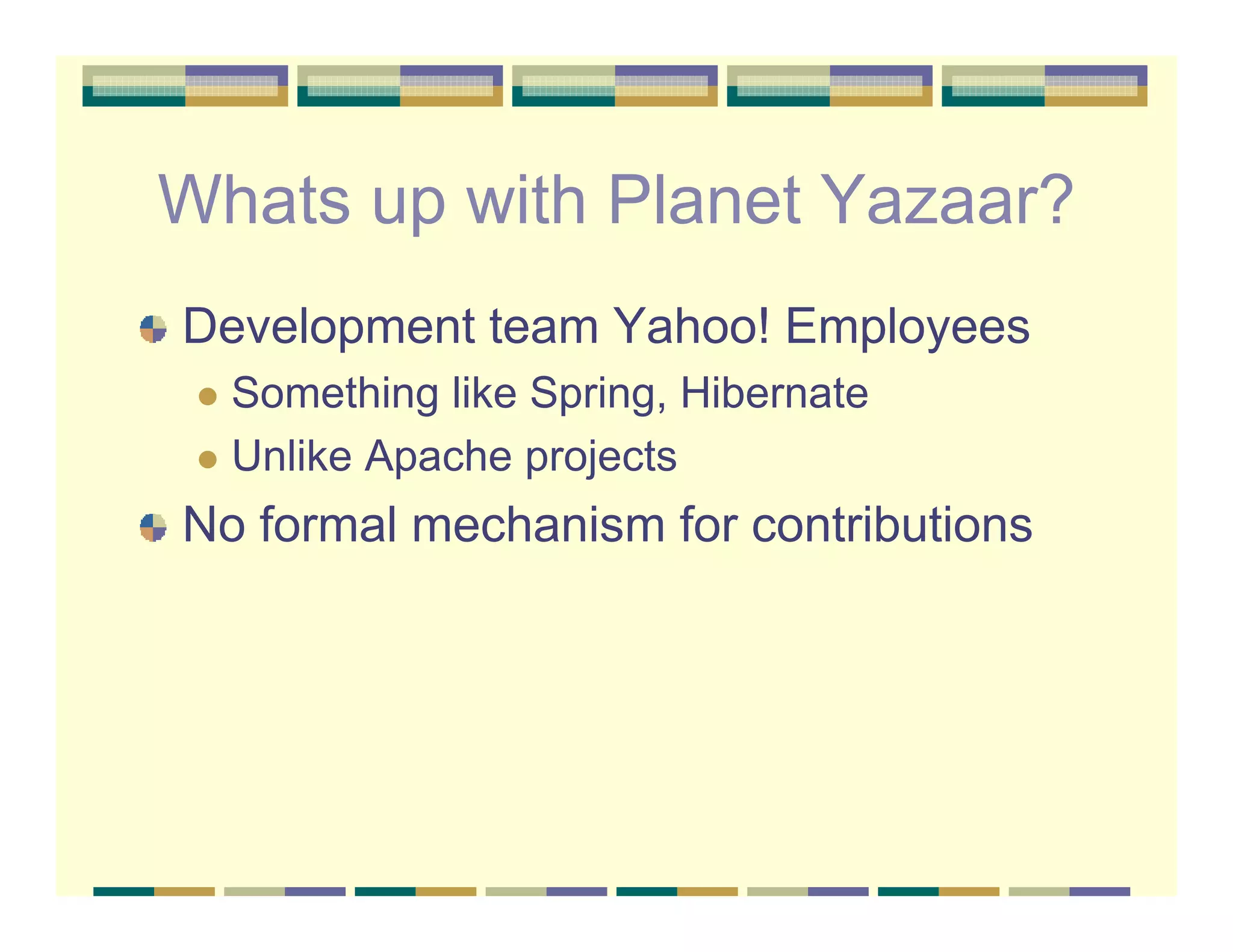

Whats up with Planet Yazaar?
Development team Yahoo! Employees
  Something like Spring, Hibernate
  Unlike Apache projects
No formal mechanism for contributions

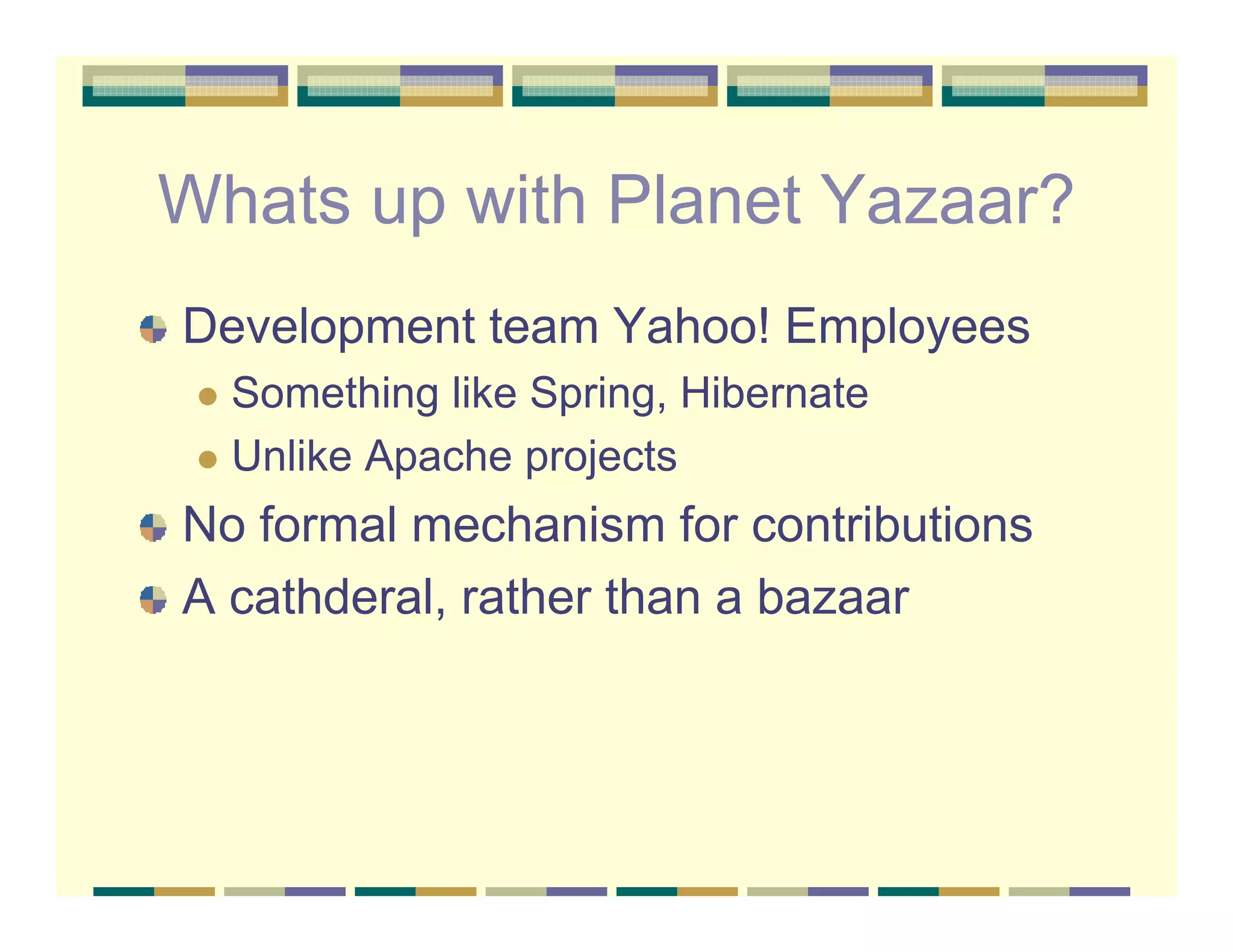

Whats up with Planet Yazaar?
Development team Yahoo! Employees
  Something like Spring, Hibernate
  Unlike Apache projects
No formal mechanism for contributions
A cathderal, rather than a bazaar

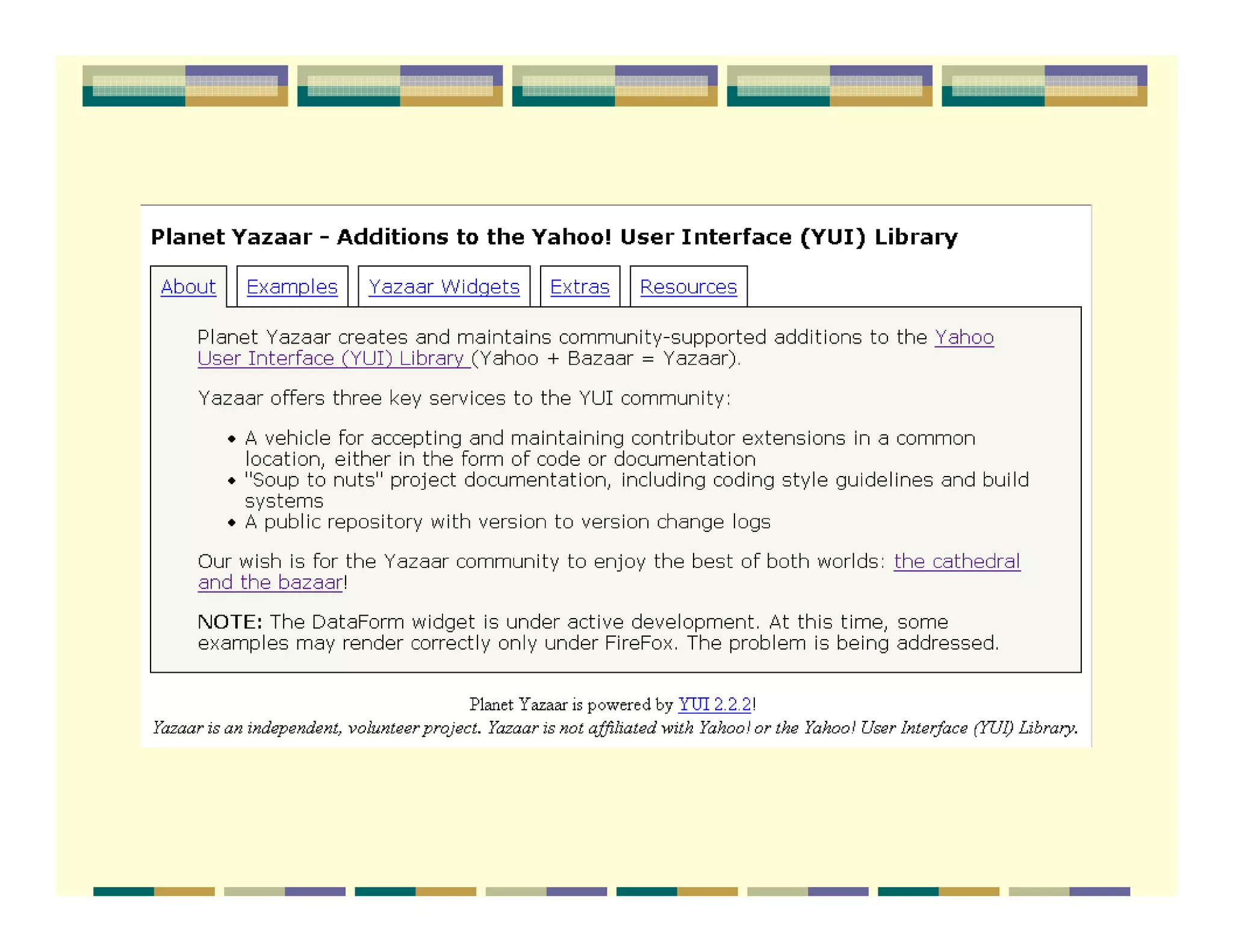

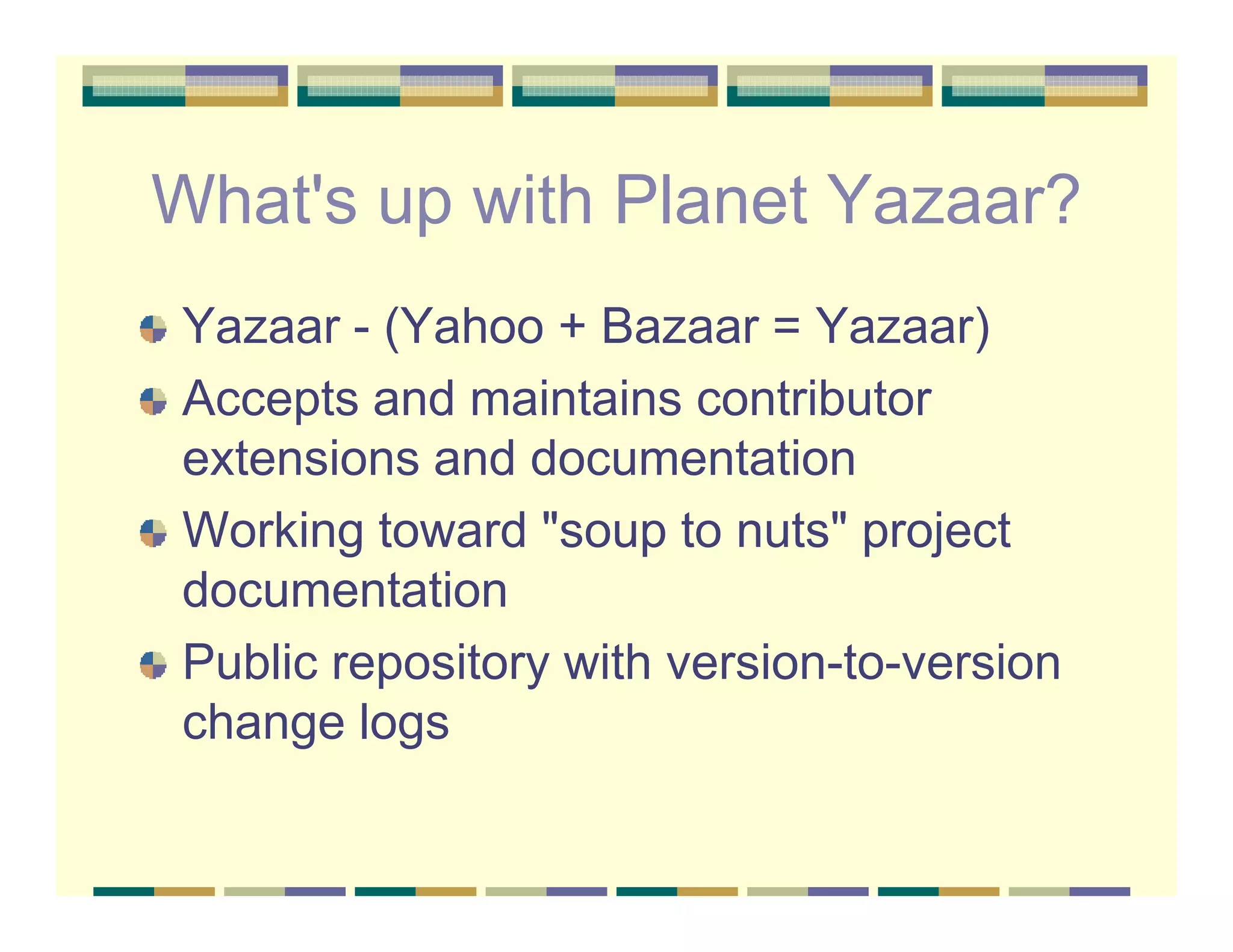

What's up with Planet Yazaar?
Yazaar - (Yahoo + Bazaar = Yazaar)
Accepts and maintains contributor
extensions and documentation
Working toward quot;soup to nutsquot; project
documentation
Public repository with version-to-version
change logs

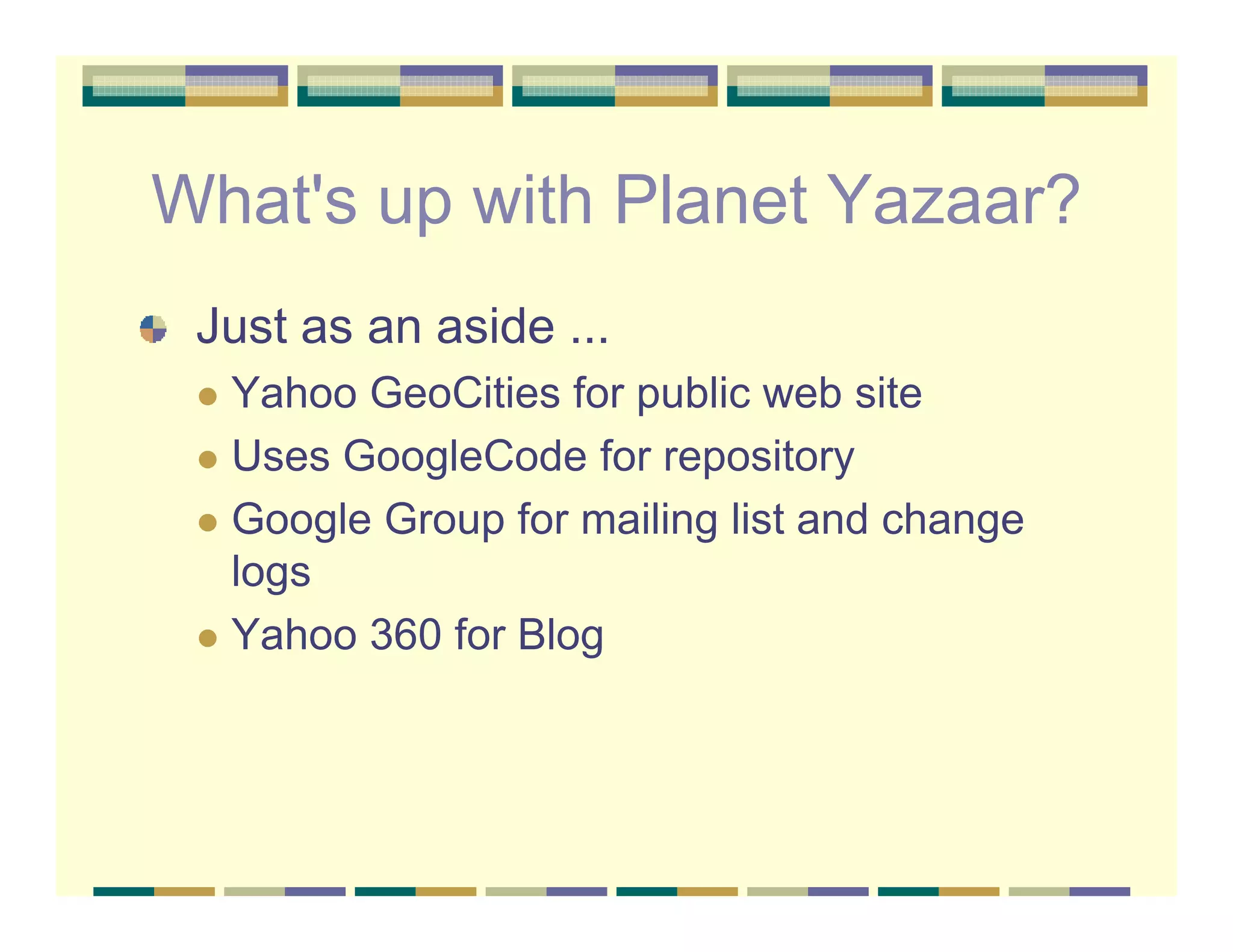

What's up with Planet Yazaar?

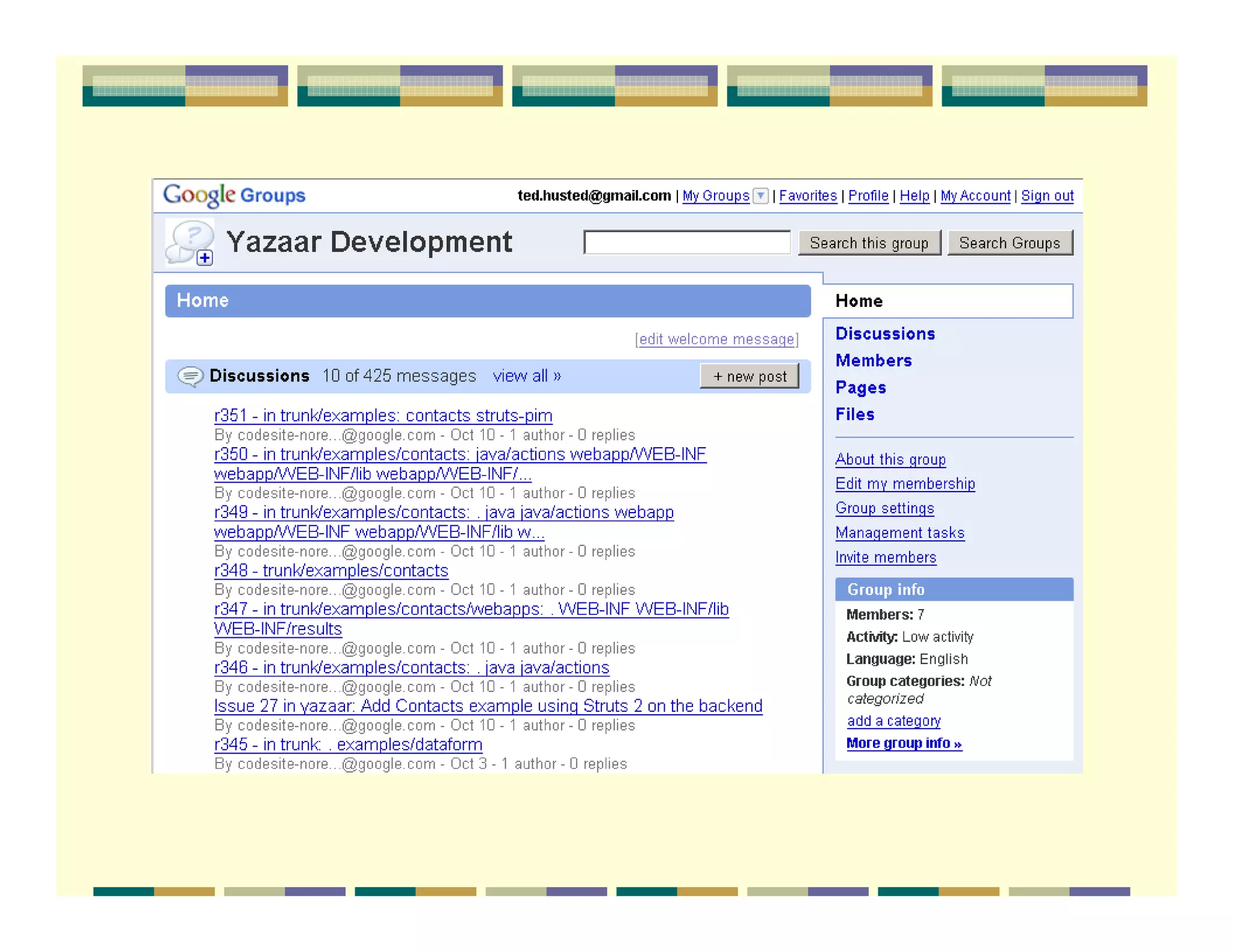

 Just as an aside ...
  Yahoo GeoCities for public web site
  Uses GoogleCode for repository
  Google Group for mailing list and change
  logs
  Yahoo 360 for Blog
Square One University Series

More Related Content

What's hot

greenDAO
greenDAOgreenDAO
greenDAO
Mu Chun Wang

GreenDao Introduction
GreenDao IntroductionGreenDao Introduction
GreenDao Introduction
Booch Lin

Ajax tutorial
Ajax tutorialAjax tutorial
Ajax tutorial
Kat Roque

The Xtext Grammar Language
The Xtext Grammar LanguageThe Xtext Grammar Language
The Xtext Grammar Language
Dr. Jan Köhnlein

Green dao
Green daoGreen dao
Green dao
彥彬 洪

Green dao
Green daoGreen dao
Green dao
Droidcon Berlin

Es.next
Es.nextEs.next
Es.next
kevinsson

Clean Code Development
Clean Code DevelopmentClean Code Development
Clean Code Development
Peter Gfader

Getting started with Elasticsearch and .NET
Getting started with Elasticsearch and .NETGetting started with Elasticsearch and .NET
Getting started with Elasticsearch and .NET
Tomas Jansson

C# Advanced L03-XML+LINQ to XML
C# Advanced L03-XML+LINQ to XMLC# Advanced L03-XML+LINQ to XML
C# Advanced L03-XML+LINQ to XML
Mohammad Shaker

Java script
 Java script Java script
Java script
bosybosy

Slickdemo
SlickdemoSlickdemo
Slickdemo
Knoldus Inc.

ORMLite Android
ORMLite AndroidORMLite Android
ORMLite Android
哲偉 楊

Automatically generating-json-from-java-objects-java-objects268
Automatically generating-json-from-java-objects-java-objects268Automatically generating-json-from-java-objects-java-objects268
Automatically generating-json-from-java-objects-java-objects268
Ramamohan Chokkam

Reducing Development Time with MongoDB vs. SQL
Reducing Development Time with MongoDB vs. SQLReducing Development Time with MongoDB vs. SQL
Reducing Development Time with MongoDB vs. SQL
MongoDB

Object Oriented Exploitation: New techniques in Windows mitigation bypass
Object Oriented Exploitation: New techniques in Windows mitigation bypassObject Oriented Exploitation: New techniques in Windows mitigation bypass
Object Oriented Exploitation: New techniques in Windows mitigation bypass
Sam Thomas

javascript objects
javascript objectsjavascript objects
javascript objects
Vijay Kalyan

DevNation'15 - Using Lambda Expressions to Query a Datastore
DevNation'15 - Using Lambda Expressions to Query a DatastoreDevNation'15 - Using Lambda Expressions to Query a Datastore
DevNation'15 - Using Lambda Expressions to Query a Datastore
Xavier Coulon

Objective-C Crash Course for Web Developers
Objective-C Crash Course for Web DevelopersObjective-C Crash Course for Web Developers
Objective-C Crash Course for Web Developers
Joris Verbogt

Introduction to Active Record - Silicon Valley Ruby Conference 2007
Introduction to Active Record - Silicon Valley Ruby Conference 2007Introduction to Active Record - Silicon Valley Ruby Conference 2007
Introduction to Active Record - Silicon Valley Ruby Conference 2007
Rabble .


What's hot (20)

greenDAO
greenDAOgreenDAO
greenDAO

GreenDao Introduction
GreenDao IntroductionGreenDao Introduction
GreenDao Introduction

Ajax tutorial
Ajax tutorialAjax tutorial
Ajax tutorial

The Xtext Grammar Language
The Xtext Grammar LanguageThe Xtext Grammar Language
The Xtext Grammar Language

Green dao
Green daoGreen dao
Green dao

Green dao
Green daoGreen dao
Green dao

Es.next
Es.nextEs.next
Es.next

Clean Code Development
Clean Code DevelopmentClean Code Development
Clean Code Development

Getting started with Elasticsearch and .NET
Getting started with Elasticsearch and .NETGetting started with Elasticsearch and .NET
Getting started with Elasticsearch and .NET

C# Advanced L03-XML+LINQ to XML
C# Advanced L03-XML+LINQ to XMLC# Advanced L03-XML+LINQ to XML
C# Advanced L03-XML+LINQ to XML

Java script
 Java script Java script
Java script

Slickdemo
SlickdemoSlickdemo
Slickdemo

ORMLite Android
ORMLite AndroidORMLite Android
ORMLite Android

Automatically generating-json-from-java-objects-java-objects268
Automatically generating-json-from-java-objects-java-objects268Automatically generating-json-from-java-objects-java-objects268
Automatically generating-json-from-java-objects-java-objects268

Reducing Development Time with MongoDB vs. SQL
Reducing Development Time with MongoDB vs. SQLReducing Development Time with MongoDB vs. SQL
Reducing Development Time with MongoDB vs. SQL

Object Oriented Exploitation: New techniques in Windows mitigation bypass
Object Oriented Exploitation: New techniques in Windows mitigation bypassObject Oriented Exploitation: New techniques in Windows mitigation bypass
Object Oriented Exploitation: New techniques in Windows mitigation bypass

javascript objects
javascript objectsjavascript objects
javascript objects

DevNation'15 - Using Lambda Expressions to Query a Datastore
DevNation'15 - Using Lambda Expressions to Query a DatastoreDevNation'15 - Using Lambda Expressions to Query a Datastore
DevNation'15 - Using Lambda Expressions to Query a Datastore

Objective-C Crash Course for Web Developers
Objective-C Crash Course for Web DevelopersObjective-C Crash Course for Web Developers
Objective-C Crash Course for Web Developers

Introduction to Active Record - Silicon Valley Ruby Conference 2007
Introduction to Active Record - Silicon Valley Ruby Conference 2007Introduction to Active Record - Silicon Valley Ruby Conference 2007
Introduction to Active Record - Silicon Valley Ruby Conference 2007


Viewers also liked

Ajax chap 4
Ajax chap 4Ajax chap 4
Ajax chap 4
Mukesh Tekwani

Ajax chap 2.-part 1
Ajax chap 2.-part 1Ajax chap 2.-part 1
Ajax chap 2.-part 1
Mukesh Tekwani

Ajax chap 3
Ajax chap 3Ajax chap 3
Ajax chap 3
Mukesh Tekwani

Ajax 101 Workshop
Ajax 101 WorkshopAjax 101 Workshop
Ajax 101 Workshop
Bill Scott

Ajax part i
Ajax part iAjax part i
Ajax part i
Mukesh Tekwani

Dom
DomDom
Dom
soumya

Ajax Part II
Ajax Part IIAjax Part II
Ajax Part II
Mukesh Tekwani

Ajax chap 5
Ajax chap 5Ajax chap 5
Ajax chap 5
Mukesh Tekwani

Perl Chapter 1
Perl Chapter 1Perl Chapter 1
Perl Chapter 1
Mukesh Tekwani

S.E. DBMS-Paper Analysis
S.E. DBMS-Paper AnalysisS.E. DBMS-Paper Analysis
S.E. DBMS-Paper Analysis
Mukesh Tekwani

AJAX
AJAXAJAX
Ajax Development With Dreamweaver
Ajax Development With DreamweaverAjax Development With Dreamweaver
Ajax Development With Dreamweaver
AndreCharland

Python reading and writing files
Python reading and writing filesPython reading and writing files
Python reading and writing files
Mukesh Tekwani

XML
XMLXML
OSI Model - Every Detail Explained
OSI Model - Every Detail ExplainedOSI Model - Every Detail Explained
OSI Model - Every Detail Explained
Ashish Malik

TCP-IP Reference Model
TCP-IP Reference ModelTCP-IP Reference Model
TCP-IP Reference Model
Mukesh Tekwani

OSI Model of Networking
OSI Model of NetworkingOSI Model of Networking
OSI Model of Networking
Mukesh Tekwani


Viewers also liked (17)

Ajax chap 4
Ajax chap 4Ajax chap 4
Ajax chap 4

Ajax chap 2.-part 1
Ajax chap 2.-part 1Ajax chap 2.-part 1
Ajax chap 2.-part 1

Ajax chap 3
Ajax chap 3Ajax chap 3
Ajax chap 3

Ajax 101 Workshop
Ajax 101 WorkshopAjax 101 Workshop
Ajax 101 Workshop

Ajax part i
Ajax part iAjax part i
Ajax part i

Dom
DomDom
Dom

Ajax Part II
Ajax Part IIAjax Part II
Ajax Part II

Ajax chap 5
Ajax chap 5Ajax chap 5
Ajax chap 5

Perl Chapter 1
Perl Chapter 1Perl Chapter 1
Perl Chapter 1

S.E. DBMS-Paper Analysis
S.E. DBMS-Paper AnalysisS.E. DBMS-Paper Analysis
S.E. DBMS-Paper Analysis

AJAX
AJAXAJAX
AJAX

Ajax Development With Dreamweaver
Ajax Development With DreamweaverAjax Development With Dreamweaver
Ajax Development With Dreamweaver

Python reading and writing files
Python reading and writing filesPython reading and writing files
Python reading and writing files

XML
XMLXML
XML

OSI Model - Every Detail Explained
OSI Model - Every Detail ExplainedOSI Model - Every Detail Explained
OSI Model - Every Detail Explained

TCP-IP Reference Model
TCP-IP Reference ModelTCP-IP Reference Model
TCP-IP Reference Model

OSI Model of Networking
OSI Model of NetworkingOSI Model of Networking
OSI Model of Networking


Similar to Coding Ajax

Groovy Introduction - JAX Germany - 2008
Groovy Introduction - JAX Germany - 2008Groovy Introduction - JAX Germany - 2008
Groovy Introduction - JAX Germany - 2008
Guillaume Laforge

Event-driven IO server-side JavaScript environment based on V8 Engine
Event-driven IO server-side JavaScript environment based on V8 EngineEvent-driven IO server-side JavaScript environment based on V8 Engine
Event-driven IO server-side JavaScript environment based on V8 Engine
Ricardo Silva

Introduction To Groovy 2005
Introduction To Groovy 2005Introduction To Groovy 2005
Introduction To Groovy 2005
Tugdual Grall

Go react codelab
Go react codelabGo react codelab
Xitrum Web Framework Live Coding Demos / Xitrum Web Framework ライブコーディング
Xitrum Web Framework Live Coding Demos / Xitrum Web Framework ライブコーディングXitrum Web Framework Live Coding Demos / Xitrum Web Framework ライブコーディング
Xitrum Web Framework Live Coding Demos / Xitrum Web Framework ライブコーディング
scalaconfjp

Xitrum @ Scala Matsuri Tokyo 2014
Xitrum @ Scala Matsuri Tokyo 2014Xitrum @ Scala Matsuri Tokyo 2014
Xitrum @ Scala Matsuri Tokyo 2014
Ngoc Dao

Don't Be Afraid of Abstract Syntax Trees
Don't Be Afraid of Abstract Syntax TreesDon't Be Afraid of Abstract Syntax Trees
Don't Be Afraid of Abstract Syntax Trees
Jamund Ferguson

Pascarello_Investigating JavaScript and Ajax Security
Pascarello_Investigating JavaScript and Ajax SecurityPascarello_Investigating JavaScript and Ajax Security
Pascarello_Investigating JavaScript and Ajax Security
amiable_indian

Embedded Typesafe Domain Specific Languages for Java
Embedded Typesafe Domain Specific Languages for JavaEmbedded Typesafe Domain Specific Languages for Java
Embedded Typesafe Domain Specific Languages for Java
Jevgeni Kabanov

A More Flash Like Web?
A More Flash Like Web?A More Flash Like Web?
A More Flash Like Web?
Murat Can ALPAY

[DSBW Spring 2009] Unit 07: WebApp Design Patterns & Frameworks (3/3)
[DSBW Spring 2009] Unit 07: WebApp Design Patterns & Frameworks (3/3)[DSBW Spring 2009] Unit 07: WebApp Design Patterns & Frameworks (3/3)
[DSBW Spring 2009] Unit 07: WebApp Design Patterns & Frameworks (3/3)
Carles Farré

Java Intro
Java IntroJava Intro
Java Intro
backdoor

Migrating from Struts 1 to Struts 2
Migrating from Struts 1 to Struts 2Migrating from Struts 1 to Struts 2
Migrating from Struts 1 to Struts 2
Matt Raible

I Feel Pretty
I Feel PrettyI Feel Pretty
I Feel Pretty
John Quaglia

Boston Computing Review - Java Server Pages
Boston Computing Review - Java Server PagesBoston Computing Review - Java Server Pages
Boston Computing Review - Java Server Pages
John Brunswick

CouchDB on Android
CouchDB on AndroidCouchDB on Android
CouchDB on Android
Sven Haiges

beyond tellerrand: Mobile Apps with JavaScript – There's More Than Web
beyond tellerrand: Mobile Apps with JavaScript – There's More Than Webbeyond tellerrand: Mobile Apps with JavaScript – There's More Than Web
beyond tellerrand: Mobile Apps with JavaScript – There's More Than Web
Heiko Behrens

JS everywhere 2011
JS everywhere 2011JS everywhere 2011
JS everywhere 2011
Oleg Podsechin

Android best practices
Android best practicesAndroid best practices
Android best practices
Jose Manuel Ortega Candel

JavaScript Growing Up
JavaScript Growing UpJavaScript Growing Up
JavaScript Growing Up
David Padbury


Similar to Coding Ajax (20)

Groovy Introduction - JAX Germany - 2008
Groovy Introduction - JAX Germany - 2008Groovy Introduction - JAX Germany - 2008
Groovy Introduction - JAX Germany - 2008

Event-driven IO server-side JavaScript environment based on V8 Engine
Event-driven IO server-side JavaScript environment based on V8 EngineEvent-driven IO server-side JavaScript environment based on V8 Engine
Event-driven IO server-side JavaScript environment based on V8 Engine

Introduction To Groovy 2005
Introduction To Groovy 2005Introduction To Groovy 2005
Introduction To Groovy 2005

Go react codelab
Go react codelabGo react codelab
Go react codelab

Xitrum Web Framework Live Coding Demos / Xitrum Web Framework ライブコーディング
Xitrum Web Framework Live Coding Demos / Xitrum Web Framework ライブコーディングXitrum Web Framework Live Coding Demos / Xitrum Web Framework ライブコーディング
Xitrum Web Framework Live Coding Demos / Xitrum Web Framework ライブコーディング

Xitrum @ Scala Matsuri Tokyo 2014
Xitrum @ Scala Matsuri Tokyo 2014Xitrum @ Scala Matsuri Tokyo 2014
Xitrum @ Scala Matsuri Tokyo 2014

Don't Be Afraid of Abstract Syntax Trees
Don't Be Afraid of Abstract Syntax TreesDon't Be Afraid of Abstract Syntax Trees
Don't Be Afraid of Abstract Syntax Trees

Pascarello_Investigating JavaScript and Ajax Security
Pascarello_Investigating JavaScript and Ajax SecurityPascarello_Investigating JavaScript and Ajax Security
Pascarello_Investigating JavaScript and Ajax Security

Embedded Typesafe Domain Specific Languages for Java
Embedded Typesafe Domain Specific Languages for JavaEmbedded Typesafe Domain Specific Languages for Java
Embedded Typesafe Domain Specific Languages for Java

A More Flash Like Web?
A More Flash Like Web?A More Flash Like Web?
A More Flash Like Web?

[DSBW Spring 2009] Unit 07: WebApp Design Patterns & Frameworks (3/3)
[DSBW Spring 2009] Unit 07: WebApp Design Patterns & Frameworks (3/3)[DSBW Spring 2009] Unit 07: WebApp Design Patterns & Frameworks (3/3)
[DSBW Spring 2009] Unit 07: WebApp Design Patterns & Frameworks (3/3)

Java Intro
Java IntroJava Intro
Java Intro

Migrating from Struts 1 to Struts 2
Migrating from Struts 1 to Struts 2Migrating from Struts 1 to Struts 2
Migrating from Struts 1 to Struts 2

I Feel Pretty
I Feel PrettyI Feel Pretty
I Feel Pretty

Boston Computing Review - Java Server Pages
Boston Computing Review - Java Server PagesBoston Computing Review - Java Server Pages
Boston Computing Review - Java Server Pages

CouchDB on Android
CouchDB on AndroidCouchDB on Android
CouchDB on Android

beyond tellerrand: Mobile Apps with JavaScript – There's More Than Web
beyond tellerrand: Mobile Apps with JavaScript – There's More Than Webbeyond tellerrand: Mobile Apps with JavaScript – There's More Than Web
beyond tellerrand: Mobile Apps with JavaScript – There's More Than Web

JS everywhere 2011
JS everywhere 2011JS everywhere 2011
JS everywhere 2011

Android best practices
Android best practicesAndroid best practices
Android best practices

JavaScript Growing Up
JavaScript Growing UpJavaScript Growing Up
JavaScript Growing Up


More from Ted Husted

Ship It!
Ship It!Ship It!
Ship It!
Ted Husted

.NET @ apache.org
 .NET @ apache.org .NET @ apache.org
.NET @ apache.org
Ted Husted

The secret life_of_open_source
The secret life_of_open_sourceThe secret life_of_open_source
The secret life_of_open_source
Ted Husted

Open Source Secret Sauce - Lugor Sep 2011
Open Source Secret Sauce - Lugor Sep 2011Open Source Secret Sauce - Lugor Sep 2011
Open Source Secret Sauce - Lugor Sep 2011
Ted Husted

NU FaceBook 101 JCC 2010
NU  FaceBook 101 JCC 2010NU  FaceBook 101 JCC 2010
NU FaceBook 101 JCC 2010
Ted Husted

Developing java Web Applications Using Google Apps RJUG 2011
Developing java Web Applications Using Google Apps RJUG 2011Developing java Web Applications Using Google Apps RJUG 2011
Developing java Web Applications Using Google Apps RJUG 2011
Ted Husted

Open source secret_sauce_apache_con_2010
Open source secret_sauce_apache_con_2010Open source secret_sauce_apache_con_2010
Open source secret_sauce_apache_con_2010
Ted Husted

Drupal kickstart-workshop
Drupal kickstart-workshopDrupal kickstart-workshop
Drupal kickstart-workshop
Ted Husted

Open source-secret-sauce-rit-2010
Open source-secret-sauce-rit-2010Open source-secret-sauce-rit-2010
Open source-secret-sauce-rit-2010
Ted Husted

Agile Analysis with Use Cases: Balancing Utility with Simplicity
Agile Analysis with Use Cases: Balancing Utility with SimplicityAgile Analysis with Use Cases: Balancing Utility with Simplicity
Agile Analysis with Use Cases: Balancing Utility with Simplicity
Ted Husted

Testing Web Application Security
Testing Web Application SecurityTesting Web Application Security
Testing Web Application Security
Ted Husted

API Doc Smackdown
API Doc SmackdownAPI Doc Smackdown
API Doc Smackdown
Ted Husted

Testing The Testers
Testing The TestersTesting The Testers
Testing The Testers
Ted Husted

Testing Ajax Applications
Testing Ajax ApplicationsTesting Ajax Applications
Testing Ajax Applications
Ted Husted

Testing Ajax Web Applications
Testing Ajax Web ApplicationsTesting Ajax Web Applications
Testing Ajax Web Applications
Ted Husted

Testing Tools
Testing ToolsTesting Tools
Testing Tools
Ted Husted

Open Source Secret Sauce
Open Source Secret SauceOpen Source Secret Sauce
Open Source Secret Sauce
Ted Husted


More from Ted Husted (17)

Ship It!
Ship It!Ship It!
Ship It!

.NET @ apache.org
 .NET @ apache.org .NET @ apache.org
.NET @ apache.org

The secret life_of_open_source
The secret life_of_open_sourceThe secret life_of_open_source
The secret life_of_open_source

Open Source Secret Sauce - Lugor Sep 2011
Open Source Secret Sauce - Lugor Sep 2011Open Source Secret Sauce - Lugor Sep 2011
Open Source Secret Sauce - Lugor Sep 2011

NU FaceBook 101 JCC 2010
NU  FaceBook 101 JCC 2010NU  FaceBook 101 JCC 2010
NU FaceBook 101 JCC 2010

Developing java Web Applications Using Google Apps RJUG 2011
Developing java Web Applications Using Google Apps RJUG 2011Developing java Web Applications Using Google Apps RJUG 2011
Developing java Web Applications Using Google Apps RJUG 2011

Open source secret_sauce_apache_con_2010
Open source secret_sauce_apache_con_2010Open source secret_sauce_apache_con_2010
Open source secret_sauce_apache_con_2010

Drupal kickstart-workshop
Drupal kickstart-workshopDrupal kickstart-workshop
Drupal kickstart-workshop

Open source-secret-sauce-rit-2010
Open source-secret-sauce-rit-2010Open source-secret-sauce-rit-2010
Open source-secret-sauce-rit-2010

Agile Analysis with Use Cases: Balancing Utility with Simplicity
Agile Analysis with Use Cases: Balancing Utility with SimplicityAgile Analysis with Use Cases: Balancing Utility with Simplicity
Agile Analysis with Use Cases: Balancing Utility with Simplicity

Testing Web Application Security
Testing Web Application SecurityTesting Web Application Security
Testing Web Application Security

API Doc Smackdown
API Doc SmackdownAPI Doc Smackdown
API Doc Smackdown

Testing The Testers
Testing The TestersTesting The Testers
Testing The Testers

Testing Ajax Applications
Testing Ajax ApplicationsTesting Ajax Applications
Testing Ajax Applications

Testing Ajax Web Applications
Testing Ajax Web ApplicationsTesting Ajax Web Applications
Testing Ajax Web Applications

Testing Tools
Testing ToolsTesting Tools
Testing Tools

Open Source Secret Sauce
Open Source Secret SauceOpen Source Secret Sauce
Open Source Secret Sauce


Recently uploaded

Top mailing list providers in the USA.pptx
Top mailing list providers in the USA.pptxTop mailing list providers in the USA.pptx
Top mailing list providers in the USA.pptx
JeremyPeirce1

Lundin Gold Corporate Presentation - June 2024
Lundin Gold Corporate Presentation - June 2024Lundin Gold Corporate Presentation - June 2024
Lundin Gold Corporate Presentation - June 2024
Adnet Communications

The Genesis of BriansClub.cm Famous Dark WEb Platform
The Genesis of BriansClub.cm Famous Dark WEb PlatformThe Genesis of BriansClub.cm Famous Dark WEb Platform
The Genesis of BriansClub.cm Famous Dark WEb Platform
SabaaSudozai

How MJ Global Leads the Packaging Industry.pdf
How MJ Global Leads the Packaging Industry.pdfHow MJ Global Leads the Packaging Industry.pdf
How MJ Global Leads the Packaging Industry.pdf
MJ Global

Understanding User Needs and Satisfying Them
Understanding User Needs and Satisfying ThemUnderstanding User Needs and Satisfying Them
Understanding User Needs and Satisfying Them
Aggregage

GKohler - Retail Scavenger Hunt Presentation
GKohler - Retail Scavenger Hunt PresentationGKohler - Retail Scavenger Hunt Presentation
GKohler - Retail Scavenger Hunt Presentation
GraceKohler1

Creative Web Design Company in Singapore
Creative Web Design Company in SingaporeCreative Web Design Company in Singapore
Creative Web Design Company in Singapore
techboxsqauremedia

3 Simple Steps To Buy Verified Payoneer Account In 2024
3 Simple Steps To Buy Verified Payoneer Account In 20243 Simple Steps To Buy Verified Payoneer Account In 2024
3 Simple Steps To Buy Verified Payoneer Account In 2024
SEOSMMEARTH

Taurus Zodiac Sign: Unveiling the Traits, Dates, and Horoscope Insights of th...
Taurus Zodiac Sign: Unveiling the Traits, Dates, and Horoscope Insights of th...Taurus Zodiac Sign: Unveiling the Traits, Dates, and Horoscope Insights of th...
Taurus Zodiac Sign: Unveiling the Traits, Dates, and Horoscope Insights of th...
my Pandit

The latest Heat Pump Manual from Newentide
The latest Heat Pump Manual from NewentideThe latest Heat Pump Manual from Newentide
The latest Heat Pump Manual from Newentide
JoeYangGreatMachiner

Easily Verify Compliance and Security with Binance KYC
Easily Verify Compliance and Security with Binance KYCEasily Verify Compliance and Security with Binance KYC
Easily Verify Compliance and Security with Binance KYC
Any kyc Account

Innovation Management Frameworks: Your Guide to Creativity & Innovation
Innovation Management Frameworks: Your Guide to Creativity & InnovationInnovation Management Frameworks: Your Guide to Creativity & Innovation
Innovation Management Frameworks: Your Guide to Creativity & Innovation
Operational Excellence Consulting

DearbornMusic-KatherineJasperFullSailUni
DearbornMusic-KatherineJasperFullSailUniDearbornMusic-KatherineJasperFullSailUni
DearbornMusic-KatherineJasperFullSailUni
katiejasper96

Unveiling the Dynamic Personalities, Key Dates, and Horoscope Insights: Gemin...
Unveiling the Dynamic Personalities, Key Dates, and Horoscope Insights: Gemin...Unveiling the Dynamic Personalities, Key Dates, and Horoscope Insights: Gemin...
Unveiling the Dynamic Personalities, Key Dates, and Horoscope Insights: Gemin...
my Pandit

Part 2 Deep Dive: Navigating the 2024 Slowdown
Part 2 Deep Dive: Navigating the 2024 SlowdownPart 2 Deep Dive: Navigating the 2024 Slowdown
Part 2 Deep Dive: Navigating the 2024 Slowdown
jeffkluth1

How are Lilac French Bulldogs Beauty Charming the World and Capturing Hearts....
How are Lilac French Bulldogs Beauty Charming the World and Capturing Hearts....How are Lilac French Bulldogs Beauty Charming the World and Capturing Hearts....
How are Lilac French Bulldogs Beauty Charming the World and Capturing Hearts....
Lacey Max

❼❷⓿❺❻❷❽❷❼❽ Dpboss Matka Result Satta Matka Guessing Satta Fix jodi Kalyan Fin...
❼❷⓿❺❻❷❽❷❼❽ Dpboss Matka Result Satta Matka Guessing Satta Fix jodi Kalyan Fin...❼❷⓿❺❻❷❽❷❼❽ Dpboss Matka Result Satta Matka Guessing Satta Fix jodi Kalyan Fin...
❼❷⓿❺❻❷❽❷❼❽ Dpboss Matka Result Satta Matka Guessing Satta Fix jodi Kalyan Fin...
❼❷⓿❺❻❷❽❷❼❽ Dpboss Kalyan Satta Matka Guessing Matka Result Main Bazar chart

How to Implement a Strategy: Transform Your Strategy with BSC Designer's Comp...
How to Implement a Strategy: Transform Your Strategy with BSC Designer's Comp...How to Implement a Strategy: Transform Your Strategy with BSC Designer's Comp...
How to Implement a Strategy: Transform Your Strategy with BSC Designer's Comp...
Aleksey Savkin

Organizational Change Leadership Agile Tour Geneve 2024
Organizational Change Leadership Agile Tour Geneve 2024Organizational Change Leadership Agile Tour Geneve 2024
Organizational Change Leadership Agile Tour Geneve 2024
Kirill Klimov

Building Your Employer Brand with Social Media
Building Your Employer Brand with Social MediaBuilding Your Employer Brand with Social Media
Building Your Employer Brand with Social Media
LuanWise


Recently uploaded (20)

Top mailing list providers in the USA.pptx
Top mailing list providers in the USA.pptxTop mailing list providers in the USA.pptx
Top mailing list providers in the USA.pptx

Lundin Gold Corporate Presentation - June 2024
Lundin Gold Corporate Presentation - June 2024Lundin Gold Corporate Presentation - June 2024
Lundin Gold Corporate Presentation - June 2024

The Genesis of BriansClub.cm Famous Dark WEb Platform
The Genesis of BriansClub.cm Famous Dark WEb PlatformThe Genesis of BriansClub.cm Famous Dark WEb Platform
The Genesis of BriansClub.cm Famous Dark WEb Platform

How MJ Global Leads the Packaging Industry.pdf
How MJ Global Leads the Packaging Industry.pdfHow MJ Global Leads the Packaging Industry.pdf
How MJ Global Leads the Packaging Industry.pdf

Understanding User Needs and Satisfying Them
Understanding User Needs and Satisfying ThemUnderstanding User Needs and Satisfying Them
Understanding User Needs and Satisfying Them

GKohler - Retail Scavenger Hunt Presentation
GKohler - Retail Scavenger Hunt PresentationGKohler - Retail Scavenger Hunt Presentation
GKohler - Retail Scavenger Hunt Presentation

Creative Web Design Company in Singapore
Creative Web Design Company in SingaporeCreative Web Design Company in Singapore
Creative Web Design Company in Singapore

3 Simple Steps To Buy Verified Payoneer Account In 2024
3 Simple Steps To Buy Verified Payoneer Account In 20243 Simple Steps To Buy Verified Payoneer Account In 2024
3 Simple Steps To Buy Verified Payoneer Account In 2024

Taurus Zodiac Sign: Unveiling the Traits, Dates, and Horoscope Insights of th...
Taurus Zodiac Sign: Unveiling the Traits, Dates, and Horoscope Insights of th...Taurus Zodiac Sign: Unveiling the Traits, Dates, and Horoscope Insights of th...
Taurus Zodiac Sign: Unveiling the Traits, Dates, and Horoscope Insights of th...

The latest Heat Pump Manual from Newentide
The latest Heat Pump Manual from NewentideThe latest Heat Pump Manual from Newentide
The latest Heat Pump Manual from Newentide

Easily Verify Compliance and Security with Binance KYC
Easily Verify Compliance and Security with Binance KYCEasily Verify Compliance and Security with Binance KYC
Easily Verify Compliance and Security with Binance KYC

Innovation Management Frameworks: Your Guide to Creativity & Innovation
Innovation Management Frameworks: Your Guide to Creativity & InnovationInnovation Management Frameworks: Your Guide to Creativity & Innovation
Innovation Management Frameworks: Your Guide to Creativity & Innovation

DearbornMusic-KatherineJasperFullSailUni
DearbornMusic-KatherineJasperFullSailUniDearbornMusic-KatherineJasperFullSailUni
DearbornMusic-KatherineJasperFullSailUni

Unveiling the Dynamic Personalities, Key Dates, and Horoscope Insights: Gemin...
Unveiling the Dynamic Personalities, Key Dates, and Horoscope Insights: Gemin...Unveiling the Dynamic Personalities, Key Dates, and Horoscope Insights: Gemin...
Unveiling the Dynamic Personalities, Key Dates, and Horoscope Insights: Gemin...

Part 2 Deep Dive: Navigating the 2024 Slowdown
Part 2 Deep Dive: Navigating the 2024 SlowdownPart 2 Deep Dive: Navigating the 2024 Slowdown
Part 2 Deep Dive: Navigating the 2024 Slowdown

How are Lilac French Bulldogs Beauty Charming the World and Capturing Hearts....
How are Lilac French Bulldogs Beauty Charming the World and Capturing Hearts....How are Lilac French Bulldogs Beauty Charming the World and Capturing Hearts....
How are Lilac French Bulldogs Beauty Charming the World and Capturing Hearts....

❼❷⓿❺❻❷❽❷❼❽ Dpboss Matka Result Satta Matka Guessing Satta Fix jodi Kalyan Fin...
❼❷⓿❺❻❷❽❷❼❽ Dpboss Matka Result Satta Matka Guessing Satta Fix jodi Kalyan Fin...❼❷⓿❺❻❷❽❷❼❽ Dpboss Matka Result Satta Matka Guessing Satta Fix jodi Kalyan Fin...
❼❷⓿❺❻❷❽❷❼❽ Dpboss Matka Result Satta Matka Guessing Satta Fix jodi Kalyan Fin...

How to Implement a Strategy: Transform Your Strategy with BSC Designer's Comp...
How to Implement a Strategy: Transform Your Strategy with BSC Designer's Comp...How to Implement a Strategy: Transform Your Strategy with BSC Designer's Comp...
How to Implement a Strategy: Transform Your Strategy with BSC Designer's Comp...

Organizational Change Leadership Agile Tour Geneve 2024
Organizational Change Leadership Agile Tour Geneve 2024Organizational Change Leadership Agile Tour Geneve 2024
Organizational Change Leadership Agile Tour Geneve 2024

Building Your Employer Brand with Social Media
Building Your Employer Brand with Social MediaBuilding Your Employer Brand with Social Media
Building Your Employer Brand with Social Media


Coding Ajax

  • 1. Ajax on Struts: Coding an Ajax Application with Struts 2 Wednesday, October 1st, 2:35p-3:35p Ted Husted In this session, we explore How to integrate an Ajax UI framework with a Struts 2 business framework. Business services Struts can provide to an Ajax UI, Basics of the Struts 2 web application framework. Basics of the Yahoo User Interface Library (YUI).
  • 2. Ajax on Struts: Coding an Ajax Application with Struts 2 Square One University Series
  • 3. Ajax on Struts For the latest version of this presentation, visit http://slideshare.com/ted.husted For the latest version of source code, visit http://code.google.com/p/yazaar/
  • 4. Abstract Ajax is the web's hottest user interface. Struts is Java's most popular web framework. What happens when we put Ajax on Struts? During the session, we will cover Integrating an Ajax UI with Struts 2 Using Yahoo User Interface (YUI) Library Using Struts to provide services to Ajax UI
  • 5. Ajax on Struts What are Ajax widgets? What are we coding? Is there an Ajax architecture? How can we switch to server-side data? What about error-handling?
  • 6. Ajax on Struts What are Ajax widgets? What are we coding? Is there an Ajax architecture? How can we switch to server-side data? What about error-handling?
  • 7. What are Ajax widgets? Ajax lets scripts make requests and update content without a page refresh Widgets are “black-box” user interfrace (UI) components Typically, widgets are configured without touching the component's internals DataGrids, Calendars, Carousels, even TextBoxes
  • 8. What are Ajax widgets? Widgets can be used with any server platform PHP, Java, .NET, Ruby, Python Client-side widget provides UI Server-side technology provides data access and business logic
  • 9. What is Apache Struts? Free open-source framework for creating Java web applications Provides three major components Request handler Response handler Tag libraries for JSP, as well as Freemarker, and Velocity
  • 10. Can we use Ajax with a Struts application? XHR is just another request/response Struts can stream data as a response Use JSP scriptlets Use Ajax JSP tag libraries Use plain-vanilla Ajax libraries
  • 11. Why use Apache Struts? Mature, well-supported, well-understood Provides input validation and data conversion Interacts well with Spring, Hibernate, et al Defacto standard for Java web applications
  • 12. Where do we start? Case study Pure Ajax prototype Test data encapsulated as JSON Later, replace test data with JSON via XHR Use “spikes” to separates concerns
  • 13. How do we select an Ajax library? Submit before you commit Code your own sample application Pick the one that works for you and yours We tried Dojo and YUI
  • 16. Why Yahoo User Interface (YUI) Library? Well documented and supported Lots of working examples New BSD license Easy to read code Easy to hack code
  • 17. Ajax on Struts What are Ajax widgets? What are we coding? Is there an Ajax architecture? How can we switch to server-side daa? What about error-handling?
  • 18. What did we code? 1 Provide a list of employees 2 Record employee's first name, last name, extension, username, hire date, and hours worked per week. 3 Record to be updated by authorized users 4 Allow list to be filtered by first name, last name, or username. 5 Allow full or filtered list to be sorted by any field
  • 19. What did we code? Use YUI DataTable to display list Share DataTable record with data-entry form Use TabView to separate list and edit
  • 20.
  • 21.
  • 22. What are we going to code? Prototype with static data Request data from Struts 2 Action Use Struts 2 Plugin to return JSON
  • 23. How does the Struts 2 JSON plugin work? Exposes action properties as fields in a JSON record. { stringValue : quot;A string valuequot;, intArray: [10, 20], map: { Zaphod : quot;Just this guy, you knowquot;, Arthur : quot;Monkey-boyquot; }, record: quot;start a named recordquot; }
  • 24. public class ExampleOutputAction { private String stringValue = quot;A string valuequot;; public String getStringValue() { return stringValue; } public void setStringValue(String value) { stringValue = value; } private int[] intArray = {10, 20}; public int[] getIntArray() { return intArray; } public void setIntArray(int[] value) { intArray = value; } private Map map = new HashMap(); public Map getMap() { return map; } public void setMap(Map value) { map = value; }
  • 25. private String nextRecord = quot;start a named recordquot;; @JSON(name=quot;recordquot;) public String getNextRecord() { return nextRecord; } //'transient' fields are not serialized @SuppressWarnings(quot;unusedquot;) private transient String stayHome; //fields without getter method are not serialized @SuppressWarnings(quot;unusedquot;) private String noGetterForMe; public String execute() { map.put(quot;Zaphodquot;, quot;Just this guy, you knowquot;); map.put(quot;Arthurquot;, quot;Monkey-Boyquot;); return quot;successquot;; } }

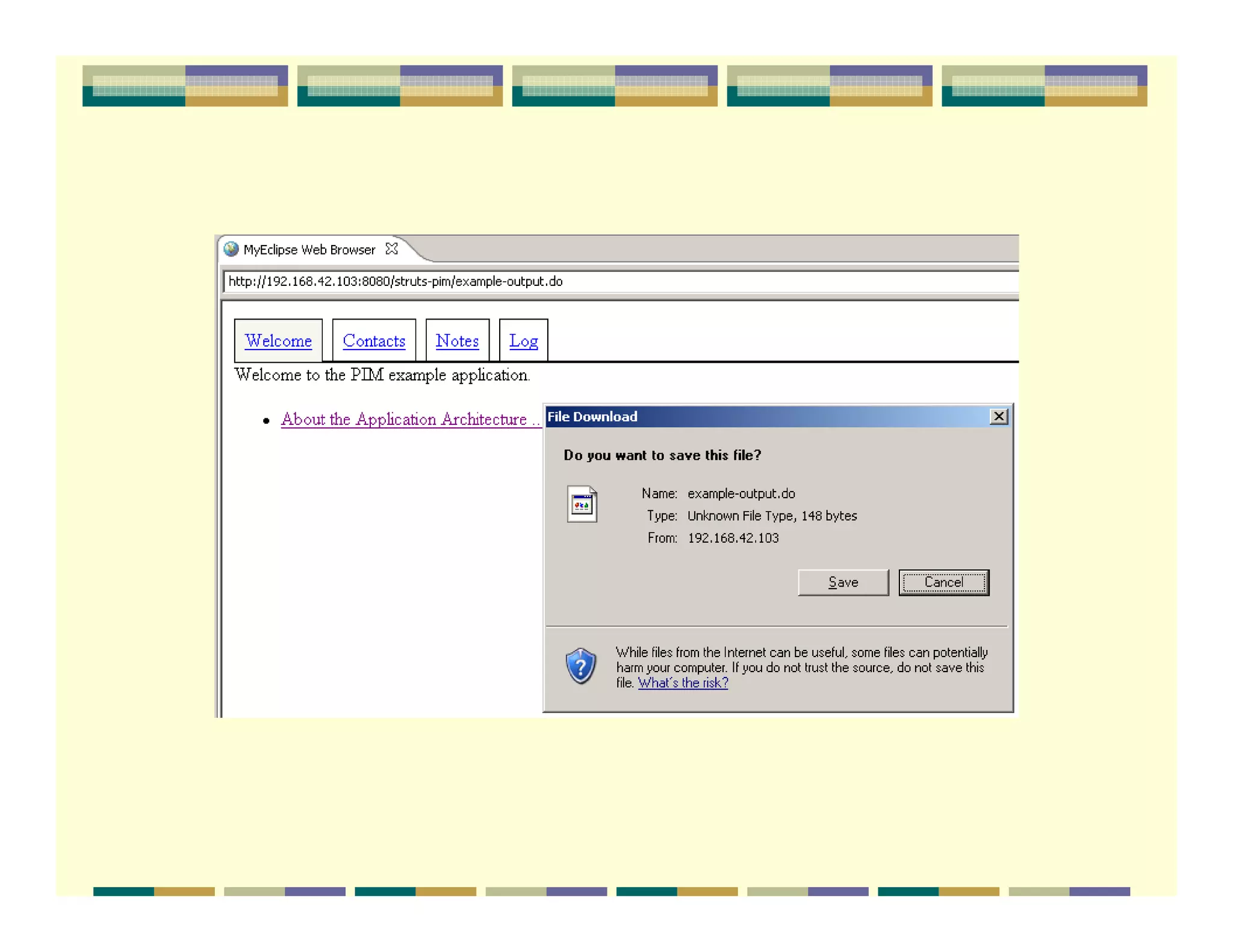

  • 26.
  • 27. { quot;intArrayquot;:[10,20], quot;mapquot;: { quot;Arthurquot;: quot;Monkey-Boyquot;, quot;Zaphodquot;:quot;Just this guy, you knowquot;}, quot;recordquot;:quot;start a named recordquot;, quot;stringValuequot;:quot;A string valuequot; } { stringValue : quot;A string valuequot;, intArray: [10, 20], map: { Zaphod : quot;Just this guy, you knowquot;, Arthur : quot;Monkey-boyquot; }, record: quot;start a named recordquot; }
  • 28. package actions; import java.util.Map; import java.util.HashMap; import com.googlecode.jsonplugin.annotations.JSON; import org.texturemedia.smarturls.ParentPackage; import org.texturemedia.smarturls.Result; @ParentPackage(quot;json-defaultquot;) @Result(name=quot;successquot;, type=quot;jsonquot;, location=quot;quot;) public class ExampleOutputAction { private String stringValue = quot;A string valuequot;; // ...

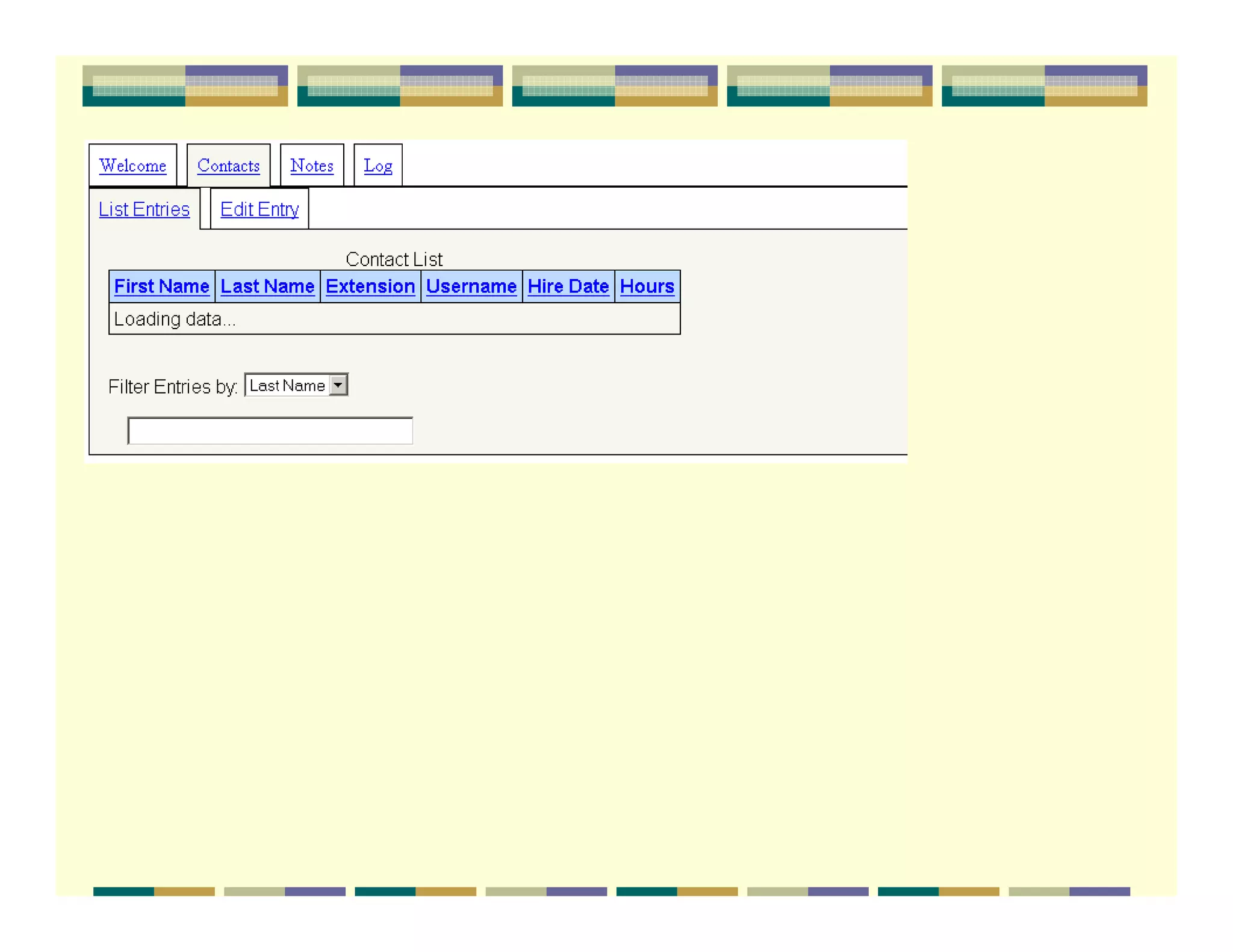

  • 29. How did we code a UI using static data? Entry list Entry form List shares data with form
  • 30.
  • 31.
  • 32. Ajax on Struts What are Ajax widgets? What are we coding? Is there an Ajax architecture? How can we switch to server-side data? What about error-handling?
  • 33. Is there an Ajax architecture? <script src=quot;my.jsquot; type=quot;text/javascriptquot;> </script> if (typeof parent.MY != quot;undefinedquot;) { var MY = parent.MY; // Prototype namespace var my = parent.my; // Variable namespace } else var var MY = {}; var my = {}; var MY.Event = { // ... } var my.oEvent = { // ... instantiate rest of my and MY
  • 34. Is there an Ajax architecture? <script src=quot;contacts.jsquot; type=quot;text/javascriptquot;> </script> MY.Contacts = function(){ MY.Contacts.superclass.constructor.call(this); }; YAHOO.lang.extend(MY.Contacts,YAHOO.yazaar.flev-base);
  • 35. What's a FLEV widget? Common business workflow is Find / List / Edit / View Or quot;FLEVquot; The FLEV widget defines one columnset and datasource to use with all four presentations
  • 36. MY.Contact.prototype.oColumnHeaders = [ {key:quot;first_namequot;, text:quot;First Namequot;, sortable:true, resizeable:true, editor:quot;textboxquot;, formClassName: quot;requiredquot;, formTitle: quot;Enter employee's first namequot;}, // more entries ]; key and text are shared attributes sortable, resizable are List attribute formClassName, formtitle are Edit attributes (validation)
  • 37. MY.Contact.prototype.oResponseSchema = { fields:[quot;idquot;, quot;last_namequot;, quot;first_namequot;, quot;extensionquot;, quot;usernamequot;, quot;hiredquot;, quot;hoursquot;, quot;editorquot;] }; MY.Contact.prototype.LOCAL_DATA = { result : [{id: 'c5b6bbb1-66d6-49cb-9db6- 743af6627828', last_name: 'Beeblebrox ', first_name: 'Zaphod ', extension: '555-123- 4565', username: 'zaphie ', hired: '04/01/1978', hours: -1, editor: '1'}, // ... ];
  • 38. my.oEvent.createEvent(quot;contactLoadquot;) my.oEvent.onContactLoadReturn = function(oData) { my.info(quot;Firing contactLoad Eventquot;); my.oEvent.fireEvent(quot;contactLoadquot;, oData); };
  • 39. <script type=quot;text/javascriptquot;> var onContentReady = function() { _Contact = new MY.Contact(); my.oEvent.subscribe(quot;contactLoadquot;,_Contact.load, _Contact); my.oEvent.onContactLoadReturn(_Contact.LOCAL_DATA); }; YAHOO.util.Event.onContentReady(quot;elBodyquot;, onContentReady); </script>
  • 40.
  • 41. Ajax on Struts What are Ajax widgets? What are we coding? Is there an Ajax architecture? How can we switch to server-side data? What about error-handling?
  • 42. How can we switch over to server-side data? Create an example Action that returns example data Create a database Action that returns persistent data
  • 43. public class ContactLoadAction { private List contactLoad = new ArrayList(); @JSON(name=quot;resultquot;) public List getContactLoad() { contactLoad.add(new Contact( quot;c5b6bbb1-66d6-49cb-9db6-743af6627828quot;, quot;Beeblebroxquot;, quot;Zaphodquot;, quot;555-123-4565quot;, quot;zaphiequot;, quot;04/01/1978quot;, quot;-1quot;, quot;1quot; )); // ... return contacts; }
  • 44. public class Contact { public Contact() {}; public Contact(String id, String last_name, String first_name, String extension, String username, String hired, String hours, String editor) { setId(id); setLast_name(last_name); setFirst_name(first_name); setExtension(extension); setUsername(username); setHired(new Date(hired)); setHours(new Double(hours)); setEditor(editor); } private String id; public void setId(String value) { id = value; } public String getId() { return id; } // more properties ...
  • 45.
  • 46. How can we switch over to server-side data? Action data: {quot;resultquot;:[{quot;editorquot;:quot;1quot;,quot;extensionquot;:quot;555-123- 4565quot;,quot;first_namequot;:quot;Zaphod quot;, ... ]} JavaScript data: MY.Contact.prototype.LOCAL_DATA = {result:[{id: 'c5b6bbb1-66d6-49cb-9db6- 743af6627828', last_name: 'Beeblebrox ', first_name: 'Zaphod ' ...
  • 48. <script> var transaction = YAHOO.util.Connect.asyncRequest( 'POST', sUrl, callback, null); </script> var callback = { success: function(o) {/*success handler code*/}, failure: function(o) {/*failure handler code*/}, argument: [argument1, argument2, argument3] } var responseSuccess = function(o){ /* Please see the Success Case section for more * details on the response object's properties. * o.tId * o.status * o.statusText * o.getResponseHeader[ ] * o.getAllResponseHeaders * o.responseText * o.responseXML * o.argument */ };
  • 49. // my.oEvents.onContactLoadReturn(_Self.LOCAL_DATA); YAHOO.util.Connect.asyncRequest('POST', quot;contact- load.doquot;, callback, null); var callback = { success : function(o) { my.oEvent.onContactLoadReturn(o.responseText); } };
  • 50.
  • 51. {quot;resultquot;:[ {quot;editorquot;:quot;1quot;,quot;extensionquot;:quot;555-123- 4565quot;,quot;first_namequot;:quot;Zaphod quot;, ... ]} MY.Contact.prototype.LOCAL_DATA = {result:[
  • 52. // my.oEvents.onContactLoadReturn(_Self.LOCAL_DATA); YAHOO.util.Connect.asyncRequest('GET', quot;contact-load.doquot;, callback, null); var callback = { success : function(o) { var payload = eval(quot;(quot; + o.responseText + quot;)quot;); my.oEvent.onContactLoadReturn(payload); } }; - var payload = eval(quot;(quot; + o.responseText + quot;)quot;) ; + var payload = jcontext.parseJSON(o.responseText); http://json.org/json.js
  • 53. What about JavaScript Hijacking? /* {quot;resultquot;:[{quot;editorquot;:quot;1quot;,quot;extensionquot;:quot;555-123-4565quot;, ... }]} */ var data = o.responseText; var payload = eval(quot;(quot;+data.substring(data.indexOf(quot;/*quot;)+2, data.lastIndexOf(quot;*/quot;))+quot;)quot;); my.oEvent.onContactLoadReturn(payload);
  • 54. What about JavaScript Hijacking? <package name=quot;my-defaultquot; extends=quot;json-defaultquot;> <result-types> <result-type name=quot;jsonquot; class=quot;com.googlecode.jsonplugin.JSONResultquot; default=quot;truequot;> <param name=quot;wrapWithCommentsquot;>true</param> </result-type> </result-types> <action name=quot;contact-loadquot; class=quot;actions.ContactLoadActionquot;> <result /> </action> </package>
  • 55.
  • 56. Ajax on Struts What are Ajax widgets? What are we coding? Is there an Ajax architecture? How can we switch to server-side data? What about error-handling?
  • 57. What about error handling? var callback = { success : function(o) { var payload = eval(quot;(quot; + o.responseText + quot;)quot;); my.oEvent.onContactLoadReturn(payload); } }; YAHOO.util.Connect.asyncRequest('POST', quot;contact- load.doquot;, callback, null);
  • 58. What about error handling? var callback = { success: function(o) {/*success handler code*/}, failure: function(o) {/*failure handler code*/}, argument: [argument1, argument2, argument3] }
  • 59. How does JSON-RPC handle errors? { quot;versionquot; : quot;1.1quot;, quot;errorquot; : { quot;namequot; : quot;JSONRPCErrorquot;, quot;codequot; : 123, quot;messagequot; : quot;An error occurred parsing the request object.quot;, quot;errorquot; : { quot;namequot; : quot;JSONErrorquot;, quot;messagequot; : quot;Bad arrayquot;, quot;atquot; : 42, quot;textquot; : quot;{quot;idquot;:1,quot;methodquot;:quot;sumquot;,quot;paramsquot;:[1,2,3,4,5}quot;} } }
  • 60. How does Struts handle exceptions? <global-results> <result name=quot;errorquot;/> </global-results> <global-exception-mappings> <exception-mapping exception=quot;java.lang.Exceptionquot; result=quot;errorquot;/> </global-exception-mappings>
  • 61. How does Struts handle exceptions? <h2>An unexpected error has occurred</h2> <p>Please report this error to your system administrator or appropriate technical support personnel. Thank you for your cooperation.</p> <hr/> <h3>Error Message</h3> <p> <s:property value=quot;%{exception.message}quot;/> </p> <hr/> <h3>Technical Details</h3> <p> <s:property value=quot;%{exceptionStack}quot;/> </p>
  • 62. How does Struts handle exceptions? public String getExceptionMessage() { ActionContext context = ActionContext.getContext(); Object value = context.getValueStack(). findValue(quot;exception.messagequot;); if (value==null) return null; return value.toString(); } public String getExceptionStack() { ActionContext context = ActionContext.getContext(); Object value = context.getValueStack(). findValue(quot;exceptionStackquot;); if (value==null) return null; return value.toString(); }
  • 63. How does Struts handle exceptions? public String execute() throws Exception { throw new Exception(quot;Whoops!quot;); // return quot;successquot;; } getExceptionMessage :” “Whoops!” getExceptionStack: “java.lang.exception Whoops! at actions.ContactLoadAction ...
  • 64. How do widgets handle errors? <!-- ... --> </div> <div id=quot;elErrorquot; class=quot;errorquot;></div> <div <!-- ... -->
  • 65. How do widgets handle errors? my.asyncRequestException = function (o) { alert(quot;Error Communicating with Server! See message area for details.quot;); var sTemplate = quot;<table> <tr><th>Message:&nbsp;</th> <td>{exceptionMessage}</td></tr> <tr><th>Location:</th> <td>{exceptionStack}</td></tr> </table>quot;; var oPayload = eval(quot;(quot; + o + quot;)quot;) ; document.getElementById(quot;elErrorquot;).innerHTML = sTemplate.supplant(oPayload);
  • 66. How do widgets handle errors?
  • 67. What about error handling? var onContentReady = function() { _Contact = new MY.Contact(); my.oEvent.subscribe(quot;contactLoadquot;,_Contact.load, _Contact); // YAHOO.util.Connect.asyncRequest('POST', quot;contact- load.doquot;, callback, null); my.asyncRequest(quot;contact-load.doquot;, my.oEvent.onContactLoadReturn); };
  • 68. my.asyncRequest = function (sAction, fnCallback) { return YAHOO.util.Connect.asyncRequest(quot;POSTquot;, sAction, { success : function(o) { var oPayload = eval(quot;(quot; + o.responseText + quot;)quot;) ; fnCallback(oPayload); } }); };
  • 69. my.asyncRequest = function (sAction, fnCallback) { return YAHOO.util.Connect.asyncRequest(quot;POSTquot;, sAction, { success : function(o) { var oPayload = eval(quot;(quot; + o.responseText + quot;)quot;) ; if (oPayload.exceptionMessage) { my.asyncRequestException(oPayload); } fnCallback(oPayload); } }); };
  • 70. my.asyncRequestException = function (oPayload) { my.errorMessage(oPayload.exceptionMessage, oPayload.exceptionStack); }; my.errorMessage = function (sMessage, sStackTrace) { alert(quot;Error Communicating with Server! // ... var sTemplate = quot;<table><tr> // ... var oContext = {message: sMessage, stackTrace: sStackTrace}; document.getElementById(quot;elErrorquot;).innerHTML = sTemplate.supplant(oContext); my.isMessage(true); my.error(oContext); };
  • 71.
  • 72.
  • 73. Is that all there is? During this session, we covered Integrating an Ajax UI with Struts 2 Using Yahoo User Interface (YUI) Library Using Struts to provide services to Ajax U
  • 75. Whats up with Planet Yazaar? Development team Yahoo! Employees Something like Spring, Hibernate Unlike Apache projects No formal mechanism for contributions
  • 76. Whats up with Planet Yazaar? Development team Yahoo! Employees Something like Spring, Hibernate Unlike Apache projects No formal mechanism for contributions A cathderal, rather than a bazaar
  • 77.
  • 78. What's up with Planet Yazaar? Yazaar - (Yahoo + Bazaar = Yazaar) Accepts and maintains contributor extensions and documentation Working toward quot;soup to nutsquot; project documentation Public repository with version-to-version change logs
  • 79.
  • 80. What's up with Planet Yazaar? Just as an aside ... Yahoo GeoCities for public web site Uses GoogleCode for repository Google Group for mailing list and change logs Yahoo 360 for Blog
  • 81.
  • 82.
  • 83.
