1. Mohammad Shaker
mohammadshaker.com
@ZGTRShaker
2011, 2012, 2013, 2014
C# Advanced
L03-XML & LINQ TO XML

2. XML

3. XML –The Definition

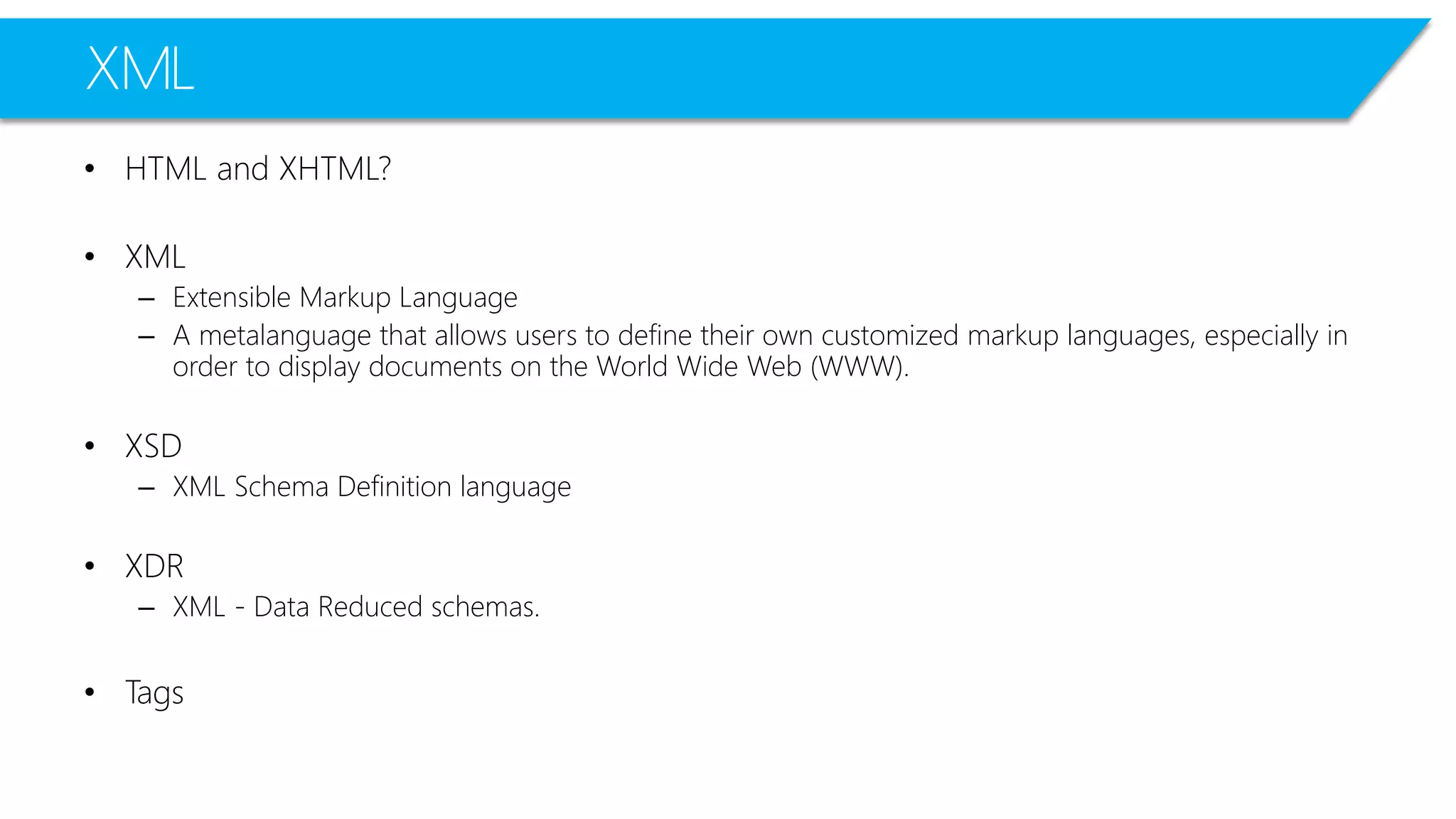

4. XML
•HTML and XHTML?
•XML
–Extensible Markup Language
–A metalanguagethat allows users to define their own customized markup languages, especially in order to display documents on the World Wide Web (WWW).
•XSD
–XML Schema Definition language
•XDR
–XML -Data Reduced schemas.
•Tags

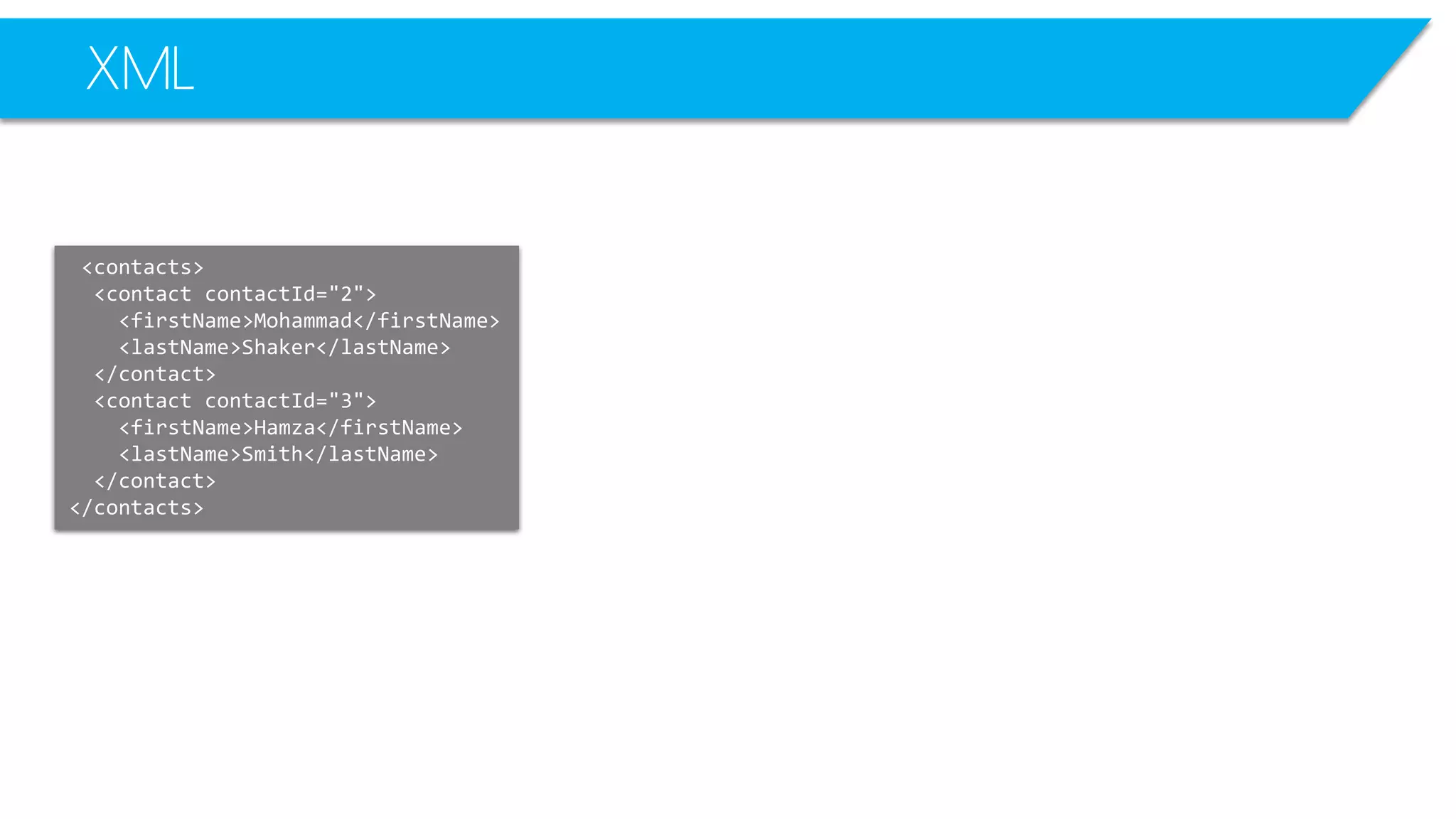

5. XML
<contacts>
<contactcontactId="2">
<firstName>Mohammad</firstName>
<lastName>Shaker</lastName>
</contact>
<contactcontactId="3">
<firstName>Hamza</firstName>
<lastName>Smith</lastName>
</contact>
</contacts>

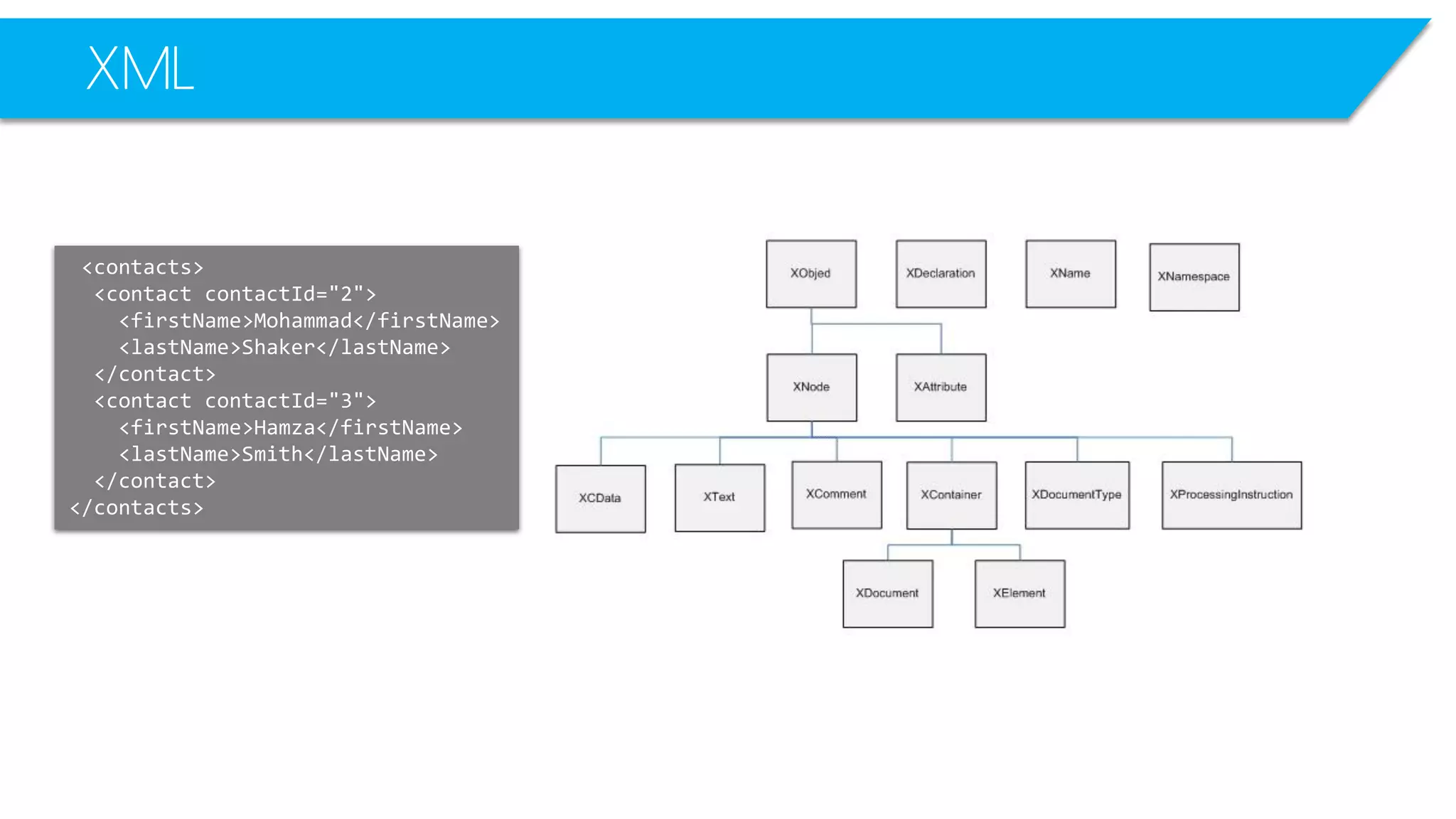

6. XML
<contacts>
<contactcontactId="2">
<firstName>Mohammad</firstName>
<lastName>Shaker</lastName>
</contact>
<contactcontactId="3">
<firstName>Hamza</firstName>
<lastName>Smith</lastName>
</contact>
</contacts>

7. XML
<contacts>
<contactcontactId="2">
<firstName>Mohammad</firstName>
<lastName>Shaker</lastName>
</contact>
<contactcontactId="3">
<firstName>Hamza</firstName>
<lastName>Smith</lastName>
</contact>
</contacts>
Contacts

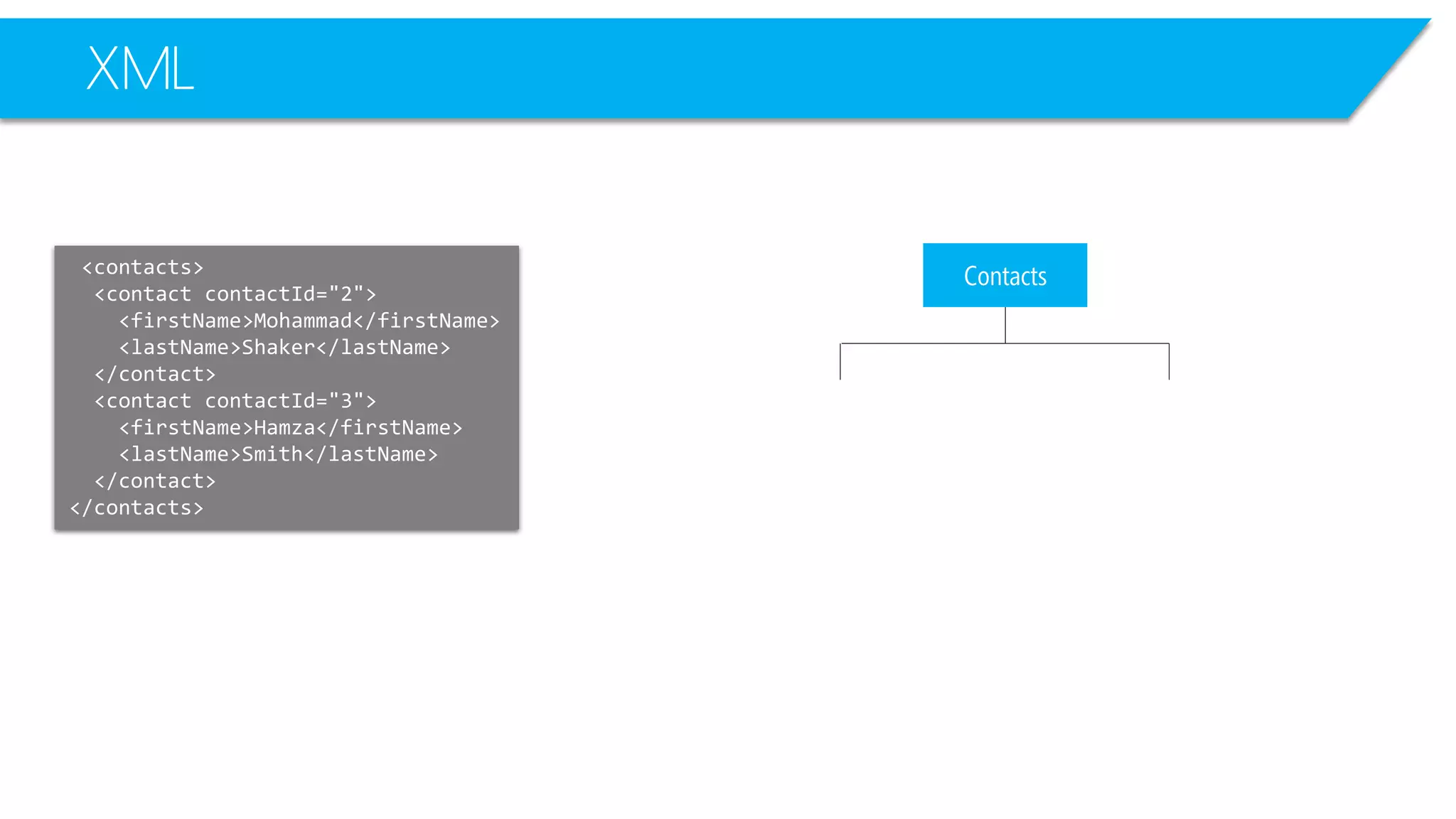

8. XML
<contacts>
<contactcontactId="2">
<firstName>Mohammad</firstName>
<lastName>Shaker</lastName>
</contact>
<contactcontactId="3">
<firstName>Hamza</firstName>
<lastName>Smith</lastName>
</contact>
</contacts>
Contacts

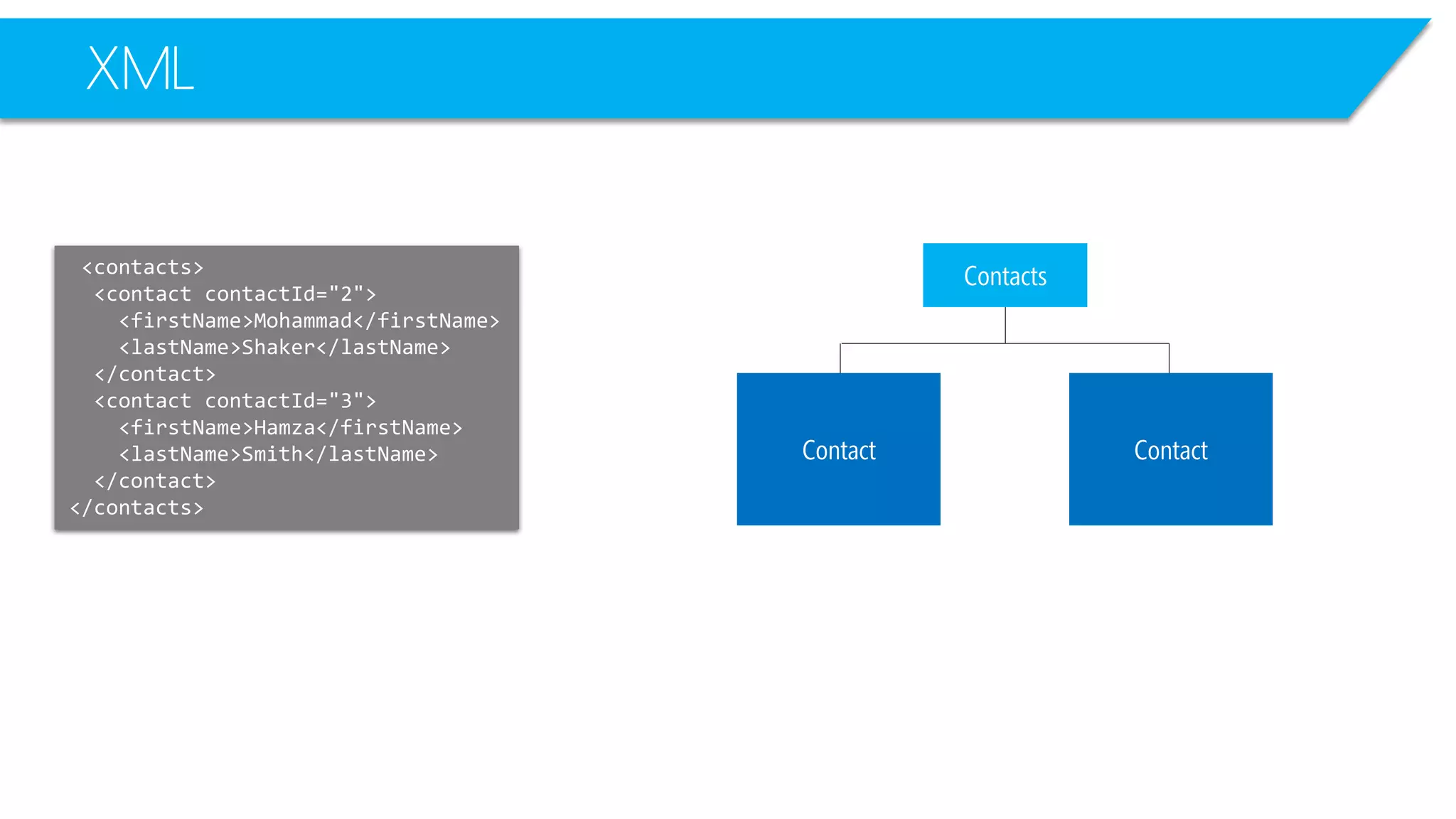

9. XML
<contacts>
<contactcontactId="2">
<firstName>Mohammad</firstName>
<lastName>Shaker</lastName>
</contact>
<contactcontactId="3">
<firstName>Hamza</firstName>
<lastName>Smith</lastName>
</contact>
</contacts>
Contacts
Contact
Contact

10. XML
<contacts>
<contactcontactId="2">
<firstName>Mohammad</firstName>
<lastName>Shaker</lastName>
</contact>
<contactcontactId="3">
<firstName>Hamza</firstName>
<lastName>Smith</lastName>
</contact>
</contacts>
Contacts
Mohammad
Shaker
Hamza
Smith

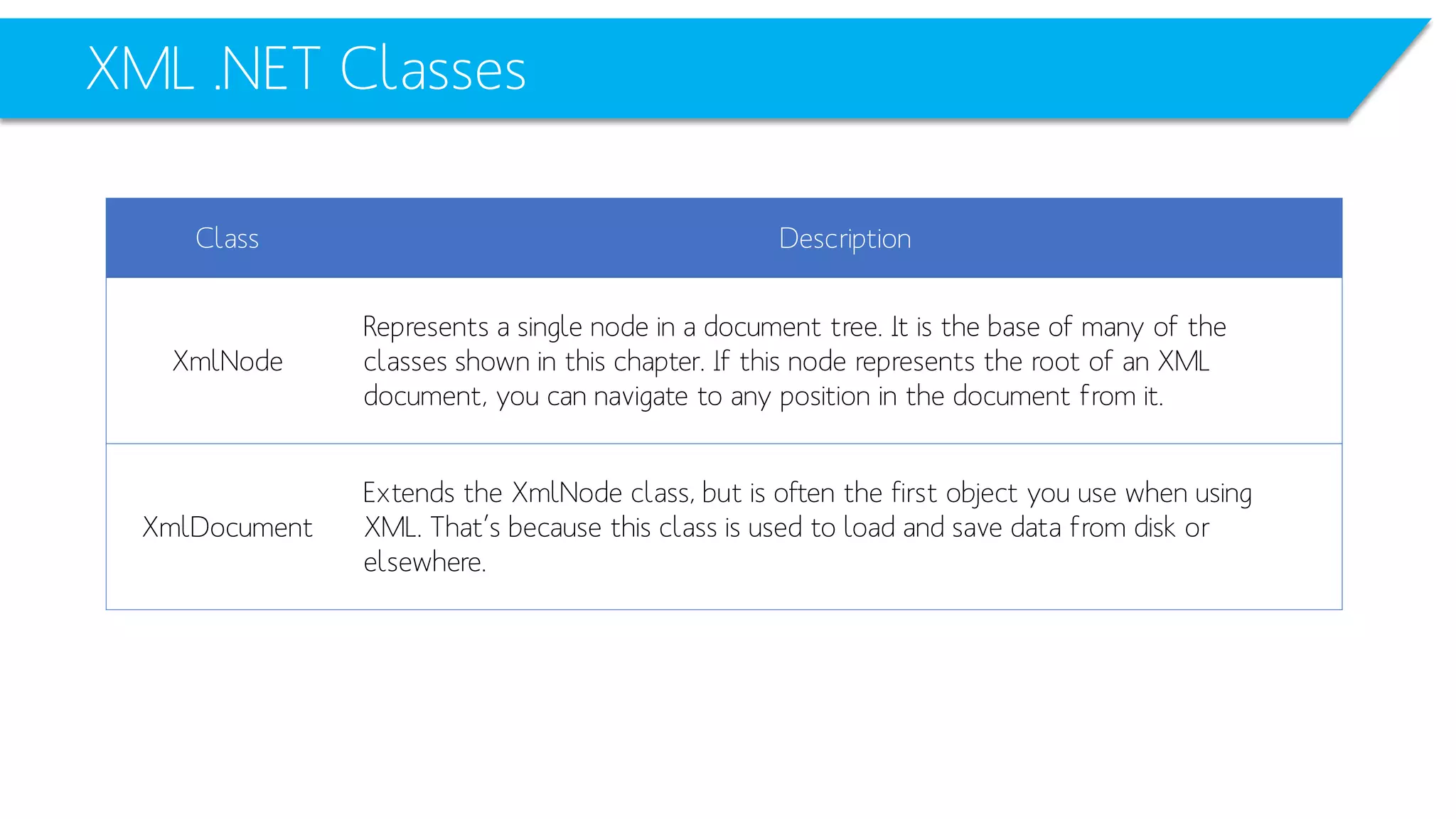

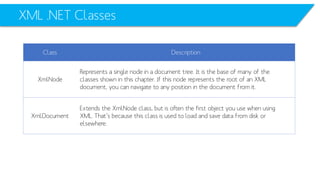

11. XML .NET Classes
Class
Description
XmlNode
Represents a single node in a document tree. It is the base of many of the
classes shown in this chapter. If this node represents the root of an XML
document, you can navigate to any position in the document from it.
XmlDocument
Extends the XmlNodeclass, but is often the first object you use when using
XML. That’s because this class is used to load and save data from disk or
elsewhere.

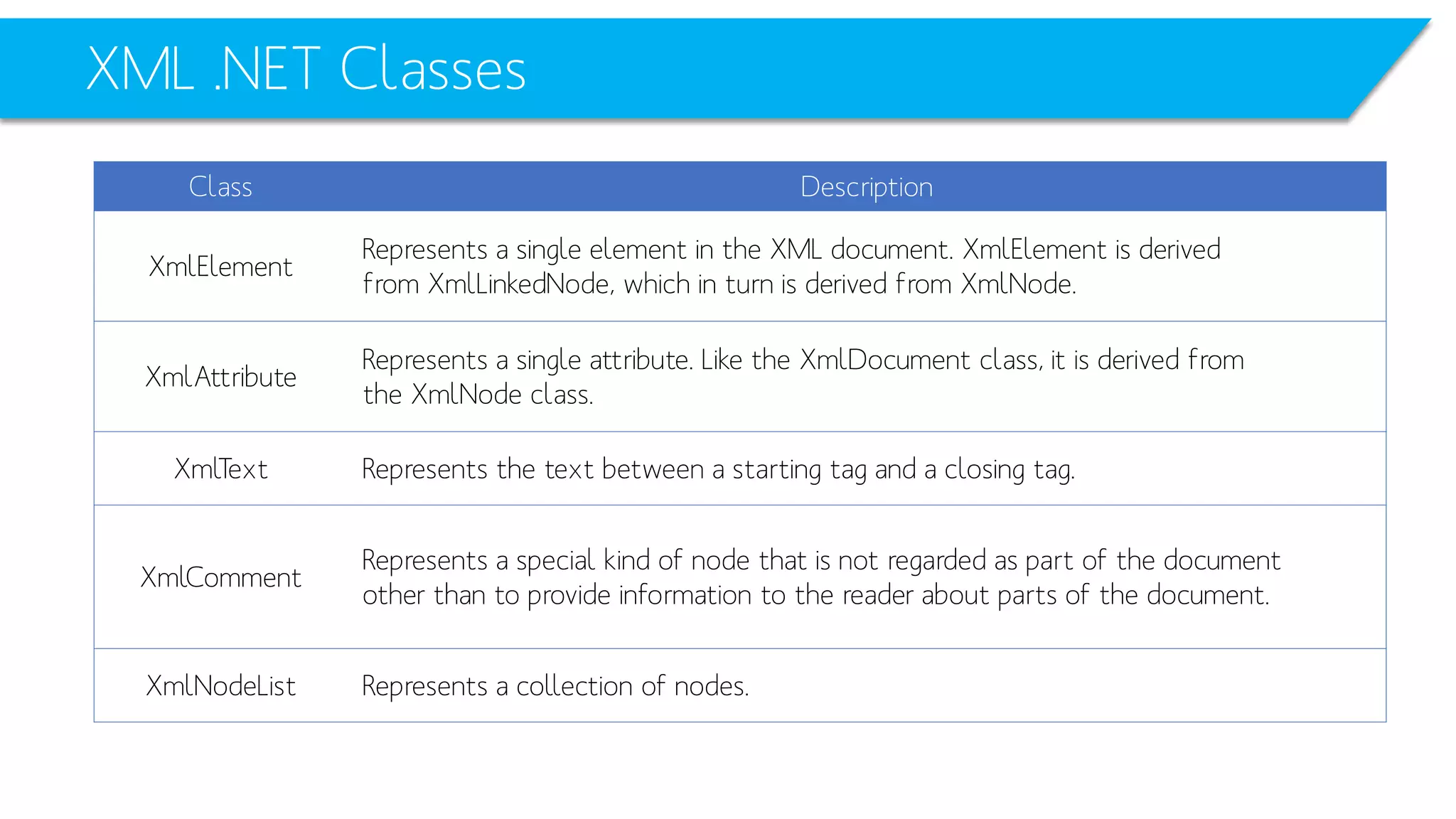

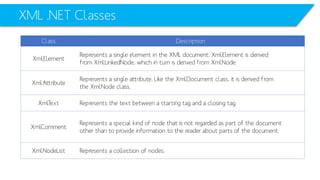

12. XML .NET Classes
Class
Description
XmlElement
Represents a single element in the XML document. XmlElementis derived
from XmlLinkedNode, which in turn is derived from XmlNode.
XmlAttribute
Represents a single attribute. Like the XmlDocumentclass, it is derived from
the XmlNodeclass.
XmlText
Represents the text between a starting tag and a closing tag.
XmlComment
Represents a special kind of node that is not regarded as part of the document
other than to provide information to the reader about parts of the document.
XmlNodeList
Represents a collection of nodes.

13. Creating an XML Node in an XML FileProgrammatically

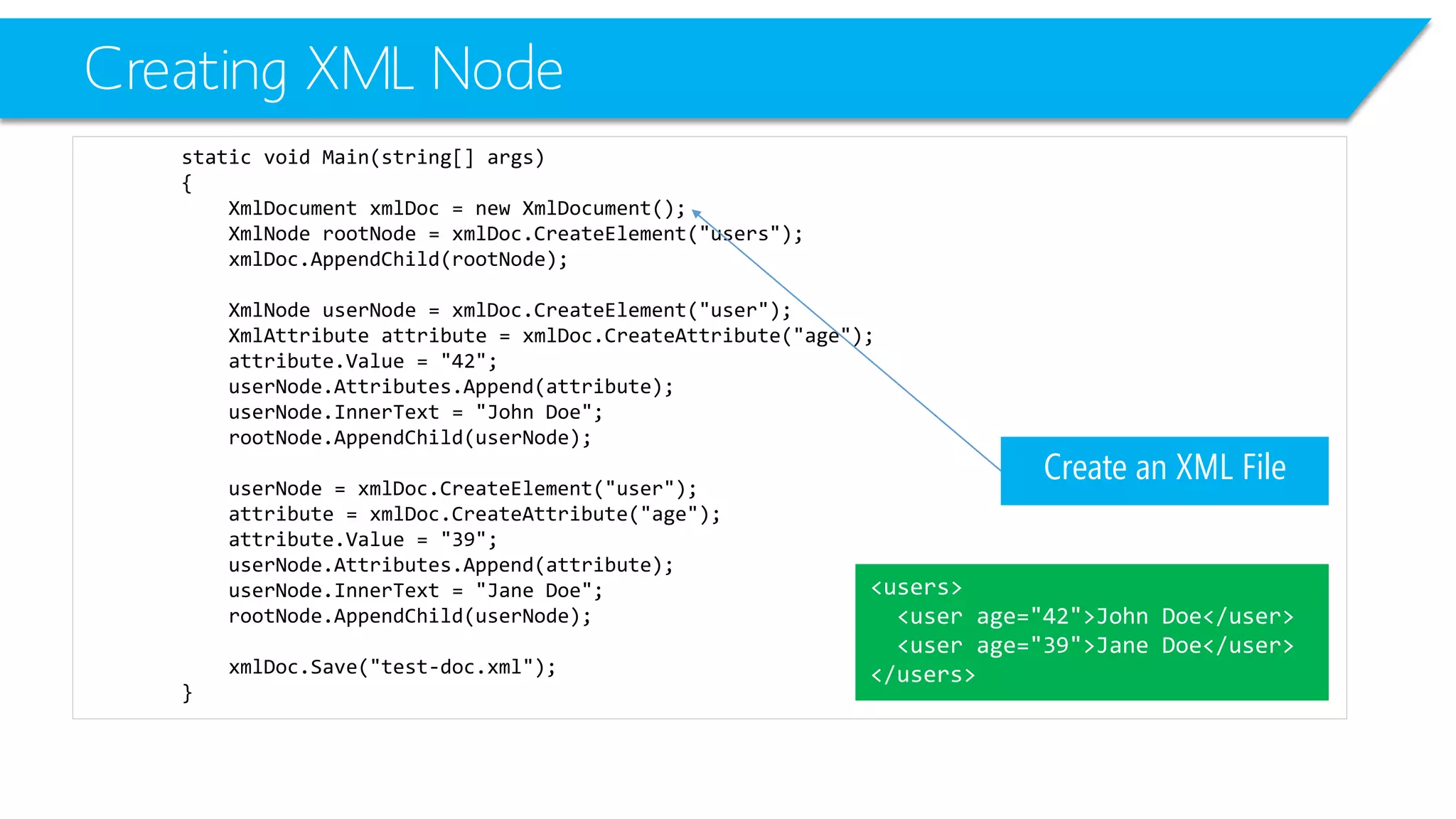

14. Creating XML Node
static void Main(string[] args)
{
XmlDocumentxmlDoc= new XmlDocument();
XmlNoderootNode= xmlDoc.CreateElement("users");
xmlDoc.AppendChild(rootNode);
XmlNodeuserNode= xmlDoc.CreateElement("user");
XmlAttributeattribute = xmlDoc.CreateAttribute("age");
attribute.Value= "42";
userNode.Attributes.Append(attribute);
userNode.InnerText= "John Doe";
rootNode.AppendChild(userNode);
userNode= xmlDoc.CreateElement("user");
attribute = xmlDoc.CreateAttribute("age");
attribute.Value= "39";
userNode.Attributes.Append(attribute);
userNode.InnerText= "Jane Doe";
rootNode.AppendChild(userNode);
xmlDoc.Save("test-doc.xml");
}
Create an XML File
<users>
<user age="42">John Doe</user>
<user age="39">Jane Doe</user>
</users>

15. Creating XML Node
static void Main(string[] args)
{
XmlDocumentxmlDoc= new XmlDocument();
XmlNoderootNode= xmlDoc.CreateElement("users");
xmlDoc.AppendChild(rootNode);
XmlNodeuserNode= xmlDoc.CreateElement("user");
XmlAttributeattribute = xmlDoc.CreateAttribute("age");
attribute.Value= "42";
userNode.Attributes.Append(attribute);
userNode.InnerText= "John Doe";
rootNode.AppendChild(userNode);
userNode= xmlDoc.CreateElement("user");
attribute = xmlDoc.CreateAttribute("age");
attribute.Value= "39";
userNode.Attributes.Append(attribute);
userNode.InnerText= "Jane Doe";
rootNode.AppendChild(userNode);
xmlDoc.Save("test-doc.xml");
}
Create an XML Node
users
<users>
<user age="42">John Doe</user>
<user age="39">Jane Doe</user>
</users>

16. Creating XML Node
static void Main(string[] args)
{
XmlDocumentxmlDoc= new XmlDocument();
XmlNoderootNode= xmlDoc.CreateElement("users");
xmlDoc.AppendChild(rootNode);
XmlNodeuserNode= xmlDoc.CreateElement("user");
XmlAttributeattribute = xmlDoc.CreateAttribute("age");
attribute.Value= "42";
userNode.Attributes.Append(attribute);
userNode.InnerText= "John Doe";
rootNode.AppendChild(userNode);
userNode= xmlDoc.CreateElement("user");
attribute = xmlDoc.CreateAttribute("age");
attribute.Value= "39";
userNode.Attributes.Append(attribute);
userNode.InnerText= "Jane Doe";
rootNode.AppendChild(userNode);
xmlDoc.Save("test-doc.xml");
}
Append the XML Node to the XML File
<users>
<user age="42">John Doe</user>
<user age="39">Jane Doe</user>
</users>

17. Creating XML Node
static void Main(string[] args)
{
XmlDocumentxmlDoc= new XmlDocument();
XmlNoderootNode= xmlDoc.CreateElement("users");
xmlDoc.AppendChild(rootNode);
XmlNodeuserNode= xmlDoc.CreateElement("user");
XmlAttributeattribute = xmlDoc.CreateAttribute("age");
attribute.Value= "42";
userNode.Attributes.Append(attribute);
userNode.InnerText= "John Doe";
rootNode.AppendChild(userNode);
userNode= xmlDoc.CreateElement("user");
attribute = xmlDoc.CreateAttribute("age");
attribute.Value= "39";
userNode.Attributes.Append(attribute);
userNode.InnerText= "Jane Doe";
rootNode.AppendChild(userNode);
xmlDoc.Save("test-doc.xml");
}
Create an XML Node
user
<users>
<user age="42">John Doe</user>
<user age="39">Jane Doe</user>
</users>

18. Creating XML Node
static void Main(string[] args)
{
XmlDocumentxmlDoc= new XmlDocument();
XmlNoderootNode= xmlDoc.CreateElement("users");
xmlDoc.AppendChild(rootNode);
XmlNodeuserNode= xmlDoc.CreateElement("user");
XmlAttributeattribute = xmlDoc.CreateAttribute("age");
attribute.Value= "42";
userNode.Attributes.Append(attribute);
userNode.InnerText= "John Doe";
rootNode.AppendChild(userNode);
userNode= xmlDoc.CreateElement("user");
attribute = xmlDoc.CreateAttribute("age");
attribute.Value= "39";
userNode.Attributes.Append(attribute);
userNode.InnerText= "Jane Doe";
rootNode.AppendChild(userNode);
xmlDoc.Save("test-doc.xml");
}
Append the node: user to the root node: users
<users>
<user age="42">John Doe</user>
<user age="39">Jane Doe</user>
</users>

19. Creating XML Node
static void Main(string[] args)
{
XmlDocumentxmlDoc= new XmlDocument();
XmlNoderootNode= xmlDoc.CreateElement("users");
xmlDoc.AppendChild(rootNode);
XmlNodeuserNode= xmlDoc.CreateElement("user");
XmlAttributeattribute = xmlDoc.CreateAttribute("age");
attribute.Value= "42";
userNode.Attributes.Append(attribute);
userNode.InnerText= "John Doe";
rootNode.AppendChild(userNode);
userNode= xmlDoc.CreateElement("user");
attribute = xmlDoc.CreateAttribute("age");
attribute.Value= "39";
userNode.Attributes.Append(attribute);
userNode.InnerText= "Jane Doe";
rootNode.AppendChild(userNode);
xmlDoc.Save("test-doc.xml");
}
Create another XML Node user
<users>
<user age="42">John Doe</user>
<user age="39">Jane Doe</user>
</users>

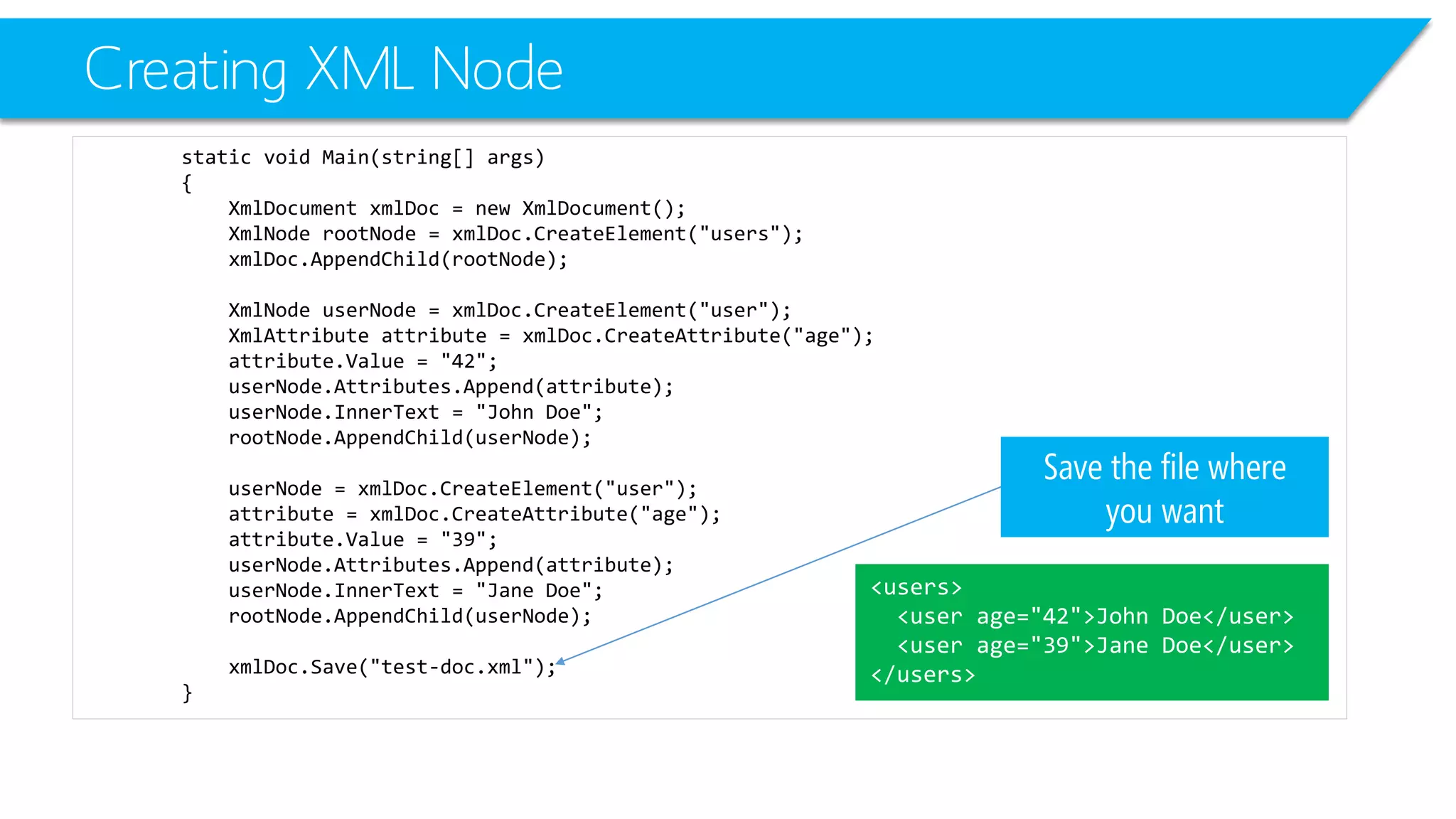

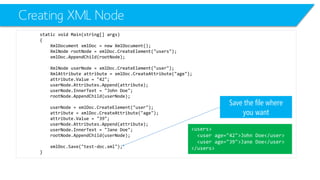

20. Creating XML Node
static void Main(string[] args)
{
XmlDocumentxmlDoc= new XmlDocument();
XmlNoderootNode= xmlDoc.CreateElement("users");
xmlDoc.AppendChild(rootNode);
XmlNodeuserNode= xmlDoc.CreateElement("user");
XmlAttributeattribute = xmlDoc.CreateAttribute("age");
attribute.Value= "42";
userNode.Attributes.Append(attribute);
userNode.InnerText= "John Doe";
rootNode.AppendChild(userNode);
userNode= xmlDoc.CreateElement("user");
attribute = xmlDoc.CreateAttribute("age");
attribute.Value= "39";
userNode.Attributes.Append(attribute);
userNode.InnerText= "Jane Doe";
rootNode.AppendChild(userNode);
xmlDoc.Save("test-doc.xml");
}
Save the file where you want
<users>
<user age="42">John Doe</user>
<user age="39">Jane Doe</user>
</users>

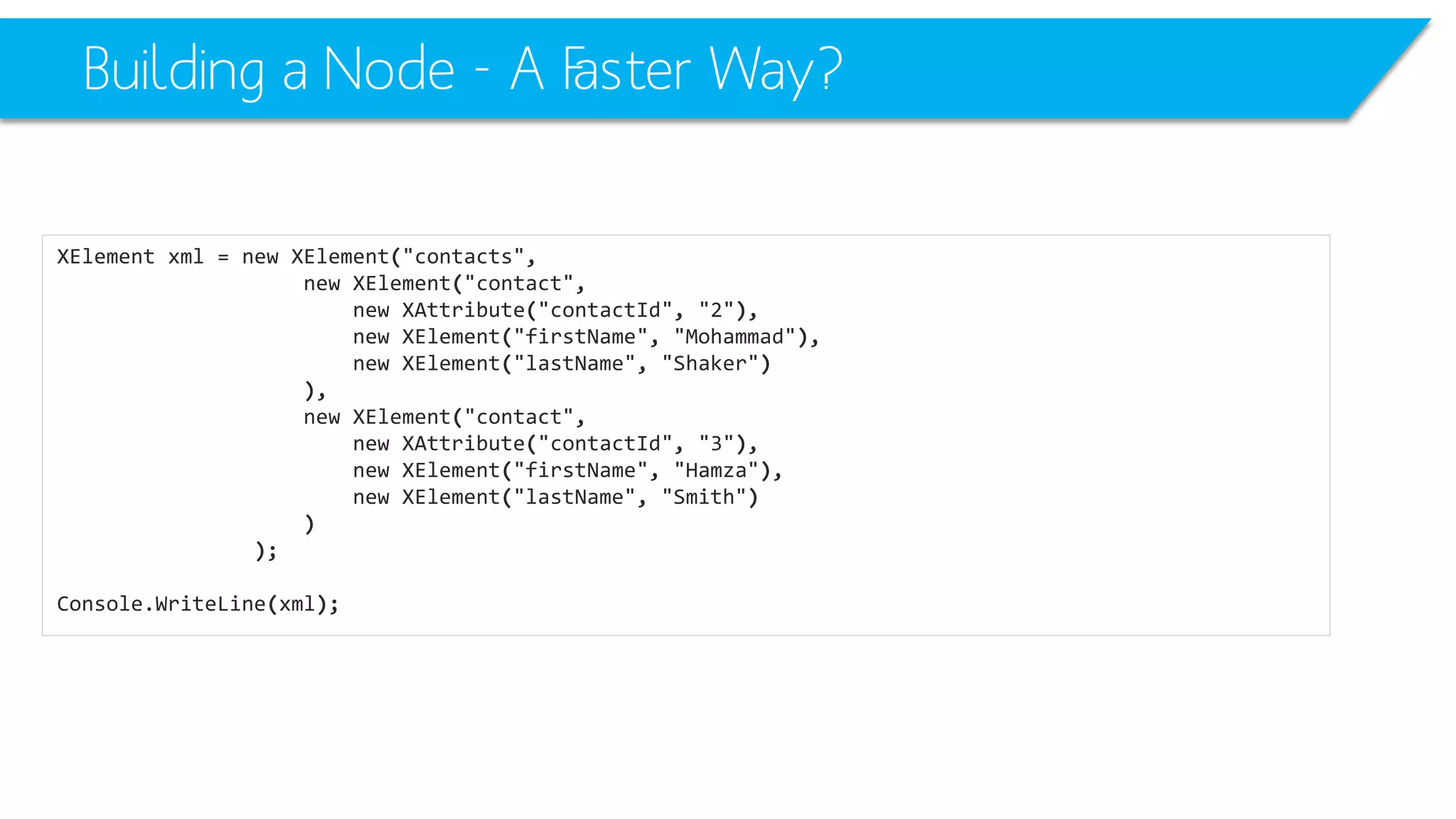

21. Building a Node -A Faster Way?
XElementxml=newXElement("contacts",
newXElement("contact",
newXAttribute("contactId", "2"),
newXElement("firstName", "Mohammad"),
newXElement("lastName", "Shaker")
),
newXElement("contact",
newXAttribute("contactId", "3"),
newXElement("firstName", "Hamza"),
newXElement("lastName", "Smith")
)
);
Console.WriteLine(xml);

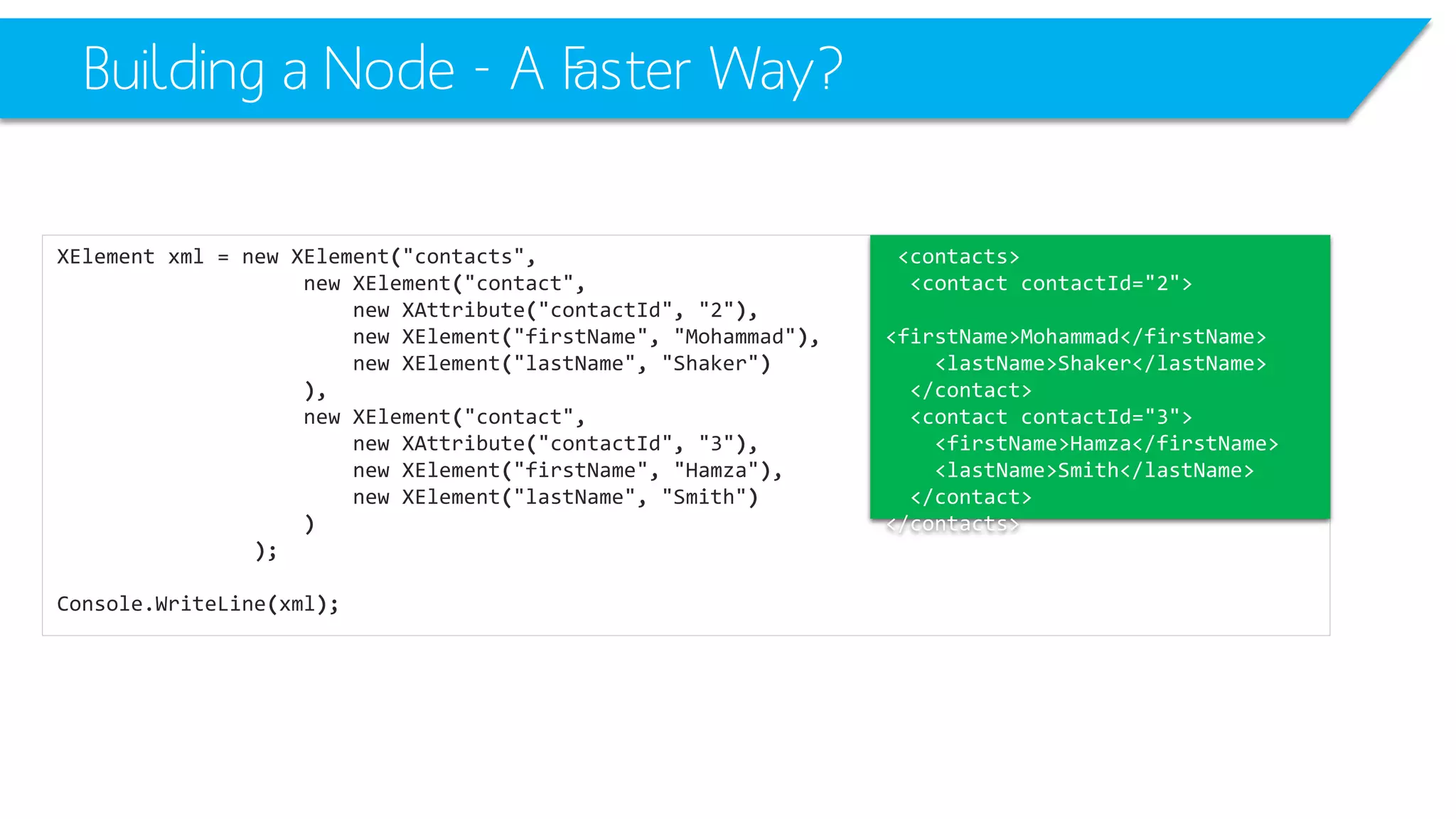

22. Building a Node -A Faster Way?
XElementxml=newXElement("contacts",
newXElement("contact",
newXAttribute("contactId", "2"),
newXElement("firstName", "Mohammad"),
newXElement("lastName", "Shaker")
),
newXElement("contact",
newXAttribute("contactId", "3"),
newXElement("firstName", "Hamza"),
newXElement("lastName", "Smith")
)
);
Console.WriteLine(xml);
<contacts>
<contactcontactId="2">
<firstName>Mohammad</firstName>
<lastName>Shaker</lastName>
</contact>
<contactcontactId="3">
<firstName>Hamza</firstName>
<lastName>Smith</lastName>
</contact>
</contacts>

23. Searching an XML

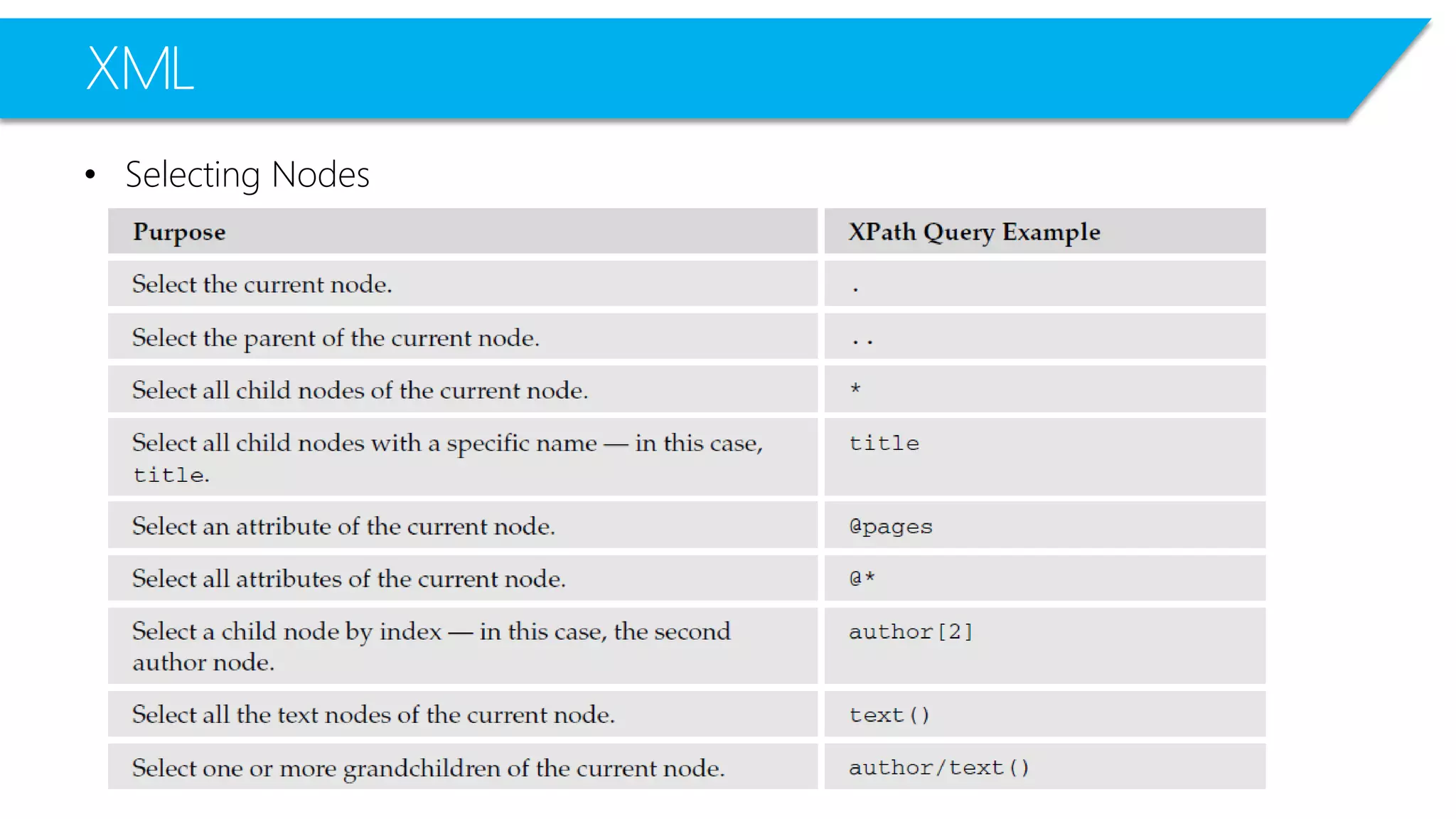

24. XML

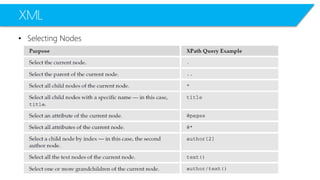

•Selecting Nodes

25. XML
•Selecting Nodes

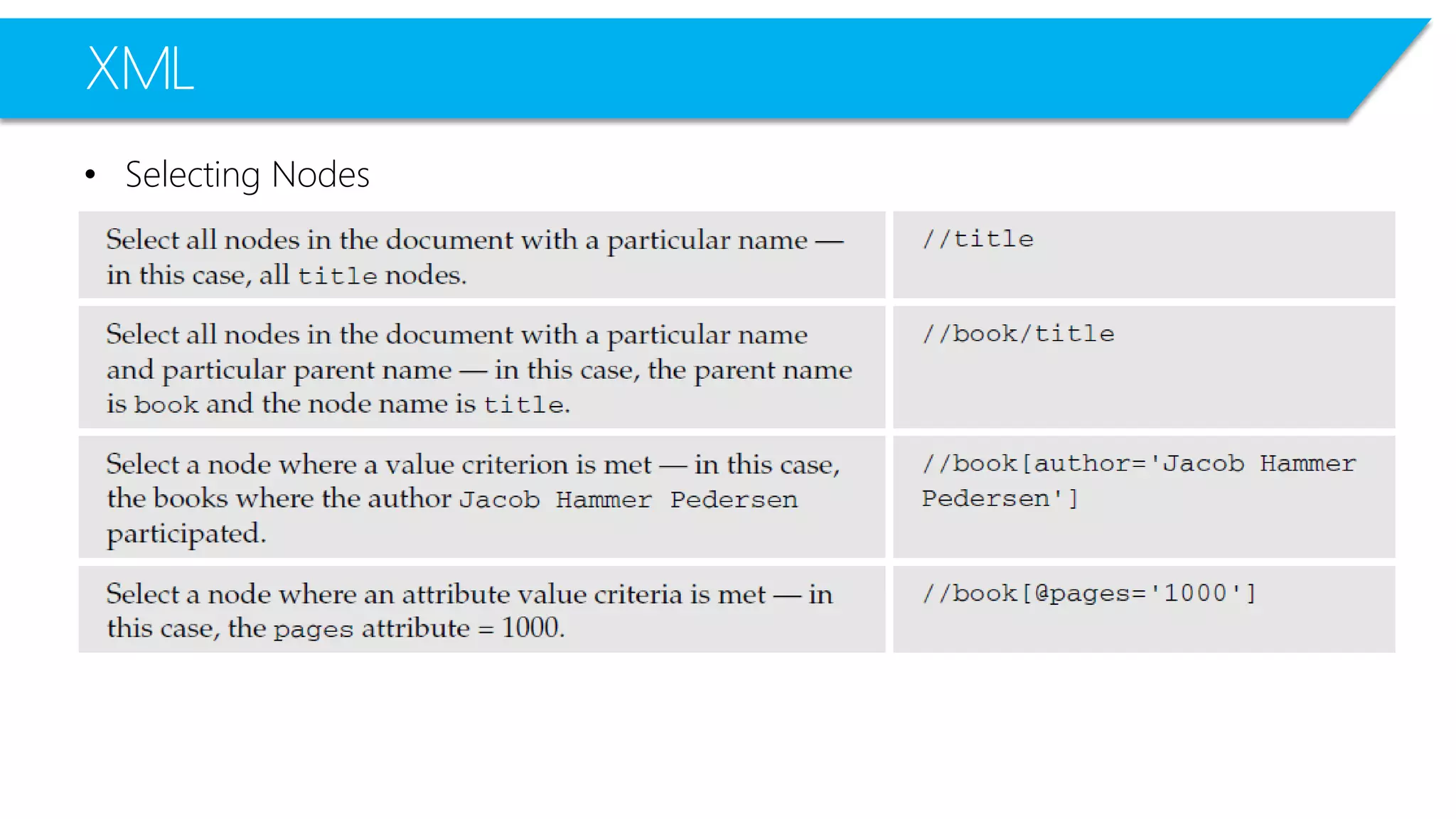

26. XML

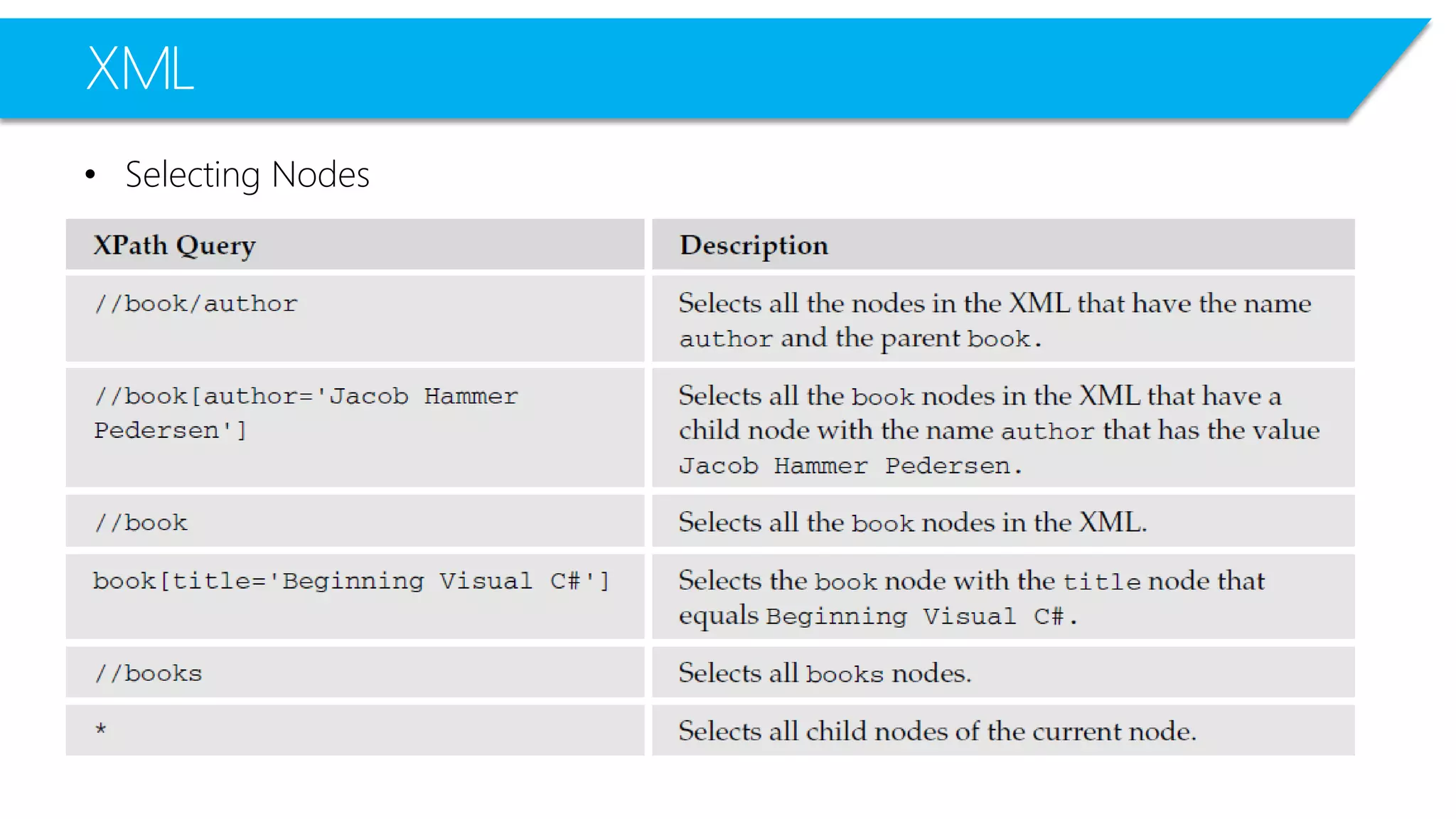

•Selecting Nodes

27. Getting XML Node Values

28. XML

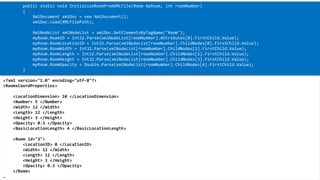

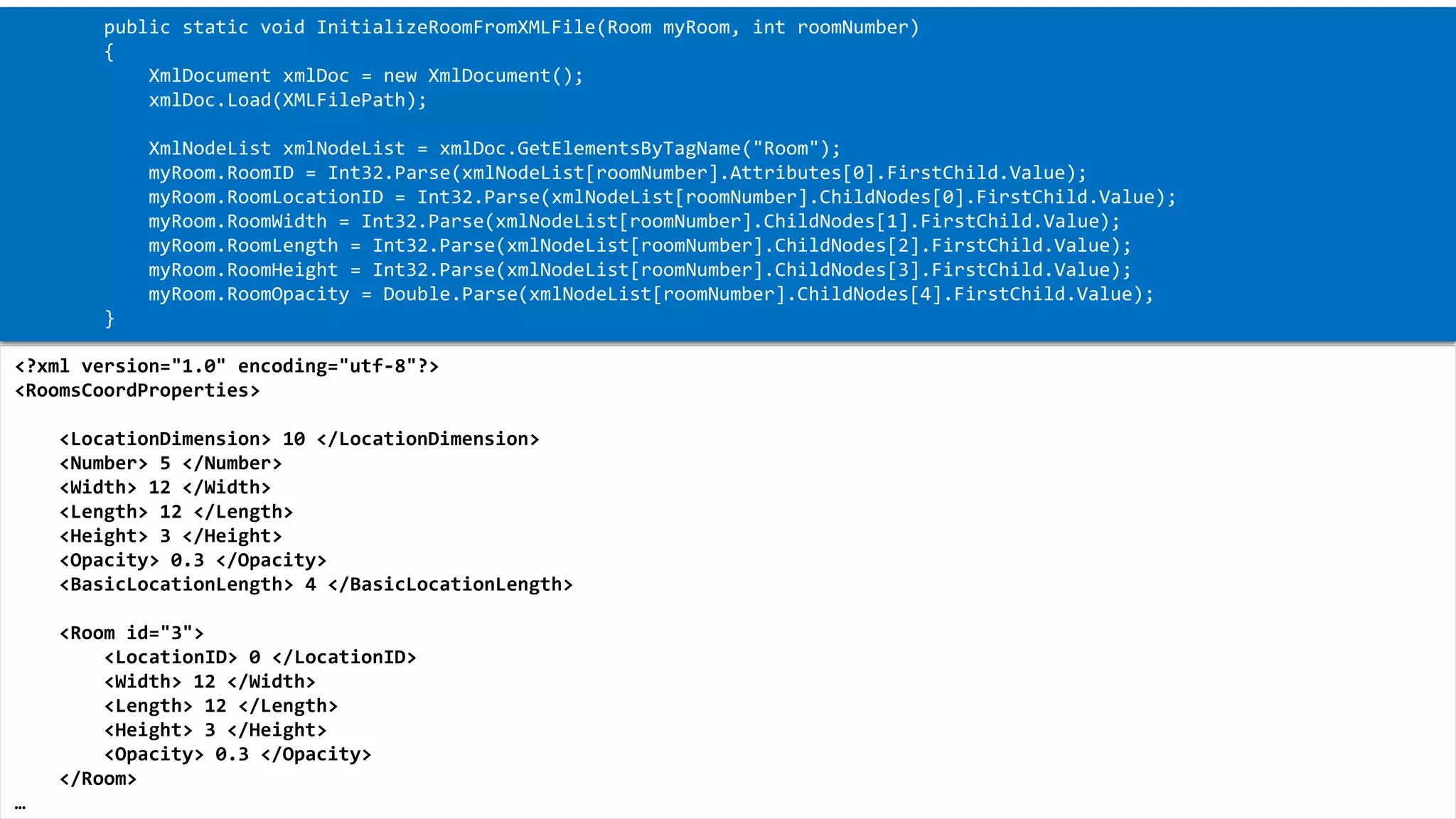

<?xml version="1.0" encoding="utf-8"?>
<RoomsCoordProperties>
<LocationDimension> 10 </LocationDimension>
<Number> 5 </Number>
<Width> 12 </Width>
<Length> 12 </Length>
<Height> 3 </Height>
<Opacity> 0.3 </Opacity>
<BasicLocationLength> 4 </BasicLocationLength>
<Room id="3">
<LocationID> 0 </LocationID>
<Width> 12 </Width>
<Length> 12 </Length>
<Height> 3 </Height>
<Opacity> 0.3 </Opacity>
</Room>
…
public static void InitializeRoomFromXMLFile(Room myRoom, introomNumber)
{
XmlDocumentxmlDoc= new XmlDocument();
xmlDoc.Load(XMLFilePath);
XmlNodeListxmlNodeList= xmlDoc.GetElementsByTagName("Room");
myRoom.RoomID= Int32.Parse(xmlNodeList[roomNumber].Attributes[0].FirstChild.Value);
myRoom.RoomLocationID= Int32.Parse(xmlNodeList[roomNumber].ChildNodes[0].FirstChild.Value);
myRoom.RoomWidth= Int32.Parse(xmlNodeList[roomNumber].ChildNodes[1].FirstChild.Value);
myRoom.RoomLength= Int32.Parse(xmlNodeList[roomNumber].ChildNodes[2].FirstChild.Value);
myRoom.RoomHeight= Int32.Parse(xmlNodeList[roomNumber].ChildNodes[3].FirstChild.Value);
myRoom.RoomOpacity= Double.Parse(xmlNodeList[roomNumber].ChildNodes[4].FirstChild.Value);
}

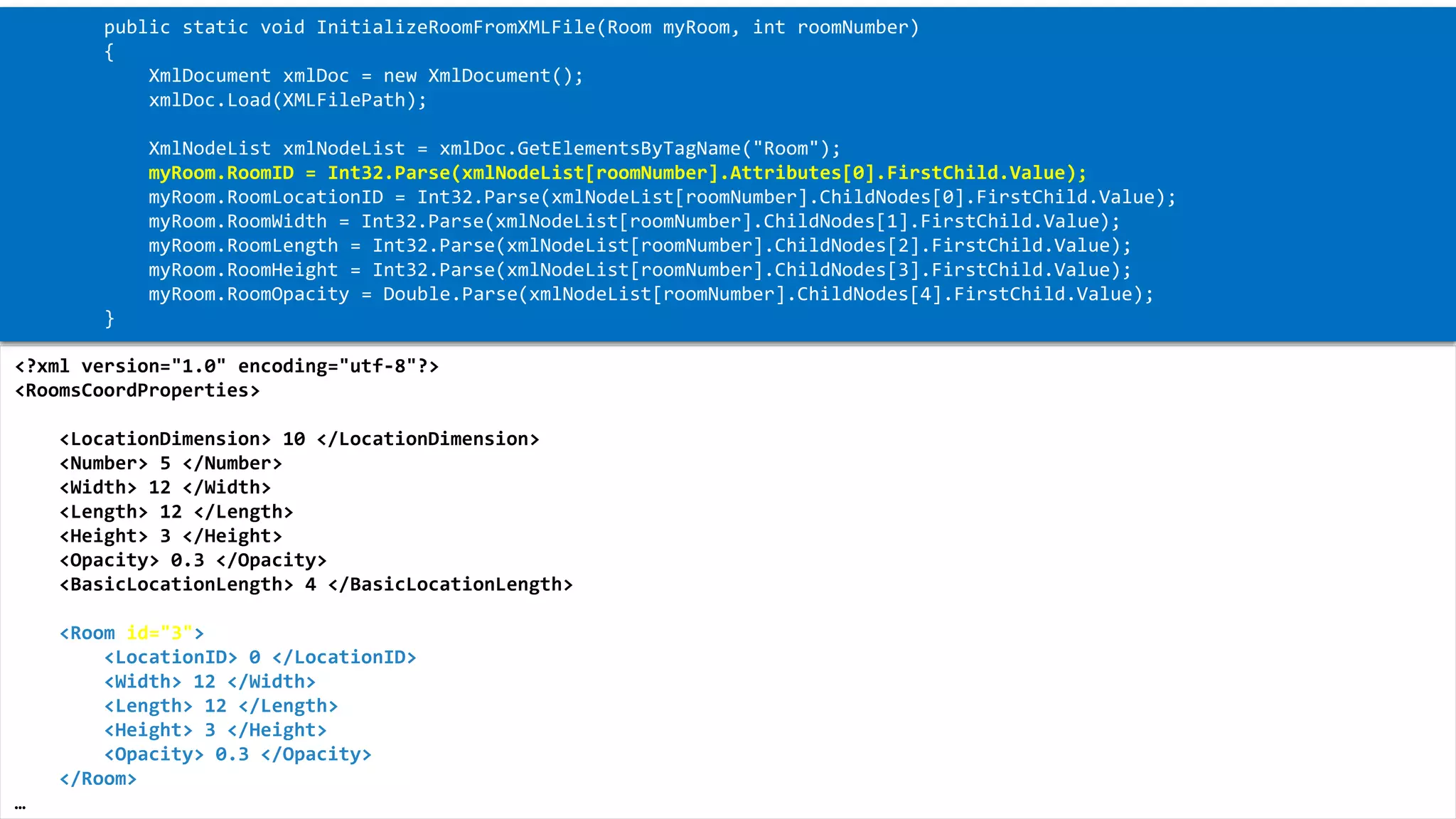

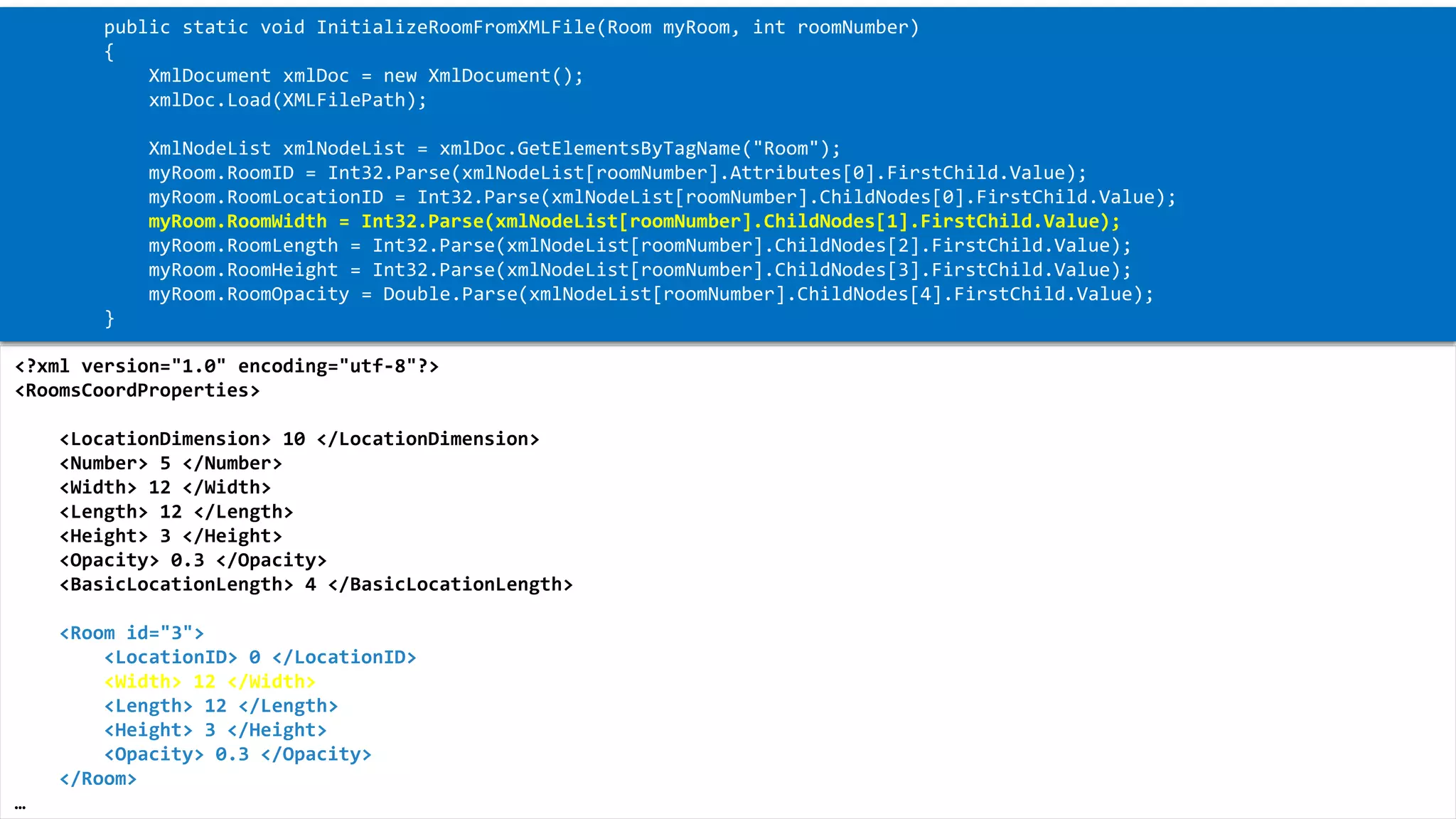

29. XML
<?xml version="1.0" encoding="utf-8"?>
<RoomsCoordProperties>
<LocationDimension> 10 </LocationDimension>
<Number> 5 </Number>
<Width> 12 </Width>
<Length> 12 </Length>
<Height> 3 </Height>
<Opacity> 0.3 </Opacity>
<BasicLocationLength> 4 </BasicLocationLength>
<Room id="3">
<LocationID> 0 </LocationID>
<Width> 12 </Width>
<Length> 12 </Length>
<Height> 3 </Height>
<Opacity> 0.3 </Opacity>
</Room>
…
public static void InitializeRoomFromXMLFile(Room myRoom, introomNumber)
{
XmlDocumentxmlDoc= new XmlDocument();
xmlDoc.Load(XMLFilePath);
XmlNodeListxmlNodeList= xmlDoc.GetElementsByTagName("Room");
myRoom.RoomID= Int32.Parse(xmlNodeList[roomNumber].Attributes[0].FirstChild.Value);
myRoom.RoomLocationID= Int32.Parse(xmlNodeList[roomNumber].ChildNodes[0].FirstChild.Value);
myRoom.RoomWidth= Int32.Parse(xmlNodeList[roomNumber].ChildNodes[1].FirstChild.Value);
myRoom.RoomLength= Int32.Parse(xmlNodeList[roomNumber].ChildNodes[2].FirstChild.Value);
myRoom.RoomHeight= Int32.Parse(xmlNodeList[roomNumber].ChildNodes[3].FirstChild.Value);
myRoom.RoomOpacity= Double.Parse(xmlNodeList[roomNumber].ChildNodes[4].FirstChild.Value);
}

30. XML
<?xml version="1.0" encoding="utf-8"?>
<RoomsCoordProperties>
<LocationDimension> 10 </LocationDimension>
<Number> 5 </Number>
<Width> 12 </Width>
<Length> 12 </Length>
<Height> 3 </Height>
<Opacity> 0.3 </Opacity>
<BasicLocationLength> 4 </BasicLocationLength>
<Room id="3">
<LocationID> 0 </LocationID>
<Width> 12 </Width>
<Length> 12 </Length>
<Height> 3 </Height>
<Opacity> 0.3 </Opacity>
</Room>
…
public static void InitializeRoomFromXMLFile(Room myRoom, introomNumber)
{
XmlDocumentxmlDoc= new XmlDocument();
xmlDoc.Load(XMLFilePath);
XmlNodeListxmlNodeList= xmlDoc.GetElementsByTagName("Room");
myRoom.RoomID= Int32.Parse(xmlNodeList[roomNumber].Attributes[0].FirstChild.Value);
myRoom.RoomLocationID= Int32.Parse(xmlNodeList[roomNumber].ChildNodes[0].FirstChild.Value);
myRoom.RoomWidth= Int32.Parse(xmlNodeList[roomNumber].ChildNodes[1].FirstChild.Value);
myRoom.RoomLength= Int32.Parse(xmlNodeList[roomNumber].ChildNodes[2].FirstChild.Value);
myRoom.RoomHeight= Int32.Parse(xmlNodeList[roomNumber].ChildNodes[3].FirstChild.Value);
myRoom.RoomOpacity= Double.Parse(xmlNodeList[roomNumber].ChildNodes[4].FirstChild.Value);
}

31. XML
<?xml version="1.0" encoding="utf-8"?>
<RoomsCoordProperties>
<LocationDimension> 10 </LocationDimension>
<Number> 5 </Number>
<Width> 12 </Width>
<Length> 12 </Length>
<Height> 3 </Height>
<Opacity> 0.3 </Opacity>
<BasicLocationLength> 4 </BasicLocationLength>
<Room id="3">
<LocationID> 0 </LocationID>
<Width> 12 </Width>
<Length> 12 </Length>
<Height> 3 </Height>
<Opacity> 0.3 </Opacity>
</Room>
…
public static void InitializeRoomFromXMLFile(Room myRoom, introomNumber)
{
XmlDocumentxmlDoc= new XmlDocument();
xmlDoc.Load(XMLFilePath);
XmlNodeListxmlNodeList= xmlDoc.GetElementsByTagName("Room");
myRoom.RoomID= Int32.Parse(xmlNodeList[roomNumber].Attributes[0].FirstChild.Value);
myRoom.RoomLocationID= Int32.Parse(xmlNodeList[roomNumber].ChildNodes[0].FirstChild.Value);
myRoom.RoomWidth= Int32.Parse(xmlNodeList[roomNumber].ChildNodes[1].FirstChild.Value);
myRoom.RoomLength= Int32.Parse(xmlNodeList[roomNumber].ChildNodes[2].FirstChild.Value);
myRoom.RoomHeight= Int32.Parse(xmlNodeList[roomNumber].ChildNodes[3].FirstChild.Value);
myRoom.RoomOpacity= Double.Parse(xmlNodeList[roomNumber].ChildNodes[4].FirstChild.Value);
}

32. LINQ to XMLXML to LINQ

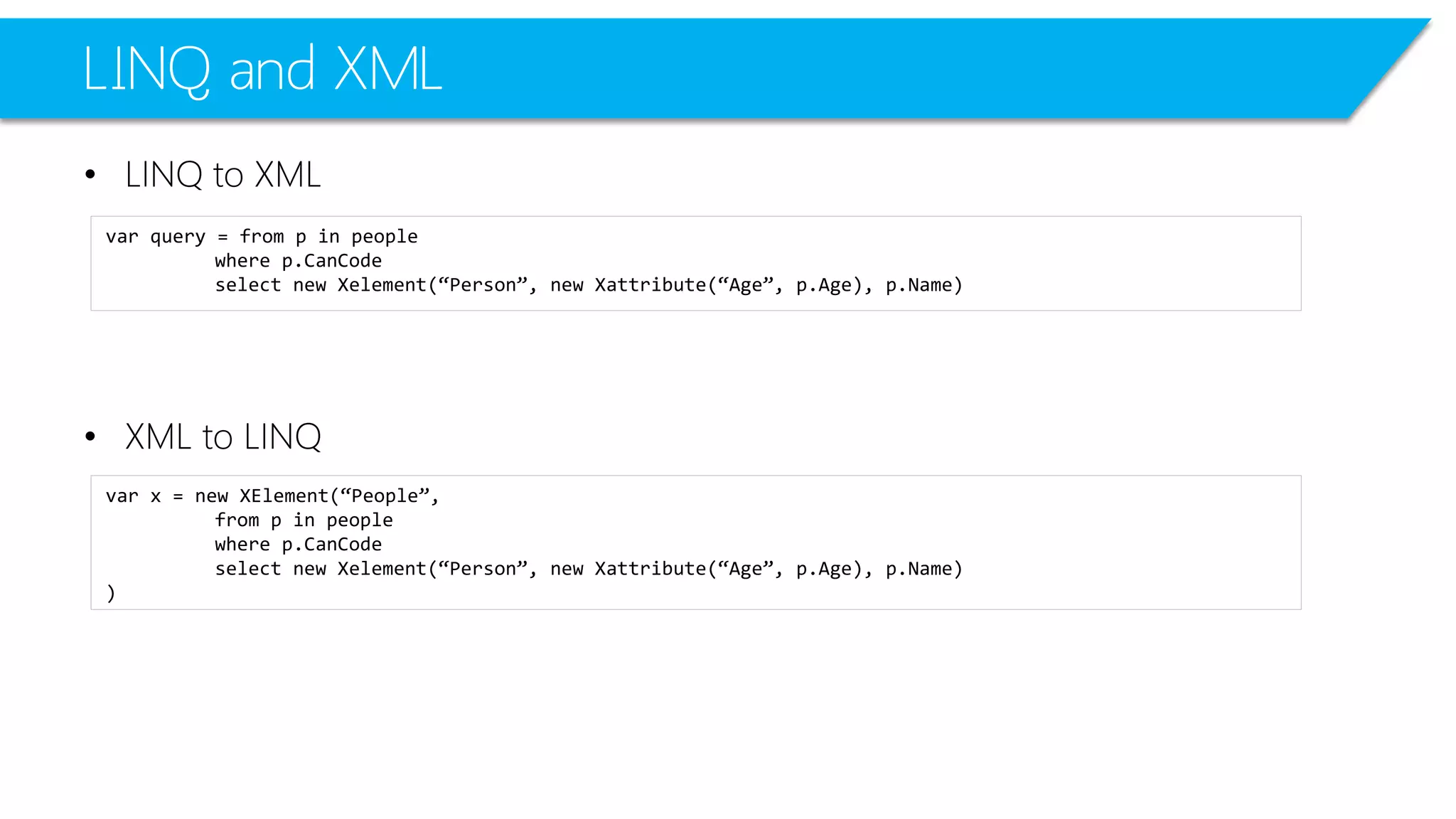

33. LINQ and XML
•LINQ to XML
•XML to LINQ
varquery = from p in people
where p.CanCode
select new Xelement(“Person”, new Xattribute(“Age”, p.Age), p.Name)
varx = new XElement(“People”,
from p in people
where p.CanCode
select new Xelement(“Person”, new Xattribute(“Age”, p.Age), p.Name)
)

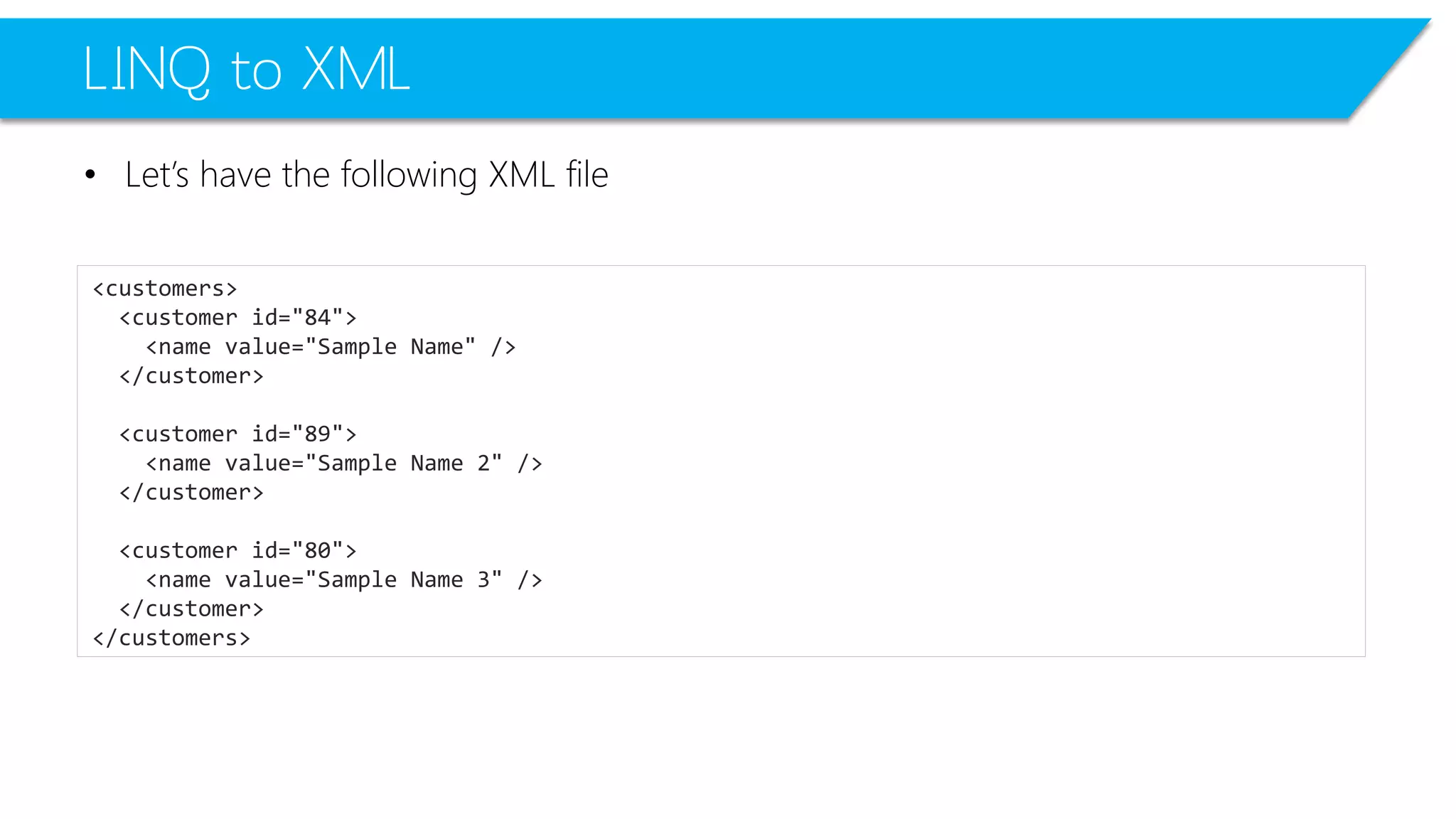

34. LINQ to XML
•Let’s have the following XML file
<customers>
<customerid="84">
<namevalue="Sample Name"/>
</customer>
<customerid="89">
<namevalue="Sample Name 2"/>
</customer>
<customerid="80">
<namevalue="Sample Name 3"/>
</customer>
</customers>

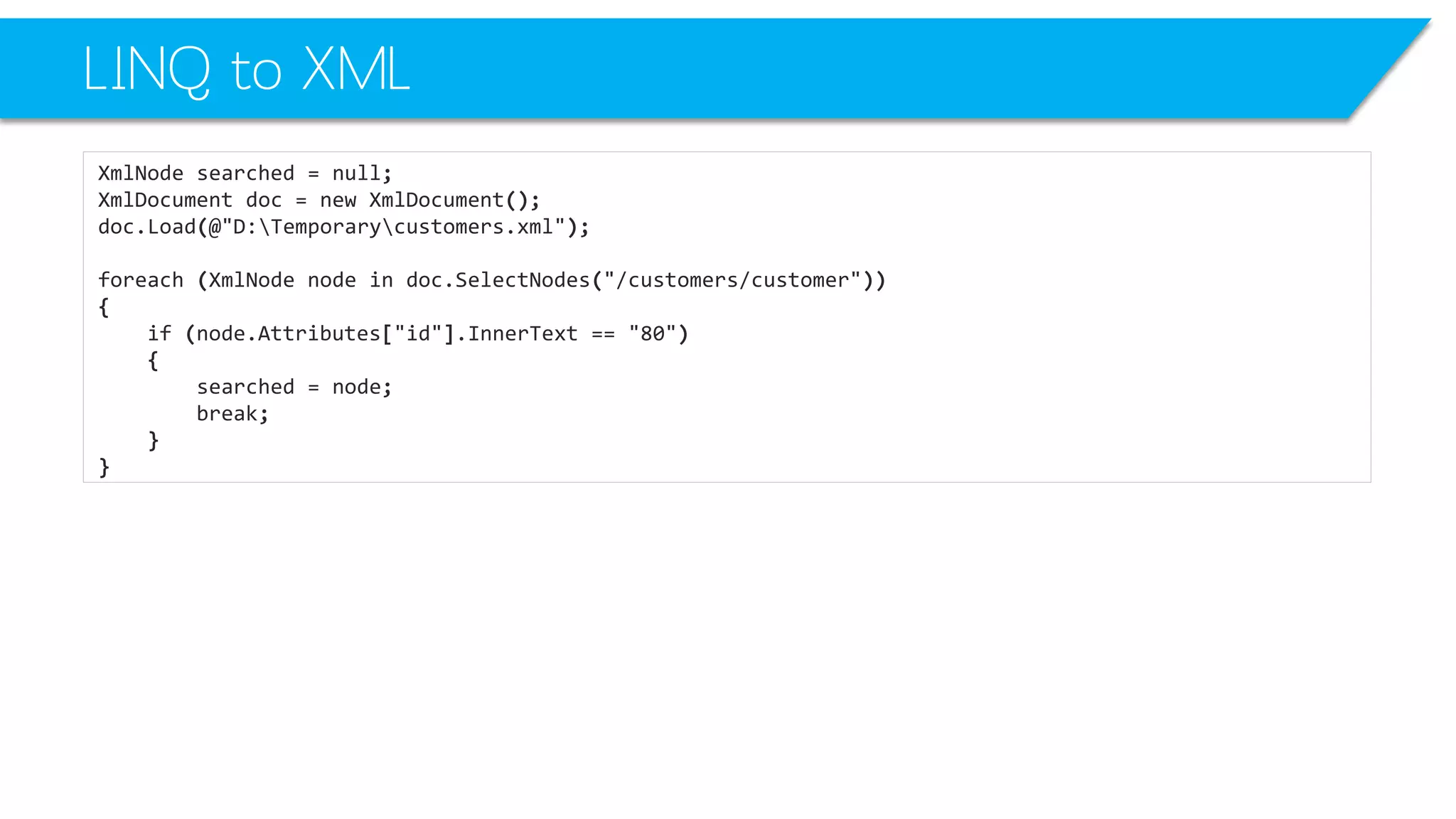

35. LINQ to XML
XmlNodesearched=null;
XmlDocumentdoc=newXmlDocument();
doc.Load(@"D:Temporarycustomers.xml");
foreach(XmlNodenodeindoc.SelectNodes("/customers/customer"))
{
if(node.Attributes["id"].InnerText=="80")
{
searched=node;
break;
}
}

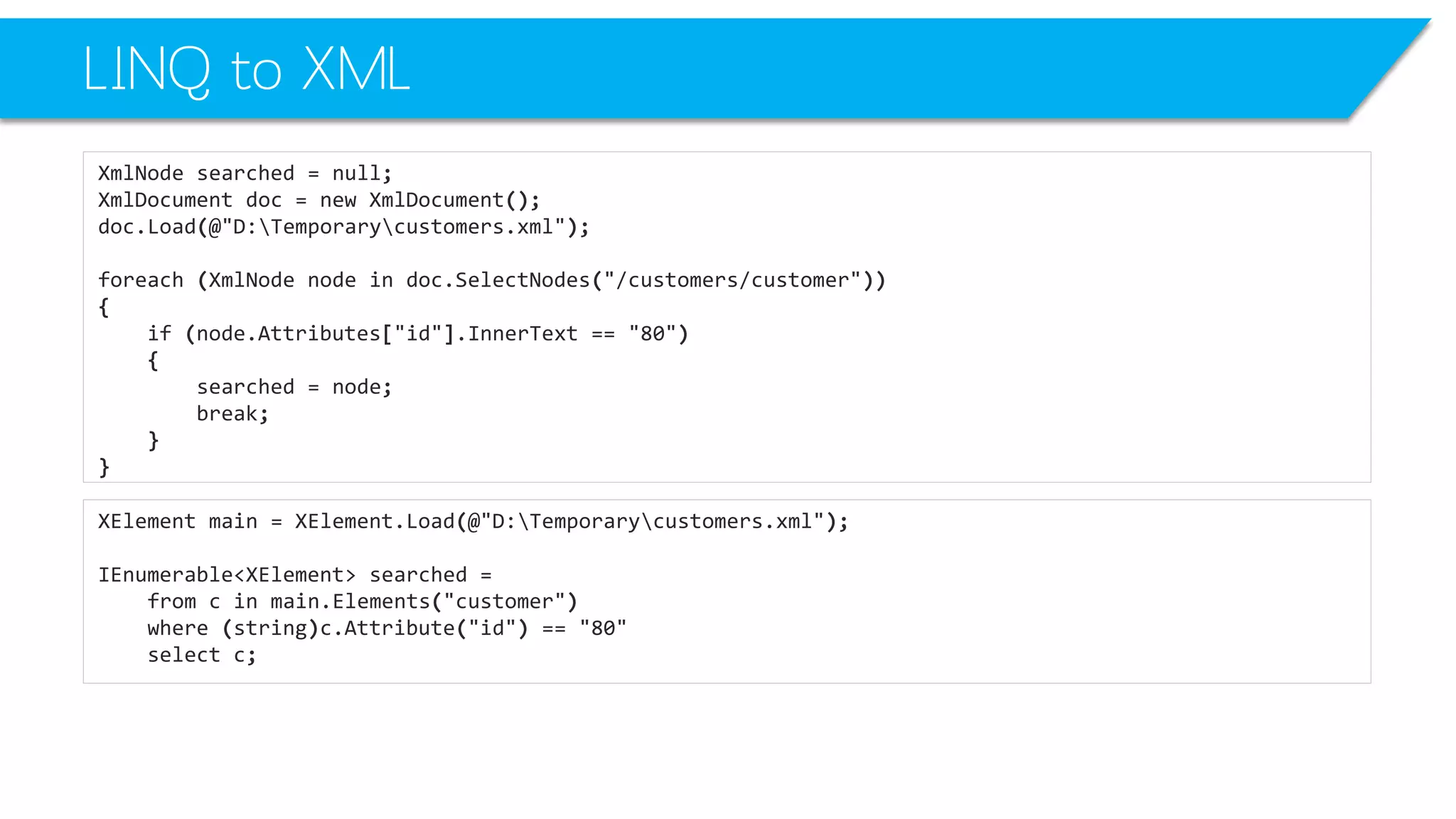

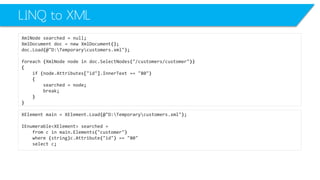

36. LINQ to XML
XmlNodesearched=null;
XmlDocumentdoc=newXmlDocument();
doc.Load(@"D:Temporarycustomers.xml");
foreach(XmlNodenodeindoc.SelectNodes("/customers/customer"))
{
if(node.Attributes["id"].InnerText=="80")
{
searched=node;
break;
}
}
XElementmain=XElement.Load(@"D:Temporarycustomers.xml");
IEnumerable<XElement>searched=
fromcinmain.Elements("customer")
where(string)c.Attribute("id") =="80"
selectc;

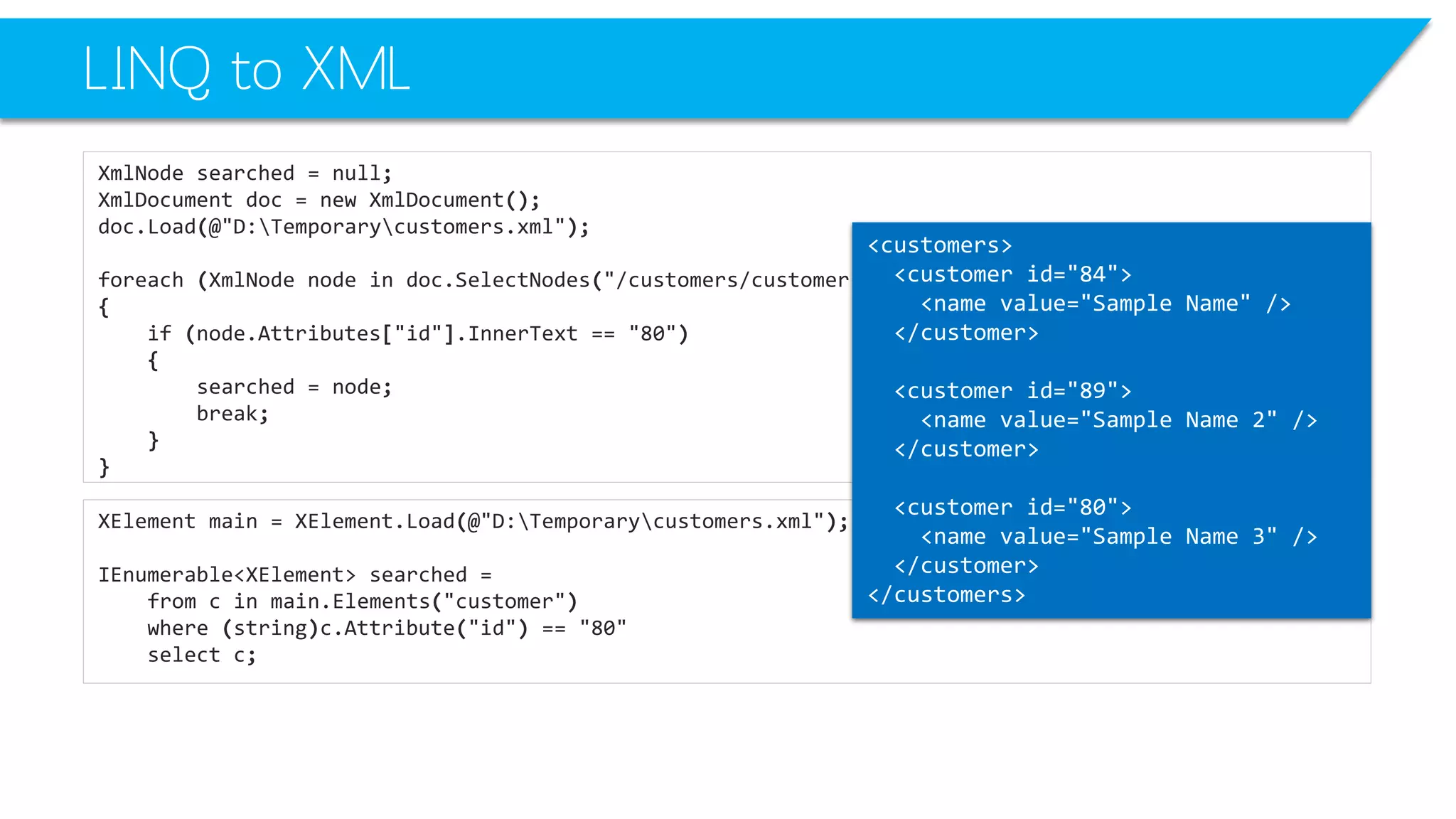

37. LINQ to XML
XmlNodesearched=null;
XmlDocumentdoc=newXmlDocument();
doc.Load(@"D:Temporarycustomers.xml");
foreach(XmlNodenodeindoc.SelectNodes("/customers/customer"))
{
if(node.Attributes["id"].InnerText=="80")
{
searched=node;
break;
}
}
XElementmain=XElement.Load(@"D:Temporarycustomers.xml");
IEnumerable<XElement>searched=
fromcinmain.Elements("customer")
where(string)c.Attribute("id") =="80"
selectc;
<customers>
<customerid="84">
<namevalue="Sample Name"/>
</customer>
<customerid="89">
<namevalue="Sample Name 2"/>
</customer>
<customerid="80">
<namevalue="Sample Name 3"/>
</customer>
</customers>

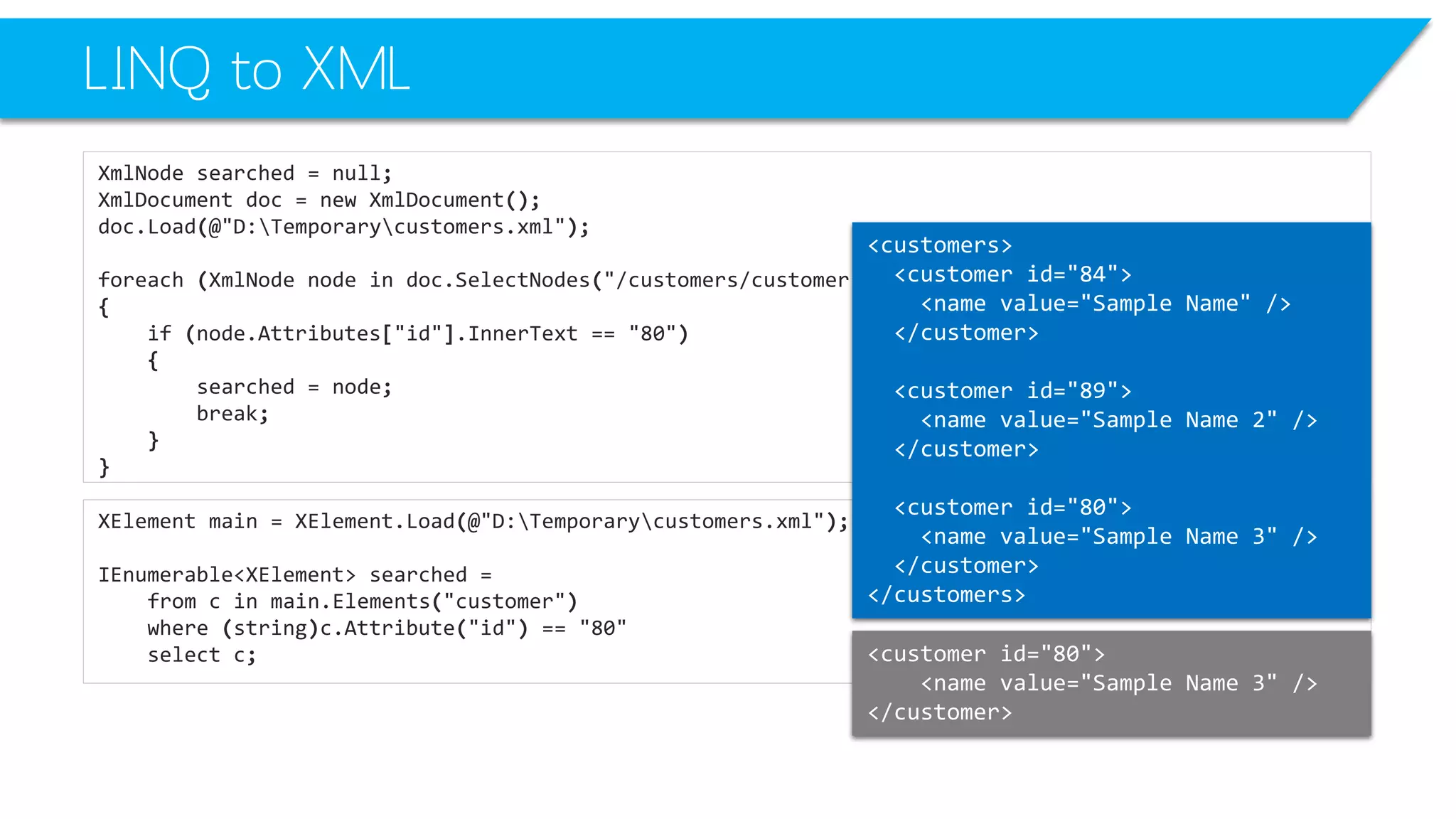

38. LINQ to XML
XmlNodesearched=null;
XmlDocumentdoc=newXmlDocument();
doc.Load(@"D:Temporarycustomers.xml");
foreach(XmlNodenodeindoc.SelectNodes("/customers/customer"))
{
if(node.Attributes["id"].InnerText=="80")
{
searched=node;
break;
}
}
XElementmain=XElement.Load(@"D:Temporarycustomers.xml");
IEnumerable<XElement>searched=
fromcinmain.Elements("customer")
where(string)c.Attribute("id") =="80"
selectc;
<customerid="80">
<namevalue="Sample Name 3"/>
</customer>
<customers>
<customerid="84">
<namevalue="Sample Name"/>
</customer>
<customerid="89">
<namevalue="Sample Name 2"/>
</customer>
<customerid="80">
<namevalue="Sample Name 3"/>
</customer>
</customers>

39. LINQ to XML
XElementmain=XElement.Load(@"D:Temporarycustomers.xml");
IEnumerable<XElement>searched=
fromcinmain.Elements("customer")
where(string)c.Element("name").Attribute("value") =="Sample Name"
selectc;
<customers>
<customerid="84">
<namevalue="Sample Name"/>
</customer>
<customerid="89">
<namevalue="Sample Name 2"/>
</customer>
<customerid="80">
<namevalue="Sample Name 3"/>
</customer>
</customers>

40. LINQ to XML
XElementmain=XElement.Load(@"D:Temporarycustomers.xml");
IEnumerable<XElement>searched=
fromcinmain.Elements("customer")
where(string)c.Element("name").Attribute("value") =="Sample Name"
selectc;
<customerid="84">
<namevalue="Sample Name"/>
</customer>
<customers>
<customerid="84">
<namevalue="Sample Name"/>
</customer>
<customerid="89">
<namevalue="Sample Name 2"/>
</customer>
<customerid="80">
<namevalue="Sample Name 3"/>
</customer>
</customers>

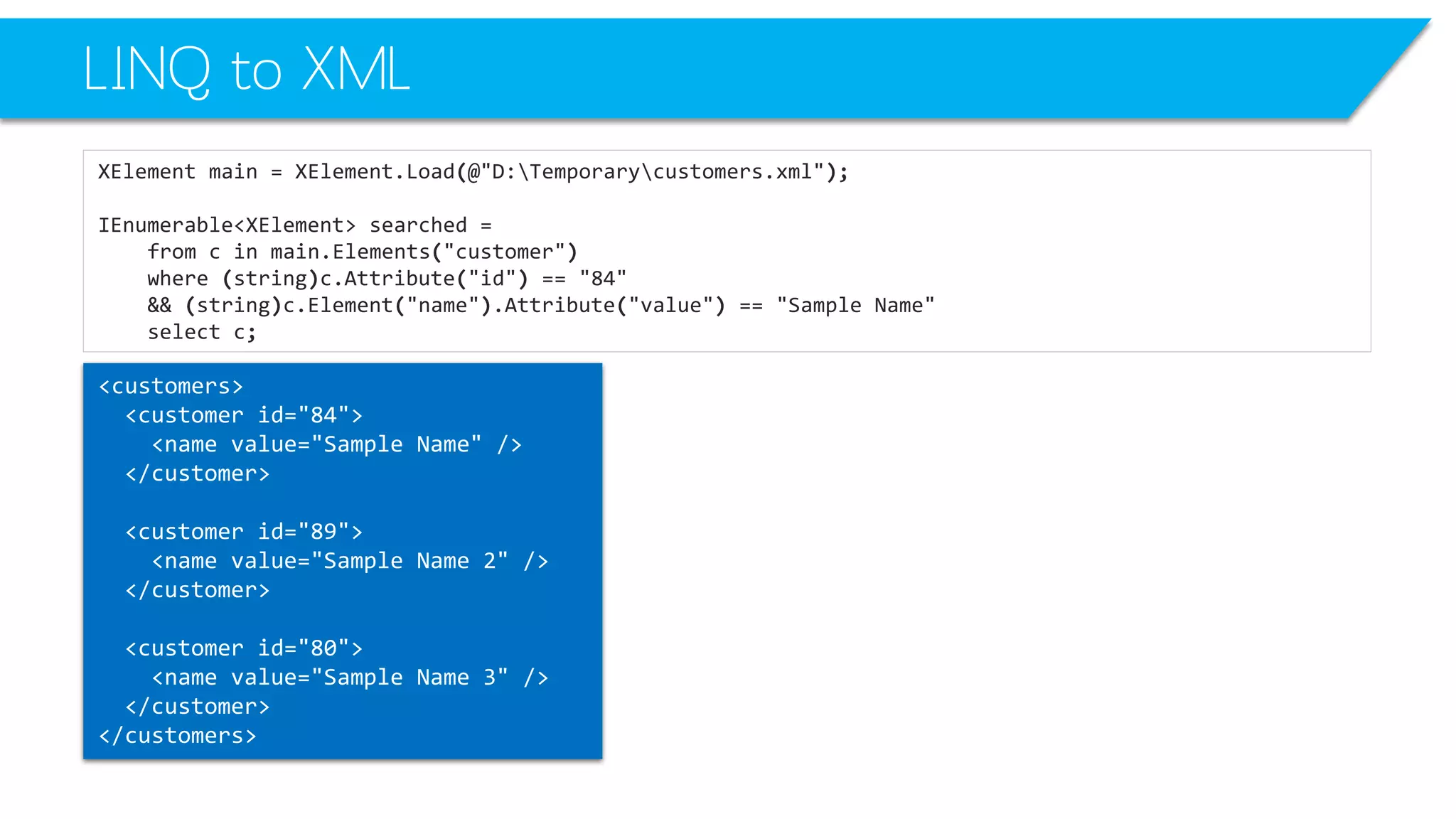

41. LINQ to XML
XElementmain=XElement.Load(@"D:Temporarycustomers.xml");
IEnumerable<XElement>searched=
fromcinmain.Elements("customer")
where(string)c.Attribute("id") =="84"
&&(string)c.Element("name").Attribute("value") =="Sample Name"
selectc;
<customers>
<customerid="84">
<namevalue="Sample Name"/>
</customer>
<customerid="89">
<namevalue="Sample Name 2"/>
</customer>
<customerid="80">
<namevalue="Sample Name 3"/>
</customer>
</customers>

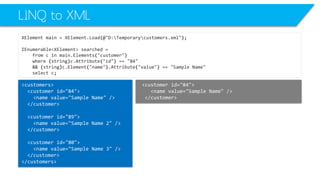

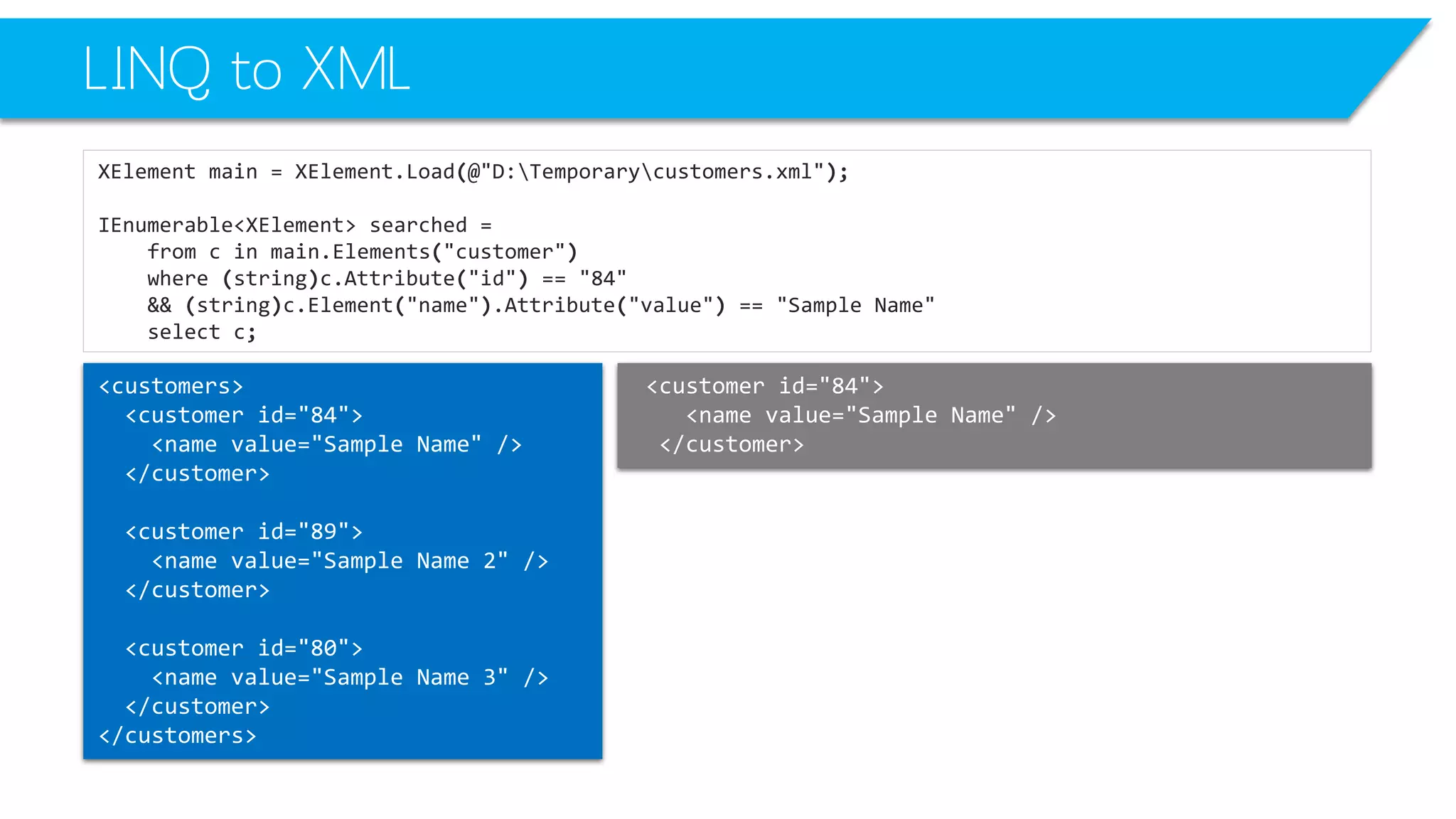

42. LINQ to XML
XElementmain=XElement.Load(@"D:Temporarycustomers.xml");
IEnumerable<XElement>searched=
fromcinmain.Elements("customer")
where(string)c.Attribute("id") =="84"
&&(string)c.Element("name").Attribute("value") =="Sample Name"
selectc;
<customerid="84">
<namevalue="Sample Name"/>
</customer>
<customers>
<customerid="84">
<namevalue="Sample Name"/>
</customer>
<customerid="89">
<namevalue="Sample Name 2"/>
</customer>
<customerid="80">
<namevalue="Sample Name 3"/>
</customer>
</customers>

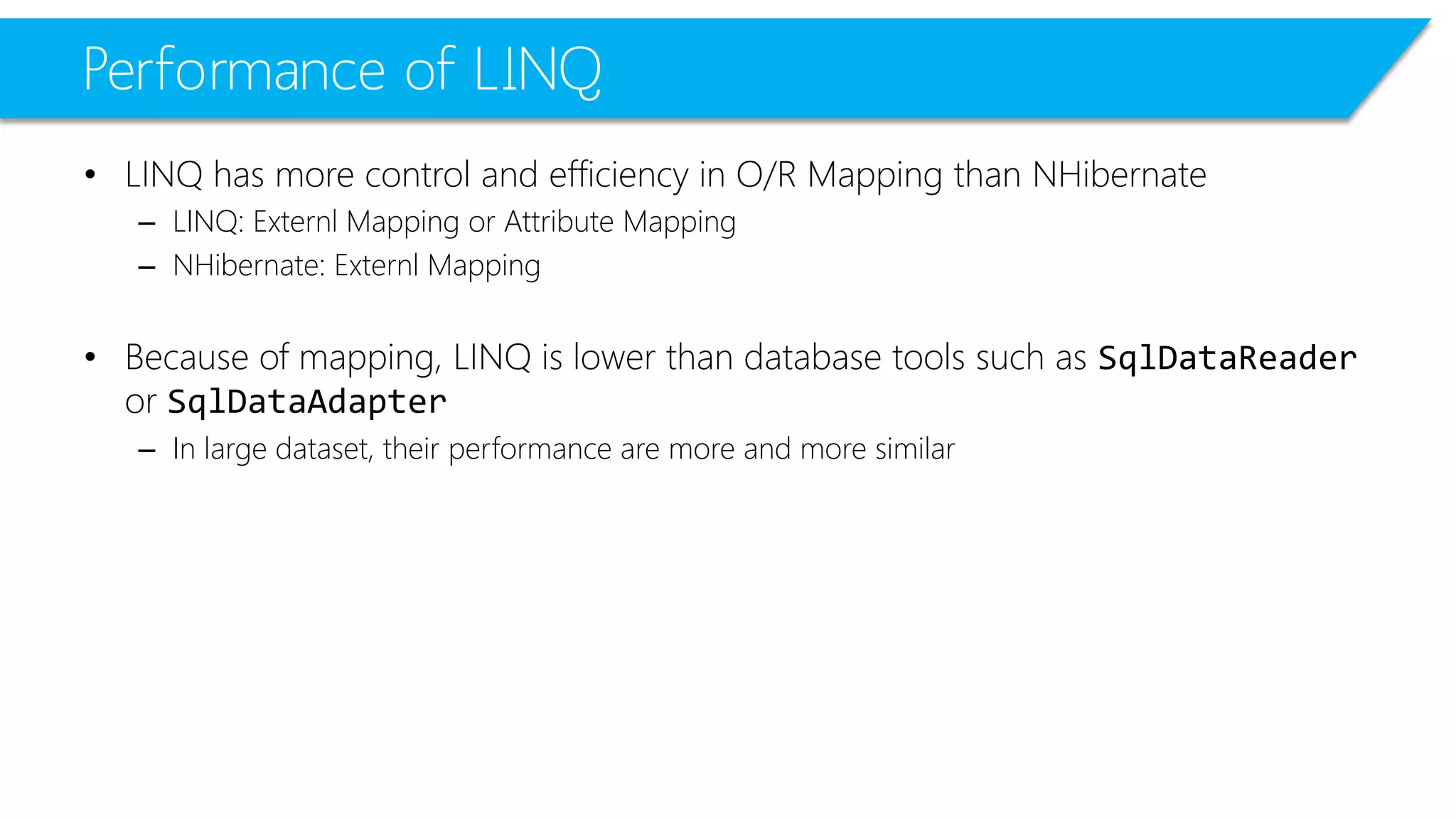

43. Performanceof LINQ
•LINQ has more control and efficiency in O/R Mapping than NHibernate
–LINQ: ExternlMapping or Attribute Mapping
–NHibernate: ExternlMapping
•Because of mapping, LINQ is lower than database tools such as SqlDataReaderor SqlDataAdapter
–In large dataset, their performance are more and more similar

44. XML Serialization

45. XML SerializationNot Always an Easy, Straightforward Task

46. XML SerializationWhy to?

47. XML SerializationSerialize a class that simply consists of public fields and properties into an XML file

48. XML SerializationUse XML serialization to generate an XML stream that conforms to a specific XML Schema (XSD) document.

49. Test CaseSerializing a Class

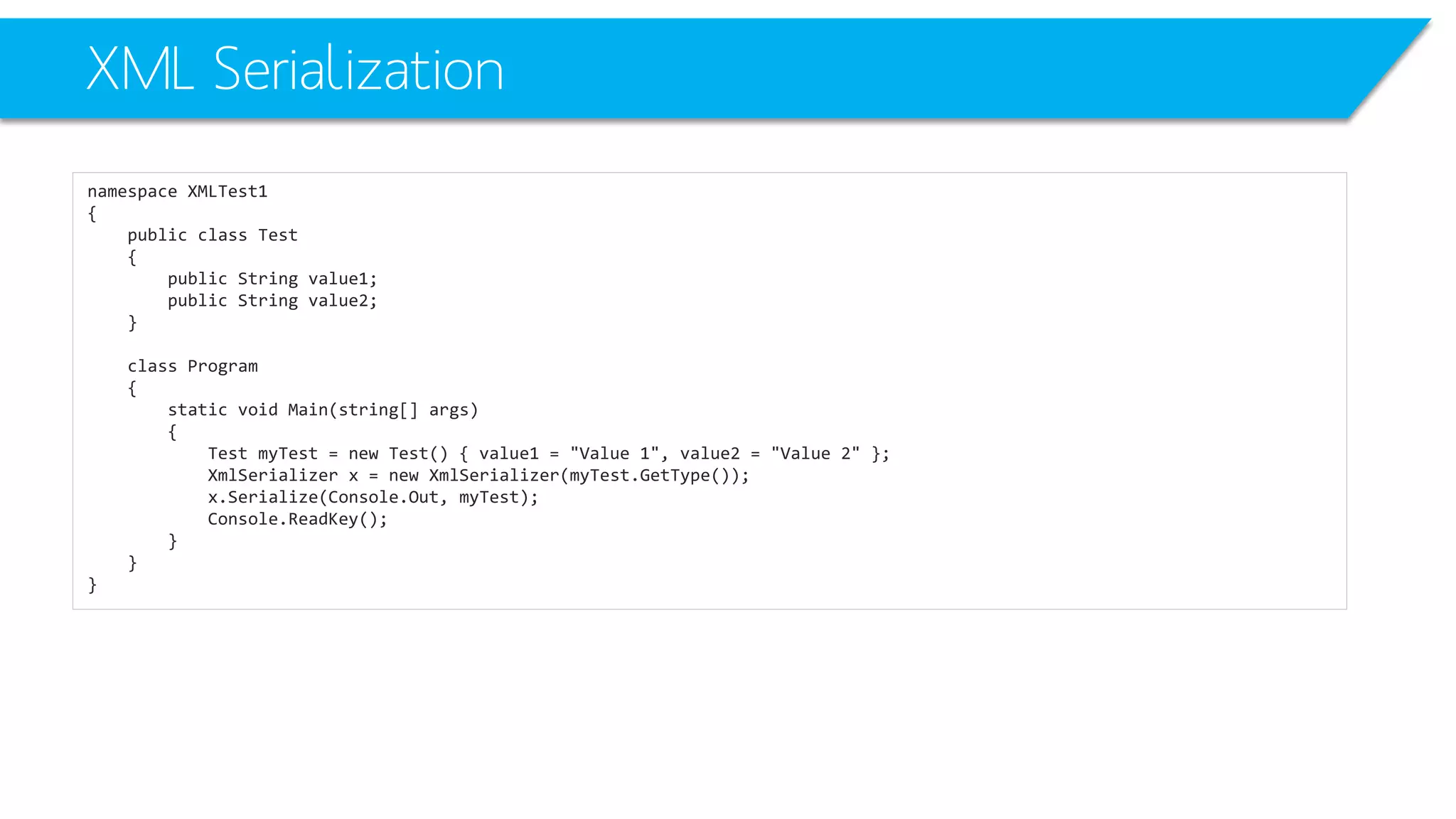

50. XML Serialization
namespace XMLTest1
{
public class Test
{
public String value1;
public String value2;
}
class Program
{
static void Main(string[] args)
{
Test myTest= new Test() { value1 = "Value 1", value2 = "Value 2" };
XmlSerializerx = new XmlSerializer(myTest.GetType());
x.Serialize(Console.Out, myTest);
Console.ReadKey();
}
}
}

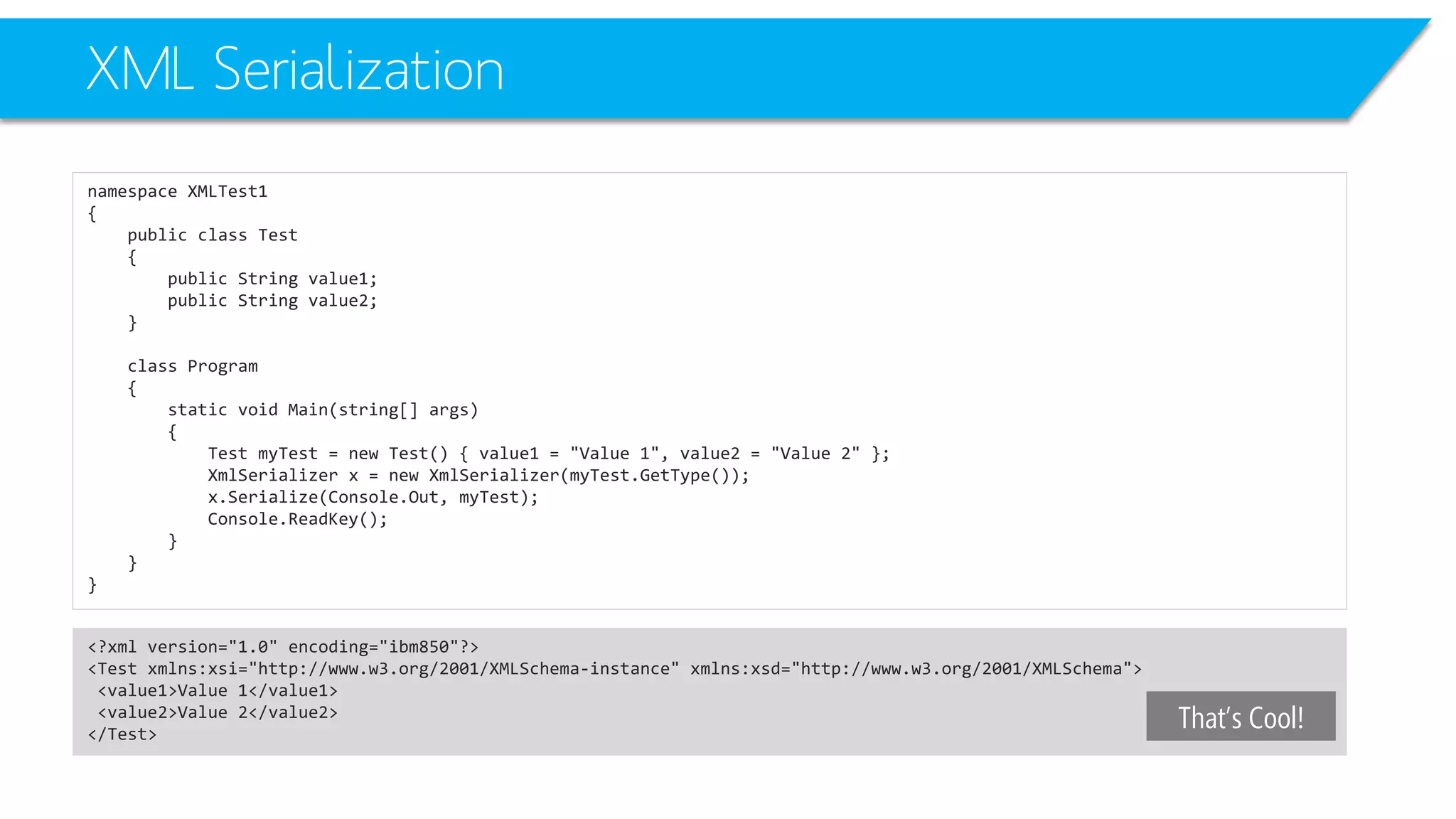

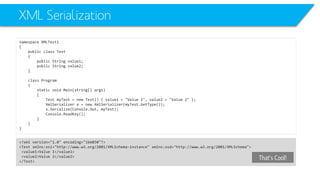

51. XML Serialization
namespace XMLTest1
{
public class Test
{
public String value1;
public String value2;
}
class Program
{
static void Main(string[] args)
{
Test myTest= new Test() { value1 = "Value 1", value2 = "Value 2" };
XmlSerializerx = new XmlSerializer(myTest.GetType());
x.Serialize(Console.Out, myTest);
Console.ReadKey();
}
}
}
<?xml version="1.0" encoding="ibm850"?>
<Test xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:xsd="http://www.w3.org/2001/XMLSchema">
<value1>Value 1</value1>
<value2>Value 2</value2>
</Test>
That’s Cool!

52. Test CaseDeSerializinga Class

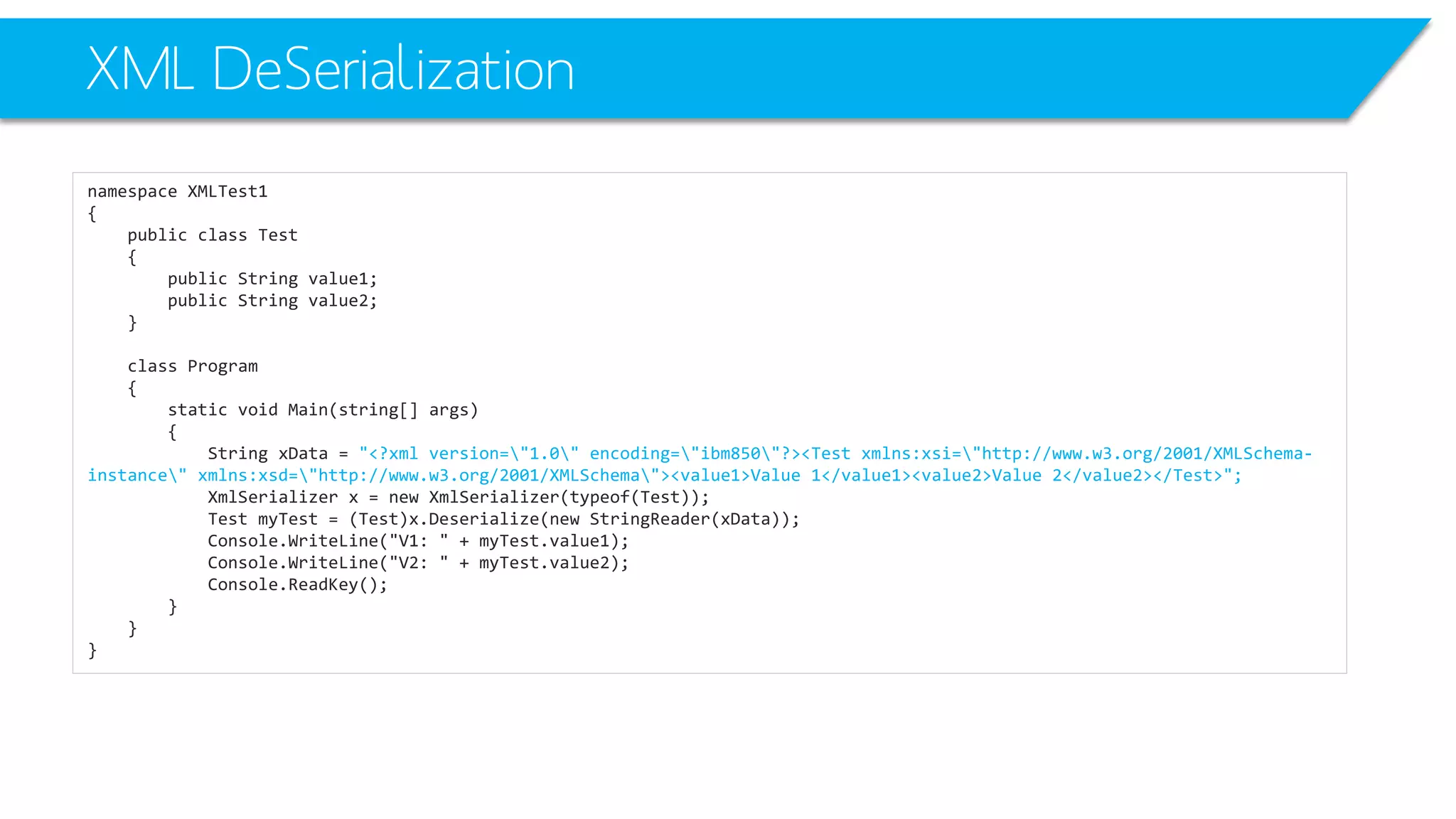

53. XML DeSerialization
namespace XMLTest1
{
public class Test
{
public String value1;
public String value2;
}
class Program
{
static void Main(string[] args)
{
String xData= "<?xml version="1.0" encoding="ibm850"?><Test xmlns:xsi="http://www.w3.org/2001/XMLSchema- instance" xmlns:xsd="http://www.w3.org/2001/XMLSchema"><value1>Value 1</value1><value2>Value 2</value2></Test>";
XmlSerializerx = new XmlSerializer(typeof(Test));
Test myTest= (Test)x.Deserialize(new StringReader(xData));
Console.WriteLine("V1: " + myTest.value1);
Console.WriteLine("V2: " + myTest.value2);
Console.ReadKey();
}
}
}

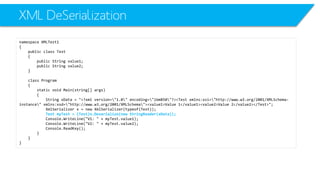

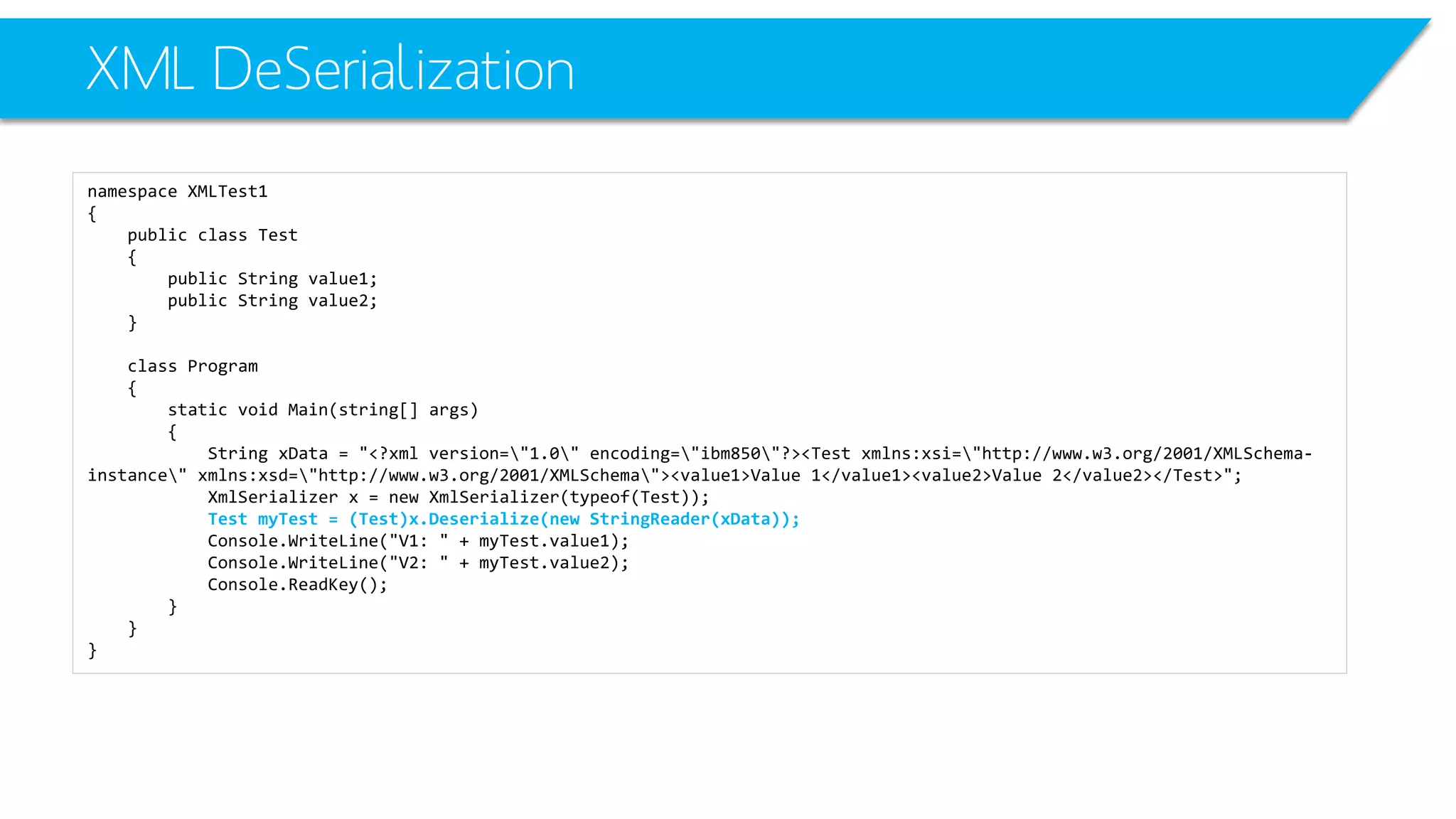

54. XML DeSerialization
namespace XMLTest1
{
public class Test
{
public String value1;
public String value2;
}
class Program
{
static void Main(string[] args)
{
String xData= "<?xml version="1.0" encoding="ibm850"?><Test xmlns:xsi="http://www.w3.org/2001/XMLSchema- instance" xmlns:xsd="http://www.w3.org/2001/XMLSchema"><value1>Value 1</value1><value2>Value 2</value2></Test>";
XmlSerializerx = new XmlSerializer(typeof(Test));
Test myTest= (Test)x.Deserialize(new StringReader(xData));
Console.WriteLine("V1: " + myTest.value1);
Console.WriteLine("V2: " + myTest.value2);
Console.ReadKey();
}
}
}

55. XML Serialization and Attributes

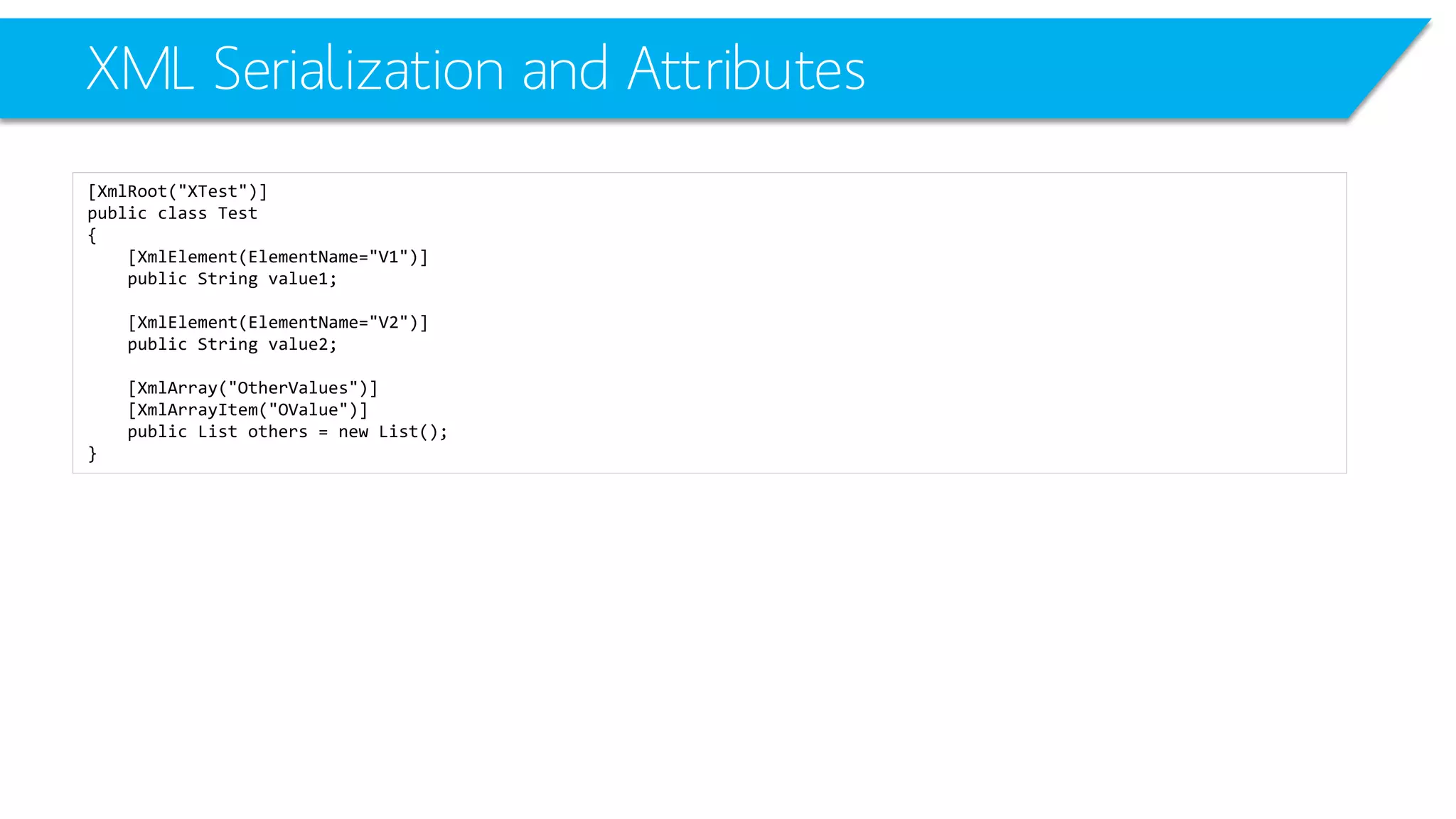

56. XML Serialization and Attributes
[XmlRoot("XTest")]
public class Test
{
[XmlElement(ElementName="V1")]
public String value1;
[XmlElement(ElementName="V2")]
public String value2;
[XmlArray("OtherValues")]
[XmlArrayItem("OValue")]
public List others = new List();
}

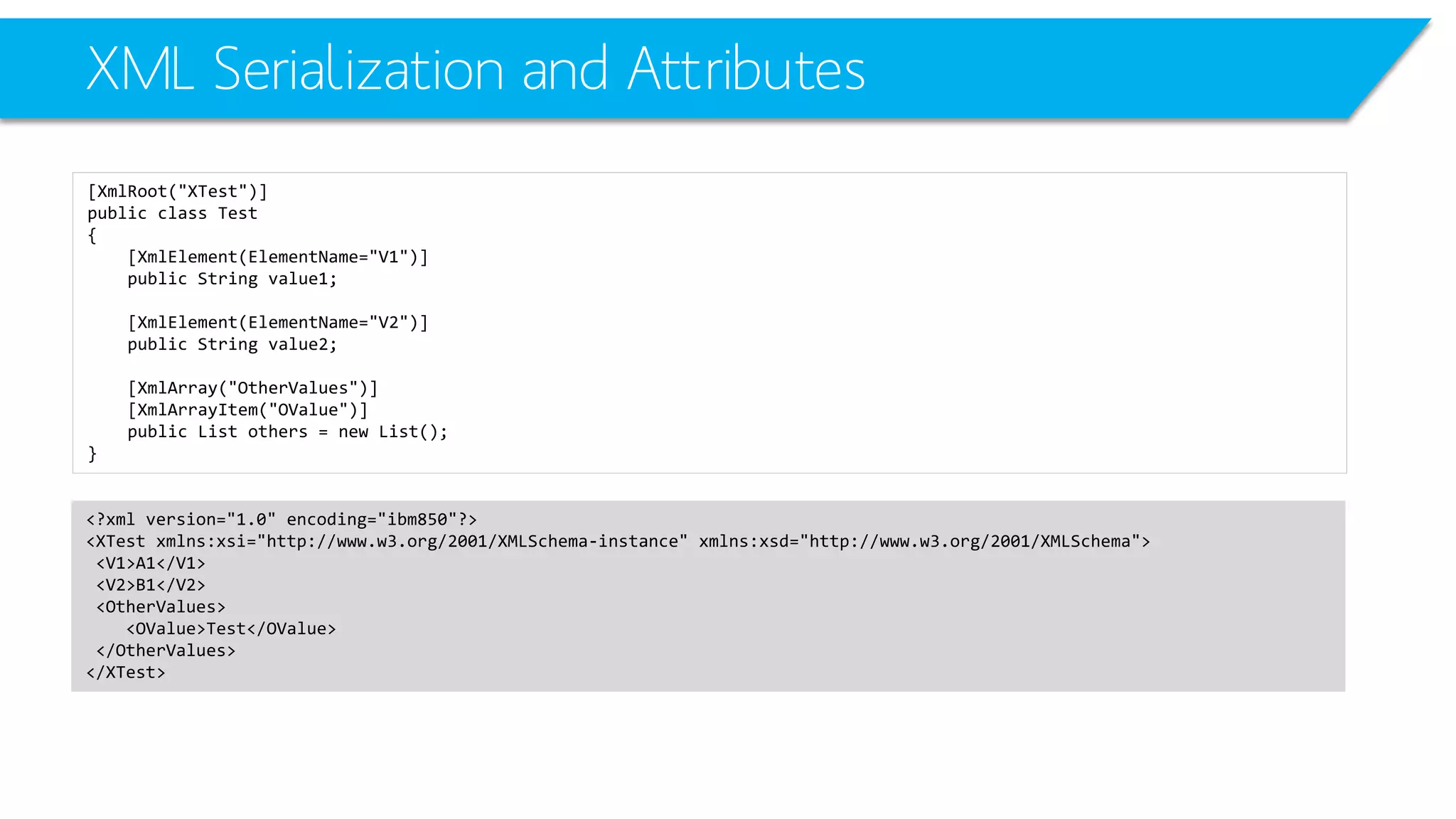

57. XML Serialization and Attributes
[XmlRoot("XTest")]
public class Test
{
[XmlElement(ElementName="V1")]
public String value1;
[XmlElement(ElementName="V2")]
public String value2;
[XmlArray("OtherValues")]
[XmlArrayItem("OValue")]
public List others = new List();
}
<?xml version="1.0" encoding="ibm850"?>
<XTestxmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:xsd="http://www.w3.org/2001/XMLSchema">
<V1>A1</V1>
<V2>B1</V2>
<OtherValues>
<OValue>Test</OValue>
</OtherValues>
</XTest>

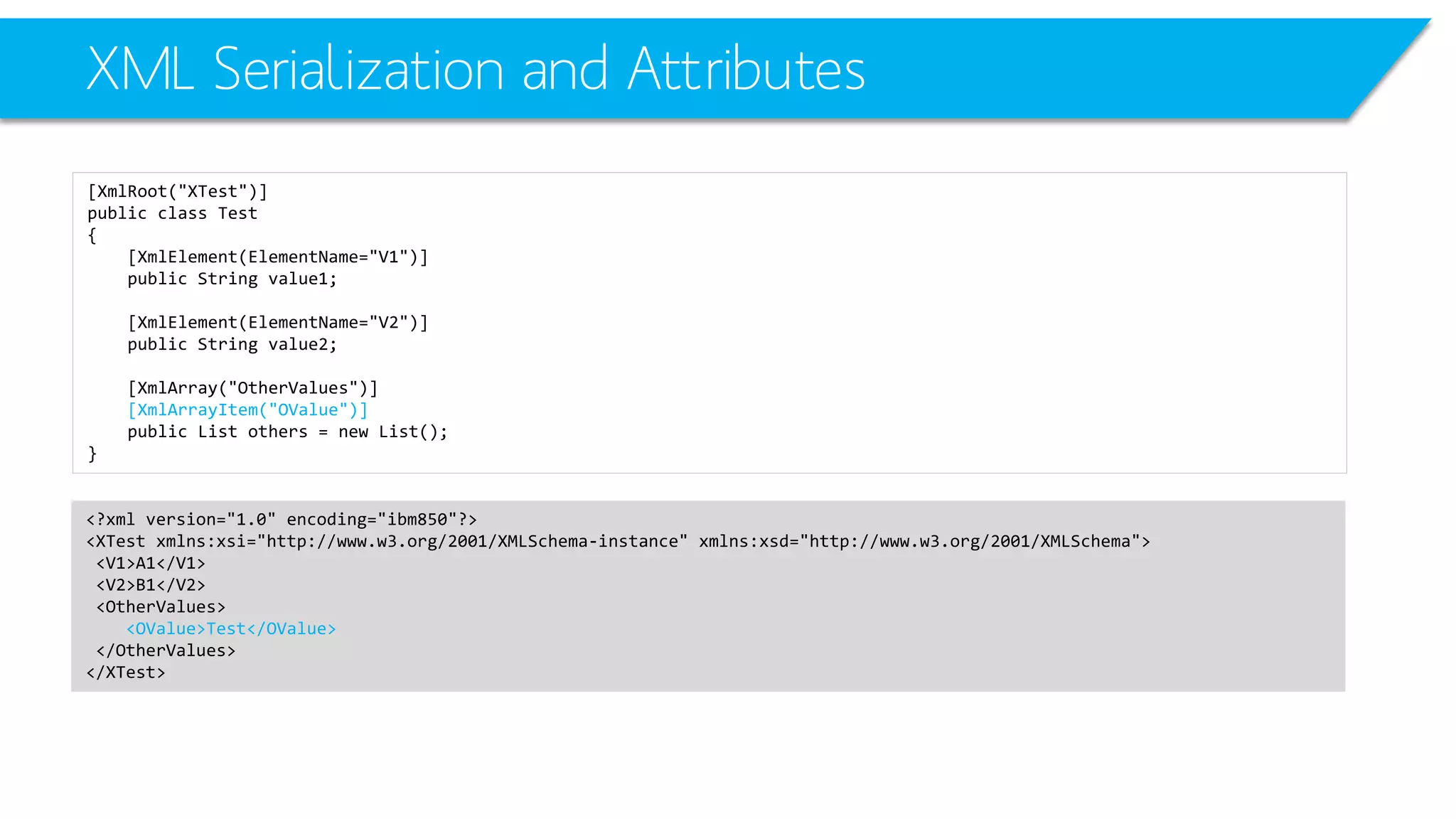

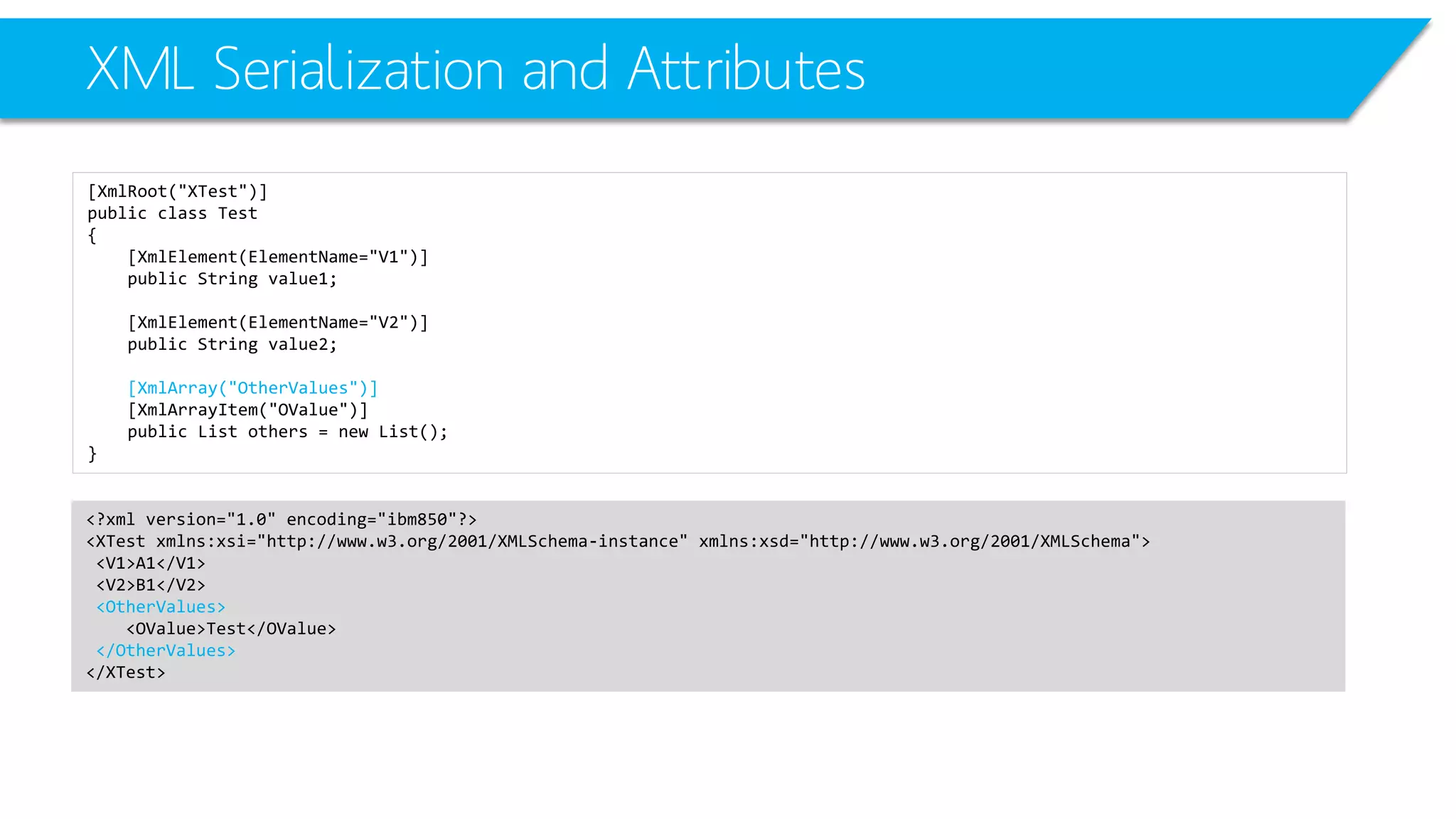

58. XML Serialization and Attributes
[XmlRoot("XTest")]
public class Test
{
[XmlElement(ElementName="V1")]
public String value1;
[XmlElement(ElementName="V2")]
public String value2;
[XmlArray("OtherValues")]
[XmlArrayItem("OValue")]
public List others = new List();
}
<?xml version="1.0" encoding="ibm850"?>
<XTestxmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:xsd="http://www.w3.org/2001/XMLSchema">
<V1>A1</V1>
<V2>B1</V2>
<OtherValues>
<OValue>Test</OValue>
</OtherValues>
</XTest>

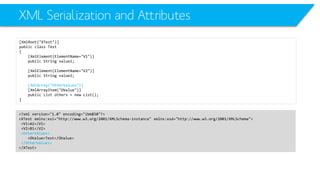

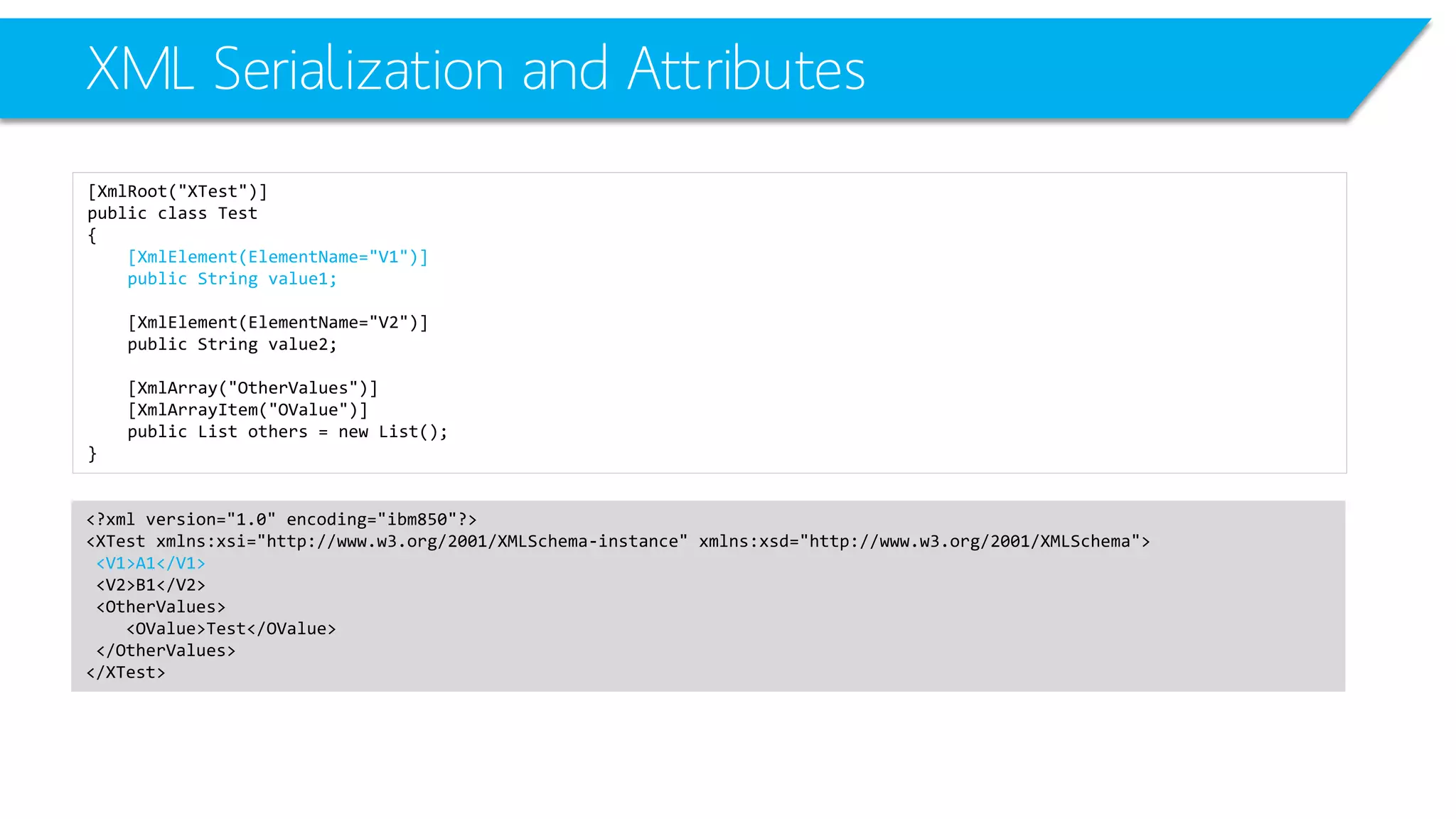

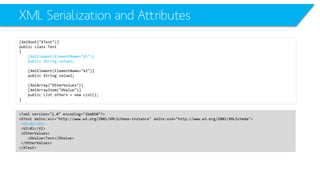

59. XML Serialization and Attributes
[XmlRoot("XTest")]
public class Test
{
[XmlElement(ElementName="V1")]
public String value1;
[XmlElement(ElementName="V2")]
public String value2;
[XmlArray("OtherValues")]
[XmlArrayItem("OValue")]
public List others = new List();
}
<?xml version="1.0" encoding="ibm850"?>
<XTestxmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:xsd="http://www.w3.org/2001/XMLSchema">
<V1>A1</V1>
<V2>B1</V2>
<OtherValues>
<OValue>Test</OValue>
</OtherValues>
</XTest>

60. XML Serialization and Attributes
[XmlRoot("XTest")]
public class Test
{
[XmlElement(ElementName="V1")]
public String value1;
[XmlElement(ElementName="V2")]
public String value2;
[XmlArray("OtherValues")]
[XmlArrayItem("OValue")]
public List others = new List();
}
<?xml version="1.0" encoding="ibm850"?>
<XTestxmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:xsd="http://www.w3.org/2001/XMLSchema">
<V1>A1</V1>
<V2>B1</V2>
<OtherValues>
<OValue>Test</OValue>
</OtherValues>
</XTest>

61. XML Serialization and Attributes
[XmlRoot("XTest")]
public class Test
{
[XmlElement(ElementName="V1")]
public String value1;
[XmlElement(ElementName="V2")]
public String value2;
[XmlArray("OtherValues")]
[XmlArrayItem("OValue")]
public List others = new List();
}
<?xml version="1.0" encoding="ibm850"?>
<XTestxmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:xsd="http://www.w3.org/2001/XMLSchema">
<V1>A1</V1>
<V2>B1</V2>
<OtherValues>
<OValue>Test</OValue>
</OtherValues>
</XTest>

62. XML Documentation

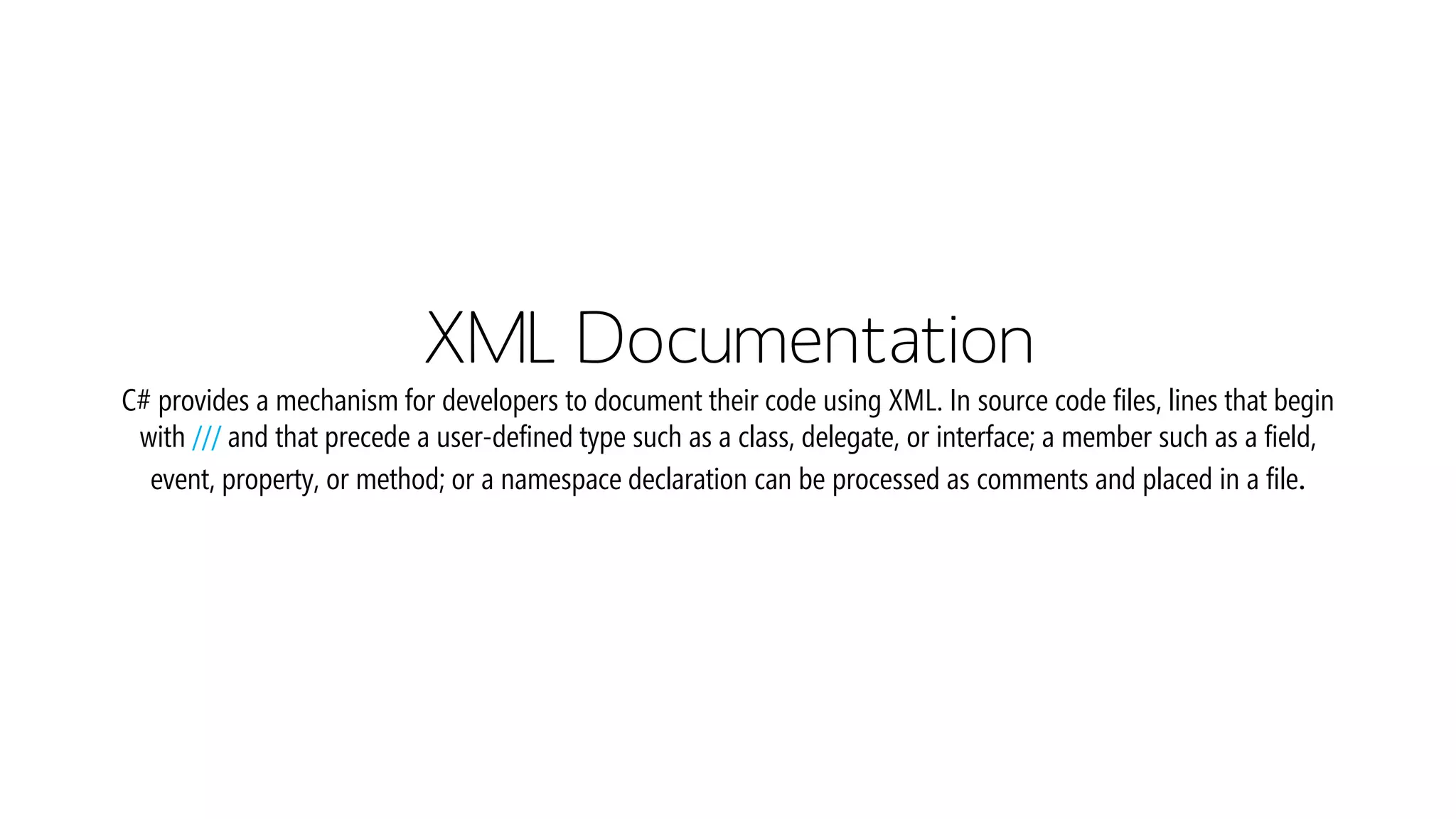

63. XML DocumentationC# provides a mechanism for developers to document their code using XML. In source code files, lines that begin with ///and that precede a user-defined type such as a class, delegate, or interface; a member such as a field, event, property, or method; or a namespace declaration can be processed as comments and placed in a file.

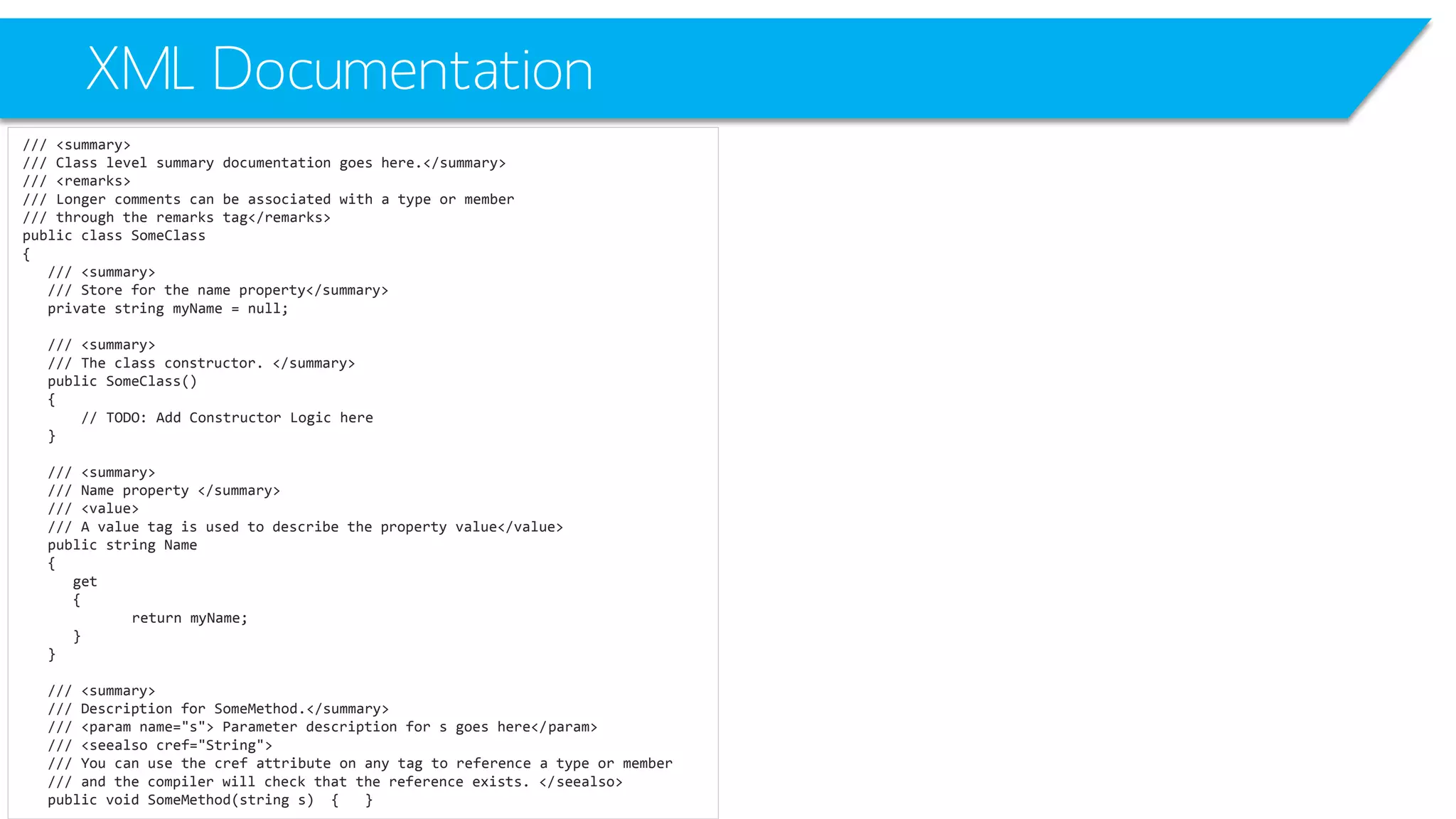

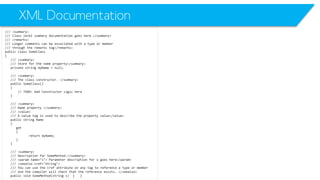

64. XML Documentation
/// <summary>
/// Class level summary documentation goes here.</summary>
/// <remarks>
/// Longer comments can be associated with a type or member
/// through the remarks tag</remarks>
public class SomeClass
{
/// <summary>
/// Store for the name property</summary>
private string myName= null;
/// <summary>
/// The class constructor. </summary>
public SomeClass()
{
// TODO: Add Constructor Logic here
}
/// <summary>
/// Name property </summary>
/// <value>
/// A value tag is used to describe the property value</value>
public string Name
{
get
{
return myName;
}
}
/// <summary>
/// Description for SomeMethod.</summary>
/// <paramname="s"> Parameter description for s goes here</param>
/// <seealsocref="String">
/// You can use the crefattribute on any tag to reference a type or member
/// and the compiler will check that the reference exists. </seealso>
public void SomeMethod(string s) { }

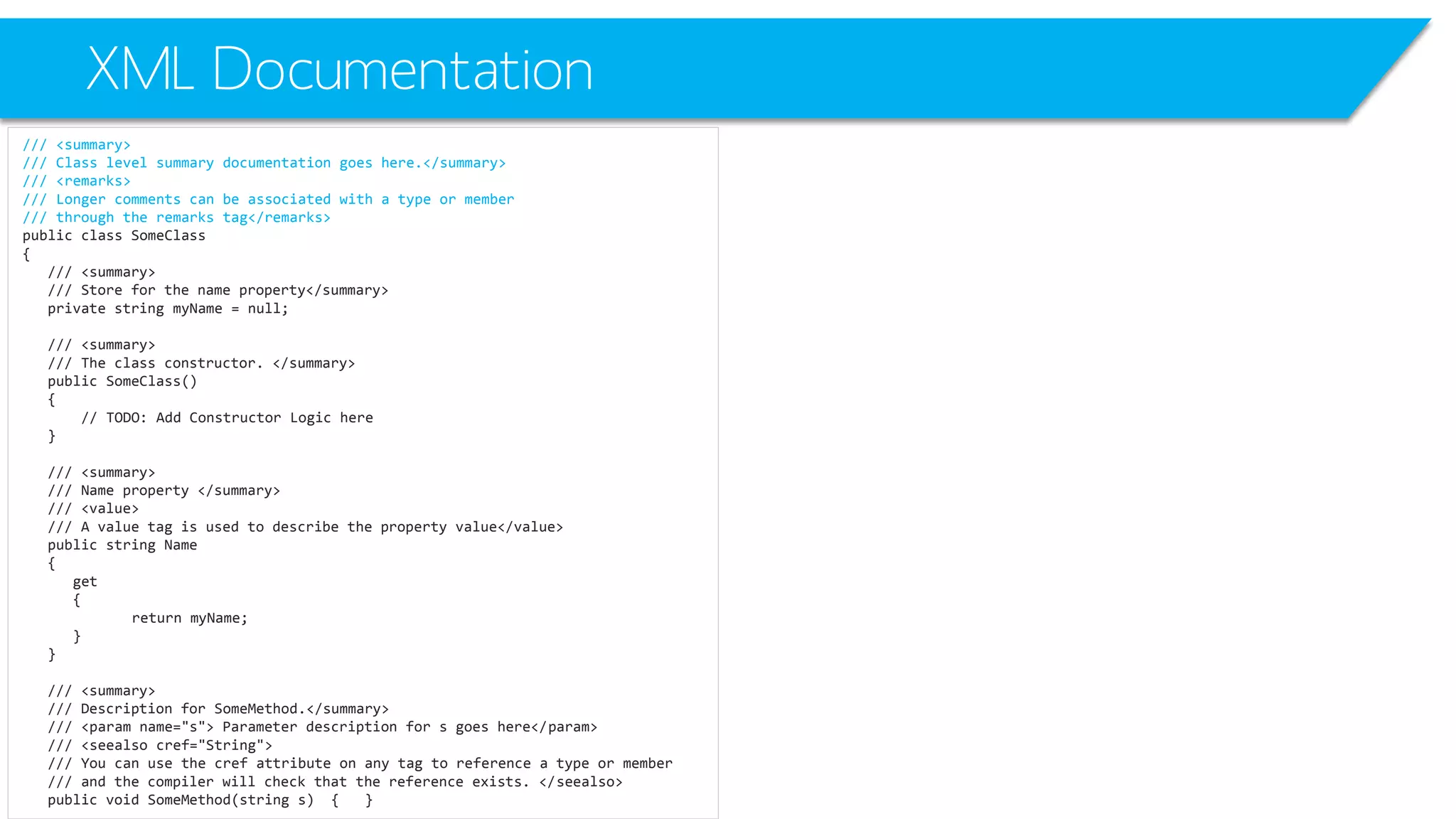

65. XML Documentation
/// <summary>
/// Class level summary documentation goes here.</summary>
/// <remarks>
/// Longer comments can be associated with a type or member
/// through the remarks tag</remarks>
public class SomeClass
{
/// <summary>
/// Store for the name property</summary>
private string myName= null;
/// <summary>
/// The class constructor. </summary>
public SomeClass()
{
// TODO: Add Constructor Logic here
}
/// <summary>
/// Name property </summary>
/// <value>
/// A value tag is used to describe the property value</value>
public string Name
{
get
{
return myName;
}
}
/// <summary>
/// Description for SomeMethod.</summary>
/// <paramname="s"> Parameter description for s goes here</param>
/// <seealsocref="String">
/// You can use the crefattribute on any tag to reference a type or member
/// and the compiler will check that the reference exists. </seealso>
public void SomeMethod(string s) { }

66. XML Documentation
/// <summary>
/// Class level summary documentation goes here.</summary>
/// <remarks>
/// Longer comments can be associated with a type or member
/// through the remarks tag</remarks>
public class SomeClass
{
/// <summary>
/// Store for the name property</summary>
private string myName= null;
/// <summary>
/// The class constructor. </summary>
public SomeClass()
{
// TODO: Add Constructor Logic here
}
/// <summary>
/// Name property </summary>
/// <value>
/// A value tag is used to describe the property value</value>
public string Name
{
get
{
return myName;
}
}
/// <summary>
/// Description for SomeMethod.</summary>
/// <paramname="s"> Parameter description for s goes here</param>
/// <seealsocref="String">
/// You can use the crefattribute on any tag to reference a type or member
/// and the compiler will check that the reference exists. </seealso>
public void SomeMethod(string s) { }
<?xml version="1.0"?>
<doc>
<assembly>
<name>xmlsample</name>
</assembly>
<members>
<member name="T:SomeClass">
<summary>
Class level summary documentation goes here.
</summary>
<remarks>
Longer comments can be associated with a type or member
through the remarks tag
</remarks>
</member>
<member name="F:SomeClass.myName">
<summary>
Store for the name property
</summary>
</member>
<member name="M:SomeClass.#ctor">
<summary>The class constructor.</summary>
</member>
<member name="M:SomeClass.SomeMethod(System.String)">
<summary>Description for SomeMethod.</summary>
<paramname="s"> Parameter description for s goes here</param>
<seealsocref="T:System.String">
You can use the crefattribute on any tag to reference a type or member
and the compiler will check that the reference exists. </seealso>
</member>
….
</doc>

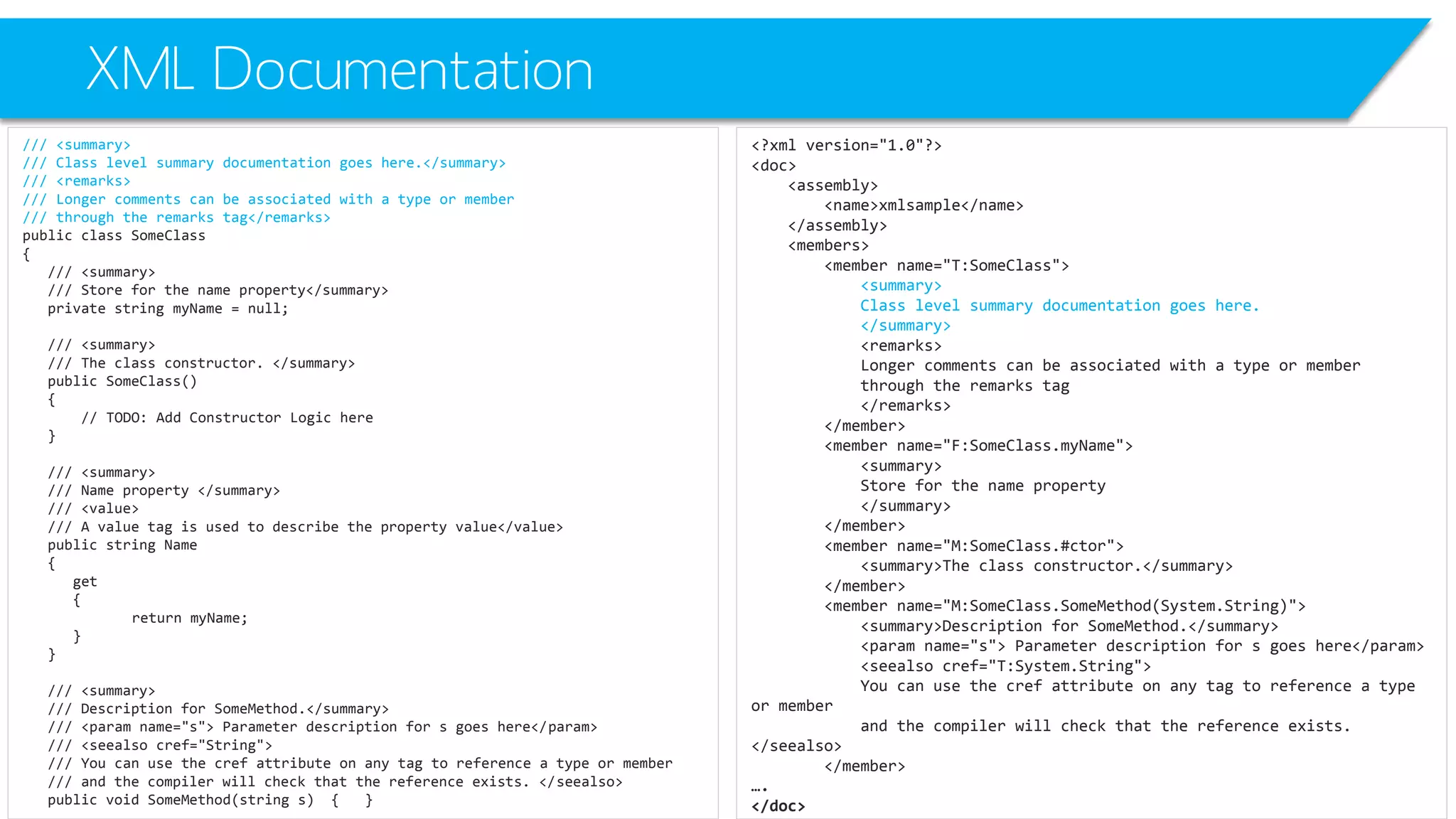

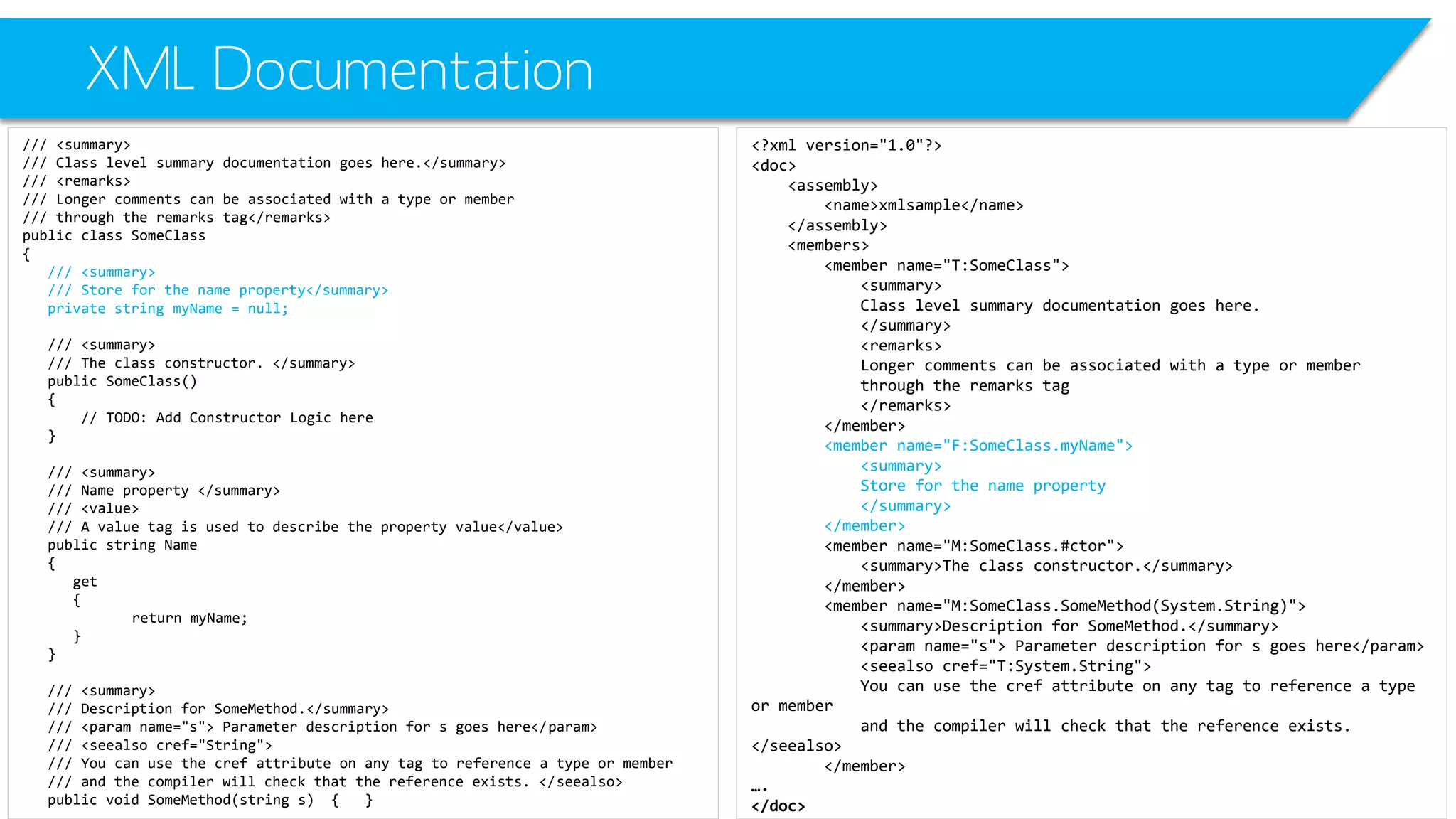

67. XML Documentation
/// <summary>
/// Class level summary documentation goes here.</summary>
/// <remarks>
/// Longer comments can be associated with a type or member
/// through the remarks tag</remarks>
public class SomeClass
{
/// <summary>
/// Store for the name property</summary>
private string myName= null;
/// <summary>
/// The class constructor. </summary>
public SomeClass()
{
// TODO: Add Constructor Logic here
}
/// <summary>
/// Name property </summary>
/// <value>
/// A value tag is used to describe the property value</value>
public string Name
{
get
{
return myName;
}
}
/// <summary>
/// Description for SomeMethod.</summary>
/// <paramname="s"> Parameter description for s goes here</param>
/// <seealsocref="String">
/// You can use the crefattribute on any tag to reference a type or member
/// and the compiler will check that the reference exists. </seealso>
public void SomeMethod(string s) { }
<?xml version="1.0"?>
<doc>
<assembly>
<name>xmlsample</name>
</assembly>
<members>
<member name="T:SomeClass">
<summary>
Class level summary documentation goes here.
</summary>
<remarks>
Longer comments can be associated with a type or member
through the remarks tag
</remarks>
</member>
<member name="F:SomeClass.myName">
<summary>
Store for the name property
</summary>
</member>
<member name="M:SomeClass.#ctor">
<summary>The class constructor.</summary>
</member>
<member name="M:SomeClass.SomeMethod(System.String)">
<summary>Description for SomeMethod.</summary>
<paramname="s"> Parameter description for s goes here</param>
<seealsocref="T:System.String">
You can use the crefattribute on any tag to reference a type or member
and the compiler will check that the reference exists. </seealso>
</member>
….
</doc>

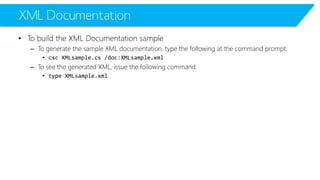

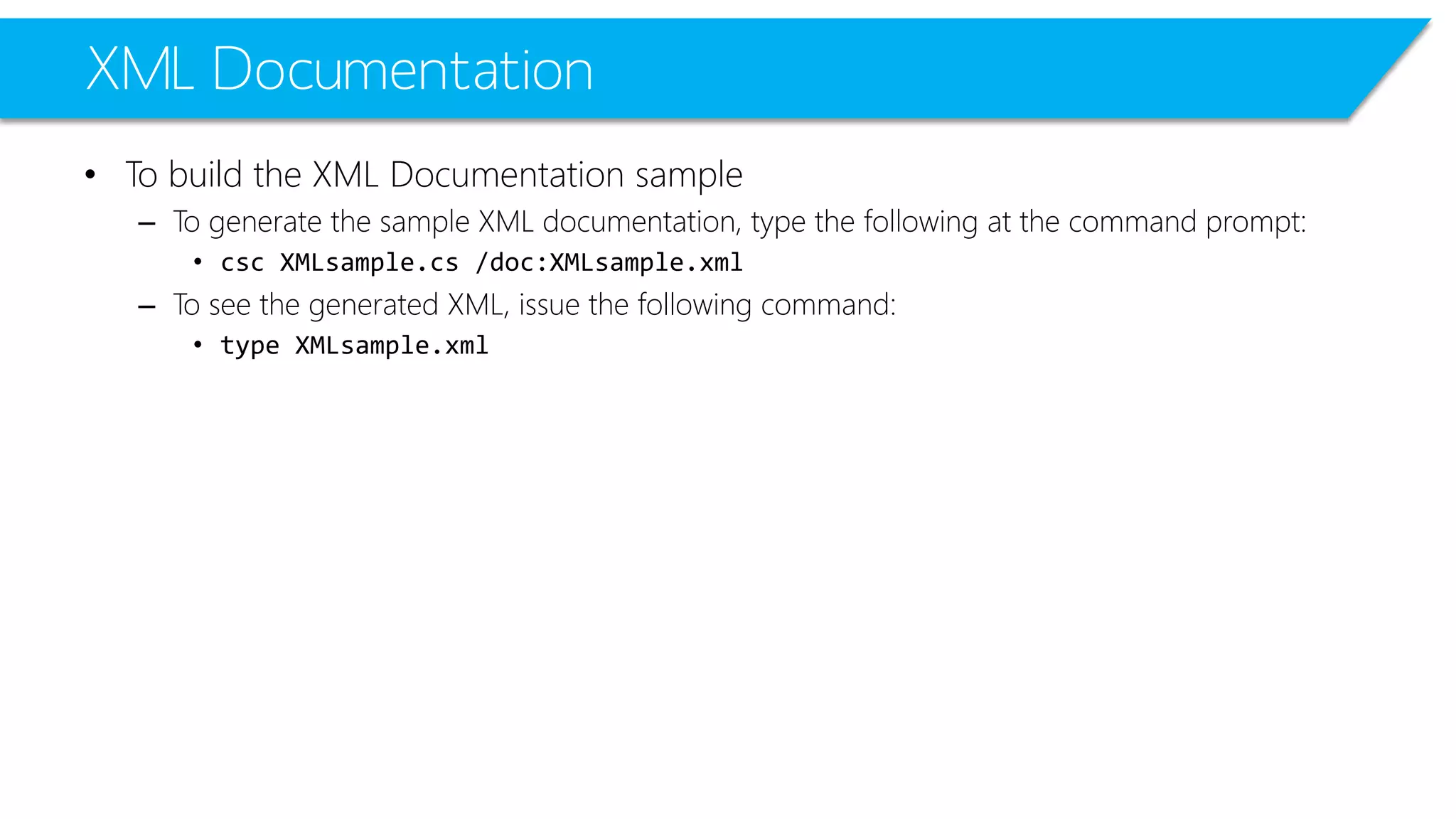

68. XML Documentation
•To build the XML Documentation sample
–To generate the sample XML documentation, type the following at the command prompt:
•cscXMLsample.cs/doc:XMLsample.xml
–To see the generated XML, issue the following command:
•type XMLsample.xml
