Enabling IPv6 Services Transparently

Painlessly Exposing IPv4-only Services on
the IPv6 Internet
Carlos Martinez Cagnazzo
LACNIC
carlos @ lacnic.net
@carlosm3011

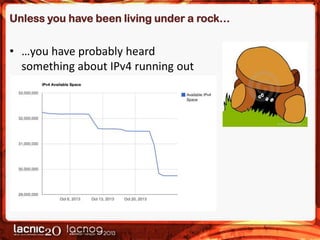

Unless you have been living under a rock…

• …you have probably heard
something about IPv4 running out

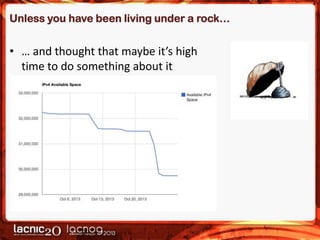

Unless you have been living under a rock…

• … and thought that maybe it’s high
time to do something about it

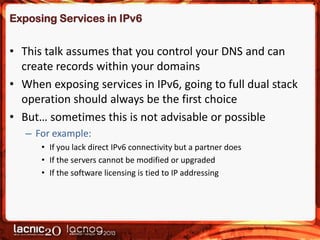

Exposing Services in IPv6

• This talk assumes that you control your DNS and can
create records within your domains
• When exposing services in IPv6, going to full dual stack
operation should always be the first choice
• But… sometimes this is not advisable or possible
– For example:
• If you lack direct IPv6 connectivity but a partner does
• If the servers cannot be modified or upgraded
• If the software licensing is tied to IP addressing

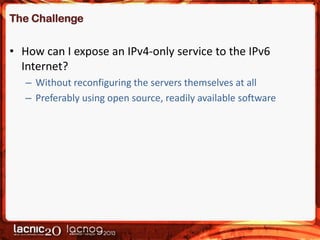

The Challenge

• How can I expose an IPv4-only service to the IPv6
Internet?
– Without reconfiguring the servers themselves at all
– Preferably using open source, readily available software

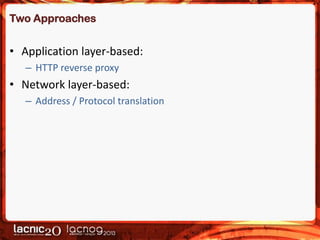

Two Approaches

• Application layer-based:
– HTTP reverse proxy

• Network layer-based:
– Address / Protocol translation

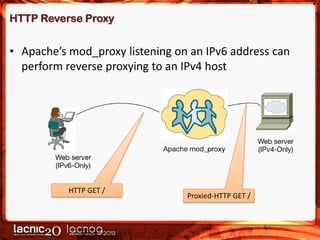

HTTP Reverse Proxy

• Apache’s mod_proxy listening on an IPv6 address can
perform reverse proxying to an IPv4 host

HTTP GET /

Proxied-HTTP GET /

HTTP Reverse Proxy

• Apache’s mod_proxy can listen on an IPv6 address and
perform reverse proxying to an IPv4 address:
<VirtualHost [2001:13c7:7001:4000::10]:80>
# Server names
ServerName www.mnav.gub.uy
ServerAlias www.mnav.gub.uy.prx64.labs.lacnic.net
# Logs
CustomLog
/home/v6v4Proxy/logs/mnav/access.log combined
ErrorLog
/home/v6v4Proxy/logs/mnav/error.log
ProxyPass
/ http://www.mnav.gub.uy/
ProxyPassReverse
/ http://www.mnav.gub.uy/
</VirtualHost>

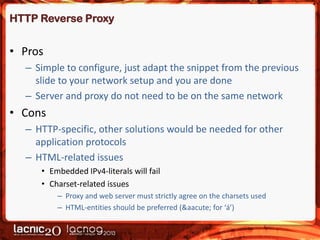

HTTP Reverse Proxy

• Pros
– Simple to configure, just adapt the snippet from the previous
slide to your network setup and you are done
– Server and proxy do not need to be on the same network

• Cons
– HTTP-specific, other solutions would be needed for other
application protocols
– HTML-related issues
• Embedded IPv4-literals will fail
• Charset-related issues
– Proxy and web server must strictly agree on the charsets used
– HTML-entities should be preferred (á for ‘á’)

A Network-layer Approach

• Meet NAT64 !
– Connect IPv6-only clouds with IPv4-only clouds
– Translate protocol headers including addresses

• Destination IPv4 address is embedded / encoded in IPv6
destination address
• Source IPv4 address for translated packet:
– Multiplexed using TCP / UDP port numbers: Stateful NAT64
– One-to-one mapping: Stateless NAT64

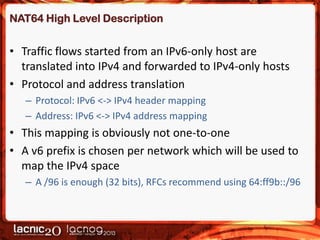

NAT64 High Level Description

• Traffic flows started from an IPv6-only host are
translated into IPv4 and forwarded to IPv4-only hosts
• Protocol and address translation
– Protocol: IPv6 <-> IPv4 header mapping
– Address: IPv6 <-> IPv4 address mapping

• This mapping is obviously not one-to-one
• A v6 prefix is chosen per network which will be used to
map the IPv4 space
– A /96 is enough (32 bits), RFCs recommend using 64:ff9b::/96

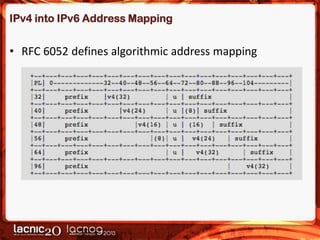

IPv4 into IPv6 Address Mapping

• RFC 6052 defines algorithmic address mapping

NAT64 (ii)

• Protocol translation
– For each IPv6 packet the NAT64 box receives it has to build an
IPv4 packet
• Header field mapping
• Address mapping IPv6 -> IPv4
– No one-to-one mapping is possible

– The NAT64 box needs at least one public IPv4 address for
outgoing packets
• It needs to keep a state table, just like any NAT implementation

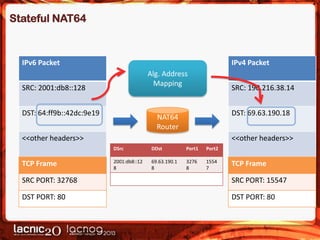

Stateful NAT64

IPv6 Packet

IPv4 Packet

Alg. Address
Mapping

SRC: 2001:db8::128
DST: 64:ff9b::42dc:9e19

SRC: 190.216.38.14
DST: 69.63.190.18

NAT64
Router

<<other headers>>

<<other headers>>
DSrc

TCP Frame

DDst

Port1

Port2

2001:db8::12
8

69.63.190.1
8

3276
8

1554
7

TCP Frame

SRC PORT: 32768

SRC PORT: 15547

DST PORT: 80

DST PORT: 80

Stateless NAT64

IPv6 Packet
SRC: 2001:db8::128
DST: 64:ff9b::42dc:9e19

IPv4 Packet

Algorithmic Address
Mapping

NAT64
Router

<<other headers>>

SRC: 190.216.38.X
DST: 69.63.190.18
<<other headers>>

SRC address is
mapped one-to-one
to the IPv6 hosts

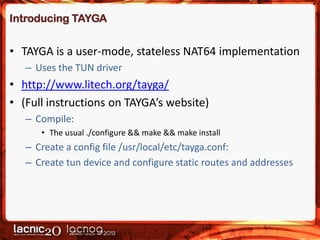

Introducing TAYGA

• TAYGA is a user-mode, stateless NAT64 implementation
– Uses the TUN driver

• http://www.litech.org/tayga/
• (Full instructions on TAYGA’s website)
– Compile:
• The usual ./configure && make && make install

– Create a config file /usr/local/etc/tayga.conf:
– Create tun device and configure static routes and addresses

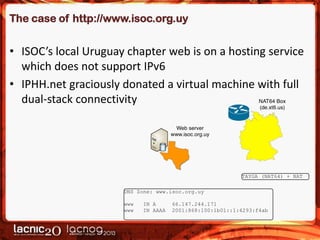

The case of http://www.isoc.org.uy

• ISOC’s local Uruguay chapter web is on a hosting service
which does not support IPv6
• IPHH.net graciously donated a virtual machine with full
dual-stack connectivity

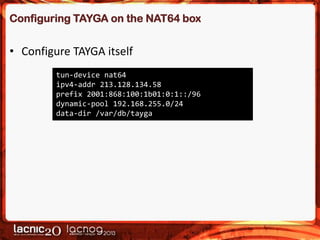

Configuring TAYGA on the NAT64 box

• Configure TAYGA itself
tun-device nat64
ipv4-addr 213.128.134.58
prefix 2001:868:100:1b01:0:1::/96
dynamic-pool 192.168.255.0/24
data-dir /var/db/tayga

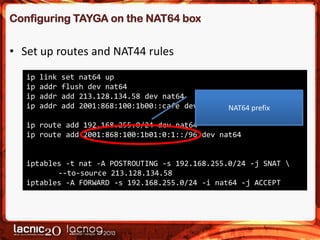

Configuring TAYGA on the NAT64 box

• Set up routes and NAT44 rules
ip
ip
ip
ip

link
addr
addr
addr

set nat64 up
flush dev nat64
add 213.128.134.58 dev nat64
add 2001:868:100:1b00::cafe dev nat64 NAT64 prefix

ip route add 192.168.255.0/24 dev nat64
ip route add 2001:868:100:1b01:0:1::/96 dev nat64

iptables -t nat -A POSTROUTING -s 192.168.255.0/24 -j SNAT
--to-source 213.128.134.58
iptables -A FORWARD -s 192.168.255.0/24 -i nat64 -j ACCEPT

What is going on inside the NAT64 box ?

IPv6

Incoming IPv6 packets
eth0
(IPv6)

nat64

IPv4 (priv)
IPv6

Outgoing IPv4 packets
(public addressing)

IPv4 (priv)

TAYGA

NAT44

eth0
(IPv4)

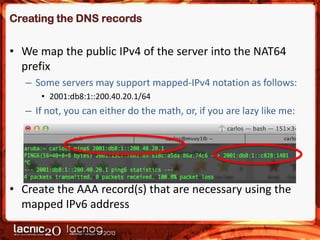

Creating the DNS records

• We map the public IPv4 of the server into the NAT64
prefix
– Some servers may support mapped-IPv4 notation as follows:
• 2001:db8:1::200.40.20.1/64

– If not, you can either do the math, or, if you are lazy like me:

• Create the AAA record(s) that are necessary using the
mapped IPv6 address

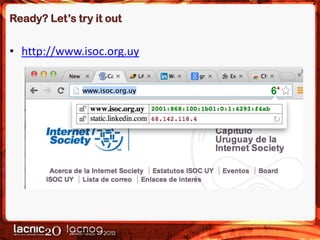

Ready? Let’s try it out

• http://www.isoc.org.uy

Want to try it out for your website?

• Drop me an email!
