ClearPass Overview
- 1. ClearPass Overview Chuck Jenson– CSE, Network Security
- 2. 2 Question of theDay – Week - Month - Year WHAT ISON THE

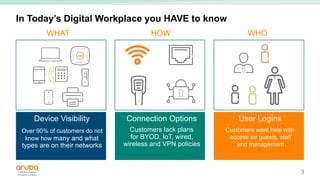

- 3. 3 In Today’s DigitalWorkplace you HAVE to know Device Visibility Over 90% of customers do not know how many and what types are on their networks Connection Options Customers lack plans for BYOD, IoT, wired, wireless and VPN policies User Logins Customers want help with access for guests, staff and management WHAT HOW WHO
- 4. 4 Step One –Visibility Hundreds of built in device category profiling fingerprints. All Included in base appliance. Total devices Fingerprint data Device types

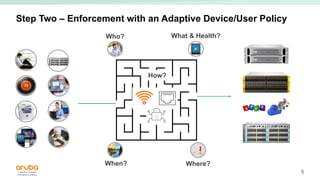

- 5. 5 Who? What &Health? Where?When? Step Two – Enforcement with an Adaptive Device/User Policy How?

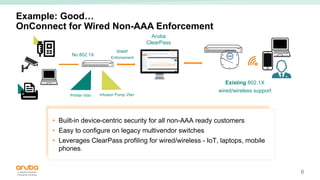

- 6. 6 Example: Good… OnConnect forWired Non-AAA Enforcement Aruba ClearPass SNMP Enforcement Printer Vlan Infusion Pump Vlan Existing 802.1X wired/wireless support No 802.1X • Built-in device-centric security for all non-AAA ready customers • Easy to configure on legacy multivendor switches • Leverages ClearPass profiling for wired/wireless - IoT, laptops, mobile phones.
- 7. 7 Technolo Example: Better… MAC Authentication:Authentication Before Access Aruba ClearPass Existing Devices with no supplicant wired/wireless support • MultiVendor and MultiSession support for all devices wired and wireless • Secure encrypted wireless access using PSK • Built-in ClearPass profiling - IoT, laptops, mobile phones • Easy to use policy creation templates • Possible to provide Guest Wired
- 8. 8 Example: Better -”Colorless Ports” – Aruba Switches
- 9. 9 Example: Better -”Colorless Ports” – Cisco Switches

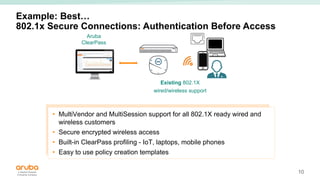

- 10. 10 Technolo Example: Best… 802.1x SecureConnections: Authentication Before Access Aruba ClearPass Existing 802.1X wired/wireless support • MultiVendor and MultiSession support for all 802.1X ready wired and wireless customers • Secure encrypted wireless access • Built-in ClearPass profiling - IoT, laptops, mobile phones • Easy to use policy creation templates

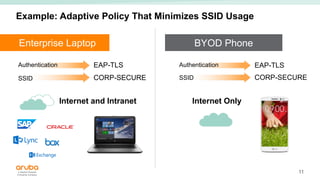

- 11. 11 Example: Adaptive PolicyThat Minimizes SSID Usage Enterprise Laptop Authentication EAP-TLS SSID CORP-SECURE Authentication EAP-TLS SSID CORP-SECURE Internet OnlyInternet and Intranet BYOD Phone
- 12. 12 Visibility • Policy Engine •RADIUS/CoA • TACACS+ • Profiling+ • +100 RADIUS dictionaries • OnConnect • Advanced reporting Automation • Policy simulation • Access Tracking • Template-based policy creation • Basic Guest (Social Login) • LDAP browser • Per session logs Protect • Exchange • API • Syslog • Extensions • AirGroup Bonjour/DLNA • Device registration • Certificate revocation ClearPass Policy Manager – What's Inside?
- 13. 13 ClearPass Exchange –Supporting Best of Breed CONTROLLER SWITCHACCESS POINT Firewall / IPS INFRASTRUCTURE PERIMETER SECURITY & ENDPOINT MANAGMENT Here is just a few of the Network, Firewall, Security and Endpoint Management exchange partners we work with.

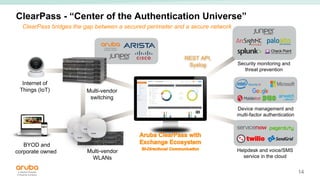

- 14. 14 Internet of Things (IoT) BYODand corporate owned REST API, Syslog Security monitoring and threat prevention Device management and multi-factor authentication Helpdesk and voice/SMS service in the cloud Multi-vendor switching Multi-vendor WLANs ClearPass - “Center of the Authentication Universe” ClearPass bridges the gap between a secured perimeter and a secure network

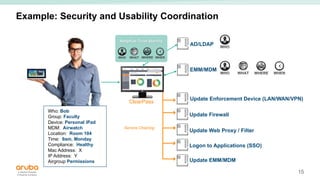

- 15. 15 Logon to Applications(SSO) Update Firewall Update Web Proxy / Filter Update EMM/MDM Example: Security and Usability Coordination AD/LDAP EMM/MDM Who: Bob Group: Faculty Device: Personal iPad MDM: Airwatch Location: Room 104 Time: 9am, Monday Compliance: Healthy Mac Address: X IP Address: Y Airgroup Permissions Update Enforcement Device (LAN/WAN/VPN) Adaptive Trust Identity ClearPass Service Chaining
- 16. 16 Firewall / IPSLAN/WLAN User connects and downloads threat NGFW / IPS sends event to ClearPass ClearPass Quarantines client 1 2 3 Example: Automated Defense – Palo Alto Networks or CheckPoint 4 ClearPass Service Chaining
- 17. 17 Example: Service Chaining RadiusAction to force notification page Send user SMS notification Update Palo Alto Firewall Open Help Desk Ticket Sound the alarm! Send Email to security team

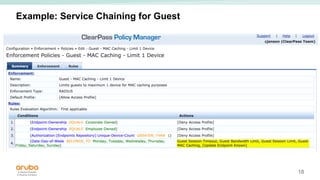

- 18. 18 Example: Service Chainingfor Guest
- 19. 19 Automated workflows Enhanced securityfor BYOD and guests Rules by user role and device types Onboard Guest OnGuard ClearPass Expandable Applications IntroSpect
- 20. CONFIDENTIAL © Copyright2016. Aruba, a Hewlett Packard Enterprise Company. All rights reserved Guest: Flexible Guest Logins for Any Visitor Visitor uses self registration Rich self-service workflows to control guest access privileges Logon support for social, sponsor Mac Caching for repeat visitors
- 21. 21 Access Network Sponsor confirms guestis valid ClearPass Guest Account enabled, visitor notified via screen, SMS, or email Visitor information collected New Visitor Sponsor 1 2 3 Guest - Self-Service with Sponsor Example
- 22. CONFIDENTIAL © Copyright2016. Aruba, a Hewlett Packard Enterprise Company. All rights reserved OnBoard: BYOD Employees Login with Personal Devices User and IT friendly: One time user registration / no IT intervention Security: IT managed, 802.1X and Certificates Context: Data added to profile for adaptive policy and troubleshooting
- 23. 23CONFIDENTIAL © Copyright2016. Aruba, a Hewlett Packard Enterprise Company. All rights reserved OnGuard: Automated Health Checks Before Access Wired/Wireless/VPN: Ensures posture compliance for laptops/computers Security: Forces use of Anti-Virus, Anti-Spyware, firewalls, disk encryption… Remediation: Manual or auto Visibility: Identifies poor behavior
- 24. 24www.arubanetworks.com/clearpass www.arubanetworks.com/introspect ClearPass Real-timePolicy-based Actions • Real-time quarantine, • Re-authentication • Bandwidth Control • Blacklist • Role-change Devices Profiled User/Device Context Wired/Wireless Device Authentication Actionable Alerts ClearPass Policy Manager IntroSpect UEBA Entity360 Profile with Risk Scoring ClearPass + IntroSpect = 3600 Protection Detect and Validate Monitor and Alert Decide and Act

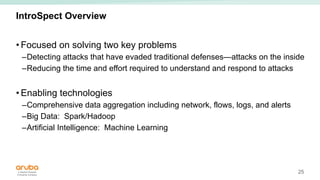

- 25. 25 • Focused onsolving two key problems –Detecting attacks that have evaded traditional defenses—attacks on the inside –Reducing the time and effort required to understand and respond to attacks • Enabling technologies –Comprehensive data aggregation including network, flows, logs, and alerts –Big Data: Spark/Hadoop –Artificial Intelligence: Machine Learning IntroSpect Overview
- 26.
- 27. 27 Accelerated Investigation andResponse Entity360 Profile Behavioral Analytics

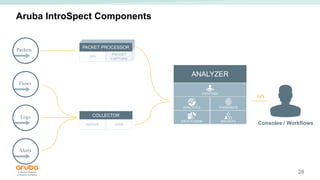

- 28. 28 Aruba IntroSpect Components Packets Flows Logs Alerts PACKETPROCESSOR DPI PACKET CAPTURE API ANALYZER ENTITY360 ANALYTICS FORENSICS DATA FUSION BIG DATA Consoles / Workflows COLLECTOR NATIVE SIEM
- 29. Recent Wins andIndustry Adoption Over 4300 ClearPass Customers - Over 25 Verticals Market Leader 2013 / 2014 Gartner NAC Magic Quadrant
