- 1. #ATM16 Large scale, distributedaccess management deployment with Aruba ClearPass Venkatraju T V – ClearPass Engineer Steve Eubanks – ClearPass CSE Drew Wyskida – ClearPass CSE March 9, 2016 @ArubaNetworks |

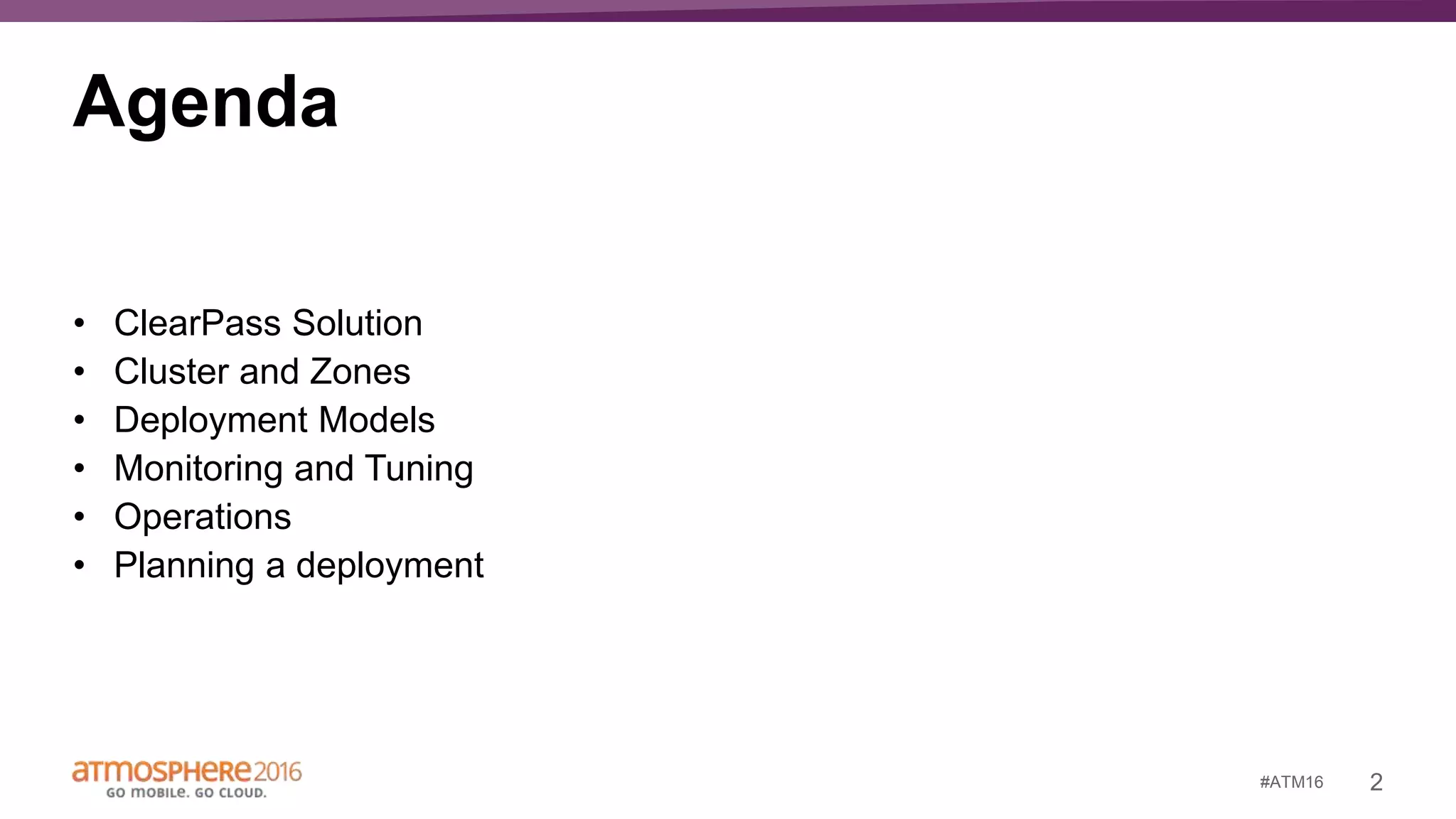

- 2. 2#ATM16 Agenda • ClearPass Solution •Cluster and Zones • Deployment Models • Monitoring and Tuning • Operations • Planning a deployment
- 3.
- 4. 4#ATM16@ArubaNetworks | ClearPass solution ModelsCP-500 CP-5K CP-25K Maximum devices 500 5,000 25,000 Maximum devices in High Capacity Guest mode 1000 10,000 50,000 Policy Manager Guest OnboardOnGuard

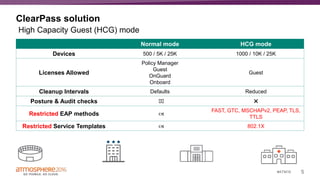

- 5. 5#ATM16 ClearPass solution Normal modeHCG mode Devices 500 / 5K / 25K 1000 / 10K / 25K Licenses Allowed Policy Manager Guest OnGuard Onboard Guest Cleanup Intervals Defaults Reduced Posture & Audit checks ✖️ Restricted EAP methods FAST, GTC, MSCHAPv2, PEAP, TLS, TTLS Restricted Service Templates 802.1X High Capacity Guest (HCG) mode
- 6.

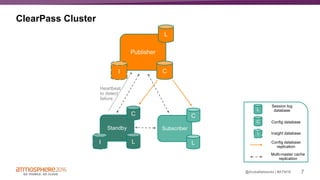

- 7. 7#ATM16@ArubaNetworks | ClearPass Cluster Publisher C StandbySubscriber C C I I Multi-master cache replication Config database replication I C Config database Insight database L L Session log databaseL Heartbeat to detect failure L

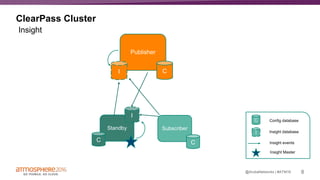

- 8. 8#ATM16@ArubaNetworks | ClearPass Cluster Publisher C StandbySubscriber C C I I Insight events I C Config database Insight database Insight Insight Master

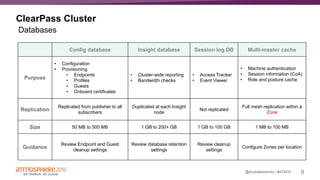

- 9. 9#ATM16@ArubaNetworks | ClearPass Cluster Configdatabase Insight database Session log DB Multi-master cache Purpose • Configuration • Provisioning • Endpoints • Profiles • Guests • Onboard certificates • Cluster-wide reporting • Bandwidth checks • Access Tracker • Event Viewer • Machine authentication • Session information (CoA) • Role and posture cache Replication Replicated from publisher to all subscribers Duplicated at each Insight node Not replicated Full mesh replication within a Zone Size 50 MB to 500 MB 1 GB to 200+ GB 1 GB to 100 GB 1 MB to 100 MB Guidance Review Endpoint and Guest cleanup settings Review database retention settings Review cleanup settings Configure Zones per location Databases

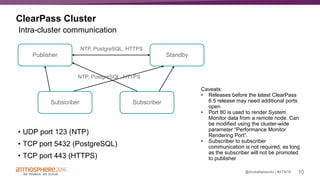

- 10. 10#ATM16@ArubaNetworks | ClearPass Cluster •UDP port 123 (NTP) • TCP port 5432 (PostgreSQL) • TCP port 443 (HTTPS) Publisher Standby Subscriber NTP, PostgreSQL, HTTPS NTP, PostgreSQL, HTTPS Subscriber Caveats: • Releases before the latest ClearPass 6.5 release may need additional ports open • Port 80 is used to render System Monitor data from a remote node. Can be modified using the cluster-wide parameter “Performance Monitor Rendering Port”. • Subscriber to subscriber communication is not required, as long as the subscriber will not be promoted to publisher Intra-cluster communication
- 11. 11#ATM16@ArubaNetworks | ClearPass Cluster •Join nodes to AD for MSCHAPv2 • Can join multiple independent AD domains • Deploy nodes close to AD domain controllers • Can override AD Password Servers Active Directory (AD) integration

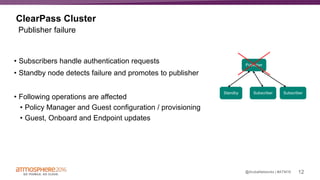

- 12. 12#ATM16@ArubaNetworks | ClearPass Cluster Publisher StandbySubscriber Subscriber Publisher failure • Subscribers handle authentication requests • Standby node detects failure and promotes to publisher • Following operations are affected • Policy Manager and Guest configuration / provisioning • Guest, Onboard and Endpoint updates

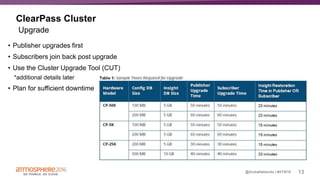

- 13. 13#ATM16@ArubaNetworks | ClearPass Cluster •Publisher upgrades first • Subscribers join back post upgrade • Use the Cluster Upgrade Tool (CUT) *additional details later • Plan for sufficient downtime Upgrade

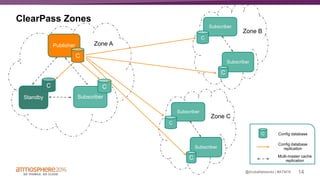

- 14. 14#ATM16@ArubaNetworks | ClearPass Zones Publisher Subscriber C C StandbySubscriber Subscriber C C C Zone A Zone B Multi-master cache replication Config database replication C Config database Subscriber C Subscriber C Zone C

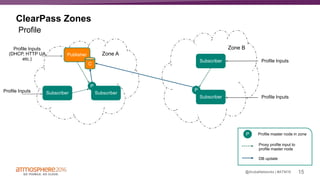

- 15. 15#ATM16@ArubaNetworks | ClearPass Zones Profile Publisher SubscriberSubscriber C Subscriber Subscriber Zone A Zone B P P Profile Inputs (DHCP, HTTP UA etc.) Profile Inputs Profile Inputs P Profile master node in zone DB update Proxy profile input to profile master node Profile Inputs
- 16. 16#ATM16@ArubaNetworks | ClearPass Zones ConfigureOnGuard client subnets per zone OnGuard
- 17.

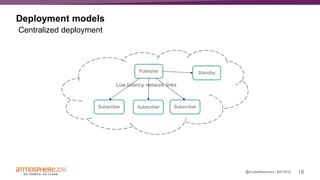

- 18. 18#ATM16@ArubaNetworks | Deployment models PublisherStandby Subscriber Subscriber Subscriber Low latency network links Centralized deployment

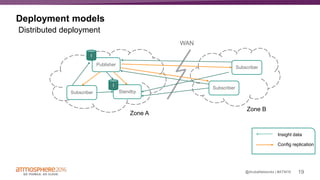

- 19. 19#ATM16@ArubaNetworks | Deployment models Publisher Standby Subscriber Subscriber Subscriber ZoneA Zone B WAN I I Config replication Insight data Distributed deployment

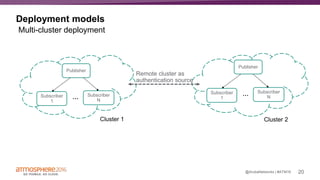

- 20. 20#ATM16@ArubaNetworks | Deployment models Publisher Subscriber N Subscriber 1 Cluster1 Cluster 2 … Publisher Subscriber N Subscriber 1 … Remote cluster as authentication source Multi-cluster deployment

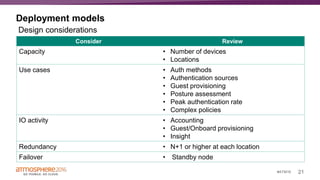

- 21. 21#ATM16 Consider Review Capacity •Number of devices • Locations Use cases • Auth methods • Authentication sources • Guest provisioning • Posture assessment • Peak authentication rate • Complex policies IO activity • Accounting • Guest/Onboard provisioning • Insight Redundancy • N+1 or higher at each location Failover • Standby node Design considerations Deployment models

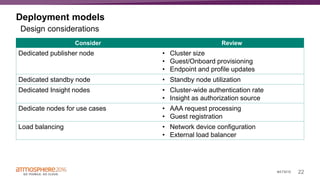

- 22. 22#ATM16 Deployment models Consider Review Dedicatedpublisher node • Cluster size • Guest/Onboard provisioning • Endpoint and profile updates Dedicated standby node • Standby node utilization Dedicated Insight nodes • Cluster-wide authentication rate • Insight as authorization source Dedicate nodes for use cases • AAA request processing • Guest registration Load balancing • Network device configuration • External load balancer Design considerations
- 23.

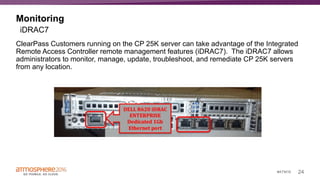

- 24. 24#ATM16 Monitoring ClearPass Customers runningon the CP 25K server can take advantage of the Integrated Remote Access Controller remote management features (iDRAC7). The iDRAC7 allows administrators to monitor, manage, update, troubleshoot, and remediate CP 25K servers from any location. iDRAC7

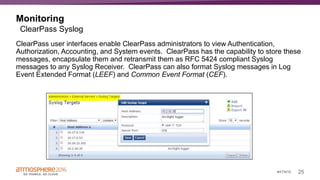

- 25. 25#ATM16 Monitoring ClearPass user interfacesenable ClearPass administrators to view Authentication, Authorization, Accounting, and System events. ClearPass has the capability to store these messages, encapsulate them and retransmit them as RFC 5424 compliant Syslog messages to any Syslog Receiver. ClearPass can also format Syslog messages in Log Event Extended Format (LEEF) and Common Event Format (CEF). ClearPass Syslog

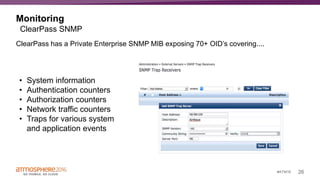

- 26. 26#ATM16 Monitoring ClearPass has aPrivate Enterprise SNMP MIB exposing 70+ OID’s covering.... ClearPass SNMP • System information • Authentication counters • Authorization counters • Network traffic counters • Traps for various system and application events

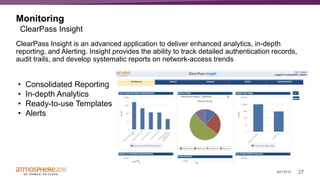

- 27. 27#ATM16 Monitoring ClearPass Insight isan advanced application to deliver enhanced analytics, in-depth reporting, and Alerting. Insight provides the ability to track detailed authentication records, audit trails, and develop systematic reports on network-access trends ClearPass Insight • Consolidated Reporting • In-depth Analytics • Ready-to-use Templates • Alerts
- 28.

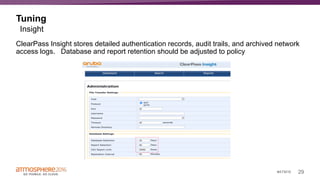

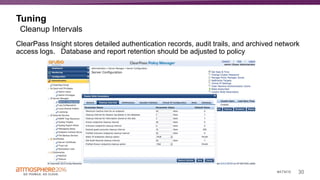

- 29. 29#ATM16 Tuning ClearPass Insight storesdetailed authentication records, audit trails, and archived network access logs. Database and report retention should be adjusted to policy Insight
- 30. 30#ATM16 Tuning ClearPass Insight storesdetailed authentication records, audit trails, and archived network access logs. Database and report retention should be adjusted to policy Cleanup Intervals

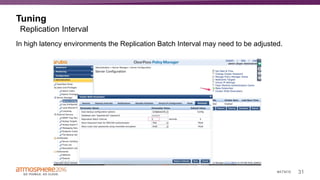

- 31. 31#ATM16 Tuning In high latencyenvironments the Replication Batch Interval may need to be adjusted. Replication Interval
- 32.
- 33. 33#ATM16 Operations The Cluster UpgradeTool is a simple user interface that automates the upgrade procedure for a ClearPass cluster. Cluster Upgrade Tool (CUT) What does it do? • Helps administrators upgrade multi node clusters (large or small) • Task automation, reduces operational overhead and time • Provides pre/post upgrade checks to flag/fix potential issues and ensure cluster health Technical Details • Available as a patch for Publishers running 6.2.6, 6.3.x, 6.4.x • Software images distributed from publisher to subscribers • Database lock time reduced to minutes versus hours • Upgrade multiple subscribers simultaneously • Does not upgrade patches (roadmap feature)

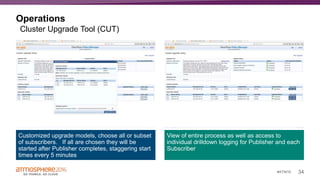

- 34. 34#ATM16 Operations Customized upgrade models,choose all or subset of subscribers. If all are chosen they will be started after Publisher completes, staggering start times every 5 minutes View of entire process as well as access to individual drilldown logging for Publisher and each Subscriber Cluster Upgrade Tool (CUT)

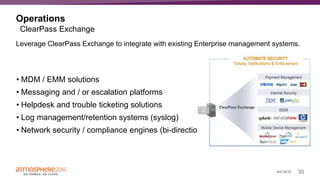

- 35. 35#ATM16 Operations • MDM /EMM solutions • Messaging and / or escalation platforms • Helpdesk and trouble ticketing solutions • Log management/retention systems (syslog) • Network security / compliance engines (bi-directional) ClearPass Exchange Leverage ClearPass Exchange to integrate with existing Enterprise management systems.

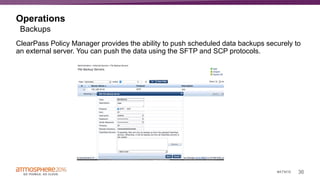

- 36. 36#ATM16 Operations ClearPass Policy Managerprovides the ability to push scheduled data backups securely to an external server. You can push the data using the SFTP and SCP protocols. Backups

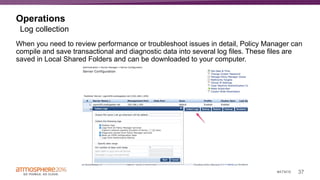

- 37. 37#ATM16 Operations When you needto review performance or troubleshoot issues in detail, Policy Manager can compile and save transactional and diagnostic data into several log files. These files are saved in Local Shared Folders and can be downloaded to your computer. Log collection

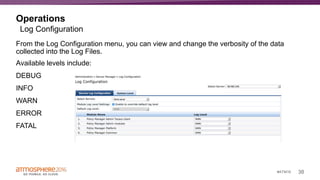

- 38. 38#ATM16 Operations From the LogConfiguration menu, you can view and change the verbosity of the data collected into the Log Files. Available levels include: DEBUG INFO WARN ERROR FATAL Log Configuration

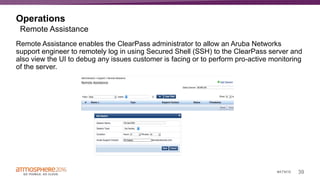

- 39. 39#ATM16 Operations Remote Assistance enablesthe ClearPass administrator to allow an Aruba Networks support engineer to remotely log in using Secured Shell (SSH) to the ClearPass server and also view the UI to debug any issues customer is facing or to perform pro-active monitoring of the server. Remote Assistance
- 40.
- 41. 41#ATM16 Enterprise ClearPass Deployment DesignPhase • Identify individual use cases • Determine necessary ClearPass Policy Manager (CPPM) Modules • Discover/Determine Customer Environments •Regional Data Centers •Estimated number of Endpoints per region • Define Initial CPPM Cluster Architecture • Define Licensing requirements Use Case Analysis (Design) Planning and Pilot Design Modifications Production Roll out
- 42. 42#ATM16 Planning/Pilot Phase • Developdraft roll out plan for Enterprise • Develop communications plan for notifying End Users • Identify pilot locations to meet criteria set in Use Cases • Leverage environment as close to production for pilot testing • Capture pilot results Use Case Analysis Planning and Pilot Design Modifications Production Roll out Enterprise ClearPass Deployment

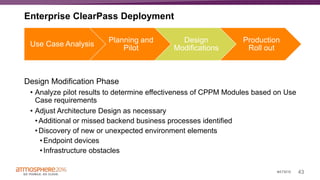

- 43. 43#ATM16 Design Modification Phase •Analyze pilot results to determine effectiveness of CPPM Modules based on Use Case requirements • Adjust Architecture Design as necessary •Additional or missed backend business processes identified •Discovery of new or unexpected environment elements •Endpoint devices •Infrastructure obstacles Use Case Analysis Planning and Pilot Design Modifications Production Roll out Enterprise ClearPass Deployment
- 44. 44#ATM16 Production Roll outPhase • Adjust deployment plan for production roll out • Begin communication plan to end users with expected changes • Execute deployment according to schedule Use Case Analysis Planning and Pilot Design Modifications Production Roll out Enterprise ClearPass Deployment
- 45. 45#ATM16 Join Aruba’s Titansof Tomorrow force in the fight against network mayhem. Find out what your IT superpower is. Share your results with friends and receive a free superpower t-shirt. www.arubatitans.com
- 46. Thank you Venkatraju TV – venkatraju@hpe.com Steve Eubanks – steve.eubanks@hpe.com Drew Wyskida – drew.wyskida@hpe.com
- 47.
