This document provides an overview and deployment guide for Citrix NetScaler application delivery controllers (ADCs). It discusses the NetScaler editions, features, hardware options, typical network topology, and basic traffic management and configuration. The NetScaler acts as a load balancer and content switch in front of web, application, and database servers. It can operate in inline or one-arm deployment modes and provides features like load balancing, caching, compression, and web application firewall capabilities to optimize application delivery and security. The document provides guidance on initial NetScaler configuration using the command line interface or graphical user interface.

1. White Paper
Citrix NetScaler
Deployment
Guide

2. 2
citrix.com
White Paper

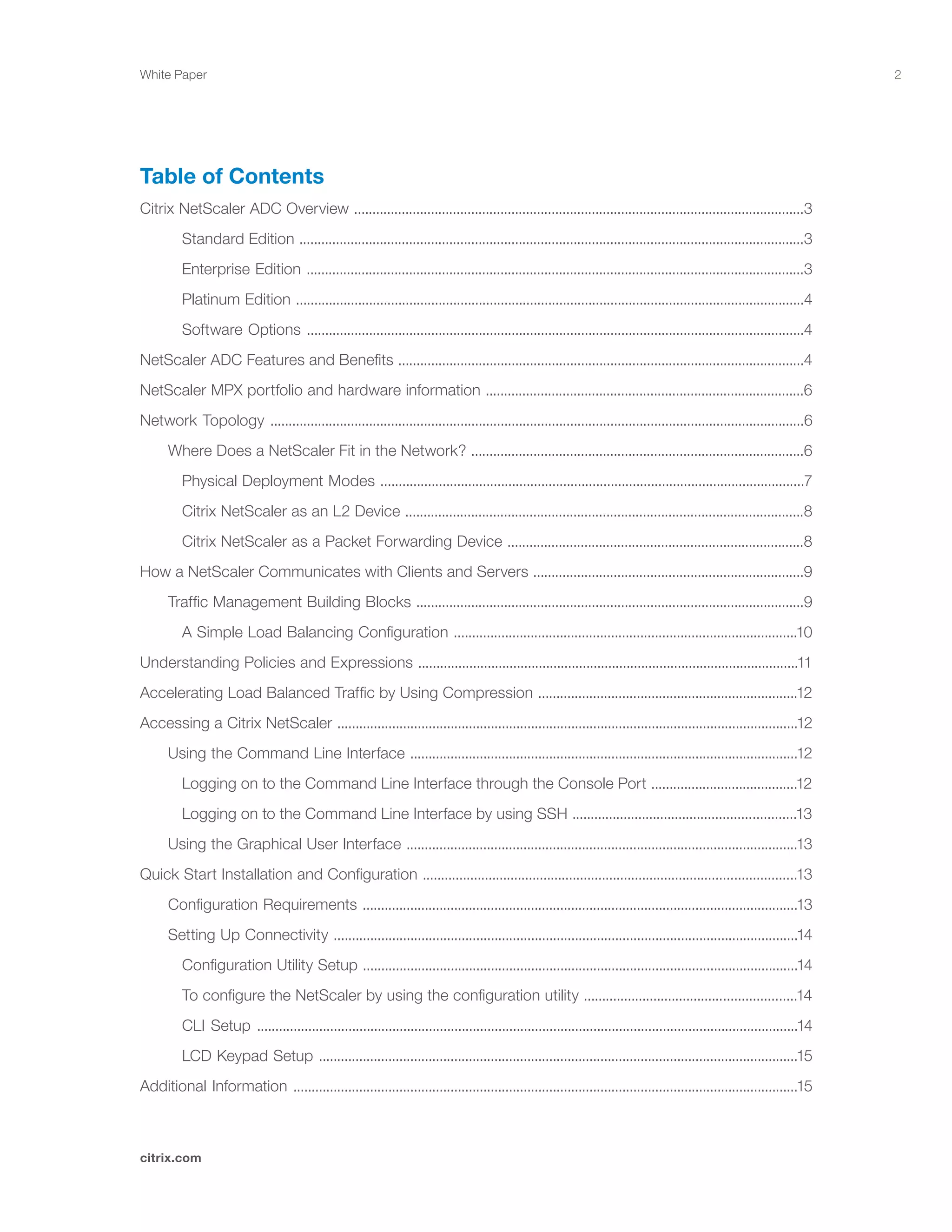

Table of Contents
Citrix NetScaler ADC Overview ...........................................................................................................................3
Standard Edition ..........................................................................................................................................3
Enterprise Edition ........................................................................................................................................3
Platinum Edition ...........................................................................................................................................4
Software Options ........................................................................................................................................4
NetScaler ADC Features and Benefits ...............................................................................................................4
NetScaler MPX portfolio and hardware information .......................................................................................6
Network Topology ..................................................................................................................................................6
Where Does a NetScaler Fit in the Network? ...........................................................................................6
Physical Deployment Modes ....................................................................................................................7
Citrix NetScaler as an L2 Device .............................................................................................................8
Citrix NetScaler as a Packet Forwarding Device .................................................................................8
How a NetScaler Communicates with Clients and Servers ..........................................................................9
Traffic Management Building Blocks ..........................................................................................................9
A Simple Load Balancing Configuration ..............................................................................................10
Understanding Policies and Expressions ........................................................................................................11
Accelerating Load Balanced Traffic by Using Compression .......................................................................12
Accessing a Citrix NetScaler ..............................................................................................................................12
Using the Command Line Interface ..........................................................................................................12
Logging on to the Command Line Interface through the Console Port ........................................12
Logging on to the Command Line Interface by using SSH .............................................................13
Using the Graphical User Interface ...........................................................................................................13
Quick Start Installation and Configuration ......................................................................................................13
Configuration Requirements .......................................................................................................................13
Setting Up Connectivity ...............................................................................................................................14
Configuration Utility Setup .......................................................................................................................14
To configure the NetScaler by using the configuration utility ..........................................................14
CLI Setup ....................................................................................................................................................14
LCD Keypad Setup ...................................................................................................................................15
Additional Information ..........................................................................................................................................15

3. 3
citrix.com
White Paper

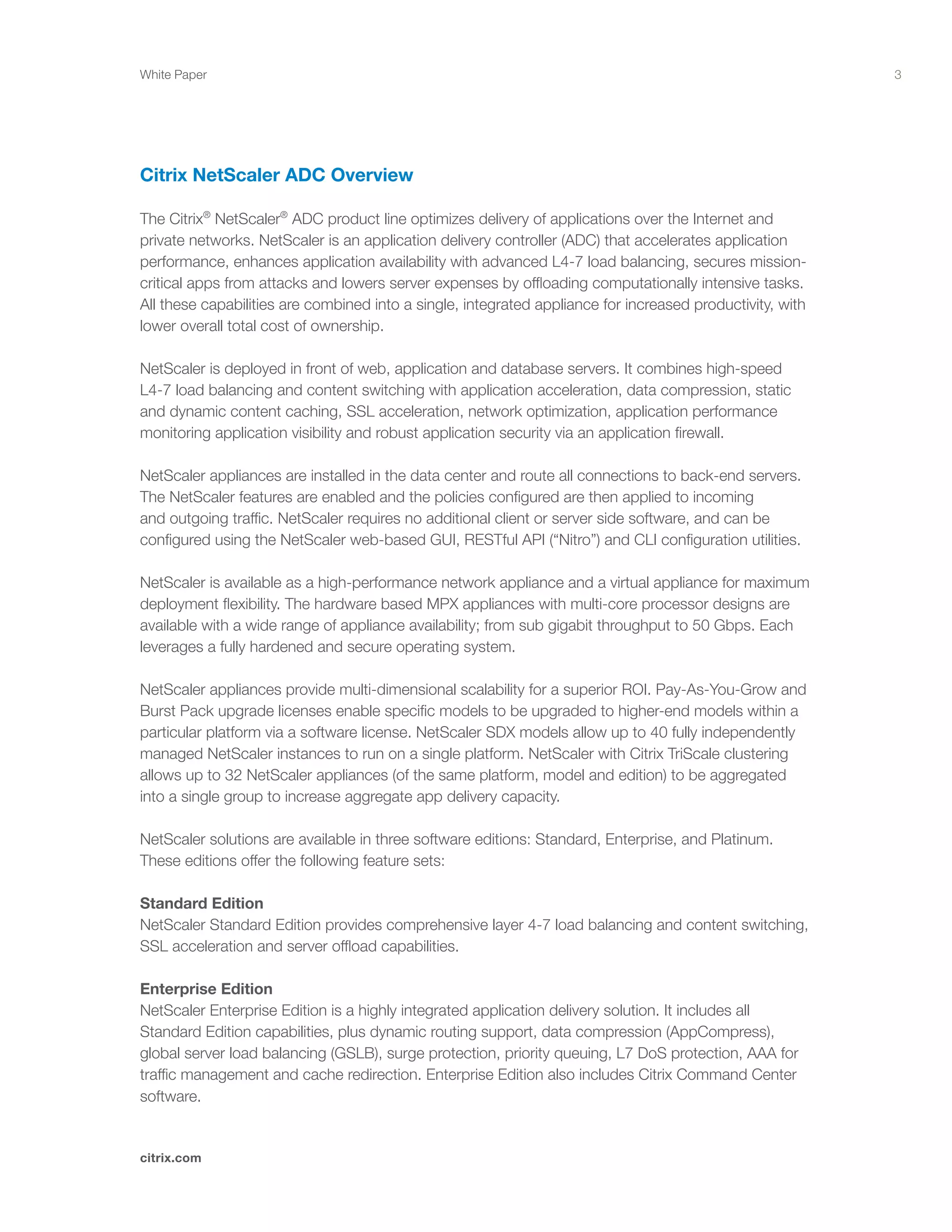

Citrix NetScaler ADC Overview
The Citrix®
NetScaler®
ADC product line optimizes delivery of applications over the Internet and
private networks. NetScaler is an application delivery controller (ADC) that accelerates application
performance, enhances application availability with advanced L4-7 load balancing, secures mission-
critical apps from attacks and lowers server expenses by offloading computationally intensive tasks.
All these capabilities are combined into a single, integrated appliance for increased productivity, with
lower overall total cost of ownership.
NetScaler is deployed in front of web, application and database servers. It combines high-speed
L4-7 load balancing and content switching with application acceleration, data compression, static
and dynamic content caching, SSL acceleration, network optimization, application performance
monitoring application visibility and robust application security via an application firewall.
NetScaler appliances are installed in the data center and route all connections to back-end servers.
The NetScaler features are enabled and the policies configured are then applied to incoming
and outgoing traffic. NetScaler requires no additional client or server side software, and can be
configured using the NetScaler web-based GUI, RESTful API (“Nitro”) and CLI configuration utilities.
NetScaler is available as a high-performance network appliance and a virtual appliance for maximum
deployment flexibility. The hardware based MPX appliances with multi-core processor designs are
available with a wide range of appliance availability; from sub gigabit throughput to 50 Gbps. Each
leverages a fully hardened and secure operating system.
NetScaler appliances provide multi-dimensional scalability for a superior ROI. Pay-As-You-Grow and
Burst Pack upgrade licenses enable specific models to be upgraded to higher-end models within a
particular platform via a software license. NetScaler SDX models allow up to 40 fully independently
managed NetScaler instances to run on a single platform. NetScaler with Citrix TriScale clustering
allows up to 32 NetScaler appliances (of the same platform, model and edition) to be aggregated
into a single group to increase aggregate app delivery capacity.
NetScaler solutions are available in three software editions: Standard, Enterprise, and Platinum.
These editions offer the following feature sets:
Standard Edition
NetScaler Standard Edition provides comprehensive layer 4-7 load balancing and content switching,
SSL acceleration and server offload capabilities.
Enterprise Edition
NetScaler Enterprise Edition is a highly integrated application delivery solution. It includes all
Standard Edition capabilities, plus dynamic routing support, data compression (AppCompress),
global server load balancing (GSLB), surge protection, priority queuing, L7 DoS protection, AAA for
traffic management and cache redirection. Enterprise Edition also includes Citrix Command Center
software.

4. 4
citrix.com
White Paper

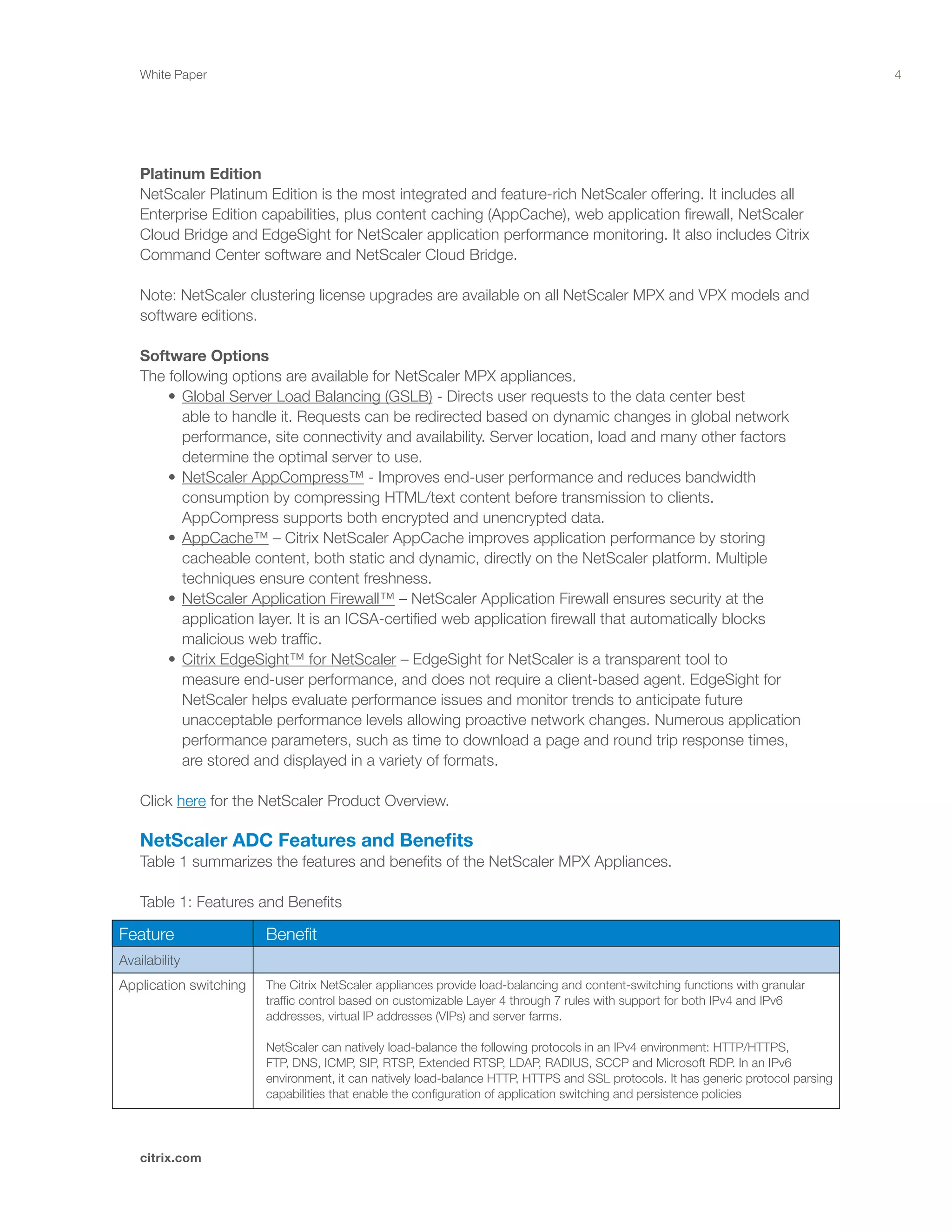

Platinum Edition
NetScaler Platinum Edition is the most integrated and feature-rich NetScaler offering. It includes all
Enterprise Edition capabilities, plus content caching (AppCache), web application firewall, NetScaler
Cloud Bridge and EdgeSight for NetScaler application performance monitoring. It also includes Citrix
Command Center software and NetScaler Cloud Bridge.
Note: NetScaler clustering license upgrades are available on all NetScaler MPX and VPX models and
software editions.
Software Options
The following options are available for NetScaler MPX appliances.
• Global Server Load Balancing (GSLB) - Directs user requests to the data center best
able to handle it. Requests can be redirected based on dynamic changes in global network
performance, site connectivity and availability. Server location, load and many other factors
determine the optimal server to use.
• NetScaler AppCompress™ - Improves end-user performance and reduces bandwidth
consumption by compressing HTML/text content before transmission to clients.
AppCompress supports both encrypted and unencrypted data.
• AppCache™ – Citrix NetScaler AppCache improves application performance by storing
cacheable content, both static and dynamic, directly on the NetScaler platform. Multiple
techniques ensure content freshness.
• NetScaler Application Firewall™ – NetScaler Application Firewall ensures security at the
application layer. It is an ICSA-certified web application firewall that automatically blocks
malicious web traffic.
• Citrix EdgeSight™ for NetScaler – EdgeSight for NetScaler is a transparent tool to
measure end-user performance, and does not require a client-based agent. EdgeSight for
NetScaler helps evaluate performance issues and monitor trends to anticipate future
unacceptable performance levels allowing proactive network changes. Numerous application
performance parameters, such as time to download a page and round trip response times,
are stored and displayed in a variety of formats.
Click here for the NetScaler Product Overview.
NetScaler ADC Features and Benefits

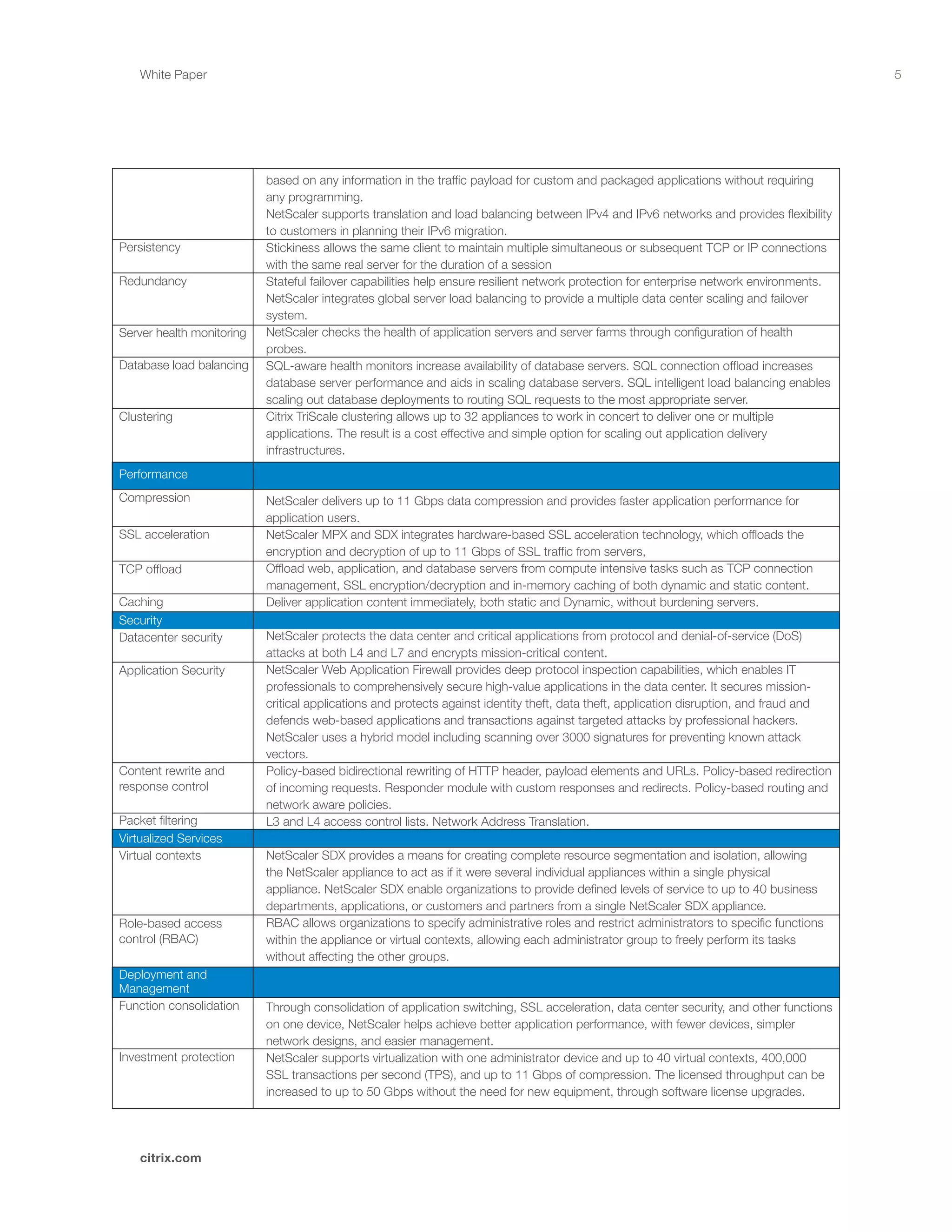

Table 1 summarizes the features and benefits of the NetScaler MPX Appliances.
Table 1: Features and Benefits
Feature
Availability
Application switching
Benefit
The Citrix NetScaler appliances provide load-balancing and content-switching functions with granular
traffic control based on customizable Layer 4 through 7 rules with support for both IPv4 and IPv6
addresses, virtual IP addresses (VIPs) and server farms.
NetScaler can natively load-balance the following protocols in an IPv4 environment: HTTP/HTTPS,
FTP, DNS, ICMP, SIP, RTSP, Extended RTSP, LDAP, RADIUS, SCCP and Microsoft RDP. In an IPv6
environment, it can natively load-balance HTTP, HTTPS and SSL protocols. It has generic protocol parsing
capabilities that enable the configuration of application switching and persistence policies

5. 5
citrix.com
White Paper
based on any information in the traffic payload for custom and packaged applications without requiring
any programming.
NetScaler supports translation and load balancing between IPv4 and IPv6 networks and provides flexibility
to customers in planning their IPv6 migration.
Stickiness allows the same client to maintain multiple simultaneous or subsequent TCP or IP connections
with the same real server for the duration of a session
Stateful failover capabilities help ensure resilient network protection for enterprise network environments.
NetScaler integrates global server load balancing to provide a multiple data center scaling and failover
system.
NetScaler checks the health of application servers and server farms through configuration of health
probes.
SQL-aware health monitors increase availability of database servers. SQL connection offload increases
database server performance and aids in scaling database servers. SQL intelligent load balancing enables
scaling out database deployments to routing SQL requests to the most appropriate server.
Citrix TriScale clustering allows up to 32 appliances to work in concert to deliver one or multiple
applications. The result is a cost effective and simple option for scaling out application delivery
infrastructures.
NetScaler delivers up to 11 Gbps data compression and provides faster application performance for
application users.
NetScaler MPX and SDX integrates hardware-based SSL acceleration technology, which offloads the
encryption and decryption of up to 11 Gbps of SSL traffic from servers,
Offload web, application, and database servers from compute intensive tasks such as TCP connection
management, SSL encryption/decryption and in-memory caching of both dynamic and static content.
Deliver application content immediately, both static and Dynamic, without burdening servers.
NetScaler protects the data center and critical applications from protocol and denial-of-service (DoS)
attacks at both L4 and L7 and encrypts mission-critical content.
NetScaler Web Application Firewall provides deep protocol inspection capabilities, which enables IT
professionals to comprehensively secure high-value applications in the data center. It secures mission-
critical applications and protects against identity theft, data theft, application disruption, and fraud and
defends web-based applications and transactions against targeted attacks by professional hackers.
NetScaler uses a hybrid model including scanning over 3000 signatures for preventing known attack
vectors.
Policy-based bidirectional rewriting of HTTP header, payload elements and URLs. Policy-based redirection
of incoming requests. Responder module with custom responses and redirects. Policy-based routing and
network aware policies.
L3 and L4 access control lists. Network Address Translation.
NetScaler SDX provides a means for creating complete resource segmentation and isolation, allowing
the NetScaler appliance to act as if it were several individual appliances within a single physical
appliance. NetScaler SDX enable organizations to provide defined levels of service to up to 40 business
departments, applications, or customers and partners from a single NetScaler SDX appliance.
RBAC allows organizations to specify administrative roles and restrict administrators to specific functions
within the appliance or virtual contexts, allowing each administrator group to freely perform its tasks
without affecting the other groups.
Through consolidation of application switching, SSL acceleration, data center security, and other functions
on one device, NetScaler helps achieve better application performance, with fewer devices, simpler
network designs, and easier management.
NetScaler supports virtualization with one administrator device and up to 40 virtual contexts, 400,000
SSL transactions per second (TPS), and up to 11 Gbps of compression. The licensed throughput can be
increased to up to 50 Gbps without the need for new equipment, through software license upgrades.
Persistency
Redundancy
Server health monitoring
Database load balancing
Clustering
Performance
Compression
SSL acceleration
TCP offload
Caching
Security
Datacenter security
Application Security
Content rewrite and
response control
Packet filtering
Virtualized Services
Virtual contexts
Role-based access
control (RBAC)
Function consolidation
Deployment and
Management
Investment protection

6. 6
citrix.com
White Paper
Operational visibility

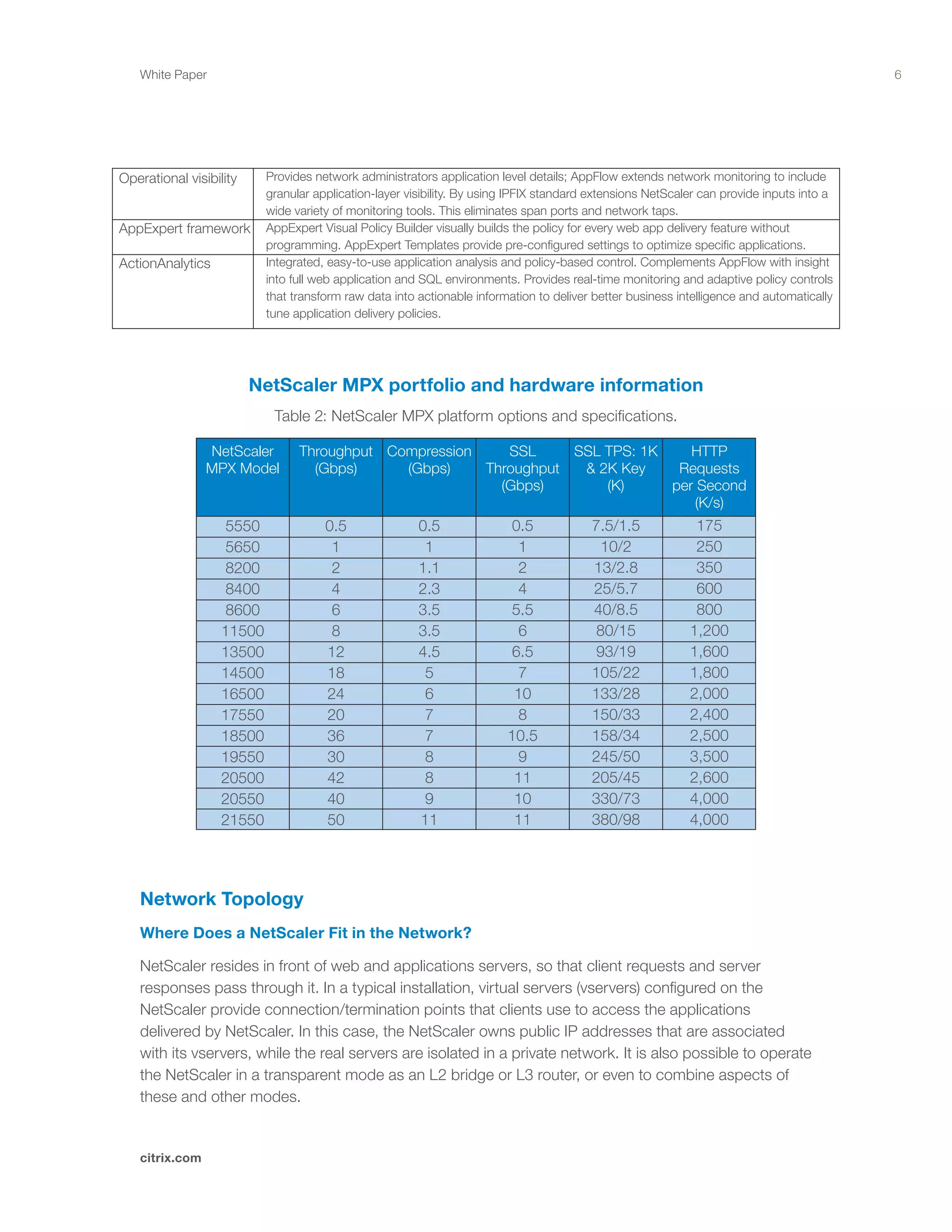

Network Topology
Where Does a NetScaler Fit in the Network?
NetScaler resides in front of web and applications servers, so that client requests and server
responses pass through it. In a typical installation, virtual servers (vservers) configured on the
NetScaler provide connection/termination points that clients use to access the applications
delivered by NetScaler. In this case, the NetScaler owns public IP addresses that are associated
with its vservers, while the real servers are isolated in a private network. It is also possible to operate
the NetScaler in a transparent mode as an L2 bridge or L3 router, or even to combine aspects of
these and other modes.
Provides network administrators application level details; AppFlow extends network monitoring to include
granular application-layer visibility. By using IPFIX standard extensions NetScaler can provide inputs into a
wide variety of monitoring tools. This eliminates span ports and network taps.
AppExpert Visual Policy Builder visually builds the policy for every web app delivery feature without
programming. AppExpert Templates provide pre-configured settings to optimize specific applications.
Integrated, easy-to-use application analysis and policy-based control. Complements AppFlow with insight
into full web application and SQL environments. Provides real-time monitoring and adaptive policy controls
that transform raw data into actionable information to deliver better business intelligence and automatically
tune application delivery policies.
AppExpert framework
ActionAnalytics
NetScaler MPX portfolio and hardware information
Table 2: NetScaler MPX platform options and specifications.
NetScaler
MPX Model
Throughput
(Gbps)
Compression
(Gbps)
SSL
Throughput
(Gbps)
SSL TPS: 1K
& 2K Key
(K)
HTTP
Requests
per Second
(K/s)
5550
5650
8200
8400
8600
11500
13500
14500
16500
17550
18500
19550
20500
20550
21550
0.5
1
2
4
6
8
12
18
24
20
36
30
42
40
50
0.5
1
1.1
2.3
3.5
3.5
4.5
5
6
7
7
8
8
9
11
0.5
1
2
4
5.5
6
6.5
7
10
8
10.5
9
11
10
11
7.5/1.5
10/2
13/2.8
25/5.7
40/8.5
80/15
93/19
105/22
133/28
150/33
158/34
245/50
205/45
330/73
380/98
175
250
350
600
800
1,200
1,600
1,800
2,000
2,400
2,500
3,500
2,600
4,000
4,000

7. 7
citrix.com
White Paper
Physical Deployment Modes
NetScaler can be deployed in either of two physical modes: inline and one-arm. In inline mode,
multiple network interfaces are connected to different Ethernet segments, and the NetScaler is
placed between the clients and the servers. The NetScaler has a separate network interface to
each client network and a separate network interface to each server network. The NetScaler and
the servers can exist on different subnets in this configuration. It is possible for the servers to be
in a public network and the clients to directly access the servers through the NetScaler, with the
NetScaler transparently applying the L4-L7 features. Usually, vservers are configured to provide an
abstraction of the real servers.

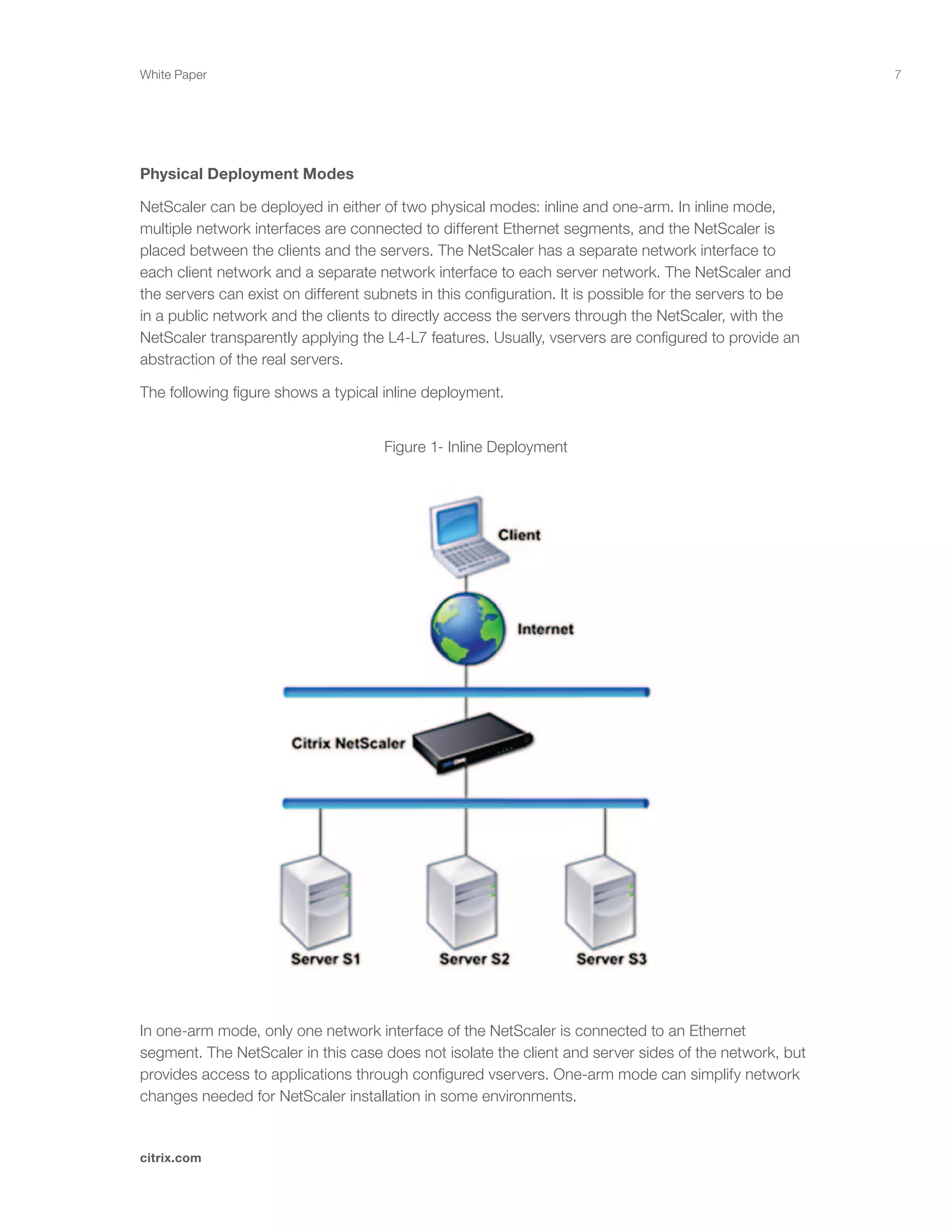

The following figure shows a typical inline deployment.
Figure 1- Inline Deployment
In one-arm mode, only one network interface of the NetScaler is connected to an Ethernet
segment. The NetScaler in this case does not isolate the client and server sides of the network, but
provides access to applications through configured vservers. One-arm mode can simplify network
changes needed for NetScaler installation in some environments.

8. 8
citrix.com
White Paper
Citrix NetScaler as an L2 Device
A NetScaler functioning as an L2 device is said to operate in L2 mode. In L2 mode, the NetScaler
forwards packets between network interfaces when all of the following conditions are met:
• The packets are destined to another device’s media access control (MAC) address.
• The destination MAC address is on a different network interface.
• The network interface is a member of the same virtual LAN (VLAN).
By default, all network interfaces are members of a pre-defined VLAN, VLAN 1. Address Resolution
Protocol (ARP) requests and responses are forwarded to all network interfaces that are members of
the same VLAN. To avoid bridging loops, L2 mode must be disabled if another L2 device is working
in parallel with the NetScaler.
Citrix NetScaler as a Packet Forwarding Device
A NetScaler can function as a packet forwarding device, and this mode of operation is called
L3 mode. With L3 mode enabled, the NetScaler forwards any received unicast packets that are
destined for an IP address that it does not have internally configured, if there is a route to the
destination. A NetScaler can also route packets between VLANs.
In both modes of operation, L2 and L3, a NetScaler generally drops packets that are in:
• Multicast frames
• Unknown protocol frames destined for a NetScaler’s MAC address (non-IP and non-ARP)
• Spanning Tree protocol (unless BridgeBPDUs is ON)
How a NetScaler Communicates with Clients and Servers
A NetScaler appliance is usually deployed in front of a server farm and functions as a transparent
TCP proxy between clients and servers, without requiring any client-side configuration. This basic
mode of operation is called Request Switching technology and is the core of NetScaler functionality.
Request Switching enables a NetScaler to multiplex and offload the TCP connections, maintain

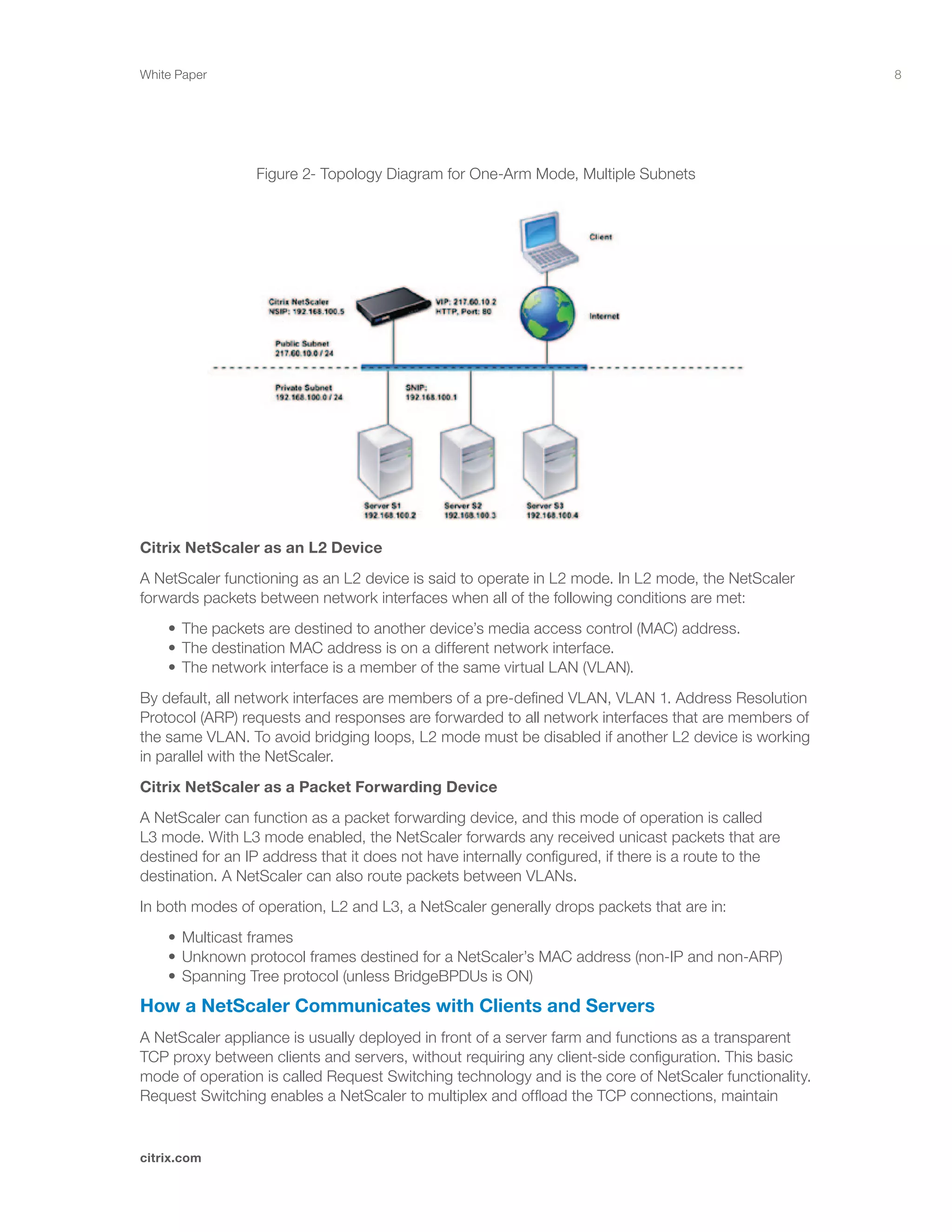

Figure 2- Topology Diagram for One-Arm Mode, Multiple Subnets

9. 9
citrix.com
White Paper
persistent connections, and manage traffic at the request (application layer) level. This is possible
because the NetScaler can separate the HTTP request from the TCP connection on which the
request is delivered.
Depending on the configuration, a NetScaler may process the traffic before forwarding the request
to a server. For example, if the client attempts to access a secure application on the server, the
NetScaler might perform the necessary SSL processing before sending traffic to the server.
To facilitate efficient and secure access to server resources, a NetScaler uses a set of IP
addresses collectively known as NetScaler-owned IP addresses. To manage your network traffic,
you assign NetScaler-owned IP addresses to virtual entities that become the building blocks of
your configuration. For example, to configure load balancing, you create virtual servers (vservers)
to receive client requests and distribute them to services, which are entities representing the
applications on your servers.
Traffic Management Building Blocks
The configuration of a NetScaler is typically built up with a series of virtual entities that serve as
building blocks for traffic management. The building block approach helps separate traffic flows.
Virtual entities are abstractions, typically representing IP addresses, ports, and protocol handlers
for processing traffic. Clients access applications and resources through these virtual entities. The
most commonly used entities are vservers and services. Vservers represent groups of servers in a
server farm or remote network, and services represent specific applications on each server.
Most features and traffic settings are enabled through virtual entities. For example, you can
configure a NetScaler to compress all server responses to a client that is connected to the server
farm through a particular vserver. To configure the NetScaler for a particular environment, you need
to identify the appropriate features and then choose the right mix of virtual entities to deliver them.
Most features are delivered through a cascade of virtual entities that are bound to each other. In
this case, the virtual entities are like blocks being assembled into the final structure of a delivered
application. You can add, remove, modify, bind, enable, and disable the virtual entities to configure
the features. The following figure shows the concepts covered in this section.

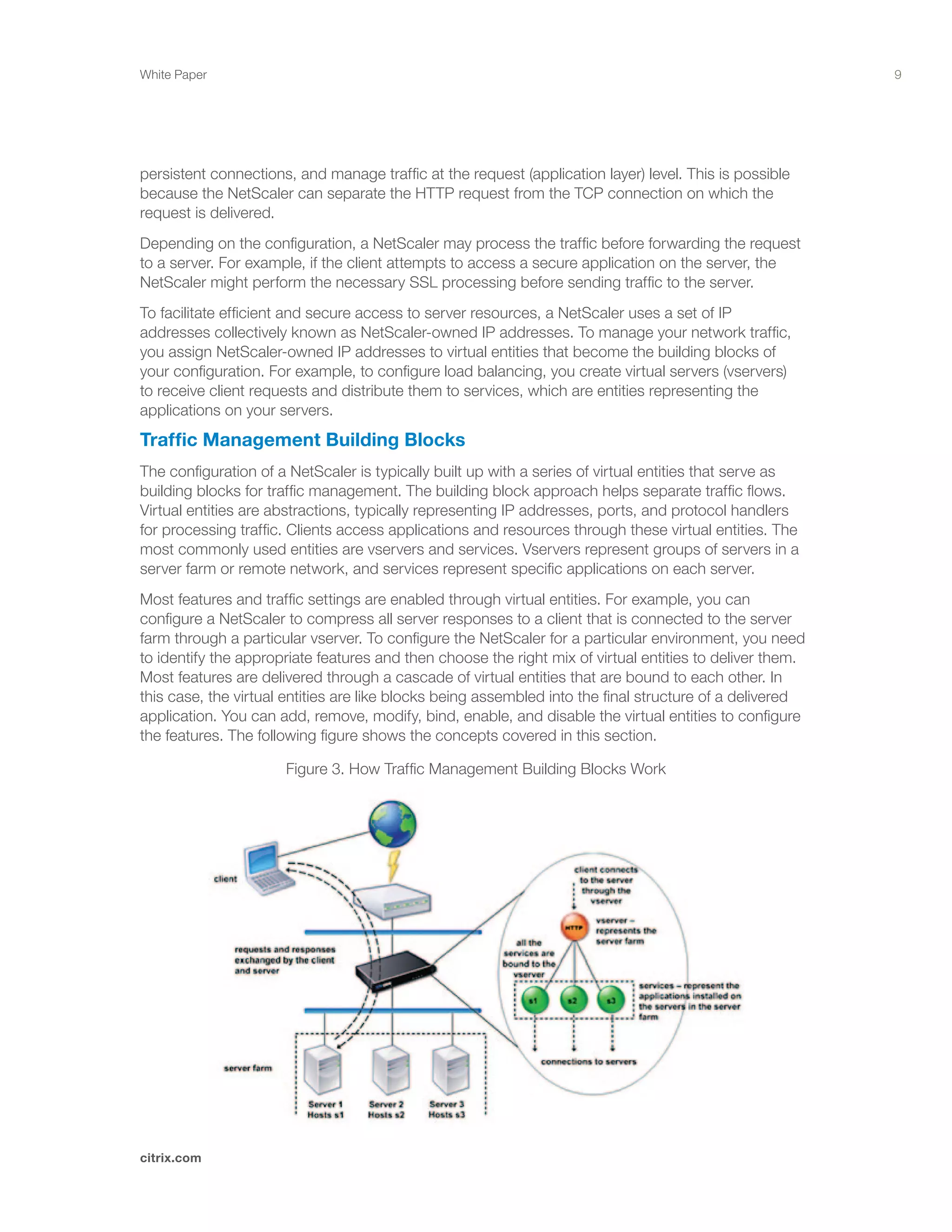

Figure 3. How Traffic Management Building Blocks Work

10. 10
citrix.com
White Paper
A Simple Load Balancing Configuration
In the example shown in the following figure, the NetScaler is configured to function as a load
balancer. For this configuration, you need to configure virtual entities specific to load balancing and
bind them in a specific order. As a load balancer, a NetScaler distributes client requests across
several servers and thus optimizes the utilization of resources.
The basic building blocks of a typical load balancing configuration are services and load balancing
vservers. The services represent the applications on the servers. The vservers abstract the servers
by providing a single IP address to which the clients connect. To ensure that client requests are
sent to a server, you need to bind each service to a vserver. That is, you must create services for
every server and bind the services to a vserver. Clients use the VIP to connect to a NetScaler. When
the NetScaler receives client requests on the VIP, it sends them to a server determined by the load
balancing algorithm. Load balancing uses a virtual entity called a monitor to track whether a specific
configured service (server plus application) is available to receive requests.
Figure 4. Load Balancing Virtual Server, Services, and Monitors
In addition to configuring the load balancing algorithm, you can configure several parameters that
affect the behavior and performance of the load balancing configuration. For example, you can
configure the vserver to maintain persistence based on source IP address. The NetScaler then
directs all requests from any specific IP address to the same server.
Understanding Policies and Expressions
A policy defines specific details of traffic filtering and management on a NetScaler. It consists of two
parts: the expression and the action. The expression defines the types of requests that the policy
matches. The action tells the NetScaler what to do when a request matches the expression. As
an example, the expression might be to match a specific URL pattern to a type of security attack,
with the action being to drop or reset the connection. Each policy has a priority, and the priorities
determine the order in which the policies are evaluated.

11. 11
citrix.com
White Paper

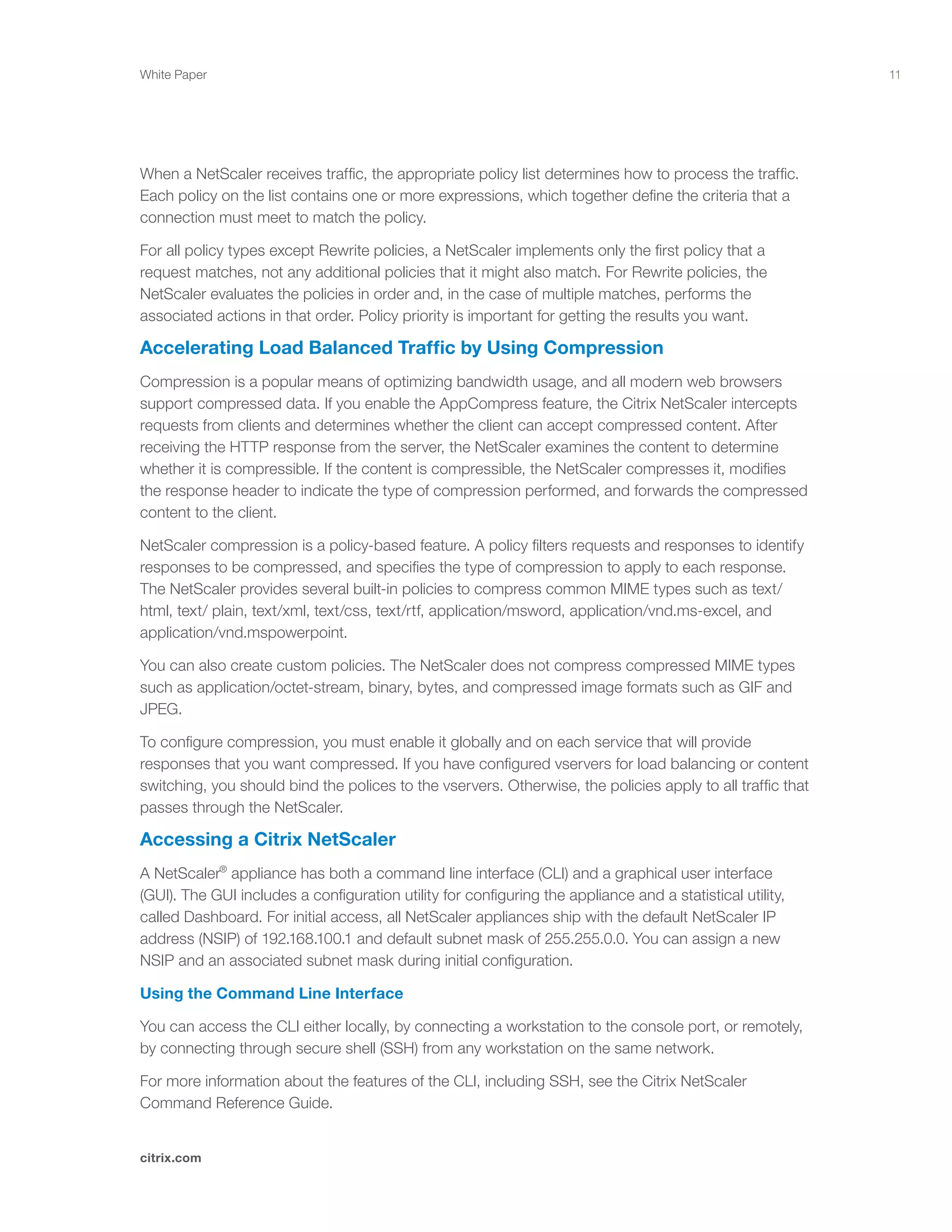

When a NetScaler receives traffic, the appropriate policy list determines how to process the traffic.
Each policy on the list contains one or more expressions, which together define the criteria that a
connection must meet to match the policy.
For all policy types except Rewrite policies, a NetScaler implements only the first policy that a
request matches, not any additional policies that it might also match. For Rewrite policies, the
NetScaler evaluates the policies in order and, in the case of multiple matches, performs the
associated actions in that order. Policy priority is important for getting the results you want.
Accelerating Load Balanced Traffic by Using Compression
Compression is a popular means of optimizing bandwidth usage, and all modern web browsers
support compressed data. If you enable the AppCompress feature, the Citrix NetScaler intercepts
requests from clients and determines whether the client can accept compressed content. After
receiving the HTTP response from the server, the NetScaler examines the content to determine
whether it is compressible. If the content is compressible, the NetScaler compresses it, modifies
the response header to indicate the type of compression performed, and forwards the compressed
content to the client.
NetScaler compression is a policy-based feature. A policy filters requests and responses to identify
responses to be compressed, and specifies the type of compression to apply to each response.
The NetScaler provides several built-in policies to compress common MIME types such as text/
html, text/ plain, text/xml, text/css, text/rtf, application/msword, application/vnd.ms-excel, and
application/vnd.mspowerpoint.
You can also create custom policies. The NetScaler does not compress compressed MIME types
such as application/octet-stream, binary, bytes, and compressed image formats such as GIF and
JPEG.
To configure compression, you must enable it globally and on each service that will provide
responses that you want compressed. If you have configured vservers for load balancing or content
switching, you should bind the polices to the vservers. Otherwise, the policies apply to all traffic that
passes through the NetScaler.
Accessing a Citrix NetScaler
A NetScaler®
appliance has both a command line interface (CLI) and a graphical user interface
(GUI). The GUI includes a configuration utility for configuring the appliance and a statistical utility,
called Dashboard. For initial access, all NetScaler appliances ship with the default NetScaler IP
address (NSIP) of 192.168.100.1 and default subnet mask of 255.255.0.0. You can assign a new
NSIP and an associated subnet mask during initial configuration.
Using the Command Line Interface
You can access the CLI either locally, by connecting a workstation to the console port, or remotely,
by connecting through secure shell (SSH) from any workstation on the same network.
For more information about the features of the CLI, including SSH, see the Citrix NetScaler
Command Reference Guide.

12. 12
citrix.com
White Paper

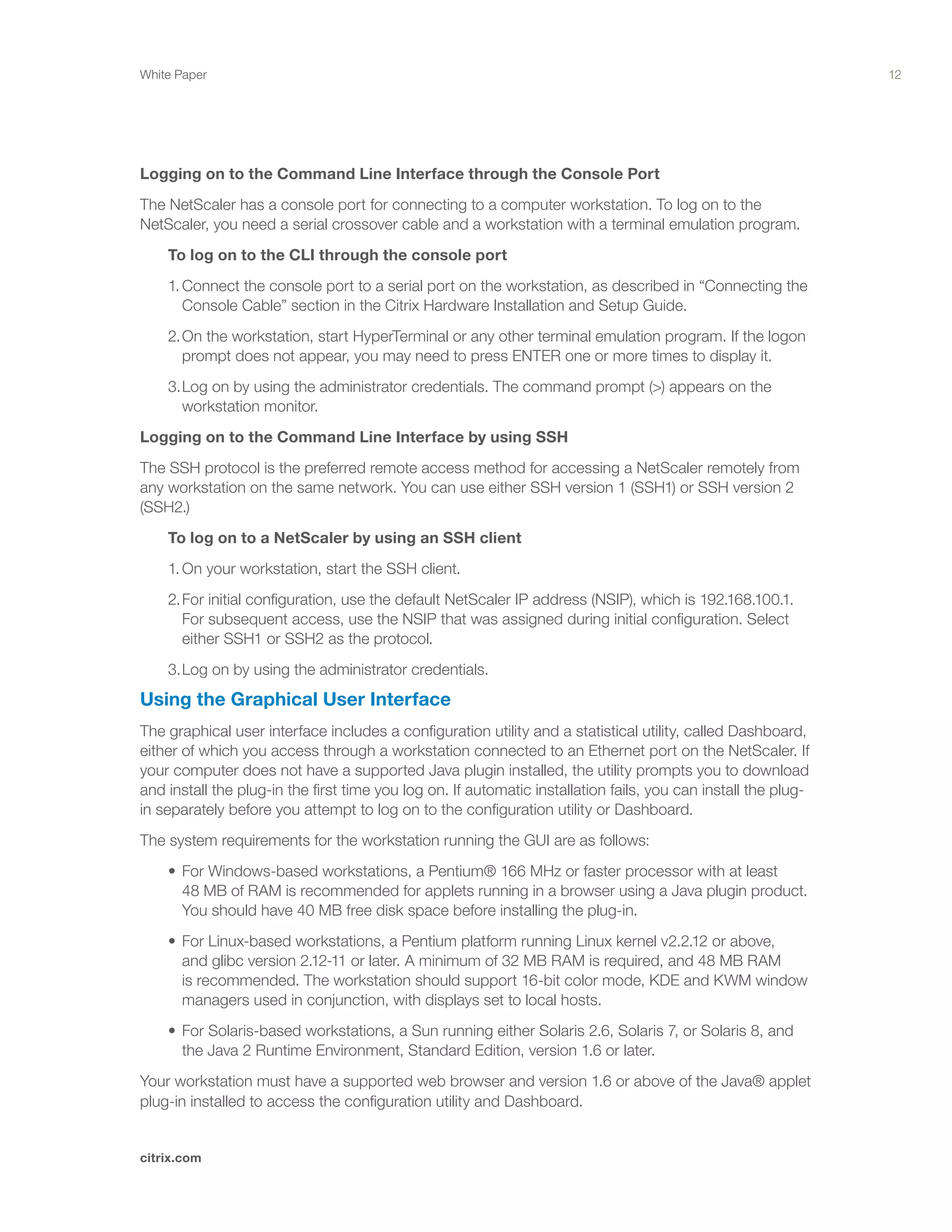

Logging on to the Command Line Interface through the Console Port
The NetScaler has a console port for connecting to a computer workstation. To log on to the
NetScaler, you need a serial crossover cable and a workstation with a terminal emulation program.
To log on to the CLI through the console port
1. Connect the console port to a serial port on the workstation, as described in “Connecting the
Console Cable” section in the Citrix Hardware Installation and Setup Guide.
2. On the workstation, start HyperTerminal or any other terminal emulation program. If the logon
prompt does not appear, you may need to press ENTER one or more times to display it.
3. Log on by using the administrator credentials. The command prompt (>) appears on the
workstation monitor.
Logging on to the Command Line Interface by using SSH
The SSH protocol is the preferred remote access method for accessing a NetScaler remotely from
any workstation on the same network. You can use either SSH version 1 (SSH1) or SSH version 2
(SSH2.)
To log on to a NetScaler by using an SSH client
1. On your workstation, start the SSH client.
2. For initial configuration, use the default NetScaler IP address (NSIP), which is 192.168.100.1.
For subsequent access, use the NSIP that was assigned during initial configuration. Select
either SSH1 or SSH2 as the protocol.
3. Log on by using the administrator credentials.
Using the Graphical User Interface
The graphical user interface includes a configuration utility and a statistical utility, called Dashboard,
either of which you access through a workstation connected to an Ethernet port on the NetScaler. If
your computer does not have a supported Java plugin installed, the utility prompts you to download
and install the plug-in the first time you log on. If automatic installation fails, you can install the plug-
in separately before you attempt to log on to the configuration utility or Dashboard.
The system requirements for the workstation running the GUI are as follows:
• For Windows-based workstations, a Pentium® 166 MHz or faster processor with at least
48 MB of RAM is recommended for applets running in a browser using a Java plugin product.
You should have 40 MB free disk space before installing the plug-in.
• For Linux-based workstations, a Pentium platform running Linux kernel v2.2.12 or above,
and glibc version 2.12-11 or later. A minimum of 32 MB RAM is required, and 48 MB RAM
is recommended. The workstation should support 16-bit color mode, KDE and KWM window
managers used in conjunction, with displays set to local hosts.
• For Solaris-based workstations, a Sun running either Solaris 2.6, Solaris 7, or Solaris 8, and
the Java 2 Runtime Environment, Standard Edition, version 1.6 or later.
Your workstation must have a supported web browser and version 1.6 or above of the Java® applet
plug-in installed to access the configuration utility and Dashboard.

13. 13
citrix.com
White Paper
Quick Start Installation and Configuration

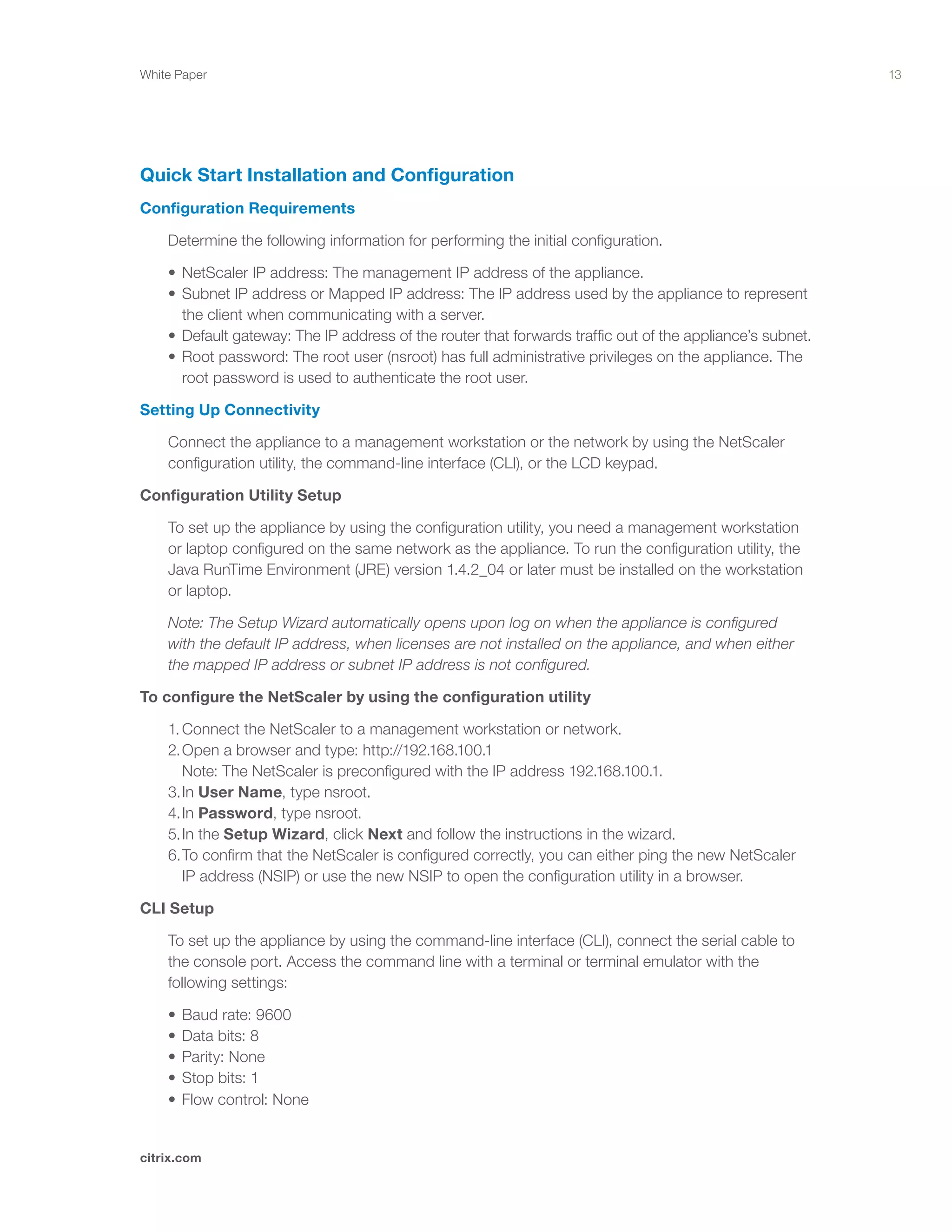

Configuration Requirements
Determine the following information for performing the initial configuration.
• NetScaler IP address: The management IP address of the appliance.
• Subnet IP address or Mapped IP address: The IP address used by the appliance to represent
the client when communicating with a server.
• Default gateway: The IP address of the router that forwards traffic out of the appliance’s subnet.
• Root password: The root user (nsroot) has full administrative privileges on the appliance. The
root password is used to authenticate the root user.
Setting Up Connectivity
Connect the appliance to a management workstation or the network by using the NetScaler
configuration utility, the command-line interface (CLI), or the LCD keypad.
Configuration Utility Setup
To set up the appliance by using the configuration utility, you need a management workstation
or laptop configured on the same network as the appliance. To run the configuration utility, the
Java RunTime Environment (JRE) version 1.4.2_04 or later must be installed on the workstation
or laptop.
Note: The Setup Wizard automatically opens upon log on when the appliance is configured
with the default IP address, when licenses are not installed on the appliance, and when either
the mapped IP address or subnet IP address is not configured.
To configure the NetScaler by using the configuration utility
1. Connect the NetScaler to a management workstation or network.
2. Open a browser and type: http://192.168.100.1
Note: The NetScaler is preconfigured with the IP address 192.168.100.1.
3. In User Name, type nsroot.
4. In Password, type nsroot.
5. In the Setup Wizard, click Next and follow the instructions in the wizard.
6. To confirm that the NetScaler is configured correctly, you can either ping the new NetScaler
IP address (NSIP) or use the new NSIP to open the configuration utility in a browser.
CLI Setup
To set up the appliance by using the command-line interface (CLI), connect the serial cable to
the console port. Access the command line with a terminal or terminal emulator with the
following settings:
• Baud rate: 9600
• Data bits: 8
• Parity: None
• Stop bits: 1
• Flow control: None

14. 14
citrix.com
White Paper

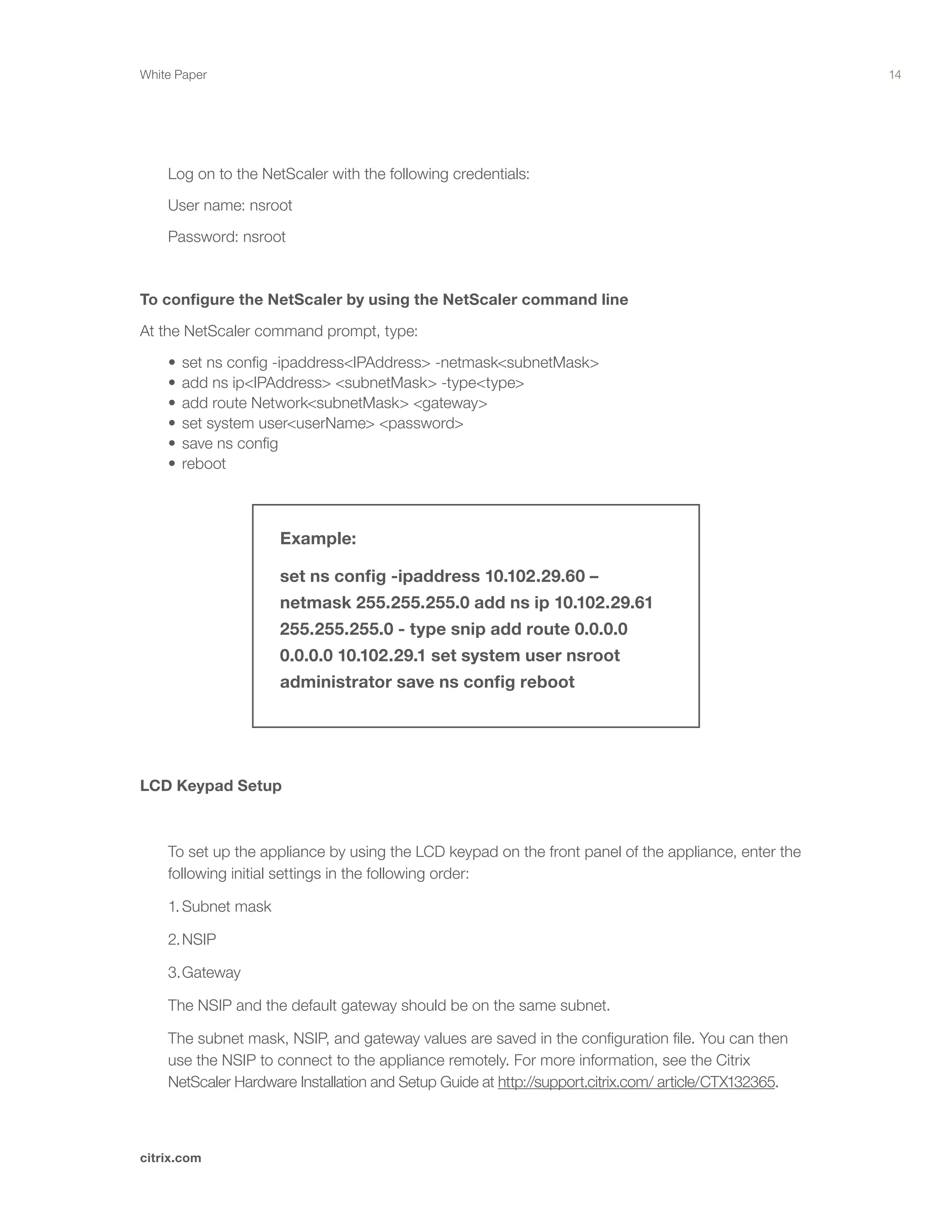

Example:
set ns config -ipaddress 10.102.29.60 –
netmask 255.255.255.0 add ns ip 10.102.29.61
255.255.255.0 - type snip add route 0.0.0.0
0.0.0.0 10.102.29.1 set system user nsroot
administrator save ns config reboot
Log on to the NetScaler with the following credentials:
User name: nsroot
Password: nsroot
To configure the NetScaler by using the NetScaler command line
At the NetScaler command prompt, type:
• set ns config -ipaddress<IPAddress> -netmask<subnetMask>
• add ns ip<IPAddress> <subnetMask> -type<type>
• add route Network<subnetMask> <gateway>
• set system user<userName> <password>
• save ns config
• reboot
LCD Keypad Setup
To set up the appliance by using the LCD keypad on the front panel of the appliance, enter the
following initial settings in the following order:
1. Subnet mask
2. NSIP
3. Gateway
The NSIP and the default gateway should be on the same subnet.
The subnet mask, NSIP, and gateway values are saved in the configuration file. You can then
use the NSIP to connect to the appliance remotely. For more information, see the Citrix
NetScaler Hardware Installation and Setup Guide at http://support.citrix.com/ article/ CTX132365.

15. 15
citrix.com
White Paper

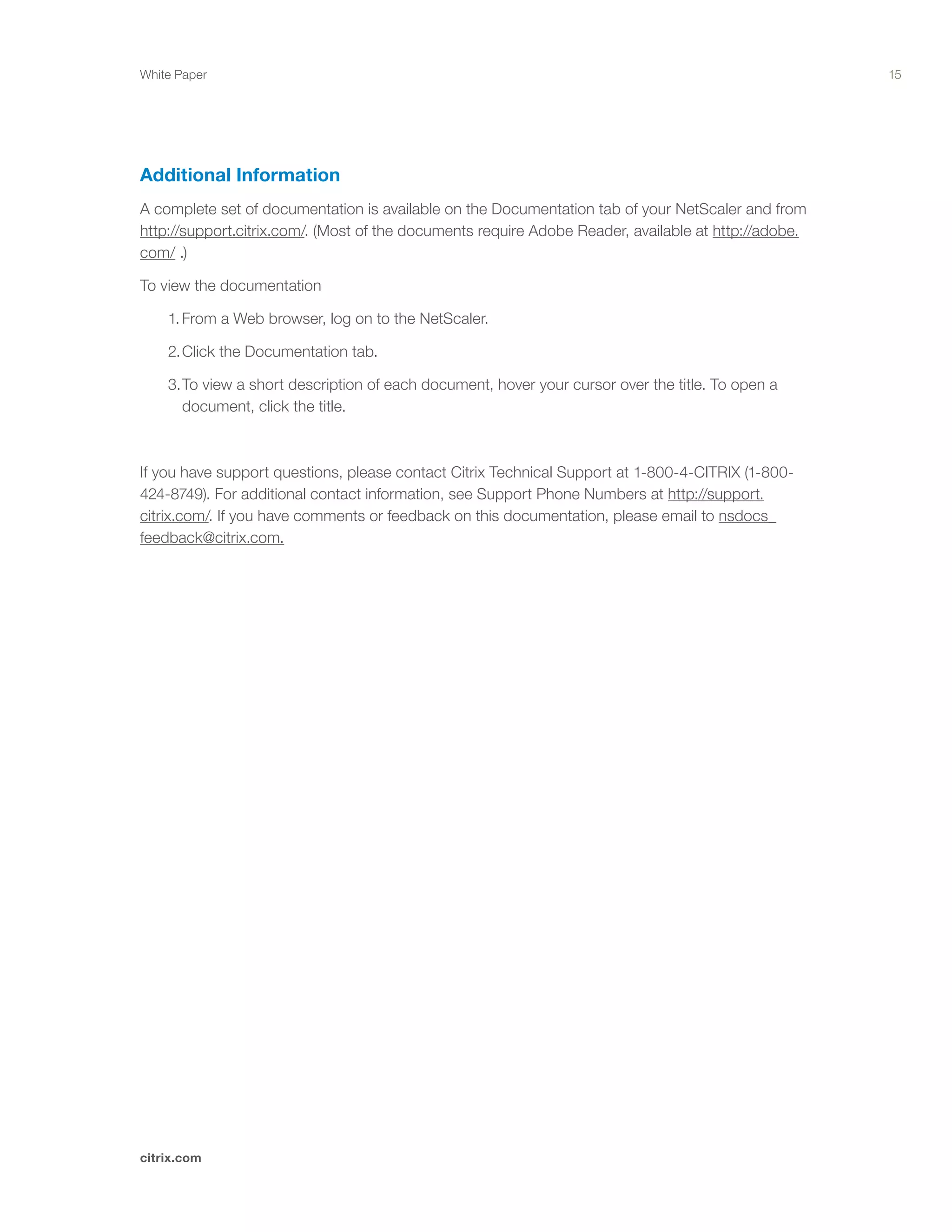

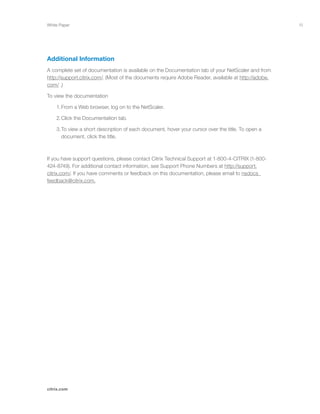

Additional Information
A complete set of documentation is available on the Documentation tab of your NetScaler and from
http://support.citrix.com/. (Most of the documents require Adobe Reader, available at http://adobe.
com/ .)
To view the documentation
1. From a Web browser, log on to the NetScaler.
2. Click the Documentation tab.
3. To view a short description of each document, hover your cursor over the title. To open a
document, click the title.
If you have support questions, please contact Citrix Technical Support at 1-800-4-CITRIX (1-800-
424-8749). For additional contact information, see Support Phone Numbers at http://support.
citrix.com/. If you have comments or feedback on this documentation, please email to nsdocs_
feedback@citrix.com.

16. citrix.com0112/PDF
16

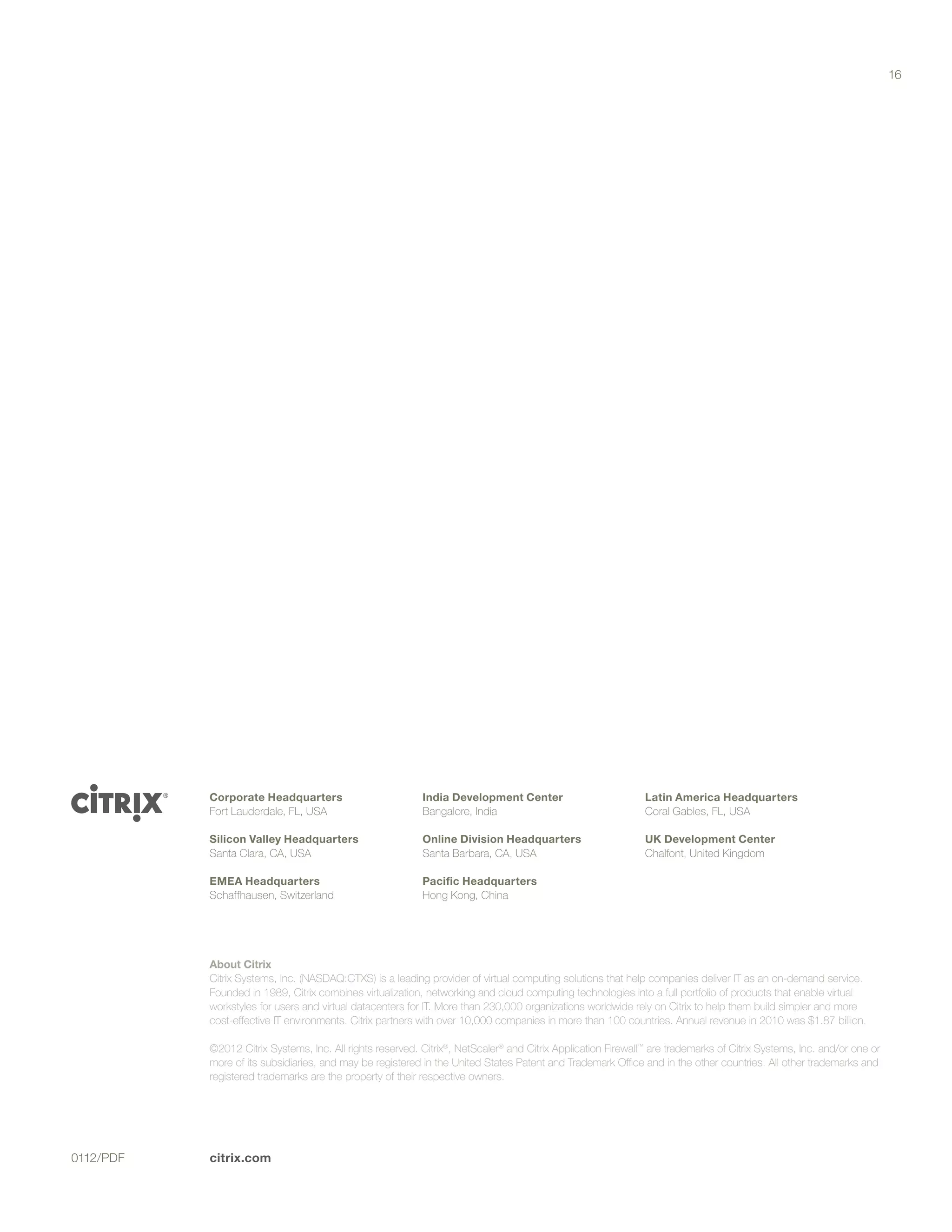

About Citrix
Citrix Systems, Inc. (NASDAQ:CTXS) is a leading provider of virtual computing solutions that help companies deliver IT as an on-demand service.
Founded in 1989, Citrix combines virtualization, networking and cloud computing technologies into a full portfolio of products that enable virtual
workstyles for users and virtual datacenters for IT. More than 230,000 organizations worldwide rely on Citrix to help them build simpler and more
cost-effective IT environments. Citrix partners with over 10,000 companies in more than 100 countries. Annual revenue in 2010 was $1.87 billion.
©2012 Citrix Systems, Inc. All rights reserved. Citrix®
, NetScaler®
and Citrix Application Firewall™
are trademarks of Citrix Systems, Inc. and/or one or
more of its subsidiaries, and may be registered in the United States Patent and Trademark Office and in the other countries. All other trademarks and
registered trademarks are the property of their respective owners.
Corporate Headquarters
Fort Lauderdale, FL, USA
Silicon Valley Headquarters
Santa Clara, CA, USA
EMEA Headquarters
Schaffhausen, Switzerland
India Development Center
Bangalore, India
Online Division Headquarters
Santa Barbara, CA, USA
Pacific Headquarters
Hong Kong, China
Latin America Headquarters
Coral Gables, FL, USA
UK Development Center
Chalfont, United Kingdom
