- 1. © 2014 VMwareInc. All rights reserved. An Introduction to Network Virtualization Scott Lowe, VCDX Engineering Architect 10 June 2014 Taking a closer look at VMware NSX

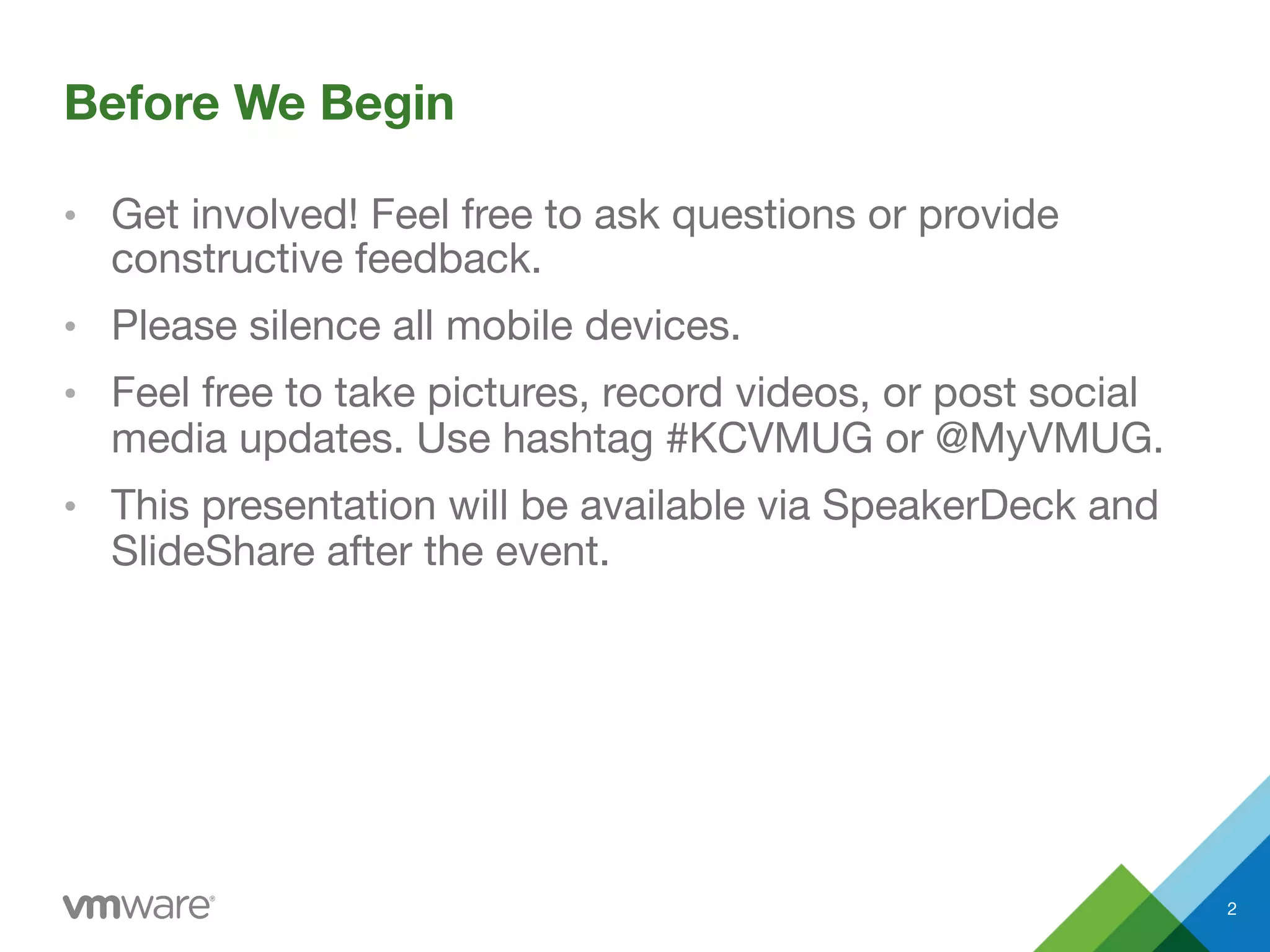

- 2. Before We Begin • Get involved! Feel free to ask questions or provide constructive feedback. • Please silence all mobile devices. • Feel free to take pictures, record videos, or post social media updates. Use hashtag #KCVMUG or @MyVMUG. • This presentation will be available via SpeakerDeck and SlideShare after the event. 2

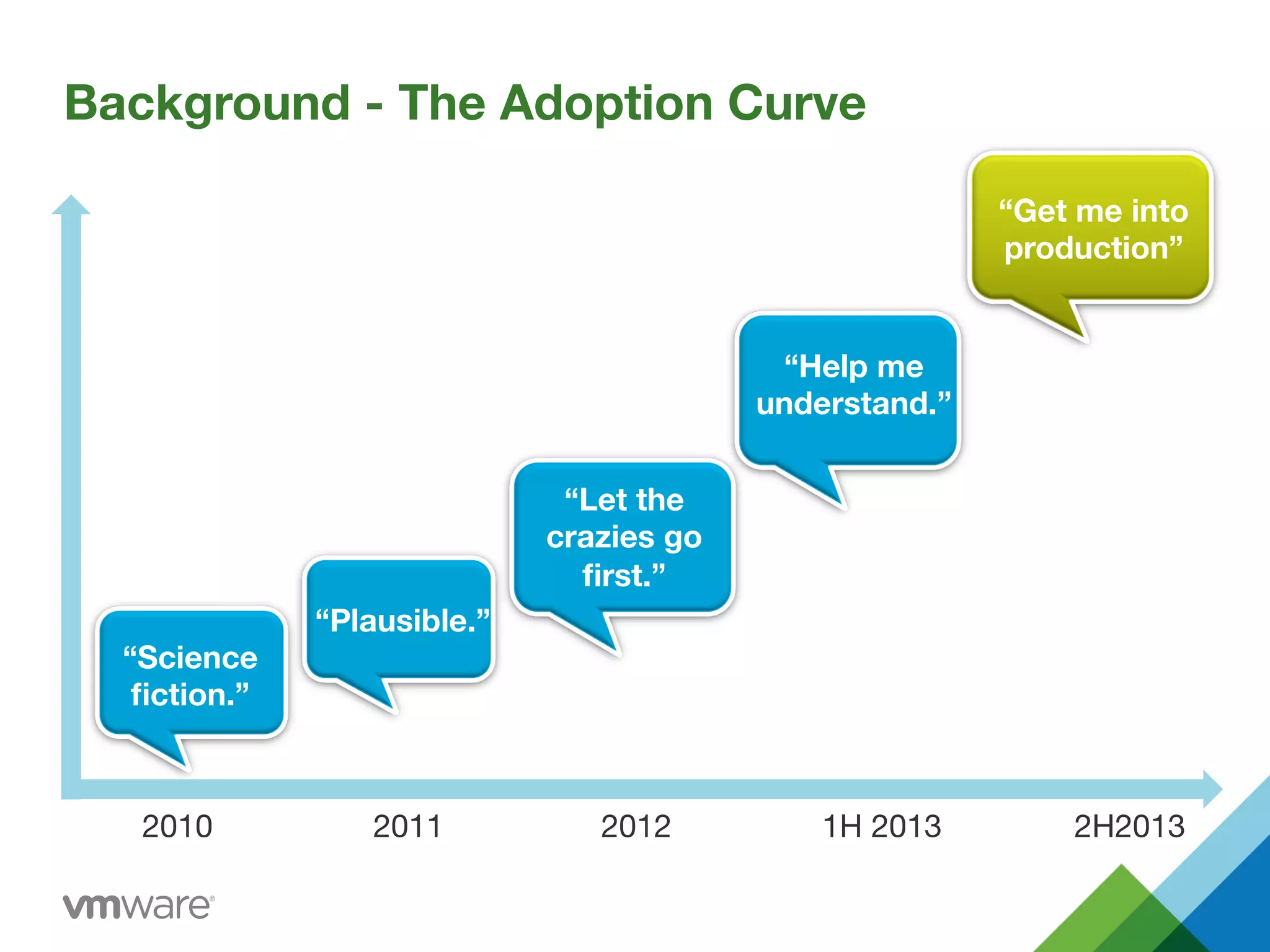

- 3. Background - TheAdoption Curve 2010 2011 2012 1H 2013 2H2013 “Science fiction.” “Plausible.” “Let the crazies go first.” “Help me understand.” “Get me into production”
- 4. VMware NSX Functionality What canI do with VMware NSX?

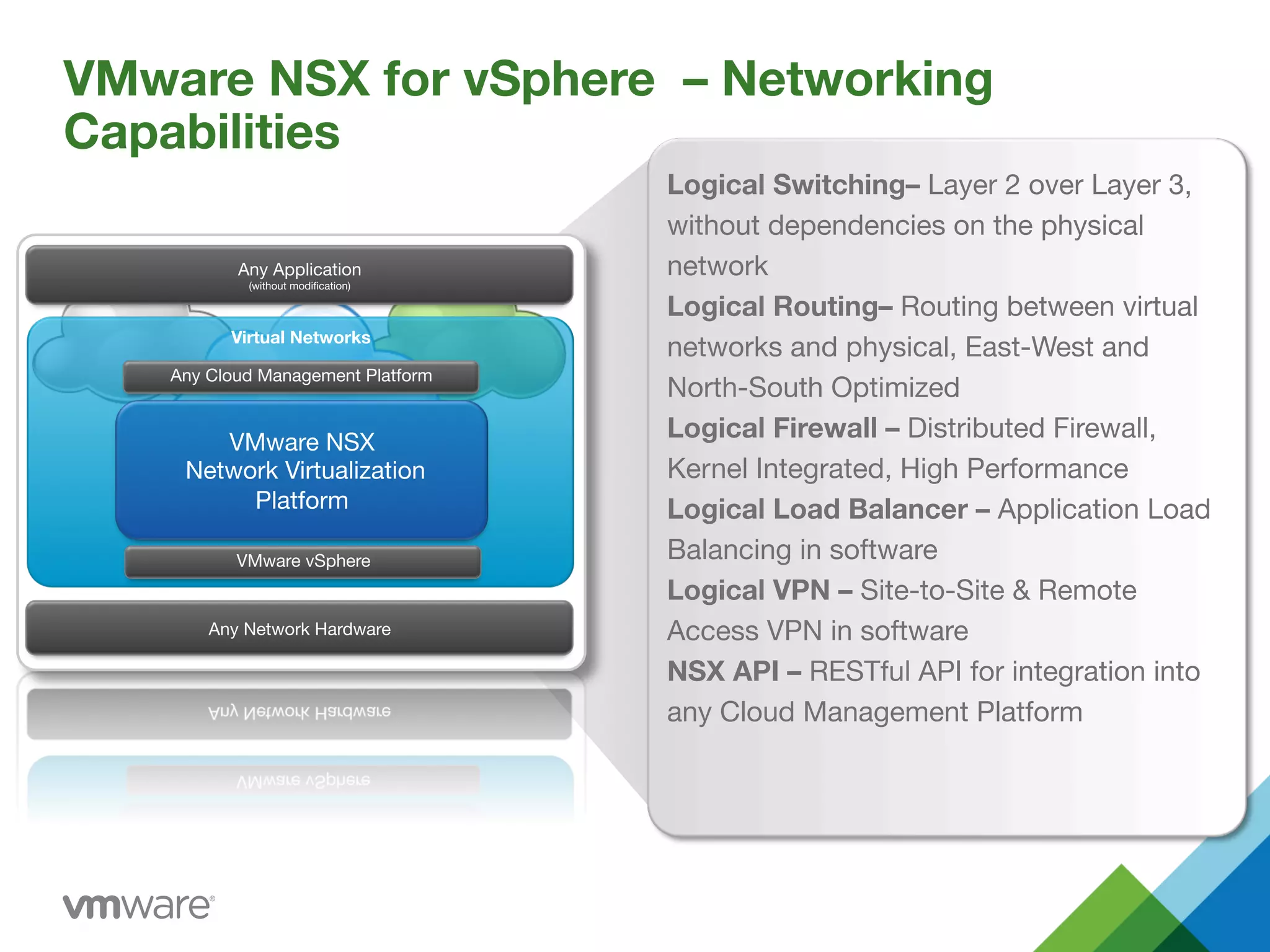

- 5. VMware NSX forvSphere – Networking Capabilities Any Application (without modification) Virtual Networks VMware NSX Network Virtualization Platform Any Network Hardware Any Cloud Management Platform VMware vSphere Logical Switching– Layer 2 over Layer 3, without dependencies on the physical network Logical Routing– Routing between virtual networks and physical, East-West and North-South Optimized Logical Firewall – Distributed Firewall, Kernel Integrated, High Performance Logical Load Balancer – Application Load Balancing in software Logical VPN – Site-to-Site & Remote Access VPN in software NSX API – RESTful API for integration into any Cloud Management Platform

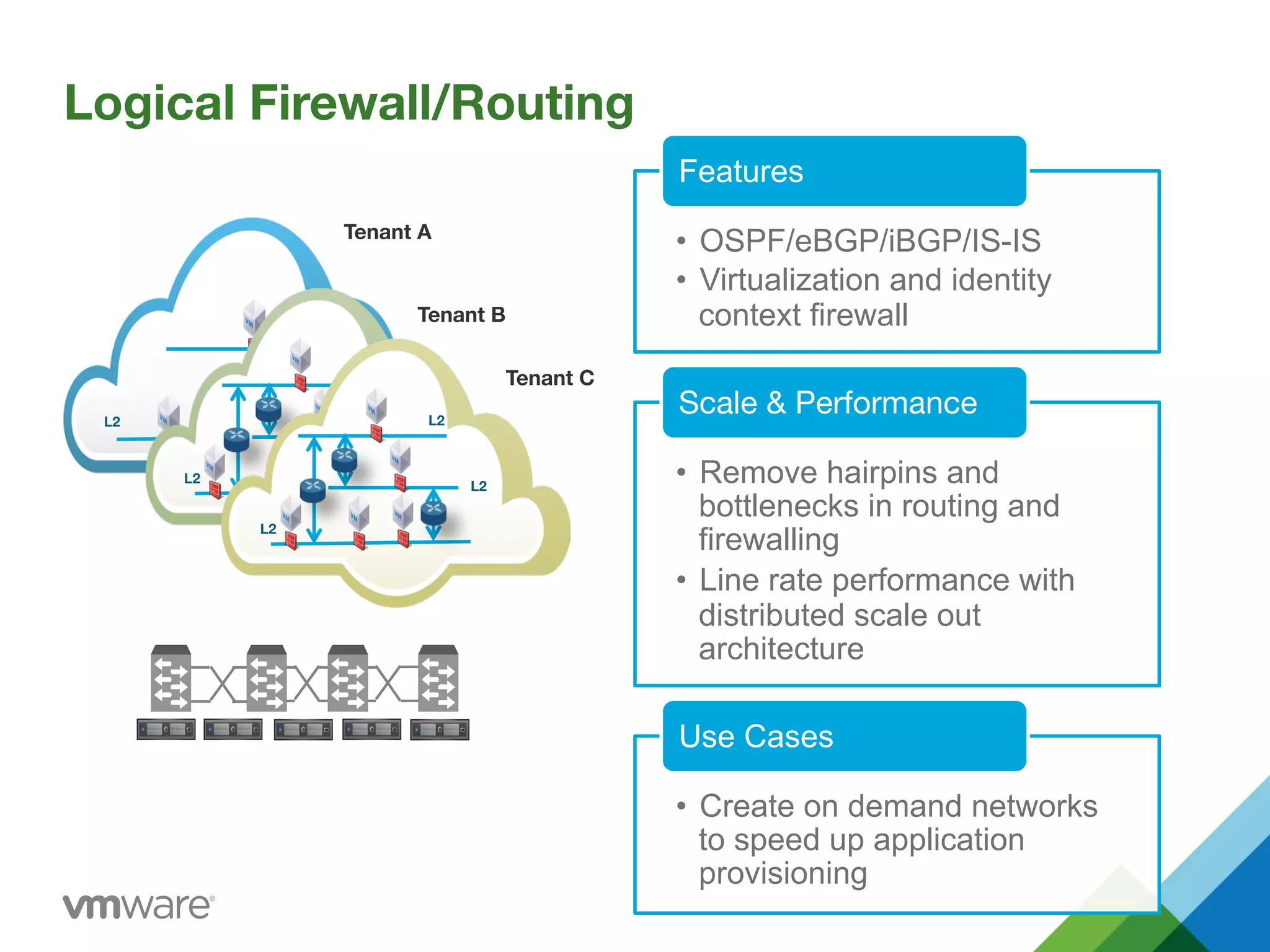

- 6. Logical Firewall/Routing • OSPF/eBGP/iBGP/IS-IS • Virtualization and identity context firewall Features • Remove hairpins and bottlenecks in routing and firewalling • Line rate performance with distributed scale out architecture Scale & Performance • Create on demand networks to speed up application provisioning Use Cases L2 L2 Tenant A Tenant B L2 L2 L2 Tenant C L2 L2 L2

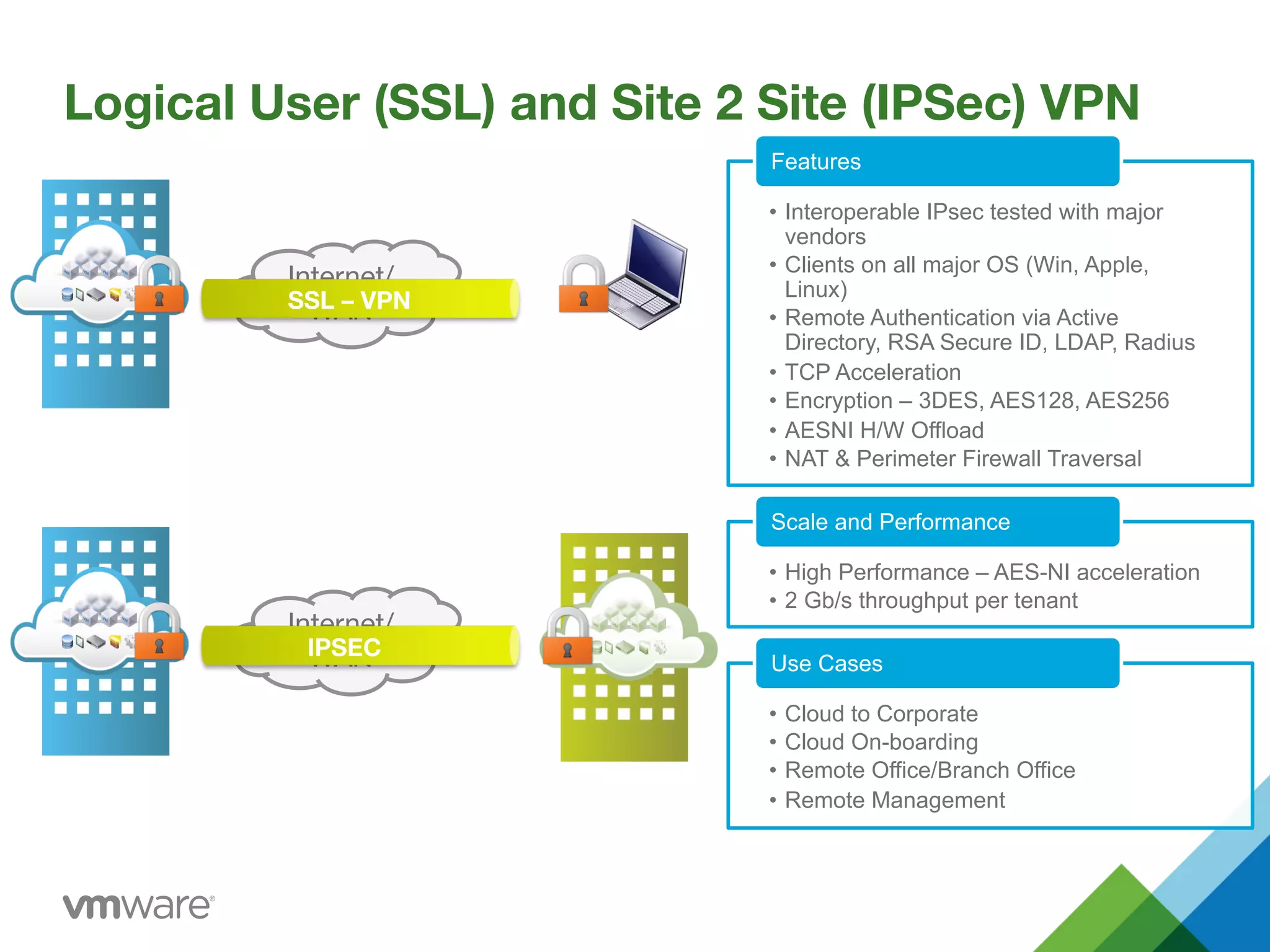

- 7. Logical User (SSL)and Site 2 Site (IPSec) VPN • Interoperable IPsec tested with major vendors • Clients on all major OS (Win, Apple, Linux) • Remote Authentication via Active Directory, RSA Secure ID, LDAP, Radius • TCP Acceleration • Encryption – 3DES, AES128, AES256 • AESNI H/W Offload • NAT & Perimeter Firewall Traversal Features • High Performance – AES-NI acceleration • 2 Gb/s throughput per tenant Scale and Performance • Cloud to Corporate • Cloud On-boarding • Remote Office/Branch Office • Remote Management Use Cases Internet/ WAN IPSEC Internet/ WAN SSL – VPN

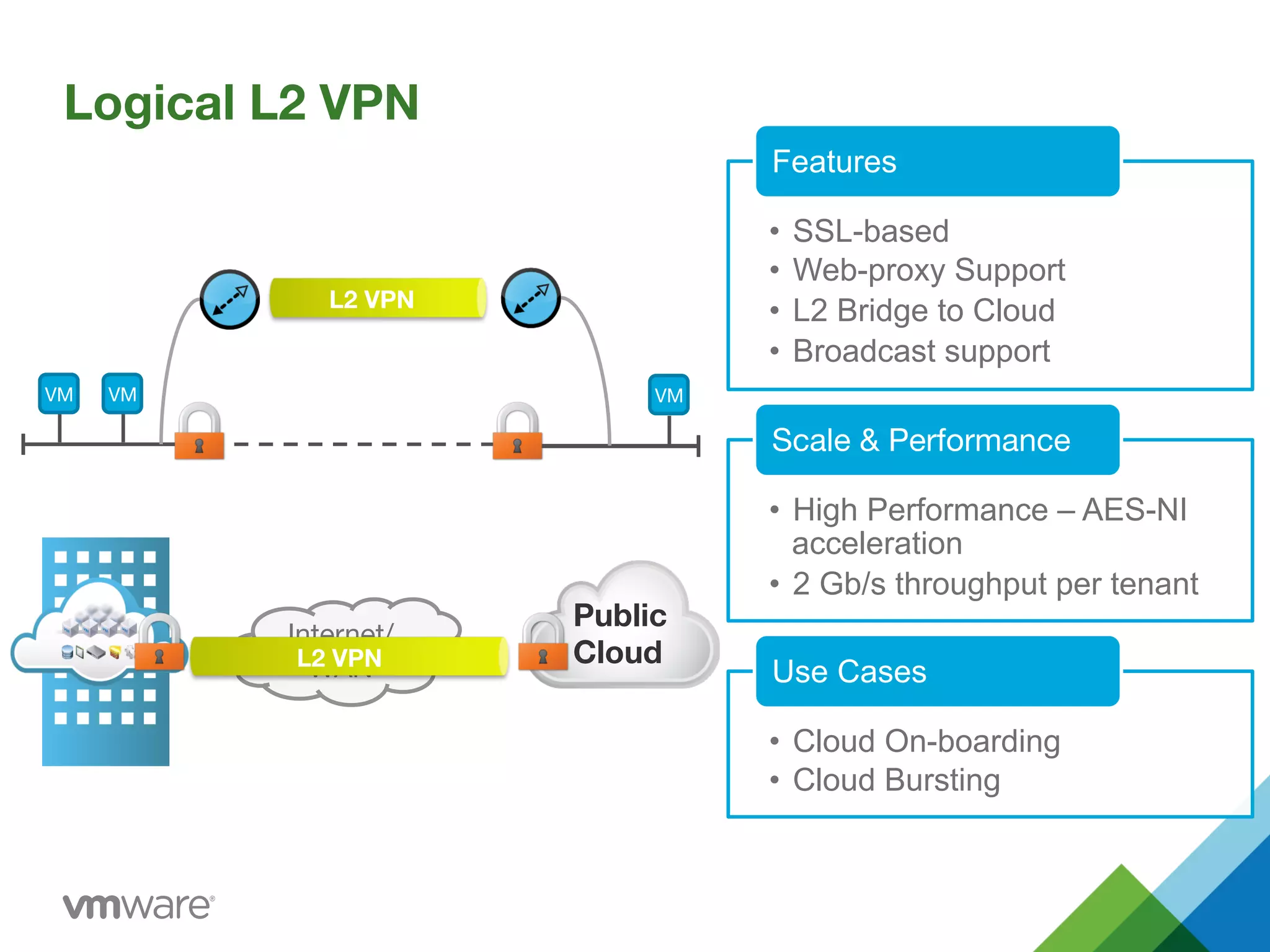

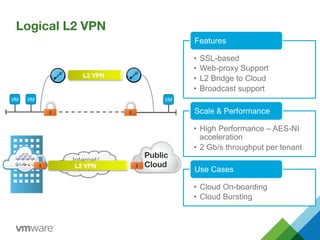

- 8. Public Cloud Logical L2 VPN • SSL-based • Web-proxy Support • L2 Bridge to Cloud • Broadcast support Features • High Performance – AES-NI acceleration • 2 Gb/s throughput per tenant Scale & Performance • Cloud On-boarding • Cloud Bursting Use Cases Internet/ WAN L2 VPN L2 VPN VM VM VM

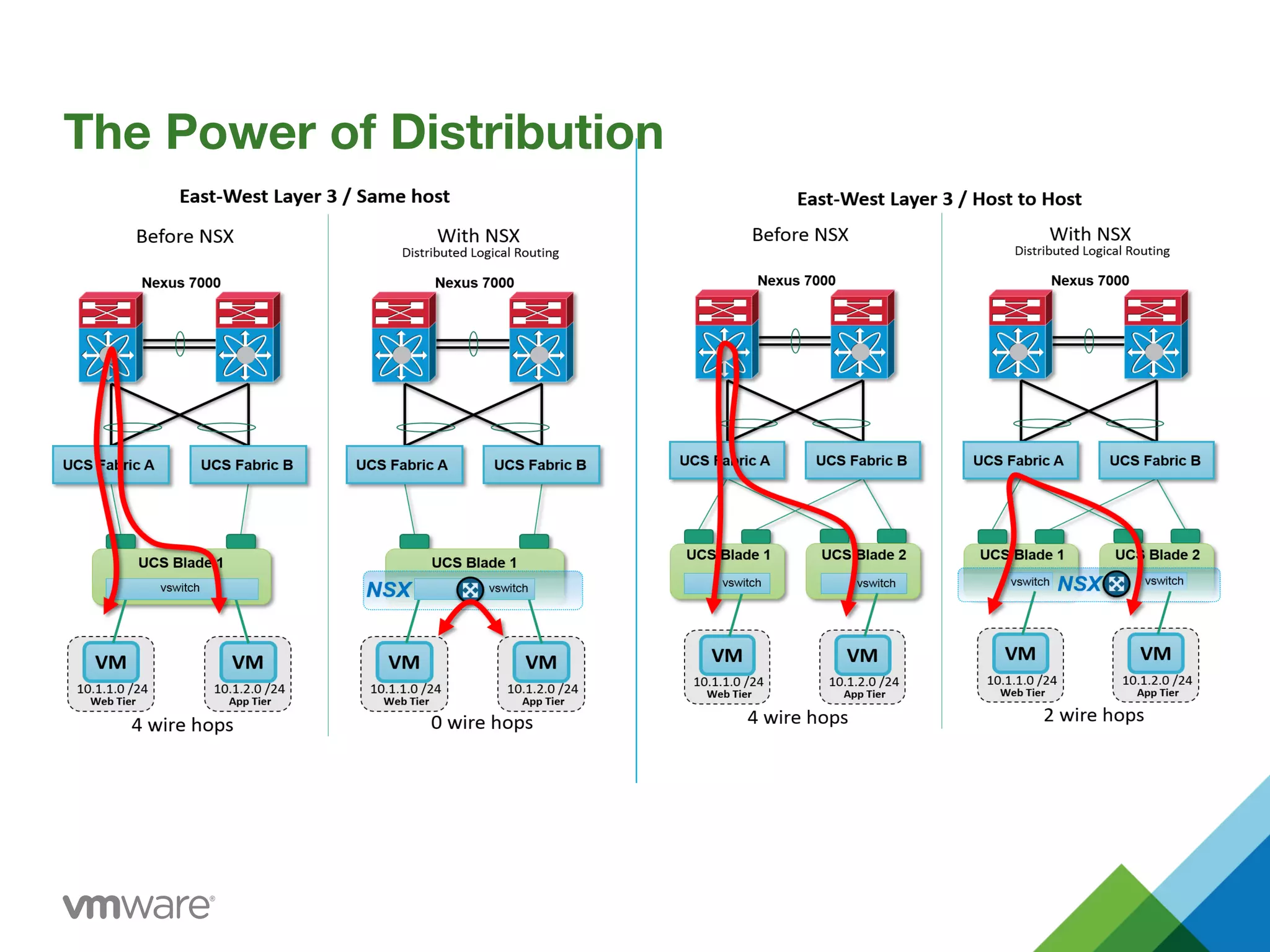

- 9. The Power ofDistribution

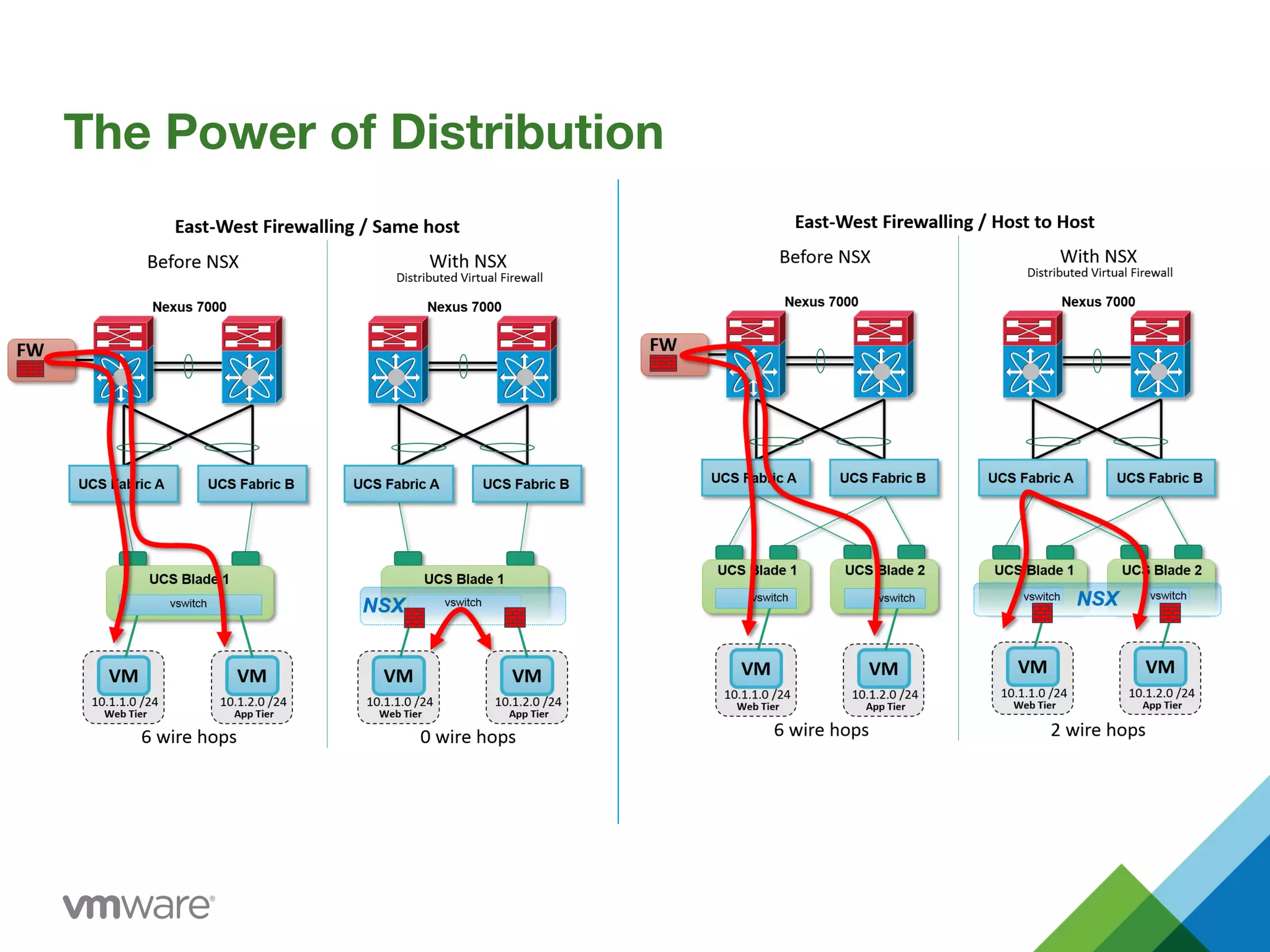

- 10. The Power ofDistribution

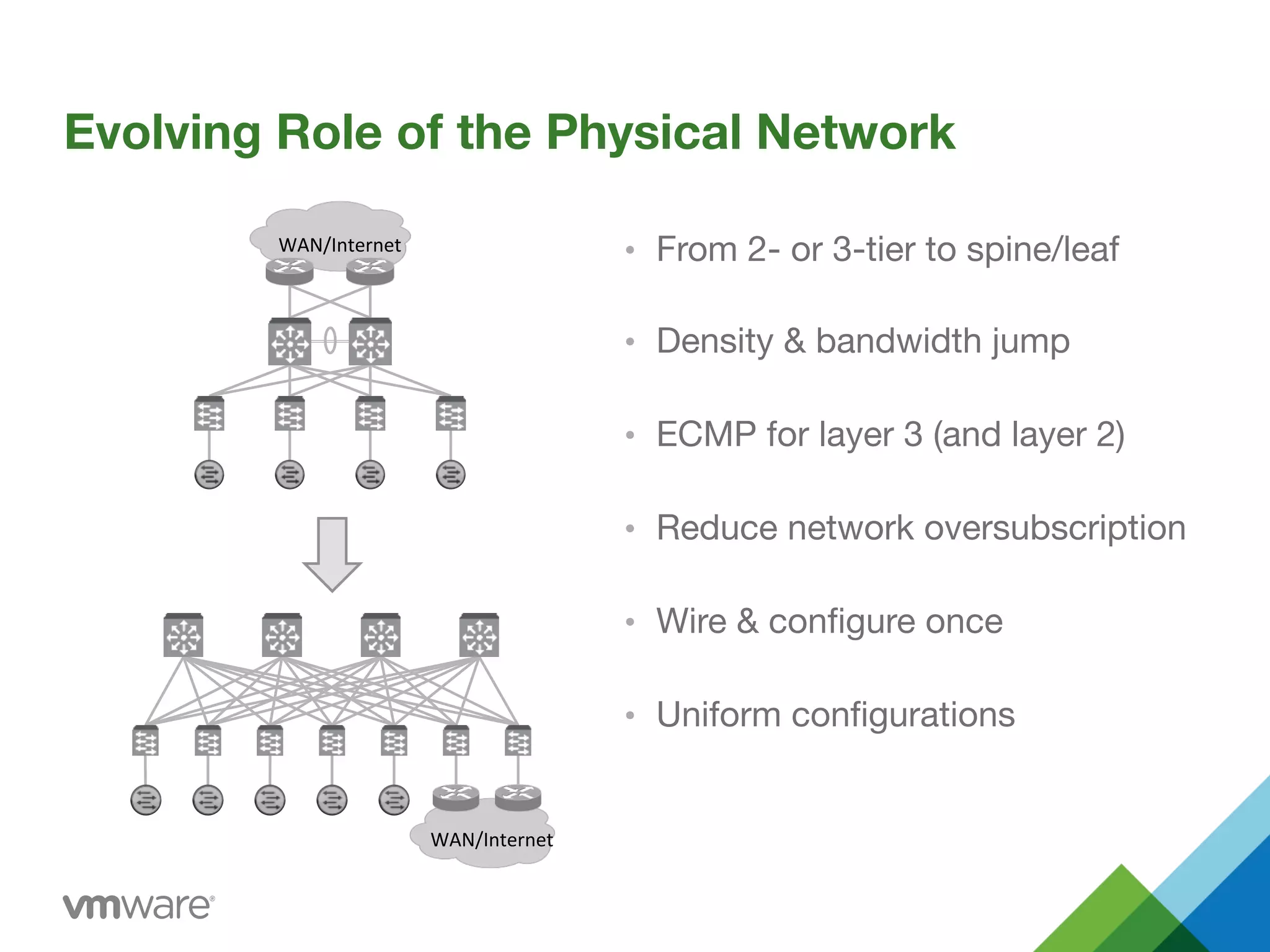

- 11. Evolving Role ofthe Physical Network • From 2- or 3-tier to spine/leaf • Density & bandwidth jump • ECMP for layer 3 (and layer 2) • Reduce network oversubscription • Wire & configure once • Uniform configurations WAN/Internet WAN/Internet
- 12. VMware NSX CoreComponents How does VMware NSX work?

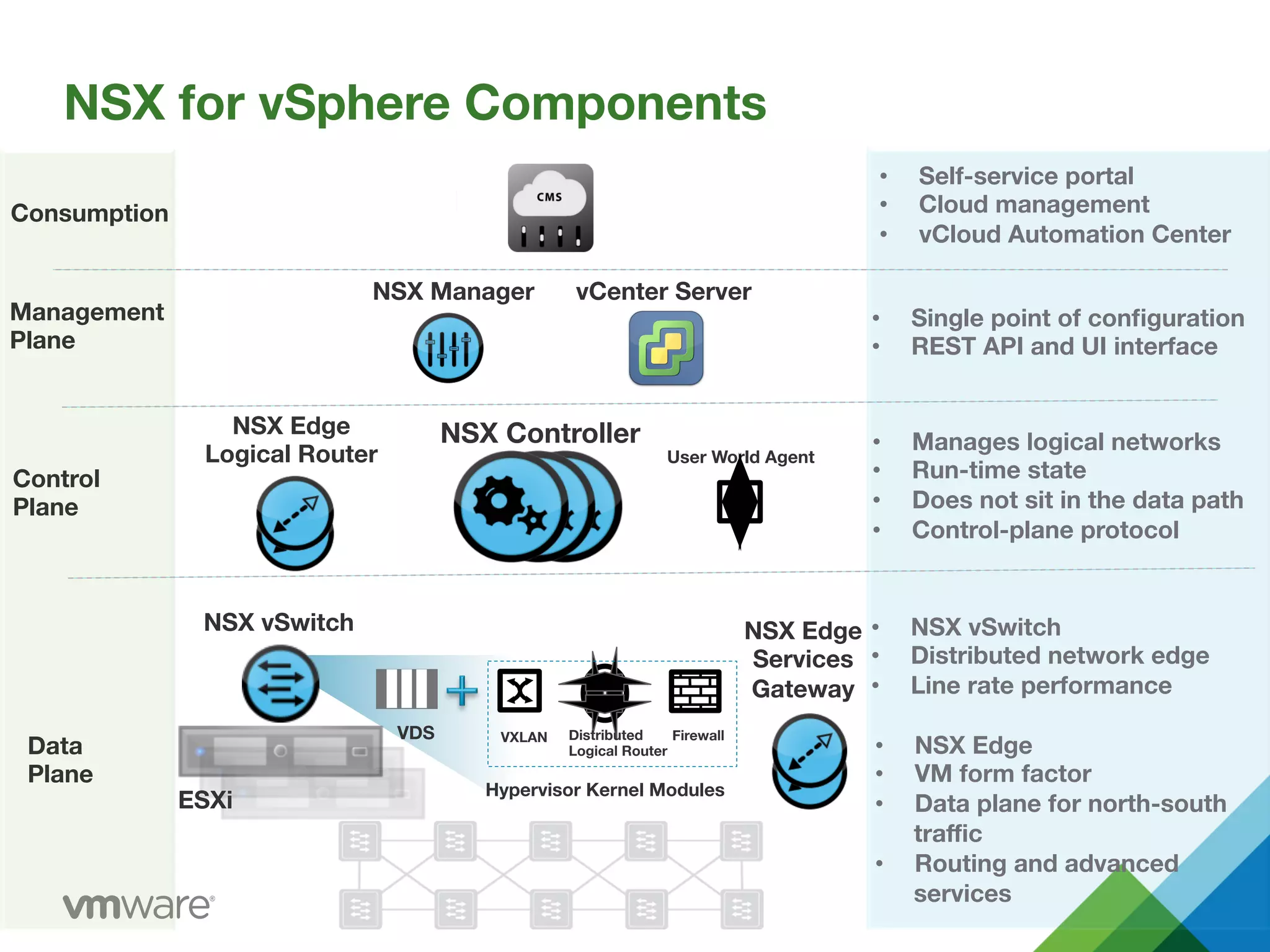

- 13. NSX for vSphereComponents Consumption • Self-service portal • Cloud management • vCloud Automation Center Data Plane NSX Edge Services Gateway ESXi VDS Hypervisor Kernel Modules Firewall Distributed Logical Router VXLAN NSX vSwitch • NSX Edge • VM form factor • Data plane for north-south traffic • Routing and advanced services • NSX vSwitch • Distributed network edge • Line rate performance Management Plane NSX Manager • Single point of configuration • REST API and UI interface vCenter Server Control Plane NSX Controller • Manages logical networks • Run-time state • Does not sit in the data path • Control-plane protocol NSX Edge Logical Router User World Agent

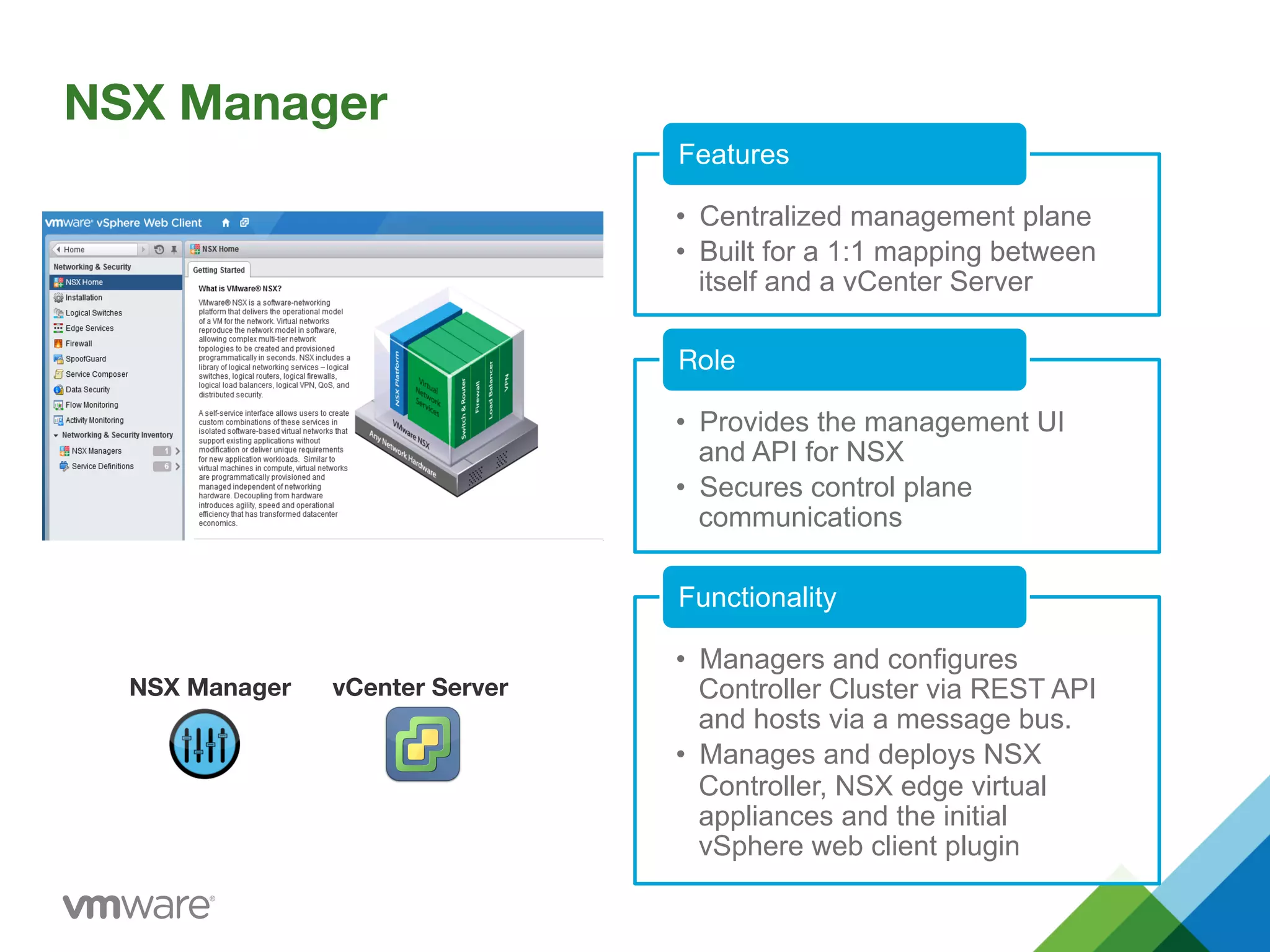

- 14. NSX Manager • Centralizedmanagement plane • Built for a 1:1 mapping between itself and a vCenter Server Features • Provides the management UI and API for NSX • Secures control plane communications Role • Managers and configures Controller Cluster via REST API and hosts via a message bus. • Manages and deploys NSX Controller, NSX edge virtual appliances and the initial vSphere web client plugin Functionality NSX Manager vCenter Server

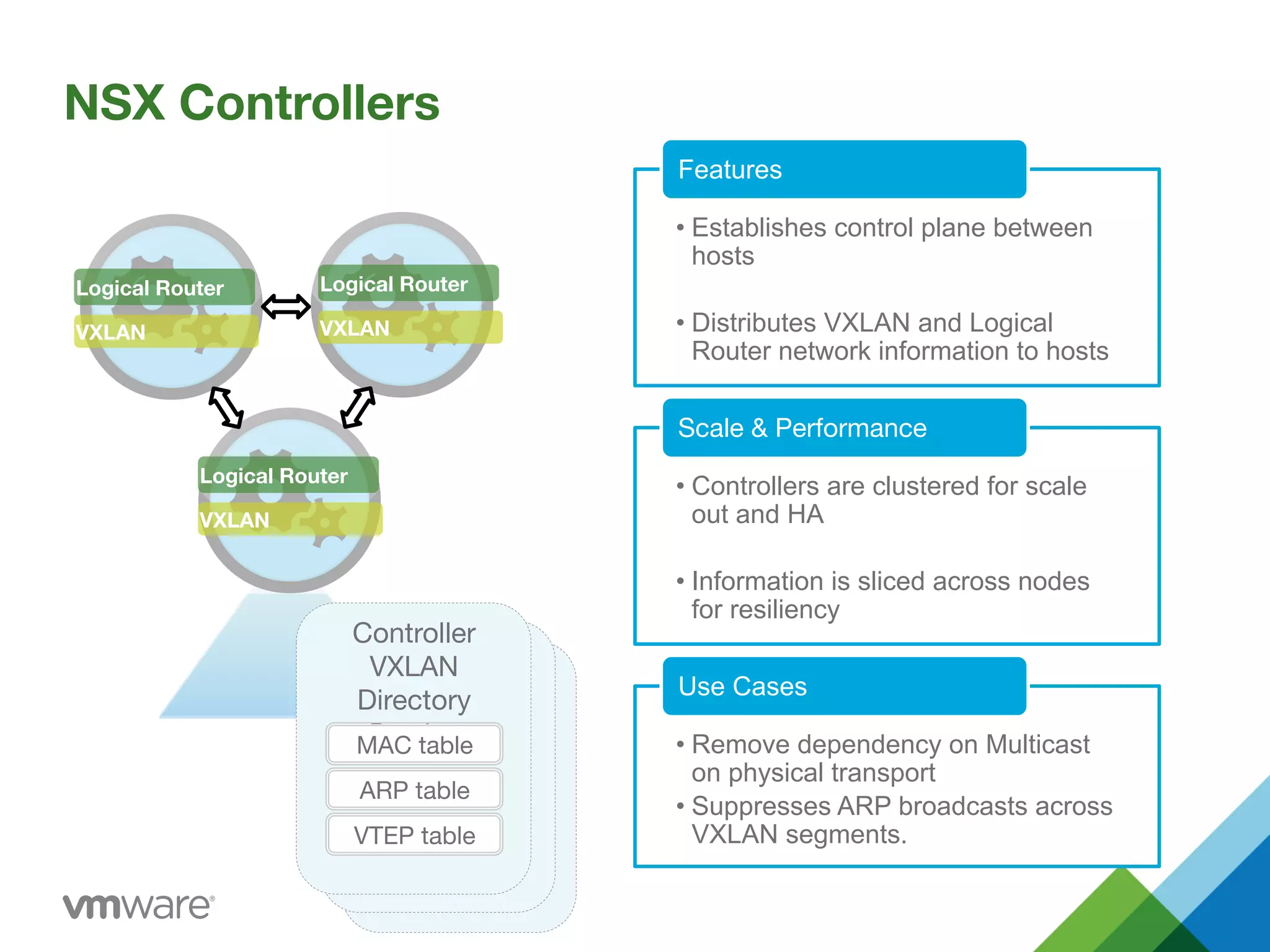

- 15. NSX Controllers • Establishes controlplane between hosts • Distributes VXLAN and Logical Router network information to hosts Features • Controllers are clustered for scale out and HA • Information is sliced across nodes for resiliency Scale & Performance • Remove dependency on Multicast on physical transport • Suppresses ARP broadcasts across VXLAN segments. Use Cases VXLAN Logical Router VXLAN Logical Router VXLAN Logical Router Controller VXLAN Directory Service MAC table ARP table VTEP table

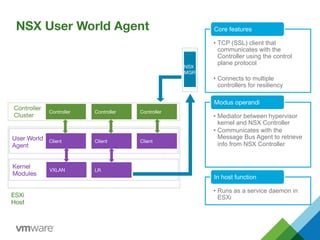

- 16. NSX User WorldAgent • TCP (SSL) client that communicates with the Controller using the control plane protocol • Connects to multiple controllers for resiliency Core features • Mediator between hypervisor kernel and NSX Controller • Communicates with the Message Bus Agent to retrieve info from NSX Controller Modus operandi • Runs as a service daemon in ESXi In host function Controller Cluster Controller Controller Controller ESXi Host Kernel Modules Client Client User World Agent LR NSX MGR Client VXLAN

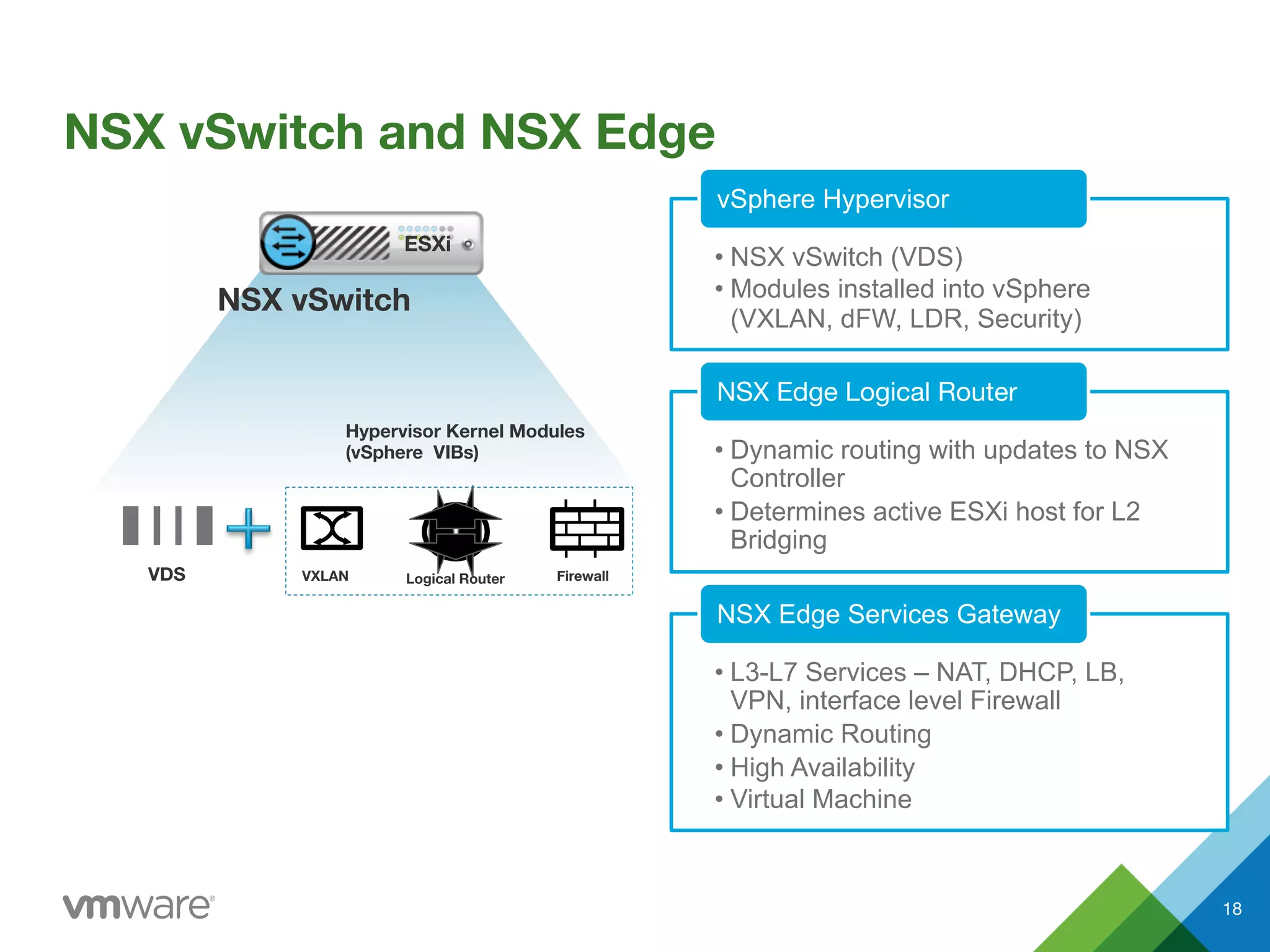

- 17. NSX vSwitch andNSX Edge 18 ESXi VDS Hypervisor Kernel Modules (vSphere VIBs) Firewall Logical Router VXLAN NSX vSwitch • NSX vSwitch (VDS) • Modules installed into vSphere (VXLAN, dFW, LDR, Security) vSphere Hypervisor • Dynamic routing with updates to NSX Controller • Determines active ESXi host for L2 Bridging NSX Edge Logical Router • L3-L7 Services – NAT, DHCP, LB, VPN, interface level Firewall • Dynamic Routing • High Availability • Virtual Machine NSX Edge Services Gateway

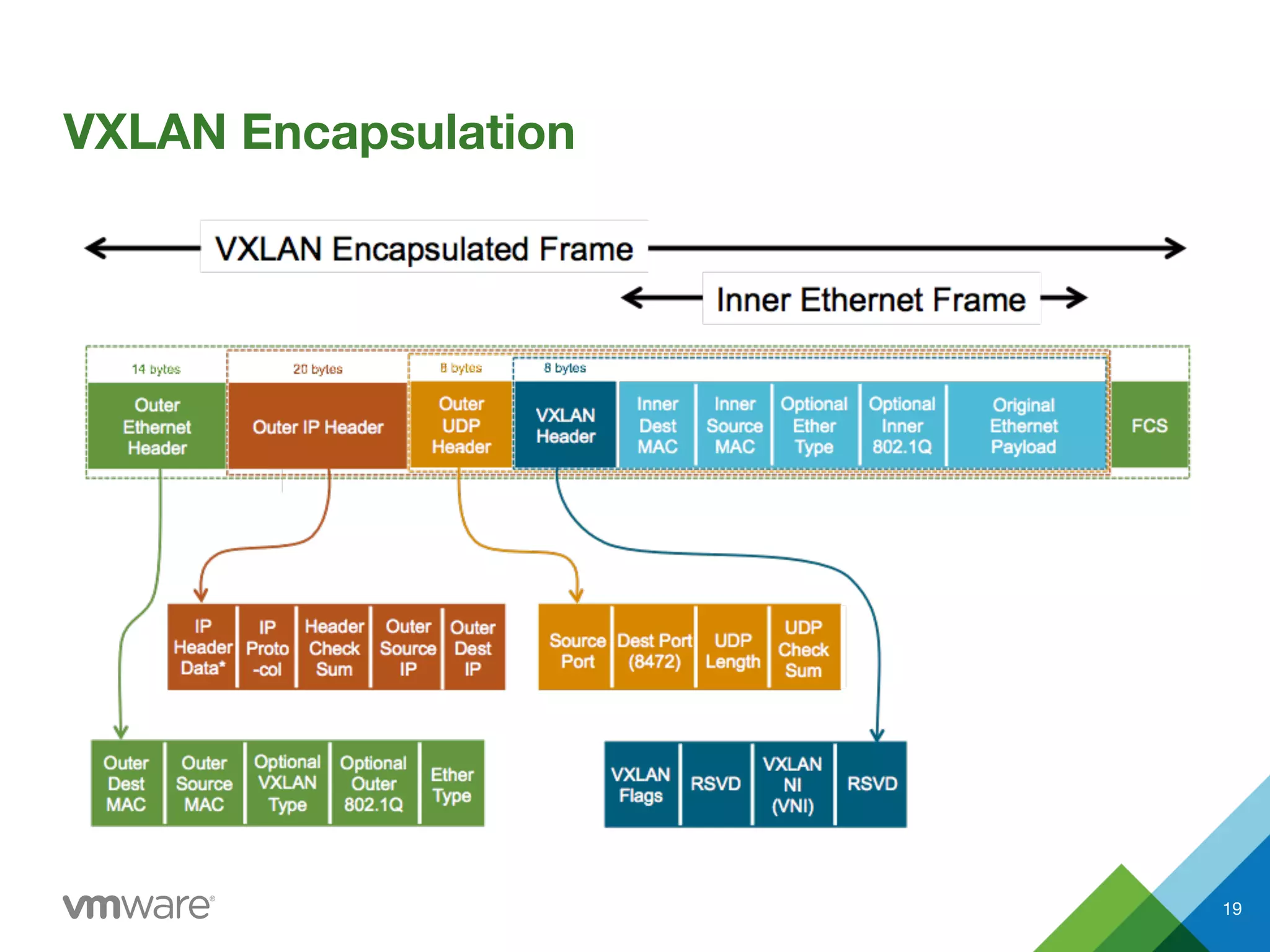

- 18.
- 19.
- 20. Thank You Scott Lowe slowe@vmware.com @scott_lowe(Twitter) http://blog.scottlowe.org
