F5 DDoS protection Mariusz Sawczuk – Specialist Systems Engineer North & East EMEA [2017-03-08]
© F5 Networks, Inc 2 DDoS (Distributed Denial of Service) Attackers AttackersAttackers AttackersAttackers AttackersAttackers Attackers Attackers AttackersAttackers AttackersAttackers AttackersAttackers Attackers Internet Web Clients Partners WebsitesRemote users Attackers Switch Switch Switch DMZ FW VPN FW VPN act/stby AntyMalware Proxy DLP Users Applications Data BaseDNS Data Center EmailUser User NextGen Firewall NextGen Firewall Router Router act/stby Multi-Layer Switch act/stby Multi-Layer Switch act/stby Application DoS Session DoS Network DoS Volumetric DoS
© F5 Networks, Inc 3 Growing Anyone Global Fun Agenda War tactics Diverse Business DDoS World is Complex
© F5 Networks, Inc 4 DDoS attacks hide the Real Threat
© F5 Networks, Inc 5 Layer 2 NetworkLayer 3 Layer 4 Layer 5 Layer 6 Layer 7 Application OWASP Top 10 (e.g. XSS), Slowloris, Slow Post/Read, HTTP GET/POST floods,… Session SSL DNS, NTP DNS UDP floods, DNS query floods, DNS NXDOMAIN floods SSL floods, SSL renegotiation, … SYN/UDP/Conn. floods, PUSH and ACK floods, ICMP/Ping floods, Teardrop, Smurf Attacks, … Types of DDoS attacks
© F5 Networks, Inc 6 Layer 2 NetworkLayer 3 Layer 4 Layer 5 Layer 6 Layer 7 Application OWASP Top 10 (e.g. XSS), Slowloris, Slow Post/Read, HTTP GET/POST floods,… Session SSL DNS, NTP DNS UDP floods, DNS query floods, DNS NXDOMAIN floods SSL floods, SSL renegotiation, … SYN/UDP/Conn. floods, PUSH and ACK floods, ICMP/Ping floods, Teardrop, Smurf Attacks, … Blended Volumetric Types of DDoS attacks
© F5 Networks, Inc 7 DDoS attacks are easy to launch Press button and forget hping3 nmap Low Orbit ION High Orbit IONkillapache.pl slowloris metasploitslowhttptest RussKill Pandora Dirt Jumper PhantomJS …, Jmeter, Scapy, Httpflooder, PhantomJS, SSLyze, THC-SSL-DOS, and many, many more…
Evasion Techniques Differentiation • Several User-Agents & Referrers • Random URL/UA/Content-Length DDoS attacks are easy to launch Press button and forget - 2016 Tools Bundle © 2016 F5 Networks 8
© 2016 F5 Networks 9 DDoS attacks are easy to launch DDoS Coin – crowd funding DDoS
© F5 Networks, Inc 10 DDoS IoT (Internet of Things) – Mirai botnet Mirai from Japaneess means Future https://krebsonsecurity.com/2017/01/who-is-anna-senpai-the-mirai-worm-author/
© F5 Networks, Inc 11 0,54 Tbps 0,62 Tbps 1,0 Tbps 1,2 Tbps DDoS IoT – Mirai botnet Known targets of DDoS attacks
© F5 Networks, Inc 12 STOMP Attack Non standard attacks Known “VSE” attack offered by online Booters (DDoS as a Service) Exploiting online gaming servers for amplification Never implemented attack A hidden “CFNull” Layer 7 attack: DDoS IoT – Mirai botnet DDoS Attacks
© F5 Networks, Inc 13 DDoS IoT – Mirai botnet DDoS Attacks – HTTP Attacks
© F5 Networks, Inc 14 DDoS IoT – Mirai botnet Coming Through the Front Door
© F5 Networks, Inc 15 DDoS IoT – Mirai botnet Change of tactics
© F5 Networks, Inc 16 Mirai LuaBot qBot (GayFgt/Torlus/Bashlite) Darlloz IRCTelnet (Aidra2) Hajime DDoS IoT – Other botnets IoT Malware Families
F5 Networks DDoS Protection
© F5 Networks, Inc 18 Protect Your Business and Stay Online During a DDoS Attack • Mitigate mid-volume, SSL, or application targeted attacks on-premises • Complete infrastructure control • Advanced L7 attack protections • Turn on cloud-based service to stop volumetric attacks from ever reaching your network • Multi-layered L3-L7 DDoS attack protection against all attack vectors • 24/7 attack support from security experts F5 SILVERLINE DDOS PROTECTION When under attack F5 ON-PREMISES DDOS PROTECTION F5 Networks DDoS Protection On-premises and cloud-based services for comprehensive DDoS Protection
© F5 Networks, Inc 19 Scanner Anonymous Proxies Anonymous Requests Botnet Attackers Threat Intelligence Feed Cloud Network Application Legitimate Users DDoS Attackers Cloud Scrubbing Service Volumetric attacks and floods, operations center experts, L3-7 known signature attacks ISPa/b Multiple ISP strategy Network attacks: ICMP flood, UDP flood, SYN flood DNS attacks: DNS amplification, query flood, dictionary attack, DNS poisoning IPS Network and DNS Application HTTP attacks: Slowloris, slow POST, recursive POST/GET Next-Generation Firewall Corporate Users SSL attacks: SSL renegotiation, SSL flood Financial Services E-Commerce Subscriber Strategic Point of Control F5 Networks DDoS Protection - Reference Architecture
© F5 Networks, Inc 20 • Only single vendor with native, seamlessly integrated on-premise and cloud-based scrubbing services • Leverages industry leading application protections to defend against L7 DDoS and vulnerability threats • Most comprehensive HW-based DDoS protection coverage • Unsurpassed SSL performance with SSL termination and outbound SSL interception protection • Ensures app availability and performance while under attack with leading datacenter scalability and up to 2Tbps of cloud-based scrubbing capacity • Gartner on DDoS – Go Hybrid! • “Cloud + On-Premise” Makes the most sense F5 Networks DDoS Protection - Why F5 Hybrid is better
F5 On Premisses DDoS Protection BIG-IP
© F5 Networks, Inc 22 iRule iRule iRule TCP SSL HTTP TCP SSL HTTP iRule iRule iRule ICMP flood SYN flood SSL renegotiation Data leakageSlowloris attackXSS Network Firewall WAF WAF F5 On-premises DDoS protection - Full proxy security
© F5 Networks, Inc 23 Application Access Network Access Network Firewall Network DDoS Protection SSL DDoS Protection DNS DDoS Protection Application DDoS Protection Web Application Firewall Fraud Protection Virtual Patching F5 On-premises protection - Comprehensive application security
© F5 Networks, Inc 24 F5 On-premises protection - Comprehensive DDoS protection More than only DDoS Protection ASM DoS + IPI L7 DoS Profiles Heavy URLs AFM DoS + IPI Device DoS Protocol DoS IP Intelligence B/W Lists DNS DoS DNS DoS DNS SEC LTM Profiles HTTP/HTTPS SSL SIP SMTP BIGIP System Reaper 75%-90% iRules
© F5 Networks, Inc 25 Up to 640 Gbps, 7.5M CPS, 576M CCS in the datacenter and over 1Tbps in the cloud F5 On-premises DDoS protection - Performance 10000 Series 11000 Series 5000 Series 2000 series / 4000 series 7000 Series VIPRION 4800 VIPRION 4480 25M 200M 1Gbps 3Gbps 5Gbps VIPRION 2400 New 10Gbps New VIPRION 2200
© F5 Networks, Inc 26 Over 110+ L3/4 DDoS vectors with majority of them mitigated in hardware. F5 On-premises DDoS protection – DDoS vectors hardware accelerated
© F5 Networks, Inc 27 F5 On-premises DDoS protection - Recommended by NSS Labs
Network DDoS Mitigation Network Application Session SSL DNS, NTP Blended

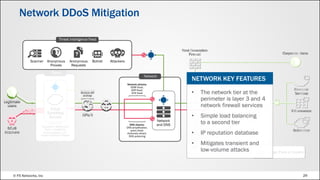

© F5 Networks, Inc 29 Network DDoS Mitigation Scanner Anonymous Proxies Anonymous Requests Botnet Attackers Threat Intelligence Feed Cloud Network Application Legitimate Users DDoS Attackers Cloud Scrubbing Service Volumetric attacks and floods, operations center experts, L3-7 known signature attacks ISPa/b Multiple ISP strategy Network attacks: ICMP flood, UDP flood, SYN flood DNS attacks: DNS amplification, query flood, dictionary attack, DNS poisoning IPS Network and DNS Application HTTP attacks: Slowloris, slow POST, recursive POST/GET Next-Generation Firewall Corporate Users SSL attacks: SSL renegotiation, SSL flood Financial Services E-Commerce Subscriber Strategic Point of Control • The network tier at the perimeter is layer 3 and 4 network firewall services • Simple load balancing to a second tier • IP reputation database • Mitigates transient and low-volume attacks NETWORK KEY FEATURES

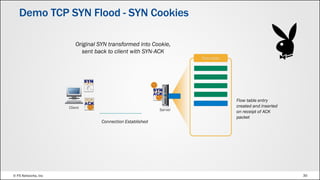

© F5 Networks, Inc 30 Demo TCP SYN Flood - SYN Cookies Flow table Original SYN transformed into Cookie, sent back to client with SYN-ACK Flow table entry created and inserted on receipt of ACK packet Connection Established
© F5 Networks, Inc 31 Demo TCP SYN Flood - Topology and initial configuration • The TMOS version 12.1 • Virtual Server info: - Listening on port 80 - Type: Performance L4 (to start with) - No HTTP profile (to start with) - Pool members: 3 x Apache servers listening on port 80 BIG-IP Platform Application 10.1.20/24 10.1.10/24 Attacker .200 VS .80:80 Application .13.11 Application User .100 .12
© F5 Networks, Inc 32 Demo TCP SYN Flood - Start the attack
© F5 Networks, Inc 33 Demo TCP SYN Flood - Attack Mitigated
© F5 Networks, Inc 34 Demo TCP SYN Flood - AFM signatures mitigation
© F5 Networks, Inc 35 Application Security Data Center Firewall Access Security User App Servers Classic Server DNS Security Network DDoS • Built on the market leading Application Delivery Controller (ADC) • Consolidates multiple appliance to reduce TCO • Protects against L2-L4 attacks with the most advanced full proxy architecture • Delivers over 110 vectors and more hardware-based DOS vectors than any other vendor • Ensures performance while under attack - scales to 7.5M CPS; 576M CC, 640 Gbps • Offers a foundation for an integrated L2-L7 Application delivery firewall platform Network DDoS Mitigation - AFM (Advanced Firewall Manager)

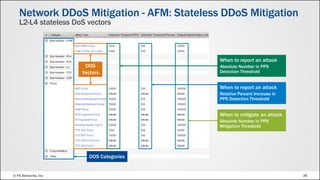

© F5 Networks, Inc 36 DOS Categories DOS Vectors When to report an attack Absolute Number in PPS Detection Threshold When to report an attack Relative Percent Increase in PPS Detection Threshold When to mitigate an attack Absolute Number in PPS Mitigation Threshold Network DDoS Mitigation - AFM: Stateless DDoS Mitigation L2-L4 stateless DoS vectors
© F5 Networks, Inc 37 Demo Different Network DDoS Attacks - Topology and initial configuration • The TMOS version 12.1 • Virtual Server info: - Listening on all ports - Type: Standard - TCP profile: tcp-lan-optimized on outside interface - Pool members: 1 x servers listening on different ports BIG-IP Platform Server 10.1.20/24 10.1.10/24 Attacker .200 VS .80:all ports User .100 .11
© F5 Networks, Inc 38 Demo Different Network DDoS Attacks - Start the attack
© F5 Networks, Inc 39 Demo Different Network DDoS Attacks - Attacks mittigated
© F5 Networks, Inc 40 F5 IP Intelligence Service • Dynamic Feed updated every 5 minutes • Applied at Virtual-Server Level 9 Pre-Defined Categories of Malicious IP’s/Subnets Customizable Per-Category Actions (Accept, Warn, Reject) Policy Name (attach-able to a Virtual Server) Network DDoS Mitigation - Dynamic Endpoint Visibility & Enforcement IP Intelligence service
© F5 Networks, Inc 41 F5 IP INTELLIGENCE SERVICES • Dynamic services feeds updated frequently • Policy attached to global, route- domain or VS contexts • Categorize IP/Sub_net by attack type • Customizable actions per attack type category (i.e., Accept, Warn, Alert) • Create multiple customizable IP feeds DYNAMIC IP BLACK LISTS & WHITE LISTS • Create IP Black Lists and White Lists that override IP intelligence services • Merge multiple sources into 1 feed or enforcement policy • HTTP/S & FTP polling methods • User defined categories • Support for IPv6 and IPv4 Maintain a current IP reputation database that allows you to automatically mitigate traffic from known bad or questionable IP addresses. Network DDoS Mitigation - AFM Dynamically update security logic
Session (DNS) DDoS Mitigation Network Application Session SSL DNS, NTP Blended
© F5 Networks, Inc 43 DNS DDoS Attacks Why DNS is popular for DDoS? • Widely used protocol, open on FWs, open recursion • DNS is based on UDP • DNS DDoS often uses spoofed sources • Large Amplification Factor (100x) - using open resolvers or ANY type to an authoritative NS Traditional mitigations are failing • Using an ACL block legitimate clients • DNS attacks use massive volumes of source addresses, breaking many firewalls Denial of Service Attacks targeting DNS infrastructure are often complex and standard tools can not provide adequate response to mitigate it without inhibiting the ability of DNS to do its job
© F5 Networks, Inc 44 DNS DDoS Attacks - DNS UDP Flood Synopsys Many attackers or botnets flood an authoritative name server, attempting to exceed its capacity. Dropped responses = reduced or no site availability. Mitigation – PERFORMANCE, PERFORMANCE, …. • F5 offers exceptional DNS capacity, over 2M RPS in case of appliance and to over 20M RPS for chassis. Additionally the possibility to use Rapid Response Mode to double during the attack. • Identify unusually high traffic patterns to specific clients using F5 DNS DDoS Profiles - ICSA–certified FW with support for 30+ DDoS vectors • Use DNS Anycast to distribute the load between regional DCsDNS Requests DNS Responses Target DNS infrastructure
© F5 Networks, Inc 45 DNS DDoS Attacks - DNS Amplification & NSQUERY DNS Requests Large DNS Responses Synopsys By spoofing a UDP source address, attackers can target a common source. By requesting for large record types (ANY, DNSSEC, etc), a 36 byte request can result in a response over 100 times larger. Mitigation • DNS request type validation– force TCP in case of type ANY • BIG-IP supports DNS type ACLs - filters for acceptable DNS query types • Identify unusually high traffic patterns to specific clients or from specific sources via DNS DoS Profiles and apply mitigations • Drop all unsolicited responses (BIG IP’s default behavior) [Target Site]

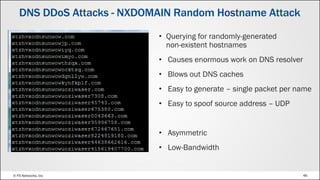

© F5 Networks, Inc 46 • Querying for randomly-generated non-existent hostnames • Causes enormous work on DNS resolver • Blows out DNS caches • Easy to generate – single packet per name • Easy to spoof source address – UDP • Asymmetric • Low-Bandwidth DNS DDoS Attacks - NXDOMAIN Random Hostname Attack
© F5 Networks, Inc 47 Demo DNS Flood - Start the attack
© F5 Networks, Inc 48 DNS DDoS Mitigation - AFM: DDoS Singnatures Attack mitigated
© F5 Networks, Inc 49 Malformed/Protocol Violations Detection DNS DOS Detection by Query Type When to report and attack. Absolute and Relative Increase Detection Thresholds SIP DOS Detection by Method When to report and attack Absolute and Relative Increase Detection Thresholds DNS DDoS Mitigation - AFM: Stateless App. Layer DoS Detection Application protocol volumetric attack detection: DNS & SIP
© F5 Networks, Inc 50 Filter by DNS Query types a m mg loc ixfr dname nsec3param aaaa px rp spf cert nesc3 ipseckey any md mr eid apl dhcid nsap_ptr cname mf null nxt axfr zxfer nsap mx a6 wks key sink rrsig nimloc ns rt dlv x25 naptr sshfp dnskey ptr mb hip sig isdn maila mailb soa ds opt tsig nsec afsdb hinfo srv kx txt ata gpos tkey minfo DNS DDoS Mitigation - AFM: Protocol Security Application Protocol compliance & DNS DoS mitigation
Network Application Session SSL DNS, NTP Blended Session (SSL) DDoS Mitigation
© F5 Networks, Inc 52 Scanner Anonymous Proxies Anonymous Requests Botnet Attackers Threat Intelligence Feed Cloud Network Legitimate Users DDoS Attackers Cloud Scrubbing Service Volumetric attacks and floods, operations center experts, L3-7 known signature attacks ISPa/b Multiple ISP strategy Network attacks: ICMP flood, UDP flood, SYN flood DNS attacks: DNS amplification, query flood, dictionary attack, DNS poisoning IPS Network and DNS Next-Generation Firewall Corporate Users Financial Services E-Commerce Subscriber Strategic Point of Control Application Application HTTP attacks: Slowloris, slow POST, recursive POST/GET SSL attacks: SSL renegotiation, SSL flood APPLICATION KEY FEATURES • Application-aware, CPU-intensive defense mechanisms • SSL termination • Web application firewall • Mitigate asymmetric and SSL- based DDoS attacks SSL DDoS Mitigation - F5 Reference Architecture

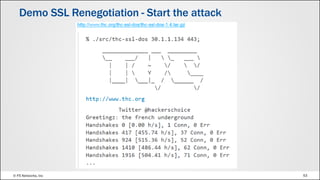

© F5 Networks, Inc 53 Demo SSL Renegotiation - Start the attack
© F5 Networks, Inc 54 Demo SSL Renegotiation – Attack mitigated LTM: SSL Profile
Application DDoS Mitigation Network Application Session SSL DNS, NTP Blended
© F5 Networks, Inc 56 Scanner Anonymous Proxies Anonymous Requests Botnet Attackers Threat Intelligence Feed Cloud Network Legitimate Users DDoS Attackers Cloud Scrubbing Service Volumetric attacks and floods, operations center experts, L3-7 known signature attacks ISPa/b Multiple ISP strategy Network attacks: ICMP flood, UDP flood, SYN flood DNS attacks: DNS amplification, query flood, dictionary attack, DNS poisoning IPS Network and DNS Next-Generation Firewall Corporate Users Financial Services E-Commerce Subscriber Strategic Point of Control Application Application HTTP attacks: Slowloris, slow POST, recursive POST/GET SSL attacks: SSL renegotiation, SSL flood APPLICATION KEY FEATURES • Application-aware, CPU-intensive defense mechanisms • SSL termination • Web application firewall • Mitigate asymmetric and SSL- based DDoS attacks Application DDoS Mitigation - F5 Reference Architecture
© F5 Networks, Inc 57 ▪ Guards against RPS (TPS) and latency-based anomalies ▪ Provides predictive indicators ▪ Support IP, geolocation, URL and site wide detection criteria Application DDoS Mitigation - ASM (Application Security Manager) Layer 7 HTTP/S DoS attack protection ▪ Provides heavy URL protection ▪ Protects against threats proactively ▪ Simplified reports access and added qkView violations export support ▪ Advanced Prevention techniques ▪ Client Side Integrity Defense ▪ CAPTCHA (HTML or JS response) ▪ Source IP Blocking ▪ Geolocation blacklisting
© F5 Networks, Inc 58 Demo Application DDoS Attacks - Topology and initial configuration • The TMOS version 12.1 • Virtual Server info: - Listening on port 80 - Type: Performance L4 (to start with) - No HTTP profile (to start with) - Pool members: 3 x Apache servers listening on port 80 BIG-IP Platform Application 10.1.20/24 10.1.10/24 Attacker .200 VS .80:80 Application .13.11 Application User .100 .12
© F5 Networks, Inc 59 • Slow HEADERS (Slowloris) – opening HTTP connections to a web server and then sending just enough data in an HTTP header (typically 5 bytes or so) every 299 seconds to keep the connections open. Slow headers is an attack that very slowly sends a HTTP request. The request headers are sent so slowly that all available server connections are tied up waiting for the slow request to complete. Slowloris achieves denial-of- service with just 394 open connections for typical Apache 2 Application DDoS Attacks - HTTP Slow (Low Bandwith)
© F5 Networks, Inc 60 Demo Slow HEADERS - Start the attack • Send the command: slowhttptest -H -c 3000 -i 10 -r 50 -u http://10.1.10.80/ & • …. website is down!
© F5 Networks, Inc 61 Demo Slow HEADERS - LTM: Standard Virtual Server with HTTP Profile • LTM can protect the Apache servers by preventing the Slow Headers attack from ever reaching them. A Standard Virtual Server with a HTTP profile does not open the server side connection until the full HTTP request is received. Since the attack never completes the HTTP request, the attack is never propagated to the servers. https://support.f5.com/kb/en-us/solutions/public/8000/000/sol8082.html#standard
© F5 Networks, Inc 62 DOS enhancements and new vectors AFM delivers increased effectiveness of DoS vectors by enhancing vectors to provide greater coverage, introducing new vectors, providing more hardware-based vectors, and improve overall DoS logging. Version 12.0 also provides Sweeper enhancements to Slow Loris, BiasIdle Cleanup and Reporting Demo Slow HEADERS - AFM: Not only Network DDoS protection

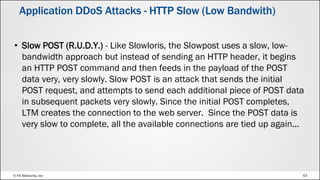

© F5 Networks, Inc 63 • Slow POST (R.U.D.Y.) - Like Slowloris, the Slowpost uses a slow, low- bandwidth approach but instead of sending an HTTP header, it begins an HTTP POST command and then feeds in the payload of the POST data very, very slowly. Slow POST is an attack that sends the initial POST request, and attempts to send each additional piece of POST data in subsequent packets very slowly. Since the initial POST completes, LTM creates the connection to the web server. Since the POST data is very slow to complete, all the available connections are tied up again... Application DDoS Attacks - HTTP Slow (Low Bandwith)
© F5 Networks, Inc 64 Demo Slow POST - Start the attack • Send the command: slowhttptest -B -c 3000 -i 20 -r 50 -u http://10.1.10.80/ & • …. website is down!
© F5 Networks, Inc 65 Demo Slow POST - ASM: Deployment Policy • ASM Deployment steps (shortened) Apply! You can use Rapid Deployment
© F5 Networks, Inc 66 Demo Slow POST - ASM Protection • ASM can protect against Slow POST attacks by just being applied to the virtual server. The policy does NOT need to be in blocking mode. Since ASM must protect itself from slow connections, it will also protect the virtual server by limiting the number of slow connections allowed. The number of allowed connections per TMM is configurable. • Security > Options > Application Security > Advanced Configuration > System Variables • When this protection kicks in, ASM will log to /var/log/asm:

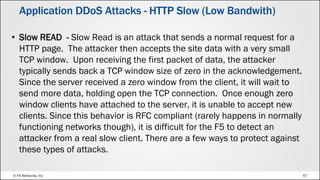

© F5 Networks, Inc 67 • Slow READ - Slow Read is an attack that sends a normal request for a HTTP page. The attacker then accepts the site data with a very small TCP window. Upon receiving the first packet of data, the attacker typically sends back a TCP window size of zero in the acknowledgement. Since the server received a zero window from the client, it will wait to send more data, holding open the TCP connection. Once enough zero window clients have attached to the server, it is unable to accept new clients. Since this behavior is RFC compliant (rarely happens in normally functioning networks though), it is difficult for the F5 to detect an attacker from a real slow client. There are a few ways to protect against these types of attacks. Application DDoS Attacks - HTTP Slow (Low Bandwith)
© F5 Networks, Inc 68 Demo Slow READ - Start the attack • Send the command: slowhttptest -X -c 3000 -i 10 -r 50 -u http://10.1.10.80/ & • …. website is down!

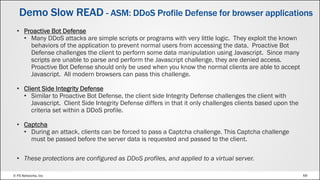

© F5 Networks, Inc 69 Demo Slow READ - ASM: DDoS Profile Defense for browser applications • Proactive Bot Defense • Many DDoS attacks are simple scripts or programs with very little logic. They exploit the known behaviors of the application to prevent normal users from accessing the data. Proactive Bot Defense challenges the client to perform some data manipulation using Javascript. Since many scripts are unable to parse and perform the Javascript challenge, they are denied access. Proactive Bot Defense should only be used when you know the normal clients are able to accept Javascript. All modern browsers can pass this challenge. • Client Side Integrity Defense • Similar to Proactive Bot Defense, the client side Integrity Defense challenges the client with Javascript. Client Side Integrity Defense differs in that it only challenges clients based upon the criteria set within a DDoS profile. • Captcha • During an attack, clients can be forced to pass a Captcha challenge. This Captcha challenge must be passed before the server data is requested and passed to the client. • These protections are configured as DDoS profiles, and applied to a virtual server.
© F5 Networks, Inc 70 Demo Slow READ - ASM: TPS-Based Detection & Prevention
© F5 Networks, Inc 71 Demo Slow READ - ASM: DDoS Profile Defense for browser applications • DoS Protection Profile Apply DDoS Profile to Virtual Server
© F5 Networks, Inc 72 User Web Bot Client: Hey server, can I get the web page ? ASM: no, you are sending too many requests. Are you a browser ? Yes, I’m a browser *^lkjdfg@#$ ASM: ok, you are allowed. Here is the web page you asked for. ASM: Bye Bye – Blocked Demo Slow READ - ASM: Client-side Integrity Defense
© F5 Networks, Inc 73 • Ultimate solution for identifying human or bot • Send challenge to every IP that reached IP detection criteria thresholds Note: Some argues that CAPTCAH is not a good usability because the user gets CAPTCHA for his online shop (or similar) and then he will not stay Demo Slow READ - ASM: Captcha
© F5 Networks, Inc 74 • Unlike most simple network attacks, which overwhelm computing resources with invalid packets, HTTP flood attacks look like real HTTP web requests. • To conventional firewall technology, these requests are indistinguishable from normal traffic • Two main variations: • Basic HTTP flood duiring which merely repeats the same request over and over again. Easy to detect and mitigate. • Advacned HTTP flood attack whith a recursive-get denial-of service. Clients using this attack request the main application page, parse the response, and then recursively request every object at the site. Difficult to detect and mitigate. Application DDoS Attacks - HTTP Flood
© F5 Networks, Inc 75 Demo HTTP Flood - Start the attack • LOIC (Low Orbital Ion Cannon) • Launch from many sources and…. website will be down!
© F5 Networks, Inc 76 Demo HTTP Flood - Attack mitigated

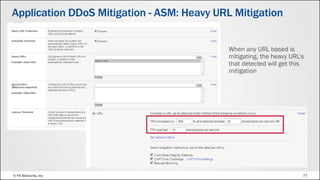

© F5 Networks, Inc 77 When any URL based is mitigating, the heavy URL’s that detected will get this mitigation Application DDoS Mitigation - ASM: Heavy URL Mitigation
© F5 Networks, Inc 78 Automatic measure latency on URL’s for 24 hours and decide who is heavy Application DDoS Mitigation - ASM: Heavy URL Mitigation Heavy URL – configuration
© F5 Networks, Inc 79 Application DDoS Mitigation - ASM: Heavy URL Reporting
New anti-DDoS features 12.1
© F5 Networks, Inc 81 RTBH BGP Black-Hole DoS protection (RTBH) Automatic DDoS vectors thresholds Behavioral analysis DDoS (BADOS) BIG-IP/DHD Silverline signalization New DDoS Features in TMOS 12.1
© F5 Networks, Inc 82 • RTBH (Remotely Triggered Black-Hole): Route Injection instructs upstream network devices to drop certain flows at the edge of the network. • RTBH is belongs to AFM, and we need AFM provisioned to configure this feature • When you will configure settings for DDoS vectors at AFM, you can find column 'Bad actors' and instead of rate limit them you can block them - this is ‚IP Shuning’. • On top of this we can configure RTBH and signal this information to upstrem routers • AFM IP-Intelligence (IPI) can now instruct the IP network within the local Autonomous System (AS) to "black-hole" source or destination addresses which have been blacklisted. • ARM (Advanced Routing), It belongs to AFM, everytime when you provision AFM you will have Advanced routing license enabled also. ARM also is included in DHD. New DDoS Features in TMOS 12.1 RTBH
© F5 Networks, Inc 83 New DDoS Features in TMOS 12.1 RTBH
© F5 Networks, Inc 84 • Today • Configuration • Tune and maintain • Impact leads to mitigate • React to 0-day • Static – automatic • Impacts the good • Uses wisdom of IT • BADOS • Hands free • Unsupervised • Predictive • 0-day capable • Improves with time (experience) • Minimal impact on good guys • Uses wisdom of the crowd New DDoS Features in TMOS 12.1 BADOS – Why?
© F5 Networks, Inc 85 • 3 modes of detection and prevention Aggressive + proactive mitigation until health is restored Standard + limit all requests based on servers health Conservative Slow down & rate shape bad actors • Conservative • Slows down & rate limit attackers • Standard • Like conservative but may rate limit all requests based on server's health • Aggressive • Like standard but proactively performs all protection actions New DDoS Features in TMOS 12.1 BADOS – Why?
New anti-DDoS features 13.0
© F5 Networks, Inc 87 New DDoS Features in TMOS 13.0 ASM Auto Thresholding (for TPS-based Detection)
© F5 Networks, Inc 88 New DDoS Features in TMOS 13.0 ASM Auto Thresholding (for TPS-based Detection)
© F5 Networks, Inc 89 New DDoS Features in TMOS 13.0 BADOS Improvements
© F5 Networks, Inc 90 New DDoS Features in TMOS 13.0 Proactive Bot Defense Reporting
© F5 Networks, Inc 91 Security > Reporting > DoS > Visibility > Dashboard New DDoS Features in TMOS 13.0 DoS Reporting Redisign
DDoS and Application Attacks Mitigation – iRules Network Application Session SSL DNS, NTP Blended
© F5 Networks, Inc 93 DDoS and Application Attacks Mitigation - iRules Slow HEADERS (Slowloris) defense
© F5 Networks, Inc 94 DDoS and Application Attacks Mitigation - iRules Slow POST (R.U.D.Y.) defense
DHD (DDoS Hybrid Defender)

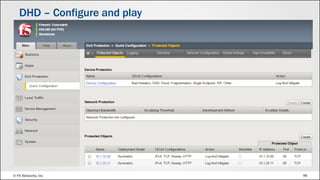

© F5 Networks, Inc 96 DHD – Configure and play
© F5 Networks, Inc 97 DHD – Simplified configuration DDoS profile Log profile DDoS profile VLAN/Network Info Protocol profile Log profile Action Deployment model Network, protocolProtocol profile 1 2 reference 1 3 Virtual Server Protected Object

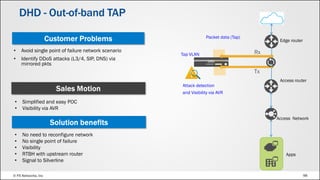

© F5 Networks, Inc 98 Attack detection and Visibility via AVR DHD Access Network Tap VLAN Packet data (Tap) • Avoid single point of failure network scenario • Identify DDoS attacks (L3/4, SIP, DNS) via mirrored pkts • No need to reconfigure network • No single point of failure • Visibility • RTBH with upstream router • Signal to Silverline • Simplified and easy POC • Visibility via AVR Apps Edge router Access router Rx Tx DHD - Out-of-band TAP

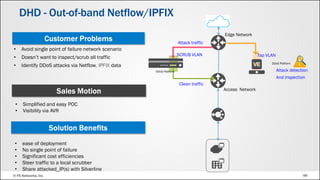

© F5 Networks, Inc 99 Attack detection And inspection Clean traffic DDoS Platform Edge Network Access Network Tap VLAN DDoS Platform Attack traffic SCRUB VLAN • Avoid single point of failure network scenario • Doesn’t want to inspect/scrub all traffic • Identify DDoS attacks via Netflow, IPFIX data • ease of deployment • No single point of failure • Significant cost efficiencies • Steer traffic to a local scrubber • Share attacked_IP(s) with Silverline • Simplified and easy POC • Visibility via AVR DHD - Out-of-band Netflow/IPFIX
© F5 Networks, Inc 100 Choose a context: Current Attacks, Device, Single Profile or VS Choose a filter: (optional) Limit by vector name, or P.O. name View Status of Current Attacks View Current Traffic Statistics Total Packets Dropped Packets View Current Configuration Manual vs. Auto-Mode Aggregate & SrcIP Limits Modify Configuration Settings Without navigating to new page Same interface as Profile Page DHD – AFM DoS “Overview” Page: 13.x
© F5 Networks, Inc 101 DHD Demo – Slow POST (Application) DDoS Attack mitigated by DHD • The TMOS version 12.1 • DHD operates in transparent mode • BADOS (Behavioral DOS) protection enabled • Protected Object: - Listening on port 443 (HTTPS) DHD Platform Attacker ..200 User ..11:443 (protected) 10.1.20.0/24 10.1.20.0/24 (unprotected) 443:12. User .100
© F5 Networks, Inc 102 DHD Demo – Slow POST (Application) DDoS Attack mitigated by DHD • slowhttptest -B -c 3000 -i 20 -r 50 -u https://10.1.20.11/ Slow POST (R.U.D.Y.) - Like Slowloris, uses a slow, low-bandwidth approach, but instead of sending an HTTP header, it begins an HTTP POST command and then feeds in the payload of the POST data very, very slowly. Slow POST is an attack that sends the initial POST request, and attempts to send each additional piece of POST data in subsequent packets very slowly. Since the POST data is very slow to complete, all the available connections are tied up again.
F5 Silverline DDoS Protection Silverline
© F5 Networks, Inc 104 DDoS Attacks Size 24% 38% 20% 6% 12% 0.5-1 Gbps 1-10 Gbps 10-50 Gbps Over 50Gbps Unknown
© F5 Networks, Inc 105 F5 Silverline - 3 Cloud-based Security Services
© F5 Networks, Inc 106 Global Coverage Fully redundant and globally distributed data centers world wide in each geographic region • San Jose, CA US • Ashburn, VA US • Frankfurt, DE • Singapore, SG Industry-Leading Bandwidth • Attack mitigation bandwidth capacity over 2.0 Tbps • Scrubbing capacity up to 1.0 Tbps (with upstream ACLs) • Guaranteed bandwidth with Tier 1 carriers 24/7 Support F5 Security Operations Center (SOC) in Seattle: staffed 24x7x365 with security experts for DDoS Protection and WAF. Warsaw is staffed for Websafe. • Seattle, WA U.S. • Warsaw, Poland SOC SOC F5 Silverline - Global Coverage
© F5 Networks, Inc 107 • Monitoring and mitigating attacks while reducing false positives requires a 24/7 staff of skilled DDoS analysts • Full provisioning and configuration • Proactive alert monitoring • Identification and inspection of attacks • Custom and script mitigation • Service level agreements time to • Notify, mitigate, escalate Availability & Support Tier II DDoS Analysts and Above Active DDoS Threat Monitoring Security Operations Center (SOC) F5 Silverline - Security Operation Center Outsourcing DDoS monitoring and mitigation
© F5 Networks, Inc 108 Scanner Anonymous Proxies Anonymous Requests Botnet Attackers Threat Intelligence Feed Cloud Network Application Legitimate Users Cloud Scrubbing Service Volumetric attacks and floods, operations center experts, L3-7 known signature attacks ISPa/b Multiple ISP strategy Network attacks: ICMP flood, UDP flood, SYN flood DNS attacks: DNS amplification, query flood, dictionary attack, DNS poisoning IPS Network and DNS Application HTTP attacks: Slowloris, slow POST, recursive POST/GET Next-Generation Firewall Corporate Users SSL attacks: SSL renegotiation, SSL flood Financial Services E-Commerce Subscriber Strategic Point of Control DDoS Attackers • Real-time Volumetric DDoS attack detection and mitigation in the cloud • Multi-layered L3-L7 DDoS attack protection • 24x7 expert SOC services • Transparent attack reporting via F5 customer portal CLOUD KEY FEATURES F5 Silverline DDoS Protection - Cloud-based Scrubbing Center
© F5 Networks, Inc 109 Inspection Toolsets Scrubbing Center Inspection Plane Traffic Actioner Route Management Flow Collection Portal Switching Routing/ACL Network Mitigation Routing (Customer VRF) GRE Tunnel Proxy IP Reflection L2VPN Customer Data Plane Netflow Netflow Copied traffic for inspection BGP signaling Signaling Visibility Management Proxy Mitigation Switching mirrors traffic to Inspection Toolsets and Routing layer Inspection Tools provide input on attacks for Traffic Actioner & SOC Traffic Actioner injects routes and steers traffic Network Mitigation removes advanced L4 attacks Proxy Mitigation removes L7 Application attacks Flow collection aggregates attack data from all sources Egress Routing returns good traffic back to customer Portal provides real- time reporting and configuration Ingress Router applies ACLs and filters traffic Legitimate Users DDoS Attackers Volumetric DDoS protection, Managed Application firewall service, zero-day threat mitigation with iRules Silverline WAF DDoS Cloud F5 Silverline DDoS Protection - Scrubbing Center Architecture
© F5 Networks, Inc 110 Europe Customer DC Customer App Cloud Network GRE Tunnels US East US West GRE Tunnels Cloud Network Cloud Network DDoS Attack Asia Legitimate Traffic InternetInternet DDoS Attack Legitimate Traffic Response Traffic Response Traffic Anycast
© F5 Networks, Inc 111 Primary protection as the first line of defense The Always On subscription stops bad traffic from ever reaching your network by continuously processing all traffic through the cloud-scrubbing service and returning only legitimate traffic to your network. Primary protection available on-demand The Always Available subscription runs on stand-by and can be initiated when under attack. Client routers monitoring (optional) Always AvailableAlways On Proactive Hybrid AFM alerts Silverline and traffic is diverts traffic for cloud-based mitigation when the datacenter is under volumetric attack Silverline is always on and the first point of detection and mitigation for volumetric attacks before traffic is passed to the datacenter. Reactive Hybrid F5 Silverline DDoS Protection - Service Options
© F5 Networks, Inc 112 Traffic Steering to Silverline Capabilities ASYMETRIC L3/L4 TUNNEL CLEAN TRAFFIC PROTECT ENTIRE NETBLOCK /24 FULL PROXY (SYMETRIC) L7 SSL TERMINATION WAF BGP (BORDER GATEWAY PROTOCOL) ROUTED MODE DNS PROXY MODE SINGLE APPLICATION (IP) F5 Silverline DDoS Protection
F5 Silverline Portal Silverline Portal
© F5 Networks, Inc 115 • Stas, Visibility, Reporting and Intelligence • Real time attack view • Real time mitigation view • Real time scrubbing & clean traffic view • Non-Attack (regular) traffic reporting capability • Instant, downloadable PDF reports • Secure set up & management of SOC services • Knowledge base & how to F5 Silverline Portal https://portal.f5silverline.com
© F5 Networks, Inc 116 • Securely communicate with Silverline SOC experts • View centralized attack and threat monitoring reports with details including: • source geo-IP mapping • blocked vs. alerted attacks • blocked traffic and attack types • alerted attack types • Threats* • bandwidth used • hits/sec* • type of traffic and visits (bots v. humans)* Customer Portal Visibility & Compliance Attack Reports F5 Silverline Portal - Stats, Visibility, Reporting & Intelligence F5 Customer Portal
© F5 Networks, Inc 117 F5 Silverline Portal - Stats: Traffic (Post i Pre-Scrubbing) • Dashboard > Netflow: Traffic, Application, Zones
© F5 Networks, Inc 119 Downloadable PDFs for internal reporting F5 Silverline Portal - Stats: Attack Reporting
© F5 Networks, Inc 120 Directly manage configuration via customer portal • Configure Proxy and Routing attributes • Manage SSL Certificates • Update White and Black List information • Check health status of GRE tunnels • Administer users and roles • Download reports and view audit history F5 Silverline Portal - Configuration and Provisioning
© F5 Networks, Inc 121 F5 Silverline Portal - Configuration: Routed mode
© F5 Networks, Inc 122 F5 Silverline Portal - Configuration: Proxy mode
© F5 Networks, Inc 123 F5 Silverline Portal - Configuration: Proxy mode
© F5 Networks, Inc 124 F5 Silverline Portal - Configuration: Proxy mode

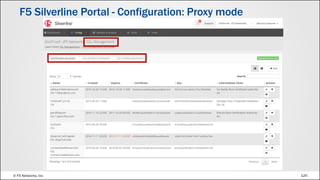

© F5 Networks, Inc 125 F5 Silverline Portal - Configuration: Proxy mode
F5 Hybrid Signaling BIG-IP / DHD Silverline
© F5 Networks, Inc 127 • New Hybrid DDoS Signaling iApp available for BIG-IP • DHD can signal to Silverline natively https://support.f5silverline.com/hc/en-us/sections/205571867-Hybrid-Signaling F5 Networks Hybrid DDoS Protection Silverline Signalling
© F5 Networks, Inc 128 • Configure connection to Silverline F5 Networks Hybrid DDoS Protection Silverline Signalling for DHD
Conclusion
© F5 Networks, Inc 130 Virtual Edition Appliance Chassis BIG-IP Platform on-premises F5 Silverline Cloud Security Anti-DDoS Managed Service Web Application Firewall Managed Service High Performance Security Simplified Security Scalable Security Conclusion: F5 Hybrid Security
© F5 Networks, Inc 131 TMOS - Full Proxy DDoS Protection App Protection Network Protection Web Fraud Protection SSL Visibility & Protection DNS Protection App Access Virtual Edition Appliance Chassis BIG-IP Platform Conclusion: Rethink…Multi-Layer Security with F5
© F5 Networks, Inc 132 Performance Minimize business impact from volumetric attacks7.5M Extensibility Take immediate action on new DDoS threats Protection Protect against the full spectrum of modern cyber threats attacks Expertise Augment resources with F5 Security experts 24x7x365 DDoS support from Security Operations Centers in the US, APAC, and EMEA 1,000’s of iRules have been written to mitigate traffic based on any type of content data Up to 640 Gbps; 7.5M CPS; 576M CCS; in the datacenter and over 1Tbps in the cloud 100+ DDoS Vectors; Most advanced app security; 98% of fortune 1000 trust their traffic to F5 Conclusion: Key DDoS Mitigation Values
© F5 Networks, Inc 133 Q & A
F5 DDoS Protection

More Related Content

PDF
F5 Web Application Security
byMarketingArrowECS_CZ

PDF
Web Application Security
byMarketingArrowECS_CZ

PPTX
F5 - BigIP ASM introduction
byJimmy Saigon

PDF
F5 ASM v12 DDoS best practices
byLior Rotkovitch

PPTX
F5 SIRT - F5 ASM WAF - DDoS protection
byLior Rotkovitch

PDF
F5 - Configuring BIG-IP LTM v11 - Instructor PPT.pdf
byneoalt

PDF
Lior rotkovitch ASM WAF unified learning – building policy with asm v12
byLior Rotkovitch

PDF
F5 TLS & SSL Practices
byBrian A. McHenry

F5 Web Application Security
byMarketingArrowECS_CZ

Web Application Security
byMarketingArrowECS_CZ

F5 - BigIP ASM introduction
byJimmy Saigon

F5 ASM v12 DDoS best practices
byLior Rotkovitch

F5 SIRT - F5 ASM WAF - DDoS protection
byLior Rotkovitch

F5 - Configuring BIG-IP LTM v11 - Instructor PPT.pdf
byneoalt

Lior rotkovitch ASM WAF unified learning – building policy with asm v12
byLior Rotkovitch

F5 TLS & SSL Practices
byBrian A. McHenry


What's hot

PPTX
F5's IP Intelligence Service
byF5 Networks

PDF
Zero Trust Model Presentation
byGowdhaman Jothilingam

PDF
Presentation f5 – beyond load balancer
byxKinAnx

PPT
BIG IP F5 GTM Presentation
byPCCW GLOBAL

PPT
Fortigate Training
byNCS Computech Ltd.

PPTX
WAF ASM / Advance WAF - Brute force lior rotkovitch f5 sirt v5 clean
byLior Rotkovitch

PDF
Microsoft Zero Trust
byDavid J Rosenthal

PPTX
kill-chain-presentation-v3
byShawn Croswell

PDF
Presentation cisco iron port email & web security
byxKinAnx

PDF
Azure 101
byKorry Lavoie

PPTX
F5 Solutions for Service Providers
byBAKOTECH

PDF
Microsoft Azure Active Directory
byDavid J Rosenthal

PPTX
DDoS 101: Attack Types and Mitigation
byCloudflare

PPT
Palo alto networks next generation firewalls
byCastleforce

PPTX
Cloudflare
byFadi Abdulwahab

PPTX
Zero trust for everybody: 3 ways to get there fast
byCloudflare

PDF
DDoS Mitigation using BGP Flowspec
byAPNIC

PPTX
Cisco Identity Services Engine (ISE)
byAnwesh Dixit

PPTX
Azure active directory
byRaju Kumar

PDF
Microsoft Azure Security Overview
byAlert Logic

F5's IP Intelligence Service
byF5 Networks

Zero Trust Model Presentation
byGowdhaman Jothilingam

Presentation f5 – beyond load balancer
byxKinAnx

BIG IP F5 GTM Presentation
byPCCW GLOBAL

Fortigate Training
byNCS Computech Ltd.

WAF ASM / Advance WAF - Brute force lior rotkovitch f5 sirt v5 clean
byLior Rotkovitch

Microsoft Zero Trust
byDavid J Rosenthal

kill-chain-presentation-v3
byShawn Croswell

Presentation cisco iron port email & web security
byxKinAnx

Azure 101
byKorry Lavoie

F5 Solutions for Service Providers
byBAKOTECH

Microsoft Azure Active Directory
byDavid J Rosenthal

DDoS 101: Attack Types and Mitigation
byCloudflare

Palo alto networks next generation firewalls
byCastleforce

Cloudflare
byFadi Abdulwahab

Zero trust for everybody: 3 ways to get there fast
byCloudflare

DDoS Mitigation using BGP Flowspec
byAPNIC

Cisco Identity Services Engine (ISE)
byAnwesh Dixit

Azure active directory
byRaju Kumar

Microsoft Azure Security Overview
byAlert Logic


Similar to F5 DDoS Protection

PDF
Bezpečnostní architektura F5
byMarketingArrowECS_CZ

PDF
Stopping DDoS Attacks in North America
byCloudflare

PDF
The F5 DDoS Protection Reference Architecture (Technical White Paper)
byF5 Networks

PPTX
Denial of Service Threats: Analysis of DoS and DDoS Attacks with Mitigation T...
bysu92bssemf220701

PDF
F5 Networks: The Right Way to Protect Against DDoS Attacks (Business White Pa...
byF5 Networks

PPTX
2019-F5-Line-Card.pptx
byAns Sembiring

DOCX
DDoS Report.docx
byTushar Mathur

PDF
DDos Mitigation Strategie, presented at bdNOG 19
byAPNIC

PDF
A10 issa d do s 5-2014
byRaleigh ISSA

PDF
DDoS Mitigation Strategies by Md. Abdul Awal
byBangladesh Network Operators Group

PPTX
F5 GOV Round Table - Application Centeric Security
byTzoori Tamam

PPTX
Spider & F5 Round Table - Application Centric Security
byTzoori Tamam

PDF
Denial of Service - Service Provider Overview
byMarketingArrowECS_CZ

PPTX
DSS ITSEC 2013 Conference 07.11.2013 - Radware - Cyber Attacks Survival Guide
byAndris Soroka

PDF
Thinking about SDN and whether it is the right approach for your organization?
byCisco Canada

PDF
f5_synthesis_cisco_connect.pdf
byGrigoryShkolnik1

PPT
Protecting your business from ddos attacks
bySaptha Wanniarachchi

PPTX
F5 Infosec Israel 2013 Application Centric Security
byTzoori Tamam

PDF
An Evolving Threat Needs an Evolved Defense (F5 Networks Infographic)
byF5 Networks

PPTX
Unleash the Hammer on Denial-of-Service: Conquer DDos Attacks!
byPriyadharshiniHemaku

Bezpečnostní architektura F5
byMarketingArrowECS_CZ

Stopping DDoS Attacks in North America
byCloudflare

The F5 DDoS Protection Reference Architecture (Technical White Paper)
byF5 Networks

Denial of Service Threats: Analysis of DoS and DDoS Attacks with Mitigation T...
bysu92bssemf220701

F5 Networks: The Right Way to Protect Against DDoS Attacks (Business White Pa...
byF5 Networks

2019-F5-Line-Card.pptx
byAns Sembiring

DDoS Report.docx
byTushar Mathur

DDos Mitigation Strategie, presented at bdNOG 19
byAPNIC

A10 issa d do s 5-2014
byRaleigh ISSA

DDoS Mitigation Strategies by Md. Abdul Awal
byBangladesh Network Operators Group

F5 GOV Round Table - Application Centeric Security
byTzoori Tamam

Spider & F5 Round Table - Application Centric Security
byTzoori Tamam

Denial of Service - Service Provider Overview
byMarketingArrowECS_CZ

DSS ITSEC 2013 Conference 07.11.2013 - Radware - Cyber Attacks Survival Guide
byAndris Soroka

Thinking about SDN and whether it is the right approach for your organization?
byCisco Canada

f5_synthesis_cisco_connect.pdf
byGrigoryShkolnik1

Protecting your business from ddos attacks
bySaptha Wanniarachchi

F5 Infosec Israel 2013 Application Centric Security
byTzoori Tamam

An Evolving Threat Needs an Evolved Defense (F5 Networks Infographic)
byF5 Networks

Unleash the Hammer on Denial-of-Service: Conquer DDos Attacks!
byPriyadharshiniHemaku


More from MarketingArrowECS_CZ

PDF
Oracle databáze – Konsolidovaná Data Management Platforma
byMarketingArrowECS_CZ

PDF
INFINIDAT InfiniGuard - 20220330.pdf
byMarketingArrowECS_CZ

PDF
Infinidat InfiniBox
byMarketingArrowECS_CZ

PDF
Základy licencování Oracle software
byMarketingArrowECS_CZ

PDF
Oracle Data Protection - 2. část
byMarketingArrowECS_CZ

PDF
Nové vlastnosti Oracle Database Appliance
byMarketingArrowECS_CZ

PDF
Využijte svou Oracle databázi na maximum!
byMarketingArrowECS_CZ

PDF
Infinidat InfiniGuard
byMarketingArrowECS_CZ

PDF
Jak konsolidovat Vaše databáze s využitím Cloud služeb?
byMarketingArrowECS_CZ

PDF
Oracle Data Protection - 1. část
byMarketingArrowECS_CZ

PDF
Chráníte správně svoje data?
byMarketingArrowECS_CZ

PDF
Novinky ve světě Oracle DB a koncept konvergované databáze
byMarketingArrowECS_CZ

PDF
Benefity Oracle Cloudu (4/4): Storage
byMarketingArrowECS_CZ

PDF
Exadata z pohledu zákazníka a novinky generace X8M - 1. část
byMarketingArrowECS_CZ

PDF
Garance 100% dostupnosti dat! Kdo z vás to má?
byMarketingArrowECS_CZ

PDF
InfiniBox z pohledu zákazníka
byMarketingArrowECS_CZ

PDF
Využijte svou Oracle databázi naplno
byMarketingArrowECS_CZ

PDF
Úvod do Oracle Cloud infrastruktury
byMarketingArrowECS_CZ

PDF
Benefity Oracle Cloudu (3/4): Compute
byMarketingArrowECS_CZ

PDF
Exadata z pohledu zákazníka a novinky generace X8M - 2. část
byMarketingArrowECS_CZ

Oracle databáze – Konsolidovaná Data Management Platforma
byMarketingArrowECS_CZ

INFINIDAT InfiniGuard - 20220330.pdf
byMarketingArrowECS_CZ

Infinidat InfiniBox
byMarketingArrowECS_CZ

Základy licencování Oracle software
byMarketingArrowECS_CZ

Oracle Data Protection - 2. část
byMarketingArrowECS_CZ

Nové vlastnosti Oracle Database Appliance
byMarketingArrowECS_CZ

Využijte svou Oracle databázi na maximum!
byMarketingArrowECS_CZ

Infinidat InfiniGuard
byMarketingArrowECS_CZ

Jak konsolidovat Vaše databáze s využitím Cloud služeb?
byMarketingArrowECS_CZ

Oracle Data Protection - 1. část
byMarketingArrowECS_CZ

Chráníte správně svoje data?
byMarketingArrowECS_CZ

Novinky ve světě Oracle DB a koncept konvergované databáze
byMarketingArrowECS_CZ

Benefity Oracle Cloudu (4/4): Storage
byMarketingArrowECS_CZ

Exadata z pohledu zákazníka a novinky generace X8M - 1. část
byMarketingArrowECS_CZ

Garance 100% dostupnosti dat! Kdo z vás to má?
byMarketingArrowECS_CZ

InfiniBox z pohledu zákazníka
byMarketingArrowECS_CZ

Využijte svou Oracle databázi naplno
byMarketingArrowECS_CZ

Úvod do Oracle Cloud infrastruktury
byMarketingArrowECS_CZ

Benefity Oracle Cloudu (3/4): Compute
byMarketingArrowECS_CZ

Exadata z pohledu zákazníka a novinky generace X8M - 2. část
byMarketingArrowECS_CZ


Recently uploaded

PDF
January Patch Tuesday
byIvanti

PDF
Chapter 2 Computer Threat .pdf
byGetnet Tigabie Askale -(GM)

PDF
Top 10 Dedicated Server Providers in Stockholm (Updated Edition).pdf
byAtal Networks

PDF
XonTel Plus IP-PBX Business Phone System
byXonTel Technology

PDF
UiPath Coded Agents - A Developer Driven Agentic Automation Era
byUiPathCommunity

PPTX
Unit 1 Introduction of Computer Networks
bySuvarnaSharma5

PDF
Saga: The new era of transactions in a microservices architecture
byGiovanni Marigi

PDF
JR : Quality Random Data from the Command line
byGiovanni Marigi

PPTX
Lecture 04. about Black heads and Hackerss.pptx
byvinocol222

PPTX
Full course that Prymehat uploads for you
byOhenebaManu1

PPTX
Grade 8 LESSON 7 - VIDEO EDITING lessonb
byclarizzairahmanansal

PPTX
Lecture 05. API Security for DevSecOps Eng.pptx
byvinocol222

PDF
SAP WalkMe Overview.pdf SAP WalkMe Overview.pdf
byMurniatiSimbolon2

PDF
Mobile Onboarding UX 11 Best Practices for Retention (2026).pdf
byDesign Studio UI UX

PPTX
Basics-of-Electronics-and-Core-Components-of-IoT-Systems.pptx
byMuhammedNihal54

PDF
Best Bank Statement Converter Software - A Documentation-Based Meta-Analysis ...
bylewisconrada

PDF
Effective Ai powered mock interview .pdf
byamazingnishusingh766

PPTX
02_Extended Warehouse Management Functions and Features.pptx
byUdayakumar218983

PPT
Waste water treatment plant operation and maintenance
byDuggineniRamakrishna

PDF
Early Signs of Constraint Loss in Modern System Design
byReality Drift Archive

January Patch Tuesday
byIvanti

Chapter 2 Computer Threat .pdf
byGetnet Tigabie Askale -(GM)

Top 10 Dedicated Server Providers in Stockholm (Updated Edition).pdf
byAtal Networks

XonTel Plus IP-PBX Business Phone System
byXonTel Technology

UiPath Coded Agents - A Developer Driven Agentic Automation Era
byUiPathCommunity

Unit 1 Introduction of Computer Networks
bySuvarnaSharma5

Saga: The new era of transactions in a microservices architecture
byGiovanni Marigi

JR : Quality Random Data from the Command line
byGiovanni Marigi

Lecture 04. about Black heads and Hackerss.pptx
byvinocol222

Full course that Prymehat uploads for you
byOhenebaManu1

Grade 8 LESSON 7 - VIDEO EDITING lessonb
byclarizzairahmanansal

Lecture 05. API Security for DevSecOps Eng.pptx
byvinocol222

SAP WalkMe Overview.pdf SAP WalkMe Overview.pdf
byMurniatiSimbolon2

Mobile Onboarding UX 11 Best Practices for Retention (2026).pdf
byDesign Studio UI UX

Basics-of-Electronics-and-Core-Components-of-IoT-Systems.pptx
byMuhammedNihal54

Best Bank Statement Converter Software - A Documentation-Based Meta-Analysis ...
bylewisconrada

Effective Ai powered mock interview .pdf
byamazingnishusingh766

02_Extended Warehouse Management Functions and Features.pptx
byUdayakumar218983

Waste water treatment plant operation and maintenance
byDuggineniRamakrishna

Early Signs of Constraint Loss in Modern System Design
byReality Drift Archive


F5 DDoS Protection

  • 1.
    F5 DDoS protection MariuszSawczuk – Specialist Systems Engineer North & East EMEA [2017-03-08]
  • 2.
    © F5 Networks,Inc 2 DDoS (Distributed Denial of Service) Attackers AttackersAttackers AttackersAttackers AttackersAttackers Attackers Attackers AttackersAttackers AttackersAttackers AttackersAttackers Attackers Internet Web Clients Partners WebsitesRemote users Attackers Switch Switch Switch DMZ FW VPN FW VPN act/stby AntyMalware Proxy DLP Users Applications Data BaseDNS Data Center EmailUser User NextGen Firewall NextGen Firewall Router Router act/stby Multi-Layer Switch act/stby Multi-Layer Switch act/stby Application DoS Session DoS Network DoS Volumetric DoS
  • 3.
    © F5 Networks,Inc 3 Growing Anyone Global Fun Agenda War tactics Diverse Business DDoS World is Complex
  • 4.
    © F5 Networks,Inc 4 DDoS attacks hide the Real Threat
  • 5.
    © F5 Networks,Inc 5 Layer 2 NetworkLayer 3 Layer 4 Layer 5 Layer 6 Layer 7 Application OWASP Top 10 (e.g. XSS), Slowloris, Slow Post/Read, HTTP GET/POST floods,… Session SSL DNS, NTP DNS UDP floods, DNS query floods, DNS NXDOMAIN floods SSL floods, SSL renegotiation, … SYN/UDP/Conn. floods, PUSH and ACK floods, ICMP/Ping floods, Teardrop, Smurf Attacks, … Types of DDoS attacks
  • 6.
    © F5 Networks,Inc 6 Layer 2 NetworkLayer 3 Layer 4 Layer 5 Layer 6 Layer 7 Application OWASP Top 10 (e.g. XSS), Slowloris, Slow Post/Read, HTTP GET/POST floods,… Session SSL DNS, NTP DNS UDP floods, DNS query floods, DNS NXDOMAIN floods SSL floods, SSL renegotiation, … SYN/UDP/Conn. floods, PUSH and ACK floods, ICMP/Ping floods, Teardrop, Smurf Attacks, … Blended Volumetric Types of DDoS attacks
  • 7.
    © F5 Networks,Inc 7 DDoS attacks are easy to launch Press button and forget hping3 nmap Low Orbit ION High Orbit IONkillapache.pl slowloris metasploitslowhttptest RussKill Pandora Dirt Jumper PhantomJS …, Jmeter, Scapy, Httpflooder, PhantomJS, SSLyze, THC-SSL-DOS, and many, many more…
  • 8.
    Evasion Techniques Differentiation •Several User-Agents & Referrers • Random URL/UA/Content-Length DDoS attacks are easy to launch Press button and forget - 2016 Tools Bundle © 2016 F5 Networks 8
  • 9.
    © 2016 F5Networks 9 DDoS attacks are easy to launch DDoS Coin – crowd funding DDoS
  • 10.
    © F5 Networks,Inc 10 DDoS IoT (Internet of Things) – Mirai botnet Mirai from Japaneess means Future https://krebsonsecurity.com/2017/01/who-is-anna-senpai-the-mirai-worm-author/
  • 11.
    © F5 Networks,Inc 11 0,54 Tbps 0,62 Tbps 1,0 Tbps 1,2 Tbps DDoS IoT – Mirai botnet Known targets of DDoS attacks
  • 12.
    © F5 Networks,Inc 12 STOMP Attack Non standard attacks Known “VSE” attack offered by online Booters (DDoS as a Service) Exploiting online gaming servers for amplification Never implemented attack A hidden “CFNull” Layer 7 attack: DDoS IoT – Mirai botnet DDoS Attacks
  • 13.
    © F5 Networks,Inc 13 DDoS IoT – Mirai botnet DDoS Attacks – HTTP Attacks
  • 14.
    © F5 Networks,Inc 14 DDoS IoT – Mirai botnet Coming Through the Front Door
  • 15.
    © F5 Networks,Inc 15 DDoS IoT – Mirai botnet Change of tactics
  • 16.
    © F5 Networks,Inc 16 Mirai LuaBot qBot (GayFgt/Torlus/Bashlite) Darlloz IRCTelnet (Aidra2) Hajime DDoS IoT – Other botnets IoT Malware Families
  • 17.
    F5 Networks DDoSProtection
  • 18.
    © F5 Networks,Inc 18 Protect Your Business and Stay Online During a DDoS Attack • Mitigate mid-volume, SSL, or application targeted attacks on-premises • Complete infrastructure control • Advanced L7 attack protections • Turn on cloud-based service to stop volumetric attacks from ever reaching your network • Multi-layered L3-L7 DDoS attack protection against all attack vectors • 24/7 attack support from security experts F5 SILVERLINE DDOS PROTECTION When under attack F5 ON-PREMISES DDOS PROTECTION F5 Networks DDoS Protection On-premises and cloud-based services for comprehensive DDoS Protection
  • 19.
    © F5 Networks,Inc 19 Scanner Anonymous Proxies Anonymous Requests Botnet Attackers Threat Intelligence Feed Cloud Network Application Legitimate Users DDoS Attackers Cloud Scrubbing Service Volumetric attacks and floods, operations center experts, L3-7 known signature attacks ISPa/b Multiple ISP strategy Network attacks: ICMP flood, UDP flood, SYN flood DNS attacks: DNS amplification, query flood, dictionary attack, DNS poisoning IPS Network and DNS Application HTTP attacks: Slowloris, slow POST, recursive POST/GET Next-Generation Firewall Corporate Users SSL attacks: SSL renegotiation, SSL flood Financial Services E-Commerce Subscriber Strategic Point of Control F5 Networks DDoS Protection - Reference Architecture
  • 20.
    © F5 Networks,Inc 20 • Only single vendor with native, seamlessly integrated on-premise and cloud-based scrubbing services • Leverages industry leading application protections to defend against L7 DDoS and vulnerability threats • Most comprehensive HW-based DDoS protection coverage • Unsurpassed SSL performance with SSL termination and outbound SSL interception protection • Ensures app availability and performance while under attack with leading datacenter scalability and up to 2Tbps of cloud-based scrubbing capacity • Gartner on DDoS – Go Hybrid! • “Cloud + On-Premise” Makes the most sense F5 Networks DDoS Protection - Why F5 Hybrid is better
  • 21.
    F5 On Premisses DDoSProtection BIG-IP
  • 22.
    © F5 Networks,Inc 22 iRule iRule iRule TCP SSL HTTP TCP SSL HTTP iRule iRule iRule ICMP flood SYN flood SSL renegotiation Data leakageSlowloris attackXSS Network Firewall WAF WAF F5 On-premises DDoS protection - Full proxy security
  • 23.
    © F5 Networks,Inc 23 Application Access Network Access Network Firewall Network DDoS Protection SSL DDoS Protection DNS DDoS Protection Application DDoS Protection Web Application Firewall Fraud Protection Virtual Patching F5 On-premises protection - Comprehensive application security
  • 24.
    © F5 Networks,Inc 24 F5 On-premises protection - Comprehensive DDoS protection More than only DDoS Protection ASM DoS + IPI L7 DoS Profiles Heavy URLs AFM DoS + IPI Device DoS Protocol DoS IP Intelligence B/W Lists DNS DoS DNS DoS DNS SEC LTM Profiles HTTP/HTTPS SSL SIP SMTP BIGIP System Reaper 75%-90% iRules
  • 25.
    © F5 Networks,Inc 25 Up to 640 Gbps, 7.5M CPS, 576M CCS in the datacenter and over 1Tbps in the cloud F5 On-premises DDoS protection - Performance 10000 Series 11000 Series 5000 Series 2000 series / 4000 series 7000 Series VIPRION 4800 VIPRION 4480 25M 200M 1Gbps 3Gbps 5Gbps VIPRION 2400 New 10Gbps New VIPRION 2200
  • 26.
    © F5 Networks,Inc 26 Over 110+ L3/4 DDoS vectors with majority of them mitigated in hardware. F5 On-premises DDoS protection – DDoS vectors hardware accelerated
  • 27.
    © F5 Networks,Inc 27 F5 On-premises DDoS protection - Recommended by NSS Labs
  • 28.
  • 29.
    © F5 Networks,Inc 29 Network DDoS Mitigation Scanner Anonymous Proxies Anonymous Requests Botnet Attackers Threat Intelligence Feed Cloud Network Application Legitimate Users DDoS Attackers Cloud Scrubbing Service Volumetric attacks and floods, operations center experts, L3-7 known signature attacks ISPa/b Multiple ISP strategy Network attacks: ICMP flood, UDP flood, SYN flood DNS attacks: DNS amplification, query flood, dictionary attack, DNS poisoning IPS Network and DNS Application HTTP attacks: Slowloris, slow POST, recursive POST/GET Next-Generation Firewall Corporate Users SSL attacks: SSL renegotiation, SSL flood Financial Services E-Commerce Subscriber Strategic Point of Control • The network tier at the perimeter is layer 3 and 4 network firewall services • Simple load balancing to a second tier • IP reputation database • Mitigates transient and low-volume attacks NETWORK KEY FEATURES
  • 30.
    © F5 Networks,Inc 30 Demo TCP SYN Flood - SYN Cookies Flow table Original SYN transformed into Cookie, sent back to client with SYN-ACK Flow table entry created and inserted on receipt of ACK packet Connection Established
  • 31.
    © F5 Networks,Inc 31 Demo TCP SYN Flood - Topology and initial configuration • The TMOS version 12.1 • Virtual Server info: - Listening on port 80 - Type: Performance L4 (to start with) - No HTTP profile (to start with) - Pool members: 3 x Apache servers listening on port 80 BIG-IP Platform Application 10.1.20/24 10.1.10/24 Attacker .200 VS .80:80 Application .13.11 Application User .100 .12
  • 32.
    © F5 Networks,Inc 32 Demo TCP SYN Flood - Start the attack
  • 33.
    © F5 Networks,Inc 33 Demo TCP SYN Flood - Attack Mitigated
  • 34.
    © F5 Networks,Inc 34 Demo TCP SYN Flood - AFM signatures mitigation
  • 35.
    © F5 Networks,Inc 35 Application Security Data Center Firewall Access Security User App Servers Classic Server DNS Security Network DDoS • Built on the market leading Application Delivery Controller (ADC) • Consolidates multiple appliance to reduce TCO • Protects against L2-L4 attacks with the most advanced full proxy architecture • Delivers over 110 vectors and more hardware-based DOS vectors than any other vendor • Ensures performance while under attack - scales to 7.5M CPS; 576M CC, 640 Gbps • Offers a foundation for an integrated L2-L7 Application delivery firewall platform Network DDoS Mitigation - AFM (Advanced Firewall Manager)
  • 36.
    © F5 Networks,Inc 36 DOS Categories DOS Vectors When to report an attack Absolute Number in PPS Detection Threshold When to report an attack Relative Percent Increase in PPS Detection Threshold When to mitigate an attack Absolute Number in PPS Mitigation Threshold Network DDoS Mitigation - AFM: Stateless DDoS Mitigation L2-L4 stateless DoS vectors
  • 37.
    © F5 Networks,Inc 37 Demo Different Network DDoS Attacks - Topology and initial configuration • The TMOS version 12.1 • Virtual Server info: - Listening on all ports - Type: Standard - TCP profile: tcp-lan-optimized on outside interface - Pool members: 1 x servers listening on different ports BIG-IP Platform Server 10.1.20/24 10.1.10/24 Attacker .200 VS .80:all ports User .100 .11
  • 38.
    © F5 Networks,Inc 38 Demo Different Network DDoS Attacks - Start the attack
  • 39.
    © F5 Networks,Inc 39 Demo Different Network DDoS Attacks - Attacks mittigated
  • 40.
    © F5 Networks,Inc 40 F5 IP Intelligence Service • Dynamic Feed updated every 5 minutes • Applied at Virtual-Server Level 9 Pre-Defined Categories of Malicious IP’s/Subnets Customizable Per-Category Actions (Accept, Warn, Reject) Policy Name (attach-able to a Virtual Server) Network DDoS Mitigation - Dynamic Endpoint Visibility & Enforcement IP Intelligence service
  • 41.
    © F5 Networks,Inc 41 F5 IP INTELLIGENCE SERVICES • Dynamic services feeds updated frequently • Policy attached to global, route- domain or VS contexts • Categorize IP/Sub_net by attack type • Customizable actions per attack type category (i.e., Accept, Warn, Alert) • Create multiple customizable IP feeds DYNAMIC IP BLACK LISTS & WHITE LISTS • Create IP Black Lists and White Lists that override IP intelligence services • Merge multiple sources into 1 feed or enforcement policy • HTTP/S & FTP polling methods • User defined categories • Support for IPv6 and IPv4 Maintain a current IP reputation database that allows you to automatically mitigate traffic from known bad or questionable IP addresses. Network DDoS Mitigation - AFM Dynamically update security logic
  • 42.
  • 43.
    © F5 Networks,Inc 43 DNS DDoS Attacks Why DNS is popular for DDoS? • Widely used protocol, open on FWs, open recursion • DNS is based on UDP • DNS DDoS often uses spoofed sources • Large Amplification Factor (100x) - using open resolvers or ANY type to an authoritative NS Traditional mitigations are failing • Using an ACL block legitimate clients • DNS attacks use massive volumes of source addresses, breaking many firewalls Denial of Service Attacks targeting DNS infrastructure are often complex and standard tools can not provide adequate response to mitigate it without inhibiting the ability of DNS to do its job
  • 44.
    © F5 Networks,Inc 44 DNS DDoS Attacks - DNS UDP Flood Synopsys Many attackers or botnets flood an authoritative name server, attempting to exceed its capacity. Dropped responses = reduced or no site availability. Mitigation – PERFORMANCE, PERFORMANCE, …. • F5 offers exceptional DNS capacity, over 2M RPS in case of appliance and to over 20M RPS for chassis. Additionally the possibility to use Rapid Response Mode to double during the attack. • Identify unusually high traffic patterns to specific clients using F5 DNS DDoS Profiles - ICSA–certified FW with support for 30+ DDoS vectors • Use DNS Anycast to distribute the load between regional DCsDNS Requests DNS Responses Target DNS infrastructure
  • 45.
    © F5 Networks,Inc 45 DNS DDoS Attacks - DNS Amplification & NSQUERY DNS Requests Large DNS Responses Synopsys By spoofing a UDP source address, attackers can target a common source. By requesting for large record types (ANY, DNSSEC, etc), a 36 byte request can result in a response over 100 times larger. Mitigation • DNS request type validation– force TCP in case of type ANY • BIG-IP supports DNS type ACLs - filters for acceptable DNS query types • Identify unusually high traffic patterns to specific clients or from specific sources via DNS DoS Profiles and apply mitigations • Drop all unsolicited responses (BIG IP’s default behavior) [Target Site]
  • 46.
    © F5 Networks,Inc 46 • Querying for randomly-generated non-existent hostnames • Causes enormous work on DNS resolver • Blows out DNS caches • Easy to generate – single packet per name • Easy to spoof source address – UDP • Asymmetric • Low-Bandwidth DNS DDoS Attacks - NXDOMAIN Random Hostname Attack
  • 47.
    © F5 Networks,Inc 47 Demo DNS Flood - Start the attack
  • 48.
    © F5 Networks,Inc 48 DNS DDoS Mitigation - AFM: DDoS Singnatures Attack mitigated
  • 49.
    © F5 Networks,Inc 49 Malformed/Protocol Violations Detection DNS DOS Detection by Query Type When to report and attack. Absolute and Relative Increase Detection Thresholds SIP DOS Detection by Method When to report and attack Absolute and Relative Increase Detection Thresholds DNS DDoS Mitigation - AFM: Stateless App. Layer DoS Detection Application protocol volumetric attack detection: DNS & SIP
  • 50.
    © F5 Networks,Inc 50 Filter by DNS Query types a m mg loc ixfr dname nsec3param aaaa px rp spf cert nesc3 ipseckey any md mr eid apl dhcid nsap_ptr cname mf null nxt axfr zxfer nsap mx a6 wks key sink rrsig nimloc ns rt dlv x25 naptr sshfp dnskey ptr mb hip sig isdn maila mailb soa ds opt tsig nsec afsdb hinfo srv kx txt ata gpos tkey minfo DNS DDoS Mitigation - AFM: Protocol Security Application Protocol compliance & DNS DoS mitigation
  • 51.
  • 52.
    © F5 Networks,Inc 52 Scanner Anonymous Proxies Anonymous Requests Botnet Attackers Threat Intelligence Feed Cloud Network Legitimate Users DDoS Attackers Cloud Scrubbing Service Volumetric attacks and floods, operations center experts, L3-7 known signature attacks ISPa/b Multiple ISP strategy Network attacks: ICMP flood, UDP flood, SYN flood DNS attacks: DNS amplification, query flood, dictionary attack, DNS poisoning IPS Network and DNS Next-Generation Firewall Corporate Users Financial Services E-Commerce Subscriber Strategic Point of Control Application Application HTTP attacks: Slowloris, slow POST, recursive POST/GET SSL attacks: SSL renegotiation, SSL flood APPLICATION KEY FEATURES • Application-aware, CPU-intensive defense mechanisms • SSL termination • Web application firewall • Mitigate asymmetric and SSL- based DDoS attacks SSL DDoS Mitigation - F5 Reference Architecture
  • 53.
    © F5 Networks,Inc 53 Demo SSL Renegotiation - Start the attack
  • 54.
    © F5 Networks,Inc 54 Demo SSL Renegotiation – Attack mitigated LTM: SSL Profile
  • 55.
  • 56.
    © F5 Networks,Inc 56 Scanner Anonymous Proxies Anonymous Requests Botnet Attackers Threat Intelligence Feed Cloud Network Legitimate Users DDoS Attackers Cloud Scrubbing Service Volumetric attacks and floods, operations center experts, L3-7 known signature attacks ISPa/b Multiple ISP strategy Network attacks: ICMP flood, UDP flood, SYN flood DNS attacks: DNS amplification, query flood, dictionary attack, DNS poisoning IPS Network and DNS Next-Generation Firewall Corporate Users Financial Services E-Commerce Subscriber Strategic Point of Control Application Application HTTP attacks: Slowloris, slow POST, recursive POST/GET SSL attacks: SSL renegotiation, SSL flood APPLICATION KEY FEATURES • Application-aware, CPU-intensive defense mechanisms • SSL termination • Web application firewall • Mitigate asymmetric and SSL- based DDoS attacks Application DDoS Mitigation - F5 Reference Architecture
  • 57.
    © F5 Networks,Inc 57 ▪ Guards against RPS (TPS) and latency-based anomalies ▪ Provides predictive indicators ▪ Support IP, geolocation, URL and site wide detection criteria Application DDoS Mitigation - ASM (Application Security Manager) Layer 7 HTTP/S DoS attack protection ▪ Provides heavy URL protection ▪ Protects against threats proactively ▪ Simplified reports access and added qkView violations export support ▪ Advanced Prevention techniques ▪ Client Side Integrity Defense ▪ CAPTCHA (HTML or JS response) ▪ Source IP Blocking ▪ Geolocation blacklisting
  • 58.
    © F5 Networks,Inc 58 Demo Application DDoS Attacks - Topology and initial configuration • The TMOS version 12.1 • Virtual Server info: - Listening on port 80 - Type: Performance L4 (to start with) - No HTTP profile (to start with) - Pool members: 3 x Apache servers listening on port 80 BIG-IP Platform Application 10.1.20/24 10.1.10/24 Attacker .200 VS .80:80 Application .13.11 Application User .100 .12
  • 59.
    © F5 Networks,Inc 59 • Slow HEADERS (Slowloris) – opening HTTP connections to a web server and then sending just enough data in an HTTP header (typically 5 bytes or so) every 299 seconds to keep the connections open. Slow headers is an attack that very slowly sends a HTTP request. The request headers are sent so slowly that all available server connections are tied up waiting for the slow request to complete. Slowloris achieves denial-of- service with just 394 open connections for typical Apache 2 Application DDoS Attacks - HTTP Slow (Low Bandwith)
  • 60.
    © F5 Networks,Inc 60 Demo Slow HEADERS - Start the attack • Send the command: slowhttptest -H -c 3000 -i 10 -r 50 -u http://10.1.10.80/ & • …. website is down!
  • 61.
    © F5 Networks,Inc 61 Demo Slow HEADERS - LTM: Standard Virtual Server with HTTP Profile • LTM can protect the Apache servers by preventing the Slow Headers attack from ever reaching them. A Standard Virtual Server with a HTTP profile does not open the server side connection until the full HTTP request is received. Since the attack never completes the HTTP request, the attack is never propagated to the servers. https://support.f5.com/kb/en-us/solutions/public/8000/000/sol8082.html#standard
  • 62.
    © F5 Networks,Inc 62 DOS enhancements and new vectors AFM delivers increased effectiveness of DoS vectors by enhancing vectors to provide greater coverage, introducing new vectors, providing more hardware-based vectors, and improve overall DoS logging. Version 12.0 also provides Sweeper enhancements to Slow Loris, BiasIdle Cleanup and Reporting Demo Slow HEADERS - AFM: Not only Network DDoS protection
  • 63.
    © F5 Networks,Inc 63 • Slow POST (R.U.D.Y.) - Like Slowloris, the Slowpost uses a slow, low- bandwidth approach but instead of sending an HTTP header, it begins an HTTP POST command and then feeds in the payload of the POST data very, very slowly. Slow POST is an attack that sends the initial POST request, and attempts to send each additional piece of POST data in subsequent packets very slowly. Since the initial POST completes, LTM creates the connection to the web server. Since the POST data is very slow to complete, all the available connections are tied up again... Application DDoS Attacks - HTTP Slow (Low Bandwith)
  • 64.
    © F5 Networks,Inc 64 Demo Slow POST - Start the attack • Send the command: slowhttptest -B -c 3000 -i 20 -r 50 -u http://10.1.10.80/ & • …. website is down!
  • 65.
    © F5 Networks,Inc 65 Demo Slow POST - ASM: Deployment Policy • ASM Deployment steps (shortened) Apply! You can use Rapid Deployment
  • 66.
    © F5 Networks,Inc 66 Demo Slow POST - ASM Protection • ASM can protect against Slow POST attacks by just being applied to the virtual server. The policy does NOT need to be in blocking mode. Since ASM must protect itself from slow connections, it will also protect the virtual server by limiting the number of slow connections allowed. The number of allowed connections per TMM is configurable. • Security > Options > Application Security > Advanced Configuration > System Variables • When this protection kicks in, ASM will log to /var/log/asm:
  • 67.
    © F5 Networks,Inc 67 • Slow READ - Slow Read is an attack that sends a normal request for a HTTP page. The attacker then accepts the site data with a very small TCP window. Upon receiving the first packet of data, the attacker typically sends back a TCP window size of zero in the acknowledgement. Since the server received a zero window from the client, it will wait to send more data, holding open the TCP connection. Once enough zero window clients have attached to the server, it is unable to accept new clients. Since this behavior is RFC compliant (rarely happens in normally functioning networks though), it is difficult for the F5 to detect an attacker from a real slow client. There are a few ways to protect against these types of attacks. Application DDoS Attacks - HTTP Slow (Low Bandwith)
  • 68.
    © F5 Networks,Inc 68 Demo Slow READ - Start the attack • Send the command: slowhttptest -X -c 3000 -i 10 -r 50 -u http://10.1.10.80/ & • …. website is down!
  • 69.
    © F5 Networks,Inc 69 Demo Slow READ - ASM: DDoS Profile Defense for browser applications • Proactive Bot Defense • Many DDoS attacks are simple scripts or programs with very little logic. They exploit the known behaviors of the application to prevent normal users from accessing the data. Proactive Bot Defense challenges the client to perform some data manipulation using Javascript. Since many scripts are unable to parse and perform the Javascript challenge, they are denied access. Proactive Bot Defense should only be used when you know the normal clients are able to accept Javascript. All modern browsers can pass this challenge. • Client Side Integrity Defense • Similar to Proactive Bot Defense, the client side Integrity Defense challenges the client with Javascript. Client Side Integrity Defense differs in that it only challenges clients based upon the criteria set within a DDoS profile. • Captcha • During an attack, clients can be forced to pass a Captcha challenge. This Captcha challenge must be passed before the server data is requested and passed to the client. • These protections are configured as DDoS profiles, and applied to a virtual server.
  • 70.
    © F5 Networks,Inc 70 Demo Slow READ - ASM: TPS-Based Detection & Prevention
  • 71.
    © F5 Networks,Inc 71 Demo Slow READ - ASM: DDoS Profile Defense for browser applications • DoS Protection Profile Apply DDoS Profile to Virtual Server
  • 72.
    © F5 Networks,Inc 72 User Web Bot Client: Hey server, can I get the web page ? ASM: no, you are sending too many requests. Are you a browser ? Yes, I’m a browser *^lkjdfg@#$ ASM: ok, you are allowed. Here is the web page you asked for. ASM: Bye Bye – Blocked Demo Slow READ - ASM: Client-side Integrity Defense
  • 73.
    © F5 Networks,Inc 73 • Ultimate solution for identifying human or bot • Send challenge to every IP that reached IP detection criteria thresholds Note: Some argues that CAPTCAH is not a good usability because the user gets CAPTCHA for his online shop (or similar) and then he will not stay Demo Slow READ - ASM: Captcha
  • 74.
    © F5 Networks,Inc 74 • Unlike most simple network attacks, which overwhelm computing resources with invalid packets, HTTP flood attacks look like real HTTP web requests. • To conventional firewall technology, these requests are indistinguishable from normal traffic • Two main variations: • Basic HTTP flood duiring which merely repeats the same request over and over again. Easy to detect and mitigate. • Advacned HTTP flood attack whith a recursive-get denial-of service. Clients using this attack request the main application page, parse the response, and then recursively request every object at the site. Difficult to detect and mitigate. Application DDoS Attacks - HTTP Flood
  • 75.
    © F5 Networks,Inc 75 Demo HTTP Flood - Start the attack • LOIC (Low Orbital Ion Cannon) • Launch from many sources and…. website will be down!
  • 76.
    © F5 Networks,Inc 76 Demo HTTP Flood - Attack mitigated
  • 77.
    © F5 Networks,Inc 77 When any URL based is mitigating, the heavy URL’s that detected will get this mitigation Application DDoS Mitigation - ASM: Heavy URL Mitigation
  • 78.
    © F5 Networks,Inc 78 Automatic measure latency on URL’s for 24 hours and decide who is heavy Application DDoS Mitigation - ASM: Heavy URL Mitigation Heavy URL – configuration
  • 79.
    © F5 Networks,Inc 79 Application DDoS Mitigation - ASM: Heavy URL Reporting
  • 80.
  • 81.
    © F5 Networks,Inc 81 RTBH BGP Black-Hole DoS protection (RTBH) Automatic DDoS vectors thresholds Behavioral analysis DDoS (BADOS) BIG-IP/DHD Silverline signalization New DDoS Features in TMOS 12.1
  • 82.
    © F5 Networks,Inc 82 • RTBH (Remotely Triggered Black-Hole): Route Injection instructs upstream network devices to drop certain flows at the edge of the network. • RTBH is belongs to AFM, and we need AFM provisioned to configure this feature • When you will configure settings for DDoS vectors at AFM, you can find column 'Bad actors' and instead of rate limit them you can block them - this is ‚IP Shuning’. • On top of this we can configure RTBH and signal this information to upstrem routers • AFM IP-Intelligence (IPI) can now instruct the IP network within the local Autonomous System (AS) to "black-hole" source or destination addresses which have been blacklisted. • ARM (Advanced Routing), It belongs to AFM, everytime when you provision AFM you will have Advanced routing license enabled also. ARM also is included in DHD. New DDoS Features in TMOS 12.1 RTBH
  • 83.
    © F5 Networks,Inc 83 New DDoS Features in TMOS 12.1 RTBH
  • 84.
    © F5 Networks,Inc 84 • Today • Configuration • Tune and maintain • Impact leads to mitigate • React to 0-day • Static – automatic • Impacts the good • Uses wisdom of IT • BADOS • Hands free • Unsupervised • Predictive • 0-day capable • Improves with time (experience) • Minimal impact on good guys • Uses wisdom of the crowd New DDoS Features in TMOS 12.1 BADOS – Why?
  • 85.
    © F5 Networks,Inc 85 • 3 modes of detection and prevention Aggressive + proactive mitigation until health is restored Standard + limit all requests based on servers health Conservative Slow down & rate shape bad actors • Conservative • Slows down & rate limit attackers • Standard • Like conservative but may rate limit all requests based on server's health • Aggressive • Like standard but proactively performs all protection actions New DDoS Features in TMOS 12.1 BADOS – Why?
  • 86.
  • 87.
    © F5 Networks,Inc 87 New DDoS Features in TMOS 13.0 ASM Auto Thresholding (for TPS-based Detection)
  • 88.
    © F5 Networks,Inc 88 New DDoS Features in TMOS 13.0 ASM Auto Thresholding (for TPS-based Detection)
  • 89.
    © F5 Networks,Inc 89 New DDoS Features in TMOS 13.0 BADOS Improvements
  • 90.
    © F5 Networks,Inc 90 New DDoS Features in TMOS 13.0 Proactive Bot Defense Reporting
  • 91.
    © F5 Networks,Inc 91 Security > Reporting > DoS > Visibility > Dashboard New DDoS Features in TMOS 13.0 DoS Reporting Redisign
  • 92.
    DDoS and Application Attacks Mitigation – iRulesNetwork Application Session SSL DNS, NTP Blended
  • 93.
    © F5 Networks,Inc 93 DDoS and Application Attacks Mitigation - iRules Slow HEADERS (Slowloris) defense
  • 94.
    © F5 Networks,Inc 94 DDoS and Application Attacks Mitigation - iRules Slow POST (R.U.D.Y.) defense
  • 95.
  • 96.
    © F5 Networks,Inc 96 DHD – Configure and play
  • 97.
    © F5 Networks,Inc 97 DHD – Simplified configuration DDoS profile Log profile DDoS profile VLAN/Network Info Protocol profile Log profile Action Deployment model Network, protocolProtocol profile 1 2 reference 1 3 Virtual Server Protected Object
  • 98.
    © F5 Networks,Inc 98 Attack detection and Visibility via AVR DHD Access Network Tap VLAN Packet data (Tap) • Avoid single point of failure network scenario • Identify DDoS attacks (L3/4, SIP, DNS) via mirrored pkts • No need to reconfigure network • No single point of failure • Visibility • RTBH with upstream router • Signal to Silverline • Simplified and easy POC • Visibility via AVR Apps Edge router Access router Rx Tx DHD - Out-of-band TAP
  • 99.
    © F5 Networks,Inc 99 Attack detection And inspection Clean traffic DDoS Platform Edge Network Access Network Tap VLAN DDoS Platform Attack traffic SCRUB VLAN • Avoid single point of failure network scenario • Doesn’t want to inspect/scrub all traffic • Identify DDoS attacks via Netflow, IPFIX data • ease of deployment • No single point of failure • Significant cost efficiencies • Steer traffic to a local scrubber • Share attacked_IP(s) with Silverline • Simplified and easy POC • Visibility via AVR DHD - Out-of-band Netflow/IPFIX
  • 100.
    © F5 Networks,Inc 100 Choose a context: Current Attacks, Device, Single Profile or VS Choose a filter: (optional) Limit by vector name, or P.O. name View Status of Current Attacks View Current Traffic Statistics Total Packets Dropped Packets View Current Configuration Manual vs. Auto-Mode Aggregate & SrcIP Limits Modify Configuration Settings Without navigating to new page Same interface as Profile Page DHD – AFM DoS “Overview” Page: 13.x
  • 101.
    © F5 Networks,Inc 101 DHD Demo – Slow POST (Application) DDoS Attack mitigated by DHD • The TMOS version 12.1 • DHD operates in transparent mode • BADOS (Behavioral DOS) protection enabled • Protected Object: - Listening on port 443 (HTTPS) DHD Platform Attacker ..200 User ..11:443 (protected) 10.1.20.0/24 10.1.20.0/24 (unprotected) 443:12. User .100
  • 102.
    © F5 Networks,Inc 102 DHD Demo – Slow POST (Application) DDoS Attack mitigated by DHD • slowhttptest -B -c 3000 -i 20 -r 50 -u https://10.1.20.11/ Slow POST (R.U.D.Y.) - Like Slowloris, uses a slow, low-bandwidth approach, but instead of sending an HTTP header, it begins an HTTP POST command and then feeds in the payload of the POST data very, very slowly. Slow POST is an attack that sends the initial POST request, and attempts to send each additional piece of POST data in subsequent packets very slowly. Since the POST data is very slow to complete, all the available connections are tied up again.
  • 103.
  • 104.
    © F5 Networks,Inc 104 DDoS Attacks Size 24% 38% 20% 6% 12% 0.5-1 Gbps 1-10 Gbps 10-50 Gbps Over 50Gbps Unknown
  • 105.
    © F5 Networks,Inc 105 F5 Silverline - 3 Cloud-based Security Services
  • 106.
    © F5 Networks,Inc 106 Global Coverage Fully redundant and globally distributed data centers world wide in each geographic region • San Jose, CA US • Ashburn, VA US • Frankfurt, DE • Singapore, SG Industry-Leading Bandwidth • Attack mitigation bandwidth capacity over 2.0 Tbps • Scrubbing capacity up to 1.0 Tbps (with upstream ACLs) • Guaranteed bandwidth with Tier 1 carriers 24/7 Support F5 Security Operations Center (SOC) in Seattle: staffed 24x7x365 with security experts for DDoS Protection and WAF. Warsaw is staffed for Websafe. • Seattle, WA U.S. • Warsaw, Poland SOC SOC F5 Silverline - Global Coverage
  • 107.
    © F5 Networks,Inc 107 • Monitoring and mitigating attacks while reducing false positives requires a 24/7 staff of skilled DDoS analysts • Full provisioning and configuration • Proactive alert monitoring • Identification and inspection of attacks • Custom and script mitigation • Service level agreements time to • Notify, mitigate, escalate Availability & Support Tier II DDoS Analysts and Above Active DDoS Threat Monitoring Security Operations Center (SOC) F5 Silverline - Security Operation Center Outsourcing DDoS monitoring and mitigation
  • 108.
    © F5 Networks,Inc 108 Scanner Anonymous Proxies Anonymous Requests Botnet Attackers Threat Intelligence Feed Cloud Network Application Legitimate Users Cloud Scrubbing Service Volumetric attacks and floods, operations center experts, L3-7 known signature attacks ISPa/b Multiple ISP strategy Network attacks: ICMP flood, UDP flood, SYN flood DNS attacks: DNS amplification, query flood, dictionary attack, DNS poisoning IPS Network and DNS Application HTTP attacks: Slowloris, slow POST, recursive POST/GET Next-Generation Firewall Corporate Users SSL attacks: SSL renegotiation, SSL flood Financial Services E-Commerce Subscriber Strategic Point of Control DDoS Attackers • Real-time Volumetric DDoS attack detection and mitigation in the cloud • Multi-layered L3-L7 DDoS attack protection • 24x7 expert SOC services • Transparent attack reporting via F5 customer portal CLOUD KEY FEATURES F5 Silverline DDoS Protection - Cloud-based Scrubbing Center
  • 109.
    © F5 Networks,Inc 109 Inspection Toolsets Scrubbing Center Inspection Plane Traffic Actioner Route Management Flow Collection Portal Switching Routing/ACL Network Mitigation Routing (Customer VRF) GRE Tunnel Proxy IP Reflection L2VPN Customer Data Plane Netflow Netflow Copied traffic for inspection BGP signaling Signaling Visibility Management Proxy Mitigation Switching mirrors traffic to Inspection Toolsets and Routing layer Inspection Tools provide input on attacks for Traffic Actioner & SOC Traffic Actioner injects routes and steers traffic Network Mitigation removes advanced L4 attacks Proxy Mitigation removes L7 Application attacks Flow collection aggregates attack data from all sources Egress Routing returns good traffic back to customer Portal provides real- time reporting and configuration Ingress Router applies ACLs and filters traffic Legitimate Users DDoS Attackers Volumetric DDoS protection, Managed Application firewall service, zero-day threat mitigation with iRules Silverline WAF DDoS Cloud F5 Silverline DDoS Protection - Scrubbing Center Architecture
  • 110.
    © F5 Networks,Inc 110 Europe Customer DC Customer App Cloud Network GRE Tunnels US East US West GRE Tunnels Cloud Network Cloud Network DDoS Attack Asia Legitimate Traffic InternetInternet DDoS Attack Legitimate Traffic Response Traffic Response Traffic Anycast
  • 111.
    © F5 Networks,Inc 111 Primary protection as the first line of defense The Always On subscription stops bad traffic from ever reaching your network by continuously processing all traffic through the cloud-scrubbing service and returning only legitimate traffic to your network. Primary protection available on-demand The Always Available subscription runs on stand-by and can be initiated when under attack. Client routers monitoring (optional) Always AvailableAlways On Proactive Hybrid AFM alerts Silverline and traffic is diverts traffic for cloud-based mitigation when the datacenter is under volumetric attack Silverline is always on and the first point of detection and mitigation for volumetric attacks before traffic is passed to the datacenter. Reactive Hybrid F5 Silverline DDoS Protection - Service Options
  • 112.
    © F5 Networks,Inc 112 Traffic Steering to Silverline Capabilities ASYMETRIC L3/L4 TUNNEL CLEAN TRAFFIC PROTECT ENTIRE NETBLOCK /24 FULL PROXY (SYMETRIC) L7 SSL TERMINATION WAF BGP (BORDER GATEWAY PROTOCOL) ROUTED MODE DNS PROXY MODE SINGLE APPLICATION (IP) F5 Silverline DDoS Protection
  • 113.
    F5 Silverline PortalSilverline Portal
  • 114.
    © F5 Networks,Inc 115 • Stas, Visibility, Reporting and Intelligence • Real time attack view • Real time mitigation view • Real time scrubbing & clean traffic view • Non-Attack (regular) traffic reporting capability • Instant, downloadable PDF reports • Secure set up & management of SOC services • Knowledge base & how to F5 Silverline Portal https://portal.f5silverline.com
  • 115.
    © F5 Networks,Inc 116 • Securely communicate with Silverline SOC experts • View centralized attack and threat monitoring reports with details including: • source geo-IP mapping • blocked vs. alerted attacks • blocked traffic and attack types • alerted attack types • Threats* • bandwidth used • hits/sec* • type of traffic and visits (bots v. humans)* Customer Portal Visibility & Compliance Attack Reports F5 Silverline Portal - Stats, Visibility, Reporting & Intelligence F5 Customer Portal
  • 116.
    © F5 Networks,Inc 117 F5 Silverline Portal - Stats: Traffic (Post i Pre-Scrubbing) • Dashboard > Netflow: Traffic, Application, Zones
  • 117.
    © F5 Networks,Inc 119 Downloadable PDFs for internal reporting F5 Silverline Portal - Stats: Attack Reporting
  • 118.
    © F5 Networks,Inc 120 Directly manage configuration via customer portal • Configure Proxy and Routing attributes • Manage SSL Certificates • Update White and Black List information • Check health status of GRE tunnels • Administer users and roles • Download reports and view audit history F5 Silverline Portal - Configuration and Provisioning
  • 119.
    © F5 Networks,Inc 121 F5 Silverline Portal - Configuration: Routed mode
  • 120.
    © F5 Networks,Inc 122 F5 Silverline Portal - Configuration: Proxy mode
  • 121.
    © F5 Networks,Inc 123 F5 Silverline Portal - Configuration: Proxy mode
  • 122.
    © F5 Networks,Inc 124 F5 Silverline Portal - Configuration: Proxy mode
  • 123.
    © F5 Networks,Inc 125 F5 Silverline Portal - Configuration: Proxy mode
  • 124.
    F5 Hybrid SignalingBIG-IP / DHD Silverline
  • 125.
    © F5 Networks,Inc 127 • New Hybrid DDoS Signaling iApp available for BIG-IP • DHD can signal to Silverline natively https://support.f5silverline.com/hc/en-us/sections/205571867-Hybrid-Signaling F5 Networks Hybrid DDoS Protection Silverline Signalling
  • 126.
    © F5 Networks,Inc 128 • Configure connection to Silverline F5 Networks Hybrid DDoS Protection Silverline Signalling for DHD
  • 127.
  • 128.
    © F5 Networks,Inc 130 Virtual Edition Appliance Chassis BIG-IP Platform on-premises F5 Silverline Cloud Security Anti-DDoS Managed Service Web Application Firewall Managed Service High Performance Security Simplified Security Scalable Security Conclusion: F5 Hybrid Security
  • 129.
    © F5 Networks,Inc 131 TMOS - Full Proxy DDoS Protection App Protection Network Protection Web Fraud Protection SSL Visibility & Protection DNS Protection App Access Virtual Edition Appliance Chassis BIG-IP Platform Conclusion: Rethink…Multi-Layer Security with F5
  • 130.
    © F5 Networks,Inc 132 Performance Minimize business impact from volumetric attacks7.5M Extensibility Take immediate action on new DDoS threats Protection Protect against the full spectrum of modern cyber threats attacks Expertise Augment resources with F5 Security experts 24x7x365 DDoS support from Security Operations Centers in the US, APAC, and EMEA 1,000’s of iRules have been written to mitigate traffic based on any type of content data Up to 640 Gbps; 7.5M CPS; 576M CCS; in the datacenter and over 1Tbps in the cloud 100+ DDoS Vectors; Most advanced app security; 98% of fortune 1000 trust their traffic to F5 Conclusion: Key DDoS Mitigation Values
  • 131.
    © F5 Networks,Inc 133 Q & A
