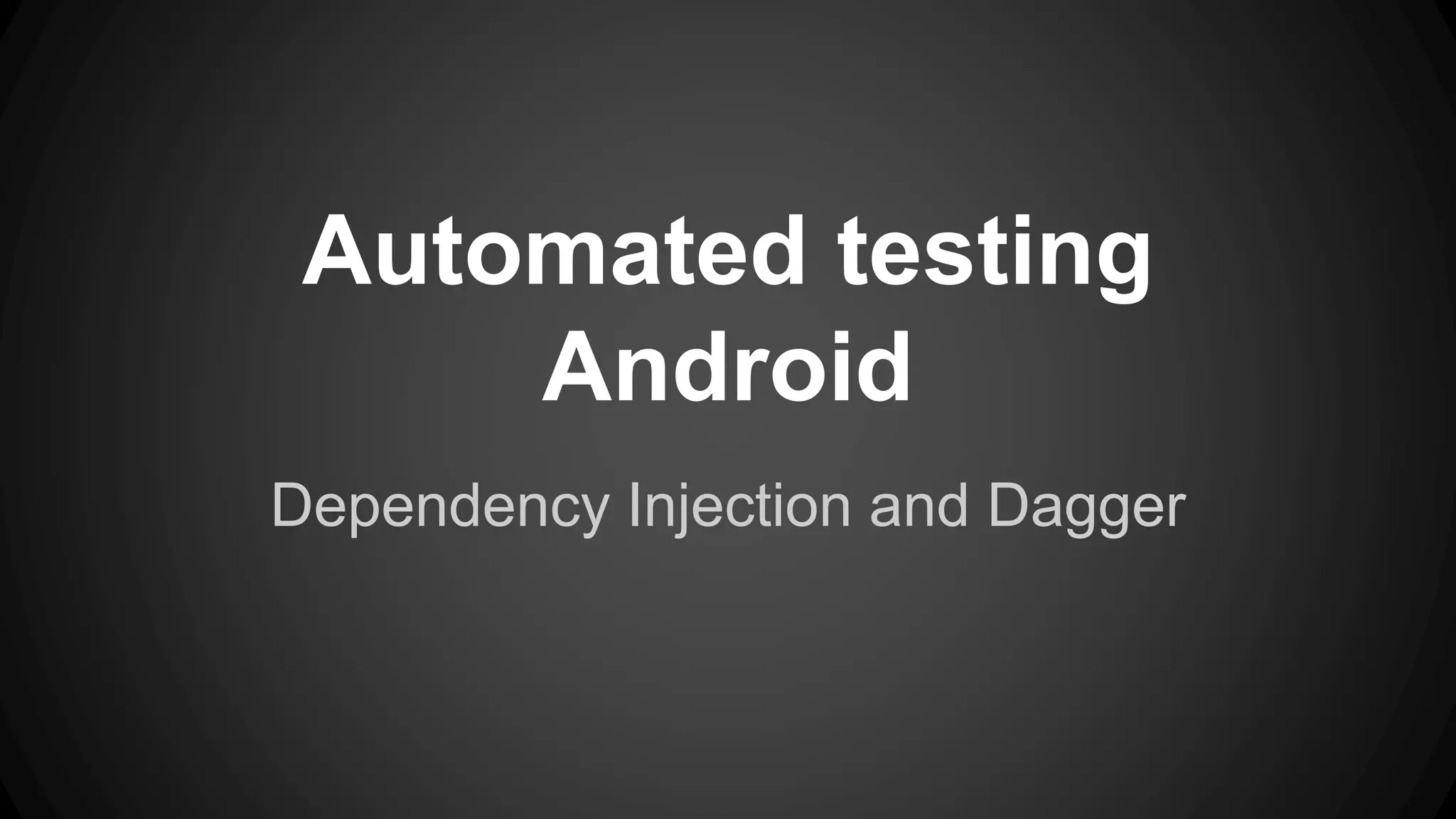

1. Automated testing
Android
Dependency Injection and Dagger

2. Dependency Injection
Dagger
Live Coding Sample 1
Live Coding Sample 2

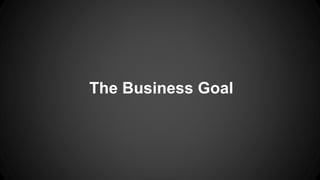

3. The Business Goal

4. Why not automated tests on mobile?

5. Motivation for Dependency Injection
● Decouple concrete from concrete
● Uniformity
● Reduced Dependency Carrying
● More Testable Code

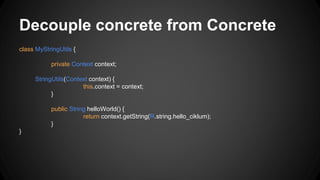

6. Decouple concrete from Concrete
class MyStringUtils {
private Context context;
StringUtils(Context context) {
this.context = context;
}
public String helloWorld() {
return context.getString(R.string.hello_ciklum);
}
}

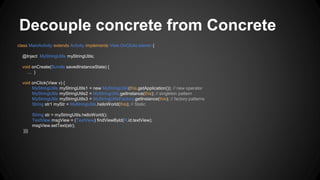

7. Decouple concrete from Concrete
class MainActivity extends Activity implements View.OnClickListener {
@Inject MyStringUtils myStringUtils;
void onCreate(Bundle savedInstanceState) {
… }
void onClick(View v) {
MyStringUtils myStringUtils1 = new MyStringUtils(this.getApplication()); // new operator
MyStringUtils myStringUtils2 = MyStringUtils.getInstance(this); // singleton pattern
MyStringUtils myStringUtils3 = MyStringUtilsFactory.getInstance(this); // factory patterns
String str1 myStr = MyStringUtils.helloWorld(this); // Static
String str = myStringUtils.helloWorld();
TextView msgView = (TextView) findViewById(R.id.textView);
msgView.setText(str);
}}}

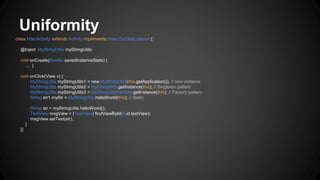

8. Uniformity
class MainActivity extends Activity implements View.OnClickListener {
@Inject MyStringUtils myStringUtils;
void onCreate(Bundle savedInstanceState) {
… }
void onClick(View v) {
MyStringUtils myStringUtils1 = new MyStringUtils(this.getApplication()); // new instance
MyStringUtils myStringUtils2 = MyStringUtils.getInstance(this); // Singleton pattern
MyStringUtils myStringUtils3 = MyStringUtilsFactory.getInstance(this); // Factory pattern
String str1 myStr = MyStringUtils.helloWorld(this); // Static
String str = myStringUtils.helloWorld();
TextView msgView = (TextView) findViewById(R.id.textView);
msgView.setText(str);
}
}}

9. Dependency Carrying
class MyActivity extends Activity {
onClick(View v) {
A a = new A(this);
a.doSometing();
}
}
class A {
Context mContext;
public (Context mContext){
this.mContext = mContext;
}
public doSomething() {
B b = new B(mContext);
String str =
b.getSomeString(R.strings.helloWorld);
}
}
class B {
Context mContext;
public B(Context mContext) {
this.mContext = mContext;
}
public String getSomeString(int resourceId) {
return
mContext.getString(resourceId);
}
}

10. Reduced Dependency Carrying
@Module class ProdModule {
Context mContext;
public ProdModule(Context mContext) {
this.mContext = mContext;
}
@Provide B provideB() {
return new B(context);
}
@Provide A provideA(B b) {
return new A(b);
}
}
class MyActivity {
@Inject A a;
onCreate(){
((MyApplication)getApplication()).inject(this);
}
onClick(View v) {
A a = new A(this);
a.doSomething();
}
}
class A {
@Inject B b;
public doSomething() {
String str = b.getSomeString(R.strings.helloWorld);
}
}
class B {
Context mContext;
public B(Context mContext) {
this.mContext = mContext;
}
public String getSomeString(int resourceId) {
return mContext.getString(resourceId);
}
}

11. More Testable Code
class MainActivity extends Activity implements View.OnClickListener {
@Inject MyStringUtils myStringUtils;
void onCreate(Bundle savedInstanceState) {
… }
void onClick(View v) {
String str = myStringUtils.helloWorld();
TextView msgView = (TextView) findViewById(R.id.textView);
msgView.setText(str);
}
}}

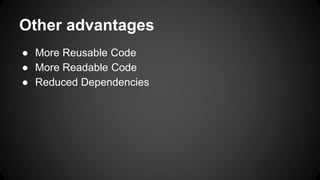

12. Other advantages
● More Reusable Code
● More Readable Code
● Reduced Dependencies

13. Dependency Injection
Dagger
Live Coding Sample 1
Live Coding Sample 2

14. DAGger
Direct
Acyclic
Graph

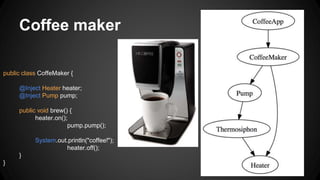

15. Coffee maker
public class CoffeMaker {
@Inject Heater heater;
@Inject Pump pump;
public void brew() {
heater.on();
pump.pump();
System.out.println("coffee!");
heater.off();
}
}

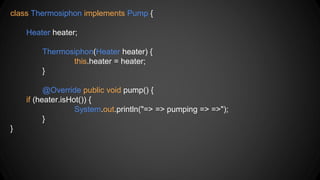

16. class Thermosiphon implements Pump {
Heater heater;
Thermosiphon(Heater heater) {
this.heater = heater;
}
@Override public void pump() {
if (heater.isHot()) {
System.out.println("=> => pumping => =>");
}
}

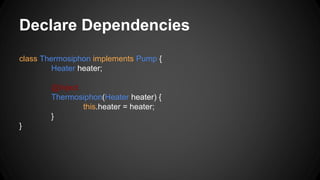

17. Declare Dependencies
class Thermosiphon implements Pump {
Heater heater;
@Inject
Thermosiphon(Heater heater) {
this.heater = heater;
}
}

18. Satisfy Dependencies
@Module
class DripCoffeeModule {
@Provides Heater provideHeater() {
return new ElectricHeater();
}
@Provides Pump providePump(Thermosiphon pump) {
return pump;
}
}

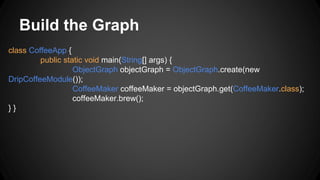

19. Build the Graph
class CoffeeApp {
public static void main(String[] args) {
ObjectGraph objectGraph = ObjectGraph.create(new
DripCoffeeModule());
CoffeeMaker coffeeMaker = objectGraph.get(CoffeeMaker.class);
coffeeMaker.brew();
} }

20. Neat features
● Lazy<T>
● Module overrides

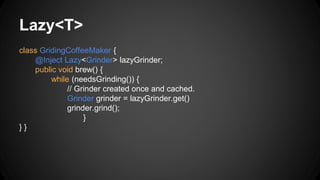

21. Lazy<T>
class GridingCoffeeMaker {
@Inject Lazy<Grinder> lazyGrinder;
public void brew() {
while (needsGrinding()) {
// Grinder created once and cached.
Grinder grinder = lazyGrinder.get()
grinder.grind();
}
} }

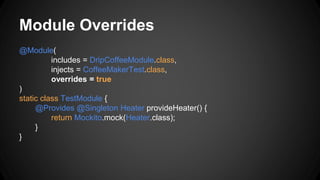

22. Module Overrides
@Module(
includes = DripCoffeeModule.class,
injects = CoffeeMakerTest.class,
overrides = true
)
static class TestModule {
@Provides @Singleton Heater provideHeater() {
return Mockito.mock(Heater.class);
}
}

23. Dependency Injection
Dagger
Live Coding Sample 1
Live Coding Sample 2

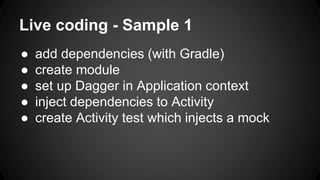

24. Live coding - Sample 1
● add dependencies (with Gradle)
● create module
● set up Dagger in Application context
● inject dependencies to Activity
● create Activity test which injects a mock

25. Add depedencies (Gradle)
dependencies {
……...
compile 'com.squareup.dagger:dagger:1.2.1'
compile 'com.squareup.dagger:dagger-compiler:1.2.1'
androidTestCompile 'org.mockito:mockito-core:1.9.5'
androidTestCompile 'com.google.dexmaker:dexmaker:1.0'
androidTestCompile 'com.google.dexmaker:dexmaker-mockito:1.0'
}

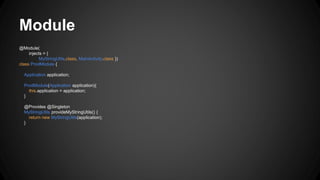

26. Module
@Module(
injects = {
MyStringUtils.class, MainActivity.class })
class ProdModule {
Application application;
ProdModule(Application application){
this.application = application;
}
@Provides @Singleton
MyStringUtils provideMyStringUtils() {
return new MyStringUtils(application);
}

27. Define Dagger Application
class MyApplication extends Application {
ObjectGraph mGraph;
void onCreate() {
super.onCreate();
mGraph = ObjectGraph.create(getModules().toArray());
}
void inject(Object o){
mGraph.inject(o);
}
List<Object> getModules() {
List<Object> result = new ArrayList<Object>();
result.add(new ProdModule(this));
return result;
}}

28. Create MyStringUtils
class MyStringUtils {
MyStringUtils(Context context) {
this.context = context;
}
public String helloWorld() {
return context.getString(R.string.hello_ciklum);
}
}

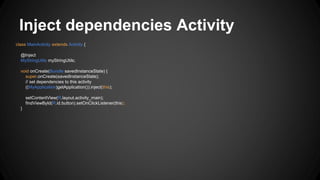

29. Inject dependencies Activity
class MainActivity extends Activity {
@Inject
MyStringUtils myStringUtils;
void onCreate(Bundle savedInstanceState) {
super.onCreate(savedInstanceState);
// set dependencies to this activity
((MyApplication)getApplication()).inject(this);
setContentView(R.layout.activity_main);
findViewById(R.id.button).setOnClickListener(this);
}

30. Unit test Activity with mock
class MainActivityUnitTest extends ActivityUnitTestCase<MainActivity> {
@Inject
MyStringUtils myStringUtils;
void setUp() {
// create test application context, Dagger Graph with our test module.
MyApplication application = new TestApplication();
application.inject(this); // inject the dependencies we need to this class
setApplication(application); // use our custom test application context
}
void testOnClick() {
String testingStr = "olala";
when(myStringUtils.helloWorld()).thenReturn(testingStr);
this.activity = startActivity(intent, null, null);
// the test
View view = activity.findViewById(R.id.button);
activity.onClick(view);
// verify the mock was invoked
verify(myStringUtils, times(1)).helloWorld();
// assert view got updated correctly
TextView msgView = (TextView) activity.findViewById(R.id.textView);
assertEquals(testingStr, msgView.getText());
}

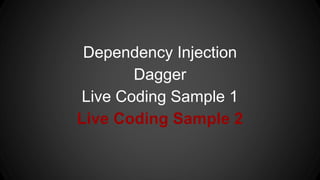

31. Dependency Injection
Dagger
Live Coding Sample 1
Live Coding Sample 2

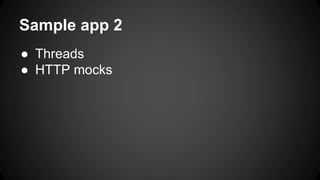

32. Sample app 2
● Threads
● HTTP mocks

33. Tips, tricks and Frameworks
● https://github.com/tha022/dagger-testing-example
● https://github.com/fizz-buzz/fb-android-dagger
