1. Writing testable
Android apps
Tomáš Kypta
@TomasKypta

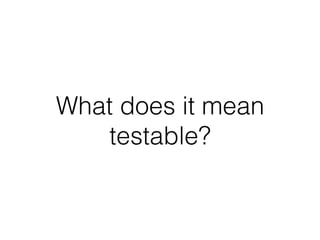

2. What does it mean
testable?

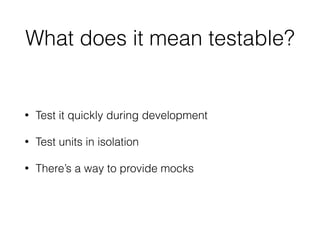

3. What does it mean testable?
• Test it quickly during development
• Test units in isolation
• There’s a way to provide mocks

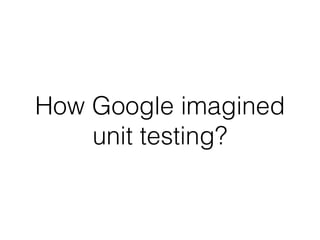

4. How Google imagined
unit testing?

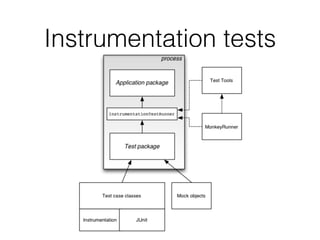

5. Instrumentation tests

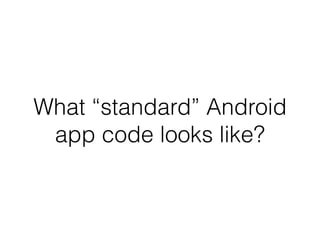

6. What “standard” Android
app code looks like?

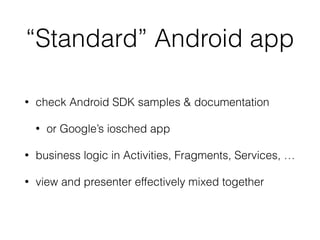

7. “Standard” Android app
• check Android SDK samples & documentation
• or Google’s iosched app
• business logic in Activities, Fragments, Services, …
• view and presenter effectively mixed together

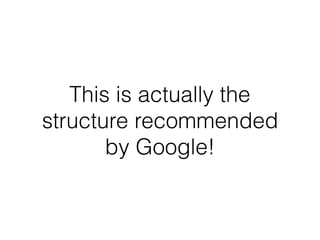

8. This is actually the
structure recommended
by Google!

9. How to make it
testable?

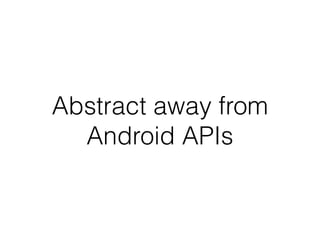

10. Abstract away from
Android APIs

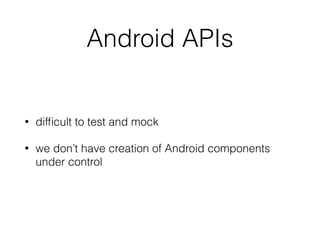

11. Android APIs
• difficult to test and mock
• we don’t have creation of Android components
under control

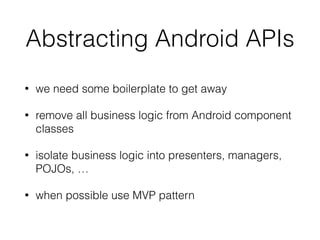

12. Abstracting Android APIs
• we need some boilerplate to get away
• remove all business logic from Android component
classes
• isolate business logic into presenters, managers,
POJOs, …
• when possible use MVP pattern

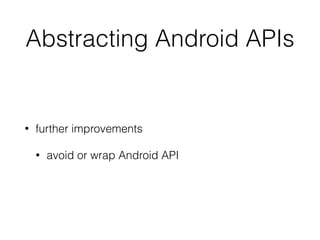

13. Abstracting Android APIs
• further improvements
• avoid or wrap Android API

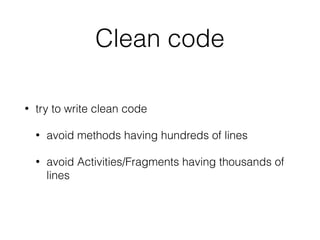

14. Clean code
• try to write clean code
• avoid methods having hundreds of lines
• avoid Activities/Fragments having thousands of
lines

15. And how to test it?
• our presenters, POJOs, managers, providers, etc.
are simple to test
• Android components are stripped off of business
logic
• nothing important to test remains there

16. Bonus Advantages
• better readability
• better maintainability

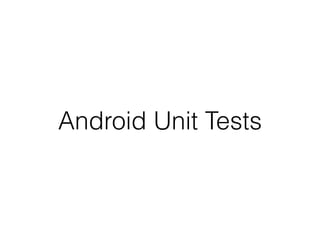

17. Android Unit Tests

18. Android Unit Tests
• Added rather recently
• You need some work to make them really useful.
• Dependency injection
• Mocking

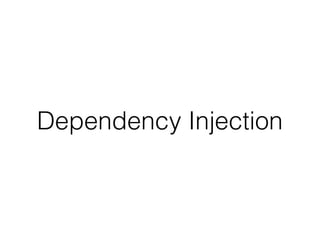

19. Dependency Injection

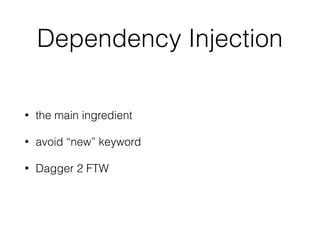

20. Dependency Injection
• the main ingredient
• avoid “new” keyword
• Dagger 2 FTW

21. Dagger 2
• by Google
• evolution of Dagger 1 (by Square)
• no reflection
• generated code in compile time
• constructor and field injection

22. Dagger 2
• Constructor injection
private ProviderC mProviderC;
private ProviderD mProviderD;
@Inject
public ProviderA(ProviderC providerC, ProviderD
providerD) {
mProviderC = providerC;
mProviderD = providerD;
}

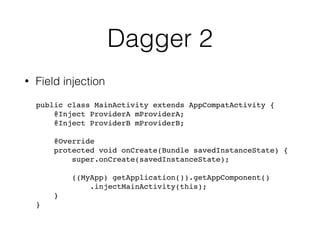

23. Dagger 2
• Field injection
public class MainActivity extends AppCompatActivity {
@Inject ProviderA mProviderA;
@Inject ProviderB mProviderB;
@Override
protected void onCreate(Bundle savedInstanceState) {
super.onCreate(savedInstanceState);
((MyApp) getApplication()).getAppComponent()
.injectMainActivity(this);
}
}

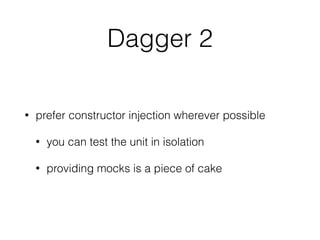

24. Dagger 2
• prefer constructor injection wherever possible
• you can test the unit in isolation
• providing mocks is a piece of cake

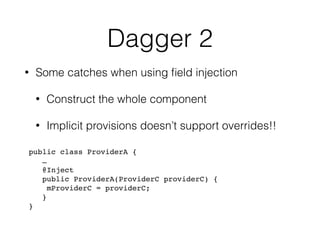

25. Dagger 2
• Some catches when using field injection
• Construct the whole component
• Implicit provisions doesn’t support overrides!!
public class ProviderA {
…
@Inject
public ProviderA(ProviderC providerC) {
mProviderC = providerC;
}
}

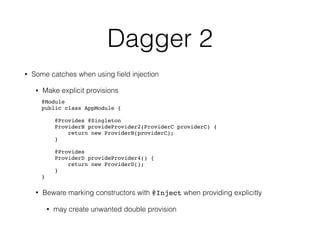

26. Dagger 2
• Some catches when using field injection
• Make explicit provisions
@Module
public class AppModule {
@Provides @Singleton
ProviderB provideProvider2(ProviderC providerC) {
return new ProviderB(providerC);
}
@Provides
ProviderD provideProvider4() {
return new ProviderD();
}
}
• Beware marking constructors with @Inject when providing explicitly
• may create unwanted double provision

27. Mocking

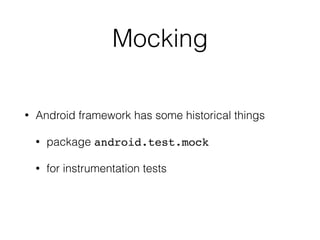

28. Mocking
• Android framework has some historical things
• package android.test.mock
• for instrumentation tests

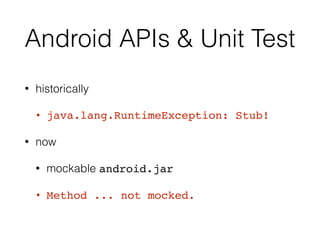

29. Android APIs & Unit Test
• historically
• java.lang.RuntimeException: Stub!
• now
• mockable android.jar
• Method ... not mocked.

30. Mocking
• it’s important to “program to an interface”
• avoid final and static

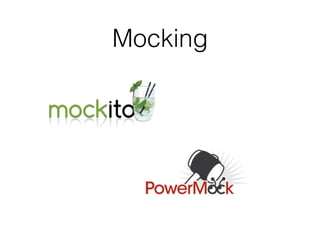

31. Mocking

32. @RunWith(JUnit4.class)
public class ProviderATest {
@Mock ProviderC mProviderC;
@Mock ProviderD mProviderD;
ProviderA mProviderA;
@Before
public void setUp() throws Exception {
MockitoAnnotations.initMocks(this);
Mockito.when(mProviderC.getString()).thenReturn("hello");
Mockito.when(mProviderD.getString()).thenReturn("world");
mProviderA = new ProviderA(mProviderC, mProviderD);
}
…
}

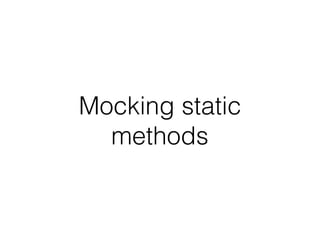

33. Mocking static
methods

34. Static methods
• avoid it as much as possible
• things like TextUtils.isEmpty() can be painful
• alternatives, e.g. Apache commons
StringUtils.isEmpty()
• PowerMock to the rescue
• still better to avoid static

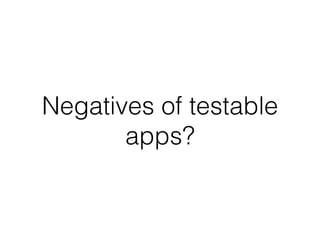

35. Negatives of testable
apps?

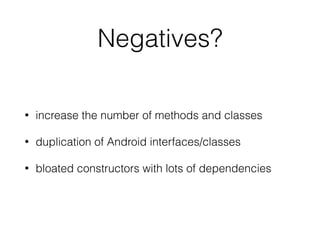

36. Negatives?
• increase the number of methods and classes
• duplication of Android interfaces/classes
• bloated constructors with lots of dependencies

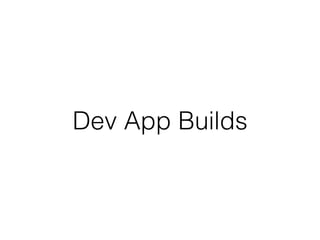

37. Dev App Builds

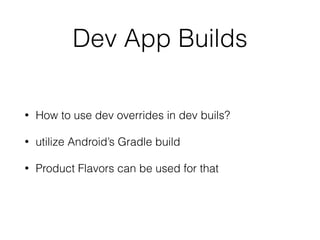

38. Dev App Builds
• How to use dev overrides in dev buils?
• utilize Android’s Gradle build
• Product Flavors can be used for that

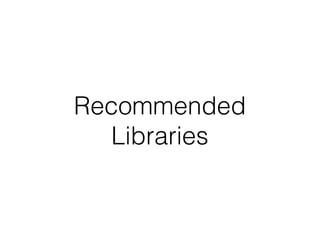

39. Recommended
Libraries

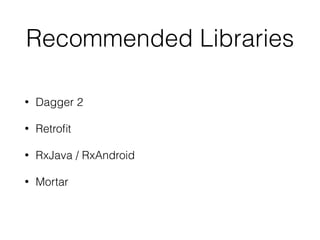

40. Recommended Libraries
• Dagger 2
• Retrofit
• RxJava / RxAndroid
• Mortar

41. Recommended Libraries
- for testing

42. Q&A

43. Thank You
