This document provides an introduction and overview of dependency injection and the dependency injection framework Dagger. It defines key concepts like dependencies, dependency injection, and the dependency inversion principle. It explains how dependency injection reduces coupling between classes and improves testability. The document demonstrates how to use Dagger annotations like @Inject, @Module, @Provides and @Component to implement dependency injection in an Android application. It also discusses additional Dagger features like scopes, lazy injection, qualifiers and subcomponents. In summary, the document is an introductory guide to dependency injection and how to implement it using the Dagger framework on Android.

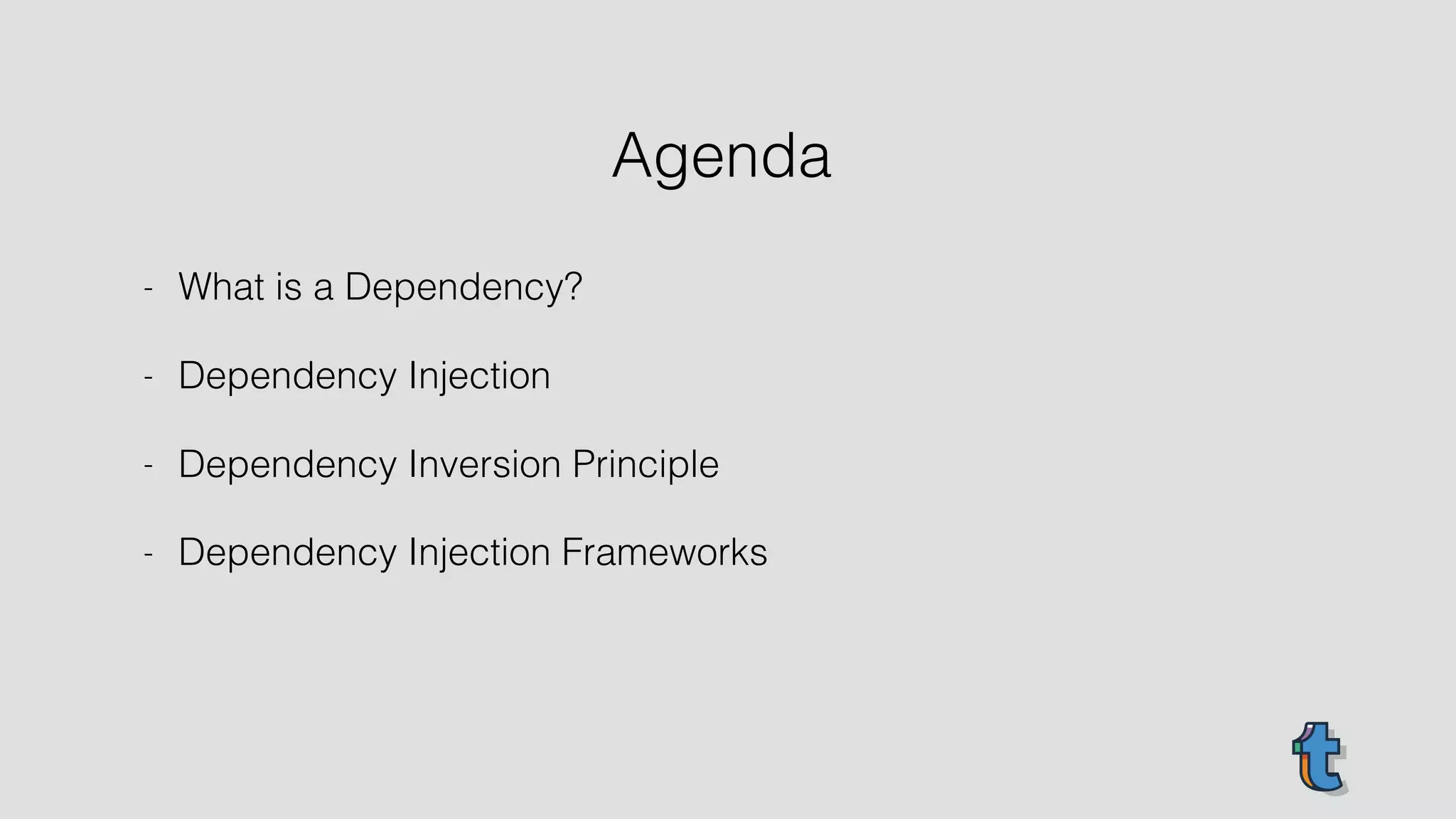

1. Intro To Dependency Injection
Or Bar

2. - What is a Dependency?
- Dependency Injection
- Dependency Inversion Principle
- Dependency Injection Frameworks
Agenda

3. A depends on B

4. public class Example {
DatabaseHelper mDatabaseHelper;
public Example() {
mDatabaseHelper = new DatabaseHelper();
}
public void doStuff() {
...
mDatabaseHelper.loadUsers();
...
}
}

5. - Dependency injection is a software design pattern that
implements inversion of control for resolving dependencies
- An injection is the passing of a dependency to a dependent
object to use

6. public class Example {
DatabaseHelper mDatabaseHelper;
public Example() {
mDatabaseHelper = new DatabaseHelper();
}
}

7. public class Example {
DatabaseHelper mDatabaseHelper;
public Example() {
mDatabaseHelper = new DatabaseHelper();
}
}
public class Example {
DatabaseHelper mDatabaseHelper;
public Example(DatabaseHelper databaseHelper) {
mDatabaseHelper = databaseHelper;
}
}

8. public class Example {
DatabaseHelper mDatabaseHelper;
public Example() {
mDatabaseHelper = new DatabaseHelper();
}
}
public class Example {
DatabaseHelper mDatabaseHelper;
public Example() {
mDatabaseHelper = new DatabaseHelper();
}
}
public class Example {
DatabaseHelper mDatabaseHelper;
public Example(DatabaseHelper databaseHelper) {
mDatabaseHelper = databaseHelper;
}
}
public class Example {
DatabaseHelper mDatabaseHelper;
public Example(DatabaseHelper databaseHelper) {
mDatabaseHelper = databaseHelper;
}
}

9. public class Example {
DatabaseHelper mDatabaseHelper;
public Example() {
}
public void setDatabaseHelper(DatabaseHelper databaseHelper) {
mDatabaseHelper = databaseHelper;
}
}

10. - Shared dependencies
- Configure dependencies externally
- Separation of modules
- Inherent testability
Why?

11. public class ExampleTest {
@Mock DatabaseHelper mockDatabaseHelper;
@Test
public void testExample_doStuff() {
Example example = new Example(mockDatabaseHelper);
example.doStuff();
mockDatabaseHelper.AssertGetDataWasCalled();
}
}
public class Example {
DatabaseHelper mDatabaseHelper;
public Example(DatabaseHelper databaseHelper) {
mDatabaseHelper = databaseHelper;
}
public void doStuff() {
...
mDatabaseHelper.loadUsers();
...
}
}

12. - High-level modules should not depend on low-level modules.
Both should depend on abstractions.
- Abstractions should not depend on details. Details should
depend on abstractions.
Dependency Inversion Principle

13. A depends on B

14. A is coupled to B

15. - Bare bones ebook reader
- Supports PDF files
- Prints book contents to screen
Ebook Reader

16. CoolEBookReader
PDFReader DisplayPrinter

17. public class CoolEBookReader {
public void loadPage(String bookUri, int PageNumber) {
String pdfContent = getPdfContent(bookUri, PageNumber);
displayPage(pdfContent);
}
}

18. public class CoolEBookReader {
enum BookType {
PDF,
EPUB
}
public void loadPage(BookType bookType, String bookUri, int PageNumber) {
String pageContent;
if (bookType == BookType.PDF) {
pageContent = getPdfContent(bookUri, PageNumber);
} else if (bookType == BookType.EPUB) {
pageContent = getEpubContent(bookUri, PageNumber);
} else {
throw new IllegalArgumentException("Unknown book type");
}
displayPage(pageContent);
}
}

19. public class CoolEBookReader {
enum BookType {
PDF,
EPUB
}
enum PrinterType {
SCREEN,
VOICE
}
public void loadPage(BookType bookType, PrinterType printerType, String bookUri, int PageNumber) {
String pageContent;
if (bookType == BookType.PDF) {
pageContent = getPdfContent(bookUri, PageNumber);
} else if (bookType == BookType.EPUB) {
pageContent = getEpubContent(bookUri, PageNumber);
} else {
throw new IllegalArgumentException("Unknown book type");
}
if (printerType == PrinterType.SCREEN) {
displayPage(pageContent);
} else if (printerType == PrinterType.VOICE) {
readAloudPage(pageContent);
} else {
throw new IllegalArgumentException("Unknown printer type");
}
}
}

20. - High-level modules should not depend on low-level modules.
Both should depend on abstractions.
- Abstractions should not depend on details. Details should
depend on abstractions.
Dependency Inversion

21. CoolEBookReader
PDFReader DisplayPrinter
<<Interface>>
Reader
<<Interface>>
Printer

22. interface Reader {
String read(String bookUri, int pagNumber);
}
interface Printer {
void print(String pageContent);
}
public class CoolEBookReader {
public void loadPage(Reader reader, Printer printer, String bookUri, int pageNumber) {
String pageContent = reader.read(bookUri, pageNumber);
printer.print(pageContent);
}
}

23. interface Reader {
String read(String bookUri, int pagNumber);
}
interface Printer {
void print(String pageContent);
}
public class CoolEBookReader {
public void loadPage(Reader reader, Printer printer, String bookUri, int pageNumber) {
String pageContent = reader.read(bookUri, pageNumber);
printer.print(pageContent);
}
}
public class CoolEBookReader {
public void loadPage(String bookUri, int PageNumber) {
String pdfContent = getPdfContent(bookUri, PageNumber);
displayPage(pdfContent);
}
}

24. public class CoolEBookReaderTest {
@Mock
Reader mockReader;
@Mock
CoolEBookReader.Printer mockPrinter;
@Test
public void TestExample_loadPage() {
CoolEBookReader coolEBookReader = new CoolEBookReader();
coolEBookReader.loadPage(mockReader, mockPrinter, "", 1);
// Assert Reader.read() is called
// Assert Printer.print() is called
}
}

25. - Dependency Injection
- Dependency Inversion
- Where are these dependencies come from
What’s next?

26. - Handles object creation
- Reduces boilerplate code
- A central location for organizing dependencies
- Implement common patterns natively (singleton, lazy loading, etc)
Why use a framework?

27. - Dagger 1
- Dagger 2
- Guice and RoboGuice
- PicoContainer
- Spring
- Many, many, many, many more options
Common Frameworks

28. History lesson of DI on Android
- RoboGuice - 2009
- Spring for Android - 2012
- Dagger 1 - 2013
- Dagger 2 - 2015
- Tiger - 2016

29. - @javax.inject.Inject
- @Module
- @Provides
- @Component
Dagger uses annotations

30. public class ConnectionHelper {
private Context mContext;
public ConnectionHelper(Context context) {
mContext = context;
}
public boolean isConnected() {
ConnectivityManager connectivityManager =
(ConnectivityManager) mContext.getSystemService(Context.CONNECTIVITY_SERVICE);
return connectivityManager.getActiveNetworkInfo().isConnected();
}
}
ConnectionHelper connectionHelper = new ConnectionHelper(context);
boolean isConnected = connectionHelper.isConnected();

31. public class ConnectionHelper {
private Context mContext;
@Inject
public ConnectionHelper(Context context) {
mContext = context;
}
public boolean isConnected() {
ConnectivityManager connectivityManager =
(ConnectivityManager) mContext.getSystemService(Context.CONNECTIVITY_SERVICE);
return connectivityManager.getActiveNetworkInfo().isConnected();
}
}
@Inject

32. @Module
public class AppModule {
}
@Module

33. @Provides
@Module
public class AppModule {
private final Context mContext;
public AppModule(Context context) {
mContext = context;
}
@Provides
public Context providesContext() {
return mContext;
}
@Provides
public ConnectionHelper providesConnectionHelper(Context context) {
return new ConnectionHelper(context);
}
}

34. @Component(modules = {AppModule.class})
public interface AppComponent {
void inject(MainActivity activity);
}
@Component

35. public class App extends Application {
private AppComponent component;
@Override
public void onCreate() {
super.onCreate();
AppComponent component = DaggerAppComponent.builder()
.appModule(new AppModule(this))
.build();
}
public AppComponent getComponent() {
return component;
}
}
public class App extends Application {
private AppComponent component;
@Override
public void onCreate() {
super.onCreate();
AppComponent component = DaggerAppComponent.builder()
.appModule(new AppModule(this))
.build();
}
public AppComponent getComponent() {
return component;
}
}

36. public class MainActivity extends AppCompatActivity {
@Inject
ConnectionHelper mConnectionHelper;
@Override
protected void onCreate(Bundle savedInstanceState) {
((App) getApplication()).getComponent().inject(this);
boolean isConnected = mConnectionHelper.isConnected();
textView.setText(isConnected ? "Connected" : "Not Connected");
}
}
public class MainActivity extends AppCompatActivity {
@Inject
ConnectionHelper mConnectionHelper;
@Override
protected void onCreate(Bundle savedInstanceState) {
((App) getApplication()).getComponent().inject(this);
boolean isConnected = mConnectionHelper.isConnected();
textView.setText(isConnected ? "Connected" : "Not Connected");
}
}
@Inject - again

37. - More annotations
- Scopes
- Lazy injections
- others
Fun stuff

38. @Provides
@Singleton
public Context providesContext() {
return context;
}
@Singleton
@Singleton
@Component(modules = {AppModule.class})
public interface AppComponent {
void inject(MainActivity activity);
}

39. @Provides
@Reusable
public ConnectionHelper providesConnectionHelper(Context context) {
return new ConnectionHelper(context);
}
@Reusable
@Singleton
@Reusable
@Component(modules = {AppModule.class})
public interface AppComponent {}

40. @Inject
Lazy<ConnectionHelper> mConnectionHelper;
...
mConnectionHelper.get().isConnected();
Lazy and Provider Injections
@Inject
Provider<ConnectionHelper> mConnectionHelper;
...
mConnectionHelper.get().isConnected();

41. @Target(ANNOTATION_TYPE)
@Retention(RUNTIME)
@Documented
public @interface Qualifier {}
@Qualifier
@Qualifier
@Documented
@Retention(RUNTIME)
public @interface Named {}

42. @Provides
@Singleton
@Named(“Adapter 1”)
public RestAdapter providesRestAdapter1() {
return …;
}
@Qualifier
@Provides
@Singleton
@Named(“Adapter 2”)
public RestAdapter providesRestAdapter2() {
return …;
}

43. @Qualifier
@Inject
@Named(“Adapter 1”)
RestAdapter mRestAdapter;

44. Subcomponents and Scopes
- Subcomponents allow you to combine different modules at
runtime
- Scopes let you define the lifetime of a dependency

45. Testing and dagger
- Constructors used for injections can be used for testing
- Test Modules for espresso

46. Questions
- @or_bar
- orbar@tumblr.com
- orbar1.tumblr.com
