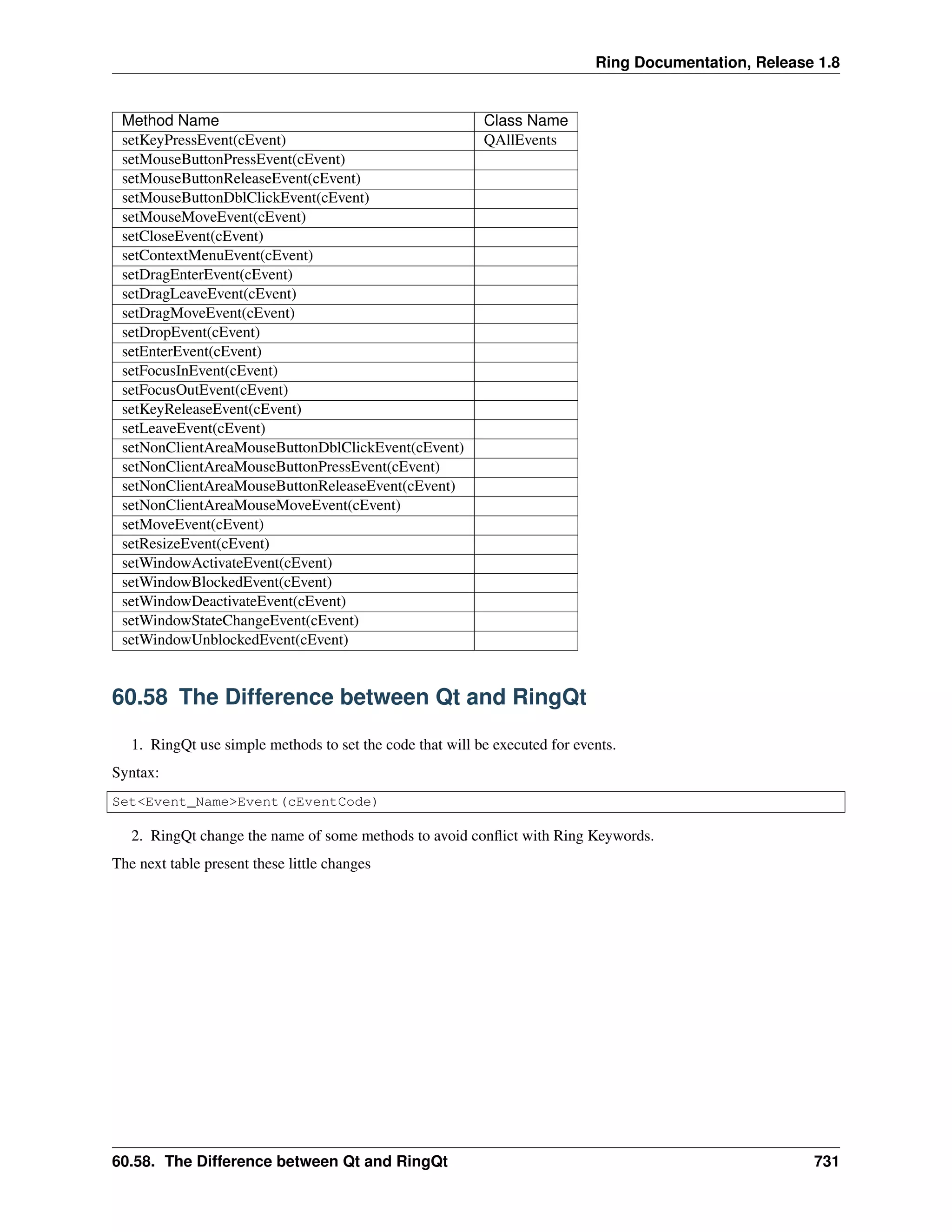

1. Ring Documentation, Release 1.8
Method Name Class Name
setKeyPressEvent(cEvent) QAllEvents
setMouseButtonPressEvent(cEvent)
setMouseButtonReleaseEvent(cEvent)
setMouseButtonDblClickEvent(cEvent)
setMouseMoveEvent(cEvent)
setCloseEvent(cEvent)
setContextMenuEvent(cEvent)
setDragEnterEvent(cEvent)
setDragLeaveEvent(cEvent)
setDragMoveEvent(cEvent)
setDropEvent(cEvent)
setEnterEvent(cEvent)
setFocusInEvent(cEvent)
setFocusOutEvent(cEvent)
setKeyReleaseEvent(cEvent)
setLeaveEvent(cEvent)
setNonClientAreaMouseButtonDblClickEvent(cEvent)
setNonClientAreaMouseButtonPressEvent(cEvent)
setNonClientAreaMouseButtonReleaseEvent(cEvent)
setNonClientAreaMouseMoveEvent(cEvent)
setMoveEvent(cEvent)
setResizeEvent(cEvent)
setWindowActivateEvent(cEvent)
setWindowBlockedEvent(cEvent)
setWindowDeactivateEvent(cEvent)
setWindowStateChangeEvent(cEvent)
setWindowUnblockedEvent(cEvent)
60.58 The Difference between Qt and RingQt
1. RingQt use simple methods to set the code that will be executed for events.
Syntax:
Set<Event_Name>Event(cEventCode)
2. RingQt change the name of some methods to avoid conflict with Ring Keywords.
The next table present these little changes
60.58. The Difference between Qt and RingQt 731

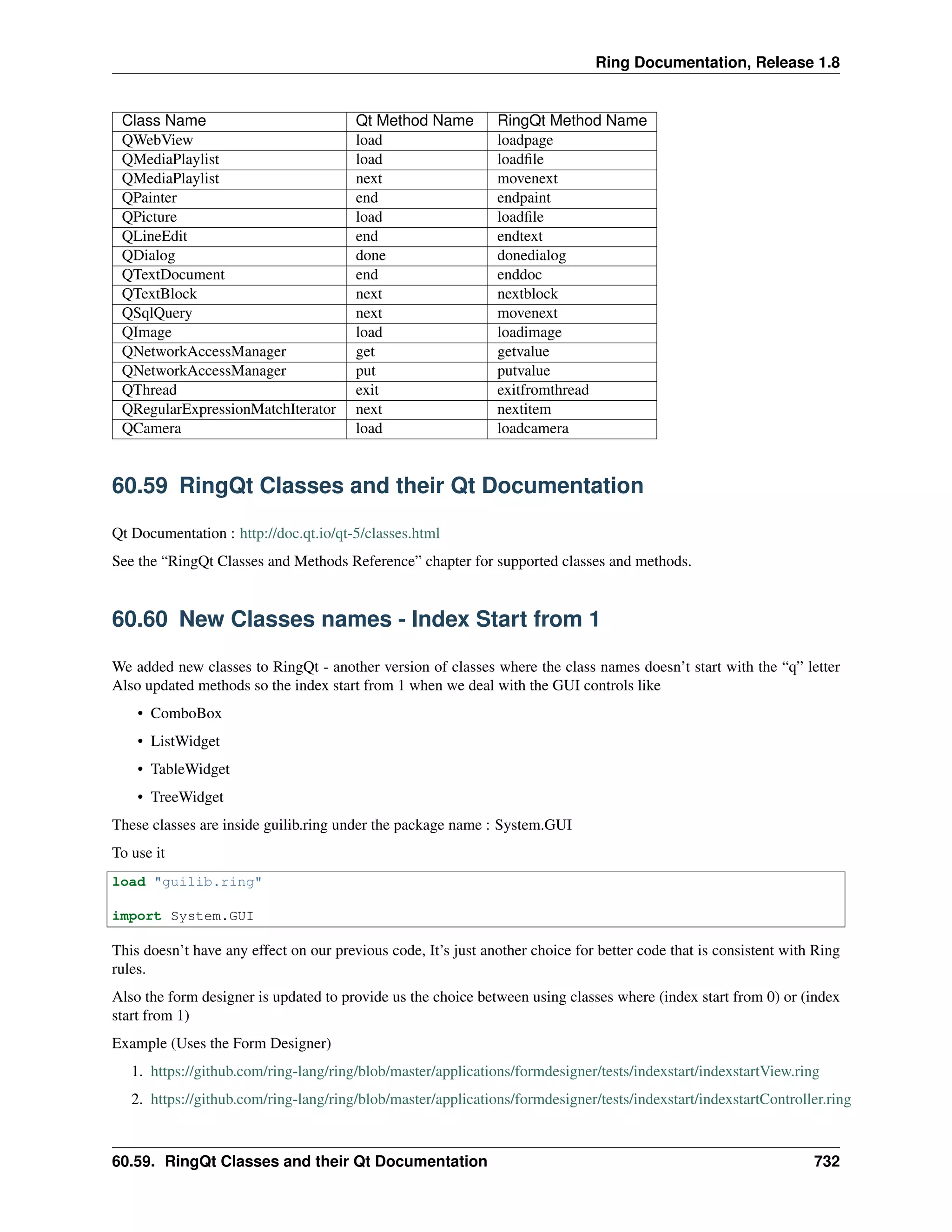

2. Ring Documentation, Release 1.8
Class Name Qt Method Name RingQt Method Name
QWebView load loadpage
QMediaPlaylist load loadfile
QMediaPlaylist next movenext
QPainter end endpaint
QPicture load loadfile
QLineEdit end endtext
QDialog done donedialog
QTextDocument end enddoc
QTextBlock next nextblock
QSqlQuery next movenext
QImage load loadimage
QNetworkAccessManager get getvalue
QNetworkAccessManager put putvalue
QThread exit exitfromthread
QRegularExpressionMatchIterator next nextitem
QCamera load loadcamera
60.59 RingQt Classes and their Qt Documentation
Qt Documentation : http://doc.qt.io/qt-5/classes.html
See the “RingQt Classes and Methods Reference” chapter for supported classes and methods.
60.60 New Classes names - Index Start from 1
We added new classes to RingQt - another version of classes where the class names doesn’t start with the “q” letter
Also updated methods so the index start from 1 when we deal with the GUI controls like
• ComboBox
• ListWidget
• TableWidget
• TreeWidget
These classes are inside guilib.ring under the package name : System.GUI
To use it
load "guilib.ring"
import System.GUI
This doesn’t have any effect on our previous code, It’s just another choice for better code that is consistent with Ring
rules.
Also the form designer is updated to provide us the choice between using classes where (index start from 0) or (index
start from 1)
Example (Uses the Form Designer)
1. https://github.com/ring-lang/ring/blob/master/applications/formdesigner/tests/indexstart/indexstartView.ring
2. https://github.com/ring-lang/ring/blob/master/applications/formdesigner/tests/indexstart/indexstartController.ring
60.59. RingQt Classes and their Qt Documentation 732

3. Ring Documentation, Release 1.8
60.61 Creating Reports using the WebLib and the GUILib
The WebLib comes with a class called HtmlPage
Using this class we can create reports quickly using WebLib & GUILib together
Example:
load "stdlib.ring"
load "weblib.ring"
load "guilib.ring"
import System.Web
import System.GUI
new qApp {
open_window(:CustomersReportController)
exec()
}
class CustomersReportController
oView = new CustomersReportView
func Start
CreateReport()
func CreateReport
mypage = new HtmlPage {
h1 { text("Customers Report") }
Table
{
style = stylewidth("100%") + stylegradient(4)
TR
{
TD { WIDTH="10%"
text("Customers Count : " ) }
TD { text (100) }
}
}
Table
{
style = stylewidth("100%") + stylegradient(26)
TR
{
style = stylewidth("100%") +
stylegradient(24)
TD { text("Name " ) }
TD { text("Age" ) }
TD { text("Country" ) }
TD { text("Job" ) }
TD { text("Company" ) }
}
for x = 1 to 100
TR
{
TD { text("Test" ) }
TD { text("30" ) }
TD { text("Egypt" ) }
60.61. Creating Reports using the WebLib and the GUILib 733

4. Ring Documentation, Release 1.8
TD { text("Sales" ) }
TD { text("Future" ) }
}
next
}
}
write("report.html",mypage.output())
func PrintEvent
printer1 = new qPrinter(0) {
setoutputformat(1)
setoutputfilename("report.pdf")
}
oView {
web.print(printer1)
web.show()
}
system ("report.pdf")
class CustomersReportView
win = new window() {
setwindowtitle("Report Window")
setgeometry(100,100,500,500)
web = new webview(win) {
setgeometry(100,100,1000,500)
loadpage(new qurl("file:///"+
currentdir()+"/report.html"))
}
new pushbutton(win) {
setGeometry(100,20,100,30)
settext("Print")
setclickevent(Method(:PrintEvent))
}
showMaximized()
}
Screen Shot:
60.61. Creating Reports using the WebLib and the GUILib 734

5. Ring Documentation, Release 1.8
60.61. Creating Reports using the WebLib and the GUILib 735

6. CHAPTER
SIXTYONE
BUILDING RINGQT APPLICATIONS FOR MOBILE
In this chapter we will learn about Building RingQt Applications for Mobile.
61.1 Download Requirements
Check the next link : http://doc.qt.io/qt-5/androidgs.html
Download
• The Android SDK Tools
https://developer.android.com/studio/index.html
• The Android NDK (Tested using android-ndk-r10c)
https://developer.android.com/ndk/index.html
• Apache Ant v1.8 or later
http://ant.apache.org/bindownload.cgi
• Java SE Development Kit (JDK) v6 or later
http://www.oracle.com/technetwork/java/javase/downloads/jdk7-downloads-1880260.html
61.2 Update the Android SDK
Update the Android SDK to get the API and tools packages required for development
Tested using Android 4.4.2 (API 19)
• In Windows - Define the next Environment Variables based on your system.
1. JAVA_HOME
For Example : C:Program Files (x86)Javajdk1.8.0_05
2. ANDROID_HOME
For Example : B:mahmoudToolsJava-Androidadt-bundle-windows-x86-20140702sdk
736

7. Ring Documentation, Release 1.8
61.3 Install Qt for Android
• You can install Qt for Android from the next link
https://download.qt.io/archive/qt/5.5/5.5.1/
• Run Qt Creator, Select Tools > Options > Android to add the Android NDK and SDK paths.
http://doc.qt.io/qtcreator/creator-developing-android.html
• Using Qt Creator Open the project
Folder : ring/android/ringqt/project
Project file : project.pro
• Using Qt Creator, You will find the compiled Ring application in resources/ringapp.ringo
This file (Ring Object File) is generated by the Ring compiler using
ring ringapp.ring -go -norun
• To run your application instead of the default application
1. Using Qt Creator, Add your application images to resources
Or You can use any text editor (Notepad) and modify : project.qrc
2. To find images from your Ring application, You need to use the file name in resources
Example
if isandroid()
mypic = new QPixmap(":/cards.jpg")
else
mypic = new QPixmap("cards.jpg")
ok
3. In your Ring application folder (Using the command prompt)
ring myapp.ring -go -norun
4. Add your file to the project project/myapp.ringo
5. Update main.cpp and project.qrc and replace ringapp.ringo with myapp.ringo
6. Build and Run your Application using Qt Creator
61.3. Install Qt for Android 737

8. Ring Documentation, Release 1.8
61.4 Comments about developing for Android using RingQt
1. The main project file is main.cpp
This file load Ring Compiler/Virtual Machine and RingQt
Then copy the Ring Object File during the runtime from the resources to temp. folder
Then run the Ring Object File (ringapp.ringo) using the Ring VM
Through main.cpp you can extract more files from the resources to temp. folder once you add them
(create projects with many files).
2. The next functions are missing from this Ring edition
• Database (ODBC, SQLite & MySQL)
• Security and Internet functions (LibCurl & OpenSSL)
• RingAllegro (Allegro Library)
• RingLibSDL (LibSDL Library)
Just use Qt Classes through RingQt.
For database access use the QSqlDatabase Class
Note: All of the missing libraries ((LibCurl, OpenSSL & Allegro) can be compiled for Android, but they are not
included in this Qt project.
3. use if isandroid() when you want to modify the code just for android
Example:
if isandroid()
// Android code
61.4. Comments about developing for Android using RingQt 738

9. Ring Documentation, Release 1.8
else
// other platforms
ok
(4) Sometimes you will find that the button text/image is repeated in drawing ! it’s Qt problem that you can avoid
using the next code.
if isandroid()
setStyleSheet("
border-style: outset;
border-width: 2px;
border-radius: 4px;
border-color: black;
padding: 6px;")
ok
5. Always use Layouts instead of manual setting of controls position and size.
This is the best way to get the expected user interface to avoid problems like (controls with small/extra size)
6. When you deal with Qt Classes you can determine the images from resources (you don’t need to copy them
using main.cpp)
Example:
if isandroid()
mypic = new QPixmap(":/cards.jpg")
else
mypic = new QPixmap("cards.jpg")
ok
Now RingQt comes with the AppFile() function to determine the file name
Example:
mypic = new QPixmap(AppFile("cards.jpg")) # Desktop or Android
61.5 Using Ring2EXE
Starting from Ring 1.6 we can use Ring2EXE to quickly prepare Qt project for our application
Example:
ring2exe myapp.ring -dist -mobileqt
61.5. Using Ring2EXE 739

10. CHAPTER
SIXTYTWO
OBJECTS LIBRARY FOR RINGQT APPLICATION
In this chapter we will learn about the objects library for RingQt applications.
Ring comes with the Objects library for RingQt applications. Instead of using global variables for windows objects
and connecting events to objects using the object name, the Objects Library will manage the GUI objects and will
provide a more natural API to quickly create one or many windows from the same class and the library provide a way
to quickly set methods to be executed when an event is fired. Also the library provide a natural interface to quickly
use the parent or the caller windows from the child or sub windows.
The Objects Library is designed to be used with the MVC Design Pattern.
The Objects Library is merged in RingQt so you can use it directly when you use RingQt
62.1 Library Usage
• Use the Open_Window(cWindowControllerClassName) function to open new Windows
• Create at least Two Classes for each window, The Controller Class and the View Class
• Create each controller class from the WindowsControllerParent Class
• Create each view class from the WindowsViewParent Class
• Use the Last_Window() function to get the object of the last window created (The Controller object).
• When you call a sub window, use the SetParentObject() method and pass the self object.
• In the View Class, To determine the event method use the Method(cMethodName) function.
• The Method(cMethodName) function determine the method in the controller class that will be executed.
• Each controller class contains by default the CloseAction() method that you can call to close the window.
• You don’t need to call the Show() Method for each window, When you use Open_Window() It will be called.
• In the view class, Define the GUI window object as an attribute called win.
• You can use Open_WindowNoShow() to avoid displaying the window.
• You can use Open_WindowAndLink() to quickly get methods to access the windows.
62.2 Example
In the next example we will create two types of windows.
• Main Window contains a button. When the user click on the button a sub window will be opened.
740
