Here are the key steps for building RingQt applications for mobile: 1. Download the Android SDK Tools and Android NDK from the official Android developer website. The SDK provides tools for app development and the NDK allows you to build portions of apps using C/C++. 2. Configure your development environment by setting the ANDROID_HOME environment variable and adding SDK/NDK paths to your system PATH. 3. Create an Android project in Qt Creator. Choose "Qt Android Application" as the template. 4. Add RingQt source files to your project and import necessary RingQt modules in your code. 5. Configure the project to use the NDK for building RingQt C/C++

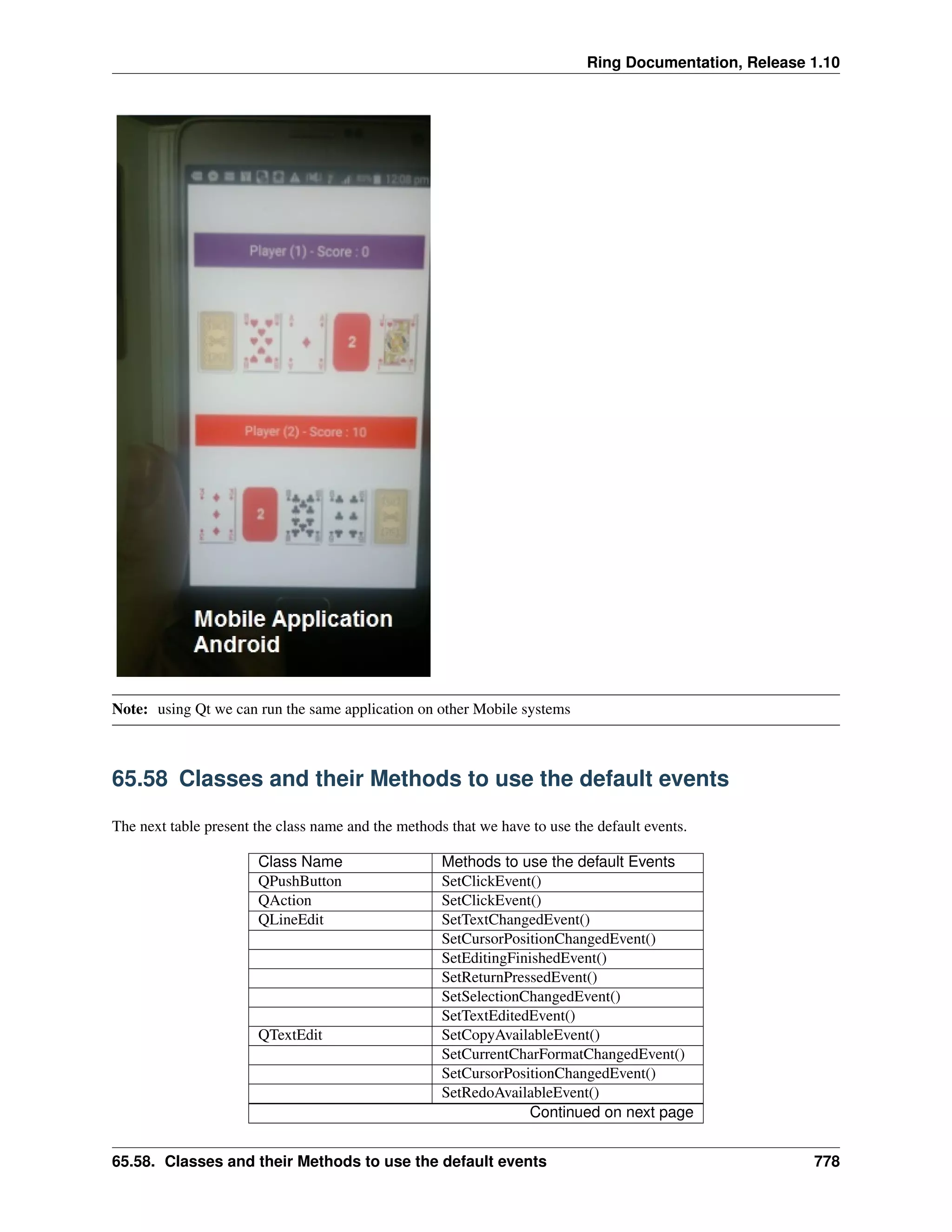

1. Ring Documentation, Release 1.10
Note: using Qt we can run the same application on other Mobile systems
65.58 Classes and their Methods to use the default events
The next table present the class name and the methods that we have to use the default events.
Class Name Methods to use the default Events
QPushButton SetClickEvent()
QAction SetClickEvent()
QLineEdit SetTextChangedEvent()
SetCursorPositionChangedEvent()
SetEditingFinishedEvent()
SetReturnPressedEvent()
SetSelectionChangedEvent()
SetTextEditedEvent()
QTextEdit SetCopyAvailableEvent()
SetCurrentCharFormatChangedEvent()
SetCursorPositionChangedEvent()
SetRedoAvailableEvent()
Continued on next page
65.58. Classes and their Methods to use the default events 778

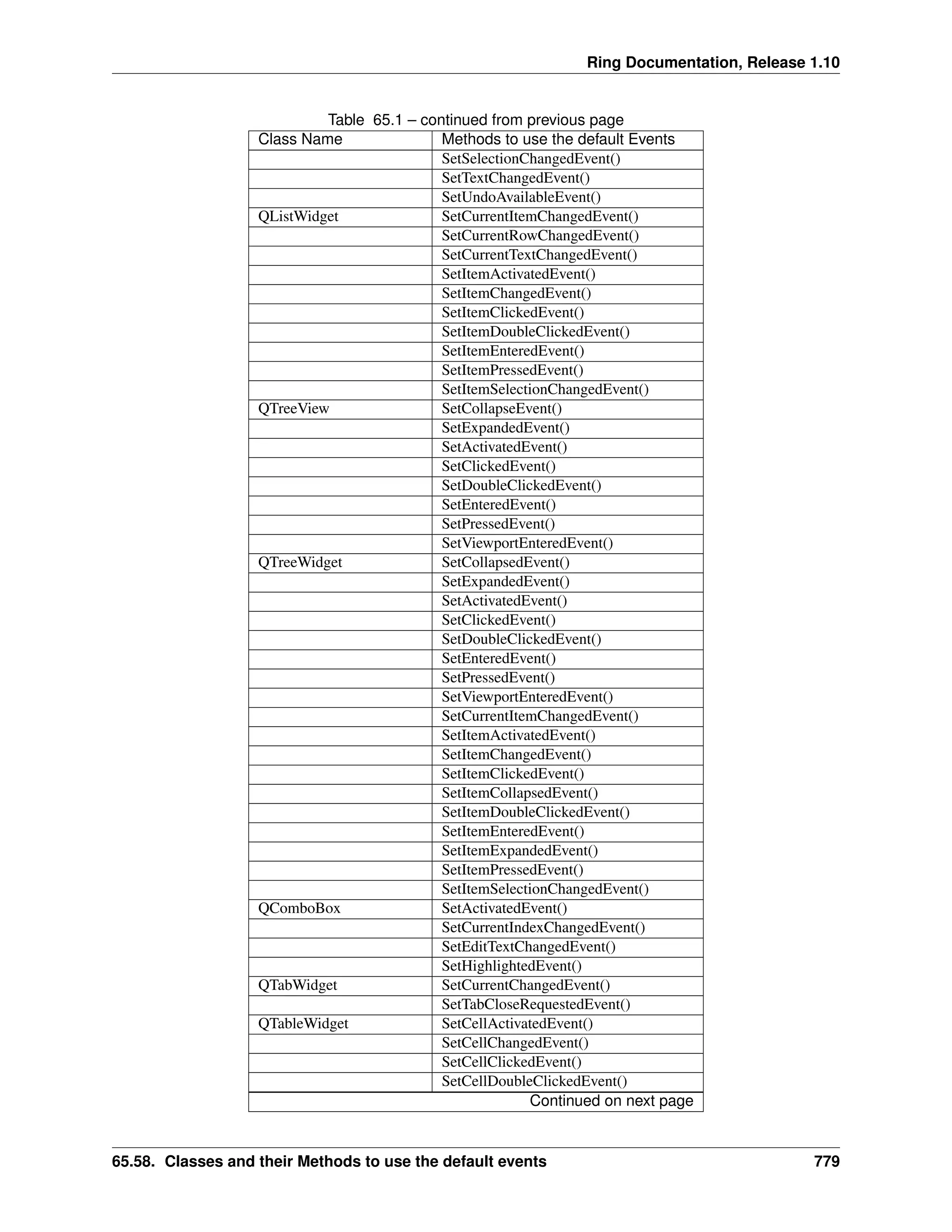

2. Ring Documentation, Release 1.10
Table 65.1 – continued from previous page
Class Name Methods to use the default Events
SetSelectionChangedEvent()
SetTextChangedEvent()
SetUndoAvailableEvent()
QListWidget SetCurrentItemChangedEvent()
SetCurrentRowChangedEvent()
SetCurrentTextChangedEvent()
SetItemActivatedEvent()
SetItemChangedEvent()
SetItemClickedEvent()
SetItemDoubleClickedEvent()
SetItemEnteredEvent()
SetItemPressedEvent()
SetItemSelectionChangedEvent()
QTreeView SetCollapseEvent()
SetExpandedEvent()
SetActivatedEvent()
SetClickedEvent()
SetDoubleClickedEvent()
SetEnteredEvent()
SetPressedEvent()
SetViewportEnteredEvent()
QTreeWidget SetCollapsedEvent()
SetExpandedEvent()
SetActivatedEvent()
SetClickedEvent()
SetDoubleClickedEvent()
SetEnteredEvent()
SetPressedEvent()
SetViewportEnteredEvent()
SetCurrentItemChangedEvent()
SetItemActivatedEvent()
SetItemChangedEvent()
SetItemClickedEvent()
SetItemCollapsedEvent()
SetItemDoubleClickedEvent()
SetItemEnteredEvent()
SetItemExpandedEvent()
SetItemPressedEvent()
SetItemSelectionChangedEvent()
QComboBox SetActivatedEvent()
SetCurrentIndexChangedEvent()
SetEditTextChangedEvent()
SetHighlightedEvent()
QTabWidget SetCurrentChangedEvent()
SetTabCloseRequestedEvent()
QTableWidget SetCellActivatedEvent()
SetCellChangedEvent()
SetCellClickedEvent()
SetCellDoubleClickedEvent()
Continued on next page
65.58. Classes and their Methods to use the default events 779

3. Ring Documentation, Release 1.10
Table 65.1 – continued from previous page
Class Name Methods to use the default Events
SetCellEnteredEvent()
SetCellPressedEvent()
SetCurrentCellChangedEvent()
SetCurrentItemChangedEvent()
SetItemActivatedEvent()
SetItemChangedEvent()
SetItemClickedEvent()
SetItemDoubleClickedEvent()
SetItemEnteredEvent()
SetItemPressedEvent()
SetItemSelectionChangedEvent()
QProgressBar SetValueChangedEvent()
QSpinBox SetValueChangedEvent()
QSlider SetActionTriggeredEvent()
SetRangeChangedEvent()
SetSliderMovedEvent()
SetSliderPressedEvent()
SetSliderReleasedEvent()
SetValueChangedEvent()
QDial SetActionTriggeredEvent()
SetRangeChangedEvent()
SetSliderMovedEvent()
SetSliderPressedEvent()
SetSliderReleasedEvent()
SetValueChangedEvent()
QWebView SetLoadFinishedEvent()
SetLoadProgressEvent()
SetLoadStartedEvent()
SetSelectionChangedEvent()
SetTitleChangedEvent()
SetUrlChangedEvent()
QCheckBox SetStateChangedEvent()
SetClickedEvent()
SetPressedEvent()
SetReleasedEvent()
SetToggledEvent()
QRadioButton SetClickedEvent()
SetPressedEvent()
SetReleasedEvent()
SetToggledEvent()
QButtonGroup SetButtonClickedEvent()
SetButtonPressedEvent()
SetButtonReleasedEvent()
QVideoWidget SetBrightnessChangedEvent()
SetContrastChangedEvent()
SetFullScreenChangedEvent()
SetHueChangedEvent()
SetSaturationChangedEvent()
QTimer SetTimeoutEvent()
Continued on next page
65.58. Classes and their Methods to use the default events 780

4. Ring Documentation, Release 1.10
Table 65.1 – continued from previous page
Class Name Methods to use the default Events
QTcpServer SetAcceptErrorEvent()
SetNewConnectionEvent()
QIODevice SetAboutToCloseEvent()
SetBytesWrittenEvent()
SetReadChannelFinishedEvent()
SetReadyReadEvent()
QAbstractSocket SetConnectedEvent()
SetDisconnectedEvent()
SetErrorEvent()
SetHostFoundEvent()
SetProxyAuthenticationRequiredEvent()
SetStateChangedEvent()
QTcpSocket SetConnectedEvent()
SetDisconnectedEvent()
SetErrorEvent()
SetHostFoundEvent()
SetProxyAuthenticationRequiredEvent()
SetStateChangedEvent()
SetAboutToCloseEvent()
SetBytesWrittenEvent()
SetReadChannelFinishedEvent()
SetReadyReadEvent()
QColorDialog SetColorSelectedEvent()
SetCurrentColorChangedEvent()
QNetworkAccessManager SetFinishedEvent()
QThread SetStartedEvent()
SetFinishedEvent()
65.59 Methods to use Events with Events Filter
RingQt define a new class called QAllEvents that help you in using Events Filter
The next table presents the methods that we have
Methods to get parameters Class Name
getKeyCode() –> Number QAllEvents
getx() –> Number
gety() –> Number
getglobalx() –> Number
getglobaly() –> Number
getbutton() –> Number
getbuttons() –> Number
The next table presents the methods that we have to use events.
65.59. Methods to use Events with Events Filter 781

5. Ring Documentation, Release 1.10
Method Name Class Name
setKeyPressEvent(cEvent) QAllEvents
setMouseButtonPressEvent(cEvent)
setMouseButtonReleaseEvent(cEvent)
setMouseButtonDblClickEvent(cEvent)
setMouseMoveEvent(cEvent)
setCloseEvent(cEvent)
setContextMenuEvent(cEvent)
setDragEnterEvent(cEvent)
setDragLeaveEvent(cEvent)
setDragMoveEvent(cEvent)
setDropEvent(cEvent)
setEnterEvent(cEvent)
setFocusInEvent(cEvent)
setFocusOutEvent(cEvent)
setKeyReleaseEvent(cEvent)
setLeaveEvent(cEvent)
setNonClientAreaMouseButtonDblClickEvent(cEvent)
setNonClientAreaMouseButtonPressEvent(cEvent)
setNonClientAreaMouseButtonReleaseEvent(cEvent)
setNonClientAreaMouseMoveEvent(cEvent)
setMoveEvent(cEvent)
setResizeEvent(cEvent)
setWindowActivateEvent(cEvent)
setWindowBlockedEvent(cEvent)
setWindowDeactivateEvent(cEvent)
setWindowStateChangeEvent(cEvent)
setWindowUnblockedEvent(cEvent)
65.60 The Difference between Qt and RingQt
1. RingQt use simple methods to set the code that will be executed for events.
Syntax:
Set<Event_Name>Event(cEventCode)
2. RingQt change the name of some methods to avoid conflict with Ring Keywords.
The next table present these little changes
65.60. The Difference between Qt and RingQt 782

6. Ring Documentation, Release 1.10
Class Name Qt Method Name RingQt Method Name
QWebView load loadpage
QMediaPlaylist load loadfile
QMediaPlaylist next movenext
QPainter end endpaint
QPicture load loadfile
QLineEdit end endtext
QDialog done donedialog
QTextDocument end enddoc
QTextBlock next nextblock
QSqlQuery next movenext
QImage load loadimage
QNetworkAccessManager get getvalue
QNetworkAccessManager put putvalue
QThread exit exitfromthread
QRegularExpressionMatchIterator next nextitem
QCamera load loadcamera
65.61 RingQt Classes and their Qt Documentation
Qt Documentation : http://doc.qt.io/qt-5/classes.html
See the “RingQt Classes and Methods Reference” chapter for supported classes and methods.
65.62 New Classes names - Index Start from 1
We added new classes to RingQt - another version of classes where the class names doesn’t start with the “q” letter
Also updated methods so the index start from 1 when we deal with the GUI controls like
• ComboBox
• ListWidget
• TableWidget
• TreeWidget
These classes are inside guilib.ring under the package name : System.GUI
To use it
load "guilib.ring"
import System.GUI
This doesn’t have any effect on our previous code, It’s just another choice for better code that is consistent with Ring
rules.
Also the form designer is updated to provide us the choice between using classes where (index start from 0) or (index
start from 1)
Example (Uses the Form Designer)
1. https://github.com/ring-lang/ring/blob/master/applications/formdesigner/tests/indexstart/indexstartView.ring
2. https://github.com/ring-lang/ring/blob/master/applications/formdesigner/tests/indexstart/indexstartController.ring
65.61. RingQt Classes and their Qt Documentation 783

7. Ring Documentation, Release 1.10
65.63 Creating Reports using the WebLib and the GUILib
The WebLib comes with a class called HtmlPage
Using this class we can create reports quickly using WebLib & GUILib together
Example:
load "stdlib.ring"
load "weblib.ring"
load "guilib.ring"
import System.Web
import System.GUI
new qApp {
open_window(:CustomersReportController)
exec()
}
class CustomersReportController
oView = new CustomersReportView
func Start
CreateReport()
func CreateReport
mypage = new HtmlPage {
h1 { text("Customers Report") }
Table
{
style = stylewidth("100%") + stylegradient(4)
TR
{
TD { WIDTH="10%"
text("Customers Count : " ) }
TD { text (100) }
}
}
Table
{
style = stylewidth("100%") + stylegradient(26)
TR
{
style = stylewidth("100%") +
stylegradient(24)
TD { text("Name " ) }
TD { text("Age" ) }
TD { text("Country" ) }
TD { text("Job" ) }
TD { text("Company" ) }
}
for x = 1 to 100
TR
{
TD { text("Test" ) }
TD { text("30" ) }
TD { text("Egypt" ) }
65.63. Creating Reports using the WebLib and the GUILib 784

8. Ring Documentation, Release 1.10
TD { text("Sales" ) }
TD { text("Future" ) }
}
next
}
}
write("report.html",mypage.output())
func PrintEvent
printer1 = new qPrinter(0) {
setoutputformat(1)
setoutputfilename("report.pdf")
}
oView {
web.print(printer1)
web.show()
}
system ("report.pdf")
class CustomersReportView
win = new window() {
setwindowtitle("Report Window")
setgeometry(100,100,500,500)
web = new webview(win) {
setgeometry(100,100,1000,500)
loadpage(new qurl("file:///"+
currentdir()+"/report.html"))
}
new pushbutton(win) {
setGeometry(100,20,100,30)
settext("Print")
setclickevent(Method(:PrintEvent))
}
showMaximized()
}
Screen Shot:
65.63. Creating Reports using the WebLib and the GUILib 785

9. Ring Documentation, Release 1.10
65.63. Creating Reports using the WebLib and the GUILib 786

10. CHAPTER
SIXTYSIX
BUILDING RINGQT APPLICATIONS FOR MOBILE
In this chapter we will learn about Building RingQt Applications for Mobile.
66.1 Download Requirements
Check the next link : http://doc.qt.io/qt-5/androidgs.html
Download
• The Android SDK Tools
https://developer.android.com/studio/index.html
• The Android NDK (Tested using android-ndk-r10c)
https://developer.android.com/ndk/index.html
• Apache Ant v1.8 or later
http://ant.apache.org/bindownload.cgi
• Java SE Development Kit (JDK) v6 or later
http://www.oracle.com/technetwork/java/javase/downloads/jdk7-downloads-1880260.html
66.2 Update the Android SDK
Update the Android SDK to get the API and tools packages required for development
Tested using Android 4.4.2 (API 19)
• In Windows - Define the next Environment Variables based on your system.
1. JAVA_HOME
For Example : C:Program Files (x86)Javajdk1.8.0_05
2. ANDROID_HOME
For Example : B:mahmoudToolsJava-Androidadt-bundle-windows-x86-20140702sdk
787
