The real beginner's guide to android testing

The real beginner’s guide to
Android testing
Eric Nguyen

About myself
● Software Engineer at Grab
● DragonBall fan (Vegeta fan)
● @ericntd (LinkedIn, Medium, Github, StackoverFlow, Twitter)
● Send me your resume eric.nguyen at grab.com - https://grab.careers/
#droidconvn

My journey with unit testing
Before unit tests With unit tests
#droidconvn
@ericntd

Agenda
1. Why write tests
2. Types of tests
3. Introduction to unit testing
4. Challenge to unit testing with Android
5. The solution
6. Steps to your first Android unit tests
7. MVP architecture limitations
8. Q & A
@ericntd

1) Why write tests?
● Improve and maintain product quality with less QA’s manual effort
● Increase confidence when shipping
● Perform routine exhaustive checks humans can’t perform, fast
● Help you write more modular code
@ericntd

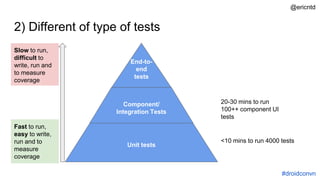

2) Different of type of tests
Unit tests
Component/
Integration Tests
End-to-
end
tests
20-30 mins to run
100++ component UI
tests
<10 mins to run 4000 tests
Fast to run,
easy to write,
run and to
measure
coverage
Slow to run,
difficult to
write, run and
to measure
coverage
#droidconvn
@ericntd

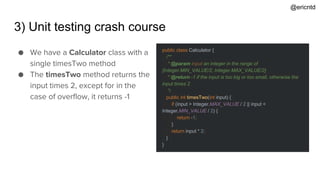

3) Unit testing crash course
public class Calculator {
/**
* @param input an integer in the range of
[Integer.MIN_VALUE/2, Integer.MAX_VALUE/2]
* @return -1 if the input is too big or too small, otherwise the
input times 2
*/
public int timesTwo(int input) {
if (input > Integer.MAX_VALUE / 2 || input <
Integer.MIN_VALUE / 2) {
return -1;
}
return input * 2;
}
}
● We have a Calculator class with a
single timesTwo method
● The timesTwo method returns the
input times 2, except for in the
case of overflow, it returns -1
@ericntd

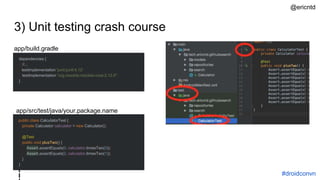

dependencies {
//...
testImplementation 'junit:junit:4.12'
testImplementation "org.mockito:mockito-core:2.12.0"
}
app/build.gradle
#droidconvn
public class CalculatorTest {
private Calculator calculator = new Calculator();
@Test
public void plusTwo() {
Assert.assertEquals(0, calculator.timesTwo(0));
}
}
app/src/test/java/your.package.name
@ericntd

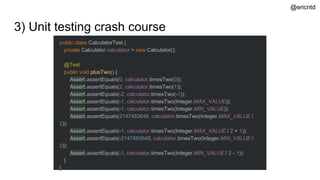

public class CalculatorTest {
private Calculator calculator = new Calculator();
@Test
public void plusTwo() {
Assert.assertEquals(-2, calculator.timesTwo(-1));
Assert.assertEquals(-1, calculator.timesTwo(Integer.MAX_VALUE));
Assert.assertEquals(-1, calculator.timesTwo(Integer.MIN_VALUE));
Assert.assertEquals(2147483646, calculator.timesTwo(Integer.MAX_VALUE /
2));
Assert.assertEquals(-1, calculator.timesTwo(Integer.MAX_VALUE / 2 + 1));
Assert.assertEquals(-2147483648, calculator.timesTwo(Integer.MIN_VALUE /
2));
Assert.assertEquals(-1, calculator.timesTwo(Integer.MIN_VALUE / 2 - 1));
}
}
@ericntd

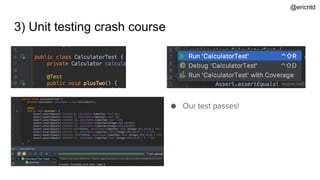

● Our test passes!
@ericntd

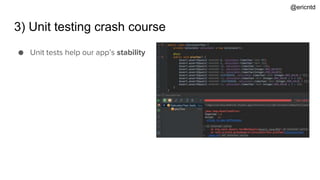

● Unit tests help our app’s stability
@ericntd

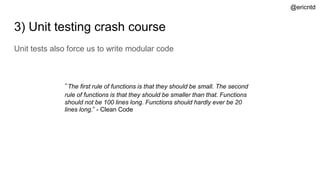

Unit tests also force us to write modular code
“The first rule of functions is that they should be small. The second
rule of functions is that they should be smaller than that. Functions
should not be 100 lines long. Functions should hardly ever be 20
lines long.” - Clean Code
@ericntd

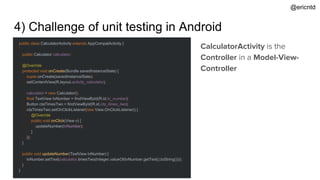

4) Challenge of unit testing in Android
● Consider a simple activity:
○ A TextView display a number, starting from 1
○ A Button named “Time Two”
● The doubling logic is from our Calculator’s
timesTwo
@ericntd

public class CalculatorActivity extends AppCompatActivity {
`
public Calculator calculator;
@Override
protected void onCreate(Bundle savedInstanceState) {
super.onCreate(savedInstanceState);
setContentView(R.layout.activity_calculator);
calculator = new Calculator();
final TextView tvNumber = findViewById(R.id.tv_number);
Button ctaTimesTwo = findViewById(R.id.cta_times_two);
ctaTimesTwo.setOnClickListener(new View.OnClickListener() {
@Override
public void onClick(View v) {
updateNumber(tvNumber);
}
});
}
public void updateNumber(TextView tvNumber) {
tvNumber.setText(calculator.timesTwo(Integer.valueOf(tvNumber.getText().toString())));
}
}
CalculatorActivity is the
Controller in a Model-View-
Controller
@ericntd

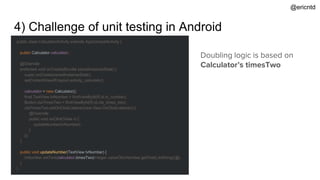

public class CalculatorActivity extends AppCompatActivity {
public Calculator calculator;
@Override
setContentView(R.layout.activity_calculator);
calculator = new Calculator();
final TextView tvNumber = findViewById(R.id.tv_number);
Button ctaTimesTwo = findViewById(R.id.cta_times_two);
ctaTimesTwo.setOnClickListener(new View.OnClickListener() {
@Override
public void onClick(View v) {
updateNumber(tvNumber);
}
});
}
public void updateNumber(TextView tvNumber) {
tvNumber.setText(calculator.timesTwo(Integer.valueOf(tvNumber.getText().toString())));
}
}
Doubling logic is based on
Calculator’s timesTwo
@ericntd

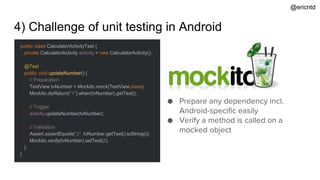

public class CalculatorActivityTest {
private CalculatorActivity activity = new CalculatorActivity();
@Test
public void updateNumber() {
// Preparation
TextView tvNumber = Mockito.mock(TextView.class);
Mockito.doReturn("1").when(tvNumber).getText();
// Trigger
activity.updateNumber(tvNumber);
// Validation
Assert.assertEquals("2", tvNumber.getText().toString());
Mockito.verify(tvNumber).setText(2);
}
}
● Prepare any dependency incl.
Android-specific easily
● Verify a method is called on a
mocked object
@ericntd

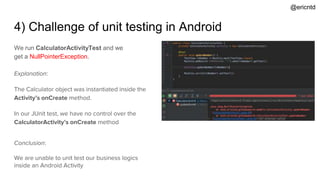

We run CalculatorActivityTest and we
get a NullPointerException.
Explanation:
The Calculator object was instantiated inside the
Activity’s onCreate method.
In our JUnit test, we have no control over the
CalculatorActivity’s onCreate method
Conclusion:
We are unable to unit test our business logics
inside an Android Activity
@ericntd

Possible Workarounds:
● Instantiate a Calculator object inside
updateNumber method itself
○ Inefficiency - multiple
Calculator objects instead of
reusing one
● Create a setter in the the activity:
setCalculator(Caculator)
○ Side effects e.g. race
condition, unexpected
behaviours
@ericntd

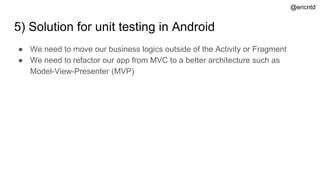

5) Solution for unit testing in Android
● We need to move our business logics outside of the Activity or Fragment
● We need to refactor our app from MVC to a better architecture such as
Model-View-Presenter (MVP)
@ericntd

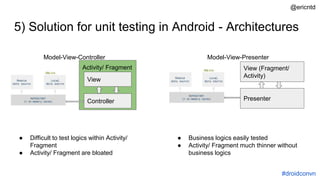

5) Solution for unit testing in Android - Architectures
#droidconvn
● Difficult to test logics within Activity/
Fragment
● Activity/ Fragment are bloated
Model-View-Presenter
View (Fragment/
Activity)
Presenter
Activity/ Fragment
Model-View-Controller
Controller
View
● Business logics easily tested
● Activity/ Fragment much thinner without
business logics
@ericntd

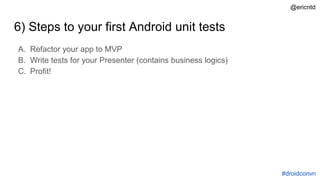

6) Steps to your first Android unit tests
A. Refactor your app to MVP
B. Write tests for your Presenter (contains business logics)
C. Profit!
#droidconvn
@ericntd

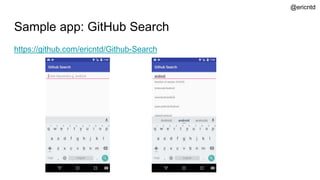

Sample app: GitHub Search
https://github.com/ericntd/Github-Search
@ericntd

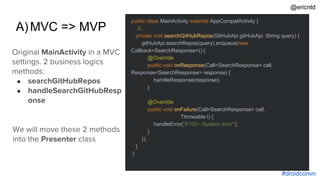

A)MVC => MVP
+
#droidconvn
public class MainActivity extends AppCompatActivity {
//...
private void searchGitHubRepos(GitHubApi gitHubApi, String query) {
gitHubApi.searchRepos(query).enqueue(new
Callback<SearchResponse>() {
@Override
public void onResponse(Call<SearchResponse> call,
Response<SearchResponse> response) {
handleResponse(response);
}
@Override
public void onFailure(Call<SearchResponse> call,
Throwable t) {
handleError("E103 - System error");
}
});
}
}
Original MainActivity in a MVC
settings. 2 business logics
methods:
● searchGitHubRepos
● handleSearchGitHubResp
onse
We will move these 2 methods
into the Presenter class
@ericntd

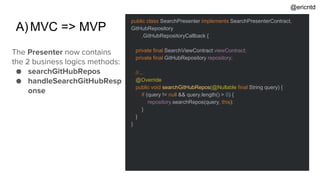

A)MVC => MVP
public class SearchPresenter implements SearchPresenterContract,
GitHubRepository
.GitHubRepositoryCallback {
private final SearchViewContract viewContract;
private final GitHubRepository repository;
//...
@Override
public void searchGitHubRepos(@Nullable final String query) {
if (query != null && query.length() > 0) {
repository.searchRepos(query, this);
}
}
}
The Presenter now contains
the 2 business logics methods:
● searchGitHubRepos
● handleSearchGitHubResp
onse
@ericntd

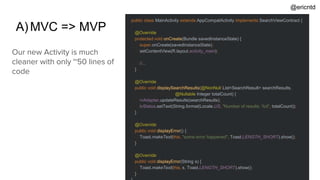

A)MVC => MVP
public class MainActivity extends AppCompatActivity implements SearchViewContract {
@Override
setContentView(R.layout.activity_main);
//...
}
@Override
public void displaySearchResults(@NonNull List<SearchResult> searchResults,
@Nullable Integer totalCount) {
rvAdapter.updateResults(searchResults);
tvStatus.setText(String.format(Locale.US, "Number of results: %d", totalCount));
}
@Override
public void displayError() {
Toast.makeText(this, "some error happened", Toast.LENGTH_SHORT).show();
}
@Override
public void displayError(String s) {
Toast.makeText(this, s, Toast.LENGTH_SHORT).show();
}
Our new Activity is much
cleaner with only ~50 lines of
code
@ericntd

B) Write tests for Presenter - Setup
package tech.ericntd.githubsearch.search;
public class SearchPresenterTest {
private SearchPresenter presenter;
@Mock
private GitHubRepository repository;
@Mock
private SearchViewContract viewContract;
@Before
public void setUp() throws Exception {
MockitoAnnotations.initMocks(this);// required for the "@Mock" annotations
// Make presenter a mock while using mock repository and viewContract
created above
presenter = Mockito.spy(new SearchPresenter(viewContract, repository));
}
// The tests
}
dependencies {
//...
testImplementation 'junit:junit:4.12'
testImplementation "org.mockito:mockito-core:2.12.0"
}
app/build.gradle app/src/test/java/
● Pure JUnit test
#droidconvn
@ericntd

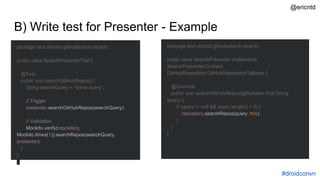

B) Write test for Presenter - Example
@Test
public void searchGitHubRepos() {
String searchQuery = "some query";
// Trigger
presenter.searchGitHubRepos(searchQuery);
// Validation
Mockito.verify(repository,
Mockito.times(1)).searchRepos(searchQuery,
presenter);
}
}
public class SearchPresenter implements
SearchPresenterContract,
GitHubRepository.GitHubRepositoryCallback {
@Override
public void searchGitHubRepos(@Nullable final String
query) {
}
}
}
#droidconvn
@ericntd

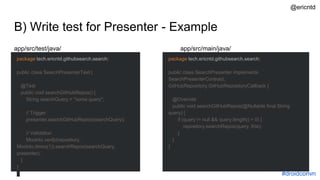

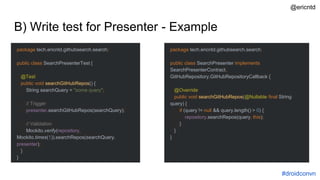

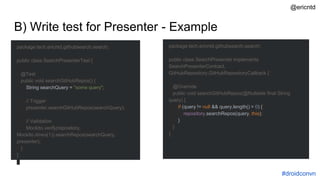

B) Write test for Presenter - Example
@Test
public void searchGitHubRepos() {
String searchQuery = "some query";
// Trigger
// Validation
Mockito.times(1)).searchRepos(searchQuery,
presenter);
}
}
@Override
query) {
}
}
}
app/src/test/java/ app/src/main/java/
#droidconvn
@ericntd

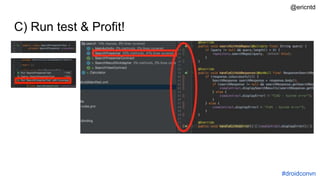

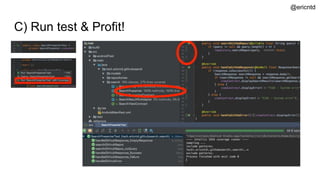

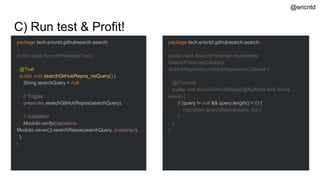

C) Run test & Profit!
#droidconvn
@ericntd

@Test
public void searchGitHubRepos_noQuery() {
String searchQuery = null;
// Trigger
// Validation
Mockito.never()).searchRepos(searchQuery, presenter);
}
}
@Override
query) {
}
}
}
@ericntd

@Test
public void handleGitHubResponse_Failure() {
Response response = Mockito.mock(Response.class);
Mockito.doReturn(false).when(response).isSuccessful();
// Trigger
presenter.handleGitHubResponse(response);
// Validation
Mockito.verify(viewContract,
Mockito.times(1)).displayError("E101 - System error");
}
@ericntd
@Test
public void handleGitHubResponse_EmptyResponse() {
Mockito.doReturn(true).when(response).isSuccessful();
Mockito.doReturn(null).when(response).body();
// Trigger
presenter.handleGitHubResponse(response);
// Validation
Mockito.verify(viewContract,
Mockito.times(1)).displayError("E102 - System error");
}

@ericntd

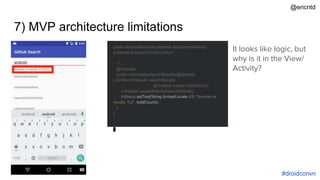

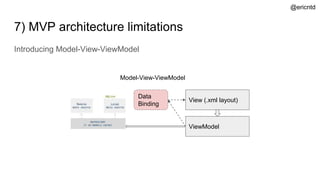

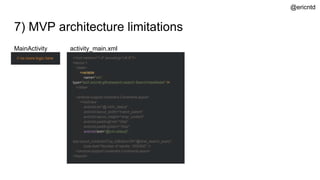

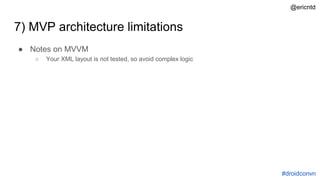

7) MVP architecture limitations
public class MainActivity extends AppCompatActivity
implements SearchViewContract {
// ...
@Override
public void displaySearchResults(@NonNull
List<SearchResult> searchResults,
@Nullable Integer totalCount) {
rvAdapter.updateResults(searchResults);
tvStatus.setText(String.format(Locale.US, "Number of
results: %d", totalCount));
}
}
It looks like logic, but
why is it in the View/
Activity?
#droidconvn
@ericntd

● Real 70-line-function in
production code
● 4 functions like this in the same
Activity
● 200+ lines of “setText” and
“setVisibility” and co.
● Hundreds of lines of code
required in test class
● Dozens of Mockito mocks
required in test class ⇒
significantly higher test run time
#droidconvn
@ericntd

Introducing Model-View-ViewModel
Model-View-ViewModel
View (.xml layout)
ViewModel
Data
Binding
@ericntd

// no more logic here
MainActivity
<?xml version="1.0" encoding="utf-8"?>
<layout >
<data>
<variable
name="vm"
type="tech.ericntd.githubsearch.search.SearchViewModel" />
</data>
<android.support.constraint.ConstraintLayout>
<TextView
android:id="@+id/tv_status"
android:layout_width="match_parent"
android:layout_height="wrap_content"
android:paddingEnd="16dp"
android:paddingStart="16dp"
android:text="@{vm.status}"
app:layout_constraintTop_toBottomOf="@id/et_search_query"
tools:text="Number of results: 1000000" />
</android.support.constraint.ConstraintLayout>
</layout>
activity_main.xml
@ericntd

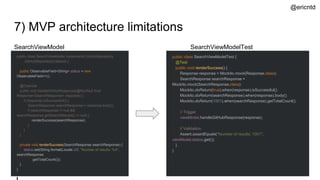

public class SearchViewModel implements GitHubRepository
.GitHubRepositoryCallback {
public ObservableField<String> status = new
ObservableField<>();
@Override
public void handleGitHubResponse(@NonNull final
Response<SearchResponse> response) {
if (response.isSuccessful()) {
SearchResponse searchResponse = response.body();
if (searchResponse != null &&
searchResponse.getSearchResults() != null) {
renderSuccess(searchResponse);
}
}
}
private void renderSuccess(SearchResponse searchResponse) {
status.set(String.format(Locale.US, "Number of results: %d",
searchResponse
.getTotalCount()));
}
}
SearchViewModel
public class SearchViewModelTest {
@Test
public void renderSuccess() {
SearchResponse searchResponse =
Mockito.mock(SearchResponse.class);
Mockito.doReturn(true).when(response).isSuccessful();
Mockito.doReturn(searchResponse).when(response).body();
Mockito.doReturn(1001).when(searchResponse).getTotalCount();
// Trigger
viewModel.handleGitHubResponse(response);
// Validation
Assert.assertEquals("Number of results: 1001",
viewModel.status.get());
}
}
SearchViewModelTest
@ericntd

● Notes on MVVM
○ Your XML layout is not tested, so avoid complex logic
#droidconvn
@ericntd

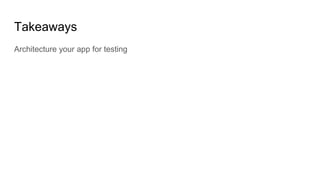

Takeaways
Architecture your app for testing

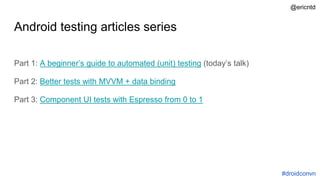

Android testing articles series
Part 1: A beginner’s guide to automated (unit) testing (today’s talk)
Part 2: Better tests with MVVM + data binding
Part 3: Component UI tests with Espresso from 0 to 1
#droidconvn
@ericntd

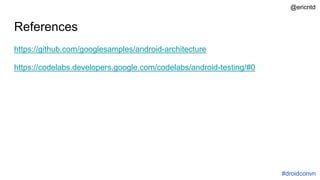

References
https://github.com/googlesamples/android-architecture
https://codelabs.developers.google.com/codelabs/android-testing/#0
#droidconvn
@ericntd

Thank you
@ericntd
● @ericntd (LinkedIn, Medium, Github, StackoverFlow, Twitter)
● Send me your resume eric.nguyen at grab.com -
https://grab.careers/

The real beginner's guide to android testing

Recommended

Recommended

More Related Content

What's hot

What's hot (20)

Similar to The real beginner's guide to android testing

Similar to The real beginner's guide to android testing (20)

Recently uploaded

Recently uploaded (20)

The real beginner's guide to android testing

Editor's Notes
