1. Dagger 2. Right way to do
Dependency Injections
by Anton Minashkin

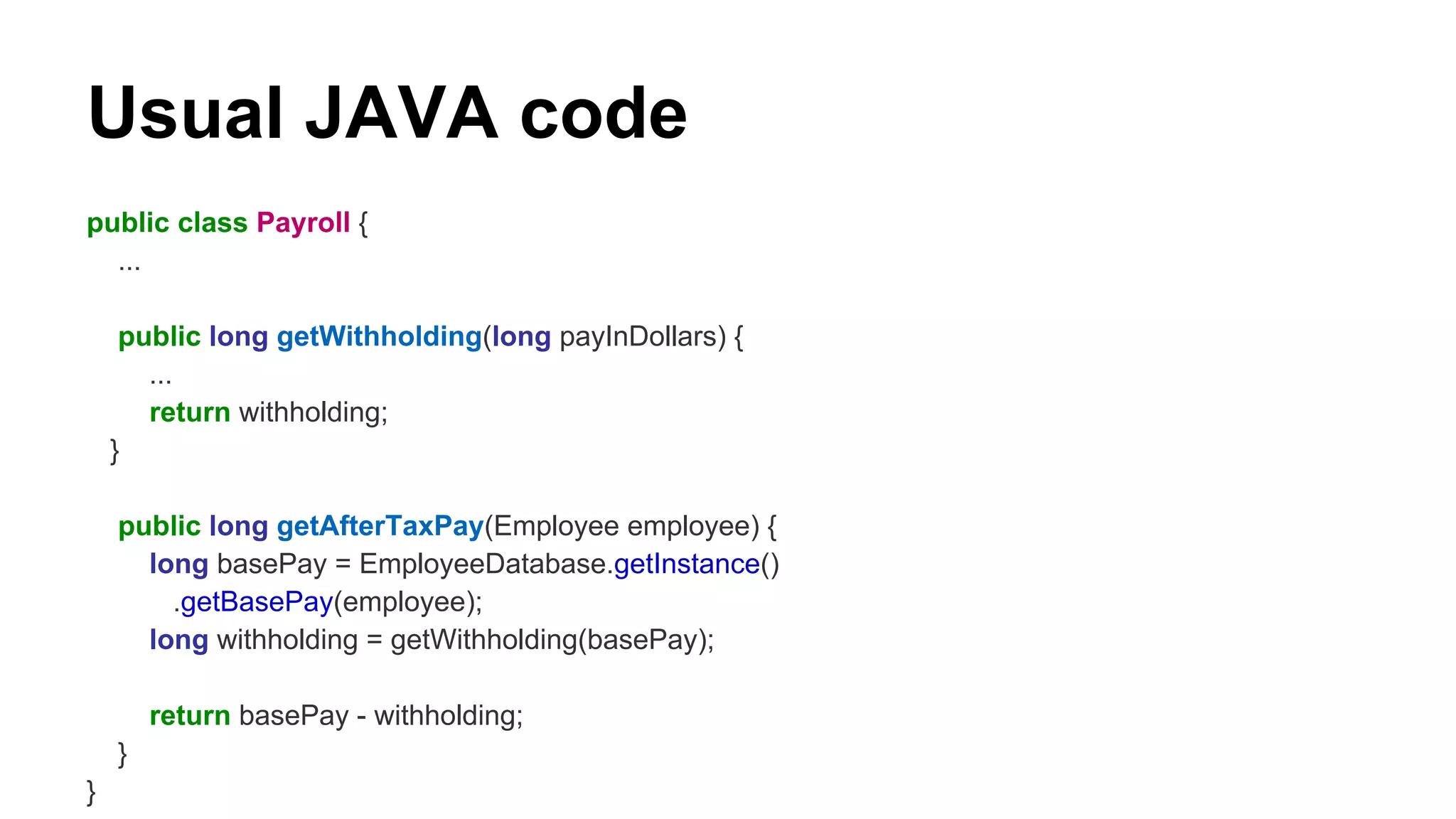

2. Usual JAVA code
public class Payroll {
...
public long getWithholding(long payInDollars) {
...
return withholding;
}
public long getAfterTaxPay(Employee employee) {
long basePay = EmployeeDatabase.getInstance()
.getBasePay(employee);
long withholding = getWithholding(basePay);
return basePay - withholding;
}
}

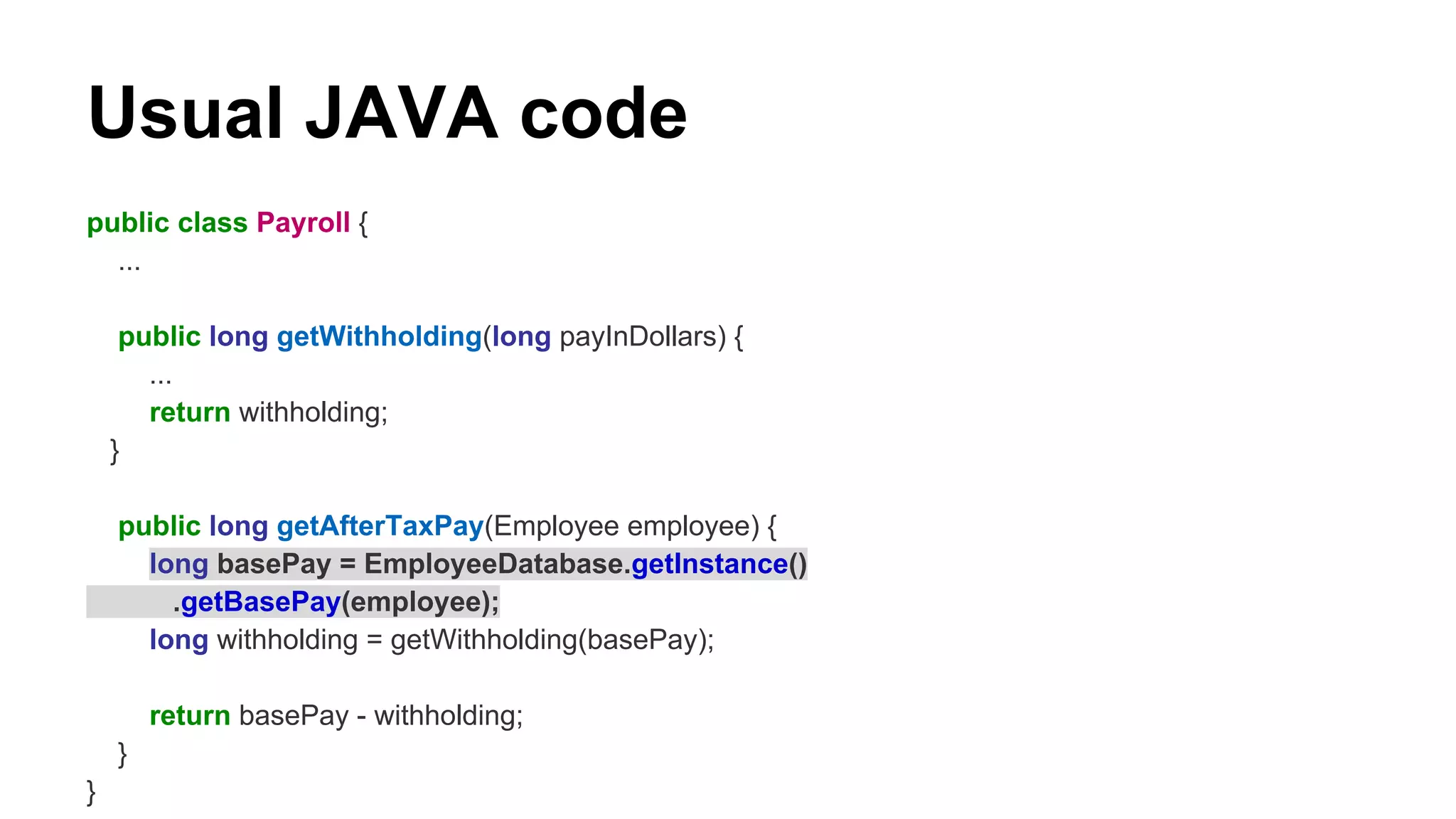

3. Usual JAVA code
public class Payroll {
...
public long getWithholding(long payInDollars) {
...
return withholding;
}
public long getAfterTaxPay(Employee employee) {
long basePay = EmployeeDatabase.getInstance()
.getBasePay(employee);
long withholding = getWithholding(basePay);
return basePay - withholding;
}
}

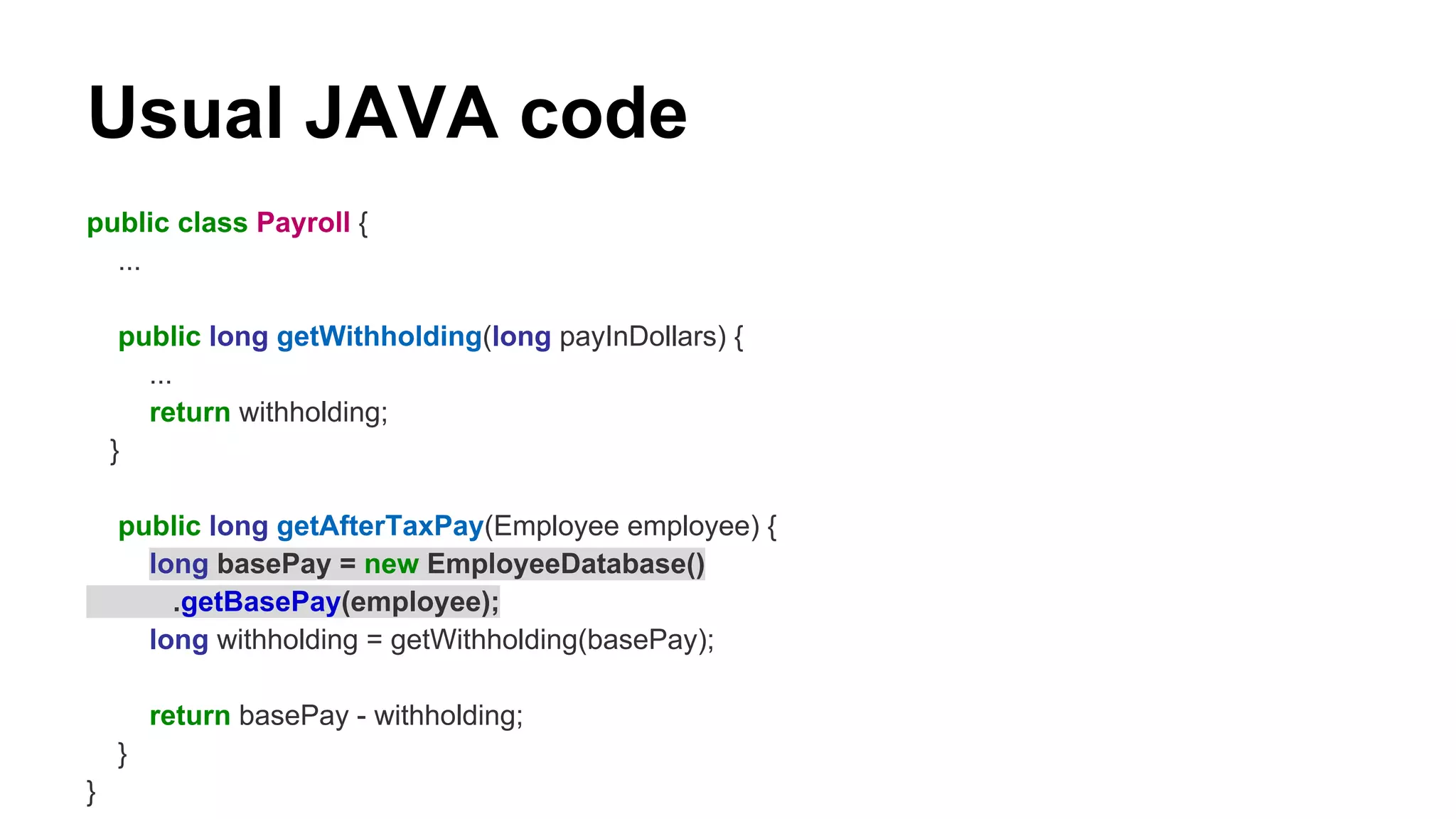

4. Usual JAVA code
public class Payroll {
...
public long getWithholding(long payInDollars) {
...
return withholding;
}
public long getAfterTaxPay(Employee employee) {
long basePay = new EmployeeDatabase()
.getBasePay(employee);
long withholding = getWithholding(basePay);
return basePay - withholding;
}
}

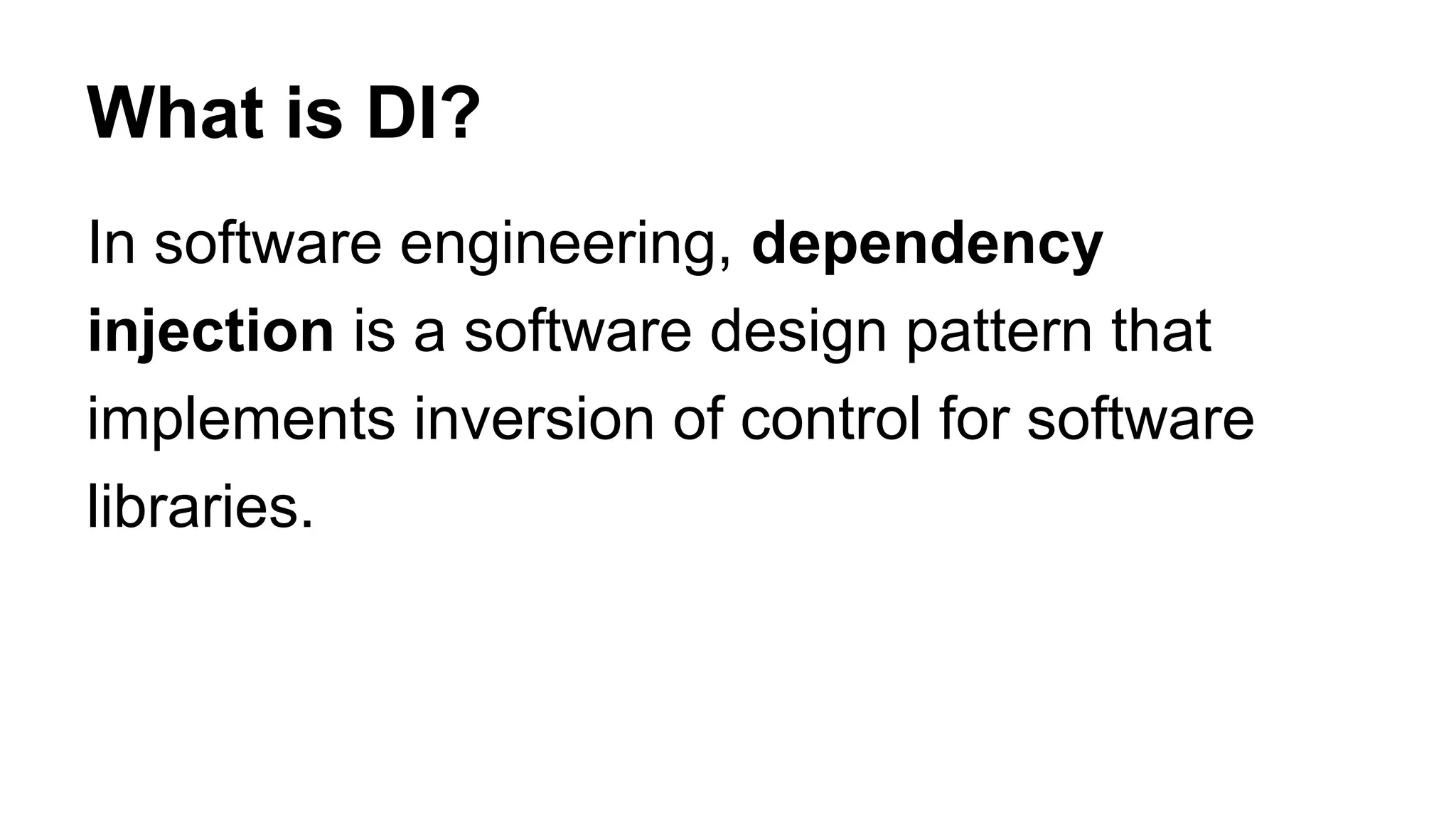

5. What is DI?
In software engineering, dependency
injection is a software design pattern that
implements inversion of control for software
libraries.

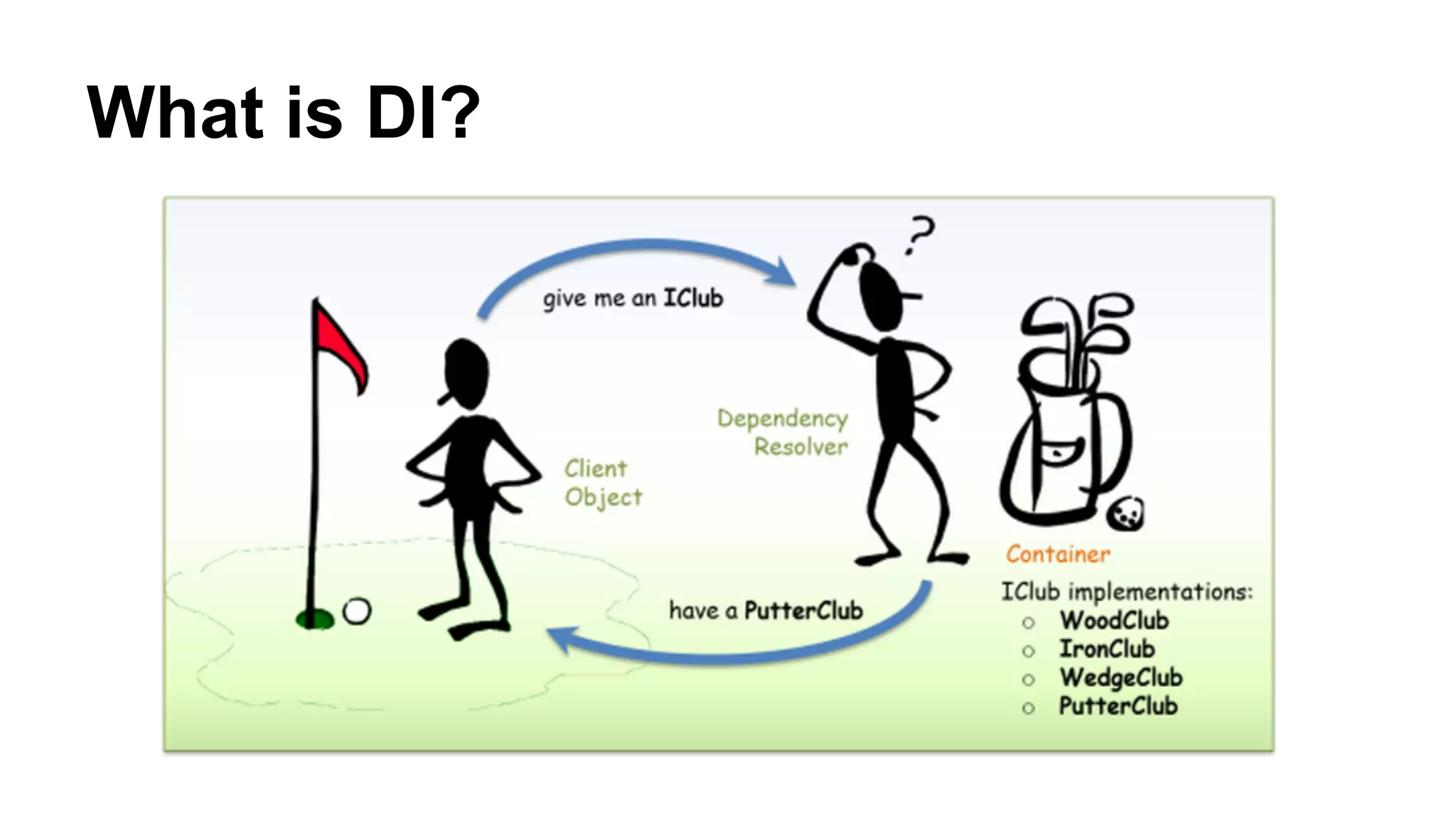

6. What is DI?

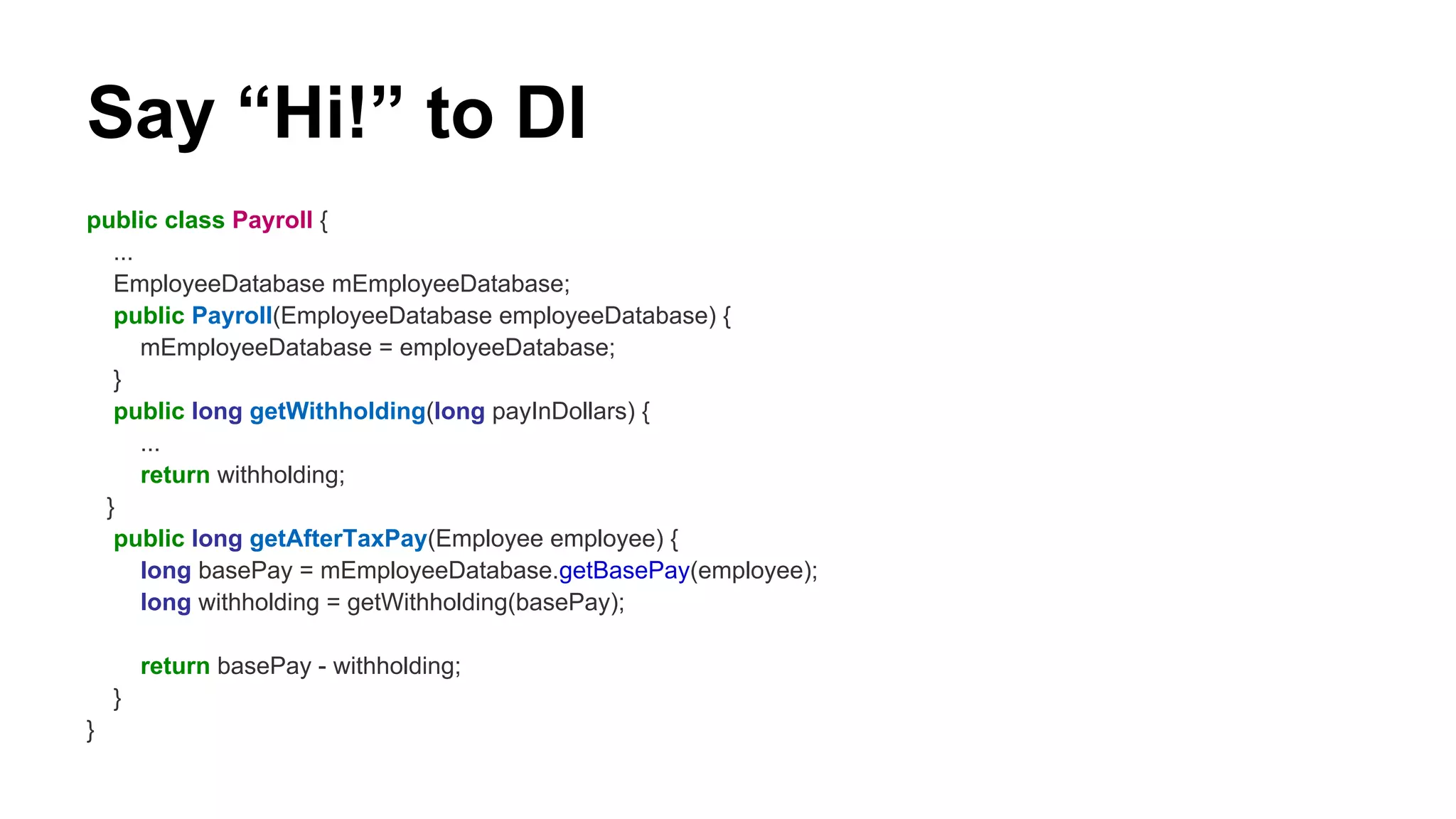

7. Say “Hi!” to DI
public class Payroll {
...
EmployeeDatabase mEmployeeDatabase;
public Payroll(EmployeeDatabase employeeDatabase) {
mEmployeeDatabase = employeeDatabase;
}
public long getWithholding(long payInDollars) {
...
return withholding;
}
public long getAfterTaxPay(Employee employee) {
long basePay = mEmployeeDatabase.getBasePay(employee);
long withholding = getWithholding(basePay);
return basePay - withholding;
}
}

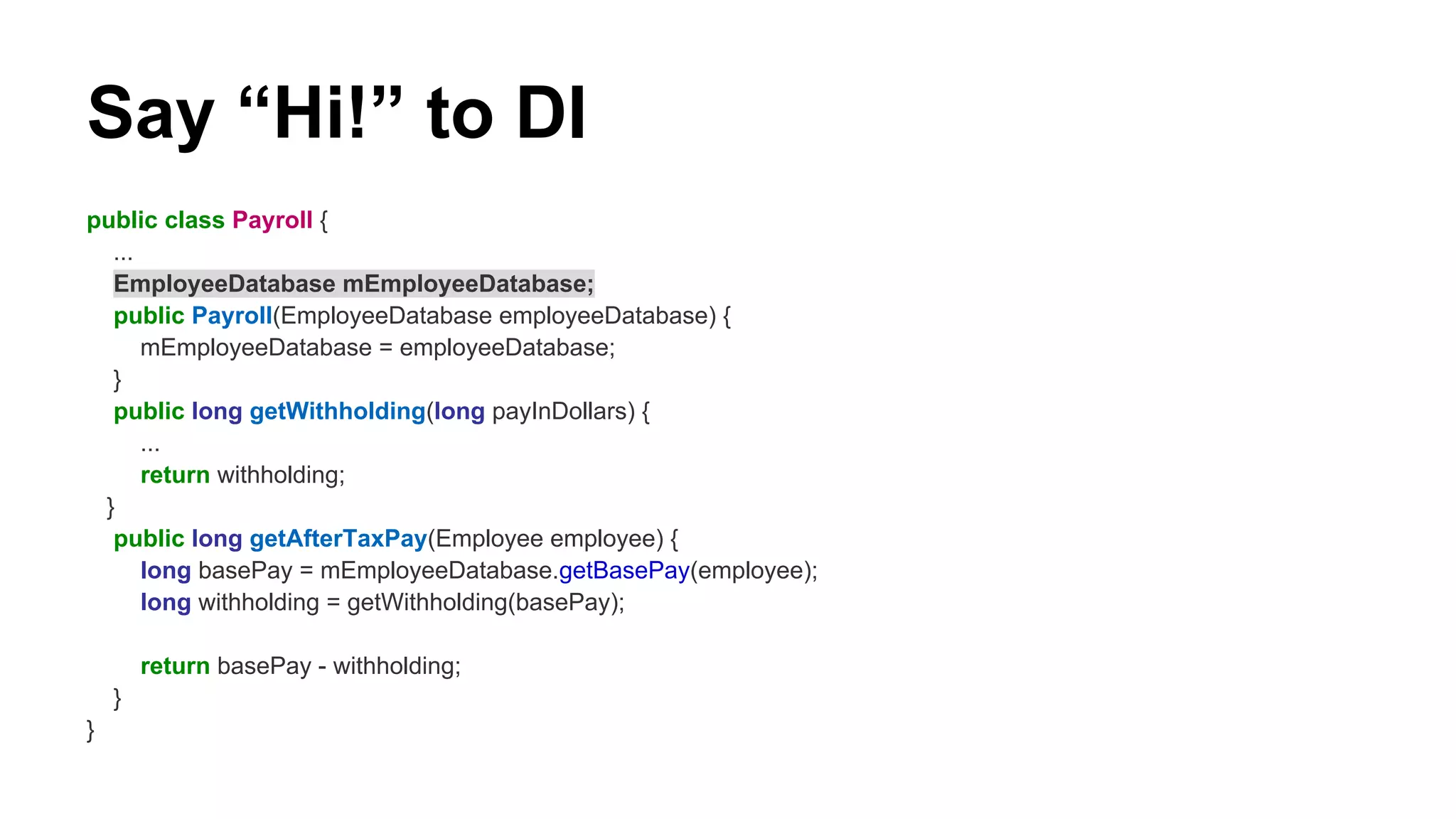

8. Say “Hi!” to DI
public class Payroll {
...
EmployeeDatabase mEmployeeDatabase;
public Payroll(EmployeeDatabase employeeDatabase) {
mEmployeeDatabase = employeeDatabase;
}
public long getWithholding(long payInDollars) {
...
return withholding;
}
public long getAfterTaxPay(Employee employee) {
long basePay = mEmployeeDatabase.getBasePay(employee);
long withholding = getWithholding(basePay);
return basePay - withholding;
}
}

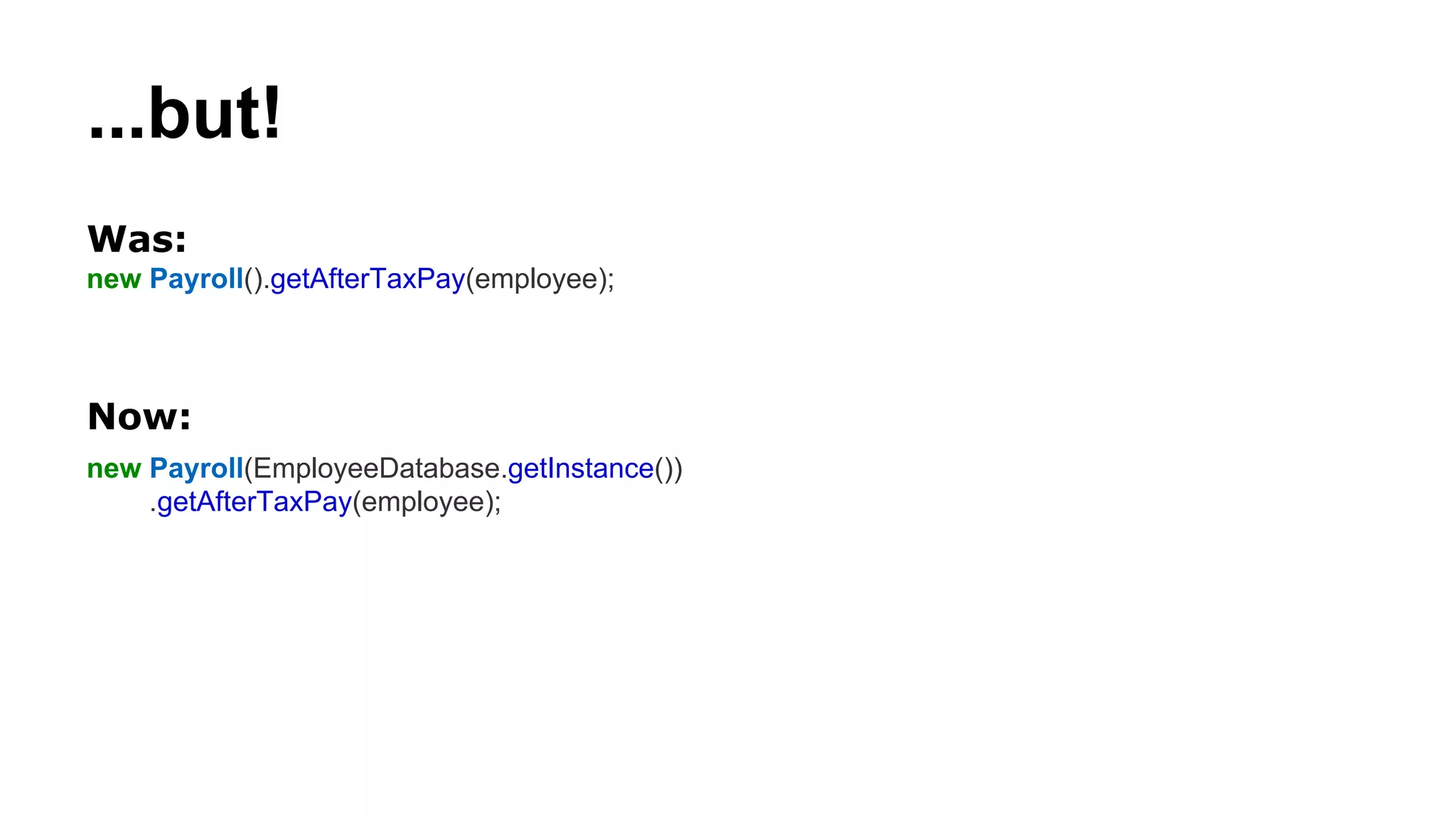

9. ...but!
Was:
new Payroll().getAfterTaxPay(employee);
Now:
new Payroll(EmployeeDatabase.getInstance())
.getAfterTaxPay(employee);

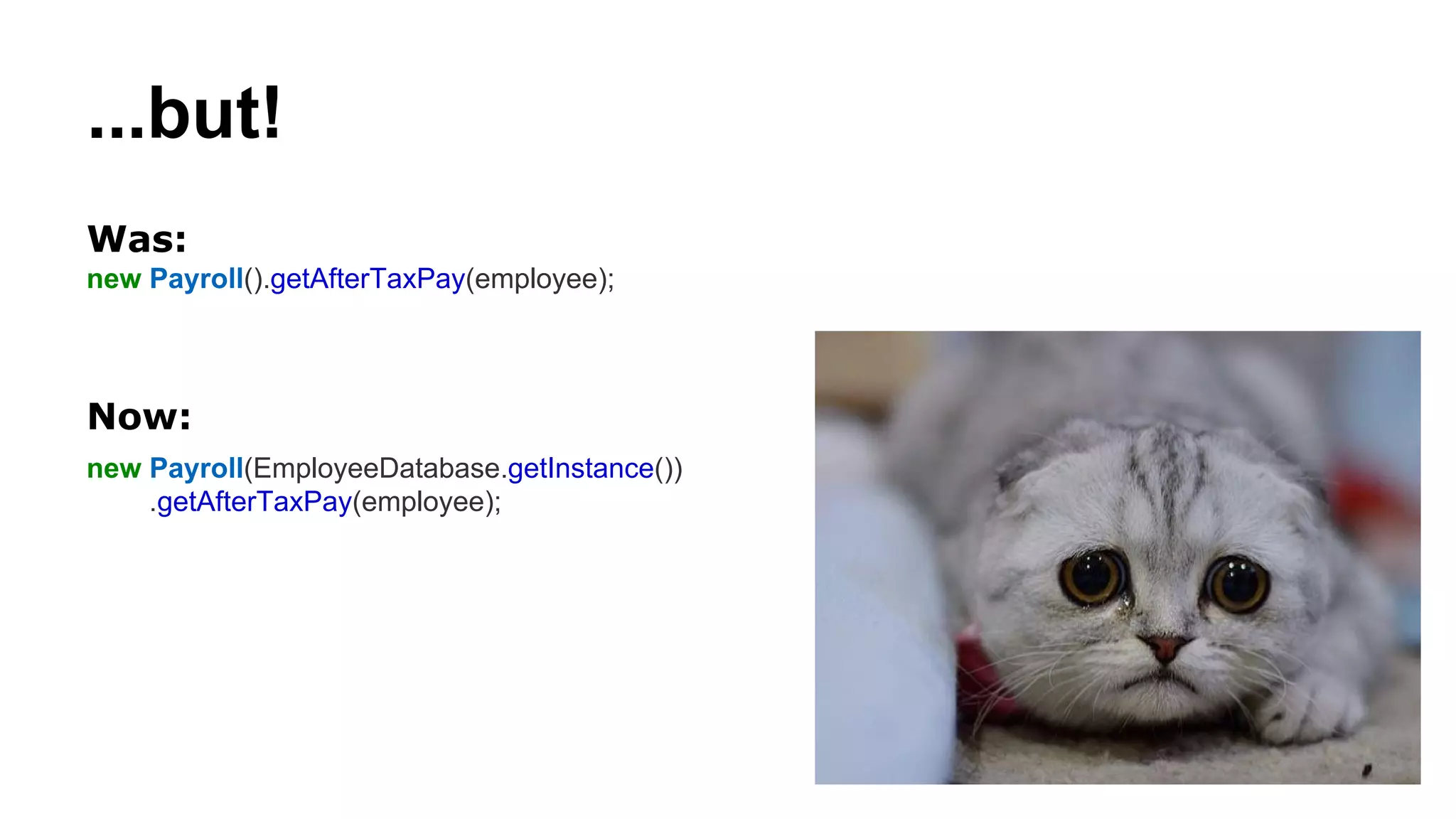

10. ...but!
Was:
new Payroll().getAfterTaxPay(employee);
Now:
new Payroll(EmployeeDatabase.getInstance())
.getAfterTaxPay(employee);

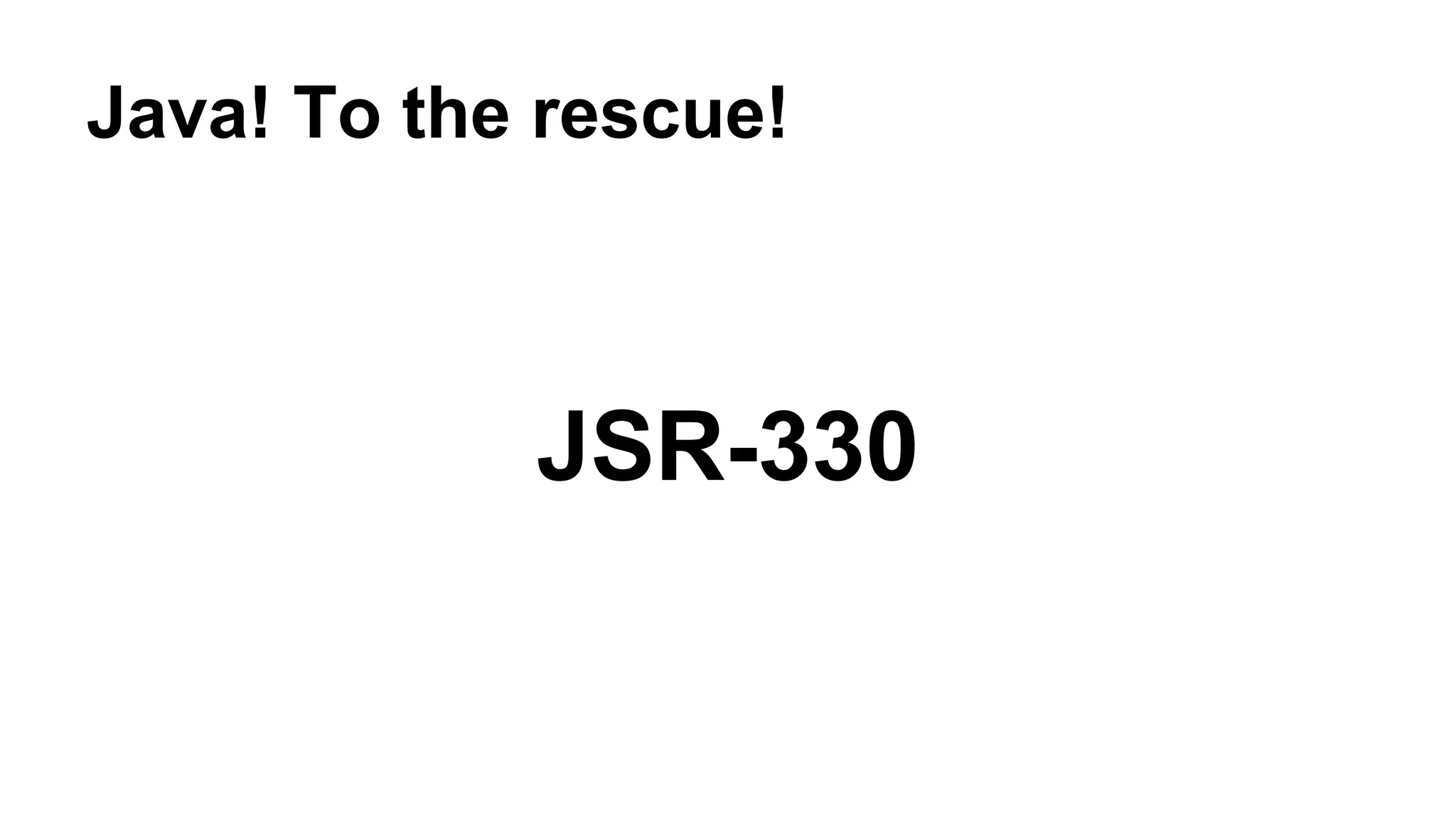

11. Java! To the rescue!
JSR-330

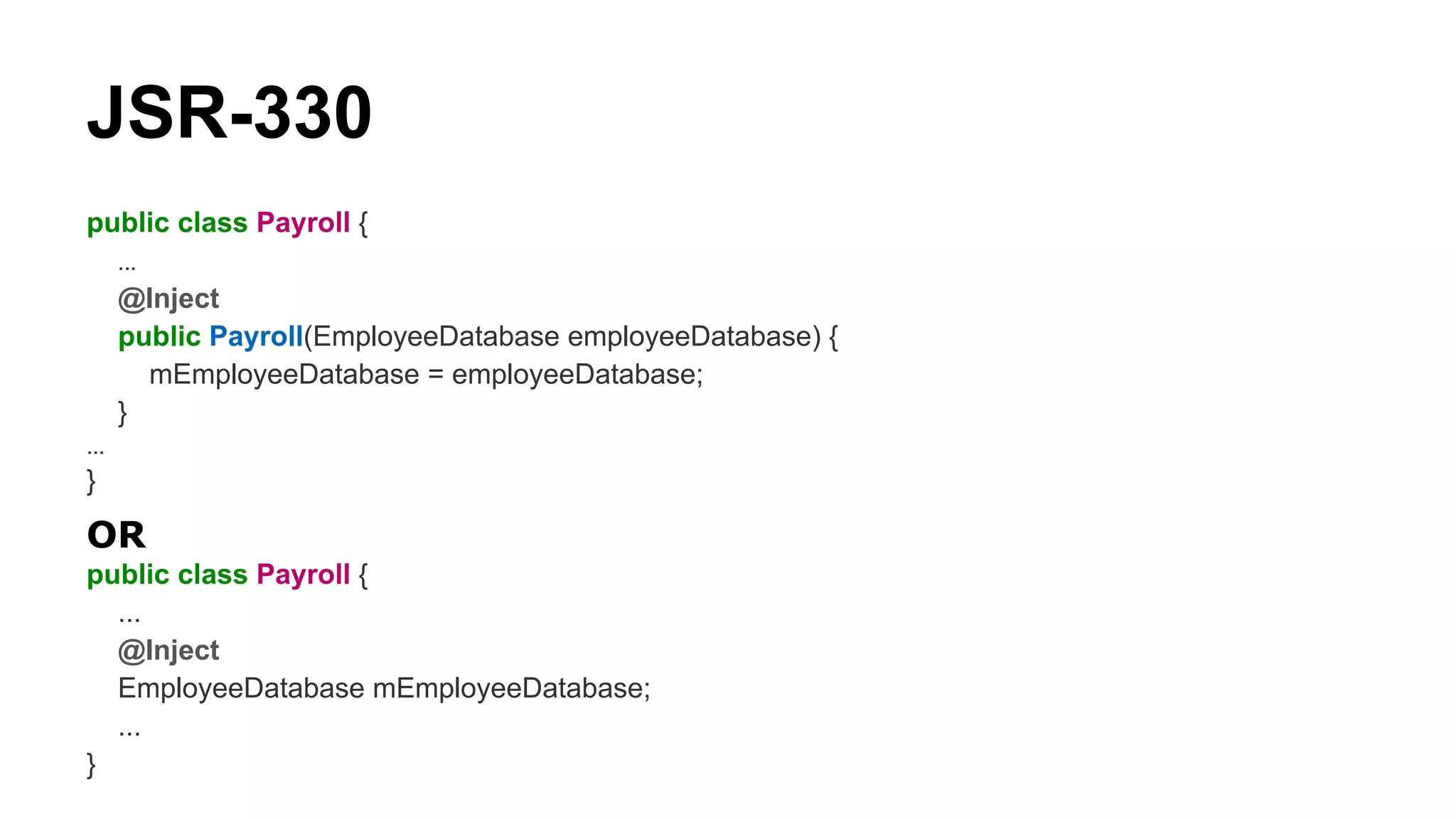

12. JSR-330
public class Payroll {
...
@Inject
public Payroll(EmployeeDatabase employeeDatabase) {
mEmployeeDatabase = employeeDatabase;
}
...
}
OR
public class Payroll {
...
@Inject
EmployeeDatabase mEmployeeDatabase;
...
}

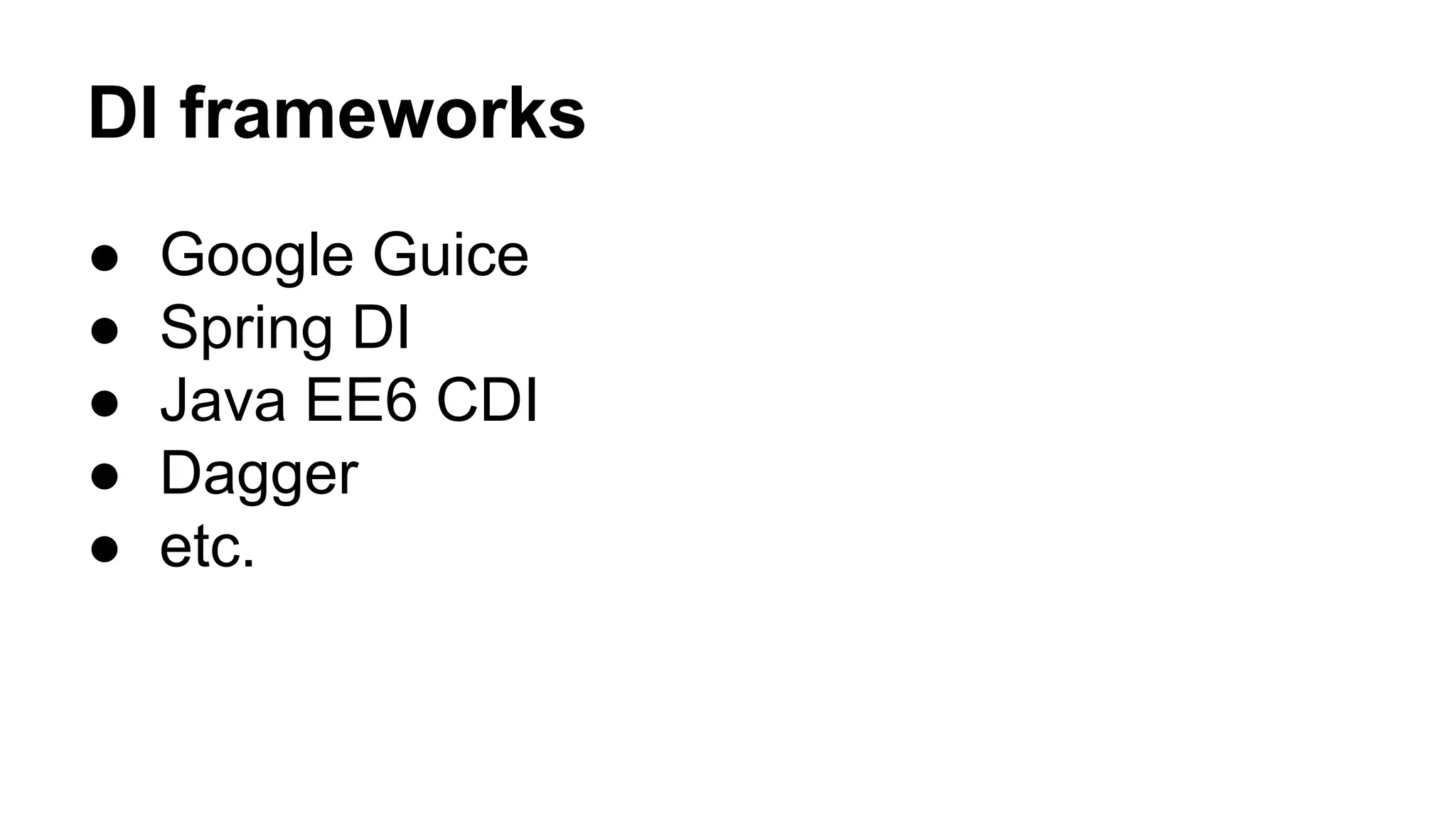

13. DI frameworks
● Google Guice
● Spring DI
● Java EE6 CDI
● Dagger
● etc.

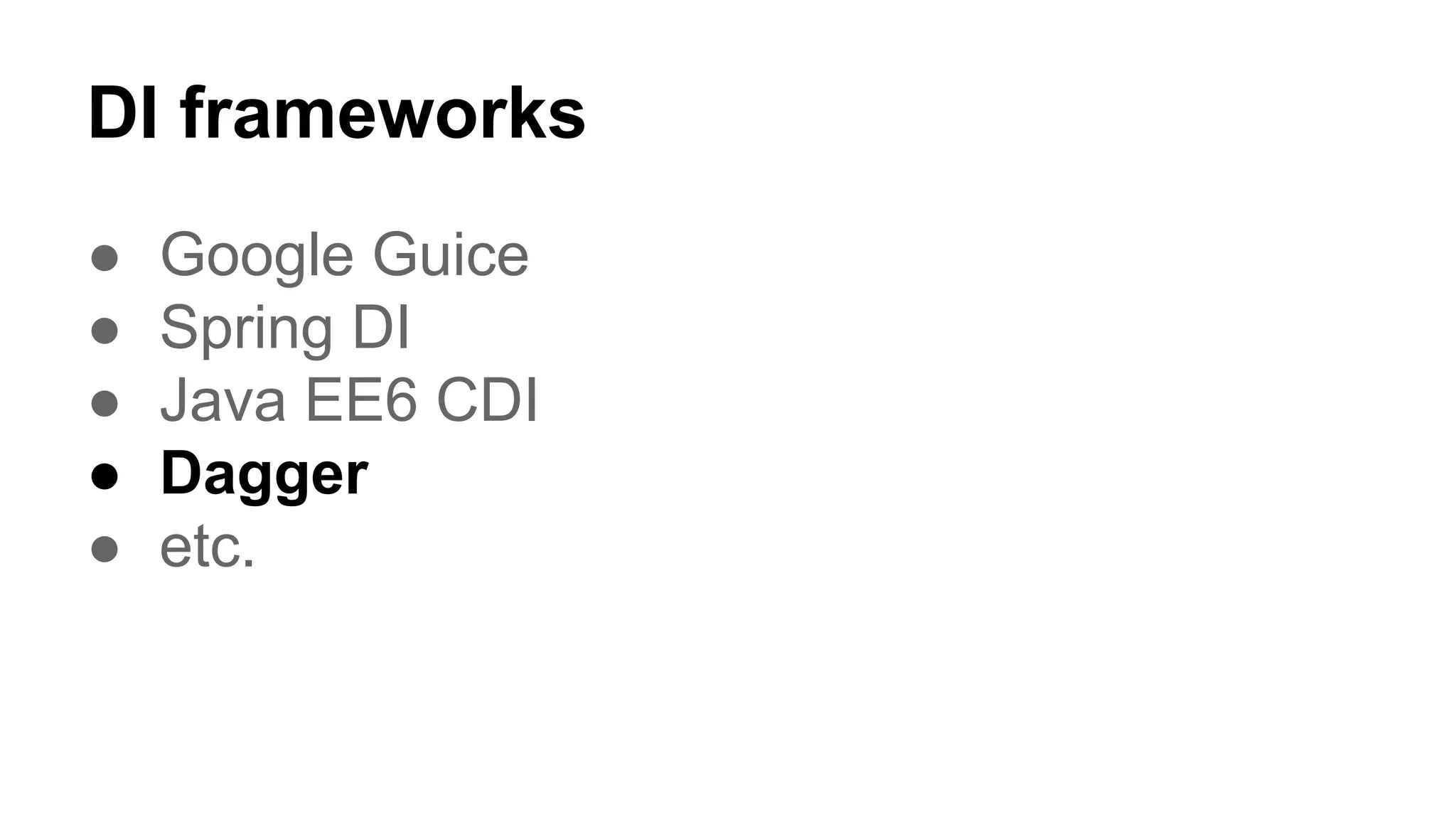

14. DI frameworks
● Google Guice
● Spring DI
● Java EE6 CDI
● Dagger
● etc.

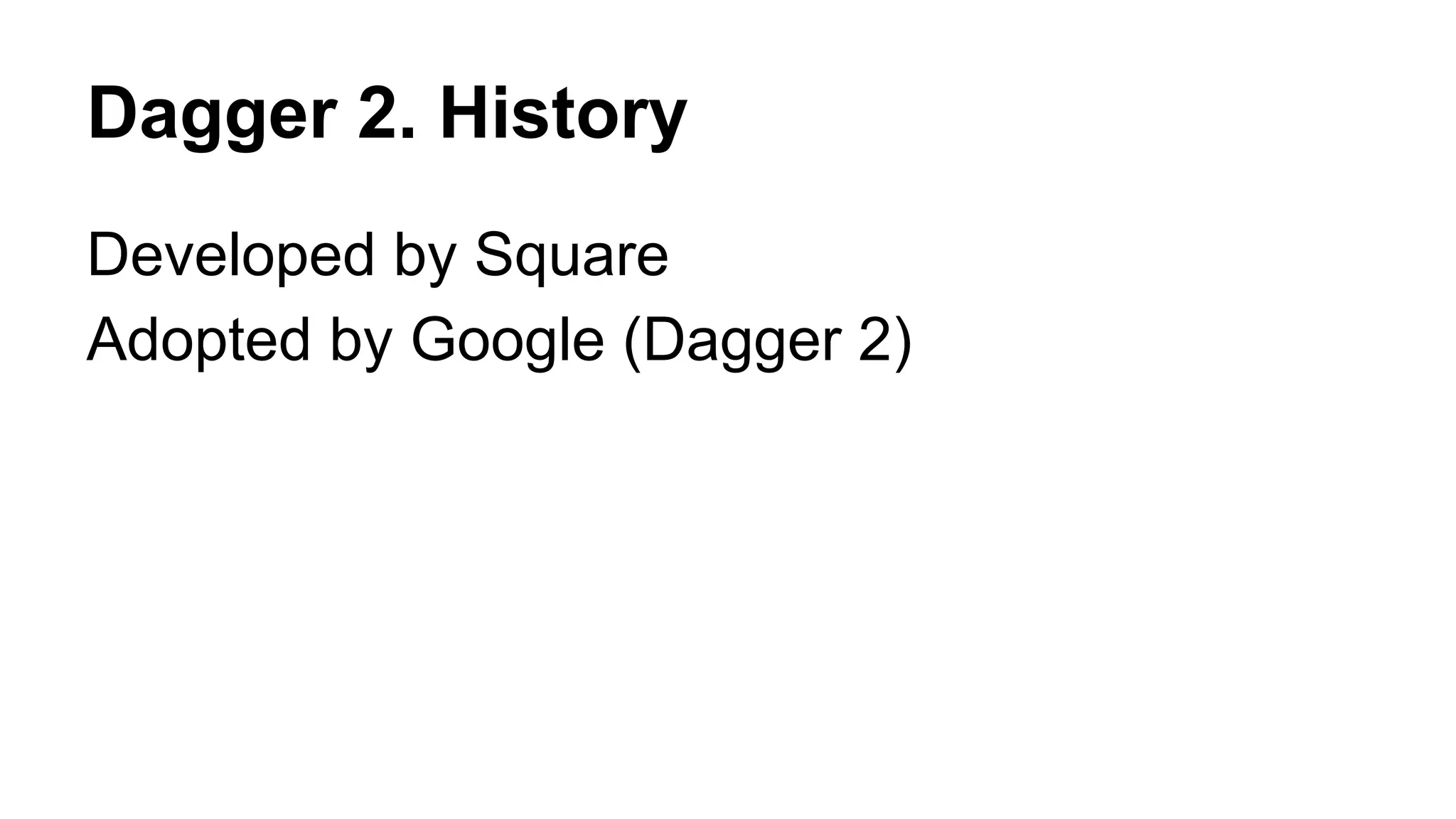

15. Dagger 2. History
Developed by Square
Adopted by Google (Dagger 2)

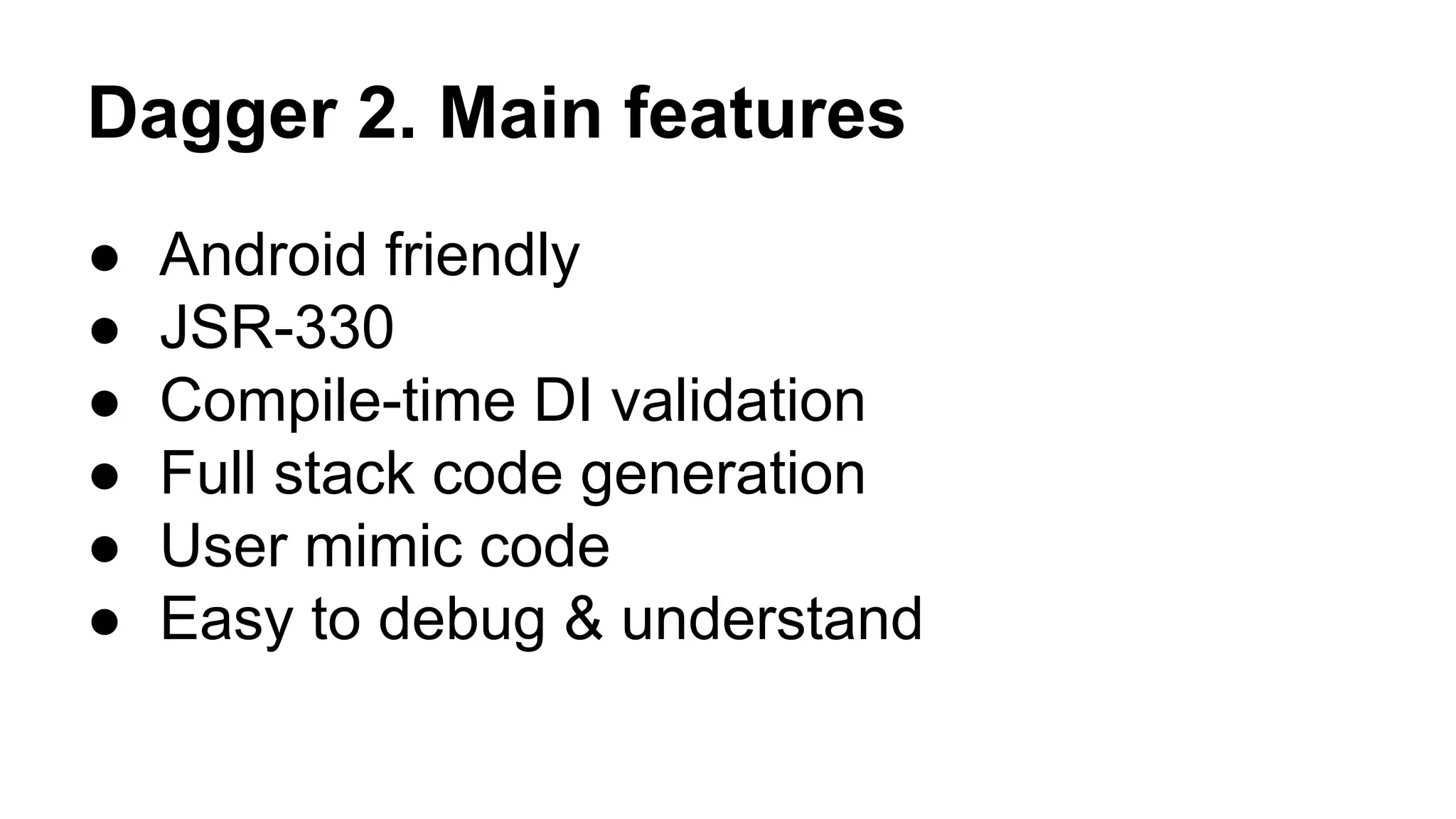

16. Dagger 2. Main features
● Android friendly
● JSR-330
● Compile-time DI validation
● Full stack code generation
● User mimic code
● Easy to debug & understand

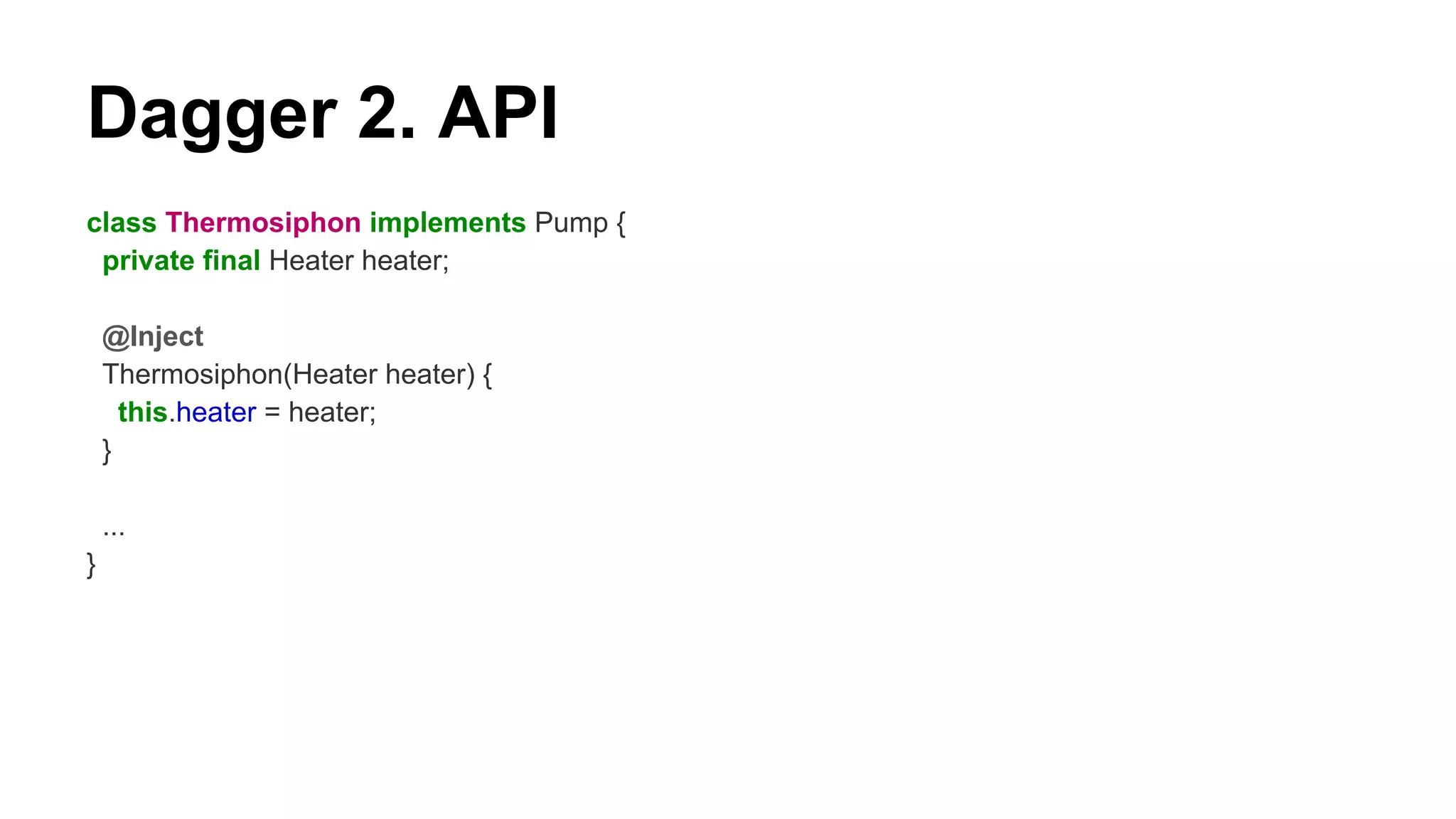

17. Dagger 2. API
class Thermosiphon implements Pump {
private final Heater heater;
@Inject
Thermosiphon(Heater heater) {
this.heater = heater;
}
...
}

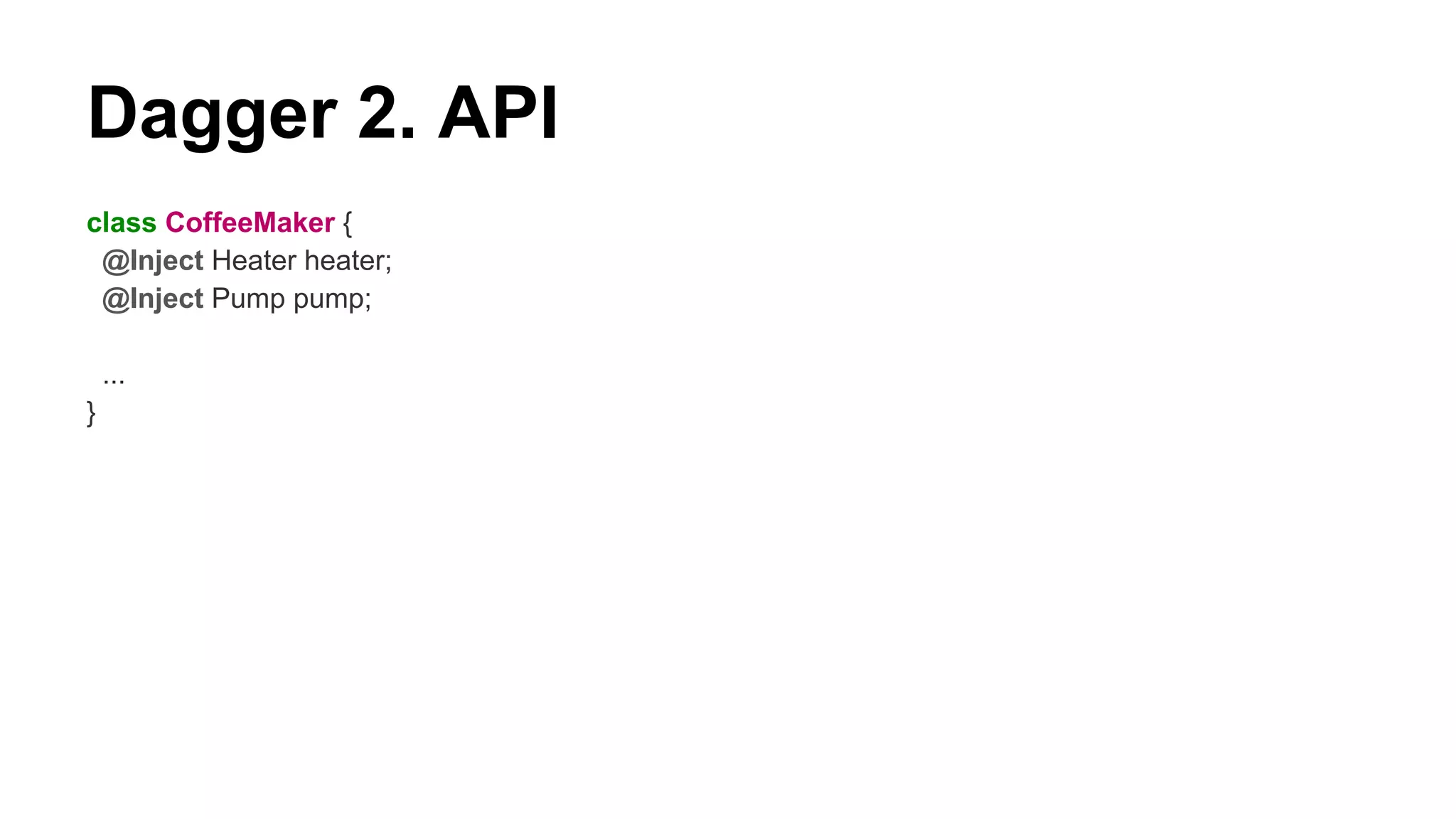

18. Dagger 2. API
class CoffeeMaker {
@Inject Heater heater;
@Inject Pump pump;
...
}

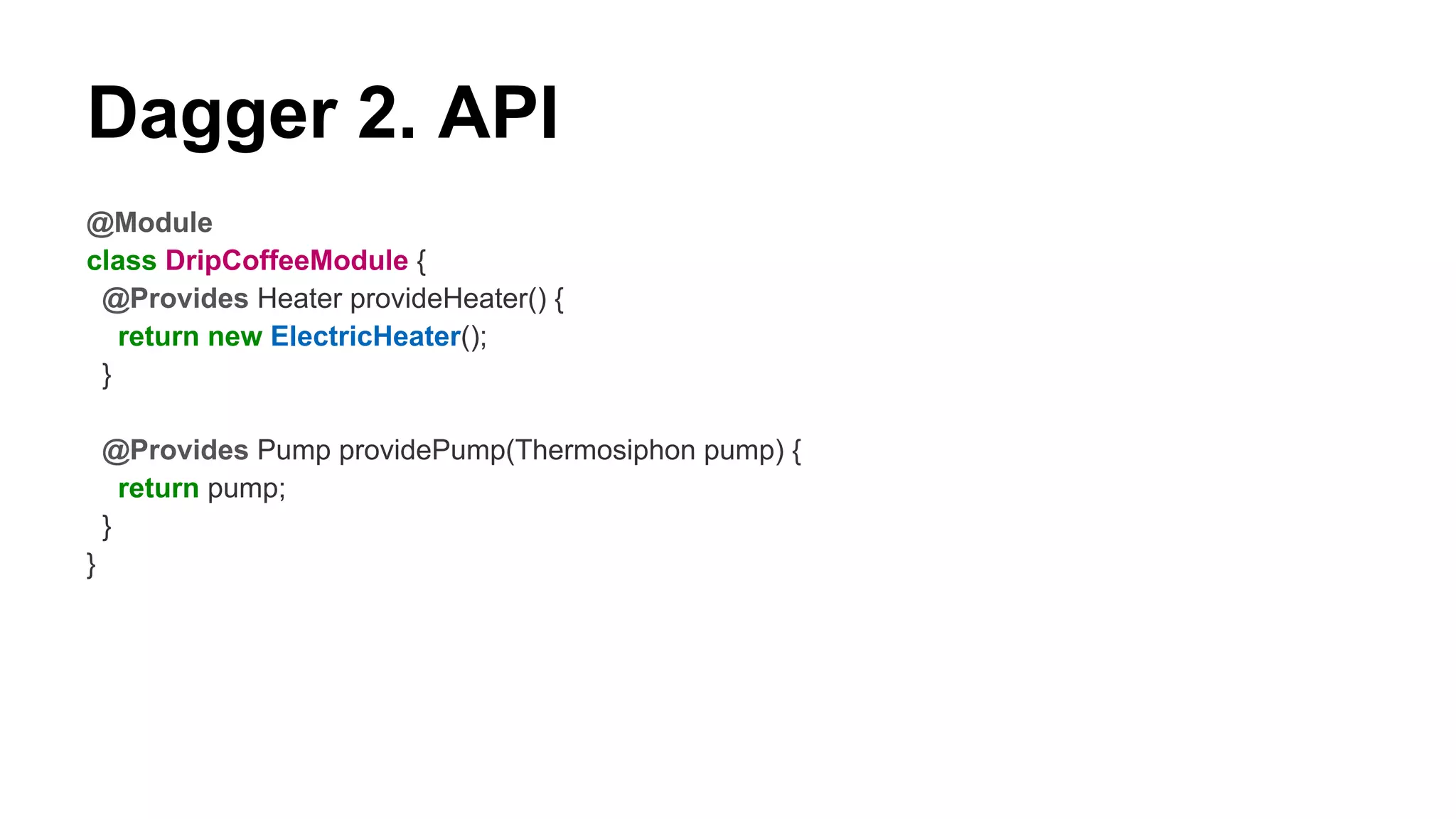

19. Dagger 2. API
@Module
class DripCoffeeModule {
@Provides Heater provideHeater() {
return new ElectricHeater();
}
@Provides Pump providePump(Thermosiphon pump) {
return pump;
}
}

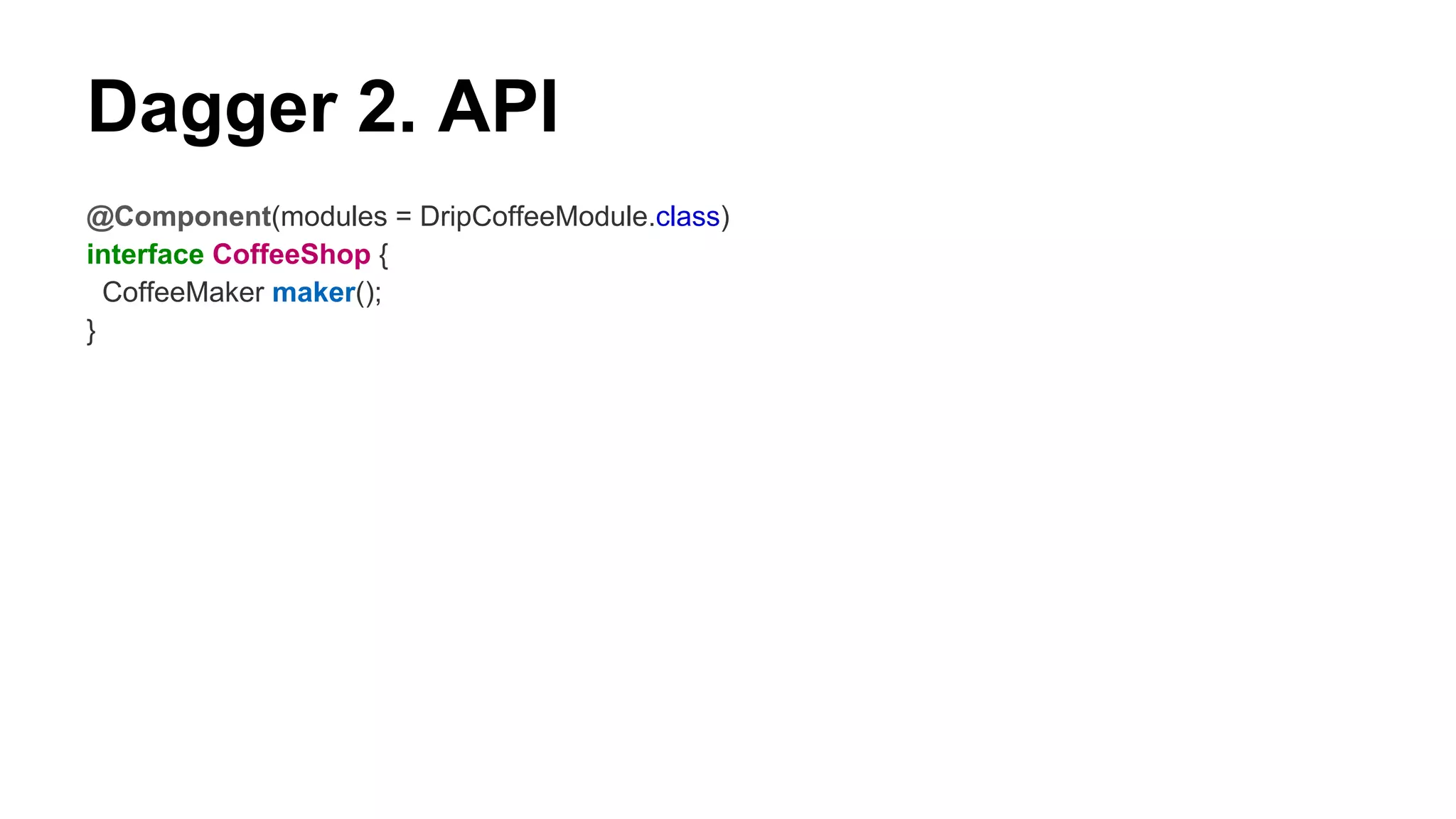

20. Dagger 2. API
@Component(modules = DripCoffeeModule.class)
interface CoffeeShop {
CoffeeMaker maker();
}

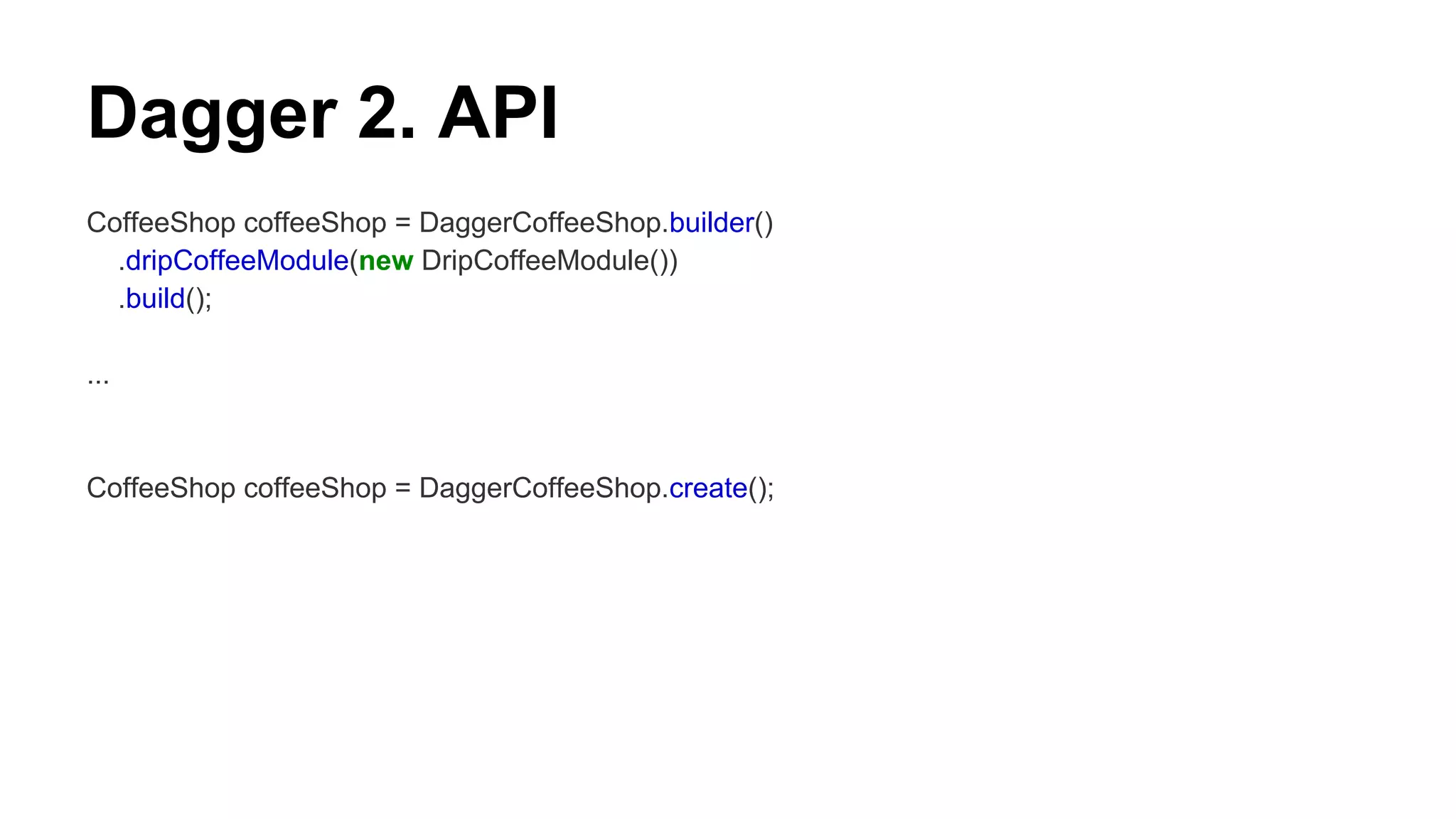

21. Dagger 2. API
CoffeeShop coffeeShop = DaggerCoffeeShop.builder()
.dripCoffeeModule(new DripCoffeeModule())
.build();
...
CoffeeShop coffeeShop = DaggerCoffeeShop.create();

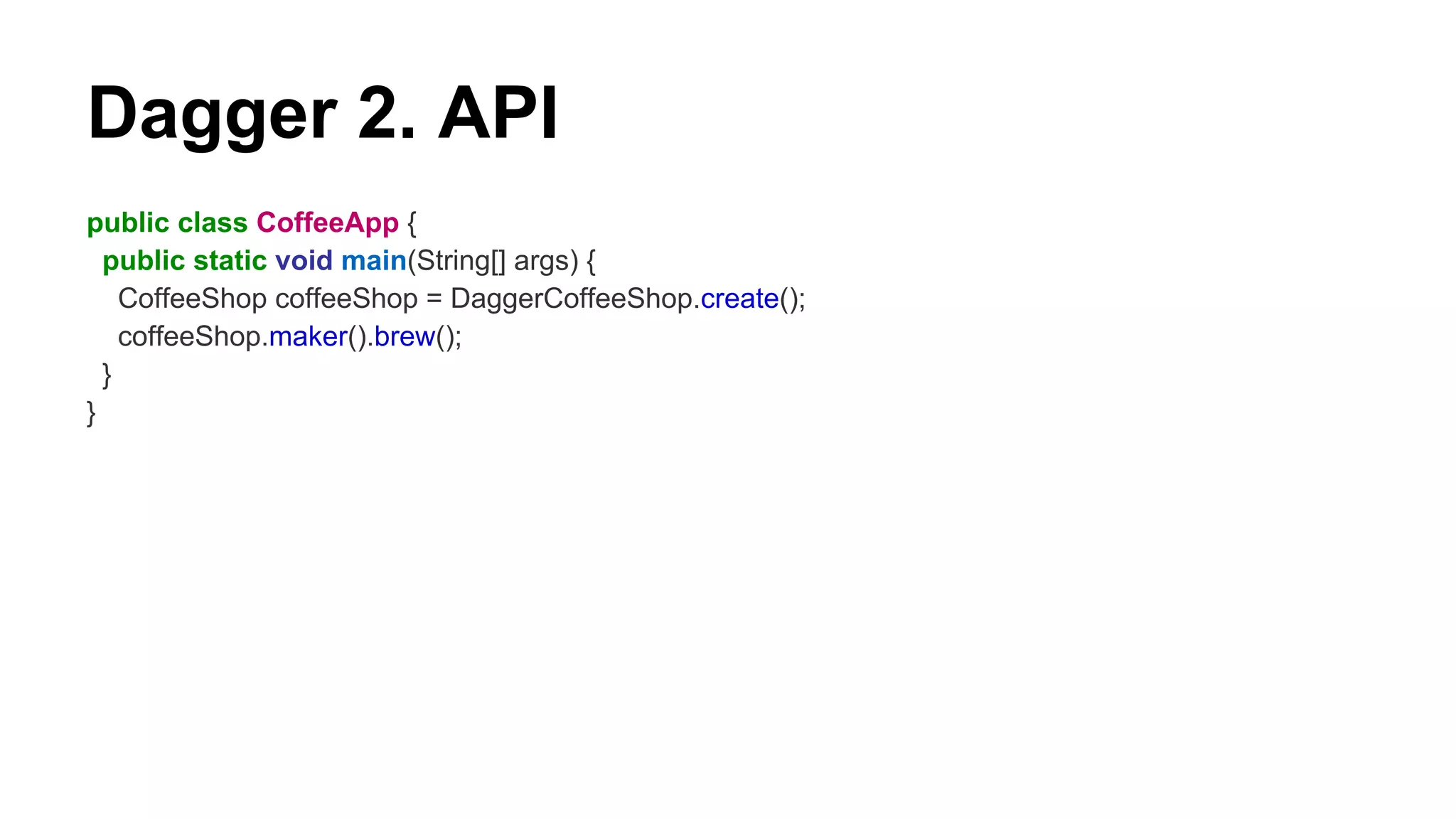

22. Dagger 2. API
public class CoffeeApp {
public static void main(String[] args) {
CoffeeShop coffeeShop = DaggerCoffeeShop.create();
coffeeShop.maker().brew();
}
}

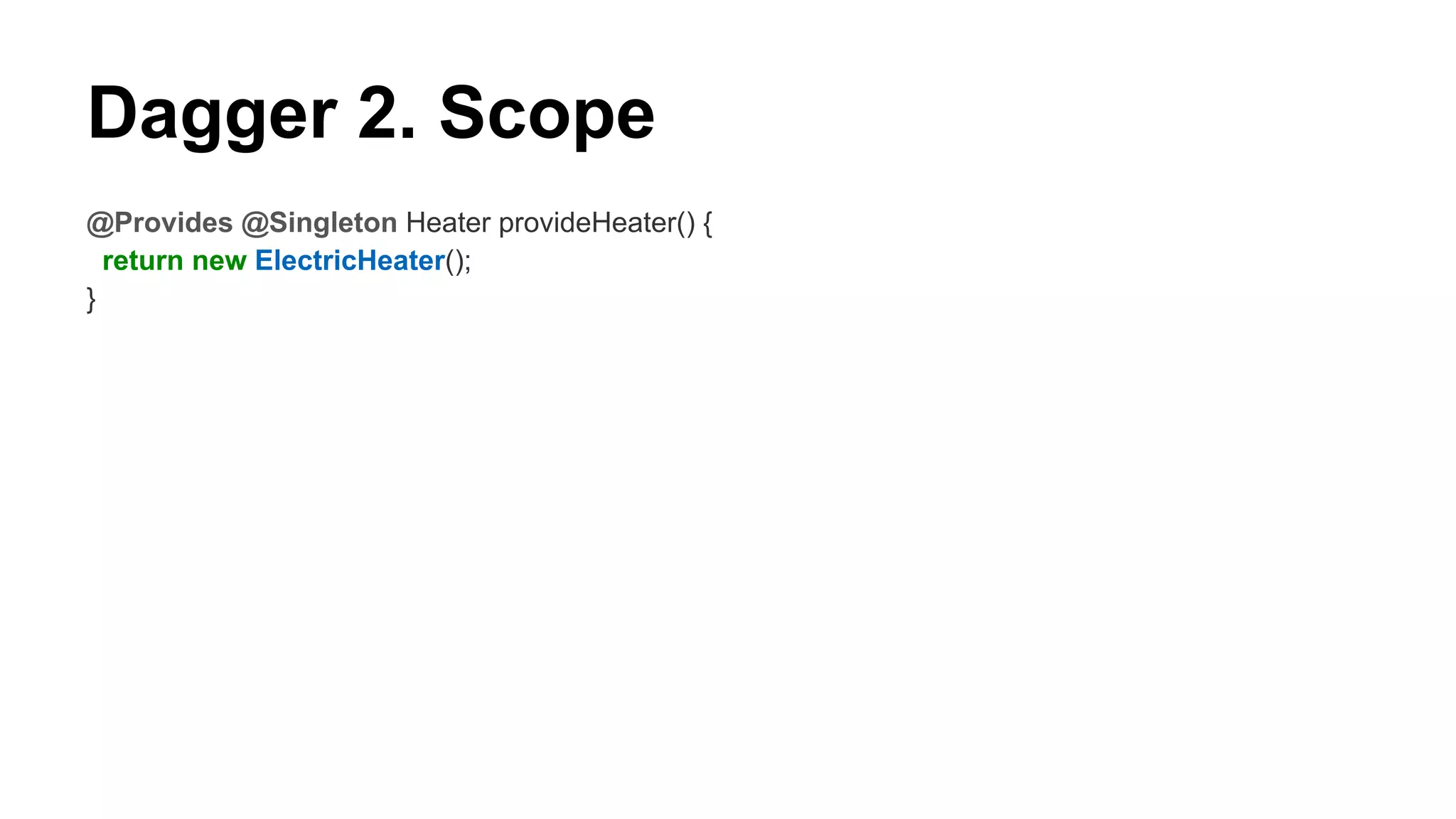

23. Dagger 2. Scope
@Provides @Singleton Heater provideHeater() {
return new ElectricHeater();
}

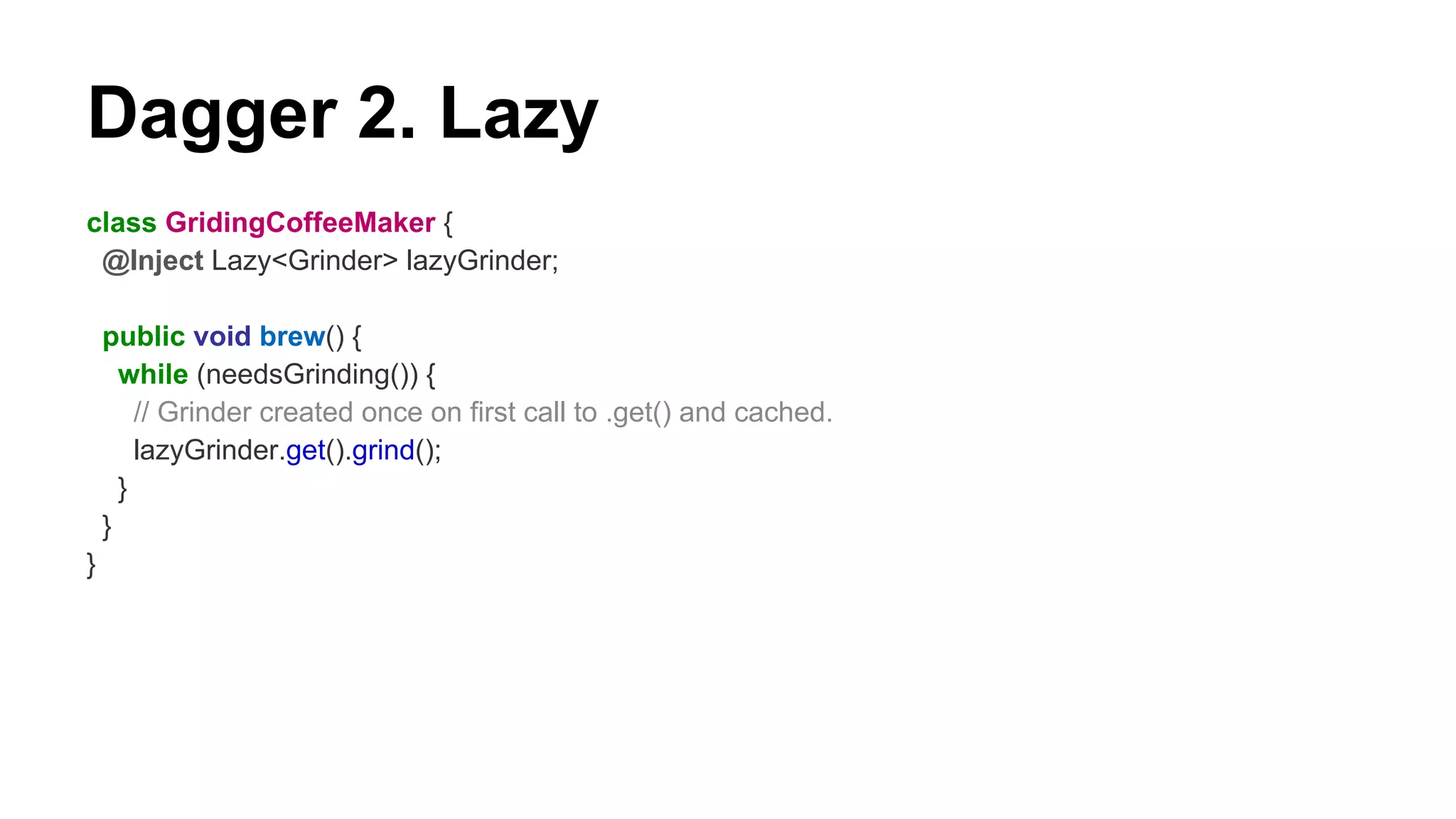

24. Dagger 2. Lazy
class GridingCoffeeMaker {
@Inject Lazy<Grinder> lazyGrinder;
public void brew() {
while (needsGrinding()) {
// Grinder created once on first call to .get() and cached.
lazyGrinder.get().grind();
}
}
}

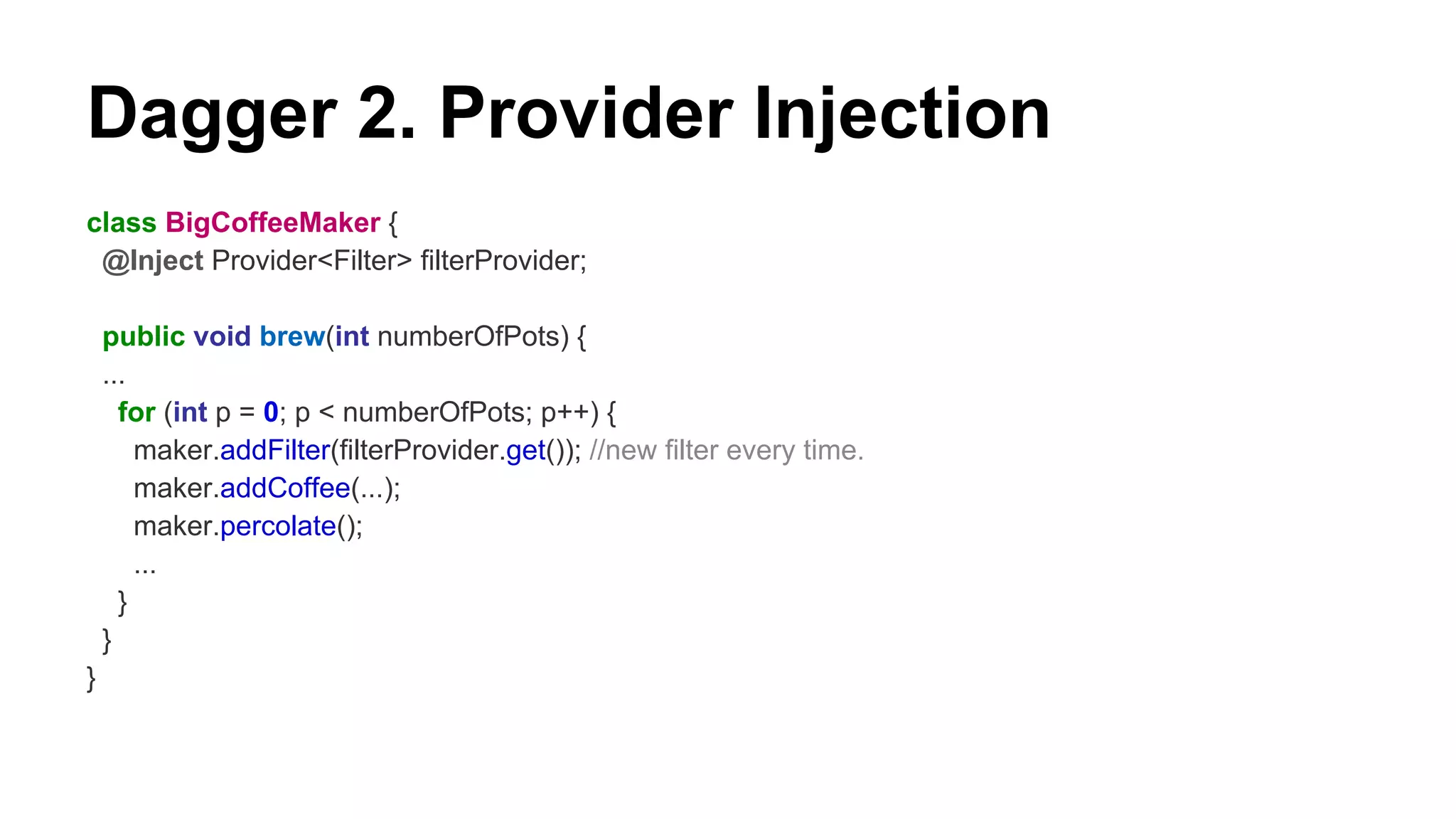

25. Dagger 2. Provider Injection
class BigCoffeeMaker {
@Inject Provider<Filter> filterProvider;
public void brew(int numberOfPots) {
...
for (int p = 0; p < numberOfPots; p++) {
maker.addFilter(filterProvider.get()); //new filter every time.
maker.addCoffee(...);
maker.percolate();
...
}
}
}

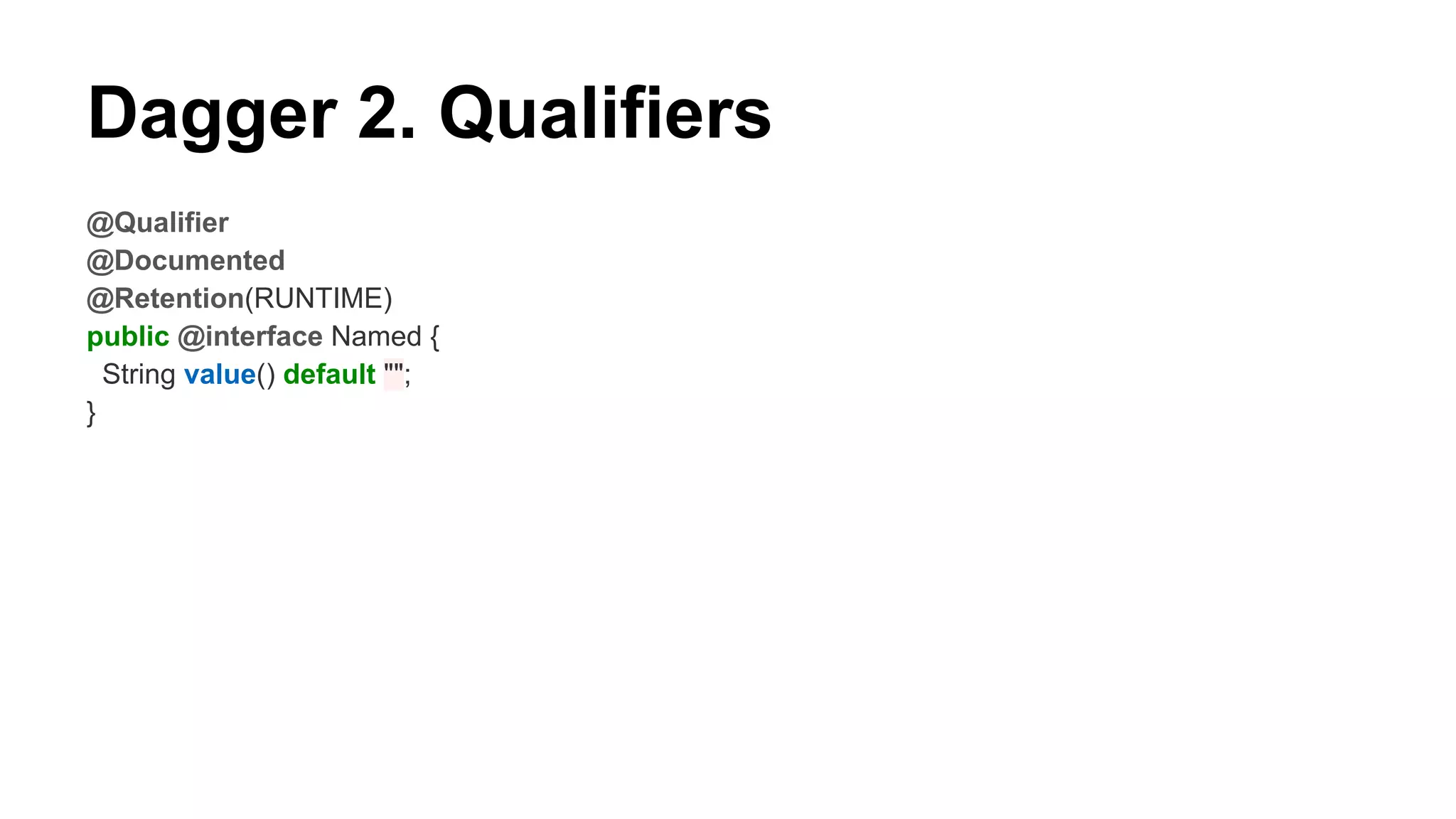

26. Dagger 2. Qualifiers
@Qualifier
@Documented
@Retention(RUNTIME)
public @interface Named {
String value() default "";
}

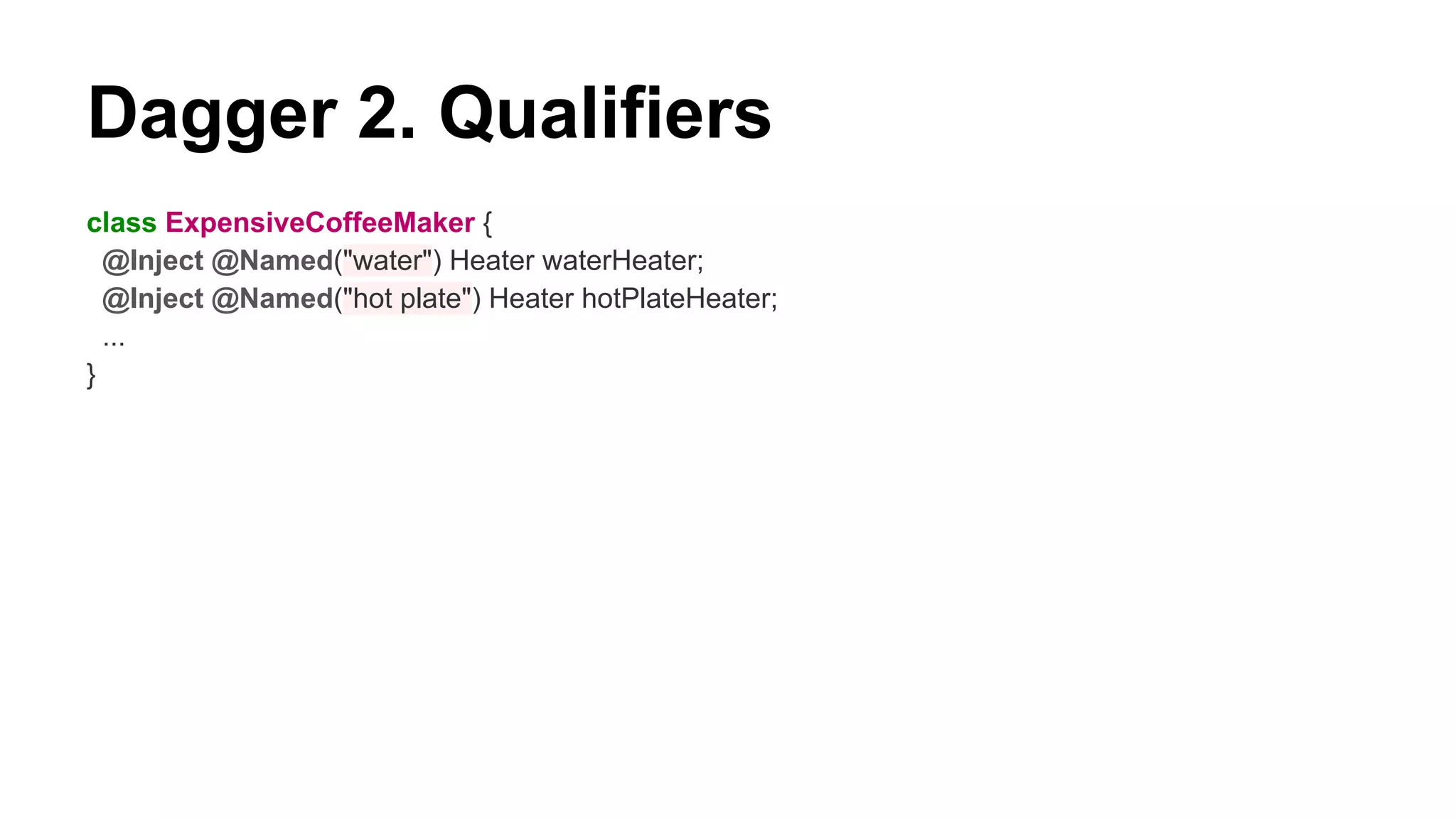

27. Dagger 2. Qualifiers
class ExpensiveCoffeeMaker {
@Inject @Named("water") Heater waterHeater;
@Inject @Named("hot plate") Heater hotPlateHeater;
...
}

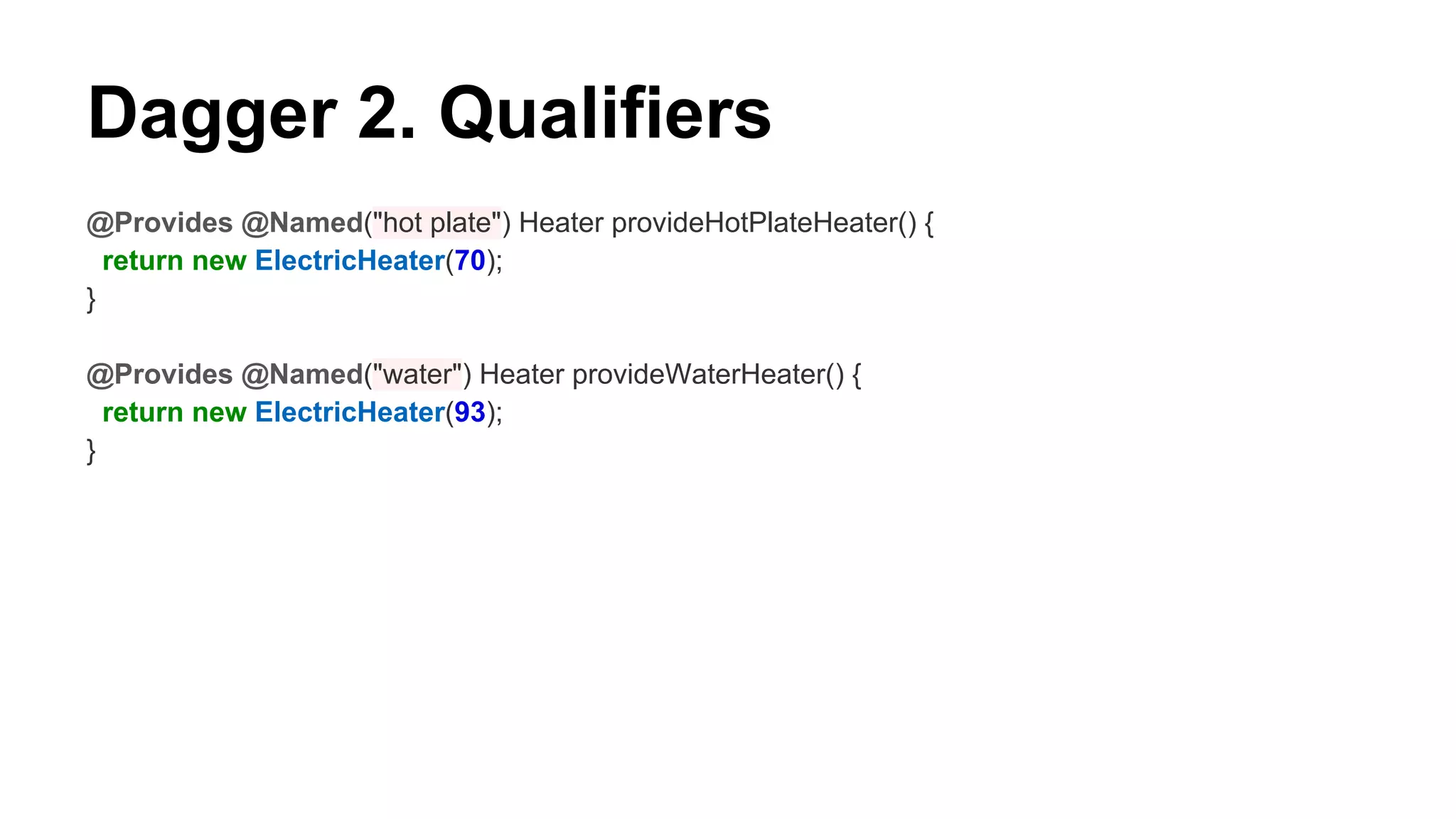

28. Dagger 2. Qualifiers
@Provides @Named("hot plate") Heater provideHotPlateHeater() {
return new ElectricHeater(70);
}
@Provides @Named("water") Heater provideWaterHeater() {
return new ElectricHeater(93);
}

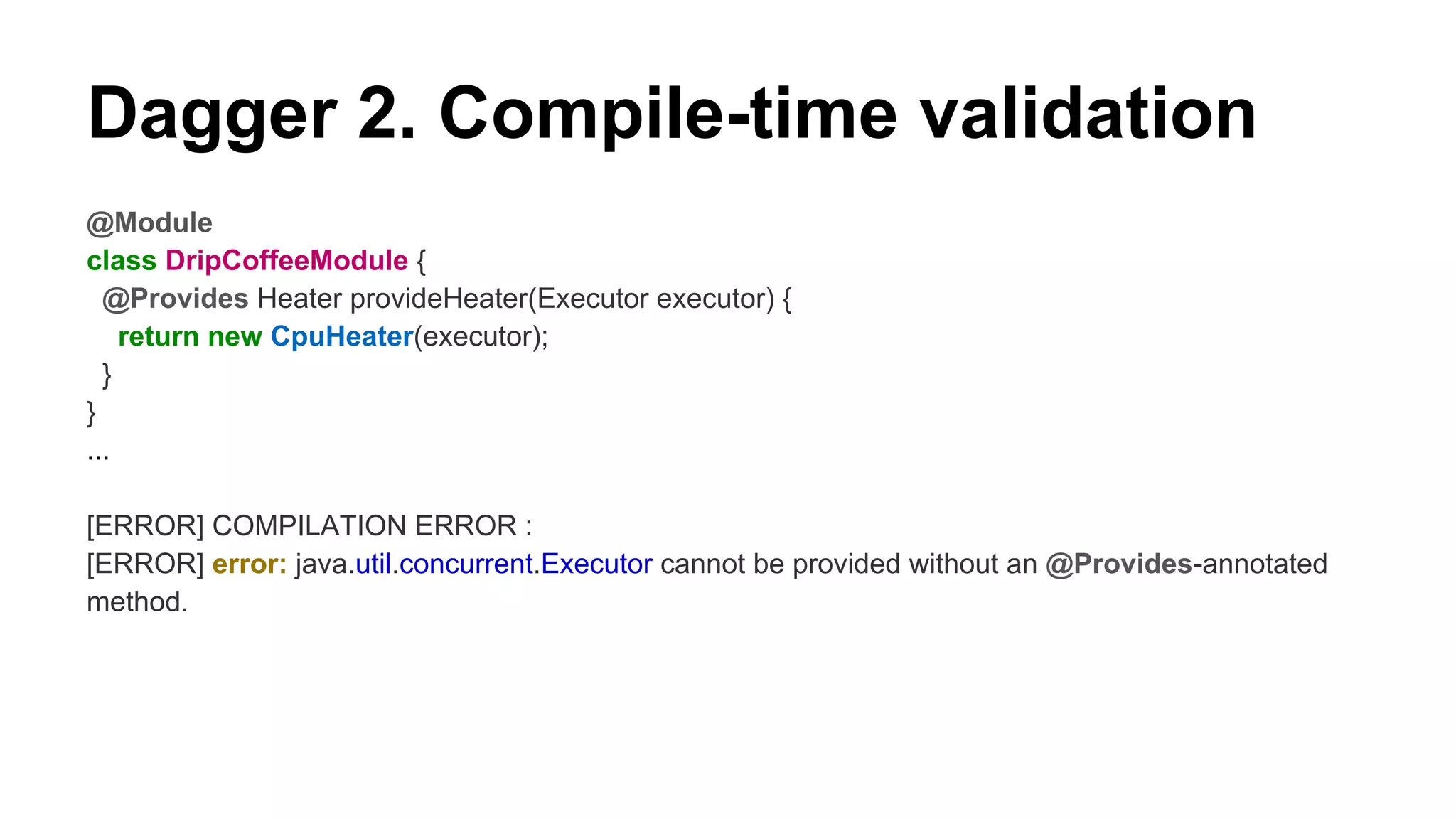

29. Dagger 2. Compile-time validation
@Module
class DripCoffeeModule {
@Provides Heater provideHeater(Executor executor) {
return new CpuHeater(executor);
}
}
...
[ERROR] COMPILATION ERROR :
[ERROR] error: java.util.concurrent.Executor cannot be provided without an @Provides-annotated
method.

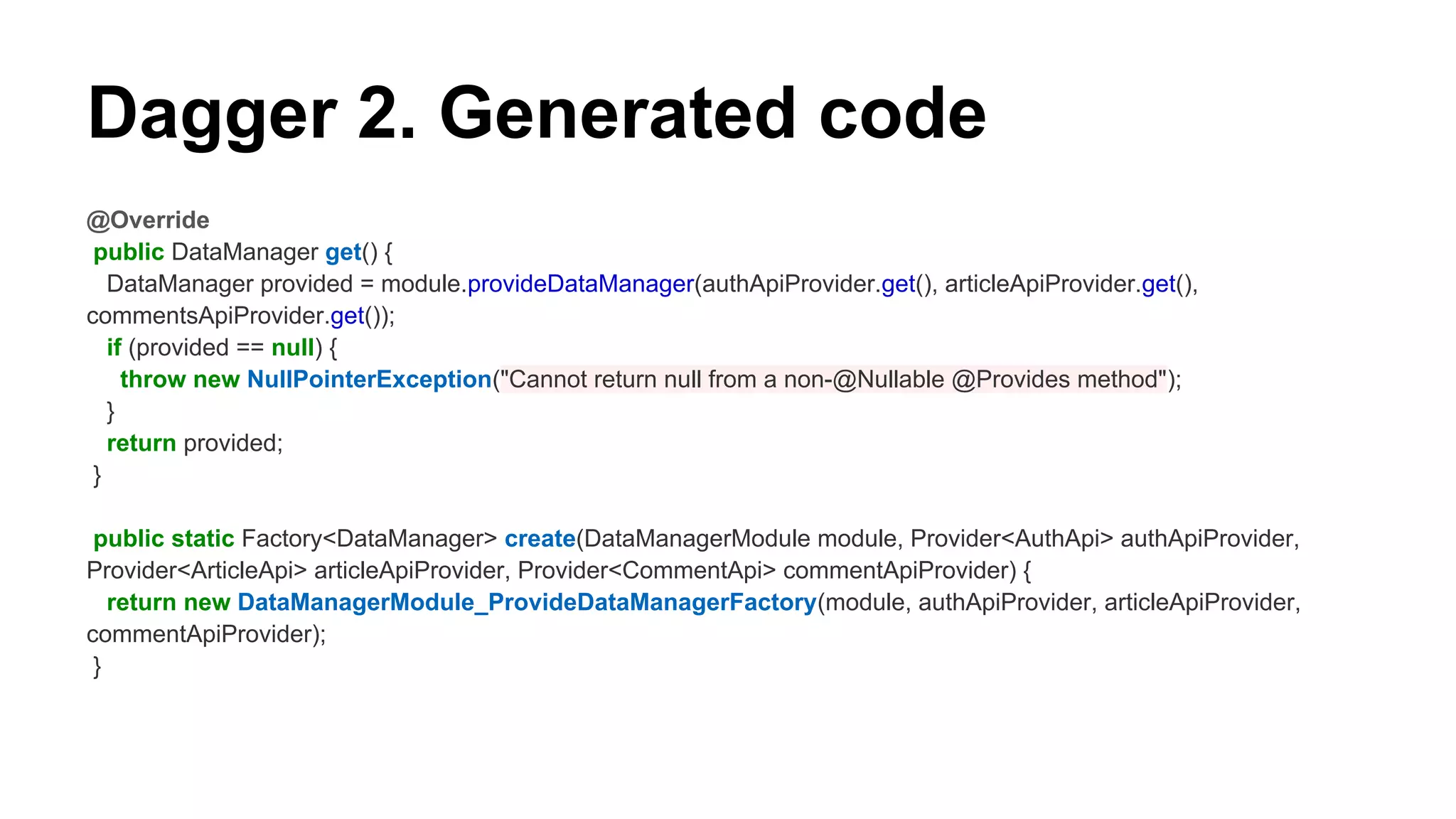

30. Dagger 2. Generated code
@Override
public DataManager get() {
DataManager provided = module.provideDataManager(authApiProvider.get(), articleApiProvider.get(),
commentsApiProvider.get());
if (provided == null) {
throw new NullPointerException("Cannot return null from a non-@Nullable @Provides method");
}
return provided;
}
public static Factory<DataManager> create(DataManagerModule module, Provider<AuthApi> authApiProvider,
Provider<ArticleApi> articleApiProvider, Provider<CommentApi> commentApiProvider) {
return new DataManagerModule_ProvideDataManagerFactory(module, authApiProvider, articleApiProvider,
commentApiProvider);
}

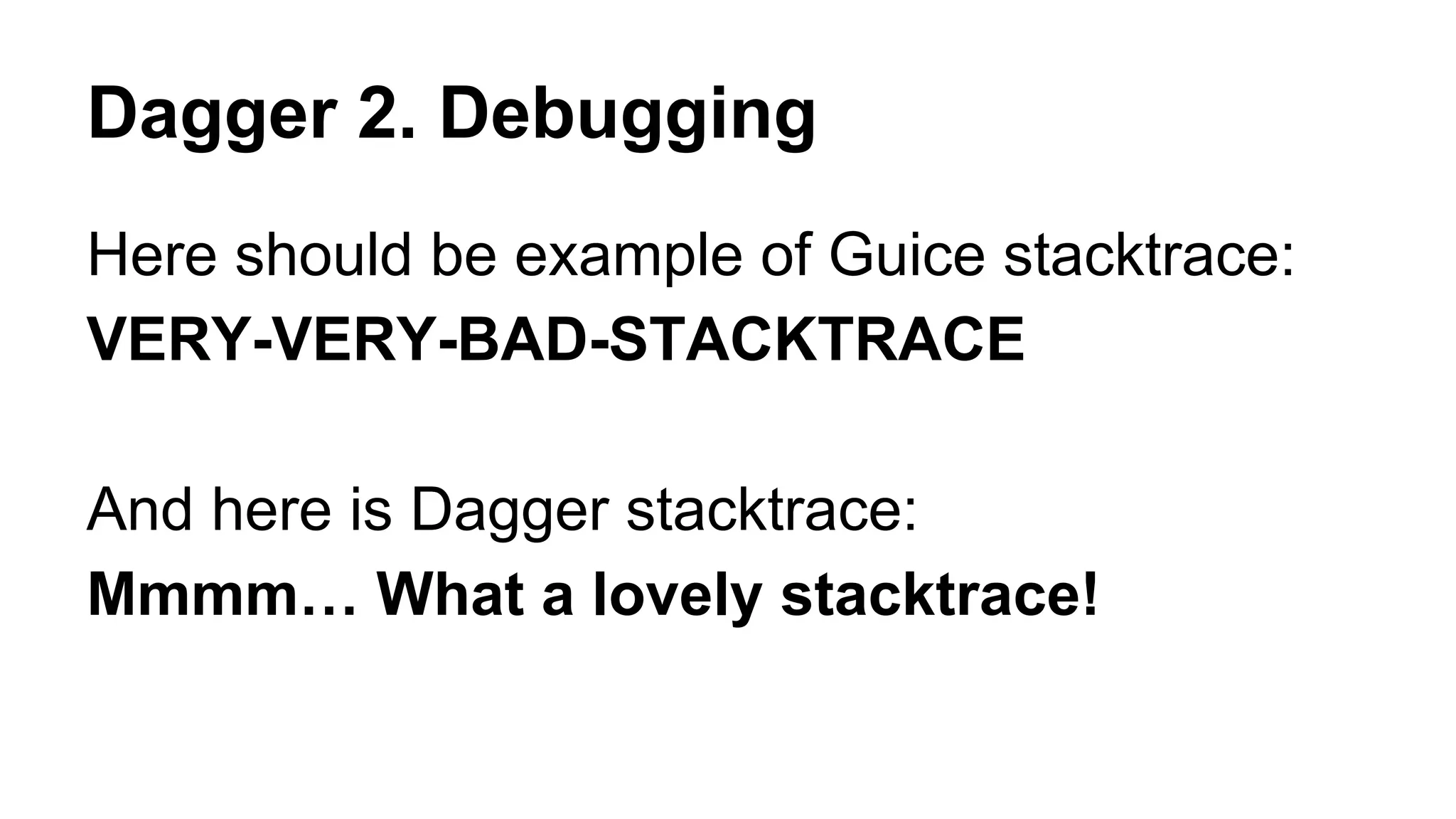

31. Dagger 2. Debugging
Here should be example of Guice stacktrace:
VERY-VERY-BAD-STACKTRACE
And here is Dagger stacktrace:
Mmmm… What a lovely stacktrace!

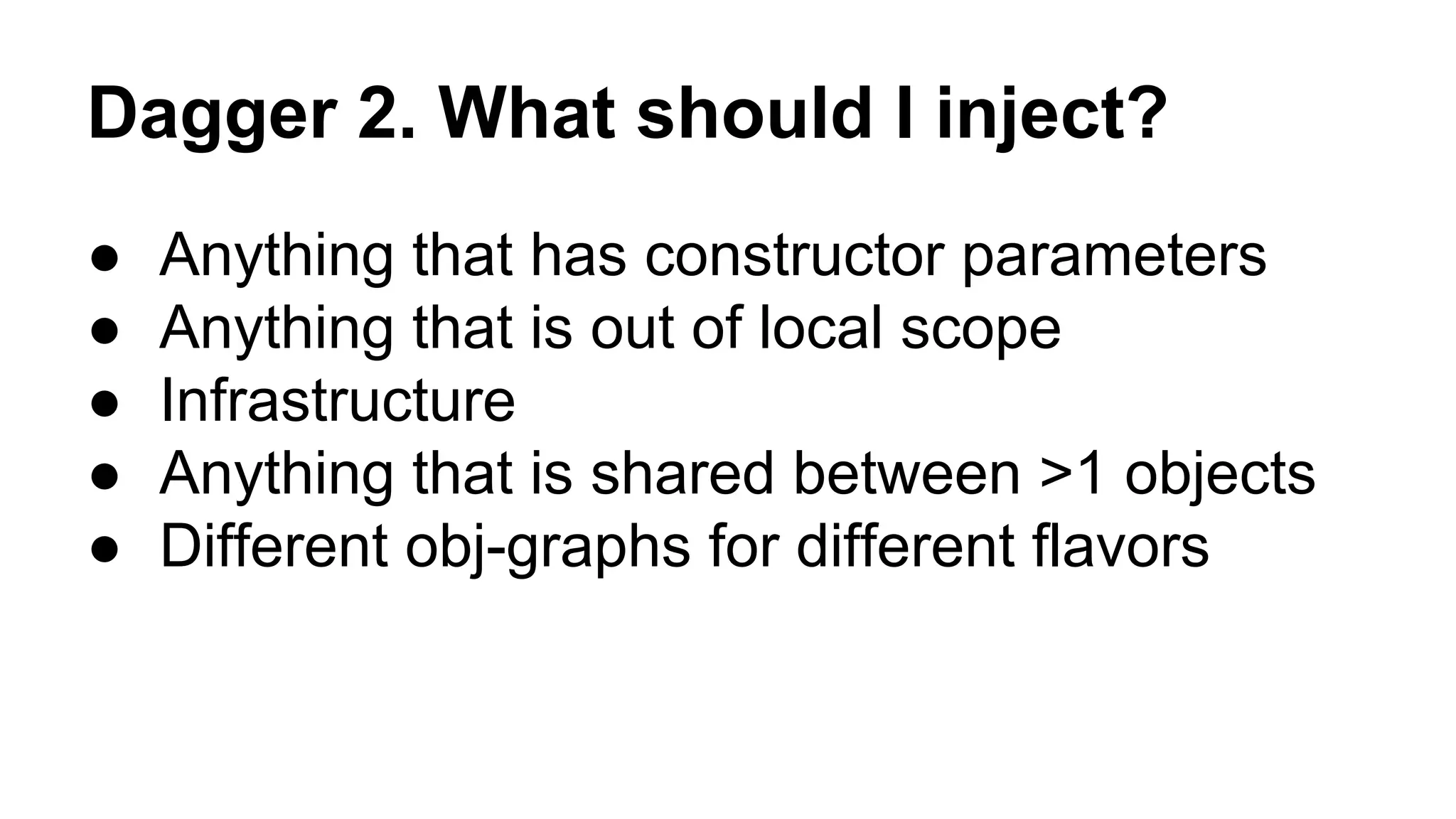

32. Dagger 2. What should I inject?
● Anything that has constructor parameters
● Anything that is out of local scope
● Infrastructure
● Anything that is shared between >1 objects
● Different obj-graphs for different flavors

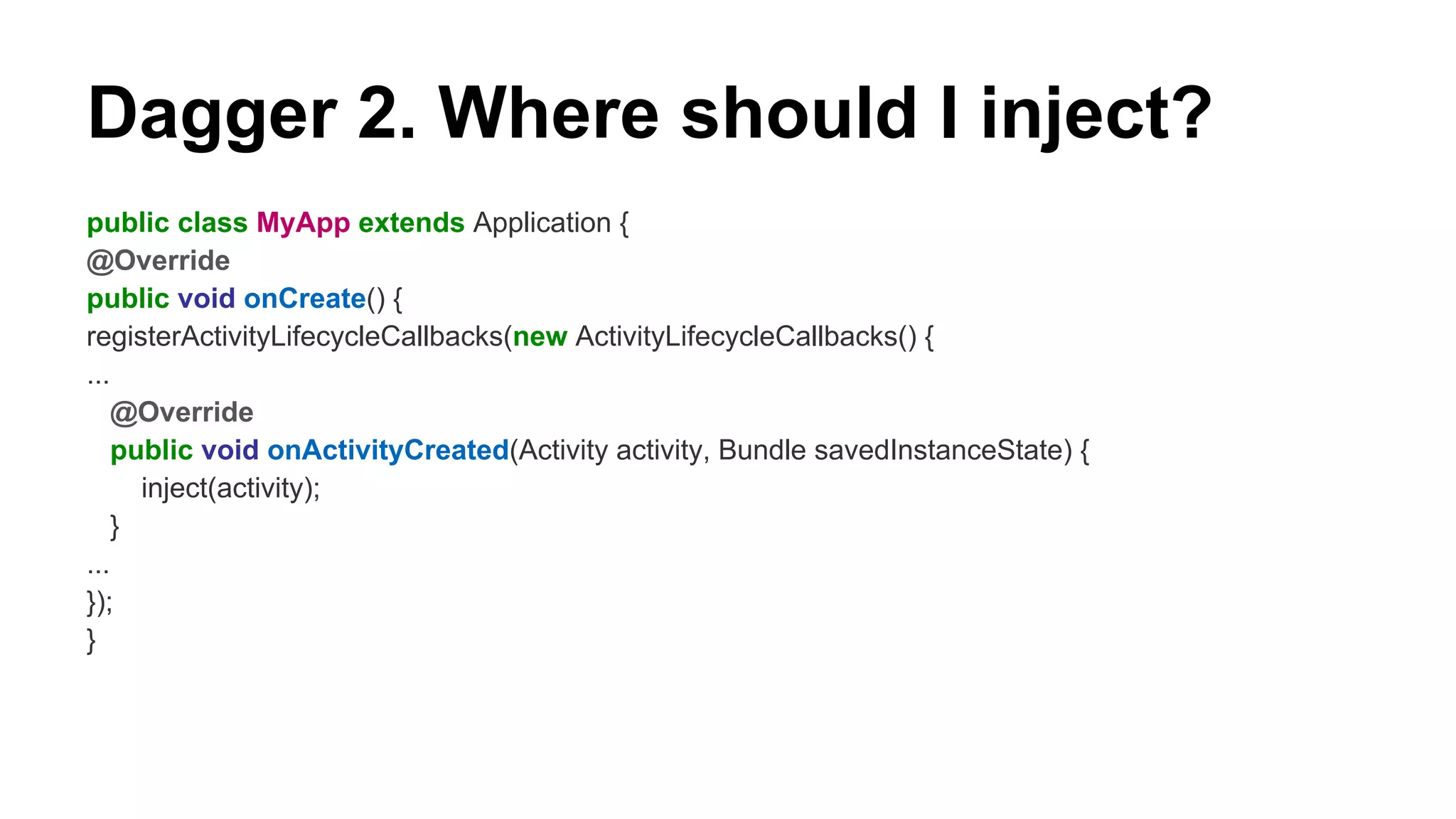

33. Dagger 2. Where should I inject?
public class MyApp extends Application {
@Override
public void onCreate() {
registerActivityLifecycleCallbacks(new ActivityLifecycleCallbacks() {
...
@Override
public void onActivityCreated(Activity activity, Bundle savedInstanceState) {
inject(activity);
}
...
});
}

34. Dagger 2
Example

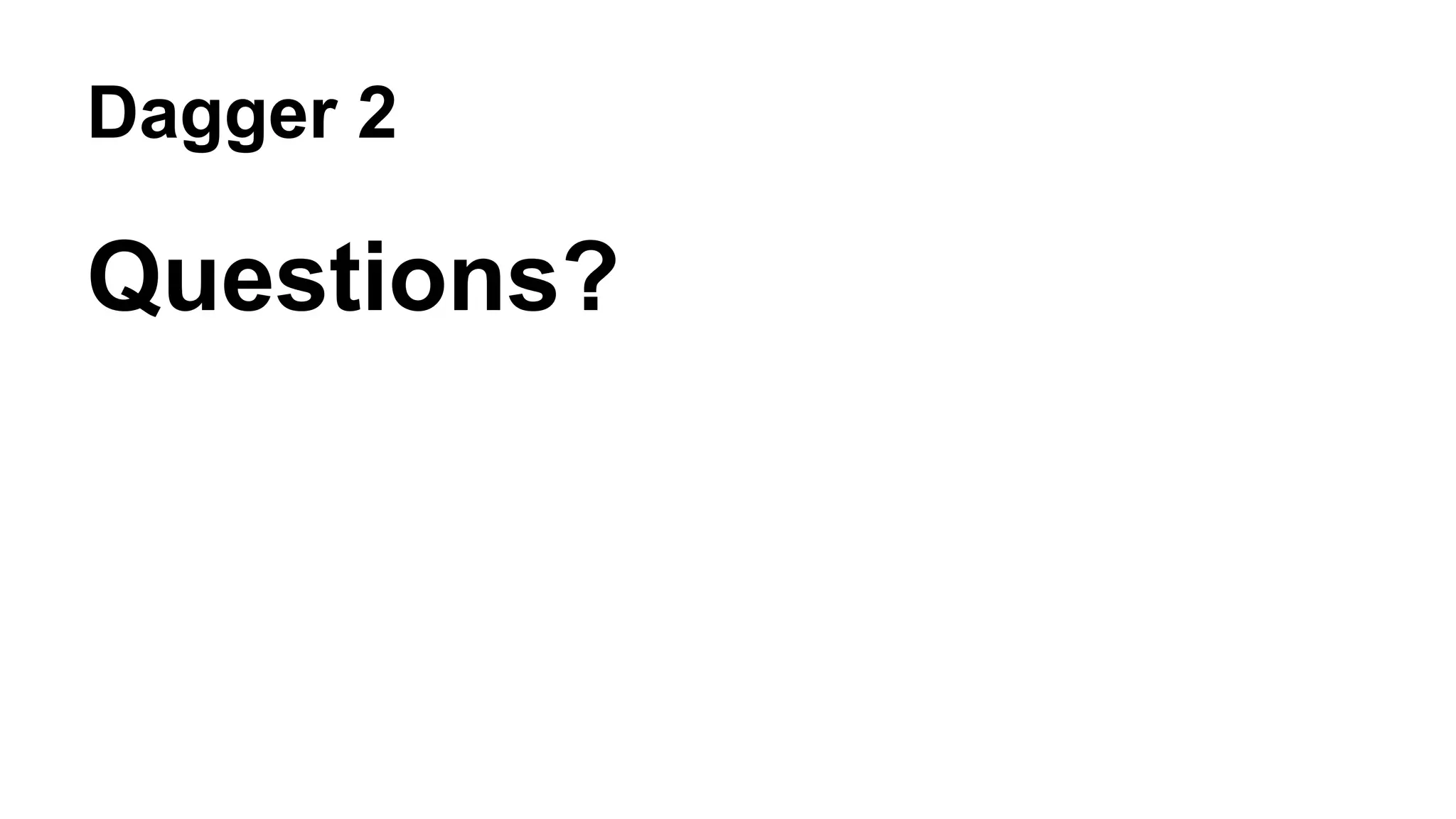

35. Dagger 2
Questions?

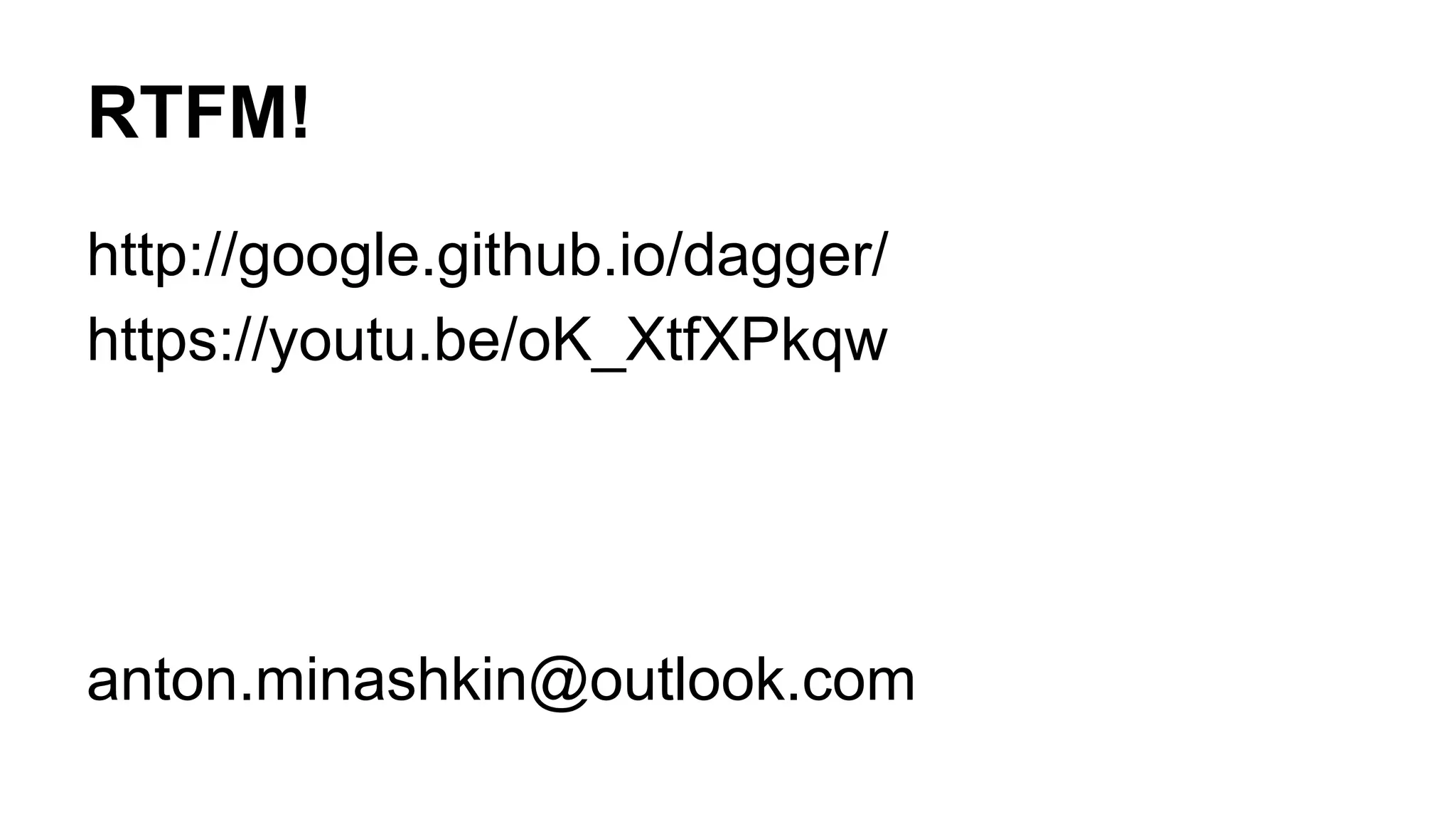

36. RTFM!
http://google.github.io/dagger/
https://youtu.be/oK_XtfXPkqw
