1. Dependency Injection with Dagger2
M.Javad Hashemi

2. Dependency Injection
● A style of creation in which an object are created by an external entity or technique
whereby one object supplies the dependencies of another object.
● IoC ( Inversion of Control)
○ The modules of top levels shouldn’t depend on modules of the lower levels. The modules of all
levels should depend on abstractions.
○ The abstractions shouldn’t depend on details. The details should depend on abstractions.

3. Dependency Injection
Benefits of DI ?
● Test
● Maintenance
● Reusable code

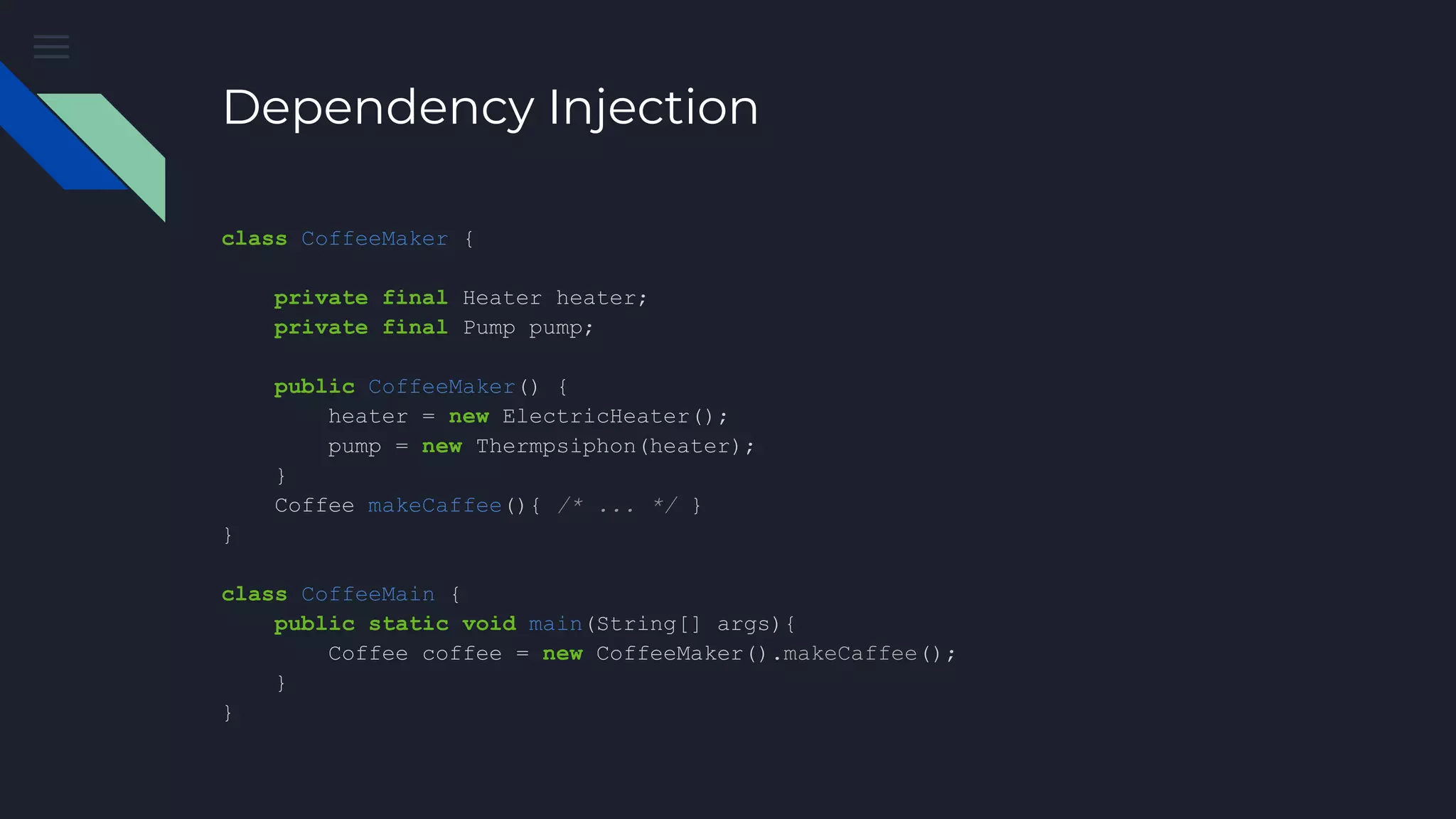

4. Dependency Injection
class CoffeeMaker {
private final Heater heater;
private final Pump pump;
public CoffeeMaker() {
heater = new ElectricHeater();
pump = new Thermpsiphon(heater);
}
Coffee makeCaffee(){ /* ... */ }
}
class CoffeeMain {
public static void main(String[] args){
Coffee coffee = new CoffeeMaker().makeCaffee();
}
}

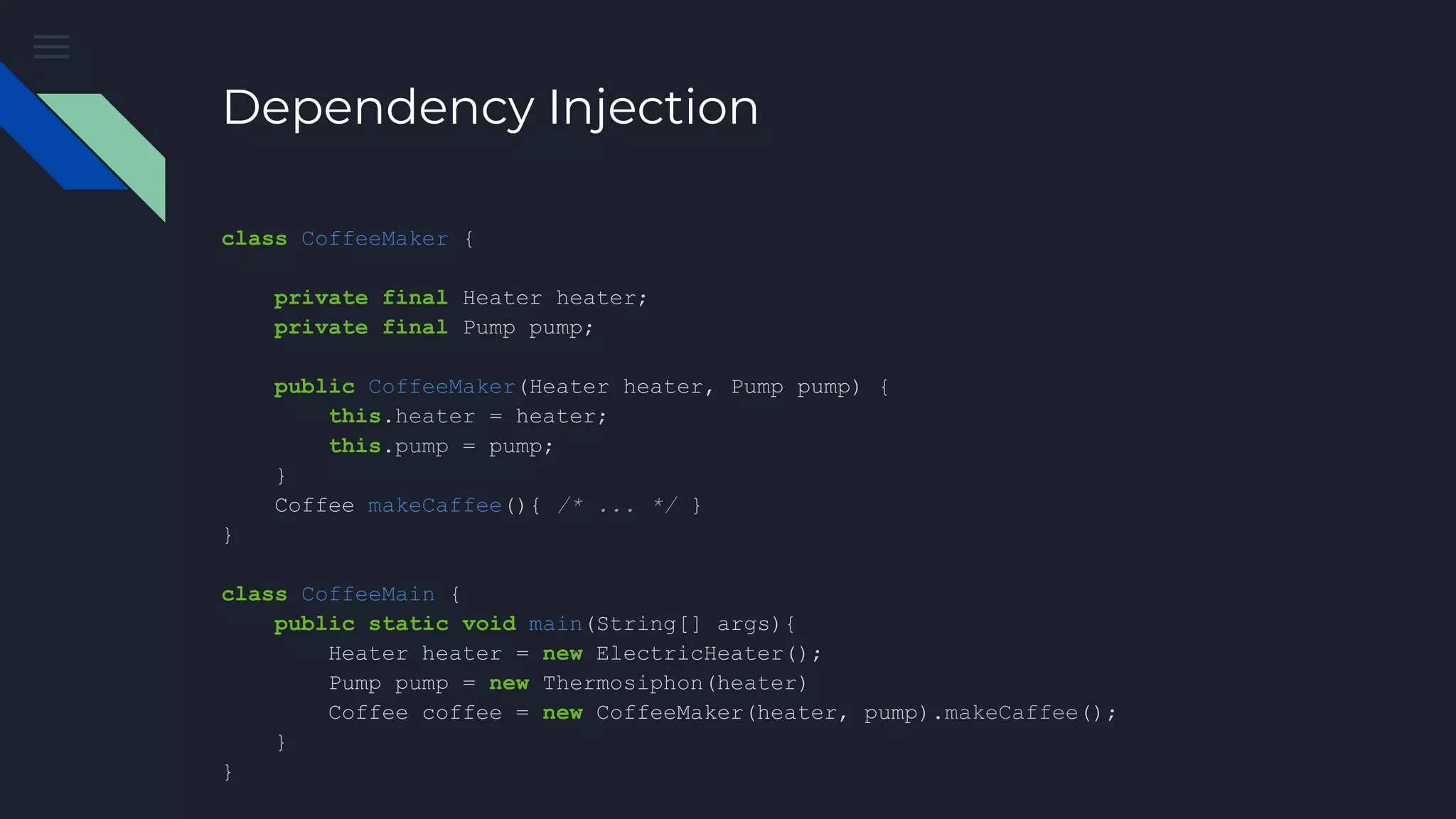

5. Dependency Injection
class CoffeeMaker {
private final Heater heater;
private final Pump pump;
public CoffeeMaker(Heater heater, Pump pump) {
this.heater = heater;
this.pump = pump;
}
Coffee makeCaffee(){ /* ... */ }
}
class CoffeeMain {
public static void main(String[] args){
Heater heater = new ElectricHeater();
Pump pump = new Thermosiphon(heater)
Coffee coffee = new CoffeeMaker(heater, pump).makeCaffee();
}
}

6. Dagger2
● Generate all the dependency injection boilerplate codes based on
annotation processing
● Base elements:
○ @Inject
○ @Module/@Provide
○ @Component
○ @Scope
○ @Named/@Qualifier

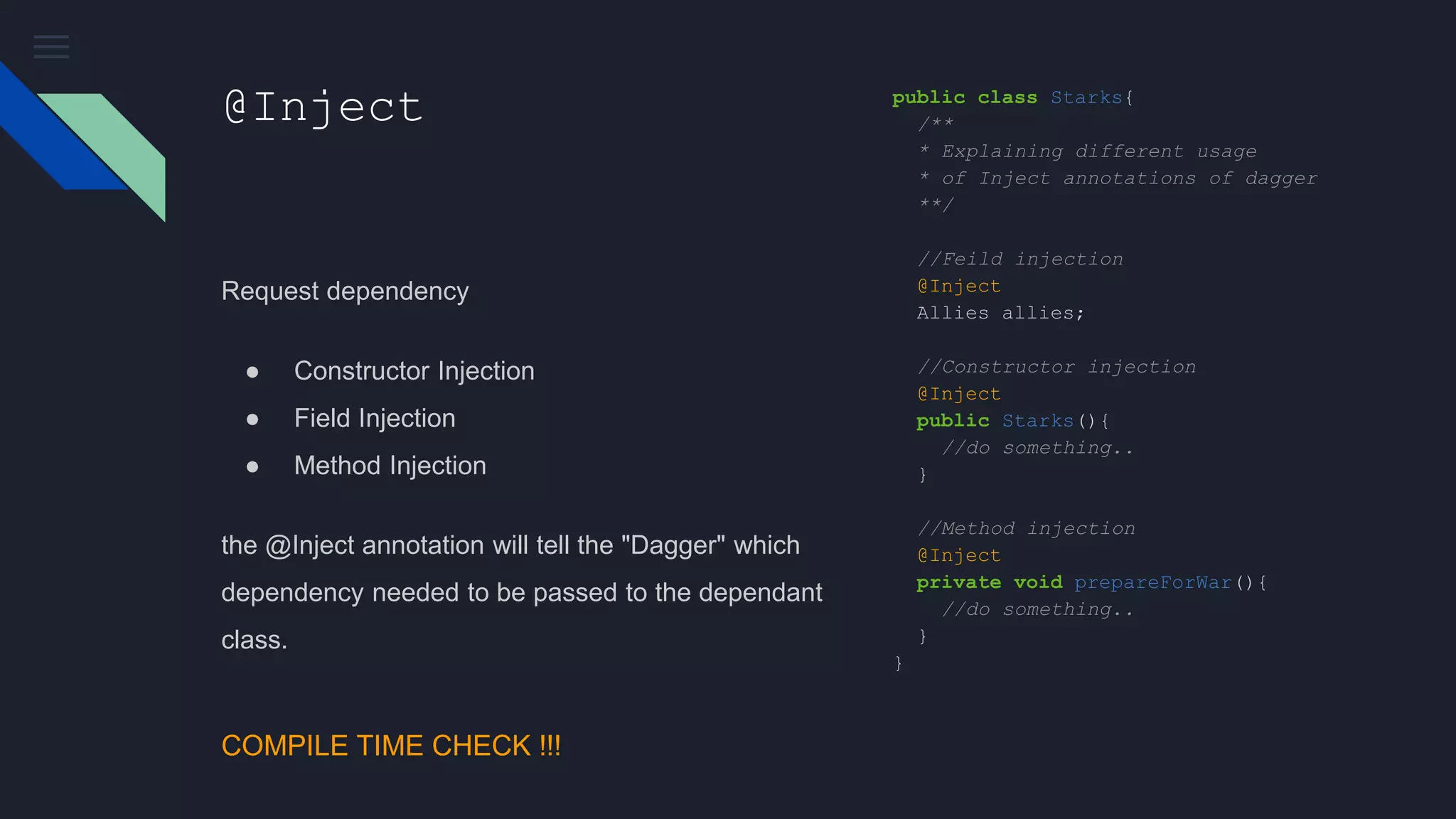

7. @Inject
Request dependency
● Constructor Injection
● Field Injection
● Method Injection
the @Inject annotation will tell the "Dagger" which
dependency needed to be passed to the dependant
class.
public class Starks{
/**
* Explaining different usage
* of Inject annotations of dagger
**/
//Feild injection
@Inject
Allies allies;
//Constructor injection
@Inject
public Starks(){
//do something..
}
//Method injection
@Inject
private void prepareForWar(){
//do something..
}
}
COMPILE TIME CHECK !!!

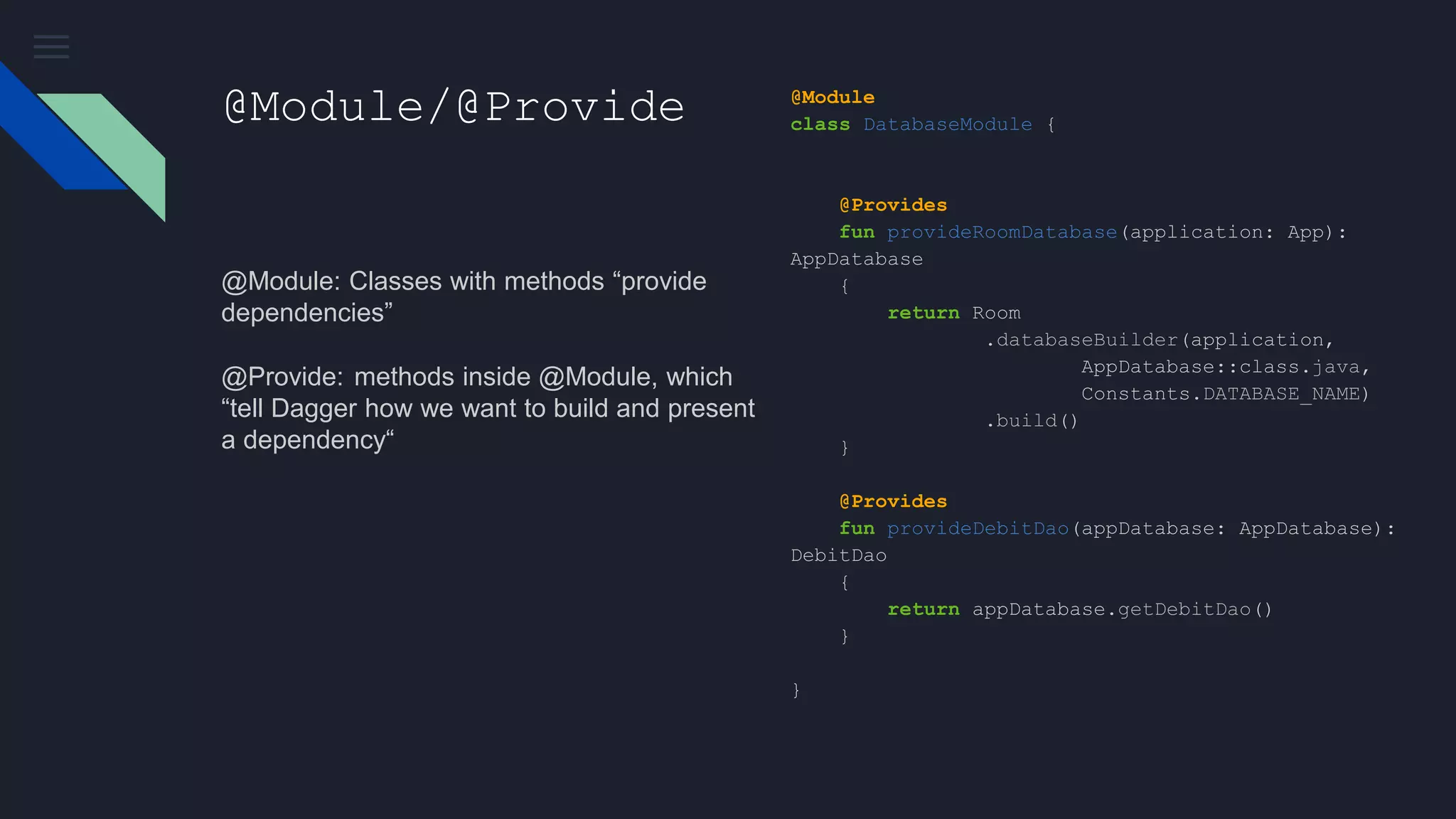

8. @Module/@Provide
@Module: Classes with methods “provide
dependencies”
@Provide: methods inside @Module, which
“tell Dagger how we want to build and present
a dependency“
@Module
class DatabaseModule {
@Provides
fun provideRoomDatabase(application: App):
AppDatabase
{
return Room
.databaseBuilder(application,
AppDatabase::class.java,
Constants.DATABASE_NAME)
.build()
}
@Provides
fun provideDebitDao(appDatabase: AppDatabase):
DebitDao
{
return appDatabase.getDebitDao()
}
}

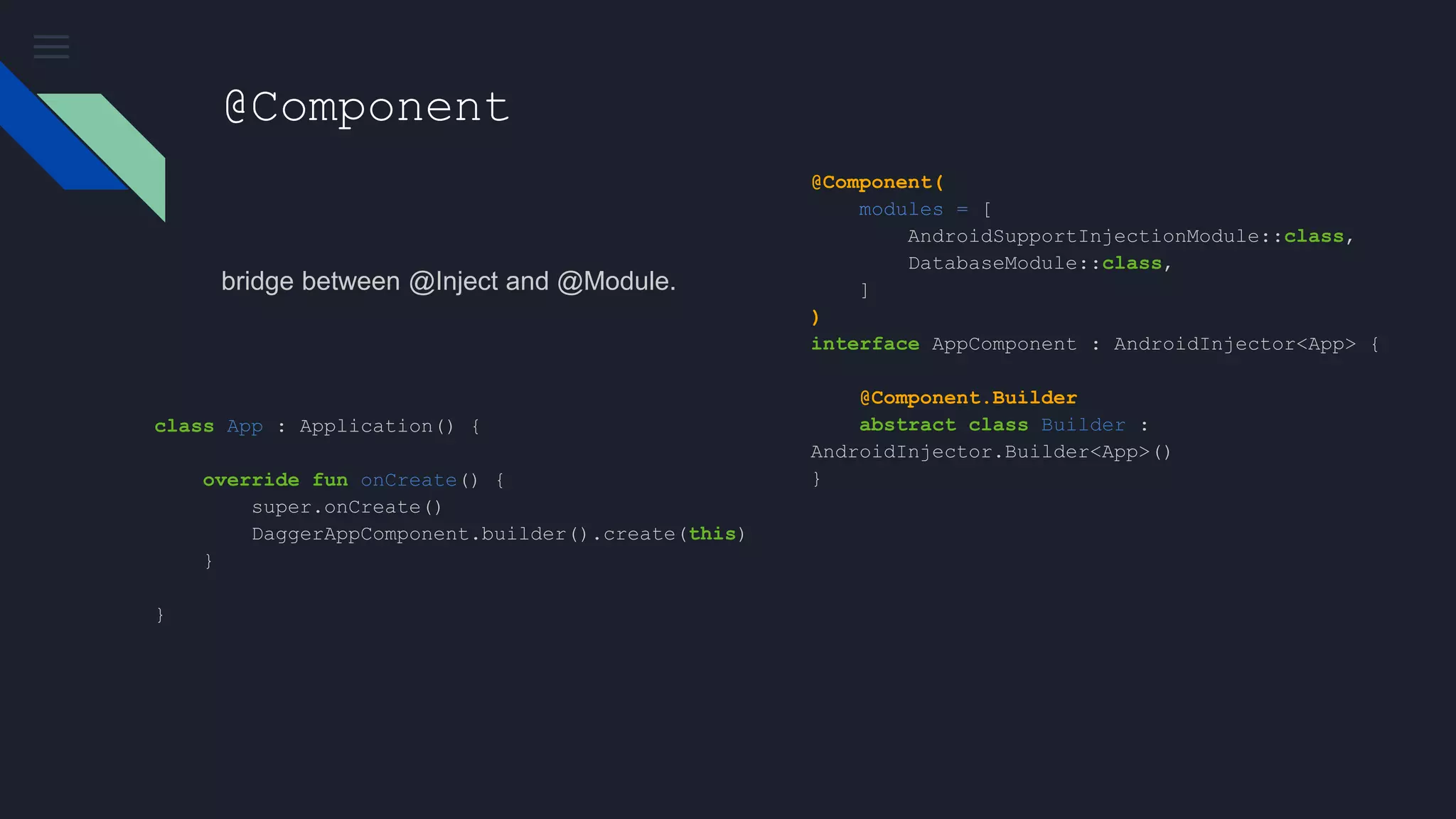

9. @Component
bridge between @Inject and @Module.
@Component(
modules = [
AndroidSupportInjectionModule::class,
DatabaseModule::class,
]
)
interface AppComponent : AndroidInjector<App> {
@Component.Builder
abstract class Builder :
AndroidInjector.Builder<App>()
}
class App : Application() {
override fun onCreate() {
super.onCreate()
DaggerAppComponent.builder().create(this)
}
}

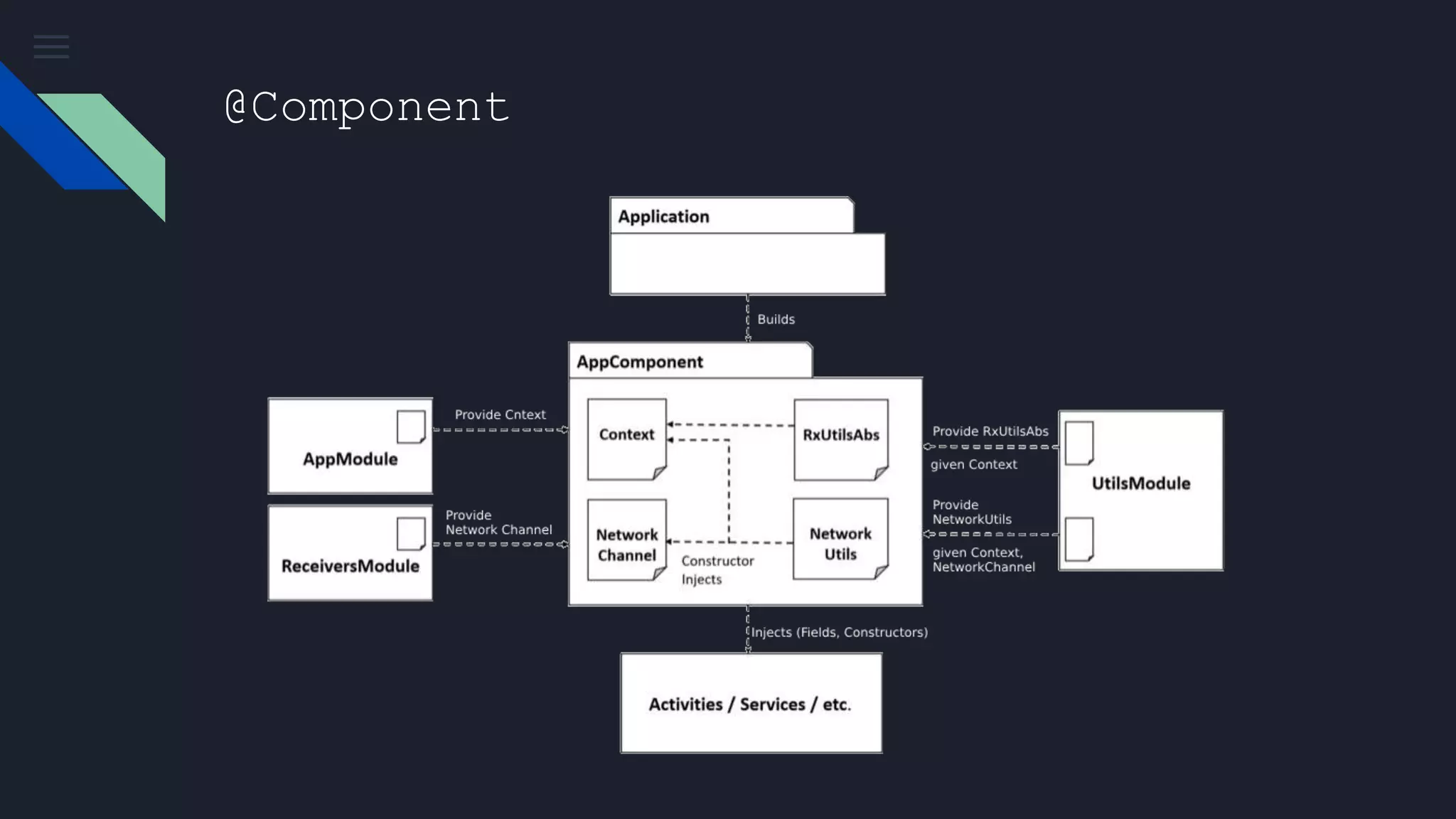

10. @Component

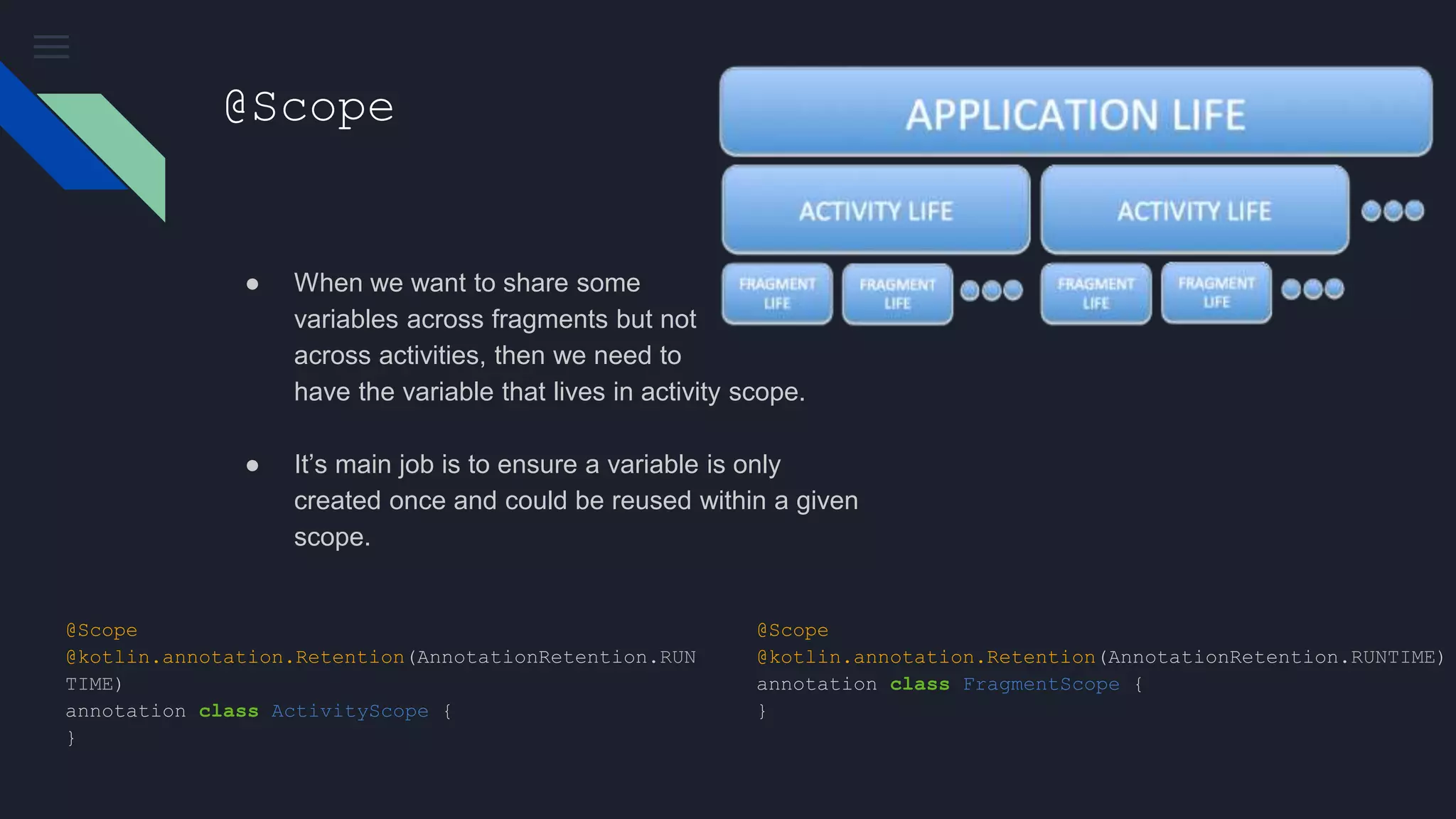

11. @Scope
● When we want to share some
variables across fragments but not
across activities, then we need to
have the variable that lives in activity scope.
● It’s main job is to ensure a variable is only
created once and could be reused within a given
scope.
@Scope
@kotlin.annotation.Retention(AnnotationRetention.RUNTIME)
annotation class FragmentScope {
}
@Scope
@kotlin.annotation.Retention(AnnotationRetention.RUN
TIME)
annotation class ActivityScope {
}

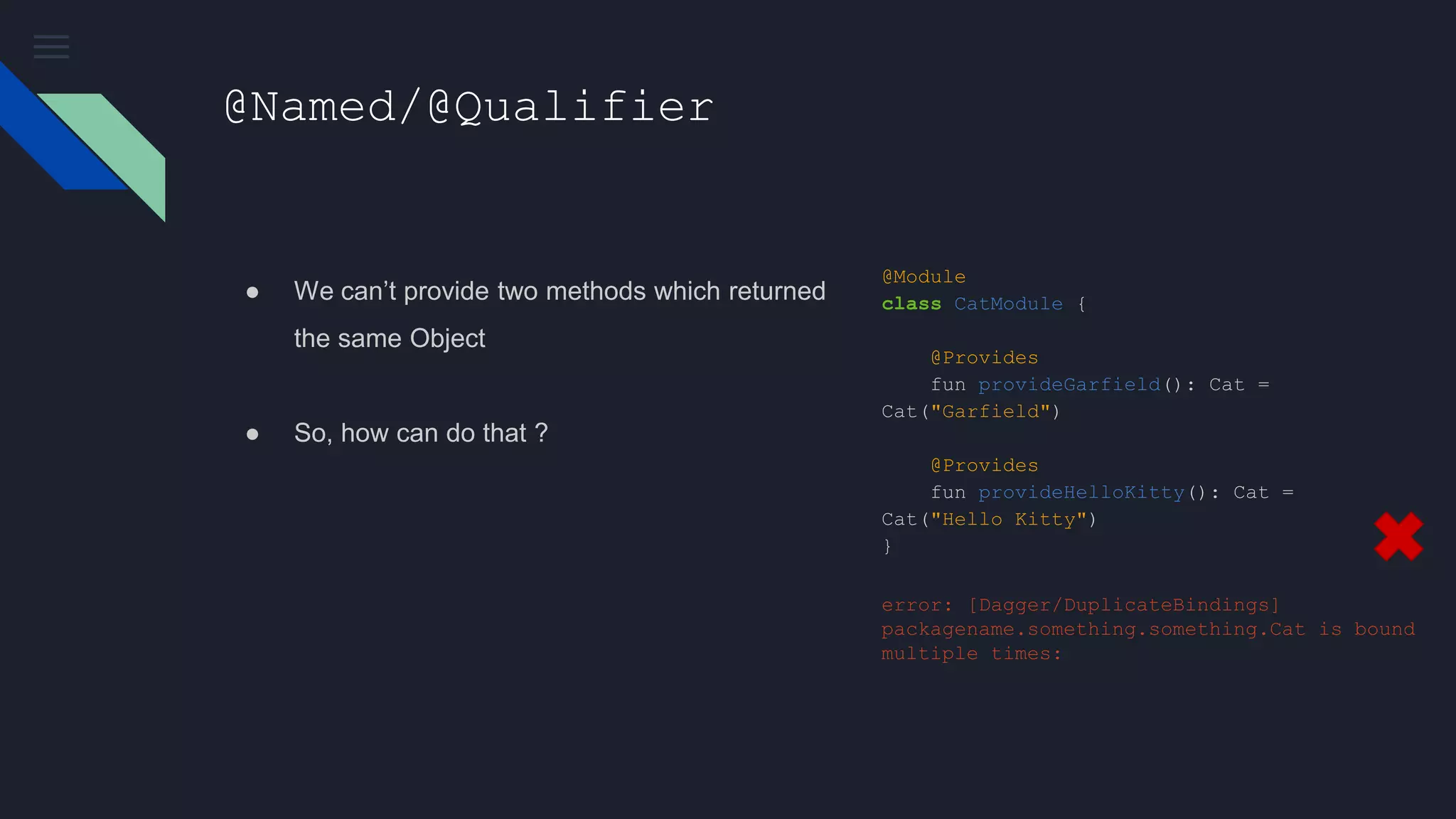

12. @Named/@Qualifier
● We can’t provide two methods which returned
the same Object
● So, how can do that ?
@Module
class CatModule {
@Provides
fun provideGarfield(): Cat =
Cat("Garfield")
@Provides
fun provideHelloKitty(): Cat =
Cat("Hello Kitty")
}
error: [Dagger/DuplicateBindings]
packagename.something.something.Cat is bound
multiple times:

13. @Named/@Qualifier
● The @Named annotation is good for identifying
which provider to be used when we are trying
to inject the dependency of the same type.
@Module
class CatModule {
@Provides
@Named("Garfield")
fun provideGarfield(): Cat =
Cat("Garfield")
@Provides
@Named("HelloKitty")
fun provideHelloKitty(): Cat =
Cat("Hello Kitty")
}
class QualifierActivity : AppCompatActivity() {
@Inject
@Named("Garfield")
lateinit var garfield: Cat
@Inject
@Named("HelloKitty")
lateinit var helloKitty: Cat
override fun onCreate(savedInstanceState:
Bundle?) {
super.onCreate(savedInstanceState)
setContentView(R.layout.activity_qualifier)
DaggerCatComponent.builder().build().inject(this
)
garfieldTextView.text = "injected:
${garfield.name}"
helloKittyTextView.text = "injected:
${helloKitty.name}"
}
}

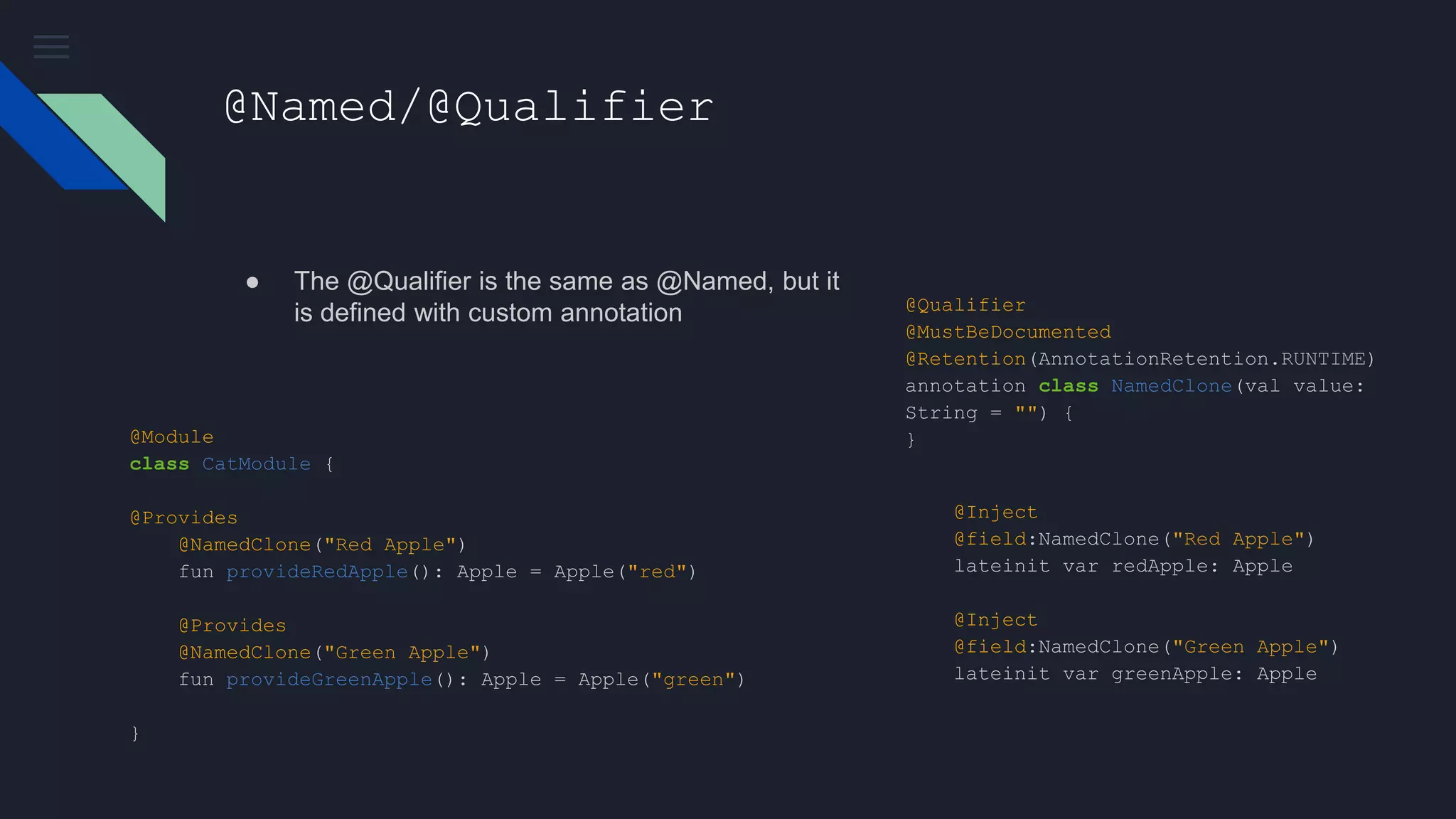

14. @Named/@Qualifier
● The @Qualifier is the same as @Named, but it
is defined with custom annotation
@Module
class CatModule {
@Provides
@NamedClone("Red Apple")
fun provideRedApple(): Apple = Apple("red")
@Provides
@NamedClone("Green Apple")
fun provideGreenApple(): Apple = Apple("green")
}
@Qualifier
@MustBeDocumented
@Retention(AnnotationRetention.RUNTIME)
annotation class NamedClone(val value:
String = "") {
}
@Inject
@field:NamedClone("Red Apple")
lateinit var redApple: Apple
@Inject
@field:NamedClone("Green Apple")
lateinit var greenApple: Apple

15. Is it the end?
Not Yet !!!
We Implement all dagger parts but
something missing. Did you find it?

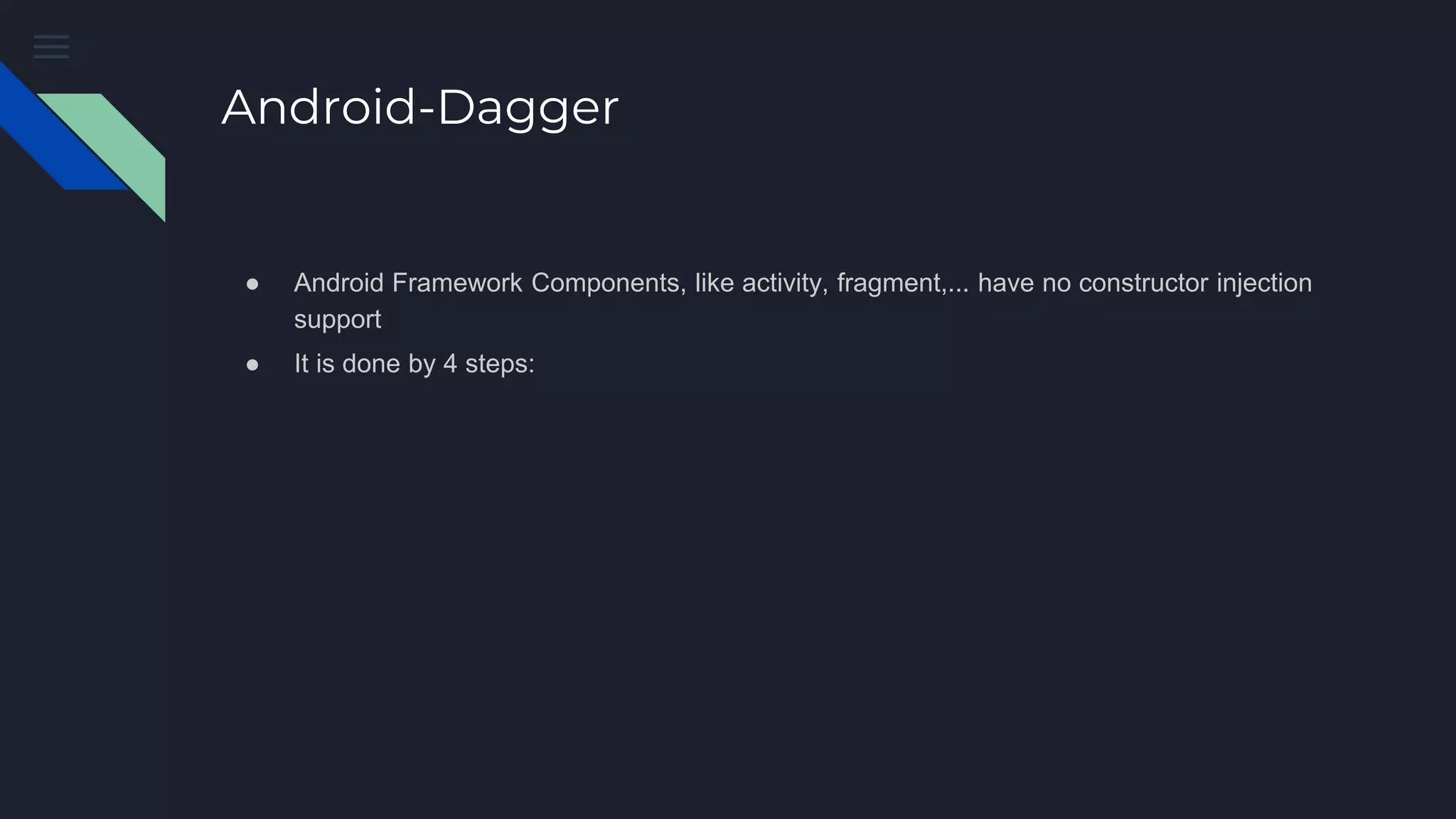

16. Android-Dagger
● Android Framework Components, like activity, fragment,... have no constructor injection
support
● It is done by 4 steps:

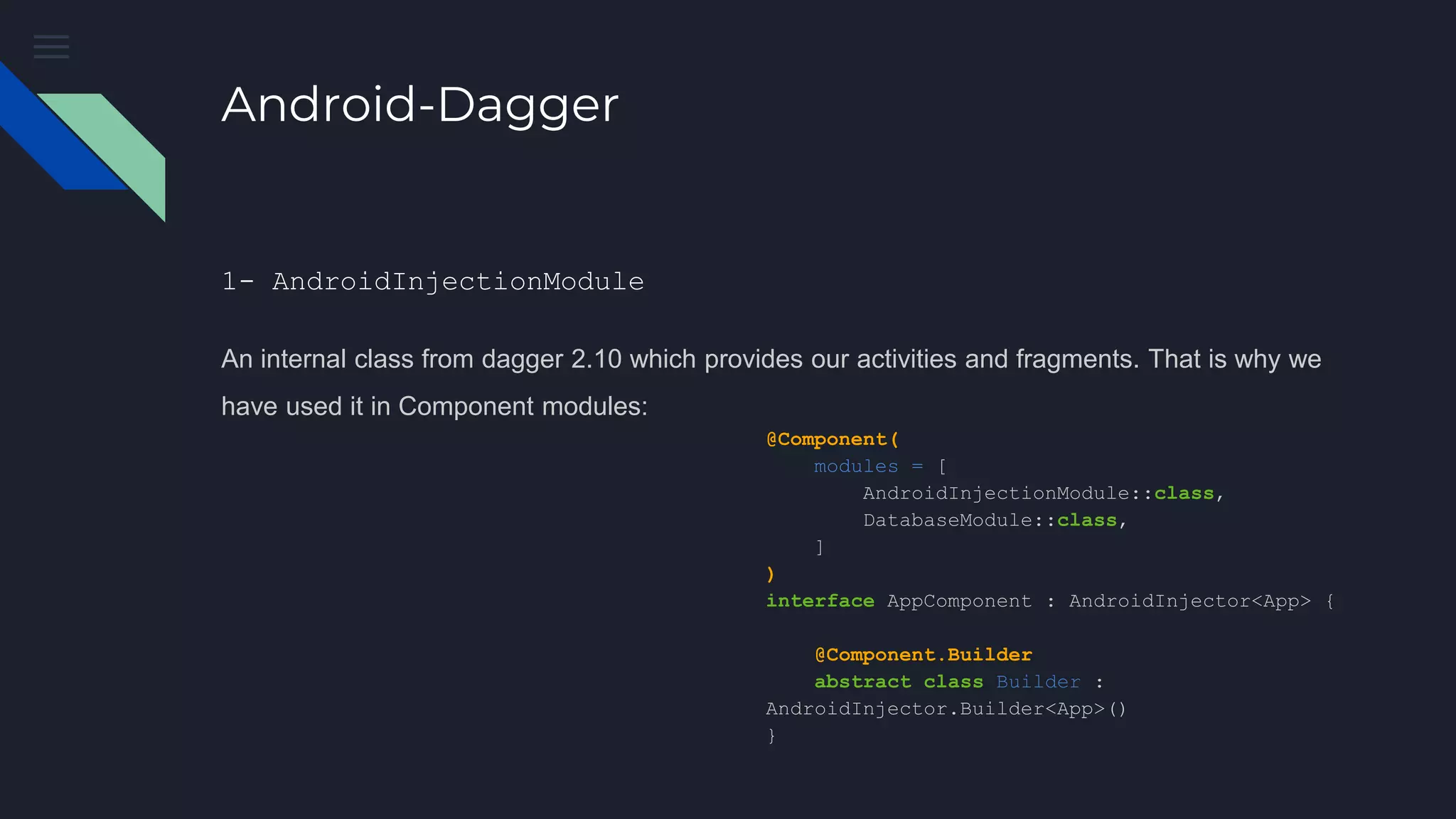

17. Android-Dagger
1- AndroidInjectionModule
An internal class from dagger 2.10 which provides our activities and fragments. That is why we
have used it in Component modules:
@Component(
modules = [
AndroidInjectionModule::class,
DatabaseModule::class,
]
)
interface AppComponent : AndroidInjector<App> {
@Component.Builder
abstract class Builder :
AndroidInjector.Builder<App>()
}

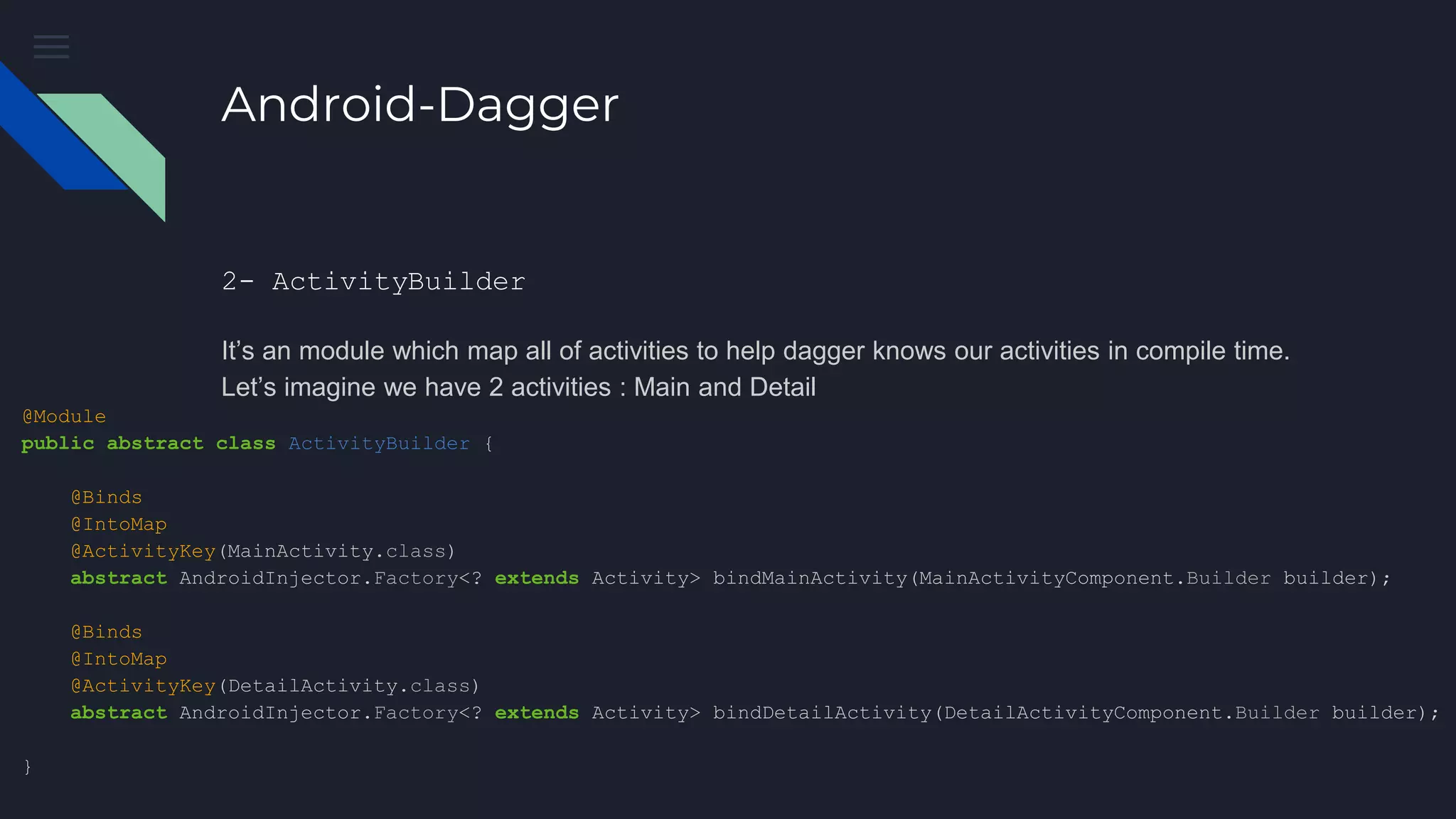

18. Android-Dagger
2- ActivityBuilder
It’s an module which map all of activities to help dagger knows our activities in compile time.
Let’s imagine we have 2 activities : Main and Detail
@Module
public abstract class ActivityBuilder {
@Binds
@IntoMap
@ActivityKey(MainActivity.class)
abstract AndroidInjector.Factory<? extends Activity> bindMainActivity(MainActivityComponent.Builder builder);
@Binds
@IntoMap
@ActivityKey(DetailActivity.class)
abstract AndroidInjector.Factory<? extends Activity> bindDetailActivity(DetailActivityComponent.Builder builder);
}

19. Android-Dagger
3- SubComponents
We can think apps in three layers while using Dagger.
● Application Component (Must be one)
● Activity Component
● Fragment Component
So. each Activity (also each Fragment) must have its own component. These are defined as
SubComponents

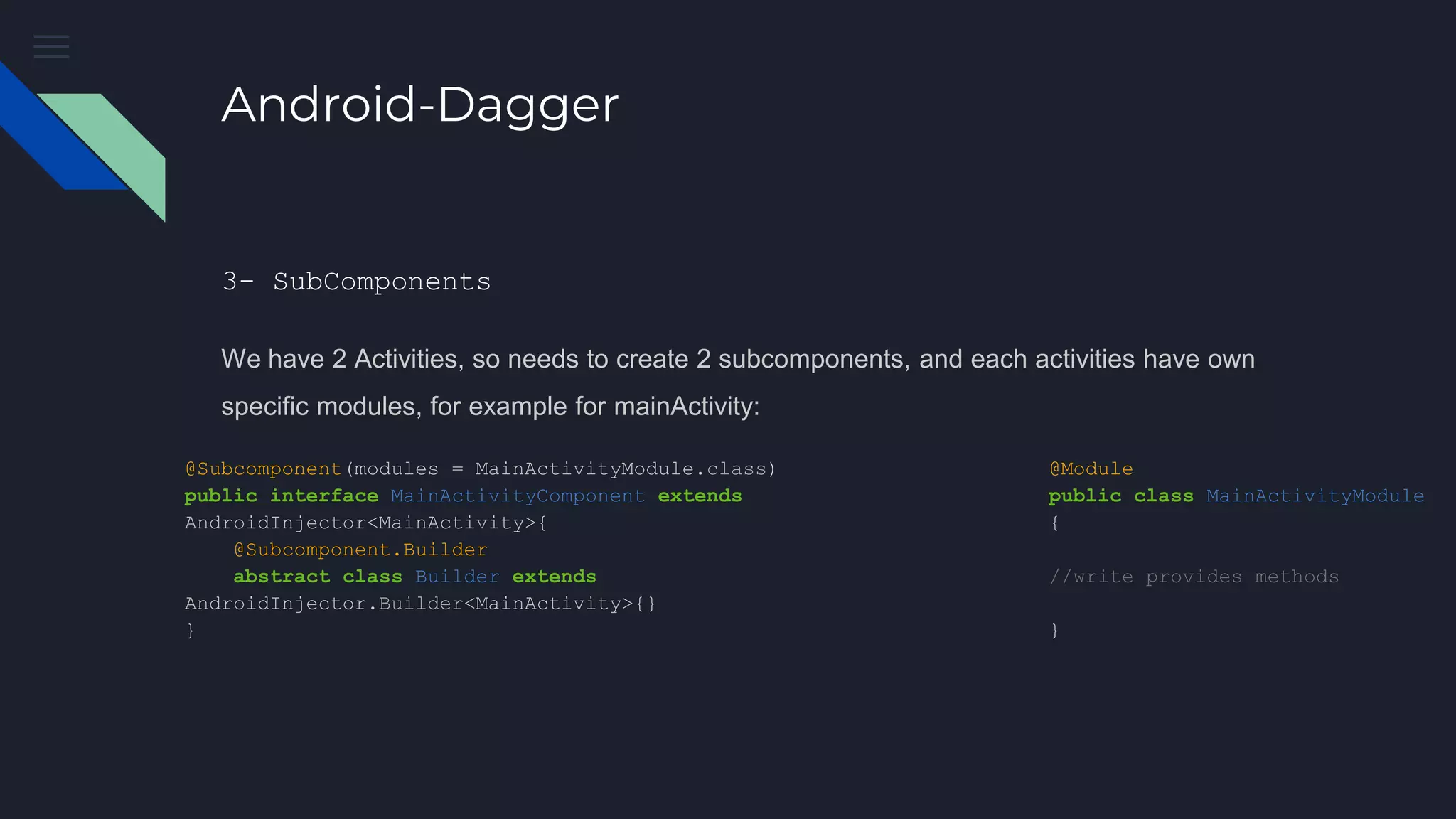

20. Android-Dagger
3- SubComponents
We have 2 Activities, so needs to create 2 subcomponents, and each activities have own
specific modules, for example for mainActivity:
@Subcomponent(modules = MainActivityModule.class)
public interface MainActivityComponent extends
AndroidInjector<MainActivity>{
@Subcomponent.Builder
abstract class Builder extends
AndroidInjector.Builder<MainActivity>{}
}
@Module
public class MainActivityModule
{
//write provides methods
}

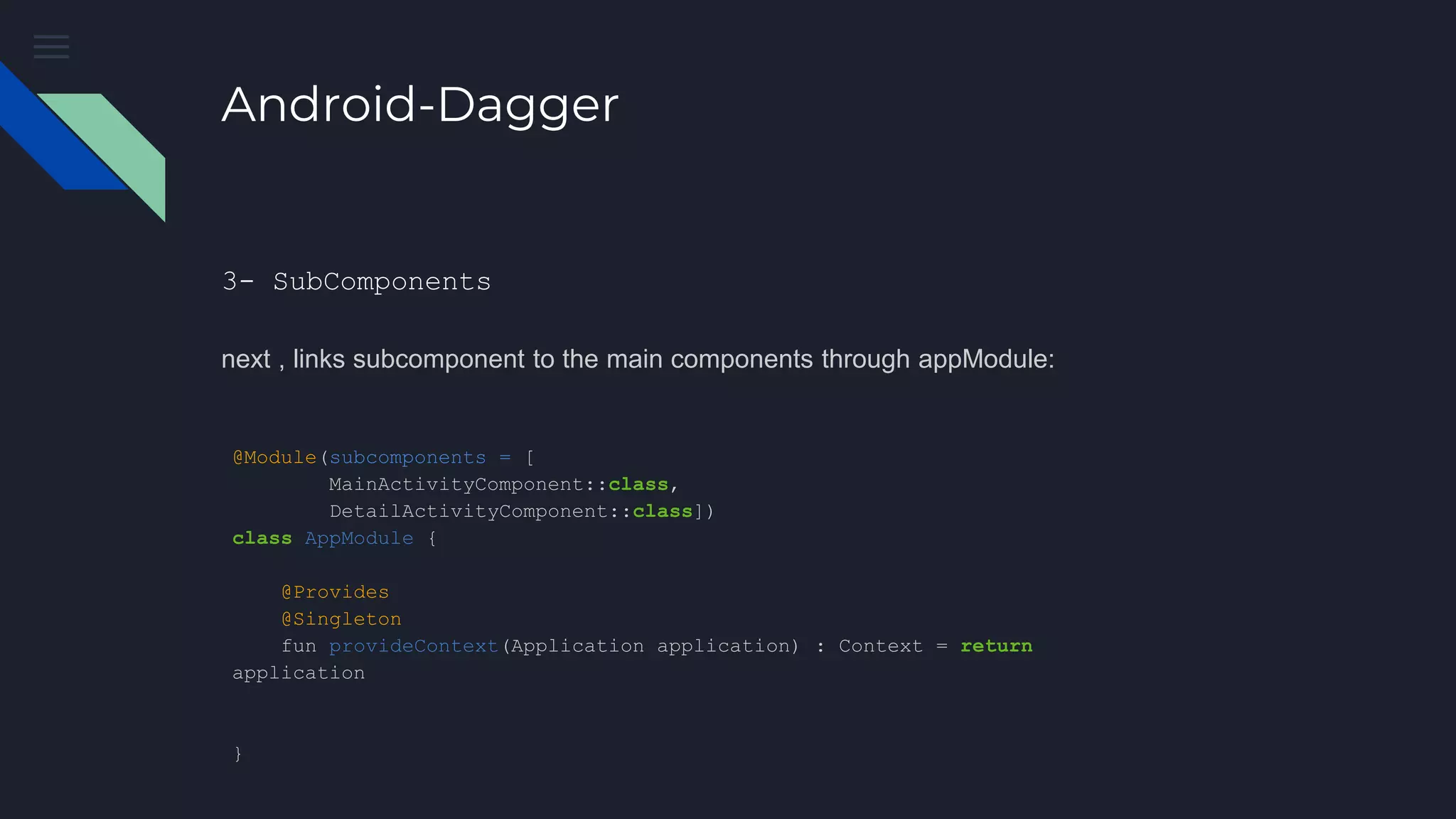

21. Android-Dagger
3- SubComponents
next , links subcomponent to the main components through appModule:
@Module(subcomponents = [
MainActivityComponent::class,
DetailActivityComponent::class])
class AppModule {
@Provides
@Singleton
fun provideContext(Application application) : Context = return
application
}

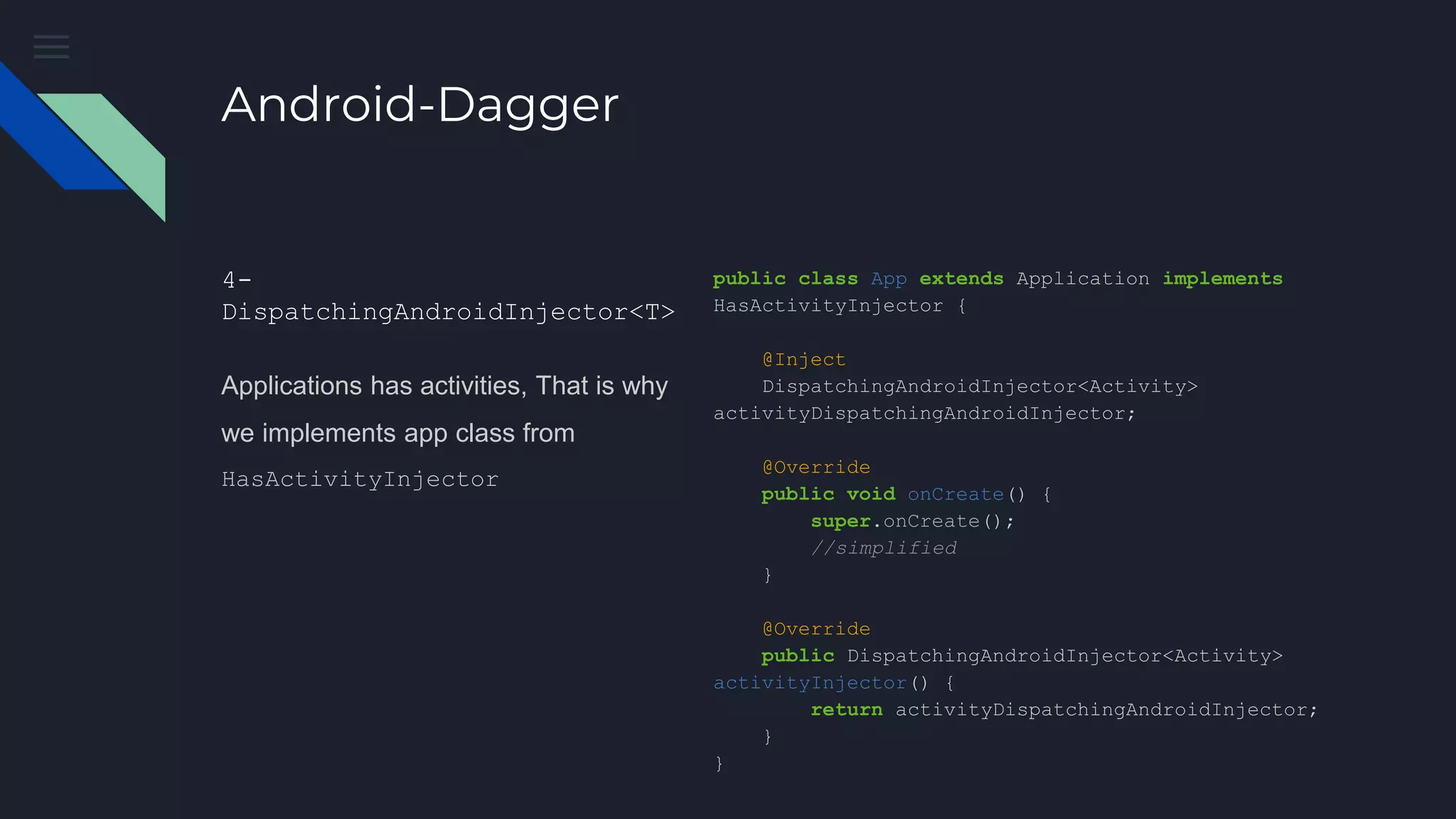

22. Android-Dagger
4-
DispatchingAndroidInjector<T>
Applications has activities, That is why
we implements app class from
HasActivityInjector
public class App extends Application implements
HasActivityInjector {
@Inject
DispatchingAndroidInjector<Activity>
activityDispatchingAndroidInjector;
@Override
public void onCreate() {
super.onCreate();
//simplified
}
@Override
public DispatchingAndroidInjector<Activity>
activityInjector() {
return activityDispatchingAndroidInjector;
}
}

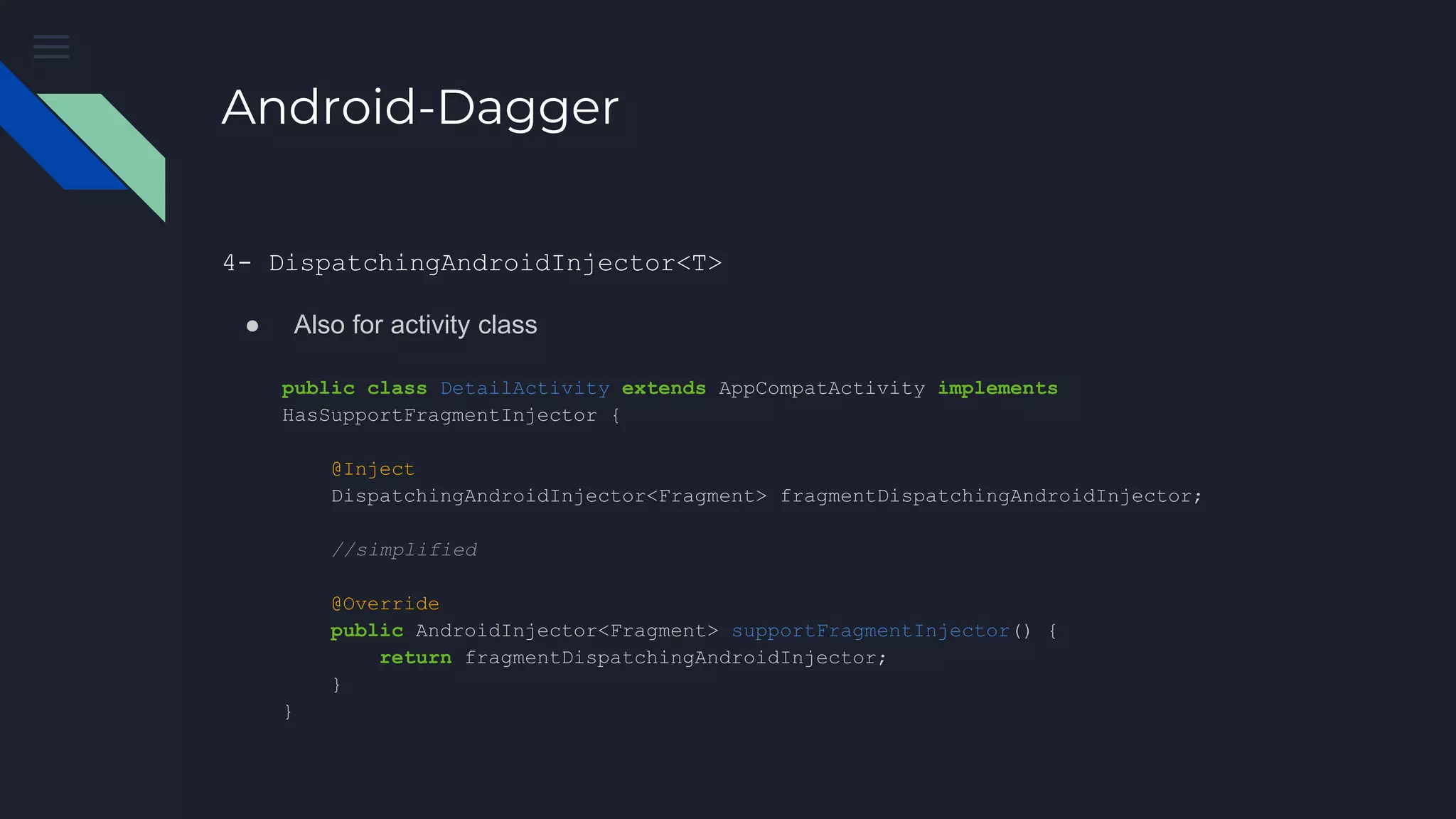

23. Android-Dagger
public class DetailActivity extends AppCompatActivity implements
HasSupportFragmentInjector {
@Inject
DispatchingAndroidInjector<Fragment> fragmentDispatchingAndroidInjector;
//simplified
@Override
public AndroidInjector<Fragment> supportFragmentInjector() {
return fragmentDispatchingAndroidInjector;
}
}
4- DispatchingAndroidInjector<T>
● Also for activity class

24. Android-Dagger

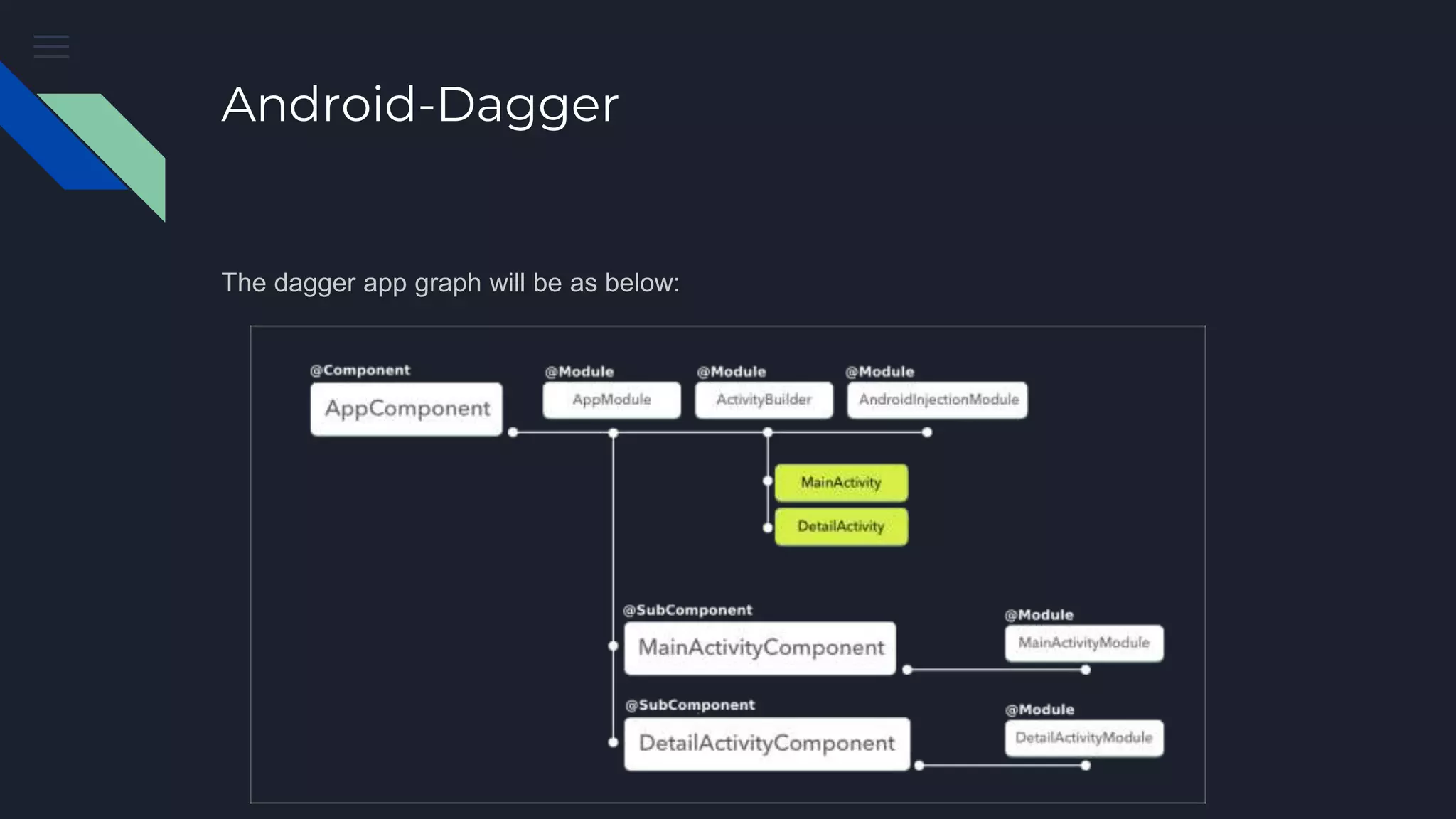

The dagger app graph will be as below:

25. Android-Dagger
Finish? No!
Because Activity and Fragment should not know about how it is injected. So how do we inject
now?
In Activity:
@Override
protected void onCreate(Bundle savedInstanceState)
{
AndroidInjection.inject(this);
super.onCreate(savedInstanceState);
}
In Fragment:
@Override
public void onAttach(Context context) {
AndroidSupportInjection.inject(this);
super.onAttach(context);
}

26. Is it too hard??
Let’s Simplified it

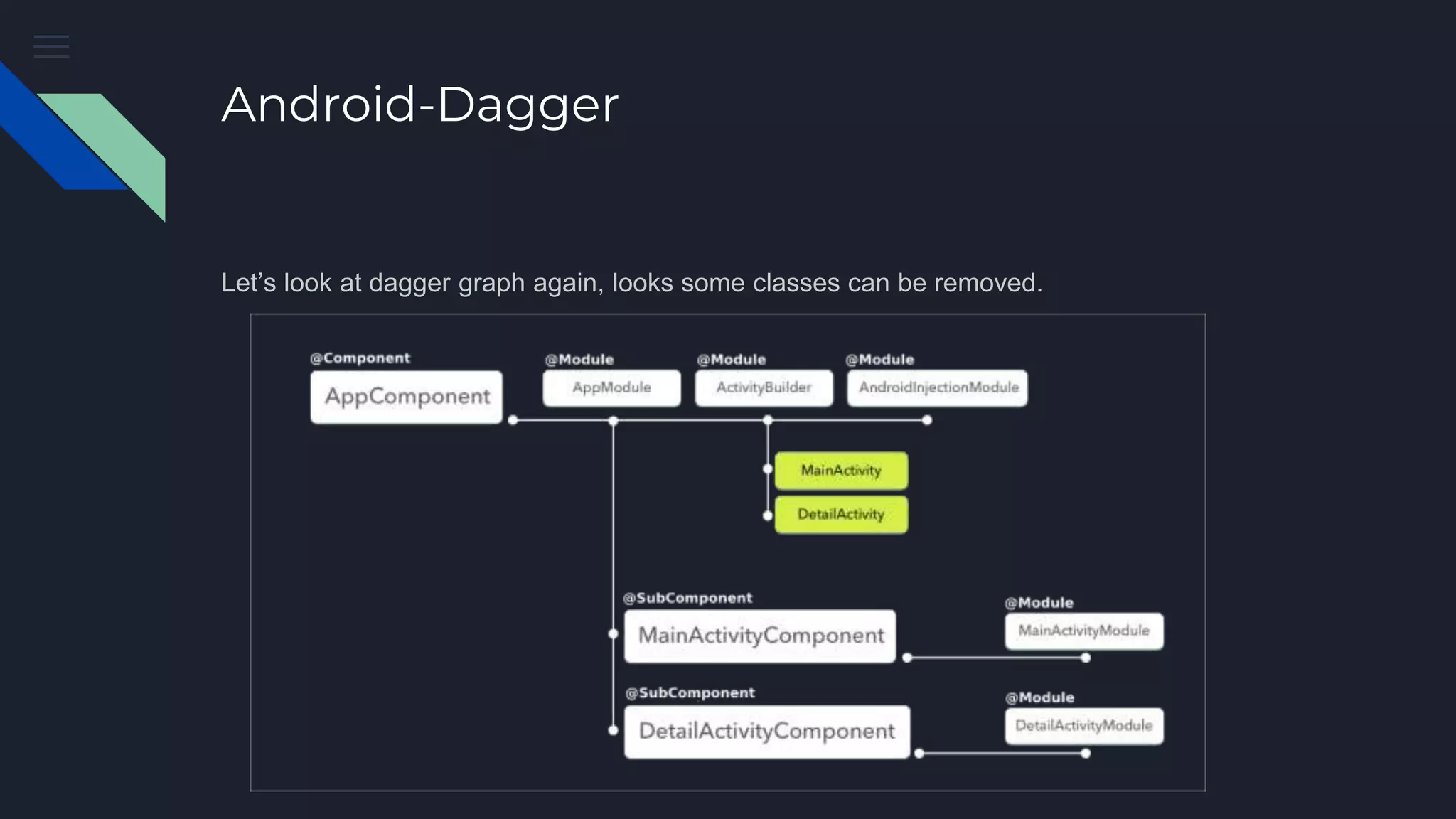

27. Android-Dagger

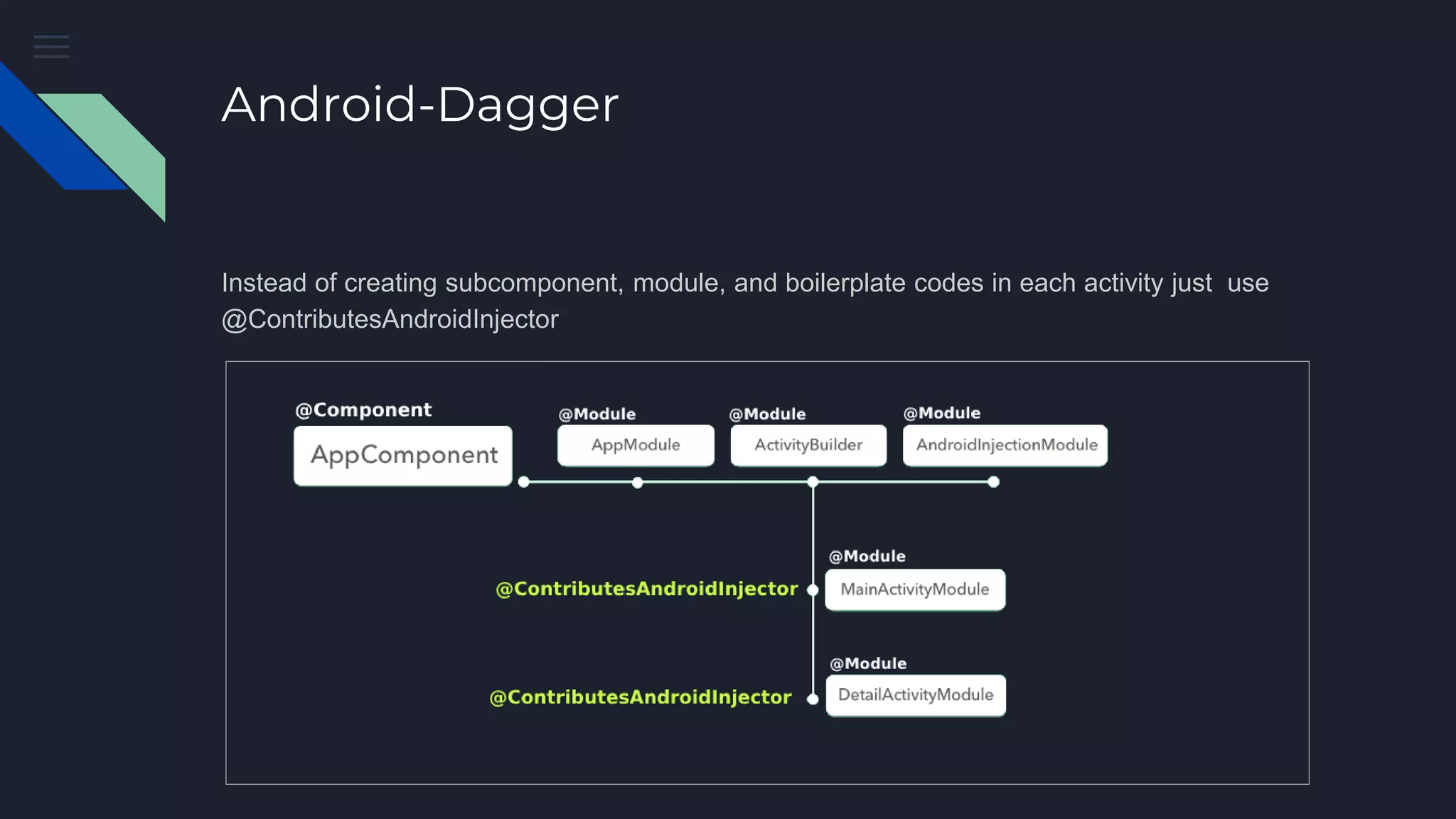

Let’s look at dagger graph again, looks some classes can be removed.

28. Android-Dagger
Instead of creating subcomponent, module, and boilerplate codes in each activity just use
@ContributesAndroidInjector

29. Android-Dagger
@ContributesAndroidInjector:
Dagger Android introduced an annotation which can reduce the Binds, Subcomponent,
ActivityKey, FragmentKey, etc boilerplate
@Module
public abstract class ActivityBuilder {
@ContributesAndroidInjector(modules = MainActivityModule.class)
abstract MainActivity bindMainActivity();
@ContributesAndroidInjector(modules = {DetailActivityModule.class})
abstract DetailActivity bindDetailActivity();
}

30. Android-Dagger
● Now, do not needs to implements android components classes from anymore
interfaces.
● Just extends them from DaggerApplication, DaggerAppCompatActivity,
DaggerFragment
● Finally, application class will be changed as follow:public class App extends DaggerApplication {
@Override
protected AndroidInjector<? extends AndroidSampleApp> applicationInjector() {
return DaggerAppComponent.builder().create(this);
}
}

31. Thank you!
Let’s try it in a real
project!
