1. Larry cai <larry.caiyu@gmail.com>

2. Agenda
 Introduction
 Exercise 1: Run the example to know the power
 Exercise 2: Hello World – first DSL
 Exercise 3: One complete JobDSL
 Exercise 4: JenkinsView and Loop
 Exercise 5: Configure Block to extend DSL
 Reference
2 08/12/15

3. Environment Preparation (docker)
 Boot2docker Installer (127M)
 Contains latest docker already, fast
 Container persistence via disk automount on /var/lib/docker
 $ docker -v
 User/Passwd: docker/tcuser (192.168.59.103)
 Download Jenkins JobDSL docker images
 $ docker pull larrycai/jenkins-jobdsl
 Notepad++ & MobaXterm are recommended
3 08/12/15
http://boot2docker.io/

4. Introduction
 Jenkins is a de-facto CI standard used for lots of products
 Easy to start, configure and extending (300+ plugins)
 Configure jobs in UI mostly
 Weak parts:
 Update git repo for many jobs
 Create dozens of jobs in fly for new project
 Monitor the changes
4 08/12/15
Learn new way to configure jenkins Jobs

5. Exercise 1: Hello World
 Run first app inside docker environment
$ cd /c/<Users>/codingwithme/jobdsl # create in advance
$ docker run -it –v $PWD:/opt/jenkins/data/jobs/jobdsl/workspace -p
8080:8080 larrycai/jenkins-jobdsl
 Browse: http://192.168.59.103:8080
Clean jenkins UI with one Job “HelloWorld”
 Exercise :
1. Execute job “HelloWorld”, and check result
2. See configuration
3. Run it again
4. Delete job “Compile-DSL-Tutorial-0” and Update job “Package-DSL-
Tutorial-0” and Run it again
5 08/12/15

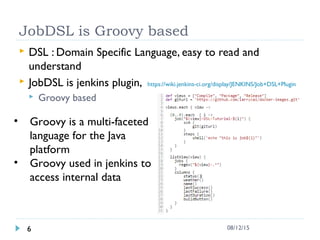

6. JobDSL is Groovy based
 DSL : Domain Specific Language, easy to read and
understand
 JobDSL is jenkins plugin, https://wiki.jenkins-ci.org/display/JENKINS/Job+DSL+Plugin
 Groovy based
6 08/12/15
• Groovy is a multi-faceted
language for the Java
platform
• Groovy used in jenkins to
access internal data

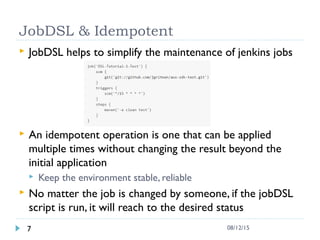

7. JobDSL & Idempotent
 JobDSL helps to simplify the maintenance of jenkins jobs
 An idempotent operation is one that can be applied
multiple times without changing the result beyond the
initial application
 Keep the environment stable, reliable
 No matter the job is changed by someone, if the jobDSL
script is run, it will reach to the desired status
7 08/12/15

8. Exercise 2:Hello World
 Configure “HelloWorld” job
 Replace script like below
freeStyleJob("Hello2") {
steps {
shell('echo "Hello Larry"')
}
}
 Select option “Action for removed jobs” to “Delete”
and option “Action for removed views” to “Delete”,
Run it again
8 08/12/15

9. Jenkins Job mapping to JobDSL
9 08/12/15
 Job Type (freeStyleJob)
 Build Parameters (parameters)
 SCM (scm)
 BuildTriggers (triggers)
 Steps (steps)
 Post Build Actions (publishers)
https://github.com/jenkinsci/job-dsl-plugin/wiki/Job-reference

10. Exercise 3: Complete JobDSL example
 Follow the existing Jenkins job “Sample” and convert it into
JobDSL in “jobdsl”
 Cover Scm/trigger/shell/archive
 Steps:
 New job “jobdsl” (freestyle)
 New build step – Process Job DSLs
 Choose “Look on Filesystem”
 complete.groovy
 In file, use freeStyleJob(“Hello3”)
 Edit it in Windows env. (codingwith/jobdsl) # mapped into docker
 Compare the result
10 08/12/15
Reference: https://github.com/jenkinsci/job-dsl-plugin/wiki/Job-reference

11. Jenkins View & Groovy DSL
 JenkinsView is simple as jobs
 Name/filter/column .
 Learn some groovy to handle
common tasks
 Loop
 Read & Parse external config files
11 08/12/15

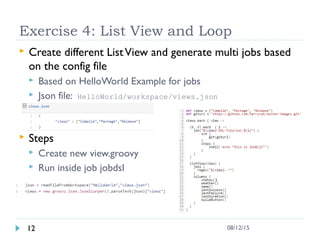

12. Exercise 4: List View and Loop
 Create different ListView and generate multi jobs based
on the config file
 Based on HelloWorld Example for jobs
 Json file: HelloWorld/workspace/views.json
 Steps
 Create new view.groovy
 Run inside job jobdsl
12 08/12/15

13. Configure block
 Not every jenkins Plugin are supported in JobDSL (may
changes in the future)
 Raise issues to get support
 Configure blocks are used inside the Job DSL to give
direct access to underlying XML of the Jenkins config.xml
13 08/12/15
https://github.com/jenkinsci/job-dsl-plugin/wiki/The-Configure-Block

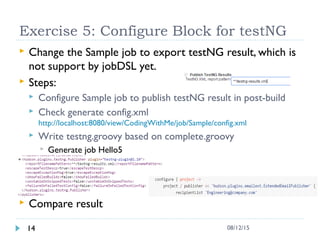

14. Exercise 5: Configure Block for testNG
 Change the Sample job to export testNG result, which is
not support by jobDSL yet.
 Steps:
 Configure Sample job to publish testNG result in post-build
 Check generate config.xml
http://localhost:8080/view/CodingWithMe/job/Sample/config.xml
 Write testng.groovy based on complete.groovy
 Generate job Hello5
 Compare result
14 08/12/15

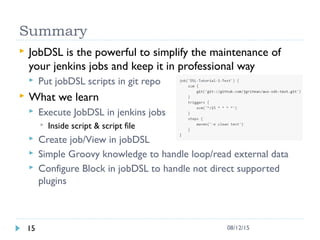

15. Summary
 JobDSL is the powerful to simplify the maintenance of
your jenkins jobs and keep it in professional way
 Put jobDSL scripts in git repo
 What we learn
 Execute JobDSL in jenkins jobs
 Inside script & script file
 Create job/View in jobDSL
 Simple Groovy knowledge to handle loop/read external data
 Configure Block in jobDSL to handle not direct supported
plugins
15 08/12/15

16. Reference
 jobDSL slides
 http://www.slideshare.net/daspilker/configuration-as-code-the-job-dsl-plugin
 JobDSL ref
 https://github.com/jenkinsci/job-dsl-plugin/wiki/View-Reference
 https://github.com/jenkinsci/job-dsl-plugin/wiki/Job-reference
 https://github.com/jenkinsci/job-dsl-plugin/wiki/The-Configure-Block
 Groovy Json
 http://www.groovy-lang.org/json.html
 Exercise Gist
 https://gist.github.com/larrycai/aeb9a3b037dcb17df9b2
16 08/12/15

17. CodingWithMe
 "CodingWithMe - Learning by Coding" is a coding
workshop, it aims to learn one technology in 90
minutes by practice
 Features:
 4-5 well tuned hands on exercises in 90 minutes
 First exercise shall be started in 20 minutes
 It well follows Bob Pike’s 90/20/8 rules (happen to
know)
 It is recommended arranged for several parallel
sessions if it is organized in the company.
17 08/12/15
http://www.larrycaiyu.com/blog/2014/03/18/codingwithme_introduction/
