The document presents a talk by Gareth Rushgrove regarding using Puppet software with Docker containers, emphasizing existing Docker support and Puppet's capabilities for managing containerized environments. Key topics include managing core OS images, building Docker images with Puppet, and integrating Puppet with container orchestration tools like Kubernetes and Rancher. The discussion highlights real-world applications and includes demos showcasing Docker commands and the integration of Puppet for inventory management and service deployment in container-centric operating systems.

1. (without introducing more risk)
Running Puppet in Docker
Puppet
Gareth Rushgrove
Demos of using Puppet Software with Containers

2. (without introducing more risk)
@garethr

3. (without introducing more risk)
Gareth Rushgrove

4. (without introducing more risk)
What we’ll cover
This talk

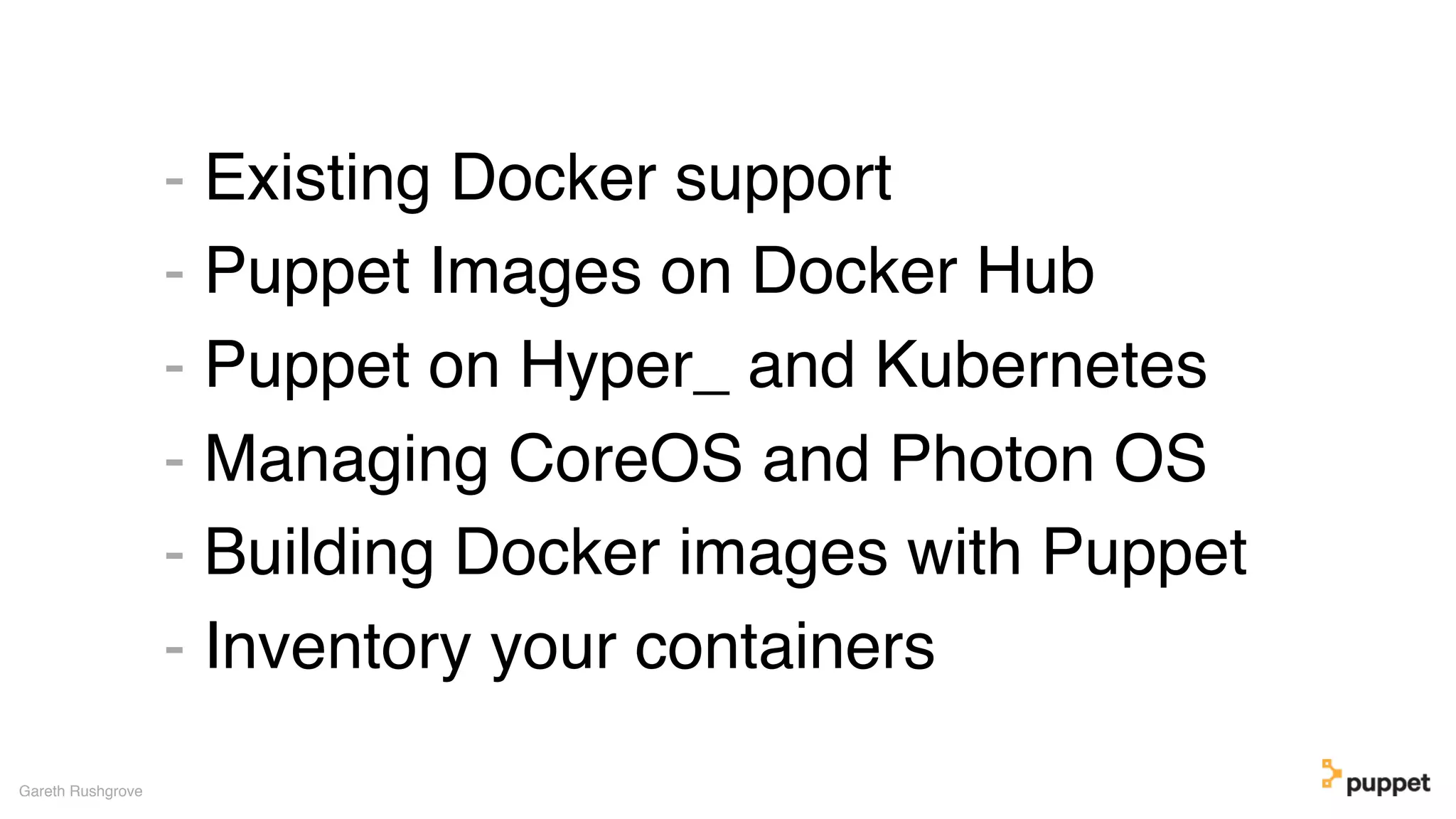

5. - Existing Docker support
- Puppet Images on Docker Hub
- Puppet on Hyper_ and Kubernetes
- Managing CoreOS and Photon OS
- Building Docker images with Puppet
- Inventory your containers
Gareth Rushgrove

6. (without introducing more risk)DEMOS

7. (without introducing more risk)
A quick summary
Existing Docker support

8. Gareth Rushgrove
+

9. (without introducing more risk)

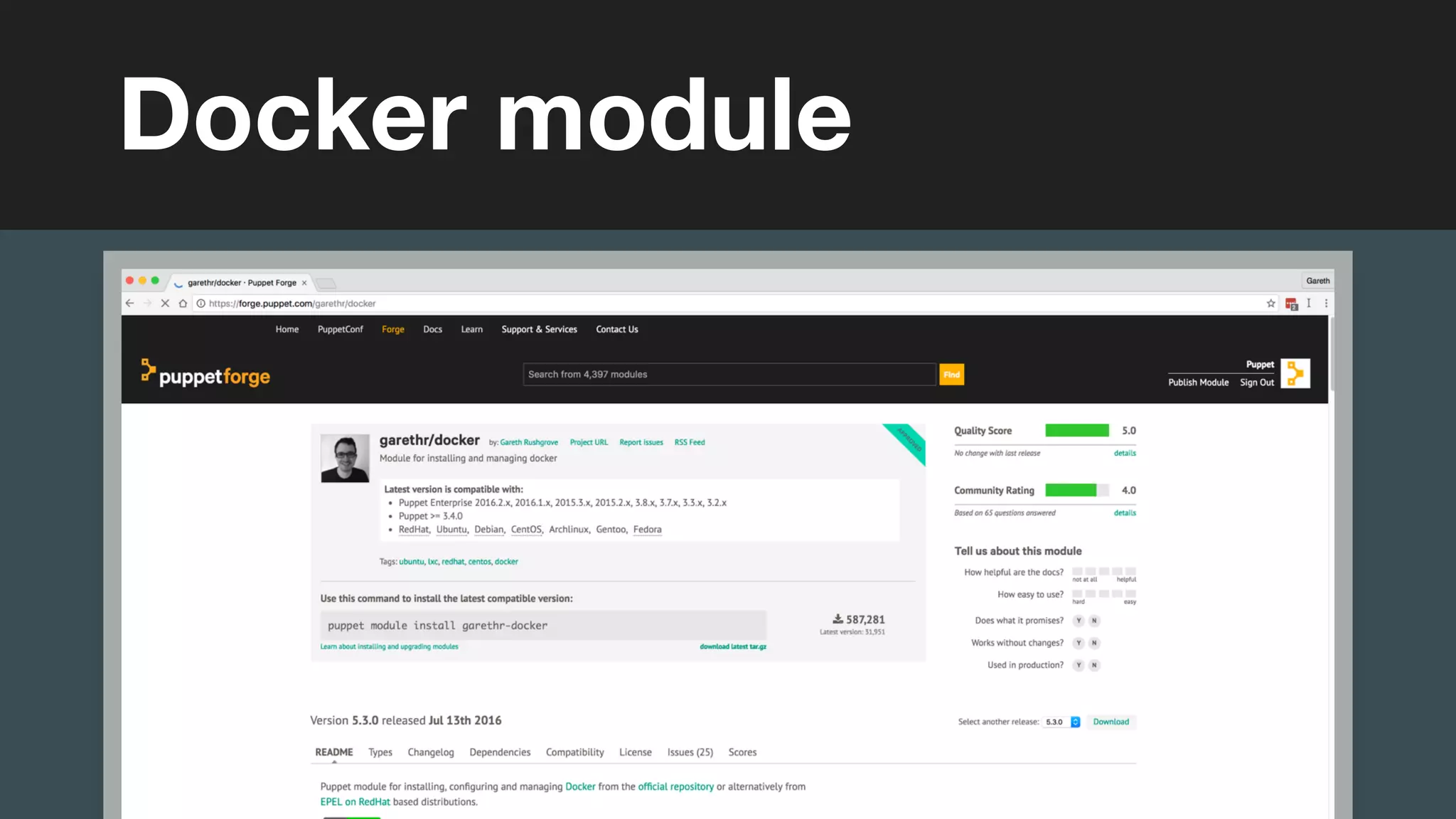

Docker module

10. 995 commits, 137 contributors, 750k+
Forge downloads, 3.5 years old,
supported for PE customers
Gareth Rushgrove

11. (without introducing more risk)
We went to the Puppet Forge, looked at the
Docker module, and it really fit pretty
much every need that we had. It handled
our image versions, it handled our runtime
configurations, links of dependencies, and it
packaged it all in a really nice init.d script.
Chris Buckley, director of DevOps, Business Insider
Gareth Rushgrove
“
”

12. (without introducing more risk)
Gareth Rushgrove

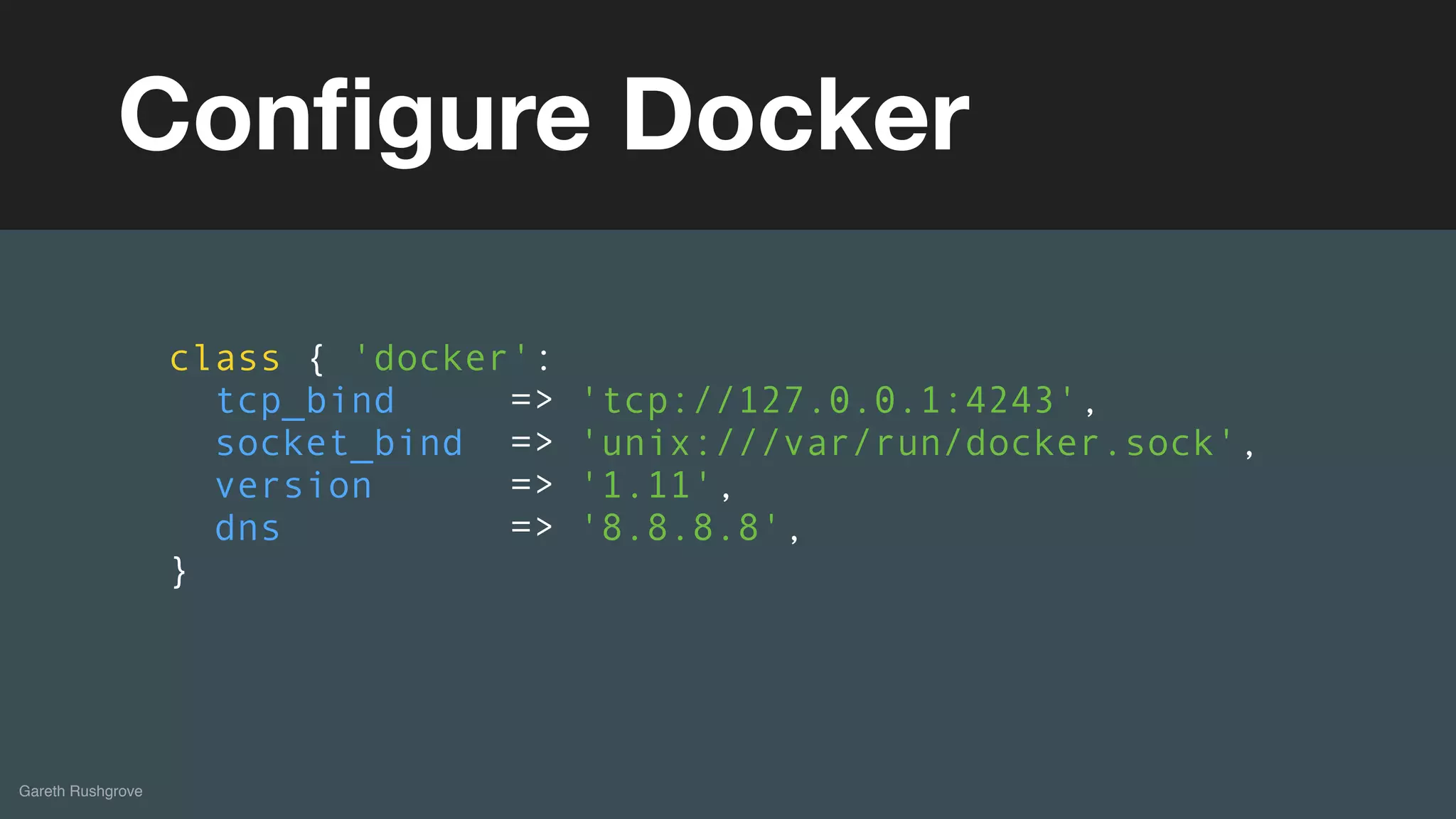

Configure Docker
class { 'docker':
tcp_bind => 'tcp://127.0.0.1:4243',
socket_bind => 'unix:///var/run/docker.sock',
version => '1.11',
dns => '8.8.8.8',
}

13. (without introducing more risk)
Gareth Rushgrove

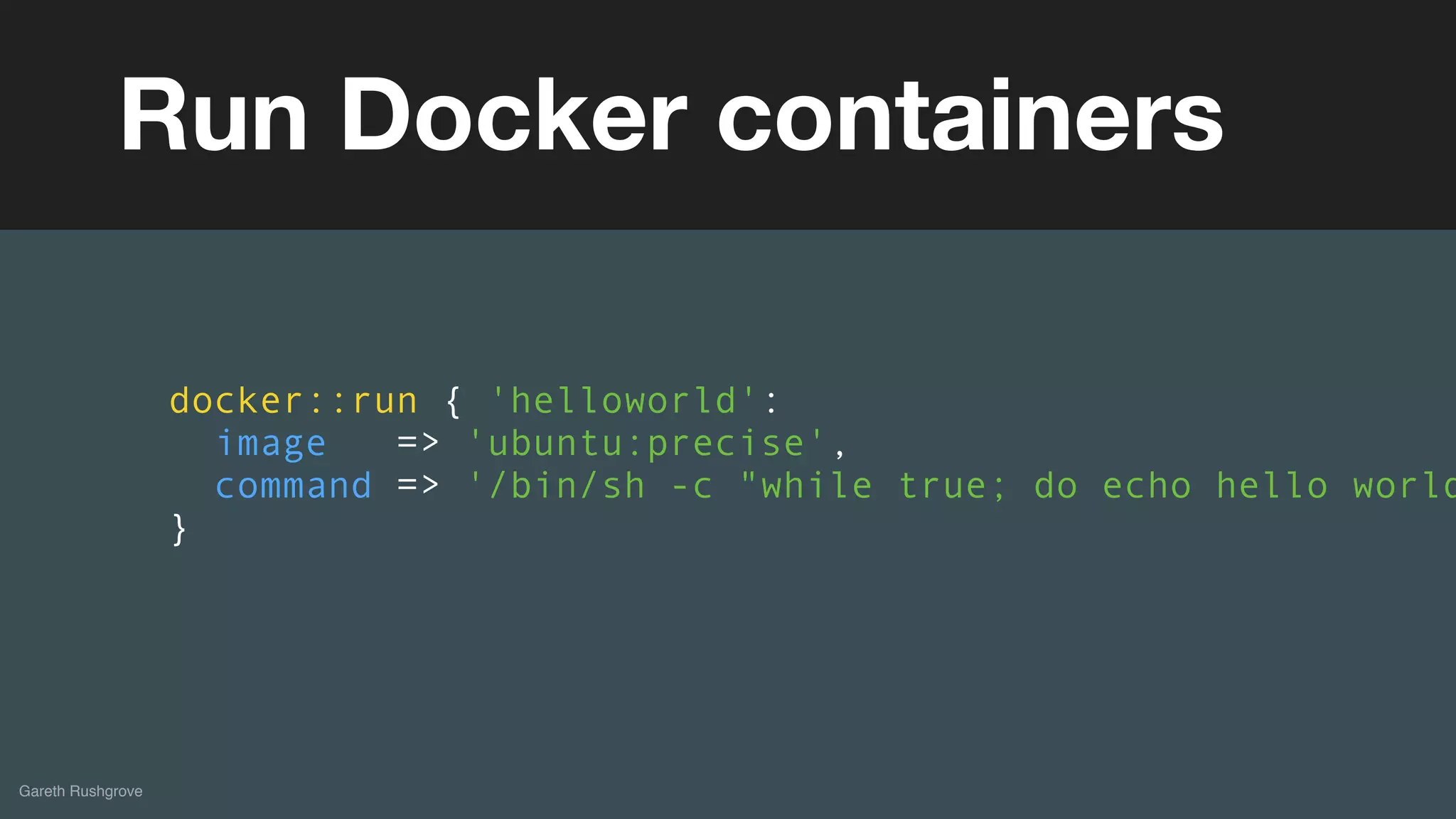

Run Docker containers
docker::run { 'helloworld':
image => 'ubuntu:precise',
command => '/bin/sh -c "while true; do echo hello world
}

14. (without introducing more risk)
Gareth Rushgrove

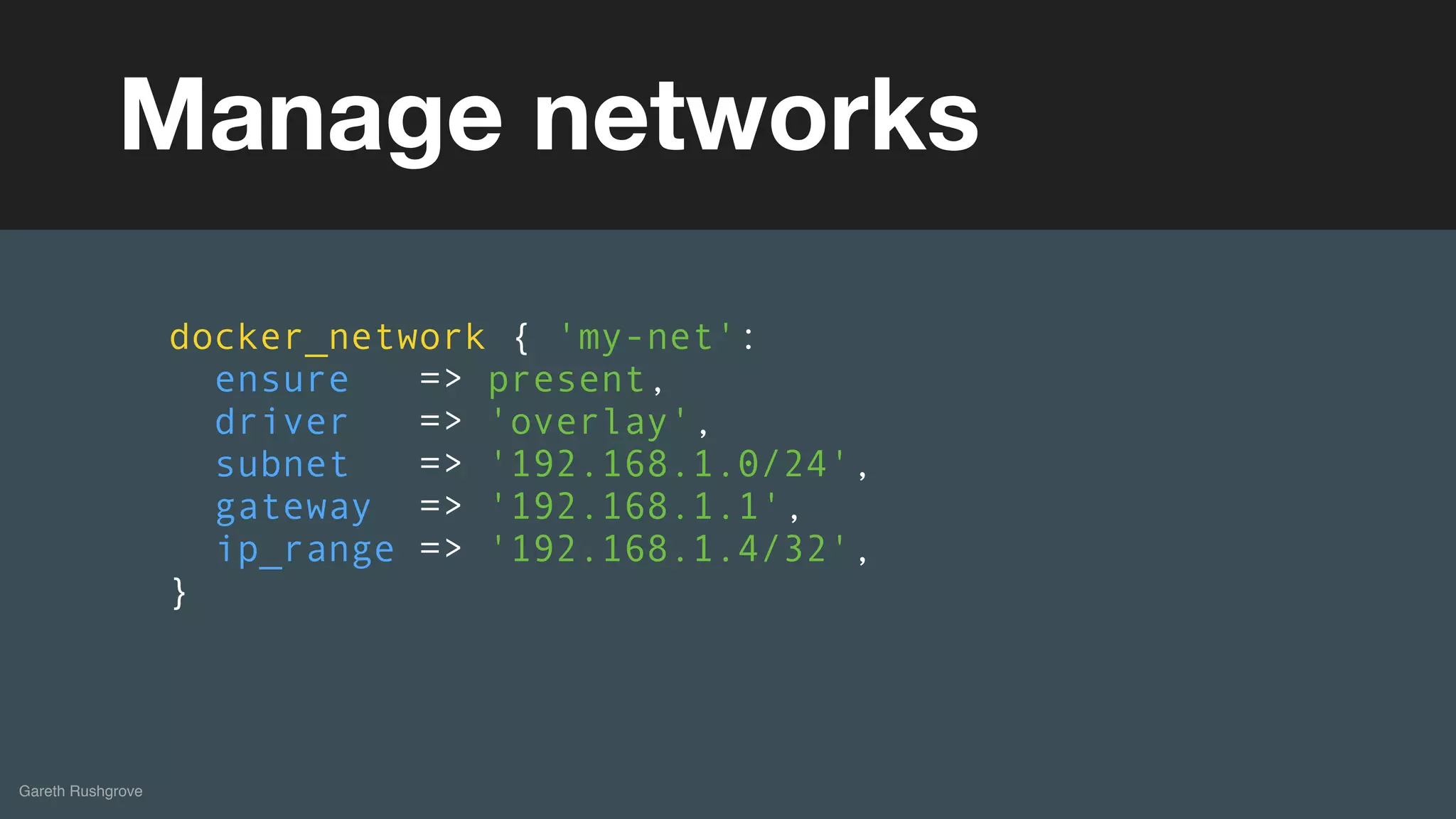

Manage networks
docker_network { 'my-net':
ensure => present,
driver => 'overlay',
subnet => '192.168.1.0/24',
gateway => '192.168.1.1',
ip_range => '192.168.1.4/32',
}

15. (without introducing more risk)
Gareth Rushgrove

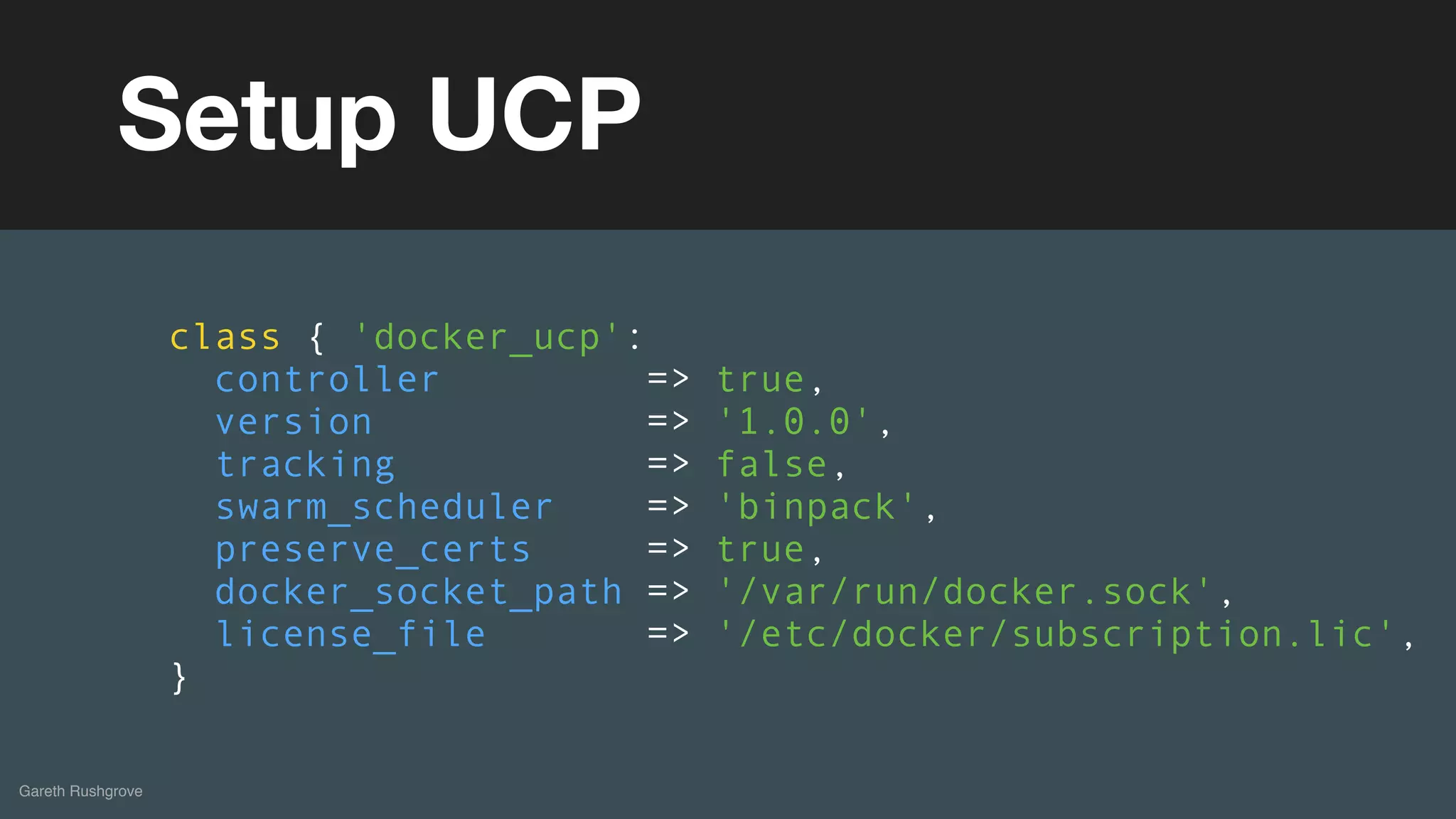

Setup UCP
class { 'docker_ucp':
controller => true,
version => '1.0.0',
tracking => false,
swarm_scheduler => 'binpack',
preserve_certs => true,
docker_socket_path => '/var/run/docker.sock',
license_file => '/etc/docker/subscription.lic',
}

16. (without introducing more risk)
Gareth Rushgrove

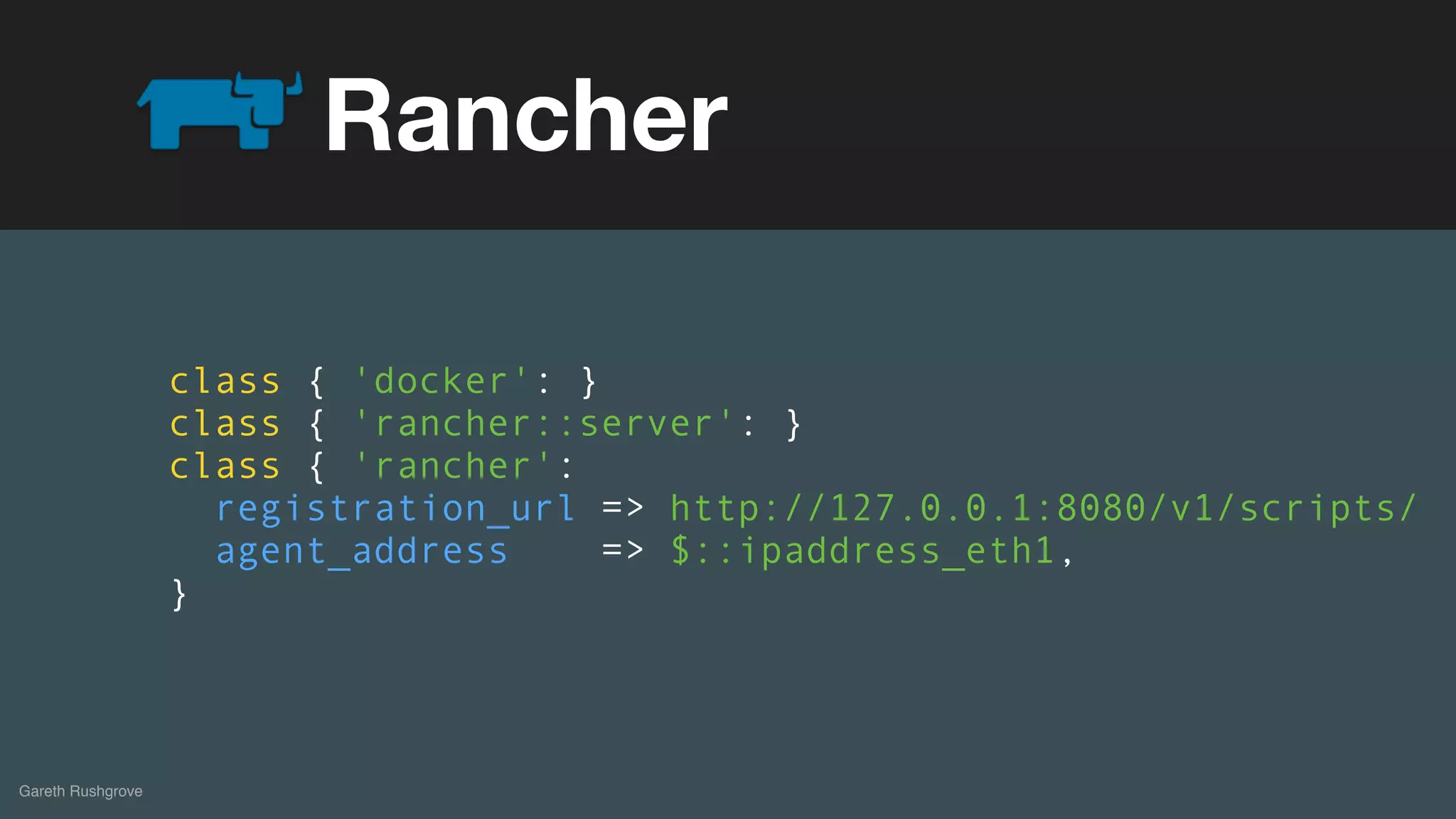

Rancher
class { 'docker': }
class { 'rancher::server': }
class { 'rancher':
registration_url => http://127.0.0.1:8080/v1/scripts/
agent_address => $::ipaddress_eth1,
}

17. (without introducing more risk)
Gareth Rushgrove
Read the book

18. (without introducing more risk)
Puppet Images on Docker Hub
Puppet-in-Docker

19. (without introducing more risk)

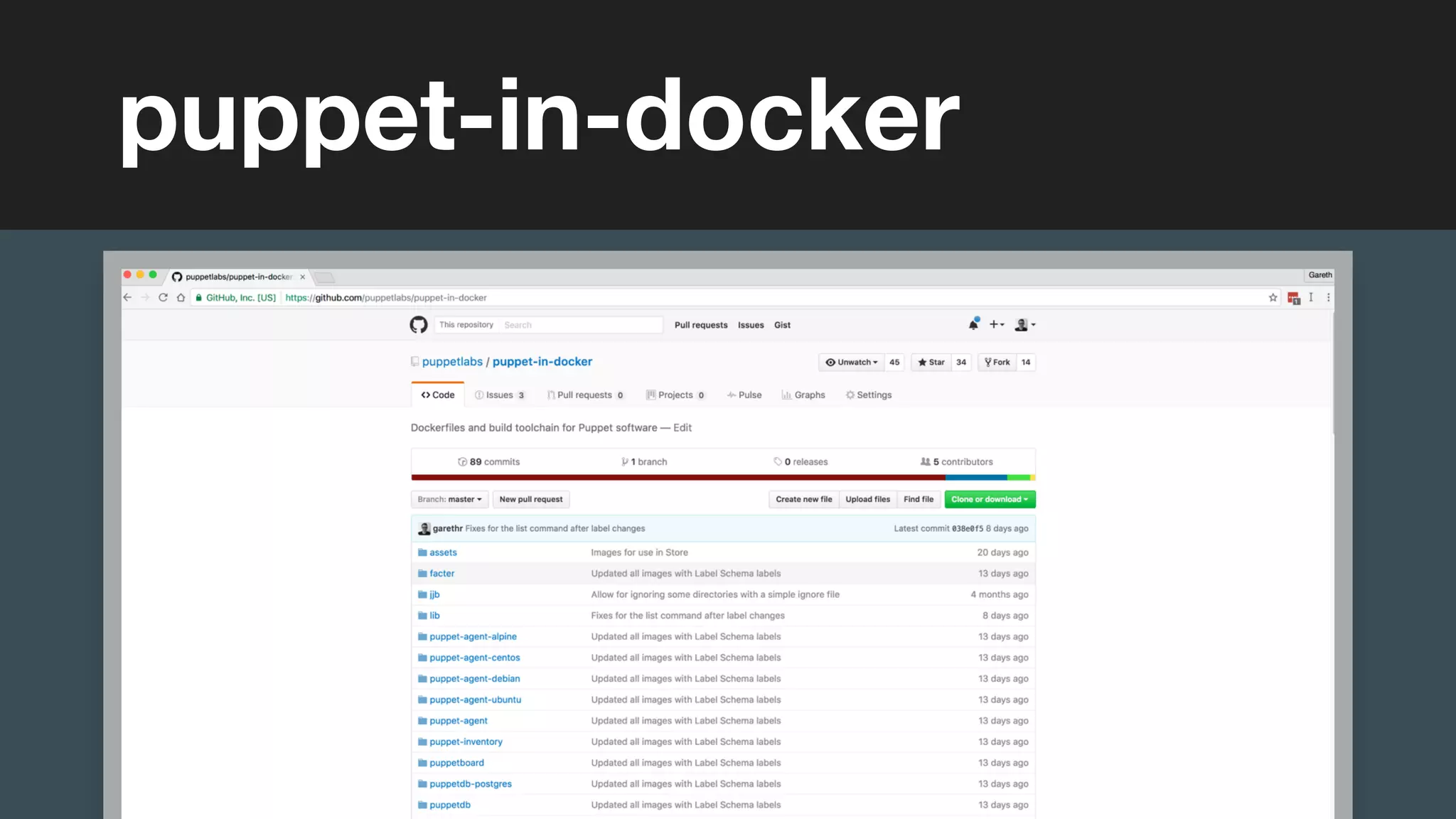

puppet-in-docker

20. (without introducing more risk)

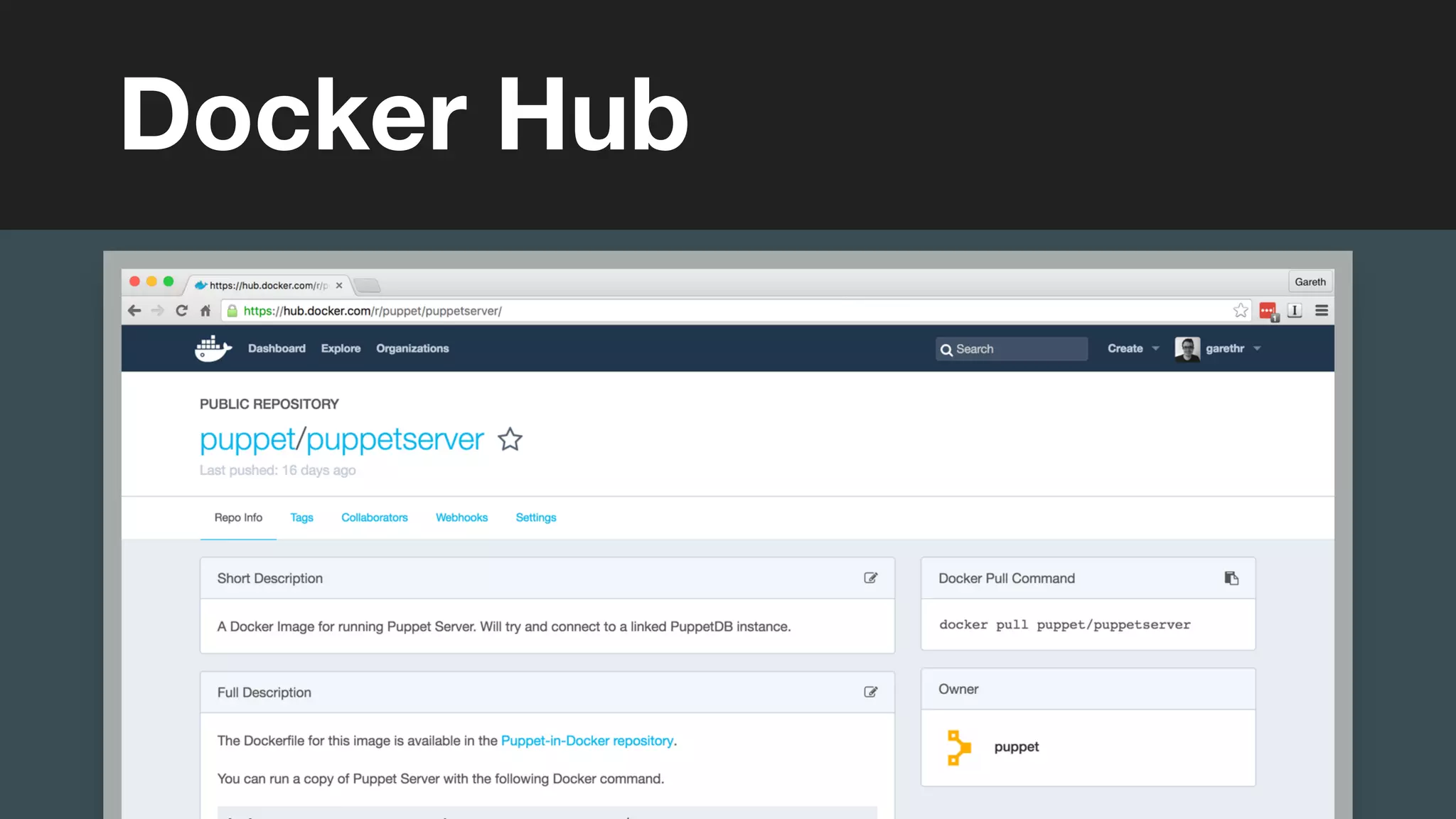

Docker Hub

21. (without introducing more risk)
Gareth Rushgrove

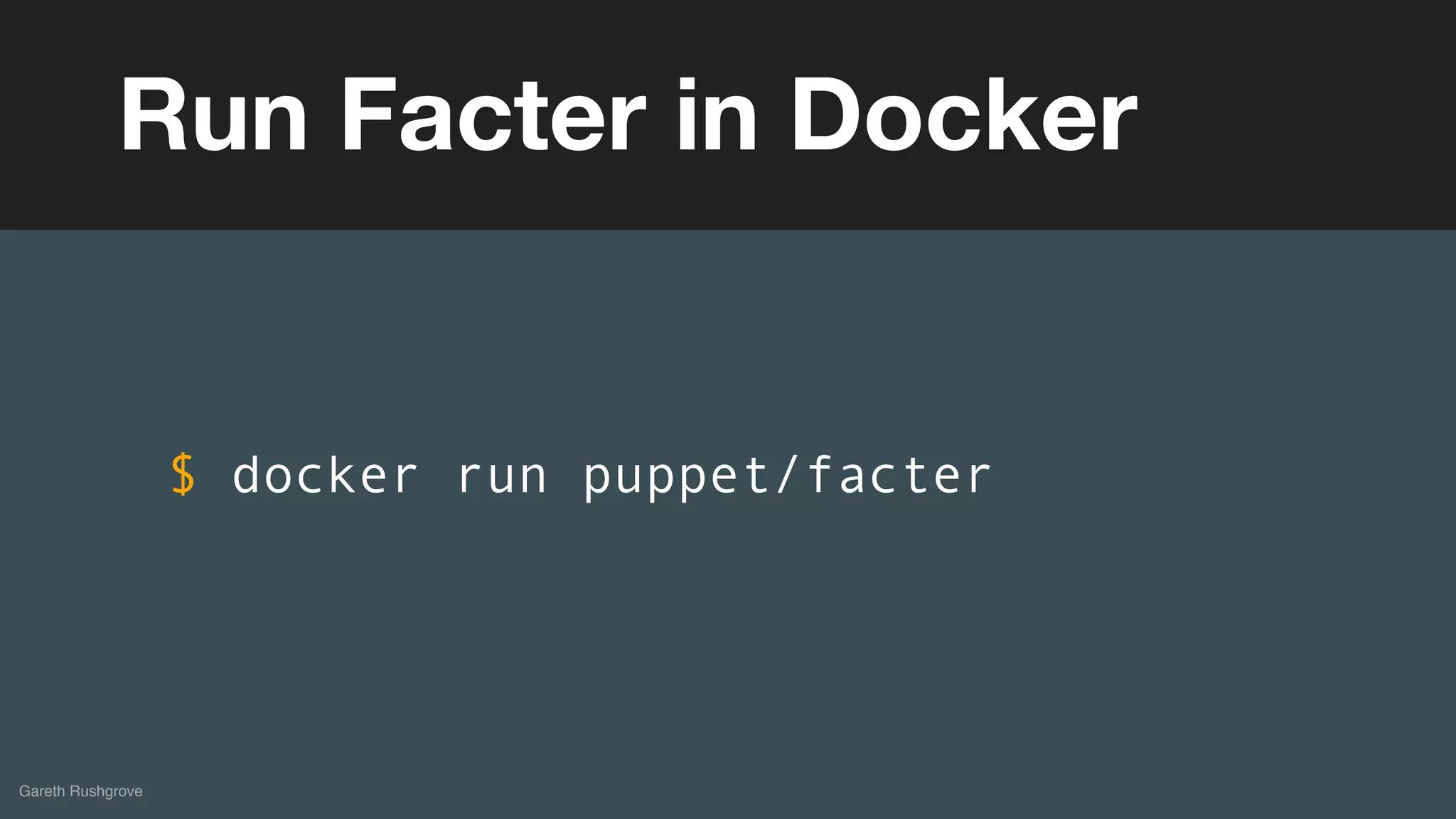

Run Facter in Docker
$ docker run puppet/facter

22. (without introducing more risk)
Gareth Rushgrove

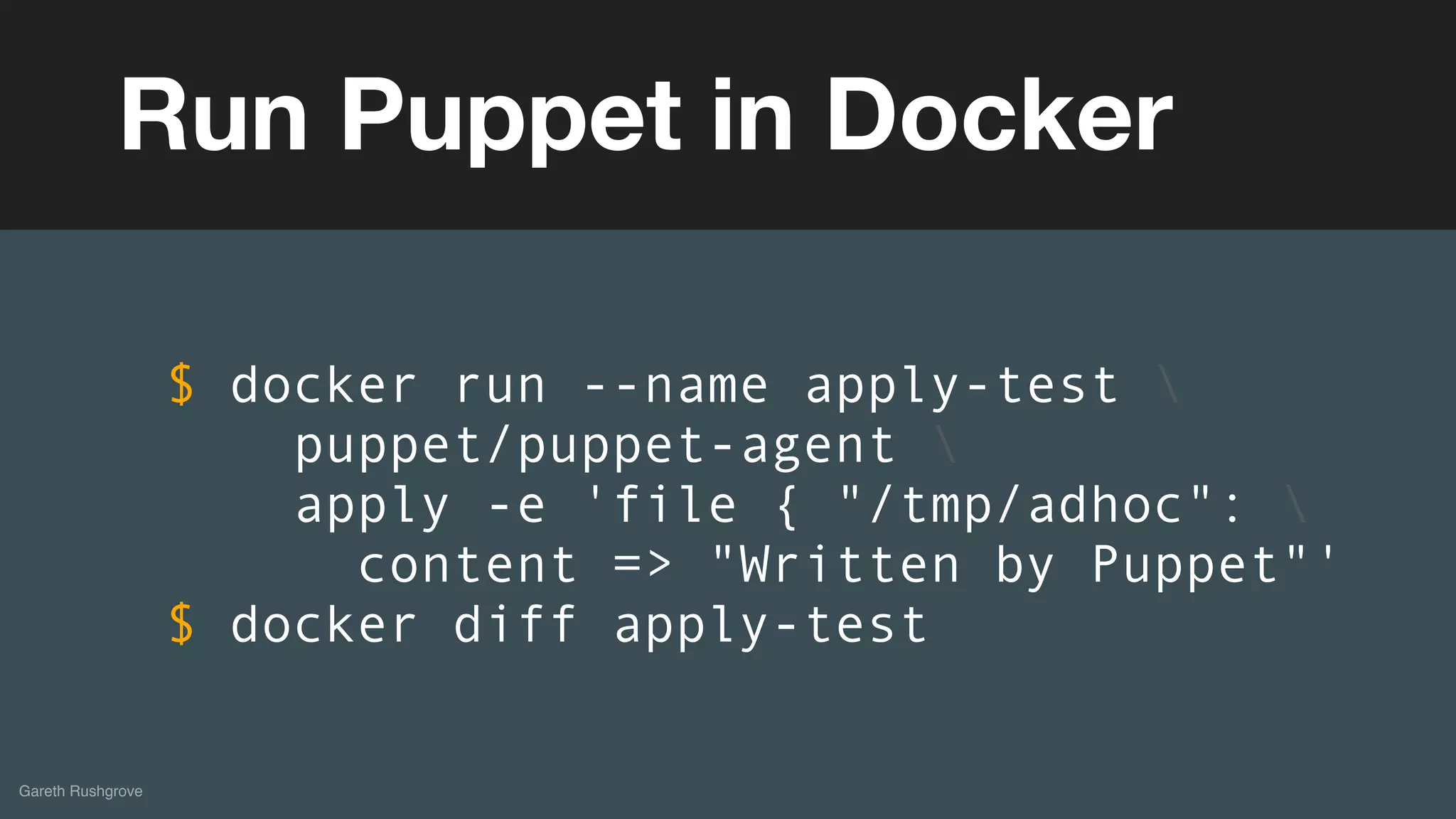

Run Puppet in Docker
$ docker run --name apply-test
puppet/puppet-agent
apply -e 'file { "/tmp/adhoc":
content => "Written by Puppet"'
$ docker diff apply-test

23. (without introducing more risk)DEMOS

24. (without introducing more risk)
Run your Puppet infrastructure on a CaaS
Running a
Puppet Master

25. (without introducing more risk)
Gareth Rushgrove

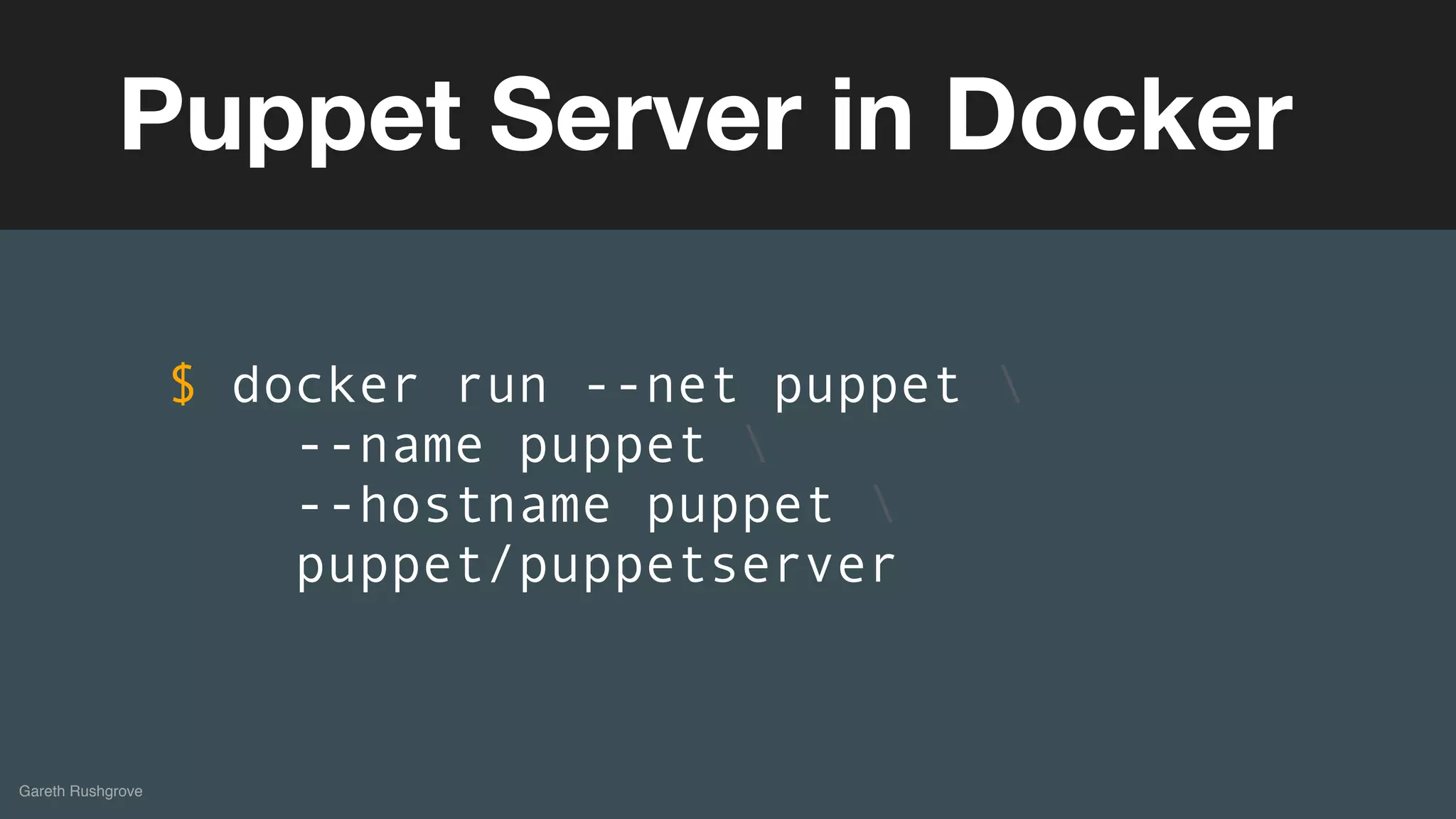

Puppet Server in Docker
$ docker run --net puppet
--name puppet
--hostname puppet
puppet/puppetserver

26. (without introducing more risk)
Gareth Rushgrove

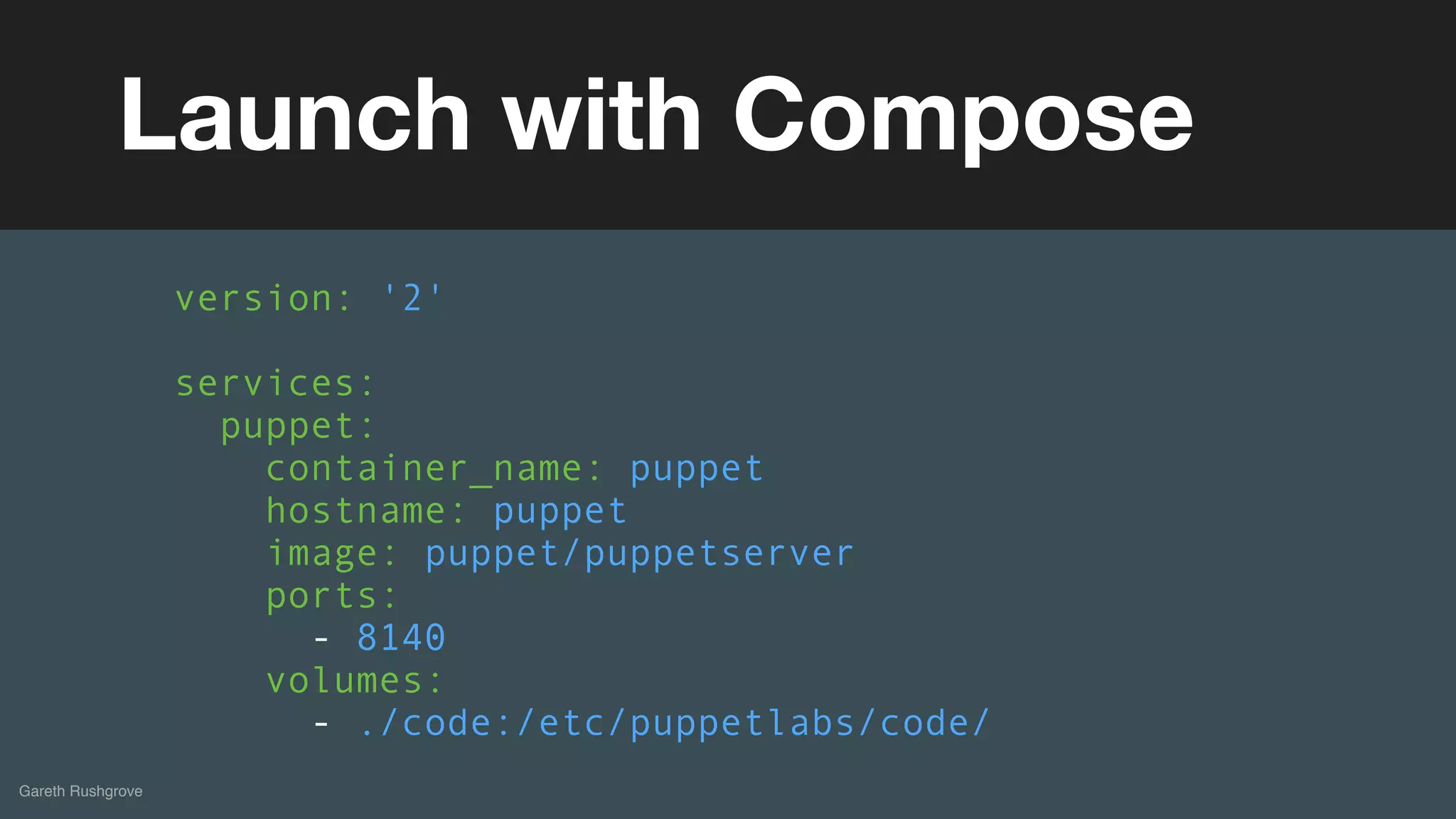

Launch with Compose
version: '2'
services:
puppet:
container_name: puppet
hostname: puppet
image: puppet/puppetserver
ports:
- 8140
volumes:
- ./code:/etc/puppetlabs/code/

27. (without introducing more risk)DEMOS

28. (without introducing more risk)

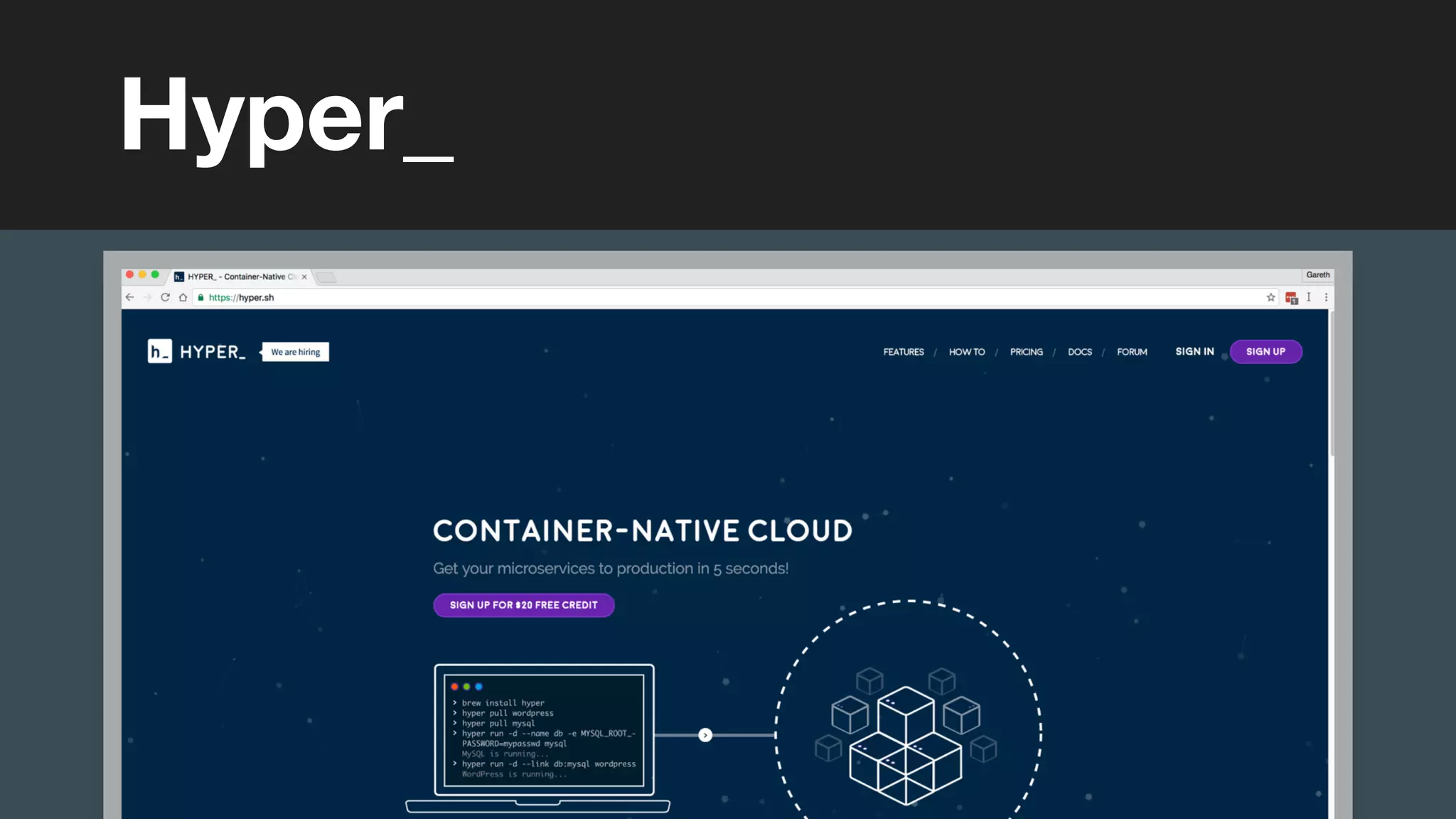

Hyper_

29. (without introducing more risk)

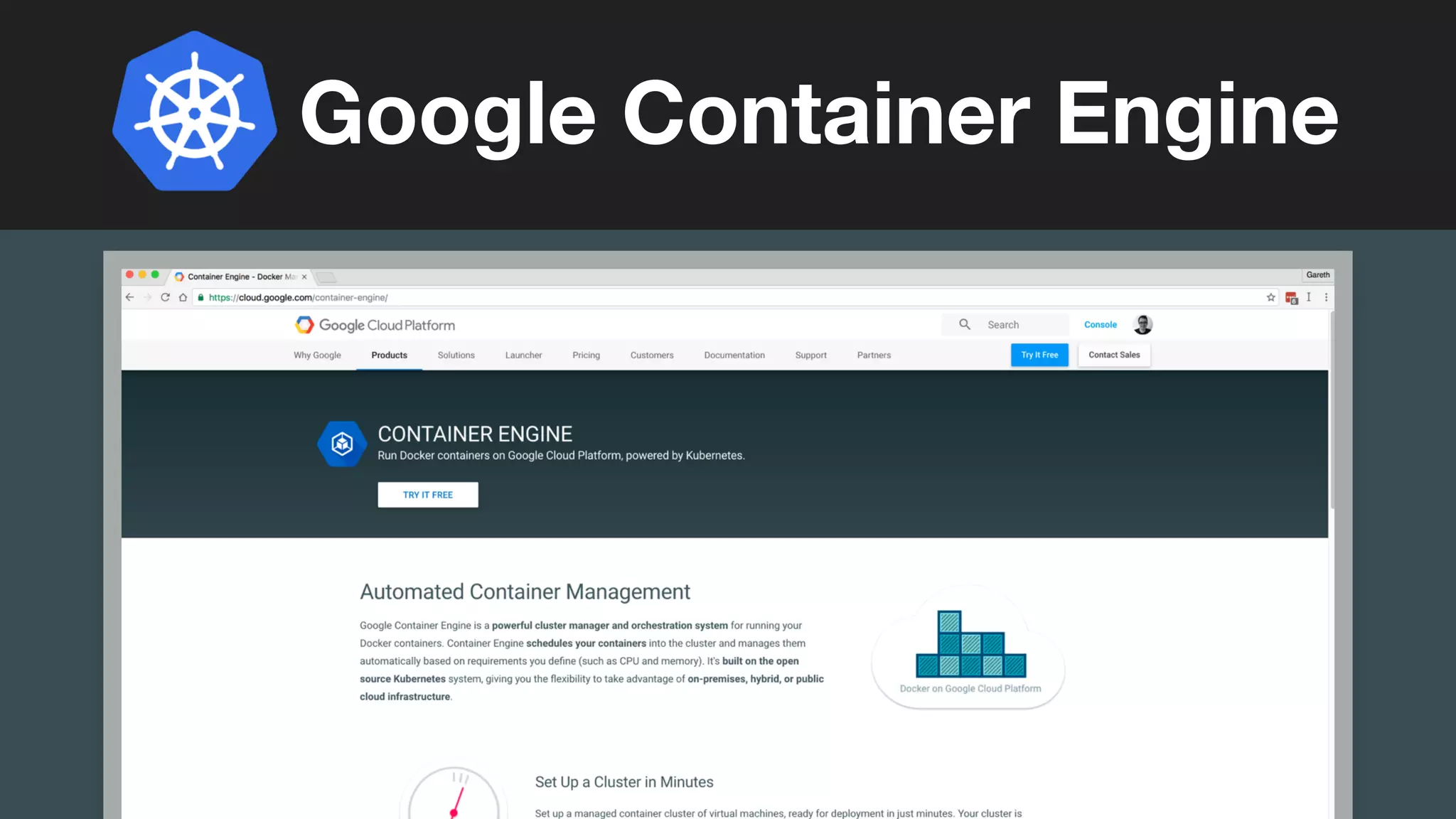

Google Container Engine

30. (without introducing more risk)
Examples

31. (without introducing more risk)
Run Puppet everywhere
Container-centric
Operating Systems

32. Gareth Rushgrove

33. (without introducing more risk)
Gareth Rushgrove

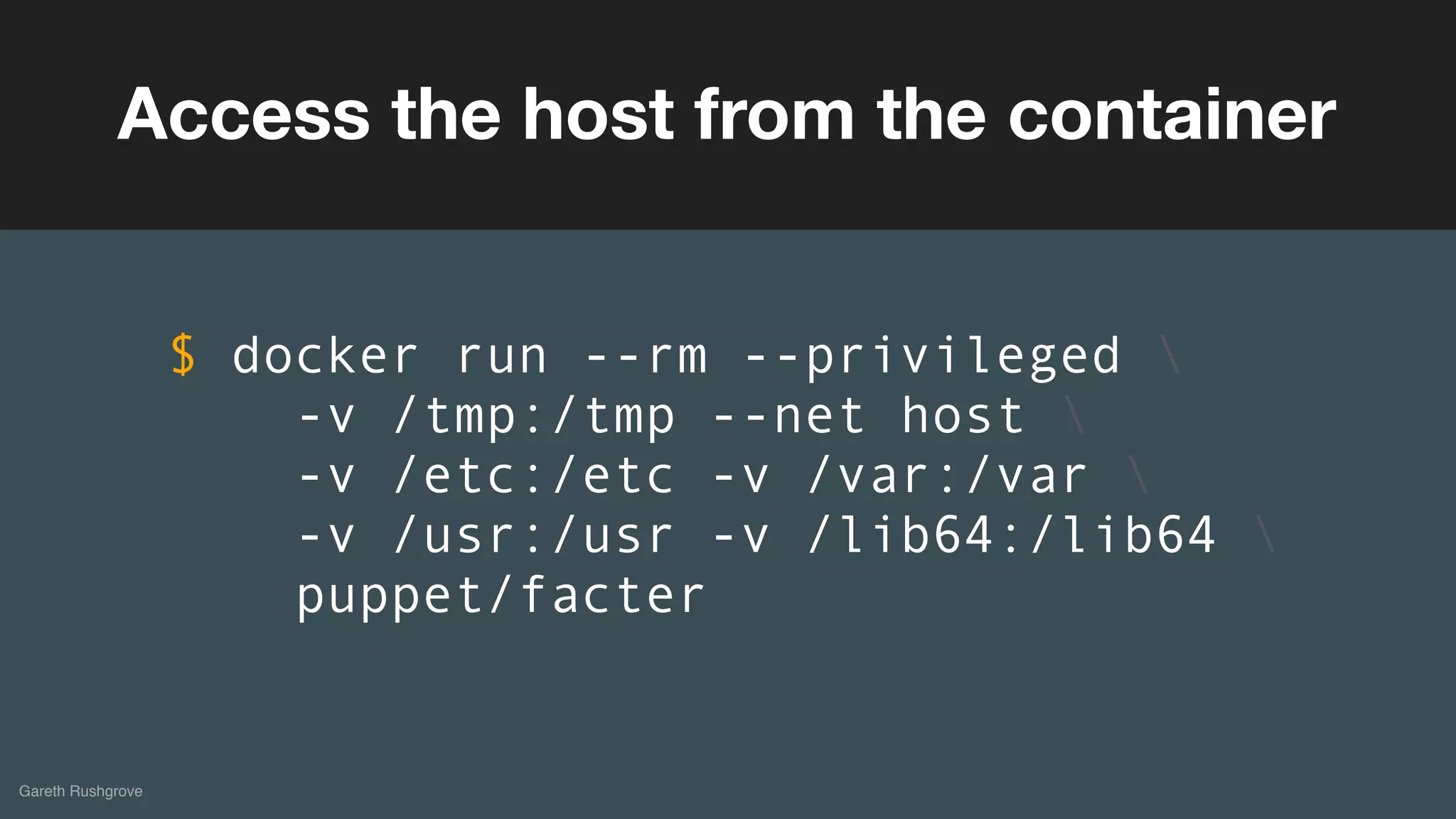

Access the host from the container
$ docker run --rm --privileged
-v /tmp:/tmp --net host
-v /etc:/etc -v /var:/var
-v /usr:/usr -v /lib64:/lib64
puppet/facter

34. (without introducing more risk)
Gareth Rushgrove

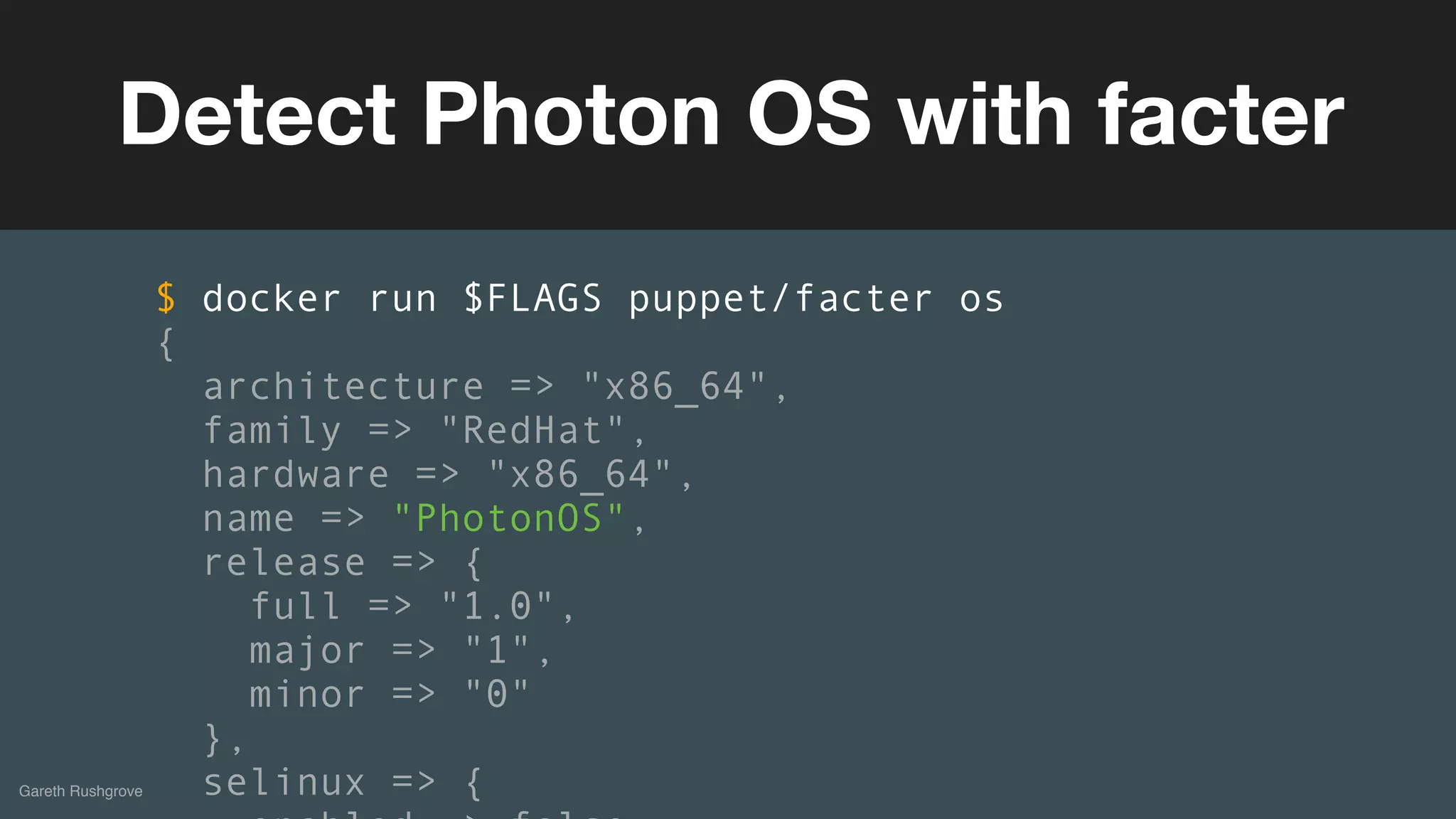

Detect Photon OS with facter
$ docker run $FLAGS puppet/facter os
{
architecture => "x86_64",
family => "RedHat",
hardware => "x86_64",
name => "PhotonOS",
release => {
full => "1.0",
major => "1",
minor => "0"
},
selinux => {

35. (without introducing more risk)
Gareth Rushgrove

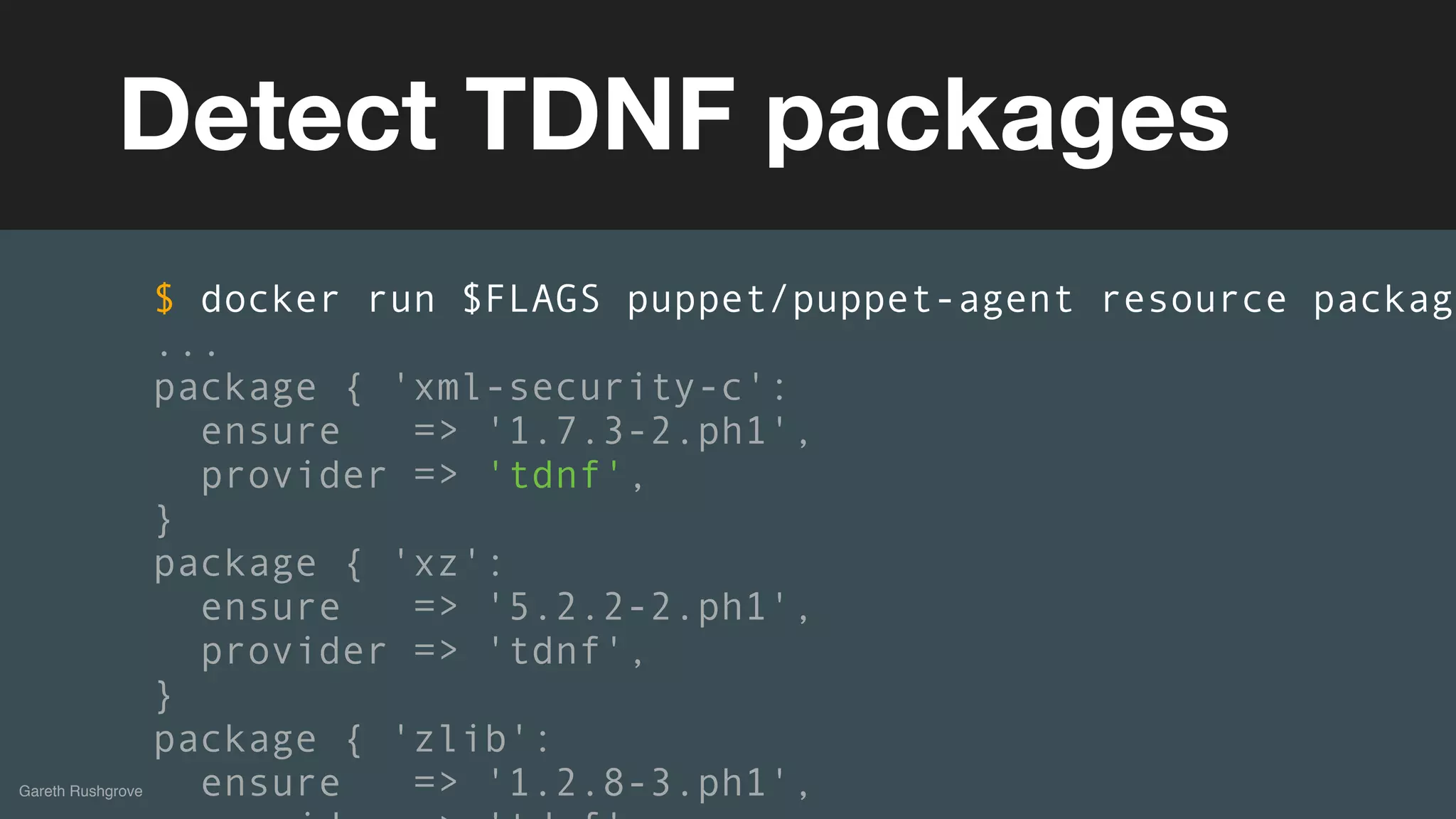

Detect TDNF packages
$ docker run $FLAGS puppet/puppet-agent resource package
...
package { 'xml-security-c':
ensure => '1.7.3-2.ph1',
provider => 'tdnf',
}
package { 'xz':
ensure => '5.2.2-2.ph1',
provider => 'tdnf',
}
package { 'zlib':
ensure => '1.2.8-3.ph1',

36. (without introducing more risk)

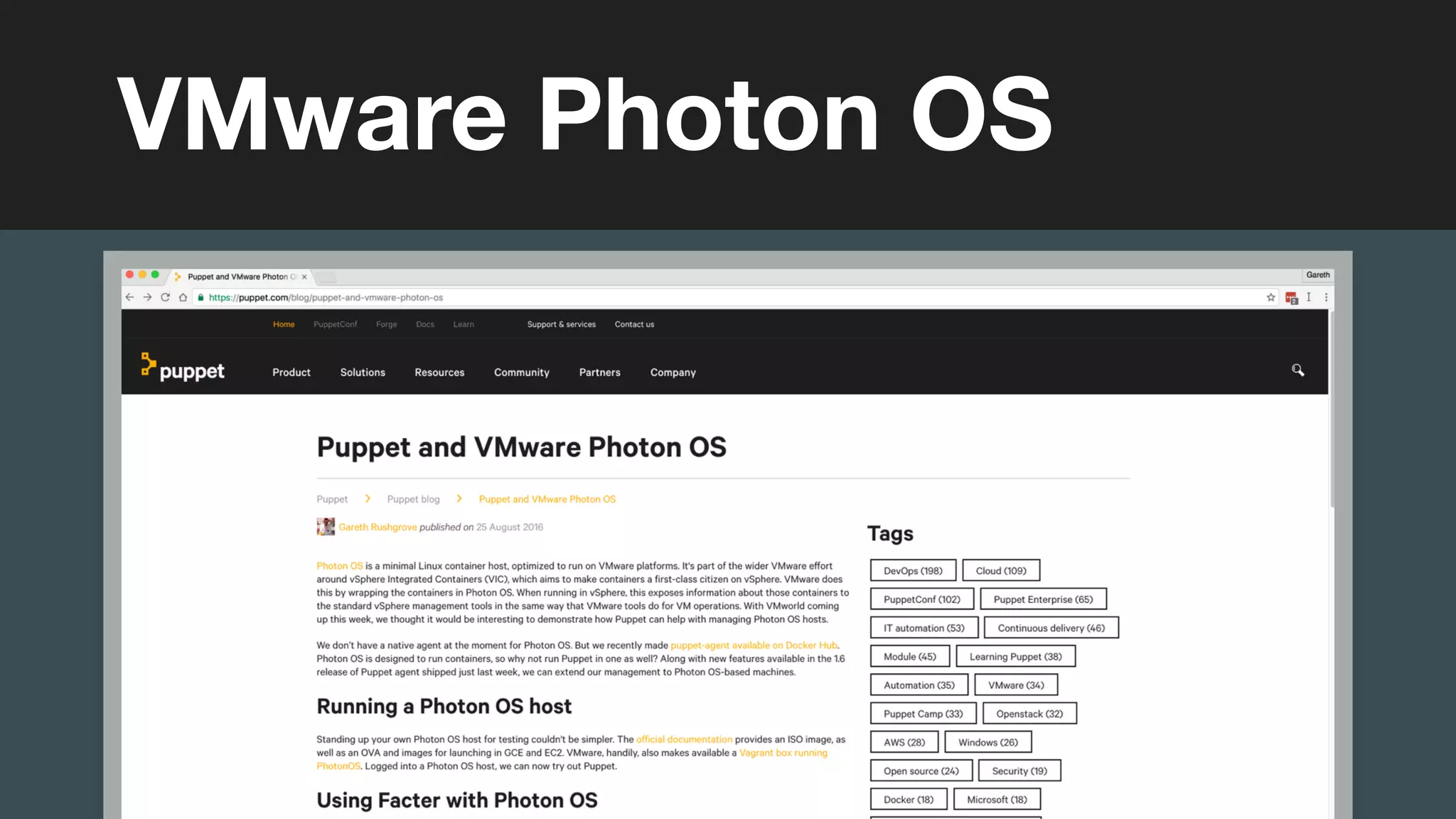

VMware Photon OS

37. (without introducing more risk)DEMOS

38. (without introducing more risk)
With your existing Puppet code
Building Docker Images

39. Building Docker images with Puppet
should be as simple as building them
with docker build
Gareth Rushgrove

40. (without introducing more risk)
Gareth Rushgrove

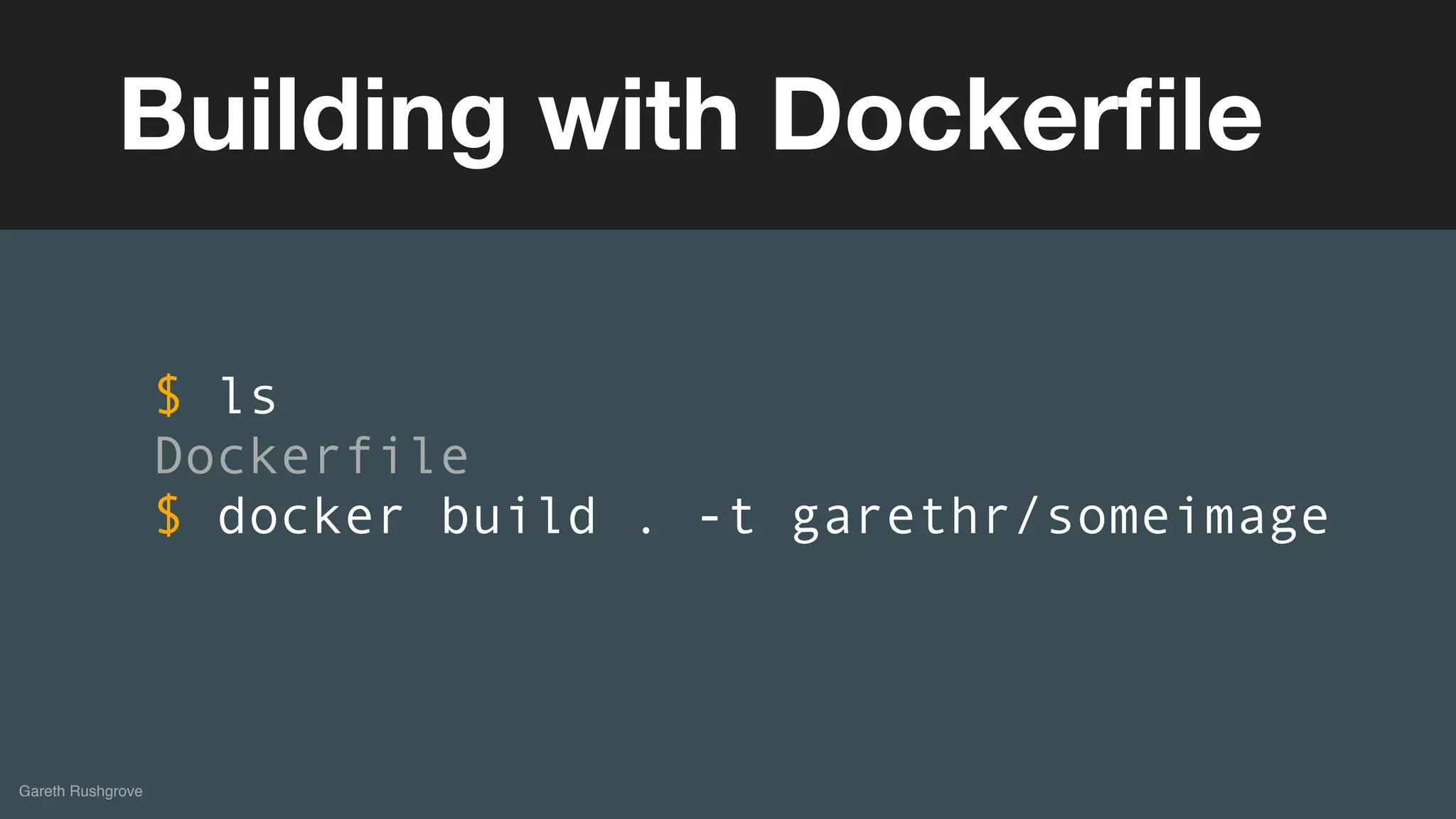

Building with Dockerfile
$ ls
Dockerfile
$ docker build . -t garethr/someimage

41. (without introducing more risk)
Gareth Rushgrove

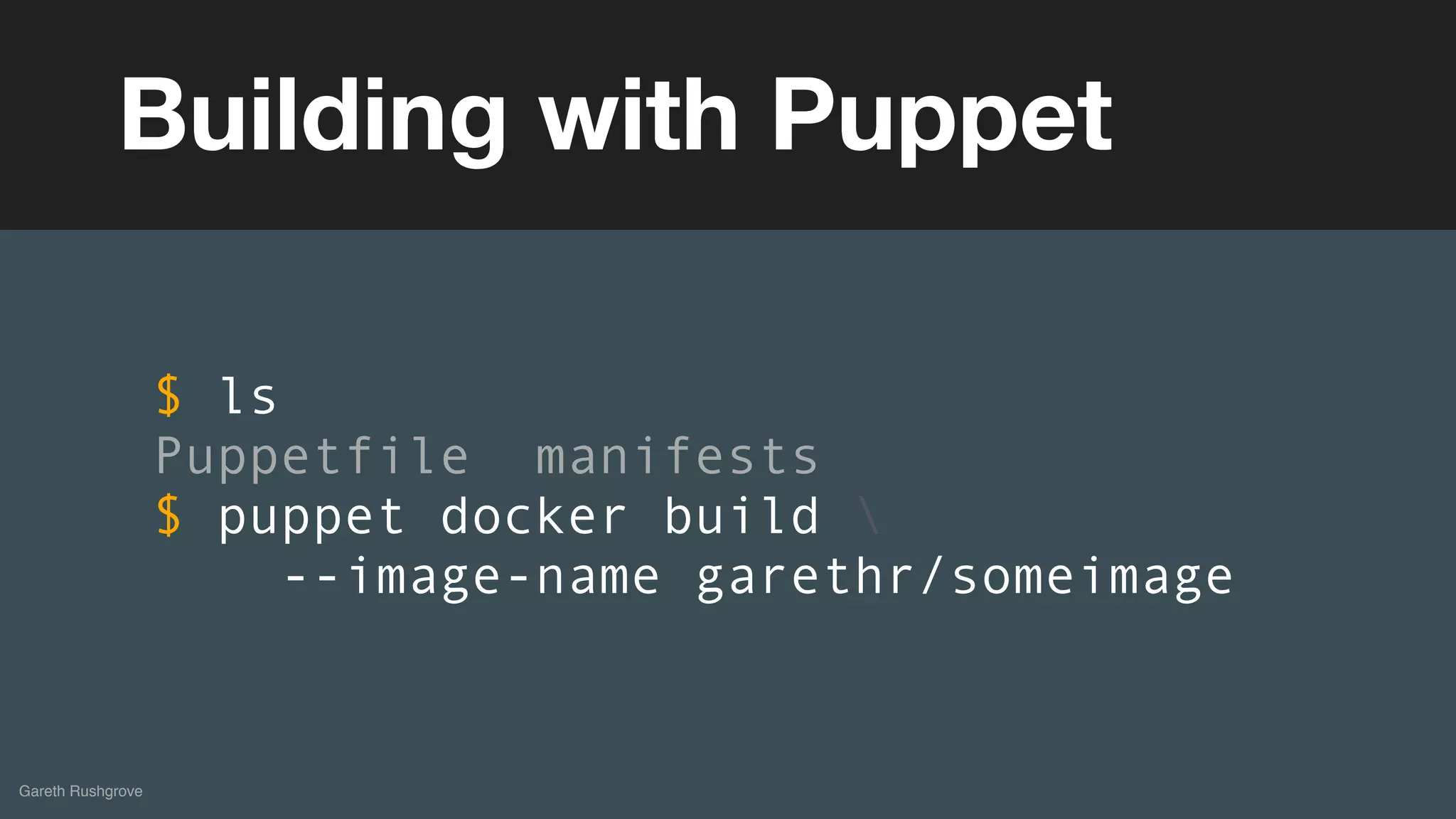

Building with Puppet
$ ls
Puppetfile manifests
$ puppet docker build
--image-name garethr/someimage

42. (without introducing more risk)

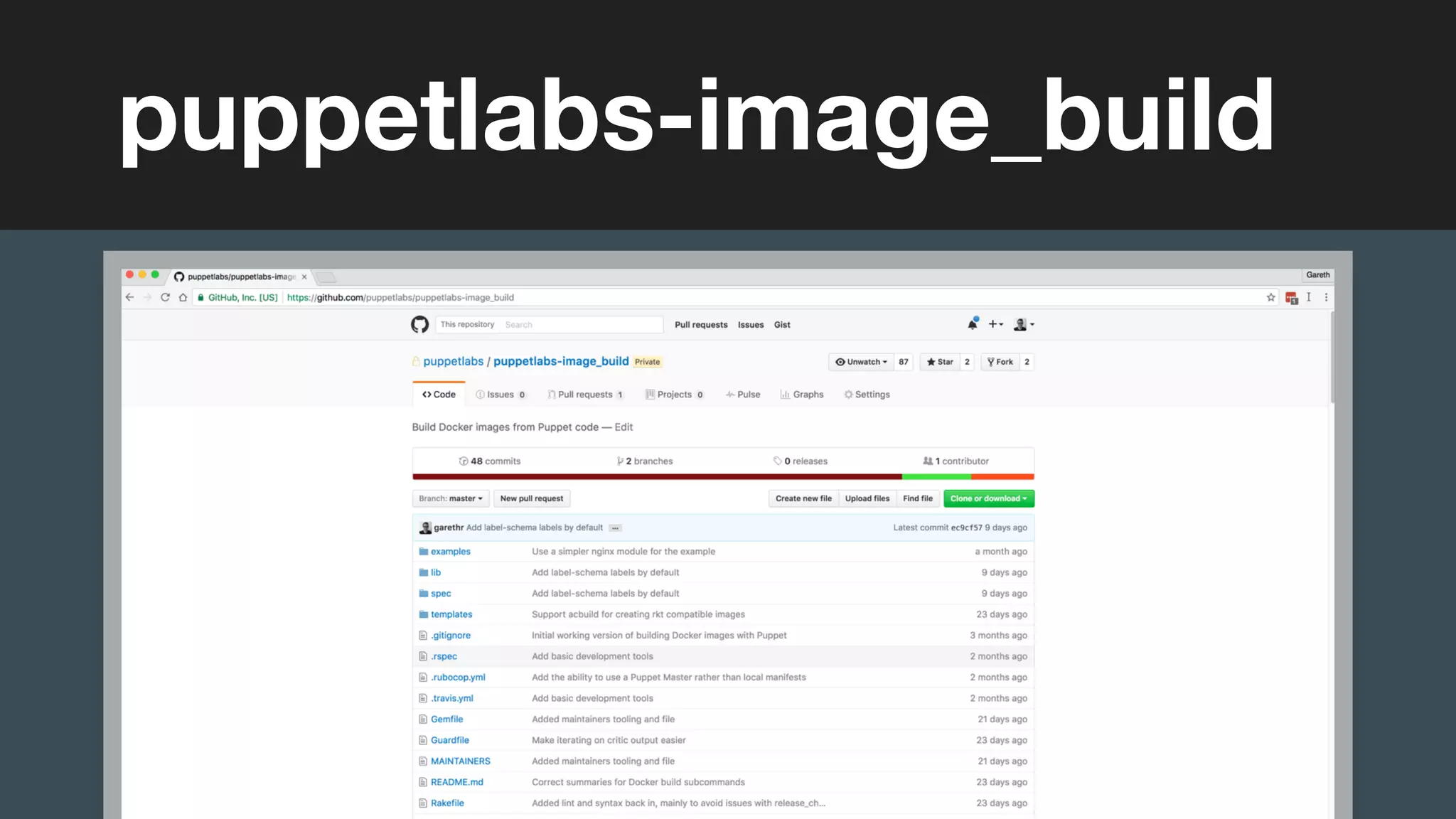

puppetlabs-image_build

43. (without introducing more risk)DEMOS

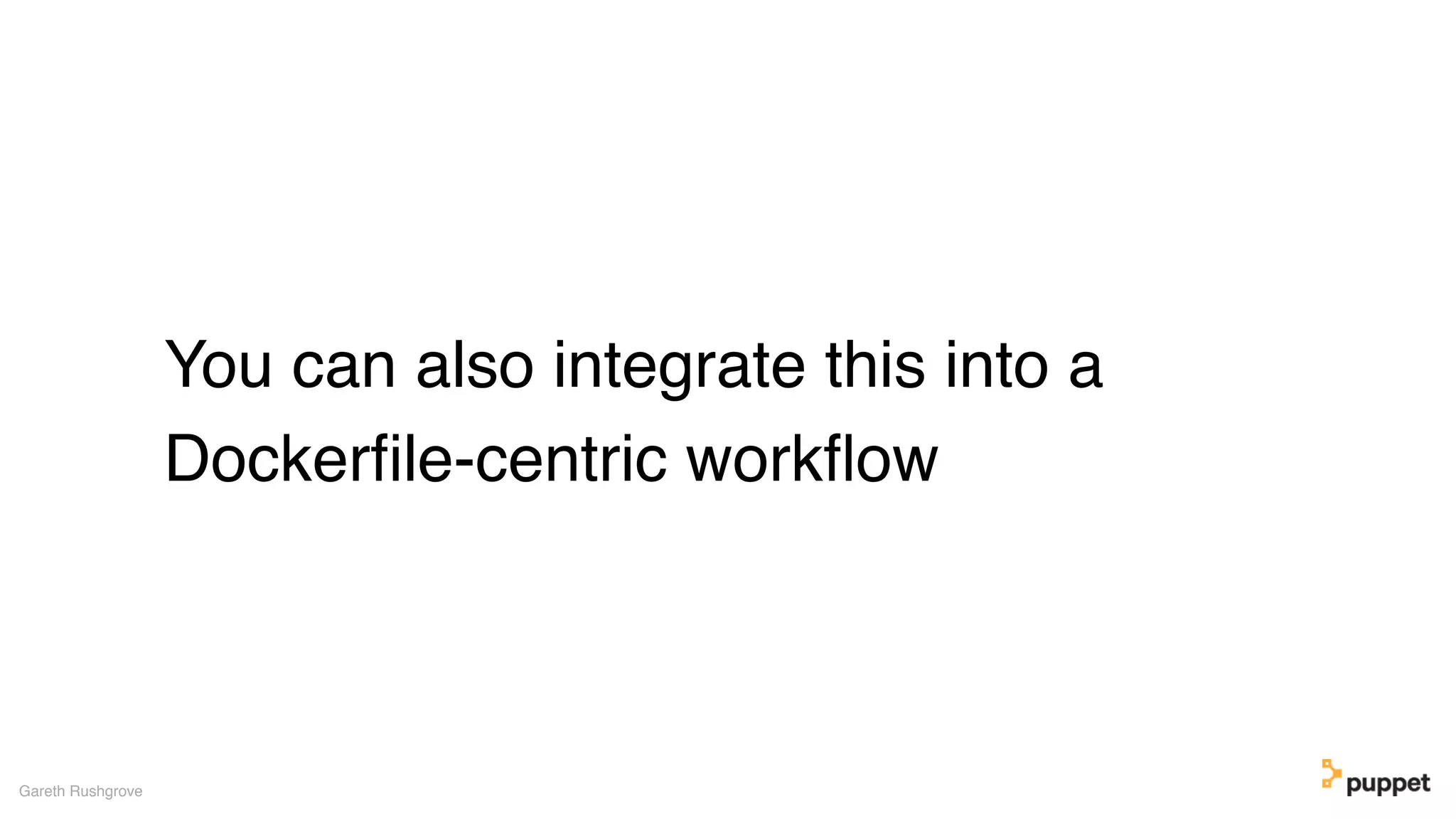

44. You can also integrate this into a
Dockerfile-centric workflow
Gareth Rushgrove

45. (without introducing more risk)
Gareth Rushgrove
Intermediary Dockerfile
$ puppet docker dockerfile
--image-name garethr/someimage

46. (without introducing more risk)

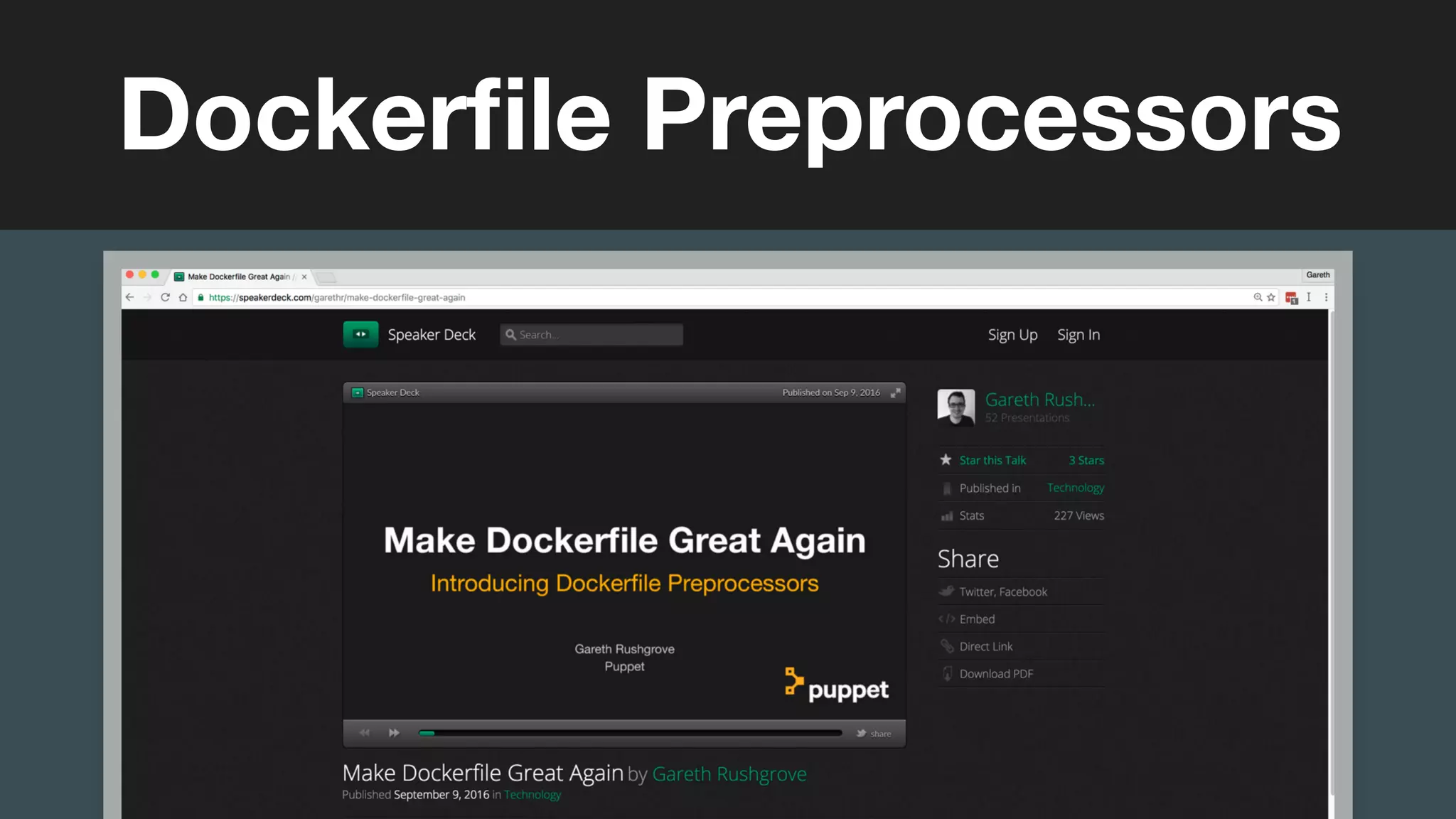

Dockerfile Preprocessors

47. (without introducing more risk)

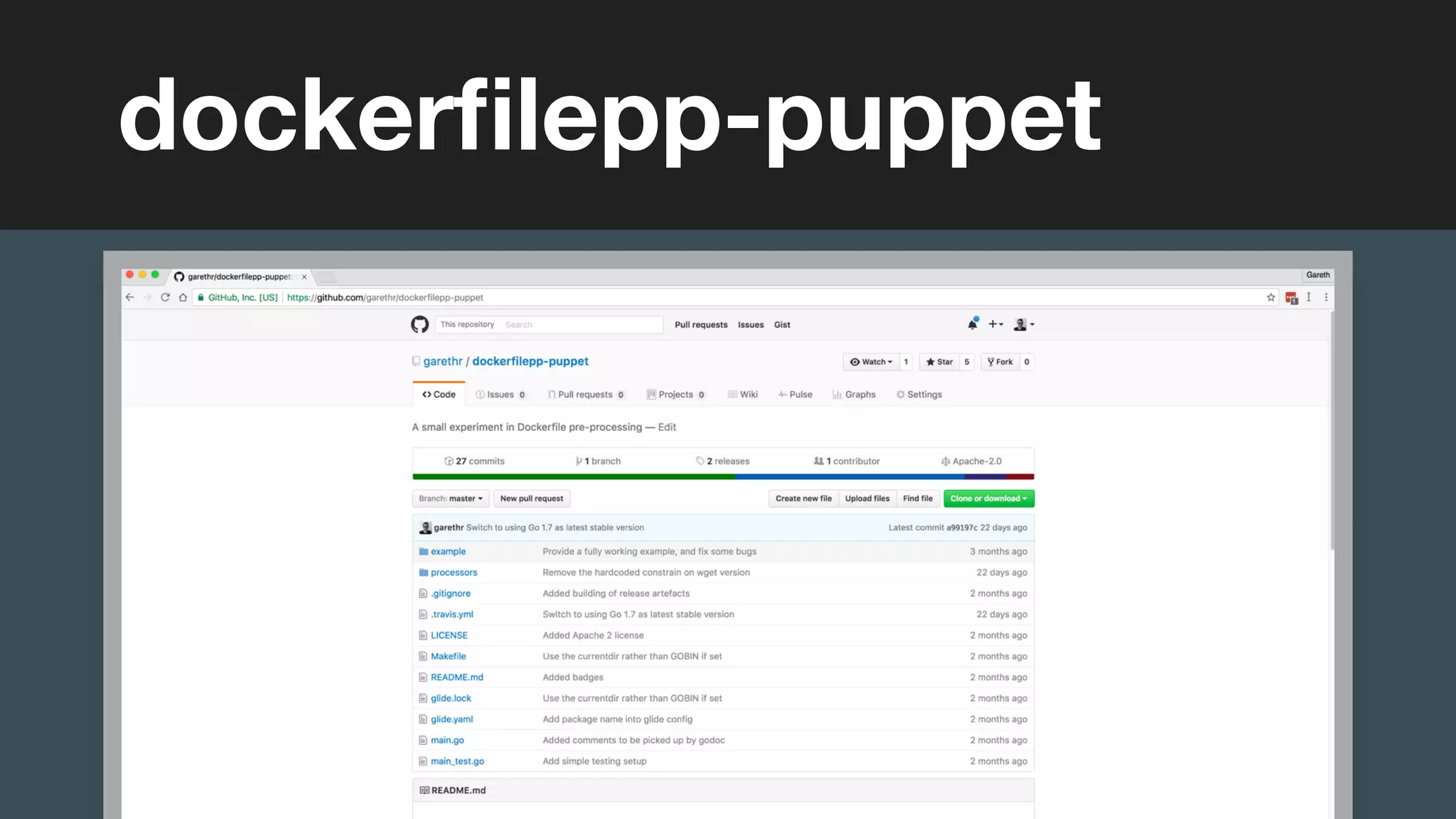

dockerfilepp-puppet

48. (without introducing more risk)
Gareth Rushgrove

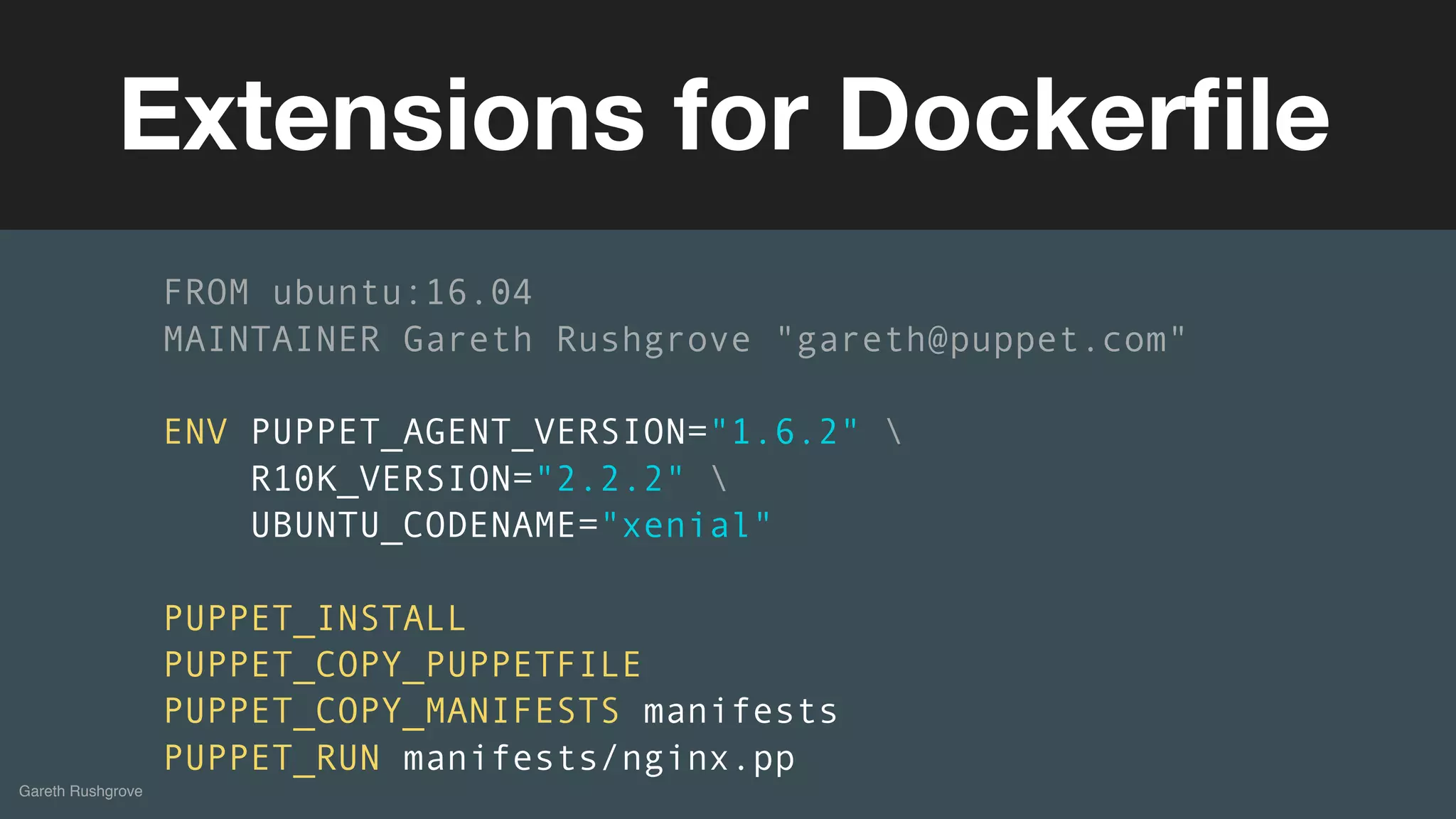

Extensions for Dockerfile
FROM ubuntu:16.04
MAINTAINER Gareth Rushgrove "gareth@puppet.com"
ENV PUPPET_AGENT_VERSION="1.6.2"
R10K_VERSION="2.2.2"
UBUNTU_CODENAME="xenial"
PUPPET_INSTALL
PUPPET_COPY_PUPPETFILE
PUPPET_COPY_MANIFESTS manifests
PUPPET_RUN manifests/nginx.pp

49. (without introducing more risk)
What is inside that container?
Container Inventory

50. (without introducing more risk)

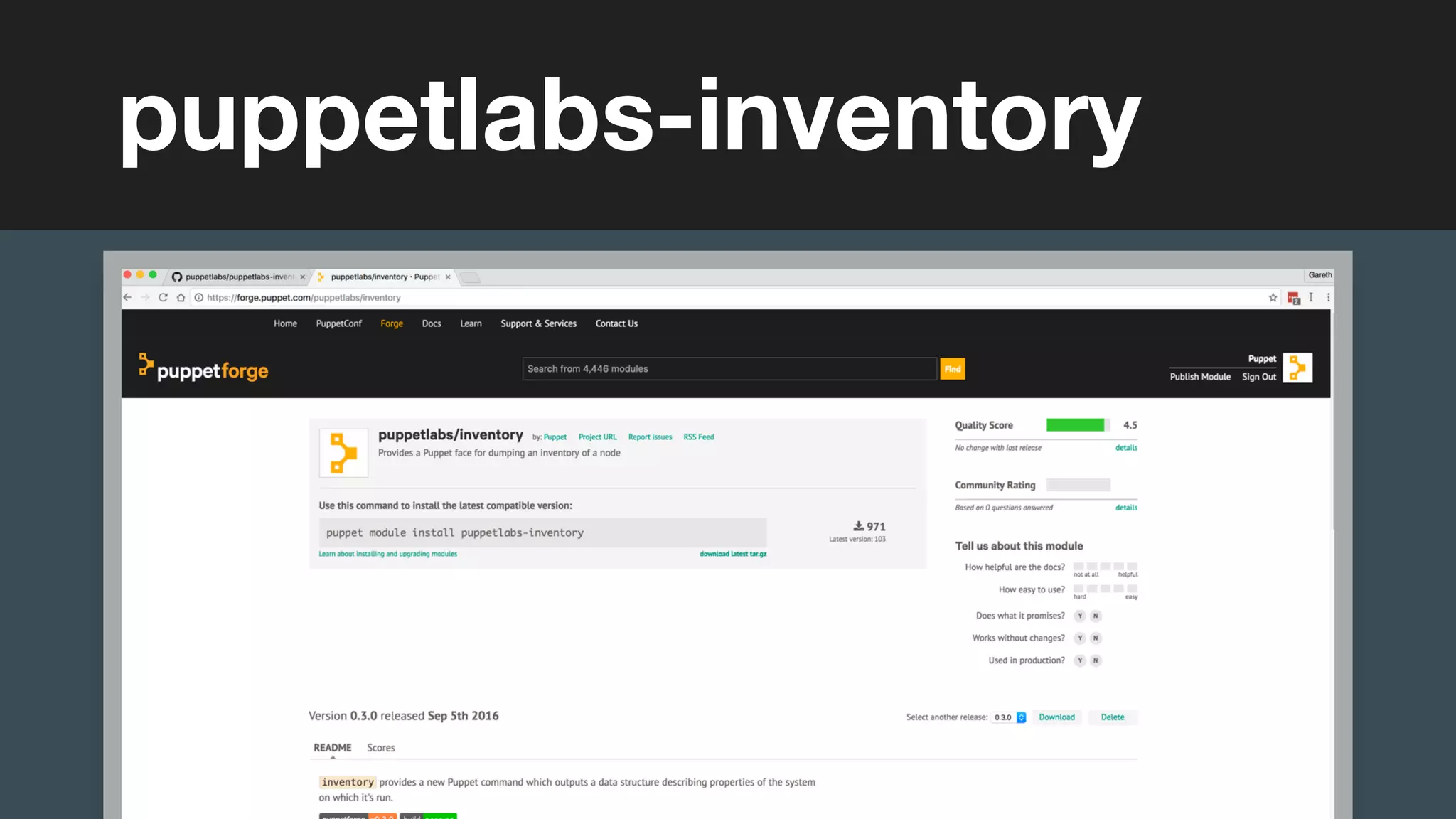

puppetlabs-inventory

51. (without introducing more risk)
Gareth Rushgrove

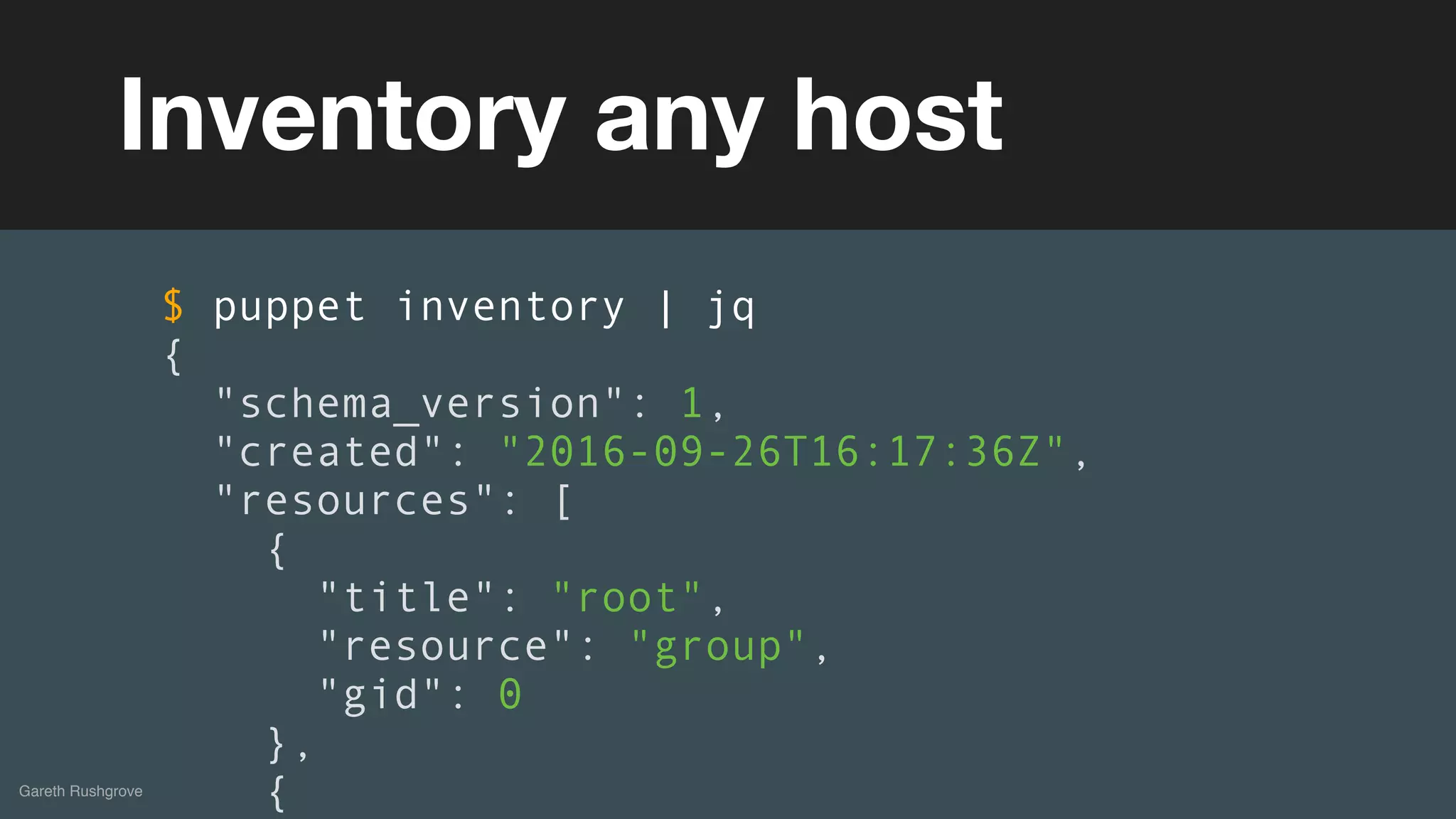

Inventory any host
$ puppet inventory | jq
{
"schema_version": 1,
"created": "2016-09-26T16:17:36Z",
"resources": [
{
"title": "root",
"resource": "group",
"gid": 0
},
{

52. (without introducing more risk)
Gareth Rushgrove
Run against other containers
$ docker run --name puppet-inventory
puppet/puppet-inventory
$ docker run --rm -it
—volumes-from=puppet-inventory
centos
/opt/puppetlabs/bin/puppet inventory

53. (without introducing more risk)
Gareth Rushgrove

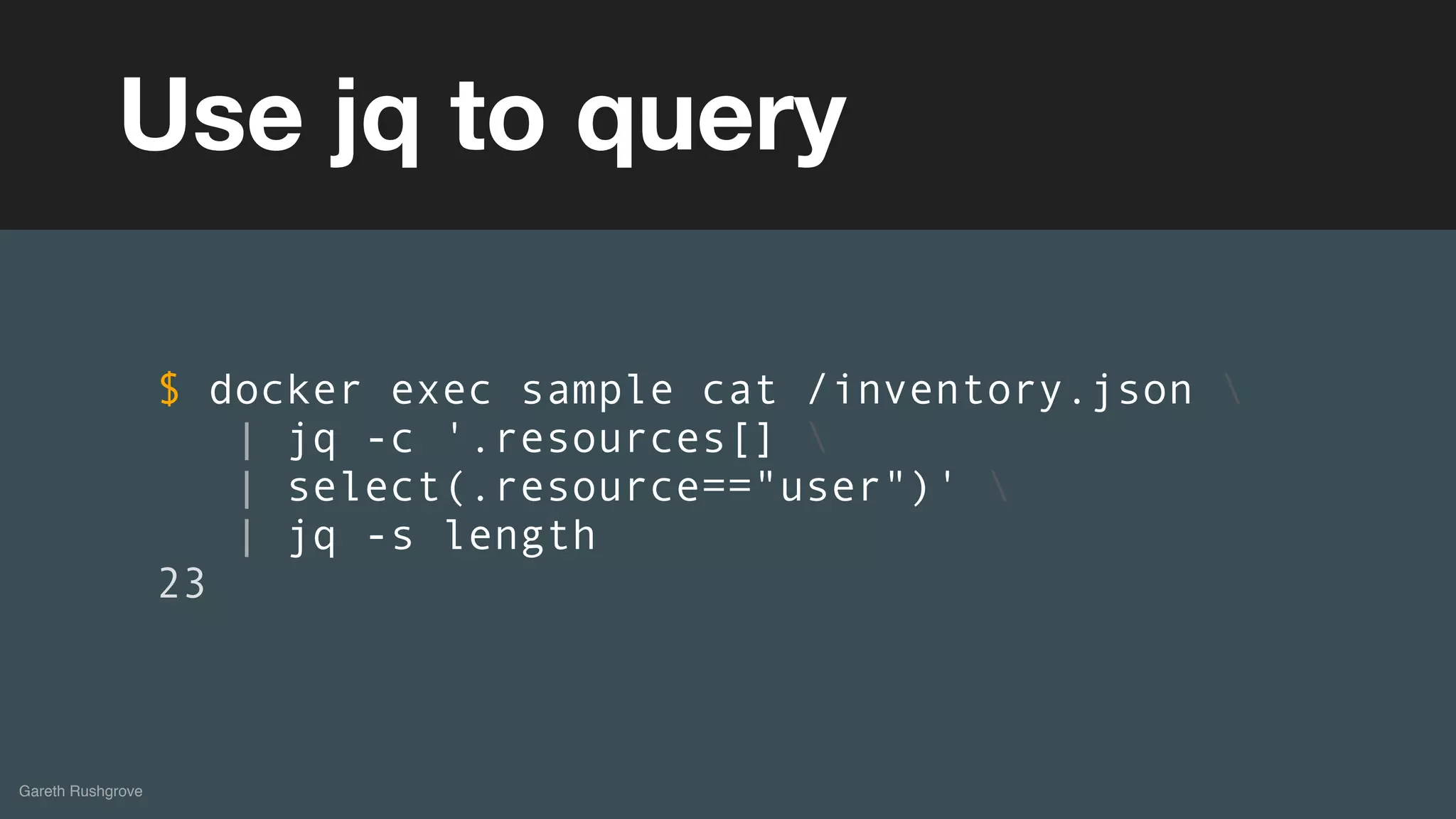

Use jq to query
$ docker exec sample cat /inventory.json
| jq -c '.resources[]
| select(.resource=="user")'
| jq -s length
23

54. (without introducing more risk)DEMOS

55. (without introducing more risk)

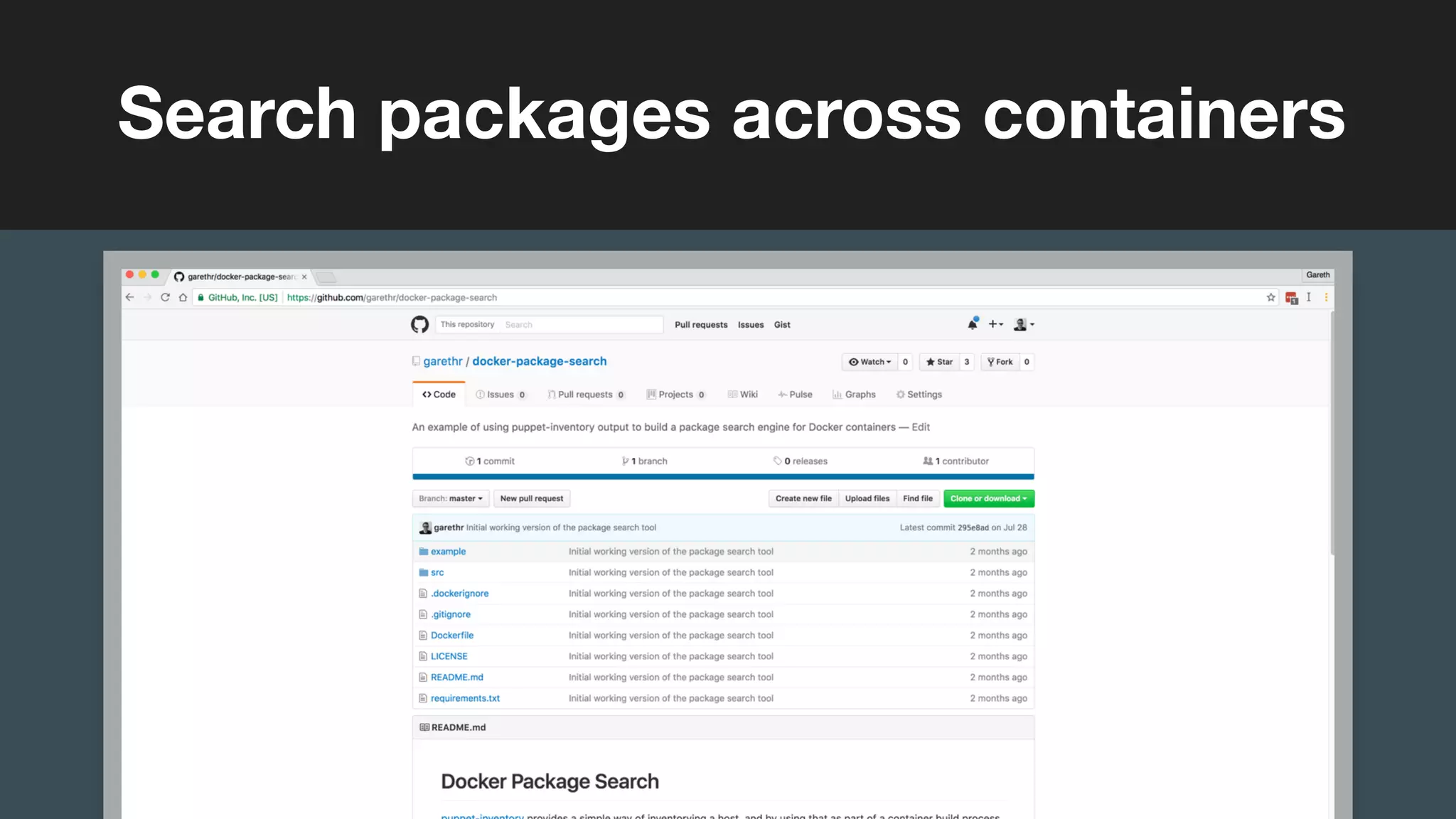

Search packages across containers

56. (without introducing more risk)
Gareth Rushgrove

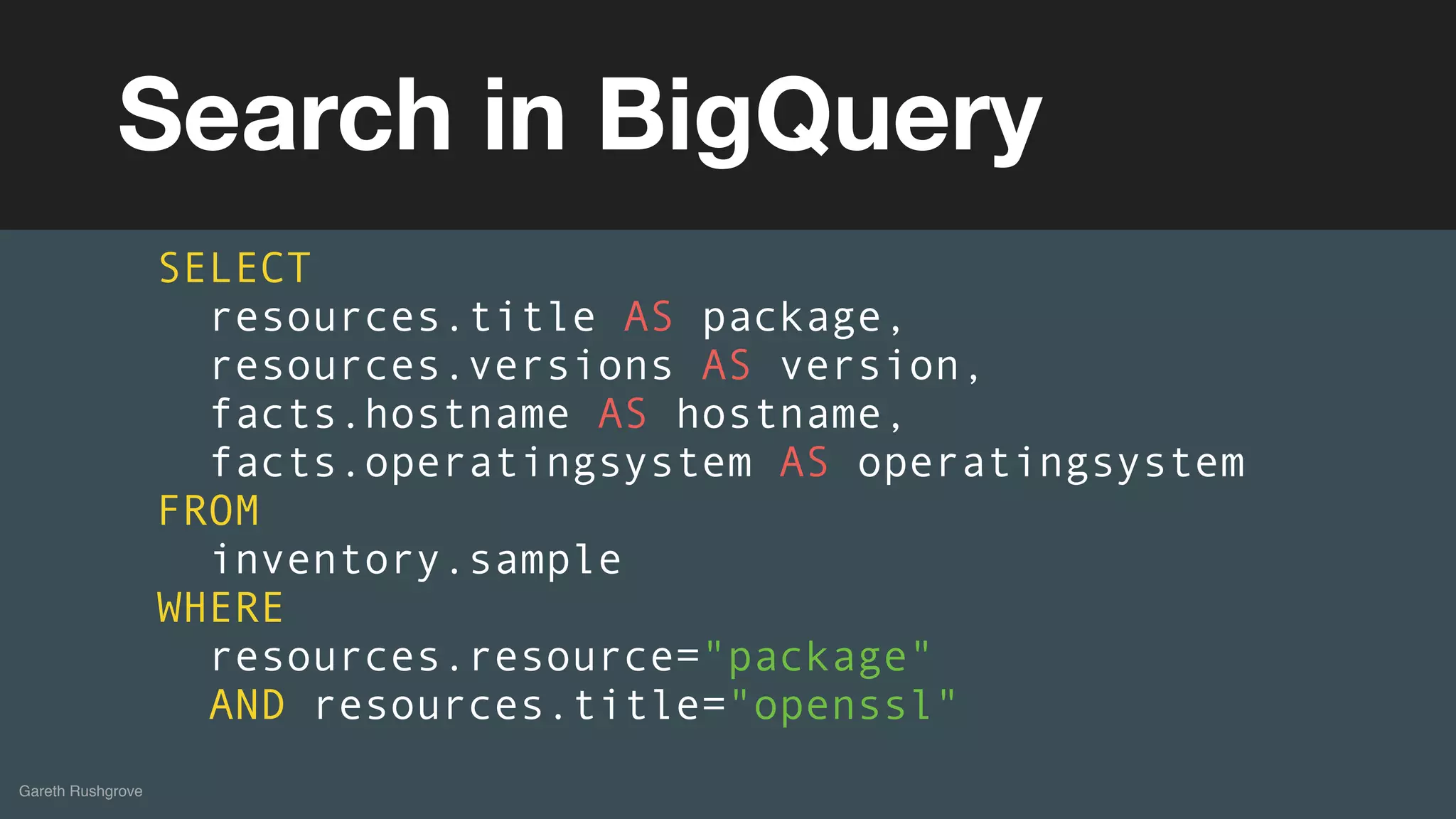

Search in BigQuery
SELECT
resources.title AS package,
resources.versions AS version,
facts.hostname AS hostname,
facts.operatingsystem AS operatingsystem
FROM
inventory.sample
WHERE
resources.resource="package"
AND resources.title="openssl"

57. (without introducing more risk)
More to come
Conclusions

58. Puppet can help you manage containers
Gareth Rushgrove

59. Containers can help you manage Puppet
Gareth Rushgrove

60. Still lots of interesting problems, and
solutions, to explore around using
Docker in production
Gareth Rushgrove

61. (without introducing more risk)

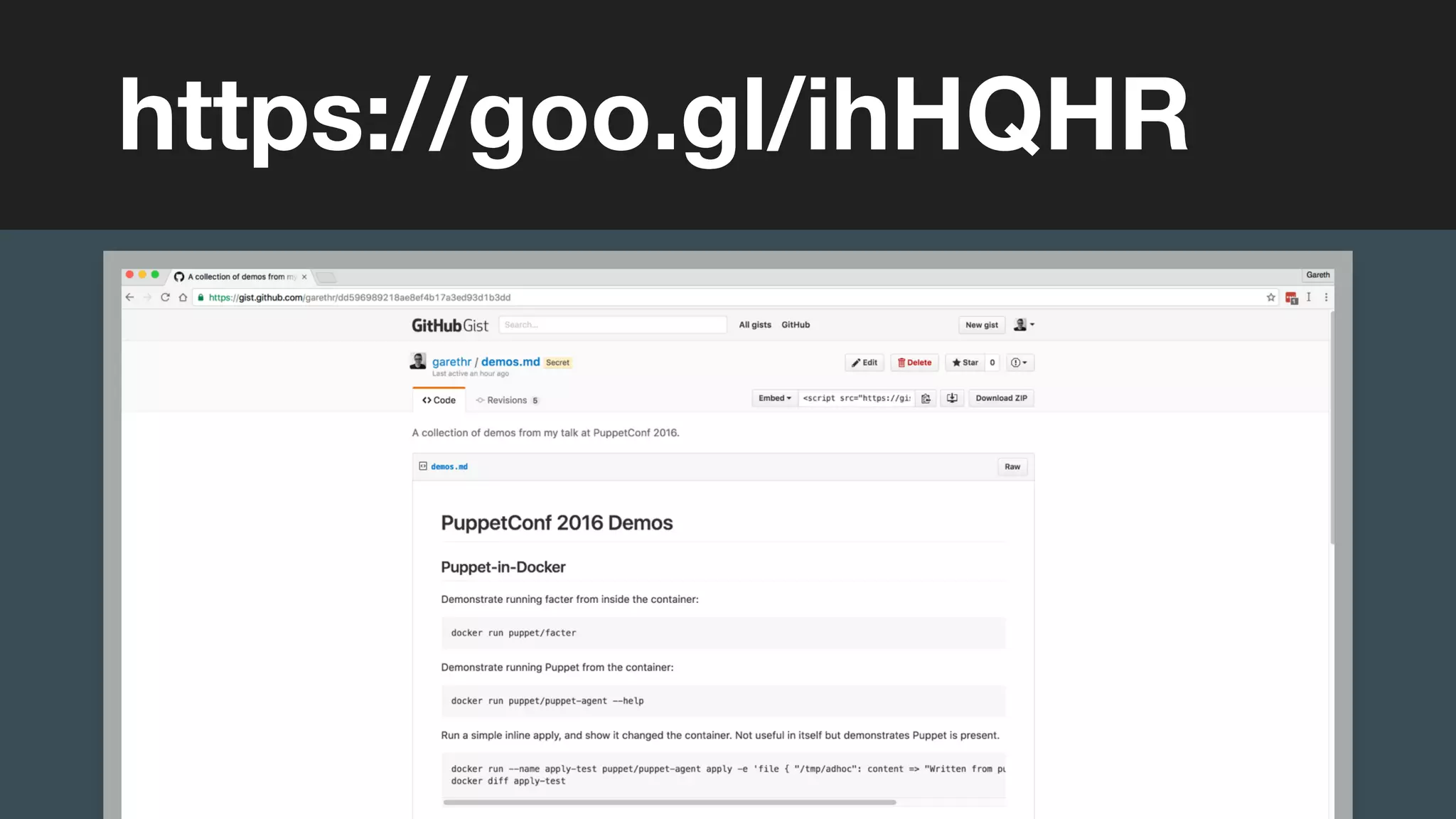

https://goo.gl/ihHQHR

62. (without introducing more risk)
Gareth Rushgrove
Follow Project Blueshift for
more solutions in this area
https://puppet.com/product/managed-technology/blueshift

63. (without introducing more risk)
Questions?
And thanks for listening
