Chef Jumpstart

Introductions
• Kimball Johnson
• Customer Architect
• Background in Development and Operations, working in
Financial, Academic and Public Sectors.
• Chef user for 7 years, Chef Employee for 3, also used
other systems.
• Other interests include embedded hardware
development and reading and computer games.
• Favorite Text Editor is VSCode, for it’s multiplatform
support and it’s ever expanding feature set.

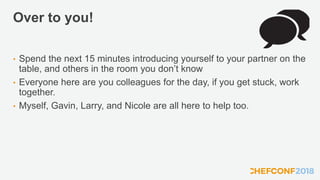

Over to you!
• Spend the next 15 minutes introducing yourself to your partner on the
table, and others in the room you don’t know
• Everyone here are you colleagues for the day, if you get stuck, work
together.
• Myself, Gavin, Larry, and Nicole are all here to help too.

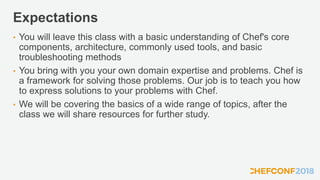

Expectations
• You will leave this class with a basic understanding of Chef's core
components, architecture, commonly used tools, and basic
troubleshooting methods
• You bring with you your own domain expertise and problems. Chef is
a framework for solving those problems. Our job is to teach you how
to express solutions to your problems with Chef.
• We will be covering the basics of a wide range of topics, after the
class we will share resources for further study.

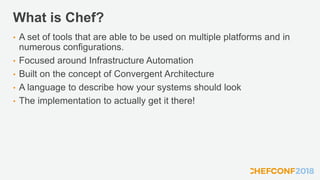

What is Chef?
• A set of tools that are able to be used on multiple platforms and in
numerous configurations.
• Focused around Infrastructure Automation
• Built on the concept of Convergent Architecture
• A language to describe how your systems should look
• The implementation to actually get it there!

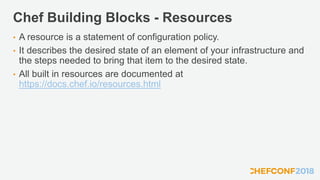

Chef Building Blocks - Resources
• A resource is a statement of configuration policy.
• It describes the desired state of an element of your infrastructure and
the steps needed to bring that item to the desired state.
• All built in resources are documented at
https://docs.chef.io/resources.html

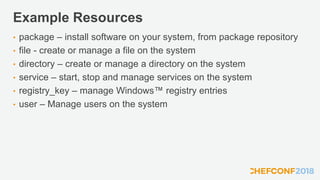

Example Resources
• package – install software on your system, from package repository
• file - create or manage a file on the system
• directory – create or manage a directory on the system
• service – start, stop and manage services on the system
• registry_key – manage Windows™ registry entries
• user – Manage users on the system

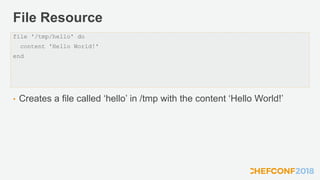

File Resource
• Creates a file called ‘hello’ in /tmp with the content ‘Hello World!’
file '/tmp/hello' do
content 'Hello World!'
end

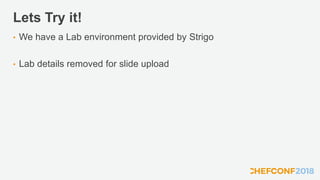

Lets Try it!
• We have a Lab environment provided by Strigo
• Lab details removed for slide upload

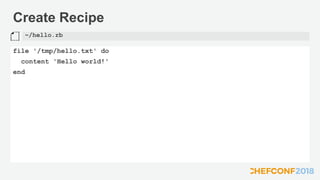

Create Recipe
file '/tmp/hello.txt' do
content 'Hello world!'
end
~/hello.rb

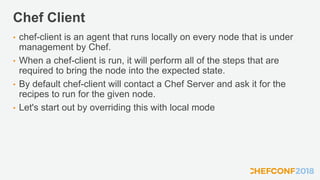

Chef Client
• chef-client is an agent that runs locally on every node that is under
management by Chef.
• When a chef-client is run, it will perform all of the steps that are
required to bring the node into the expected state.
• By default chef-client will contact a Chef Server and ask it for the
recipes to run for the given node.
• Let's start out by overriding this with local mode

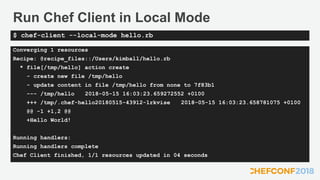

Run Chef Client in Local Mode
Converging 1 resources
Recipe: @recipe_files::/Users/kimball/hello.rb
* file[/tmp/hello] action create
- create new file /tmp/hello
- update content in file /tmp/hello from none to 7f83b1
--- /tmp/hello 2018-05-15 16:03:23.659272552 +0100
+++ /tmp/.chef-hello20180515-43912-1rkvise 2018-05-15 16:03:23.658781075 +0100
@@ -1 +1,2 @@
+Hello World!
Running handlers:
Running handlers complete
Chef Client finished, 1/1 resources updated in 04 seconds
$ chef-client --local-mode hello.rb

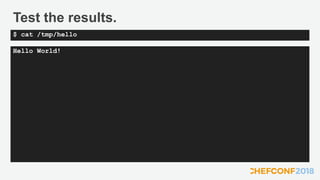

Test the results.
Hello World!
$ cat /tmp/hello

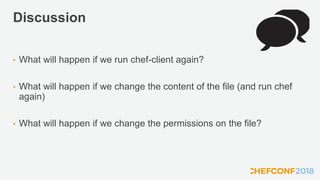

Discussion
• What will happen if we run chef-client again?
• What will happen if we change the content of the file (and run chef
again)
• What will happen if we change the permissions on the file?

Test and Repair
• chef-client takes action only when it needs to. Think of it as test and
repair.
• Chef looks at the current state of each resource and takes action only
when that resource differs from the recipe.

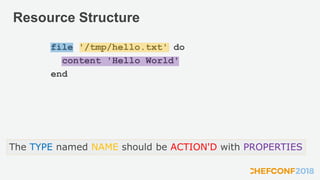

Resource Structure
file '/tmp/hello.txt' do
content 'Hello World'
end
The TYPE named NAME should be ACTION'D with PROPERTIES

But what about the Action?
• Every resource has a default action
• Lets look at the documentation to see the default for 'file'
• https://docs.chef.io/resources.html

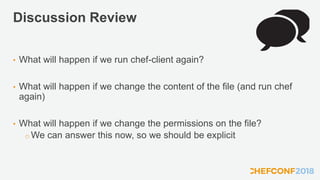

Discussion Review
• What will happen if we run chef-client again?
• What will happen if we change the content of the file (and run chef
again)
• What will happen if we change the permissions on the file?
o We can answer this now, so we should be explicit

Experiment
• Update file resource and set the mode, and the action to ':create'
• Change the permissions and run again
• Change the content and run again
• Update the file resource and set the action to ':create_if_missing'
• Change the content and run again

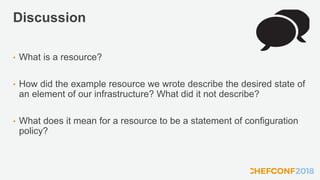

Discussion
• What is a resource?
• How did the example resource we wrote describe the desired state of
an element of our infrastructure? What did it not describe?
• What does it mean for a resource to be a statement of configuration
policy?

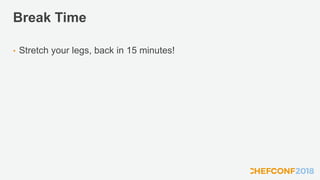

Break Time
• Stretch your legs, back in 15 minutes!

Discussion
• What else might we want to do with chef?
• Any limitations we can think of to how we have used it so far?
• What about testing?

Cookbooks
• Single Recipes alone are limited, we need other files to go along with
them
• You may need to put in place config files, and putting the content in
the properties would be unwieldy
• Also, as this is code, we should have tests!
• We package all this up together in a cookbook

Cookbooks
• A Chef cookbook is the fundamental unit of configuration and policy
distribution.
• Each cookbook defines a scenario, such as everything needed to
install and configure MySQL, and then it contains all of the
components that are required to support that scenario.
• They are documented here: http://docs.chef.io/cookbooks.html

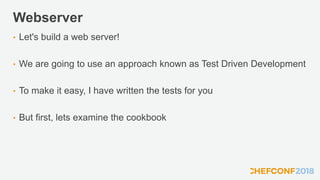

Webserver
• Let's build a web server!
• We are going to use an approach known as Test Driven Development
• To make it easy, I have written the tests for you
• But first, lets examine the cookbook

Webserver
lab2
├── Berksfile
├── Berksfile.lock
├── LICENSE
├── README.md
├── chefignore
├── metadata.rb
├── recipes
│ └── default.rb
├── spec
│ ├── spec_helper.rb
│ └── unit
│ └── recipes
│ └── default_spec.rb
└── test
└── smoke
└── default
└── default_test.rb
7 directories, 10 files
$ tree lab2/

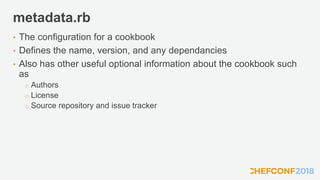

metadata.rb
• The configuration for a cookbook
• Defines the name, version, and any dependancies
• Also has other useful optional information about the cookbook such
as
o Authors
o License
o Source repository and issue tracker

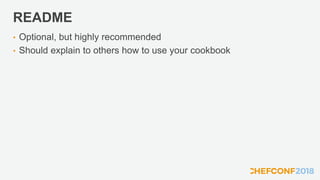

README
• Optional, but highly recommended
• Should explain to others how to use your cookbook

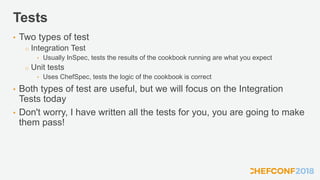

Tests
• Two types of test
o Integration Test
• Usually InSpec, tests the results of the cookbook running are what you expect
o Unit tests
• Uses ChefSpec, tests the logic of the cookbook is correct
• Both types of test are useful, but we will focus on the Integration
Tests today
• Don't worry, I have written all the tests for you, you are going to make
them pass!

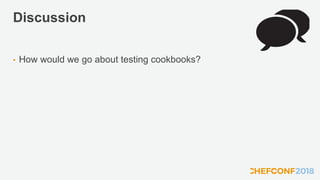

Discussion
• How would we go about testing cookbooks?

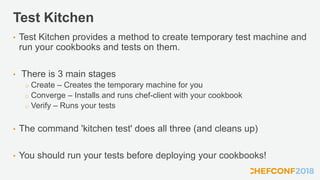

Test Kitchen
• Test Kitchen provides a method to create temporary test machine and
run your cookbooks and tests on them.
• There is 3 main stages
o Create – Creates the temporary machine for you
o Converge – Installs and runs chef-client with your cookbook
o Verify – Runs your tests
• The command 'kitchen test' does all three (and cleans up)
• You should run your tests before deploying your cookbooks!

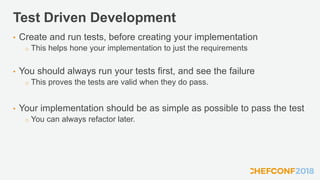

Test Driven Development
• Create and run tests, before creating your implementation
o This helps hone your implementation to just the requirements
• You should always run your tests first, and see the failure
o This proves the tests are valid when they do pass.
• Your implementation should be as simple as possible to pass the test
o You can always refactor later.

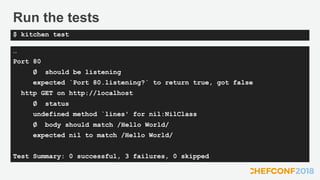

Run the tests
…
Port 80
∅ should be listening
expected `Port 80.listening?` to return true, got false
http GET on http://localhost
∅ status
undefined method `lines' for nil:NilClass
∅ body should match /Hello World/
expected nil to match /Hello World/
Test Summary: 0 successful, 3 failures, 0 skipped
$ kitchen test

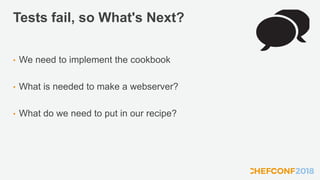

Tests fail, so What's Next?
• We need to implement the cookbook
• What is needed to make a webserver?
• What do we need to put in our recipe?

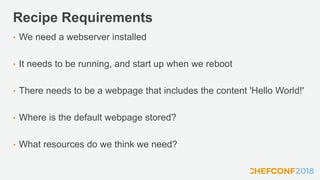

Recipe Requirements
• We need a webserver installed
• It needs to be running, and start up when we reboot
• There needs to be a webpage that includes the content 'Hello World!'
• Where is the default webpage stored?
• What resources do we think we need?

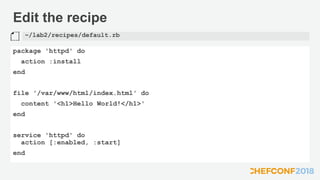

Edit the recipe
package 'httpd' do
action :install
end
file '/var/www/html/index.html' do
content '<h1>Hello World!</h1>'
end
service 'httpd' do
action [:enabled, :start]
end
~/lab2/recipes/default.rb

Run the tests
…
Port 80
✔ should be listening
✔ status should cmp == 200
✔ body should match /Hello World/
$ kitchen test

Discussion
• So, what have we learnt?
• How does running the tests first help?
• How does test kitchen help?

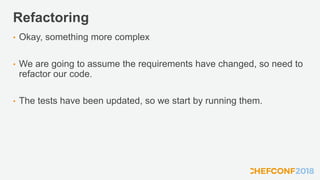

Refactoring
• Okay, something more complex
• We are going to assume the requirements have changed, so need to
refactor our code.
• The tests have been updated, so we start by running them.

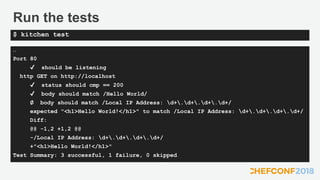

Run the tests
…
Port 80
∅ body should match /Local IP Address: d+.d+.d+.d+/
expected "<h1>Hello World!</h1>" to match /Local IP Address: d+.d+.d+.d+/
Diff:
@@ -1,2 +1,2 @@
-/Local IP Address: d+.d+.d+.d+/
+"<h1>Hello World!</h1>"
Test Summary: 3 successful, 1 failure, 0 skipped
$ kitchen test

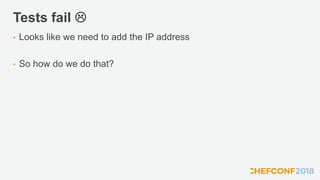

Tests fail 
• Looks like we need to add the IP address
• So how do we do that?

Ohai!
• We could, of course, figure out the IP address of the machine and
hard code it (or in fact put in anything to pass the test)
• But chef is designed to help us automate, so maybe there is a way to
get data automatically?
• Ohai queries the operating system with a number of commands,
automatically every chef run.
• You can also run it manually

Lets experiment again
…….
$ ohai
Okay, that's a lot
of data

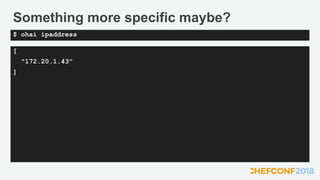

Something more specific maybe?
[
"172.20.1.43"
]
$ ohai ipaddress

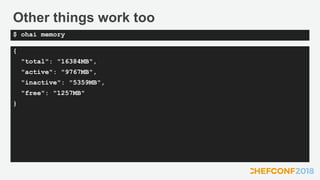

Other things work too
{
"total": "16384MB",
"active": "9767MB",
"inactive": "5359MB",
"free": "1257MB"
}
$ ohai memory

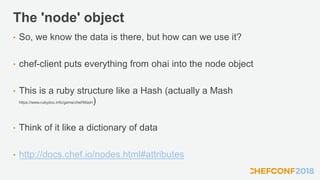

The 'node' object
• So, we know the data is there, but how can we use it?
• chef-client puts everything from ohai into the node object
• This is a ruby structure like a Hash (actually a Mash
https://www.rubydoc.info/gems/chef/Mash)
• Think of it like a dictionary of data
• http://docs.chef.io/nodes.html#attributes

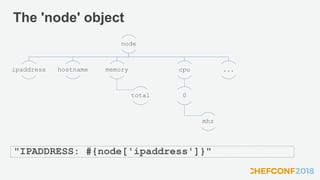

The 'node' object
node
ipaddress hostname memory
total
cpu
0
mhz
...
"IPADDRESS: #{node['ipaddress']}"

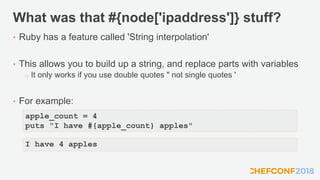

What was that #{node['ipaddress']} stuff?
• Ruby has a feature called 'String interpolation'
• This allows you to build up a string, and replace parts with variables
o It only works if you use double quotes " not single quotes '
• For example:
apple_count = 4
puts "I have #{apple_count} apples"
I have 4 apples

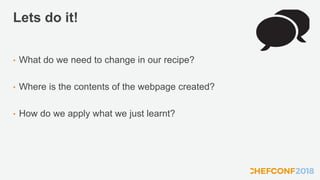

Lets do it!
• What do we need to change in our recipe?
• Where is the contents of the webpage created?
• How do we apply what we just learnt?

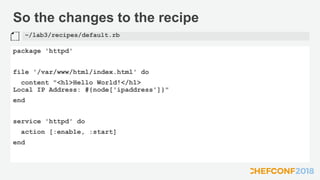

So the changes to the recipe
package 'httpd'
file '/var/www/html/index.html' do
content "<h1>Hello World!</h1>
Local IP Address: #{node['ipaddress']}"
end
service 'httpd' do
action [:enable, :start]
end

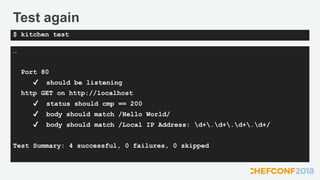

Test again
…
Port 80
✔ body should match /Local IP Address: d+.d+.d+.d+/
$ kitchen test

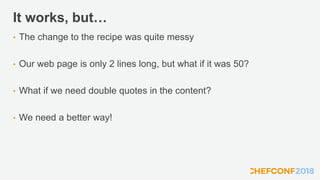

It works, but…
• The change to the recipe was quite messy
• Our web page is only 2 lines long, but what if it was 50?
• What if we need double quotes in the content?
• We need a better way!

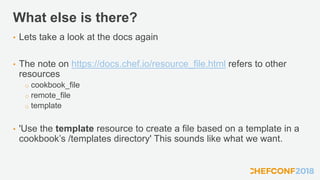

What else is there?
• Lets take a look at the docs again
• The note on https://docs.chef.io/resource_file.html refers to other
resources
o cookbook_file
o remote_file
o template
• 'Use the template resource to create a file based on a template in a
cookbook’s /templates directory' This sounds like what we want.

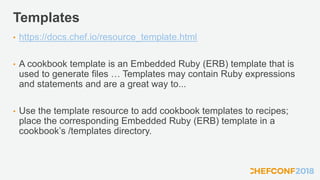

Templates
• https://docs.chef.io/resource_template.html
• A cookbook template is an Embedded Ruby (ERB) template that is
used to generate files … Templates may contain Ruby expressions
and statements and are a great way to...
• Use the template resource to add cookbook templates to recipes;
place the corresponding Embedded Ruby (ERB) template in a
cookbook’s /templates directory.

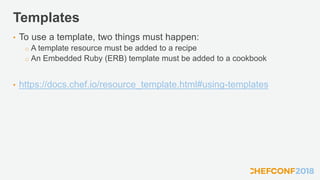

Templates
• To use a template, two things must happen:
o A template resource must be added to a recipe
o An Embedded Ruby (ERB) template must be added to a cookbook
• https://docs.chef.io/resource_template.html#using-templates

Embedded Ruby
• Templates use Embedded Ruby (ERB)
• An Embedded Ruby (ERB) template allows Ruby code to be
embedded inside a text file within specially formatted tags.
• Ruby code can be embedded using expressions and statements.
• This gives great flexibility in constructing the final file

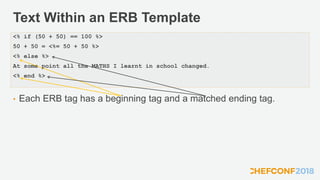

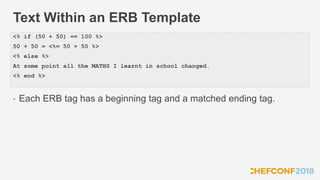

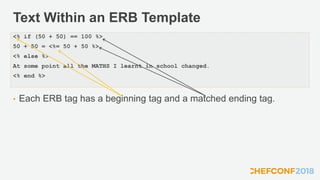

Text Within an ERB Template
• Each ERB tag has a beginning tag and a matched ending tag.
<% if (50 + 50) == 100 %>
50 + 50 = <%= 50 + 50 %>
<% else %>
At some point all the MATHS I learnt in school changed.
<% end %>

• Executes the ruby code within the brackets and do not display the
result.
<% if (50 + 50) == 100 %>
50 + 50 = <%= 50 + 50 %>
<% else %>
<% end %>

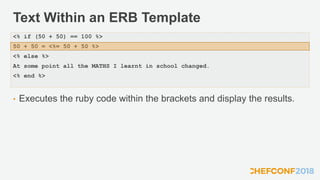

• Executes the ruby code within the brackets and display the results.
<% if (50 + 50) == 100 %>
50 + 50 = <%= 50 + 50 %>
<% else %>
<% end %>

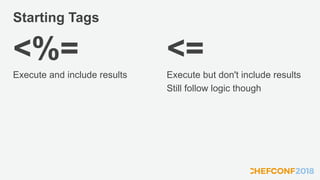

Starting Tags
<%=
Execute and include results
<=
Execute but don't include results
Still follow logic though

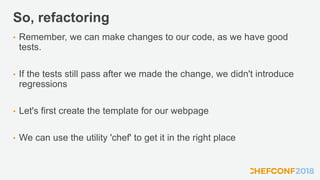

So, refactoring
• Remember, we can make changes to our code, as we have good
tests.
• If the tests still pass after we made the change, we didn't introduce
regressions
• Let's first create the template for our webpage
• We can use the utility 'chef' to get it in the right place

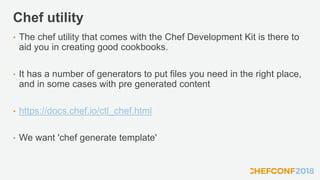

Chef utility
• The chef utility that comes with the Chef Development Kit is there to
aid you in creating good cookbooks.
• It has a number of generators to put files you need in the right place,
and in some cases with pre generated content
• https://docs.chef.io/ctl_chef.html
• We want 'chef generate template'

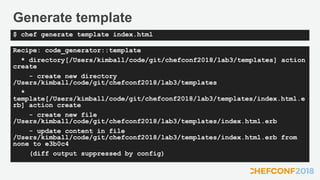

Generate template
Recipe: code_generator::template
* directory[/Users/kimball/code/git/chefconf2018/lab3/templates] action
create
- create new directory
/Users/kimball/code/git/chefconf2018/lab3/templates
*
template[/Users/kimball/code/git/chefconf2018/lab3/templates/index.html.e
rb] action create
- create new file
/Users/kimball/code/git/chefconf2018/lab3/templates/index.html.erb
- update content in file
/Users/kimball/code/git/chefconf2018/lab3/templates/index.html.erb from
none to e3b0c4
(diff output suppressed by config)
$ chef generate template index.html

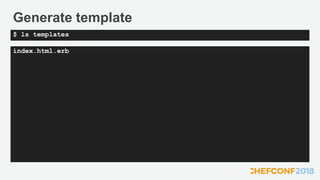

Generate template
index.html.erb
$ ls templates

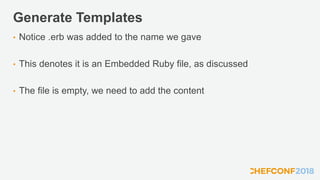

Generate Templates
• Notice .erb was added to the name we gave
• This denotes it is an Embedded Ruby file, as discussed
• The file is empty, we need to add the content

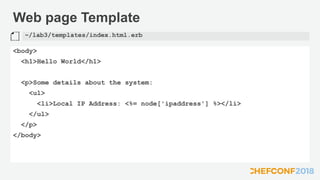

Web page Template
<body>
<h1>Hello World</h1>
<p>Some details about the system:
<ul>
<li>Local IP Address: <%= node['ipaddress'] %></li>
</ul>
</p>
</body>
~/lab3/templates/index.html.erb

Update the Recipe
• So, we have a template, what's next?
• From our previous discussion, we also need a template resource in
the recipe.
• We can convert the file resource we already have easily
o We just need to replace the content parameter with a source parameter so
chef-client can find the template
o And change it's type to 'template'

Update the recipe
package 'httpd'
template '/var/www/html/index.html' do
source 'index.html.erb'
end
service 'httpd' do
action [:enable, :start]
end

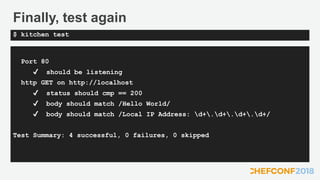

Finally, test again
Port 80
✔ body should match /Local IP Address: d+.d+.d+.d+/
$ kitchen test

Discussion
• So, what have we learnt?
• How do we get data about the system?
• How can we put that in the outputted files?
• How do the tests help us refactor?

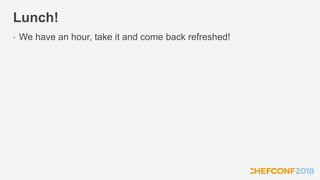

Lunch!
• We have an hour, take it and come back refreshed!

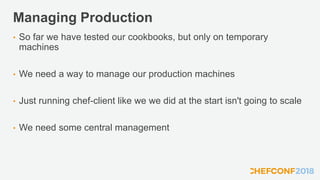

Managing Production
• So far we have tested our cookbooks, but only on temporary
machines
• We need a way to manage our production machines
• Just running chef-client like we we did at the start isn't going to scale
• We need some central management

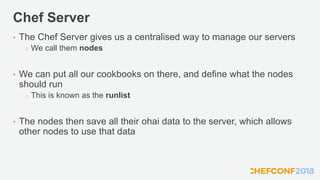

Chef Server
• The Chef Server gives us a centralised way to manage our servers
o We call them nodes
• We can put all our cookbooks on there, and define what the nodes
should run
o This is known as the runlist
• The nodes then save all their ohai data to the server, which allows
other nodes to use that data

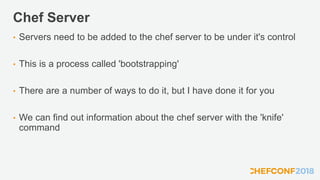

Chef Server
• Servers need to be added to the chef server to be under it's control
• This is a process called 'bootstrapping'
• There are a number of ways to do it, but I have done it for you
• We can find out information about the chef server with the 'knife'
command

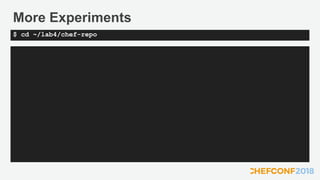

More Experiments
$ cd ~/lab4/chef-repo

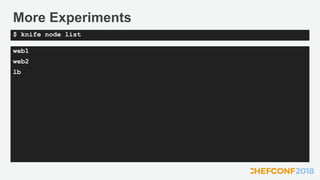

More Experiments
web1
web2
lb
$ knife node list

More Experiments
$ knife node show web1

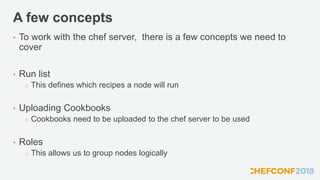

A few concepts
• To work with the chef server, there is a few concepts we need to
cover
• Run list
o This defines which recipes a node will run
• Uploading Cookbooks
o Cookbooks need to be uploaded to the chef server to be used
• Roles
o This allows us to group nodes logically

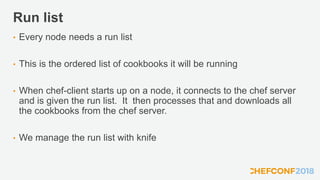

Run list
• Every node needs a run list
• This is the ordered list of cookbooks it will be running
• When chef-client starts up on a node, it connects to the chef server
and is given the run list. It then processes that and downloads all
the cookbooks from the chef server.
• We manage the run list with knife

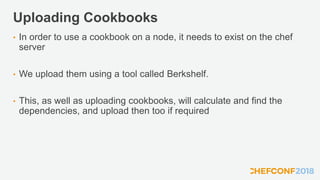

Uploading Cookbooks
• In order to use a cookbook on a node, it needs to exist on the chef
server
• We upload them using a tool called Berkshelf.
• This, as well as uploading cookbooks, will calculate and find the
dependencies, and upload then too if required

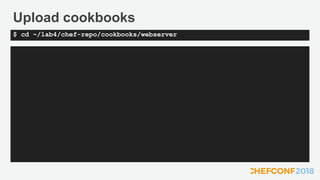

Upload cookbooks
$ cd ~/lab4/chef-repo/cookbooks/webserver

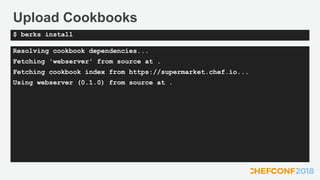

Upload Cookbooks
Resolving cookbook dependencies...
Fetching 'webserver' from source at .
Fetching cookbook index from https://supermarket.chef.io...
Using webserver (0.1.0) from source at .
$ berks install

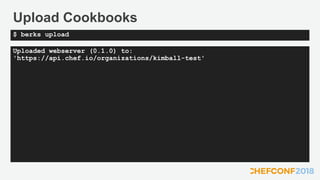

Upload Cookbooks
Uploaded webserver (0.1.0) to:
'https://api.chef.io/organizations/kimball-test'
$ berks upload

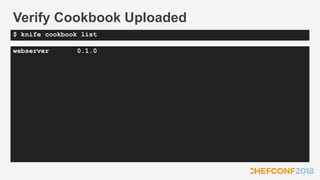

Verify Cookbook Uploaded
webserver 0.1.0
$ knife cookbook list

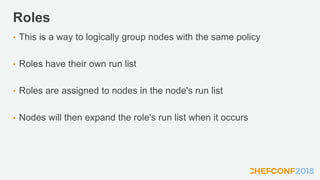

Roles
• This is a way to logically group nodes with the same policy
• Roles have their own run list
• Roles are assigned to nodes in the node's run list
• Nodes will then expand the role's run list when it occurs

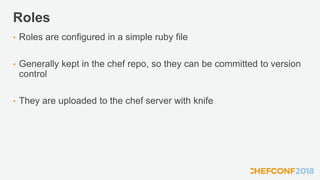

Roles
• Roles are configured in a simple ruby file
• Generally kept in the chef repo, so they can be committed to version
control
• They are uploaded to the chef server with knife

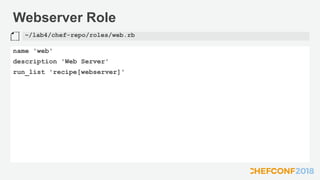

Webserver Role
name 'web'
description 'Web Server'
run_list 'recipe[webserver]'
~/lab4/chef-repo/roles/web.rb

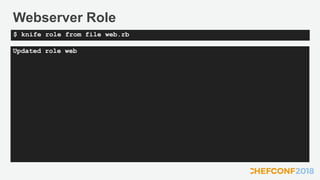

Webserver Role
Updated role web
$ knife role from file web.rb

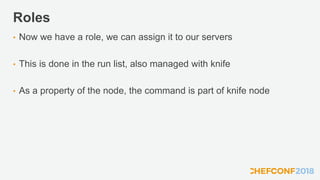

Roles
• Now we have a role, we can assign it to our servers
• This is done in the run list, also managed with knife
• As a property of the node, the command is part of knife node

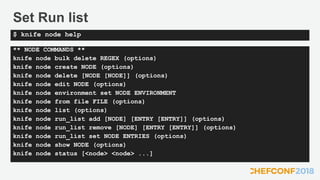

Set Run list
** NODE COMMANDS **
knife node bulk delete REGEX (options)
knife node create NODE (options)
knife node delete [NODE [NODE]] (options)
knife node edit NODE (options)
knife node environment set NODE ENVIRONMENT
knife node from file FILE (options)
knife node list (options)
knife node run_list add [NODE] [ENTRY [ENTRY]] (options)
knife node run_list remove [NODE] [ENTRY [ENTRY]] (options)
knife node run_list set NODE ENTRIES (options)
knife node show NODE (options)
knife node status [<node> <node> ...]
$ knife node help

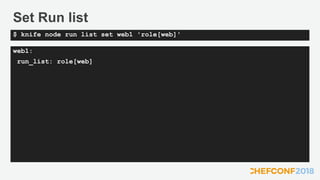

Set Run list
web1:
run_list: role[web]
$ knife node run list set web1 'role[web]'

Set Run list
web2:
run_list: role[web]
$ knife node run list set web2 'role[web]'

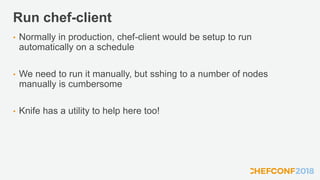

Run chef-client
• Normally in production, chef-client would be setup to run
automatically on a schedule
• We need to run it manually, but sshing to a number of nodes
manually is cumbersome
• Knife has a utility to help here too!

Knife SSH
• Knife SSH will allow us to select a set of nodes to connect to, and run
a command on them all
• The syntax for searching is based on matching a key value pair
• For this case we want to use 'role:web' to match all nodes that have
the web role assigned.
• Further info on searching: https://docs.chef.io/chef_search.html

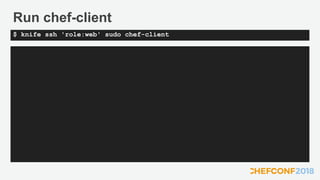

Run chef-client
$ knife ssh 'role:web' sudo chef-client

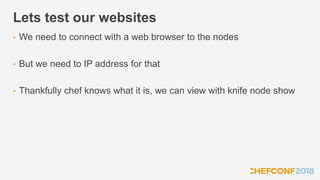

Lets test our websites
• We need to connect with a web browser to the nodes
• But we need to IP address for that
• Thankfully chef knows what it is, we can view with knife node show

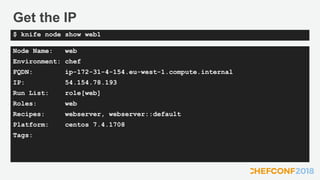

Get the IP
Node Name: web
Environment: chef
FQDN: ip-172-31-4-154.eu-west-1.compute.internal
IP: 54.154.78.193
Run List: role[web]
Roles: web
Recipes: webserver, webserver::default
Platform: centos 7.4.1708
Tags:
$ knife node show web1

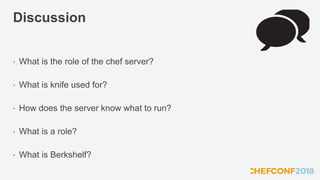

Discussion
• What is the role of the chef server?
• What is knife used for?
• How does the server know what to run?
• What is a role?
• What is Berkshelf?

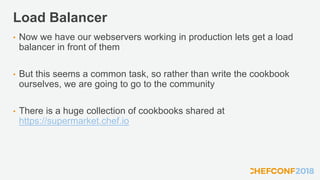

Load Balancer
• Now we have our webservers working in production lets get a load
balancer in front of them
• But this seems a common task, so rather than write the cookbook
ourselves, we are going to go to the community
• There is a huge collection of cookbooks shared at
https://supermarket.chef.io

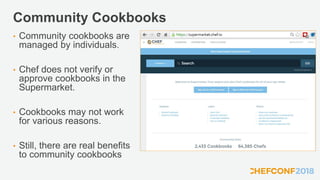

Community Cookbooks
• Community cookbooks are
managed by individuals.
• Chef does not verify or
approve cookbooks in the
Supermarket.
• Cookbooks may not work
for various reasons.
• Still, there are real benefits
to community cookbooks

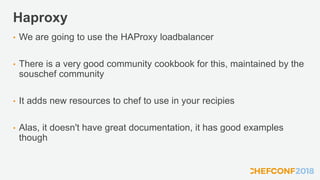

Haproxy
• We are going to use the HAProxy loadbalancer
• There is a very good community cookbook for this, maintained by the
souschef community
• It adds new resources to chef to use in your recipies
• Alas, it doesn't have great documentation, it has good examples
though

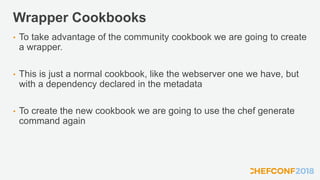

Wrapper Cookbooks
• To take advantage of the community cookbook we are going to create
a wrapper.
• This is just a normal cookbook, like the webserver one we have, but
with a dependency declared in the metadata
• To create the new cookbook we are going to use the chef generate
command again

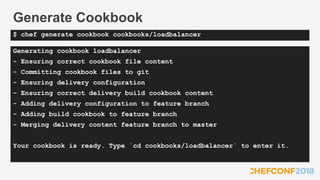

Generate Cookbook
$ cd ~/lab4/chef-repo

Generate Cookbook
Generating cookbook loadbalancer
- Ensuring correct cookbook file content
- Committing cookbook files to git
- Ensuring delivery configuration
- Ensuring correct delivery build cookbook content
- Adding delivery configuration to feature branch
- Adding build cookbook to feature branch
- Merging delivery content feature branch to master
Your cookbook is ready. Type `cd cookbooks/loadbalancer` to enter it.
$ chef generate cookbook cookbooks/loadbalancer

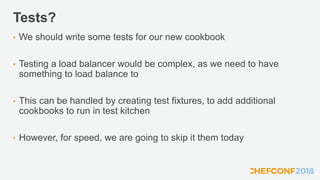

Tests?
• We should write some tests for our new cookbook
• Testing a load balancer would be complex, as we need to have
something to load balance to
• This can be handled by creating test fixtures, to add additional
cookbooks to run in test kitchen
• However, for speed, we are going to skip it them today

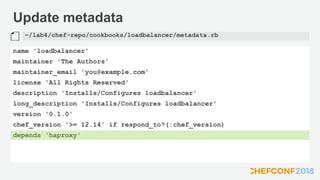

Update metadata
name 'loadbalancer'
maintainer 'The Authors'
maintainer_email 'you@example.com'
license 'All Rights Reserved'
description 'Installs/Configures loadbalancer'
long_description 'Installs/Configures loadbalancer'
version '0.1.0'
chef_version '>= 12.14' if respond_to?(:chef_version)
depends 'haproxy'
~/lab4/chef-repo/cookbooks/loadbalancer/metadata.rb

HAProxy Resources
• The cookbook adds a number of resources for our use
o haproxy_install
o haproxy_config_global
o haproxy_config_defaults
o haproxy_frontend
o haproxy_backend
o haproxy_service
• The use is quite simple, for most we can use the defaults provided

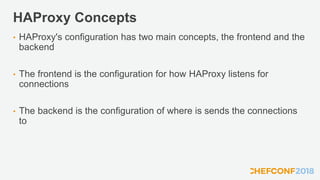

HAProxy Concepts
• HAProxy's configuration has two main concepts, the frontend and the
backend
• The frontend is the configuration for how HAProxy listens for
connections
• The backend is the configuration of where is sends the connections
to

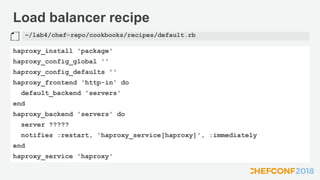

Load balancer recipe
haproxy_install 'package'
haproxy_config_global ''
haproxy_config_defaults ''
haproxy_frontend 'http-in' do
default_backend 'servers'
end
haproxy_backend 'servers' do
server ?????
notifies :restart, 'haproxy_service[haproxy]', :immediately
end
haproxy_service 'haproxy'
~/lab4/chef-repo/cookbooks/recipes/default.rb

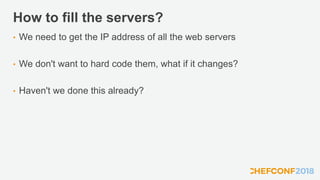

How to fill the servers?
• We need to get the IP address of all the web servers
• We don't want to hard code them, what if it changes?
• Haven't we done this already?

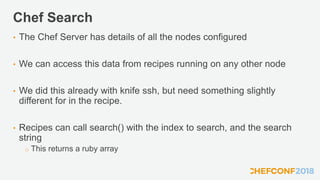

Chef Search
• The Chef Server has details of all the nodes configured
• We can access this data from recipes running on any other node
• We did this already with knife ssh, but need something slightly
different for in the recipe.
• Recipes can call search() with the index to search, and the search
string
o This returns a ruby array

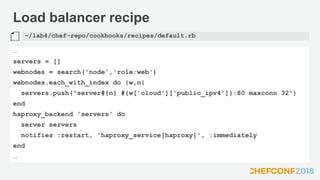

Load balancer recipe
…
servers = []
webnodes = search('node','role:web')
webnodes.each_with_index do |w,n|
servers.push("server#{n} #{w['cloud']['public_ipv4']}:80 maxconn 32")
end
haproxy_backend 'servers' do
server servers
notifies :restart, 'haproxy_service[haproxy]', :immediately
end
…
~/lab4/chef-repo/cookbooks/recipes/default.rb

Upload the cookbook
$ cd ~/lab4/chef-repo/cookbooks/loadbalancer

Upload the cookbook
Resolving cookbook dependencies...
Fetching 'loadbalancer' from source at .
Fetching cookbook index from https://supermarket.chef.io...
Installing build-essential (8.1.1)
Installing cpu (2.0.0)
Installing poise (2.8.1)
Using loadbalancer (0.1.0) from source at .
Installing poise-service (1.5.2)
Installing mingw (2.0.2)
Installing seven_zip (3.0.0)
Installing haproxy (6.2.0)
Installing windows (4.2.5)
$ berks install

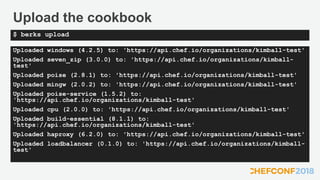

Upload the cookbook
Uploaded windows (4.2.5) to: 'https://api.chef.io/organizations/kimball-test'
Uploaded seven_zip (3.0.0) to: 'https://api.chef.io/organizations/kimball-
test'
Uploaded poise (2.8.1) to: 'https://api.chef.io/organizations/kimball-test'
Uploaded mingw (2.0.2) to: 'https://api.chef.io/organizations/kimball-test'
Uploaded poise-service (1.5.2) to:
Uploaded cpu (2.0.0) to: 'https://api.chef.io/organizations/kimball-test'
Uploaded build-essential (8.1.1) to:
Uploaded haproxy (6.2.0) to: 'https://api.chef.io/organizations/kimball-test'
Uploaded loadbalancer (0.1.0) to: 'https://api.chef.io/organizations/kimball-
test'
$ berks upload

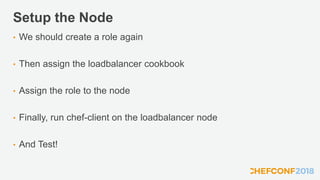

Setup the Node
• We should create a role again
• Then assign the loadbalancer cookbook
• Assign the role to the node
• Finally, run chef-client on the loadbalancer node
• And Test!

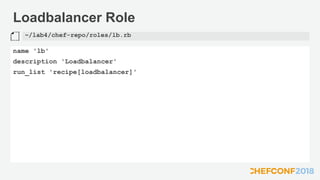

Loadbalancer Role
name 'lb'
description 'Loadbalancer'
run_list 'recipe[loadbalancer]'
~/lab4/chef-repo/roles/lb.rb

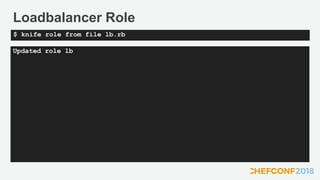

Loadbalancer Role
Updated role lb
$ knife role from file lb.rb

Set Run list
lb:
run_list: role[lb]
$ knife node run list set lb 'role[lb]'

Run chef-client
$ knife ssh 'role:lb' sudo chef-client

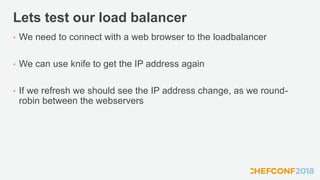

Lets test our load balancer
• We need to connect with a web browser to the loadbalancer
• We can use knife to get the IP address again
• If we refresh we should see the IP address change, as we round-
robin between the webservers

Get the IP
Node Name: lb
Environment: chef
FQDN: ip-172-31-4-154.eu-west-1.compute.internal
IP: 54.154.78.193
Run List: role[lb]
Roles: lb
Recipes: loadbalancer, loadbalancer::default
Platform: centos 7.4.1708
Tags:
$ knife node show lb

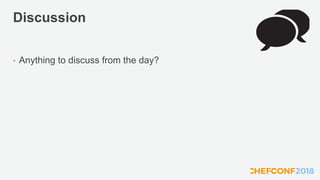

Discussion
• Anything to discuss from the day?

Chef Jumpstart

More Related Content

What's hot

Similar to Chef Jumpstart

Recently uploaded

Chef Jumpstart

Editor's Notes
