1. COOKIN’ UP SERVERS WITH CHEF
Chef is an automation platform that streamlines the tasks
of configuring machines. It also helps maintain the state
of those machines.
I am going to talk about the anatomy of Chef, show a
code example, show how code become a configuration
on a machine

2. CHEF ECOSYSTEM
The Chef Ecosystem has three main components. The
Chef DK, Chef Server and Clients.
The ChefDK is installed on a programmer’s workstation.
The Chef Server is an on premise server or a Chef
Managed instance.
Clients are the machines that you want Chef to configure.

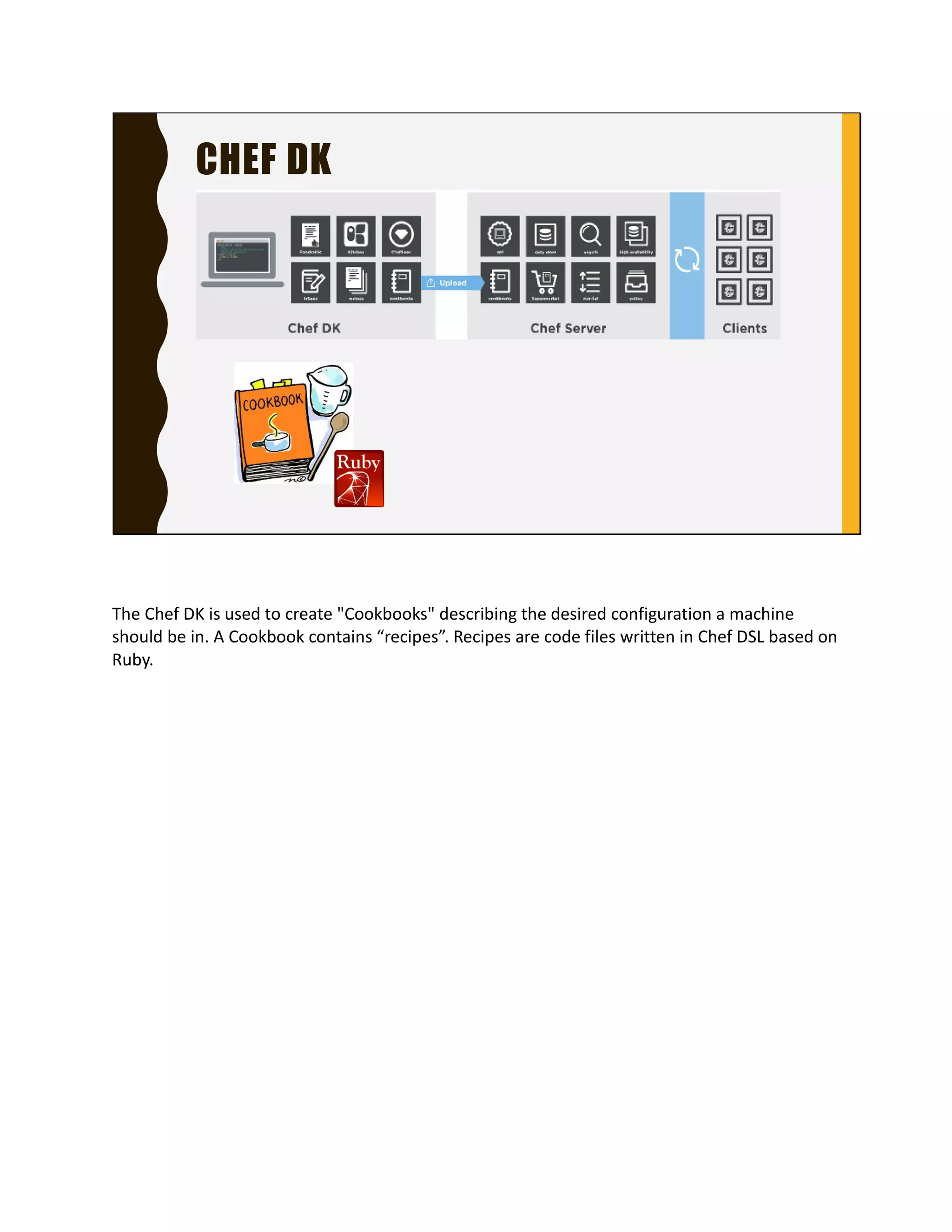

3. CHEF DK
The Chef DK is used to create "Cookbooks" describing the
desired configuration a machine should be in. A
Cookbook contains “recipes”. Recipes are code files
written in Chef DSL based on Ruby.

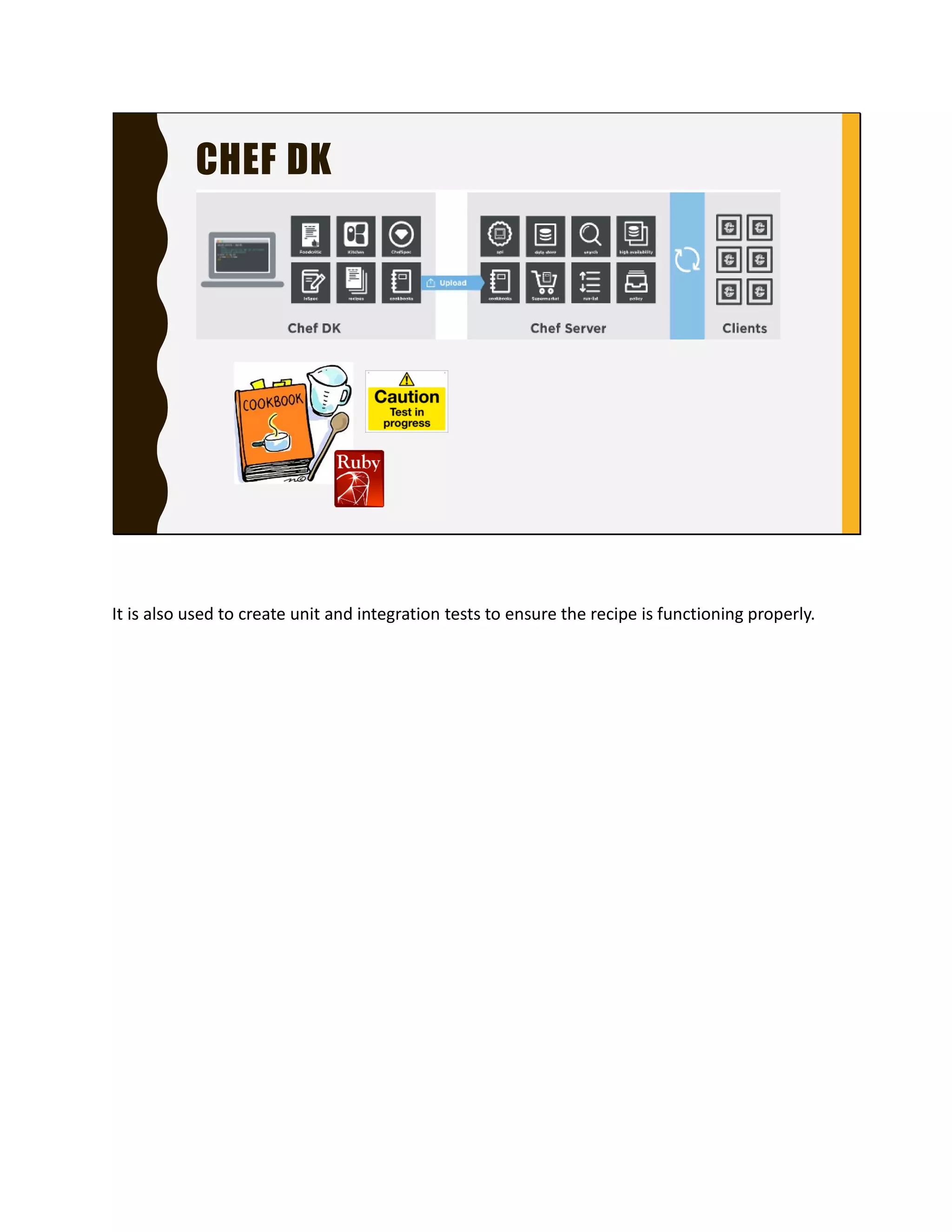

4. CHEF DK
It is also used to create unit and integration tests to
ensure the recipe is functioning properly.

5. CHEF SERVER
The Chef Server is a hub for configuration data. Chef
server stores:
Cookbooks
Rules on how recipes are applied to clients
Meta data to describe each client configuration..

6. CHEF CLIENTS
Clients are computers - physical, virtual or cloud that are
managed by Chef. Each computer has the Chef Client
installed.
Chef Client is what does the configuring
It runs in the background periodically.
For each run it asks the Chef Server for recipes to
execute, executes them to bring the configuration of the
machine to its desired state

7. COOKBOOKS
Let’s take a deeper dive into the ChefDK
Chef DK is used to create cookbooks.
Cookbooks contain recipes related to each other
A cookbook has many parts, recipes, attributes,
environments, data_bags, Tests, libraries and custom
resources.
I am only going show you the most essential parts,
recipes and tests.

8. RECIPES
A recipe contains a set of resources that describe what
the state the machine should be. A resource is the
“thing” you configure on the machine.
Here is an example of a recipe that installs KanbanSim.
When the chef client runs this recipe, it will run the
resources in order.

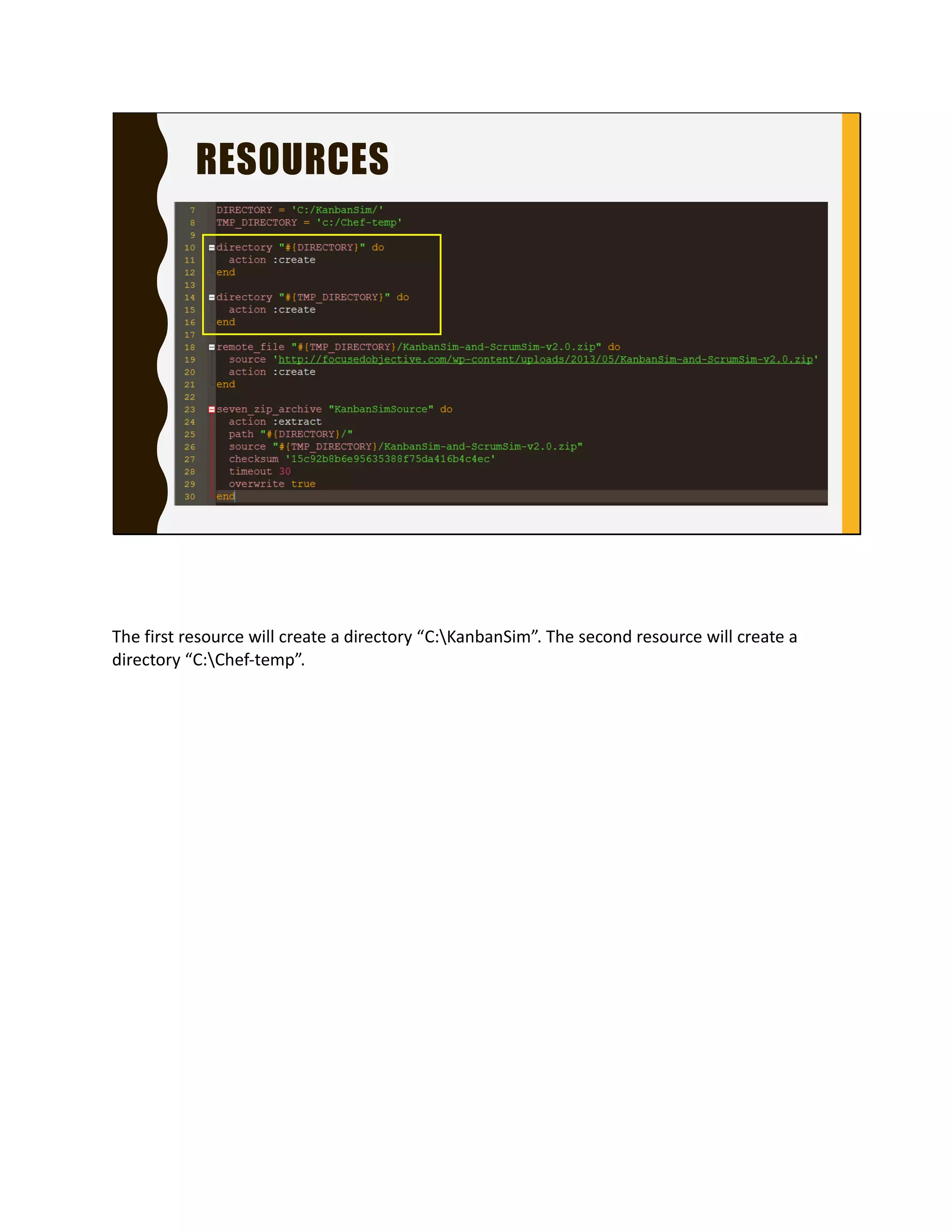

9. RESOURCES
The first resource will create a directory “C:KanbanSim”.
The second resource will create a directory “C:Chef-
temp”.

10. RESOURCES
The remote_file resource will download the file in the
source attribute and save it as C:Chef-tempKanbanSim-
and-ScrumSim-v2.0.zip.

11. RESOURCES
The last resource will extract the zip file specified in the
source attribute to the location set in the path attribute.

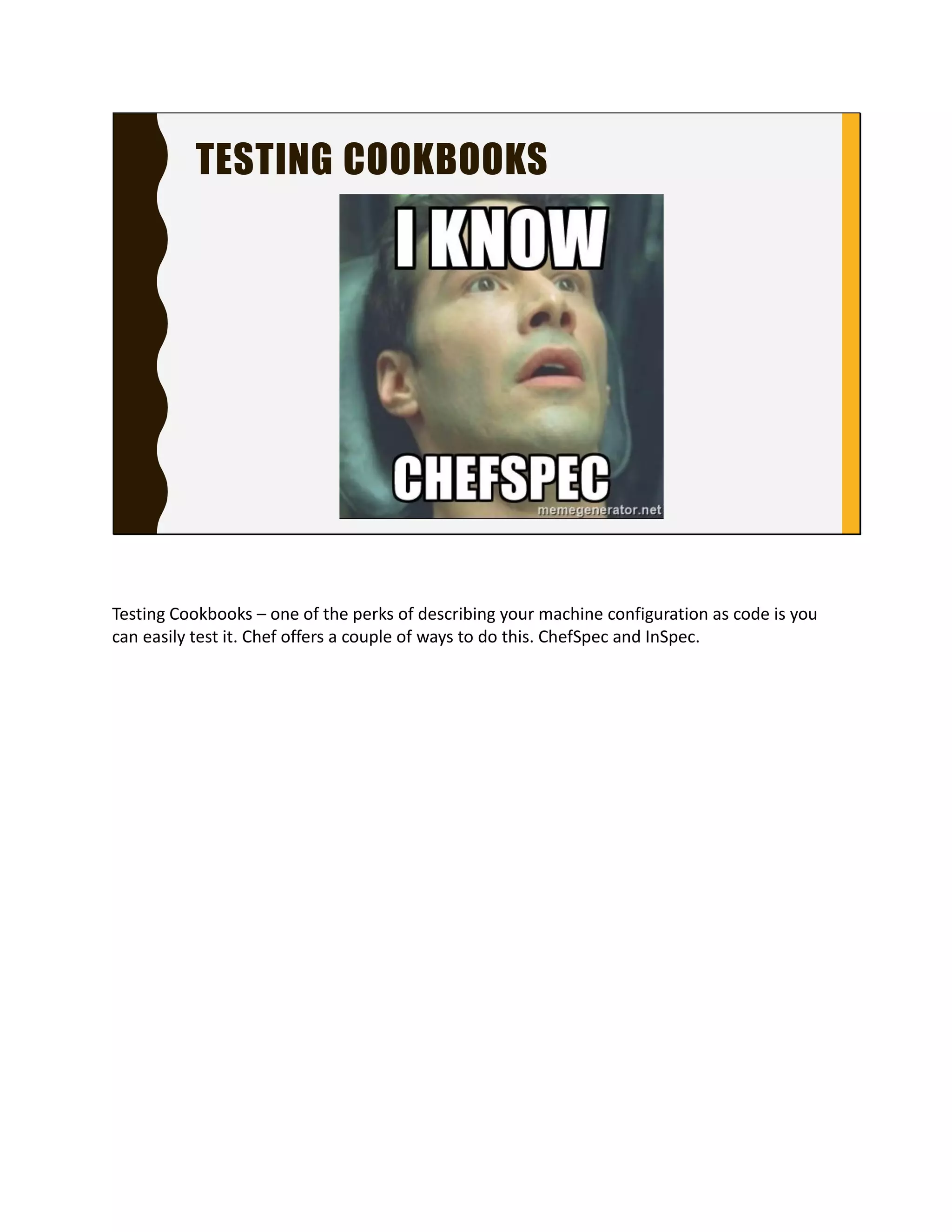

12. TESTING COOKBOOKS
Testing Cookbooks – one of the perks of describing your
machine configuration as code is you can easily test it.
Chef offers a couple of ways to do this. ChefSpec and
InSpec.

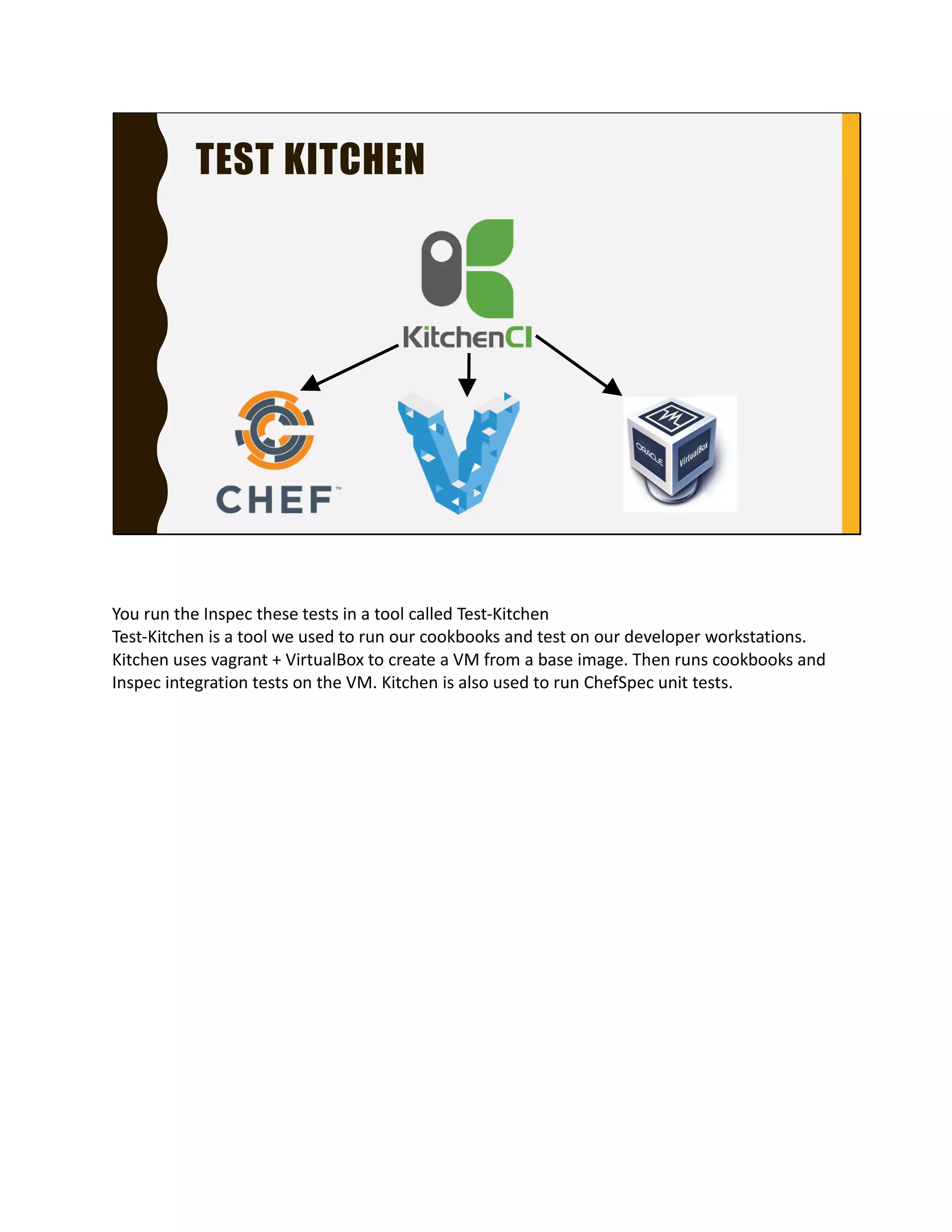

13. TEST KITCHEN
You run the Inspec these tests in a tool called Test-
Kitchen
Test-Kitchen is a tool we used to run our cookbooks and
test on our developer workstations. Kitchen uses vagrant
+ VirtualBox to create a VM from a base image. Then runs
cookbooks and Inspec integration tests on the VM.
Kitchen is also used to run ChefSpec unit tests.

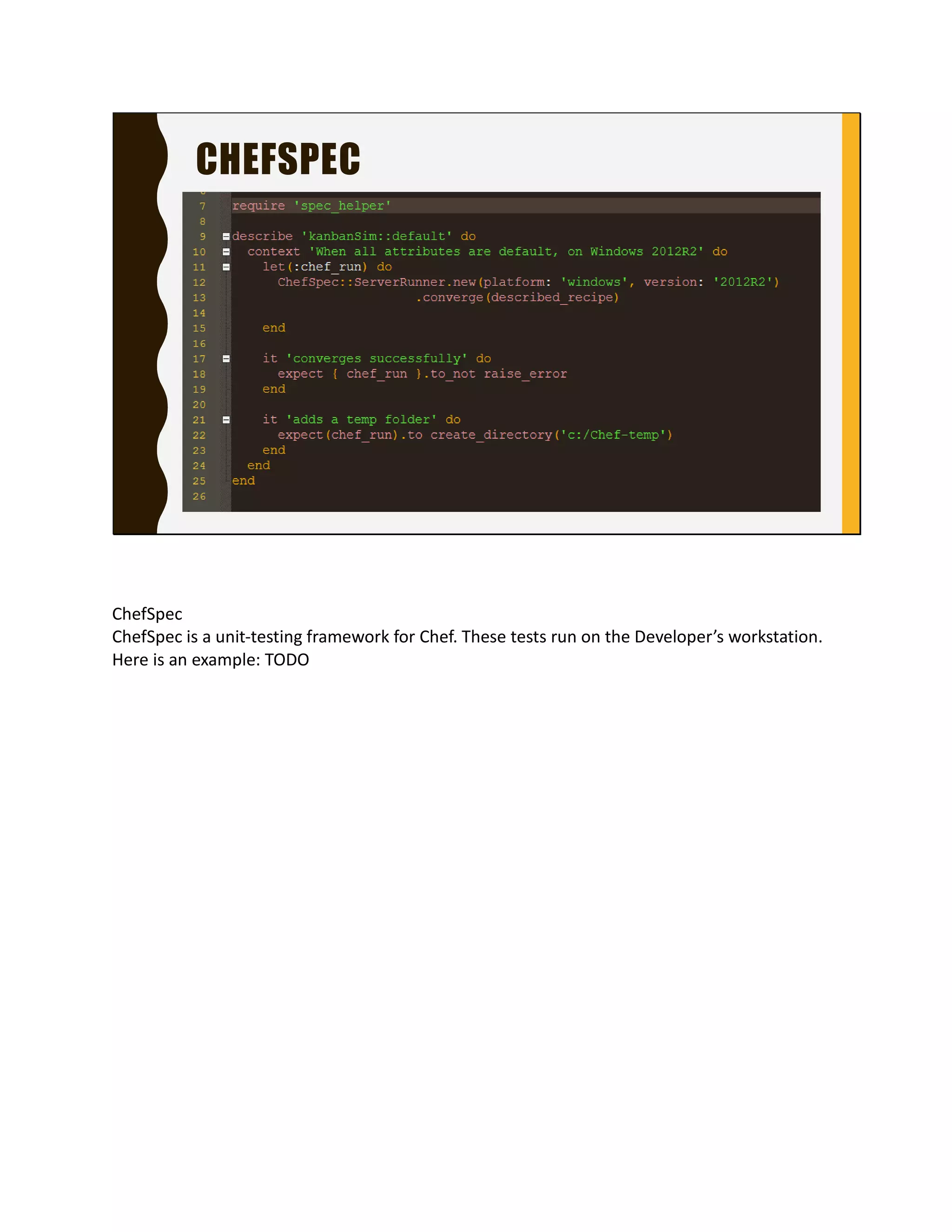

14. CHEFSPEC
ChefSpec
ChefSpec is a unit-testing framework for Chef. These tests
run on the Developer’s workstation. Here is an example:
TODO

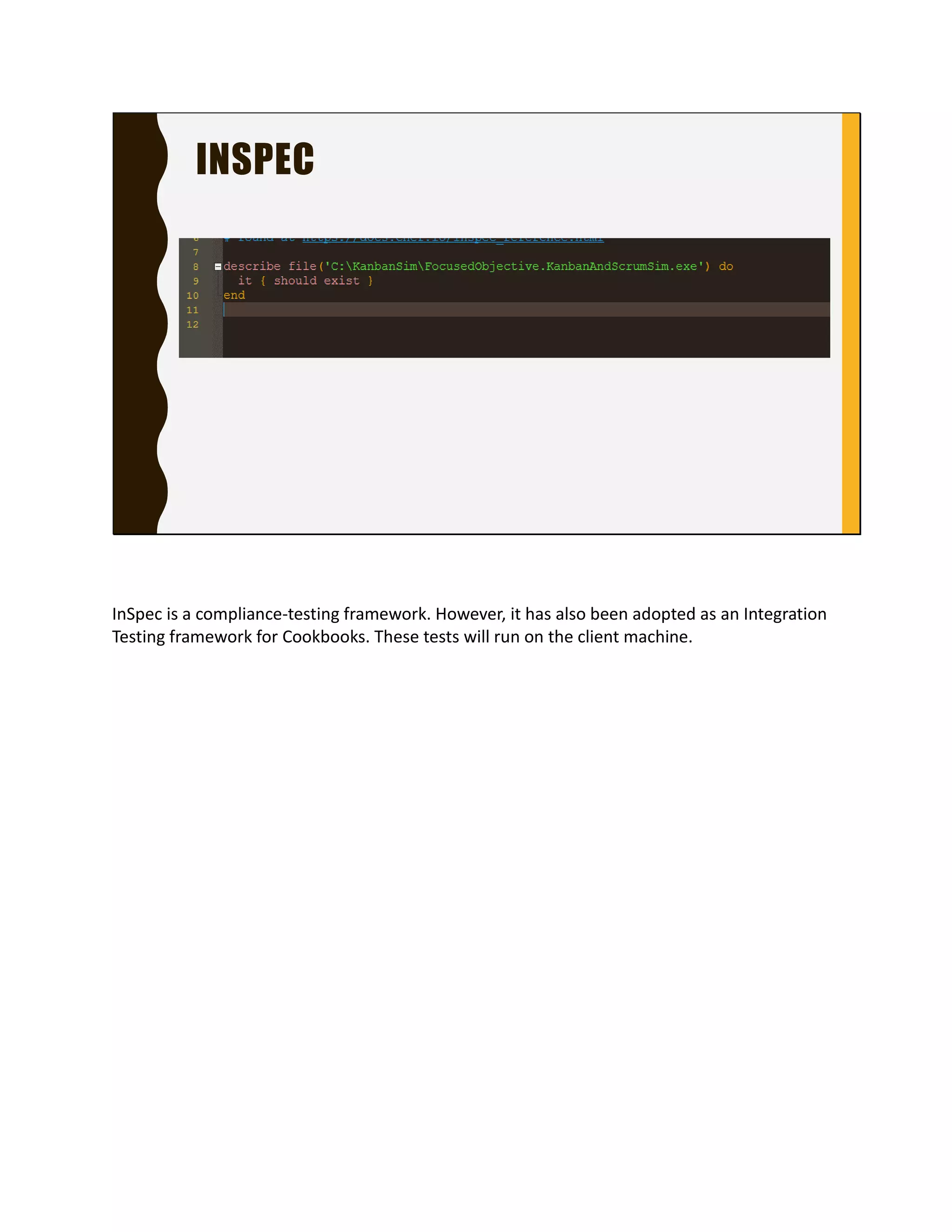

15. INSPEC
InSpec is a compliance-testing framework. However, it
has also been adopted as an Integration Testing
framework for Cookbooks. These tests will run on the
client machine.

16. CHEF SERVER
Chef Server
The Chef server is a hub for configuration data. With Chef
Server you can:
Manage User Security
Manage Roles, which is a group of recipes. Roles are
assigned to Client “Node
The picture here shows a role called Jenkins_dotnet
with three recipes in the run list
Manage Client “Nodes”
View Reports about Chef client runs

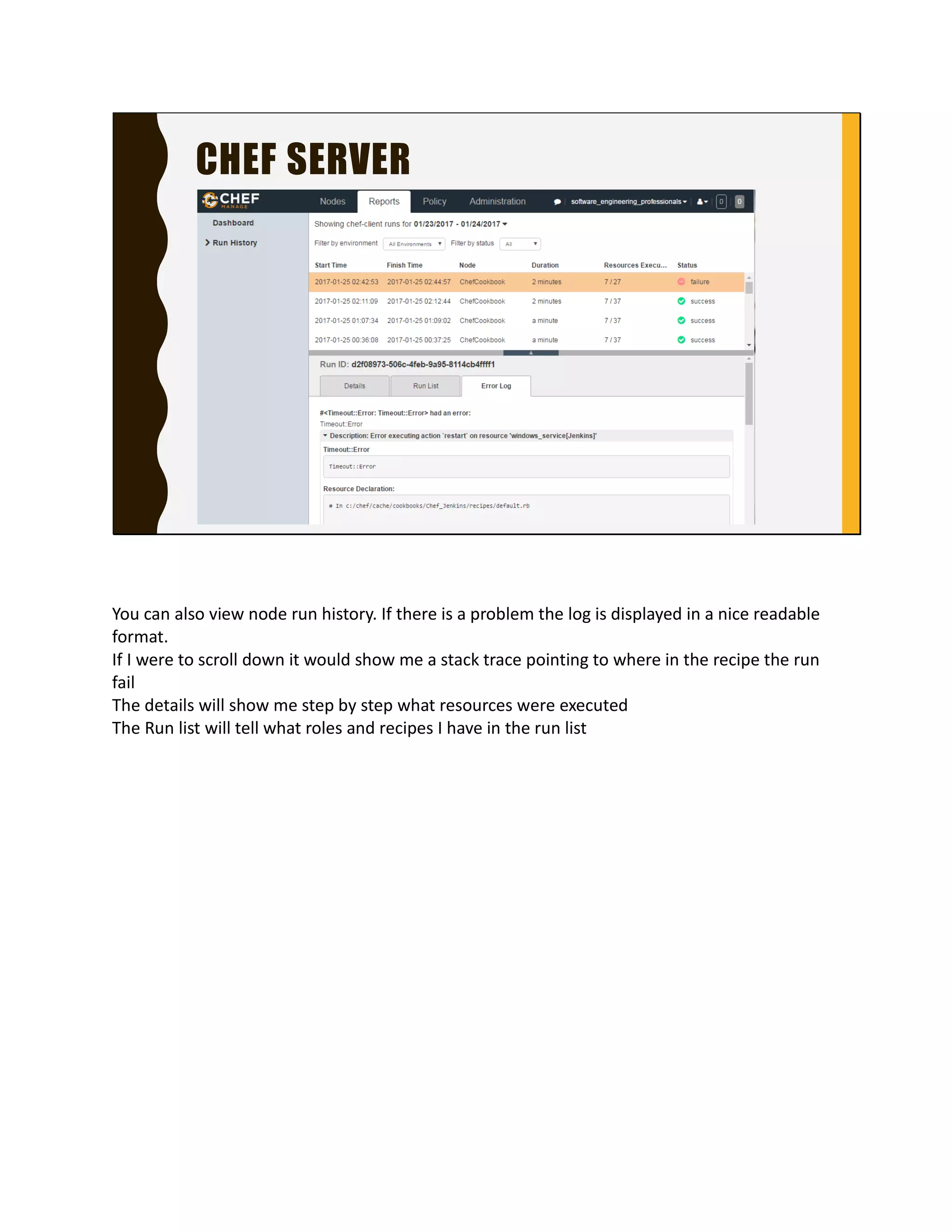

17. CHEF SERVER
You can also view node run history. If there is a problem
the log is displayed in a nice readable format.
If I were to scroll down it would show me a stack trace
pointing to where in the recipe the run fail
The details will show me step by step what resources
were executed
The Run list will tell what roles and recipes I have in the
run list

18. CHEF WORKFLOW EXAMPLE
Ok let’s get out of the weeds a second and talk about what the
workflow would look like to get a server with KanbanSim
First I push the KanbanSim cookbook to git
Which kicks off a Jenkins Job
That downloads the code and runs my unit and integration tests
Once those pass then the Jenkins job will call a tool called knife
and upload the cookbooks
Then we can use knife to install chef client on a server and
assign that server a run list
Once Chef Client is installed then it will start to configure the
server.
Then the server will periodically perform a run and check in
with the Chef server

19. CHEF WORKFLOW EXAMPLE
Then the Jenkins job will call a tool called knife and
upload the cookbooks
Then we can use knife to install chef client on a server
and assign that server a run list
Once Chef Client is installed then it will start to configure
the server.
Then the server will periodically perform a run and check
in with the Chef server

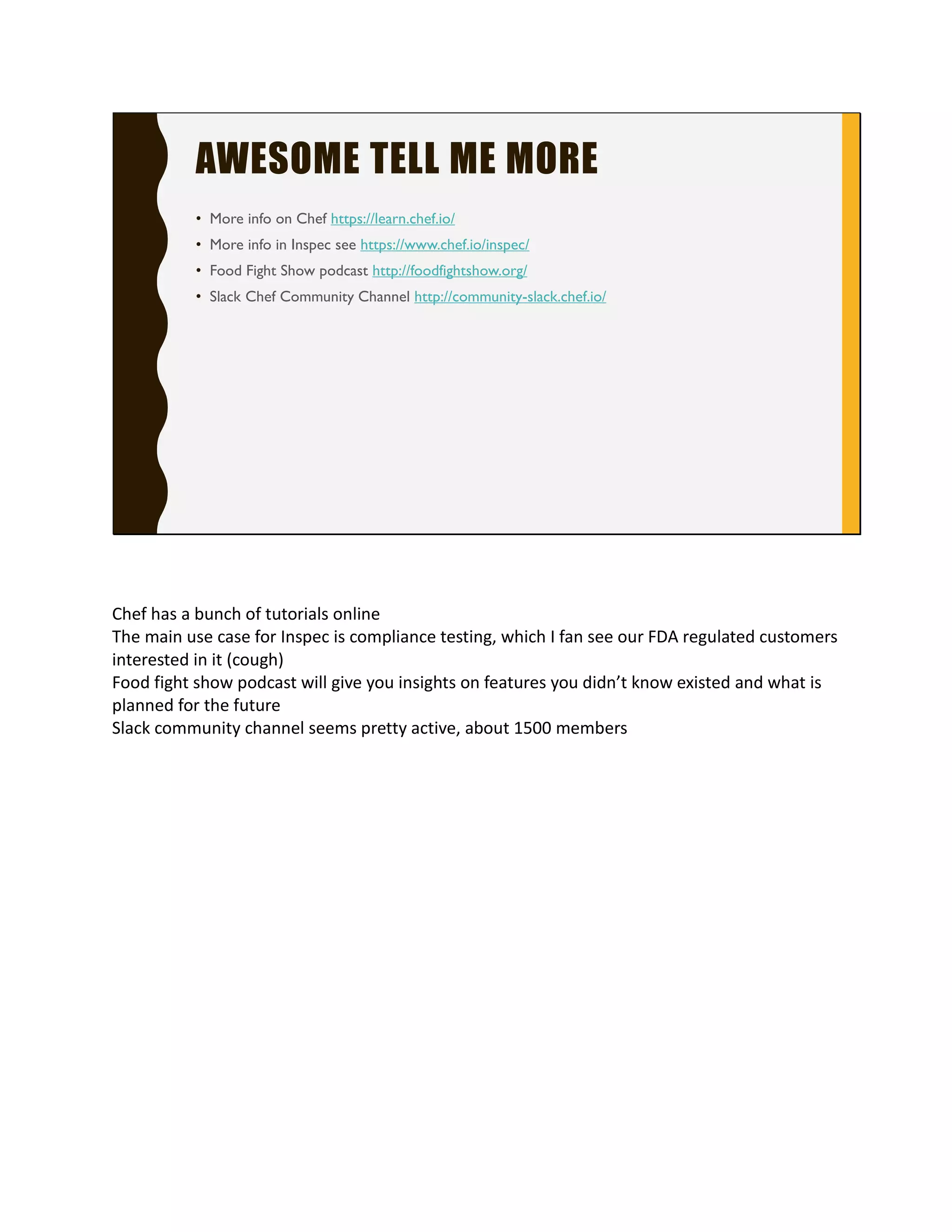

20. AWESOME TELL ME MORE
• More info on Chef https://learn.chef.io/
• More info in Inspec see https://www.chef.io/inspec/
• Food Fight Show podcast http://foodfightshow.org/
• Slack Chef Community Channel http://community-slack.chef.io/
Chef has a bunch of tutorials online
The main use case for Inspec is compliance testing, which
I can see our FDA regulated customers interested in it
(cough)
Food fight show podcast will give you insights on features
you didn’t know existed and what is planned for the
future
Slack community channel seems pretty active, about
1500 members
