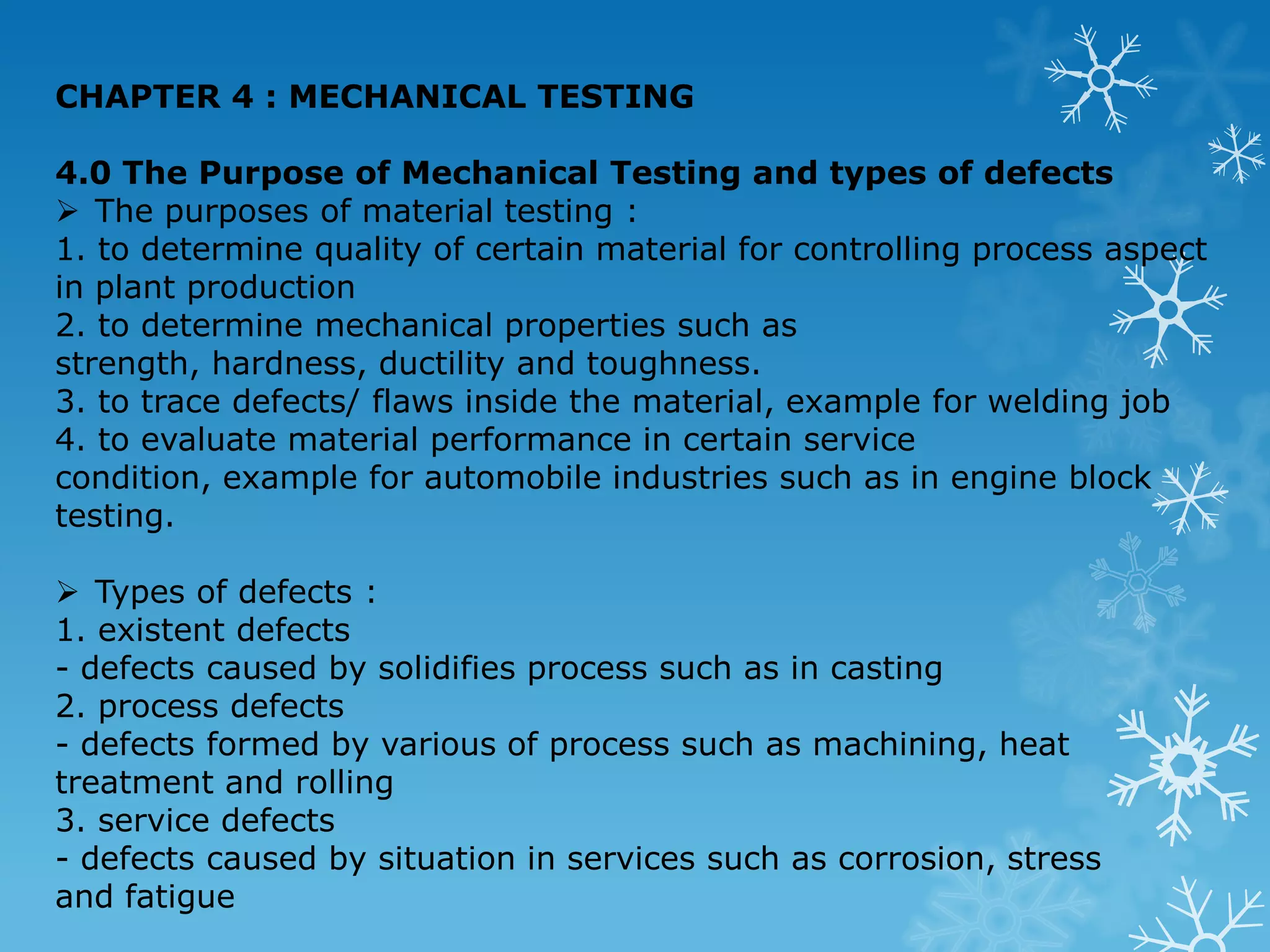

1. CHAPTER 4 : MECHANICAL TESTING 4.0 The Purpose of Mechanical Testing and types of defects The purposes of material testing : 1. to determine quality of certain material for controlling process aspect in plant production 2. to determine mechanical properties such as strength, hardness, ductility and toughness. 3. to trace defects/ flaws inside the material, example for welding job 4. to evaluate material performance in certain service condition, example for automobile industries such as in engine block testing.Types of defects : 1. existent defects - defects caused by solidifies process such as in casting 2. process defects - defects formed by various of process such as machining, heat treatment and rolling 3. service defects - defects caused by situation in services such as corrosion, stress and fatigue

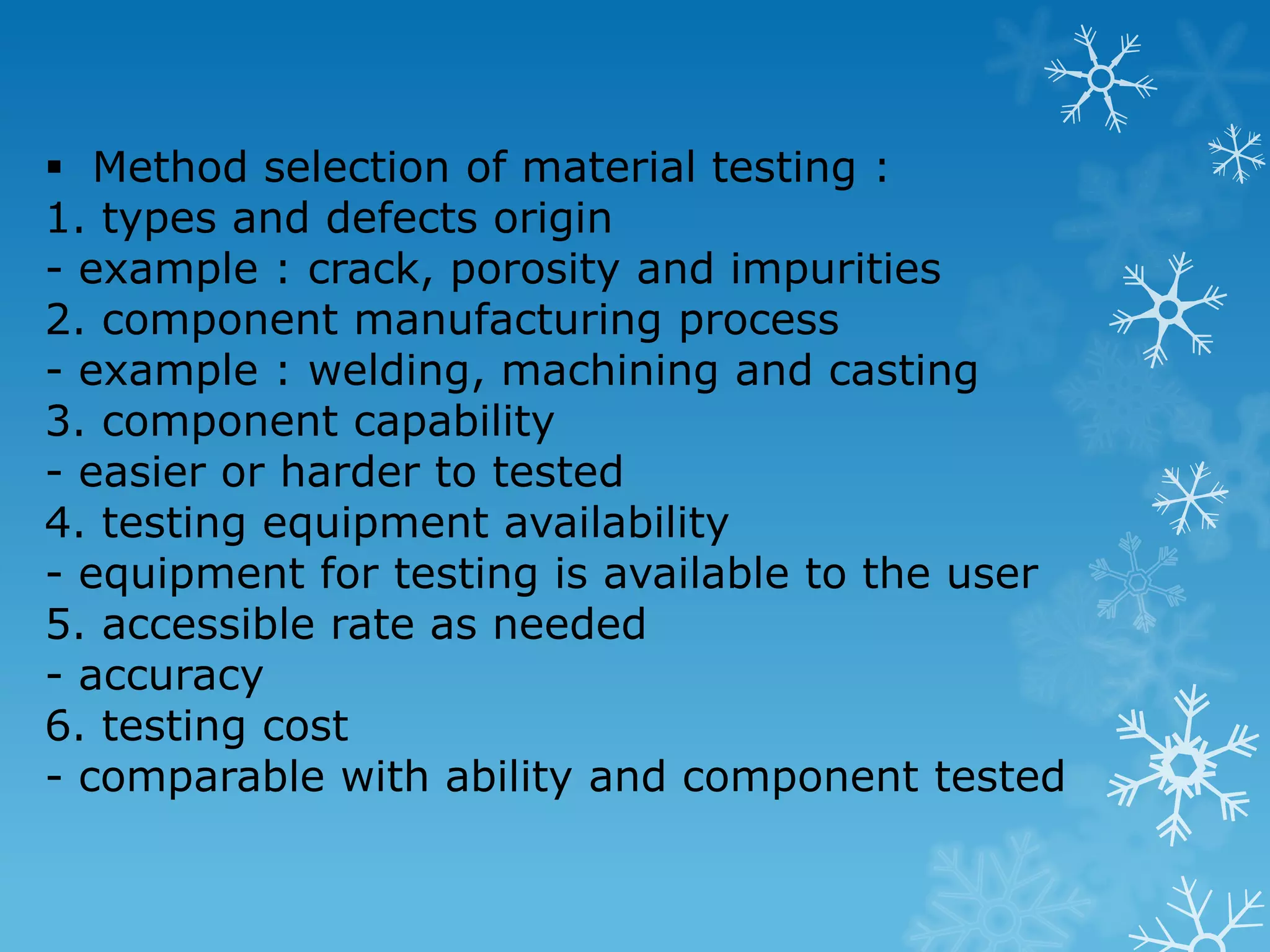

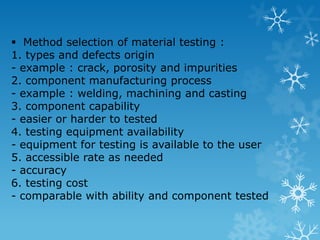

2. Method selection of material testing : 1. types and defects origin - example : crack, porosity and impurities 2. component manufacturing process - example : welding, machining and casting 3. component capability - easier or harder to tested 4. testing equipment availability - equipment for testing is available to the user 5. accessible rate as needed - accuracy 6. testing cost - comparable with ability and component tested

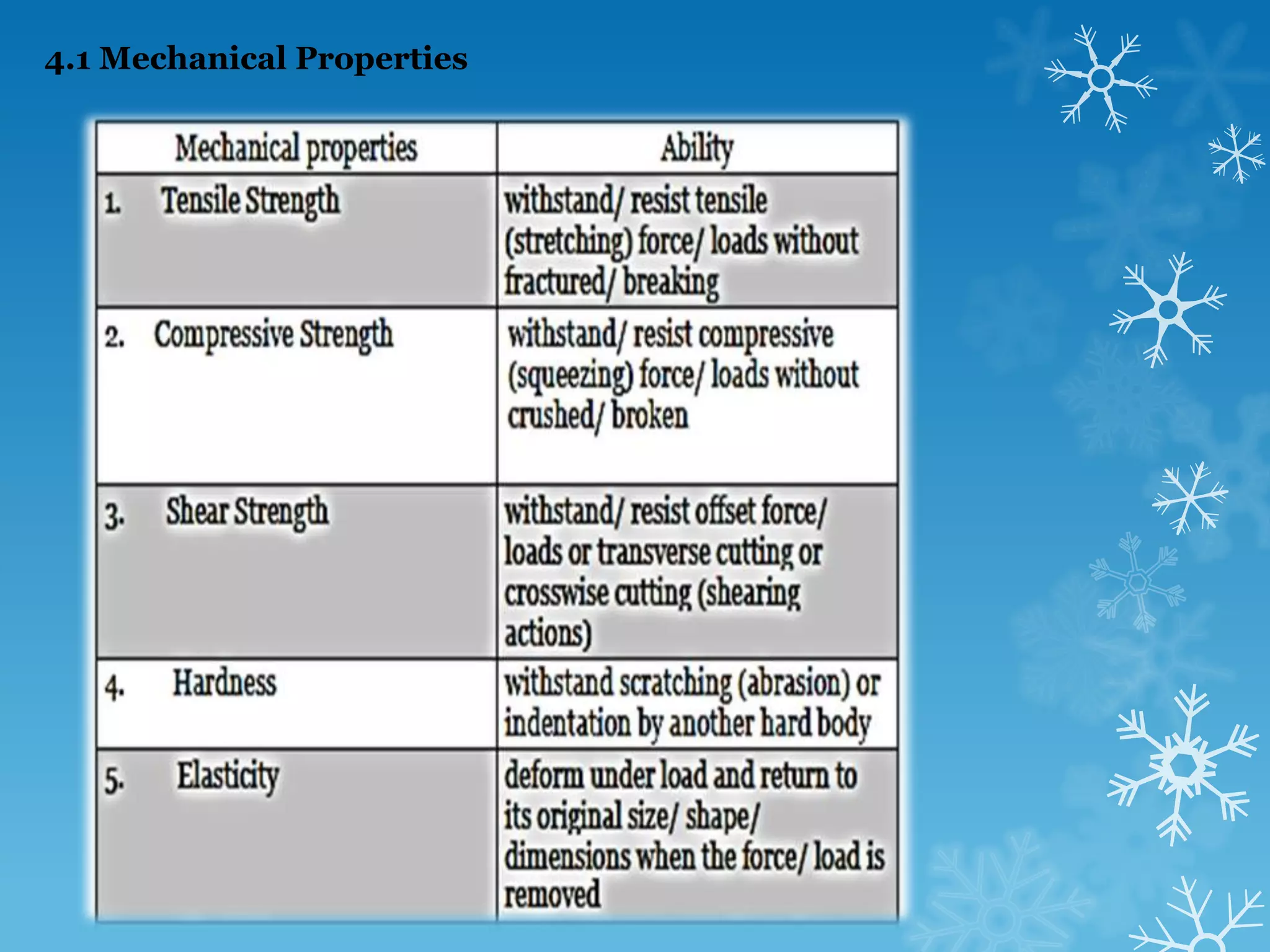

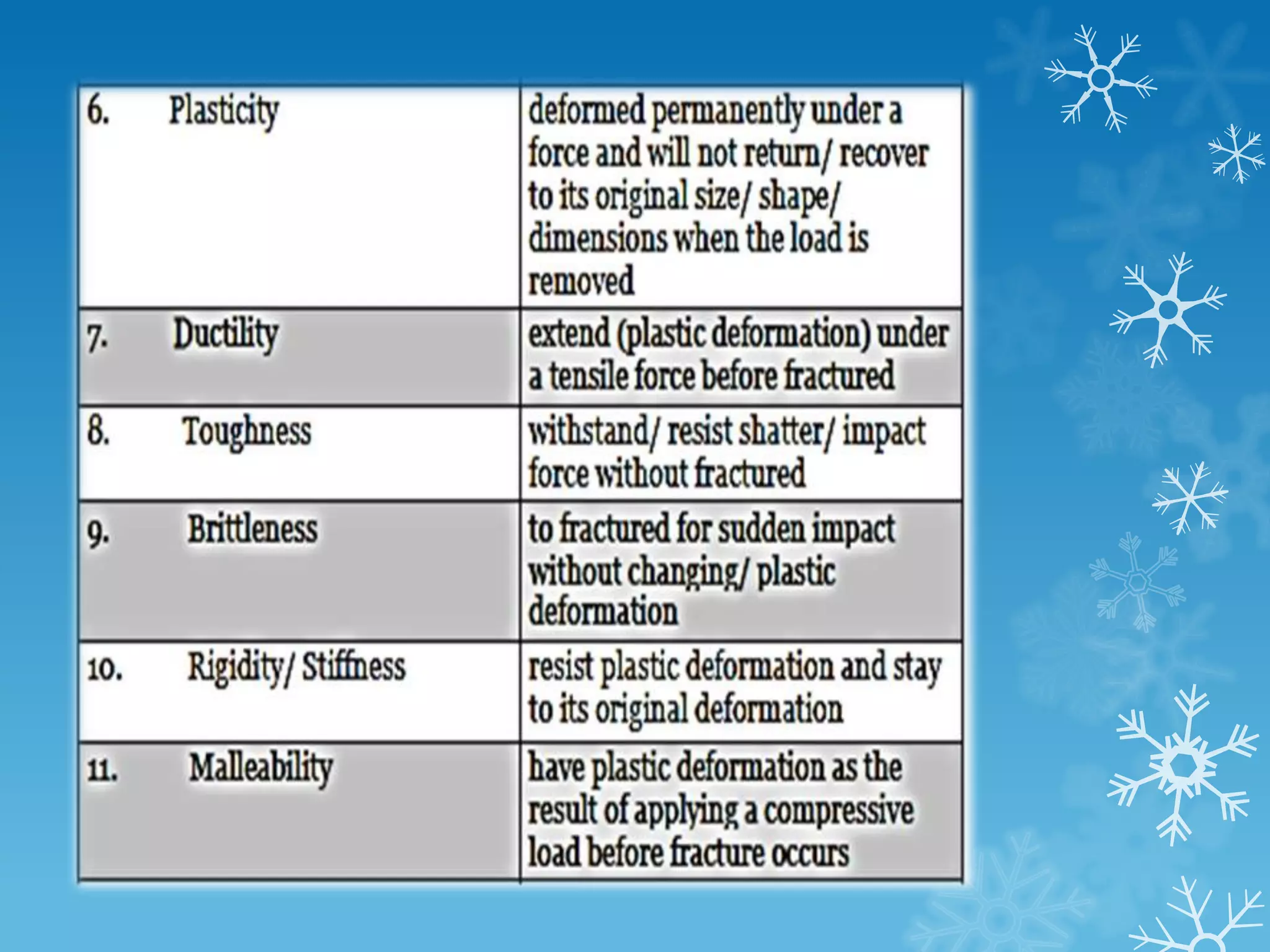

3. 4.1 Mechanical Properties

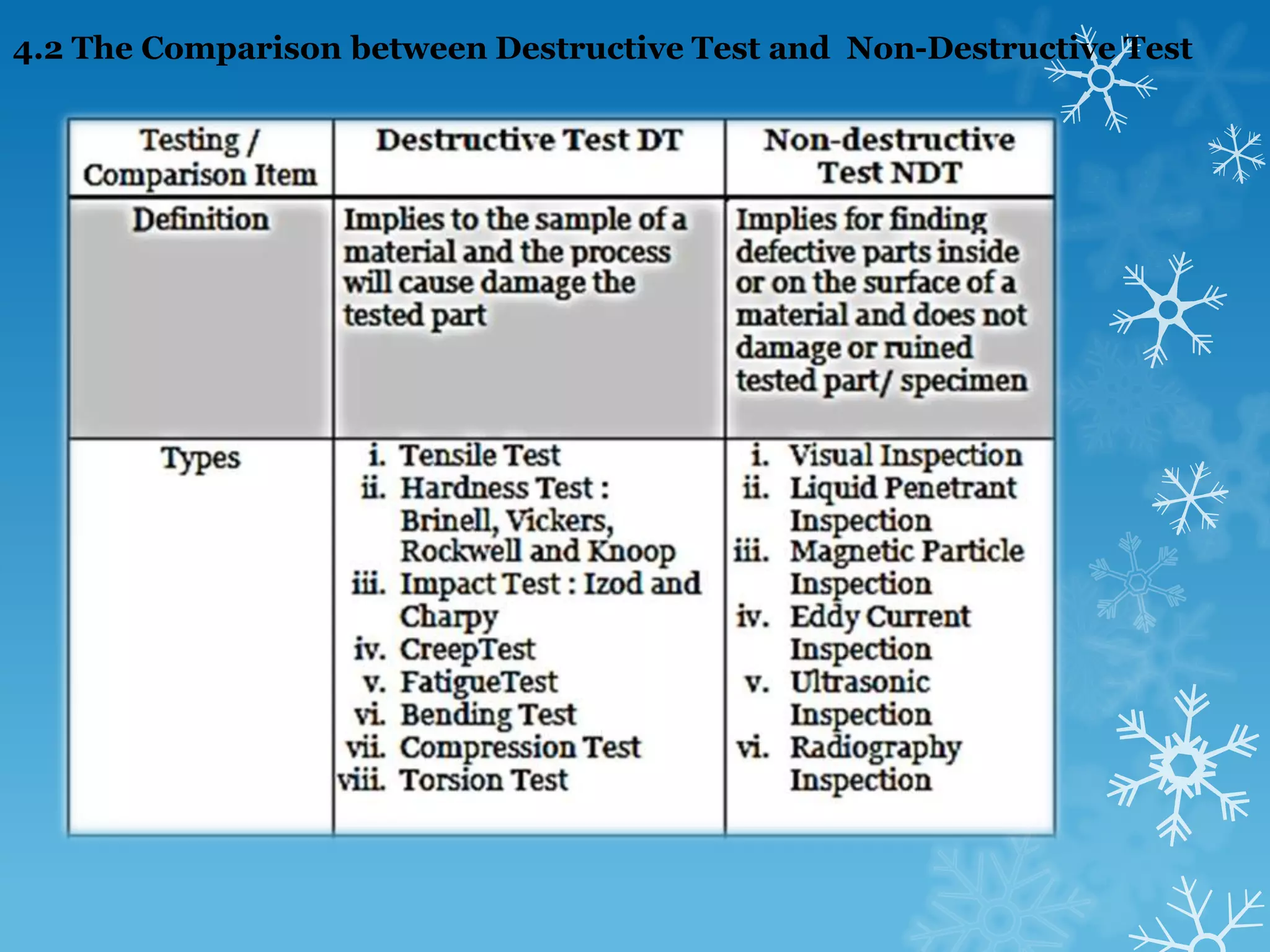

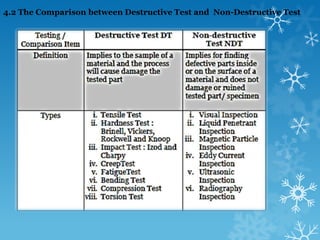

5. 4.2 The Comparison between Destructive Test and Non-Destructive Test

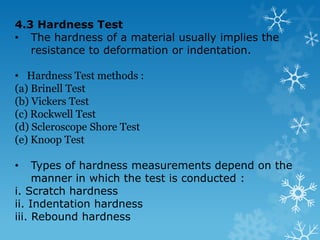

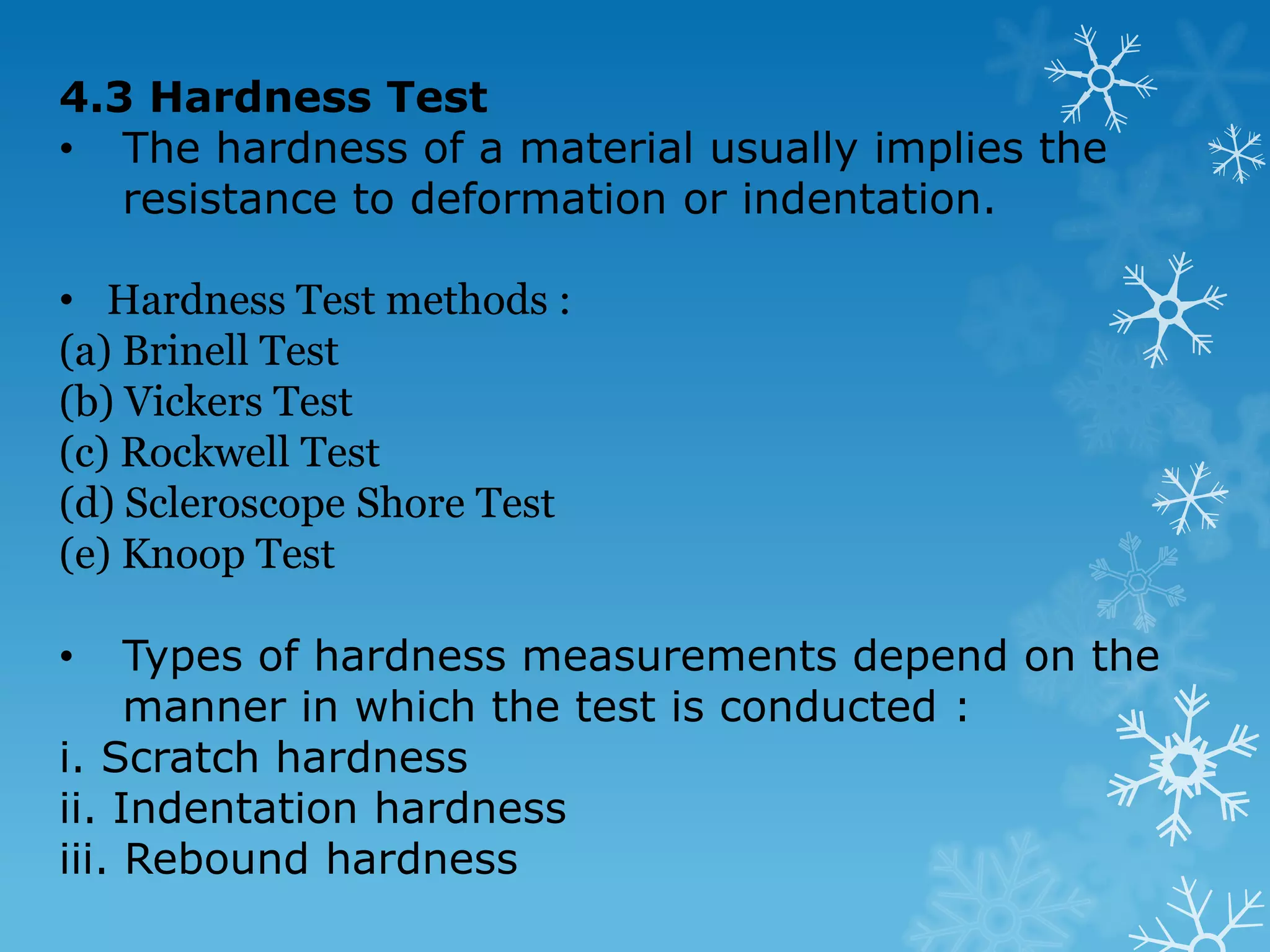

6. 4.3 Hardness Test The hardness of a material usually implies the resistance to deformation or indentation.

7. Hardness Test methods : (a) Brinell Test (b) Vickers Test (c) Rockwell Test (d) Scleroscope Shore Test (e) Knoop Test Types of hardness measurements depend on the manner in which the test is conducted : i. Scratch hardness ii. Indentation hardness iii. Rebound hardness

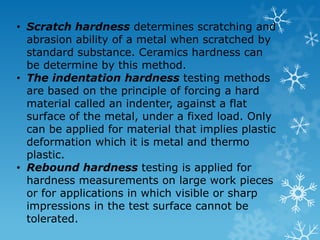

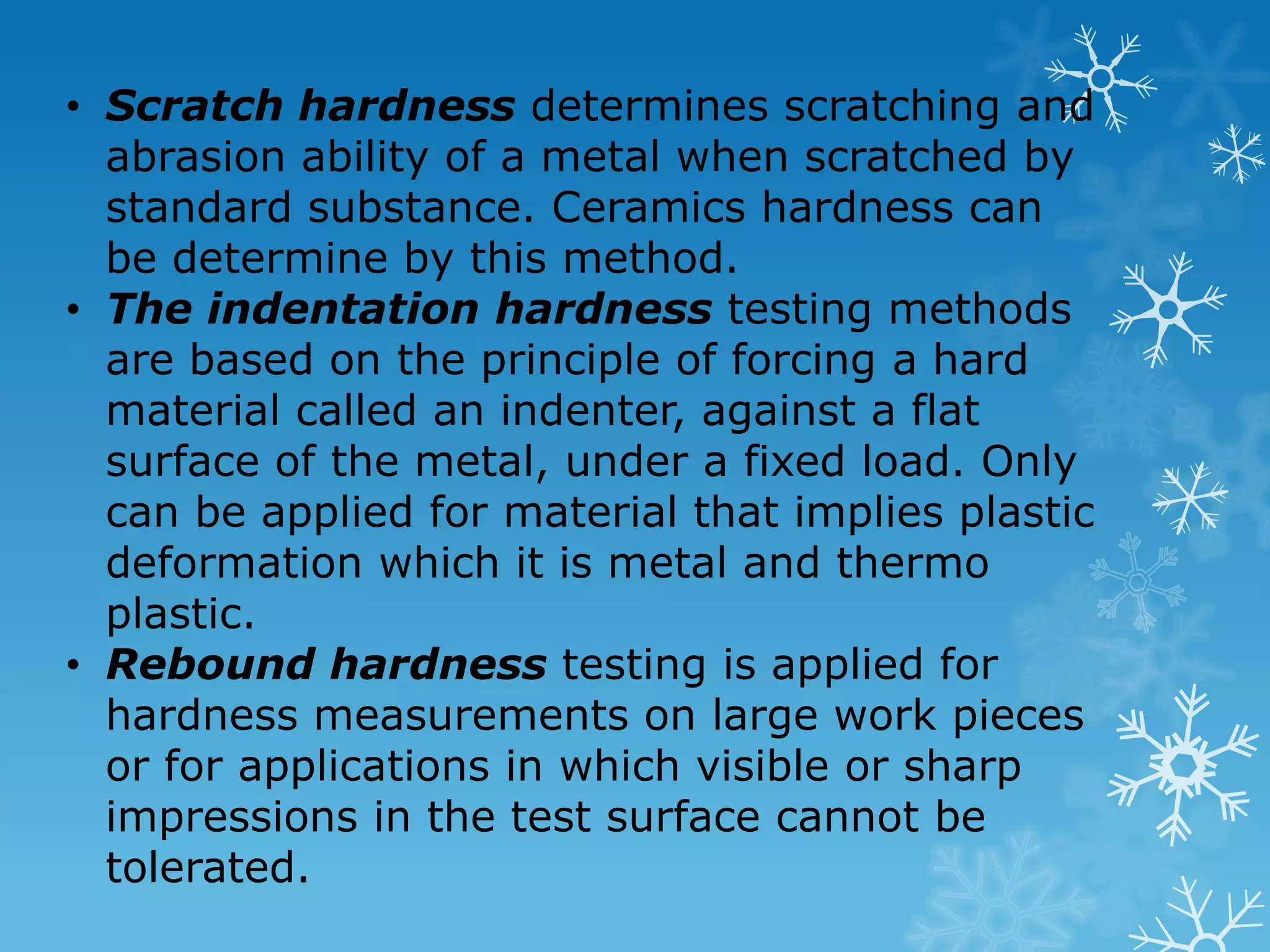

8. Scratch hardness determines scratching and abrasion ability of a metal when scratched by standard substance. Ceramics hardness can be determine by this method.

9. The indentation hardness testing methods are based on the principle of forcing a hard material called an indenter, against a flat surface of the metal, under a fixed load. Only can be applied for material that implies plastic deformation which it is metal and thermo plastic.

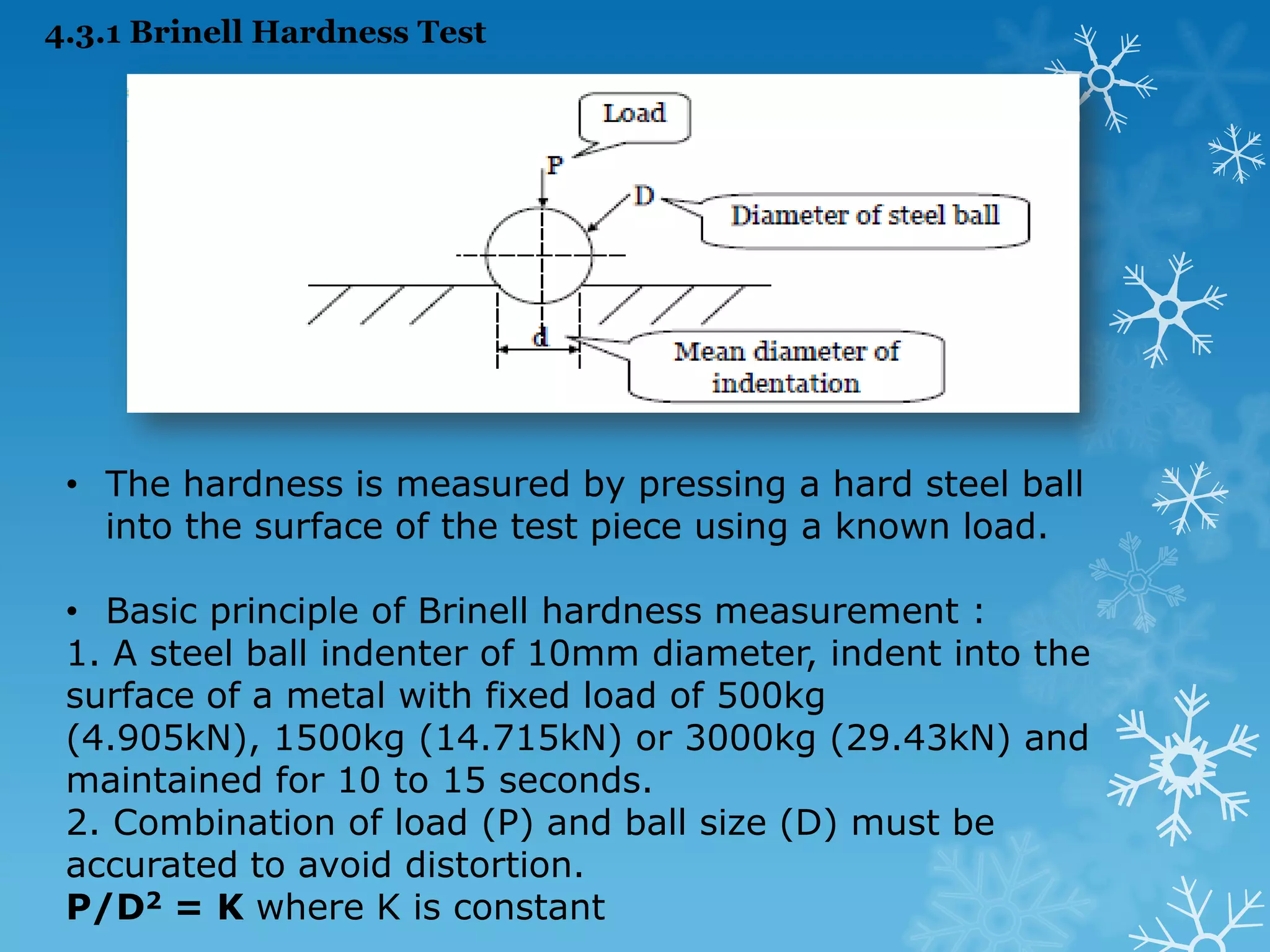

10. Rebound hardness testing is applied for hardness measurements on large work pieces or for applications in which visible or sharp impressions in the test surface cannot be tolerated. 4.3.1 Brinell Hardness Test The hardness is measured by pressing a hard steel ball into the surface of the test piece using a known load.

11. Basic principle of Brinell hardness measurement : 1. A steel ball indenter of 10mm diameter, indent into the surface of a metal with fixed load of 500kg (4.905kN), 1500kg (14.715kN) or 3000kg (29.43kN) and maintained for 10 to 15 seconds. 2. Combination of load (P) and ball size (D) must be accurated to avoid distortion. P/D2 = K where K is constant

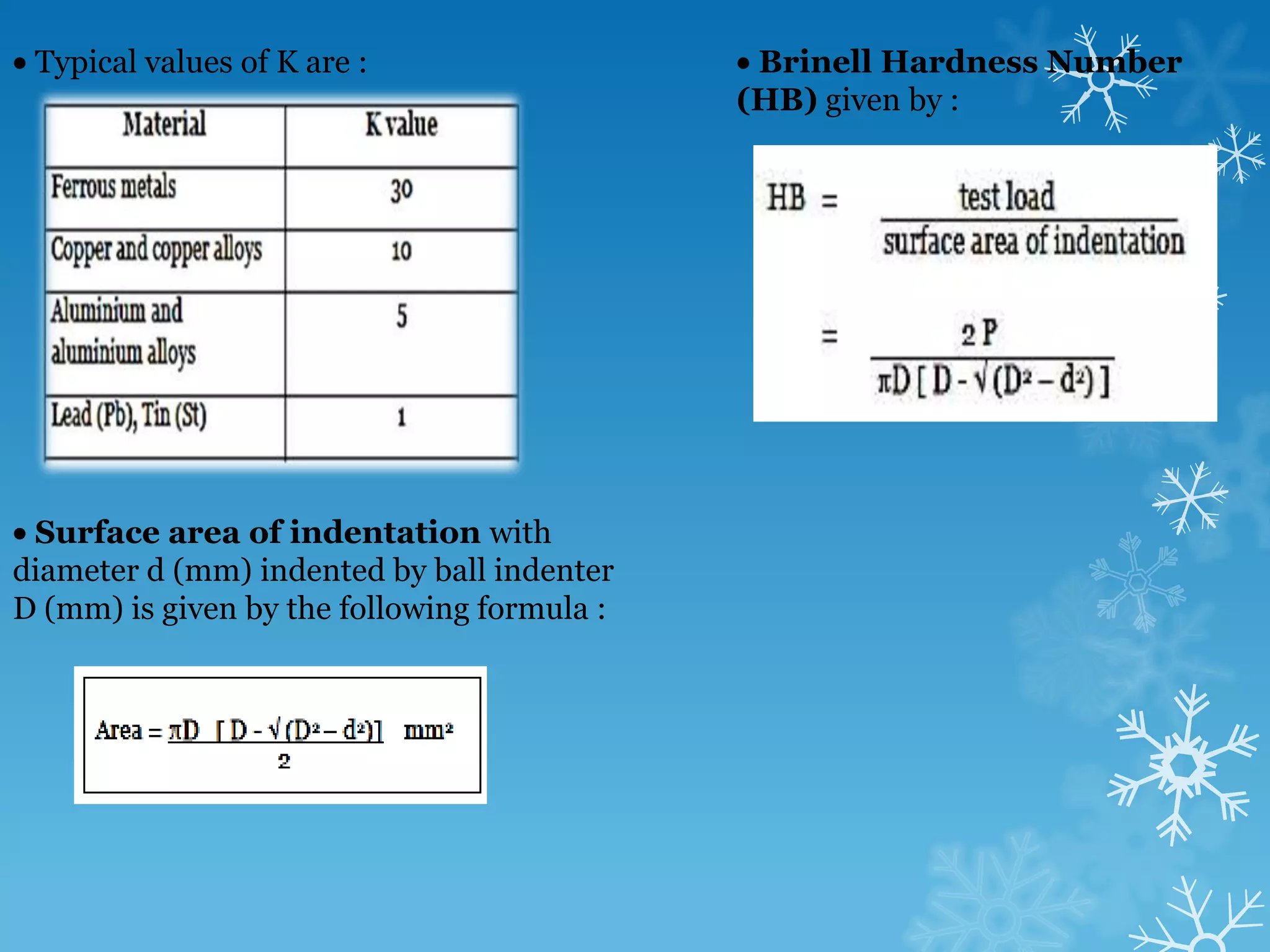

12.  Typical values of K are :  Brinell Hardness Number (HB) given by :  Surface area of indentation with diameter d (mm) indented by ball indenter D (mm) is given by the following formula :

13. 4.3.2 Vickers Hardness Test Diamond pyramid (6000 HB) test indentor with an angle of 136˚, gives an indentation that appears as a square. Indented with static loads for 10 to 15 minutes.

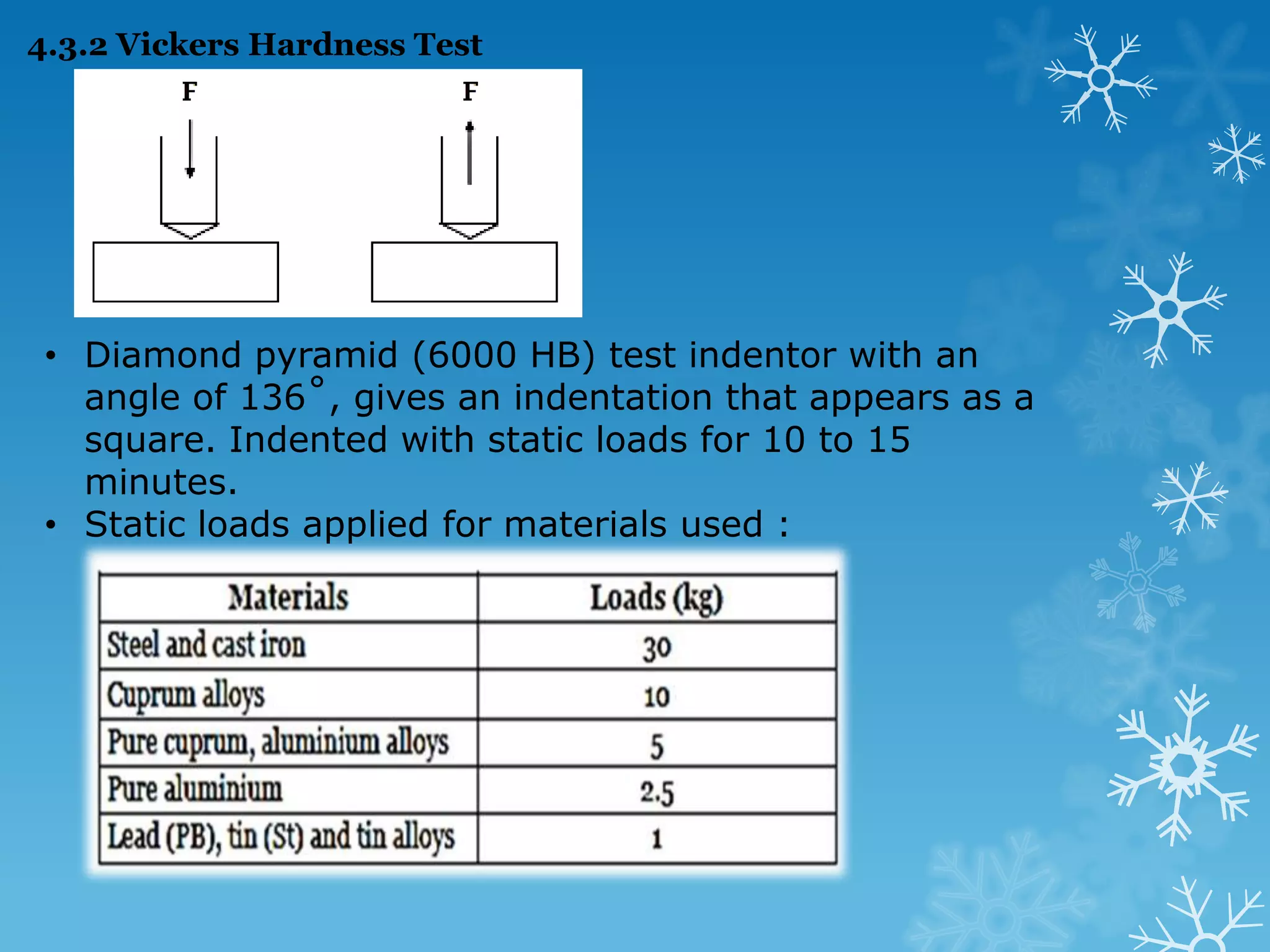

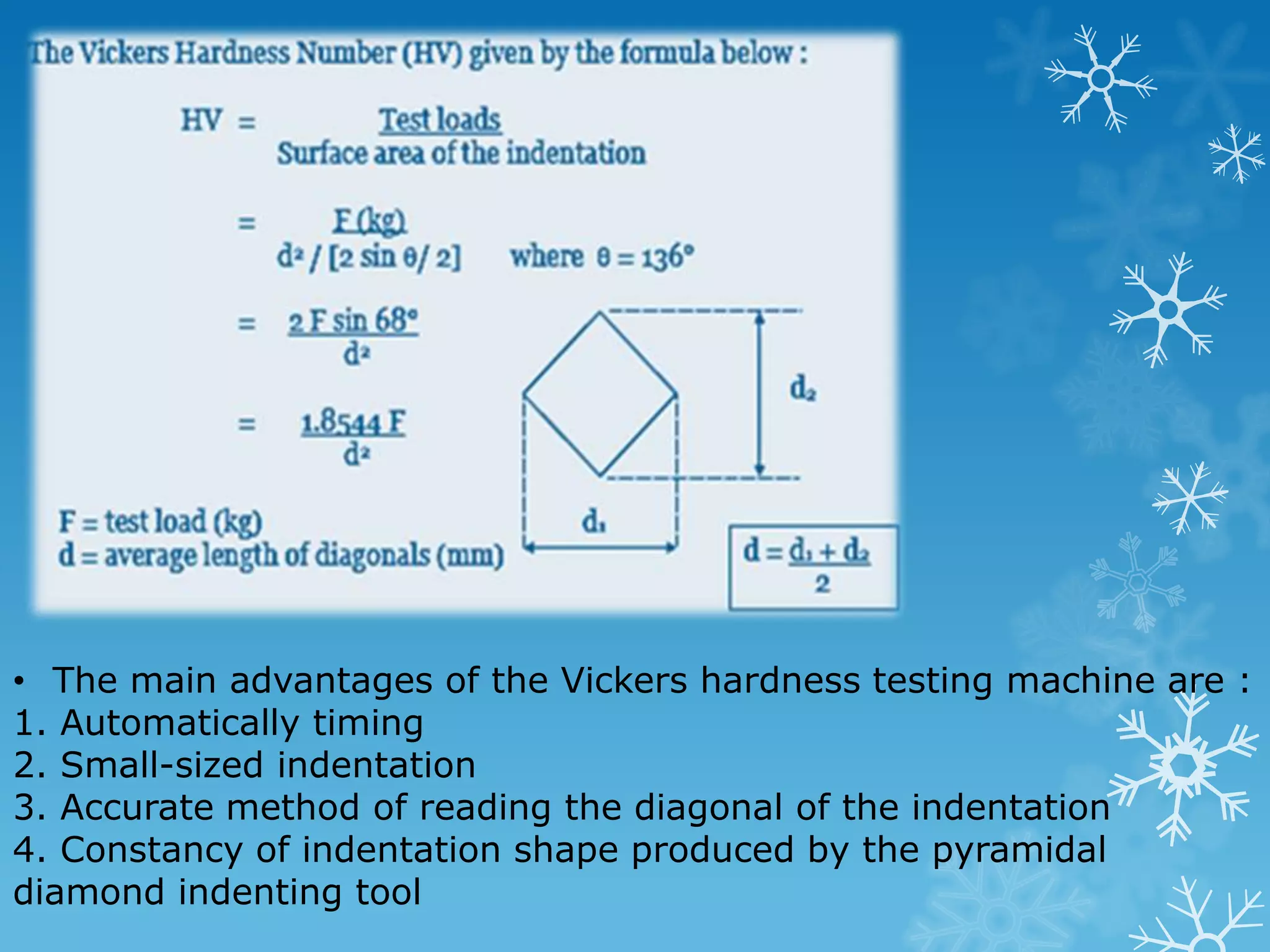

14. Static loads applied for materials used : The main advantages of the Vickers hardness testing machine are : 1. Automatically timing 2. Small-sized indentation 3. Accurate method of reading the diagonal of the indentation 4. Constancy of indentation shape produced by the pyramidal diamond indenting tool

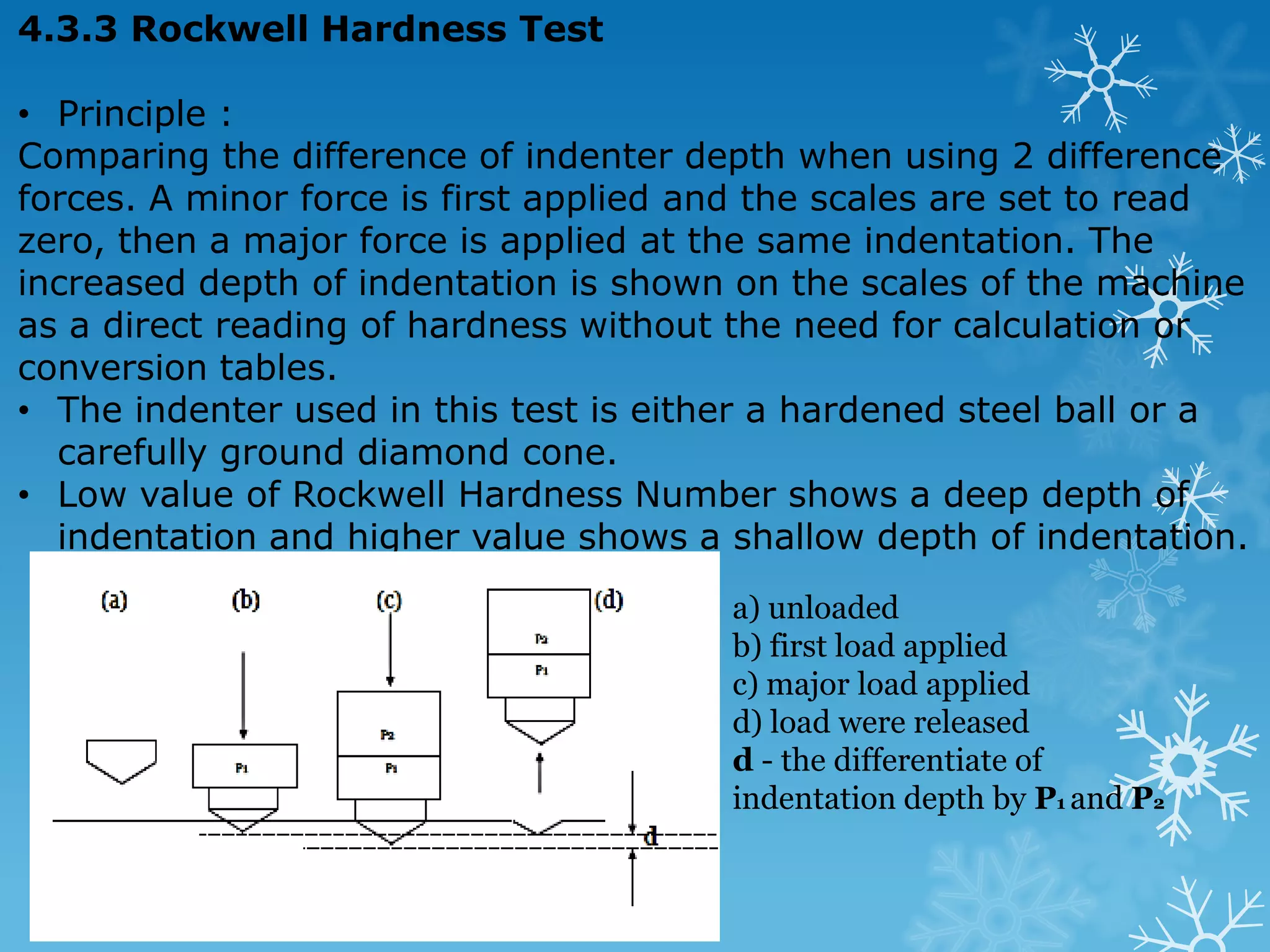

15. 4.3.3 Rockwell Hardness Test Principle : Comparing the difference of indenter depth when using 2 difference forces. A minor force is first applied and the scales are set to read zero, then a major force is applied at the same indentation. The increased depth of indentation is shown on the scales of the machine as a direct reading of hardness without the need for calculation or conversion tables. The indenter used in this test is either a hardened steel ball or a carefully ground diamond cone.

16. Low value of Rockwell Hardness Number shows a deep depth of indentation and higher value shows a shallow depth of indentation. a) unloaded b) first load applied c) major load applied d) load were released d - the differentiate of indentation depth by P1 and P2

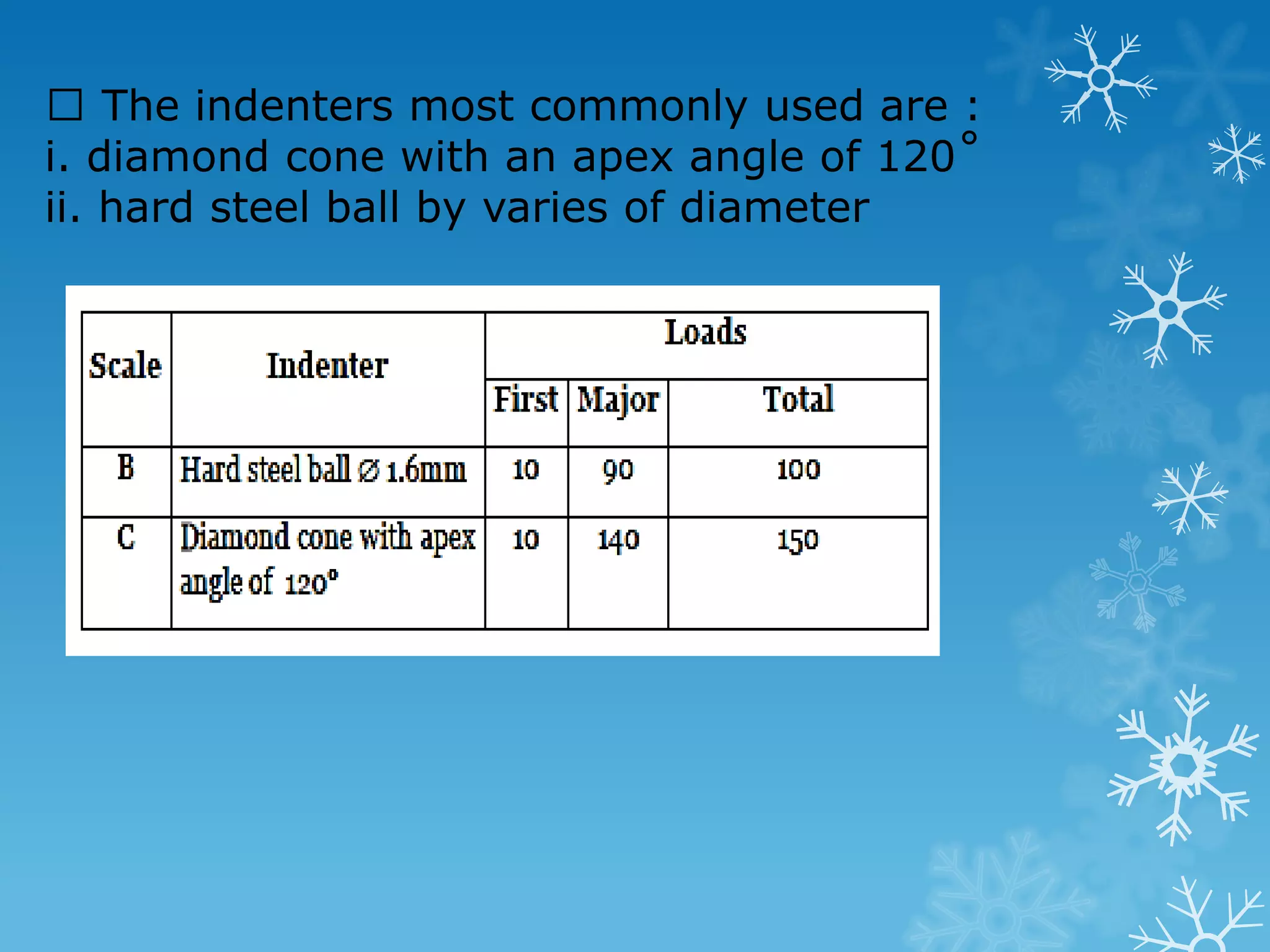

17.  The indenters most commonly used are : i. diamond cone with an apex angle of 120˚ ii. hard steel ball by varies of diameter

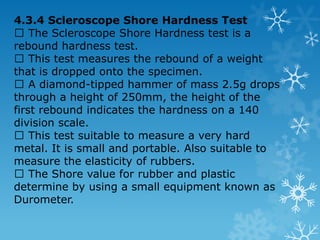

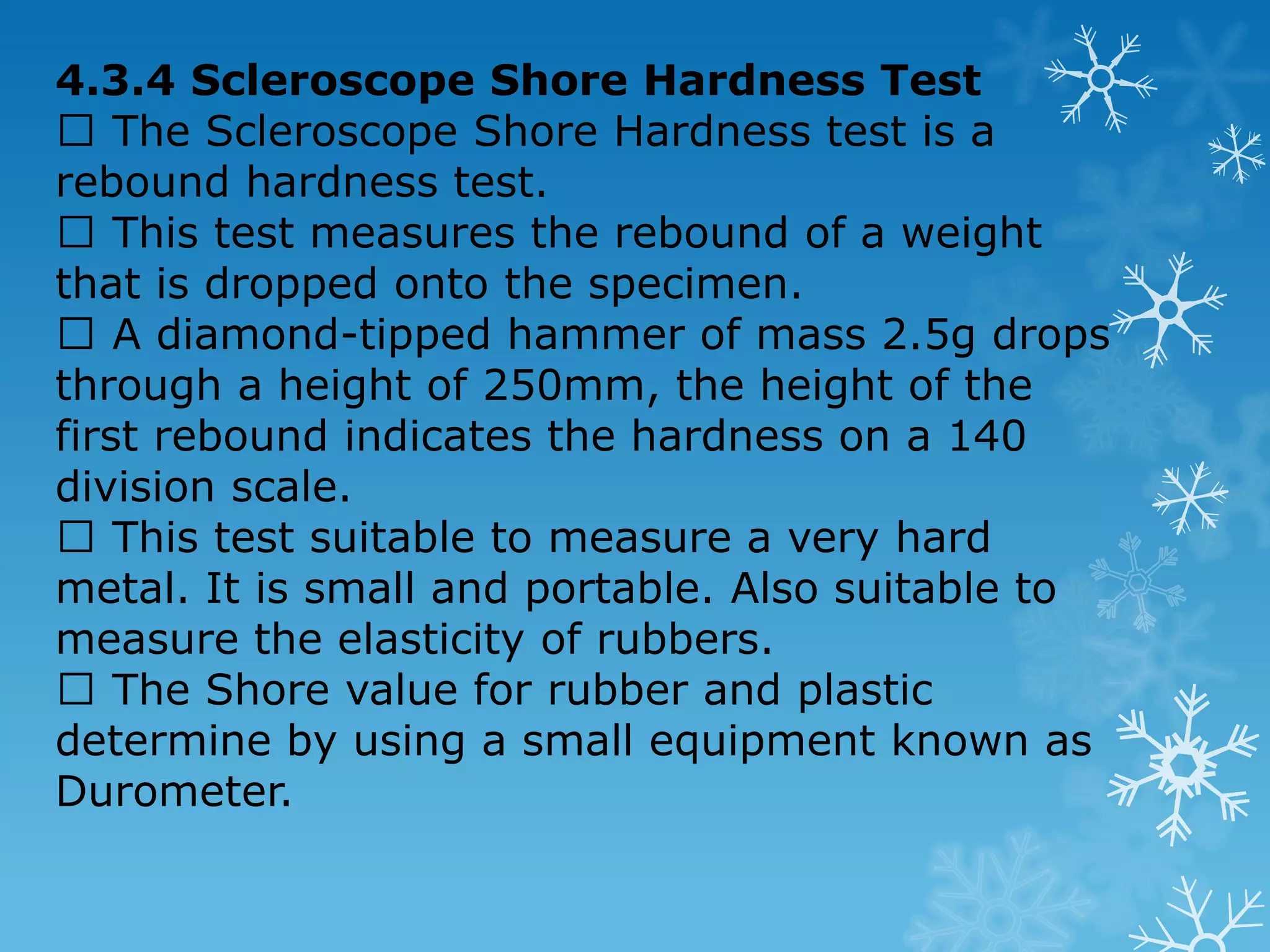

18. 4.3.4 Scleroscope Shore Hardness Test  The Scleroscope Shore Hardness test is a rebound hardness test.  This test measures the rebound of a weight that is dropped onto the specimen.  A diamond-tipped hammer of mass 2.5g drops through a height of 250mm, the height of the first rebound indicates the hardness on a 140 division scale.  This test suitable to measure a very hard metal. It is small and portable. Also suitable to measure the elasticity of rubbers.  The Shore value for rubber and plastic determine by using a small equipment known as Durometer.

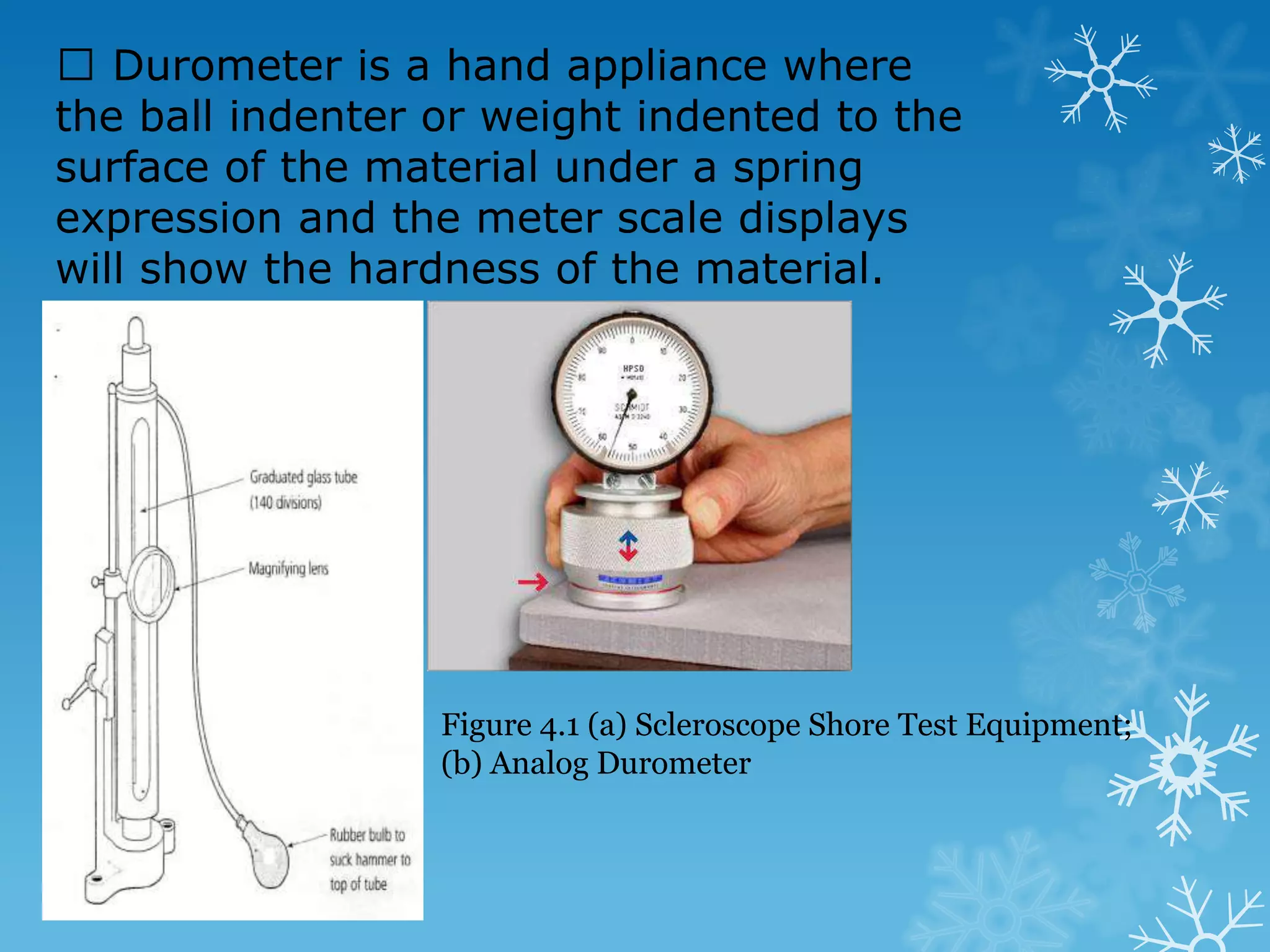

19.  Durometer is a hand appliance where the ball indenter or weight indented to the surface of the material under a spring expression and the meter scale displays will show the hardness of the material. Figure 4.1 (a) Scleroscope Shore Test Equipment; (b) Analog Durometer

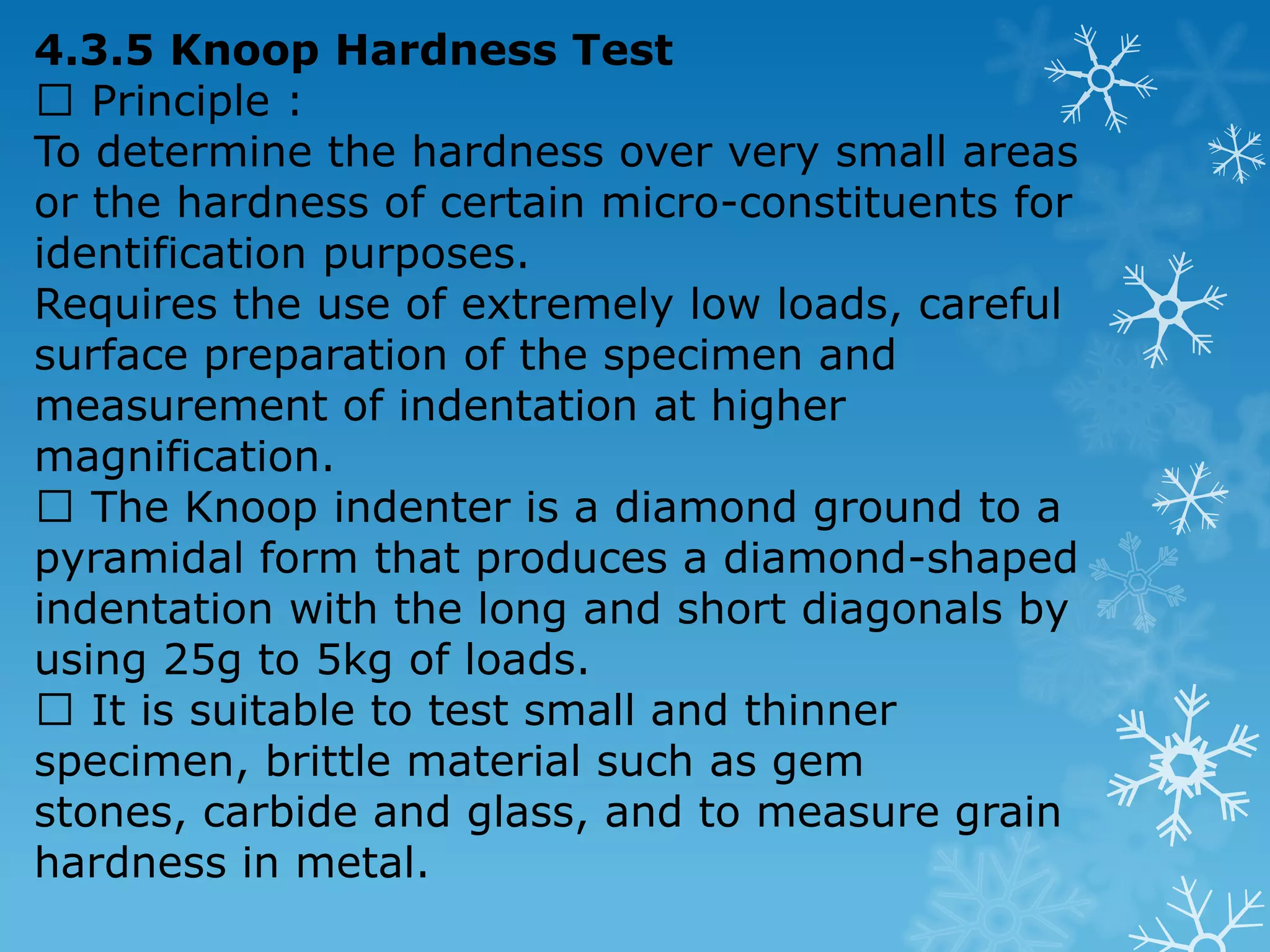

20. 4.3.5 Knoop Hardness Test  Principle : To determine the hardness over very small areas or the hardness of certain micro-constituents for identification purposes. Requires the use of extremely low loads, careful surface preparation of the specimen and measurement of indentation at higher magnification.  The Knoop indenter is a diamond ground to a pyramidal form that produces a diamond-shaped indentation with the long and short diagonals by using 25g to 5kg of loads.  It is suitable to test small and thinner specimen, brittle material such as gem stones, carbide and glass, and to measure grain hardness in metal.

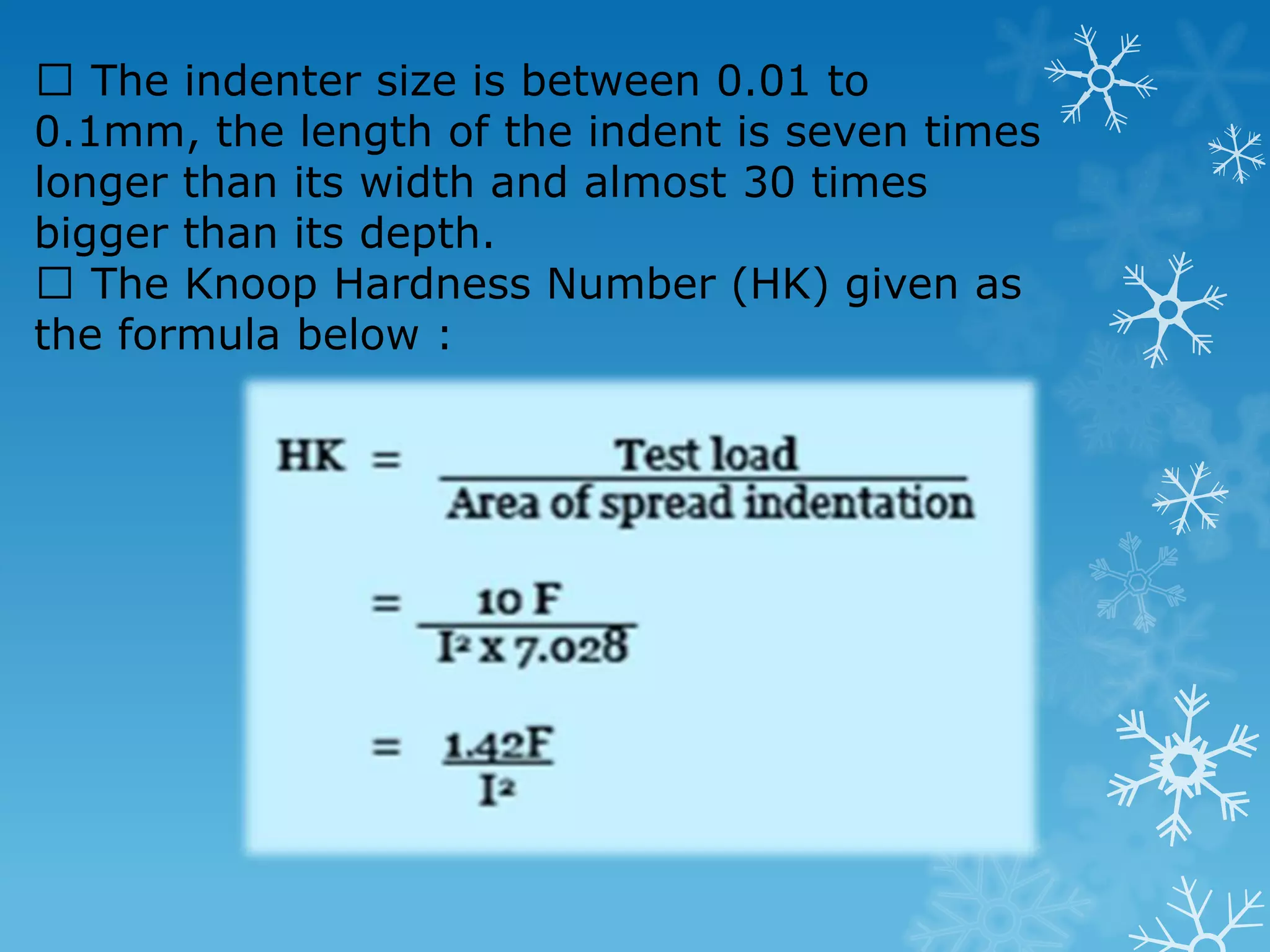

21.  The indenter size is between 0.01 to 0.1mm, the length of the indent is seven times longer than its width and almost 30 times bigger than its depth.  The Knoop Hardness Number (HK) given as the formula below :

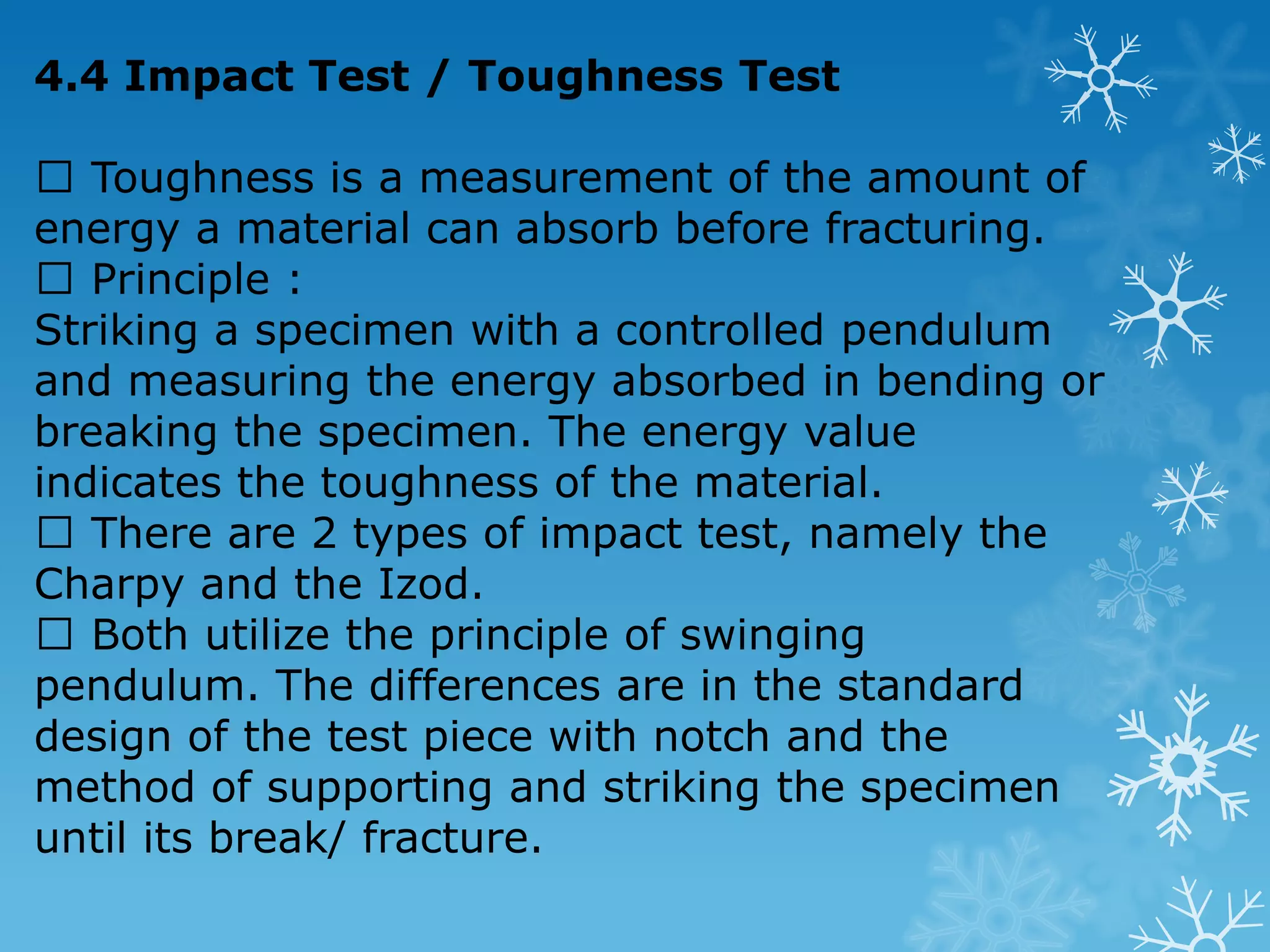

22. 4.4 Impact Test / Toughness Test  Toughness is a measurement of the amount of energy a material can absorb before fracturing.  Principle :Striking a specimen with a controlled pendulum and measuring the energy absorbed in bending or breaking the specimen. The energy value indicates the toughness of the material.  There are 2 types of impact test, namely the Charpy and the Izod.  Both utilize the principle of swinging pendulum. The differences are in the standard design of the test piece with notch and the method of supporting and striking the specimen until its break/ fracture.

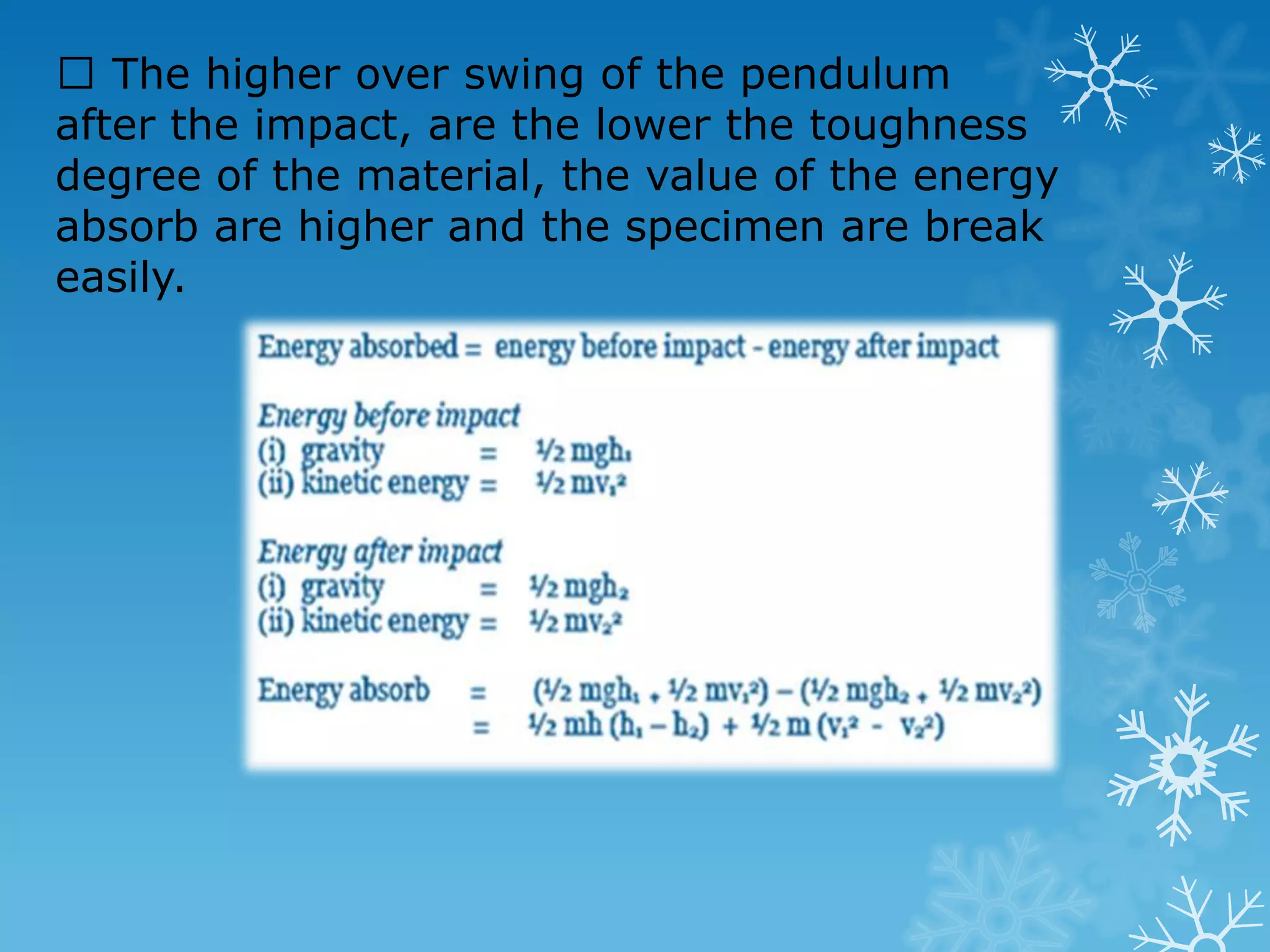

23.  The higher over swing of the pendulum after the impact, are the lower the toughness degree of the material, the value of the energy absorb are higher and the specimen are break easily.

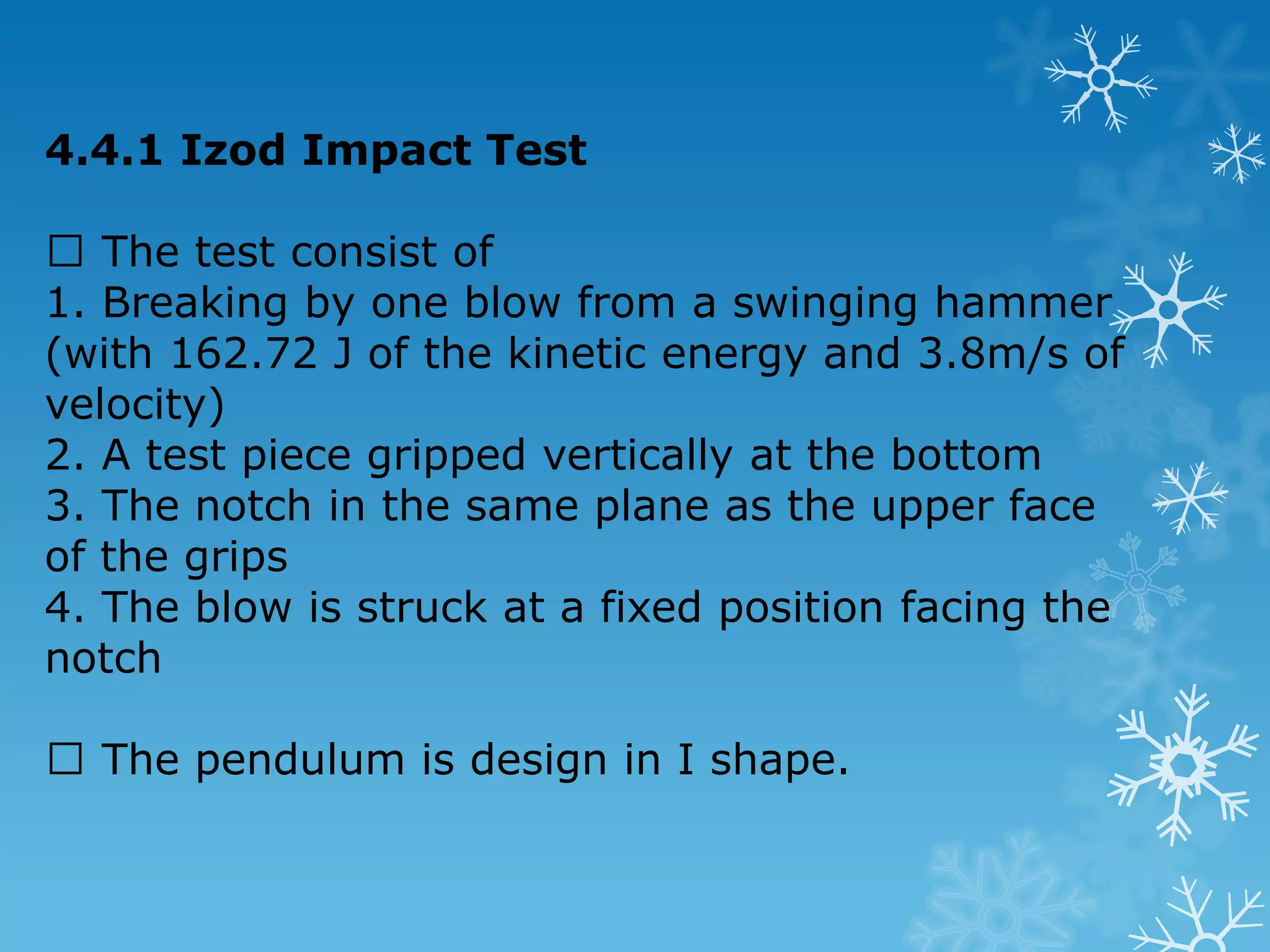

24. 4.4.1 Izod Impact Test  The test consist of 1. Breaking by one blow from a swinging hammer (with 162.72 J of the kinetic energy and 3.8m/s of velocity) 2. A test piece gripped vertically at the bottom 3. The notch in the same plane as the upper face of the grips 4. The blow is struck at a fixed position facing the notch  The pendulum is design in I shape.

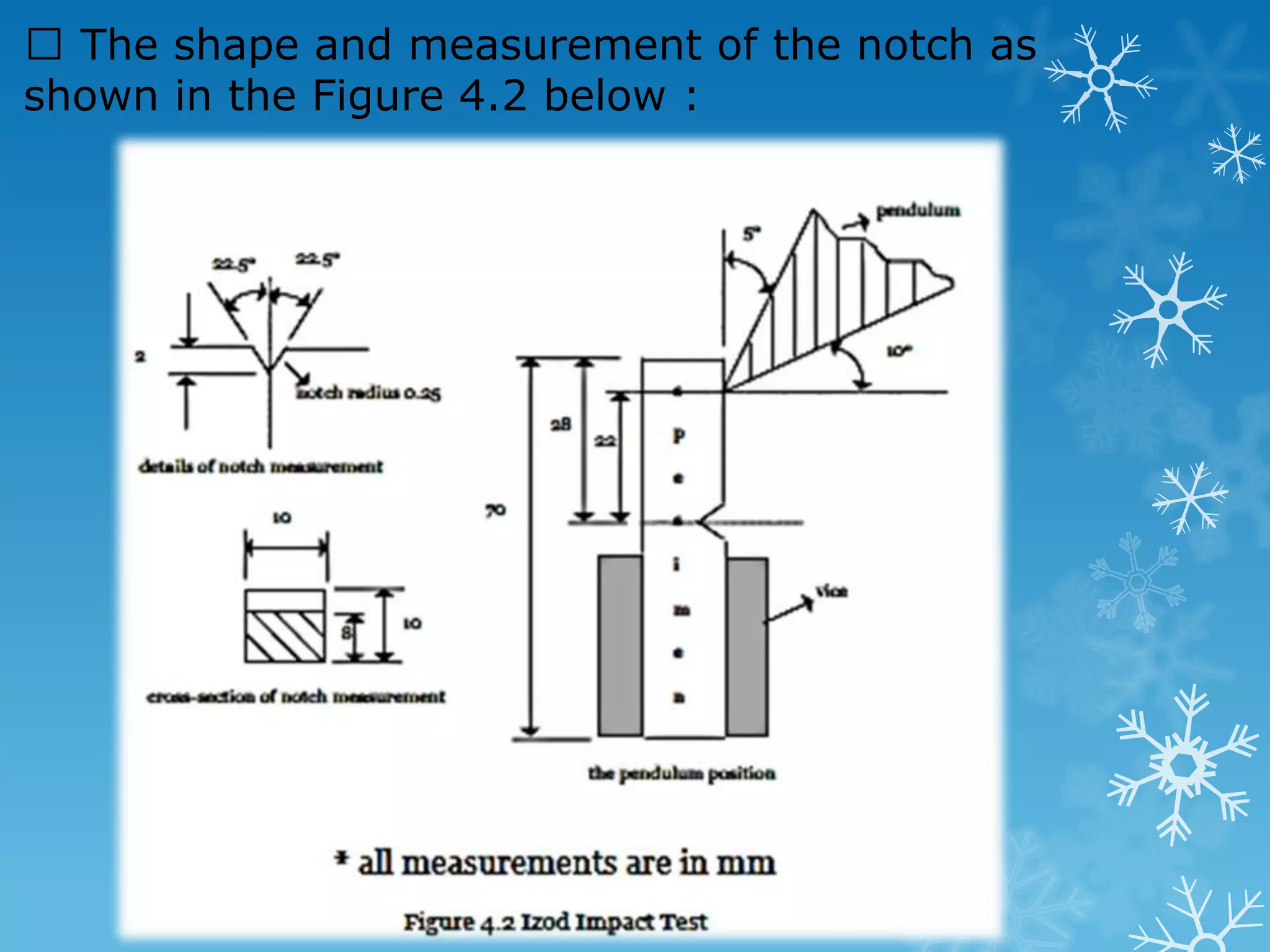

25.  The shape and measurement of the notch as shown in the Figure 4.2 below :

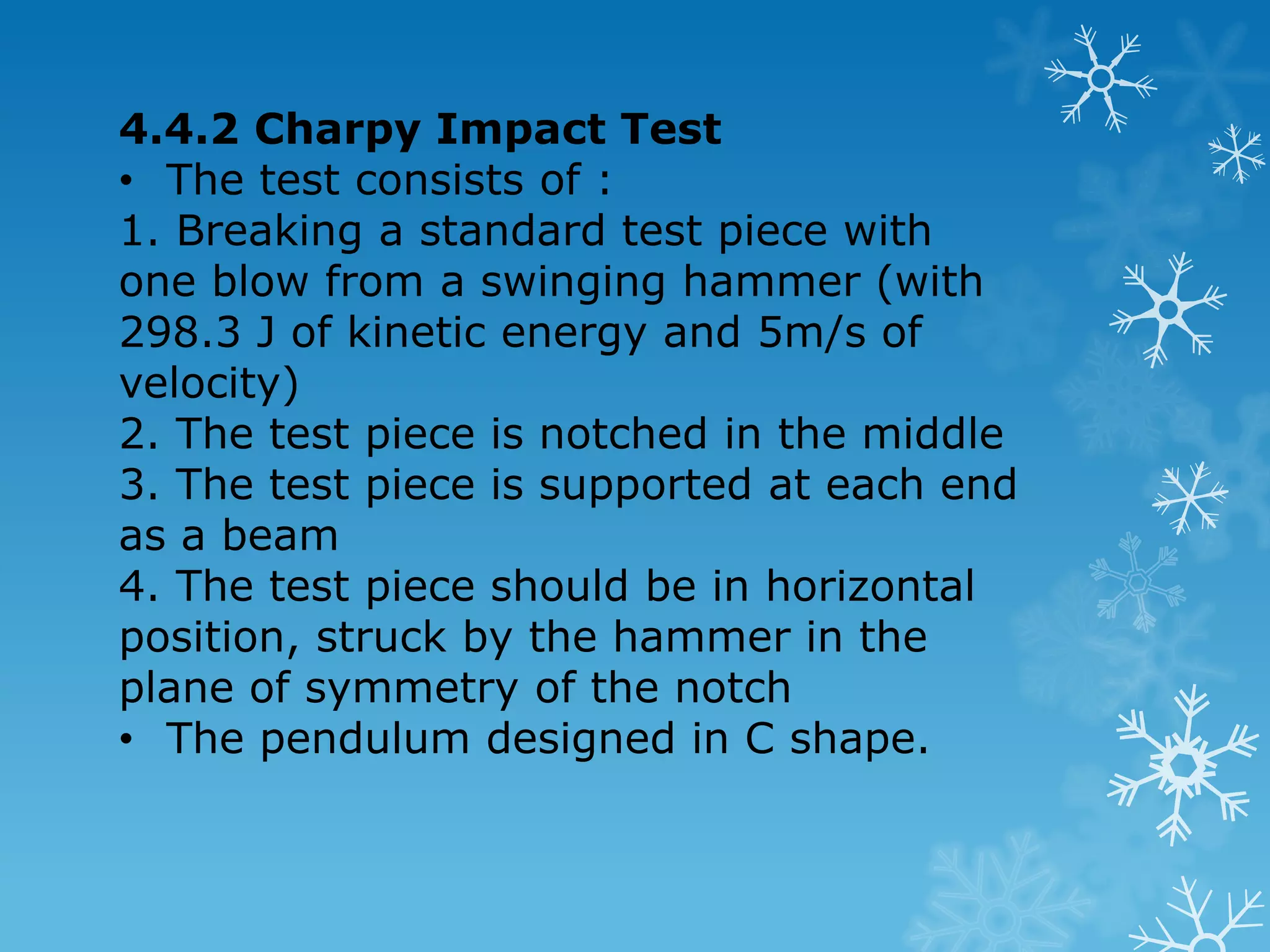

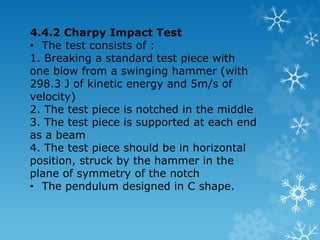

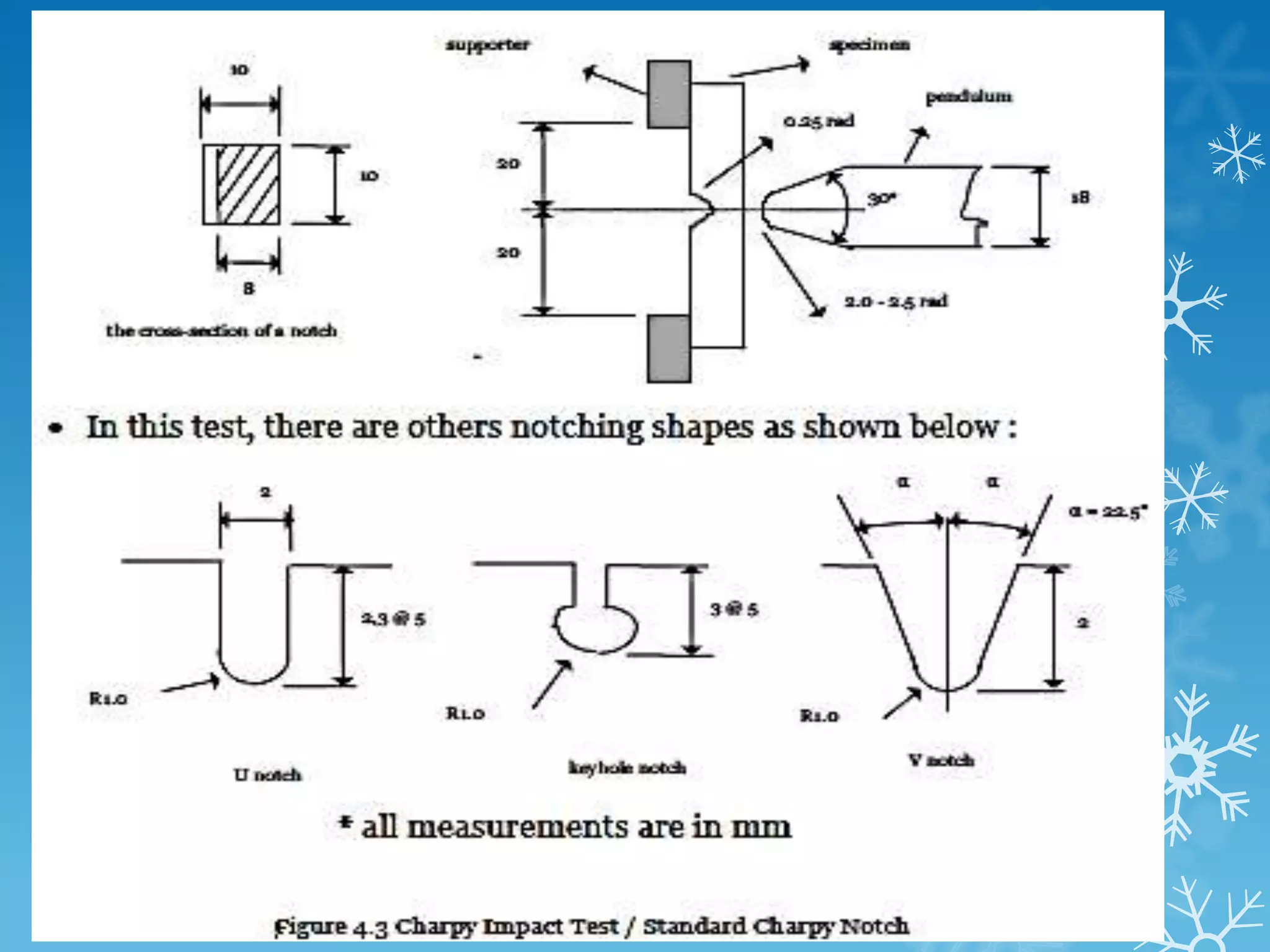

26. 4.4.2 Charpy Impact Test The test consists of : 1. Breaking a standard test piece with one blow from a swinging hammer (with 298.3 J of kinetic energy and 5m/s of velocity) 2. The test piece is notched in the middle 3. The test piece is supported at each end as a beam 4. The test piece should be in horizontal position, struck by the hammer in the plane of symmetry of the notch The pendulum designed in C shape.

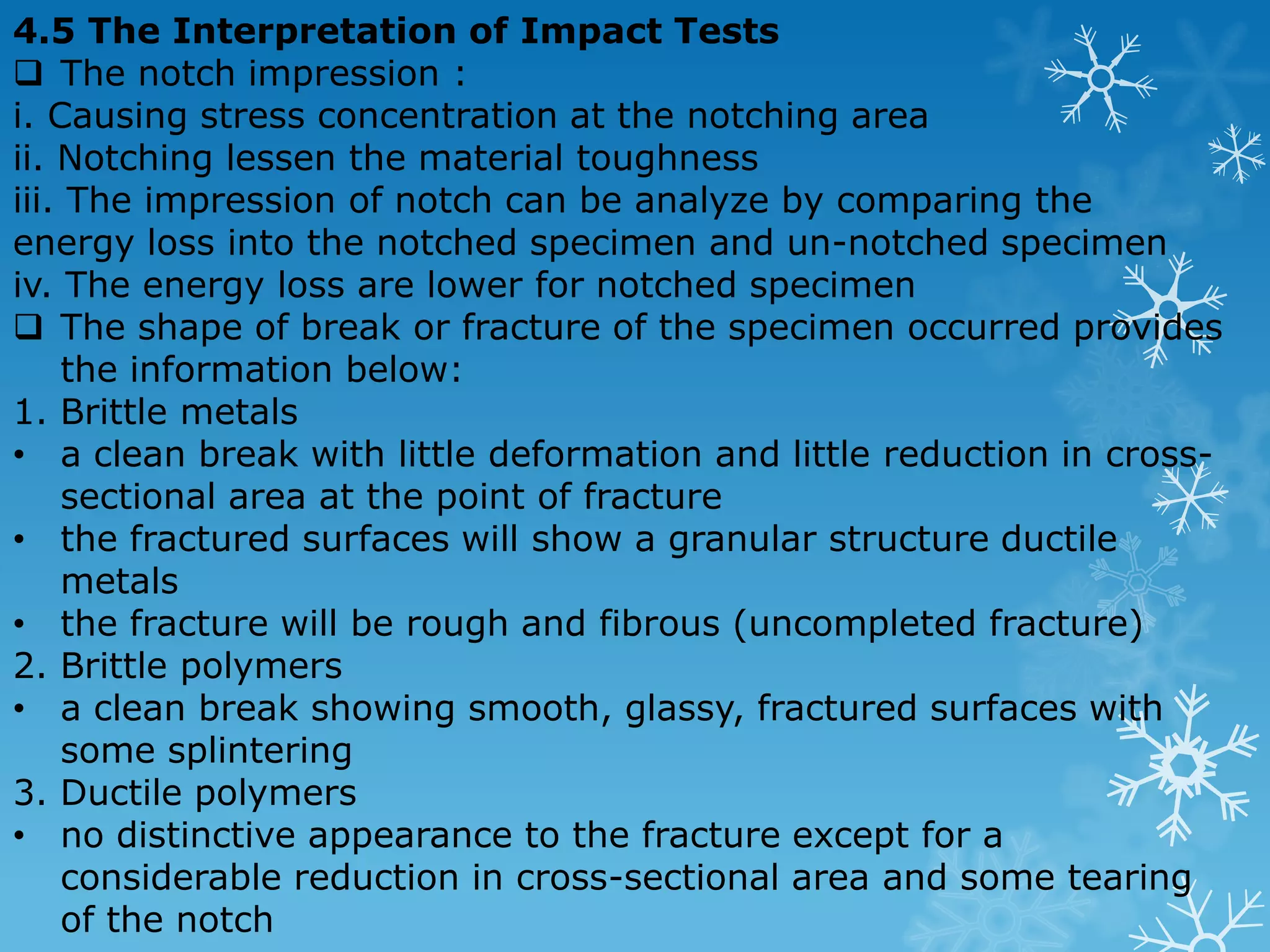

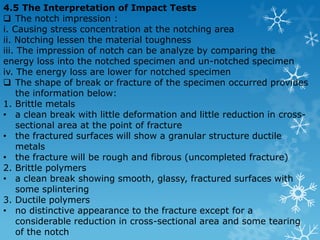

27. 4.5 The Interpretation of Impact Tests The notch impression : i. Causing stress concentration at the notching area ii. Notching lessen the material toughness iii. The impression of notch can be analyze by comparing the energy loss into the notched specimen and un-notched specimen iv. The energy loss are lower for notched specimen The shape of break or fracture of the specimen occurred provides the information below: 1. Brittle metals a clean break with little deformation and little reduction in cross-sectional area at the point of fracture

28. the fractured surfaces will show a granular structure ductile metals

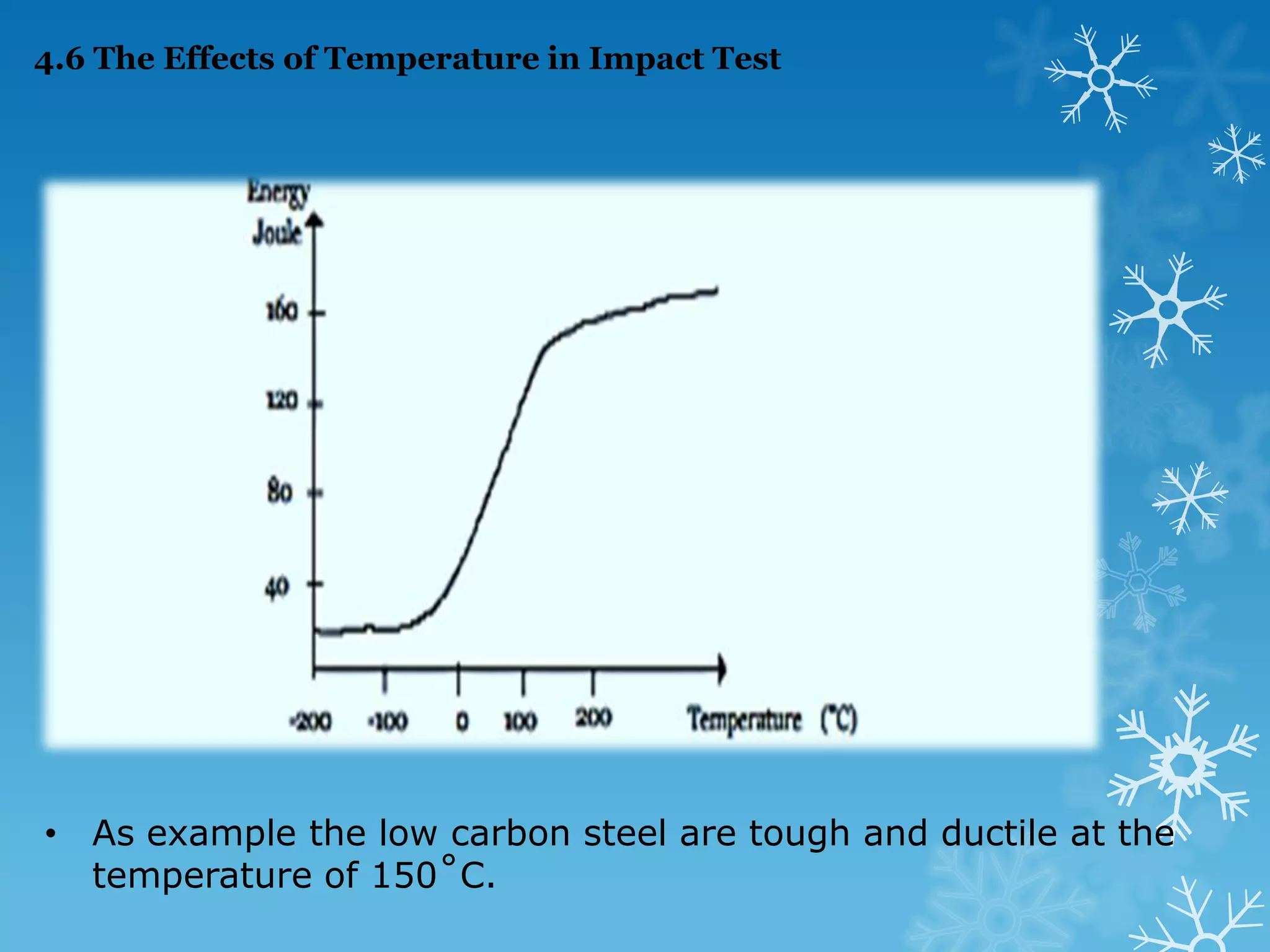

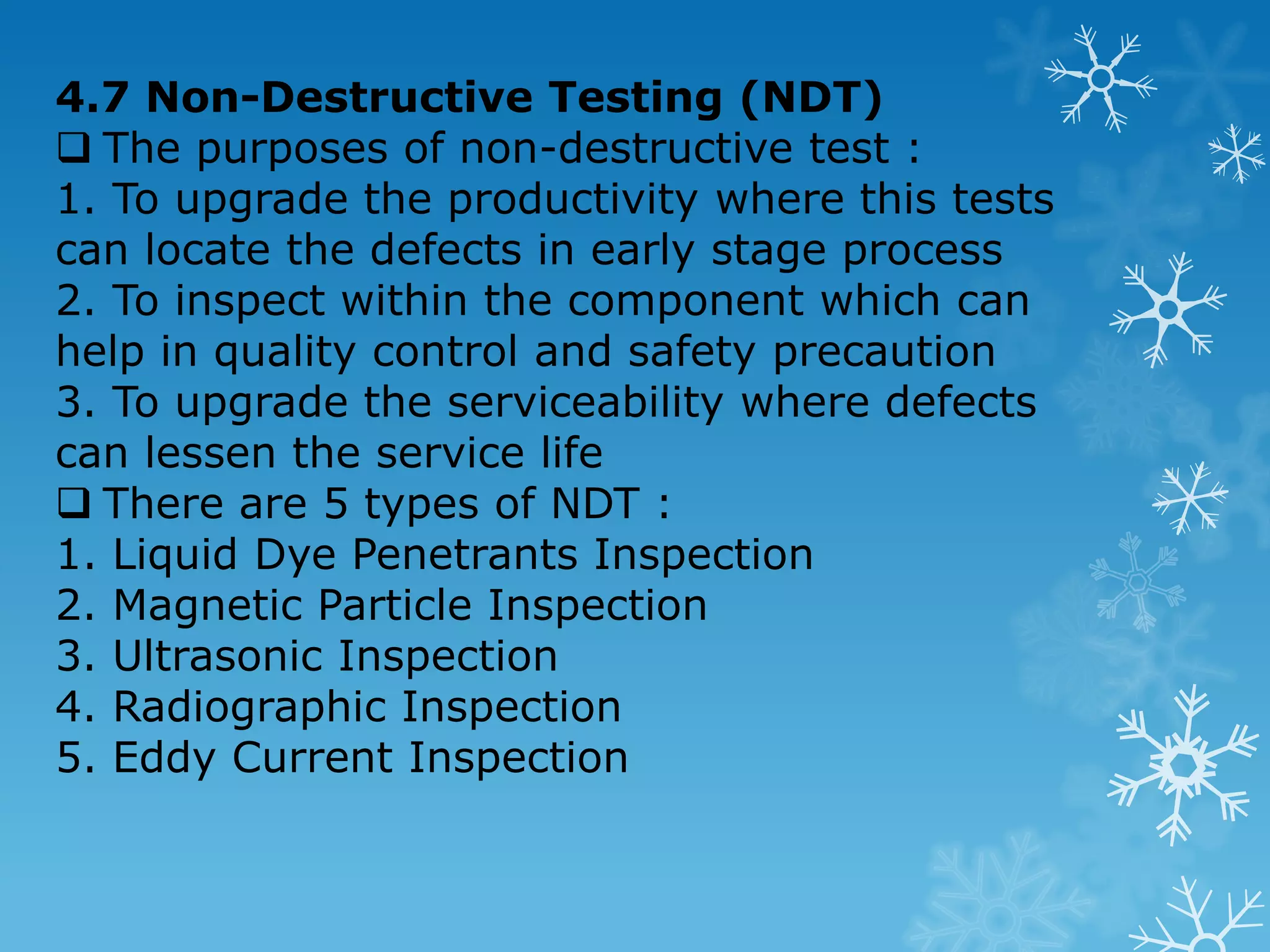

29. the fracture will be rough and fibrous (uncompleted fracture) 2. Brittle polymers a clean break showing smooth, glassy, fractured surfaces with some splintering 3. Ductile polymers no distinctive appearance to the fracture except for a considerable reduction in cross-sectional area and some tearing of the notch 4.6 The Effects of Temperature in Impact Test As example the low carbon steel are tough and ductile at the temperature of 150˚C. 4.7 Non-Destructive Testing (NDT) The purposes of non-destructive test : 1. To upgrade the productivity where this tests can locate the defects in early stage process 2. To inspect within the component which can help in quality control and safety precaution 3. To upgrade the serviceability where defects can lessen the service life There are 5 types of NDT : 1. LiquidDyePenetrants Inspection 2. Magnetic Particle Inspection 3. Ultrasonic Inspection 4. Radiographic Inspection 5. Eddy Current Inspection

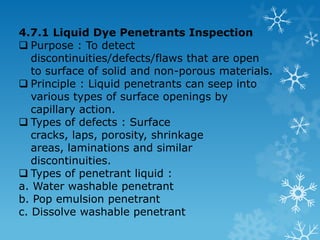

30. 4.7.1 LiquidDyePenetrants Inspection Purpose : To detect discontinuities/defects/flaws that are open to surface of solid and non-porous materials.

31. Principle : Liquid penetrants can seep into various types of surface openings by capillary action.

32. Types of defects : Surface cracks, laps, porosity, shrinkage areas, laminations and similar discontinuities.

33. Types of penetrant liquid : a. Water washable penetrant b. Pop emulsion penetrant c. Dissolve washable penetrant

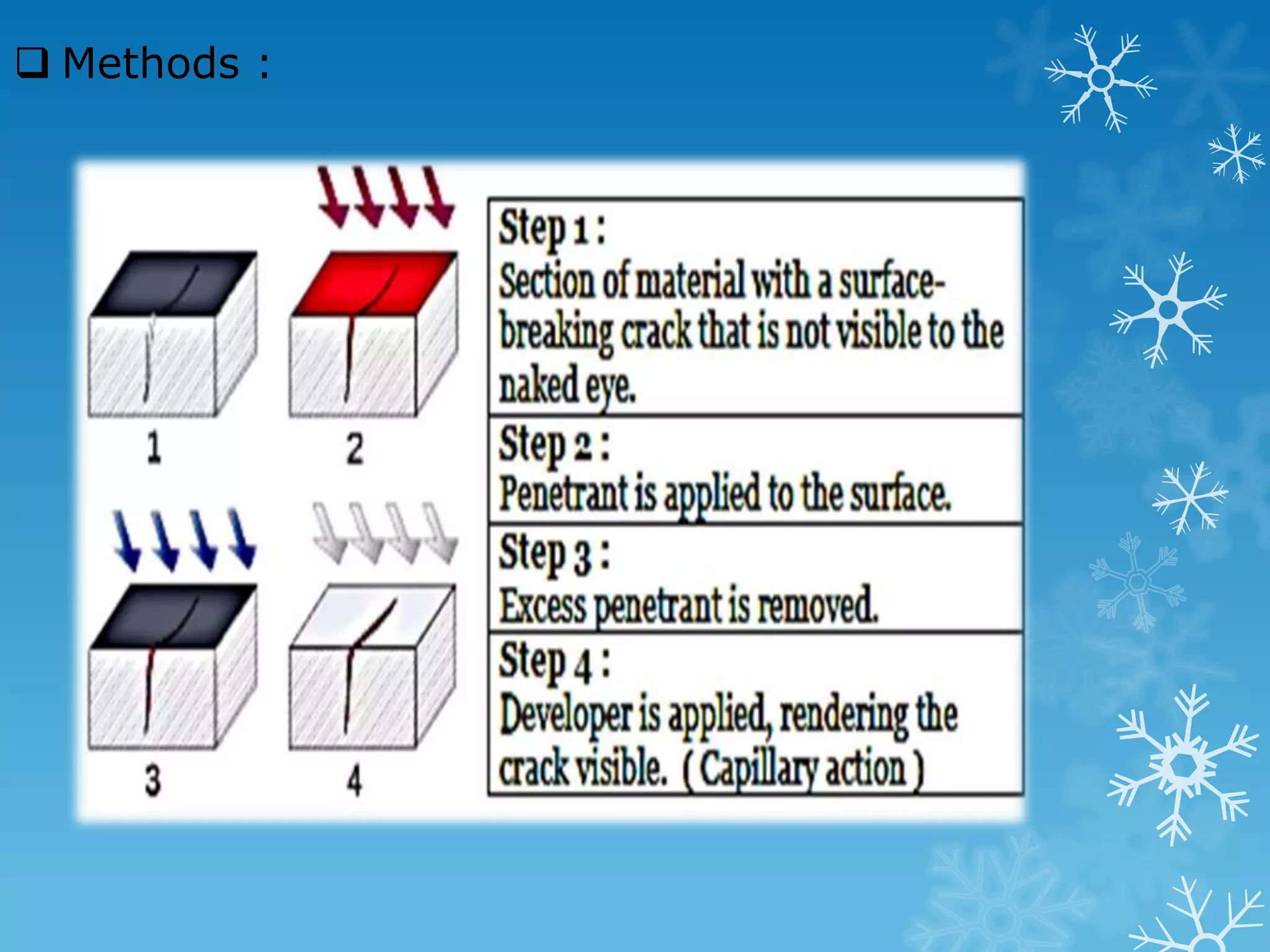

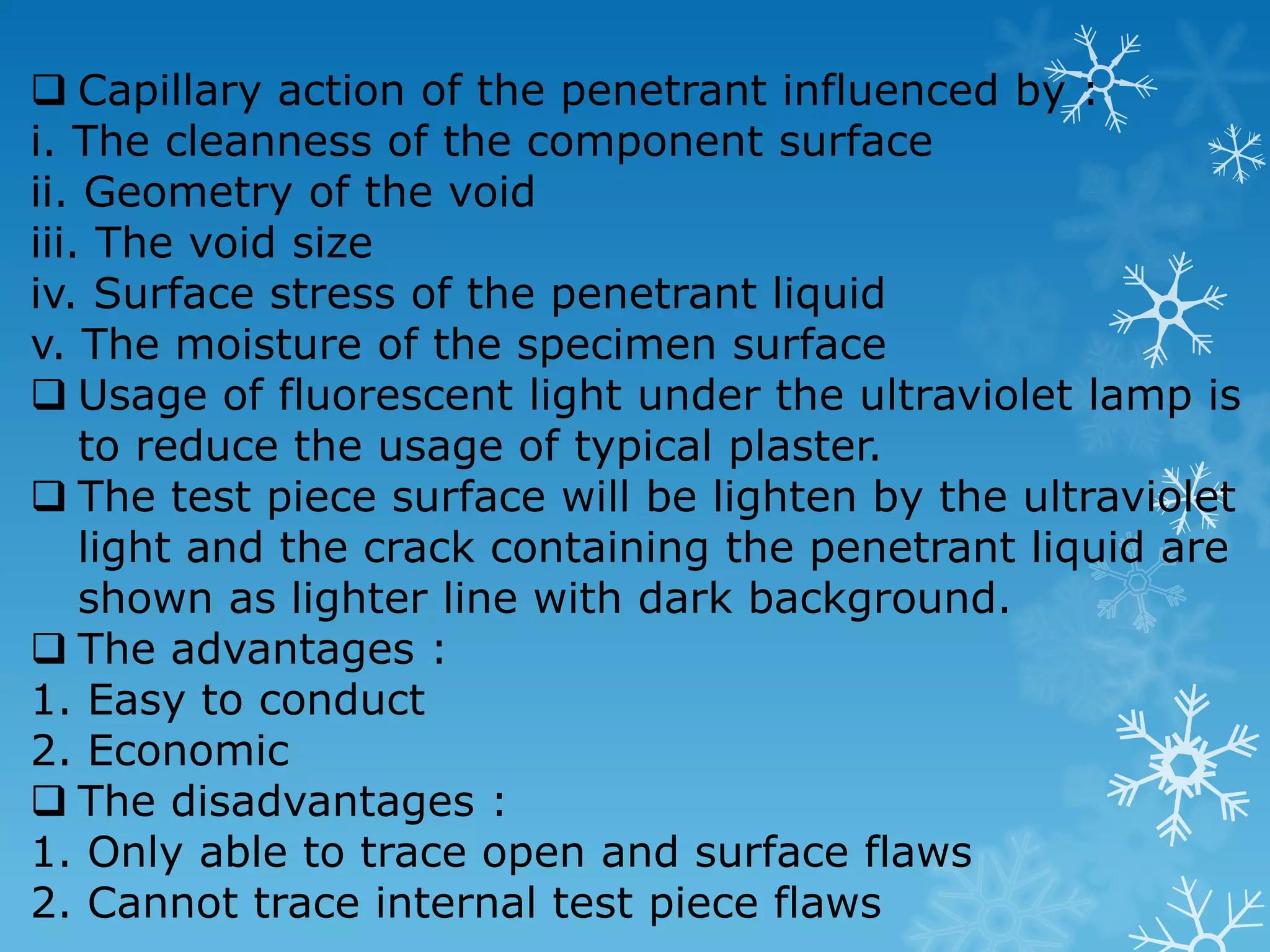

34. Methods : Capillary action of the penetrant influenced by : i. The cleanness of the component surface ii. Geometry of the void iii. The void size iv. Surface stress of the penetrant liquid v. The moisture of the specimen surface Usage of fluorescent light under the ultraviolet lamp is to reduce the usage of typical plaster.

35. The test piece surface will be lighten by the ultraviolet light and the crack containing the penetrant liquid are shown as lighter line with dark background.

36. The advantages : 1. Easy to conduct 2. Economic The disadvantages : 1. Only able to trace open and surface flaws 2. Cannot trace internal test piece flaws

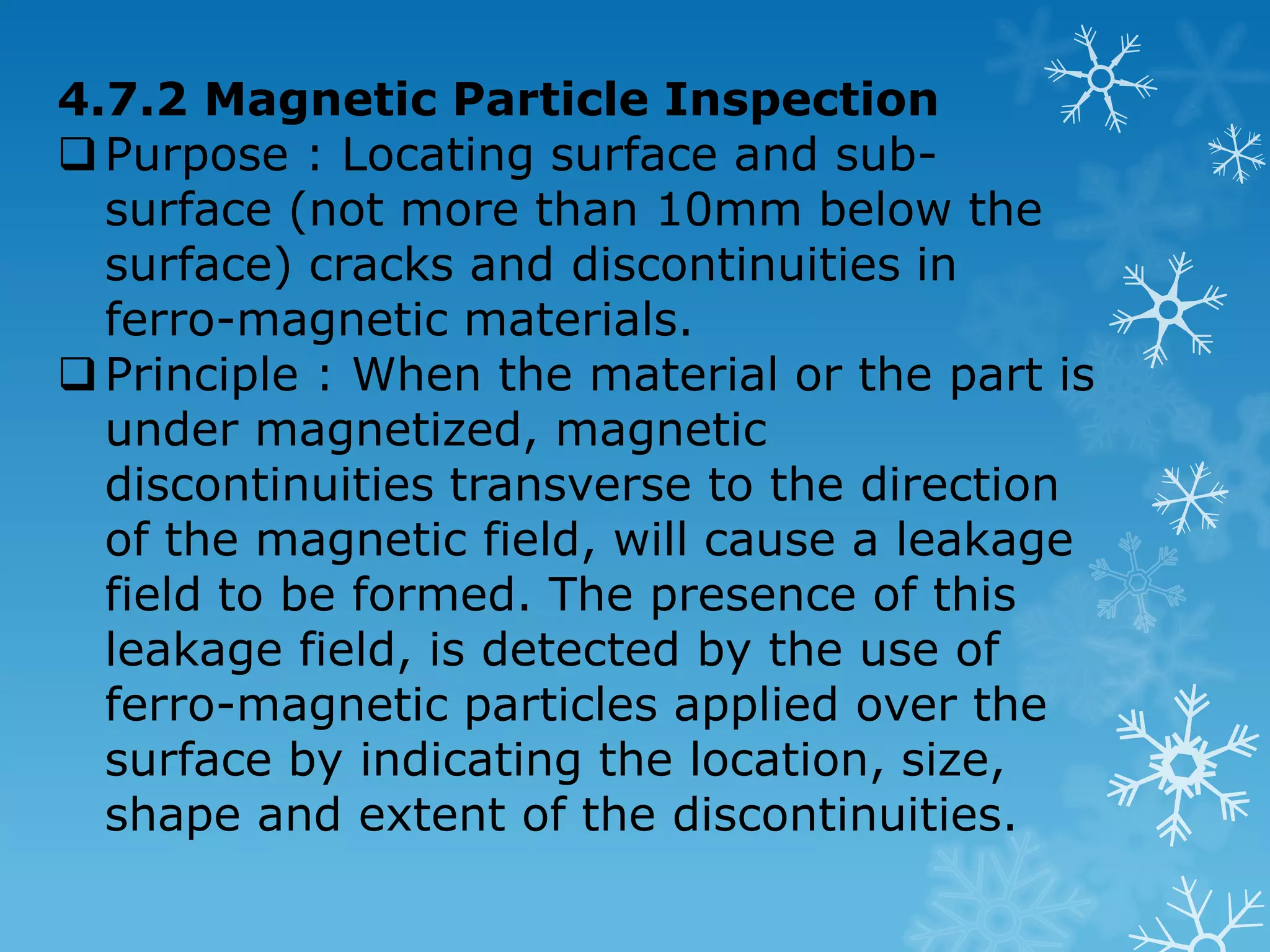

37. 4.7.2 Magnetic Particle Inspection Purpose : Locating surface and sub-surface (not more than 10mm below the surface) cracks and discontinuities in ferro-magnetic materials.

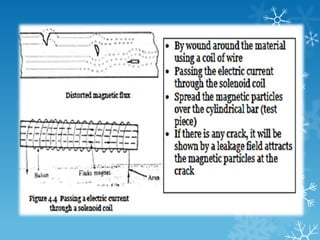

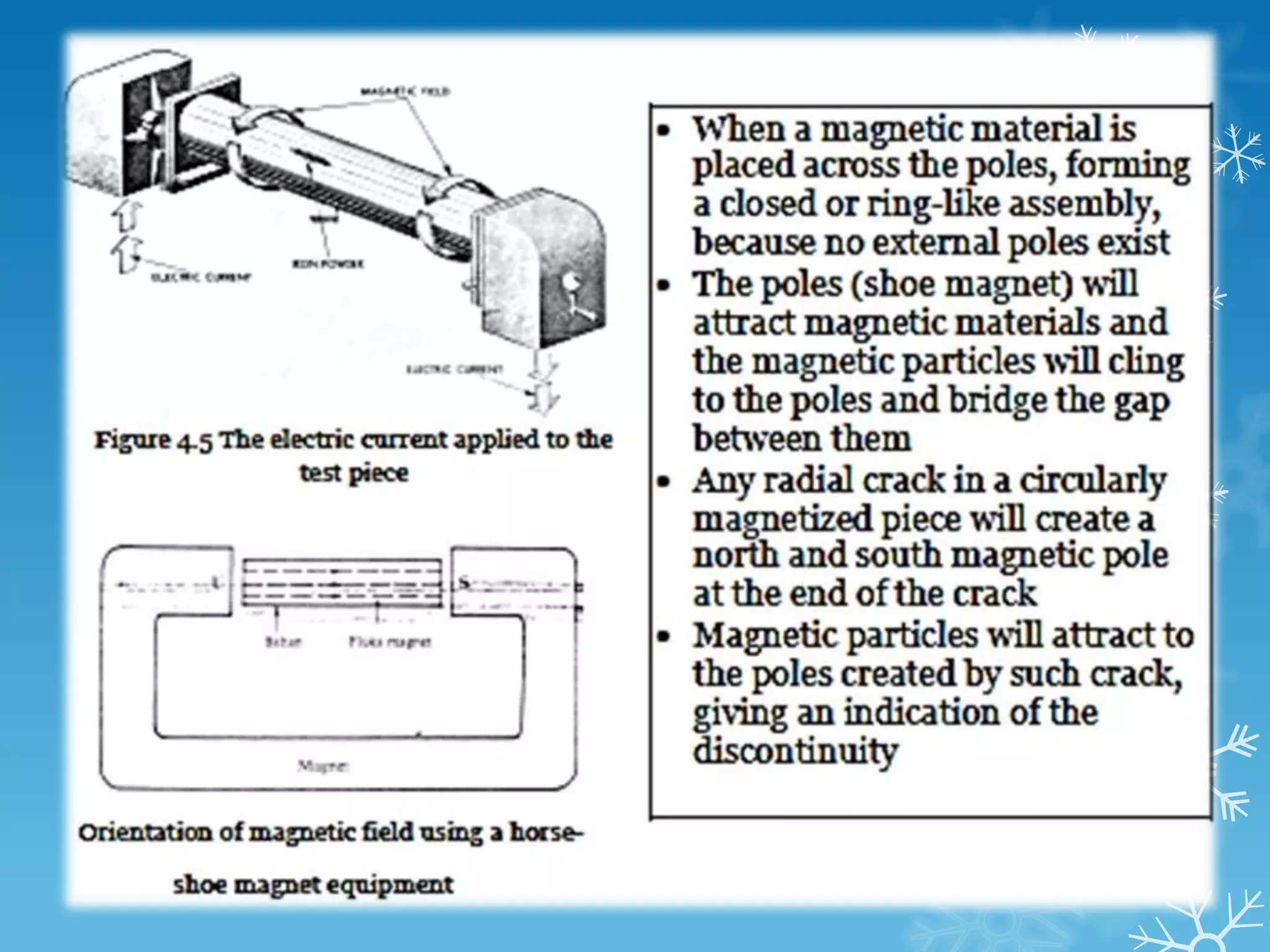

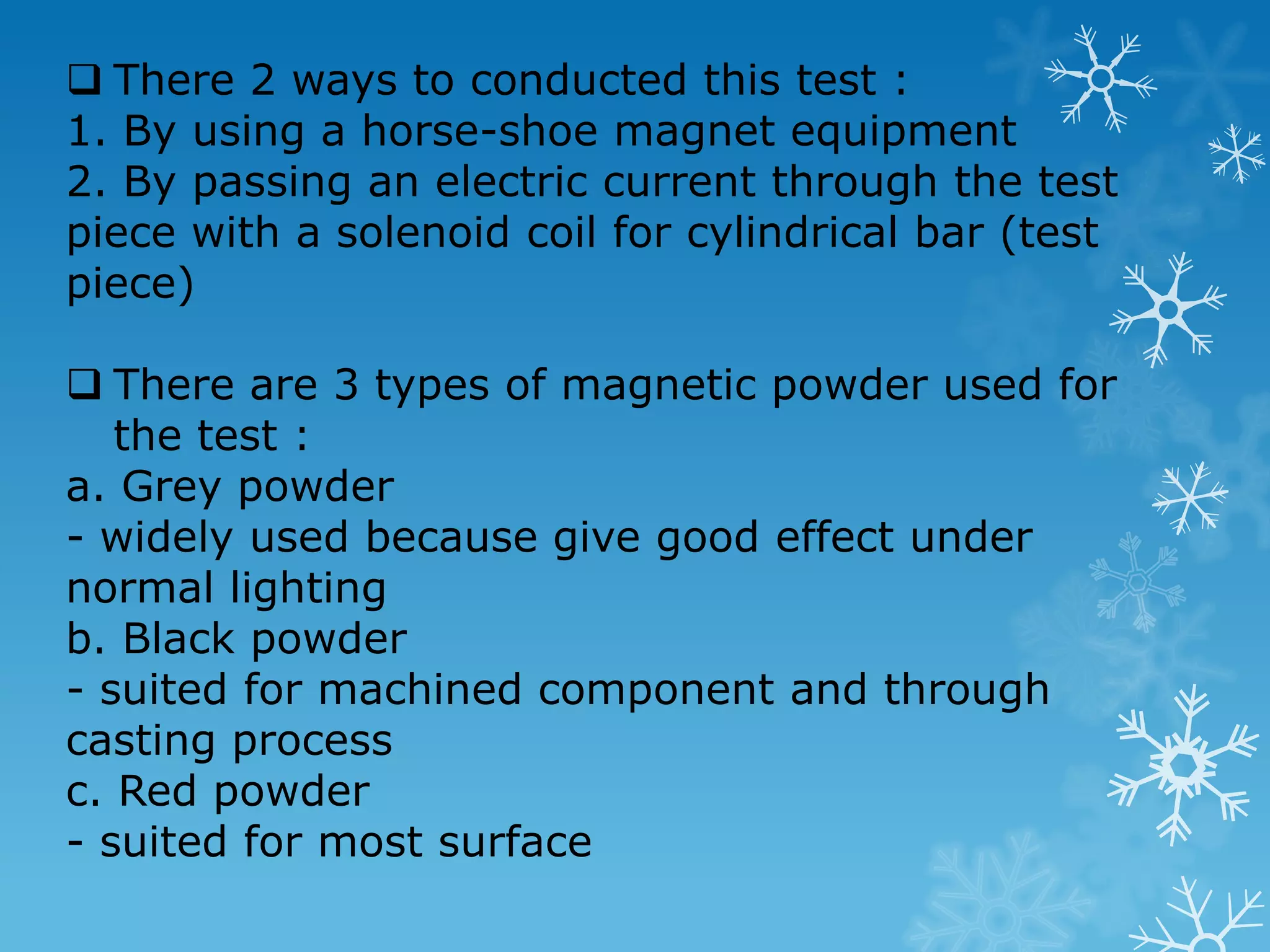

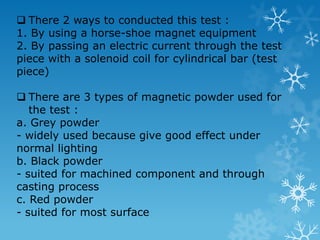

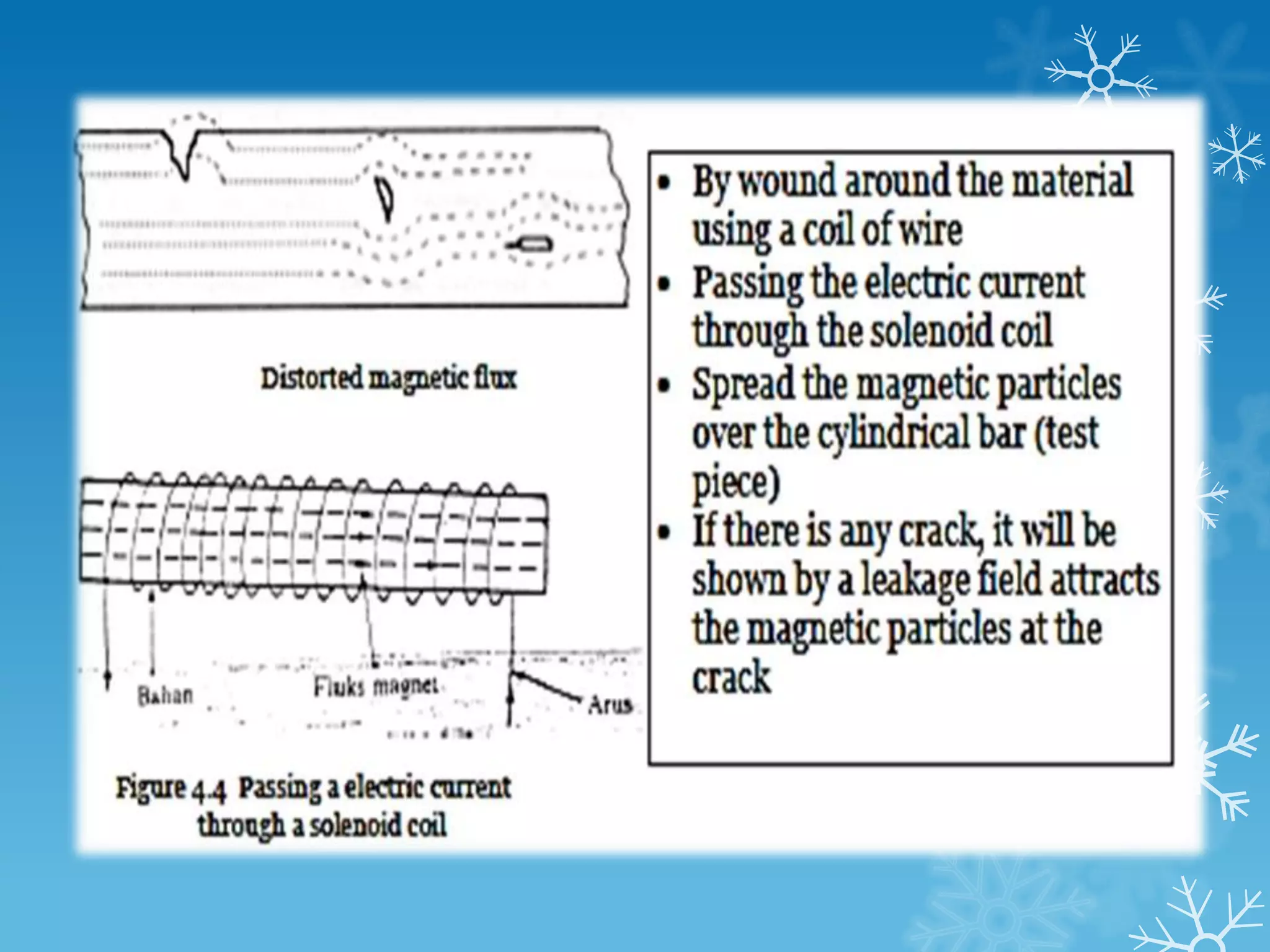

38. Principle : When the material or the part is under magnetized, magnetic discontinuities transverse to the direction of the magnetic field, will cause a leakage field to be formed. The presence of this leakage field, is detected by the use of ferro-magnetic particles applied over the surface by indicating the location, size, shape and extent of the discontinuities. There 2 ways to conducted this test : 1. By using a horse-shoe magnet equipment 2. By passing an electric current through the test piece with a solenoid coil for cylindrical bar (test piece) There are 3 types of magnetic powder used for the test : a. Grey powder - widely used because give good effect under normal lighting b. Black powder - suited for machined component and through casting process c. Red powder - suited for most surface

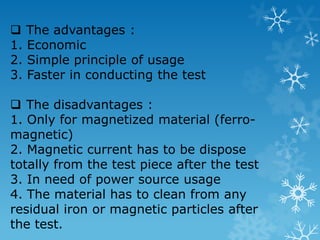

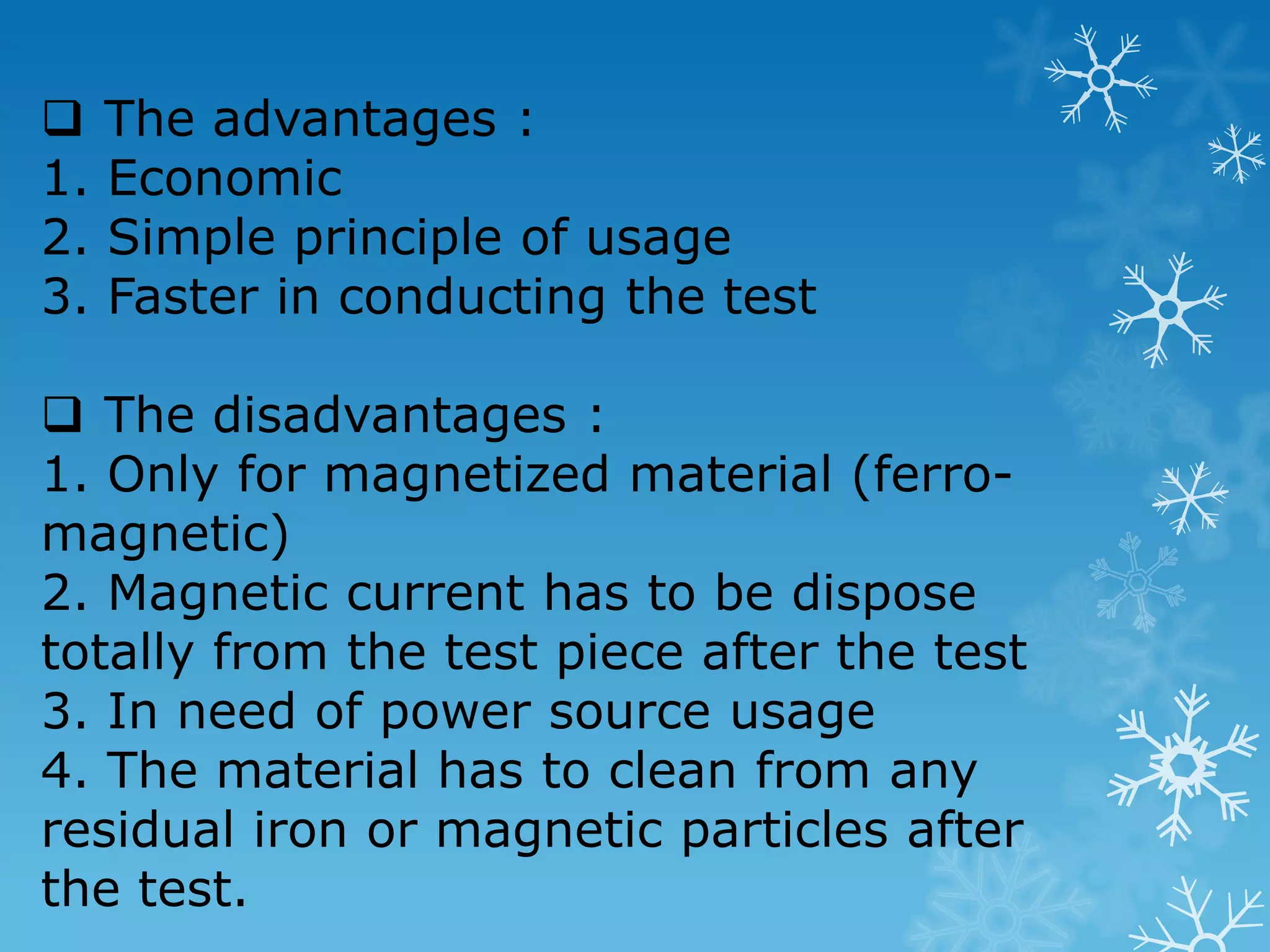

39. The advantages : 1. Economic 2. Simple principle of usage 3. Faster in conducting the testThe disadvantages : 1. Only for magnetized material (ferro-magnetic) 2. Magnetic current has to be dispose totally from the test piece after the test 3. In need of power source usage 4. The material has to clean from any residual iron or magnetic particles after the test.

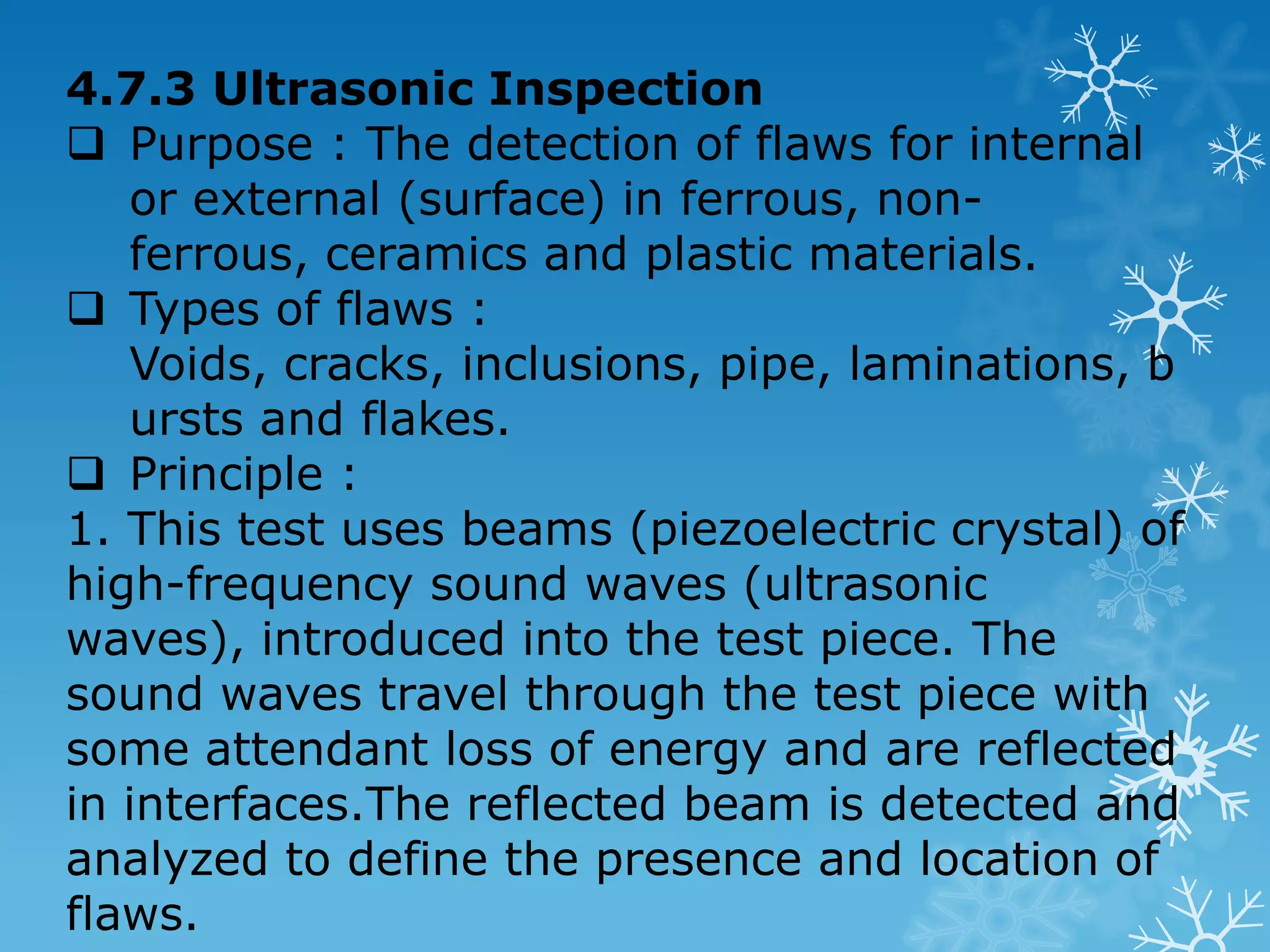

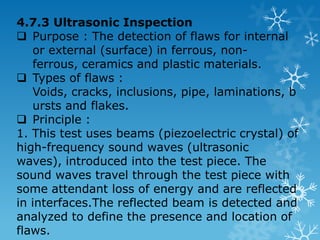

42. 4.7.3 Ultrasonic Inspection Purpose : The detection of flaws for internal or external (surface) in ferrous, non-ferrous, ceramics and plastic materials.

43. Types of flaws : Voids, cracks, inclusions, pipe, laminations, bursts and flakes.

44. Principle : 1. This test uses beams (piezoelectric crystal) of high-frequency sound waves (ultrasonic waves), introduced into the test piece. The sound waves travel through the test piece with some attendant loss of energy and are reflected in interfaces.The reflected beam is detected and analyzed to define the presence and location of flaws.

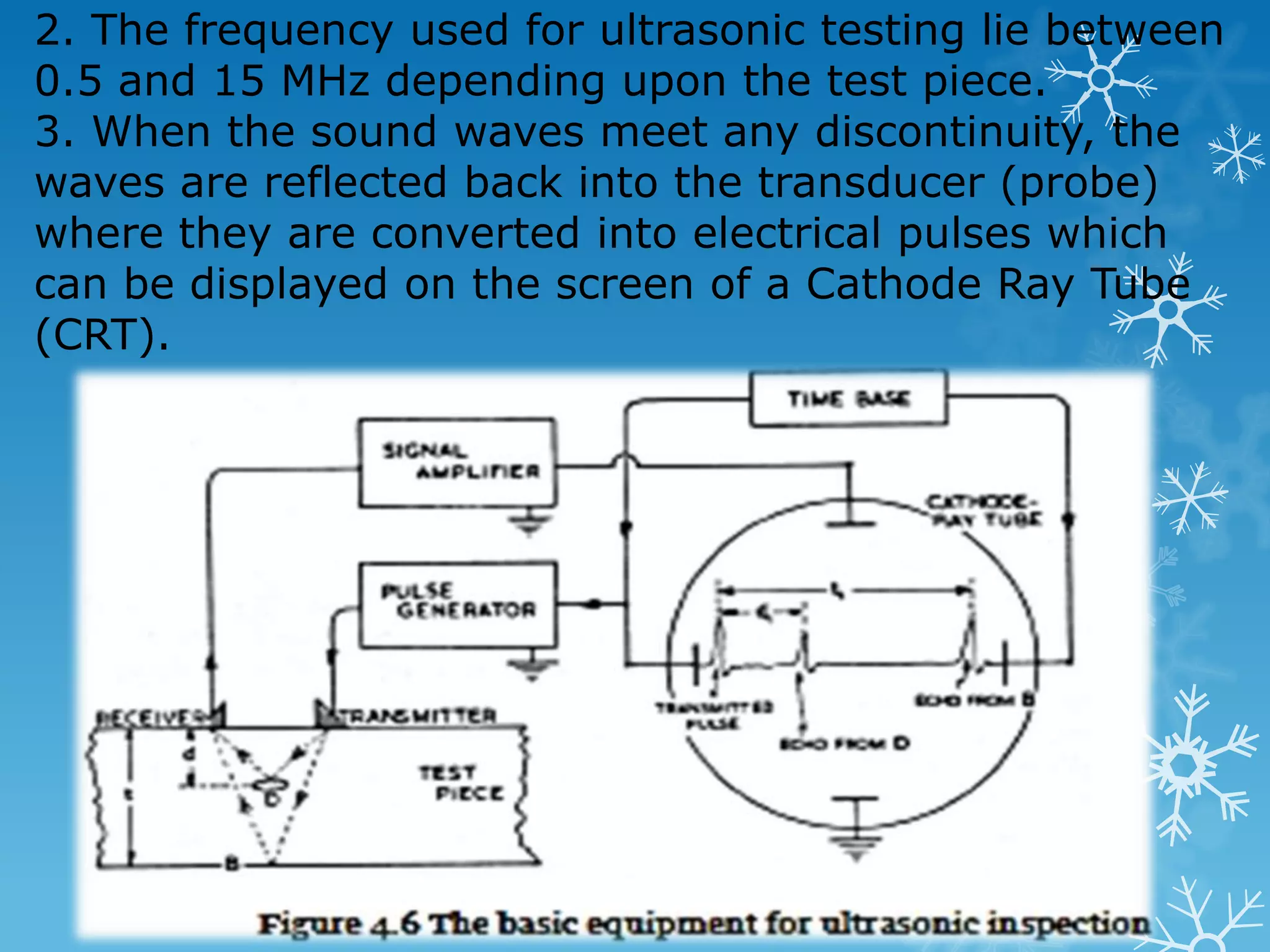

45. 2. The frequency used for ultrasonic testing lie between 0.5 and 15 MHz depending upon the test piece. 3. When the sound waves meet any discontinuity, the waves are reflected back into the transducer (probe) where they are converted into electrical pulses which can be displayed on the screen of a Cathode Ray Tube (CRT).

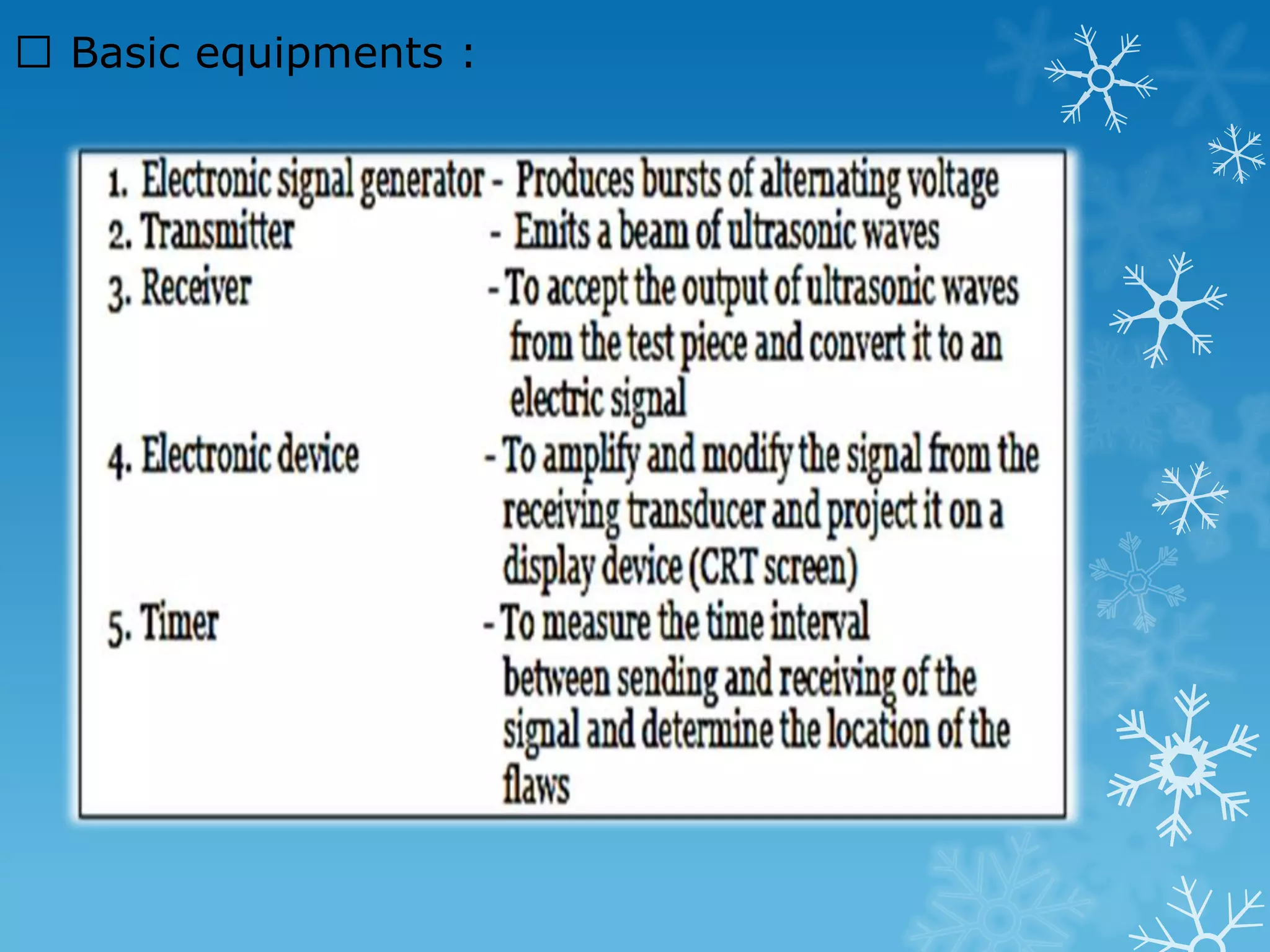

46.  Basic equipments :

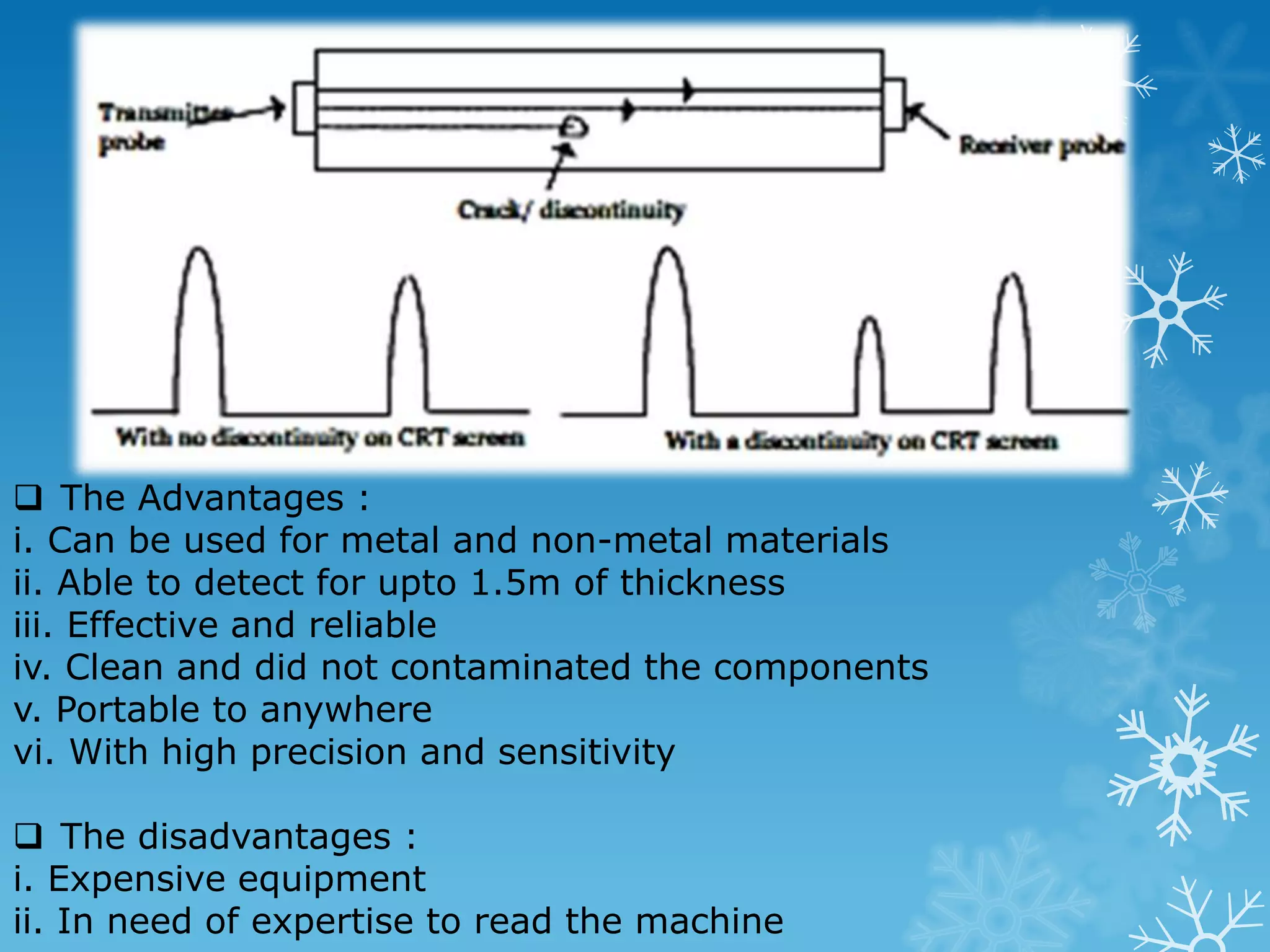

47. The Advantages : i. Can be used for metal and non-metal materials ii. Able to detect for upto 1.5m of thickness iii. Effective and reliable iv. Clean and did not contaminated the components v. Portable to anywhere vi. With high precision and sensitivity The disadvantages : i. Expensive equipment ii. In need of expertise to read the machine

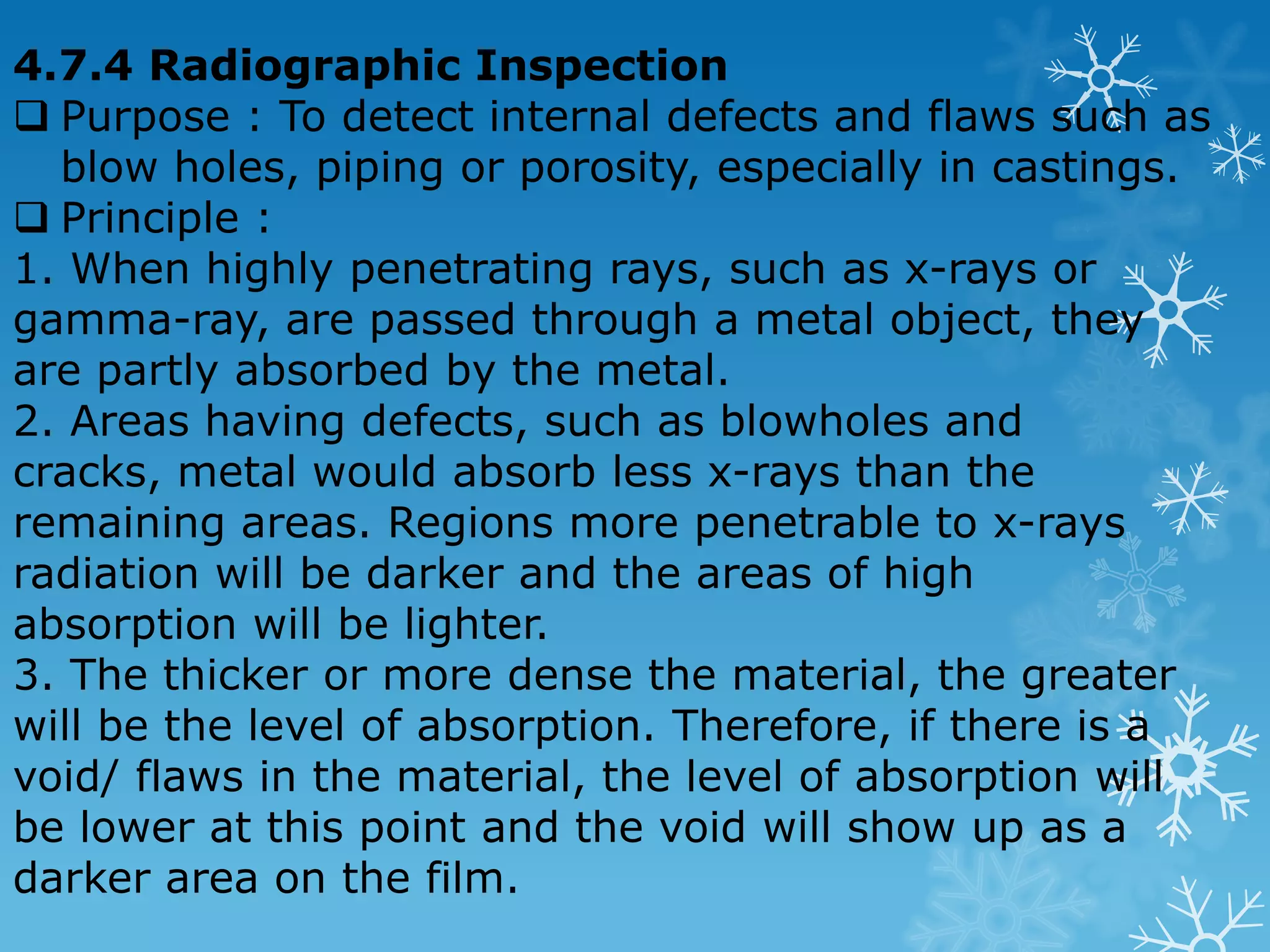

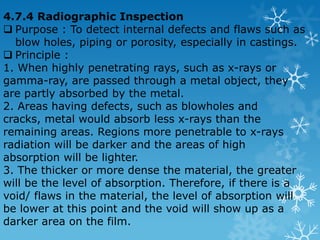

48. 4.7.4 Radiographic Inspection Purpose : To detect internal defects and flaws such as blow holes, piping or porosity, especially in castings.

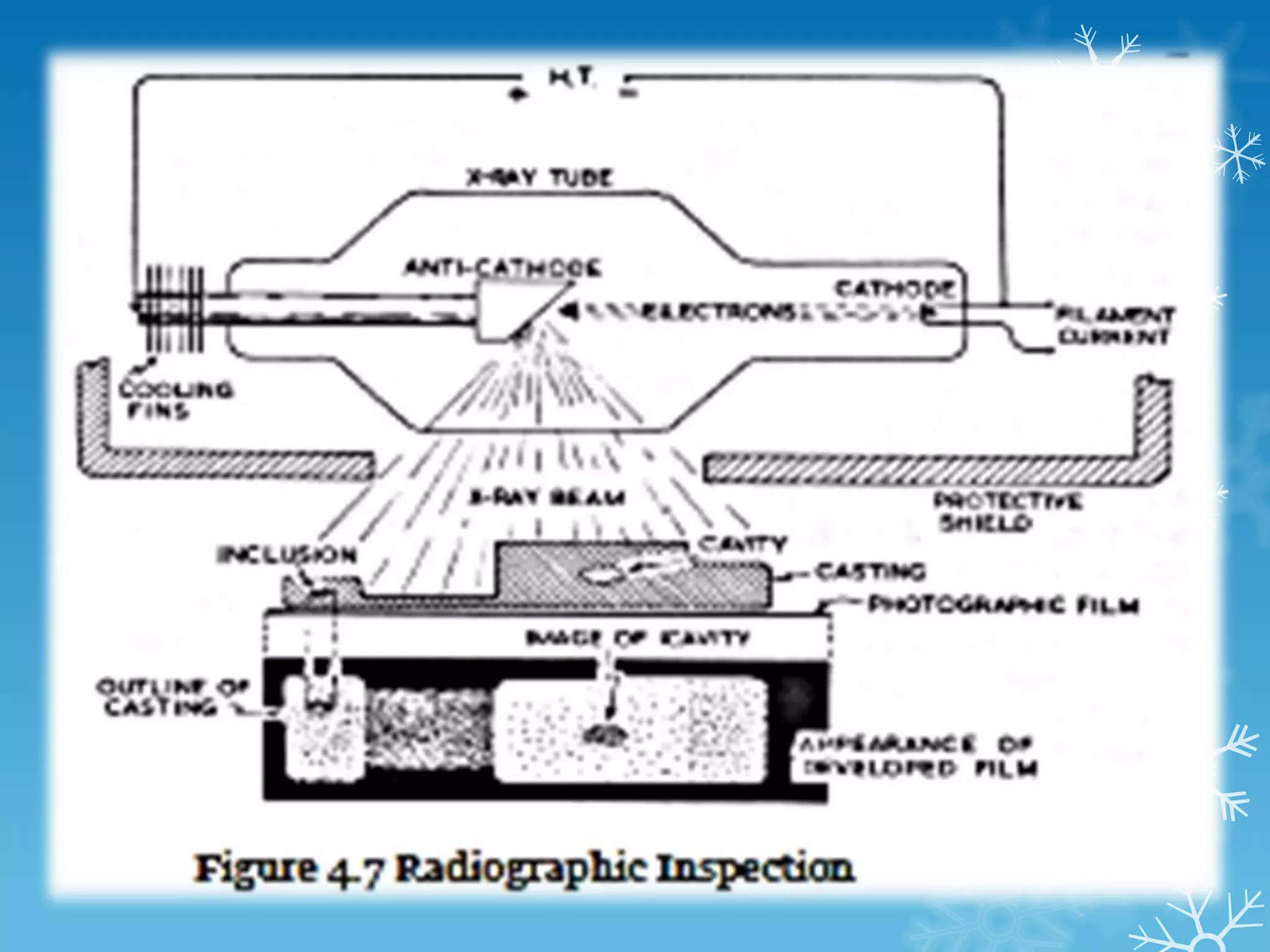

49. Principle : 1. When highly penetrating rays, such as x-rays or gamma-ray, are passed through a metal object, they are partly absorbed by the metal. 2. Areas having defects, such as blowholes and cracks, metal would absorb less x-rays than the remaining areas. Regions more penetrable to x-rays radiation will be darker and the areas of high absorption will be lighter. 3. The thicker or more dense the material, the greater will be the level of absorption. Therefore, if there is a void/ flaws in the material, the level of absorption will be lower at this point and the void will show up as a darker area on the film.

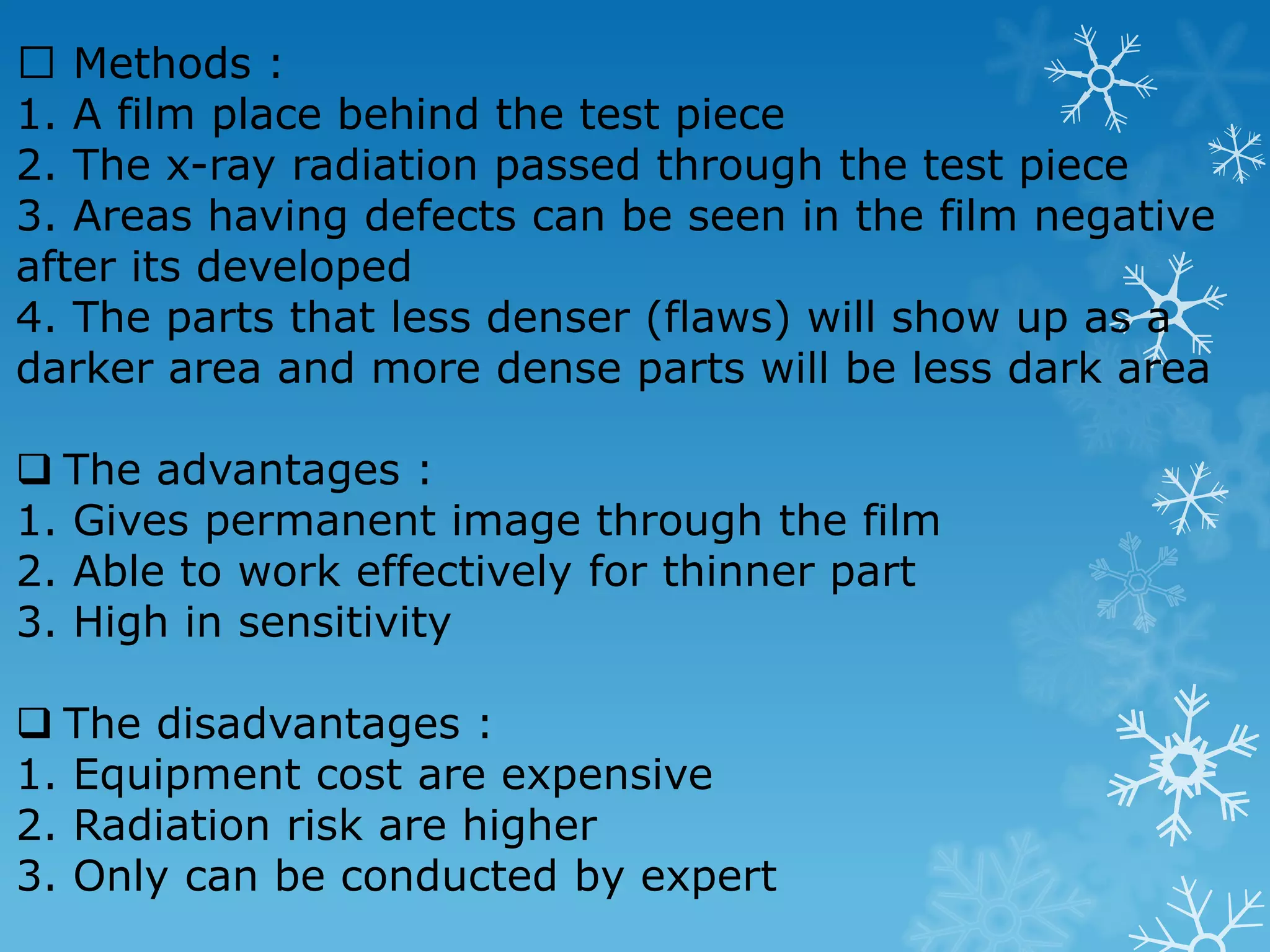

50.  Methods : 1. A film place behind the test piece 2. The x-ray radiation passed through the test piece 3. Areas having defects can be seen in the film negative after its developed 4. The parts that less denser (flaws) will show up as a darker area and more dense parts will be less dark areaThe advantages : 1. Gives permanent image through the film 2. Able to work effectively for thinner part 3. High in sensitivity The disadvantages : 1. Equipment cost are expensive 2. Radiation risk are higher 3. Only can be conducted by expert

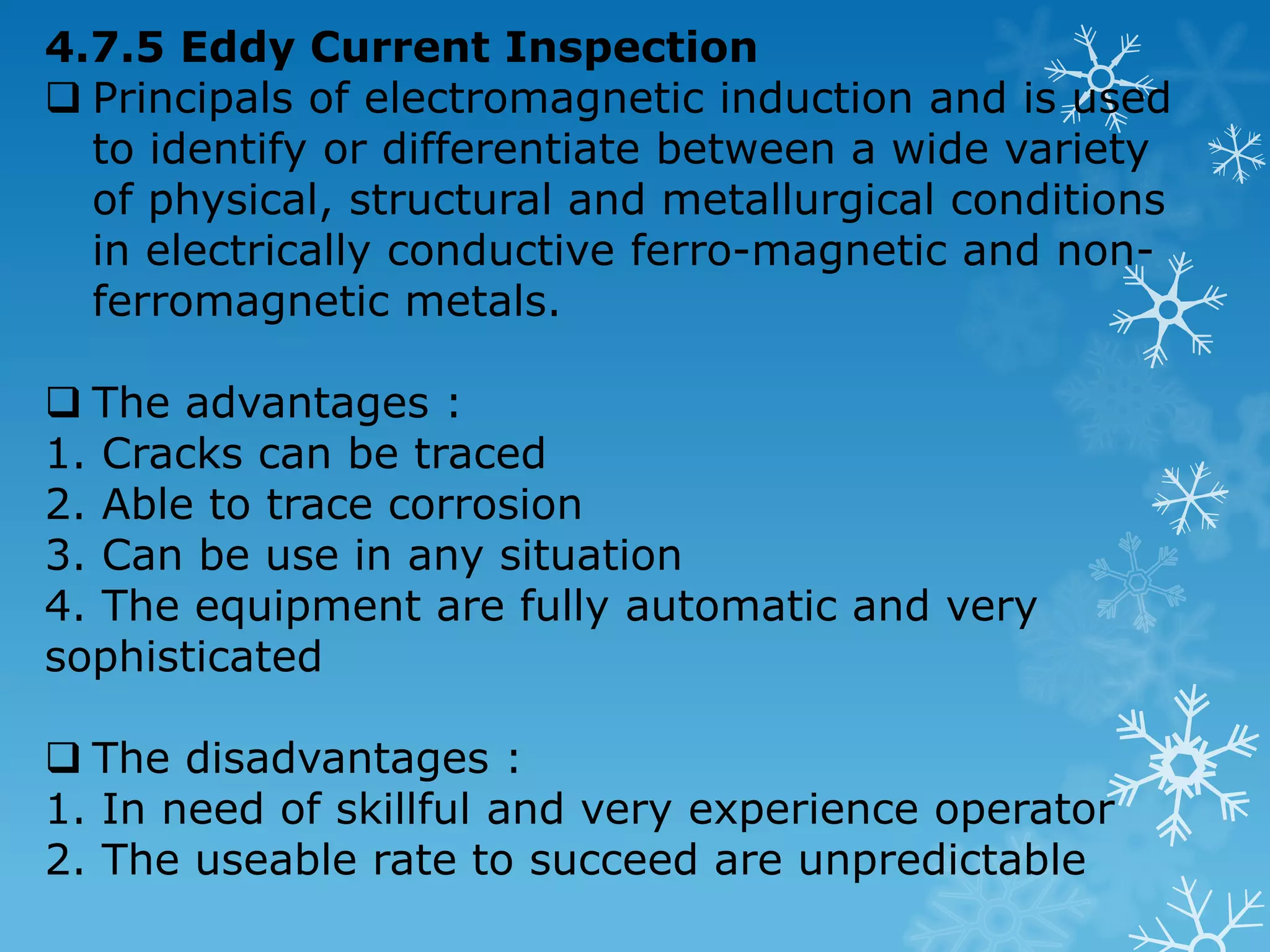

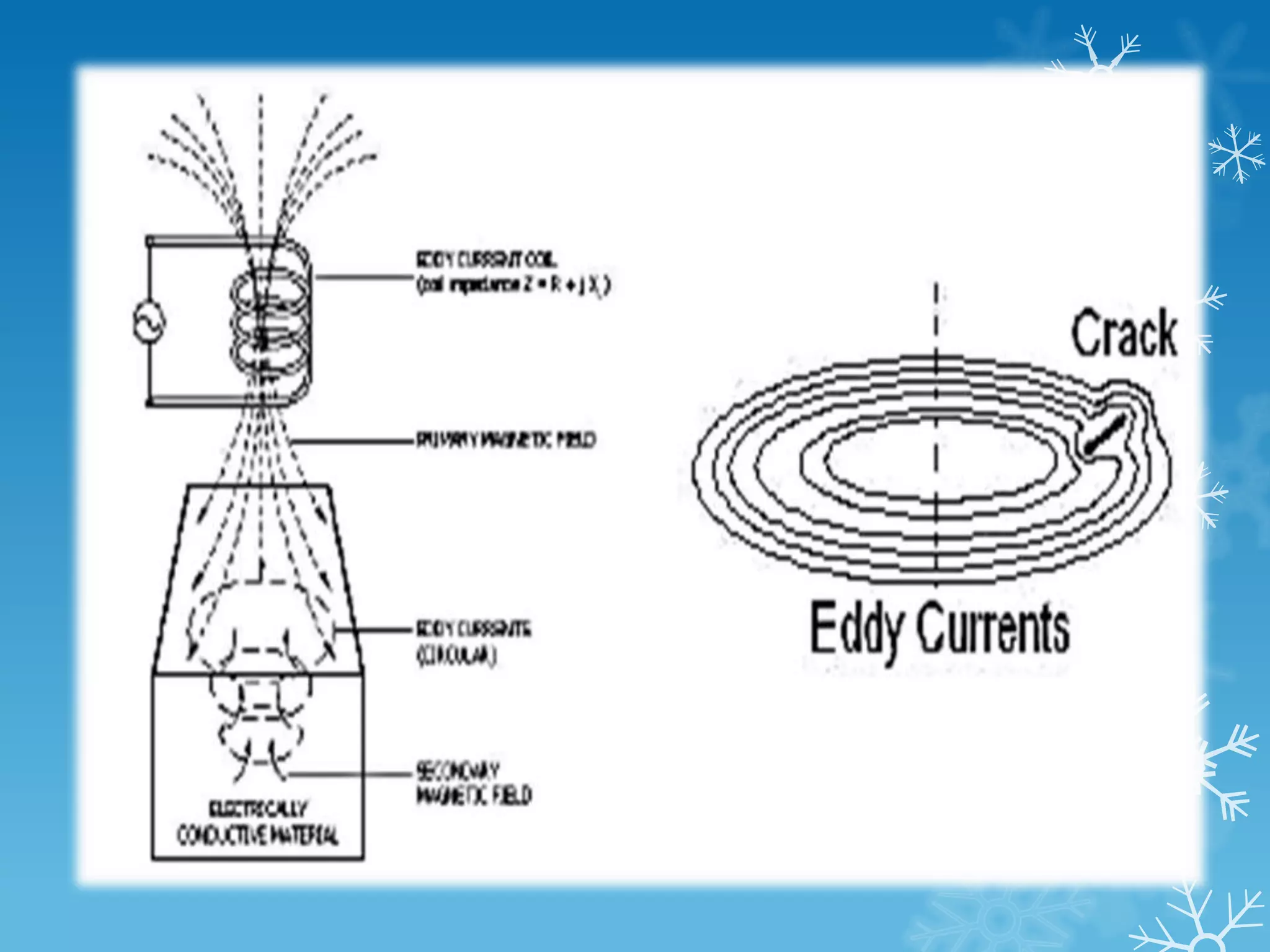

52. 4.7.5 Eddy Current Inspection Principals of electromagnetic induction and is used to identify or differentiate between a wide variety of physical, structural and metallurgical conditions in electrically conductive ferro-magnetic and non-ferromagnetic metals.

53. The advantages : 1. Cracks can be traced 2. Able to trace corrosion 3. Can be use in any situation 4. The equipment are fully automatic and very sophisticated The disadvantages : 1. In need of skillful and very experience operator 2. The useable rate to succeed are unpredictable

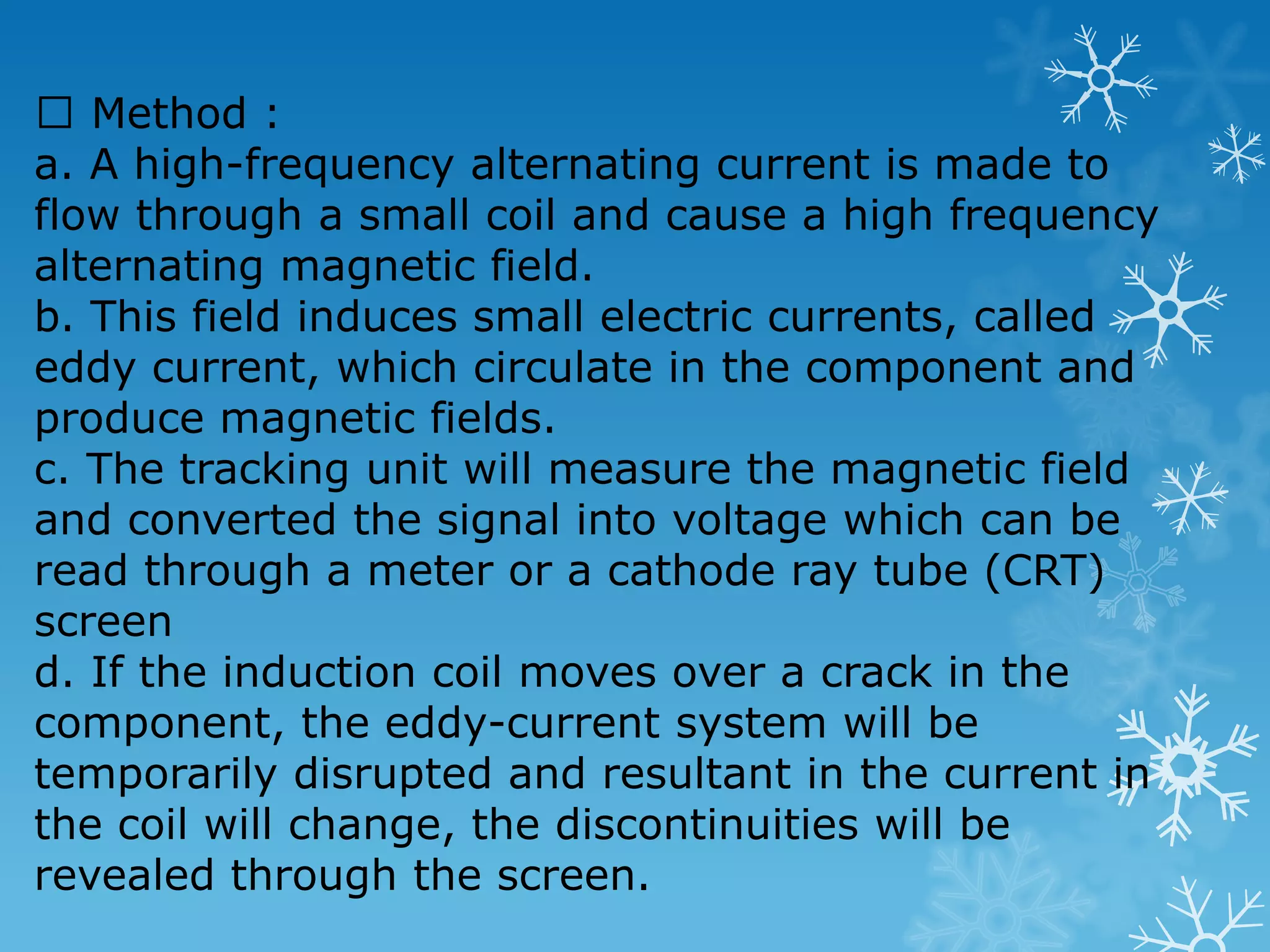

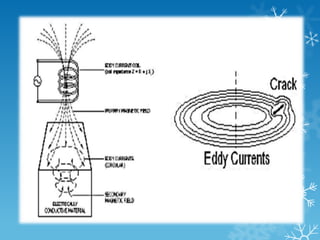

54.  Method : a. A high-frequency alternating current is made to flow through a small coil and cause a high frequency alternating magnetic field. b. This field induces small electric currents, called eddy current, which circulate in the component and produce magnetic fields. c. The tracking unit will measure the magnetic field and converted the signal into voltage which can be read through a meter or a cathode ray tube (CRT) screen d. If the induction coil moves over a crack in the component, the eddy-current system will be temporarily disrupted and resultant in the current in the coil will change, the discontinuities will be revealed through the screen.
