1. Firewall Configuration Strategies
Chapter 3

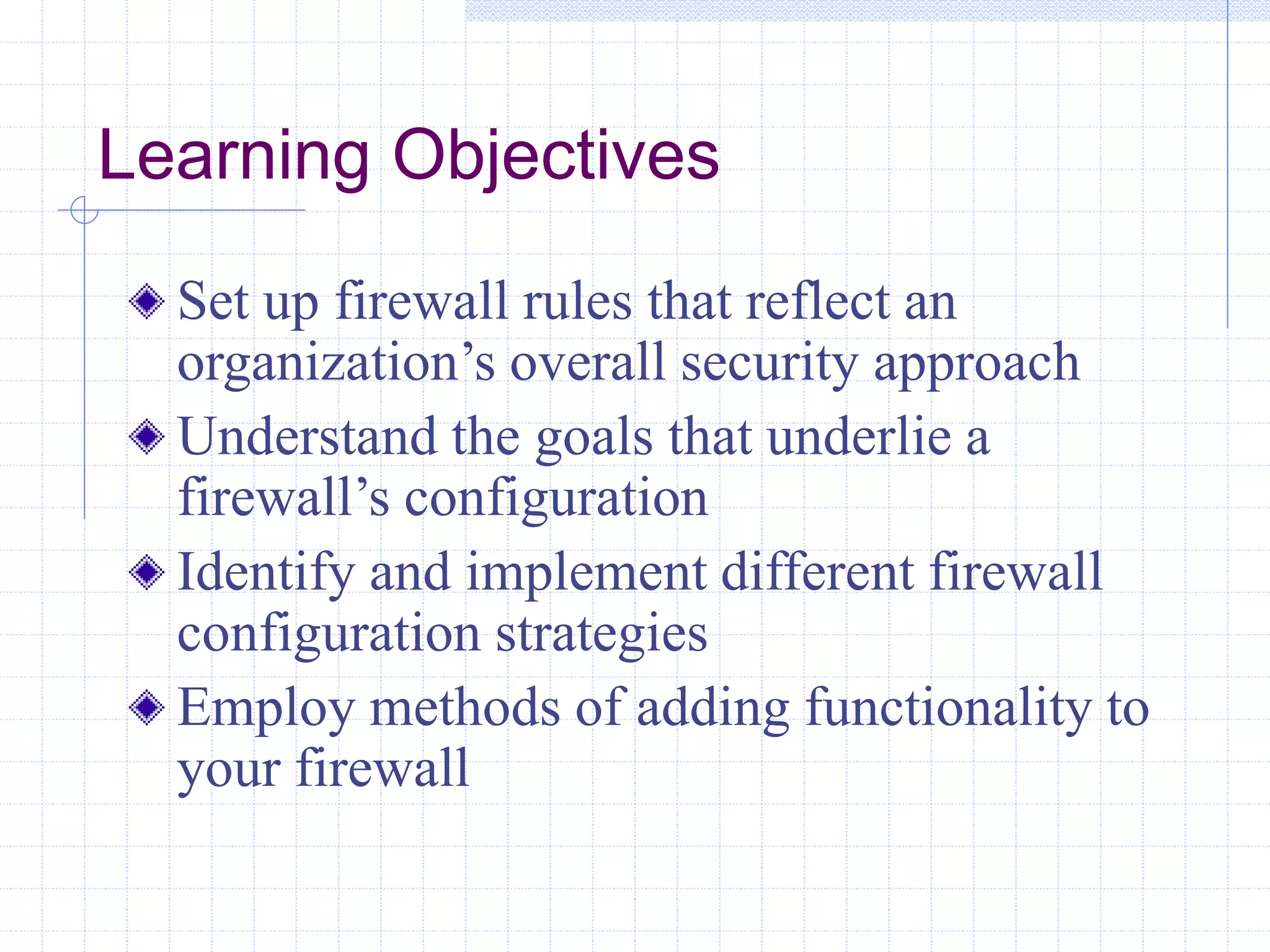

2. Learning Objectives
Set up firewall rules that reflect an
organization’s overall security approach
Understand the goals that underlie a
firewall’s configuration
Identify and implement different firewall
configuration strategies
Employ methods of adding functionality to
your firewall

3. Establishing Rules and
Restrictions for Your Firewall
Rules give firewalls specific criteria for
making decisions about whether to allow
packets through or drop them
All firewalls have a rules file—the most
important configuration file on the firewall

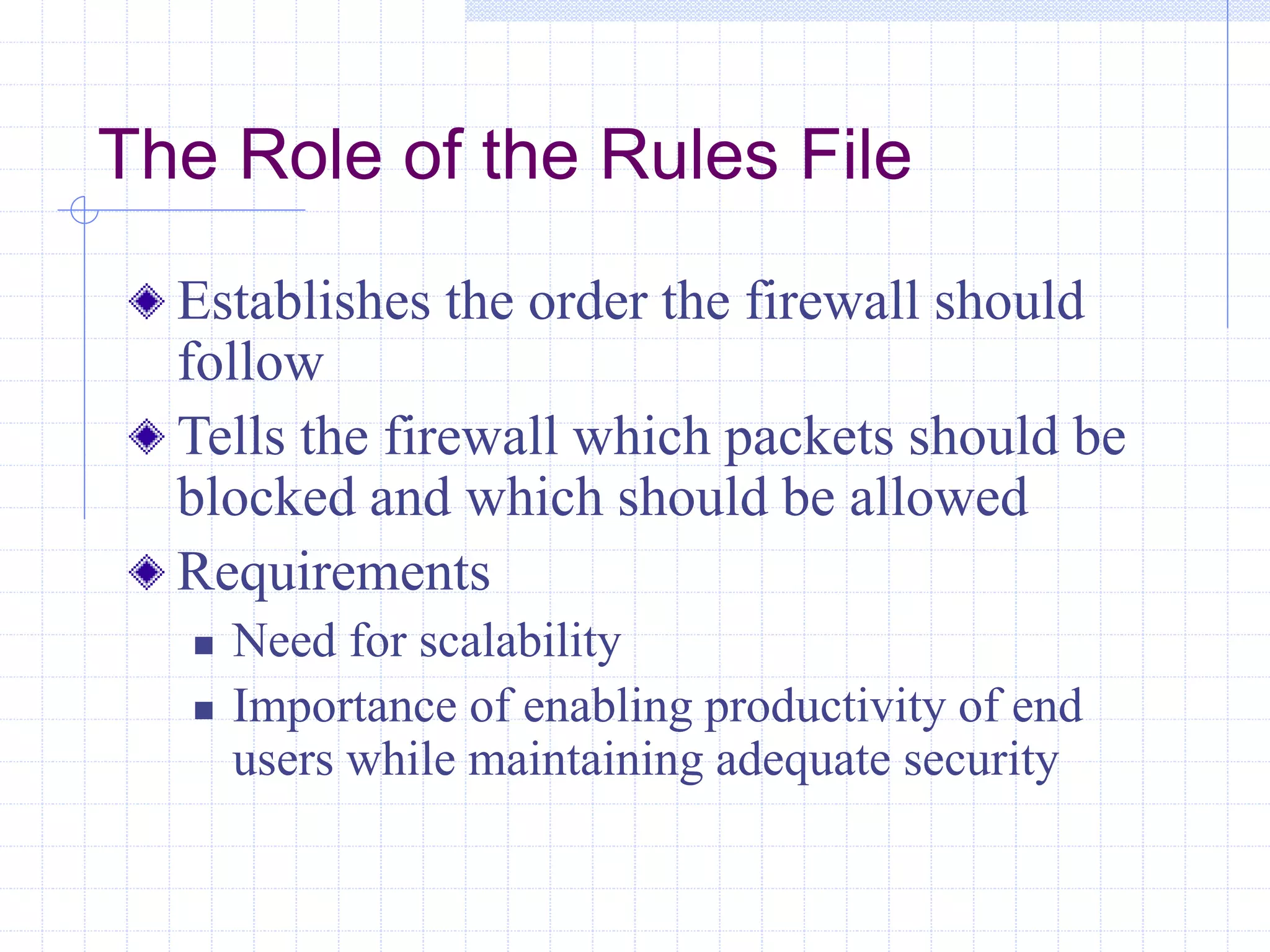

4. The Role of the Rules File
Establishes the order the firewall should
follow
Tells the firewall which packets should be
blocked and which should be allowed
Requirements
 Need for scalability
 Importance of enabling productivity of end
users while maintaining adequate security

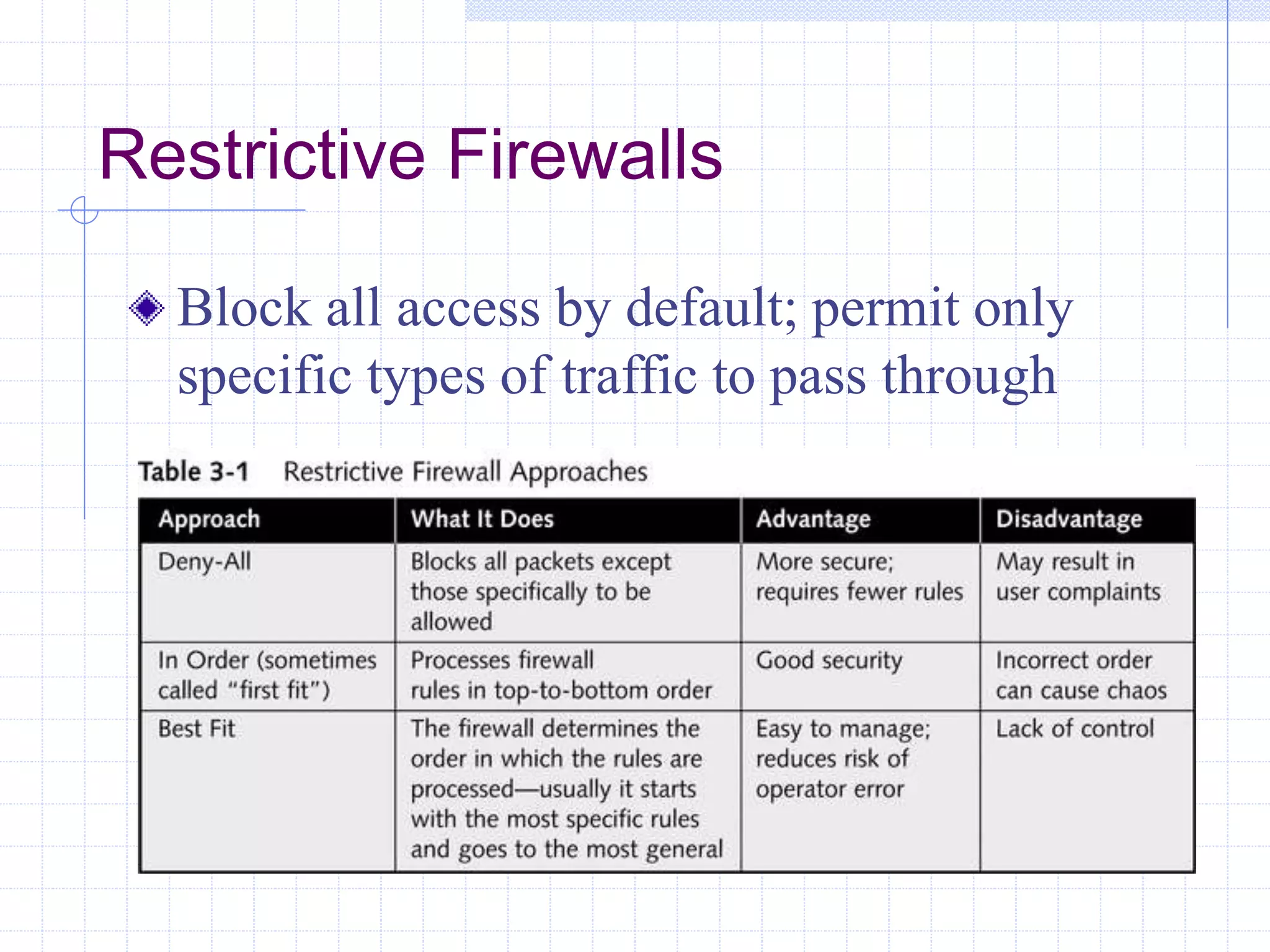

5. Restrictive Firewalls
Block all access by default; permit only
specific types of traffic to pass through

6. Strategies for Implementing a
Security Policy
Follow the concept of least privilege
Spell out services that employees cannot use
Use and maintain passwords
Choose an approach
 Open
 Optimistic
 Cautious
 Strict
 Paranoid

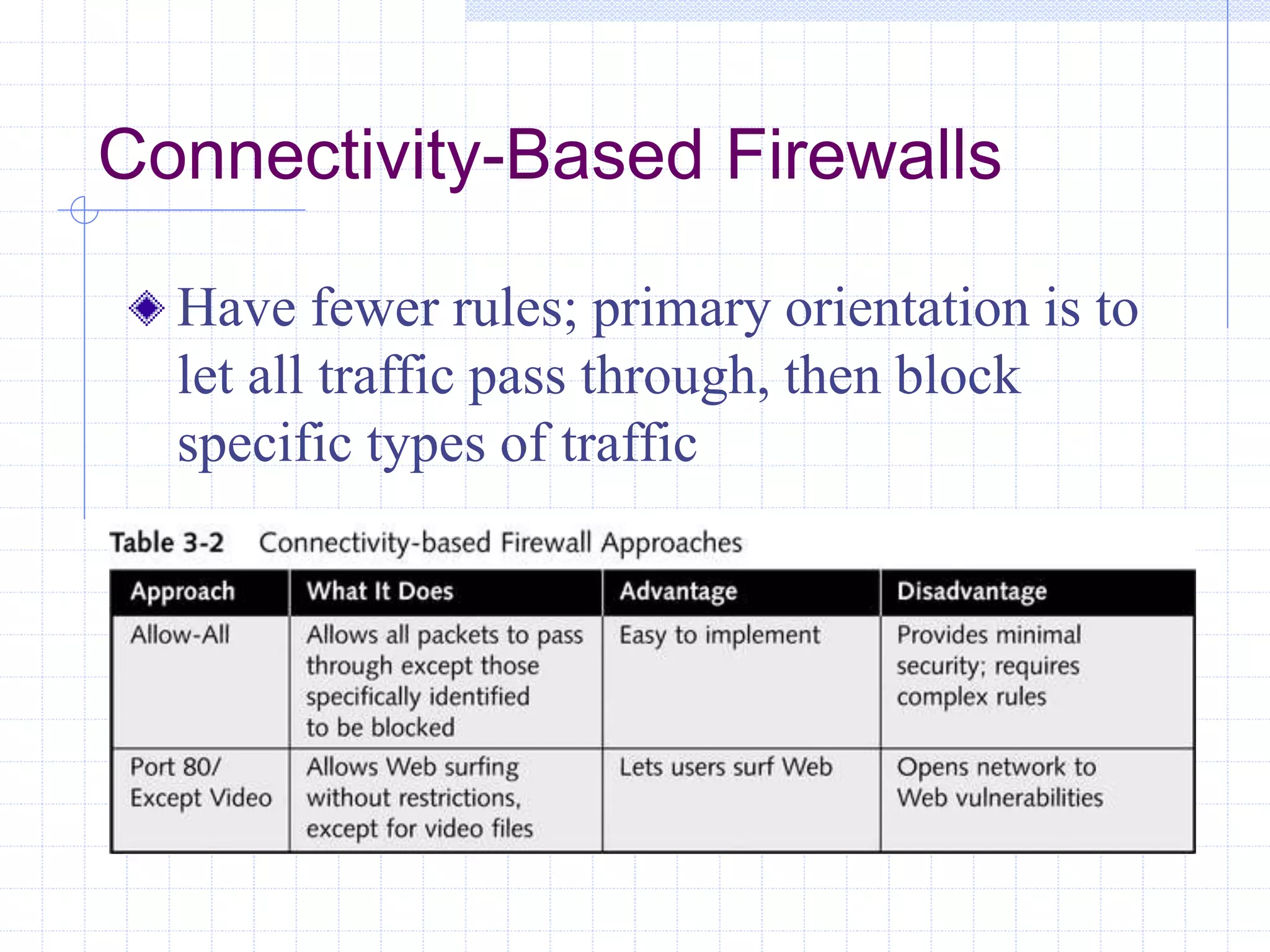

7. Connectivity-Based Firewalls
Have fewer rules; primary orientation is to
let all traffic pass through, then block
specific types of traffic

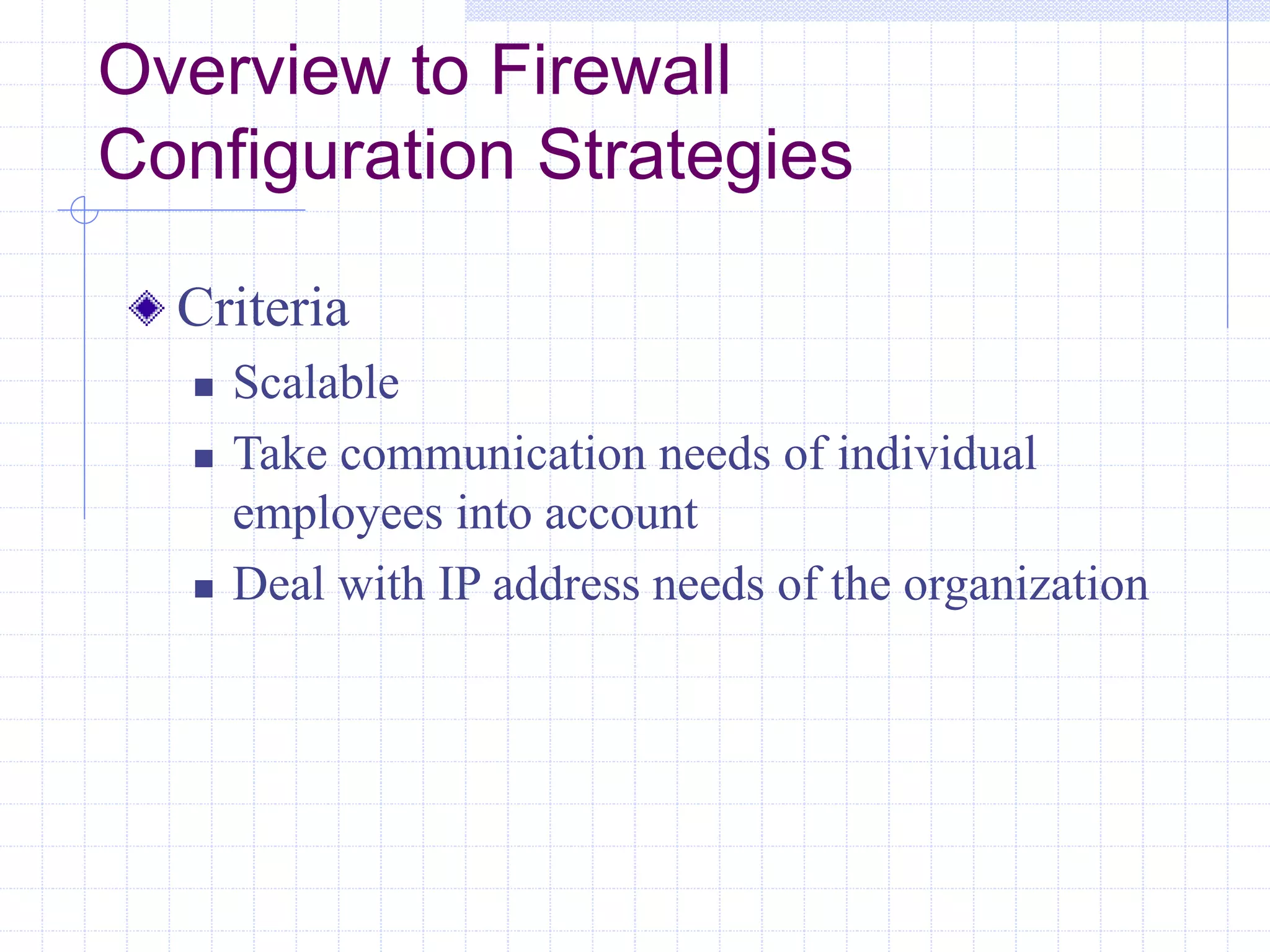

8. Overview to Firewall
Configuration Strategies
Criteria
 Scalable
 Take communication needs of individual
employees into account
 Deal with IP address needs of the organization

9. Scalability
Provide for the firewall’s growth by
recommending a periodic review and
upgrading software and hardware as needed

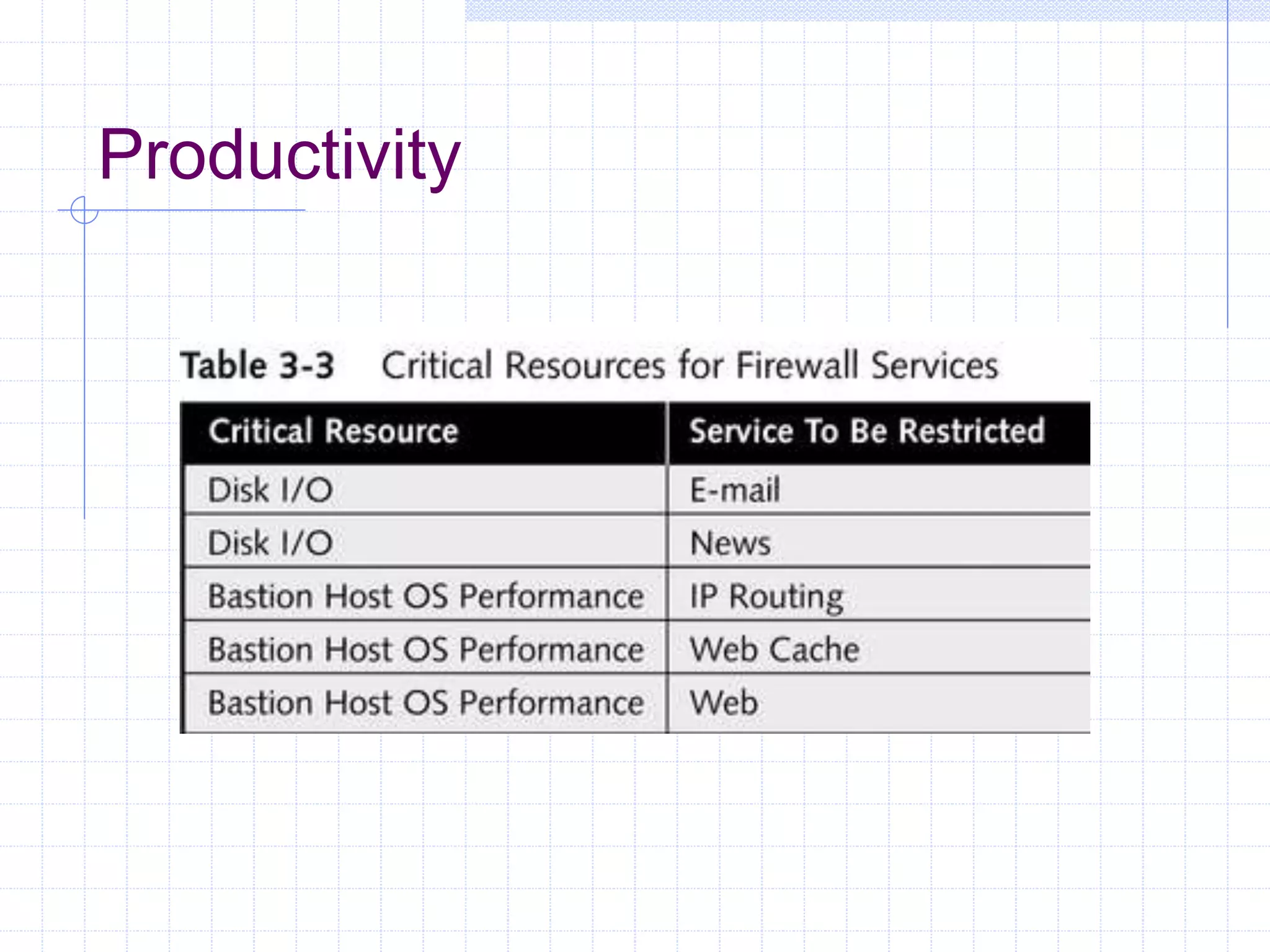

10. Productivity
The stronger and more elaborate the
firewall, the slower the data transmissions
Important features of firewall: processing
and memory resources available to the
bastion host

11. Productivity

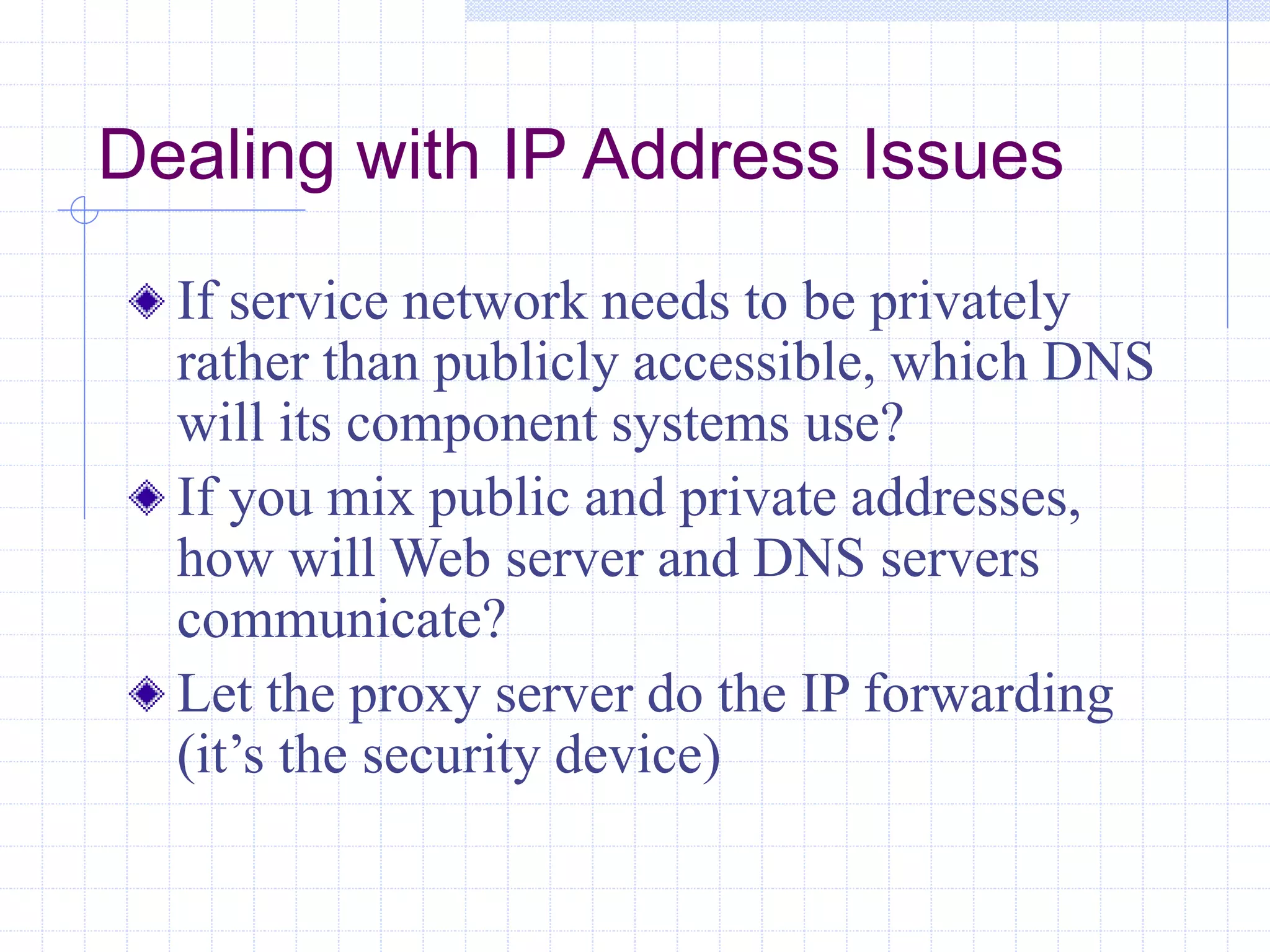

12. Dealing with IP Address Issues
If service network needs to be privately
rather than publicly accessible, which DNS
will its component systems use?
If you mix public and private addresses,
how will Web server and DNS servers
communicate?
Let the proxy server do the IP forwarding
(it’s the security device)

13. Firewall Configuration Strategies

14. Firewall Configuration Strategies
Settle on general approaches; establish rules
for them
Deploy firewalls, routers, VPN tunnels, and
other tools in a way that will implement
rules
Use security components to defend against
common attacks

15. Using Security Components to
Defend Against Attacks

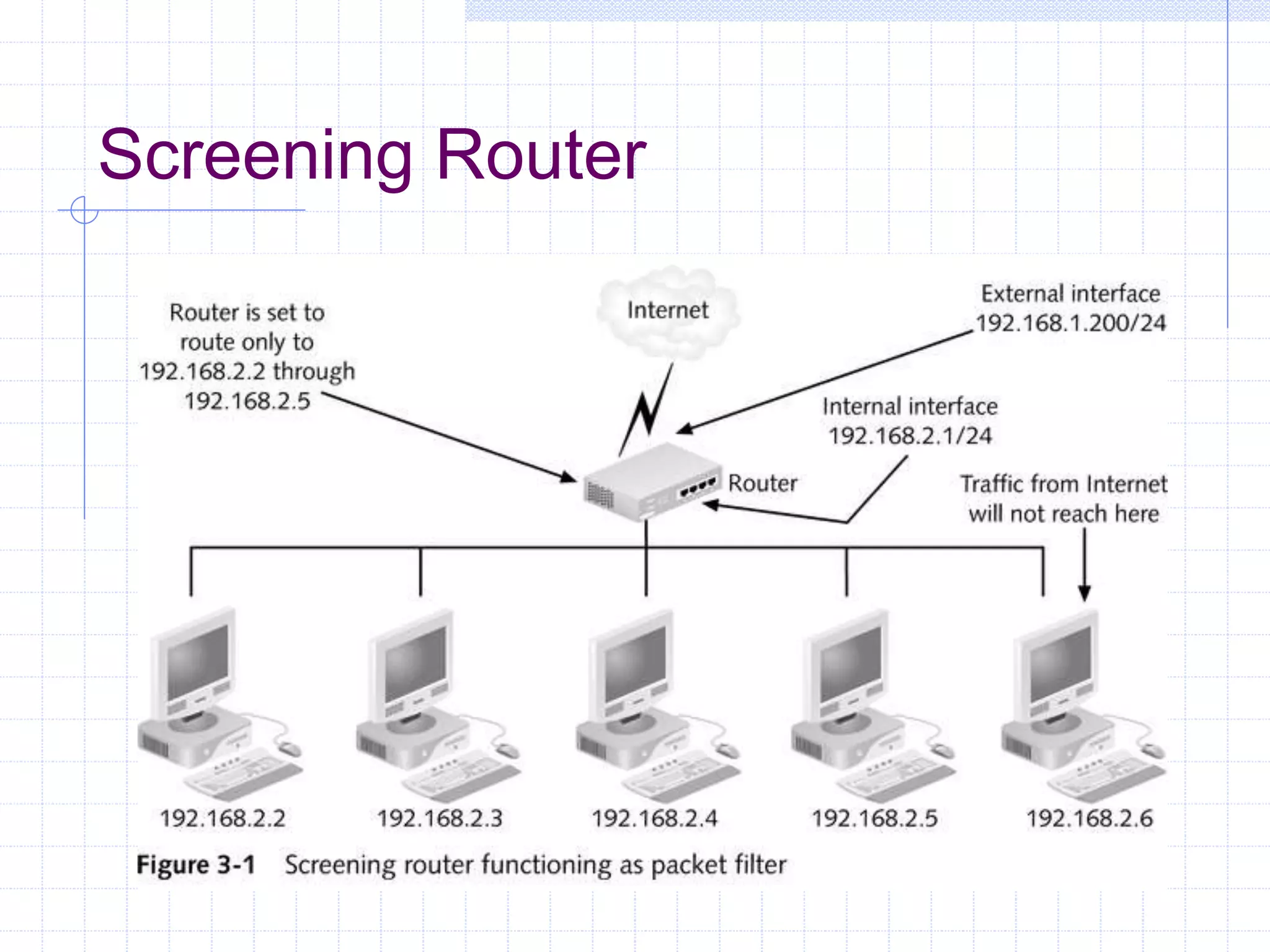

16. Screening Router
Filters traffic passing between one network
and another
Simple, minimally secure
Two interfaces—external and internal—
each with its own unique IP address
Performs IP forwarding, based on an access
control list (ACL)

17. Screening Router

18. Stateful Packet Filtering

19. Dual-Homed Host
A workstation with an internal interface and
an external interface to the Internet
Disadvantage
 Host serves as a single point of entry to the
organization

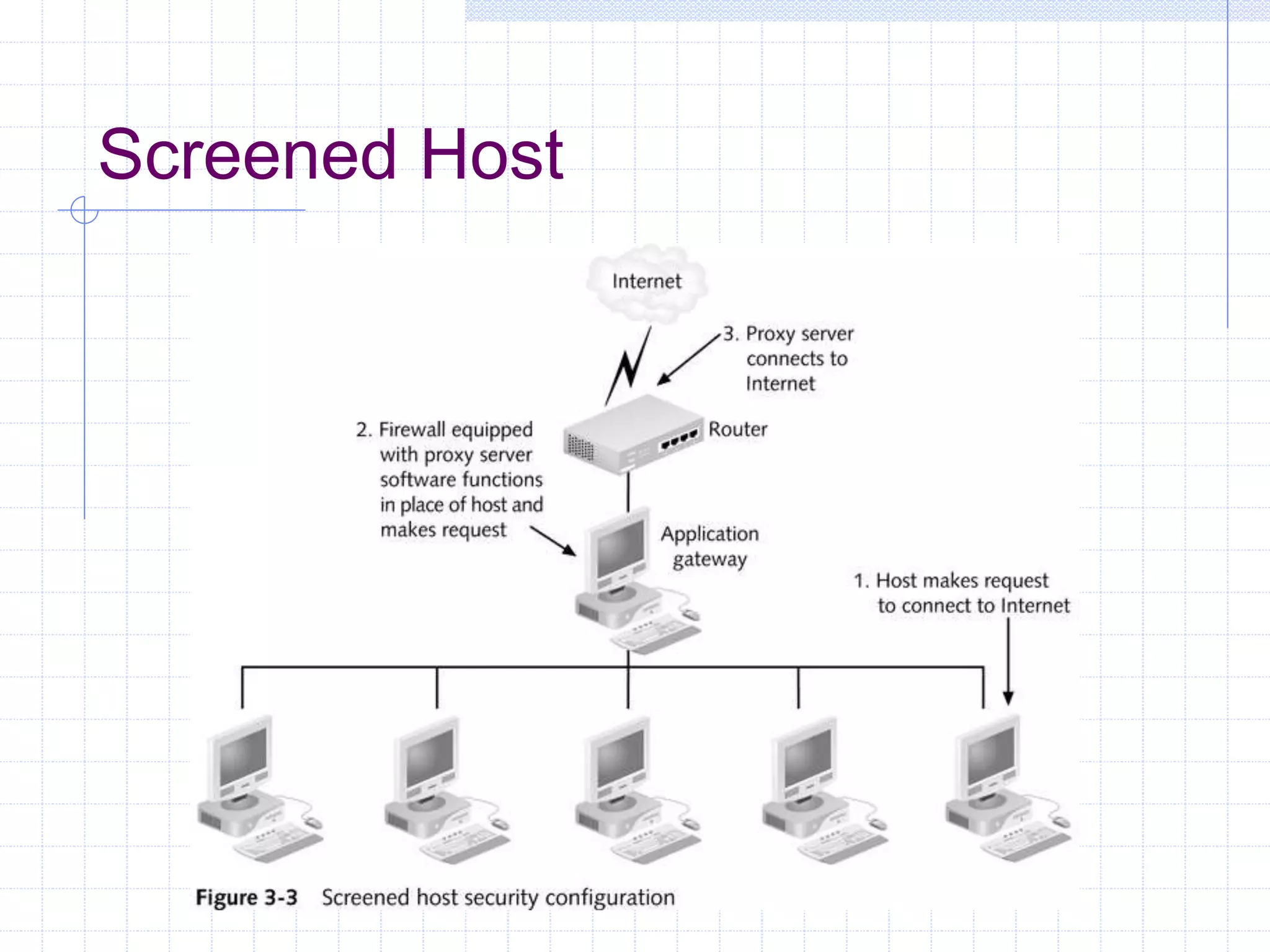

20. Screened Host
Similar to dual-homed host, but the host is
dedicated to performing security functions
Sits exposed on the perimeter of the
network rather than behind the firewall
Requires two network connections
Also called a dual-homed gateway or
bastion host

21. Screened Host

22. Two Routers, One Firewall
Router positioned on the outside
 Performs initial, static packet filtering
Router positioned just inside the network
 Routes traffic to appropriate computers in the
LAN being protected
 Can do stateful packet filtering

23. Two Routers, One Firewall

24. DMZ Screened Subnet
Screened subnet
 Network exposed to external network, but partially
protected by a firewall
Three-pronged firewall
 Three network interfaces connect it to:
 External network
 DMZ
 Protected LAN
Service network
 Screened subnet that contains an organization’s publicly
accessible server

25. DMZ Screened Subnet

26. Three-Pronged Firewall with Only
One Firewall
Advantages
 Simplification
 Lower cost
Disadvantages
 Complexity
 Vulnerability
 Performance

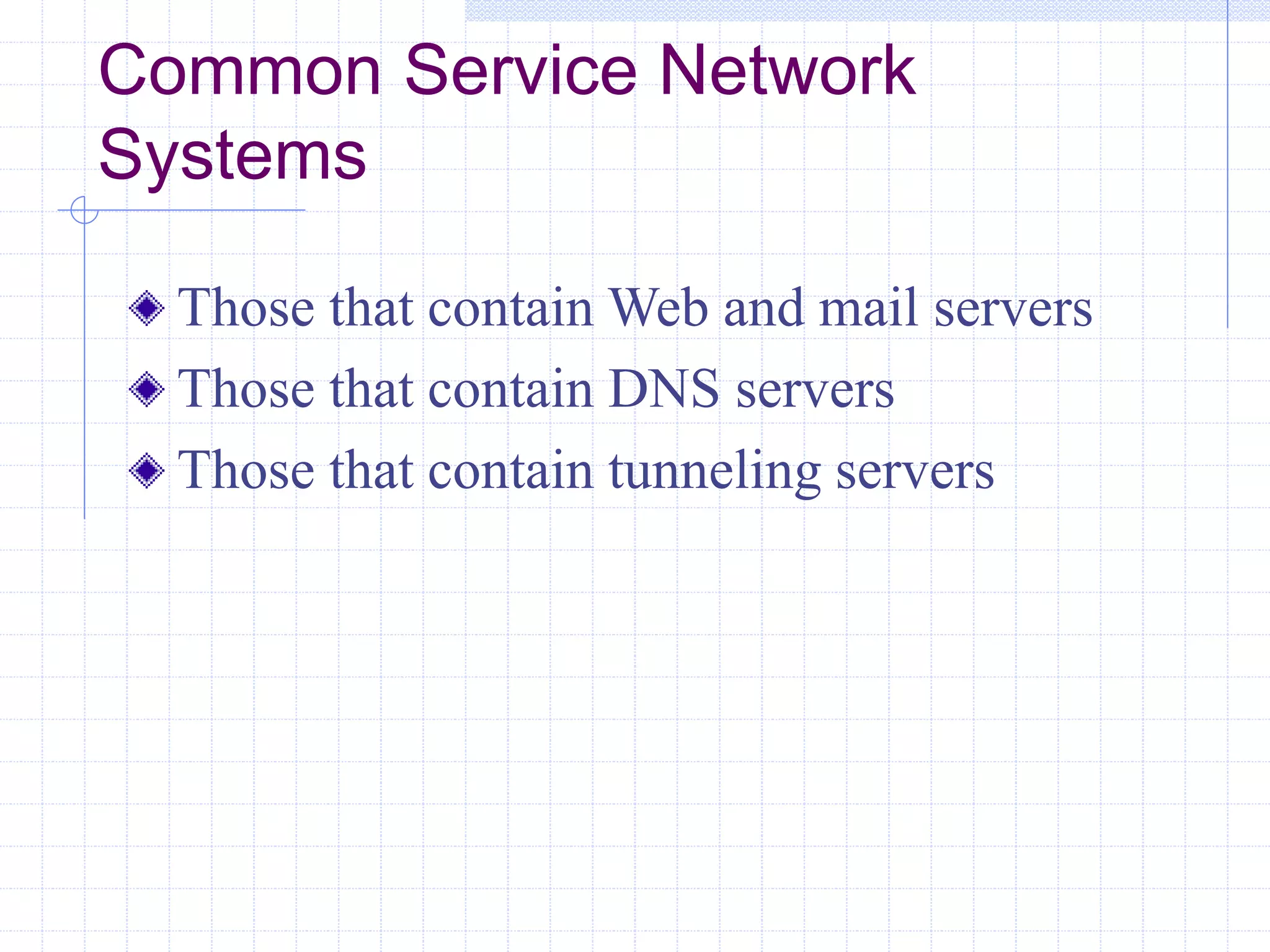

27. Common Service Network
Systems
Those that contain Web and mail servers
Those that contain DNS servers
Those that contain tunneling servers

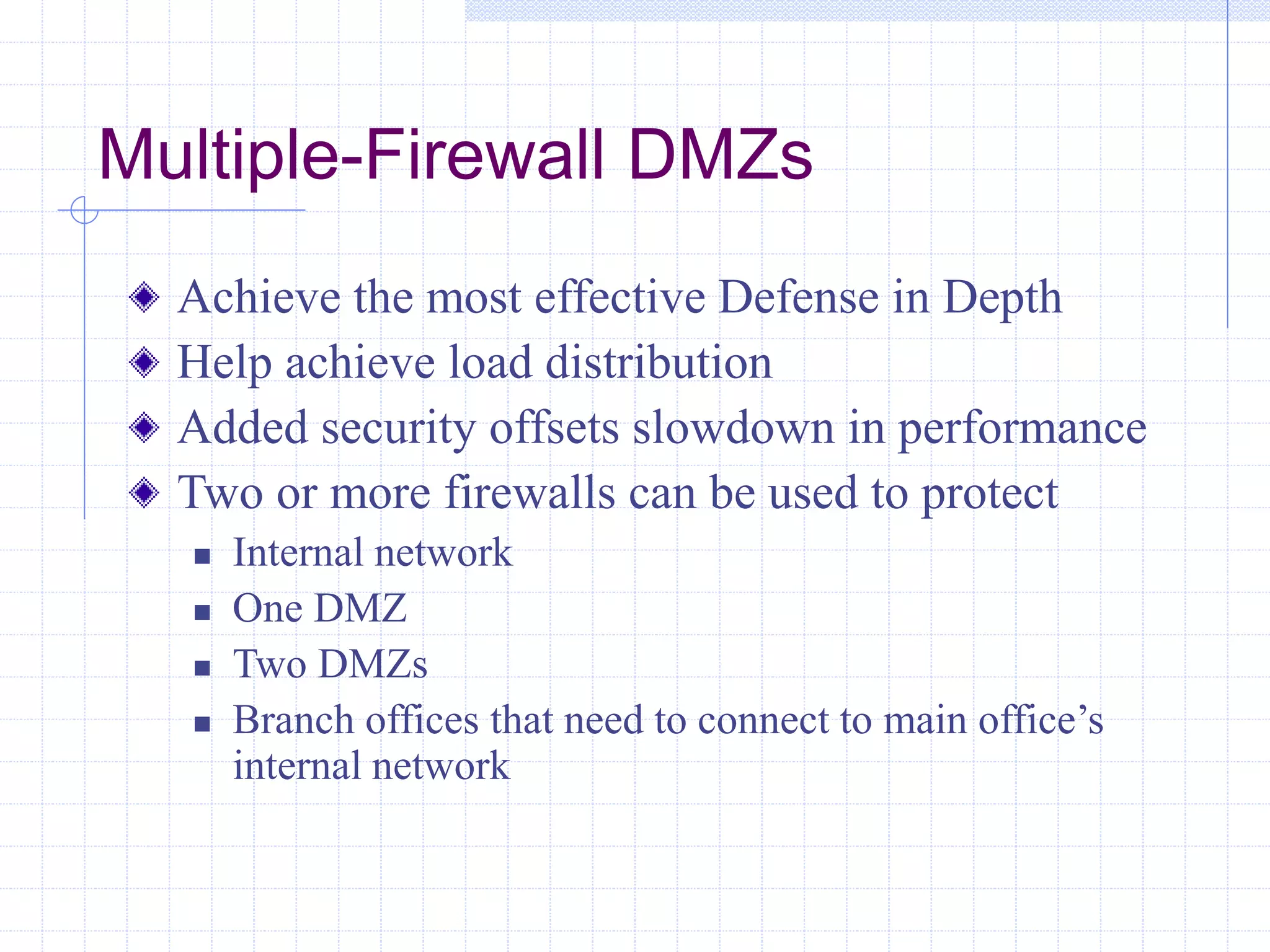

28. Multiple-Firewall DMZs
Achieve the most effective Defense in Depth
Help achieve load distribution
Added security offsets slowdown in performance
Two or more firewalls can be used to protect
 Internal network
 One DMZ
 Two DMZs
 Branch offices that need to connect to main office’s
internal network

29. Two Firewalls, One DMZ
Two firewalls used to set up three separate
networks (tri-homed firewall)
 Internal protected network (behind DMZ)
 External private network or service network
(within DMZ)
 External network (outside DMZ)
Advantage
 Enables control of traffic in the three networks

30. Two Firewalls, One DMZ

31. Two Firewalls, Two DMZs
Setting up separate DMZs for different parts
of the organization helps balance the traffic
load between them

32. Two Firewalls, Two DMZs

33. Multiple Firewalls to Protect
Branch Offices

34. Load Distribution Through
Layering of Firewalls

35. Reverse Firewalls
Inspect and monitor traffic going out of a
network rather than trying to block what’s
coming in
Help block Distributed Denial of Service
(DDoS) attacks

36. Specialty Firewalls
Protect specific types of network communications
(eg, e-mail, instant-messaging)
Examples
 Mail Marshal and WebMarshal by Marshal Software
 OpenReach includes a small-scale packet-filtering
firewall for its VPN
 VOISS Proxy Firewall (VF-1) by VocalData
 Speedware Corporation sells its own firewall software

37. Approaches That Add
Functionality to a Firewall
Network Address Translation (NAT)
Encryption
Application proxies
VPNs
Intrusion detection systems (IDSs)

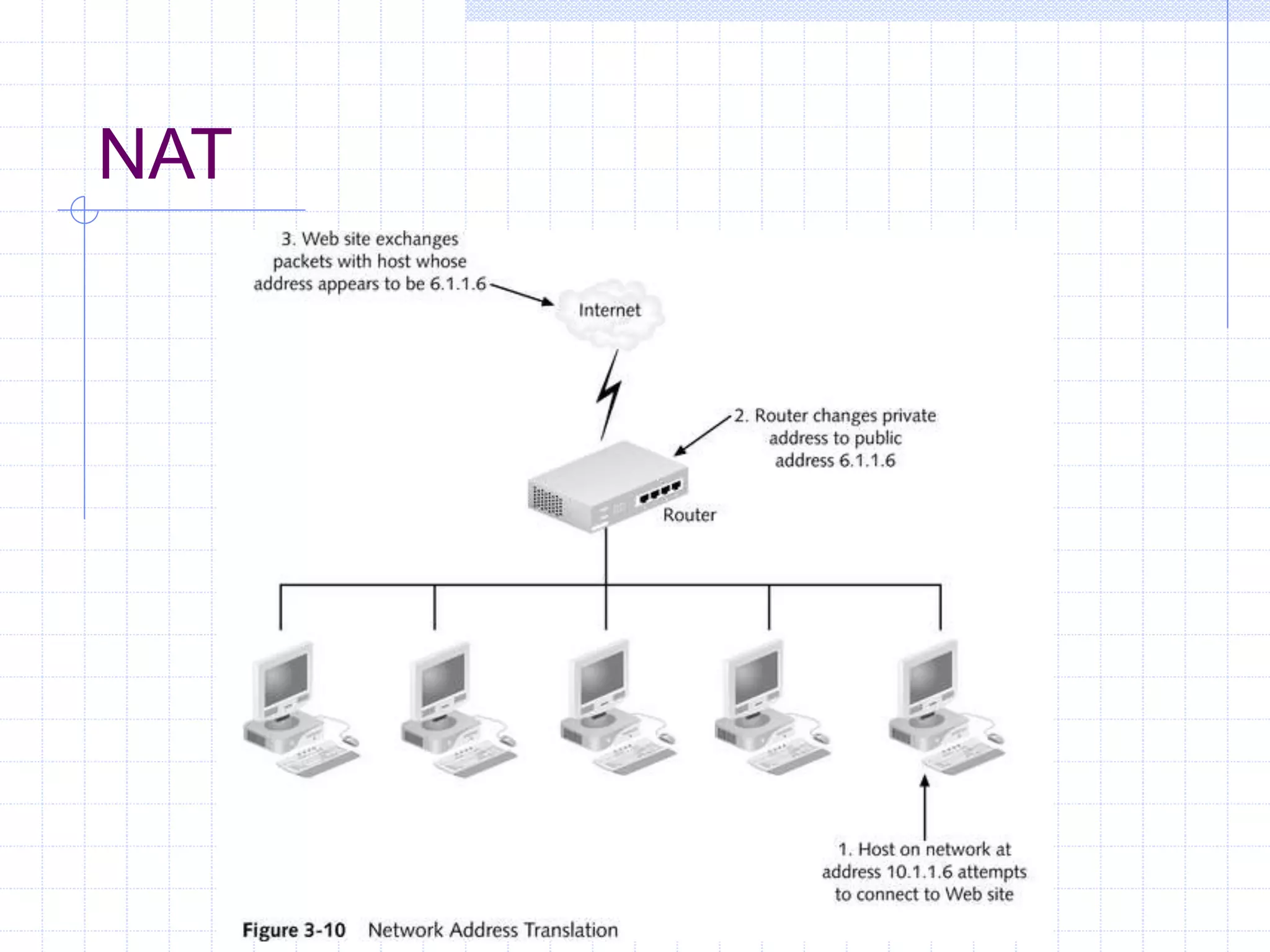

38. NAT
Converts publicly accessible IP addresses to
private ones and vice versa; shields IP
addresses of computers on the protected
network from those on the outside

39. NAT

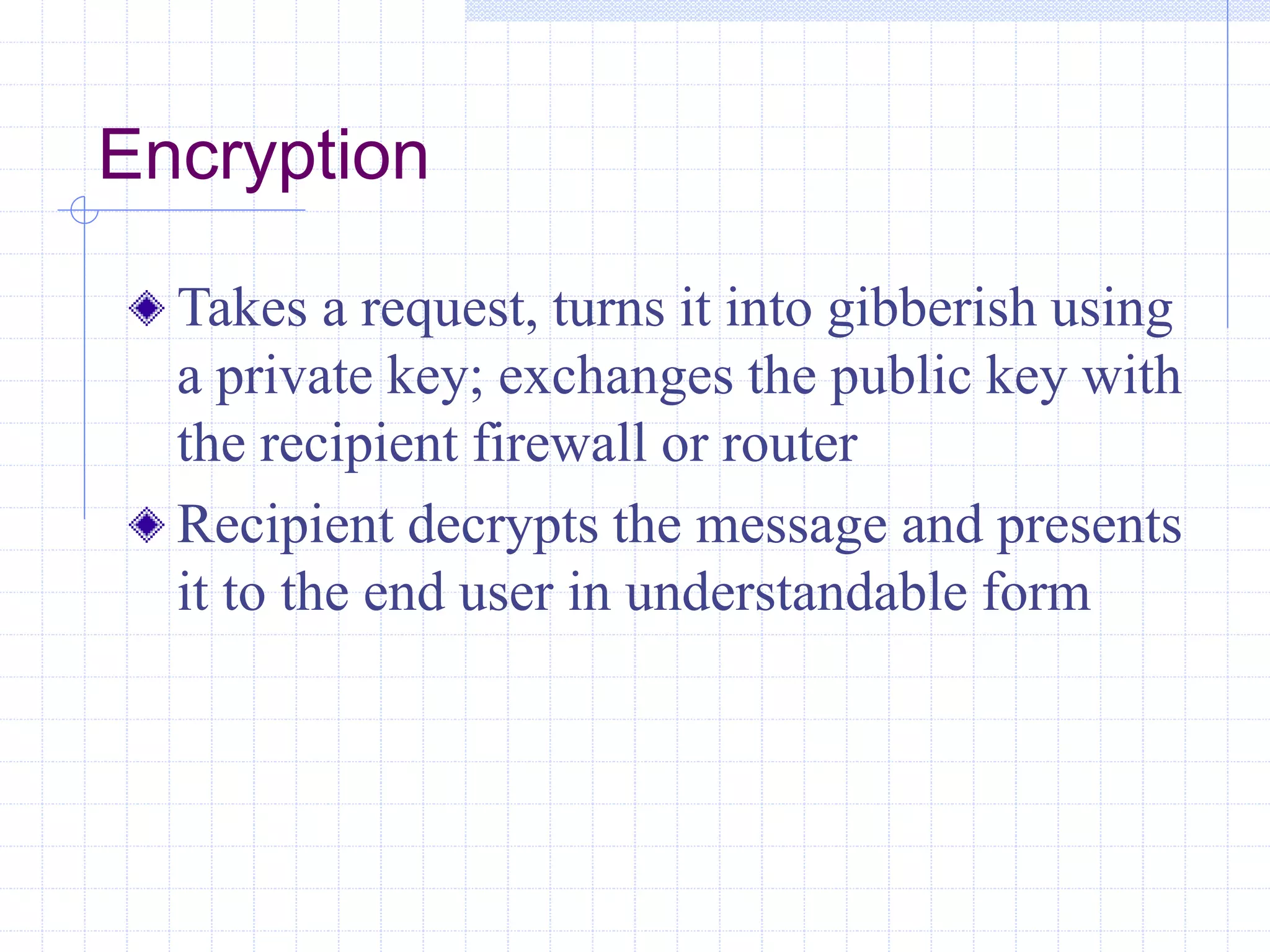

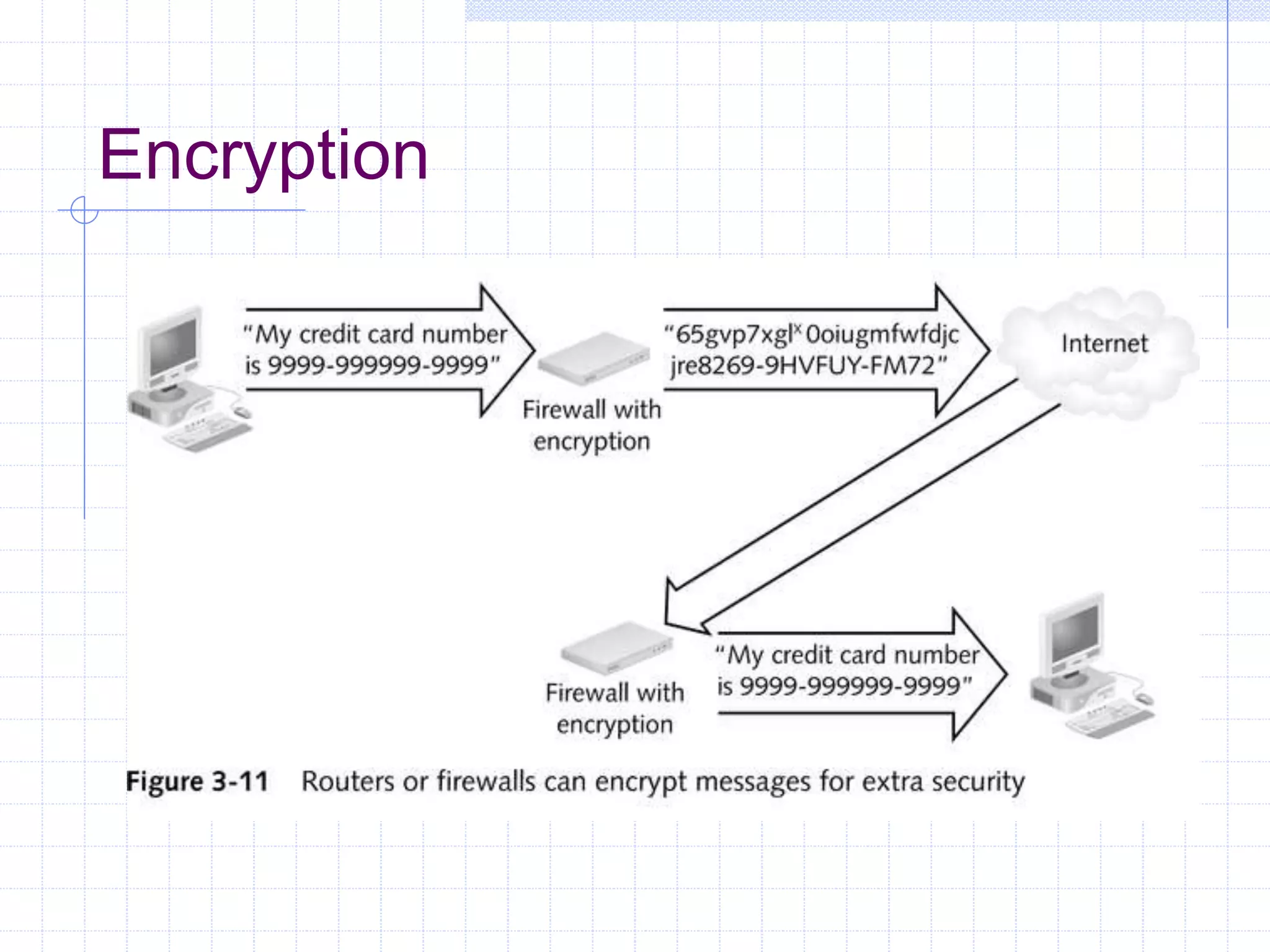

40. Encryption
Takes a request, turns it into gibberish using
a private key; exchanges the public key with
the recipient firewall or router
Recipient decrypts the message and presents
it to the end user in understandable form

41. Encryption

42. Application Proxies
Act on behalf of a host; receive requests,
rebuild them from scratch, and forward
them to the intended location as though the
request originated with it (the proxy)
Can be set up with either a dual-homed host
or a screened host system

43. Application Proxies
Dual-homed setup
 Host that contains the firewall or proxy server software
has two interfaces, one to the Internet and one to the
internal network being protected
Screened subnet system
 Host that holds proxy server software has a single
network interface
 Packet filters on either side of the host filter out all
traffic except that destined for proxy server software

44. Application Proxies on a
Dual-Homed Host

45. VPNs
Connect internal hosts with specific clients
in other organizations
Connections are encrypted and limited only
to machines with specific IP addresses
VPN gateway can:
 Go on a DMZ
 Bypass the firewall and connect directly to the
internal LAN

46. VPN Gateway Bypassing the
Firewall

47. Intrusion Detection Systems
Can be installed in external and/or internal
routers at the perimeter of the network
Built into many popular firewall packages

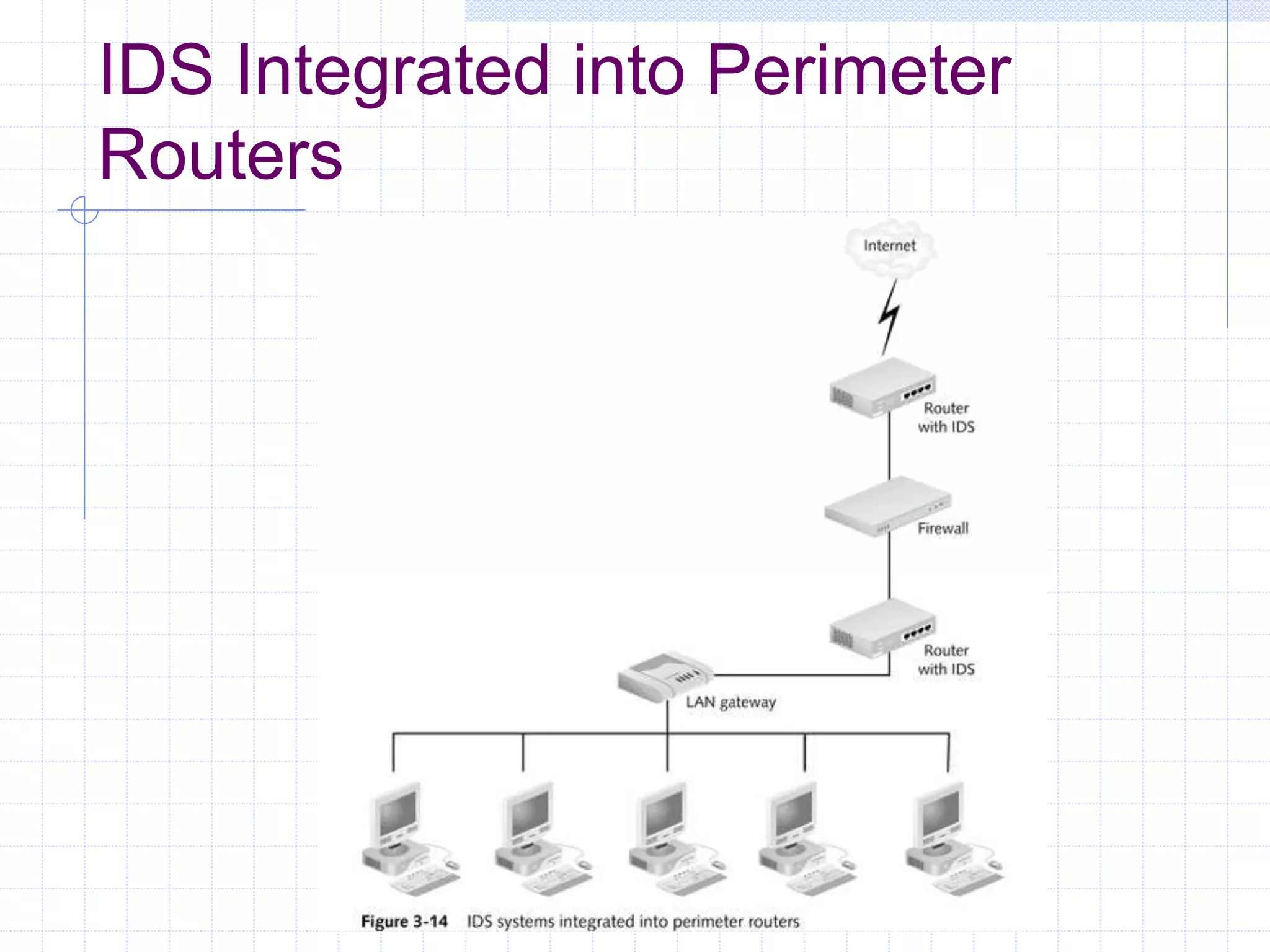

48. IDS Integrated into Perimeter
Routers

49. IDS Positioned Between Firewall
and Internet

50. Chapter Summary
How to design perimeter security for a network
that integrates firewalls with a variety of other
software and hardware components
Rules and restrictions that influence configuration
of a security perimeter
Security configurations that either perform
firewall functions or that use firewalls to create
protected areas
