- 2. Introduction • The Internethas made large amount of information available to the average computer user at home, in business and education. • For many people, having access to this information is no longer just an advantage; it is essential. • Therefore, security of network is the main criteria here and firewalls provide this security.

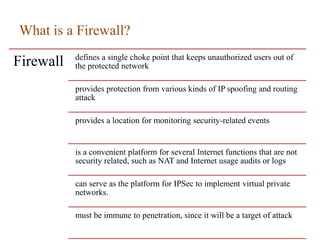

- 3. What is aFirewall? Firewall defines a single choke point that keeps unauthorized users out of the protected network provides protection from various kinds of IP spoofing and routing attack provides a location for monitoring security-related events is a convenient platform for several Internet functions that are not security related, such as NAT and Internet usage audits or logs can serve as the platform for IPSec to implement virtual private networks. must be immune to penetration, since it will be a target of attack
- 4. What is thedifference between a host-based firewall and a network-based firewall? A host-based firewall is installed on an individual computer to protect it from activity occurring on its network i.e. the Microsoft firewall that comes with a Windows-based computer. Host-based firewalls offer some advantages over network-based firewalls • Flexibility – applications and VMs (virtual machines) can be moved between cloud environments, taking their host-based firewalls along with them. • Customization – a single device can be configured for individual circumstances using custom firewall rules. • Mobility – a laptop or mobile device with a firewall provides security for the device in different physical locations. • Internal protection – a customized host-based firewall can prevent attack from within an organization by only allowing authorized employee access to particular devices.
- 5. What is thedifference between a host-based firewall and a network-based firewall? A network-based firewall is implemented at a specified point in the network path and protects all computers on the “internal” side of the firewall from all computers on the “external” side of the firewall i.e. Amazon’s firewall in AWS environments • Greater security – if an attacker circumvents a host-based firewall, they can gain direct access to the host (i.e. via a Trojan) However, the detection and prevention systems operating on a network-based firewall would be more likely to notice suspicious traffic generated by a Trojan as it crosses the network barrier. • Scalability – network-based firewalls can be scaled up as client bandwidth demands increase. • Availability – network-based firewall providers offer high availability (uptime) through fully redundant power, HVAC, and network services, • Affordability – network-based firewalls offer much better value for money as they do not require individual installation and maintenance on every server. Network-based firewalls significant advantages over host-based firewalls
- 6. Hardware firewall vsSoftware firewall • Hardware firewalls are integrated into the router that sits between a computer and the Internet. Linksys routers are an example of a hardware firewall. • Software firewalls are installed on individual servers. They intercept each connection request and then determine whether the request is valid or not. Windows Firewall, an example of a firewall software program included with Microsoft Windows

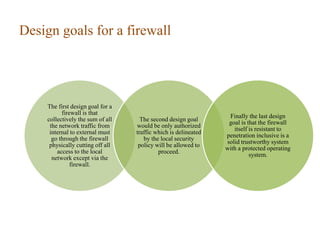

- 7. Design goals fora firewall The first design goal for a firewall is that collectively the sum of all the network traffic from internal to external must go through the firewall physically cutting off all access to the local network except via the firewall. The second design goal would be only authorized traffic which is delineated by the local security policy will be allowed to proceed. Finally the last design goal is that the firewall itself is resistant to penetration inclusive is a solid trustworthy system with a protected operating system.

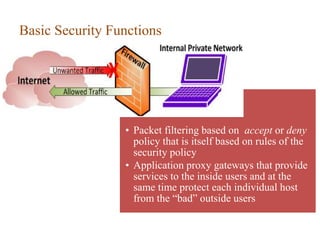

- 8. Basic Security Functions •Packet filtering based on accept or deny policy that is itself based on rules of the security policy • Application proxy gateways that provide services to the inside users and at the same time protect each individual host from the “bad” outside users

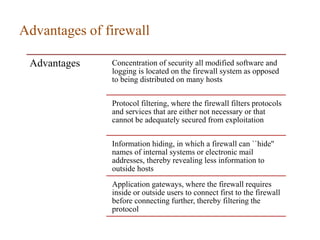

- 9. Advantages of firewall AdvantagesConcentration of security all modified software and logging is located on the firewall system as opposed to being distributed on many hosts Protocol filtering, where the firewall filters protocols and services that are either not necessary or that cannot be adequately secured from exploitation Information hiding, in which a firewall can ``hide'' names of internal systems or electronic mail addresses, thereby revealing less information to outside hosts Application gateways, where the firewall requires inside or outside users to connect first to the firewall before connecting further, thereby filtering the protocol
- 10. Firewall Limitations Limitations cannotprotect from attacks bypassing it eg sneaker net, utility modems, trusted organisations, trusted services (eg SSL/SSH) cannot protect against access via WLAN if improperly secured against external use cannot protect against malware imported via laptop, PDA, storage infected outside cannot protect against internal threats eg disgruntled or colluding employees
- 11.
- 12. Packet Filter Firewall •A packet filtering firewall applies a set of rules to each incoming and outgoing IP packet and then forwards or discards the packet. • Filtering rules are based on information contained in a network packet. • Source IP address • Destination IP address • Source and destination transport level address • IP protocol field • Interface
- 13. Firewalls – PacketFilters • Two default policies are there to take default action to determine whether to forward or discard the packet. • Default = discard • Default = forward • Some possible attacks on firewall : – IP address spoofing – Source routing attacks – Tiny fragment attacks

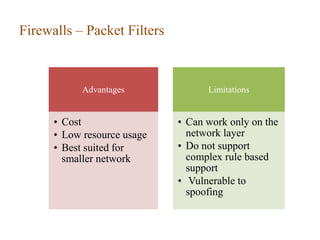

- 14. Firewalls – PacketFilters Advantages • Cost • Low resource usage • Best suited for smaller network Limitations • Can work only on the network layer • Do not support complex rule based support • Vulnerable to spoofing

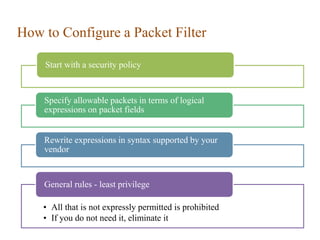

- 15. How to Configurea Packet Filter Start with a security policy Specify allowable packets in terms of logical expressions on packet fields Rewrite expressions in syntax supported by your vendor • All that is not expressly permitted is prohibited • If you do not need it, eliminate it General rules - least privilege

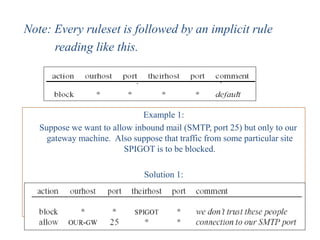

- 16. Note: Every rulesetis followed by an implicit rule reading like this. Example 1: Suppose we want to allow inbound mail (SMTP, port 25) but only to our gateway machine. Also suppose that traffic from some particular site SPIGOT is to be blocked. Solution 1:

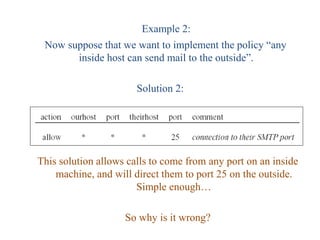

- 17. Example 2: Now supposethat we want to implement the policy “any inside host can send mail to the outside”. Solution 2: This solution allows calls to come from any port on an inside machine, and will direct them to port 25 on the outside. Simple enough… So why is it wrong?

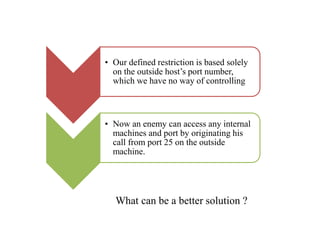

- 18. What can bea better solution ? • Our defined restriction is based solely on the outside host’s port number, which we have no way of controlling • Now an enemy can access any internal machines and port by originating his call from port 25 on the outside machine.

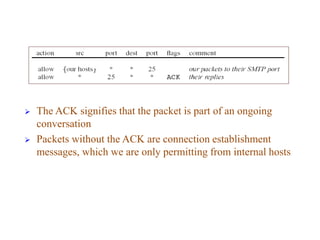

- 19. The ACKsignifies that the packet is part of an ongoing conversation Packets without the ACK are connection establishment messages, which we are only permitting from internal hosts

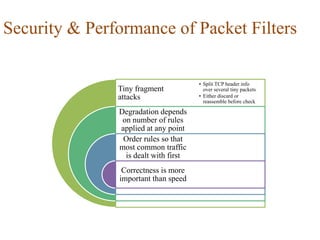

- 20. Security & Performanceof Packet Filters Tiny fragment attacks Degradation depends on number of rules applied at any point Order rules so that most common traffic is dealt with first Correctness is more important than speed • Split TCP header info over several tiny packets • Either discard or reassemble before check

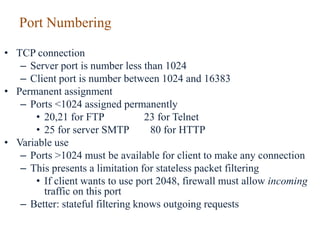

- 21. Port Numbering • TCPconnection – Server port is number less than 1024 – Client port is number between 1024 and 16383 • Permanent assignment – Ports <1024 assigned permanently • 20,21 for FTP 23 for Telnet • 25 for server SMTP 80 for HTTP • Variable use – Ports >1024 must be available for client to make any connection – This presents a limitation for stateless packet filtering • If client wants to use port 2048, firewall must allow incoming traffic on this port – Better: stateful filtering knows outgoing requests

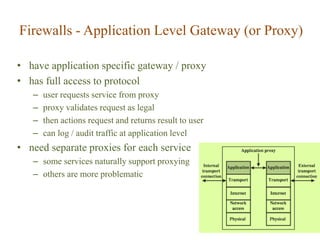

- 22. Firewalls - ApplicationLevel Gateway (or Proxy) • have application specific gateway / proxy • has full access to protocol – user requests service from proxy – proxy validates request as legal – then actions request and returns result to user – can log / audit traffic at application level • need separate proxies for each service – some services naturally support proxying – others are more problematic
- 23. Firewalls - ApplicationLevel Gateway (or Proxy) Advantages More secure than packet filter firewalls Easy to log and audit incoming traffic Disadvantages Additional processing overhead on each connection
- 24. Firewalls - CircuitLevel Gateway • This can be a stand – alone system or it can be a specialized functions performed by an application – level gateway for certain applications. • It does not permit an end – to – end TCP connection; rather, the gateway sets two TCP connections. • A typical use of the circuit – level gateway is a situation in which the system administrator trusts the internal users. • The gateway can be configured to support application – level or proxy service on inbound connections and circuit – level functions for outbound connections.

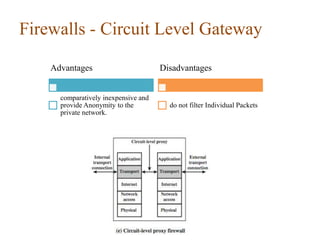

- 25. Firewalls - CircuitLevel Gateway Advantages comparatively inexpensive and provide Anonymity to the private network. Disadvantages do not filter Individual Packets

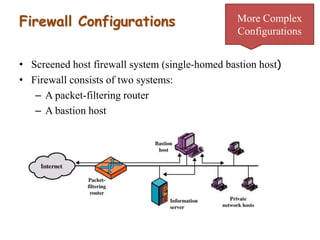

- 26. Firewall Configurations • Screenedhost firewall system (single-homed bastion host) • Firewall consists of two systems: – A packet-filtering router – A bastion host More Complex Configurations

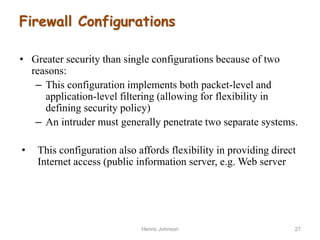

- 27. Henric Johnson 27 FirewallConfigurations • Greater security than single configurations because of two reasons: – This configuration implements both packet-level and application-level filtering (allowing for flexibility in defining security policy) – An intruder must generally penetrate two separate systems. • This configuration also affords flexibility in providing direct Internet access (public information server, e.g. Web server
- 28. Firewall Configurations • Screenedhost firewall system (dual-homed bastion host) • The packet-filtering router is not completely compromised • Traffic between the Internet and other hosts on the private network has to flow through the bastion host

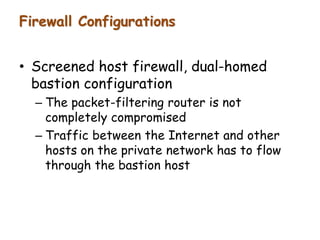

- 29. Firewall Configurations • Screenedhost firewall, dual-homed bastion configuration – The packet-filtering router is not completely compromised – Traffic between the Internet and other hosts on the private network has to flow through the bastion host
- 30. Firewall Configurations • Screened-subnetfirewall system – Most secure configuration of the three – Two packet-filtering routers are used – Creation of an isolated sub-network

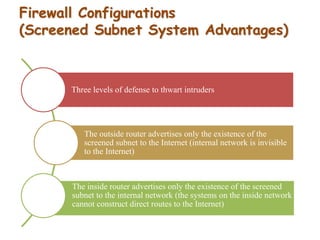

- 31. Firewall Configurations (Screened SubnetSystem Advantages) Three levels of defense to thwart intruders The outside router advertises only the existence of the screened subnet to the Internet (internal network is invisible to the Internet) The inside router advertises only the existence of the screened subnet to the internal network (the systems on the inside network cannot construct direct routes to the Internet)

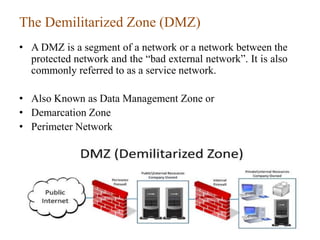

- 32. The Demilitarized Zone(DMZ) • A DMZ is a segment of a network or a network between the protected network and the “bad external network”. It is also commonly referred to as a service network. • Also Known as Data Management Zone or • Demarcation Zone • Perimeter Network 32

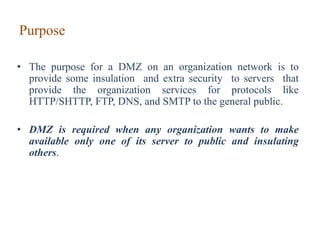

- 33. Purpose • The purposefor a DMZ on an organization network is to provide some insulation and extra security to servers that provide the organization services for protocols like HTTP/SHTTP, FTP, DNS, and SMTP to the general public. • DMZ is required when any organization wants to make available only one of its server to public and insulating others.

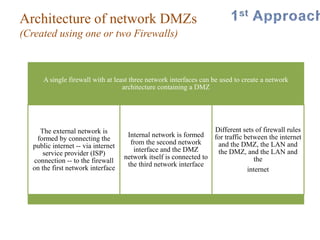

- 34. Architecture of networkDMZs (Created using one or two Firewalls) . A single firewall with at least three network interfaces can be used to create a network architecture containing a DMZ The external network is formed by connecting the public internet -- via internet service provider (ISP) connection -- to the firewall on the first network interface Internal network is formed from the second network interface and the DMZ network itself is connected to the third network interface Different sets of firewall rules for traffic between the internet and the DMZ, the LAN and the DMZ, and the LAN and the internet

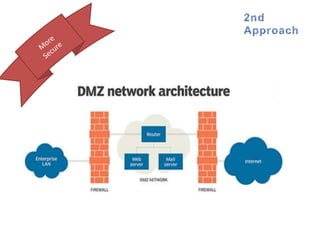

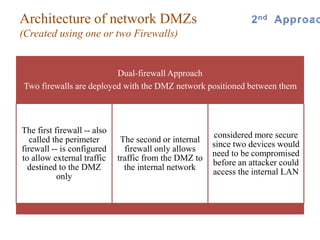

- 35. Dual-firewall Approach Two firewallsare deployed with the DMZ network positioned between them The first firewall -- also called the perimeter firewall -- is configured to allow external traffic destined to the DMZ only The second or internal firewall only allows traffic from the DMZ to the internal network considered more secure since two devices would need to be compromised before an attacker could access the internal LAN Architecture of network DMZs (Created using one or two Firewalls)

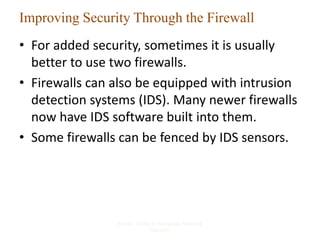

- 37. Improving Security Throughthe Firewall • For added security, sometimes it is usually better to use two firewalls. • Firewalls can also be equipped with intrusion detection systems (IDS). Many newer firewalls now have IDS software built into them. • Some firewalls can be fenced by IDS sensors. Kizza - Guide to Computer Network Security 37

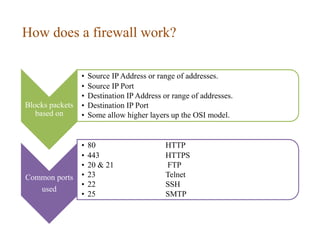

- 38. How does afirewall work? 38 Blocks packets based on • Source IP Address or range of addresses. • Source IP Port • Destination IP Address or range of addresses. • Destination IP Port • Some allow higher layers up the OSI model. Common ports used • 80 HTTP • 443 HTTPS • 20 & 21 FTP • 23 Telnet • 22 SSH • 25 SMTP

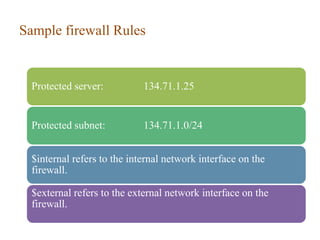

- 39. Sample firewall Rules 39 Protectedserver: 134.71.1.25 Protected subnet: 134.71.1.0/24 $internal refers to the internal network interface on the firewall. $external refers to the external network interface on the firewall.

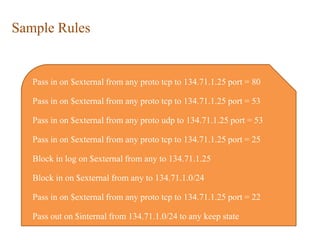

- 40. Sample Rules 40 Pass inon $external from any proto tcp to 134.71.1.25 port = 80 Pass in on $external from any proto tcp to 134.71.1.25 port = 53 Pass in on $external from any proto udp to 134.71.1.25 port = 53 Pass in on $external from any proto tcp to 134.71.1.25 port = 25 Block in log on $external from any to 134.71.1.25 Block in on $external from any to 134.71.1.0/24 Pass in on $external from any proto tcp to 134.71.1.25 port = 22 Pass out on $internal from 134.71.1.0/24 to any keep state
- 41. .. 41 State When your computermakes a connection with another computer on the network, several things are exchanged including the source and destination ports In a standard firewall configuration, most inbound ports are blocked. This would normally cause a problem with return traffic since the source port is randomly assigned (different from the destination port). A state is a dynamic rule created by the firewall containing the source-destination port combination, allowing the desired return traffic to pass the firewall A single computer could have hundreds of states depending on the number of established connections Without state, your request for traffic would leave the firewall but the reply would be blocked.

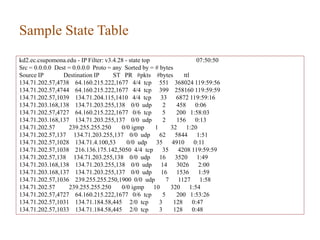

- 42. Sample State Table kd2.ec.csupomona.edu- IP Filter: v3.4.28 - state top 07:50:50 Src = 0.0.0.0 Dest = 0.0.0.0 Proto = any Sorted by = # bytes Source IP Destination IP ST PR #pkts #bytes ttl 134.71.202.57,4738 64.160.215.222,1677 4/4 tcp 551 368024 119:59:56 134.71.202.57,4744 64.160.215.222,1677 4/4 tcp 399 258160 119:59:59 134.71.202.57,1039 134.71.204.115,1410 4/4 tcp 33 6872 119:59:16 134.71.203.168,138 134.71.203.255,138 0/0 udp 2 458 0:06 134.71.202.57,4727 64.160.215.222,1677 0/6 tcp 5 200 1:58:03 134.71.203.168,137 134.71.203.255,137 0/0 udp 2 156 0:13 134.71.202.57 239.255.255.250 0/0 igmp 1 32 1:20 134.71.202.57,137 134.71.203.255,137 0/0 udp 62 5844 1:51 134.71.202.57,1028 134.71.4.100,53 0/0 udp 35 4910 0:11 134.71.202.57,1038 216.136.175.142,5050 4/4 tcp 35 4208 119:59:59 134.71.202.57,138 134.71.203.255,138 0/0 udp 16 3520 1:49 134.71.203.168,138 134.71.203.255,138 0/0 udp 14 3026 2:00 134.71.203.168,137 134.71.203.255,137 0/0 udp 16 1536 1:59 134.71.202.57,1036 239.255.255.250,1900 0/0 udp 7 1127 1:58 134.71.202.57 239.255.255.250 0/0 igmp 10 320 1:54 134.71.202.57,4727 64.160.215.222,1677 0/6 tcp 5 200 1:53:26 134.71.202.57,1031 134.71.184.58,445 2/0 tcp 3 128 0:47 134.71.202.57,1033 134.71.184.58,445 2/0 tcp 3 128 0:48 42
