This document provides an overview of software development processes and process models. It defines what a process is and discusses key process characteristics. It then describes several common process models for software development, including waterfall, V-model, prototyping, incremental/iterative development, and agile methods. Finally, it discusses tools and techniques for process modeling, including static and dynamic modeling approaches. The key points covered are: 1. A process involves a series of steps and activities that produce an intended output, using resources and subject to constraints. 2. Common process models include waterfall, V-model, prototyping, incremental development, and agile methods like Scrum. 3. Tools for process modeling include static not

1. Chapter 2
1

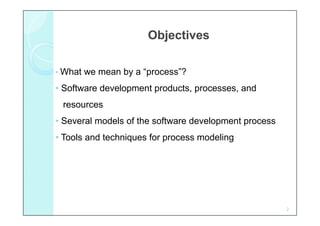

2. Objectives
• What we mean by a “process”?
• Software development products, processes, and
resources
• Several models of the software development process
• Tools and techniques for process modeling
2

3. 2.1 The Meaning of Process
 A process: a series of steps involving
activities, constraints, and resources that
produce an intended output of some kind
 A process involves a set of tools and
techniques
3

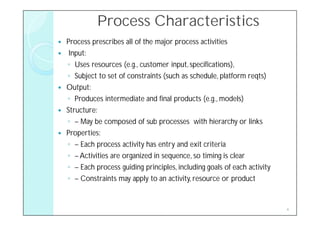

4. Process Characteristics
 Process prescribes all of the major process activities
 Input:
◦ Uses resources (e.g., customer input, specifications),
◦ Subject to set of constraints (such as schedule, platform reqts)
 Output:
◦ Produces intermediate and final products (e.g., models)
 Structure:
◦ – May be composed of sub processes with hierarchy or links
 Properties:
◦ – Each process activity has entry and exit criteria
◦ – Activities are organized in sequence, so timing is clear
◦ – Each process guiding principles, including goals of each activity
◦ – Constraints may apply to an activity, resource or product
4

5.  When process involves the building the
product – referred as Life Cycle
 Software Development Process is
sometimes called Software Life Cycle.
5

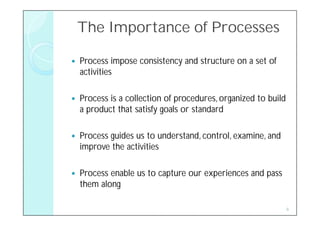

6. The Importance of Processes
 Process impose consistency and structure on a set of
activities
 Process is a collection of procedures, organized to build
a product that satisfy goals or standard
 Process guides us to understand, control, examine, and
improve the activities
 Process enable us to capture our experiences and pass
them along
6

7. Software Development Stages
 Requirement Analysis and Definition
 System Design
 Program Design
 Program Implementation
 Unit Testing
 Integration Testing
 System Testing
 System Delivery
 Maintenance
 Each stage itself a Process that can be described as a set of activities.
 Each activity involves constraints, outputs, and resources
7

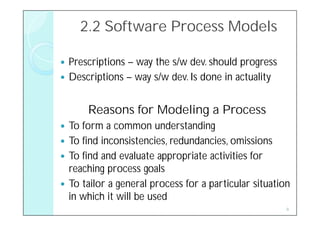

8. 2.2 Software Process Models
 Prescriptions – way the s/w dev. should progress
 Descriptions – way s/w dev. Is done in actuality
Reasons for Modeling a Process
 To form a common understanding
 To find inconsistencies, redundancies, omissions
 To find and evaluate appropriate activities for
reaching process goals
 To tailor a general process for a particular situation
in which it will be used
8

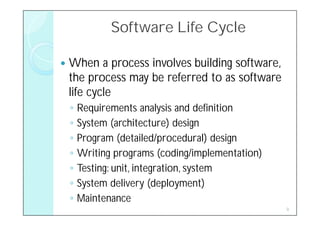

9. Software Life Cycle
 When a process involves building software,
the process may be referred to as software
life cycle
◦ Requirements analysis and definition
◦ System (architecture) design
◦ Program (detailed/procedural) design
◦ Writing programs (coding/implementation)
◦ Testing: unit, integration, system
◦ System delivery (deployment)
◦ Maintenance
9

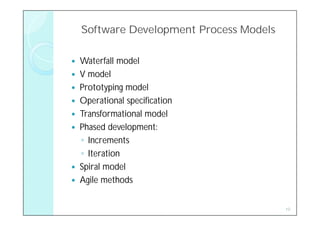

10. Software Development Process Models
 Waterfall model
 V model
 Prototyping model
 Operational specification
 Transformational model
 Phased development:
◦ Increments
◦ Iteration
 Spiral model
 Agile methods
10

11. Waterfall Model ( Royce)
 One of the first process development models proposed
 Works for well understood problems with minimal or no
changes in the requirements
 Simple and easy to explain to customers
 It presents
◦ – A very high-level view of the development process
◦ – Sequence of process activities
 Each major phase is marked by milestones and deliverables
(artifacts)
 There is no iteration in waterfall model
 Most software developments apply a great many iterations
11

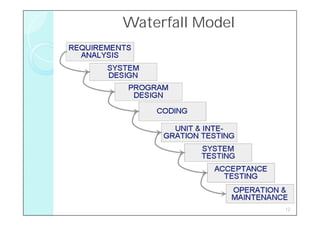

12. Waterfall Model
12

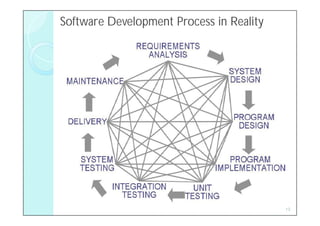

13. Software Development Process in Reality
13

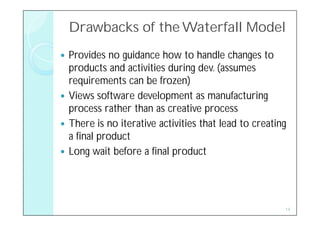

14. Drawbacks of the Waterfall Model
 Provides no guidance how to handle changes to
products and activities during dev. (assumes
requirements can be frozen)
 Views software development as manufacturing
process rather than as creative process
 There is no iterative activities that lead to creating
a final product
 Long wait before a final product
14

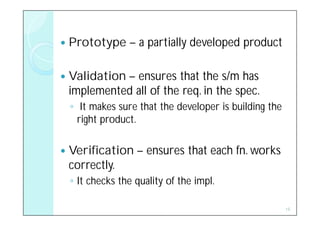

15.  Prototype – a partially developed product
 Validation – ensures that the s/m has
implemented all of the req. in the spec.
◦ It makes sure that the developer is building the
right product.
 Verification – ensures that each fn. works
correctly.
◦ It checks the quality of the impl.
15

16. Waterfall model with Prototyping
16

17. V Model ( German Ministry of Defense)
 It is a variation of Water fall model that demonstrates how
the testing activities are related to analysis and design.
 V - coding forms the point
◦ Analysis and Design - left
◦ Testing and Maintenance – right
 This model used to verify pgm. design
 Acceptance testing done by customers rather than
developers
 Waterfall model focus on documents and artifacts whereas
V model focus on activity and correctness
17

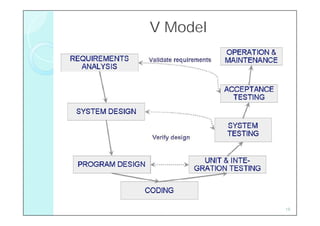

18. V Model
18

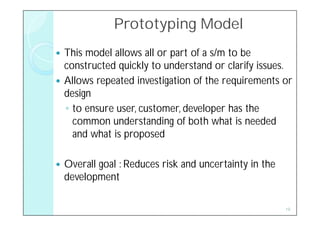

19. Prototyping Model
 This model allows all or part of a s/m to be
constructed quickly to understand or clarify issues.
 Allows repeated investigation of the requirements or
design
◦ to ensure user, customer, developer has the
common understanding of both what is needed
and what is proposed
 Overall goal : Reduces risk and uncertainty in the
development
19

20. Prototyping Model
20

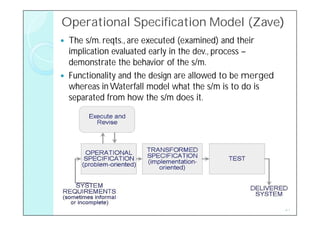

21. Operational Specification Model (Zave)
(Zave)
 The s/m. reqts., are executed (examined) and their
implication evaluated early in the dev., process –
demonstrate the behavior of the s/m.
 Functionality and the design are allowed to be merged
whereas in Waterfall model what the s/m is to do is
separated from how the s/m does it.
21

22. Transformational Model (Blazer)
 This model tries to reduce error by eliminating
several major dev., steps
 Applies a series of transformations to change a
spec., into deliverable s/m.
◦ Change data representation
◦ Select algorithms
◦ Optimize
◦ Compile
 Relies on formalism
 Requires formal specification (to allow
transformations) – may gain wider acceptance.
22

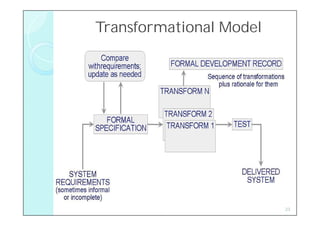

23. Transformational Model
23

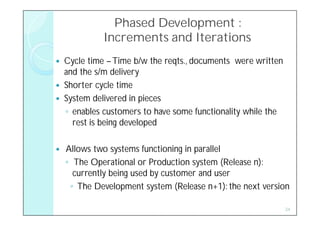

24. Phased Development :
Increments and Iterations
 Cycle time – Time b/w the reqts., documents were written
and the s/m delivery
 Shorter cycle time
 System delivered in pieces
◦ enables customers to have some functionality while the
rest is being developed
 Allows two systems functioning in parallel
◦ The Operational or Production system (Release n):
currently being used by customer and user
◦ The Development system (Release n+1): the next version
24

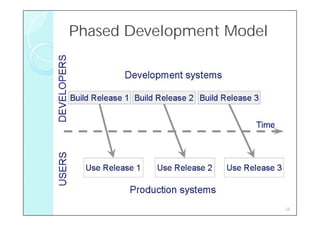

25. Phased Development Model
25

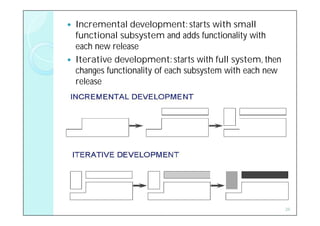

26.  Incremental development: starts with small
functional subsystem and adds functionality with
each new release
 Iterative development: starts with full system, then
changes functionality of each subsystem with each new
release
26

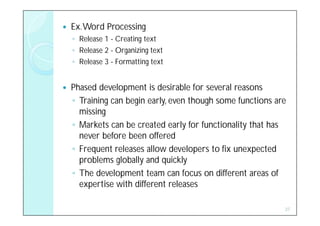

27.  Ex. Word Processing
◦ Release 1 - Creating text
◦ Release 2 - Organizing text
◦ Release 3 - Formatting text
 Phased development is desirable for several reasons
◦ Training can begin early, even though some functions are
missing
◦ Markets can be created early for functionality that has
never before been offered
◦ Frequent releases allow developers to fix unexpected
problems globally and quickly
◦ The development team can focus on different areas of
expertise with different releases
27

28. Spiral Model (Boehm )
 Suggested by Barry Boehm (1988)
 Combines development activities with risk management to
minimize and control risks
 The model is presented as a spiral in which each iteration
is represented by a circuit around four major activities
◦ Plan
◦ Determine goals, alternatives and constraints
◦ Evaluate alternatives and risks
◦ Develop and test
 With each iteration, the risk analysis weighs
◦ diffn. alternatives in light of reqts., and constraint
◦ prototyping verifies feasibility before particular altn. is
chosen
28

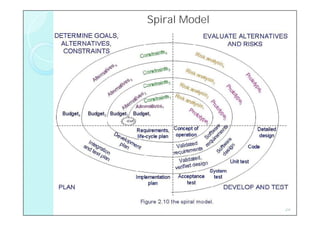

29. Spiral Model
29

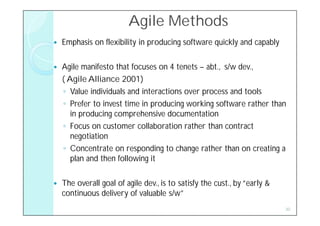

30. Agile Methods
 Emphasis on flexibility in producing software quickly and capably
 Agile manifesto that focuses on 4 tenets – abt., s/w dev.,
( Agile Alliance 2001)
◦ Value individuals and interactions over process and tools
◦ Prefer to invest time in producing working software rather than
in producing comprehensive documentation
◦ Focus on customer collaboration rather than contract
negotiation
◦ Concentrate on responding to change rather than on creating a
plan and then following it
 The overall goal of agile dev., is to satisfy the cust., by “early &
continuous delivery of valuable s/w”
30

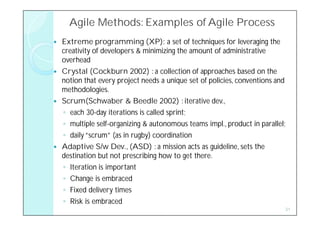

31. Agile Methods: Examples of Agile Process
 Extreme programming (XP): a set of techniques for leveraging the
creativity of developers & minimizing the amount of administrative
overhead
 Crystal (Cockburn 2002) : a collection of approaches based on the
notion that every project needs a unique set of policies, conventions and
methodologies.
 Scrum(Schwaber & Beedle 2002) : iterative dev.,
◦ each 30-day iterations is called sprint;
◦ multiple self-organizing & autonomous teams impl., product in parallel;
◦ daily “scrum” (as in rugby) coordination
 Adaptive S/w Dev., (ASD) : a mission acts as guideline, sets the
destination but not prescribing how to get there.
◦ Iteration is important
◦ Change is embraced
◦ Fixed delivery times
◦ Risk is embraced
31

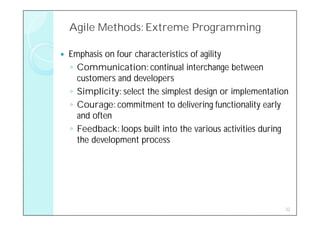

32. Agile Methods: Extreme Programming
 Emphasis on four characteristics of agility
◦ Communication: continual interchange between
customers and developers
◦ Simplicity: select the simplest design or implementation
◦ Courage: commitment to delivering functionality early
and often
◦ Feedback: loops built into the various activities during
the development process
32

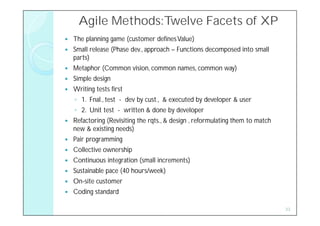

33. Agile Methods:Twelve Facets of XP
 The planning game (customer defines Value)
 Small release (Phase dev., approach – Functions decomposed into small
parts)
 Metaphor (Common vision, common names, common way)
 Simple design
 Writing tests first
◦ 1. Fnal., test - dev by cust., & executed by developer & user
◦ 2. Unit test - written & done by developer
 Refactoring (Revisiting the rqts., & design , reformulating them to match
new & existing needs)
 Pair programming
 Collective ownership
 Continuous integration (small increments)
 Sustainable pace (40 hours/week)
 On-site customer
 Coding standard
33

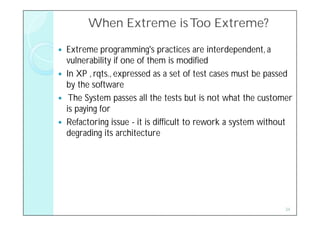

34. When Extreme is Too Extreme?
 Extreme programming's practices are interdependent, a
vulnerability if one of them is modified
 In XP , rqts., expressed as a set of test cases must be passed
by the software
 The System passes all the tests but is not what the customer
is paying for
 Refactoring issue - it is difficult to rework a system without
degrading its architecture
34

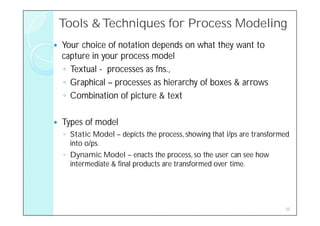

35. Tools & Techniques for Process Modeling
 Your choice of notation depends on what they want to
capture in your process model
◦ Textual - processes as fns.,
◦ Graphical – processes as hierarchy of boxes & arrows
◦ Combination of picture & text
 Types of model
◦ Static Model – depicts the process, showing that i/ps are transformed
into o/ps.
◦ Dynamic Model – enacts the process, so the user can see how
intermediate & final products are transformed over time.
35

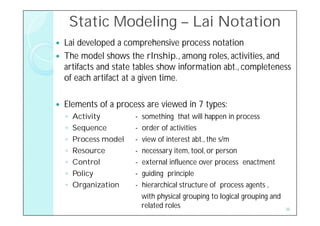

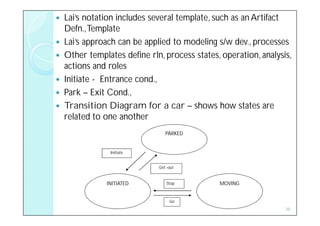

36. Static Modeling – Lai Notation
 Lai developed a comprehensive process notation
 The model shows the rlnship., among roles, activities, and
artifacts and state tables show information abt., completeness
of each artifact at a given time.
 Elements of a process are viewed in 7 types:
◦ Activity - something that will happen in process
◦ Sequence - order of activities
◦ Process model - view of interest abt., the s/m
◦ Resource - necessary item, tool, or person
◦ Control - external influence over process enactment
◦ Policy - guiding principle
◦ Organization - hierarchical structure of process agents ,
with physical grouping to logical grouping and
related roles 36

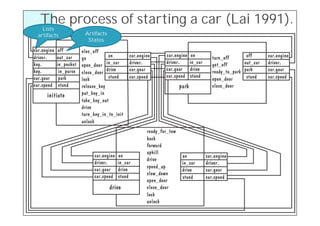

37. The process of starting a car (Lai 1991).
Lists
artifacts Artifacts
States
37

38.  Lai’s notation includes several template, such as an Artifact
Defn., Template
 Lai’s approach can be applied to modeling s/w dev., processes
 Other templates define rln, process states, operation, analysis,
actions and roles
 Initiate - Entrance cond.,
 Park – Exit Cond.,
 Transition Diagram for a car – shows how states are
related to one another
PARKED
Initiate
Get -out
INITIATED Stop MOVING
Go
38

39. Dynamic Modeling – S/m Dynamics
 Dynamic process view – enables us to simulate the process and make
changes before resources are actually expended
 This model decide
◦ How many testers we need
◦ When we must initiate testing
◦ We can include or exclude activities to see their effects on efforts and
schedule.
 The s/m dynamics approach (Forrester 1950) - simulating diverse
processes.
 Abdel-Hamid & Madnick - - applied s/m dynamics to s/w dev., enabling proj.,
managers to ‘test out ‘ their process choices before imposing them on
developers.
 We can build a descriptive model of various activities
◦ Involve in developers’ time and how changes in model increase or
decrease the time it takes to design, write, and test the code.
39

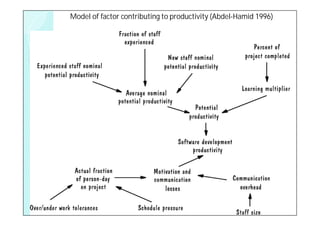

40. Model of factor contributing to productivity (Abdel-Hamid 1996)
40

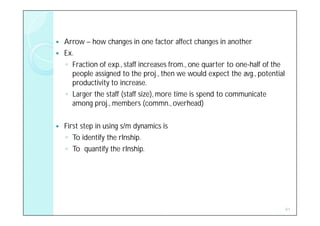

41.  Arrow – how changes in one factor affect changes in another
 Ex.
◦ Fraction of exp., staff increases from., one quarter to one-half of the
people assigned to the proj., then we would expect the avg., potential
productivity to increase.
◦ Larger the staff (staff size), more time is spend to communicate
among proj., members (commn., overhead)
 First step in using s/m dynamics is
◦ To identify the rlnship.
◦ To quantify the rlnship.
41

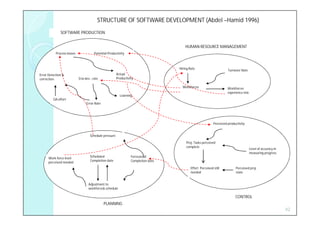

42. STRUCTURE OF SOFTWARE DEVELOPMENT (Abdel –Hamid 1996)
SOFTWARE PRODUCTION
HUMAN RESOURCE MANAGEMENT
Process losses Potential Productivity
Hiring Rate
Turnover Rate
Error Detection & Actual
correction S/w dev., rate Productivity
Workforces Workforces
experience mix
Learning
QA effort
Error Rate
Perceived productivity
Schedule pressure
Proj. Tasks perceived
complete
Level of accuracy in
measuring progress
Scheduled Forecasted
Work force level
Completion date Completion date
perceived needed
Effort Perceived still Perceived proj.
needed state
Adjustment to
workforce& schedule
CONTROL
PLANNING
42

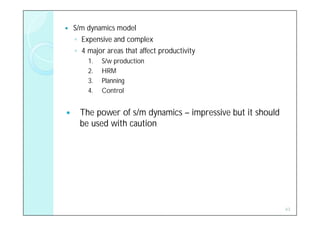

43.  S/m dynamics model
◦ Expensive and complex
◦ 4 major areas that affect productivity
1. S/w production
2. HRM
3. Planning
4. Control
 The power of s/m dynamics – impressive but it should
be used with caution
43

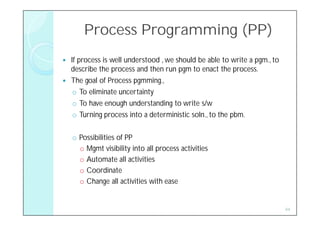

44. Process Programming (PP)
 If process is well understood , we should be able to write a pgm., to
describe the process and then run pgm to enact the process.
 The goal of Process pgmming.,
o To eliminate uncertainty
o To have enough understanding to write s/w
o Turning process into a deterministic soln., to the pbm.
o Possibilities of PP
o Mgmt visibility into all process activities
o Automate all activities
o Coordinate
o Change all activities with ease
44

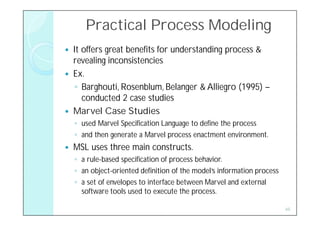

45. Practical Process Modeling
 It offers great benefits for understanding process &
revealing inconsistencies
 Ex.
◦ Barghouti, Rosenblum, Belanger & Alliegro (1995) –
conducted 2 case studies
 Marvel Case Studies
◦ used Marvel Specification Language to define the process
◦ and then generate a Marvel process enactment environment.
 MSL uses three main constructs.
◦ a rule-based specification of process behavior.
◦ an object-oriented definition of the model’s information process
◦ a set of envelopes to interface between Marvel and external
software tools used to execute the process.
45

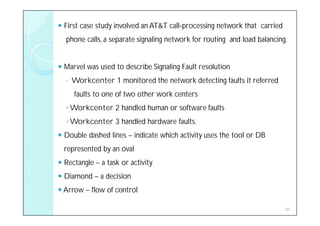

46.  First case study involved an AT&T call-processing network that carried
phone calls, a separate signaling network for routing and load balancing.
 Marvel was used to describe Signaling Fault resolution
◦ Workcenter 1 monitored the network detecting faults it referred
faults to one of two other work centers
◦ Workcenter 2 handled human or software faults
◦ Workcenter 3 handled hardware faults.
 Double dashed lines – indicate which activity uses the tool or DB
represented by an oval
 Rectangle – a task or activity
 Diamond – a decision
 Arrow – flow of control
46

47. Signaling Fault Resolution process
(Barghouti et al. 1995).
47

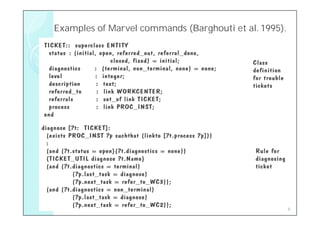

48. Examples of Marvel commands (Barghouti et al. 1995).
(Barghouti
48

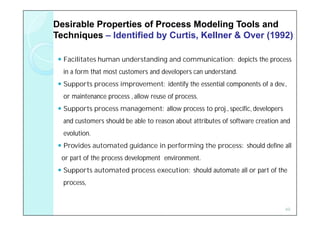

49. Desirable Properties of Process Modeling Tools and
Techniques – Identified by Curtis, Kellner & Over (1992)
 Facilitates human understanding and communication: depicts the process
in a form that most customers and developers can understand.
 Supports process improvement: identify the essential components of a dev.,
or maintenance process , allow reuse of process.
 Supports process management: allow process to proj., specific, developers
and customers should be able to reason about attributes of software creation and
evolution.
 Provides automated guidance in performing the process: should define all
or part of the process development environment.
 Supports automated process execution: should automate all or part of the
process,
49

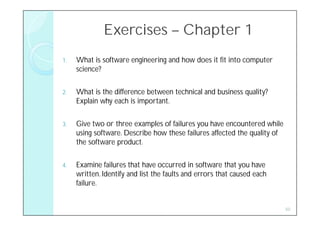

50. Exercises – Chapter 1
1. What is software engineering and how does it fit into computer
science?
2. What is the difference between technical and business quality?
Explain why each is important.
3. Give two or three examples of failures you have encountered while
using software. Describe how these failures affected the quality of
the software product.
4. Examine failures that have occurred in software that you have
written. Identify and list the faults and errors that caused each
failure.
50

51. Exercises – Chapter 2
1. Describe the process you use to get to ready for class or work in the
morning. Draw a diagram to capture the process.
2. Describe three software development life-cycle models. For each, name
the main activities performed, and the inputs and outputs of each
activity. For each give an example of the kind of software development
project where the life-cycle model would be well-suited, and an example
of where the life-cycle model would be inappropriate; explain why.
3. What is the difference between static and dynamic modeling? Explain
how each type of modeling is useful.
4. Explain the difference between prescriptive and descriptive process
models. What is the purpose for each? When is it appropriate to use
each?
51
