SOFTWARE PROCESS AND PROCESS
          ITERATION

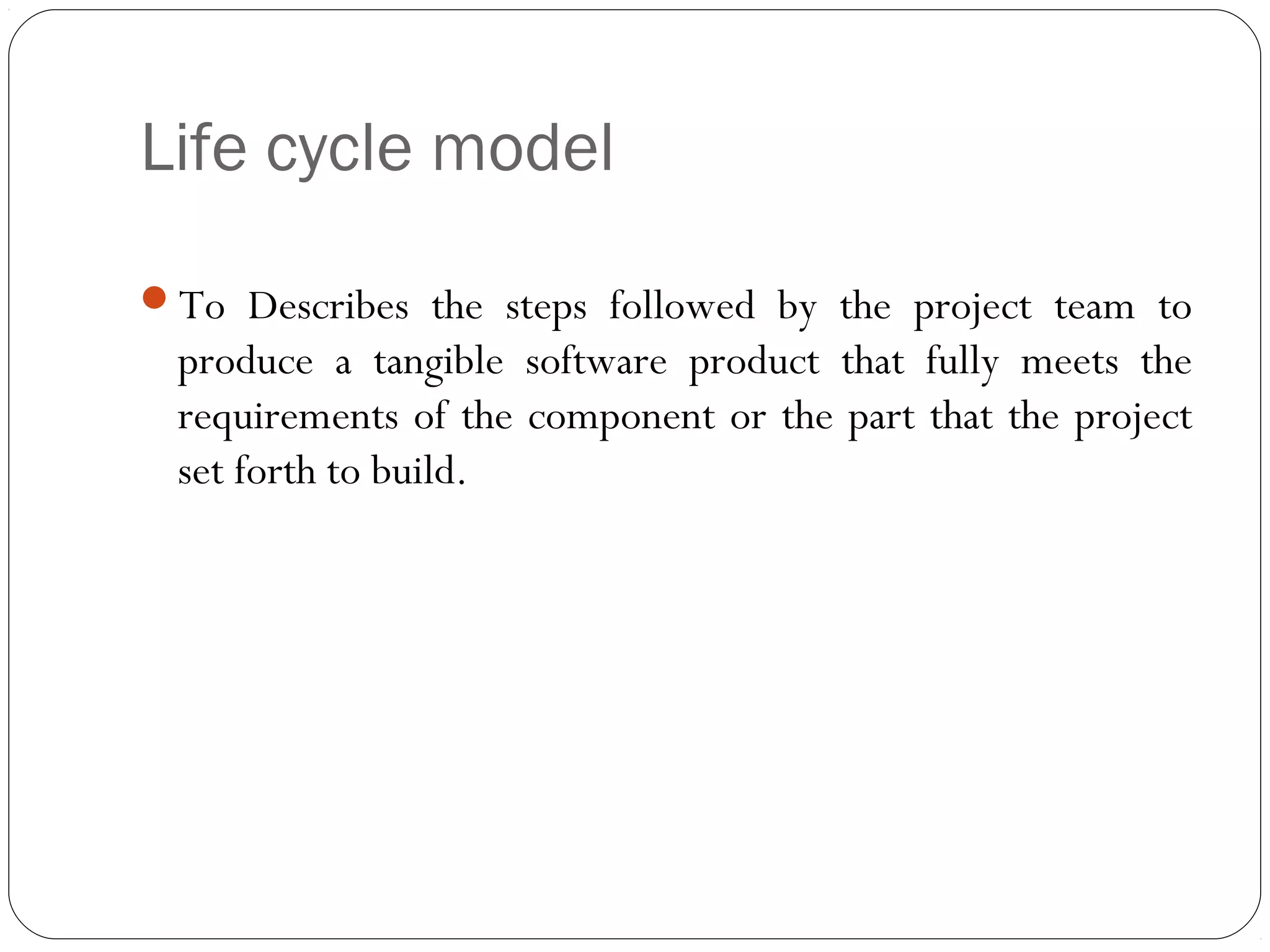

Life cycle model

To Describes the steps followed by the project team to
 produce a tangible software product that fully meets the
 requirements of the component or the part that the project
 set forth to build.

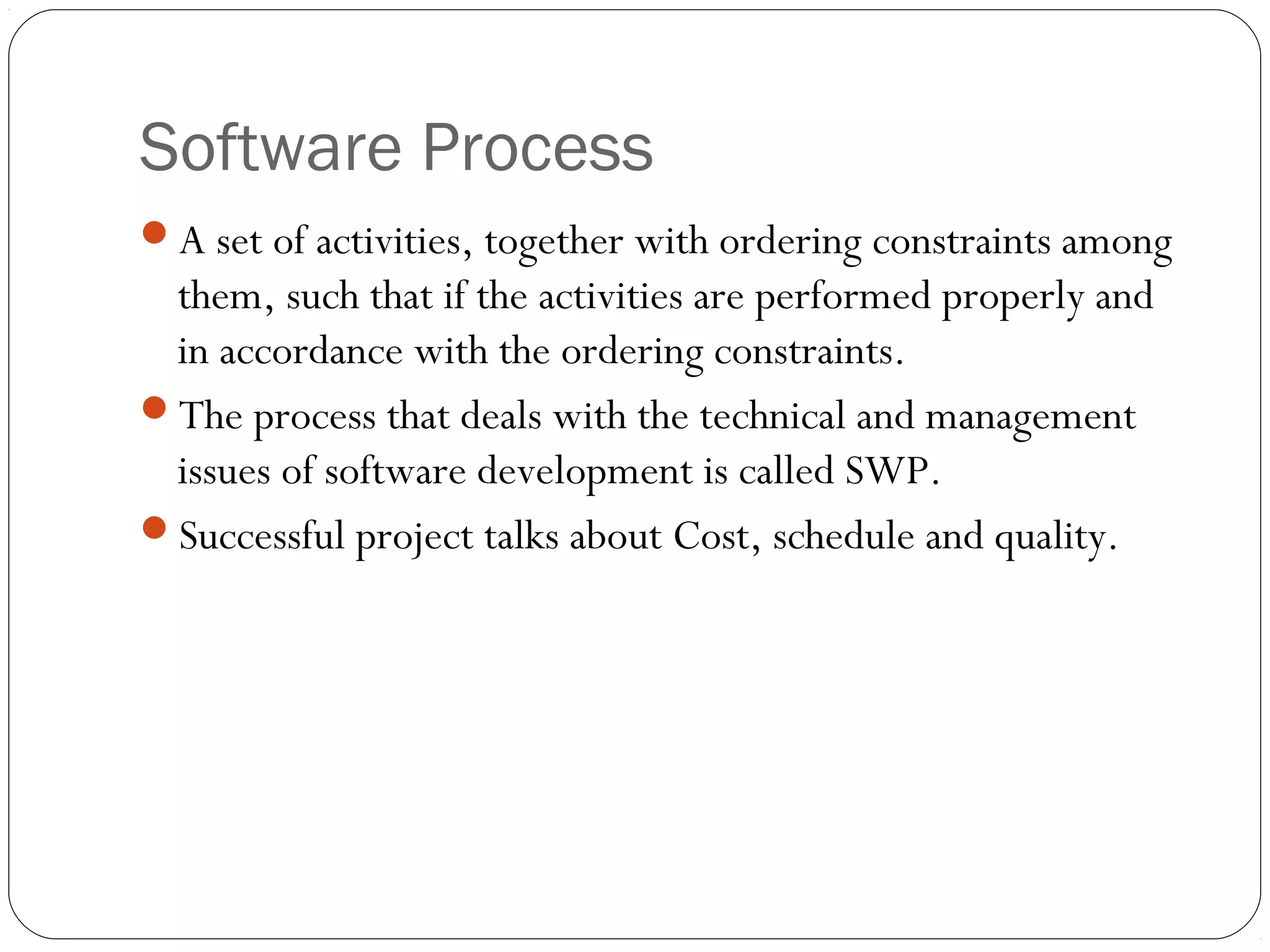

Software Process
A set of activities, together with ordering constraints among
 them, such that if the activities are performed properly and
 in accordance with the ordering constraints.
The process that deals with the technical and management
 issues of software development is called SWP.
Successful project talks about Cost, schedule and quality.

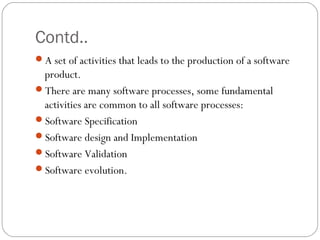

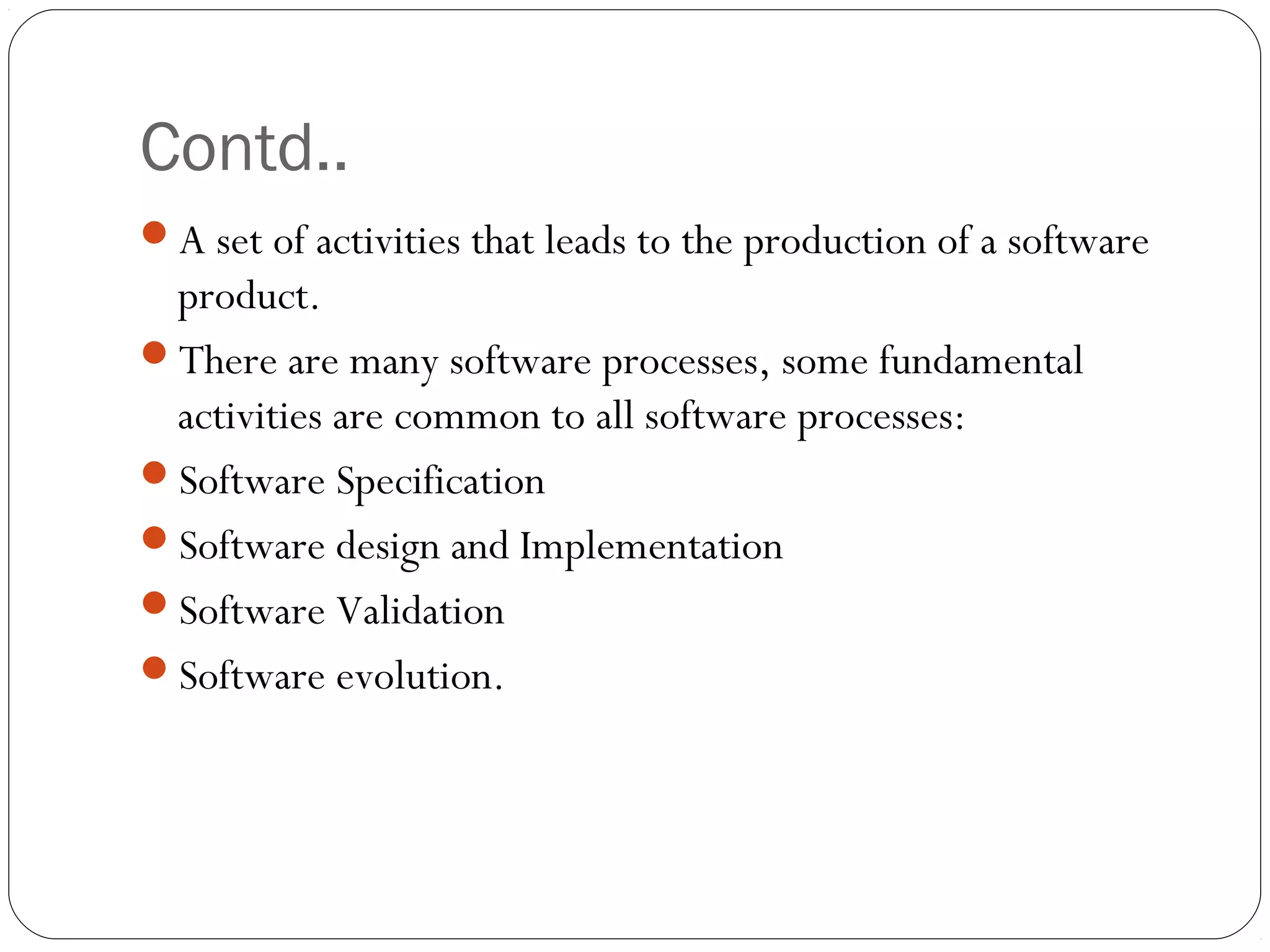

Contd..
A set of activities that leads to the production of a software
 product.
There are many software processes, some fundamental
 activities are common to all software processes:
Software Specification
Software design and Implementation
Software Validation
Software evolution.

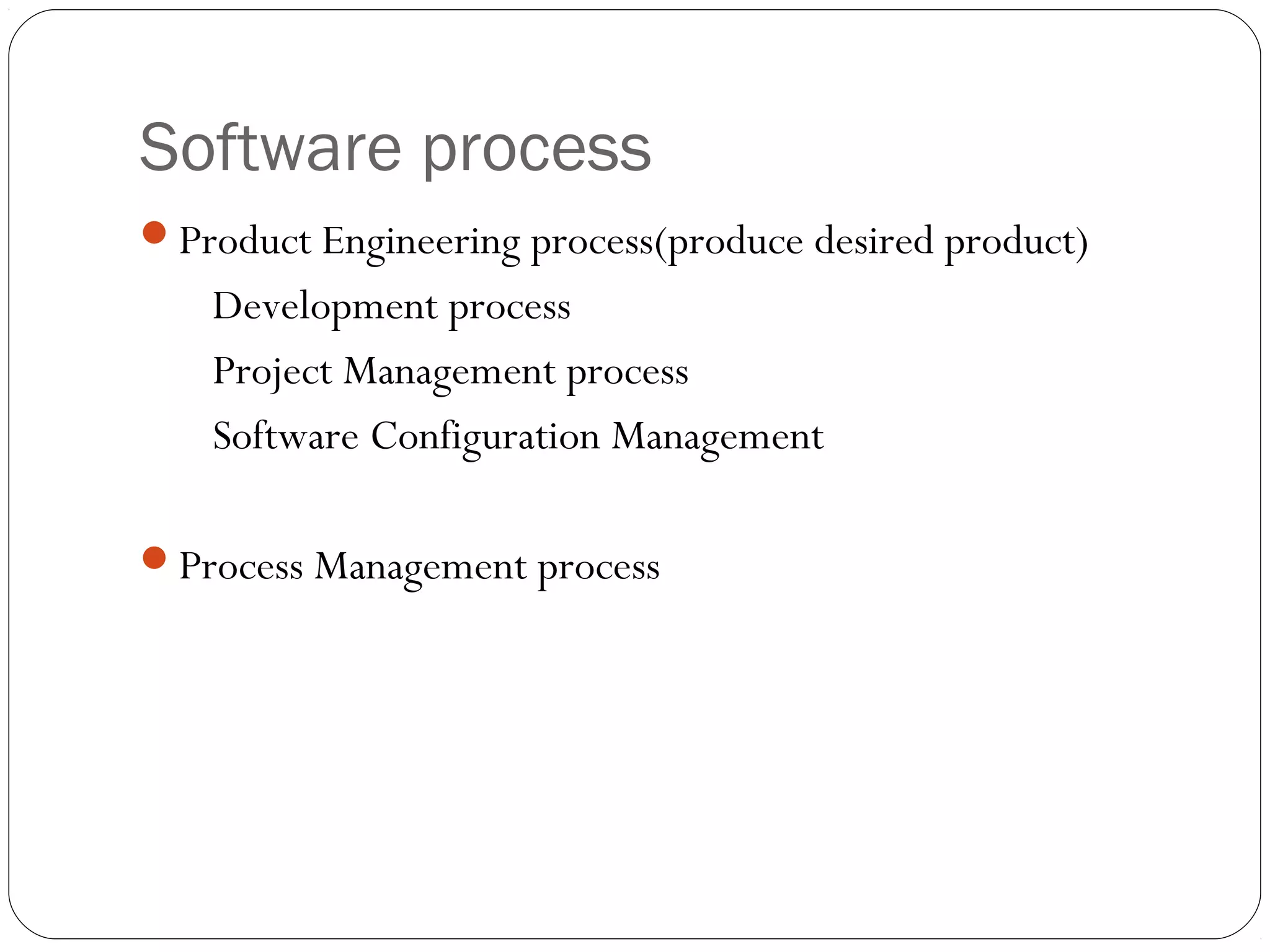

Software process
Product Engineering process(produce desired product)
    Development process
    Project Management process
    Software Configuration Management

Process Management process

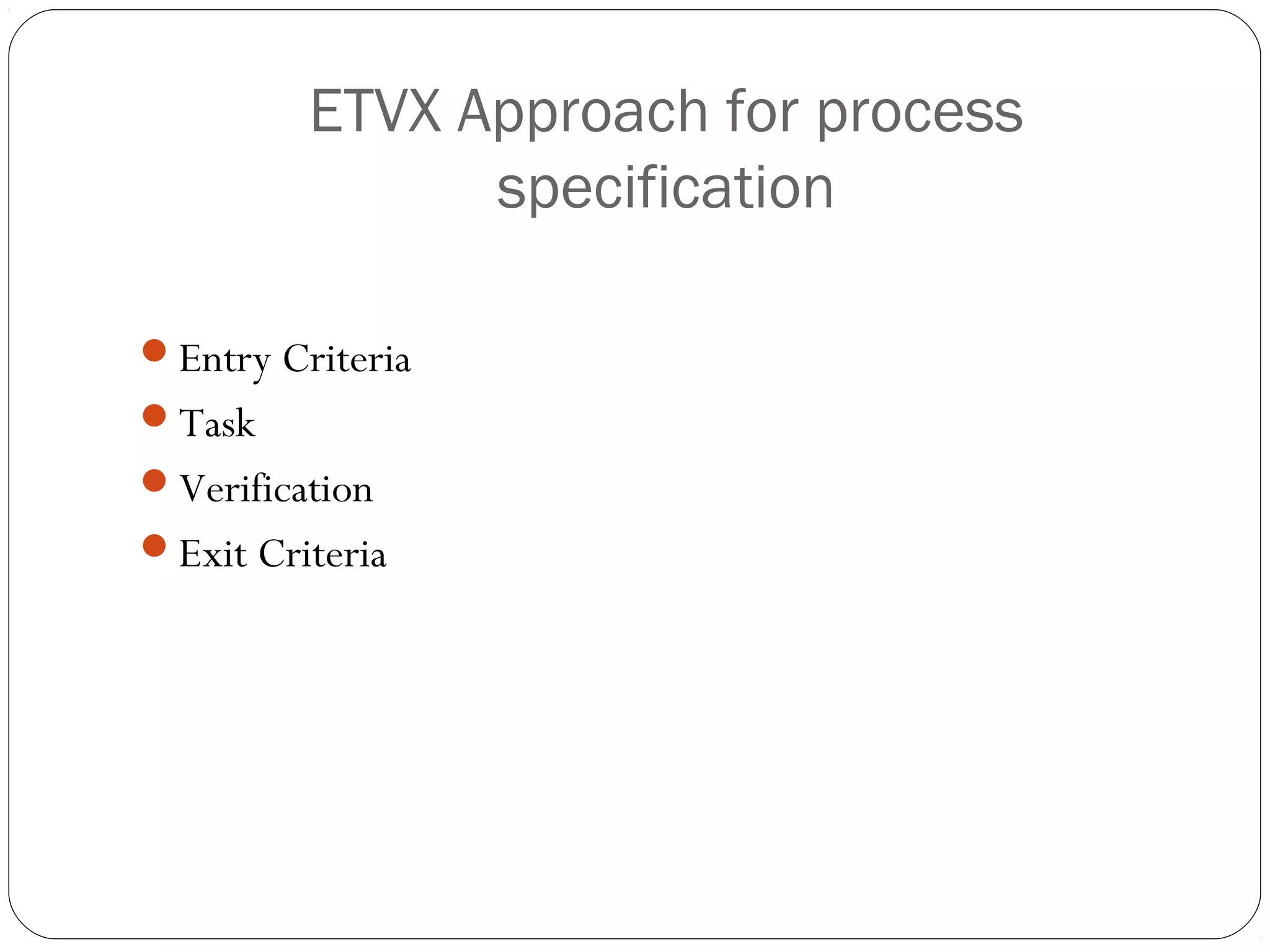

ETVX Approach for process
               specification

Entry Criteria
Task
Verification
Exit Criteria

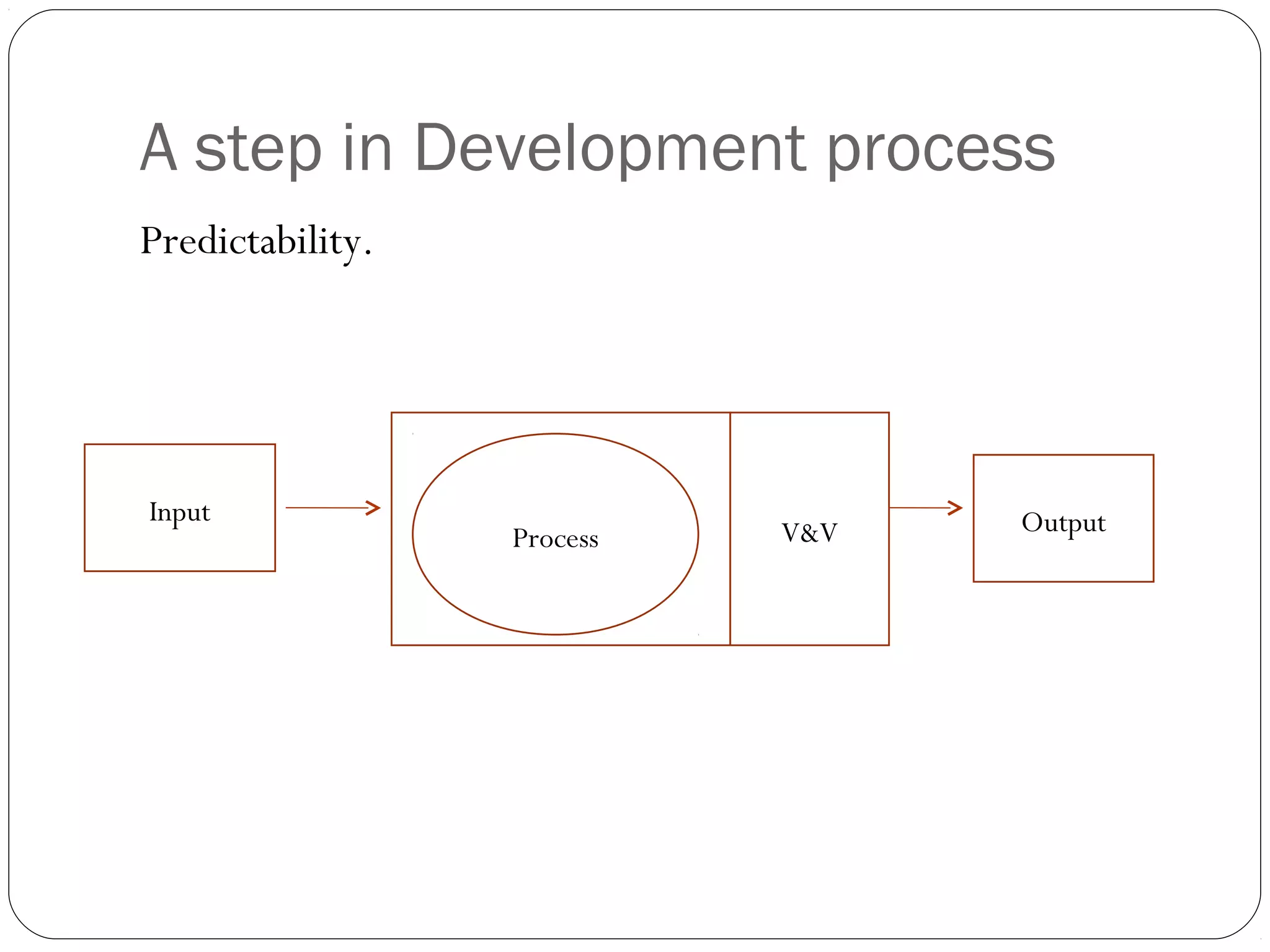

A step in Development process
Predictability.




Input                             Output
                  Process   V&V

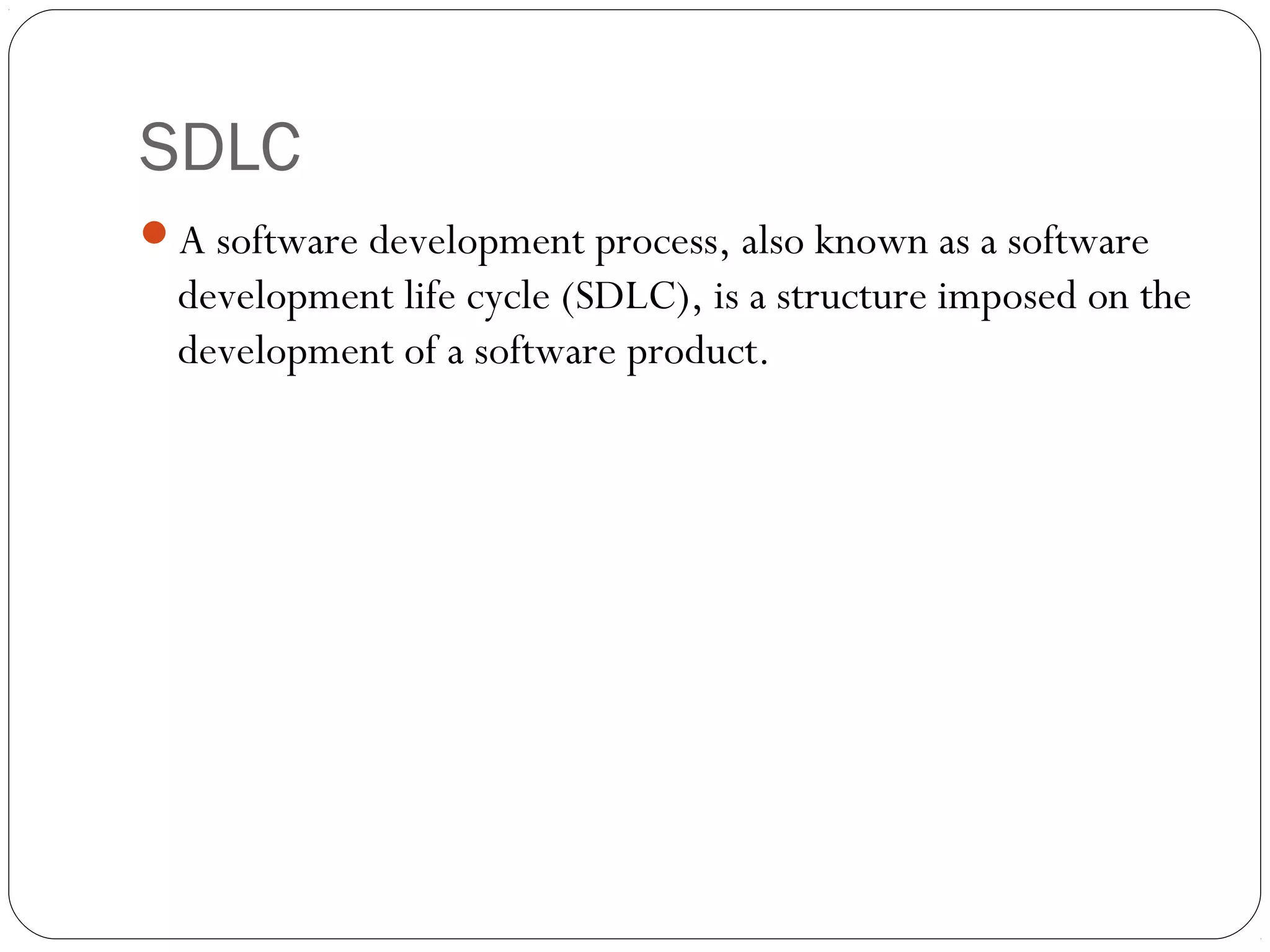

SDLC
A software development process, also known as a software
  development life cycle (SDLC), is a structure imposed on the
  development of a software product.

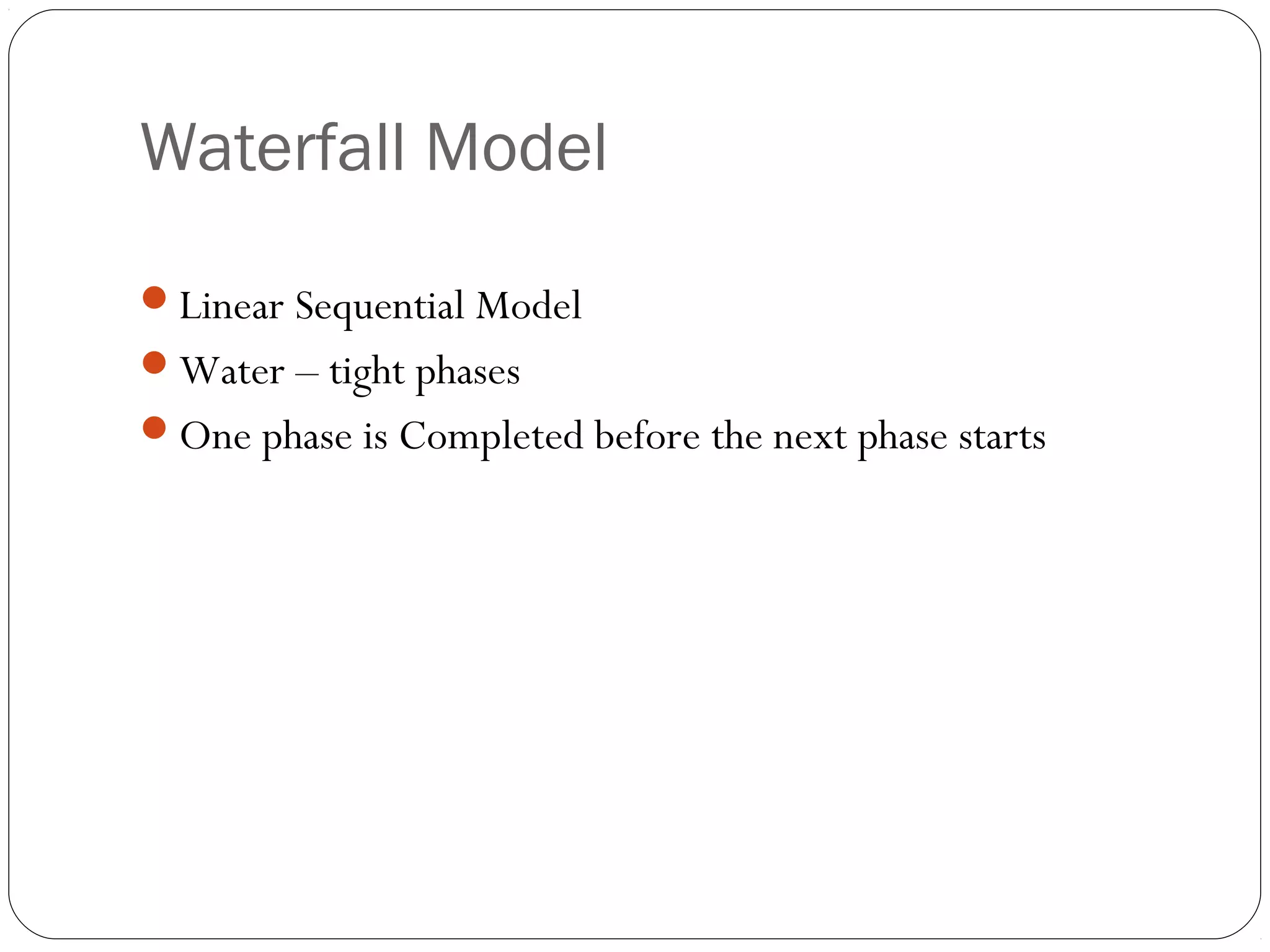

Waterfall Model

Linear Sequential Model
Water – tight phases
One phase is Completed before the next phase starts

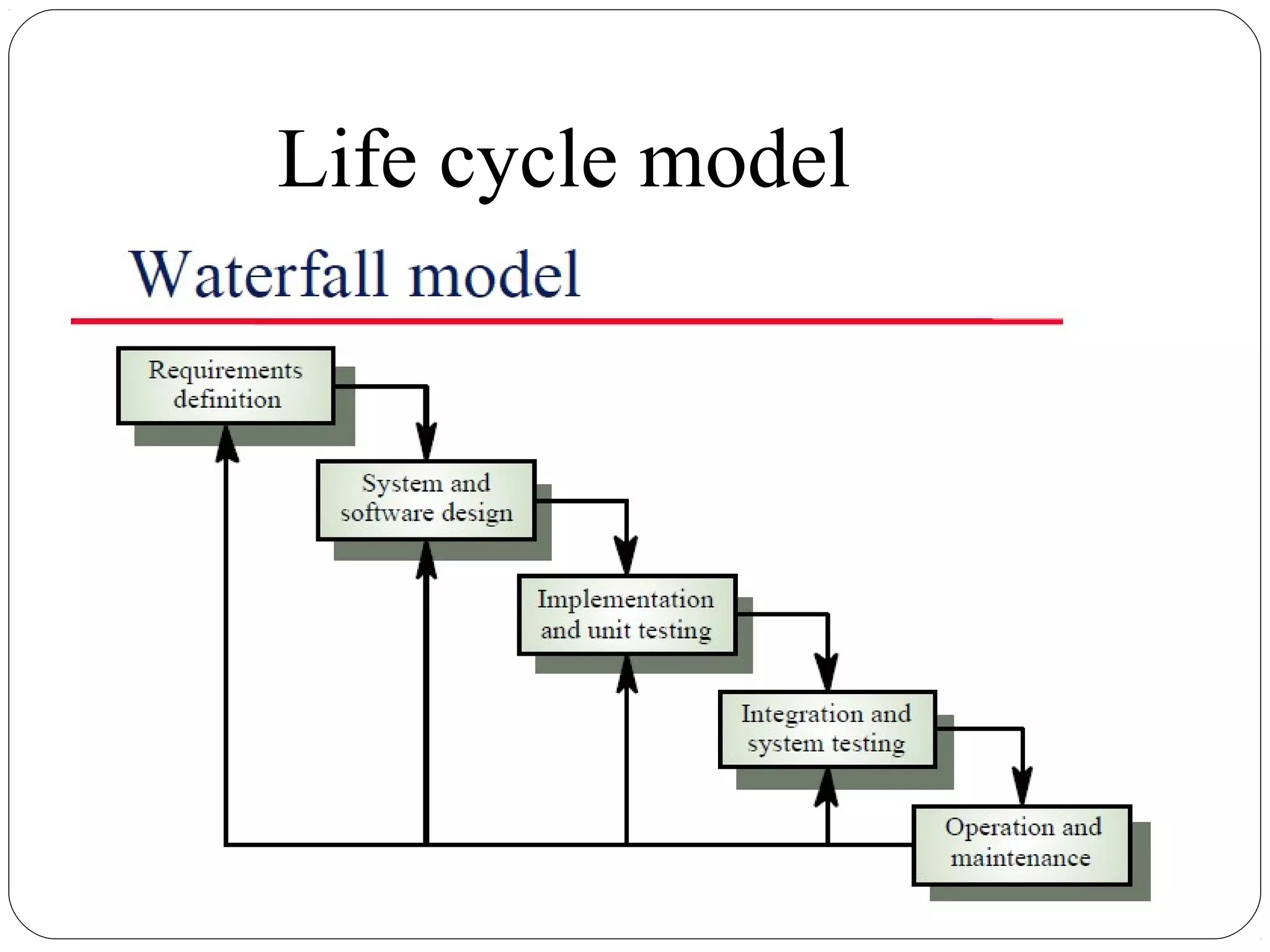

Life cycle model

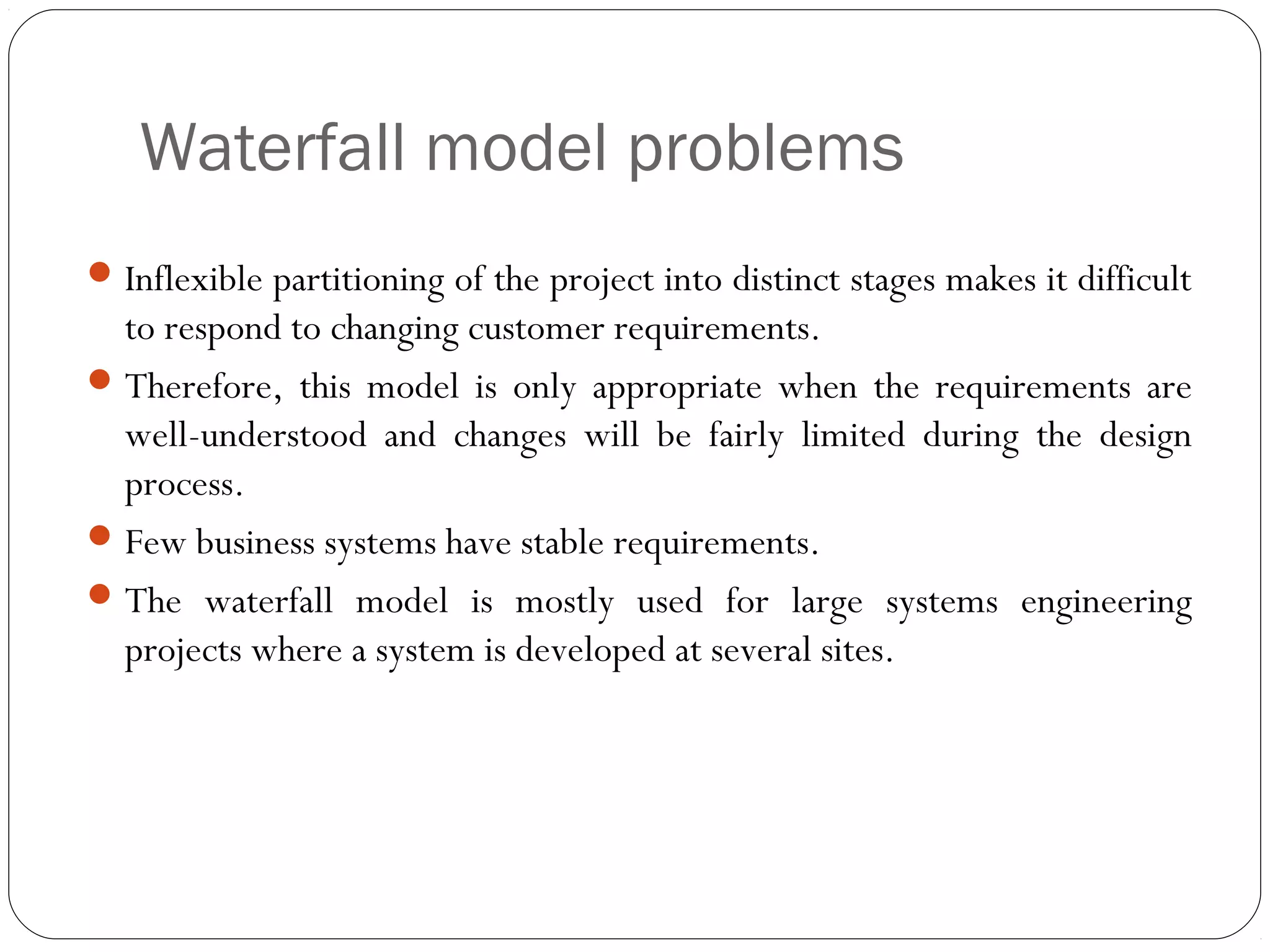

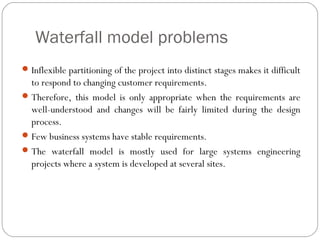

Waterfall model problems
 Inflexible partitioning of the project into distinct stages makes it difficult
  to respond to changing customer requirements.
 Therefore, this model is only appropriate when the requirements are
  well-understood and changes will be fairly limited during the design
  process.
 Few business systems have stable requirements.
 The waterfall model is mostly used for large systems engineering
  projects where a system is developed at several sites.

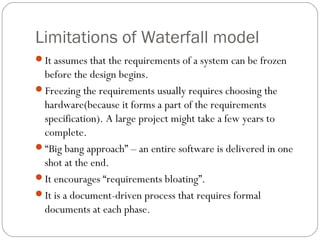

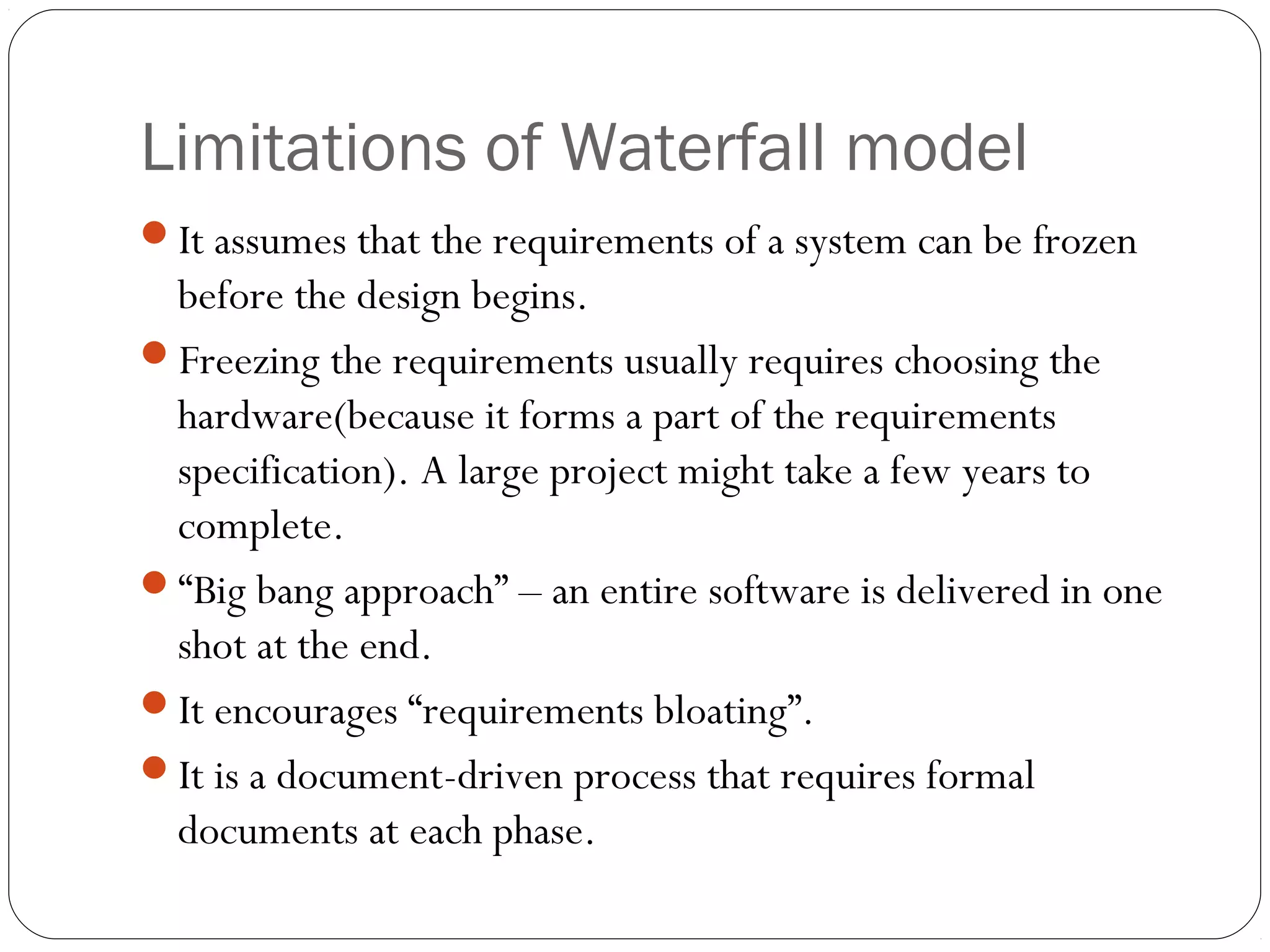

Limitations of Waterfall model
It assumes that the requirements of a system can be frozen
 before the design begins.
Freezing the requirements usually requires choosing the
 hardware(because it forms a part of the requirements
 specification). A large project might take a few years to
 complete.
“Big bang approach” – an entire software is delivered in one
 shot at the end.
It encourages “requirements bloating”.
It is a document-driven process that requires formal
 documents at each phase.

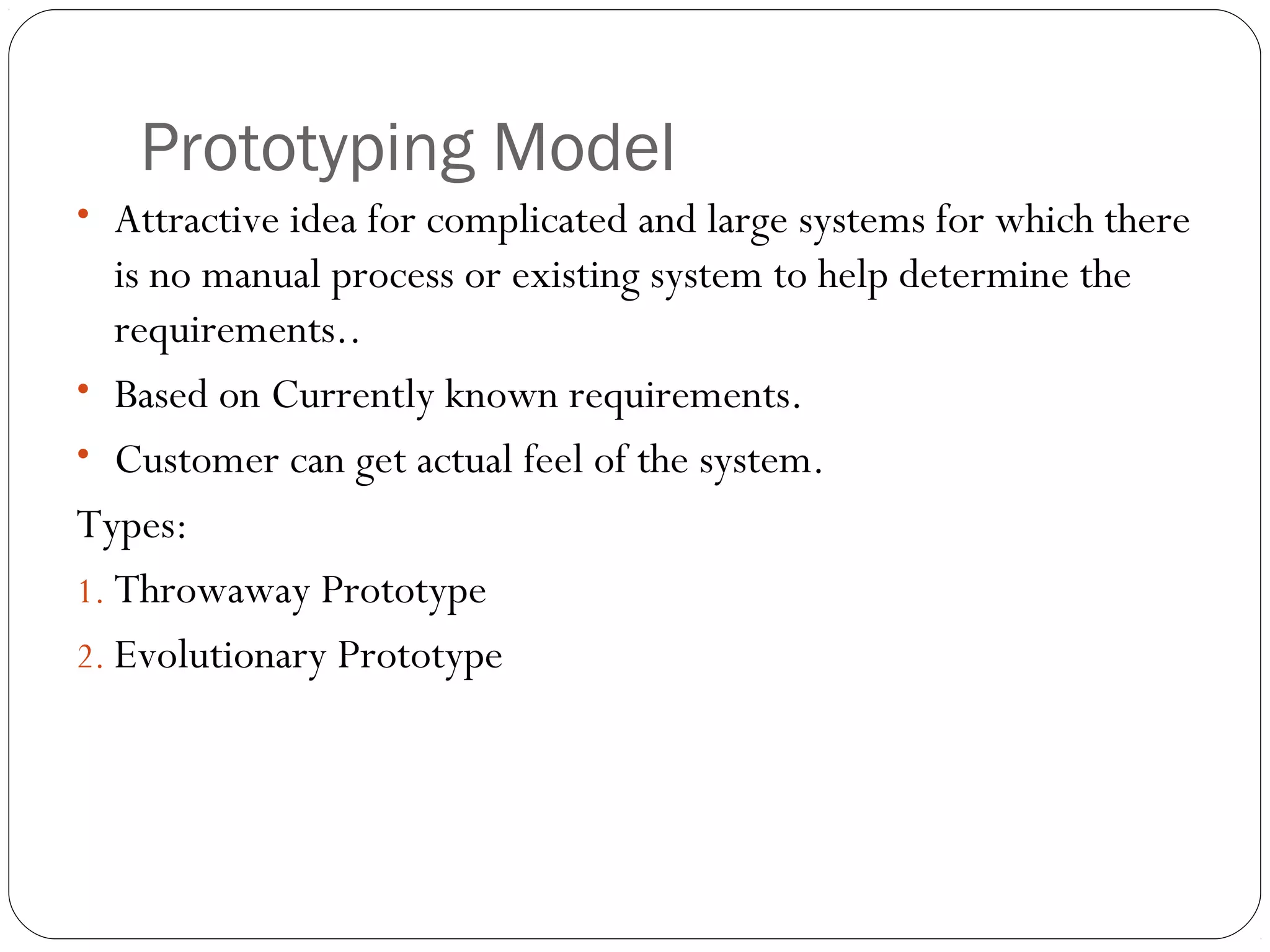

Prototyping Model
• Attractive idea for complicated and large systems for which there
   is no manual process or existing system to help determine the
   requirements..
• Based on Currently known requirements.
• Customer can get actual feel of the system.
Types:
1. Throwaway Prototype
2. Evolutionary Prototype

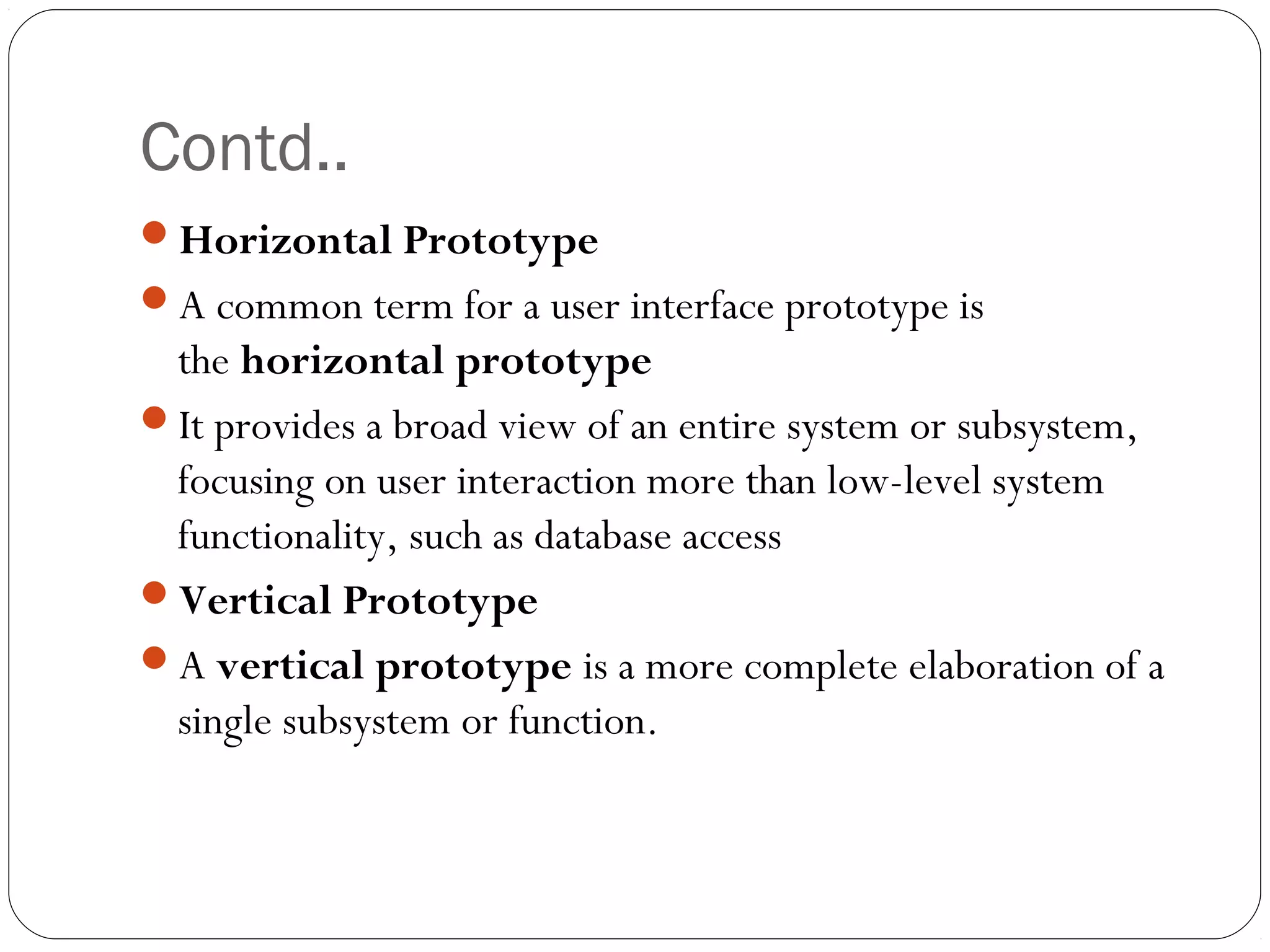

Contd..
Horizontal Prototype
A common term for a user interface prototype is
 the horizontal prototype
It provides a broad view of an entire system or subsystem,
 focusing on user interaction more than low-level system
 functionality, such as database access
Vertical Prototype
A vertical prototype is a more complete elaboration of a
 single subsystem or function.
Contd..

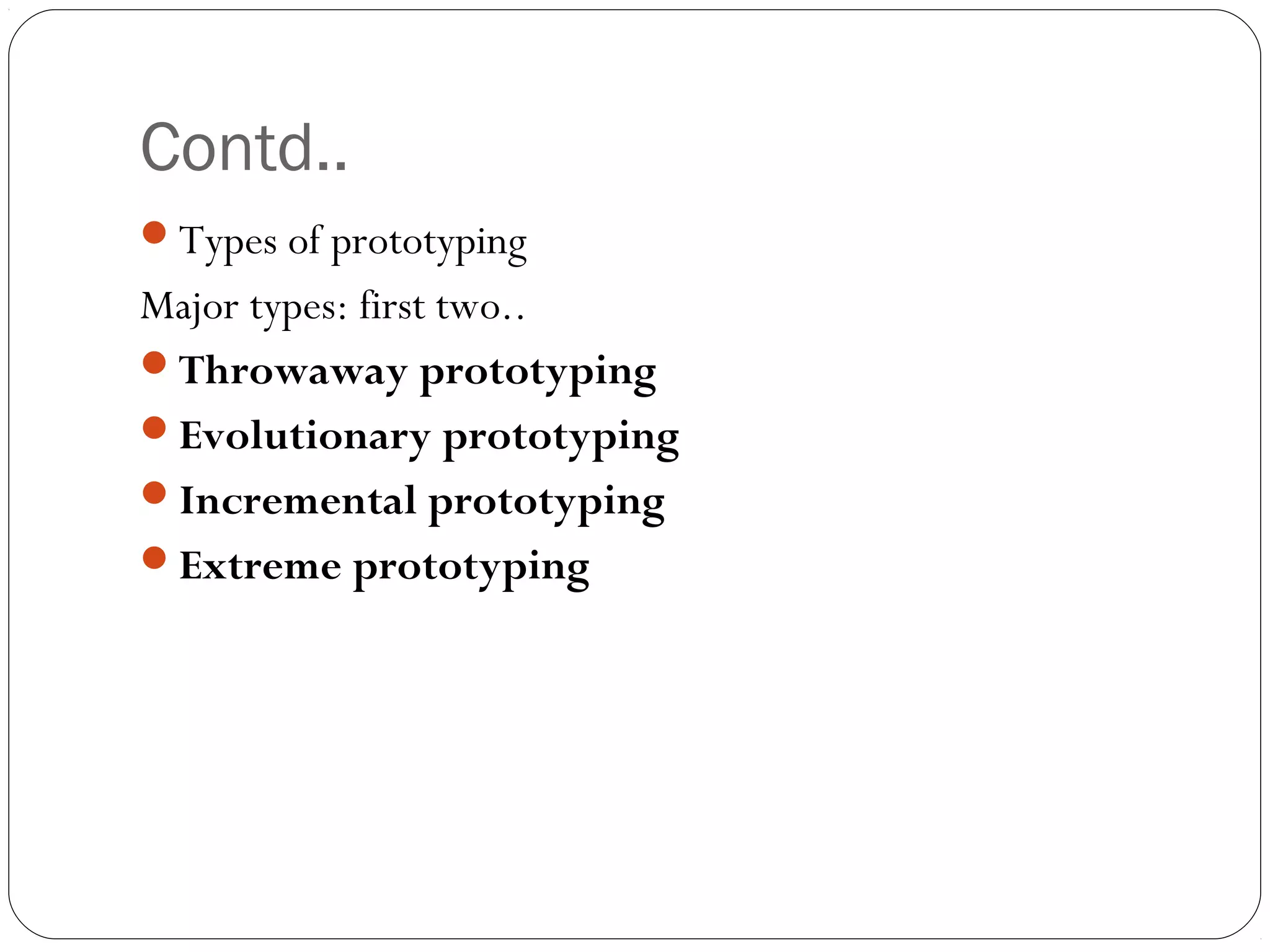

Types of prototyping
Major types: first two..
Throwaway prototyping

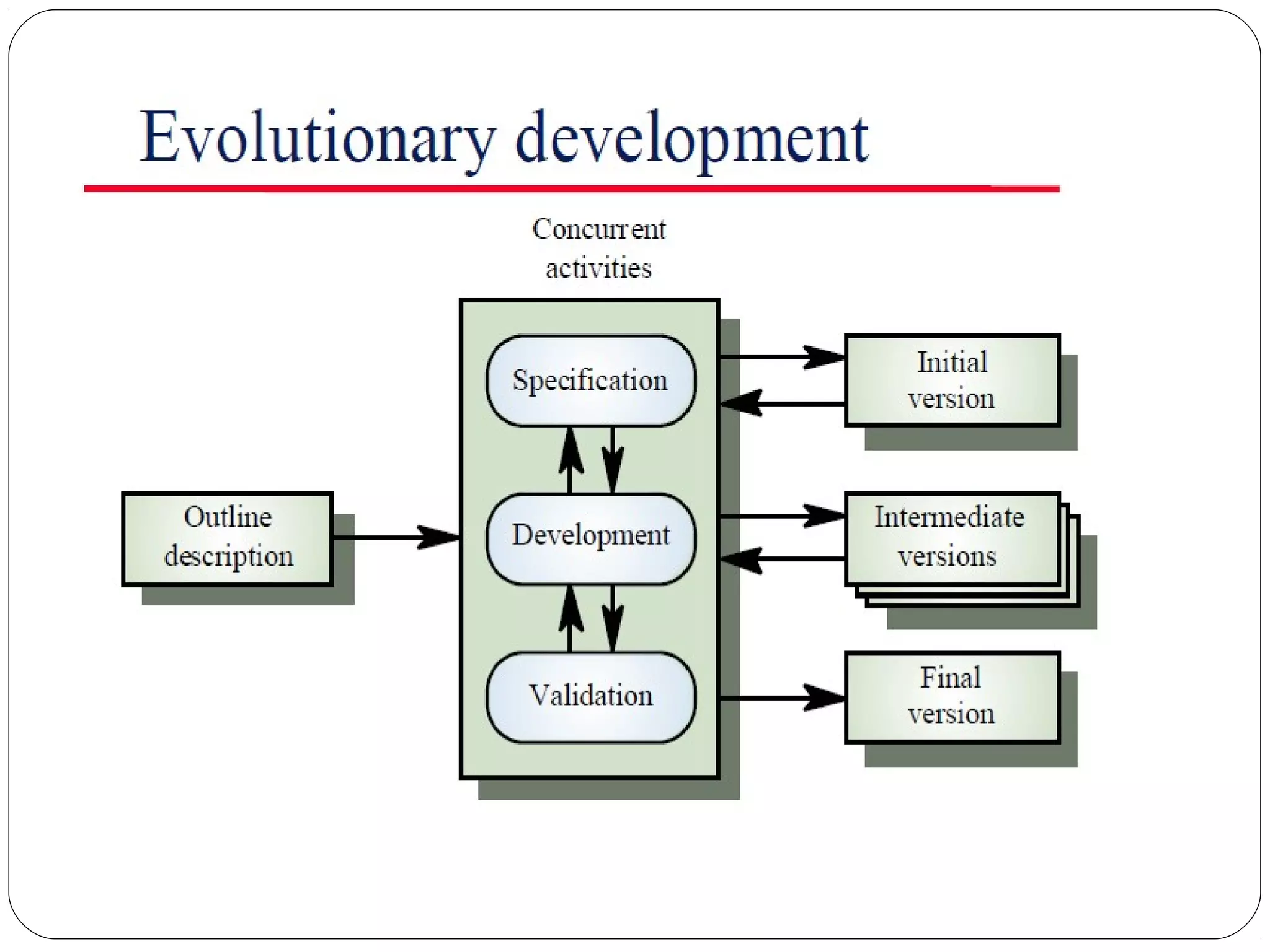

Evolutionary prototyping
Incremental prototyping
Extreme prototyping

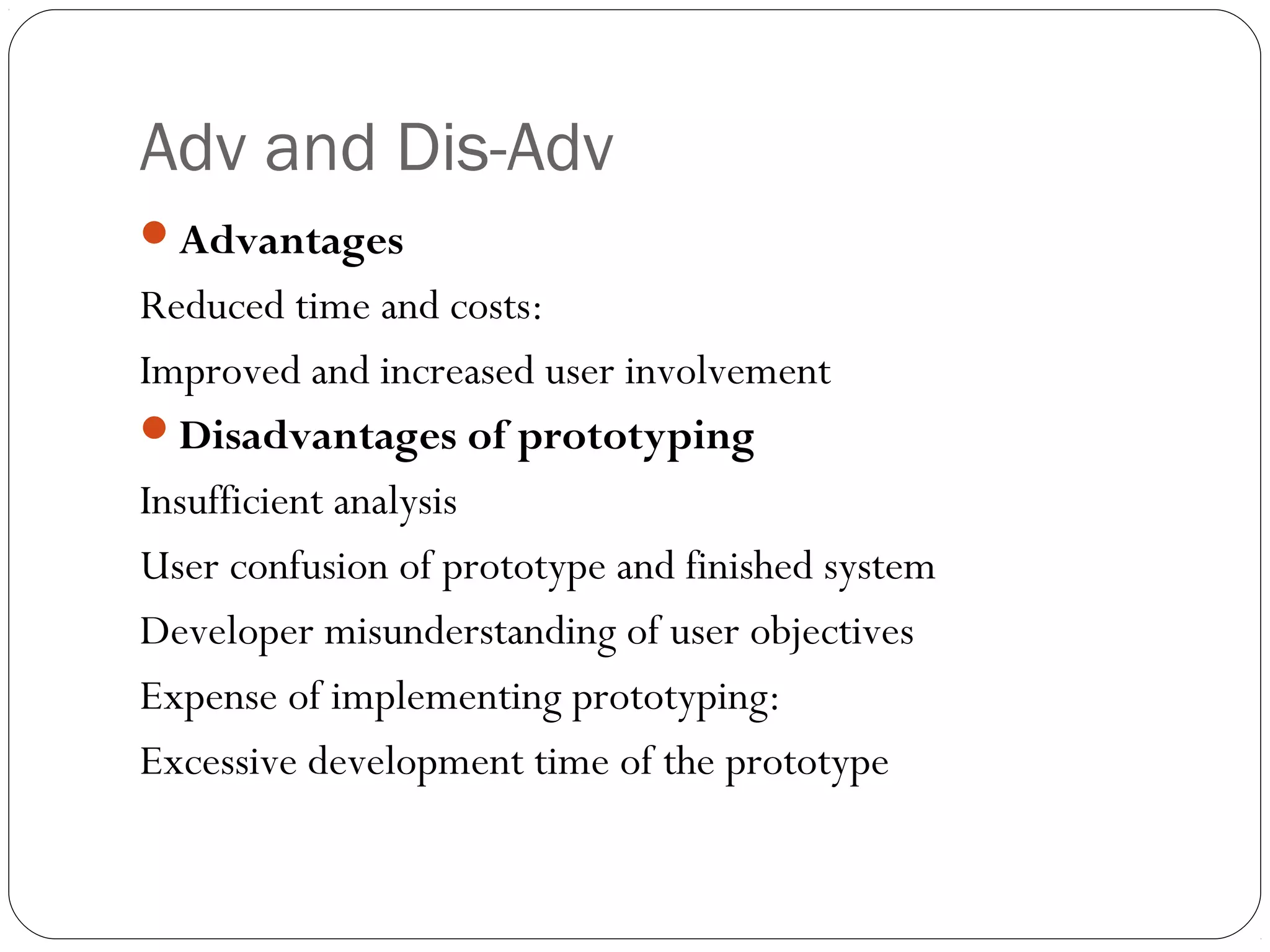

Adv and Dis-Adv
Advantages
Reduced time and costs:
Improved and increased user involvement
Disadvantages of prototyping
Insufficient analysis
User confusion of prototype and finished system
Developer misunderstanding of user objectives
Expense of implementing prototyping:
Excessive development time of the prototype

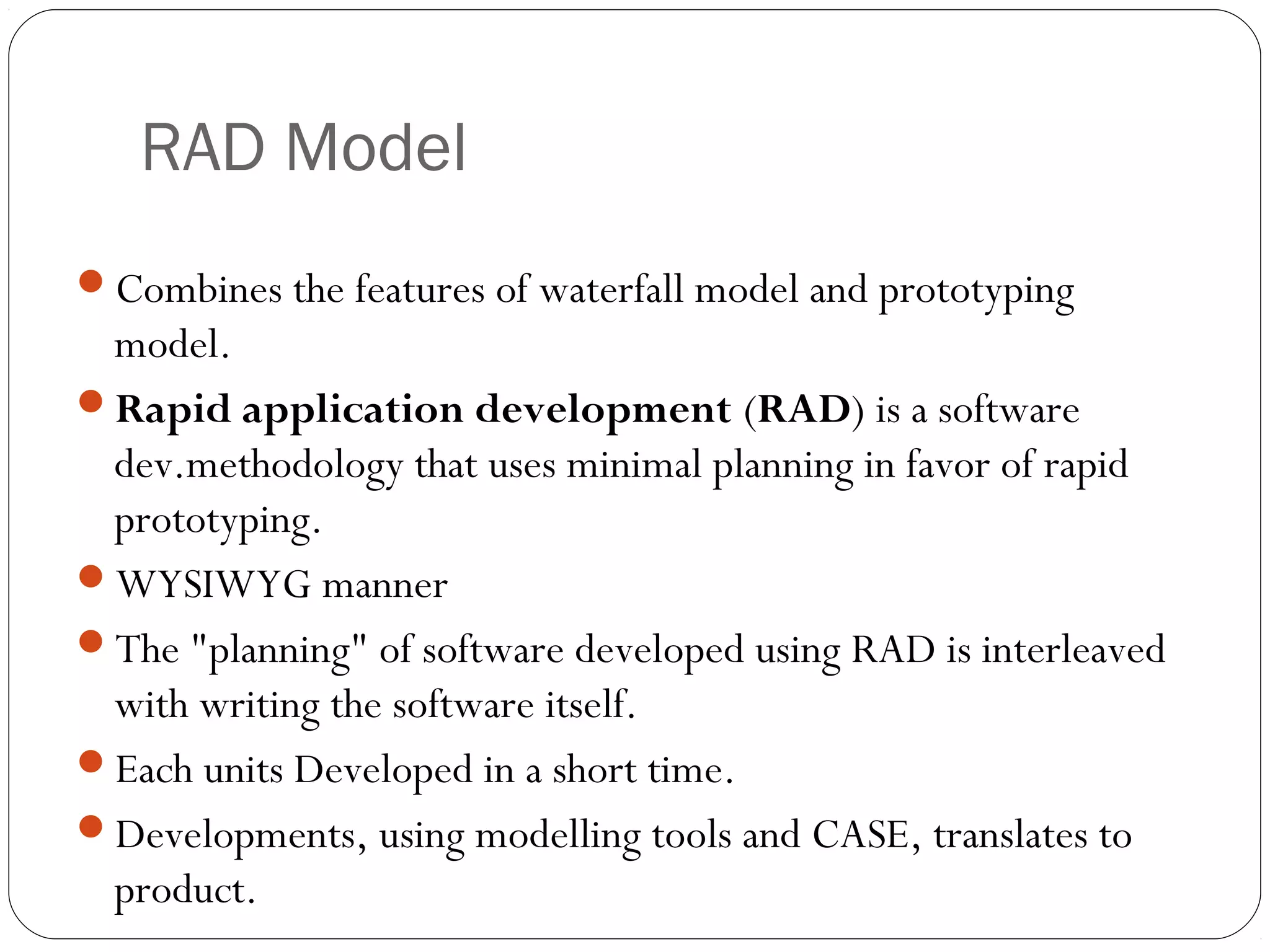

RAD Model
Combines the features of waterfall model and prototyping
 model.
Rapid application development (RAD) is a software
 dev.methodology that uses minimal planning in favor of rapid
 prototyping.
WYSIWYG manner
The "planning" of software developed using RAD is interleaved
 with writing the software itself.
Each units Developed in a short time.
Developments, using modelling tools and CASE, translates to
 product.

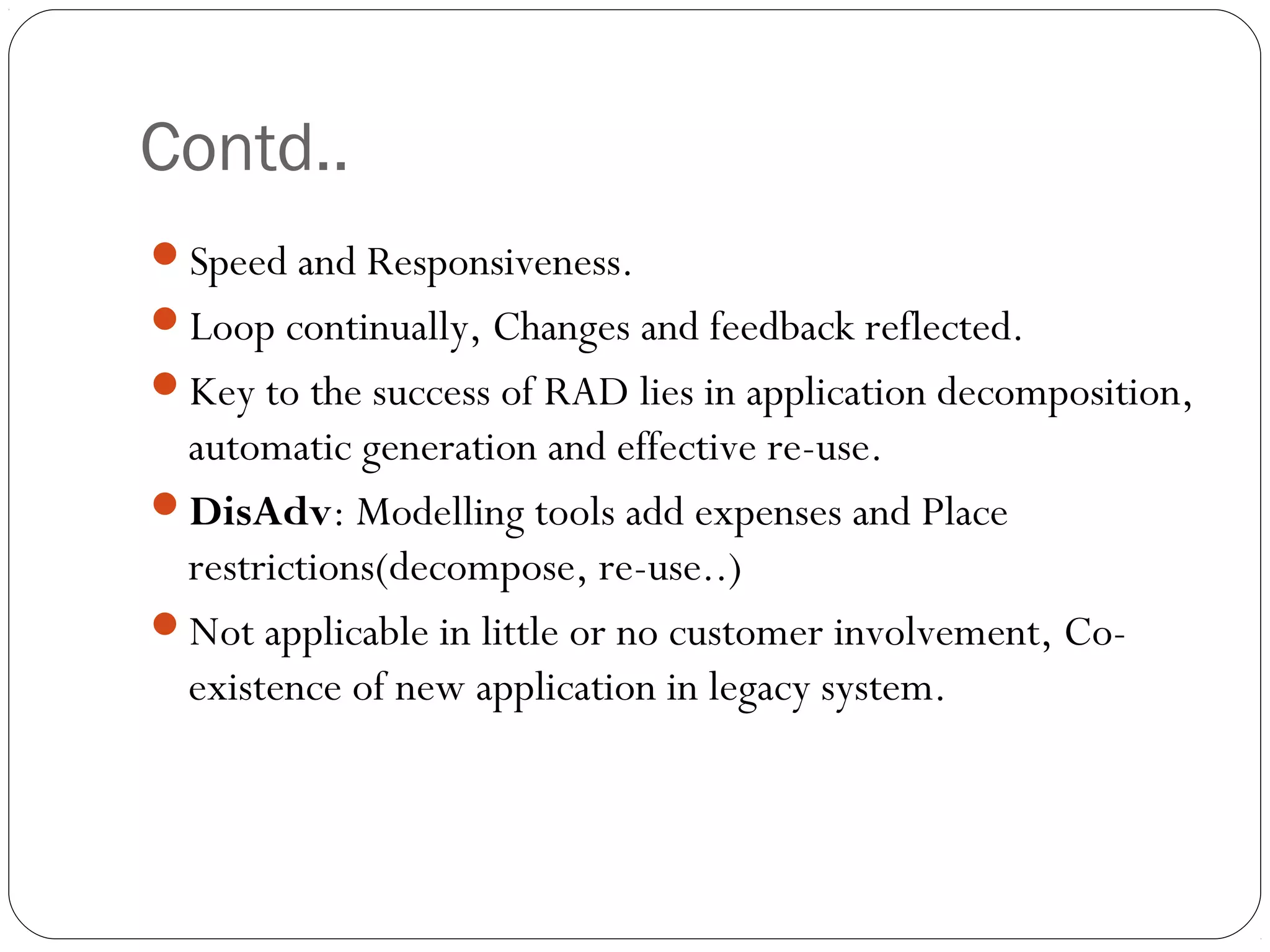

Contd..
Speed and Responsiveness.
Loop continually, Changes and feedback reflected.
Key to the success of RAD lies in application decomposition,
 automatic generation and effective re-use.
DisAdv: Modelling tools add expenses and Place
 restrictions(decompose, re-use..)
Not applicable in little or no customer involvement, Co-
 existence of new application in legacy system.

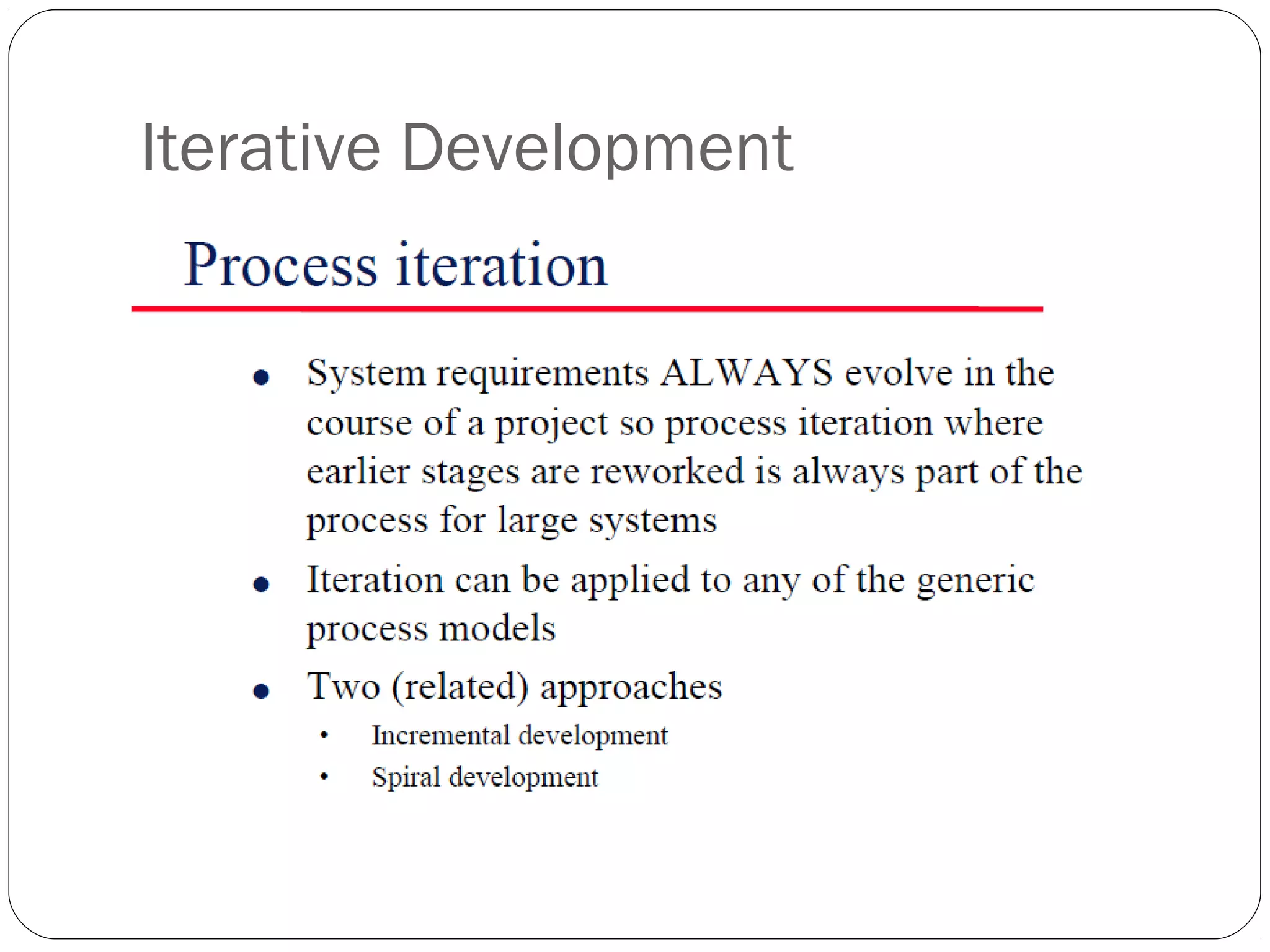

Iterative Development

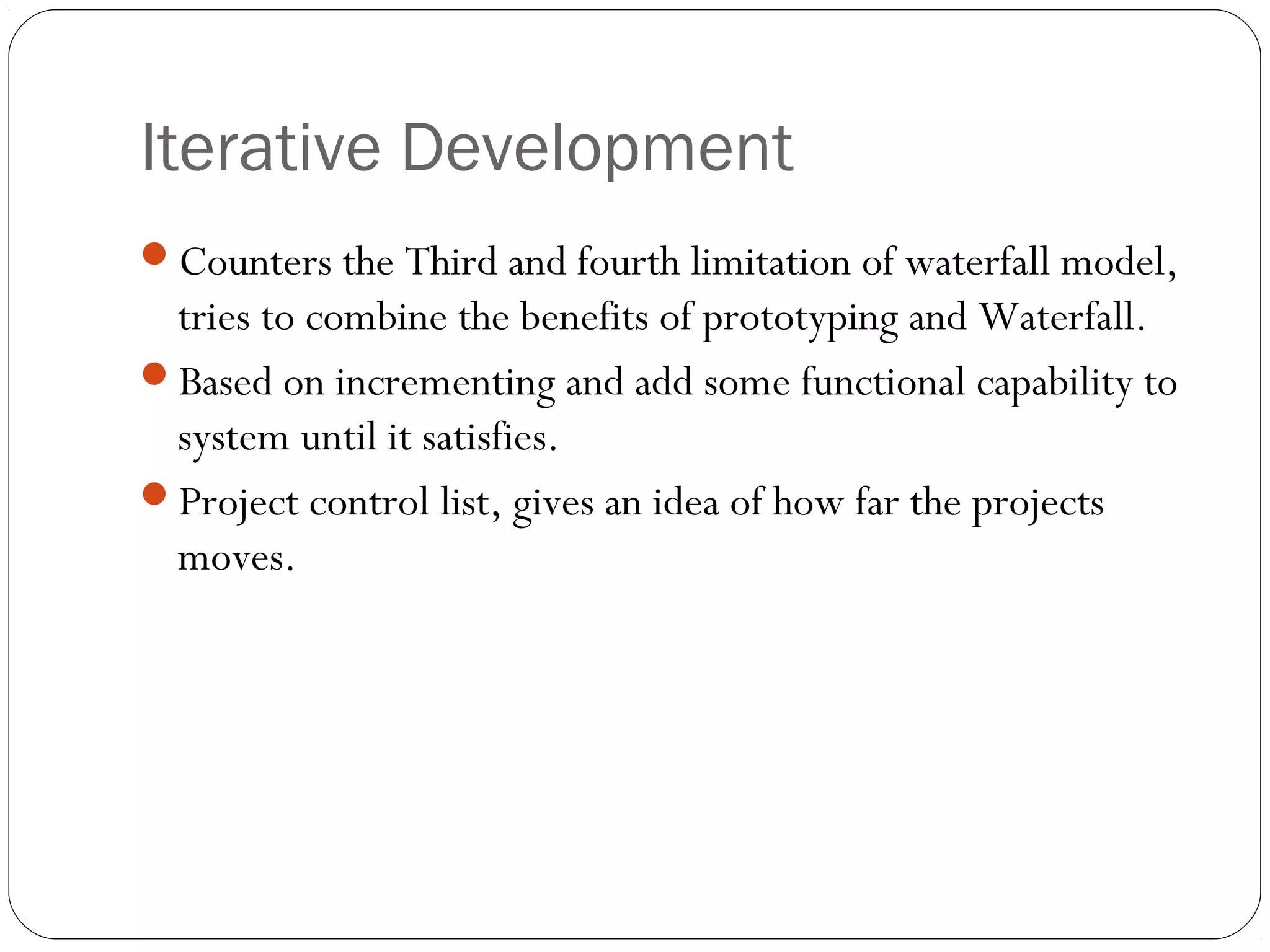

Iterative Development
Counters the Third and fourth limitation of waterfall model,
 tries to combine the benefits of prototyping and Waterfall.
Based on incrementing and add some functional capability to
 system until it satisfies.
Project control list, gives an idea of how far the projects
 moves.

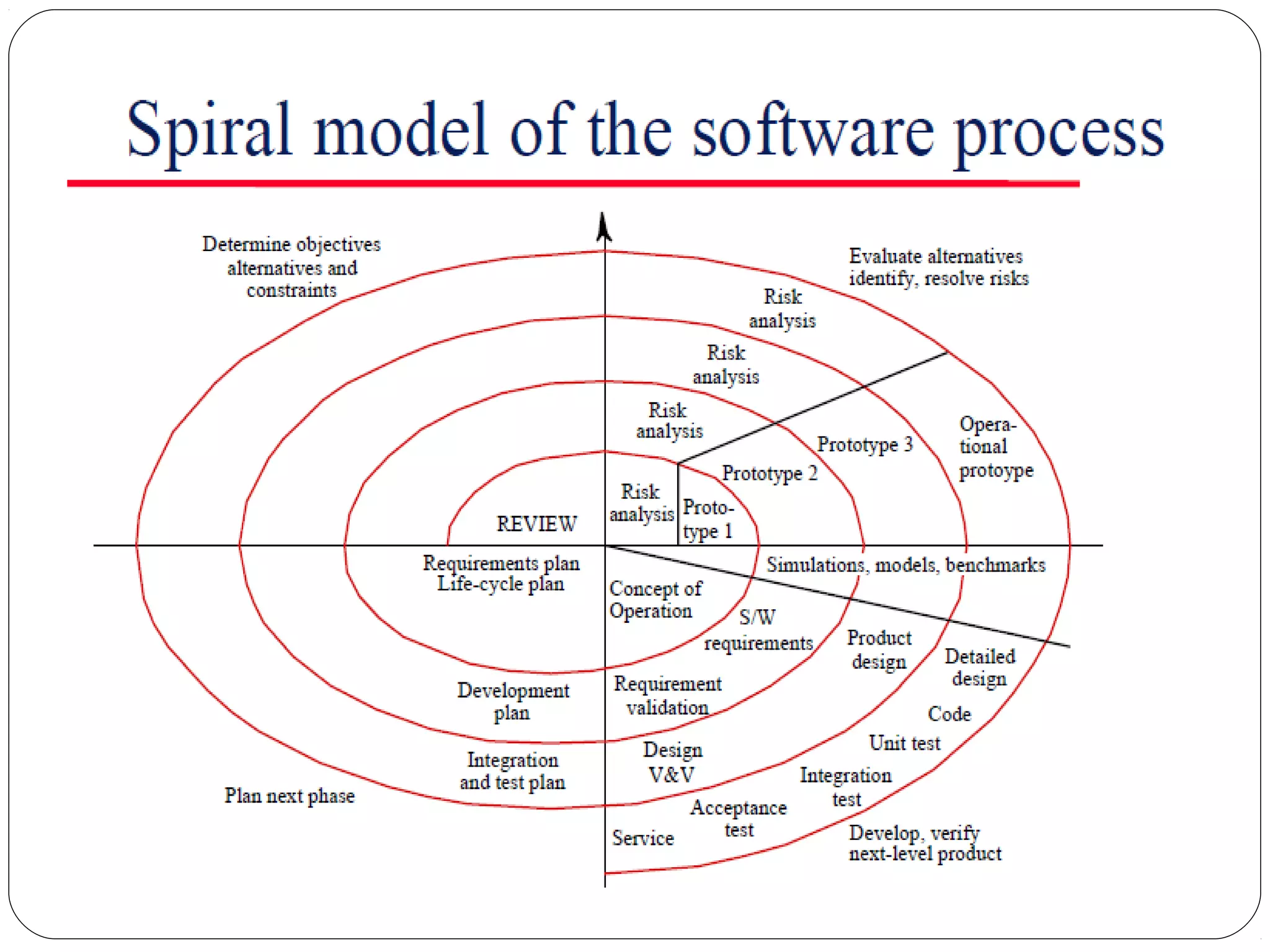

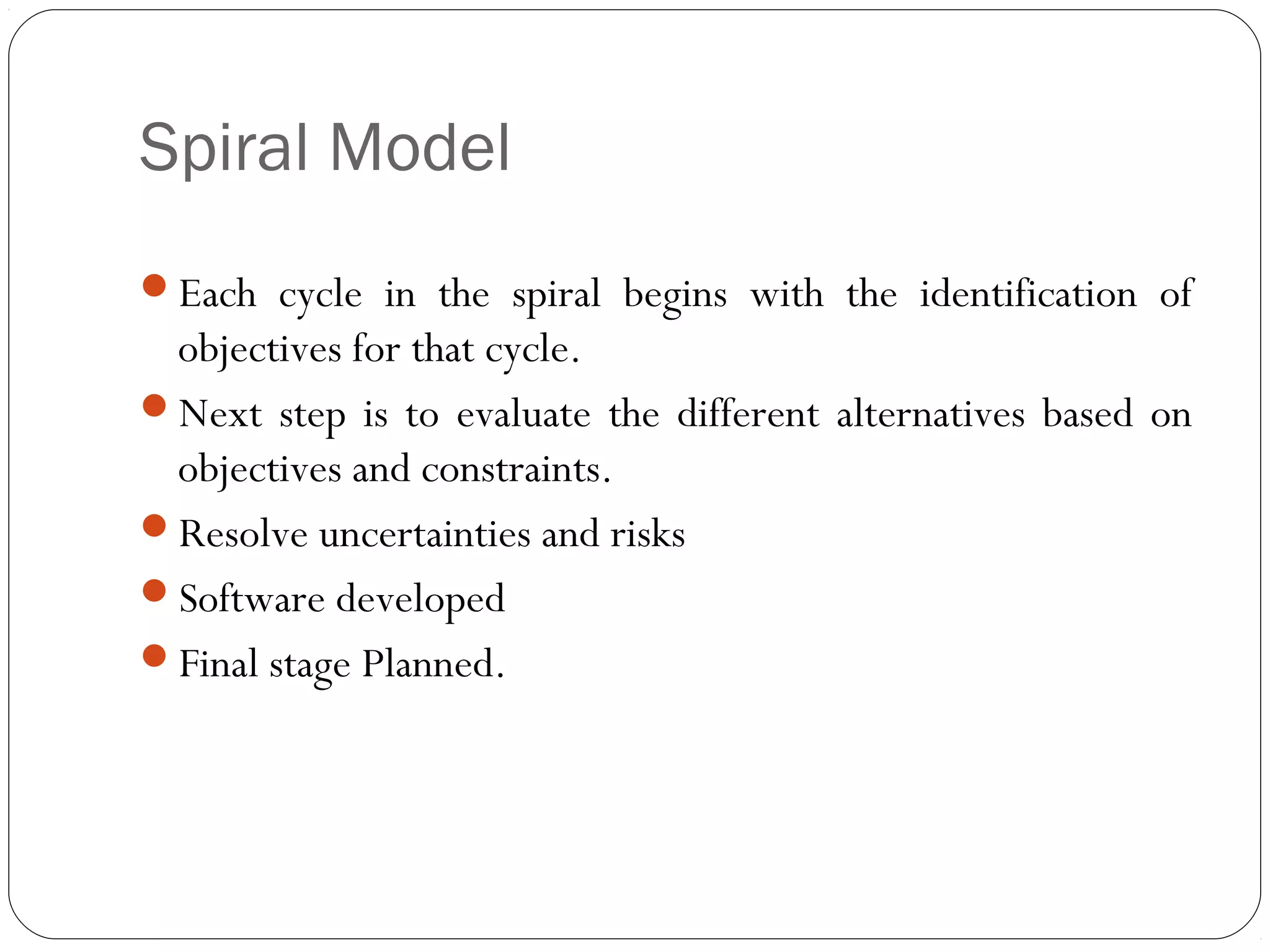

Spiral Model
Each cycle in the spiral begins with the identification of
 objectives for that cycle.
Next step is to evaluate the different alternatives based on
 objectives and constraints.
Resolve uncertainties and risks
Software developed
Final stage Planned.

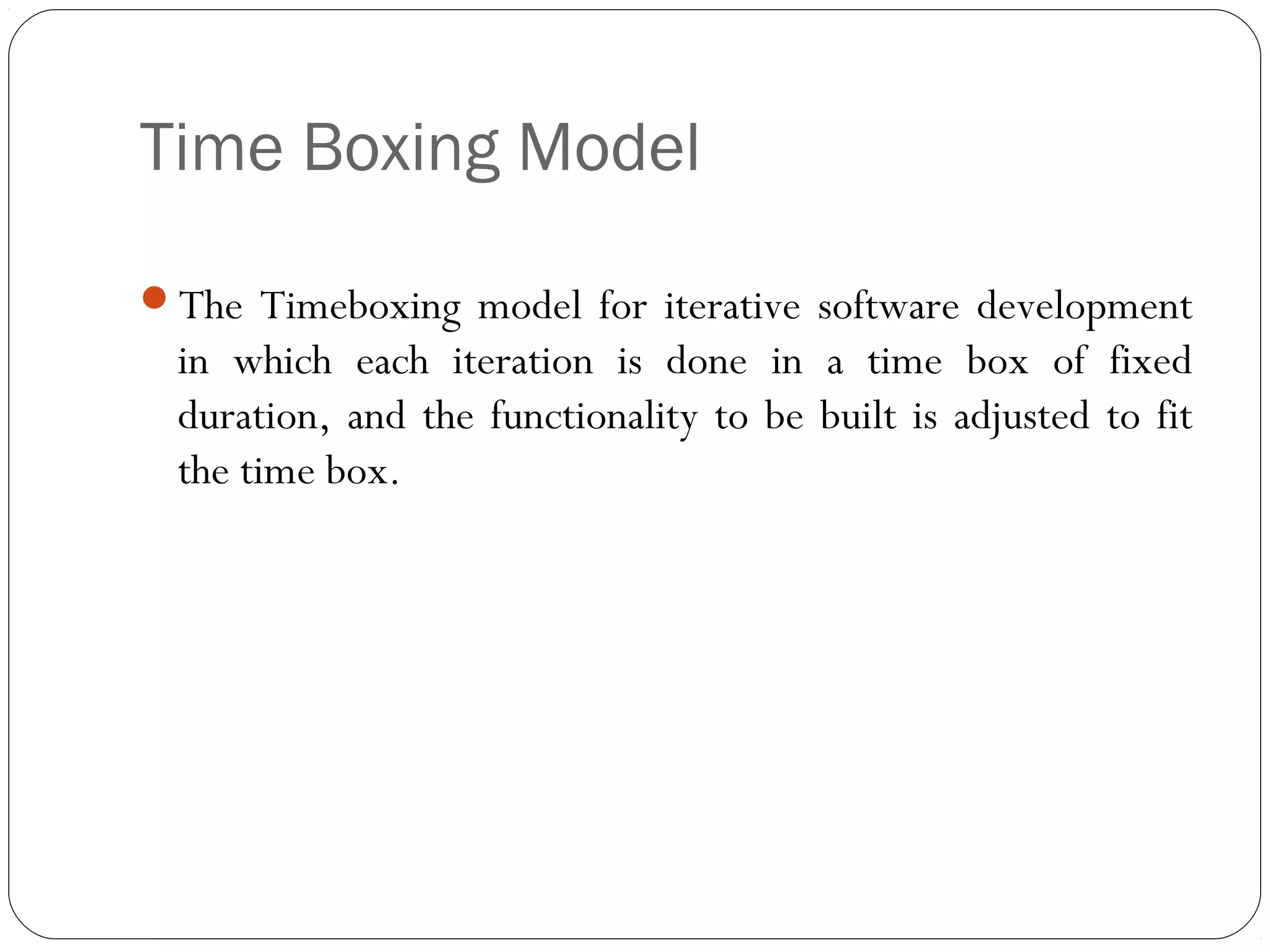

Time Boxing Model

The Timeboxing model for iterative software development
  in which each iteration is done in a time box of fixed
  duration, and the functionality to be built is adjusted to fit
  the time box.

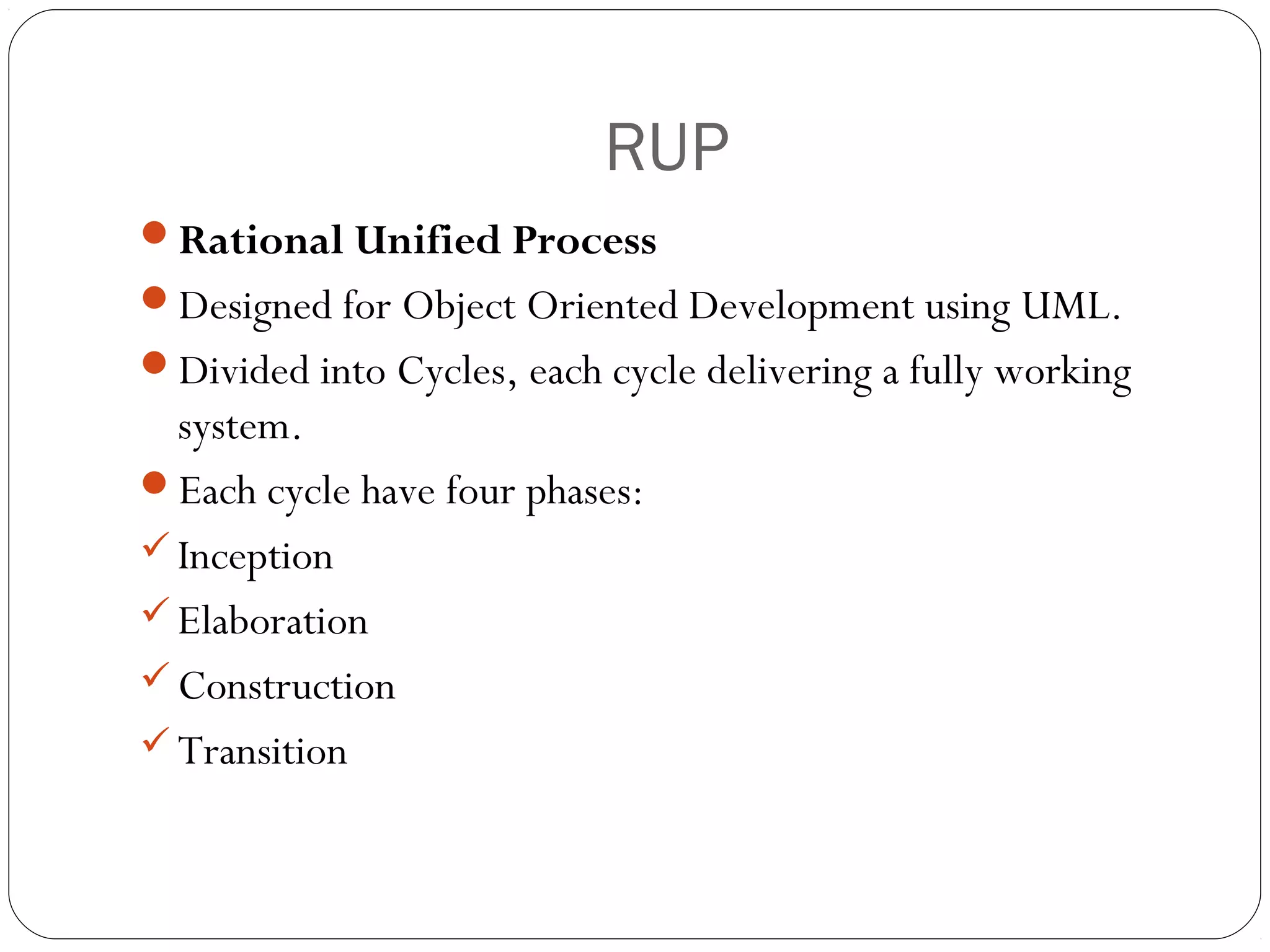

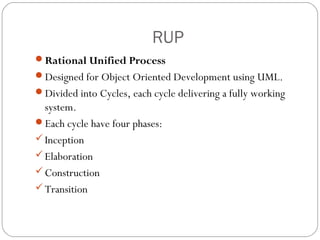

RUP
Rational Unified Process
Designed for Object Oriented Development using UML.
Divided into Cycles, each cycle delivering a fully working
  system.
Each cycle have four phases:
 Inception
 Elaboration
 Construction
 Transition

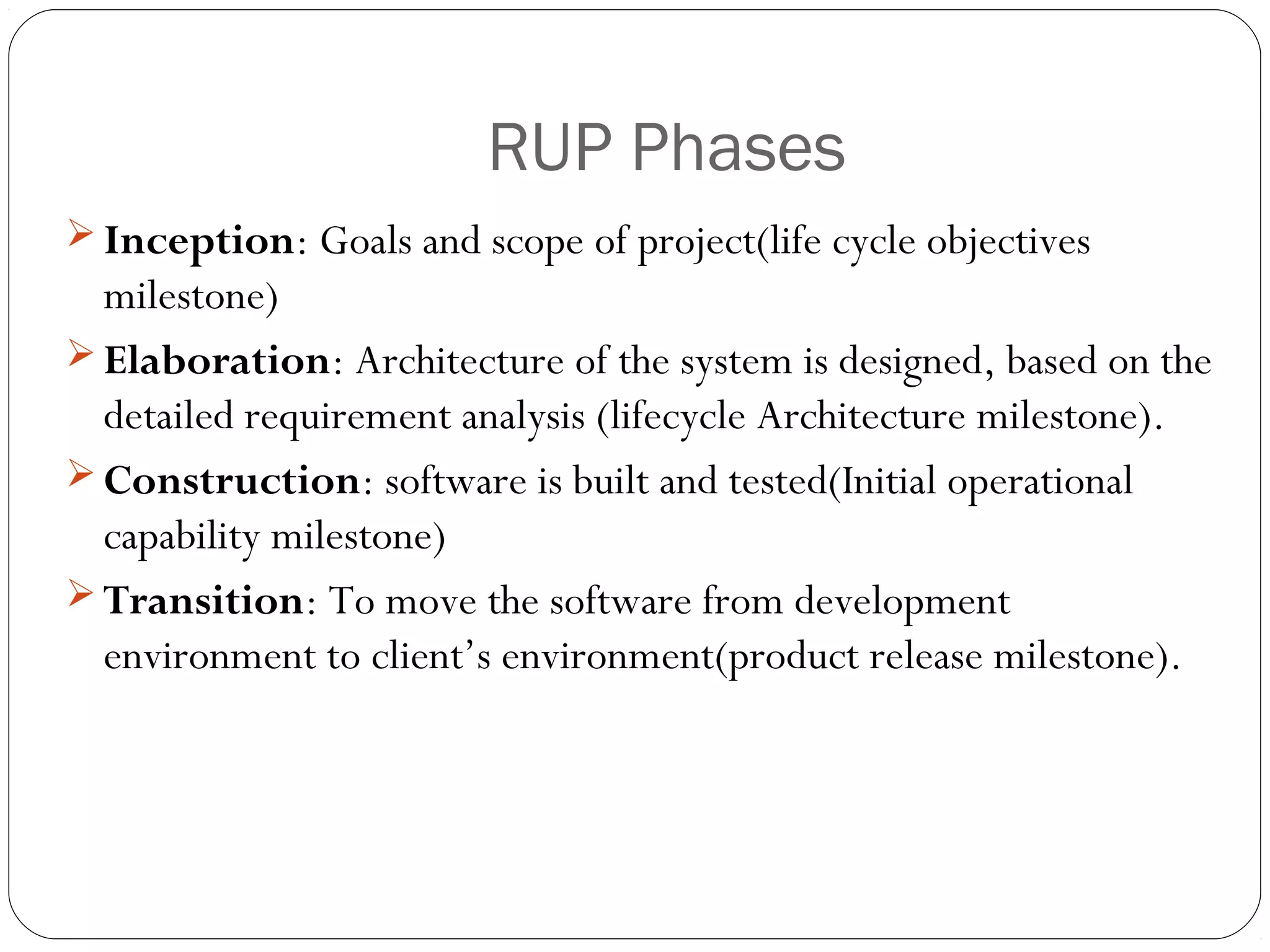

RUP Phases
 Inception: Goals and scope of project(life cycle objectives
  milestone)
 Elaboration: Architecture of the system is designed, based on the
  detailed requirement analysis (lifecycle Architecture milestone).
 Construction: software is built and tested(Initial operational
  capability milestone)
 Transition: To move the software from development
  environment to client’s environment(product release milestone).

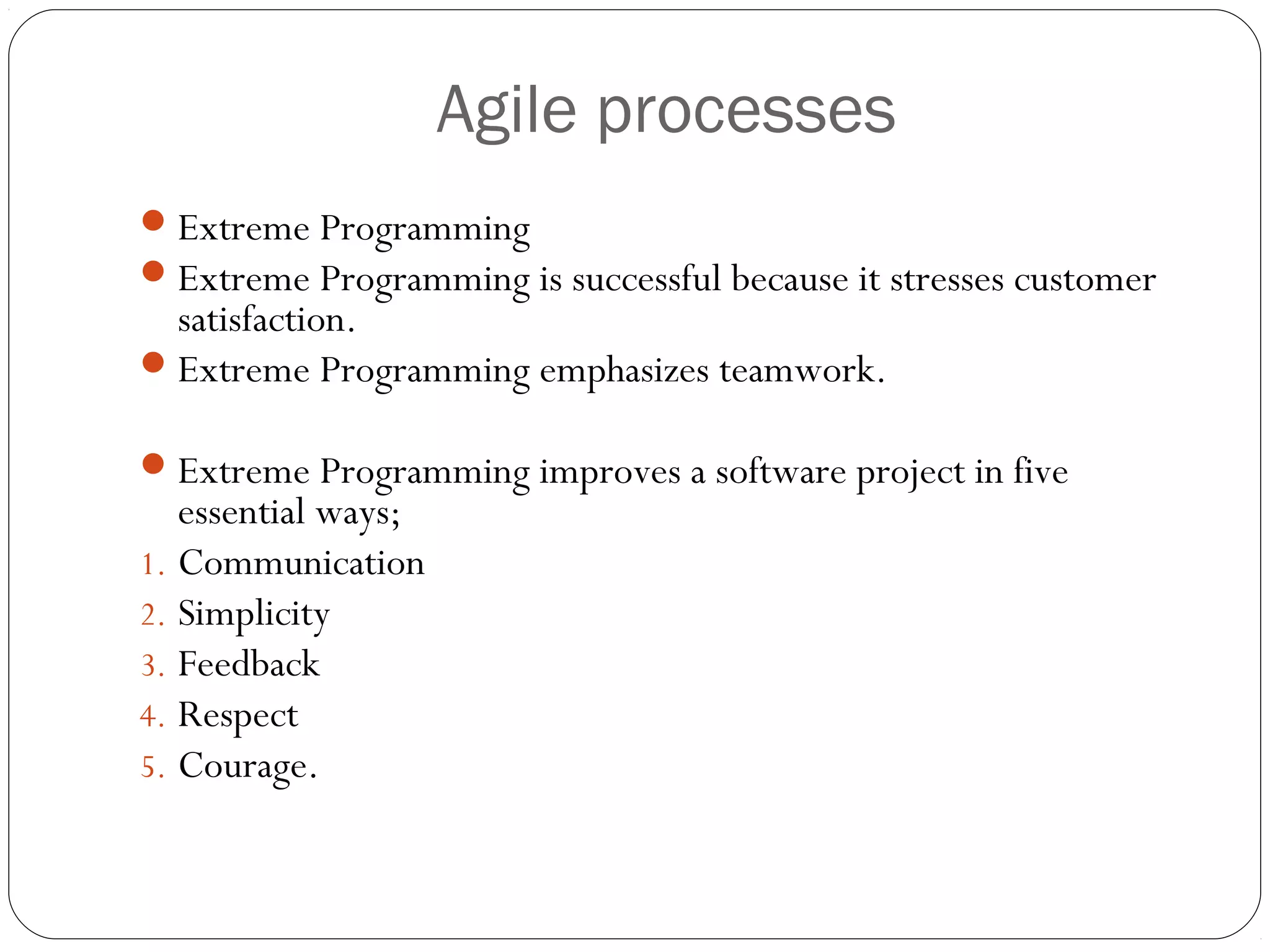

Agile processes
 Extreme Programming
 Extreme Programming is successful because it stresses customer
  satisfaction.
 Extreme Programming emphasizes teamwork.

 Extreme Programming improves a software project in five
   essential ways;
1. Communication
2. Simplicity
3. Feedback
4. Respect
5. Courage.

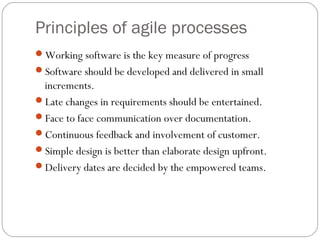

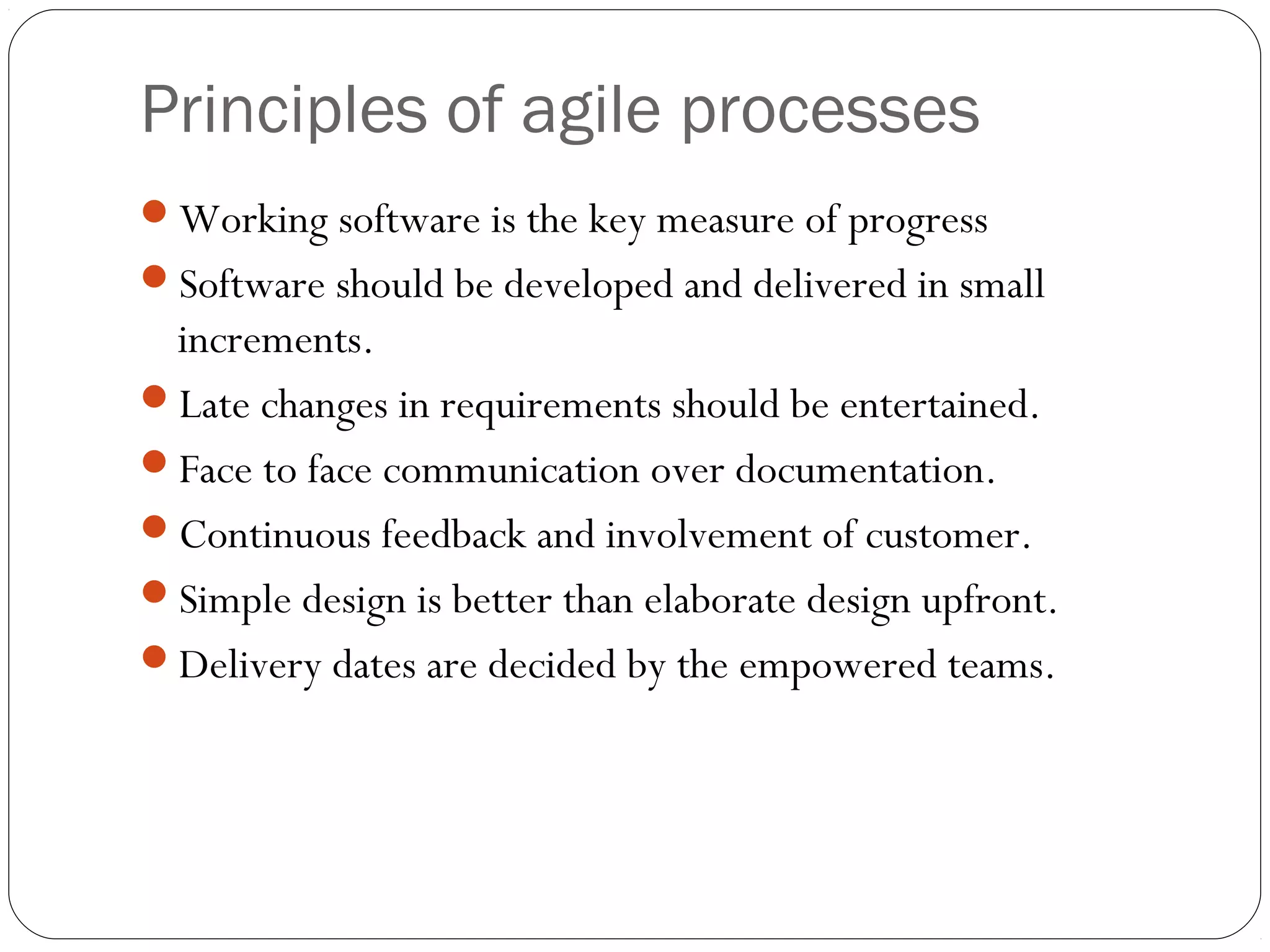

Principles of agile processes
Working software is the key measure of progress
Software should be developed and delivered in small
 increments.
Late changes in requirements should be entertained.
Face to face communication over documentation.
Continuous feedback and involvement of customer.
Simple design is better than elaborate design upfront.
Delivery dates are decided by the empowered teams.
THANK YOU
