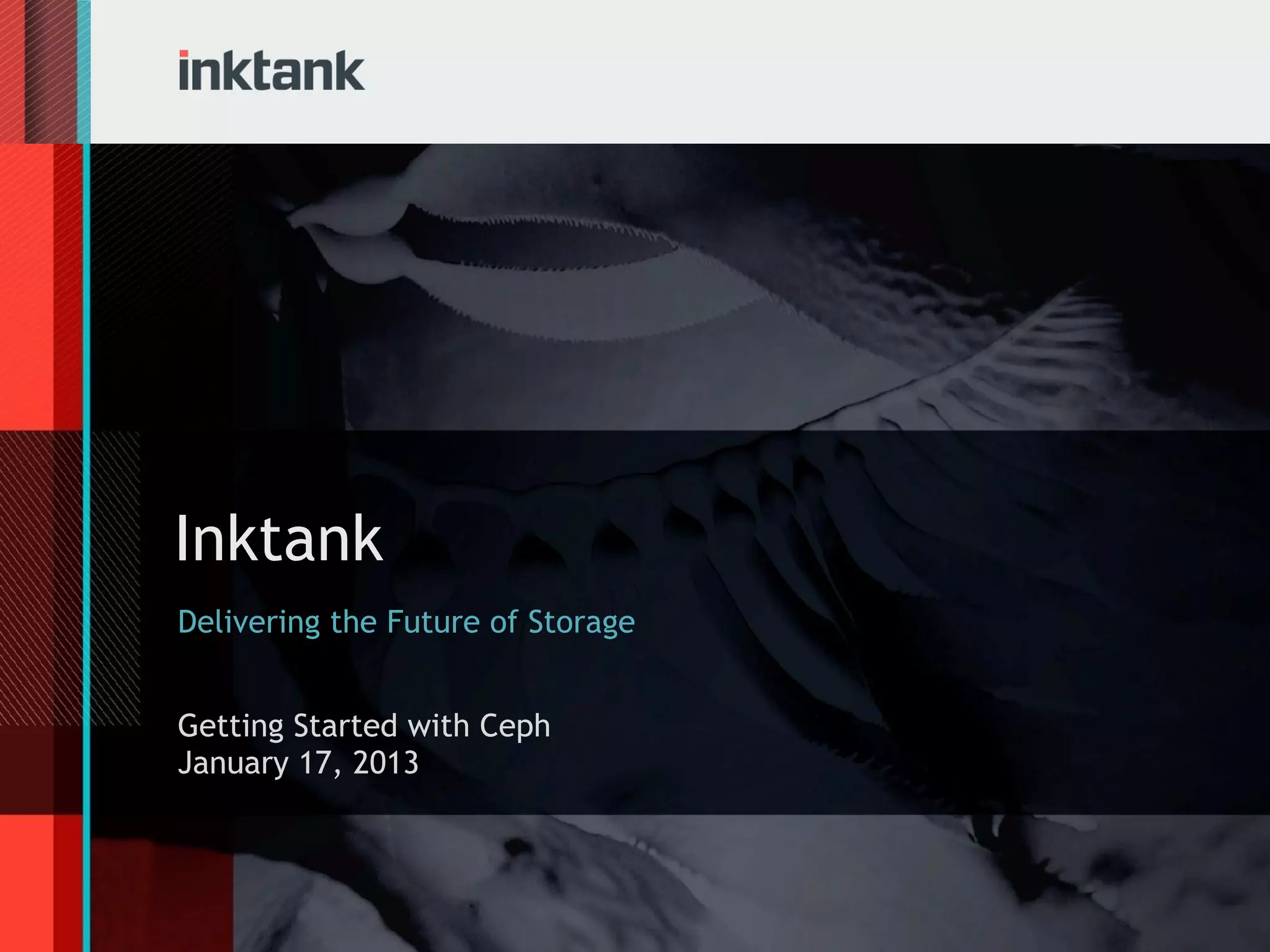

1. Inktank
Delivering the Future of Storage
Getting Started with Ceph
January 17, 2013

2. Agenda
• Inktank and Ceph Introduction
• Ceph Technology
• Getting Started Walk-through
• Resources
• Next steps

3. • Company that provides • Distributed unified object,
professional services and block and file storage
support for Ceph
platform
• Founded in 2011
• Created by storage
• Funded by DreamHost experts
• Mark Shuttleworth • Open source
invested $1M
• In the Linux Kernel
• Sage Weil, CTO and
creator of Ceph • Integrated into Cloud
Platforms

4. Ceph Technological Foundations
Ceph was built with the following goals:
l Every component must scale
l There can be no single point of failure
l The solution must be software-based, not an appliance
l Should run on readily-available, commodity hardware
l Everything must self-manage wherever possible
l Must be open source
4

5. Key Differences
• CRUSH data placement algorithm (Object)
Intelligent storage nodes
• Unified storage platform (Object + Block + File)
All uses cases (cloud, big data, legacy, web app,
archival, etc.) satisfied in a single cluster
• Thinly provisioned virtual block device (Block)
Cloud storage block for VM images
• Distributed scalable metadata servers (CephFS)

6. Ceph Use Cases
Object
• Archival and backup storage
• Primary data storage
• S3-like storage
• Web services and platforms
• Application development
Block
• SAN replacement
• Virtual block device, VM images
File
• HPC
• Posix-compatible applications

7. Ceph Technology Overview

8. Ceph
APP APP HOST/VM CLIENT
Ceph Object Ceph Block Ceph Distributed
Ceph Object Gateway (RBD) File System
Library (RADOS (CephFS)
(LIBRADOS) Gateway) A reliable and fully-
distributed block A POSIX-compliant
device distributed file
A library allowing A RESTful gateway
applications to for object storage system
directly
access Ceph Object
Storage
Ceph Object Storage
(RADOS)
A reliable, autonomous, distributed object store comprised of self-healing, self-managing,
intelligent storage nodes

9. RADOS Components
Monitors:
M
• Maintain cluster map
• Provide consensus for
distributed decision-making
• Must have an odd number
• These do not serve stored
objects to clients
RADOS Storage Nodes
containing Object Storage
Daemons (OSDs):
• One OSD per disk (recommended)
• At least three nodes in a cluster
• Serve stored objects to clients
• Intelligently peer to perform
replication tasks
• Supports object classes
9

10. RADOS Cluster Makeup
OSD OSD OSD OSD OSD
RADOS
Node
btrfs
FS FS FS FS FS xfs
ext4
DISK DISK DISK DISK DISK
M M M
RADOS
Cluster
10

11. VOTE
Using the Votes Bottom on the top of the presentation panel
please take 30 seconds answer the following questions to
help us better understand you.
1. Are you exploring Ceph for a current project?
2. Are you looking to implement Ceph within the next 6
months?
3. Do you need help deploying Ceph?

12. Getting Started Walk-through

13. Overview
• This tutorial and walk-through based on VirtualBox, but
other hypervisor platforms will work just as well.
• Relaxed security best practices to speed things up, and
will omit some of the security setup steps here.
• We will:
1. Create the VirtualBox VMs
2. Prepare the VMs for Creating the Ceph Cluster
3. Install Ceph on all VMs from the Client
4. Configure Ceph on all the server nodes and the client
5. Experiment with Ceph’s Virtual Block Device (RBD)
6. Experiment with the Ceph Distributed Filesystem
7. Unmount, stop Ceph, and shut down the VMs safely

14. Create the VMs
• 1 or more CPU cores
• 512MB or more memory
• Ubuntu 12.04 with latest updates
• VirtualBox Guest Addons
• Three virtual disks (dynamically allocated):
• 28GB OS disk with boot partition
• 8GB disk for Ceph data
• 8GB disk for Ceph data
• Two virtual network interfaces:
• eth0 Host-Only interface for Ceph
• eth1 NAT interface for updates
Consider creating a template based on the above, and then
cloning the template to save time creating all four VMs

15. Adjust Networking in the VM OS
• Edit /etc/network/interfaces
# The primary network interface
auto eth0
iface eth0 inet static
address 192.168.56.20
netmask 255.255.255.0
# The secondary NAT interface with outside access
auto eth1
iface eth1 inet dhcp
gateway 10.0.3.2
• Edit /etc/udev/rules.d/70-persistent-net.rules
If the VMs were cloned from a template, the MAC addresses for the
virtual NICs should have been regenerated to stay unique. Edit this
file to make sure that the right NIC is mapped as eth0 and eth1.

16. Security Shortcuts
To streamline and simplify access for this tutorial, we:
• Configured the user “ubuntu” to SSH between hosts using
authorized keys instead of a password.
• Added “ubuntu” to /etc/sudoers with full access.
• Configured root on the server nodes to SSH between nodes
using authorized keys without a password set.
• Relaxed SSH checking of known hosts to avoid interactive
confirmation when accessing a new host.
• Disabled cephx authentication for the Ceph cluster

17. Edit /etc/hosts to resolve names
• Use the /etc/hosts file for simple name resolution
for all the VMs on the Host-Only network.
• Create a portable /etc/hosts file on the client
127.0.0.1 localhost
192.168.56.20 ceph-client
192.168.56.21 ceph-node1
192.168.56.22 ceph-node2
192.168.56.23 ceph-node3
• Copy the file to all the VMs so that names are
consistently resolved across all machines.

18. Install the Ceph Bobtail release
ubuntu@ceph-client:~$ wget -q -O- https://raw.github.com/ceph/ceph/master/keys/
release.asc | ssh ceph-node1 sudo apt-key add -
OK
ubuntu@ceph-client:~$ echo “deb http://ceph.com/debian-bobtail/ $(lsb_release -sc)
main” | ssh ceph-node1 sudo tee /etc/apt/sources.list.d/ceph.list
deb http://ceph.com/debian-bobtail/ precise main
ubuntu@ceph-client:~$ ssh ceph-node1 “sudo apt-get update && sudo apt-get install ceph”
...
Setting up librados2 (0.56.1-1precise) ...
Setting up librbd1 (0.56.1-1precise) ...
Setting up ceph-common (0.56.1-1precise) ...
Installing new version of config file /etc/bash_completion.d/rbd ...
Setting up ceph (0.56.1-1precise) ...
Setting up ceph-fs-common (0.56.1-1precise) ...
Setting up ceph-fuse (0.56.1-1precise) ...
Setting up ceph-mds (0.56.1-1precise) ...
Setting up libcephfs1 (0.56.1-1precise) ...
...
ldconfig deferred processing now taking place

19. Create the Ceph Configuration File
~$ sudo cat <<! > /etc/ceph/ceph.conf [mon.c]
[global] host = ceph-node3
auth cluster required = none mon addr = 192.168.56.23:6789
auth service required = none [osd.0]
auth client required = none host = ceph-node1
[osd] devs = /dev/sdb
osd journal size = 1000 [osd.1]
filestore xattr use omap = true host = ceph-node1
osd mkfs type = ext4 devs = /dev/sdc
osd mount options ext4 = user_xattr,rw,
noexec,nodev, …
noatime,nodiratime
[mon.a] [osd.5]
host = ceph-node1 host = ceph-node3
mon addr = 192.168.56.21:6789 devs = /dev/sdc
[mon.b] [mds.a]
host = ceph-node2 host = ceph-node1
mon addr = 192.168.56.22:6789 !

20. Complete Ceph Cluster Creation
• Copy the /etc/ceph/ceph.conf file to all nodes
• Create the Ceph deamon working directories:
~$ ssh ceph-node1 sudo mkdir -p /var/lib/ceph/osd/ceph-0
~$ ssh ceph-node1 sudo mkdir -p /var/lib/ceph/osd/ceph-1
~$ ssh ceph-node2 sudo mkdir -p /var/lib/ceph/osd/ceph-2
~$ ssh ceph-node2 sudo mkdir -p /var/lib/ceph/osd/ceph-3
~$ ssh ceph-node3 sudo mkdir -p /var/lib/ceph/osd/ceph-4
~$ ssh ceph-node3 sudo mkdir -p /var/lib/ceph/osd/ceph-5
~$ ssh ceph-node1 sudo mkdir -p /var/lib/ceph/mon/ceph-a
~$ ssh ceph-node2 sudo mkdir -p /var/lib/ceph/mon/ceph-b
~$ ssh ceph-node3 sudo mkdir -p /var/lib/ceph/mon/ceph-c
~$ ssh ceph-node1 sudo mkdir -p /var/lib/ceph/mds/ceph-a
• Run the mkcephfs command from a server node:
~$ ubuntu@ceph-client:~$ ssh ceph-node1
Welcome to Ubuntu 12.04.1 LTS (GNU/Linux 3.2.0-23-generic
x86_64)
...
ubuntu@ceph-node1:~$ sudo -i
root@ceph-node1:~# cd /etc/ceph
root@ceph-node1:/etc/ceph#
mkcephfs -a -c /etc/ceph/ceph.conf -k ceph.keyring --mkfs

21. Start the Ceph Cluster
On a server node, start the Ceph service:
root@ceph-node1:/etc/ceph# service ceph -a start
=== mon.a ===
Starting Ceph mon.a on ceph-node1...
starting mon.a rank 0 at 192.168.56.21:6789/0 mon_data /var/lib/ceph/mon/
ceph-a fsid 11309f36-9955-413c-9463-efae6c293fd6
=== mon.b ===
=== mon.c ===
=== mds.a ===
Starting Ceph mds.a on ceph-node1...
starting mds.a at :/0
=== osd.0 ===
Mounting ext4 on ceph-node1:/var/lib/ceph/osd/ceph-0
Starting Ceph osd.0 on ceph-node1...
starting osd.0 at :/0 osd_data /var/lib/ceph/osd/ceph-0 /var/lib/ceph/
osd/ceph-0/journal
=== osd.1 ===
=== osd.2 ===
=== osd.3 ===
=== osd.4 ===
=== osd.5 ===

22. Verify Cluster Health
root@ceph-node1:/etc/ceph# ceph status
health HEALTH_OK
monmap e1: 3 mons at
{a=192.168.56.21:6789/0,b=192.168.56.22:6789/0,c=192.168.56.23:6789/0},
election epoch 6, quorum 0,1,2 a,b,c
osdmap e17: 6 osds: 6 up, 6 in
pgmap v473: 1344 pgs: 1344 active+clean; 8730 bytes data, 7525 MB
used,
39015 MB / 48997 MB avail
mdsmap e9: 1/1/1 up {0=a=up:active}
root@ceph-node1:/etc/ceph# ceph osd tree
# id weight type name up/down reweight
-1 6 root default
-3 6 rack unknownrack
-2 2 host ceph-node1
0 1 osd.0 up 1
1 1 osd.1 up 1
-4 2 host ceph-node2
2 1 osd.2 up 1
3 1 osd.3 up 1
-5 2 host ceph-node3
4 1 osd.4 up 1
5 1 osd.5 up 1

23. Access Ceph’s Virtual Block Device
ubuntu@ceph-client:~$ rbd ls
rbd: pool rbd doesn't contain rbd images
ubuntu@ceph-client:~$ rbd create myLun --size 4096
ubuntu@ceph-client:~$ rbd ls -l
NAME SIZE PARENT FMT PROT LOCK
myLun 4096M 1
ubuntu@ceph-client:~$ sudo modprobe rbd
ubuntu@ceph-client:~$ sudo rbd map myLun --pool rbd
ubuntu@ceph-client:~$ sudo rbd showmapped
id pool image snap device
0 rbd myLun - /dev/rbd0
ubuntu@ceph-client:~$ ls -l /dev/rbd
rbd/ rbd0
ubuntu@ceph-client:~$ ls -l /dev/rbd/rbd/myLun
… 1 root root 10 Jan 16 21:15 /dev/rbd/rbd/myLun -> ../../rbd0
ubuntu@ceph-client:~$ ls -l /dev/rbd0
brw-rw---- 1 root disk 251, 0 Jan 16 21:15 /dev/rbd0

24. Format RBD image and use it
ubuntu@ceph-client:~$ sudo mkfs.ext4 -m0 /dev/rbd/rbd/myLun
mke2fs 1.42 (29-Nov-2011)
...
Writing superblocks and filesystem accounting information: done
ubuntu@ceph-client:~$ sudo mkdir /mnt/myLun
ubuntu@ceph-client:~$ sudo mount /dev/rbd/rbd/myLun /mnt/myLun
ubuntu@ceph-client:~$ df -h | grep myLun
/dev/rbd0 4.0G 190M 3.9G 5% /mnt/myLun
ubuntu@ceph-client:~$ sudo dd if=/dev/zero of=/mnt/myLun/testfile
bs=4K count=128
128+0 records in
128+0 records out
524288 bytes (524 kB) copied, 0.000431868 s, 1.2 GB/s
ubuntu@ceph-client:~$ ls -lh /mnt/myLun/
total 528K
drwx------ 2 root root 16K Jan 16 21:24 lost+found
-rw-r--r-- 1 root root 512K Jan 16 21:29 testfile

25. Access Ceph Distributed Filesystem
~$ sudo mkdir /mnt/myCephFS
~$ sudo mount.ceph ceph-node1,ceph-node2,ceph-node3:/ /mnt/myCephFS
~$ df -h | grep my
192.168.56.21,192.168.56.22,192.168.56.23:/ 48G 11G 38G 22% /mnt/myCephFS
/dev/rbd0 4.0G 190M 3.9G 5% /mnt/myLun
~$ sudo dd if=/dev/zero of=/mnt/myCephFS/testfile bs=4K count=128
128+0 records in
128+0 records out
524288 bytes (524 kB) copied, 0.000439191 s, 1.2 GB/s
~$ ls -lh /mnt/myCephFS/
total 512K
-rw-r--r-- 1 root root 512K Jan 16 23:04 testfile

26. Unmount, Stop Ceph, and Halt
ubuntu@ceph-client:~$ sudo umount /mnt/myCephFS
ubuntu@ceph-client:~$ sudo umount /mnt/myLun/
ubuntu@ceph-client:~$ sudo rbd unmap /dev/rbd0
ubuntu@ceph-client:~$ ssh ceph-node1 sudo service ceph -a stop
=== mon.a ===
Stopping Ceph mon.a on ceph-node1...kill 19863...done
=== mon.b ===
=== mon.c ===
=== mds.a ===
=== osd.0 ===
=== osd.1 ===
=== osd.2 ===
=== osd.3 ===
=== osd.4 ===
=== osd.5 ===
ubuntu@ceph-client:~$ ssh ceph-node1 sudo service halt stop
* Will now halt
^Cubuntu@ceph-client:~$ ssh ceph-node2 sudo service halt stop
* Will now halt
^Cubuntu@ceph-client:~$ ssh ceph-node3 sudo service halt stop
* Will now halt
^Cubuntu@ceph-client:~$ sudo service halt stop
* Will now halt

27. Review
We:
1. Created the VirtualBox VMs
2. Prepared the VMs for Creating the Ceph Cluster
3. Installed Ceph on all VMs from the Client
4. Configured Ceph on all the server nodes and the client
5. Experimented with Ceph’s Virtual Block Device (RBD)
6. Experimented with the Ceph Distributed Filesystem
7. Unmounted, stopped Ceph, and shut down the VMs safely
• Based on VirtualBox; other hypervisors work too.
• Relaxed security best practices to speed things up, but
recommend following them in most circumstances.

28. Resources for Learning More

29. Leverage great online resources
Documentation on the Ceph web site:
• http://ceph.com/docs/master/
Blogs from Inktank and the Ceph community:
• http://www.inktank.com/news-events/blog/
• http://ceph.com/community/blog/
Developer resources:
• http://ceph.com/resources/development/
• http://ceph.com/resources/mailing-list-irc/
• http://dir.gmane.org/gmane.comp.file-systems.ceph.devel

30. What Next?
30

31. Try it yourself!
• Use the information in this webinar as a starting point
• Consult the Ceph documentation online:
http://ceph.com/docs/master/
http://ceph.com/docs/master/start/

32. Inktank’s Professional Services
Consulting Services:
• Technical Overview
• Infrastructure Assessment
• Proof of Concept
• Implementation Support
• Performance Tuning
Support Subscriptions:
• Pre-Production Support
• Production Support
A full description of our services can be found at the following:
Consulting Services: http://www.inktank.com/consulting-services/
Support Subscriptions: http://www.inktank.com/support-services/
32

33. Check out our upcoming webinars
1. Introduction to Ceph with OpenStack
January 24, 2013
10:00AM PT, 12:00PM CT, 1:00PM ET
https://www.brighttalk.com/webcast/8847/63177
2. DreamHost Case Study: DreamObjects with Ceph
February 7, 2013
10:00AM PT, 12:00PM CT, 1:00PM ET
https://www.brighttalk.com/webcast/8847/63181
3. Advanced Features of Ceph Distributed Storage
(delivered by Sage Weil, creator of Ceph)
February 12, 2013
10:00AM PT, 12:00PM CT, 1:00PM ET
https://www.brighttalk.com/webcast/8847/63179

34. Contact Us
Info@inktank.com
1-855-INKTANK
Don’t forget to follow us on:
Twitter: https://twitter.com/inktank
Facebook: http://www.facebook.com/inktank
YouTube: http://www.youtube.com/inktankstorage
