Deploying and Managing Ceph
on the
OpenShift Container Platform
using Rook
CephStorageforOCP
Ceph Storage for OCP

2. What is
?

3. 3

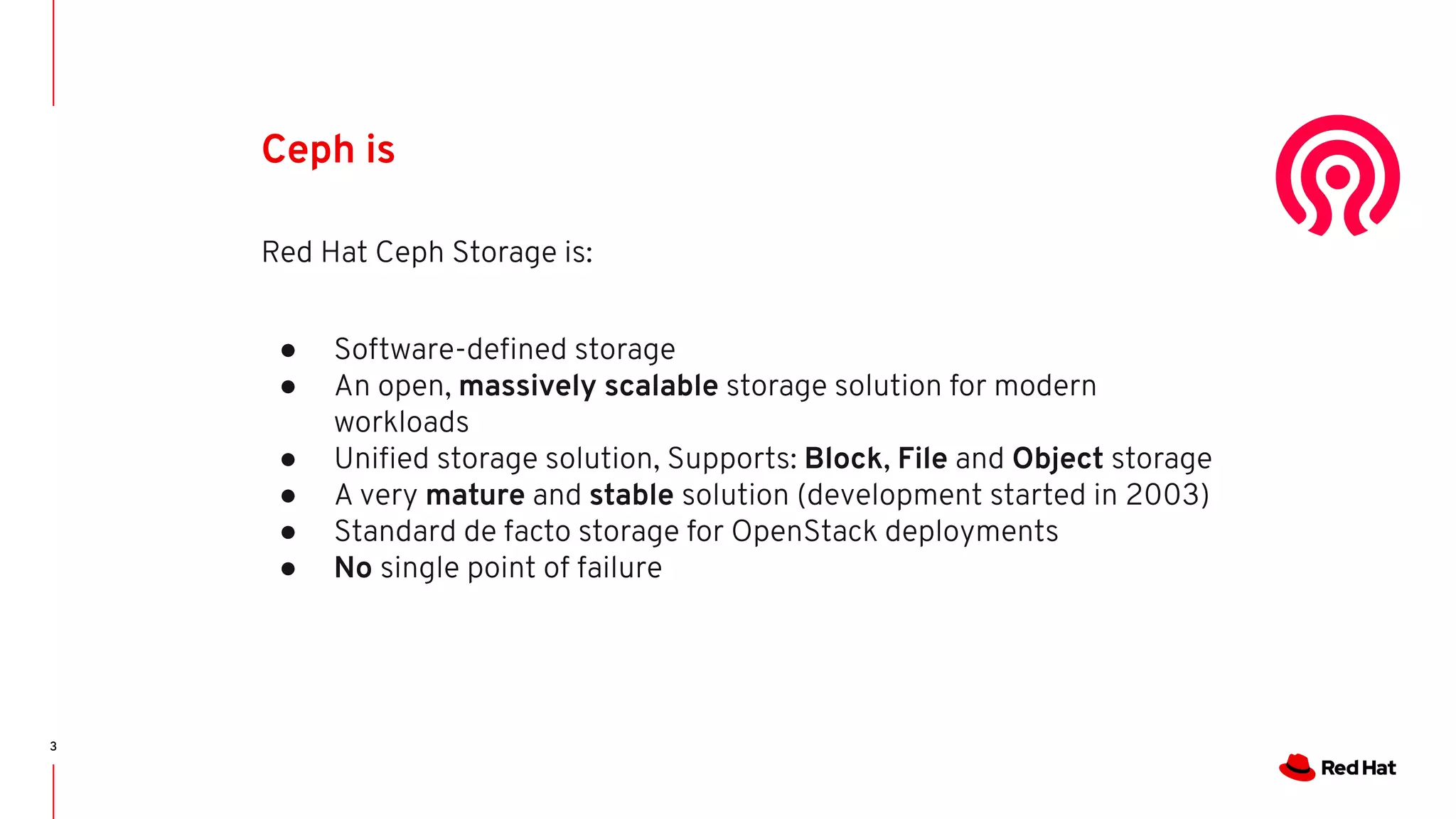

Ceph is
Red Hat Ceph Storage is:
● Software-defined storage
● An open, massively scalable storage solution for modern
workloads
● Unified storage solution, Supports: Block, File and Object storage
● A very mature and stable solution (development started in 2003)
● Standard de facto storage for OpenStack deployments
● No single point of failure

4. 4

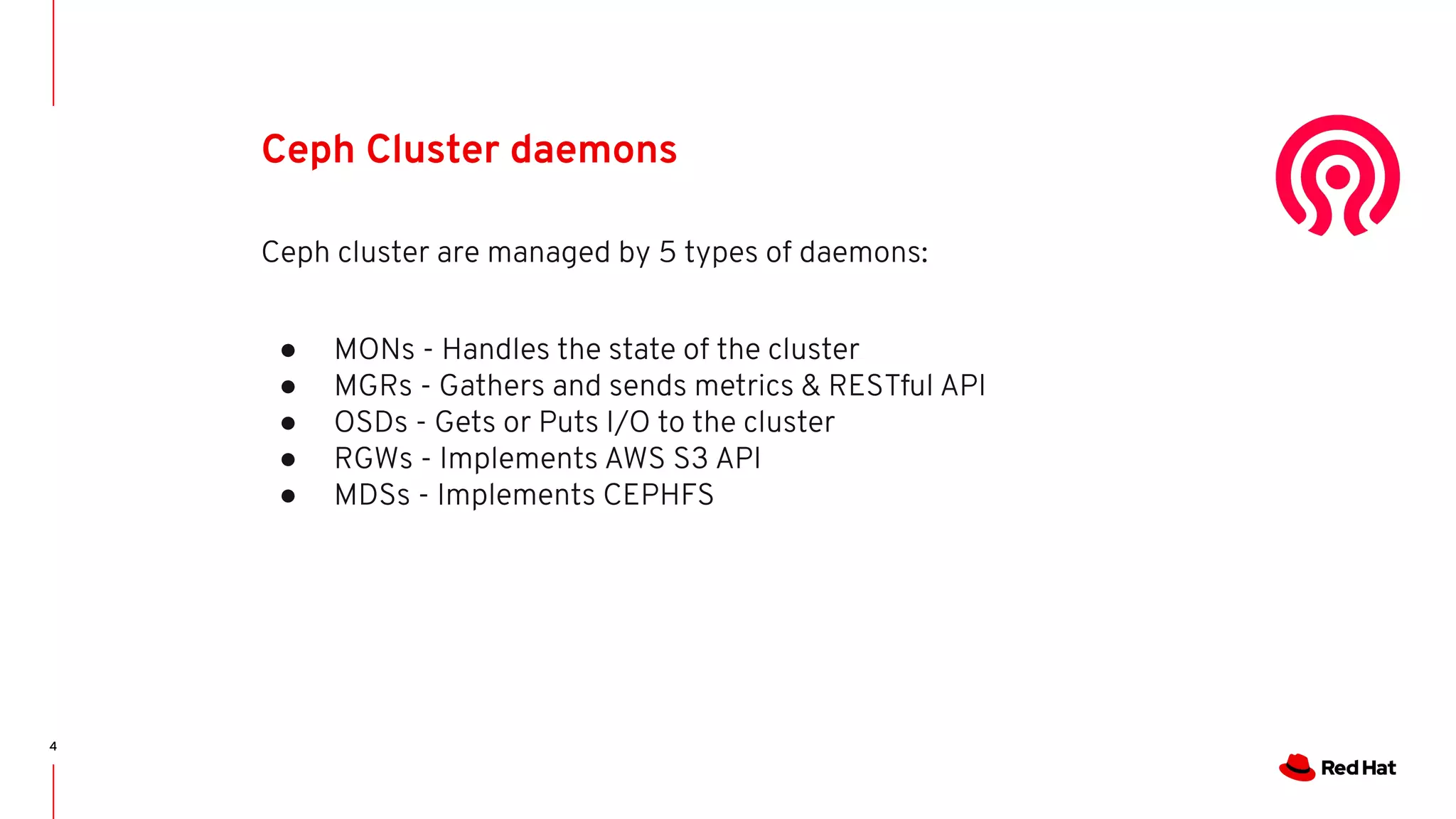

Ceph Cluster daemons
Ceph cluster are managed by 5 types of daemons:
● MONs - Handles the state of the cluster
● MGRs - Gathers and sends metrics & RESTful API
● OSDs - Gets or Puts I/O to the cluster
● RGWs - Implements AWS S3 API
● MDSs - Implements CEPHFS

5. 5

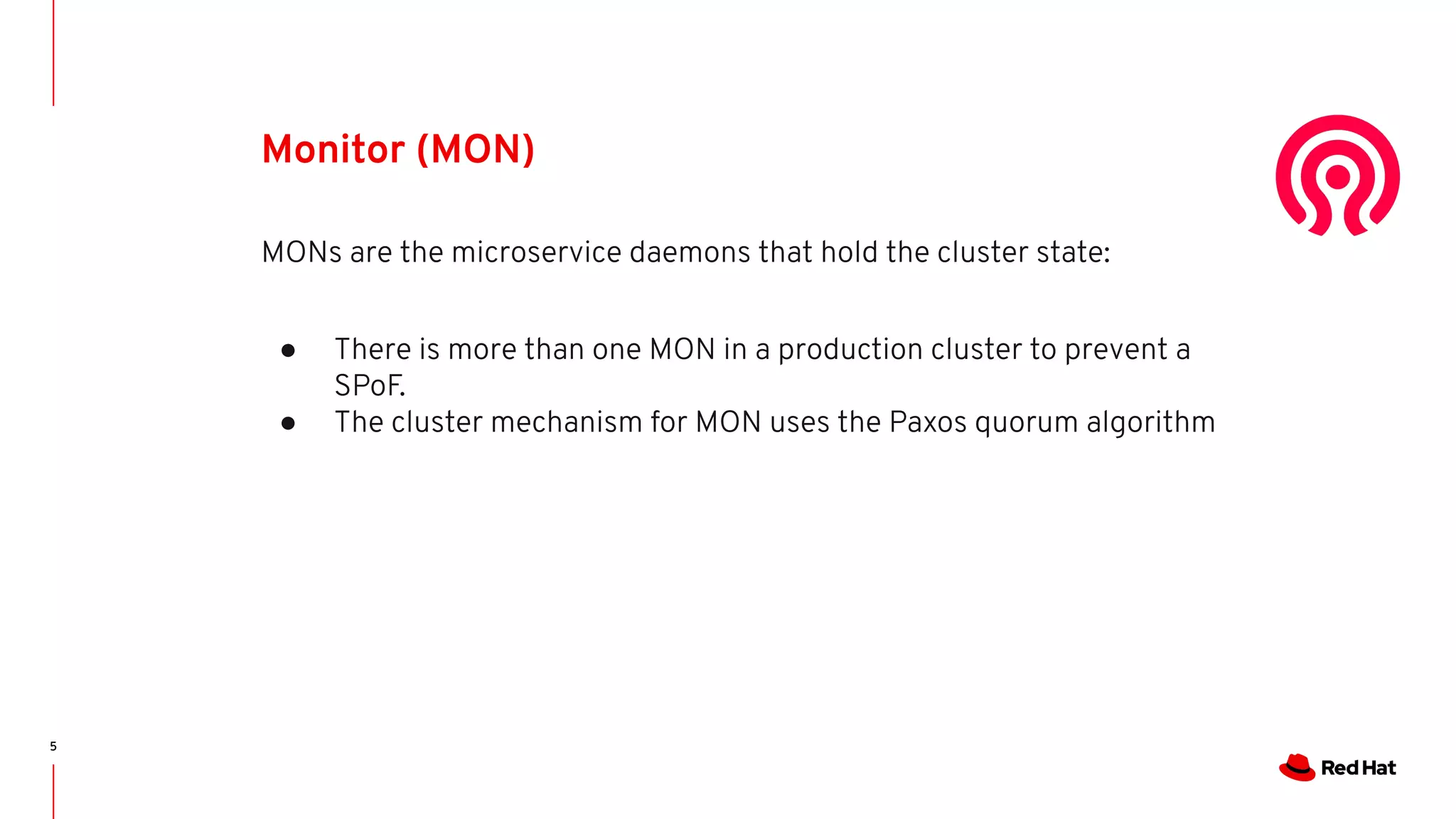

Monitor (MON)
MONs are the microservice daemons that hold the cluster state:
● There is more than one MON in a production cluster to prevent a
SPoF.
● The cluster mechanism for MON uses the Paxos quorum algorithm

6. 6

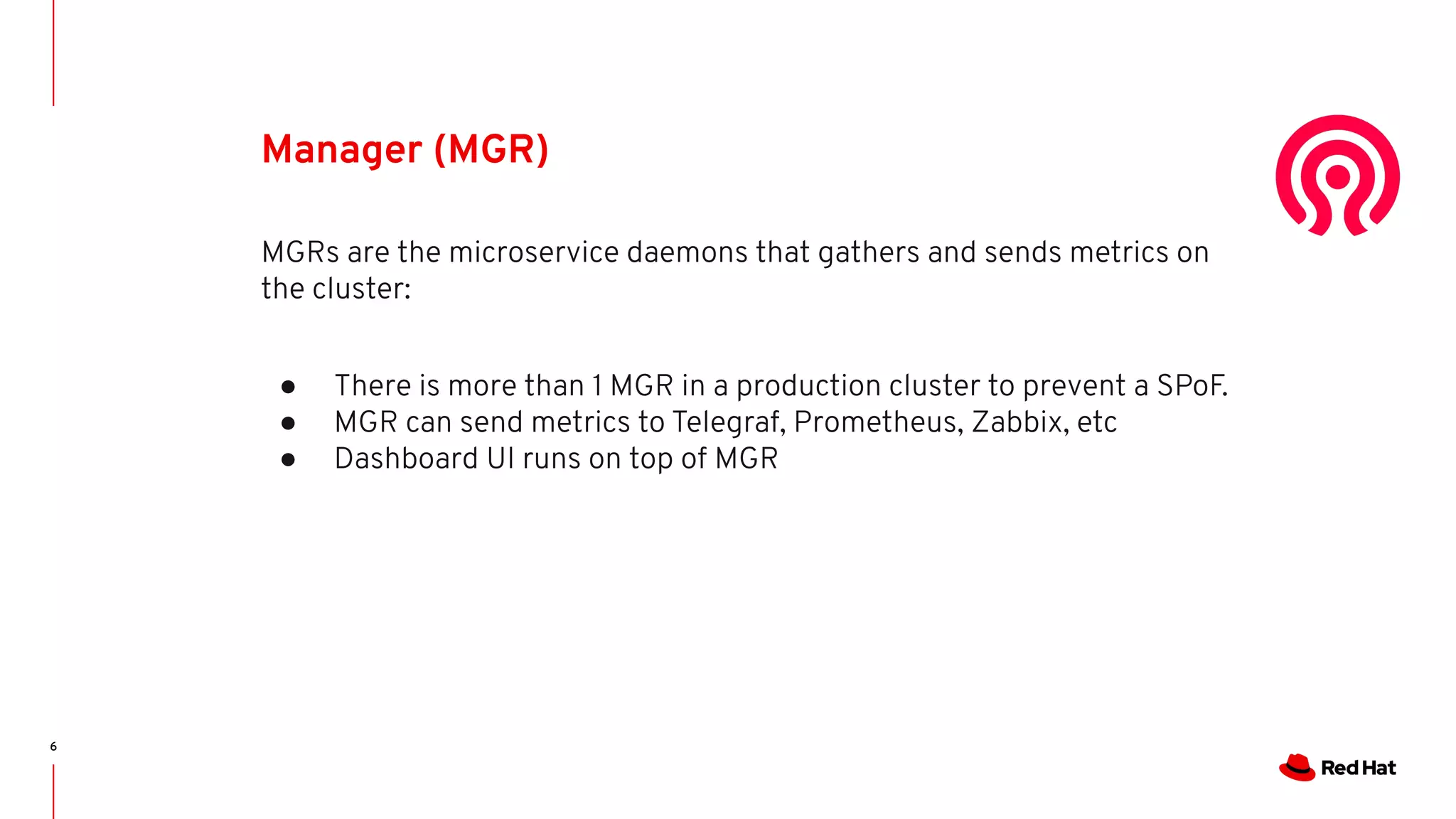

Manager (MGR)
MGRs are the microservice daemons that gathers and sends metrics on
the cluster:
● There is more than 1 MGR in a production cluster to prevent a SPoF.
● MGR can send metrics to Telegraf, Prometheus, Zabbix, etc
● Dashboard UI runs on top of MGR

7. 7

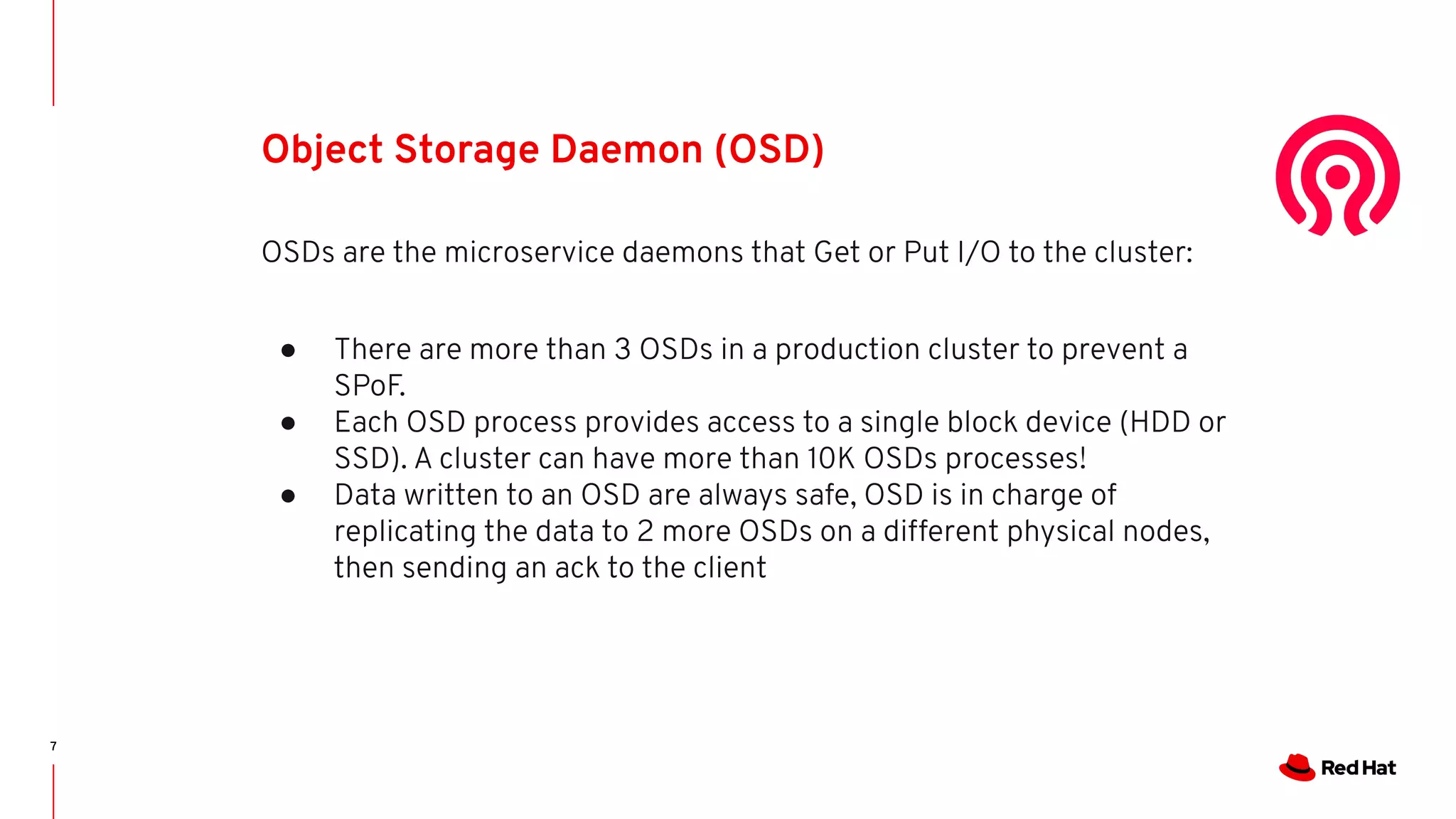

Object Storage Daemon (OSD)
OSDs are the microservice daemons that Get or Put I/O to the cluster:
● There are more than 3 OSDs in a production cluster to prevent a
SPoF.
● Each OSD process provides access to a single block device (HDD or
SSD). A cluster can have more than 10K OSDs processes!
● Data written to an OSD are always safe, OSD is in charge of
replicating the data to 2 more OSDs on a different physical nodes,
then sending an ack to the client

8. 8

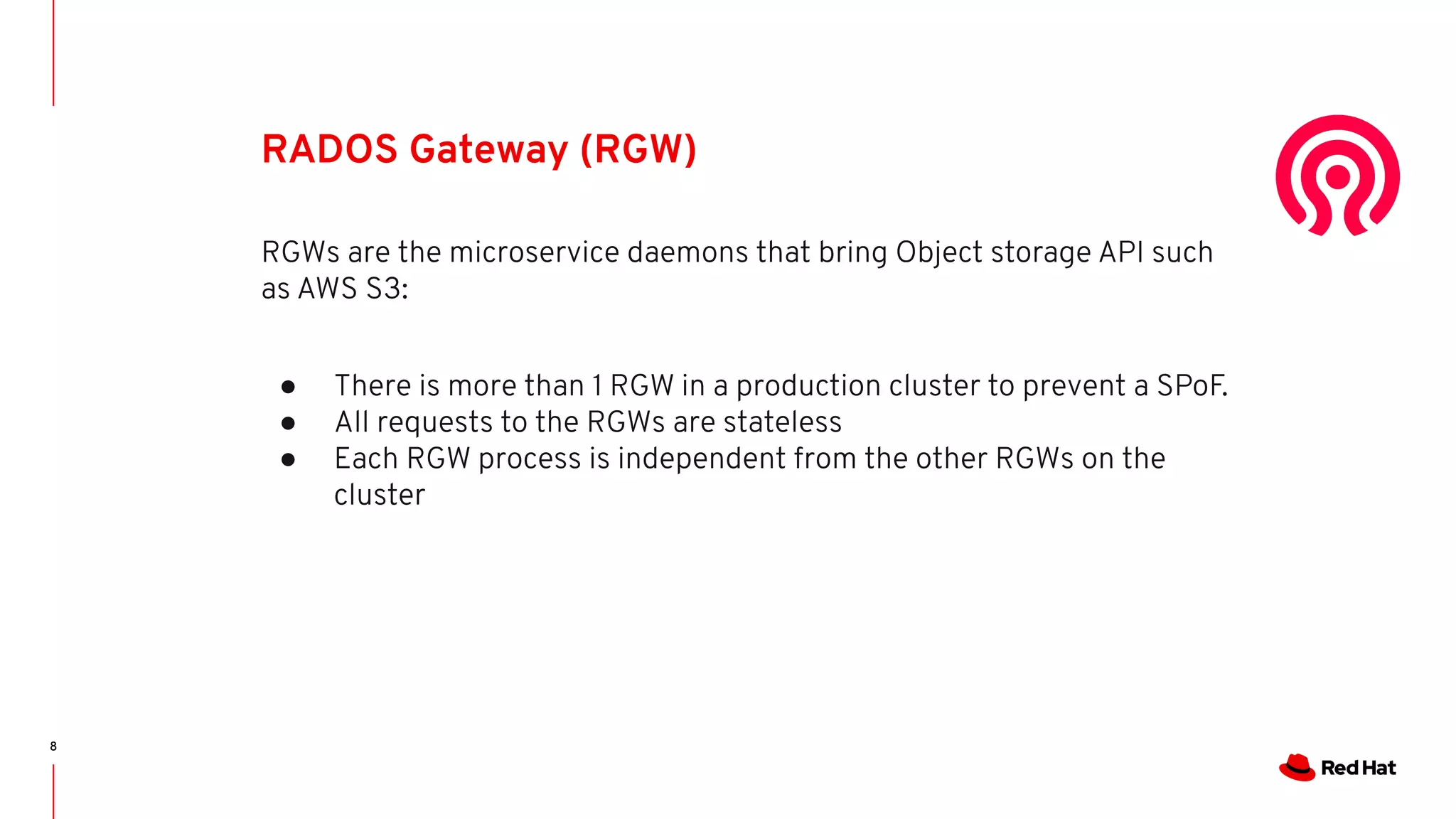

RADOS Gateway (RGW)
RGWs are the microservice daemons that bring Object storage API such
as AWS S3:
● There is more than 1 RGW in a production cluster to prevent a SPoF.
● All requests to the RGWs are stateless
● Each RGW process is independent from the other RGWs on the
cluster

9. 9

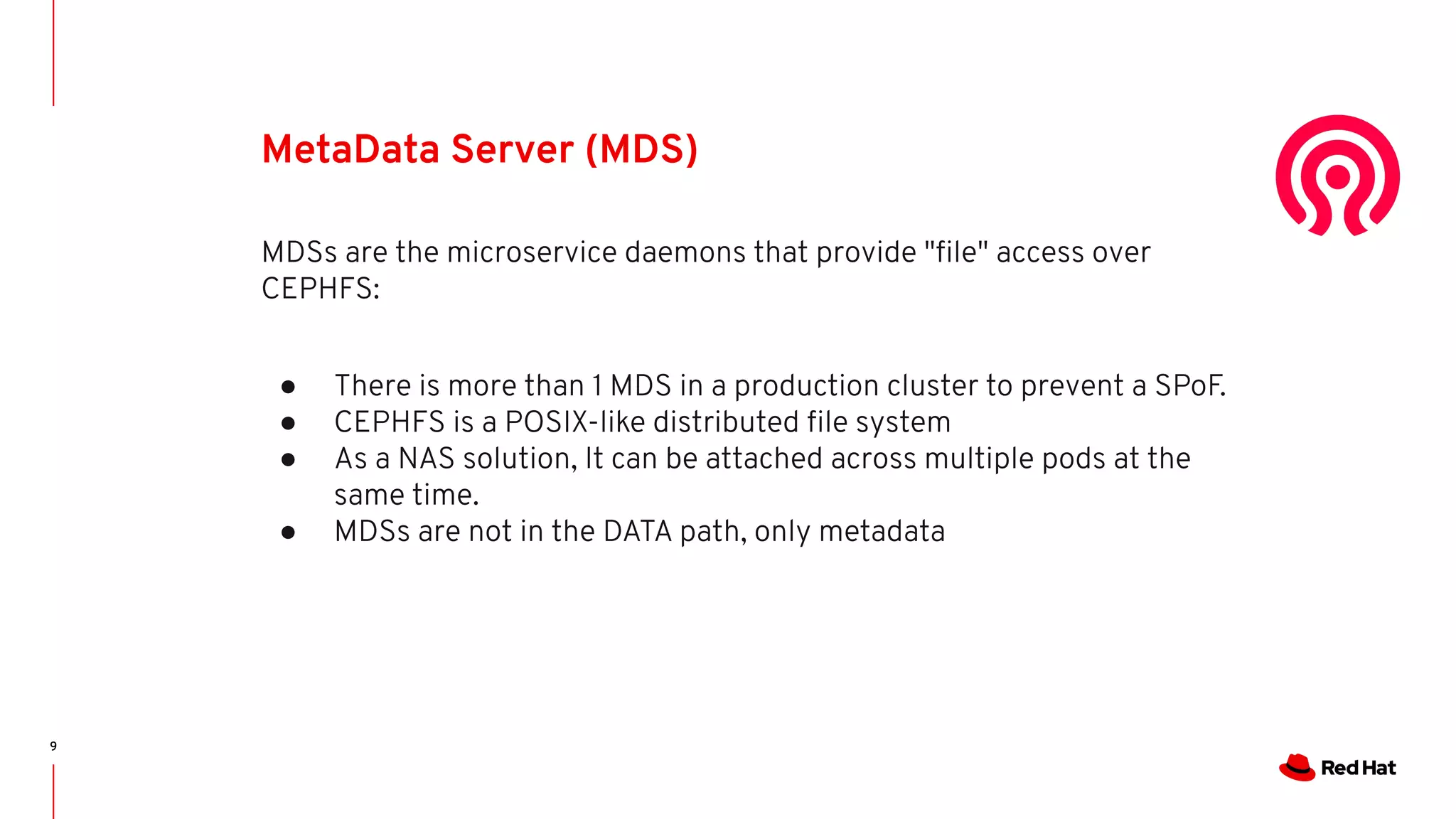

MetaData Server (MDS)
MDSs are the microservice daemons that provide "file" access over
CEPHFS:
● There is more than 1 MDS in a production cluster to prevent a SPoF.
● CEPHFS is a POSIX-like distributed file system
● As a NAS solution, It can be attached across multiple pods at the
same time.
● MDSs are not in the DATA path, only metadata

10. What is
?

11. 11

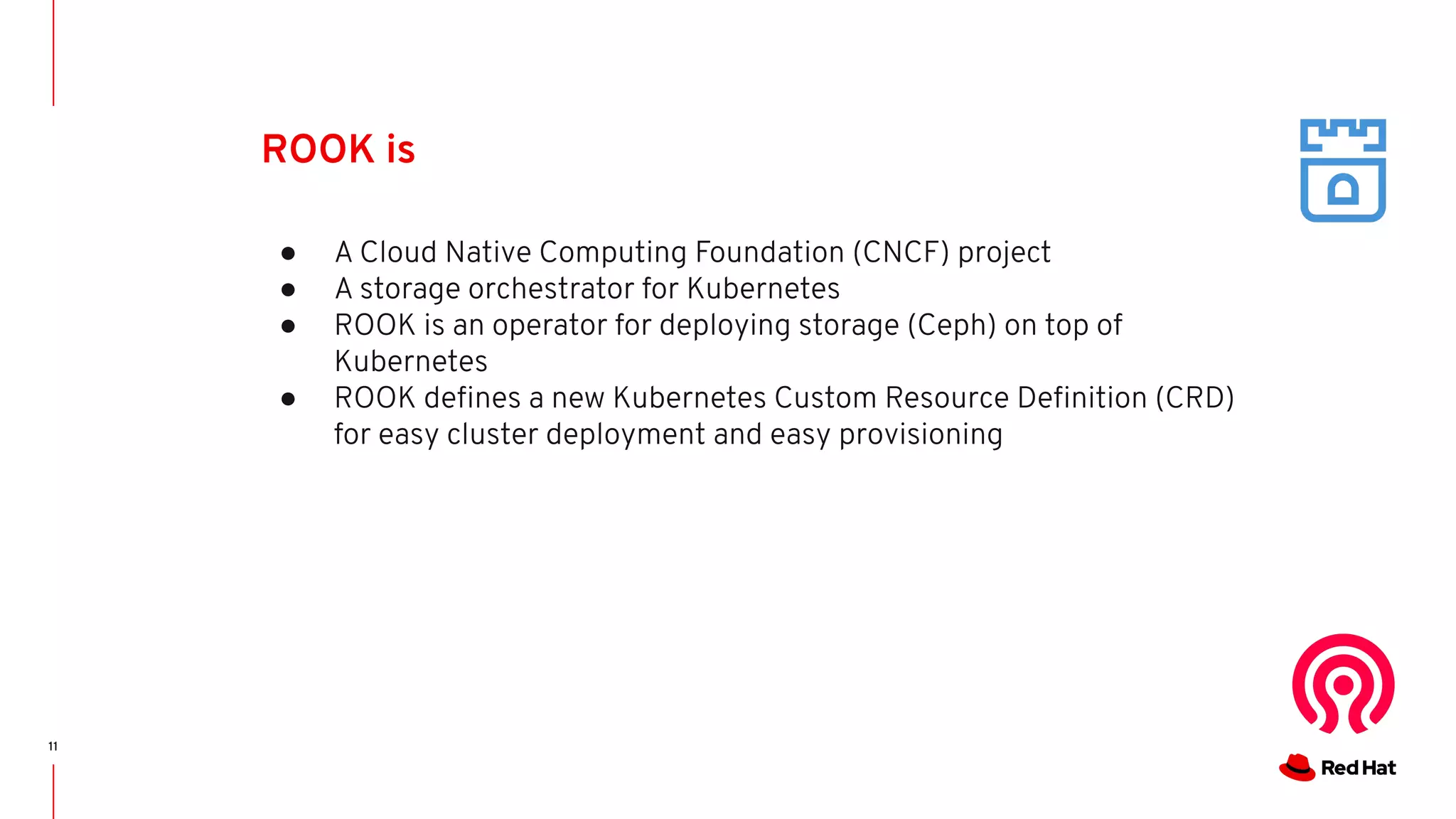

ROOK is
● A Cloud Native Computing Foundation (CNCF) project
● A storage orchestrator for Kubernetes
● ROOK is an operator for deploying storage (Ceph) on top of
Kubernetes
● ROOK defines a new Kubernetes Custom Resource Definition (CRD)
for easy cluster deployment and easy provisioning

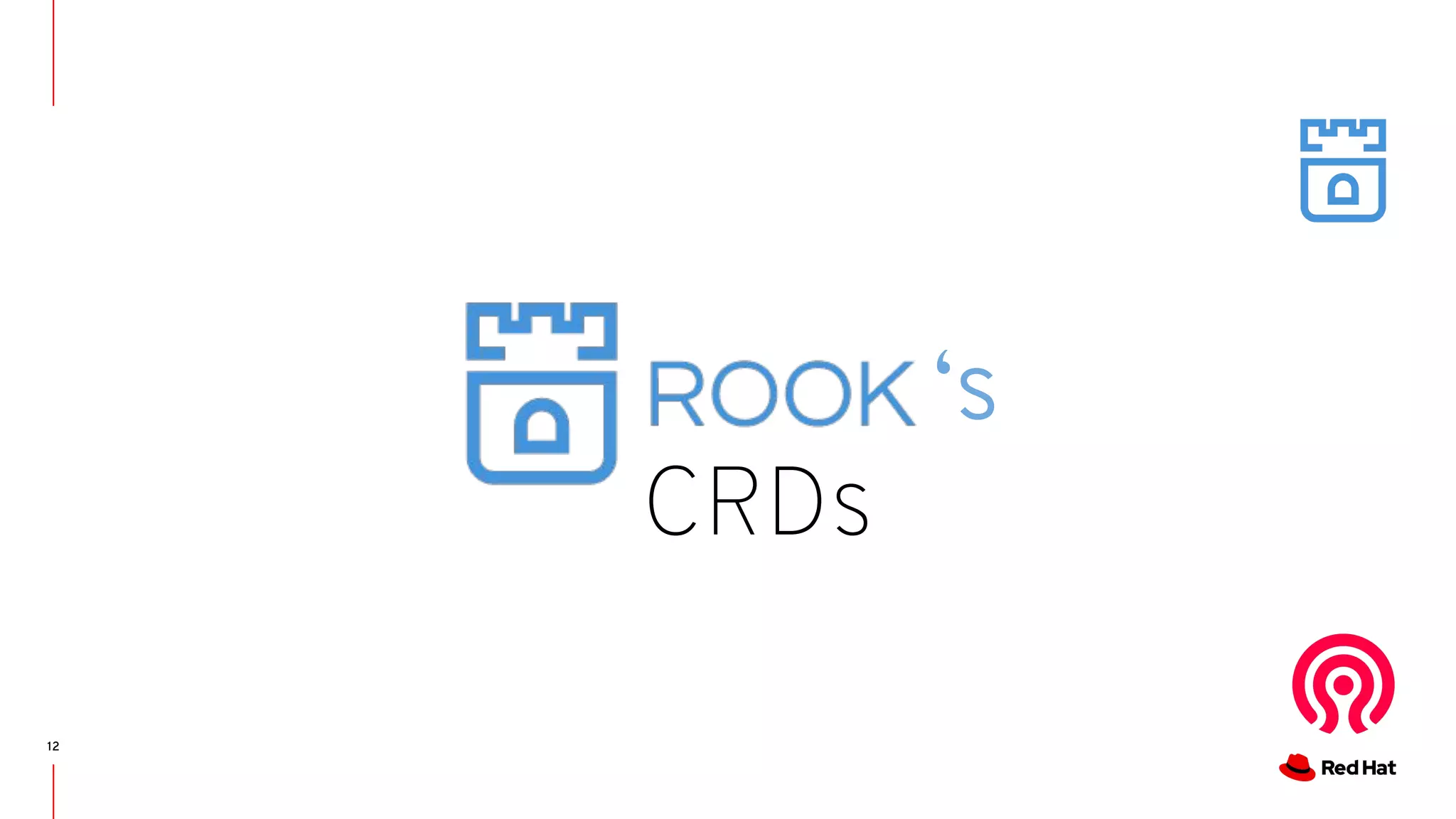

12. 12
‘s
CRDs

13. 13

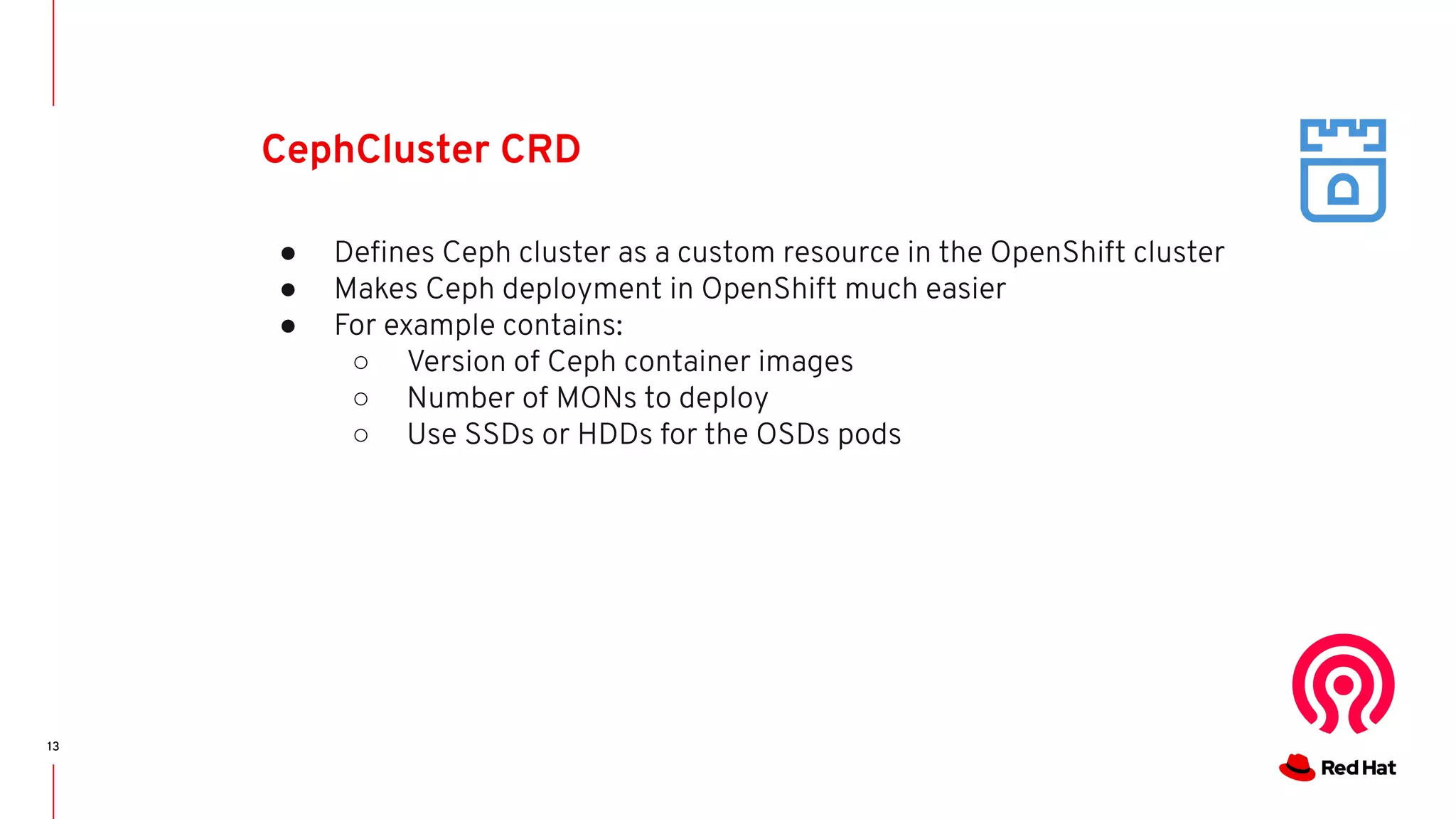

CephCluster CRD
● Defines Ceph cluster as a custom resource in the OpenShift cluster
● Makes Ceph deployment in OpenShift much easier
● For example contains:
○ Version of Ceph container images
○ Number of MONs to deploy
○ Use SSDs or HDDs for the OSDs pods

14. 14

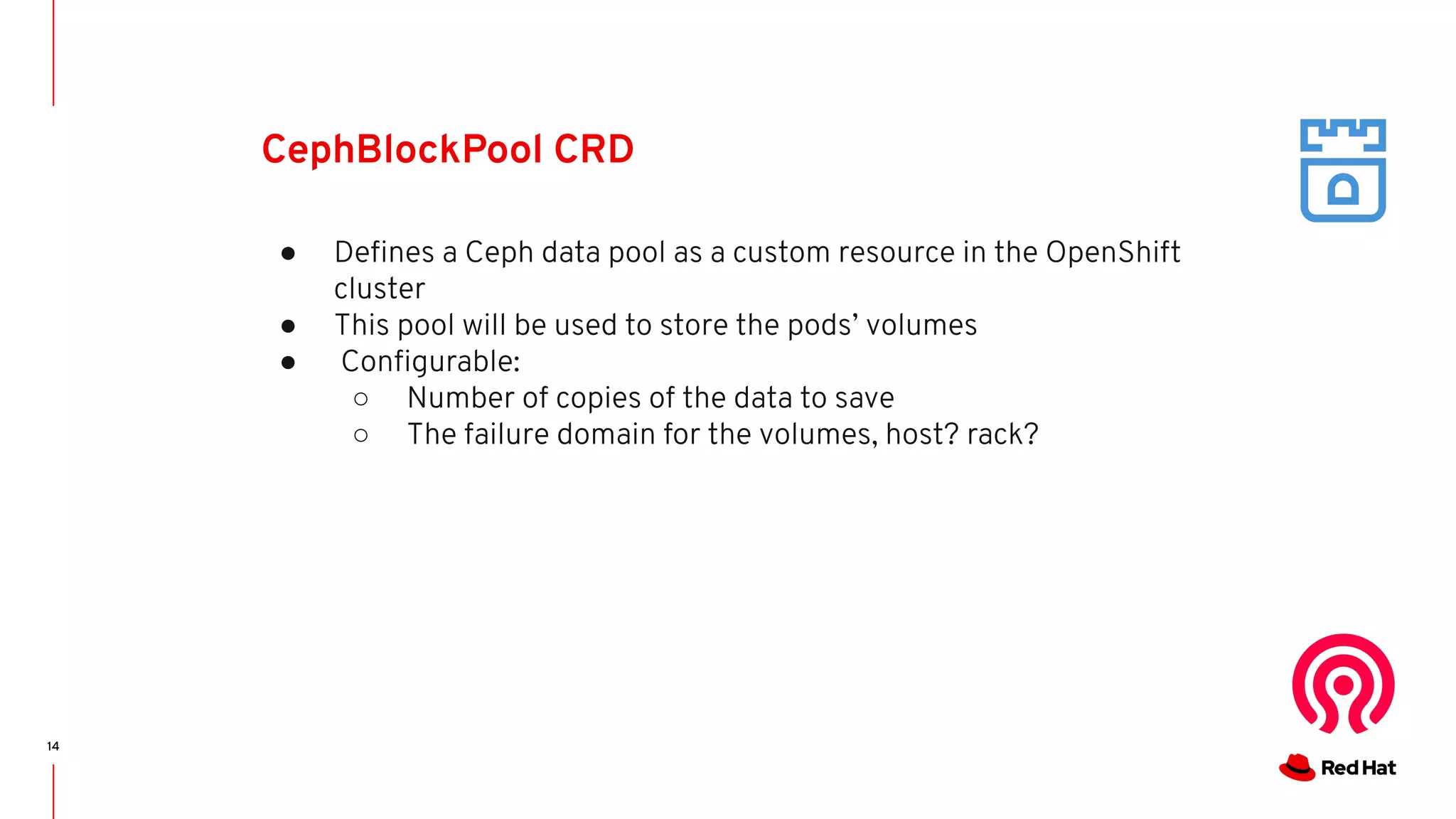

CephBlockPool CRD
● Defines a Ceph data pool as a custom resource in the OpenShift
cluster
● This pool will be used to store the pods’ volumes
● Configurable:
○ Number of copies of the data to save
○ The failure domain for the volumes, host? rack?

15. 15

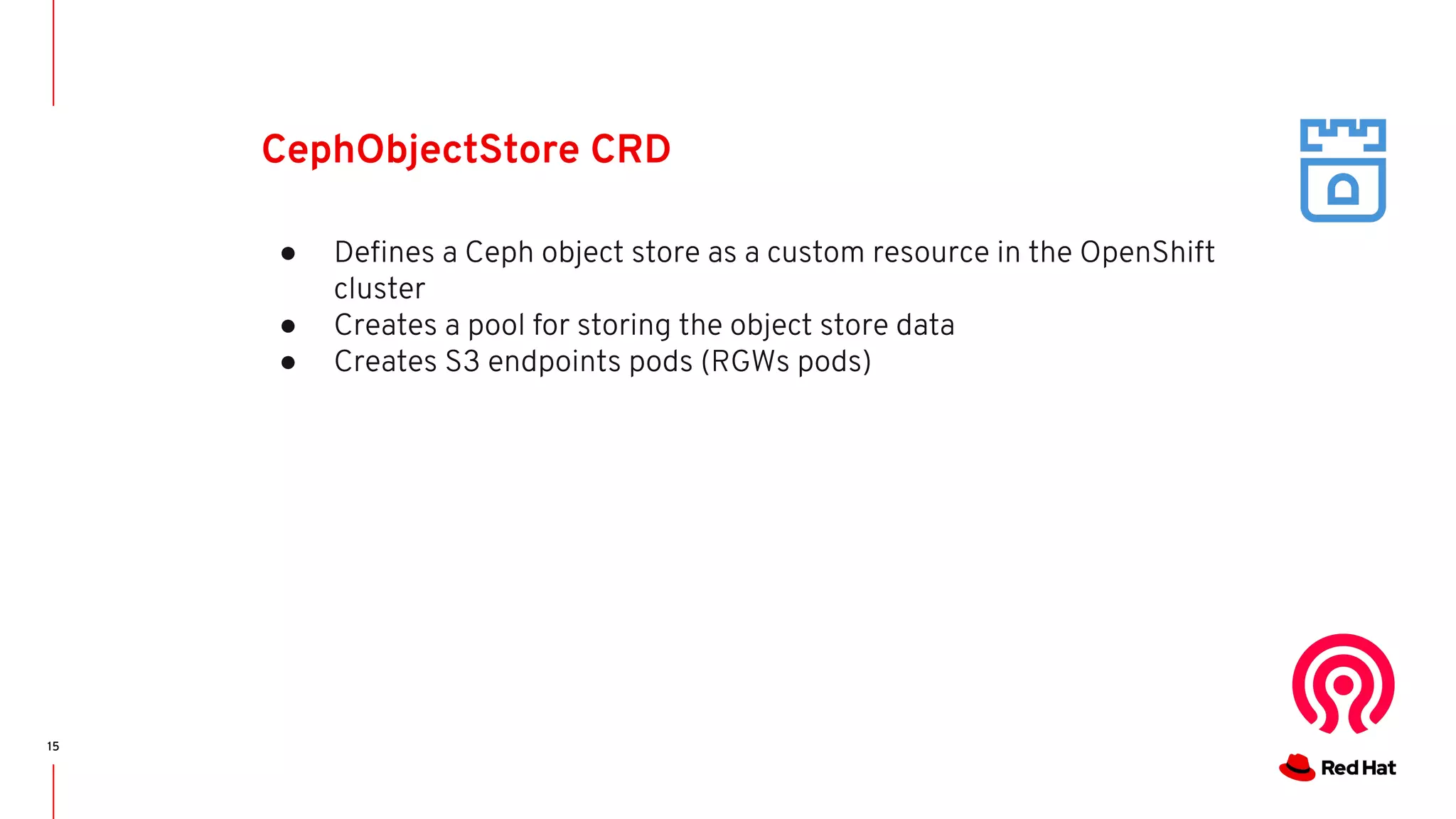

CephObjectStore CRD
● Defines a Ceph object store as a custom resource in the OpenShift
cluster
● Creates a pool for storing the object store data
● Creates S3 endpoints pods (RGWs pods)

16. 16

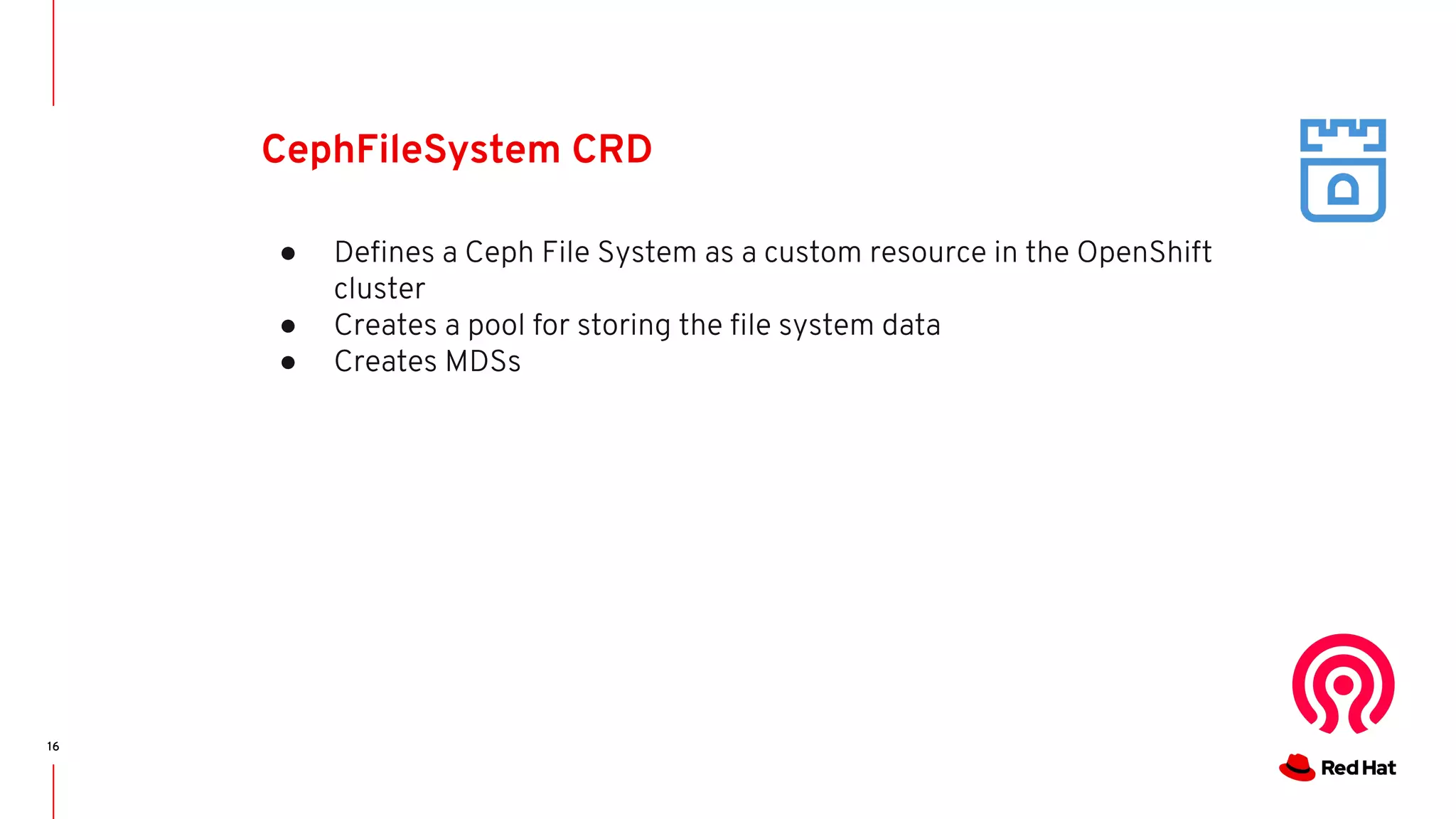

CephFileSystem CRD
● Defines a Ceph File System as a custom resource in the OpenShift
cluster
● Creates a pool for storing the file system data
● Creates MDSs

17. 17

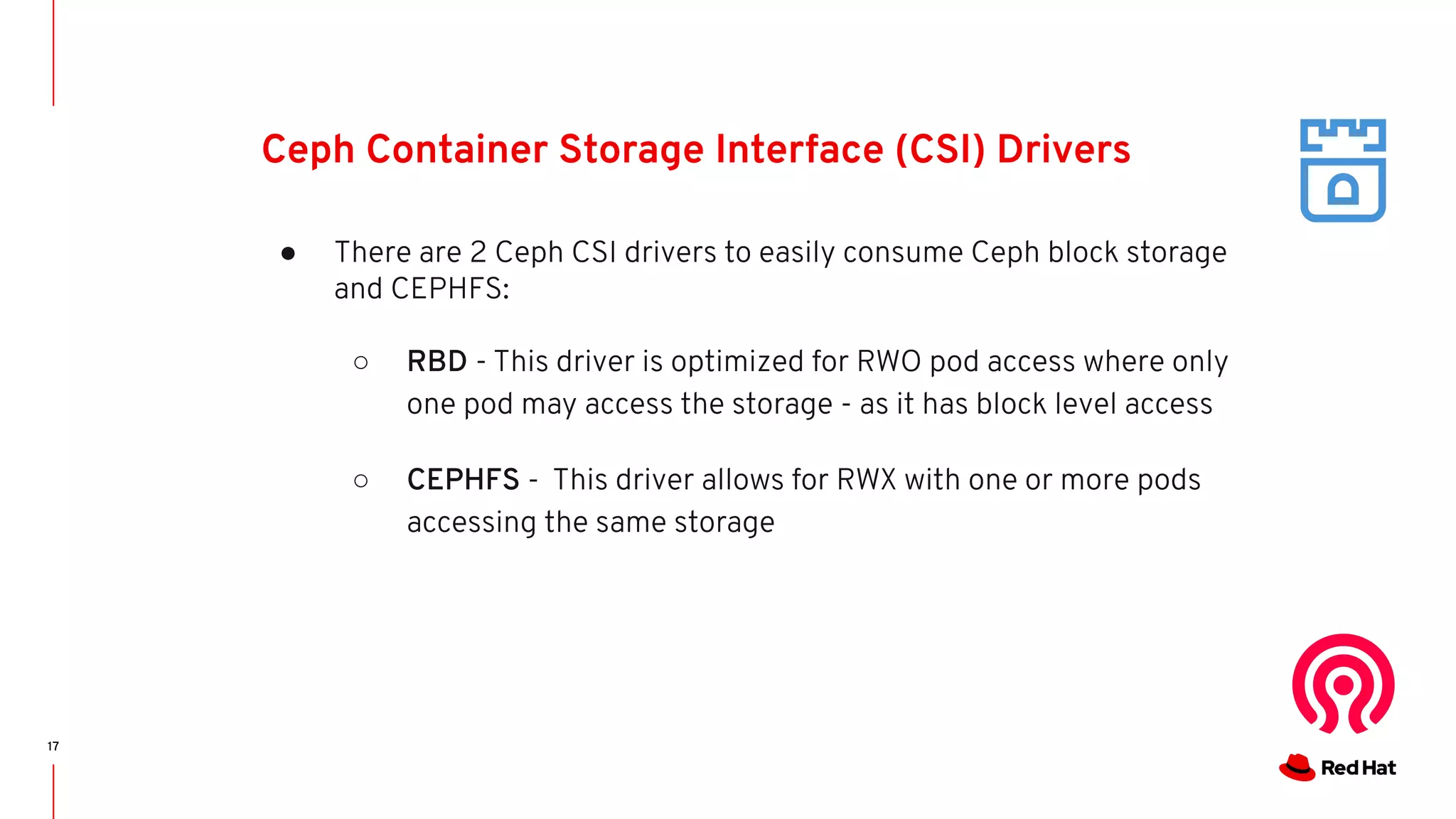

Ceph Container Storage Interface (CSI) Drivers
● There are 2 Ceph CSI drivers to easily consume Ceph block storage
and CEPHFS:
○ RBD - This driver is optimized for RWO pod access where only
one pod may access the storage - as it has block level access
○ CEPHFS - This driver allows for RWX with one or more pods
accessing the same storage

18. 18

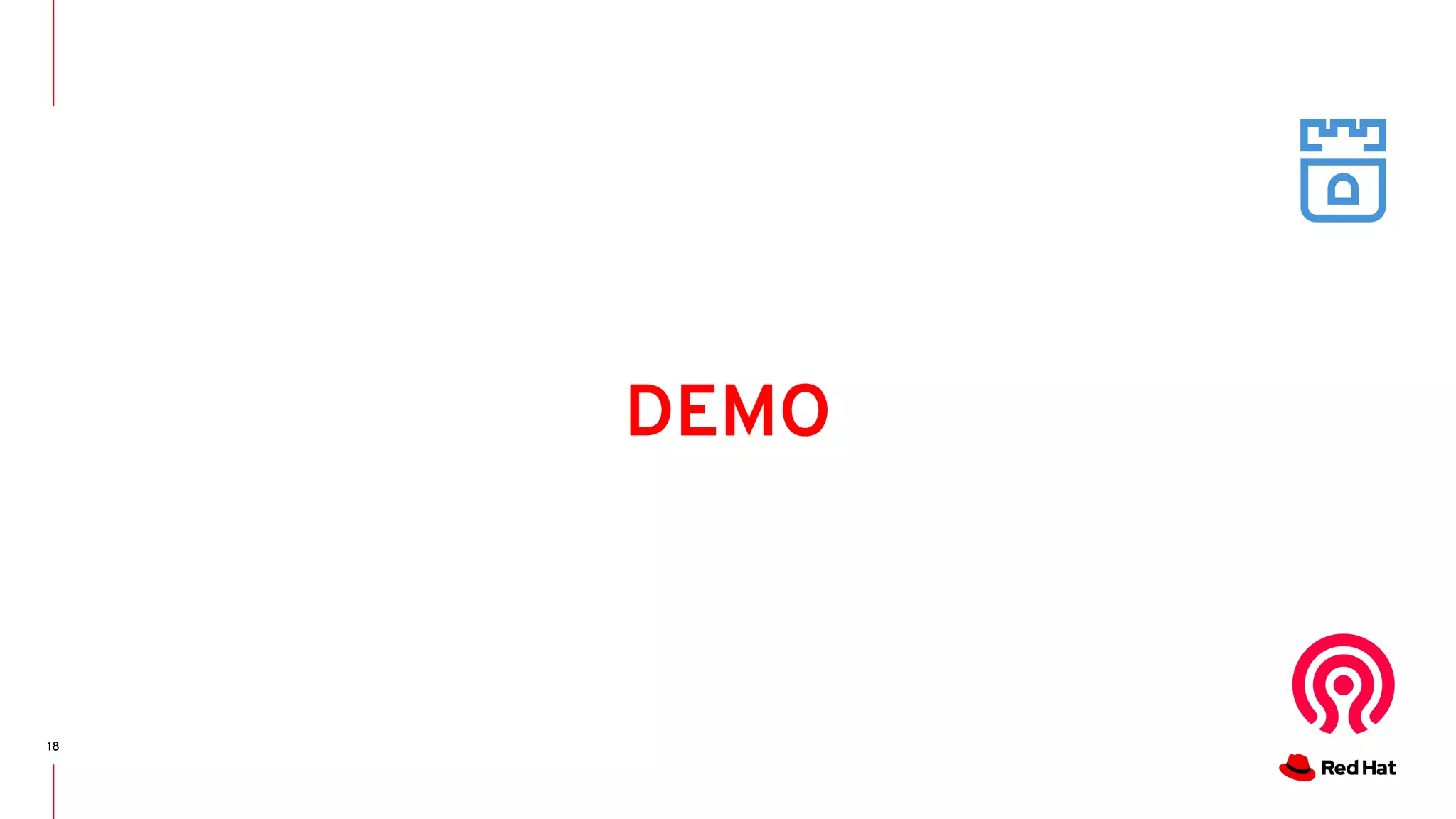

DEMO

19. 19
Q&A
