Dynamo and BigTable
In light of the CAP Theorem

22953 Research Seminar: Databases and Data Mining
November 2013
Open University
Grisha Weintraub

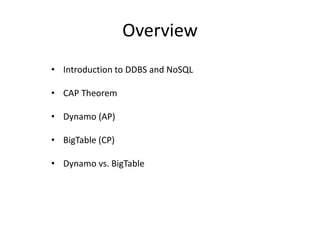

Overview
• Introduction to DDBS and NoSQL
• CAP Theorem
• Dynamo (AP)

• BigTable (CP)
• Dynamo vs. BigTable

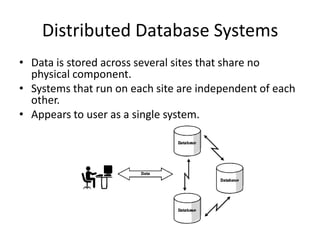

Distributed Database Systems
• Data is stored across several sites that share no
physical component.
• Systems that run on each site are independent of each
other.
• Appears to user as a single system.
Distributed Data Storage
Partitioning :
Data is partitioned into
several fragments and
stored in different sites.
Horizontal – by rows.
Vertical – by columns.

Replication :
System maintains multiple
copies of data, stored in
different sites.

Replication and partitioning can be combined !

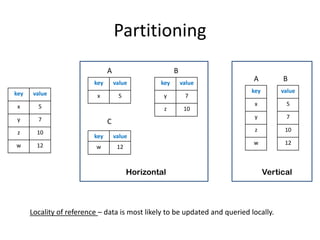

Partitioning
A

B

key
key

value

x

10

w

12

value

x

5

y

7

z

10

A

B

12

5

7
10
12

value

w

x

w

key

value

y

C

key

z

7

z

key

5

y

value

Horizontal

Vertical

Locality of reference – data is most likely to be updated and queried locally.
Replication
A

B

key

value

x

x

5

y

7

z

10

10

w

5

7

z

value

5

y

key

x
key

value

12

C

D

key

value

key

value

y

7

z

10

w

12

w

12

Pros – Increased availability of data and faster query evaluation.
Cons – Increased cost of updates and complexity of concurrency control.
Updating distributed data
• Quorum voting (Gifford SOSP’79) :






N – number of replicas.
At least R copies should be read.
At least W copies should be written.
R+W > N
Example (N=10, R=4, W=7)

• Read-any write-all :
 R=1, W=N

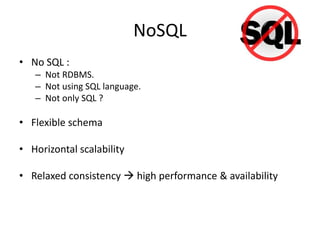

NoSQL
• No SQL :
– Not RDBMS.
– Not using SQL language.
– Not only SQL ?

• Flexible schema
• Horizontal scalability
• Relaxed consistency  high performance & availability

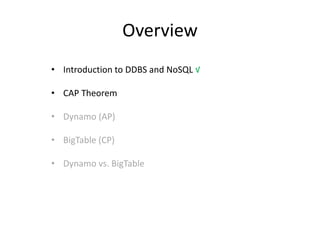

Overview
• Introduction to DDBS and NoSQL √
• CAP Theorem
• Dynamo (AP)

• BigTable (CP)
• Dynamo vs. BigTable

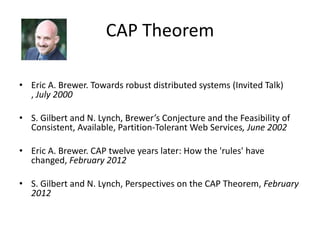

CAP Theorem
• Eric A. Brewer. Towards robust distributed systems (Invited Talk)
, July 2000
• S. Gilbert and N. Lynch, Brewer’s Conjecture and the Feasibility of
Consistent, Available, Partition-Tolerant Web Services, June 2002
• Eric A. Brewer. CAP twelve years later: How the 'rules' have
changed, February 2012
• S. Gilbert and N. Lynch, Perspectives on the CAP Theorem, February
2012
CAP Theorem
• Consistency – equivalent to having a single up-to-date
copy of the data.
• Availability - every request received by a non-failing node
in the system must result in a response.
• Partition tolerance - the network will be allowed to lose
arbitrarily many messages sent from one node to another.

Theorem – You can have at most two of these properties
for any shared-data system.

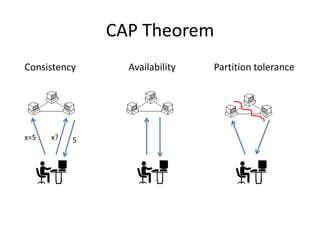

CAP Theorem
Consistency

x=5

x?

5

Availability

Partition tolerance
CAP Theorem - Proof
x=0

x=0

x=0

x=5

x?

1. x=0  Not consistent
2. No response  Not available

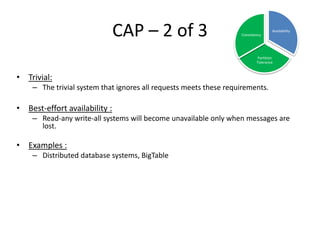

CAP – 2 of 3

Consistency

Availability

Partition
Tolerance

• Trivial:
– The trivial system that ignores all requests meets these requirements.

• Best-effort availability :
– Read-any write-all systems will become unavailable only when messages are
lost.

• Examples :
– Distributed database systems, BigTable
CAP – 2 of 3

Consistency

Availability

Partition
Tolerance

• Trivial:
– The service can trivially return the initial value in response to every request.

• Best-effort consistency :
– Quorum-based system, modified to time-out lost messages, will only return
inconsistent(and, in particular, stale) data when messages are lost.

• Examples :
– Web cashes, Dynamo
CAP – 2 of 3

Consistency

Availability

Partition
Tolerance

• If there are no partitions, it is clearly possible to provide
consistent, available data (e.g. read-any write-all).
• Does choosing CA make sense ?
Eric Brewer :
– “The general belief is that for wide-area systems, designers cannot forfeit P
and therefore have a difficult choice between C and A.“
– “If the choice is CA, and then there is a partition, the choice must revert to C or
A. ”

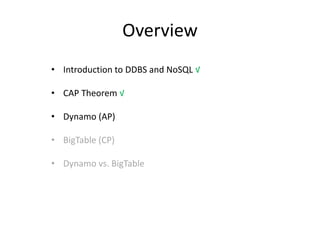

Overview
• Introduction to DDBS and NoSQL √
• CAP Theorem √
• Dynamo (AP)

• BigTable (CP)
• Dynamo vs. BigTable

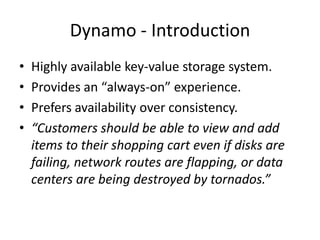

Dynamo - Introduction
•
•
•
•

Highly available key-value storage system.
Provides an “always-on” experience.
Prefers availability over consistency.
“Customers should be able to view and add
items to their shopping cart even if disks are
failing, network routes are flapping, or data
centers are being destroyed by tornados.”
Dynamo - API
• Distributed hash table :
– put(key, context, object) – Associates given object with
specified key and context.
• context – metadata about the object, includes information as the
version of the object.

– get(key) – Returns the object to which the specified key is
mapped or a list of objects with conflicting versions along
with a context.

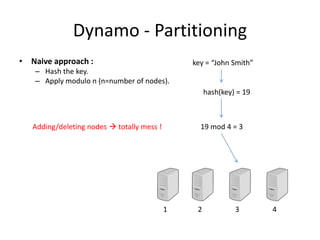

Dynamo - Partitioning
• Naive approach :
– Hash the key.
– Apply modulo n (n=number of nodes).

key = “John Smith”

hash(key) = 19

Adding/deleting nodes  totally mess !

19 mod 4 = 3

1

2

3

4

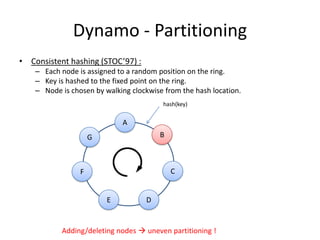

Dynamo - Partitioning
• Consistent hashing (STOC’97) :
– Each node is assigned to a random position on the ring.
– Key is hashed to the fixed point on the ring.
– Node is chosen by walking clockwise from the hash location.
hash(key)

A

B

G

C

F

E

D

Adding/deleting nodes  uneven partitioning !

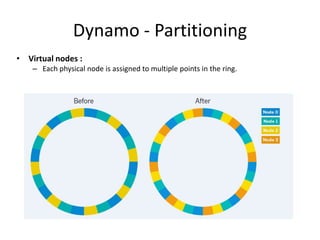

Dynamo - Partitioning
• Virtual nodes :
– Each physical node is assigned to multiple points in the ring.

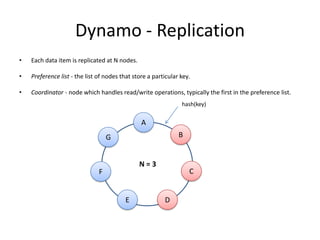

Dynamo - Replication
•

Each data item is replicated at N nodes.

•

Preference list - the list of nodes that store a particular key.

•

Coordinator - node which handles read/write operations, typically the first in the preference list.
hash(key)

A

B

G
N=3

F

E

C

D

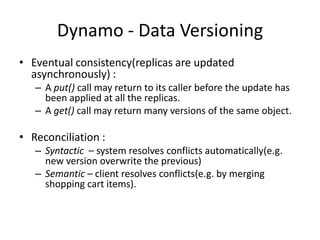

Dynamo - Data Versioning
• Eventual consistency(replicas are updated
asynchronously) :
– A put() call may return to its caller before the update has
been applied at all the replicas.
– A get() call may return many versions of the same object.

• Reconciliation :
– Syntactic – system resolves conflicts automatically(e.g.
new version overwrite the previous)
– Semantic – client resolves conflicts(e.g. by merging
shopping cart items).

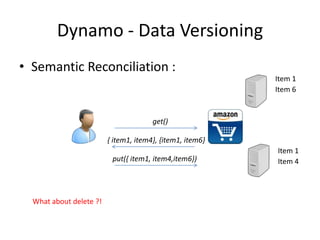

Dynamo - Data Versioning
• Semantic Reconciliation :
Item 1
Item 6

get()
{ item1, item4}, {item1, item6}
put({ item1, item4,item6})

What about delete ?!

Item 1
Item 4

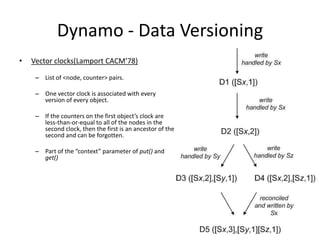

Dynamo - Data Versioning
•

Vector clocks(Lamport CACM’78)
– List of <node, counter> pairs.
– One vector clock is associated with every
version of every object.
– If the counters on the first object’s clock are
less-than-or-equal to all of the nodes in the
second clock, then the first is an ancestor of the
second and can be forgotten.
– Part of the “context” parameter of put() and
get()

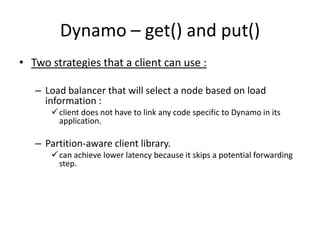

Dynamo – get() and put()
• Two strategies that a client can use :
– Load balancer that will select a node based on load
information :
 client does not have to link any code specific to Dynamo in its
application.

– Partition-aware client library.
 can achieve lower latency because it skips a potential forwarding
step.

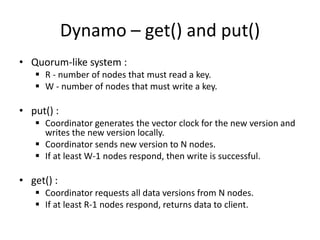

Dynamo – get() and put()
• Quorum-like system :
 R - number of nodes that must read a key.
 W - number of nodes that must write a key.

• put() :
 Coordinator generates the vector clock for the new version and
writes the new version locally.
 Coordinator sends new version to N nodes.
 If at least W-1 nodes respond, then write is successful.

• get() :
 Coordinator requests all data versions from N nodes.
 If at least R-1 nodes respond, returns data to client.

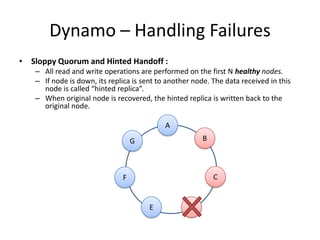

Dynamo – Handling Failures
• Sloppy Quorum and Hinted Handoff :
– All read and write operations are performed on the first N healthy nodes.
– If node is down, its replica is sent to another node. The data received in this
node is called “hinted replica”.
– When original node is recovered, the hinted replica is written back to the
original node.
A

B

G

C

F

E

D

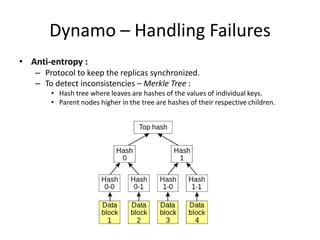

Dynamo – Handling Failures
• Anti-entropy :
– Protocol to keep the replicas synchronized.
– To detect inconsistencies – Merkle Tree :
• Hash tree where leaves are hashes of the values of individual keys.
• Parent nodes higher in the tree are hashes of their respective children.
Dynamo – Membership detection
• Gossip-based protocol :
– Periodically, each node contacts another node in the network,
randomly selected.
– Nodes compare their membership histories and reconcile them.
A
B

G

C

F

E

D

A F
BG
CE
DG
EA
FB
GC

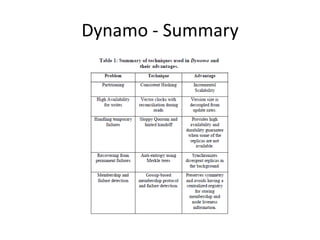

Dynamo - Summary

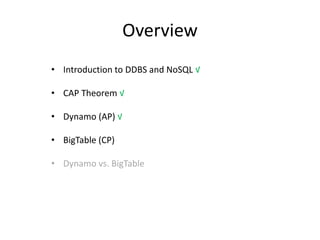

Overview
• Introduction to DDBS and NoSQL √
• CAP Theorem √
• Dynamo (AP) √

• BigTable (CP)
• Dynamo vs. BigTable

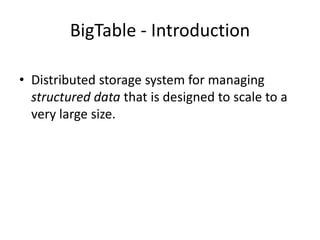

BigTable - Introduction
• Distributed storage system for managing
structured data that is designed to scale to a
very large size.

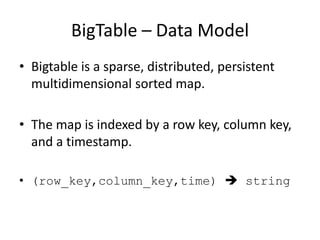

BigTable – Data Model
• Bigtable is a sparse, distributed, persistent
multidimensional sorted map.
• The map is indexed by a row key, column key,
and a timestamp.
• (row_key,column_key,time)  string

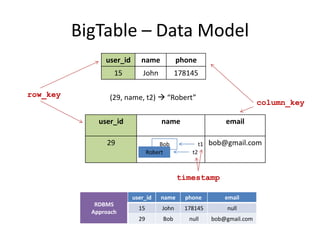

BigTable – Data Model
user_id

phone

15
row_key

name
John

178145

(29, name, t2)  “Robert”
user_id

column_key

name

29

Bob
Robert

email
t1

bob@gmail.com

t2

timestamp
user_id
RDBMS
Approach

name

phone

email

15

John

178145

null

29

Bob

null

bob@gmail.com

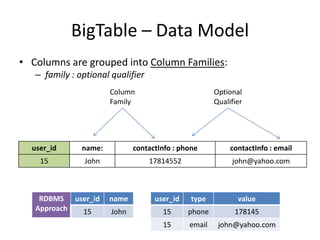

BigTable – Data Model
• Columns are grouped into Column Families:
– family : optional qualifier
Column
Family

Optional
Qualifier

user_id

name:

contactInfo : phone

contactInfo : email

15

John

17814552

john@yahoo.com

RDBMS user_id
Approach
15

name

user_id

type

value

John

15

phone

178145

15

email

john@yahoo.com

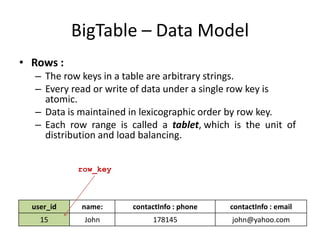

BigTable – Data Model
• Rows :
– The row keys in a table are arbitrary strings.
– Every read or write of data under a single row key is
atomic.
– Data is maintained in lexicographic order by row key.
– Each row range is called a tablet, which is the unit of
distribution and load balancing.
row_key

user_id

name:

contactInfo : phone

contactInfo : email

15

John

178145

john@yahoo.com

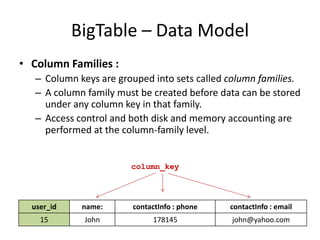

BigTable – Data Model
• Column Families :
– Column keys are grouped into sets called column families.
– A column family must be created before data can be stored
under any column key in that family.
– Access control and both disk and memory accounting are
performed at the column-family level.
column_key

user_id

name:

contactInfo : phone

contactInfo : email

15

John

178145

john@yahoo.com

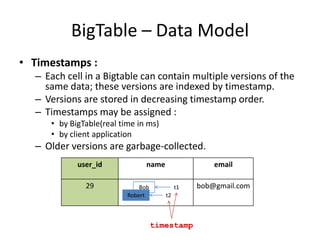

BigTable – Data Model
• Timestamps :
– Each cell in a Bigtable can contain multiple versions of the
same data; these versions are indexed by timestamp.
– Versions are stored in decreasing timestamp order.
– Timestamps may be assigned :
• by BigTable(real time in ms)
• by client application

– Older versions are garbage-collected.
user_id
29

name
Bob
Robert

email
t1
t2

timestamp

bob@gmail.com
BigTable – Data Model
• Tablets :
– Large tables broken into tablets at row boundaries.
– Tablet holds contiguous range of rows.
– Approximately 100-200 MB of data per tablet.
id
15000
….

…..
…..

20001
Tablet 2

…..

20000

Tablet 1

…..

…..

….

…..

25000

…..
BigTable – API
• Metadata operations :
– Creating and deleting tables, column families, modify access
control rights.

• Client operations :
– Write/delete values
– Read values
– Scan row ranges

// Open the table
Table *T = OpenOrDie("/bigtable/users");

// Update name and delete a phone
RowMutation r1(T, “29");
r1.Set(“name:", “Robert");
r1.Delete(“contactInfo:phone");
Operation op;
Apply(&op, &r1);

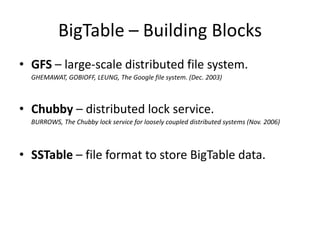

BigTable – Building Blocks
• GFS – large-scale distributed file system.
GHEMAWAT, GOBIOFF, LEUNG, The Google file system. (Dec. 2003)

• Chubby – distributed lock service.
BURROWS, The Chubby lock service for loosely coupled distributed systems (Nov. 2006)

• SSTable – file format to store BigTable data.

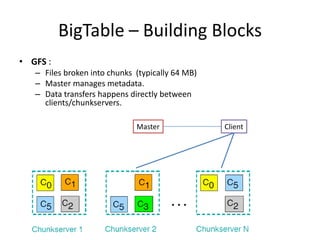

BigTable – Building Blocks
• GFS :
– Files broken into chunks (typically 64 MB)
– Master manages metadata.
– Data transfers happens directly between
clients/chunkservers.
Master

Client

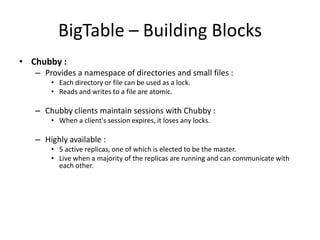

BigTable – Building Blocks
• Chubby :
– Provides a namespace of directories and small files :
• Each directory or file can be used as a lock.
• Reads and writes to a file are atomic.

– Chubby clients maintain sessions with Chubby :
• When a client's session expires, it loses any locks.

– Highly available :
• 5 active replicas, one of which is elected to be the master.
• Live when a majority of the replicas are running and can communicate with
each other.
BigTable – Building Blocks
• SSTable :
– Stored in GFS.
– Persistent, ordered, immutable map from keys to values.
– Provided operations :
• Get value by key
• Iterate over all key/value pairs in a specified key range.

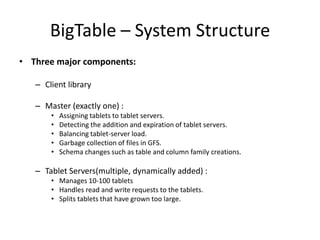

BigTable – System Structure
• Three major components:
– Client library
– Master (exactly one) :
•
•
•
•
•

Assigning tablets to tablet servers.
Detecting the addition and expiration of tablet servers.
Balancing tablet-server load.
Garbage collection of files in GFS.
Schema changes such as table and column family creations.

– Tablet Servers(multiple, dynamically added) :
• Manages 10-100 tablets
• Handles read and write requests to the tablets.
• Splits tablets that have grown too large.

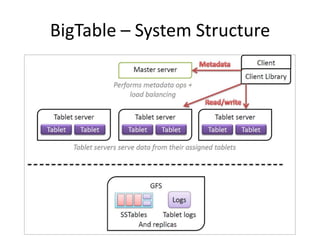

BigTable – System Structure

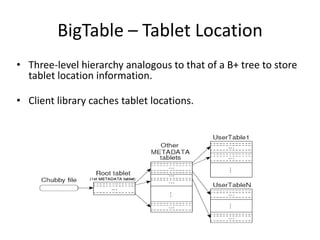

BigTable – Tablet Location
• Three-level hierarchy analogous to that of a B+ tree to store
tablet location information.
• Client library caches tablet locations.

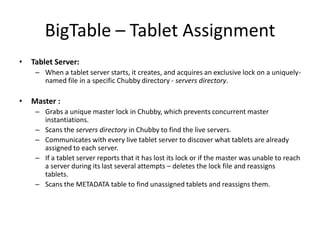

BigTable – Tablet Assignment
•

Tablet Server:
– When a tablet server starts, it creates, and acquires an exclusive lock on a uniquelynamed file in a specific Chubby directory - servers directory.

•

Master :
– Grabs a unique master lock in Chubby, which prevents concurrent master
instantiations.
– Scans the servers directory in Chubby to find the live servers.
– Communicates with every live tablet server to discover what tablets are already
assigned to each server.
– If a tablet server reports that it has lost its lock or if the master was unable to reach
a server during its last several attempts – deletes the lock file and reassigns
tablets.
– Scans the METADATA table to find unassigned tablets and reassigns them.

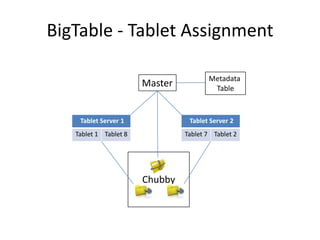

BigTable - Tablet Assignment
Master

Metadata
Table

Tablet Server 1

Tablet Server 2

Tablet 1 Tablet 8

Tablet 7 Tablet 2

Chubby

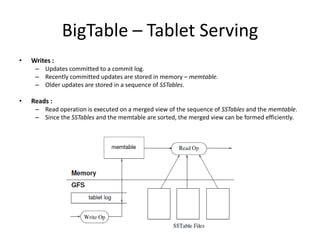

BigTable – Tablet Serving
•

Writes :
– Updates committed to a commit log.
– Recently committed updates are stored in memory – memtable.
– Older updates are stored in a sequence of SSTables.

•

Reads :
– Read operation is executed on a merged view of the sequence of SSTables and the memtable.
– Since the SSTables and the memtable are sorted, the merged view can be formed efficiently.

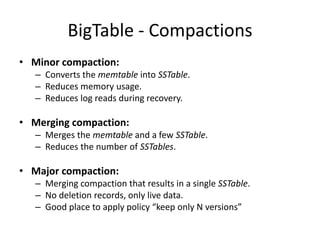

BigTable - Compactions
• Minor compaction:
– Converts the memtable into SSTable.
– Reduces memory usage.
– Reduces log reads during recovery.

• Merging compaction:
– Merges the memtable and a few SSTable.
– Reduces the number of SSTables.

• Major compaction:
– Merging compaction that results in a single SSTable.
– No deletion records, only live data.
– Good place to apply policy “keep only N versions”

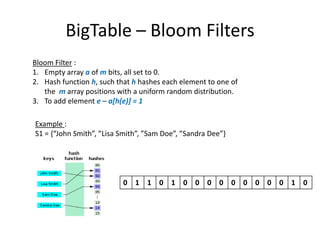

BigTable – Bloom Filters
Bloom Filter :
1. Empty array a of m bits, all set to 0.
2. Hash function h, such that h hashes each element to one of
the m array positions with a uniform random distribution.
3. To add element e – a[h(e)] = 1
Example :
S1 = {“John Smith”, ”Lisa Smith”, ”Sam Doe”, ”Sandra Dee”}

0 1 1 0 1 0 0 0 0 0 0 0 0 0 1 0

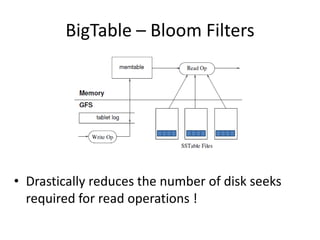

BigTable – Bloom Filters

• Drastically reduces the number of disk seeks
required for read operations !

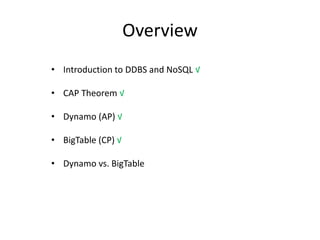

Overview
• Introduction to DDBS and NoSQL √
• CAP Theorem √
• Dynamo (AP) √

• BigTable (CP) √
• Dynamo vs. BigTable

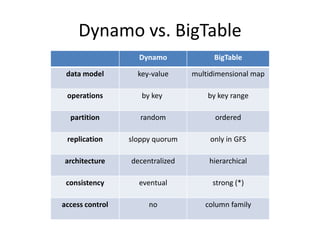

Dynamo vs. BigTable
Dynamo

BigTable

data model

key-value

multidimensional map

operations

by key

by key range

partition

random

ordered

replication

sloppy quorum

only in GFS

architecture

decentralized

hierarchical

consistency

eventual

strong (*)

access control

no

column family
Overview
• Introduction to DDBS and NoSQL √
• CAP Theorem √
• Dynamo (AP) √

• BigTable (CP) √
• Dynamo vs. BigTable √
References
•

R.Ramakrishnan and J.Gehrke, Database Management Systems, 3rd edition, pp. 736-751

•

S. Gilbert and N. Lynch, "Brewer's Conjecture and the Feasibility of Consistent, Available,
Partition-Tolerant Web Services," ACM SIGACT News, June 2002, pp. 51-59.

•

Brewer, E. CAP twelve years later: How the 'rules' have changed. IEEE Computer 45, 2 (Feb. 2012),
23–29.

•

S. Gilbert and N. Lynch, Perspectives on the CAP Theorem. IEEE Computer 45, 2 (Feb. 2012), 30-36.

•

G. DeCandia et al., "Dynamo: Amazon's Highly Available Key-Value Store," Proc. 21st ACM SIGOPS
Symp. Operating Systems Principles (SOSP 07), ACM, 2007, pp. 205-220.

•

F. Chang et al., "Bigtable: A Distributed Storage System for Structured Data" Proc. 7th Usenix
Symp. Operating Systems Design and Implementation (OSDI 06), Usenix, 2006, pp. 205-218.

•

Ghemawat, S., Gobioff, H., and Leung, S. The Google File system. In Proc. of the 19th ACM SOSP
(Dec.2003), pp. 29.43.
Dynamo and BigTable in light of the CAP theorem

More Related Content

What's hot

Database, 3 Distribution Design
Database, 3 Distribution DesignDatabase, 3 Distribution Design
Database, 3 Distribution Design
Ali Usman

Distributed databases and dbm ss
Distributed databases and dbm ssDistributed databases and dbm ss
Distributed databases and dbm ss
Mohd Arif


What's hot (20)

Deep Dive on Amazon Redshift
Deep Dive on Amazon RedshiftDeep Dive on Amazon Redshift
Deep Dive on Amazon Redshift

Introduction to Apache ZooKeeper
Introduction to Apache ZooKeeperIntroduction to Apache ZooKeeper
Introduction to Apache ZooKeeper

Amazon S3 Best Practice and Tuning for Hadoop/Spark in the Cloud
Amazon S3 Best Practice and Tuning for Hadoop/Spark in the CloudAmazon S3 Best Practice and Tuning for Hadoop/Spark in the Cloud
Amazon S3 Best Practice and Tuning for Hadoop/Spark in the Cloud

Apache ZooKeeper
Apache ZooKeeperApache ZooKeeper
Apache ZooKeeper

Database, 3 Distribution Design
Database, 3 Distribution DesignDatabase, 3 Distribution Design
Database, 3 Distribution Design

Kafka Reliability - When it absolutely, positively has to be there
Kafka Reliability - When it absolutely, positively has to be thereKafka Reliability - When it absolutely, positively has to be there
Kafka Reliability - When it absolutely, positively has to be there

Google Big Table
Google Big TableGoogle Big Table
Google Big Table

Lightweight Transactions in Scylla versus Apache Cassandra
Lightweight Transactions in Scylla versus Apache CassandraLightweight Transactions in Scylla versus Apache Cassandra
Lightweight Transactions in Scylla versus Apache Cassandra

Distributed databases and dbm ss
Distributed databases and dbm ssDistributed databases and dbm ss
Distributed databases and dbm ss

From Pandas to Koalas: Reducing Time-To-Insight for Virgin Hyperloop's Data
From Pandas to Koalas: Reducing Time-To-Insight for Virgin Hyperloop's DataFrom Pandas to Koalas: Reducing Time-To-Insight for Virgin Hyperloop's Data
From Pandas to Koalas: Reducing Time-To-Insight for Virgin Hyperloop's Data

MongoDB Sharding Fundamentals
MongoDB Sharding Fundamentals MongoDB Sharding Fundamentals
MongoDB Sharding Fundamentals

Large Scale Graph Analytics with JanusGraph
Large Scale Graph Analytics with JanusGraphLarge Scale Graph Analytics with JanusGraph
Large Scale Graph Analytics with JanusGraph

Gfs vs hdfs
Gfs vs hdfsGfs vs hdfs
Gfs vs hdfs

Apache Iceberg: An Architectural Look Under the Covers
Apache Iceberg: An Architectural Look Under the CoversApache Iceberg: An Architectural Look Under the Covers
Apache Iceberg: An Architectural Look Under the Covers

Thousands of Threads and Blocking I/O
Thousands of Threads and Blocking I/OThousands of Threads and Blocking I/O
Thousands of Threads and Blocking I/O

The Google Chubby lock service for loosely-coupled distributed systems
The Google Chubby lock service for loosely-coupled distributed systemsThe Google Chubby lock service for loosely-coupled distributed systems
The Google Chubby lock service for loosely-coupled distributed systems

Google Spanner : our understanding of concepts and implications
Google Spanner : our understanding of concepts and implicationsGoogle Spanner : our understanding of concepts and implications
Google Spanner : our understanding of concepts and implications

Basics of MongoDB
Basics of MongoDB Basics of MongoDB
Basics of MongoDB

Big Data & Hadoop Tutorial
Big Data & Hadoop TutorialBig Data & Hadoop Tutorial
Big Data & Hadoop Tutorial

SRV308 Deep Dive on Amazon Aurora
SRV308 Deep Dive on Amazon AuroraSRV308 Deep Dive on Amazon Aurora
SRV308 Deep Dive on Amazon Aurora


Similar to Dynamo and BigTable in light of the CAP theorem

Cassandra
CassandraCassandra
Cassandra
exsuns

Talk about apache cassandra, TWJUG 2011
Talk about apache cassandra, TWJUG 2011Talk about apache cassandra, TWJUG 2011
Talk about apache cassandra, TWJUG 2011
Boris Yen

Cassandra background-and-architecture
Cassandra background-and-architectureCassandra background-and-architecture
Cassandra background-and-architecture
Markus Klems

Scalable Similarity-Based Neighborhood Methods with MapReduce
Scalable Similarity-Based Neighborhood Methods with MapReduceScalable Similarity-Based Neighborhood Methods with MapReduce
Scalable Similarity-Based Neighborhood Methods with MapReduce
sscdotopen


Similar to Dynamo and BigTable in light of the CAP theorem (20)

7. Key-Value Databases: In Depth
7. Key-Value Databases: In Depth7. Key-Value Databases: In Depth
7. Key-Value Databases: In Depth

Apache cassandra
Apache cassandraApache cassandra
Apache cassandra

Cassandra
CassandraCassandra
Cassandra

Talk about apache cassandra, TWJUG 2011
Talk about apache cassandra, TWJUG 2011Talk about apache cassandra, TWJUG 2011
Talk about apache cassandra, TWJUG 2011

Talk About Apache Cassandra
Talk About Apache CassandraTalk About Apache Cassandra
Talk About Apache Cassandra

6.1-Cassandra.ppt
6.1-Cassandra.ppt6.1-Cassandra.ppt
6.1-Cassandra.ppt

Cassandra
CassandraCassandra
Cassandra

6.1-Cassandra.ppt
6.1-Cassandra.ppt6.1-Cassandra.ppt
6.1-Cassandra.ppt

cybersecurity notes for mca students for learning
cybersecurity notes for mca students for learningcybersecurity notes for mca students for learning
cybersecurity notes for mca students for learning

Dynamodb Presentation
Dynamodb PresentationDynamodb Presentation
Dynamodb Presentation

Building Big Data Streaming Architectures
Building Big Data Streaming ArchitecturesBuilding Big Data Streaming Architectures
Building Big Data Streaming Architectures

Master.pptx
Master.pptxMaster.pptx
Master.pptx

Cassandra background-and-architecture
Cassandra background-and-architectureCassandra background-and-architecture
Cassandra background-and-architecture

Managing your Black Friday Logs - Antonio Bonuccelli - Codemotion Rome 2018
Managing your Black Friday Logs - Antonio Bonuccelli - Codemotion Rome 2018Managing your Black Friday Logs - Antonio Bonuccelli - Codemotion Rome 2018
Managing your Black Friday Logs - Antonio Bonuccelli - Codemotion Rome 2018

CASSANDRA - Next to RDBMS
CASSANDRA - Next to RDBMSCASSANDRA - Next to RDBMS
CASSANDRA - Next to RDBMS

Kademlia introduction
Kademlia introductionKademlia introduction
Kademlia introduction

Scalable Similarity-Based Neighborhood Methods with MapReduce
Scalable Similarity-Based Neighborhood Methods with MapReduceScalable Similarity-Based Neighborhood Methods with MapReduce
Scalable Similarity-Based Neighborhood Methods with MapReduce

Introduction to cassandra
Introduction to cassandraIntroduction to cassandra
Introduction to cassandra

chapter 2 architecture
chapter 2 architecturechapter 2 architecture
chapter 2 architecture

data clean.ppt
data clean.pptdata clean.ppt
data clean.ppt


Recently uploaded

Tales from a Passkey Provider Progress from Awareness to Implementation.pptx
Tales from a Passkey Provider  Progress from Awareness to Implementation.pptxTales from a Passkey Provider  Progress from Awareness to Implementation.pptx
Tales from a Passkey Provider Progress from Awareness to Implementation.pptx
FIDO Alliance

Microsoft BitLocker Bypass Attack Method.pdf
Microsoft BitLocker Bypass Attack Method.pdfMicrosoft BitLocker Bypass Attack Method.pdf
Microsoft BitLocker Bypass Attack Method.pdf
Overkill Security

Hyatt driving innovation and exceptional customer experiences with FIDO passw...
Hyatt driving innovation and exceptional customer experiences with FIDO passw...Hyatt driving innovation and exceptional customer experiences with FIDO passw...
Hyatt driving innovation and exceptional customer experiences with FIDO passw...
FIDO Alliance

Harnessing Passkeys in the Battle Against AI-Powered Cyber Threats.pptx
Harnessing Passkeys in the Battle Against AI-Powered Cyber Threats.pptxHarnessing Passkeys in the Battle Against AI-Powered Cyber Threats.pptx
Harnessing Passkeys in the Battle Against AI-Powered Cyber Threats.pptx
FIDO Alliance

Easier, Faster, and More Powerful – Alles Neu macht der Mai -Wir durchleuchte...
Easier, Faster, and More Powerful – Alles Neu macht der Mai -Wir durchleuchte...Easier, Faster, and More Powerful – Alles Neu macht der Mai -Wir durchleuchte...
Easier, Faster, and More Powerful – Alles Neu macht der Mai -Wir durchleuchte...
panagenda


Recently uploaded (20)

Working together SRE & Platform Engineering
Working together SRE & Platform EngineeringWorking together SRE & Platform Engineering
Working together SRE & Platform Engineering

AI+A11Y 11MAY2024 HYDERBAD GAAD 2024 - HelloA11Y (11 May 2024)
AI+A11Y 11MAY2024 HYDERBAD GAAD 2024 - HelloA11Y (11 May 2024)AI+A11Y 11MAY2024 HYDERBAD GAAD 2024 - HelloA11Y (11 May 2024)
AI+A11Y 11MAY2024 HYDERBAD GAAD 2024 - HelloA11Y (11 May 2024)

Intro to Passkeys and the State of Passwordless.pptx
Intro to Passkeys and the State of Passwordless.pptxIntro to Passkeys and the State of Passwordless.pptx
Intro to Passkeys and the State of Passwordless.pptx

The Zero-ETL Approach: Enhancing Data Agility and Insight
The Zero-ETL Approach: Enhancing Data Agility and InsightThe Zero-ETL Approach: Enhancing Data Agility and Insight
The Zero-ETL Approach: Enhancing Data Agility and Insight

AI in Action: Real World Use Cases by Anitaraj
AI in Action: Real World Use Cases by AnitarajAI in Action: Real World Use Cases by Anitaraj
AI in Action: Real World Use Cases by Anitaraj

Six Myths about Ontologies: The Basics of Formal Ontology
Six Myths about Ontologies: The Basics of Formal OntologySix Myths about Ontologies: The Basics of Formal Ontology
Six Myths about Ontologies: The Basics of Formal Ontology

The Ultimate Prompt Engineering Guide for Generative AI: Get the Most Out of ...
The Ultimate Prompt Engineering Guide for Generative AI: Get the Most Out of ...The Ultimate Prompt Engineering Guide for Generative AI: Get the Most Out of ...
The Ultimate Prompt Engineering Guide for Generative AI: Get the Most Out of ...

Tales from a Passkey Provider Progress from Awareness to Implementation.pptx
Tales from a Passkey Provider  Progress from Awareness to Implementation.pptxTales from a Passkey Provider  Progress from Awareness to Implementation.pptx
Tales from a Passkey Provider Progress from Awareness to Implementation.pptx

Microsoft BitLocker Bypass Attack Method.pdf
Microsoft BitLocker Bypass Attack Method.pdfMicrosoft BitLocker Bypass Attack Method.pdf
Microsoft BitLocker Bypass Attack Method.pdf

Navigating the Large Language Model choices_Ravi Daparthi
Navigating the Large Language Model choices_Ravi DaparthiNavigating the Large Language Model choices_Ravi Daparthi
Navigating the Large Language Model choices_Ravi Daparthi

Hyatt driving innovation and exceptional customer experiences with FIDO passw...
Hyatt driving innovation and exceptional customer experiences with FIDO passw...Hyatt driving innovation and exceptional customer experiences with FIDO passw...
Hyatt driving innovation and exceptional customer experiences with FIDO passw...

ERP Contender Series: Acumatica vs. Sage Intacct
ERP Contender Series: Acumatica vs. Sage IntacctERP Contender Series: Acumatica vs. Sage Intacct
ERP Contender Series: Acumatica vs. Sage Intacct

Harnessing Passkeys in the Battle Against AI-Powered Cyber Threats.pptx
Harnessing Passkeys in the Battle Against AI-Powered Cyber Threats.pptxHarnessing Passkeys in the Battle Against AI-Powered Cyber Threats.pptx
Harnessing Passkeys in the Battle Against AI-Powered Cyber Threats.pptx

الأمن السيبراني - ما لا يسع للمستخدم جهله
الأمن السيبراني - ما لا يسع للمستخدم جهلهالأمن السيبراني - ما لا يسع للمستخدم جهله
الأمن السيبراني - ما لا يسع للمستخدم جهله

Easier, Faster, and More Powerful – Alles Neu macht der Mai -Wir durchleuchte...
Easier, Faster, and More Powerful – Alles Neu macht der Mai -Wir durchleuchte...Easier, Faster, and More Powerful – Alles Neu macht der Mai -Wir durchleuchte...
Easier, Faster, and More Powerful – Alles Neu macht der Mai -Wir durchleuchte...

How to Check GPS Location with a Live Tracker in Pakistan
How to Check GPS Location with a Live Tracker in PakistanHow to Check GPS Location with a Live Tracker in Pakistan
How to Check GPS Location with a Live Tracker in Pakistan

(Explainable) Data-Centric AI: what are you explaininhg, and to whom?
(Explainable) Data-Centric AI: what are you explaininhg, and to whom?(Explainable) Data-Centric AI: what are you explaininhg, and to whom?
(Explainable) Data-Centric AI: what are you explaininhg, and to whom?

ChatGPT and Beyond - Elevating DevOps Productivity
ChatGPT and Beyond - Elevating DevOps ProductivityChatGPT and Beyond - Elevating DevOps Productivity
ChatGPT and Beyond - Elevating DevOps Productivity

Event-Driven Architecture Masterclass: Engineering a Robust, High-performance...
Event-Driven Architecture Masterclass: Engineering a Robust, High-performance...Event-Driven Architecture Masterclass: Engineering a Robust, High-performance...
Event-Driven Architecture Masterclass: Engineering a Robust, High-performance...

JohnPollard-hybrid-app-RailsConf2024.pptx
JohnPollard-hybrid-app-RailsConf2024.pptxJohnPollard-hybrid-app-RailsConf2024.pptx
JohnPollard-hybrid-app-RailsConf2024.pptx


Dynamo and BigTable in light of the CAP theorem

  • 1. Dynamo and BigTable In light of the CAP Theorem 22953 Research Seminar: Databases and Data Mining November 2013 Open University Grisha Weintraub
  • 2. Overview • Introduction to DDBS and NoSQL • CAP Theorem • Dynamo (AP) • BigTable (CP) • Dynamo vs. BigTable
  • 3. Distributed Database Systems • Data is stored across several sites that share no physical component. • Systems that run on each site are independent of each other. • Appears to user as a single system.
  • 4. Distributed Data Storage Partitioning : Data is partitioned into several fragments and stored in different sites. Horizontal – by rows. Vertical – by columns. Replication : System maintains multiple copies of data, stored in different sites. Replication and partitioning can be combined !
  • 6. Replication A B key value x x 5 y 7 z 10 10 w 5 7 z value 5 y key x key value 12 C D key value key value y 7 z 10 w 12 w 12 Pros – Increased availability of data and faster query evaluation. Cons – Increased cost of updates and complexity of concurrency control.
  • 7. Updating distributed data • Quorum voting (Gifford SOSP’79) :      N – number of replicas. At least R copies should be read. At least W copies should be written. R+W > N Example (N=10, R=4, W=7) • Read-any write-all :  R=1, W=N
  • 8. NoSQL • No SQL : – Not RDBMS. – Not using SQL language. – Not only SQL ? • Flexible schema • Horizontal scalability • Relaxed consistency  high performance & availability
  • 9. Overview • Introduction to DDBS and NoSQL √ • CAP Theorem • Dynamo (AP) • BigTable (CP) • Dynamo vs. BigTable
  • 10. CAP Theorem • Eric A. Brewer. Towards robust distributed systems (Invited Talk) , July 2000 • S. Gilbert and N. Lynch, Brewer’s Conjecture and the Feasibility of Consistent, Available, Partition-Tolerant Web Services, June 2002 • Eric A. Brewer. CAP twelve years later: How the 'rules' have changed, February 2012 • S. Gilbert and N. Lynch, Perspectives on the CAP Theorem, February 2012
  • 11. CAP Theorem • Consistency – equivalent to having a single up-to-date copy of the data. • Availability - every request received by a non-failing node in the system must result in a response. • Partition tolerance - the network will be allowed to lose arbitrarily many messages sent from one node to another. Theorem – You can have at most two of these properties for any shared-data system.
  • 13. CAP Theorem - Proof x=0 x=0 x=0 x=5 x? 1. x=0  Not consistent 2. No response  Not available

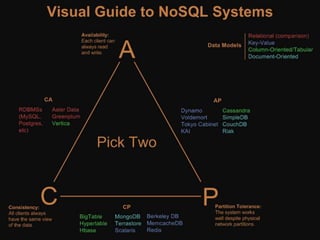

  • 14. CAP – 2 of 3 Consistency Availability Partition Tolerance • Trivial: – The trivial system that ignores all requests meets these requirements. • Best-effort availability : – Read-any write-all systems will become unavailable only when messages are lost. • Examples : – Distributed database systems, BigTable
  • 15. CAP – 2 of 3 Consistency Availability Partition Tolerance • Trivial: – The service can trivially return the initial value in response to every request. • Best-effort consistency : – Quorum-based system, modified to time-out lost messages, will only return inconsistent(and, in particular, stale) data when messages are lost. • Examples : – Web cashes, Dynamo
  • 16. CAP – 2 of 3 Consistency Availability Partition Tolerance • If there are no partitions, it is clearly possible to provide consistent, available data (e.g. read-any write-all). • Does choosing CA make sense ? Eric Brewer : – “The general belief is that for wide-area systems, designers cannot forfeit P and therefore have a difficult choice between C and A.“ – “If the choice is CA, and then there is a partition, the choice must revert to C or A. ”
  • 17. Overview • Introduction to DDBS and NoSQL √ • CAP Theorem √ • Dynamo (AP) • BigTable (CP) • Dynamo vs. BigTable
  • 18. Dynamo - Introduction • • • • Highly available key-value storage system. Provides an “always-on” experience. Prefers availability over consistency. “Customers should be able to view and add items to their shopping cart even if disks are failing, network routes are flapping, or data centers are being destroyed by tornados.”
  • 19. Dynamo - API • Distributed hash table : – put(key, context, object) – Associates given object with specified key and context. • context – metadata about the object, includes information as the version of the object. – get(key) – Returns the object to which the specified key is mapped or a list of objects with conflicting versions along with a context.
  • 20. Dynamo - Partitioning • Naive approach : – Hash the key. – Apply modulo n (n=number of nodes). key = “John Smith” hash(key) = 19 Adding/deleting nodes  totally mess ! 19 mod 4 = 3 1 2 3 4
  • 21. Dynamo - Partitioning • Consistent hashing (STOC’97) : – Each node is assigned to a random position on the ring. – Key is hashed to the fixed point on the ring. – Node is chosen by walking clockwise from the hash location. hash(key) A B G C F E D Adding/deleting nodes  uneven partitioning !
  • 22. Dynamo - Partitioning • Virtual nodes : – Each physical node is assigned to multiple points in the ring.
  • 23. Dynamo - Replication • Each data item is replicated at N nodes. • Preference list - the list of nodes that store a particular key. • Coordinator - node which handles read/write operations, typically the first in the preference list. hash(key) A B G N=3 F E C D
  • 24. Dynamo - Data Versioning • Eventual consistency(replicas are updated asynchronously) : – A put() call may return to its caller before the update has been applied at all the replicas. – A get() call may return many versions of the same object. • Reconciliation : – Syntactic – system resolves conflicts automatically(e.g. new version overwrite the previous) – Semantic – client resolves conflicts(e.g. by merging shopping cart items).
  • 25. Dynamo - Data Versioning • Semantic Reconciliation : Item 1 Item 6 get() { item1, item4}, {item1, item6} put({ item1, item4,item6}) What about delete ?! Item 1 Item 4
  • 26. Dynamo - Data Versioning • Vector clocks(Lamport CACM’78) – List of <node, counter> pairs. – One vector clock is associated with every version of every object. – If the counters on the first object’s clock are less-than-or-equal to all of the nodes in the second clock, then the first is an ancestor of the second and can be forgotten. – Part of the “context” parameter of put() and get()
  • 27. Dynamo – get() and put() • Two strategies that a client can use : – Load balancer that will select a node based on load information :  client does not have to link any code specific to Dynamo in its application. – Partition-aware client library.  can achieve lower latency because it skips a potential forwarding step.
  • 28. Dynamo – get() and put() • Quorum-like system :  R - number of nodes that must read a key.  W - number of nodes that must write a key. • put() :  Coordinator generates the vector clock for the new version and writes the new version locally.  Coordinator sends new version to N nodes.  If at least W-1 nodes respond, then write is successful. • get() :  Coordinator requests all data versions from N nodes.  If at least R-1 nodes respond, returns data to client.
  • 29. Dynamo – Handling Failures • Sloppy Quorum and Hinted Handoff : – All read and write operations are performed on the first N healthy nodes. – If node is down, its replica is sent to another node. The data received in this node is called “hinted replica”. – When original node is recovered, the hinted replica is written back to the original node. A B G C F E D
  • 30. Dynamo – Handling Failures • Anti-entropy : – Protocol to keep the replicas synchronized. – To detect inconsistencies – Merkle Tree : • Hash tree where leaves are hashes of the values of individual keys. • Parent nodes higher in the tree are hashes of their respective children.
  • 31. Dynamo – Membership detection • Gossip-based protocol : – Periodically, each node contacts another node in the network, randomly selected. – Nodes compare their membership histories and reconcile them. A B G C F E D A F BG CE DG EA FB GC
  • 33. Overview • Introduction to DDBS and NoSQL √ • CAP Theorem √ • Dynamo (AP) √ • BigTable (CP) • Dynamo vs. BigTable
  • 34. BigTable - Introduction • Distributed storage system for managing structured data that is designed to scale to a very large size.
  • 35. BigTable – Data Model • Bigtable is a sparse, distributed, persistent multidimensional sorted map. • The map is indexed by a row key, column key, and a timestamp. • (row_key,column_key,time)  string
  • 36. BigTable – Data Model user_id phone 15 row_key name John 178145 (29, name, t2)  “Robert” user_id column_key name 29 Bob Robert email t1 bob@gmail.com t2 timestamp user_id RDBMS Approach name phone email 15 John 178145 null 29 Bob null bob@gmail.com
  • 37. BigTable – Data Model • Columns are grouped into Column Families: – family : optional qualifier Column Family Optional Qualifier user_id name: contactInfo : phone contactInfo : email 15 John 17814552 john@yahoo.com RDBMS user_id Approach 15 name user_id type value John 15 phone 178145 15 email john@yahoo.com
  • 38. BigTable – Data Model • Rows : – The row keys in a table are arbitrary strings. – Every read or write of data under a single row key is atomic. – Data is maintained in lexicographic order by row key. – Each row range is called a tablet, which is the unit of distribution and load balancing. row_key user_id name: contactInfo : phone contactInfo : email 15 John 178145 john@yahoo.com
  • 39. BigTable – Data Model • Column Families : – Column keys are grouped into sets called column families. – A column family must be created before data can be stored under any column key in that family. – Access control and both disk and memory accounting are performed at the column-family level. column_key user_id name: contactInfo : phone contactInfo : email 15 John 178145 john@yahoo.com
  • 40. BigTable – Data Model • Timestamps : – Each cell in a Bigtable can contain multiple versions of the same data; these versions are indexed by timestamp. – Versions are stored in decreasing timestamp order. – Timestamps may be assigned : • by BigTable(real time in ms) • by client application – Older versions are garbage-collected. user_id 29 name Bob Robert email t1 t2 timestamp bob@gmail.com
  • 41. BigTable – Data Model • Tablets : – Large tables broken into tablets at row boundaries. – Tablet holds contiguous range of rows. – Approximately 100-200 MB of data per tablet. id 15000 …. ….. ….. 20001 Tablet 2 ….. 20000 Tablet 1 ….. ….. …. ….. 25000 …..
  • 42. BigTable – API • Metadata operations : – Creating and deleting tables, column families, modify access control rights. • Client operations : – Write/delete values – Read values – Scan row ranges // Open the table Table *T = OpenOrDie("/bigtable/users"); // Update name and delete a phone RowMutation r1(T, “29"); r1.Set(“name:", “Robert"); r1.Delete(“contactInfo:phone"); Operation op; Apply(&op, &r1);
  • 43. BigTable – Building Blocks • GFS – large-scale distributed file system. GHEMAWAT, GOBIOFF, LEUNG, The Google file system. (Dec. 2003) • Chubby – distributed lock service. BURROWS, The Chubby lock service for loosely coupled distributed systems (Nov. 2006) • SSTable – file format to store BigTable data.
  • 44. BigTable – Building Blocks • GFS : – Files broken into chunks (typically 64 MB) – Master manages metadata. – Data transfers happens directly between clients/chunkservers. Master Client
  • 45. BigTable – Building Blocks • Chubby : – Provides a namespace of directories and small files : • Each directory or file can be used as a lock. • Reads and writes to a file are atomic. – Chubby clients maintain sessions with Chubby : • When a client's session expires, it loses any locks. – Highly available : • 5 active replicas, one of which is elected to be the master. • Live when a majority of the replicas are running and can communicate with each other.
  • 46. BigTable – Building Blocks • SSTable : – Stored in GFS. – Persistent, ordered, immutable map from keys to values. – Provided operations : • Get value by key • Iterate over all key/value pairs in a specified key range.
  • 47. BigTable – System Structure • Three major components: – Client library – Master (exactly one) : • • • • • Assigning tablets to tablet servers. Detecting the addition and expiration of tablet servers. Balancing tablet-server load. Garbage collection of files in GFS. Schema changes such as table and column family creations. – Tablet Servers(multiple, dynamically added) : • Manages 10-100 tablets • Handles read and write requests to the tablets. • Splits tablets that have grown too large.
  • 48. BigTable – System Structure
  • 49. BigTable – Tablet Location • Three-level hierarchy analogous to that of a B+ tree to store tablet location information. • Client library caches tablet locations.
  • 50. BigTable – Tablet Assignment • Tablet Server: – When a tablet server starts, it creates, and acquires an exclusive lock on a uniquelynamed file in a specific Chubby directory - servers directory. • Master : – Grabs a unique master lock in Chubby, which prevents concurrent master instantiations. – Scans the servers directory in Chubby to find the live servers. – Communicates with every live tablet server to discover what tablets are already assigned to each server. – If a tablet server reports that it has lost its lock or if the master was unable to reach a server during its last several attempts – deletes the lock file and reassigns tablets. – Scans the METADATA table to find unassigned tablets and reassigns them.
  • 51. BigTable - Tablet Assignment Master Metadata Table Tablet Server 1 Tablet Server 2 Tablet 1 Tablet 8 Tablet 7 Tablet 2 Chubby
  • 52. BigTable – Tablet Serving • Writes : – Updates committed to a commit log. – Recently committed updates are stored in memory – memtable. – Older updates are stored in a sequence of SSTables. • Reads : – Read operation is executed on a merged view of the sequence of SSTables and the memtable. – Since the SSTables and the memtable are sorted, the merged view can be formed efficiently.
  • 53. BigTable - Compactions • Minor compaction: – Converts the memtable into SSTable. – Reduces memory usage. – Reduces log reads during recovery. • Merging compaction: – Merges the memtable and a few SSTable. – Reduces the number of SSTables. • Major compaction: – Merging compaction that results in a single SSTable. – No deletion records, only live data. – Good place to apply policy “keep only N versions”
  • 54. BigTable – Bloom Filters Bloom Filter : 1. Empty array a of m bits, all set to 0. 2. Hash function h, such that h hashes each element to one of the m array positions with a uniform random distribution. 3. To add element e – a[h(e)] = 1 Example : S1 = {“John Smith”, ”Lisa Smith”, ”Sam Doe”, ”Sandra Dee”} 0 1 1 0 1 0 0 0 0 0 0 0 0 0 1 0
  • 55. BigTable – Bloom Filters • Drastically reduces the number of disk seeks required for read operations !
  • 56. Overview • Introduction to DDBS and NoSQL √ • CAP Theorem √ • Dynamo (AP) √ • BigTable (CP) √ • Dynamo vs. BigTable
  • 57. Dynamo vs. BigTable Dynamo BigTable data model key-value multidimensional map operations by key by key range partition random ordered replication sloppy quorum only in GFS architecture decentralized hierarchical consistency eventual strong (*) access control no column family
  • 58. Overview • Introduction to DDBS and NoSQL √ • CAP Theorem √ • Dynamo (AP) √ • BigTable (CP) √ • Dynamo vs. BigTable √
  • 59. References • R.Ramakrishnan and J.Gehrke, Database Management Systems, 3rd edition, pp. 736-751 • S. Gilbert and N. Lynch, "Brewer's Conjecture and the Feasibility of Consistent, Available, Partition-Tolerant Web Services," ACM SIGACT News, June 2002, pp. 51-59. • Brewer, E. CAP twelve years later: How the 'rules' have changed. IEEE Computer 45, 2 (Feb. 2012), 23–29. • S. Gilbert and N. Lynch, Perspectives on the CAP Theorem. IEEE Computer 45, 2 (Feb. 2012), 30-36. • G. DeCandia et al., "Dynamo: Amazon's Highly Available Key-Value Store," Proc. 21st ACM SIGOPS Symp. Operating Systems Principles (SOSP 07), ACM, 2007, pp. 205-220. • F. Chang et al., "Bigtable: A Distributed Storage System for Structured Data" Proc. 7th Usenix Symp. Operating Systems Design and Implementation (OSDI 06), Usenix, 2006, pp. 205-218. • Ghemawat, S., Gobioff, H., and Leung, S. The Google File system. In Proc. of the 19th ACM SOSP (Dec.2003), pp. 29.43.

Editor's Notes

  1. Immutable  On reads, no concurrency control neededIndex is of block ranges, not values
