This document discusses migrating an e-commerce platform's online product catalog from Oracle Coherence to Cassandra. The goals of the migration were to minimize system restart time, have at least two copies of data in different data centers, and enable quick simple backups. Performance testing showed Cassandra was able to meet the requirements of thousands of transactions per second and handle a full data reload daily with millions of products and entities stored. Configuring Cassandra optimization like disk layout and caching helped improve performance and meet the project's goals.

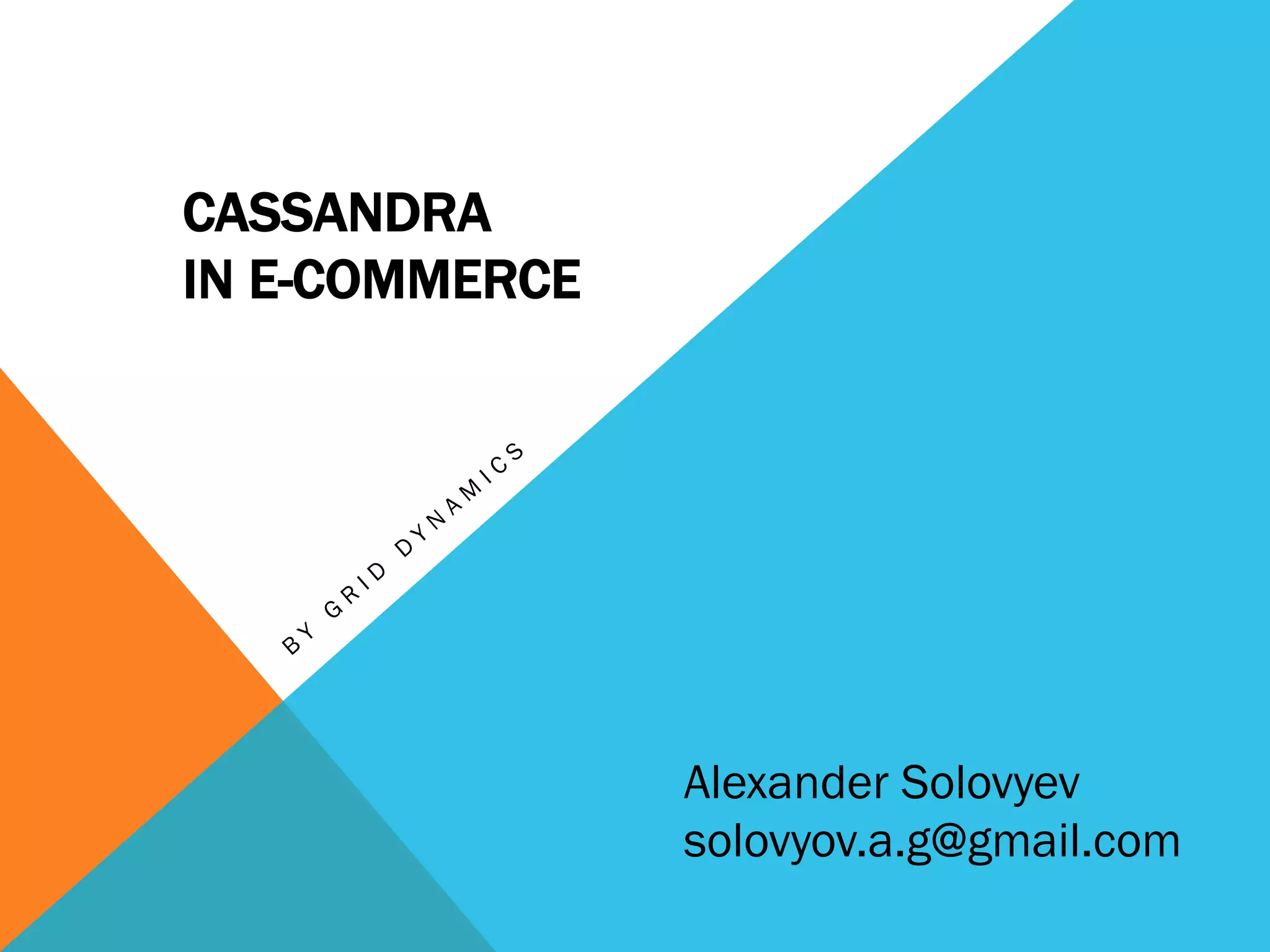

1. CASSANDRA
IN E-COMMERCE
Alexander Solovyev
solovyov.a.g@gmail.com

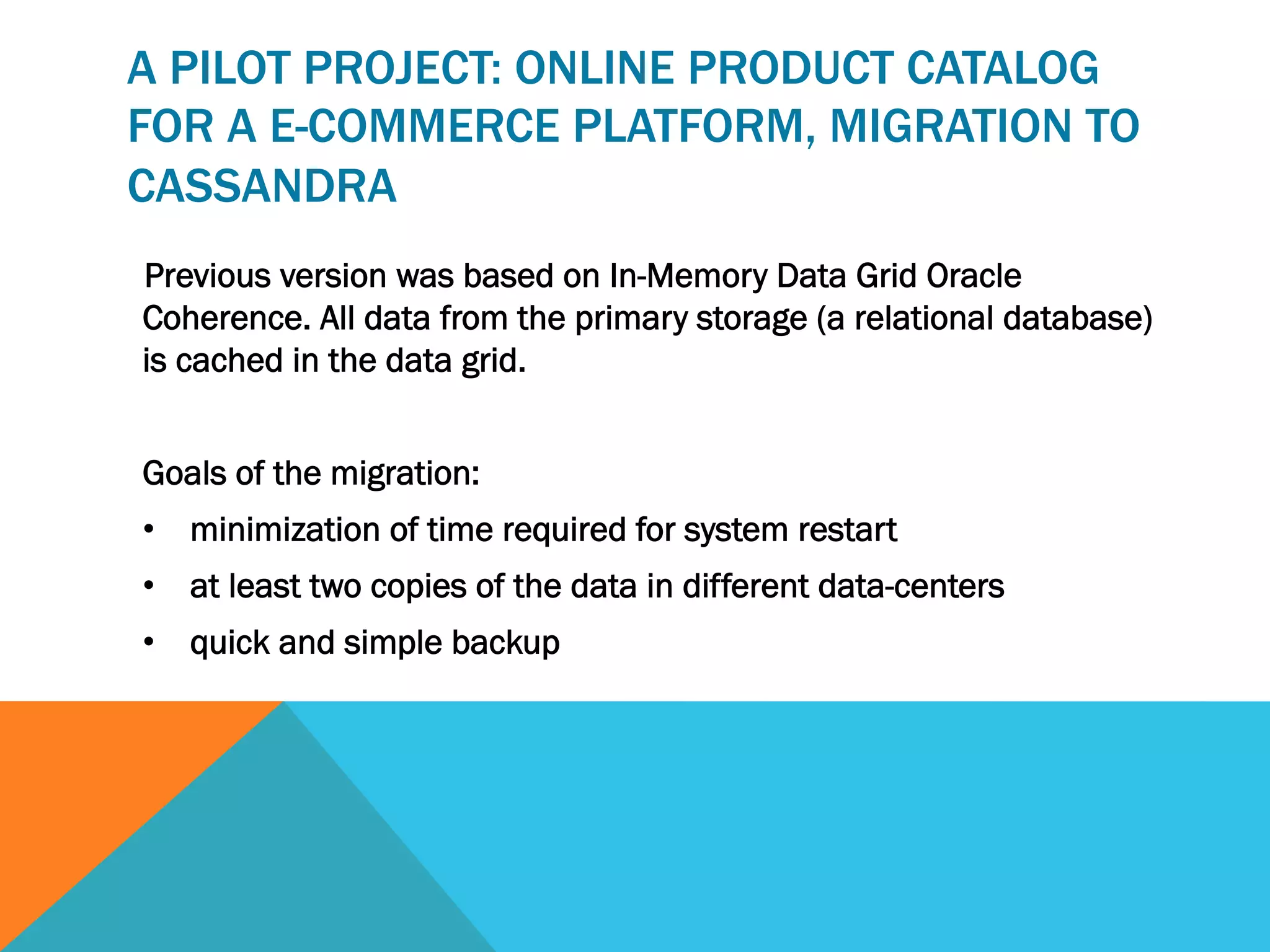

2. A PILOT PROJECT: ONLINE PRODUCT CATALOG
FOR A E-COMMERCE PLATFORM, MIGRATION TO
CASSANDRA
Previous version was based on In-Memory Data Grid Oracle
Coherence. All data from the primary storage (a relational database)
is cached in the data grid.
Goals of the migration:
• minimization of time required for system restart
• at least two copies of the data in different data-centers
• quick and simple backup

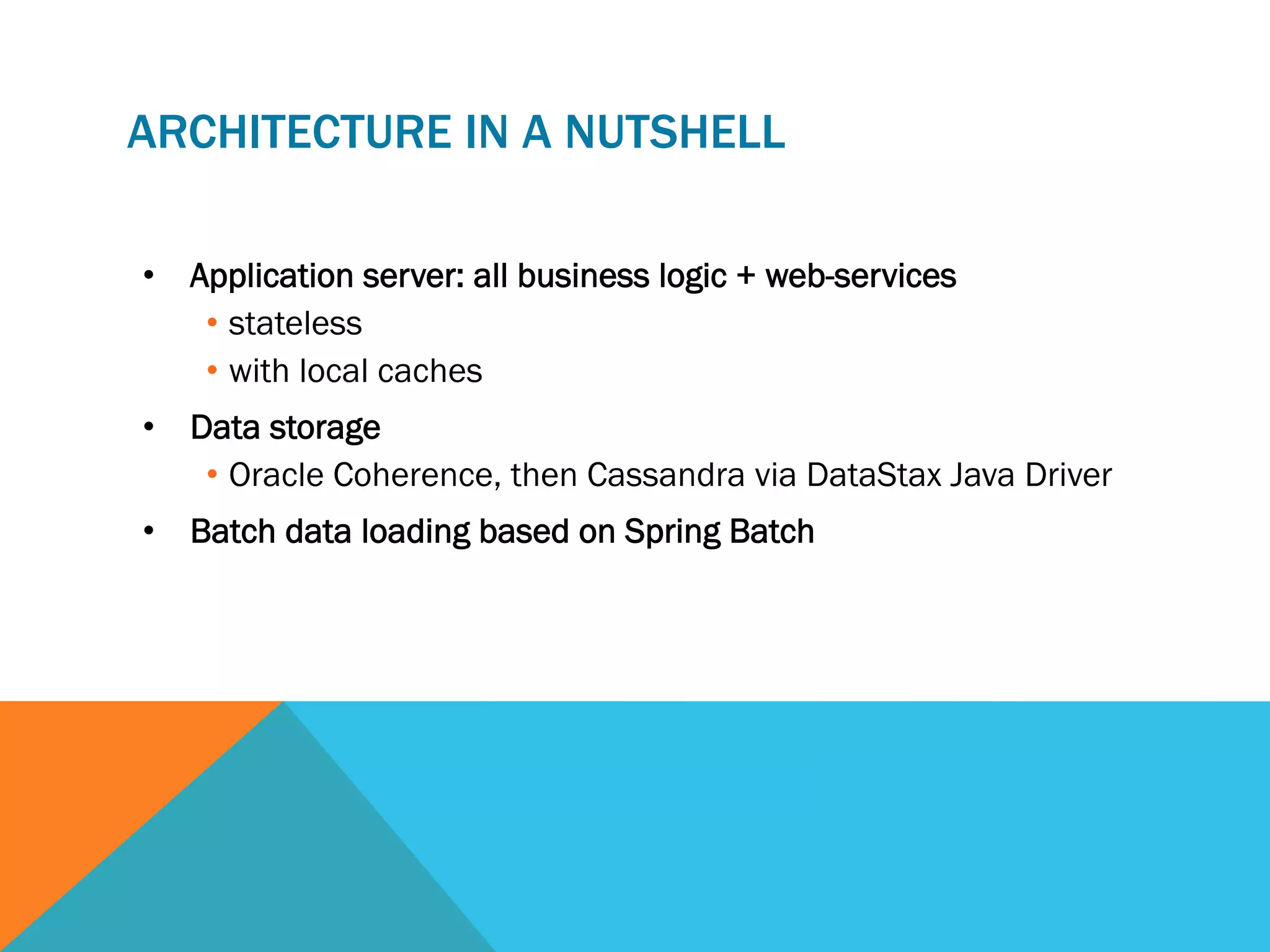

3. ARCHITECTURE IN A NUTSHELL
• Application server: all business logic + web-services
• stateless
• with local caches
• Data storage
• Oracle Coherence, then Cassandra via DataStax Java Driver
• Batch data loading based on Spring Batch

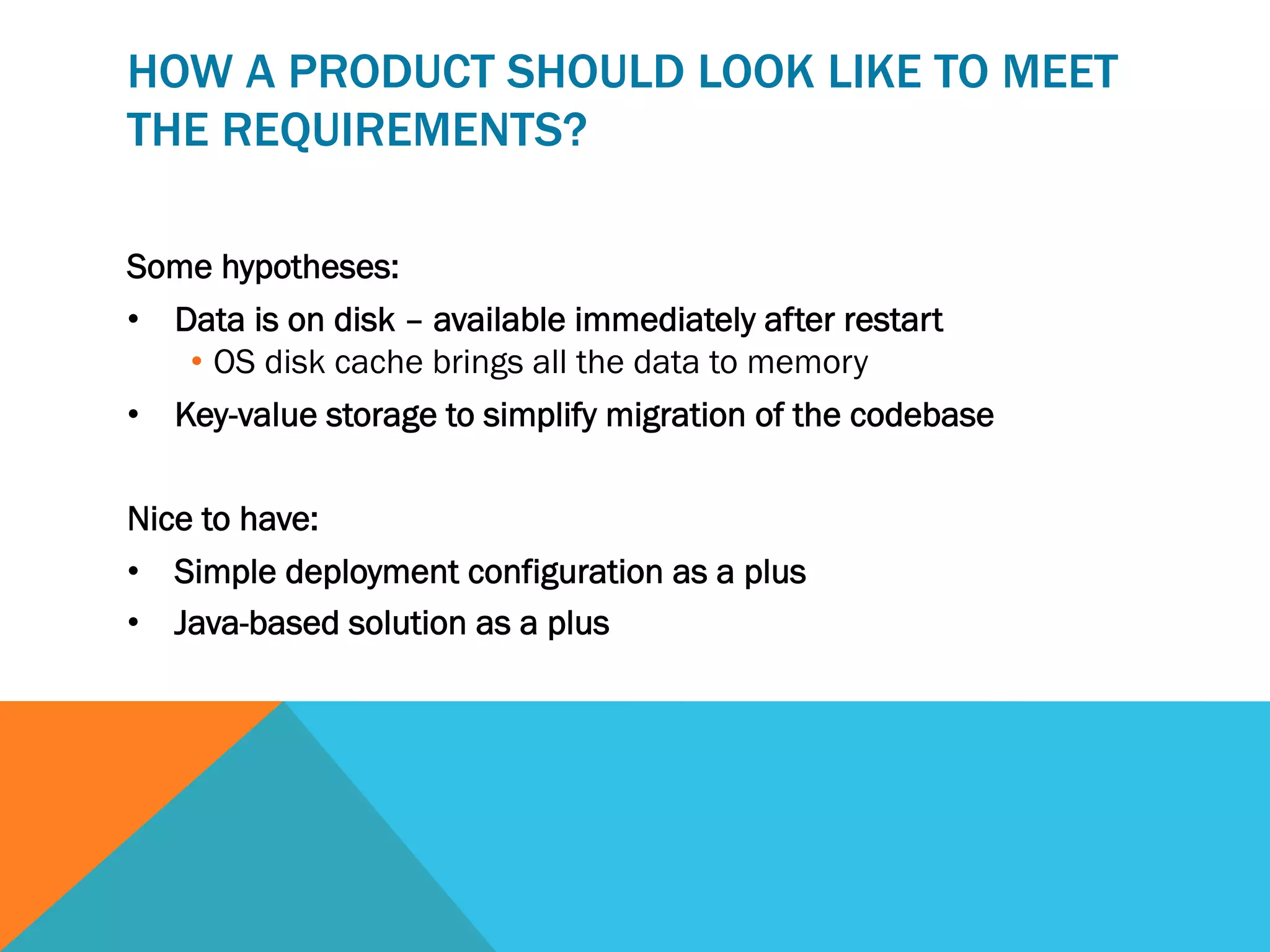

4. HOW A PRODUCT SHOULD LOOK LIKE TO MEET
THE REQUIREMENTS?
Some hypotheses:
• Data is on disk – available immediately after restart
• OS disk cache brings all the data to memory
• Key-value storage to simplify migration of the codebase
Nice to have:
• Simple deployment configuration as a plus
• Java-based solution as a plus

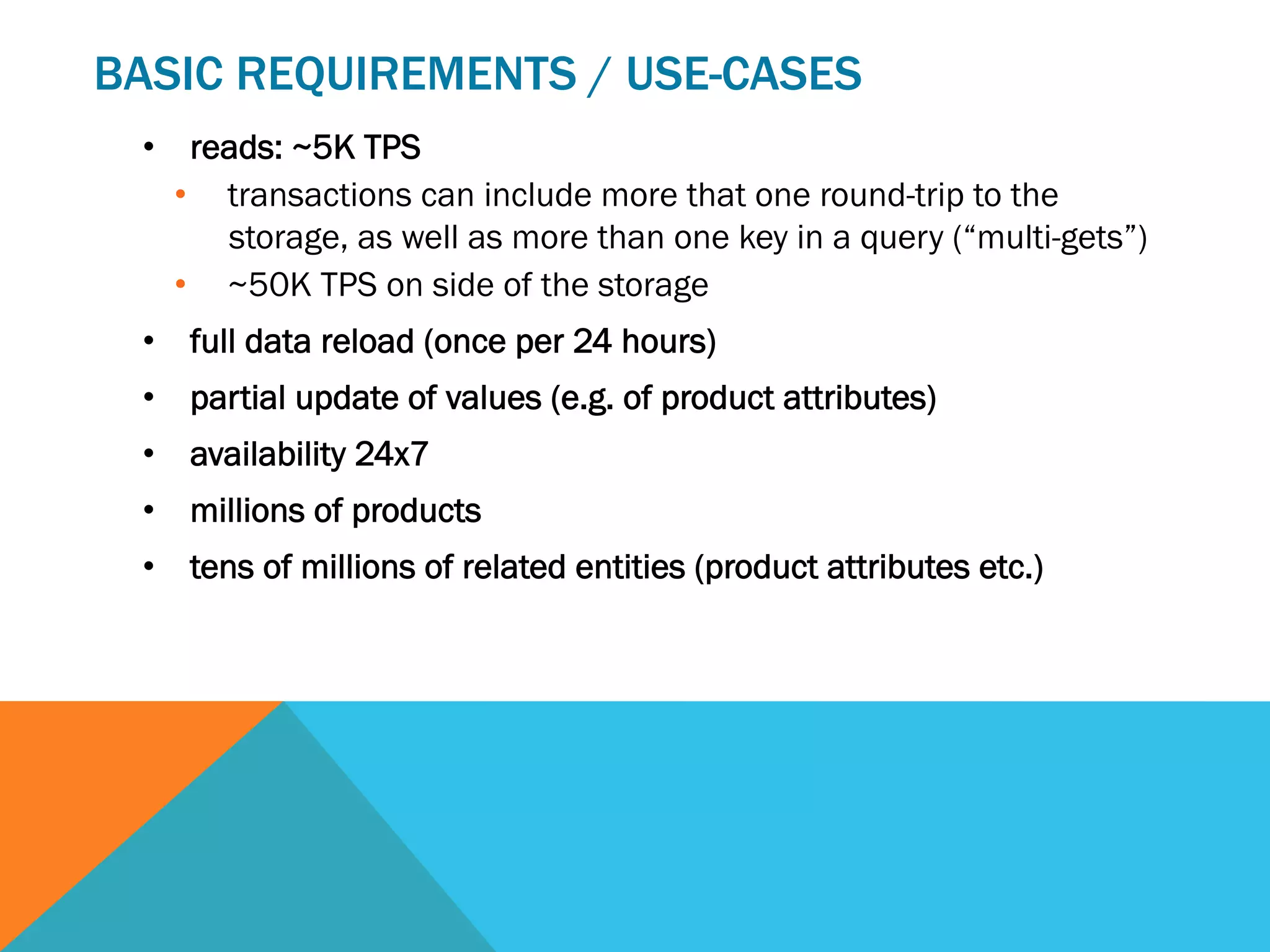

5. BASIC REQUIREMENTS / USE-CASES
• reads: ~5K TPS
• transactions can include more that one round-trip to the
storage, as well as more than one key in a query (“multi-gets”)
• ~50K TPS on side of the storage
• full data reload (once per 24 hours)
• partial update of values (e.g. of product attributes)
• availability 24x7
• millions of products
• tens of millions of related entities (product attributes etc.)

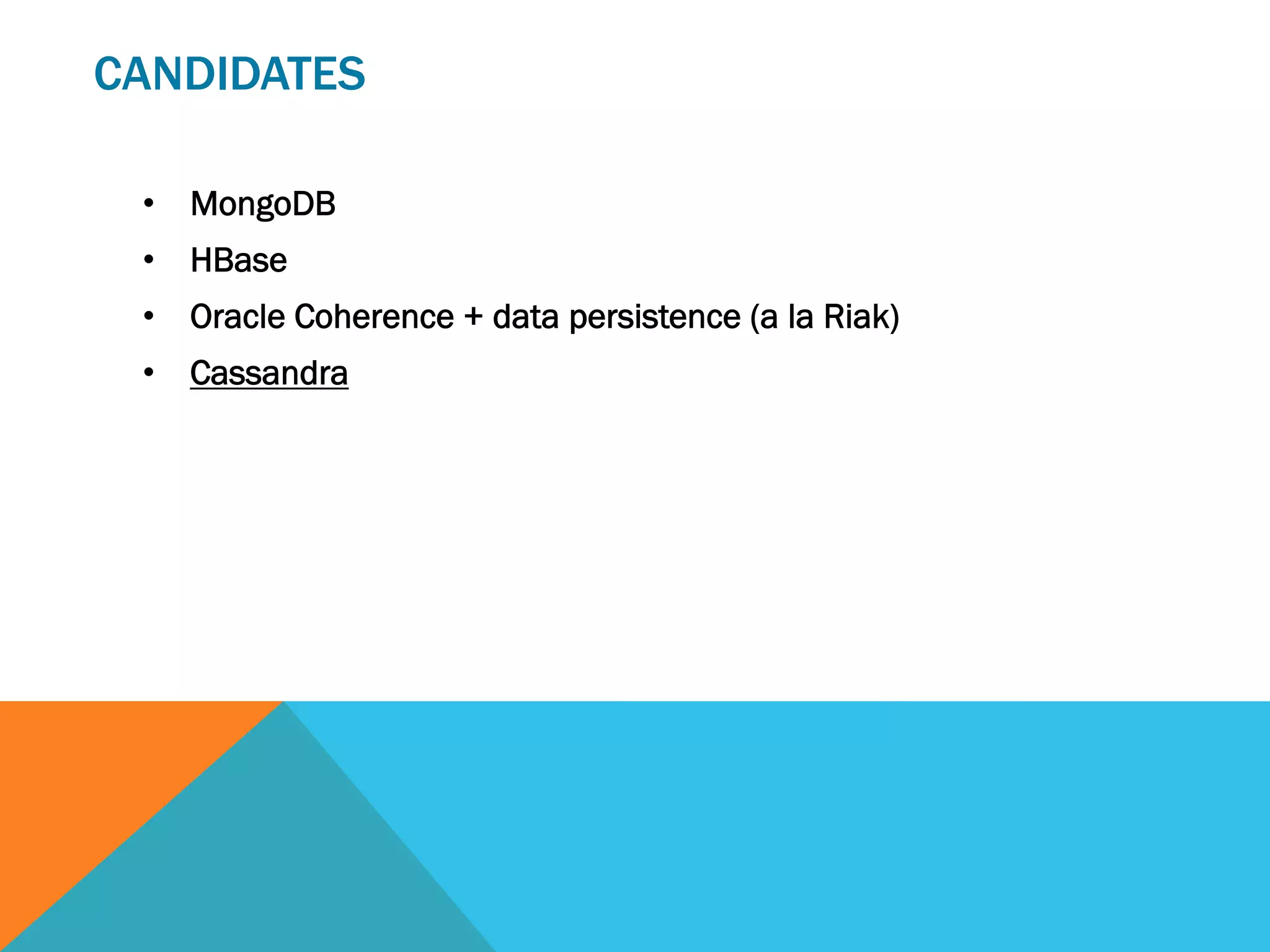

6. CANDIDATES
• MongoDB
• HBase
• Oracle Coherence + data persistence (a la Riak)
• Cassandra

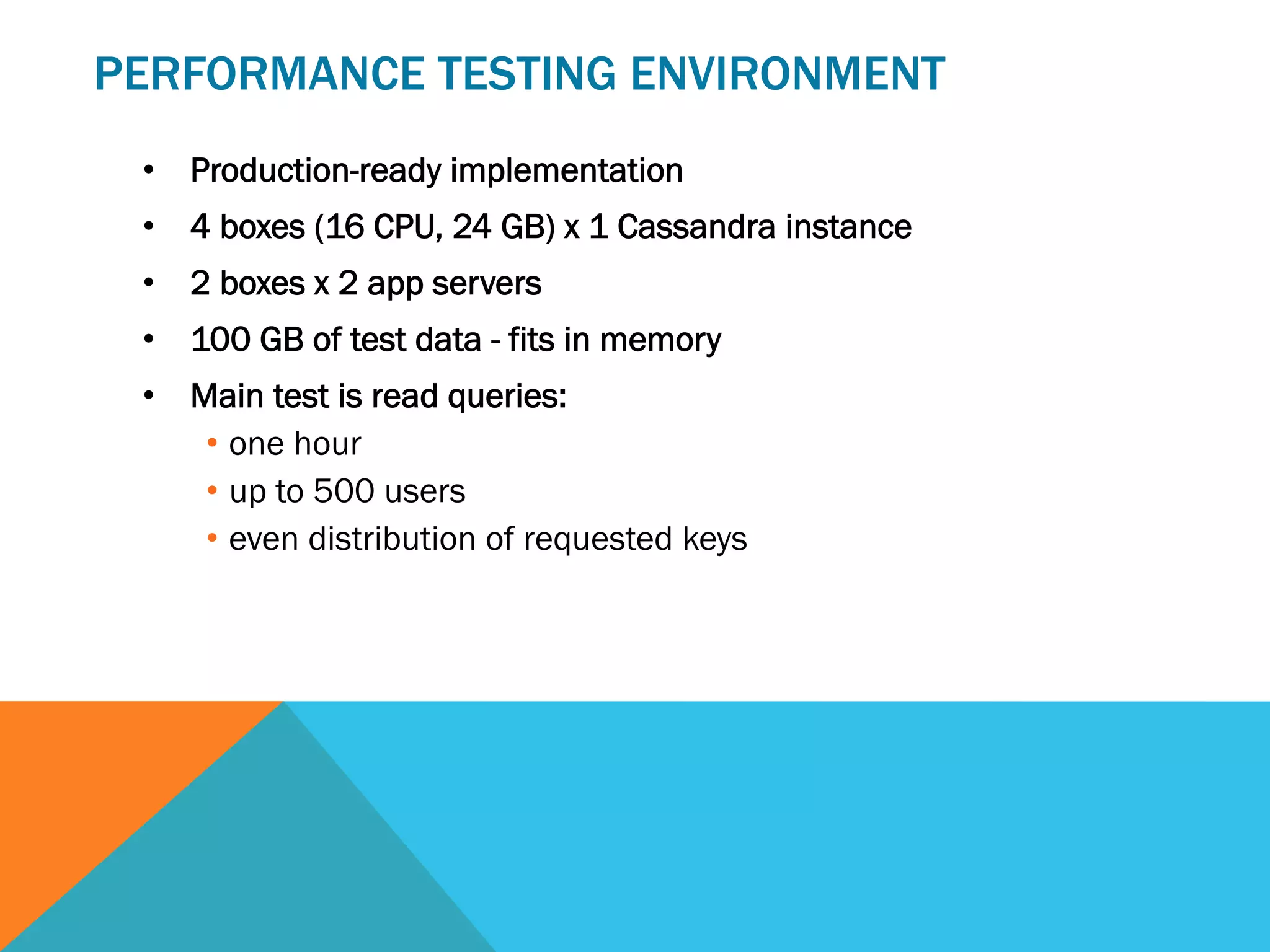

7. PERFORMANCE TESTING ENVIRONMENT
• Production-ready implementation
• 4 boxes (16 CPU, 24 GB) x 1 Cassandra instance
• 2 boxes x 2 app servers
• 100 GB of test data - fits in memory
• Main test is read queries:
• one hour
• up to 500 users
• even distribution of requested keys

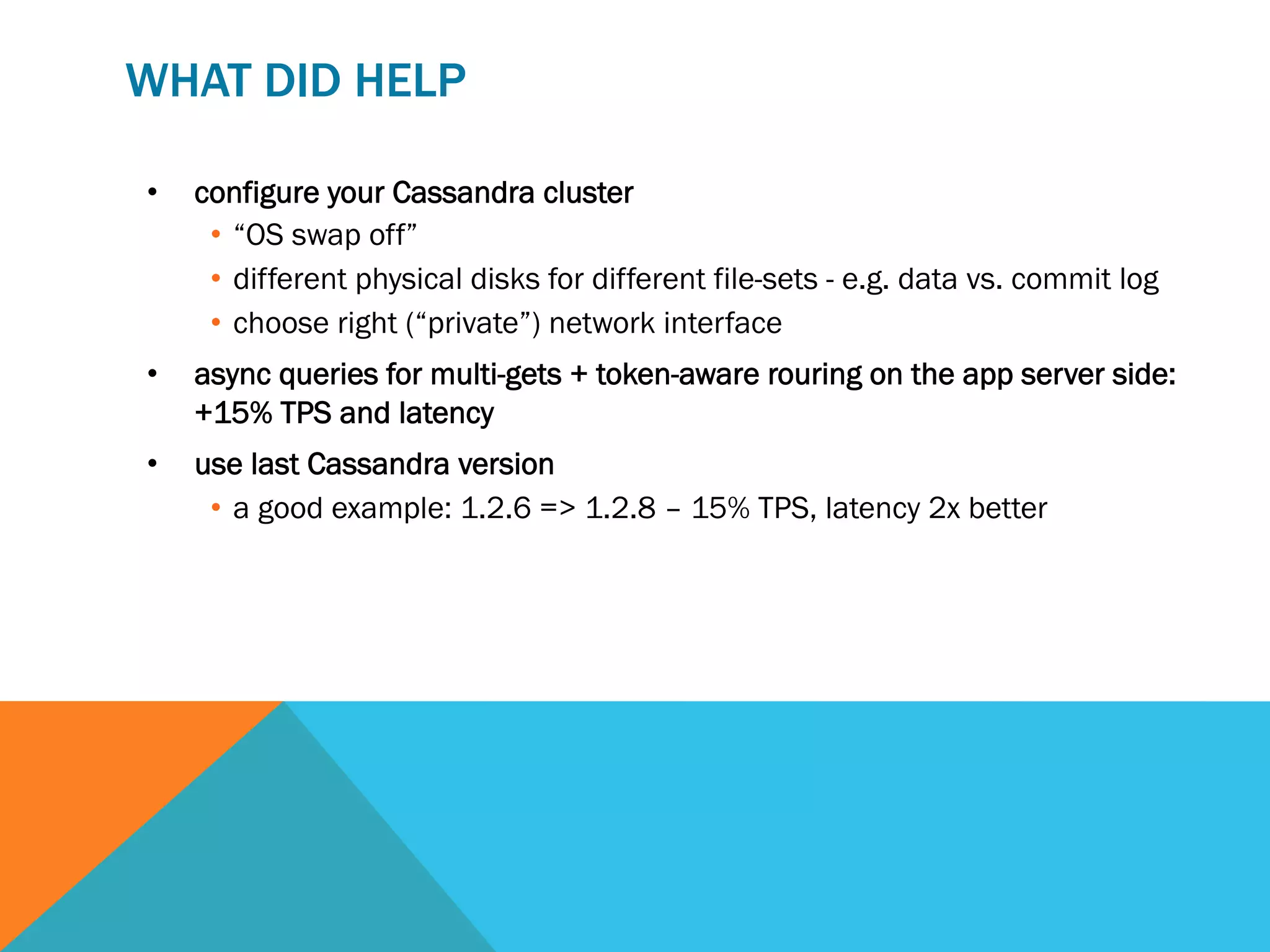

8. WHAT DID HELP
•
configure your Cassandra cluster
• “OS swap off”
• different physical disks for different file-sets - e.g. data vs. commit log
• choose right (“private”) network interface
•
async queries for multi-gets + token-aware rouring on the app server side:
+15% TPS and latency
•
use last Cassandra version
• a good example: 1.2.6 => 1.2.8 – 15% TPS, latency 2x better

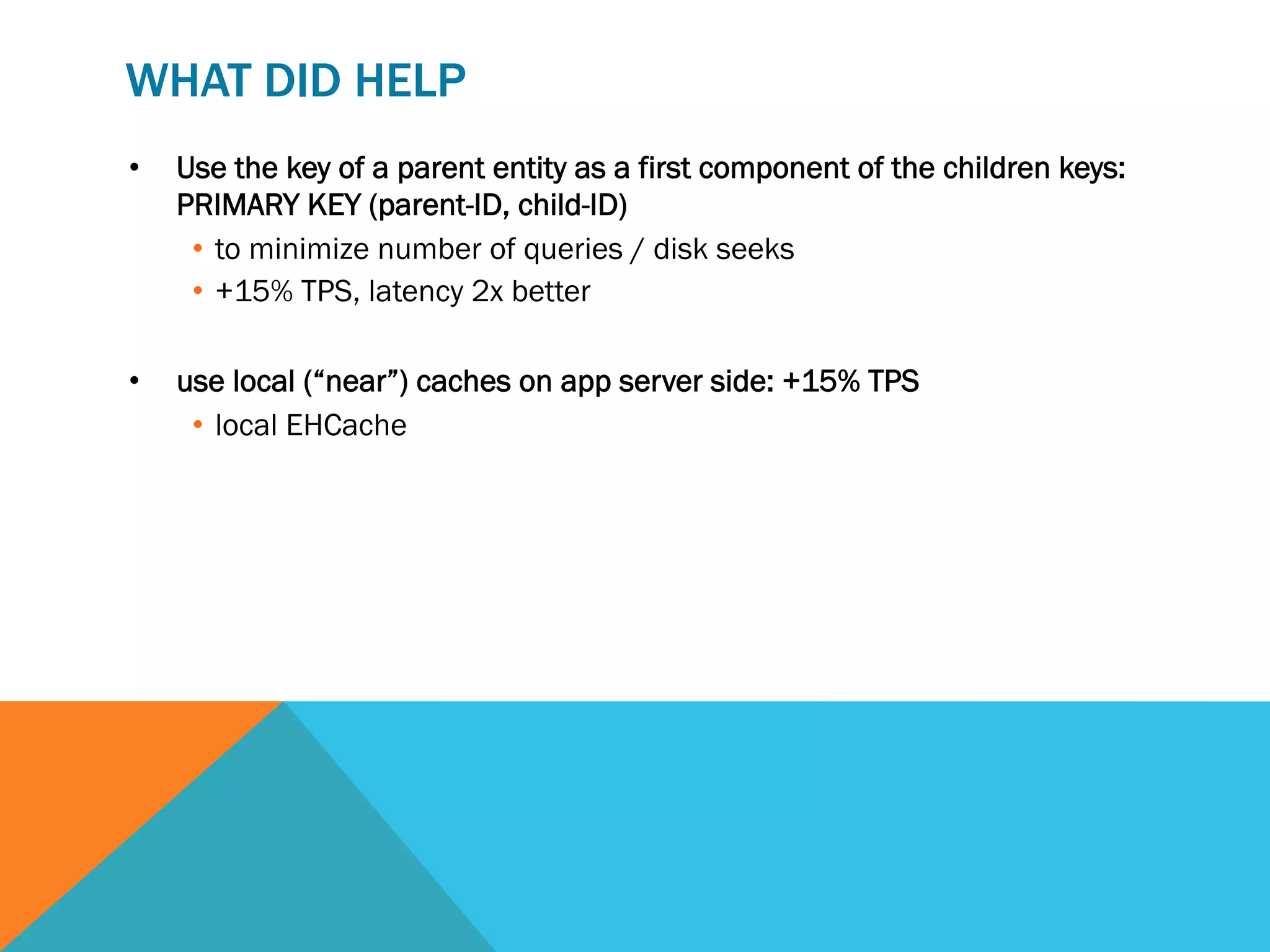

9. WHAT DID HELP
•
Use the key of a parent entity as a first component of the children keys:
PRIMARY KEY (parent-ID, child-ID)
• to minimize number of queries / disk seeks
• +15% TPS, latency 2x better
•
use local (“near”) caches on app server side: +15% TPS
• local EHCache

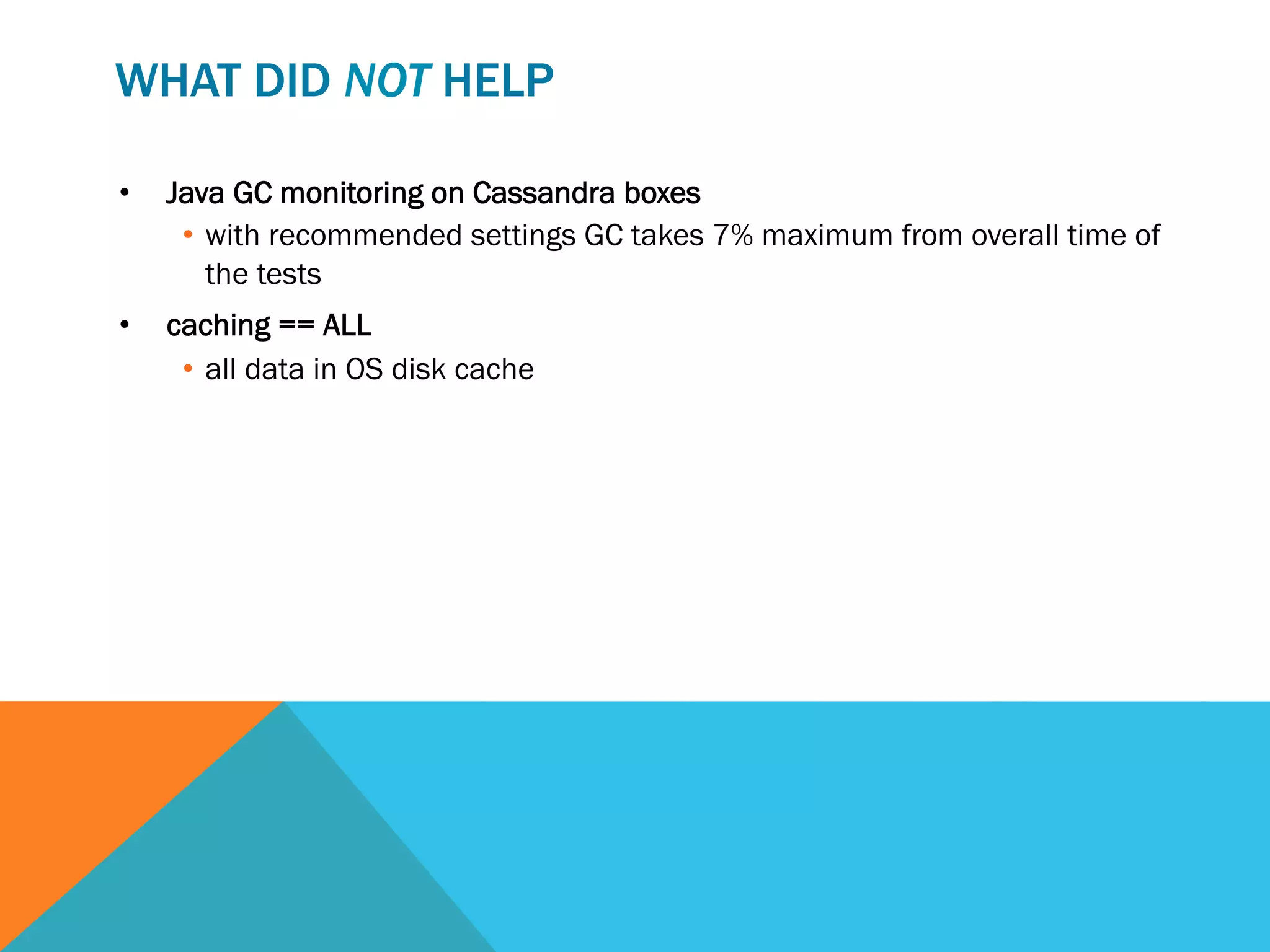

10. WHAT DID NOT HELP
•
Java GC monitoring on Cassandra boxes
• with recommended settings GC takes 7% maximum from overall time of
the tests
•
caching == ALL
• all data in OS disk cache

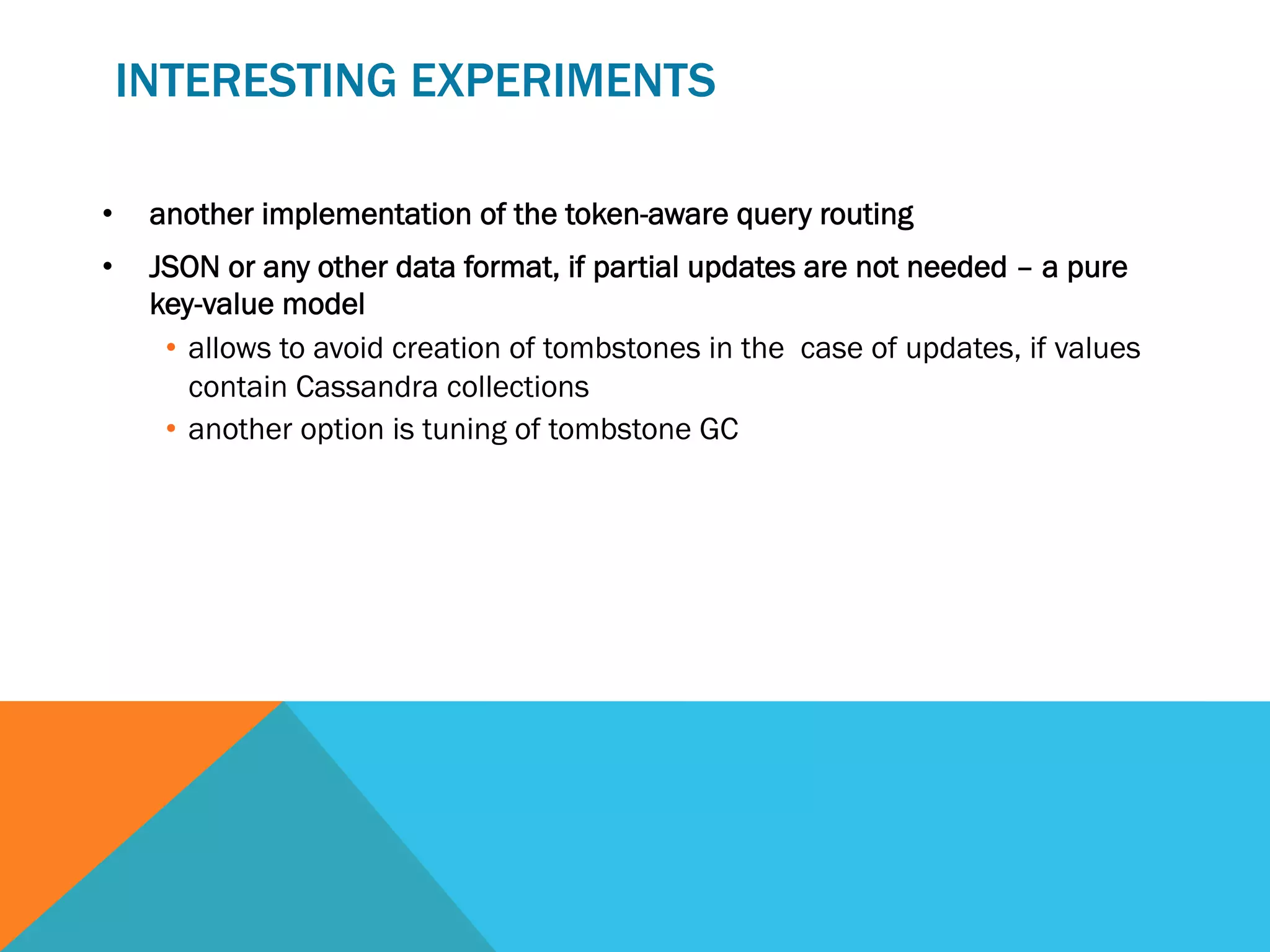

11. INTERESTING EXPERIMENTS
•
another implementation of the token-aware query routing
•
JSON or any other data format, if partial updates are not needed – a pure
key-value model
• allows to avoid creation of tombstones in the case of updates, if values
contain Cassandra collections
• another option is tuning of tombstone GC

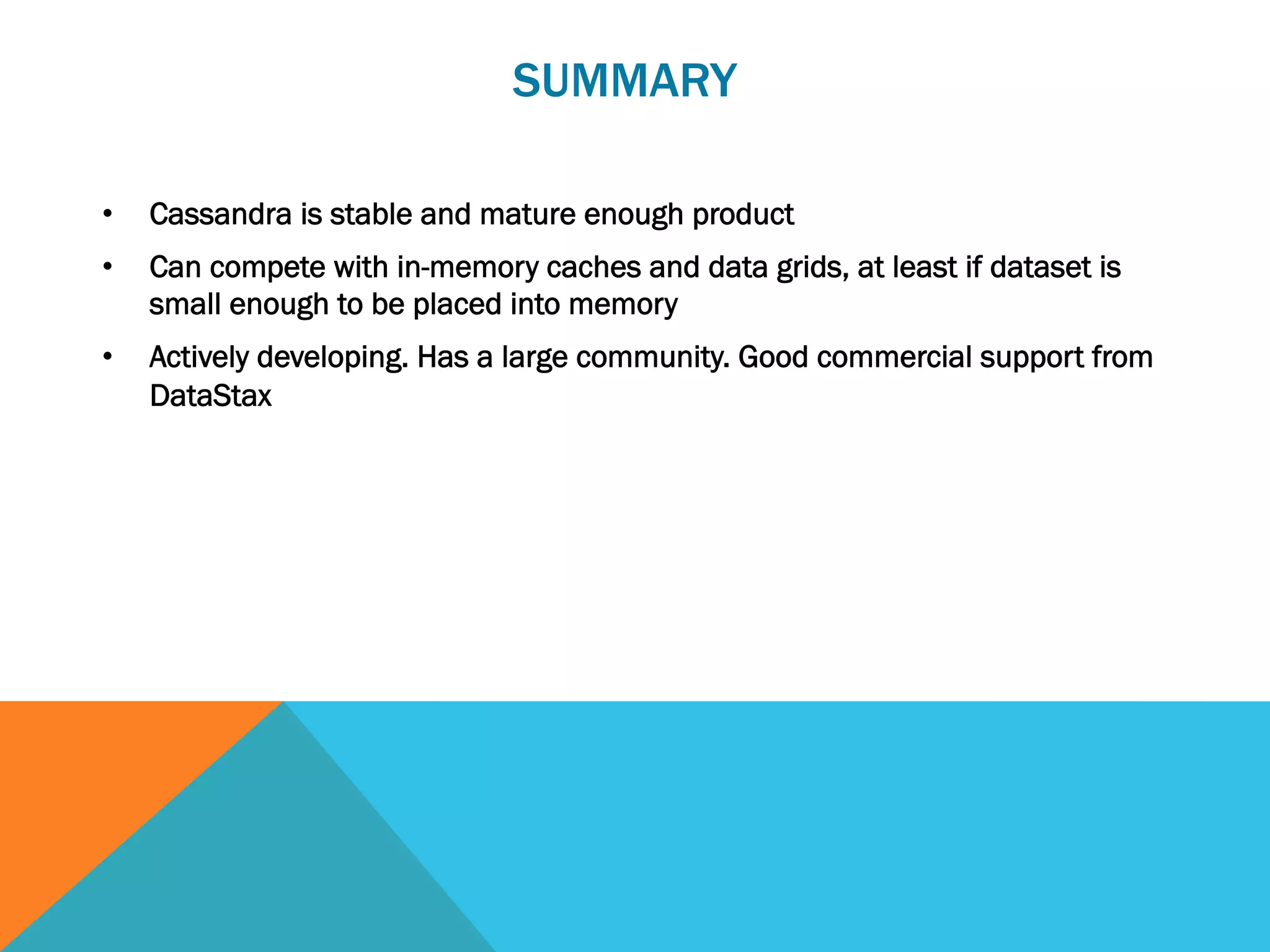

12. SUMMARY
•
Cassandra is stable and mature enough product
•
Can compete with in-memory caches and data grids, at least if dataset is
small enough to be placed into memory
•
Actively developing. Has a large community. Good commercial support from
DataStax

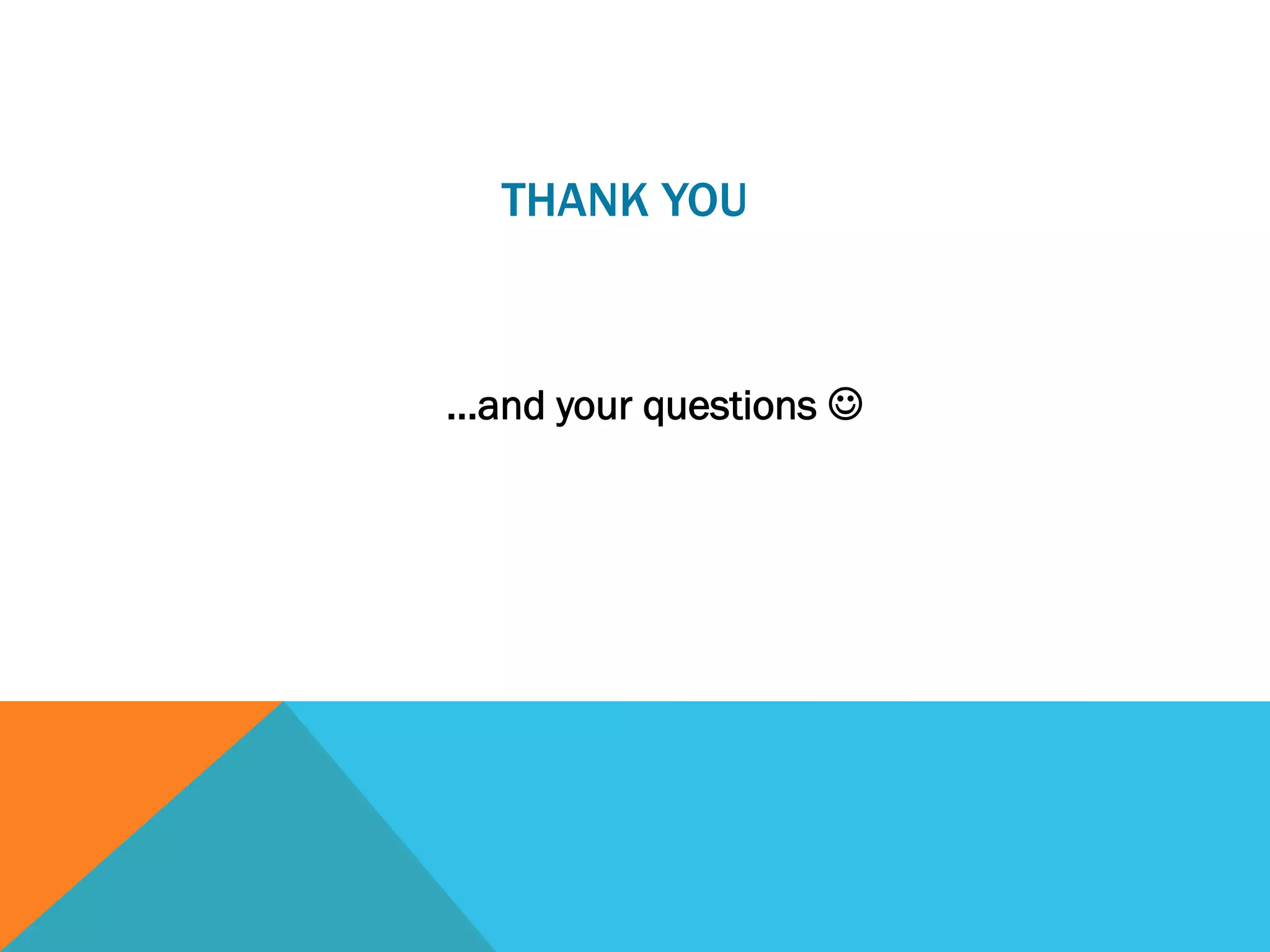

13. THANK YOU
…and your questions J
