This document discusses how Compose applies containerization best practices to provide database services. It outlines the "Twelve Factors of Stateful Apps" that guide Compose's architecture. These include running databases and data in separate containers, using environment variables for configuration, scaling containers vertically before adding nodes, and collecting logs and metrics within the deployment. By applying these factors, Compose can reliably deploy a range of database technologies like MongoDB, PostgreSQL, and now ScyllaDB across its platform.

1. Containing the Database
Nick Stott
Platform Engineer, Compose

2. Nick Stott
Platform Engineer @
Compose
Specialties: Containers and the databases
that go in them.

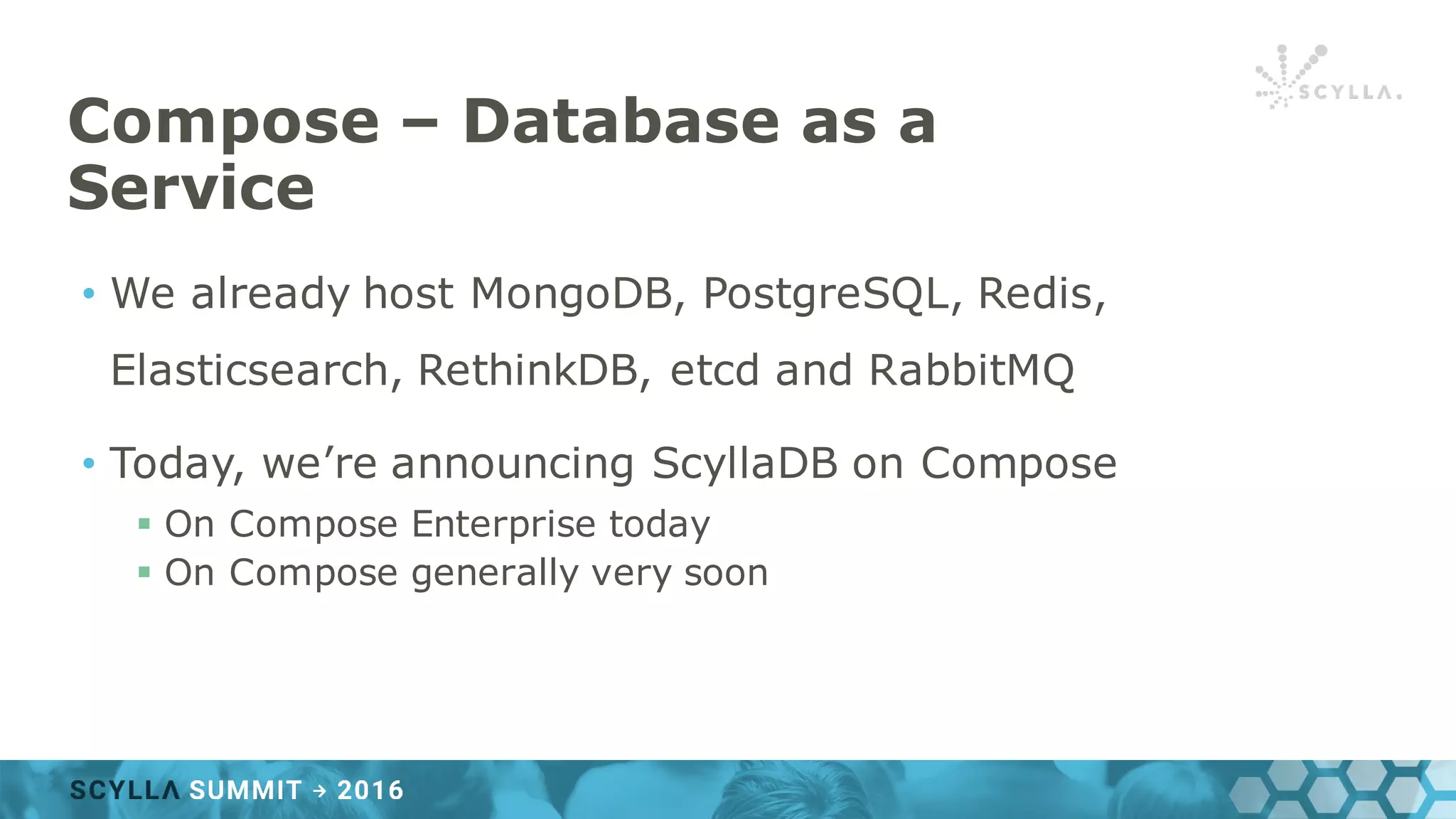

3. Compose – Database as a
Service
• We already host MongoDB, PostgreSQL, Redis,
Elasticsearch, RethinkDB, etcd and RabbitMQ
• Today, we’re announcing ScyllaDB on Compose
§ On Compose Enterprise today
§ On Compose generally very soon

4. How Compose
Got There

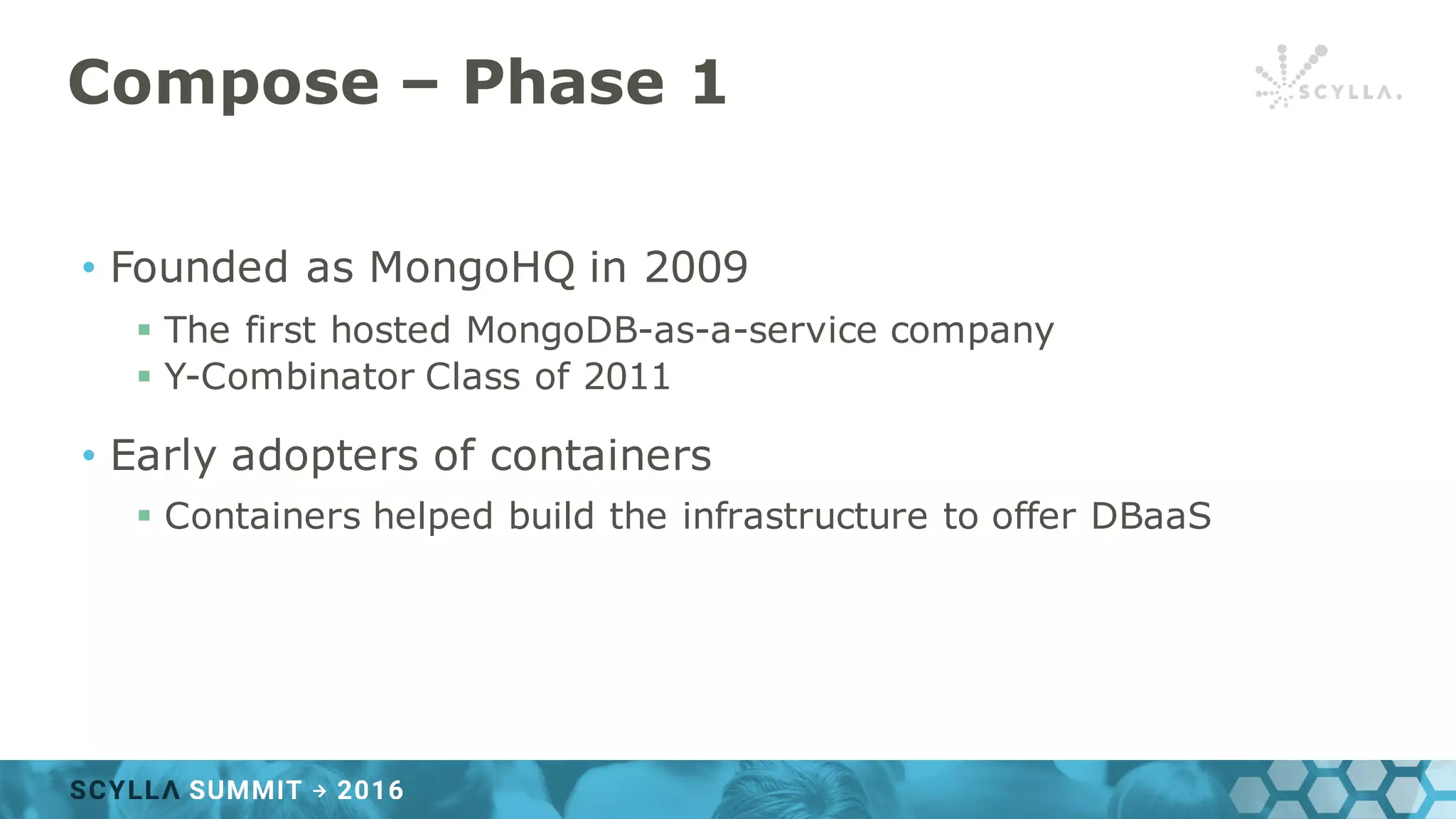

5. Compose – Phase 1
• Founded as MongoHQ in 2009
§ The first hosted MongoDB-as-a-service company
§ Y-Combinator Class of 2011
• Early adopters of containers
§ Containers helped build the infrastructure to offer DBaaS

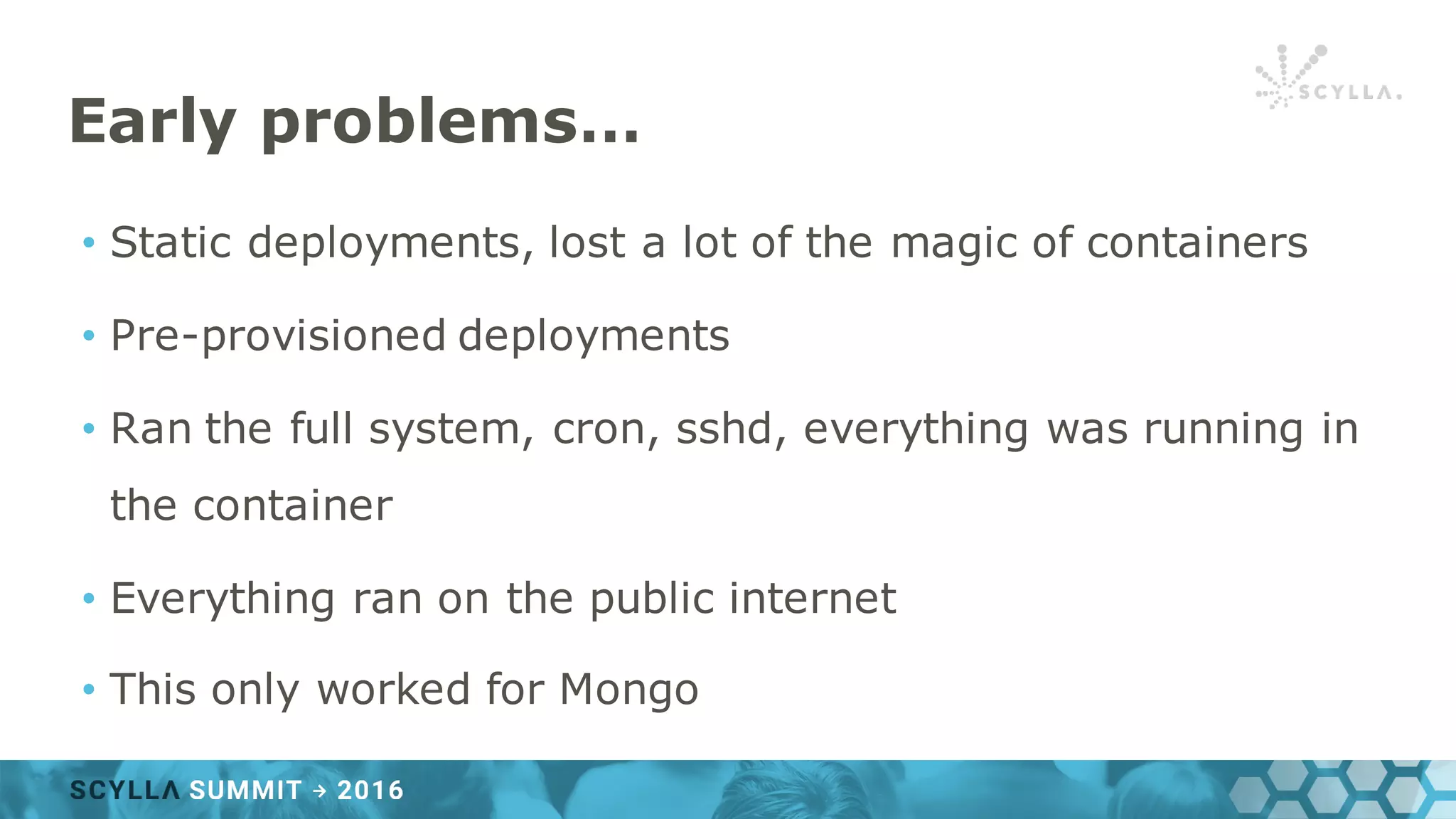

6. Early problems…
• Static deployments, lost a lot of the magic of containers
• Pre-provisioned deployments
• Ran the full system, cron, sshd, everything was running in
the container
• Everything ran on the public internet
• This only worked for Mongo

7. This sucked….

8. … but we already
knew what we had
to do to fix it.

9. Elastic
Deployments

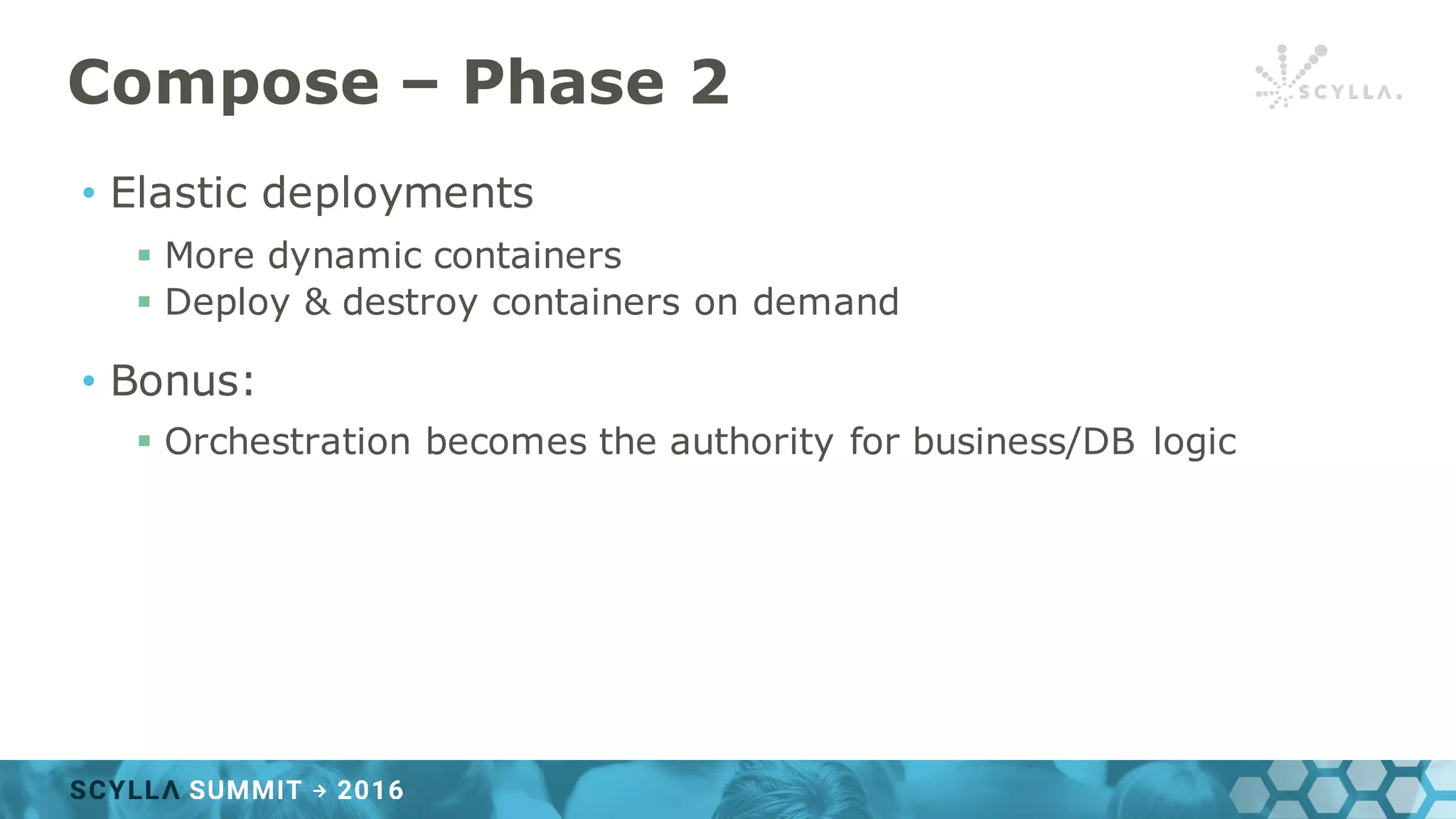

10. Compose – Phase 2
• Elastic deployments
§ More dynamic containers
§ Deploy & destroy containers on demand
• Bonus:
§ Orchestration becomes the authority for business/DB logic

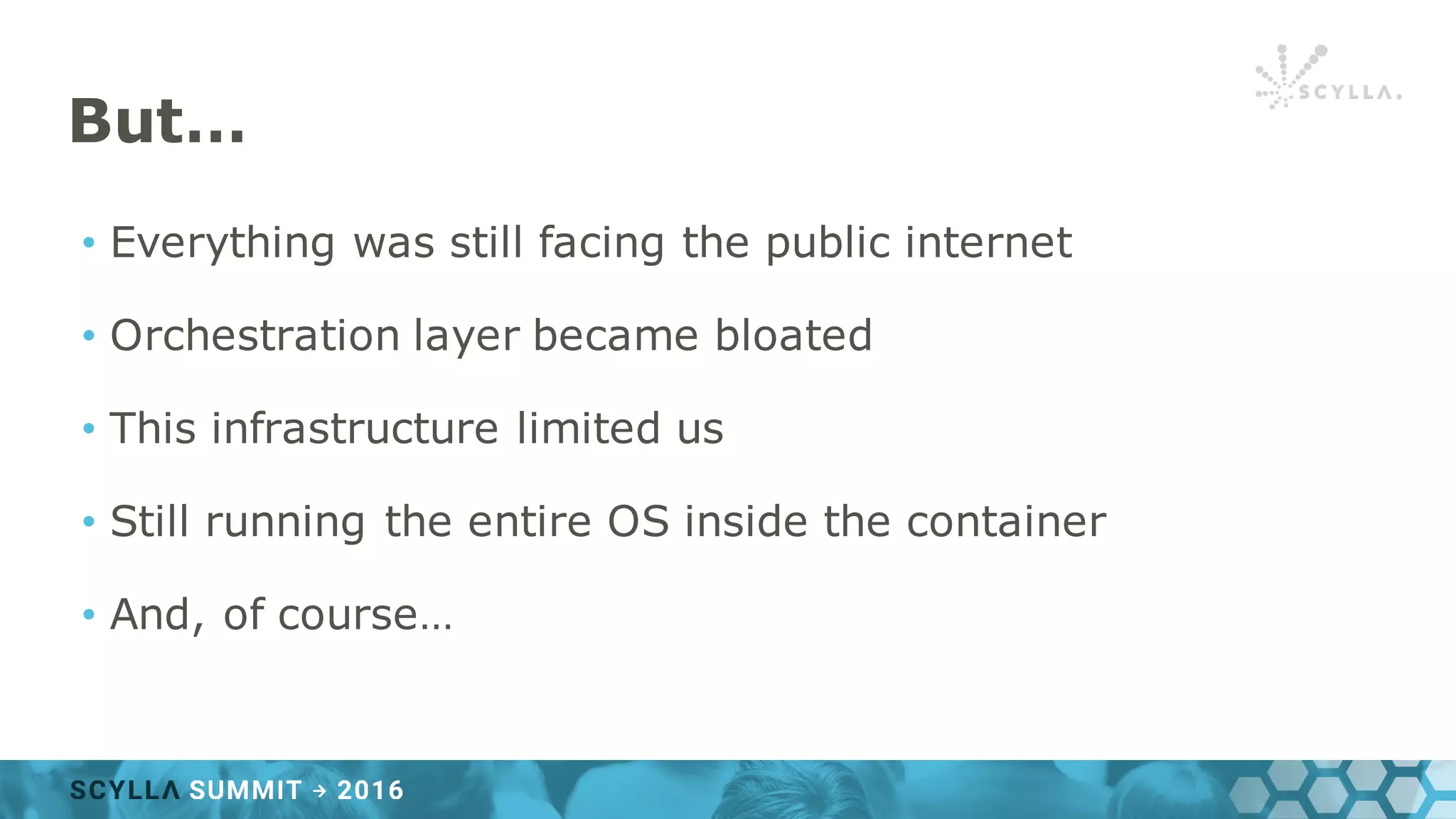

11. But…
• Everything was still facing the public internet
• Orchestration layer became bloated
• This infrastructure limited us
• Still running the entire OS inside the container
• And, of course…

12. Still Only MongoDB
WE
WANT
MORE

13. Into a post-
MongoDB world

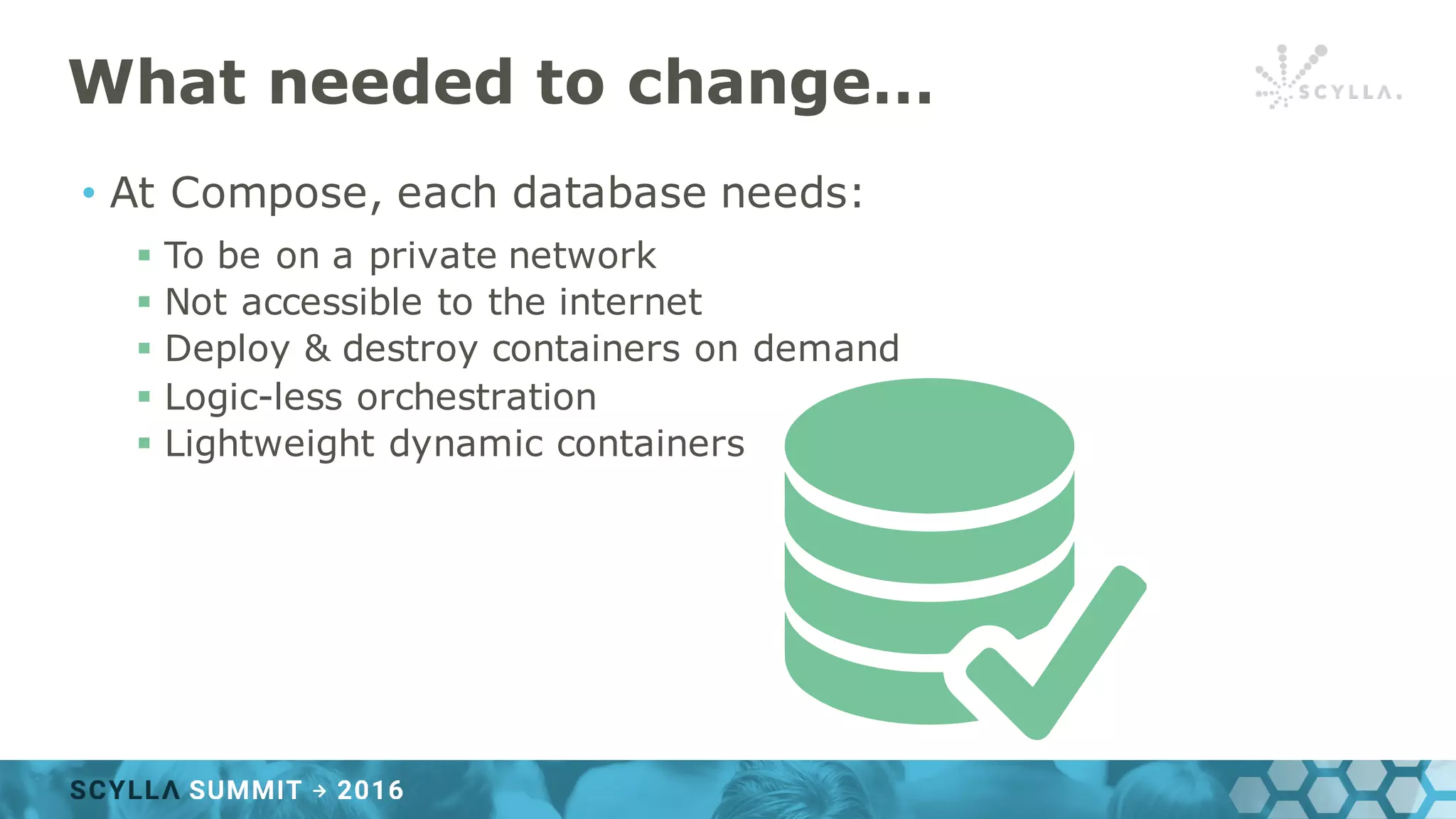

14. What needed to change…
• At Compose, each database needs:
§ To be on a private network
§ Not accessible to the internet
§ Deploy & destroy containers on demand
§ Logic-less orchestration
§ Lightweight dynamic containers

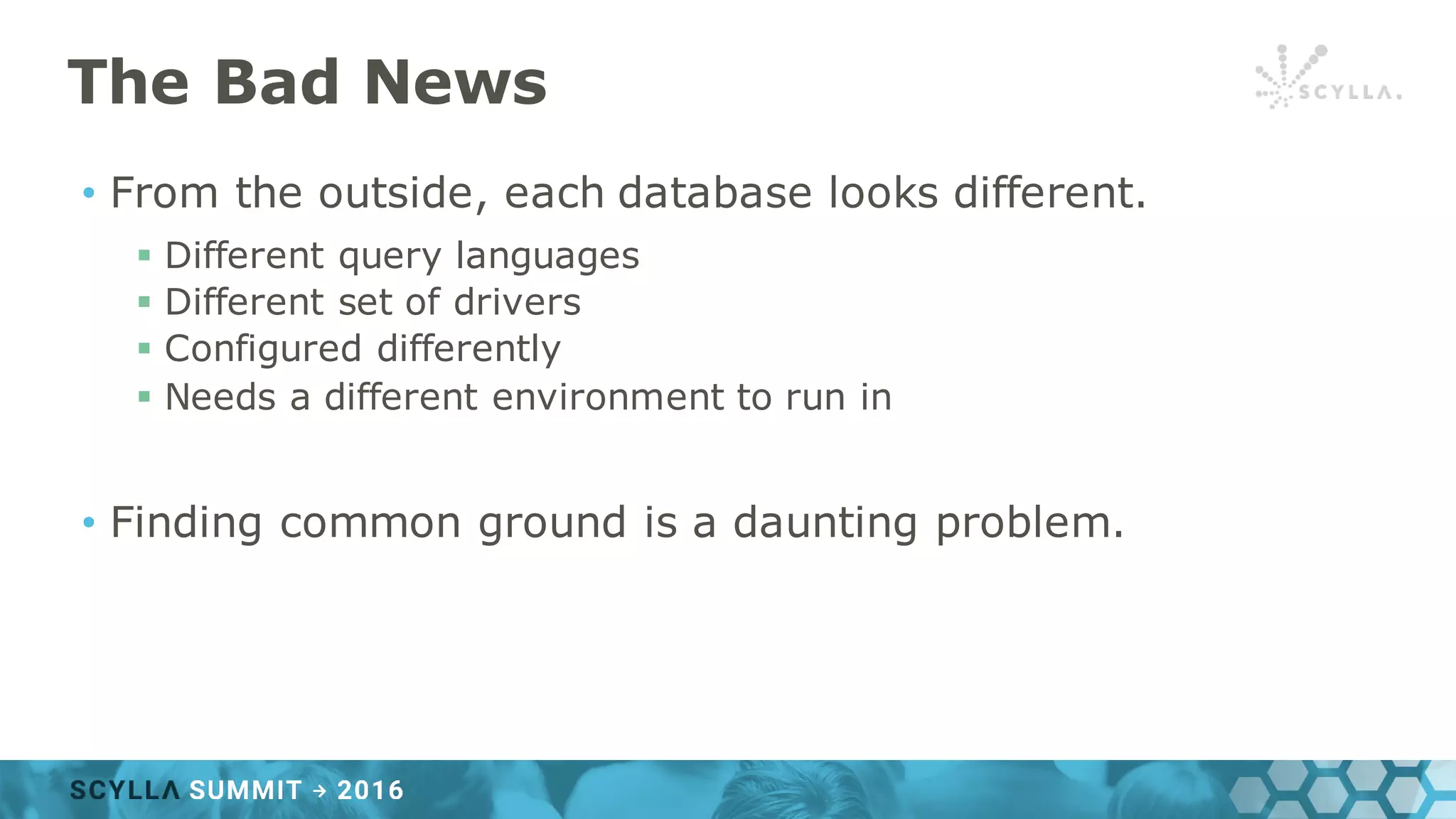

15. The Bad News
• From the outside, each database looks different.
§ Different query languages
§ Different set of drivers
§ Configured differently
§ Needs a different environment to run in
• Finding common ground is a daunting problem.

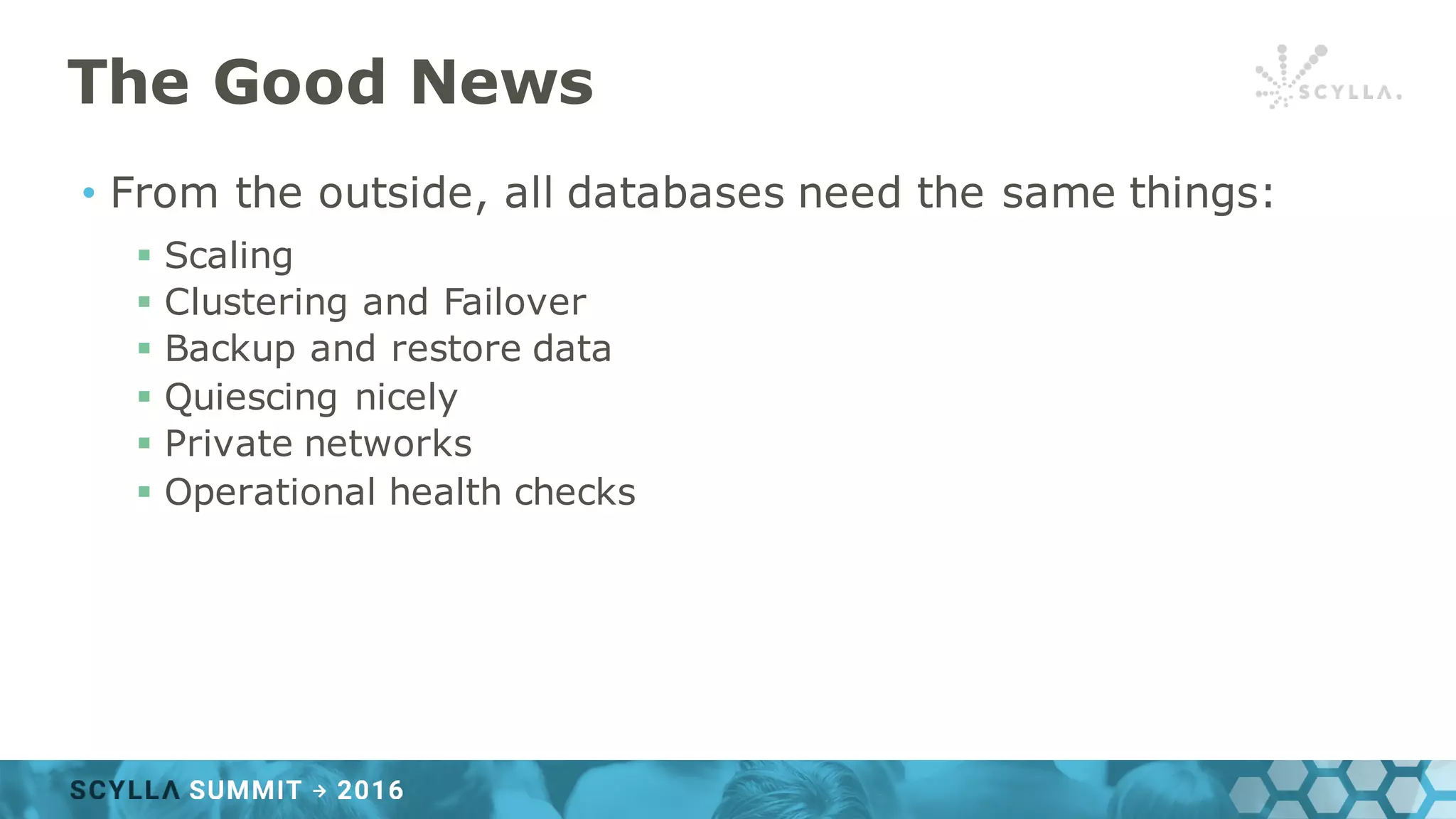

16. The Good News
• From the outside, all databases need the same things:
§ Scaling
§ Clustering and Failover
§ Backup and restore data
§ Quiescing nicely
§ Private networks
§ Operational health checks

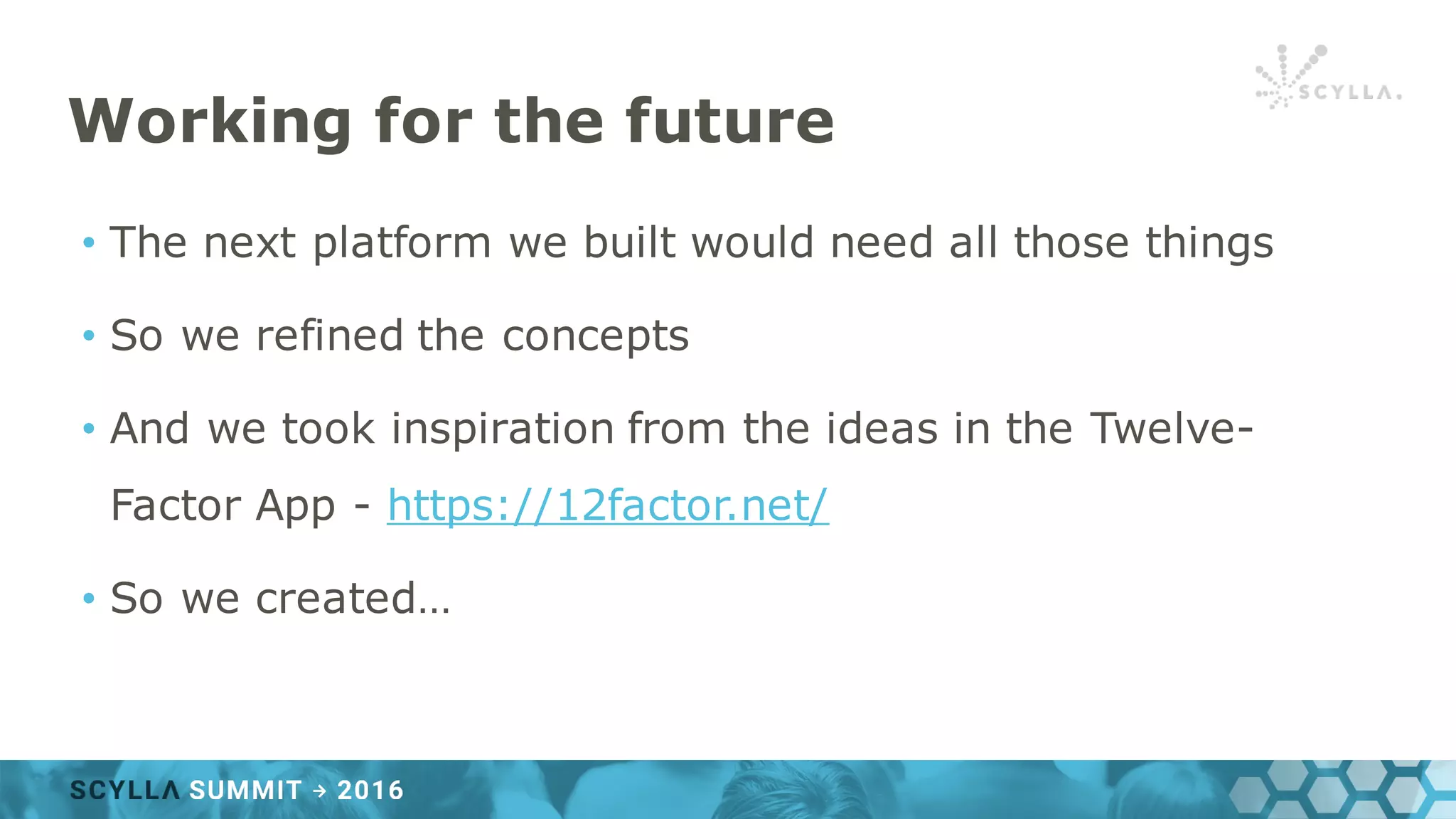

17. Working for the future
• The next platform we built would need all those things
• So we refined the concepts
• And we took inspiration from the ideas in the Twelve-
Factor App - https://12factor.net/
• So we created…

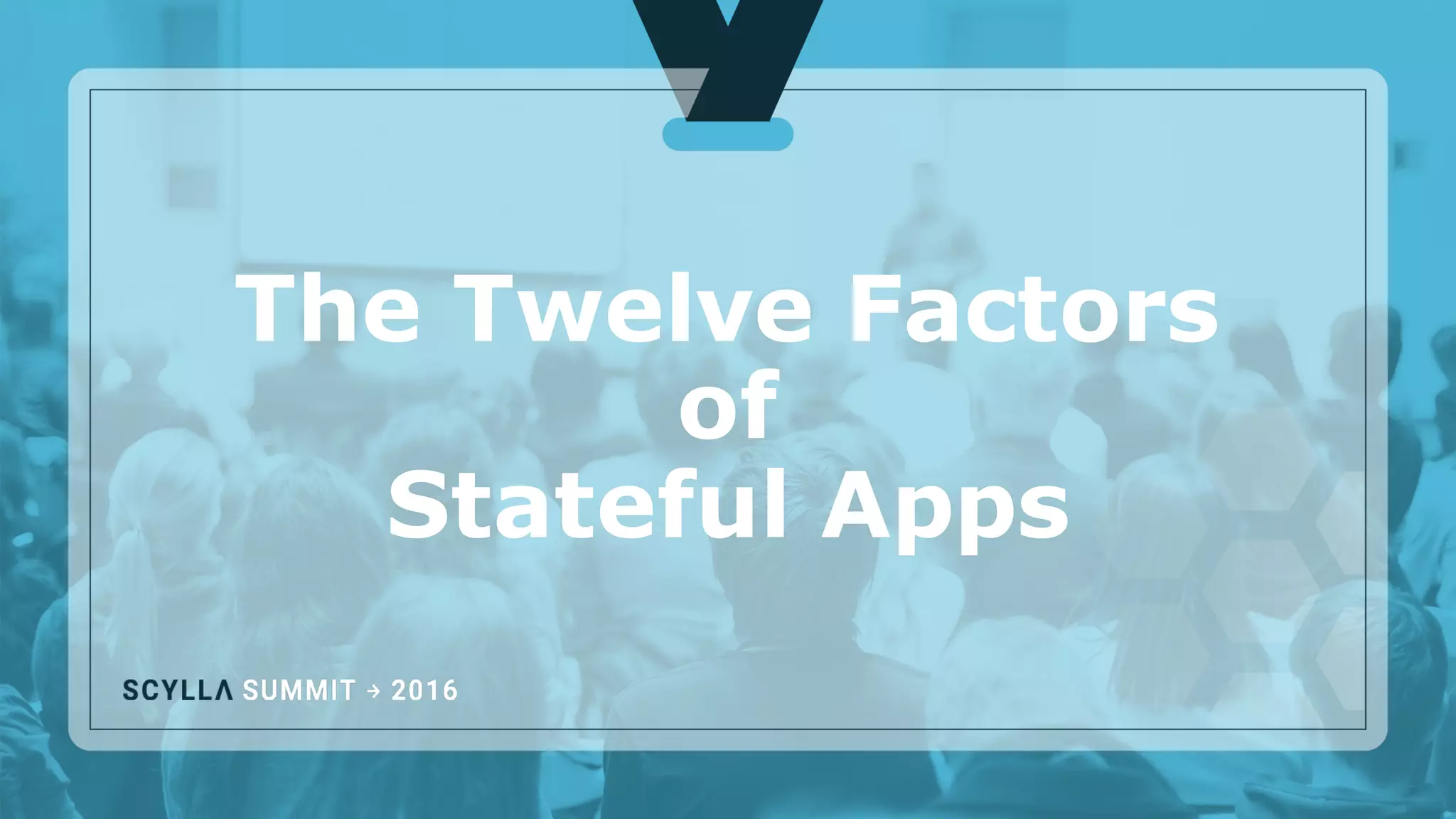

18. The Twelve Factors
of
Stateful Apps

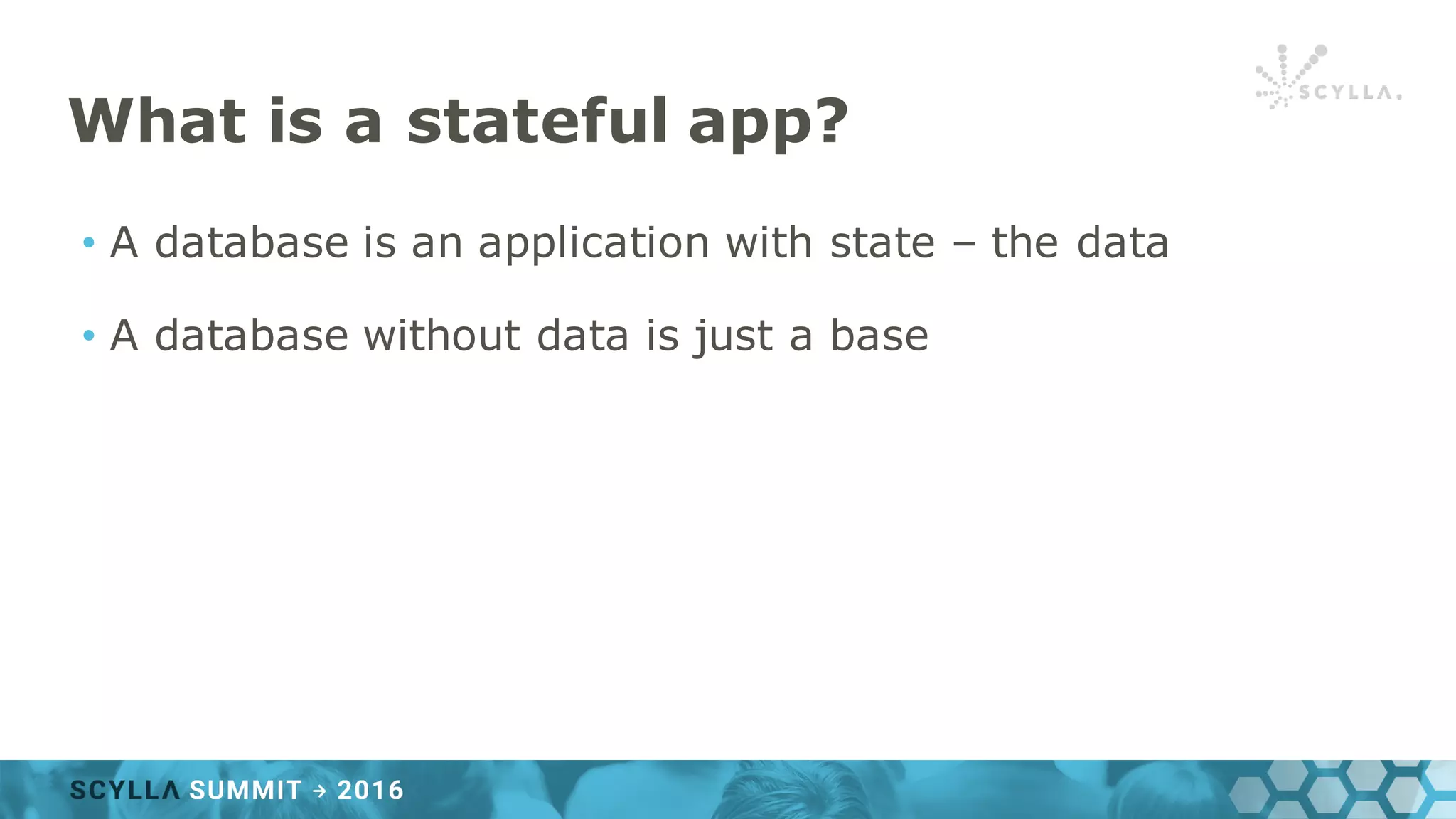

19. What is a stateful app?
• A database is an application with state – the data
• A database without data is just a base

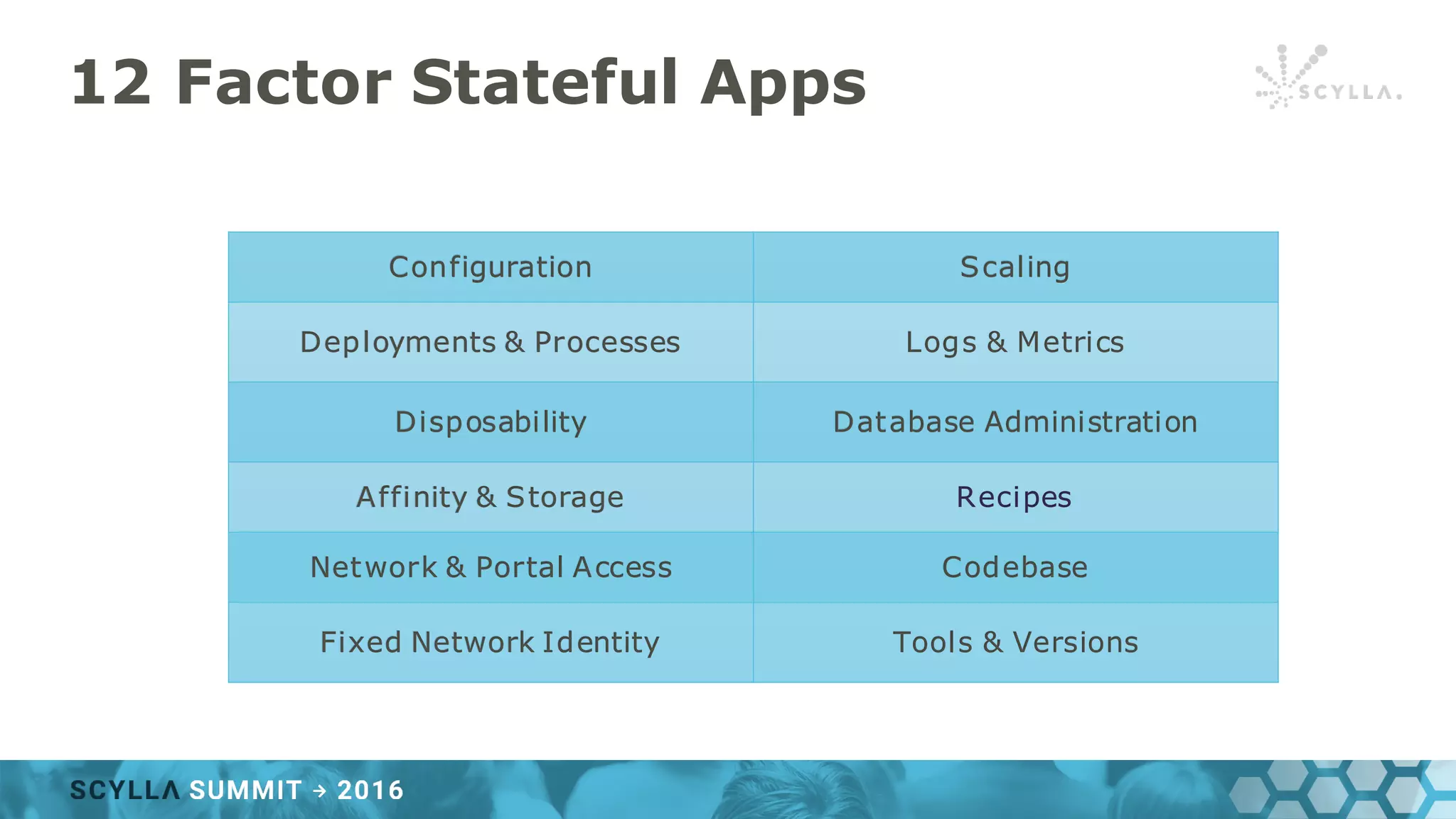

20. 12 Factor Stateful Apps
Configuration Scaling
Deployments & Processes Logs & Metrics
Disposability Database Administration
Affinity & Storage Recipes
Network & Portal Access Codebase
Fixed Network Identity Tools & Versions

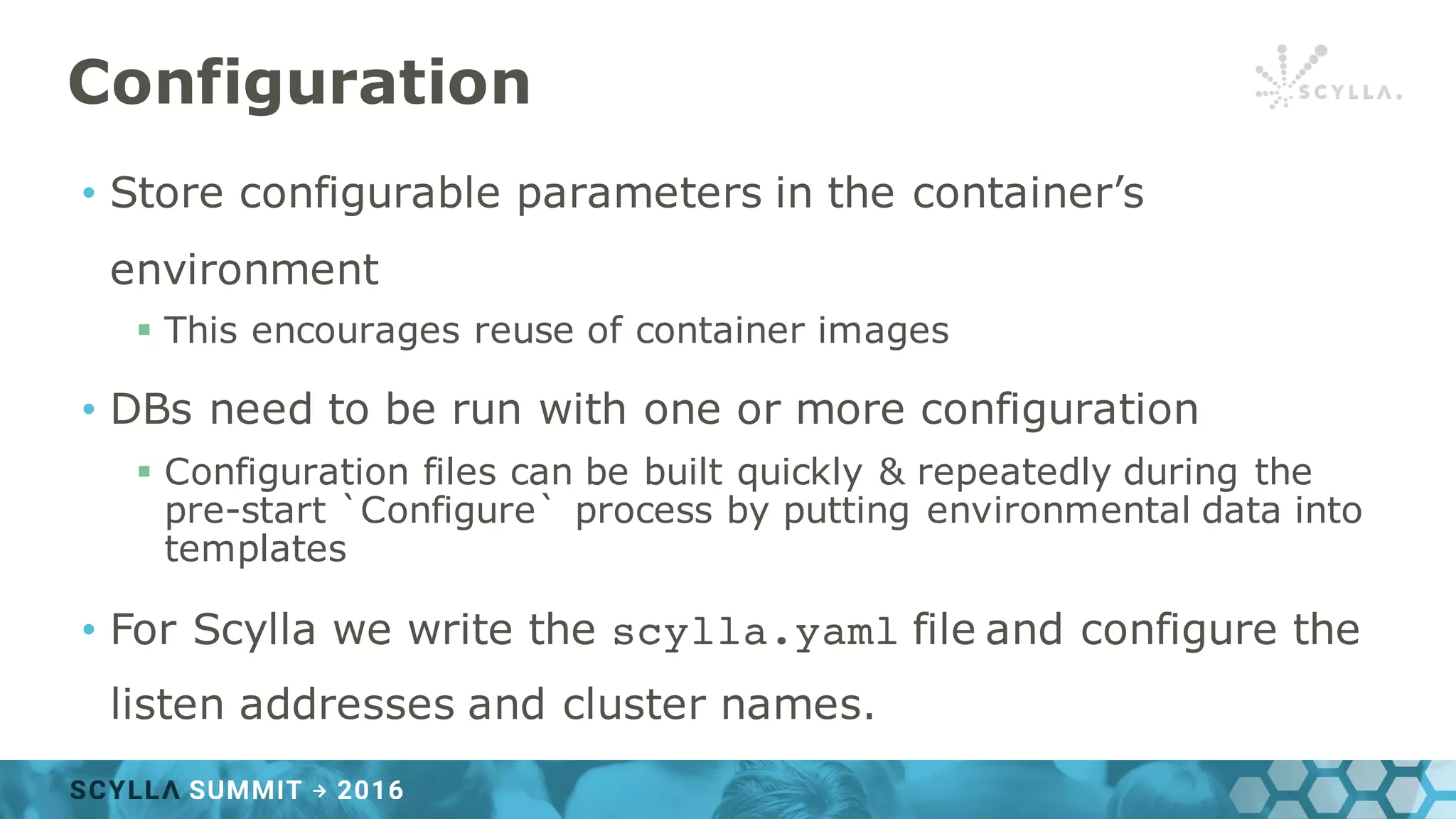

21. Configuration
• Store configurable parameters in the container’s
environment
§ This encourages reuse of container images
• DBs need to be run with one or more configuration
§ Configuration files can be built quickly & repeatedly during the
pre-start `Configure` process by putting environmental data into
templates
• For Scylla we write the scylla.yaml file and configure the
listen addresses and cluster names.

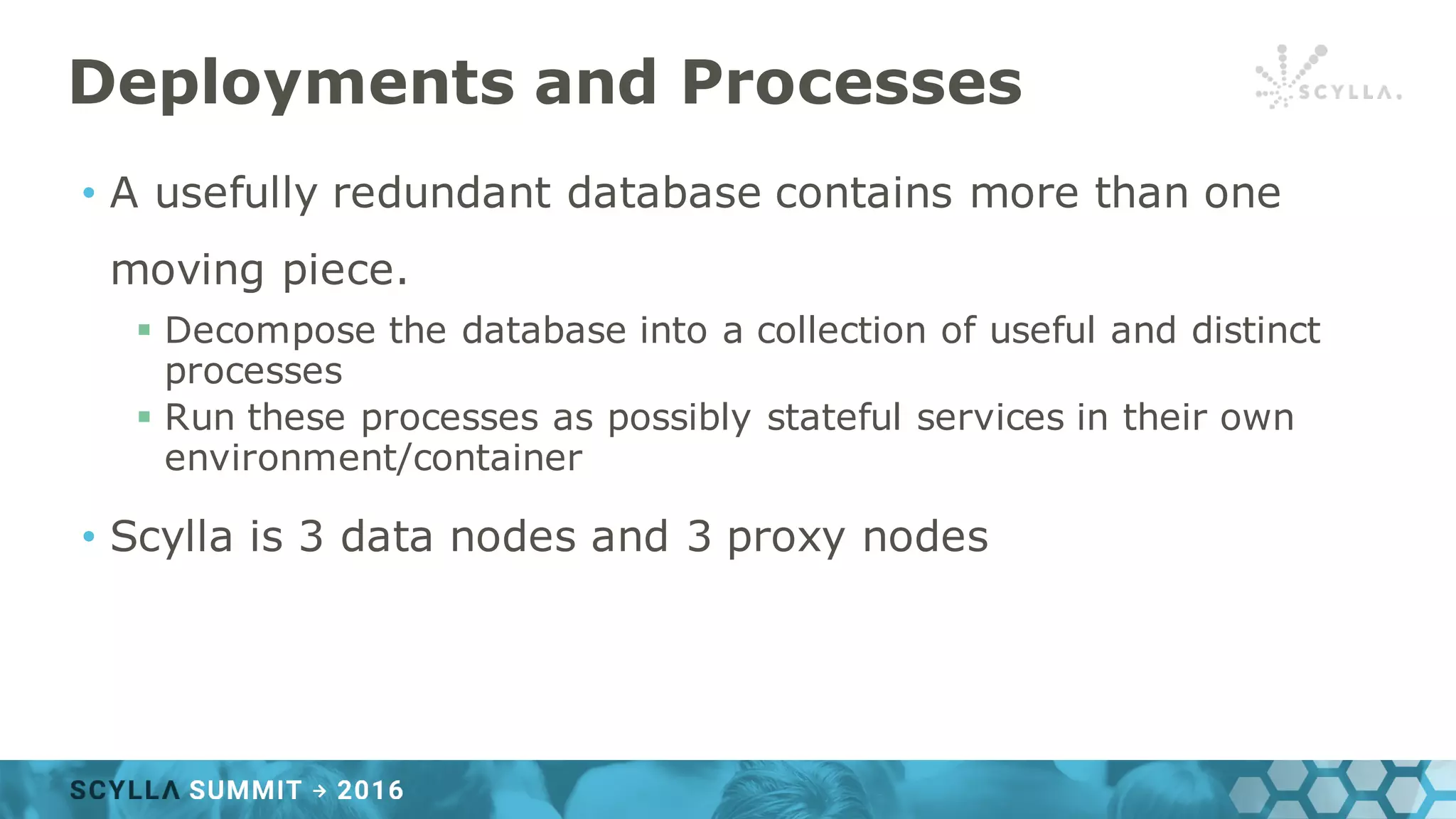

22. Deployments and Processes
• A usefully redundant database contains more than one
moving piece.
§ Decompose the database into a collection of useful and distinct
processes
§ Run these processes as possibly stateful services in their own
environment/container
• Scylla is 3 data nodes and 3 proxy nodes

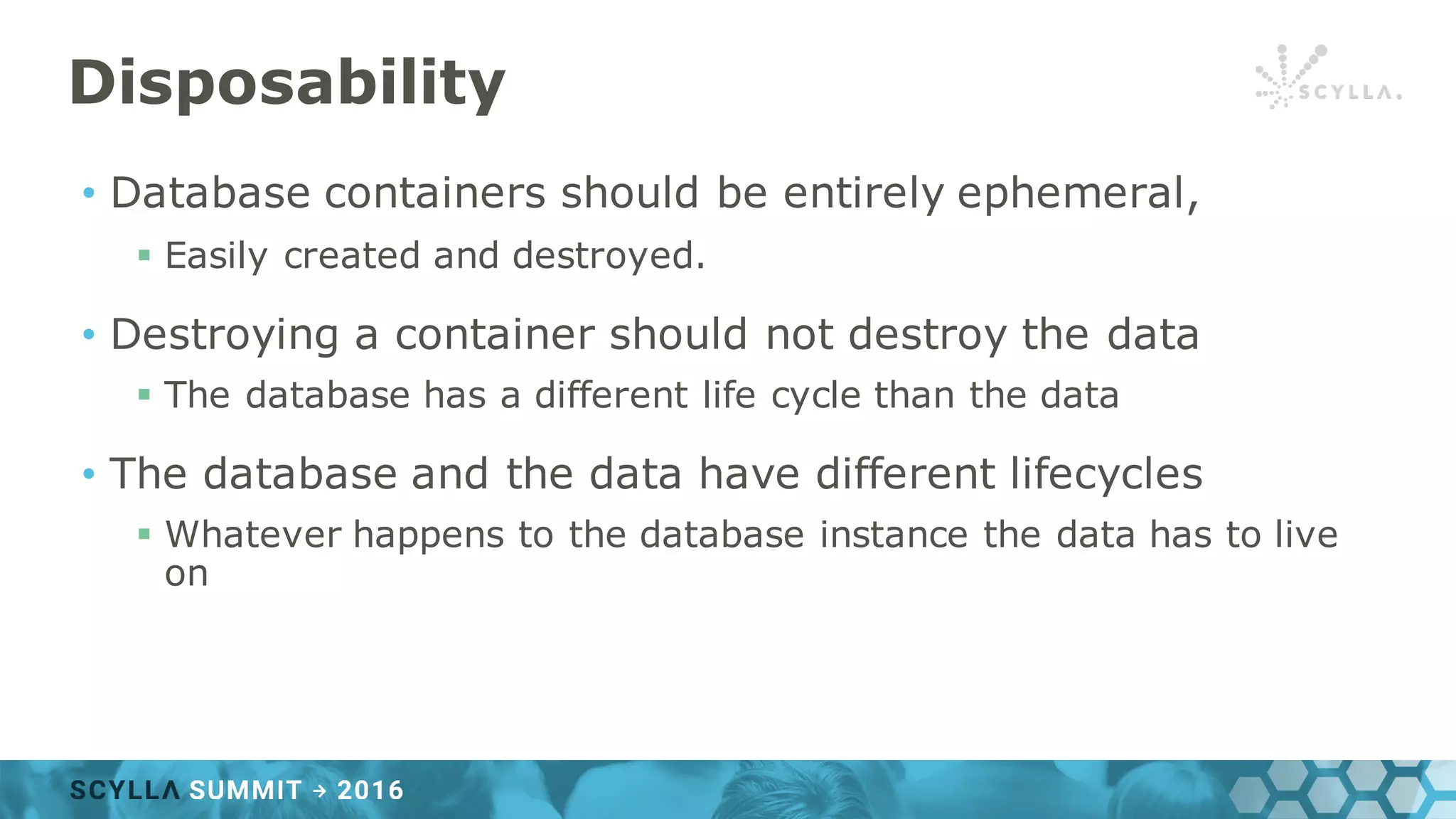

23. Disposability
• Database containers should be entirely ephemeral,
§ Easily created and destroyed.
• Destroying a container should not destroy the data
§ The database has a different life cycle than the data
• The database and the data have different lifecycles
§ Whatever happens to the database instance the data has to live
on

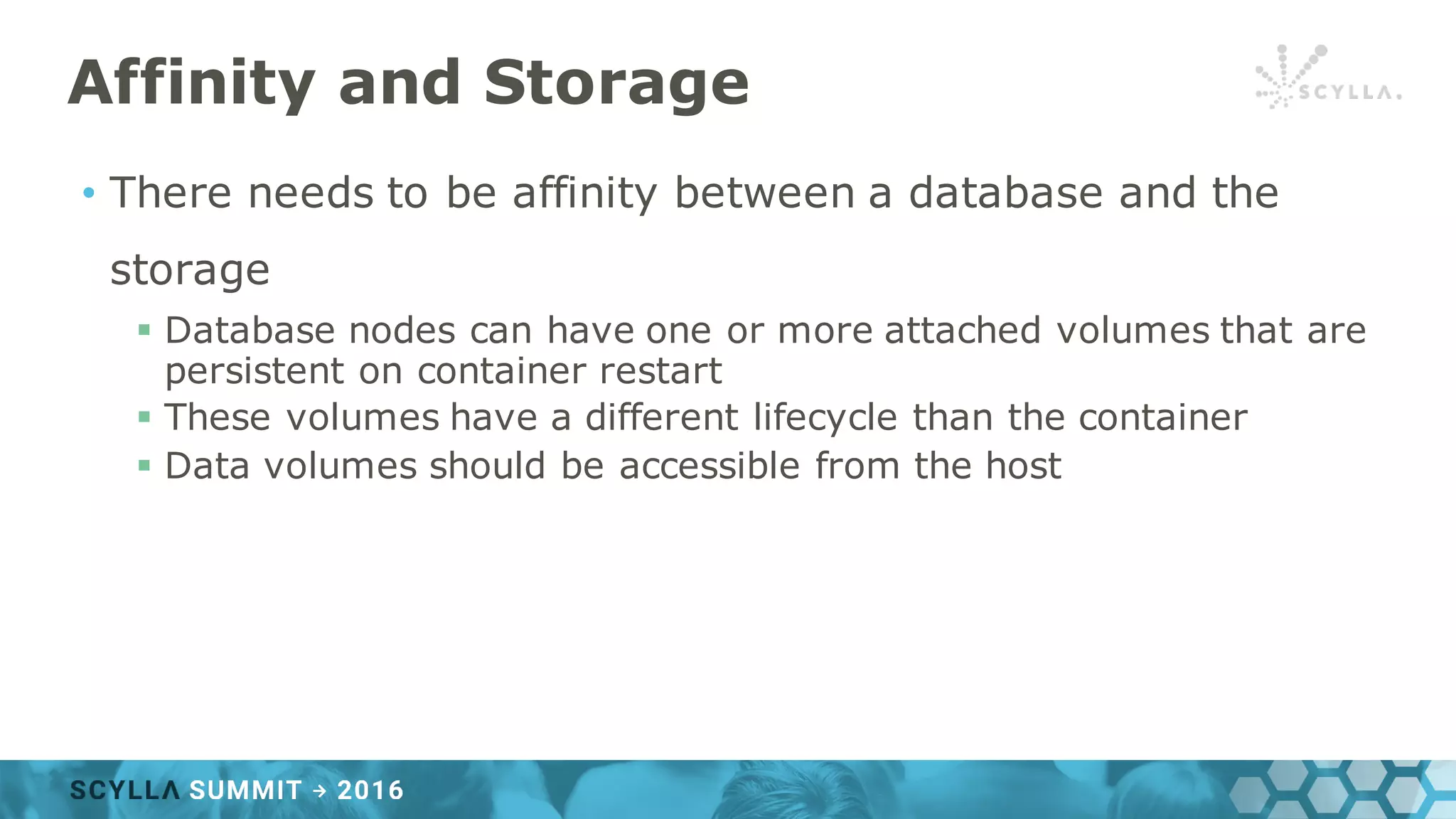

24. Affinity and Storage
• There needs to be affinity between a database and the
storage
§ Database nodes can have one or more attached volumes that are
persistent on container restart
§ These volumes have a different lifecycle than the container
§ Data volumes should be accessible from the host

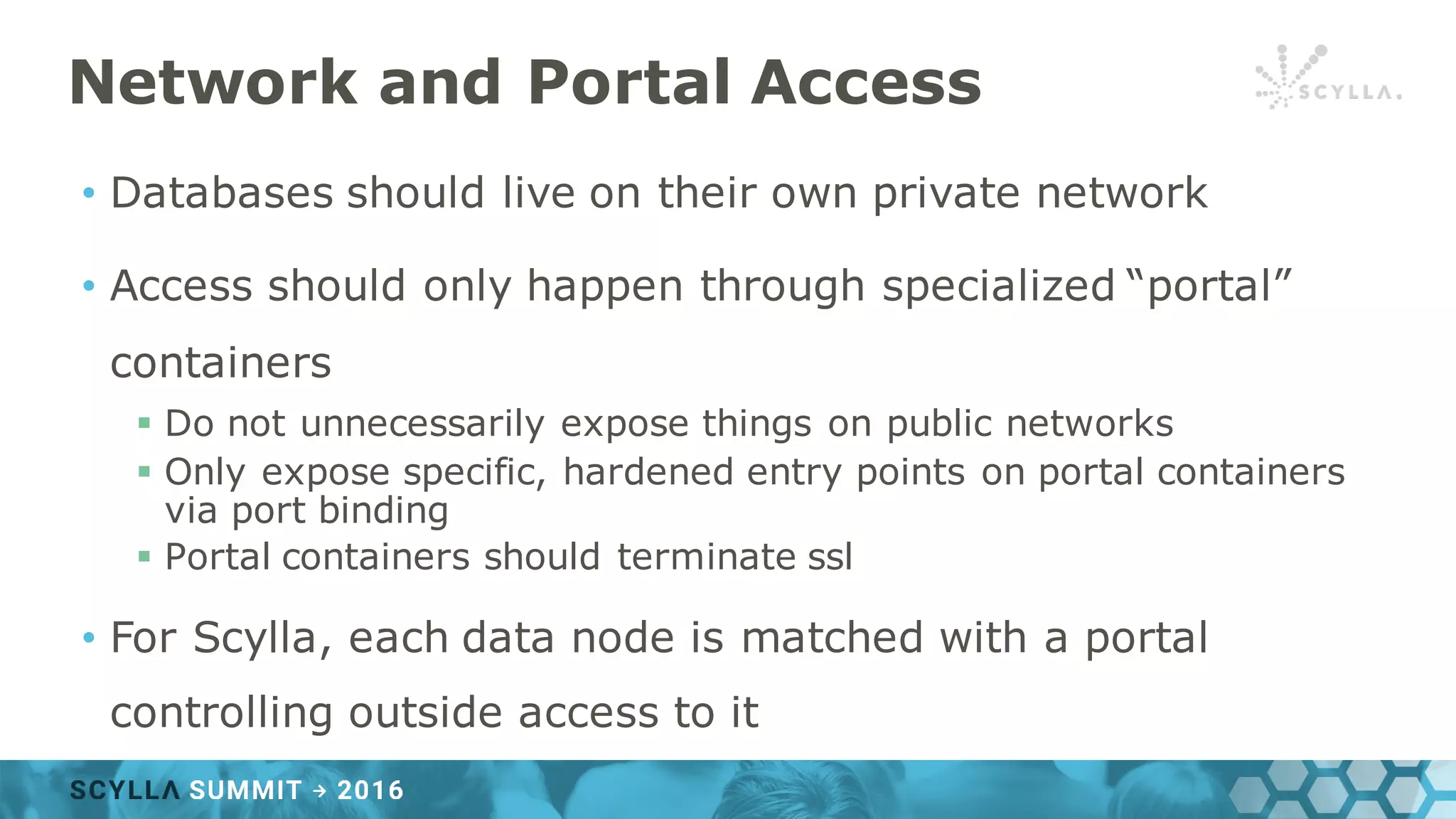

25. Network and Portal Access
• Databases should live on their own private network
• Access should only happen through specialized “portal”
containers
§ Do not unnecessarily expose things on public networks
§ Only expose specific, hardened entry points on portal containers
via port binding
§ Portal containers should terminate ssl
• For Scylla, each data node is matched with a portal
controlling outside access to it

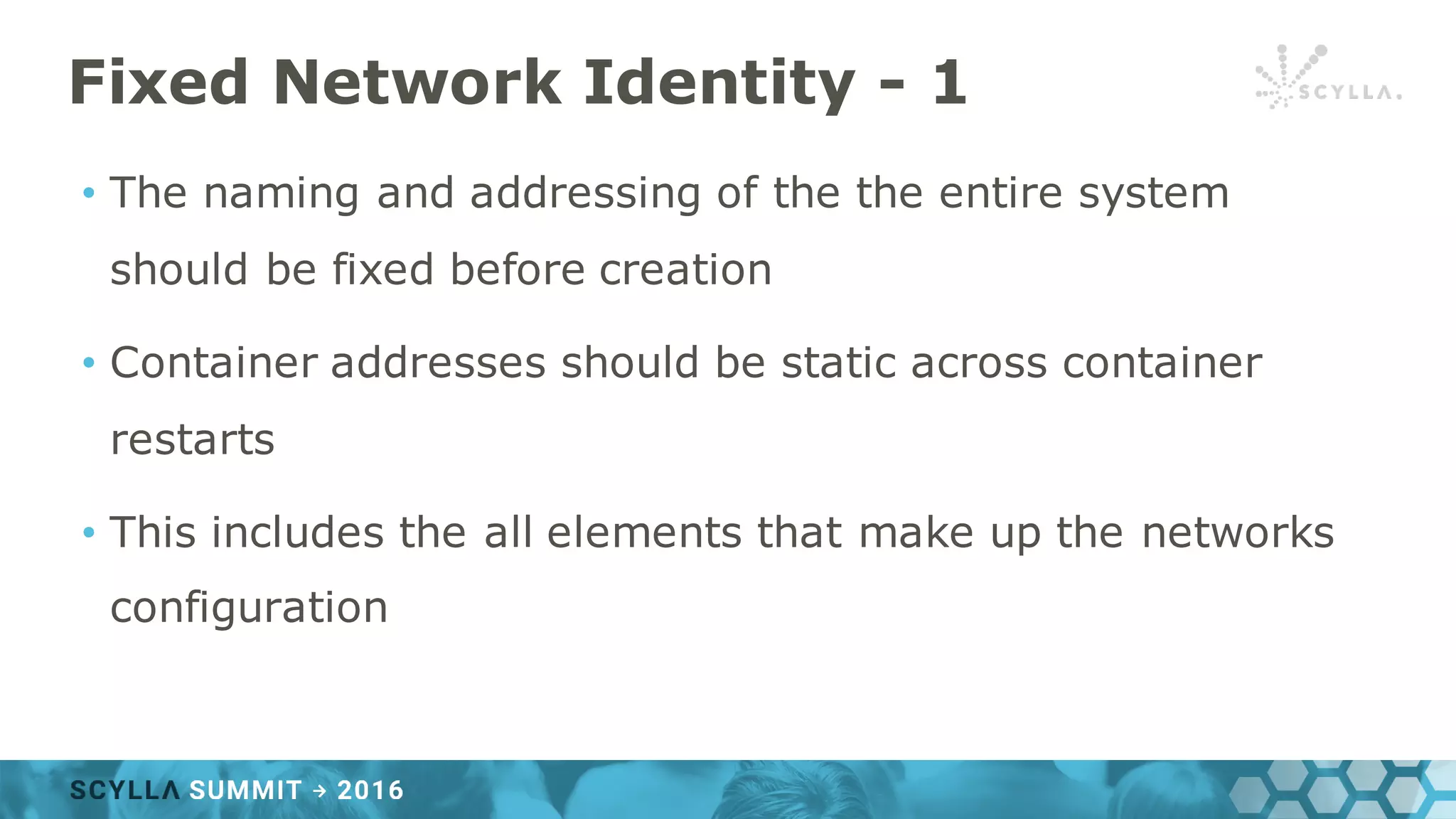

26. Fixed Network Identity - 1
• The naming and addressing of the the entire system
should be fixed before creation
• Container addresses should be static across container
restarts
• This includes the all elements that make up the networks
configuration

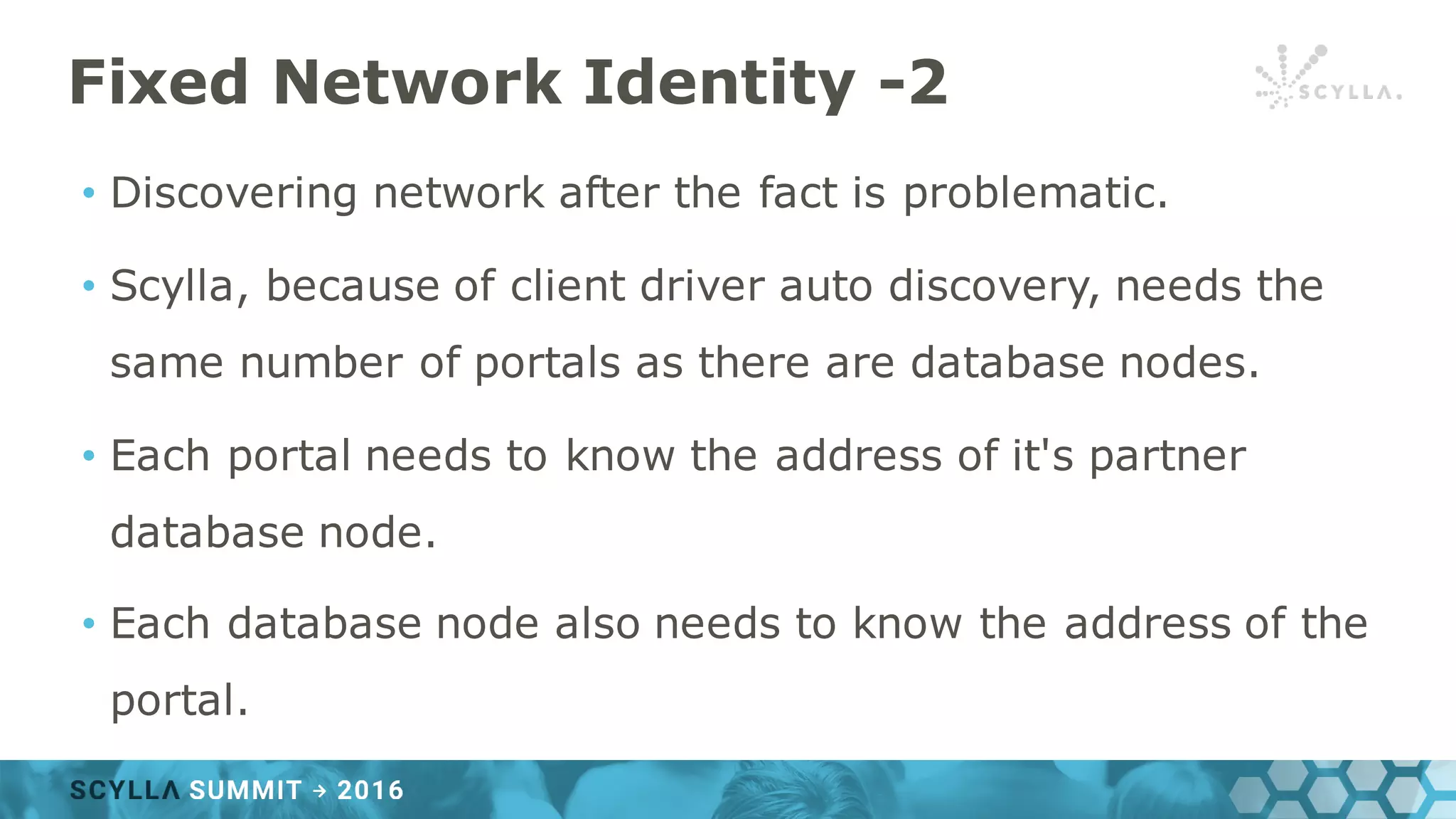

27. Fixed Network Identity -2
• Discovering network after the fact is problematic.
• Scylla, because of client driver auto discovery, needs the
same number of portals as there are database nodes.
• Each portal needs to know the address of it's partner
database node.
• Each database node also needs to know the address of the
portal.

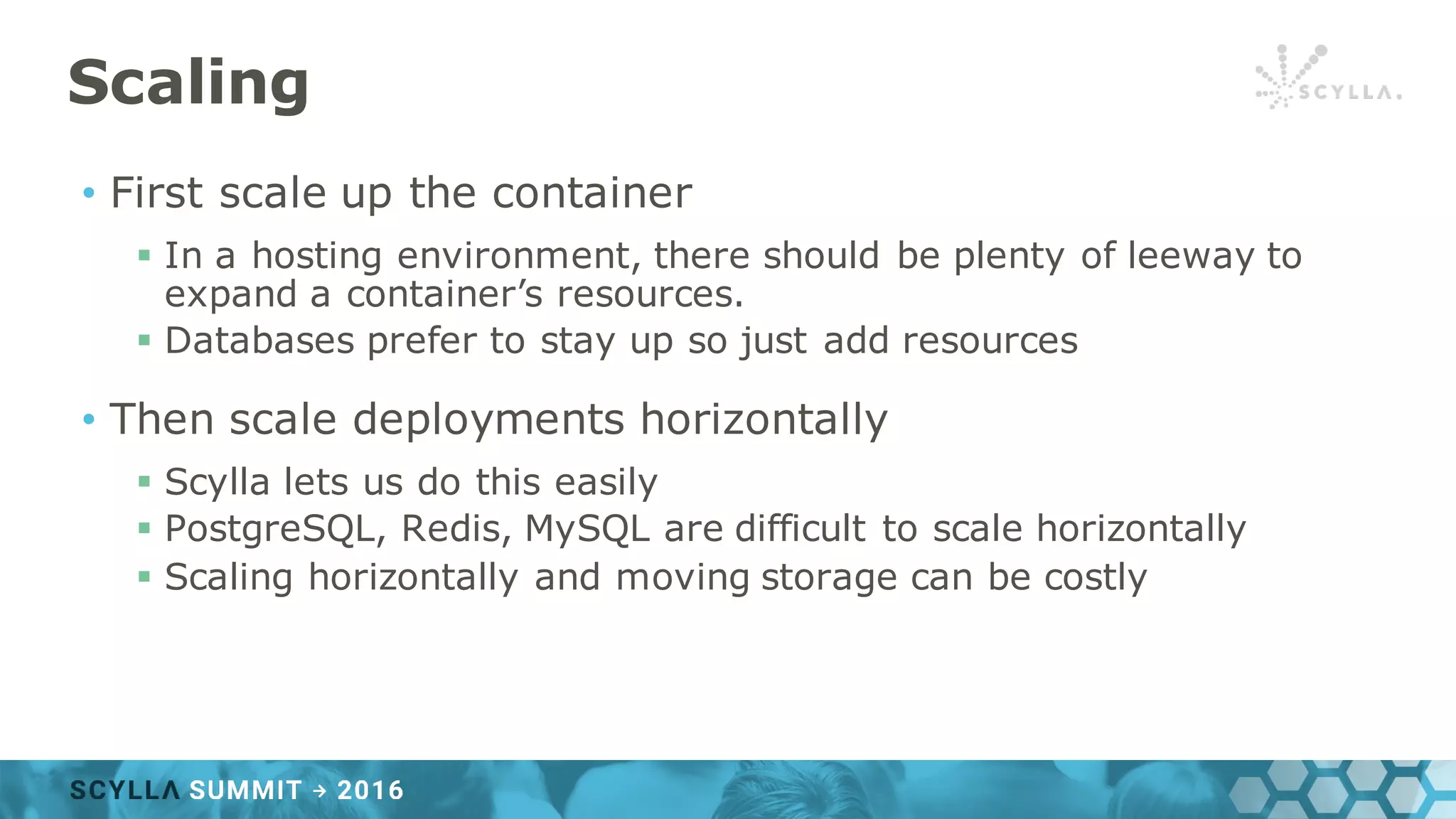

28. Scaling
• First scale up the container
§ In a hosting environment, there should be plenty of leeway to
expand a container’s resources.
§ Databases prefer to stay up so just add resources
• Then scale deployments horizontally
§ Scylla lets us do this easily
§ PostgreSQL, Redis, MySQL are difficult to scale horizontally
§ Scaling horizontally and moving storage can be costly

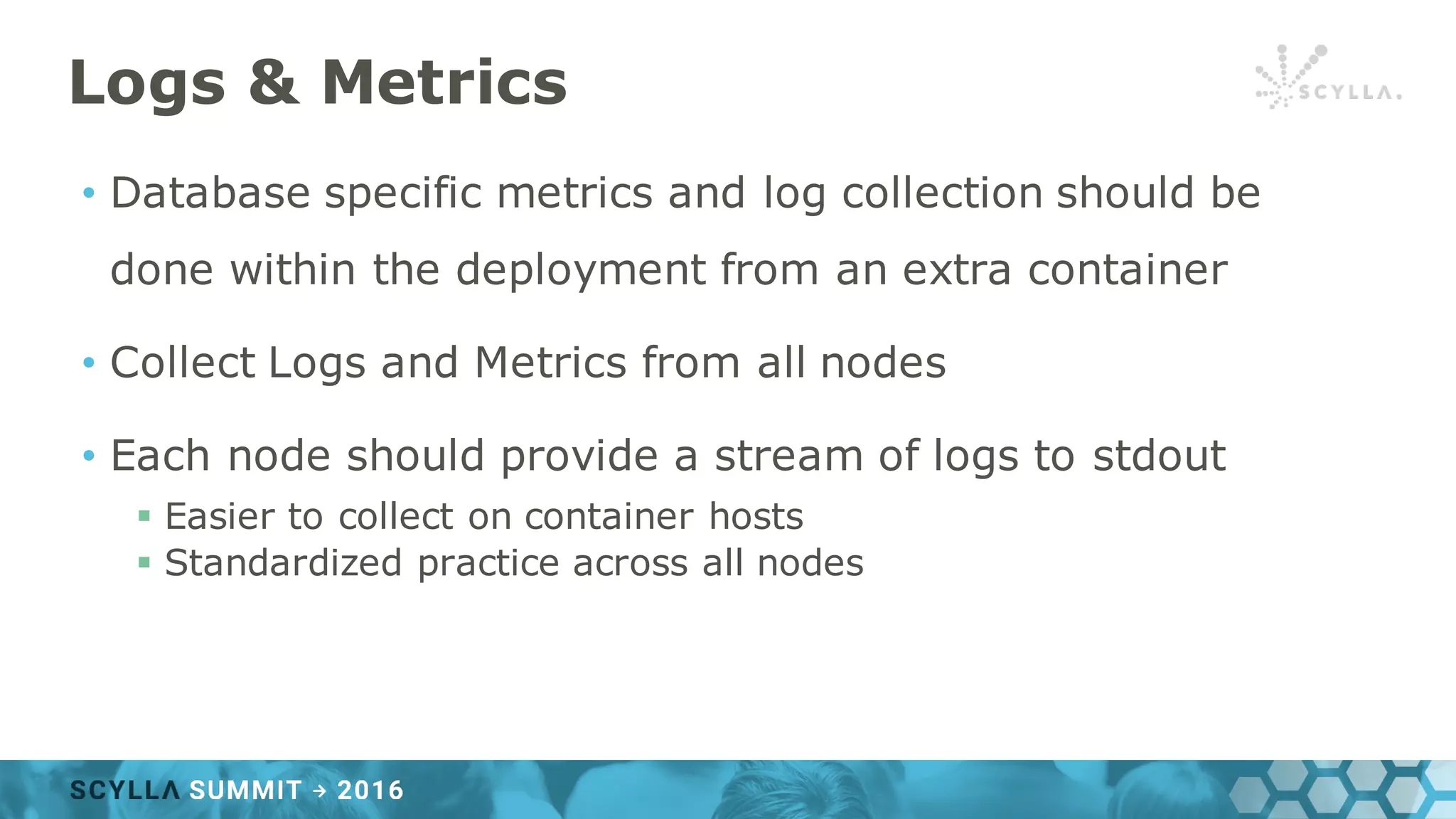

29. Logs & Metrics
• Database specific metrics and log collection should be
done within the deployment from an extra container
• Collect Logs and Metrics from all nodes
• Each node should provide a stream of logs to stdout
§ Easier to collect on container hosts
§ Standardized practice across all nodes

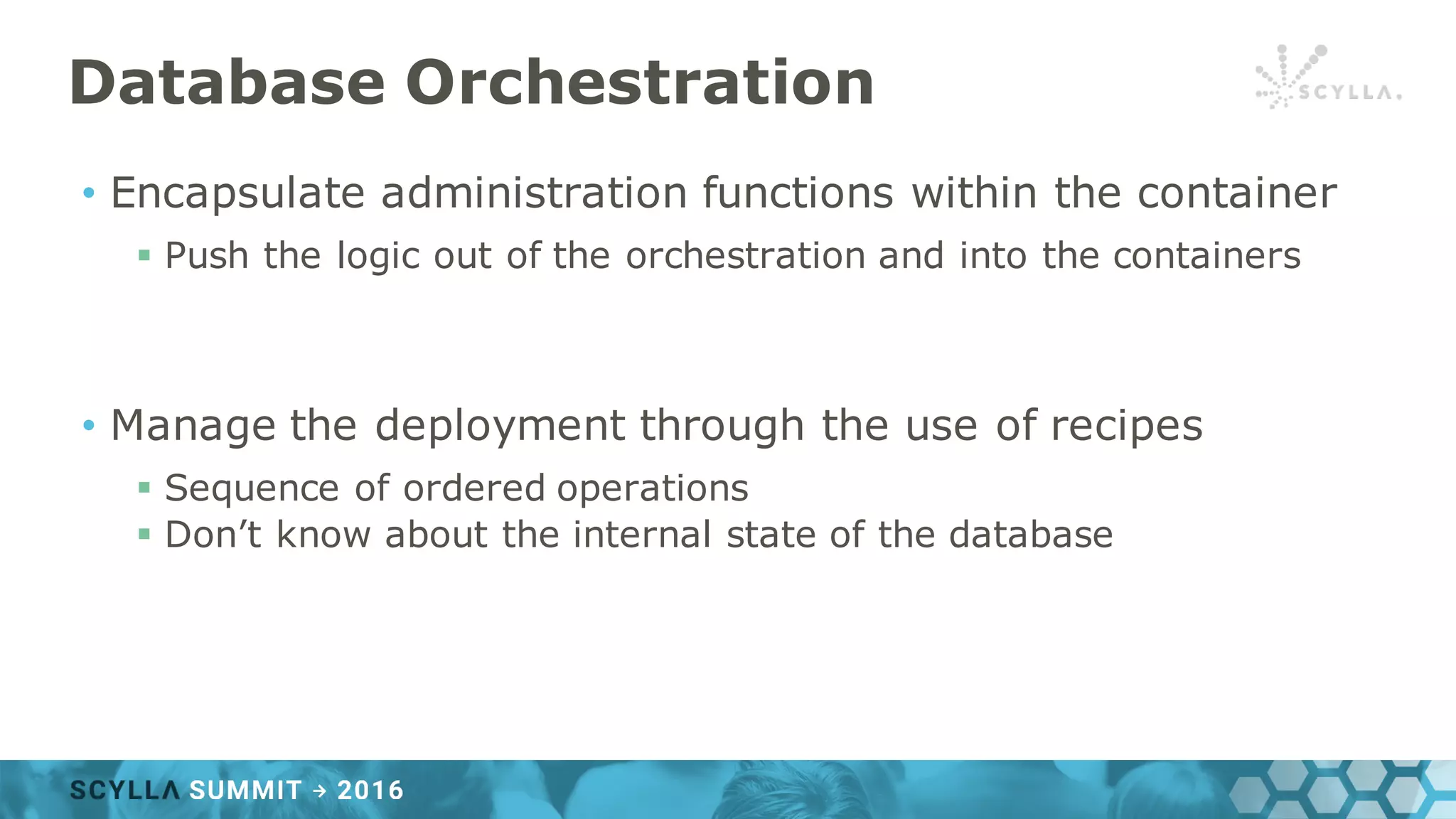

30. Database Orchestration
• Encapsulate administration functions within the container
§ Push the logic out of the orchestration and into the containers
• Manage the deployment through the use of recipes
§ Sequence of ordered operations
§ Don’t know about the internal state of the database

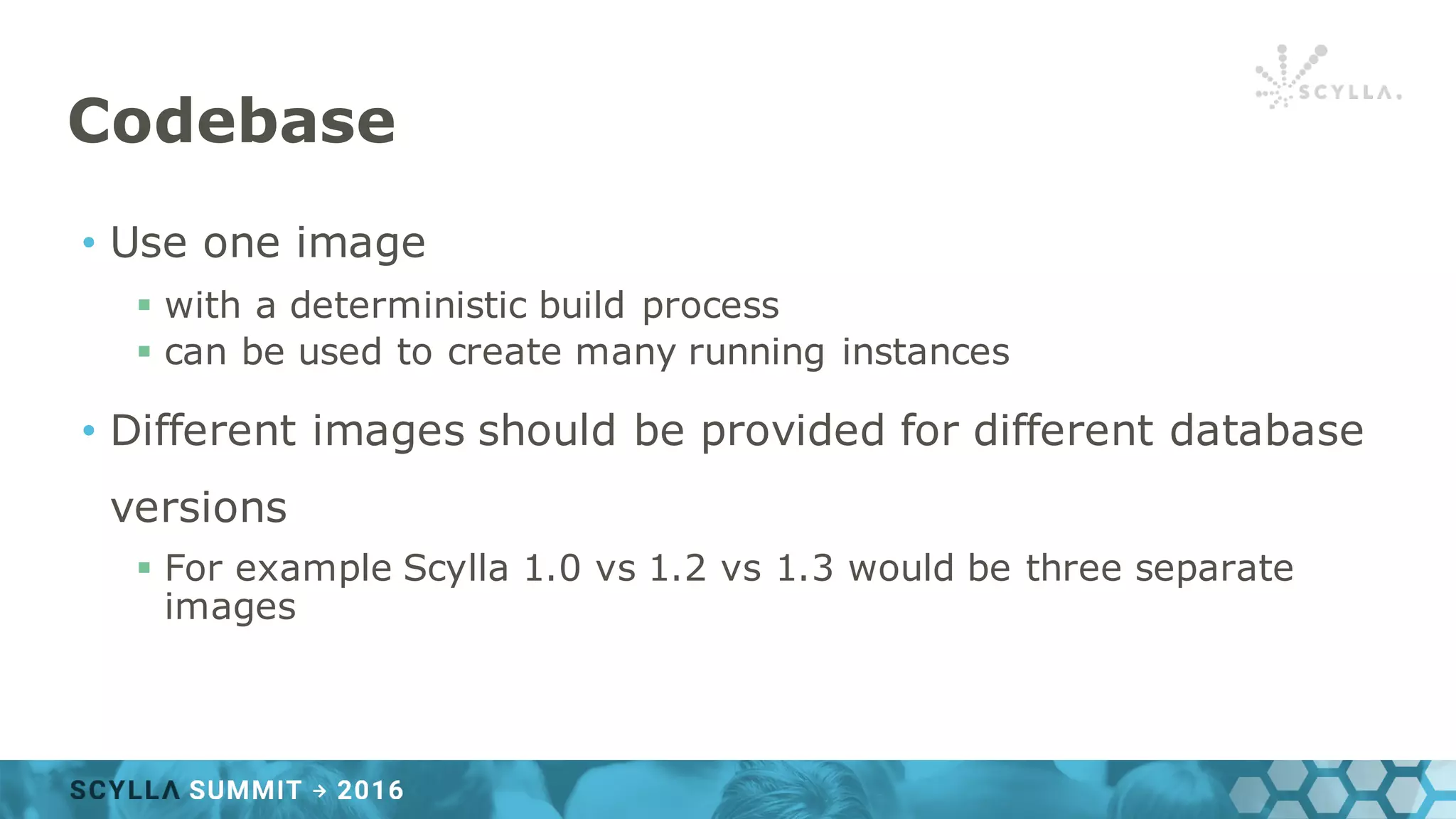

31. Codebase
• Use one image
§ with a deterministic build process
§ can be used to create many running instances
• Different images should be provided for different database
versions
§ For example Scylla 1.0 vs 1.2 vs 1.3 would be three separate
images

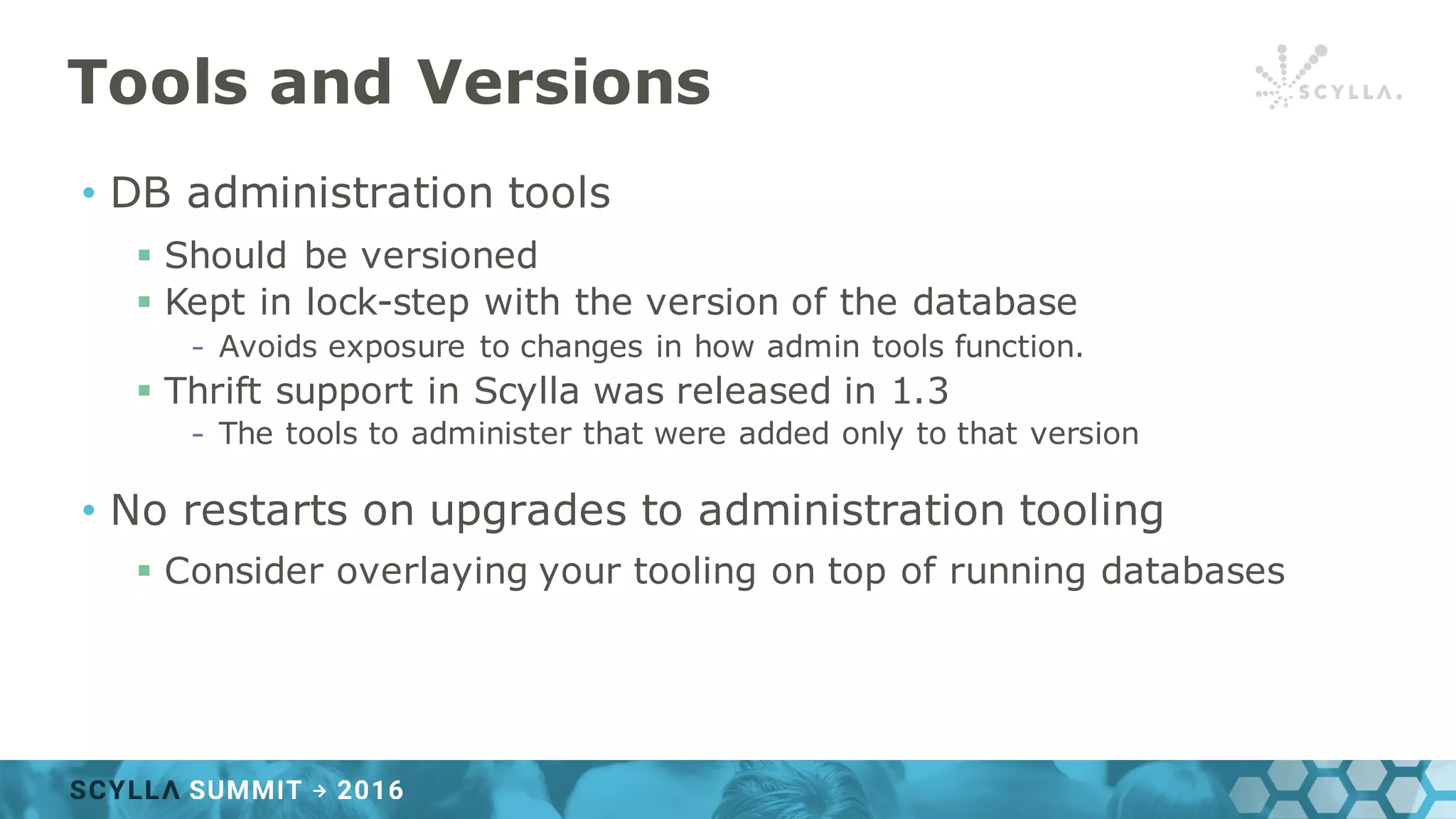

32. Tools and Versions
• DB administration tools
§ Should be versioned
§ Kept in lock-step with the version of the database
- Avoids exposure to changes in how admin tools function.
§ Thrift support in Scylla was released in 1.3
- The tools to administer that were added only to that version
• No restarts on upgrades to administration tooling
§ Consider overlaying your tooling on top of running databases

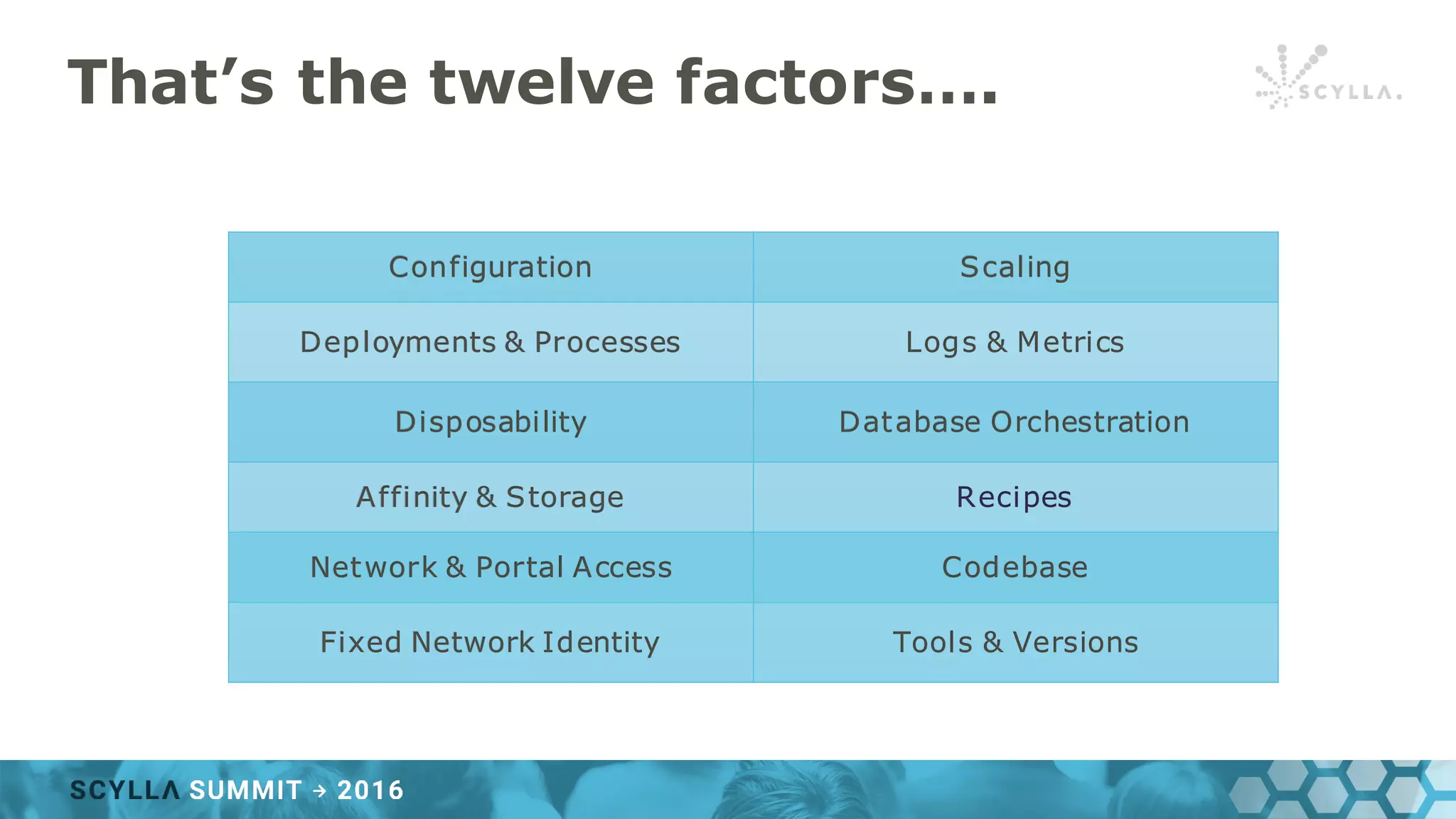

33. That’s the twelve factors….
Configuration Scaling
Deployments & Processes Logs & Metrics
Disposability Database Orchestration
Affinity & Storage Recipes
Network & Portal Access Codebase
Fixed Network Identity Tools & Versions

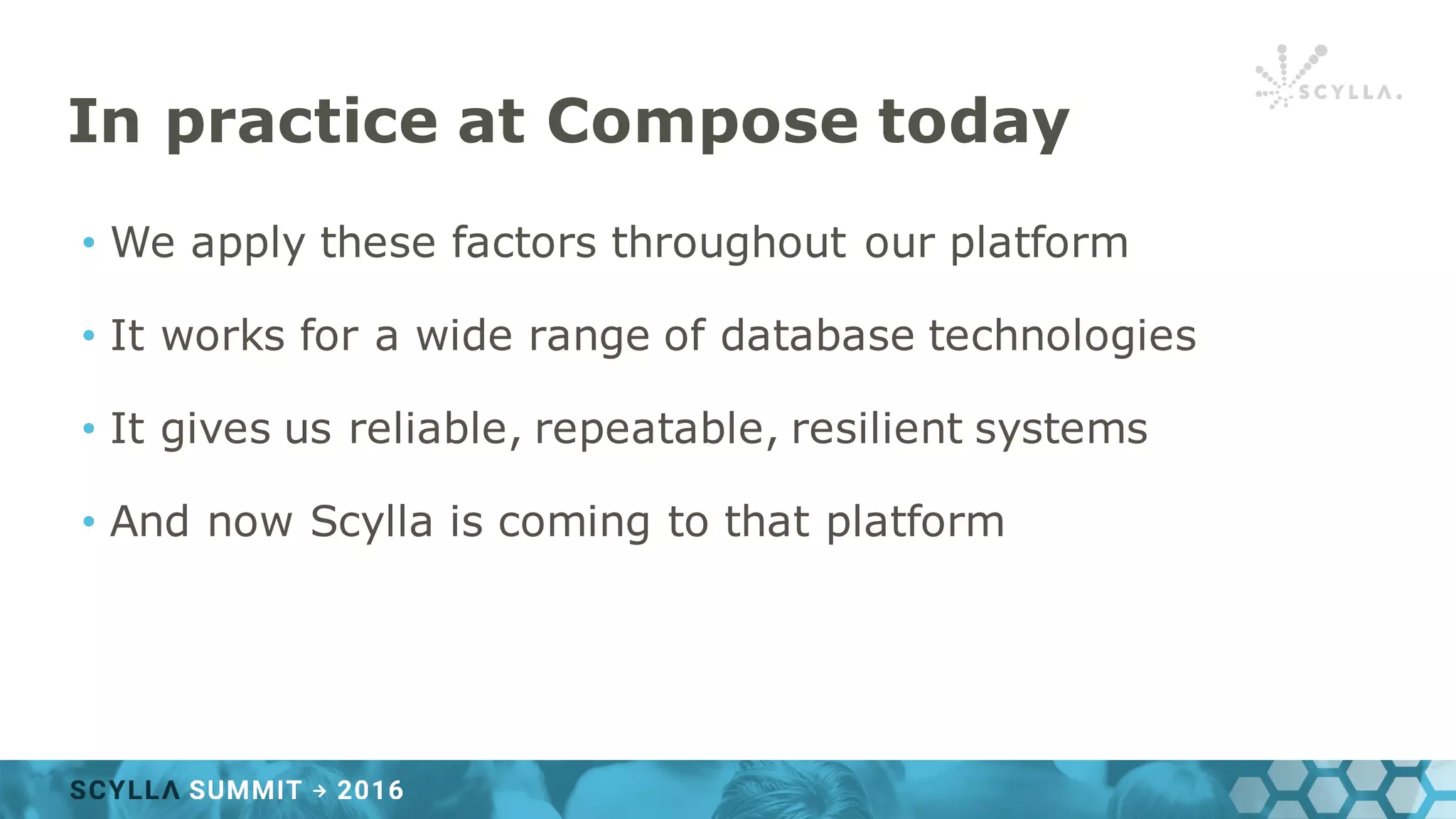

34. In practice at Compose today
• We apply these factors throughout our platform
• It works for a wide range of database technologies
• It gives us reliable, repeatable, resilient systems
• And now Scylla is coming to that platform

35. Thank You!
Contact: hello@compose.com | @composeio
