Uploaded byJignesh Shah
PostgreSQL High Availability in a Containerized World
This document discusses high availability for PostgreSQL in a containerized environment. It outlines typical enterprise requirements for high availability including recovery time objectives and recovery point objectives. Shared storage-based high availability is described as well as the advantages and disadvantages of PostgreSQL replication. The use of Linux containers and orchestration tools like Kubernetes and Consul for managing containerized PostgreSQL clusters is also covered. The document advocates for using PostgreSQL replication along with services and self-healing tools to provide highly available and scalable PostgreSQL deployments in modern container environments.
More Related Content
Similar to PostgreSQL High Availability in a Containerized World
PostgreSQL High Availability in a Containerized World
- 1. POSTGRESQL HIGH AVAILABILITY INA CONTAINERIZED WORLD Jignesh Shah Chief Architect
- 2. About @jkshah ü appOrbit • Focus is on data management of applications running in Containers ü VMware • Lead and manage Postgres and Data Management teams at VMware for various products embedding PostgreSQL running in virtualized embedded instances ü Sun Microsystems • Team Member of first published SpecJAppServer 2004 benchmark with PostgreSQL • Performance of PostgreSQL on Solaris/Sun Servers ü Working with PostgreSQL community since 2005 • http://jkshah.blogspot.com/2005/04/profiling-postgresql-using-dtrace-on_22.html ü Working with Container technologies (Solaris Zones) since 2004 • http://jkshah.blogspot.com/2004/08/db2-working-under-solaris-10-zones_30.html

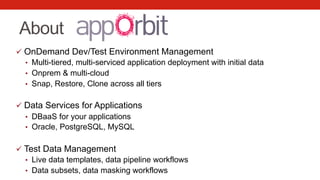

- 3. About ü OnDemand Dev/TestEnvironment Management • Multi-tiered, multi-serviced application deployment with initial data • Onprem & multi-cloud • Snap, Restore, Clone across all tiers ü Data Services for Applications • DBaaS for your applications • Oracle, PostgreSQL, MySQL ü Test Data Management • Live data templates, data pipeline workflows • Data subsets, data masking workflows
- 4.

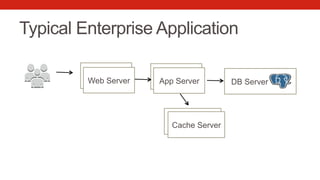

- 5. DB Server Typical EnterpriseApplication Web Server Web Server App Server App Server Cache ServerCache Server
- 6. Typical Micro servicesApplication Web ServerWebapp Server Gateway App Server MicroService 1 DB 2 App Server MicroService 2 DB 3 App Server MicroService N
- 7. Simplified Requirements ofDB Service ü Easy, convenient Database service ü High Availability ü High Durability Data Center DNS Name
- 8. High Availability Requirements ü Requirements • Recovery Time Objective (RTO) - Availability • What does 99.99% availability really mean? • Recovery Point Objective (RPO) - Durability • Zero data lost? • HA vs. DR requirements Availability % Downtime / Year Downtime / Month * Downtime / week "Two Nines" - 99% 3.65 Days 7.2 Hours 1.69 Hours "Three Nines" - 99.9% 8.76 Hours 43.2 Minutes 10.1 Minutes "Four Nines" - 99.99% 52.56 Minutes 4.32 Minutes 1.01 Minutes "Five Nines" - 99.999% 5.26 Minutes 25.9 Seconds 6.06 Seconds * Using a 30 day month

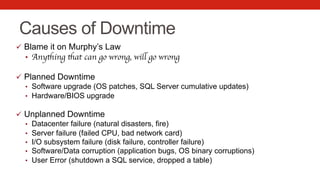

- 9. Causes of Downtime ü Blame it on Murphy’s Law • Anything that can go wrong, will go wrong ü Planned Downtime • Software upgrade (OS patches, SQL Server cumulative updates) • Hardware/BIOS upgrade ü Unplanned Downtime • Datacenter failure (natural disasters, fire) • Server failure (failed CPU, bad network card) • I/O subsystem failure (disk failure, controller failure) • Software/Data corruption (application bugs, OS binary corruptions) • User Error (shutdown a SQL service, dropped a table)

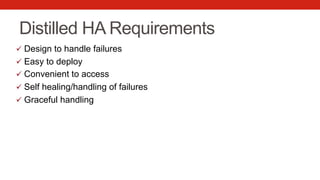

- 10. Distilled HA Requirements ü Design to handle failures ü Easy to deploy ü Convenient to access ü Self healing/handling of failures ü Graceful handling
- 11.

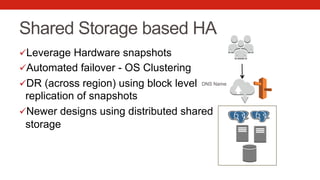

- 12. Shared Storage basedHA ü Leverage Hardware snapshots ü Automated failover - OS Clustering ü DR (across region) using block level replication of snapshots ü Newer designs using distributed shared storage DNS Name

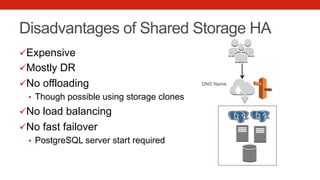

- 13. Disadvantages of SharedStorage HA ü Expensive ü Mostly DR ü No offloading • Though possible using storage clones ü No load balancing ü No fast failover • PostgreSQL server start required DNS Name

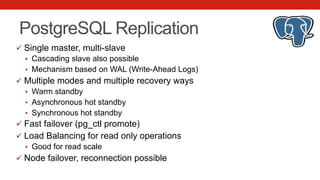

- 14. PostgreSQL Replication ü Singlemaster, multi-slave • Cascading slave also possible • Mechanism based on WAL (Write-Ahead Logs) ü Multiple modes and multiple recovery ways • Warm standby • Asynchronous hot standby • Synchronous hot standby ü Fast failover (pg_ctl promote) ü Load Balancing for read only operations • Good for read scale ü Node failover, reconnection possible

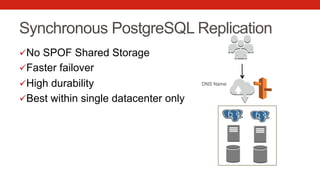

- 15. Synchronous PostgreSQL Replication ü NoSPOF Shared Storage ü Faster failover ü High durability ü Best within single datacenter only DNS Name

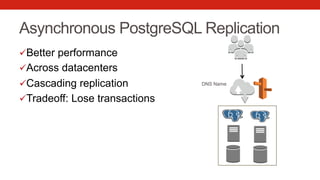

- 16. Asynchronous PostgreSQL Replication ü Betterperformance ü Across datacenters ü Cascading replication ü Tradeoff: Lose transactions DNS Name

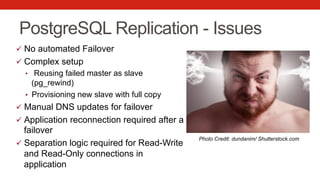

- 17. PostgreSQL Replication -Issues ü No automated Failover ü Complex setup • Reusing failed master as slave (pg_rewind) • Provisioning new slave with full copy ü Manual DNS updates for failover ü Application reconnection required after a failover ü Separation logic required for Read-Write and Read-Only connections in application Photo Credit: dundanim/ Shutterstock.com

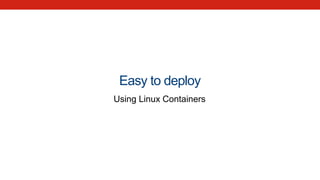

- 18. Easy to deploy UsingLinux Containers
- 19. What are Containers? ü OSLevel virtualization where kernel allows for multiple isolated user- space instances Operating System Bare Metal Server OS Bare Metal Server Hypervisor OS Operating System Bare Metal Server C C C C C OS Bare Metal Server Hypervisor OS C C C C

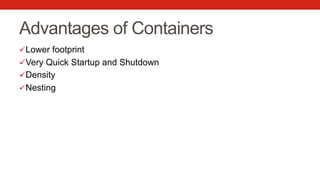

- 20. Advantages of Containers ü Lowerfootprint ü Very Quick Startup and Shutdown ü Density ü Nesting

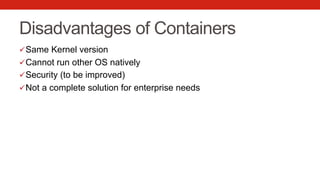

- 21. Disadvantages of Containers ü SameKernel version ü Cannot run other OS natively ü Security (to be improved) ü Not a complete solution for enterprise needs

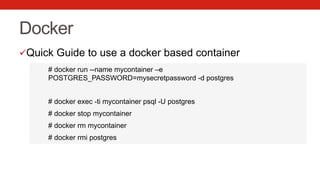

- 22. Docker ü Quick Guide touse a docker based container # docker run --name mycontainer –e POSTGRES_PASSWORD=mysecretpassword -d postgres # docker exec -ti mycontainer psql -U postgres # docker stop mycontainer # docker rm mycontainer # docker rmi postgres

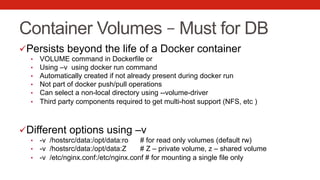

- 23. Container Volumes –Must for DB ü Persists beyond the life of a Docker container • VOLUME command in Dockerfile or • Using –v using docker run command • Automatically created if not already present during docker run • Not part of docker push/pull operations • Can select a non-local directory using --volume-driver • Third party components required to get multi-host support (NFS, etc ) ü Different options using –v • -v /hostsrc/data:/opt/data:ro # for read only volumes (default rw) • -v /hostsrc/data:/opt/data:Z # Z – private volume, z – shared volume • -v /etc/nginx.conf:/etc/nginx.conf # for mounting a single file only

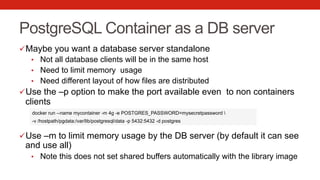

- 24. PostgreSQL Container asa DB server ü Maybe you want a database server standalone • Not all database clients will be in the same host • Need to limit memory usage • Need different layout of how files are distributed ü Use the –p option to make the port available even to non containers clients ü Use –m to limit memory usage by the DB server (by default it can see and use all) • Note this does not set shared buffers automatically with the library image docker run --name mycontainer -m 4g -e POSTGRES_PASSWORD=mysecretpassword -v /hostpath/pgdata:/var/lib/postgresql/data -p 5432:5432 -d postgres

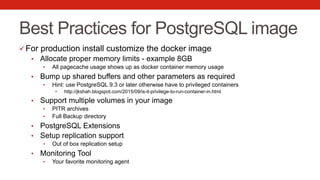

- 25. Best Practices forPostgreSQL image ü For production install customize the docker image • Allocate proper memory limits - example 8GB • All pagecache usage shows up as docker container memory usage • Bump up shared buffers and other parameters as required • Hint: use PostgreSQL 9.3 or later otherwise have to privileged containers • http://jkshah.blogspot.com/2015/09/is-it-privilege-to-run-container-in.html • Support multiple volumes in your image • PITR archives • Full Backup directory • PostgreSQL Extensions • Setup replication support • Out of box replication setup • Monitoring Tool • Your favorite monitoring agent

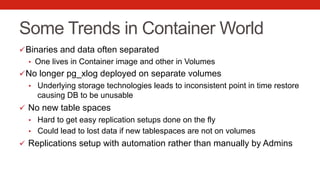

- 26. Some Trends inContainer World ü Binaries and data often separated • One lives in Container image and other in Volumes ü No longer pg_xlog deployed on separate volumes • Underlying storage technologies leads to inconsistent point in time restore causing DB to be unusable ü No new table spaces • Hard to get easy replication setups done on the fly • Could lead to lost data if new tablespaces are not on volumes ü Replications setup with automation rather than manually by Admins
- 27. Some Trends inContainer World ü Adoption of Micro services • Leading to lots of smaller databases for each micro service ü Faster Updates • Schema changes sometimes need to be backward compatible ü Repeatable Deployments • Need to redeploy at a moment’s notice

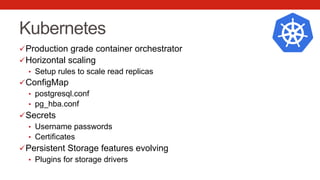

- 28. Kubernetes ü Production grade containerorchestrator ü Horizontal scaling • Setup rules to scale read replicas ü ConfigMap • postgresql.conf • pg_hba.conf ü Secrets • Username passwords • Certificates ü Persistent Storage features evolving • Plugins for storage drivers
- 29.

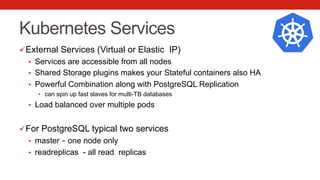

- 30. Kubernetes Services ü External Services(Virtual or Elastic IP) • Services are accessible from all nodes • Shared Storage plugins makes your Stateful containers also HA • Powerful Combination along with PostgreSQL Replication • can spin up fast slaves for multi-TB databases • Load balanced over multiple pods ü For PostgreSQL typical two services • master – one node only • readreplicas - all read replicas

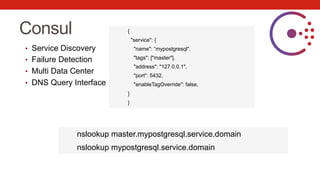

- 31. Consul • Service Discovery • Failure Detection • Multi Data Center • DNS Query Interface { "service": { "name": ”mypostgresql", "tags": ["master"], "address": "127.0.0.1", "port": 5432, "enableTagOverride": false, } } nslookup master.mypostgresql.service.domain nslookup mypostgresql.service.domain

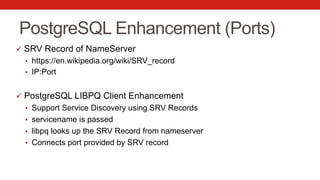

- 32. PostgreSQL Enhancement (Ports) ü SRV Record of NameServer • https://en.wikipedia.org/wiki/SRV_record • IP:Port ü PostgreSQL LIBPQ Client Enhancement • Support Service Discovery using SRV Records • servicename is passed • libpq looks up the SRV Record from nameserver • Connects port provided by SRV record
- 33.

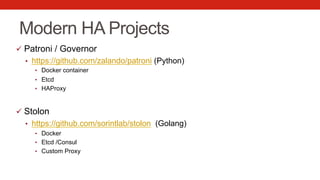

- 34. Modern HA Projects ü Patroni / Governor • https://github.com/zalando/patroni (Python) • Docker container • Etcd • HAProxy ü Stolon • https://github.com/sorintlab/stolon (Golang) • Docker • Etcd /Consul • Custom Proxy
- 35.
- 36. Stolon The image cannotbe displayed. Your computer may not have enough memory to open the image, or the image may have been corrupted. Restart your computer, and then open the file again. If the red x still appears, you may have to delete the image and then insert it again. https://github.com/sorintlab/stolon/blob/master/doc/architecture_small.png

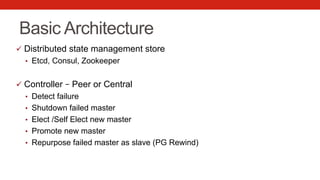

- 37. Basic Architecture ü Distributedstate management store • Etcd, Consul, Zookeeper ü Controller – Peer or Central • Detect failure • Shutdown failed master • Elect /Self Elect new master • Promote new master • Repurpose failed master as slave (PG Rewind)
- 38. Limitations ü Selection ofwrong replicas (lag) ü Multi-data center topology ü Edge cases ü Not completely human free

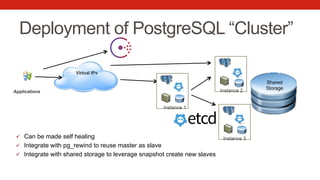

- 39. Deployment of PostgreSQL“Cluster” ü Can be made self healing ü Integrate with pg_rewind to reuse master as slave ü Integrate with shared storage to leverage snapshot create new slaves Virtual IPs Applications Instance 1 Instance 2 Instance 3 Shared Storage

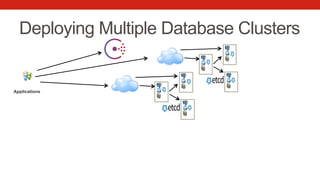

- 40. Deploying Multiple DatabaseClusters Applications
- 41. Production Grade Orchestrator ü Can even add rules to spin up new slaves as for read load Operations Applications

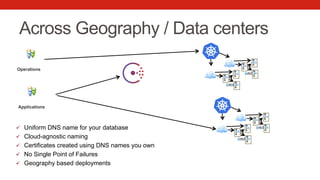

- 42. Across Geography /Data centers ü Uniform DNS name for your database ü Cloud-agnostic naming ü Certificates created using DNS names you own ü No Single Point of Failures ü Geography based deployments Operations Applications
- 43.

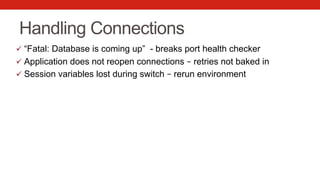

- 44. Handling Connections ü “Fatal:Database is coming up” - breaks port health checker ü Application does not reopen connections – retries not baked in ü Session variables lost during switch – rerun environment
- 45.

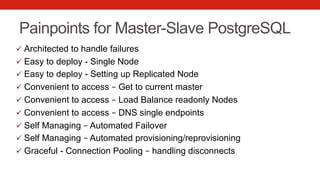

- 46. Painpoints for Master-SlavePostgreSQL ü Architected to handle failures ü Easy to deploy - Single Node ü Easy to deploy - Setting up Replicated Node ü Convenient to access – Get to current master ü Convenient to access – Load Balance readonly Nodes ü Convenient to access – DNS single endpoints ü Self Managing – Automated Failover ü Self Managing – Automated provisioning/reprovisioning ü Graceful - Connection Pooling – handling disconnects

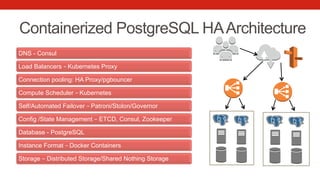

- 47. Containerized PostgreSQL HAArchitecture DNS- Consul Load Balancers – Kubernetes Proxy Connection pooling: HA Proxy/pgbouncer Compute Scheduler – Kubernetes Self/Automated Failover – Patroni/Stolon/Governor Config /State Management – ETCD, Consul, Zookeeper Database - PostgreSQL Instance Format – Docker Containers Storage – Distributed Storage/Shared Nothing Storage

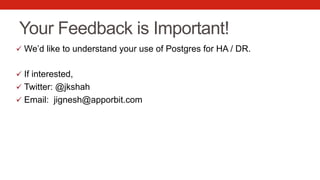

- 48. Your Feedback isImportant! ü We’d like to understand your use of Postgres for HA / DR. ü If interested, ü Twitter: @jkshah ü Email: jignesh@apporbit.com
- 49. Thanks. Questions? Follow me ontwitter: @jkshah Blog: http://jkshah.blogspot.com Full copies of your applications at the push of a button We are HIRING !!!
