1. Caching and tuning fun
for high scalability
Wim Godden
Cu.be Solutions

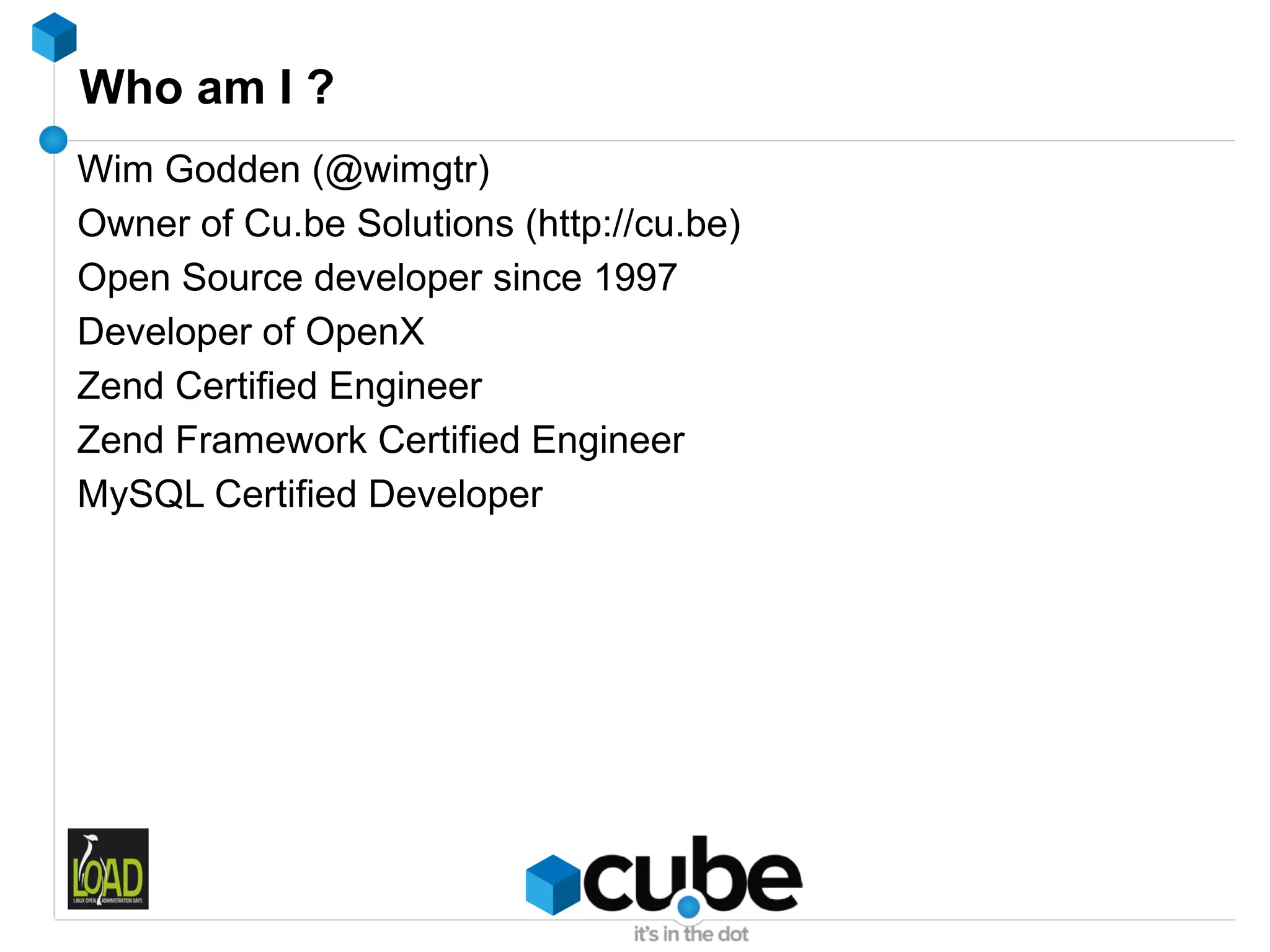

2. Who am I ?
Wim Godden (@wimgtr)
Owner of Cu.be Solutions (http://cu.be)
Open Source developer since 1997
Developer of OpenX
Zend Certified Engineer
Zend Framework Certified Engineer
MySQL Certified Developer

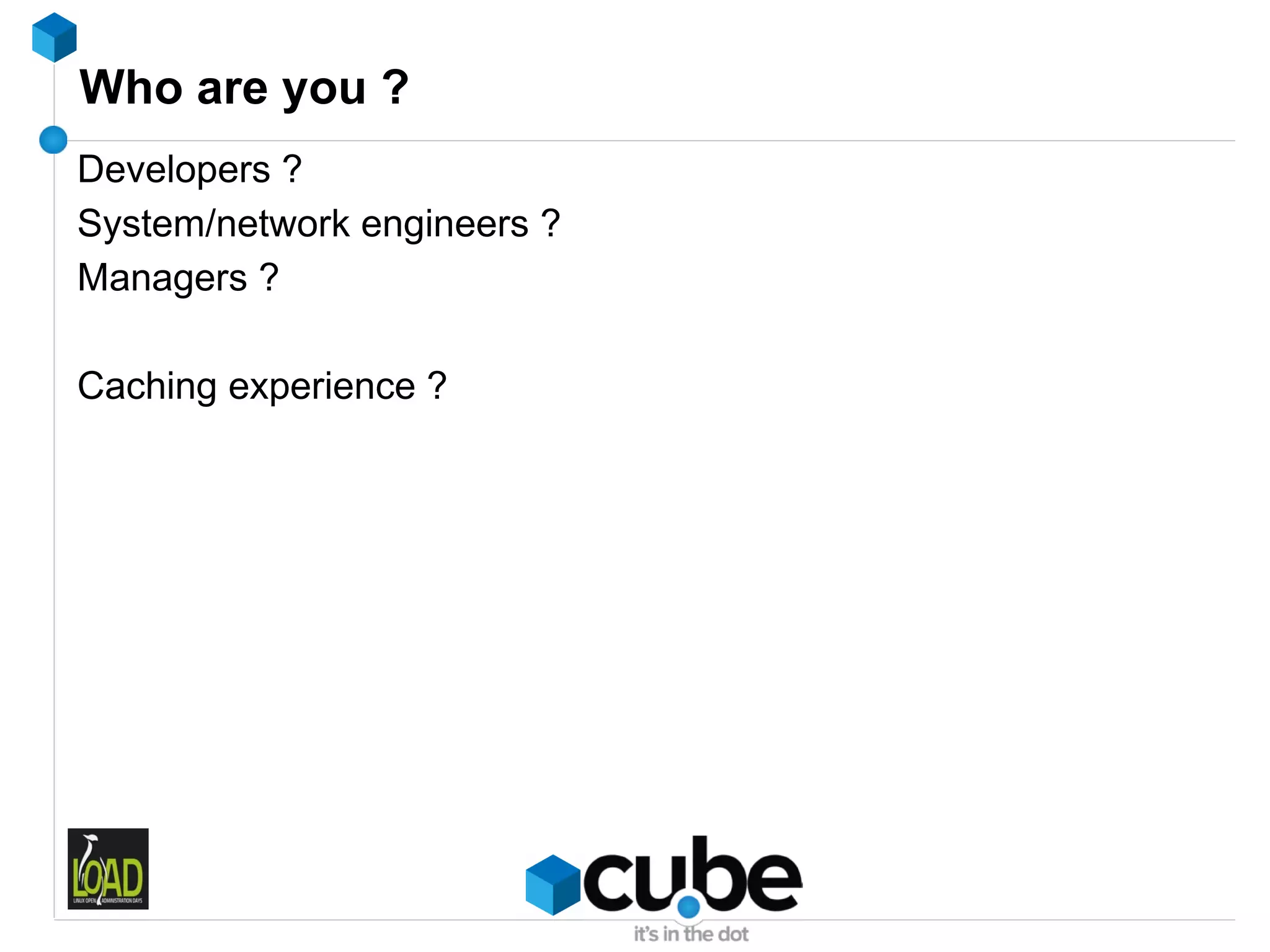

3. Who are you ?
Developers ?
System/network engineers ?
Managers ?
Caching experience ?

4. Caching and tuning fun
for high scalability
Wim Godden
Cu.be Solutions

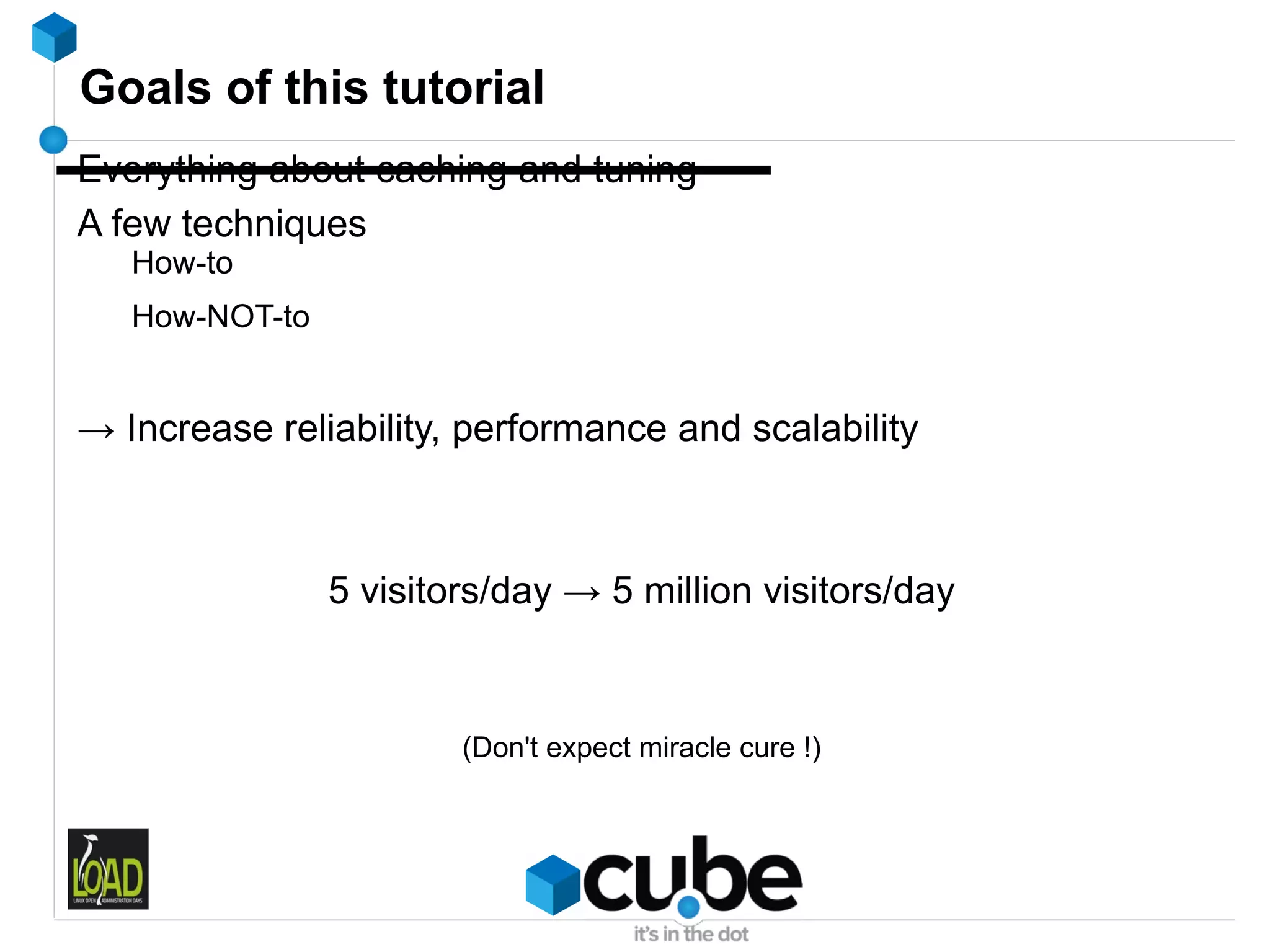

5. Goals of this tutorial
Everything about caching and tuning
A few techniques
How-to
How-NOT-to
→ Increase reliability, performance and scalability
5 visitors/day → 5 million visitors/day
(Don't expect miracle cure !)

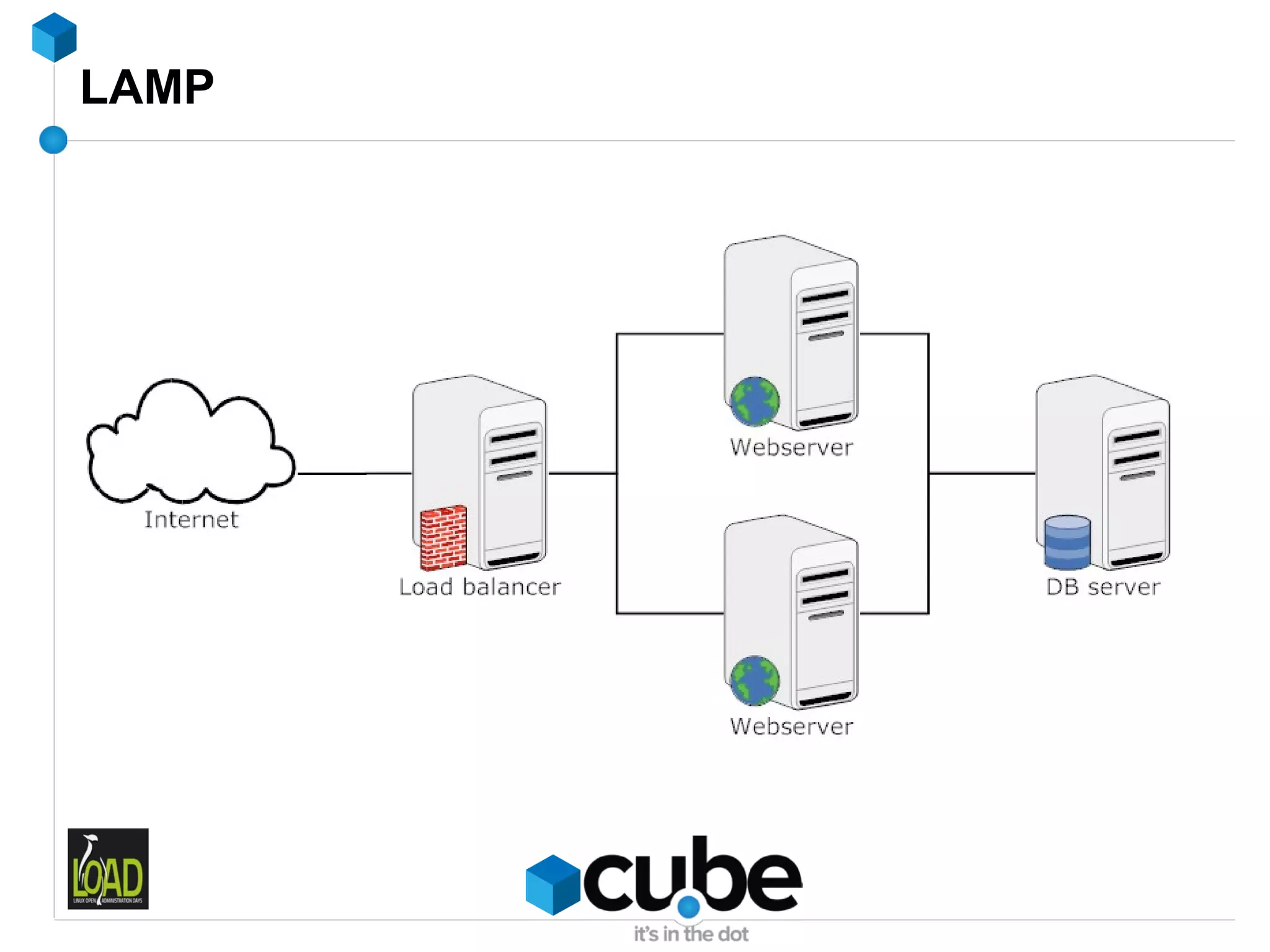

6. LAMP

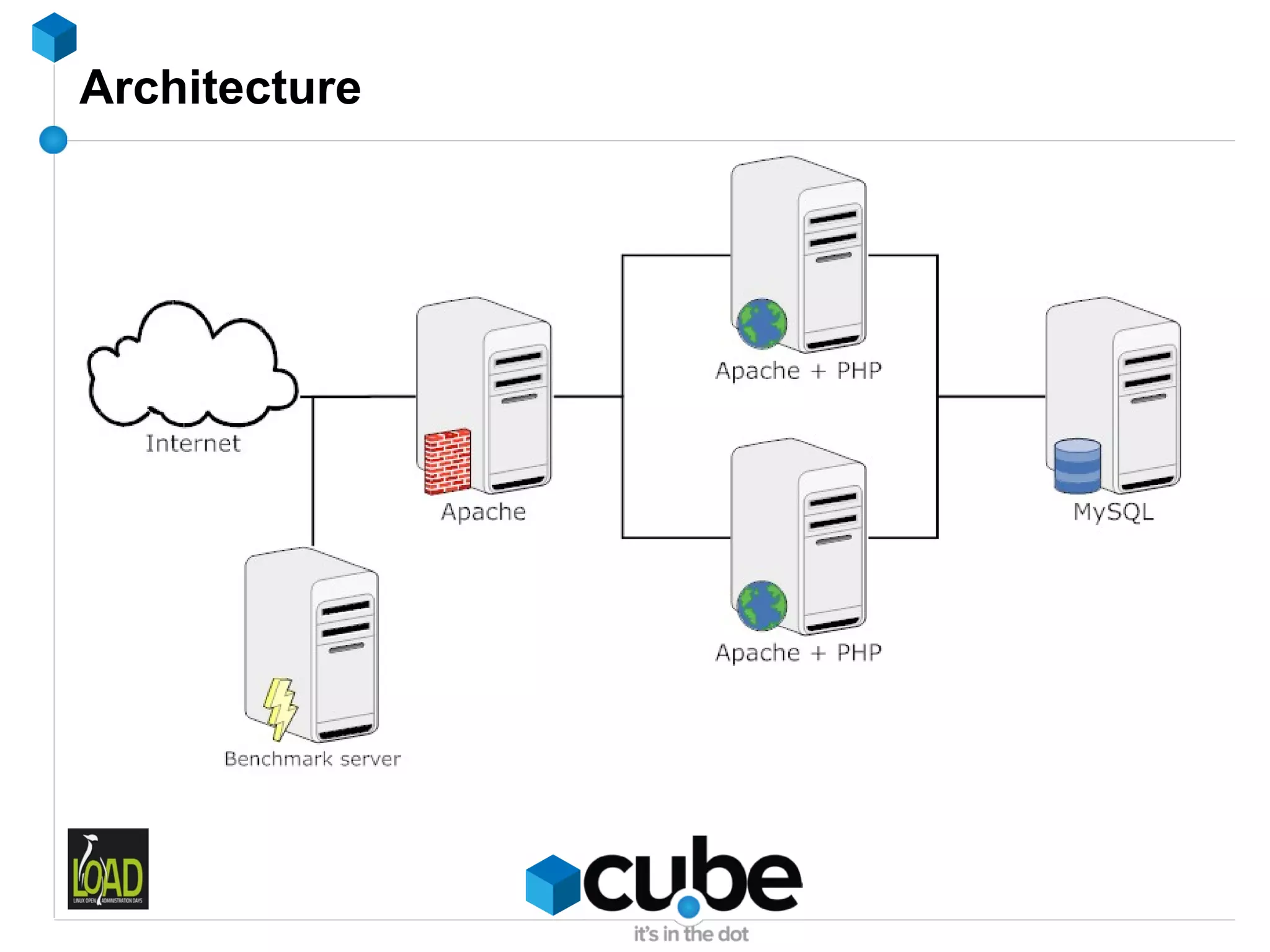

7. Architecture

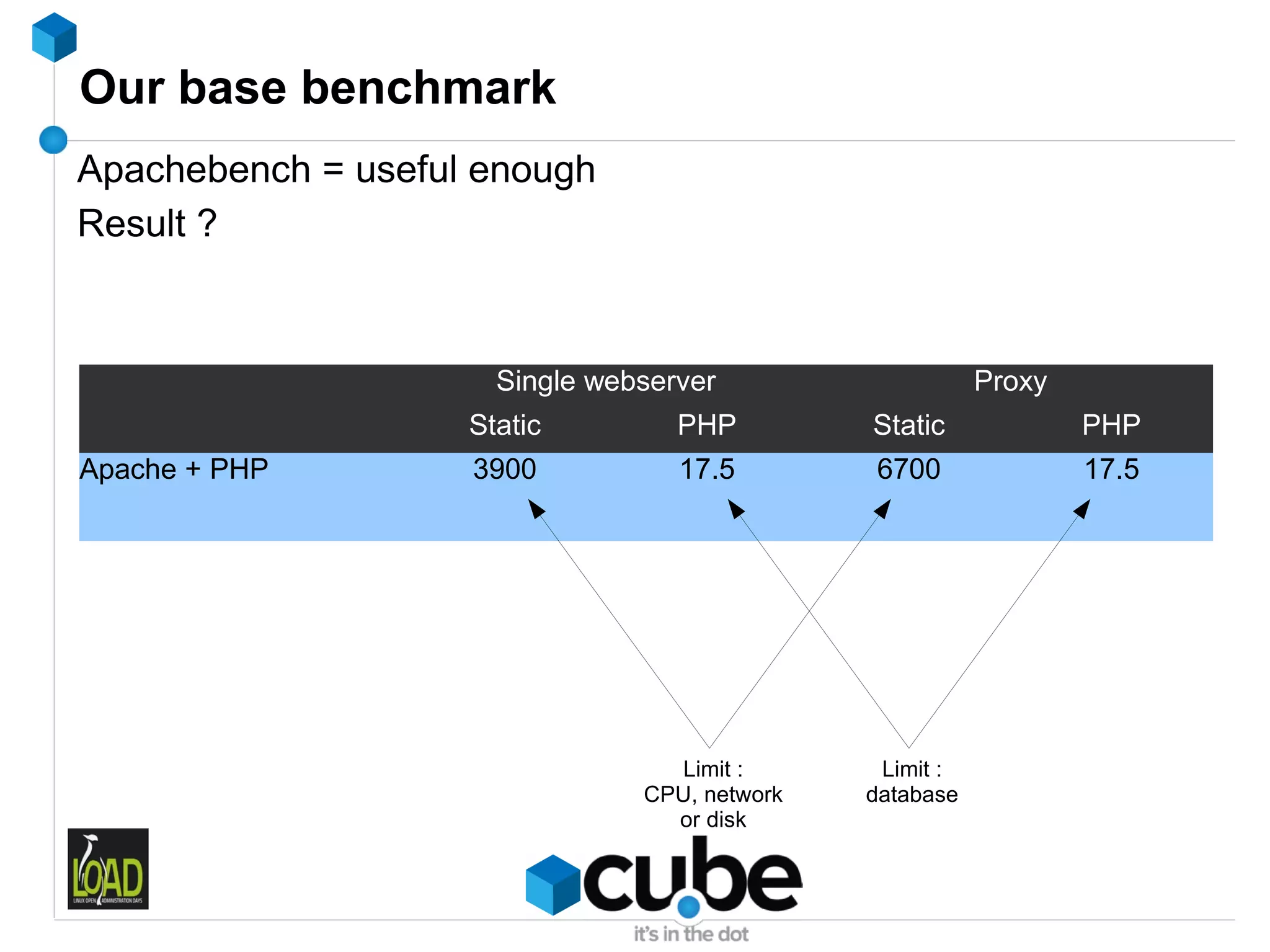

8. Our base benchmark
Apachebench = useful enough
Result ?
Single webserver Proxy
Static PHP Static PHP
Apache + PHP 3900 17.5 6700 17.5
Limit : Limit :
CPU, network database
or disk

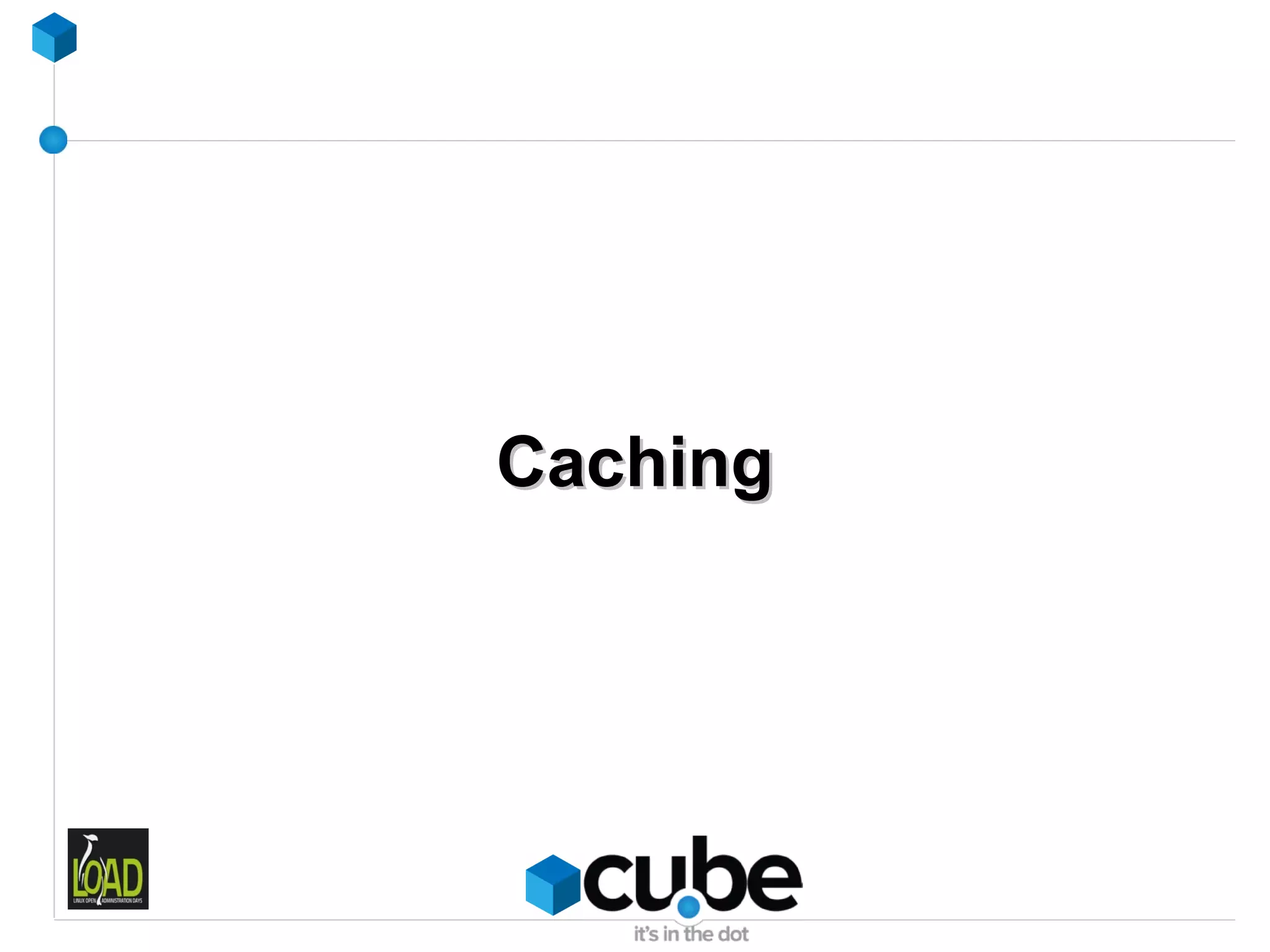

9. Caching

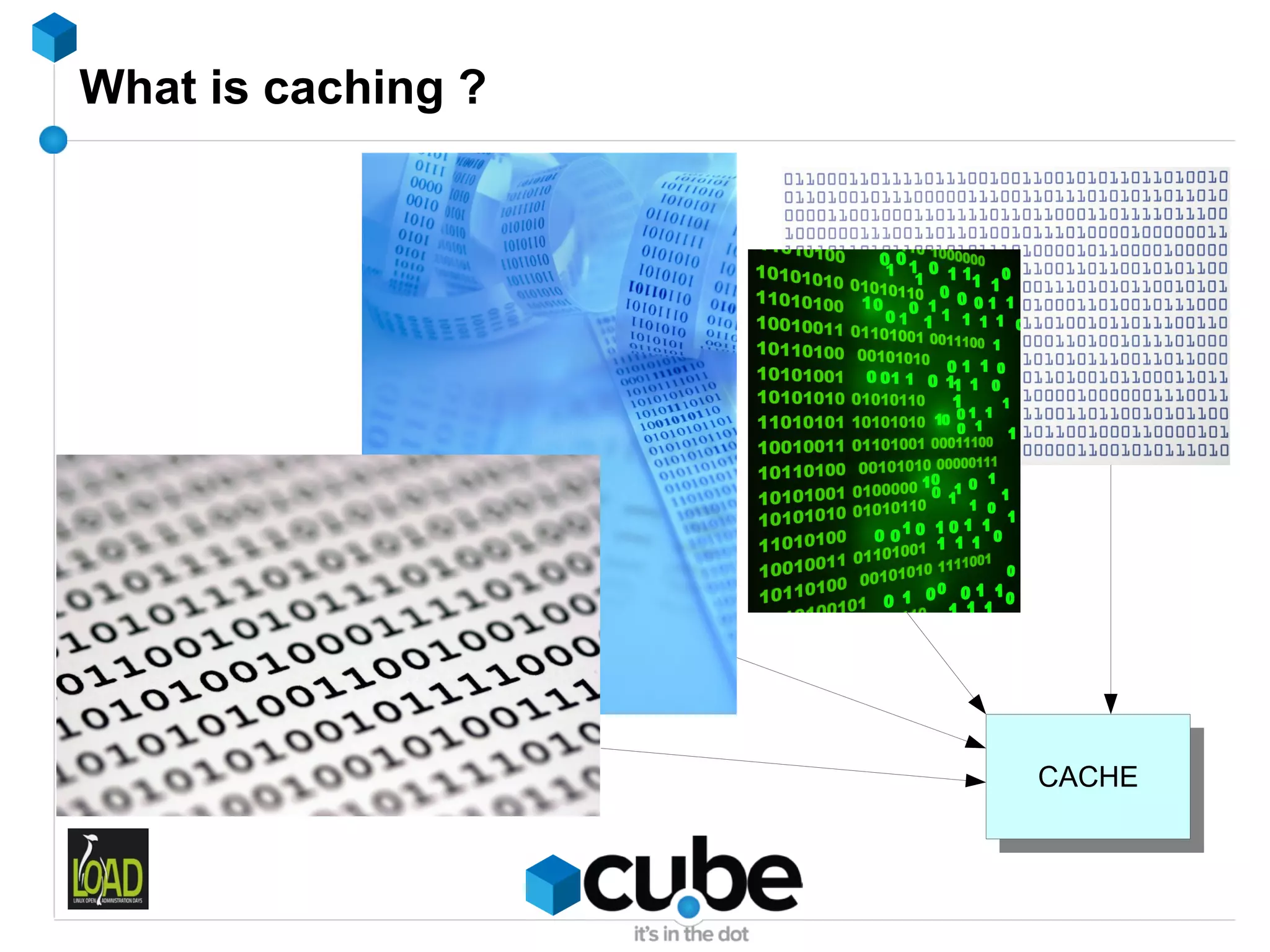

10. What is caching ?
CACHE

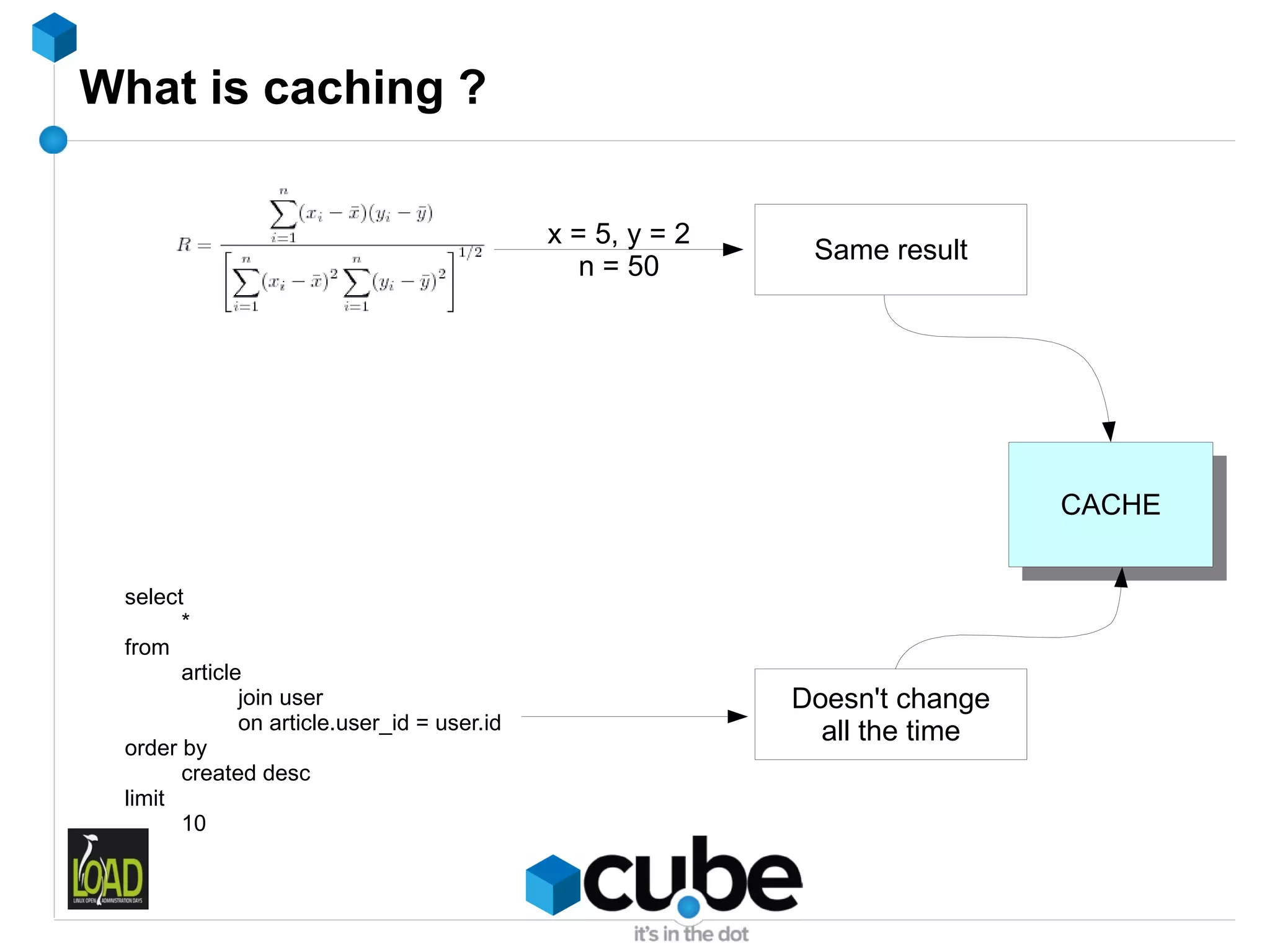

11. What is caching ?
x = 5, y = 2
Same result
n = 50
CACHE
select
*
from
article
join user Doesn't change
on article.user_id = user.id all the time
order by
created desc
limit
10

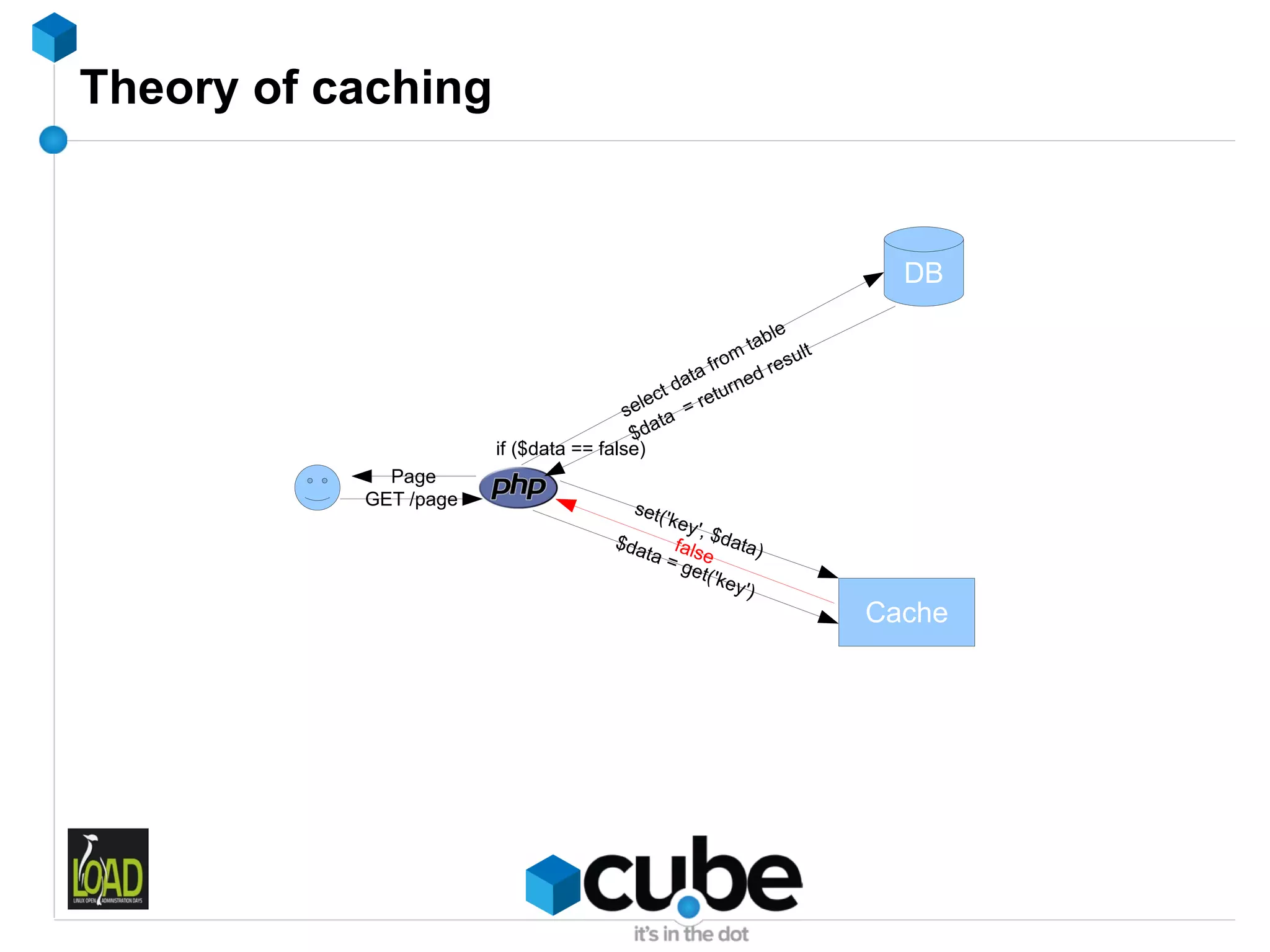

12. Theory of caching
DB
le
t ab
fro
m ul t
res
ata ned
e ct d retur
sel ta =
$da
if ($data == false)
Page
GET /page set(
'key
', $
$da fals data)
ta = e
get(
'key
')
Cache

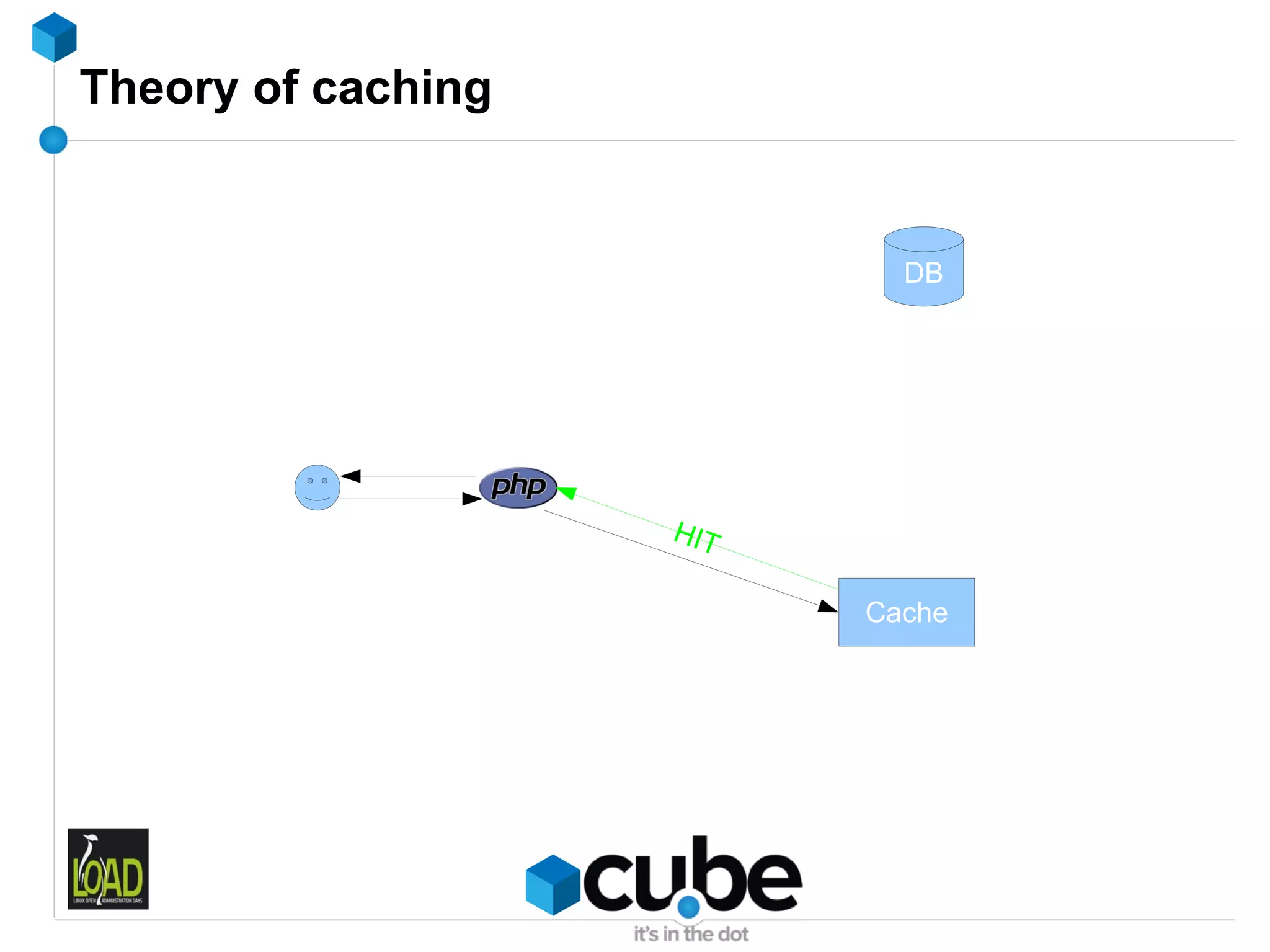

13. Theory of caching
DB
HIT
Cache

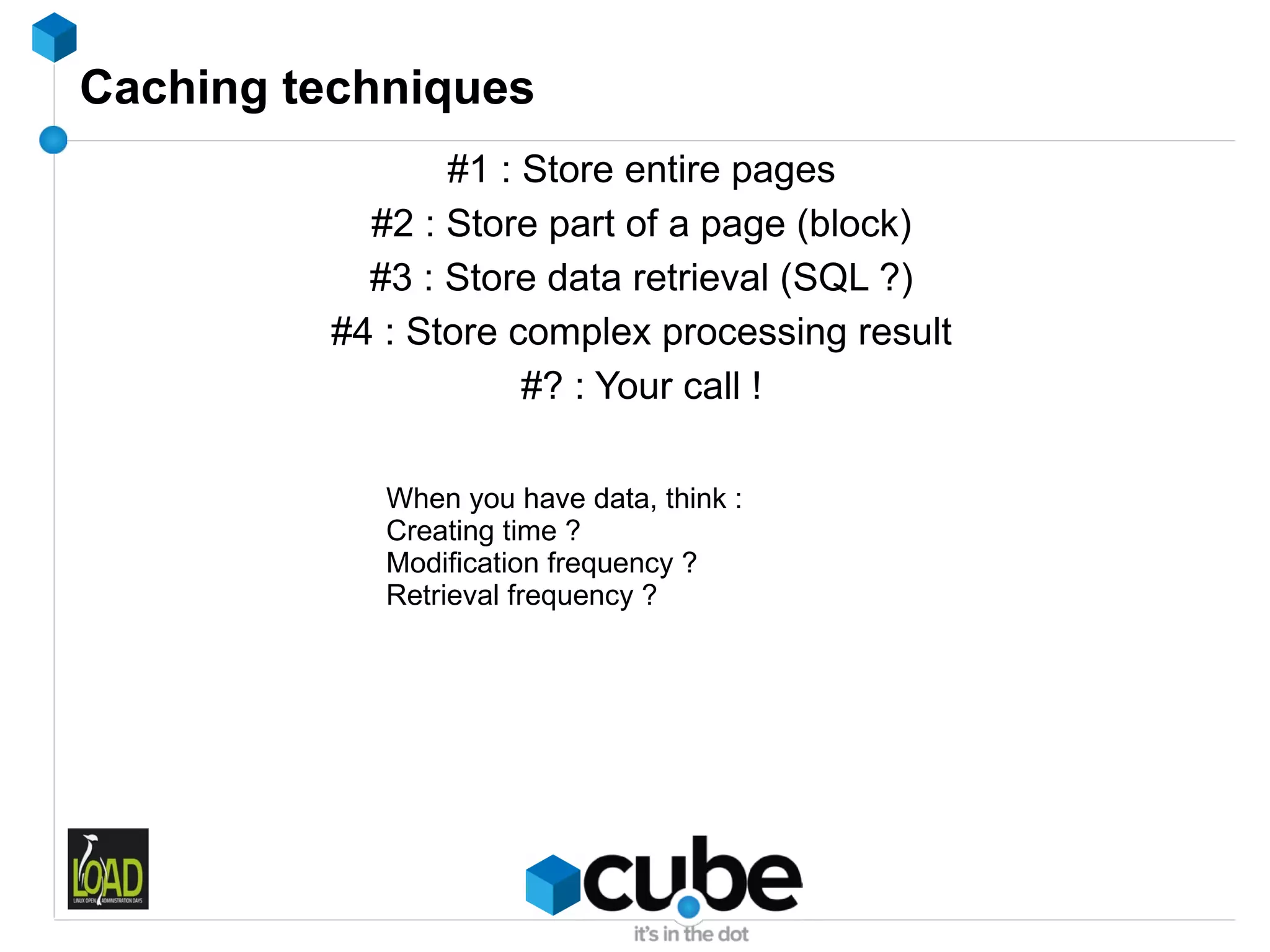

14. Caching techniques
#1 : Store entire pages
#2 : Store part of a page (block)
#3 : Store data retrieval (SQL ?)
#4 : Store complex processing result
#? : Your call !
When you have data, think :
Creating time ?
Modification frequency ?
Retrieval frequency ?

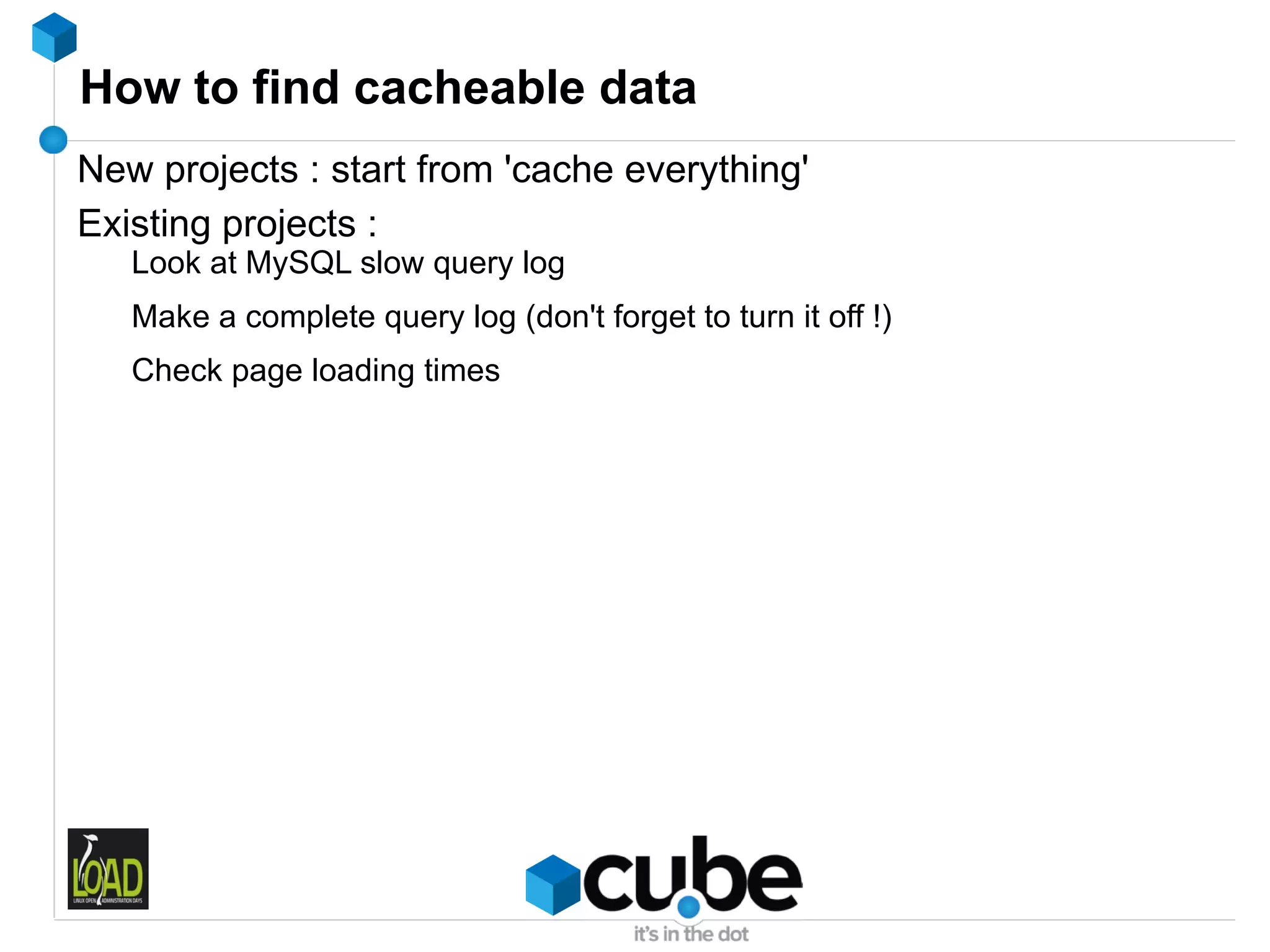

15. How to find cacheable data
New projects : start from 'cache everything'
Existing projects :
Look at MySQL slow query log
Make a complete query log (don't forget to turn it off !)
Check page loading times

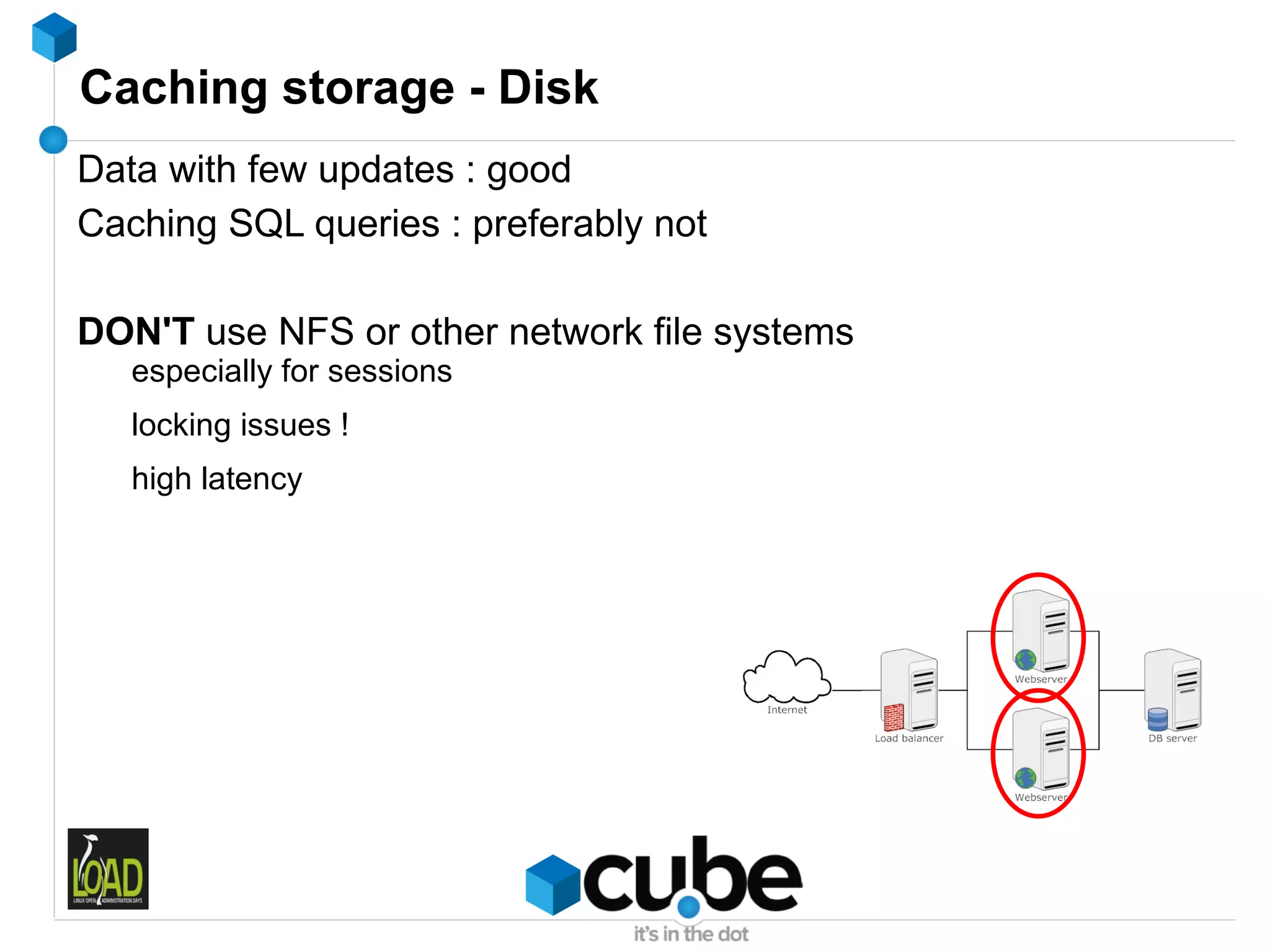

16. Caching storage - Disk
Data with few updates : good
Caching SQL queries : preferably not
DON'T use NFS or other network file systems
especially for sessions
locking issues !
high latency

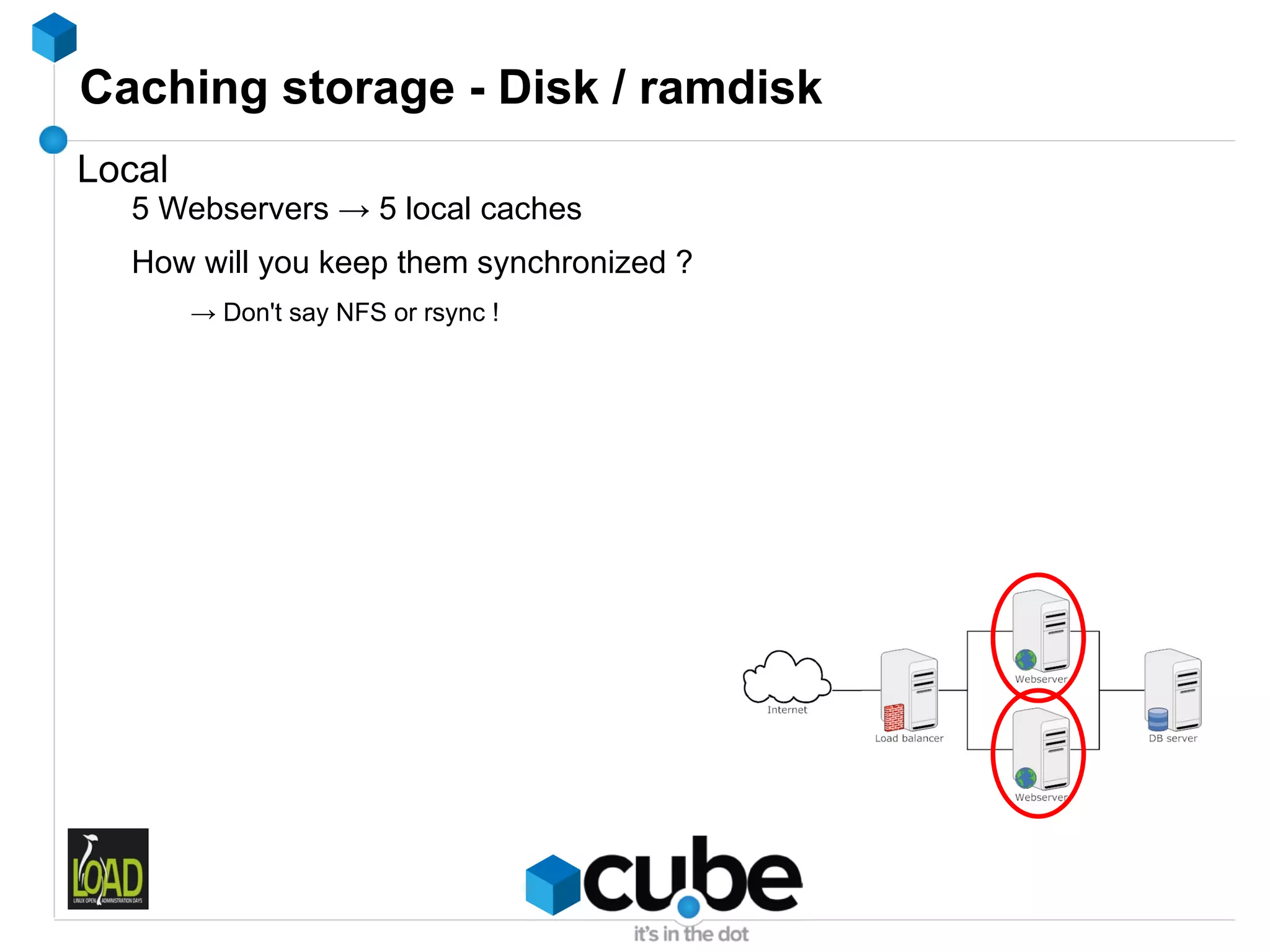

17. Caching storage - Disk / ramdisk
Local
5 Webservers → 5 local caches
How will you keep them synchronized ?
→ Don't say NFS or rsync !

18. Caching storage - Memcache(d)
Facebook, Twitter, YouTube, … → need we say more ?
Distributed memory caching system
Multiple machines ↔ 1 big memory-based hash-table
Key-value storage system
Keys - max. 250bytes
Values - max. 1Mbyte

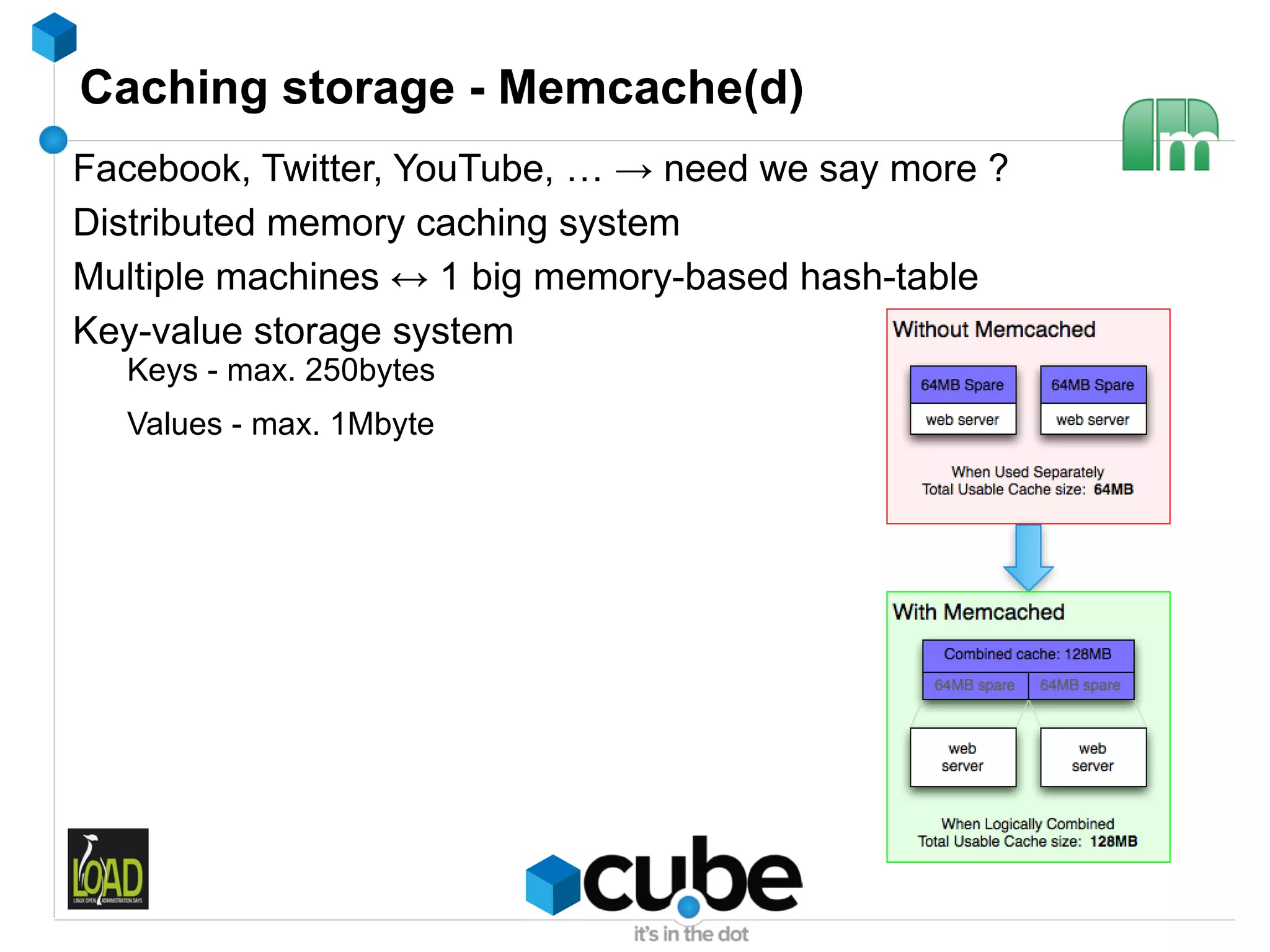

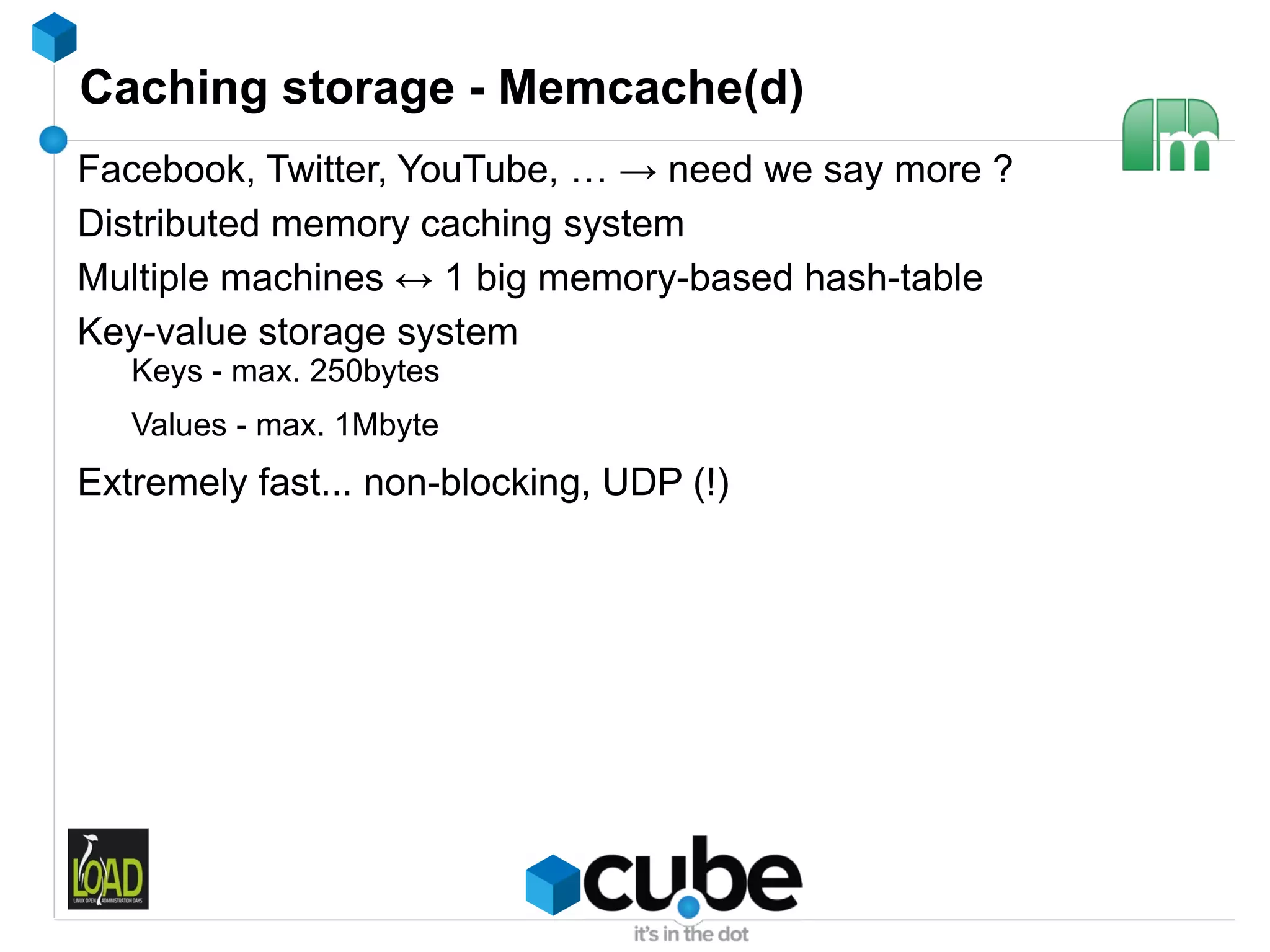

19. Caching storage - Memcache(d)
Facebook, Twitter, YouTube, … → need we say more ?
Distributed memory caching system
Multiple machines ↔ 1 big memory-based hash-table
Key-value storage system
Keys - max. 250bytes
Values - max. 1Mbyte
Extremely fast... non-blocking, UDP (!)

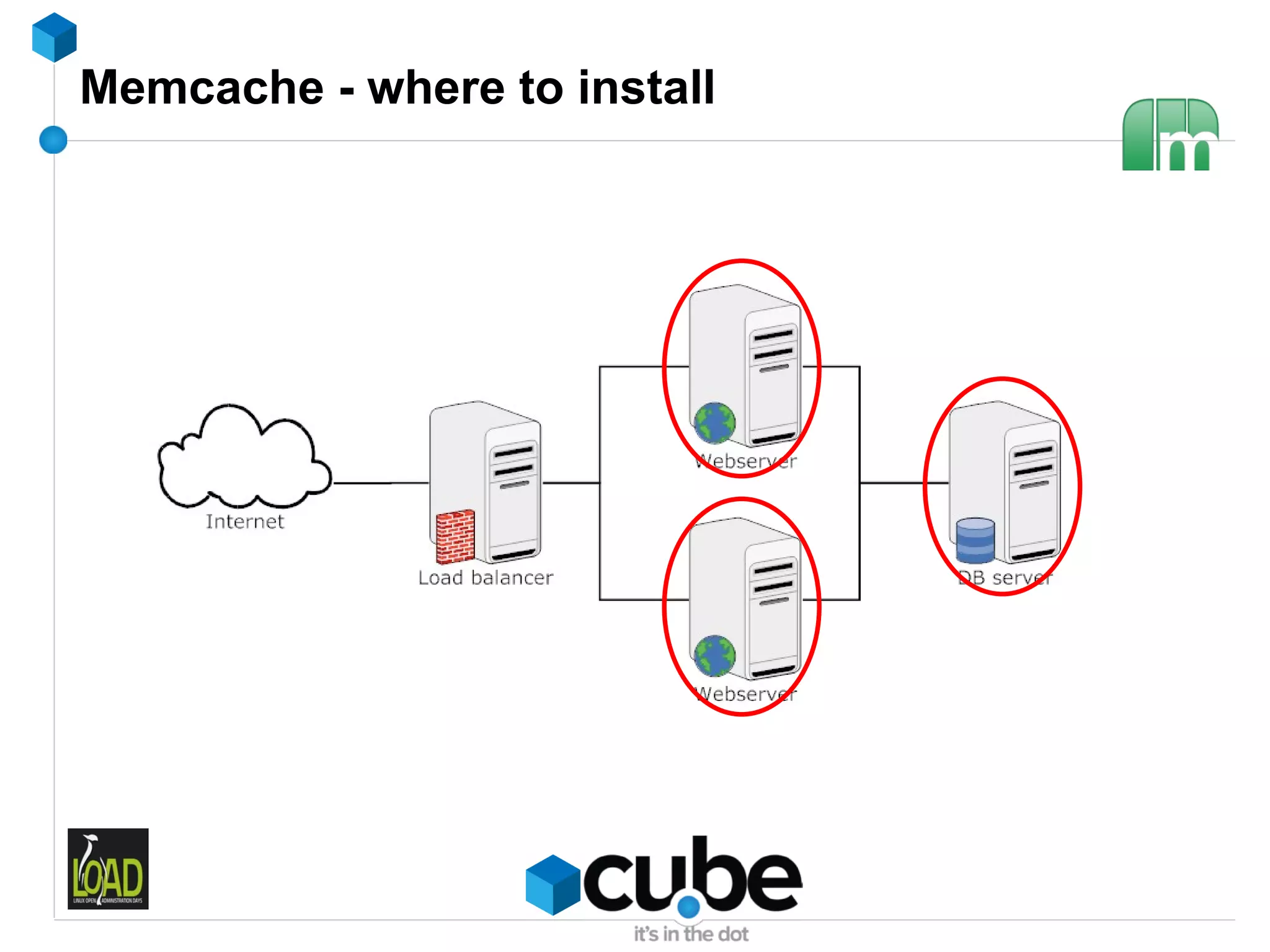

20. Memcache - where to install

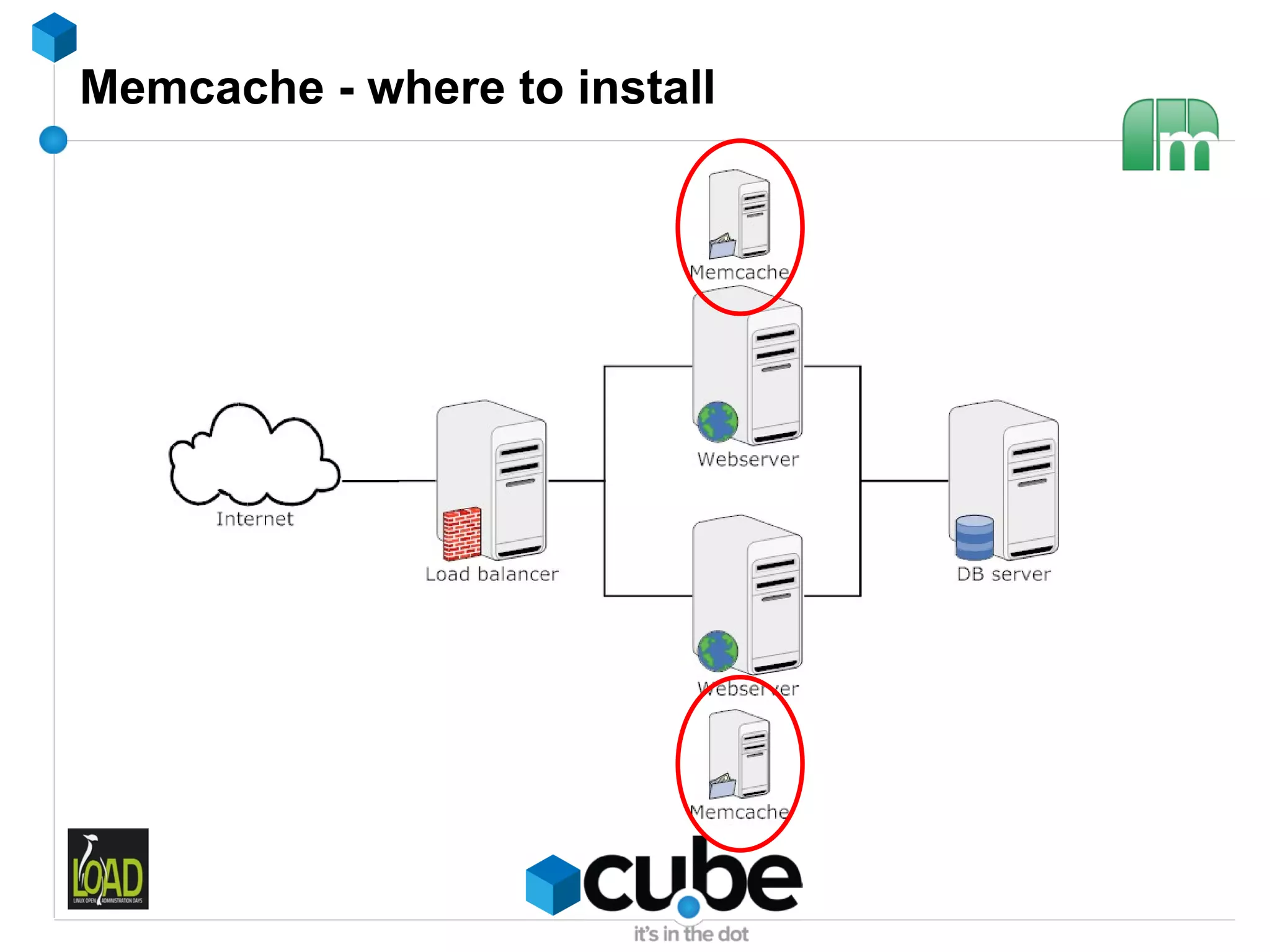

21. Memcache - where to install

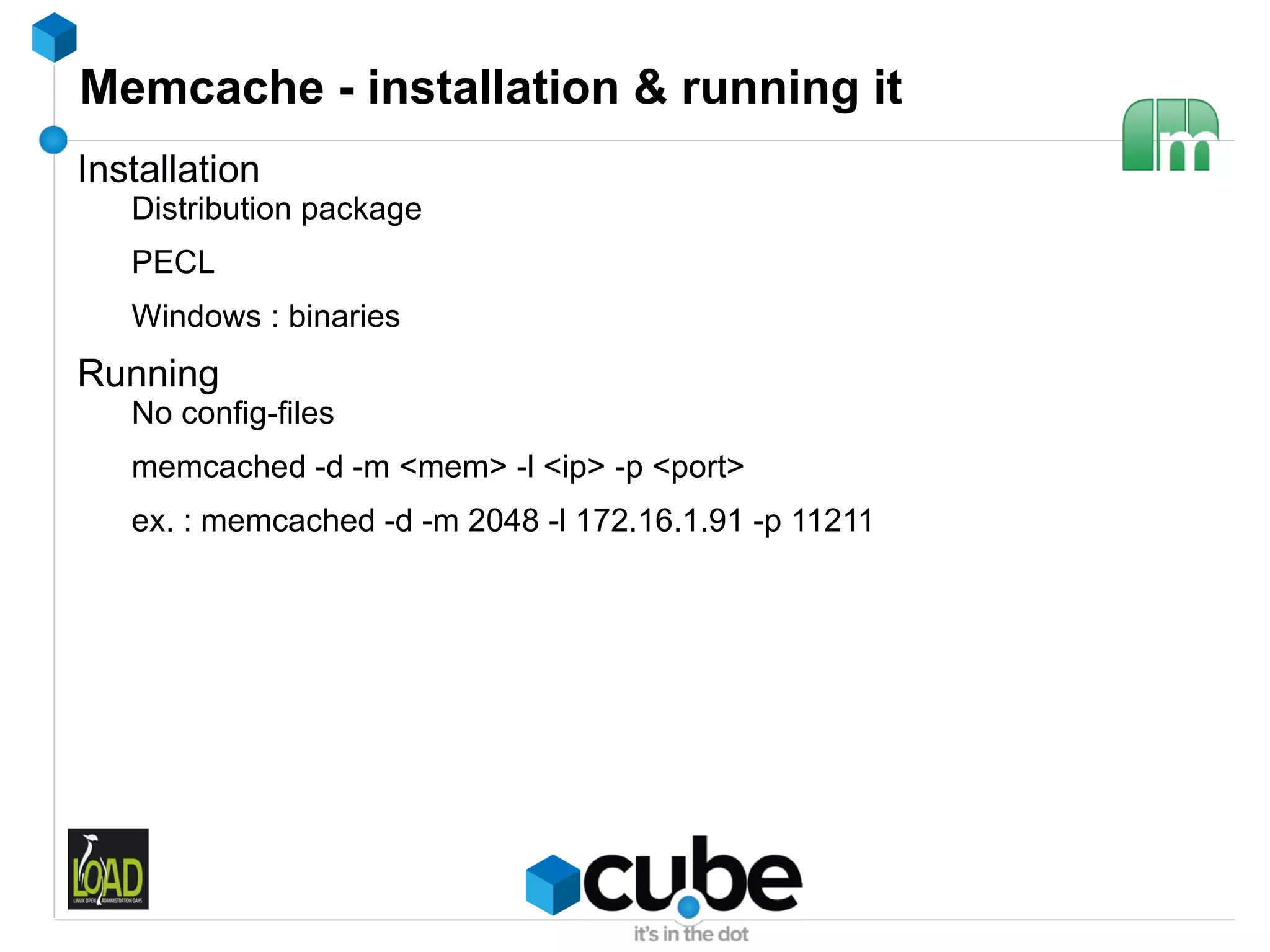

22. Memcache - installation & running it
Installation
Distribution package
PECL
Windows : binaries
Running
No config-files
memcached -d -m <mem> -l <ip> -p <port>
ex. : memcached -d -m 2048 -l 172.16.1.91 -p 11211

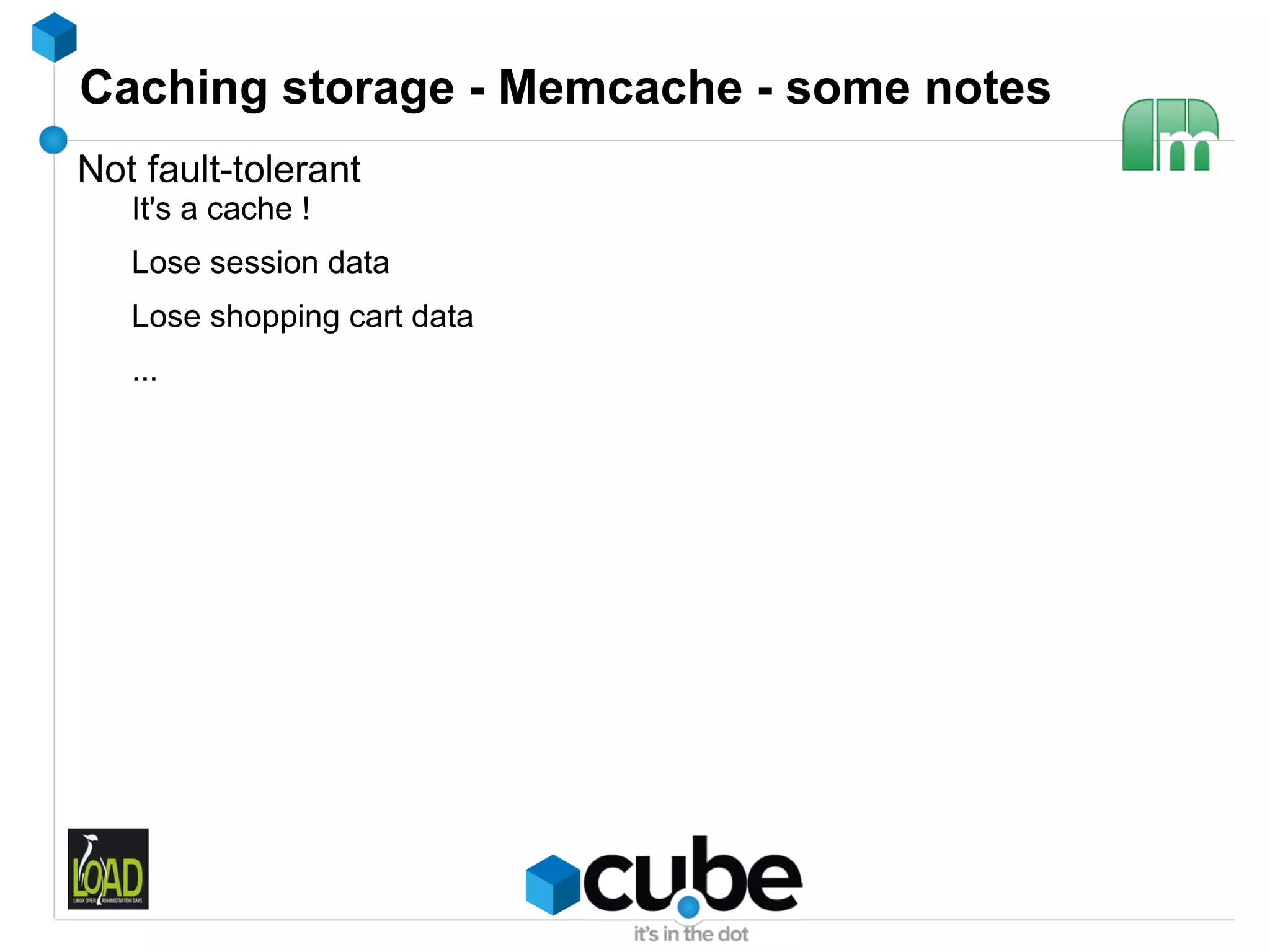

23. Caching storage - Memcache - some notes
Not fault-tolerant
It's a cache !
Lose session data
Lose shopping cart data
...

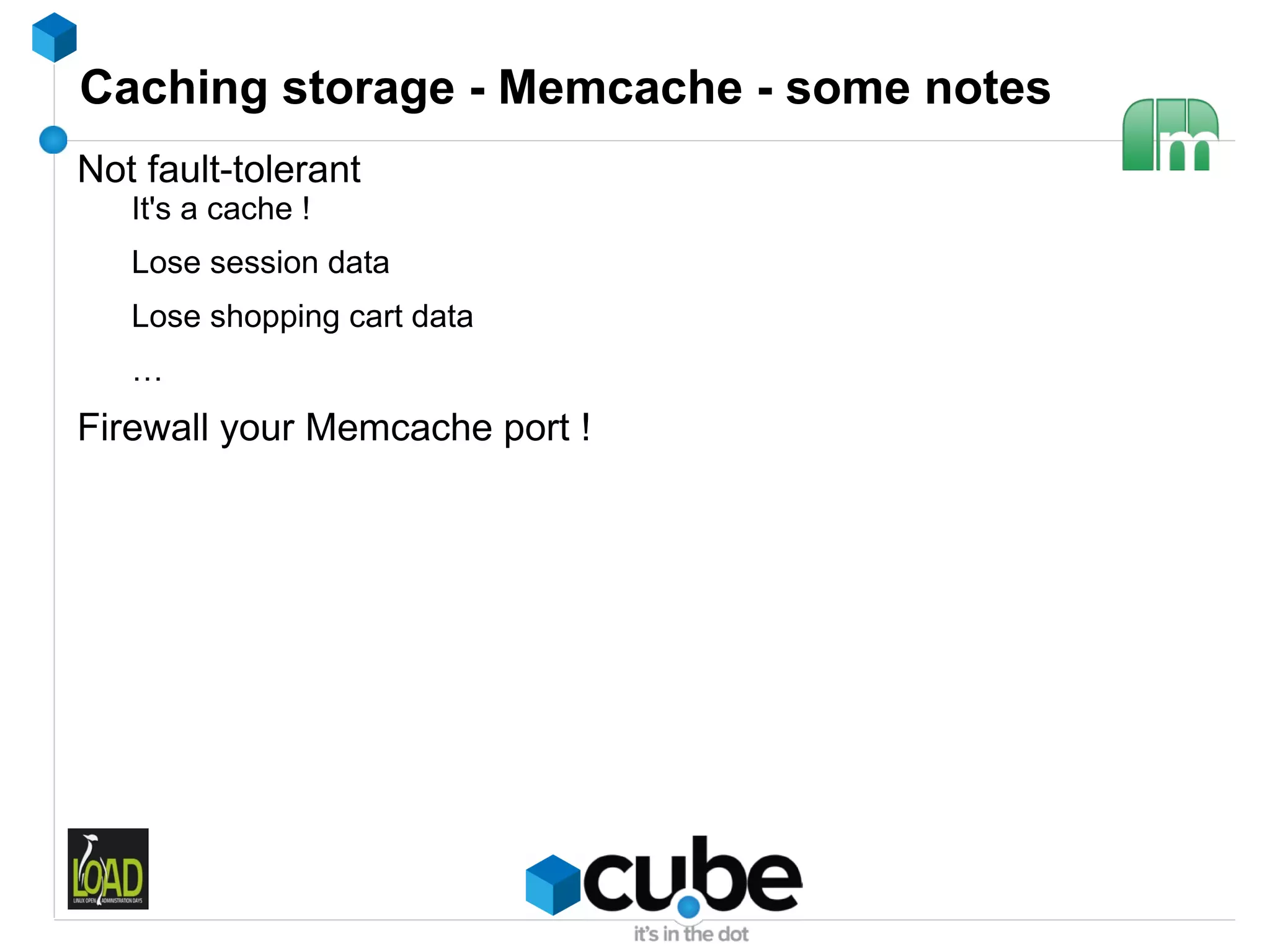

24. Caching storage - Memcache - some notes
Not fault-tolerant
It's a cache !
Lose session data
Lose shopping cart data
…
Firewall your Memcache port !

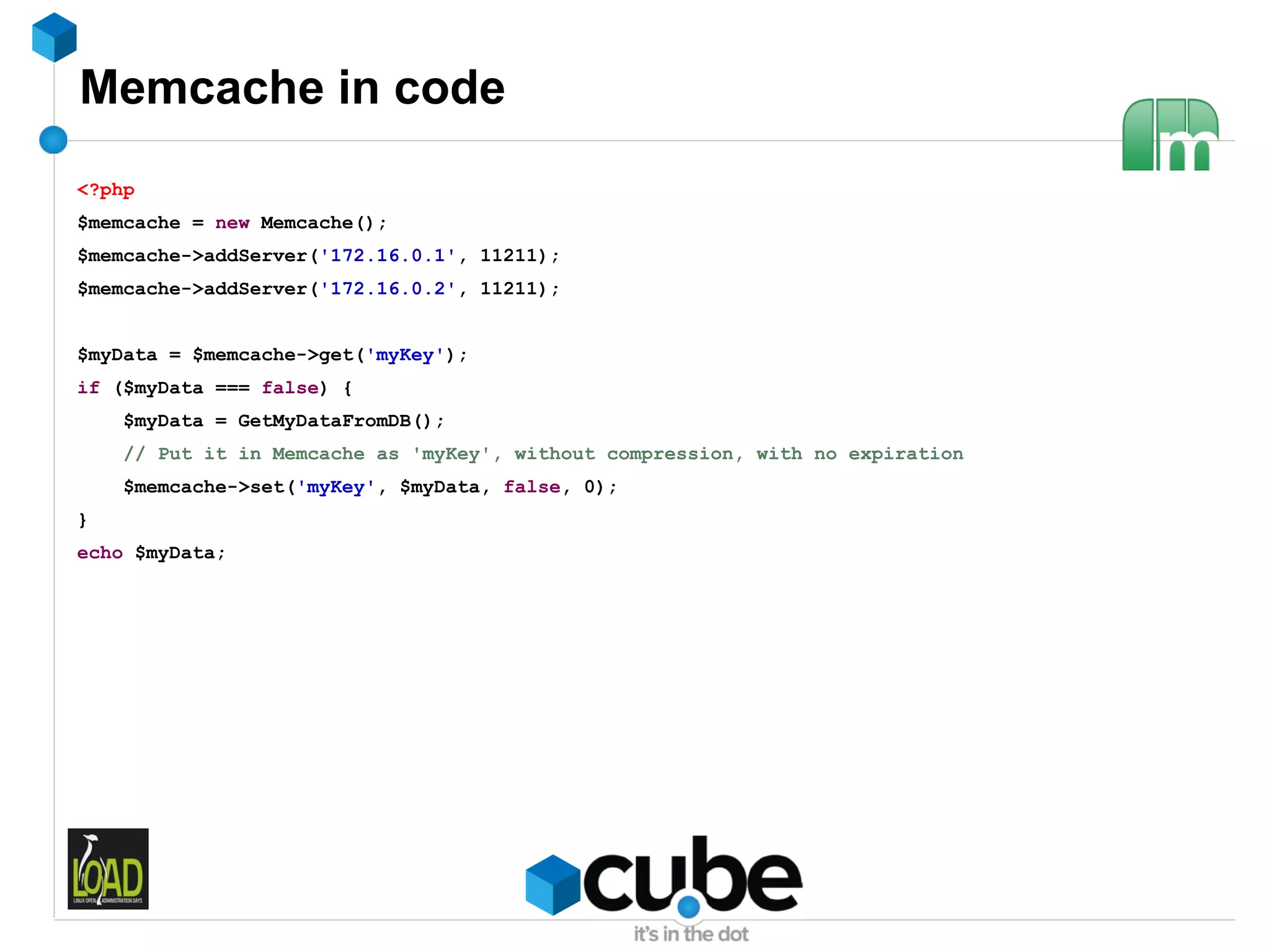

25. Memcache in code
<?php
$memcache = new Memcache();
$memcache->addServer('172.16.0.1', 11211);
$memcache->addServer('172.16.0.2', 11211);
$myData = $memcache->get('myKey');
if ($myData === false) {
$myData = GetMyDataFromDB();
// Put it in Memcache as 'myKey', without compression, with no expiration
$memcache->set('myKey', $myData, false, 0);
}
echo $myData;

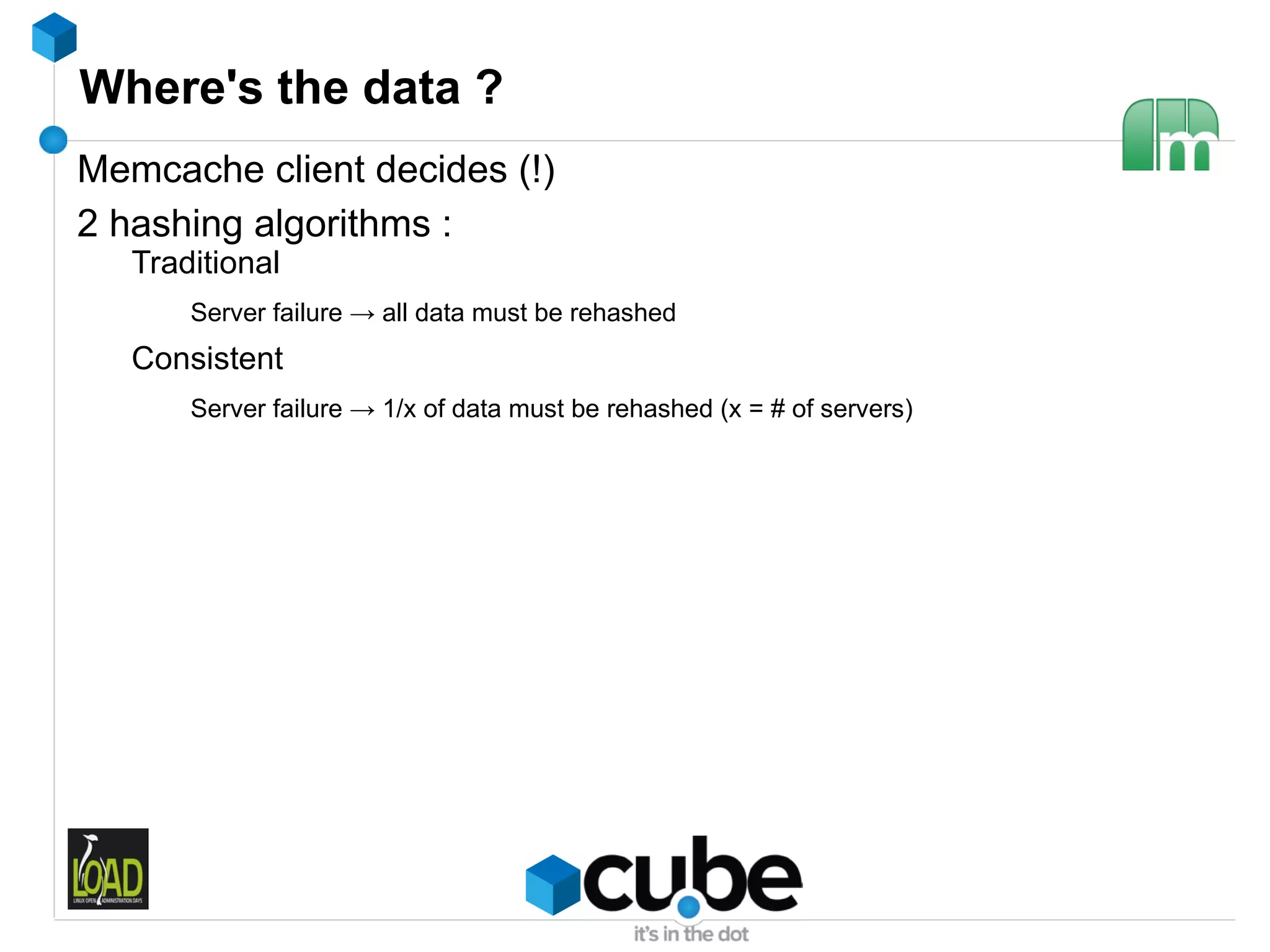

26. Where's the data ?
Memcache client decides (!)
2 hashing algorithms :
Traditional
Server failure → all data must be rehashed
Consistent
Server failure → 1/x of data must be rehashed (x = # of servers)

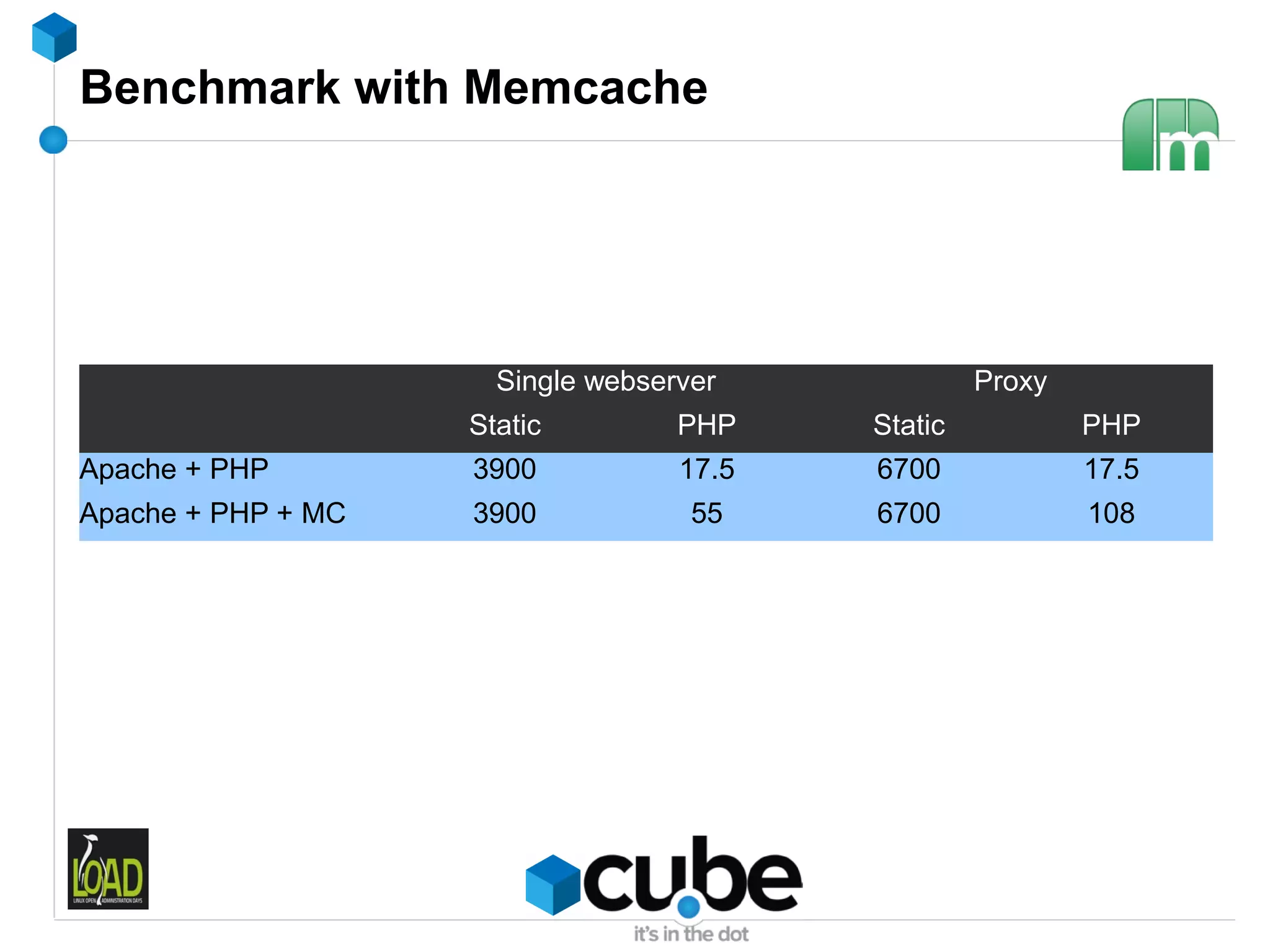

27. Benchmark with Memcache
Single webserver Proxy
Static PHP Static PHP
Apache + PHP 3900 17.5 6700 17.5
Apache + PHP + MC 3900 55 6700 108

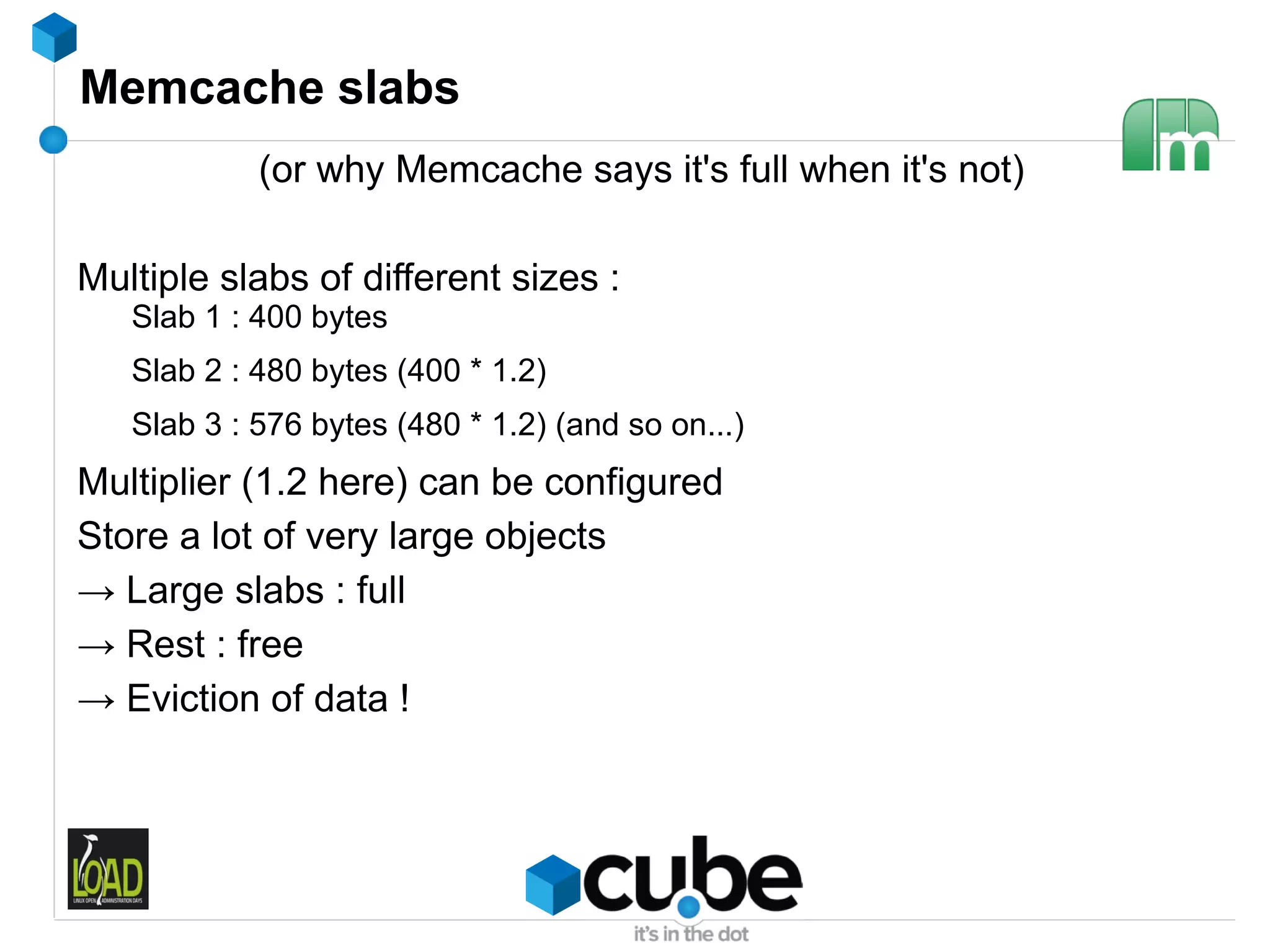

28. Memcache slabs
(or why Memcache says it's full when it's not)
Multiple slabs of different sizes :
Slab 1 : 400 bytes
Slab 2 : 480 bytes (400 * 1.2)
Slab 3 : 576 bytes (480 * 1.2) (and so on...)
Multiplier (1.2 here) can be configured
Store a lot of very large objects
→ Large slabs : full
→ Rest : free
→ Eviction of data !

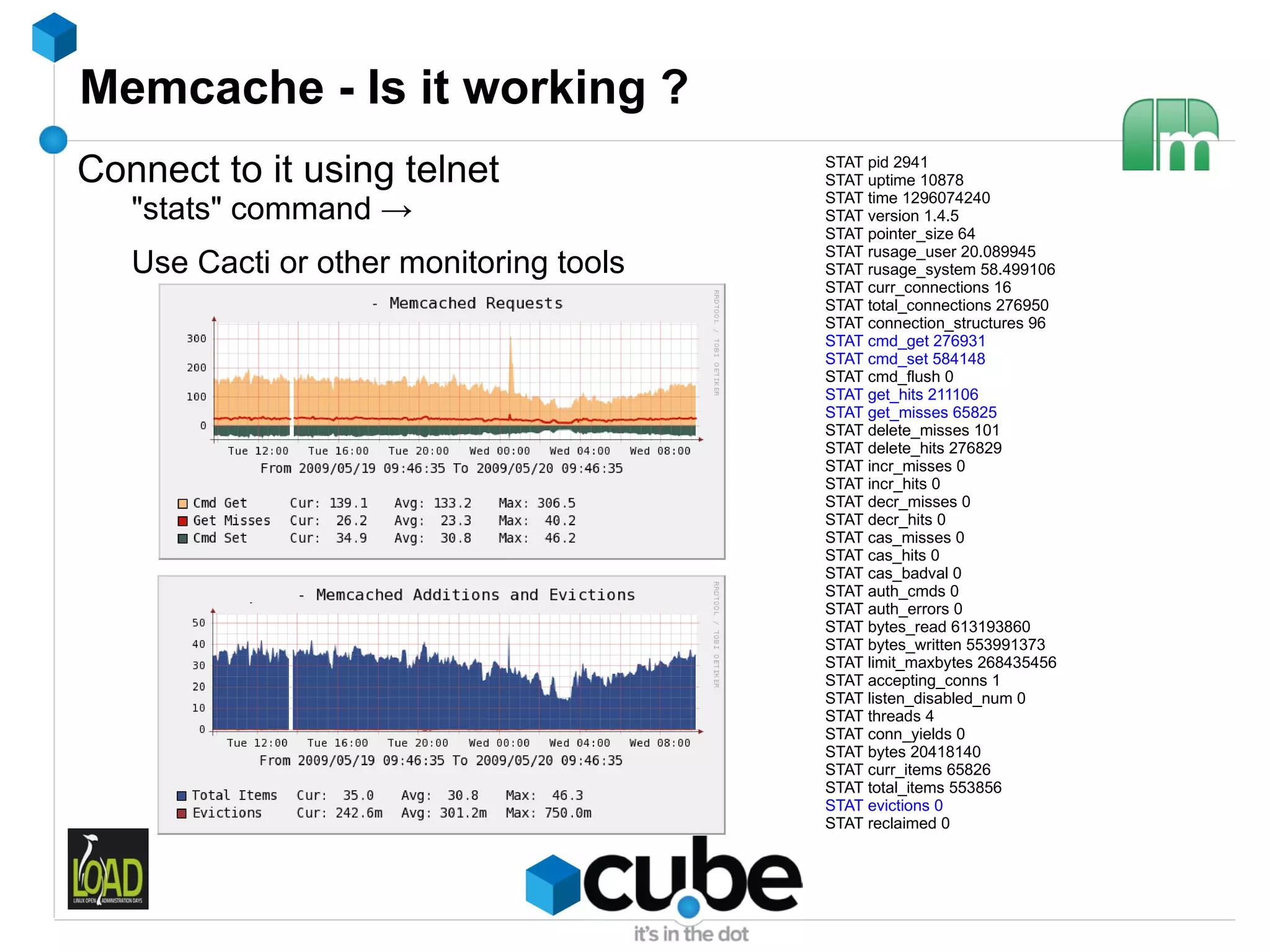

29. Memcache - Is it working ?
Connect to it using telnet STAT pid 2941
STAT uptime 10878
STAT time 1296074240
"stats" command → STAT version 1.4.5
STAT pointer_size 64
STAT rusage_user 20.089945
Use Cacti or other monitoring tools STAT rusage_system 58.499106
STAT curr_connections 16
STAT total_connections 276950
STAT connection_structures 96
STAT cmd_get 276931
STAT cmd_set 584148
STAT cmd_flush 0
STAT get_hits 211106
STAT get_misses 65825
STAT delete_misses 101
STAT delete_hits 276829
STAT incr_misses 0
STAT incr_hits 0
STAT decr_misses 0
STAT decr_hits 0
STAT cas_misses 0
STAT cas_hits 0
STAT cas_badval 0
STAT auth_cmds 0
STAT auth_errors 0
STAT bytes_read 613193860
STAT bytes_written 553991373
STAT limit_maxbytes 268435456
STAT accepting_conns 1
STAT listen_disabled_num 0
STAT threads 4
STAT conn_yields 0
STAT bytes 20418140
STAT curr_items 65826
STAT total_items 553856
STAT evictions 0
STAT reclaimed 0

30. Memcache - backing up

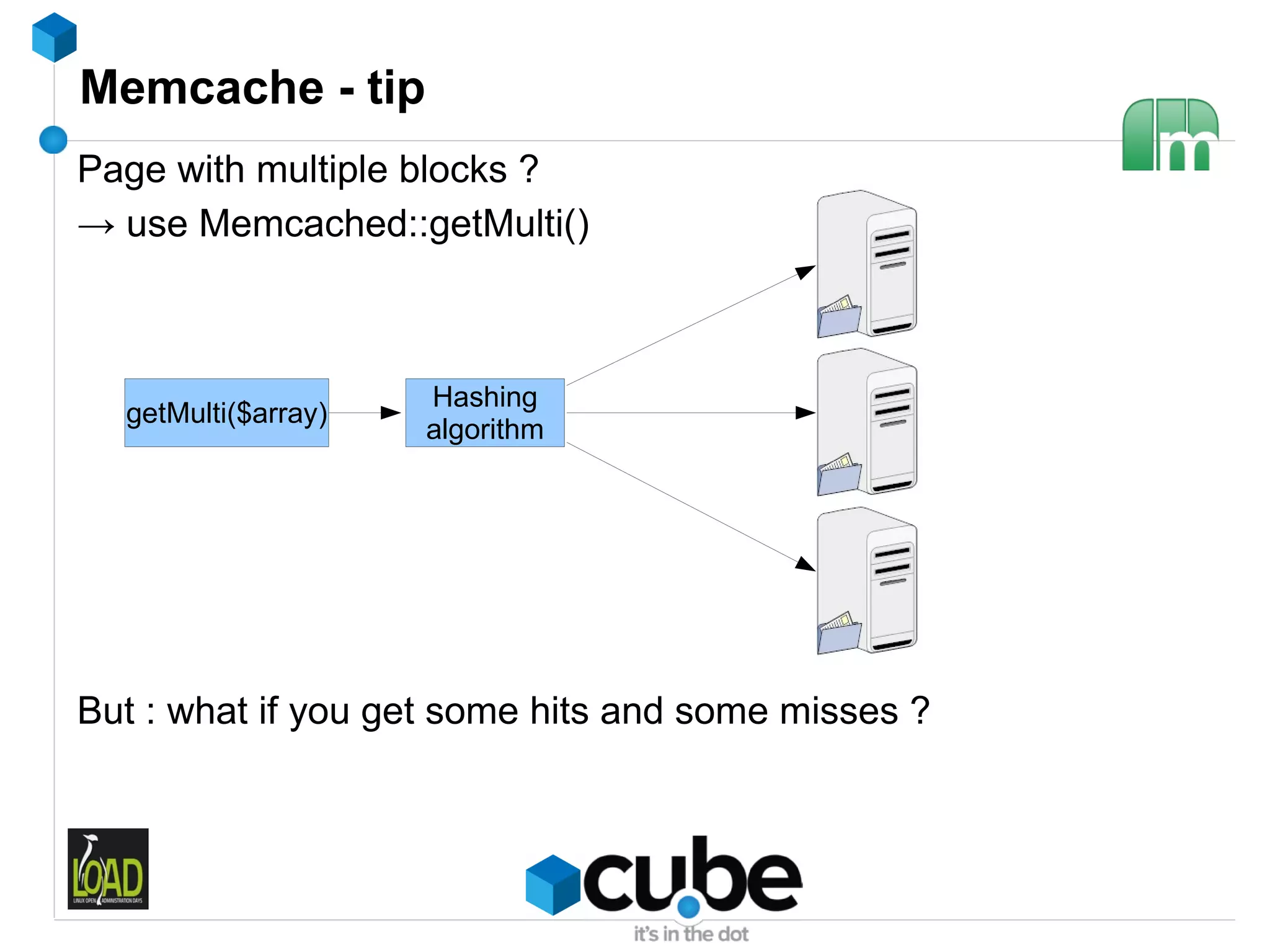

31. Memcache - tip
Page with multiple blocks ?
→ use Memcached::getMulti()
Hashing
getMulti($array)
algorithm
But : what if you get some hits and some misses ?

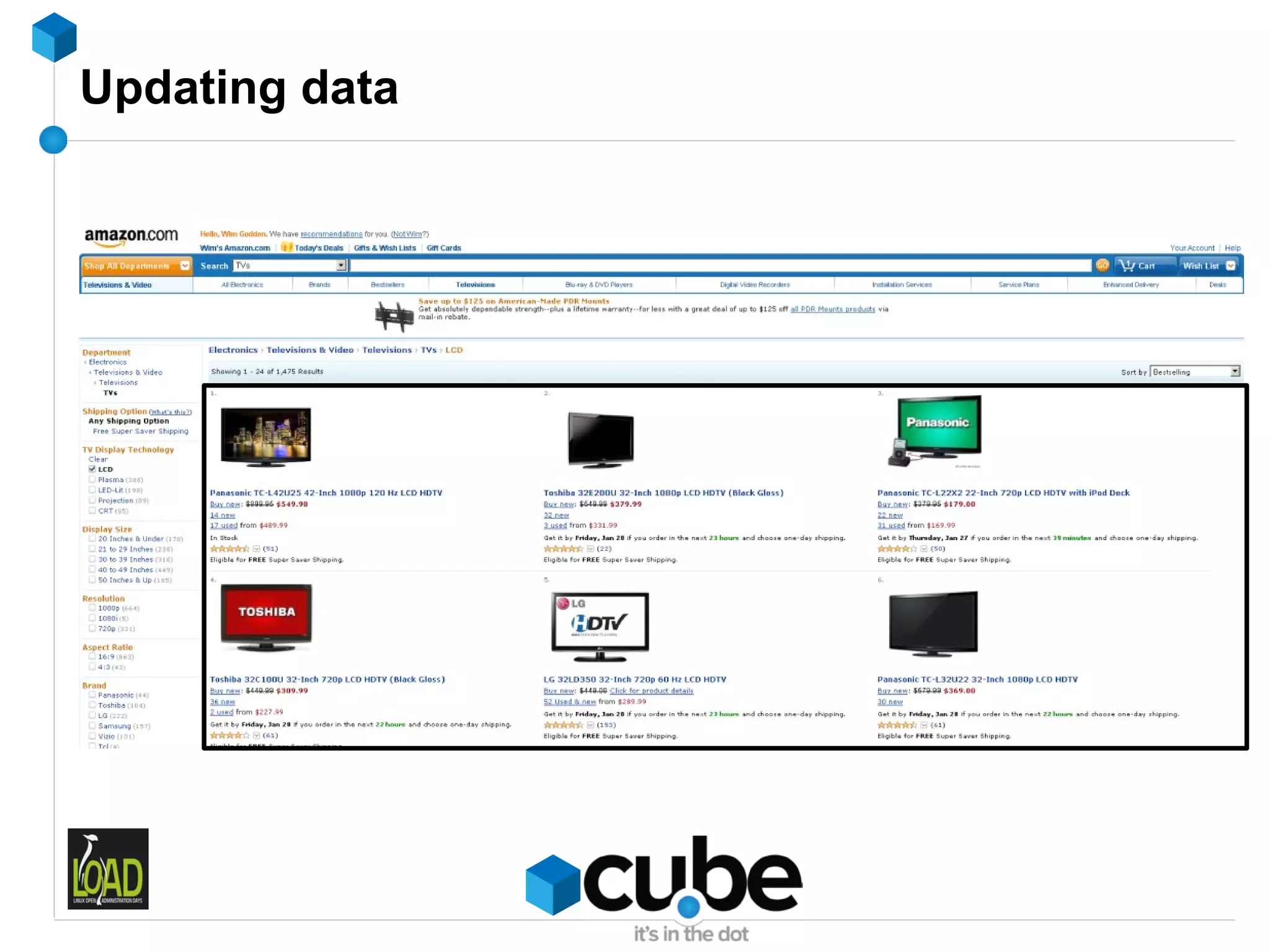

32. Updating data

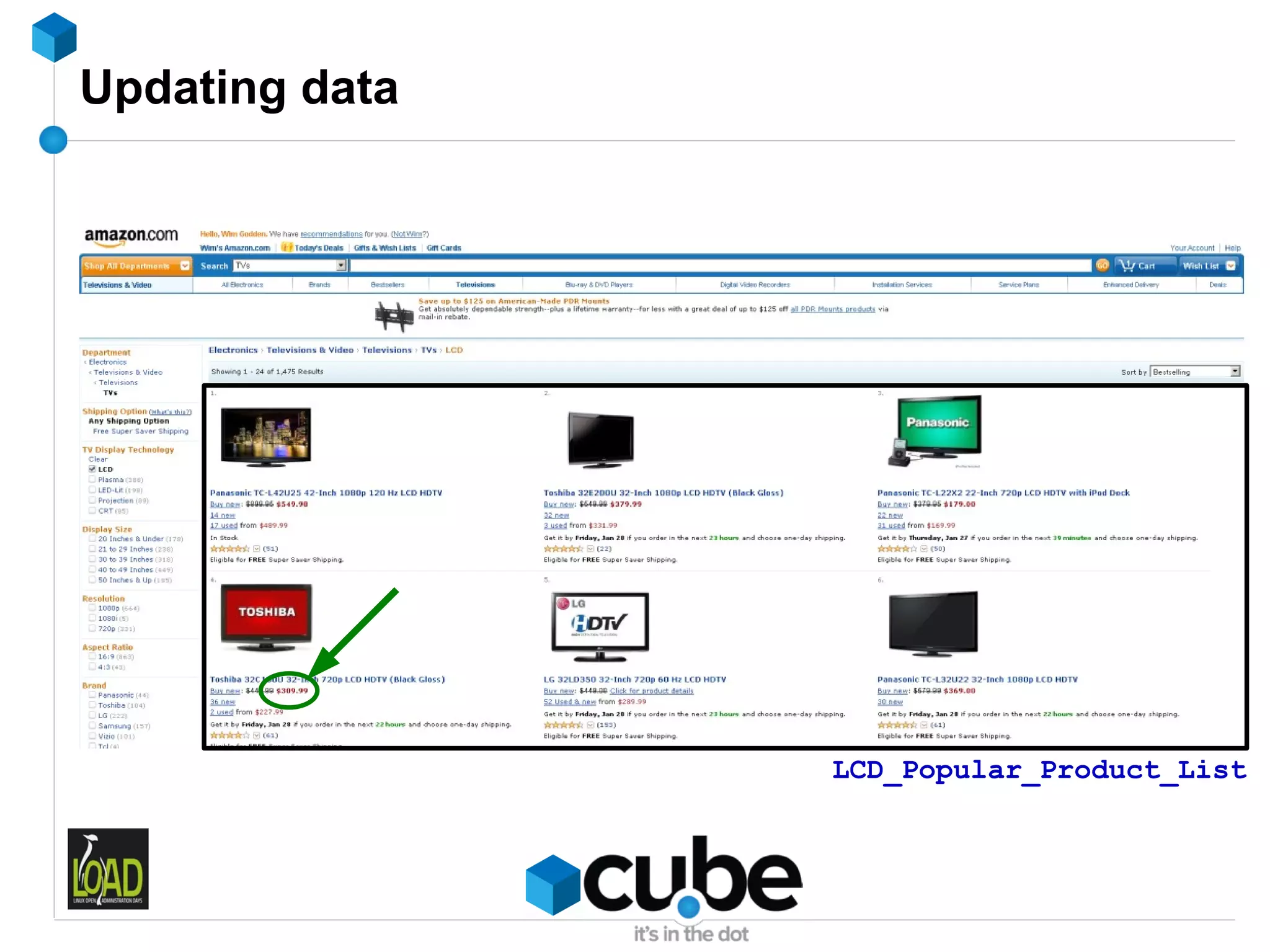

33. Updating data
LCD_Popular_Product_List

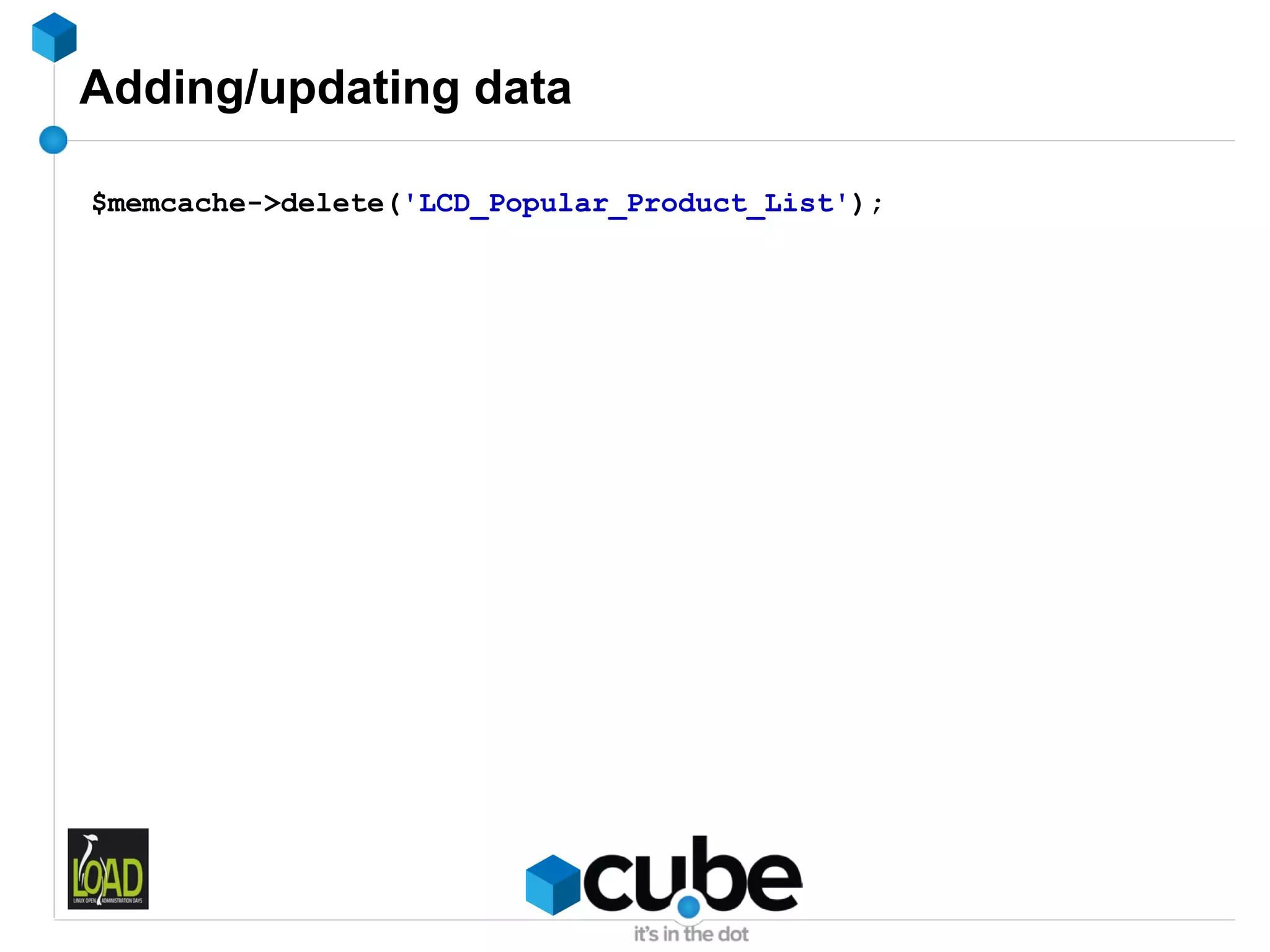

34. Adding/updating data
$memcache->delete('LCD_Popular_Product_List');

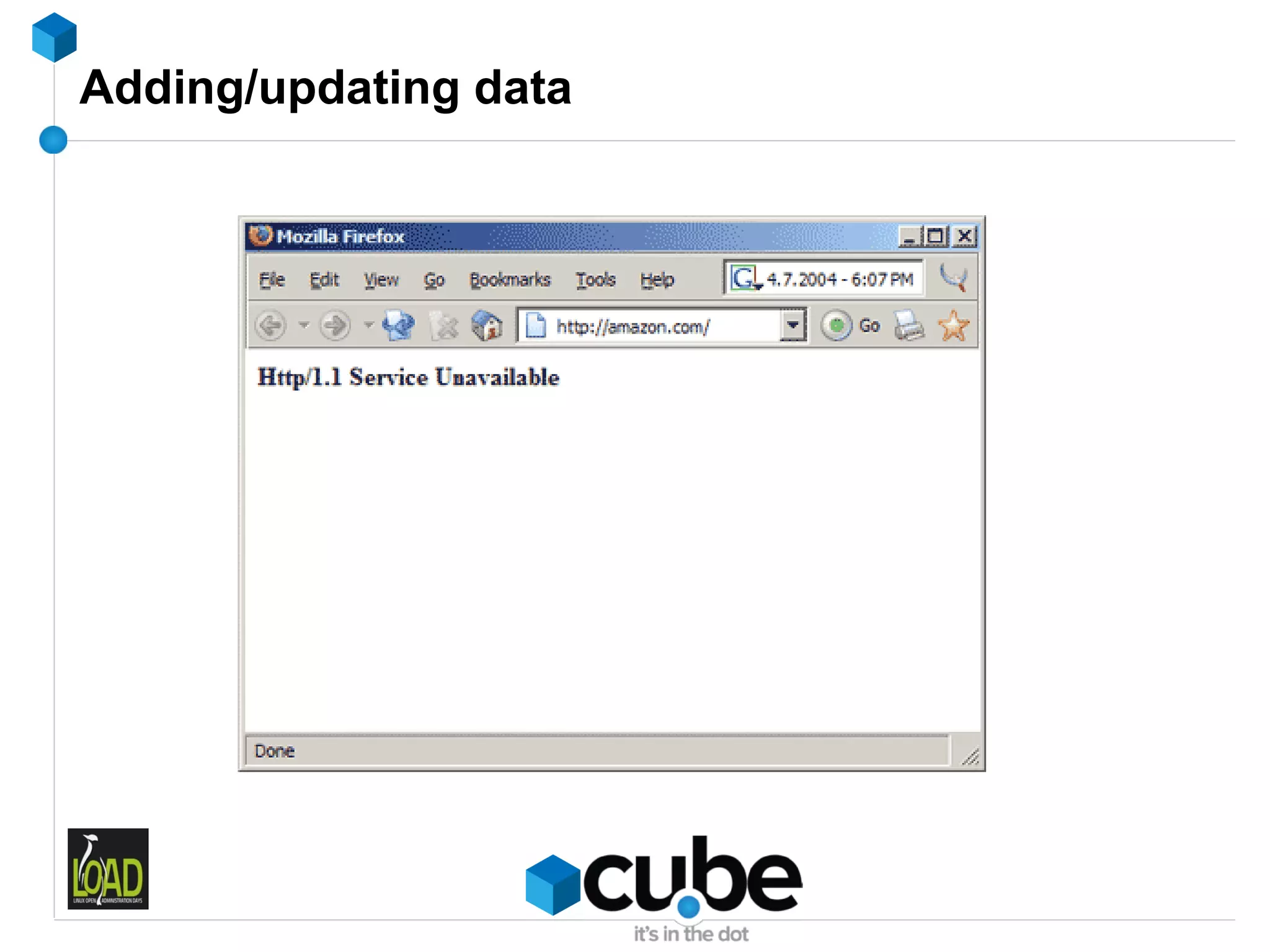

35. Adding/updating data

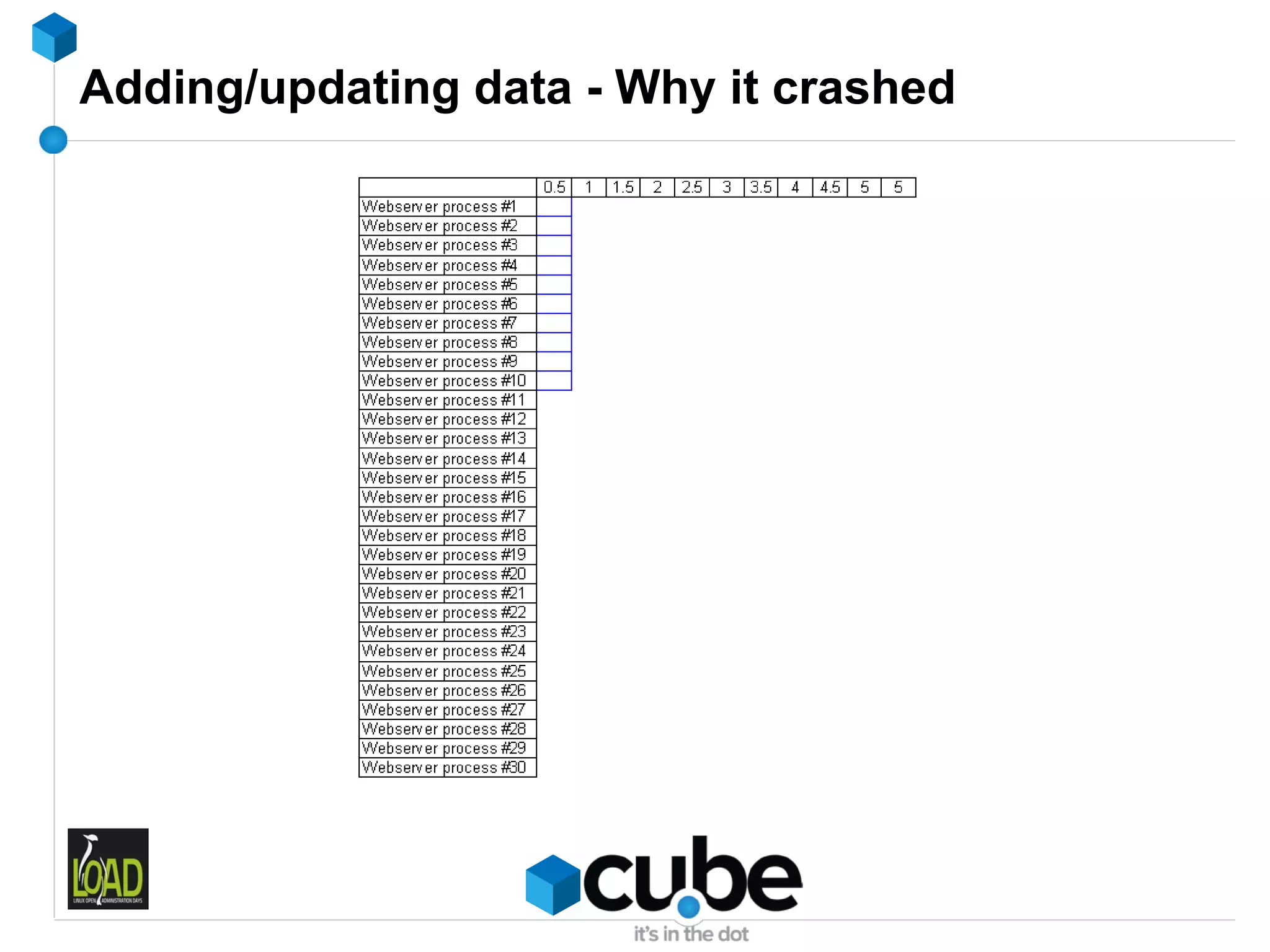

36. Adding/updating data - Why it crashed

37. Adding/updating data - Why it crashed

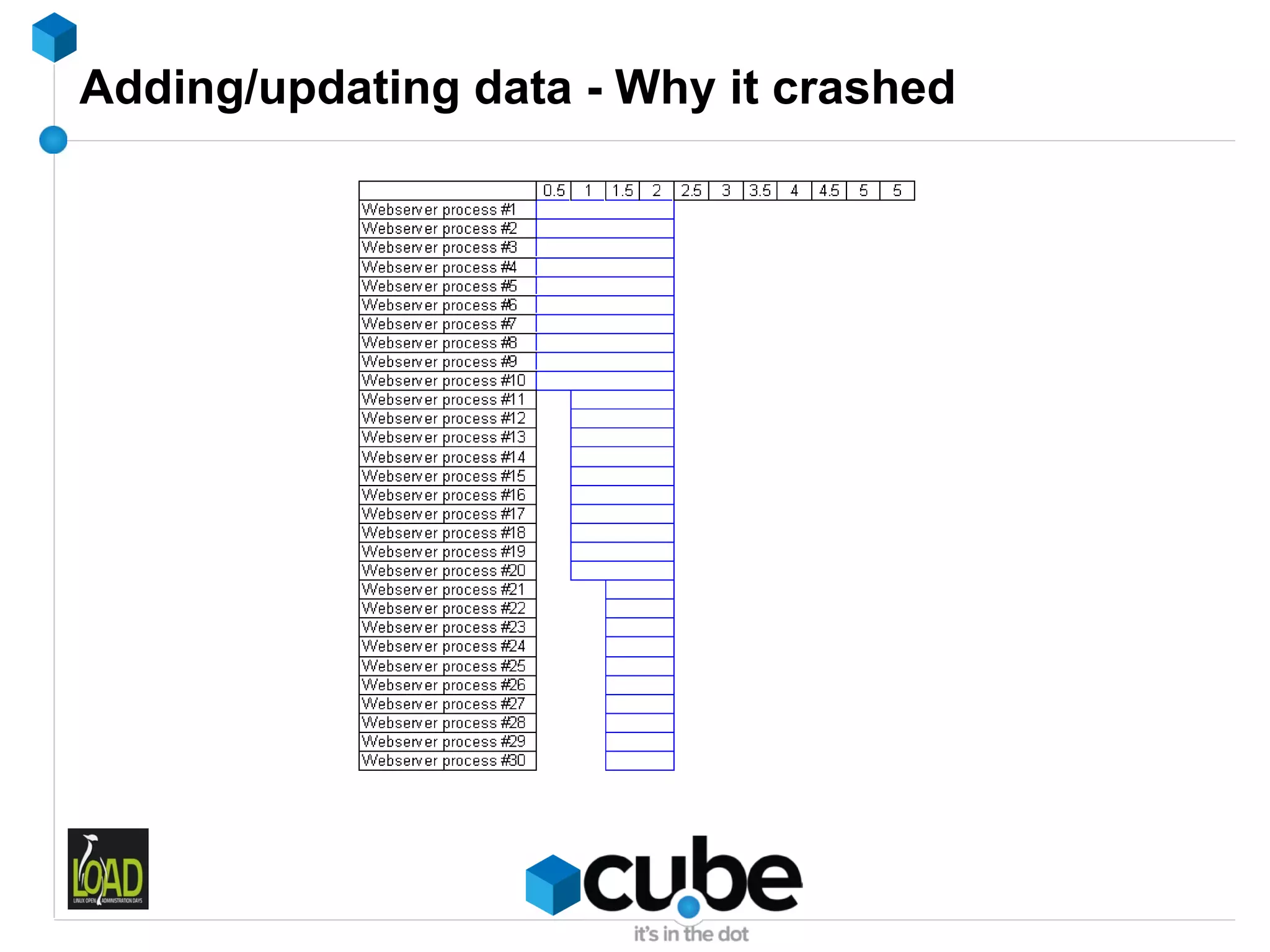

38. Adding/updating data - Why it crashed

39. Cache stampeding

40. Cache stampeding

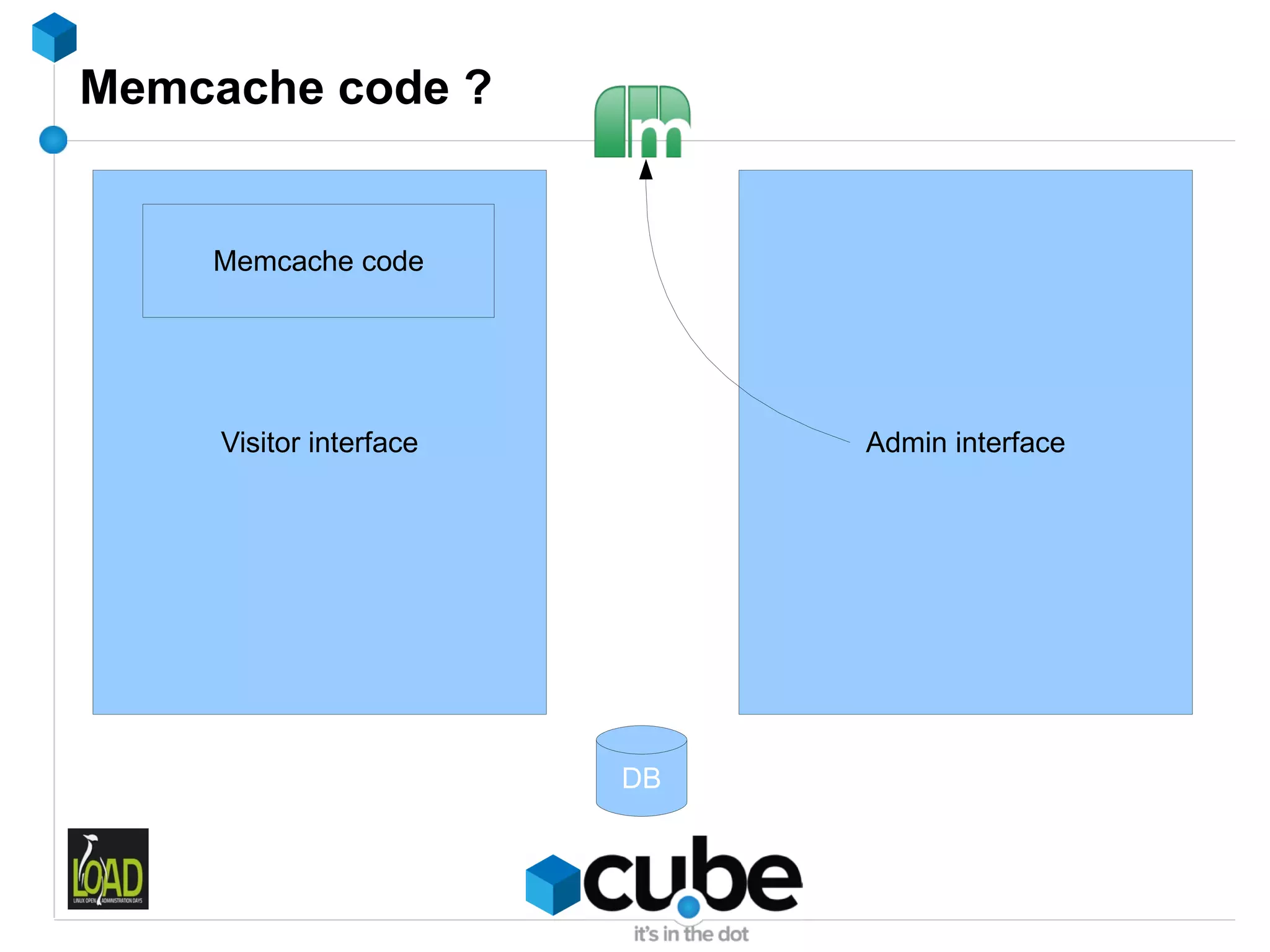

41. Memcache code ?
Memcache code
Visitor interface Admin interface
DB

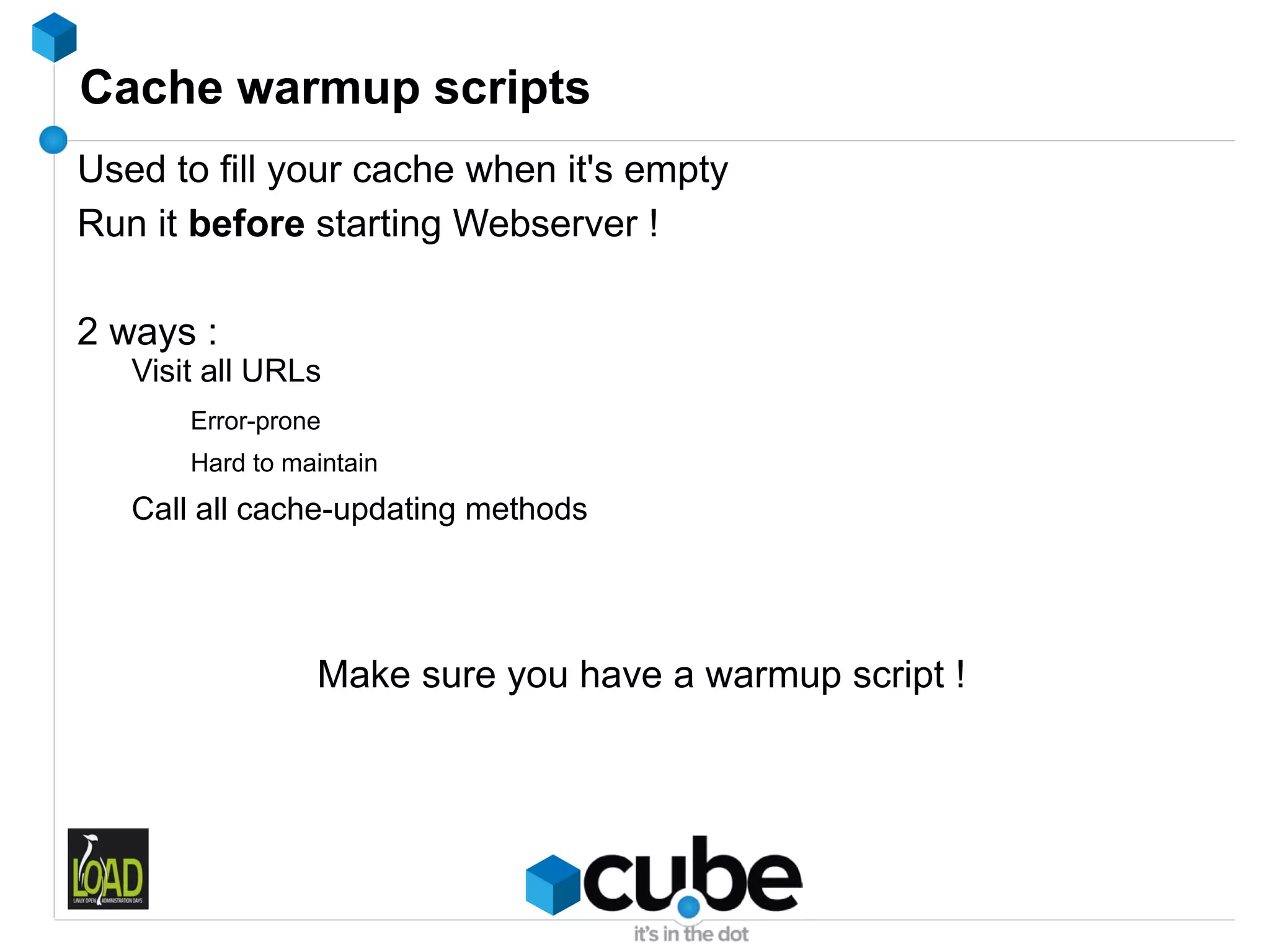

42. Cache warmup scripts
Used to fill your cache when it's empty
Run it before starting Webserver !
2 ways :
Visit all URLs
Error-prone
Hard to maintain
Call all cache-updating methods
Make sure you have a warmup script !

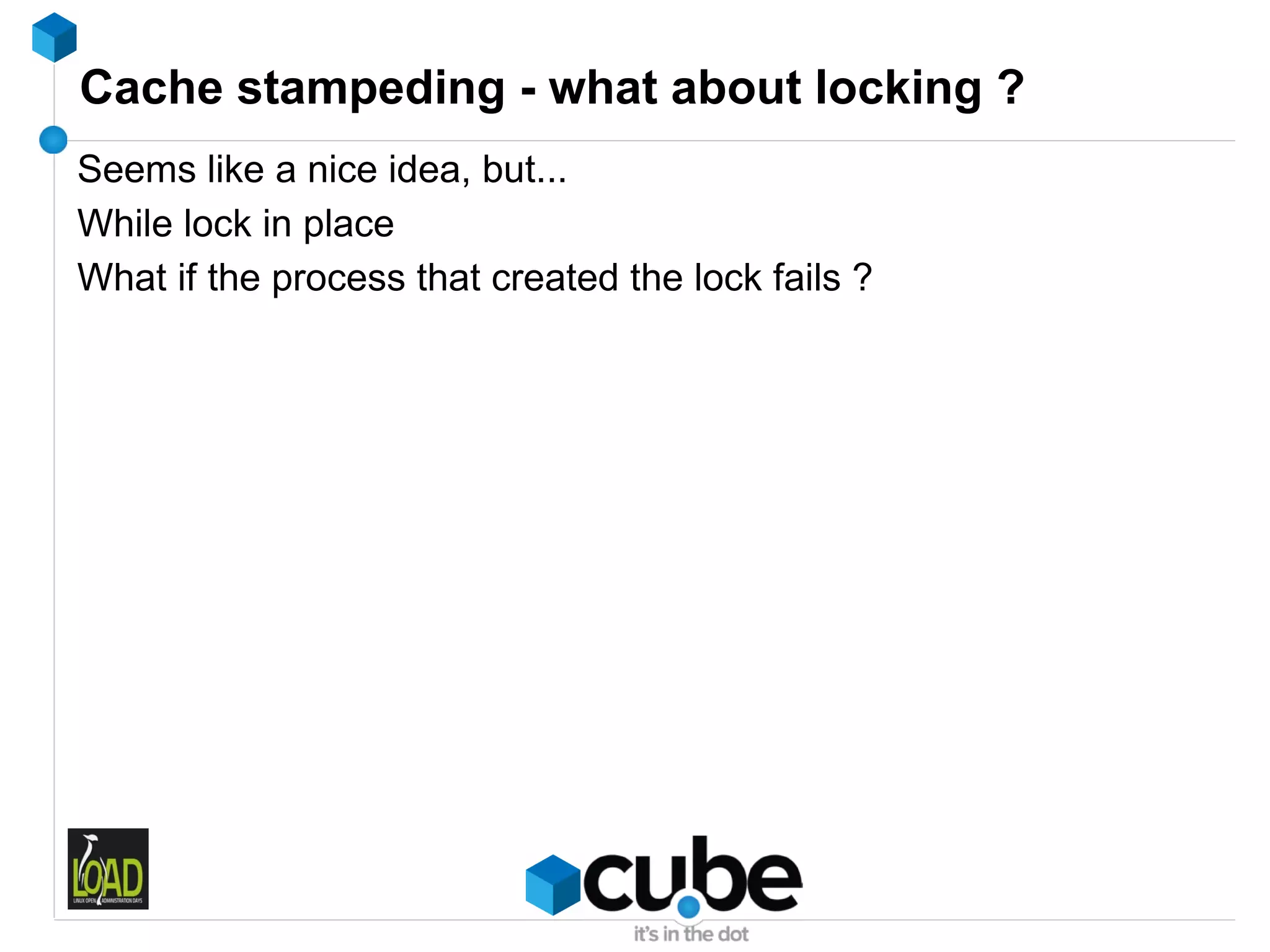

43. Cache stampeding - what about locking ?
Seems like a nice idea, but...
While lock in place
What if the process that created the lock fails ?

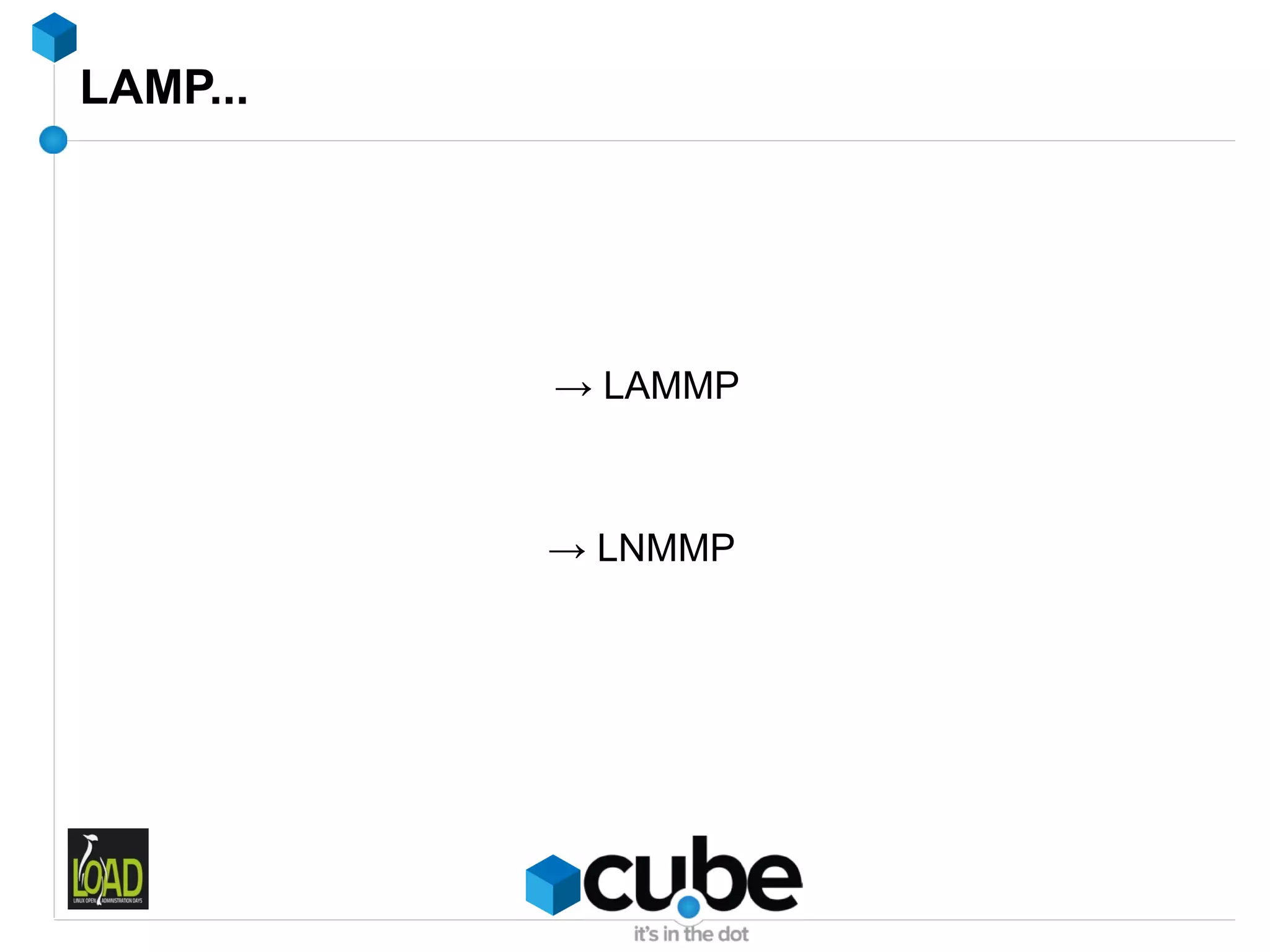

44. LAMP...
→ LAMMP
→ LNMMP

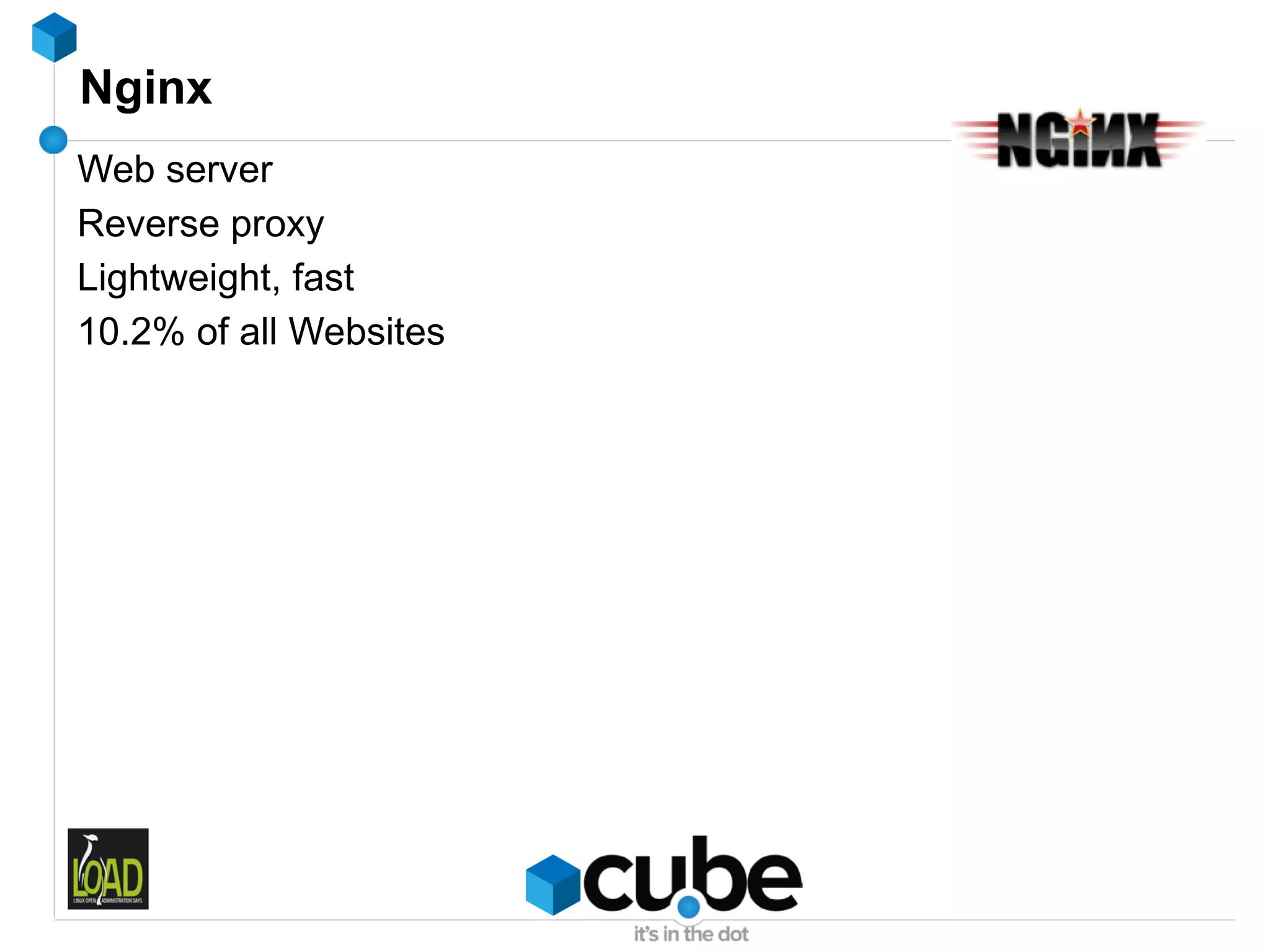

45. Nginx
Web server
Reverse proxy
Lightweight, fast
10.2% of all Websites

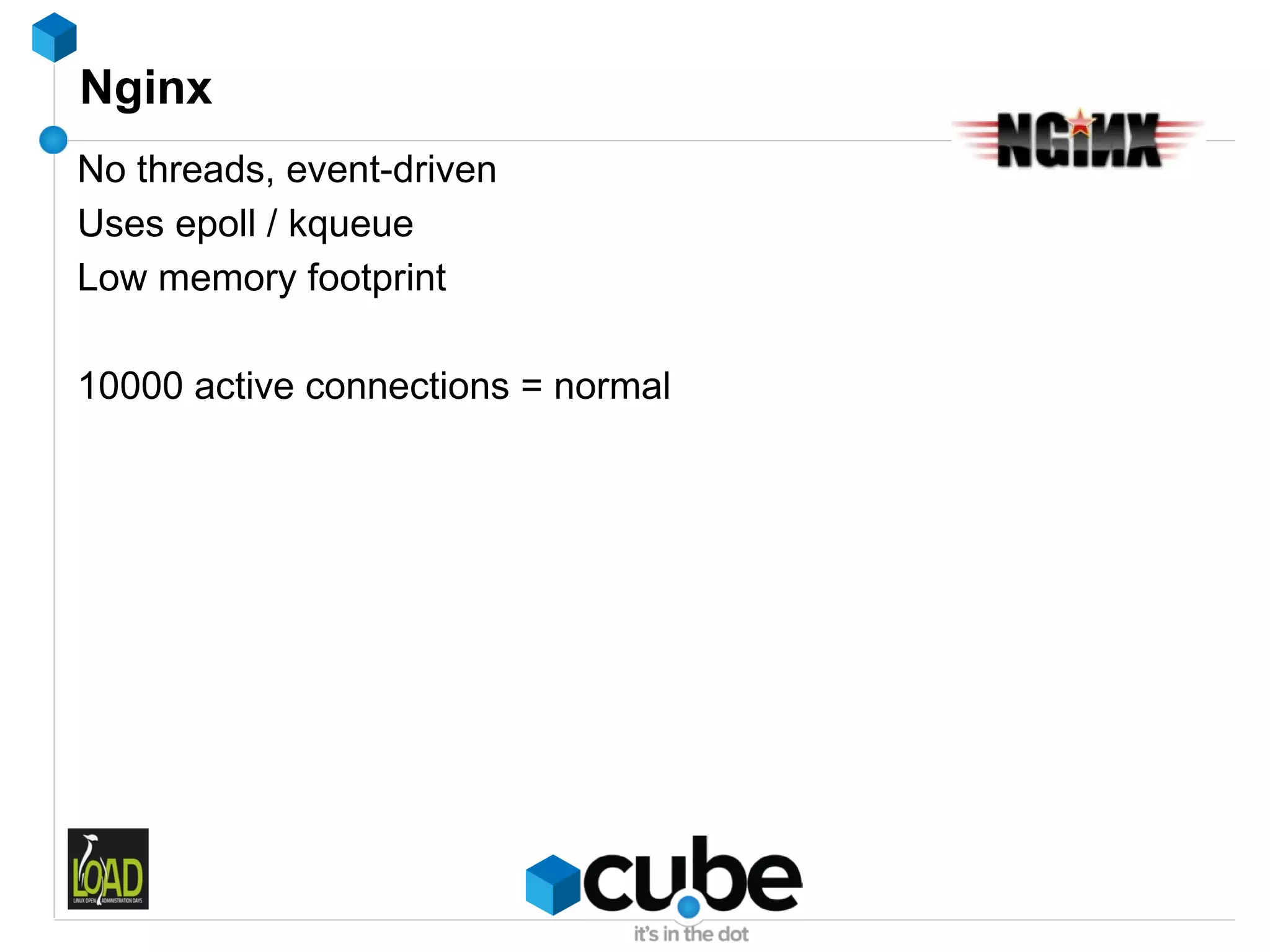

46. Nginx
No threads, event-driven
Uses epoll / kqueue
Low memory footprint
10000 active connections = normal

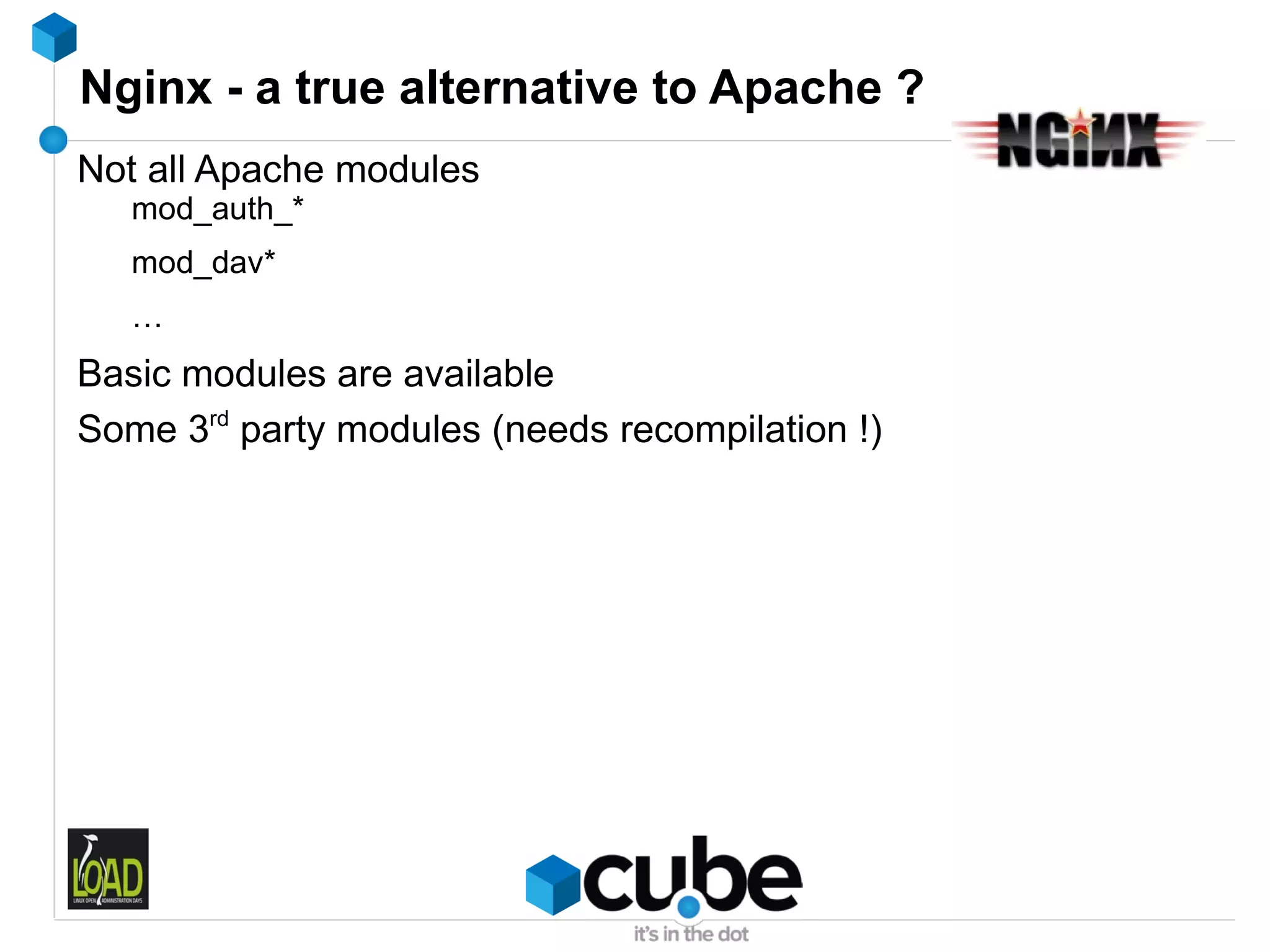

47. Nginx - a true alternative to Apache ?
Not all Apache modules
mod_auth_*
mod_dav*
…
Basic modules are available
Some 3rd party modules (needs recompilation !)

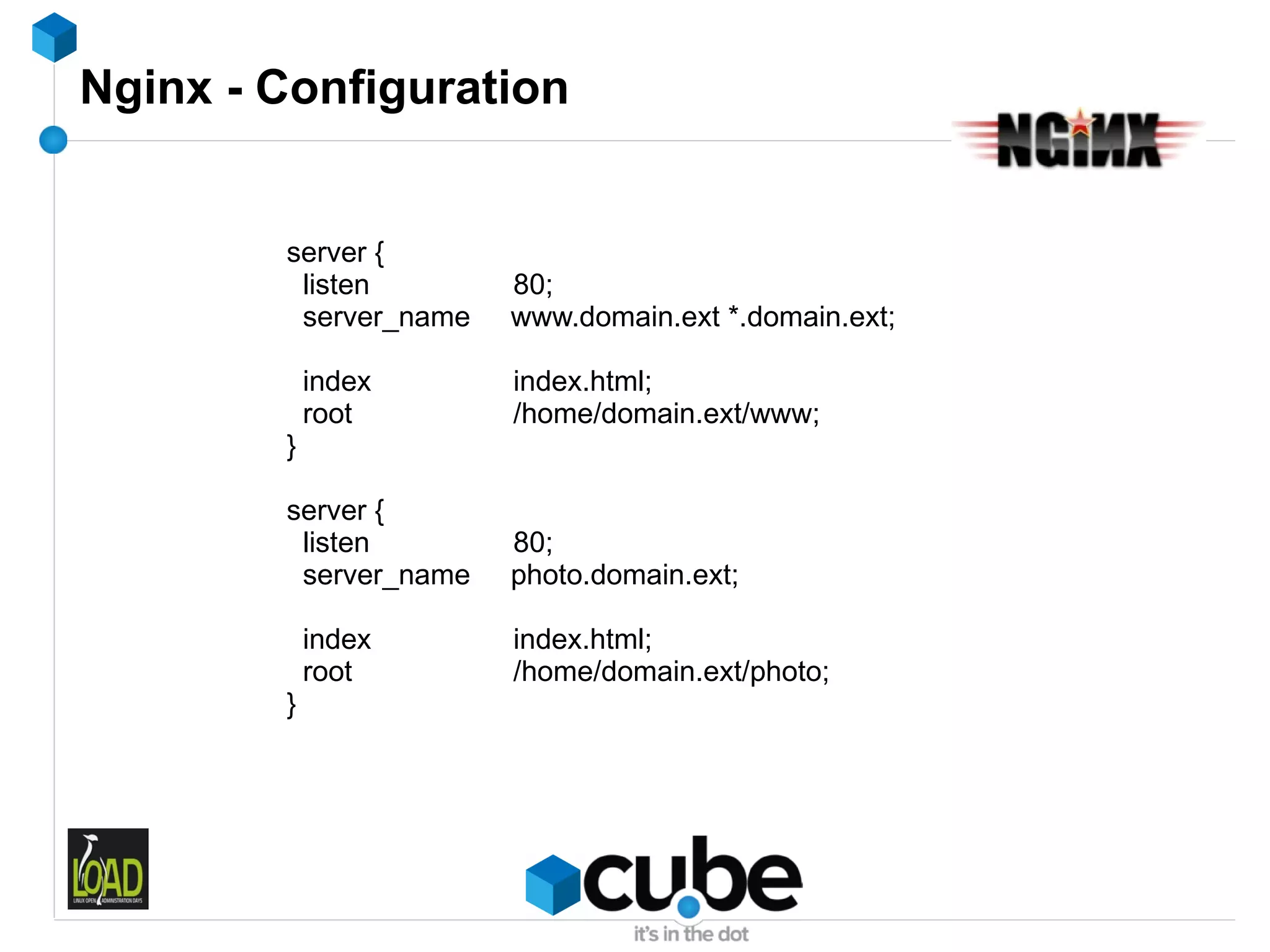

48. Nginx - Configuration
server {
listen 80;
server_name www.domain.ext *.domain.ext;
index index.html;
root /home/domain.ext/www;
}
server {
listen 80;
server_name photo.domain.ext;
index index.html;
root /home/domain.ext/photo;
}

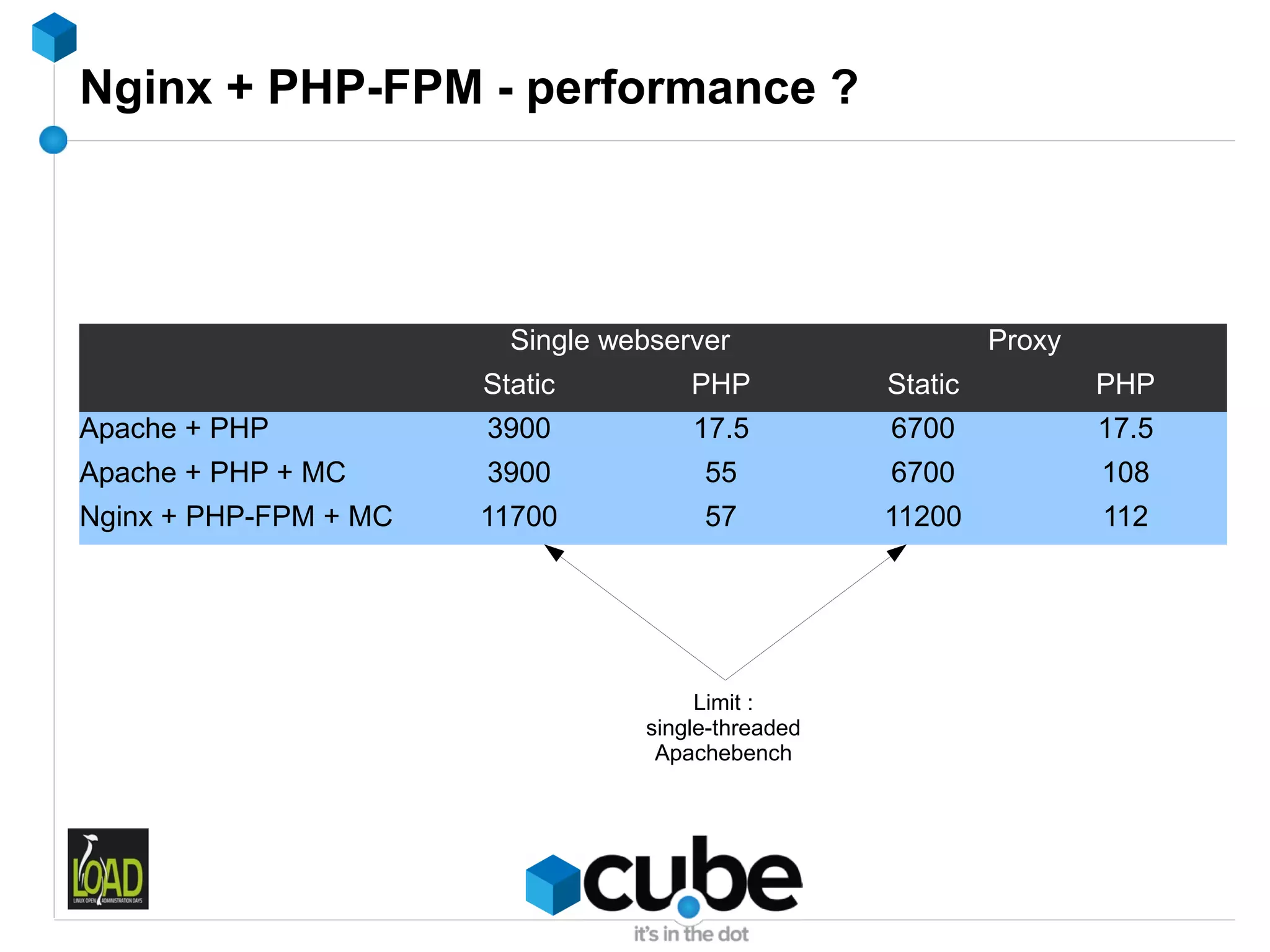

49. Nginx + PHP-FPM - performance ?
Single webserver Proxy
Static PHP Static PHP
Apache + PHP 3900 17.5 6700 17.5
Apache + PHP + MC 3900 55 6700 108
Nginx + PHP-FPM + MC 11700 57 11200 112
Limit :
single-threaded
Apachebench

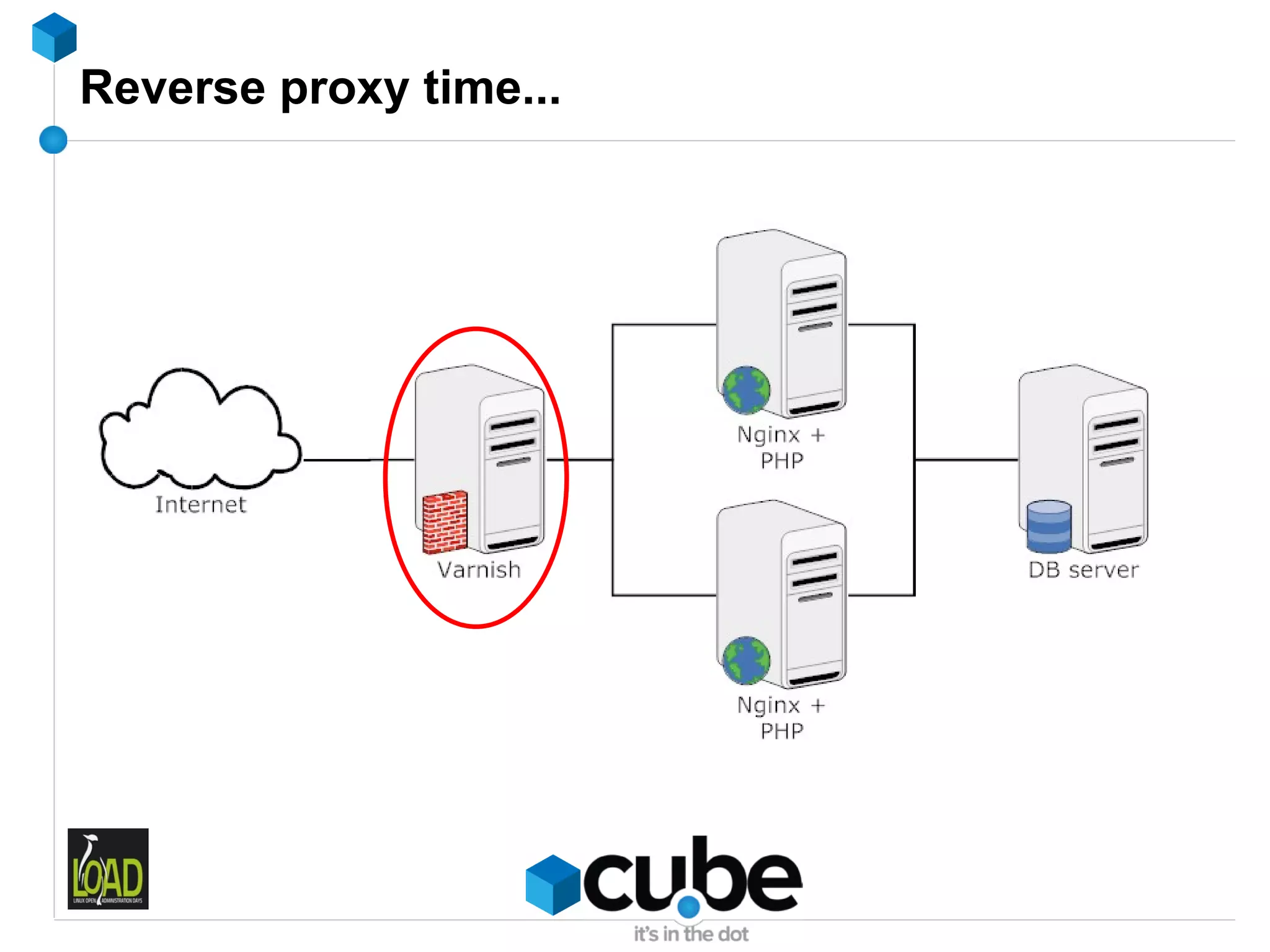

50. Reverse proxy time...

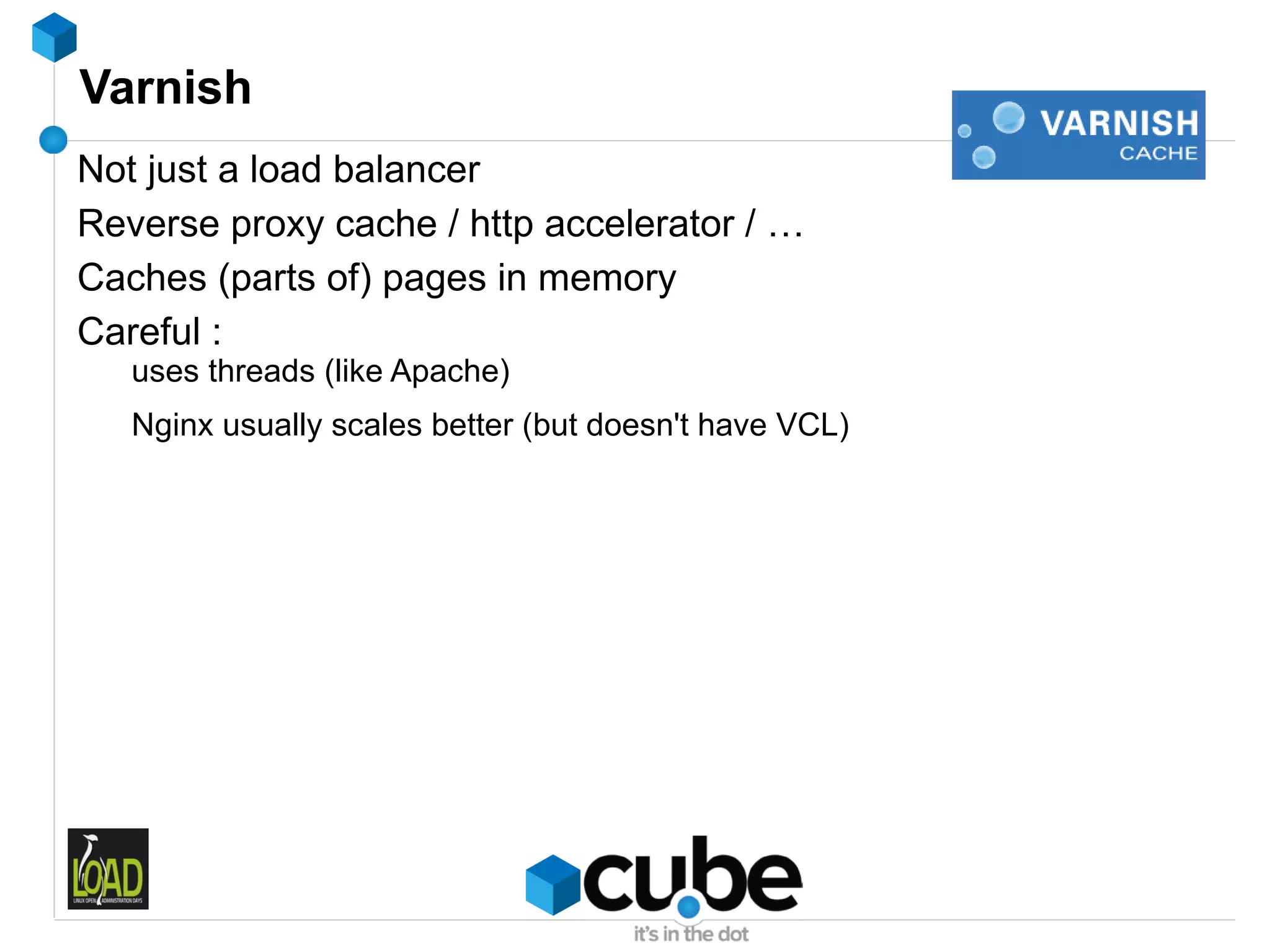

51. Varnish
Not just a load balancer
Reverse proxy cache / http accelerator / …
Caches (parts of) pages in memory
Careful :
uses threads (like Apache)
Nginx usually scales better (but doesn't have VCL)

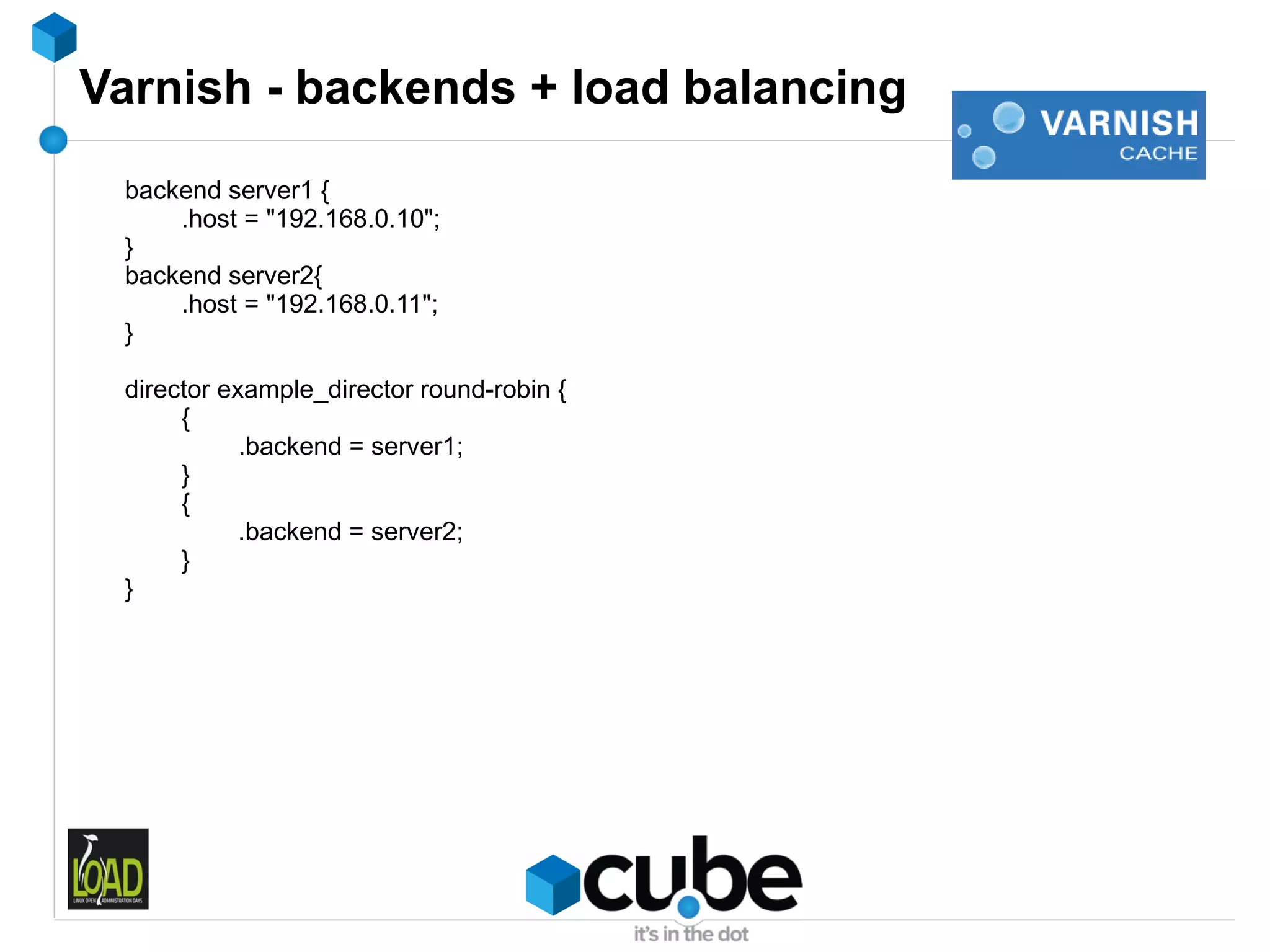

52. Varnish - backends + load balancing
backend server1 {
.host = "192.168.0.10";
}
backend server2{
.host = "192.168.0.11";
}
director example_director round-robin {
{
.backend = server1;
}
{
.backend = server2;
}
}

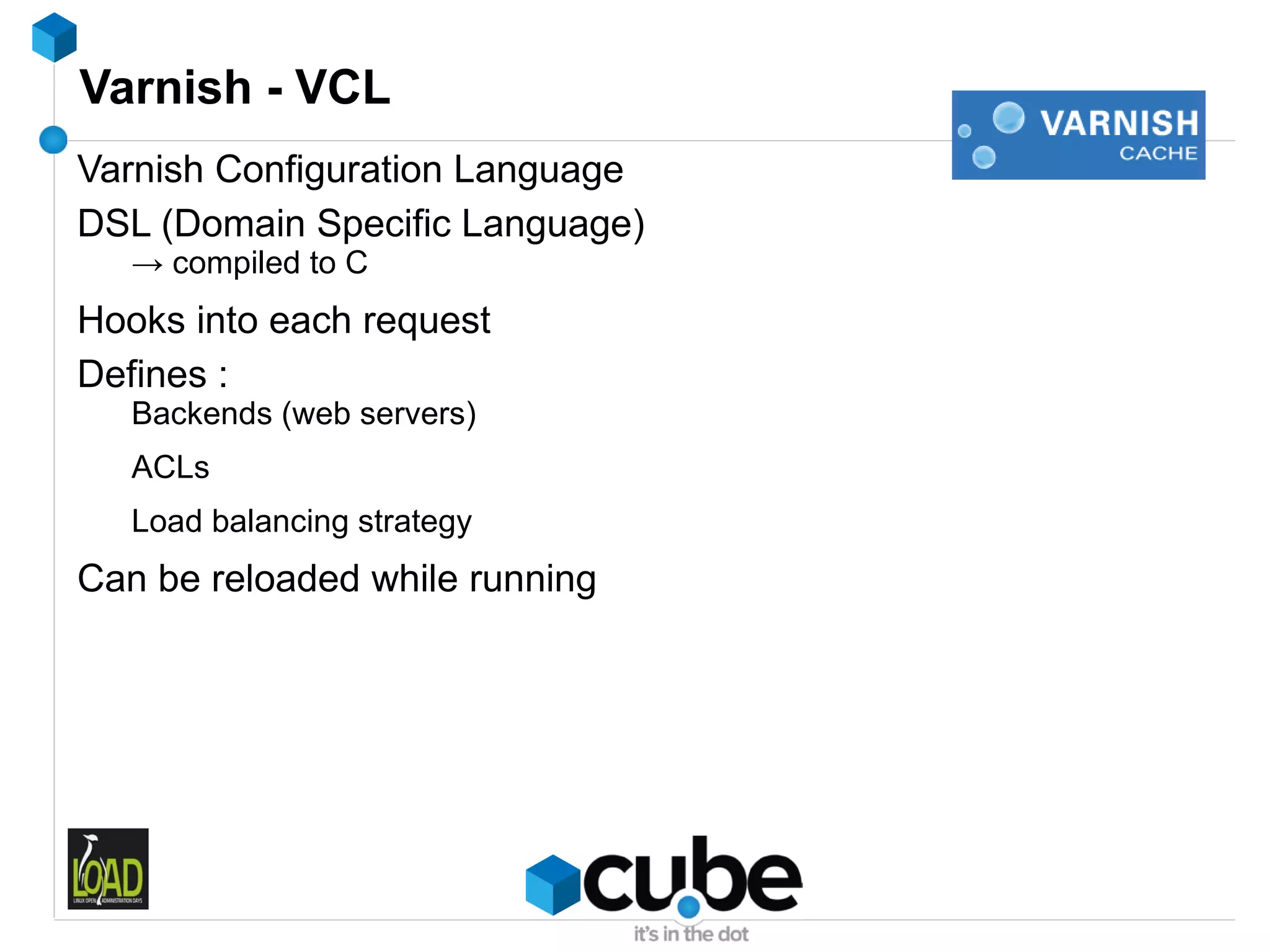

53. Varnish - VCL
Varnish Configuration Language
DSL (Domain Specific Language)
→ compiled to C
Hooks into each request
Defines :
Backends (web servers)
ACLs
Load balancing strategy
Can be reloaded while running

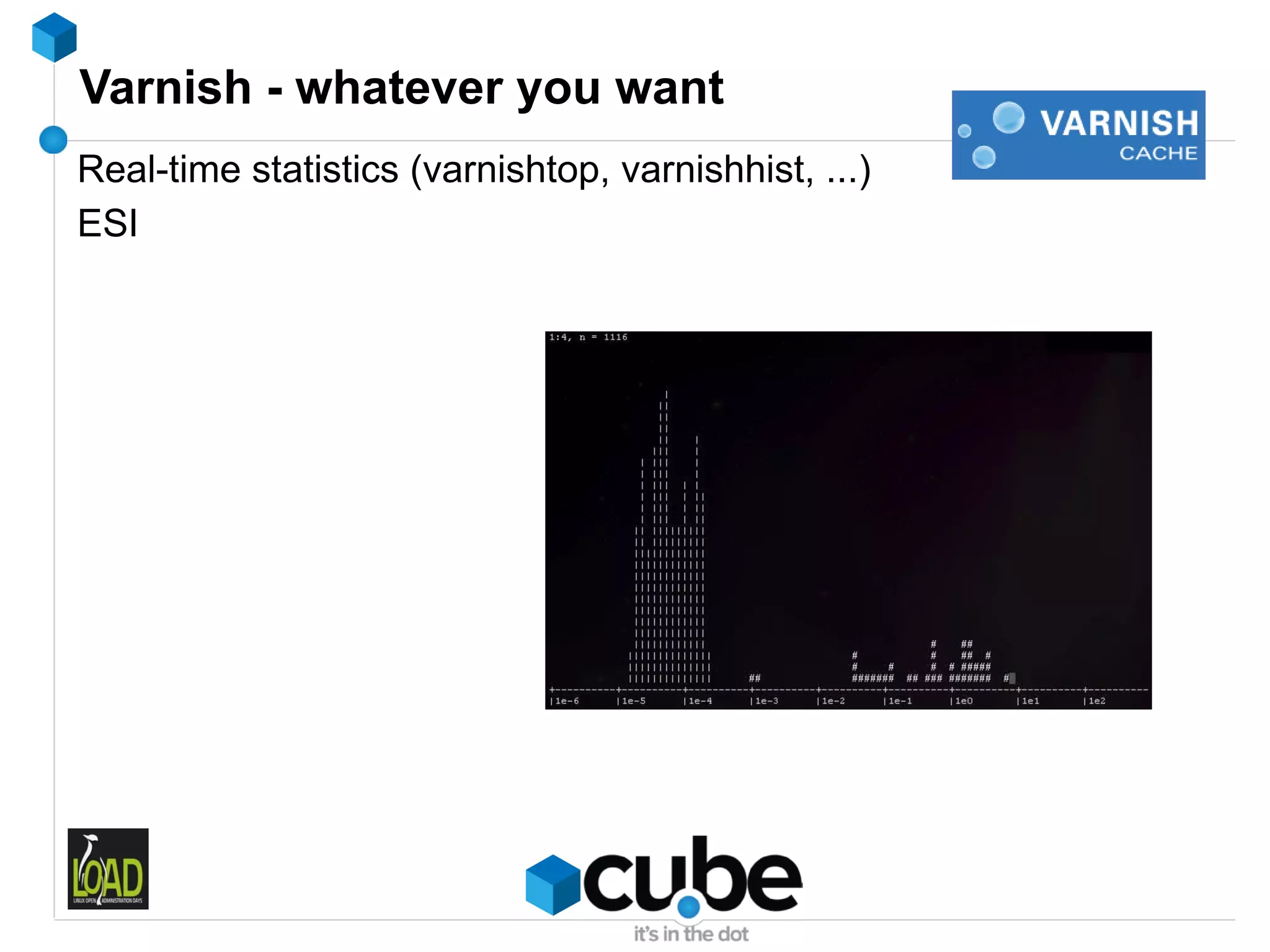

54. Varnish - whatever you want
Real-time statistics (varnishtop, varnishhist, ...)
ESI

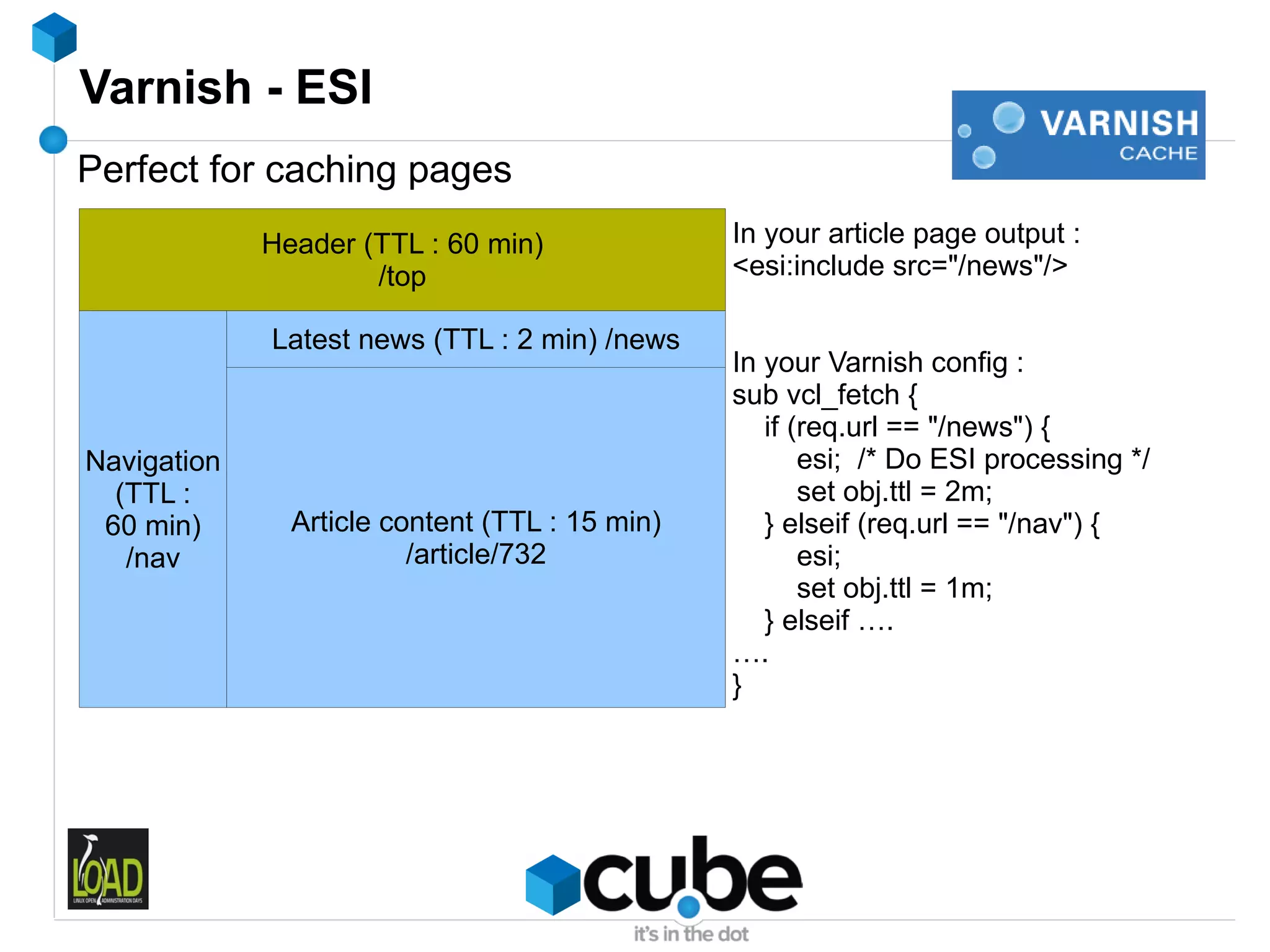

55. Varnish - ESI
Perfect for caching pages
Header (TTL : 60 min) In your article page output :
/top <esi:include src="/news"/>
Latest news (TTL : 2 min) /news
In your Varnish config :
sub vcl_fetch {
if (req.url == "/news") {
Navigation Article content page esi; /* Do ESI processing */
(TTL : set obj.ttl = 2m;
60 min) Article content (TTL : 15 min) } elseif (req.url == "/nav") {
/nav /article/732 esi;
set obj.ttl = 1m;
} elseif ….
….
}

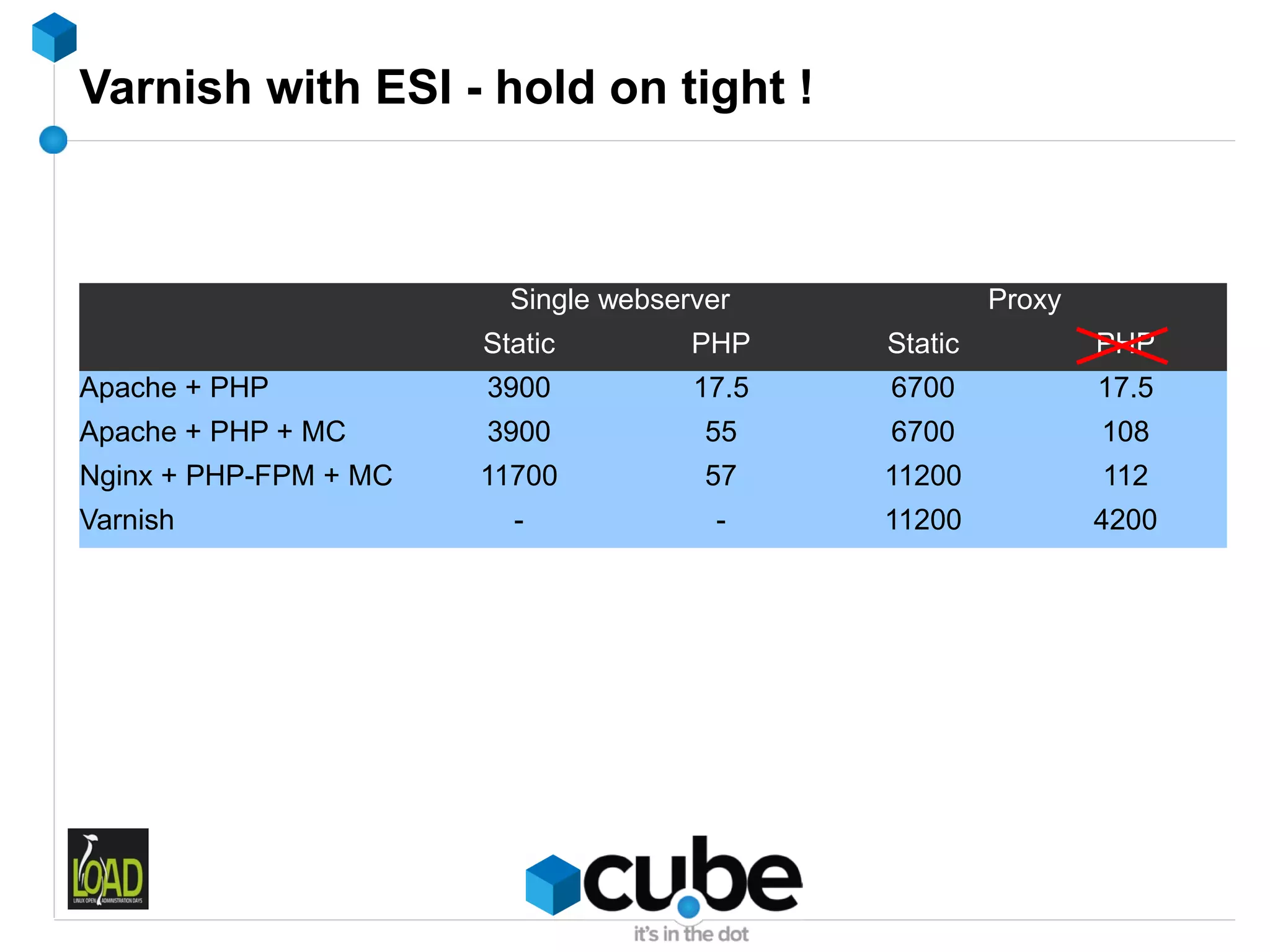

56. Varnish with ESI - hold on tight !
Single webserver Proxy
Static PHP Static PHP
Apache + PHP 3900 17.5 6700 17.5
Apache + PHP + MC 3900 55 6700 108
Nginx + PHP-FPM + MC 11700 57 11200 112
Varnish - - 11200 4200

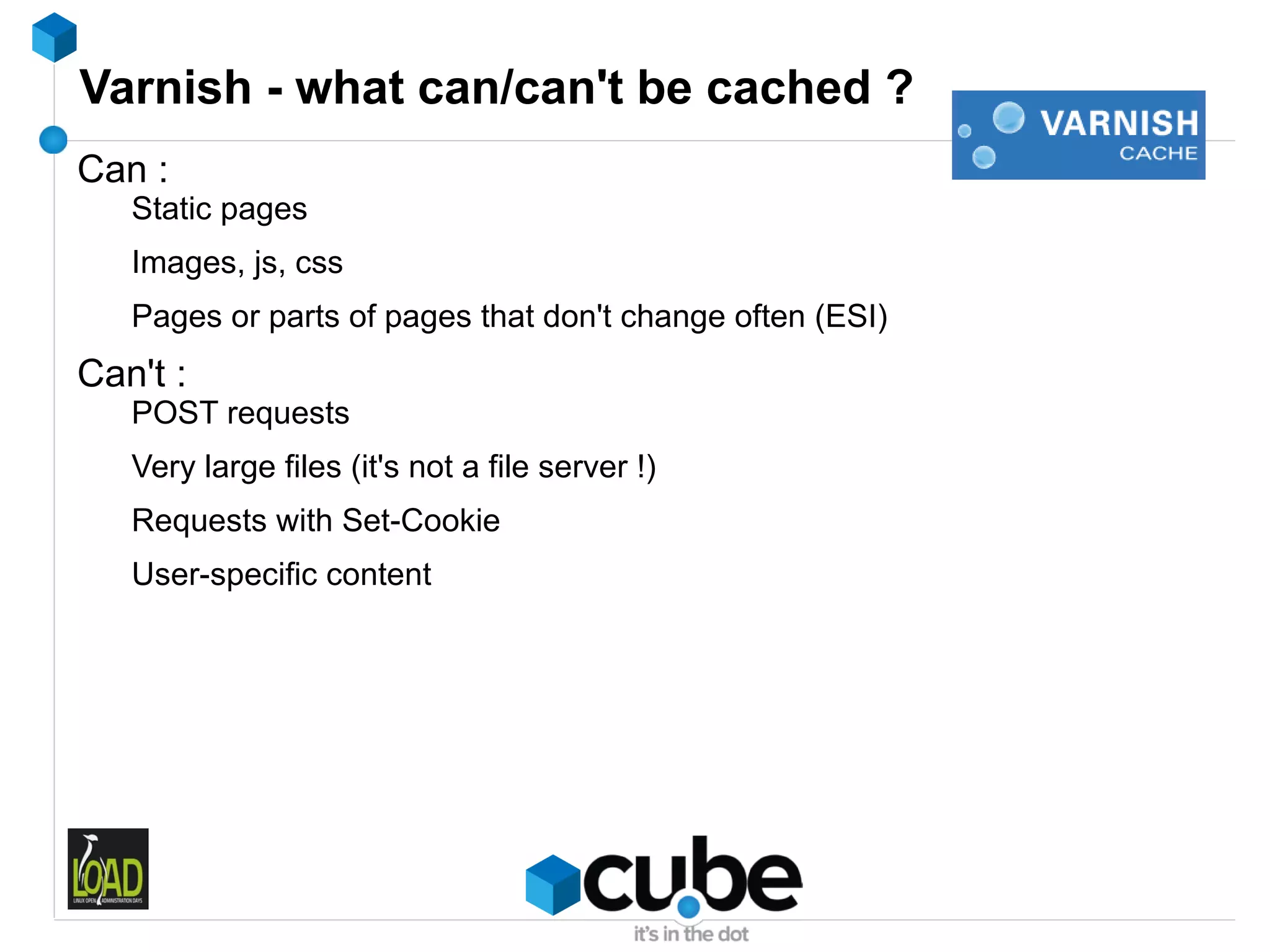

57. Varnish - what can/can't be cached ?
Can :
Static pages
Images, js, css
Pages or parts of pages that don't change often (ESI)
Can't :
POST requests
Very large files (it's not a file server !)
Requests with Set-Cookie
User-specific content

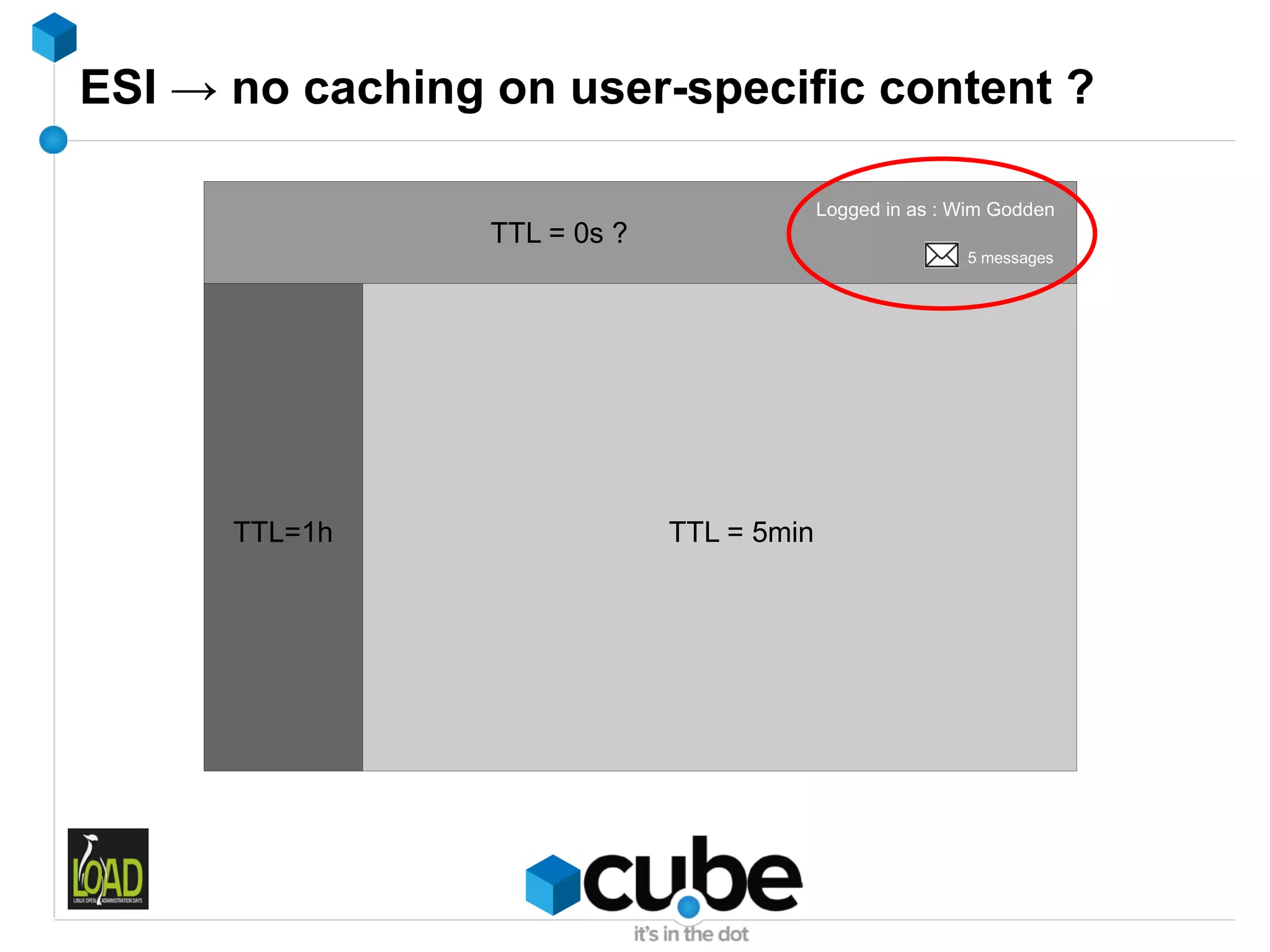

58. ESI → no caching on user-specific content ?
Logged in as : Wim Godden
TTL = 0s ?
5 messages
TTL=1h TTL = 5min

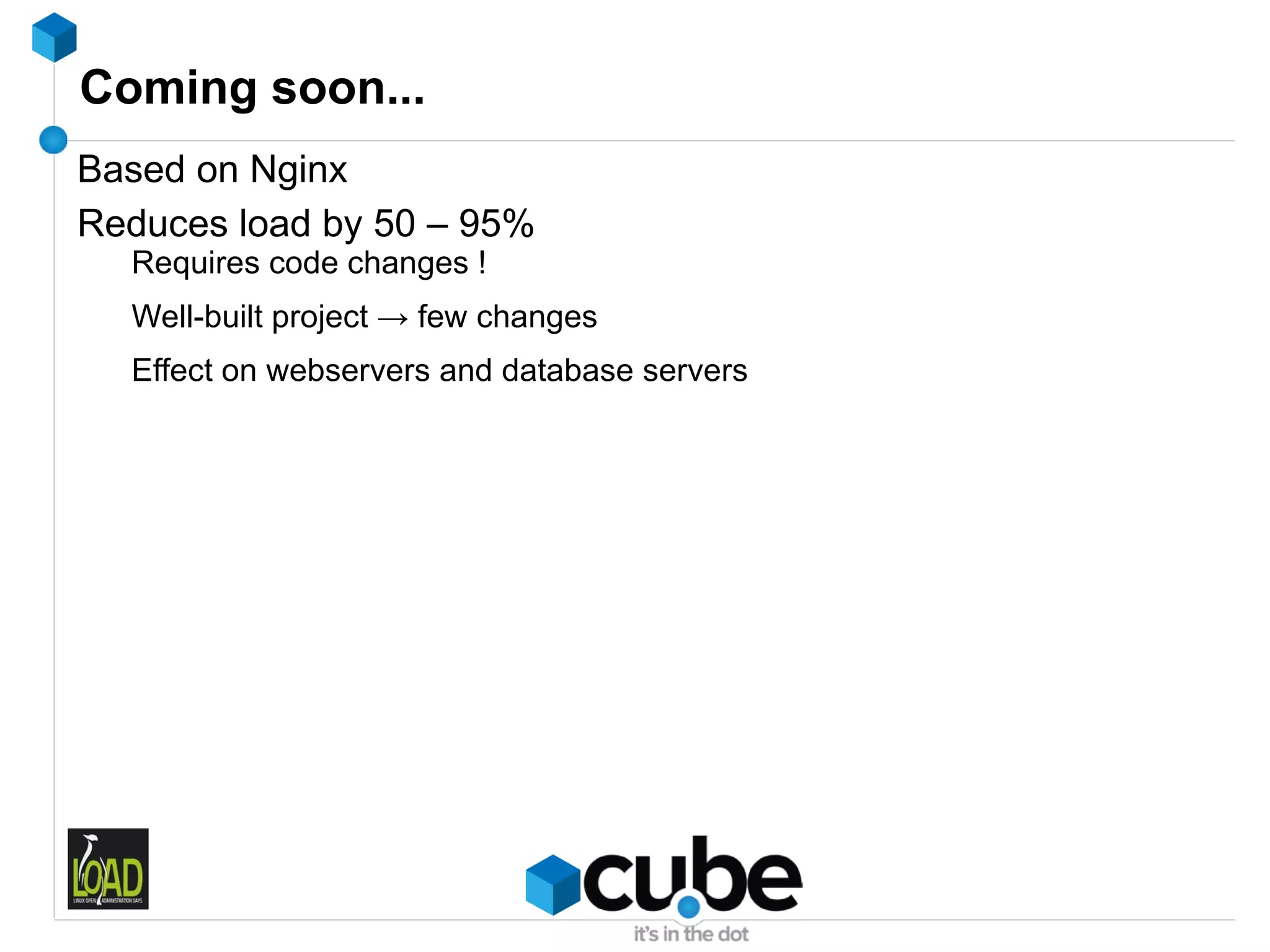

59. Coming soon...
Based on Nginx
Reduces load by 50 – 95%
Requires code changes !
Well-built project → few changes
Effect on webservers and database servers

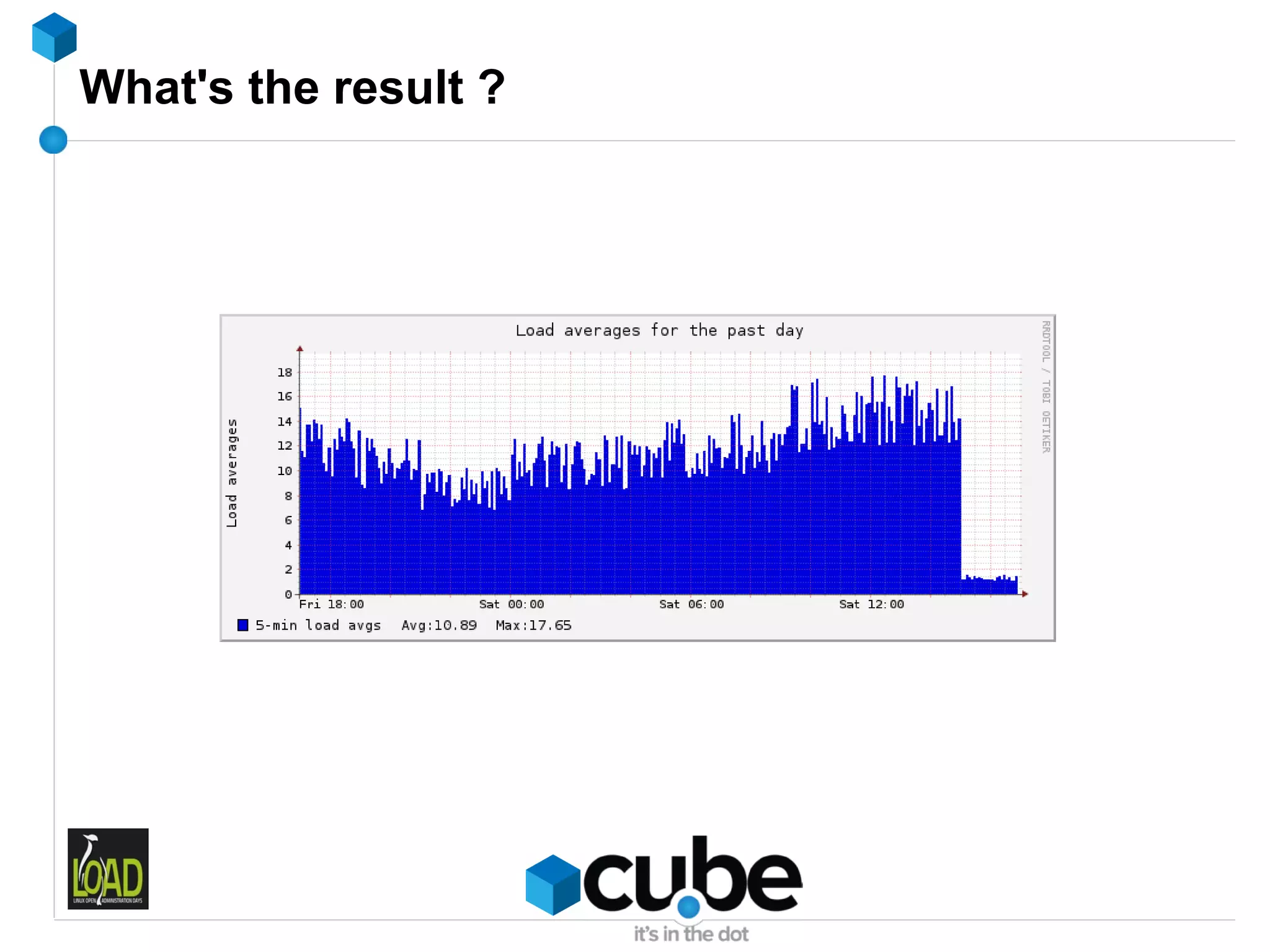

60. What's the result ?

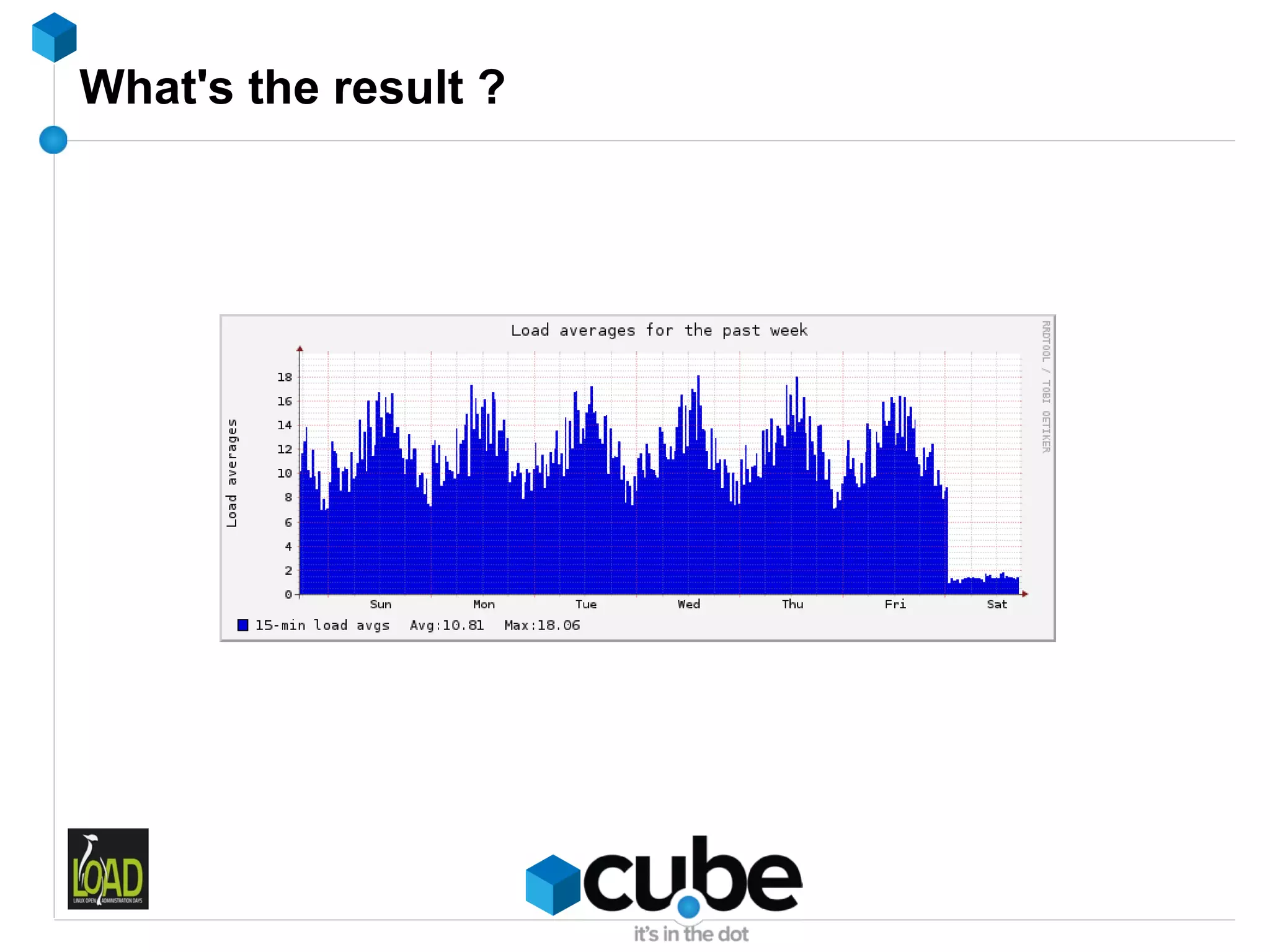

61. What's the result ?

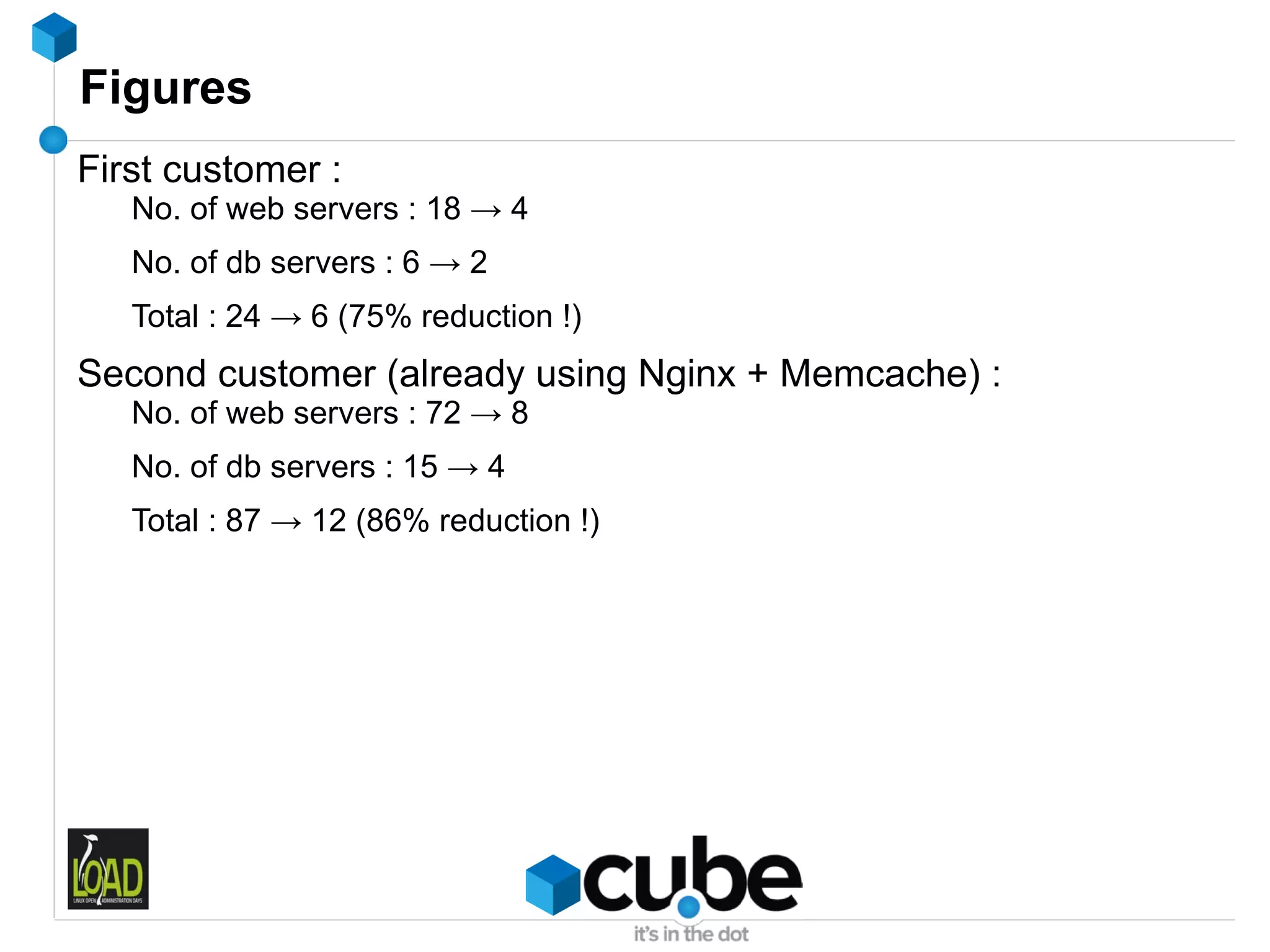

62. Figures
First customer :
No. of web servers : 18 → 4
No. of db servers : 6 → 2
Total : 24 → 6 (75% reduction !)
Second customer (already using Nginx + Memcache) :
No. of web servers : 72 → 8
No. of db servers : 15 → 4
Total : 87 → 12 (86% reduction !)

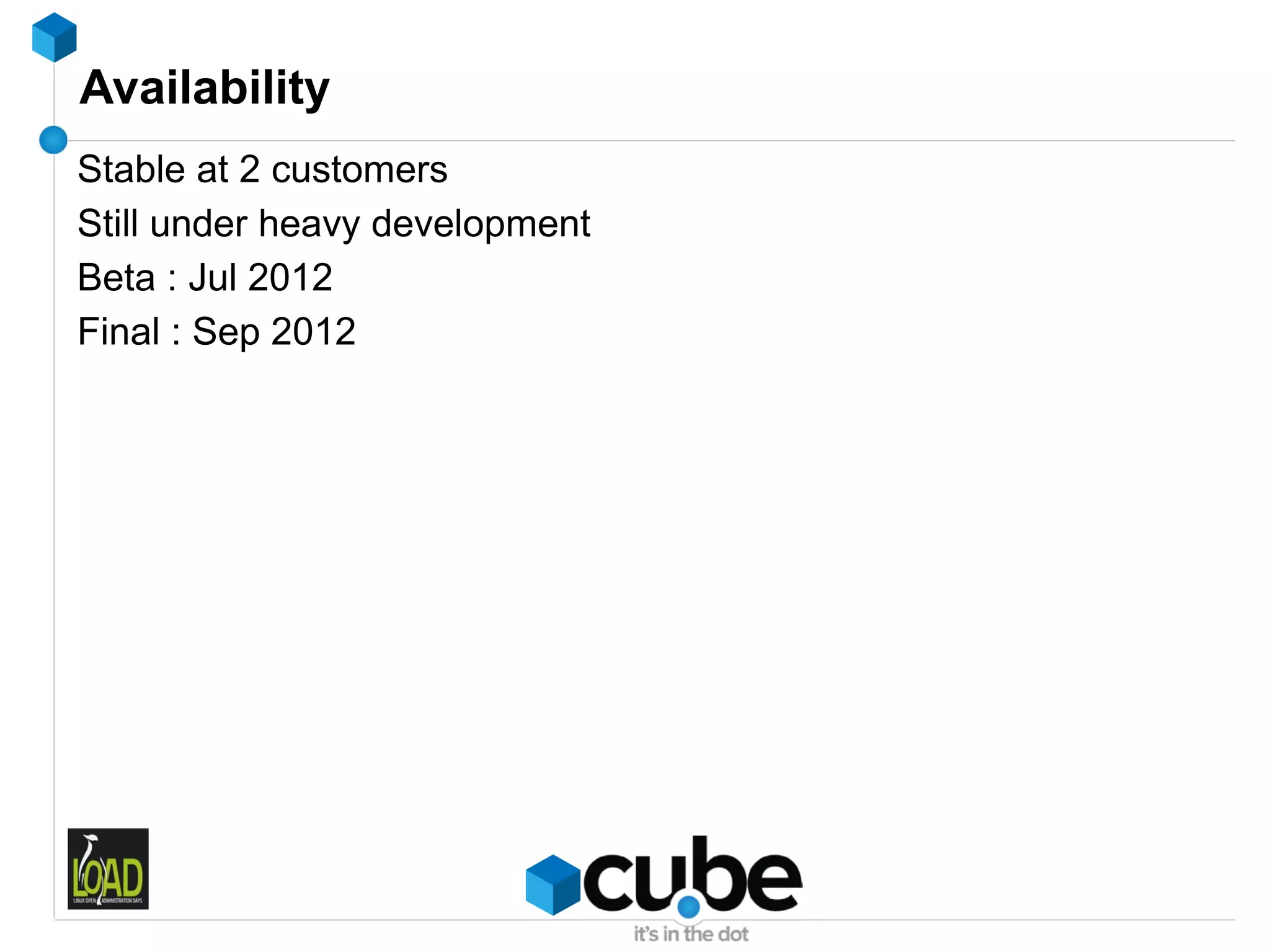

63. Availability
Stable at 2 customers
Still under heavy development
Beta : Jul 2012
Final : Sep 2012

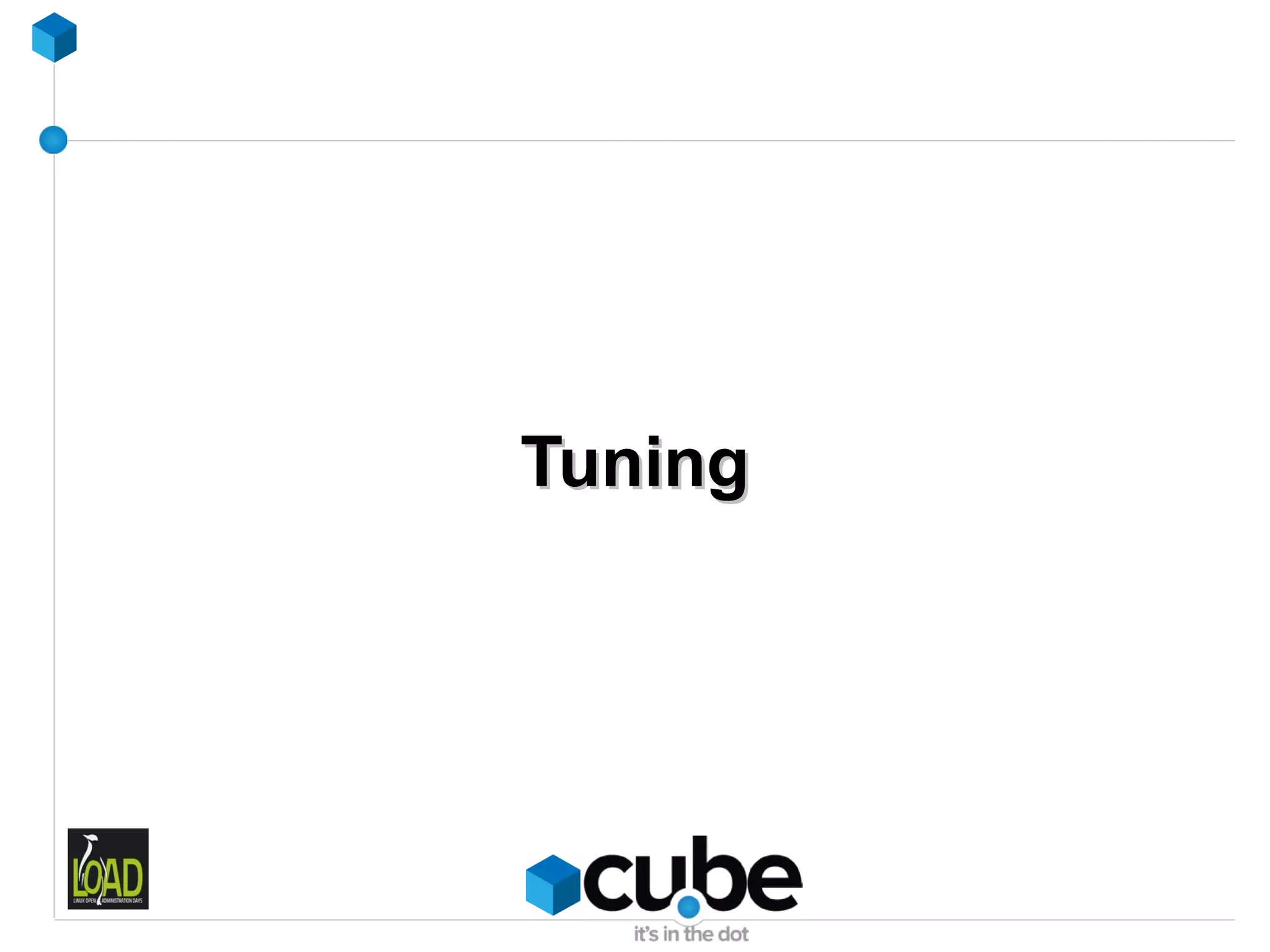

64. Tuning

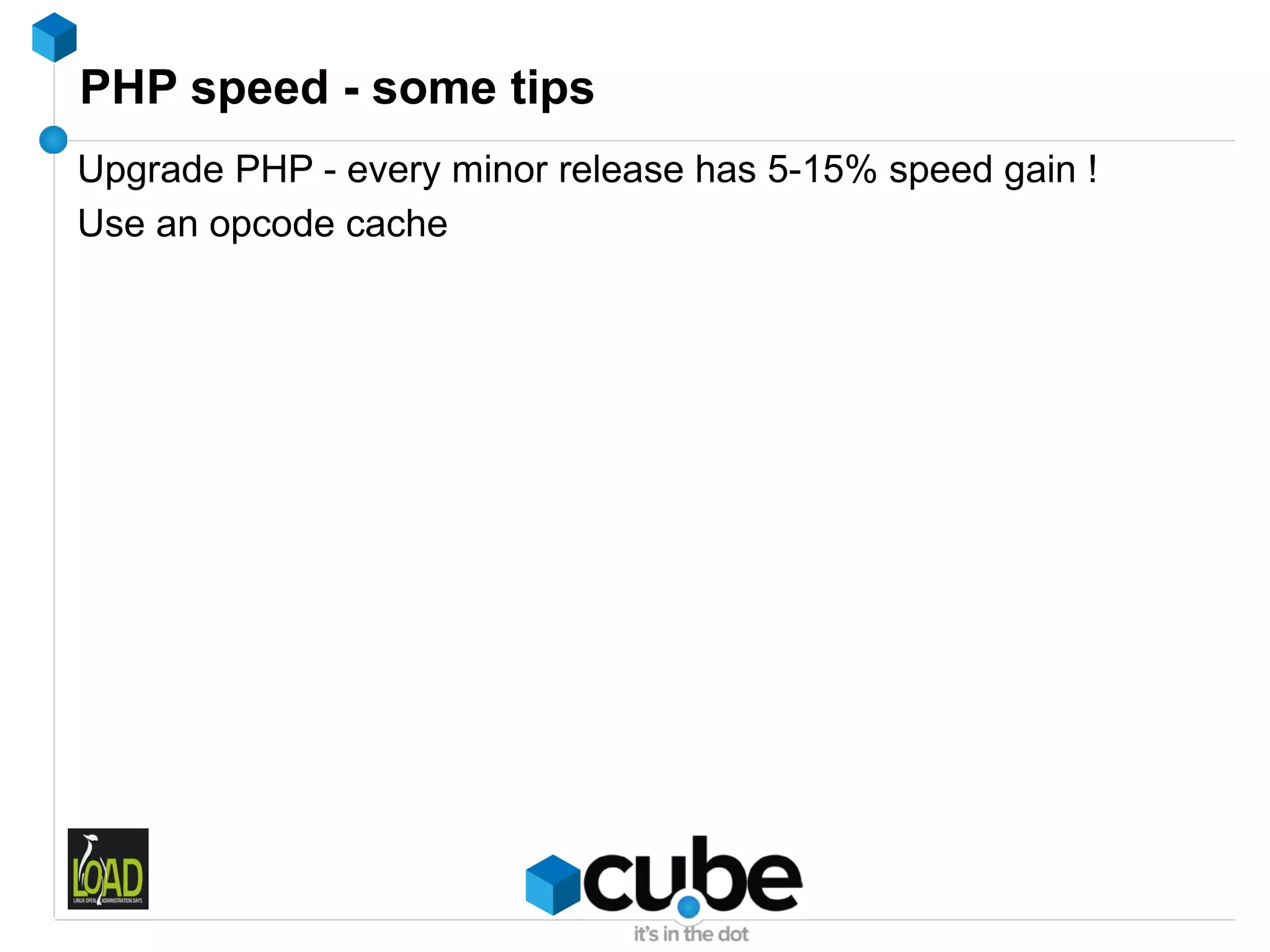

65. PHP speed - some tips
Upgrade PHP - every minor release has 5-15% speed gain !
Use an opcode cache

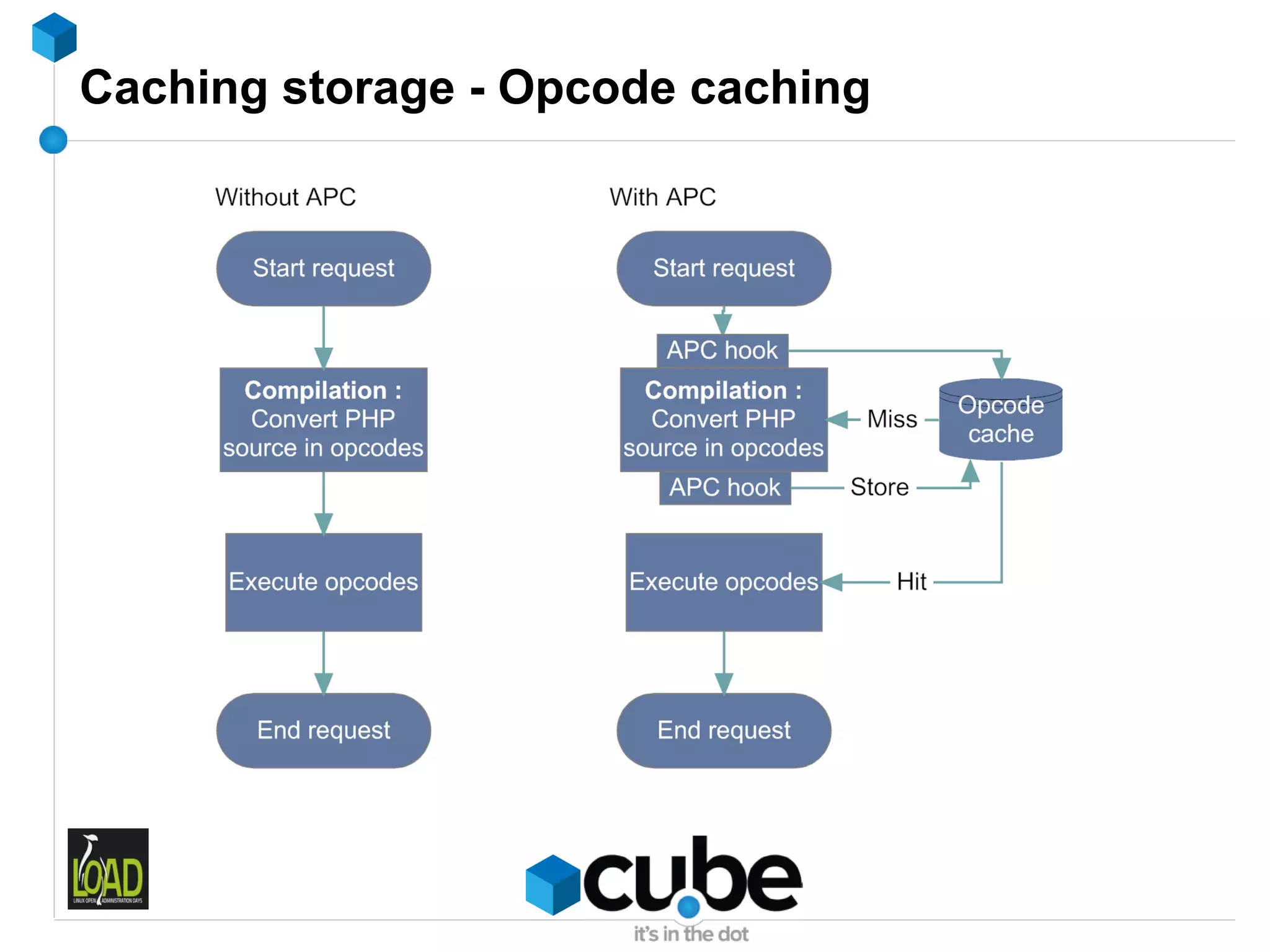

66. Caching storage - Opcode caching

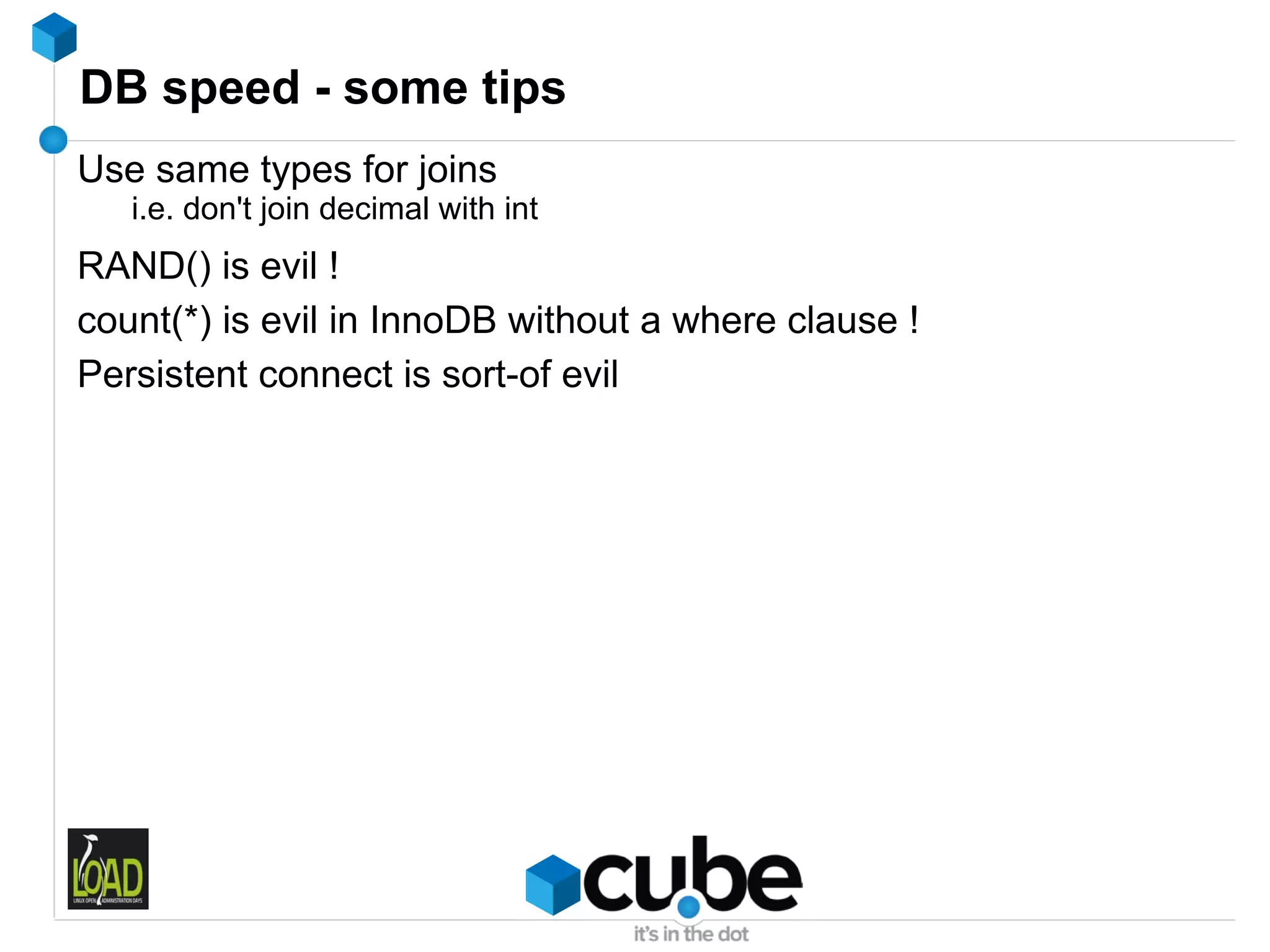

67. DB speed - some tips
Use same types for joins
i.e. don't join decimal with int
RAND() is evil !
count(*) is evil in InnoDB without a where clause !
Persistent connect is sort-of evil

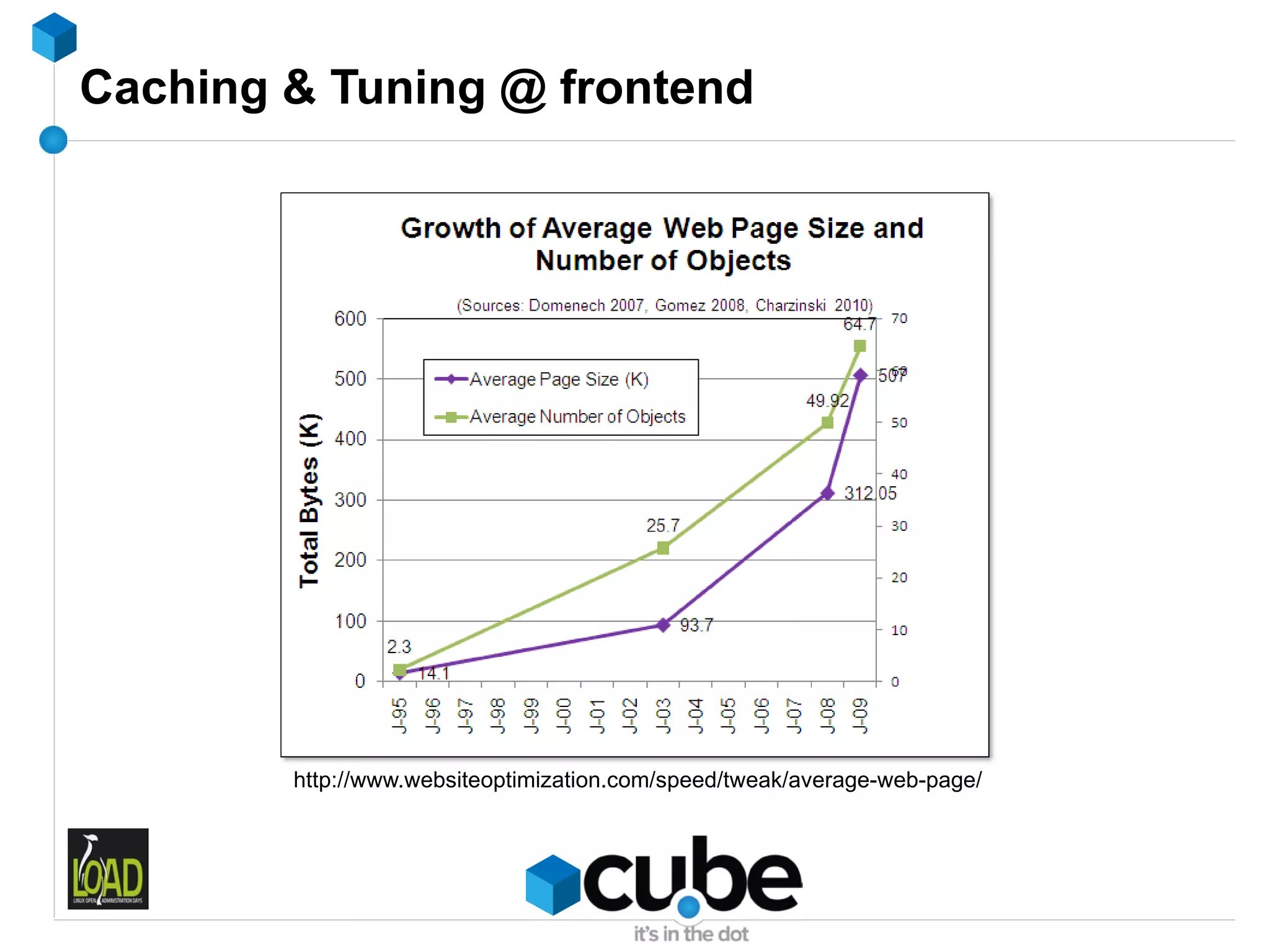

68. Caching & Tuning @ frontend
http://www.websiteoptimization.com/speed/tweak/average-web-page/

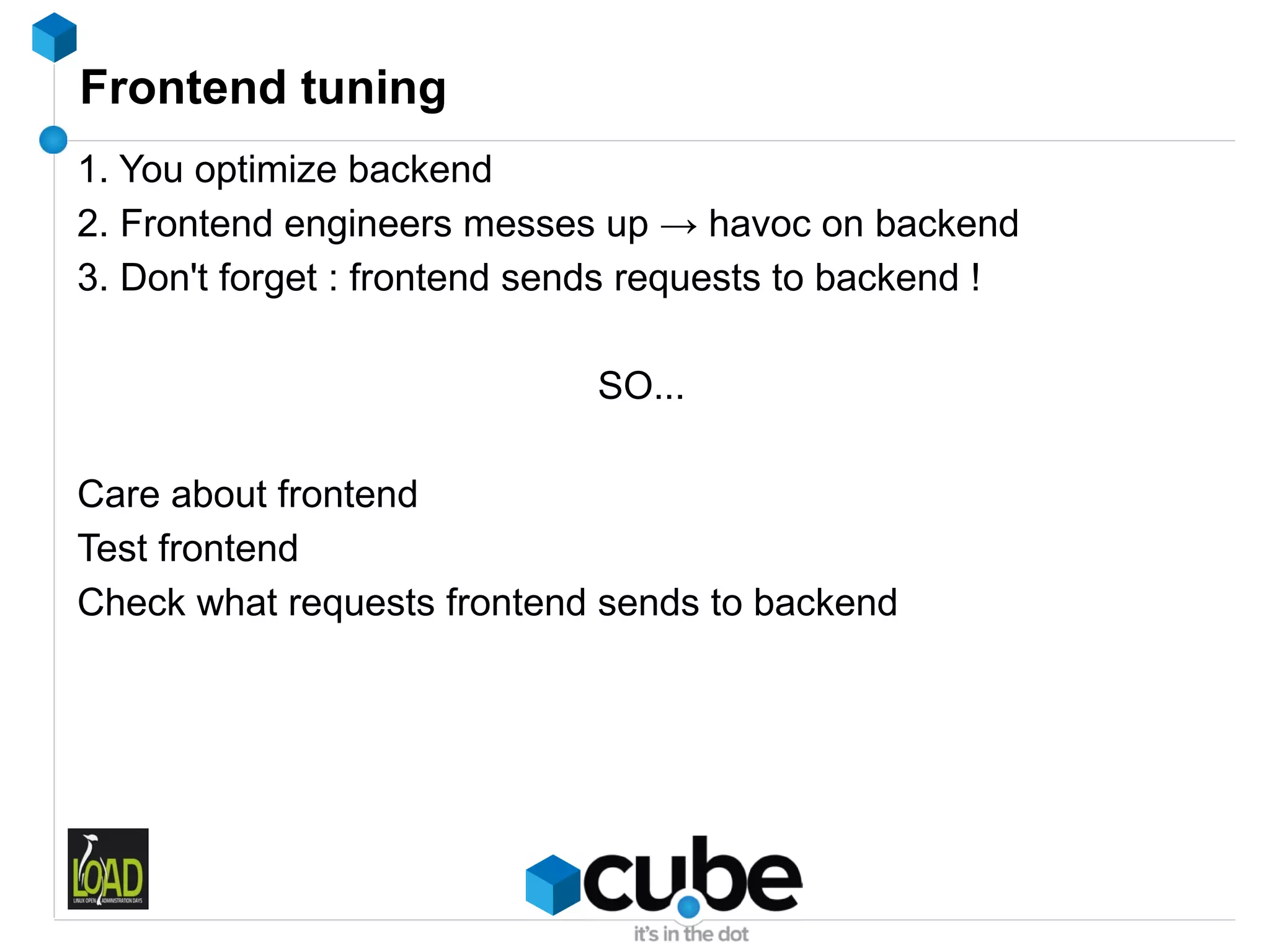

69. Frontend tuning
1. You optimize backend
2. Frontend engineers messes up → havoc on backend
3. Don't forget : frontend sends requests to backend !
SO...
Care about frontend
Test frontend
Check what requests frontend sends to backend

70. Tuning frontend
Minimize requests
Combine CSS/JavaScript files

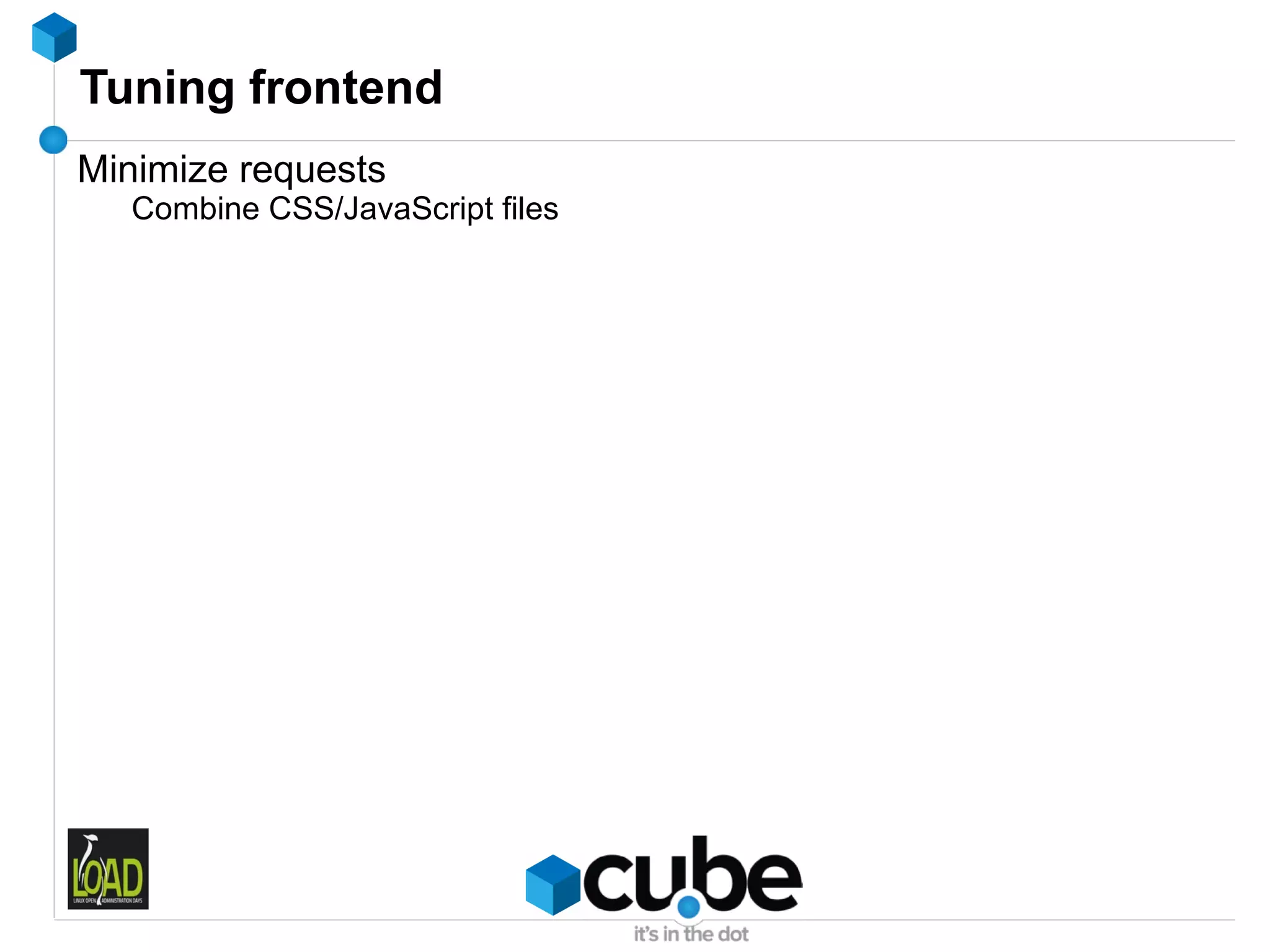

71. Tuning frontend
Minimize requests
Combine CSS/JavaScript files
Use CSS Sprites

72. CSS Sprites

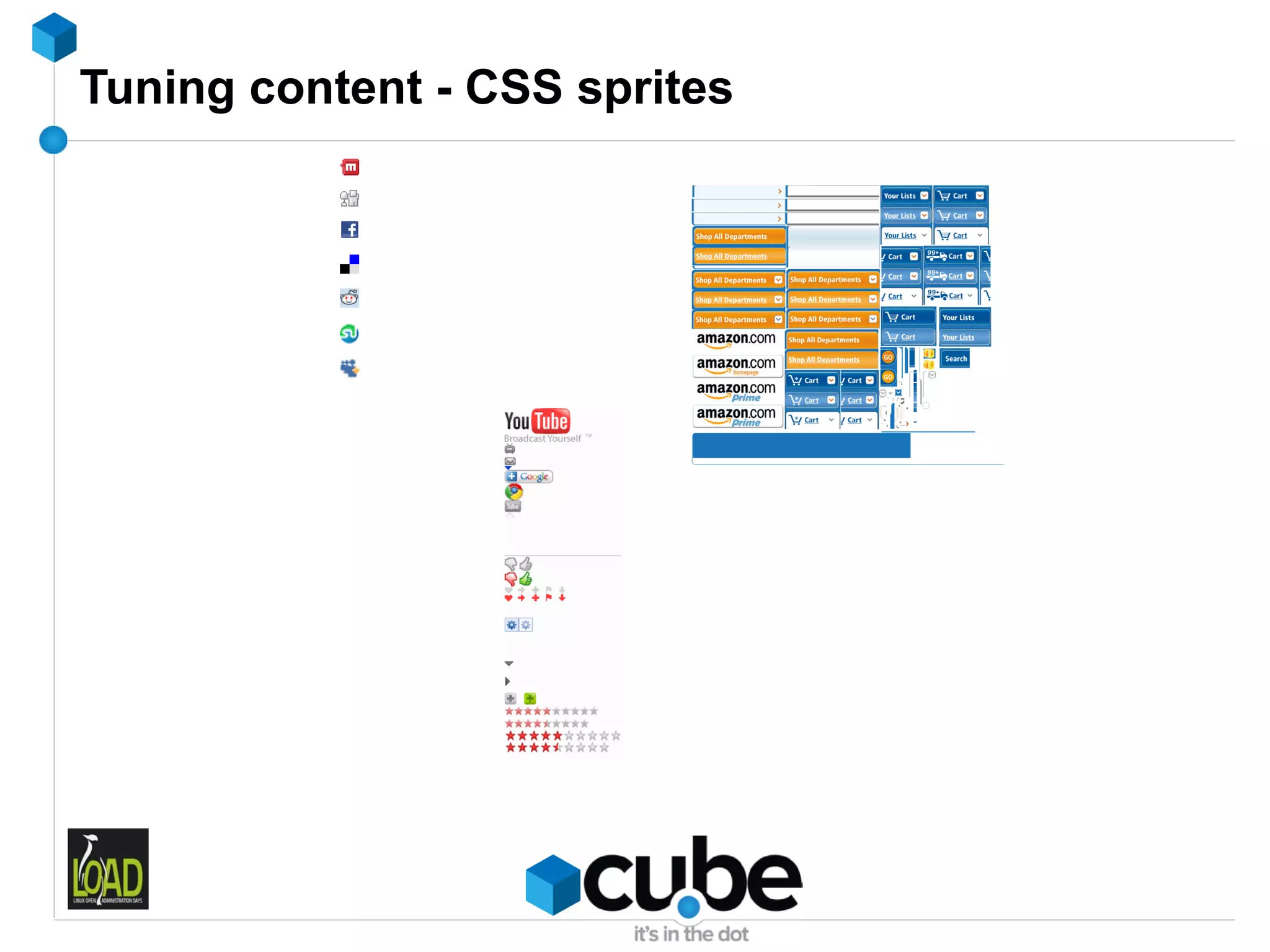

73. Tuning content - CSS sprites

74. Tuning content - CSS sprites
11 images 1 image
11 HTTP requests 1 HTTP requests
24KByte 14KByte

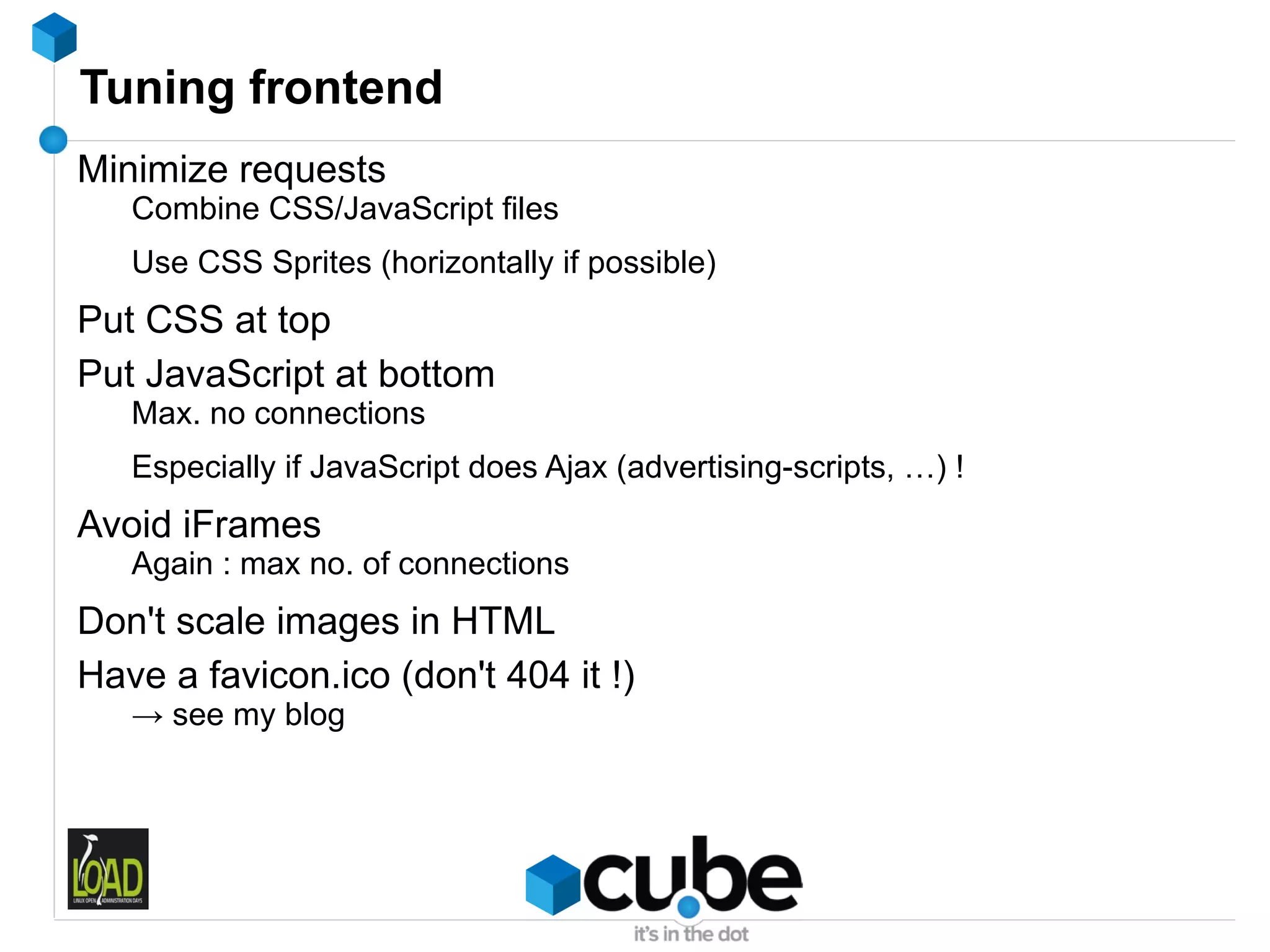

75. Tuning frontend
Minimize requests
Combine CSS/JavaScript files
Use CSS Sprites (horizontally if possible)
Put CSS at top
Put JavaScript at bottom
Max. no connections
Especially if JavaScript does Ajax (advertising-scripts, …) !
Avoid iFrames
Again : max no. of connections
Don't scale images in HTML
Have a favicon.ico (don't 404 it !)
→ see my blog

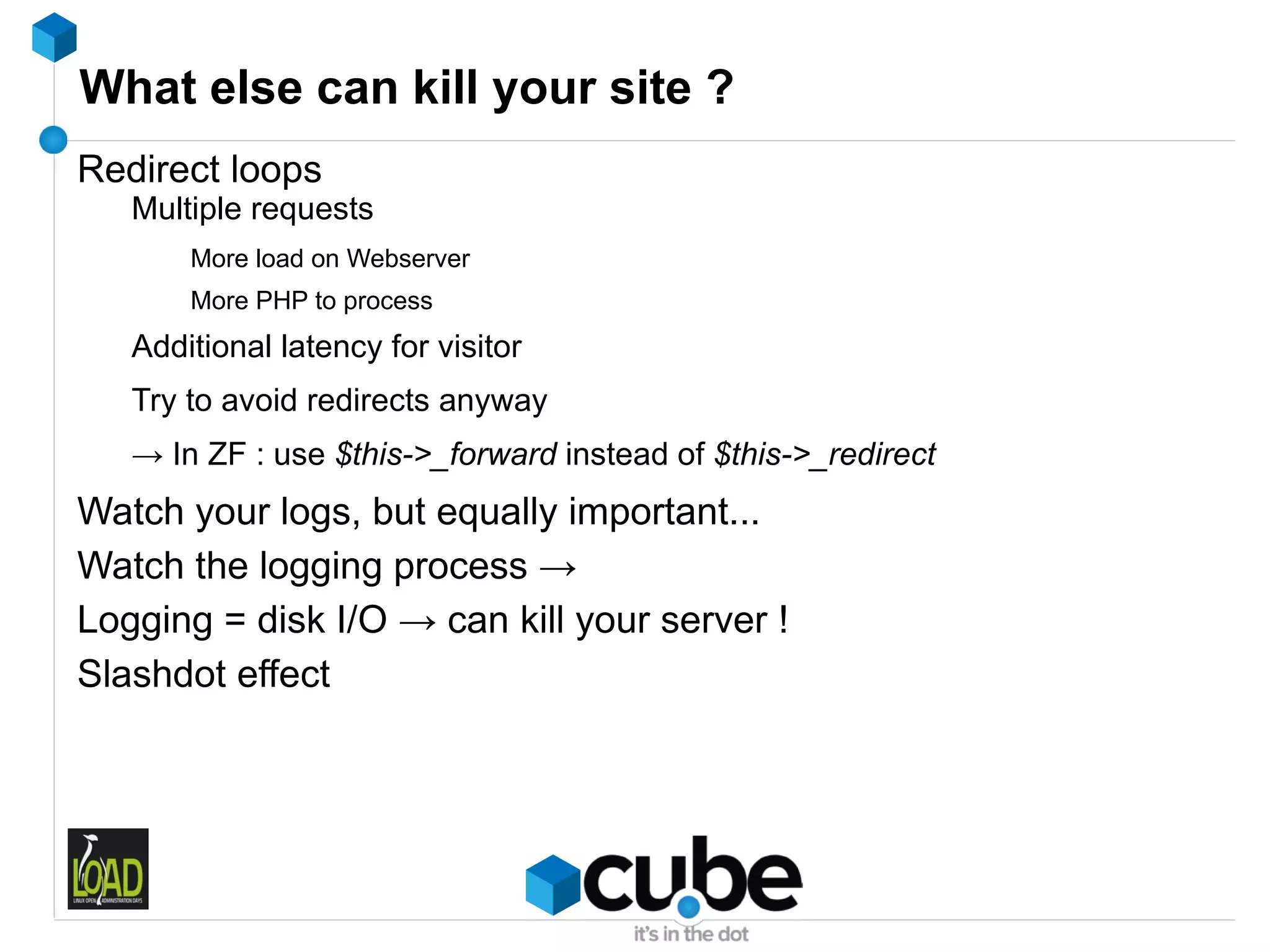

76. What else can kill your site ?
Redirect loops
Multiple requests
More load on Webserver
More PHP to process
Additional latency for visitor
Try to avoid redirects anyway
→ In ZF : use $this->_forward instead of $this->_redirect
Watch your logs, but equally important...
Watch the logging process →
Logging = disk I/O → can kill your server !
Slashdot effect

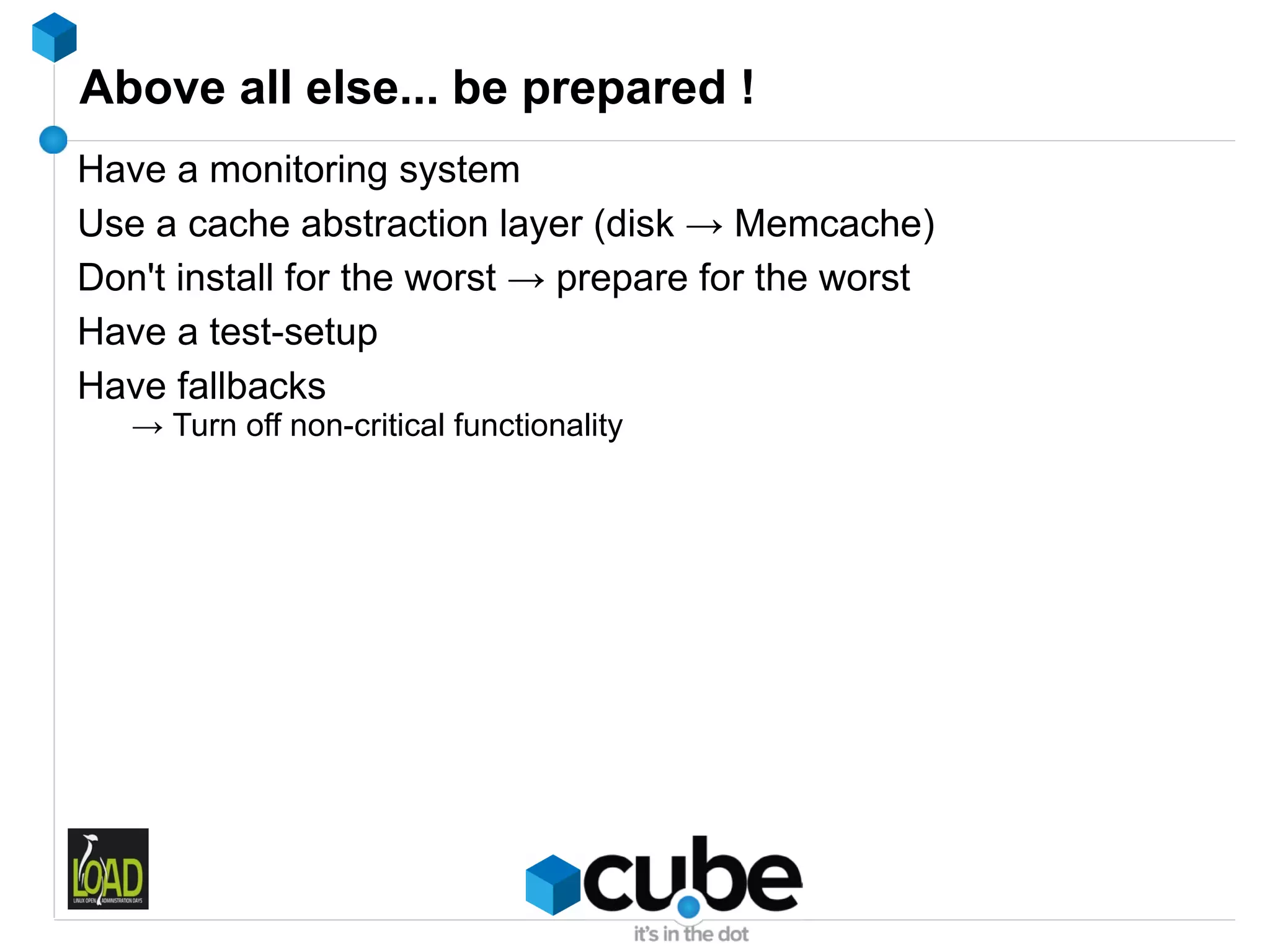

77. Above all else... be prepared !
Have a monitoring system
Use a cache abstraction layer (disk → Memcache)
Don't install for the worst → prepare for the worst
Have a test-setup
Have fallbacks
→ Turn off non-critical functionality

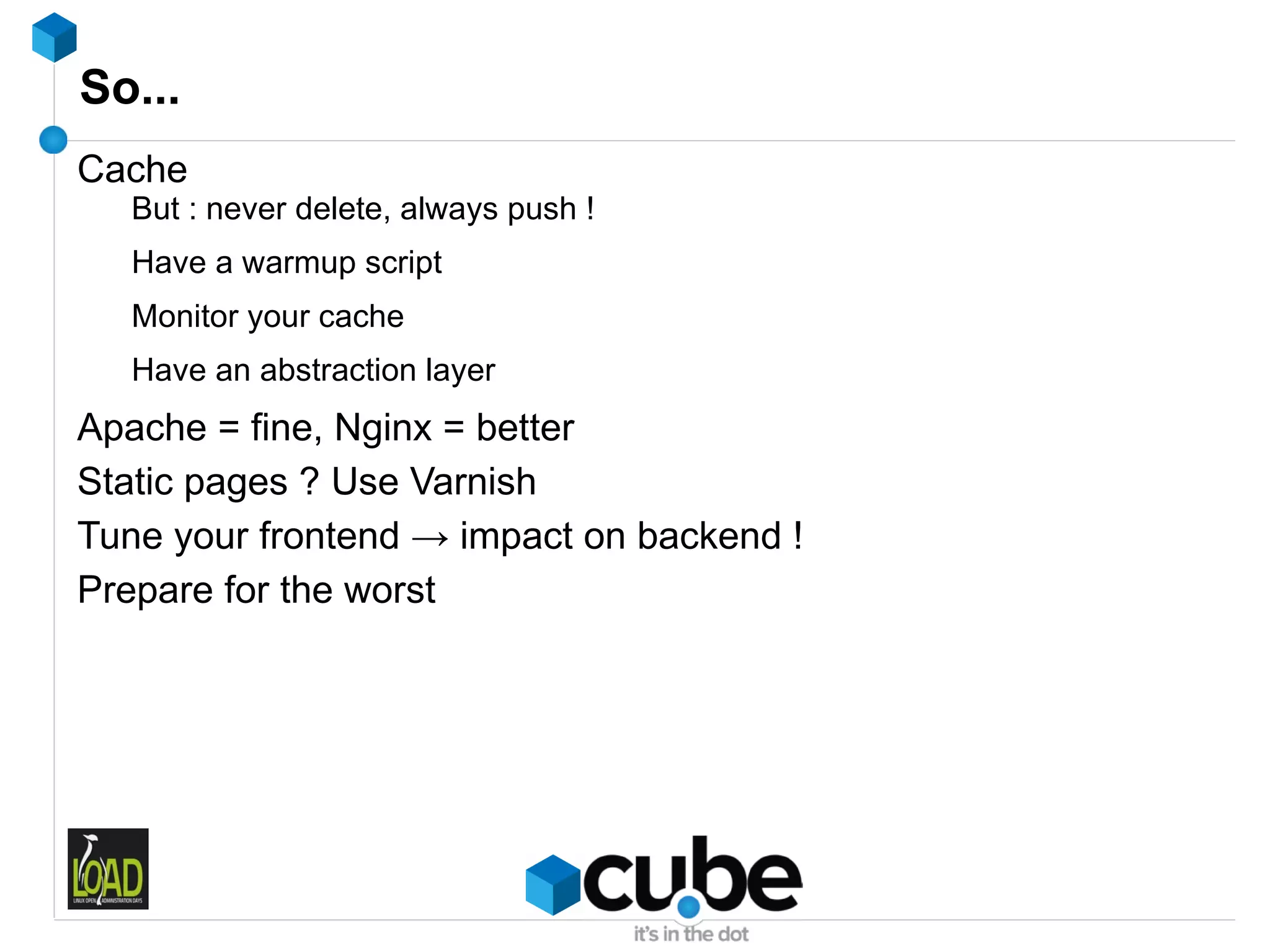

78. So...
Cache
But : never delete, always push !
Have a warmup script
Monitor your cache
Have an abstraction layer
Apache = fine, Nginx = better
Static pages ? Use Varnish
Tune your frontend → impact on backend !
Prepare for the worst

79. Questions ?

80. Questions ?

81. We're hiring !
Lots of challenges
Work with cutting-edge technology
Varied :
PHP development
System / network architecture
Scalability services
Build our own services
Work on Open Source
→ mail us : info@cu.be

82. Contact
Twitter @wimgtr
Web http://techblog.wimgodden.be
Slides http://www.slideshare.net/wimg
E-mail wim.godden@cu.be
Please...
Rate my talk : http://speakerrate.com/talks/9501

83. Thanks !
Please...
Rate my talk : http://speakerrate.com/talks/9501
