DAZ 3D strives to bring 3D art to the masses by delivering the highest quality 3D digital content and software at the most affordable prices. DAZ Studio is a free, feature rich 3D figure design and 3D animation tool that enables anyone to create stunning digital imagery. This is the perfect tool to design unique digital art and animation using virtual people, animals, props, vehicles, accessories, environments and more. In April of 2004, DAZ started the Public Beta release stage of development for DAZ Studio after two years of development. In June 2009, DAZ Studio v3.0 was released both as a free version and a monetized advanced version. This presentation will explain why Qt was originally selected, what benefits have been realized from it’s use in DAZ Studio, and what DAZ 3D’s experience has been in porting there app from Qt3.3 to Qt4.5. Specific topics will include scripting implementation, cross-platform compatibility, UI versatility, upgrade porting issues/experiences, benefits of the 4.5 opensource version, and styling benefits. Presentation by Tyson Ratliff and Jarom Schow held during Qt Developer Days 2009. http://qt.nokia.com/developer/learning/elearning

1. DAZ Studio
Advanced 3D Graphics Empowered by Qt

2. DAZ 3D
1

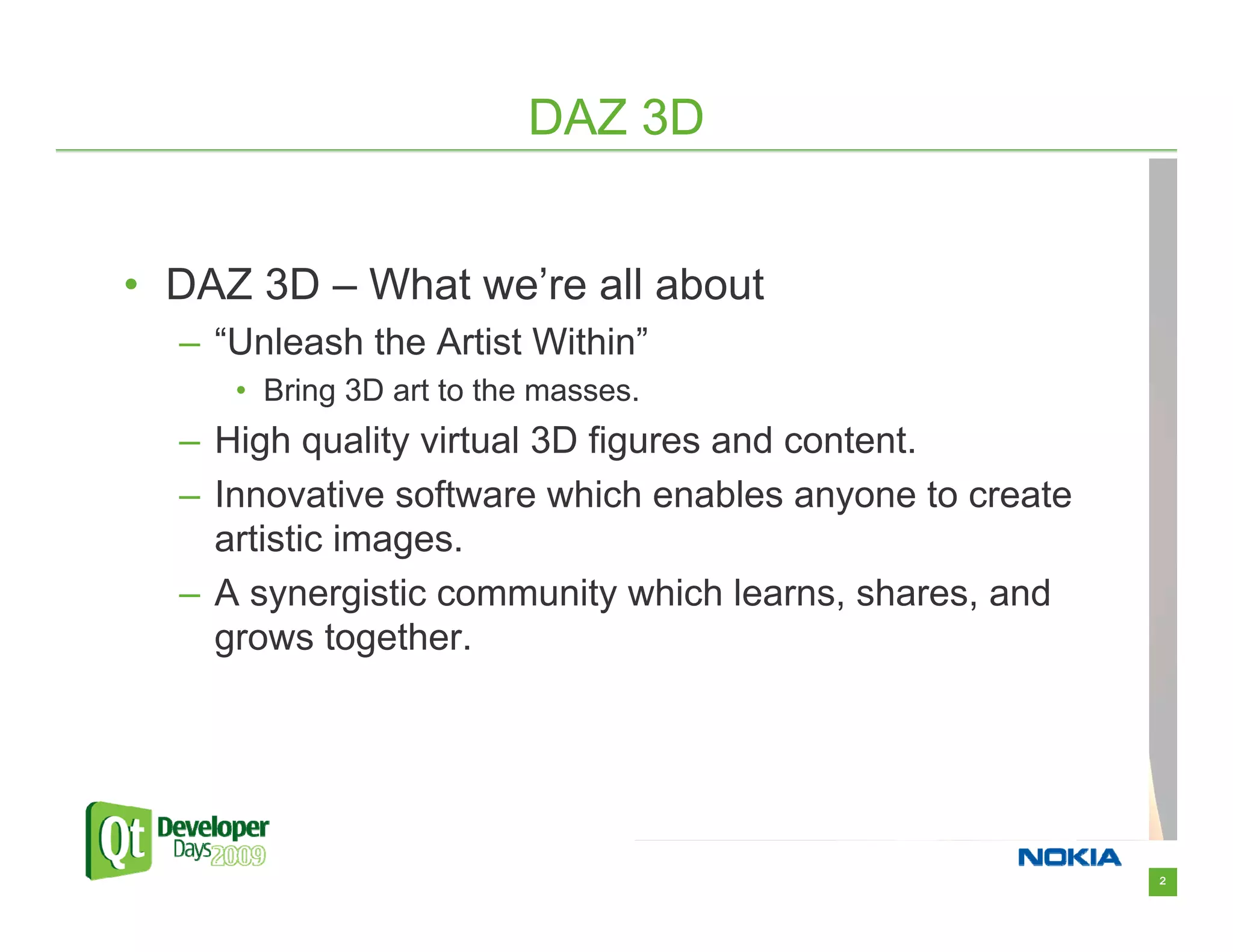

3. DAZ 3D
• DAZ 3D – What we’re all about
– “Unleash the Artist Within”
• Bring 3D art to the masses.
– High quality virtual 3D figures and content.
– Innovative software which enables anyone to create
artistic images.
– A synergistic community which learns, shares, and
grows together.
2

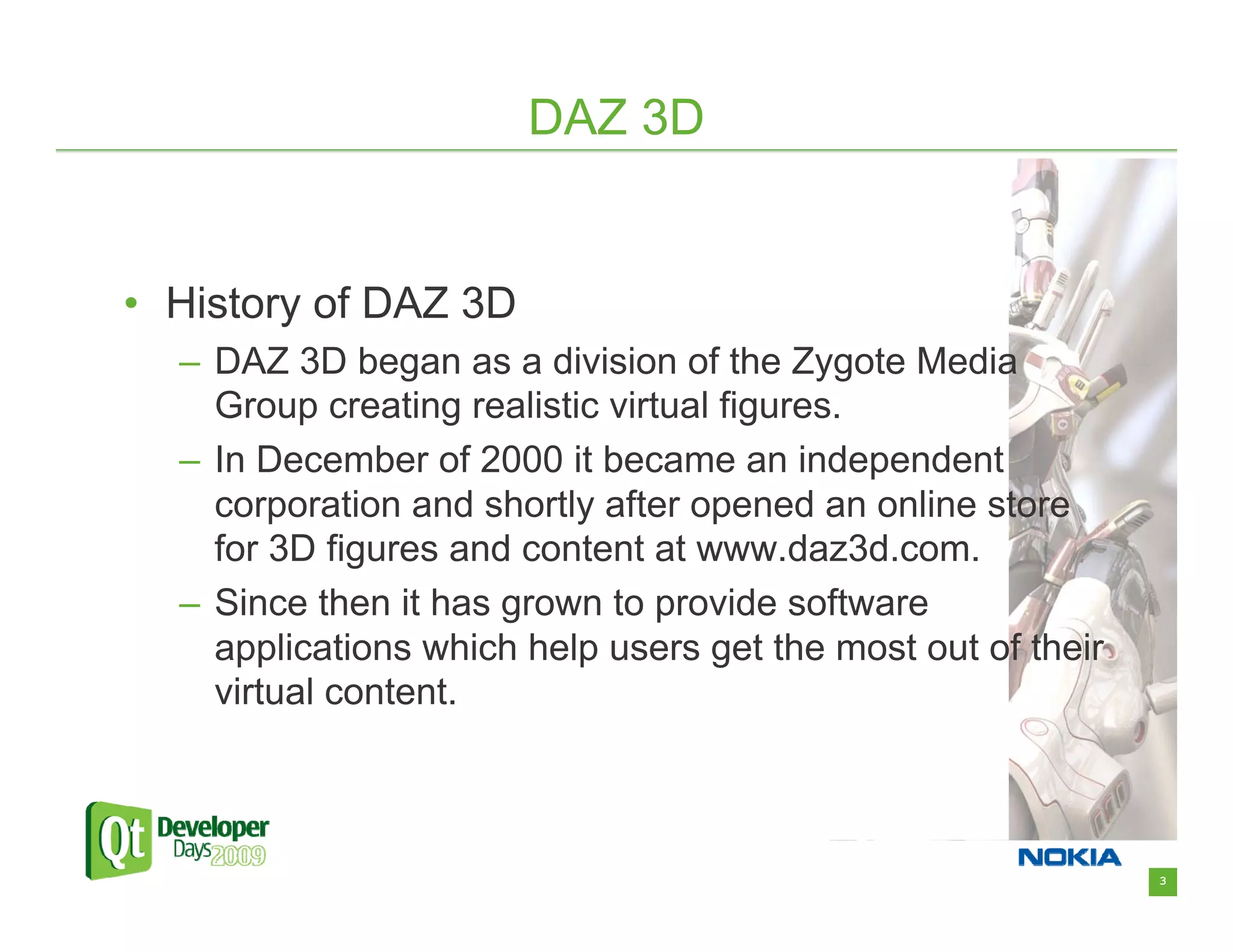

4. DAZ 3D
• History of DAZ 3D
– DAZ 3D began as a division of the Zygote Media
Group creating realistic virtual figures.
– In December of 2000 it became an independent
corporation and shortly after opened an online store
for 3D figures and content at www.daz3d.com.
– Since then it has grown to provide software
applications which help users get the most out of their
virtual content.
3

5. DAZ Studio
4

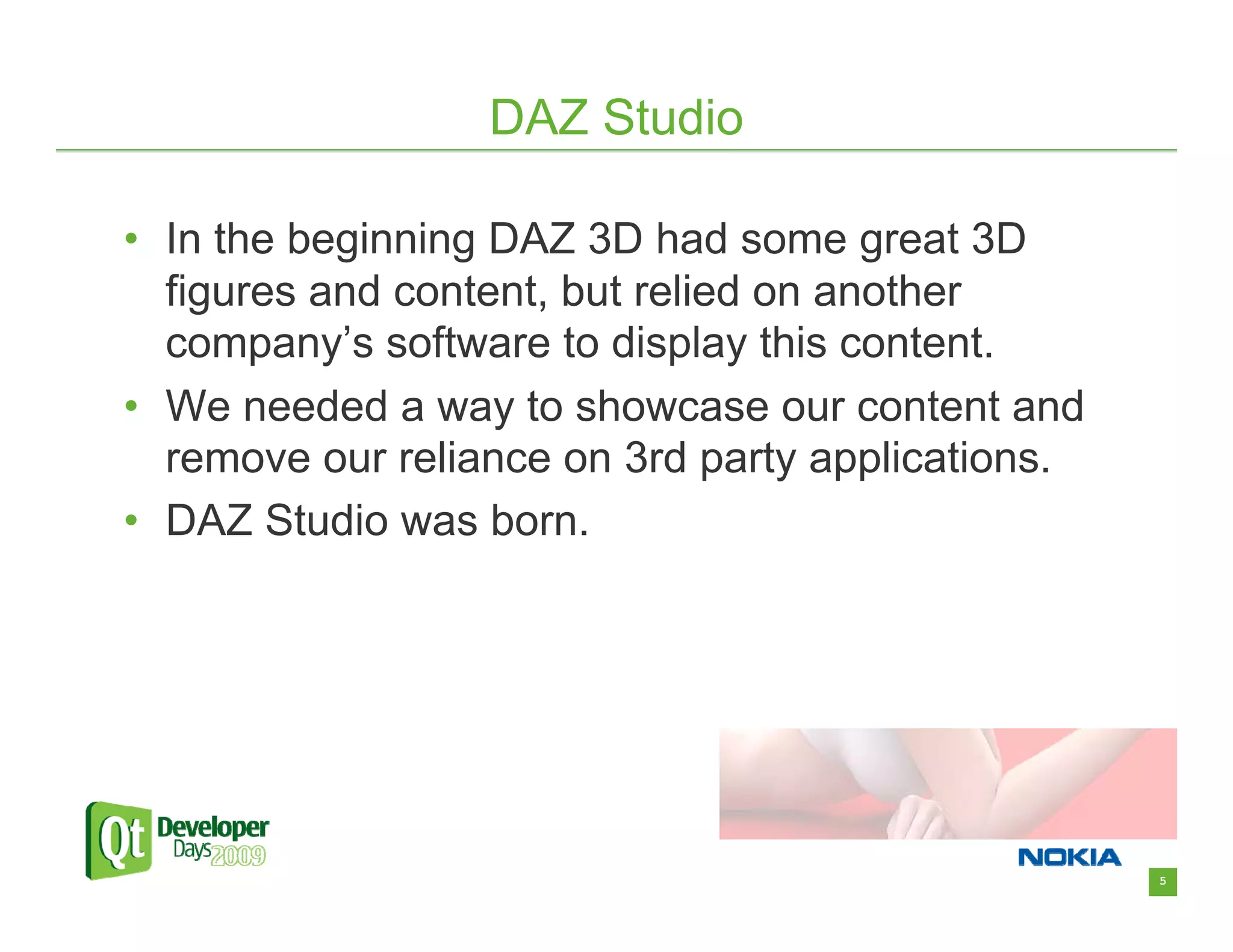

6. DAZ Studio
• In the beginning DAZ 3D had some great 3D
figures and content, but relied on another
company’s software to display this content.
• We needed a way to showcase our content and
remove our reliance on 3rd party applications.
• DAZ Studio was born.
5

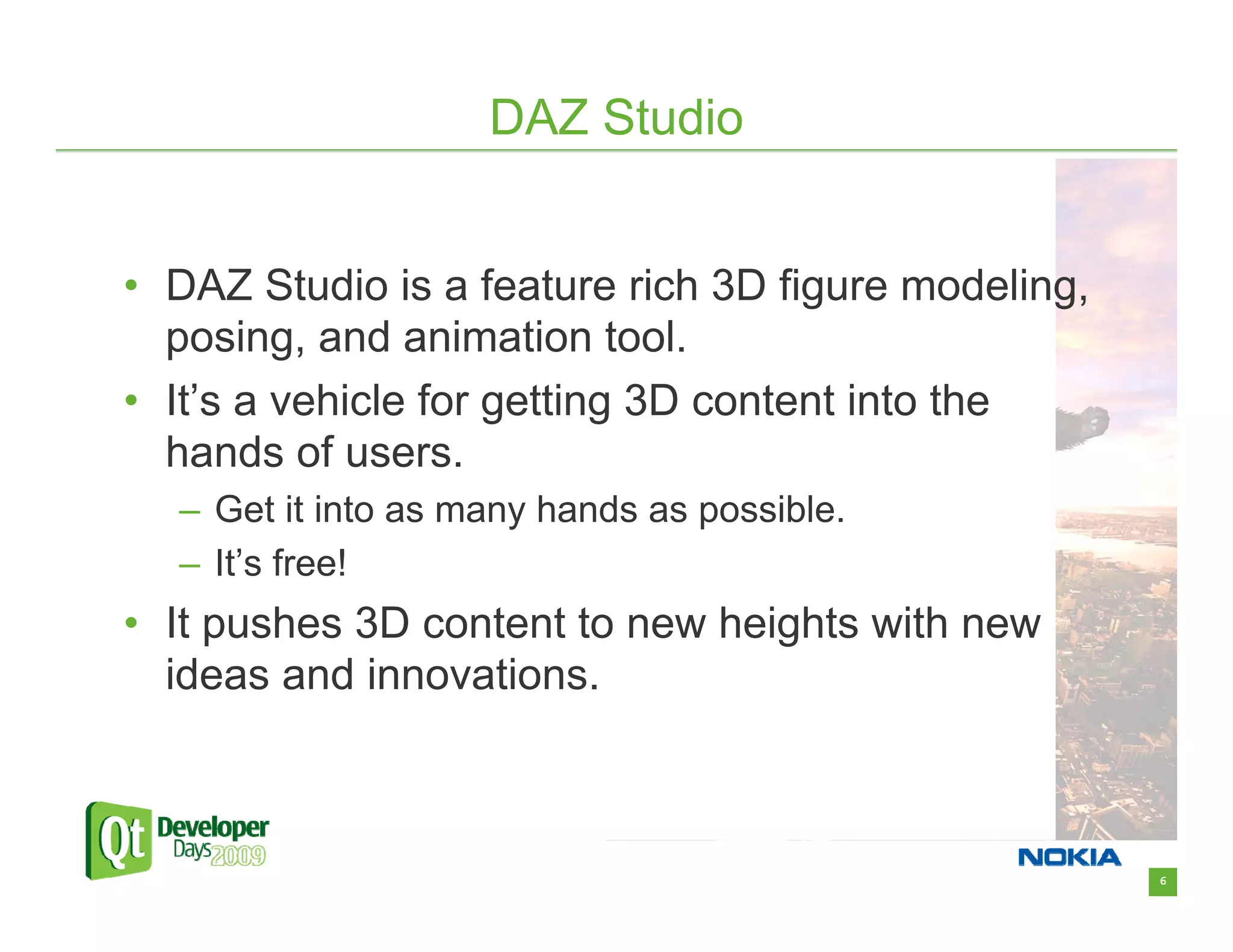

7. DAZ Studio
• DAZ Studio is a feature rich 3D figure modeling,
posing, and animation tool.
• It’s a vehicle for getting 3D content into the
hands of users.
– Get it into as many hands as possible.
– It’s free!
• It pushes 3D content to new heights with new
ideas and innovations.
6

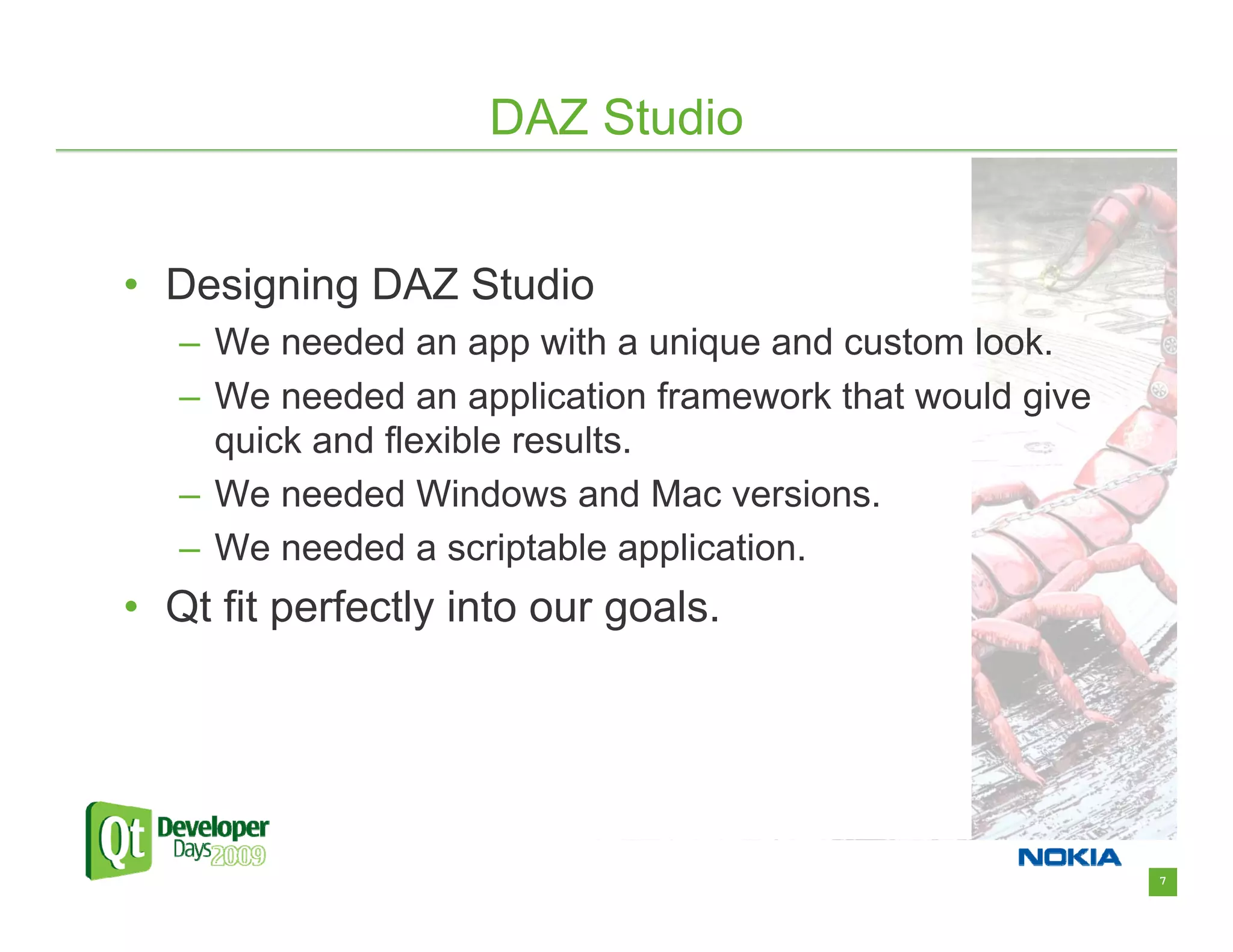

8. DAZ Studio
• Designing DAZ Studio
– We needed an app with a unique and custom look.
– We needed an application framework that would give
quick and flexible results.
– We needed Windows and Mac versions.
– We needed a scriptable application.
• Qt fit perfectly into our goals.
7

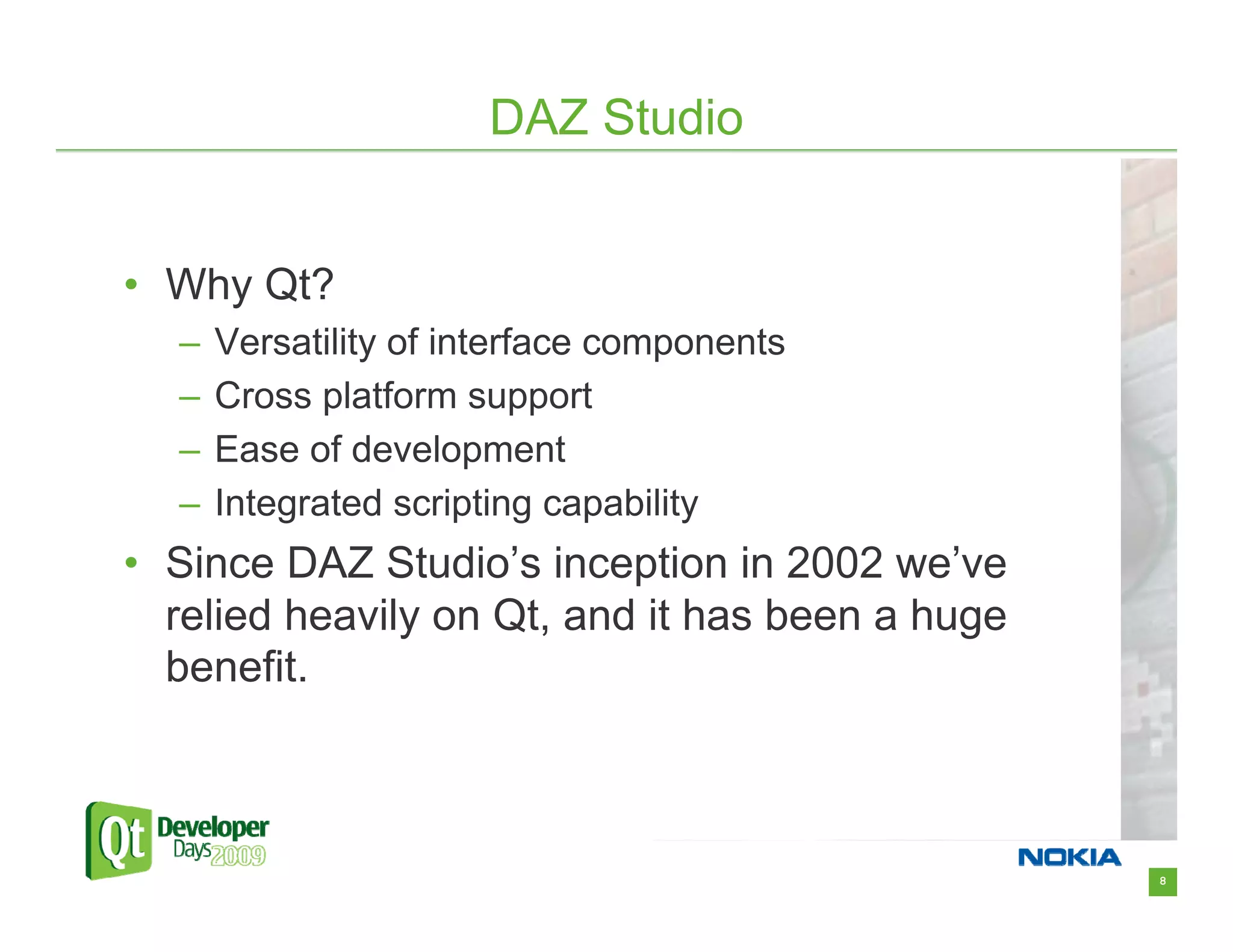

9. DAZ Studio
• Why Qt?
– Versatility of interface components
– Cross platform support
– Ease of development
– Integrated scripting capability
• Since DAZ Studio’s inception in 2002 we’ve
relied heavily on Qt, and it has been a huge
benefit.
8

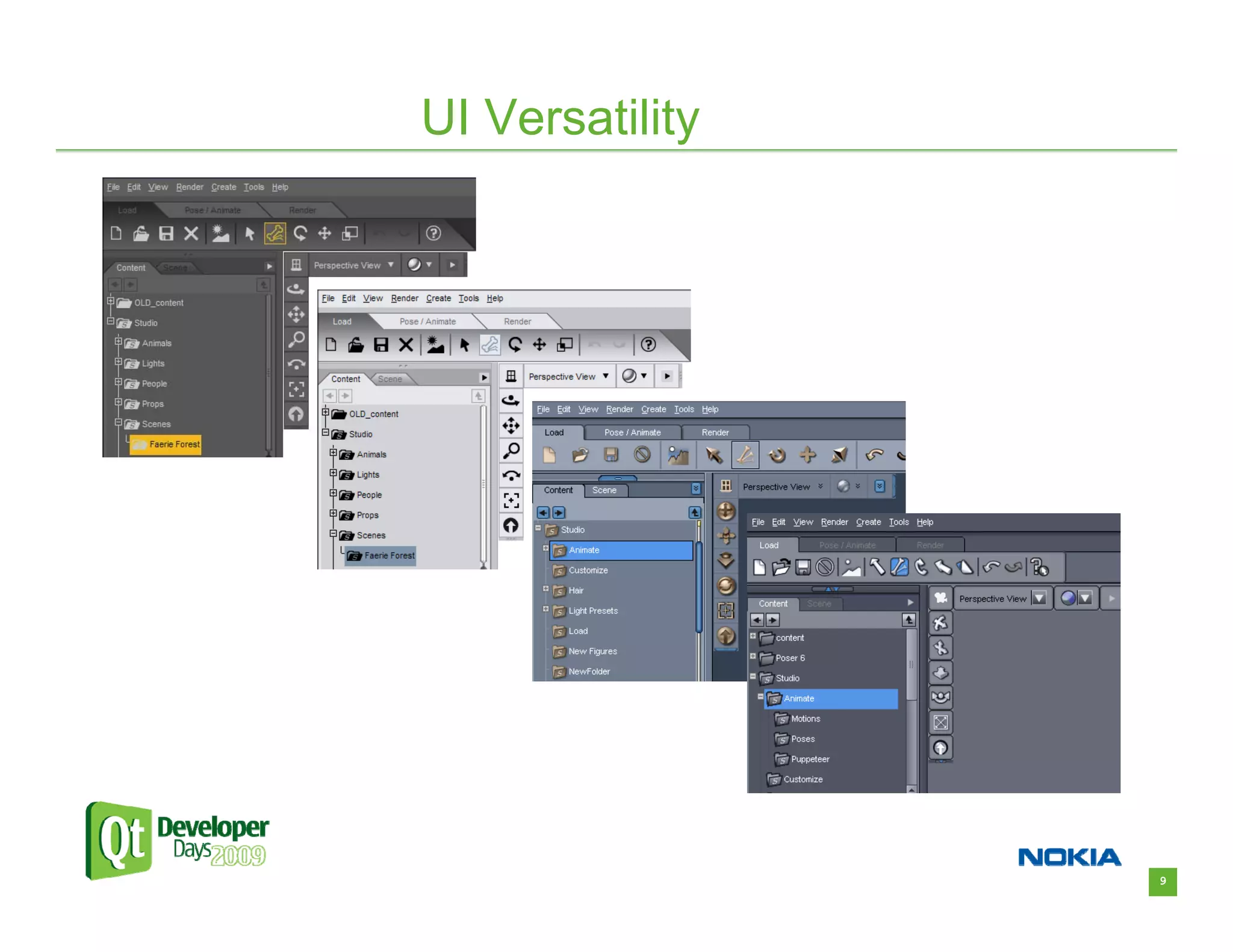

10. UI Versatility
9

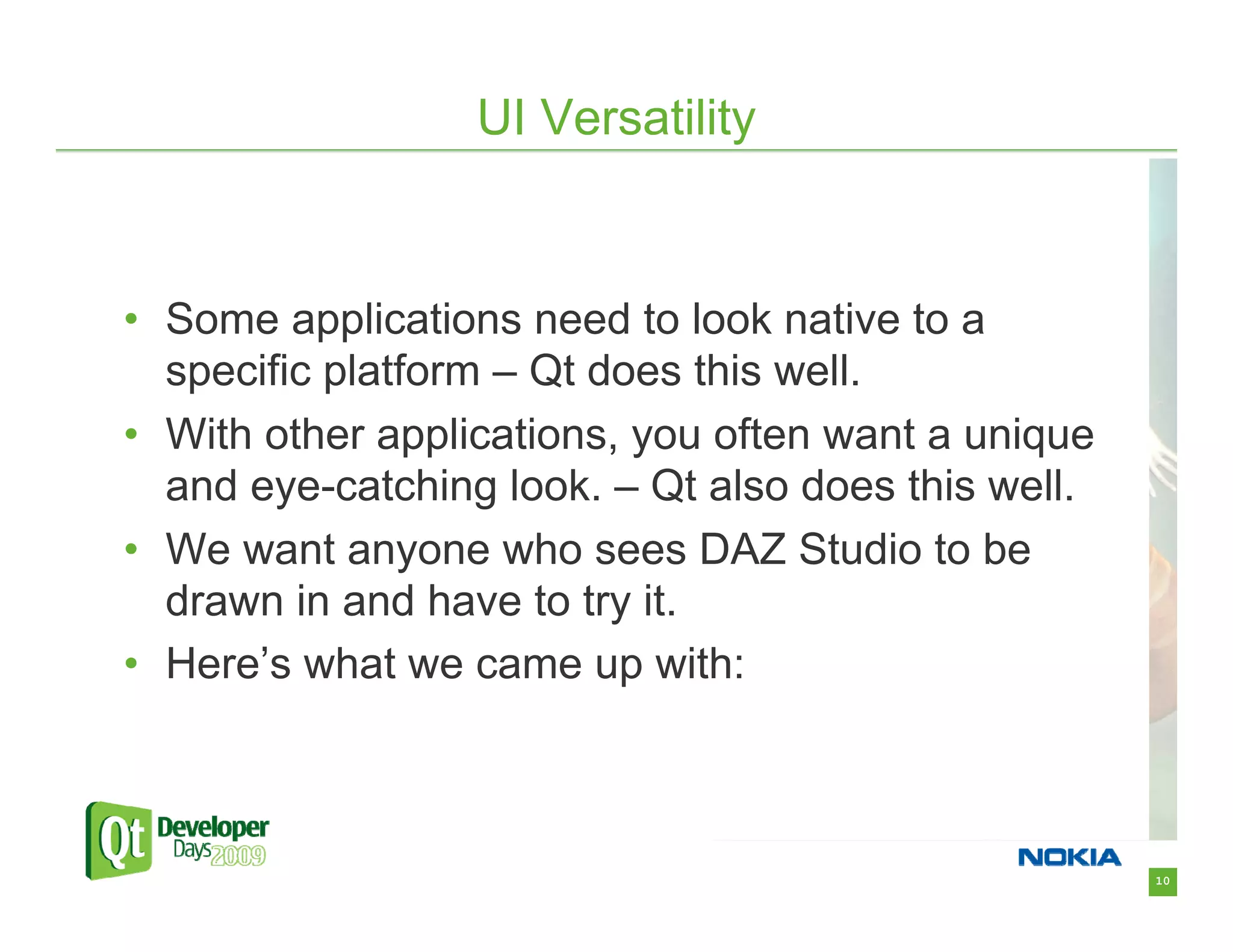

11. UI Versatility
• Some applications need to look native to a
specific platform – Qt does this well.
• With other applications, you often want a unique
and eye-catching look. – Qt also does this well.
• We want anyone who sees DAZ Studio to be
drawn in and have to try it.
• Here’s what we came up with:
10

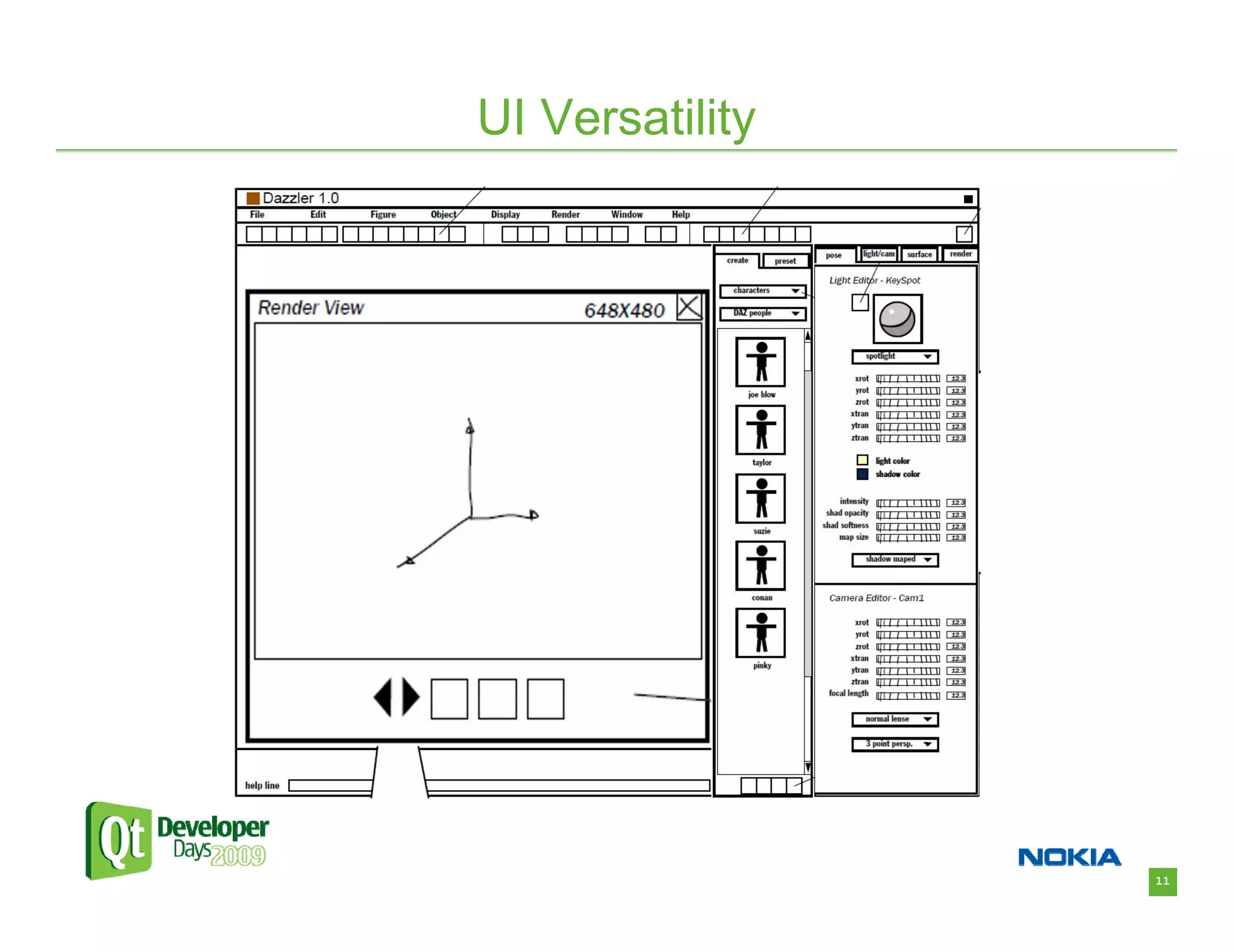

12. UI Versatility
11

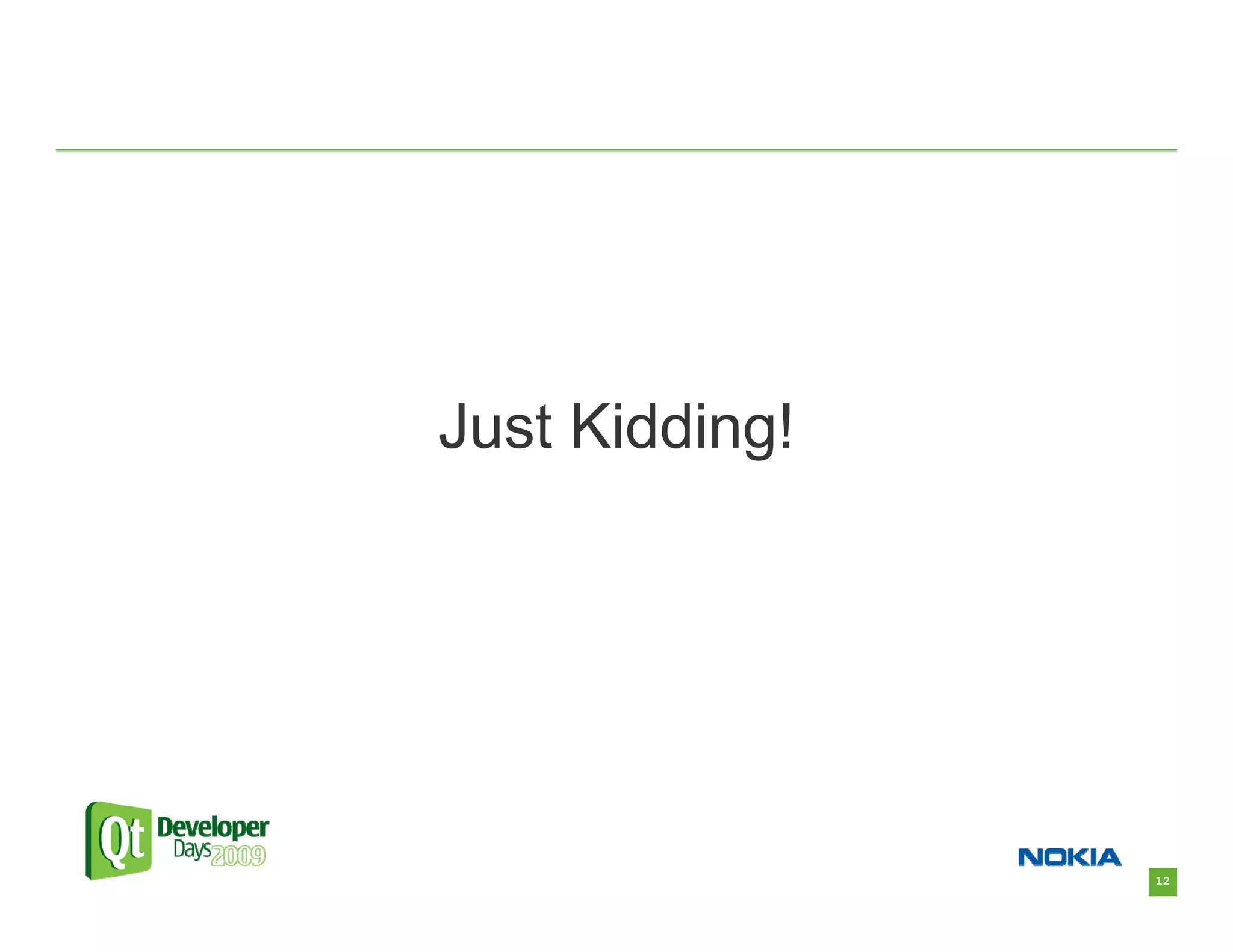

13. Just Kidding!
12

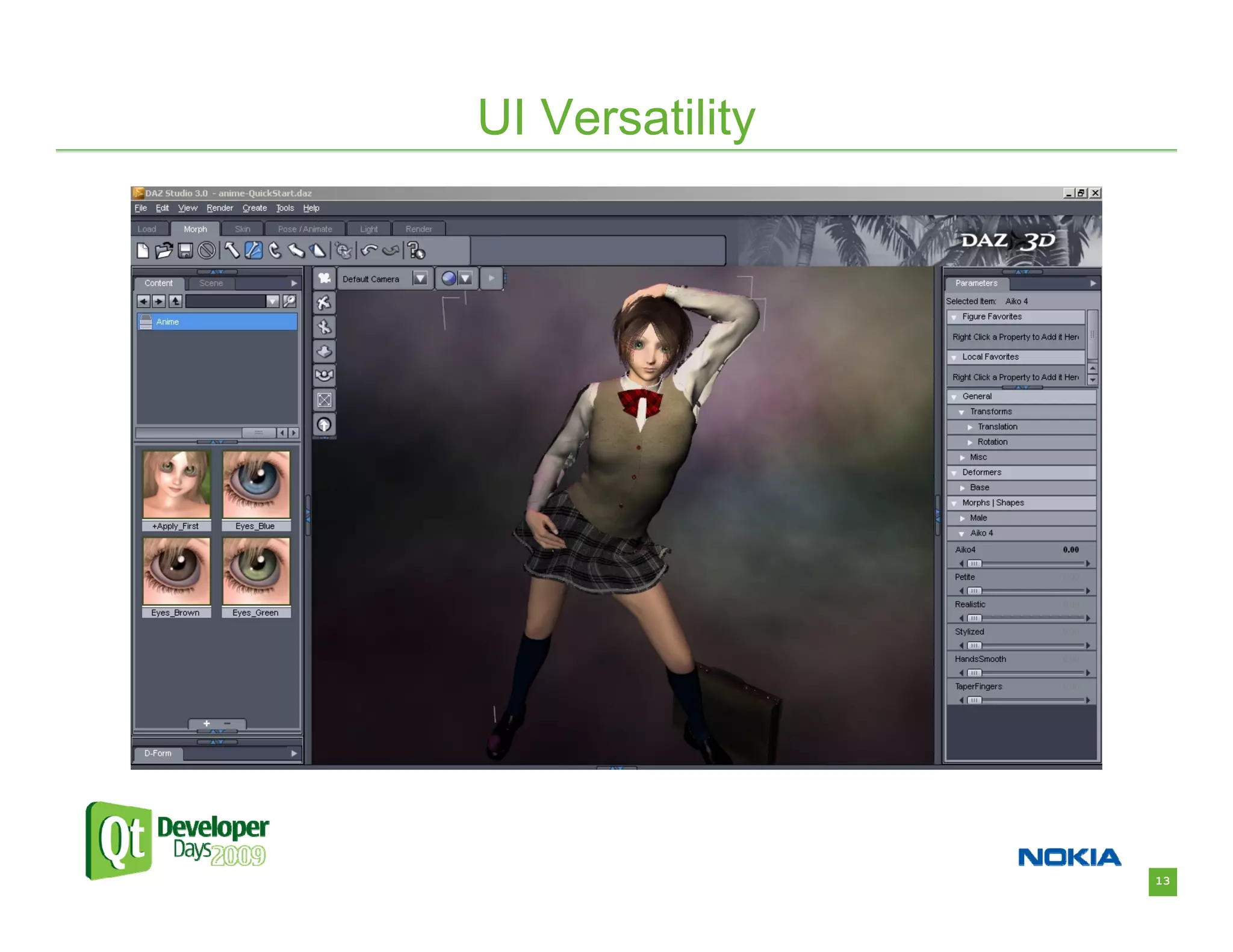

14. UI Versatility
13

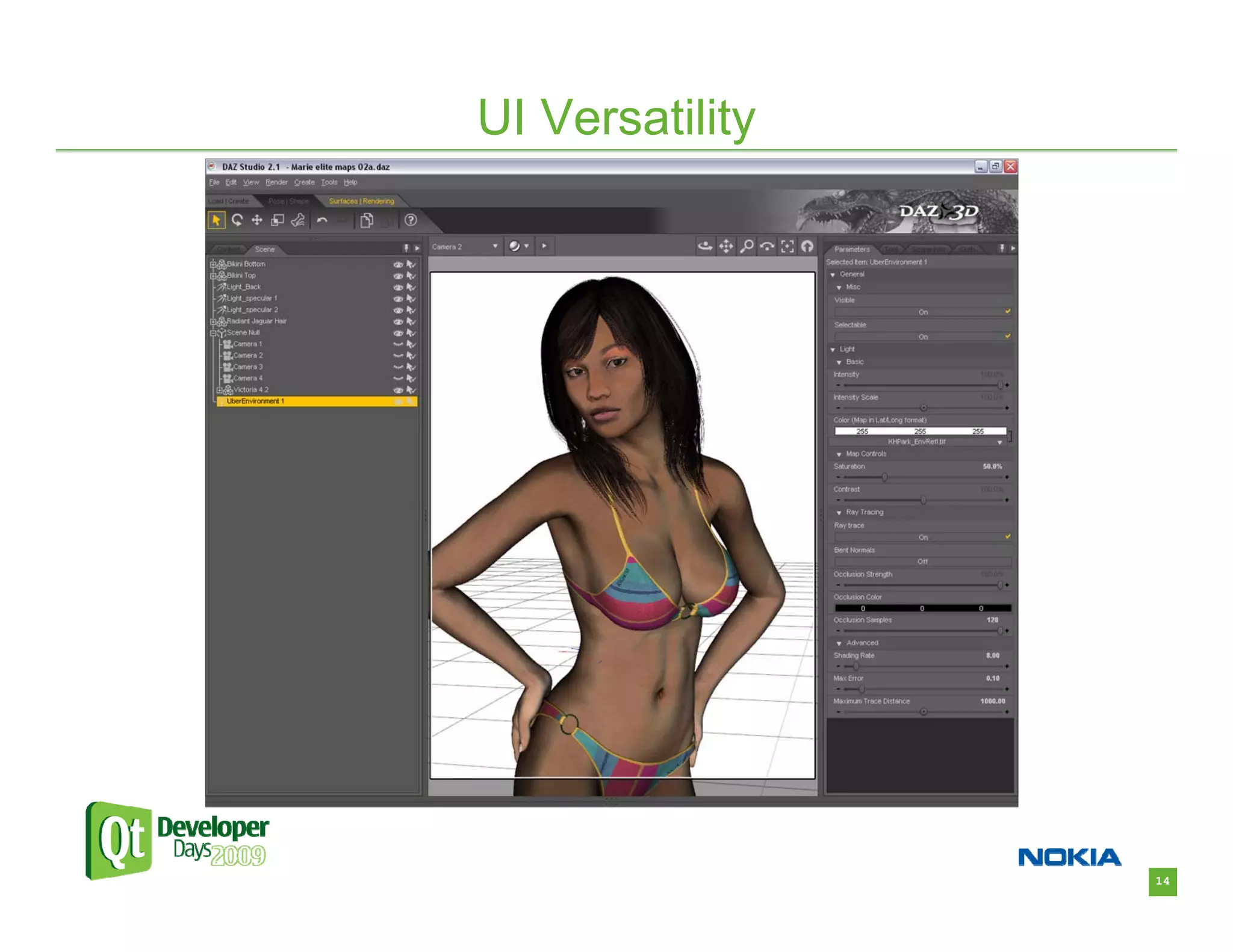

15. UI Versatility
14

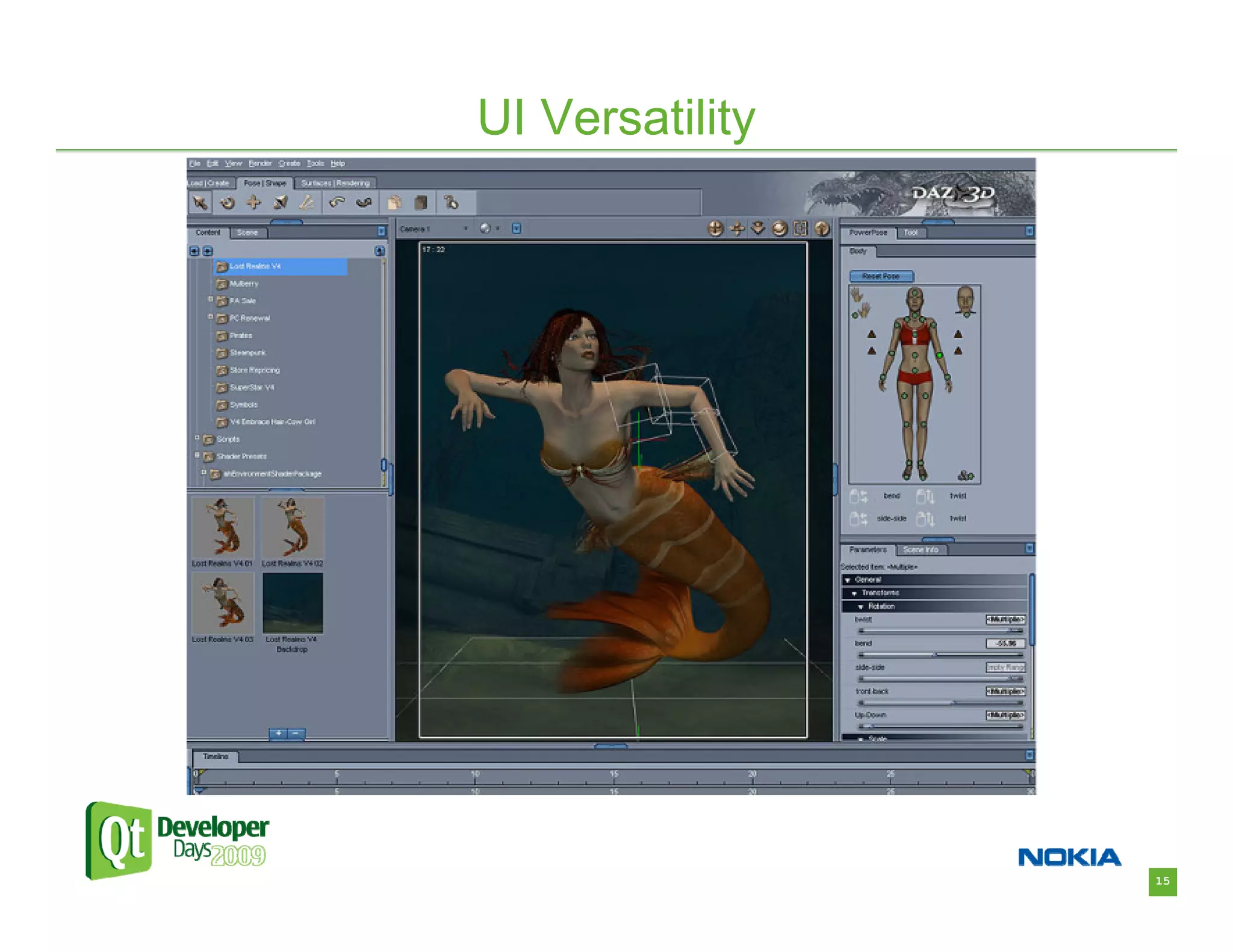

16. UI Versatility
15

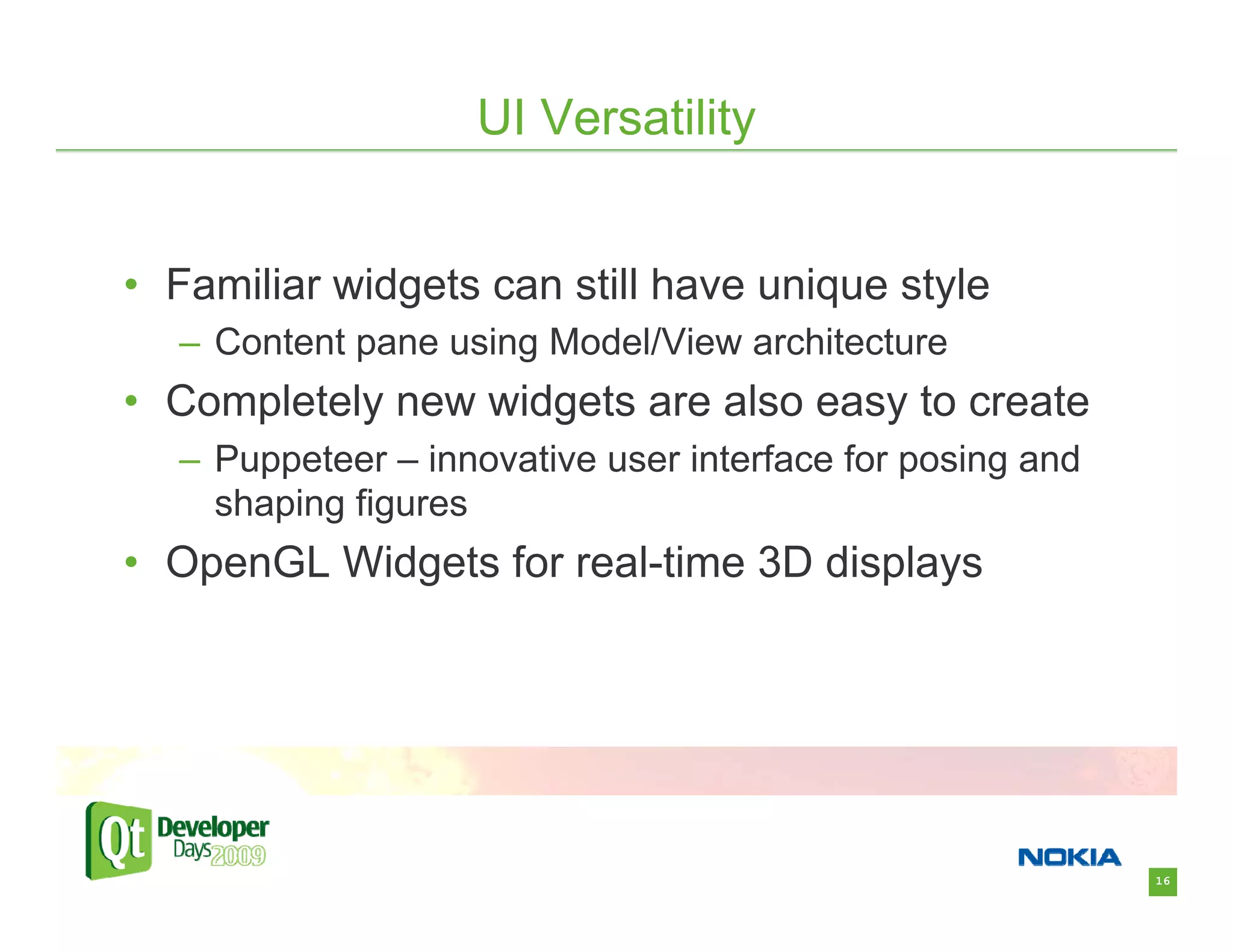

17. UI Versatility
• Familiar widgets can still have unique style
– Content pane using Model/View architecture
• Completely new widgets are also easy to create
– Puppeteer – innovative user interface for posing and
shaping figures
• OpenGL Widgets for real-time 3D displays
16

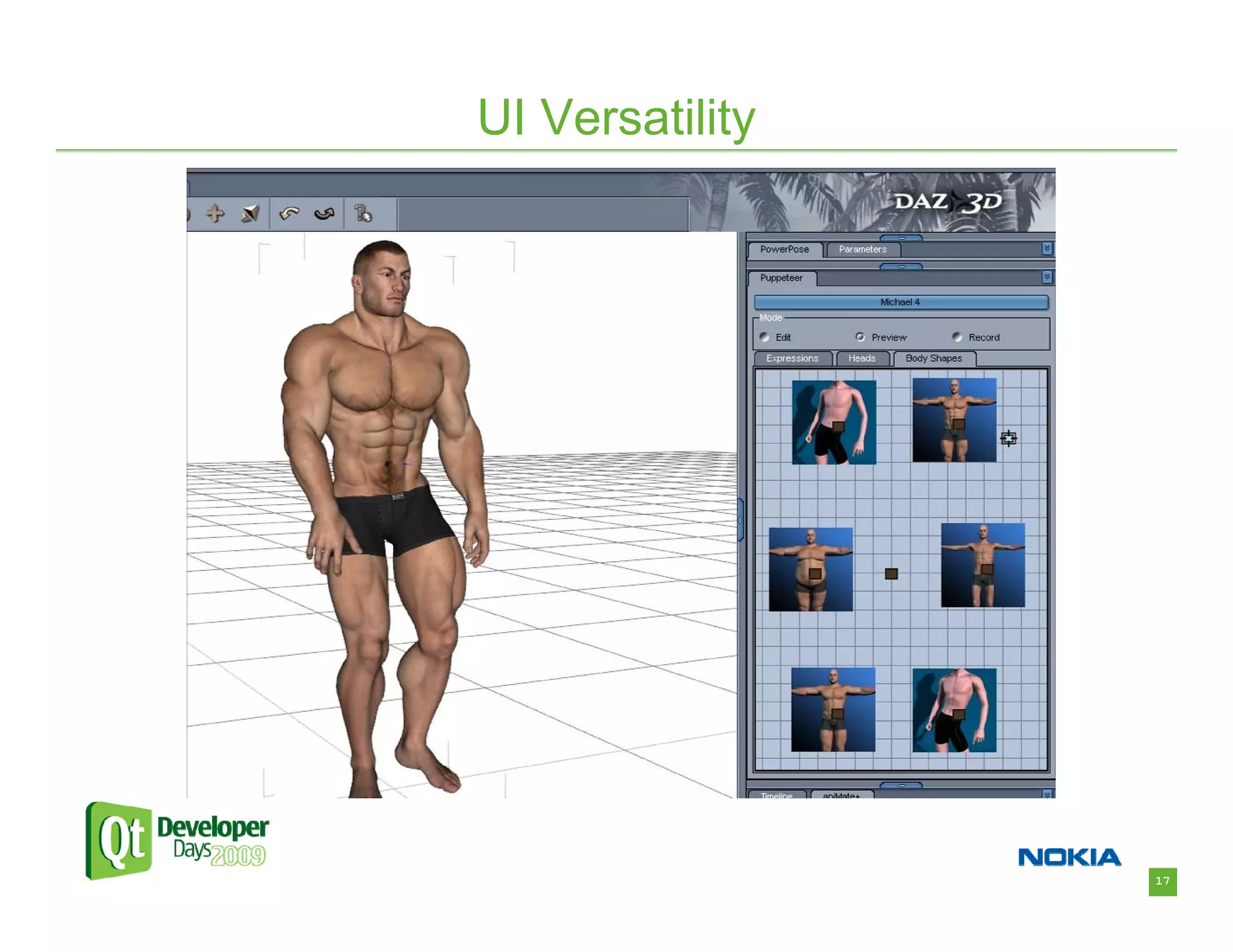

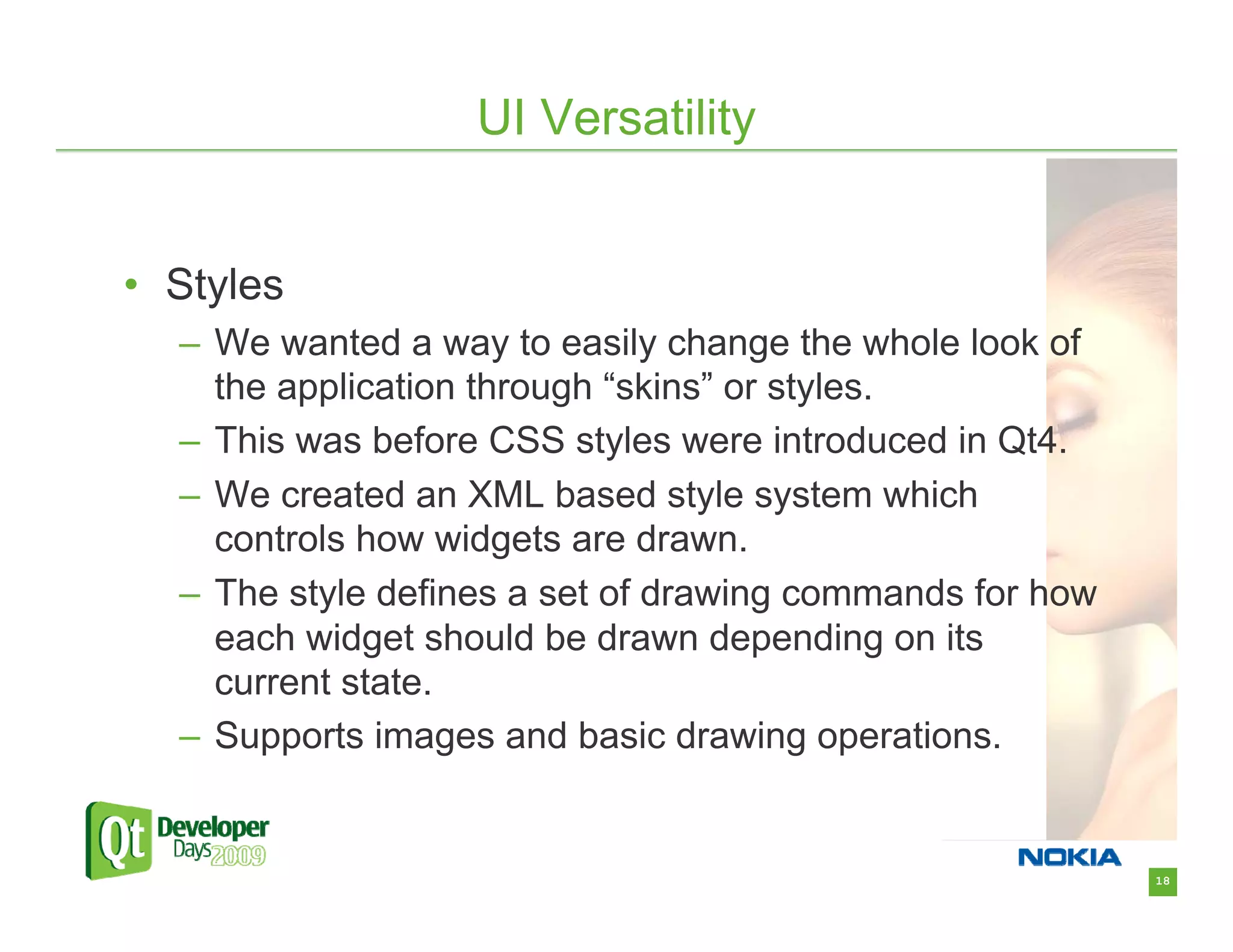

18. UI Versatility
17

19. UI Versatility
• Styles
– We wanted a way to easily change the whole look of
the application through “skins” or styles.
– This was before CSS styles were introduced in Qt4.
– We created an XML based style system which
controls how widgets are drawn.
– The style defines a set of drawing commands for how
each widget should be drawn depending on its
current state.
– Supports images and basic drawing operations.
18

20. UI Versatility
• Styles
– Savvy users are able to create their own styles.
– We’re able to mimic the look of other applications in
our lineup, so users can have more familiar and
consistent experiences.
– Most of this would have been very difficult without the
powerful styling framework that Qt already had.
– We’re currently exploring Qt Style sheets and are
excited for the possibilities they’ll provide.
19

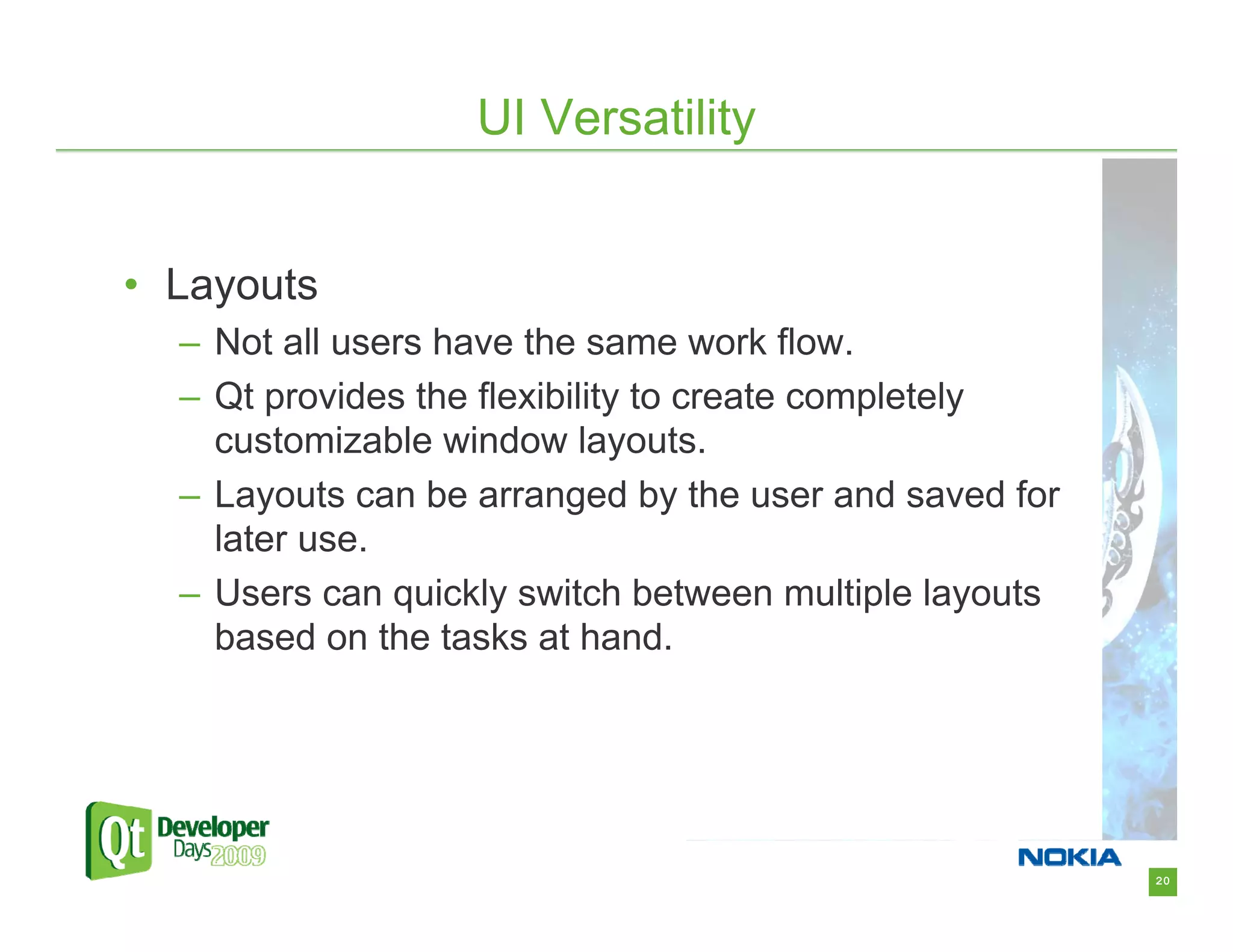

21. UI Versatility
• Layouts
– Not all users have the same work flow.
– Qt provides the flexibility to create completely
customizable window layouts.
– Layouts can be arranged by the user and saved for
later use.
– Users can quickly switch between multiple layouts
based on the tasks at hand.
20

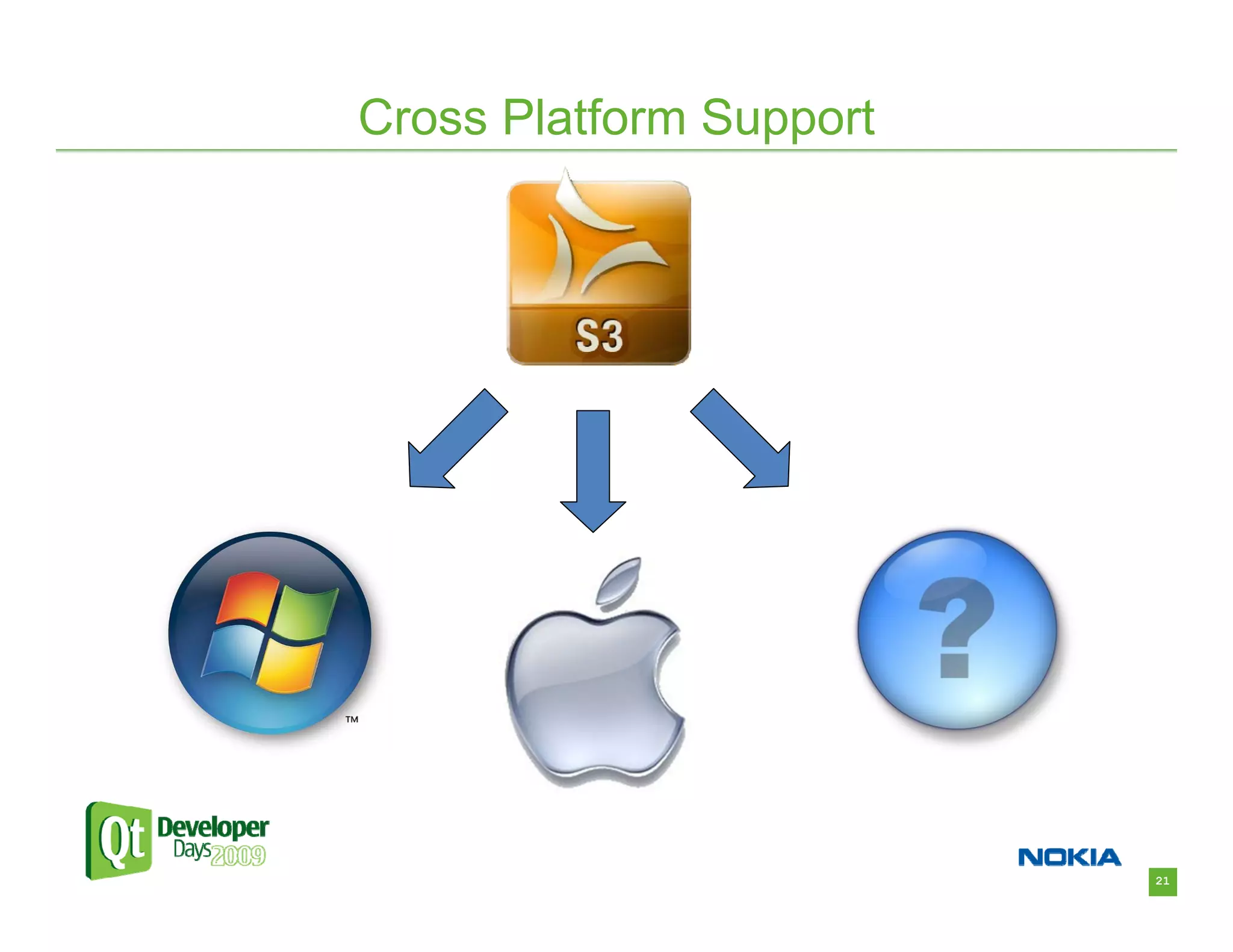

22. Cross Platform Support
21

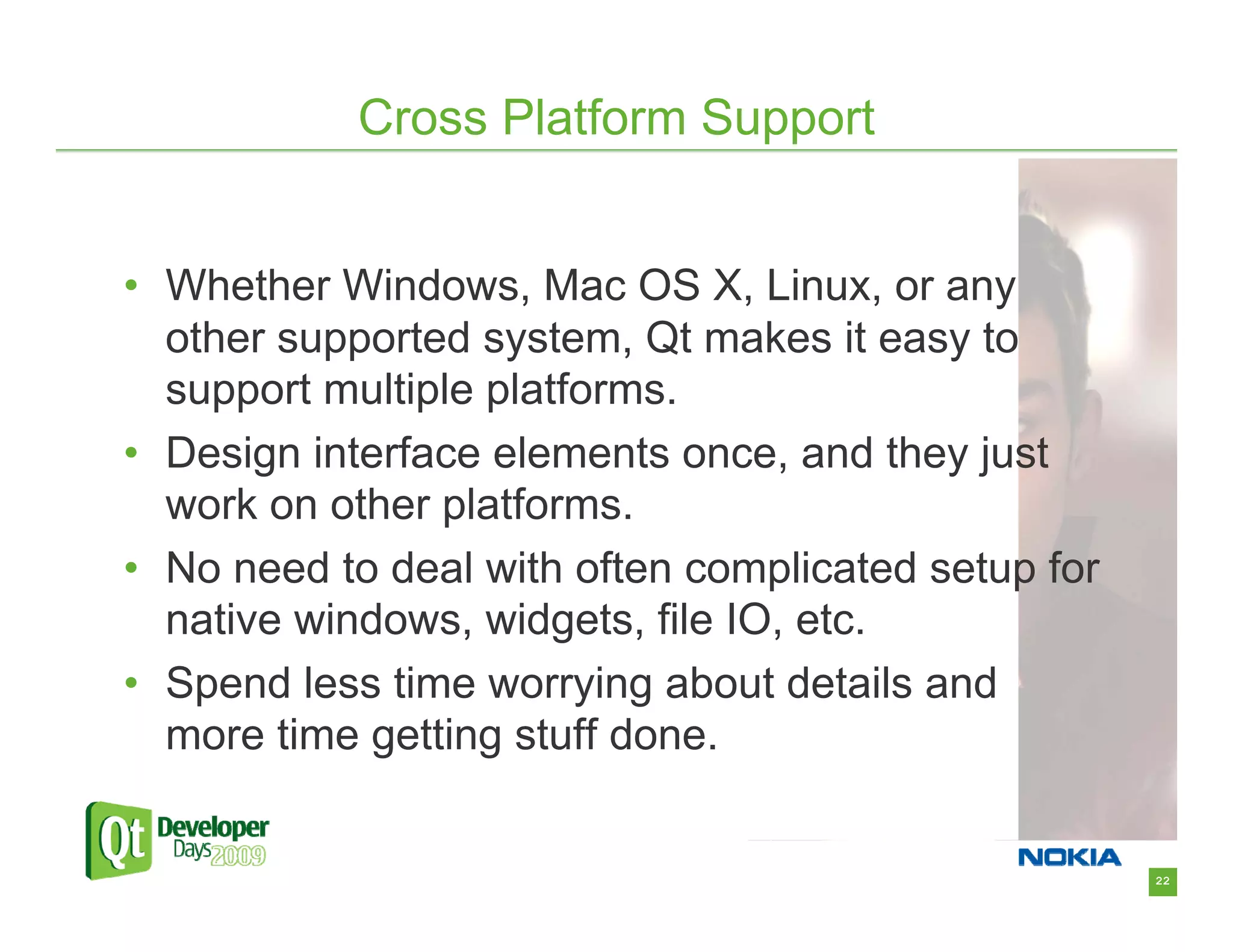

23. Cross Platform Support
• Whether Windows, Mac OS X, Linux, or any
other supported system, Qt makes it easy to
support multiple platforms.
• Design interface elements once, and they just
work on other platforms.
• No need to deal with often complicated setup for
native windows, widgets, file IO, etc.
• Spend less time worrying about details and
more time getting stuff done.
22

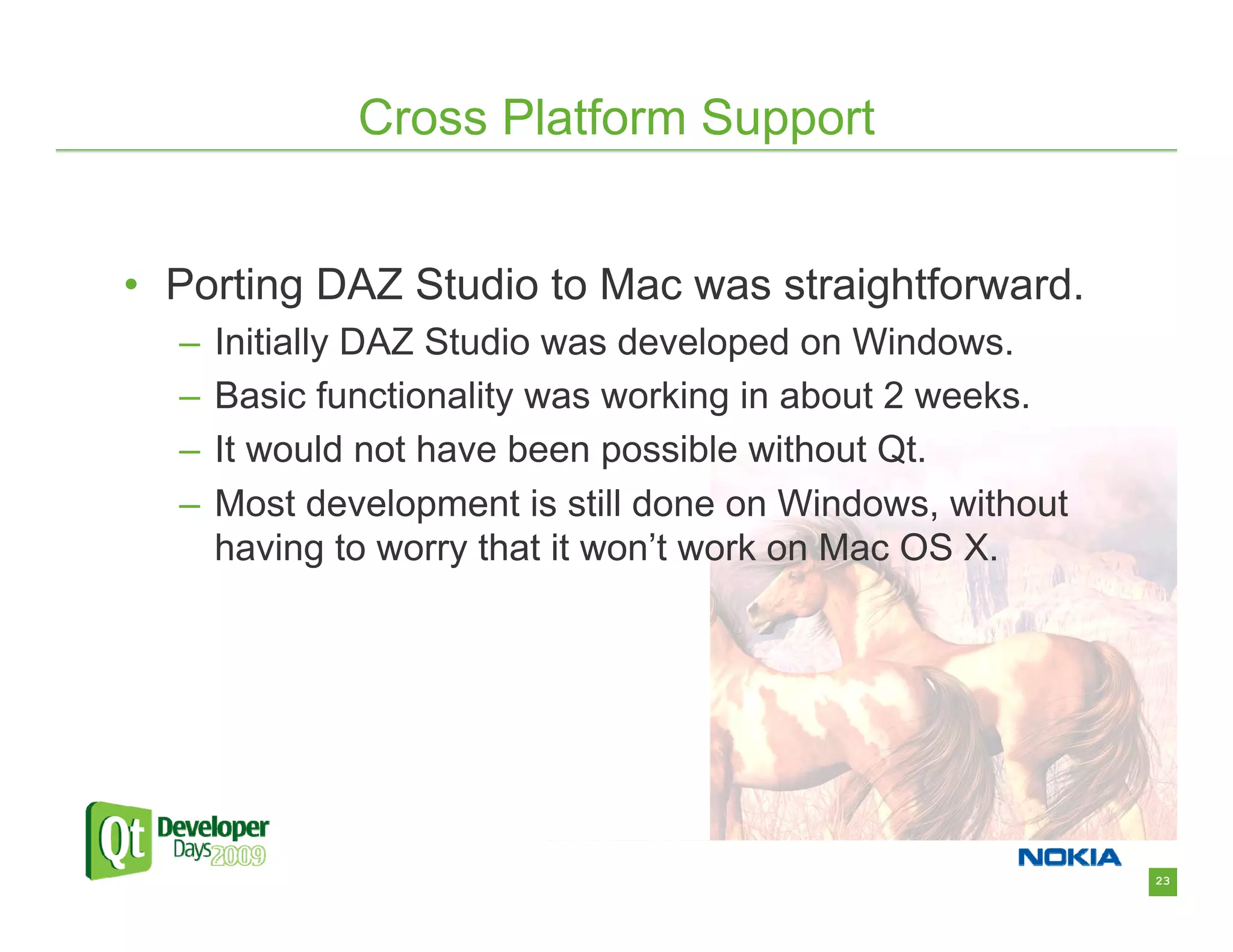

24. Cross Platform Support
• Porting DAZ Studio to Mac was straightforward.
– Initially DAZ Studio was developed on Windows.
– Basic functionality was working in about 2 weeks.
– It would not have been possible without Qt.
– Most development is still done on Windows, without
having to worry that it won’t work on Mac OS X.
23

25. Scripting Support
24

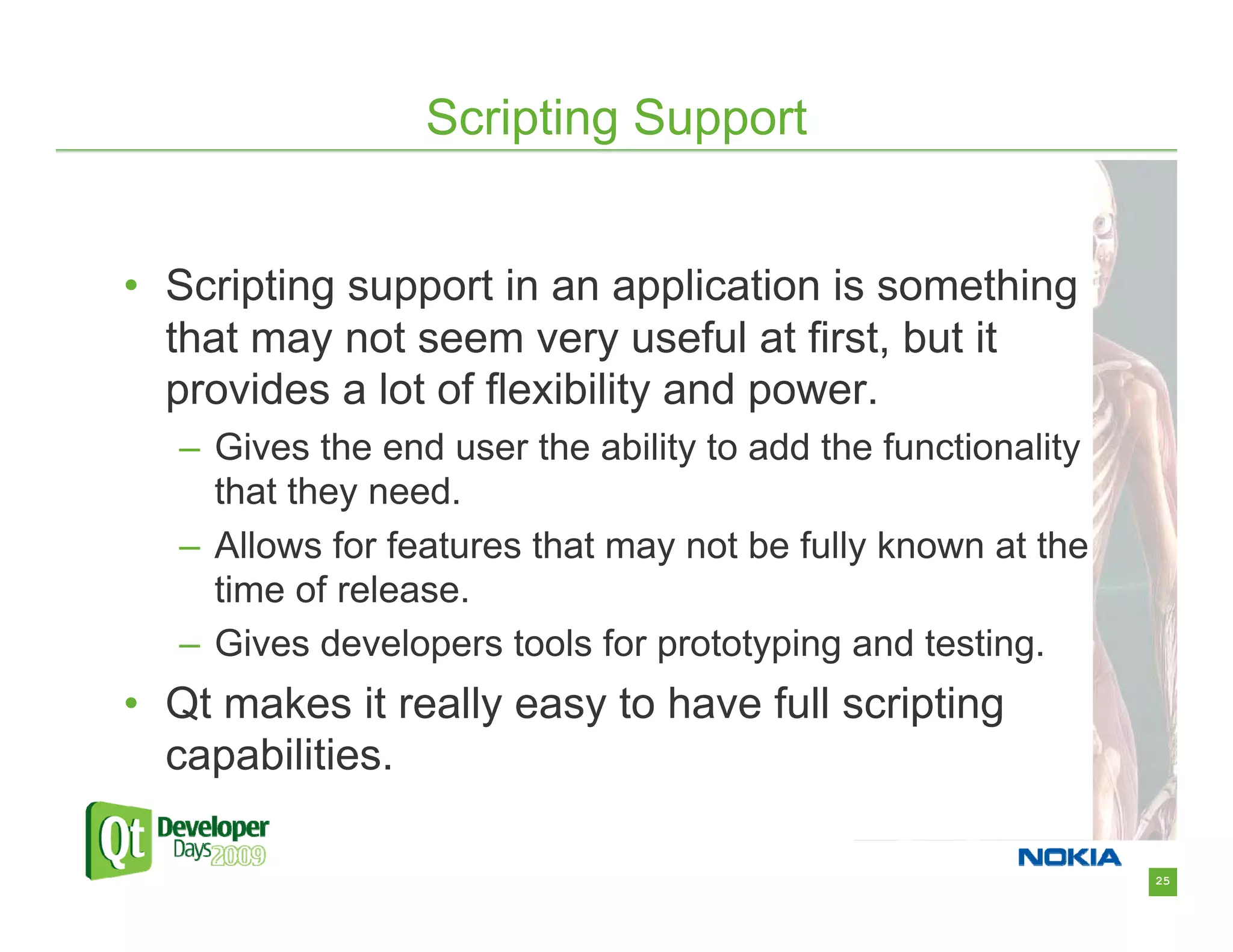

26. Scripting Support
• Scripting support in an application is something
that may not seem very useful at first, but it
provides a lot of flexibility and power.
– Gives the end user the ability to add the functionality
that they need.
– Allows for features that may not be fully known at the
time of release.
– Gives developers tools for prototyping and testing.
• Qt makes it really easy to have full scripting
capabilities.
25

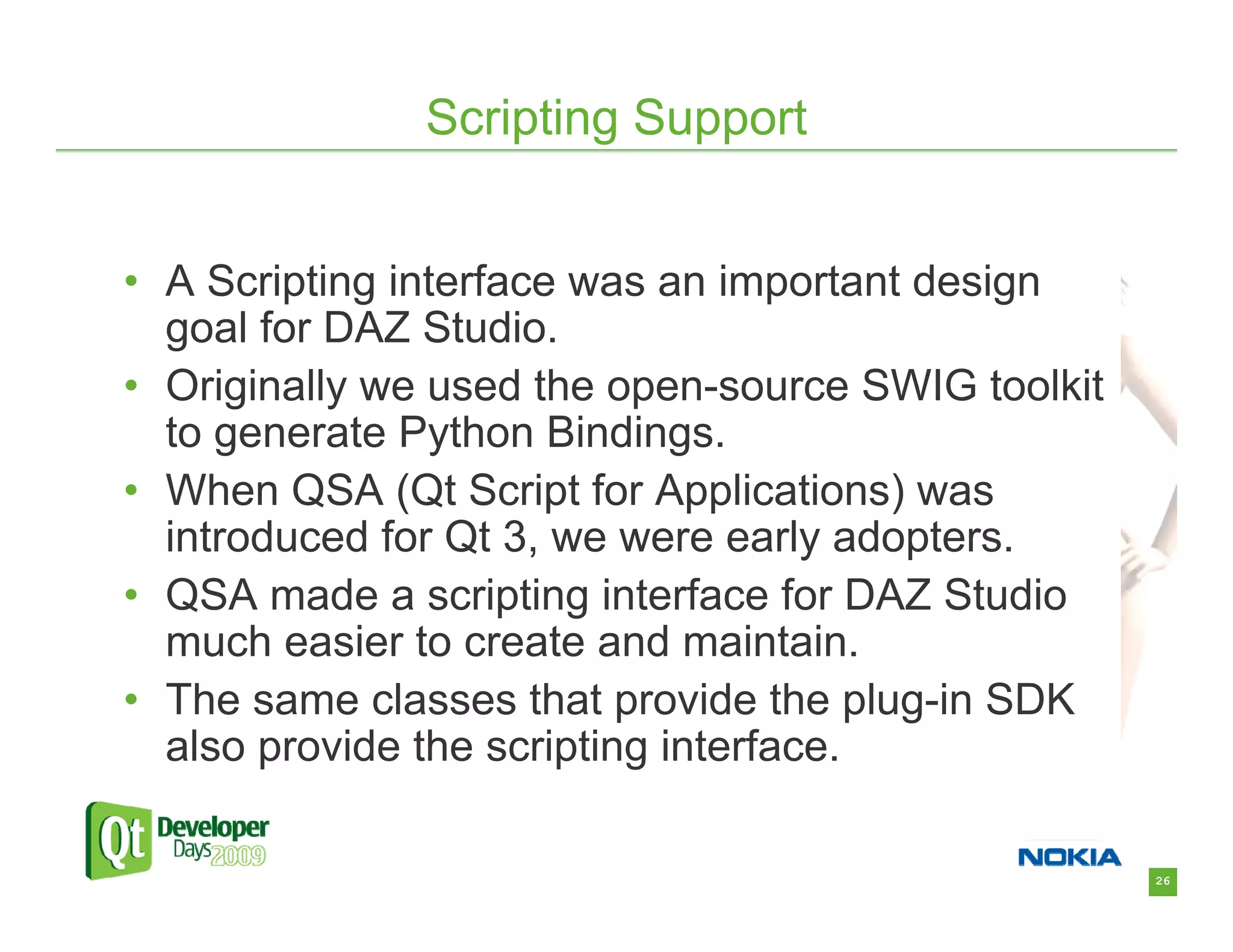

27. Scripting Support
• A Scripting interface was an important design
goal for DAZ Studio.
• Originally we used the open-source SWIG toolkit
to generate Python Bindings.
• When QSA (Qt Script for Applications) was
introduced for Qt 3, we were early adopters.
• QSA made a scripting interface for DAZ Studio
much easier to create and maintain.
• The same classes that provide the plug-in SDK
also provide the scripting interface.
26

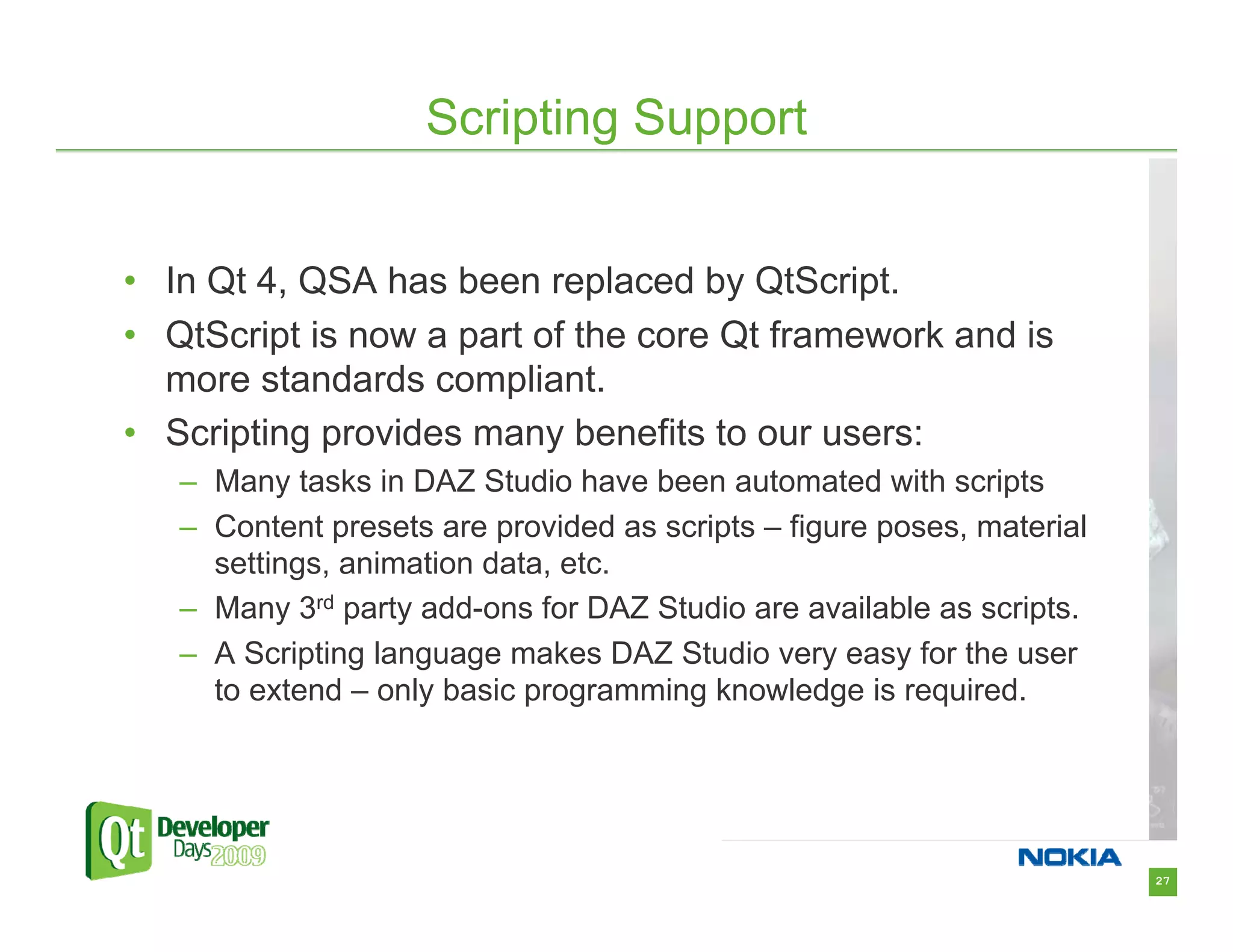

28. Scripting Support
• In Qt 4, QSA has been replaced by QtScript.
• QtScript is now a part of the core Qt framework and is
more standards compliant.
• Scripting provides many benefits to our users:
– Many tasks in DAZ Studio have been automated with scripts
– Content presets are provided as scripts – figure poses, material
settings, animation data, etc.
– Many 3rd party add-ons for DAZ Studio are available as scripts.
– A Scripting language makes DAZ Studio very easy for the user
to extend – only basic programming knowledge is required.
27

29. Ease of Development
28

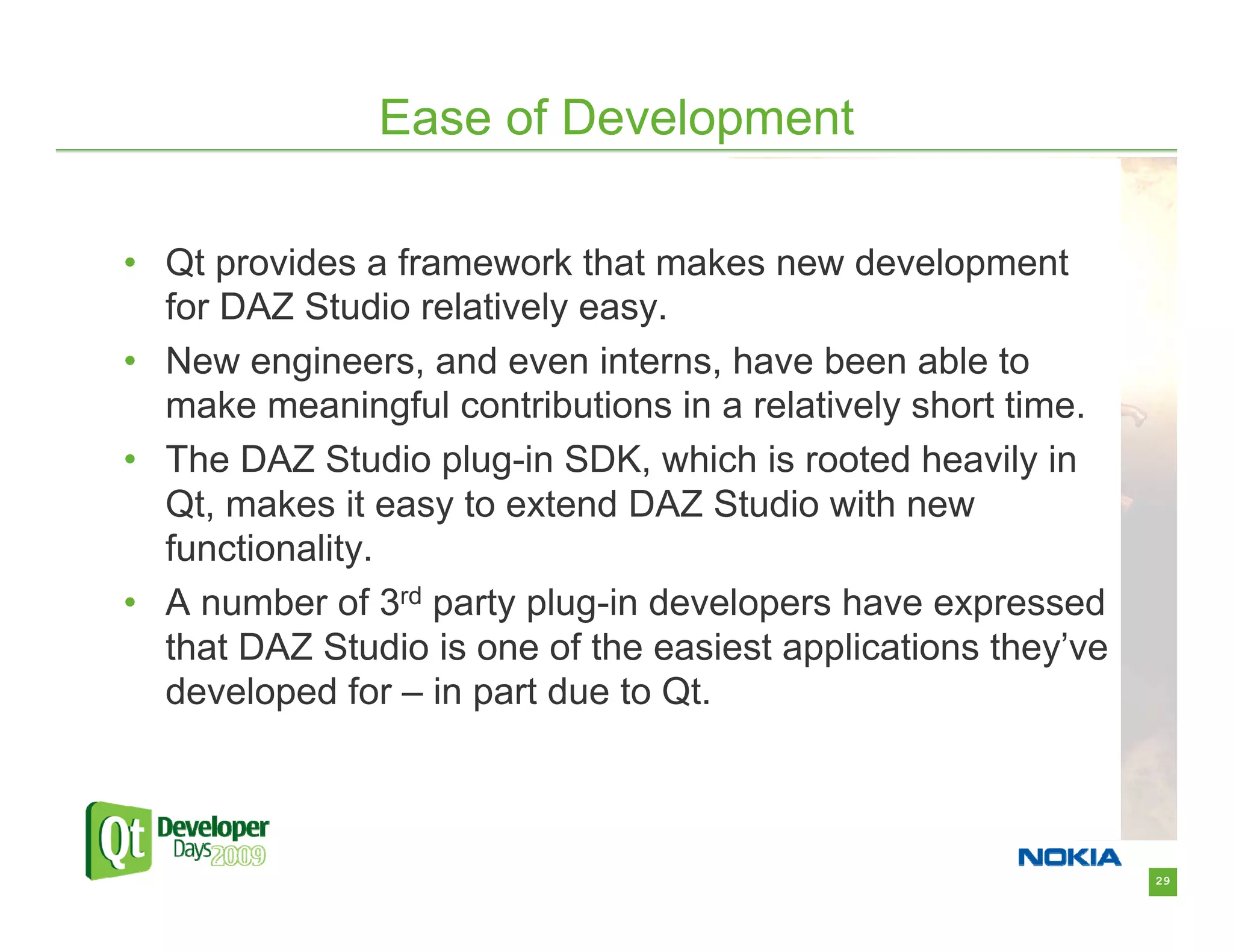

30. Ease of Development
• Qt provides a framework that makes new development
for DAZ Studio relatively easy.
• New engineers, and even interns, have been able to
make meaningful contributions in a relatively short time.
• The DAZ Studio plug-in SDK, which is rooted heavily in
Qt, makes it easy to extend DAZ Studio with new
functionality.
• A number of 3rd party plug-in developers have expressed
that DAZ Studio is one of the easiest applications they’ve
developed for – in part due to Qt.
29

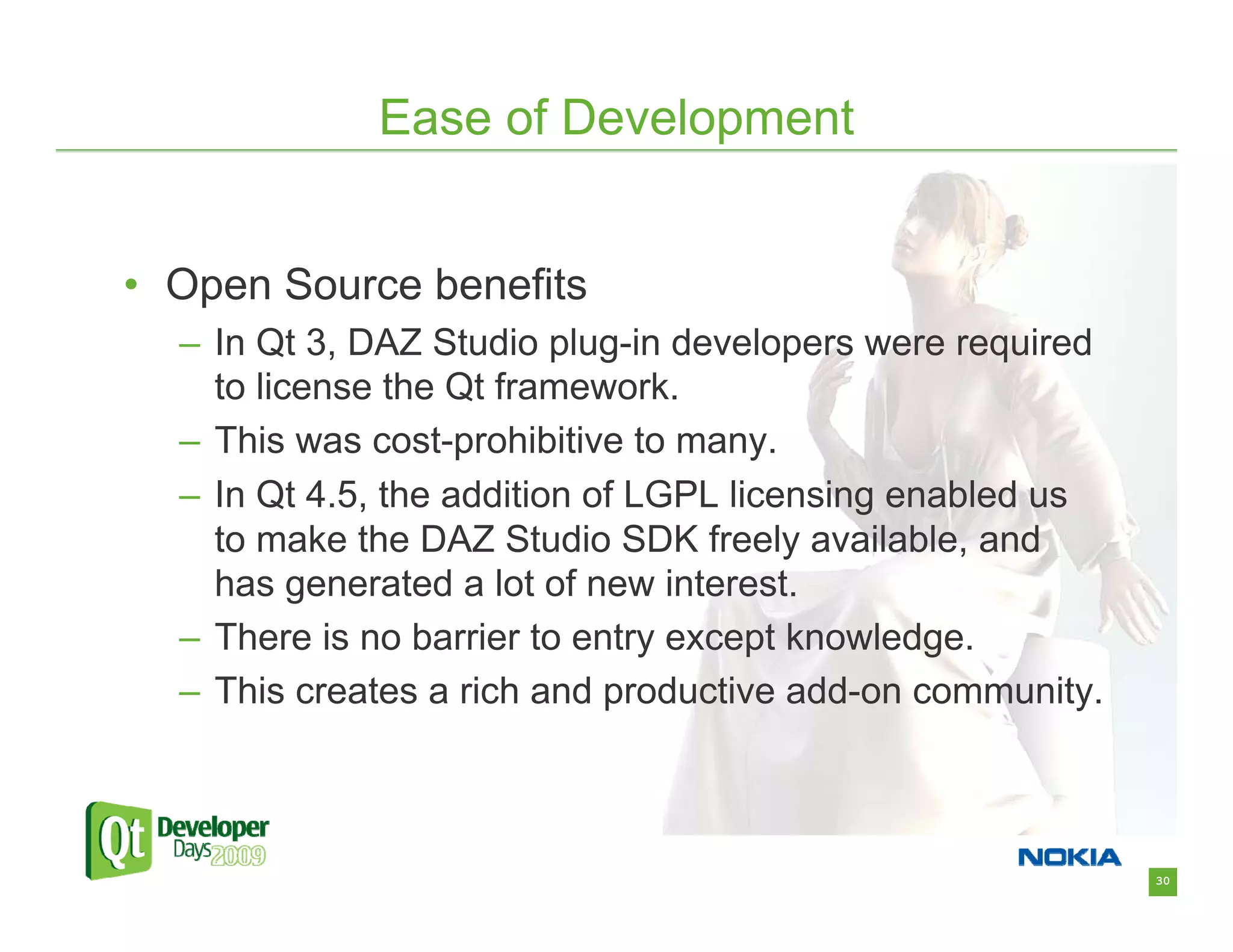

31. Ease of Development
• Open Source benefits
– In Qt 3, DAZ Studio plug-in developers were required
to license the Qt framework.
– This was cost-prohibitive to many.
– In Qt 4.5, the addition of LGPL licensing enabled us
to make the DAZ Studio SDK freely available, and
has generated a lot of new interest.
– There is no barrier to entry except knowledge.
– This creates a rich and productive add-on community.
30

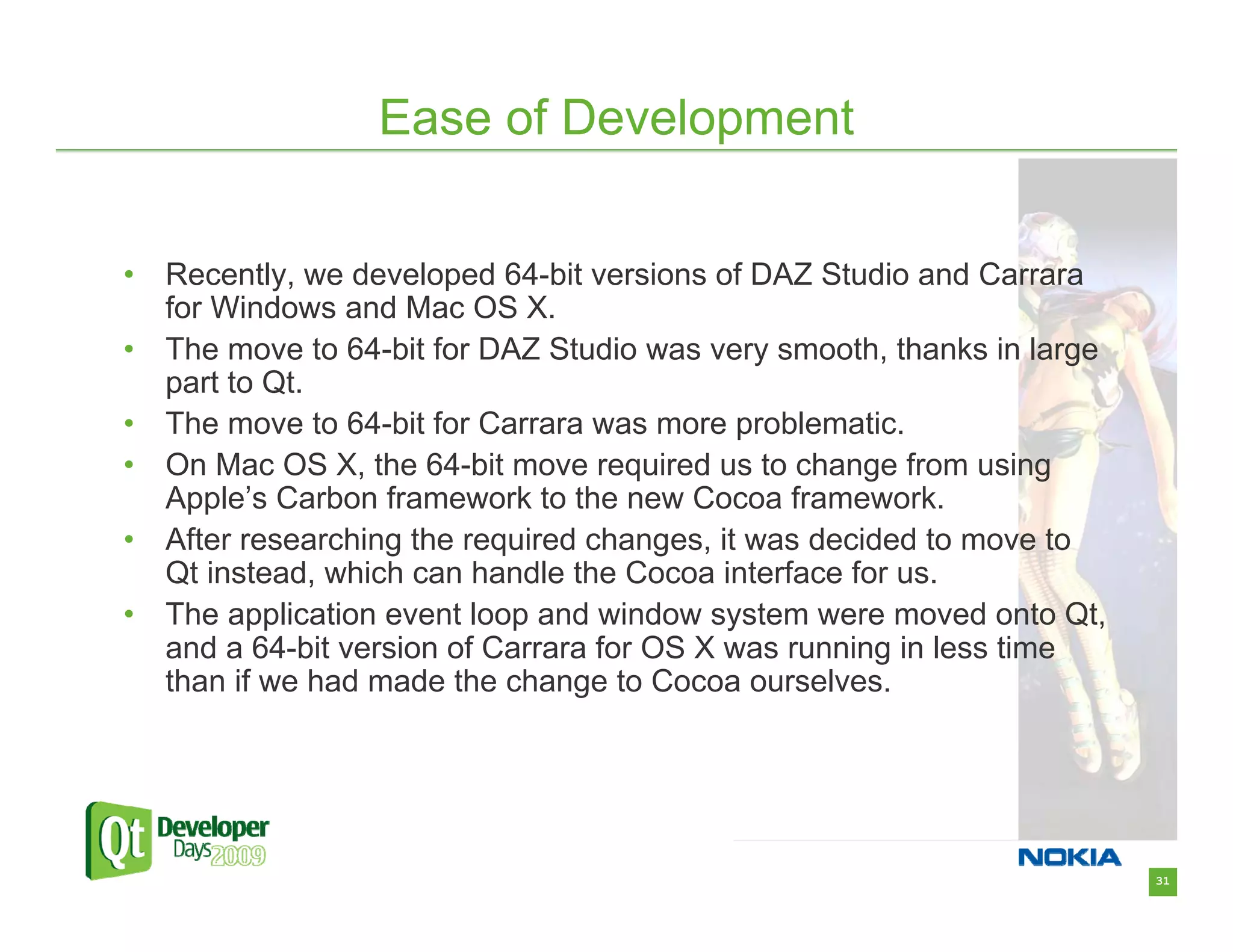

32. Ease of Development
• Recently, we developed 64-bit versions of DAZ Studio and Carrara
for Windows and Mac OS X.
• The move to 64-bit for DAZ Studio was very smooth, thanks in large
part to Qt.
• The move to 64-bit for Carrara was more problematic.
• On Mac OS X, the 64-bit move required us to change from using
Apple’s Carbon framework to the new Cocoa framework.
• After researching the required changes, it was decided to move to
Qt instead, which can handle the Cocoa interface for us.
• The application event loop and window system were moved onto Qt,
and a 64-bit version of Carrara for OS X was running in less time
than if we had made the change to Cocoa ourselves.
31

33. Qt 3 to Qt 4
32

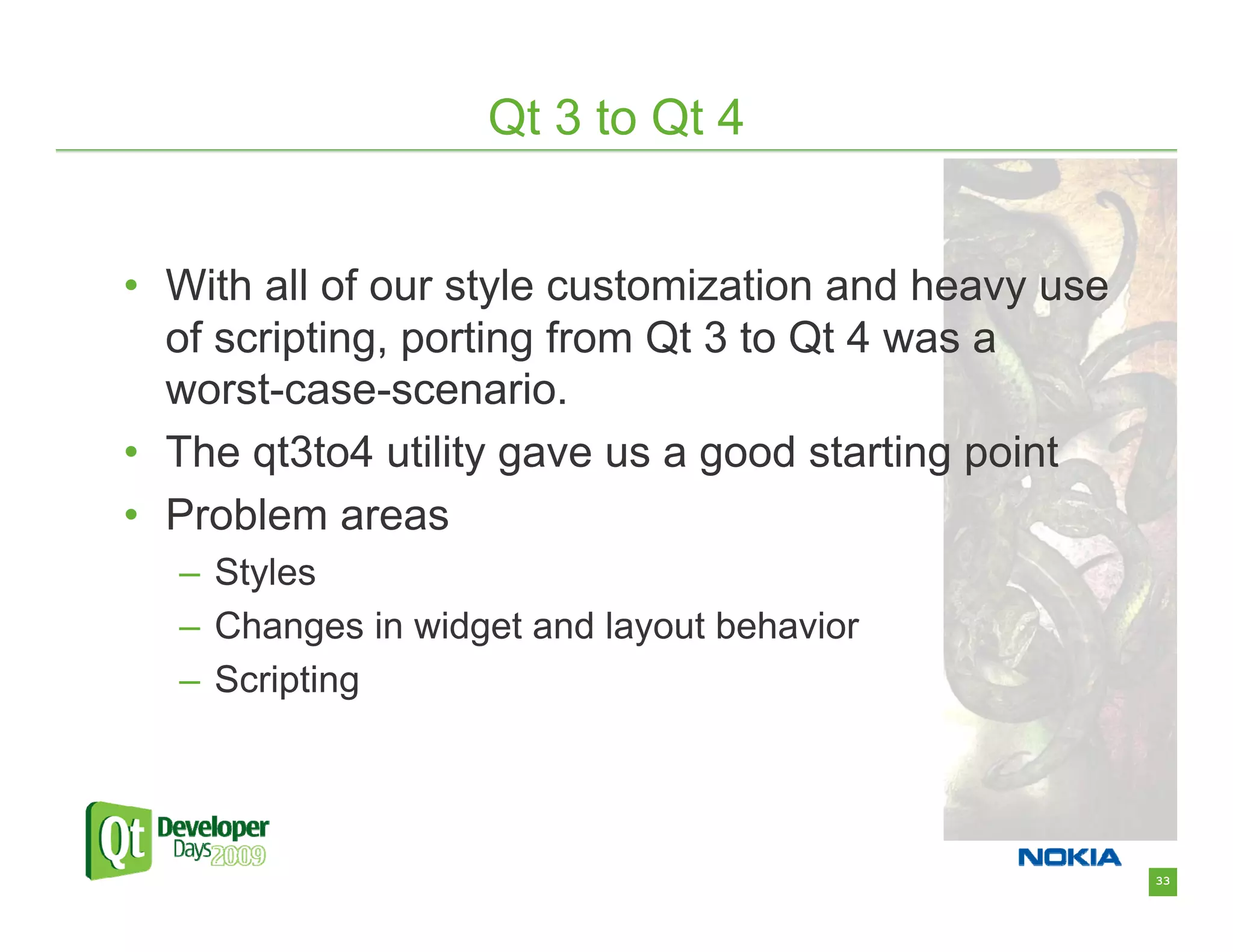

34. Qt 3 to Qt 4
• With all of our style customization and heavy use
of scripting, porting from Qt 3 to Qt 4 was a
worst-case-scenario.
• The qt3to4 utility gave us a good starting point
• Problem areas
– Styles
– Changes in widget and layout behavior
– Scripting
33

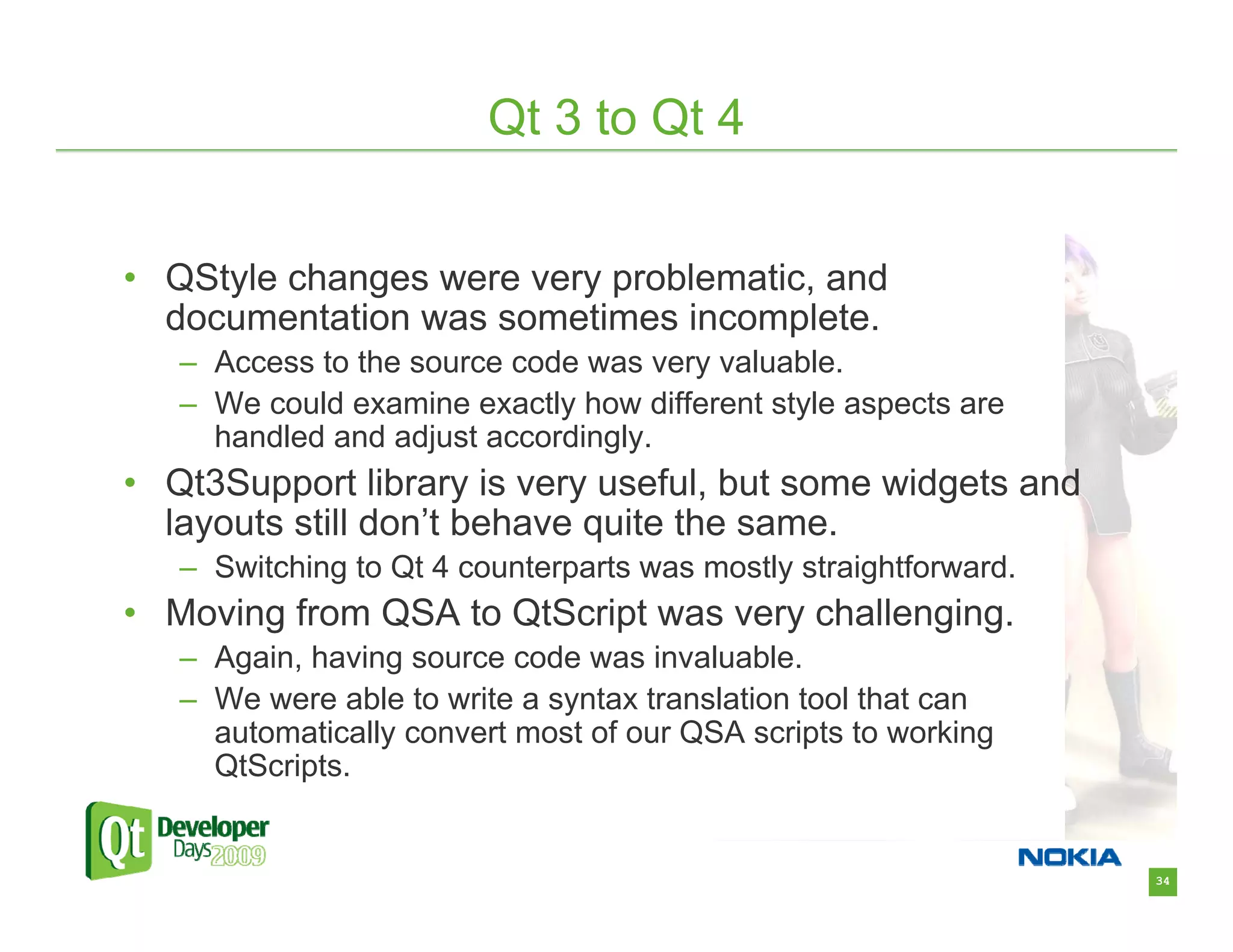

35. Qt 3 to Qt 4
• QStyle changes were very problematic, and
documentation was sometimes incomplete.
– Access to the source code was very valuable.
– We could examine exactly how different style aspects are
handled and adjust accordingly.
• Qt3Support library is very useful, but some widgets and
layouts still don’t behave quite the same.
– Switching to Qt 4 counterparts was mostly straightforward.
• Moving from QSA to QtScript was very challenging.
– Again, having source code was invaluable.
– We were able to write a syntax translation tool that can
automatically convert most of our QSA scripts to working
QtScripts.
34

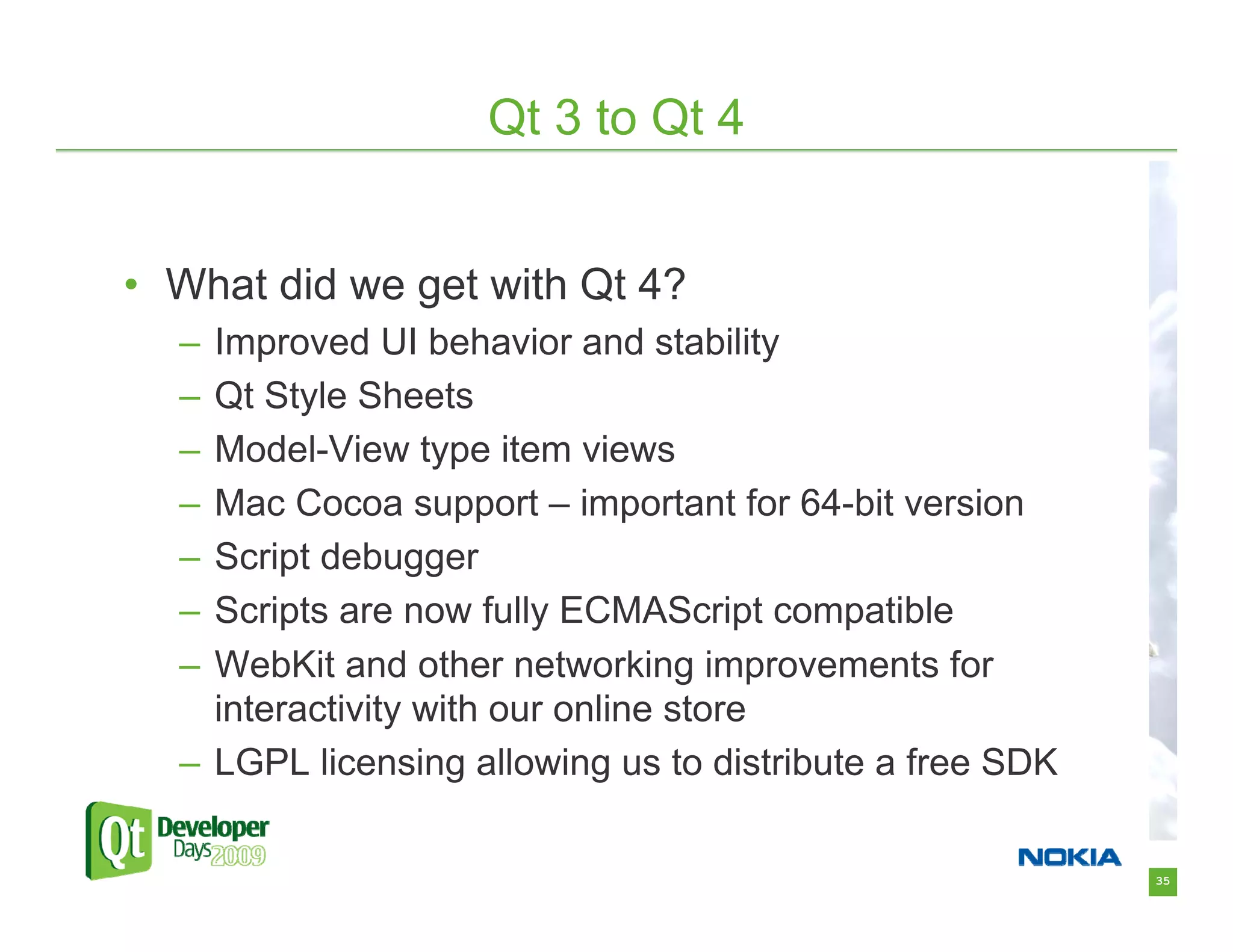

36. Qt 3 to Qt 4
• What did we get with Qt 4?
– Improved UI behavior and stability
– Qt Style Sheets
– Model-View type item views
– Mac Cocoa support – important for 64-bit version
– Script debugger
– Scripts are now fully ECMAScript compatible
– WebKit and other networking improvements for
interactivity with our online store
– LGPL licensing allowing us to distribute a free SDK
35

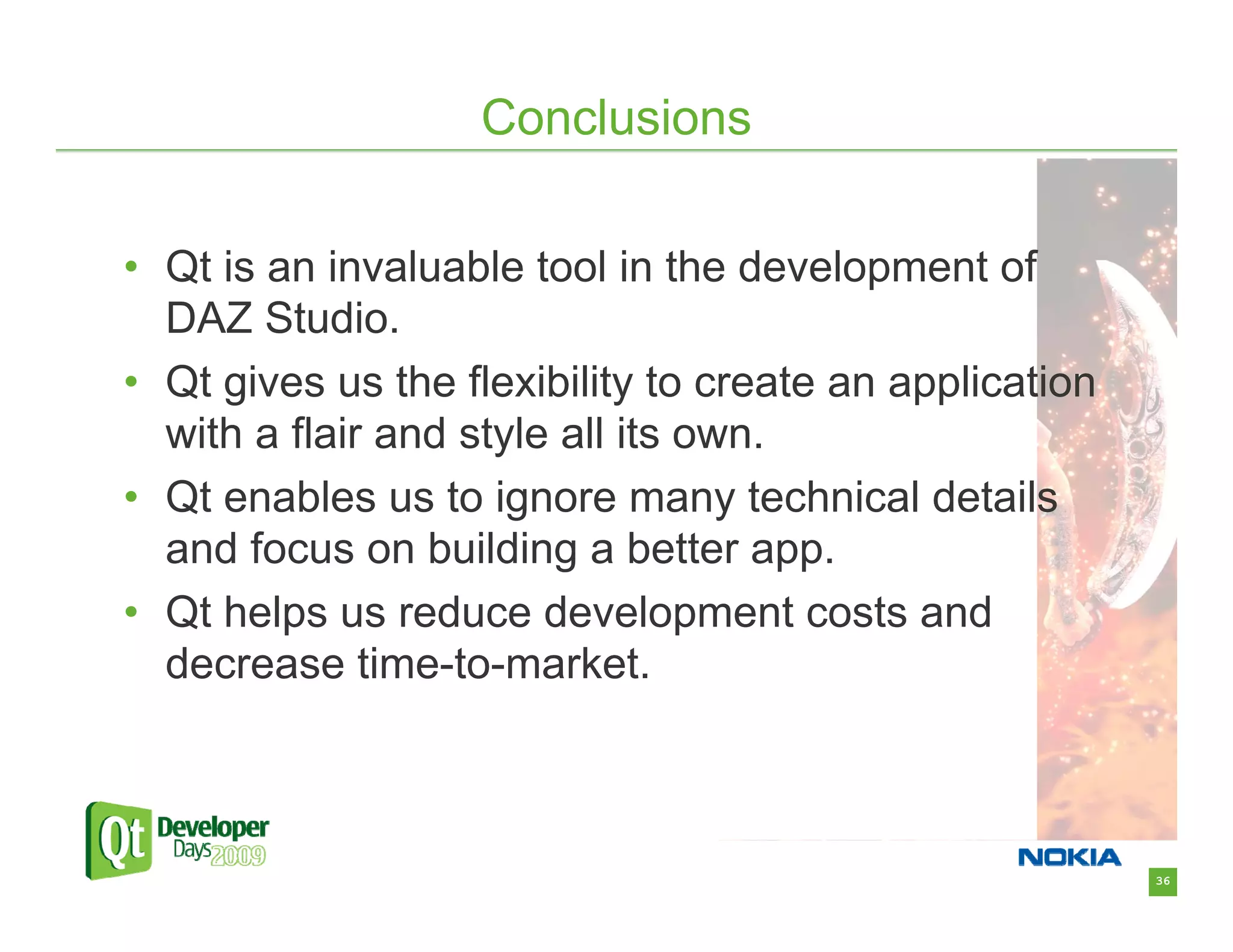

37. Conclusions
• Qt is an invaluable tool in the development of
DAZ Studio.
• Qt gives us the flexibility to create an application
with a flair and style all its own.
• Qt enables us to ignore many technical details
and focus on building a better app.
• Qt helps us reduce development costs and
decrease time-to-market.
36
