1. The Mobility Project
Alex Luddy

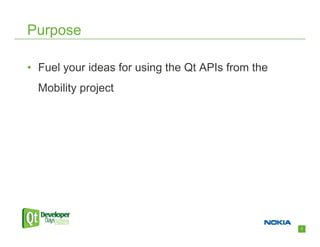

2. Purpose
• Fuel your ideas for using the Qt APIs from the
Mobility project
1

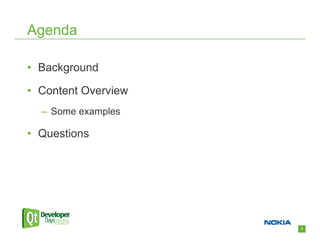

3. Agenda
• Background
• Content Overview
– Some examples
• Questions
2

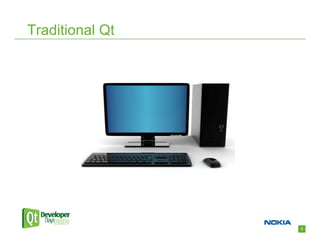

4. Traditional Qt
3

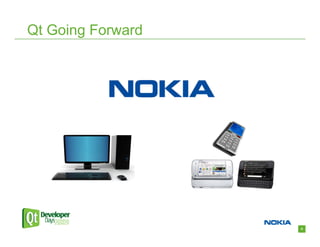

5. Qt Going Forward
4

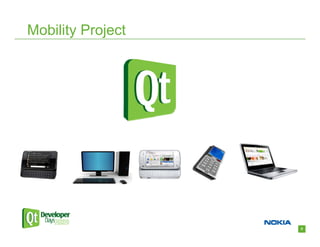

6. Mobility Project
5

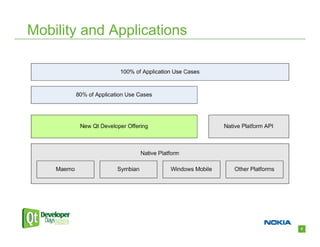

7. Mobility and Applications
6

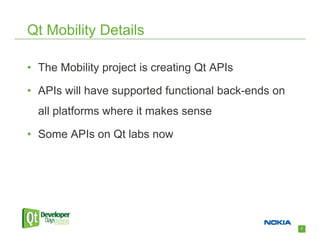

8. Qt Mobility Details
• The Mobility project is creating Qt APIs
• APIs will have supported functional back-ends on
all platforms where it makes sense
• Some APIs on Qt labs now
7

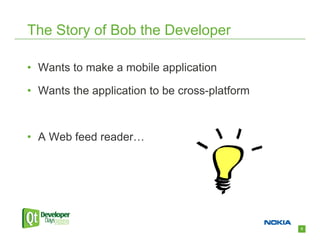

9. The Story of Bob the Developer
• Wants to make a mobile application
• Wants the application to be cross-platform
• A Web feed reader…
8

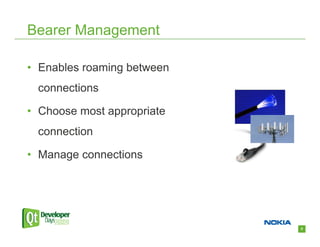

10. Bearer Management
• Enables roaming between
connections
• Choose most appropriate
connection
• Manage connections
9

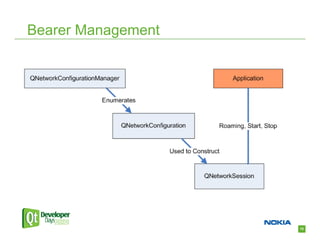

11. Bearer Management
10

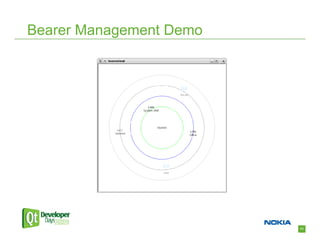

12. Bearer Management Demo
11

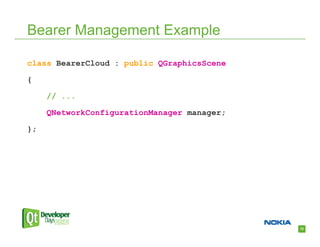

13. Bearer Management Example
class BearerCloud : public QGraphicsScene
{
// ...
QNetworkConfigurationManager manager;
};
12

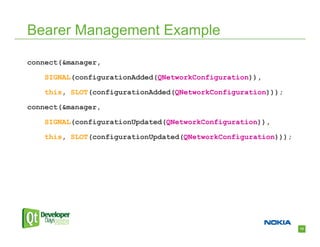

14. Bearer Management Example
connect(&manager,
SIGNAL(configurationAdded(QNetworkConfiguration)),
this, SLOT(configurationAdded(QNetworkConfiguration)));
connect(&manager,
SIGNAL(configurationUpdated(QNetworkConfiguration)),
this, SLOT(configurationUpdated(QNetworkConfiguration)));
13

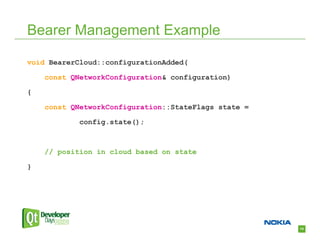

15. Bearer Management Example
void BearerCloud::configurationAdded(
const QNetworkConfiguration& configuration)
{
const QNetworkConfiguration::StateFlags state =
config.state();
// position in cloud based on state
}
14

16. Back to Bob
• Efficient Internet connection
• Web feed reader with contact interest
information…
15

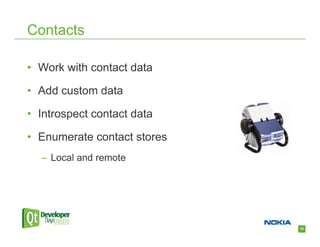

17. Contacts
• Work with contact data
• Add custom data
• Introspect contact data
• Enumerate contact stores
– Local and remote
16

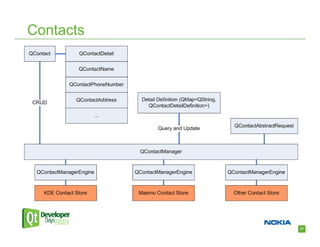

18. Contacts
17

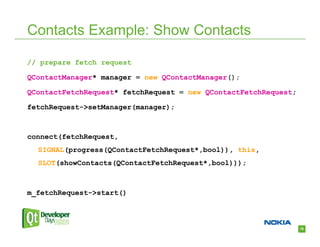

19. Contacts Example: Show Contacts
// prepare fetch request
QContactManager* manager = new QContactManager();
QContactFetchRequest* fetchRequest = new QContactFetchRequest;
fetchRequest->setManager(manager);
connect(fetchRequest,
SIGNAL(progress(QContactFetchRequest*,bool)), this,
SLOT(showContacts(QContactFetchRequest*,bool)));
m_fetchRequest->start()
18

20. Contacts Example: Show Contacts
void Example::showContacts(QContactFetchRequest* request,
bool appendOnly)
{
QList<QContact> results = request->contacts();
// handle append only case
// access contacts for display
for (int i = 0; i < results.size(); ++i) {
QString display = results[i].displayLabel().label();
// ...
19

21. Back to Bob
• Efficient Internet connection
• Access contact details
– Add “interest” as custom data
• Web feed reader that can send messages to
contacts about relevant information..
20

22. Messaging
• Send (Email, SMS, MMS)
• Work with stored/remote messages
• Access message accounts
• New message notifications
• Retrieve
21

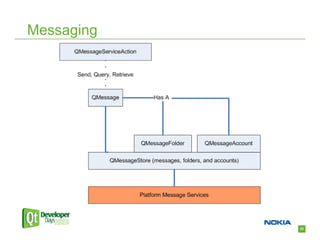

23. Messaging
22

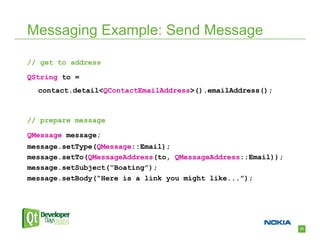

24. Messaging Example: Send Message
// get to address
QString to =
contact.detail<QContactEmailAddress>().emailAddress();
// prepare message
QMessage message;
message.setType(QMessage::Email);
message.setTo(QMessageAddress(to, QMessageAddress::Email));
message.setSubject(“Boating”);
message.setBody(“Here is a link you might like...”);
23

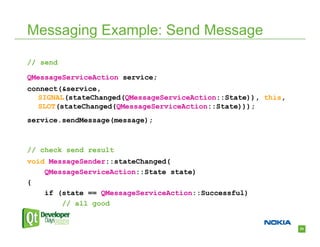

25. Messaging Example: Send Message
// send
QMessageServiceAction service;
connect(&service,
SIGNAL(stateChanged(QMessageServiceAction::State)), this,
SLOT(stateChanged(QMessageServiceAction::State)));
service.sendMessage(message);
// check send result
void MessageSender::stateChanged(
QMessageServiceAction::State state)
{
if (state == QMessageServiceAction::Successful)
// all good
24

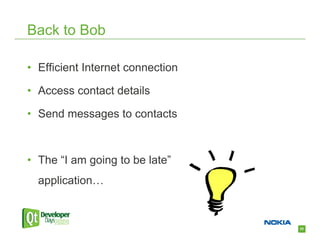

26. Back to Bob
• Efficient Internet connection
• Access contact details
• Send messages to contacts
• The “I am going to be late”
application…
25

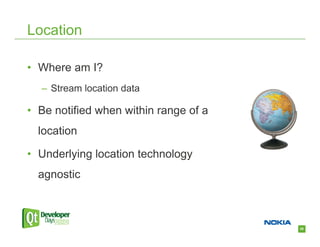

27. Location
• Where am I?
– Stream location data
• Be notified when within range of a
location
• Underlying location technology
agnostic
26

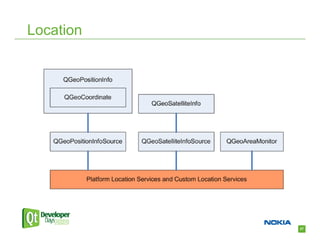

28. Location
27

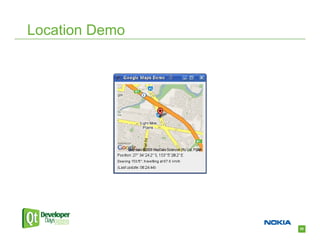

29. Location Demo
28

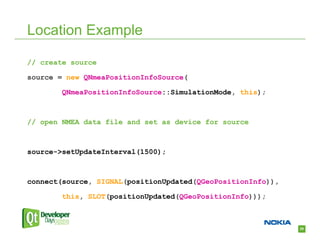

30. Location Example
// create source
source = new QNmeaPositionInfoSource(
QNmeaPositionInfoSource::SimulationMode, this);
// open NMEA data file and set as device for source
source->setUpdateInterval(1500);
connect(source, SIGNAL(positionUpdated(QGeoPositionInfo)),
this, SLOT(positionUpdated(QGeoPositionInfo)));
29

31. Location Example
void MapWindow::positionUpdated(const QGeoPositionInfo& info)
{
if (info.hasProperty(QGeoPositionInfo::Heading))
// ...
QString url = /* ... */
.arg(QString::number(
info.coordinate().latitude()))
// ...
30

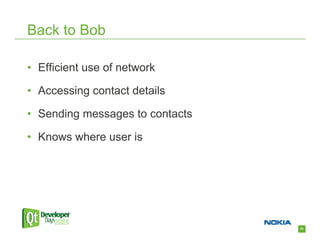

32. Back to Bob
• Efficient use of network
• Accessing contact details
• Sending messages to contacts
• Knows where user is
31

33. Other APIs for Application Developers
• Multimedia
• System Information
• Calendar (coming next year)
• Sensors (coming next year)
• More to come…
32

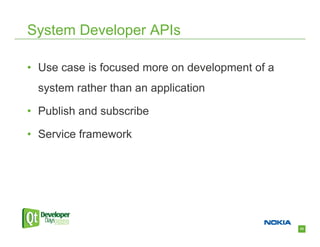

34. System Developer APIs
• Use case is focused more on development of a
system rather than an application
• Publish and subscribe
• Service framework
33

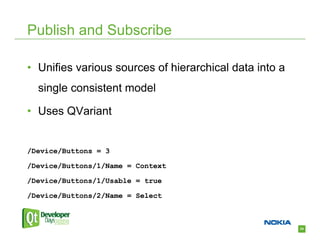

35. Publish and Subscribe
• Unifies various sources of hierarchical data into a
single consistent model
• Uses QVariant
/Device/Buttons = 3
/Device/Buttons/1/Name = Context
/Device/Buttons/1/Usable = true
/Device/Buttons/2/Name = Select
34

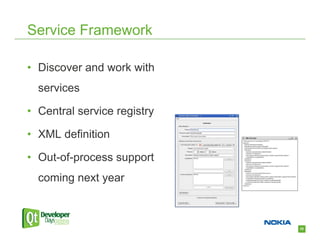

36. Service Framework
• Discover and work with
services
• Central service registry
• XML definition
• Out-of-process support
coming next year
35

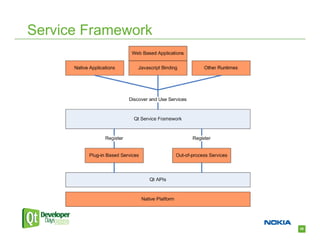

37. Service Framework
36

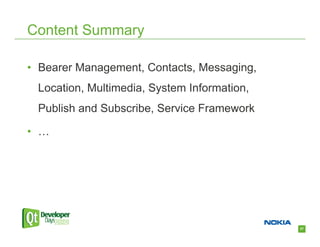

38. Content Summary
• Bearer Management, Contacts, Messaging,
Location, Multimedia, System Information,
Publish and Subscribe, Service Framework
• …
37

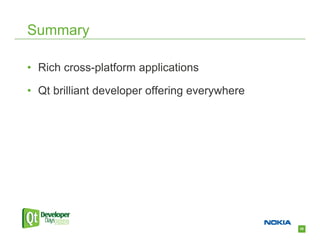

39. Summary
• Rich cross-platform applications
• Qt brilliant developer offering everywhere
38

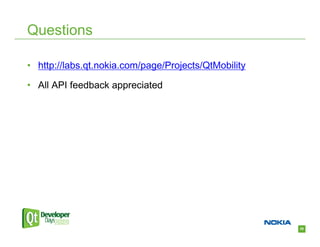

40. Questions
• http://labs.qt.nokia.com/page/Projects/QtMobility
• All API feedback appreciated
39
