2. CASE STUDY ON SANIMA BANK , NAXAL
INTRODUCTION
❖ SANIMA PROMOTED BY PROMINENT AND DYNAMIC NON-RESIDENT
NEPALESE(NRCNs)BUSINESSMAN COMMENCED ITS OPERATION IN 2004 AS A
NATIONAL LEVEL DEVELOPMENT BANK WITH THE VISION OF MOBILIZED
RESOURCES NATIONAL DEVELOPMENT.
❖ IN THE PURSUIT OF SUSTAINABLE GROWTH,SANIMA HAS 27 FULL-FLEDGED
BRANCHES WITHIN AND OUTSIDE THE KATHMANDU VALLEY AND HAS FURTHER
PLANS TO EXPANDS ITS REACH IN THE VARIOUS PARTS IN THE COUNTRY.
➢ LOCATED IN NARAYANCHAUR, NAXAL, KATHMANDU.
➢ THE SITE IS SOUTHWEST FACING WHILE THE
BUILDING IS FACING TOWARDS STREET SIDE.
➢ ANOTHER EXAMPLE ON MODERN BANKING
FACILITIES AND BANK ARCHITECTURE IN NEPAL
➢ THE SURROUNDING MODERN BUILDING GO HAND ON
HAND WITH THE ARCHITECTURE OF THE BUILDING.
lOCATION

3. ENTRANCE
SECURITY
DESK
WAITING
SPACE
CIRCULATION
GENERAL
SERVICES
EMERGENCY
EXIT
SERVICE
STORE
COUNTER
W/C
LIFT
STAIRCASE

5. SERVICES
➢ WATER SUPPLY IS USED FROM NATONAL PUBLIC WATER SUPPLY CORPORATION MAIN.
➢ EQUIPPED WITH THE THREE PHASE ELECTRICITY FROM NEPAL ELECTRICITY AUTHORITY.
➢ GENERATOR FOR BACKUP.
➢ SEWERAGE AND SANITATION IS DESIGNED TO DISPOSE IN THE PUBLIC SANITARY MAIN SUPPLY LINE.
➢ COMMUNICATON NETWORKS WELL DESIGNED INSIDE THE BUILDING.
➢ PROVISION OF FIRE EXTINGUISER IN EVERY FLOOR.
➢ CABLE TRAYS ARE USED TO CARRY AIR DUCTS AND CABLE WHICH IS AN ULTRA MODERN SERVICE TOOL.
➢ MODERN FIRE HYDRANT TOOLS ALONG WITH SMOKE DECTATOR TOOLS AND SPRINKLES.
➢ PANORNIC LIFTS FOR AACCESS TO UPPER FLOORS.
PARKING
➢PROVISION FOR BOTH SURFACE AND BASEMENT PARKING.
➢SURFACE PARKING FOR ALMOST 50 MOTORCYCLES.
➢BASEMENT PARKING FOR ALMOST 150 BIKES AND 35 CARS.
➢REGULAR SUPERVISION FROM SECURITY PERSONNEL FOR THE EASE OF CUSTOMERS.

6. SECURITY
➢ SECURITY SYSTEM IN THE BUILDING IS QUITE ALERT.
➢BUNCH OF SECURITY PERSONNEL AT THE MAIN ENTRANCE AND THE ENTRANCE TO THE BANKING HALL.
➢GUARDS ARE ASSIGNED TO THE VAULT ROOM AND ALL SENSITIVE LOCATIONS.
➢CCTV IS FIXED AT THE ENTRANCE, BANKING HALL AND AT EVERY SENSITIVE LOCATIONS WHICH ARE
CONSTANTLY OBSERVED.
➢ALERT BUTTONS IS PLACED UNDER THE TABLE OF THE SELECTED STAFFS.
➢FIRE ALARMS AND SENSORS ALSO PLACED IN VARIOUS PARTS.
SHORTCOMINGS
➢ PARKING NOT ADEQUATE FOR THE FLOW OF THE CUSTOMERS.
➢NARROW OPENING FOR THE ENTRANCE IN THE BANK.
➢ DIRECT ACCESS FROM THE ROAD CAN CAUSE SECURITY ISSUES.
➢POLLUTION IN THE SURROUNDING AREAS.
➢CONGESTED SPACE IN THE GROUND FLOOR.

7. CASE STUDY ON
DEVELOPMENT ALTERNATIVE,DELHI

8. SITE
LOCATION: NEW DELHI, QUTAB INSTITUTIONAL AREA
CLIMATE: TROPICAL, COMPOSITE
TERRAIN: 1° SLOPE TOWARD NE
SITE SIZE: 3,316 M2
SETTING: URBAN, BORDERING ON FOREST
SEISMIC ZONE: ZONE 4, NATIONAL CODE
PARKING SPACES: 18 CARS AND 30 MOTORCYCLES IN
BASEMENT GARAGE 9 CARS AND 12 MOTORCYCLES ON GRADE
● MAIN ENTRANCE AT EAST
● LANDMARK
-MEDEROR HOSPITAL (SOUTH)
- IME HOSTEL (EAST)
-INDIAN INSTITUTE OF FOREIGN TRADE (250M)
● 400 M FROM MAIN HIGHWAY
● COMMUNITY FOREST AT NORTH
● AVERAGE TEMP: 29 DEGREE C
● AVERAGE RAINFALL: 617 MM
ORIENTATION AND CLIMATE

9. BUILDING
PERIOD: NOVEMBER 2005 TO NOVEMBER 2008
BUILDING TYPE: INSTITUTIONAL HEADQUARTERS
BUILDING VOLUME: -BASEMENT: 5,479 M3;
-SUPERSTRUCTURE: 10,160 M3
MAXIMUM NUMBER OF OCCUPANTS:
- WORKPLACES: 245; VISITORS: 210
GROSS FLOOR AREA: 4,775 M2
NUMBER OF FINISHED FLOORS:
-5 ABOVE GRADE, PLUS BASEMENT
NUMBER OF BASEMENTS: 1

10. CONSTRUCTION
● CONSTRUCTION:
RCC FRAME, MASONRY WALLS , VAULTED
PRECAST CONCRETE DECK ELEMENTS,FERRO-
CEMENT CHANNEL MASONRY DOMES.
● MECHANICAL SYSTEMS:
HYBRID COOLING, EVAPORATIVE
AND REFRIGERANT MODES
● CONSTRUCTION COST:
USD 527/M2

12. CONSTRUCTION MATERIAL
● TRADITIONAL & ENVIRONMENTALLY EFFICIENT CONSTRUCTION MATERIALS AND SYSTEMS
THAT CAN BE ECONOMICALLY DEVELOPED FOR LOW-ENERGY MASS PRODUCTION
❖ WALLS ARE BUILT OF CEMENT-STABILIZED
COMPRESSED-EARTH BLOCK & CEMENT-
STABILIZED FLY-ASH LIME-GYPSUM BLOCK
❖ USES LESS THAN HALF THE REINFORCING
STEEL USED IN COMPARABLE STRUCTURES
OF CONVENTIONAL DESIGN
❖ HIGHLY ENERGY INTENSIVE MATERIALS
ARE LEAST USED
❖ EXTENSIVE USE OF COMMERCIAL TIMBER
AT DOORS AND WINDOWS
❖ TERRACOTTA TILES AT SLOOP ROOFING
❖ VAULTED PRECAST RCC DECK AT ROOFING

13. SPACES
● CENTRAL COURTYARD
● MAIN LOBBY APPROACHING LIFT/STAIRS
● LOBBY AS THE EXHIBITION HALL
● RESOURCE CENTER WITH LIBRARY
● CONSECUTIVE MEETING SPACE WITH
CONFERENCE ROOM
● SEPARATE COFFEE AND CANTEEN SPACE
● CRECHE
● BASEMENT PARKING
● ROOF GARDENING
● AMPHITHEATER
● WORKING DESK
● BOUILI

14. MASTERPLAN
MASTER
PLAN
N

15. PARKING
CAFETERIA
CONFERENCE HALL
WORK
STATION
WORK
STATION
LOBBY

16. FIRST TO FIFTH TYPICAL FLOOR PLAN

17. CIRCULATION

18. ELEVATIONS

19. SECTION

20. GREEN CONCEPT
● BUILDING IS CONSIDERED AS
INDIA'S
GREENEST BUILDING
● WATER – NOT A DROP OF WASTE
WATER FROM DA WILL POLLUTE
THE YAMUNA
● FIRST BUILDING IN INDIA AMING
ZERO EMISSION
● LOCALLY AVAILABLE BUILDING
MATERIAL WITH WIDE USE OF
WOOD INSTEAD OF ALUMINIUM
AND STEEL
● ALL RAINWATER THAT FALLS ON
THE SITE IS USED TO RECHARGE
THE GROUNDWATER

21. ECONOMIC PERFORMANCE
● SELECTING LOW MAINTENANCE, HIGH DURABILITY MATERIALS AND
FINISHES THAT PROVIDE LONG TERM BENEFITS TO USERS AND EVENTUALLY TO THE
ENVIRONMENT
● STONE INSTEAD OF VITRIFIED TILES FOR FLOORS
● EXPOSED BRICK FINISH WITHOUT PAINTS
REDUCED OPERATIONAL COSTS BY
● DESIGNING FOR SECURE ACCESS WITHOUT LARGE SECURITY STAFF
● USING HIGHLY EFFICIENT LIGHTING AND AIR CONDITIONING SYSTEMS
● REDUCING ENERGY COSTS FOR COOLING AND HEATING BY APPROPRIATE PASSIVE DESIGN AND
INCORPORATION OF DOUBLE GLAZED WINDOW

22. DESIGN TEAM
● ARCHITECTURE:
ASHOK B. LALL ARCHITECTS, NEW DELHI
● ENGINEERING
MAIN STRUCTURE: SUBIR ROY CHOUDHURY
● CONTRACTORS:
CIVIL ENGINEERING CONTRACTOR: GURBAKSH SINGH B.A. BUILDERS PVT. LTD,NEW
DELHI

23. REFERENCES
1. https://www.devalt.org/ ( DA OFFICIAL WEBSITE)
2. https://www.ashokblallarchitects.com/ (ARCHITECT)
3. https://archnet.org/sites/6903/media_contents/77339( PLAN,ELEVATION
SECTION)
4. https://www.lafargeholcim-foundation.org/media/publications/development-alt
ernatives-world-headquarters-office-building-in ( GREEN BUILDING IN
INDIA; BOOK)
5. GOOGLE/GOOGLE MAP
6. https://www.cseindia.org/ashok-b-lall-architects-and-development-alternatives
-group-3970 (DATA)

25. CASE STUDY ON VAN DIJK GROEP OFFICE BUILDING
LOCATION:-GEMMERT, THE NETHERLANDS
ARCHITECT:-DENKKAMAR
AREA:-1101 SQ.M.
COMPLETED YEAR:-2020
PURPOSE:- OFFICE BUILDING FOR
INVESTMENT, REAL ESTATE AND UNIBOW
SALES OF VAN DIJK GROUP
● LOCATED AT THE ROUNDABOUT NEAR THE
VILLAGE OF GEMMERT BESIDE VDG UNIBOW
PRODUCTION COMPANY
● HAS A SMALL STREAM FLOWING IN THE
FRONT
WARMEST MONTH- AUGUST (22*C)
COLDEST MONTH - JANUARY(4*C)
AVERAGE ANNUAL PRICIPITATION- 693MM

26. BUBBLE DIAGRAM
w/c
LOCKER STAI
RS
KITCHE
N
DINING
CONFERAN
CE ROOM
LOBBY
SERVIC
E
OFFICE
DEPART
MENT
HEAD
OFFICE
MANAGER
’S OFFICE
EXECUTI
VE
HEAD’S
OFFICE
COUNCEL
LING
ROOM
ENTRANCE
STO
RE
BACK ENTRANCE
GROUND FLOOR

27. GGROU
1
2
3
5
4
GROUND FLOOR PLAN

28. firstfi
FIRST FLOOR PLAN
10
9
6
7

29. SECOND FLOOR PLAN
11
13
12
11

30. BUILDING MATERIAL
● STEEL AND REINFORCED
CONCRETE
● GLASS AND ALUMINIUM FACADE
● WOODEN CANTILEVERED CANOPIES
TO PROTECT FROM EXCESSIVE
SOLAR RADIATION AND ENHANCE
PANORAMIC VIEW FROM THE
OFFICE
● TOP AND BOTTOM OF AWNING ARE
FINISHED IN ARTIFICIAL GRASS
AND ENHANCED ASH WOOD

31. DESIGN CONSIDERATIONS
● A VOID HAS BEEN MADE IN THE HEART OF THE BUILDING ESTABLISHING
RELATION BETWEEN ENTRANCE AND FLOORS ABOVE
● CENTRAL CONNECTING AXIS WITH CENTRAL STAIRS AND KITCHEN TOILETS
AND LOCKERS POSITIONED AGAINST WALL
● WORK AND MEETING PLACE TOWARD THE GLASS FACADE TO TAKE
MAXIMUM ADVANTAGE OF LIGHT AND VIEW
● SINGLE FLIGHT STAIRS TO SAVE SPACE
● BACK EXIT ON EVERY FLOOR FOR EMERGENCY
● NO SPECIFICATION OF SECURITY GUARDS
● REVOLVING DOOR
● NO RAMPS OR ANY OTHER CONSIDERATION FOR HANDICAPPED PERSONS
● NO SPECIFICATION OF OFFICE PARKING SPACE i.e COMMON PARKING IS
USED
SHORTCOMINGS
SOURCE- ARCHDAILY, WIKIPEDIA, GOOGLE

32. Case study on RENASANT BANK
LOCATION = MEMPHIS, UNITED STATES
ARCHITECT = brg3s ARCHITECTS
AREA = 7500 FT²
COMPLETED YEAR = 2018
SOUTH ELEVATION
I
N
T
R
O
D
U
C
T
I
O
N

33. N
SITE VIEW
ENTRY
(20 to 22)

34. SUN-PATH
DIAGRAM
CLIMATE AND SOIL OF
OUR SITE ARE
INFLUENCED BY
MISSISSIPPI RIVER BUT
NOT HIGHLY AFFECTED.

35. MEMPHIS CLIMATIC CONDITION
-WARM AND TEMPERATE
-LOT OF RAIN EVEN IN DRIEST SEASON
-HIGH TEMPERATURE (JULY, 27.6 DEGREE CELCIUS)
- LOW TEMPERATURE (JANUARY, 4.9 DEGREE CELCIUS)
-ANNUAL RAINFALL IS 1258MM.
SOIL OF MEMPHIS AND CONSTRUCION
● THE NATCHEZ SILT LOAM AS THE
OFFICIAL STATE SOIL OF MEMPHIS
● These soils have natural fertility
and desirable tilth
Building anything on top of such plantation is dangerous because it
consists of moisture. The soil has to be dry and rid of moisture for the
construction of a house or building. Removal of the top part of the soil
allows the moisture to leave the soil and the soil that is dug out is later
restored once the construction has taken place. In the meanwhile it is
stockpiled.

36. VIEW OF
HOSPITALITY
BAR FROM
ENGAGE ZONE
ENGAGE ZONE
HOSPITALITY
BAR
ENTRY
TWO SPACES INTERACTING WITH EACH
OTHER IN MINIMAL PLANNING
1
2
3
4
6
5

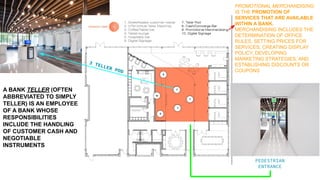

37. 3 TELLER POD
A BANK TELLER (OFTEN
ABBREVIATED TO SIMPLY
TELLER) IS AN EMPLOYEE
OF A BANK WHOSE
RESPONSIBILITIES
INCLUDE THE HANDLING
OF CUSTOMER CASH AND
NEGOTIABLE
INSTRUMENTS
PROMOTIONAL MERCHANDISING
IS THE PROMOTION OF
SERVICES THAT ARE AVAILABLE
WITHIN A BANK.
MERCHANDISING INCLUDES THE
DETERMINATION OF OFFICE
RULES, SETTING PRICES FOR
SERVICES, CREATING DISPLAY
POLICY, DEVELOPING
MARKETING STRATEGIES, AND
ESTABLISHING DISCOUNTS OR
COUPONS
PEDESTRIAN
ENTRANCE

38. EXIT
OFFICE
Conference
hall
● 4 OFFICES HAVING WORKING AREA FOR 3
PEOPLE IN EACH.
● 2 CONFERENCE HALL HAVING ACCOMMODATION OF
10 AND 14 PEOPLE RESPECTIVELY
● 2 TOILET AND 1 FILE KEEPING SPACE
● COMMON SPACE OR BREAK SPACE
● TOTAL NUMBER OF EMPLOYEE AND CLIENT CAN BE
ACCOMMODATED ARE 24 AND 10-12 RESPECTIVELY
MANAGING DIRECTOR OFFICE

39. PARKING
ENTRANCE
FRONT VIEW
BACK VIEW
CAR ENTRY SPACE
A.C.SYSTEM FOR
INTERNAL CONVENIENT
TEMPERATURE CONTROL

40. MATERIAL USED:
● Metal Baffles ceilings
● Use
Interior ceiling
● Characteristics
Flexible designs, easy installation, easy plenum access, lightweight metal
solution
● Sizes
Maximum spans primary and secondary grid 1200 mm. Maximum
cantilevers 300 mm.
● GLASS (FOR
TRANSPARENCY AND
SOUND BARRIER)
● WOODEN PARQUETING
● WHITE MARBLE
