Elante Mall in Chandigarh, opened in April 2013, is the largest mall in the city with a total retail floor area of 107,000 m2, designed by the Australian architectural firm Woodhead. The development features a retail mall, office complex, and a luxury hotel, all encompassing an area of 20 acres, with a mix of shopping, dining, and entertainment options. Elante Mall attracts an average footfall of 18,000 to 20,000 people during the week, and can rise to 30,000–40,000 on weekends.

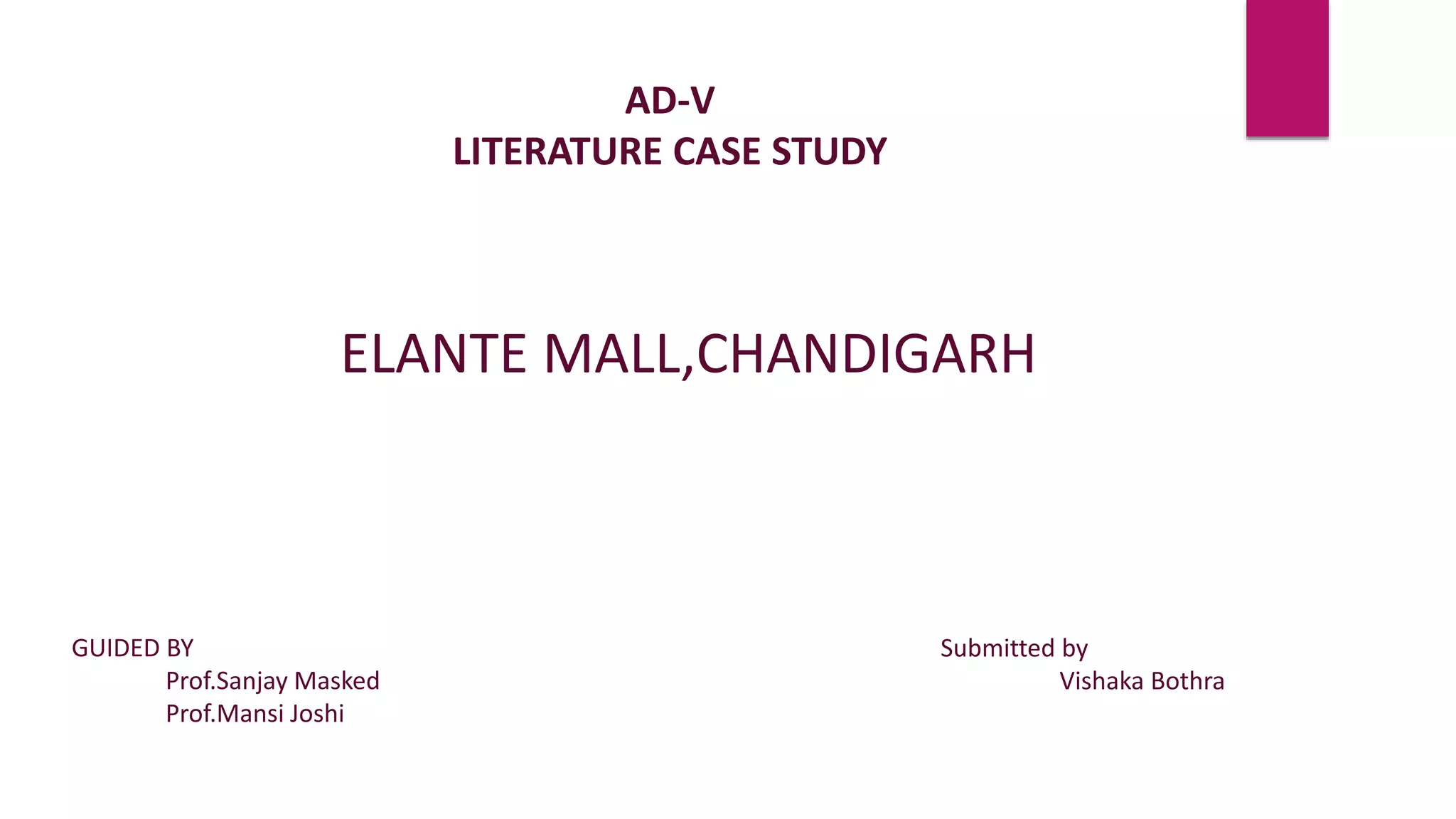

1. AD-V
LITERATURE CASE STUDY
ELANTE MALL,CHANDIGARH
GUIDED BY
Prof.Sanjay Masked
Prof.Mansi Joshi
Submitted by
Vishaka Bothra

2. CONTENTS:
 INTRODUCTION
 SITE PLAN
 SITE ANALYSIS
 CONCEPTUAL VIEW
 FLOOR PLANS
 FEATURES
 RECREATION
 SERVICES
 MATERIALS
 LANDSCAPPING

3.  Opening date – April 2013
 Architect – Woodhead , architectural firm from
Australia
 Total retail floor –107,000 m2
 No of floor – 4+1 basement level , of retail area.
 The developments consists of three distinct
facilities which includes retail mall, office complex
& hotel with central courtyard.
 Elante, with its retail space of over 1 million. Sq.
Ft. Across G+3 levels is the largest mall in
Chandigarh.
 The retail space hosts premium national and
international brands along with a mix of
hypermarket, departmental stores, sports bar,
bowling alley .
 Elante has well planned entertainment zone with
multiplex and food court to cater to its
customers.
Introduction

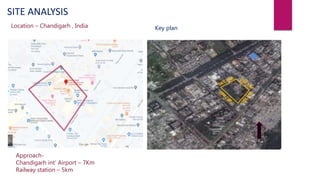

4. SITE ANALYSIS
N
Approach-
Chandigarh int’ Airport – 7Km
Railway station – 5km
Location – Chandigarh , India Key plan

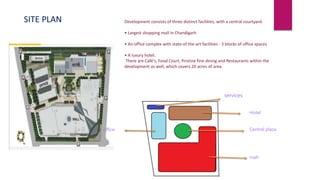

5. SITE PLAN Development consists of three distinct facilities, with a central courtyard:
• Largest shopping mall in Chandigarh
• An office complex with state-of the-art facilities - 3 blocks of office spaces
• A luxury hotel.
There are Café's, Food Court, Pristine fine dining and Restaurants within the
development as well, which covers 20 acres of area.
services
Hotel
Central plaza
mall
office

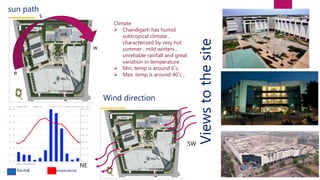

6. sun path
s
e
w
Climate
 Chandigarh has humid
subtropical climate ,
characterized by very hot
summer , mild winters ,
unreliable rainfall and great
variation in temperature .
 Min. temp is around 6˚c.
 Max. temp is around 40˚c .
Rainfall temperature
Views
to
the
site
Wind direction
SW
NE

7. • Total Site Area 20.16 Acres
• Ground Coverage 50 %
• Total Built up Area 1,62,580 sqm
• Retail Mall (Approx. Area) 1,03,586 sqm.
• Office Complex (Approx. Area) 34,838
sqm.
• Hotel (Approx. Area) 24,154 sqm.
• Parking - 5,846 Car Parks
• Total Constructible Area(Including
Basement Parking) 3,06,580 sqm
• Total Area : 1,03,586 sqm.
• No. of Floors : 3B + G + 3
• Mall Positioning : Medium to High end
• Tenancy : 100% Lease hold
• Basic Retail Mix : Hypermarket, Multiplex,
Departmental Stores, Entertainment Zone,
Food Court, Health Club, Night Club,
Premium National and International Brands
CONCEPTUAL VIEW

8. zoning
shop
s
s
h
o
p
s
shops
shops
shops
s
h
o
p
s
L o b b y
L
o
b
b
y
 The shops are zoned in such a way
around the lobby such that there is
proper distinction of materials
 More elements on the lobby
include corridors, atriums and
shops.
 The atrium acts as a focal point for
any person to set as a meeting
spot.
Key facts :
 Total area – 1,03,586.8 sq.
 No. of floors – 3b + G + 3
 Basic retail mix – hypermarket , multiplex ,
departmental store , entertainment zone ,
night club , food court , premium national
and international brands.

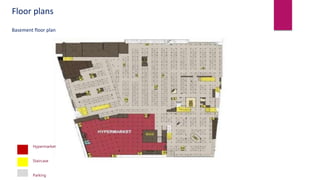

9. Basement floor plan
Hypermarket
Staircase
Parking
Floor plans

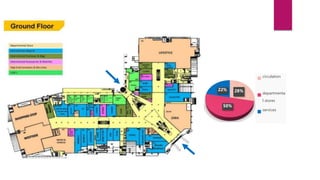

10. 28%
50%
22%
circulation
departmenta
l stores
services

11. 24%
21%
55%
circulation
food court
departmental
stores

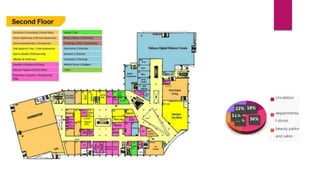

12. 18%
36%
13%
11%
22%
circulation
departmenta
l stores
beauty parlor
and salon

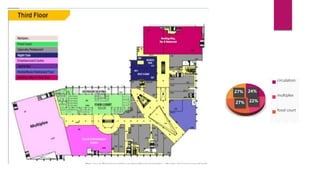

13. 24%
22%
27%
27%
circulation
multiplex
food court

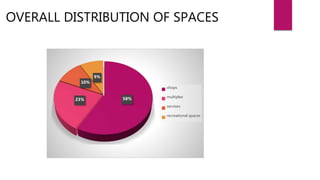

14. 58%
23%
10%
9%
shops
multiplex
servises
recreational spaces
OVERALL DISTRIBUTION OF SPACES

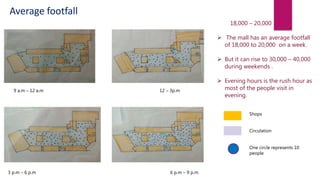

15. Average footfall
9 a.m – 12 a.m 12 – 3p.m
3 p.m – 6 p.m 6 p.m – 9 p.m
18,000 – 20,000
 The mall has an average footfall
of 18,000 to 20,000 on a week.
 But it can rise to 30,000 – 40,000
during weekends .
 Evening hours is the rush hour as
most of the people visit in
evening.
Shops
Circulation
One circle represents 10
people

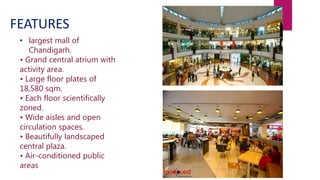

16. • largest mall of
Chandigarh.
• Grand central atrium with
activity area.
• Large floor plates of
18,580 sqm.
• Each floor scientifically
zoned.
• Wide aisles and open
circulation spaces.
• Beautifully landscaped
central plaza.
• Air-conditioned public
areas
FEATURES

17. Multiplex
• PVR has launched its branch at 3rd floor in
Elante’s multiplex space.
• The eight screen cinema is spread across an
area of 6,503 sqm. and has the highest screen
count in Chandigarh.
Gaming Zone
• Provided at 3rdfloor of mall.
• Comprises of various games for all age Group.
Known as ‘Fun City’.
• food court covers area of over 1,858 sqm. with
a seating capacity of 750 seats .
• A foodies heaven with a range of fine dine
restaurant.
Bowling Area
• A vast area is defined by bluO for bowling.
• It also consists of café, karaoke, tattoo lounge,
gaming parlour, etc
RECREATION

18. Parking
• It has a vast parking area that
can accommodate over 5000
cars.
• There are 3 basement floors
dedicated to it.
Circulation
• Vertical:
3 sets of escalators
11 passenger lifts
8 Goods lifts
• Horizontal:
wide aisles and open
circulation spaces
SERVICES
Vertical circulation

19. Friendly design enable easy access for
physically challenged.
• Dedicated parking for women. • ATM
facility.
• Locker and Café facility for
employees.
• Baby care facility on each floor.
• Intelligent Building Management
System.
• Sensitive energy sage device.
4• User friendly signage and digital
displays.
• Managed indoor air quality (incl.
basement parking).
• Central gas bank with piped gas
supply to kitchens.
• Toilets at convenient location.

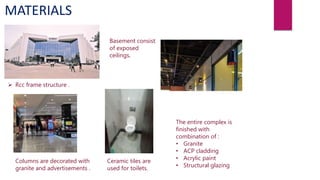

20. MATERIALS
 Rcc frame structure .
Columns are decorated with
granite and advertisements .
Basement consist
of exposed
ceilings.
Ceramic tiles are
used for toilets.
The entire complex is
finished with
combination of :
• Granite
• ACP cladding
• Acrylic paint
• Structural glazing

21. MATERIALS
Internal materials used :
• Different types of false
ceiling is used inside the
mall .
• Basement consist of
exposed ceiling .
• Columns are decorated
with hoardings and
advertisements.
• Italian marble flooring on
the entire ground floor.
Skylight
• Skylights were provided to allow
daylight inside the mall at day
time.
• Glazing is used for skylight .
The water fountains at the main entry
add to the exterior beauty of the mall.

22.  The landscape is treated with both hard and soft
landscape
 Patterns were created with tiles
 Small trees are provided in the central plaza of the mall
.
 A plaza is provided in the center for the people to sit
and enjoy
 Several other elements like fountain and open area
theatre are provided which includes the hard landscape.
 Outside seating are provided for the people to sit and
enjoy the elevation.
LANDSCAPING

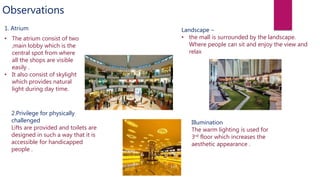

23. Observations
1. Atrium
• The atrium consist of two
,main lobby which is the
central spot from where
all the shops are visible
easily .
• It also consist of skylight
which provides natural
light during day time.
2.Privilege for physically
challenged
Lifts are provided and toilets are
designed in such a way that it is
accessible for handicapped
people .
Landscape –
• the mall is surrounded by the landscape.
Where people can sit and enjoy the view and
relax
Illumination
The warm lighting is used for
3rd floor which increases the
aesthetic appearance .
