1. CASE STUDIES ANALYSIS
Prepared by: Arch. Dania Abdel-Aziz
10/2/2018 1Arch. Dania Abdel-Aziz
University of Jordan
Year 2018/2019

2. What is A case study?
• A case study is an in-depth investigation of a single individual, group,
incident, or community. Other ways include experiments, surveys, or
analysis of archival information.
10/2/2018 Arch. Dania Abdel-Aziz 2

3. Case study Selection criteria
• Program/ functions
• Area
• Location
• Construction system
• Concept
• Project nature
• Topography
• Weather conditions
• Data availability
10/2/2018 Arch. Dania Abdel-Aziz 3

4. Case study Importance
Doing a case study will help you understand the various aspects that you have
to consider while designing such as;
• programs and functions
• new materials
• building technology
• design process
• user experience
• spatial relations
10/2/2018 Arch. Dania Abdel-Aziz 4

5. Important things to analyze in any
Case Study
1. Environment and micro-climate
2. User behaviour and requirements.
3. Utility and space enhancement
4. Form and Function
5. Horizontal and vertical circulation
6. Site Planning and Landscape detailing
7. Structural details such as Column and Beam Design, Steel and Composite
structures
8. Building Services such as Fire Alarm system, HVAC, Water supply systems
9. Design detailing considering the Barrier-free environment
10. Socio-economic profile of user group
11. Parking details and standards
10/2/2018 Arch. Dania Abdel-Aziz 5

6. 1. Local case study (visit)
2. Regional case
3. International case
10/2/2018 Arch. Dania Abdel-Aziz 6

7. General Information
1. Area
2. Designers/ architects
3. Location
4. Year Built
5. Function
6. Concept
7. Extra Data
10/2/2018 Arch. Dania Abdel-Aziz 7

8. Site Plan
1. Location
2. Pathway to building
3. Entrances to site
4. Sun path and wind
5. Surrounding context
6. Greenery
7. Topography
8. Accessibility
10/2/2018 8Arch. Dania Abdel-Aziz

9. Floor Plans
1. Zoning
2. Functions
3. Entrances
4. Circulation (users)
5. Public to private
6. Vertical circulation
7. Services
8. Levels
9. Landscape
10. Relationship to outdoor/site
11. Basic shapes
12. Plan to section
13. Plan to elevation
14. Solid void ratio
10/2/2018 Arch. Dania Abdel-Aziz 9

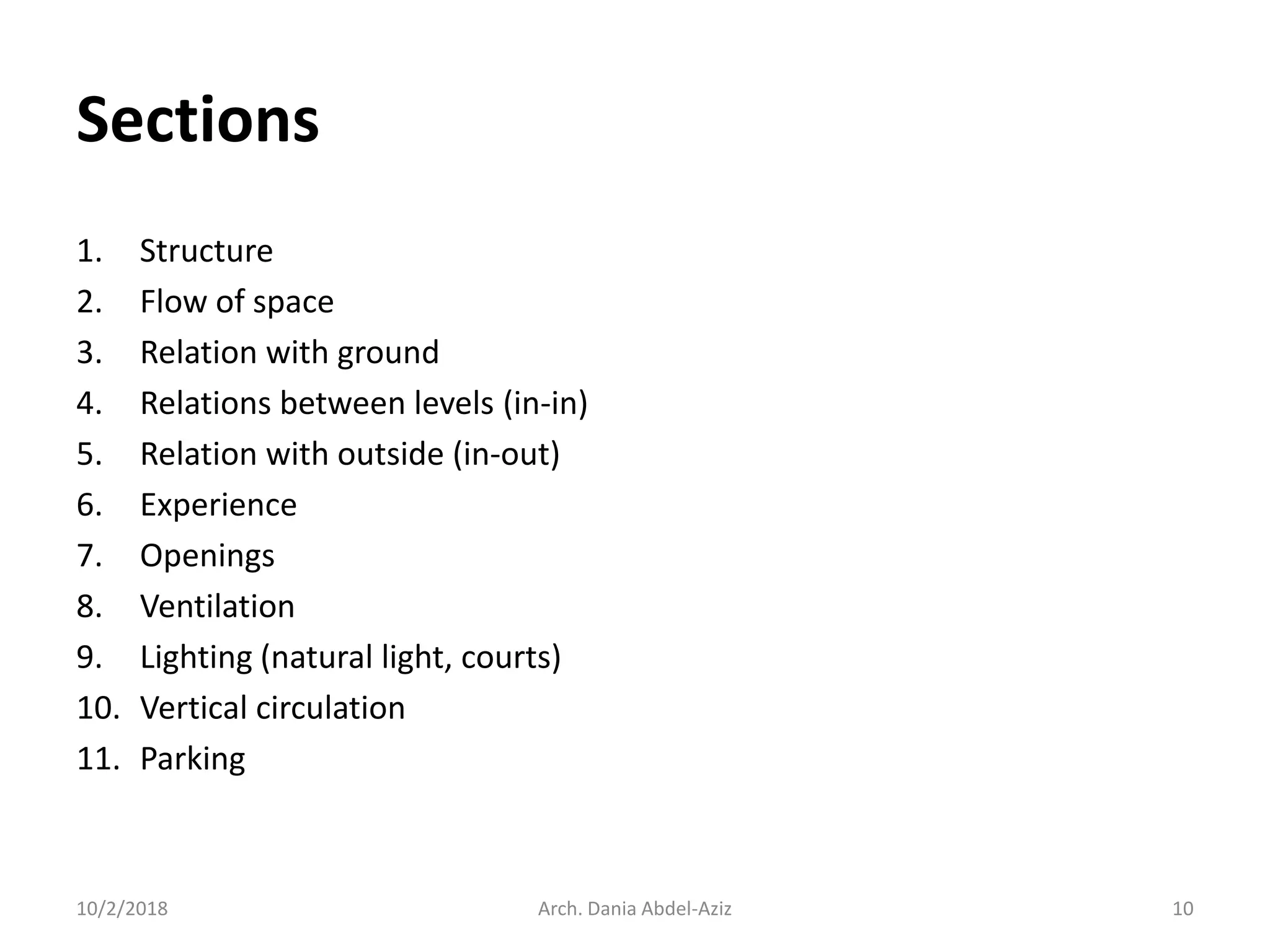

10. Sections
1. Structure
2. Flow of space
3. Relation with ground
4. Relations between levels (in-in)
5. Relation with outside (in-out)
6. Experience
7. Openings
8. Ventilation
9. Lighting (natural light, courts)
10. Vertical circulation
11. Parking
10/2/2018 Arch. Dania Abdel-Aziz 10

11. Elevations
1. Materials
2. Openings vs Wall
3. Rhythm of Facade
4. Structure
5. Architectural Style
6. Levels
7. Context
8. Sky line
9. Heights
10/2/2018 Arch. Dania Abdel-Aziz 11

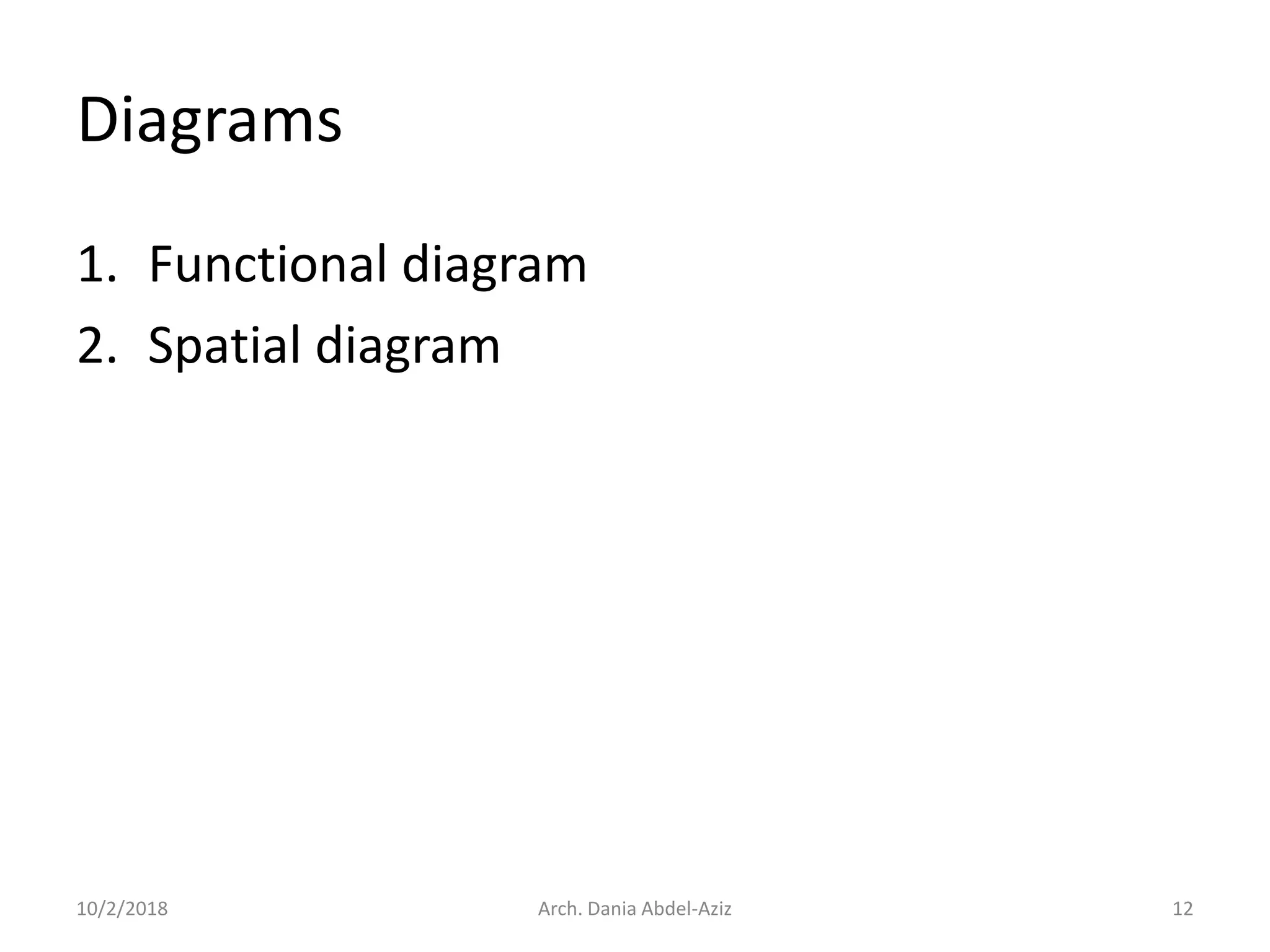

12. Diagrams
1. Functional diagram
2. Spatial diagram
10/2/2018 Arch. Dania Abdel-Aziz 12

13. 10/2/2018 Arch. Dania Abdel-Aziz 13

14. 10/2/2018 Arch. Dania Abdel-Aziz 14

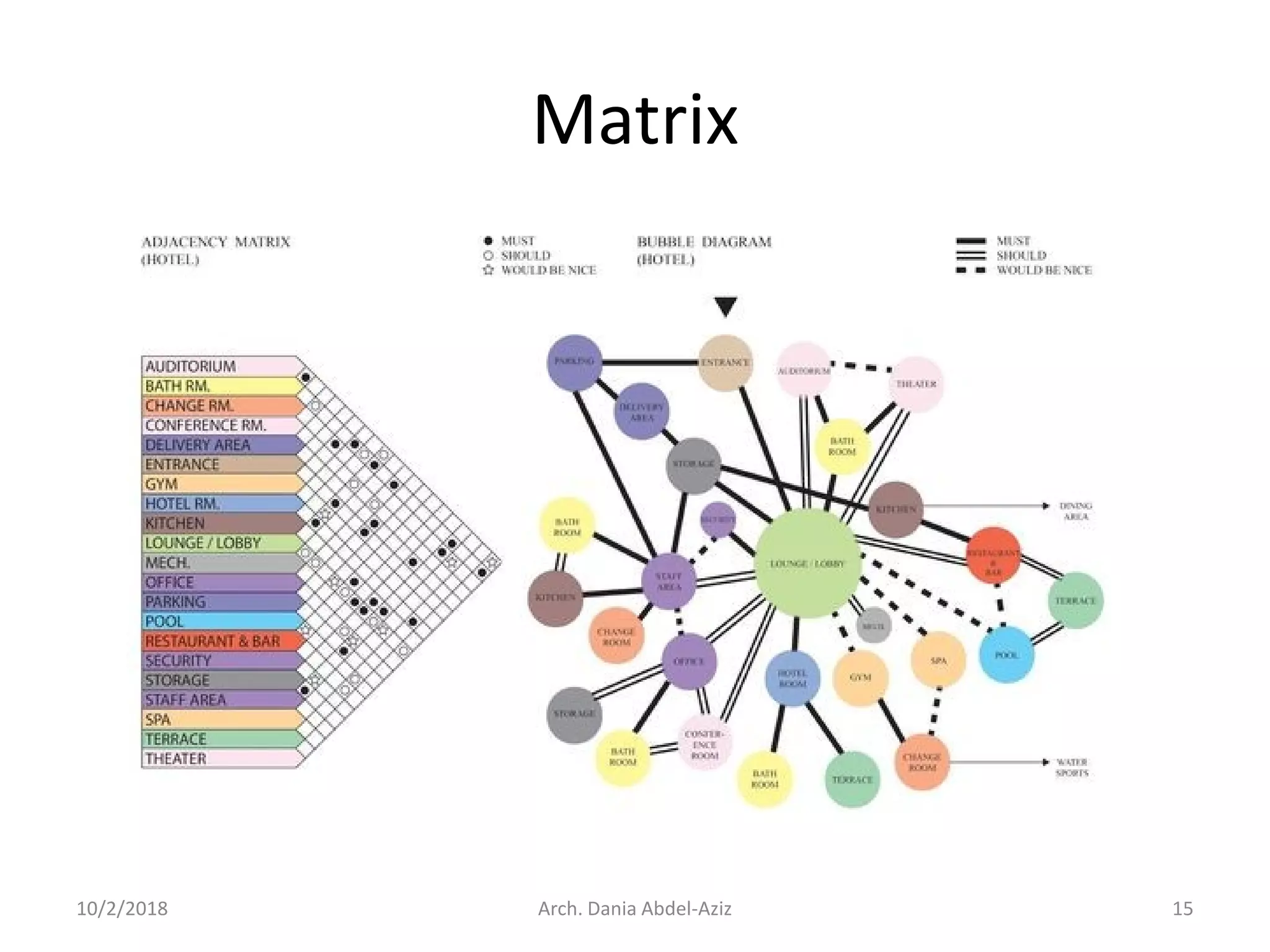

15. Matrix
10/2/2018 Arch. Dania Abdel-Aziz 15

16. 10/2/2018 Arch. Dania Abdel-Aziz 16

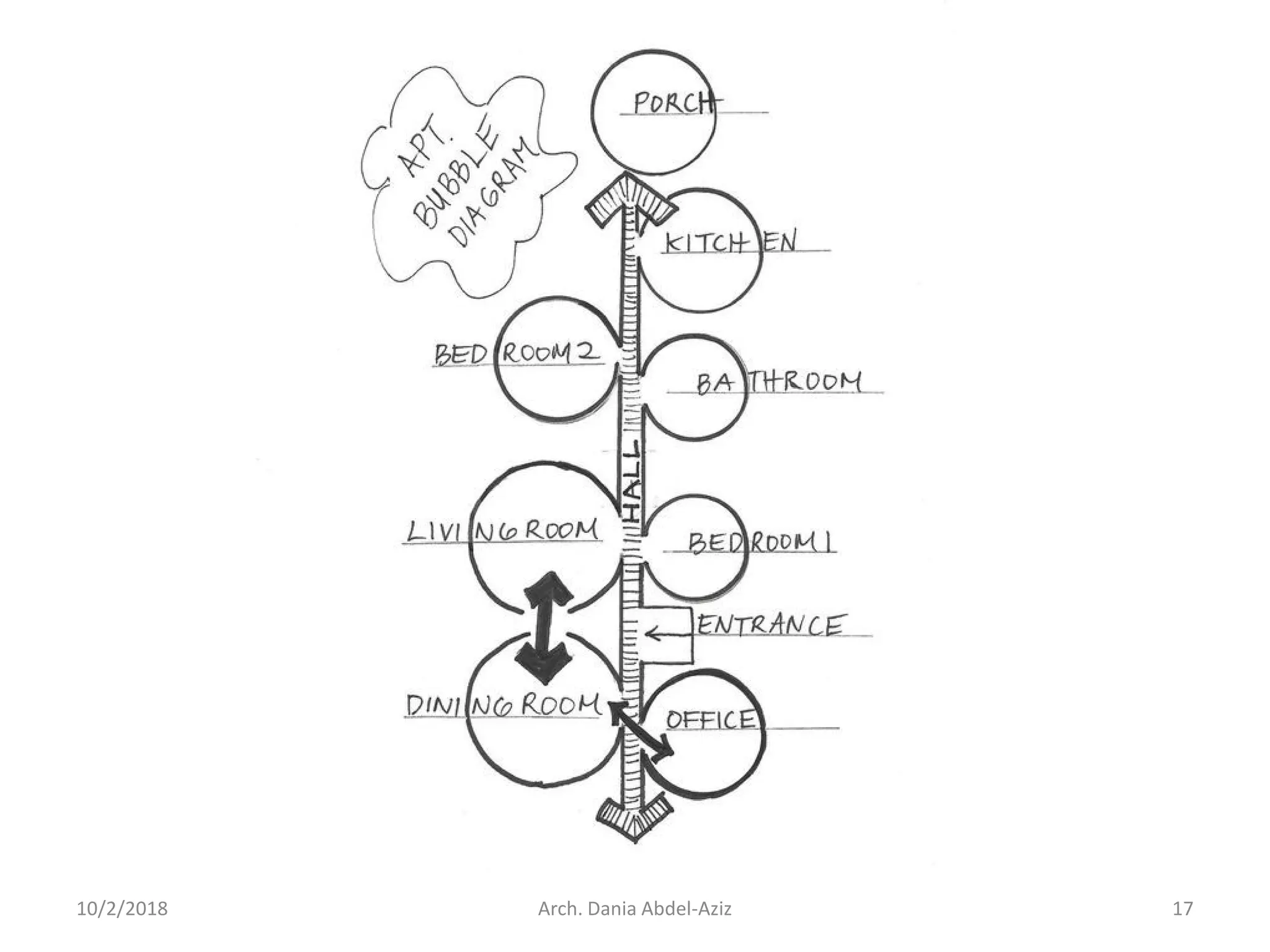

17. 10/2/2018 Arch. Dania Abdel-Aziz 17

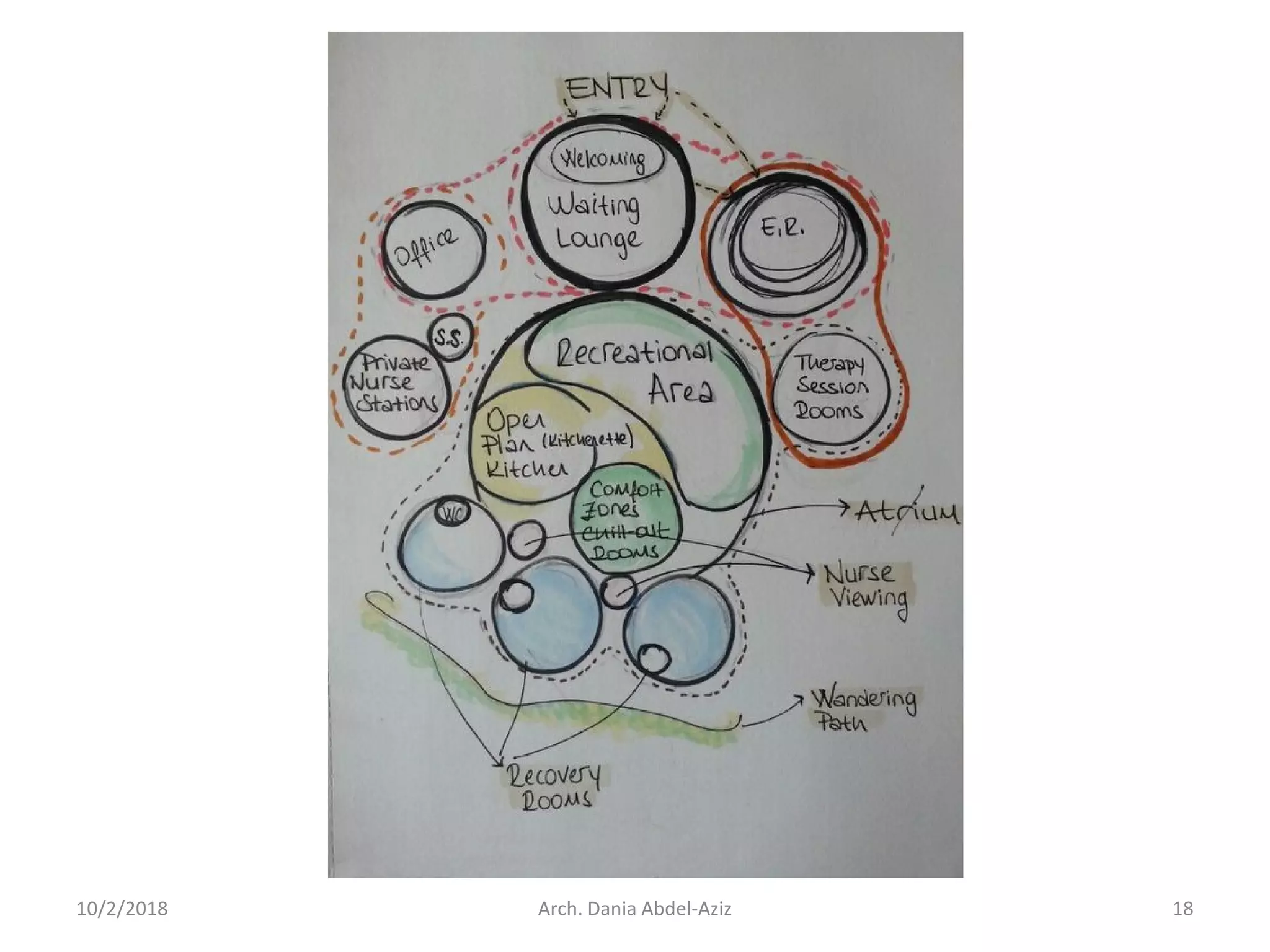

18. 10/2/2018 Arch. Dania Abdel-Aziz 18

19. 10/2/2018 Arch. Dania Abdel-Aziz 19

20. 10/2/2018 Arch. Dania Abdel-Aziz 20

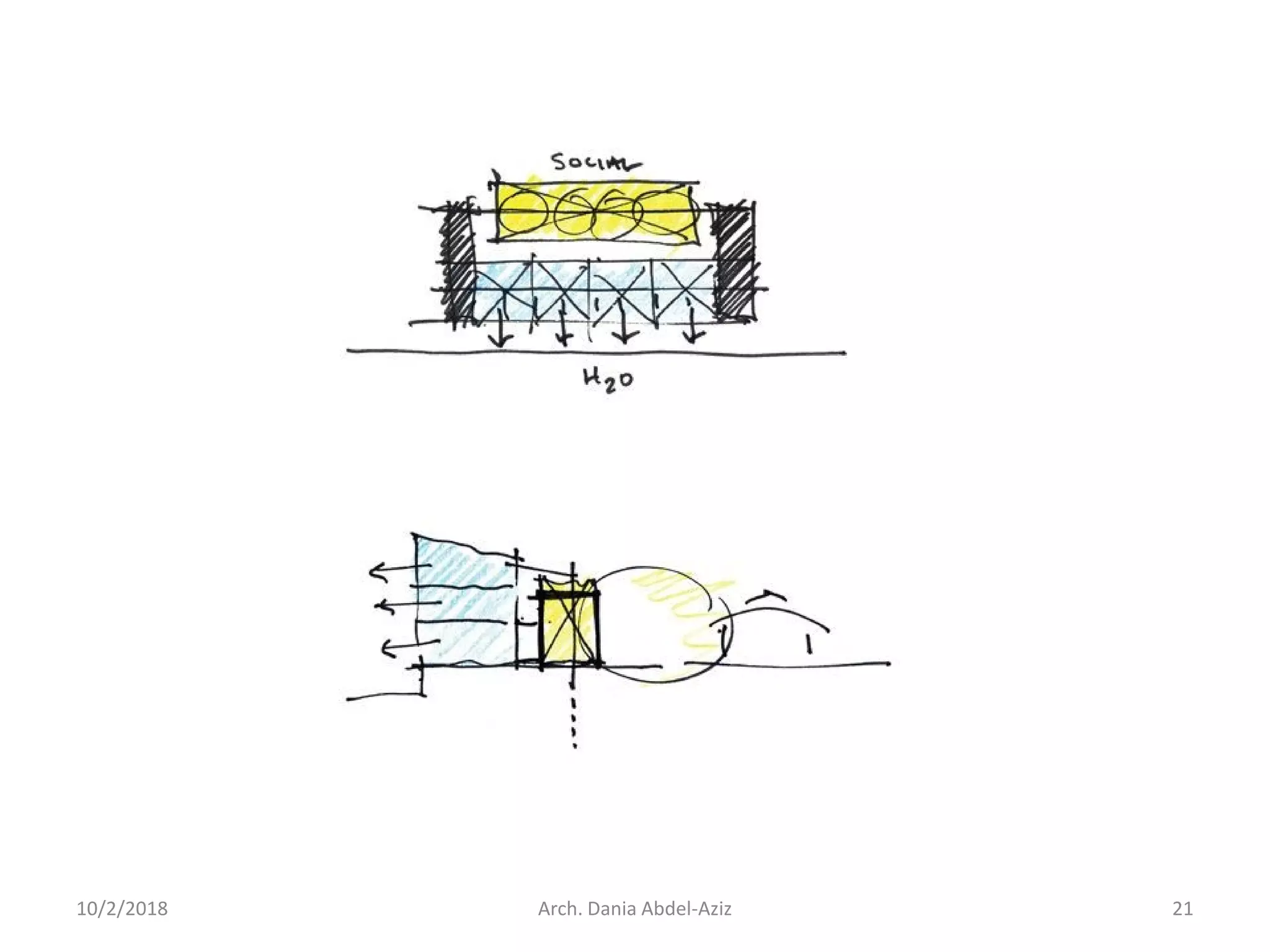

21. 10/2/2018 Arch. Dania Abdel-Aziz 21

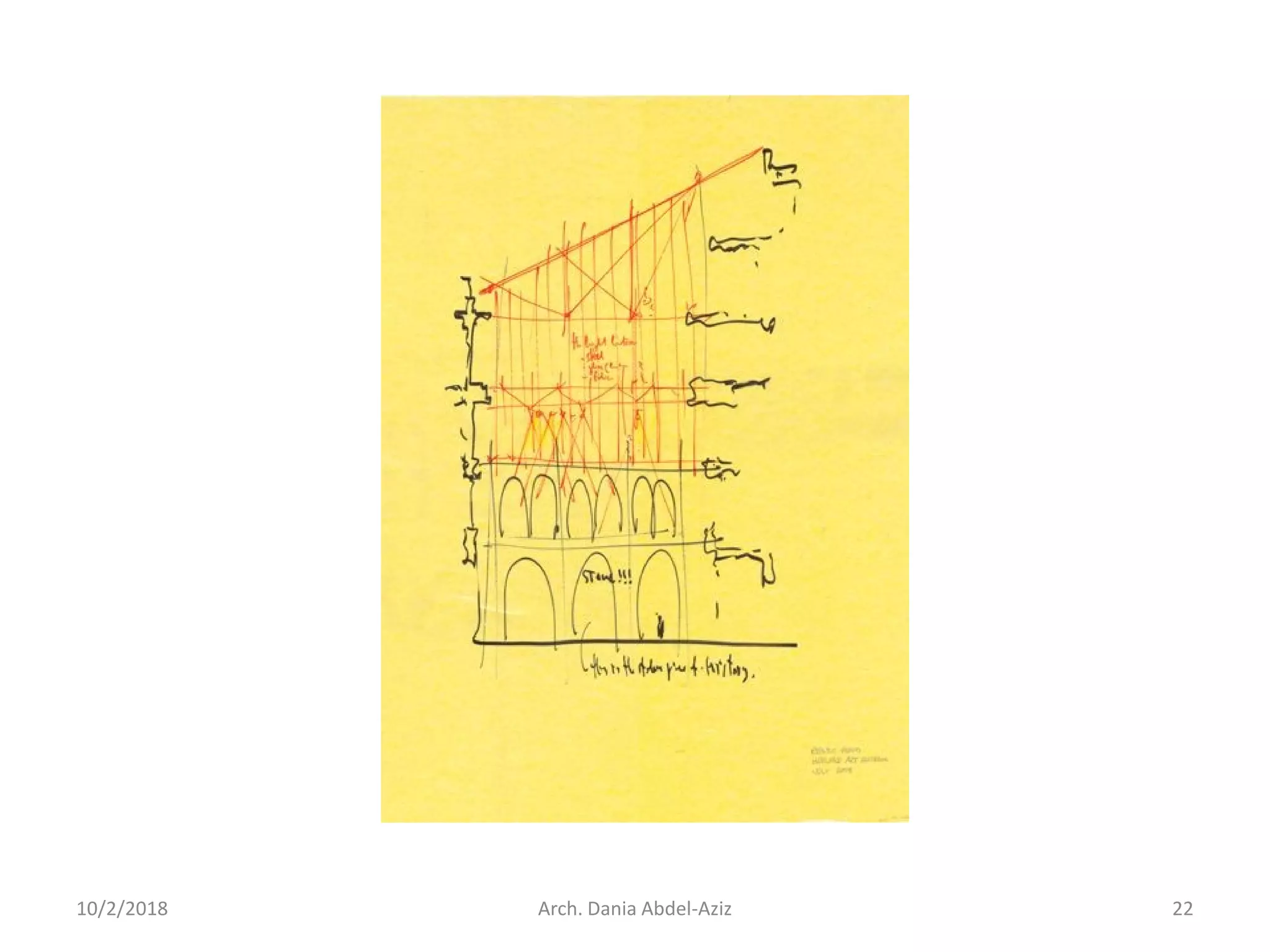

22. 10/2/2018 Arch. Dania Abdel-Aziz 22

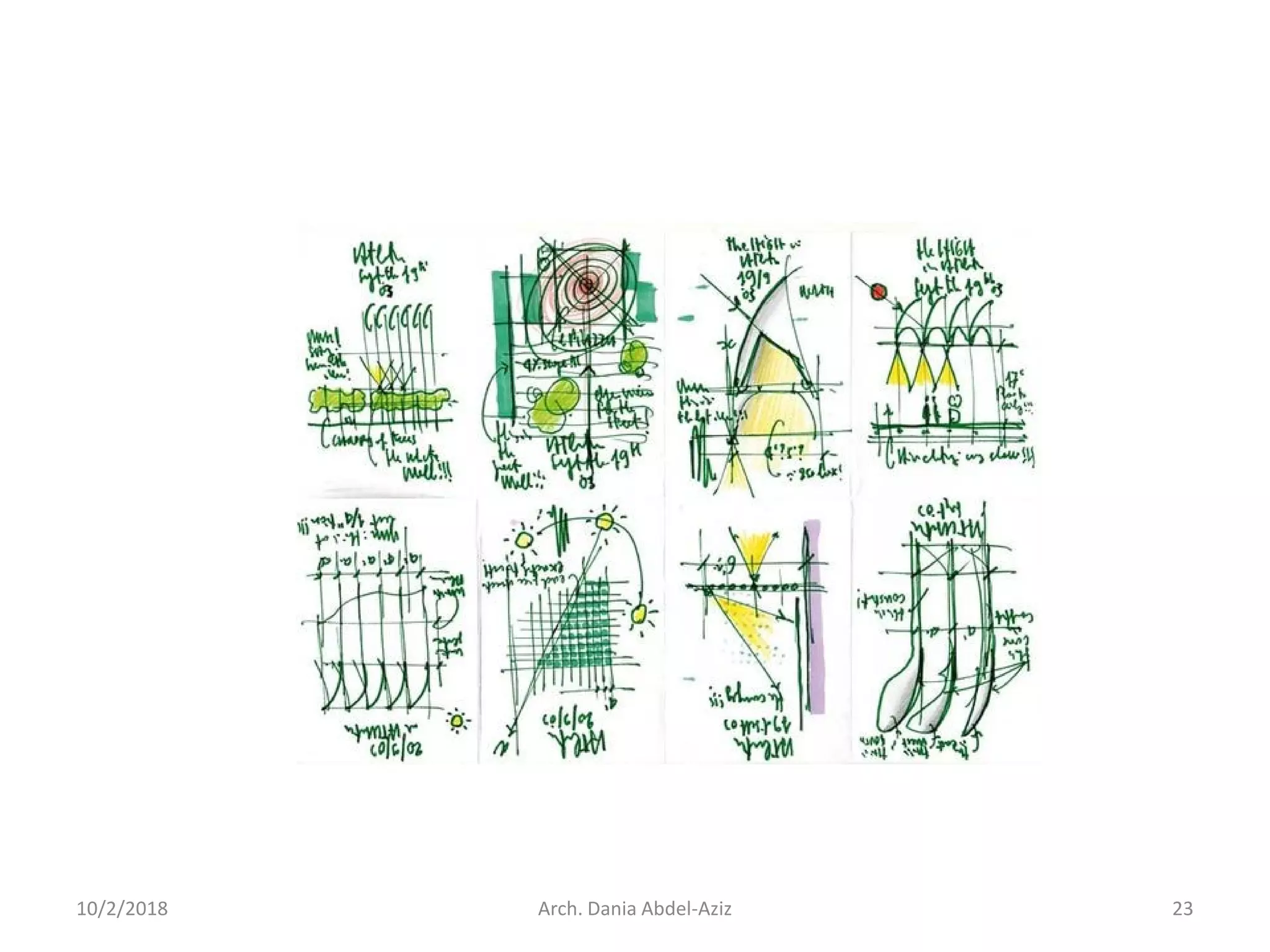

23. 10/2/2018 Arch. Dania Abdel-Aziz 23

24. 10/2/2018 Arch. Dania Abdel-Aziz 24

25. 10/2/2018 Arch. Dania Abdel-Aziz 25

26. 10/2/2018 Arch. Dania Abdel-Aziz 26

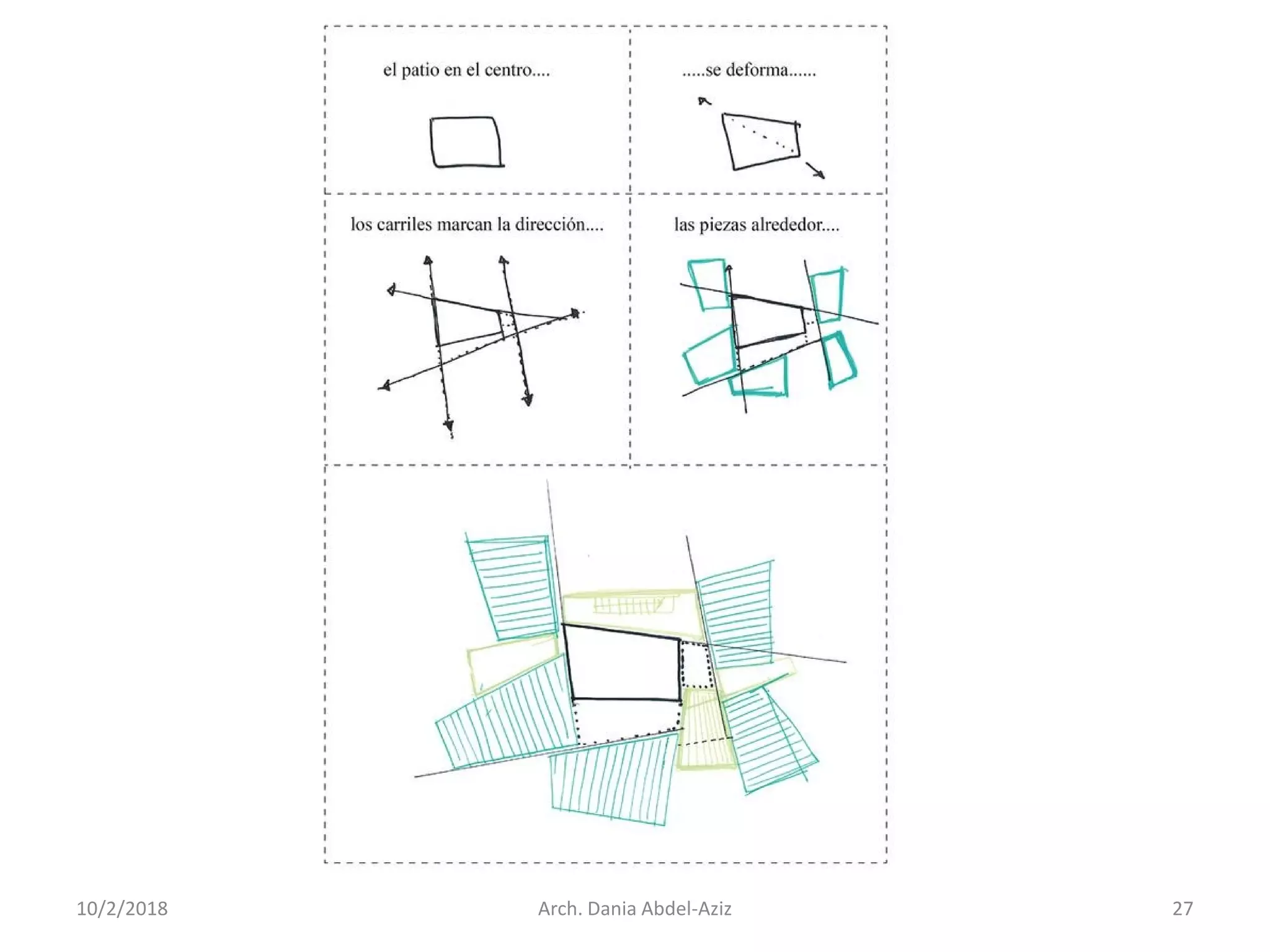

27. 10/2/2018 Arch. Dania Abdel-Aziz 27

28. 10/2/2018 Arch. Dania Abdel-Aziz 28

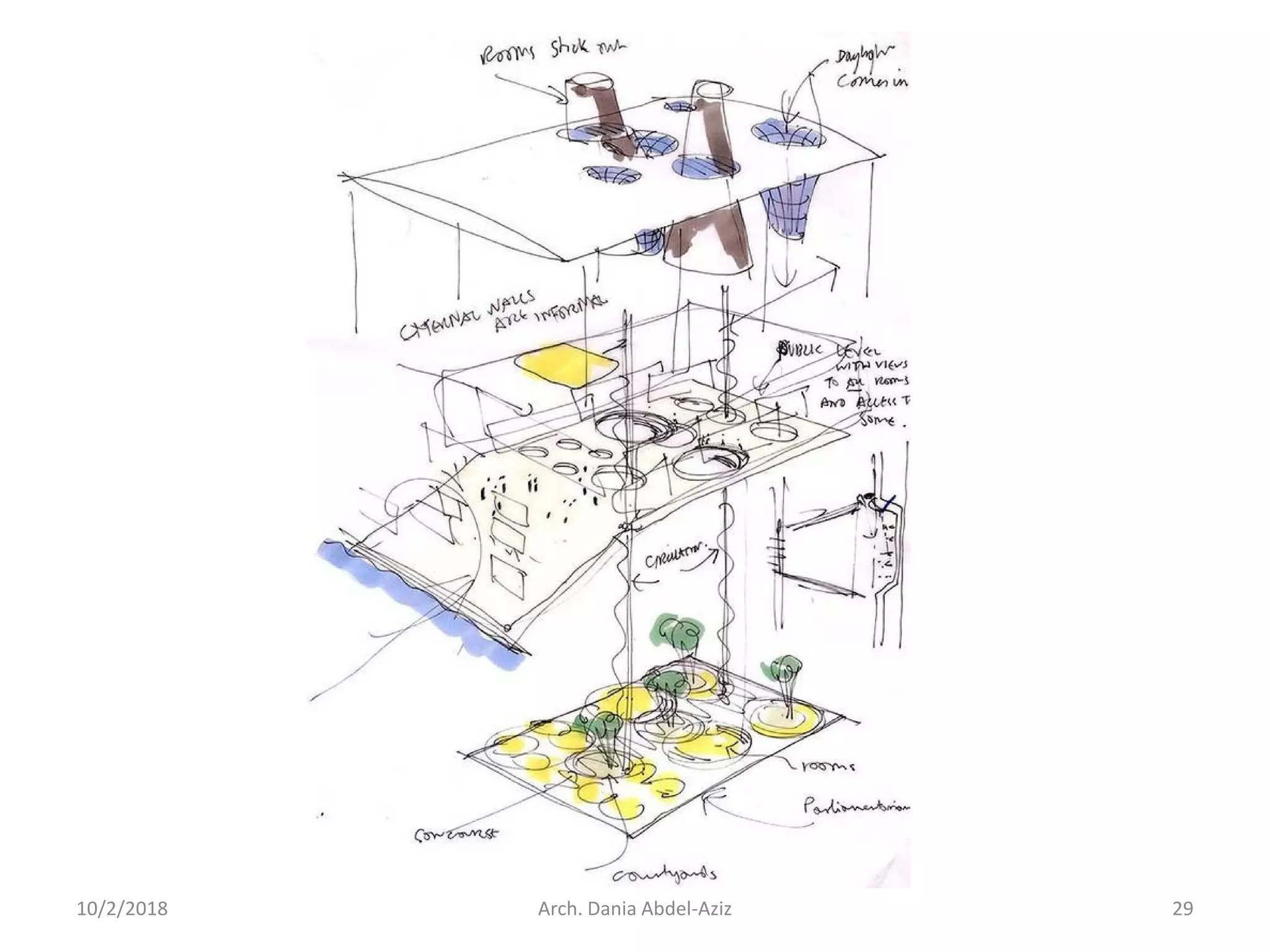

29. 10/2/2018 Arch. Dania Abdel-Aziz 29

30. 10/2/2018 Arch. Dania Abdel-Aziz 30

31. Thank you 
