vSRX
- 1.
- 2. AGENDA WHAT IS vSRX USECASES PERFORMANCE
- 3. vSRX – Security& Routing Junos Routing Protocols and SDK Junos Rich and Extensible Security Stack Junos Space – Security Director & Virtual Director, CLI, JWEB, SNMP, HA/FT Firewall VPN NAT Routing Anti-Virus IPS Web Filtering Anti-Spam AppID AppFW AppQoS AppTrack Perimeter Security Content Security Application Security
- 4. Juniper Networks SRX securityplatforms Product Line 3U, 10 Gb/s 5U, 20 Gb/s 8U, 500+ Gbps 3U, 5 Gb/s SRX3600 SRX5800 SRX5600 SRX3400 SRX1400 SRX550/650 SRX5400 5U, 200 Gb/s 16U, 2 Tb/s HIGH END SRX100/200 BRANCH & SECURE ROUTER SMALL CAMPUS ENTERPRISE EDGE/SMALL DATA CENTER DATA CENTER vSRX - Virtual SRX 4 Gb/s with path to 20Gb/s All performance estimates are IMIX
- 5. vSRX VM Hypervisors (VMware, KVM,Contrail) Physical X86 CPU, Memory, & Storage Adv Services + Flow Processing + Packet FWD (JEXEC) Junos Kernel QEMU/KVM Juniper Linux (Guest OS) SRIOV Junos Control Plane (JCP/vRE) MGD RPD FEATURE PARITY TO X47-D20 (FFP) (Including Firewall, AppSecure, UTM/IDP, VPN, NAT, Routing, HA Cluster, etc.) PLATFORMS • VMWare 5.1,5.5,6.0 • Ubuntu 14.04 (KVM) CHANGES • Name change to vSRX • Junos Version change to 15.1 • DPDK • SR-IOV • VMXNET3 and VirtIO (Driver updates) • Linux Base OS • 64Bit Flowd • Dedicated management I/F • SCSI Support • SNMP enhancements • VMTools • Min 4G vRAM and 8G HD vSRX 2.0 • Centos 7 (KVM) • Latest Contrail
- 6. Junos Space SecurityDirector & Virtualization Security Director Virtualization Automation (Virtual Director) Firewall Management IPsec VPN management Network Address Translation (NAT) management Intrusion prevention (IPS) management Application-level policy management UTM unified threat management Security Services • Delivers scalable and responsive security management • Improves the reach, ease, and accuracy of security policy administration • Enables quick and intuitive web-based management of security policy lifecycle • Deploys and manages lifecycle of Virtual Firewalls

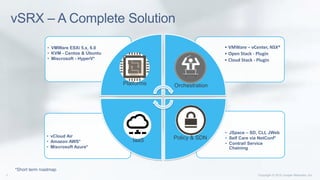

- 7. vSRX – AComplete Solution • JSpace – SD, CLI, JWeb • Self Care via NetConf* • Contrail Service Chaining • vCloud Air • Amazon AWS* • Miscrosoft Azure* • VMWare – vCenter, NSX* • Open Stack - Plugin • Cloud Stack - Plugin • VMWare ESXi 5.x, 6.0 • KVM - Centos & Ubuntu • Miscrosoft - HyperV* *Short term roadmap Platforms IaaS Policy & SDN Orchestration
- 8. AGENDA WHAT IS vSRX USECASES PERFORMANCE
- 9. Enterprise: Private Cloud SecurityDirector enables security policy configuration and management across physical & virtual environments Key Need VM Isolation Department 2Department 1 Department 3 Department 4 Other VM Web VM APP VM DB VM Other VM Web VM APP VM DB VM Other VM Web VM APP VM DB VM Other VM Web VM APP VM DB VM vSRX vSRX vSRX vSRX vCenter Security Director Virtual Director Virtual Environment/Private Cloud Physical Servers WAN
- 10. Providing protection andconnectivity to customer hosted VMs Customer Premise 2 Other VM Web VM APP VM DB VM IPSec VPN Customer Premise 3 Other VM Web VM APP VM DB VM IPSec VPN Other VM Web VM APP VM DB VM Customer Premise 4 IPSec VPN Customer 2 Customer 3 Customer 4 IPSec VPN IPSec VPN IPSec VPN Other VM Web VM APP VM DB VM IPSec VPN Customer Premise 1 Customer 1 IPSec VPN vSRX dedicated to each customer Public and Hybrid Cloud

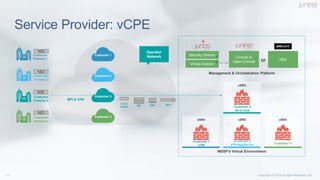

- 11. Service Provider: vCPE MPLSVPN Customer Premise 1 Customer Premise 2 Customer Premise 4 MX L2/L3 Switch SRX QFX Customer 1 UTM vSRX Customer 2 IPS+AppSecure vSRX Customer 4 vSRX MSSP’s Virtual Environment Customer 3 All-in-One vSRX Management & Orchestration Platform Contrail or Open Contrail or Security Director Virtual Director NSX Customer 2 Customer Premise 3 Customer 3 Customer 4 Customer 1 Operator Network NID NID NID NID
- 12. Service Provider: uCPE MPLSVPN Customer Premise 1 Customer Premise 2 Customer Premise 4 MX L2/L3 Switch SRX QFX MSSP’s Virtual Environment Management & Orchestration Platform Contrail or Open Contrail or Security Director Virtual Director NSX Customer 2 Customer Premise 3 Customer 3 Customer 4 Customer 1 Operator Network uCPE HW vSRX uCPE HW vSRX uCPE HW vSRX uCPE HW vSRX Additional Services Delivered from Cloud
- 13. Junos-Out-of-the-Box Use CaseDiagram SRX Physical Servers Physical Servers Physical Servers EX Switch Before (Retail Branch, Subscriber, Military Ship/Tank/etc.) Physical Servers Physical Servers EX Switch Partial Virtual Metro Ethernet, etc. Traffic flows for virtual or physical routed through local Firefly Virtualized Environment VMs Total Virtual All VM’s at location with Firefly (similar termination of WAN link required) Virtualized Environment VMs VMs vSRX vSRX
- 14. AGENDA WHAT IS vSRX USECASES PERFORMANCE
- 15. vSRX 2.0 (15.1X49-D15)vs. vSRX 1.0 Performance 1.05 4.35 2.9 11.4 4.2 17 0 2 4 6 8 10 12 14 16 18 IMIX 1514B vSRX X47 vSRX 15.1X49 vSRX 15.1X49 (SR-IOV) FW Throughput (Gbps) ESXi5.5 platforms used for performance tests: HP Proliant DL380p, Xeon E5-2660v2, 20 Cores @2.194 GHz Dell R820, Xeon E5-4610, 24 Cores @2.40GHz and Dell R920, Xeon E7-8893v2, 12 Cores @3.4GHz for SR-IOV tests Industry’s fastest virtual firewall 17G (1514B) 4.2G (Imix)
- 16. NEXT STEPS - Localdemos - Partner/Disti/JNPR - Loan of Juniper Equipment - Proof of Concept Labs, nearest in Amsterdam - Mandatory item is a testplan - Professional testing tools - Possibility to bring 3rd party equipment
