- 1. Juniper Mobile Backhaul Solution andMobile Security Juniper Partner Summit, Moscow, April 21, 2015 Denis Zotov EMEA CoE
- 2. LSP Services Mobile Backbone Datacenters IP/Internet Universal Edge Universal Access Universal Access extendsthe intelligence from edge to access, creating a seamless end-to-end service delivery system, with scale and financial viability. Single OS Single control plane Seamless end-to-end service Operational simplicity and scale Residential Broadband Edge Introducing Universal Access Business Edge Mobile Edge ACX Service providers have traditionally deployed separate networks for business, residential and mobile customers Business Universal Edge MX 3D JUNOS SPACE End-to-end Service Provisioning, Troubleshooting, Performance Management Access and Aggregation Network
- 3. 3 Copyright ©2013 Juniper Networks, Inc. www.juniper.net JUNIPER NETWORKS’ SOLUTION FOR UNIVERSAL ACCESS, AGGREGATION, EDGE Pre-Aggregation MX960 MX480 10GE Access ACX 4000 ACX 2x00 MX104 ACX500 Aggregation MX2010 MX2020 Edge TCA8x00 TCA6x00 SEAMLESS MPLS NETWORK TIMING 100GE MX240 MX80 ACX5048 ACX5096 ACX 1x00 vMX
- 4. ACX2100 ACX-series ACX2000 ACX1100 ACX1000 ACX4000 ACX5048 ACX5096 Juniper’s UniversalAccess router for mobile backhaul (LTE, 2G/3G), business Ethernet services and residential access Complements Universal Edge Fixed and modular platforms all running JUNOS Integrated precision timing for highest QoE (IEEE1588v2, SyncE) Embedded SLA packet generator (RFC 2544) Hardened fan-less design Support for POE++ (up to 65 W) 10 Gig interfaces for converged access Seamless MPLS provides most flexible service architecture Extensive end-to-end network monitoring: Latency, jitter, OAM Open system for innovation (JUNOS SDK and JVAE) Satellite Node to MX/MX104 (Junos Node Unifier) THE NEW BENCHMARK FOR ACCESS NETWORKS ACX500 indoor ACX500 outdoor ACX2200
- 5.
- 6. Introducing the ACX500family of Routers Highlights • Specifically designed to meet the SmallCell market deployment needs • Support Carrier Ethernet and MPLS Access • MEF CE2.0 Compliant • Line Rate on all ports • Scalable H-QoS support • IPSec support for secure transport over non- trusted backhaul • Built-in DHCP Server for Small Cells • Zero Touch Provisioning • Automated Configuration / Image download using Junos Space • Supports convergence of Wireline and Mobile Networks • Low Power consumption • Multiple product variants including support for POE/POE++ ACX500 Indoor ACX500 Outdoor
- 7. ACX500 •2x 1GE (SFP)+ 4x 1GE (Combo, 3x PoE+ support) •Temp. Hardened (-40 to +65 C), Passive cooling •10.7 in. (W) x 1.75 in. (H) x 11 in. (D) (TBD) •Advanced Timing – GPS receiver integration, GM capability •Advanced Security – IPSec, NAT, MacSec and TPM •Advanced SLA management – RFC2544, Y.1564, TWAMP • 3x 1GE (SFP) + 3x 1GE (Cu, PoE+ support) • IP65 compliant, Passive cooling, Power Budget: 45W • 9.47 in. (W) x 15.8 in. (H) x 5.6 in. (D) (TBD) • Advanced Timing - GPS receiver integration, GM capability • Advanced Security – IPSec, NAT, MacSec and TPM • Advanced SLA management – RFC2544, Y.1564, TWAMP ACX500 – INDOOR SKU ACX500-O & ACX500-O-POE - OUTDOOR SKUs
- 8. ACX500 Indoor andOutdoor Variants / Licensing Variants Indoor (Avail Today) Outdoor (Avail-3Q15) AC - ACX500-O-AC DC - ACX500-O-DC AC with POE* ACX500-AC ACX500-O-POE-AC DC with POE* ACX500-DC ACX500-O-POE-DC Services Licensing Indoor ACX500-LIC-GPS ACX500 License for GPS Receiver ACX500-LIC-SEC ACX500 License for IPSec and NAT features Note: * 3 ports capable of supporting POE / POE++, max 80 Watts power across 1 or 3 ports combined

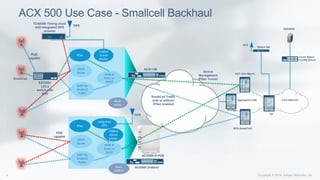

- 9. ACX 500 UseCase - Smallcell Backhaul NAPT for Smallcell Traffic DHCP Server IPSec 1588v2 Grand Master WAN IP Static or DHCP ACX1100 EX2200c L2/L3 switch with PoE TCA6500 Timing client with Integrated GPS receiver GPS POE capable SmallCell Device Management IPSec Tunnel SmallCell Traffic with or without IPSec enabled POE capable NAPT for Smallcell Traffic DHCP Server IPSec 1588v2 Grand Master WAN IP Static or DHCP Integrated GPS GPS ACX500-O-POE (Outdoor) ACX500 (Indoor) Junos Space + Config Server OSS/BSS 1588v2 GM GPS Aggregation NW SEG (SmallCell) SEG (Dev Mgmt) Core Network CE PreAgg Avail. today Avail. 1H2015

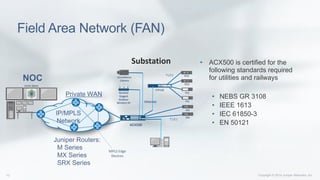

- 10. Field Area Network(FAN) • ACX500 is certified for the following standards required for utilities and railways • NEBS GR 3108 • IEEE 1613 • IEC 61850-3 • EN 50121 Substation NOC ACX500 IP/MPLS Network CTP150 Junos Space Juniper Routers: M Series MX Series SRX Series WLA632 Rugged Outdoor Wireless AP IED Surveillance Camera RTU PLC RTU PLC IED Private WAN T1/E1 T1/E1 Ethernet MPLS Edge Devices
- 11.
- 12. ACX5000 series ACX5048 48x 1/10GbE SFP+ 6 x 40GbE QSFP uplinks 1.44 Tbps throughput 1U fixed form factor ACX5096 96 x 1/10GbE SFP+ 8 x 40GbE QSFP uplinks 2.56 Tbps throughput 2U fixed form factor E-LINE, E-LAN with full E-OAM, Comprehensive L2 Multicast Solution over IP/MPLS Infrastructure IP-VPN Services Reliable Networking: ISSU, MC-LAG, Flexible Virtual Chassis Deployments Sync: 1588 TC

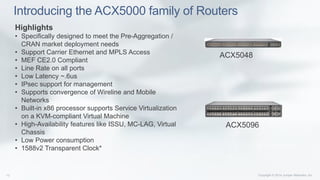

- 13. Introducing the ACX5000family of Routers Highlights • Specifically designed to meet the Pre-Aggregation / CRAN market deployment needs • Support Carrier Ethernet and MPLS Access • MEF CE2.0 Compliant • Line Rate on all ports • Low Latency ~.6us • IPsec support for management • Supports convergence of Wireline and Mobile Networks • Built-in x86 processor supports Service Virtualization on a KVM-compliant Virtual Machine • High-Availability features like ISSU, MC-LAG, Virtual Chassis • Low Power consumption • 1588v2 Transparent Clock* ACX5048 ACX5096
- 14. ACX5K VALUE PROPOSITION 1GEto 10GE Network and Service Migration High density & capacity 1GE/10GE Platform Graceful Migration From 1GE to 10GE Flexible Service Offerings Low Latency (Finance, Front- haul) MEF Services (ELINE, ELAN, E-Tree, ENNI) Ethernet OAM 802.3ah, 802.1ag, Y.1731 PM RFC2544 IP-VPN VM Architecture Added Value Applications – Firewall, Analytics, User Defined Apps) Flexible Network Deployment Ethernet IP/MPLS High Availability and Scalable Networking JUNOS for building highly reliable and scalable networks G.8032, RSVP 1:1, FRR, BFD, IP LFA, PWE Red., VRRP ISSU, Virtual Chassis, MC-LAG Seamless MPLS Networking Solution
- 15. ACX5000 APPLICATIONS – METROEAGGREGATION(BUSINESS) MetroE Aggregation (No Residential access) E-OAM, E-LINE/E-LAN (Ethernet and MPLS) High Capacity, IP-VPN/IP Support SP Market MSO
- 16. ACX5000 APPLICATIONS – METROECPE (BUSINESS) High Capacity CLE/CPE – EAD Device E-OAM, E-LINE/E-LAN (Ethernet and MPLS) High Capacity, IP-VPN/IP Support SP Market MSO
- 17. Connectivity Services Director &Cross Platform Provisioning
- 18. Service Lifecycle Management ServiceDesign & Provisioning • Templates for service design and rapid provisioning Validation & Troubleshooting • Network performance and SLA assurance Service Decommissioning • Decommission and release service resources Resource Management • Maintain service inventory and resources Transport Provisioning - Design, provisioning, and deployment of static and dynamic P2P and P2MP and full mesh LSPs Network Service Provisioning - Provisioning, validation and troubleshooting of MPLS, L2/L3VPN, MEF and TDM/ATM services QoS Provisioning - Provisioning of QoS profiles for bandwidth management, traffic shaping and congestion management Sync Management - Configuration and management of PTP, SyncE and hybrid synchronization modes across the network Troubleshooting and Performance Monitoring – Service fault and performance management using Y.1731, CFM, LFM, BFD Key Requirements Service Lifecycle Management

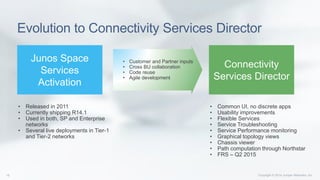

- 19. Evolution to ConnectivityServices Director Junos Space Services Activation • Released in 2011 • Currently shipping R14.1 • Used in both, SP and Enterprise networks • Several live deployments in Tier-1 and Tier-2 networks • Common UI, no discrete apps • Usability improvements • Flexible Services • Service Troubleshooting • Service Performance monitoring • Graphical topology views • Chassis viewer • Path computation through Northstar • FRS – Q2 2015 Connectivity Services Director • Customer and Partner inputs • Cross BU collaboration • Code reuse • Agile development
- 20.
- 21. Services Types Easy accessto customer list Service-specific tasks Overall status of services Improved search Services List Alarm summary
- 22. Port-specific information Logical interfaces anddetails Port specific configlets
- 23. CPP - HighLevel Architecture ALU 5620 SAM Junos Space EMS CPP Service Activation 1.0 E-LINE / E-LAN / L3VPN / IPTV L3VPN Services Carrier Ethernet Network REST API SOAP Webservices (SAM-O) Junos Space Platform Alcatel Lucent Hardware Juniper Hardware Enhancements to Services Activation Director (Network Activate) to deploy and manage services in Space & ALU 5620 SAM Uses Flex Services framework to design and provision services on Juniper and ALU devices Uses SOAP API to manage ALU 5620 SAM services Provides a script-driven approach to service template design for provisioning new services Leverages Space platform features such as clustering, redundancy, etc. Solution Highlights Flex Services
- 24. Device and ServiceLifecycle Management CPP Modify operations (Device, Service) Bulk Service Changes (Device, Service) Service Migration (Port x to Port y) MODIFICATION Device Discovery Service Discovery DISCOVERY Golden template on device using device Configlets Service Provisioning ELINE, ELAN, L3VPN, Network Peering PROVISIONING Device Validation Scripts Device Troubleshooting OpScripts Service Troubleshooting OpScripts TROUBLESHOOTING 2 4 3 1
- 25.
- 26. What is MobileSec GW • What is Mobile Sec GW • Mobile Security GW is introduced to protect the availability and integrity of the mobile network; • Protect the EPC by permitting the sessions from the certified mobile base stations • Protect the data integrity through transport network. • Securing the management plane traffic of the backhaul devices • What are the key functions • IKE/IPsec VPN termination (HA in some case) from eNB directly to Mobile core (main) • Firewall, SCTP rate limiting, IPS, DDoS, etc. (optional) EPC
- 27. Where are thethreats Backhaul Network - UEs • Signalling storms (not directly malicious) • Signalling plane attacks • Access to EPC nodes • Participation in botnets • Access to exploitable carrier services such as DNS or NTP • Insecure physical locations giving easy access to backhaul network • Visibility of user information • IP access to backhaul nodes and EPC • Ethernet access could allow standard attack devices and tools to be used • Possible access to carrier services, e.g. DNS, NTP • Commonly shared or leased – not under operator control and inherently insecure • Risk of insertion points directly or via access to non-isolated backhaul • Clear avenue to EPC and rest of mobile network for attack
- 28. Physical Deployment options MPLS 2GGSM /CDMA, 3G UMTS,4G LTE TDM, ATM/TDM, IP/Ethernet Small Cells SCG AAA PCRF Leased Sec-GW Sec-GW Sec-GW EPC Sec-GW • Many options to deploy Sec GW in a network; can be in 1 or multiple type of locations. • Candidate platforms from Juniper: SRX and MX • Two common terms:- ‘Centralised’ and ‘Distributed’ Security Gateway ‘Distributed’ SeGW ‘Centralised’ SeGW
- 29. Variable SeGW functionality MME SGW/PGW eNodeB Differentset of security functions can be enabled depending on where the Sec GW is located
- 30. Other considerations:- centralisedvs distributed • Concentration of HW • Reduced HW Capex • Fewer nodes and sites • Competence concentration • Concentration of complexity • Easier to grow/match capacity without geographical aspects Centralized • Supports high traffic volume • Reducing transmission cost • Enables efficient X2 transport (Latency-critical functions) • Enables CPG distribution • Minimize affect of node failure • Less number of users per node • Less need of high capacity SeGWs • Integrate SeGWs with IP router nodes • Similarities to fixed broadband network architectures Distributed Access Sites Aggregation Sites Core Sites
- 31. SRX5800 SRX5400SRX5600 Key Benefit: • Verymature and stable turnkey solution for end-to-end backhaul security in conjunction with NSN or Ericsson • Dynamic scaling provides pay-as-you-grow model up to 80Gbps (SRX5800) IMIX IPsec & stateful firewall • Stateful High Availability (HA) synchronises IPSec SAs, meaning minimal downtime in the event of a SeGW failure • Stateful SCTP inspection can be enabled to protect signalling plane • Full stateful firewall • Complete IPv6 support across IPSec, firewall, routing, and more • In-Service Software/Hardware upgrades (ISSU/ISHU) • JUNOS heritage functions (routing, QoS, commit confirmed, rollback) • Single RAN security (2G/3G/4G IP protection) Positioning SRX as SEGW

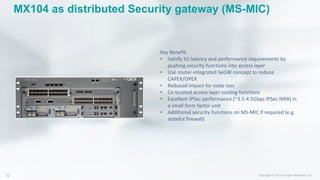

- 32. MX104 as distributedSecurity gateway (MS-MIC) Key Benefit: • Satisfy X2 latency and performance requirements by pushing security functions into access layer • Use router-integrated SeGW concept to reduce CAPEX/OPEX • Reduced impact for node loss • Co-located access layer routing functions • Excellent IPSec performance (~3.5-4.5Gbps IPSec IMIX) in a small form factor unit • Additional security functions on MS-MIC if required (e.g. stateful firewall)
- 33. Centralised MX asSecurity gateway (MS-MPC) MX960 MX480 MX240 Key Benefit: • Great performance for IPSec on MS-MPC (~27G for IPSec IMIX) • Leverage existing MXs within transport network to provide a transparent • Significantly reduced TCO • Router integrated solution allows flexibility in where to deploy across the backhaul network • Distributed BFD provides a super-fast inter-site failover design for dual tunnel topologies (becoming increasingly common) – negates the need for intra-site HA
- 34. Use case -LTE-A deployment There are stringent requirements for X2 latency for reliable LTE-A deployment Solution: Deploy IPsec termination on the Aggr router or Pre-aggr router • Case-1: Only X2 communication being terminated the traffic at the edge of the network for latency reason, S1 will be sent back to central EPC • Case-2: all S1 and X2 terminated at the D-Sec- GW in a secured location Allow communication from macro cell to EPC from certified eNBs, provide data integrity from eNBs to a secured location; Pre-aggregation Aggregation/SecGW Core/C-SecGW MME SGW/PGW CSR CSR CSR eNB eNB eNB HSS

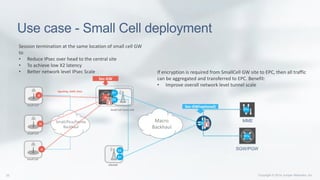

- 35. Use case -Small Cell deployment Small Cell Small Cell Small Cell MME SGW/PGW eNodeB Small Cell Home GW X2 S1 S1u S1 S1 X2 H Macro Backhaul S1c Signaling, OAM, Data Small/Pico/Femto Backhaul Sec-GW Sec-GW(optional) Session termination at the same location of small cell GW to • Reduce IPsec over head to the central site • To achieve low X2 latency • Better network level IPsec Scale If encryption is required from SmallCell GW site to EPC, then all traffic can be aggregated and transferred to EPC. Benefit: • Improve overall network level tunnel scale H H H
- 36. Summary - Router-integratedMobile Sec GW – Security is the integral part of the Mobile Backhaul solution, and MX is a critical element of Juniper’s Mobile Backhaul solution offering; – Router-integrated SecGW simplifies the Mobile Backhaul solution also gives great flexibility in Sec GW deployment; Can be deployed in Any part of the Mobile Backhaul network with Any MX platform with add-on services and IPsec security – CAPEX saving: Allow the provider to leverage the current MX platforms in the network, or getting new Mobile Backhaul infra with add-on SecGW function; – Non-intrusive security introduction plan: with no requirements for any change in the current network design – A small step into the big future: IPsec security is the first step of the distributed Mobile service vision – Router-integrated solution also completes the toolkit (in addition to what Juniper’s winning product SRX can offer) which operator needs to secure the Mobile network;
