Network

1. Wired Network (Switching)

2. A switch is a network device with multiple interfaces or ports. The ports can connect computers and
other devices, and any devices that are connected to the switch can communicate with each other.
Switches use all three, broadcast, multicast, and unicast, but they are primarily known for their efficient handling of
unicast and multicast traffic.
Types of Switches
1. Unmanaged Switch
1. Basic plug-and-play device.
2. No configuration required.
3. Best for small/home networks.
2. Managed Switch (Layer2 & Layer3)
1. Provides configuration via CLI/Web/Software.
2. Supports VLANs, QoS, SNMP, STP, security features.
3. Used in enterprise/campus networks.
3. Layer 2 Switch (PoE & Non-POE, Stackable, Gig-MultiGig)
1. Operates at the Data Link Layer (MAC address).
2. Forwards frames within the same network.
3. Common in LANs.
4. Layer 3 Switch (Multilayer Switch)
1. Operates at both Layer 2 & 3.
2. Supports routing (IP-based decisions).
3. Used for inter-VLAN routing and large networks.

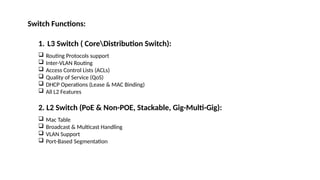

3. Switch Functions:
1. L3 Switch ( CoreDistribution Switch):
 Routing Protocols support
 Inter-VLAN Routing
 Access Control Lists (ACLs)
 Quality of Service (QoS)
 DHCP Operations (Lease & MAC Binding)
 All L2 Features
2. L2 Switch (PoE & Non-POE, Stackable, Gig-Multi-Gig):
 Mac Table
 Broadcast & Multicast Handling
 VLAN Support
 Port-Based Segmentation

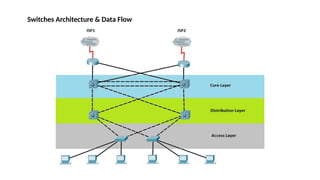

4. Switches Architecture & Data Flow

5. • Streamline campus deployment
with cloud-based ZTP for quickest time to value
• Simplify restaurant troubleshooting operations with AIOps
• Quickly identify and troubleshoot “needle in haystack”
problems like misconfigured VLANs and bad cables with
Wired Assurance
• Part of a full stack offering with wireless access and SD-WAN
for end-to-end automation, insights, and actions
JUNIPER EX SERIES SWITCHES
Leader in Wired LAN
Deliver best-in-class connectivity with industry leading solutions
EX4300
EX2300
EX4600
EX9200
EX4400
EX3400
Wired
Assurance
2024
MAGIC QUADRANT
A LEADER
Wired & Wireless LAN
Access Infrastructure
Gartner names Juniper
furthest in Vision and
highest in Execution.
EX4100
EX4000

6. Description
Switches Model Model Model
Instant On 1830 8G
R8N89A Aruba 6000 12G POE, 2SFP 139 W Instant On 1830 8G POE 65W MS130-12X, 2xSFP+, 240W
R8N88A Aruba 6000 24G, 4SFP Instant On 1830 24G, 2SFP MS130-24, 4SFP
R8N87A Aruba 6000 24G POE, 4SFP 370W Instant On 1830 24G POE, 2SFP 195W MS130-24P, 4SFP
R8N86A Aruba 6000 48G, 4SFP Instant On 1830 24G, 4SFP MS130-48, 4SFP
R8N85A Aruba 6000 48G POE, 4SFP 370W Instant On 1830 24G POE, 4SFP 370W MS130-48P, 4SFP 740
R9Y03A Aruba 6000 48G POE, 4SFP 740W MS130-48P, 4SFP
Instant On 1960 12GT POE, 4SFP+
JL679A Aruba 6100 12G POE, 2SFP+ 139 W Instant On 1960 8G POE, 2SFP+ MS130-12X, 2xSFP+, 240W
JL678A Aruba 6100 24G, 4SFP+ Instant On 1930 24G, 4SFP+ C9300L-24T-4X-M
JL677A Aruba 6100 24G POE, 4SFP+ 370W Instant On 1930 24G POE, 4SFP+ 195W/370W C9300L-24P-4X-M 505W/720W
JL676A Aruba 6100 48G, 4SFP+ Instant On 1930 48G, 4SFP+ C9300L-48T-4X-M
JL675A Aruba 6100 48G POE, 4SFP+ 370W Instant On 1930 48G POE, 4SFP+, 370W C9300L-48P-4X-M 505W/1440W
R9Y04A Aruba 6100 48G POE, 4SFP+ 740W C9300L-48P-4X-M 505W/1440W
Instant On 1960 12GT POE, 4SFP+
Aruba 6200F 12G POE, 2SFP+ 139 W
S0M81A Aruba 6200F 24G, 4SFP Instant On 1960 24G, 2GT/SFP+ C9300L-24T-4X-M
S0M82A Aruba 6200F 24G POE, 4SFP 370W Instant On 1960 24G POE, 2GT/SFP+ C9300L-24P-4X-M 505W/720W
S0M83A Aruba 6200F 48G, 4SFP Instant On 1960 48G, 2GT/SFP+ C9300L-48T-4X-M
S0M84A Aruba 6200F 48G POE, 4SFP 370W Instant On 1960 48G, 2GT/SFP+ 600W C9300L-48P-4X-M 505W/1440W
S0M85A Aruba 6200F 48G POE, 4SFP 740W Instant On 1960 48G, 2GT/SFP+ 600W C9300L-48P-4X-M 505W/1440W
JL724B Aruba 6200F 24G, 4SFP+ Instant On 1960 24G, 2GT/SFP+ C9300L-24T-4X-M
JL725B Aruba 6200F 24G POE, 4SFP+ 370W Instant On 1960 24G POE, 2GT/SFP+ C9300L-24P-4X-M 505W/720W
JL726B Aruba 6200F 48G, 4SFP+ Instant On 1960 48G, 2GT/SFP+ C9300L-48T-4X-M
JL727B Aruba 6200F 48G POE, 4SFP+ 370W Instant On 1960 48G, 2GT/SFP+ 600W C9300L-48P-4X-M 505W/1440W
JL728B Aruba 6200F 48G POE, 4SFP+ 740W Instant On 1960 48G, 2GT/SFP+ 600W C9300L-48P-4X-M 505W/1440W
Aruba 6200M 24G, 4SFP+ C9300L-24T-4X-M
Aruba 6200M 24G POE, 4SFP 740W C9300L-24P-4X-M 505W/720W
R8Q69A Aruba 6200M 48G, 4SFP+ C9300L-48T-4X-M
R8Q70A Aruba 6200M 48G POE, 4SFP+ 14400W C9300L-48P-4X-M 505W/1440W
R8Q71A Aruba 6200M 36G, 12SR5 POE, 4SFP+ 1440W C9300L-48UXG-4X-M 505W/1440W
L3 With Stacking 10G
Fiber Port
JL658A Aruba 6300M 24SFP+, 4SFP56 C9300X-24Y-M,Fiber & Moduler Uplink available
R8M98A AP-503 (1.4 Gbps) Instant On Access Point AP21 (1.5Gbps) MR28 (1.5Gbps)
R2H33A AP-504 (1.5 Gbps) Ex
R2H38A AP-505 (1.5 Gbps) In Instant On Access Point AP22 (1.7Gbps) MR36 (1.5Gbps)
Q9H67A AP-514 (2.7 Gbps) Ex
Aruba
L2 With Stacking 10G
Uplink
L2 With Stacking 10G
Uplink & RPS
Cisco Meraki
L2 With Stacking 1G
Uplink
Basic L2 Without
Stacking & 10G Fiber
Uplink
Basic L2 Without
Stacking & 1G Fiber
Uplink
AP
Wi-Fi 6 With Solid
Surface Mounting
Bracket

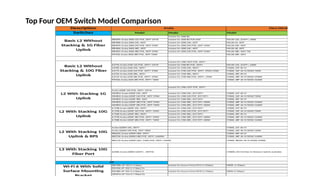

Top Four OEM Switch Model Comparison

7. Before Configuration & Hardening Guidelines
Before Reaching Installation Site:
 BOQ Verification & Understanding
 Solution document, Finalized Scope & HLD Review
 Tools Preparation (Console Cable, Mounting Hardware, terminal emulator…etc)
 Checklist Preparation as per Customer Use Case & Approval (IP Schema, Hostname, User
Logins, SNMP, NTP, Syslog, MFA details …etc)
At Installation Site:
 Material Verification as per BOQ
 Installation site readiness (Rack space, Power & cooling availability ..etc
 Device Power on & Physical verification
 Verify all Devices with latest firmware
Hardening Practices (Depends on Customer Use Case)
 Disable Telnet, use only SSH
 Enabling strong & encrypted login user password
 Enable port security (MAC address limiting)
 Restrict management access (ACLs, mgmt VLAN)
 Use AAA (TACACS+/RADIUS) for centralized authentication

8. Wireless Network

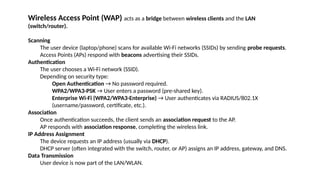

9. Wireless Access Point (WAP) acts as a bridge between wireless clients and the LAN
(switch/router).
Scanning
The user device (laptop/phone) scans for available Wi-Fi networks (SSIDs) by sending probe requests.
Access Points (APs) respond with beacons advertising their SSIDs.
Authentication
The user chooses a Wi-Fi network (SSID).
Depending on security type:
Open Authentication → No password required.
WPA2/WPA3-PSK → User enters a password (pre-shared key).
Enterprise Wi-Fi (WPA2/WPA3-Enterprise) → User authenticates via RADIUS/802.1X
(username/password, certificate, etc.).
Association
Once authentication succeeds, the client sends an association request to the AP.
AP responds with association response, completing the wireless link.
IP Address Assignment
The device requests an IP address (usually via DHCP).
DHCP server (often integrated with the switch, router, or AP) assigns an IP address, gateway, and DNS.
Data Transmission
User device is now part of the LAN/WLAN.

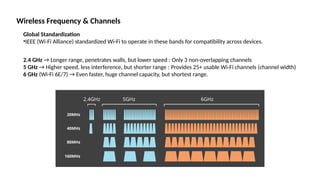

10. 20MHz
40MHz
80MHz
160MHz
2.4GHz 5GHz 6GHz
Wireless Frequency & Channels
2.4 GHz → Longer range, penetrates walls, but lower speed : Only 3 non-overlapping channels
5 GHz → Higher speed, less interference, but shorter range : Provides 25+ usable Wi-Fi channels (channel width)
6 GHz (Wi-Fi 6E/7) → Even faster, huge channel capacity, but shortest range.
Global Standardization
•IEEE (Wi-Fi Alliance) standardized Wi-Fi to operate in these bands for compatibility across devices.

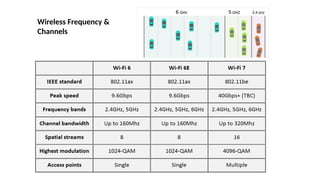

11. Wireless Frequency &
Channels

12. JUNIPER MIST AP SERIES
Leader in Wireless LAN
Reliable and consistent Wi-Fi, everywhere
• AI-driven automation and real-
time insight into customer
experience
• Microservices cloud architecture
for seamless updates
• Up to 802.11ax (Wi-Fi 6): 4x4:4
• Gartner Leading Indoor Location
Services
• Tri-Band; dedicated fourth radio
• vBLE
• Rapid deployment with
QR code scanning
Wi-Fi
Assurance
User
Engagemen
t
Asset
Tracking
Premium
Analytics
IoT
Assurance
AP32 AP33 AP61/63/6
4
(outdoor)
AP43
AP34 AP45
Location Services
2024
MAGIC QUADRANT
A LEADER
Wired & Wireless LAN
Access Infrastructure
Gartner names Juniper
furthest in Vision and
highest in Execution.
AP47
(Wi-Fi7)

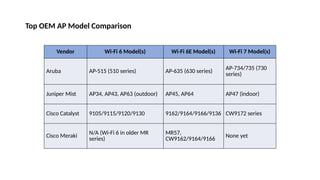

13. Vendor Wi-Fi 6 Model(s) Wi-Fi 6E Model(s) Wi-Fi 7 Model(s)
Aruba AP-515 (510 series) AP-635 (630 series)
AP-734/735 (730
series)
Juniper Mist AP34, AP43, AP63 (outdoor) AP45, AP64 AP47 (indoor)
Cisco Catalyst 9105/9115/9120/9130 9162/9164/9166/9136 CW9172 series
Cisco Meraki
N/A (Wi-Fi 6 in older MR
series)
MR57,
CW9162/9164/9166
None yet
Top OEM AP Model Comparison
