Slides for Jan 29, 2020 Chicago Rust Meetup talk where I discuss using Rust based Lambdas in AWS. I don't believe the talk is being recorded so might not make 100% sense, but left links on most pages for more info. Hope this is useful to folks.

1. Byte Sized RustByte Sized Rust
Chicago Rust Meetup
January 2020
-Steve Hoffman @bacoboy
1

2. Motivation...Motivation...
https://xkcd.com/149/2 . 1

3. Motivation...Motivation...
https://xkcd.com/149/
Me: Run my code
2 . 1

4. Motivation...Motivation...
https://xkcd.com/149/
Me: Run my code
Cloud: Okay
2 . 1

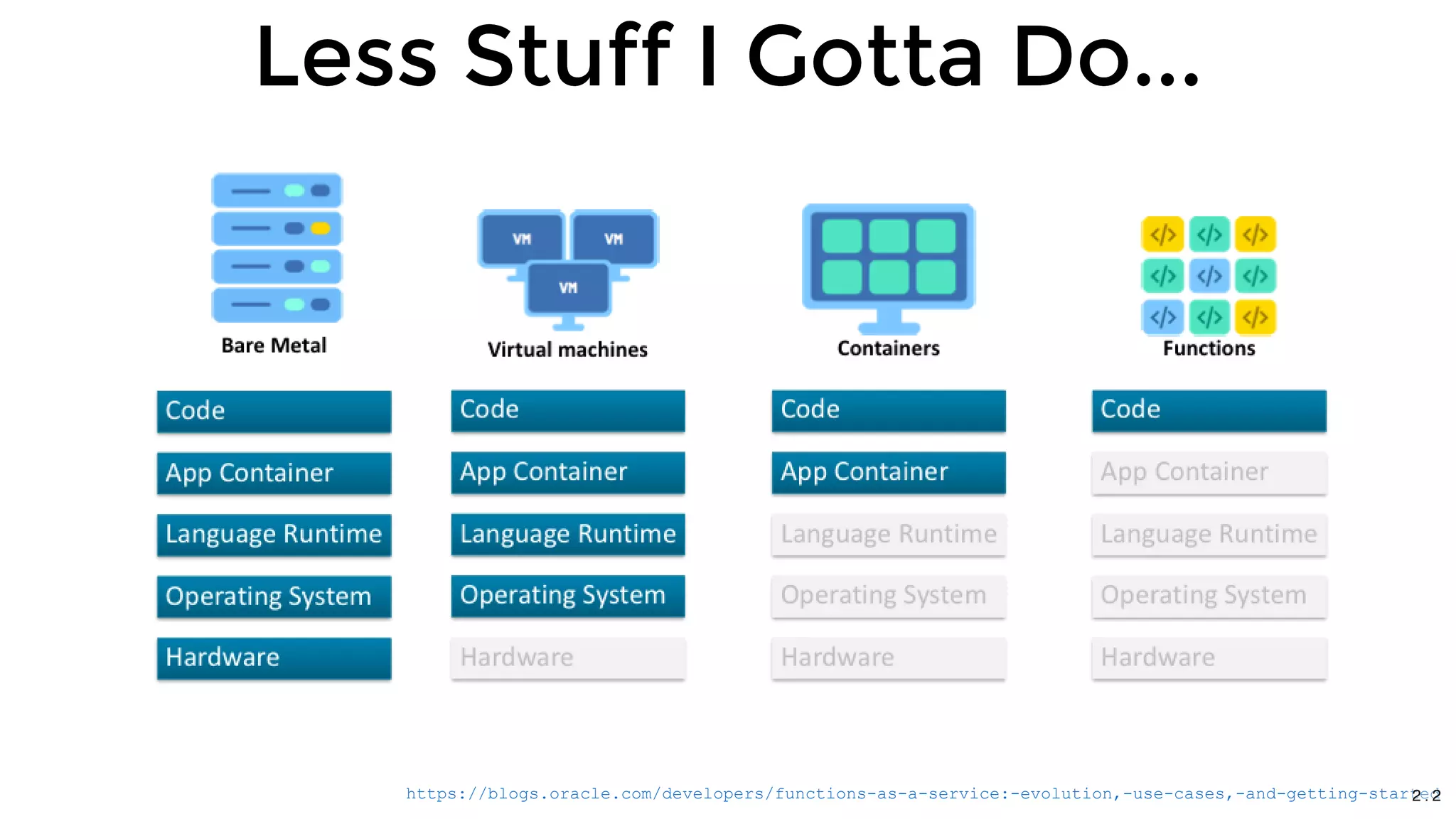

5. Less Stuff I Gotta Do...Less Stuff I Gotta Do...
https://blogs.oracle.com/developers/functions­as­a­service:­evolution,­use­cases,­and­getting­started2 . 2

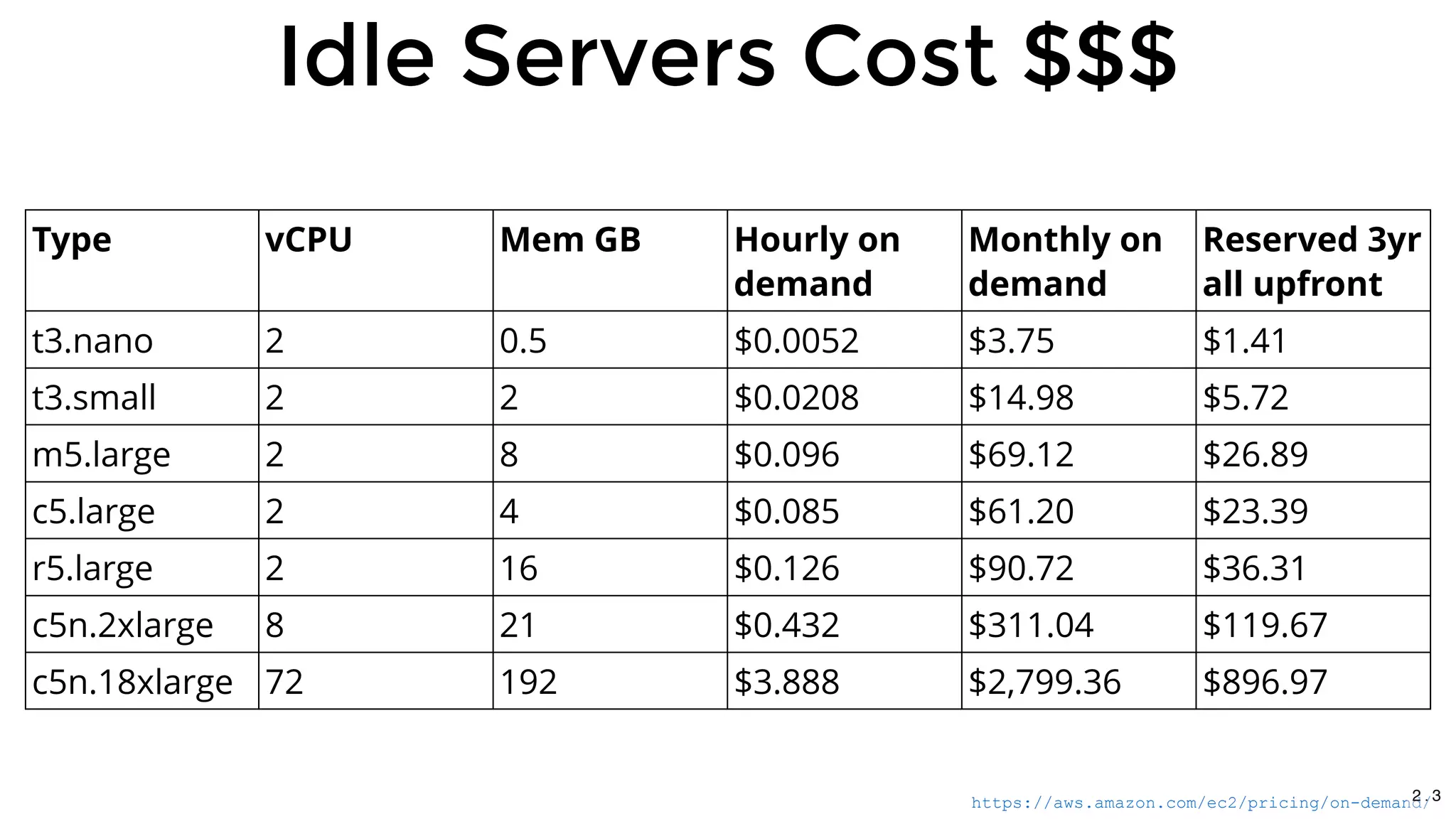

6. Idle Servers Cost $$$Idle Servers Cost $$$
Type vCPU Mem GB Hourly on
demand
Monthly on
demand
Reserved 3yr
all upfront
t3.nano 2 0.5 $0.0052 $3.75 $1.41
t3.small 2 2 $0.0208 $14.98 $5.72
m5.large 2 8 $0.096 $69.12 $26.89
c5.large 2 4 $0.085 $61.20 $23.39
r5.large 2 16 $0.126 $90.72 $36.31
c5n.2xlarge 8 21 $0.432 $311.04 $119.67
c5n.18xlarge 72 192 $3.888 $2,799.36 $896.97
https://aws.amazon.com/ec2/pricing/on­demand/2 . 3

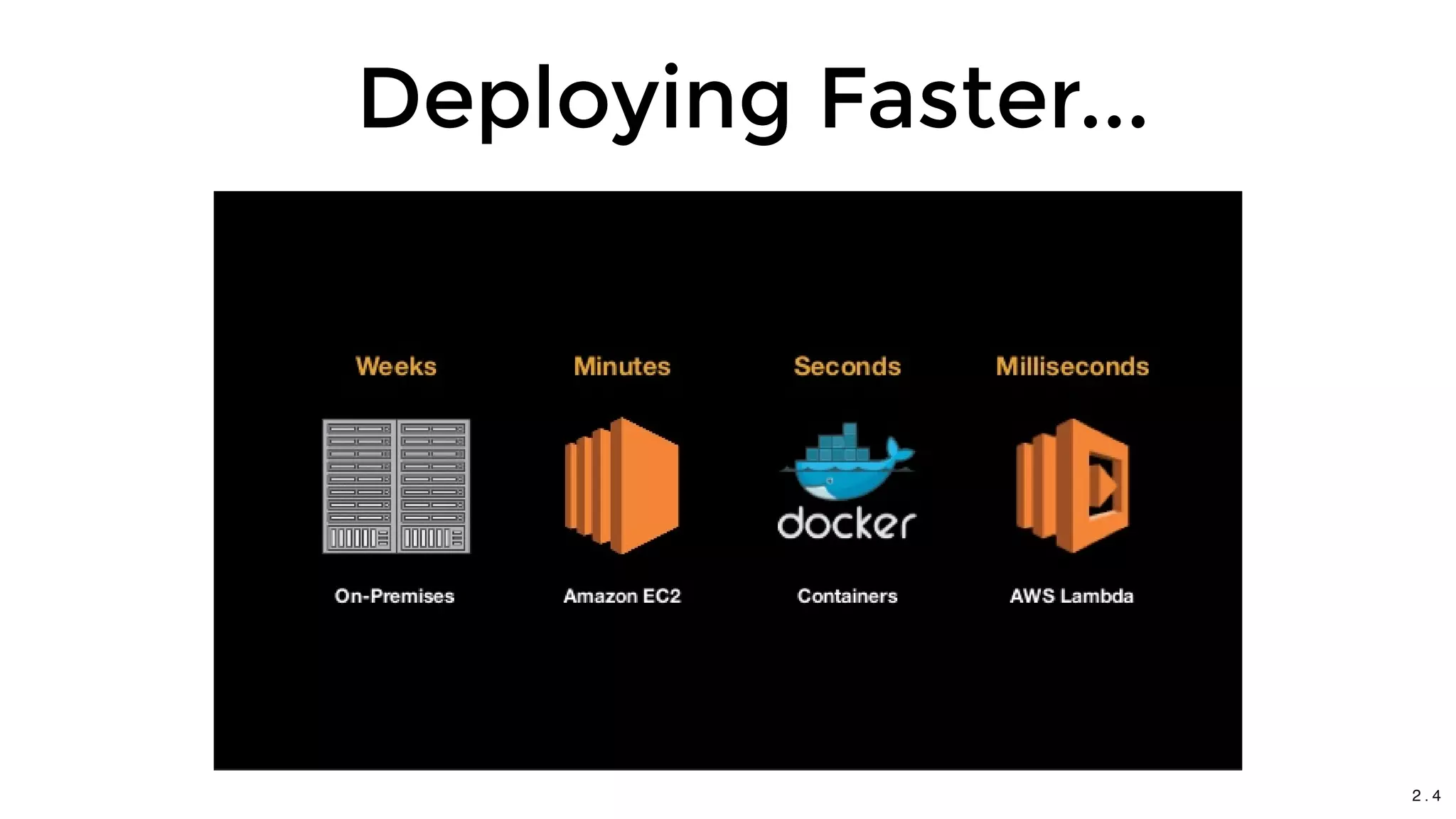

7. Deploying Faster...Deploying Faster...
2 . 4

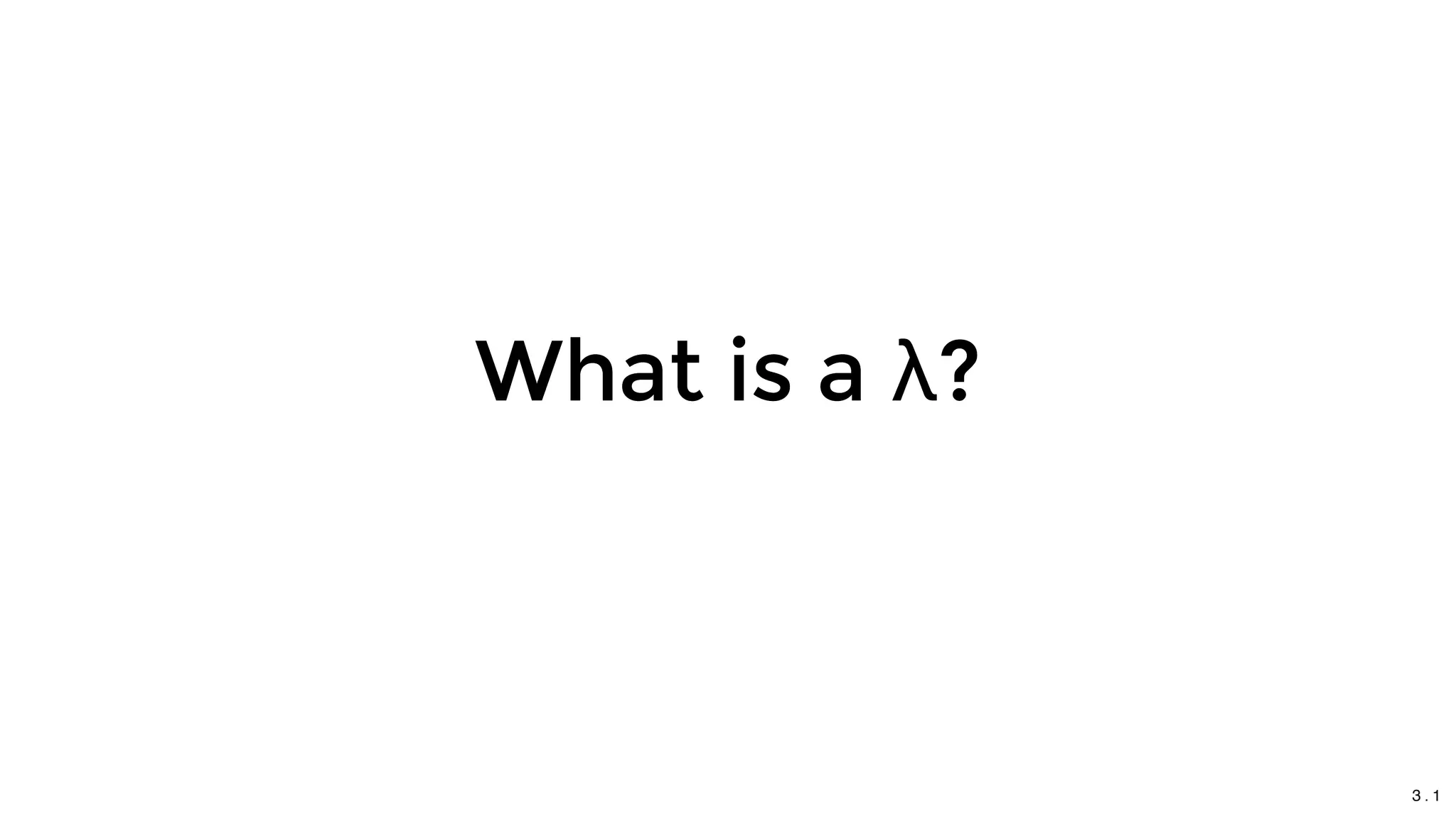

8. What is a λ?What is a λ?
3 . 1

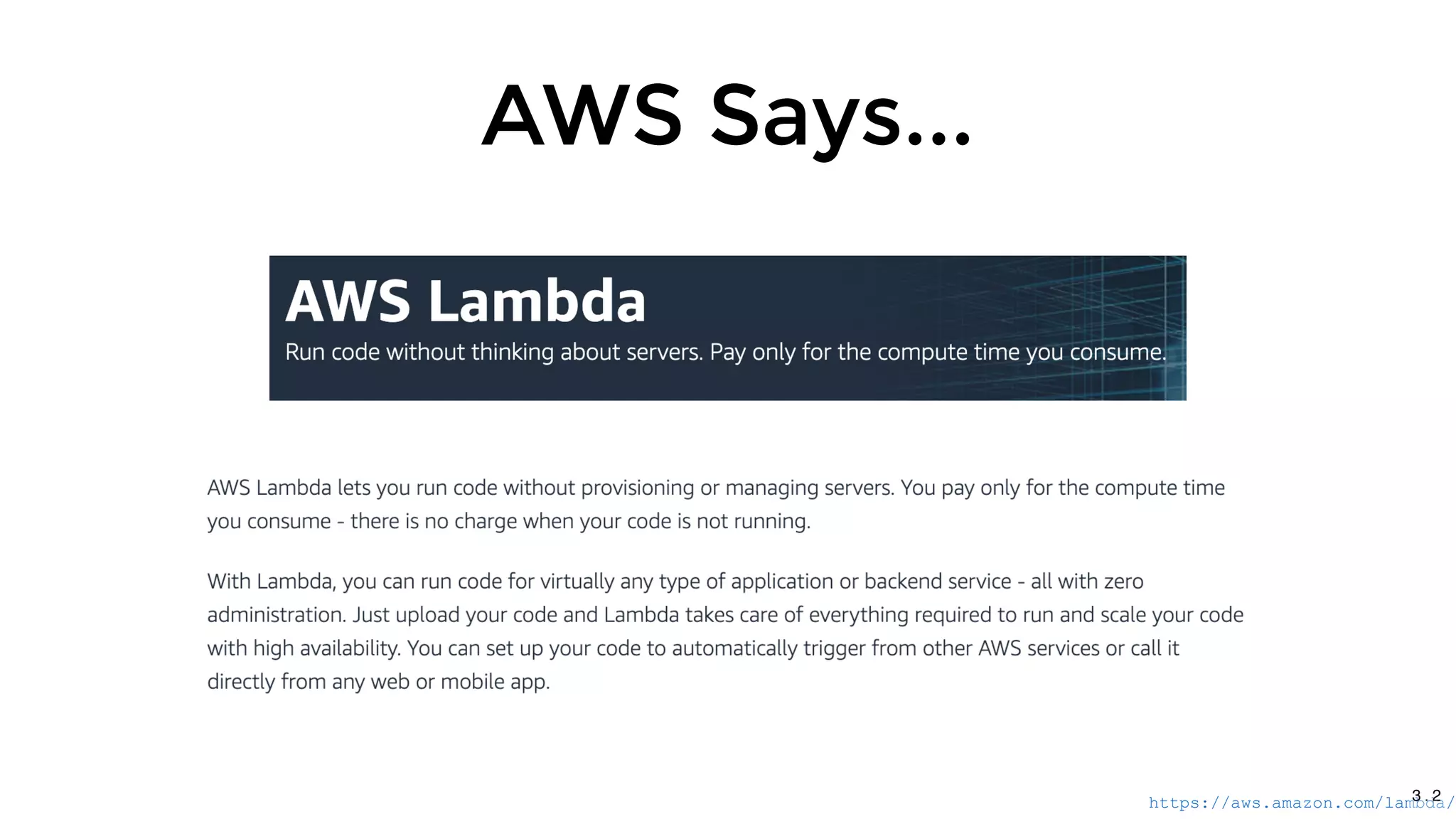

9. AWS Says...AWS Says...
https://aws.amazon.com/lambda/3 . 2

10. A λ is a "handler" function YOU provideA λ is a "handler" function YOU provide
that runs in an AWS container "somewhere"that runs in an AWS container "somewhere"
so you focus on your code not plumbingso you focus on your code not plumbing
3 . 3

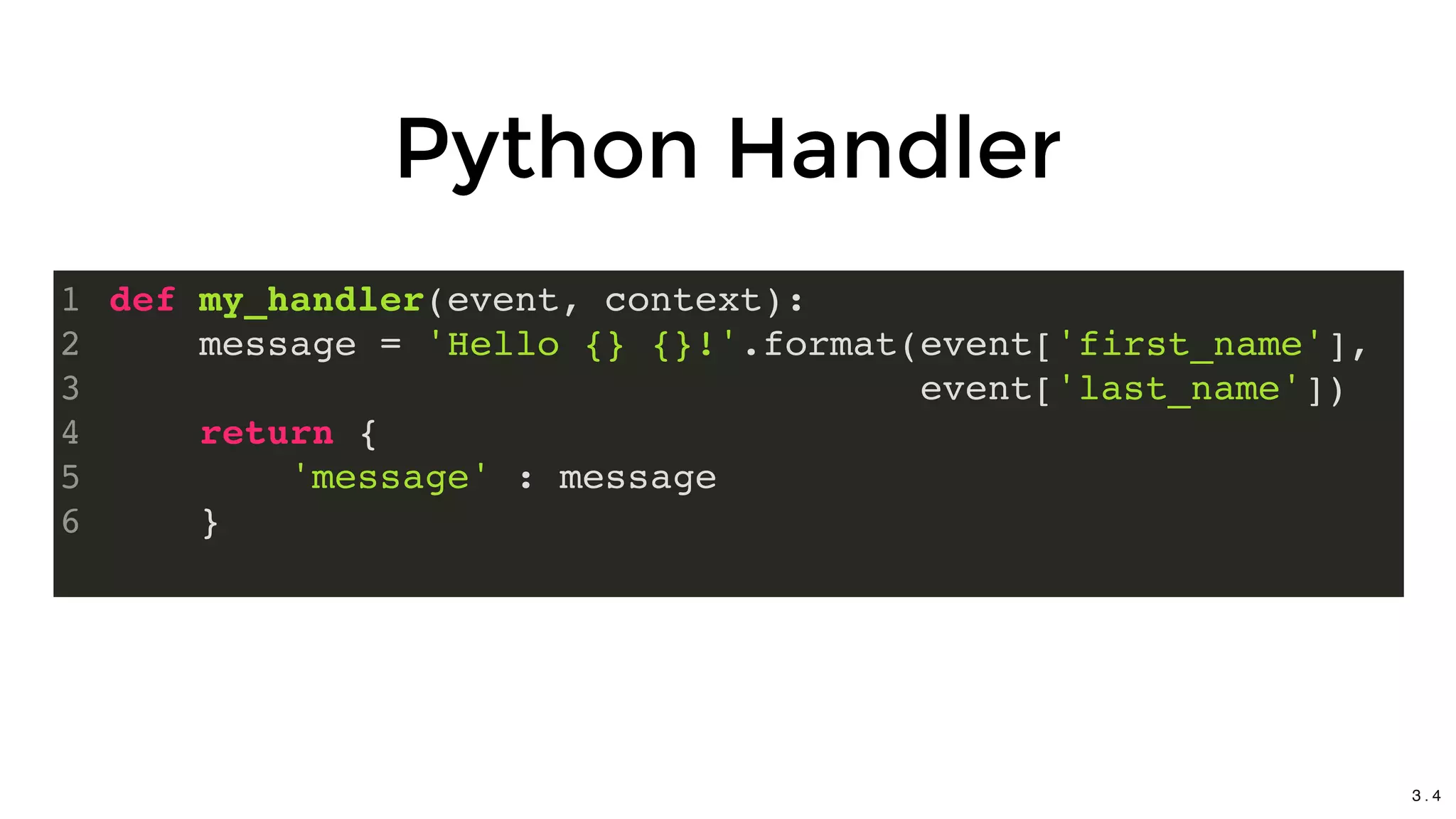

11. Python HandlerPython Handler
def my_handler(event, context):
message = 'Hello {} {}!'.format(event['first_name'],
event['last_name'])
return {
'message' : message
}
1
2
3
4
5
6
3 . 4

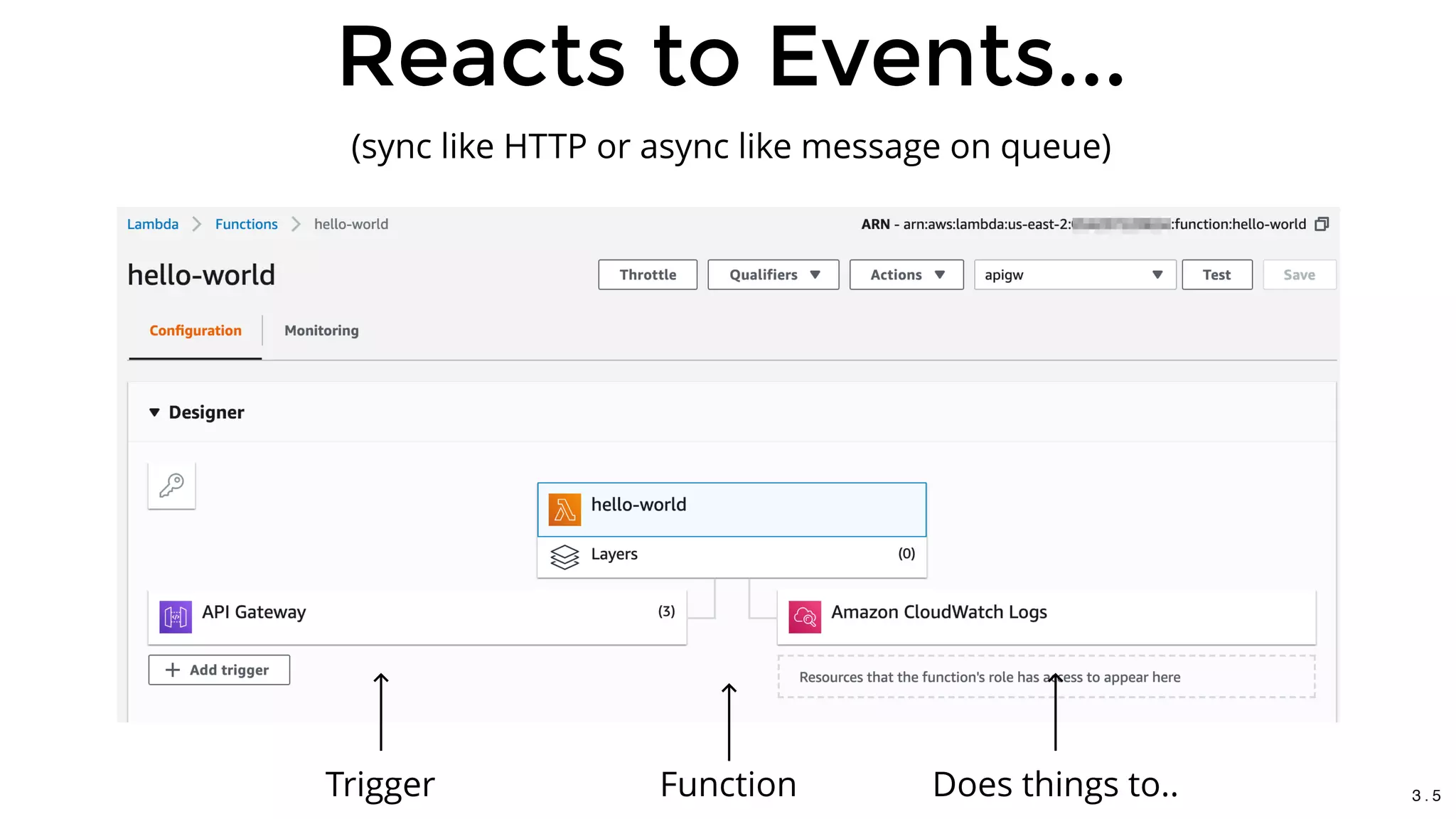

12. Reacts to Events...Reacts to Events...
(sync like HTTP or async like message on queue)
FunctionTrigger Does things to.. 3 . 5

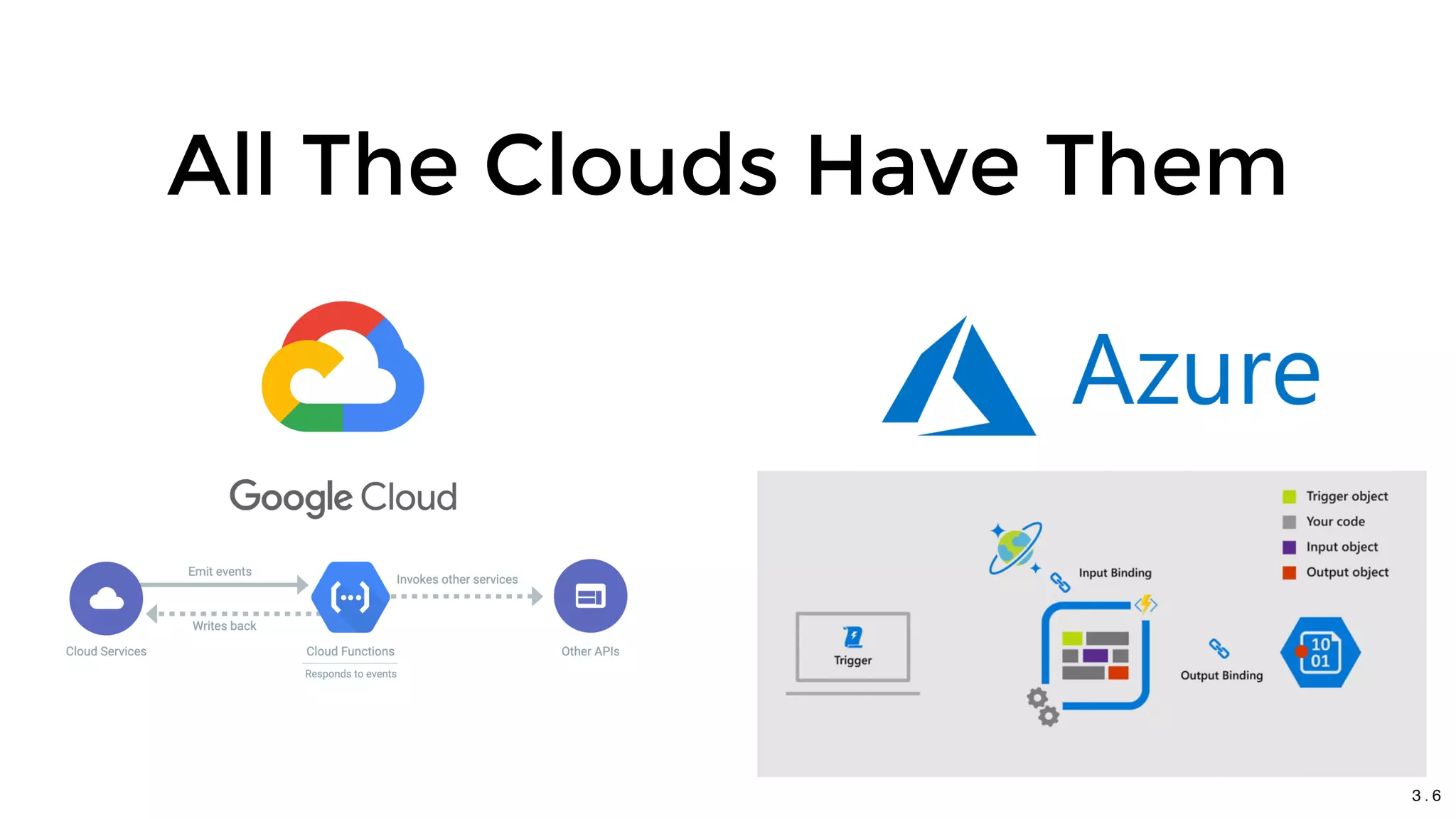

13. All The Clouds Have ThemAll The Clouds Have Them
3 . 6

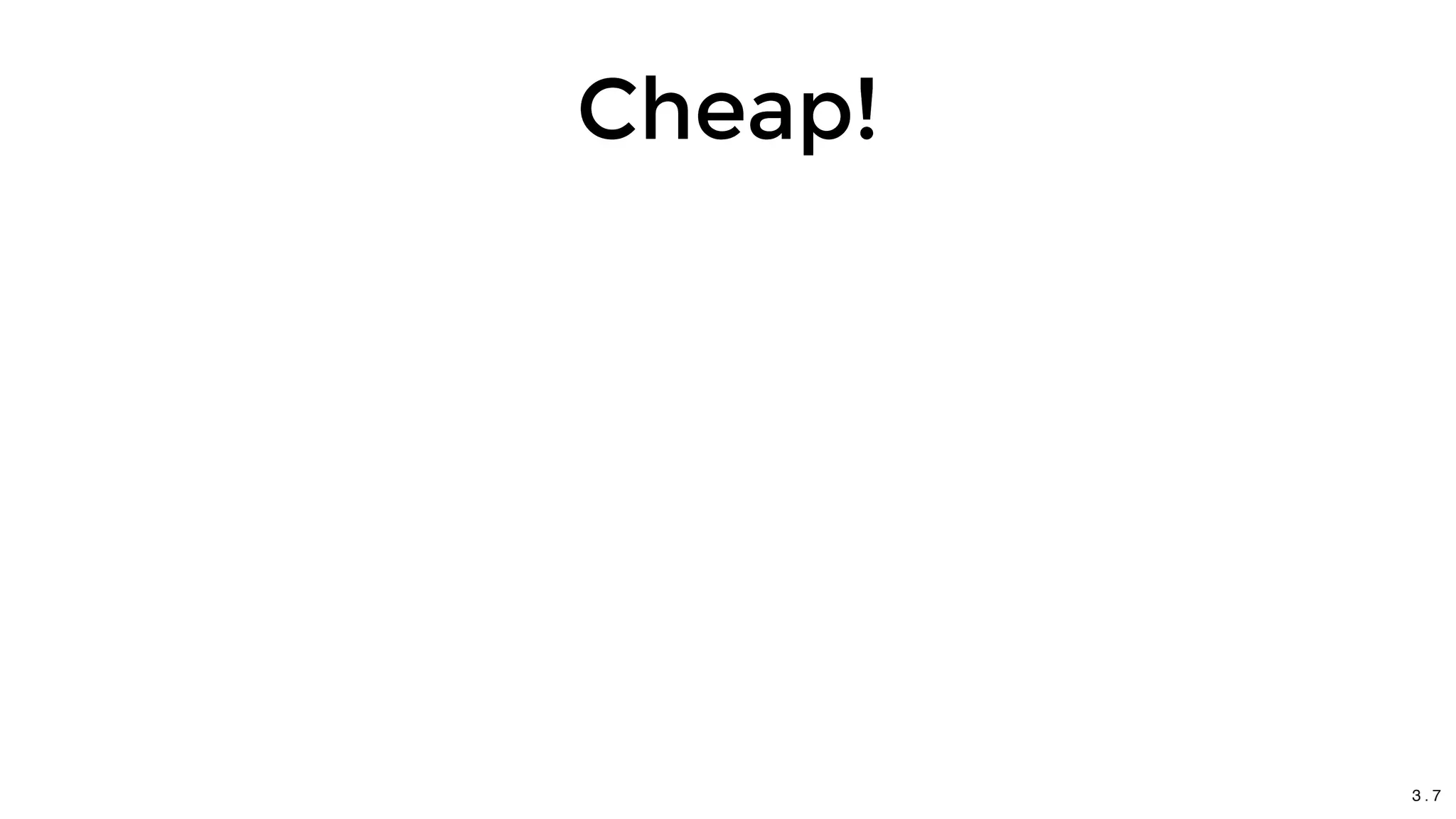

14. Cheap!Cheap!
3 . 7

15. Cheap!Cheap!
In Theory...
3 . 7

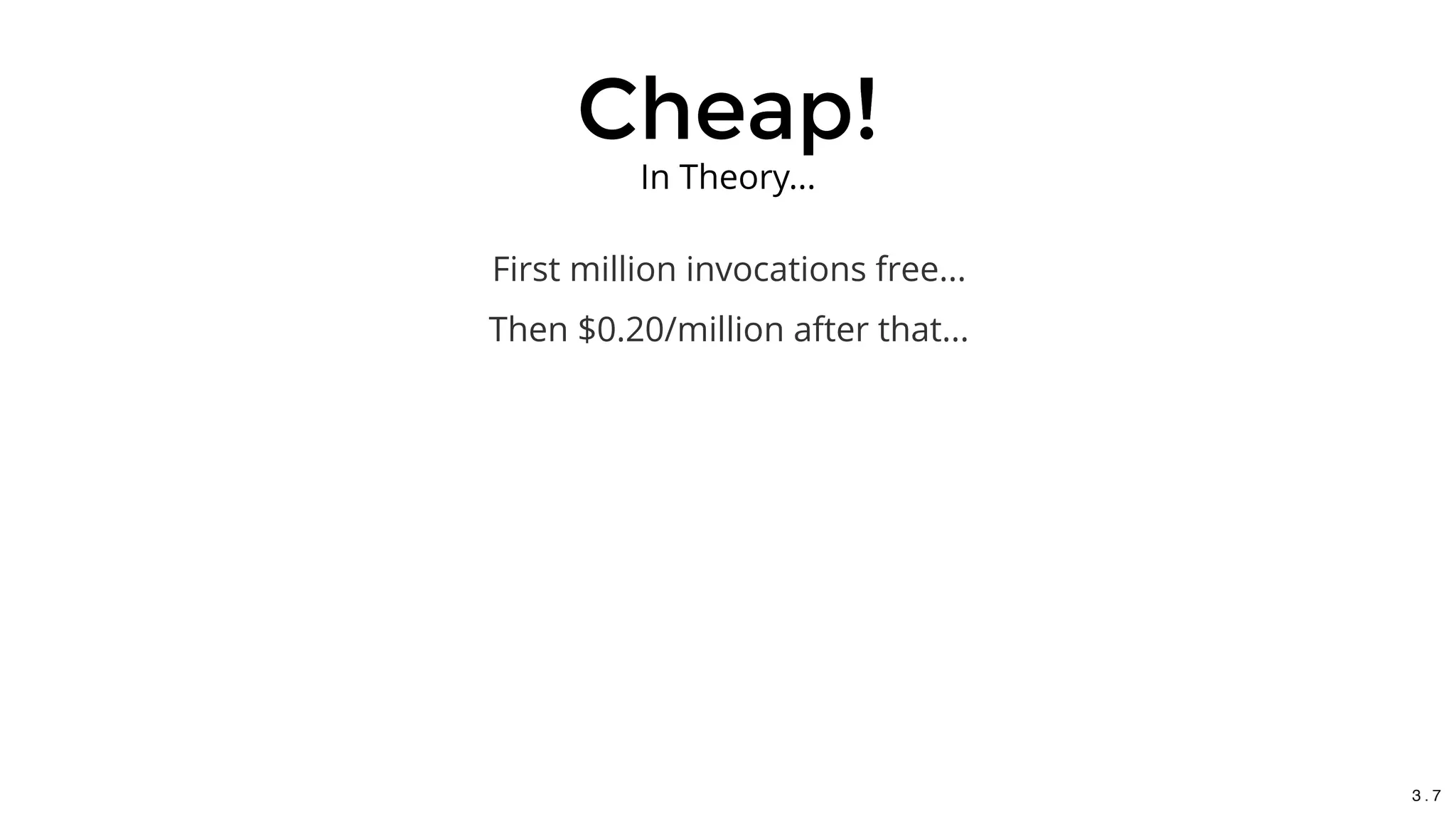

16. Cheap!Cheap!
In Theory...
First million invocations free...
Then $0.20/million after that...
3 . 7

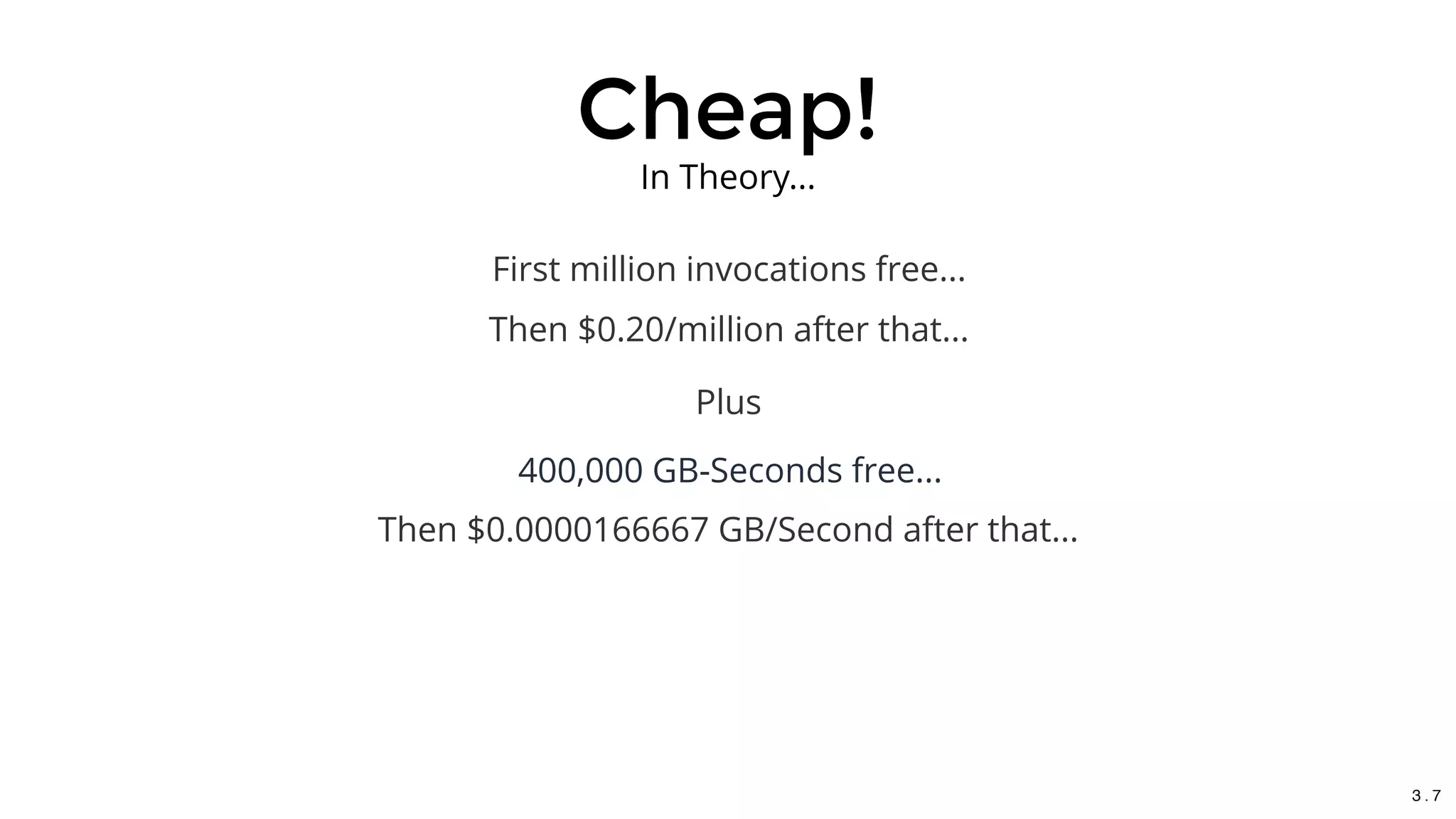

17. Cheap!Cheap!
In Theory...
Then $0.0000166667 GB/Second after that...
First million invocations free...
Then $0.20/million after that...
400,000 GB-Seconds free...
Plus
3 . 7

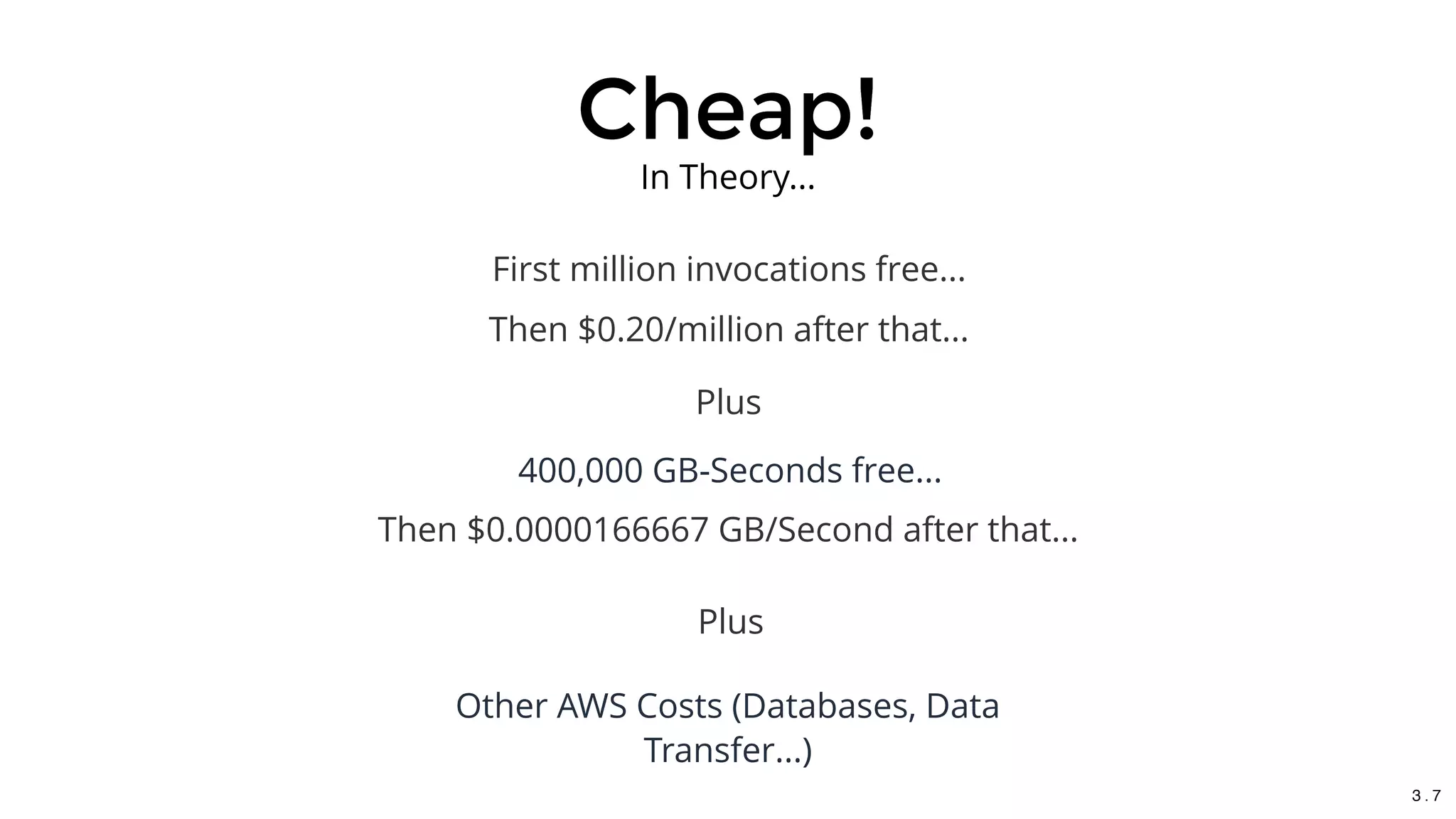

18. Cheap!Cheap!
In Theory...
Then $0.0000166667 GB/Second after that...
First million invocations free...
Then $0.20/million after that...
400,000 GB-Seconds free...
Plus
Plus
Other AWS Costs (Databases, Data
Transfer...)
3 . 7

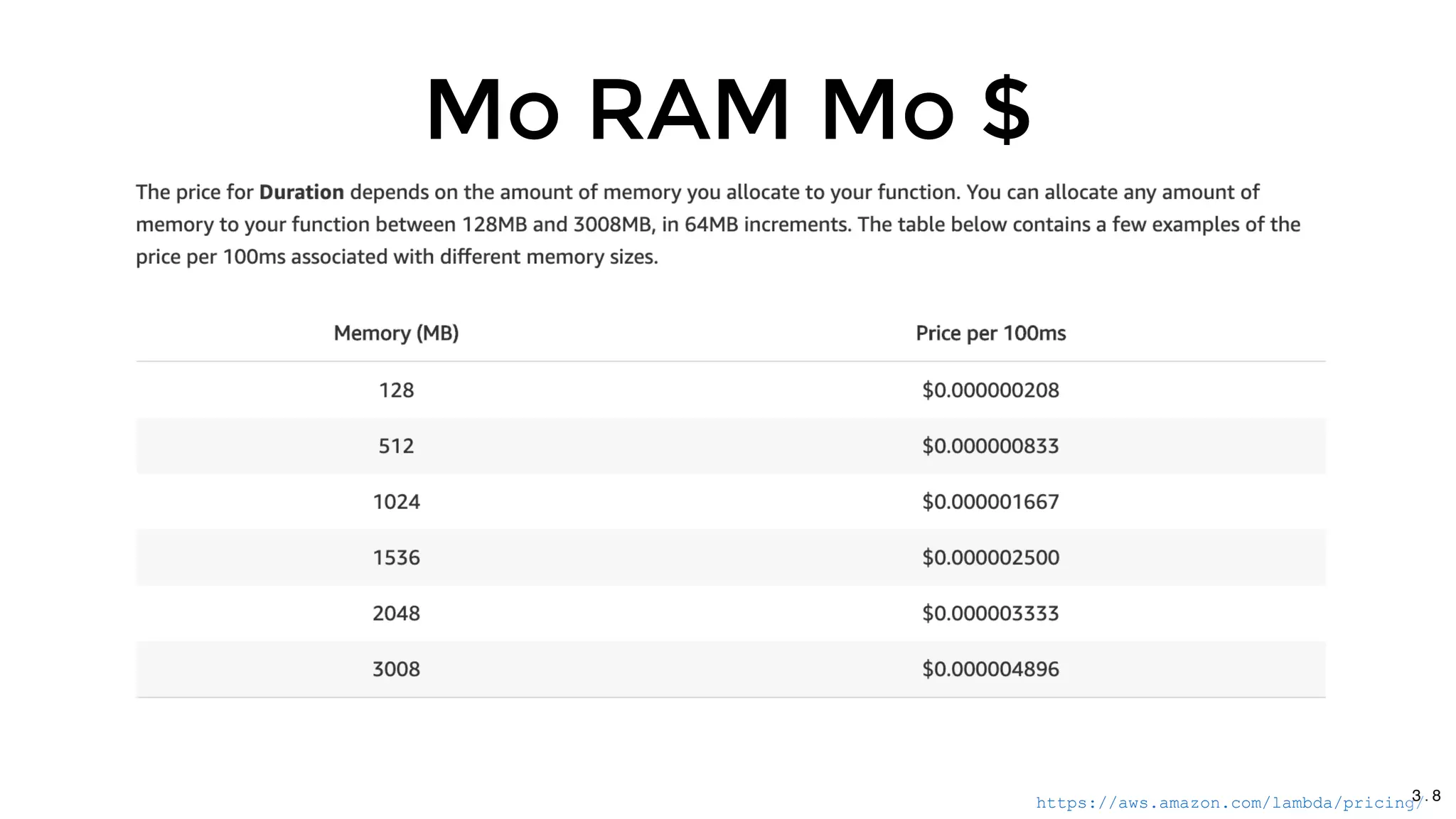

19. Mo RAM Mo $Mo RAM Mo $
https://aws.amazon.com/lambda/pricing/3 . 8

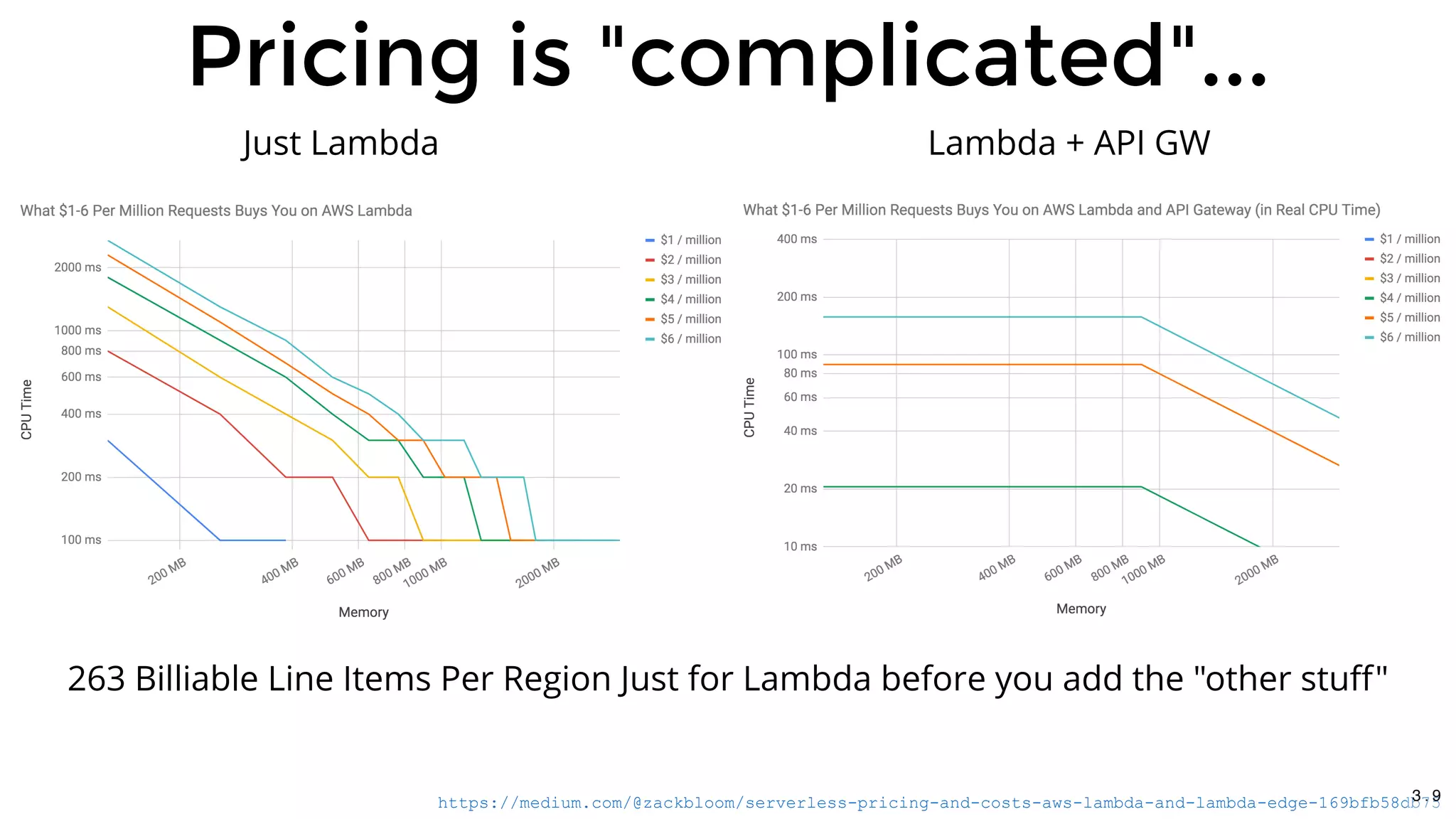

20. Pricing is "complicated"...Pricing is "complicated"...
https://medium.com/@zackbloom/serverless­pricing­and­costs­aws­lambda­and­lambda­edge­169bfb58db75
Just Lambda Lambda + API GW
263 Billiable Line Items Per Region Just for Lambda before you add the "other stuff"
3 . 9

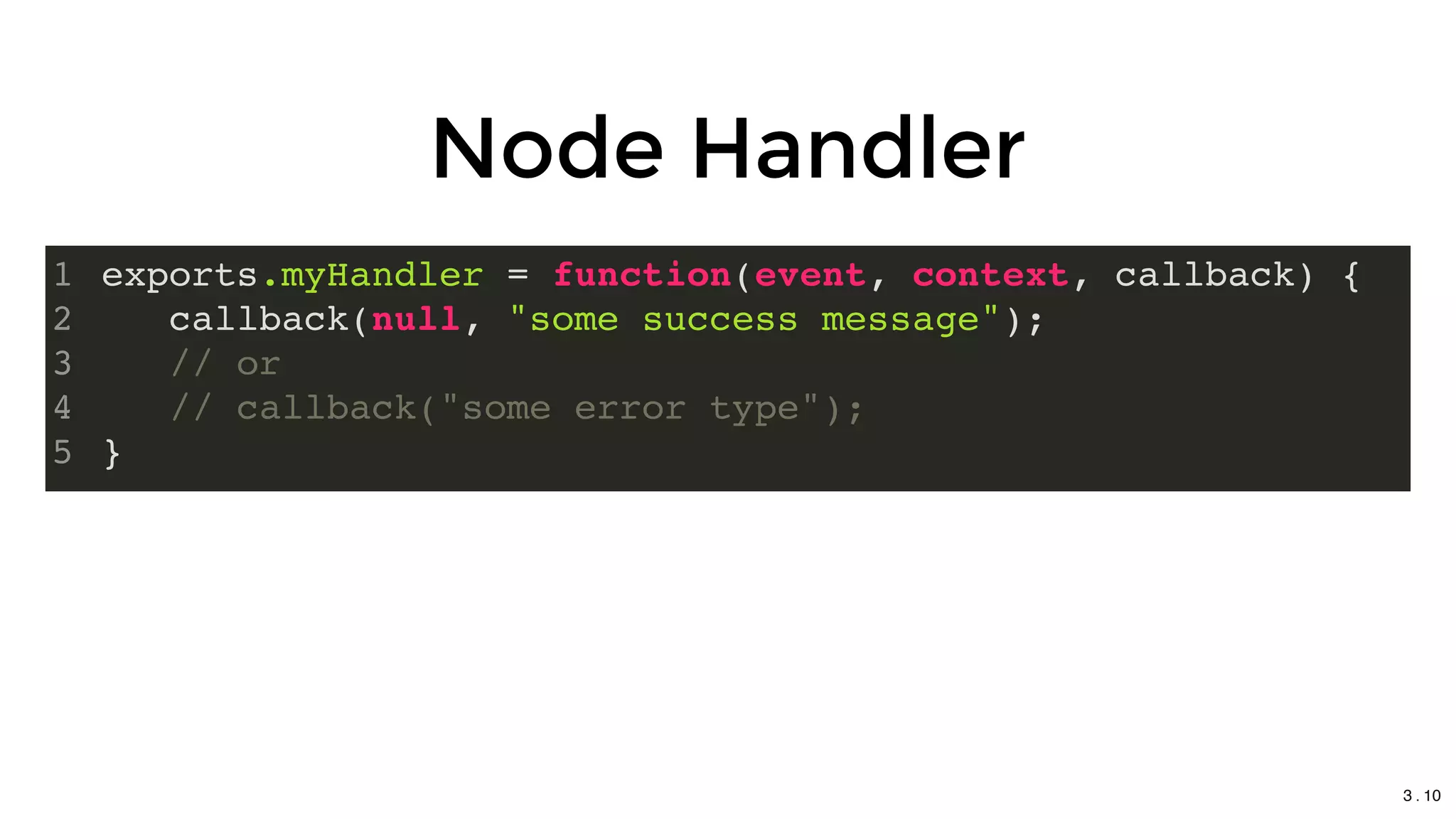

21. Node HandlerNode Handler
exports.myHandler = function(event, context, callback) {
callback(null, "some success message");
// or
// callback("some error type");
}
1
2
3
4
5
3 . 10

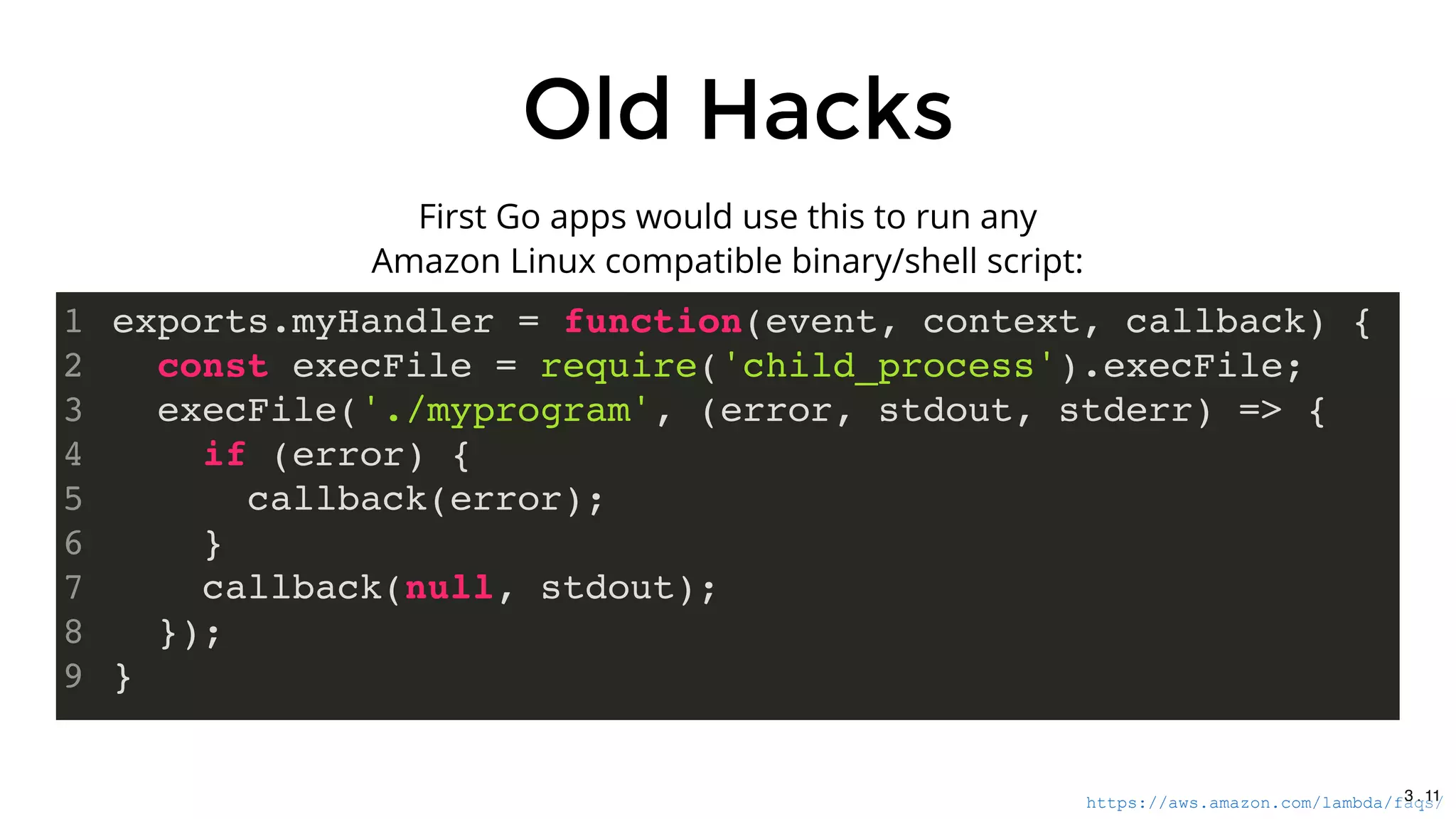

22. Old HacksOld Hacks
https://aws.amazon.com/lambda/faqs/
exports.myHandler = function(event, context, callback) {
const execFile = require('child_process').execFile;
execFile('./myprogram', (error, stdout, stderr) => {
if (error) {
callback(error);
}
callback(null, stdout);
});
}
1
2
3
4
5
6
7
8
9
First Go apps would use this to run any
Amazon Linux compatible binary/shell script:
3 . 11

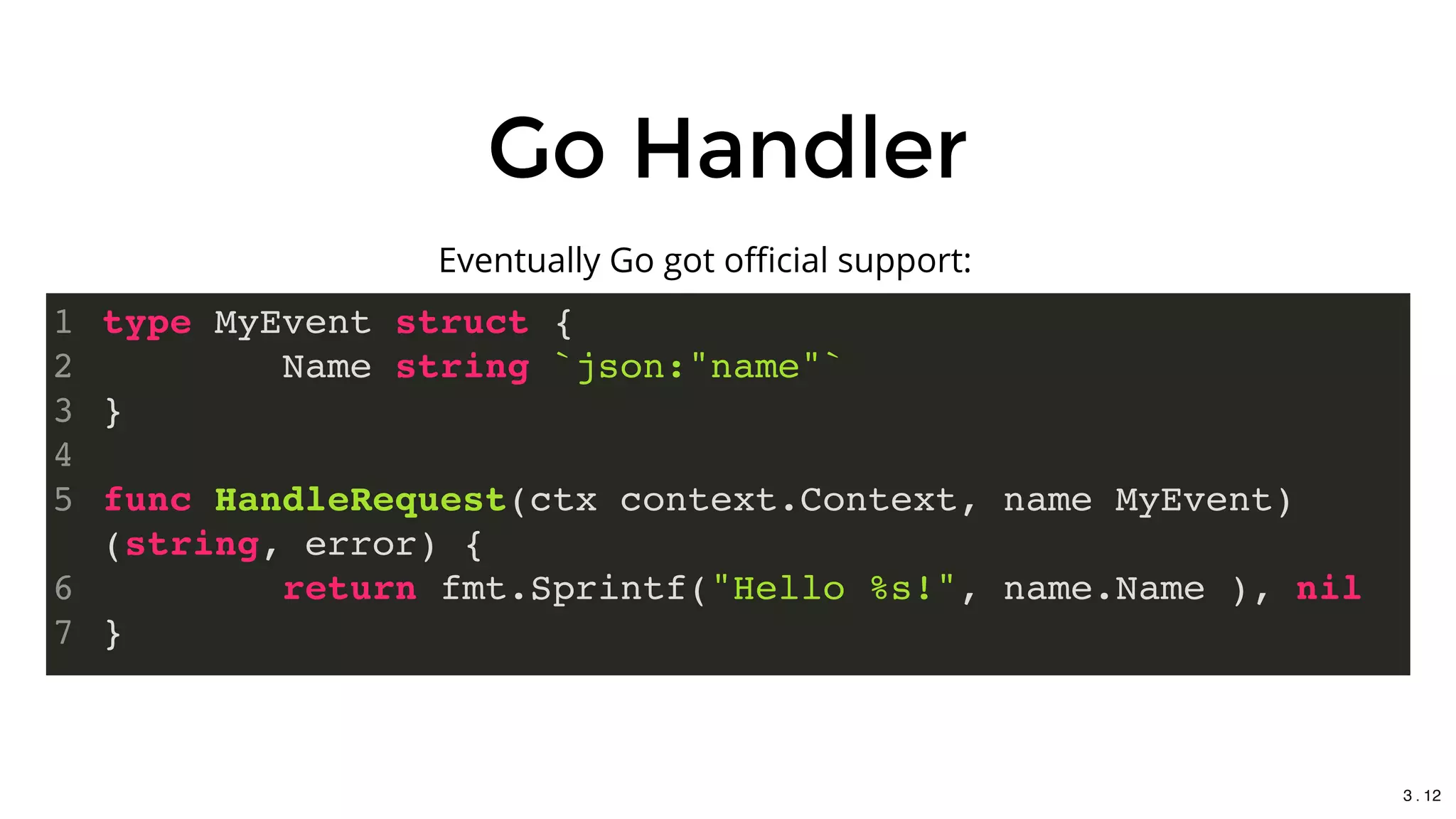

23. Go HandlerGo Handler
type MyEvent struct {
Name string `json:"name"`
}
func HandleRequest(ctx context.Context, name MyEvent)
(string, error) {
return fmt.Sprintf("Hello %s!", name.Name ), nil
}
1
2
3
4
5
6
7
Eventually Go got official support:
3 . 12

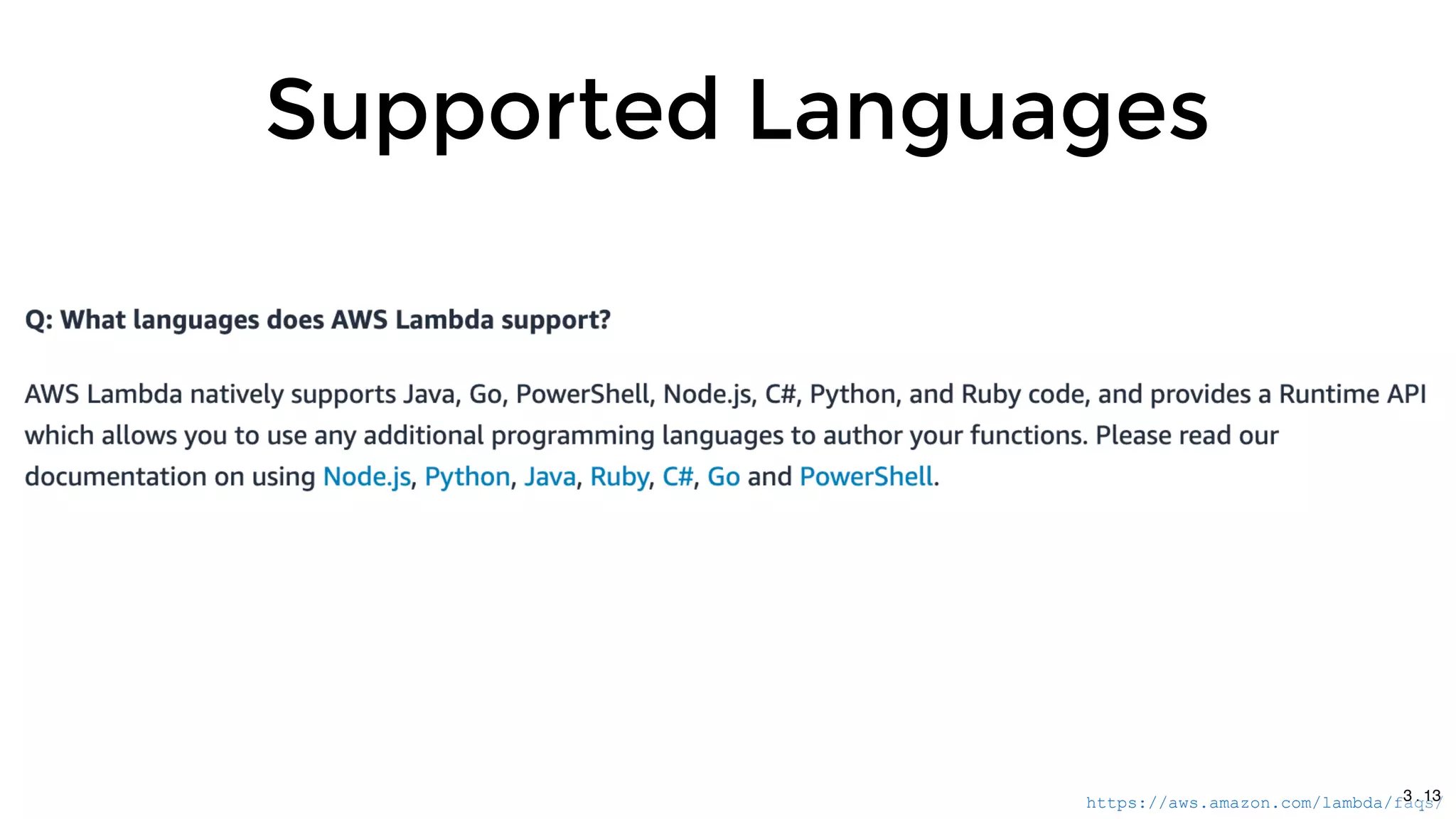

24. Supported LanguagesSupported Languages
https://aws.amazon.com/lambda/faqs/3 . 13

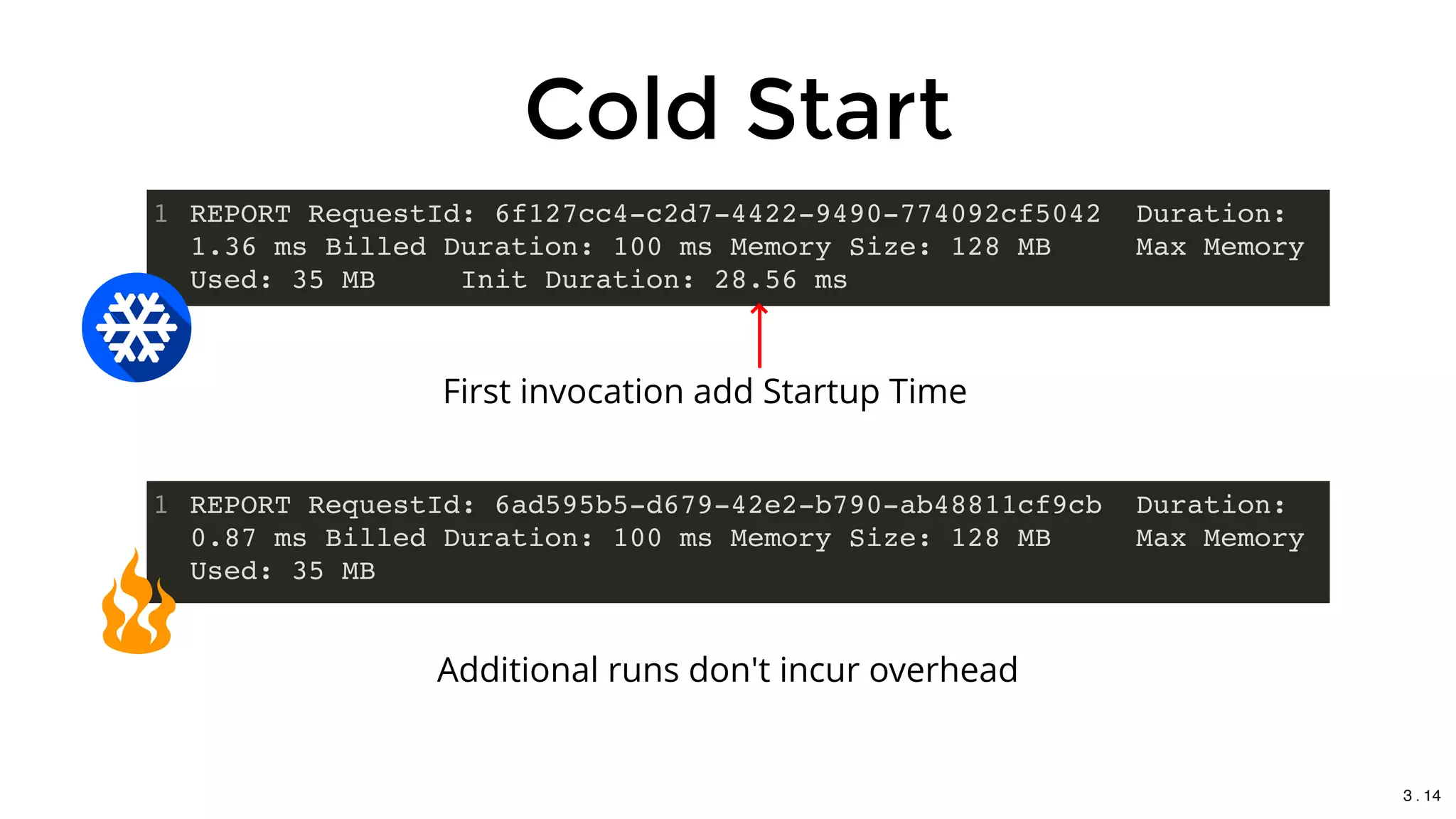

25. Cold StartCold Start
REPORT RequestId: 6f127cc4-c2d7-4422-9490-774092cf5042 Duration:
1.36 ms Billed Duration: 100 ms Memory Size: 128 MB Max Memory
Used: 35 MB Init Duration: 28.56 ms
1
REPORT RequestId: 6ad595b5-d679-42e2-b790-ab48811cf9cb Duration:
0.87 ms Billed Duration: 100 ms Memory Size: 128 MB Max Memory
Used: 35 MB
1
First invocation add Startup Time
Additional runs don't incur overhead
3 . 14

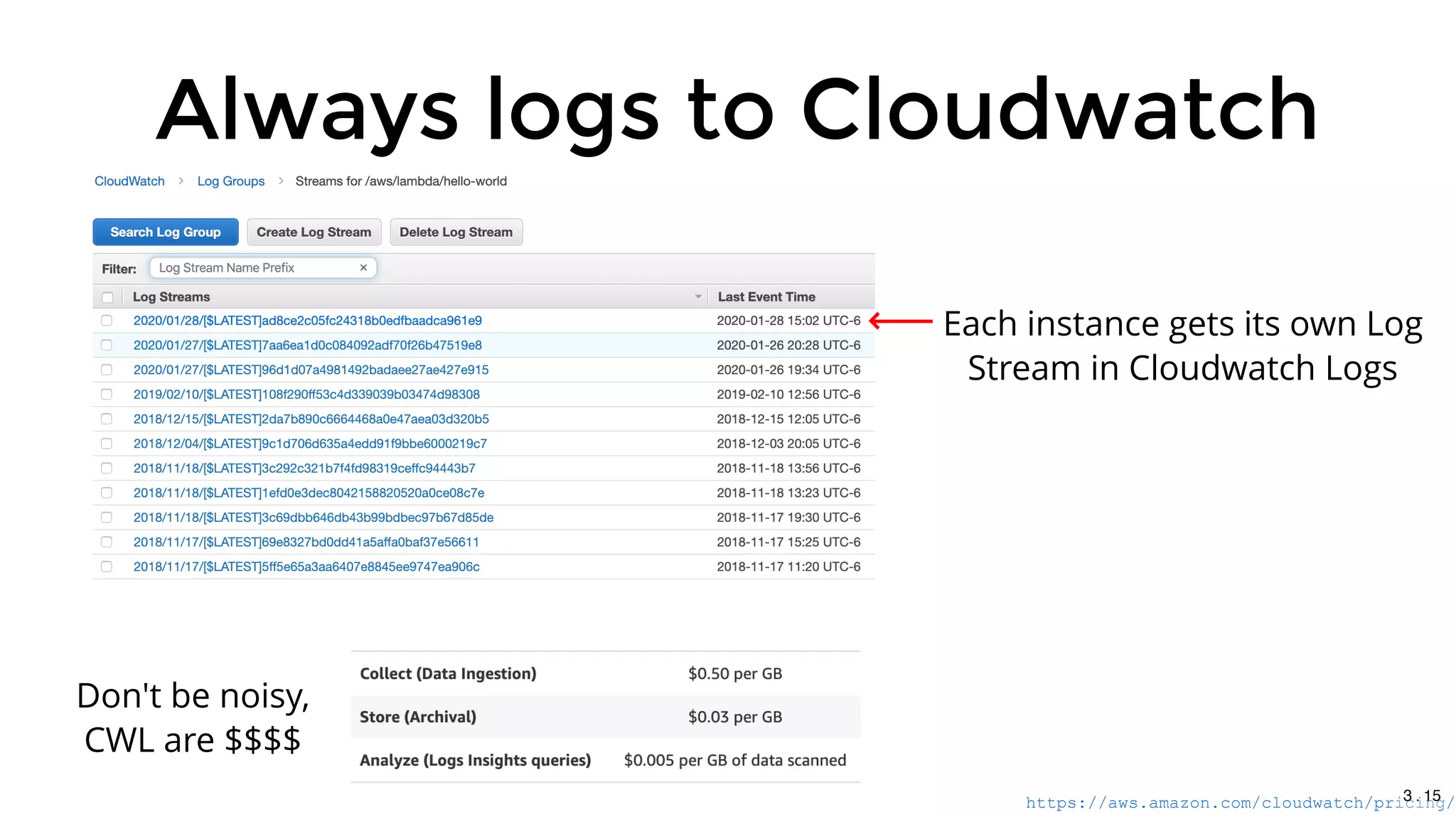

26. Always logs to CloudwatchAlways logs to Cloudwatch
Each instance gets its own Log
Stream in Cloudwatch Logs
https://aws.amazon.com/cloudwatch/pricing/
Don't be noisy,
CWL are $$$$
3 . 15

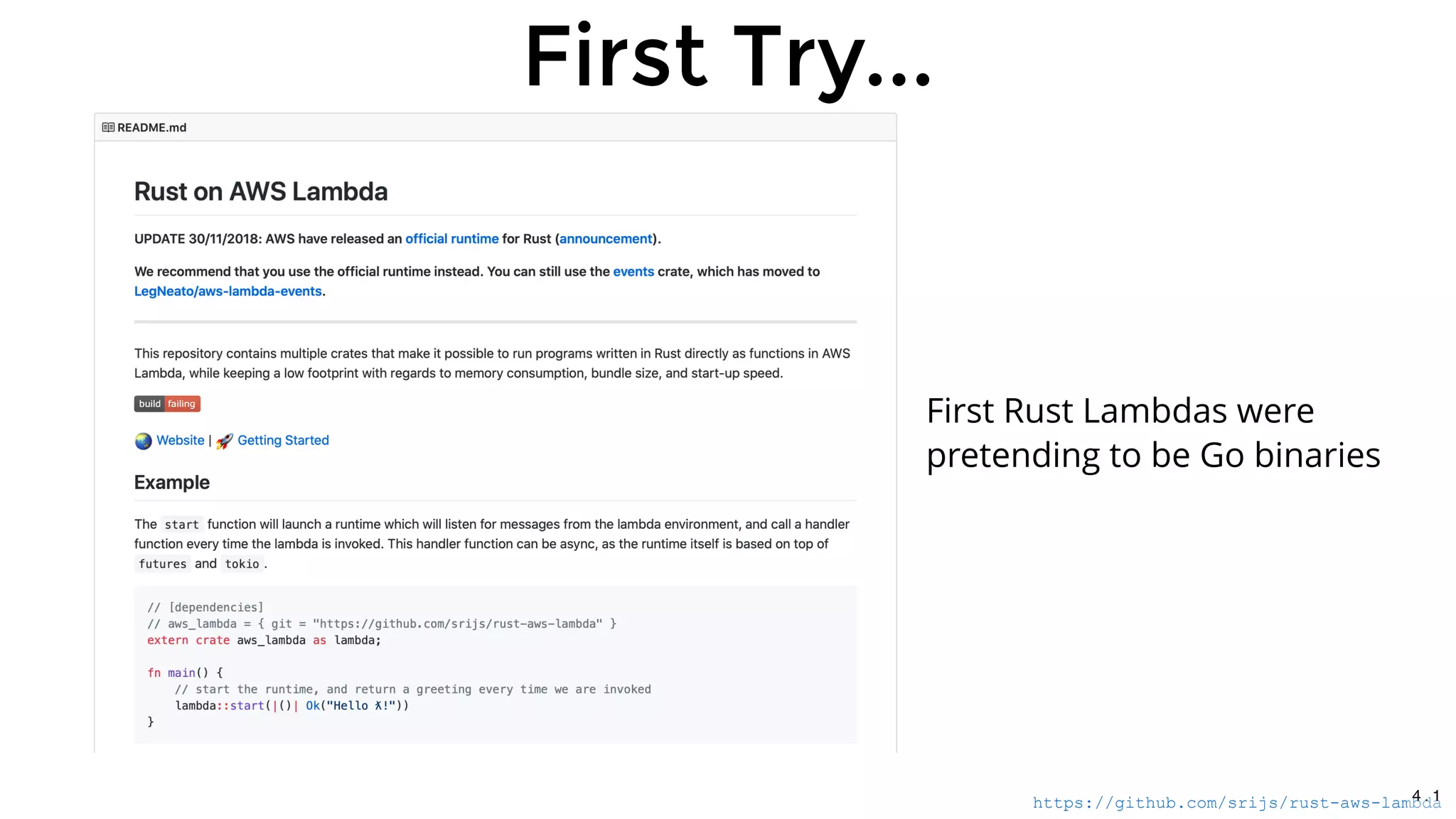

27. First Try...First Try...
https://github.com/srijs/rust­aws­lambda
First Rust Lambdas were
pretending to be Go binaries
4 . 1

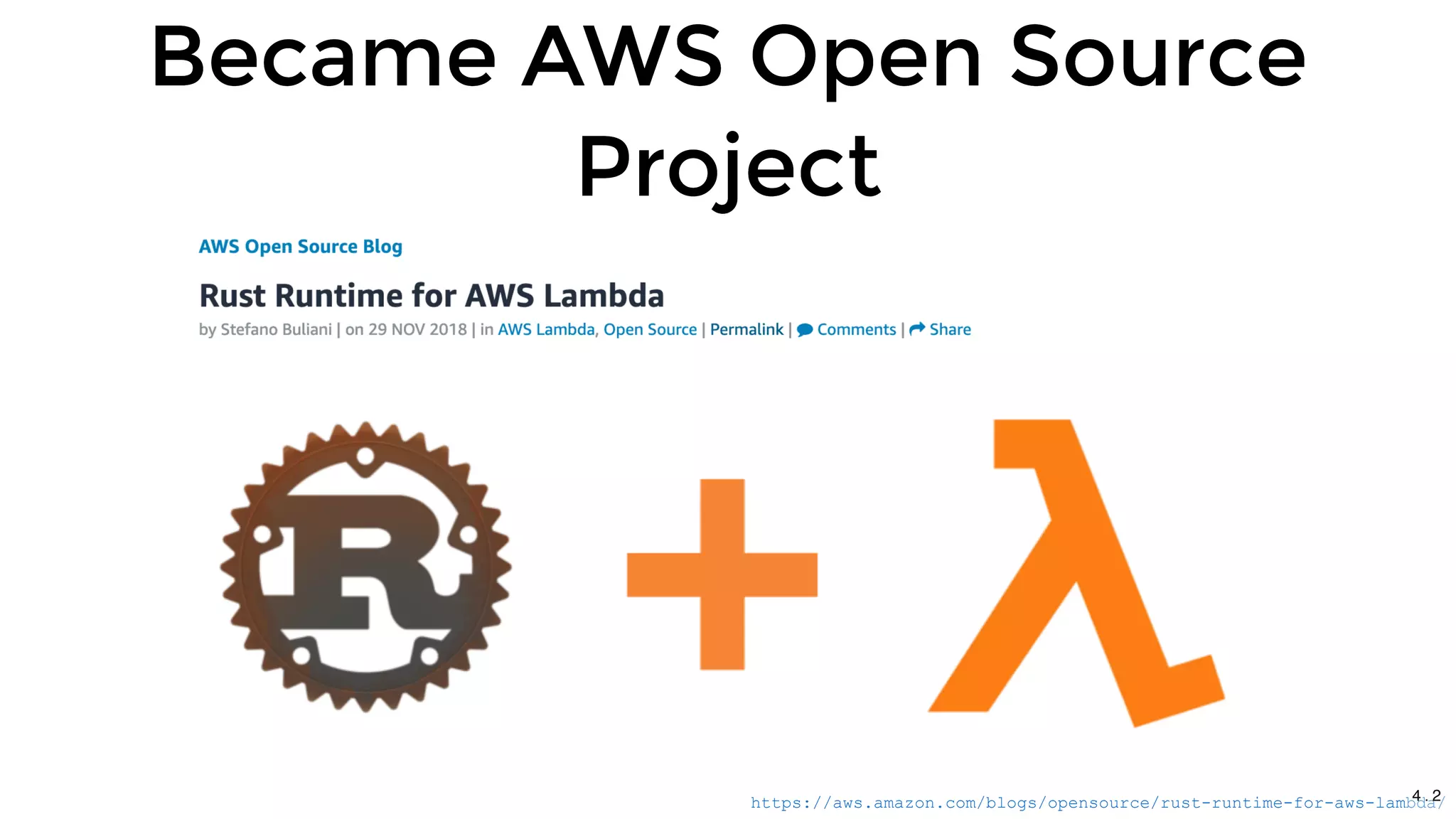

28. Became AWS Open SourceBecame AWS Open Source
ProjectProject
https://aws.amazon.com/blogs/opensource/rust­runtime­for­aws­lambda/4 . 2

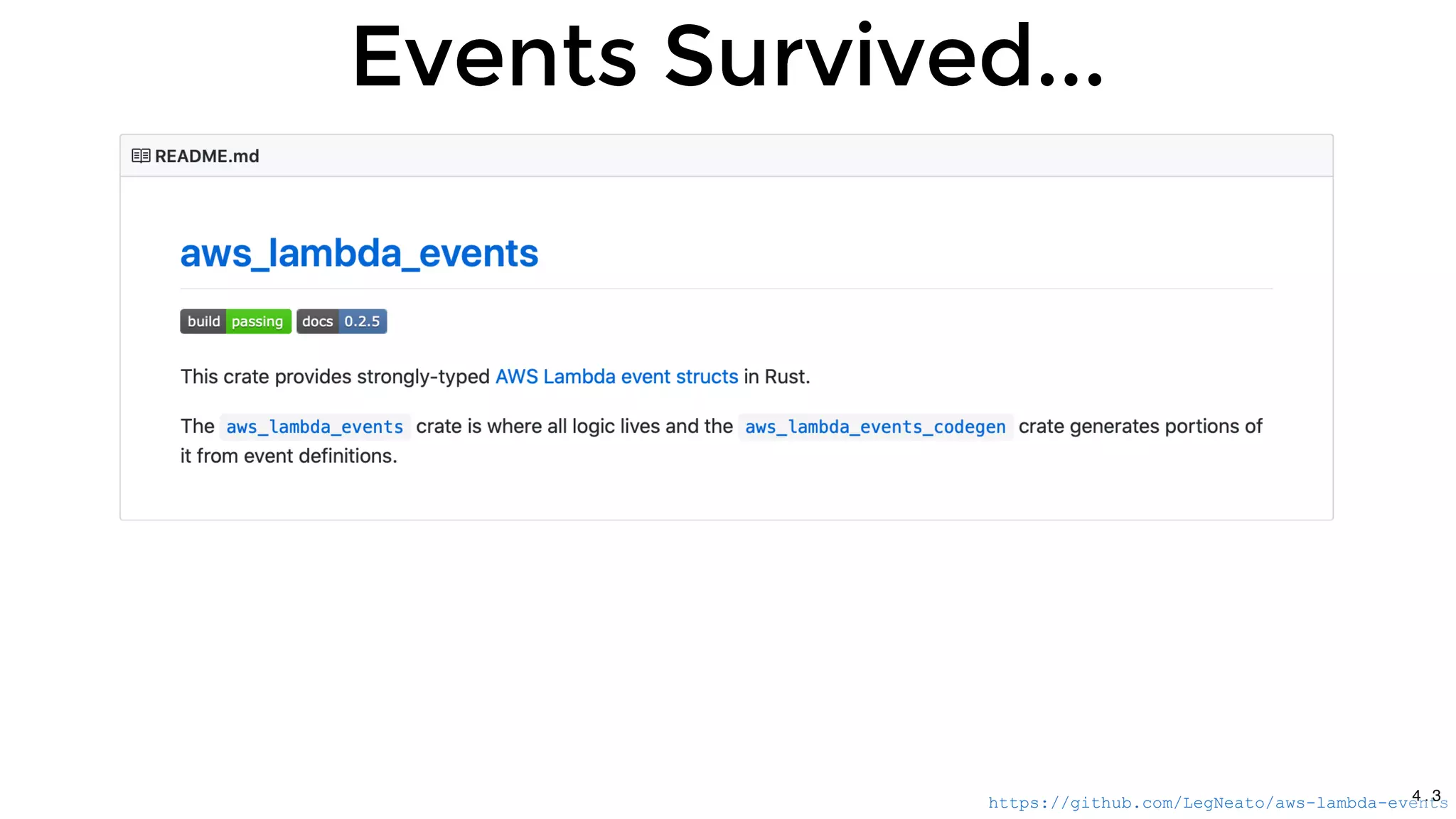

29. Events Survived...Events Survived...
https://github.com/LegNeato/aws­lambda­events4 . 3

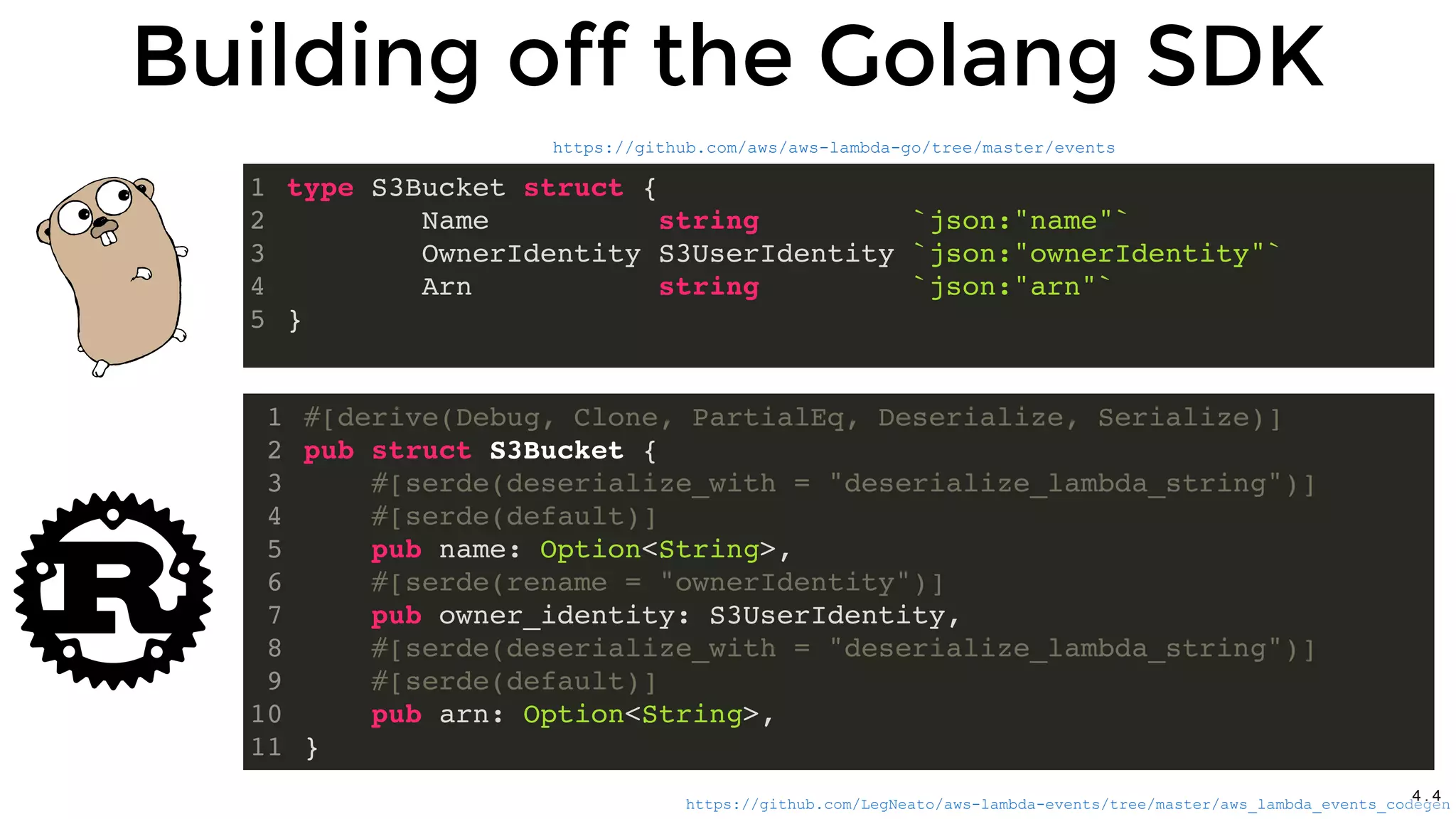

30. Building off the Golang SDKBuilding off the Golang SDK
type S3Bucket struct {
Name string `json:"name"`
OwnerIdentity S3UserIdentity `json:"ownerIdentity"`
Arn string `json:"arn"`
}
1
2
3
4
5
#[derive(Debug, Clone, PartialEq, Deserialize, Serialize)]
pub struct S3Bucket {
#[serde(deserialize_with = "deserialize_lambda_string")]
#[serde(default)]
pub name: Option<String>,
#[serde(rename = "ownerIdentity")]
pub owner_identity: S3UserIdentity,
#[serde(deserialize_with = "deserialize_lambda_string")]
#[serde(default)]
pub arn: Option<String>,
}
1
2
3
4
5
6
7
8
9
10
11
https://github.com/aws/aws­lambda­go/tree/master/events
https://github.com/LegNeato/aws­lambda­events/tree/master/aws_lambda_events_codegen
4 . 4

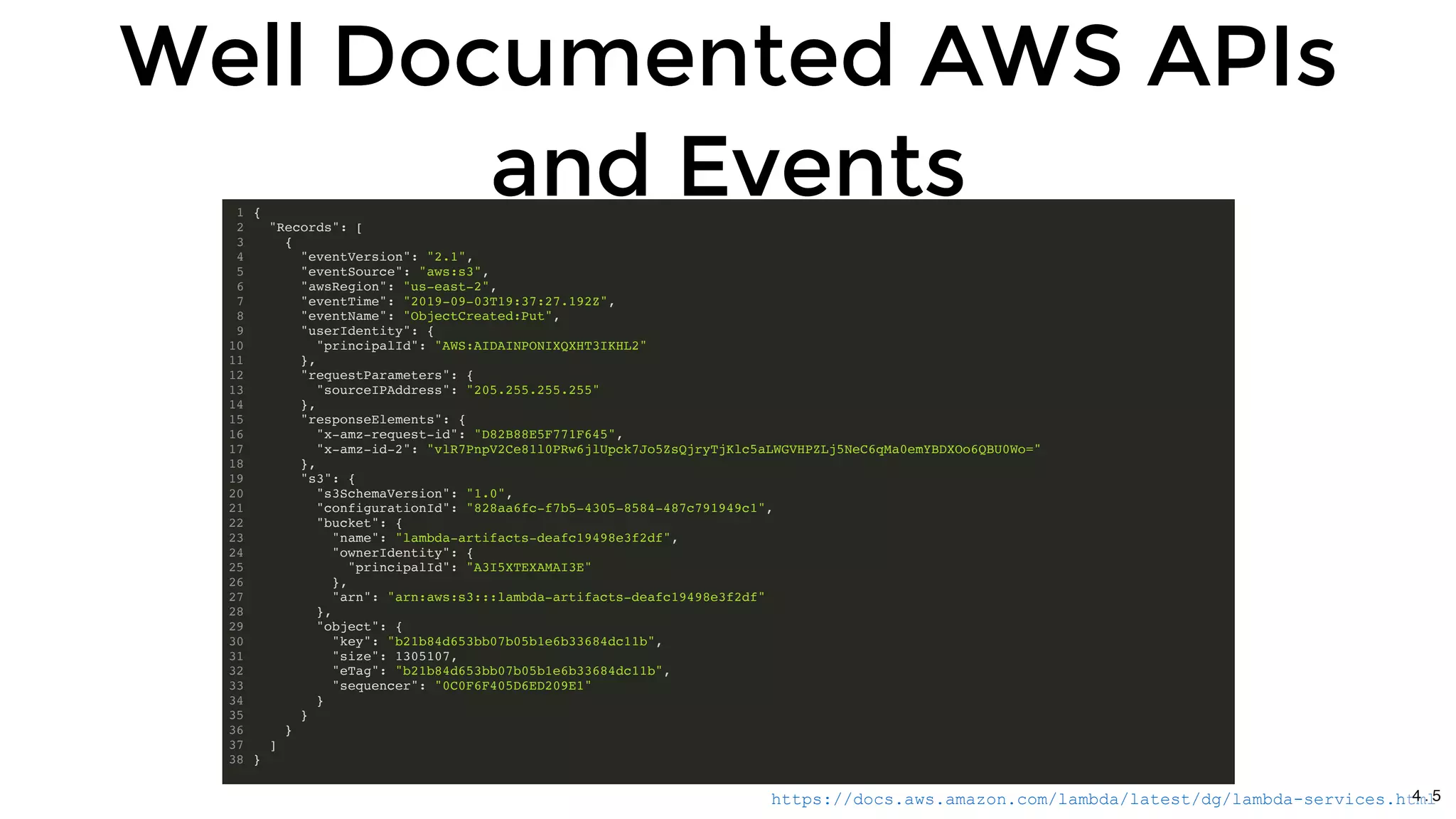

31. Well Documented AWS APIsWell Documented AWS APIs
and Eventsand Events
https://docs.aws.amazon.com/lambda/latest/dg/lambda­services.html
{
"Records": [
{
"eventVersion": "2.1",
"eventSource": "aws:s3",
"awsRegion": "us-east-2",
"eventTime": "2019-09-03T19:37:27.192Z",
"eventName": "ObjectCreated:Put",
"userIdentity": {
"principalId": "AWS:AIDAINPONIXQXHT3IKHL2"
},
"requestParameters": {
"sourceIPAddress": "205.255.255.255"
},
"responseElements": {
"x-amz-request-id": "D82B88E5F771F645",
"x-amz-id-2": "vlR7PnpV2Ce81l0PRw6jlUpck7Jo5ZsQjryTjKlc5aLWGVHPZLj5NeC6qMa0emYBDXOo6QBU0Wo="
},
"s3": {
"s3SchemaVersion": "1.0",
"configurationId": "828aa6fc-f7b5-4305-8584-487c791949c1",
"bucket": {
"name": "lambda-artifacts-deafc19498e3f2df",
"ownerIdentity": {
"principalId": "A3I5XTEXAMAI3E"
},
"arn": "arn:aws:s3:::lambda-artifacts-deafc19498e3f2df"
},
"object": {
"key": "b21b84d653bb07b05b1e6b33684dc11b",
"size": 1305107,
"eTag": "b21b84d653bb07b05b1e6b33684dc11b",
"sequencer": "0C0F6F405D6ED209E1"
}
}
}
]
}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
4 . 5

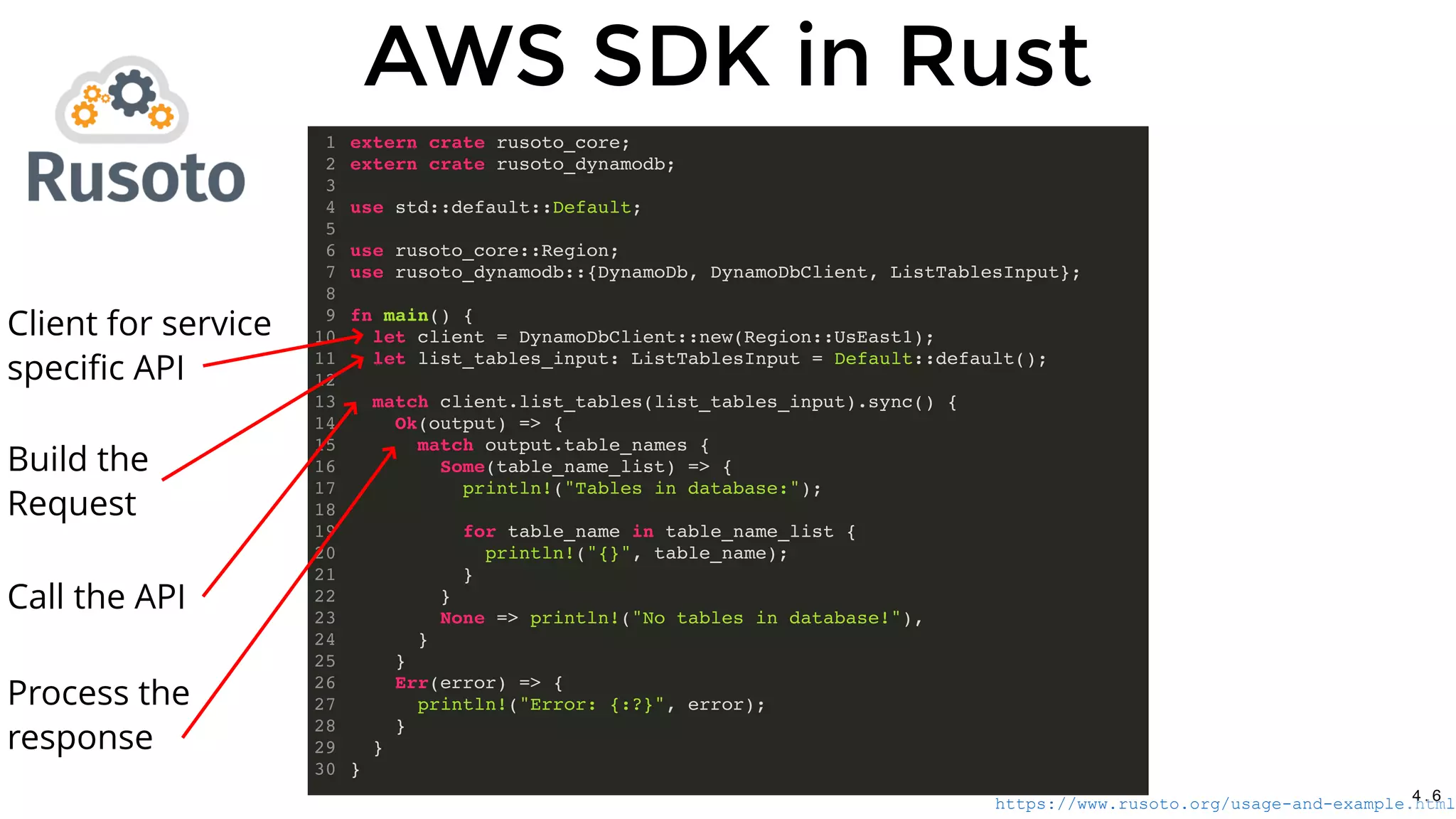

32. https://www.rusoto.org/usage­and­example.html
AWS SDK in RustAWS SDK in Rust
extern crate rusoto_core;
extern crate rusoto_dynamodb;
use std::default::Default;
use rusoto_core::Region;
use rusoto_dynamodb::{DynamoDb, DynamoDbClient, ListTablesInput};
fn main() {
let client = DynamoDbClient::new(Region::UsEast1);
let list_tables_input: ListTablesInput = Default::default();
match client.list_tables(list_tables_input).sync() {
Ok(output) => {
match output.table_names {
Some(table_name_list) => {
println!("Tables in database:");
for table_name in table_name_list {
println!("{}", table_name);
}
}
None => println!("No tables in database!"),
}
}
Err(error) => {
println!("Error: {:?}", error);
}
}
}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
Client for service
specific API
Build the
Request
Call the API
Process the
response
4 . 6

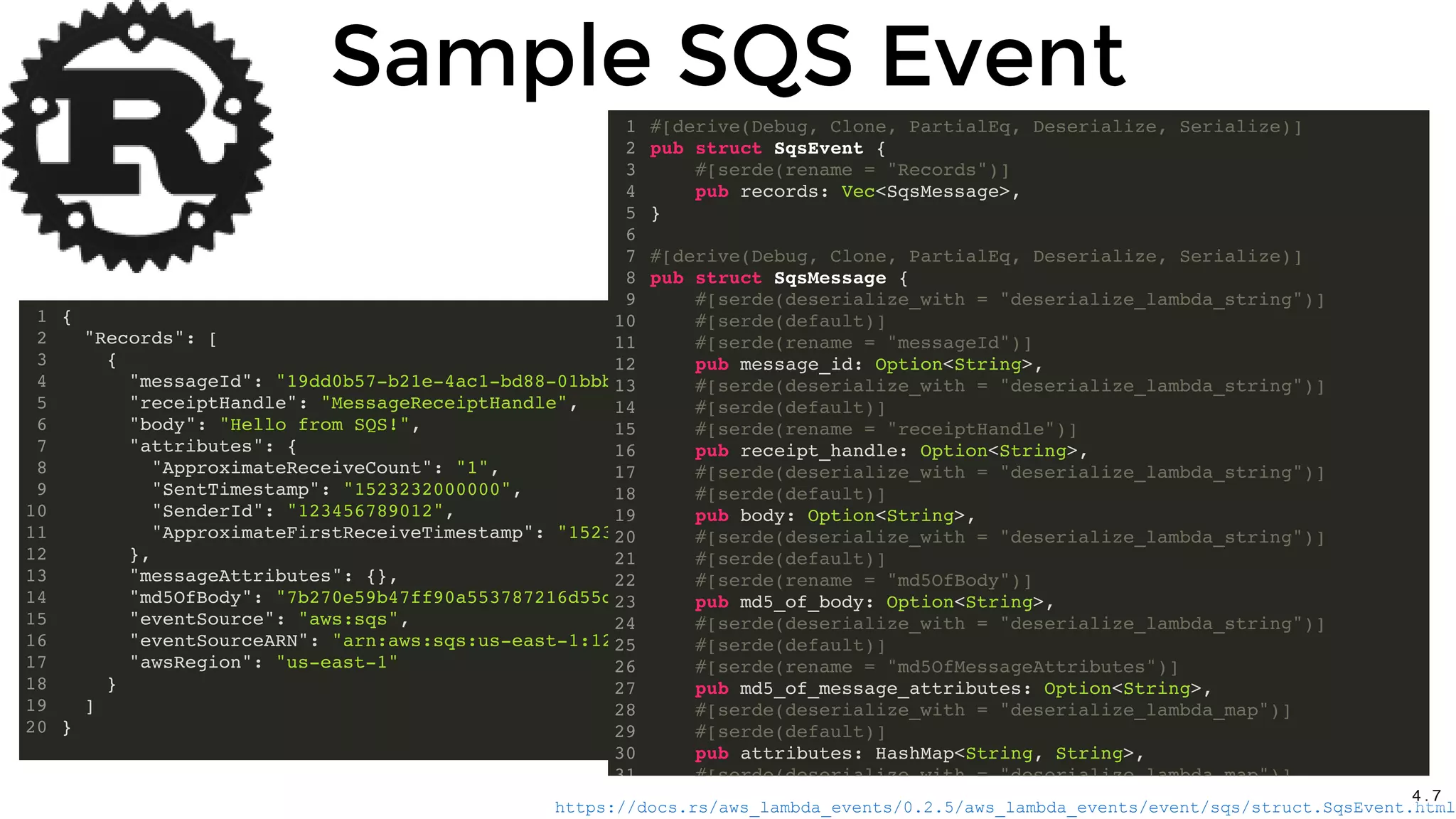

33. https://docs.rs/aws_lambda_events/0.2.5/aws_lambda_events/event/sqs/struct.SqsEvent.html
Sample SQS EventSample SQS Event
{
"Records": [
{
"messageId": "19dd0b57-b21e-4ac1-bd88-01bbb068cb78",
"receiptHandle": "MessageReceiptHandle",
"body": "Hello from SQS!",
"attributes": {
"ApproximateReceiveCount": "1",
"SentTimestamp": "1523232000000",
"SenderId": "123456789012",
"ApproximateFirstReceiveTimestamp": "1523232000001"
},
"messageAttributes": {},
"md5OfBody": "7b270e59b47ff90a553787216d55d91d",
"eventSource": "aws:sqs",
"eventSourceARN": "arn:aws:sqs:us-east-1:123456789012:MyQueue",
"awsRegion": "us-east-1"
}
]
}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
#[derive(Debug, Clone, PartialEq, Deserialize, Serialize)]
pub struct SqsEvent {
#[serde(rename = "Records")]
pub records: Vec<SqsMessage>,
}
#[derive(Debug, Clone, PartialEq, Deserialize, Serialize)]
pub struct SqsMessage {
#[serde(deserialize_with = "deserialize_lambda_string")]
#[serde(default)]
#[serde(rename = "messageId")]
pub message_id: Option<String>,
#[serde(deserialize_with = "deserialize_lambda_string")]
#[serde(default)]
#[serde(rename = "receiptHandle")]
pub receipt_handle: Option<String>,
#[serde(deserialize_with = "deserialize_lambda_string")]
#[serde(default)]
pub body: Option<String>,
#[serde(deserialize_with = "deserialize_lambda_string")]
#[serde(default)]
#[serde(rename = "md5OfBody")]
pub md5_of_body: Option<String>,
#[serde(deserialize_with = "deserialize_lambda_string")]
#[serde(default)]
#[serde(rename = "md5OfMessageAttributes")]
pub md5_of_message_attributes: Option<String>,
#[serde(deserialize_with = "deserialize_lambda_map")]
#[serde(default)]
pub attributes: HashMap<String, String>,
#[serde(deserialize with = "deserialize lambda map")]
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
4 . 7

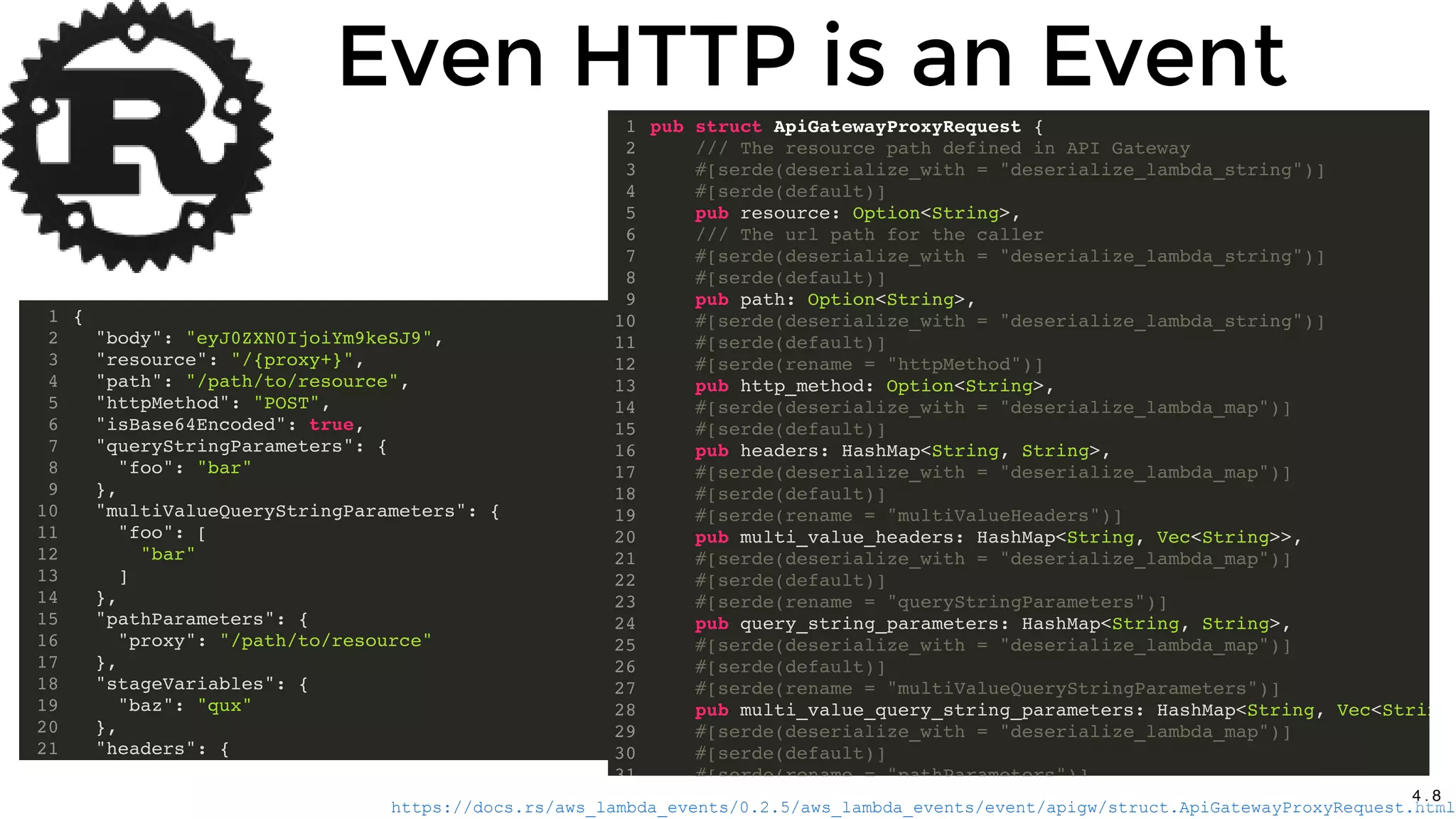

34. https://docs.rs/aws_lambda_events/0.2.5/aws_lambda_events/event/apigw/struct.ApiGatewayProxyRequest.html
Even HTTP is an EventEven HTTP is an Event
{
"body": "eyJ0ZXN0IjoiYm9keSJ9",
"resource": "/{proxy+}",
"path": "/path/to/resource",
"httpMethod": "POST",
"isBase64Encoded": true,
"queryStringParameters": {
"foo": "bar"
},
"multiValueQueryStringParameters": {
"foo": [
"bar"
]
},
"pathParameters": {
"proxy": "/path/to/resource"
},
"stageVariables": {
"baz": "qux"
},
"headers": {
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
pub struct ApiGatewayProxyRequest {
/// The resource path defined in API Gateway
#[serde(deserialize_with = "deserialize_lambda_string")]
#[serde(default)]
pub resource: Option<String>,
/// The url path for the caller
#[serde(deserialize_with = "deserialize_lambda_string")]
#[serde(default)]
pub path: Option<String>,
#[serde(deserialize_with = "deserialize_lambda_string")]
#[serde(default)]
#[serde(rename = "httpMethod")]
pub http_method: Option<String>,
#[serde(deserialize_with = "deserialize_lambda_map")]
#[serde(default)]
pub headers: HashMap<String, String>,
#[serde(deserialize_with = "deserialize_lambda_map")]
#[serde(default)]
#[serde(rename = "multiValueHeaders")]
pub multi_value_headers: HashMap<String, Vec<String>>,
#[serde(deserialize_with = "deserialize_lambda_map")]
#[serde(default)]
#[serde(rename = "queryStringParameters")]
pub query_string_parameters: HashMap<String, String>,
#[serde(deserialize_with = "deserialize_lambda_map")]
#[serde(default)]
#[serde(rename = "multiValueQueryStringParameters")]
pub multi_value_query_string_parameters: HashMap<String, Vec<Strin
#[serde(deserialize_with = "deserialize_lambda_map")]
#[serde(default)]
#[serde(rename = "pathParameters")]
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
4 . 8

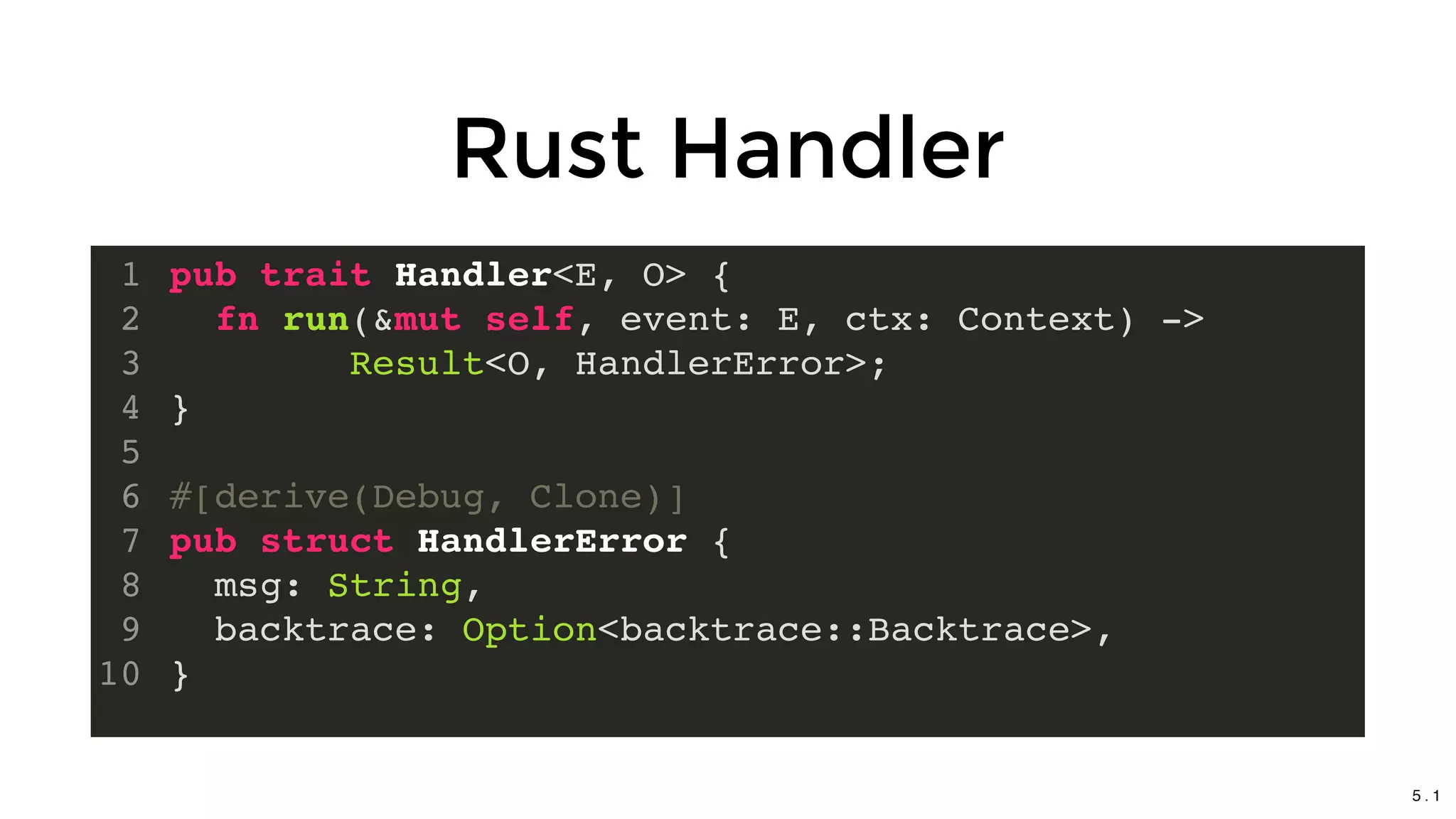

35. Rust HandlerRust Handler
pub trait Handler<E, O> {
fn run(&mut self, event: E, ctx: Context) ->
Result<O, HandlerError>;
}
#[derive(Debug, Clone)]
pub struct HandlerError {
msg: String,
backtrace: Option<backtrace::Backtrace>,
}
1
2
3
4
5
6
7
8
9
10
5 . 1

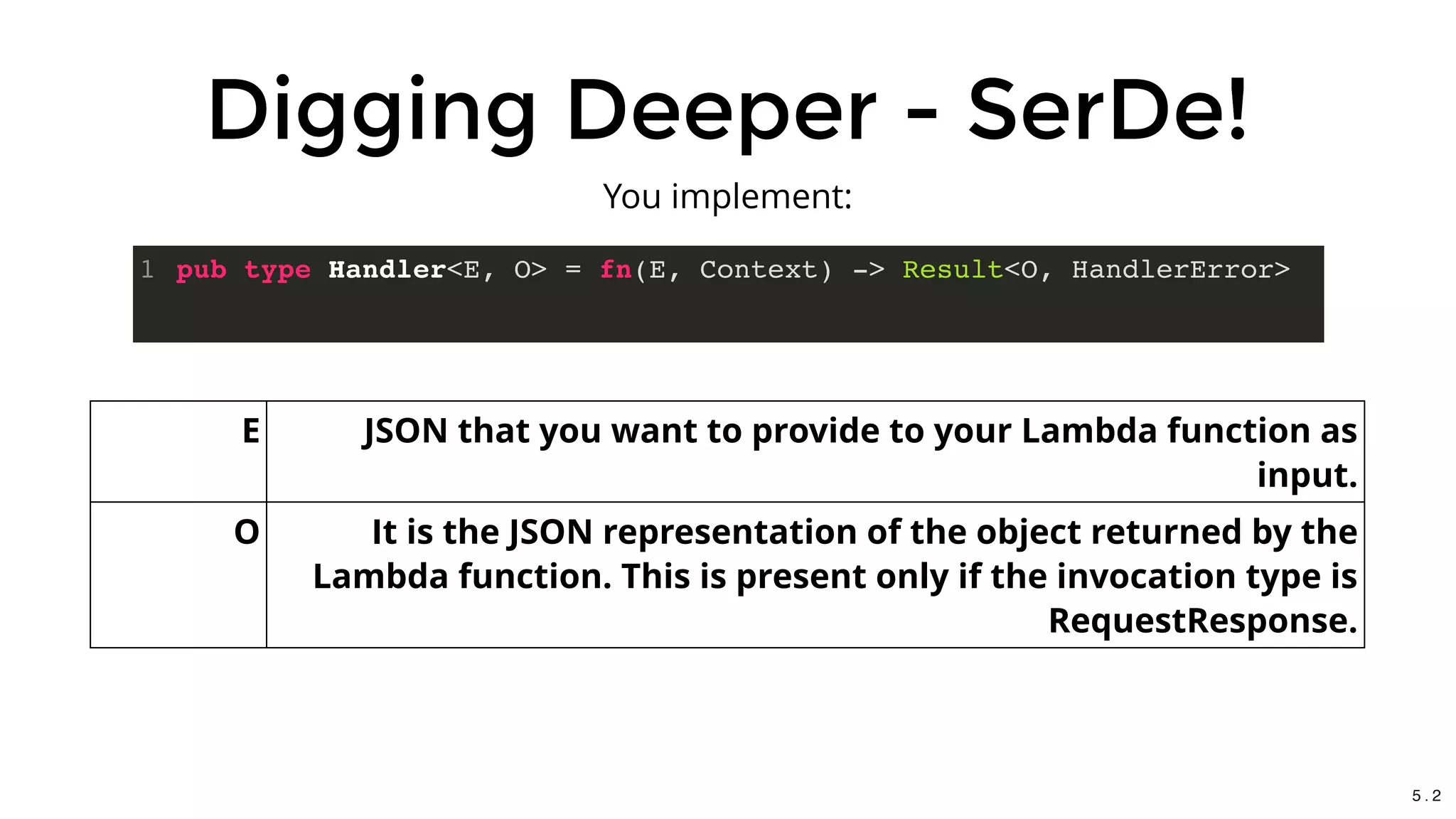

36. Digging Deeper - SerDe!Digging Deeper - SerDe!
pub type Handler<E, O> = fn(E, Context) -> Result<O, HandlerError>1
You implement:
E JSON that you want to provide to your Lambda function as
input.
O It is the JSON representation of the object returned by the
Lambda function. This is present only if the invocation type is
RequestResponse.
5 . 2

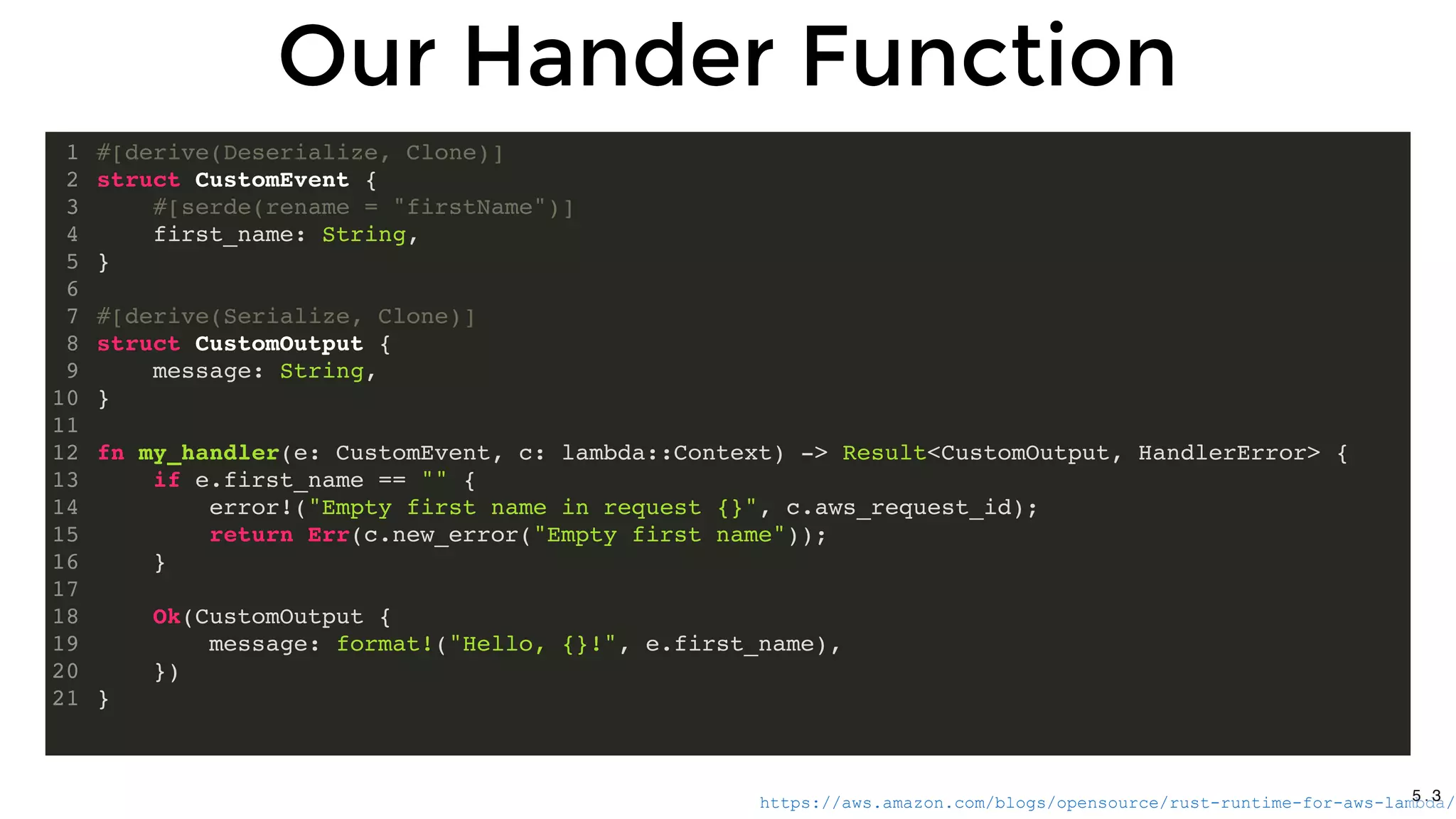

37. Our Hander FunctionOur Hander Function
#[derive(Deserialize, Clone)]
struct CustomEvent {
#[serde(rename = "firstName")]
first_name: String,
}
#[derive(Serialize, Clone)]
struct CustomOutput {
message: String,
}
fn my_handler(e: CustomEvent, c: lambda::Context) -> Result<CustomOutput, HandlerError> {
if e.first_name == "" {
error!("Empty first name in request {}", c.aws_request_id);
return Err(c.new_error("Empty first name"));
}
Ok(CustomOutput {
message: format!("Hello, {}!", e.first_name),
})
}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
https://aws.amazon.com/blogs/opensource/rust­runtime­for­aws­lambda/5 . 3

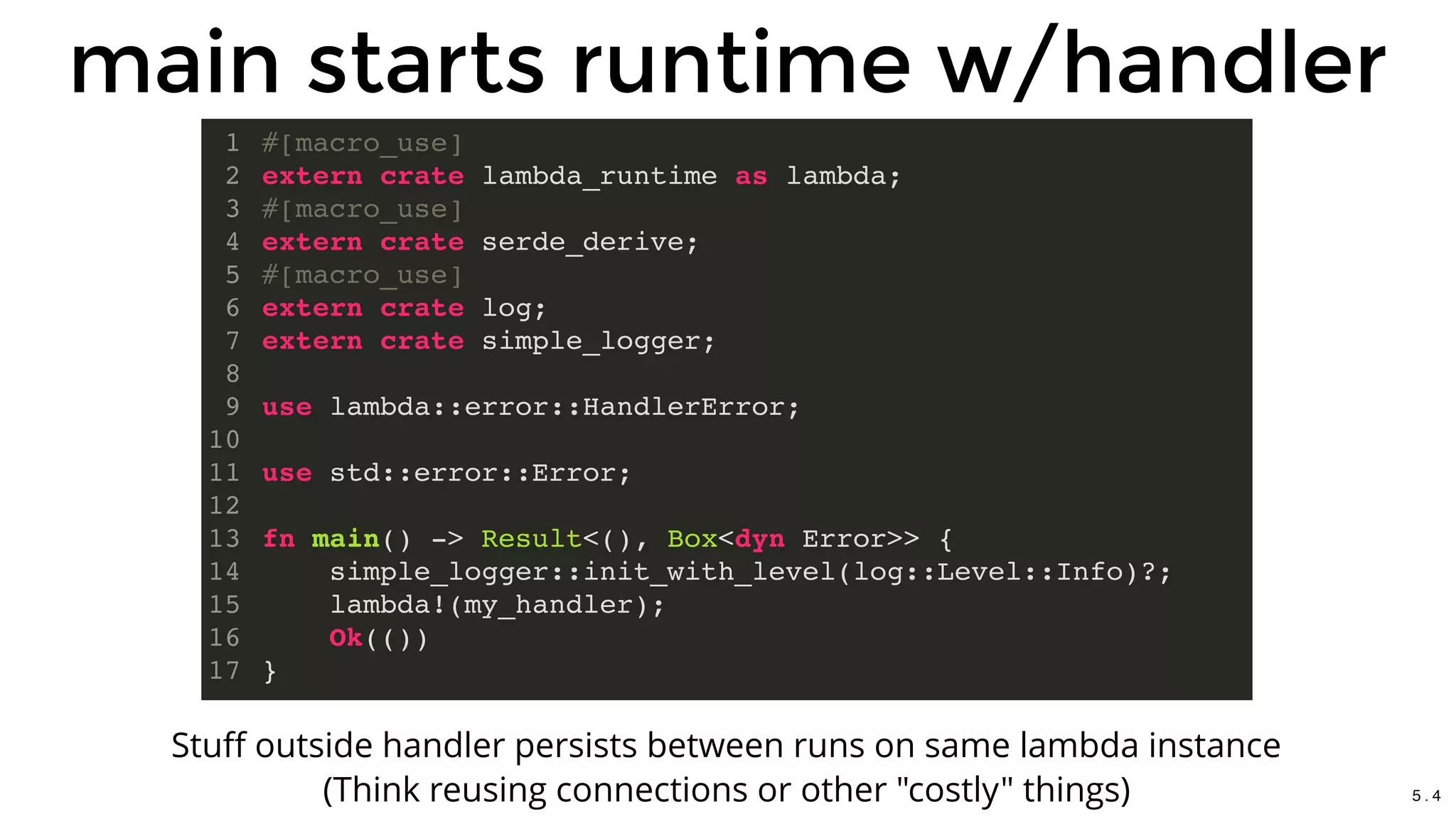

38. main starts runtime w/handlermain starts runtime w/handler
#[macro_use]
extern crate lambda_runtime as lambda;
#[macro_use]
extern crate serde_derive;
#[macro_use]
extern crate log;
extern crate simple_logger;
use lambda::error::HandlerError;
use std::error::Error;
fn main() -> Result<(), Box<dyn Error>> {
simple_logger::init_with_level(log::Level::Info)?;
lambda!(my_handler);
Ok(())
}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
Stuff outside handler persists between runs on same lambda instance
(Think reusing connections or other "costly" things) 5 . 4

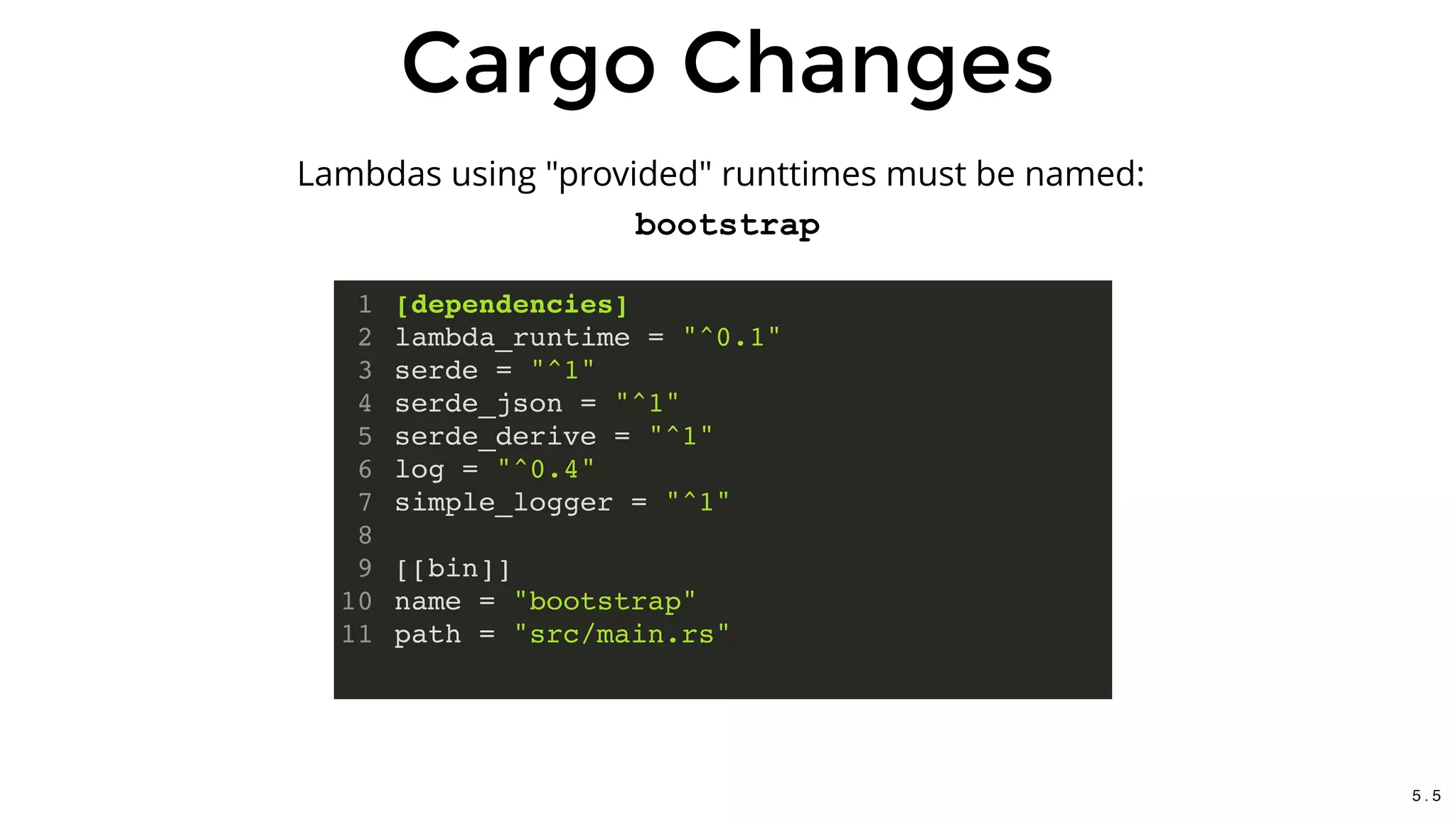

39. Cargo ChangesCargo Changes
[dependencies]
lambda_runtime = "^0.1"
serde = "^1"
serde_json = "^1"
serde_derive = "^1"
log = "^0.4"
simple_logger = "^1"
[[bin]]
name = "bootstrap"
path = "src/main.rs"
1
2
3
4
5
6
7
8
9
10
11
Lambdas using "provided" runttimes must be named:
bootstrap
5 . 5

40. So what can youSo what can you
build with this?build with this?
6 . 1

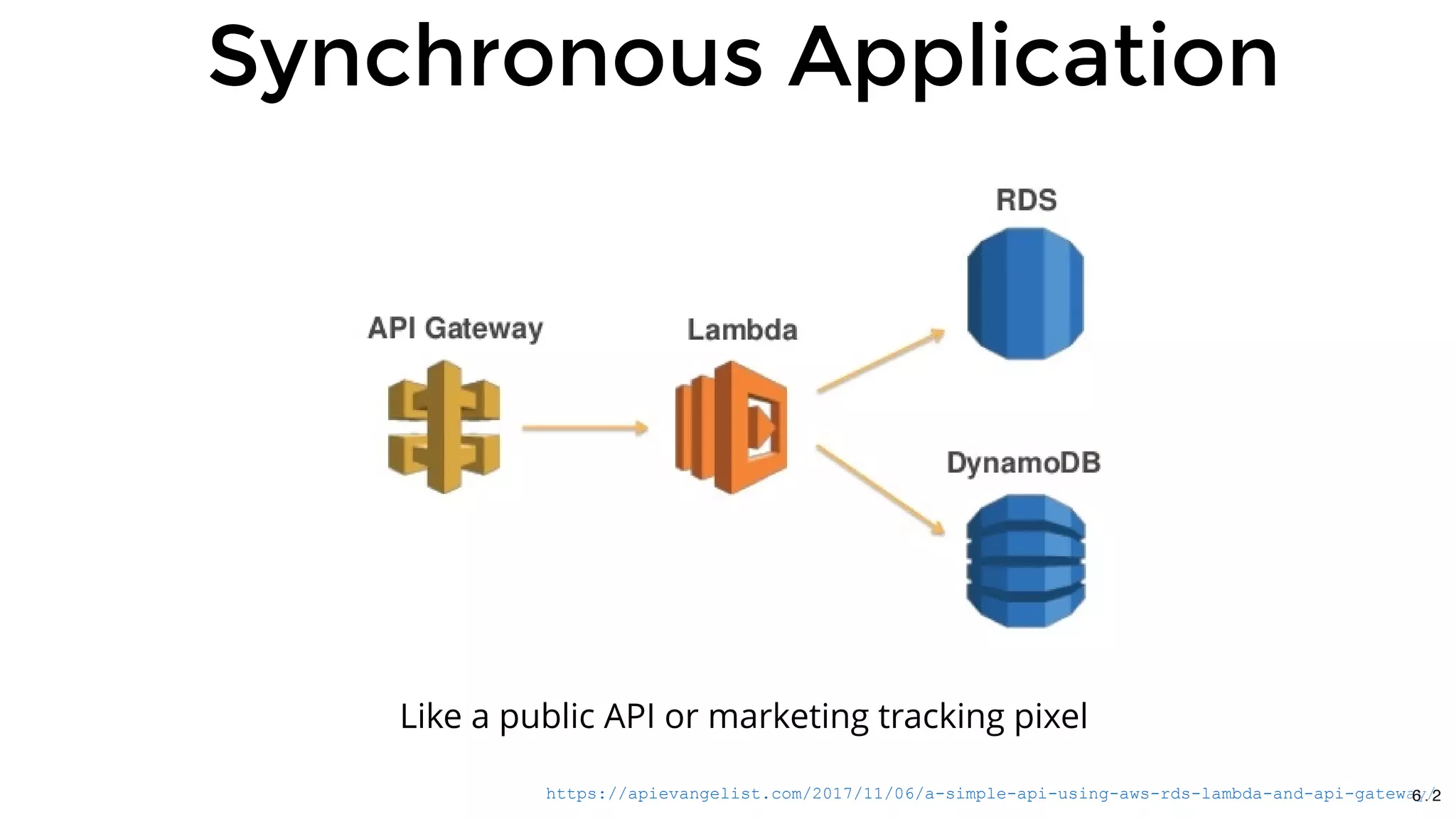

41. https://apievangelist.com/2017/11/06/a­simple­api­using­aws­rds­lambda­and­api­gateway/
Synchronous ApplicationSynchronous Application
Like a public API or marketing tracking pixel
6 . 2

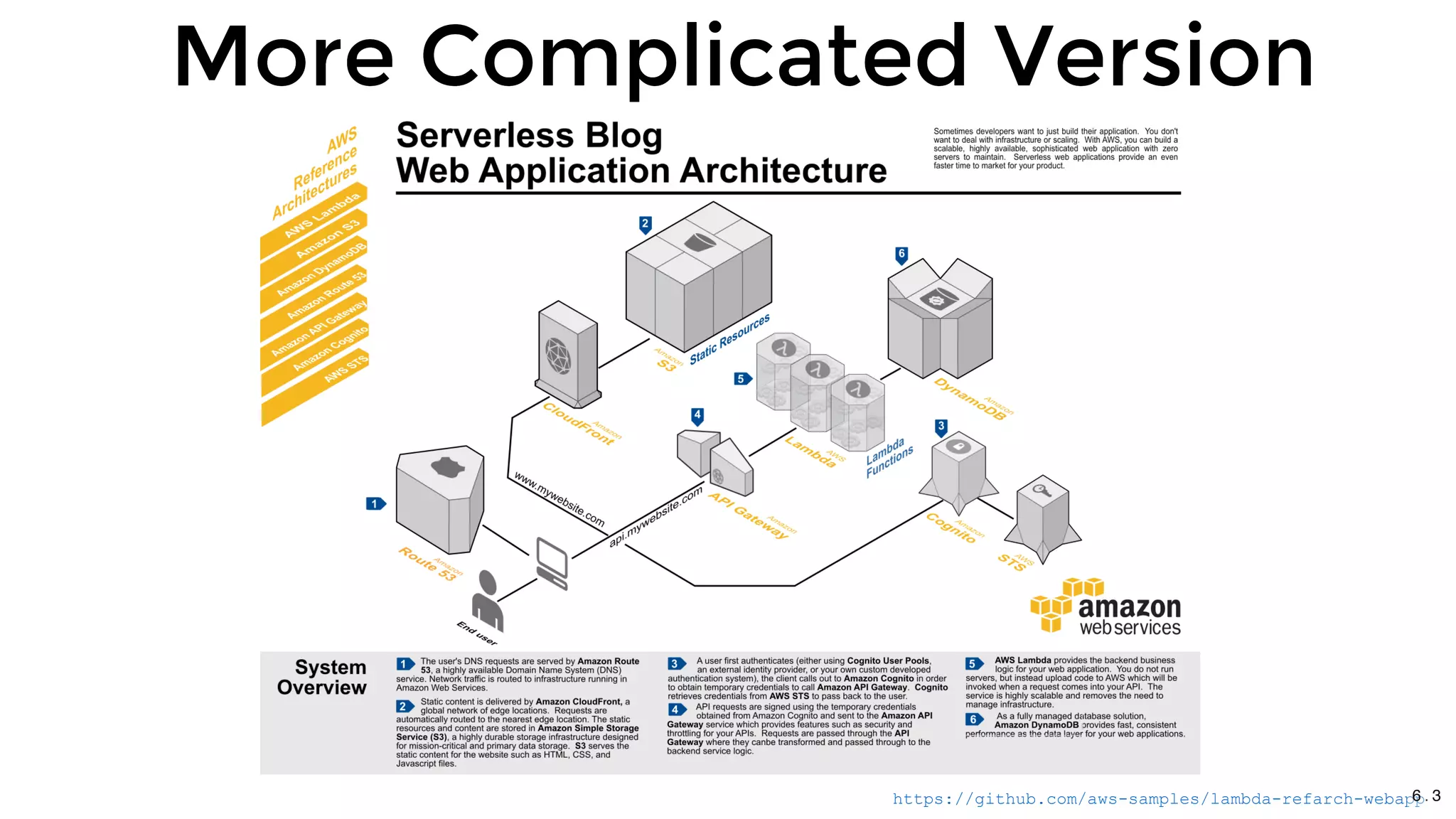

42. https://github.com/aws­samples/lambda­refarch­webapp
More Complicated VersionMore Complicated Version
6 . 3

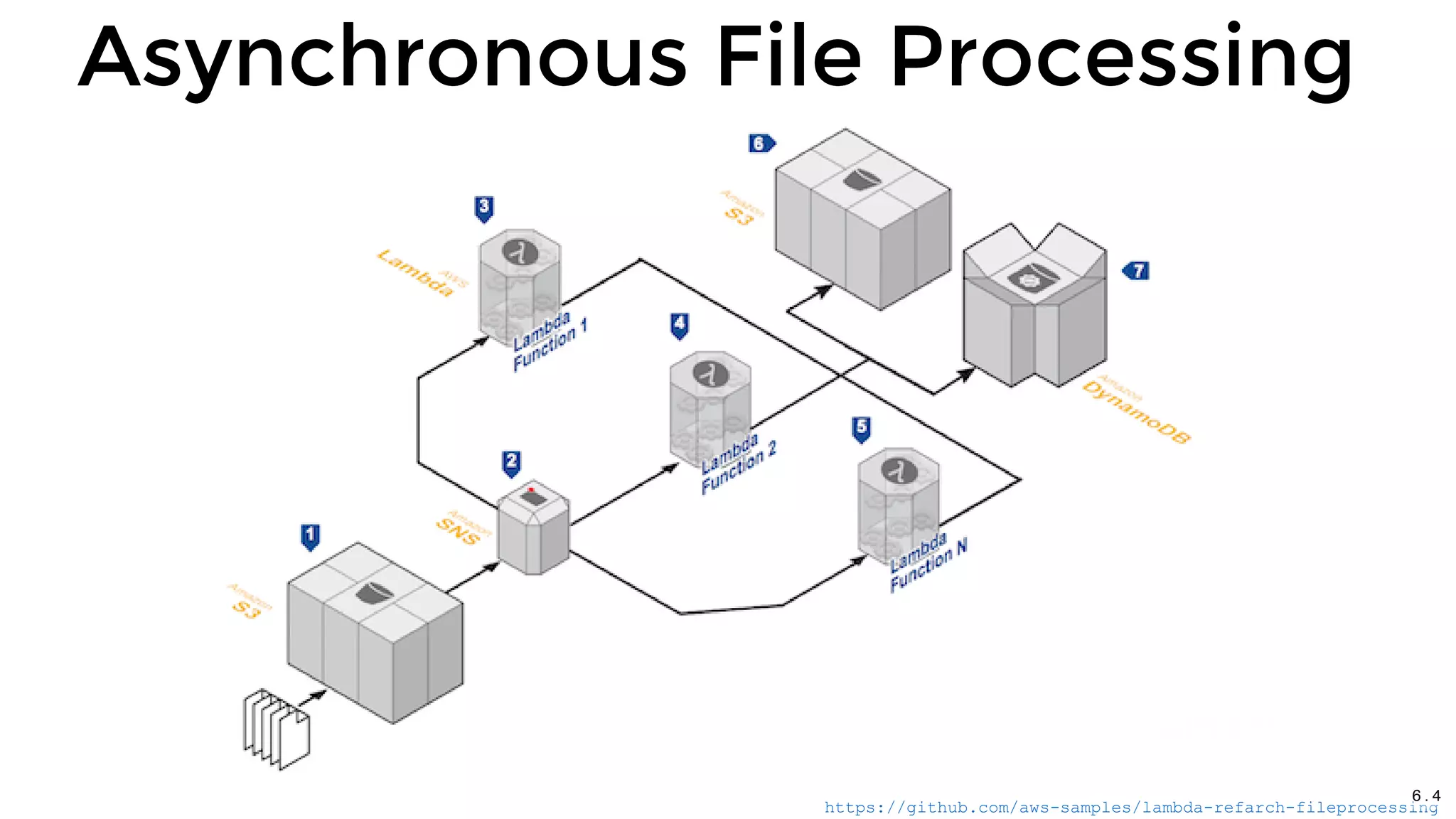

43. https://github.com/aws­samples/lambda­refarch­fileprocessing
Asynchronous File ProcessingAsynchronous File Processing
6 . 4

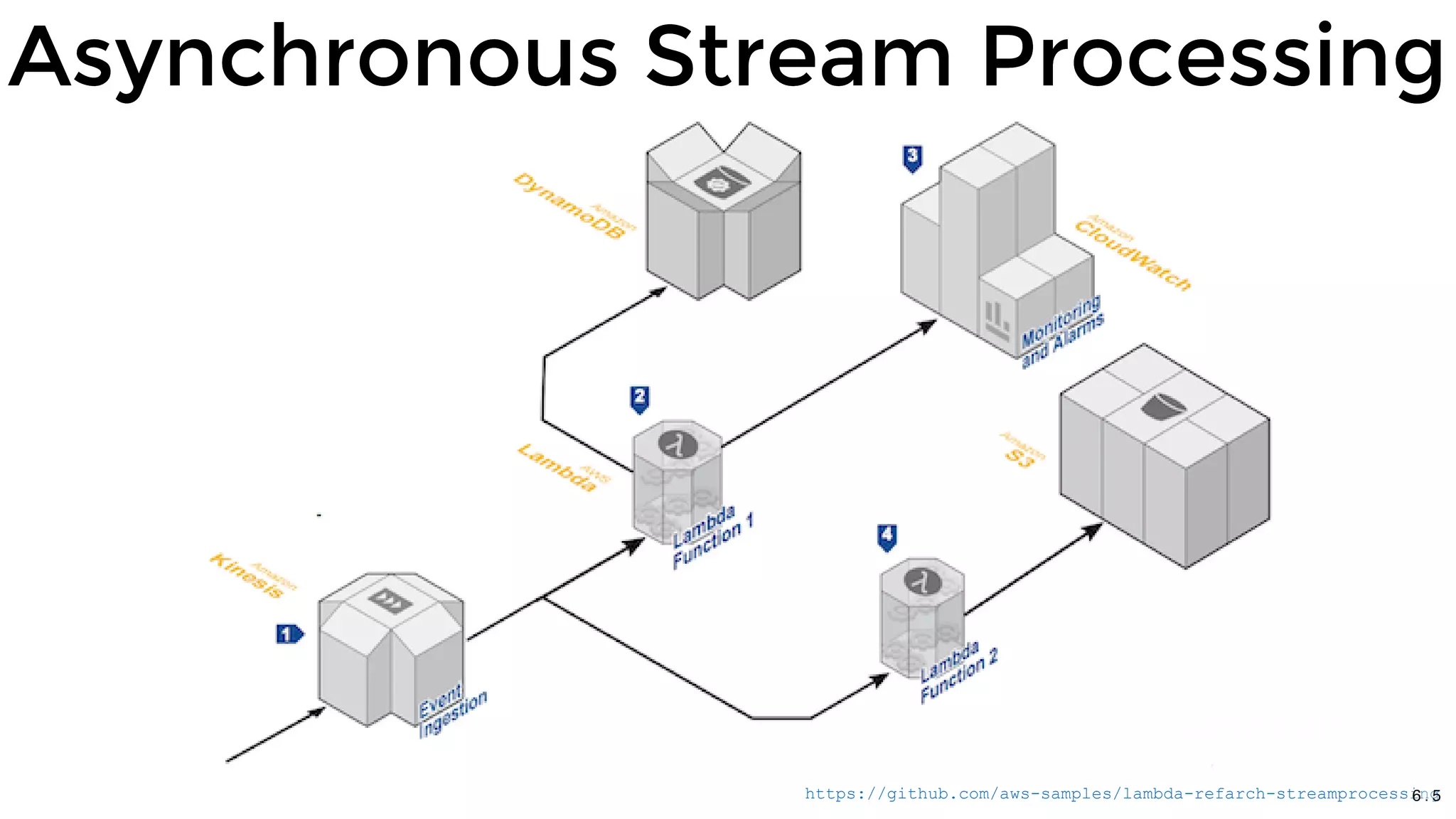

44. https://github.com/aws­samples/lambda­refarch­streamprocessing
Asynchronous Stream ProcessingAsynchronous Stream Processing
6 . 5

45. Manual/SAM/ServerlessManual/SAM/Serverless
6 . 6

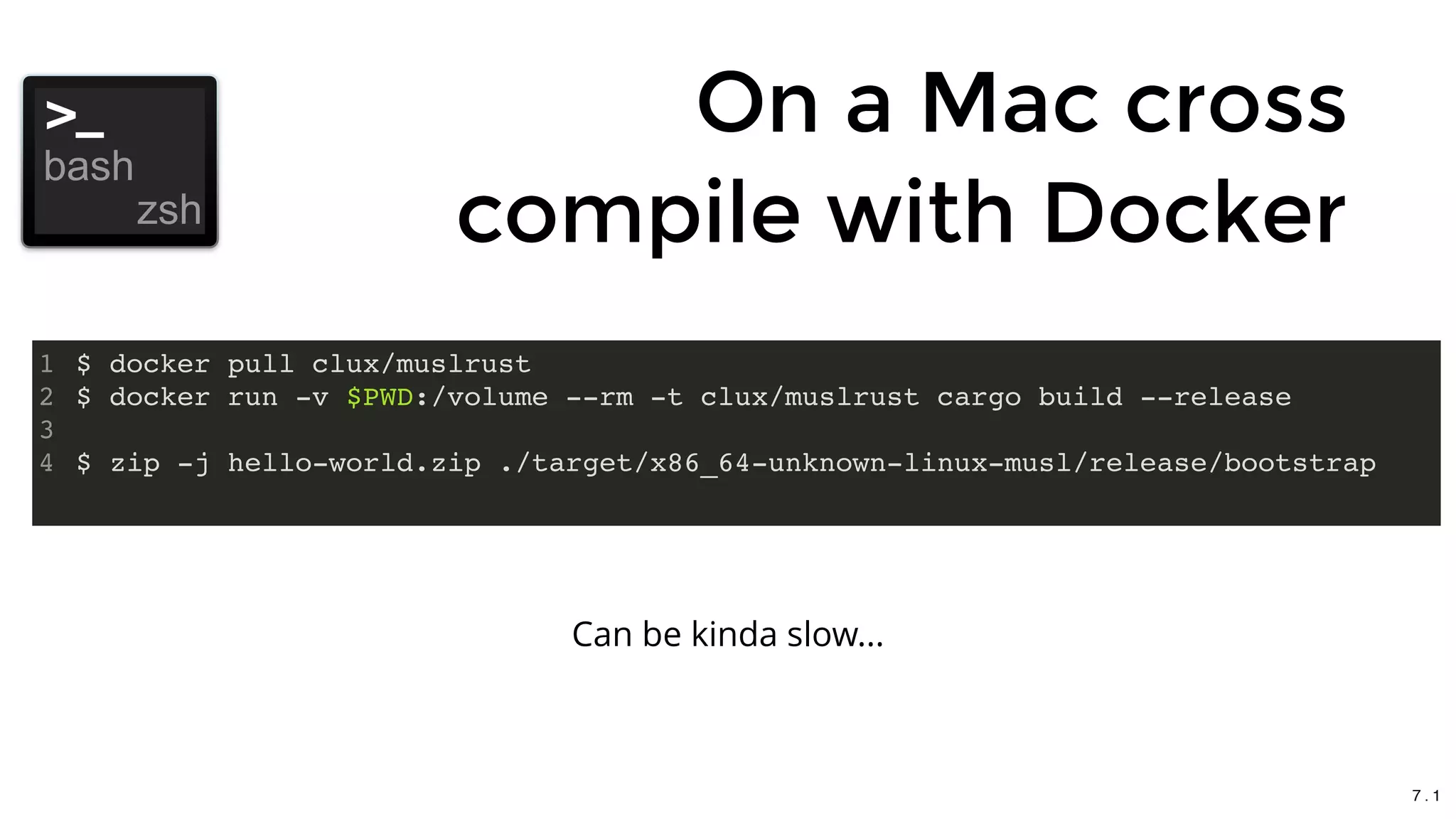

46. On a Mac crossOn a Mac cross
compile with Dockercompile with Docker
$ docker pull clux/muslrust
$ docker run -v $PWD:/volume --rm -t clux/muslrust cargo build --release
$ zip -j hello-world.zip ./target/x86_64-unknown-linux-musl/release/bootstrap
1
2
3
4
Can be kinda slow...
7 . 1

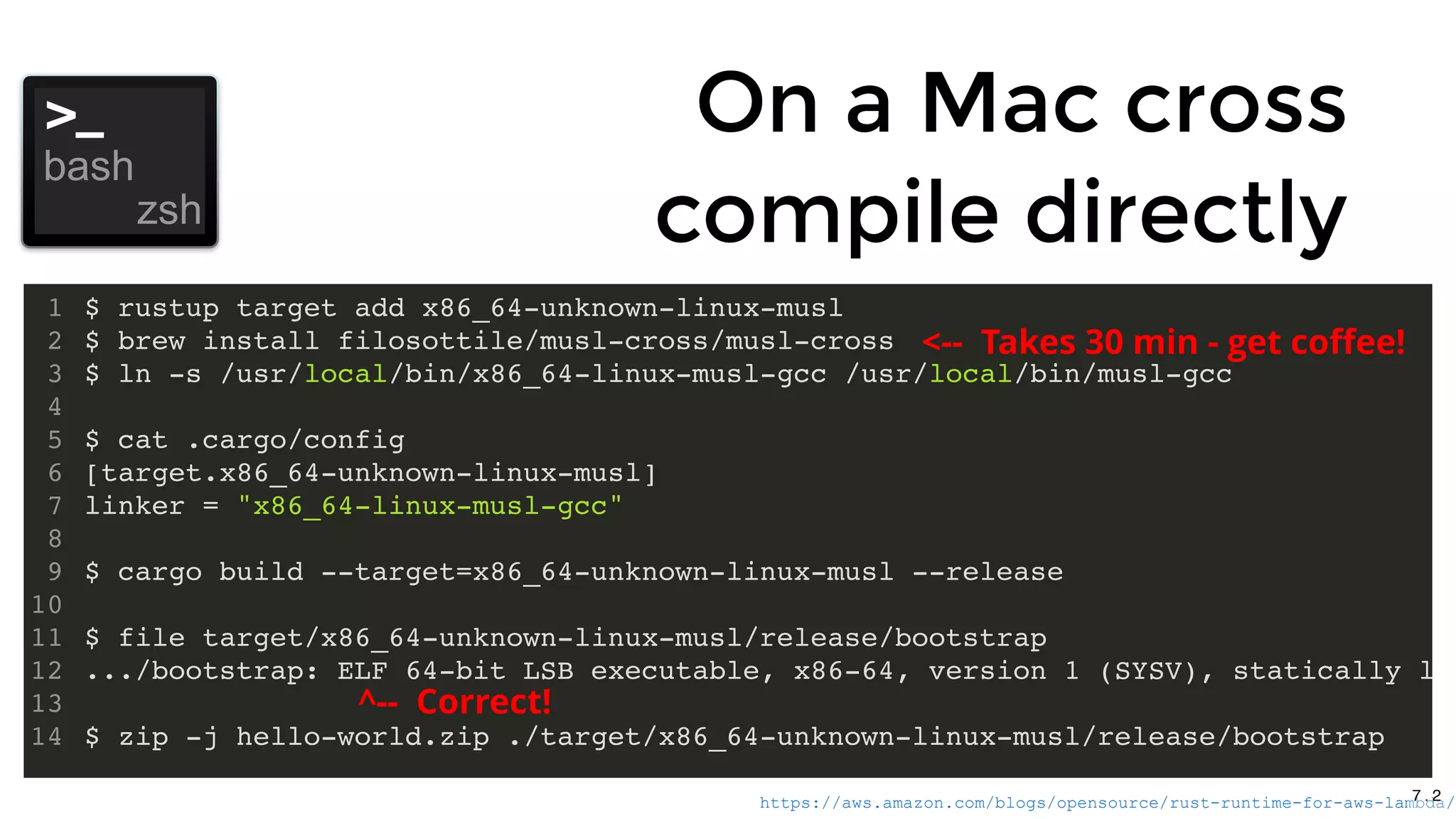

47. On a Mac crossOn a Mac cross
compile directlycompile directly
$ rustup target add x86_64-unknown-linux-musl
$ brew install filosottile/musl-cross/musl-cross
$ ln -s /usr/local/bin/x86_64-linux-musl-gcc /usr/local/bin/musl-gcc
$ cat .cargo/config
[target.x86_64-unknown-linux-musl]
linker = "x86_64-linux-musl-gcc"
$ cargo build --target=x86_64-unknown-linux-musl --release
$ file target/x86_64-unknown-linux-musl/release/bootstrap
.../bootstrap: ELF 64-bit LSB executable, x86-64, version 1 (SYSV), statically l
$ zip -j hello-world.zip ./target/x86_64-unknown-linux-musl/release/bootstrap
1
2
3
4
5
6
7
8
9
10
11
12
13
14
^-- Correct!
<-- Takes 30 min - get coffee!
https://aws.amazon.com/blogs/opensource/rust­runtime­for­aws­lambda/7 . 2

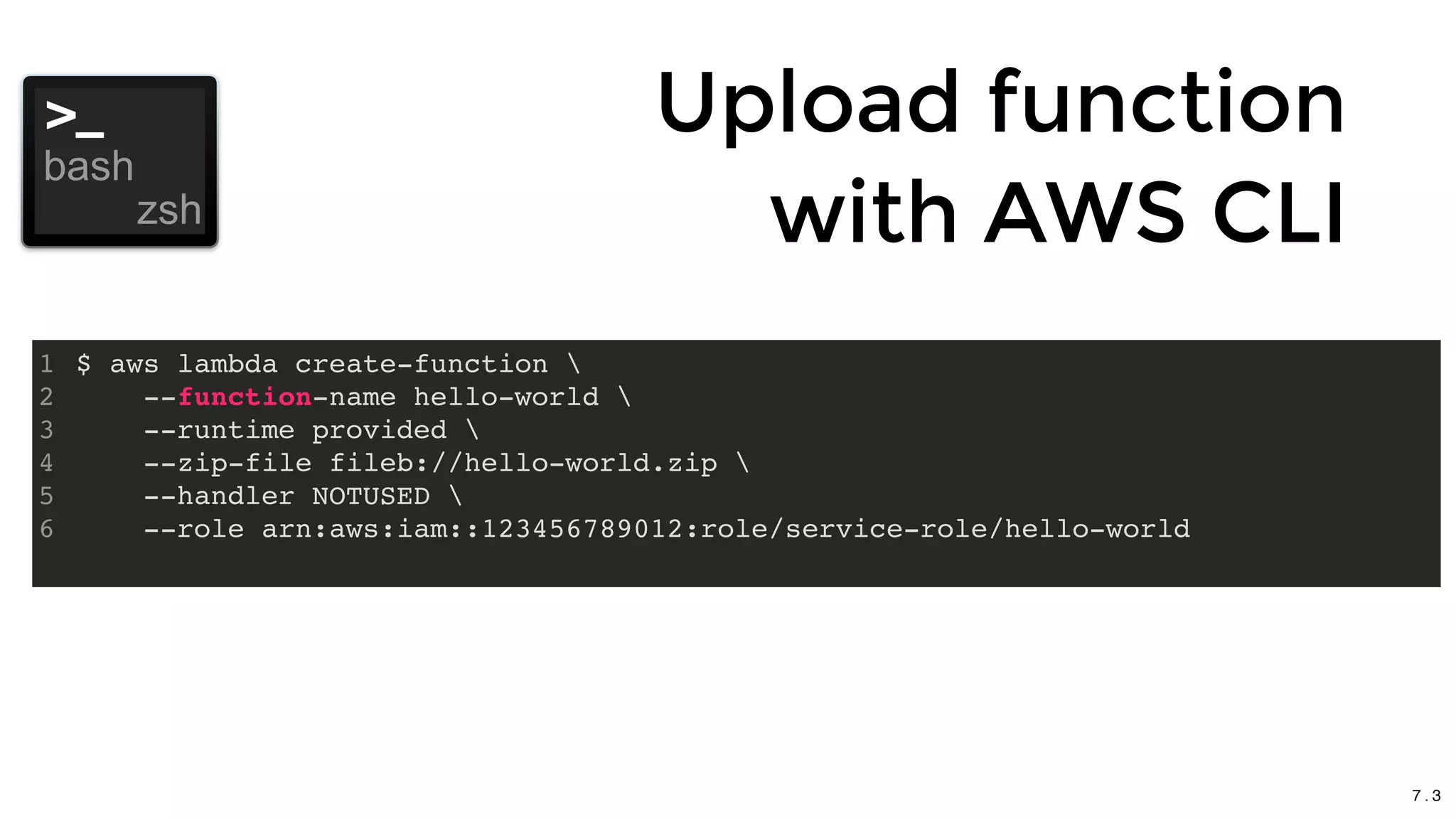

48. Upload functionUpload function
with AWS CLIwith AWS CLI
$ aws lambda create-function
--function-name hello-world
--runtime provided
--zip-file fileb://hello-world.zip
--handler NOTUSED
--role arn:aws:iam::123456789012:role/service-role/hello-world
1
2
3
4
5
6
7 . 3

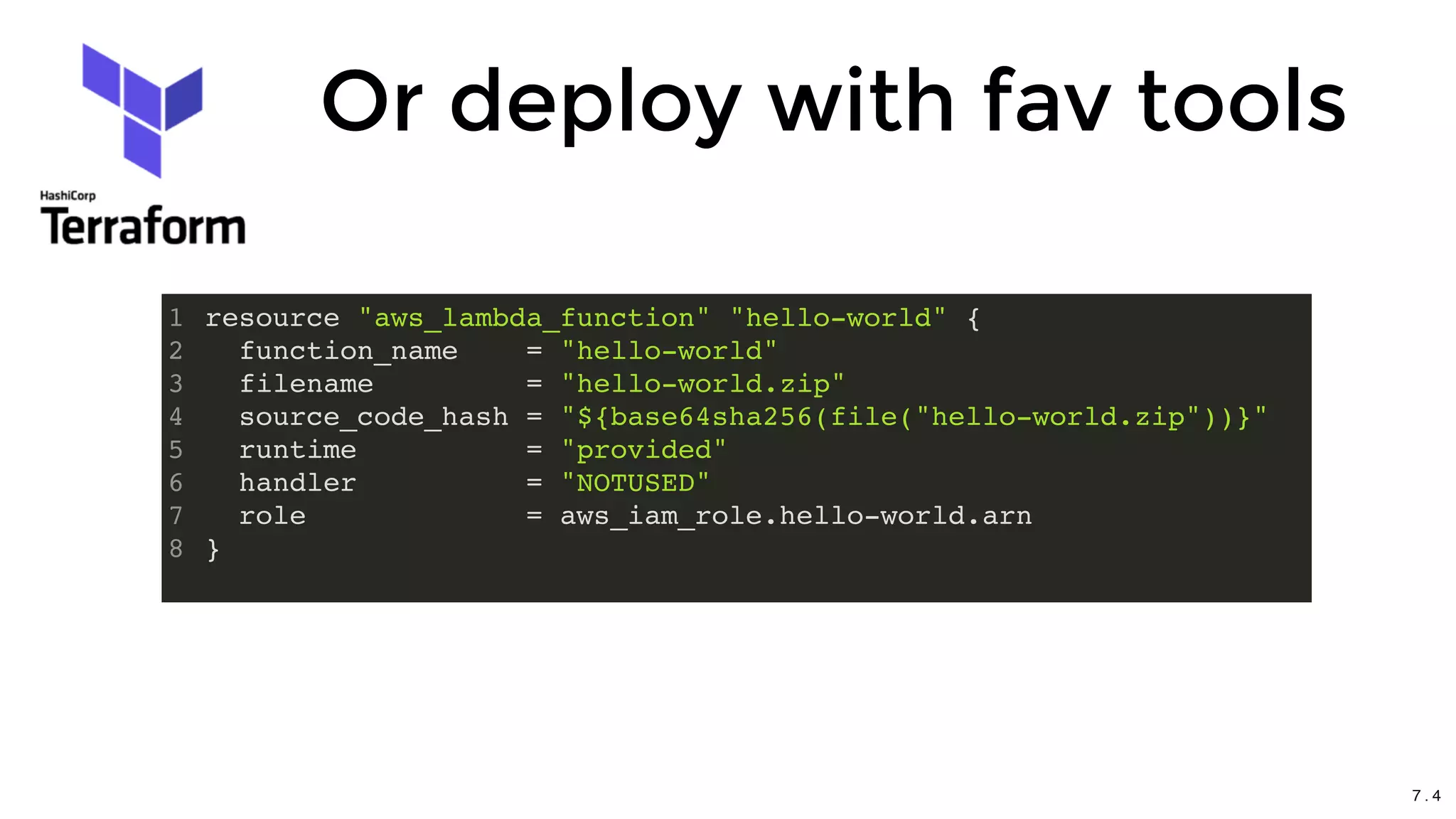

49. Or deploy with fav toolsOr deploy with fav tools
resource "aws_lambda_function" "hello-world" {
function_name = "hello-world"
filename = "hello-world.zip"
source_code_hash = "${base64sha256(file("hello-world.zip"))}"
runtime = "provided"
handler = "NOTUSED"
role = aws_iam_role.hello-world.arn
}
1
2
3
4
5
6
7
8
7 . 4

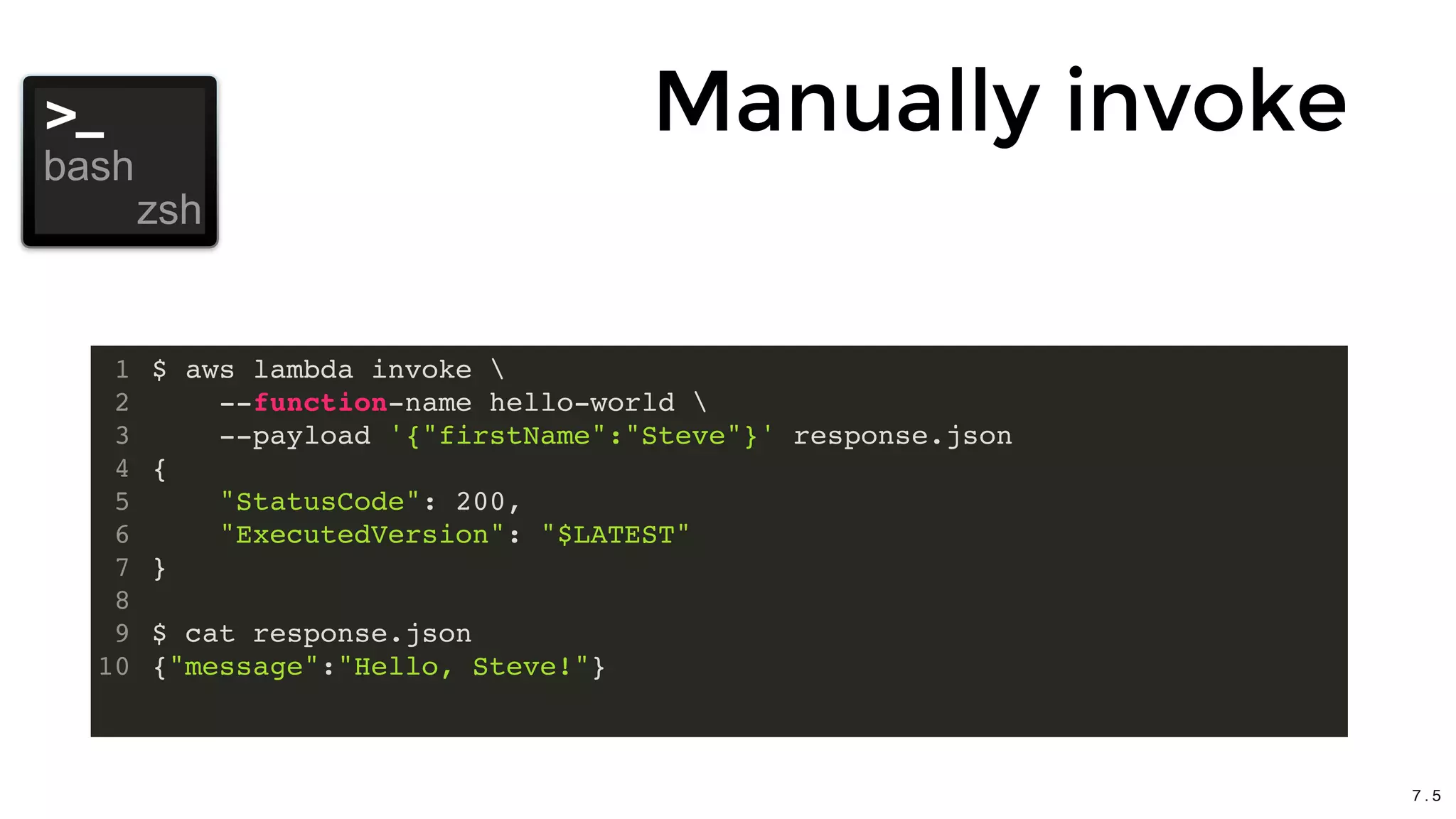

50. Manually invokeManually invoke
$ aws lambda invoke
--function-name hello-world
--payload '{"firstName":"Steve"}' response.json
{
"StatusCode": 200,
"ExecutedVersion": "$LATEST"
}
$ cat response.json
{"message":"Hello, Steve!"}
1
2
3
4
5
6
7
8
9
10
7 . 5

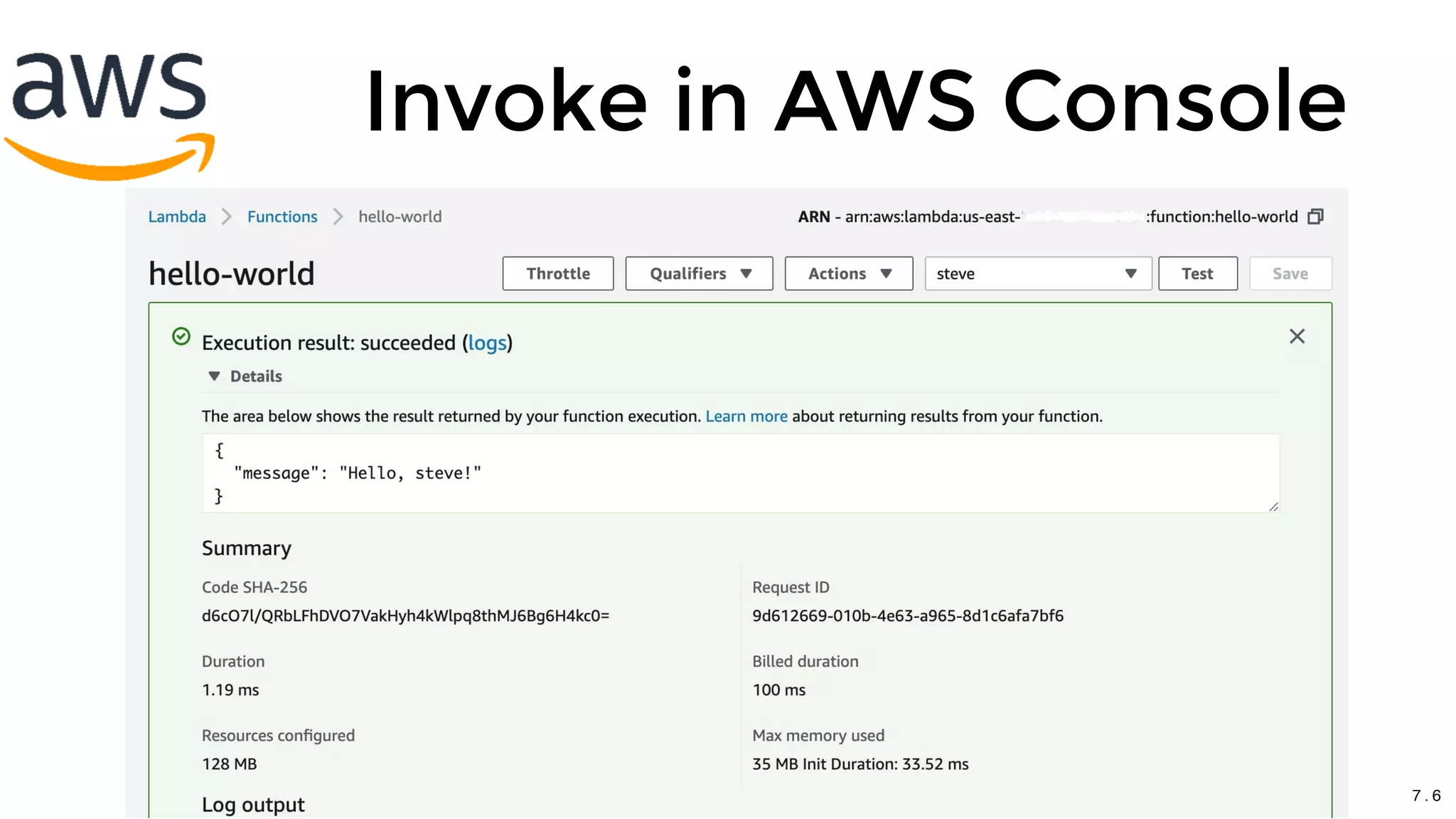

51. Invoke in AWS ConsoleInvoke in AWS Console
7 . 6

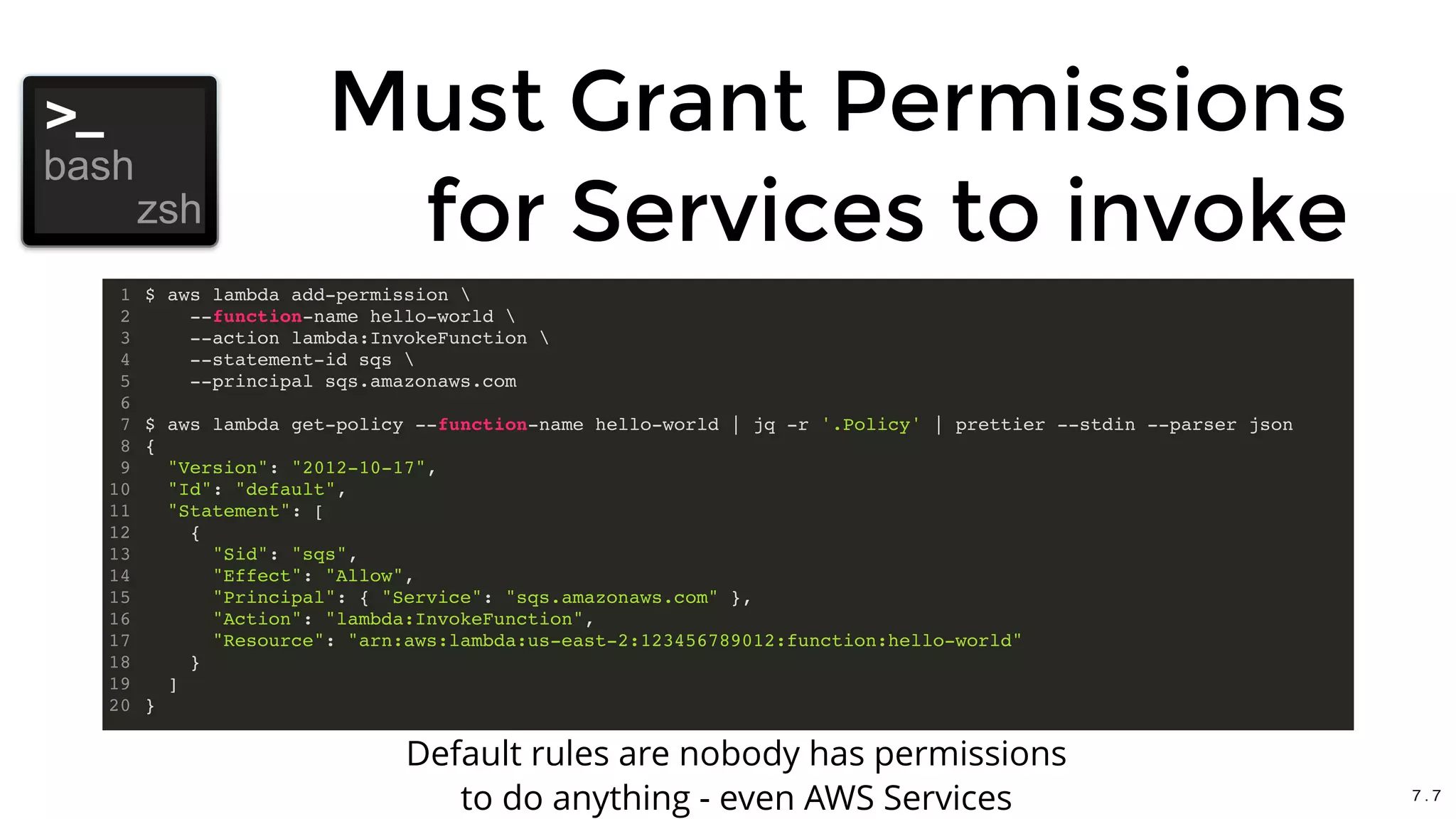

52. Must Grant PermissionsMust Grant Permissions
for Services to invokefor Services to invoke
$ aws lambda add-permission
--function-name hello-world
--action lambda:InvokeFunction
--statement-id sqs
--principal sqs.amazonaws.com
$ aws lambda get-policy --function-name hello-world | jq -r '.Policy' | prettier --stdin --parser json
{
"Version": "2012-10-17",
"Id": "default",
"Statement": [
{
"Sid": "sqs",
"Effect": "Allow",
"Principal": { "Service": "sqs.amazonaws.com" },
"Action": "lambda:InvokeFunction",
"Resource": "arn:aws:lambda:us-east-2:123456789012:function:hello-world"
}
]
}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
Default rules are nobody has permissions
to do anything - even AWS Services 7 . 7

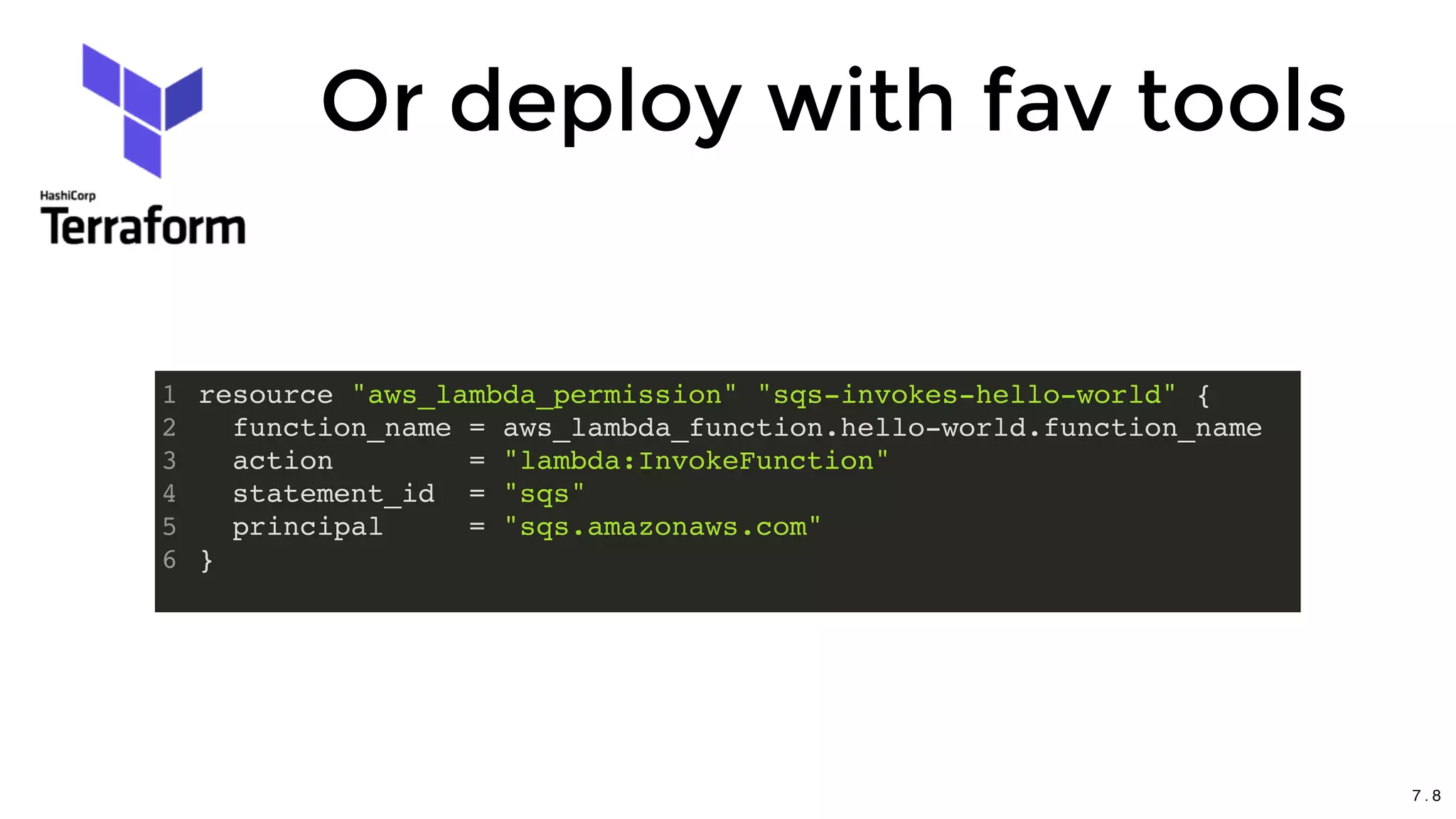

53. Or deploy with fav toolsOr deploy with fav tools
resource "aws_lambda_permission" "sqs-invokes-hello-world" {
function_name = aws_lambda_function.hello-world.function_name
action = "lambda:InvokeFunction"
statement_id = "sqs"
principal = "sqs.amazonaws.com"
}
1
2
3
4
5
6
7 . 8

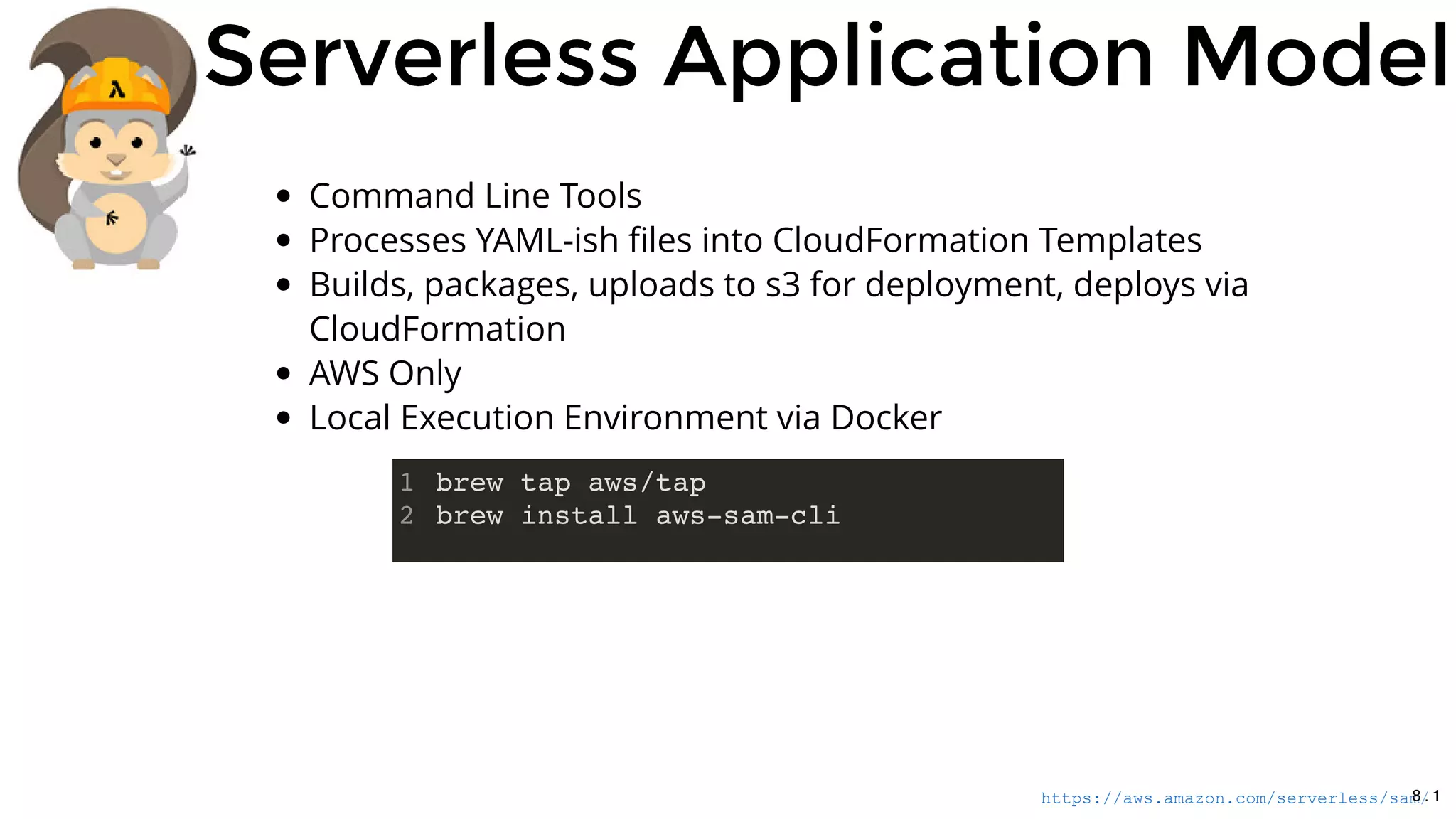

54. Serverless Application ModelServerless Application Model
https://aws.amazon.com/serverless/sam/
Command Line Tools
Processes YAML-ish files into CloudFormation Templates
Builds, packages, uploads to s3 for deployment, deploys via
CloudFormation
AWS Only
Local Execution Environment via Docker
brew tap aws/tap
brew install aws-sam-cli
1
2
8 . 1

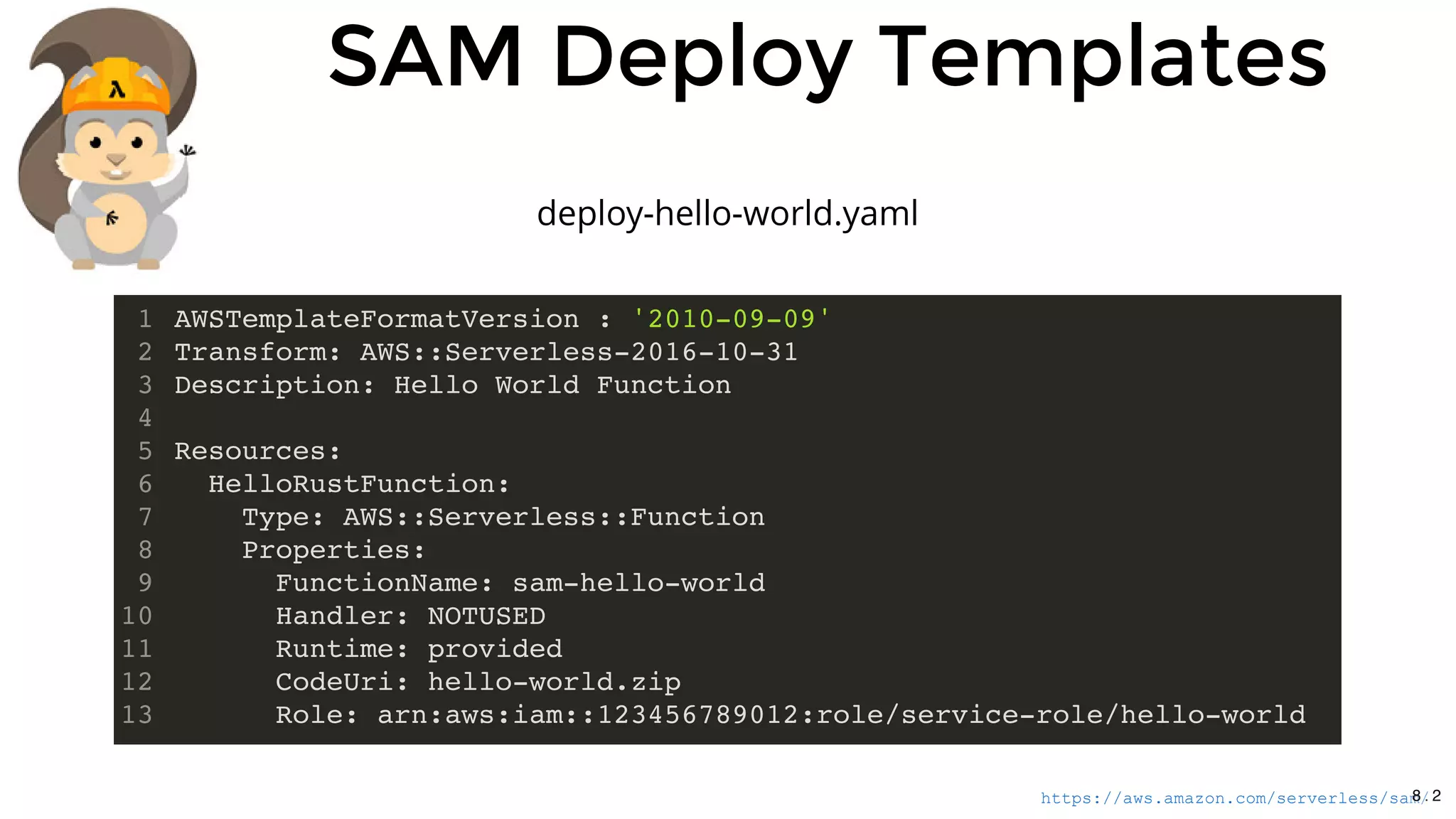

55. SAM Deploy TemplatesSAM Deploy Templates
https://aws.amazon.com/serverless/sam/
AWSTemplateFormatVersion : '2010-09-09'
Transform: AWS::Serverless-2016-10-31
Description: Hello World Function
Resources:
HelloRustFunction:
Type: AWS::Serverless::Function
Properties:
FunctionName: sam-hello-world
Handler: NOTUSED
Runtime: provided
CodeUri: hello-world.zip
Role: arn:aws:iam::123456789012:role/service-role/hello-world
1
2
3
4
5
6
7
8
9
10
11
12
13
deploy-hello-world.yaml
8 . 2

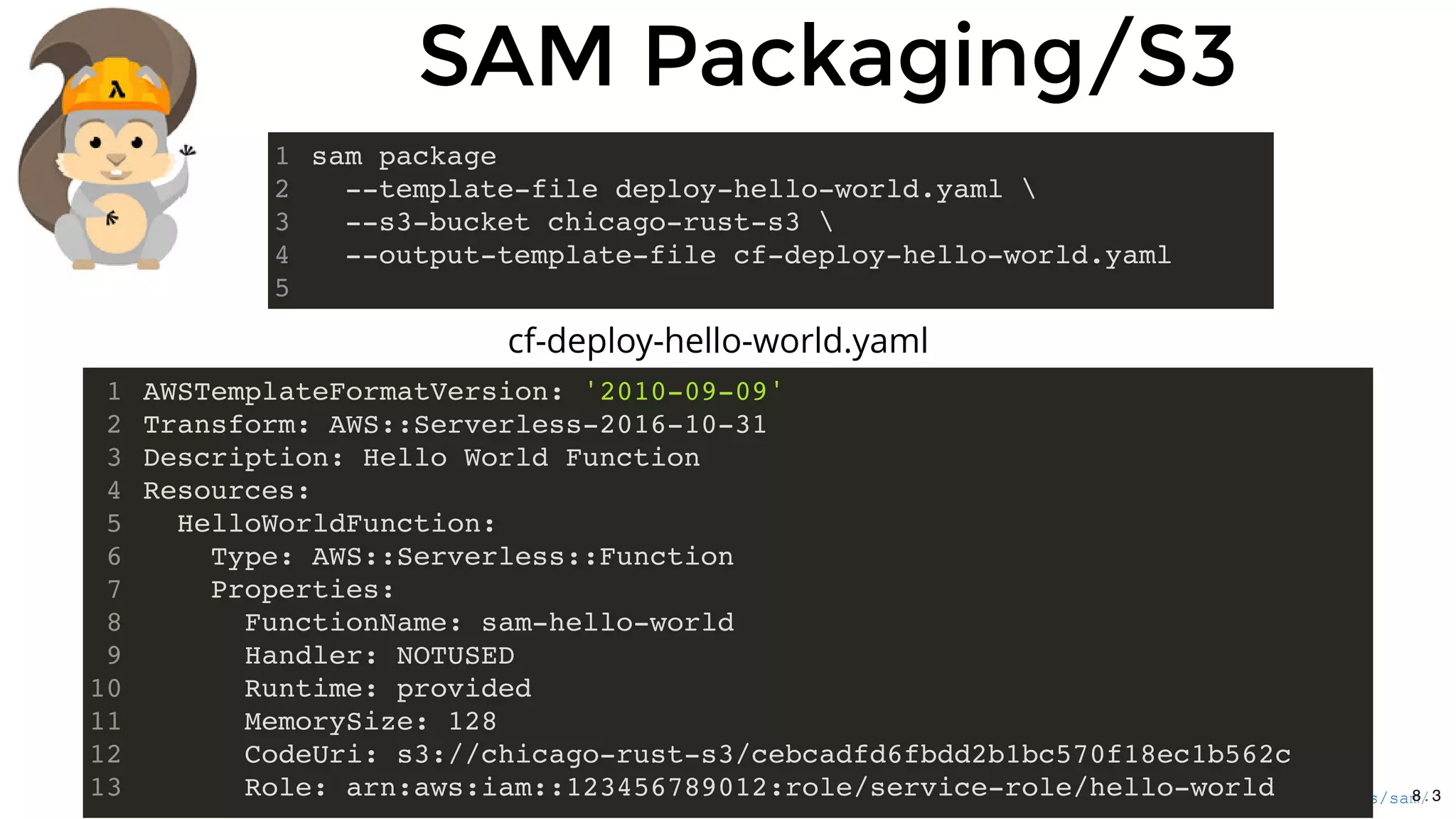

56. SAM Packaging/S3SAM Packaging/S3
https://aws.amazon.com/serverless/sam/
sam package
--template-file deploy-hello-world.yaml
--s3-bucket chicago-rust-s3
--output-template-file cf-deploy-hello-world.yaml
1
2
3
4
5
cf-deploy-hello-world.yaml
AWSTemplateFormatVersion: '2010-09-09'
Transform: AWS::Serverless-2016-10-31
Description: Hello World Function
Resources:
HelloWorldFunction:
Type: AWS::Serverless::Function
Properties:
FunctionName: sam-hello-world
Handler: NOTUSED
Runtime: provided
MemorySize: 128
CodeUri: s3://chicago-rust-s3/cebcadfd6fbdd2b1bc570f18ec1b562c
Role: arn:aws:iam::123456789012:role/service-role/hello-world
1
2
3
4
5
6
7
8
9
10
11
12
13 8 . 3

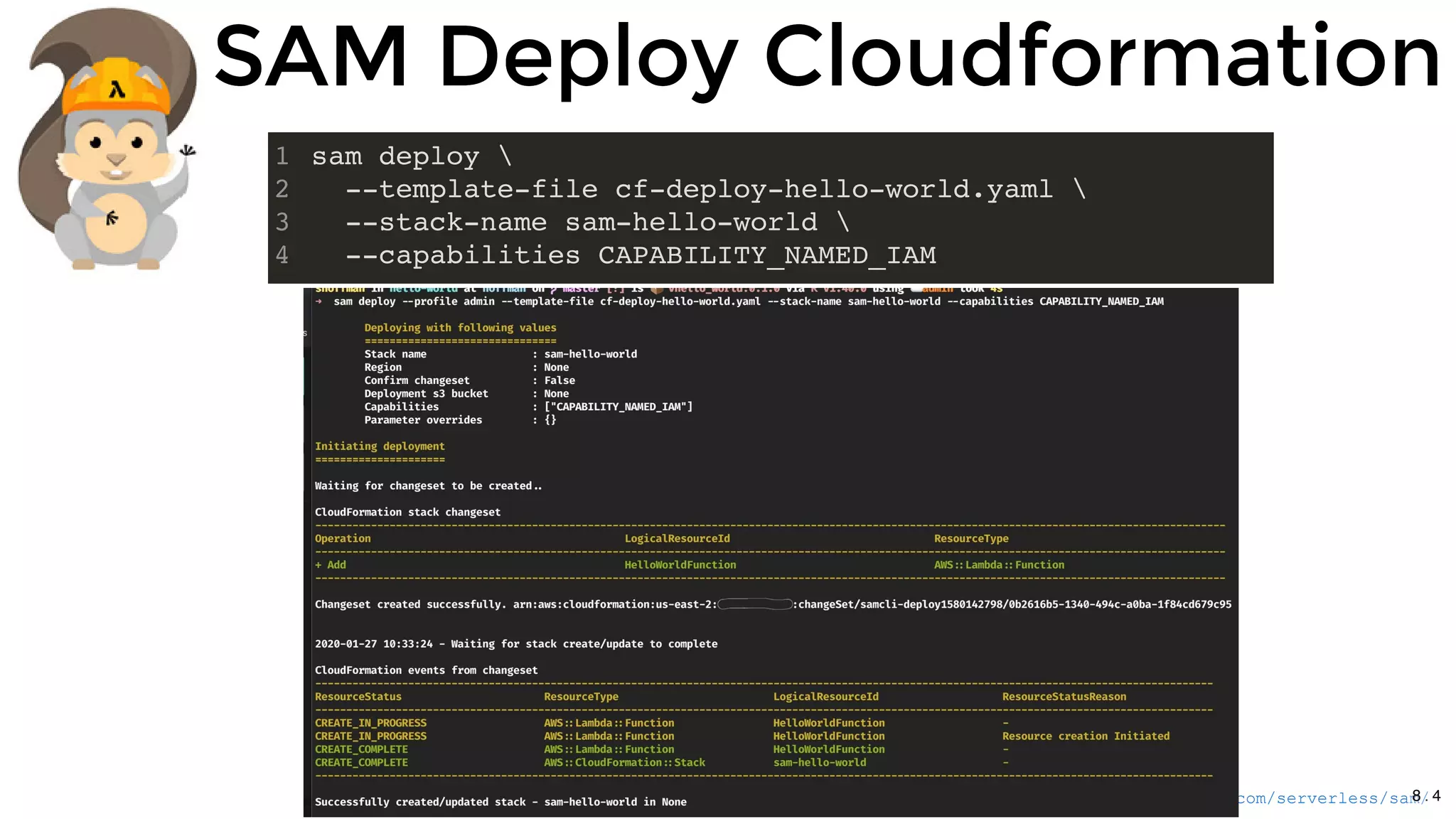

57. SAM Deploy CloudformationSAM Deploy Cloudformation
https://aws.amazon.com/serverless/sam/
sam deploy
--template-file cf-deploy-hello-world.yaml
--stack-name sam-hello-world
--capabilities CAPABILITY_NAMED_IAM
1
2
3
4
8 . 4

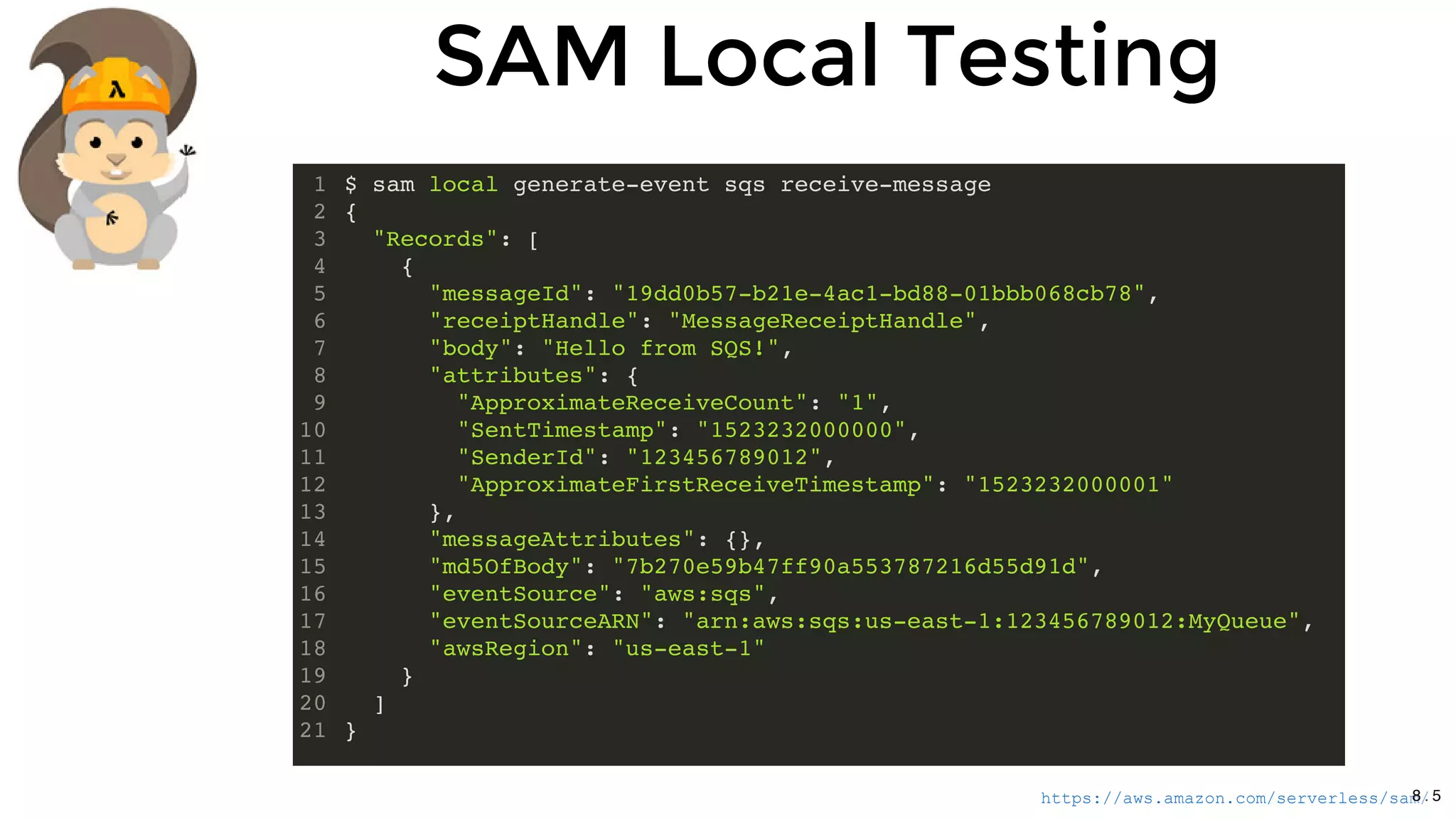

58. SAM Local TestingSAM Local Testing
https://aws.amazon.com/serverless/sam/
$ sam local generate-event sqs receive-message
{
"Records": [
{
"messageId": "19dd0b57-b21e-4ac1-bd88-01bbb068cb78",
"receiptHandle": "MessageReceiptHandle",
"body": "Hello from SQS!",
"attributes": {
"ApproximateReceiveCount": "1",
"SentTimestamp": "1523232000000",
"SenderId": "123456789012",
"ApproximateFirstReceiveTimestamp": "1523232000001"
},
"messageAttributes": {},
"md5OfBody": "7b270e59b47ff90a553787216d55d91d",
"eventSource": "aws:sqs",
"eventSourceARN": "arn:aws:sqs:us-east-1:123456789012:MyQueue",
"awsRegion": "us-east-1"
}
]
}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
8 . 5

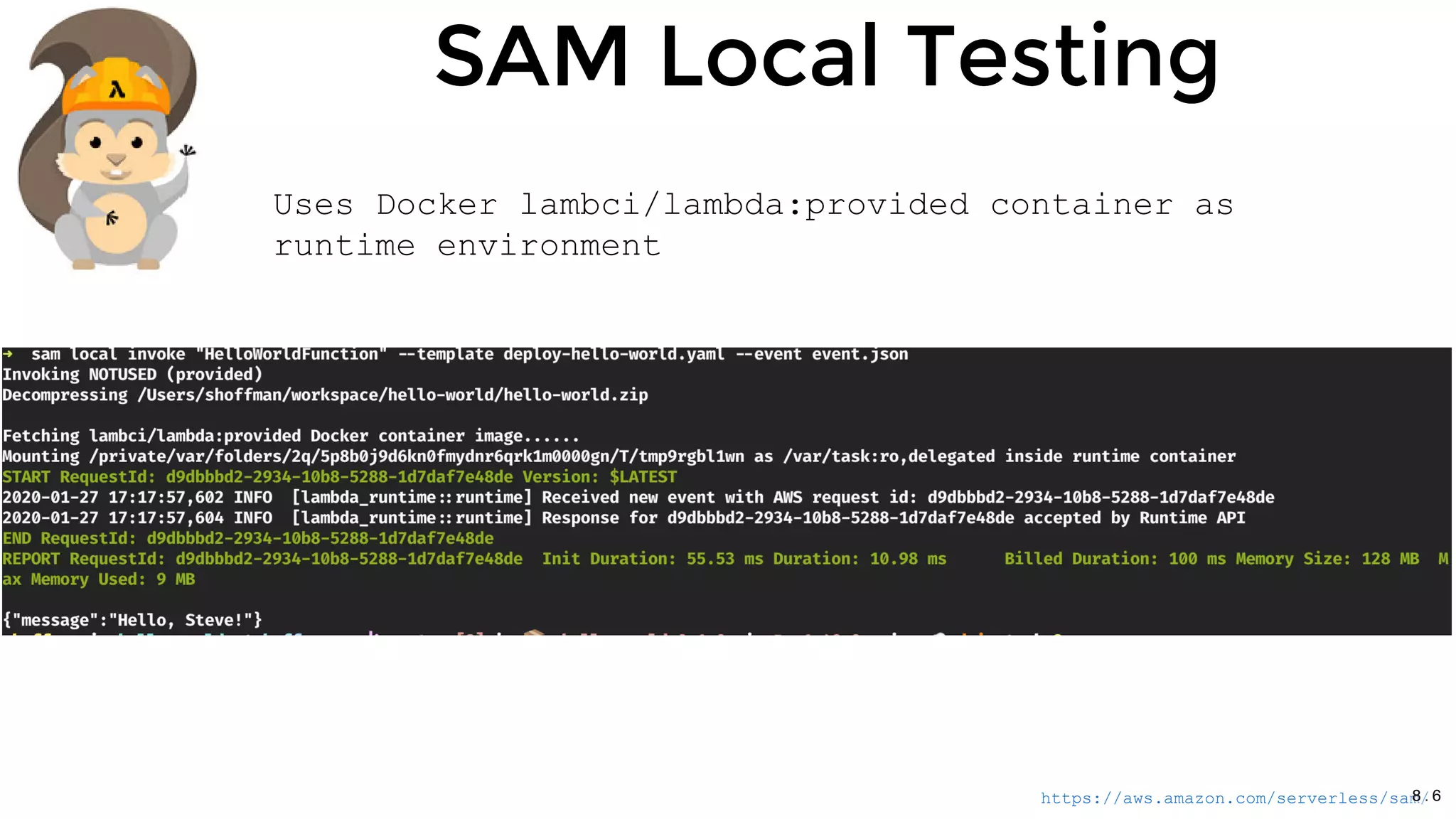

59. SAM Local TestingSAM Local Testing
https://aws.amazon.com/serverless/sam/
Uses Docker lambci/lambda:provided container as
runtime environment
8 . 6

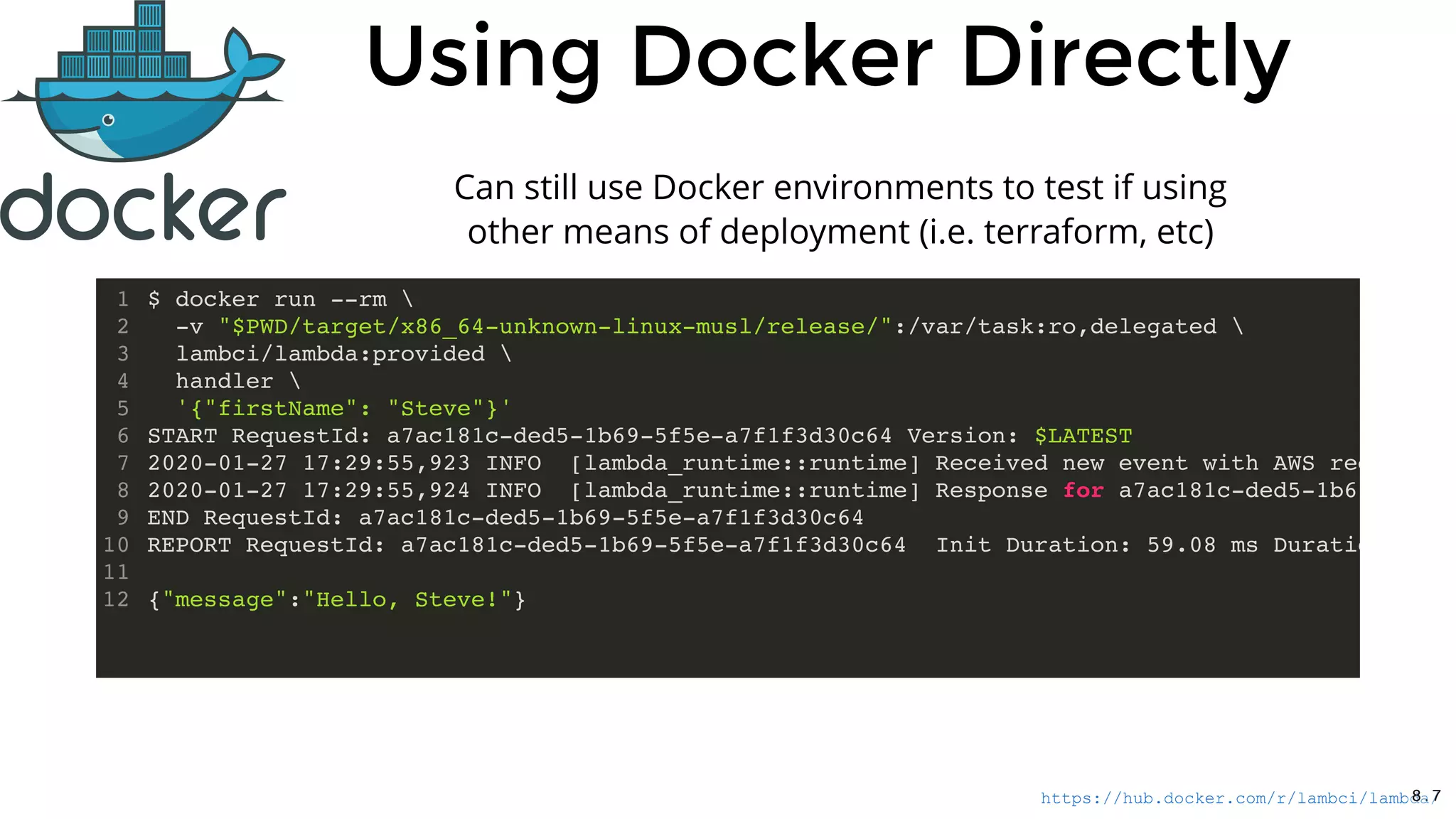

60. Using Docker DirectlyUsing Docker Directly
https://hub.docker.com/r/lambci/lambda/
$ docker run --rm
-v "$PWD/target/x86_64-unknown-linux-musl/release/":/var/task:ro,delegated
lambci/lambda:provided
handler
'{"firstName": "Steve"}'
START RequestId: a7ac181c-ded5-1b69-5f5e-a7f1f3d30c64 Version: $LATEST
2020-01-27 17:29:55,923 INFO [lambda_runtime::runtime] Received new event with AWS req
2020-01-27 17:29:55,924 INFO [lambda_runtime::runtime] Response for a7ac181c-ded5-1b6
END RequestId: a7ac181c-ded5-1b69-5f5e-a7f1f3d30c64
REPORT RequestId: a7ac181c-ded5-1b69-5f5e-a7f1f3d30c64 Init Duration: 59.08 ms Duratio
{"message":"Hello, Steve!"}
1
2
3
4
5
6
7
8
9
10
11
12
Can still use Docker environments to test if using
other means of deployment (i.e. terraform, etc)
8 . 7

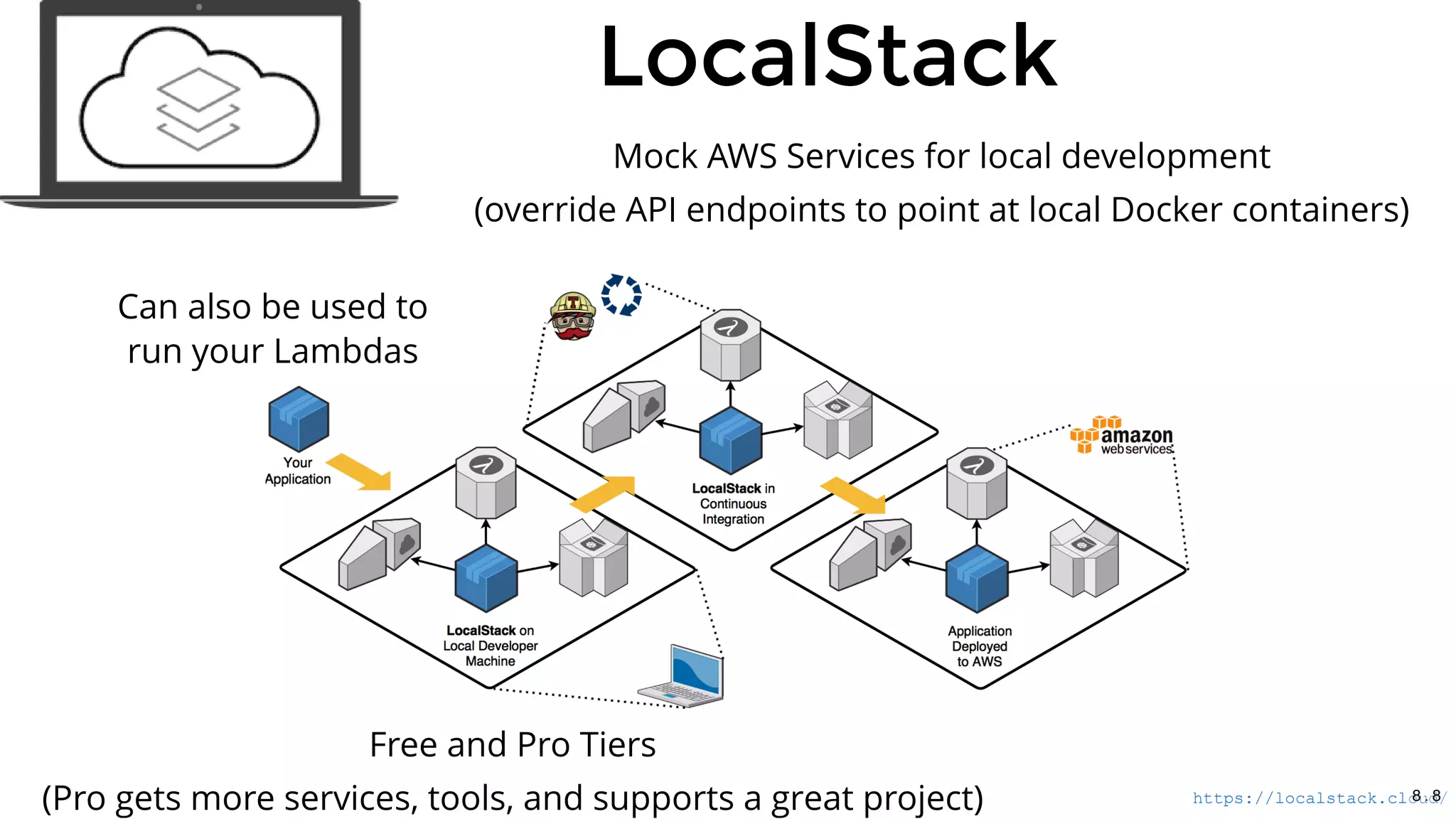

61. LocalStackLocalStack
https://localstack.cloud/
Mock AWS Services for local development
(override API endpoints to point at local Docker containers)
Free and Pro Tiers
(Pro gets more services, tools, and supports a great project)
Can also be used to
run your Lambdas
8 . 8

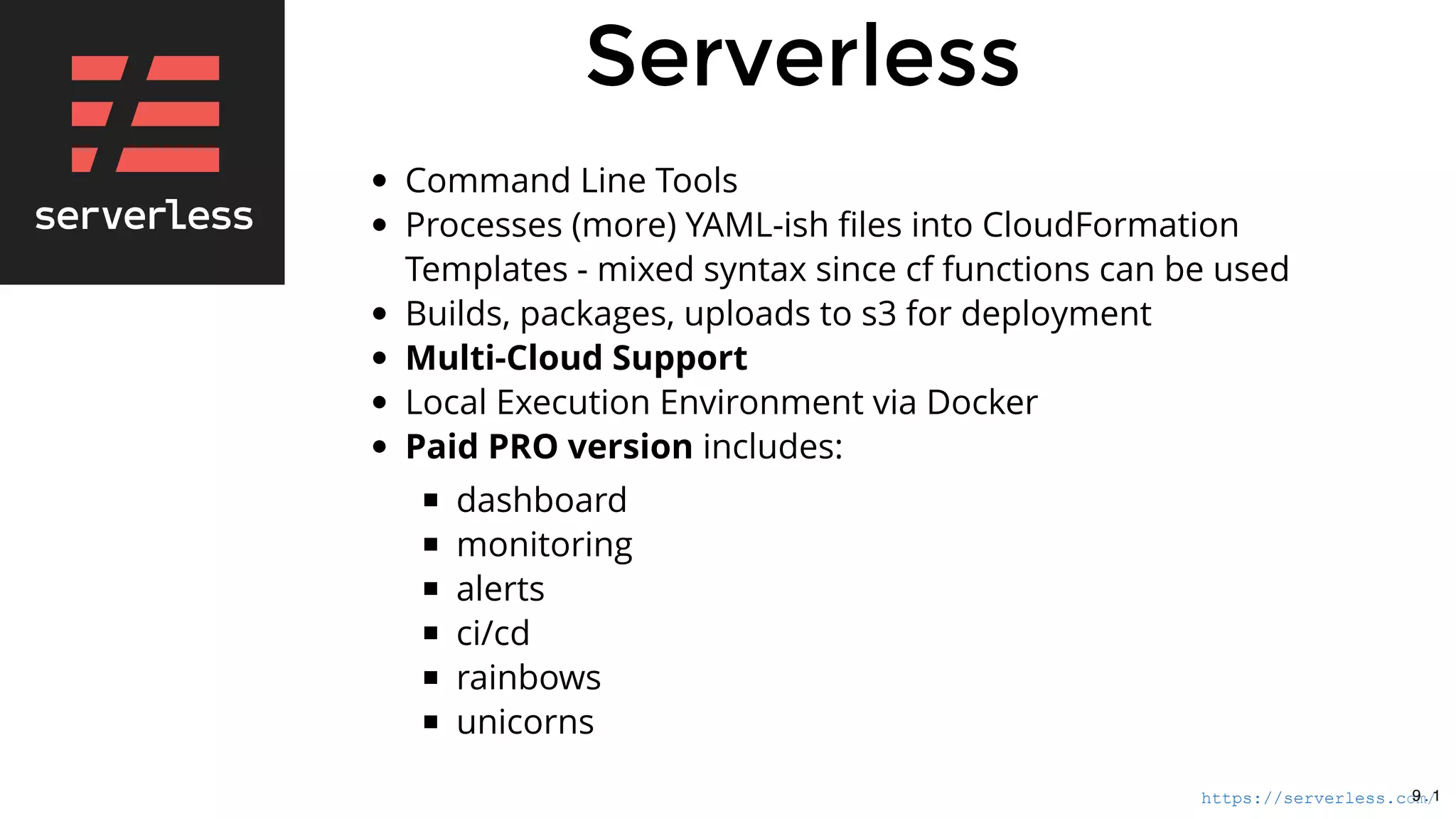

62. ServerlessServerless
https://serverless.com/
Command Line Tools
Processes (more) YAML-ish files into CloudFormation
Templates - mixed syntax since cf functions can be used
Builds, packages, uploads to s3 for deployment
Multi-Cloud Support
Local Execution Environment via Docker
Paid PRO version includes:
dashboard
monitoring
alerts
ci/cd
rainbows
unicorns
9 . 1

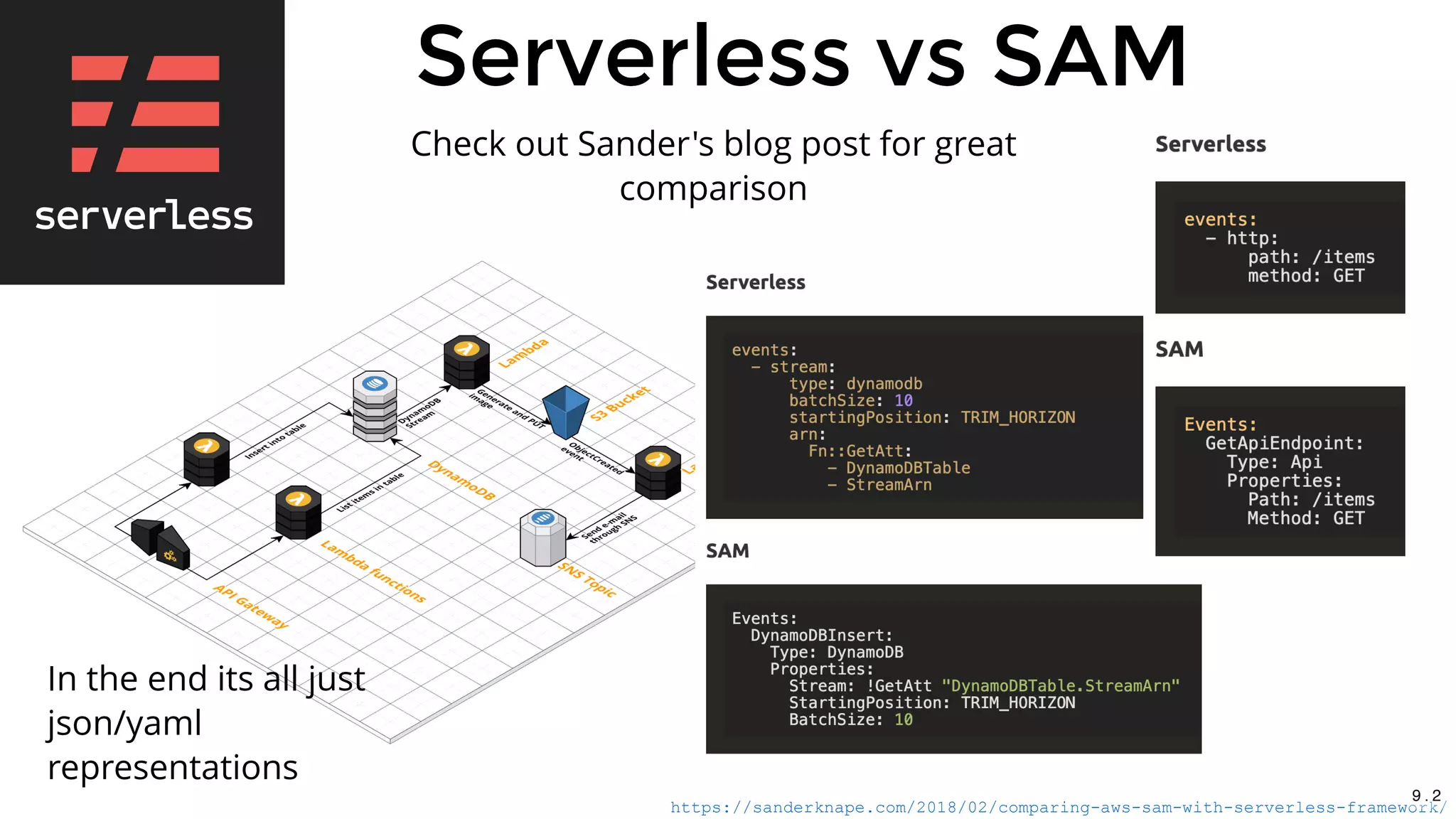

63. Serverless vs SAMServerless vs SAM
https://sanderknape.com/2018/02/comparing­aws­sam­with­serverless­framework/
Check out Sander's blog post for great
comparison
In the end its all just
json/yaml
representations
9 . 2

64. Other Resources ToOther Resources To
Read/WatchRead/Watch
10 . 1

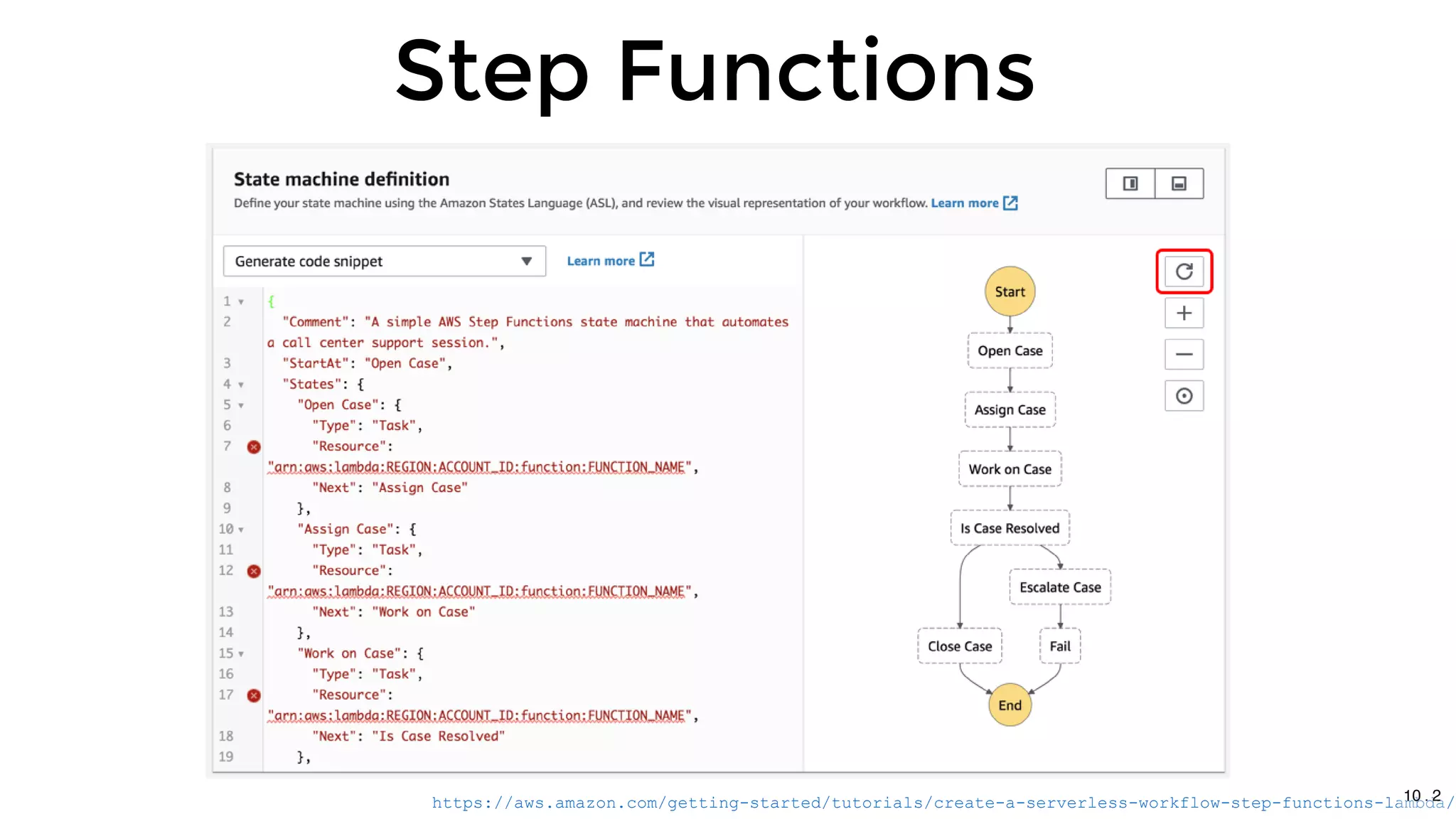

65. Step FunctionsStep Functions
https://aws.amazon.com/getting­started/tutorials/create­a­serverless­workflow­step­functions­lambda/10 . 2

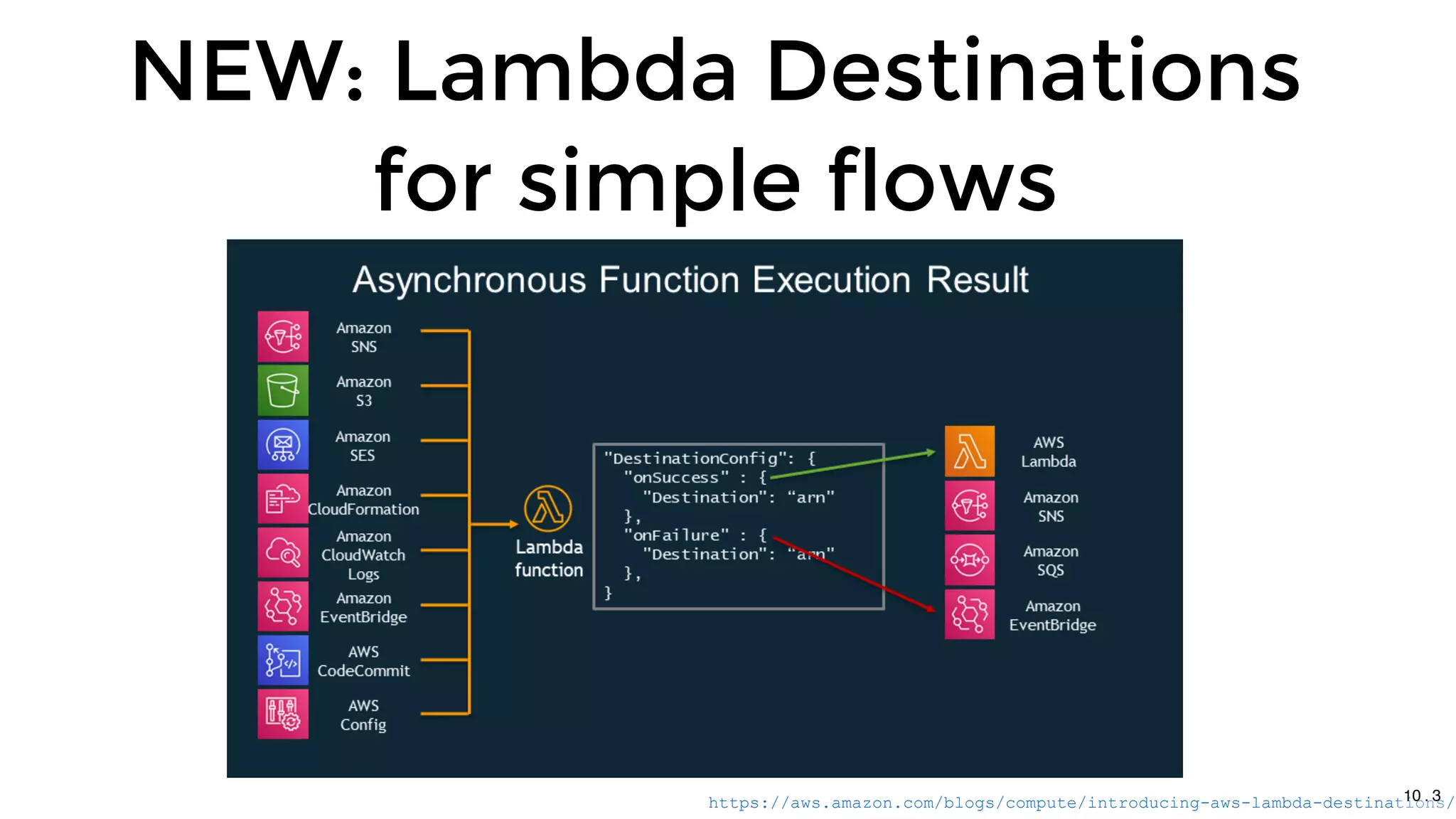

66. NEW: Lambda DestinationsNEW: Lambda Destinations
for simple flowsfor simple flows
https://aws.amazon.com/blogs/compute/introducing­aws­lambda­destinations/10 . 3

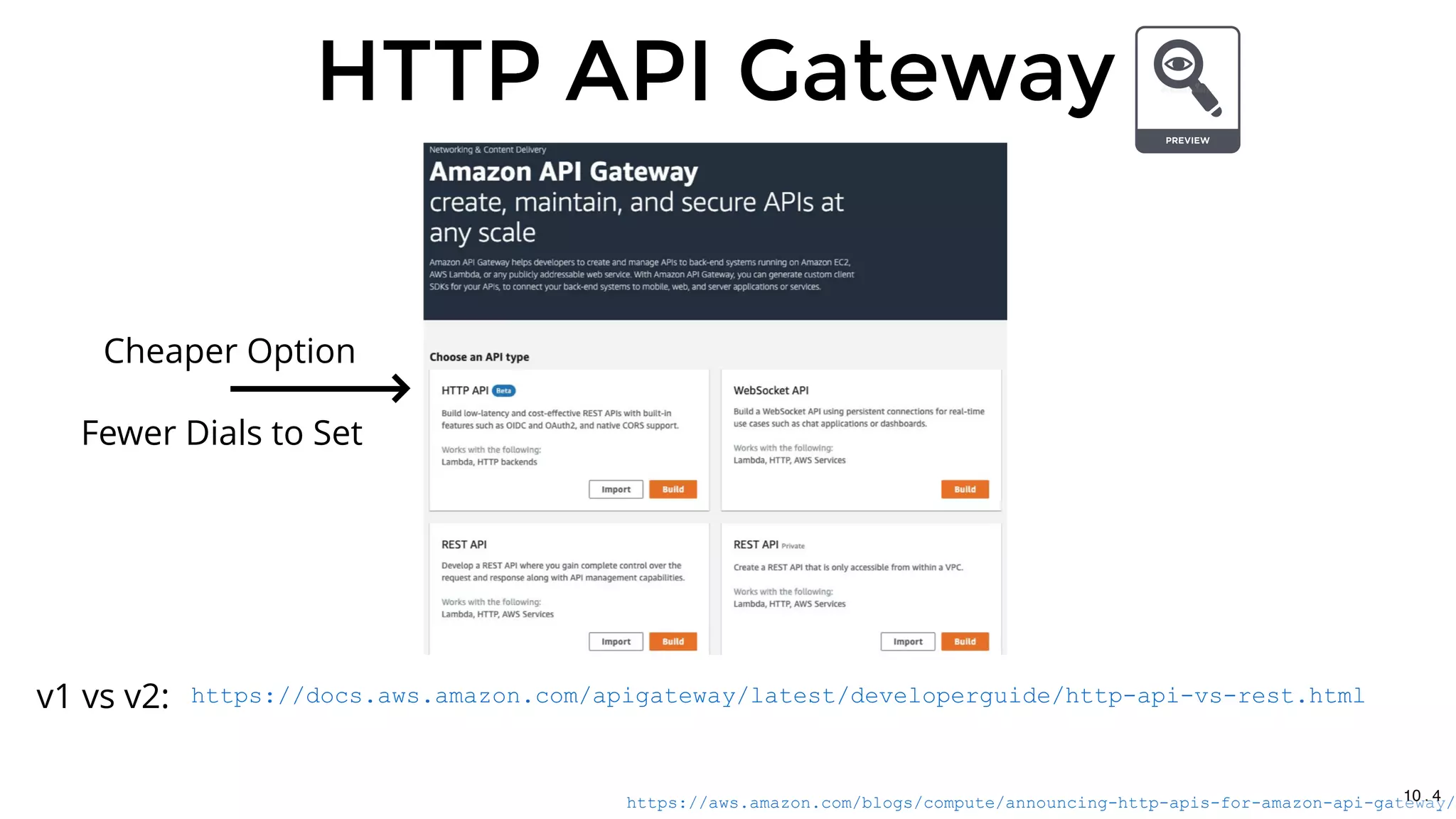

67. HTTP API GatewayHTTP API Gateway
https://aws.amazon.com/blogs/compute/announcing­http­apis­for­amazon­api­gateway/
Cheaper Option
Fewer Dials to Set
https://docs.aws.amazon.com/apigateway/latest/developerguide/http­api­vs­rest.htmlv1 vs v2:
10 . 4

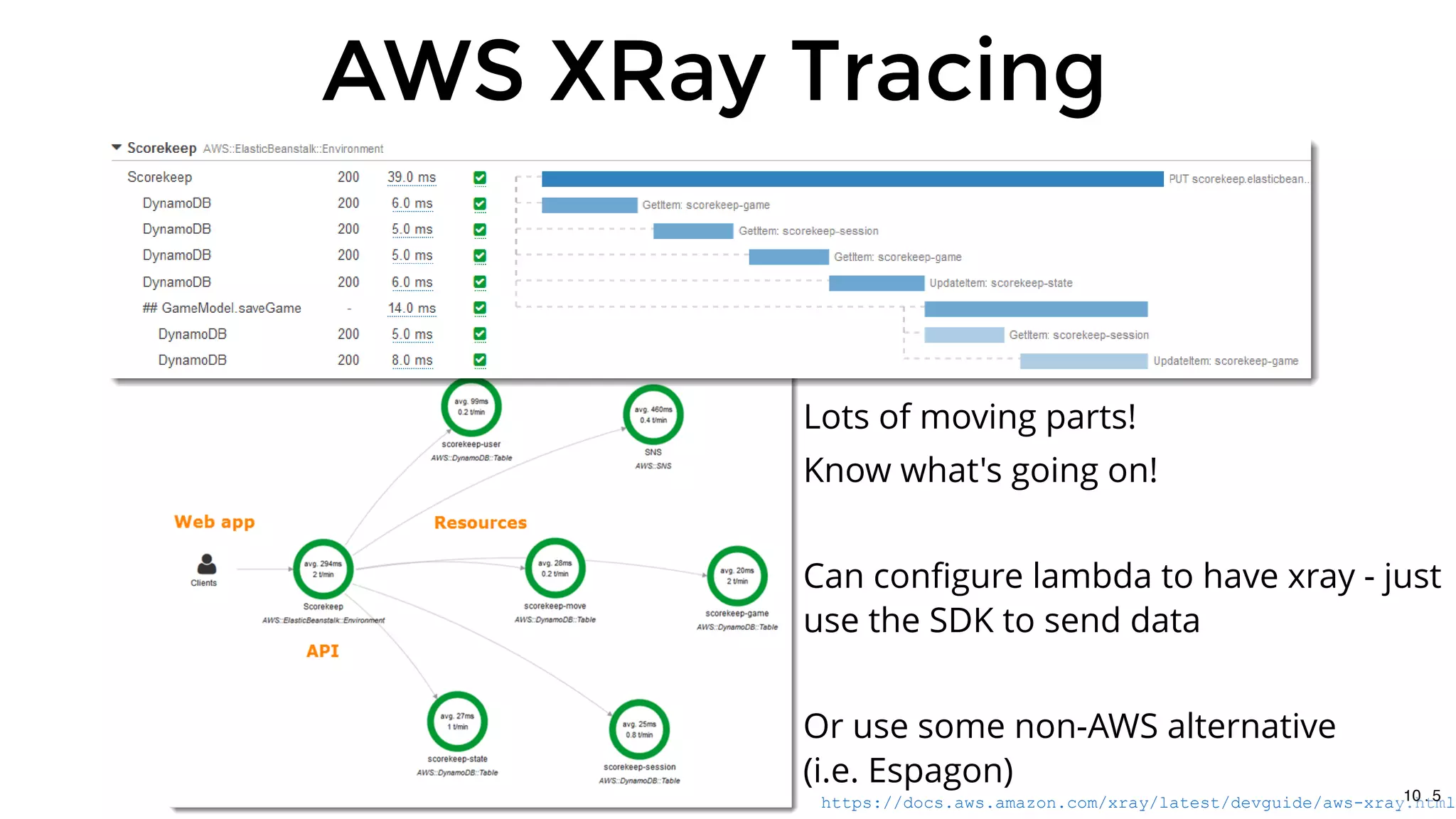

68. AWS XRay TracingAWS XRay Tracing
https://docs.aws.amazon.com/xray/latest/devguide/aws­xray.html
Lots of moving parts!
Know what's going on!
Can configure lambda to have xray - just
use the SDK to send data
Or use some non-AWS alternative
(i.e. Espagon)
10 . 5

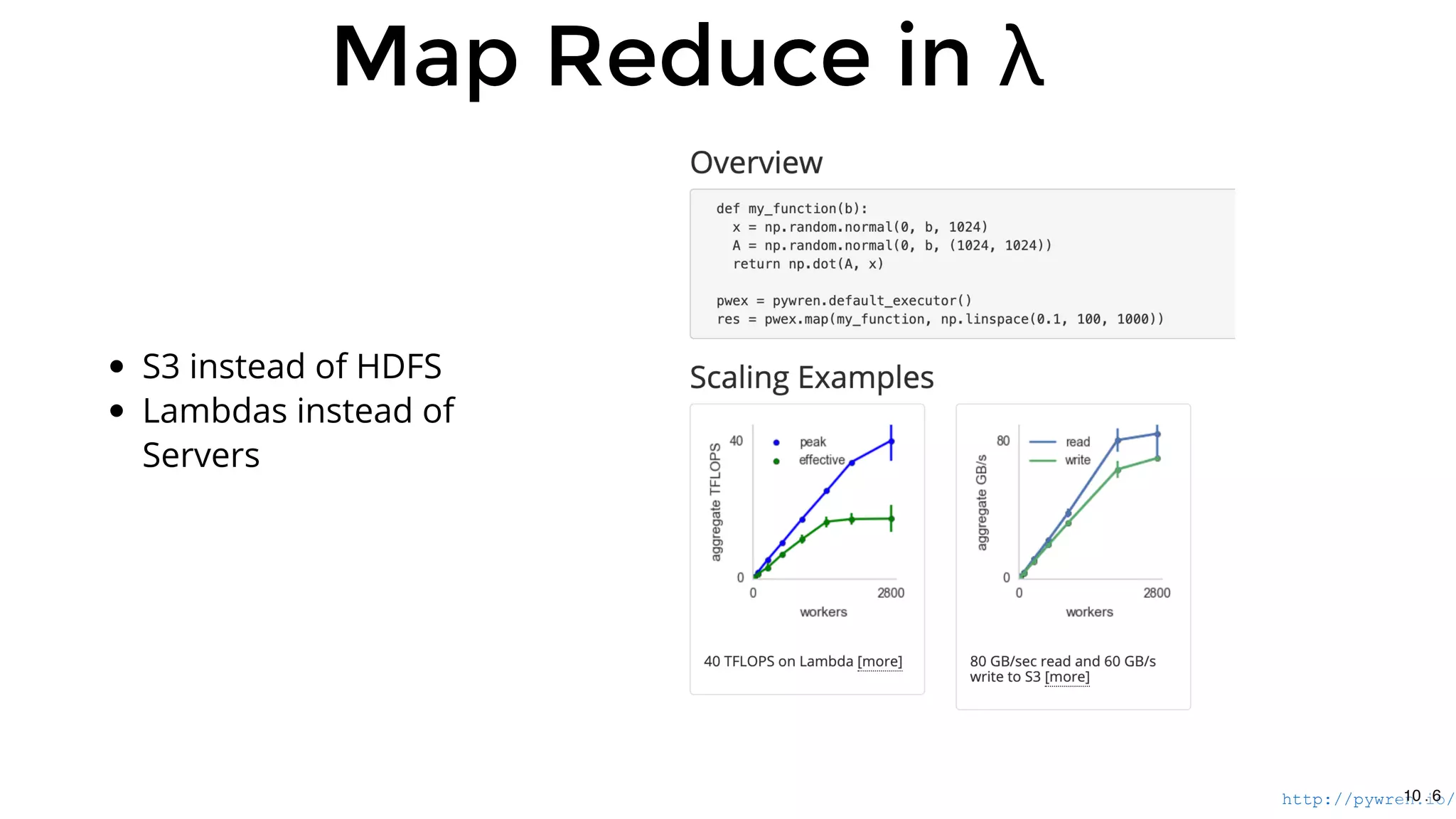

69. Map Reduce in λMap Reduce in λ
http://pywren.io/
S3 instead of HDFS
Lambdas instead of
Servers
10 . 6

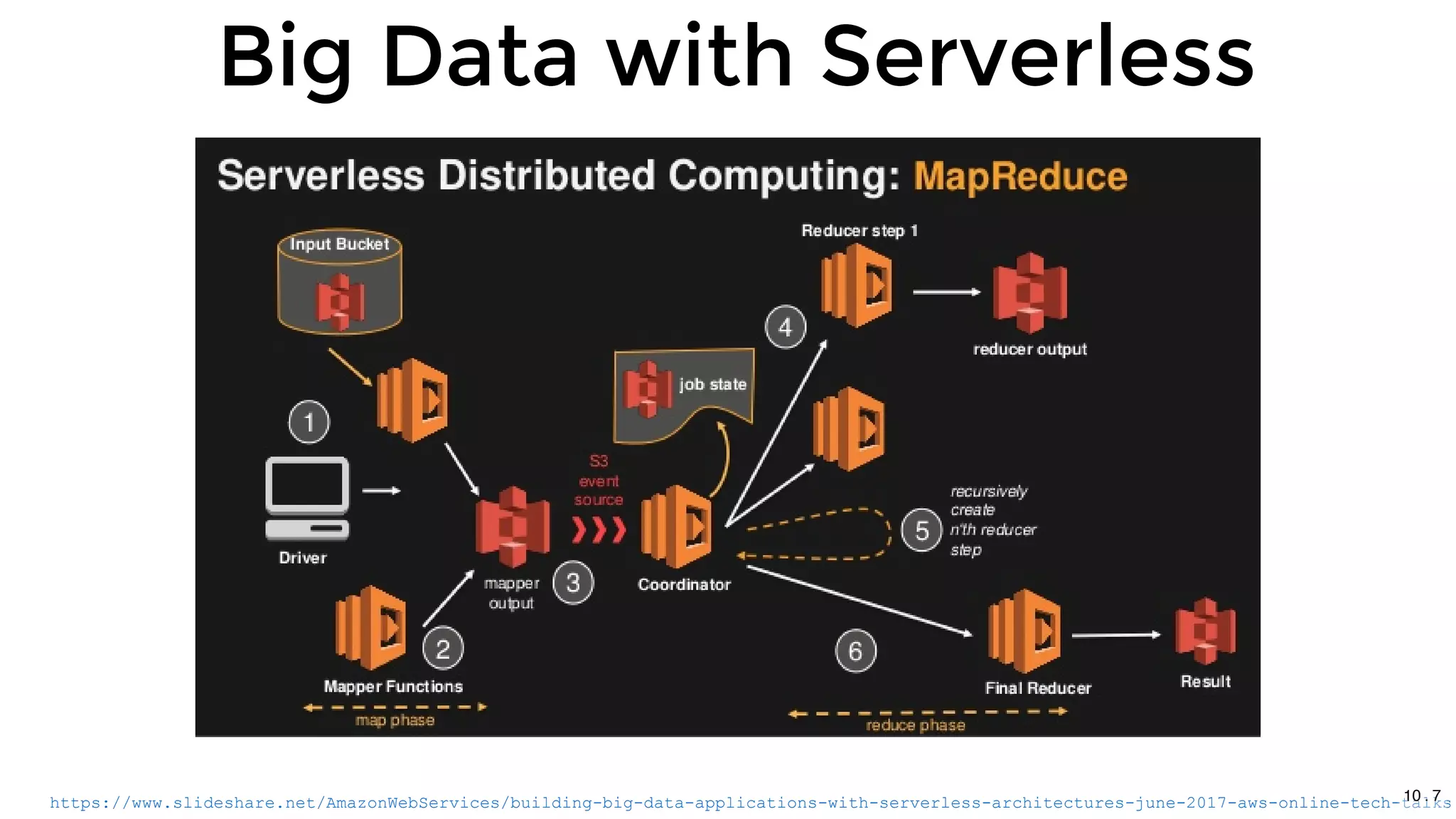

70. Big Data with ServerlessBig Data with Serverless
https://www.slideshare.net/AmazonWebServices/building­big­data­applications­with­serverless­architectures­june­2017­aws­online­tech­talks10 . 7

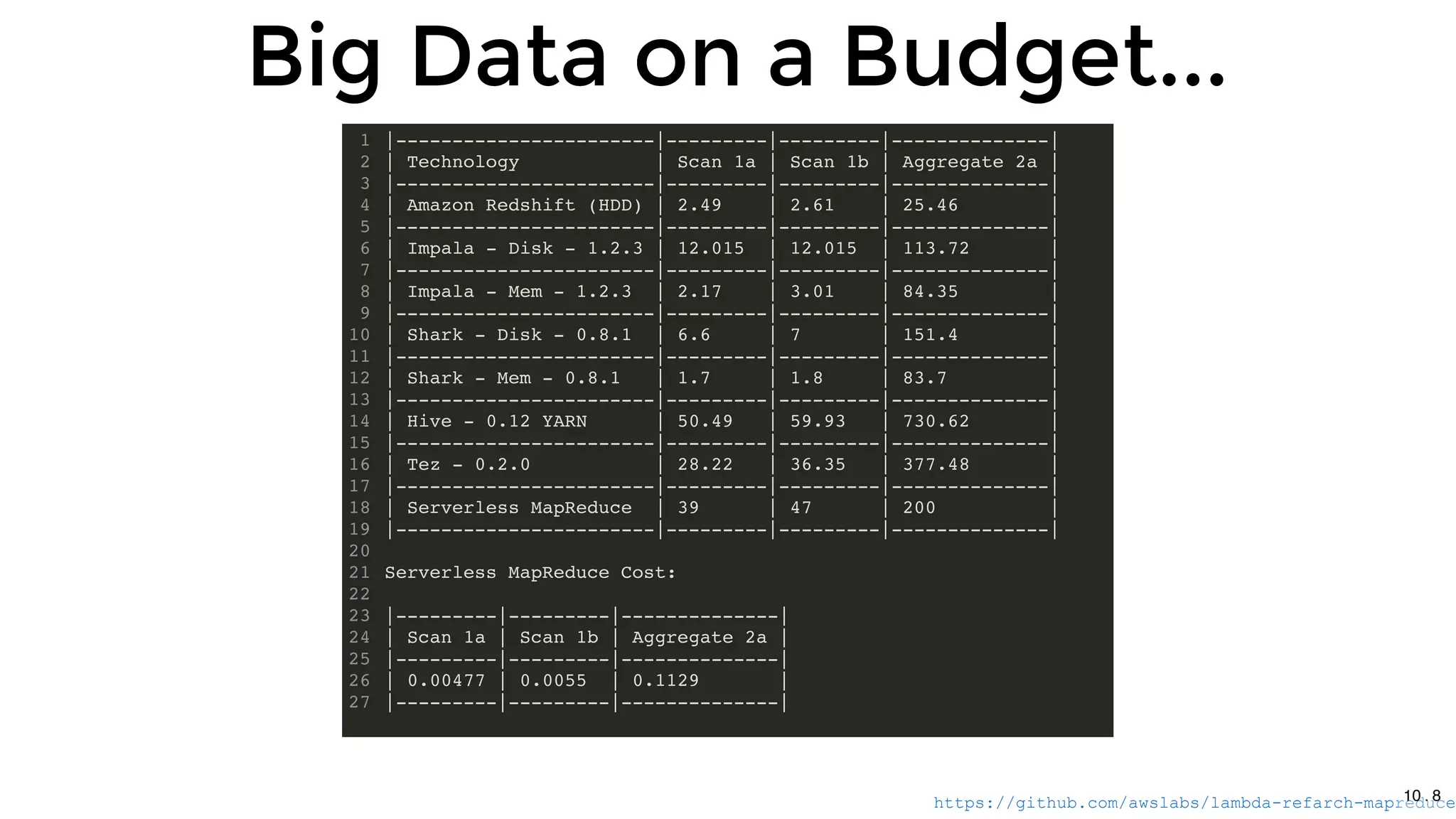

71. Big Data on a Budget...Big Data on a Budget...
https://github.com/awslabs/lambda­refarch­mapreduce
|-----------------------|---------|---------|--------------|
| Technology | Scan 1a | Scan 1b | Aggregate 2a |
|-----------------------|---------|---------|--------------|
| Amazon Redshift (HDD) | 2.49 | 2.61 | 25.46 |
|-----------------------|---------|---------|--------------|
| Impala - Disk - 1.2.3 | 12.015 | 12.015 | 113.72 |
|-----------------------|---------|---------|--------------|
| Impala - Mem - 1.2.3 | 2.17 | 3.01 | 84.35 |
|-----------------------|---------|---------|--------------|
| Shark - Disk - 0.8.1 | 6.6 | 7 | 151.4 |
|-----------------------|---------|---------|--------------|
| Shark - Mem - 0.8.1 | 1.7 | 1.8 | 83.7 |
|-----------------------|---------|---------|--------------|
| Hive - 0.12 YARN | 50.49 | 59.93 | 730.62 |
|-----------------------|---------|---------|--------------|
| Tez - 0.2.0 | 28.22 | 36.35 | 377.48 |
|-----------------------|---------|---------|--------------|
| Serverless MapReduce | 39 | 47 | 200 |
|-----------------------|---------|---------|--------------|
Serverless MapReduce Cost:
|---------|---------|--------------|
| Scan 1a | Scan 1b | Aggregate 2a |
|---------|---------|--------------|
| 0.00477 | 0.0055 | 0.1129 |
|---------|---------|--------------|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
10 . 8

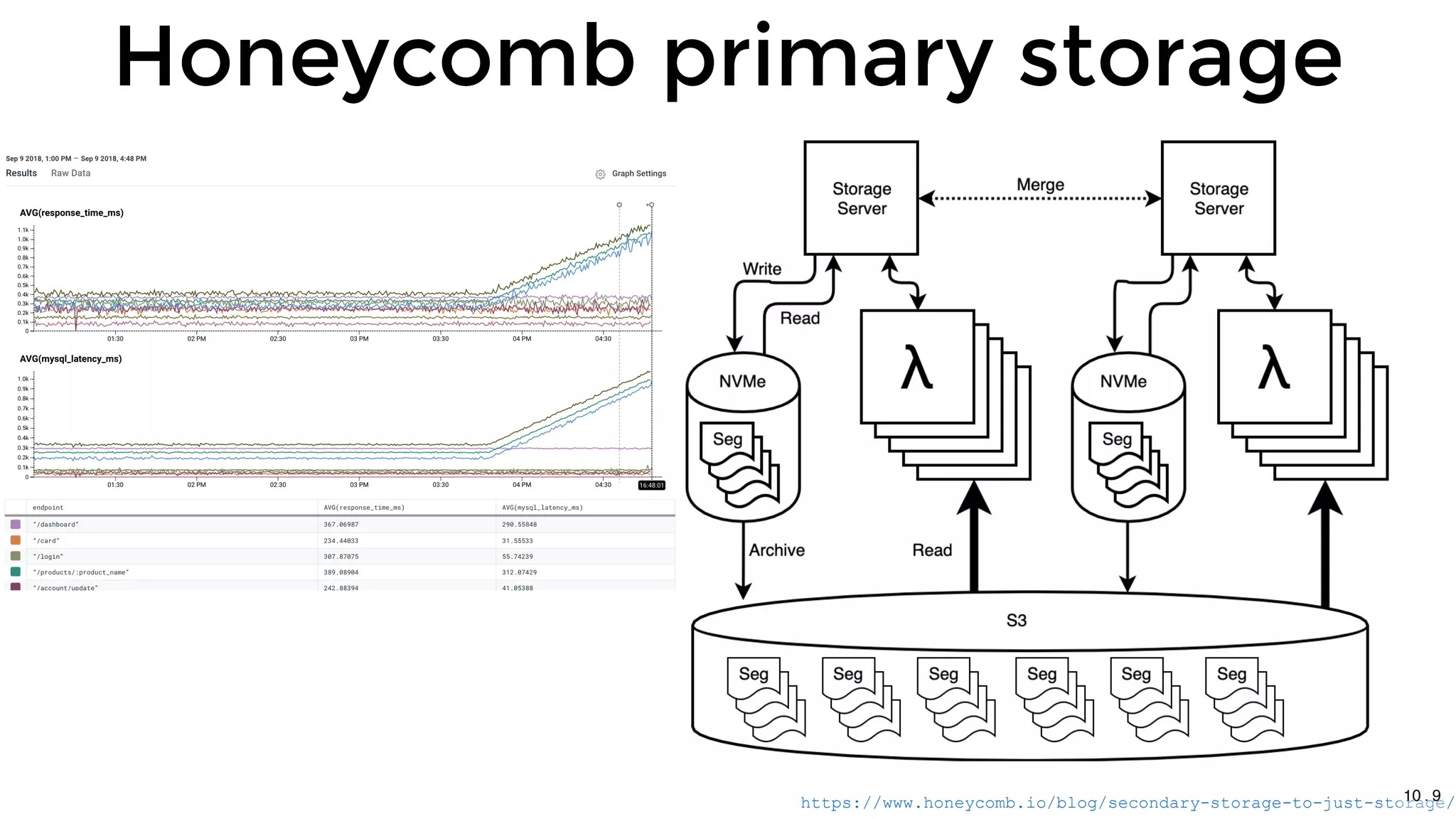

72. Honeycomb primary storageHoneycomb primary storage
https://www.honeycomb.io/blog/secondary­storage­to­just­storage/10 . 9

73. re:Invent 2018 - SRV409re:Invent 2018 - SRV409
Lambda Deep Dive
https://www.youtube.com/embed/QdzV04T_kec?enablejsapi=1
10 . 10

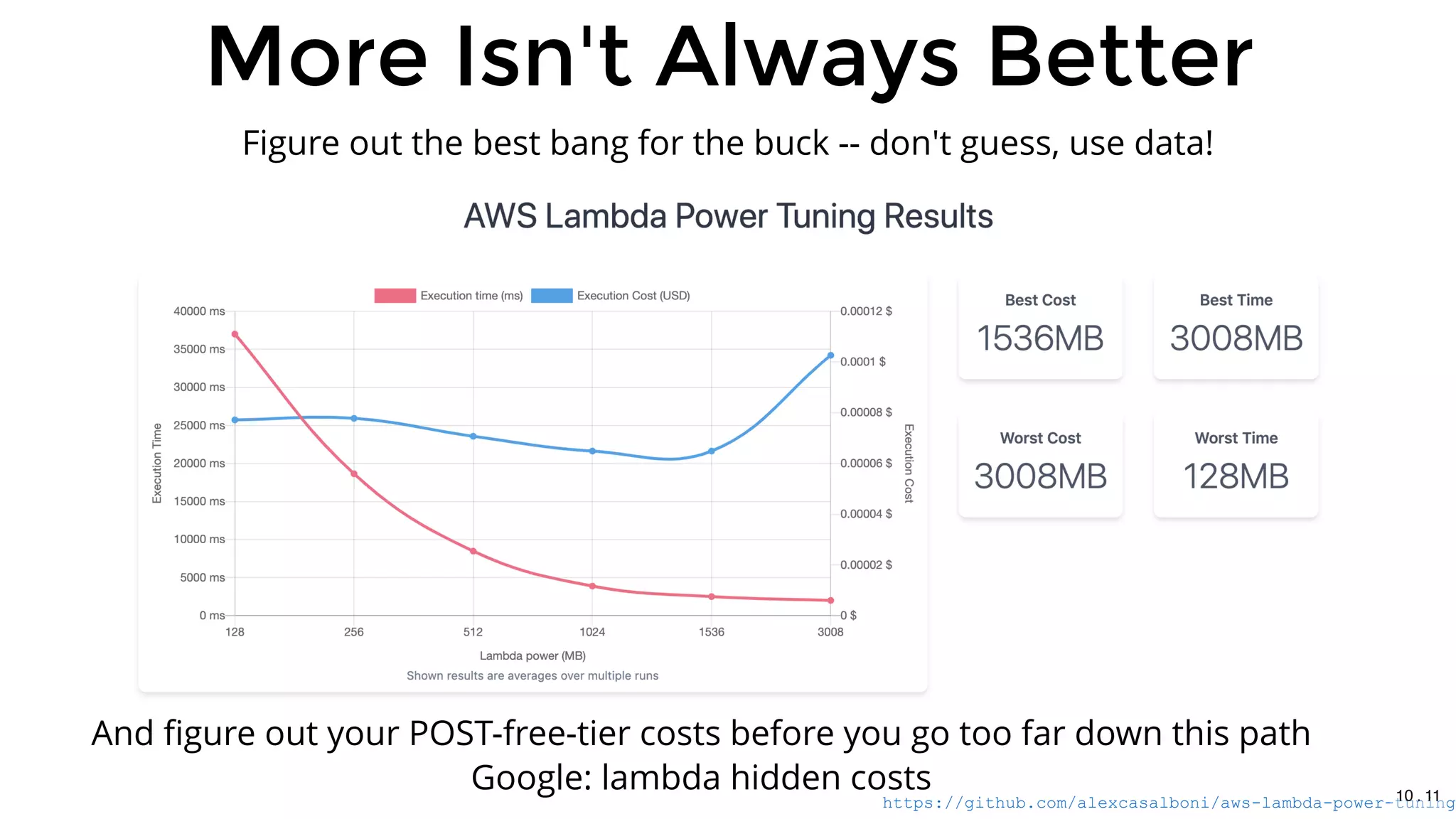

74. More Isn't Always BetterMore Isn't Always Better
Figure out the best bang for the buck -- don't guess, use data!
https://github.com/alexcasalboni/aws­lambda­power­tuning
And figure out your POST-free-tier costs before you go too far down this path
Google: lambda hidden costs 10 . 11

75. Thanks!Thanks!
Questions?Questions?
11
