1. Perl web frameworks
Catalyst & Mojolicious
Curs avançat de Perl 2012
10/03/2012

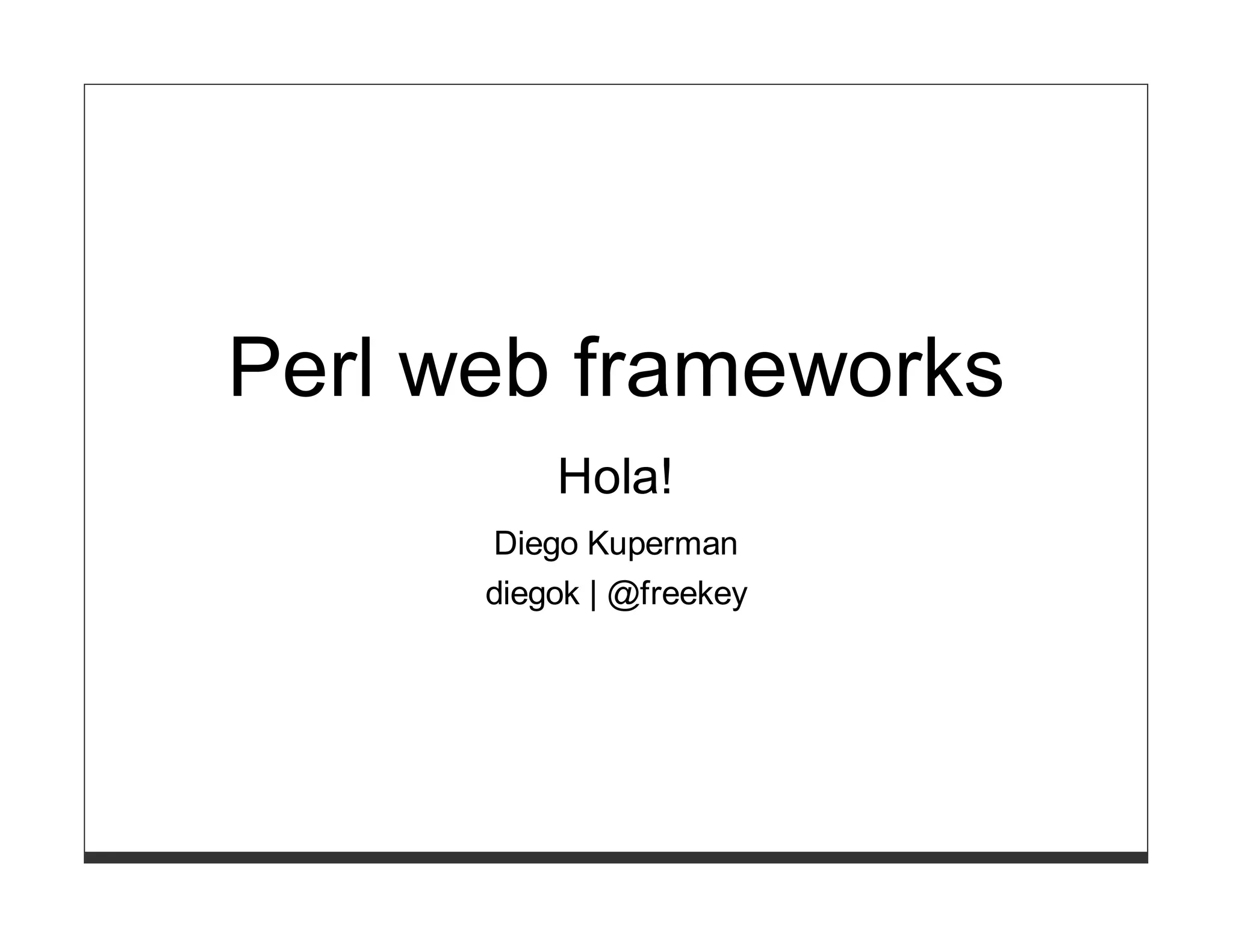

2. Perl web frameworks
Hola!
Diego Kuperman
diegok | @freekey

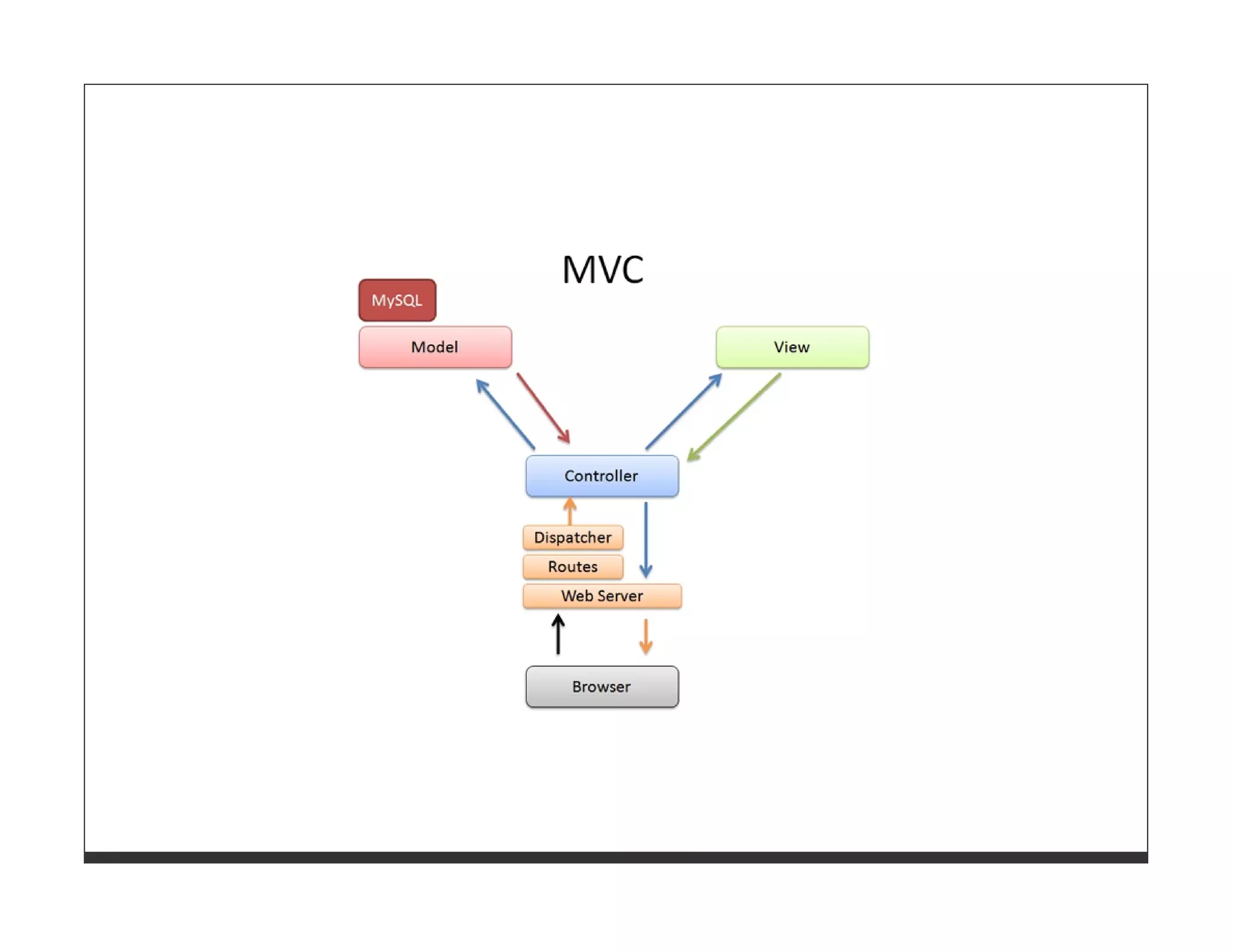

3. Web frameworks
~
MVC

5. Router
~
Dispatcher

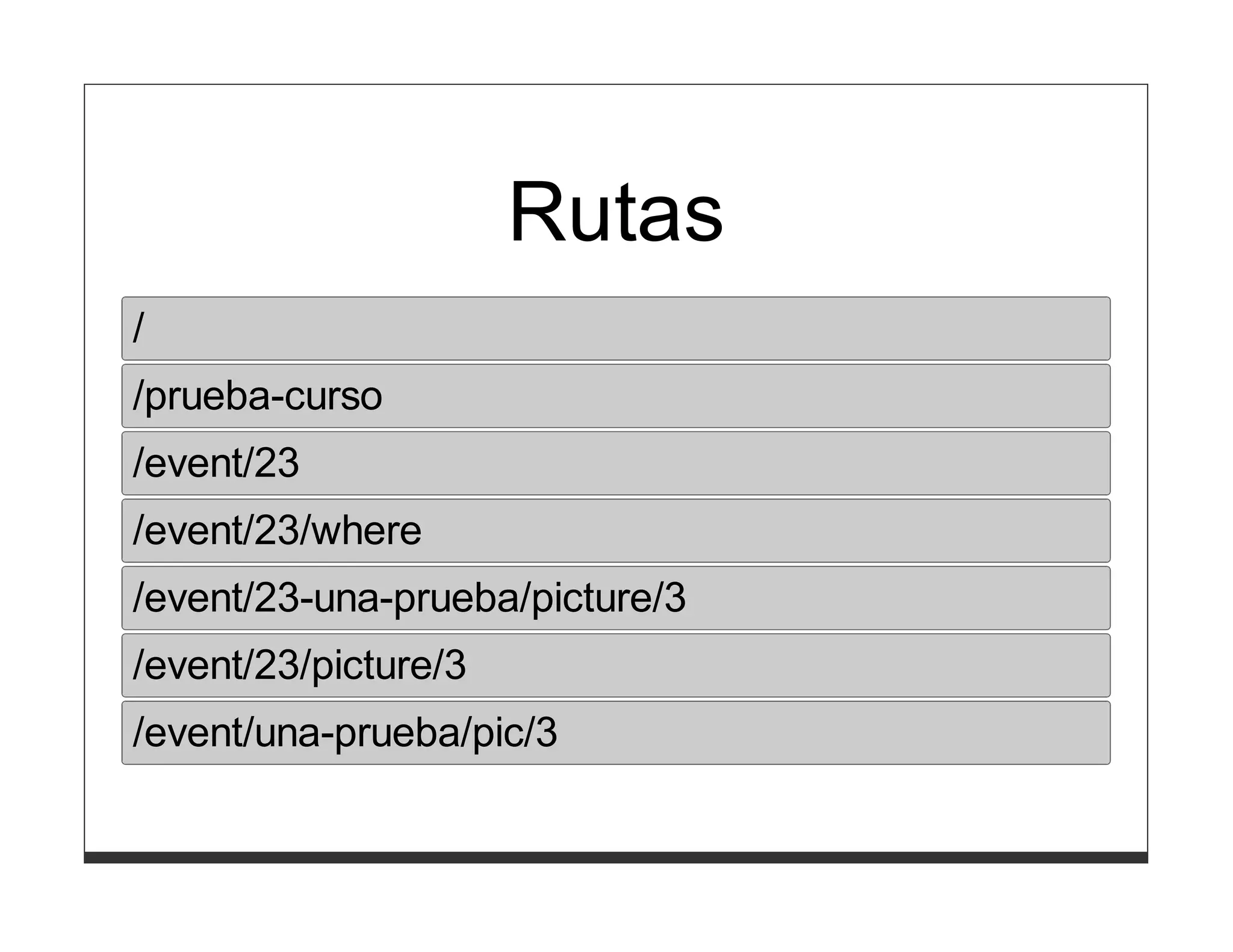

6. Rutas
/
/prueba-curso
/event/23
/event/23/where
/event/23-una-prueba/picture/3
/event/23/picture/3
/event/una-prueba/pic/3

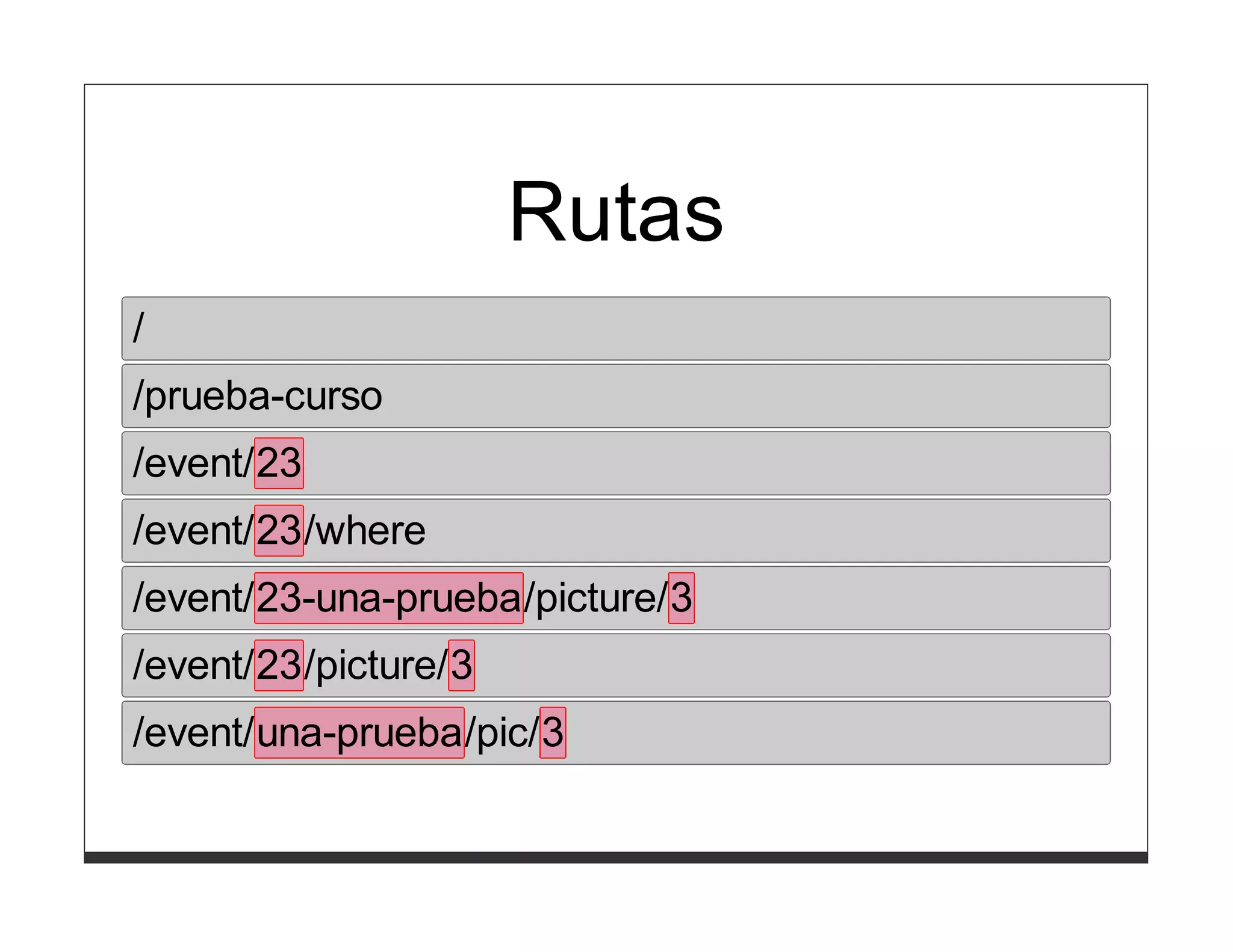

7. Rutas
/
/prueba-curso
/event/23
/event/23/where
/event/23-una-prueba/picture/3
/event/23/picture/3
/event/una-prueba/pic/3

8. Controller

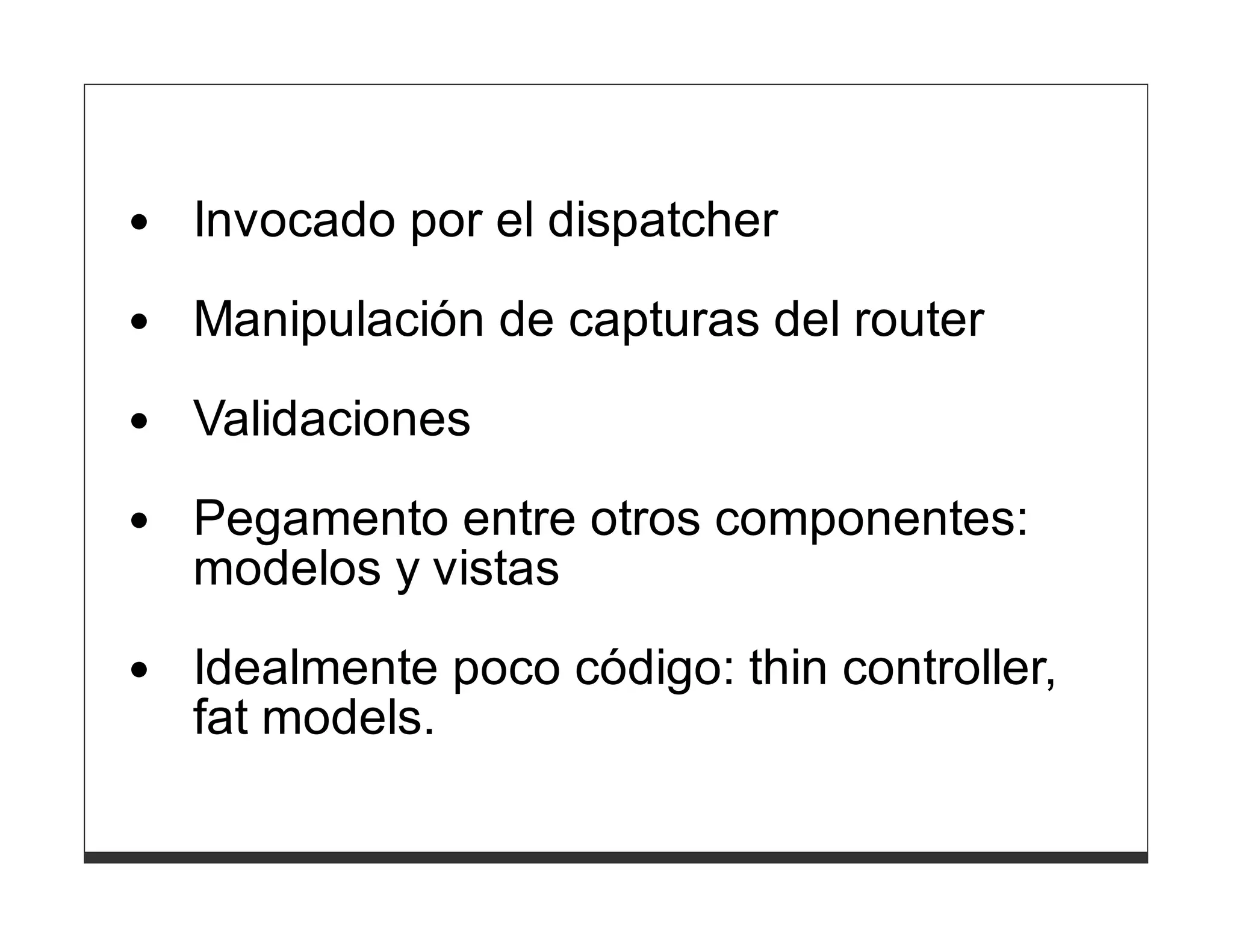

9. Invocado por el dispatcher
Manipulación de capturas del router
Validaciones
Pegamento entre otros componentes:
modelos y vistas
Idealmente poco código: thin controller,
fat models.

10. Model
~
Storage

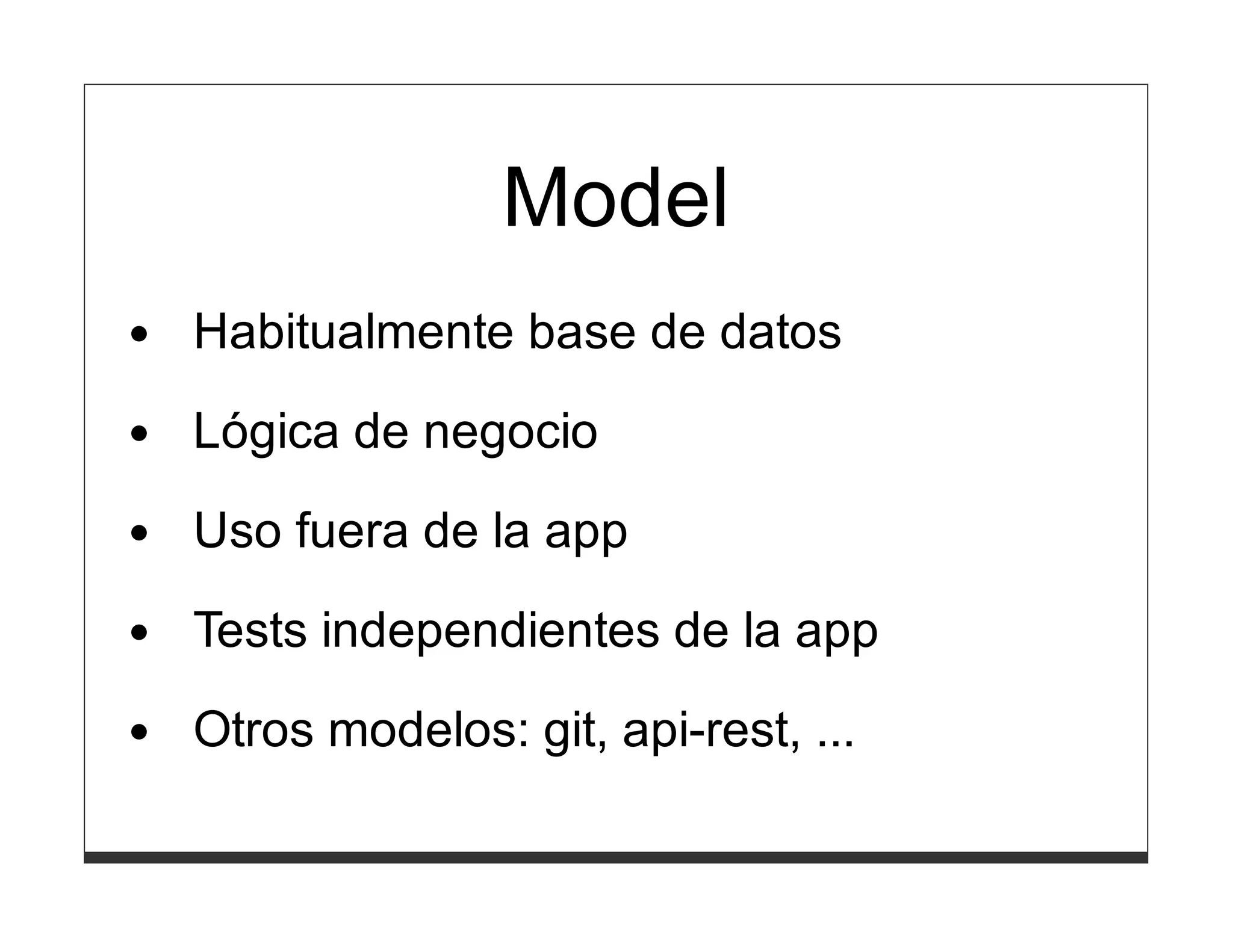

11. Model
Habitualmente base de datos
Lógica de negocio
Uso fuera de la app
Tests independientes de la app
Otros modelos: git, api-rest, ...

12. View
~
Templates / Serializers

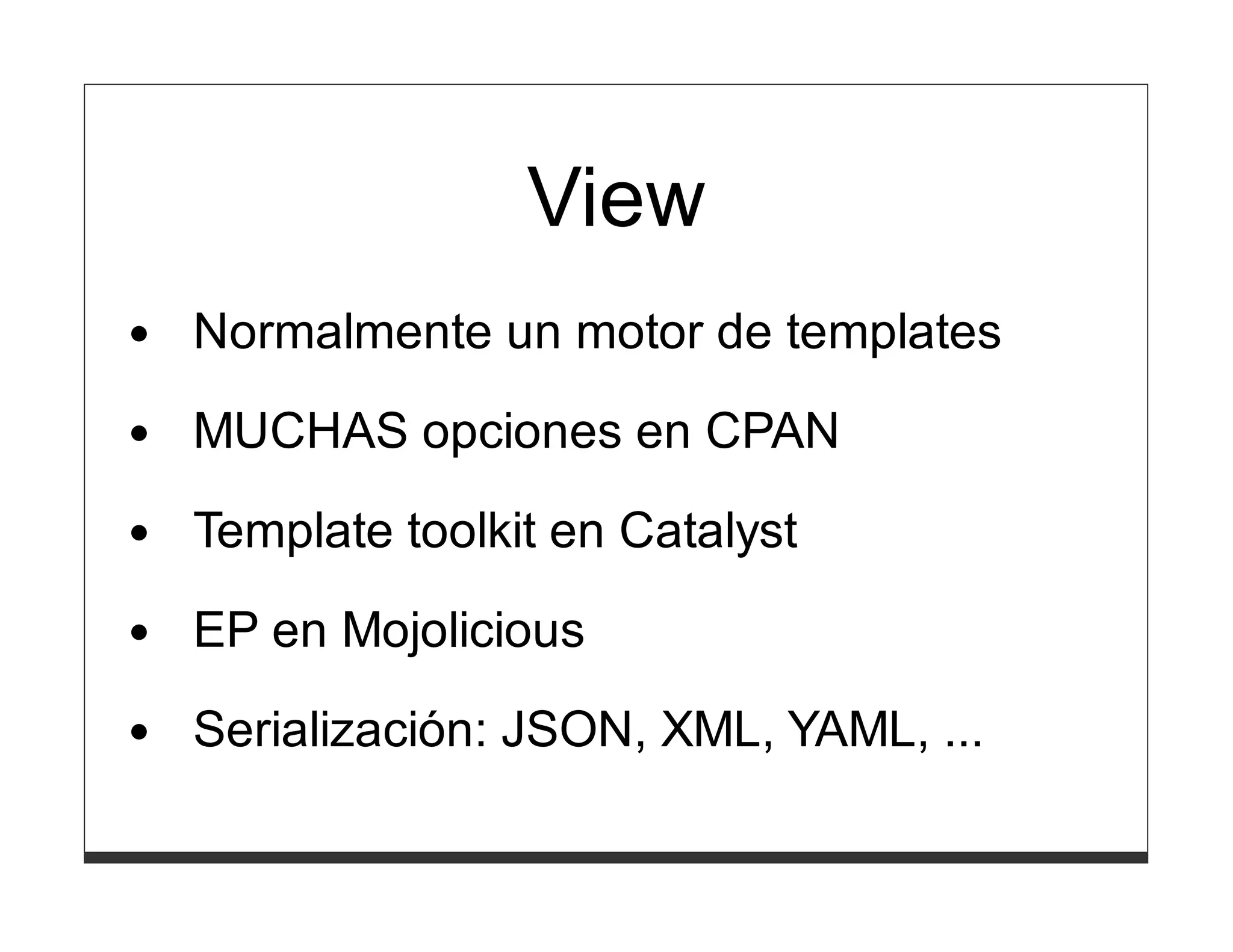

13. View
Normalmente un motor de templates
MUCHAS opciones en CPAN
Template toolkit en Catalyst
EP en Mojolicious
Serialización: JSON, XML, YAML, ...

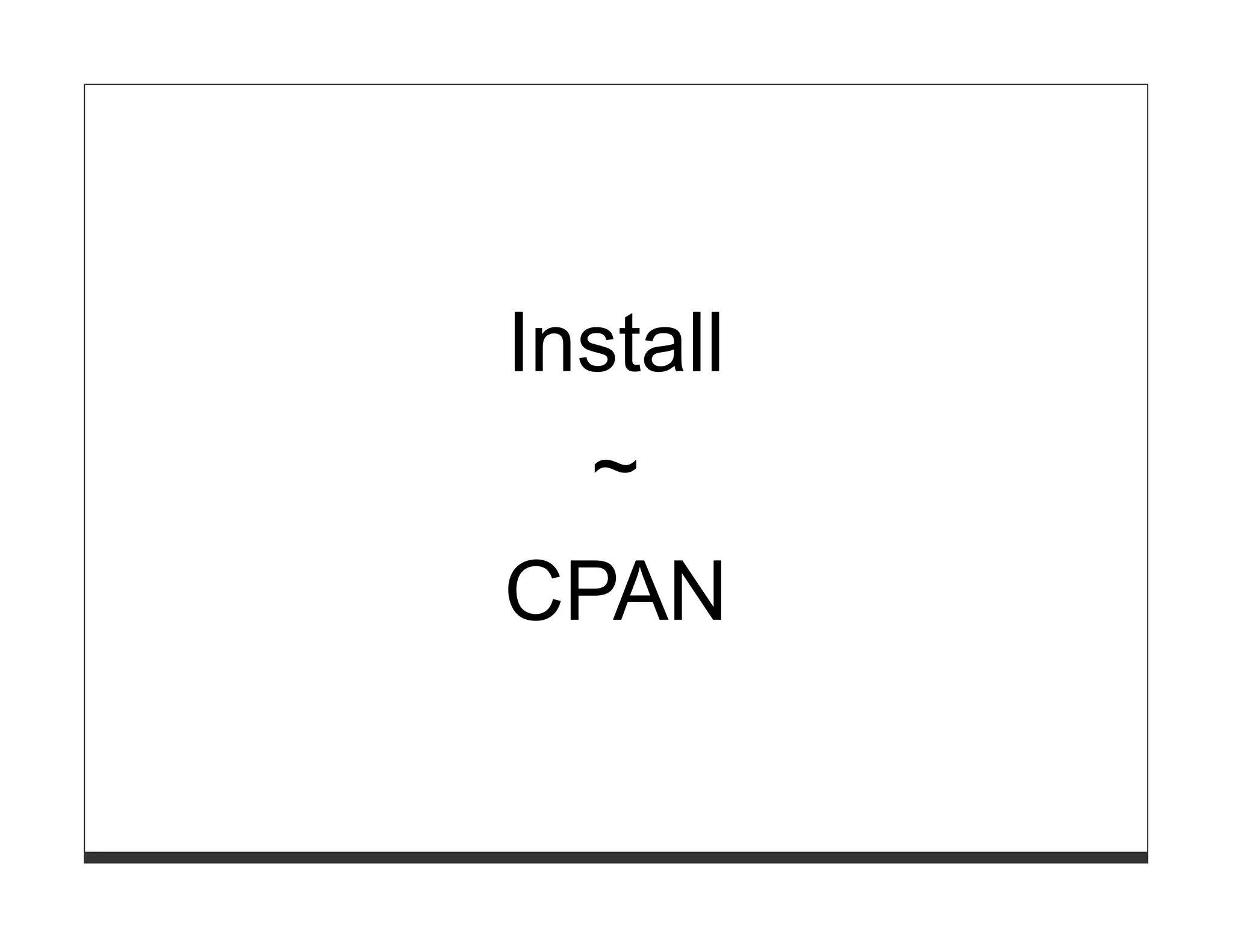

14. Install
~
CPAN

15. Catalyst
$ cpanm -n Catalyst::Runtime Catalyst::Devel
$ cpanm -n Catalyst::View::TT Catalyst::View::JSON
$ cpanm -n Catalyst::Plugin::Unicode::Encoding
$ cpanm -n Catalyst::Plugin::Session
$ cpanm -n Catalyst::Plugin::Session::Store::File
$ cpanm -n Catalyst::Plugin::Session::State::Cookie
$ cpanm -n Catalyst::Plugin::Authentication
$ cpanm -n Catalyst::Plugin::Authorization::Roles
$ cpanm -n Catalyst::Authentication::Store::DBIx::Class
$ cpanm -n HTML::FormHandler HTML::FormHandler::Model::DBIC

16. Mojolicious
http://mojolicio.us
The web in a box
$ cpanm -n Mojolicious

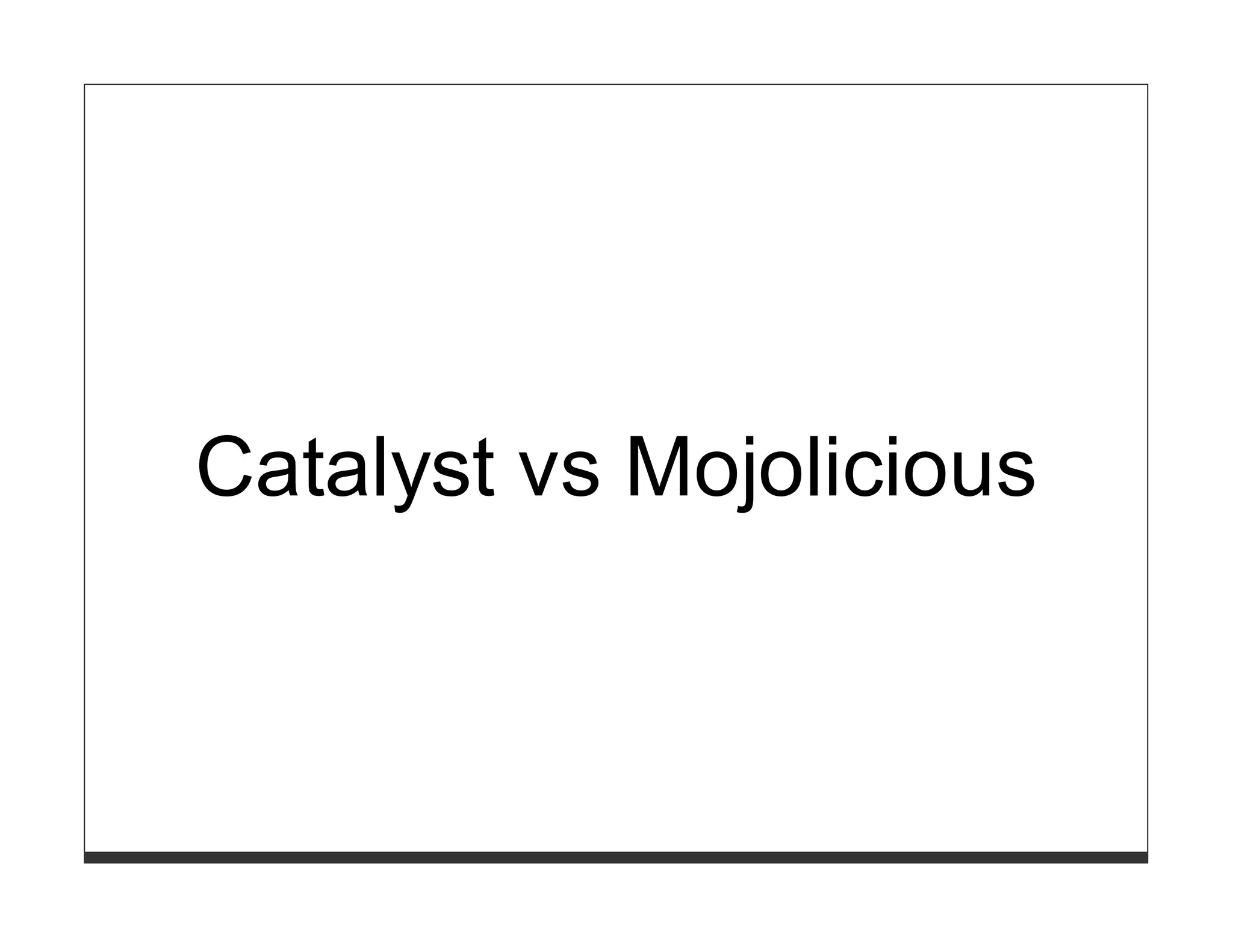

17. Catalyst vs Mojolicious

18. Catalyst

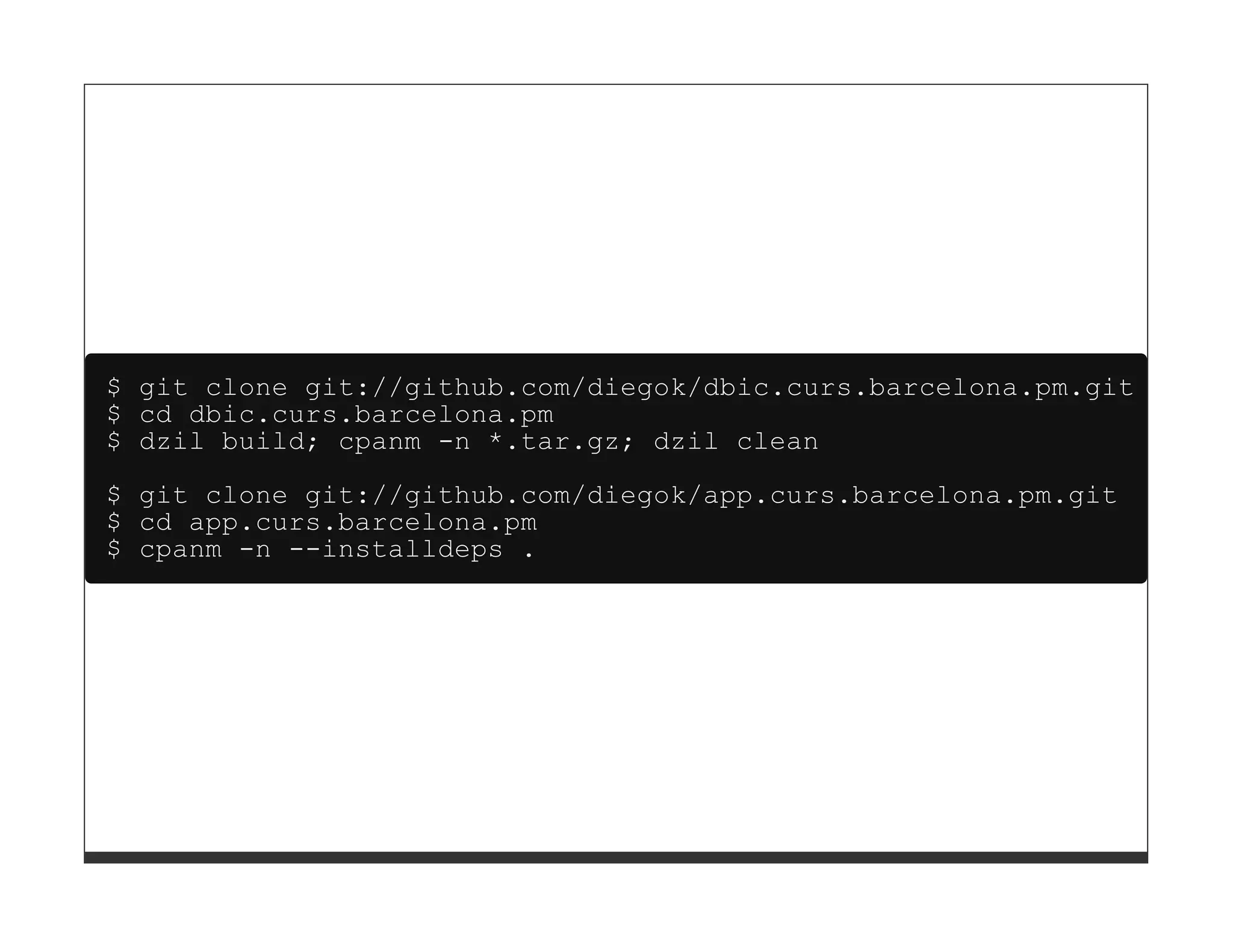

19. $ git clone git://github.com/diegok/dbic.curs.barcelona.pm.git
$ cd dbic.curs.barcelona.pm
$ dzil build; cpanm -n *.tar.gz; dzil clean
$ git clone git://github.com/diegok/app.curs.barcelona.pm.git
$ cd app.curs.barcelona.pm
$ cpanm -n --installdeps .

20. Catalyst
The elegant MVC framework

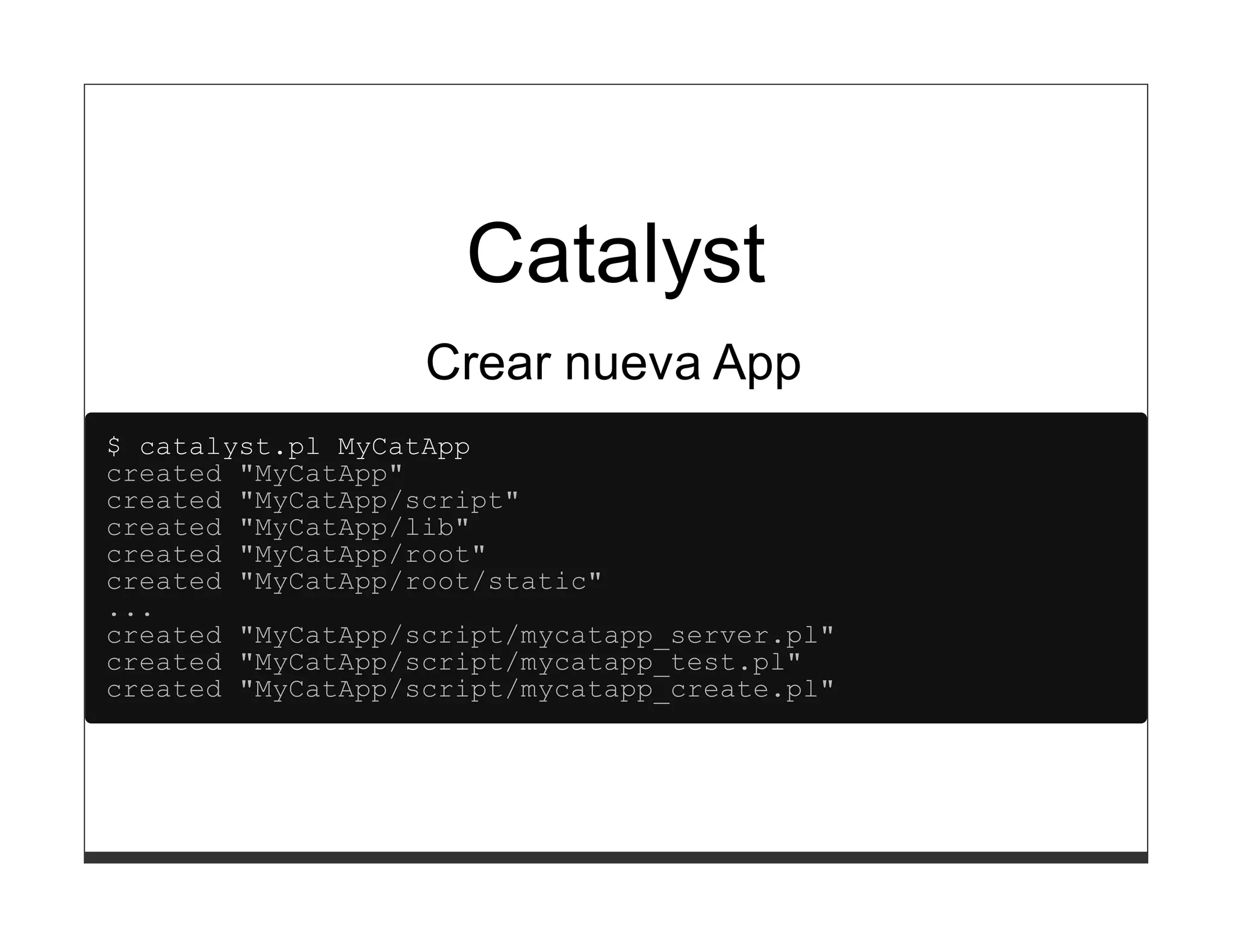

21. Catalyst
Crear nueva App
$ catalyst.pl MyCatApp
created "MyCatApp"
created "MyCatApp/script"
created "MyCatApp/lib"
created "MyCatApp/root"
created "MyCatApp/root/static"
...
created "MyCatApp/script/mycatapp_server.pl"
created "MyCatApp/script/mycatapp_test.pl"
created "MyCatApp/script/mycatapp_create.pl"

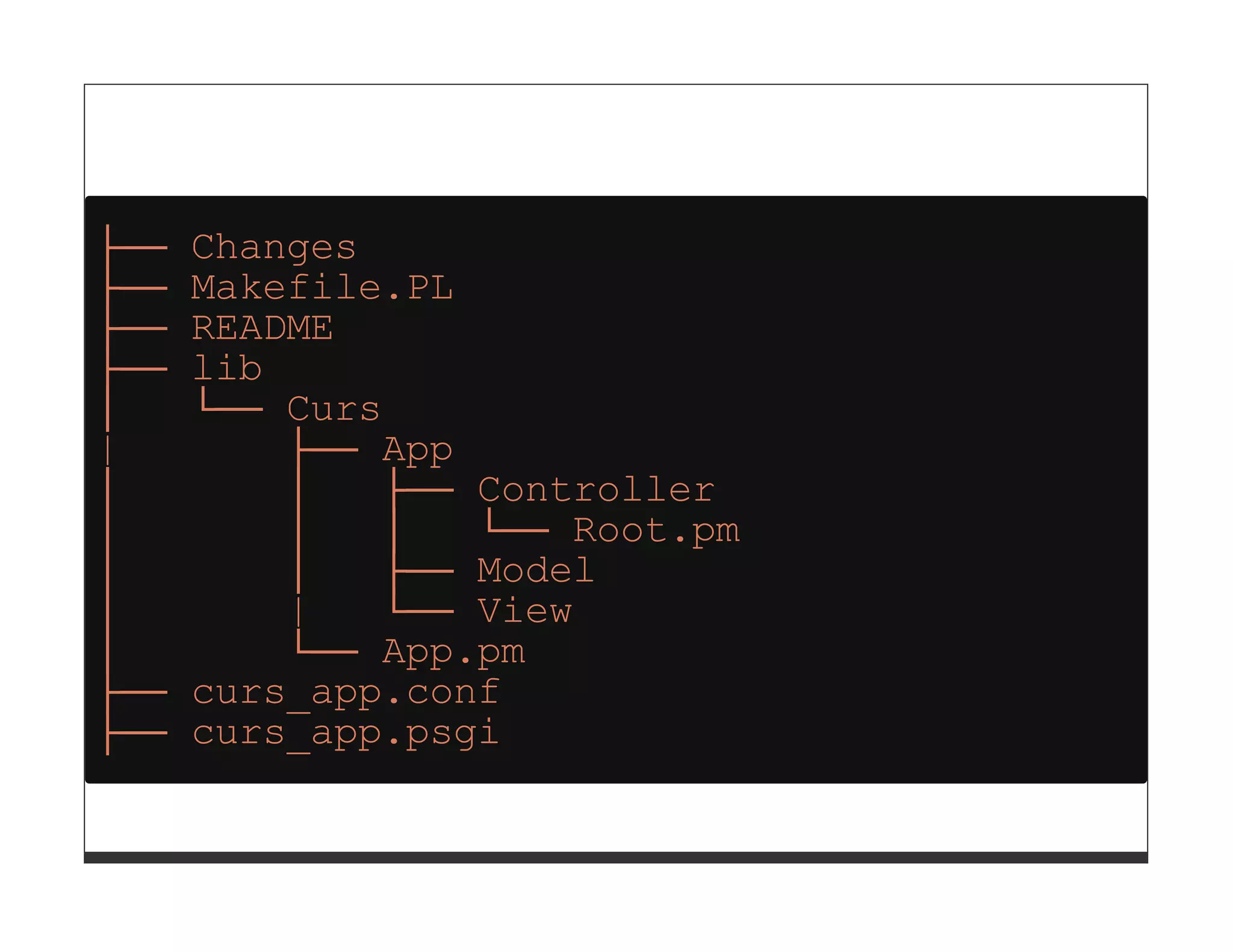

22. ├── Changes
├── Makefile.PL
├── README
├── lib
│ └── Curs
| ├── App
│ │ ├── Controller
│ │ │ └── Root.pm
│ │ ├── Model
│ | └── View
│ └── App.pm
├── curs_app.conf
├── curs_app.psgi

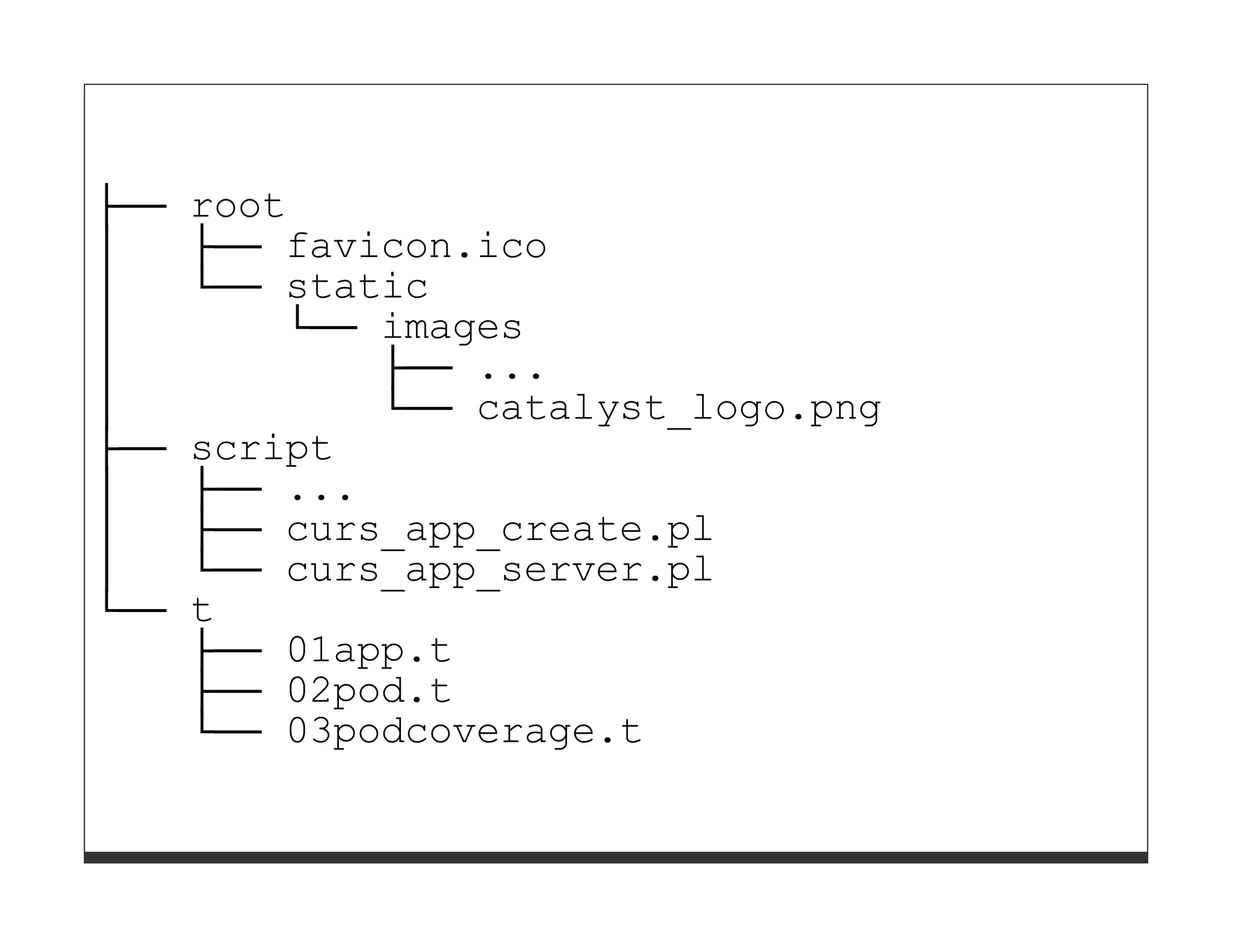

23. ├── root
│ ├── favicon.ico
│ └── static
│ └── images
│ ├── ...
│ └── catalyst_logo.png
├── script
│ ├── ...
│ ├── curs_app_create.pl
│ └── curs_app_server.pl
└── t
├── 01app.t
├── 02pod.t
└── 03podcoverage.t

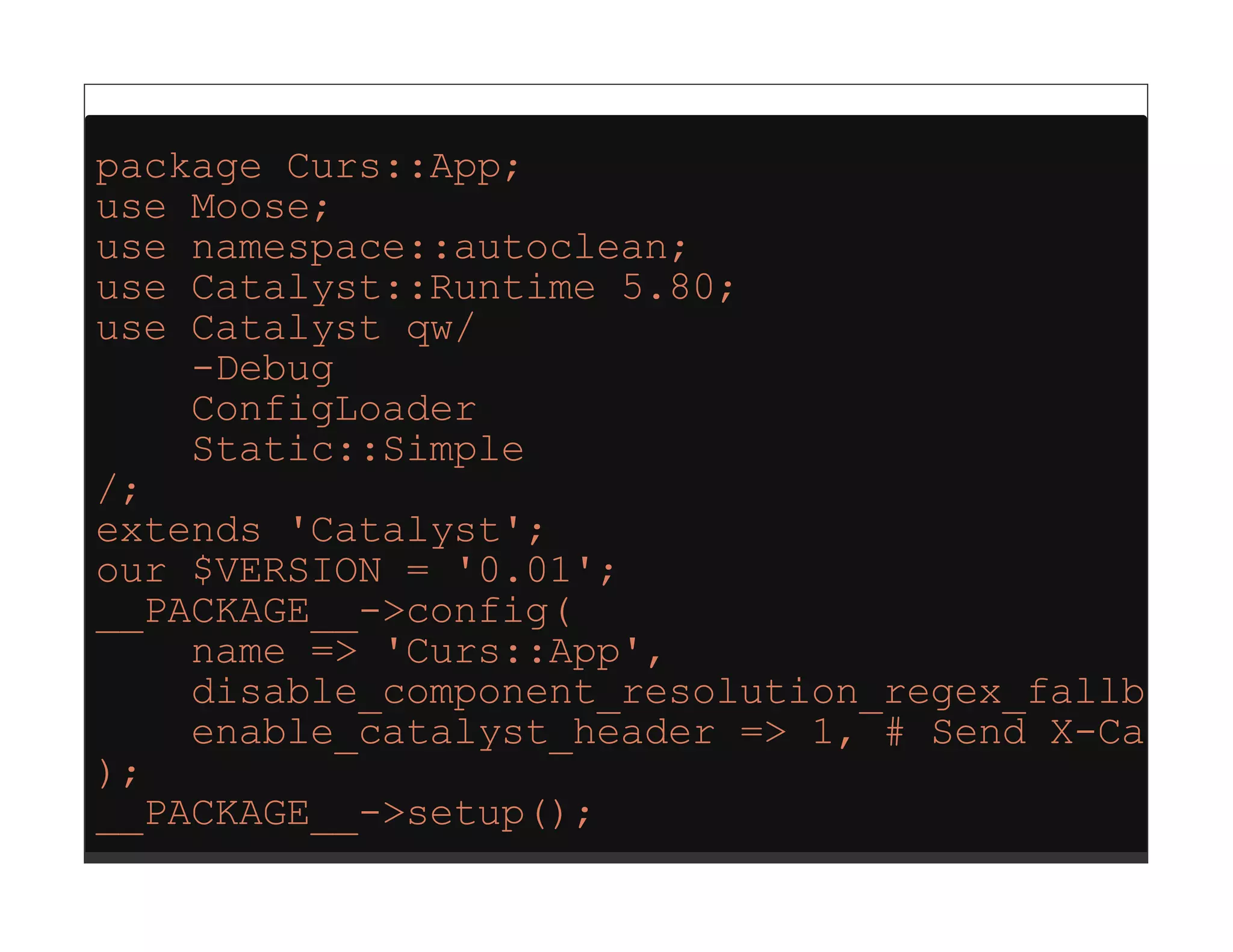

24. package Curs::App;
use Moose;
use namespace::autoclean;
use Catalyst::Runtime 5.80;
use Catalyst qw/
-Debug
ConfigLoader
Static::Simple
/;
extends 'Catalyst';
our $VERSION = '0.01';
__PACKAGE__->config(
name => 'Curs::App',
disable_component_resolution_regex_fallback
enable_catalyst_header => 1, # Send X-Cataly
);
__PACKAGE__->setup();

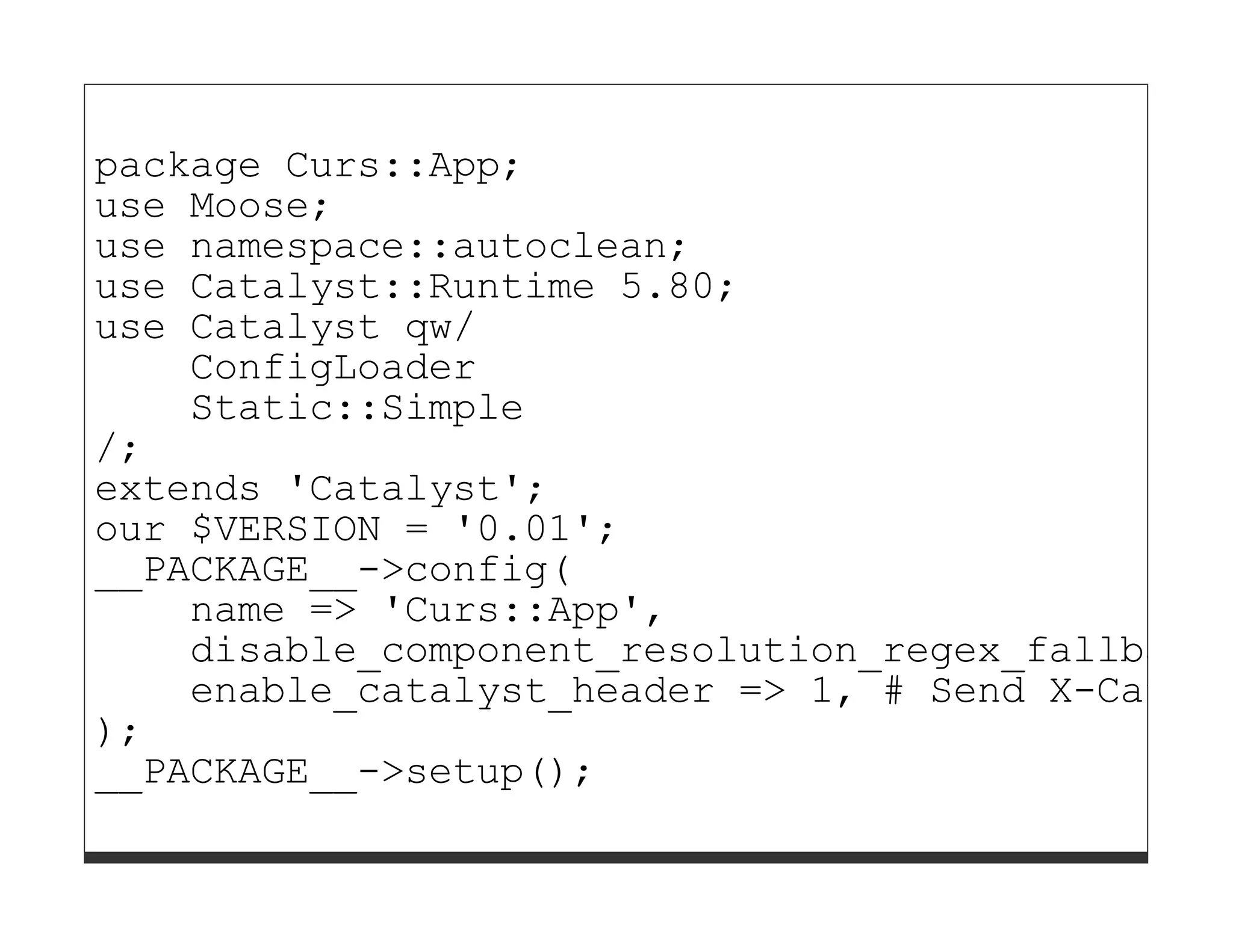

25. package Curs::App;
use Moose;
use namespace::autoclean;
use Catalyst::Runtime 5.80;
use Catalyst qw/
ConfigLoader
Static::Simple
/;
extends 'Catalyst';
our $VERSION = '0.01';
__PACKAGE__->config(
name => 'Curs::App',
disable_component_resolution_regex_fallback
enable_catalyst_header => 1, # Send X-Cataly
);
__PACKAGE__->setup();

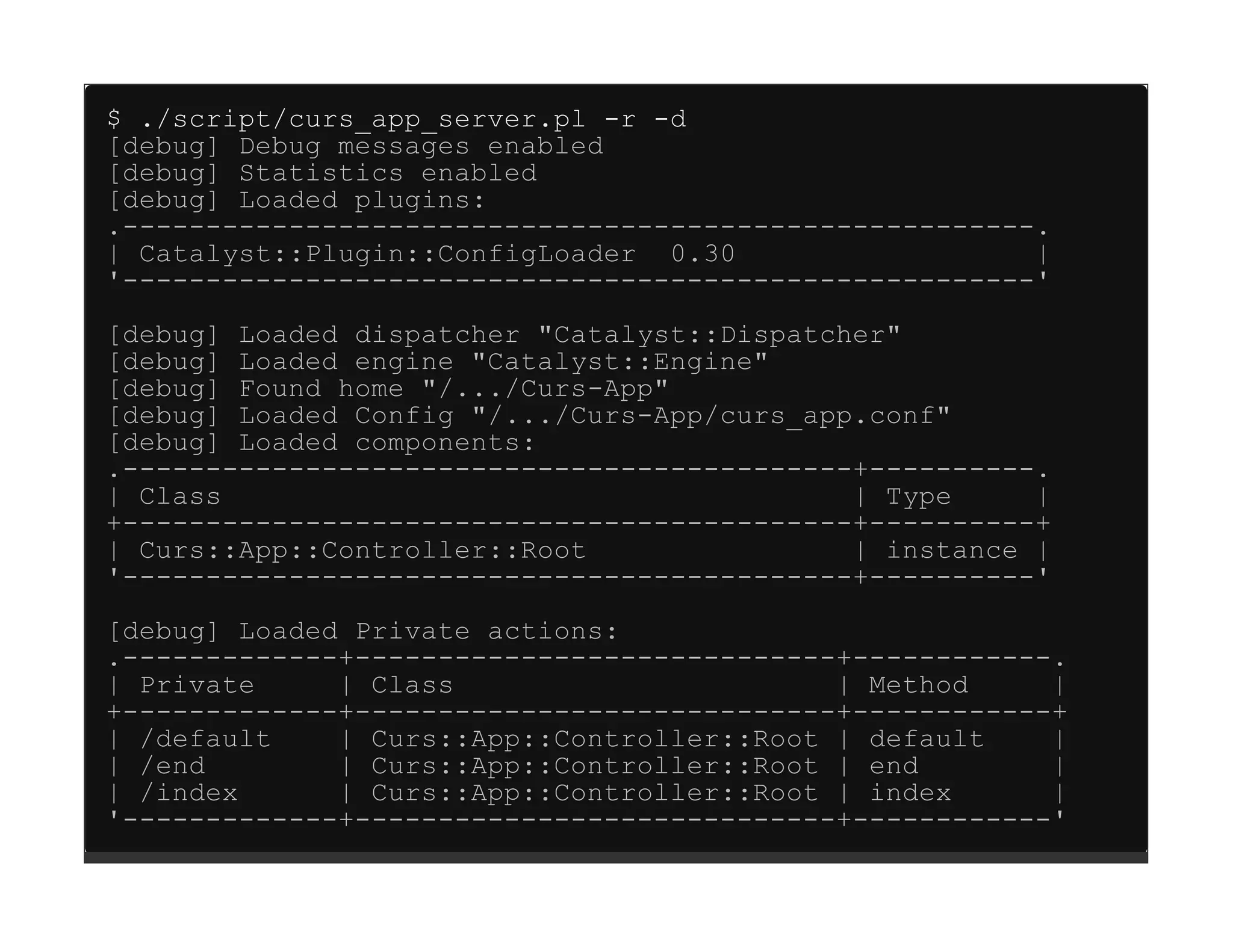

26. $ ./script/curs_app_server.pl -r -d
[debug] Debug messages enabled
[debug] Statistics enabled
[debug] Loaded plugins:
.-------------------------------------------------------.
| Catalyst::Plugin::ConfigLoader 0.30 |
'-------------------------------------------------------'
[debug] Loaded dispatcher "Catalyst::Dispatcher"
[debug] Loaded engine "Catalyst::Engine"
[debug] Found home "/.../Curs-App"
[debug] Loaded Config "/.../Curs-App/curs_app.conf"
[debug] Loaded components:
.--------------------------------------------+----------.
| Class | Type |
+--------------------------------------------+----------+
| Curs::App::Controller::Root | instance |
'--------------------------------------------+----------'
[debug] Loaded Private actions:
.-------------+-----------------------------+------------.
| Private | Class | Method |
+-------------+-----------------------------+------------+
| /default | Curs::App::Controller::Root | default |
| /end | Curs::App::Controller::Root | end |
| /index | Curs::App::Controller::Root | index |
'-------------+-----------------------------+------------'

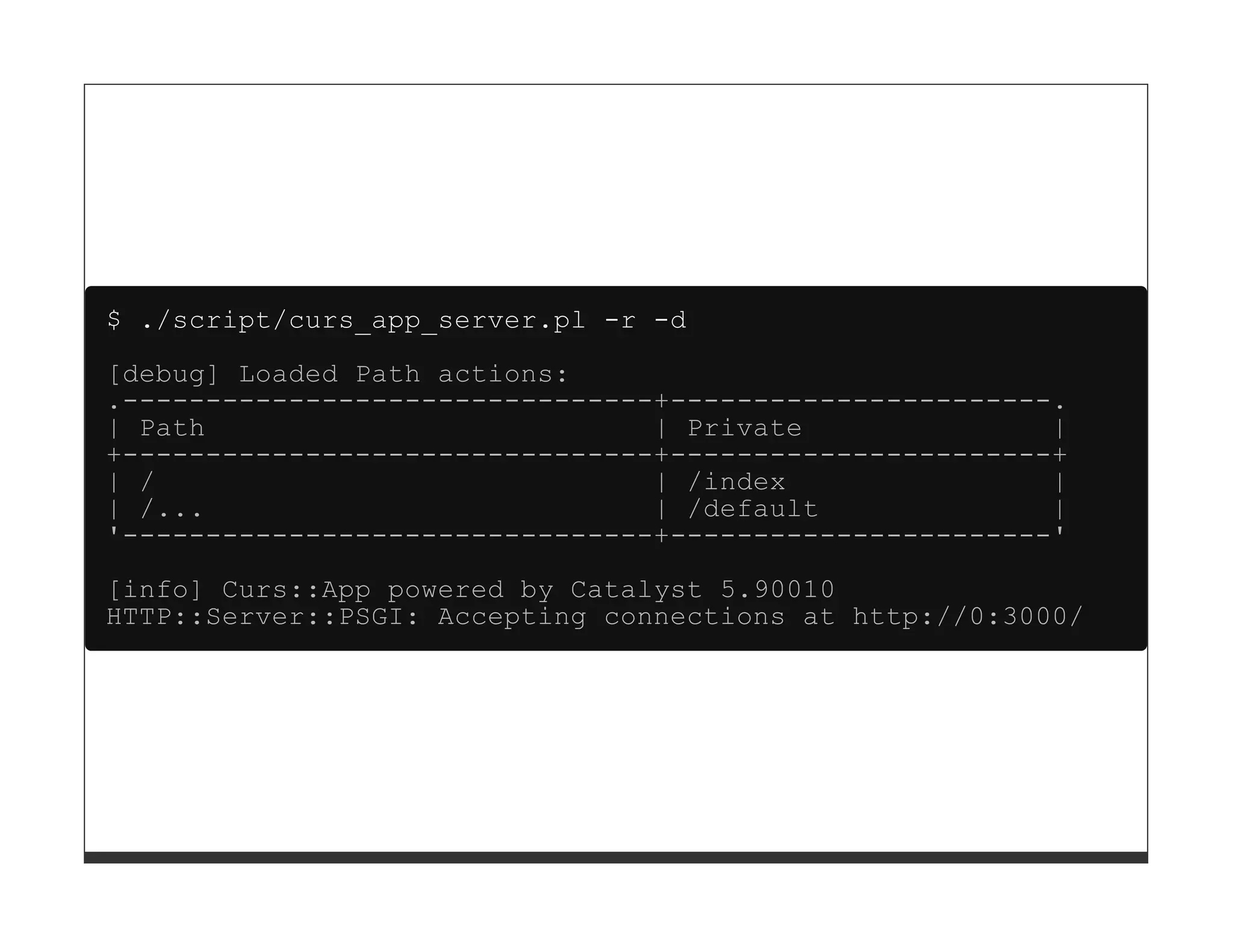

27. $ ./script/curs_app_server.pl -r -d
[debug] Loaded Path actions:
.--------------------------------+-----------------------.
| Path | Private |
+--------------------------------+-----------------------+
| / | /index |
| /... | /default |
'--------------------------------+-----------------------'

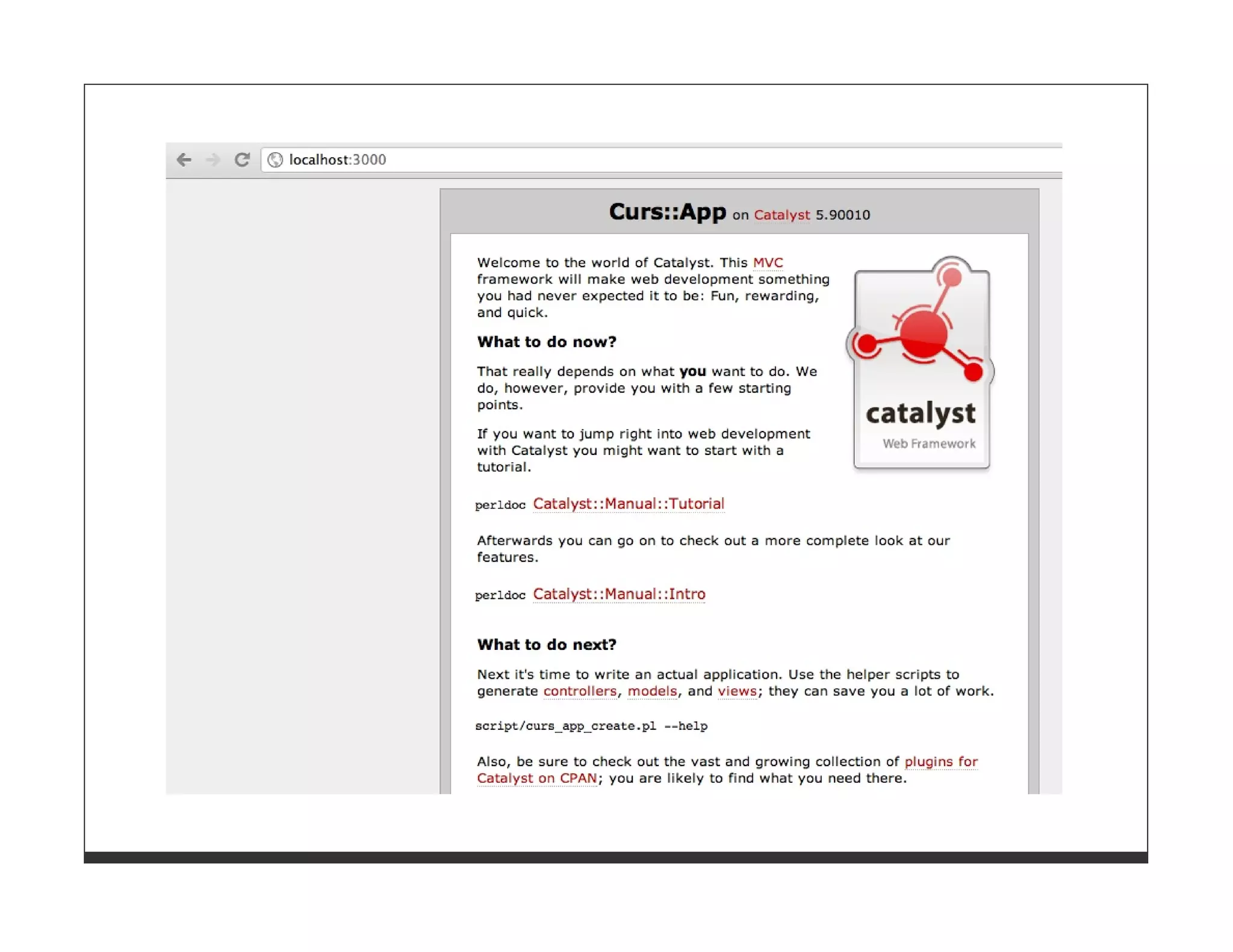

[info] Curs::App powered by Catalyst 5.90010
HTTP::Server::PSGI: Accepting connections at http://0:3000/

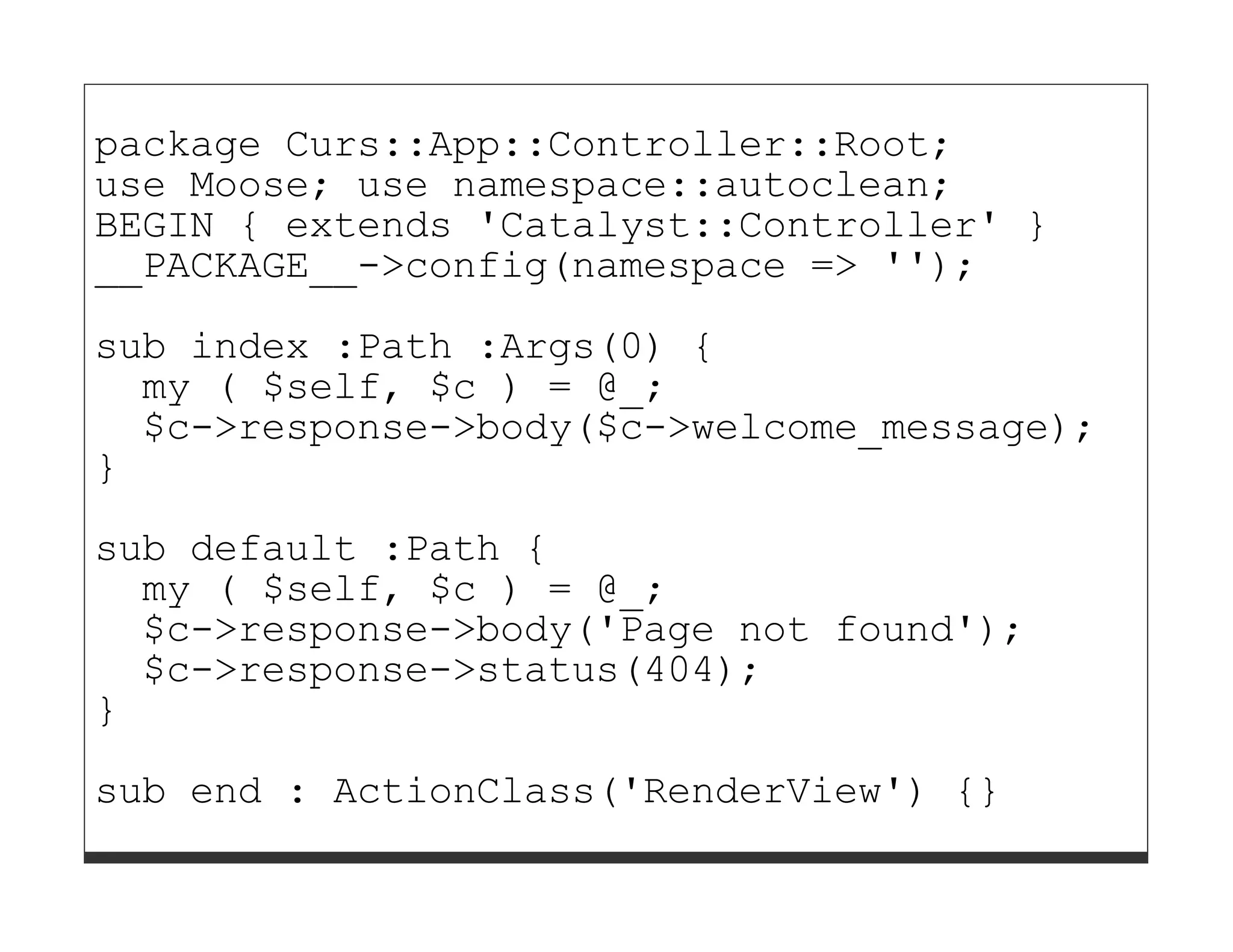

29. package Curs::App::Controller::Root;
use Moose; use namespace::autoclean;
BEGIN { extends 'Catalyst::Controller' }
__PACKAGE__->config(namespace => '');
sub index :Path :Args(0) {
my ( $self, $c ) = @_;
$c->response->body($c->welcome_message);
}
sub default :Path {
my ( $self, $c ) = @_;
$c->response->body('Page not found');
$c->response->status(404);
}
sub end : ActionClass('RenderView') {}

30. Tiene
Router + Dispatcher
Static::Simple
Controller Root
Acción por defecto

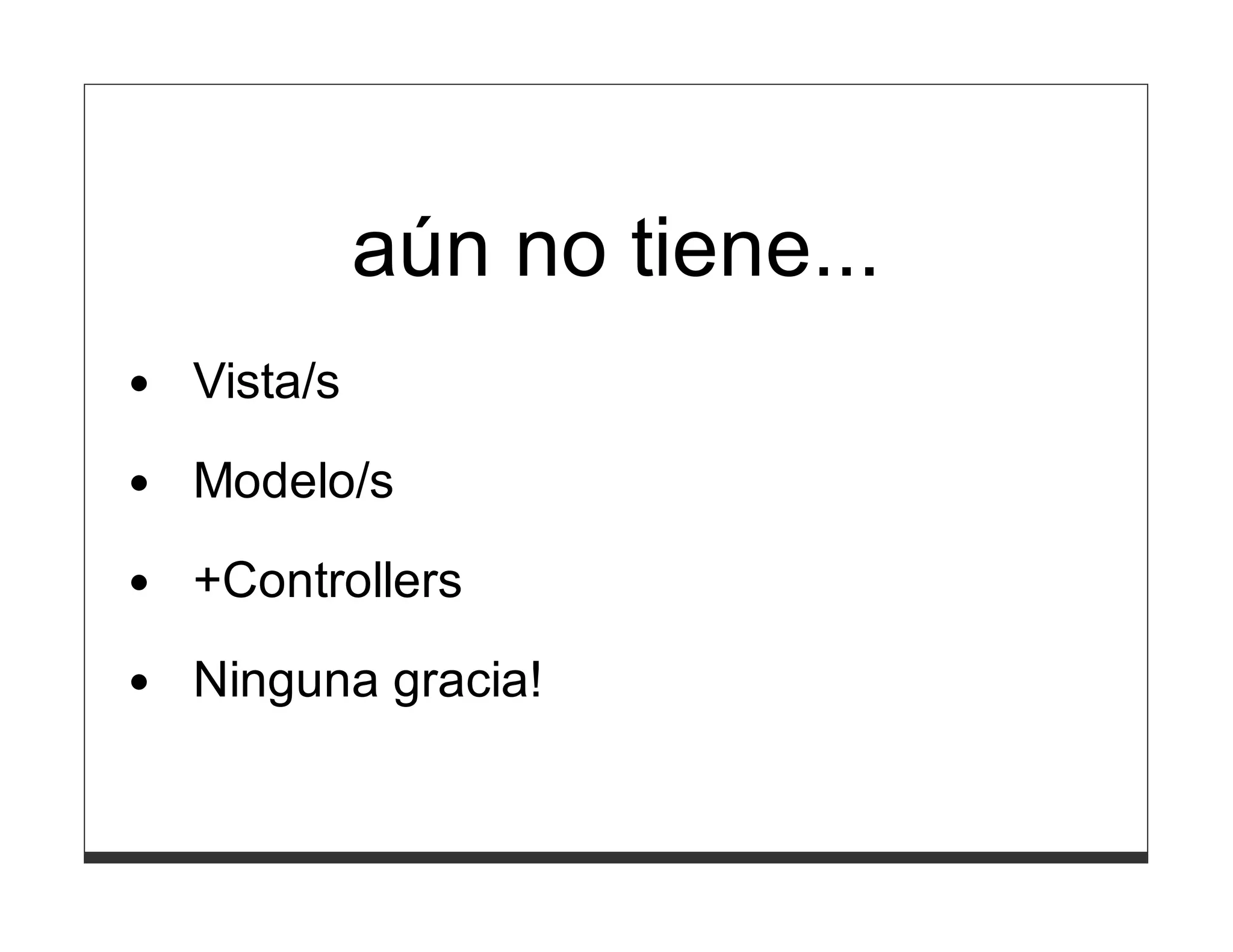

31. aún no tiene...
Vista/s
Modelo/s
+Controllers
Ninguna gracia!

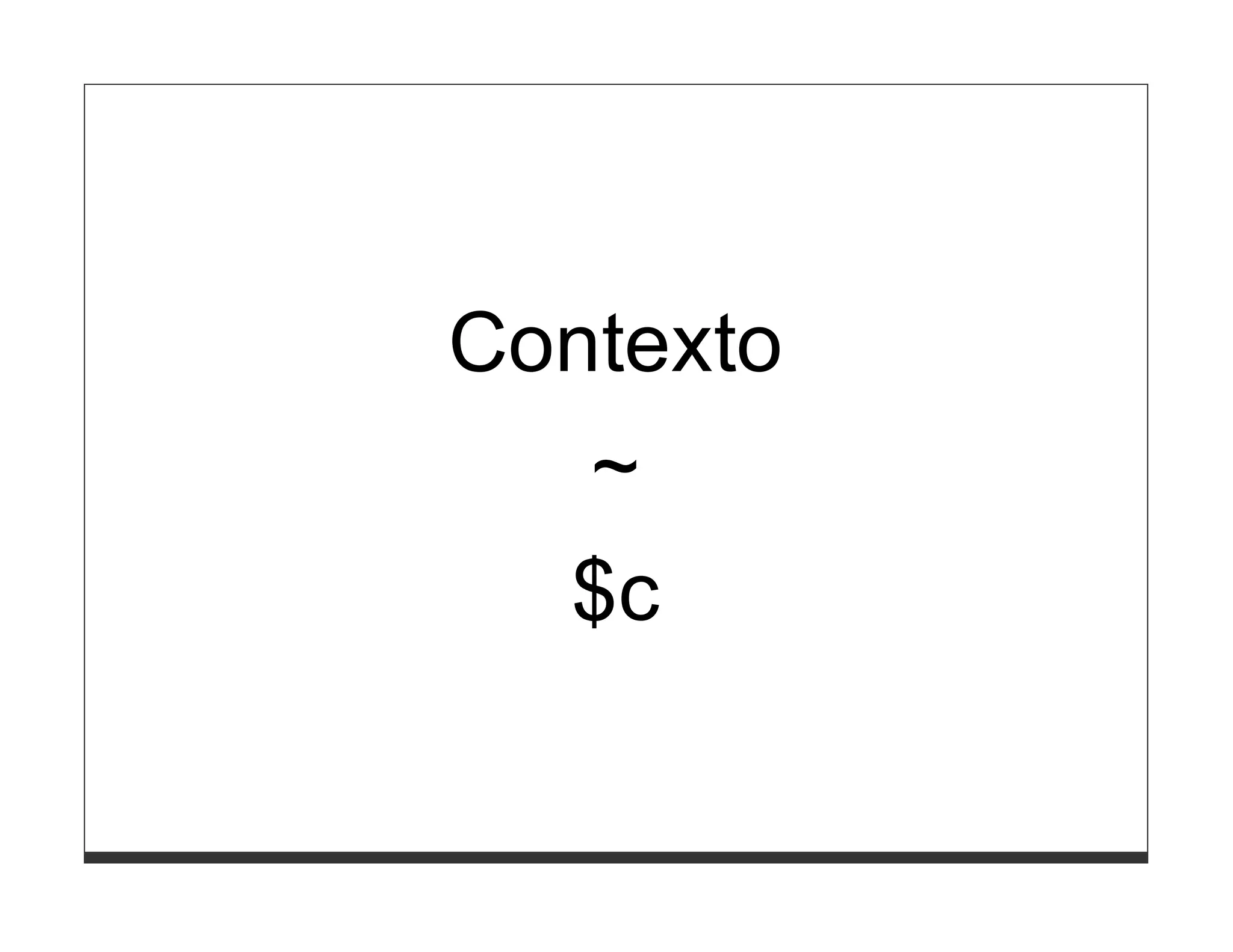

32. Contexto
~
$c

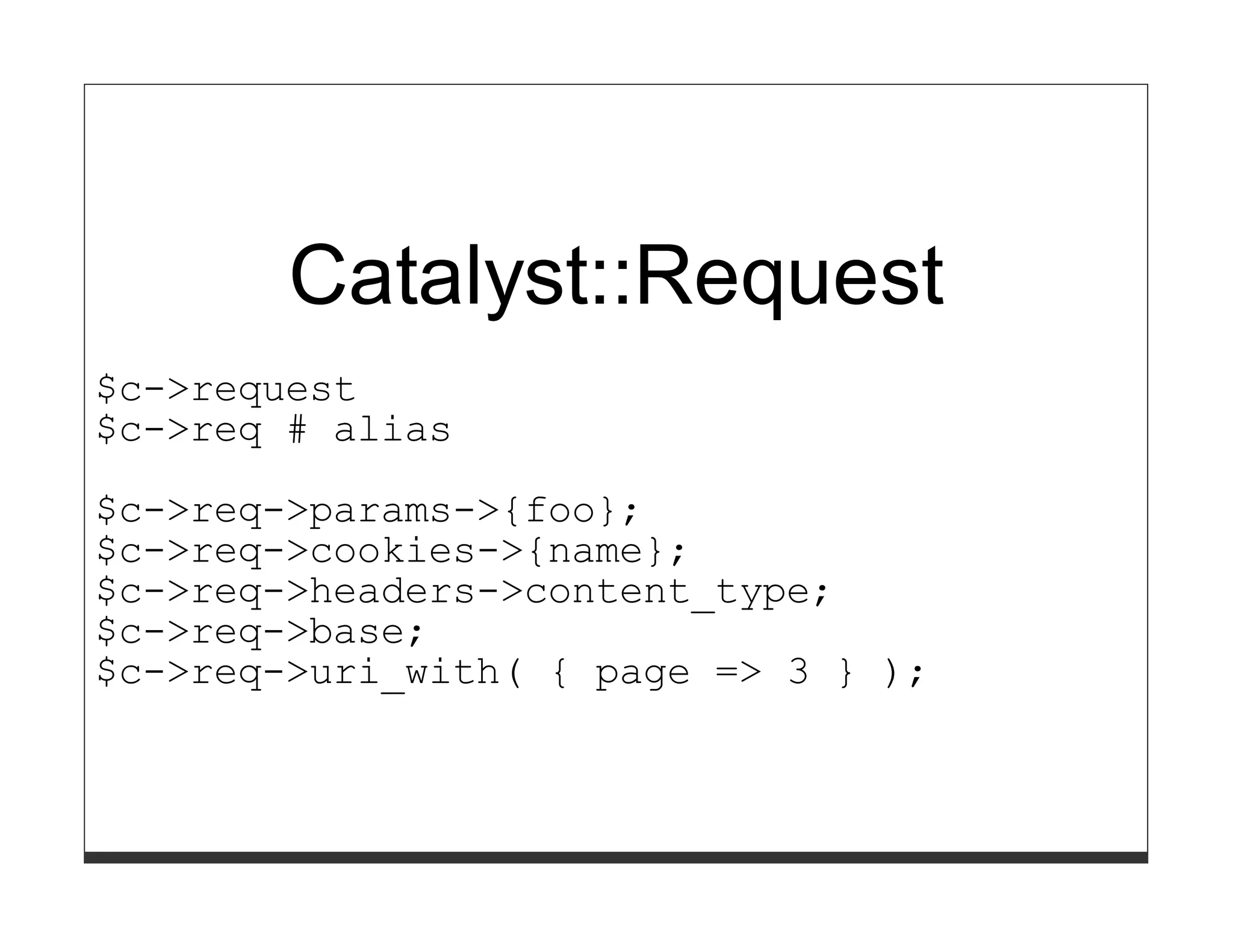

33. Catalyst::Request
$c->request
$c->req # alias
$c->req->params->{foo};
$c->req->cookies->{name};
$c->req->headers->content_type;
$c->req->base;
$c->req->uri_with( { page => 3 } );

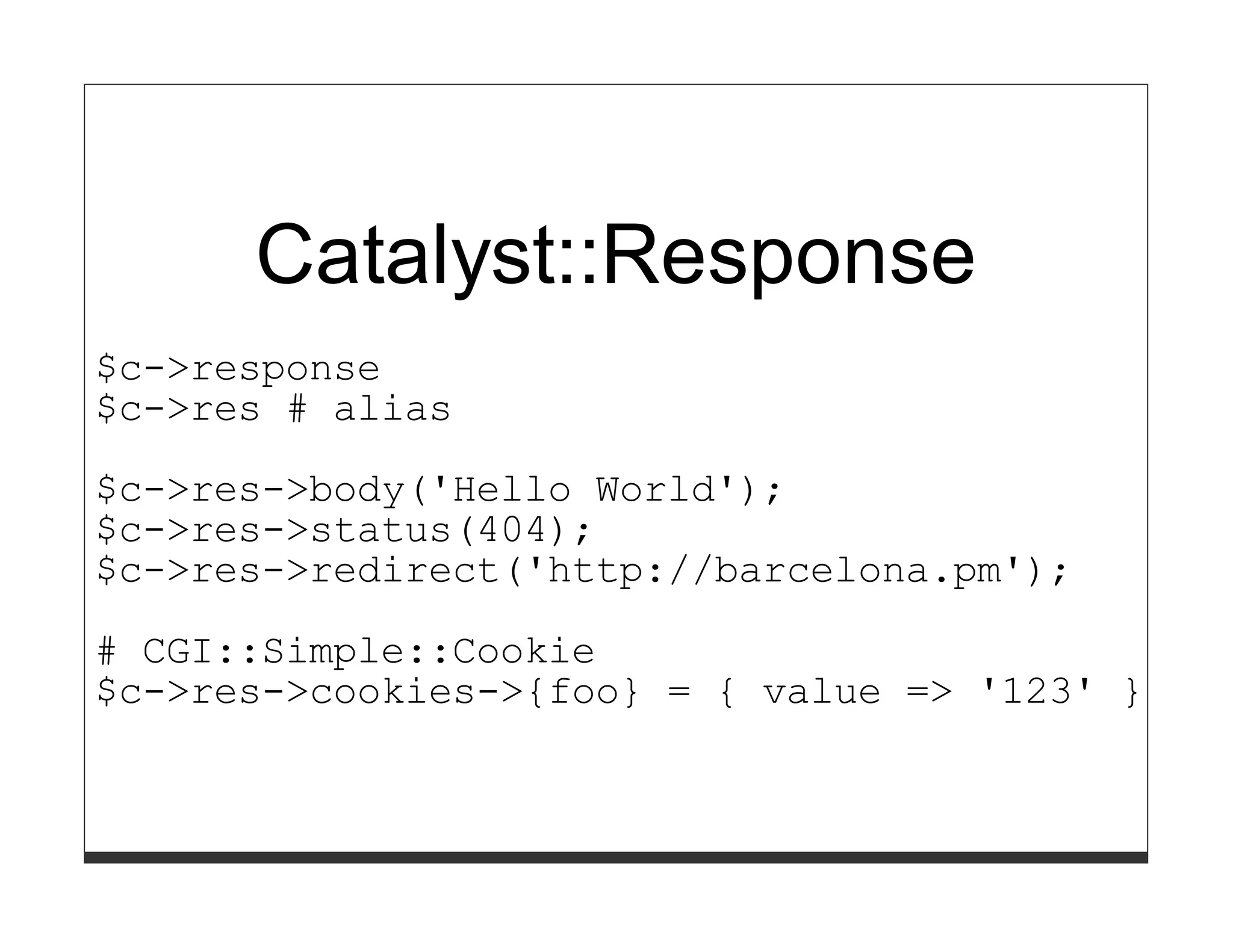

34. Catalyst::Response
$c->response
$c->res # alias
$c->res->body('Hello World');
$c->res->status(404);
$c->res->redirect('http://barcelona.pm');
# CGI::Simple::Cookie
$c->res->cookies->{foo} = { value => '123' };

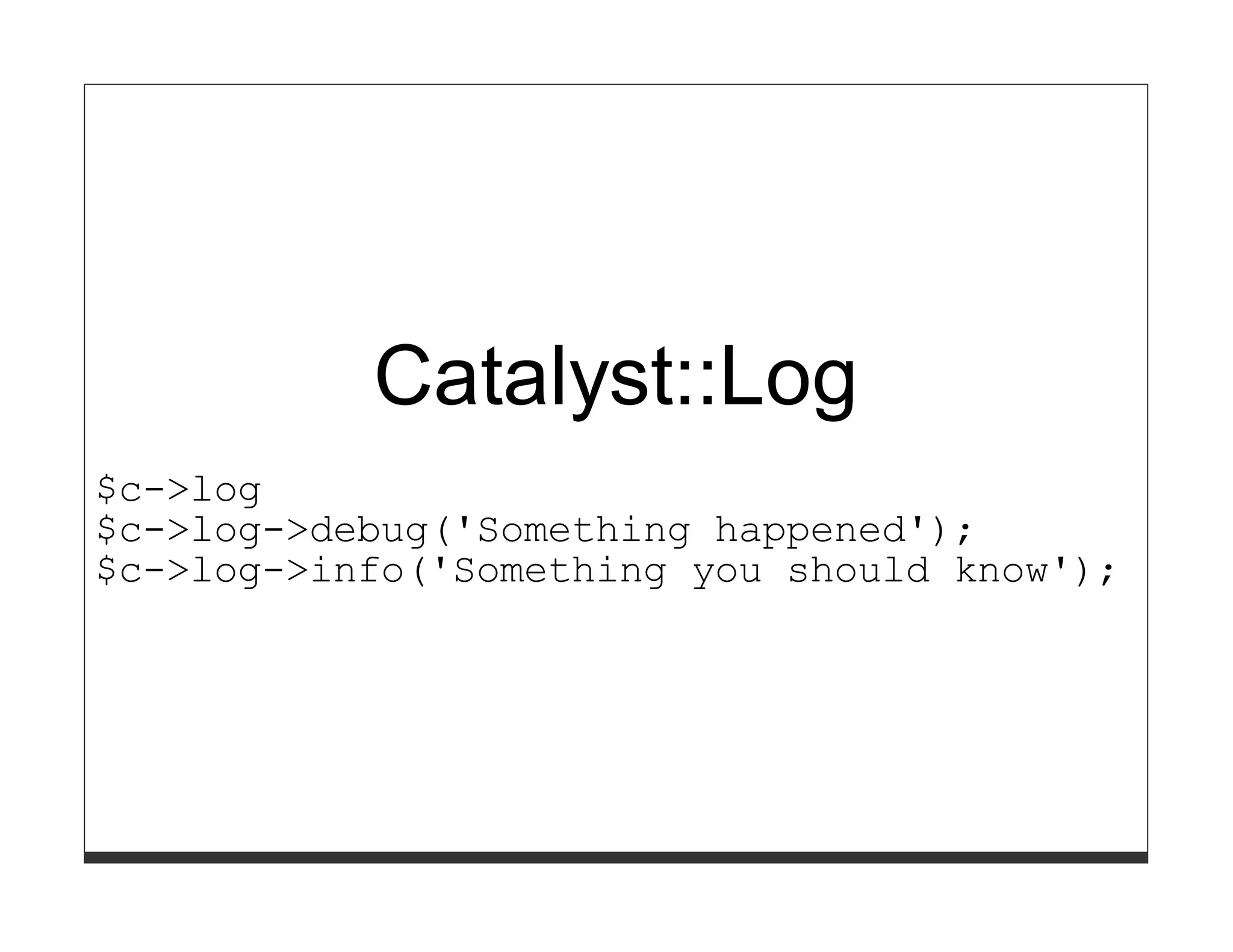

35. Catalyst::Log
$c->log
$c->log->debug('Something happened');
$c->log->info('Something you should know');

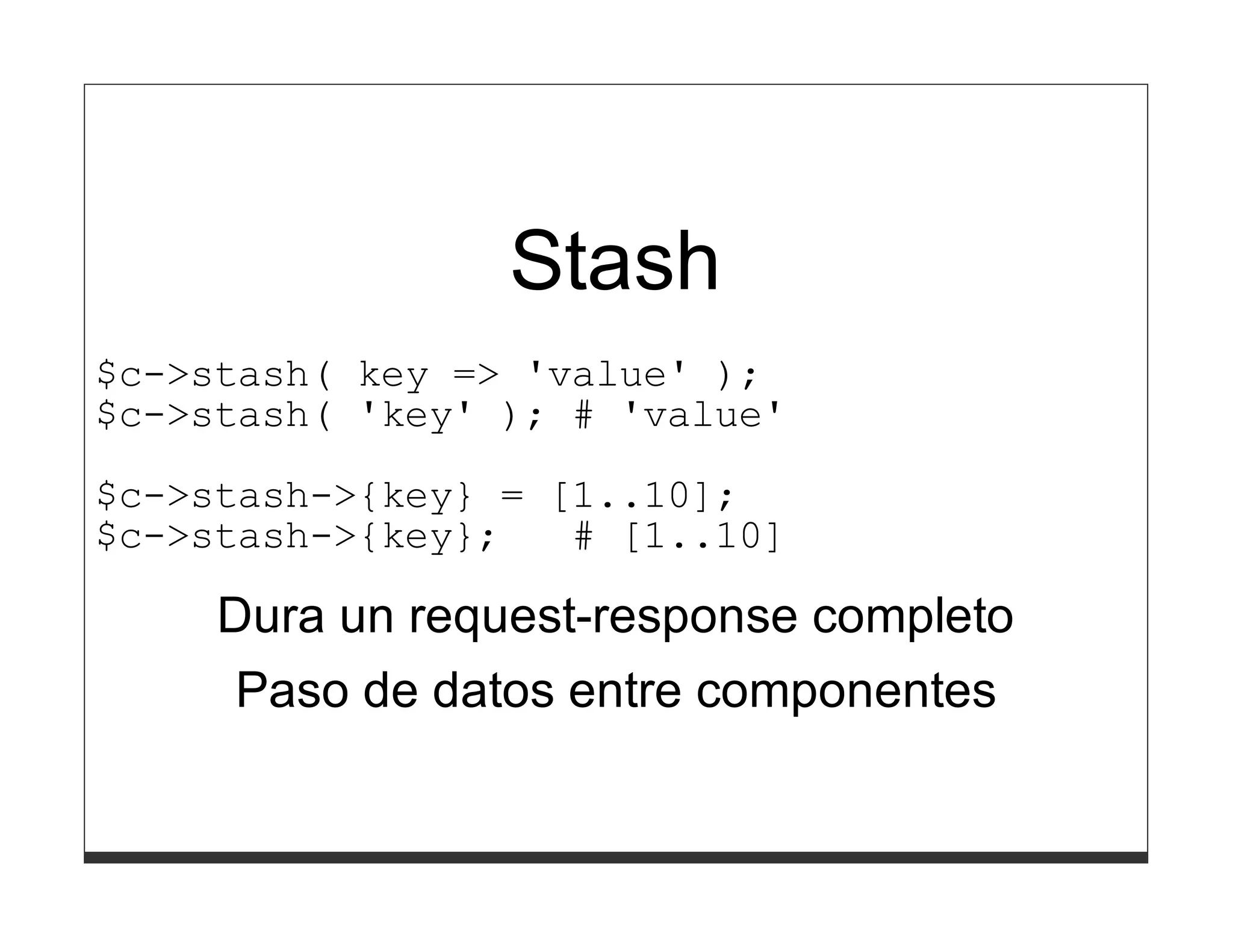

36. Stash
$c->stash( key => 'value' );
$c->stash( 'key' ); # 'value'
$c->stash->{key} = [1..10];
$c->stash->{key}; # [1..10]
Dura un request-response completo
Paso de datos entre componentes

37. Routes
~
Controller actions

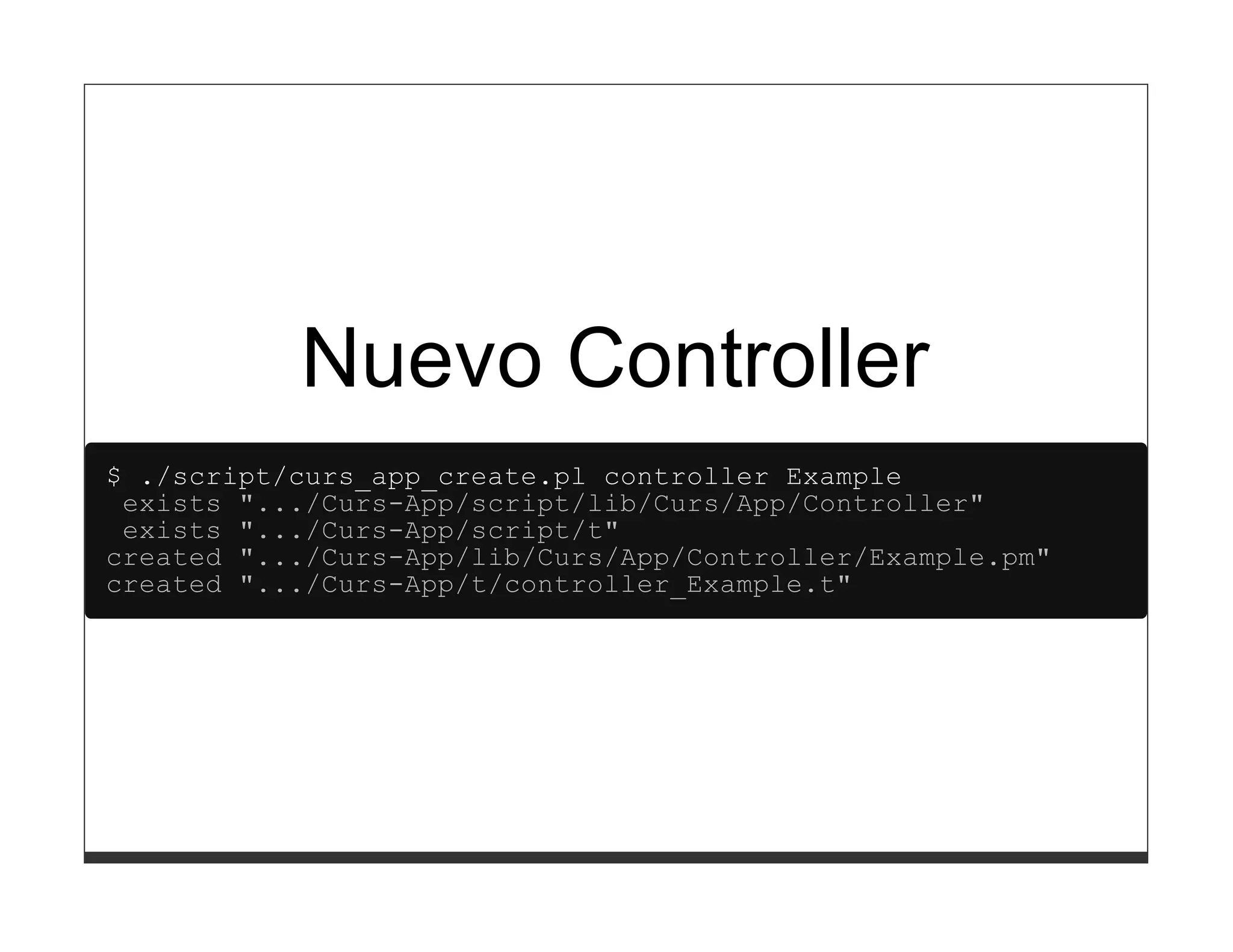

38. Nuevo Controller
$ ./script/curs_app_create.pl controller Example
exists ".../Curs-App/script/lib/Curs/App/Controller"
exists ".../Curs-App/script/t"
created ".../Curs-App/lib/Curs/App/Controller/Example.pm"
created ".../Curs-App/t/controller_Example.t"

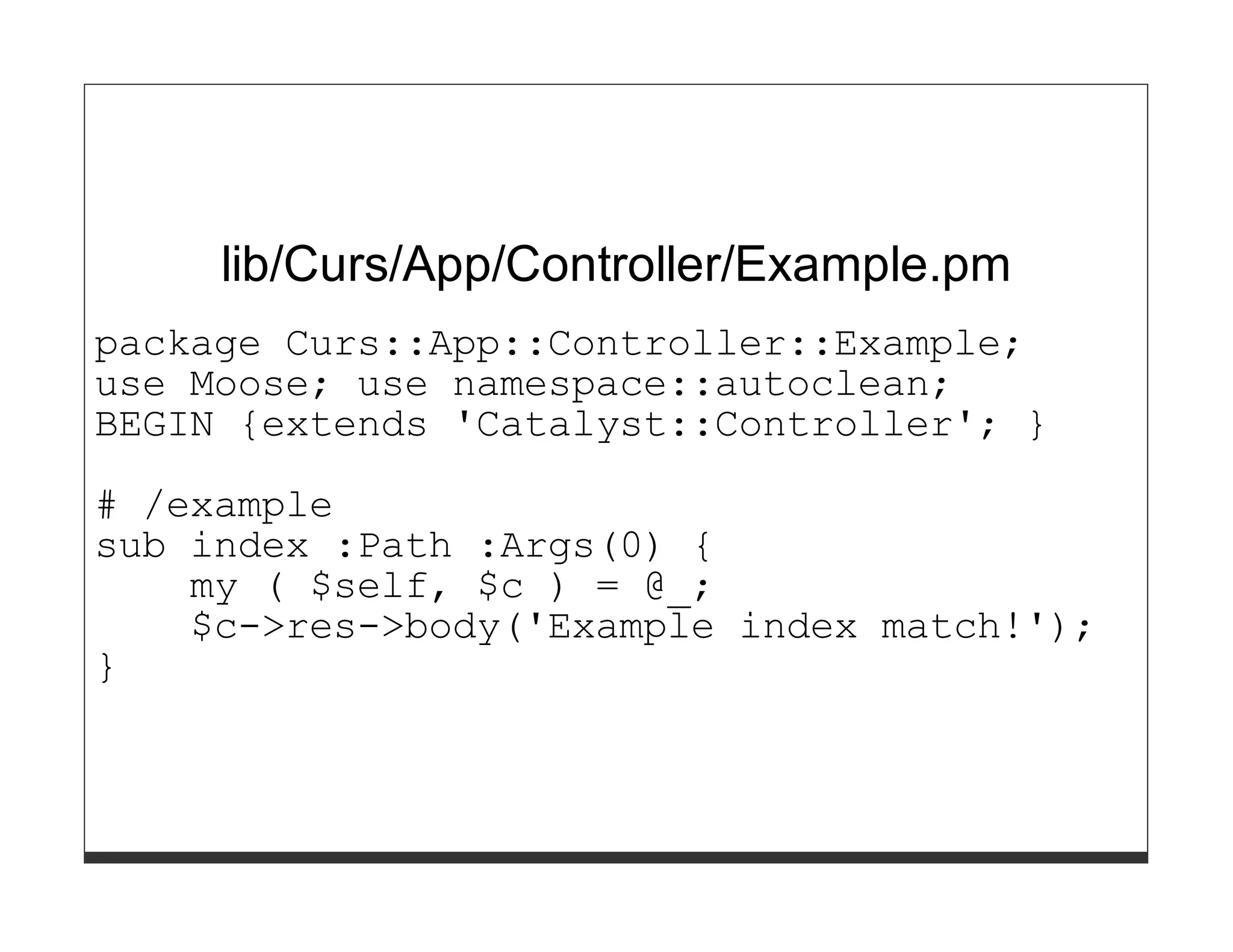

39. lib/Curs/App/Controller/Example.pm
package Curs::App::Controller::Example;
use Moose; use namespace::autoclean;
BEGIN {extends 'Catalyst::Controller'; }
# /example
sub index :Path :Args(0) {
my ( $self, $c ) = @_;
$c->res->body('Example index match!');
}

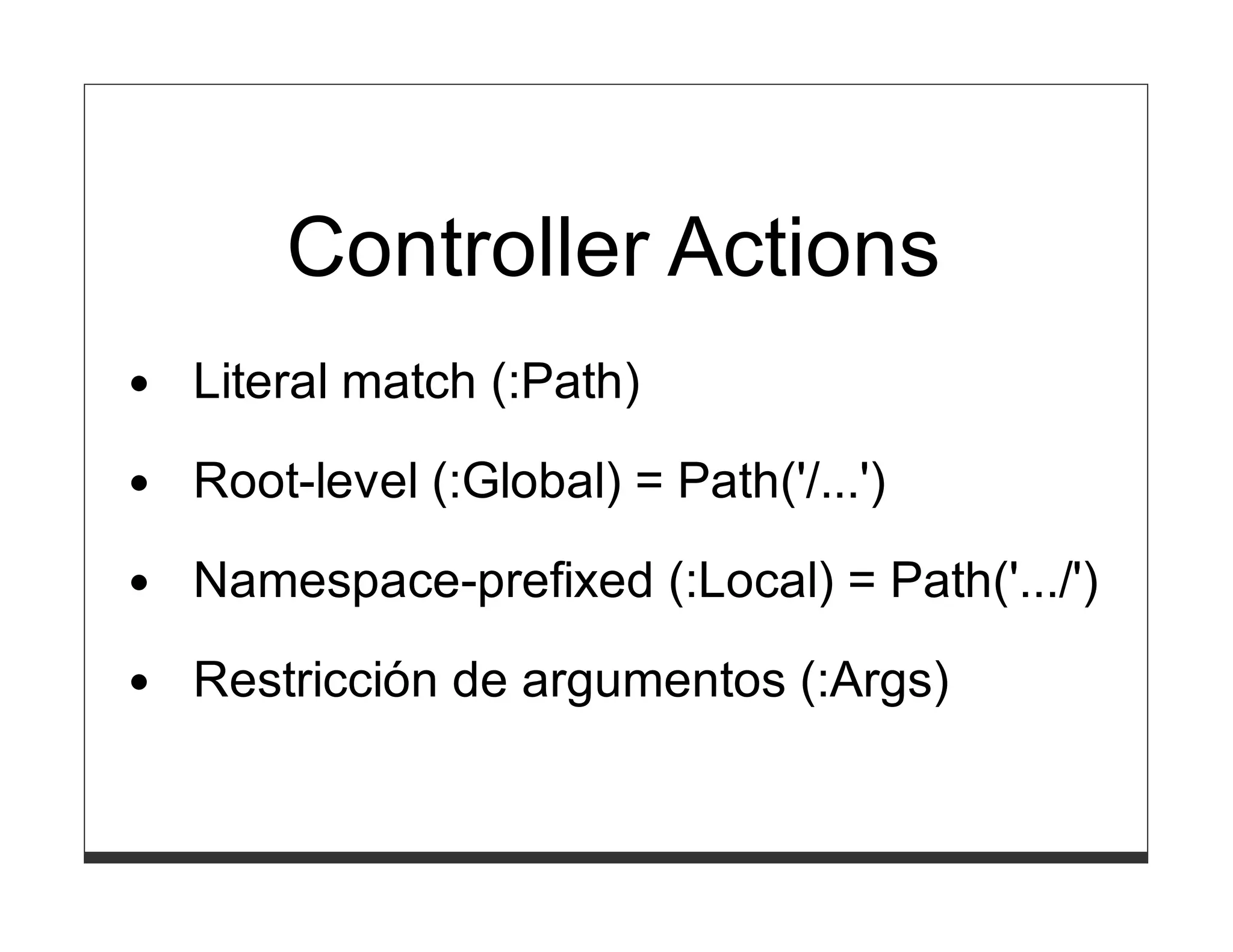

40. Controller Actions
Literal match (:Path)
Root-level (:Global) = Path('/...')
Namespace-prefixed (:Local) = Path('.../')
Restricción de argumentos (:Args)

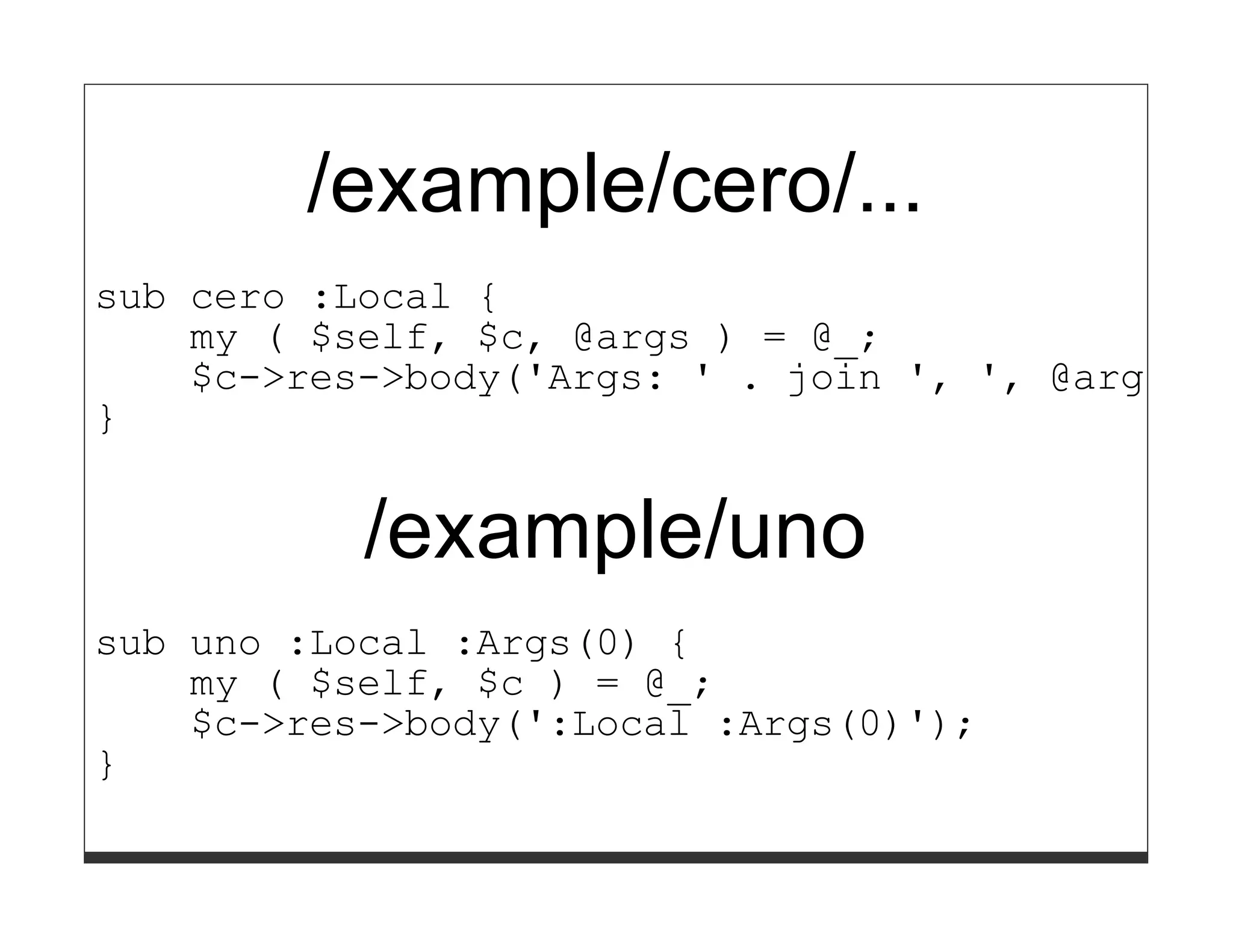

41. /example/cero/...
sub cero :Local {
my ( $self, $c, @args ) = @_;
$c->res->body('Args: ' . join ', ', @args);
}
/example/uno
sub uno :Local :Args(0) {
my ( $self, $c ) = @_;
$c->res->body(':Local :Args(0)');
}

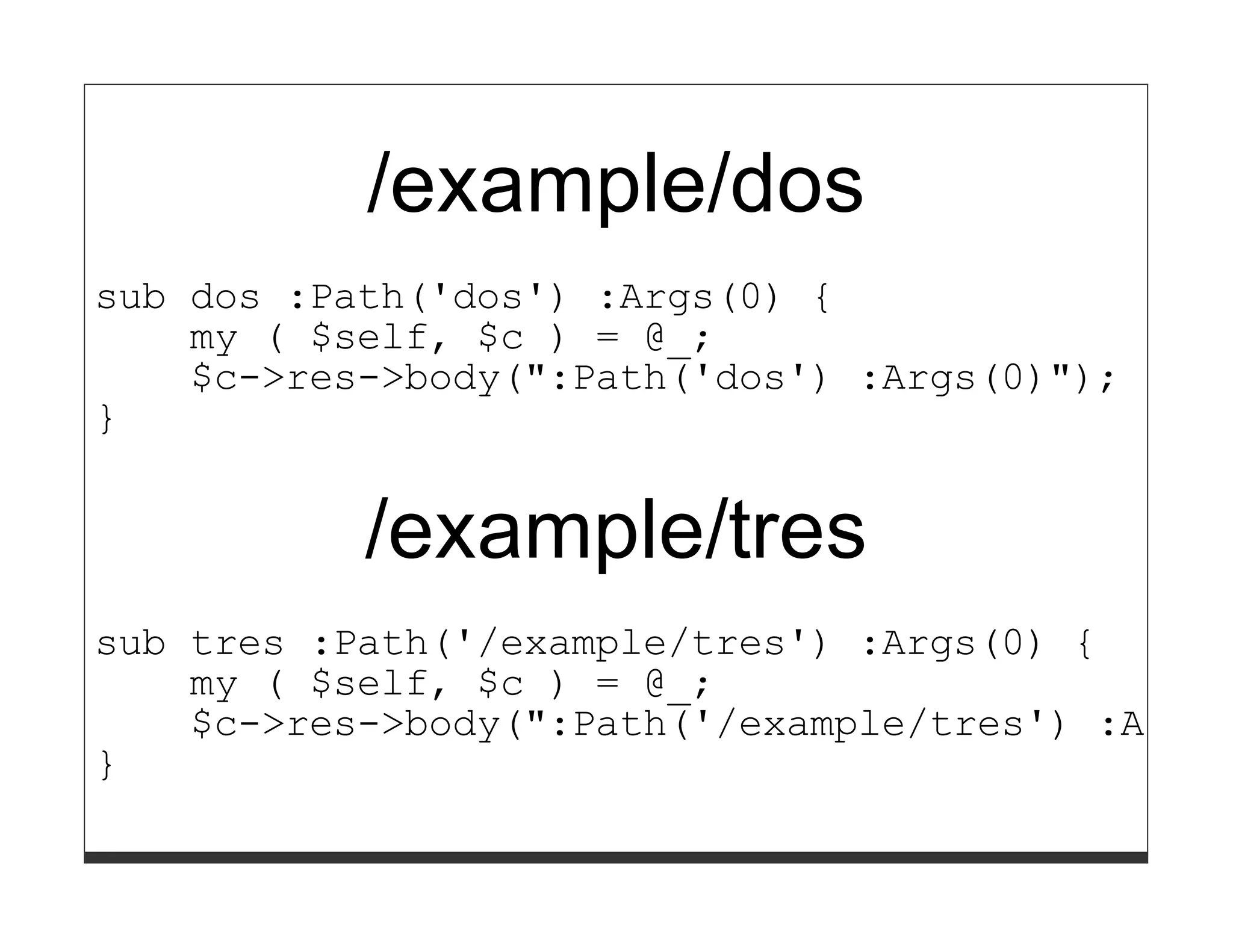

42. /example/dos
sub dos :Path('dos') :Args(0) {
my ( $self, $c ) = @_;
$c->res->body(":Path('dos') :Args(0)");
}
/example/tres
sub tres :Path('/example/tres') :Args(0) {
my ( $self, $c ) = @_;
$c->res->body(":Path('/example/tres') :Args(
}

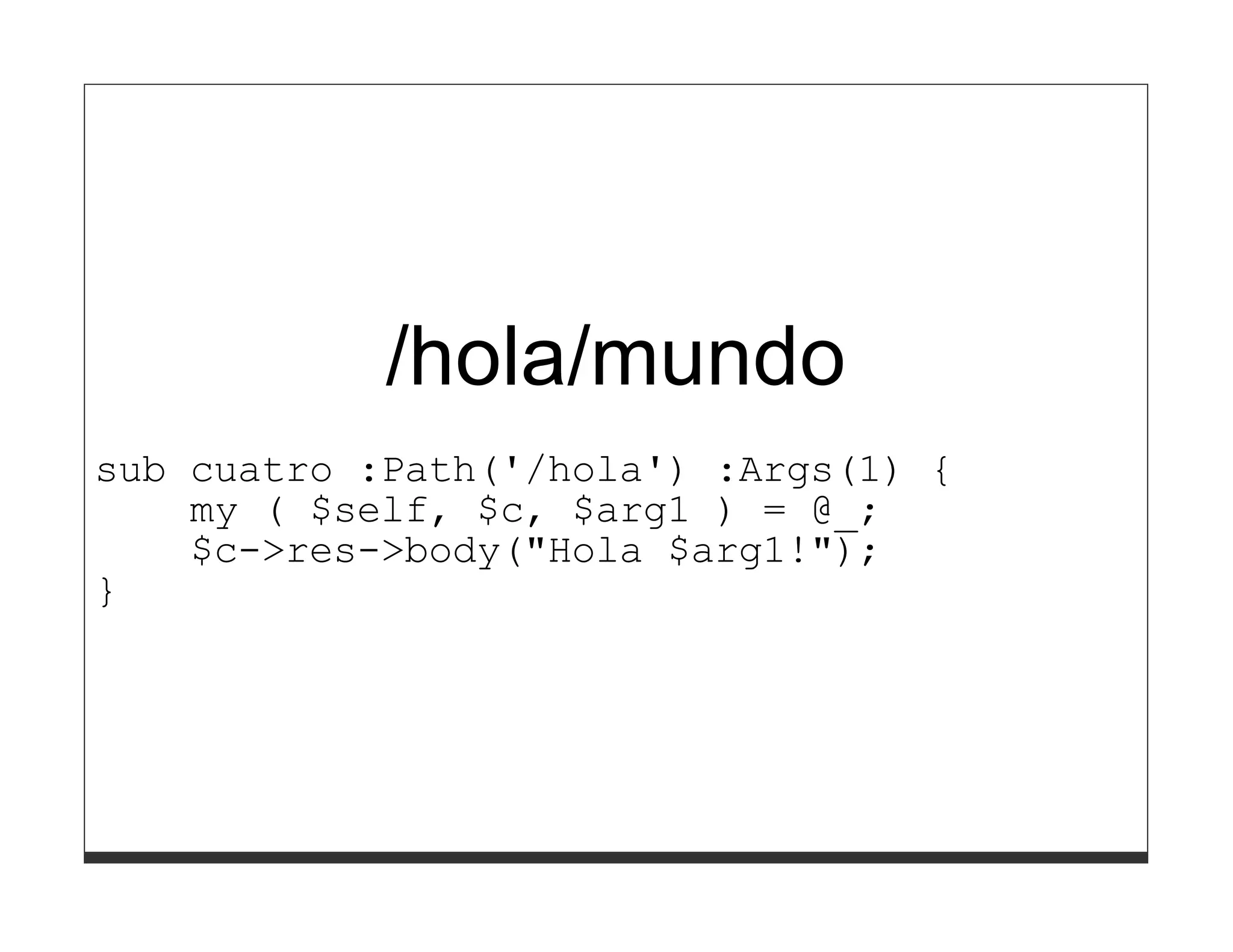

43. /hola/mundo
sub cuatro :Path('/hola') :Args(1) {
my ( $self, $c, $arg1 ) = @_;
$c->res->body("Hola $arg1!");
}

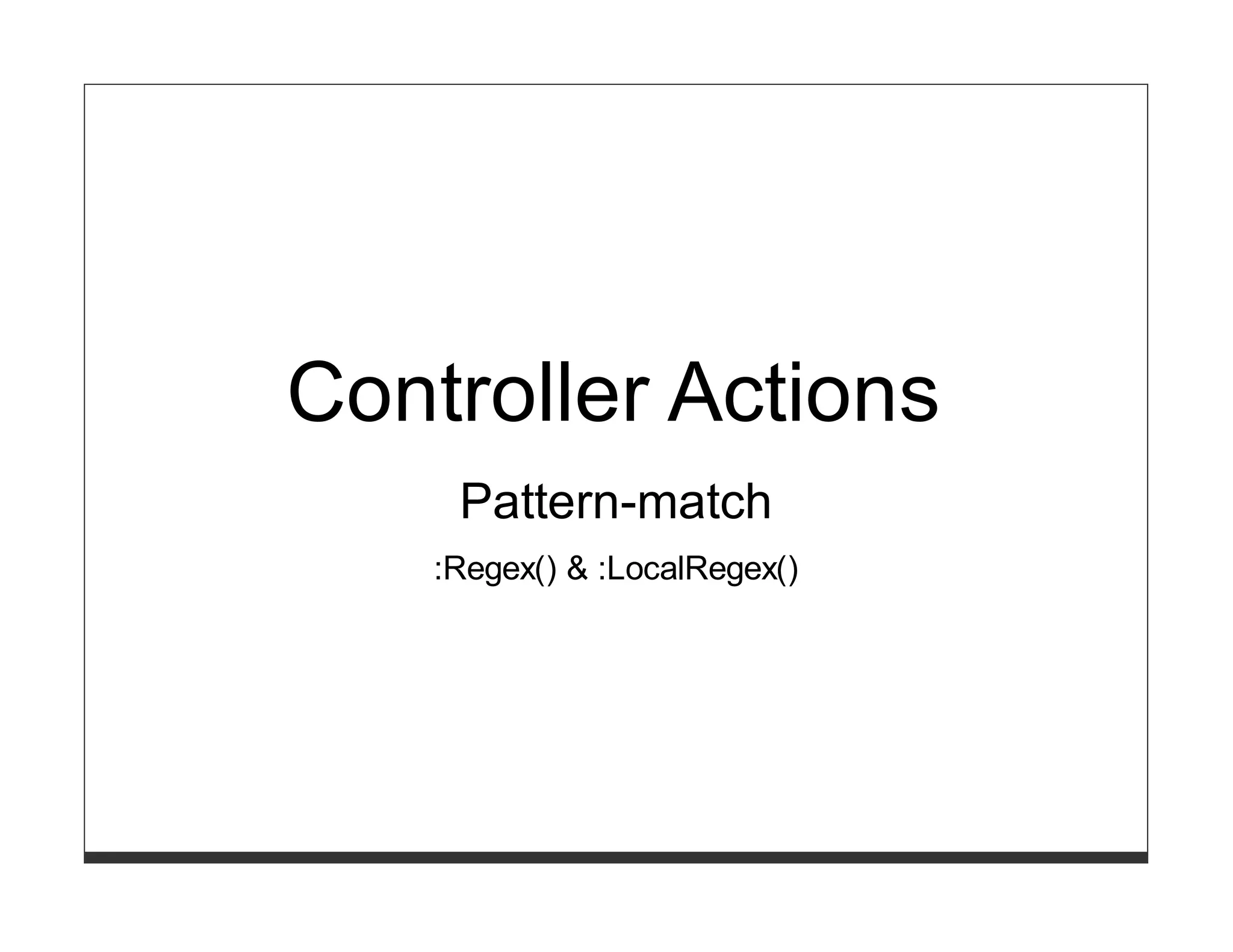

44. Controller Actions
Pattern-match
:Regex() & :LocalRegex()

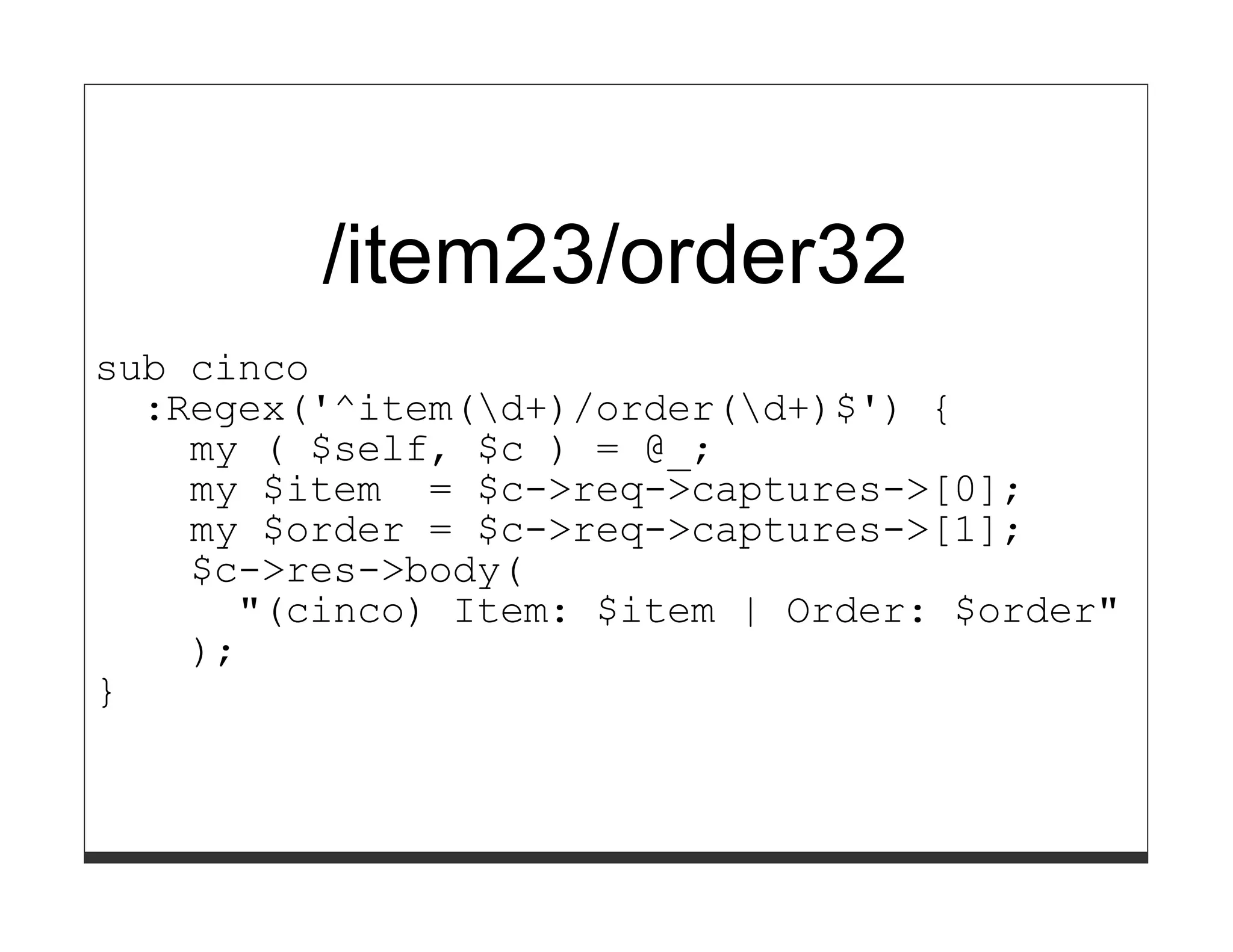

45. /item23/order32
sub cinco
:Regex('^item(d+)/order(d+)$') {
my ( $self, $c ) = @_;
my $item = $c->req->captures->[0];
my $order = $c->req->captures->[1];
$c->res->body(
"(cinco) Item: $item | Order: $order"
);
}

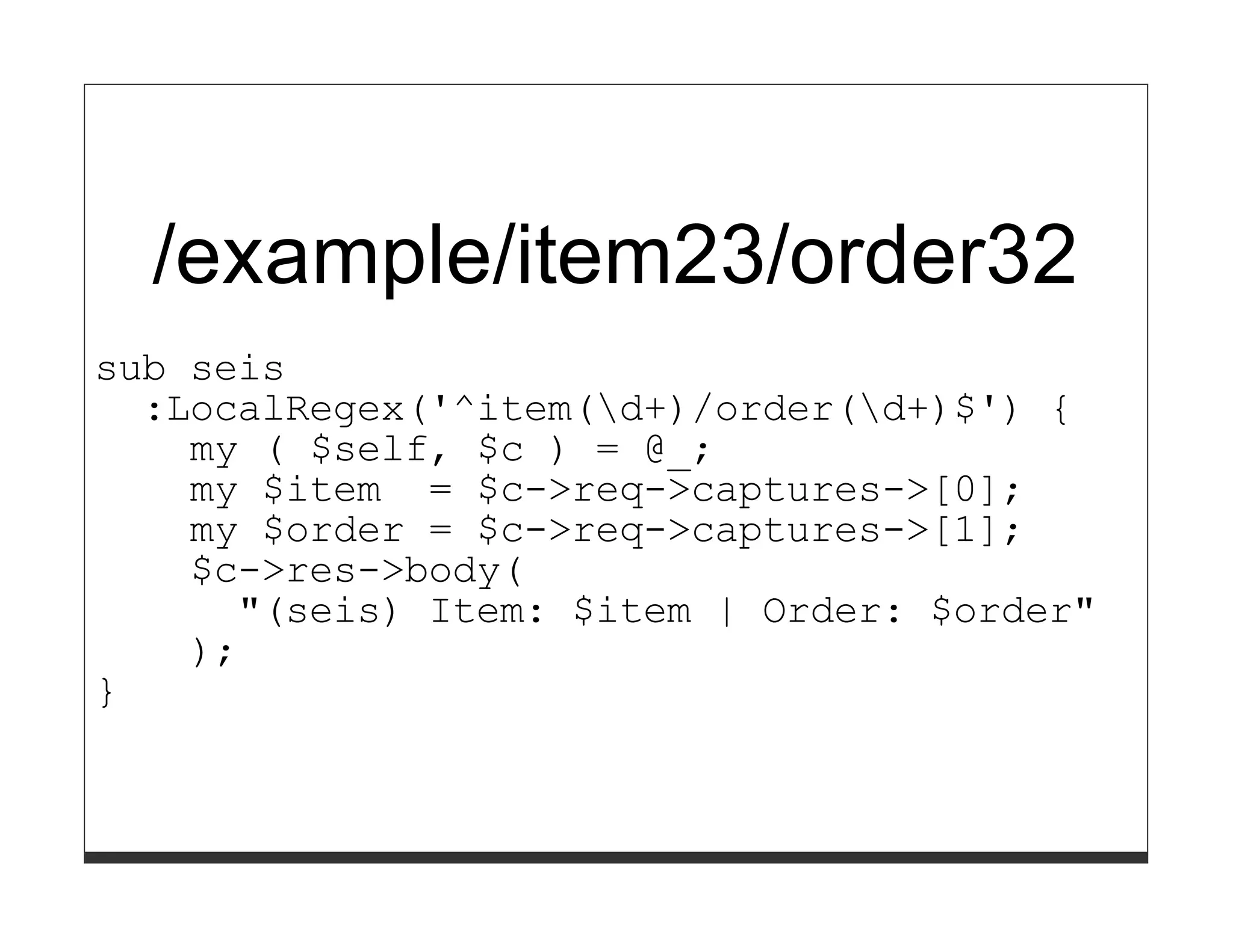

46. /example/item23/order32
sub seis
:LocalRegex('^item(d+)/order(d+)$') {
my ( $self, $c ) = @_;
my $item = $c->req->captures->[0];
my $order = $c->req->captures->[1];
$c->res->body(
"(seis) Item: $item | Order: $order"
);
}

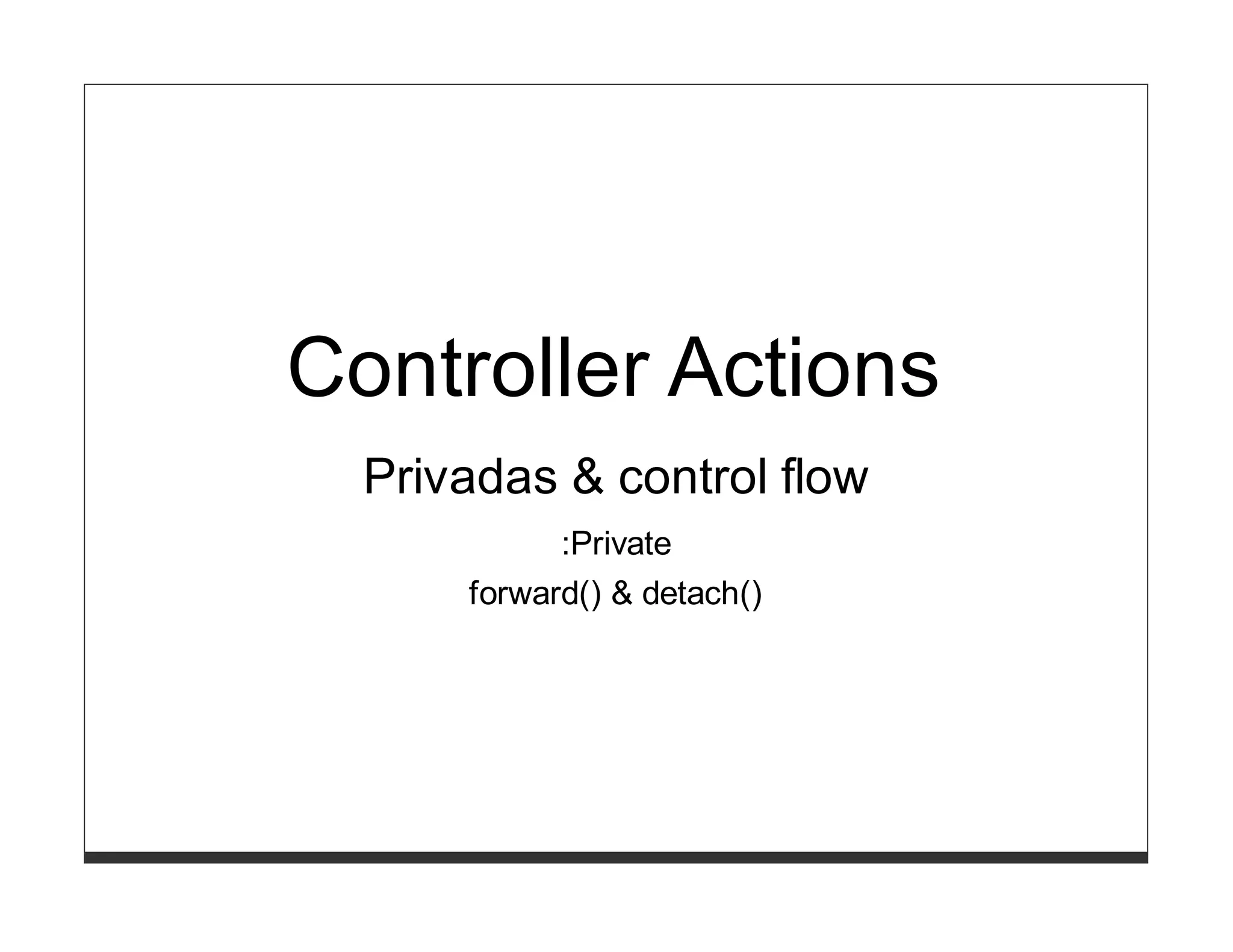

47. Controller Actions
Privadas & control flow
:Private
forward() & detach()

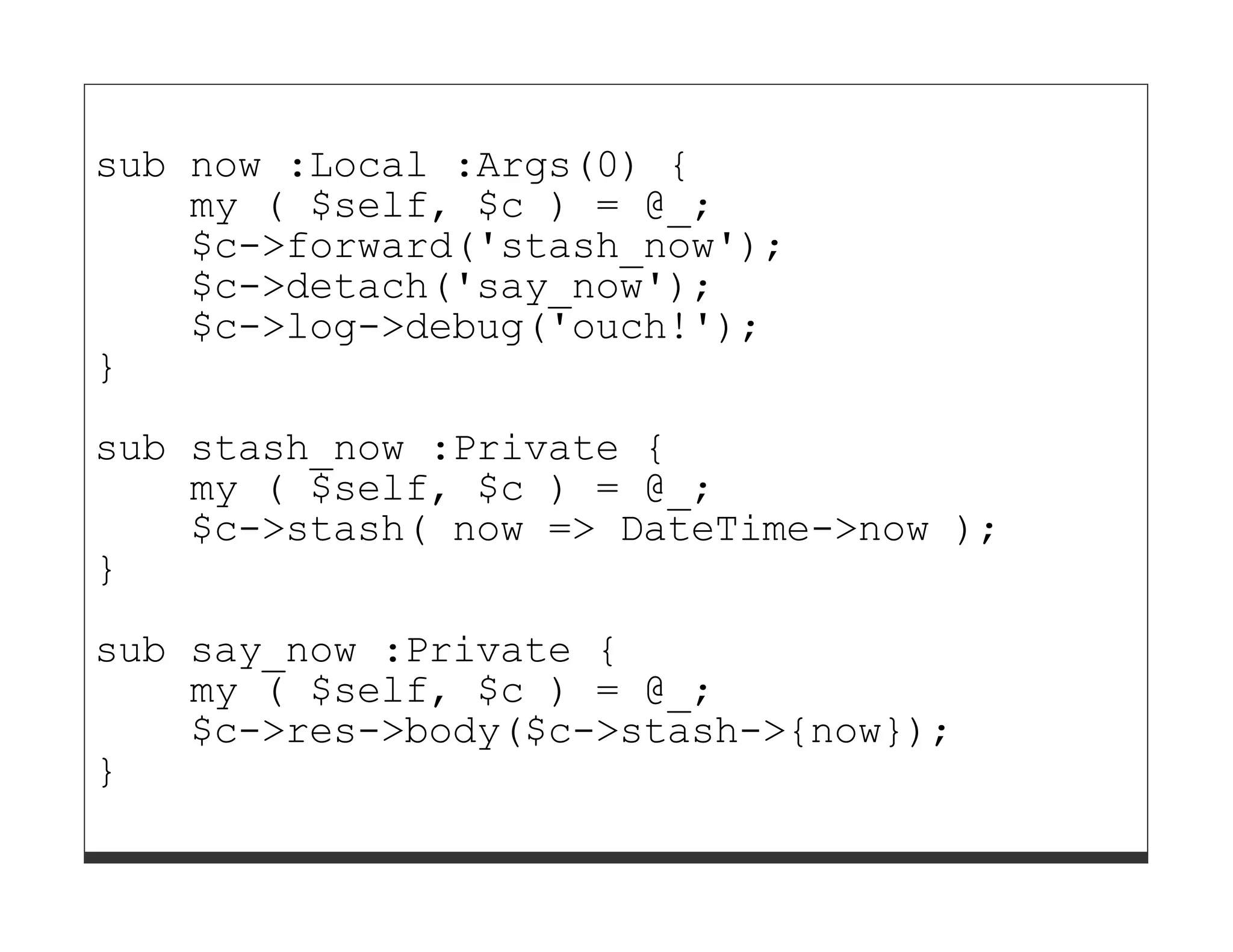

48. sub now :Local :Args(0) {
my ( $self, $c ) = @_;
$c->forward('stash_now');
$c->detach('say_now');
$c->log->debug('ouch!');
}
sub stash_now :Private {
my ( $self, $c ) = @_;
$c->stash( now => DateTime->now );
}
sub say_now :Private {
my ( $self, $c ) = @_;
$c->res->body($c->stash->{now});
}

49. Built-in special actions

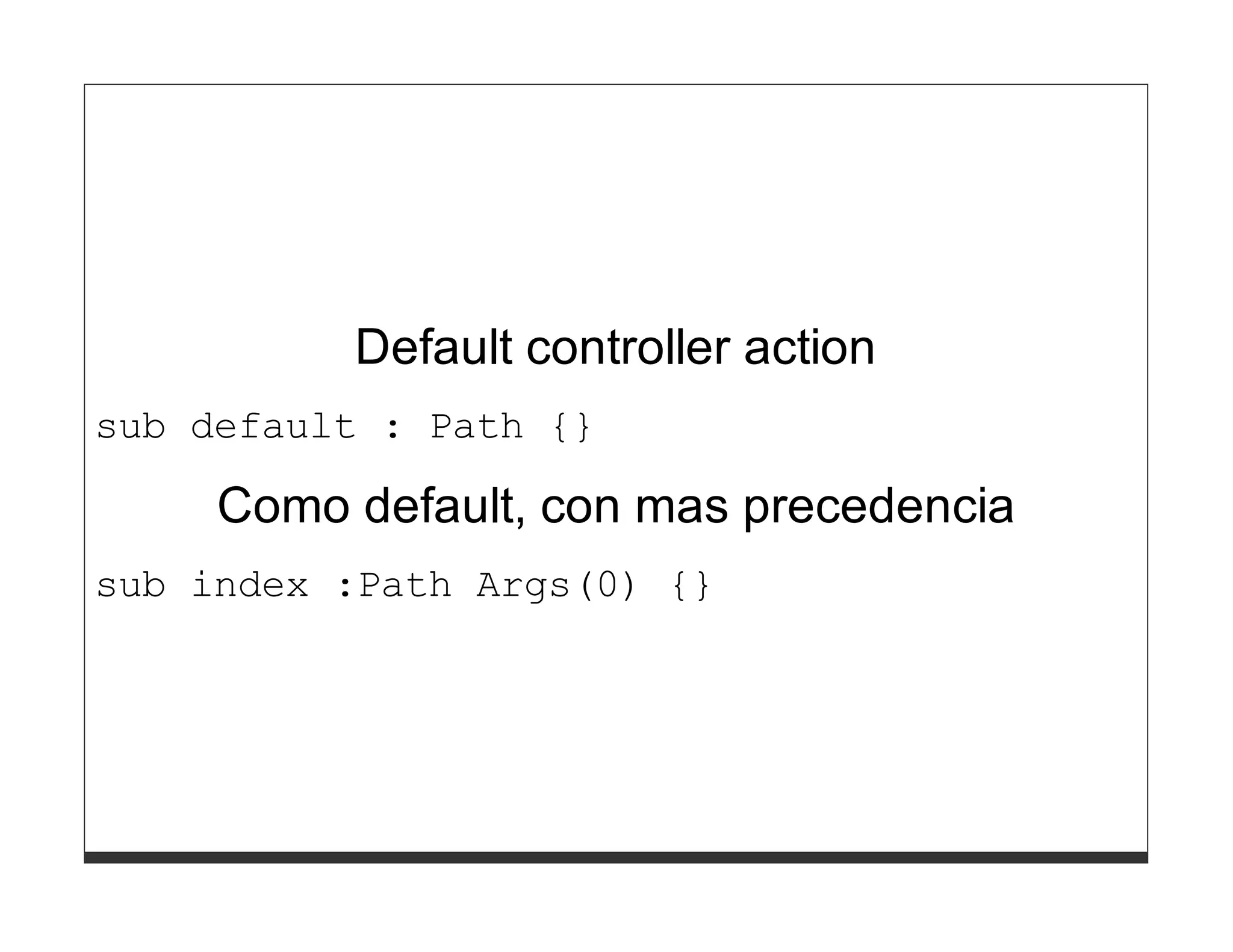

50. Default controller action
sub default : Path {}
Como default, con mas precedencia
sub index :Path Args(0) {}

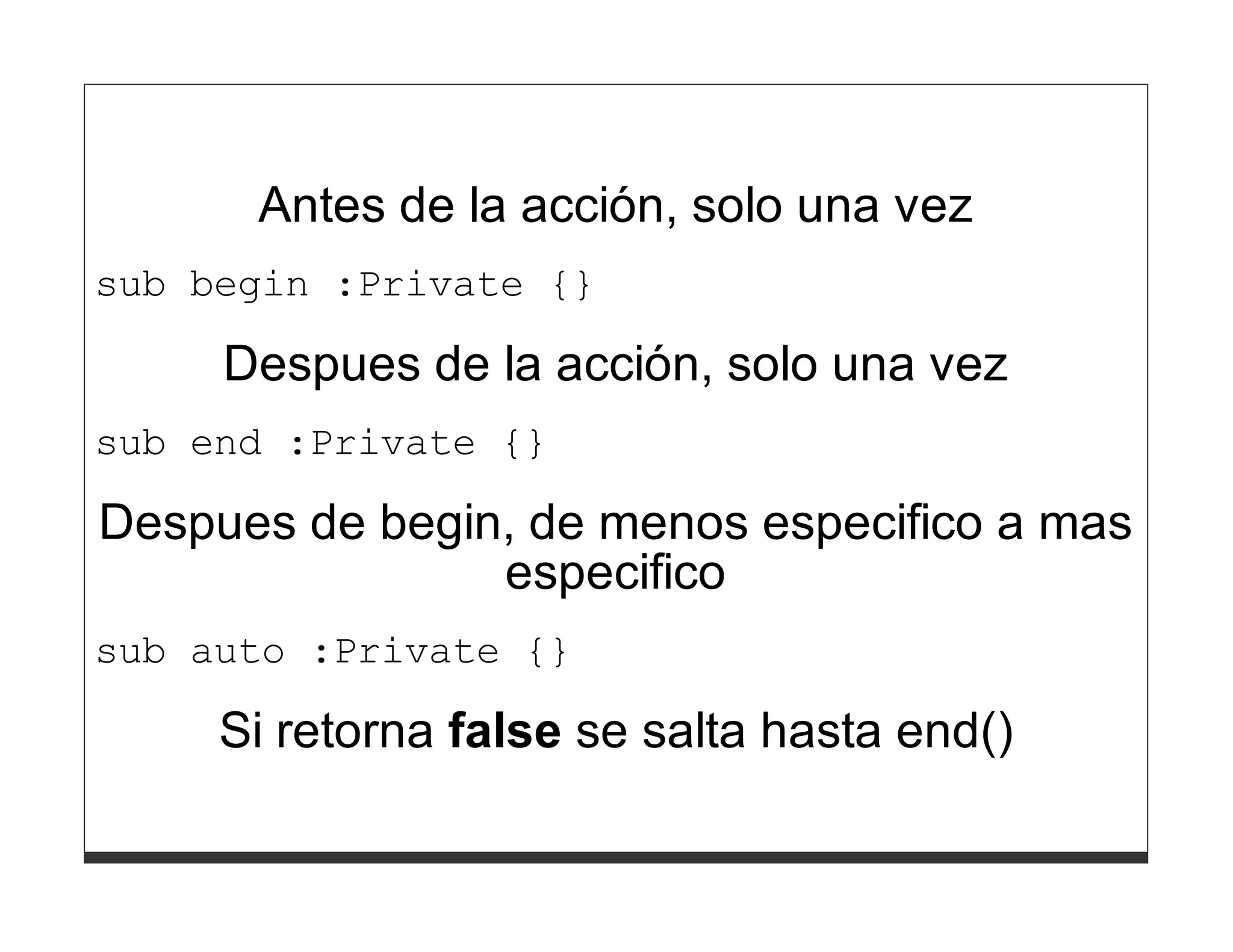

51. Antes de la acción, solo una vez
sub begin :Private {}
Despues de la acción, solo una vez
sub end :Private {}
Despues de begin, de menos especifico a mas
especifico
sub auto :Private {}
Si retorna false se salta hasta end()

52. Chained actions
:Chained

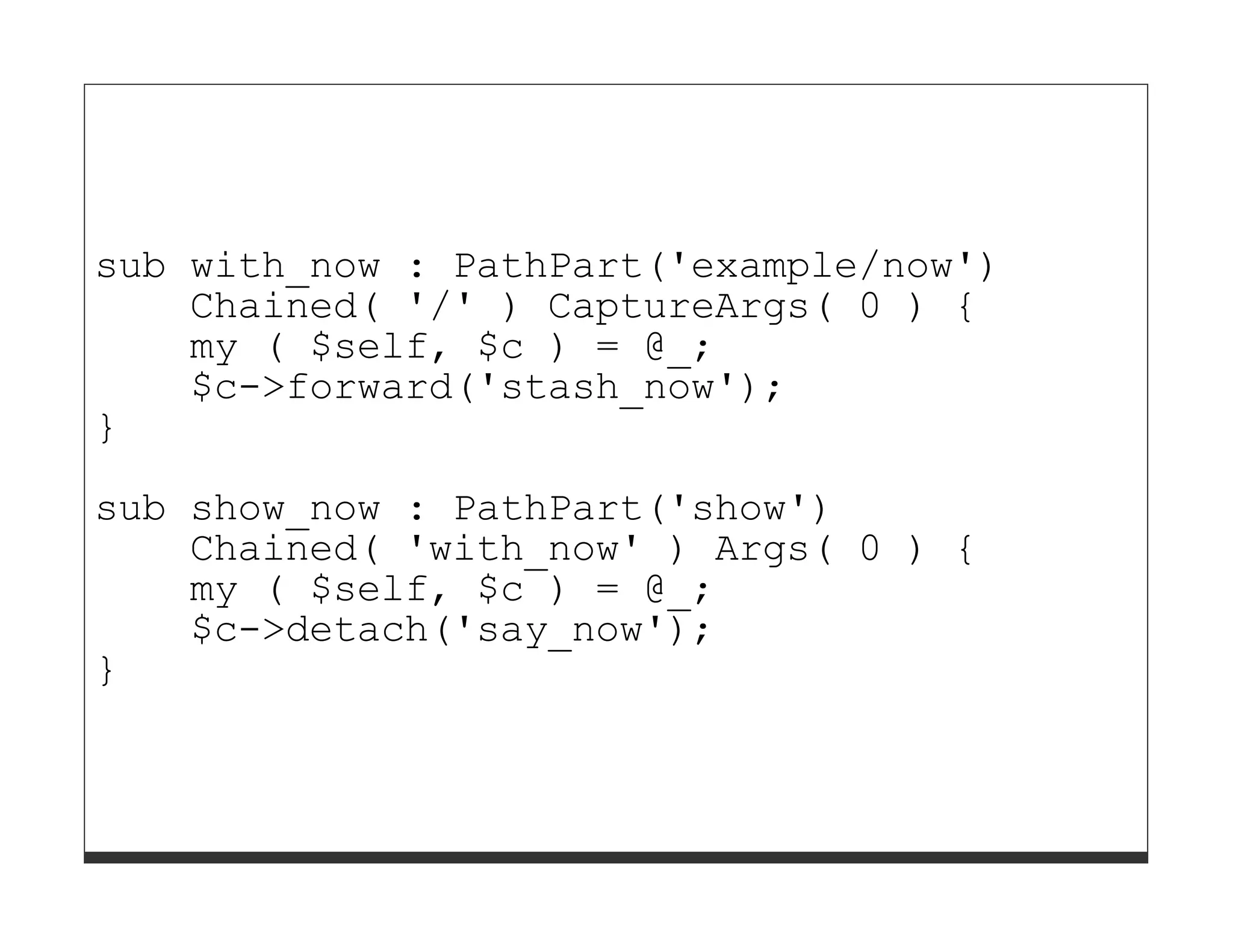

53. sub with_now : PathPart('example/now')
Chained( '/' ) CaptureArgs( 0 ) {
my ( $self, $c ) = @_;
$c->forward('stash_now');
}
sub show_now : PathPart('show')
Chained( 'with_now' ) Args( 0 ) {
my ( $self, $c ) = @_;
$c->detach('say_now');
}

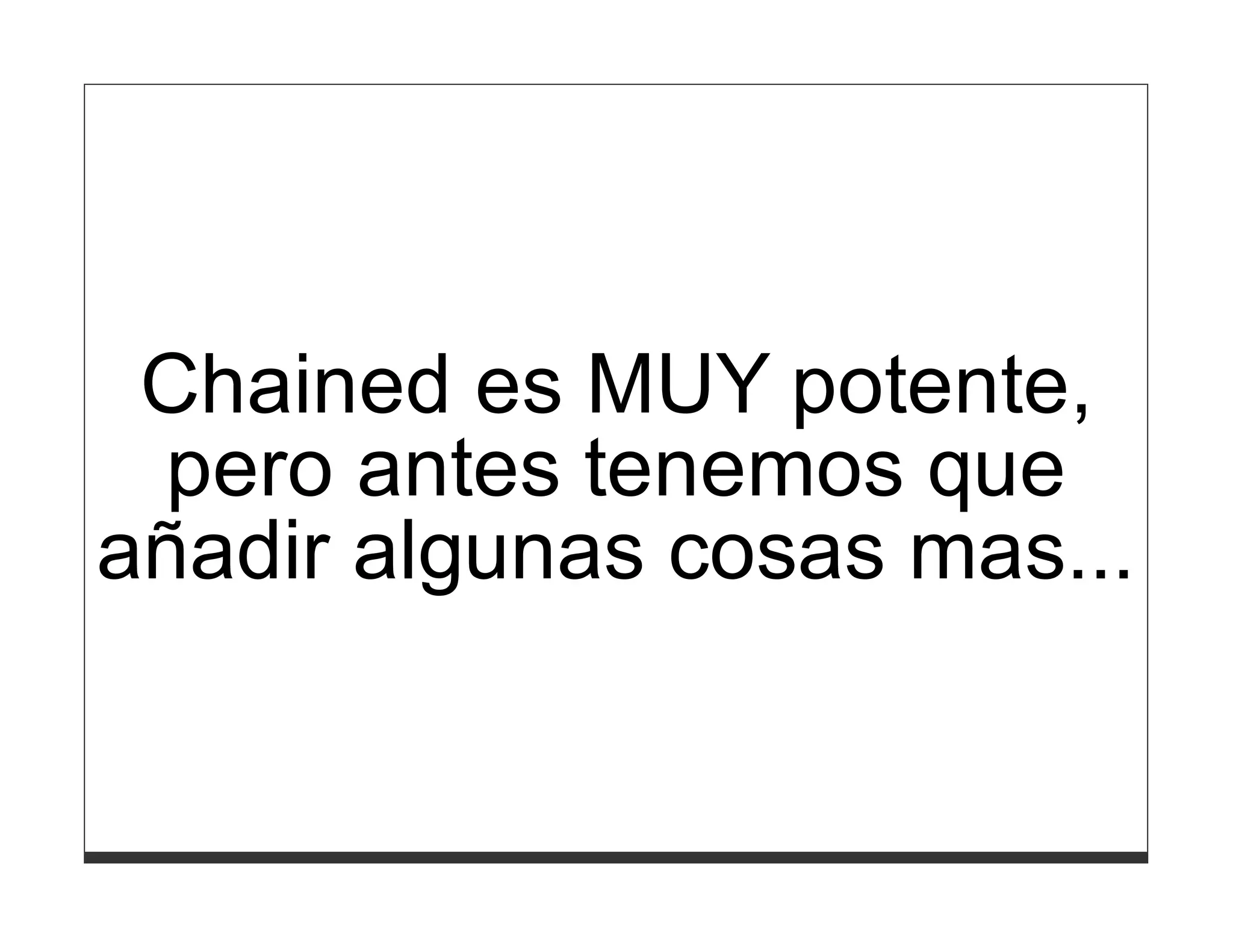

54. Chained es MUY potente,
pero antes tenemos que
añadir algunas cosas mas...

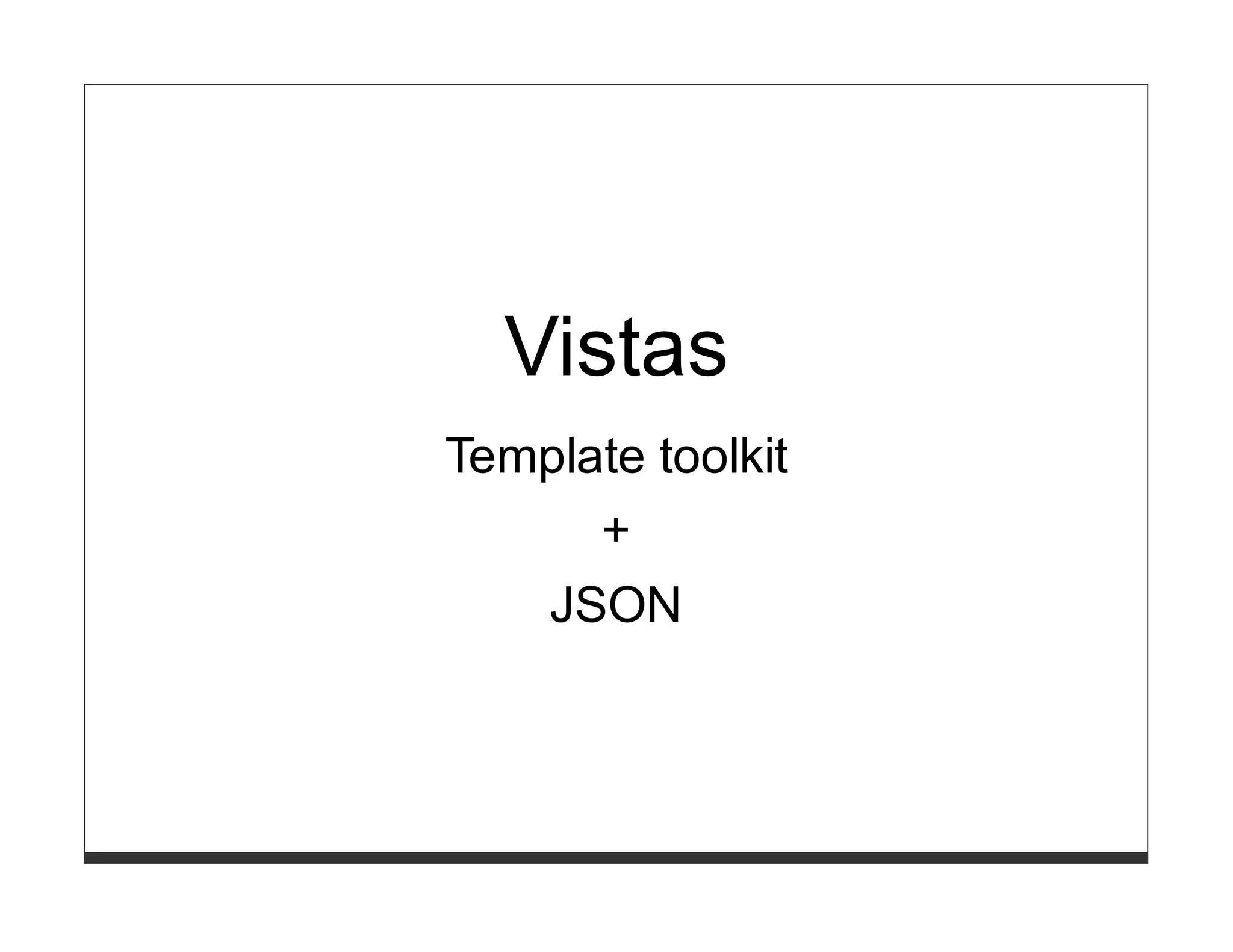

55. Vistas
Template toolkit
+
JSON

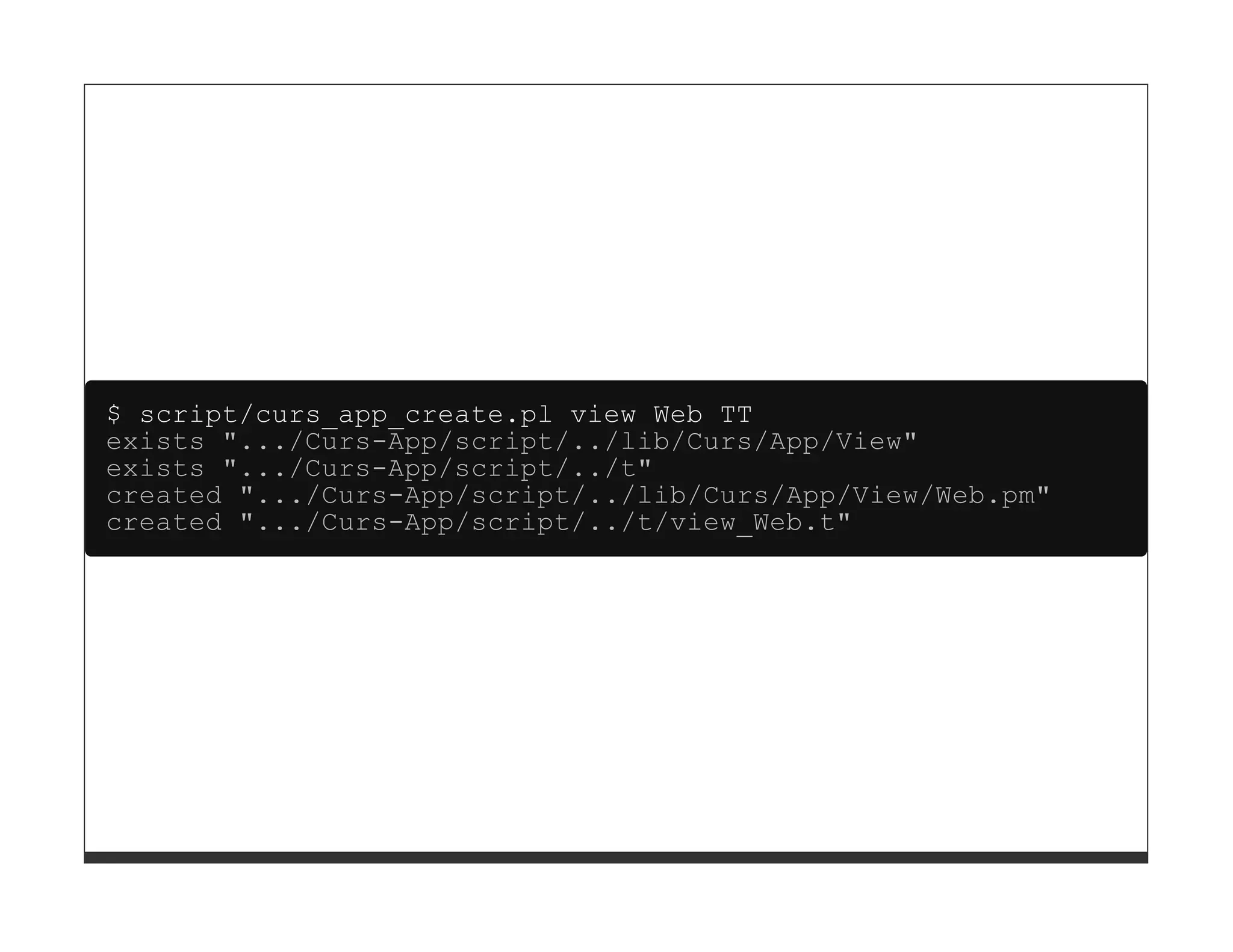

56. $ script/curs_app_create.pl view Web TT
exists ".../Curs-App/script/../lib/Curs/App/View"
exists ".../Curs-App/script/../t"
created ".../Curs-App/script/../lib/Curs/App/View/Web.pm"
created ".../Curs-App/script/../t/view_Web.t"

57. lib/Curs/App/View/Web.pm
Curs::App::View::Web;
use Moose;
extends 'Catalyst::View::TT';
__PACKAGE__->config(
TEMPLATE_EXTENSION => '.tt',
CATALYST_VAR => 'c',
TIMER => 0,
ENCODING => 'utf-8'
WRAPPER => 'layout',
render_die => 1,
);
1;

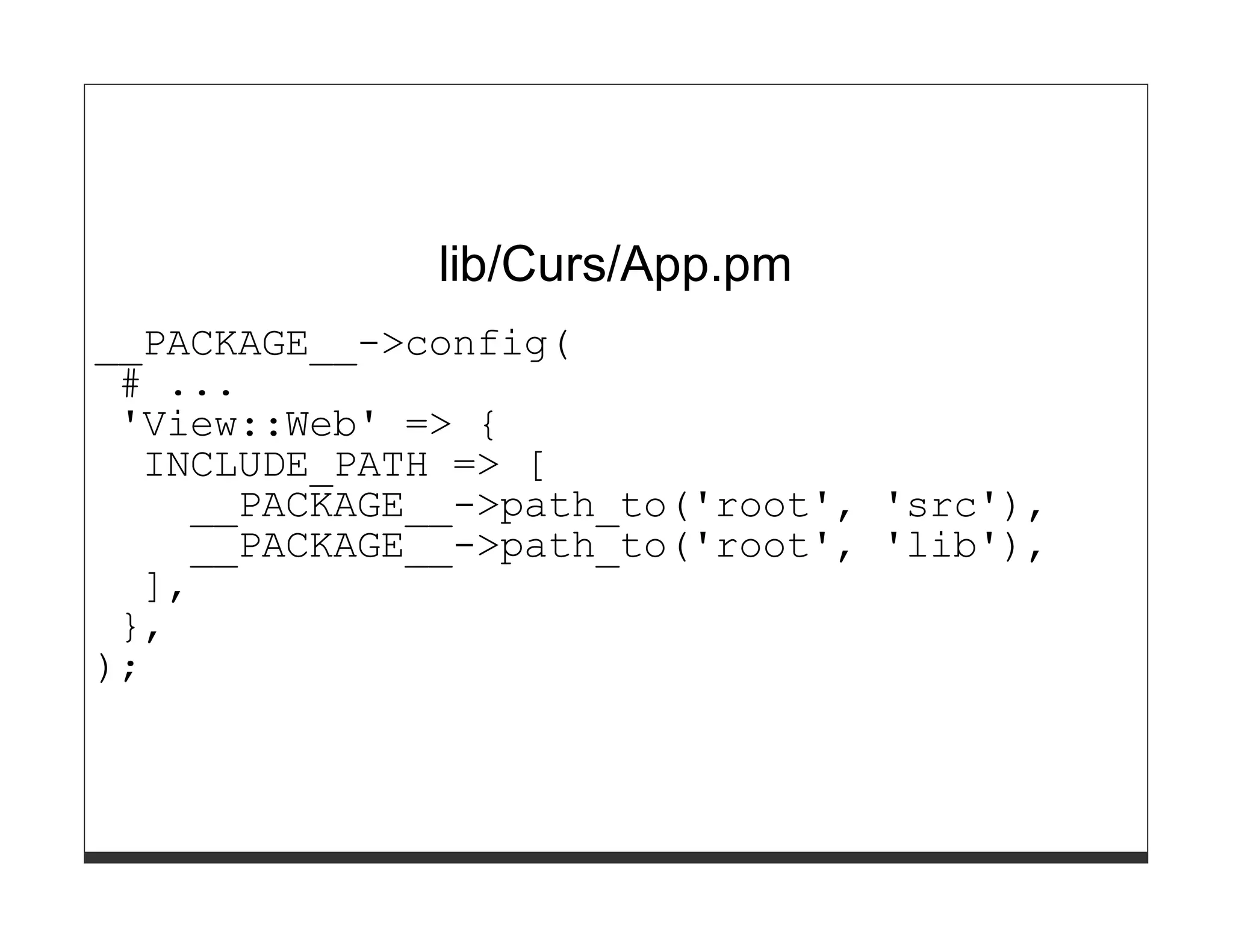

58. lib/Curs/App.pm
__PACKAGE__->config(
# ...
'View::Web' => {
INCLUDE_PATH => [
__PACKAGE__->path_to('root', 'src'),
__PACKAGE__->path_to('root', 'lib'),
],
},
);

59. root/lib/layout
<!DOCTYPE HTML>
<html lang="en-us">
<head>
<meta http-equiv="Content-type" content="text/
<title>Curs avançat de Perl 2012</title>
<link rel="stylesheet" href="/css/style.css" t
</head>
<body>
[% content %]
</body>
</html>

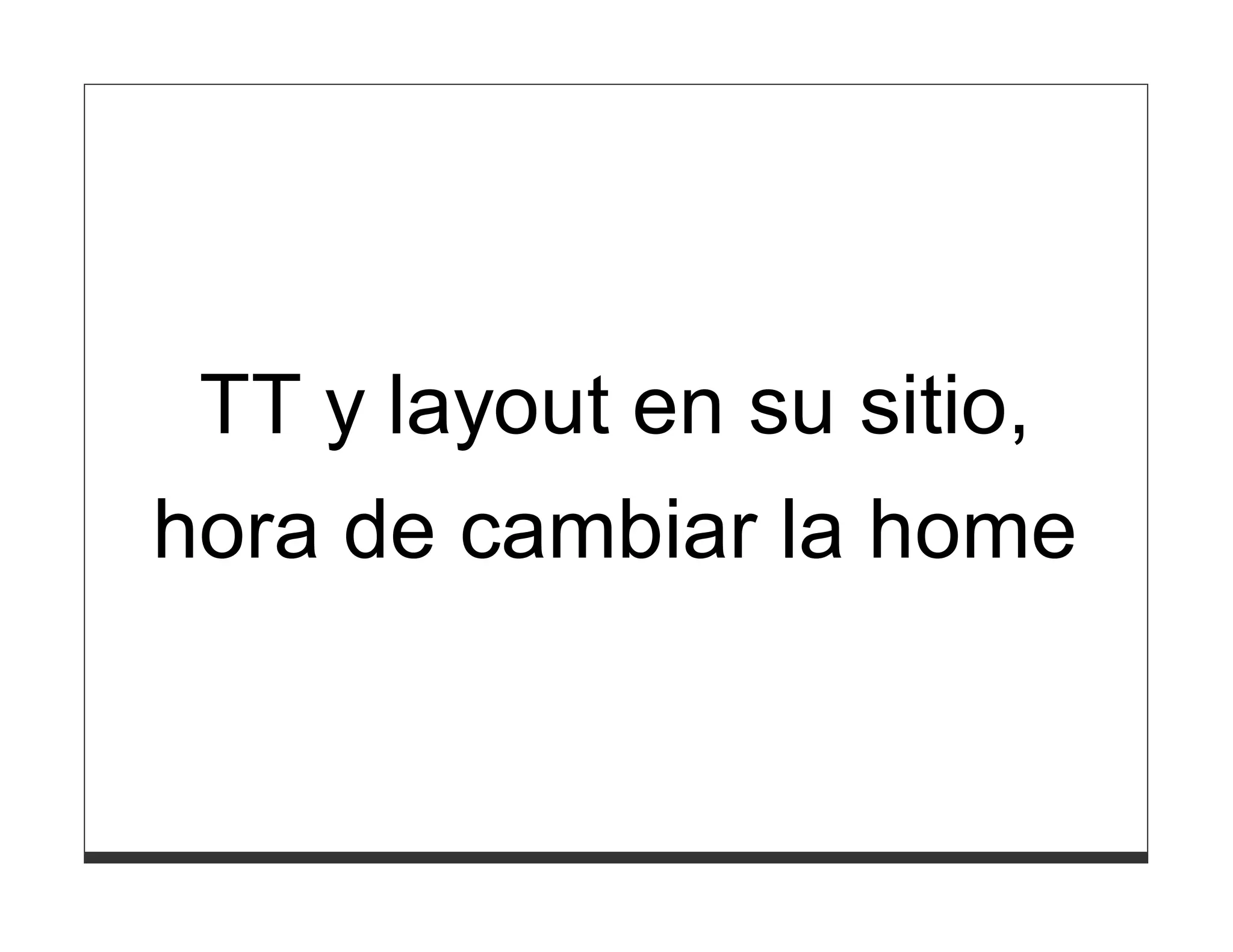

60. TT y layout en su sitio,
hora de cambiar la home

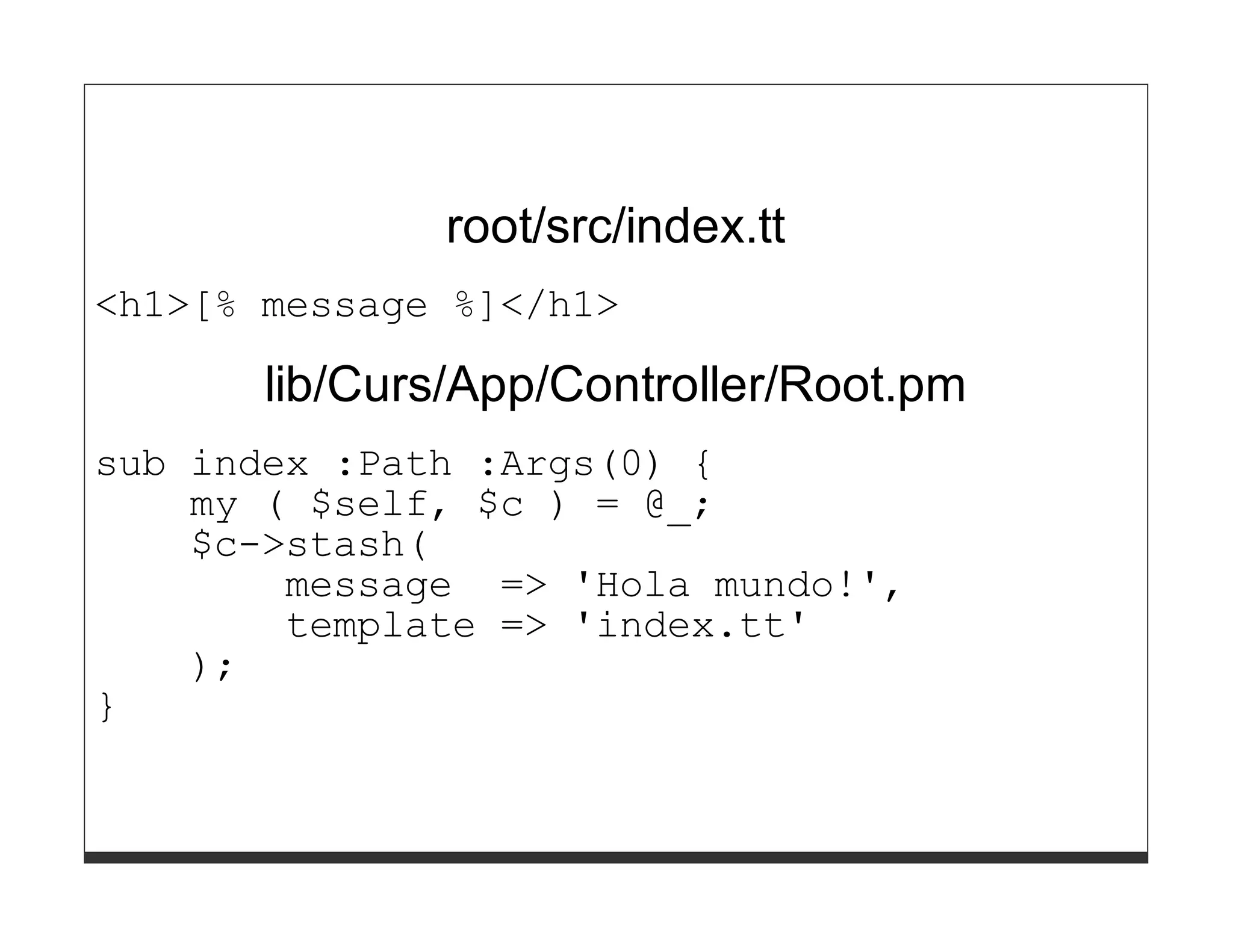

61. root/src/index.tt
<h1>[% message %]</h1>
lib/Curs/App/Controller/Root.pm
sub index :Path :Args(0) {
my ( $self, $c ) = @_;
$c->stash(
message => 'Hola mundo!',
template => 'index.tt'
);
}

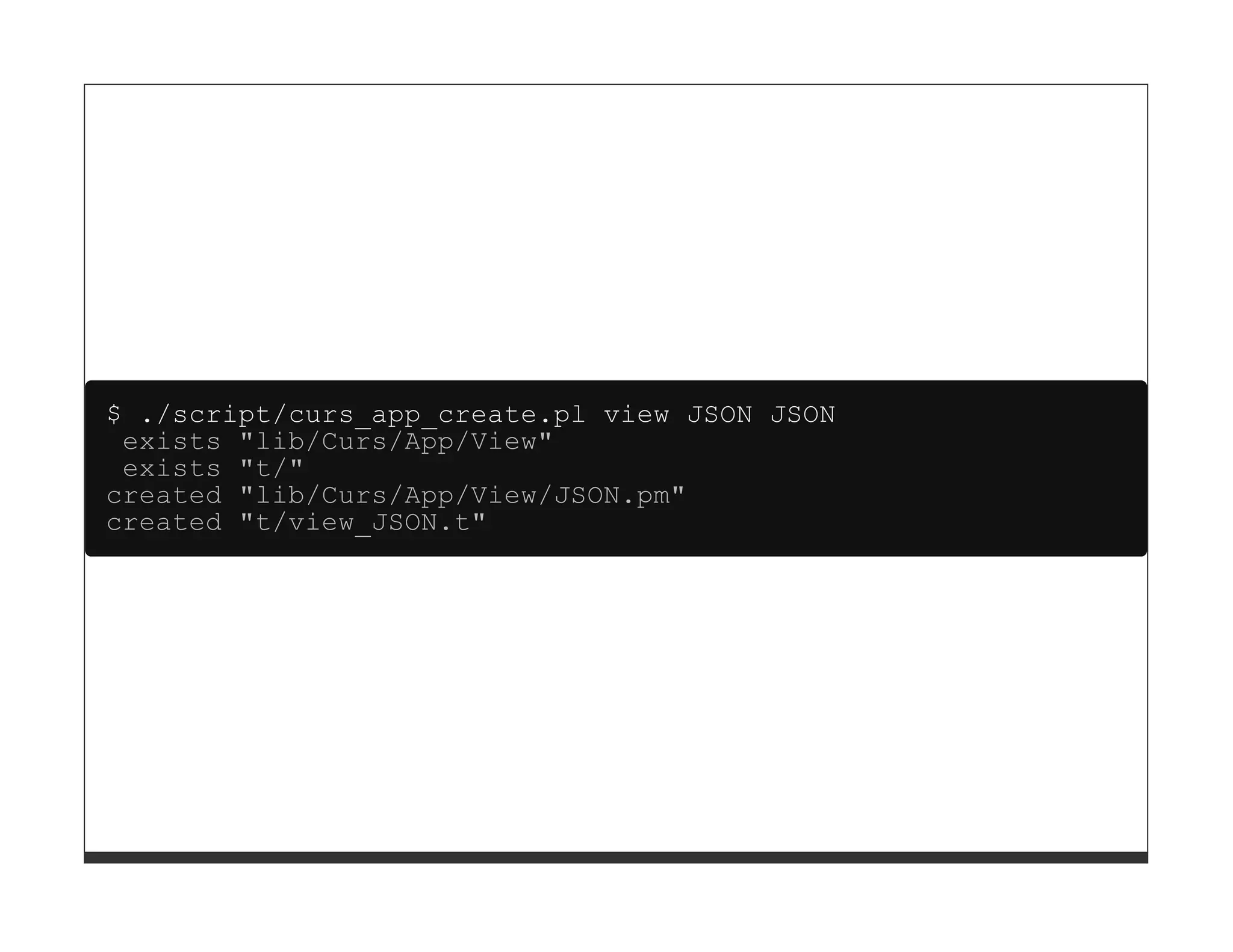

63. $ ./script/curs_app_create.pl view JSON JSON
exists "lib/Curs/App/View"
exists "t/"
created "lib/Curs/App/View/JSON.pm"
created "t/view_JSON.t"

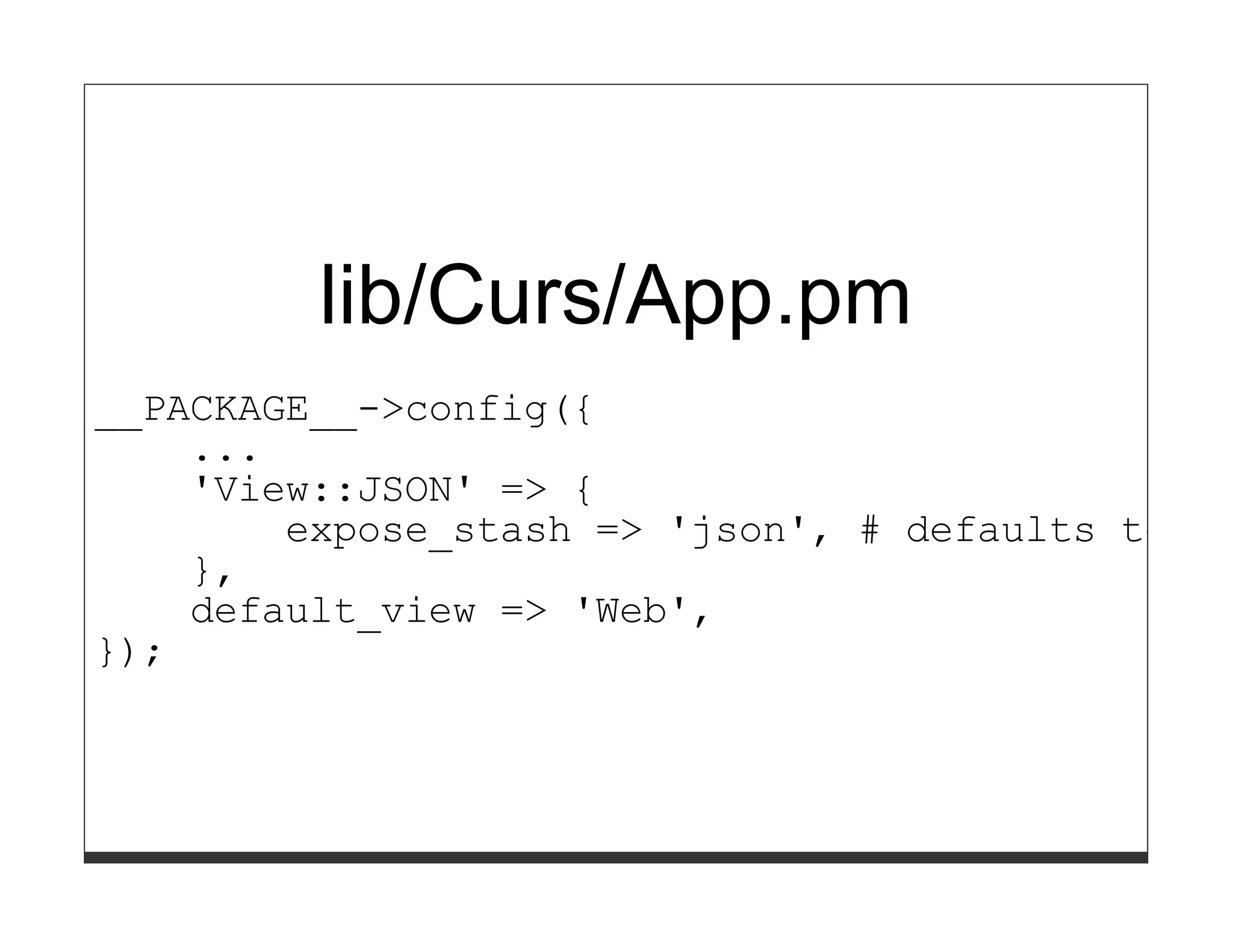

64. lib/Curs/App.pm
__PACKAGE__->config({
...
'View::JSON' => {
expose_stash => 'json', # defaults to ev
},
default_view => 'Web',
});

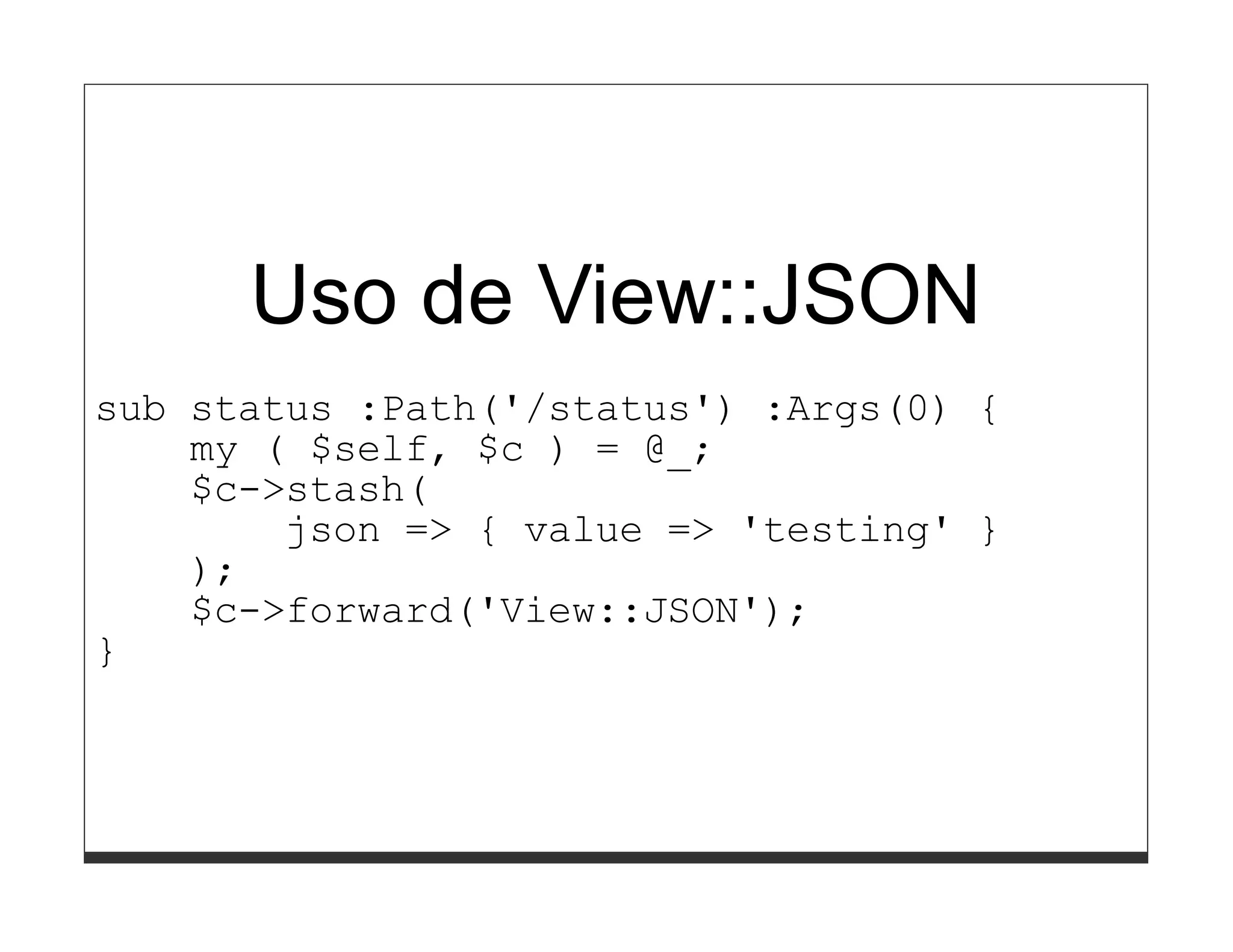

65. Uso de View::JSON
sub status :Path('/status') :Args(0) {
my ( $self, $c ) = @_;
$c->stash(
json => { value => 'testing' }
);
$c->forward('View::JSON');
}

66. Modelo
DBIC

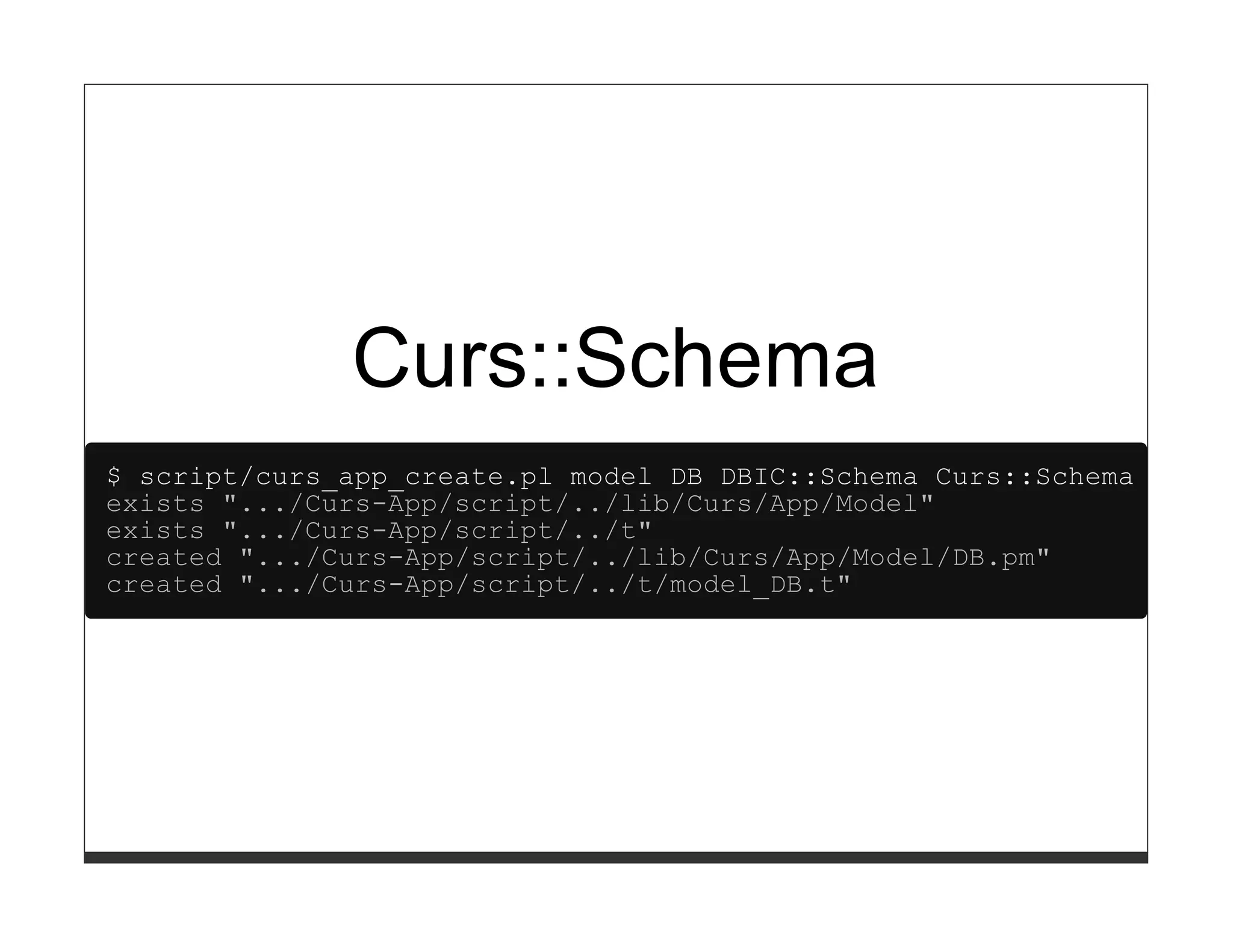

67. Curs::Schema
$ script/curs_app_create.pl model DB DBIC::Schema Curs::Schema
exists ".../Curs-App/script/../lib/Curs/App/Model"
exists ".../Curs-App/script/../t"
created ".../Curs-App/script/../lib/Curs/App/Model/DB.pm"
created ".../Curs-App/script/../t/model_DB.t"

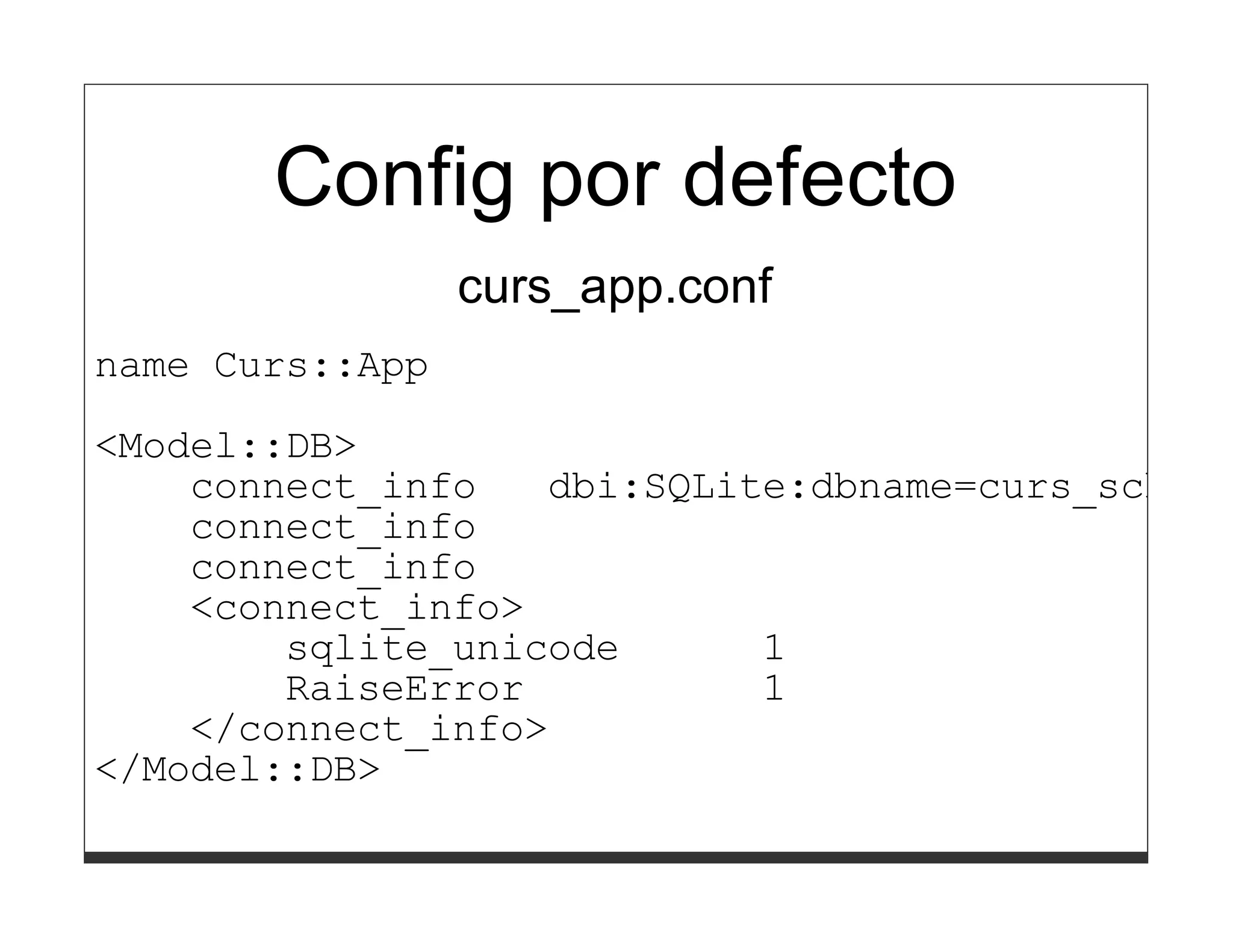

68. Config por defecto
curs_app.conf
name Curs::App
<Model::DB>
connect_info dbi:SQLite:dbname=curs_schema
connect_info
connect_info
<connect_info>
sqlite_unicode 1
RaiseError 1
</connect_info>
</Model::DB>

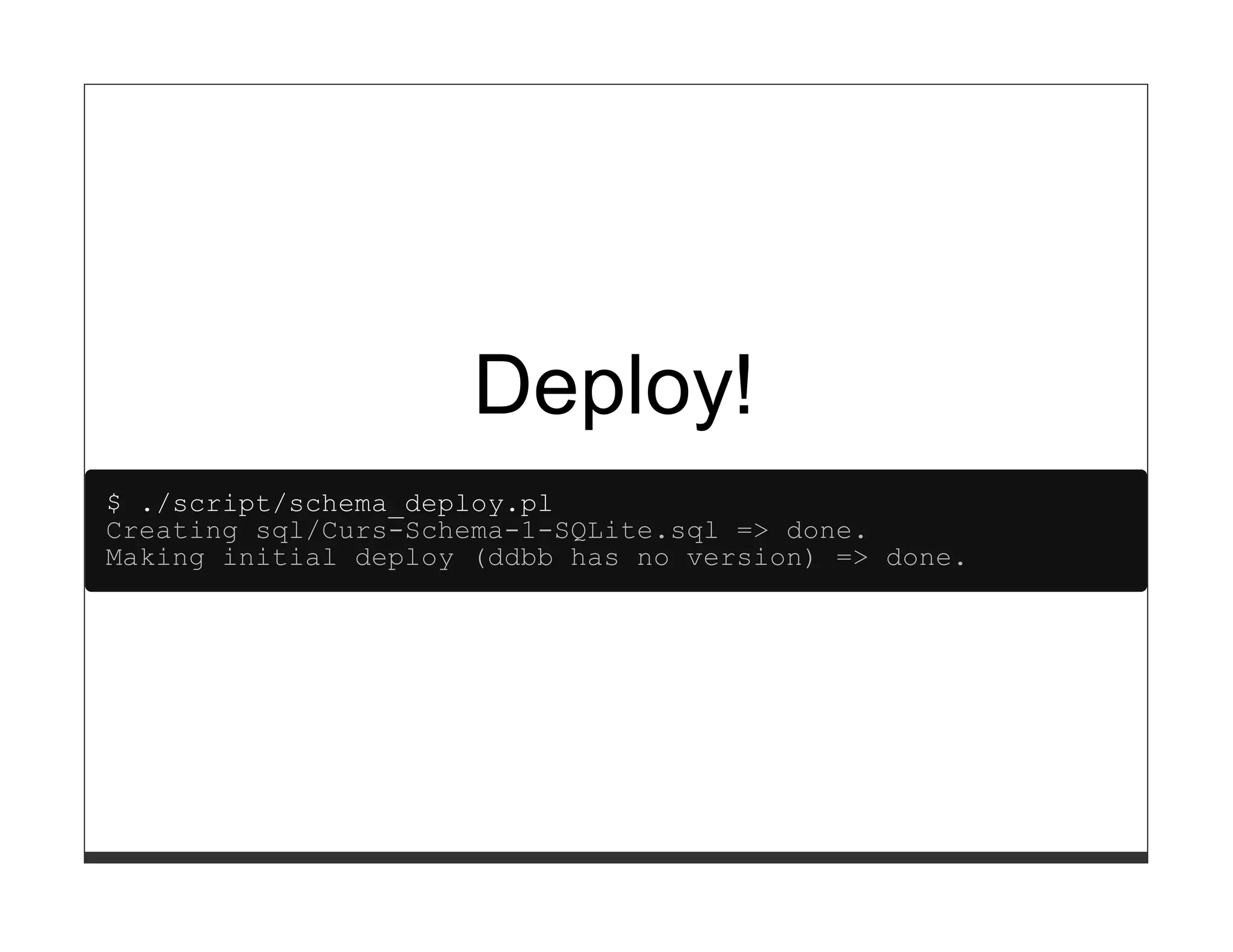

69. Deploy!
$ ./script/schema_deploy.pl
Creating sql/Curs-Schema-1-SQLite.sql => done.
Making initial deploy (ddbb has no version) => done.

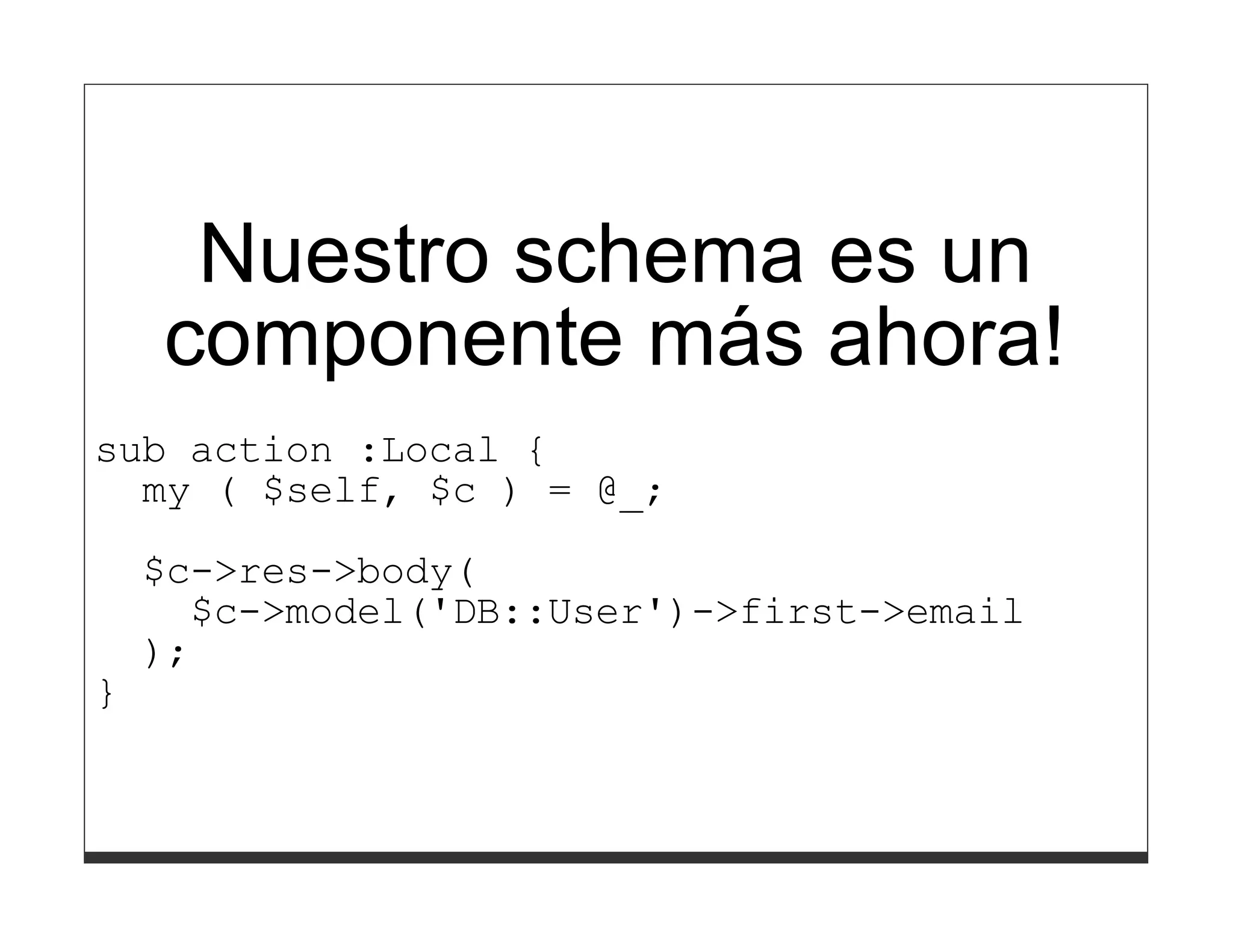

70. Nuestro schema es un
componente más ahora!
sub action :Local {
my ( $self, $c ) = @_;
$c->res->body(
$c->model('DB::User')->first->email
);
}

71. Authentication
&
Authorization

72. Catalyst::Plugin::Authentication
&
Catalyst::Plugin:Authorization::Roles
+ Catalyst::Plugin::Session

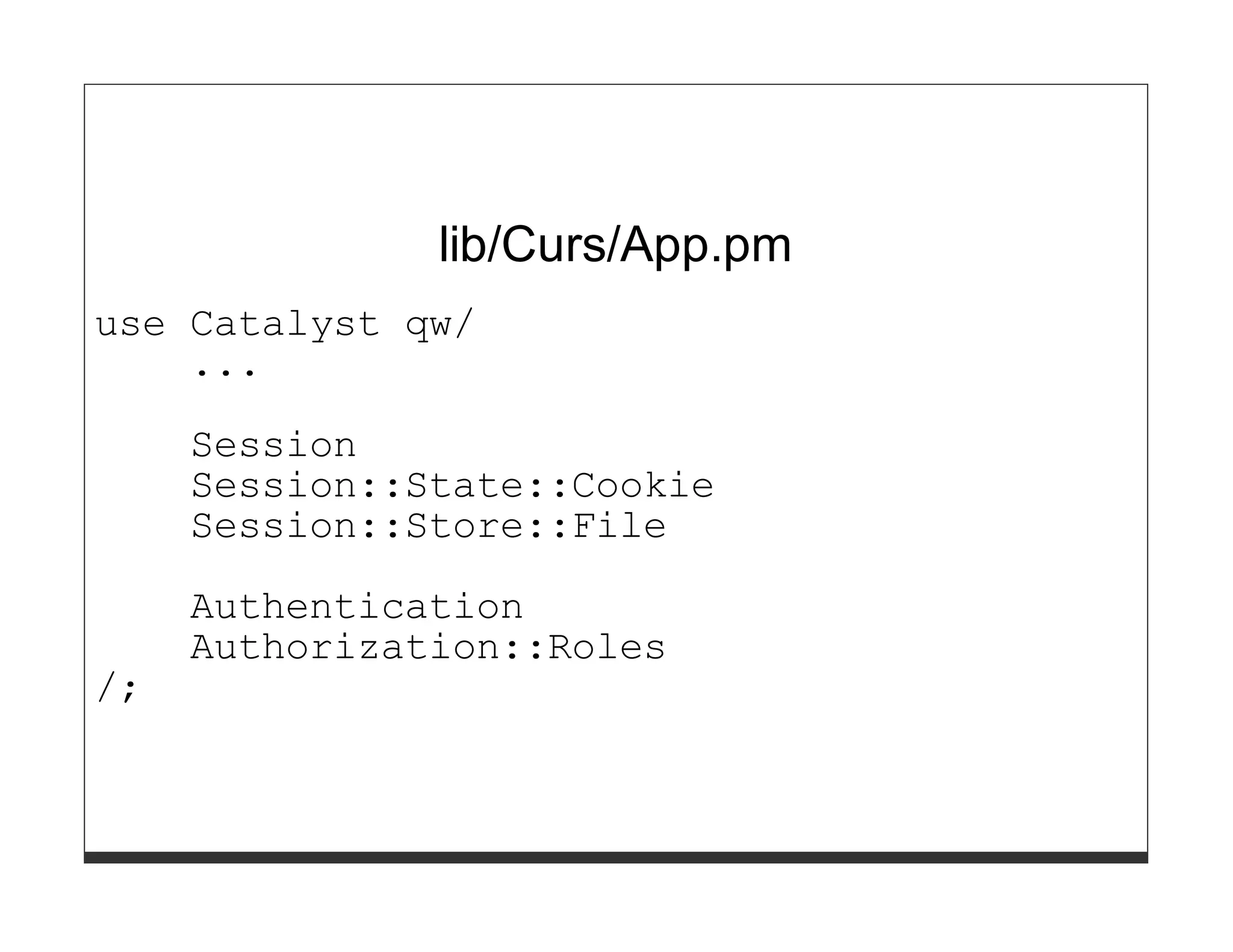

73. lib/Curs/App.pm
use Catalyst qw/
...
Session
Session::State::Cookie
Session::Store::File
Authentication
Authorization::Roles
/;

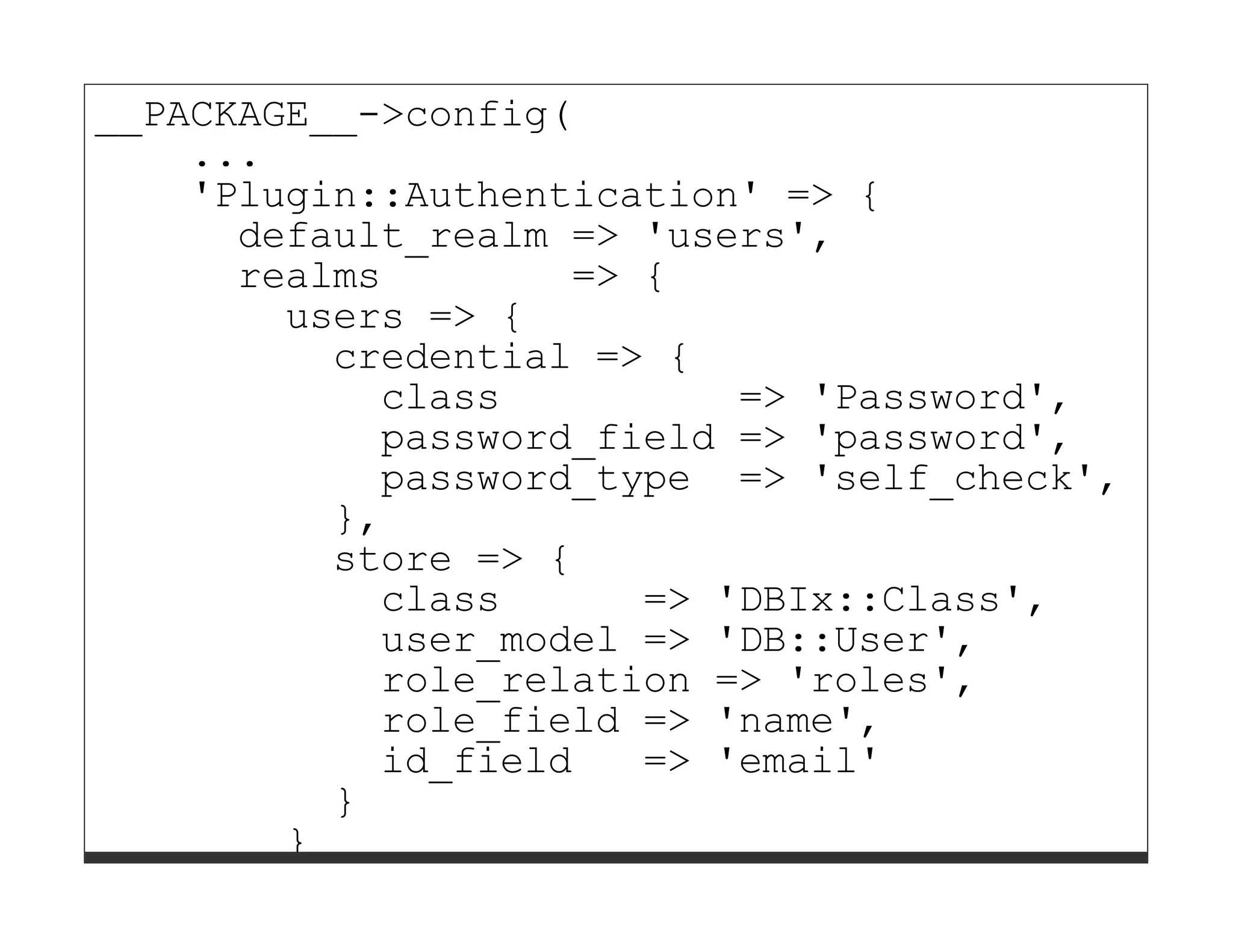

74. __PACKAGE__->config(
...
'Plugin::Authentication' => {
default_realm => 'users',
realms => {
users => {
credential => {
class => 'Password',
password_field => 'password',
password_type => 'self_check',
},
store => {
class => 'DBIx::Class',
user_model => 'DB::User',
role_relation => 'roles',
role_field => 'name',
id_field => 'email'
}
}
}

75. }
}
},
);

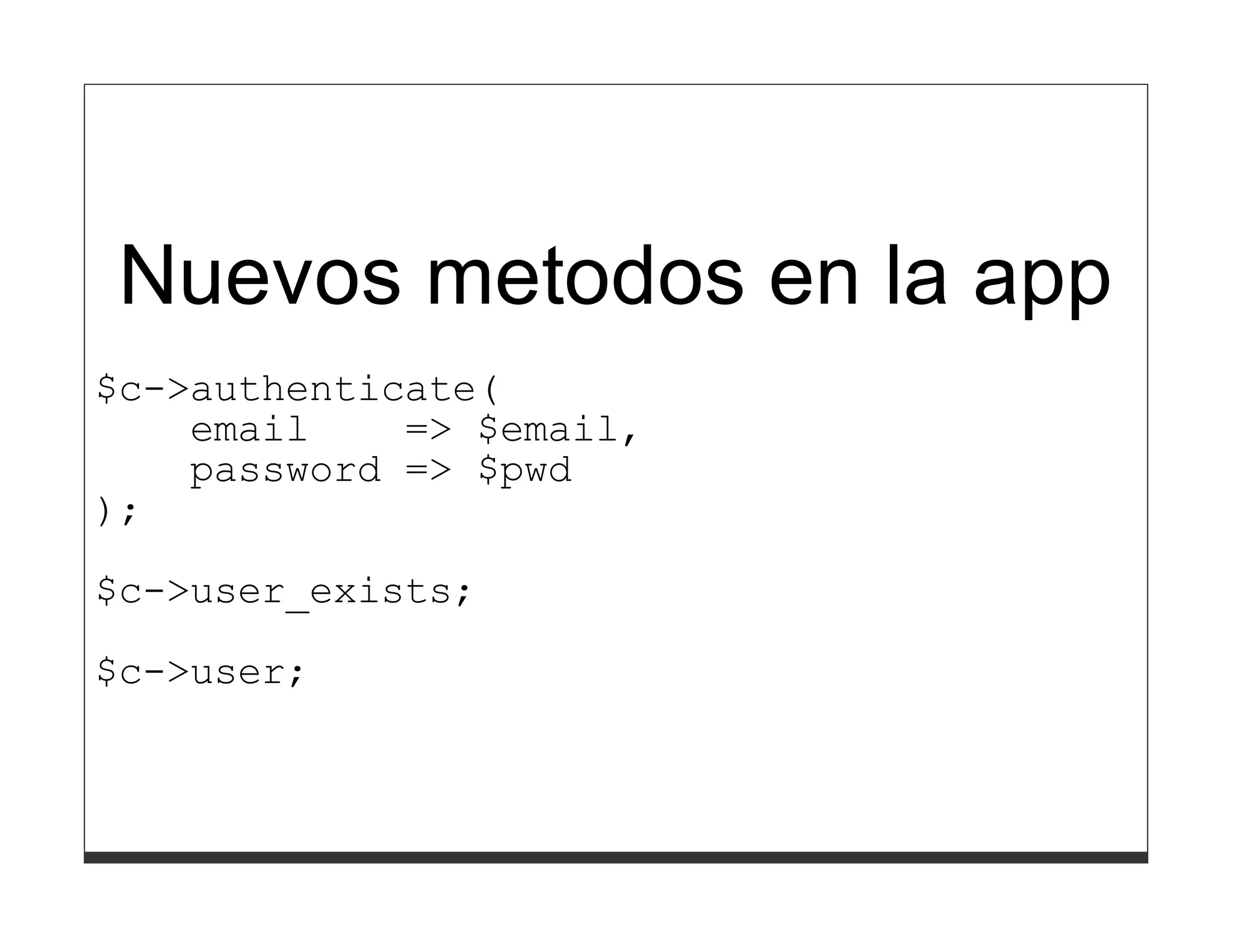

Nuevos metodos en la app
$c->authenticate(
email => $email,
password => $pwd
);
$c->user_exists;
$c->user;

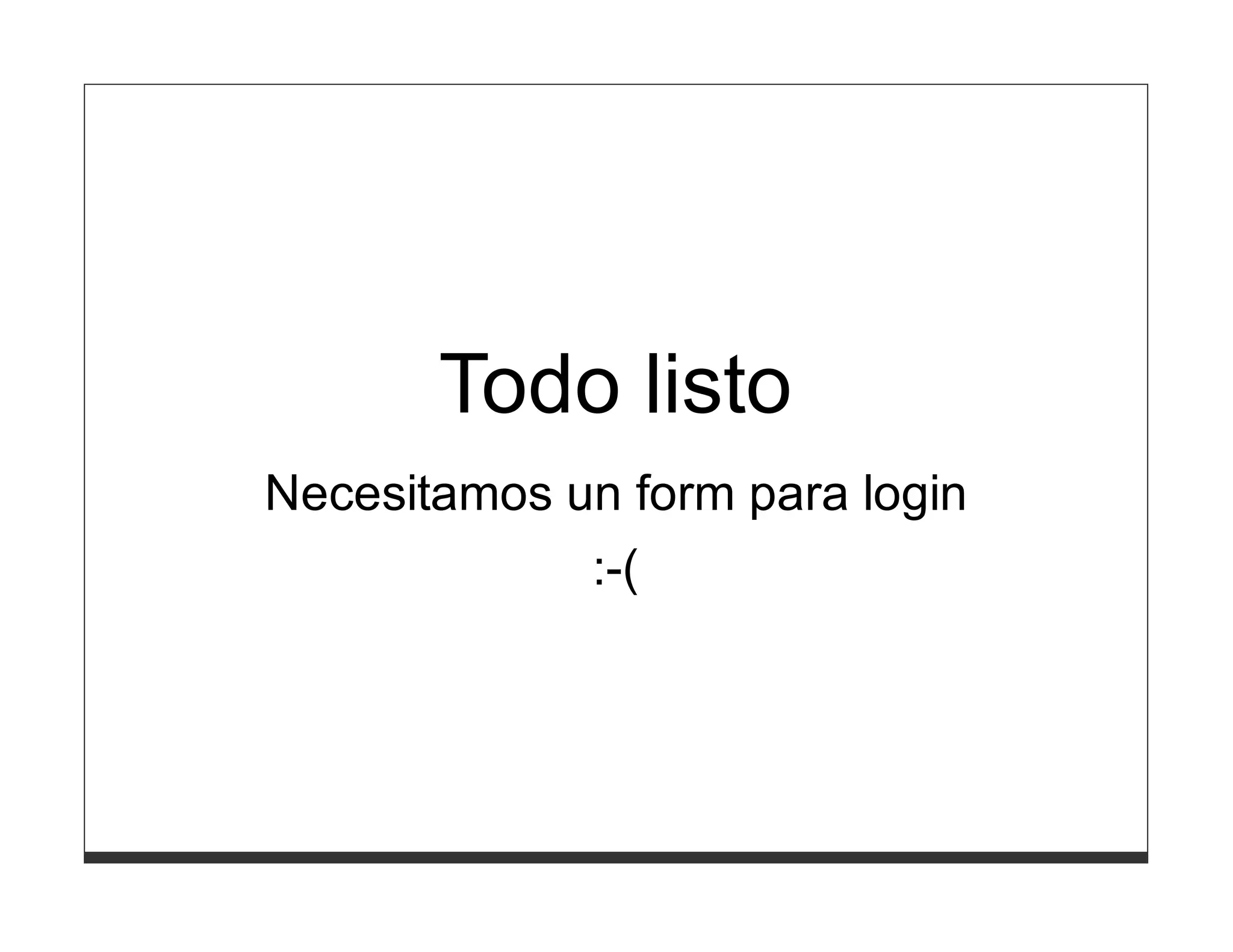

76. Todo listo
Necesitamos un form para login
:-(

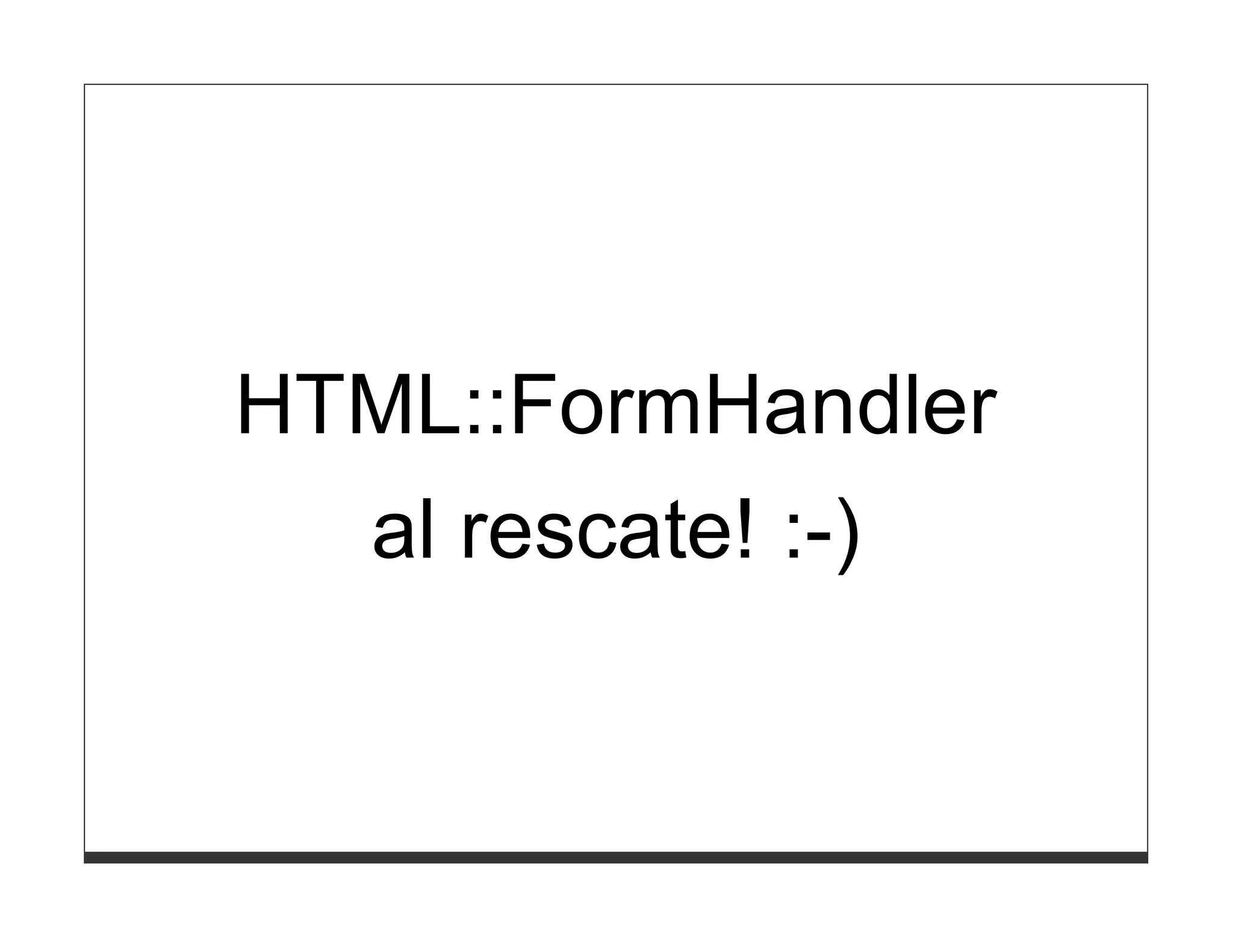

77. HTML::FormHandler
al rescate! :-)

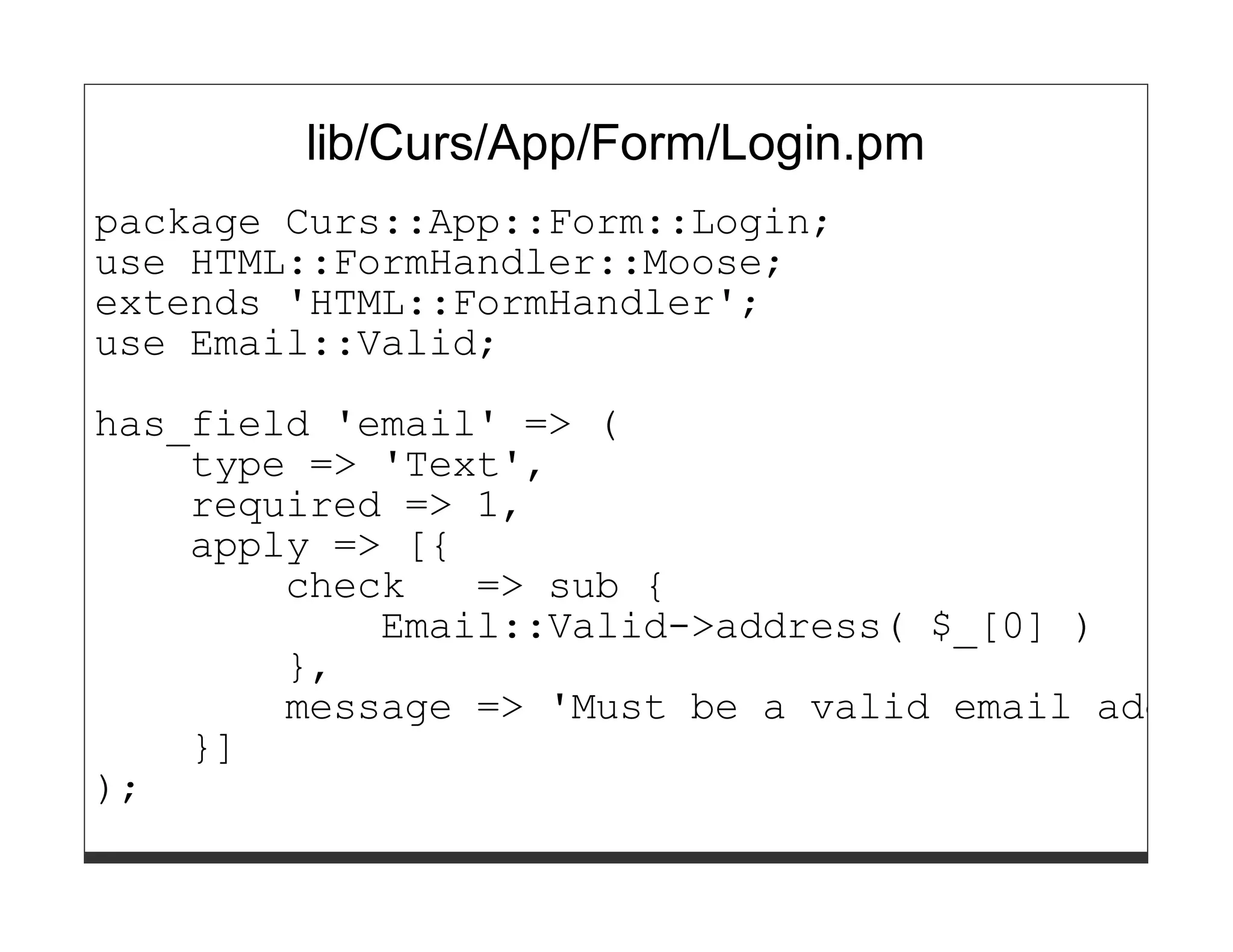

78. lib/Curs/App/Form/Login.pm
package Curs::App::Form::Login;
use HTML::FormHandler::Moose;
extends 'HTML::FormHandler';
use Email::Valid;
has_field 'email' => (
type => 'Text',
required => 1,
apply => [{
check => sub {
Email::Valid->address( $_[0] )
},
message => 'Must be a valid email addres
}]
);

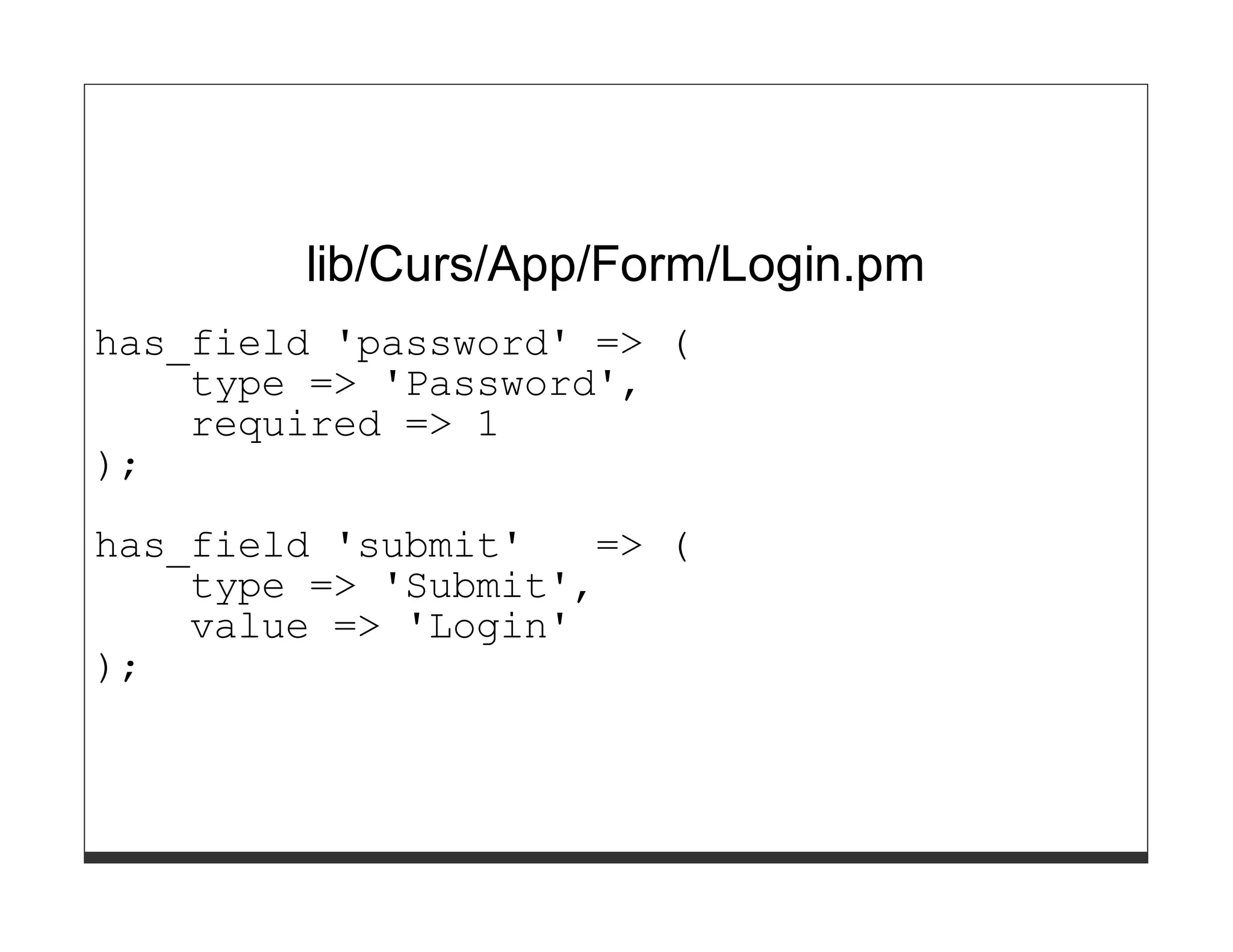

79. lib/Curs/App/Form/Login.pm
has_field 'password' => (
type => 'Password',
required => 1
);
has_field 'submit' => (
type => 'Submit',
value => 'Login'
);

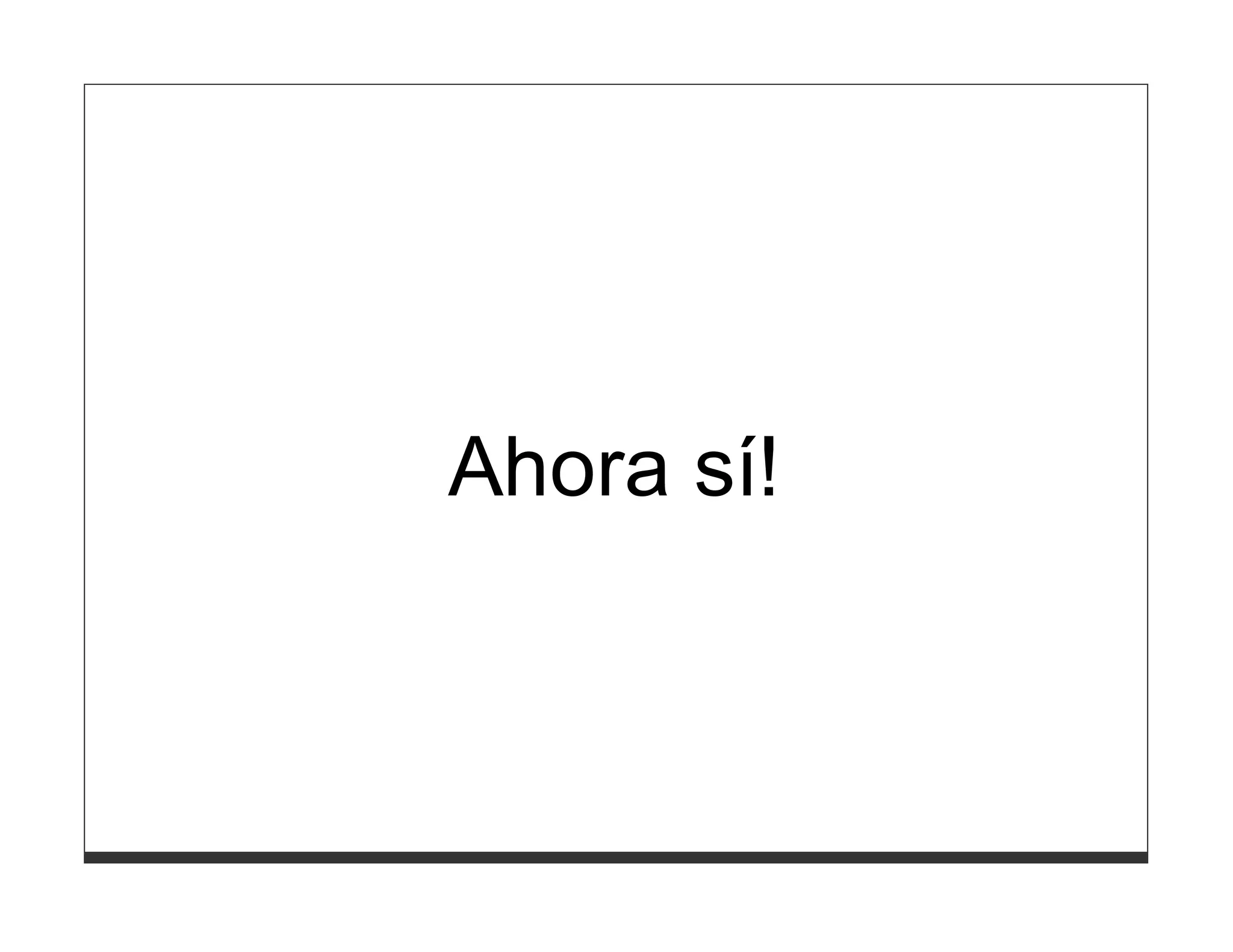

80. Ahora sí!

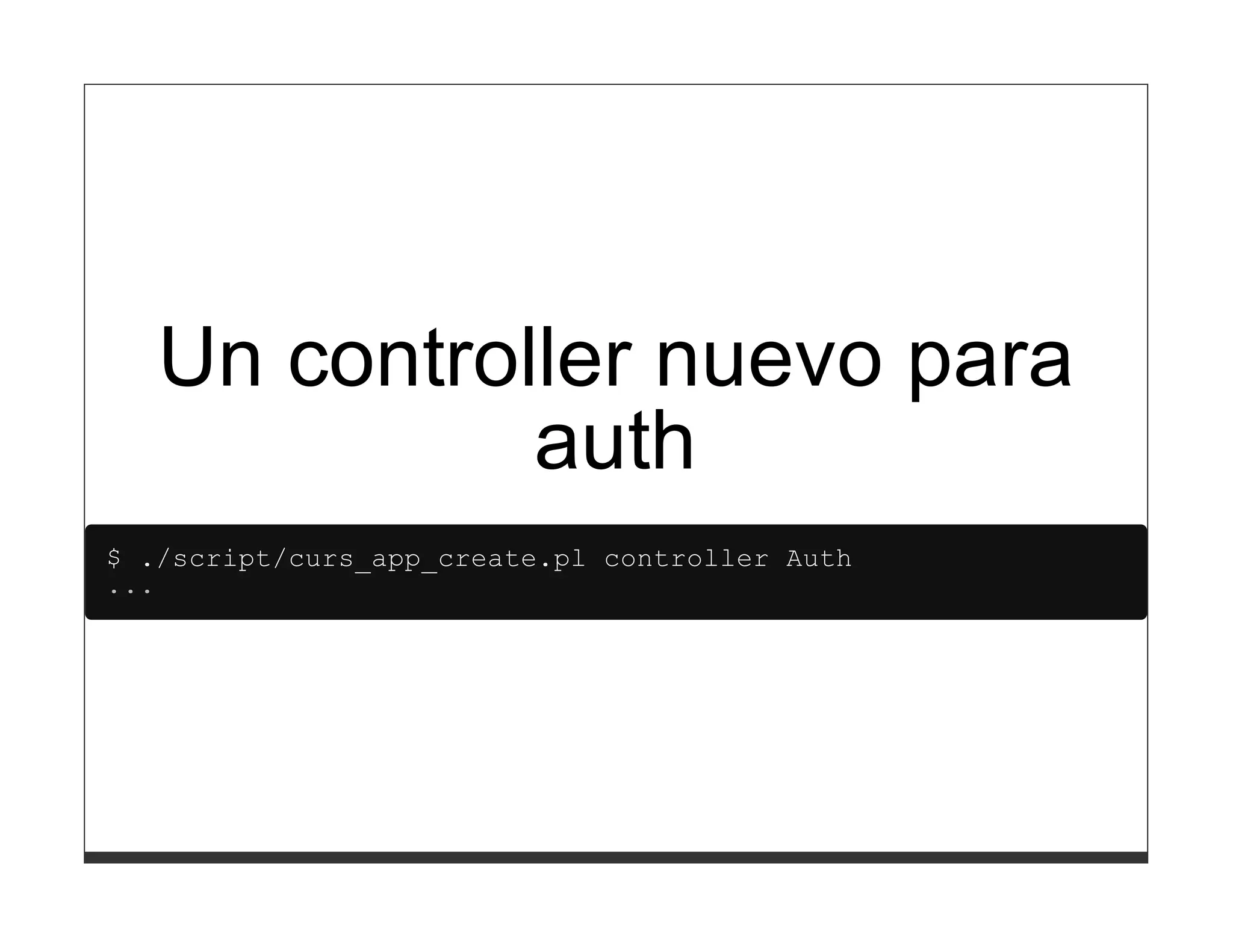

81. Un controller nuevo para
auth
$ ./script/curs_app_create.pl controller Auth
...

82. lib/Curs/App/Controller/Auth.pm
package Curs::App::Controller::Auth;
use Moose; use namespace::autoclean;
BEGIN {extends 'Catalyst::Controller'; }
use Curs::App::Form::Login;

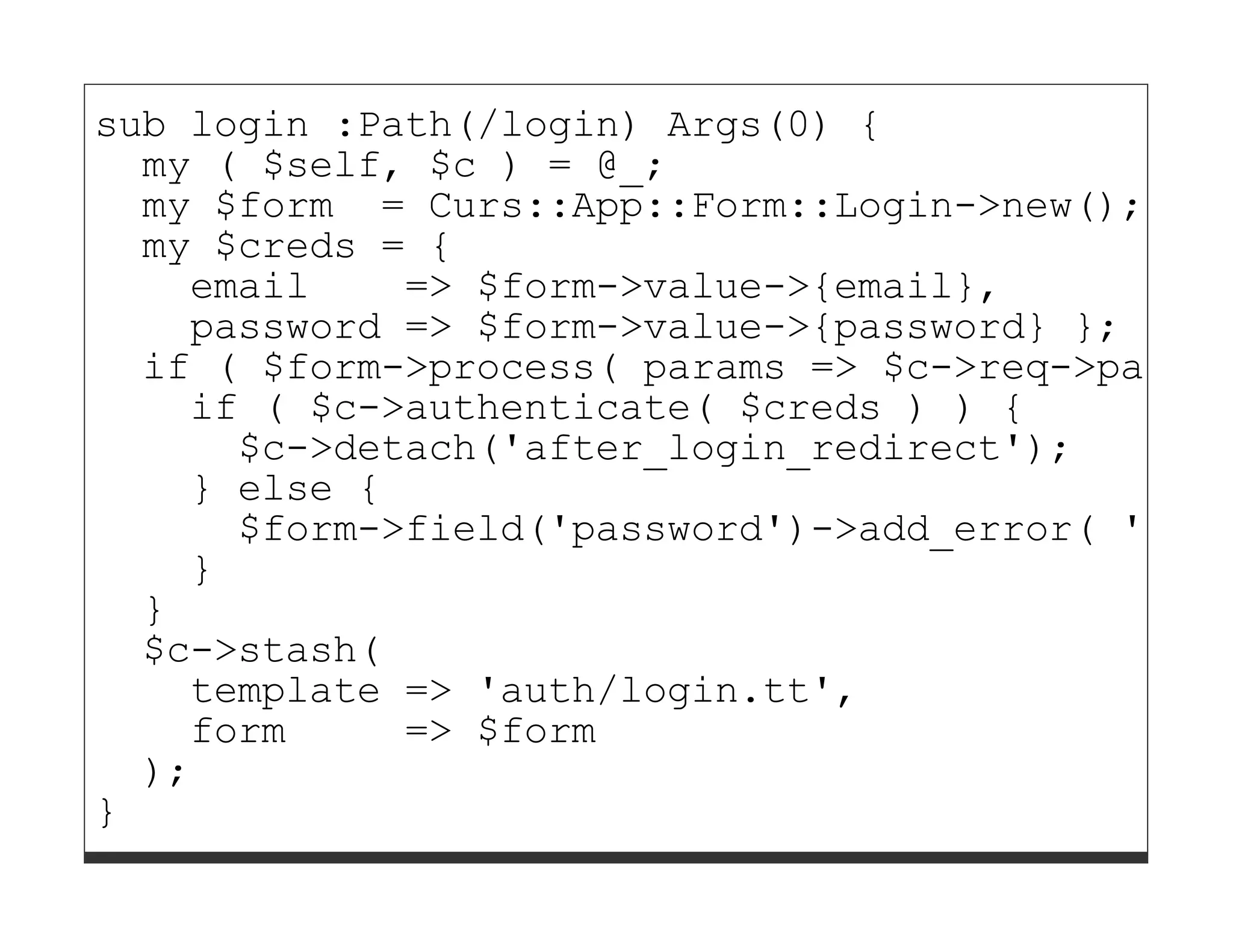

83. sub login :Path(/login) Args(0) {
my ( $self, $c ) = @_;
my $form = Curs::App::Form::Login->new();
my $creds = {
email => $form->value->{email},
password => $form->value->{password} };
if ( $form->process( params => $c->req->params
if ( $c->authenticate( $creds ) ) {
$c->detach('after_login_redirect');
} else {
$form->field('password')->add_error( 'Inva
}
}
$c->stash(
template => 'auth/login.tt',
form => $form
);
}

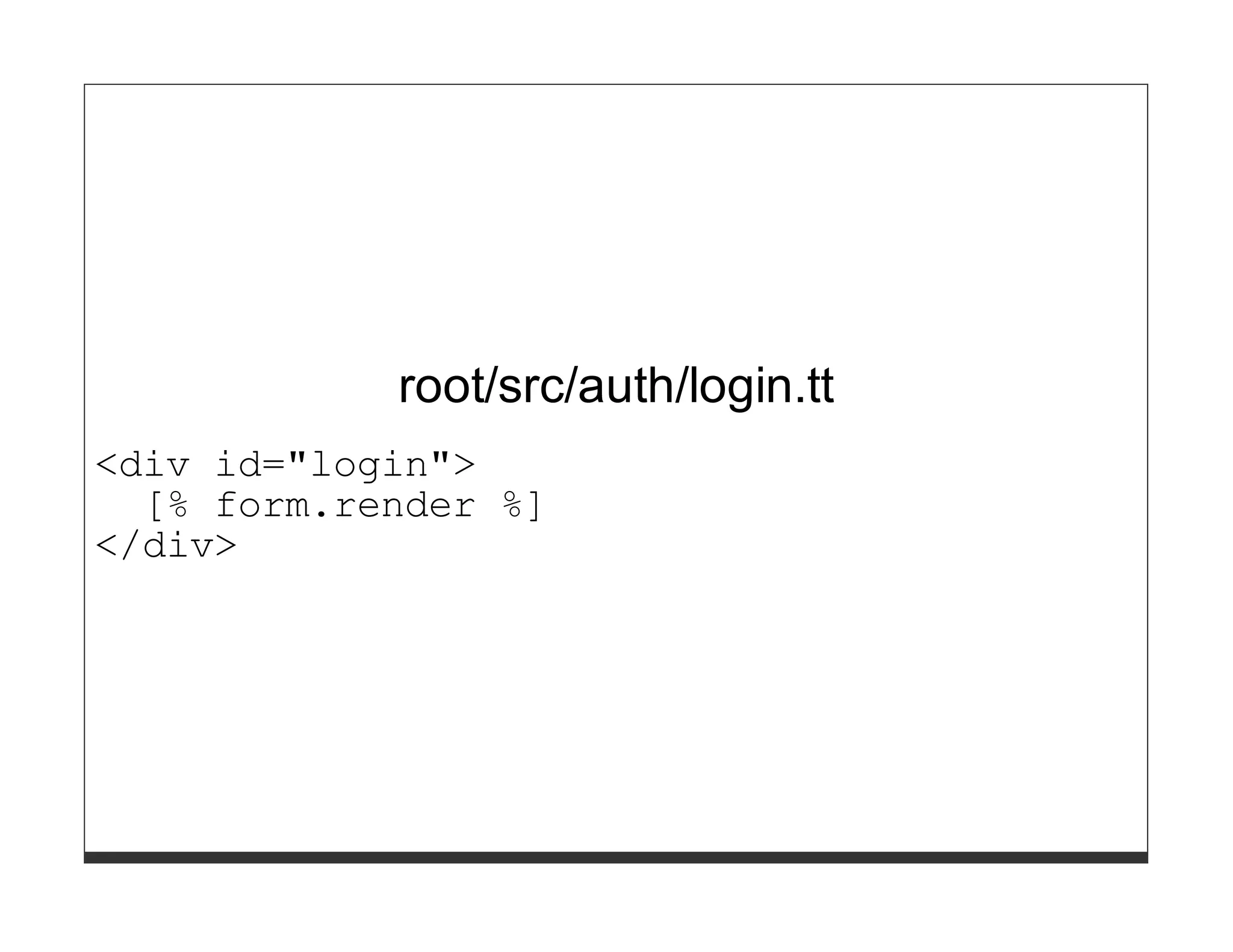

84. root/src/auth/login.tt
<div id="login">
[% form.render %]
</div>

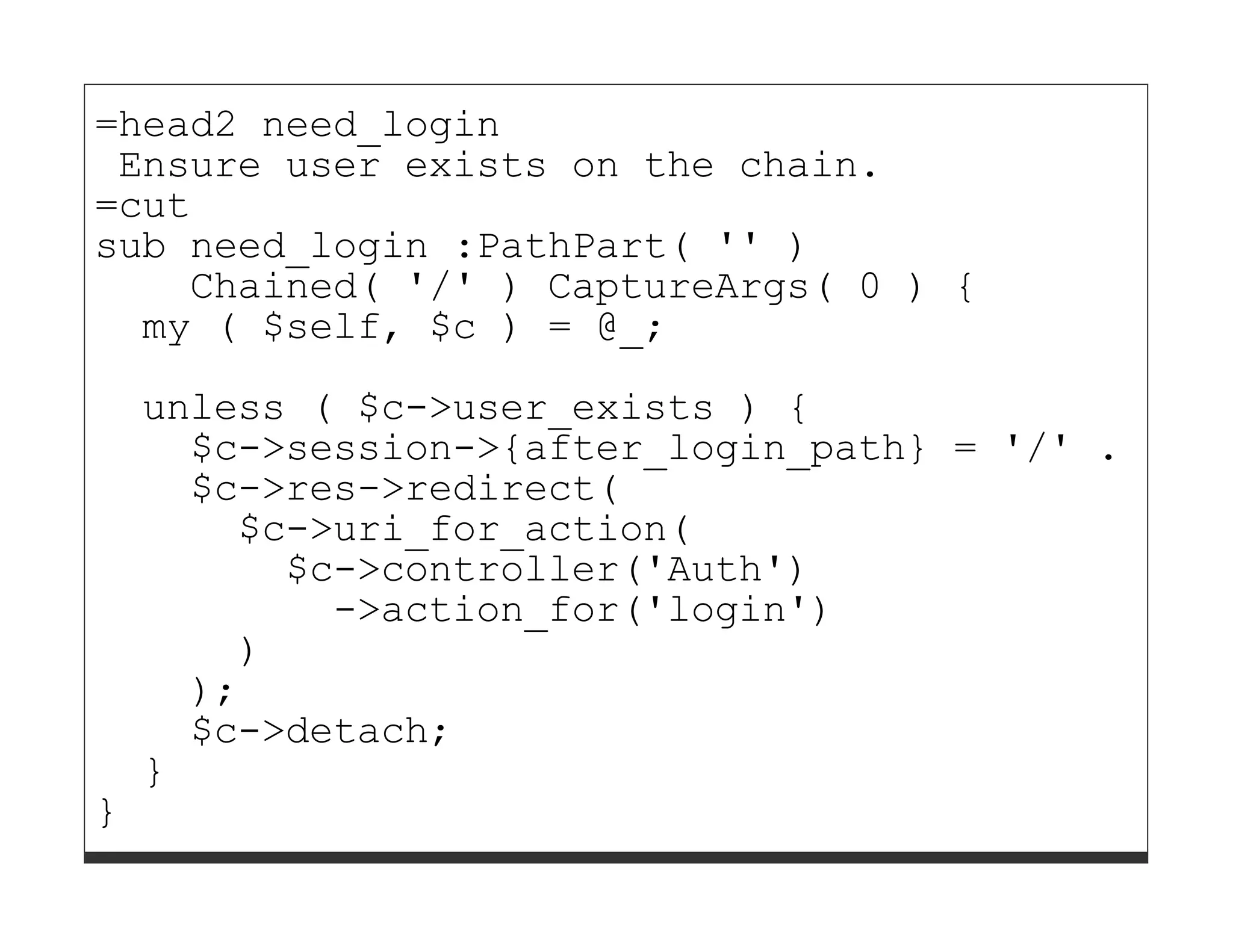

85. =head2 need_login
Ensure user exists on the chain.
=cut
sub need_login :PathPart( '' )
Chained( '/' ) CaptureArgs( 0 ) {
my ( $self, $c ) = @_;
unless ( $c->user_exists ) {
$c->session->{after_login_path} = '/' . $c->
$c->res->redirect(
$c->uri_for_action(
$c->controller('Auth')
->action_for('login')
)
);
$c->detach;
}
}

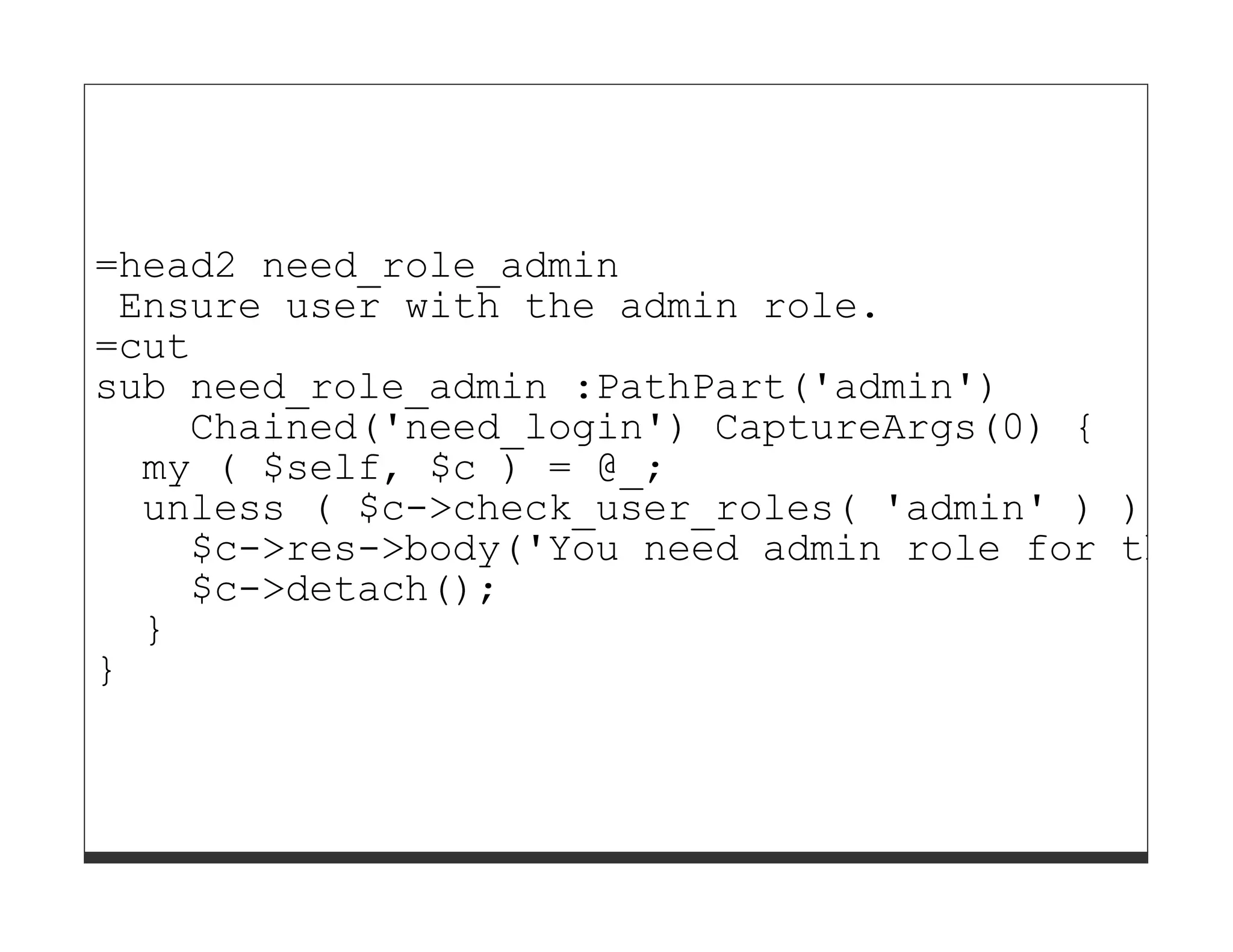

86. =head2 need_role_admin
Ensure user with the admin role.
=cut
sub need_role_admin :PathPart('admin')
Chained('need_login') CaptureArgs(0) {
my ( $self, $c ) = @_;
unless ( $c->check_user_roles( 'admin' ) ) {
$c->res->body('You need admin role for this
$c->detach();
}
}

87. En otro controller
... perdido en otra galaxia ...

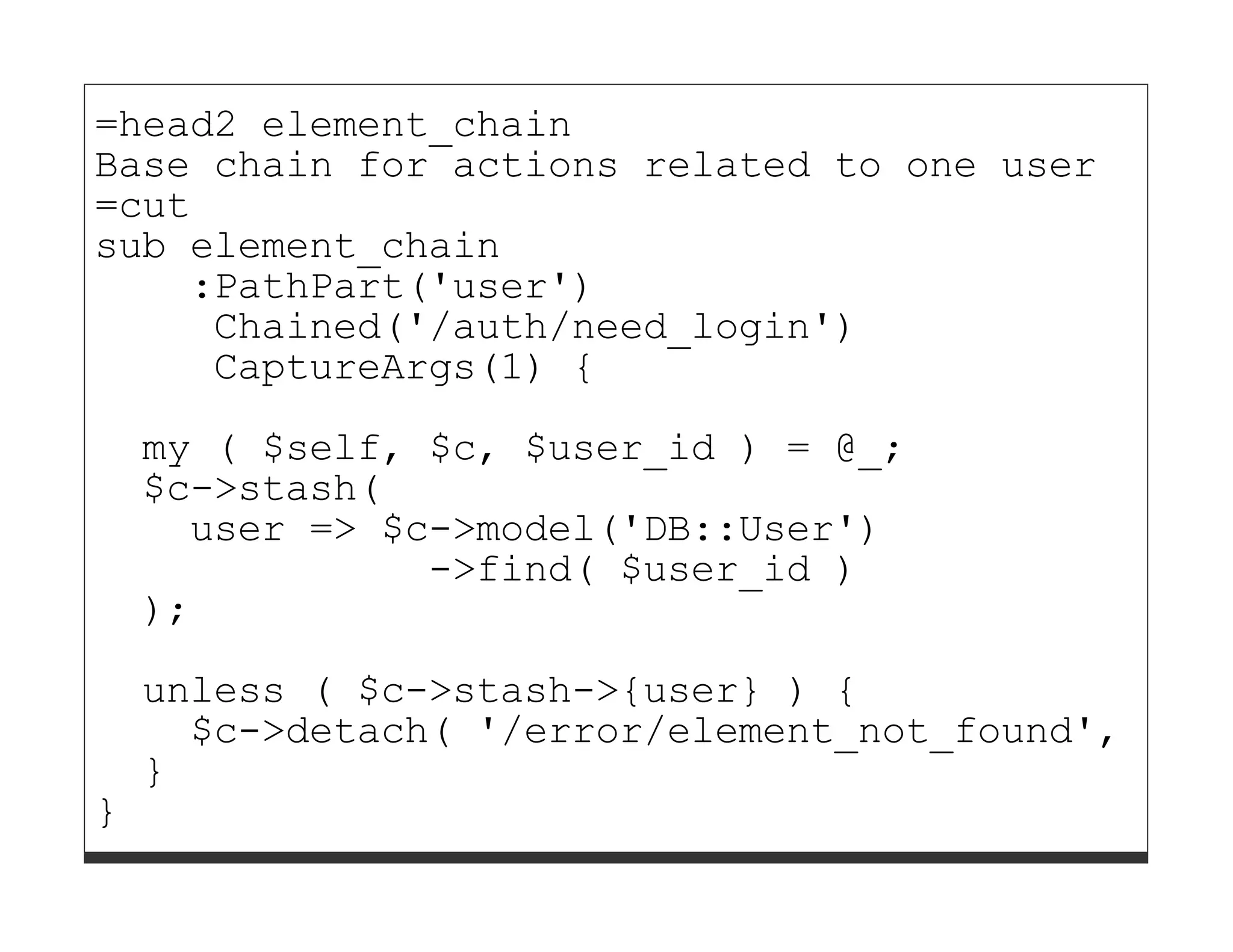

88. =head2 element_chain
Base chain for actions related to one user
=cut
sub element_chain
:PathPart('user')
Chained('/auth/need_login')
CaptureArgs(1) {
my ( $self, $c, $user_id ) = @_;
$c->stash(
user => $c->model('DB::User')
->find( $user_id )
);
unless ( $c->stash->{user} ) {
$c->detach( '/error/element_not_found', [ 'u
}
}

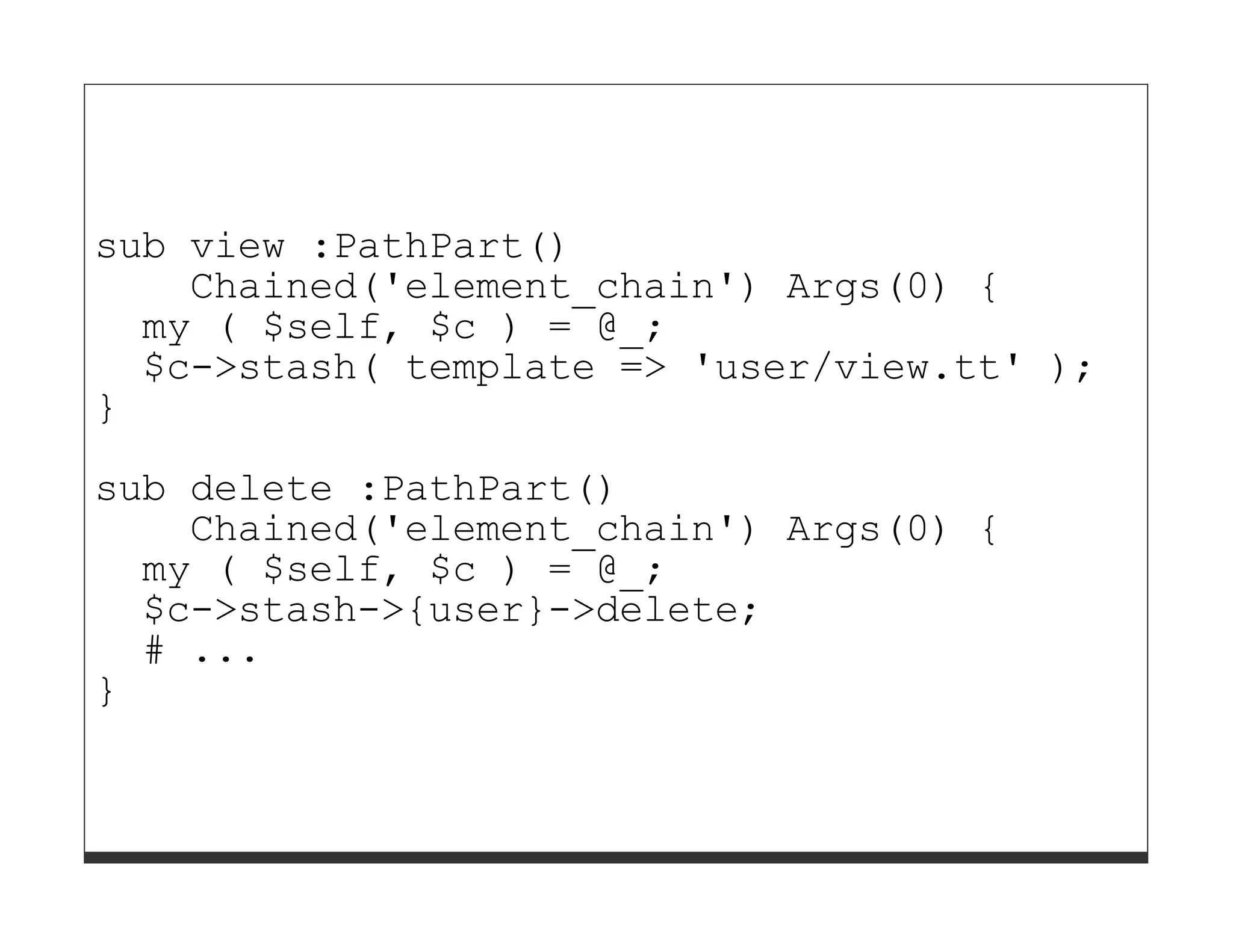

89. sub view :PathPart()
Chained('element_chain') Args(0) {
my ( $self, $c ) = @_;
$c->stash( template => 'user/view.tt' );
}
sub delete :PathPart()
Chained('element_chain') Args(0) {
my ( $self, $c ) = @_;
$c->stash->{user}->delete;
# ...
}

90. Plugin
vs
TraitFor

91. Plugin global
vs
Plugin for component

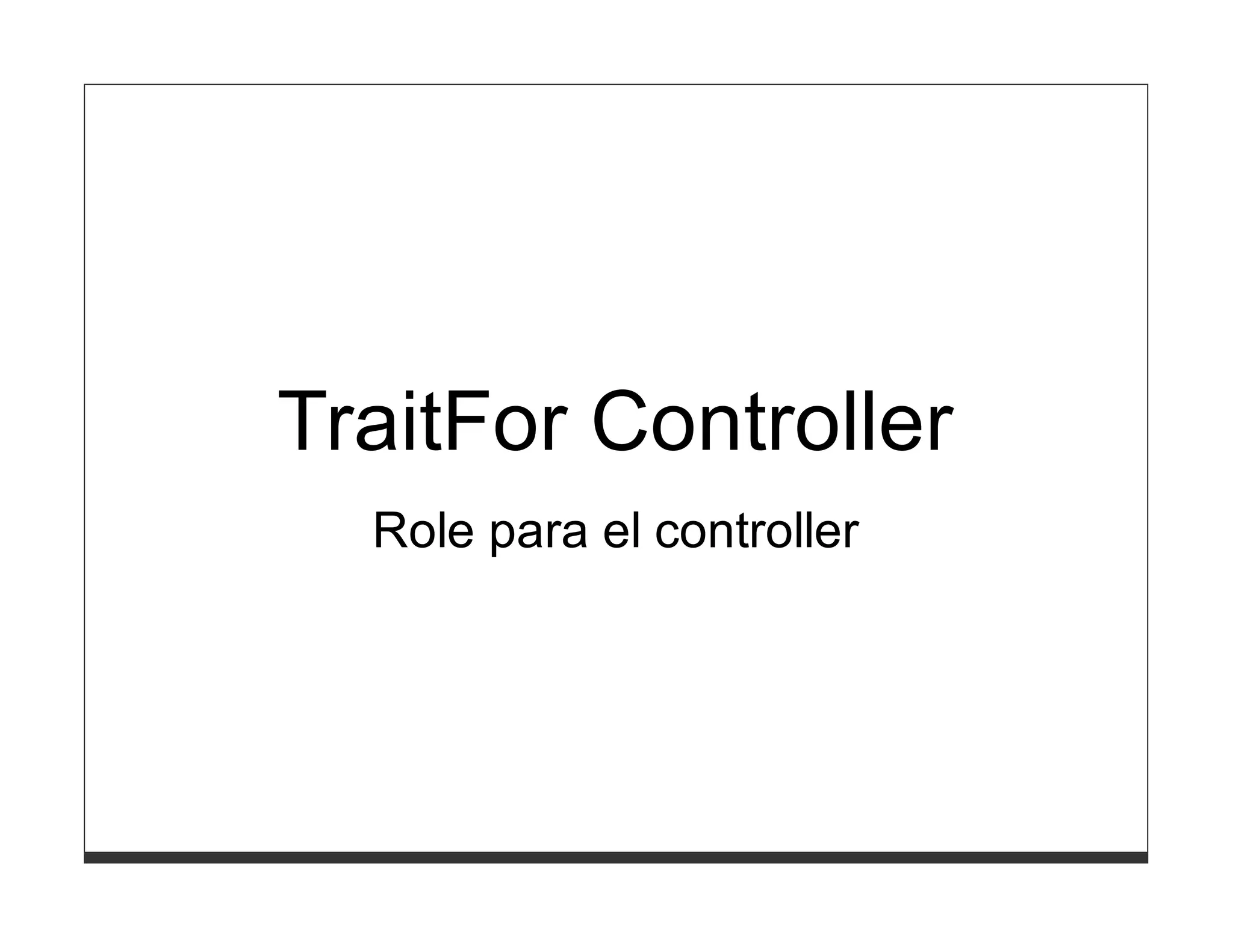

92. TraitFor Controller
Role para el controller

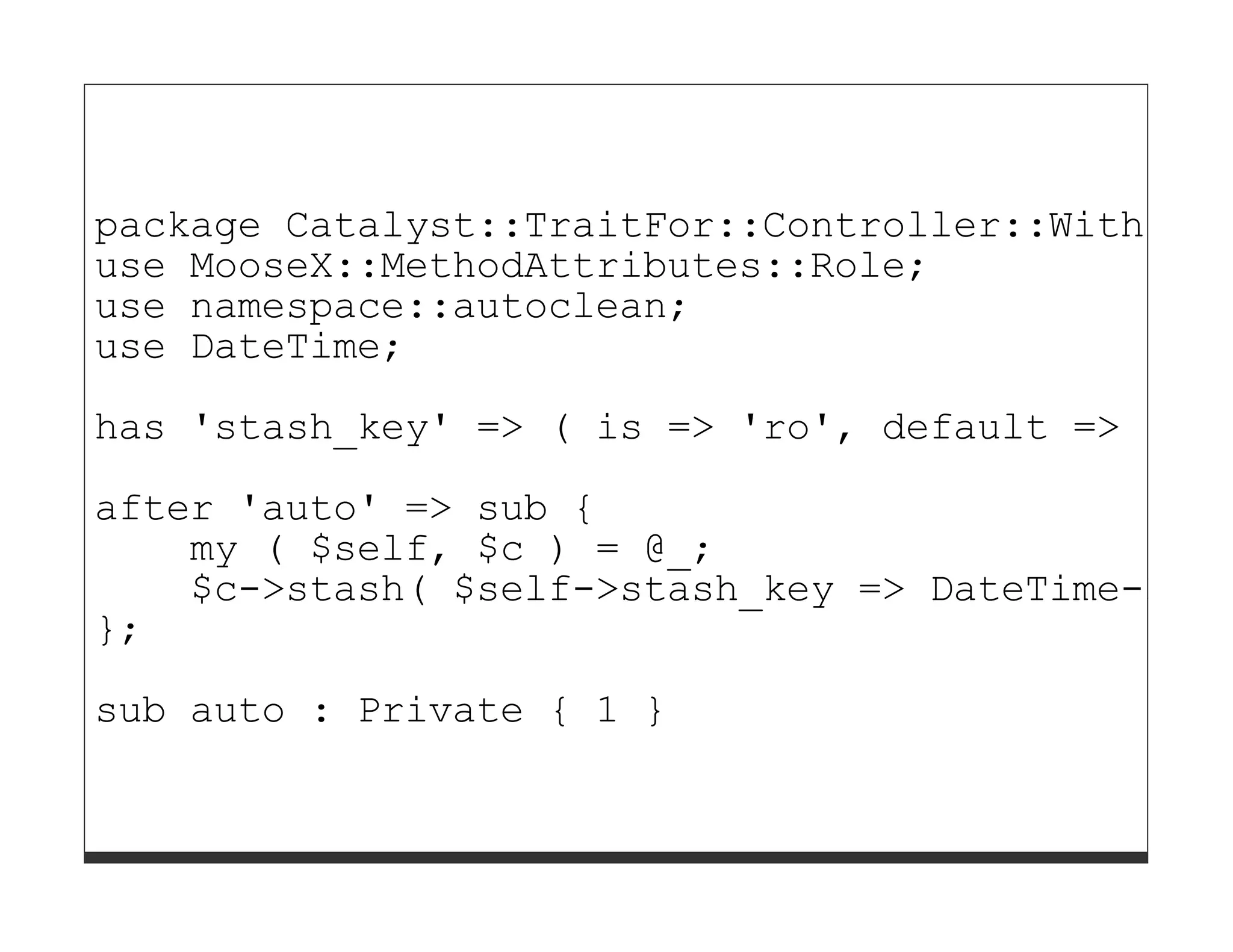

93. package Catalyst::TraitFor::Controller::WithDate
use MooseX::MethodAttributes::Role;
use namespace::autoclean;
use DateTime;
has 'stash_key' => ( is => 'ro', default => 'dat
after 'auto' => sub {
my ( $self, $c ) = @_;
$c->stash( $self->stash_key => DateTime->now
};
sub auto : Private { 1 }

94. Trait's locales

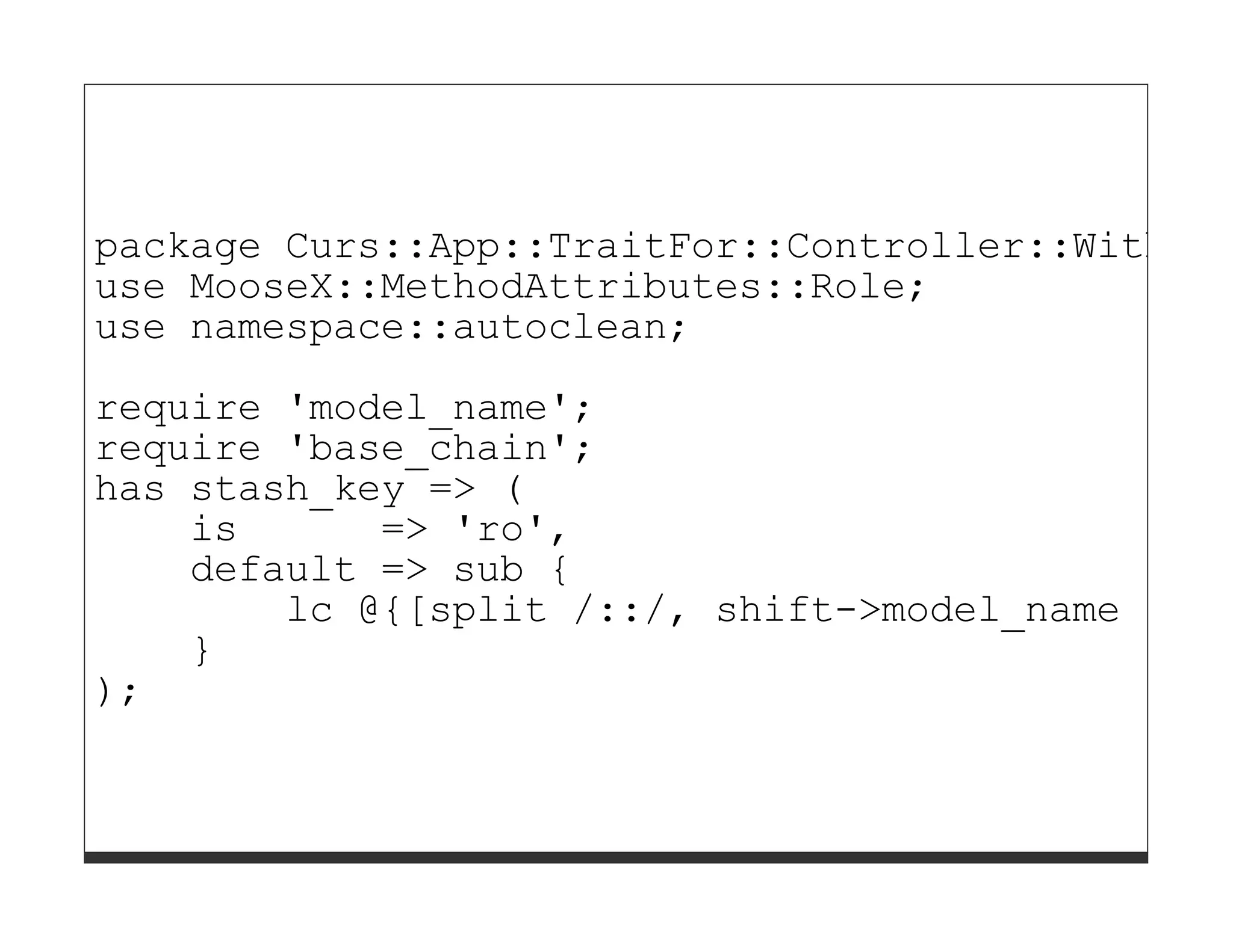

95. package Curs::App::TraitFor::Controller::WithDBI
use MooseX::MethodAttributes::Role;
use namespace::autoclean;
require 'model_name';
require 'base_chain';
has stash_key => (
is => 'ro',
default => sub {
lc @{[split /::/, shift->model_name ]}[-
}
);

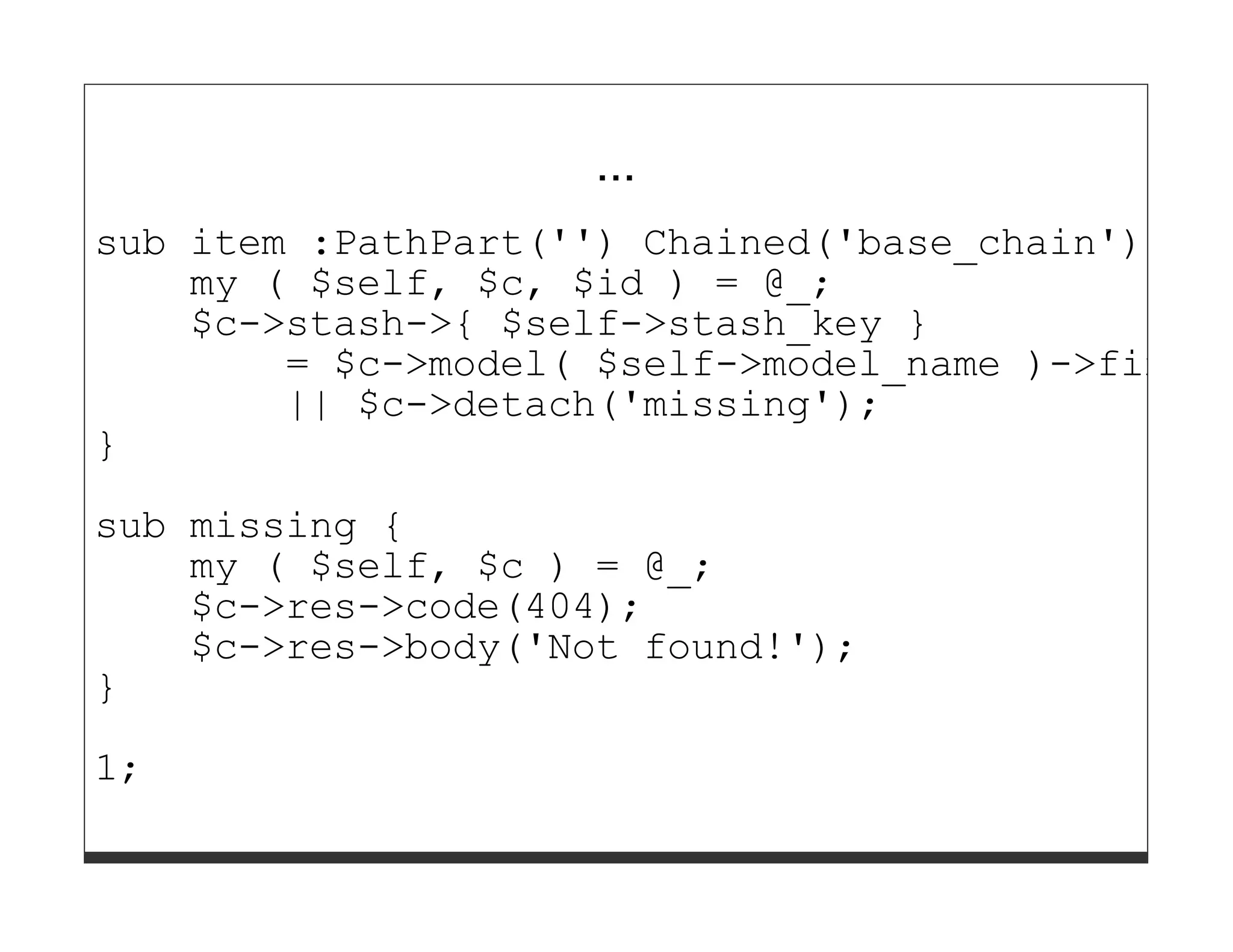

96. ...
sub item :PathPart('') Chained('base_chain') Cap
my ( $self, $c, $id ) = @_;
$c->stash->{ $self->stash_key }
= $c->model( $self->model_name )->find($
|| $c->detach('missing');
}
sub missing {
my ( $self, $c ) = @_;
$c->res->code(404);
$c->res->body('Not found!');
}
1;

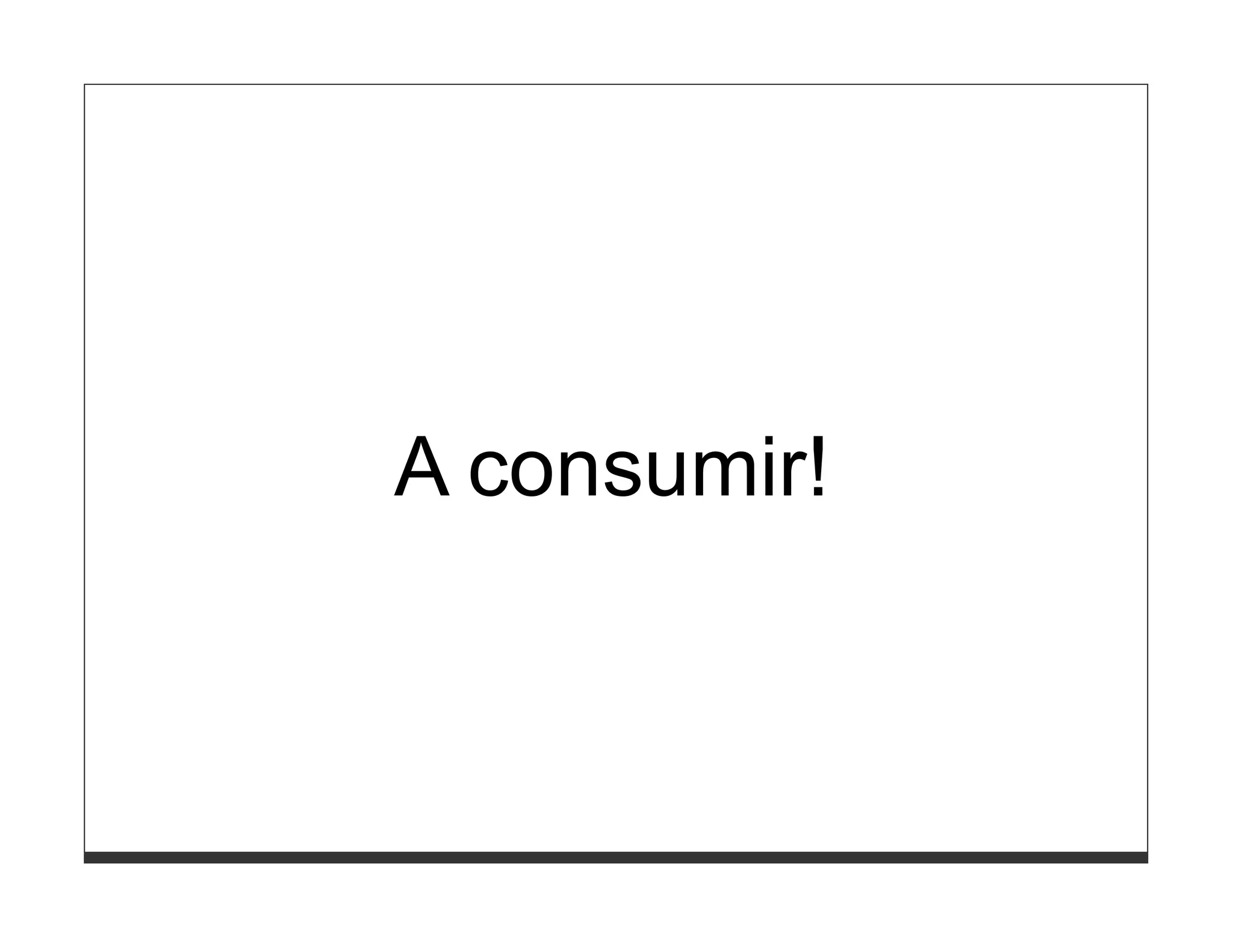

97. A consumir!

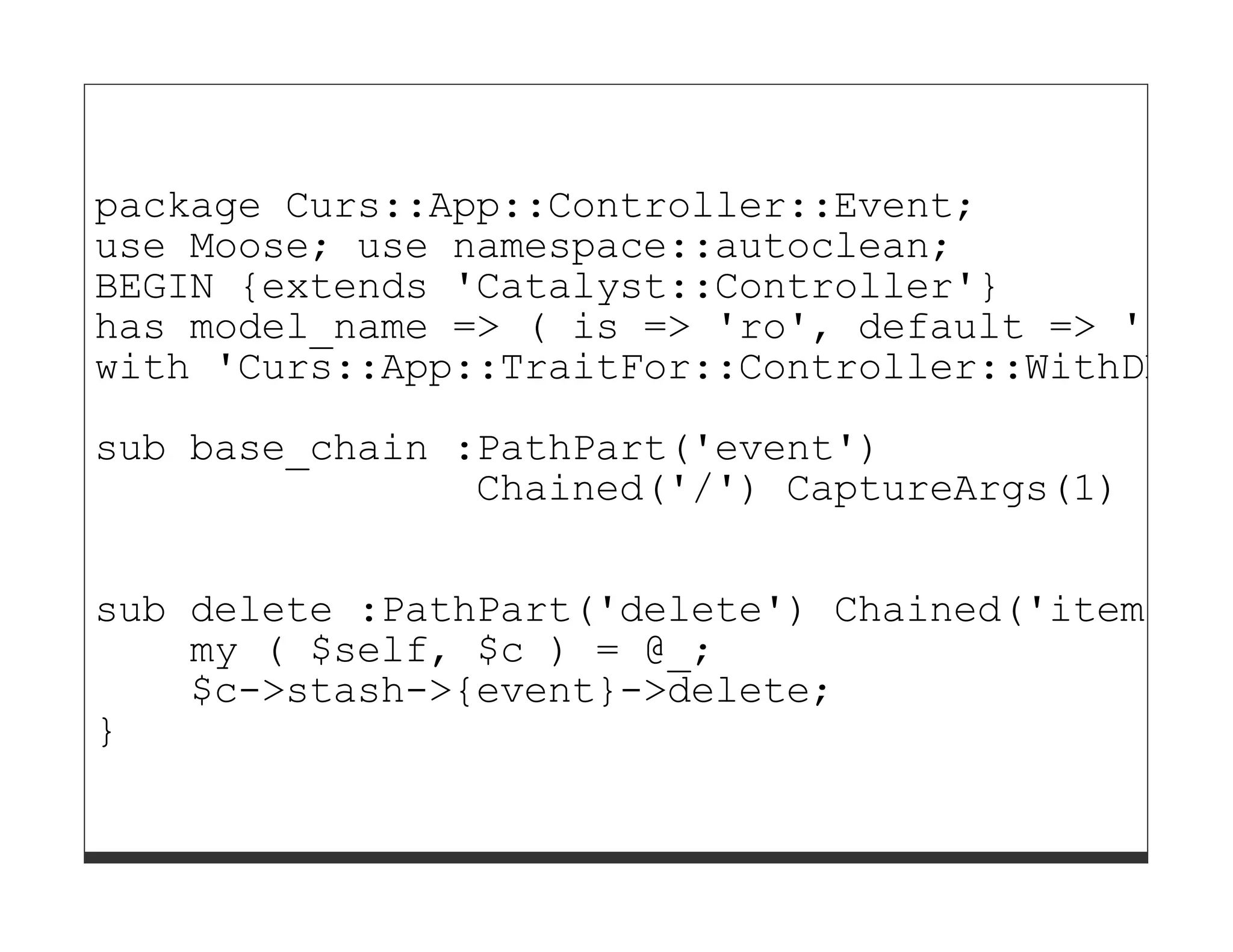

98. package Curs::App::Controller::Event;
use Moose; use namespace::autoclean;
BEGIN {extends 'Catalyst::Controller'}
has model_name => ( is => 'ro', default => 'DB::
with 'Curs::App::TraitFor::Controller::WithDBIC'
sub base_chain :PathPart('event')
Chained('/') CaptureArgs(1) {}
sub delete :PathPart('delete') Chained('item') A
my ( $self, $c ) = @_;
$c->stash->{event}->delete;
}

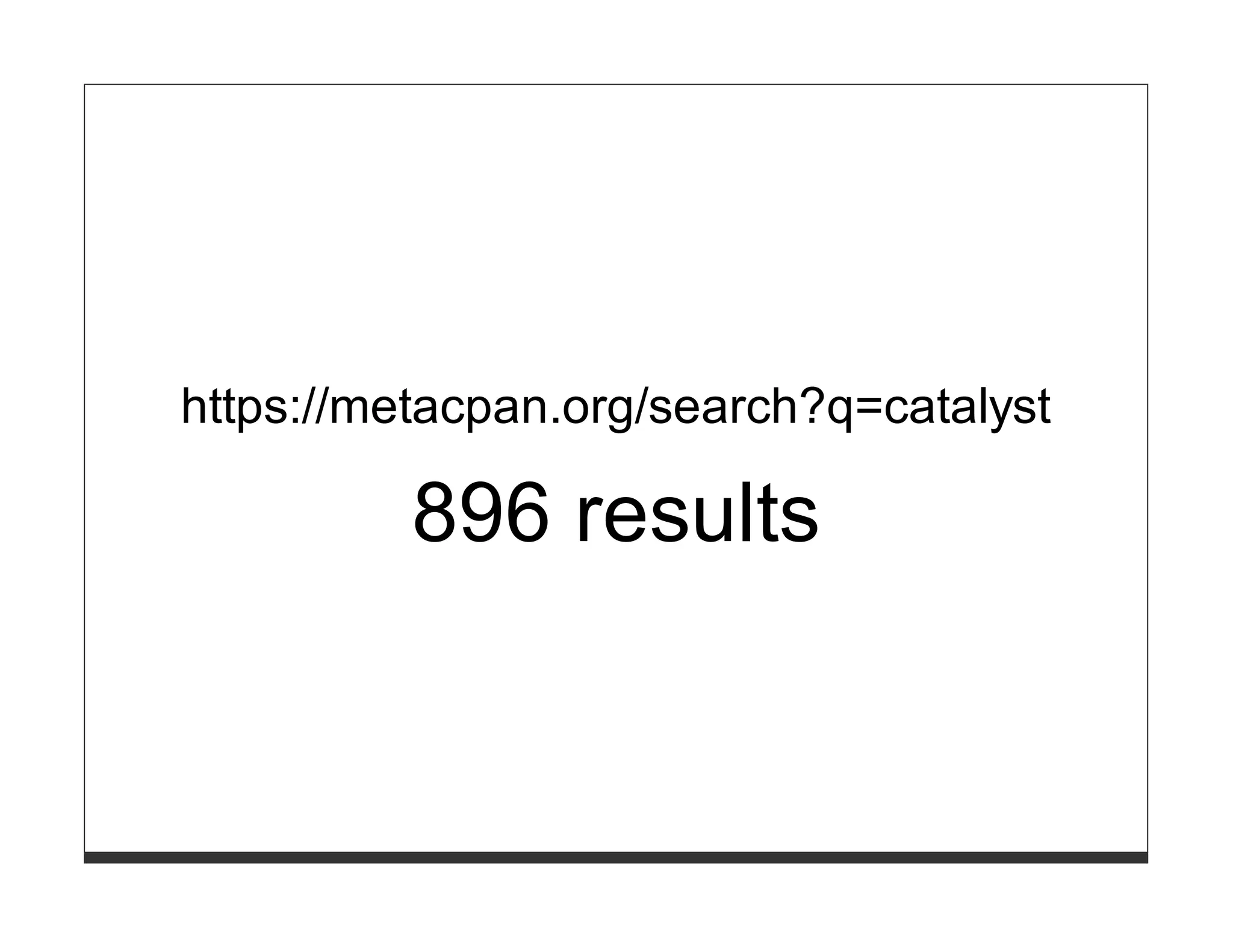

99. https://metacpan.org/search?q=catalyst
896 results

100. Plack
(ya lo estamos usando)

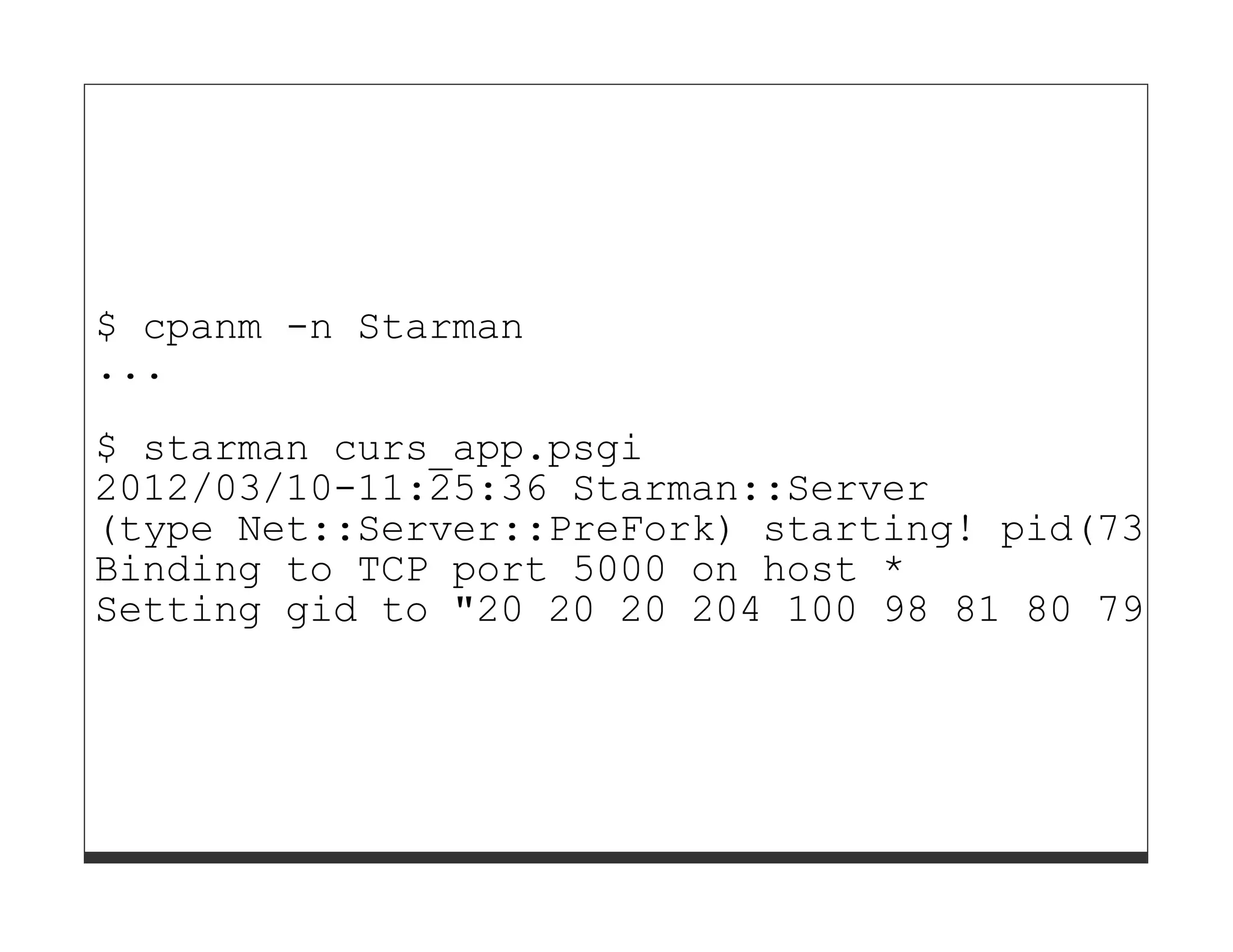

101. $ cpanm -n Starman
...
$ starman curs_app.psgi
2012/03/10-11:25:36 Starman::Server
(type Net::Server::PreFork) starting! pid(73661)
Binding to TCP port 5000 on host *
Setting gid to "20 20 20 204 100 98 81 80 79 61

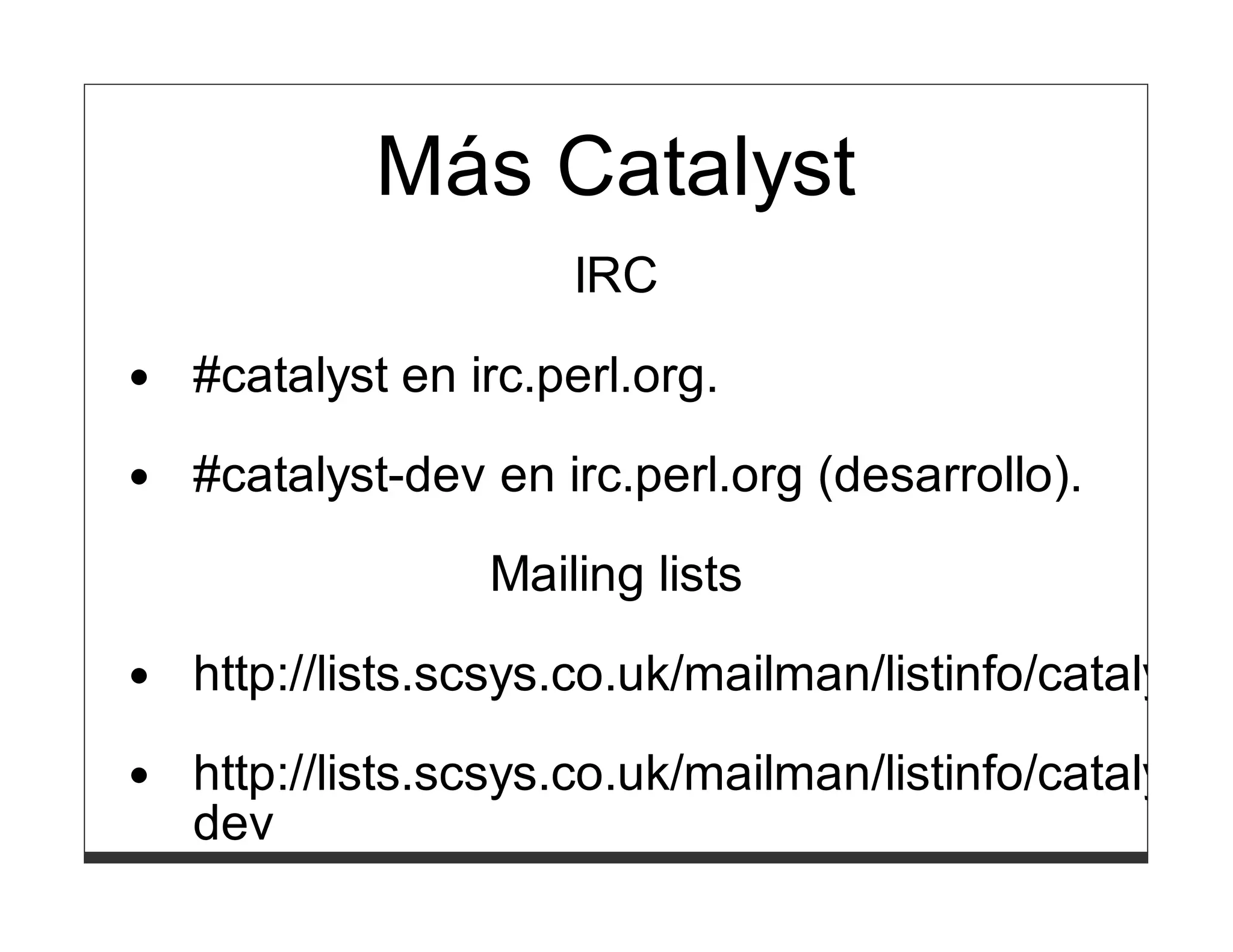

102. Más Catalyst
IRC
#catalyst en irc.perl.org.
#catalyst-dev en irc.perl.org (desarrollo).
Mailing lists
http://lists.scsys.co.uk/mailman/listinfo/catalyst
http://lists.scsys.co.uk/mailman/listinfo/catalyst-
dev

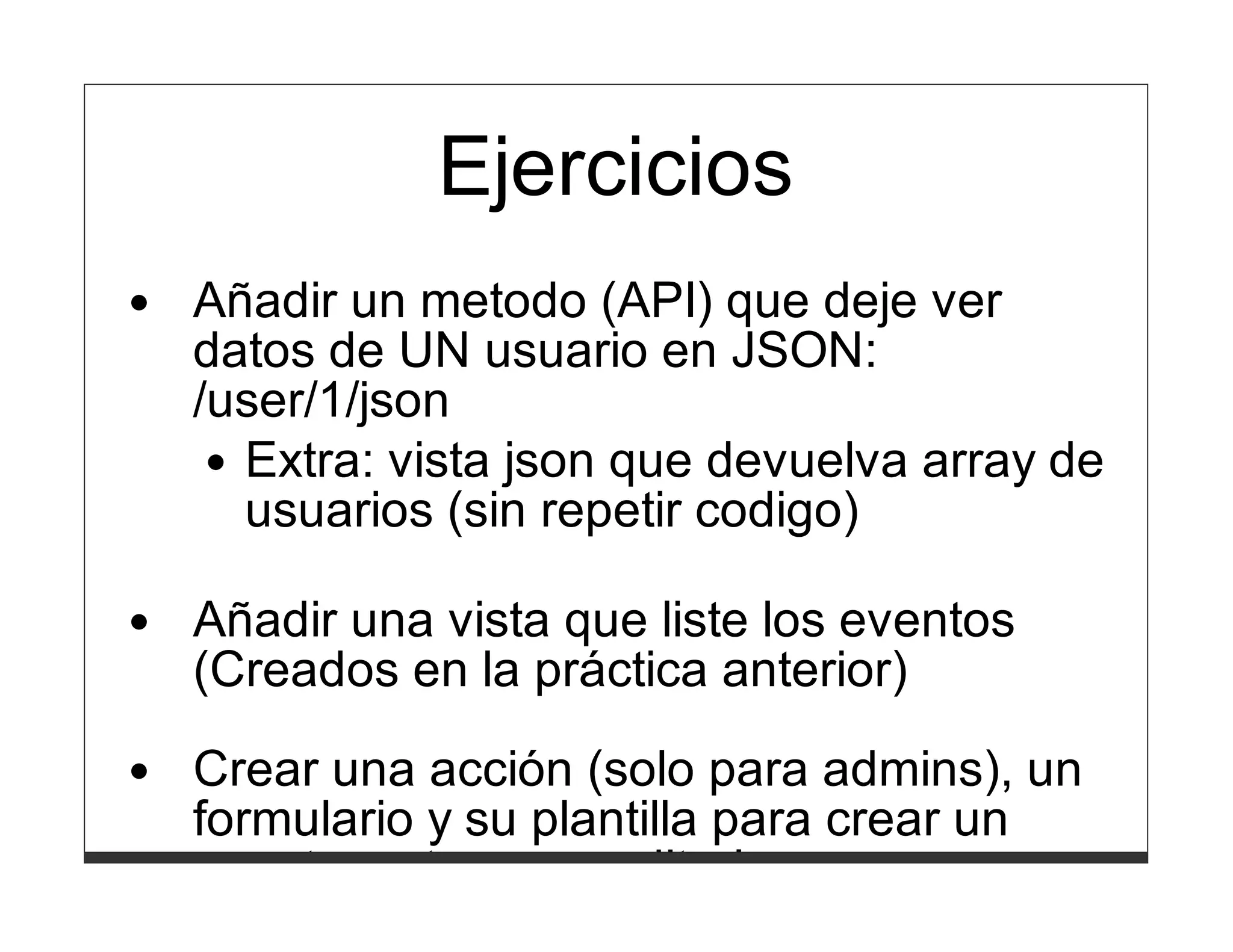

103. Manual
Ejercicios
https://metacpan.org/module/Catalyst::Manual
Añadir un metodo (API) que deje ver
datos de UN usuario en JSON:
/user/1/json
Extra: vista json que devuelva array de
usuarios (sin repetir codigo)
Añadir una vista que liste los eventos
(Creados en la práctica anterior)
Crear una acción (solo para admins), un
formulario y su plantilla para crear un
evento y otra para editarlo.
