Enabling Microservices @Orbitz - Velocity Conf 2015
- 1. Enabling Microservices @Orbitz Steve Hoffman Senior PrincipalEngineer @bacoboy Rick Fast Senior Principal Engineer @tortiepoint
- 2.
- 3.
- 4.
- 5. #velocityconf 2015 Outline • Brief ArchitectureOverview/History • From Monolithic to Services to Microservices/Docker • Automated Pipelines • Questions
- 6.
- 7.

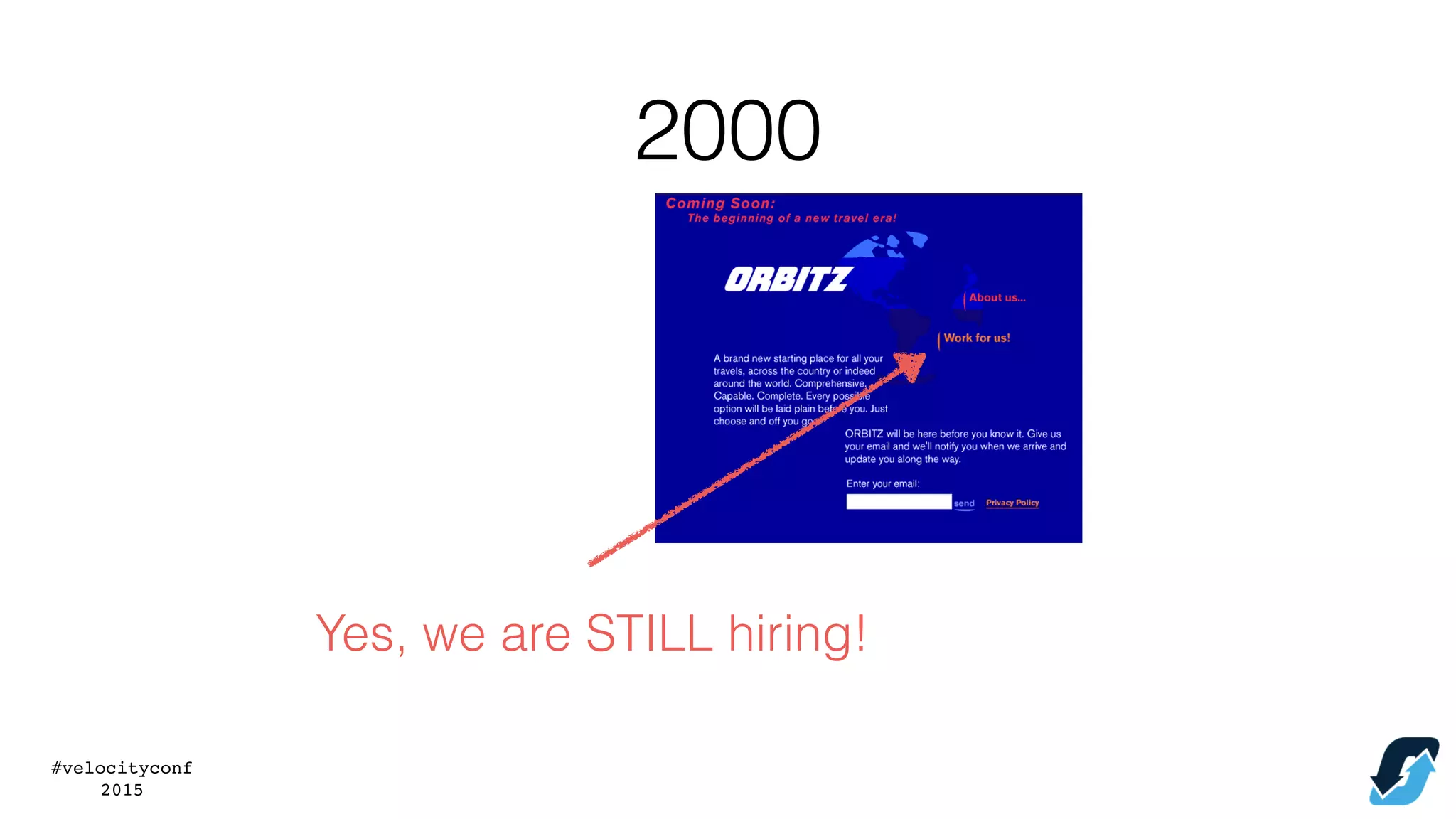

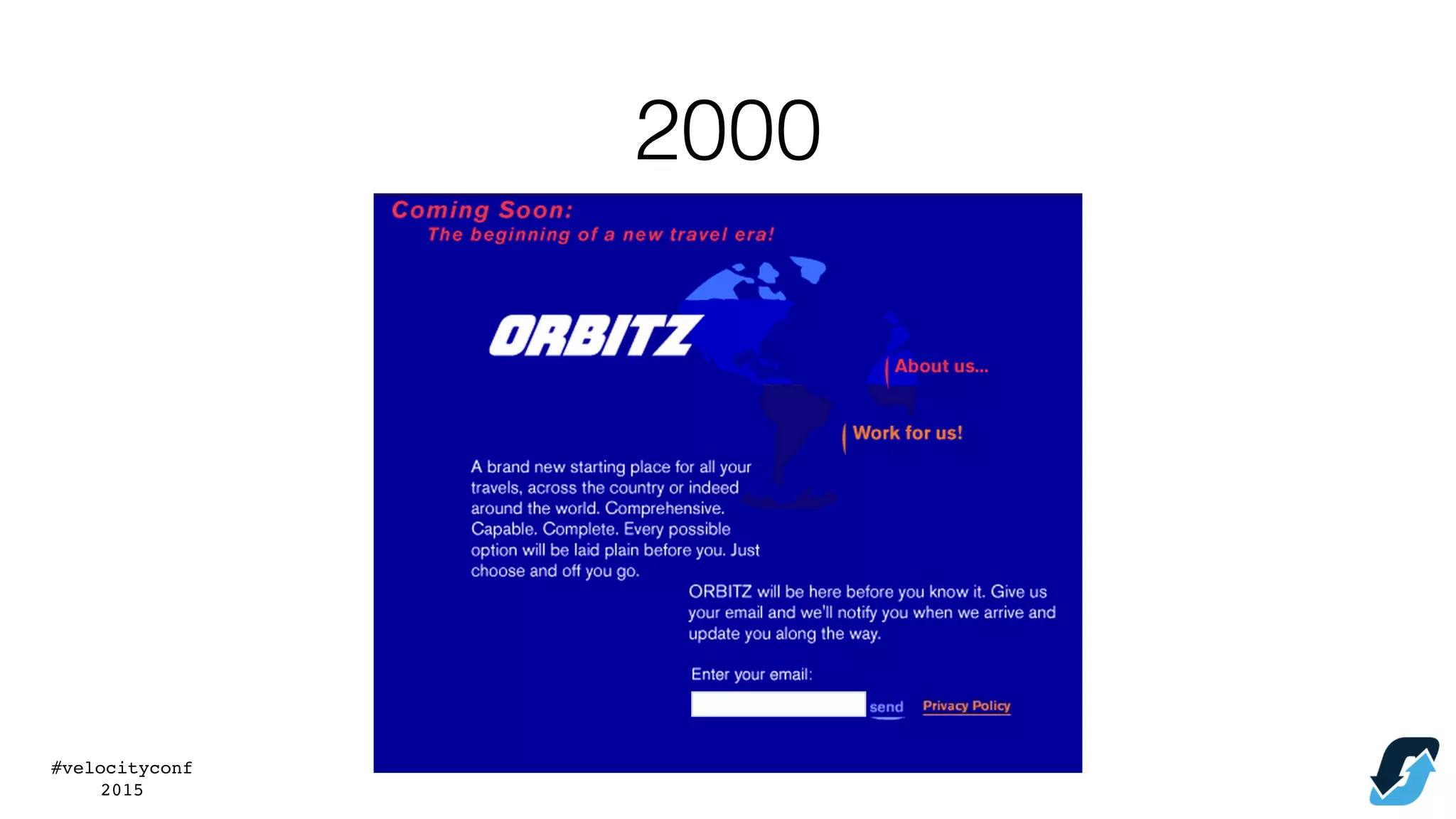

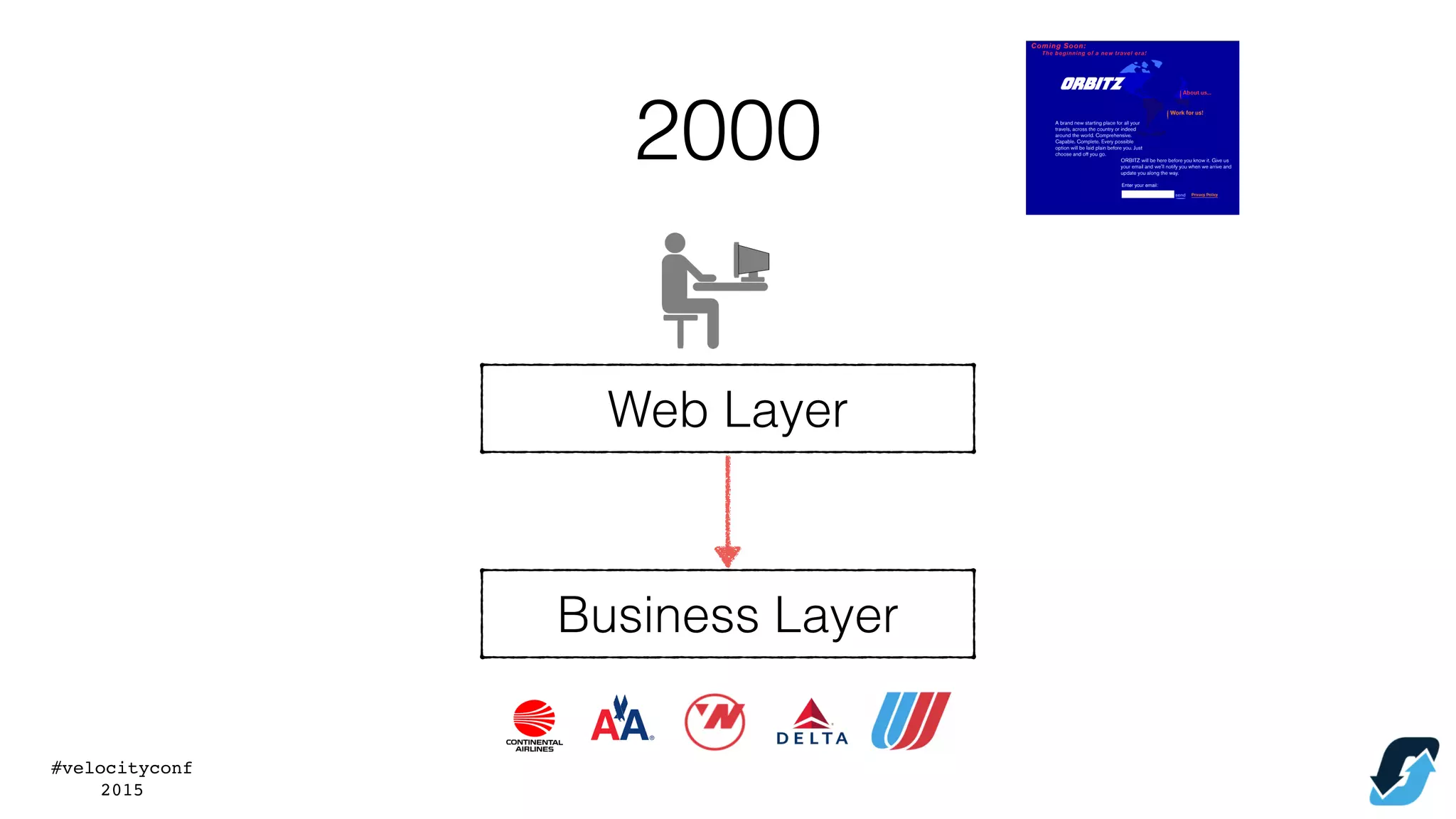

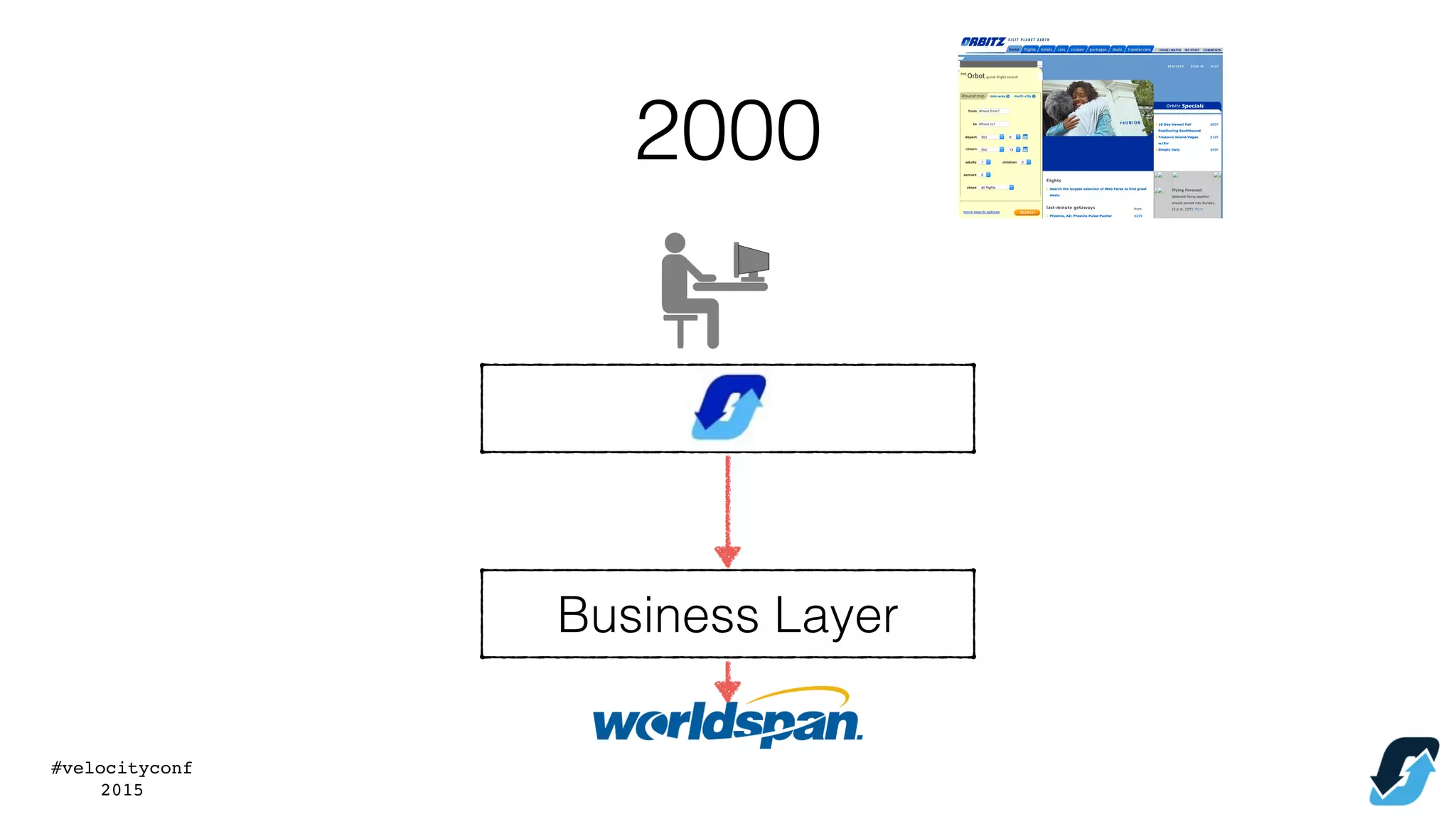

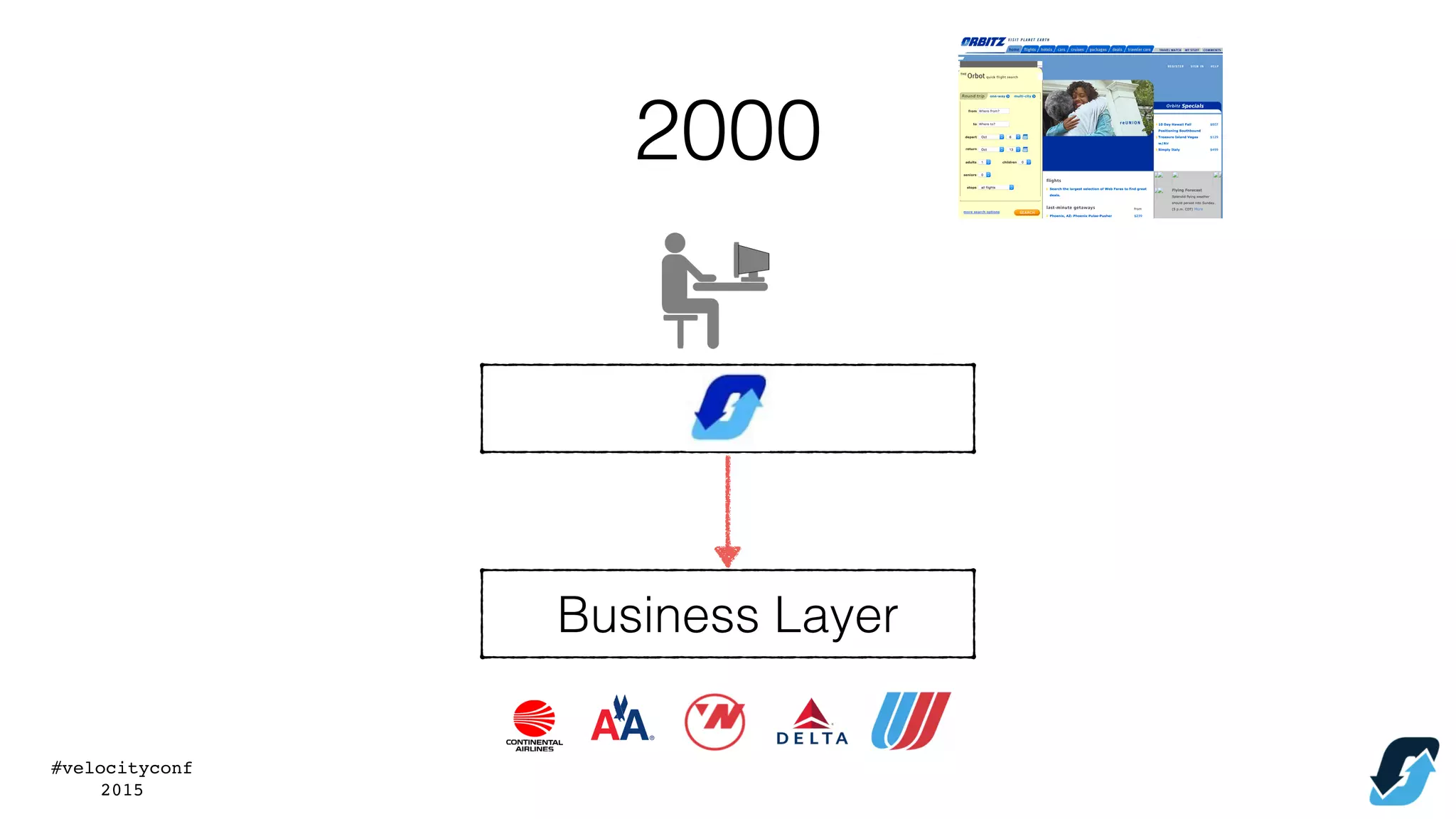

- 8. #velocityconf 2015 2000 Yes, we areSTILL hiring!
- 9. #velocityconf 2015 2000 Yes, we areSTILL hiring! @OrbitzTalent
- 10.
- 11.
- 12.
- 13.
- 14.
- 15.
- 16.
- 17.
- 18.
- 19.
- 20.
- 21.
- 22.
- 23.
- 24.

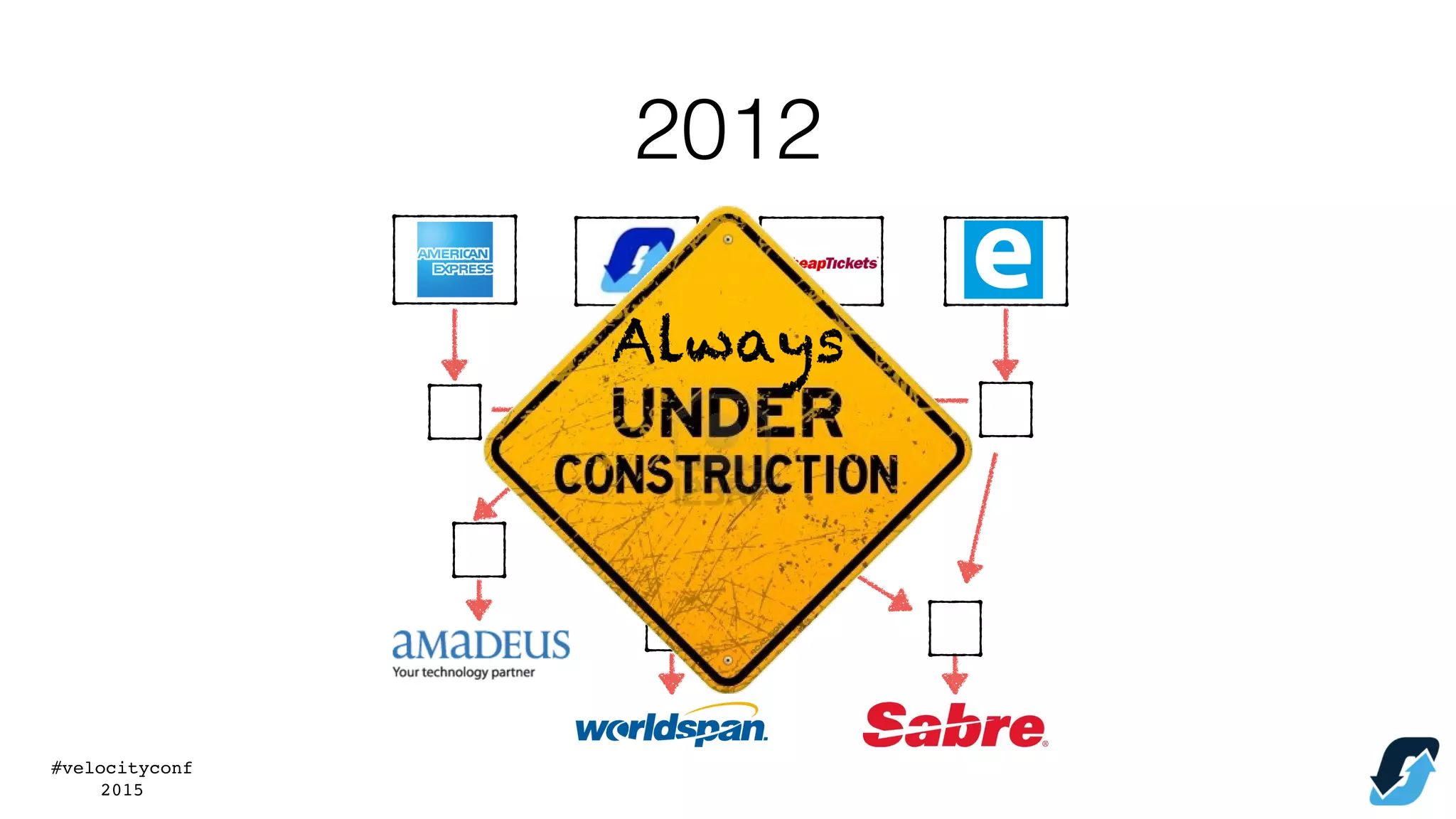

- 25. #velocityconf 2015 2012 • Multiple Brands •Websites • Webservices • Multiple Backends • 500+ apps / thousands of instances • Deployments Daily (sometimes more)
- 26. #velocityconf 2015 2015 • Multiple Brands •Websites • Webservices • Multiple Backends • 500+ apps / thousands of instances • Deployments Daily (sometimes more)
- 27.
- 28.

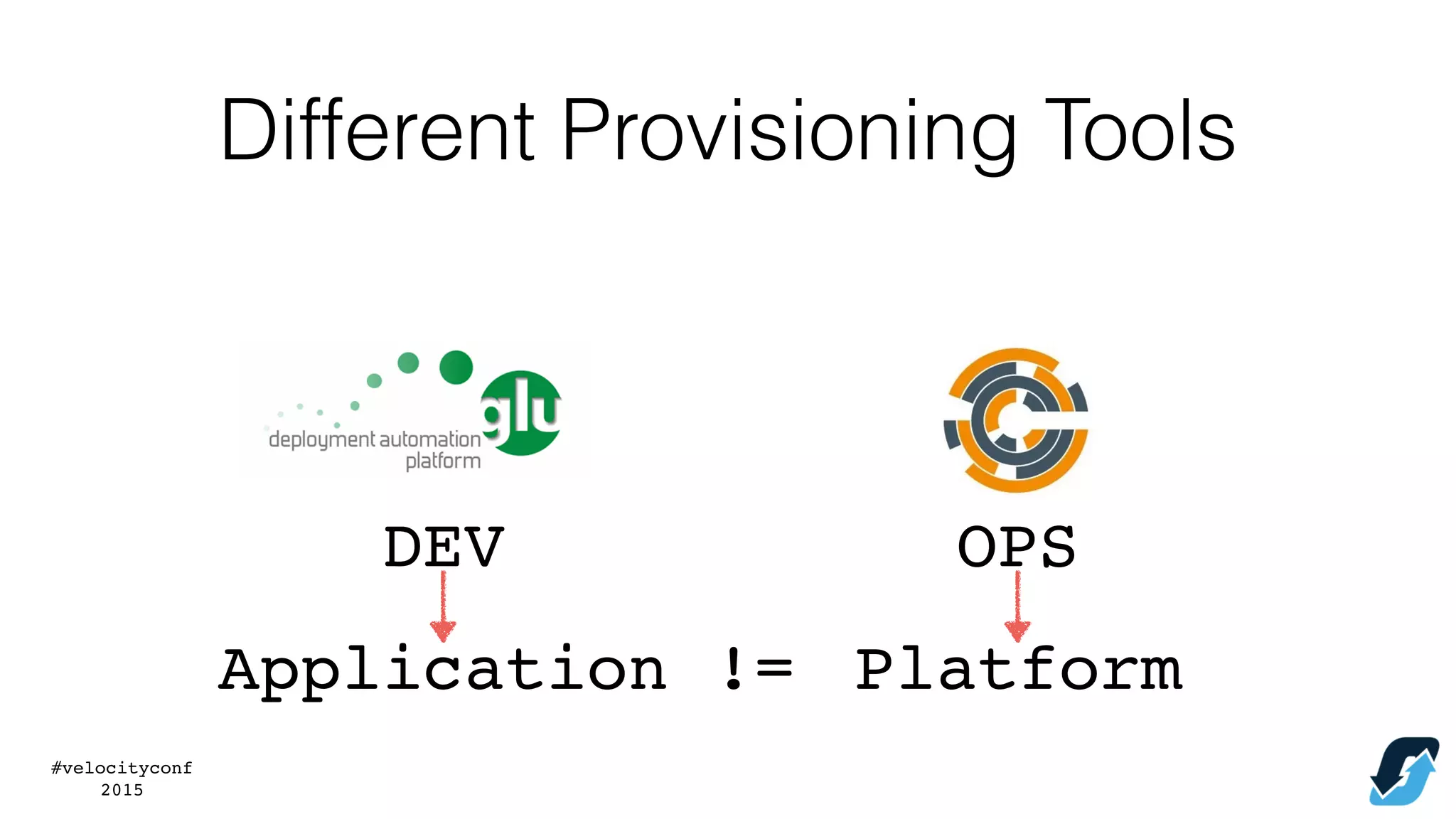

- 29. #velocityconf 2015 Different Provisioning Tools DEVOPS Application Platform!=

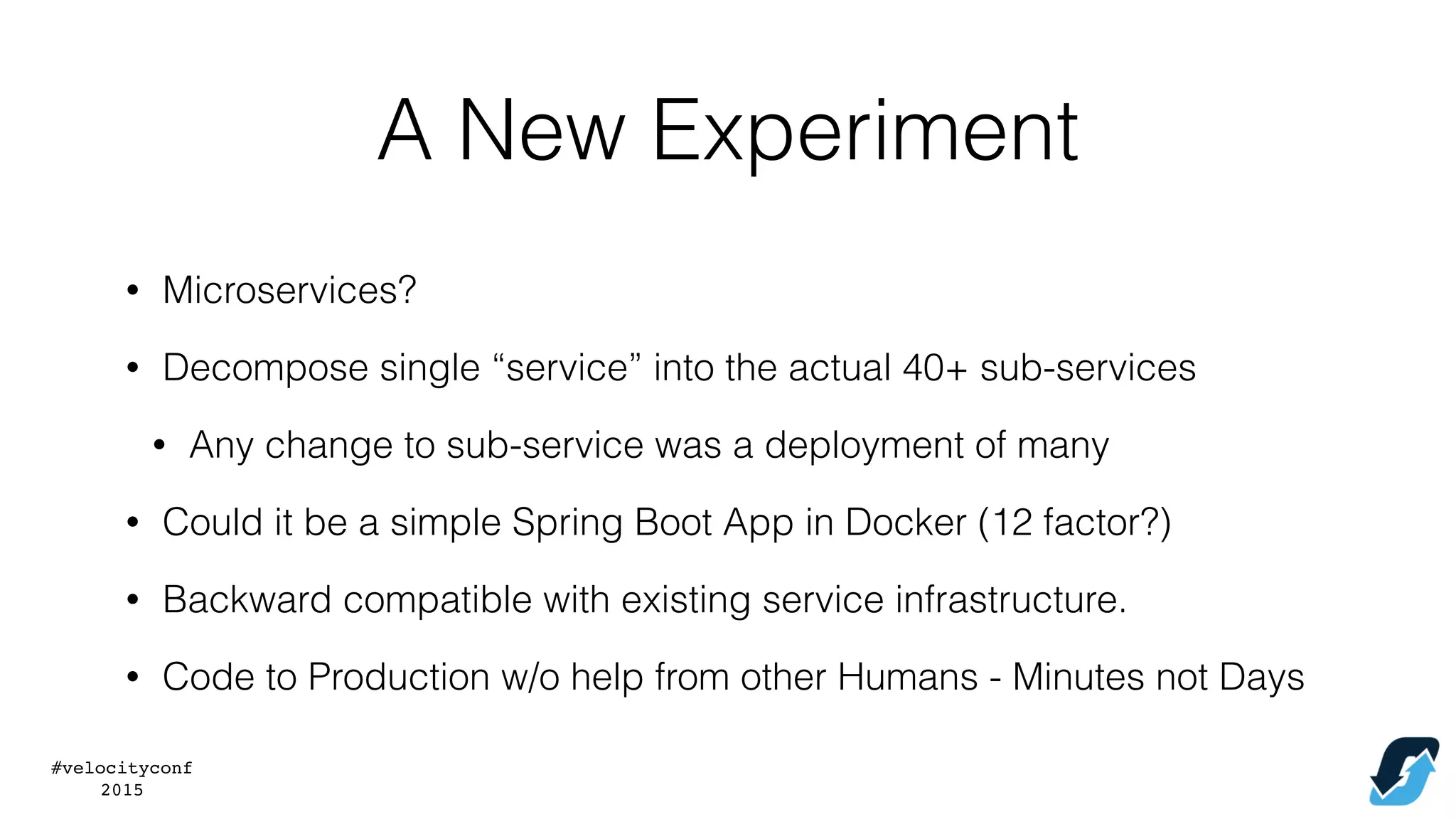

- 30. #velocityconf 2015 A New Experiment •Microservices? • Decompose single “service” into the actual 40+ sub-services • Any change to sub-service was a deployment of many • Could it be a simple Spring Boot App in Docker (12 factor?) • Backward compatible with existing service infrastructure. • Code to Production w/o help from other Humans - Minutes not Days

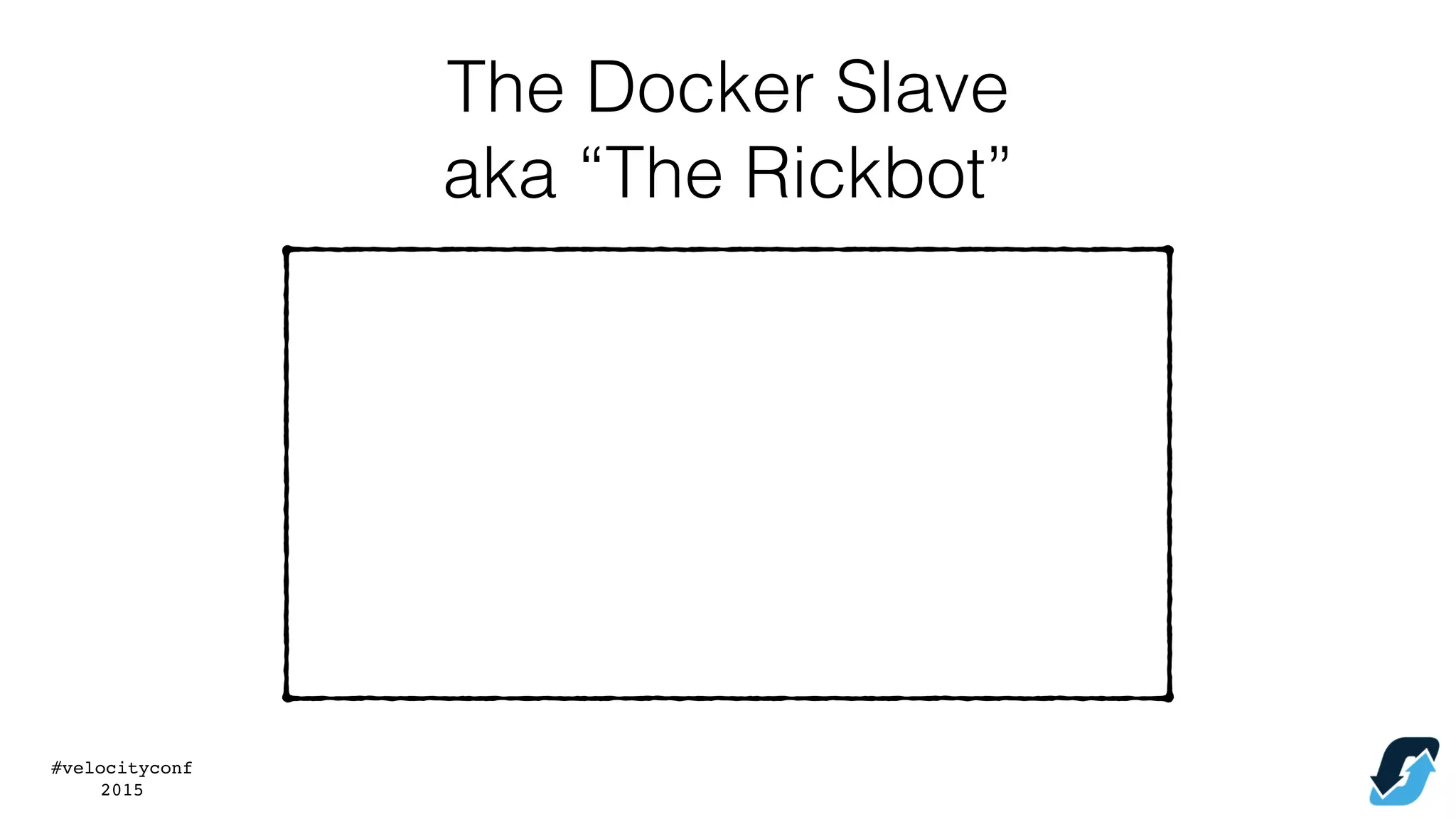

- 31. #velocityconf 2015 The Docker Slave aka“The Rickbot”

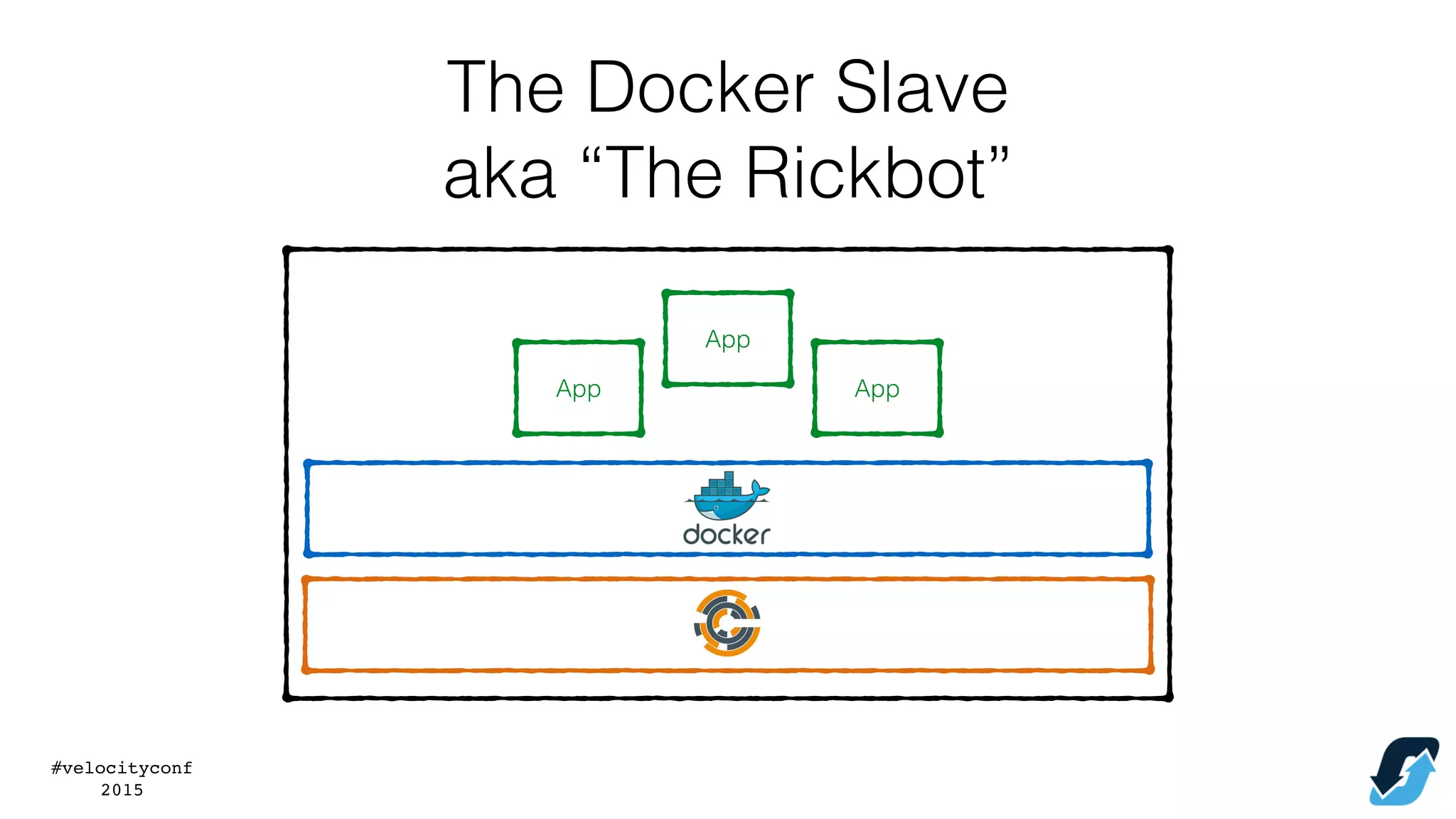

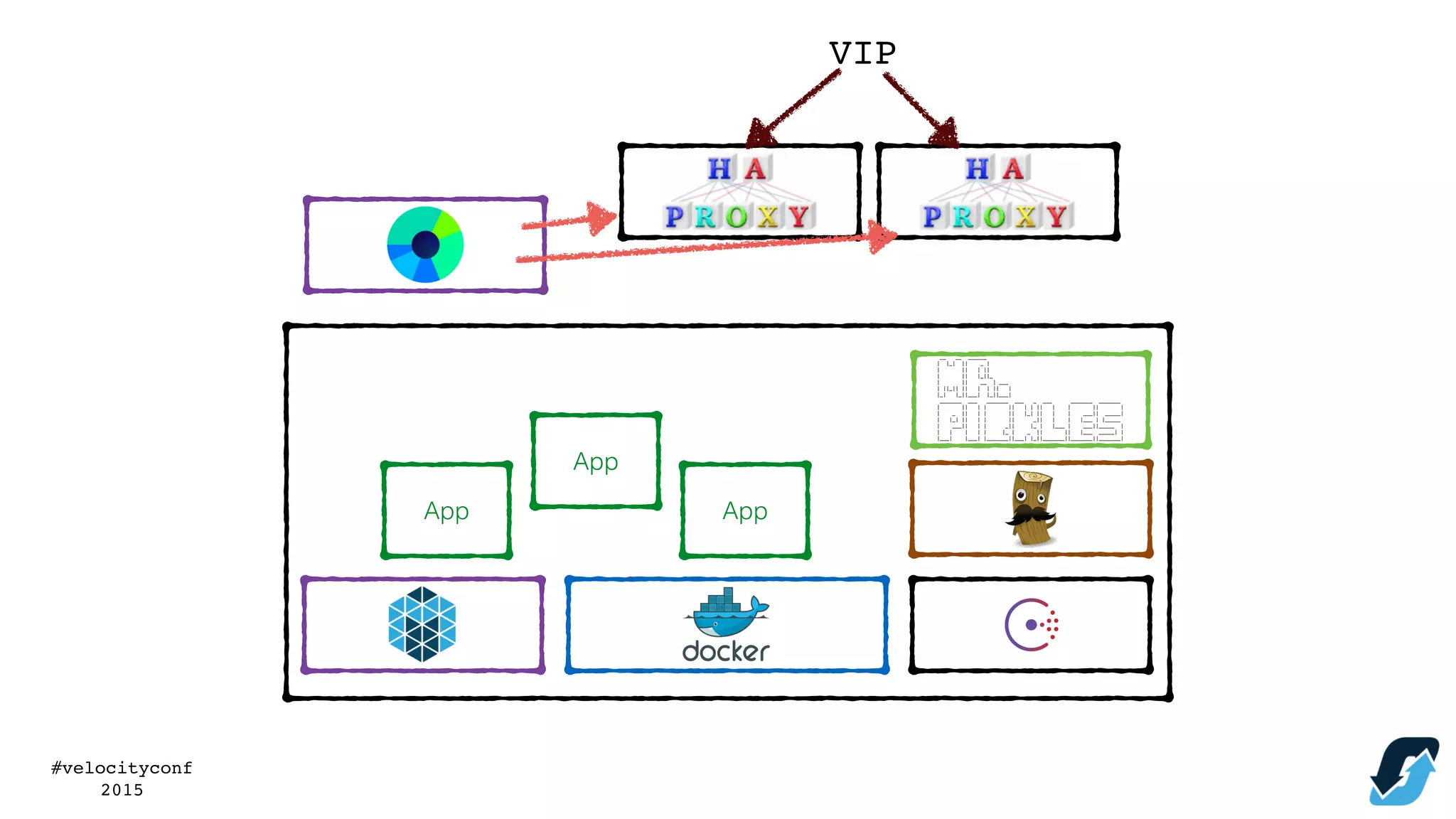

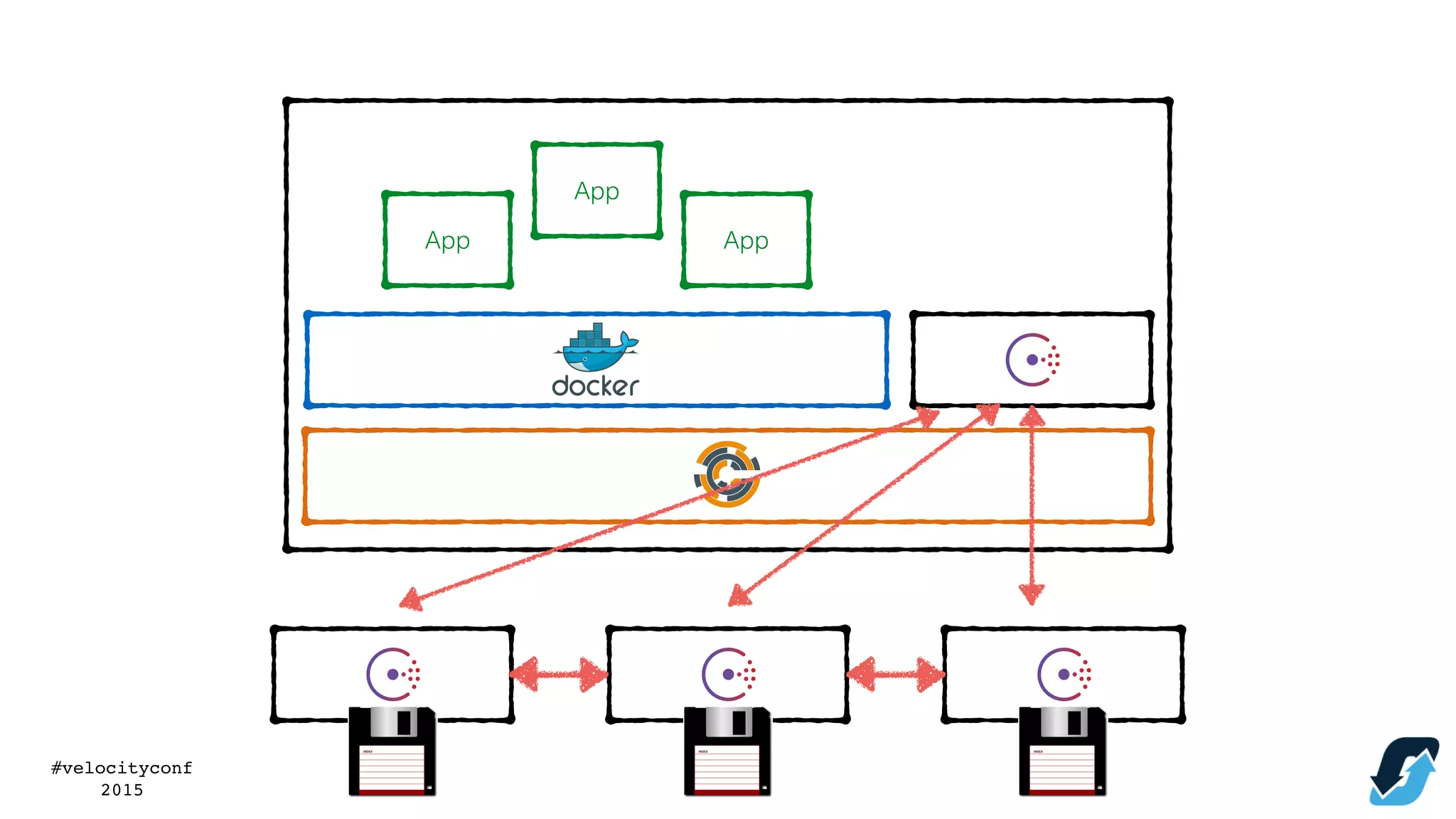

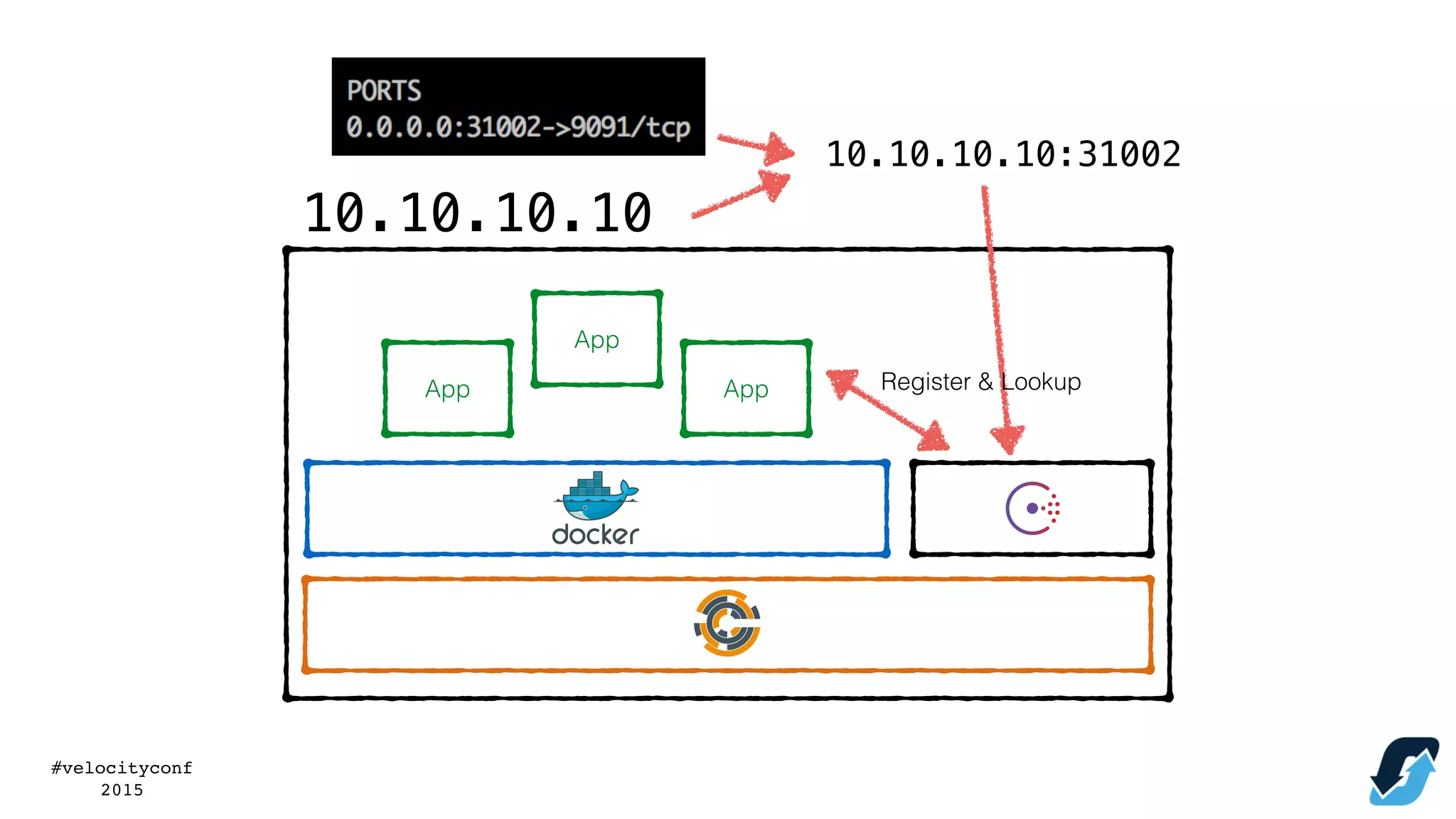

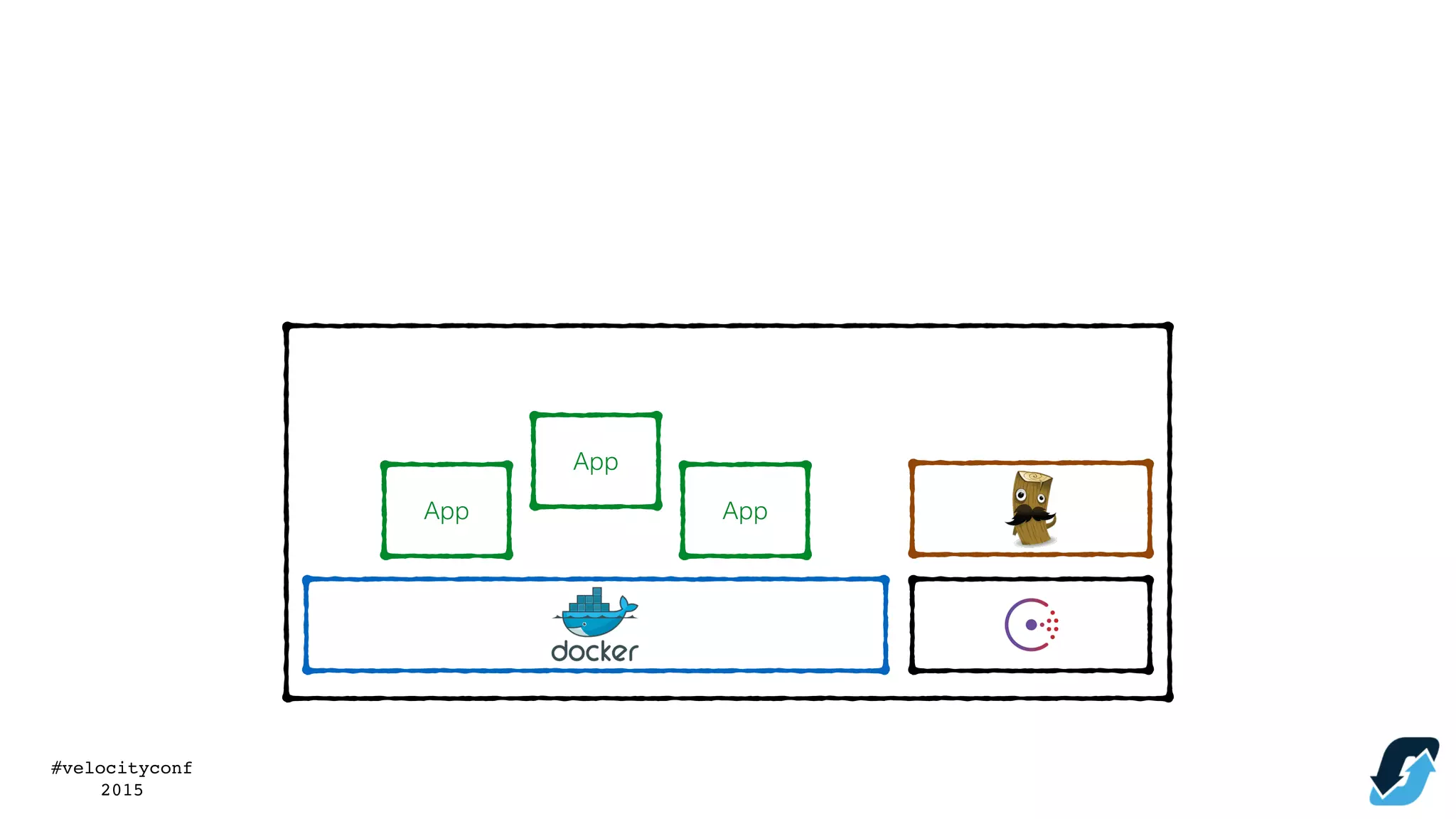

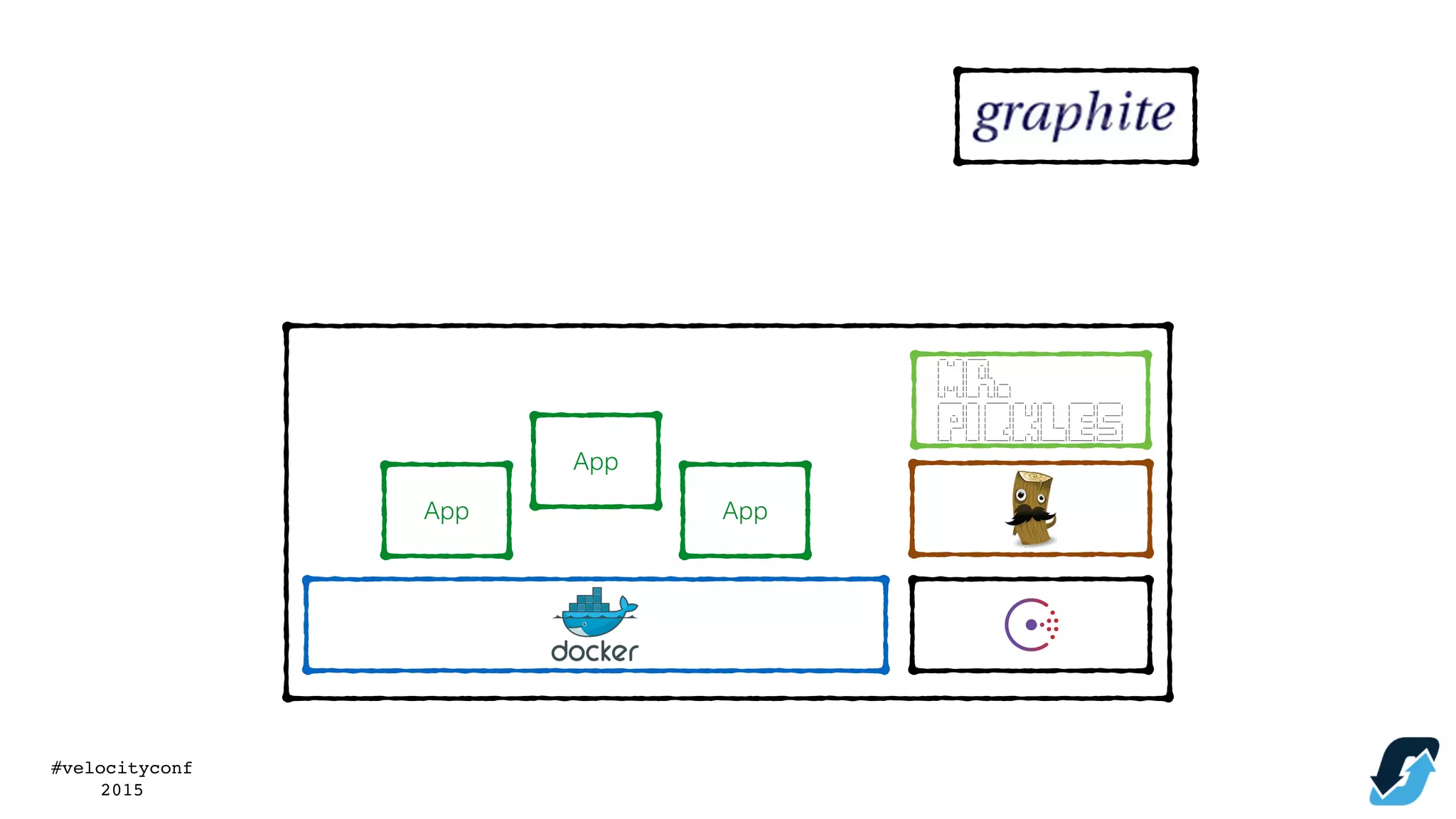

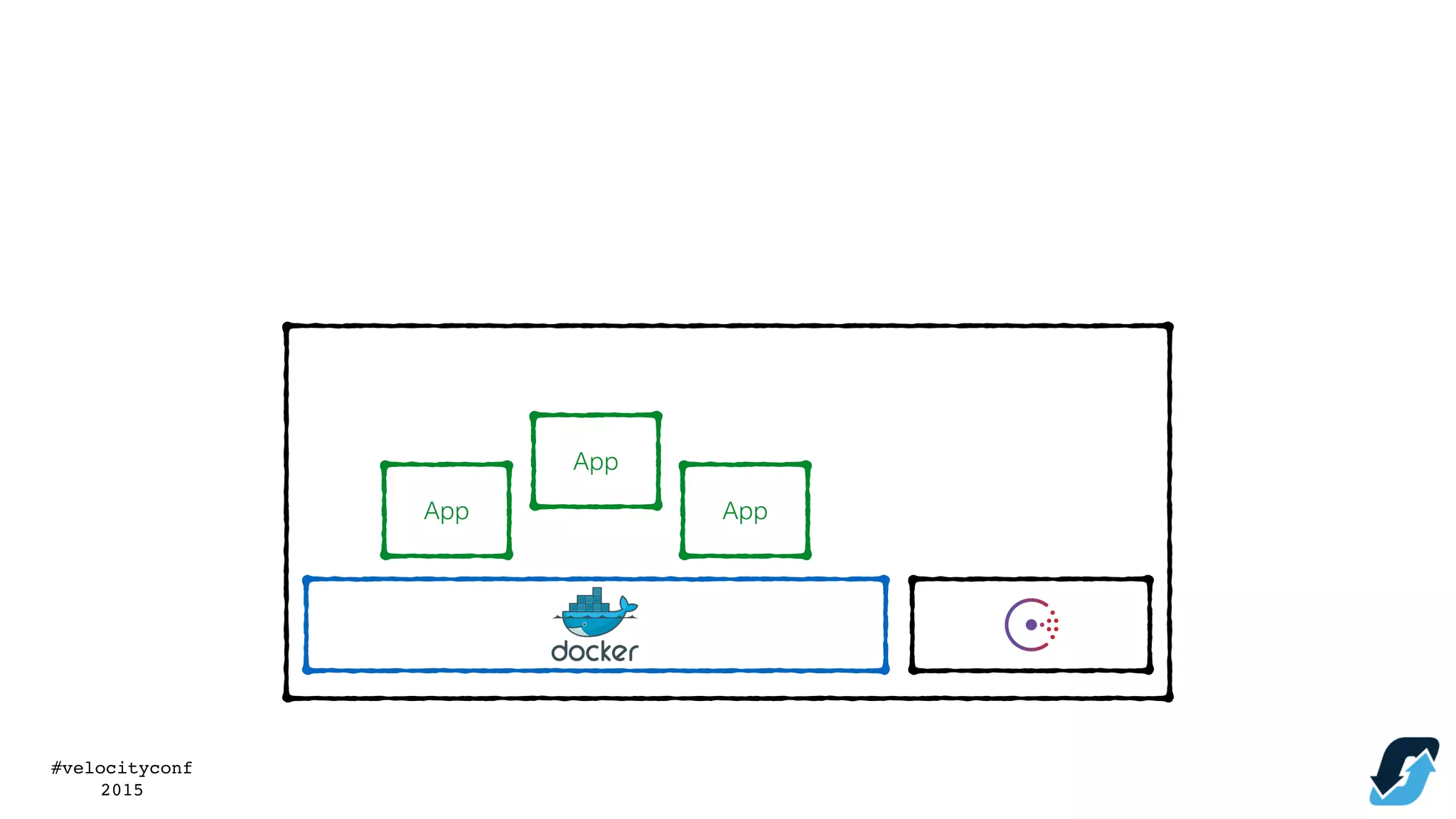

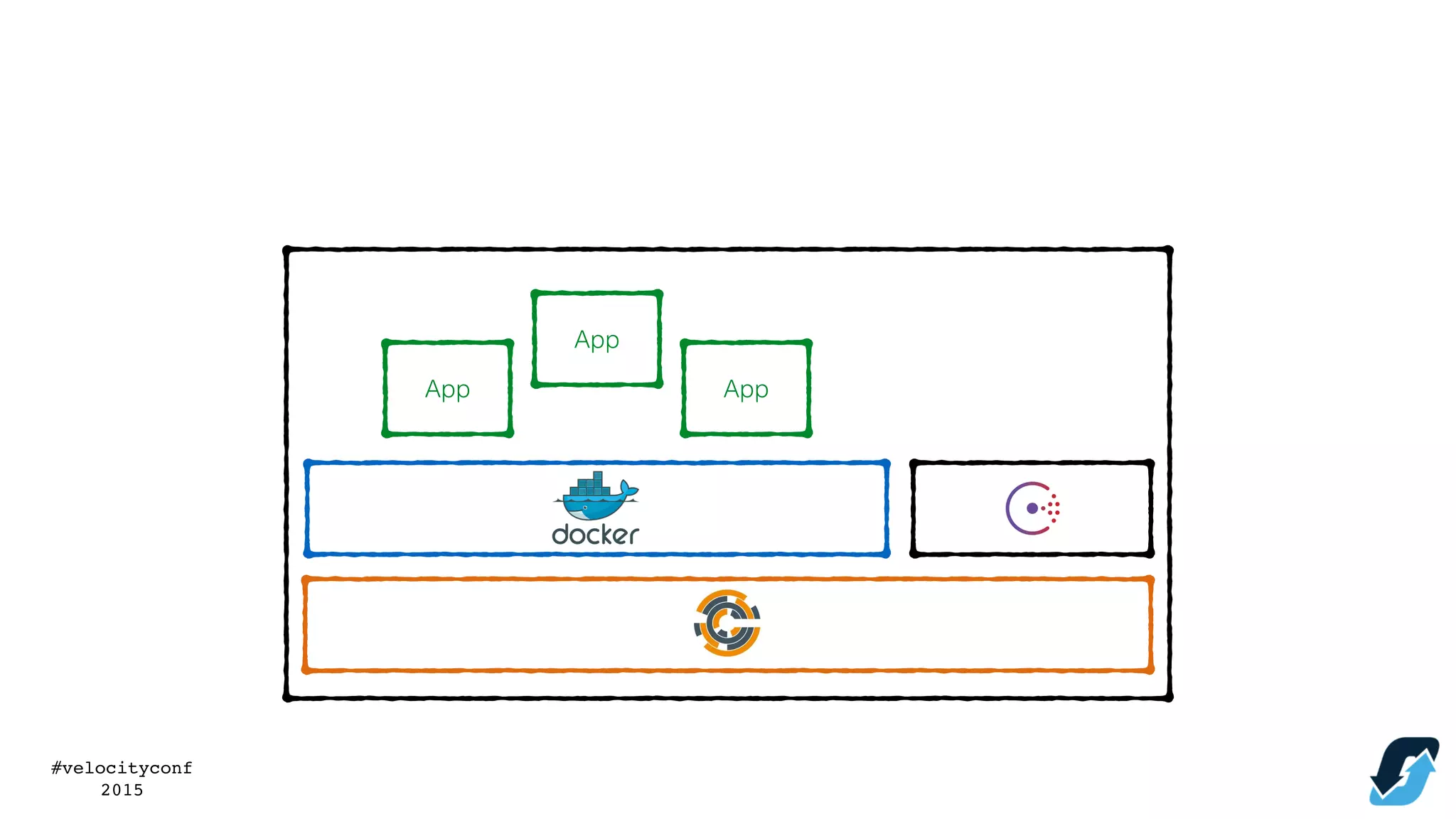

- 32. #velocityconf 2015 The Docker Slave aka“The Rickbot” App App App
- 33.
- 34.
- 35.
- 36.
- 37.
- 38.
- 39.
- 40.
- 41.
- 42.
- 43.
- 44.
- 45.
- 46.
- 47.
- 48.
- 49.
- 50.
- 51.
- 52.
- 53.
- 54.
- 55.
- 56.
- 57.
- 58.
- 59.
- 60.
- 61.
- 62.
- 63.
- 64.
- 65.
- 66.
- 67.
- 68.

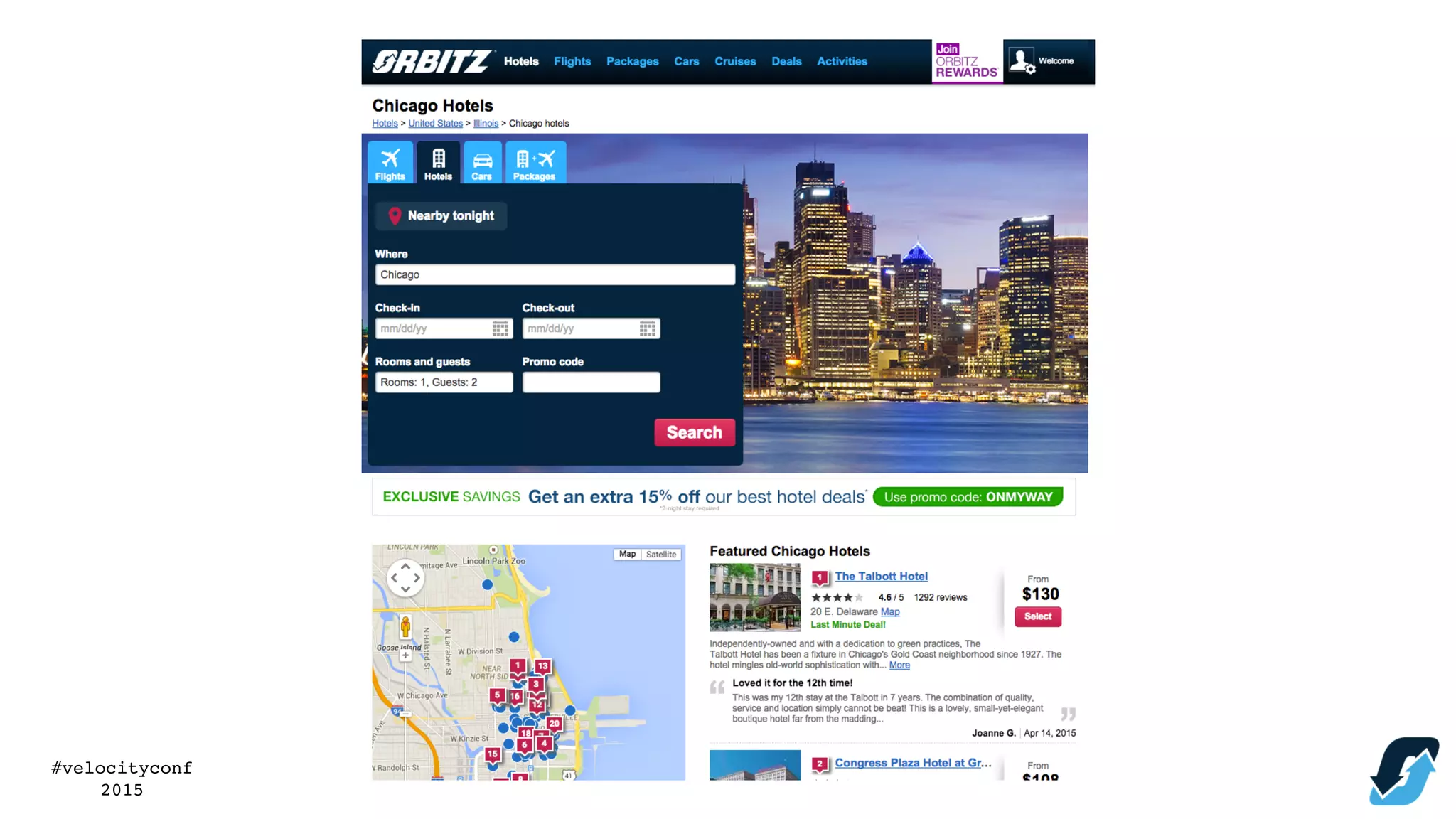

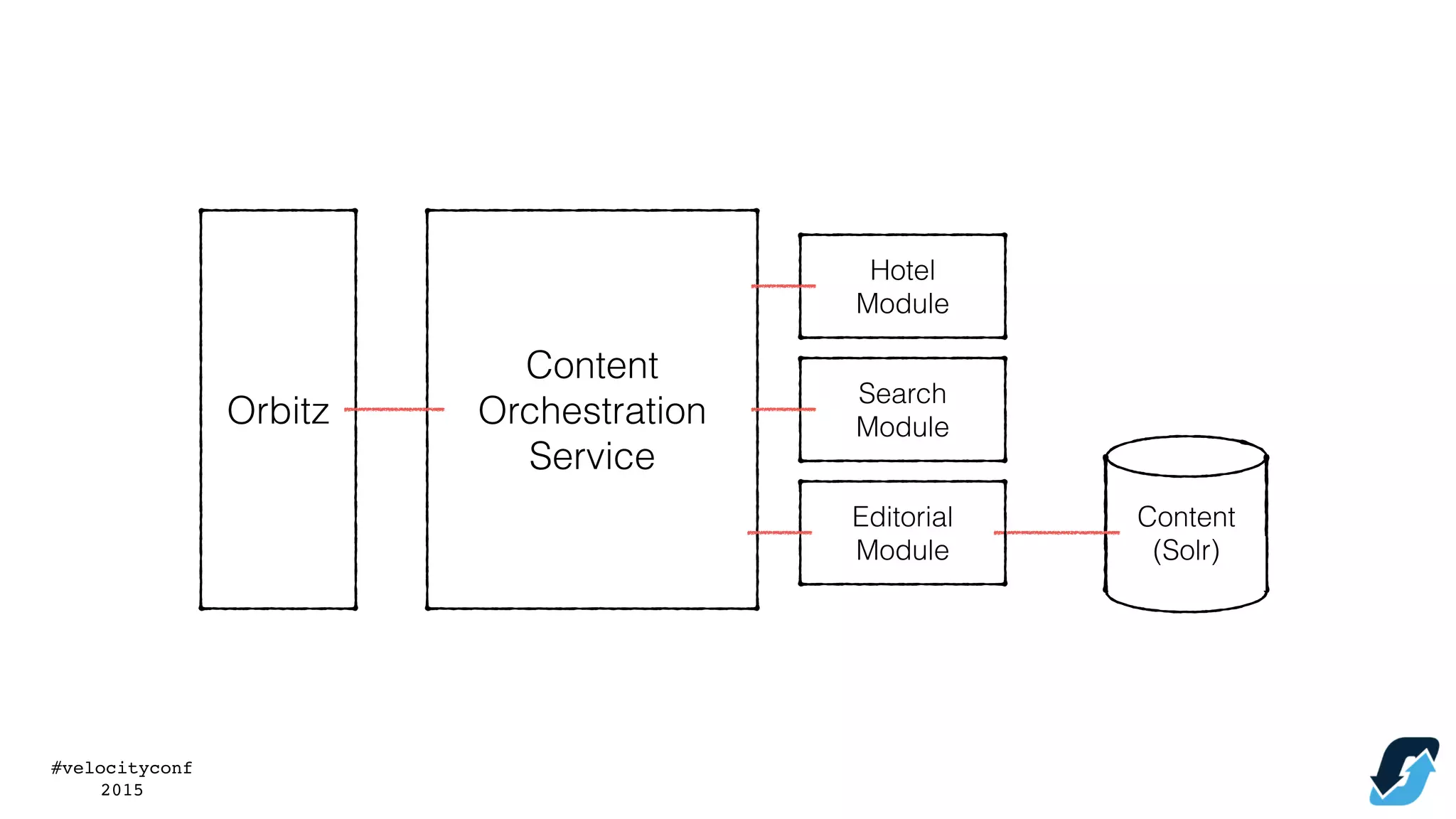

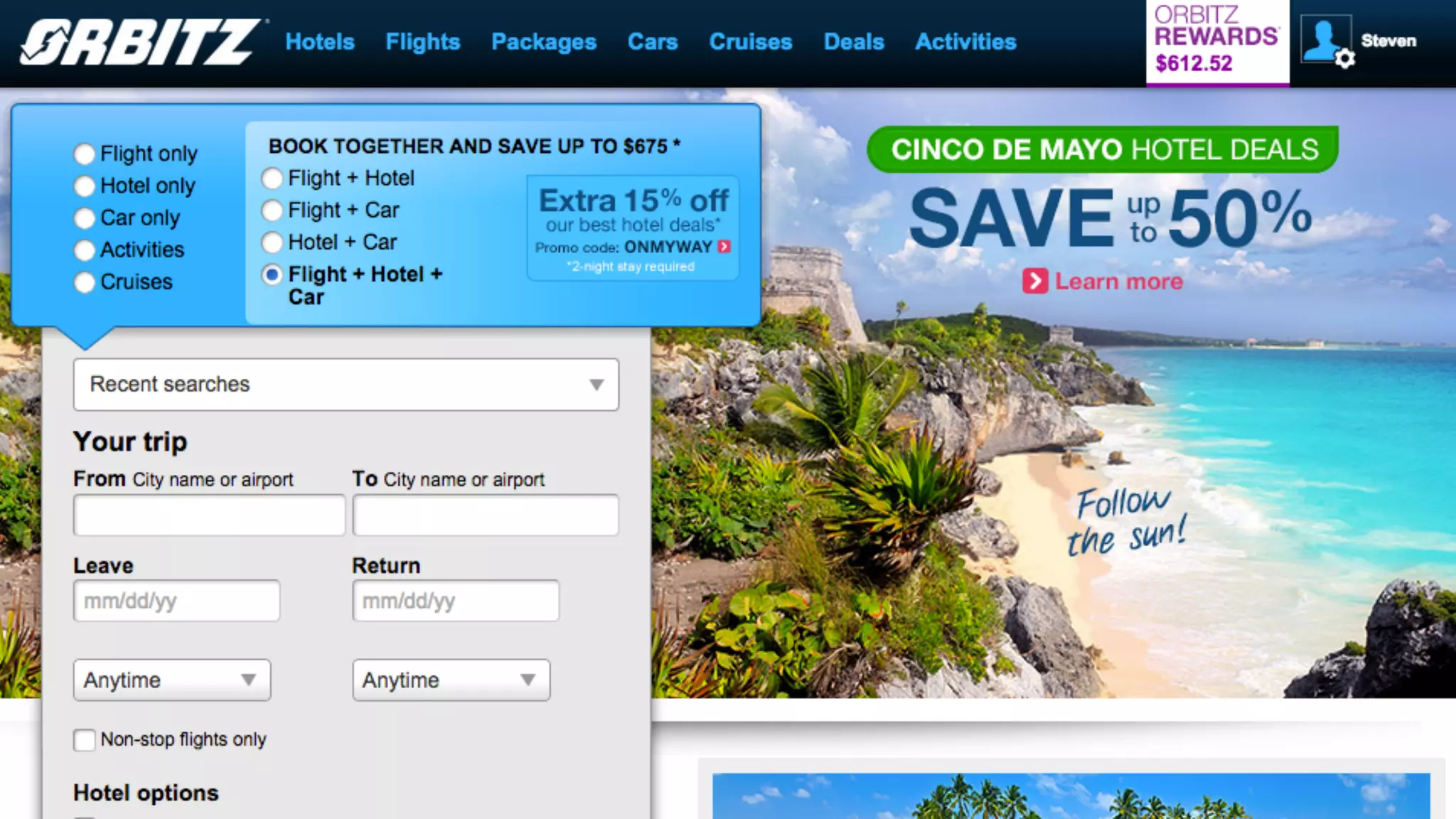

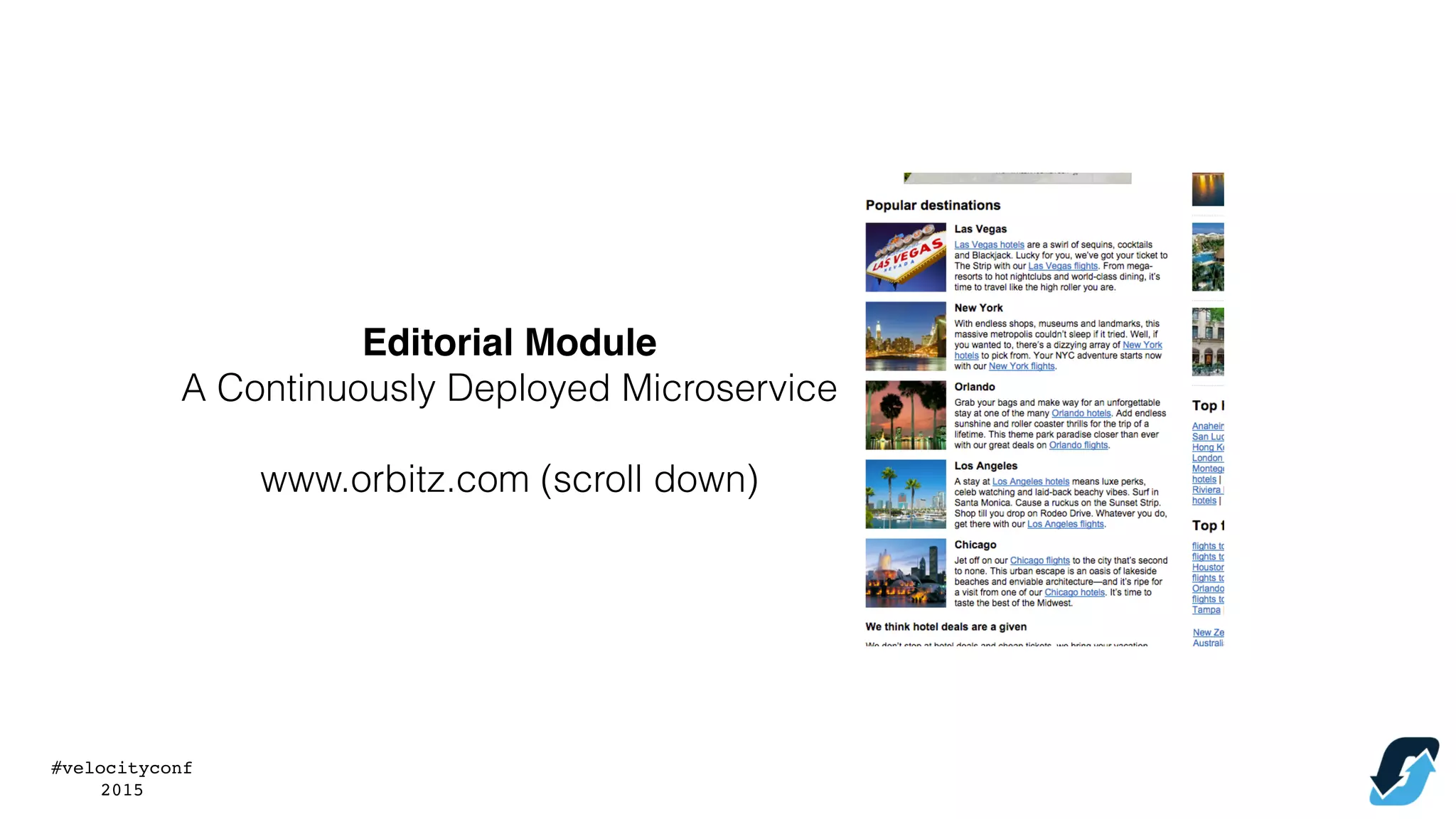

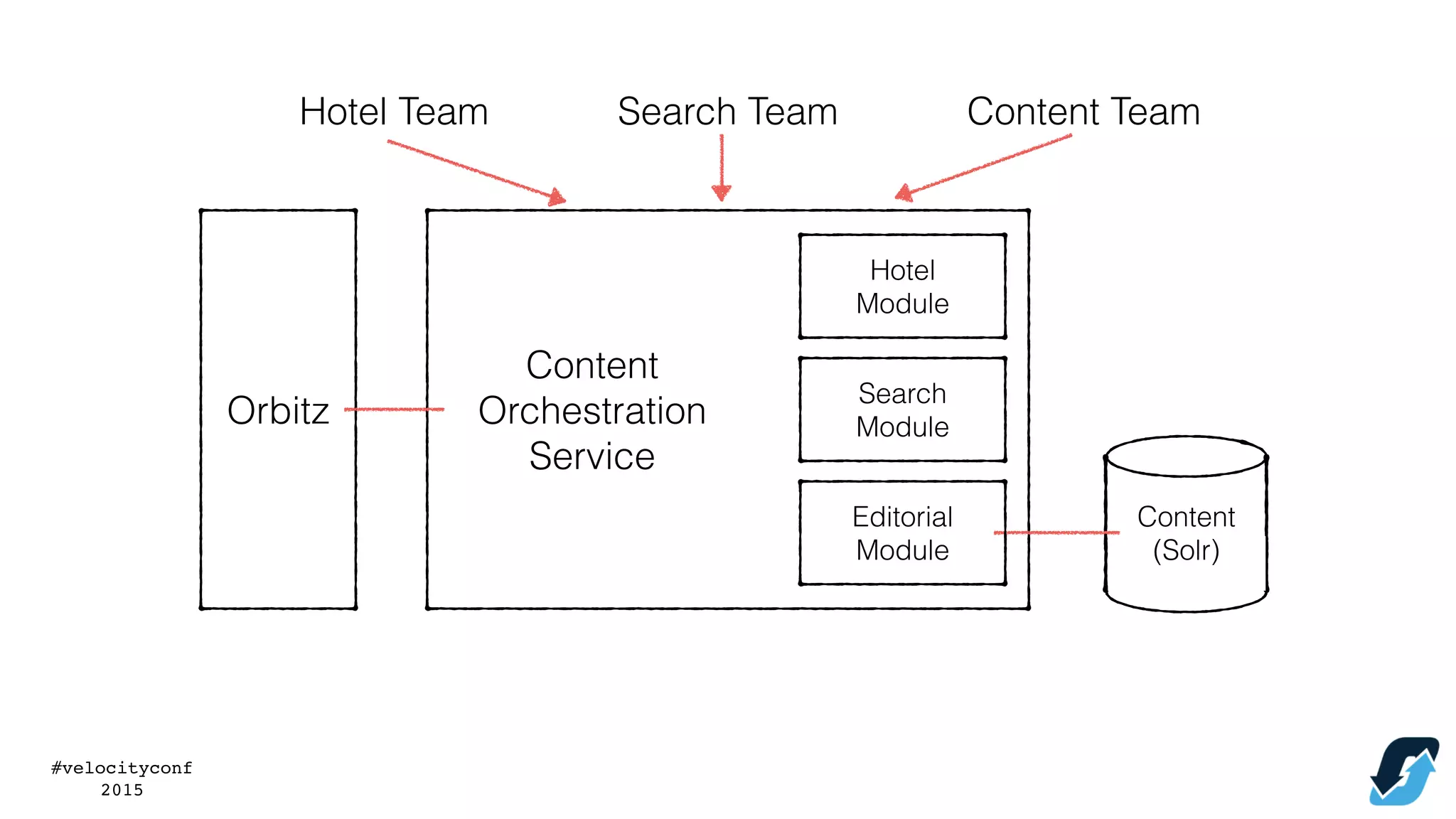

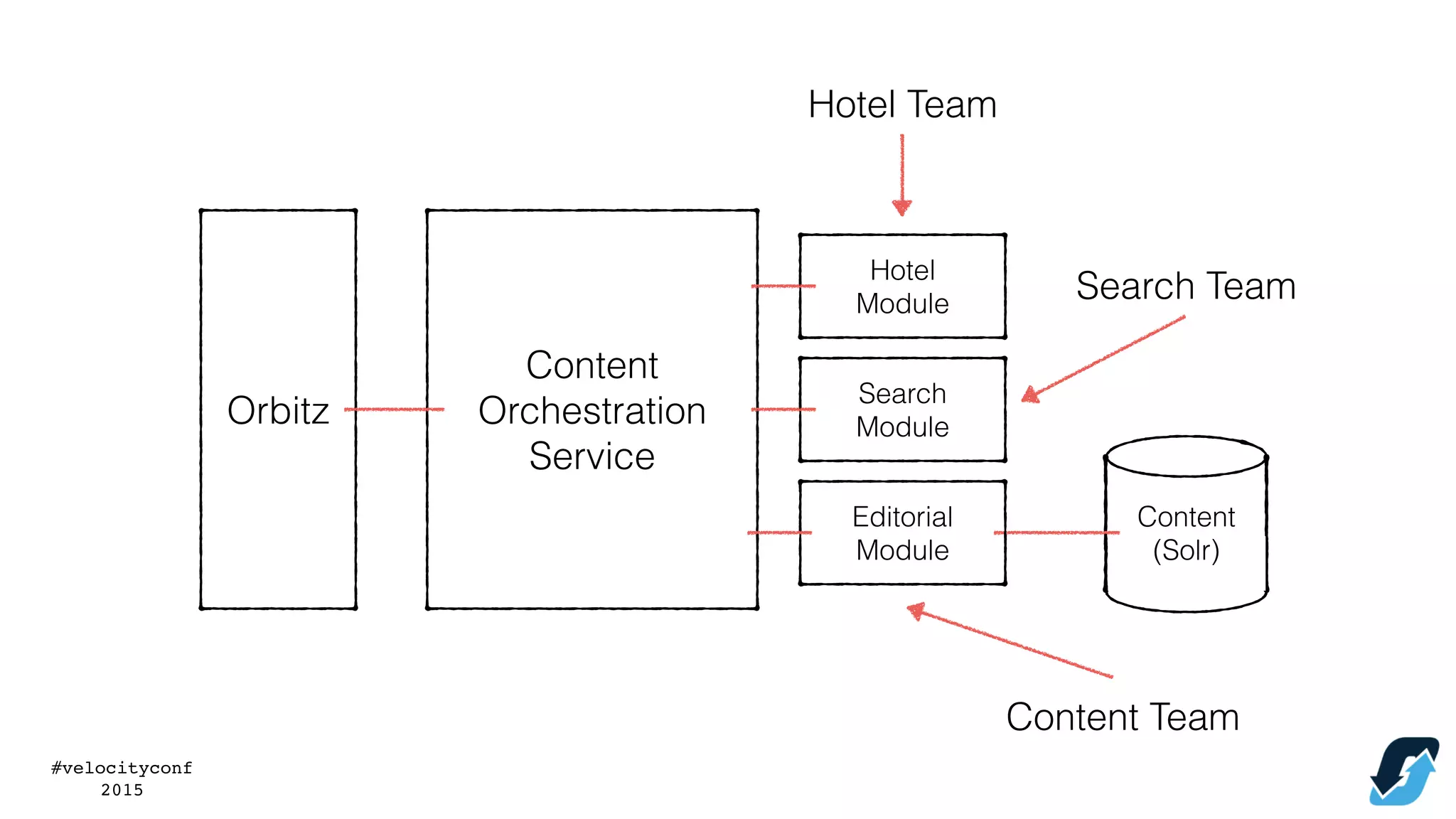

- 69. #velocityconf 2015 Editorial Module A ContinuouslyDeployed Microservice www.orbitz.com (scroll down)
- 70.
- 71.
- 72.
- 73.

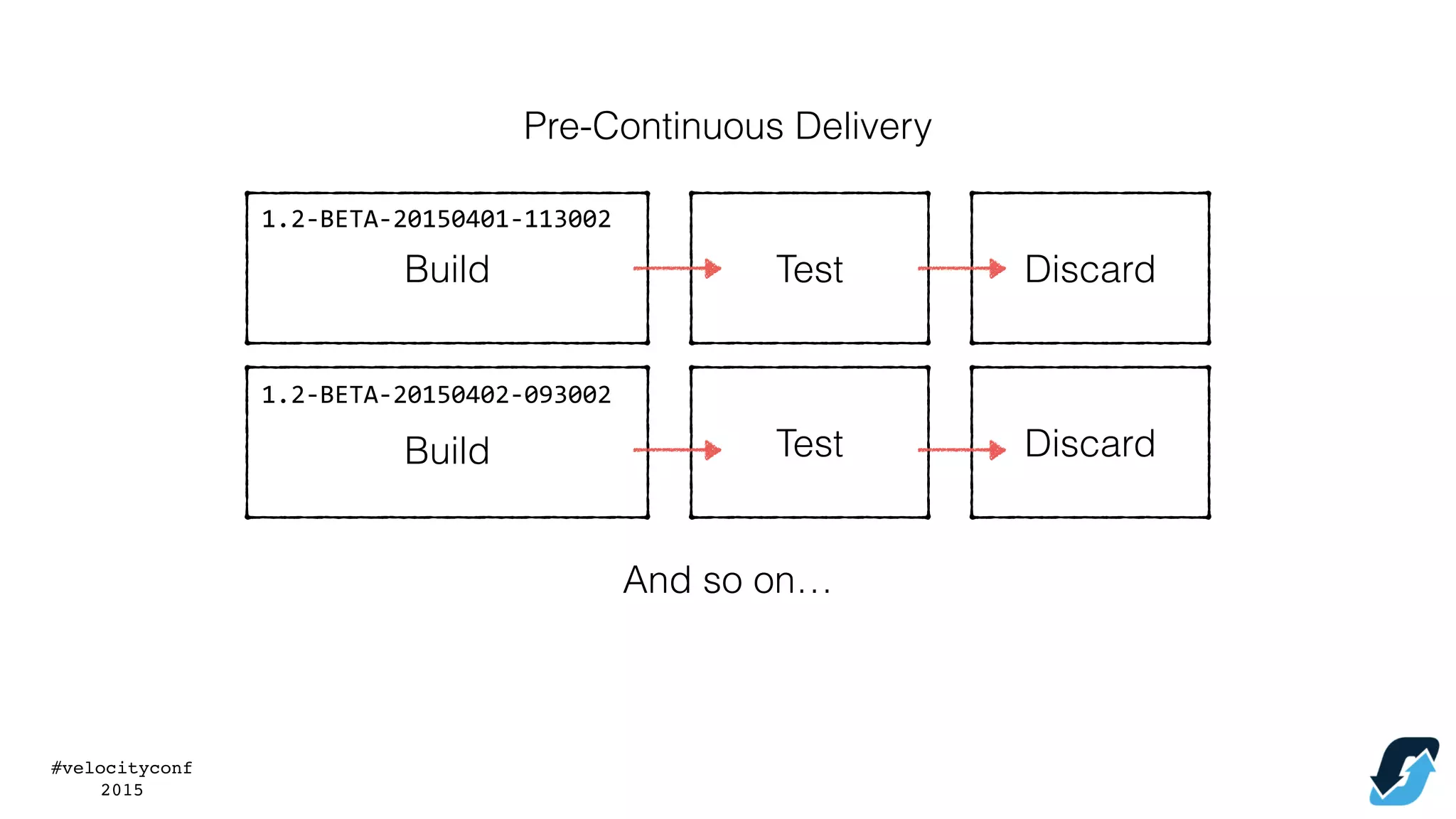

- 74. #velocityconf 2015 Pre-Continuous Delivery 1.2-‐BETA-‐20150401-‐113002 Test Discard TestDiscard 1.2-‐BETA-‐20150402-‐093002 Build Build And so on…

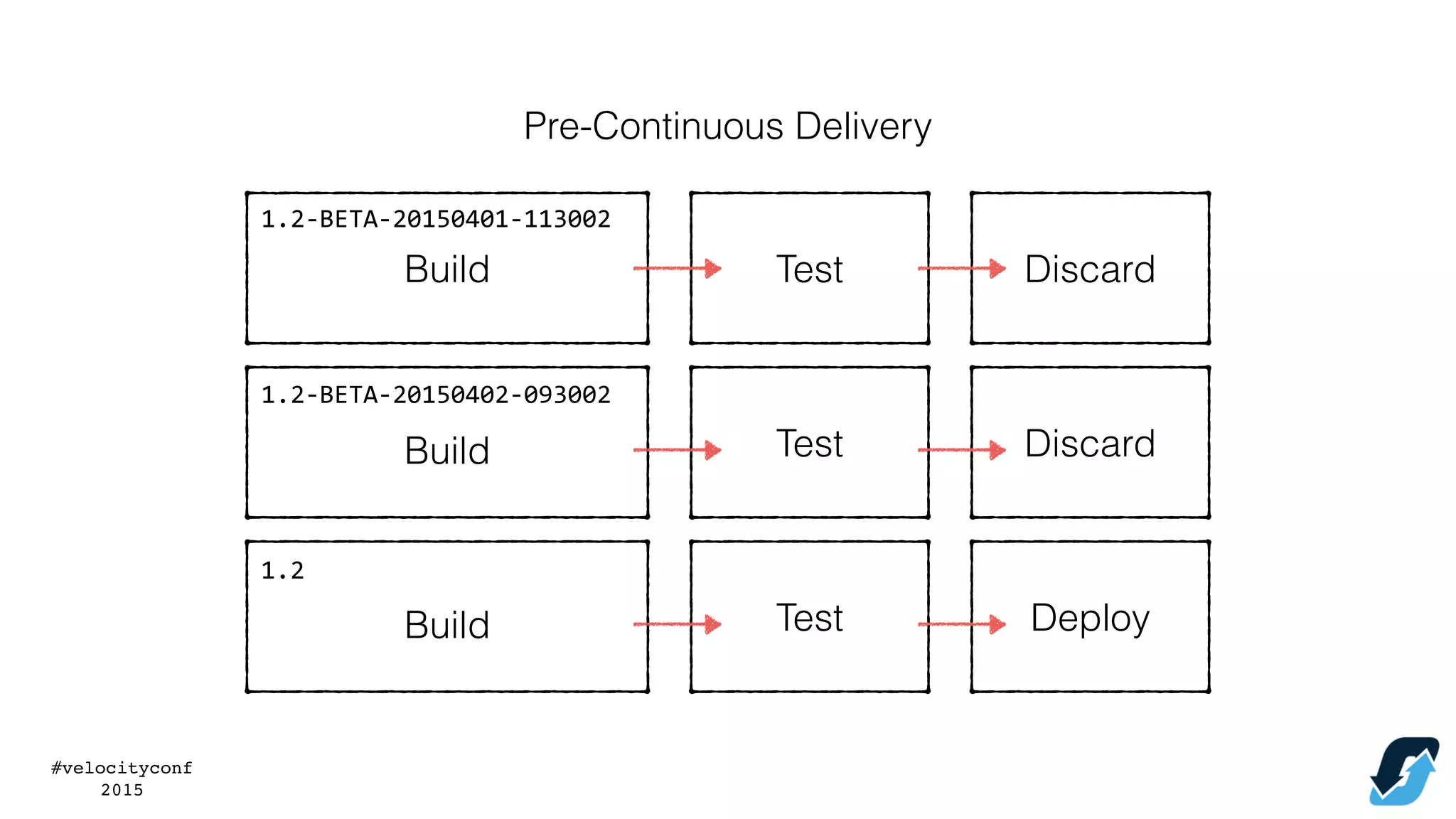

- 75. #velocityconf 2015 Pre-Continuous Delivery 1.2-‐BETA-‐20150401-‐113002 Test Discard TestDiscard 1.2-‐BETA-‐20150402-‐093002 Build Build Test Deploy 1.2 Build
- 76. #velocityconf 2015 Continuous Delivery with Jenkins,Docker, and Ansible (And then Marathon)

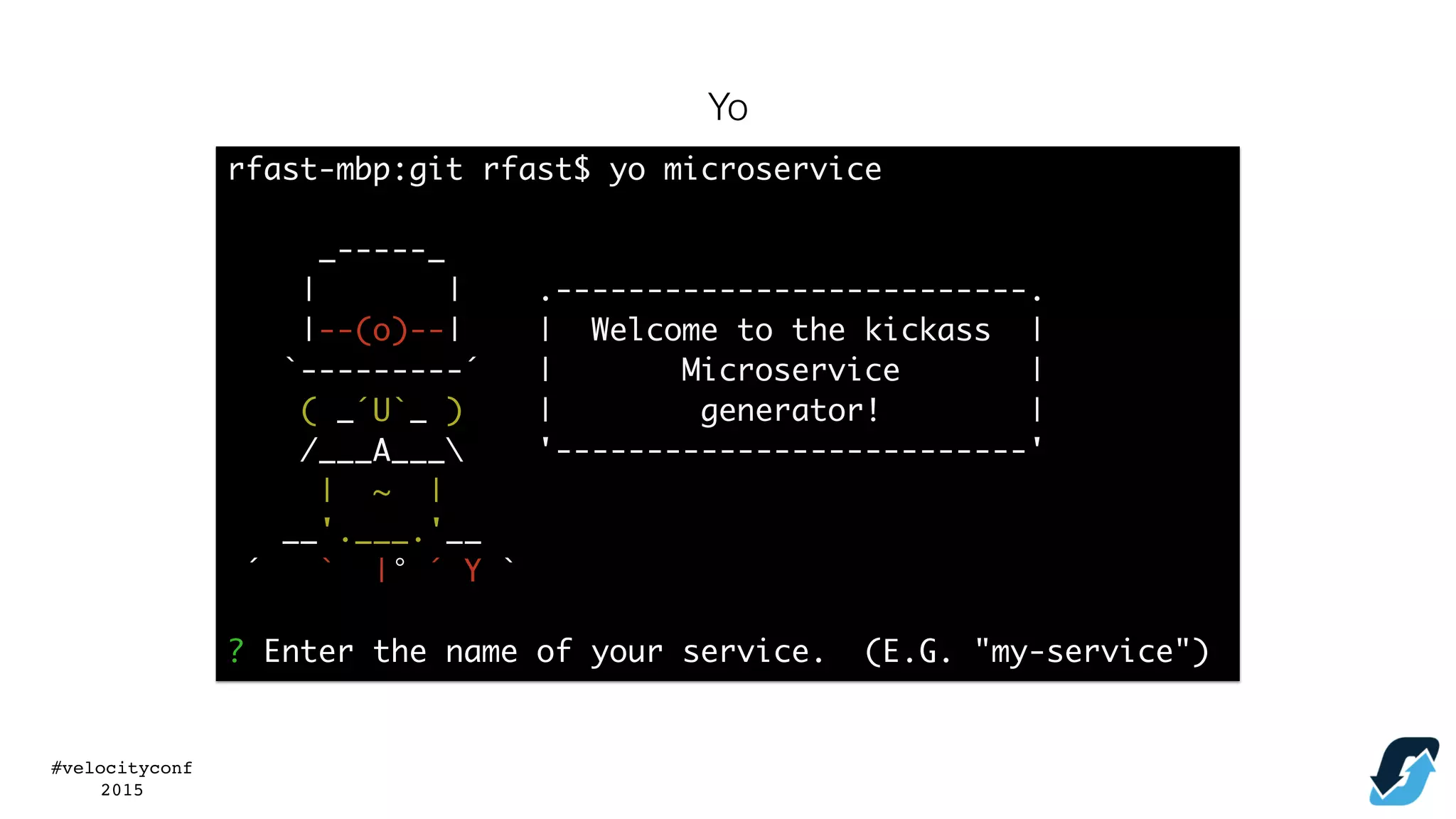

- 77. #velocityconf 2015 rfast-mbp:git rfast$ yomicroservice _-----_ | | .--------------------------. |--(o)--| | Welcome to the kickass | `---------´ | Microservice | ( _´U`_ ) | generator! | /___A___ '--------------------------' | ~ | __'.___.'__ ´ ` |° ´ Y ` ? Enter the name of your service. (E.G. "my-service") Yo
- 78.
- 79.
- 80.
- 81.
- 82.
- 83.
- 84.
- 85.

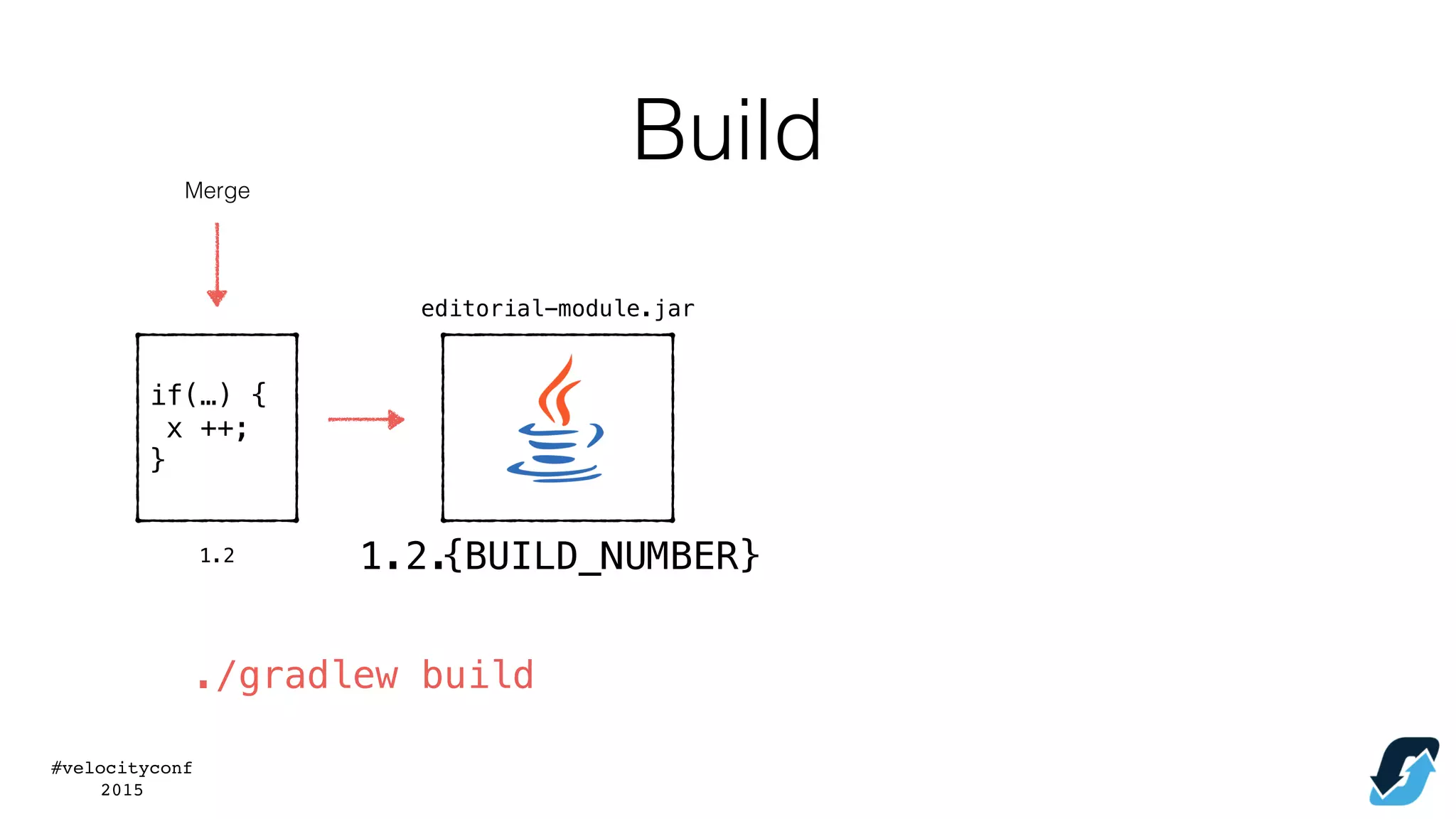

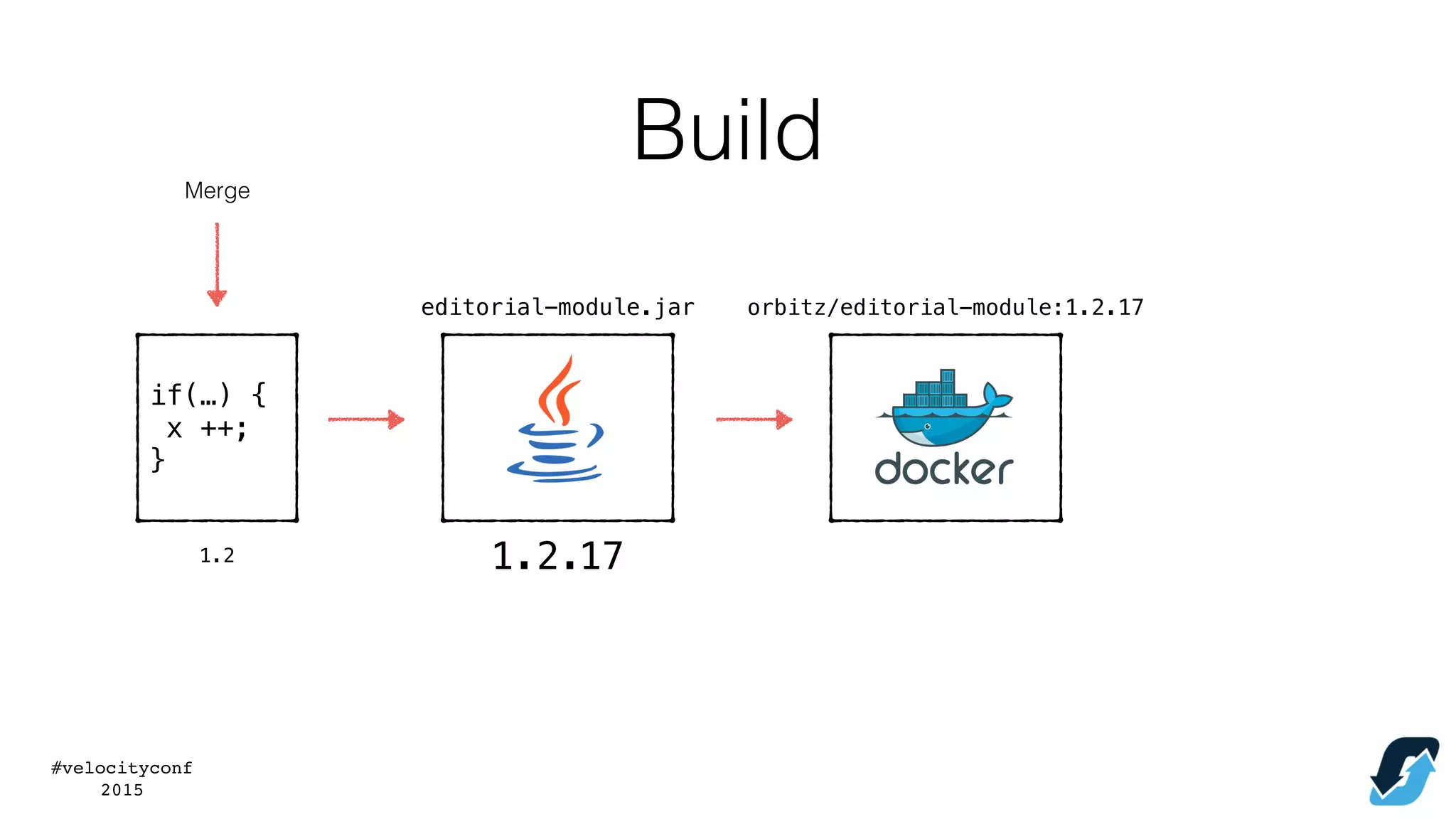

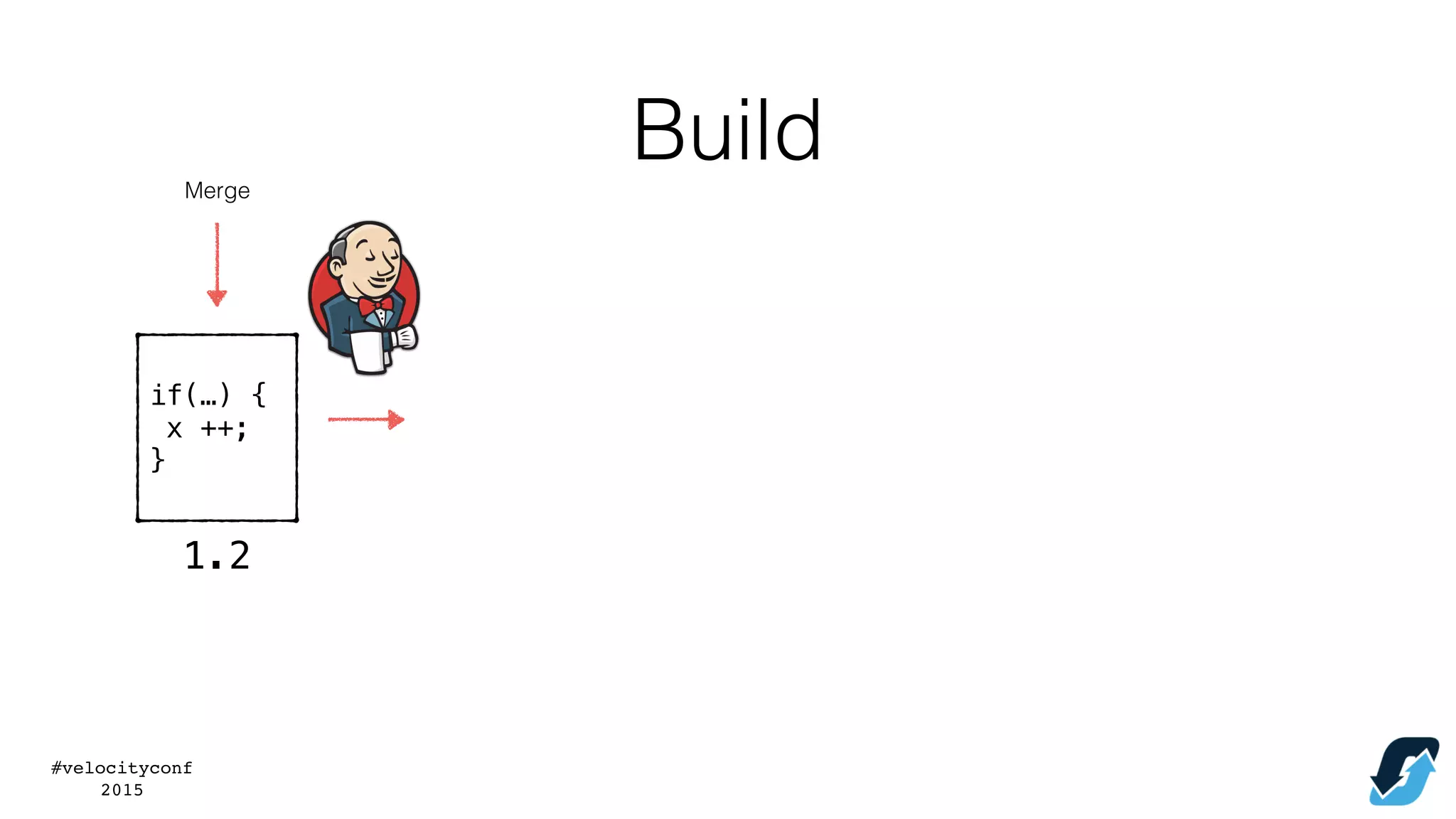

- 86. #velocityconf 2015 if(…) { x ++; } 1.2 Merge 1.2. editorial-module.jar ./gradlewbuild {BUILD_NUMBER} Build
- 87.

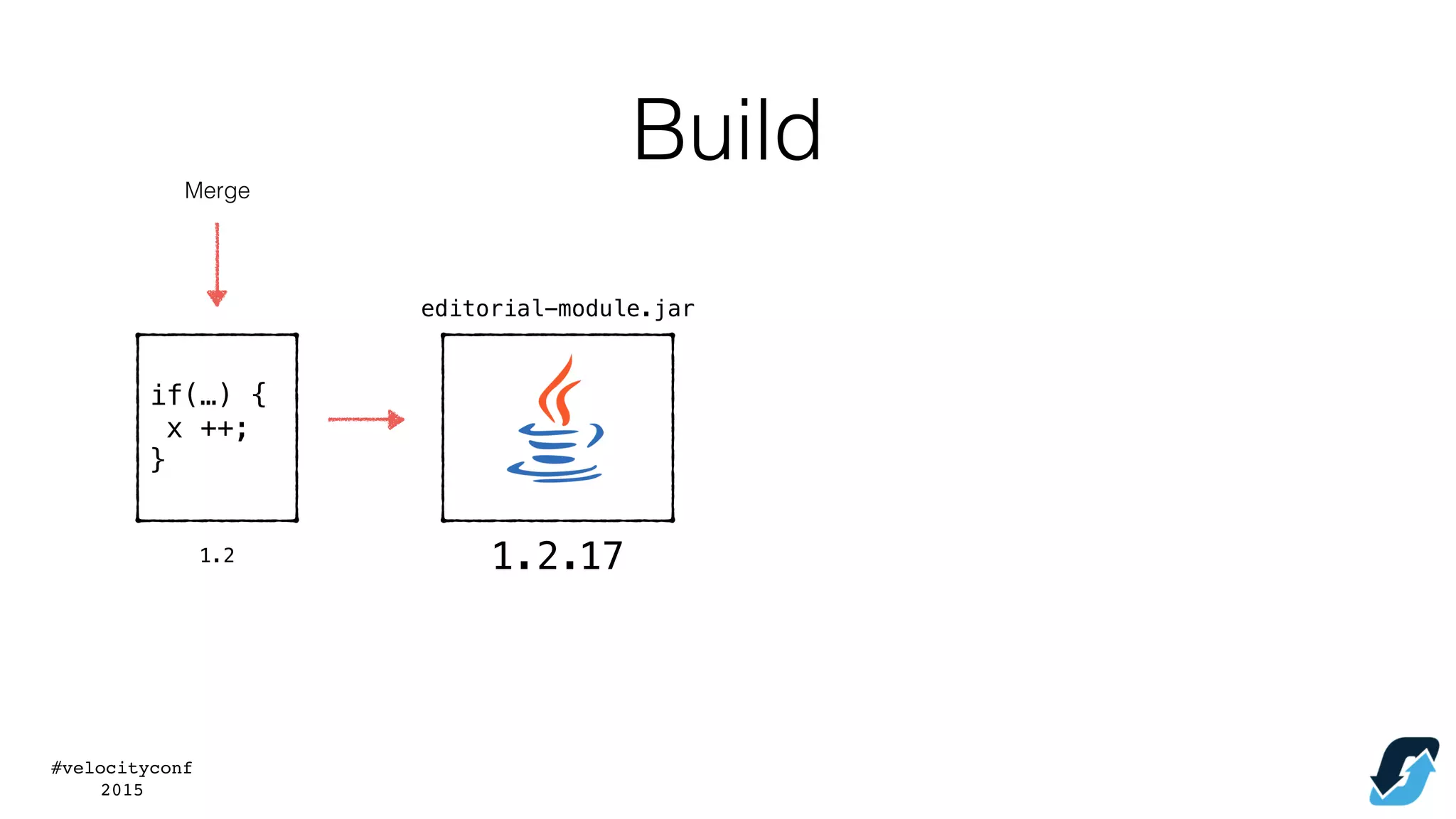

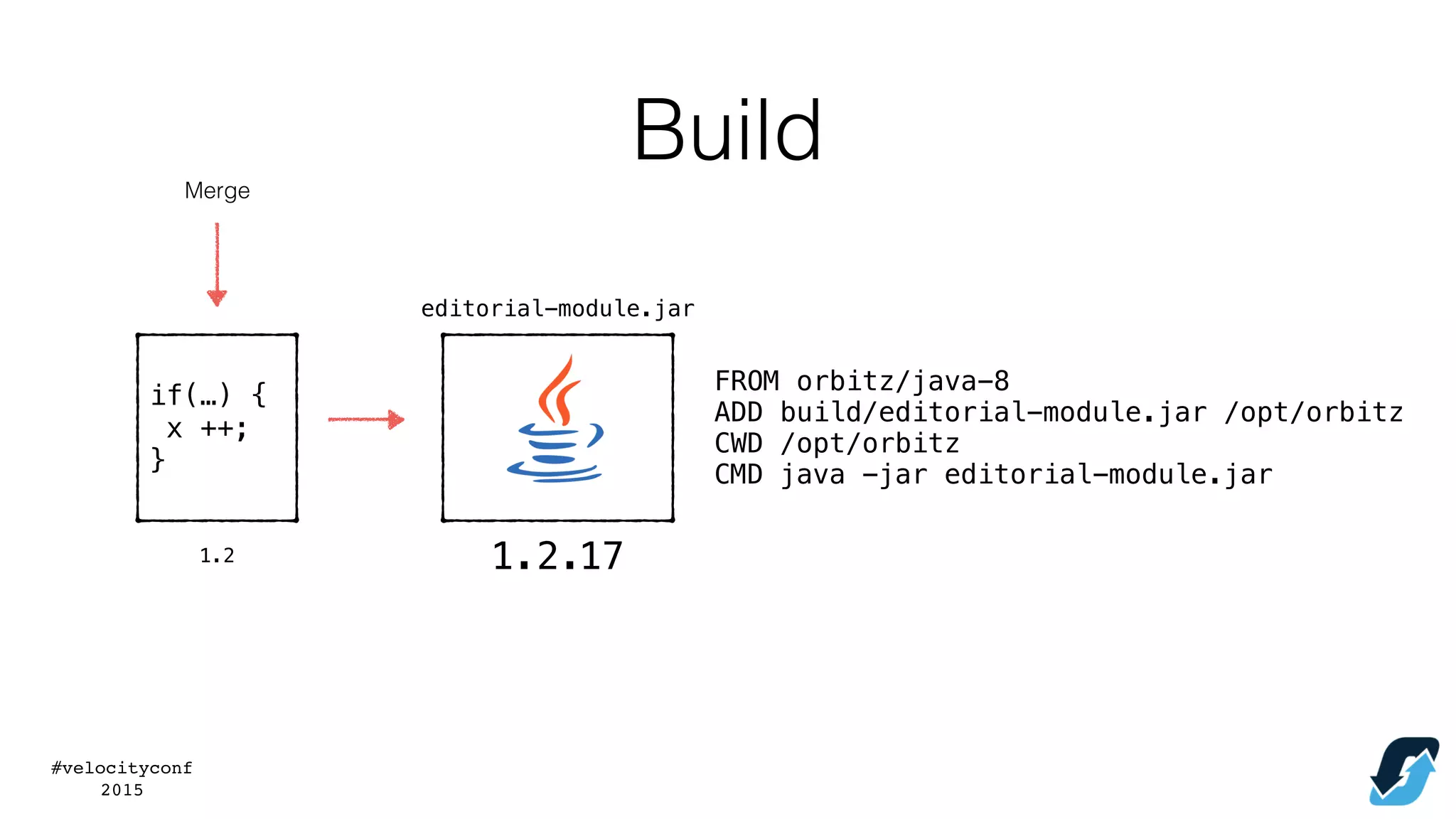

- 88. #velocityconf 2015 1.2 Merge editorial-module.jar FROM orbitz/java-8 ADD build/editorial-module.jar/opt/orbitz CWD /opt/orbitz CMD java -jar editorial-module.jar if(…) { x ++; } 171.2. Build
- 89.
- 90.

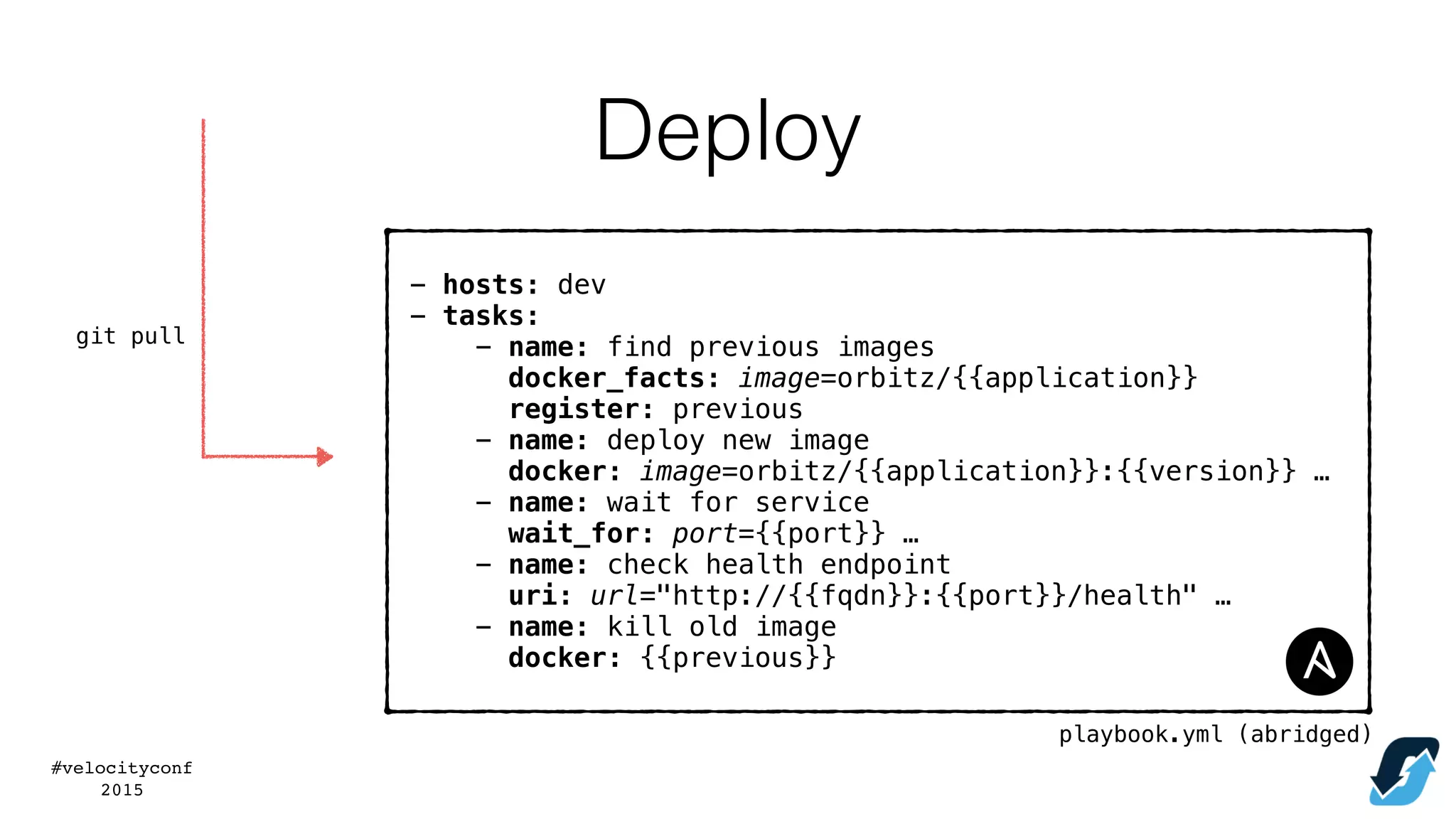

- 91. #velocityconf 2015 - hosts: dev -tasks: - name: find previous images docker_facts: image=orbitz/{{application}} register: previous - name: deploy new image docker: image=orbitz/{{application}}:{{version}} … - name: wait for service wait_for: port={{port}} … - name: check health endpoint uri: url="http://{{fqdn}}:{{port}}/health" … - name: kill old image docker: {{previous}} git pull playbook.yml (abridged) Deploy

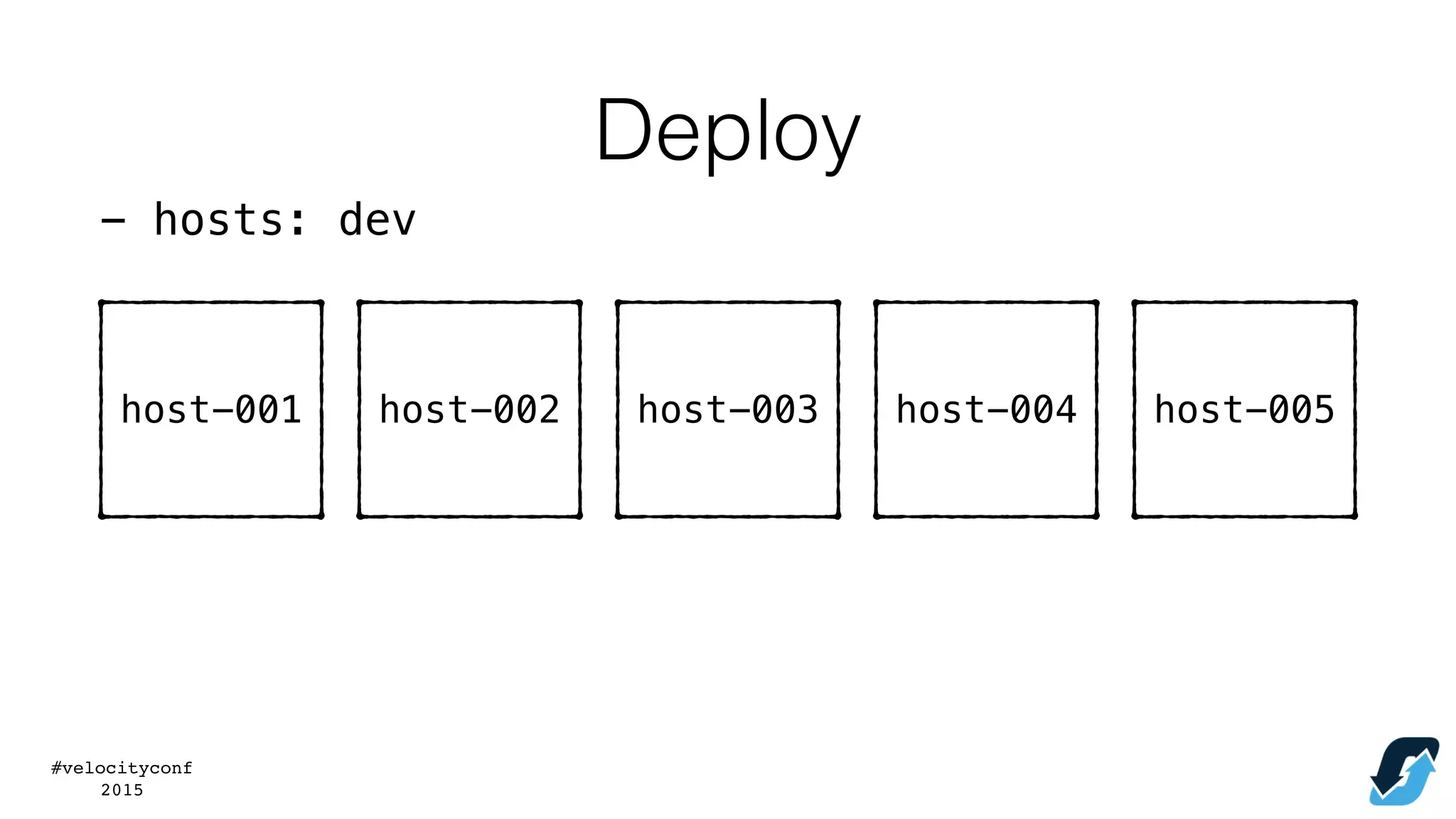

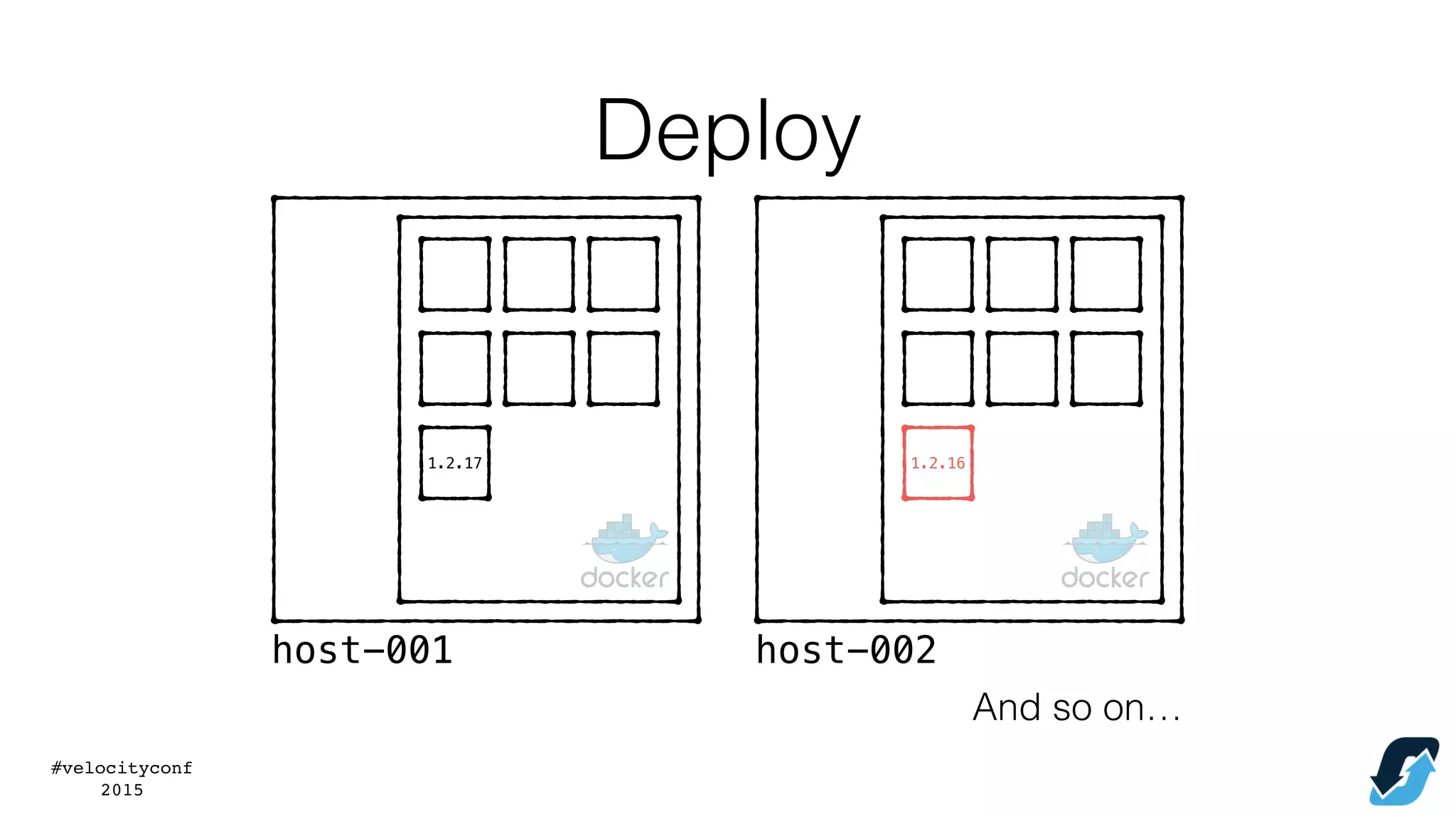

- 92. #velocityconf 2015 host-001 host-002 host-003host-004 host-005 - hosts: dev Deploy
- 93.
- 94.
- 95.
- 96.
- 97.
- 98.
- 99.
- 100.
- 101.
- 102. #velocityconf 2015 How to handlefailure?
- 103. #velocityconf 2015 What happens whena VM is moved?

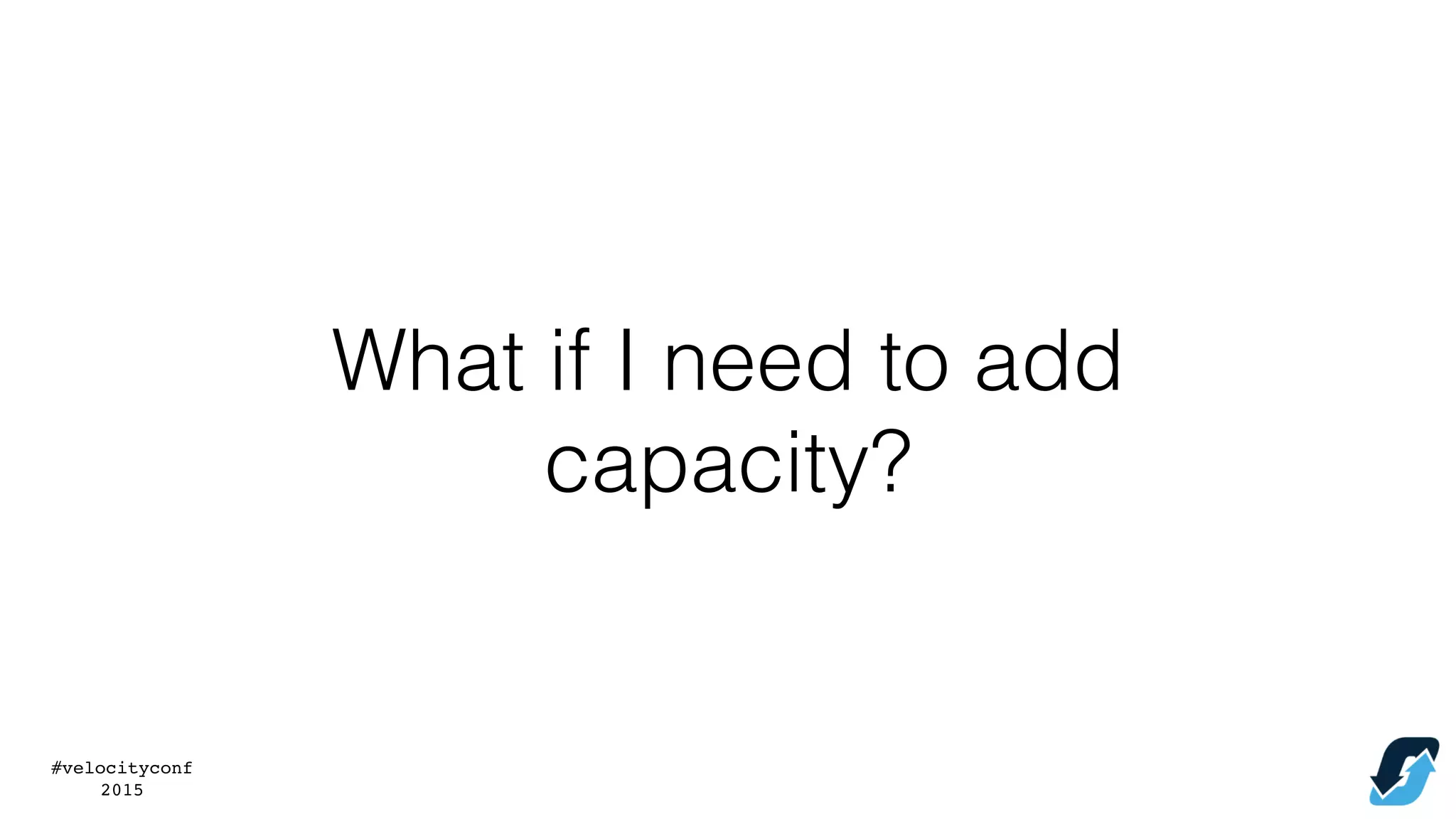

- 104. #velocityconf 2015 What if Ineed to add capacity?

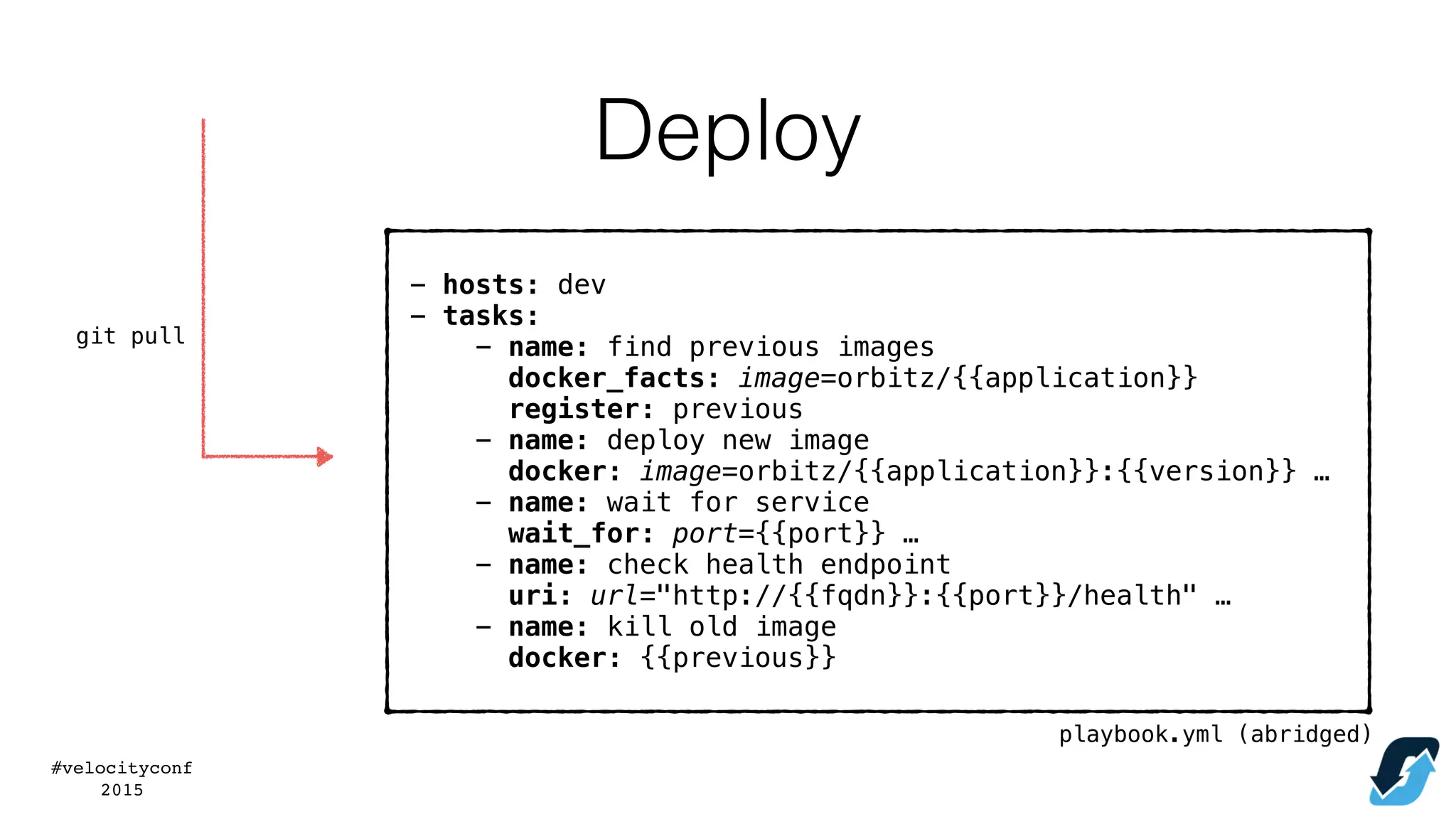

- 105. #velocityconf 2015 - hosts: dev -tasks: - name: find previous images docker_facts: image=orbitz/{{application}} register: previous - name: deploy new image docker: image=orbitz/{{application}}:{{version}} … - name: wait for service wait_for: port={{port}} … - name: check health endpoint uri: url="http://{{fqdn}}:{{port}}/health" … - name: kill old image docker: {{previous}} git pull playbook.yml (abridged) Deploy

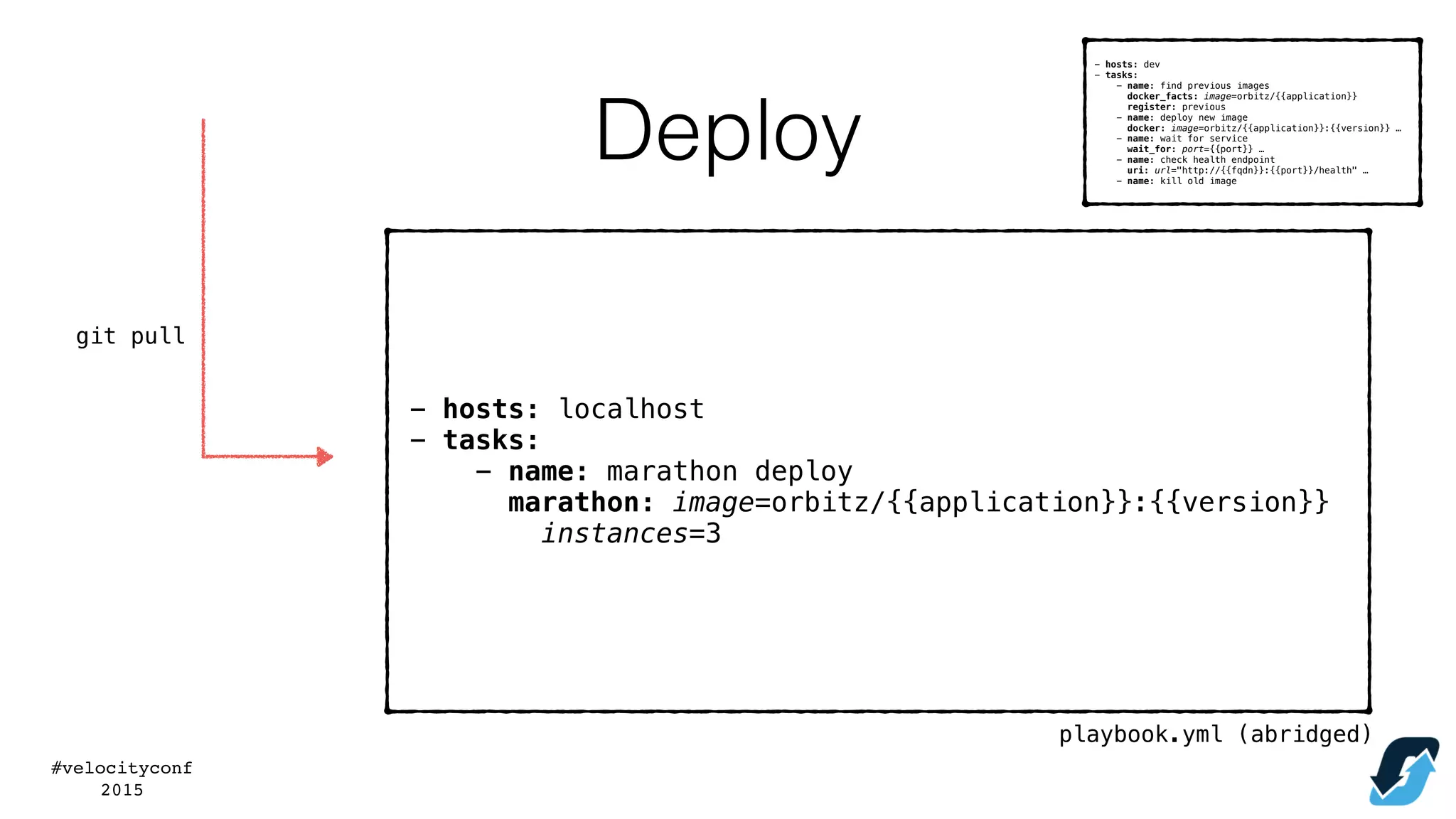

- 106. #velocityconf 2015 - hosts: dev -tasks: - name: find previous images docker_facts: image=orbitz/{{application}} register: previous - name: deploy new image docker: image=orbitz/{{application}}:{{version}} … - name: wait for service wait_for: port={{port}} … - name: check health endpoint uri: url="http://{{fqdn}}:{{port}}/health" … - name: kill old image git pull playbook.yml (abridged) - hosts: localhost - tasks: - name: marathon deploy marathon: image=orbitz/{{application}}:{{version}} instances=3 Deploy

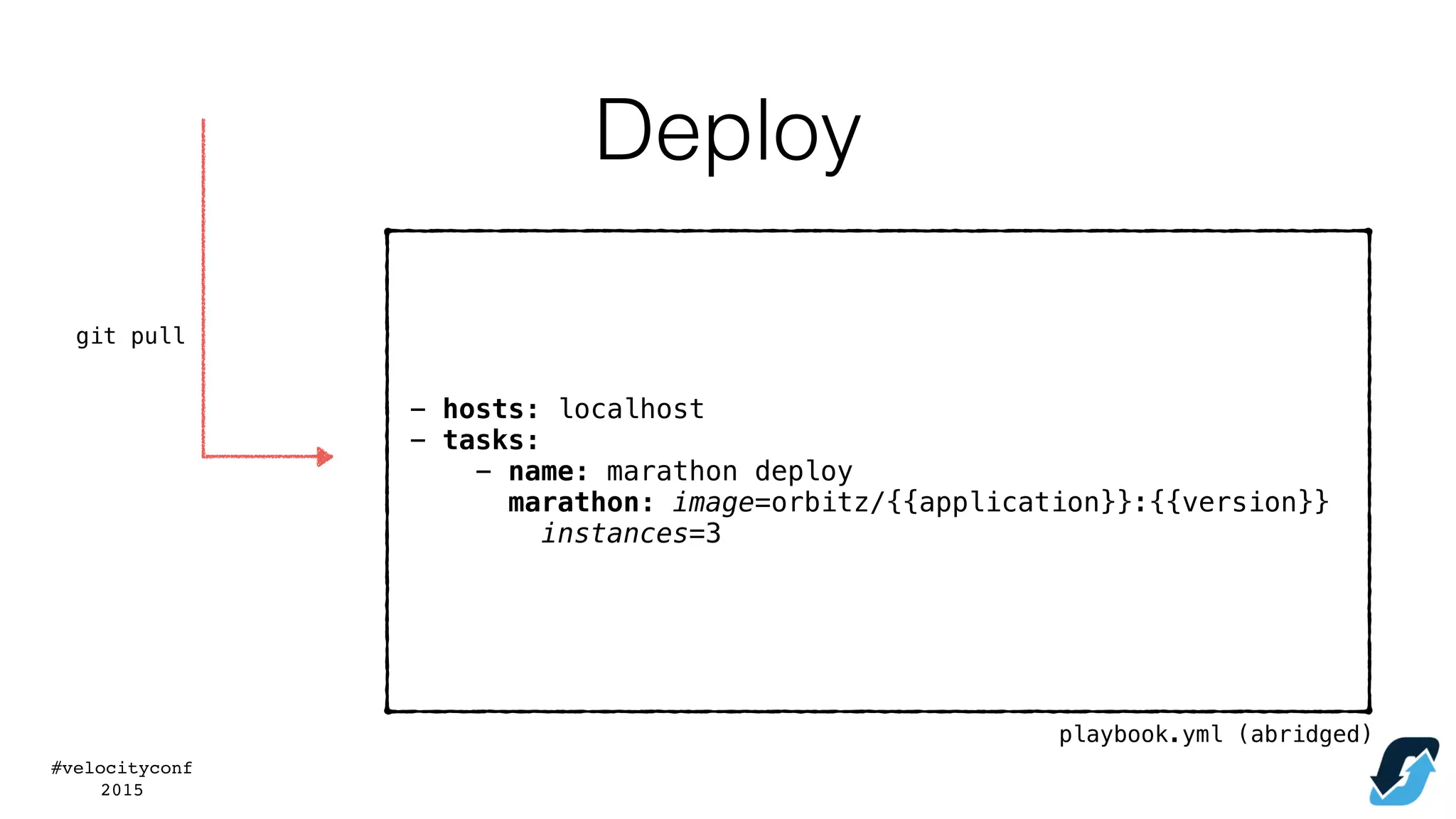

- 107. #velocityconf 2015 git pull playbook.yml (abridged) -hosts: localhost - tasks: - name: marathon deploy marathon: image=orbitz/{{application}}:{{version}} instances=3 Deploy
- 108.

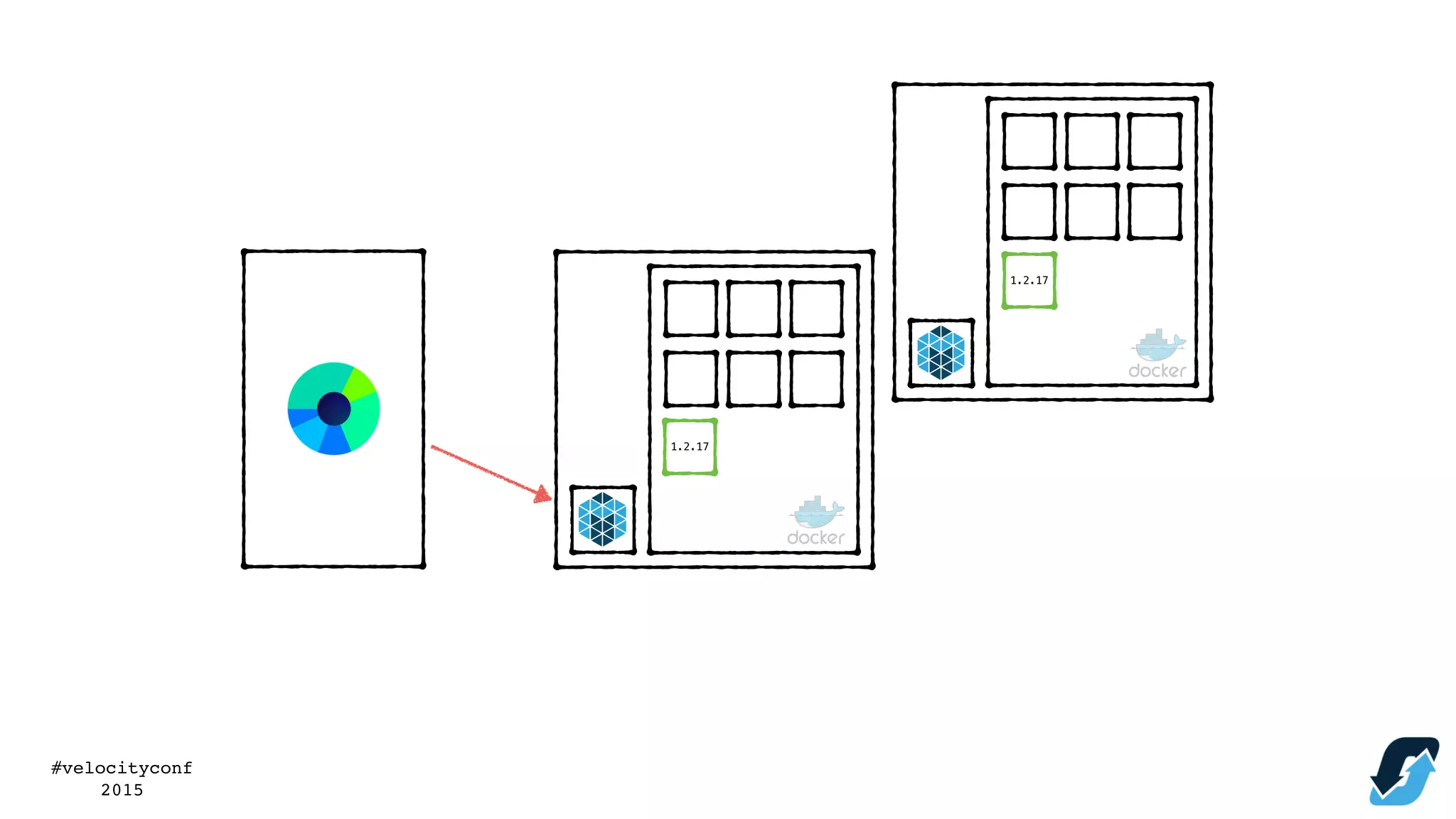

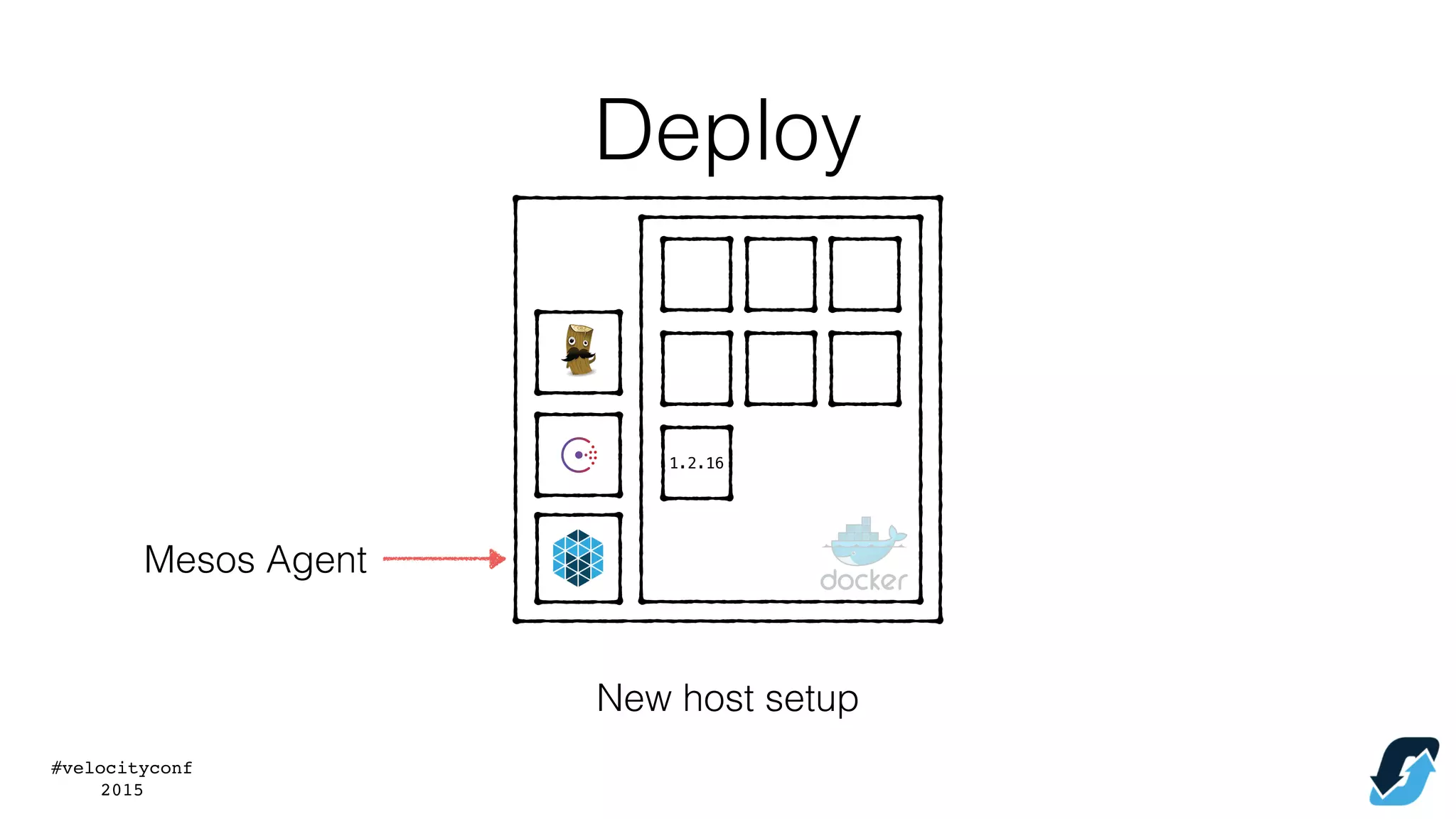

- 109. #velocityconf 2015 Mesos Agent New hostsetup 1.2.16 Deploy
- 110.
- 111.
- 112.

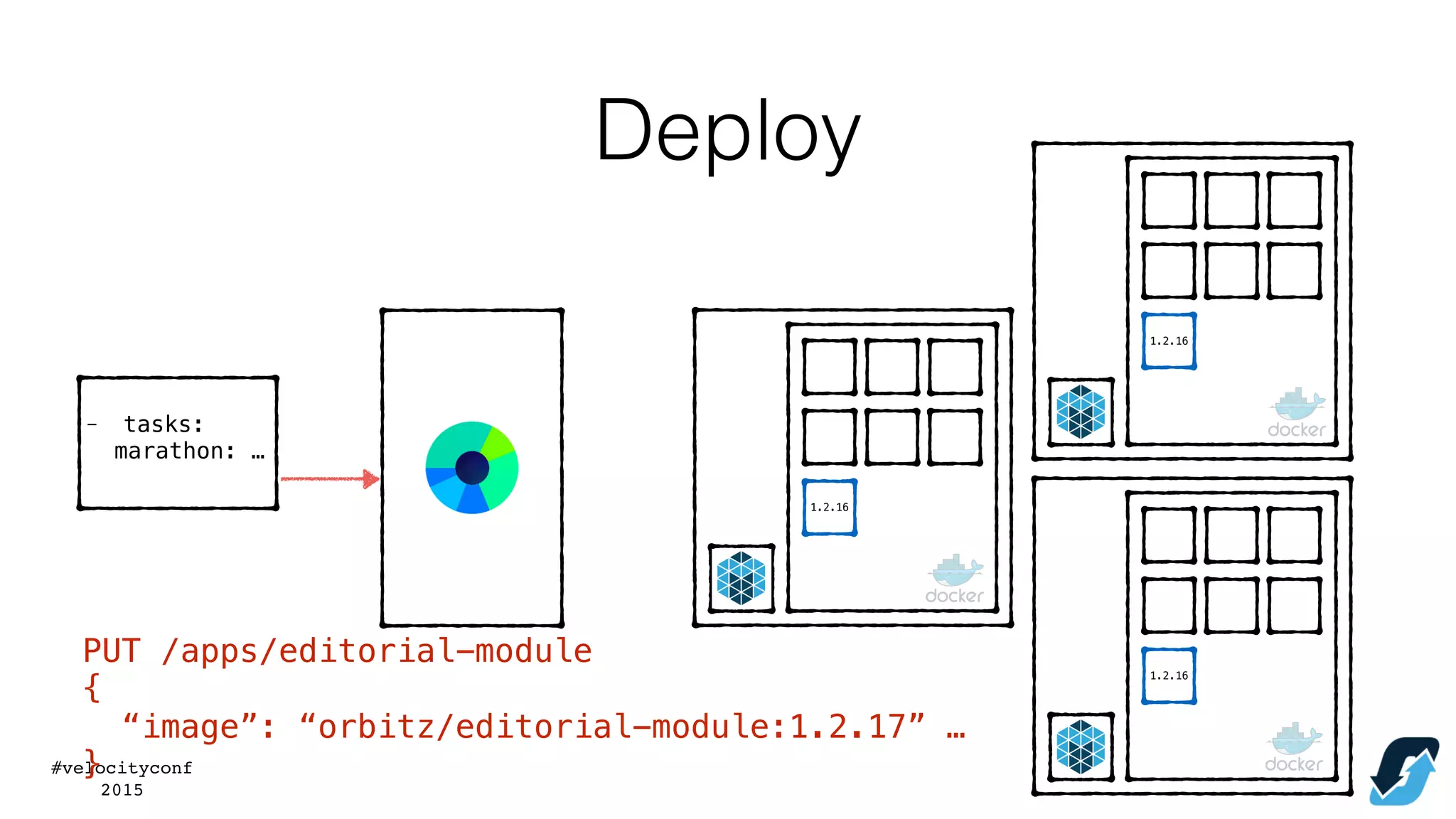

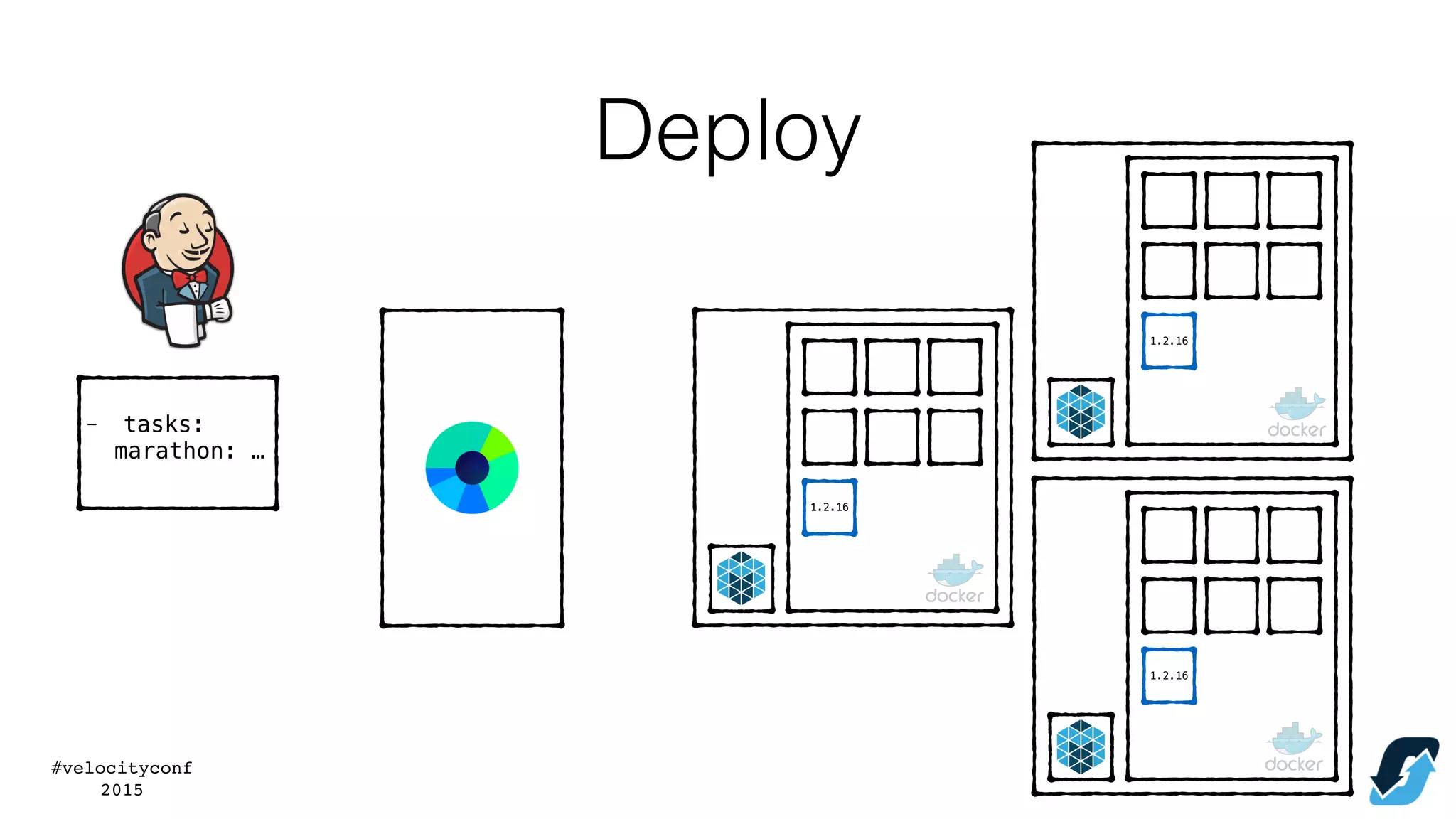

- 113. #velocityconf 2015 - tasks: marathon: … PUT/apps/editorial-module { “image”: “orbitz/editorial-module:1.2.17” … } 1.2.16 1.2.16 1.2.16 Deploy

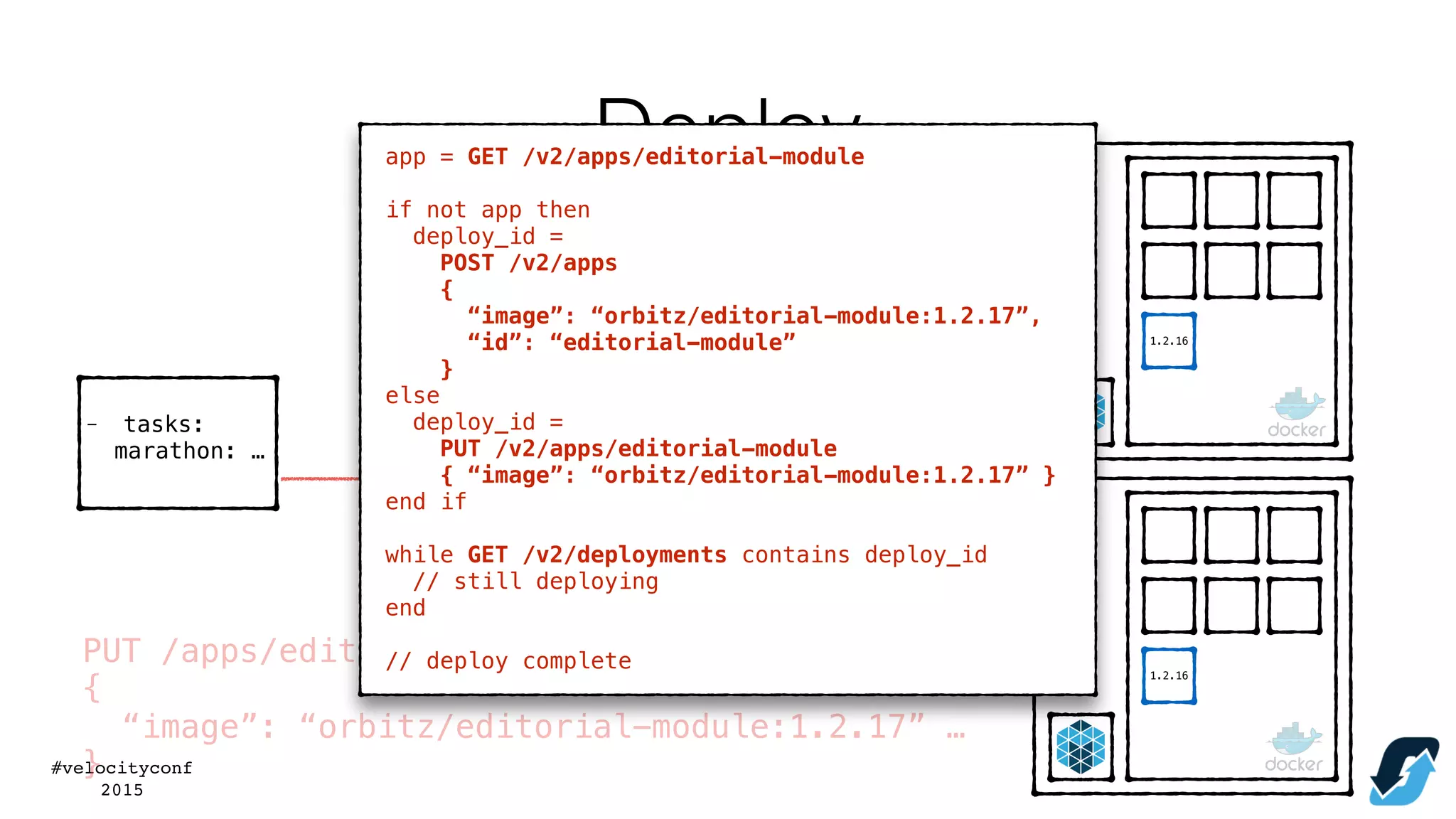

- 114. #velocityconf 2015 Deploy PUT /apps/editorial-module { “image”: “orbitz/editorial-module:1.2.17”… } - tasks: marathon: … 1.2.16 1.2.16 1.2.16 app = GET /v2/apps/editorial-module if not app then deploy_id = POST /v2/apps { “image”: “orbitz/editorial-module:1.2.17”, “id”: “editorial-module” } else deploy_id = PUT /v2/apps/editorial-module { “image”: “orbitz/editorial-module:1.2.17” } end if while GET /v2/deployments contains deploy_id // still deploying end // deploy complete

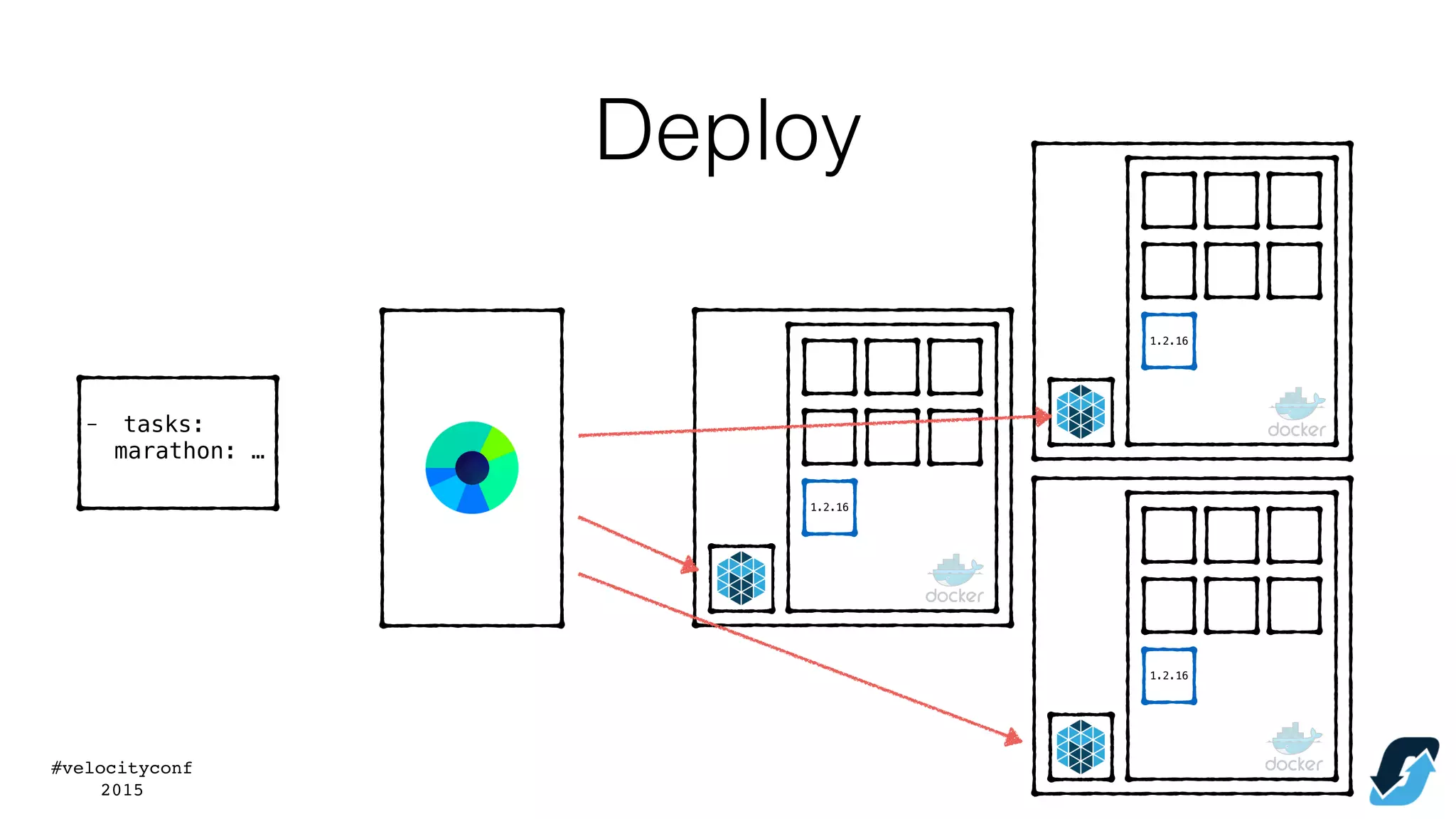

- 115. #velocityconf 2015 - tasks: marathon: … PUT/apps/editorial-module { “image”: “orbitz/editorial-module:1.2.17” … } 1.2.16 1.2.16 1.2.16 Deploy
- 116.
- 117.
- 118.

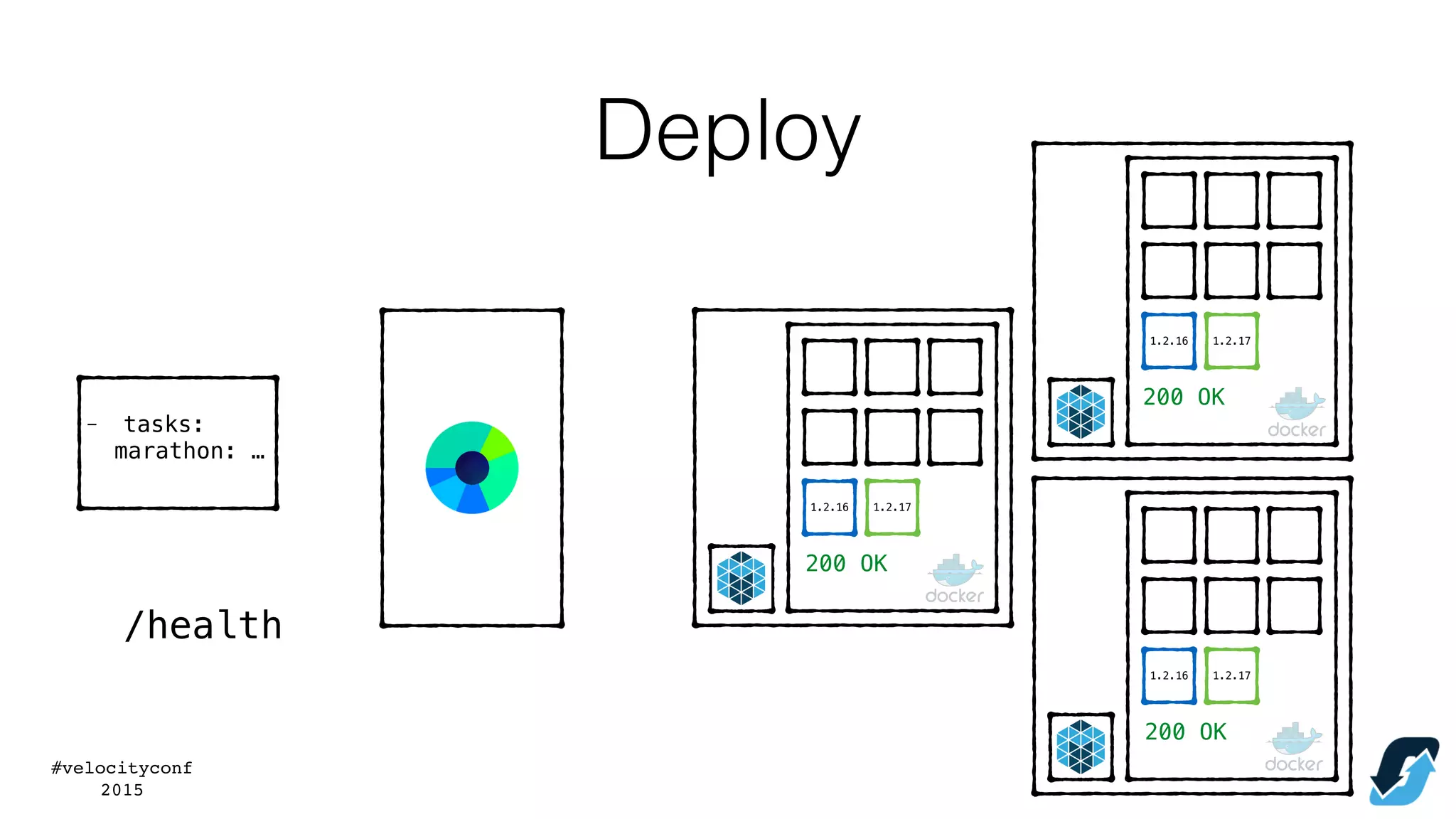

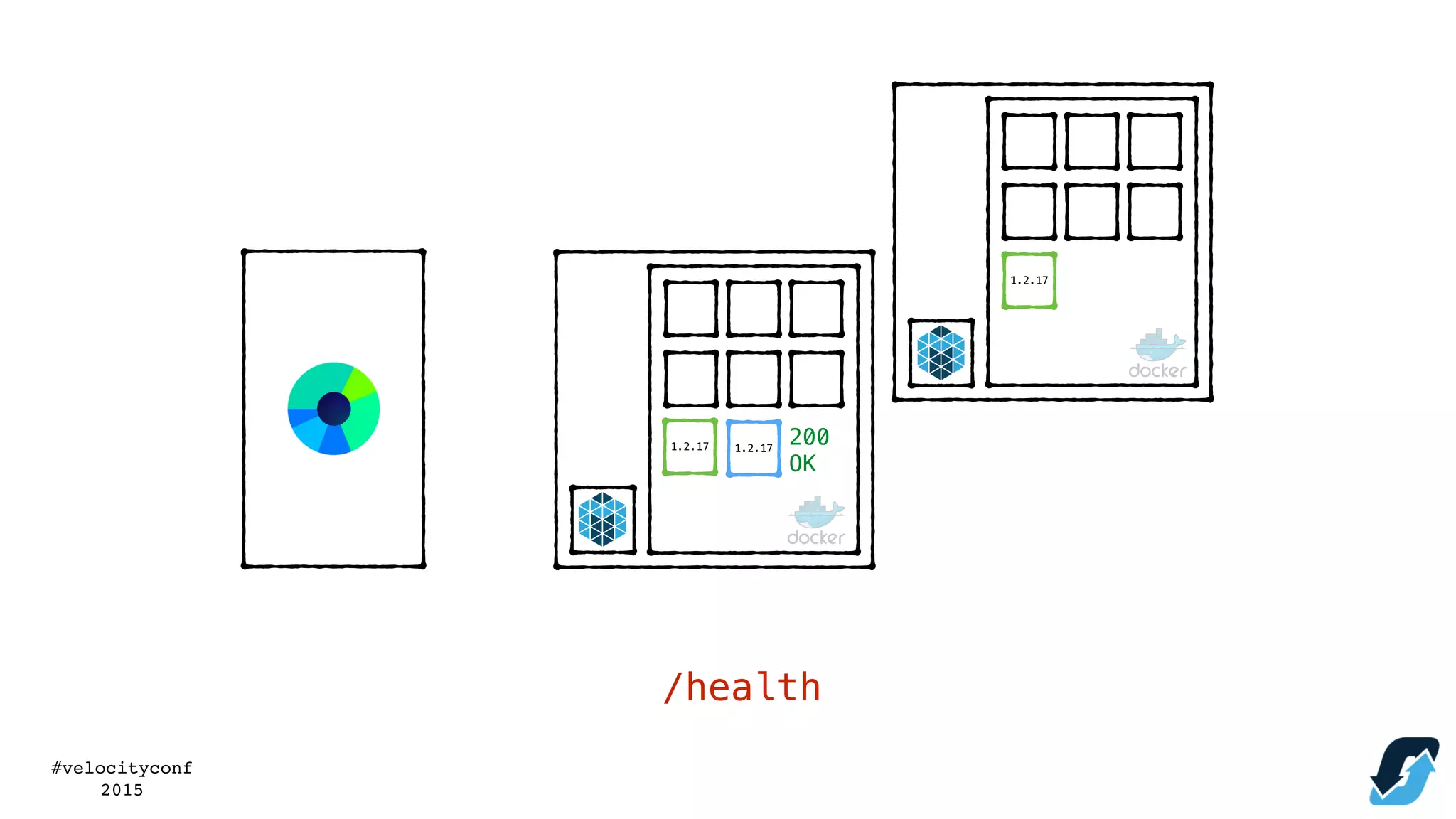

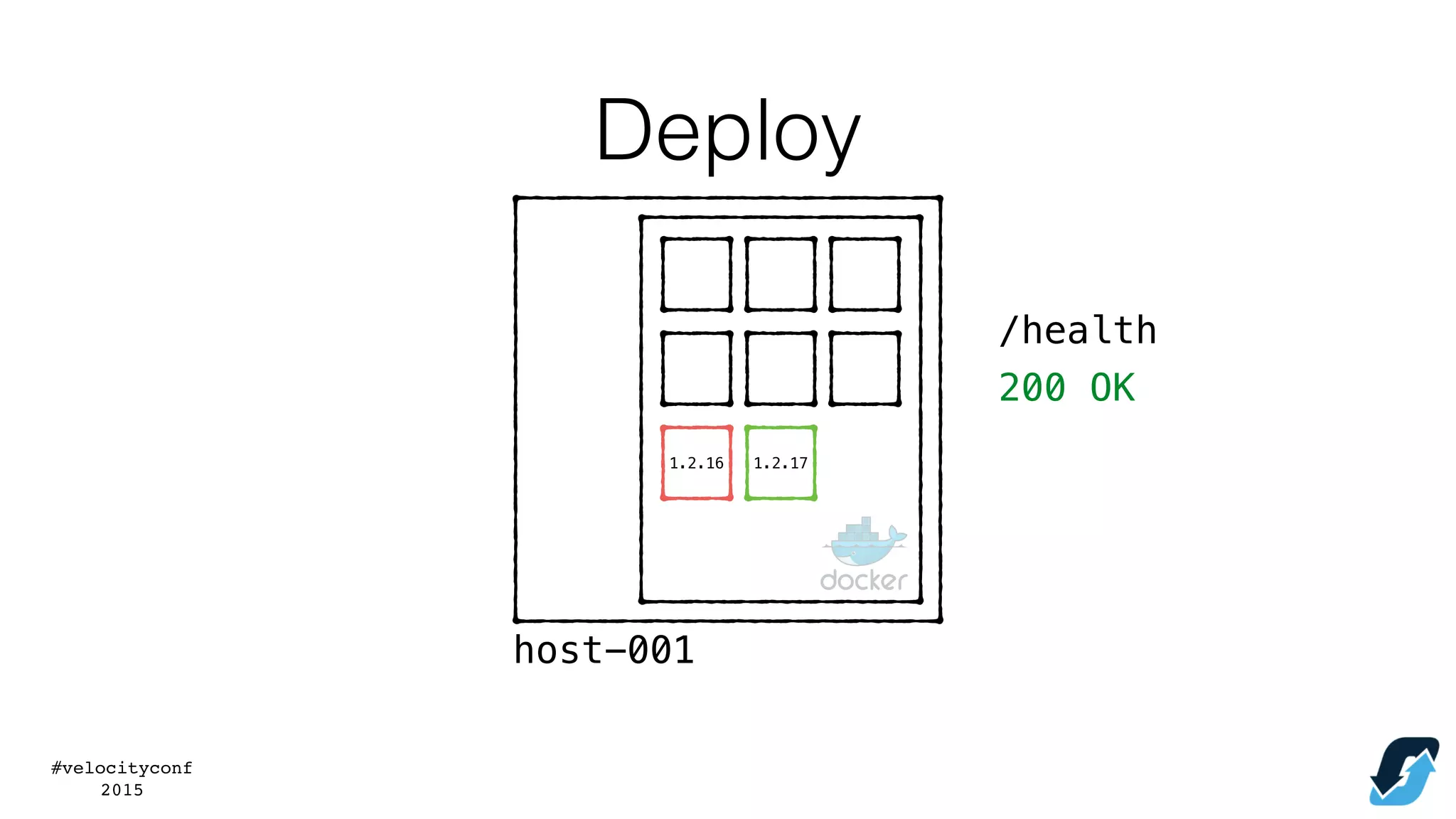

- 119. #velocityconf 2015 - tasks: marathon: … /health 200OK 200 OK 200 OK 1.2.16 1.2.16 1.2.16 1.2.17 1.2.17 1.2.17 Deploy
- 120.

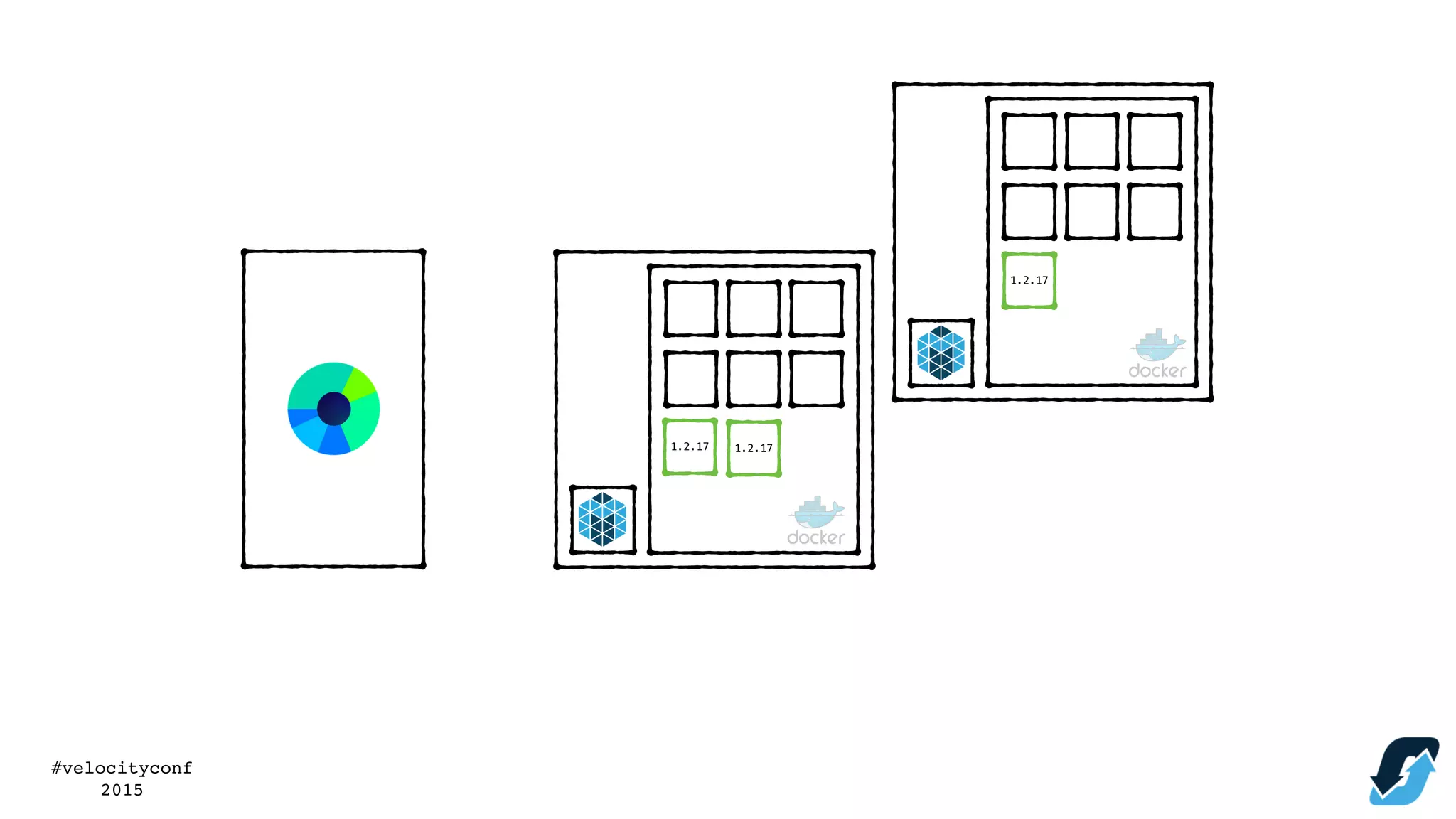

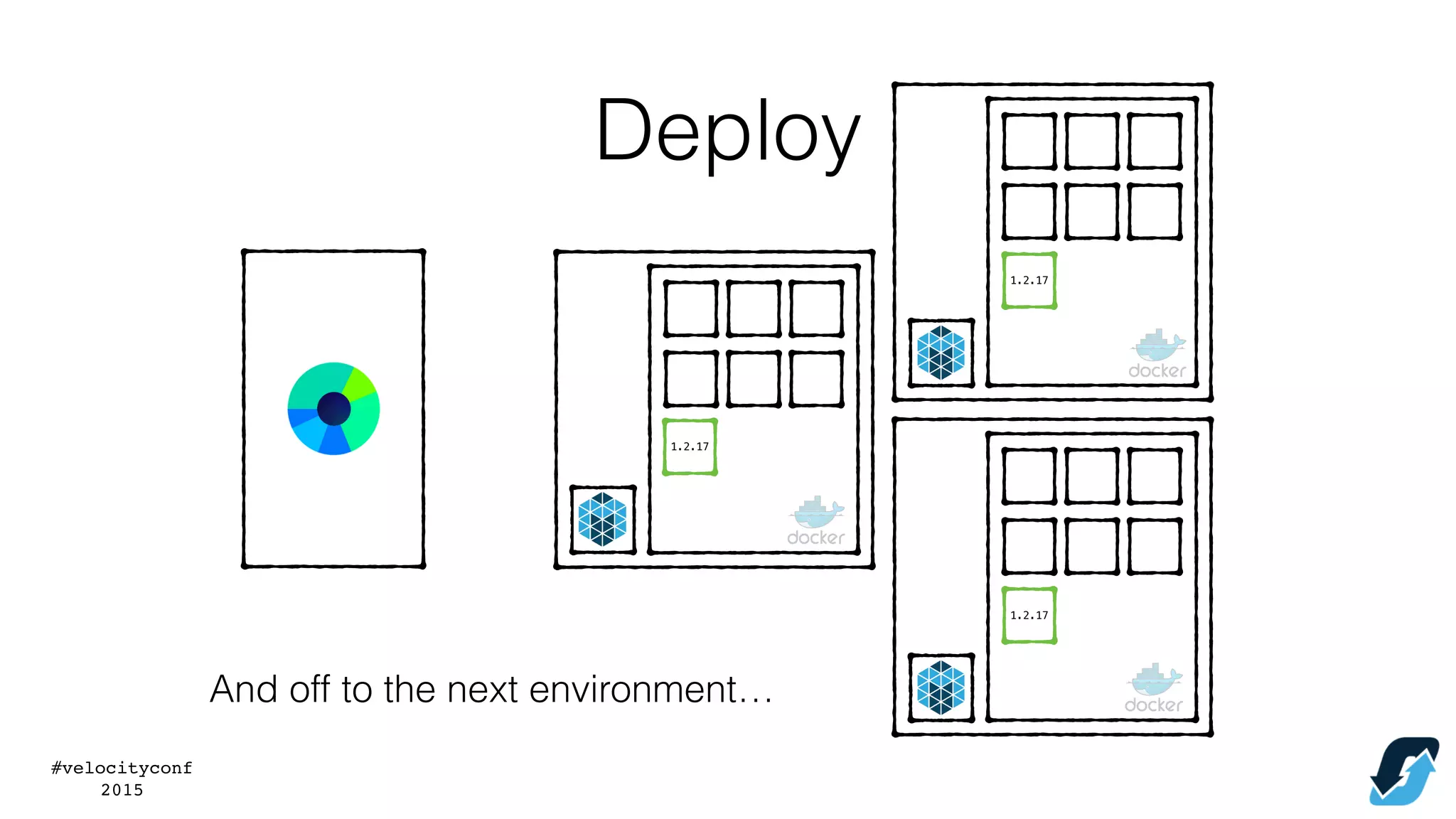

- 121. #velocityconf 2015 And off tothe next environment… 1.2.17 1.2.17 1.2.17 Deploy
- 122.
- 123.
- 124.
- 125.
- 126.
- 127.
- 128.
- 129.
- 130.
- 131.
- 132.

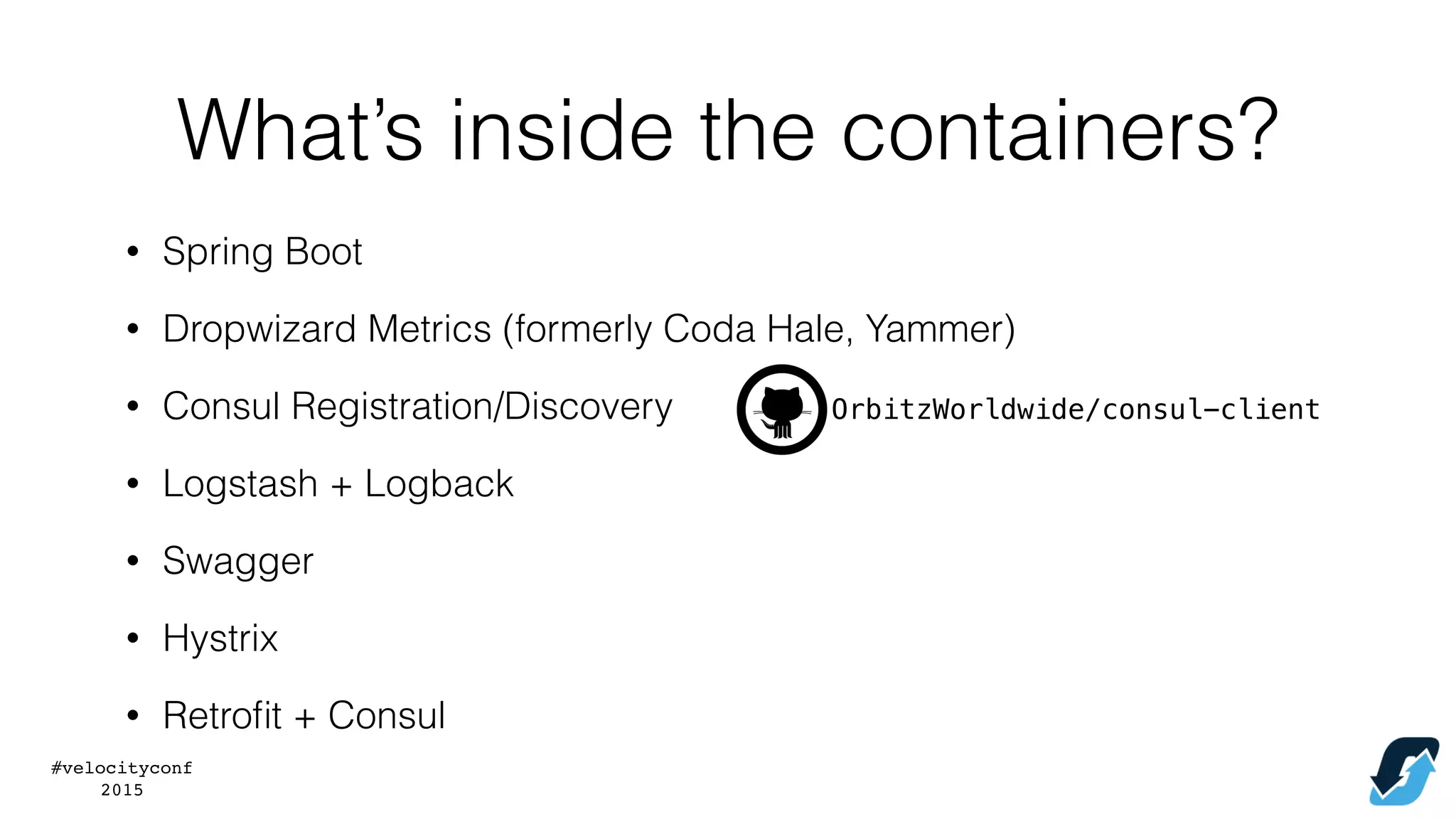

- 133. #velocityconf 2015 What’s inside thecontainers? • Spring Boot • Dropwizard Metrics (formerly Coda Hale, Yammer) • Consul Registration/Discovery OrbitzWorldwide/consul-client • Logstash + Logback • Swagger • Hystrix • Retrofit + Consul
- 134. #velocityconf 2015 “Why didn’t youuse {{.x}} ?”
- 135. #velocityconf 2015 Keeping an eyeon… Kubernetes Amazon Elastic Container Service Docker Swarm

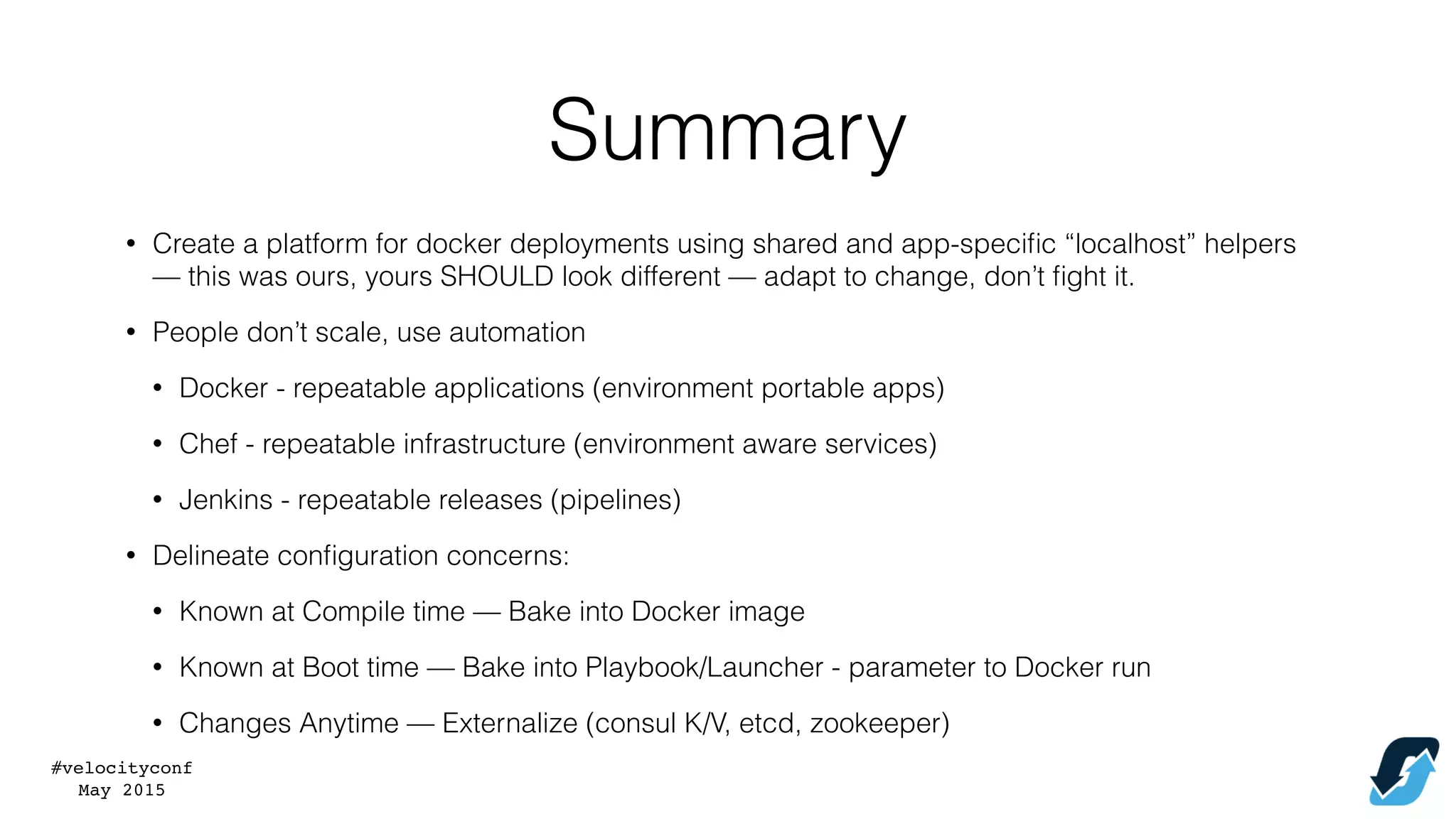

- 136. #velocityconf May 2015 Summary • Createa platform for docker deployments using shared and app-specific “localhost” helpers — this was ours, yours SHOULD look different — adapt to change, don’t fight it. • People don’t scale, use automation • Docker - repeatable applications (environment portable apps) • Chef - repeatable infrastructure (environment aware services) • Jenkins - repeatable releases (pipelines) • Delineate configuration concerns: • Known at Compile time — Bake into Docker image • Known at Boot time — Bake into Playbook/Launcher - parameter to Docker run • Changes Anytime — Externalize (consul K/V, etcd, zookeeper)
- 137.
