A new development platform connecting BIM to anything
Xiaodong Liang
Forge Partner Development
Senior Developer Evangelist

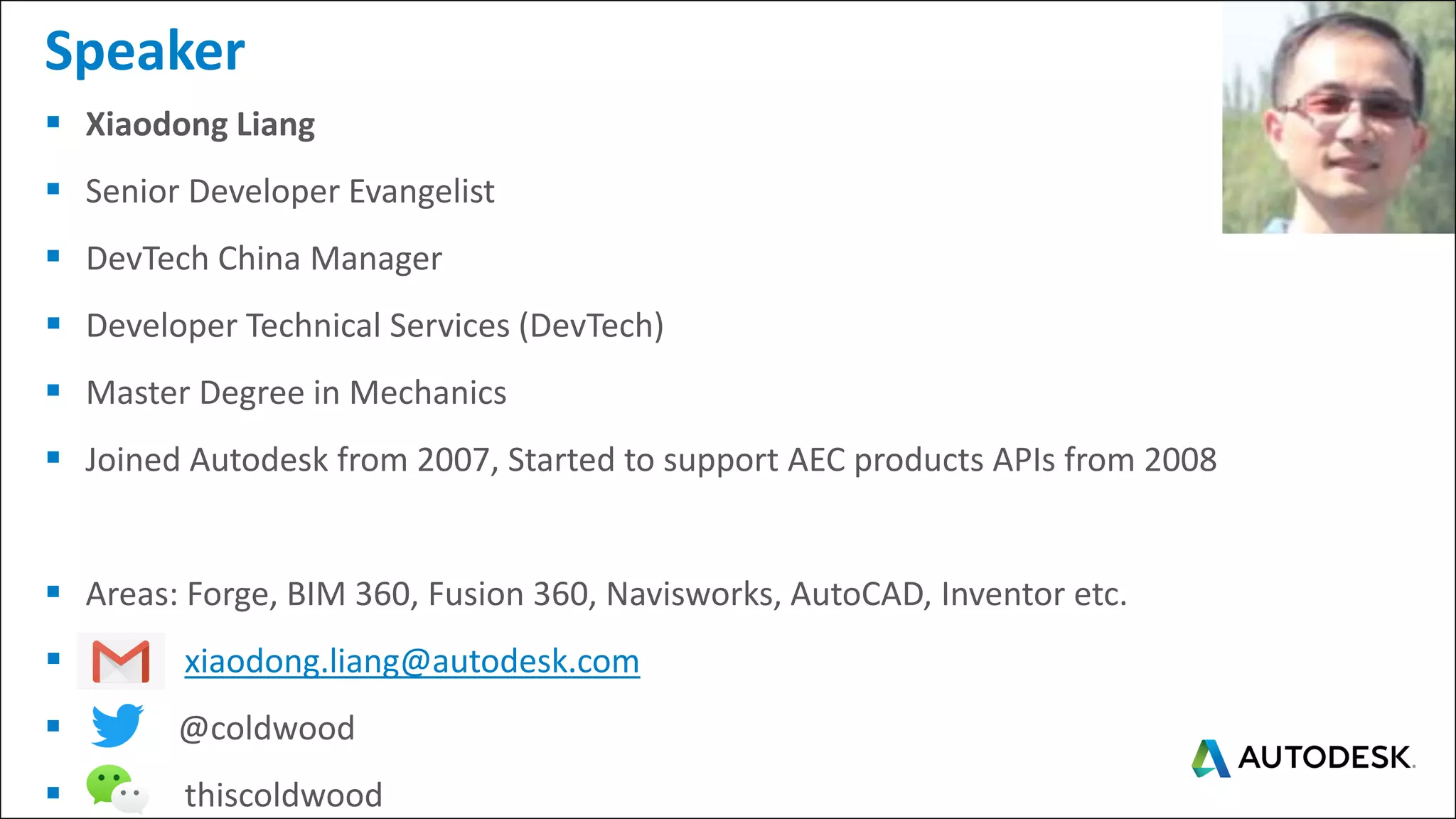

2. ▪ Xiaodong Liang
▪ Senior Developer Evangelist
▪ DevTech China Manager
▪ Developer Technical Services (DevTech)
▪ Master Degree in Mechanics
▪ Joined Autodesk from 2007, Started to support AEC products APIs from 2008
▪ Areas: Forge, BIM 360, Fusion 360, Navisworks, AutoCAD, Inventor etc.
▪ xiaodong.liang@autodesk.com
▪ : @coldwood
▪ thiscoldwood
Speaker

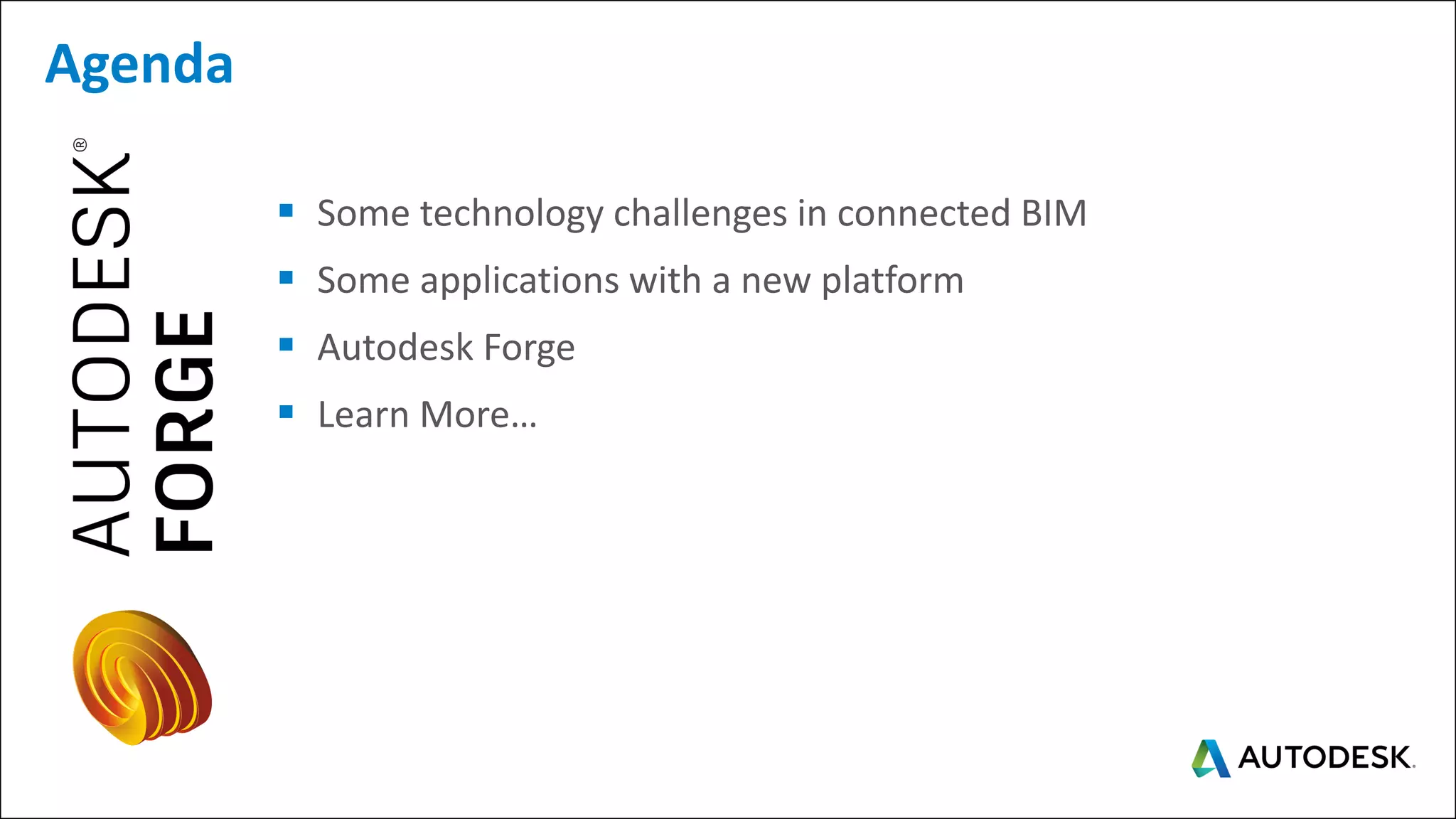

3. ▪ Some technology challenges in connected BIM
▪ Some applications with a new platform
▪ Autodesk Forge
▪ Learn More…
Agenda

4. Some technology challenges in Connected BIM

6. Engineers
Consultant Maintenance
Construction
SupplierCost & AnalystOwner

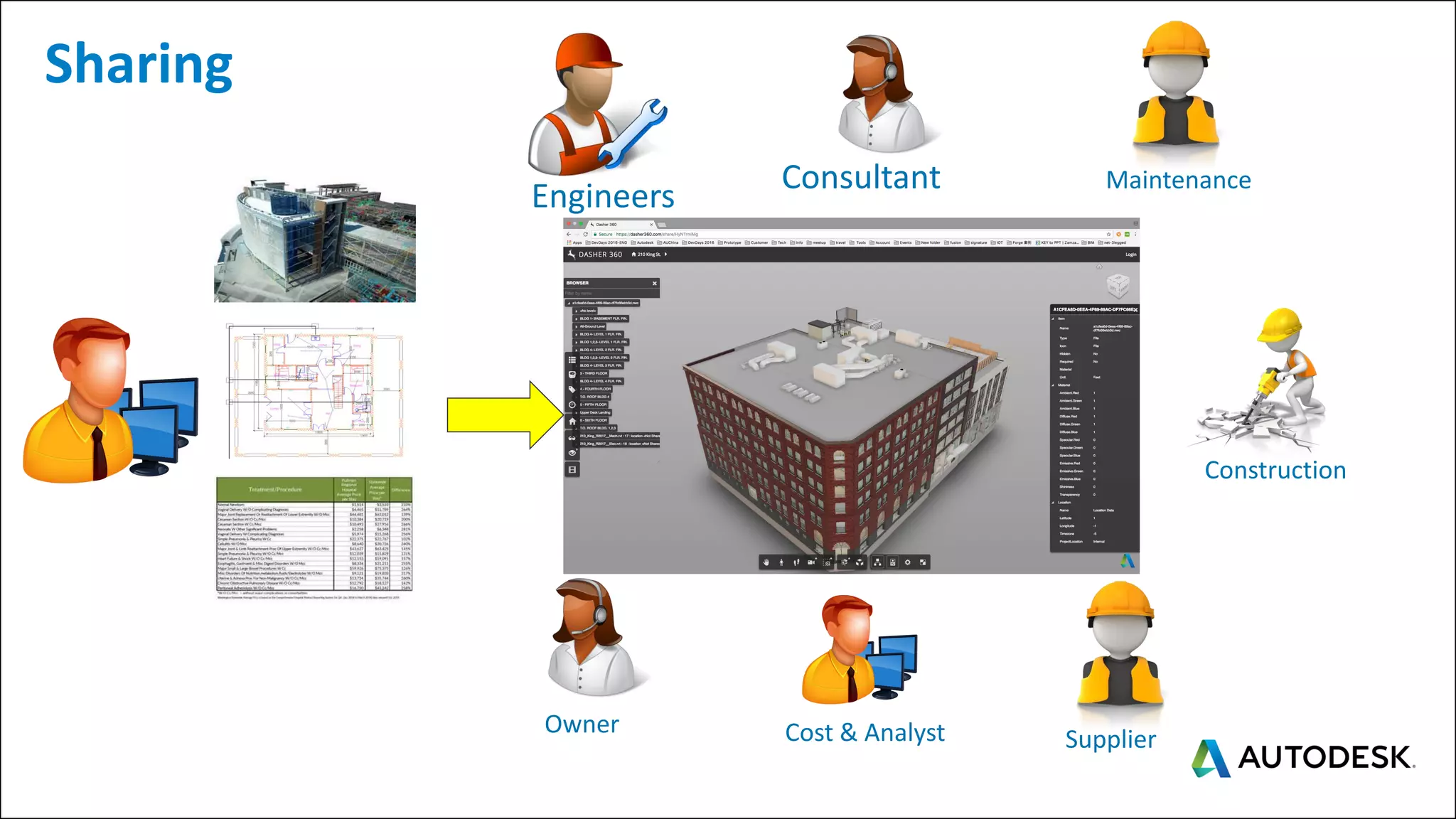

Sharing

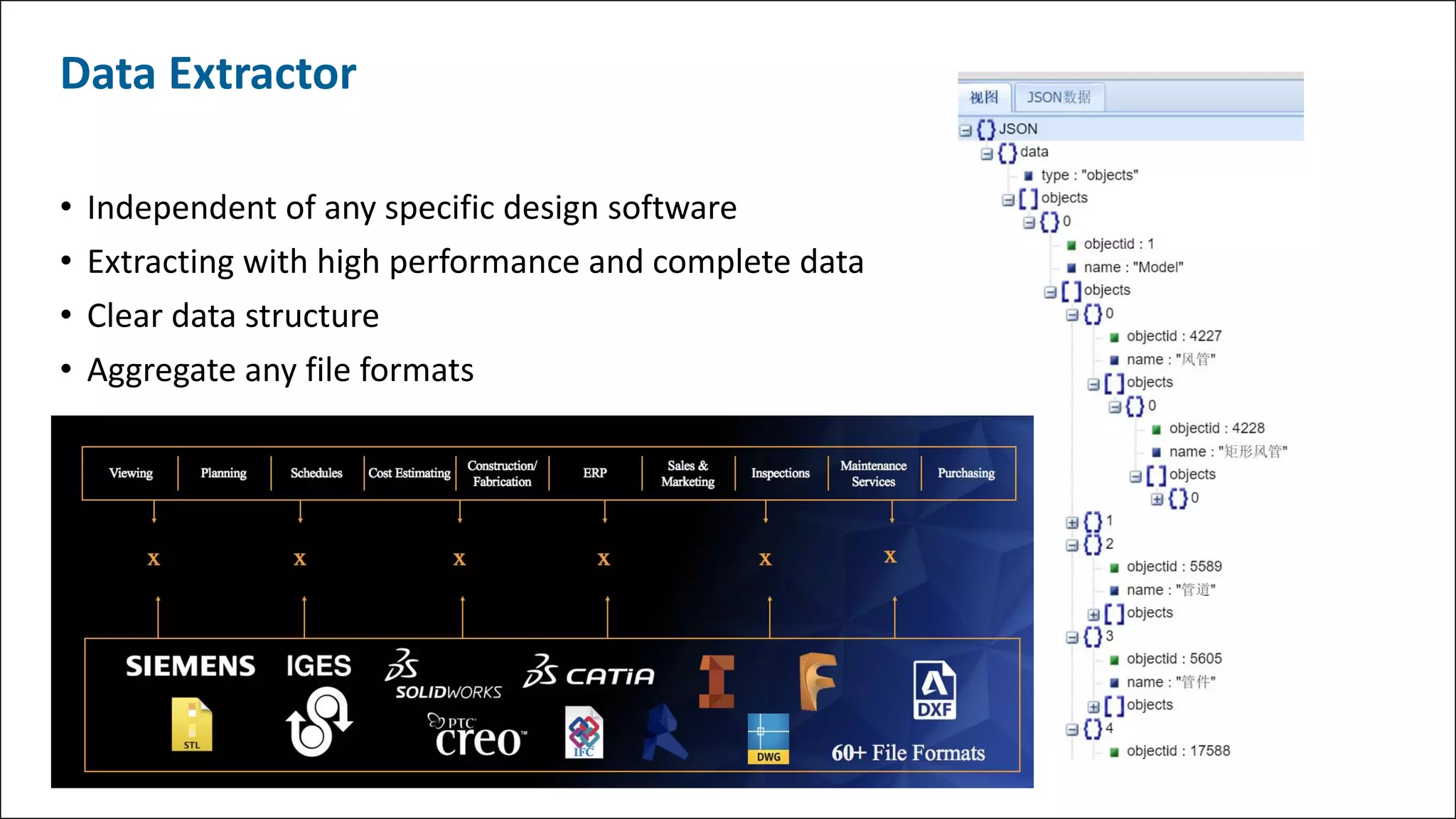

7. Data Extractor
• Independent of any specific design software
• Extracting with high performance and complete data
• Clear data structure
• Aggregate any file formats

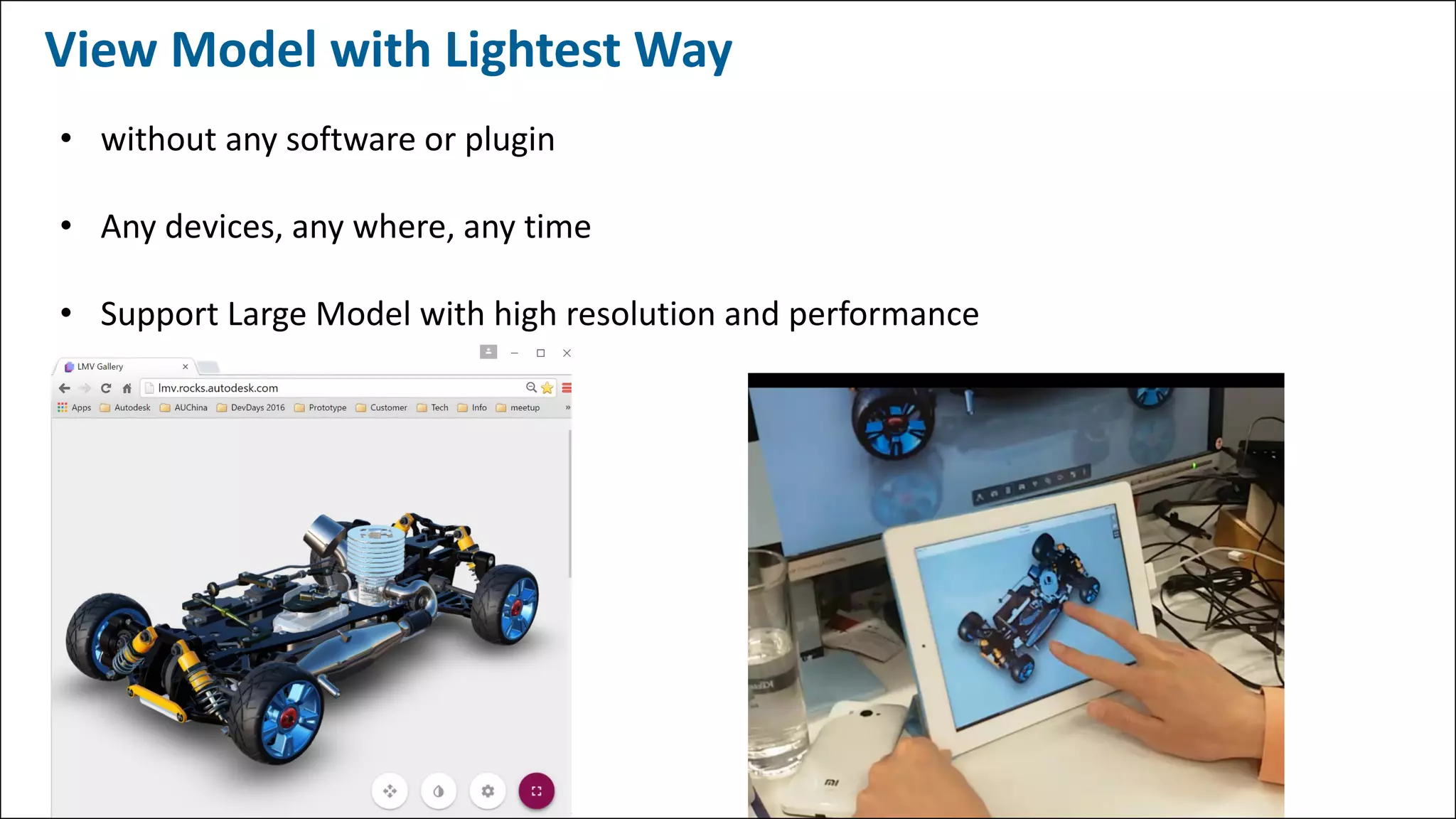

8. View Model with Lightest Way
• without any software or plugin
• Any devices, any where, any time
• Support Large Model with high resolution and performance

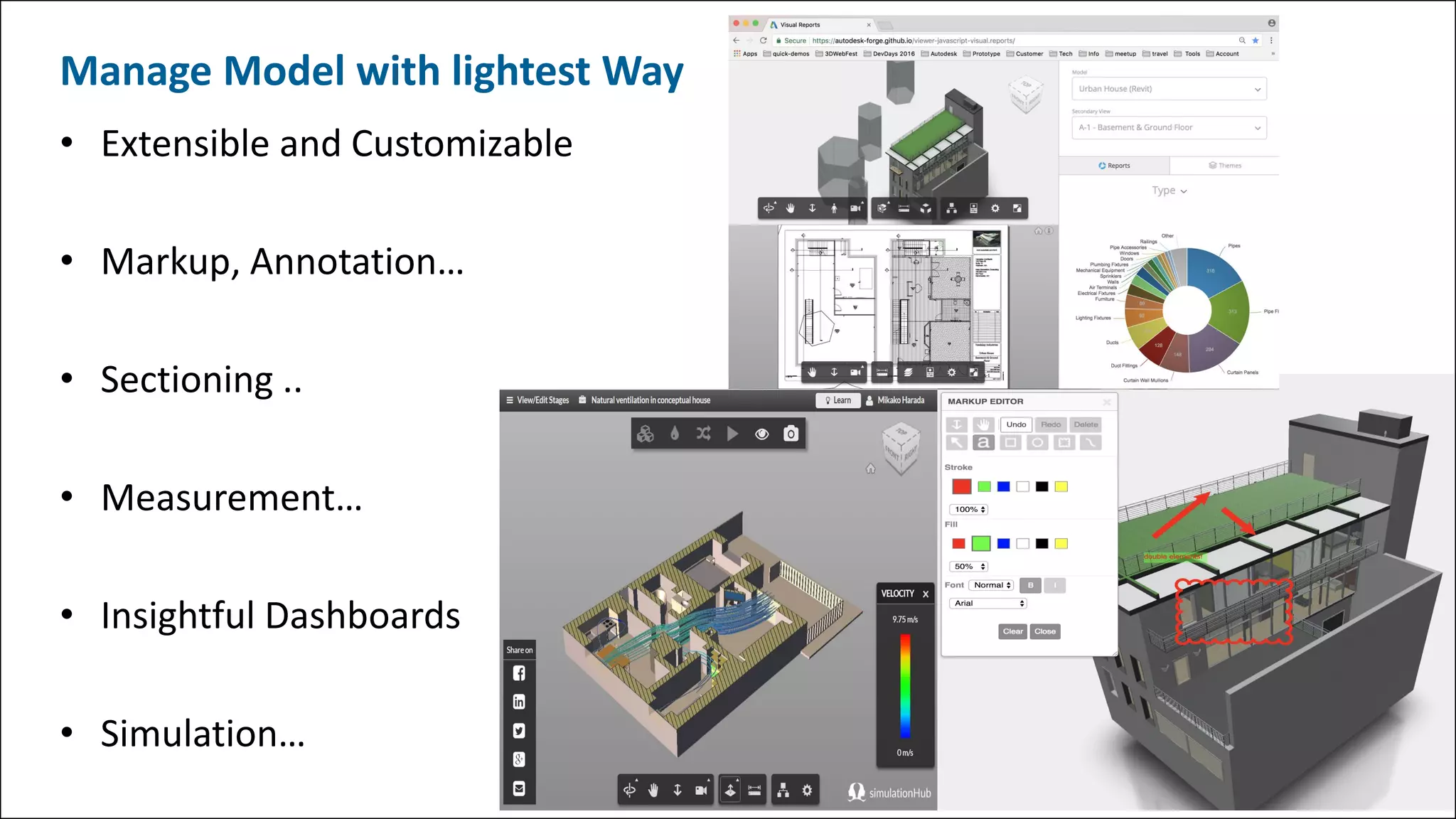

9. Manage Model with lightest Way
• Extensible and Customizable
• Markup, Annotation…
• Sectioning ..
• Measurement…
• Insightful Dashboards
• Simulation…

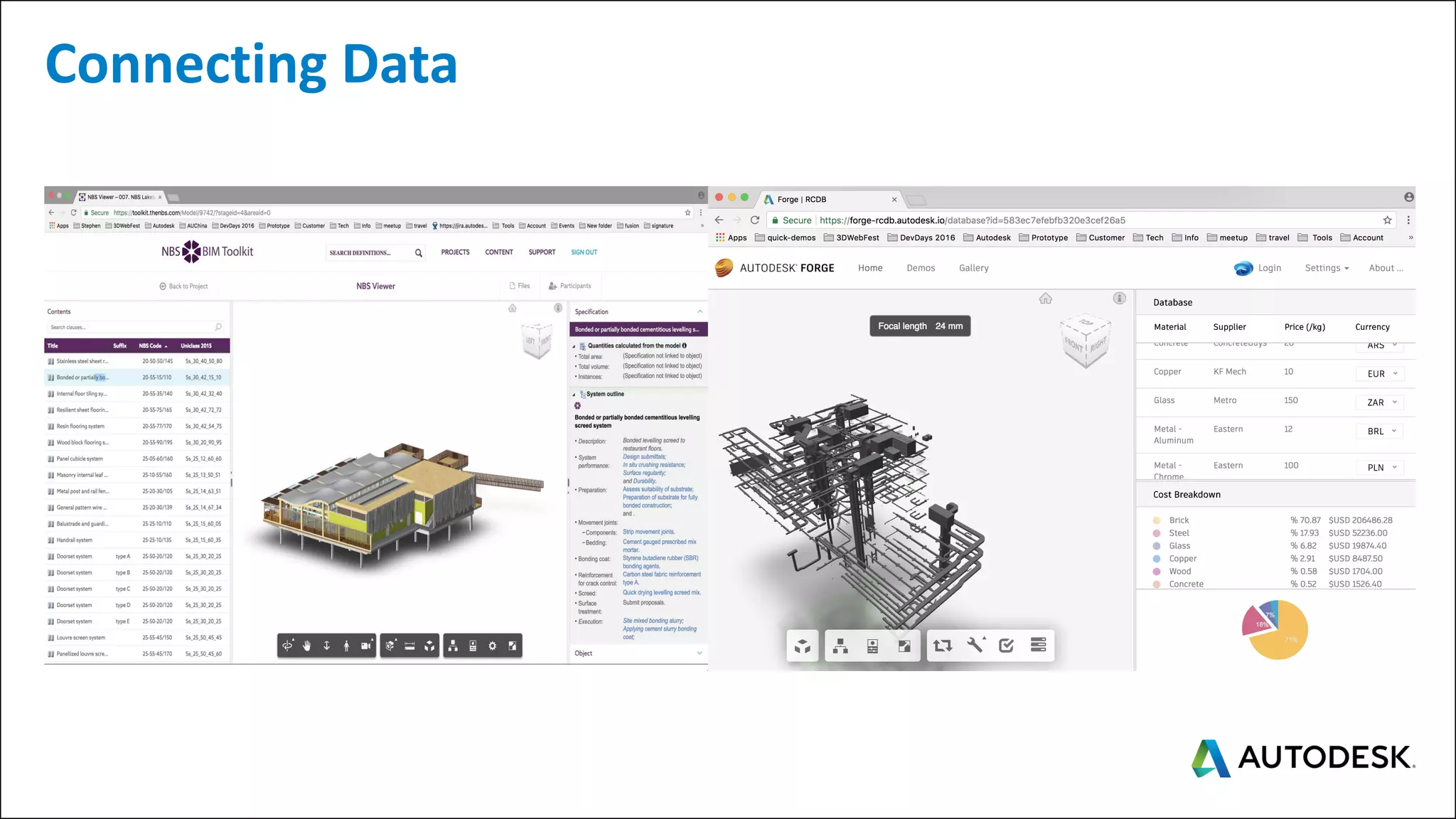

10. Connecting Data

11. Connecting Devices

12. Some applications with a new platform

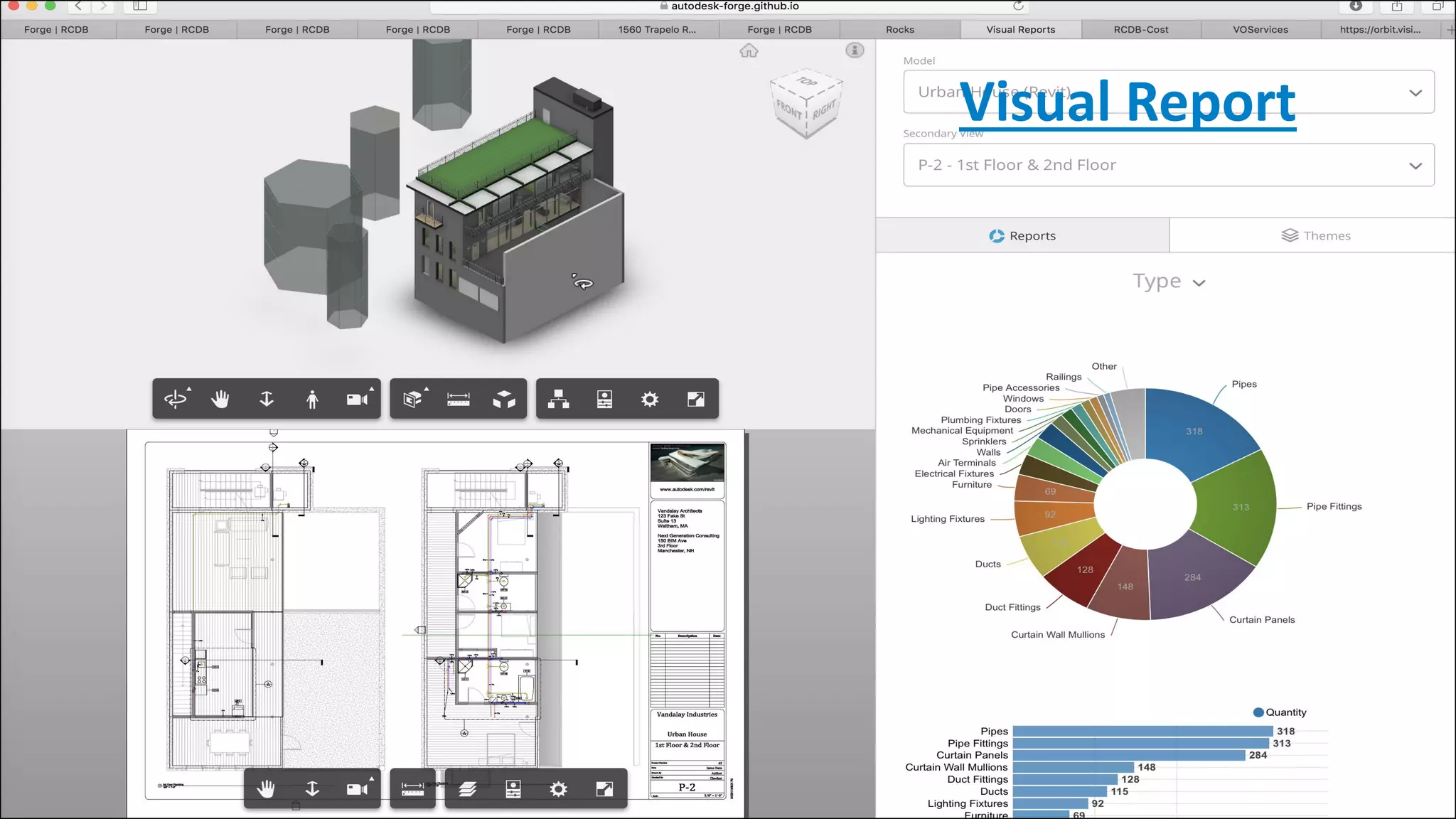

14. Visual Report

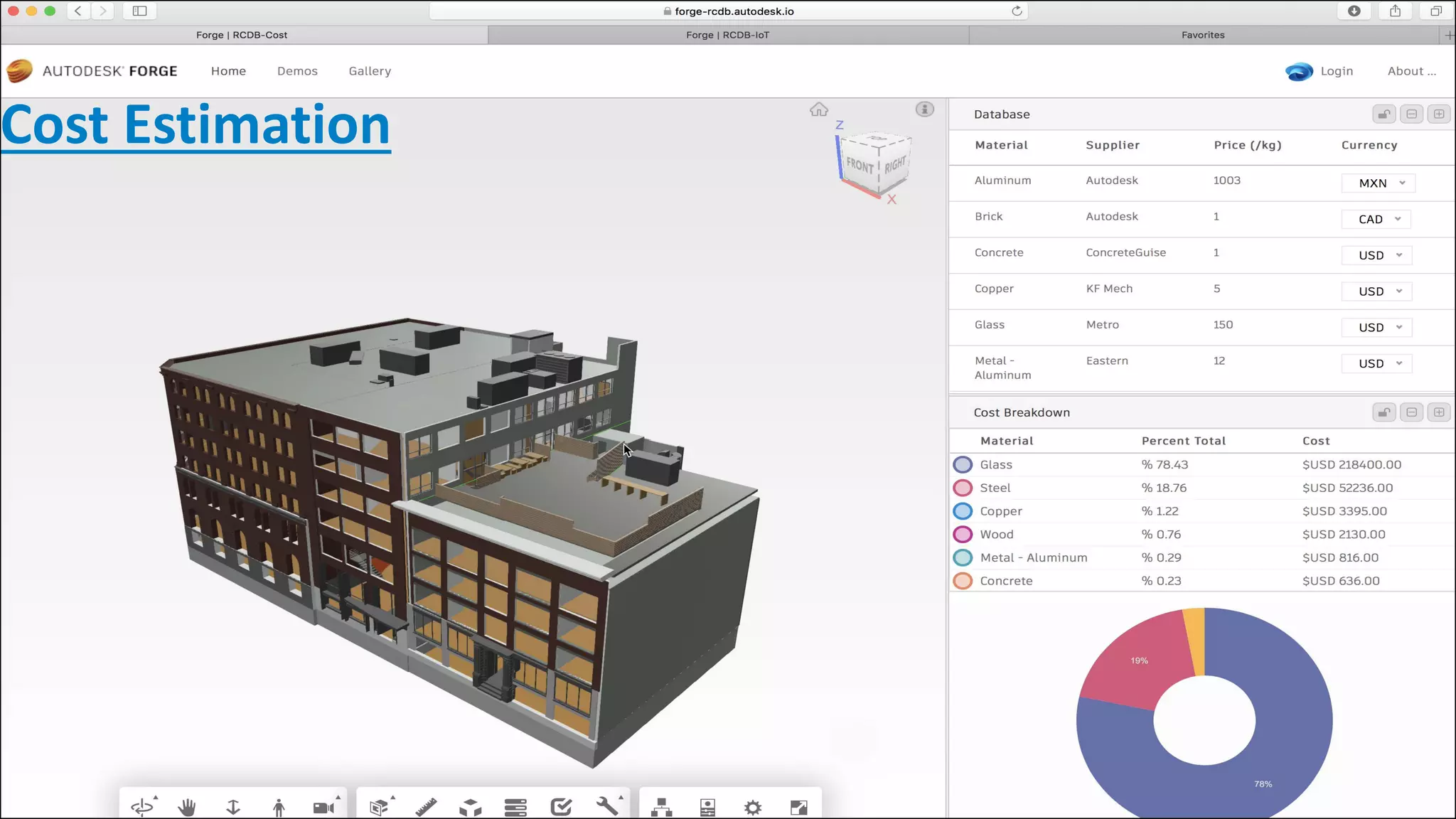

15. Cost Estimation

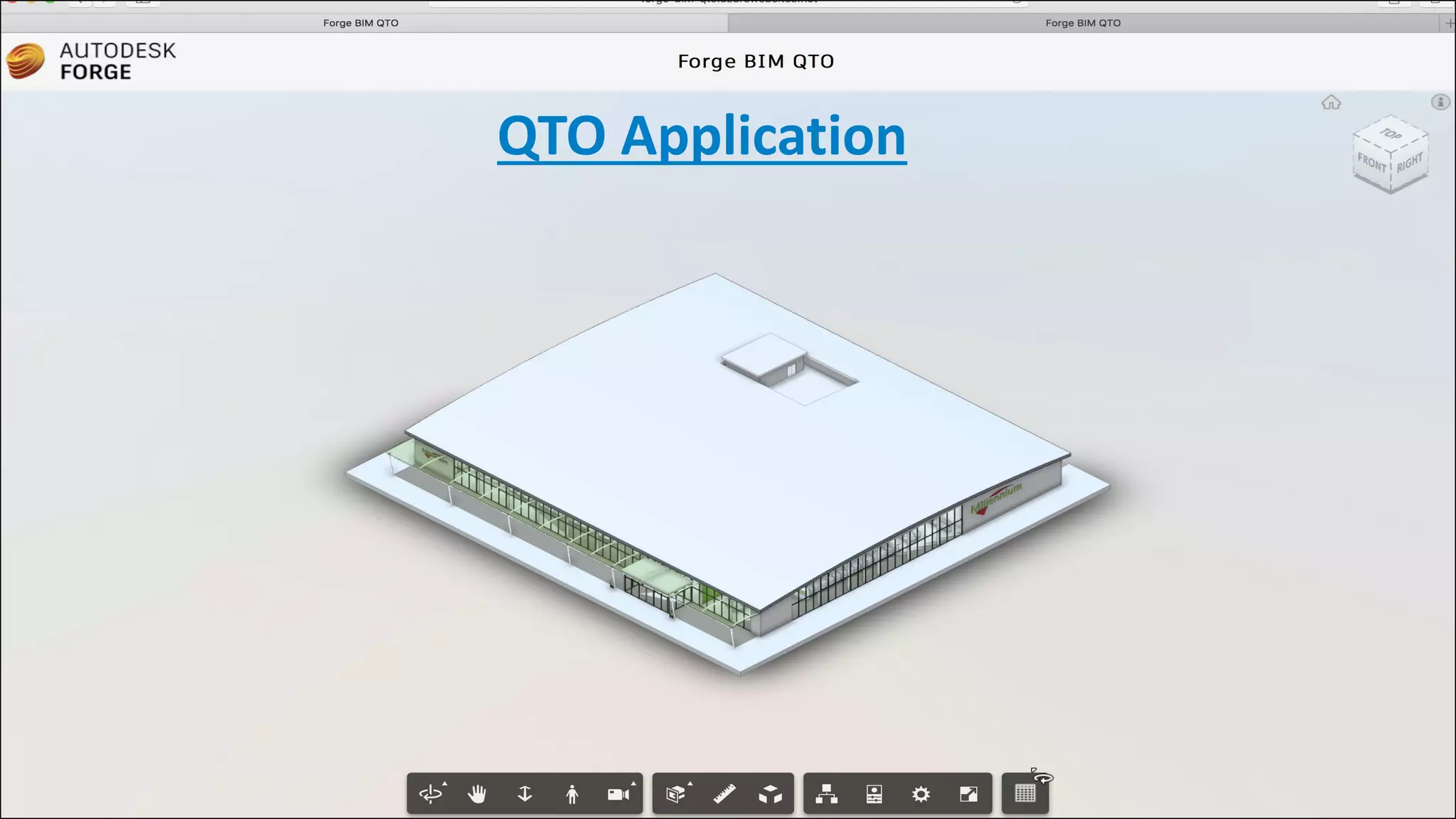

16. QTO Application

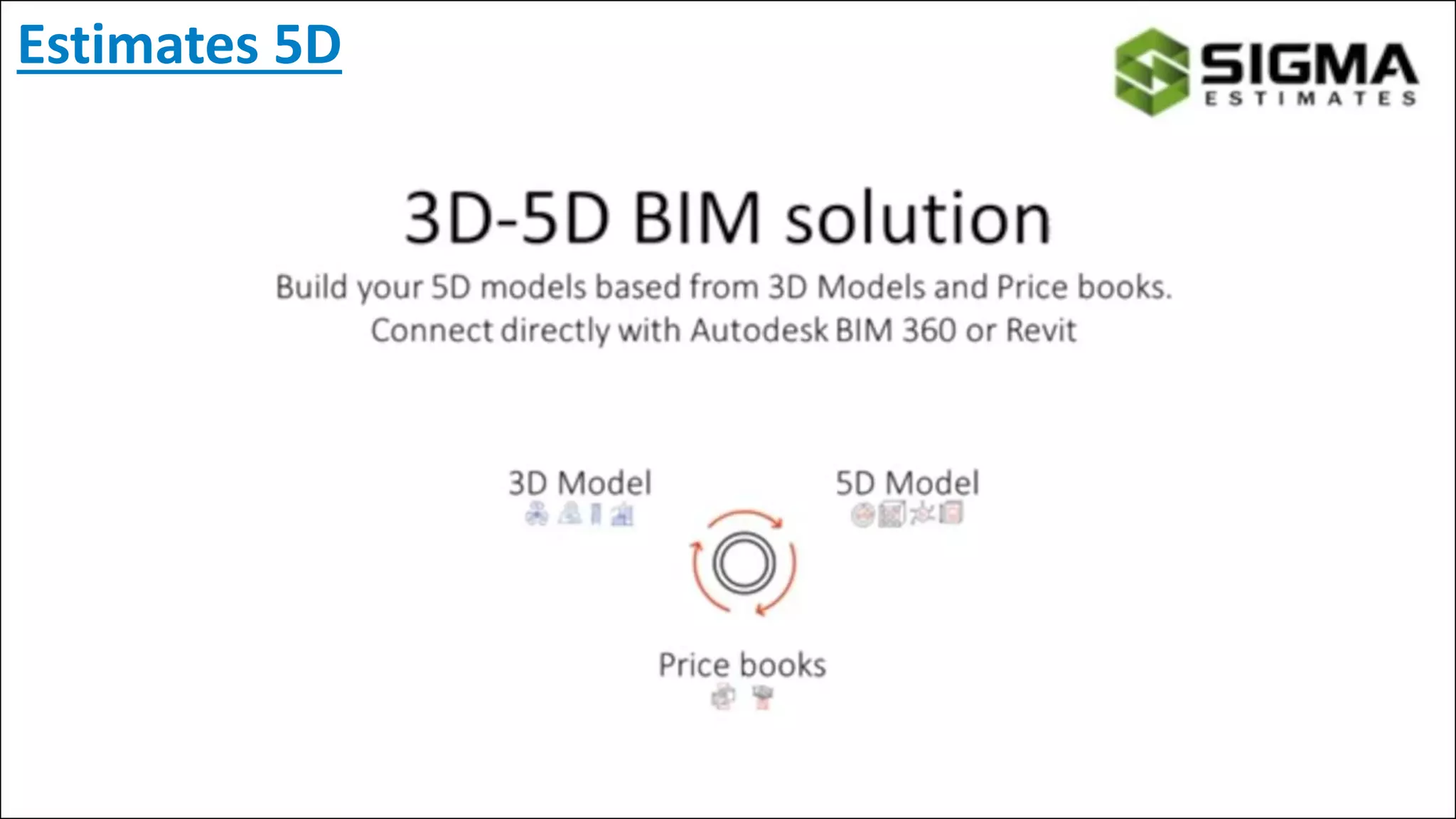

17. Estimates 5D

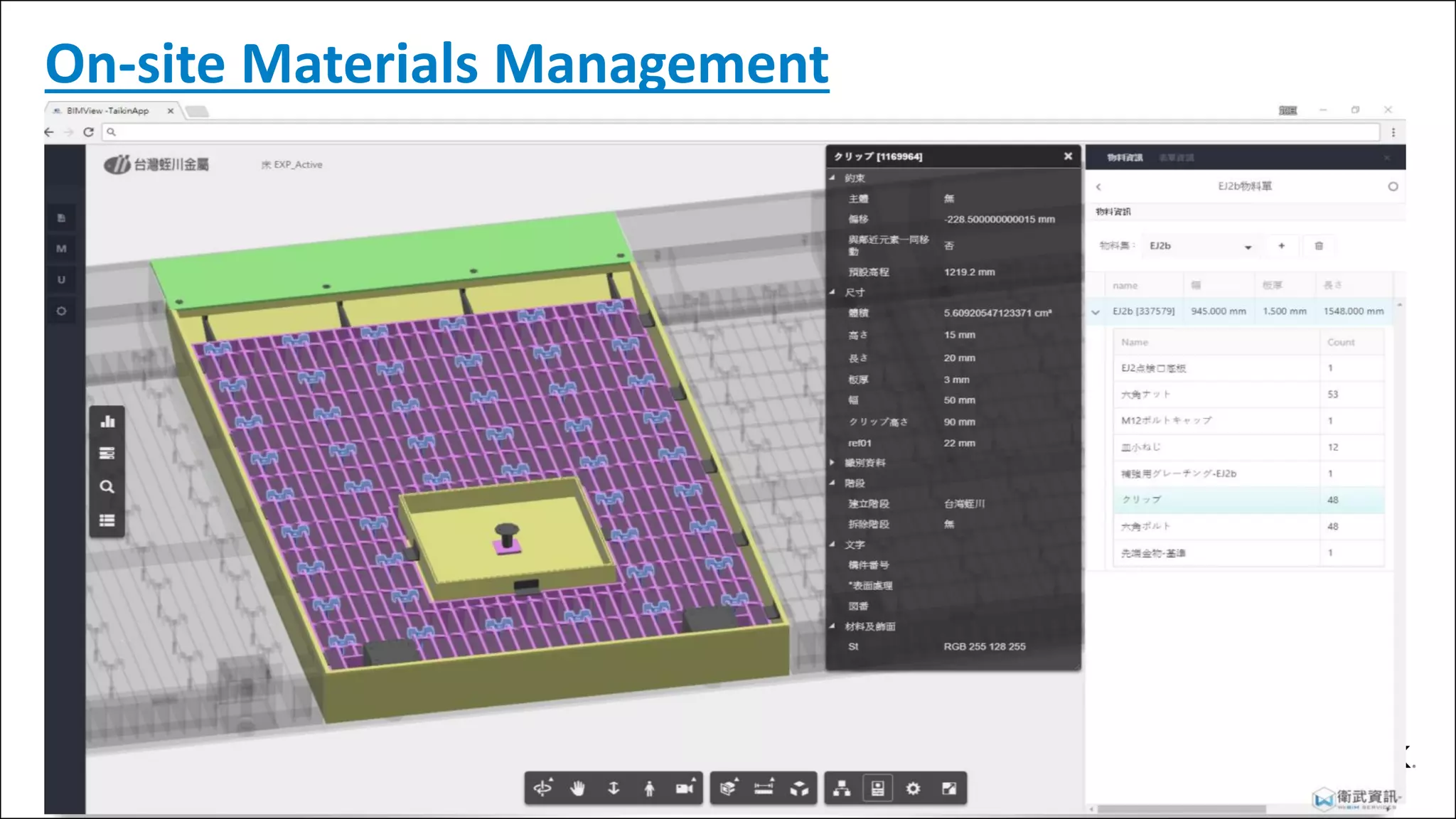

18. On-site Materials Management

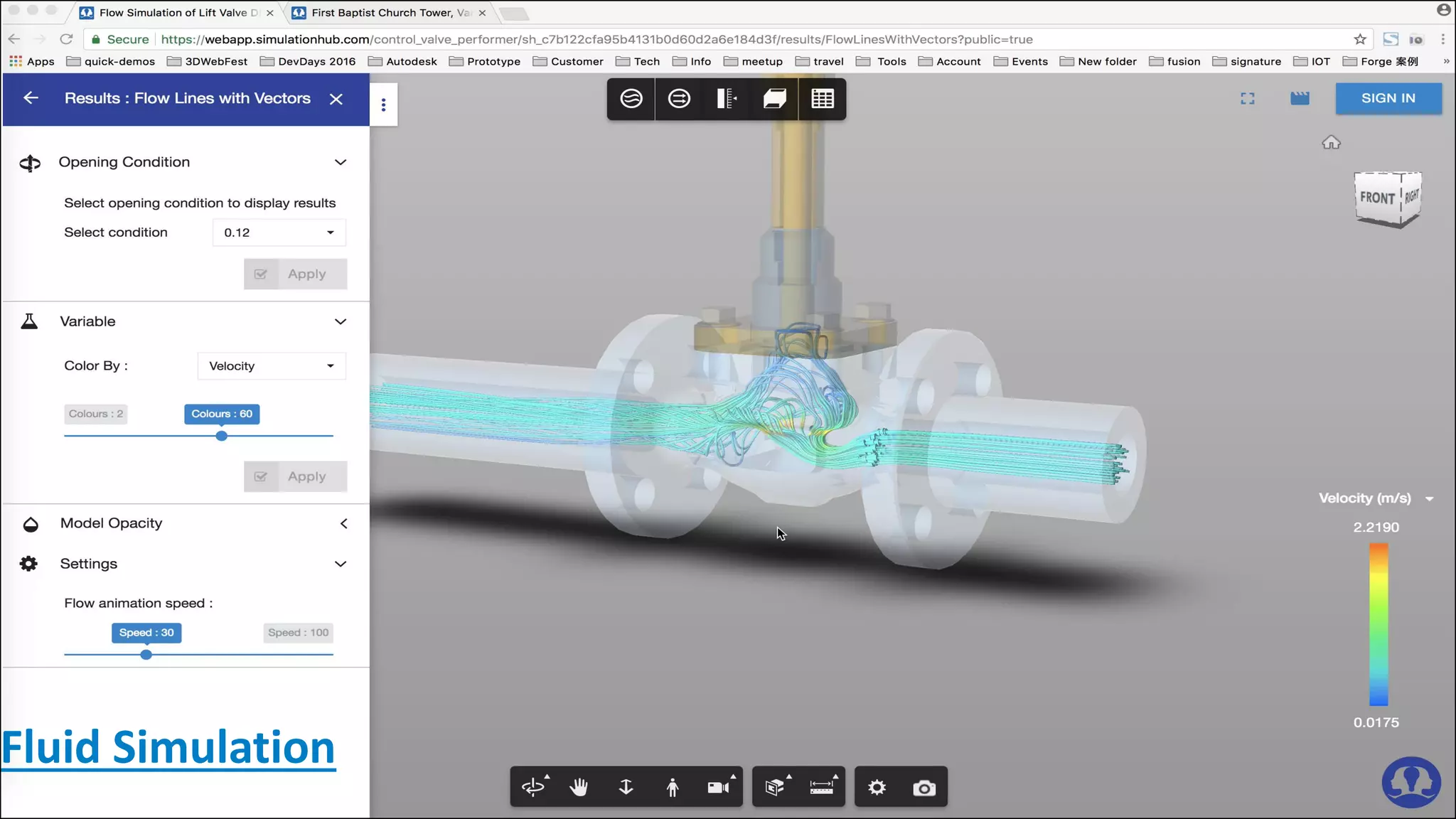

19. Fluid Simulation

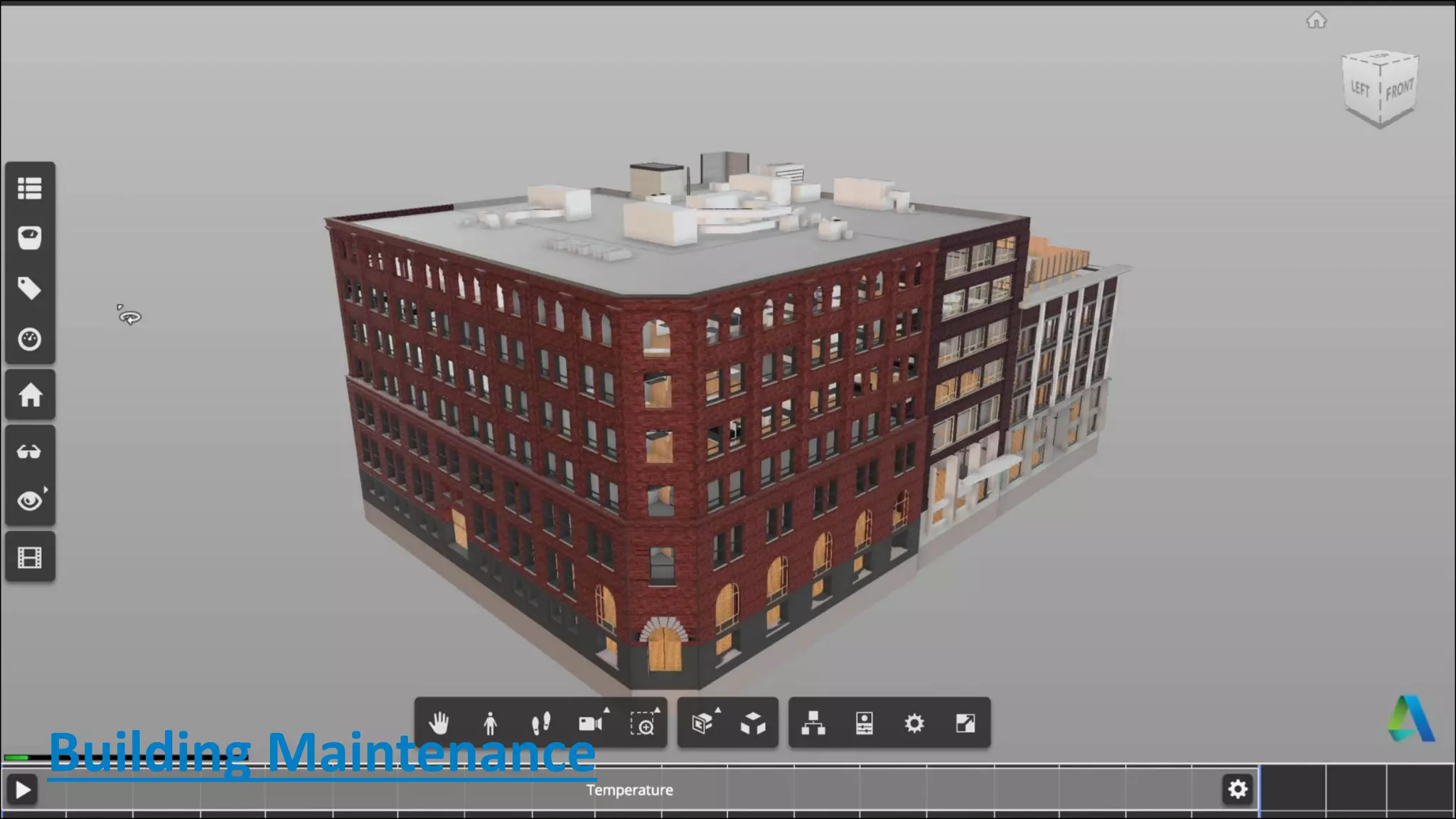

20. Building Maintenance

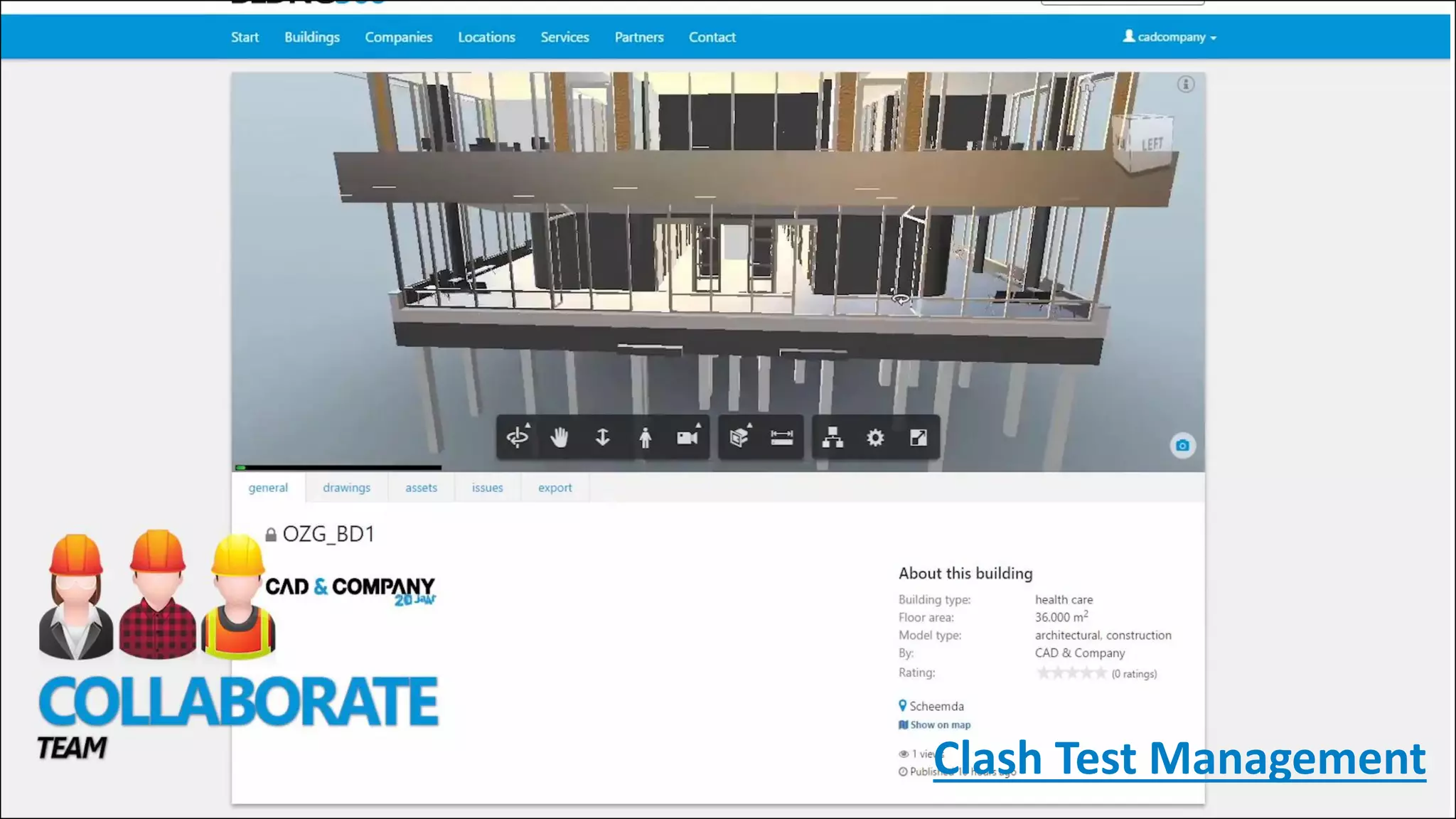

21. Clash Test Management

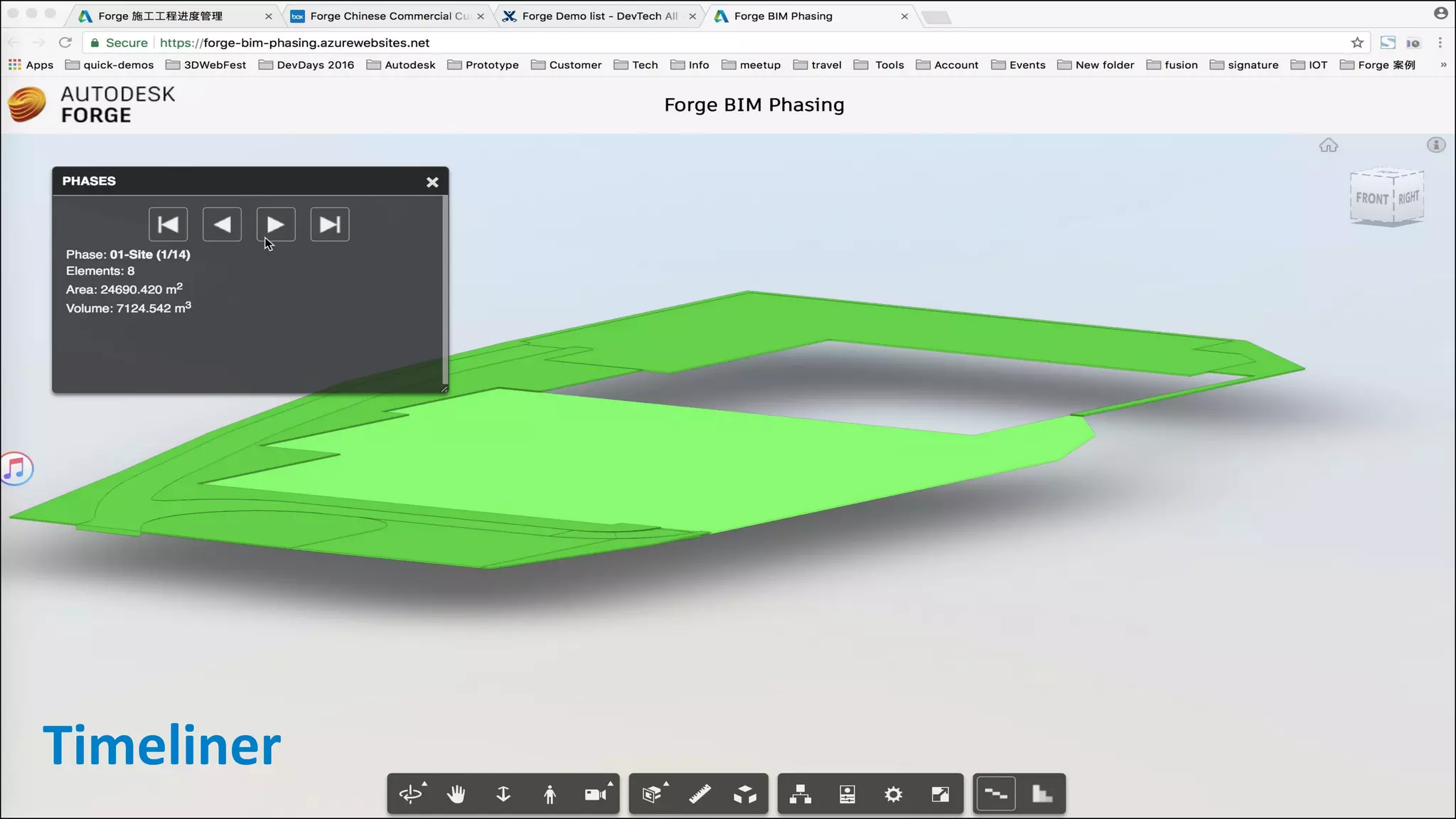

22. Timeliner

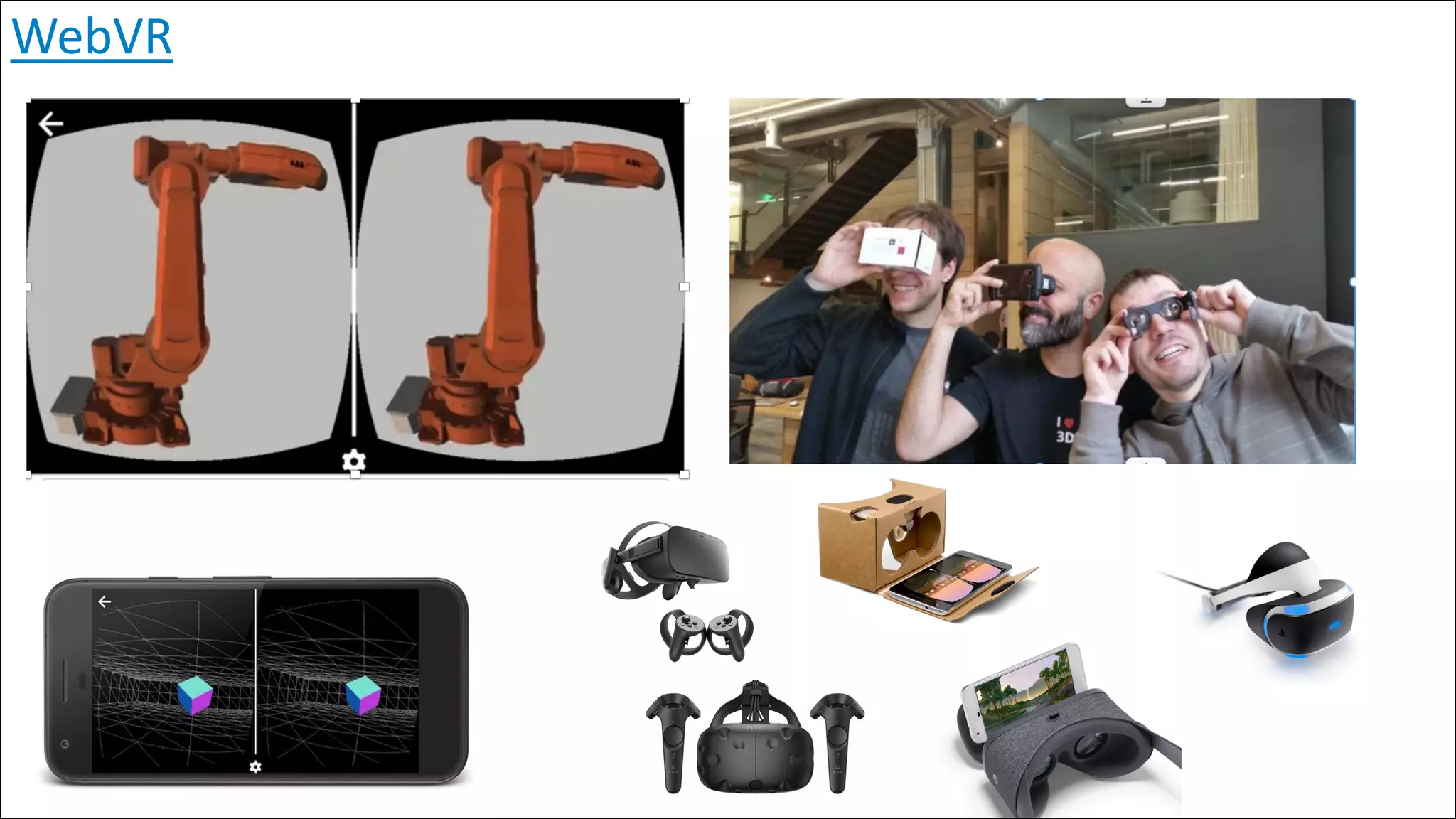

23. WebVR

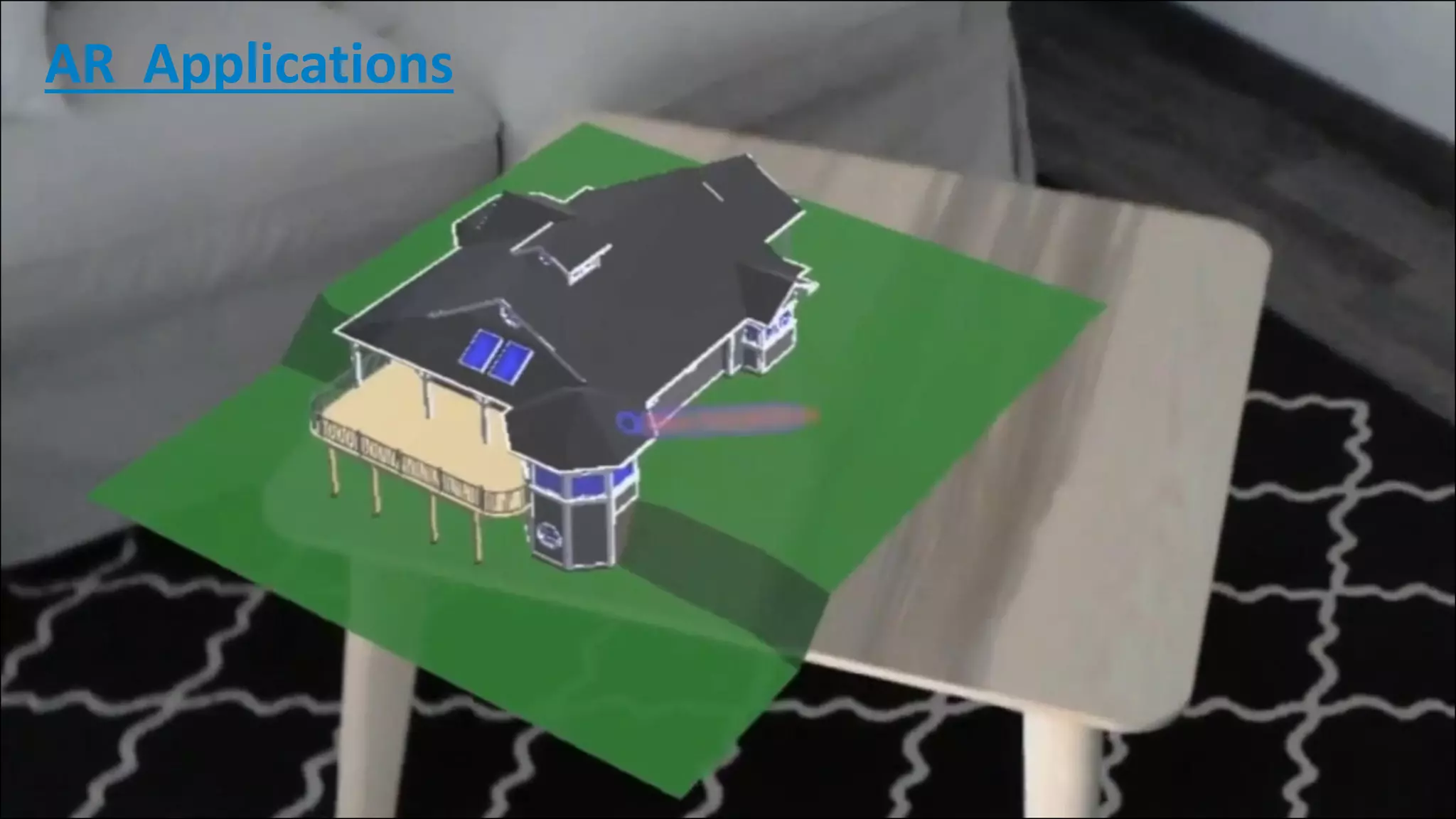

24. AR Applications

25. Autodesk Forge

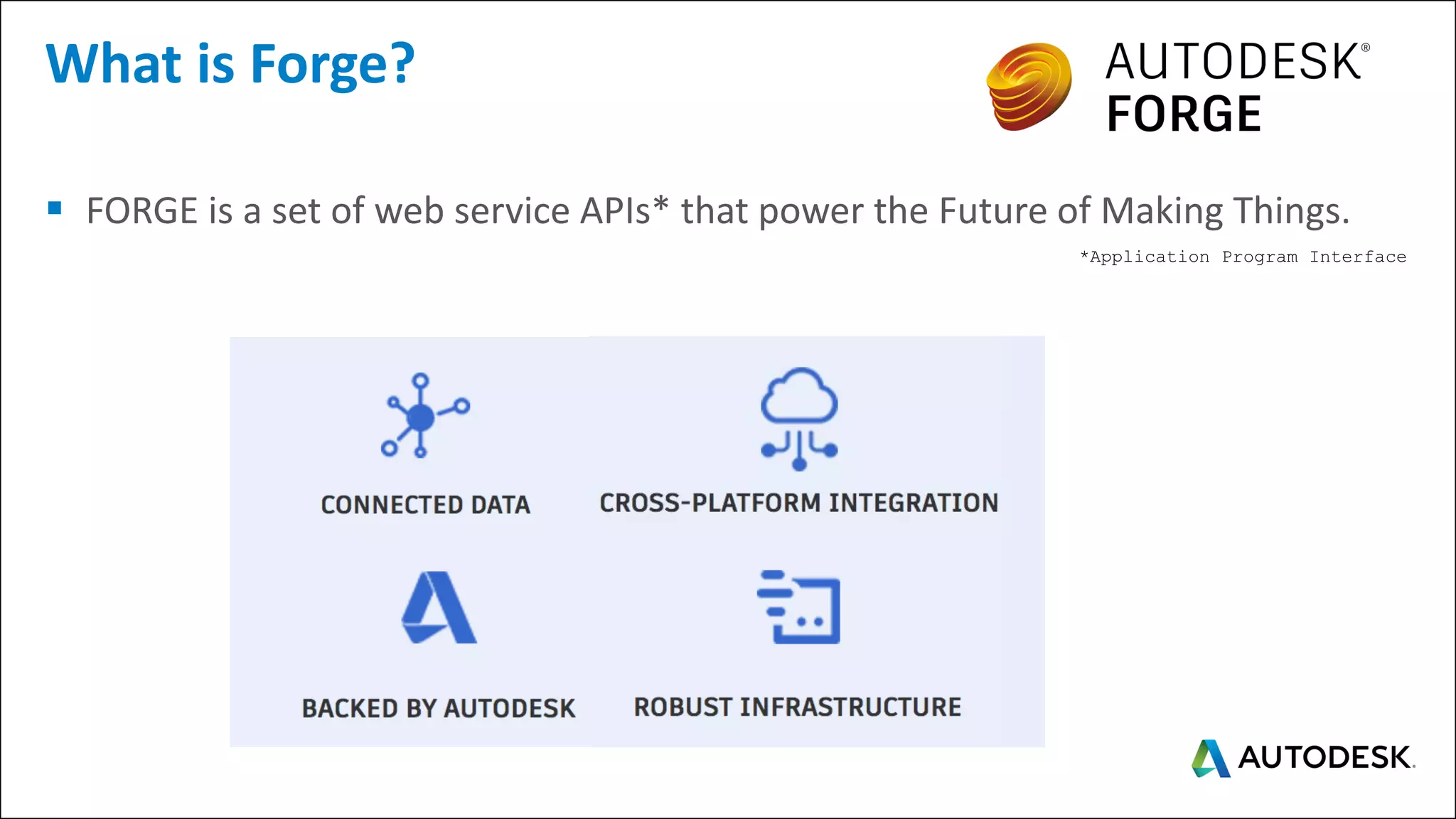

26. *Application Program Interface
▪ FORGE is a set of web service APIs* that power the Future of Making Things.
What is Forge?

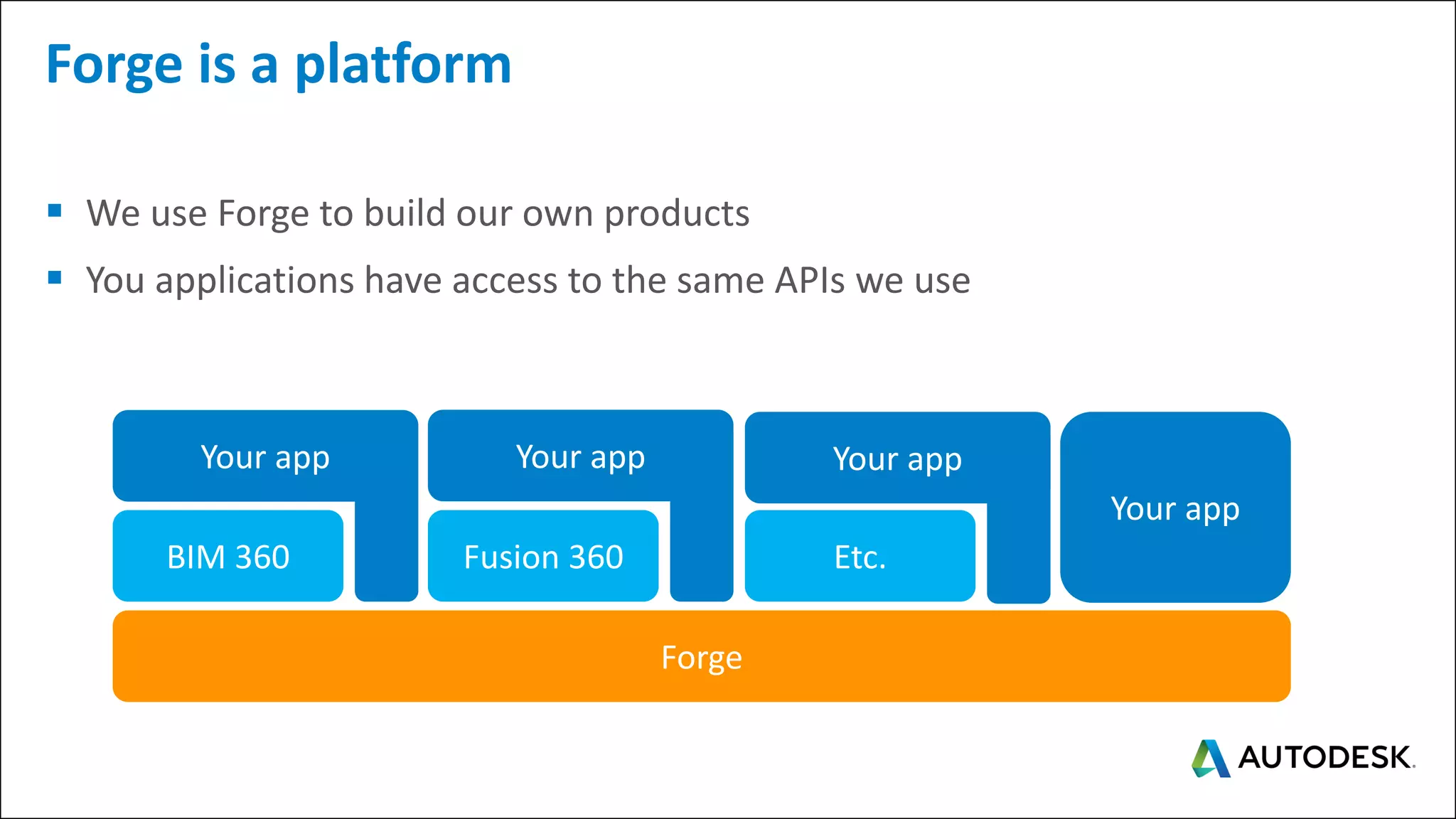

27. ▪ We use Forge to build our own products
▪ You applications have access to the same APIs we use
Forge is a platform
Forge
BIM 360 Fusion 360 Etc.
Your app
Your app Your app Your app

28. Binary file in
specific formats
Bounded Data Unbounded data
Geometry
Properties
Textures
Constraints
Sketches

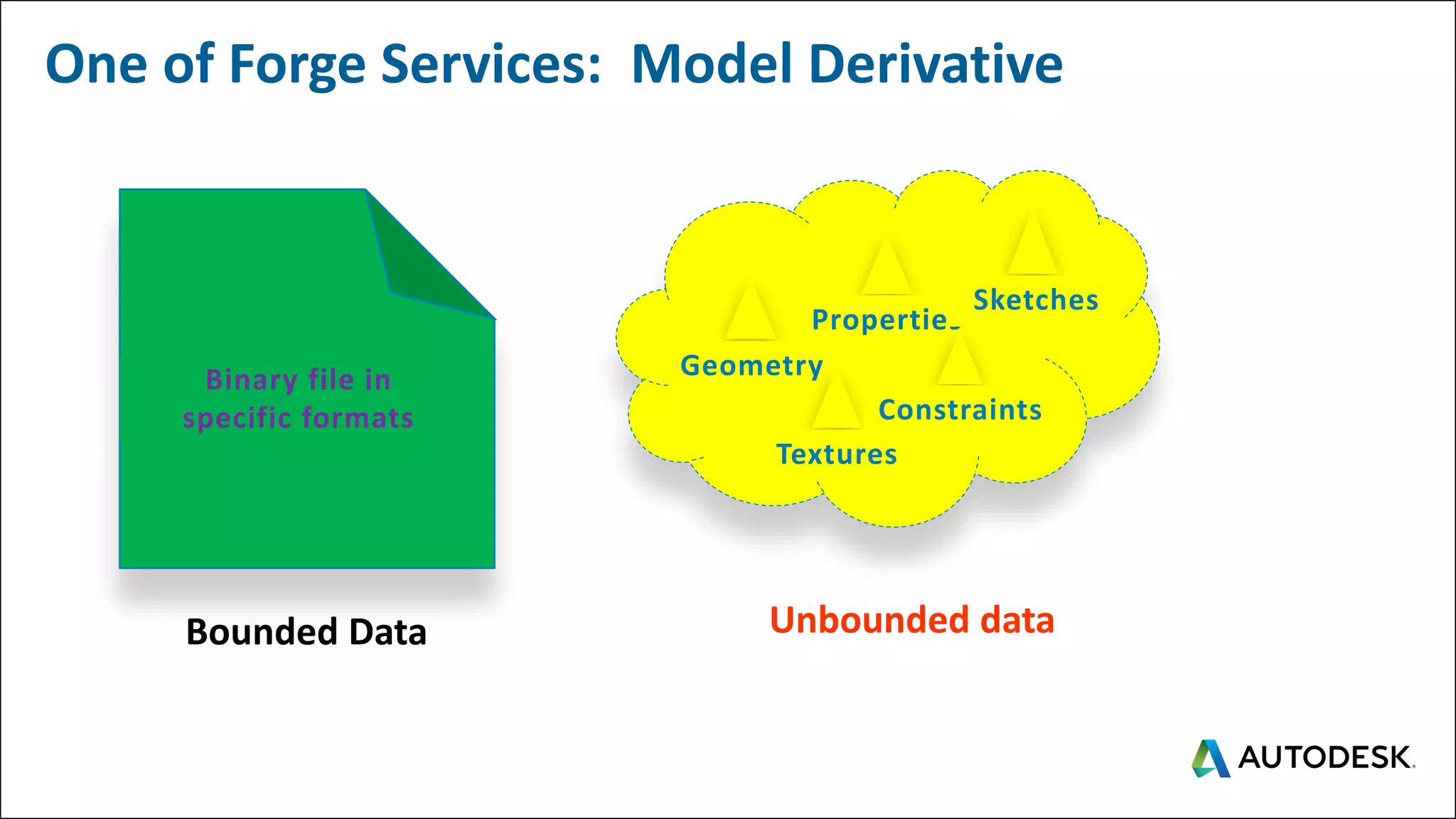

One of Forge Services: Model Derivative

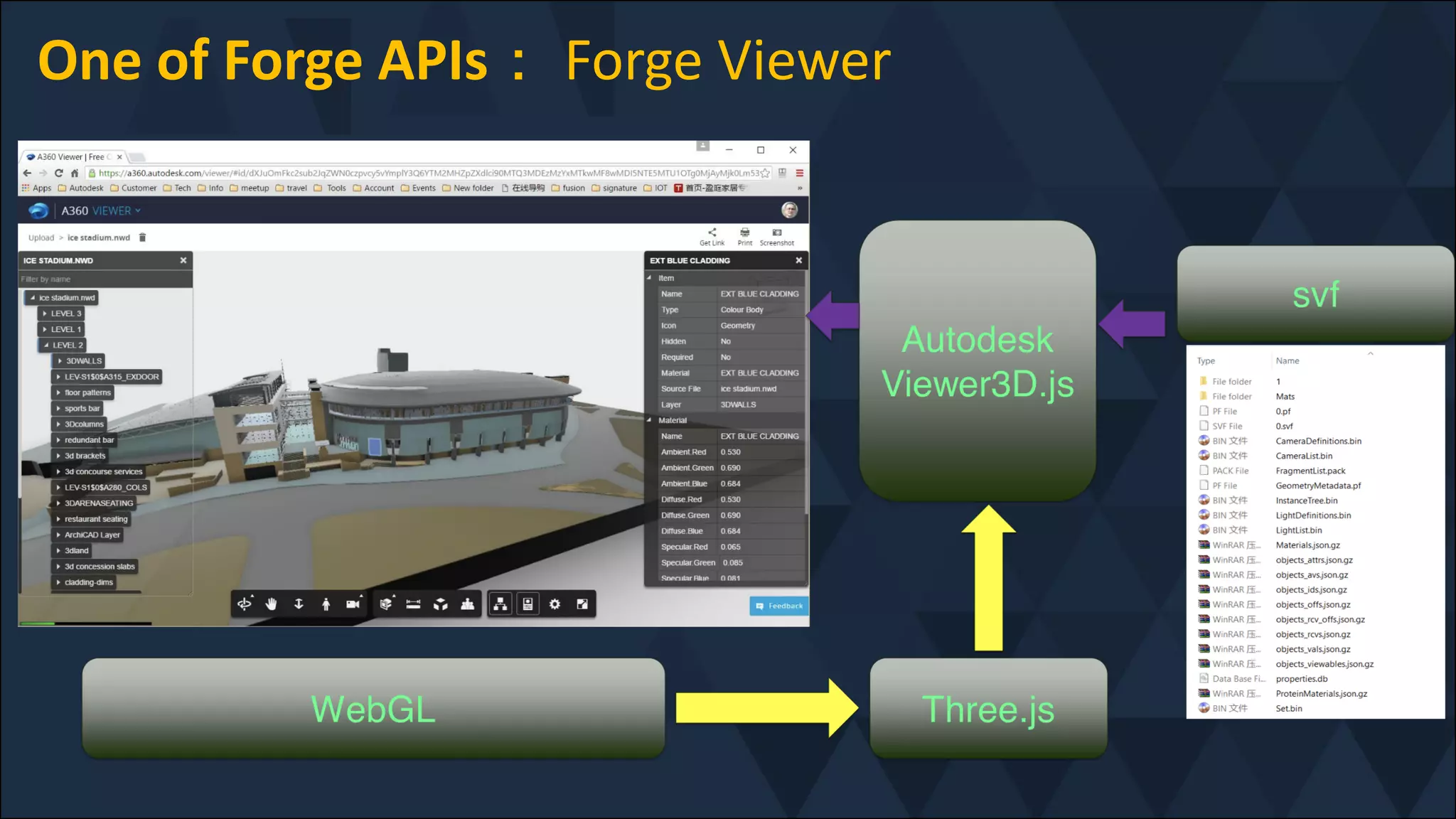

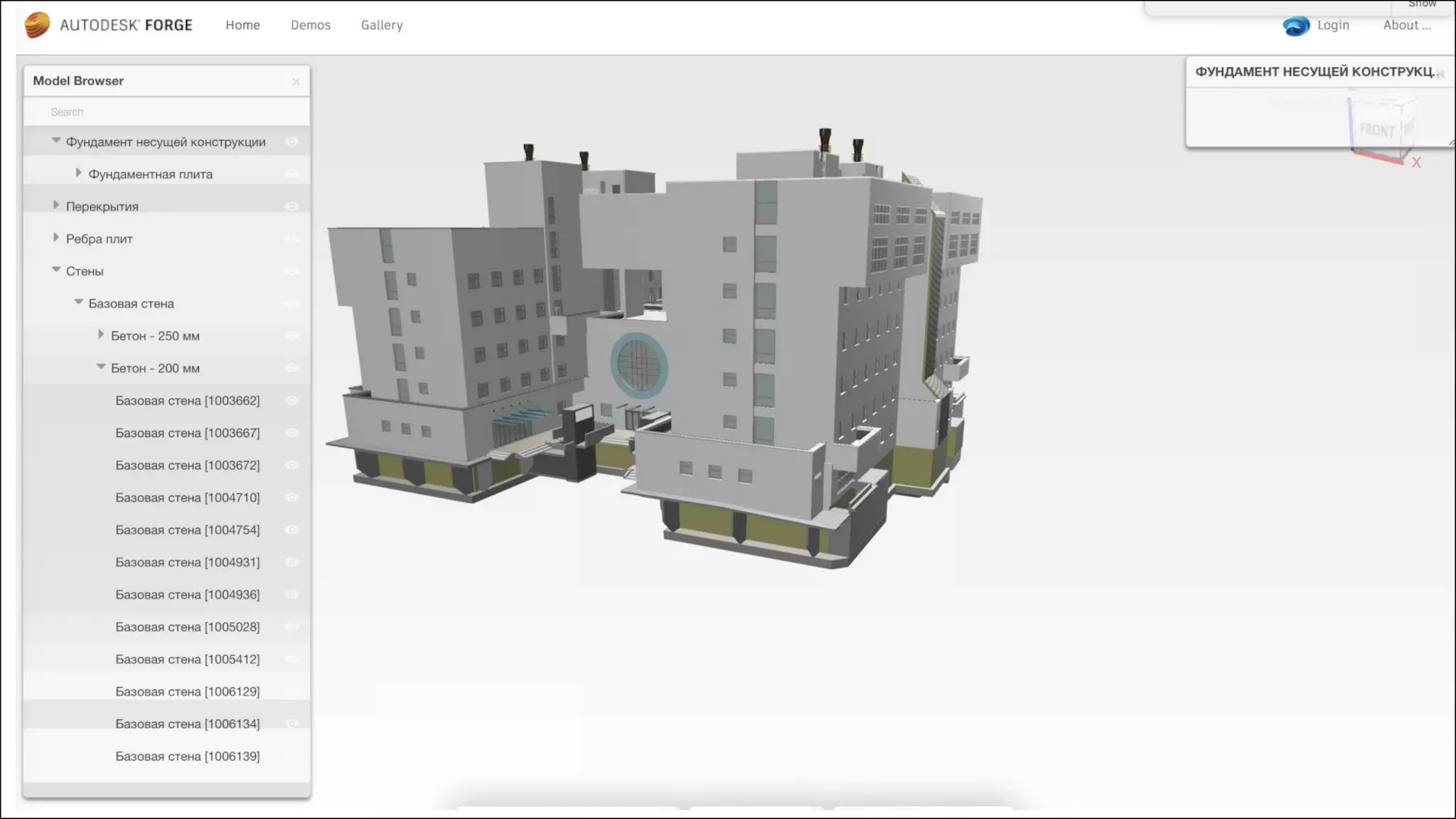

29. One of Forge APIs： Forge Viewer

30. ▪ Data extraction
▪ Geometry
▪ Object data/Model structure
▪ Thumbnails
▪ Translation
▪ 60+ file formats to browser viewing（down-able)
▪ Convert to some industry standards
▪ Viewing (browser based)
▪ Visual reporting
▪ Model interaction

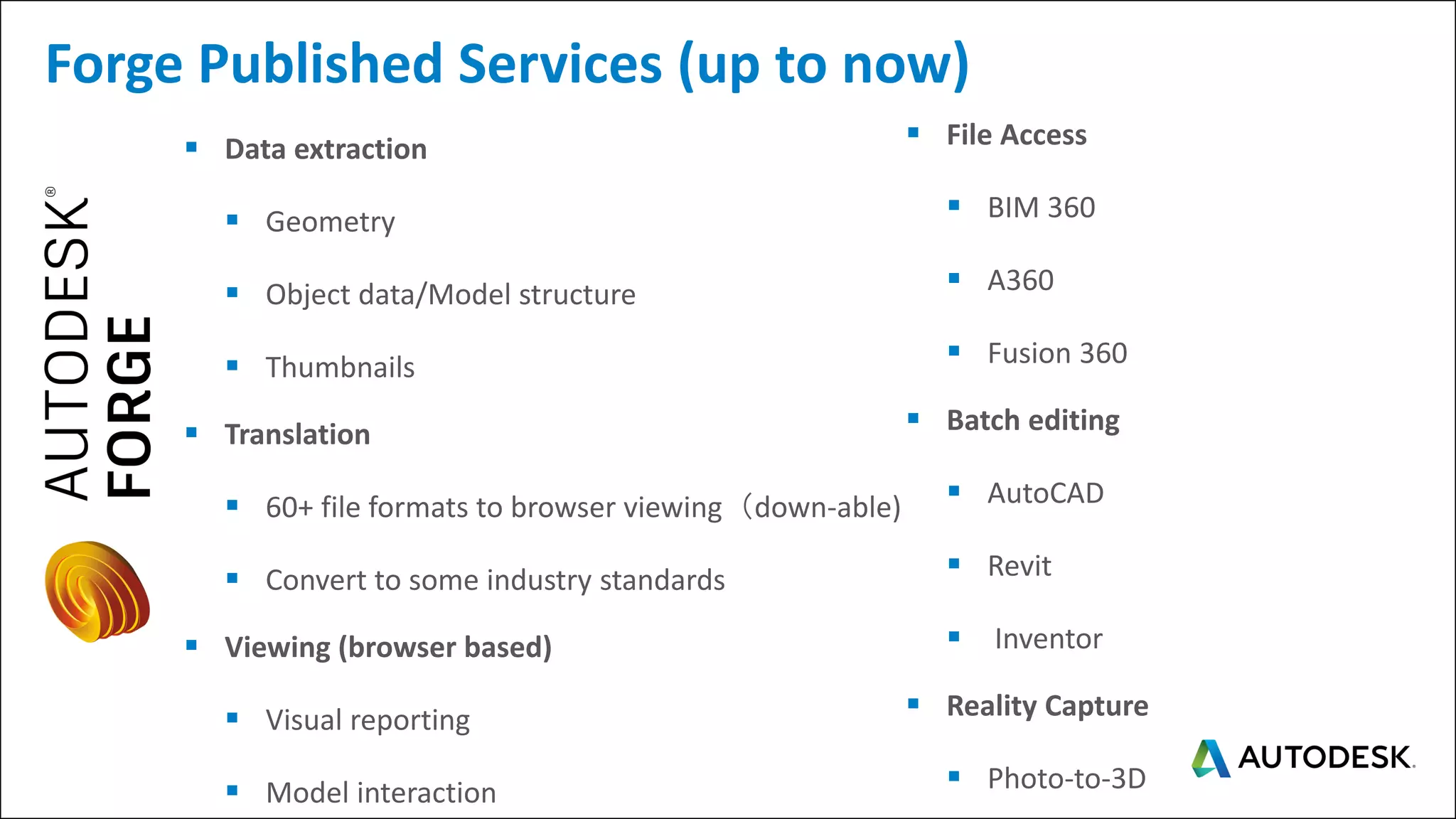

Forge Published Services (up to now)
▪ File Access
▪ BIM 360
▪ A360
▪ Fusion 360
▪ Batch editing
▪ AutoCAD
▪ Revit
▪ Inventor
▪ Reality Capture
▪ Photo-to-3D

31. © Autodesk, Inc. 2017
Viewing Schedules ERPCost EstimatingPlanning
Sales &
Marketing
Construction/
Fabrication
Inspections
Maintenance
Services
Purchasing
IFC

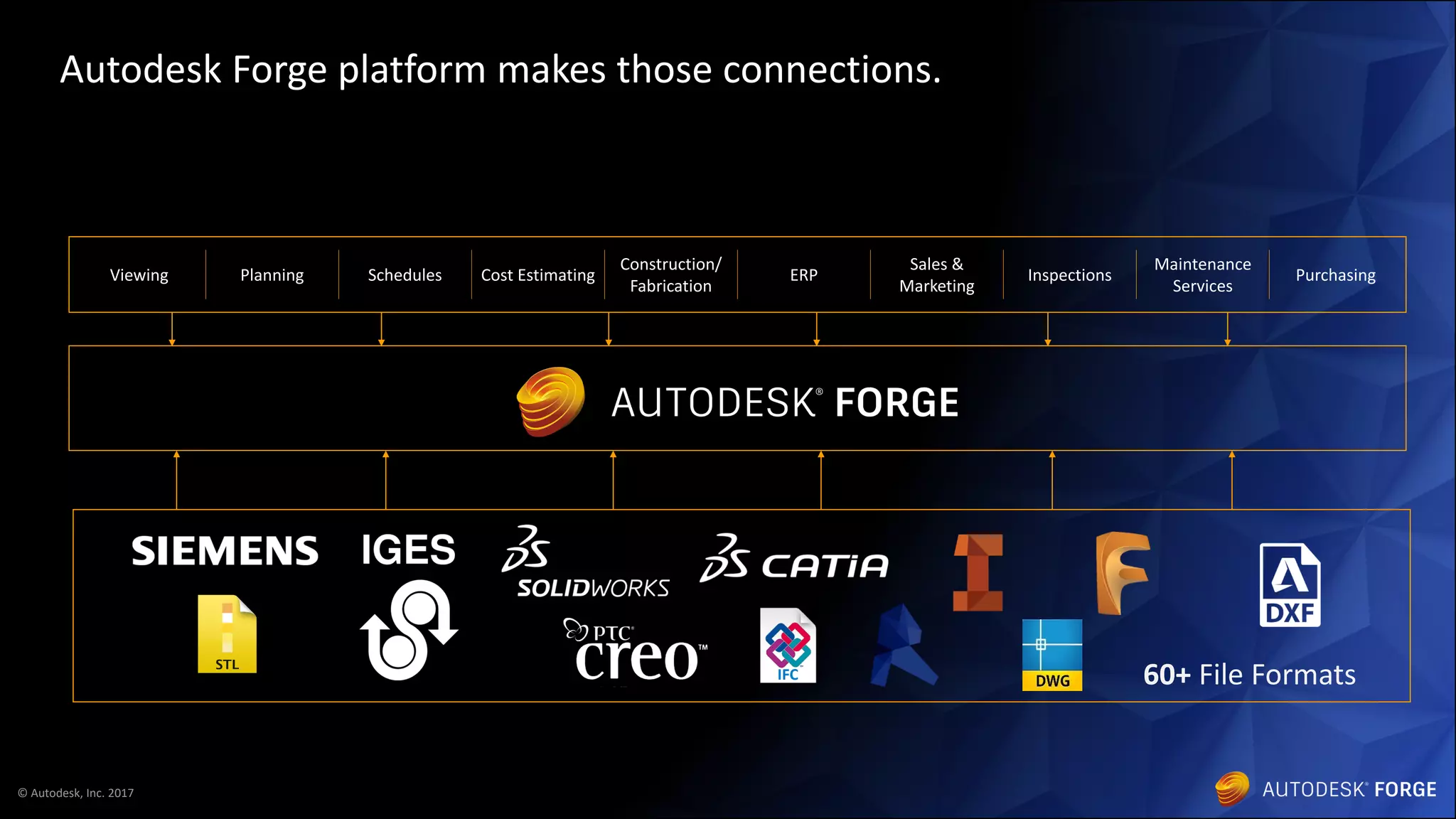

Autodesk Forge platform makes those connections.
60+ File Formats

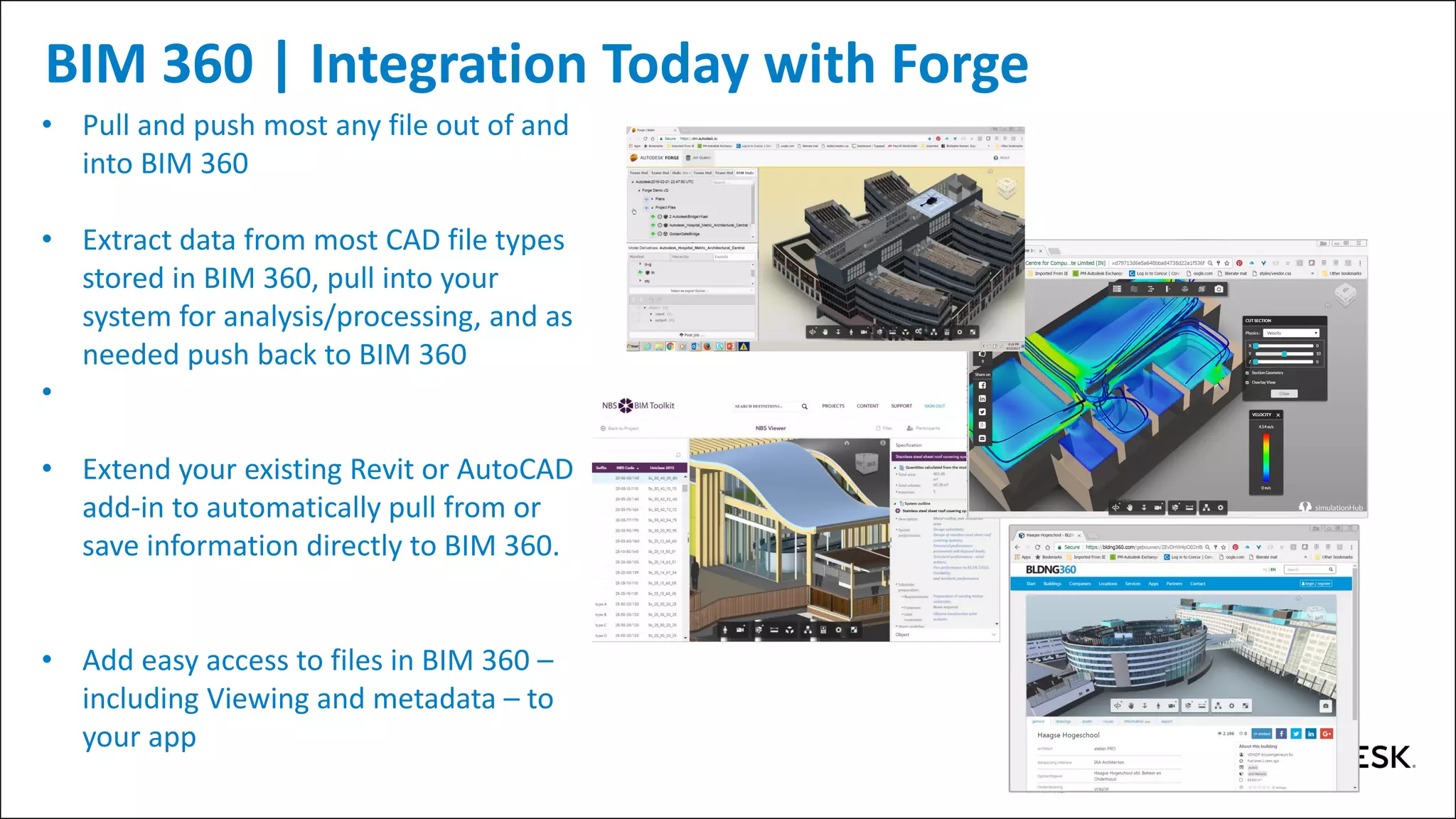

32. BIM 360 | Integration Today with Forge
• Pull and push most any file out of and
into BIM 360
• Extract data from most CAD file types
stored in BIM 360, pull into your
system for analysis/processing, and as
needed push back to BIM 360
•
• Extend your existing Revit or AutoCAD
add-in to automatically pull from or
save information directly to BIM 360.
• Add easy access to files in BIM 360 –
including Viewing and metadata – to
your app

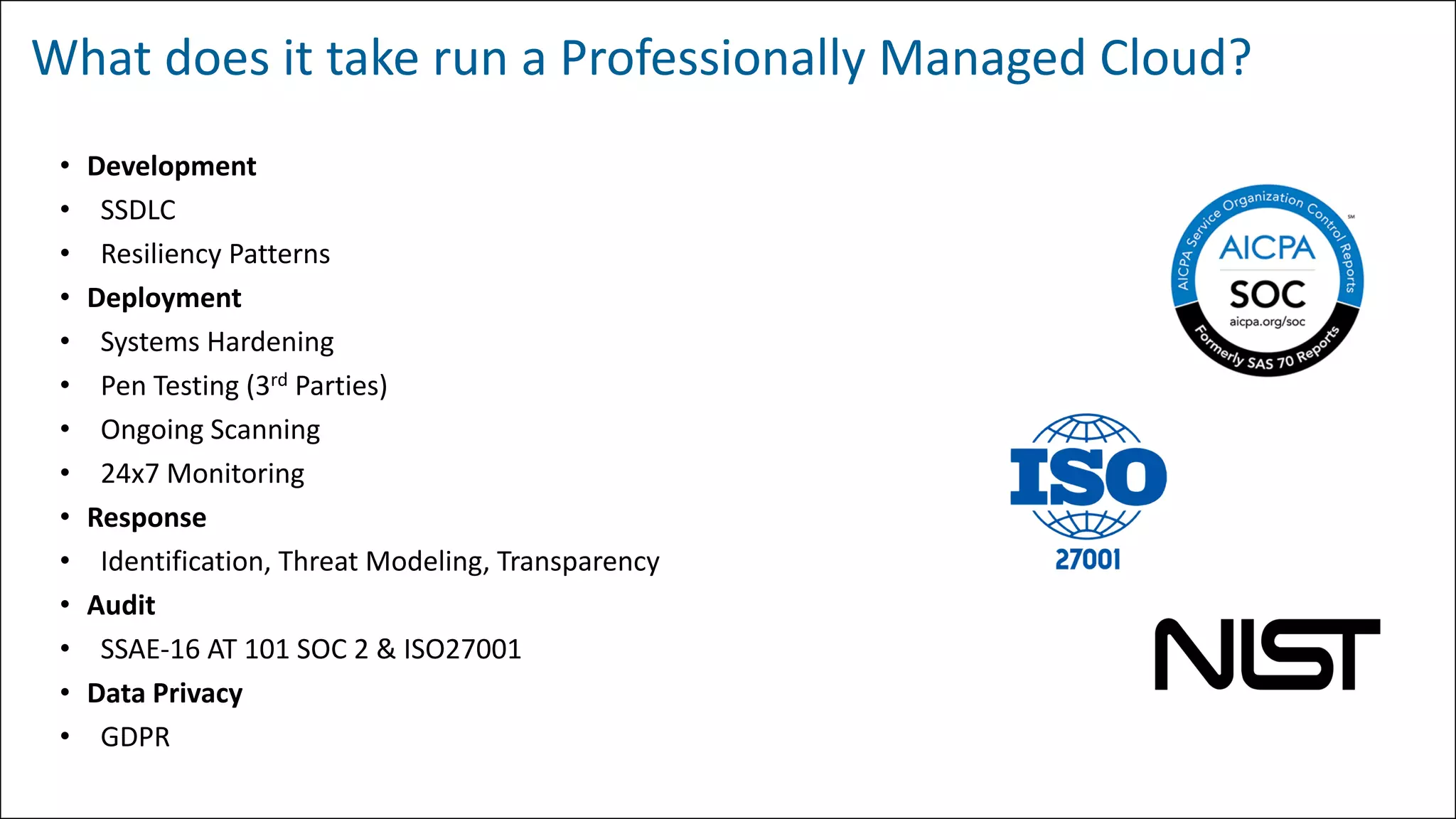

33. • Development
• SSDLC
• Resiliency Patterns
• Deployment
• Systems Hardening
• Pen Testing (3rd Parties)
• Ongoing Scanning
• 24x7 Monitoring
• Response
• Identification, Threat Modeling, Transparency
• Audit
• SSAE-16 AT 101 SOC 2 & ISO27001
• Data Privacy
• GDPR
What does it take run a Professionally Managed Cloud?

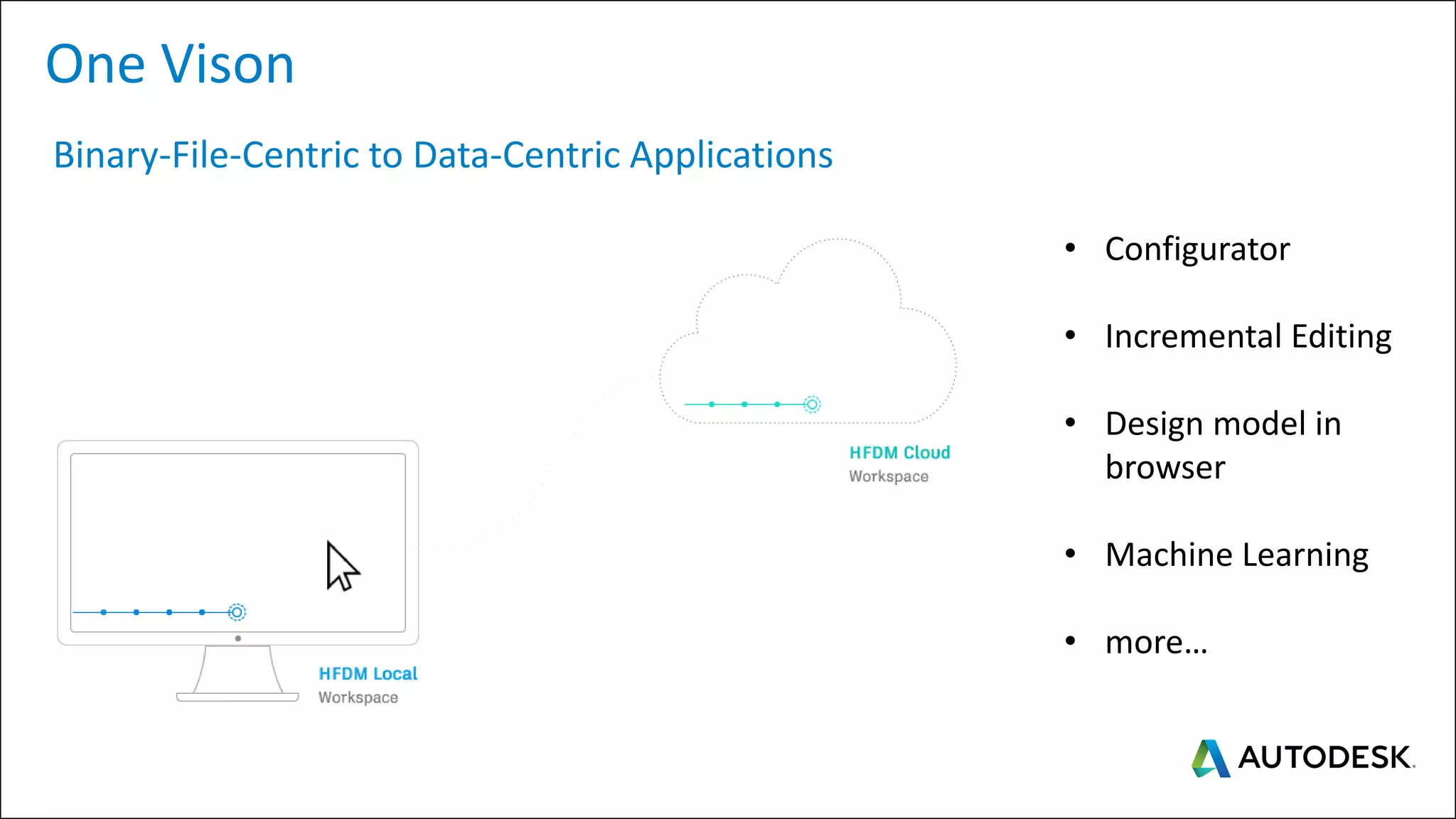

34. One Vison
Binary-File-Centric to Data-Centric Applications
• Configurator
• Incremental Editing
• Design model in
browser
• Machine Learning
• more…

35. Forge Integrated Development Experience

36. Learn More…

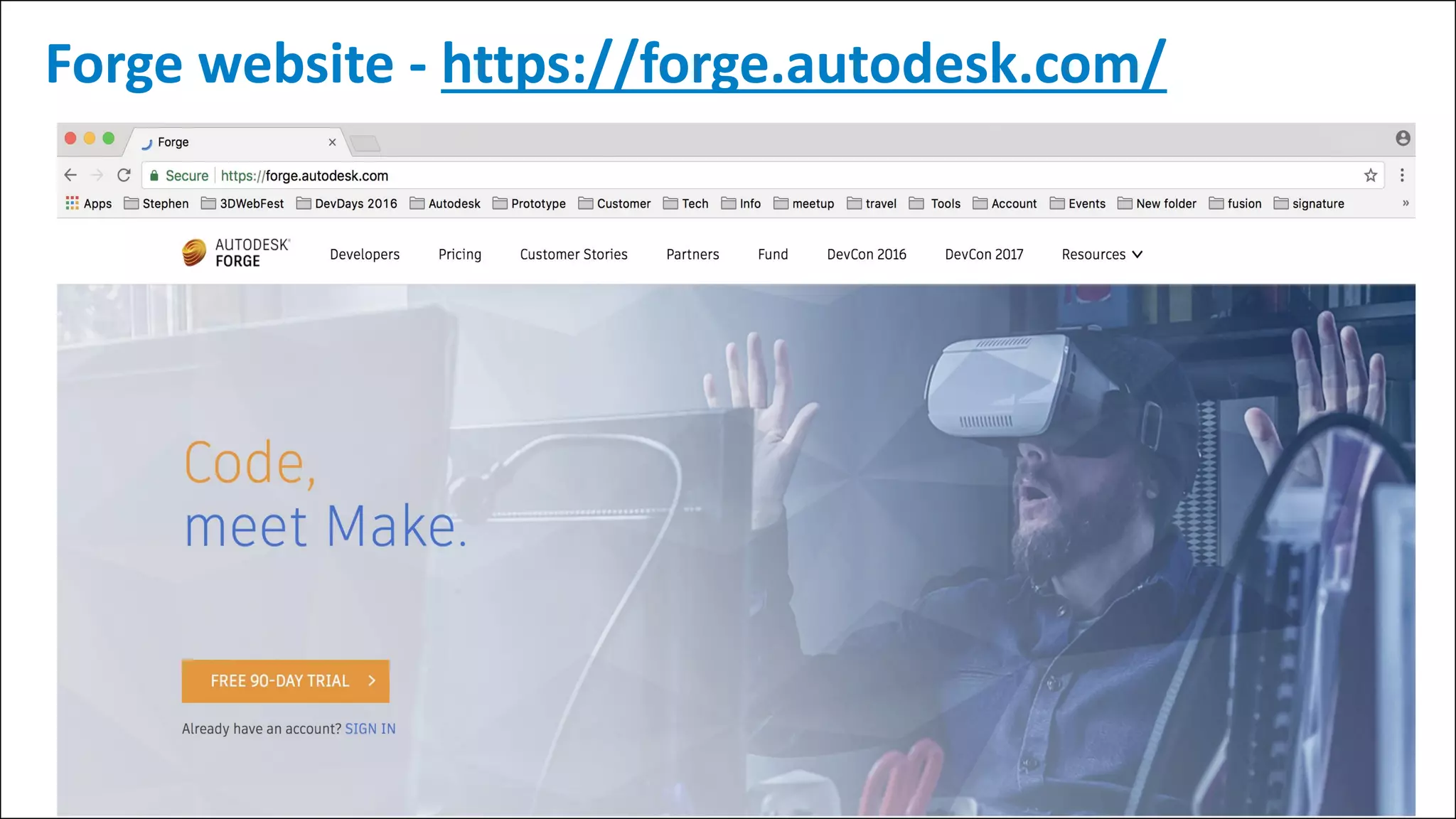

37. Forge website - https://forge.autodesk.com/

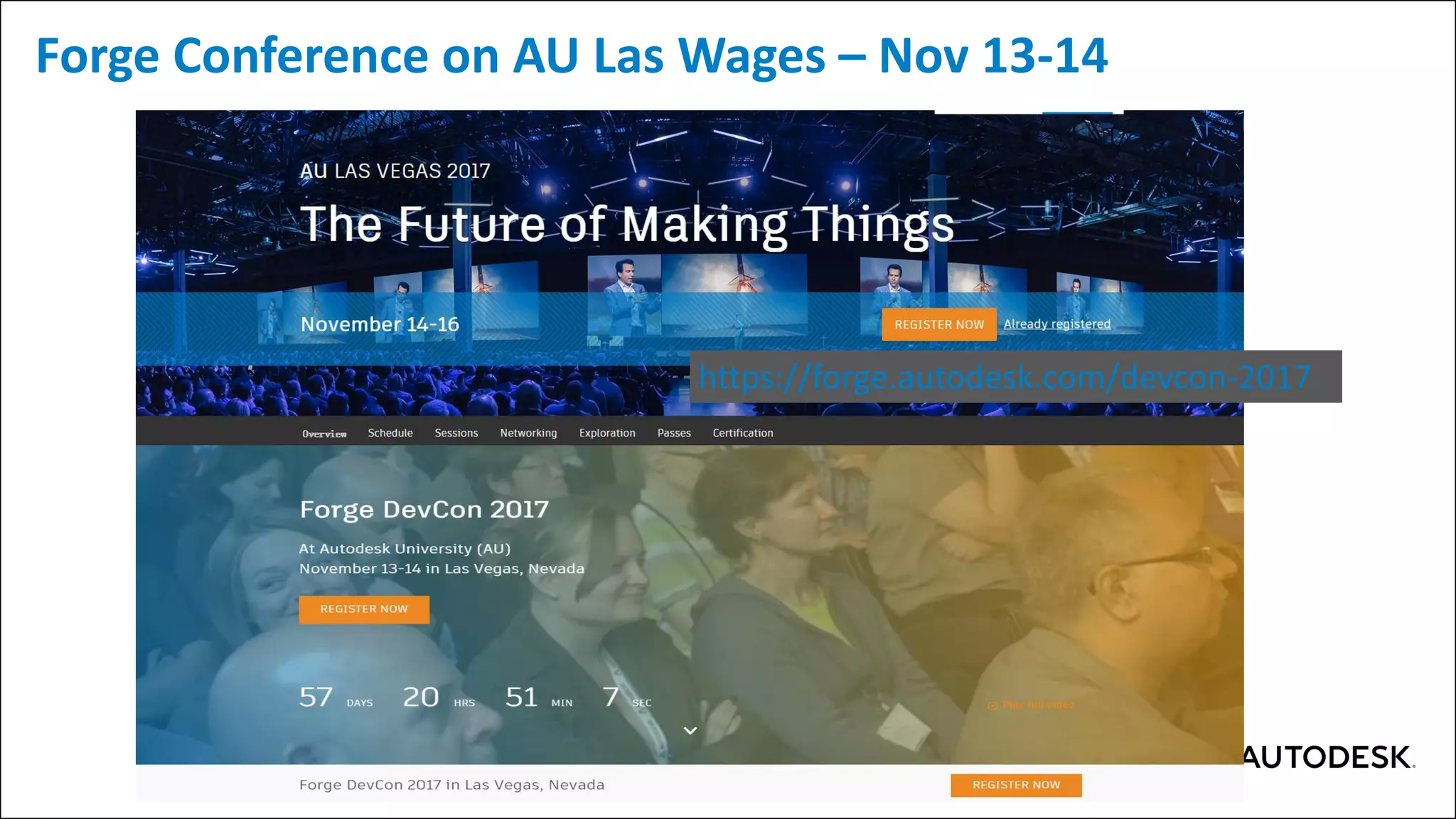

38. Forge Conference on AU Las Wages – Nov 13-14
https://forge.autodesk.com/devcon-2017

39. 39

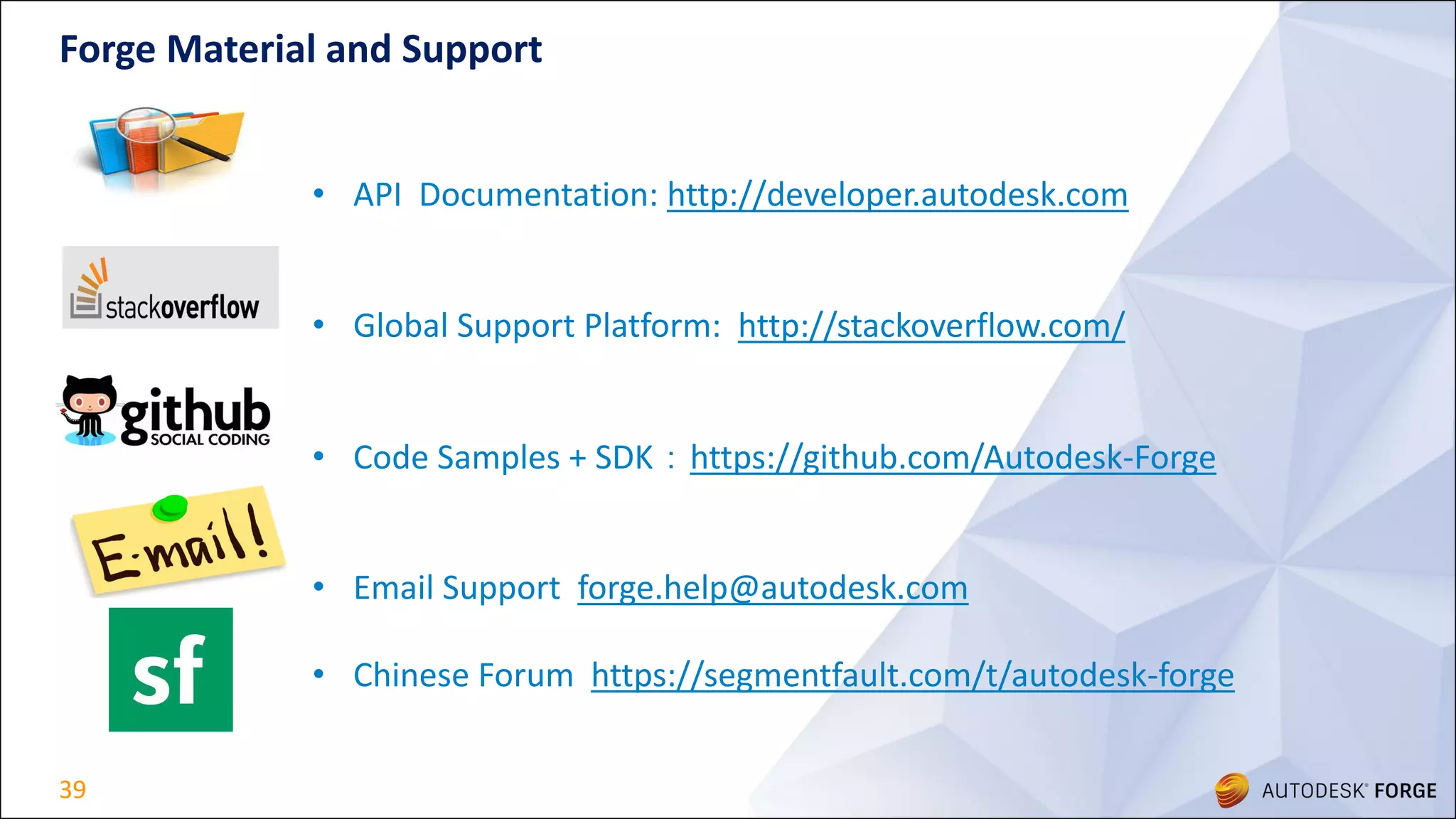

Forge Material and Support
• API Documentation: http://developer.autodesk.com
• Global Support Platform: http://stackoverflow.com/
• Code Samples + SDK：https://github.com/Autodesk-Forge
• Email Support forge.help@autodesk.com
• Chinese Forum https://segmentfault.com/t/autodesk-forge

40. 40

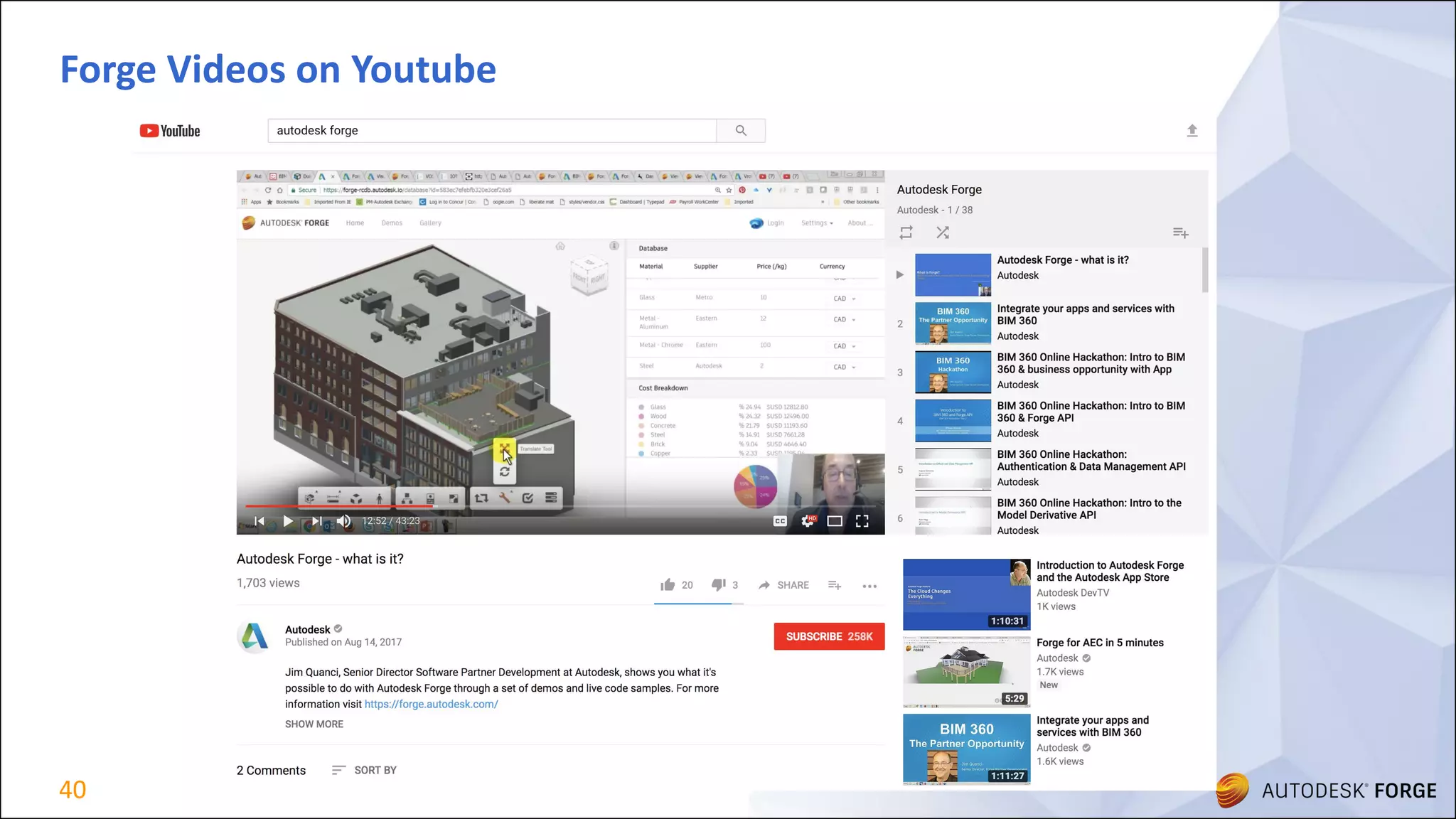

Forge Videos on Youtube

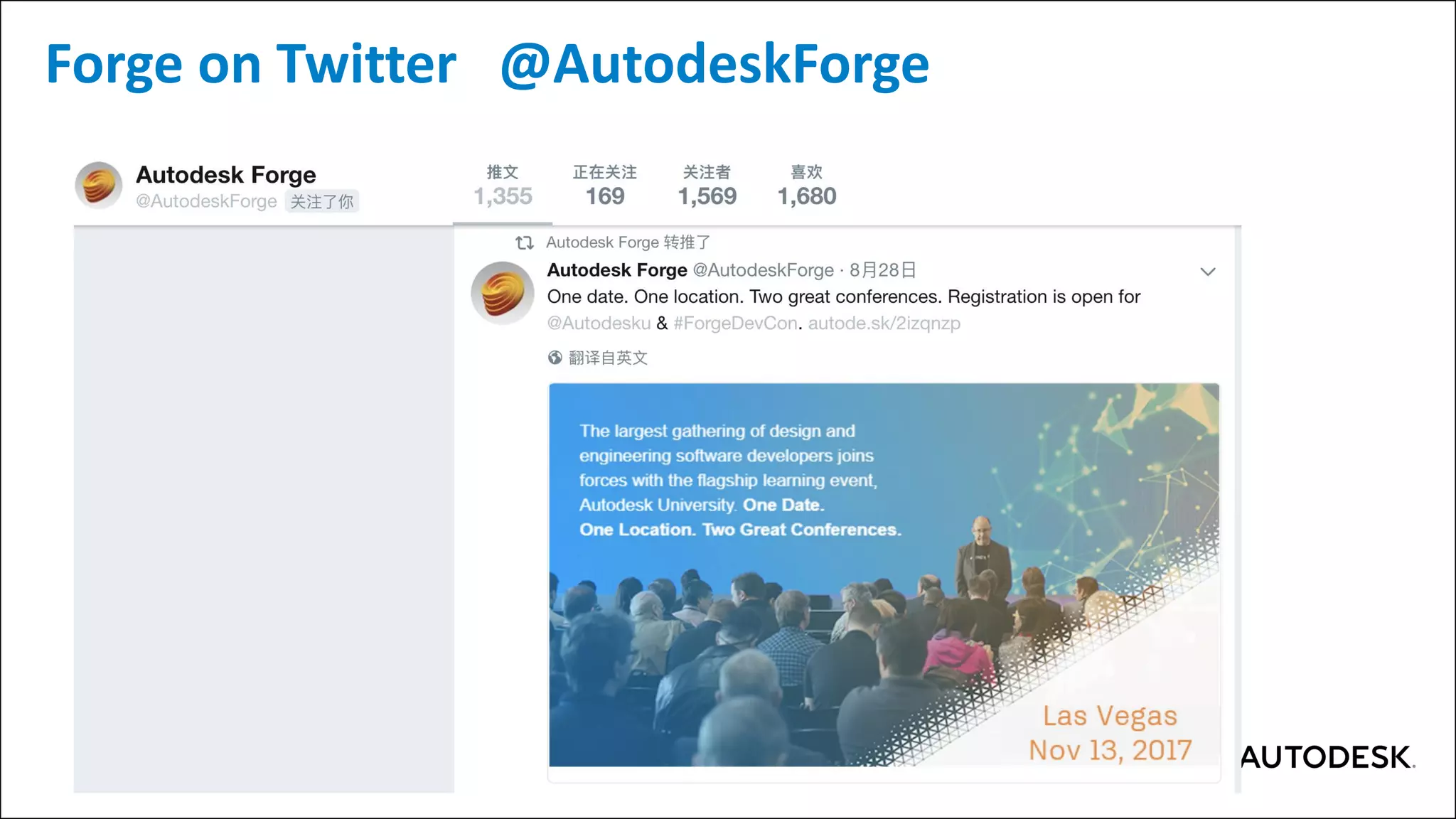

41. Forge on Twitter @AutodeskForge

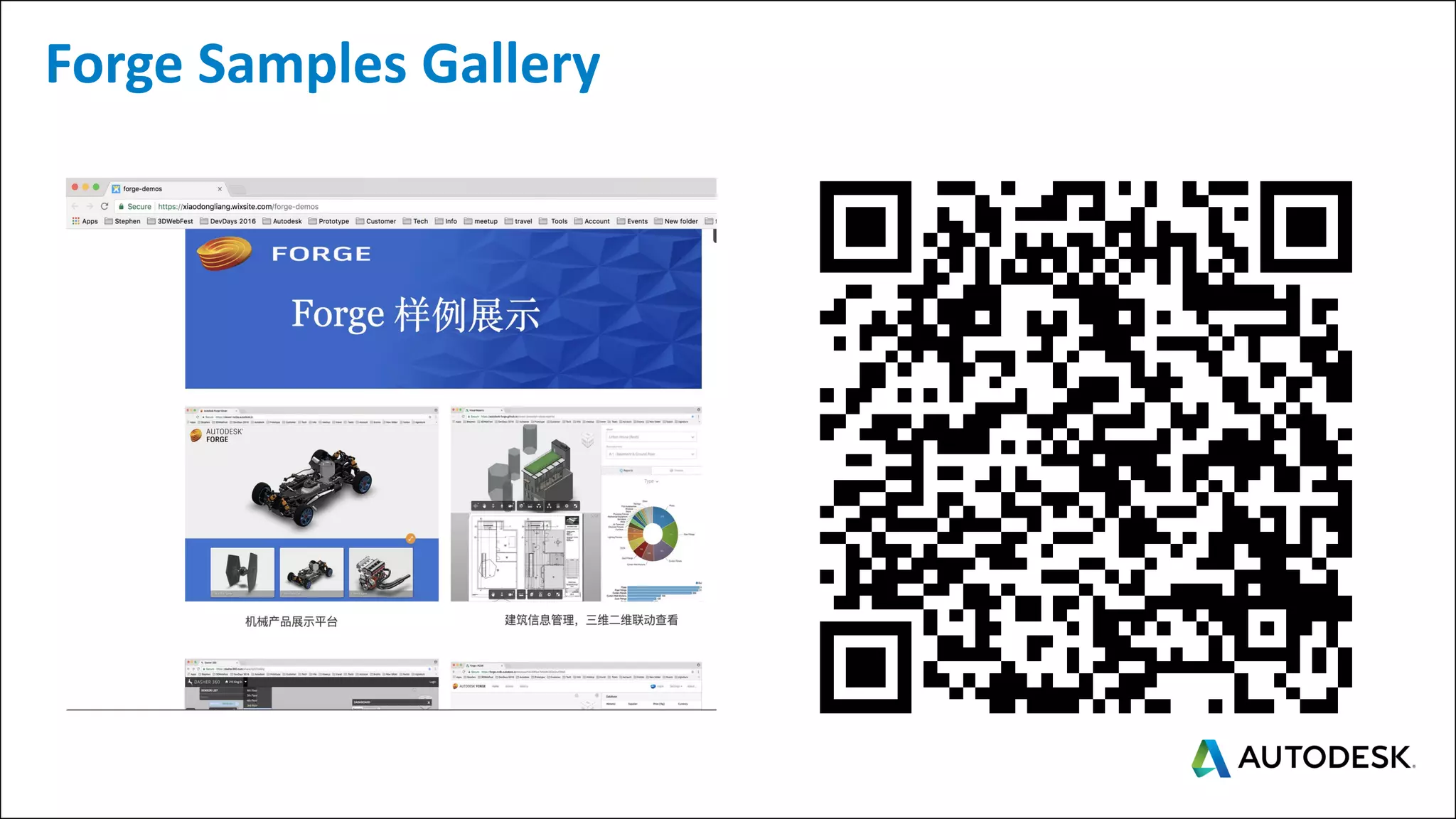

42. Forge Samples Gallery

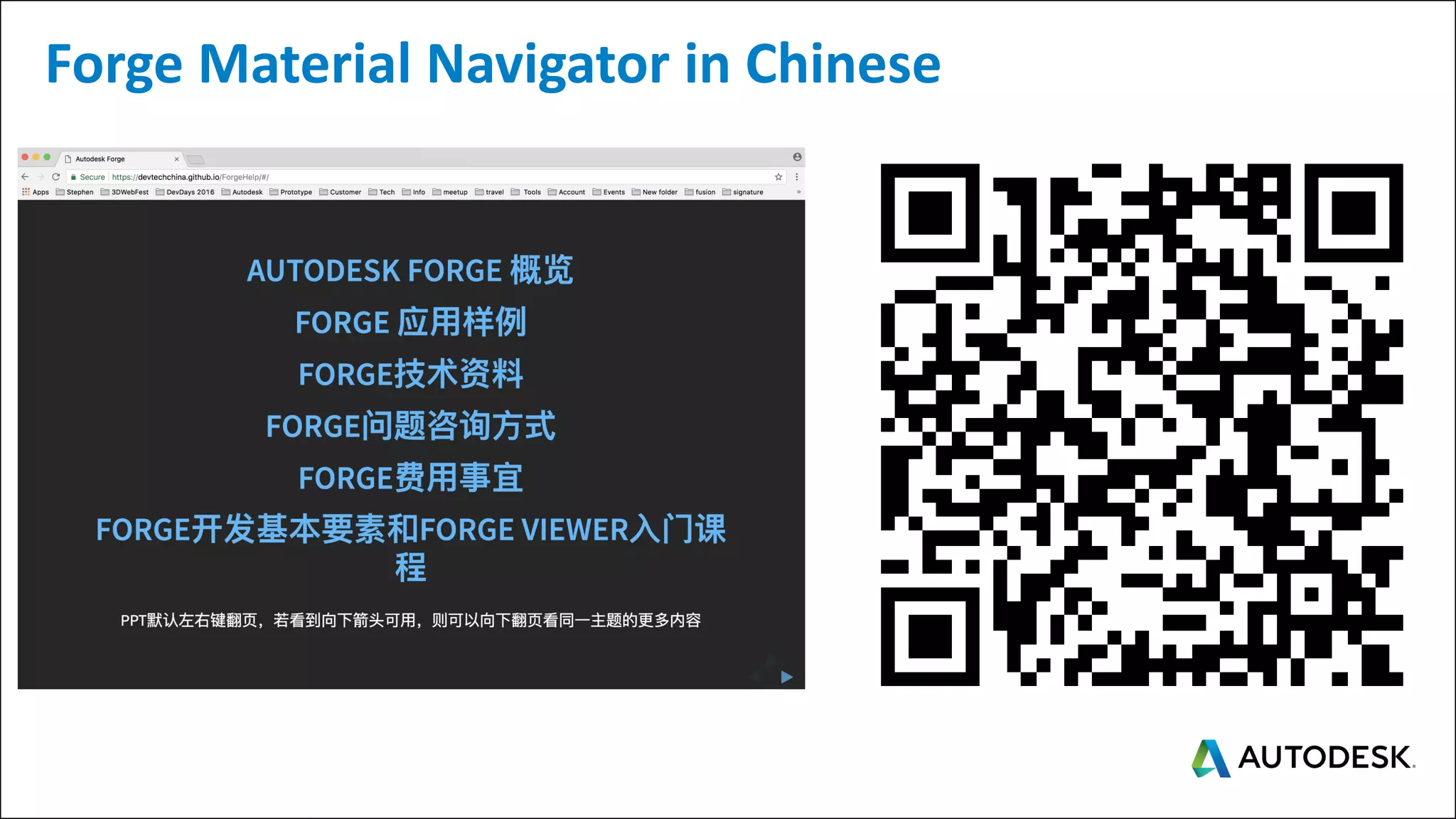

43. Forge Material Navigator in Chinese

44. 1990 2000 2010
