Forge - DevCon 2016: The Future of Making Buildings Forms Follow Formulae
Anthony Hauck, a director at Autodesk with extensive experience in the AEC industry, discusses advancements in generative design that enhance building efficiency and reliability. The document details technical aspects of a generative design system, including computational simulations and parameters for architectural design. It highlights improvements such as reduced fabrication time and increased structural compliance through innovative data structure applications.
More Related Content
![THEORIES OF ARCHITECTURE & URBANISM [ARC61303] [ARC2224]- Project Part 2 Anal...](https://cdn.slidesharecdn.com/ss_thumbnails/ar-141209072700-conversion-gate01-thumbnail.jpg?width=640&height=640&fit=bounds)
![ARCH205 Presentation [1]](https://cdn.slidesharecdn.com/ss_thumbnails/arch205-presentation1-100209160909-phpapp02-thumbnail.jpg?width=640&height=640&fit=bounds)
Similar to Forge - DevCon 2016: The Future of Making Buildings Forms Follow Formulae
![[DesignOps Global Conference 2019] Samir Dash - 3-steps for building design e...](https://cdn.slidesharecdn.com/ss_thumbnails/final0-190531042932-thumbnail.jpg?width=640&height=640&fit=bounds)
![Vibe Coding vs. Spec-Driven Development [Free Meetup]](https://cdn.slidesharecdn.com/ss_thumbnails/vibecodingvsspecdrivendevelopment-251209105622-43f455e7-thumbnail.jpg?width=640&height=640&fit=bounds)
Forge - DevCon 2016: The Future of Making Buildings Forms Follow Formulae
- 1. Anthony A. Hauck Directorof Product Strategy | AEC Generative Design The Future of Making Buildings Forms Follow Formulae
- 2. Anthony Hauck |Director of Product Strategy • 30 years in the AEC industry • Architecture, then… • … millwork subcontracting… • … and back to Architecture, then… • … AE firm lead developer + IT Director for 12 years, and now… • … Autodesk for almost 9 years • Joined Autodesk as Revit Platform PM • Led the expansion of the Revit API for 2 years • Led the Revit Product Management for 6 years thereafter • Joined AEC Generative Design in 2015

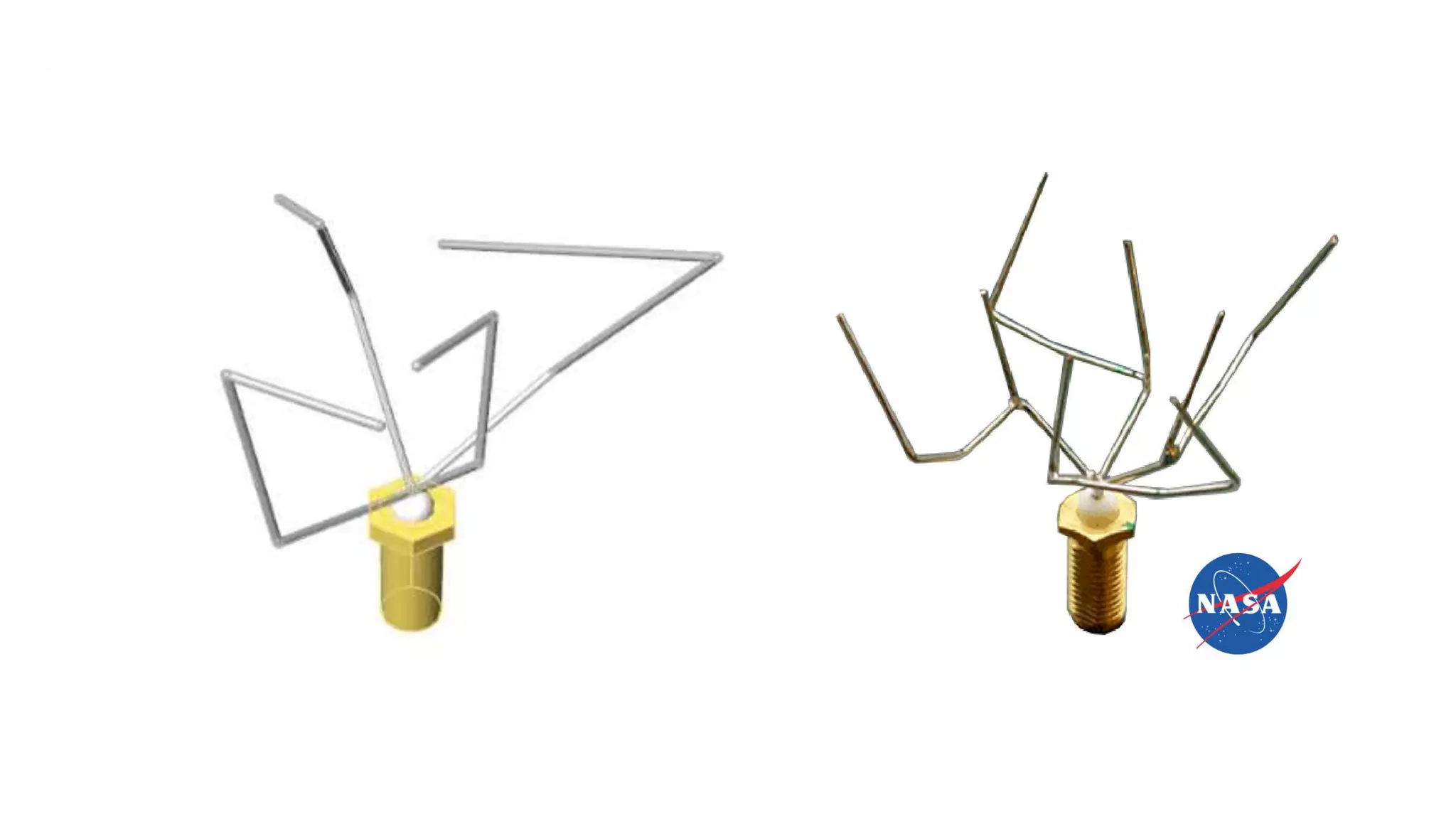

- 5. • 90% Increasein efficiency • Fewer parts, greater reliability • Reduced fabrication time • Improved quality of signal

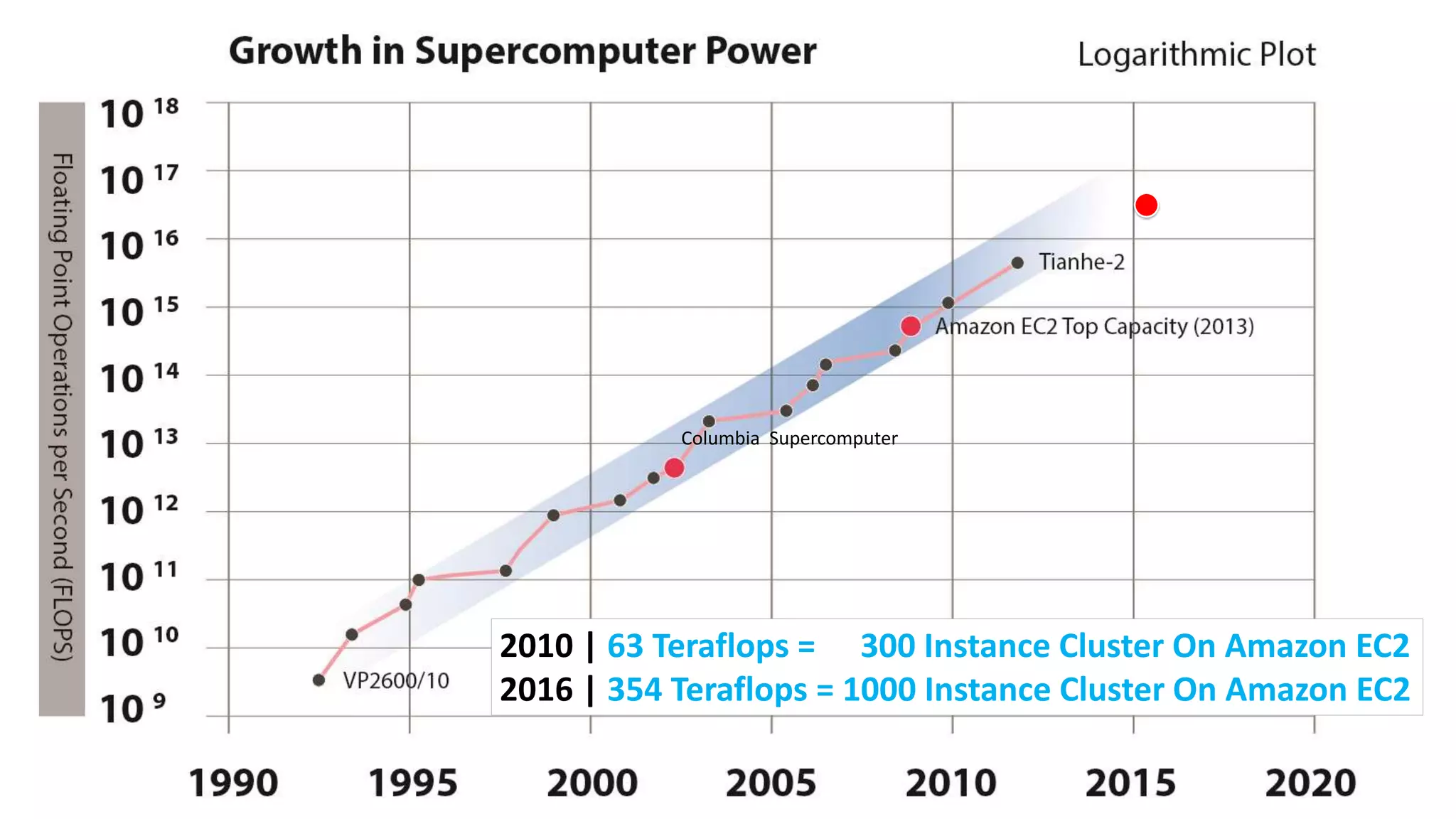

- 6. 2010 | 63Teraflops = 300 Instance Cluster On Amazon EC2 2016 | 354 Teraflops = 1000 Instance Cluster On Amazon EC2 Columbia Supercomputer
- 8.

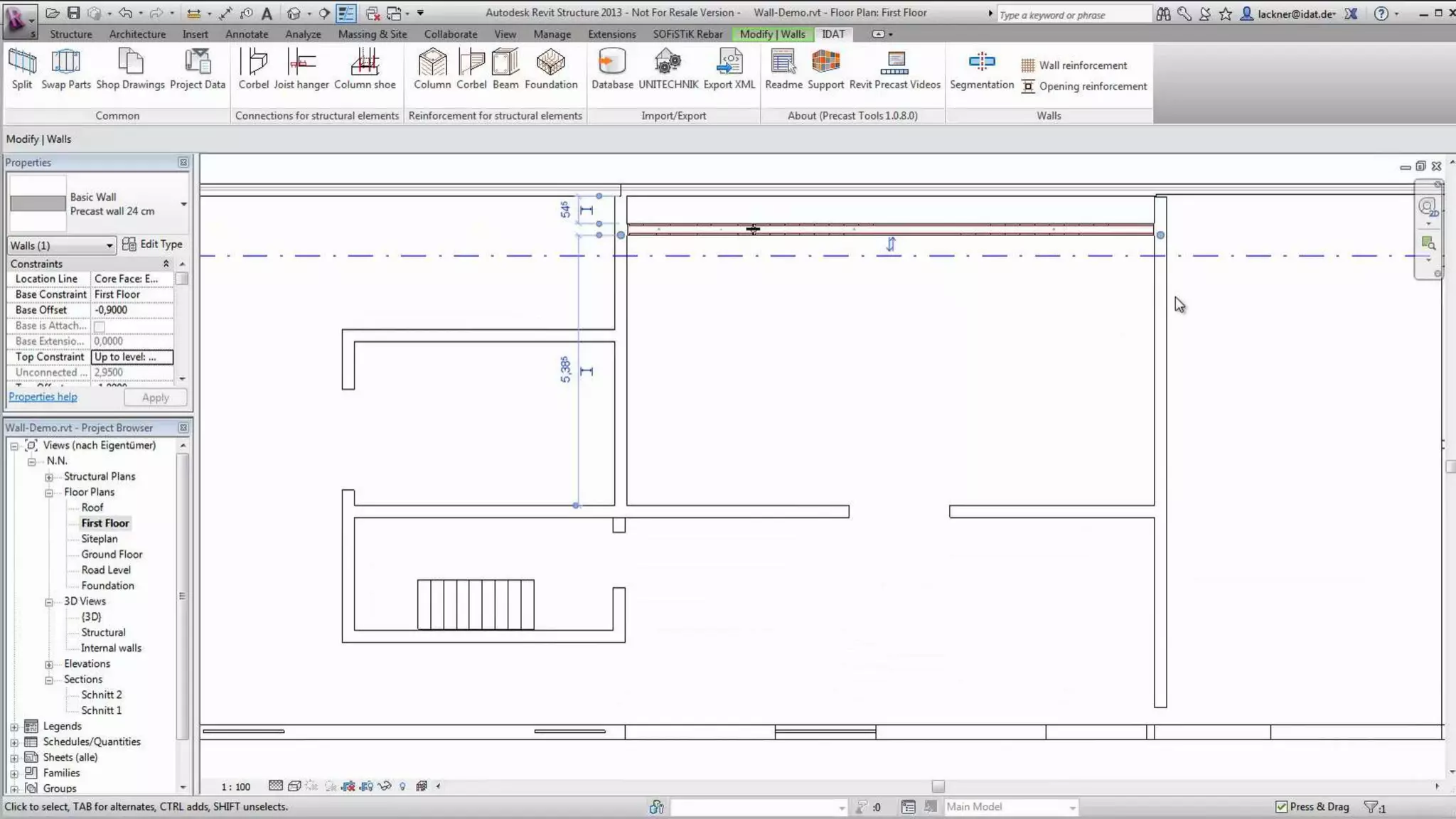

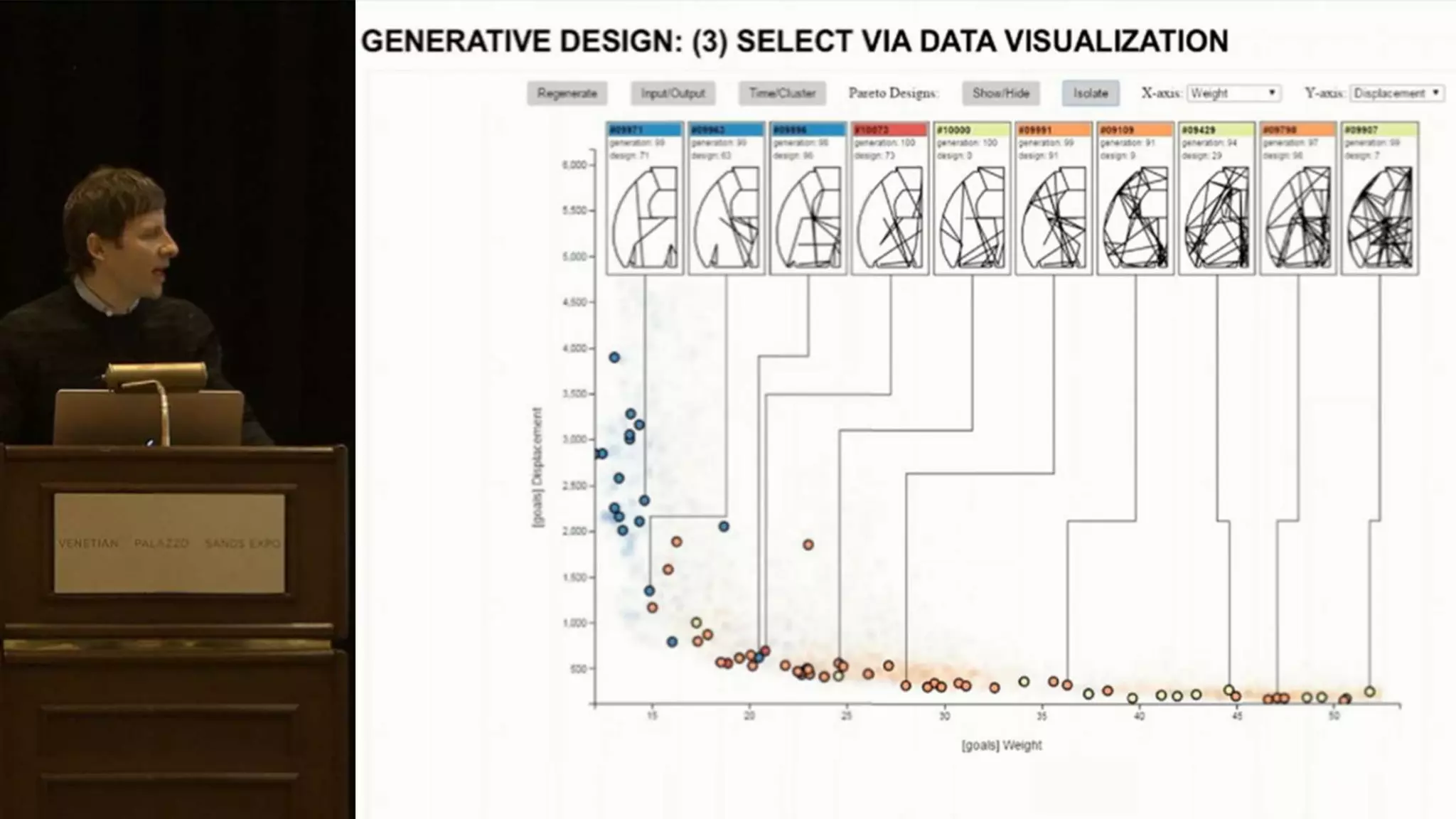

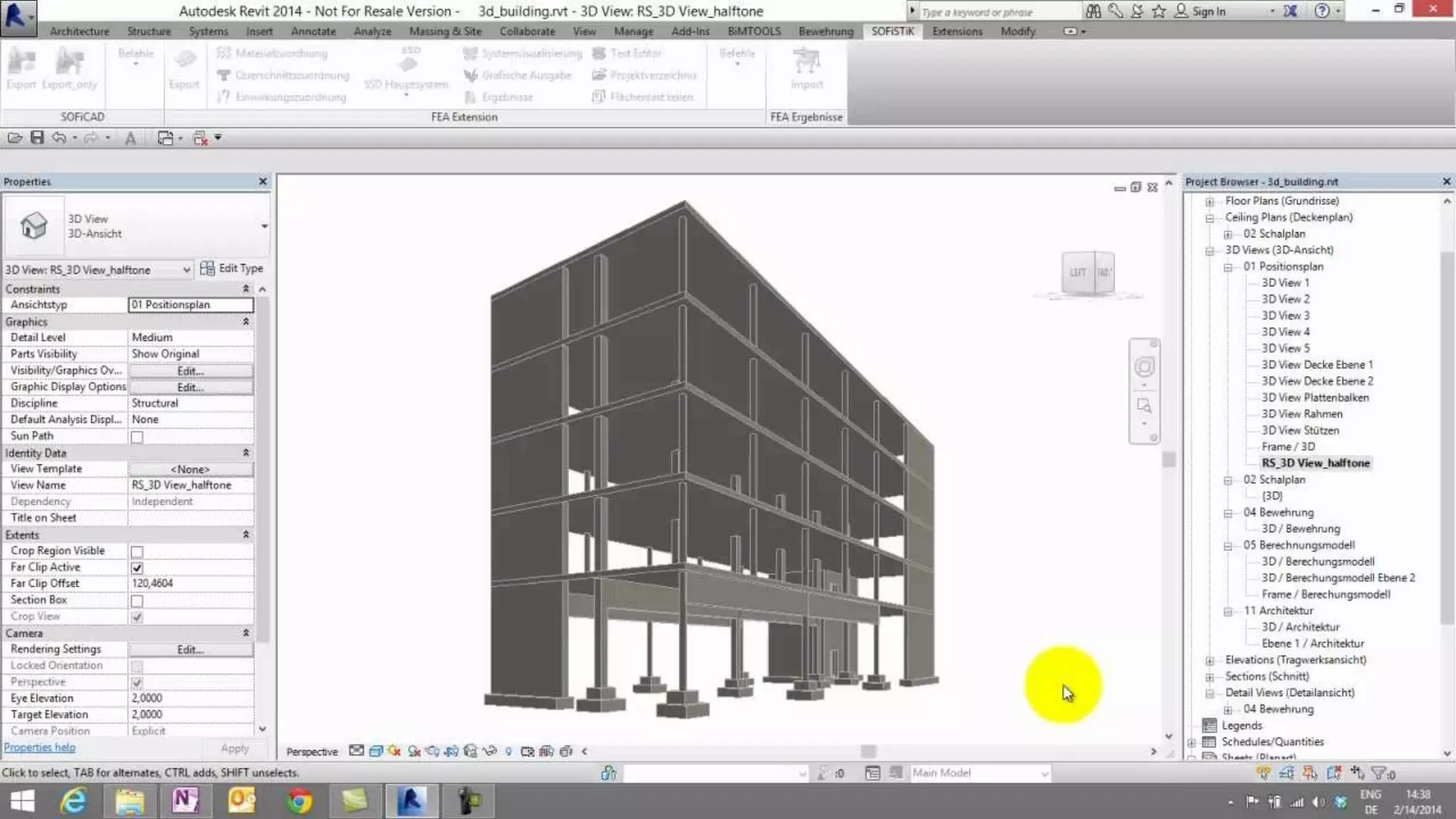

- 15.

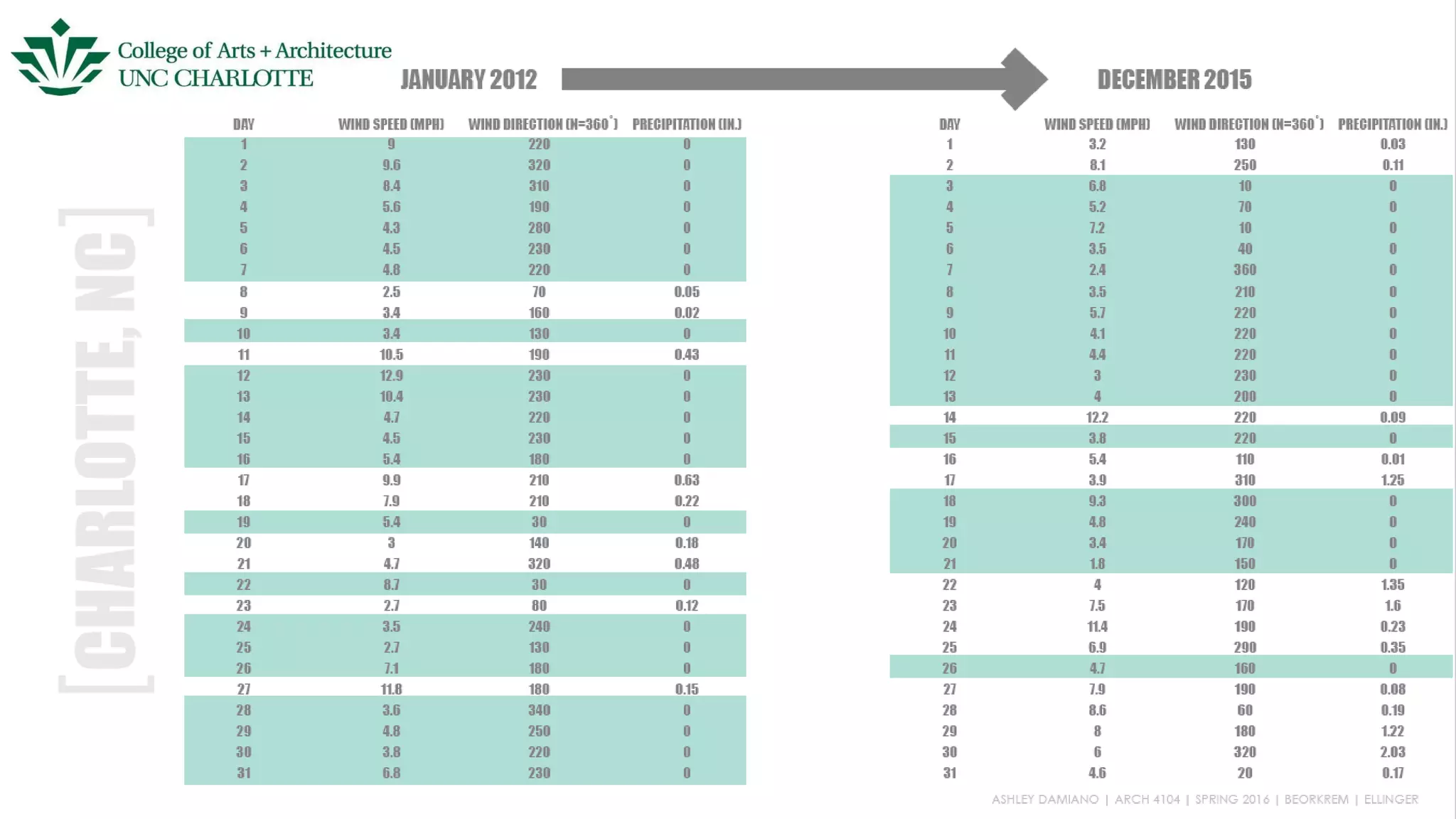

- 40.

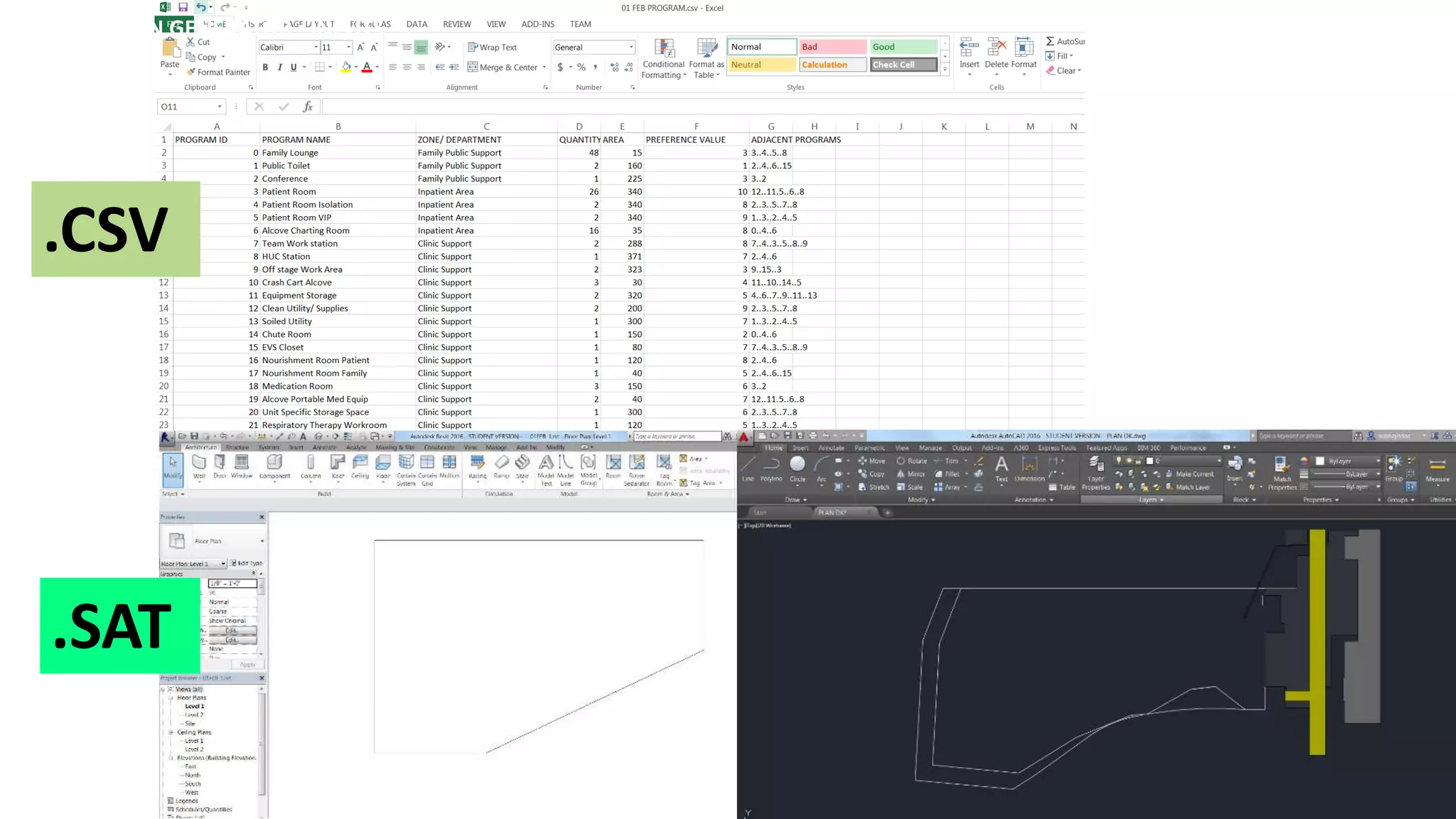

- 42. SPACE PLAN GENERATOR: INPUTS .SAT .CSV

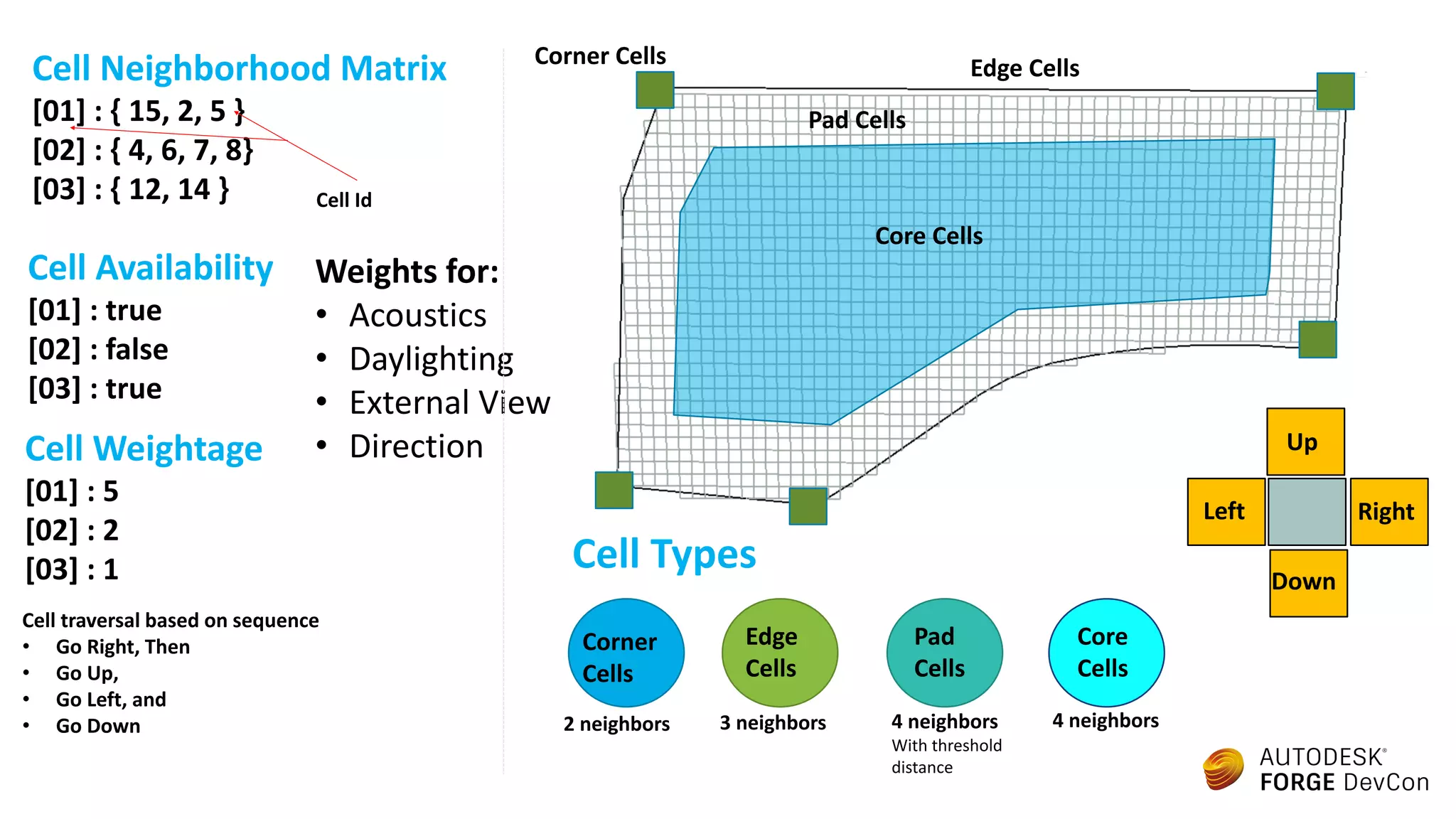

- 44. Cell Types Pad Cells Edge Cells Core Cells Corner Cells Corner CellsEdge Cells Pad Cells Core Cells Down Left Up Right 2 neighbors 3 neighbors 4 neighbors With threshold distance 4 neighbors Cell Neighborhood Matrix [01] : { 15, 2, 5 } [02] : { 4, 6, 7, 8} [03] : { 12, 14 } Cell Availability [01] : true [02] : false [03] : true Cell Weightage [01] : 5 [02] : 2 [03] : 1 Cell Id Weights for: • Acoustics • Daylighting • External View • Direction Cell traversal based on sequence • Go Right, Then • Go Up, • Go Left, and • Go Down

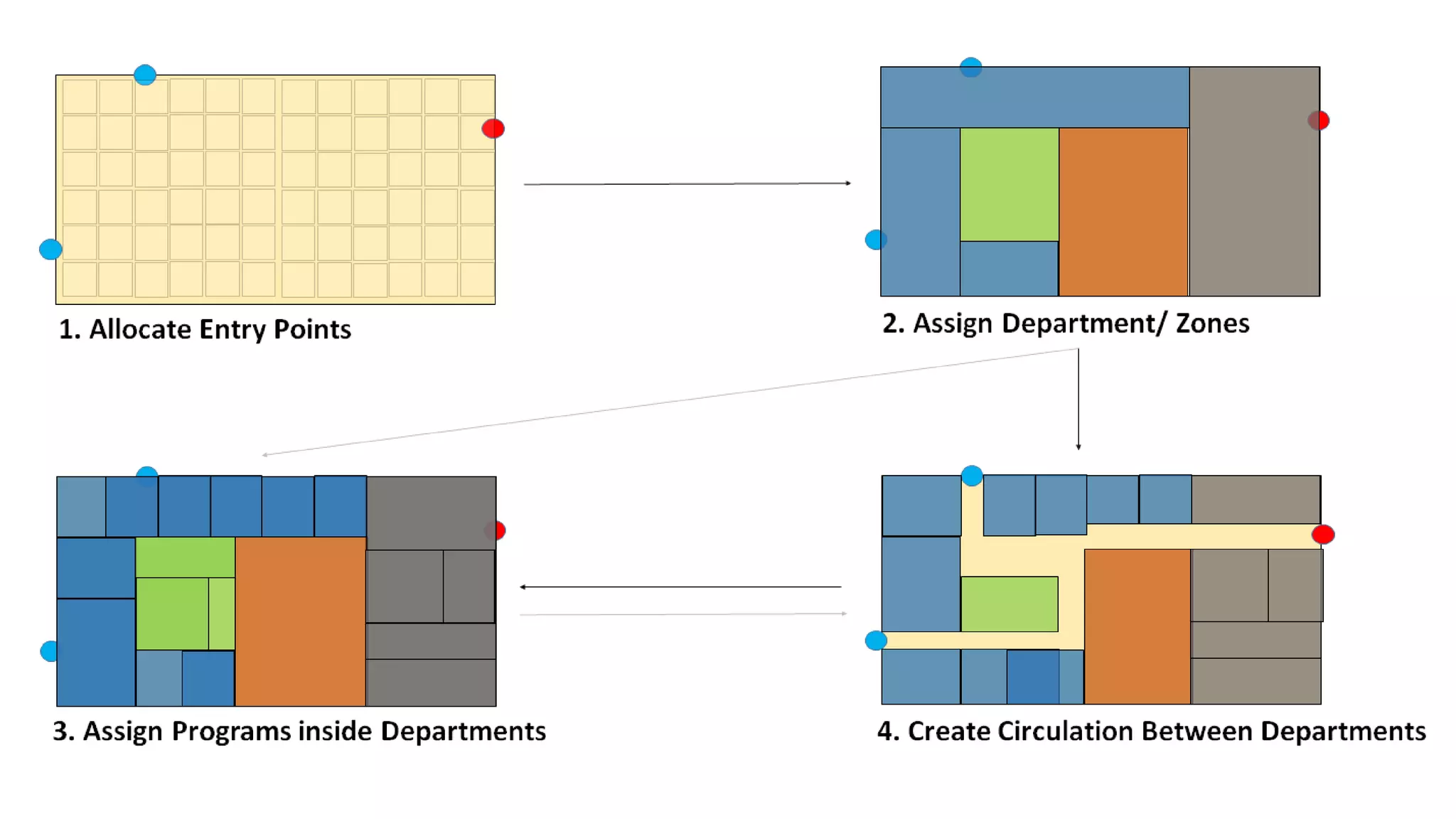

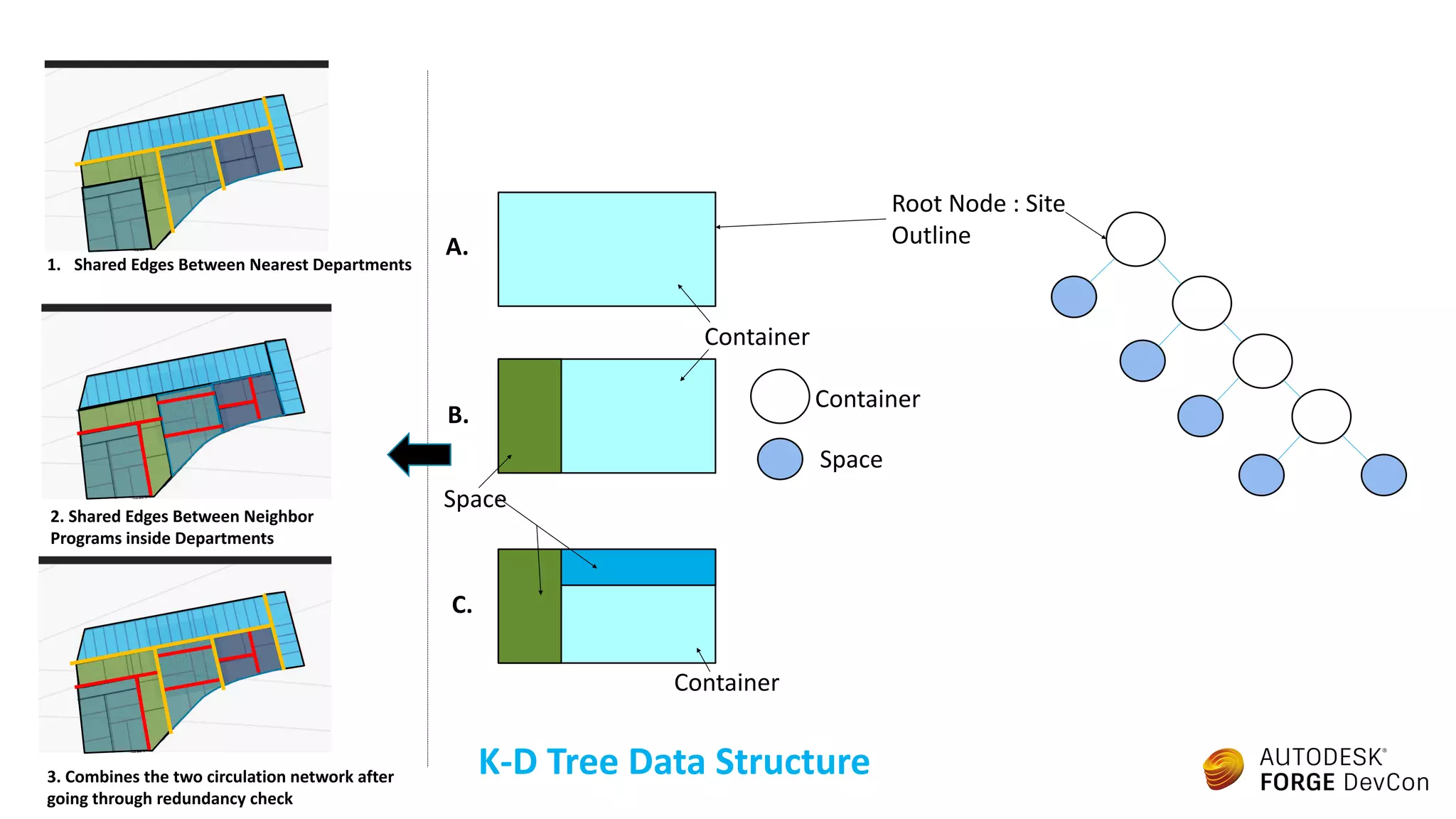

- 45. Container Space Root Node :Site Outline Container Space Container A. B. C. 1. Shared Edges Between Nearest Departments 2. Shared Edges Between Neighbor Programs inside Departments 3. Combines the two circulation network after going through redundancy check K-D Tree Data Structure
- 47.
- 48. AEC Generative Design| Services
- 49.
- 50.
- 51.

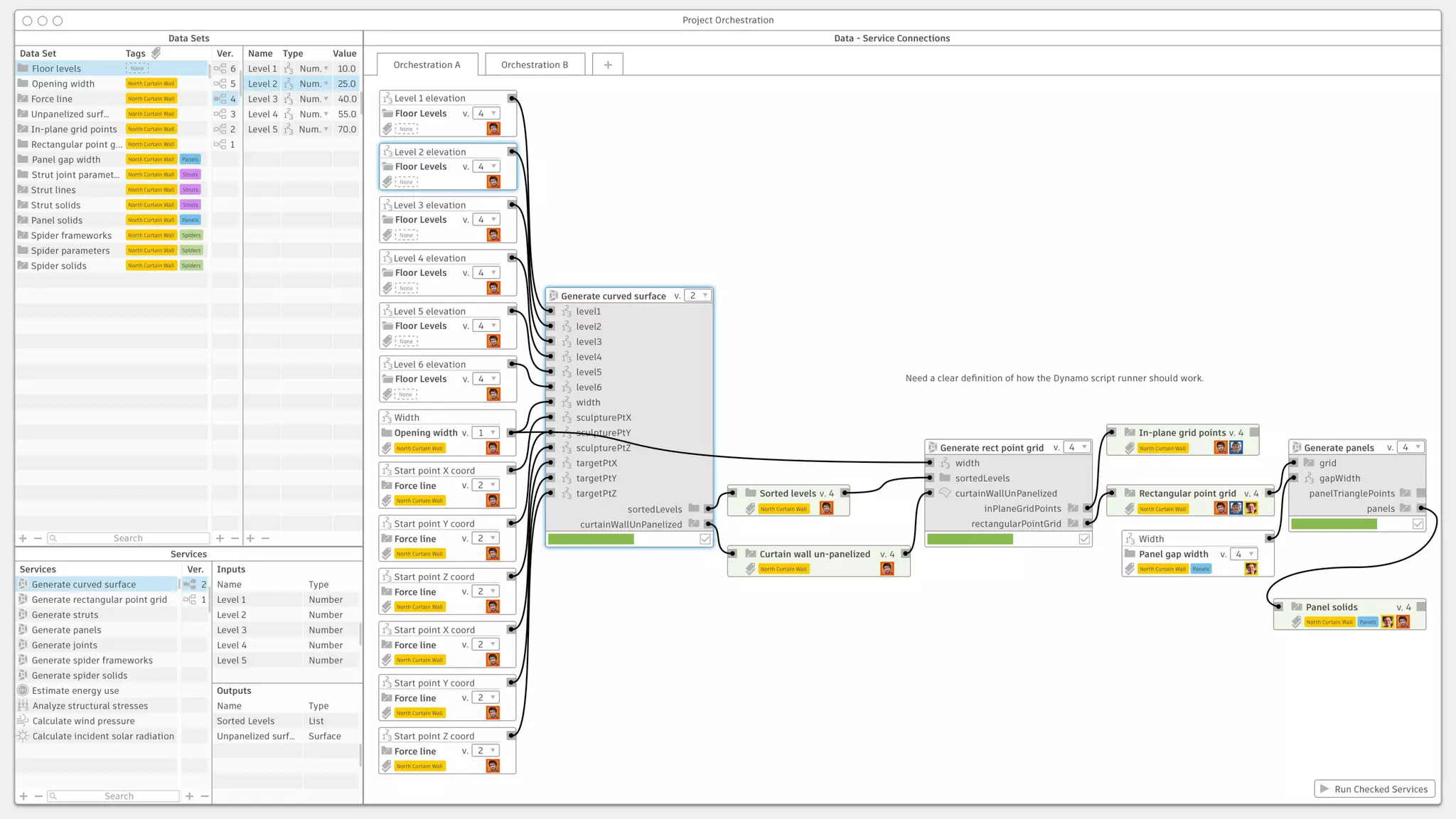

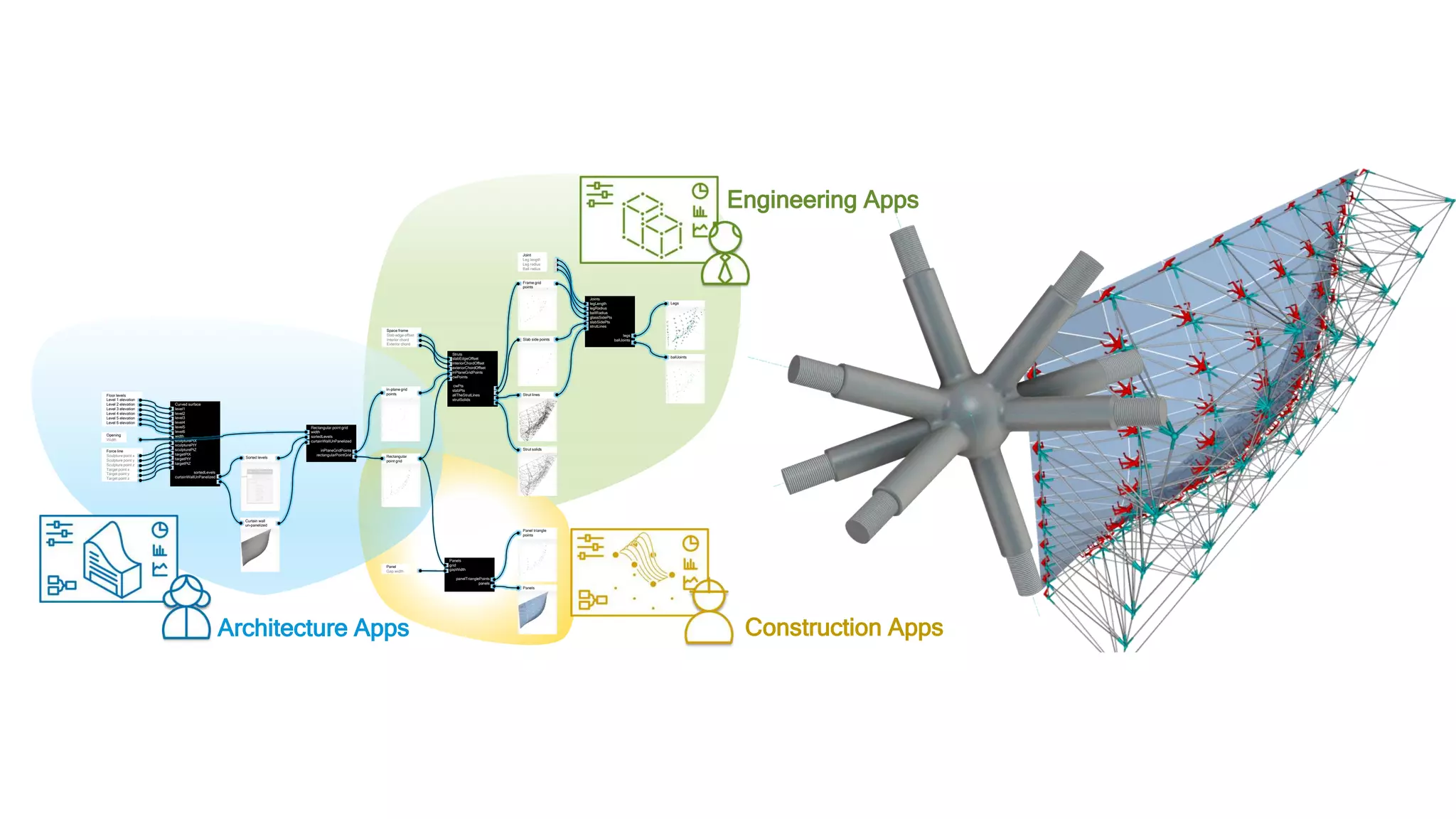

- 52. Engineering Apps Construction Apps Struts slabEdgeOffset interiorChordOffset exteriorChordOffset inPlaneGridPoints cwPoints cwPts slabPts allTheStrutLines strutSolids Curvedsurface level1 level2 level3 level4 level5 level6 width sculpturePtX sculpturePtY sculpturePtZ targetPtX targetPtY targetPtZ sortedLevels curtainWallUnPanelized Curtain wall un-panelized Floor levels Level 1 elevation Level 2 elevation Level 3 elevation Level 4 elevation Level 5 elevation Level 6 elevation Opening Width Force line Sculpture point x Sculpture point y Sculpture point z Target point x Target point y Target point z Rectangular point grid width sortedLevels curtainWallUnPanelized inPlaneGridPoints rectangularPointGrid Sorted levels Rectangular point grid In-plane grid points Panel Gap width Panels grid gapWidth panelTrianglePoints panels Panel triangle points Panels Space frame Slab edge offset Interior chord Exterior chord Frame grid points Slab side points Strut lines Strut solids Joints legLength legRadius ballRadius glassSidePts slabSidePts strutLines legs ballJoints Legs ballJoints Joint Leg length Leg radius Ball radius Architecture Apps
- 53.

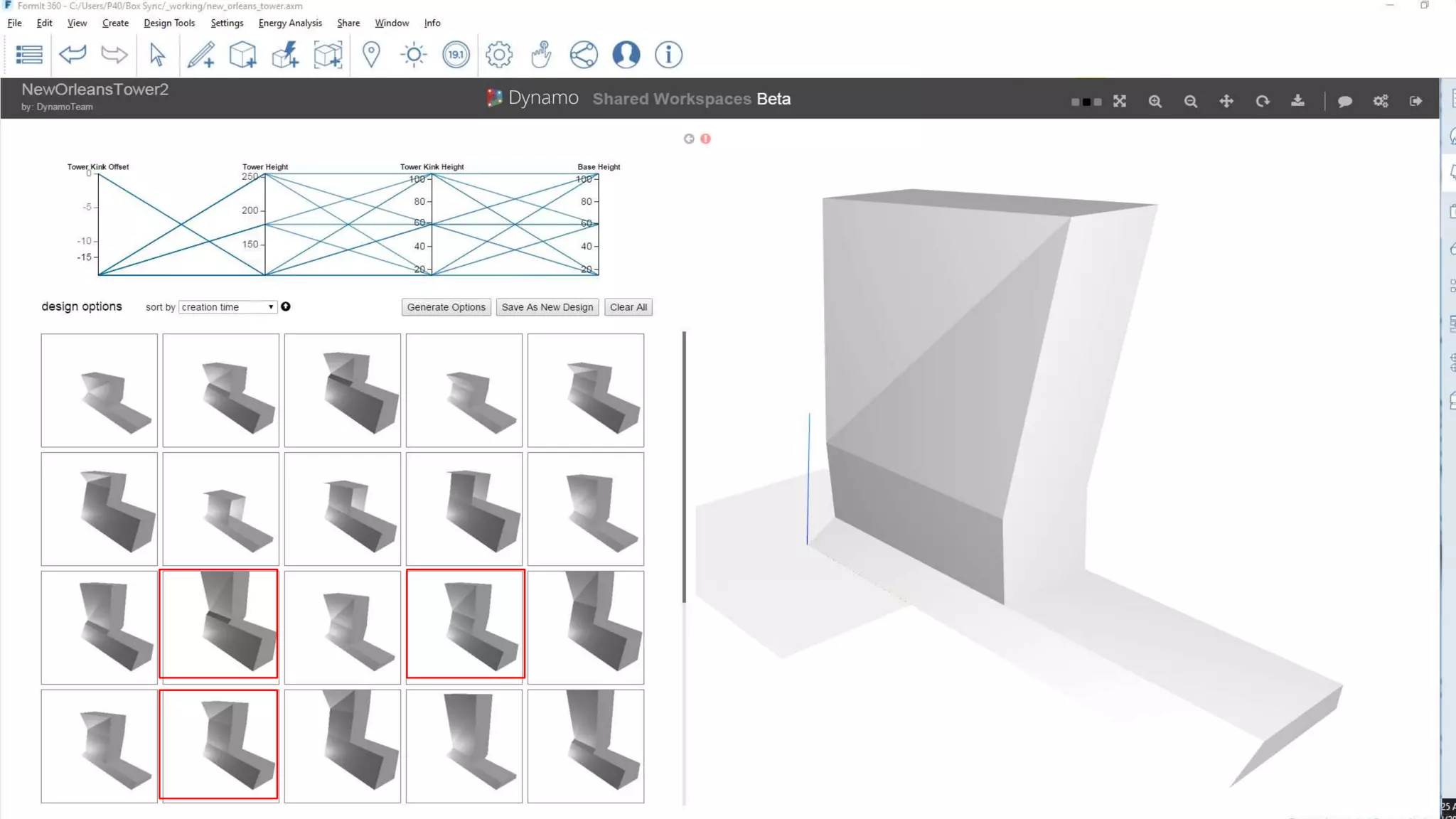

- 54. 470,400 sq ft 156,800sq ft Office Residential Customizers

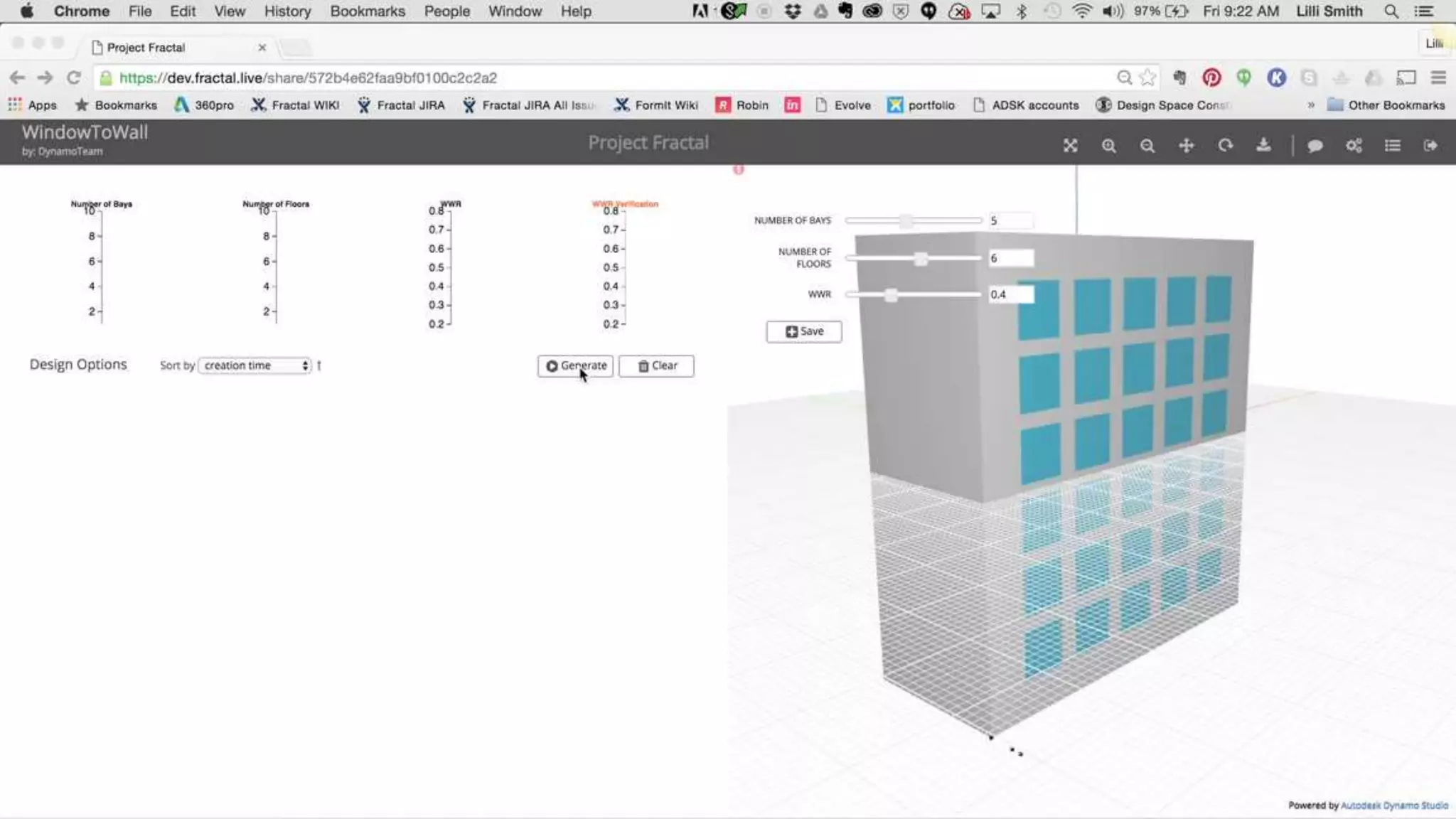

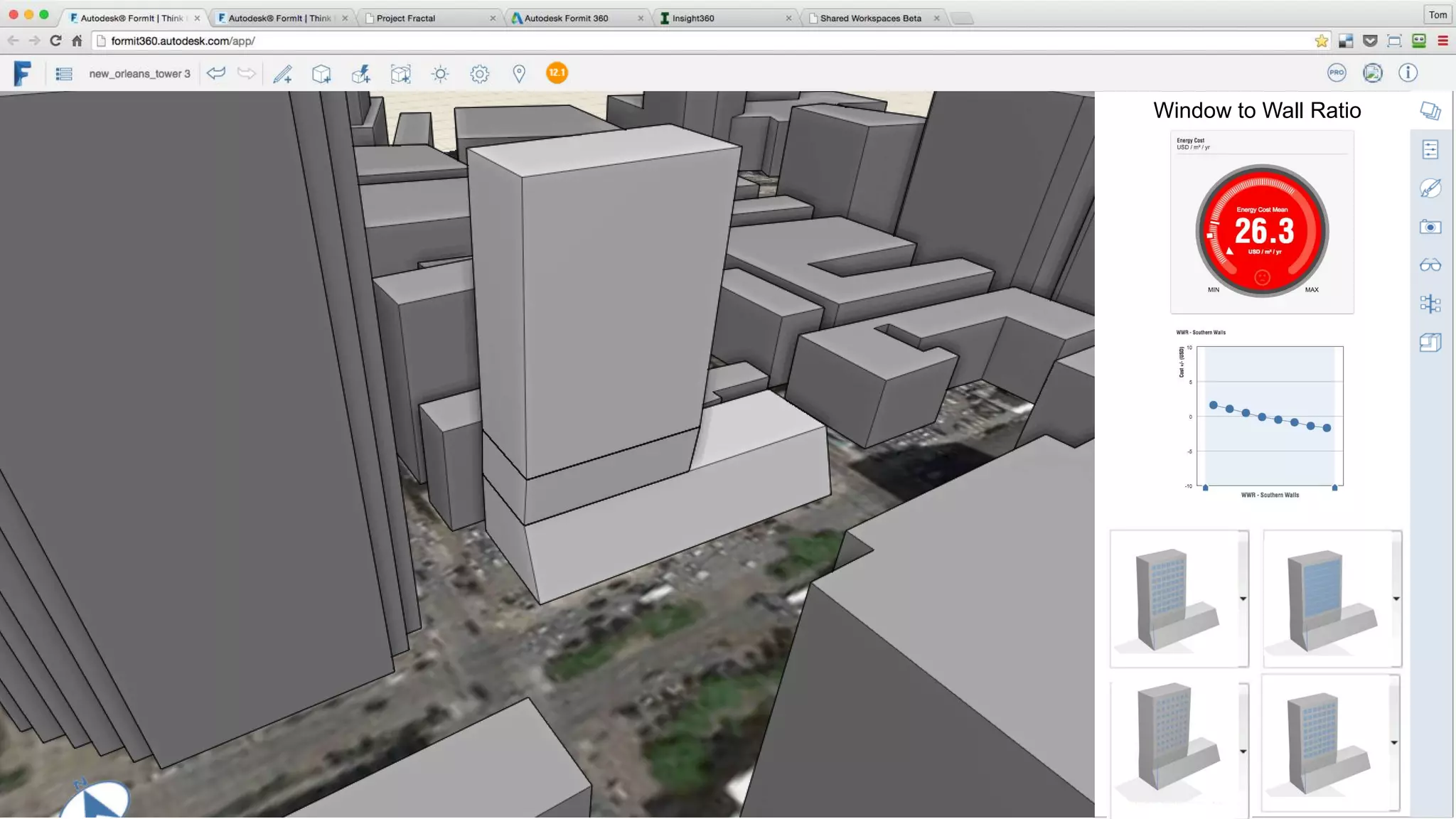

- 55. Window to WallRatio

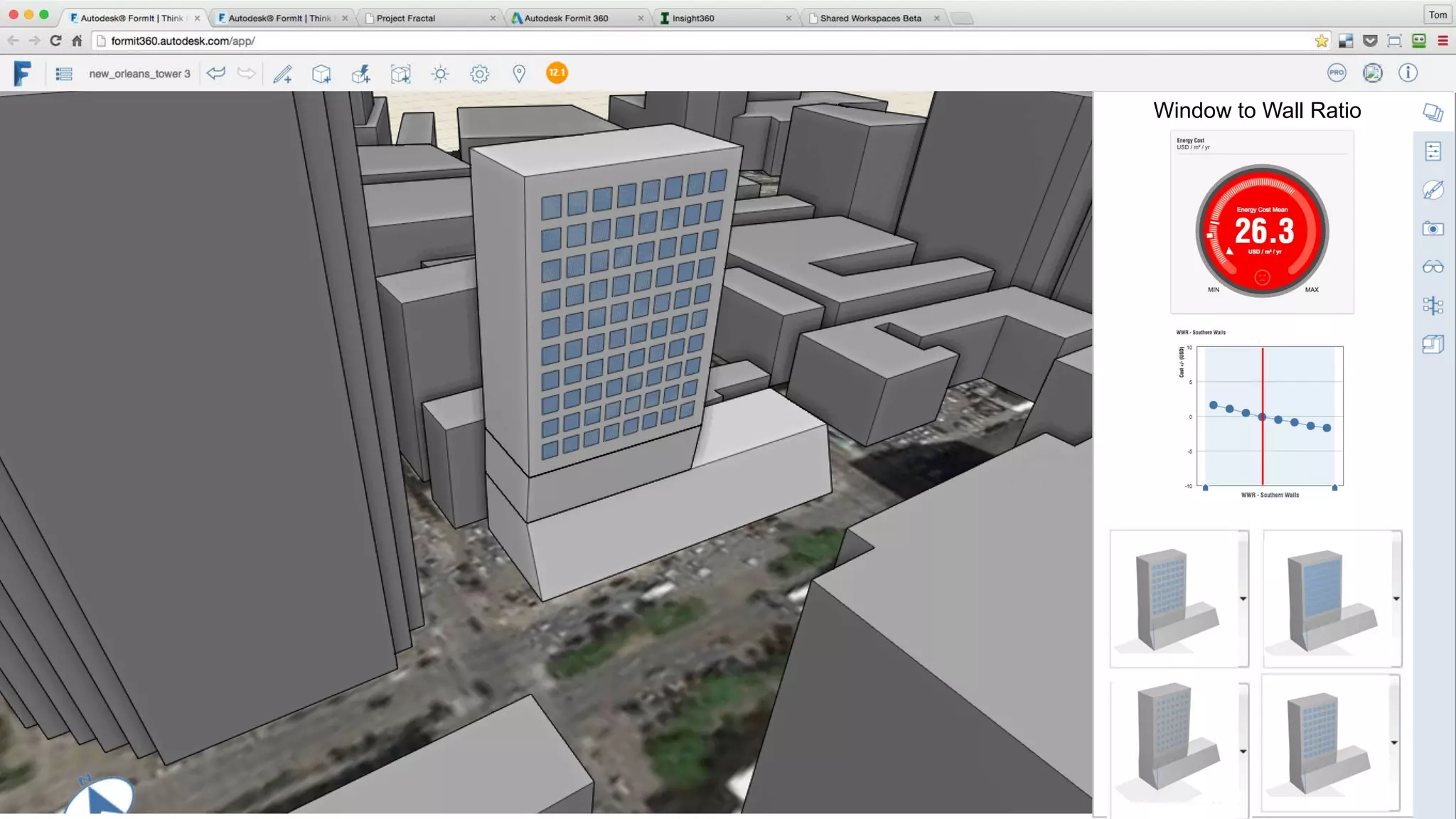

- 56. Window to WallRatio
- 57. Window to WallRatio

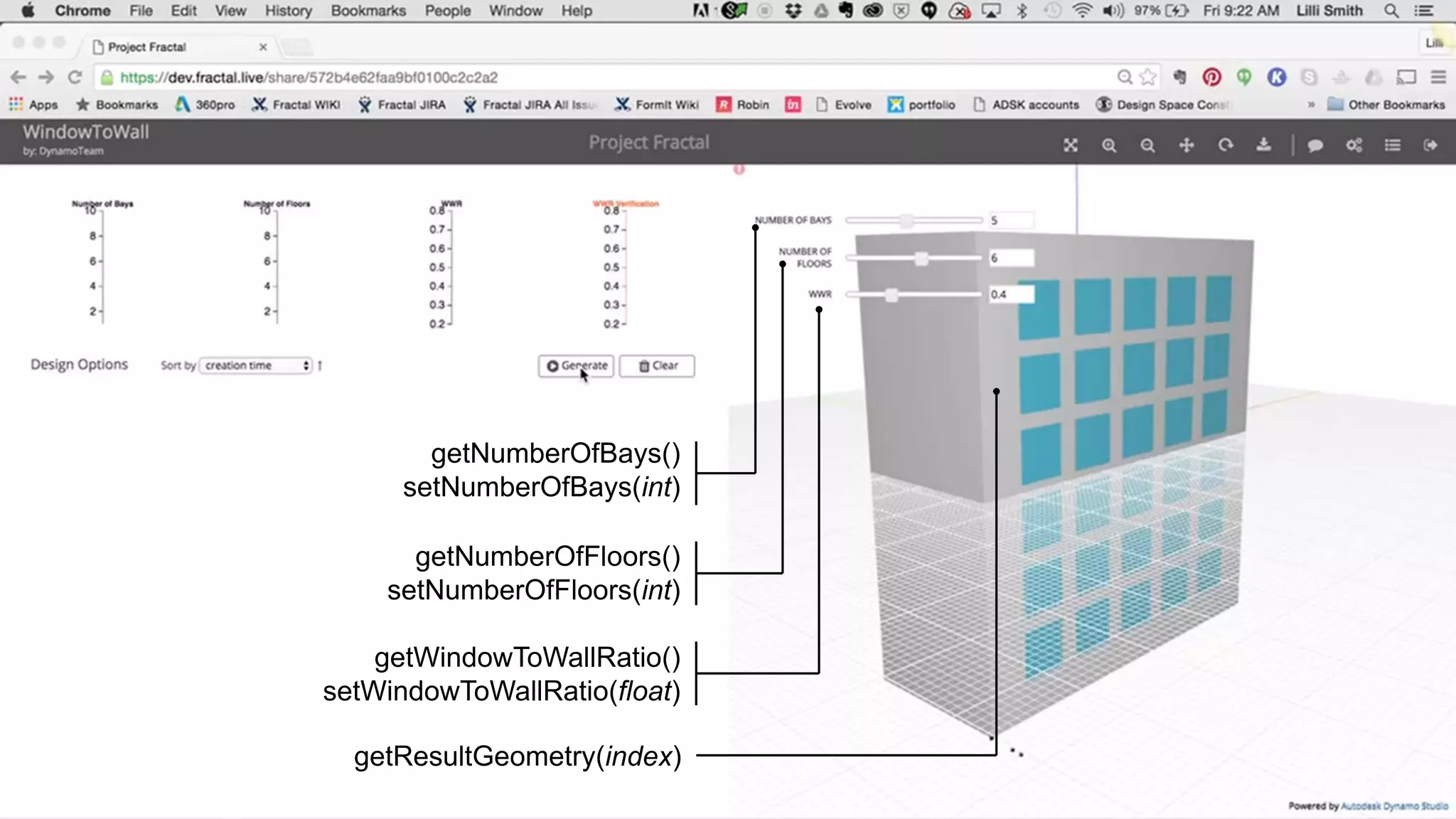

- 59.
- 60.
- 63.
- 64.
- 65. © 2013 Autodesk,Inc. All rights reserved.
Editor's Notes

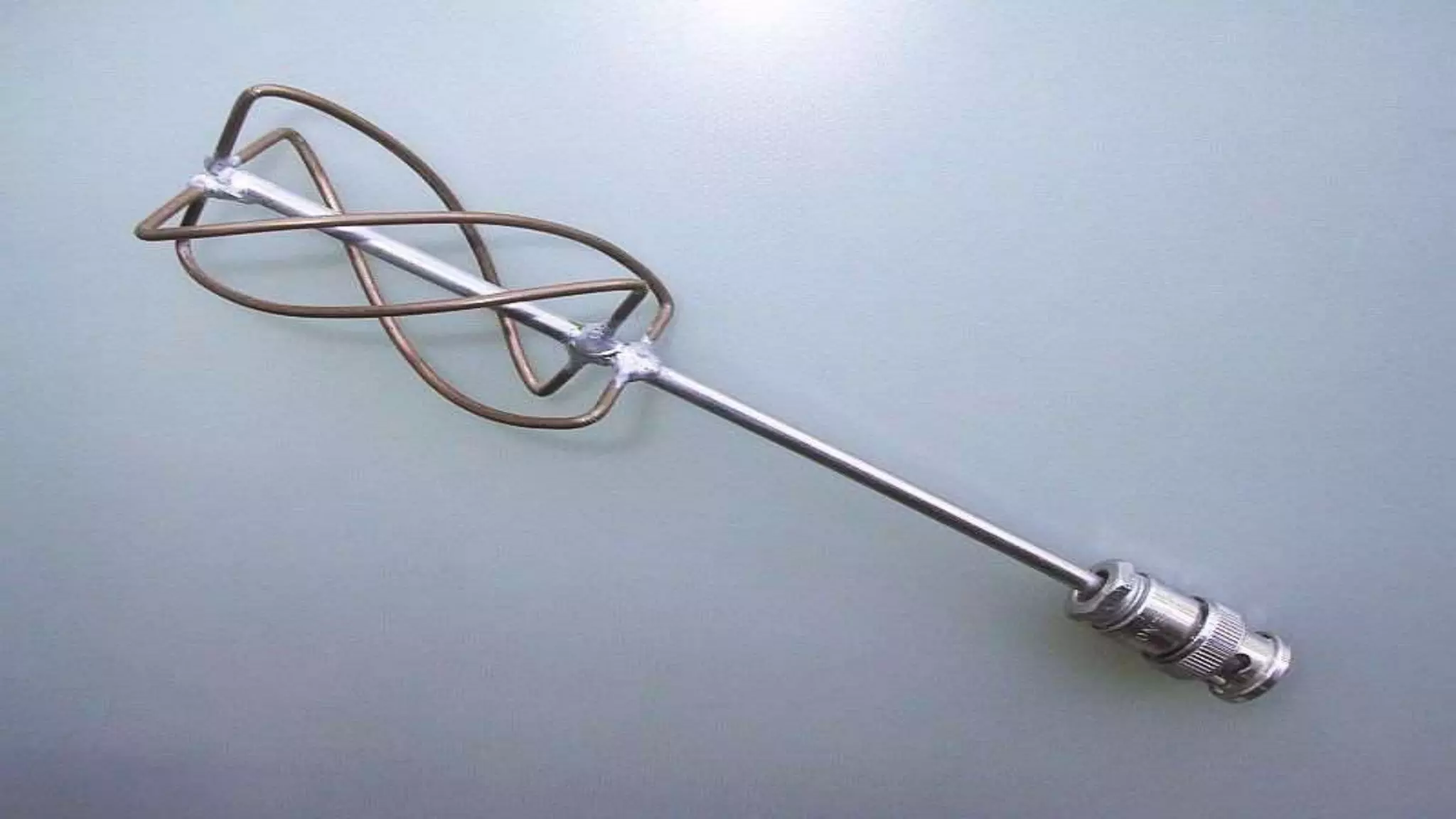

- #5 From the 1960s, this design, a quadrifilar helix anetnna, was used on orbital missions to space. This model was optimized using traditional methods by engineers over several decades to produce an elegant solution that maximized performance.
- #6 In 2003 a groundbreaking development changed the design of the NASA antennna forever. Engineers developed a computational experiment that created and searched through tens of thousands of possible antenna designs, simulating their performance and progressively evolving higher performing solutions. Interesting case study because it looks like a kindergarten project but it is unassuming in its strength. The final antenna performed more than 90% more efficiently over the traditional antenna. The antenna eliminated the need for a phasing circuit. NOT DESIGNED BY HAND -THE OPTIMAL DESIGN IS NOT A DESIGN THAT THE ENGINEERS AT NASA WOULD HAVE PURSUED using traditional methods. What I think is amazing about this project is that it is one of MOST SUCCESSFUL examples of artificial intelligence in design, exposing patterns and dependencies that surpassed decades of traditional antennae engineering.

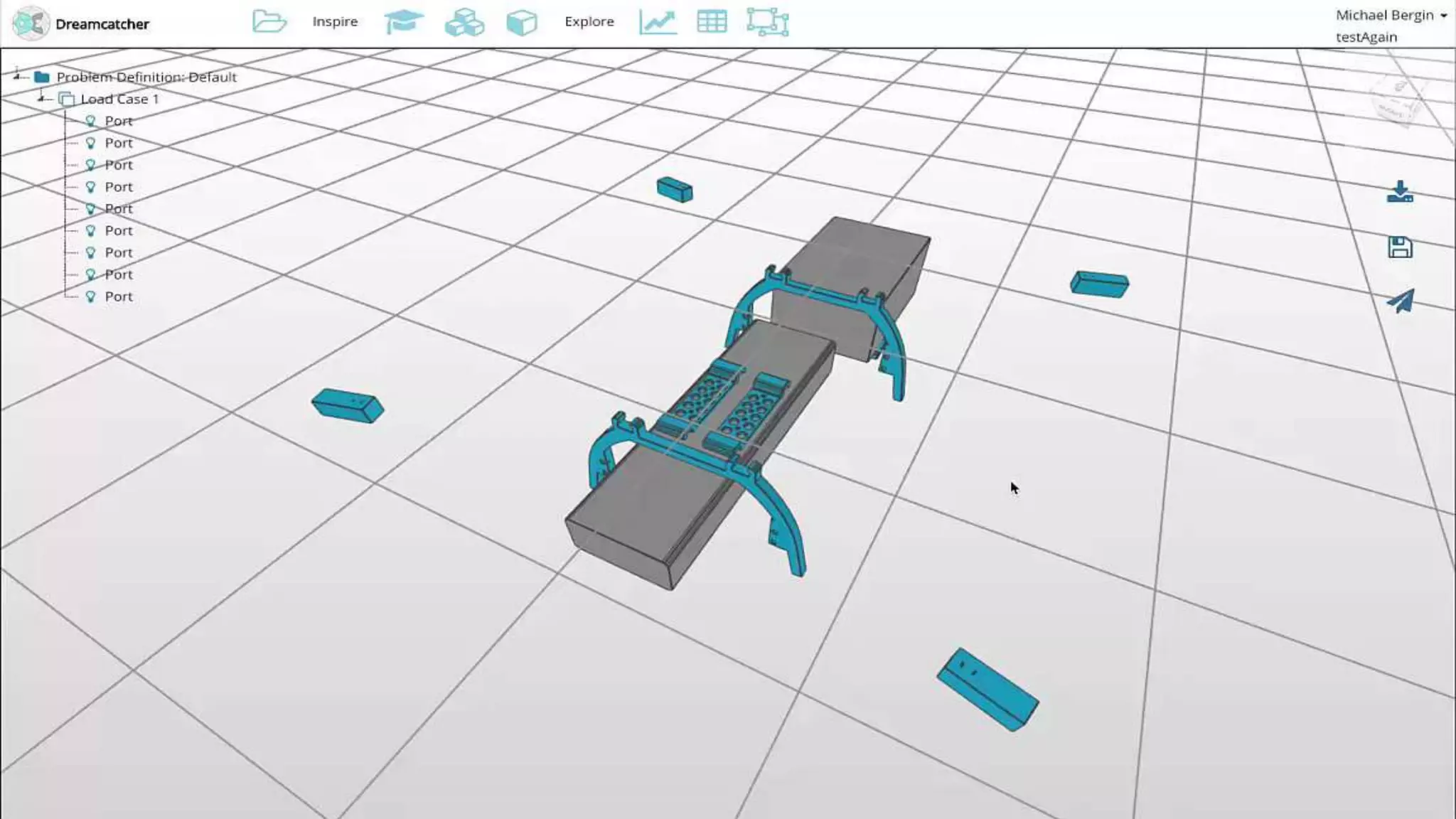

- #7 The NASA St-5 Experiment was performed on the worlds second fastest computer at the time, today processing power many times more powerful is available to anyone with a Amazon EC2 account. Dreamcatcher leverages a Cloud Computing Infrastructure developed within Autodesk to provide a system that optimizes the speed of the search process to create and find high performing designs. These operations are performed concurrently, or in parallel and exchange data throughout the generative design process. What impact does this have for designers?

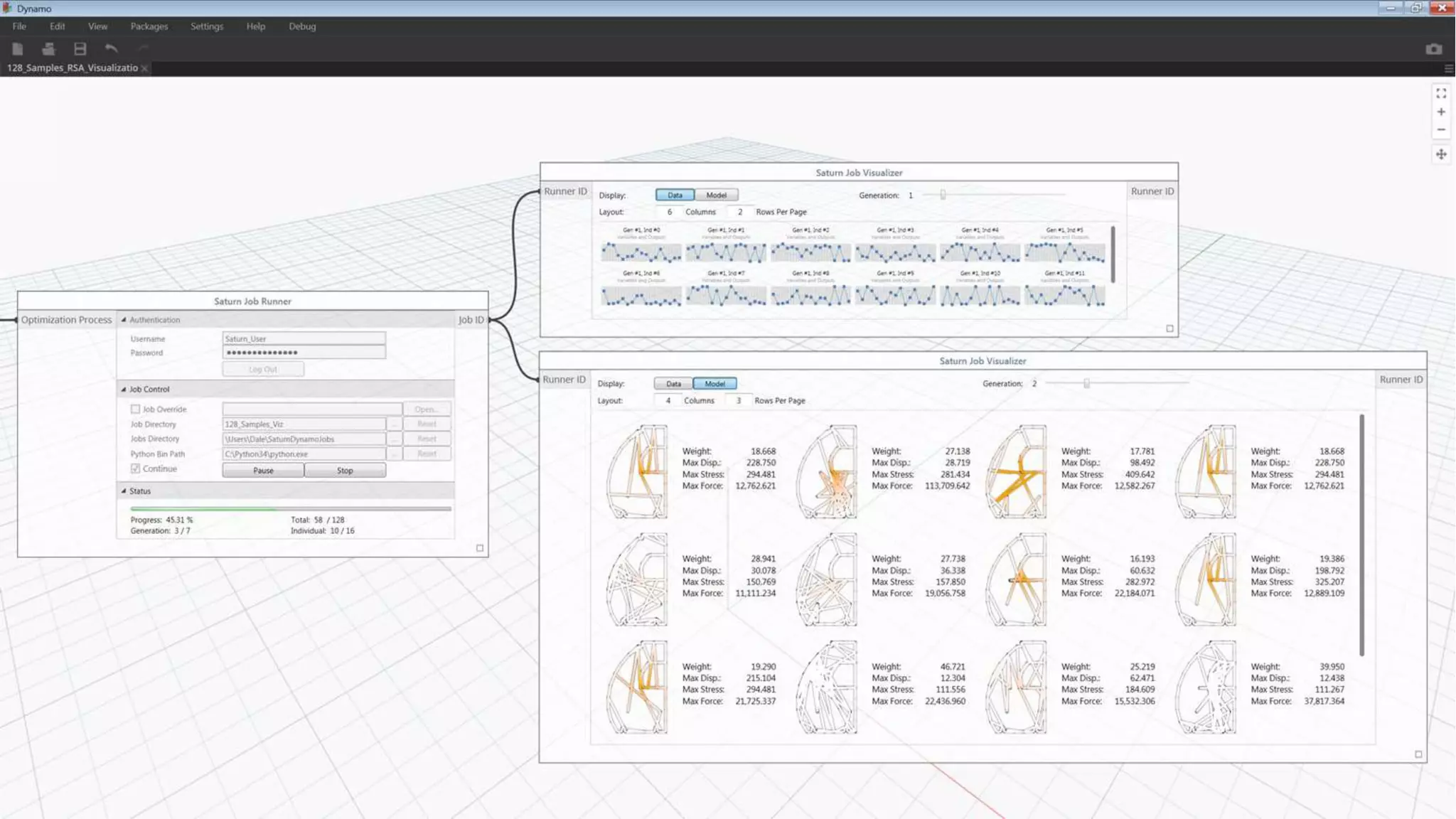

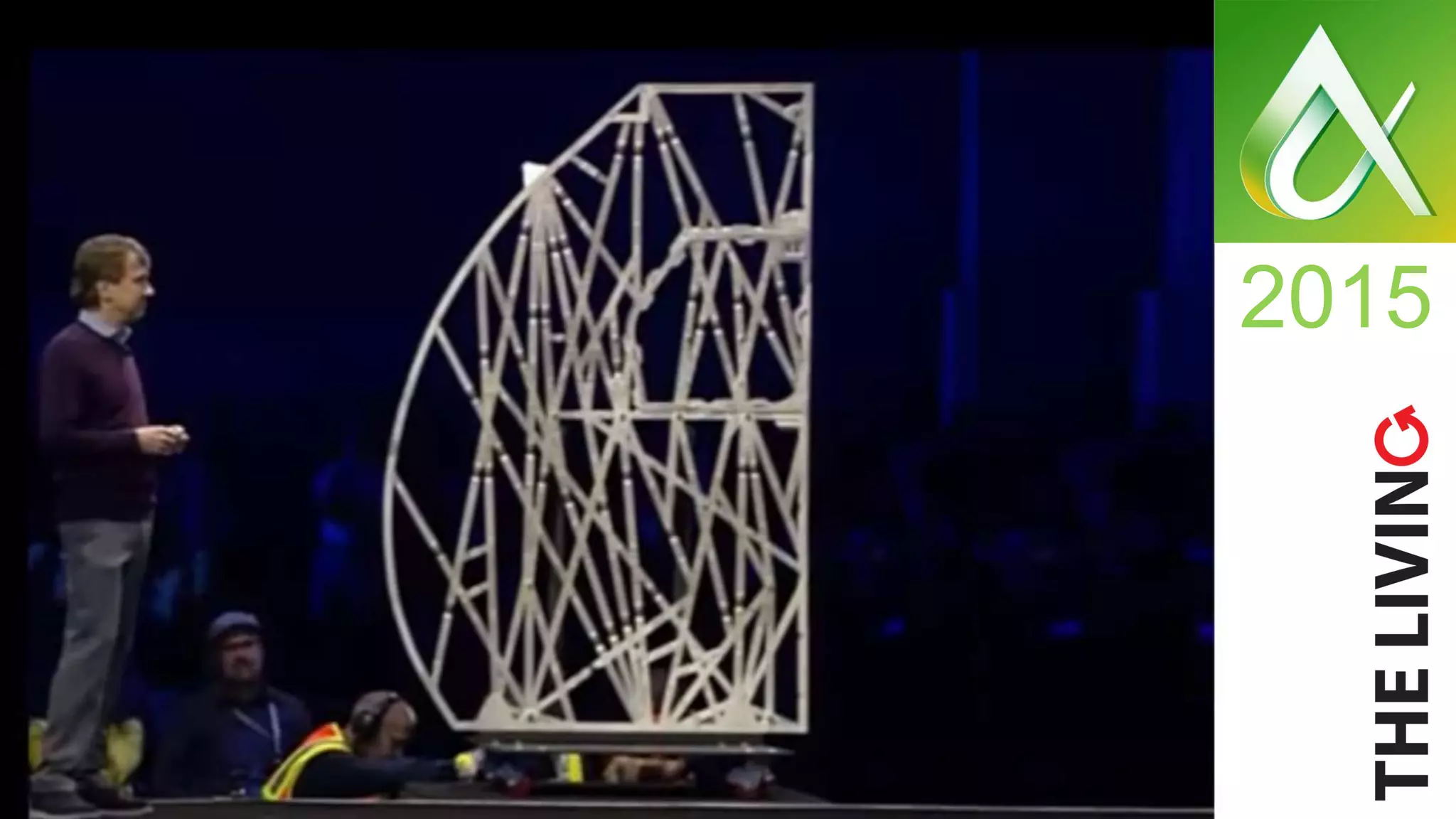

- #8 One place where Autodesk is helping a real project with optimization techniques is airplane manufacture. The Living, a design firm purchased by Autodesk about 2 years ago, has been working with Airbus to produce a new type of airplane bulkhead with required strength at half the weight of a standard bulkhead – saving on fuel, which saves on operating costs, or increases load limits on the target aircraft.
- #9 One place where Autodesk is helping a real project with optimization techniques is airplane manufacture. The Living, a design firm purchased by Autodesk about 2 years ago, has been working with Airbus to produce a new type of airplane bulkhead with required strength at half the weight of a standard bulkhead – saving on fuel, which saves on operating costs, or increases load limits on the target aircraft.

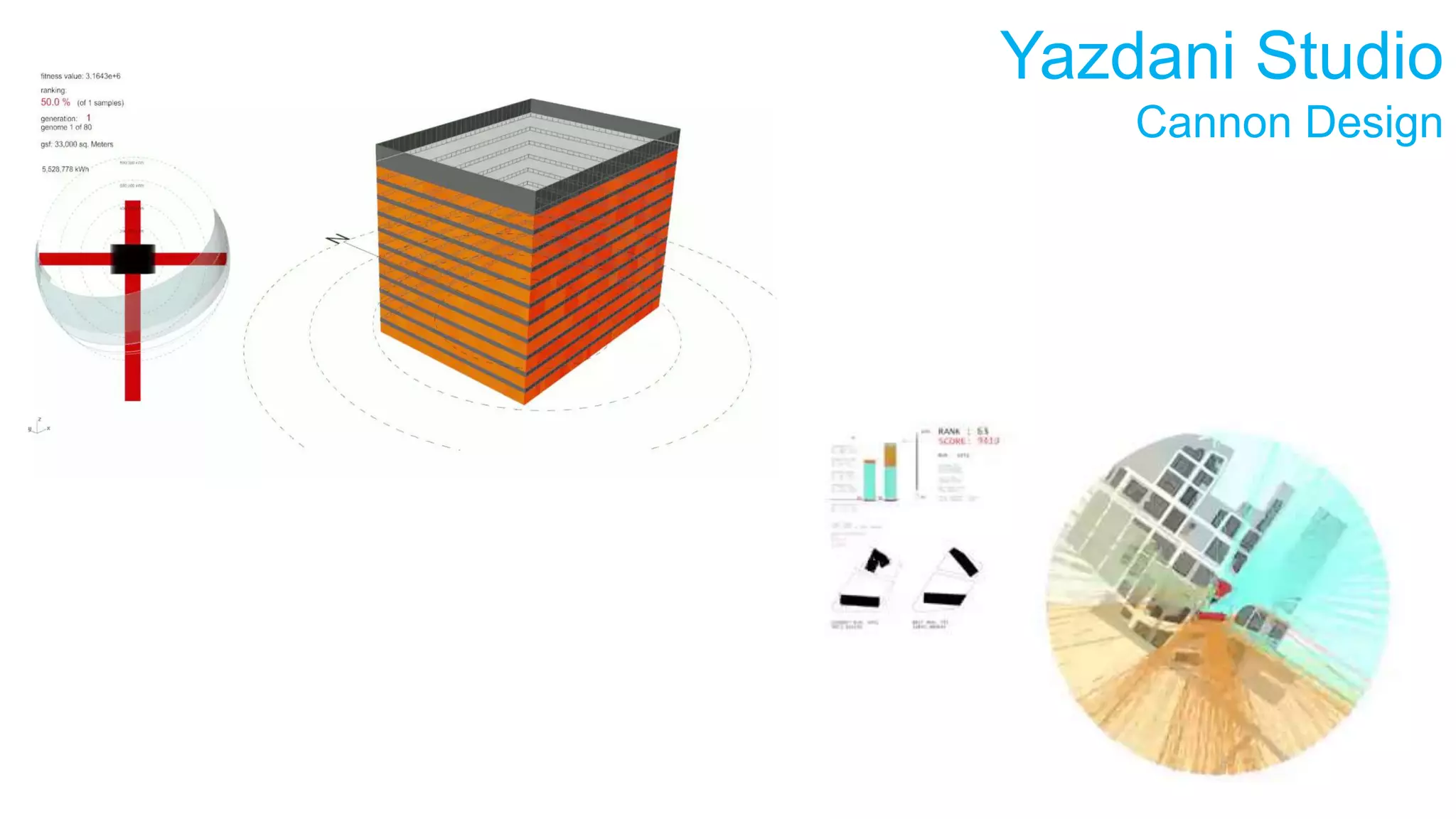

- #16 …and more recently from Cannon Design, using scripting to drive a building shell to minimize solar incidence and another to enhance residential occupant views.

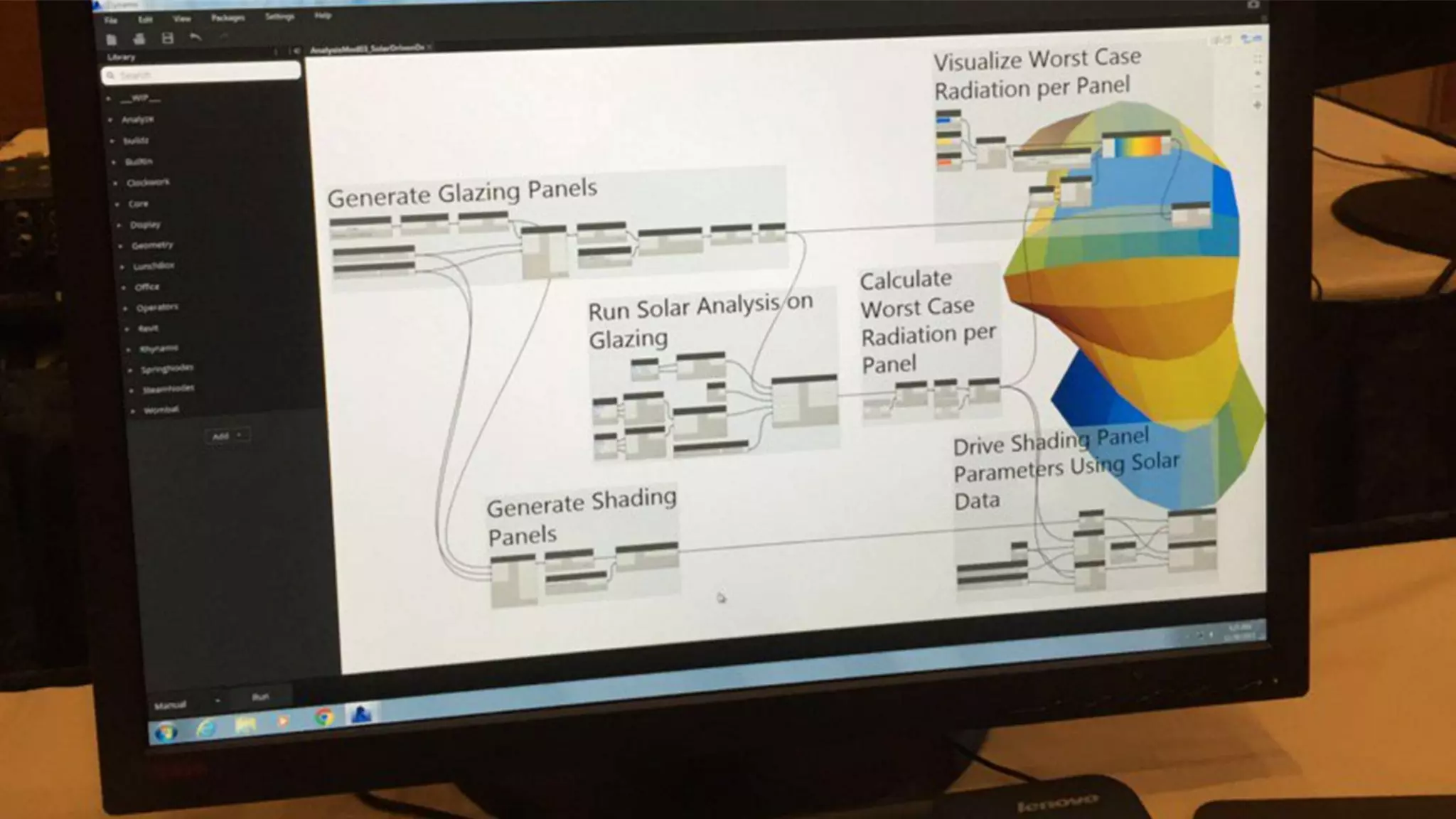

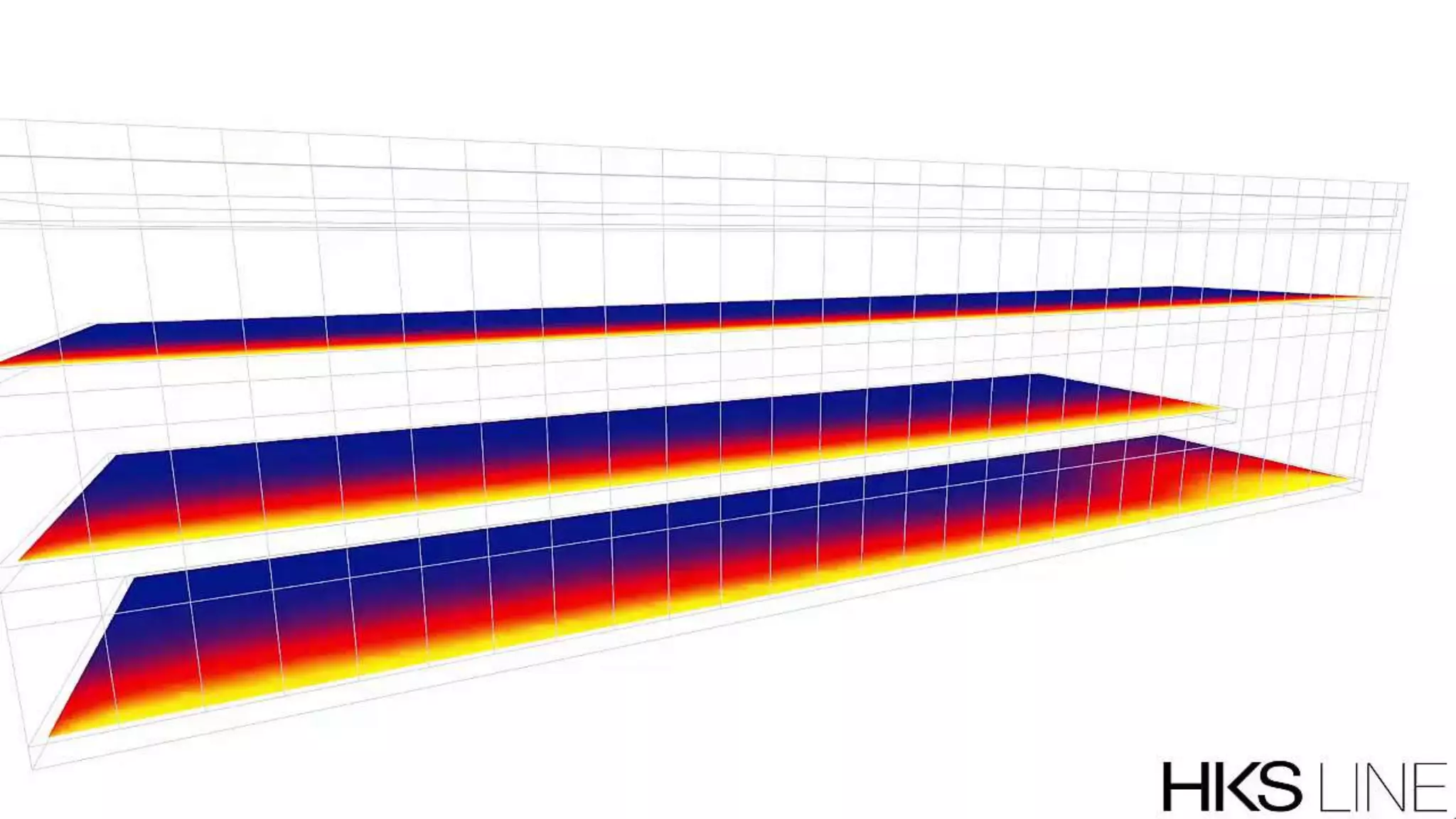

- #17 Sophisticated customers have already begun publicly prototyping new optioneering workflows. This example from the HKS LINE research studio shows recursive façade optimization for controlling daylighting and solar incidence.

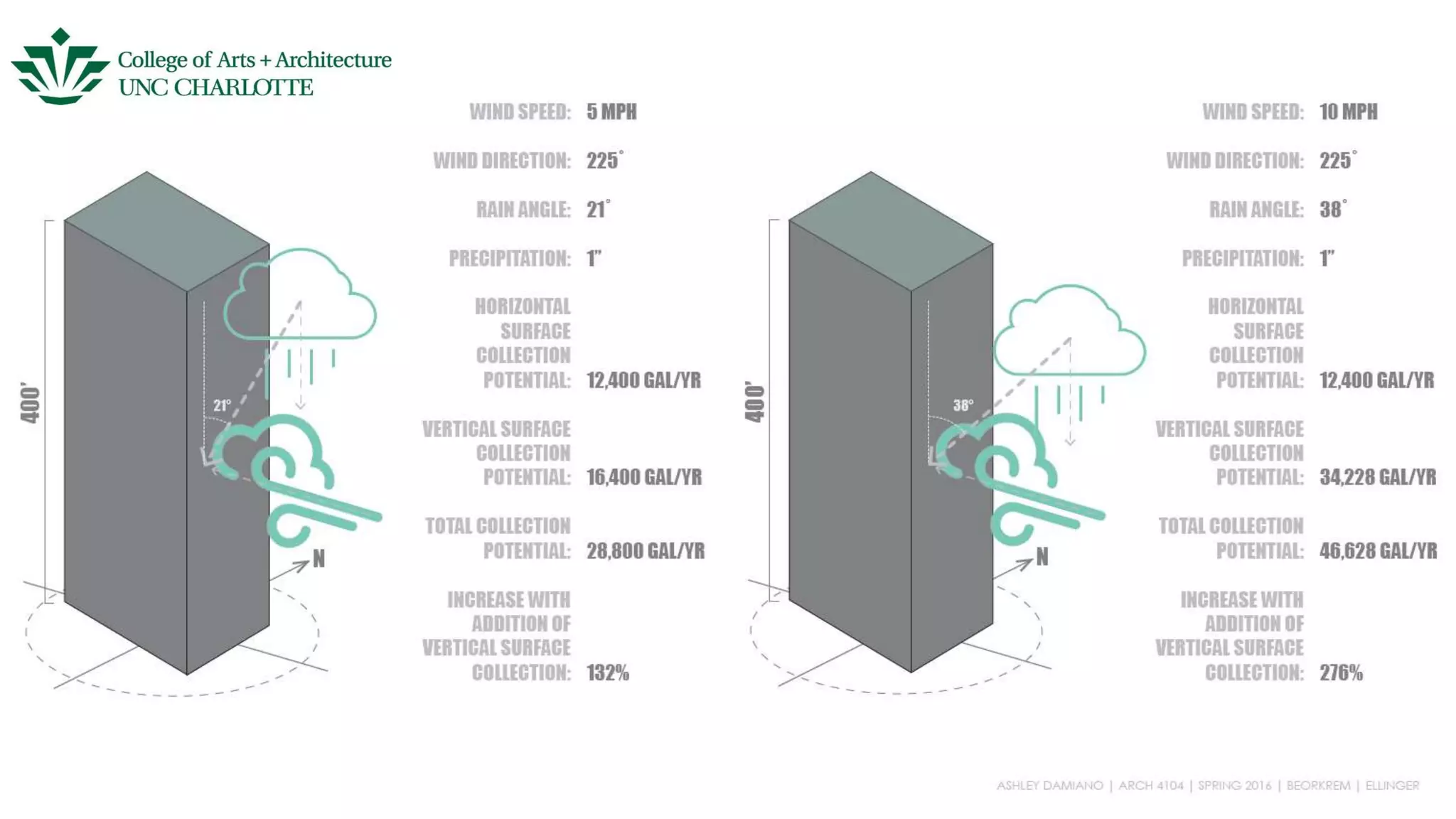

- #19 Class advertised “no experience necessary”, but our attendees covered experience from zero to active use on live projects

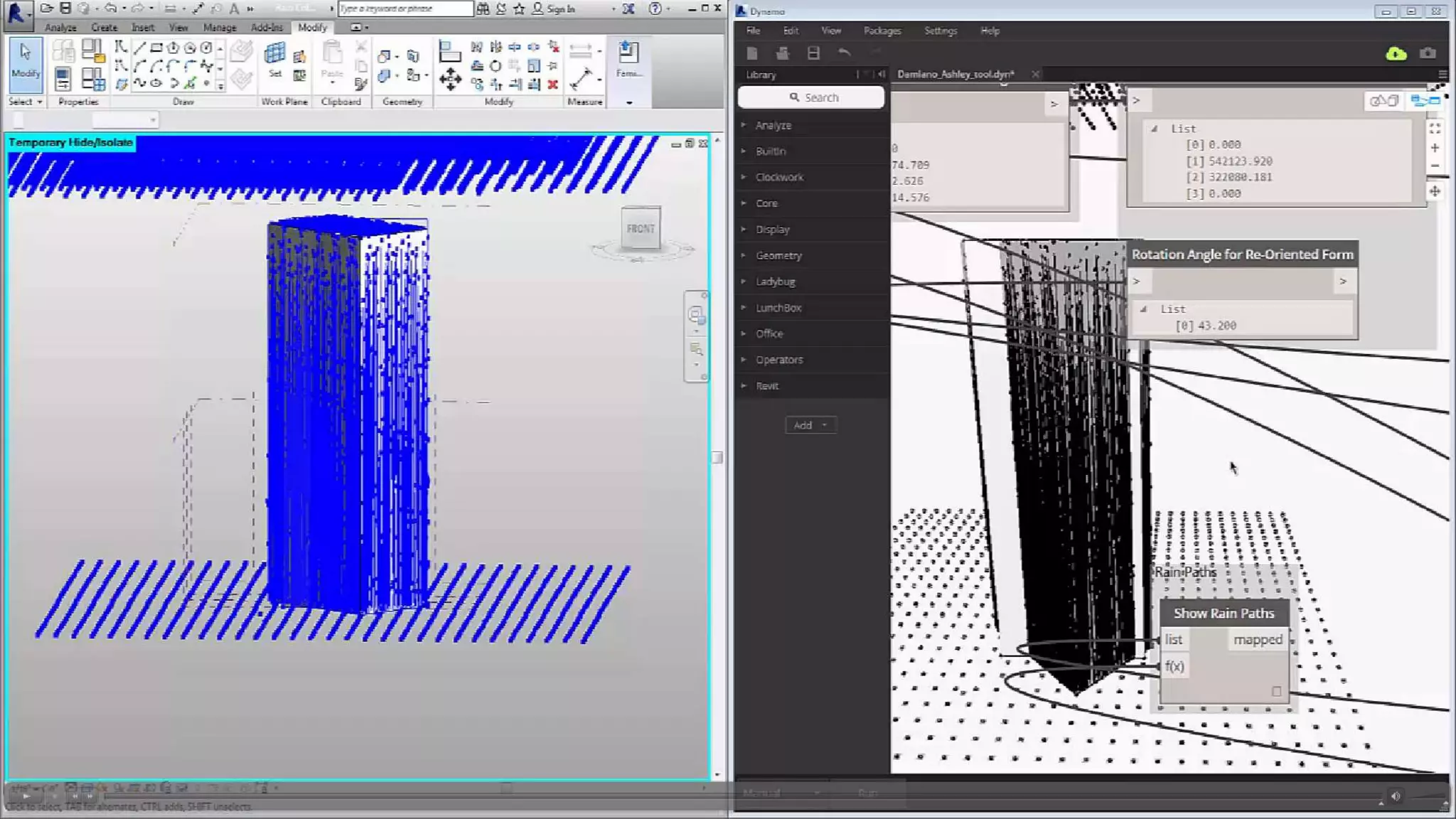

- #20 Class advertised “no experience necessary”, but our attendees covered experience from zero to active use on live projects

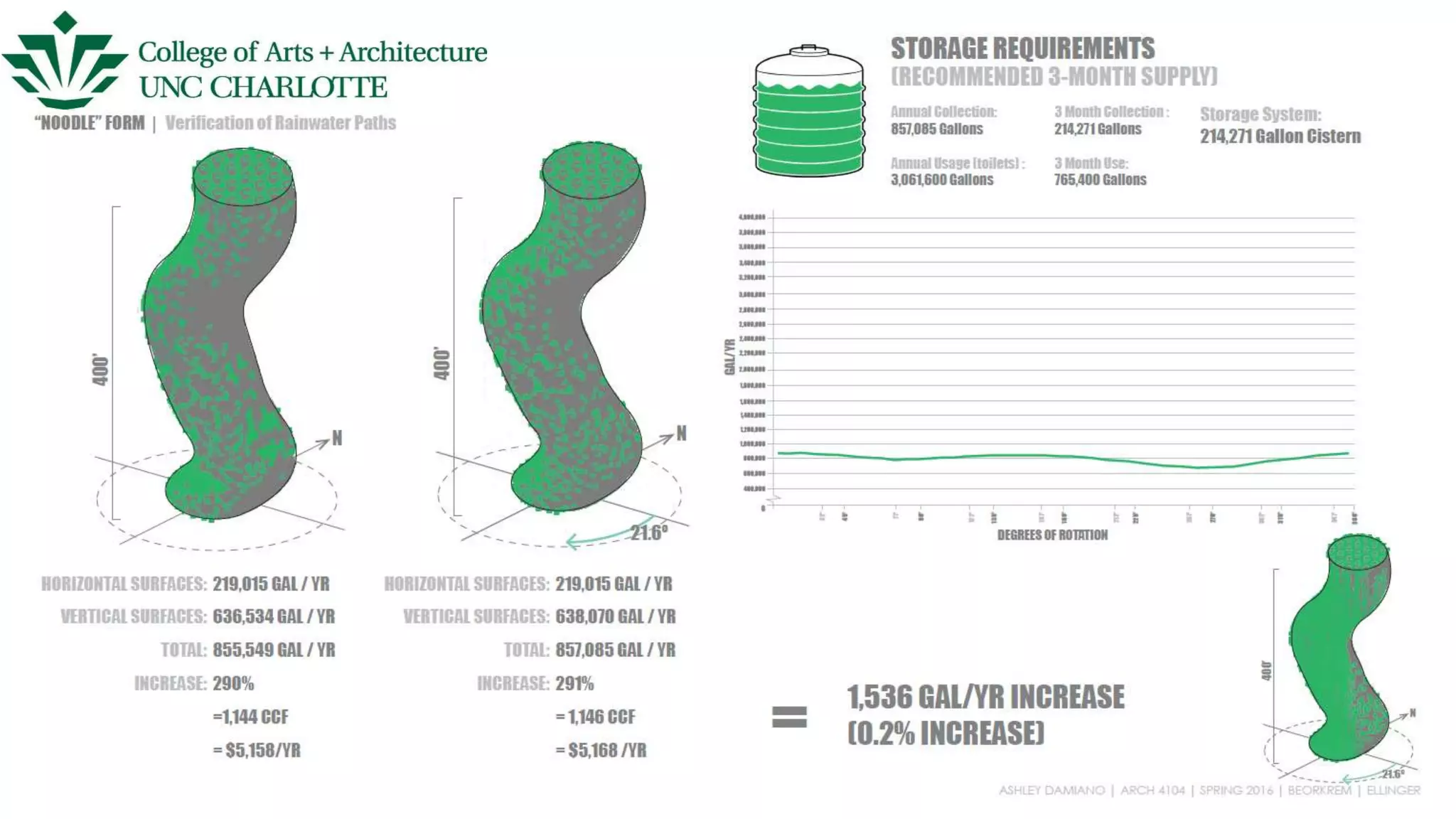

- #21 Class advertised “no experience necessary”, but our attendees covered experience from zero to active use on live projects
- #22 Class advertised “no experience necessary”, but our attendees covered experience from zero to active use on live projects

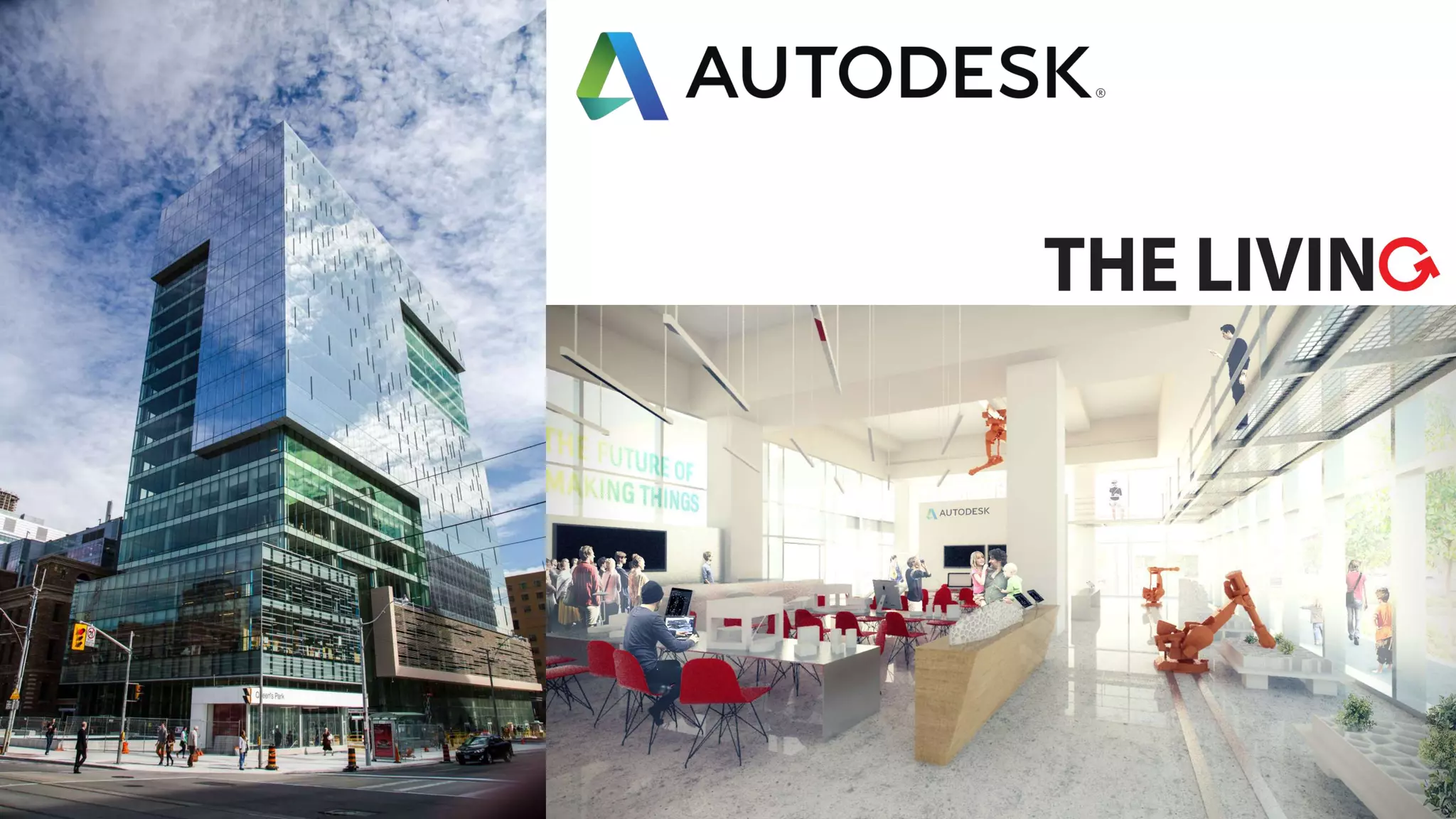

- #23 Autodesk Totonto is moving to a new facility in the MaRS innovation district, with The Living using a generative approach to the new office’s space layout.

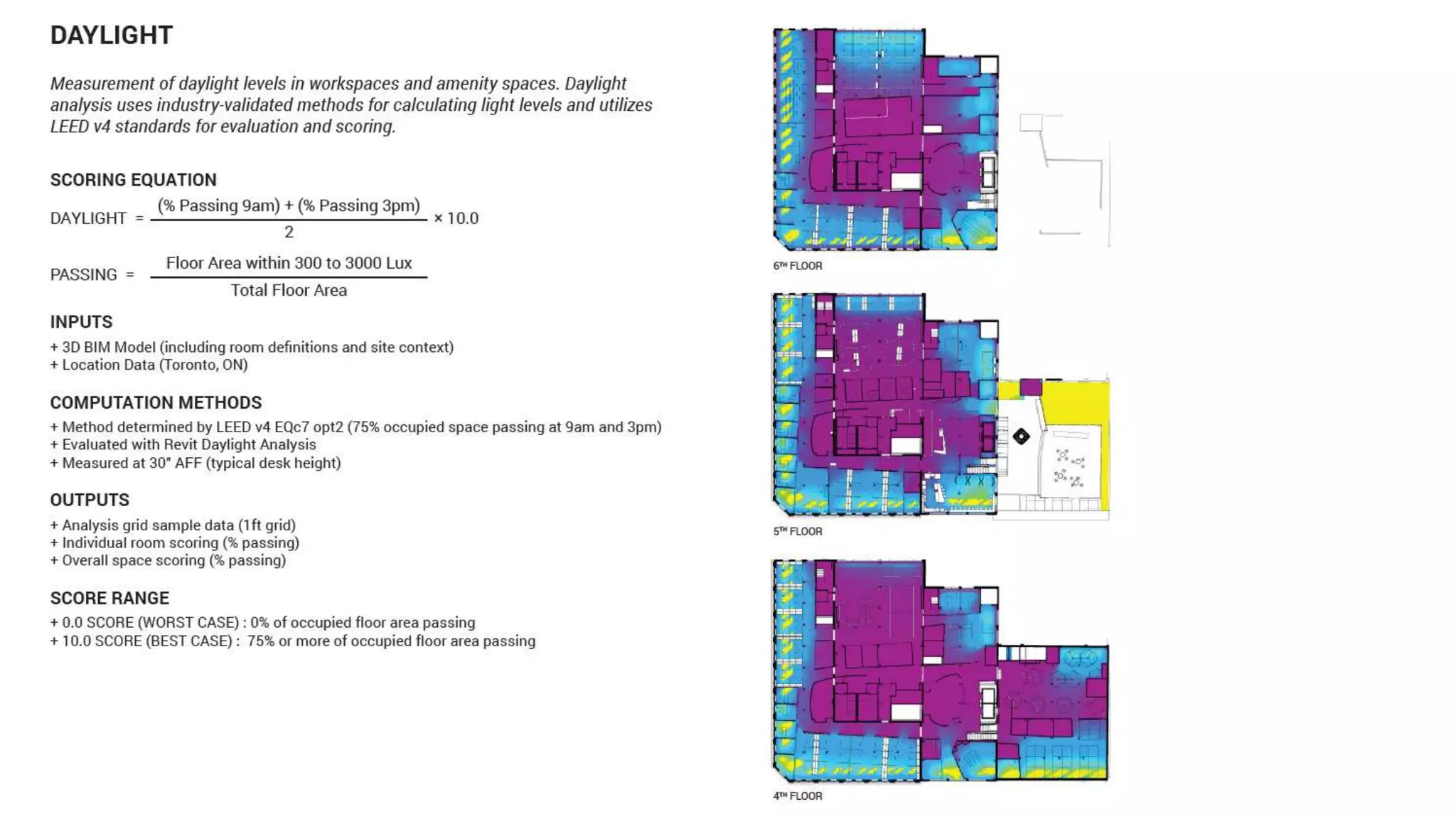

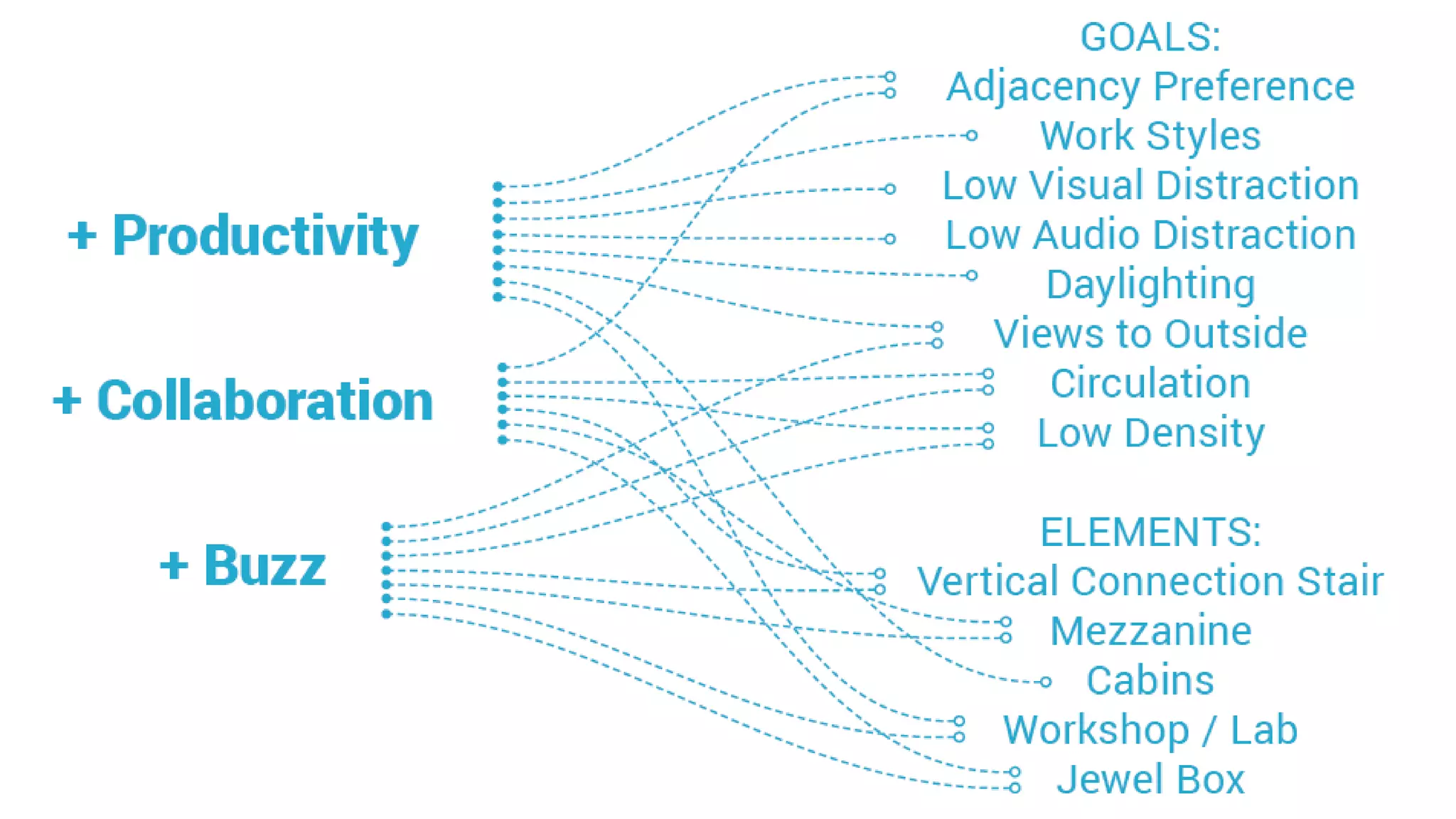

- #24 A number of factors had to be considered to arrive at the design goals (see appended slides for the math if you wan them)

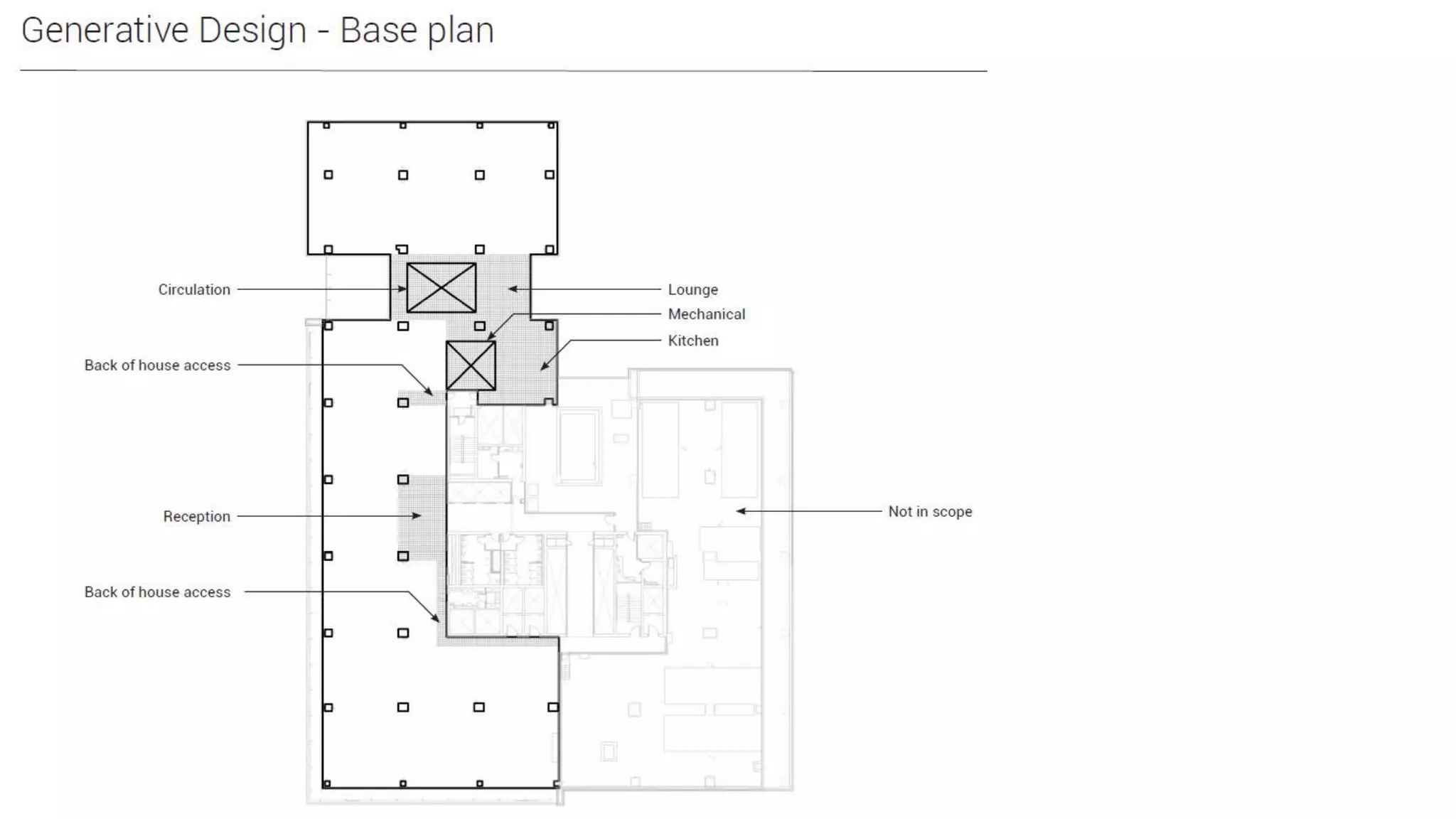

- #25 … an existing floor in the MaRS building
- #26 Some early design results from the P+W project.
- #27 We have many customers and other constituents already interested and making progress in similar endeavors. Most of them have already expressed interest in working with Autodesk.
- #28 We have many customers and other constituents already interested and making progress in similar endeavors. Most of them have already expressed interest in working with Autodesk.

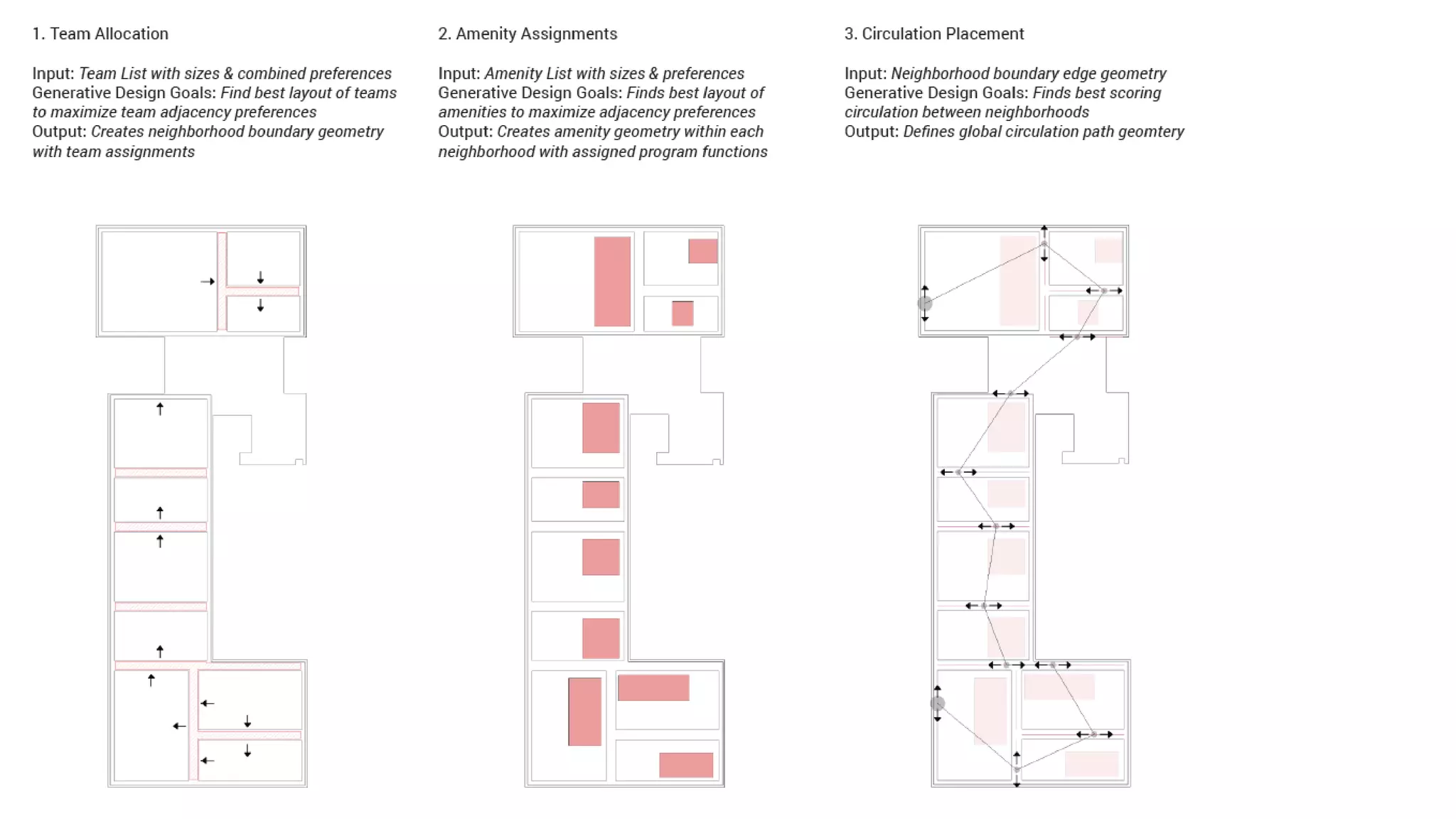

- #29 Various requirements were applied to the space, such as team proximity and amenity distribution, such as kitchens and conference rooms. A circulation form was imposed on the other requirements.

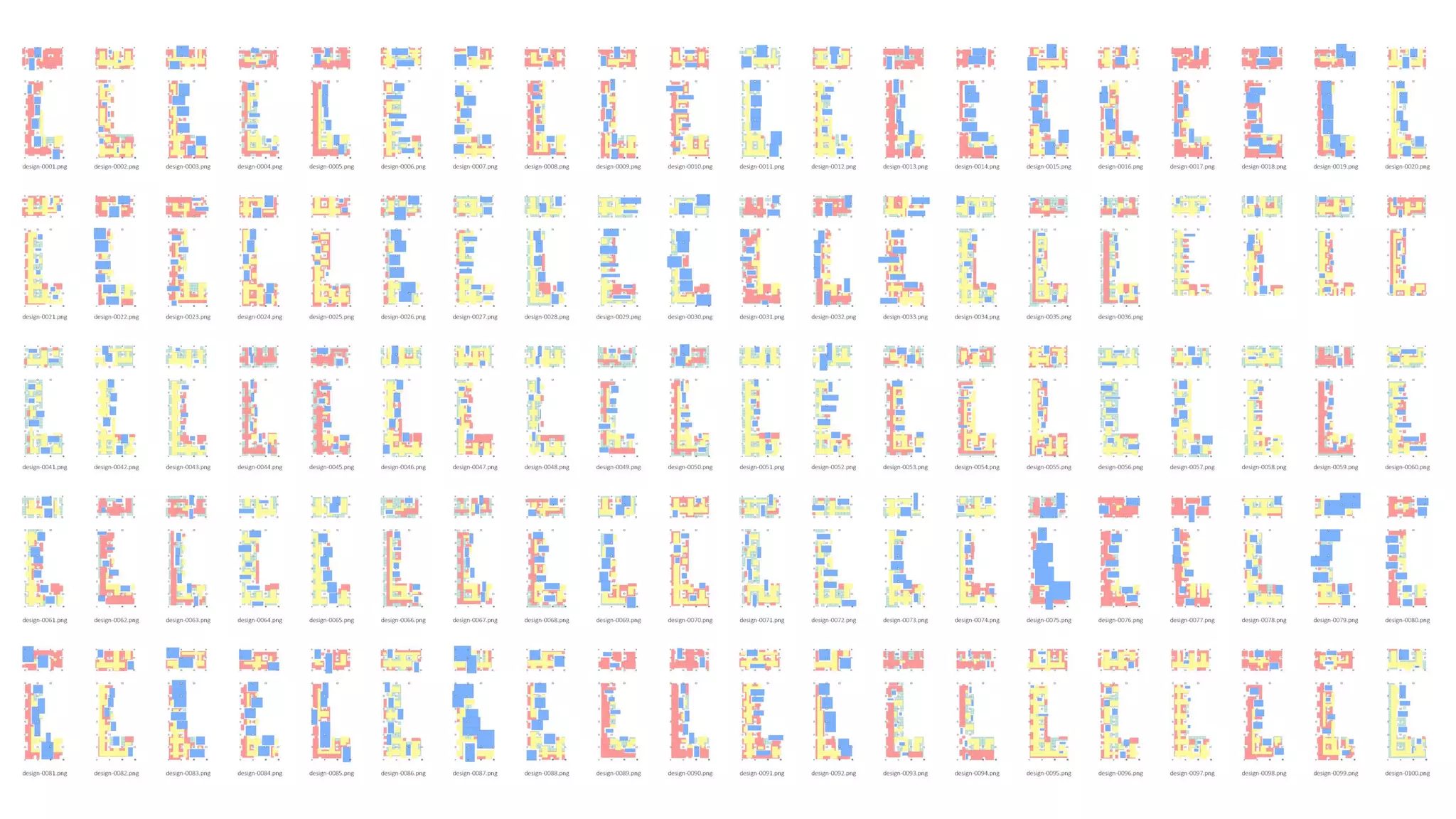

- #30 …generating many possibilities.

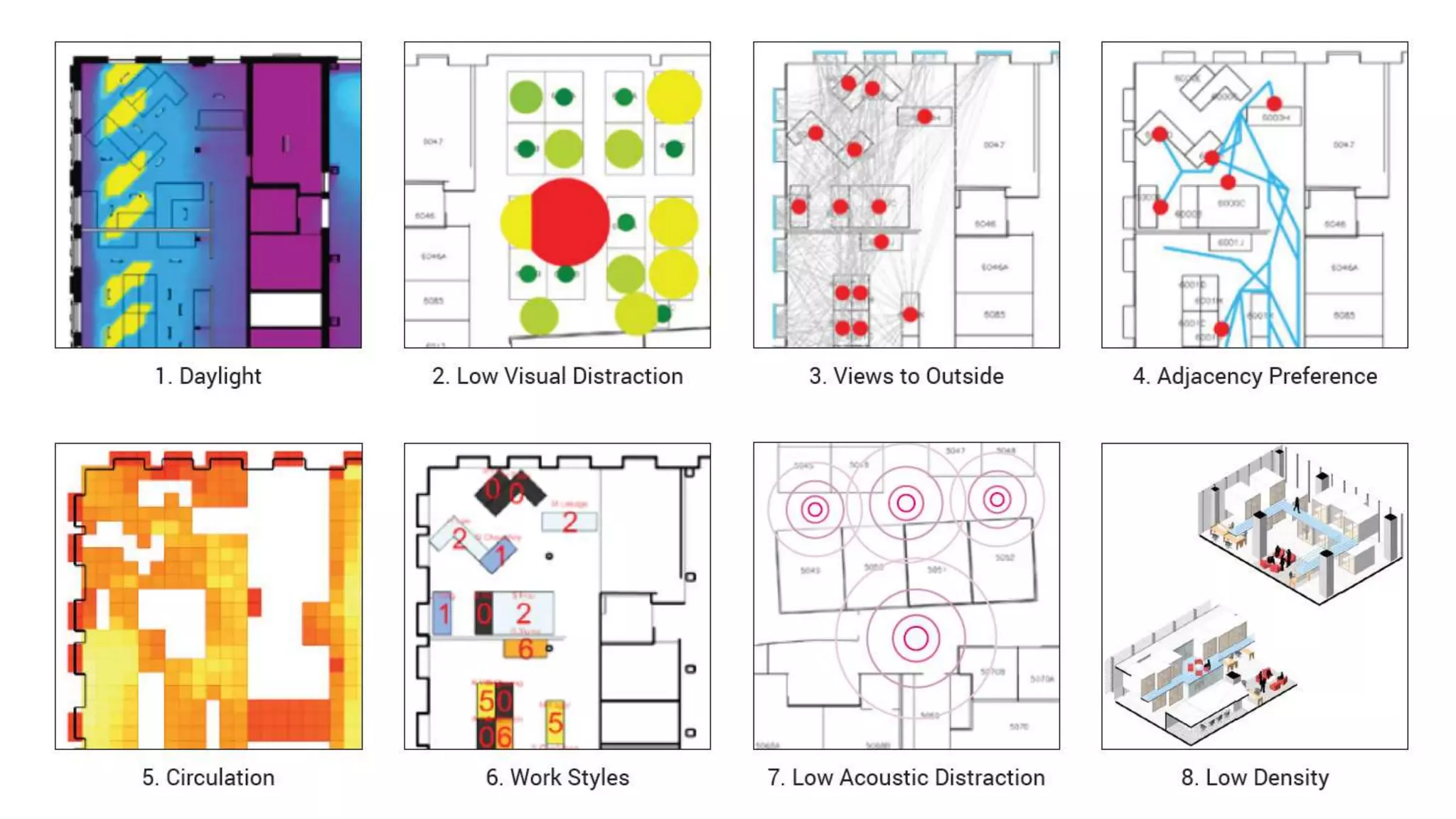

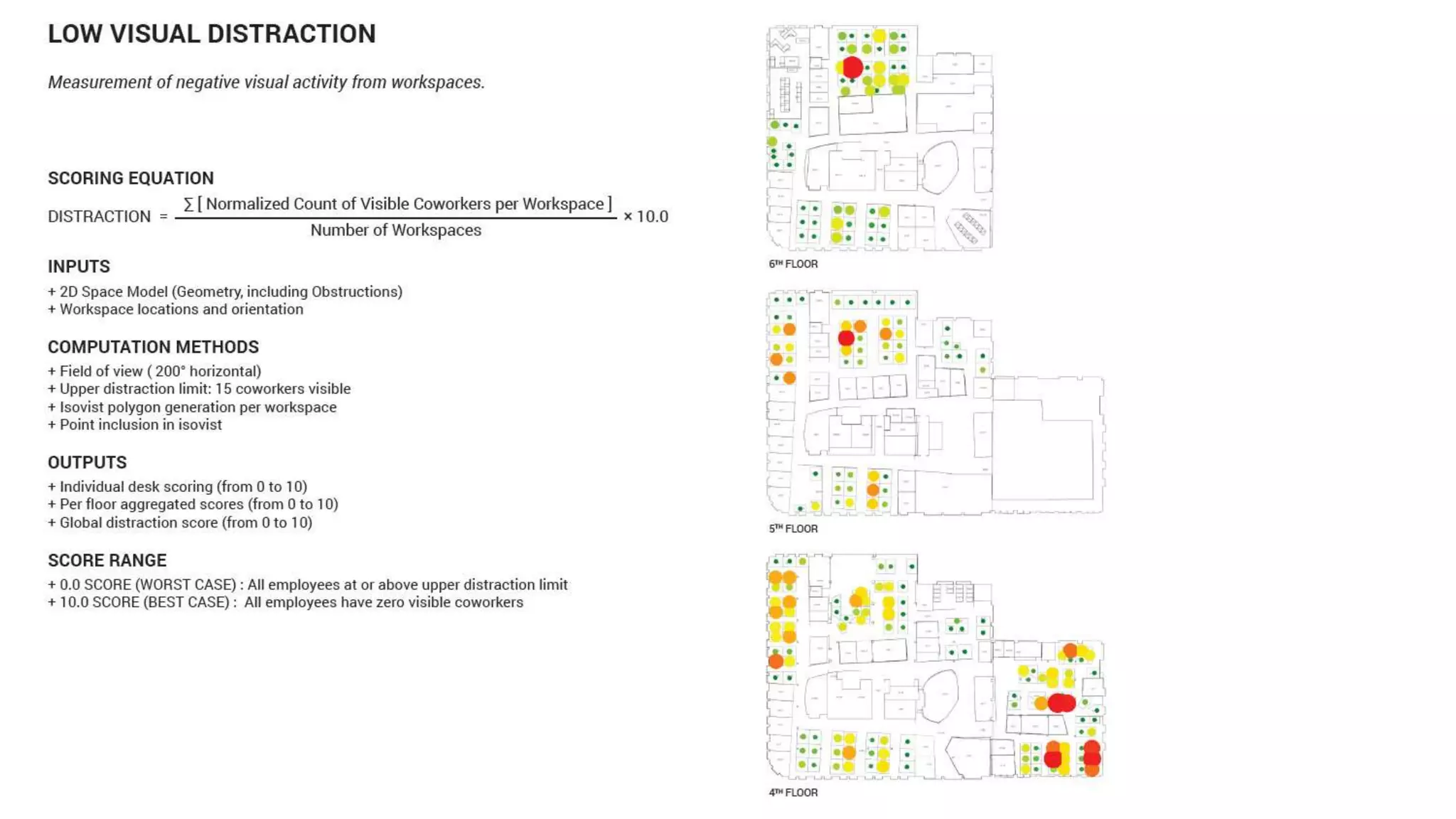

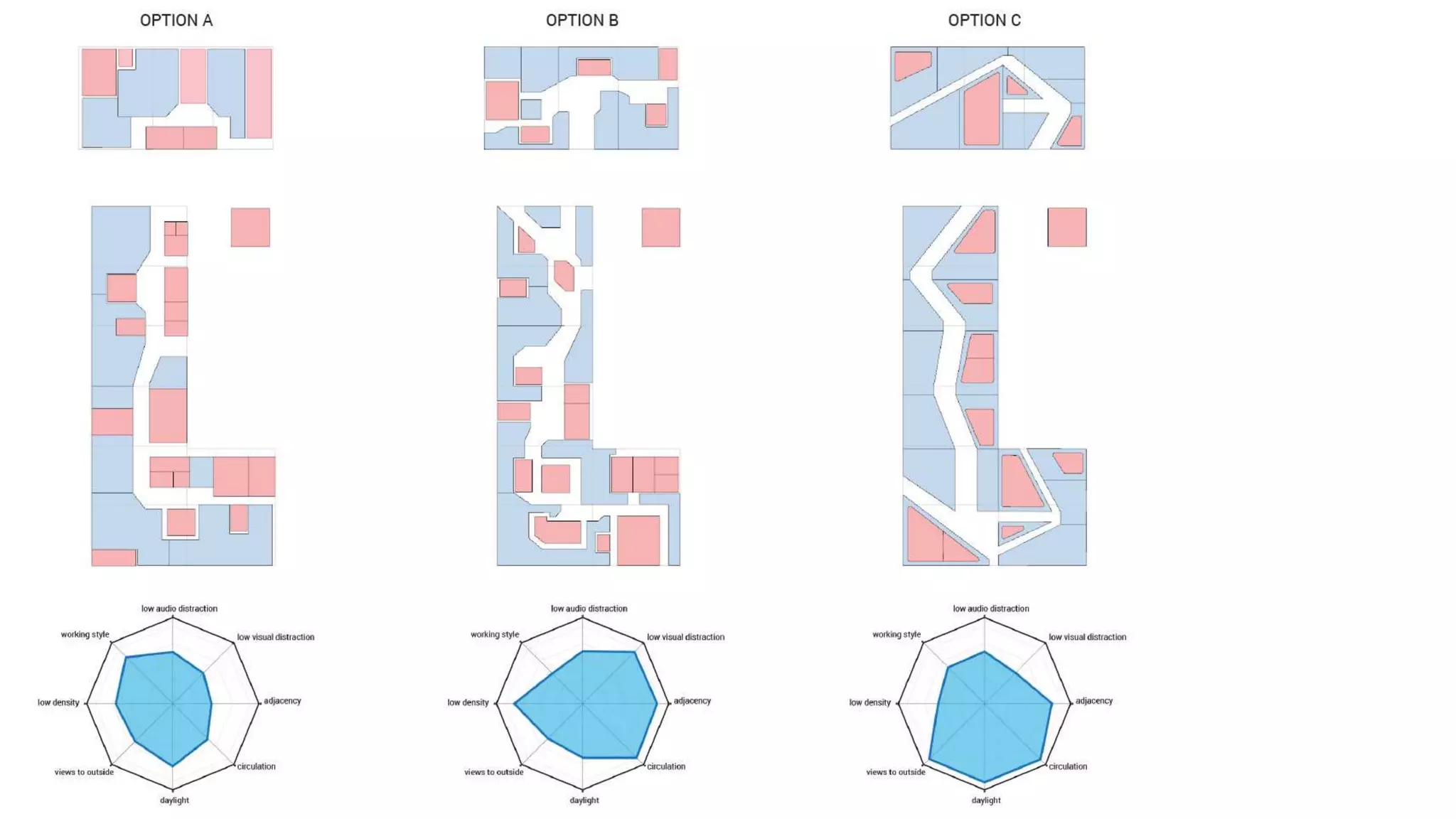

- #31 Scoring against those possibilities led to evaluations of satisfaction against the eight identified metrics.

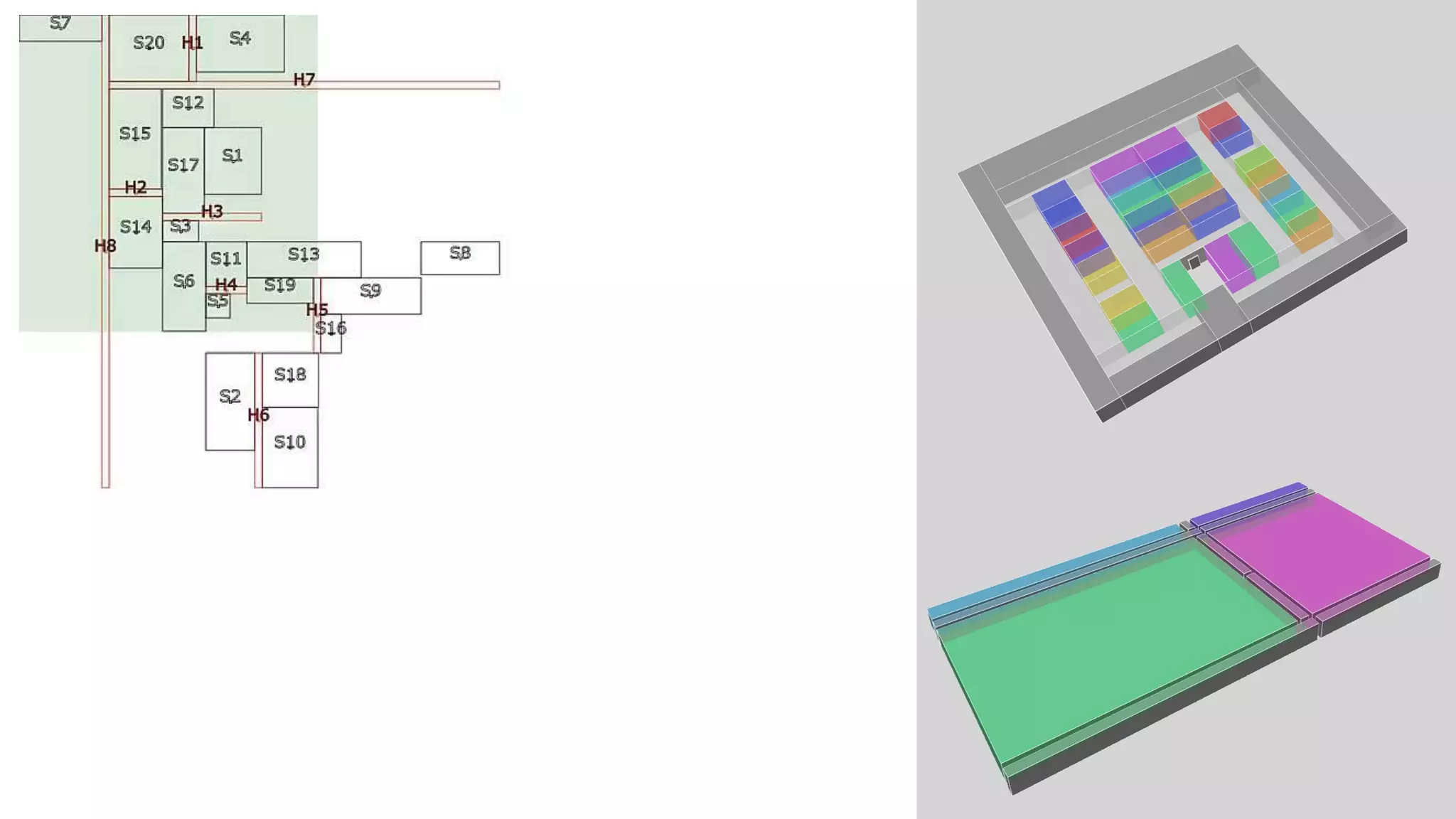

- #32 We’ll extend this work into an environment that will support the procedural generation and exploration of multiple design options optimized for design and owner goals.

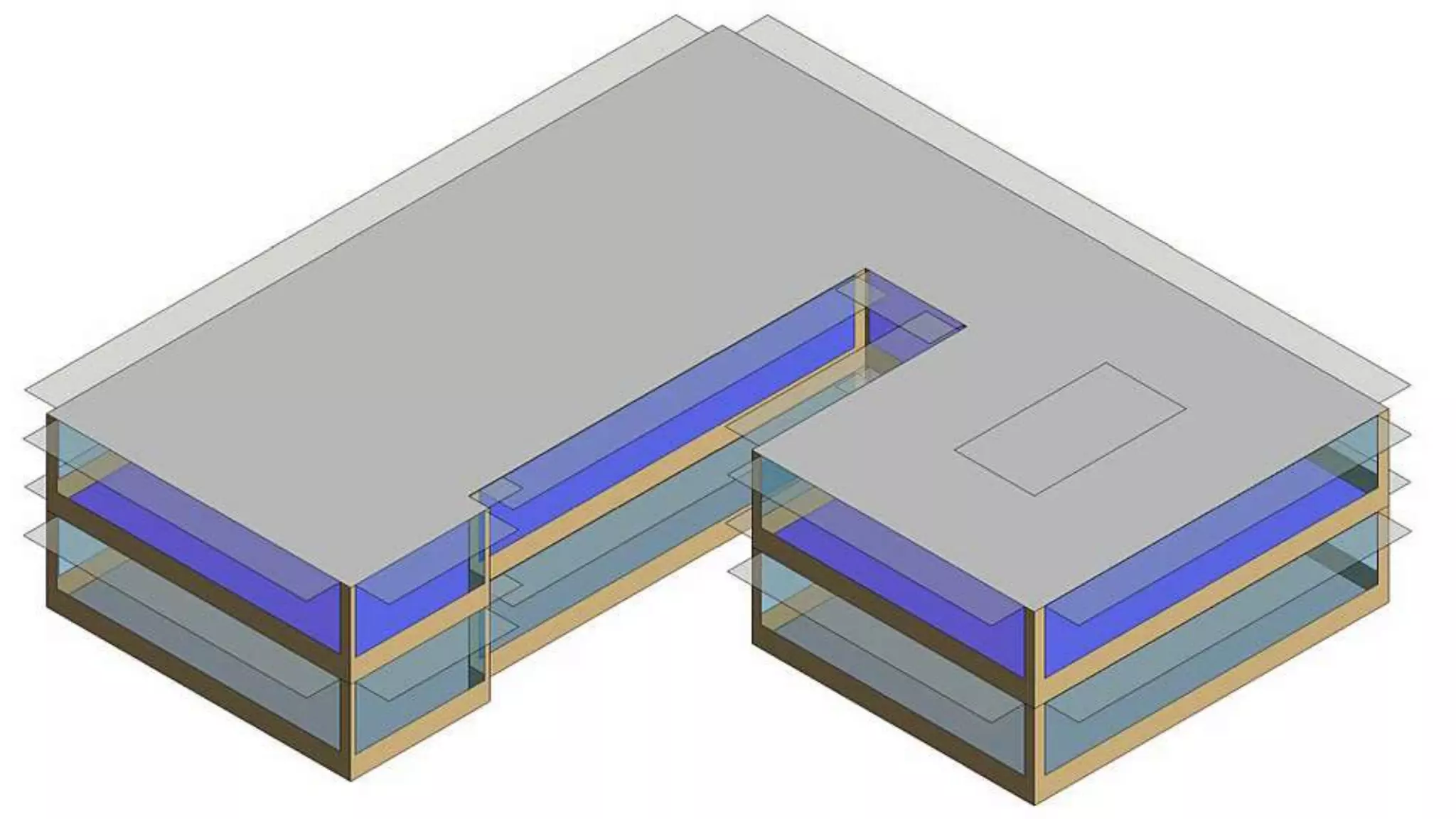

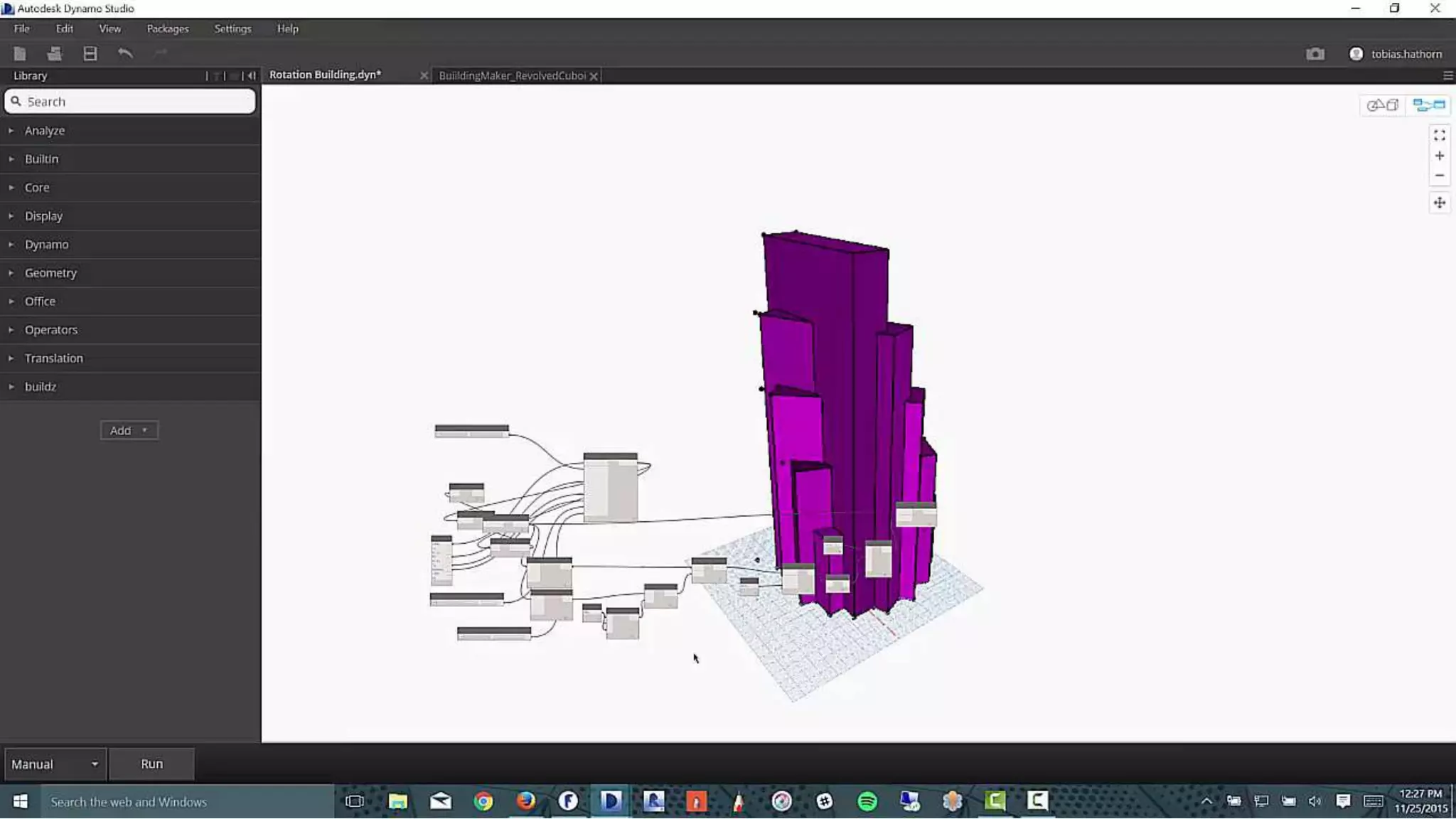

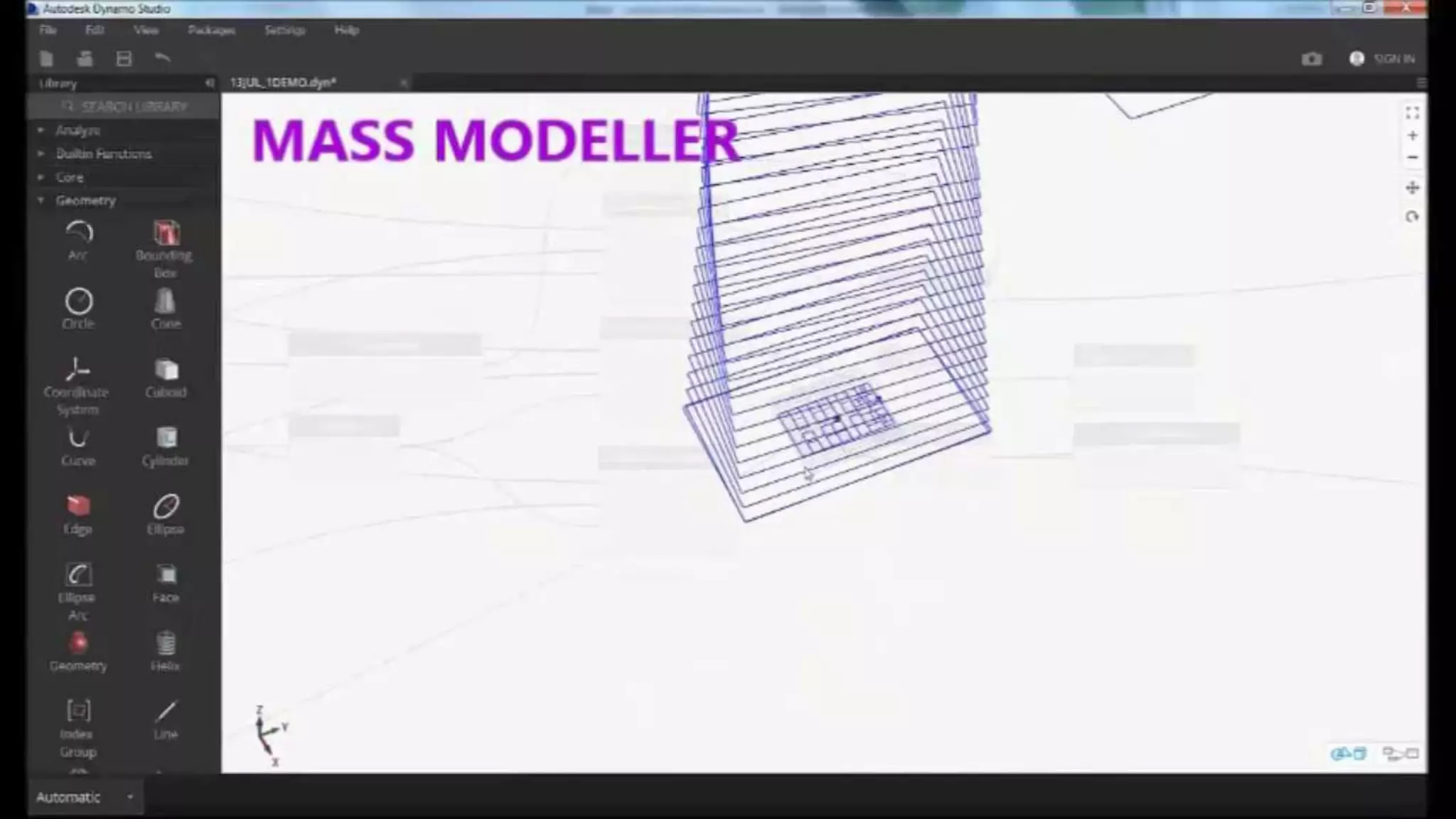

- #35 One customer is using Dynamo to visualize the intersection of core, shell and program.
- #36 First, through this charter. If we can fulfill this mission, we can… Preserve our position in AEC as the market and thought leader Avoid a major disruption and competitive threat if someone else beats us with something interesting OnShape Lagoa Flux Technology is available to everyone… Data centers available to anyone on Amazon, Azure etc… Lot's of open source components to build on Low cost barrier to entry …but access to the customer base and in-house expertise isn’t. We can leverage our market position and 50 years of academic development into new solutions, targeted at first and progressively more comprehensive.

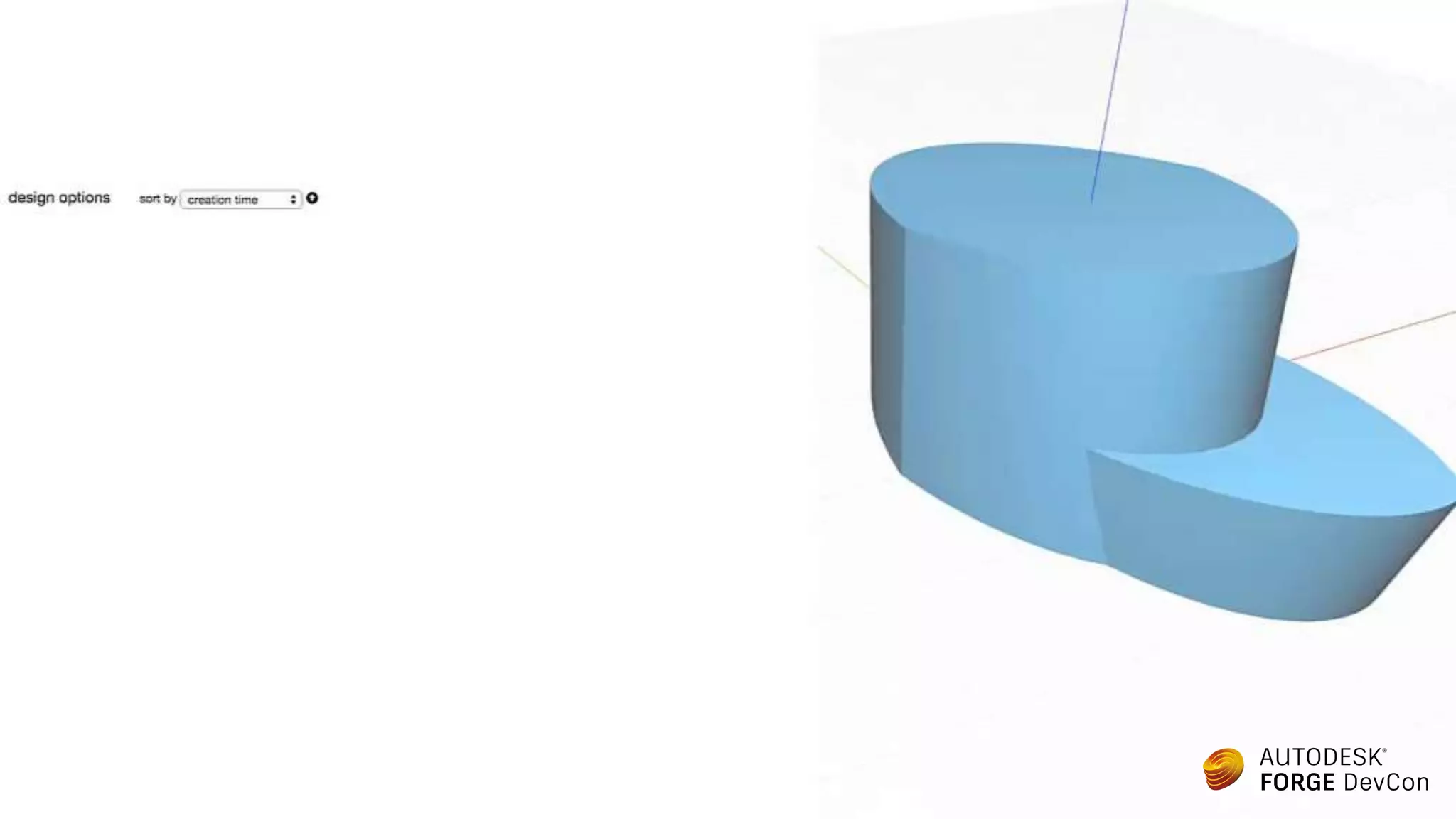

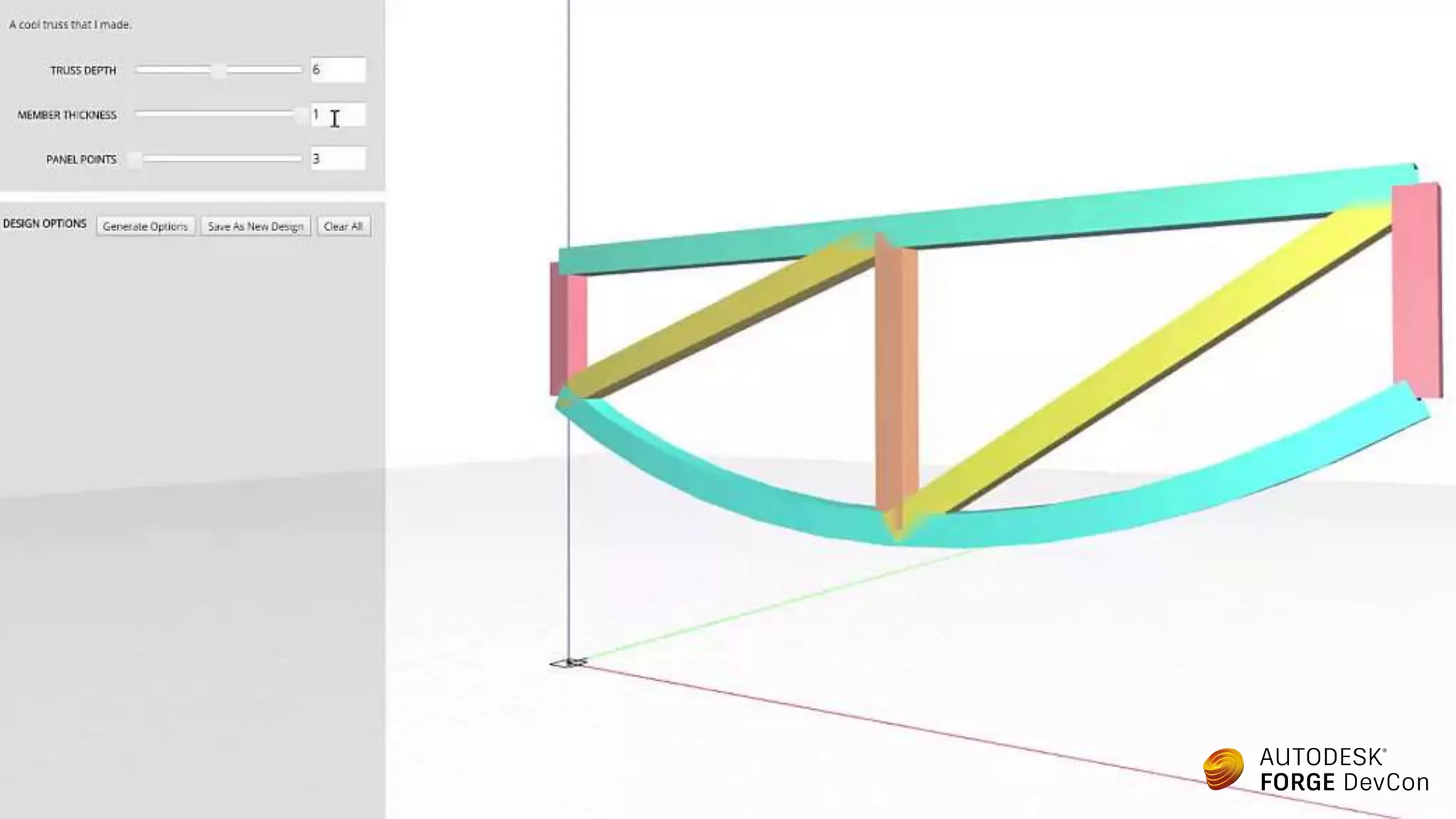

- #38 Using a truss-configuration Dynamo graph, the team created this video showing both direct interaction with condition sliders and the automated production of every possibility the Dynamo graph can generate. In the future, such a display would include structural fitness evaluation.

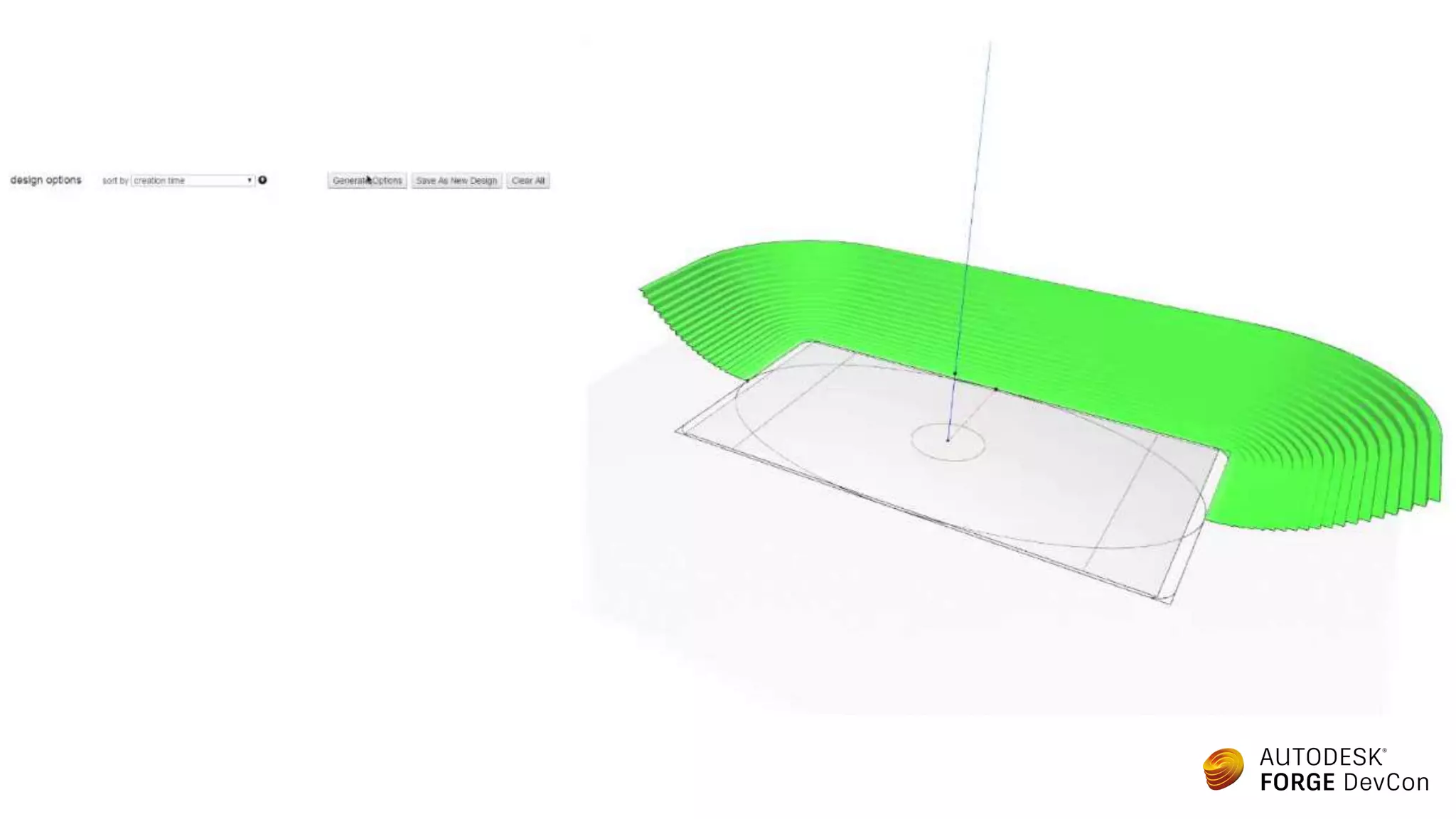

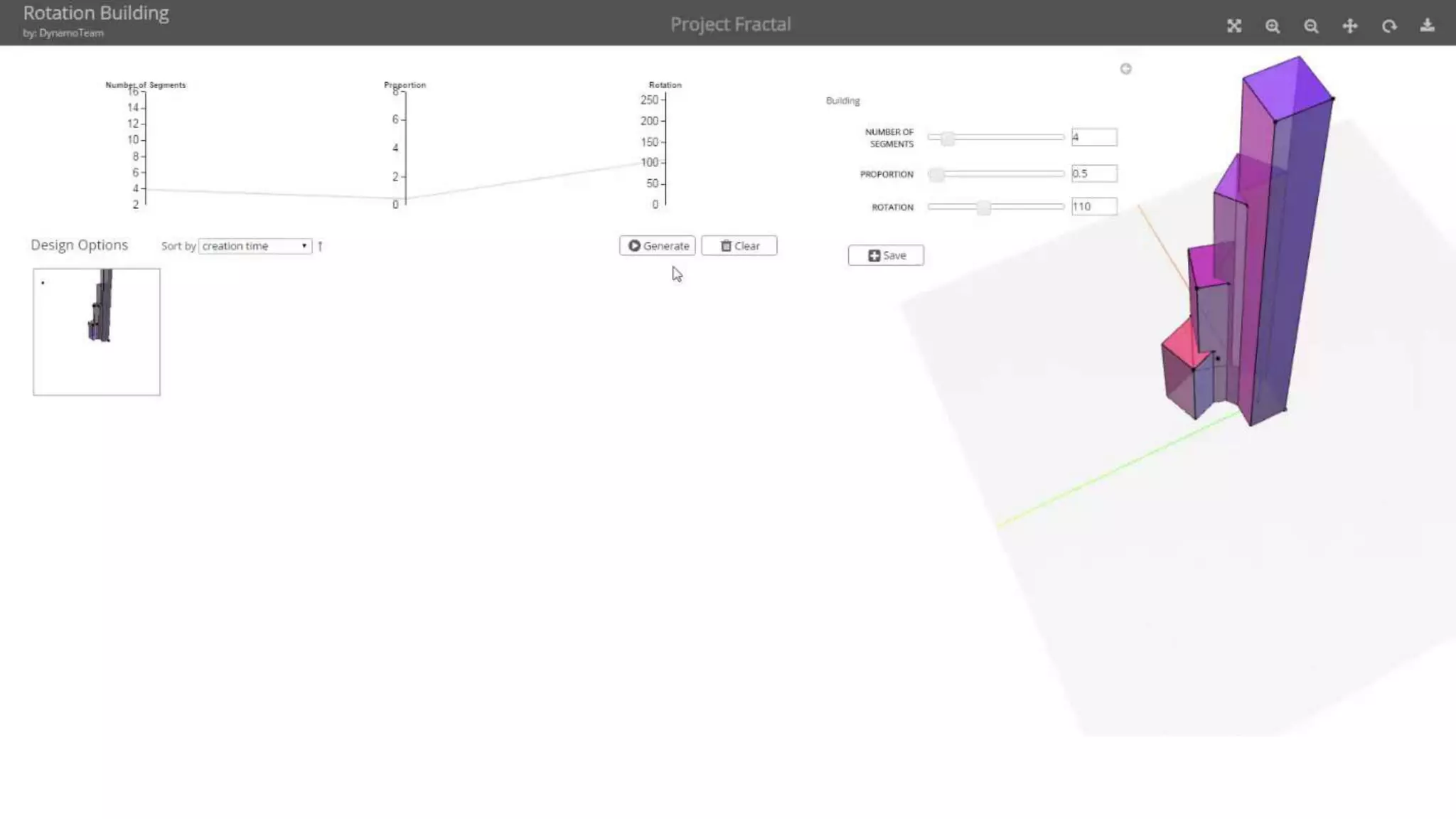

- #40 Subsequently, the team created this video showing generating, filtering, and sorting of designs generated by an arbitrary Dynamo graph.

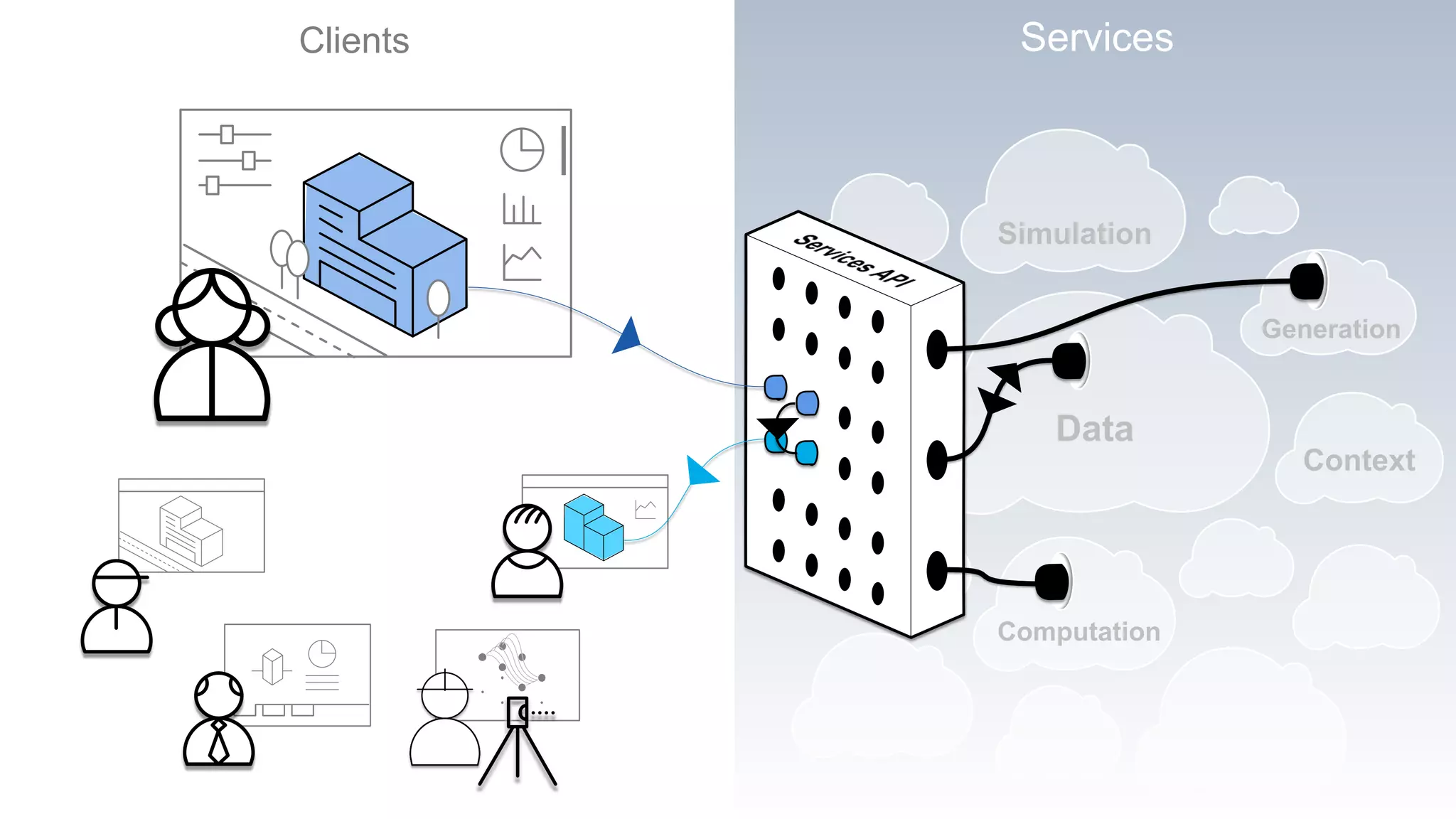

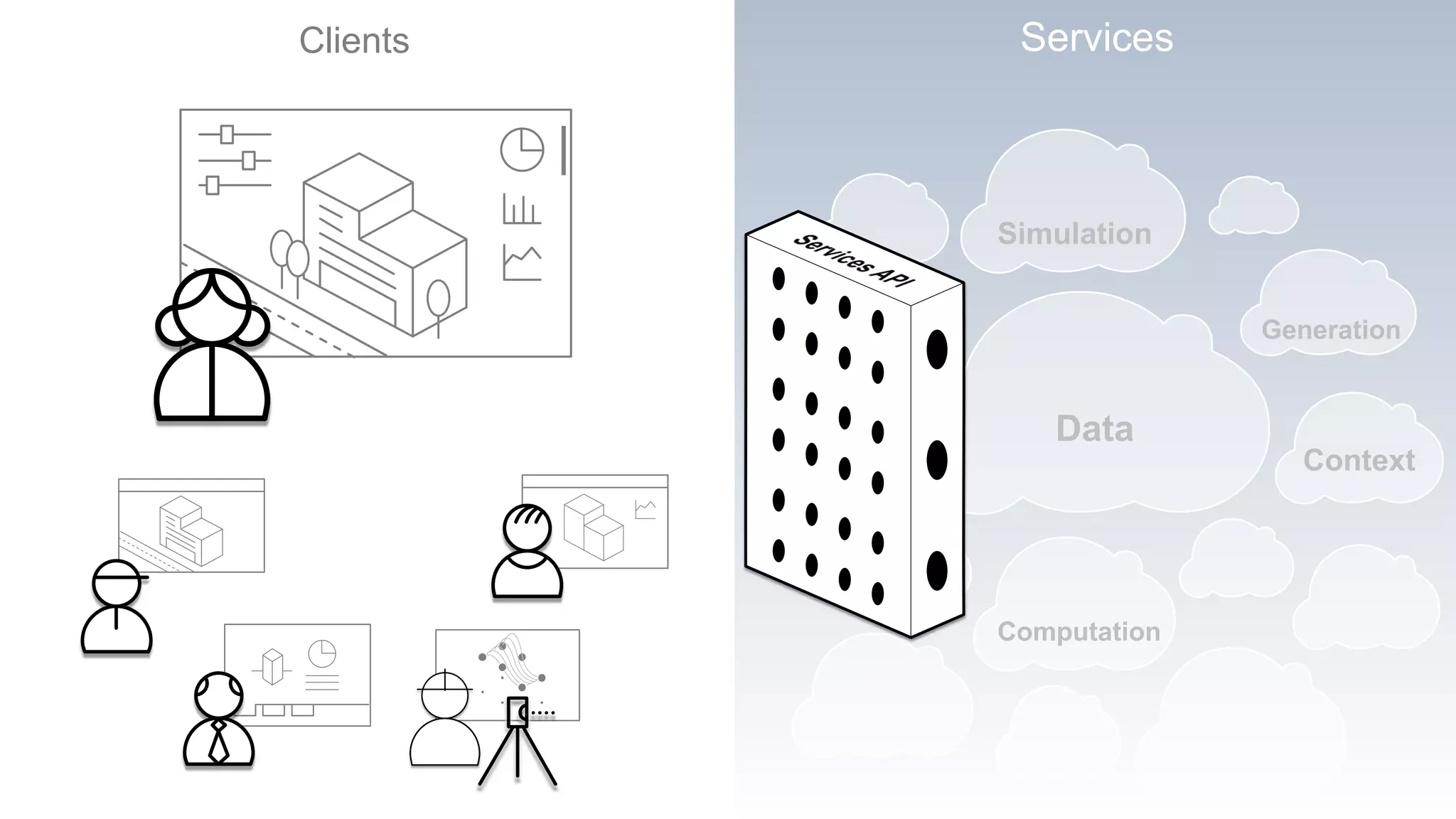

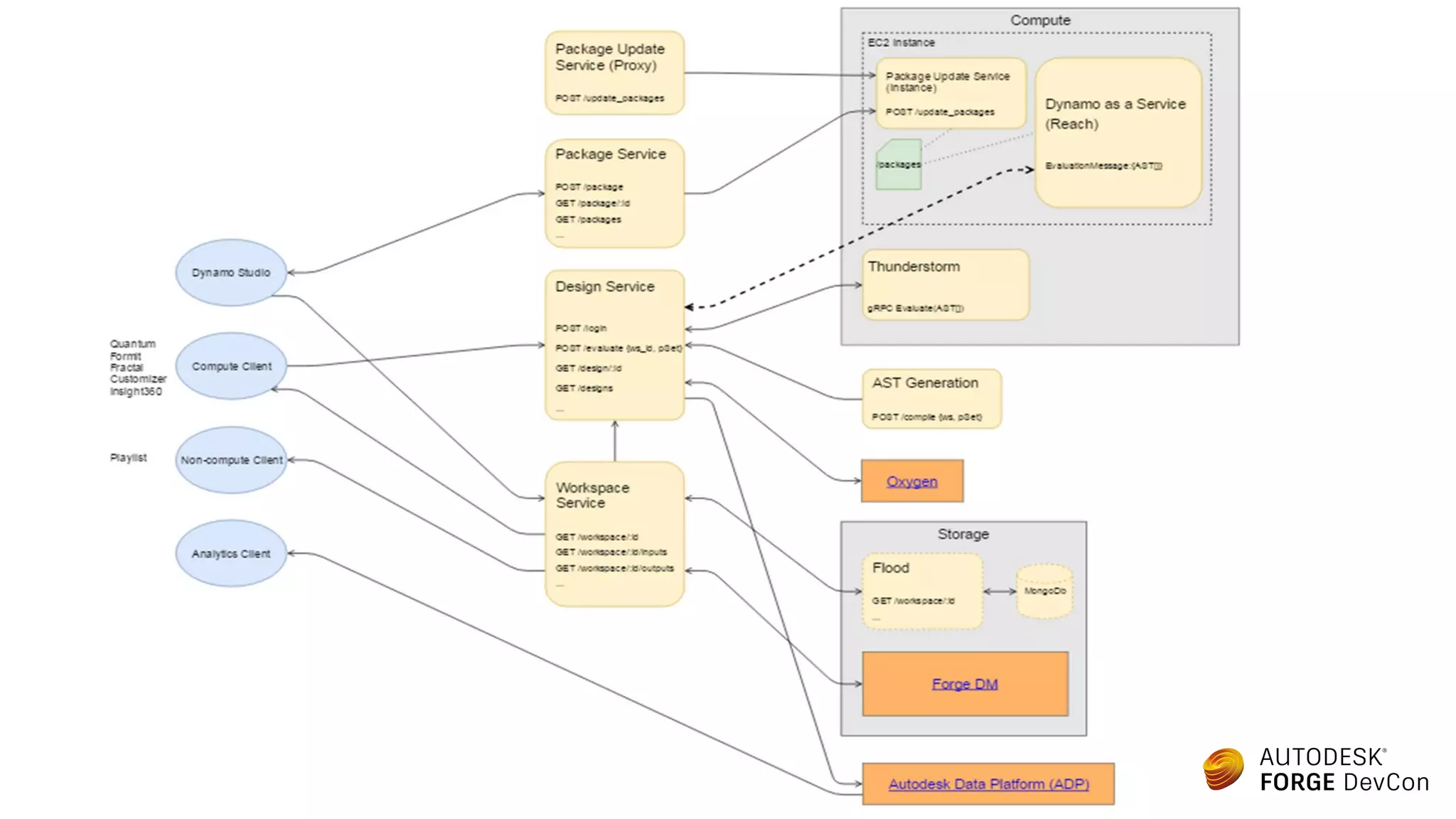

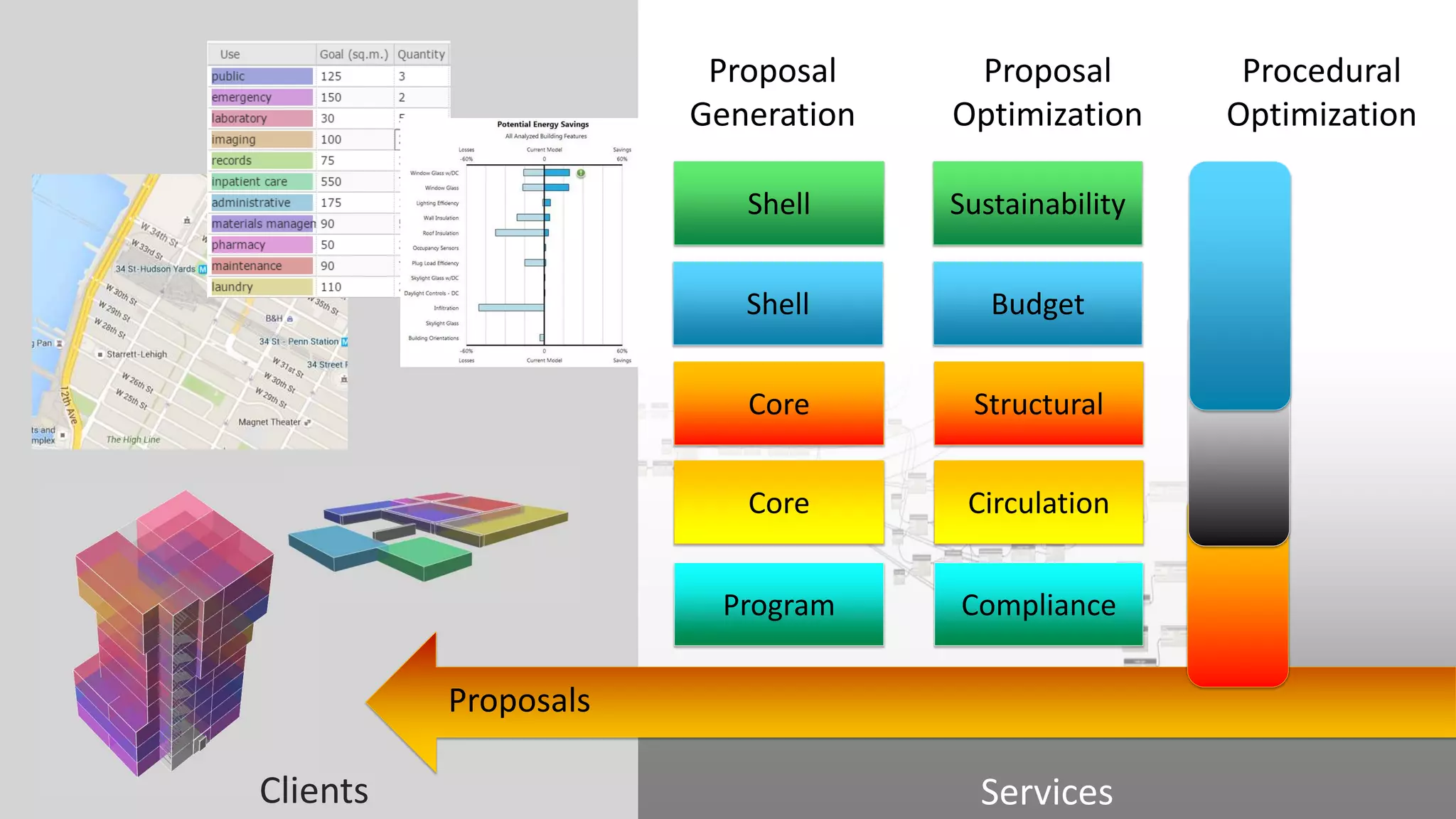

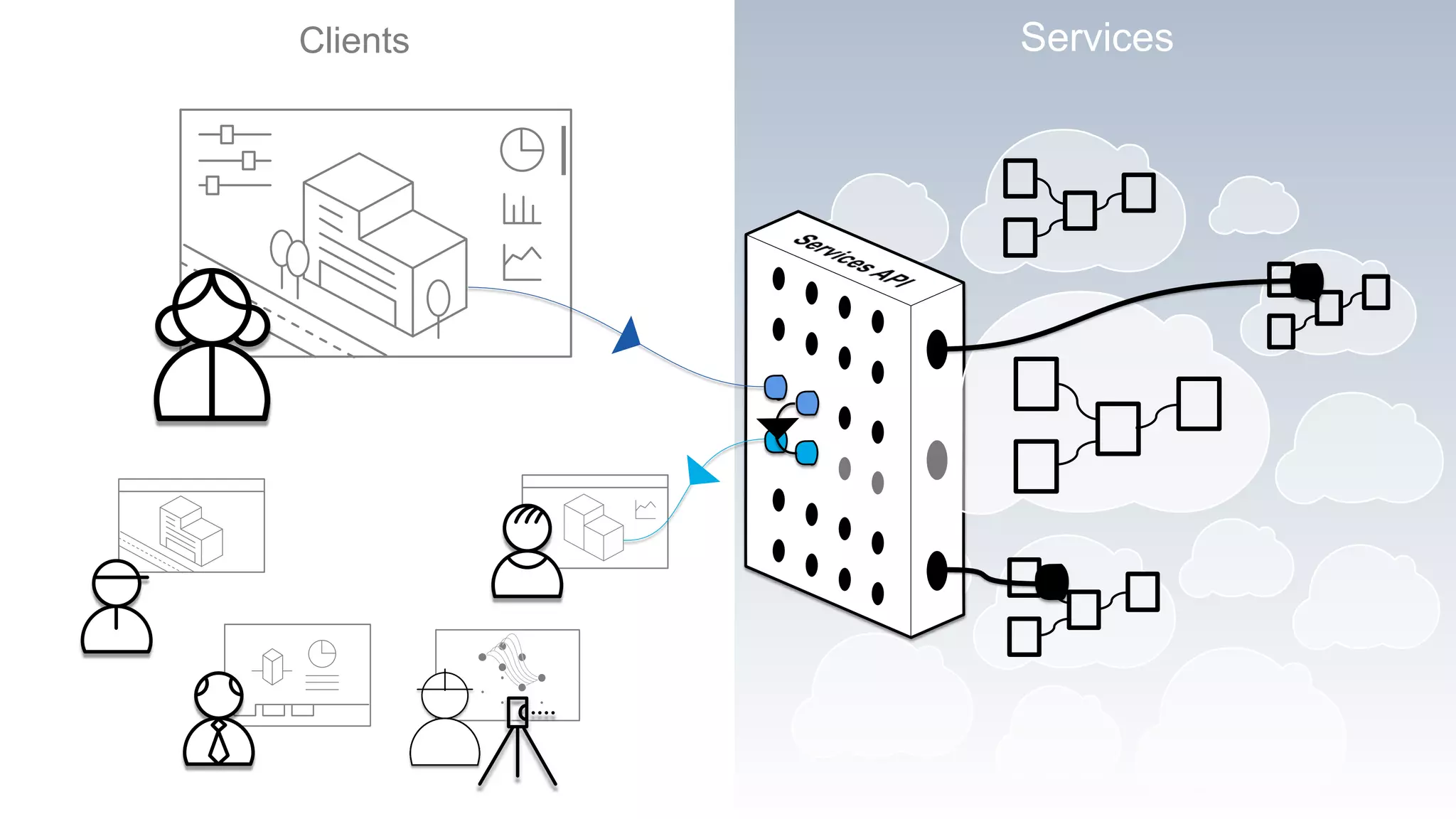

- #41 Project Fractal has begun to construct a client + services architecture that we’ll use to access contextual information and record goals, provide multiple generation services competing in the Saturn optimization environment for consideration by a design team. We’ll record the logic of proposal generation in Dynamo scripts for use and extension by customers and partners. Ultimately, we can broker a marketplace for the exchange of expertise as expressed in visual programming and contextual data.

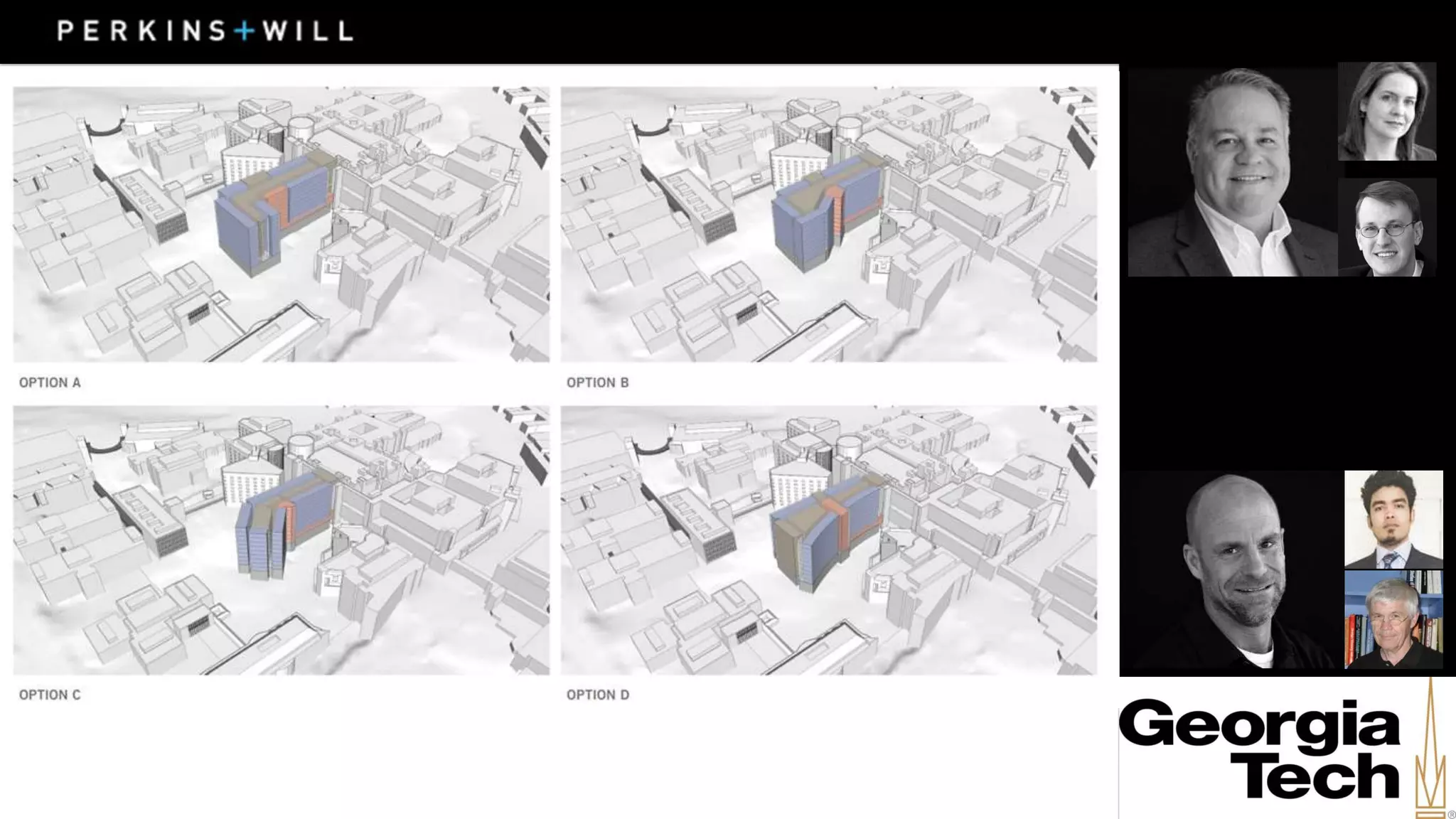

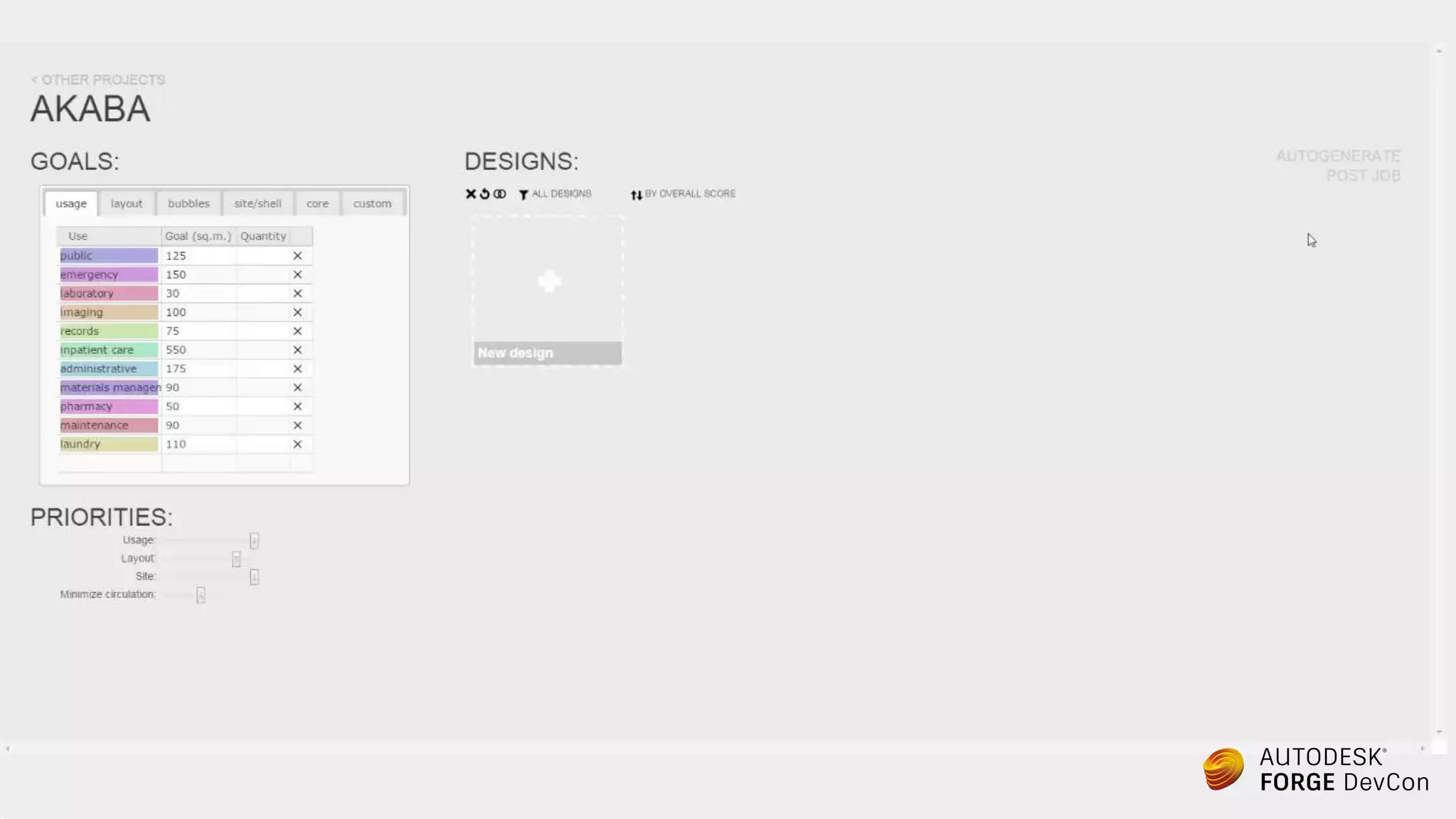

- #42 Additionally, the Project Fractal team has been working with Perkins + Will and Georgia Tech on a hospital planning research project using a real commission to explore new planning possibilities. The Perkins + Will team consists of Tyson Curcio, COO, John Haymaker, Director or Research, Richard Herring, Director of Hospital Planning, and Diana Davis, Senior Hospital Planner. Subhajit Das, our Georgia Tech co-op, is working with the P+W team in Atlanta also in conjunction with Chuck Eastman of Georgia Tech.
- #43 Input data : csv and .sat
- #46 Space Data Structure based on k-D Data Structure, Slice & Dice Technique, which stores each of the entities on separate nodes on the tree Mostly used to search nearest neighbor in large databases, also has application in ray tracing Finds common edges between neighbor depts. They are potential circulation routes Same for programs Redundancy check on circulations with the aid of cell grid to optimize routes

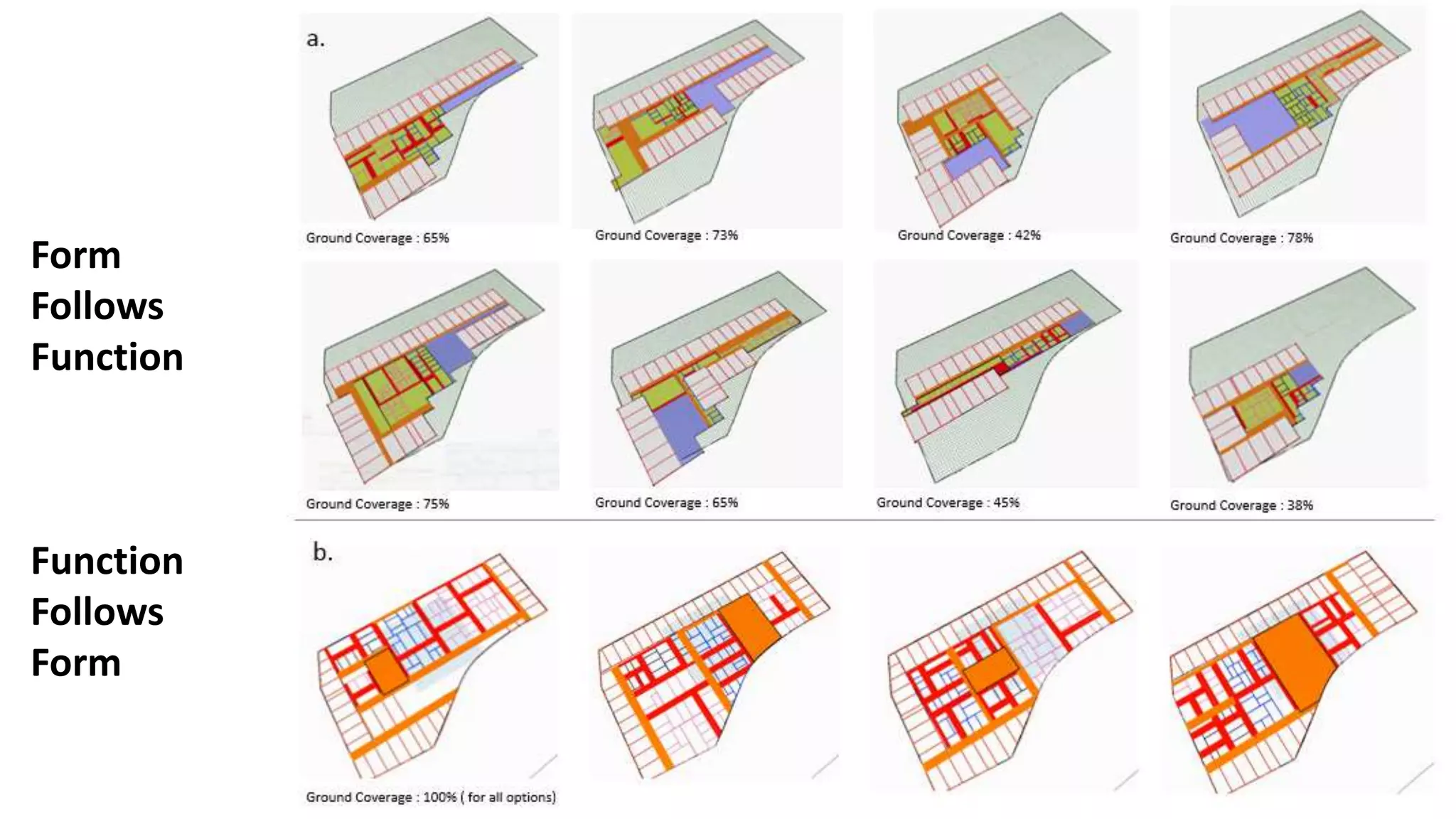

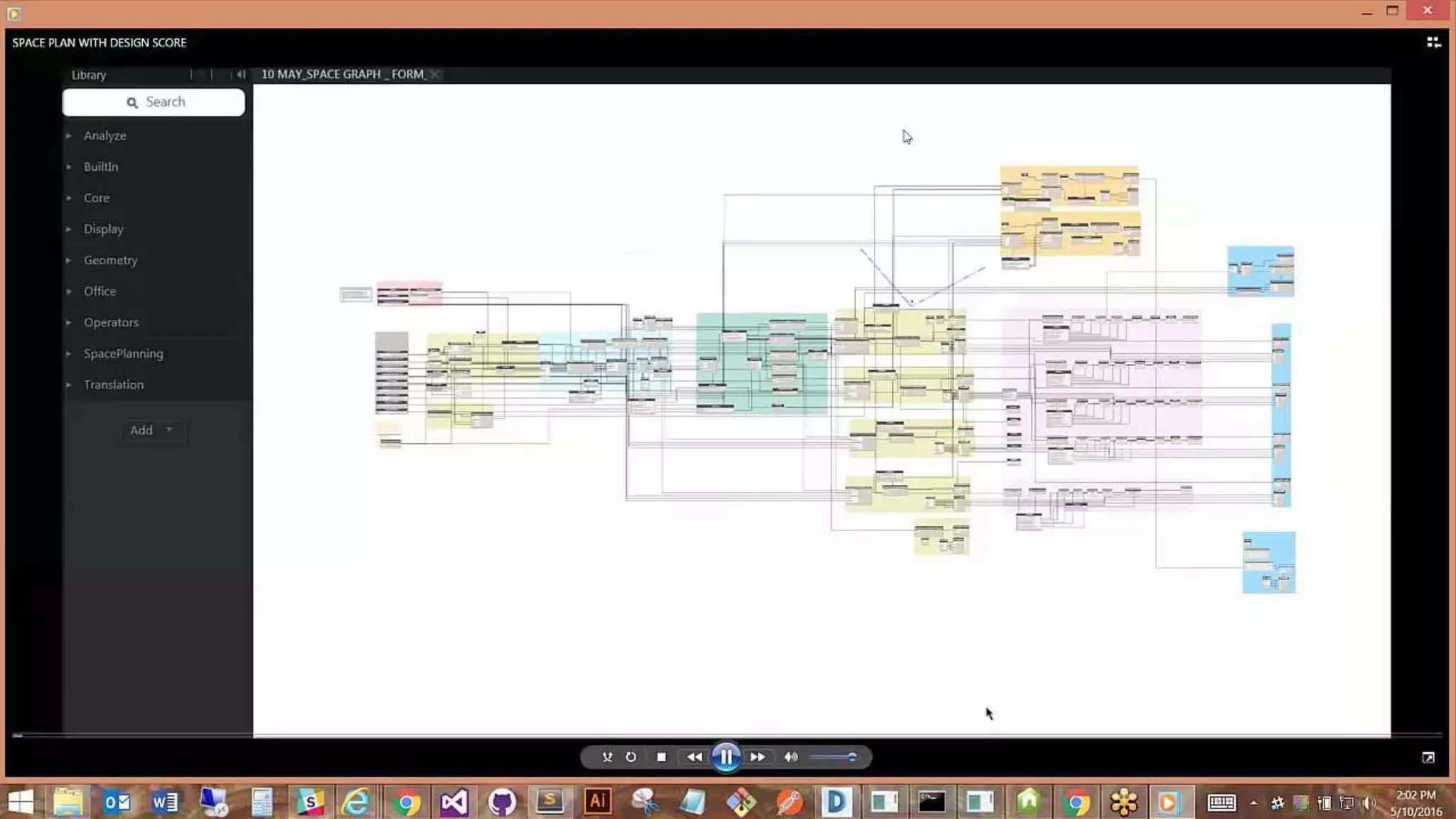

- #47 Supplying the first graph to Project Fractal, we can see generated options on the left, coupled with the capability to edit individual options using Dynamo graph inputs exposed as sliders. The Customizer interface in FormIt Prop provides a similar capability to edit geometry using sliders to trigger changes in a Dynamo graph evaluated the cloud.

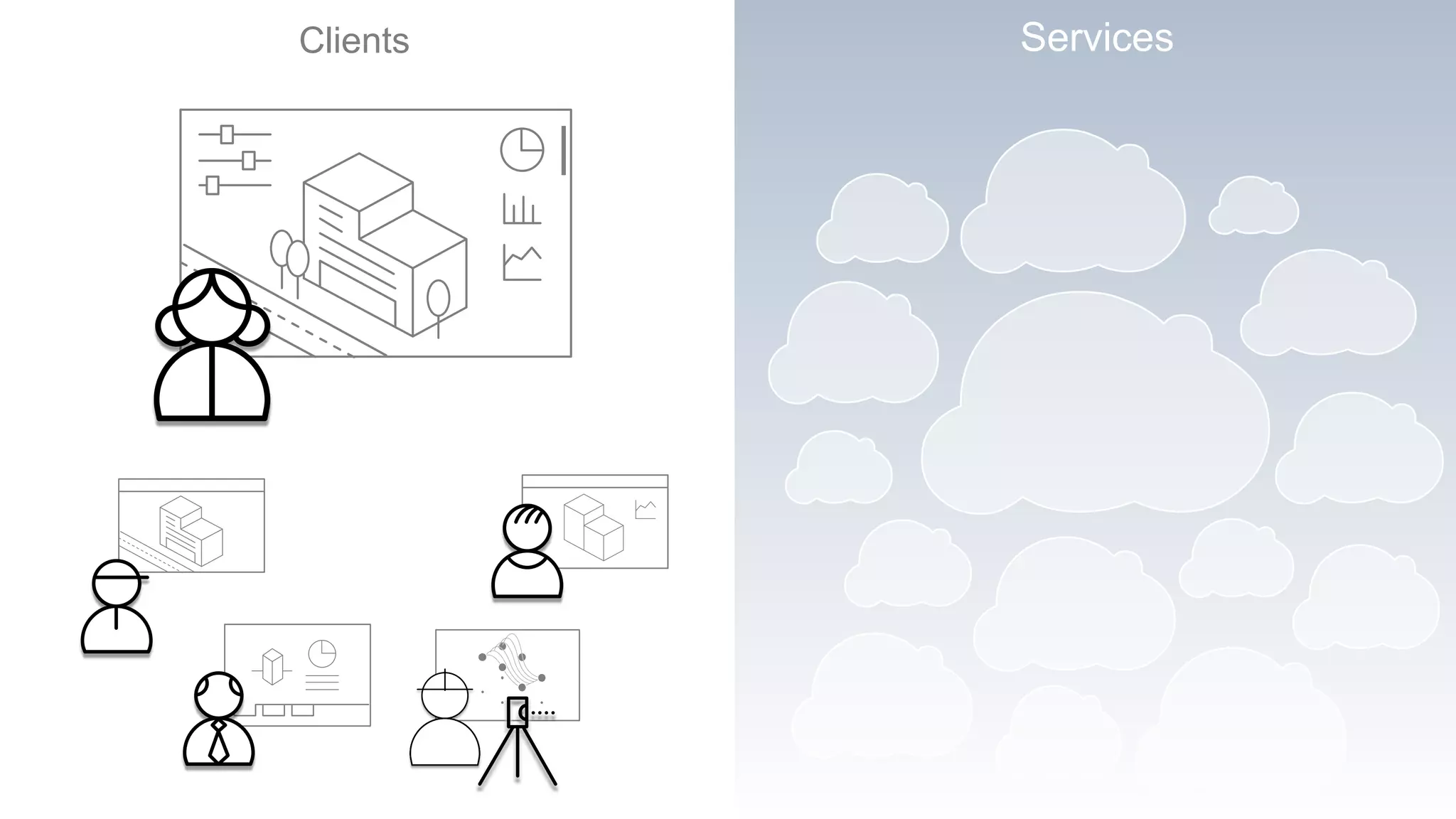

- #49 The team has begun to engage with design firms both to gather design expertise and test Fractal’s interaction models.
- #53 …
- #54 The team has begun to engage with design firms both to gather design expertise and test Fractal’s interaction models.
- #55 A bunch of options generated based on the primary inputs Select option(s), an Insight run is kicked off

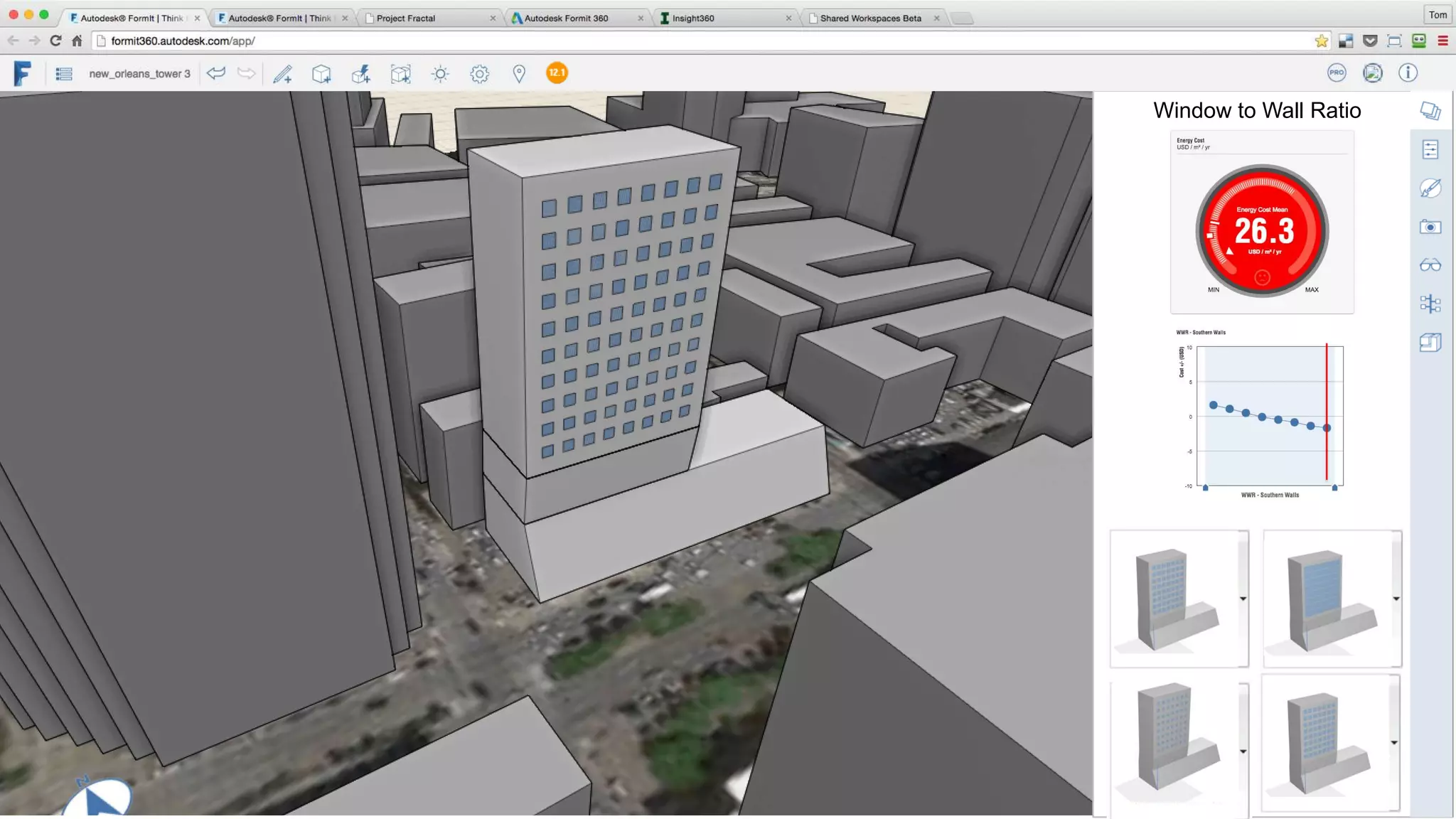

- #56 Glazing options reflect range of WWRs in Insight widget.
- #57 Modelled WWR reflected in Insight widget.

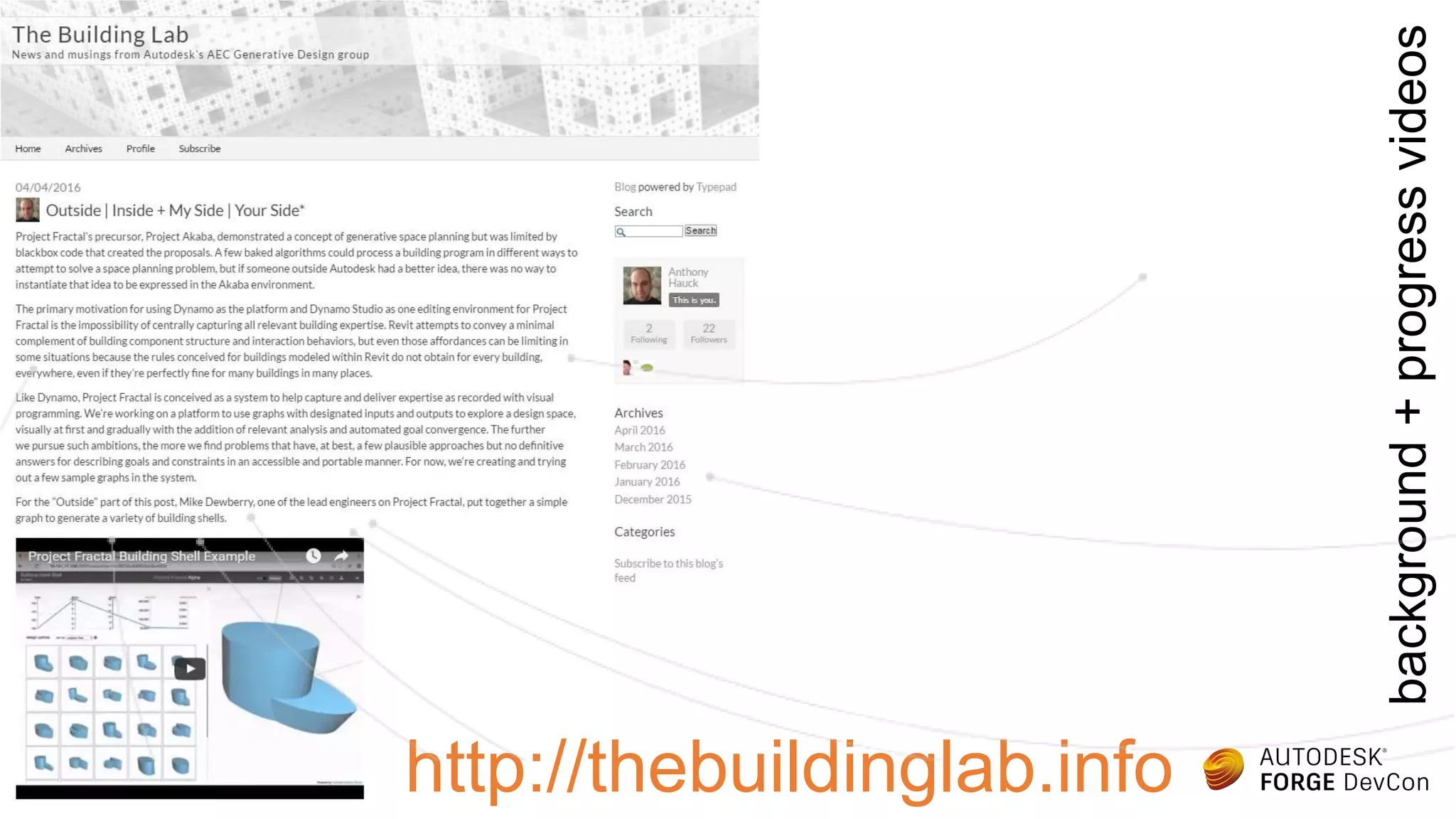

- #59 If you’d like to learn more, please visit the The Building Lab blog, where we’re posting regularly about the project.
- #60 If you’d like to learn more, please visit the The Building Lab blog, where we’re posting regularly about the project.
- #62 The team has begun to engage with design firms both to gather design expertise and test Fractal’s interaction models.
- #64 If you’d like to learn more, please visit the The Building Lab blog, where we’re posting regularly about the project.
- #65 The team has begun to engage with design firms both to gather design expertise and test Fractal’s interaction models.
