Building a framework with shared code on Android and iOS using React Native allows integrating React Native into both a native mobile app and a shared library. The shared library can contain React Native code and be published as an npm module. To integrate it, the library initializes its own ReactNative instance with a separate root view. This allows running two independent ReactNative instances in the same app. There are advantages like code reuse and fewer bugs, but also challenges due to React Native's immaturity and differences from native development.

1. with shared code
React Native
using
on and
Building
(Building framework with shared code on Android and iOS using React Native)
Oleksandr Yefremov
Mobile Architect at ProSiebenSat1.Digital GmbH, Munich, Germany

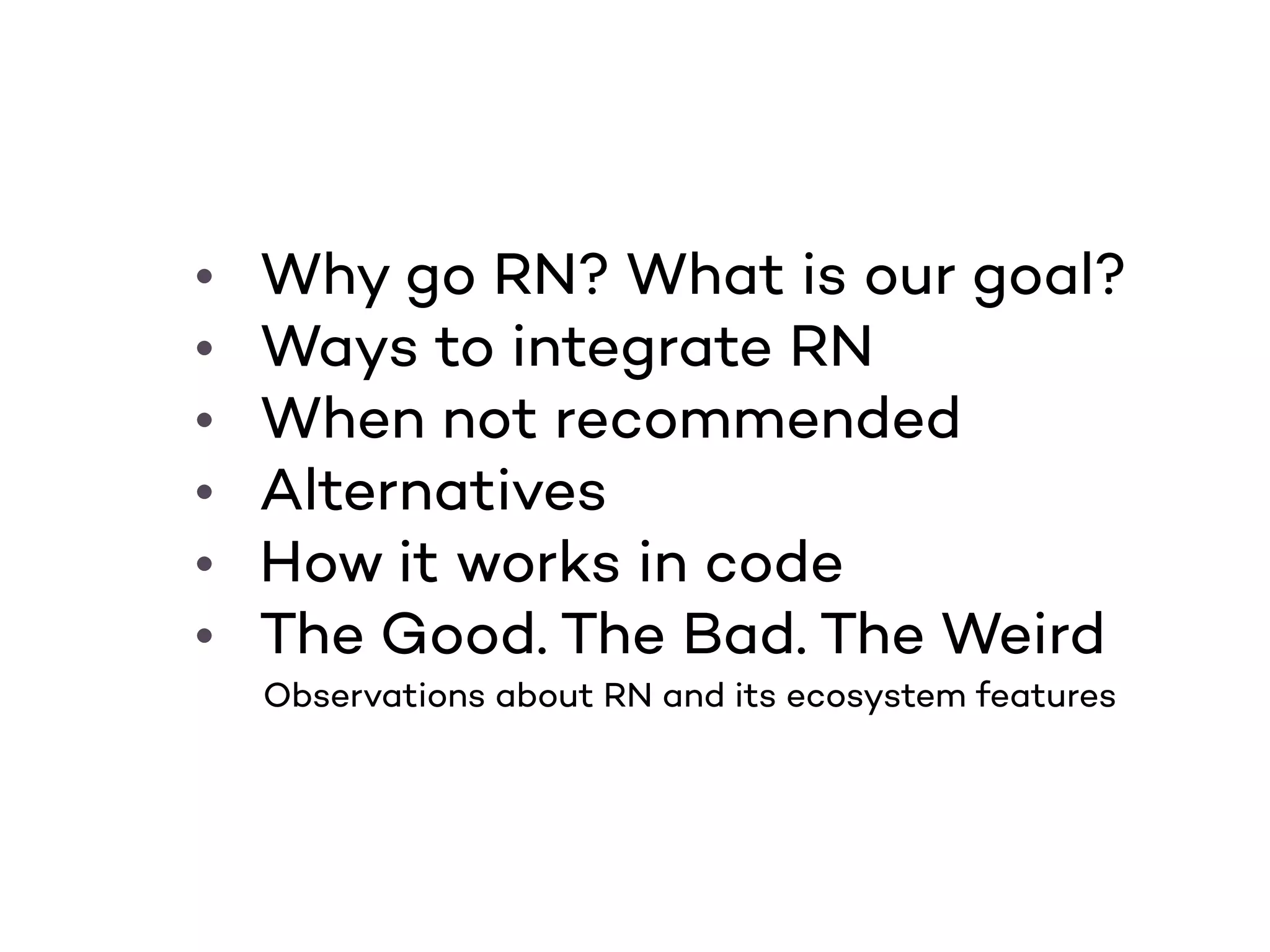

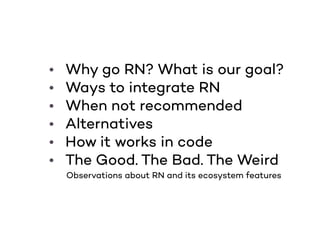

2. • Why go RN? What is our goal?
• Ways to integrate RN
• When not recommended
• Alternatives
• How it works in code

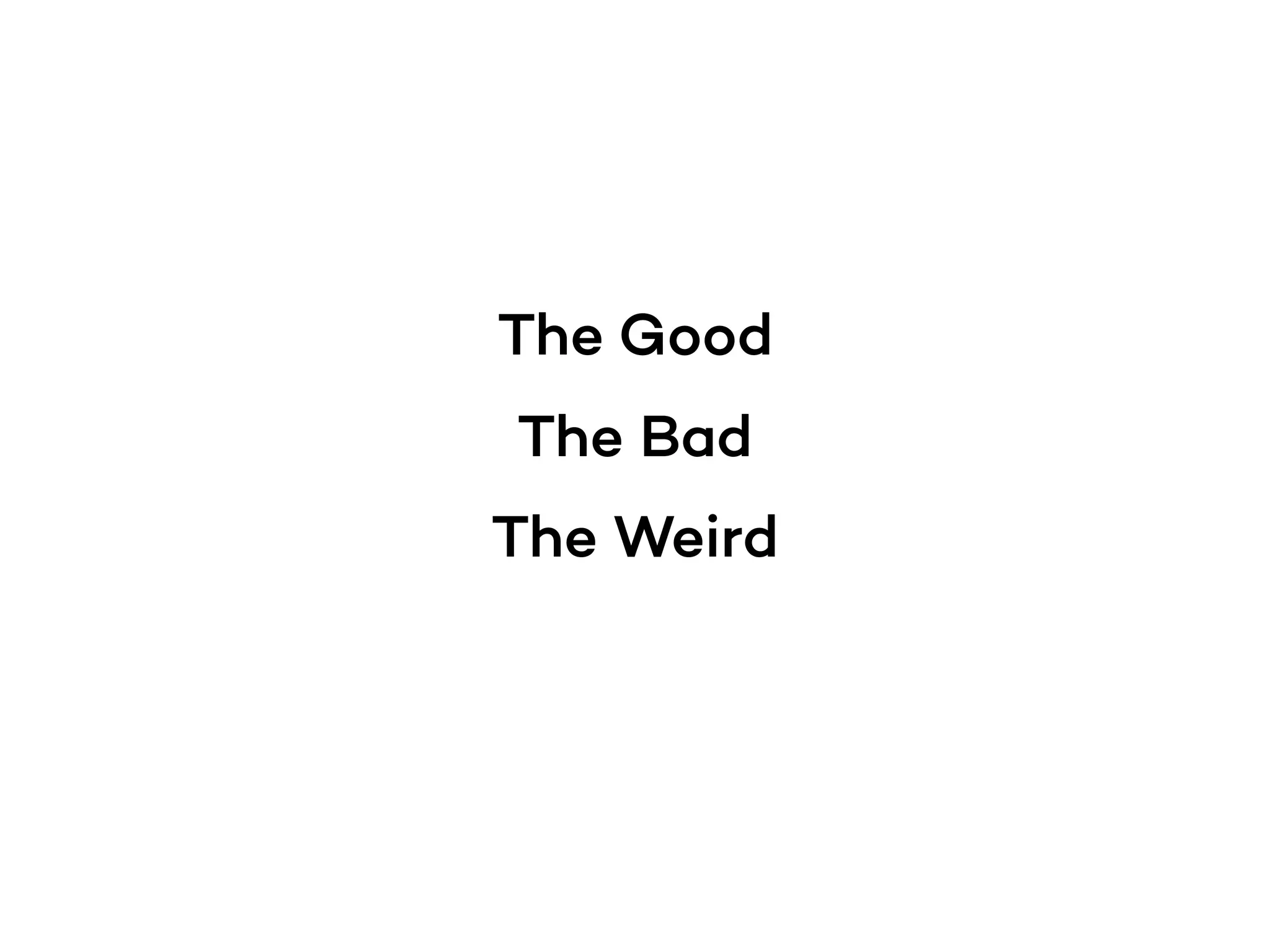

• The Good. The Bad. The Weird
Observations about RN and its ecosystem features

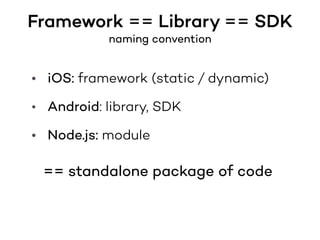

3. Framework == Library == SDK
naming convention
• iOS: framework (static / dynamic)
• Android: library, SDK
• Node.js: module
== standalone package of code

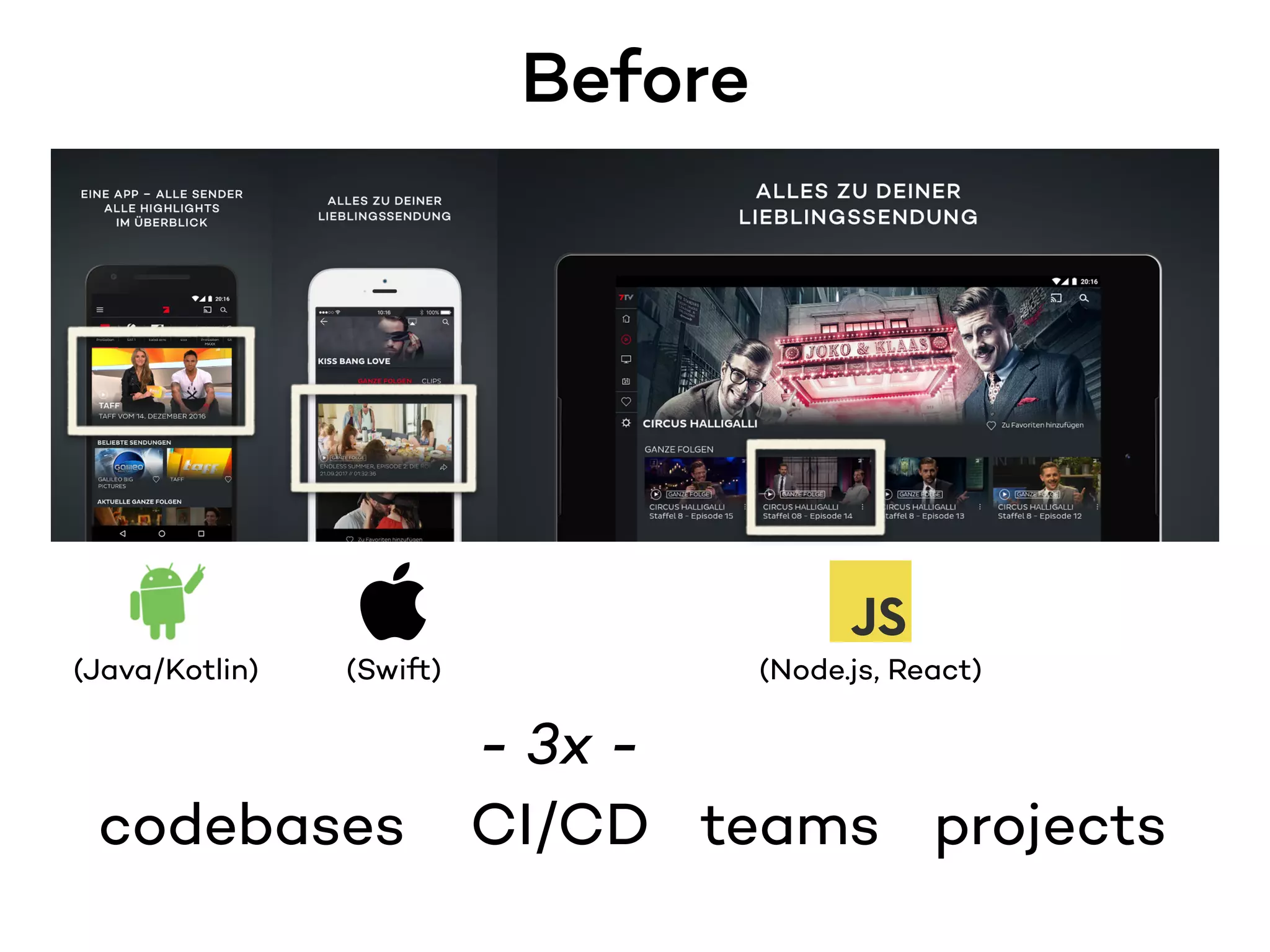

4. Before
(Java/Kotlin) (Swift) (Node.js, React)
codebases
- 3x -
CI/CD teams projects

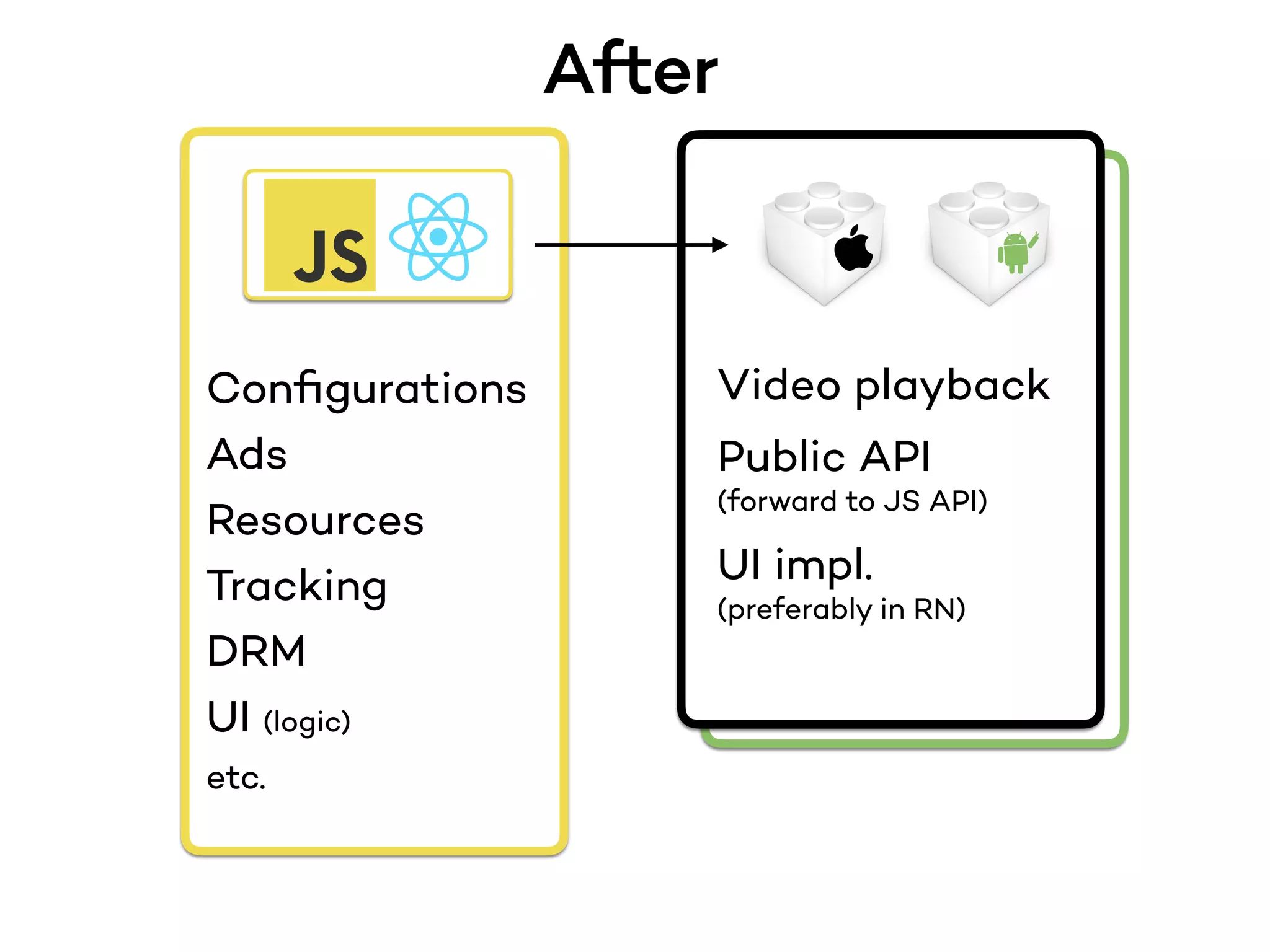

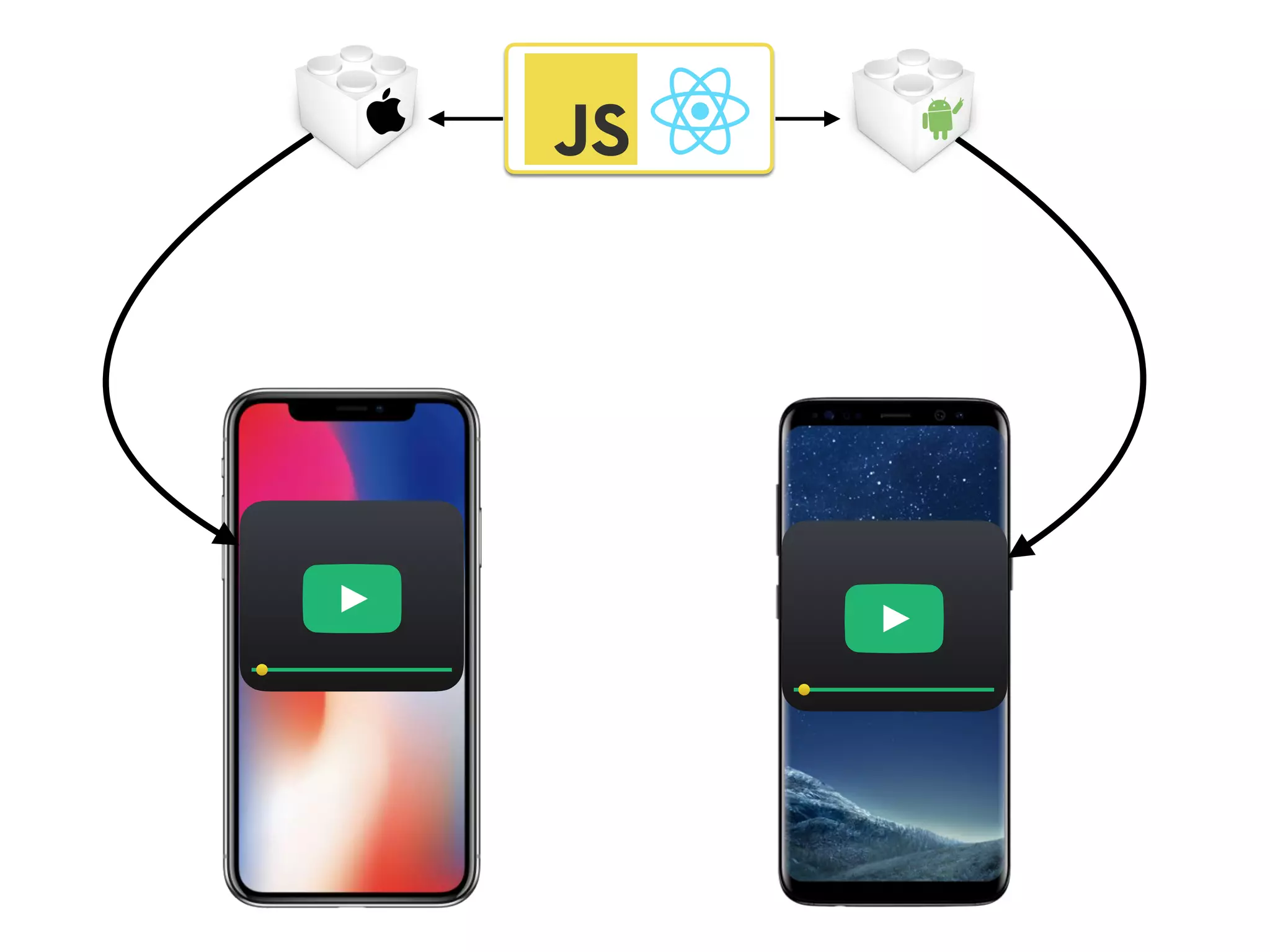

5. After
Configurations
Ads
Resources
Tracking
DRM
UI (logic)
etc.
Video playback
Public API
(forward to JS API)
UI impl.
(preferably in RN)

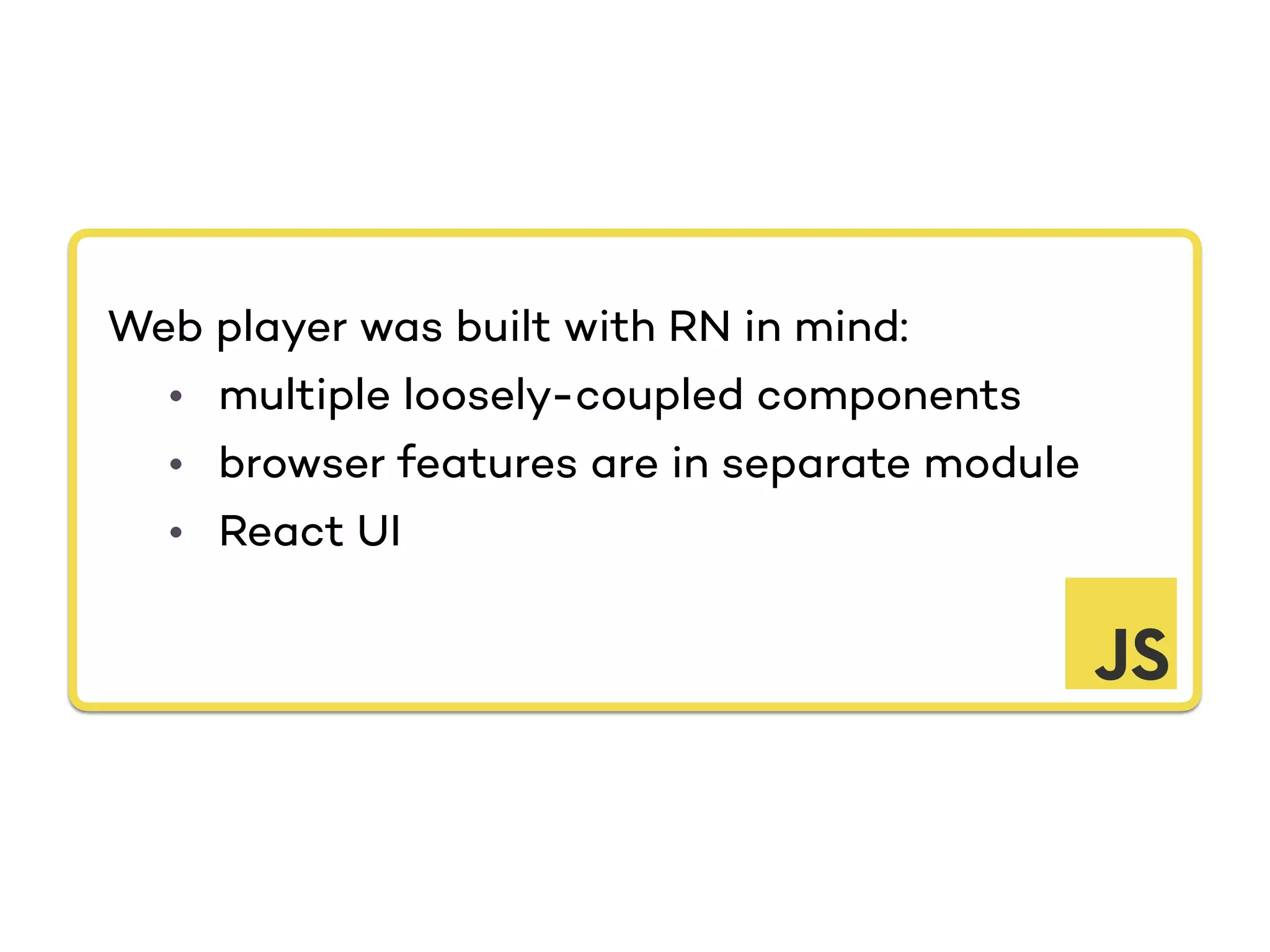

6. Web player was built with RN in mind:
• multiple loosely-coupled components
• browser features are in separate module
• React UI

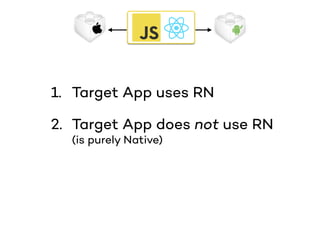

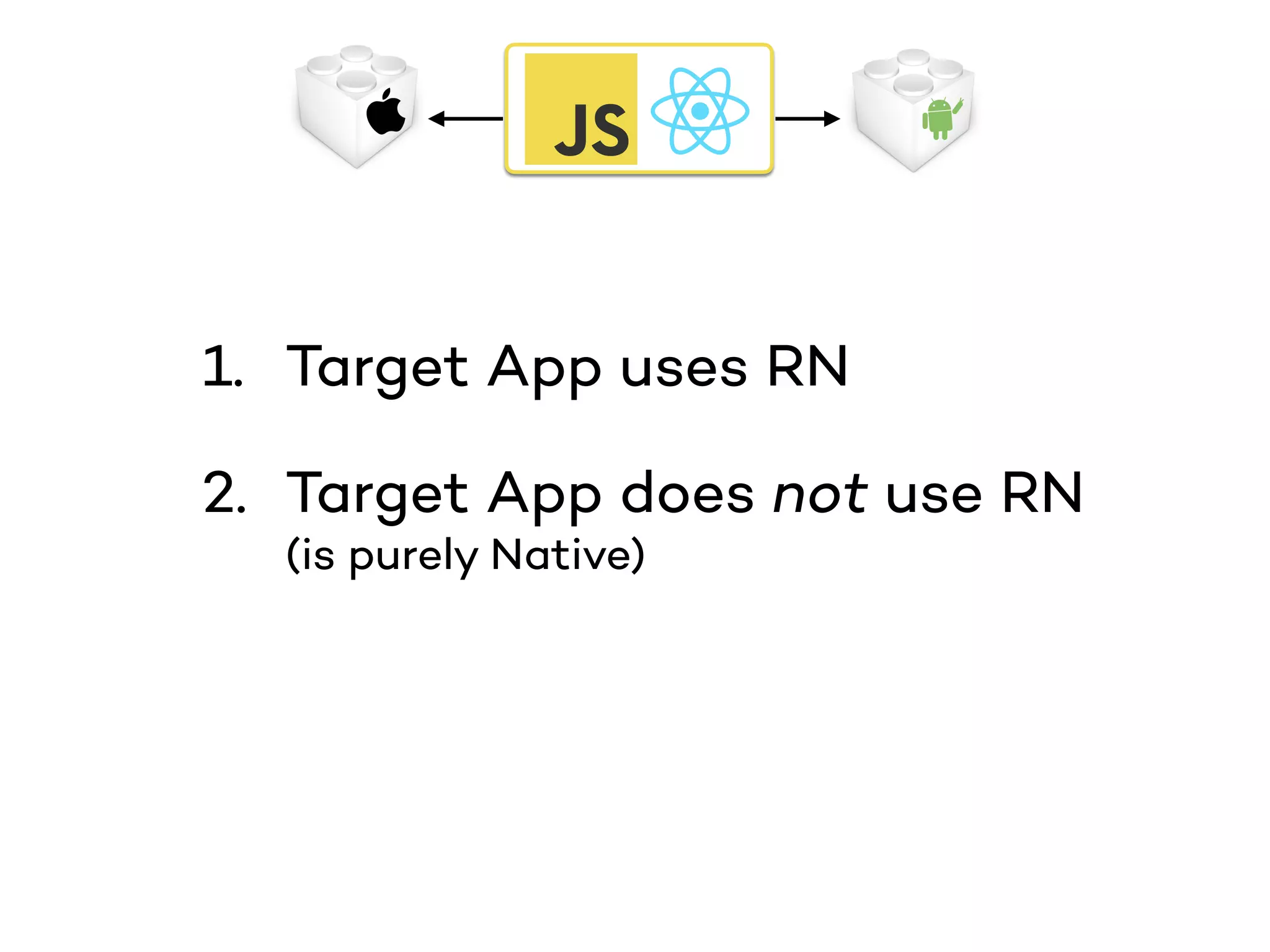

9. 1. Target App uses RN
2. Target App does not use RN
(is purely Native)

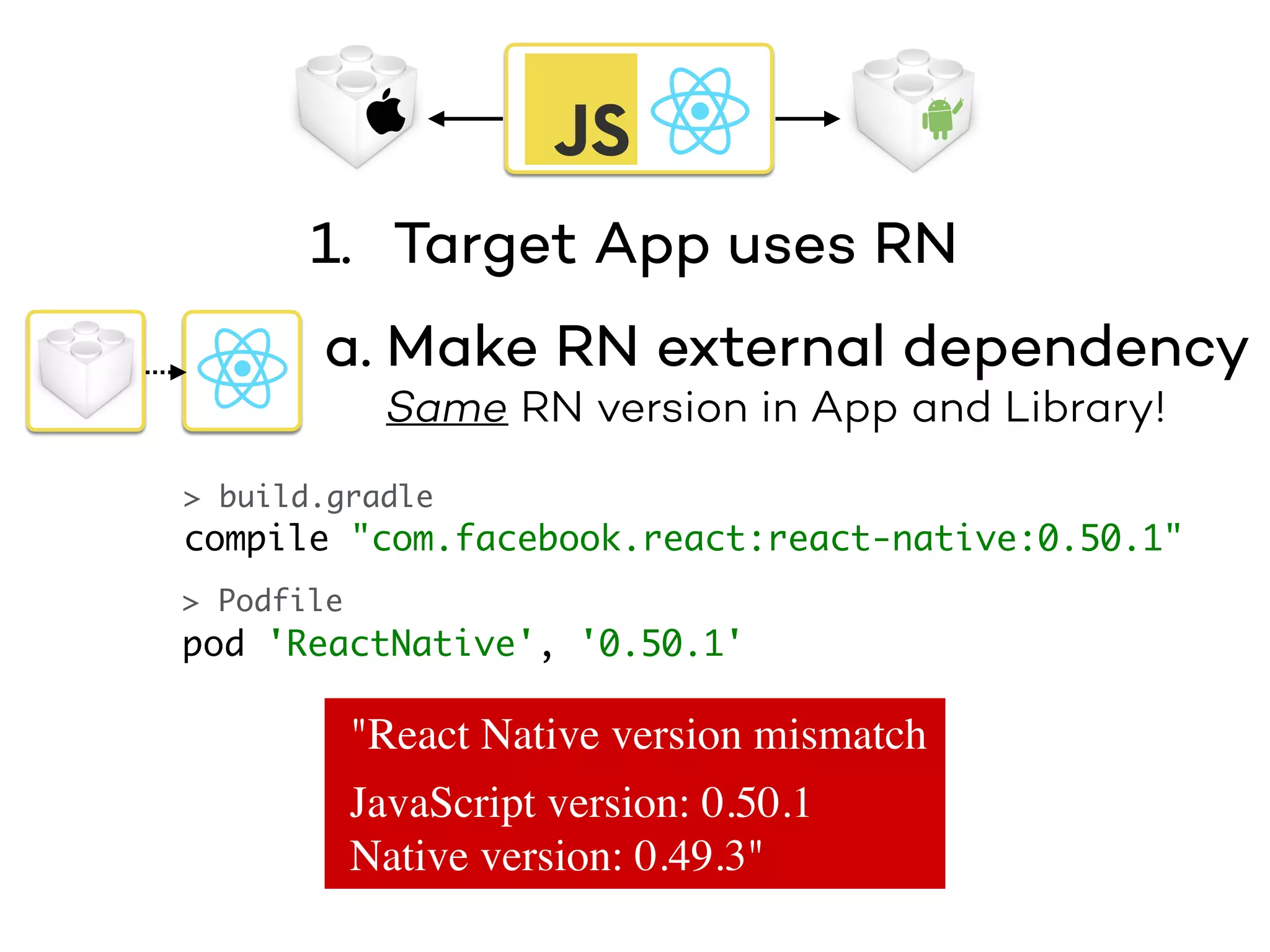

10. a. Make RN external dependency
Same RN version in App and Library!
"React Native version mismatch
JavaScript version: 0.50.1
Native version: 0.49.3"
> build.gradle
compile "com.facebook.react:react-native:0.50.1"
> Podfile
pod 'ReactNative', '0.50.1'

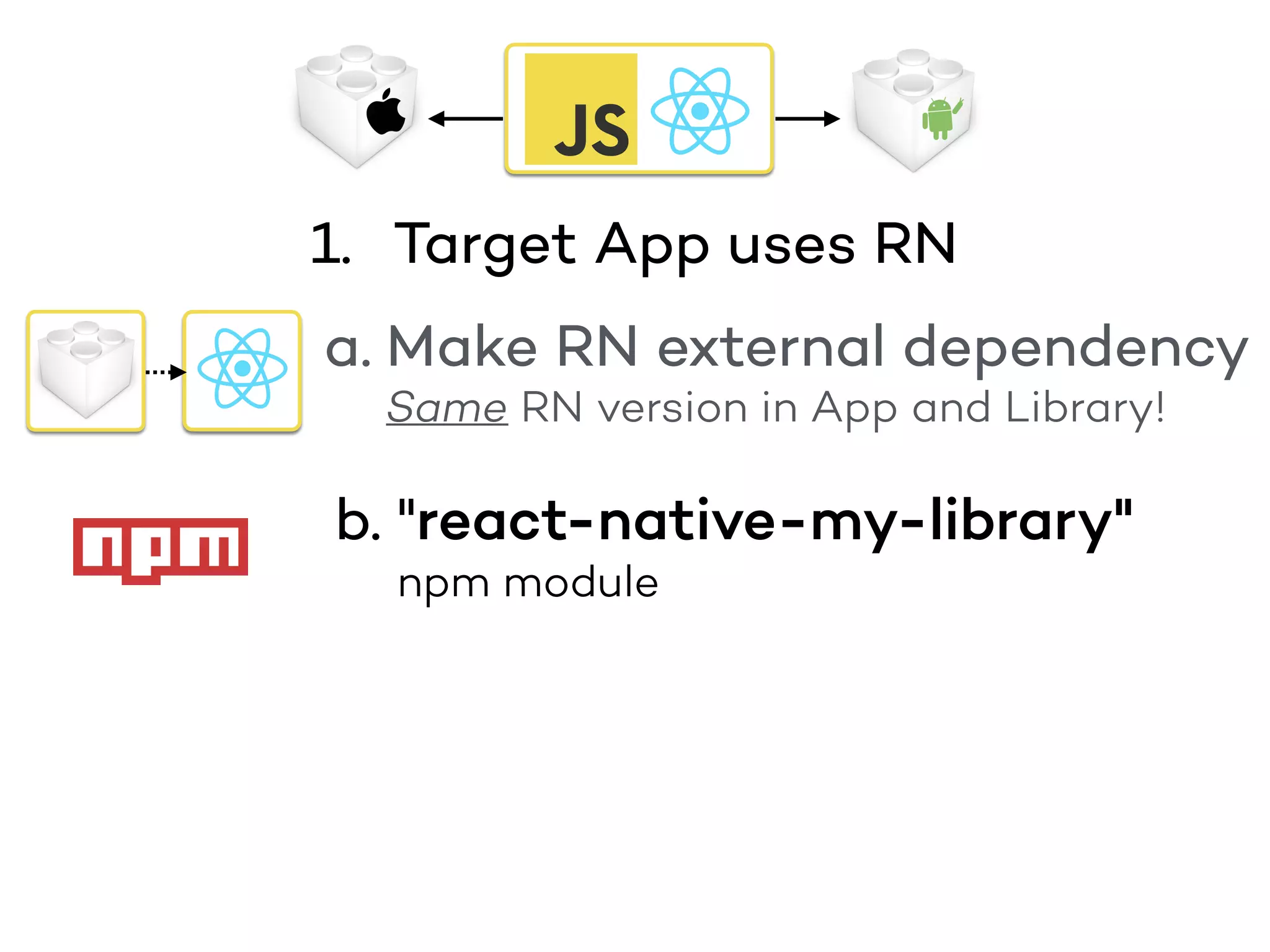

1. Target App uses RN

11. b. "react-native-my-library"
npm module
a. Make RN external dependency
Same RN version in App and Library!
1. Target App uses RN

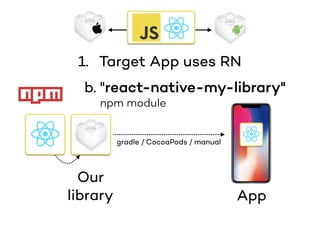

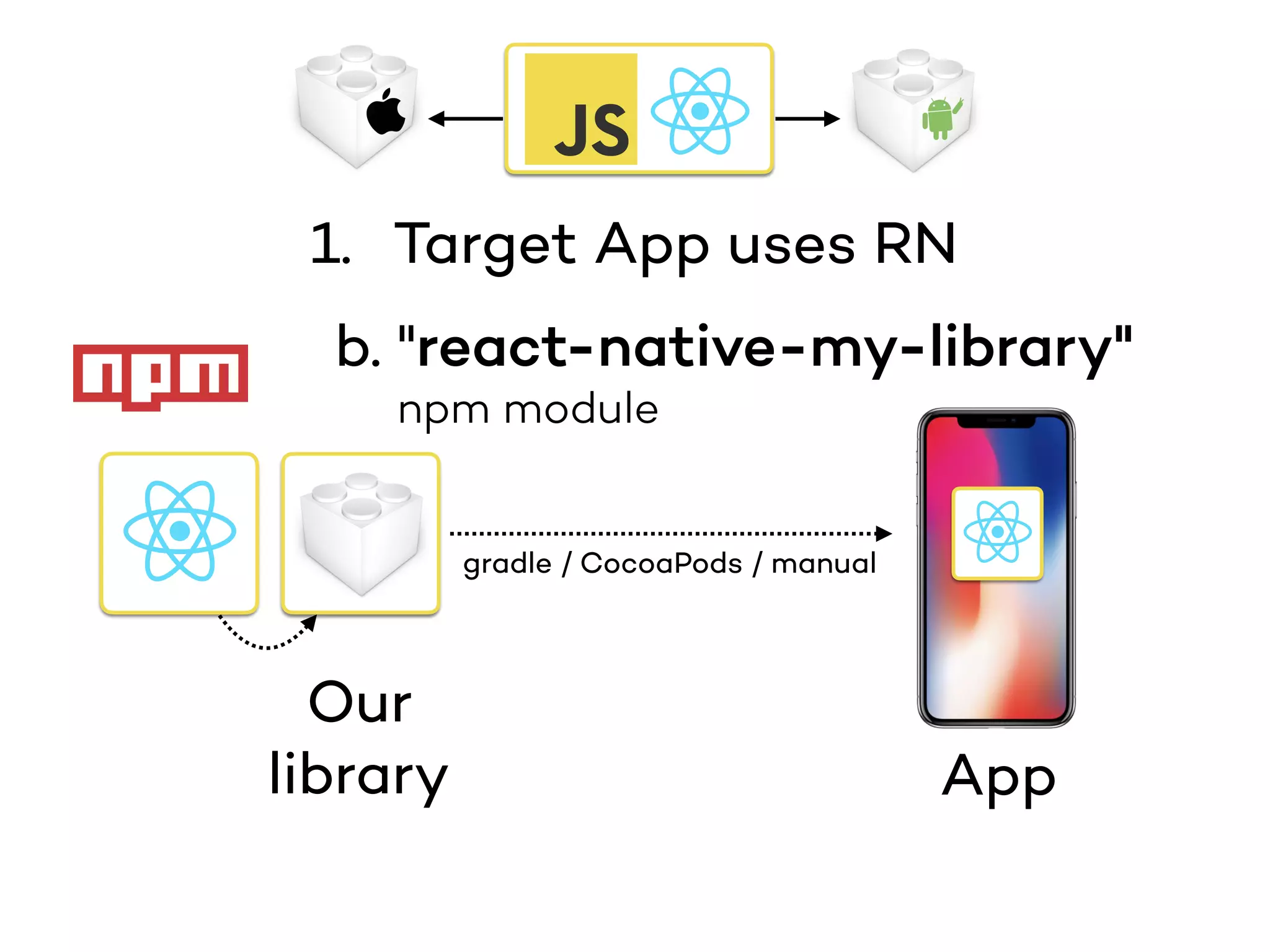

12. b. "react-native-my-library"
npm module
Our
library App
gradle / CocoaPods / manual
1. Target App uses RN

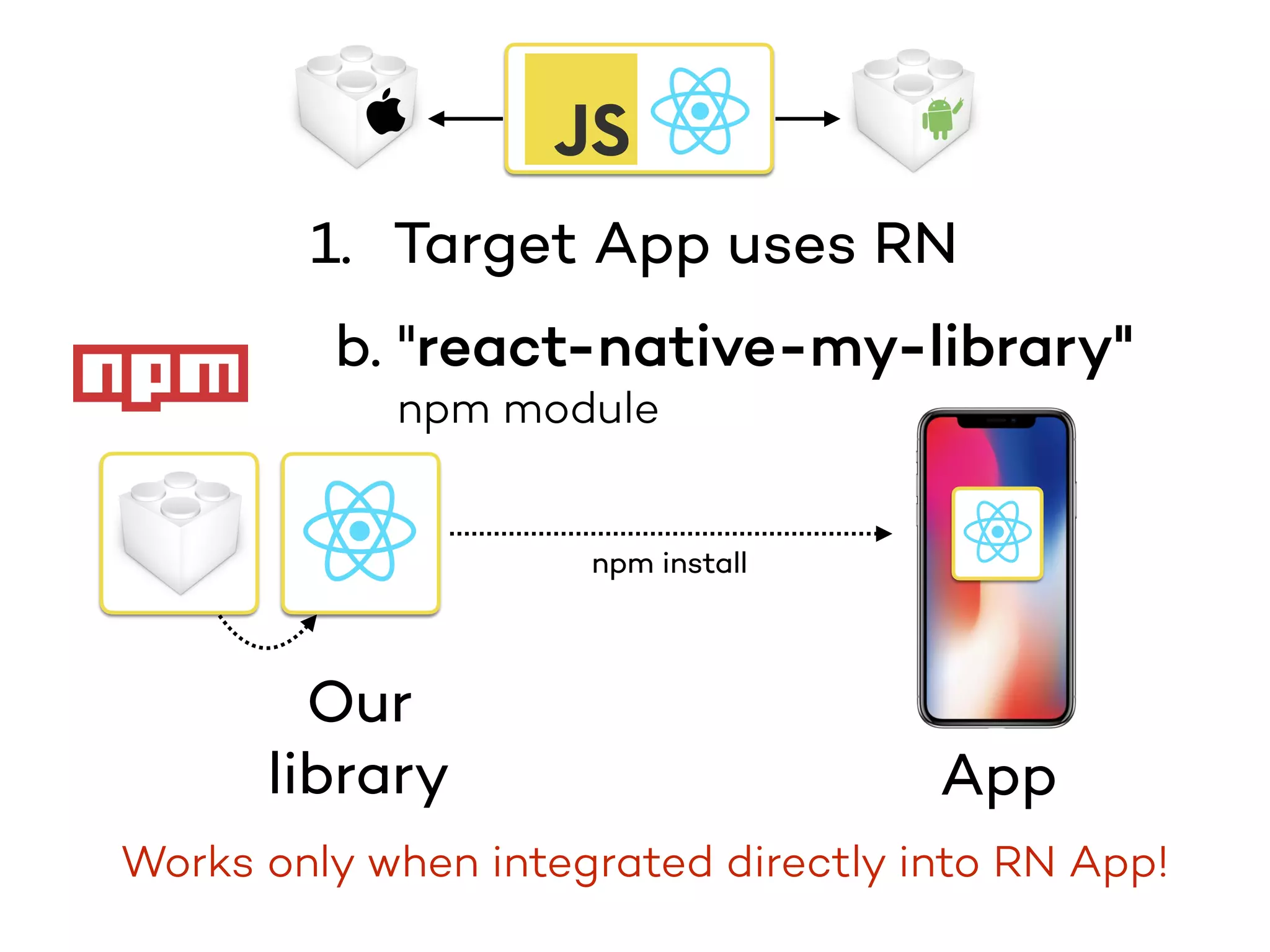

13. Works only when integrated directly into RN App!
Our
library App
npm install
1. Target App uses RN
b. "react-native-my-library"
npm module

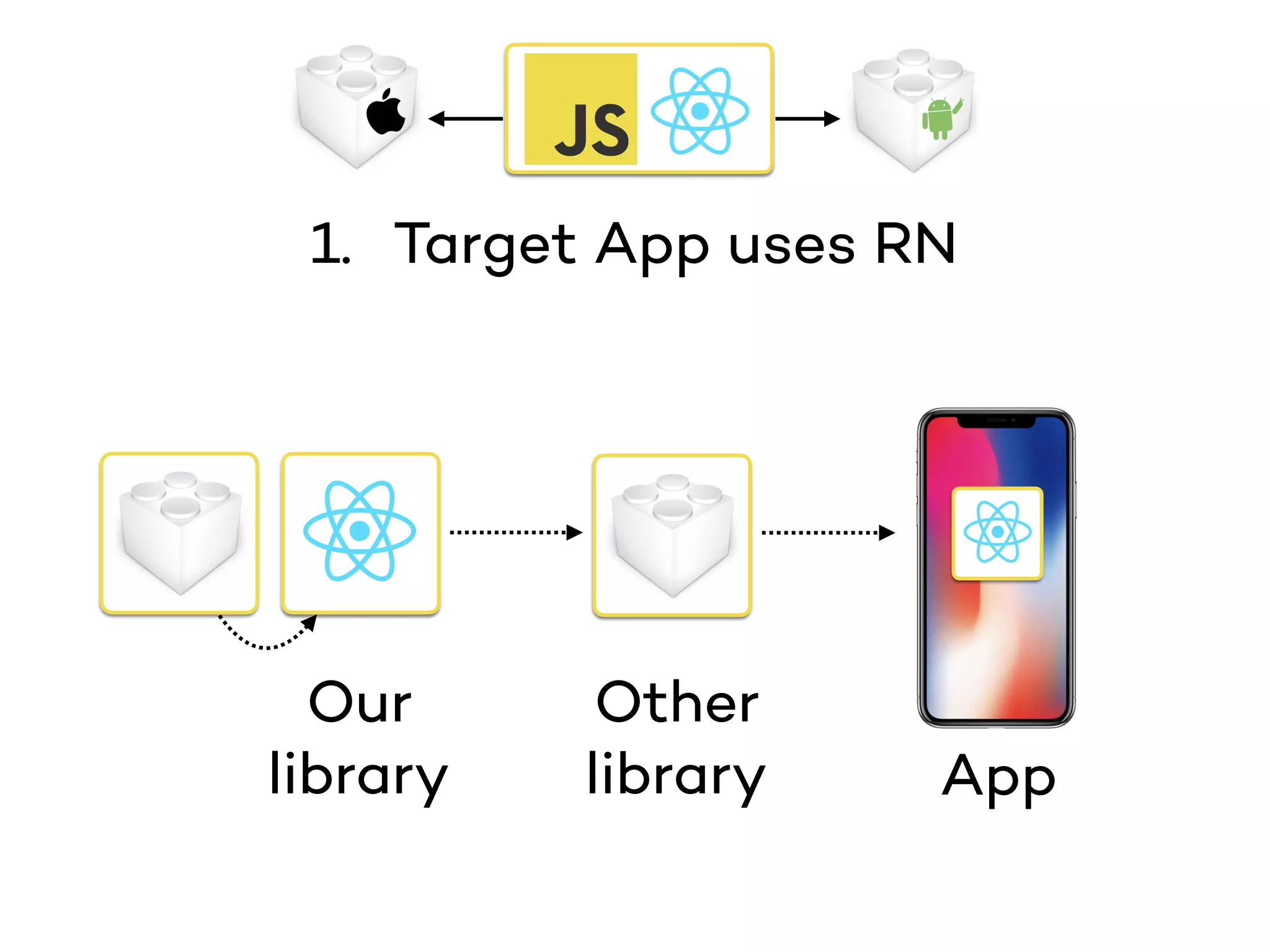

14. Our
library
Other
library App
1. Target App uses RN

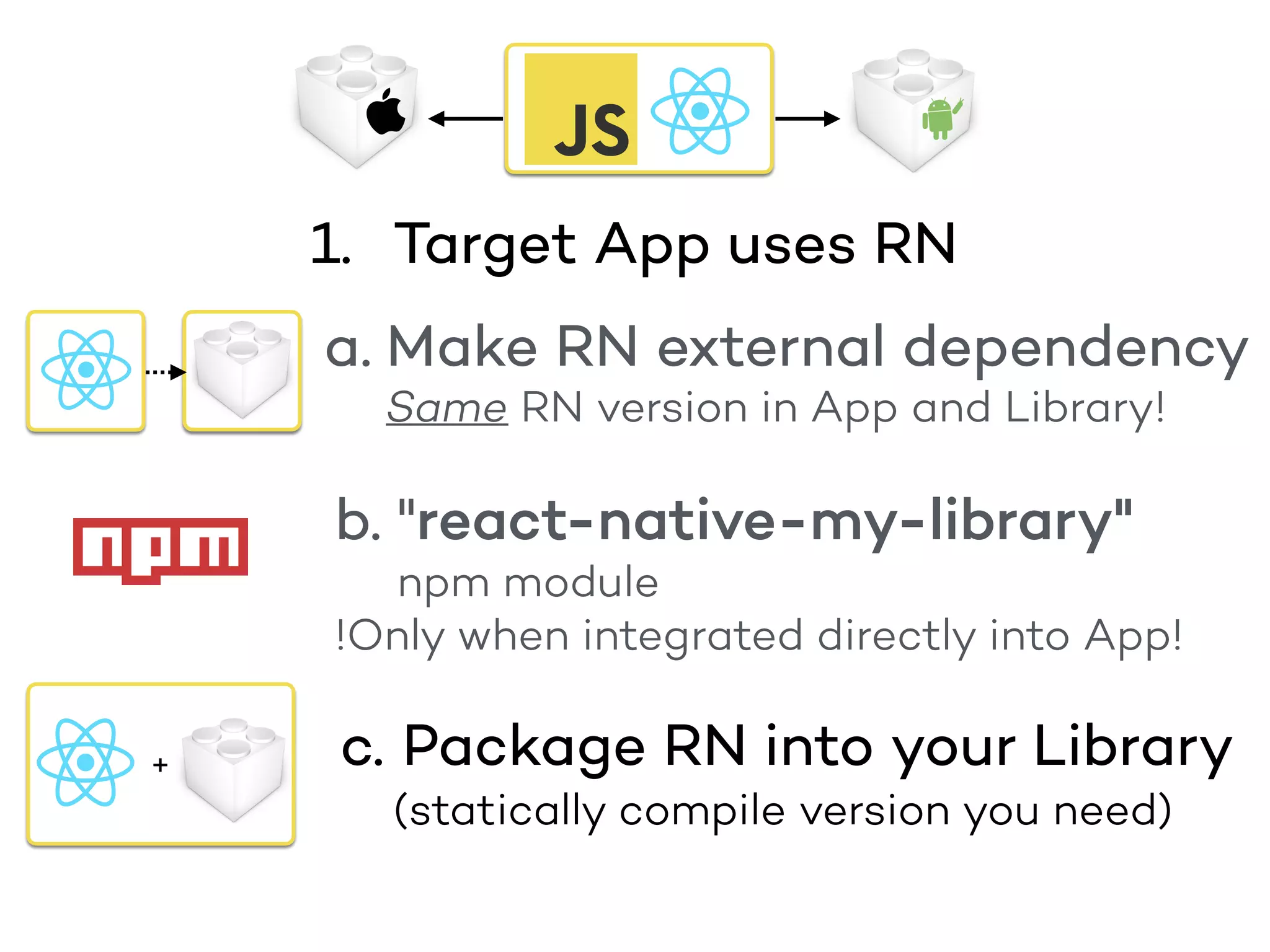

15. c. Package RN into your Library
b. "react-native-my-library"
npm module
!Only when integrated directly into App!
+
a. Make RN external dependency
Same RN version in App and Library!
(statically compile version you need)
1. Target App uses RN

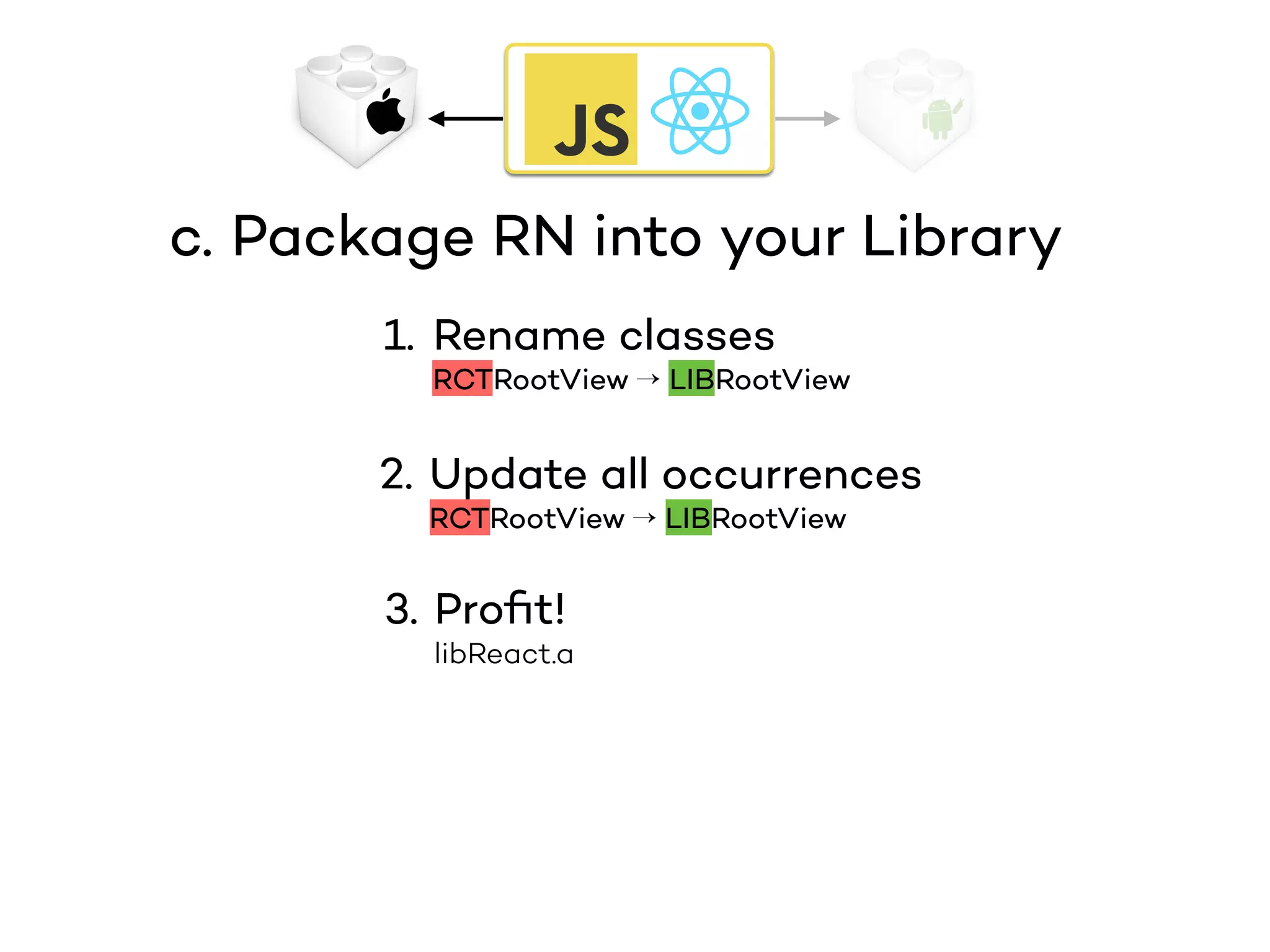

16. 1. Rename classes
RCTRootView → LIBRootView
2. Update all occurrences
RCTRootView → LIBRootView
3. Profit!
libReact.a
c. Package RN into your Library

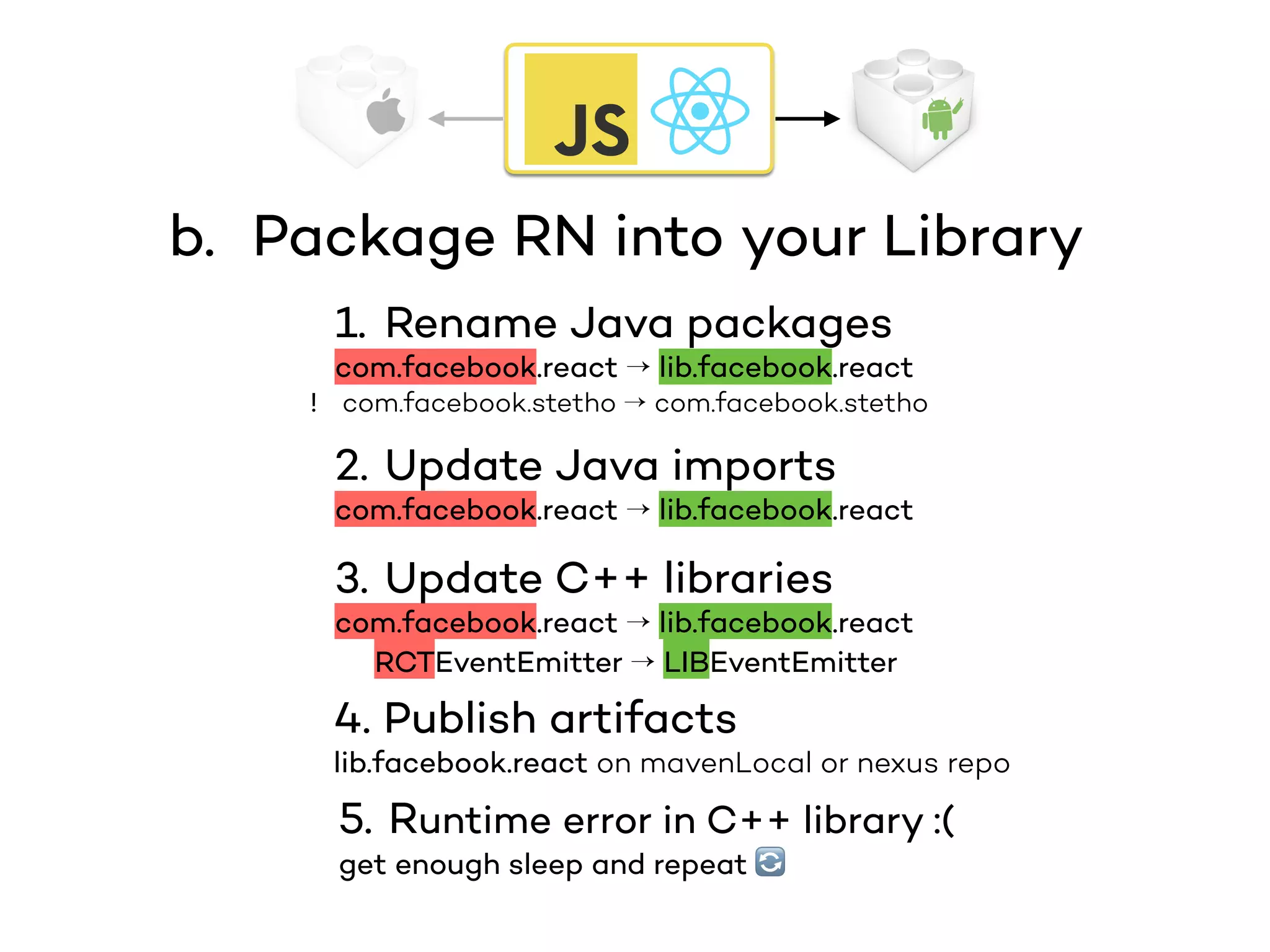

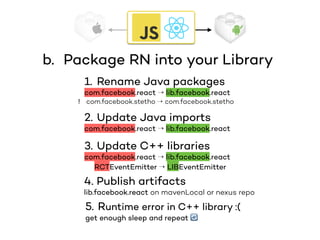

17. b. Package RN into your Library
1. Rename Java packages
com.facebook.react → lib.facebook.react
com.facebook.stetho → com.facebook.stetho
2. Update Java imports
com.facebook.react → lib.facebook.react
3. Update C++ libraries
com.facebook.react → lib.facebook.react
RCTEventEmitter → LIBEventEmitter
4. Publish artifacts
lib.facebook.react on mavenLocal or nexus repo
5. Runtime error in C++ library :(
get enough sleep and repeat 🔄
!

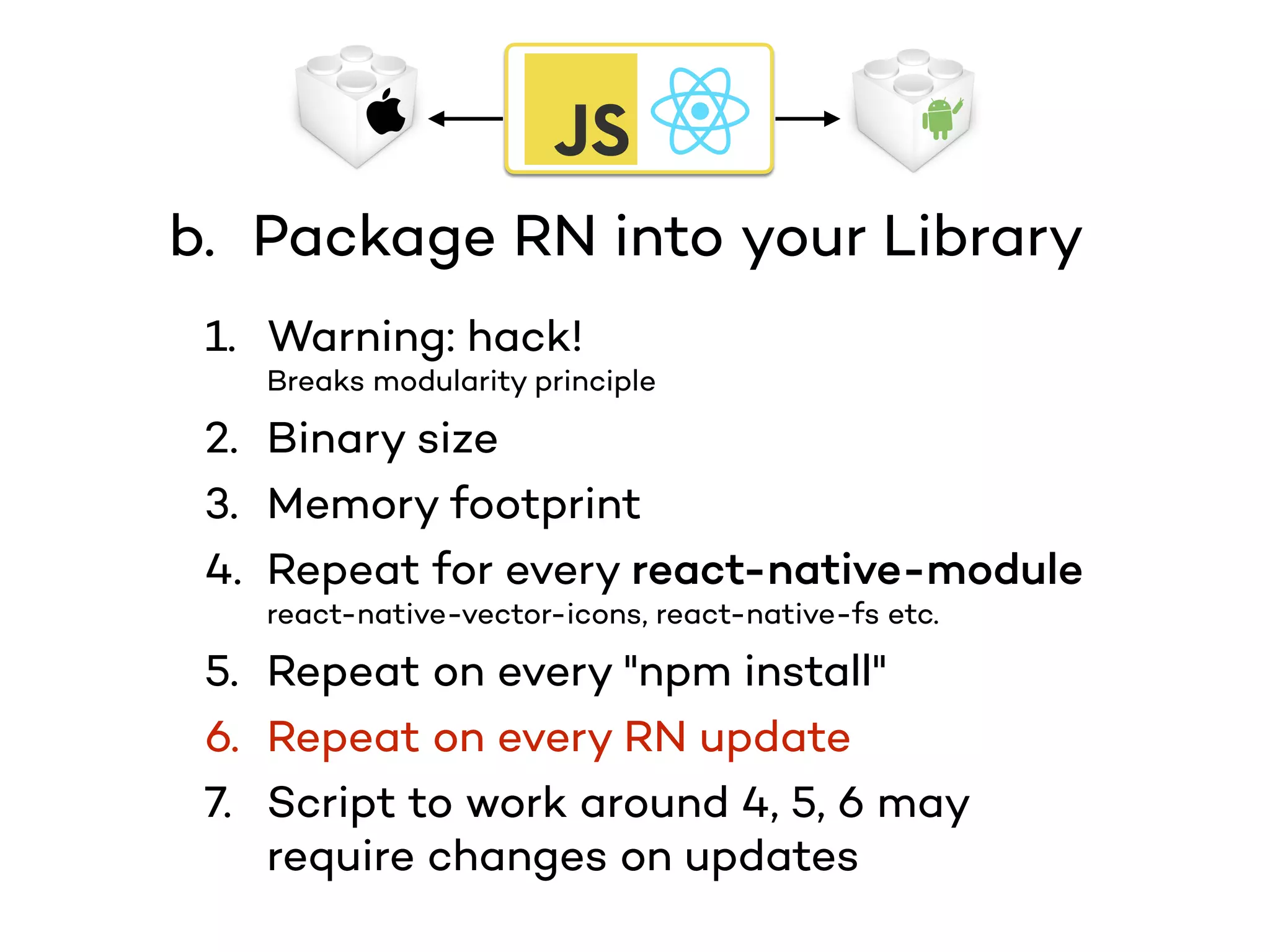

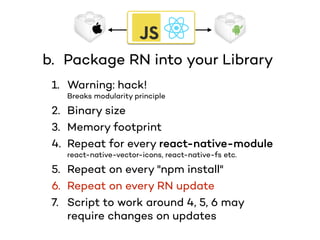

18. 1. Warning: hack!
Breaks modularity principle
2. Binary size
3. Memory footprint
4. Repeat for every react-native-module
react-native-vector-icons, react-native-fs etc.
5. Repeat on every "npm install"
6. Repeat on every RN update
7. Script to work around 4, 5, 6 may
require changes on updates
b. Package RN into your Library

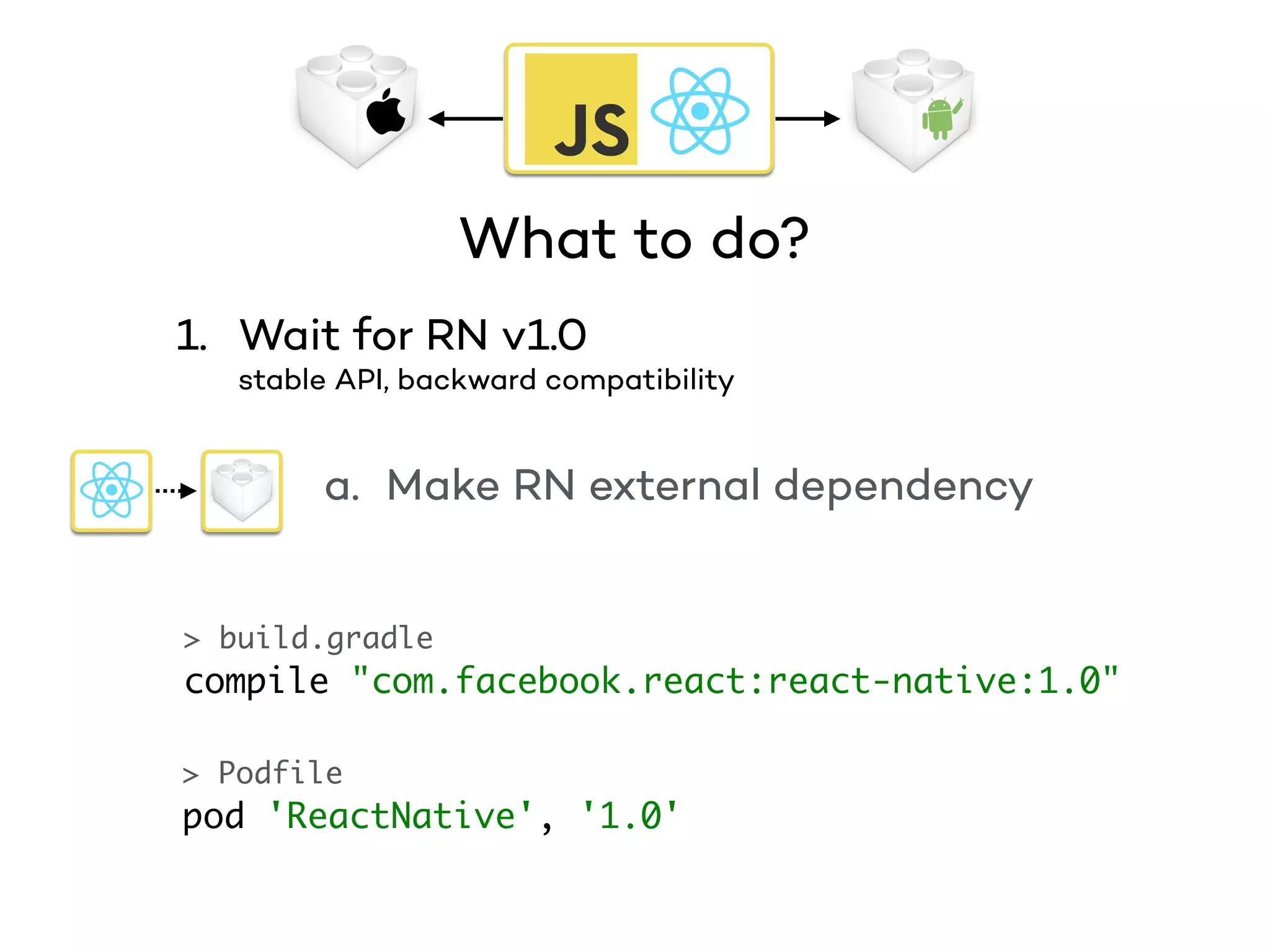

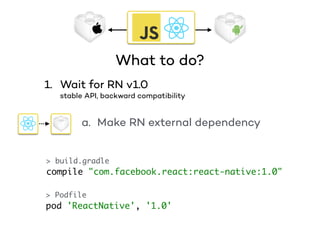

19. What to do?
1. Wait for RN v1.0
stable API, backward compatibility
> build.gradle
compile "com.facebook.react:react-native:1.0"
> Podfile
pod 'ReactNative', '1.0'
a. Make RN external dependency

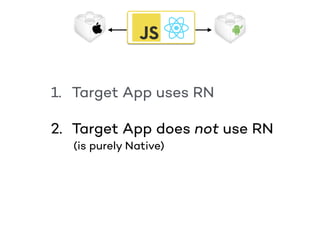

20. 1. Target App uses RN
(is purely Native)
2. Target App does not use RN

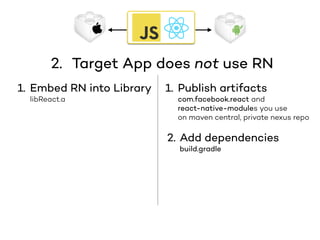

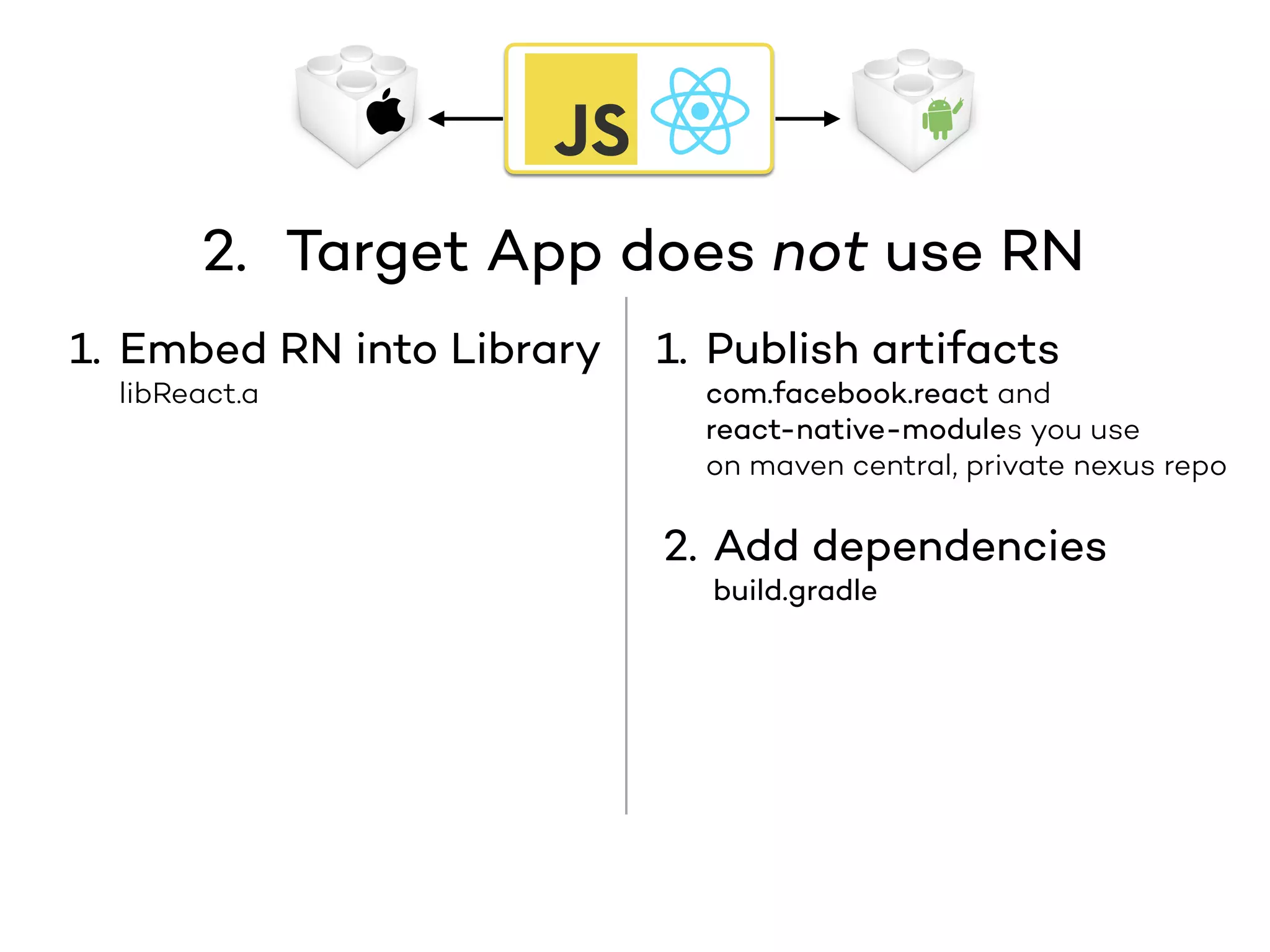

21. 2. Target App does not use RN
1. Embed RN into Library
libReact.a
1. Publish artifacts
com.facebook.react and
react-native-modules you use
on maven central, private nexus repo
2. Add dependencies
build.gradle

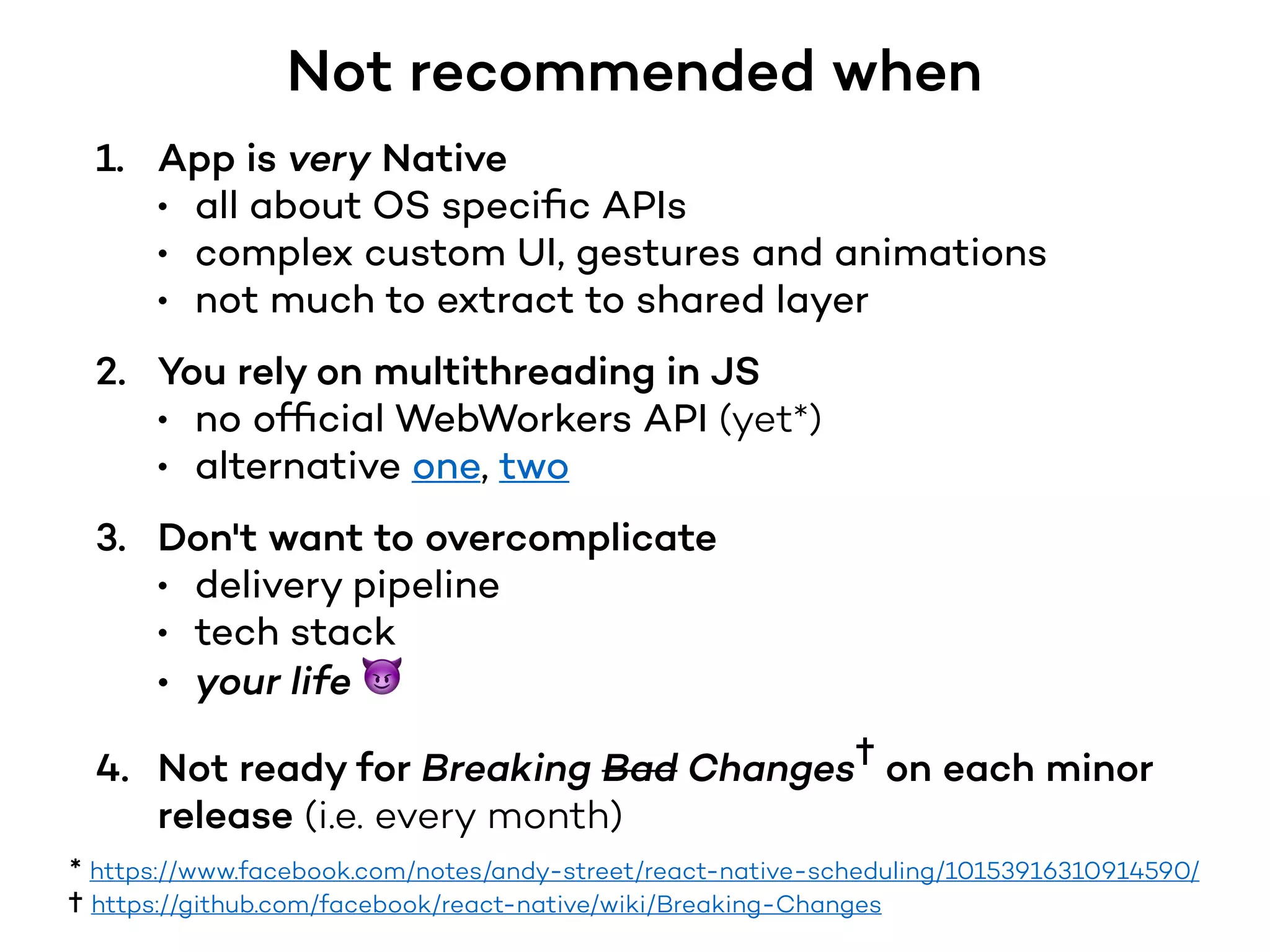

22. 1. App is very Native
• all about OS specific APIs
• complex custom UI, gestures and animations
• not much to extract to shared layer
2. You rely on multithreading in JS
• no official WebWorkers API (yet*)
• alternative one, two
3. Don't want to overcomplicate
• delivery pipeline
• tech stack
• your life 😈
4. Not ready for Breaking Bad Changes✝ on each minor
release (i.e. every month)
Not recommended when
* https://www.facebook.com/notes/andy-street/react-native-scheduling/10153916310914590/
✝ https://github.com/facebook/react-native/wiki/Breaking-Changes

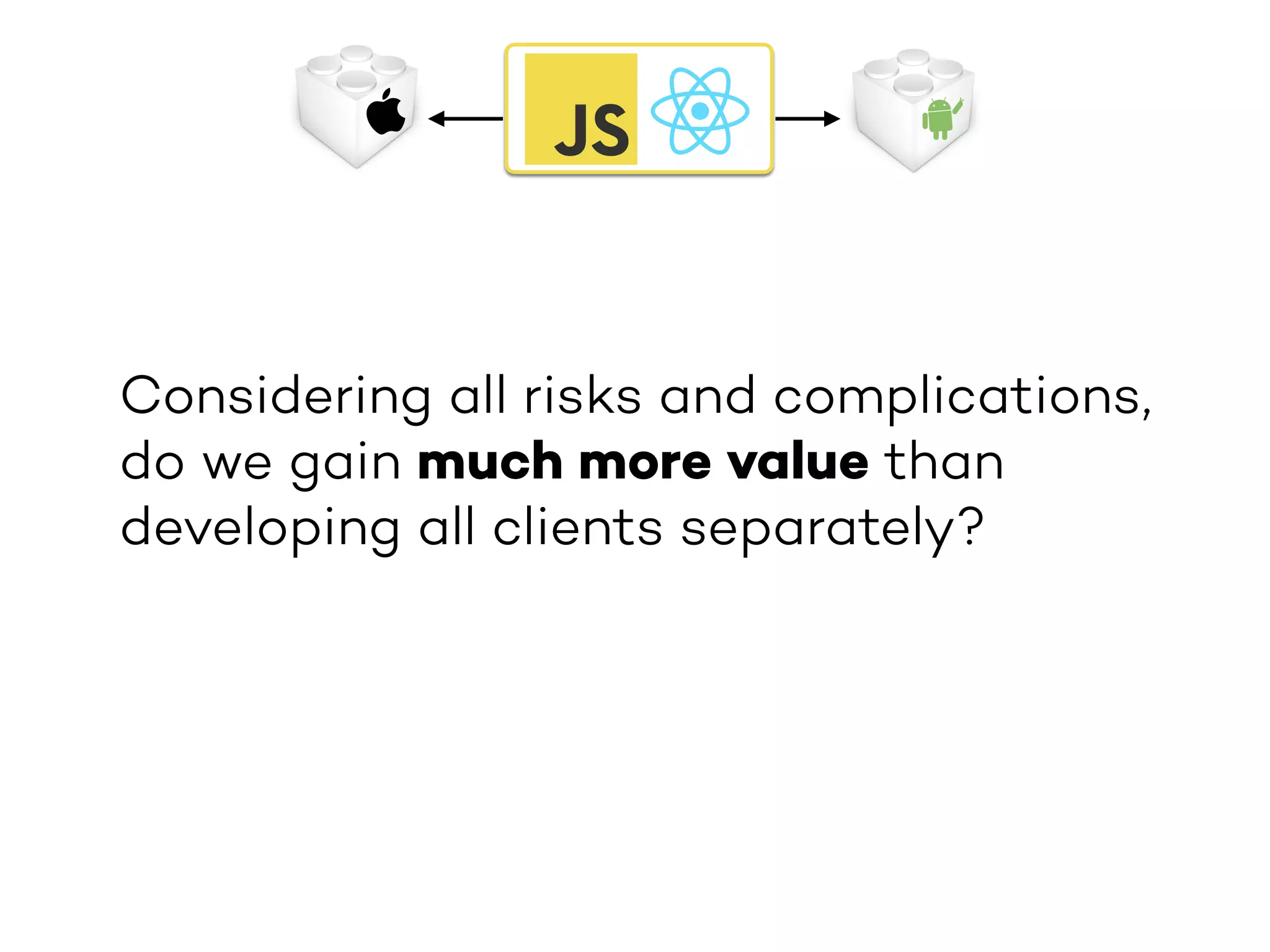

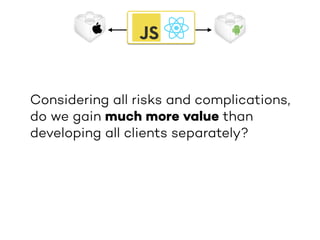

23. Considering all risks and complications,
do we gain much more value than
developing all clients separately?

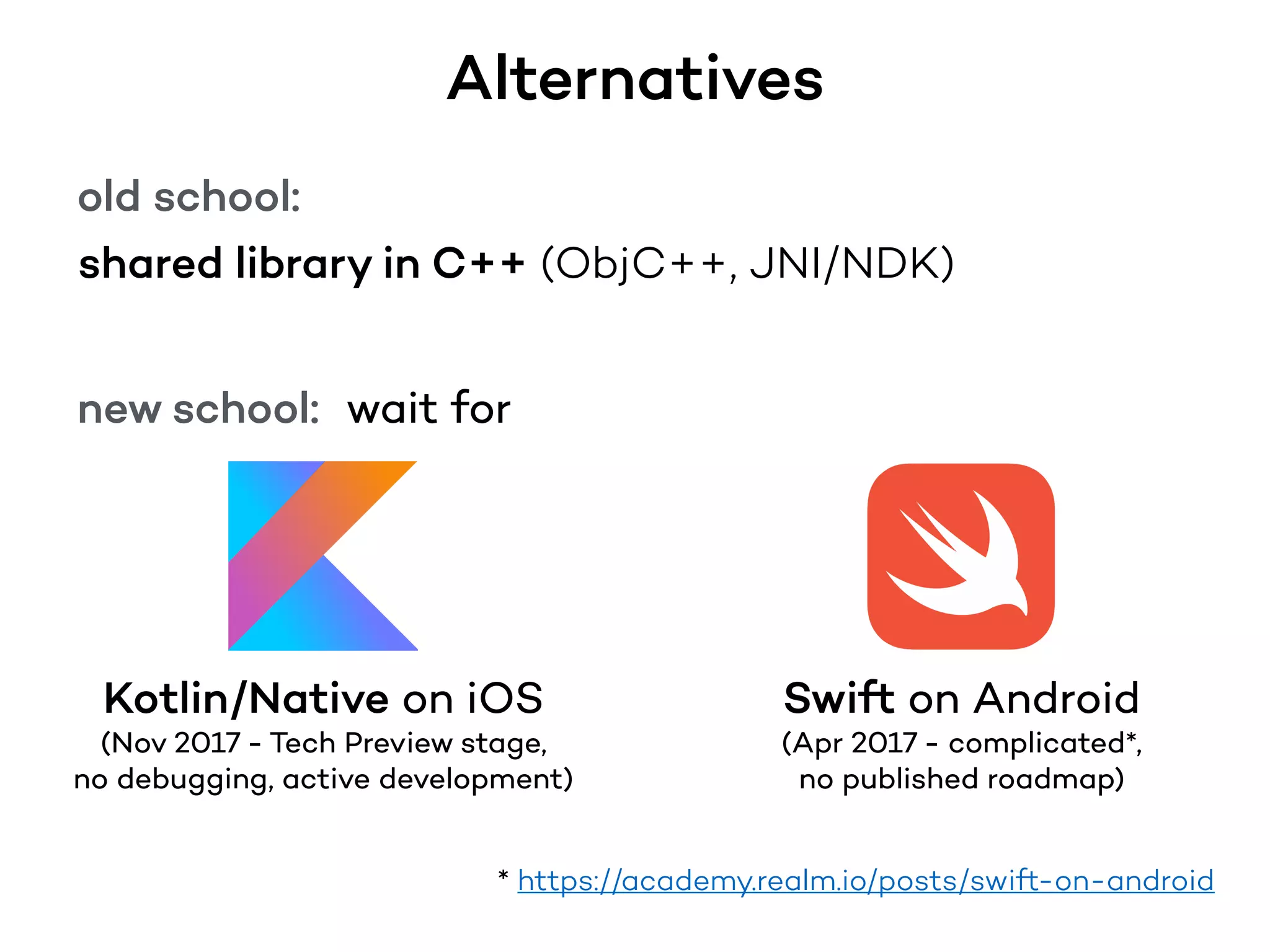

24. Alternatives
old school:
shared library in C++ (ObjC++, JNI/NDK)
new school: wait for
Kotlin/Native on iOS
(Nov 2017 - Tech Preview stage,
no debugging, active development)
Swift on Android
(Apr 2017 - complicated*,
no published roadmap)
* https://academy.realm.io/posts/swift-on-android

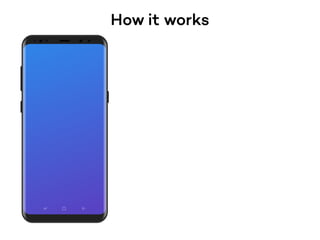

25. How it works

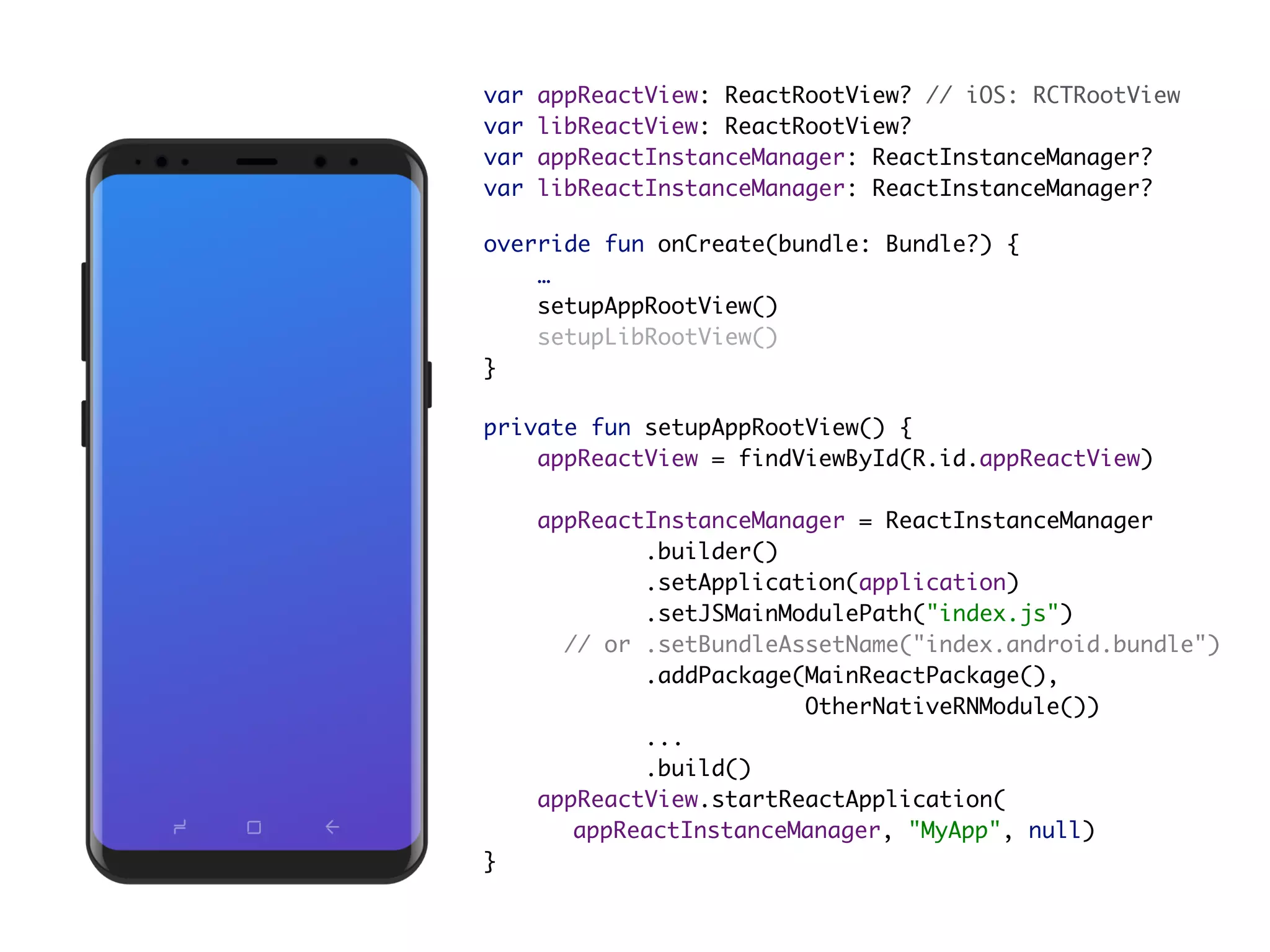

26. override fun onCreate(bundle: Bundle?) {
…
setupAppRootView()
setupLibRootView()
}
private fun setupAppRootView() {
appReactView = findViewById(R.id.appReactView)
appReactInstanceManager = ReactInstanceManager
.builder()
.setApplication(application)
.setJSMainModulePath("index.js")
// or .setBundleAssetName("index.android.bundle")
.addPackage(MainReactPackage(),
OtherNativeRNModule())
...
.build()
appReactView.startReactApplication(
appReactInstanceManager, "MyApp", null)
}
var appReactView: ReactRootView? // iOS: RCTRootView
var libReactView: ReactRootView?
var appReactInstanceManager: ReactInstanceManager?
var libReactInstanceManager: ReactInstanceManager?

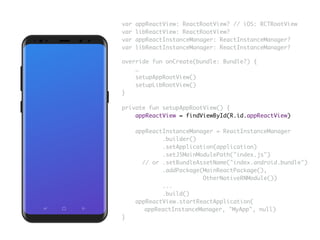

27. override fun onCreate(bundle: Bundle?) {
…
setupAppRootView()
setupLibRootView()
}
private fun setupAppRootView() {
appReactView = findViewById(R.id.appReactView)
appReactInstanceManager = ReactInstanceManager
.builder()
.setApplication(application)
.setJSMainModulePath("index.js")
// or .setBundleAssetName("index.android.bundle")
.addPackage(MainReactPackage(),
OtherNativeRNModule())
...
.build()
appReactView.startReactApplication(
appReactInstanceManager, "MyApp", null)
}
var appReactView: ReactRootView? // iOS: RCTRootView
var libReactView: ReactRootView?
var appReactInstanceManager: ReactInstanceManager?
var libReactInstanceManager: ReactInstanceManager?

28. override fun onCreate(bundle: Bundle?) {
…
setupAppRootView()
setupLibRootView()
}
private fun setupAppRootView() {
appReactView = findViewById(R.id.appReactView)
appReactInstanceManager = ReactInstanceManager
.builder()
.setApplication(application)
.setJSMainModulePath("index.js")
// or .setBundleAssetName("index.android.bundle")
.addPackage(MainReactPackage(),
OtherNativeRNModule())
...
.build()
appReactView.startReactApplication(
appReactInstanceManager, "MyApp", null)
}
var appReactView: ReactRootView? // iOS: RCTRootView
var libReactView: ReactRootView?
var appReactInstanceManager: ReactInstanceManager?
var libReactInstanceManager: ReactInstanceManager?

29. override fun onCreate(bundle: Bundle?) {
…
setupAppRootView()
setupLibRootView()
}
private fun setupAppRootView() {
appReactView = findViewById(R.id.appReactView)
appReactInstanceManager = ReactInstanceManager
.builder()
.setApplication(application)
.setJSMainModulePath("index.js")
// or .setBundleAssetName("index.android.bundle")
.addPackage(MainReactPackage(),
OtherNativeRNModule())
...
.build()
appReactView.startReactApplication(
appReactInstanceManager, "MyApp", null)
}
var appReactView: ReactRootView? // iOS: RCTRootView
var libReactView: ReactRootView?
var appReactInstanceManager: ReactInstanceManager?
var libReactInstanceManager: ReactInstanceManager?

30. override fun onCreate(bundle: Bundle?) {
…
setupAppRootView()
setupLibRootView()
}
var appReactView: ReactRootView? // iOS: RCTRootView
var libReactView: ReactRootView?
var appReactInstanceManager: ReactInstanceManager?
var libReactInstanceManager: ReactInstanceManager?
private fun setupAppRootView() {
appReactView = findViewById(R.id.appReactView)
appReactInstanceManager = ReactInstanceManager
.builder()
.setApplication(application)
.setJSMainModulePath("index.js")
// or .setBundleAssetName("index.android.bundle")
.addPackage(MainReactPackage(),
OtherNativeRNModule())
...
.build()
appReactView.startReactApplication(
appReactInstanceManager, "MyApp", null)
}

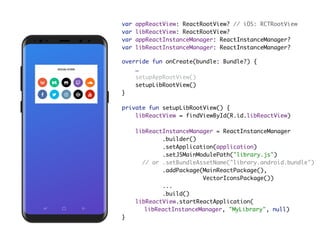

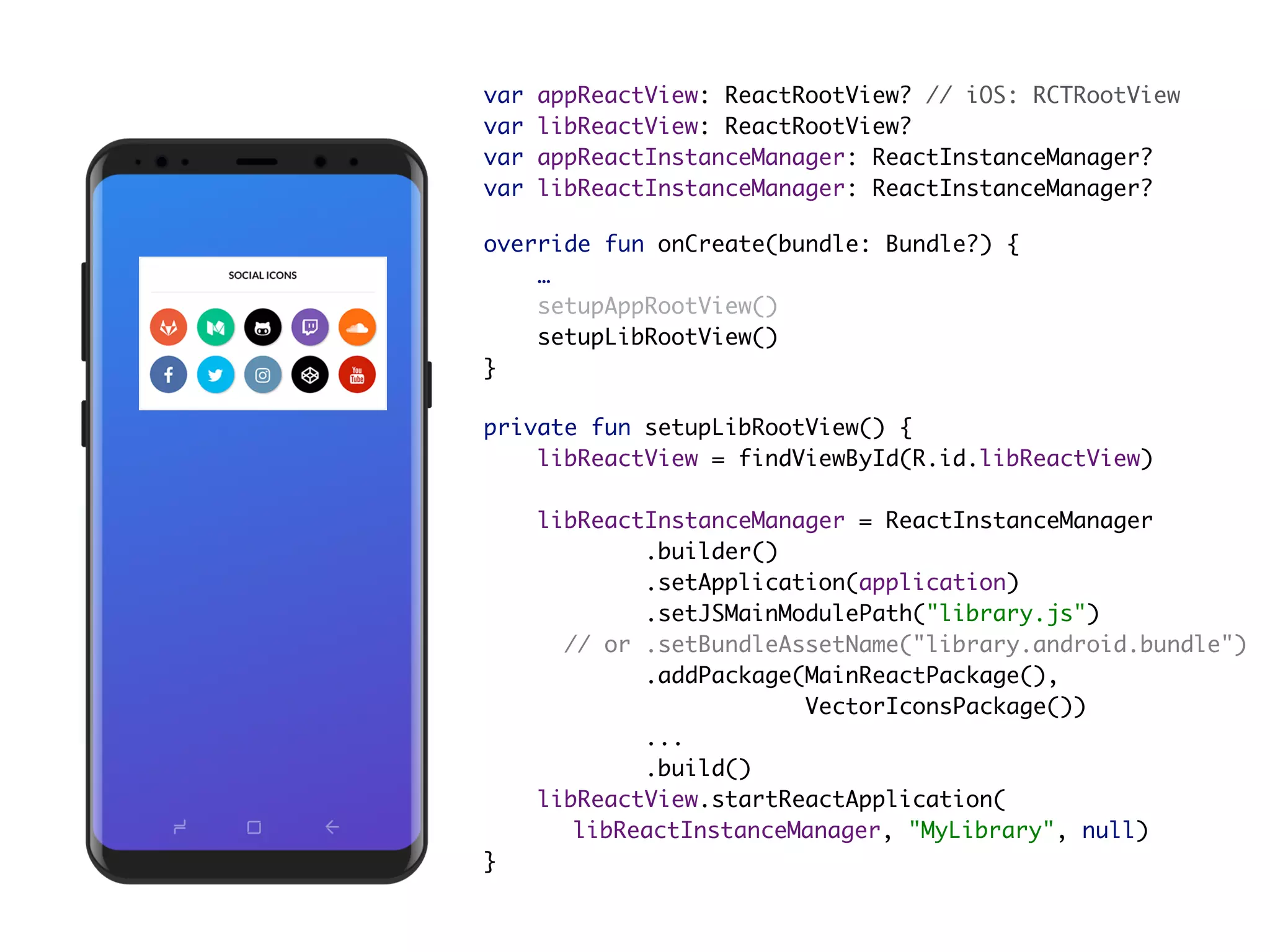

31. private fun setupLibRootView() {
libReactView = findViewById(R.id.libReactView)
libReactInstanceManager = ReactInstanceManager
.builder()
.setApplication(application)
.setJSMainModulePath("library.js")
// or .setBundleAssetName("library.android.bundle")
.addPackage(MainReactPackage(),
VectorIconsPackage())
...
.build()
libReactView.startReactApplication(
libReactInstanceManager, "MyLibrary", null)
}
override fun onCreate(bundle: Bundle?) {
…
setupAppRootView()
setupLibRootView()
}
var appReactView: ReactRootView? // iOS: RCTRootView
var libReactView: ReactRootView?
var appReactInstanceManager: ReactInstanceManager?
var libReactInstanceManager: ReactInstanceManager?

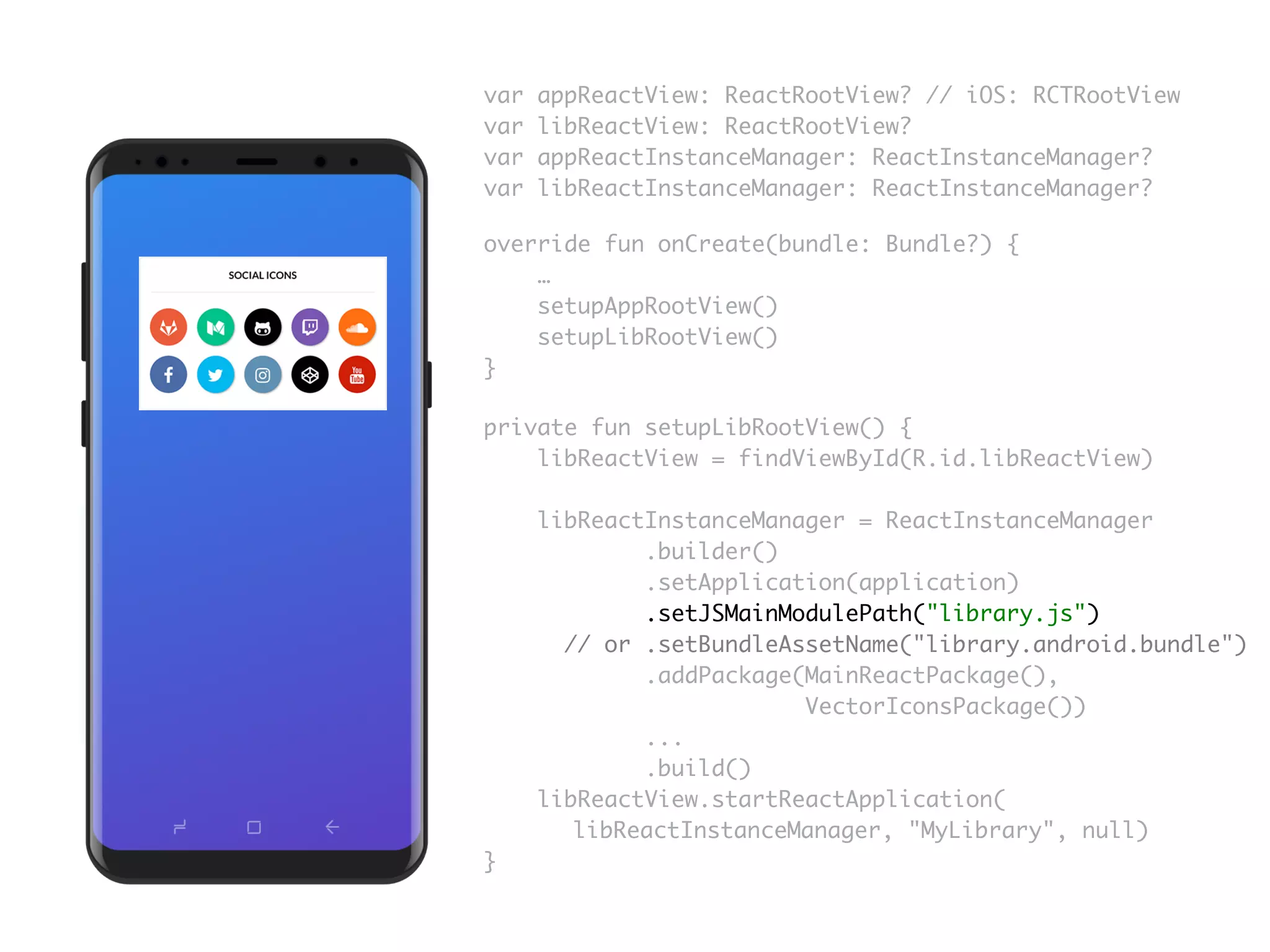

32. private fun setupLibRootView() {
libReactView = findViewById(R.id.libReactView)
libReactInstanceManager = ReactInstanceManager
.builder()
.setApplication(application)
.setJSMainModulePath("library.js")
// or .setBundleAssetName("library.android.bundle")
.addPackage(MainReactPackage(),
VectorIconsPackage())
...
.build()
libReactView.startReactApplication(
libReactInstanceManager, "MyLibrary", null)
}
override fun onCreate(bundle: Bundle?) {
…
setupAppRootView()
setupLibRootView()
}
var appReactView: ReactRootView? // iOS: RCTRootView
var libReactView: ReactRootView?
var appReactInstanceManager: ReactInstanceManager?
var libReactInstanceManager: ReactInstanceManager?

33. override fun onCreate(bundle: Bundle?) {
…
setupAppRootView()
setupLibRootView()
}
var appReactView: ReactRootView? // iOS: RCTRootView
var libReactView: ReactRootView?
var appReactInstanceManager: ReactInstanceManager?
var libReactInstanceManager: ReactInstanceManager?
private fun setupLibRootView() {
libReactView = findViewById(R.id.libReactView)
libReactInstanceManager = ReactInstanceManager
.builder()
.setApplication(application)
.setJSMainModulePath("library.js")
// or .setBundleAssetName("library.android.bundle")
.addPackage(MainReactPackage(),
VectorIconsPackage())
...
.build()
libReactView.startReactApplication(
libReactInstanceManager, "MyLibrary", null)
}

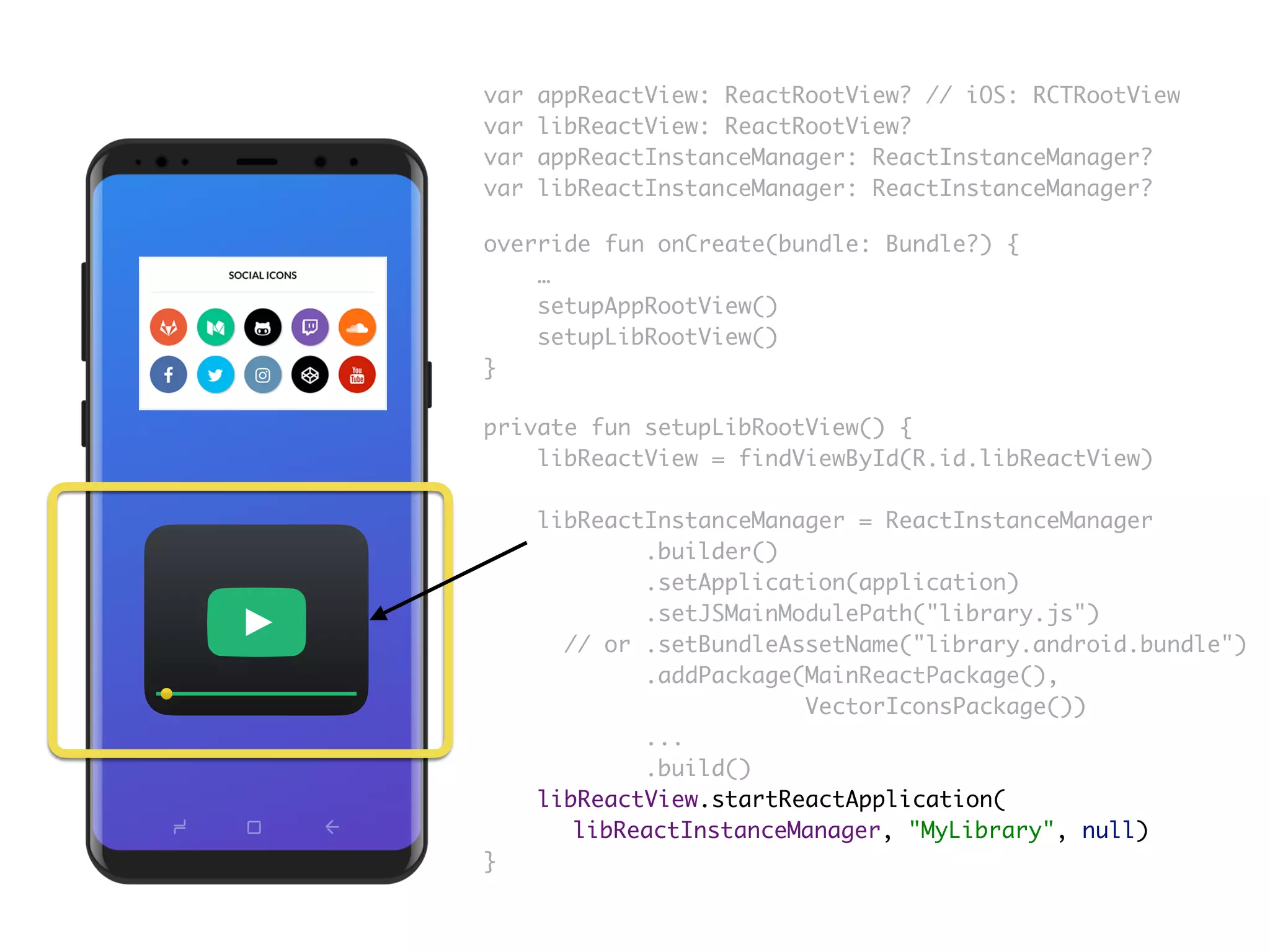

34. private fun setupLibRootView() {
libReactView = findViewById(R.id.libReactView)
libReactInstanceManager = ReactInstanceManager
.builder()
.setApplication(application)
.setJSMainModulePath("library.js")
// or .setBundleAssetName("library.android.bundle")
.addPackage(MainReactPackage(),
VectorIconsPackage())
...
.build()
libReactView.startReactApplication(
libReactInstanceManager, "MyLibrary", null)
}
override fun onCreate(bundle: Bundle?) {
…
setupAppRootView()
setupLibRootView()
}
var appReactView: ReactRootView? // iOS: RCTRootView
var libReactView: ReactRootView?
var appReactInstanceManager: ReactInstanceManager?
var libReactInstanceManager: ReactInstanceManager?

35. private fun setupLibRootView() {
libReactView = findViewById(R.id.libReactView)
libReactInstanceManager = ReactInstanceManager
.builder()
.setApplication(application)
.setJSMainModulePath("library.js")
// or .setBundleAssetName("library.android.bundle")
.addPackage(MainReactPackage(),
VectorIconsPackage())
...
.build()
libReactView.startReactApplication(
libReactInstanceManager, "MyLibrary", null)
}
override fun onCreate(bundle: Bundle?) {
…
setupAppRootView()
setupLibRootView()
}
var appReactView: ReactRootView? // iOS: RCTRootView
var libReactView: ReactRootView?
var appReactInstanceManager: ReactInstanceManager?
var libReactInstanceManager: ReactInstanceManager?

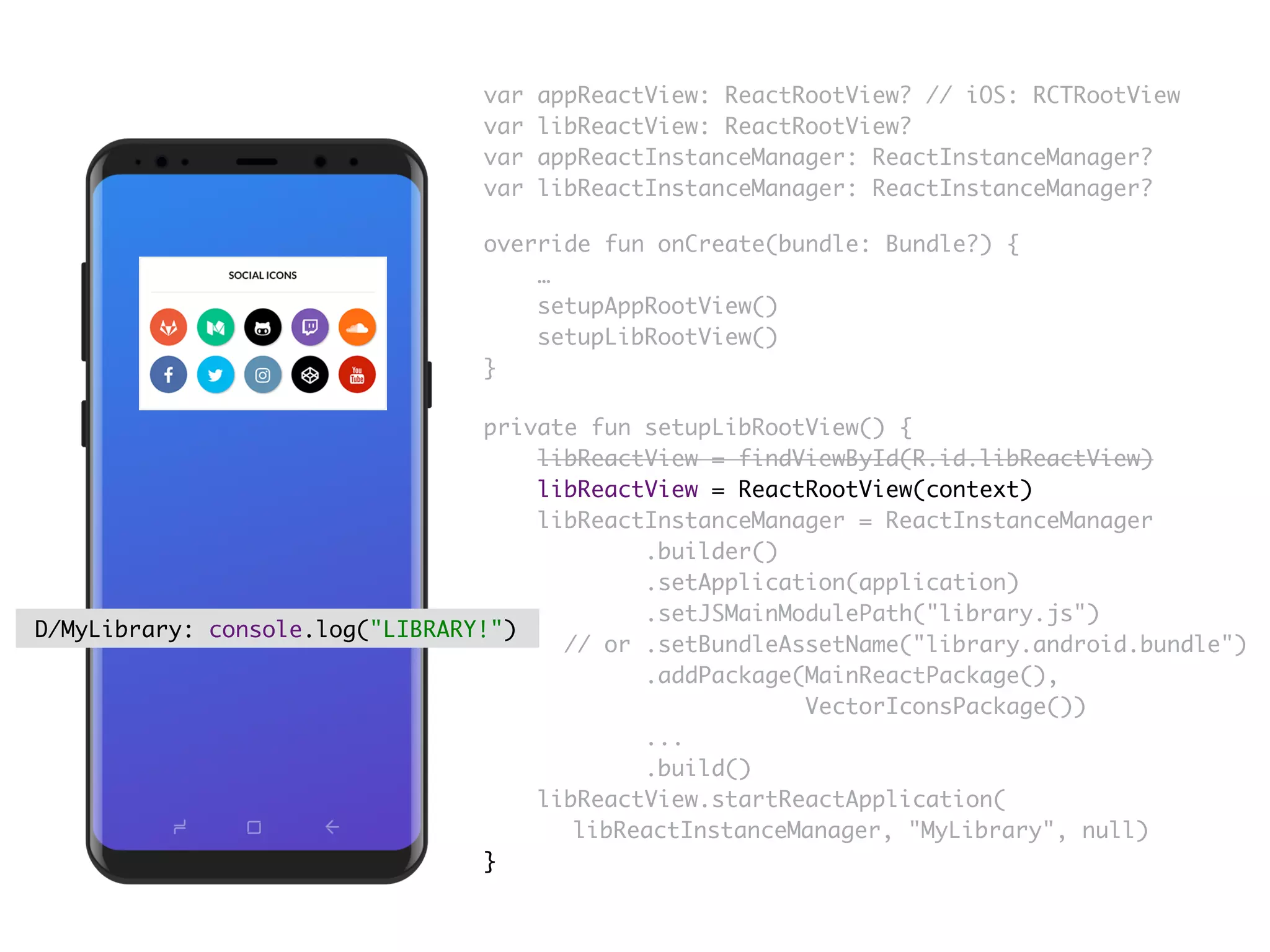

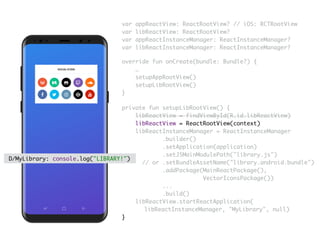

36. private fun setupLibRootView() {
libReactView = findViewById(R.id.libReactView)
libReactView = ReactRootView(context)
libReactInstanceManager = ReactInstanceManager
.builder()
.setApplication(application)
.setJSMainModulePath("library.js")
// or .setBundleAssetName("library.android.bundle")
.addPackage(MainReactPackage(),
VectorIconsPackage())
...
.build()
libReactView.startReactApplication(
libReactInstanceManager, "MyLibrary", null)
}
override fun onCreate(bundle: Bundle?) {
…
setupAppRootView()
setupLibRootView()
}
var appReactView: ReactRootView? // iOS: RCTRootView
var libReactView: ReactRootView?
var appReactInstanceManager: ReactInstanceManager?
var libReactInstanceManager: ReactInstanceManager?
D/MyLibrary: console.log("LIBRARY!")

37. The Good
The Bad
The Weird

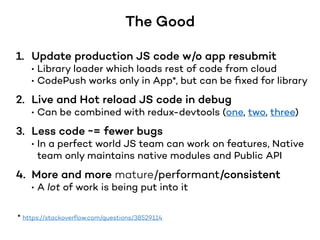

38. The Good
1. Update production JS code w/o app resubmit
• Library loader which loads rest of code from cloud
• CodePush works only in App*, but can be fixed for library
2. Live and Hot reload JS code in debug
• Can be combined with redux-devtools (one, two, three)
3. Less code ~= fewer bugs
• In a perfect world JS team can work on features, Native
team only maintains native modules and Public API
4. More and more mature/performant/consistent
• A lot of work is being put into it
* https://stackoverflow.com/questions/38529114

39. The Bad
1. More async code that you don't own
• Native ↔ Bridge ↔ JS
• more places for subtle bugs
2. Not all modules from npm will work out-of-the-box
• usually because of browser features

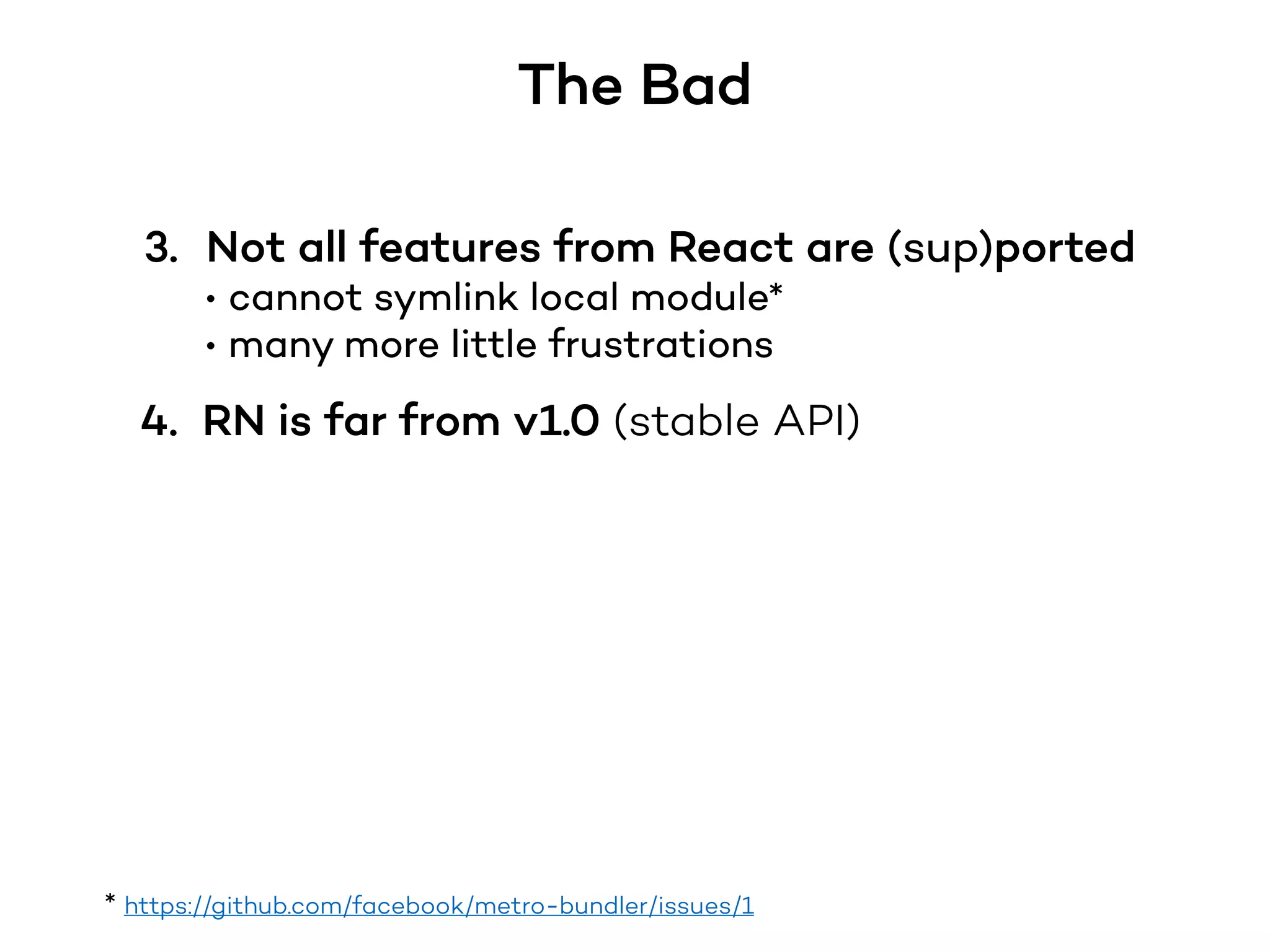

40. The Bad
3. Not all features from React are (sup)ported
• cannot symlink local module*
• many more little frustrations
* https://github.com/facebook/metro-bundler/issues/1
4. RN is far from v1.0 (stable API)

41. The Weird
1. In debug mode JS is executed inside Chrome
• if __DEV__ { console.group() }
• sometimes side effects: render() breaks etc.
• always double check performance with release bundle
2. RN StyleSheets != CSS
• StyleSheet.create()
• styled-components
3. Tech stack expands
• not only JS, but also npm, babel
• building C++ code (NDK for Android)
• threading and event handling model
• how ReactBridge works
4. More context switching and IDEs :)
• one for Native, one for JS, and a browser

42. To be continued…

43. Q&A
Icons, logos and images may be registered trademarks of their owners.
Samsung S8 sketch mockup file is originally created by ranjithalingal.
Thank you!
https://medium.com/@oleksandr.yefremov
https://github.com/oleksandr-yefremov
