This document provides guidance on writing Android libraries. It discusses getting started by creating a library module in Android Studio or using the command line. It emphasizes the importance of testing libraries using tools like JUnit, Burst, and Jenkins. The document also covers publishing libraries to Bintray and generating AAR and JAR files. More advanced topics discussed include annotation processing, using the NDK for native code, and including native libraries in the published JAR file. The key takeaways are to embrace Gradle, explore Gradle plugins, automate testing, use Bintray for publishing, and that writing libraries can be very rewarding.

1. Writing Android Libraries
Emanuele Zattin
@emanuelez
April 9, 2015
DroidCon Italy

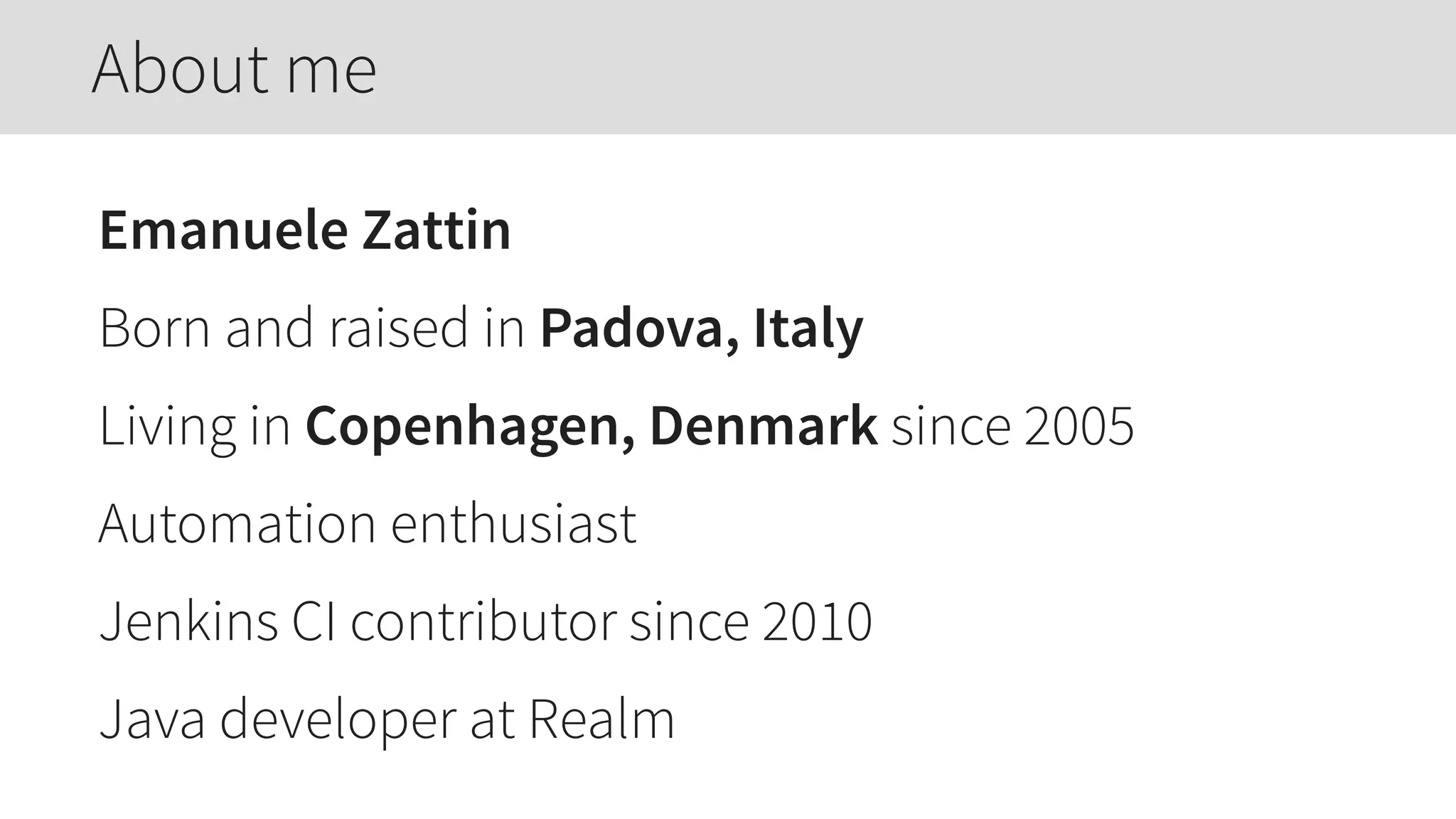

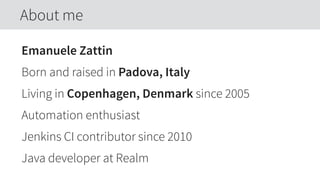

2. Emanuele Zattin
Born and raised in Padova, Italy
Living in Copenhagen, Denmark since 2005
Automation enthusiast
Jenkins CI contributor since 2010
Java developer at Realm
About me

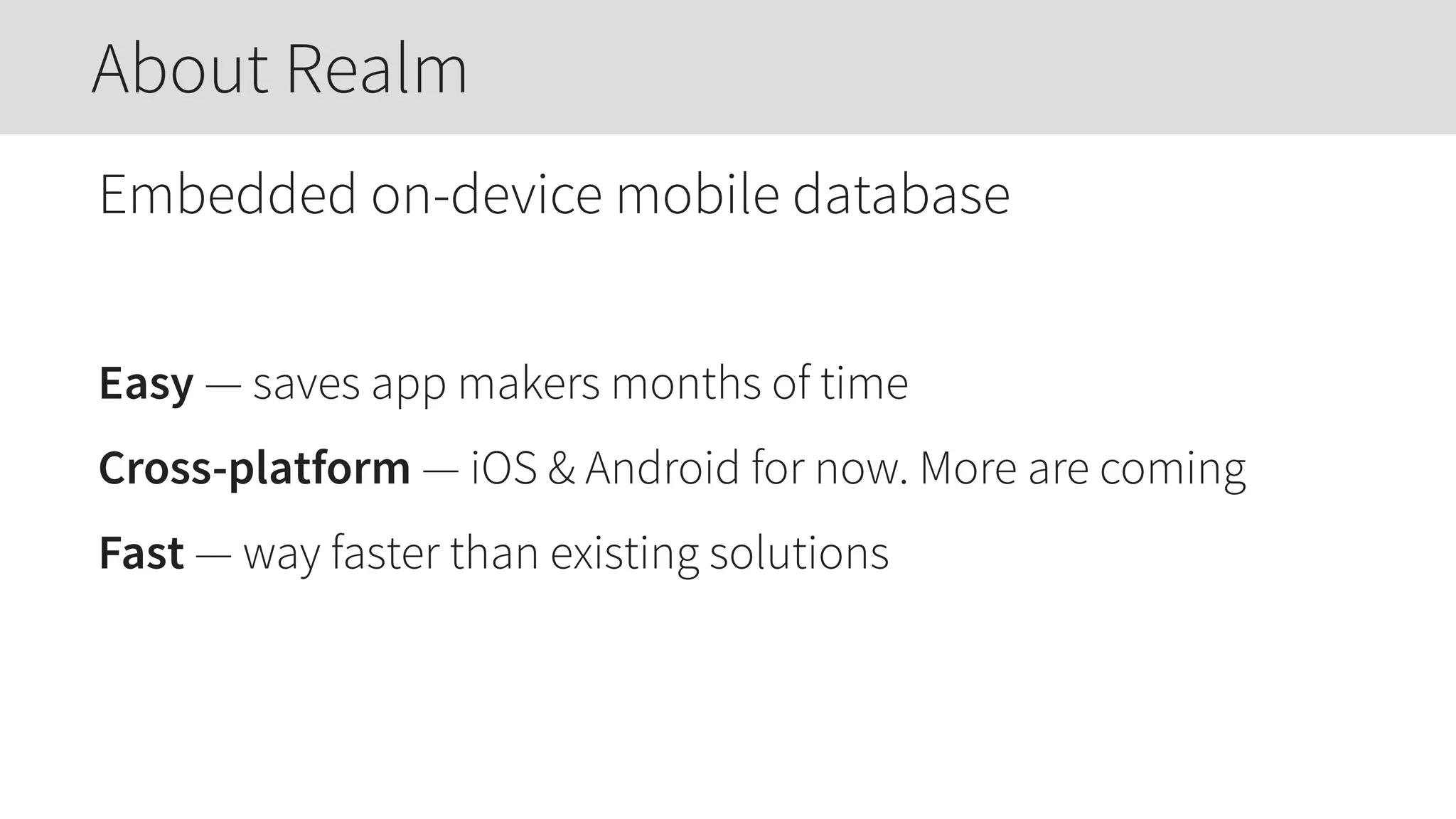

3. Embedded on-device mobile database
Easy — saves app makers months of time
Cross-platform — iOS & Android for now. More are coming
Fast — way faster than existing solutions
About Realm

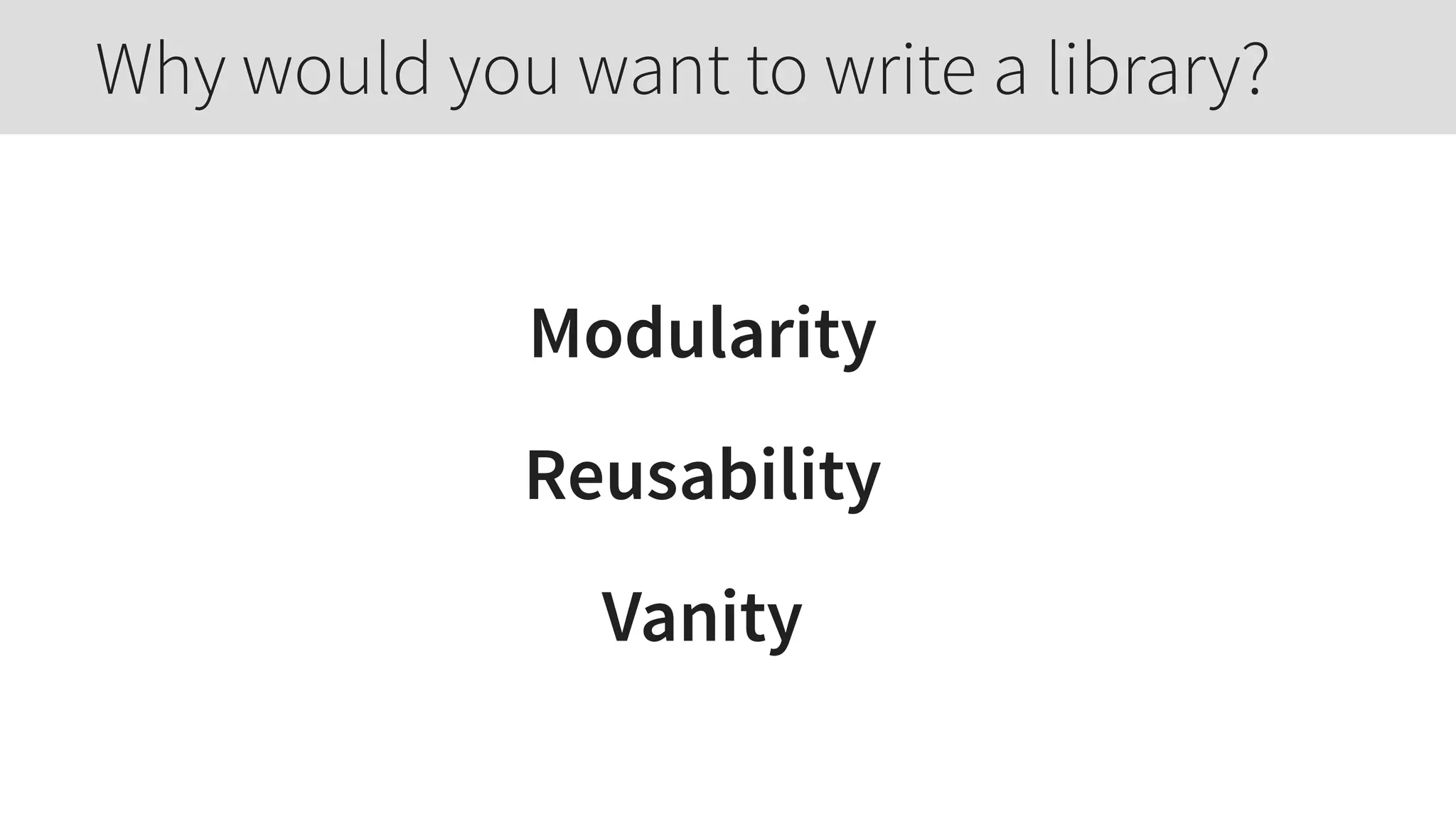

4. Modularity
Reusability
Vanity
Why would you want to write a library?

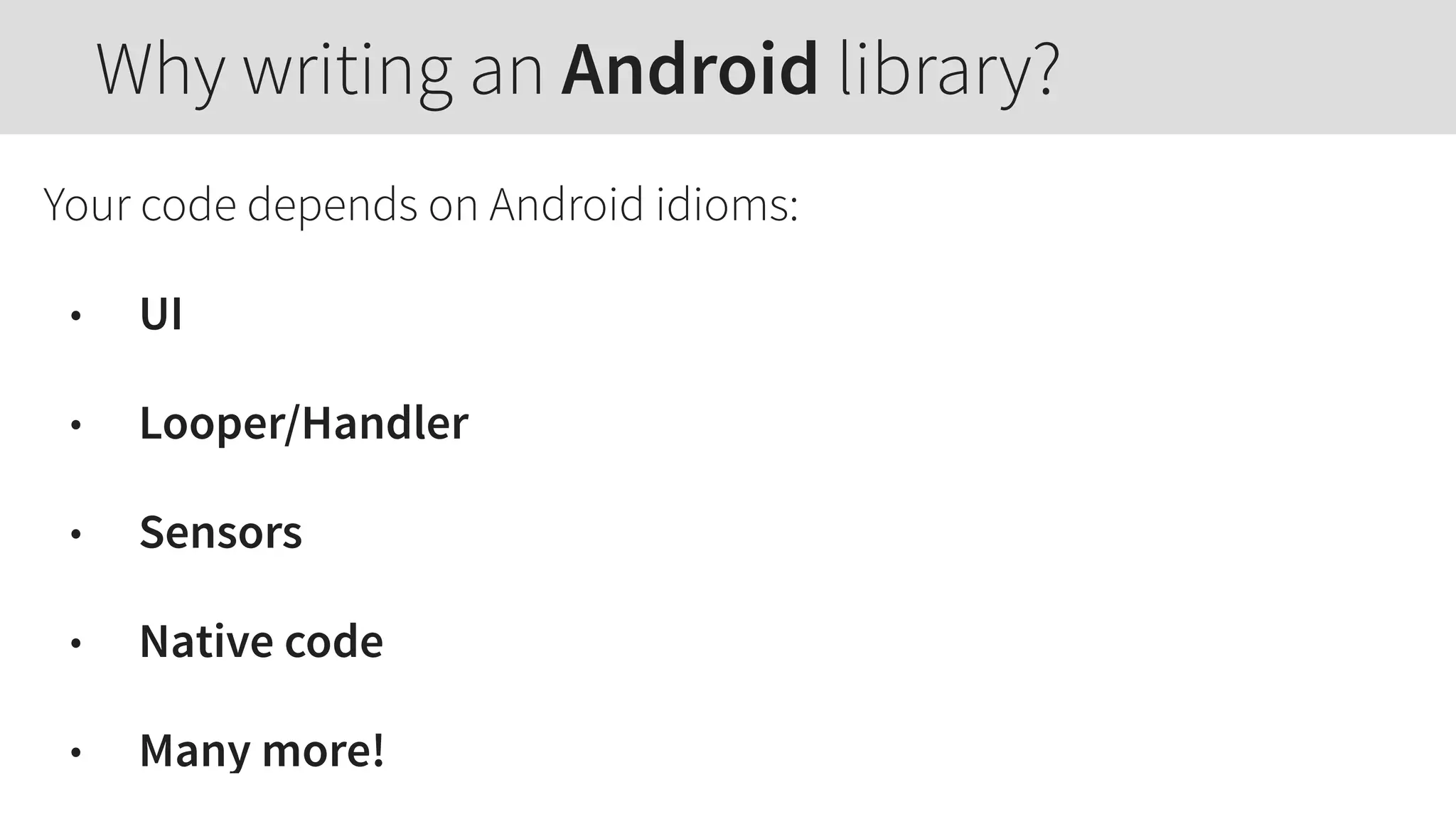

5. Your code depends on Android idioms:
• UI
• Looper/Handler
• Sensors
• Native code
• Many more!
Why writing an Android library?

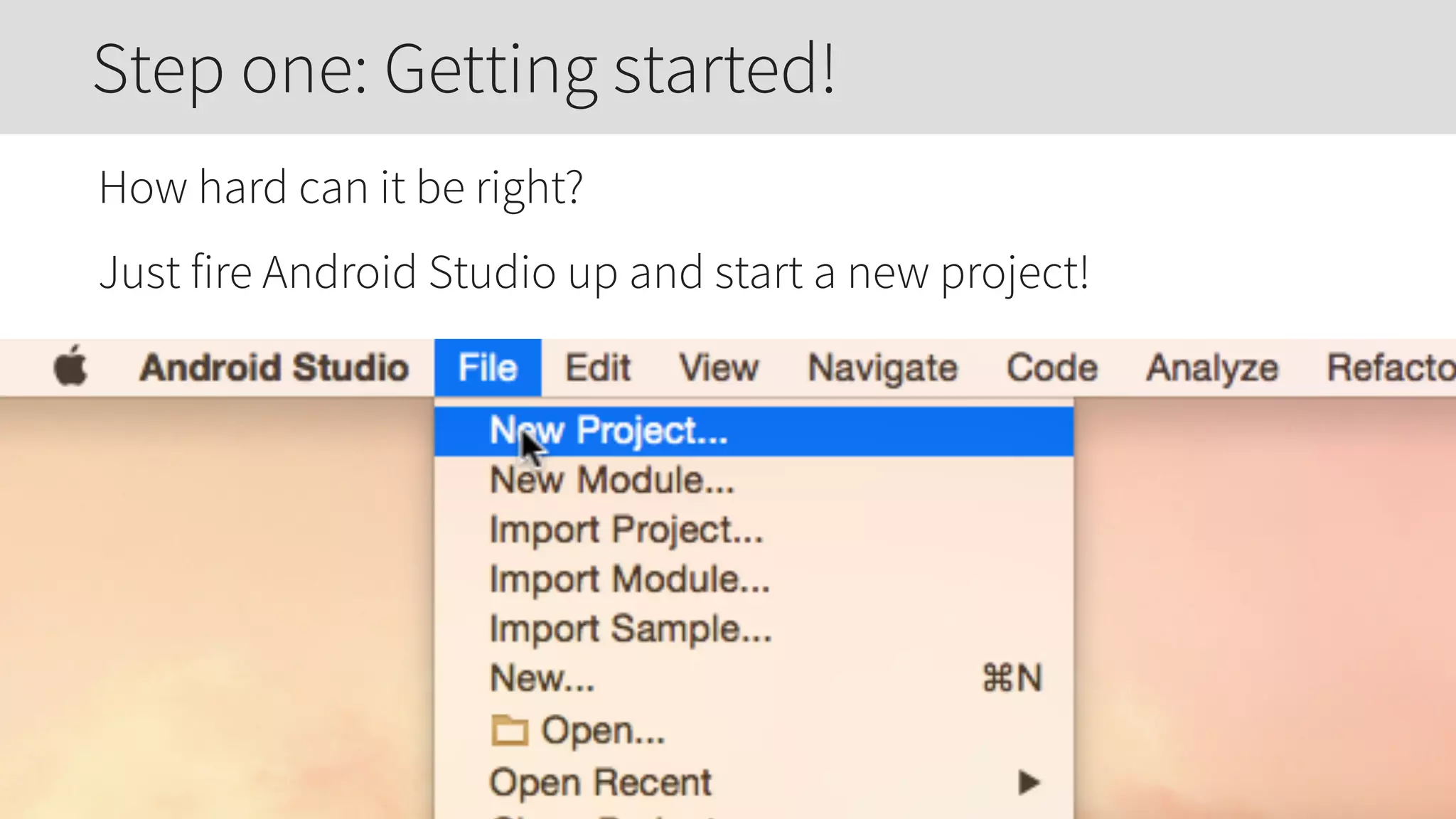

6. How hard can it be right?
Just fire Android Studio up and start a new project!
Step one: Getting started!

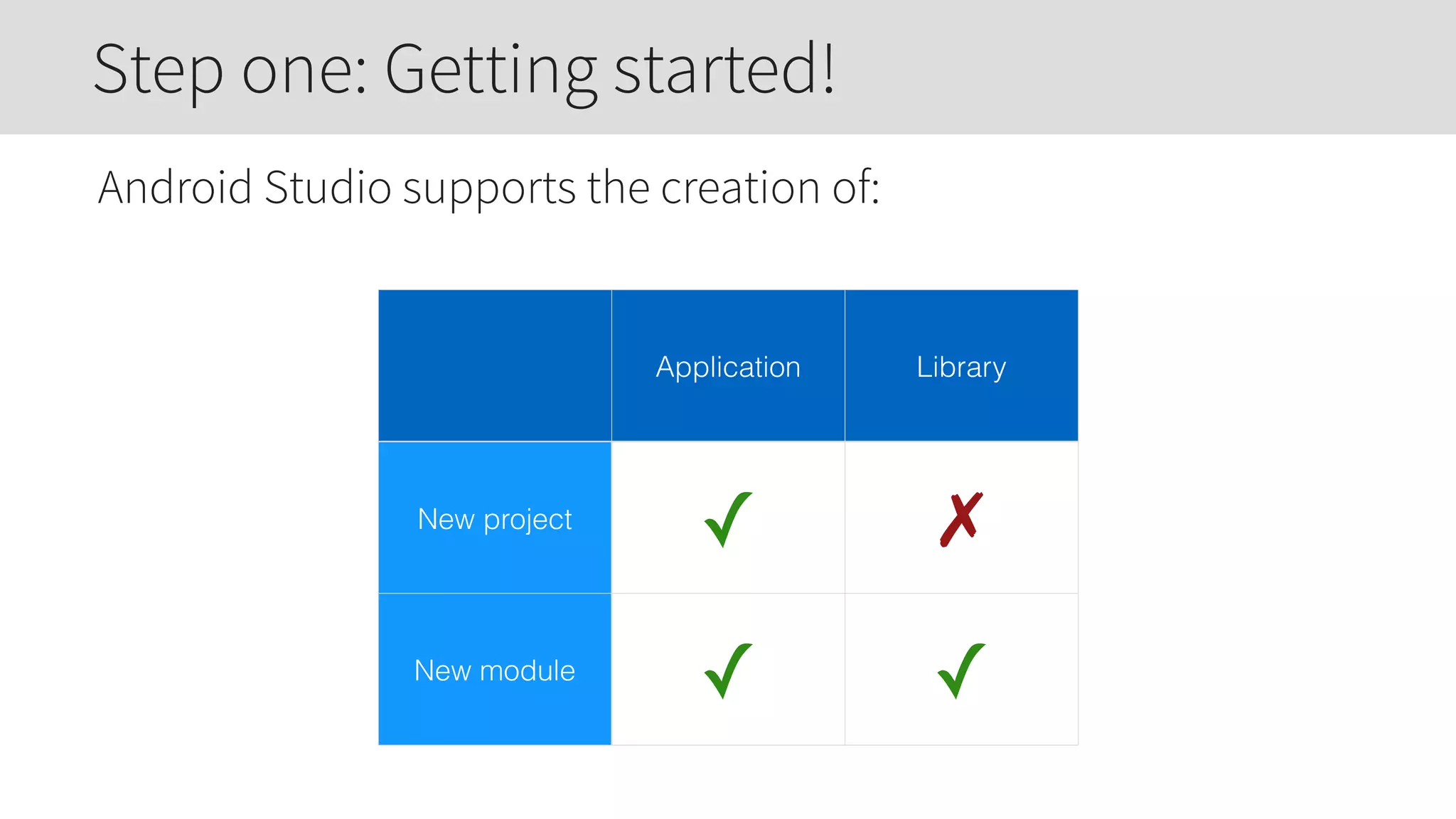

7. Android Studio supports the creation of:
Step one: Getting started!
Application Library
New project
✓ ✗
New module
✓ ✓

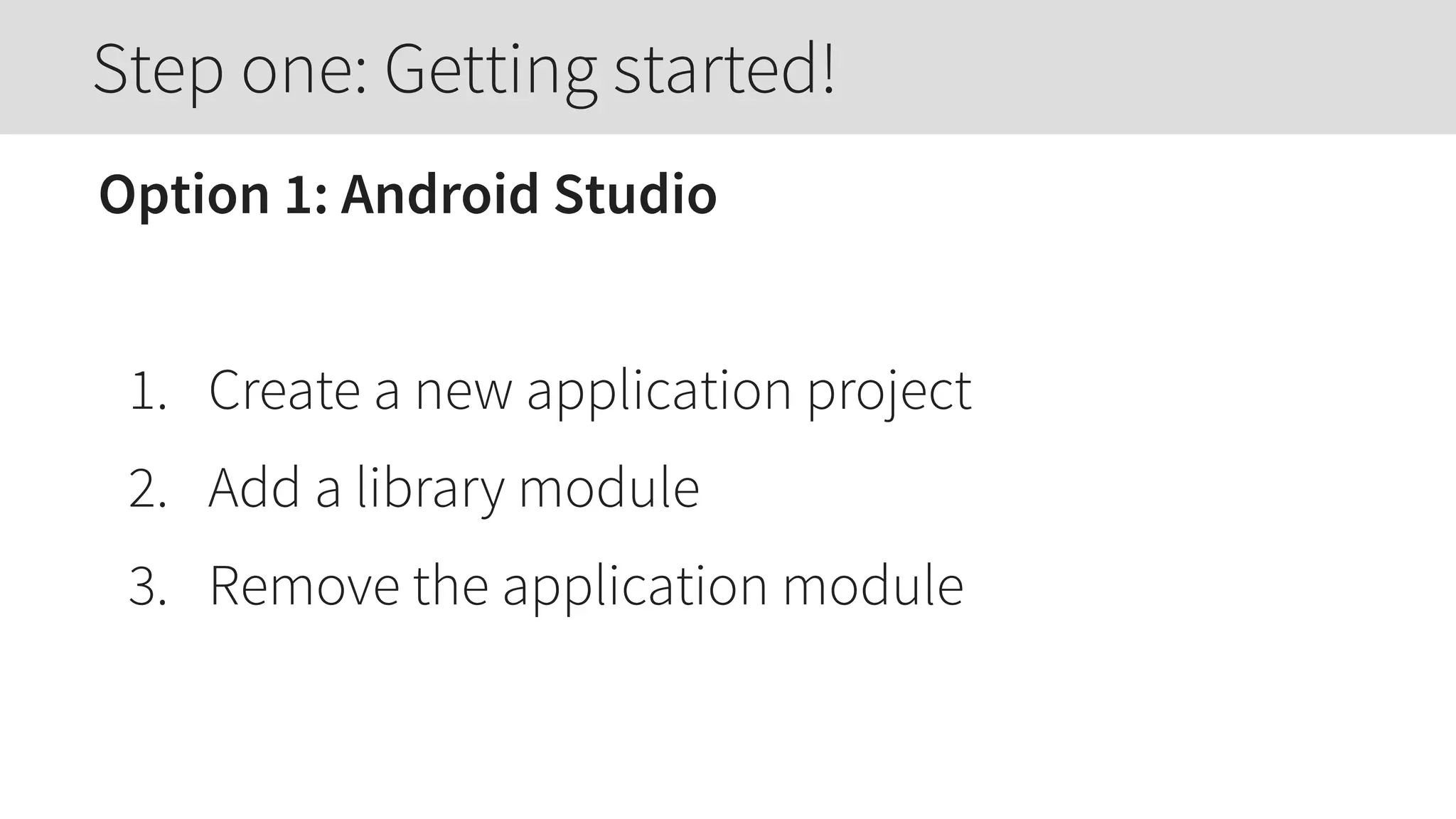

8. Option 1: Android Studio
1. Create a new application project
2. Add a library module
3. Remove the application module
Step one: Getting started!

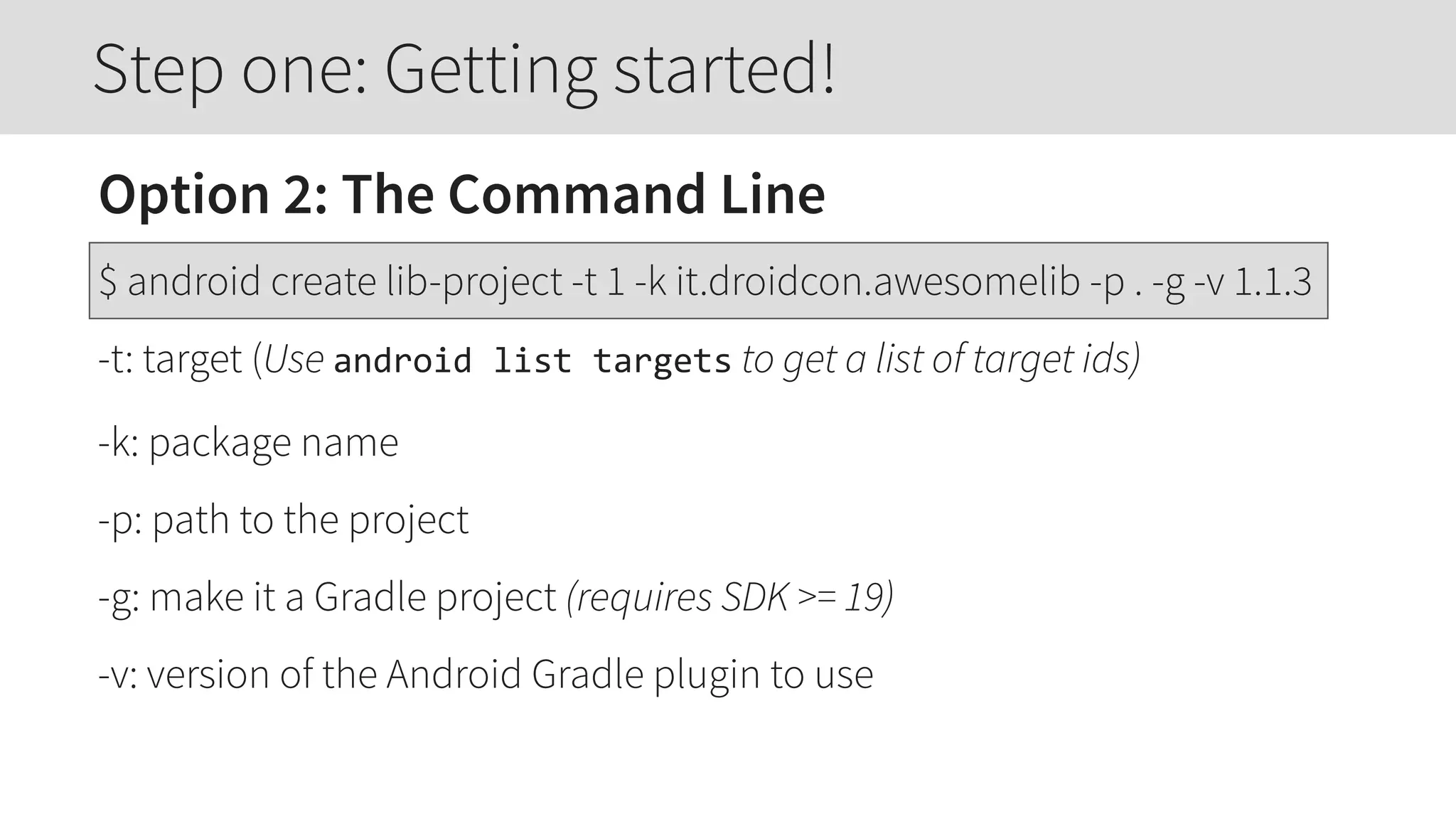

9. Option 2: The Command Line
$ android create lib-project -t 1 -k it.droidcon.awesomelib -p . -g -v 1.1.3
-t: target (Use android list targets to get a list of target ids)
-k: package name
-p: path to the project
-g: make it a Gradle project (requires SDK >= 19)
-v: version of the Android Gradle plugin to use
Step one: Getting started!

10. Step one: Getting started!

11. Step two: Code, code, code!

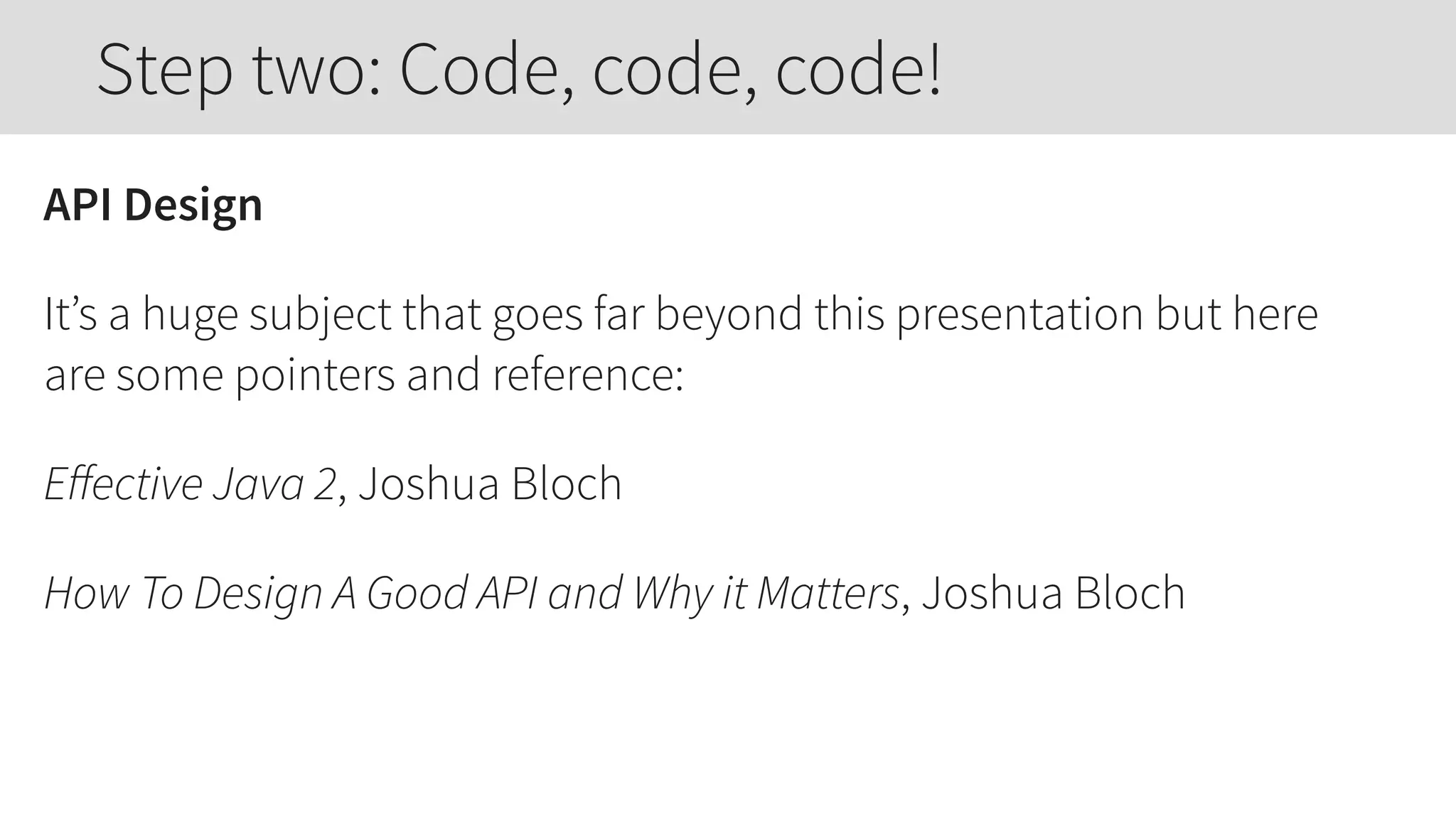

12. API Design
It’s a huge subject that goes far beyond this presentation but here
are some pointers and reference:
Effective Java 2, Joshua Bloch
How To Design A Good API and Why it Matters, Joshua Bloch
Step two: Code, code, code!

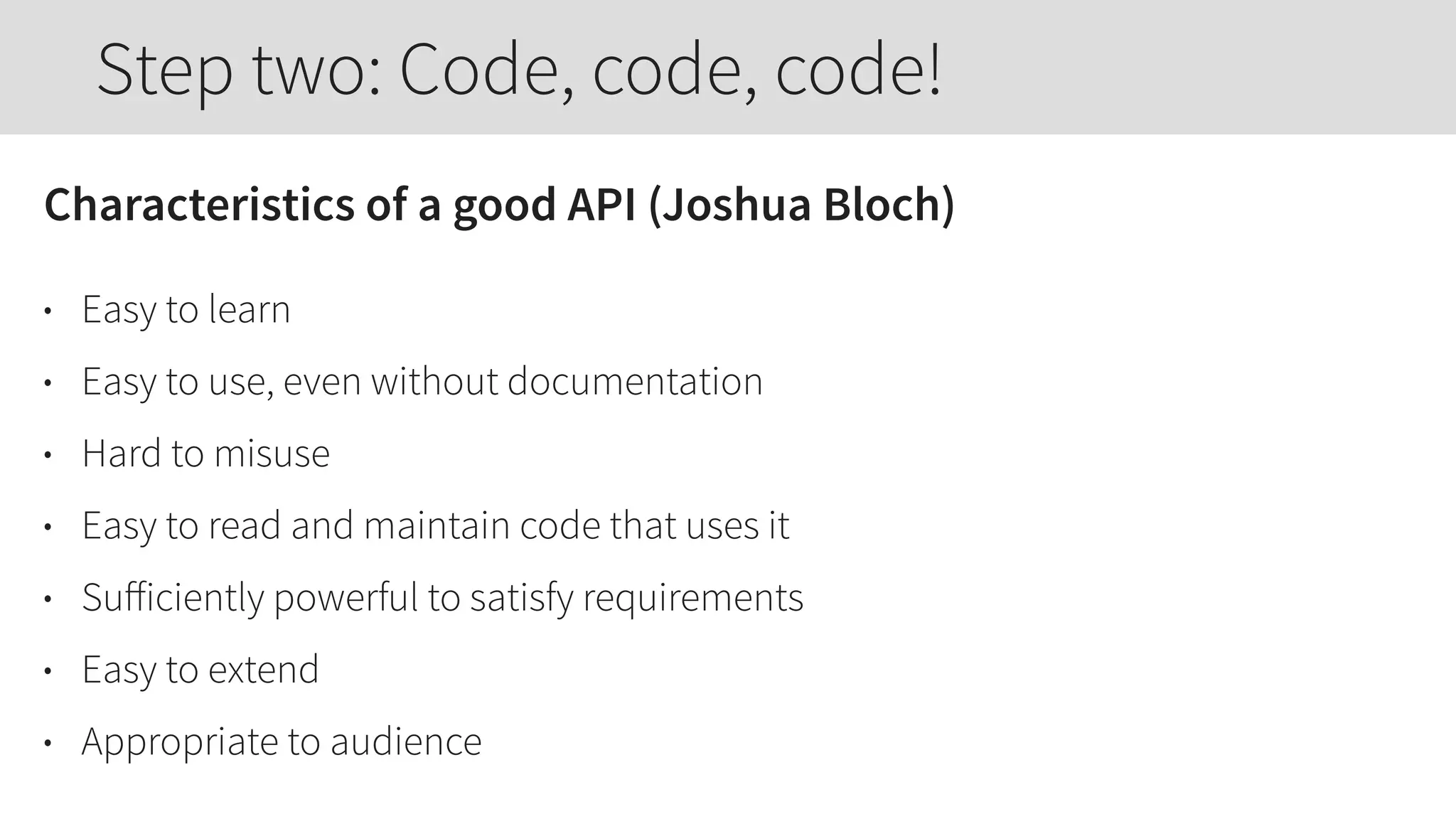

13. Characteristics of a good API (Joshua Bloch)
• Easy to learn
• Easy to use, even without documentation
• Hard to misuse
• Easy to read and maintain code that uses it
• Sufficiently powerful to satisfy requirements
• Easy to extend
• Appropriate to audience
Step two: Code, code, code!

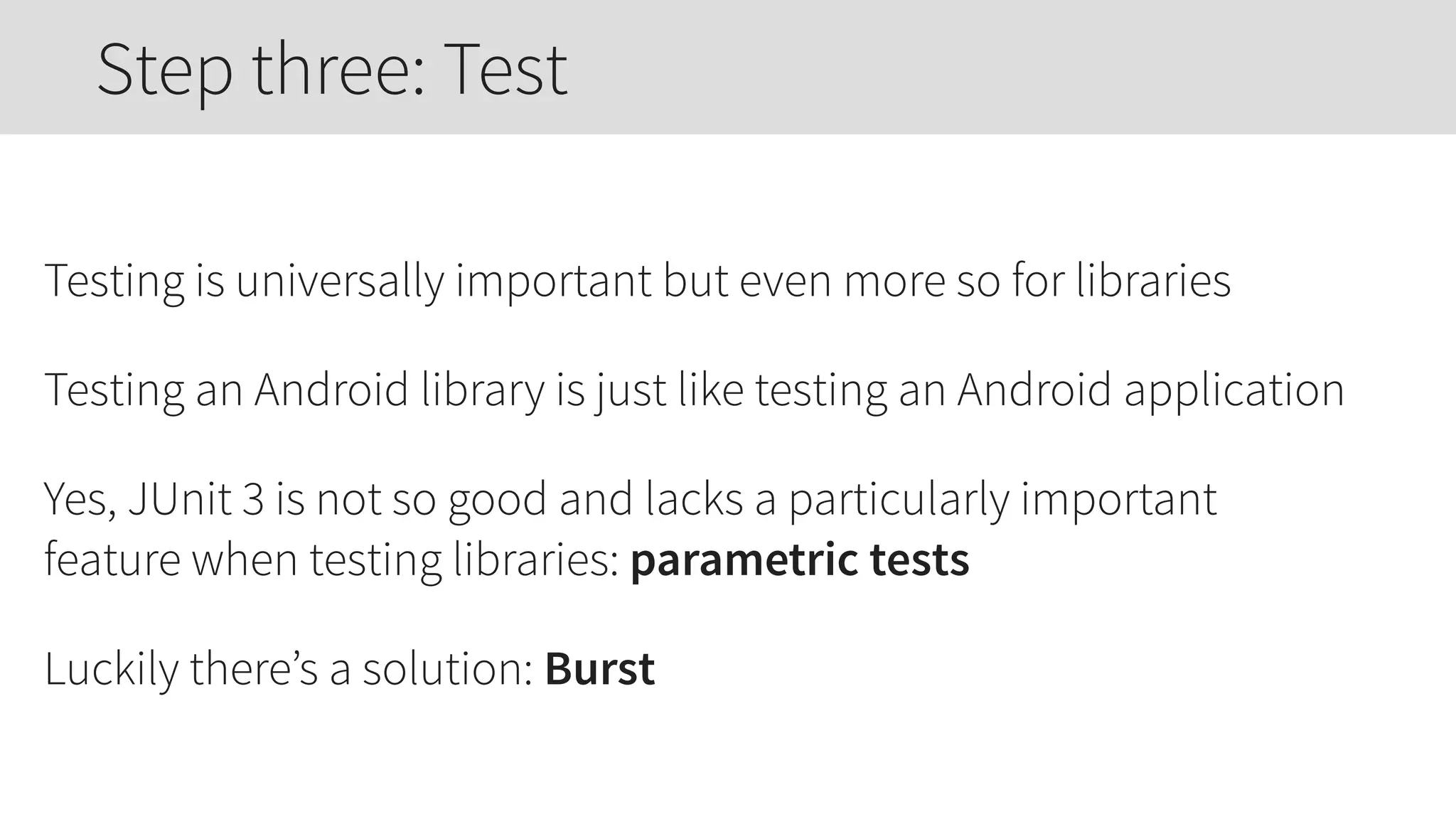

14. Testing is universally important but even more so for libraries
Testing an Android library is just like testing an Android application
Yes, JUnit 3 is not so good and lacks a particularly important
feature when testing libraries: parametric tests
Luckily there’s a solution: Burst
Step three: Test

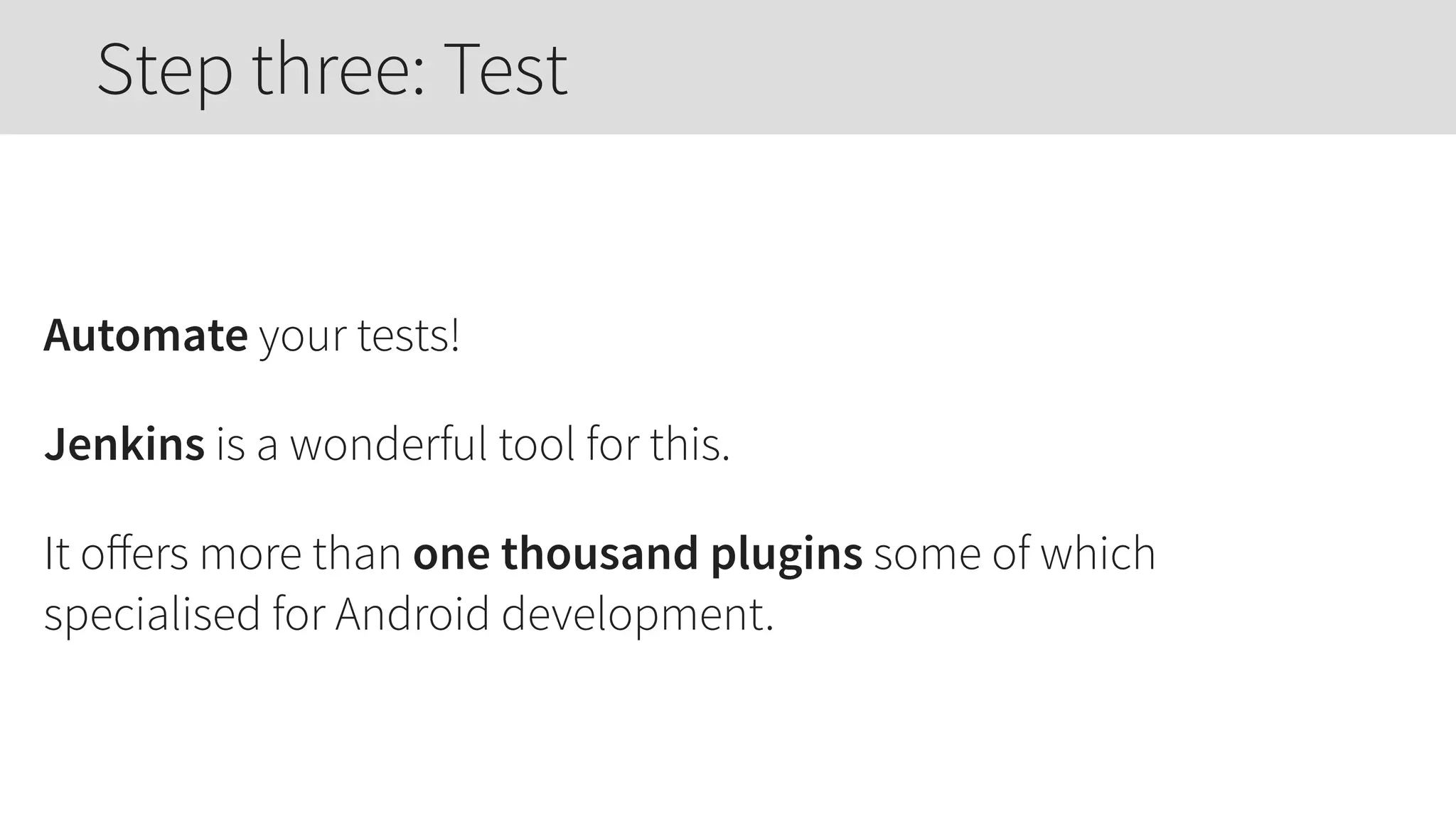

15. Automate your tests!
Jenkins is a wonderful tool for this.
It offers more than one thousand plugins some of which
specialised for Android development.
Step three: Test

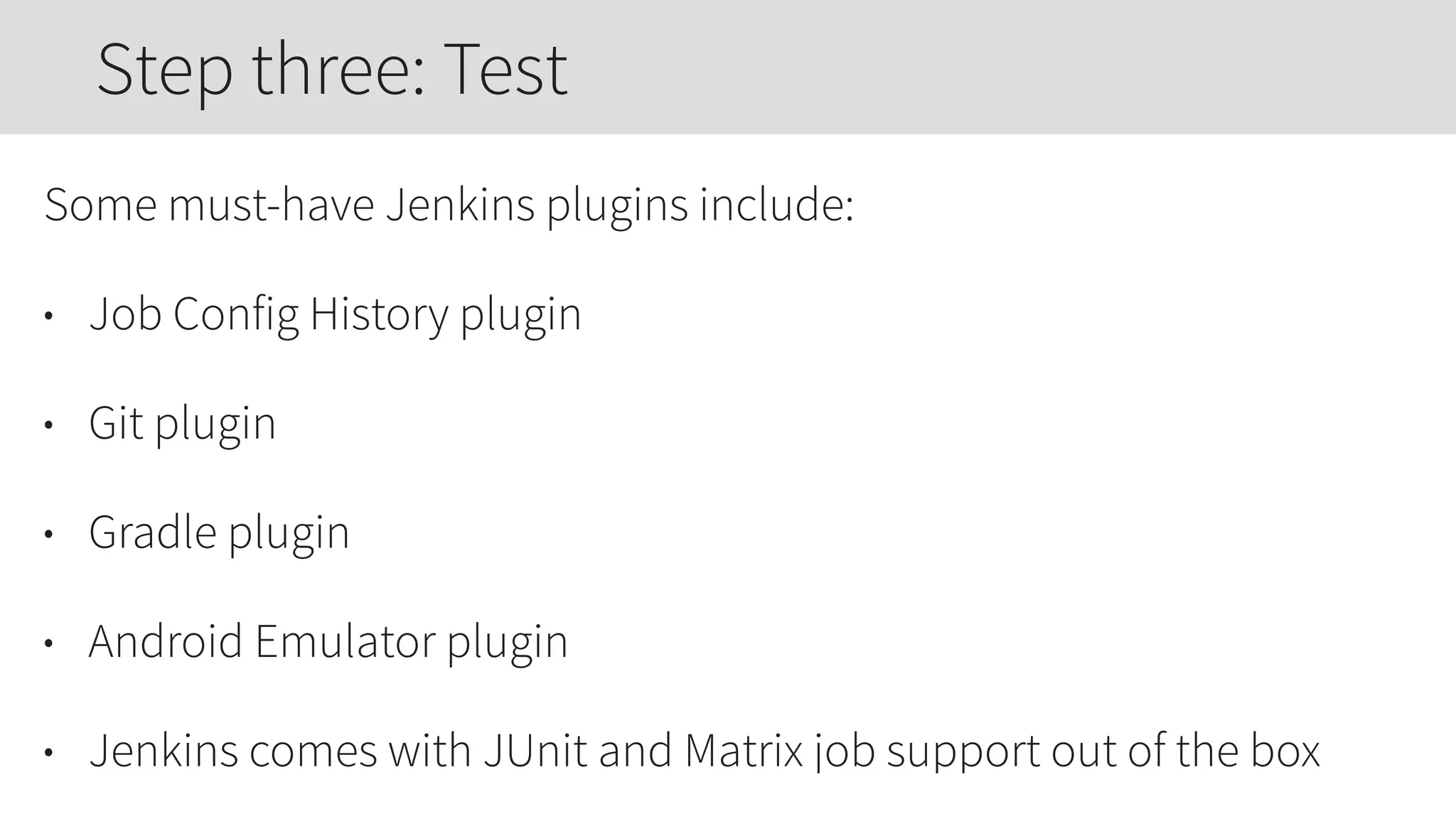

16. Some must-have Jenkins plugins include:
• Job Config History plugin
• Git plugin
• Gradle plugin
• Android Emulator plugin
• Jenkins comes with JUnit and Matrix job support out of the box
Step three: Test

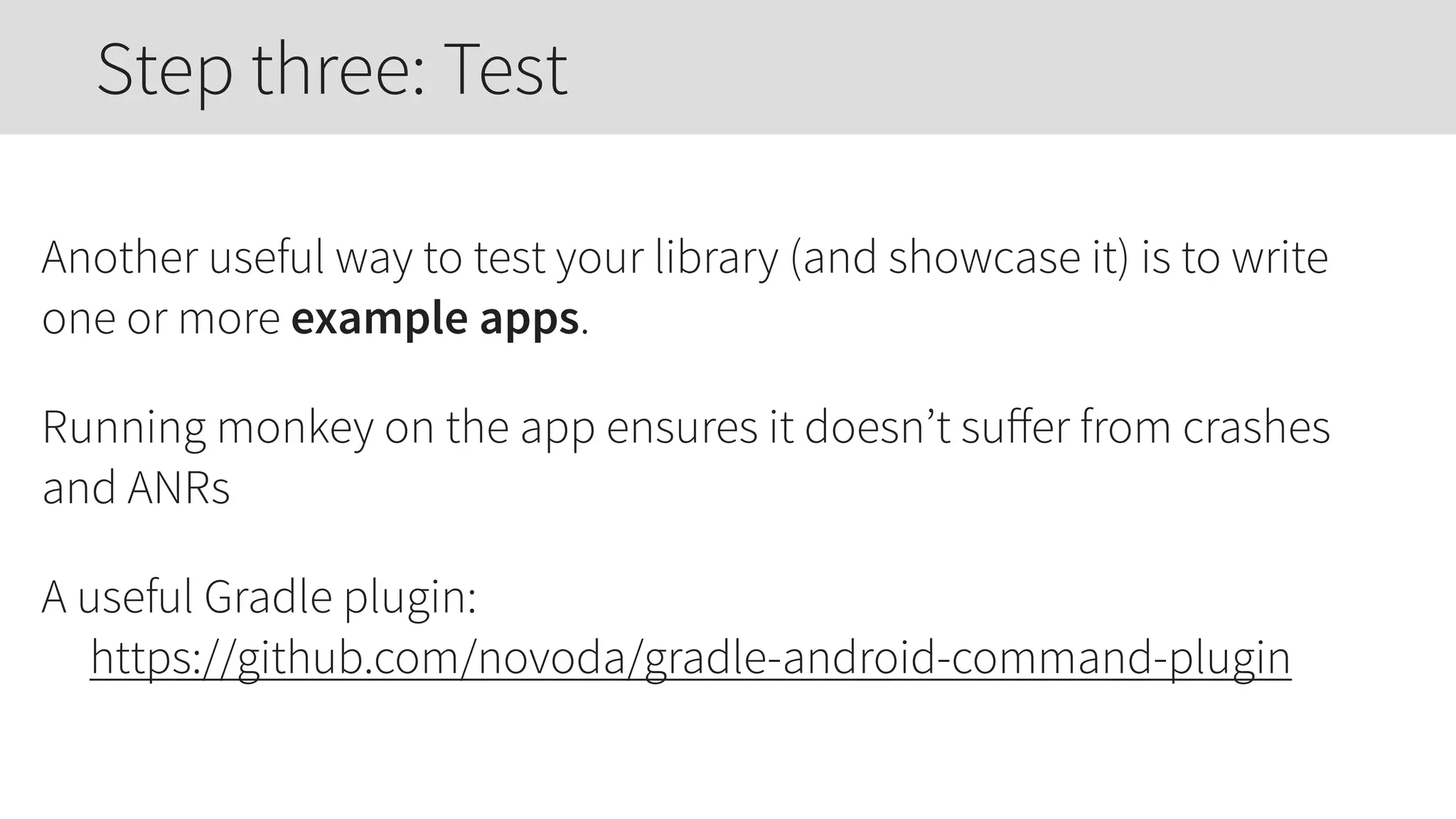

17. Another useful way to test your library (and showcase it) is to write
one or more example apps.
Running monkey on the app ensures it doesn’t suffer from crashes
and ANRs
A useful Gradle plugin:
https://github.com/novoda/gradle-android-command-plugin
Step three: Test

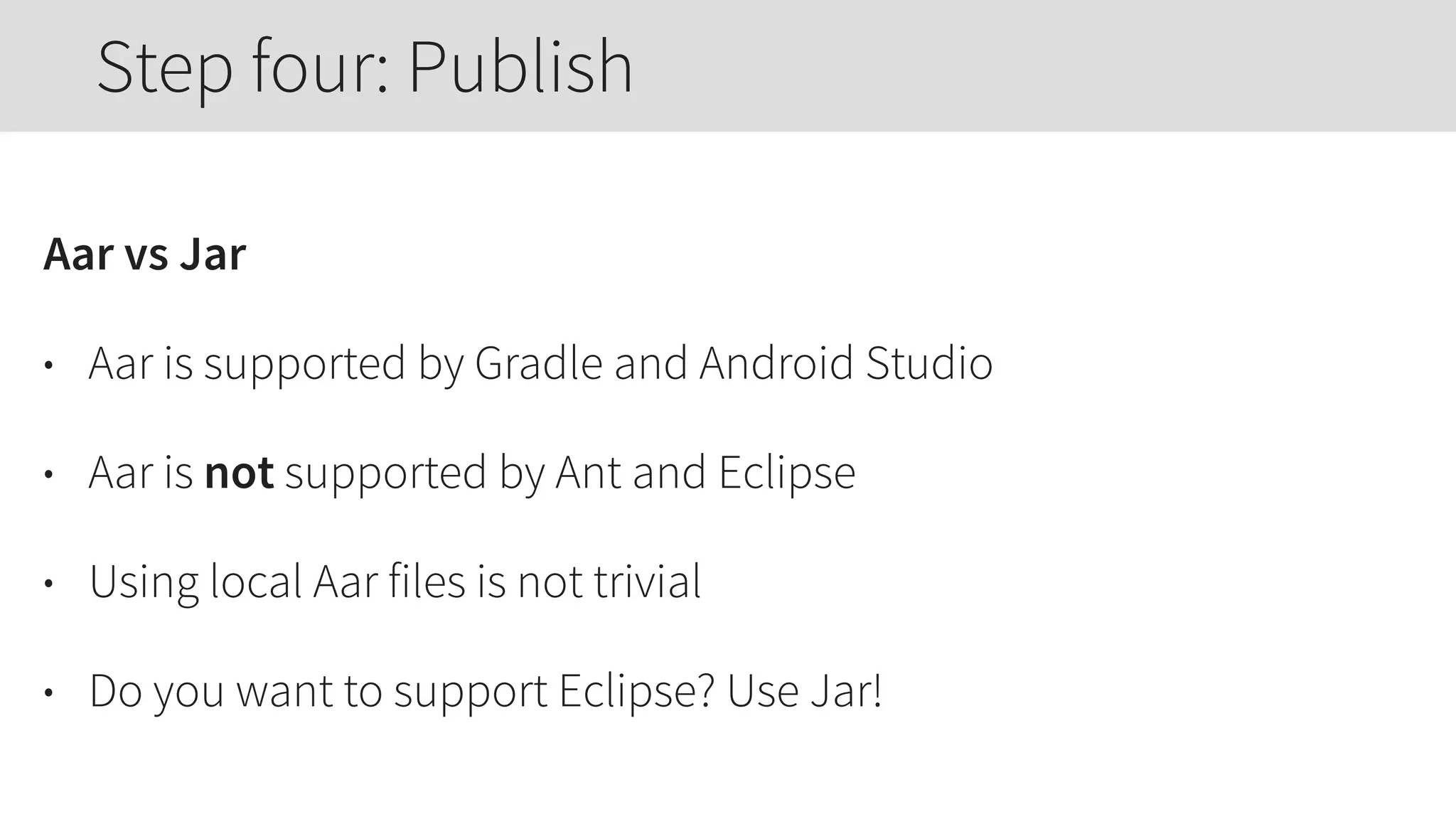

18. Aar vs Jar
• Aar is supported by Gradle and Android Studio
• Aar is not supported by Ant and Eclipse
• Using local Aar files is not trivial
• Do you want to support Eclipse? Use Jar!
Step four: Publish

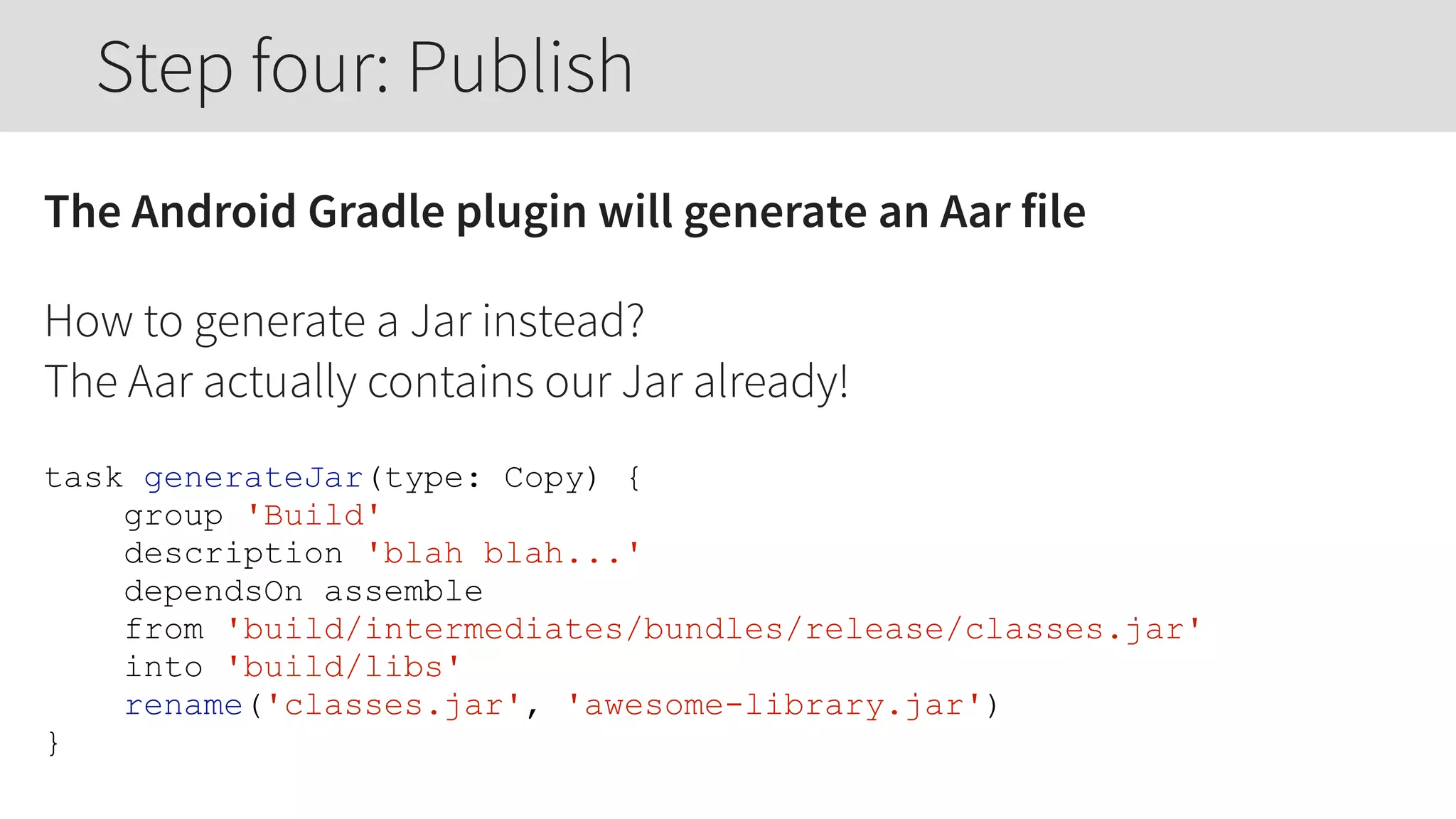

19. The Android Gradle plugin will generate an Aar file
How to generate a Jar instead?
The Aar actually contains our Jar already!
task generateJar(type: Copy) {
group 'Build'
description 'blah blah...'
dependsOn assemble
from 'build/intermediates/bundles/release/classes.jar'
into 'build/libs'
rename('classes.jar', 'awesome-library.jar')
}
Step four: Publish

20. Where to publish?
Step four: Publish

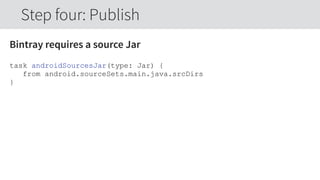

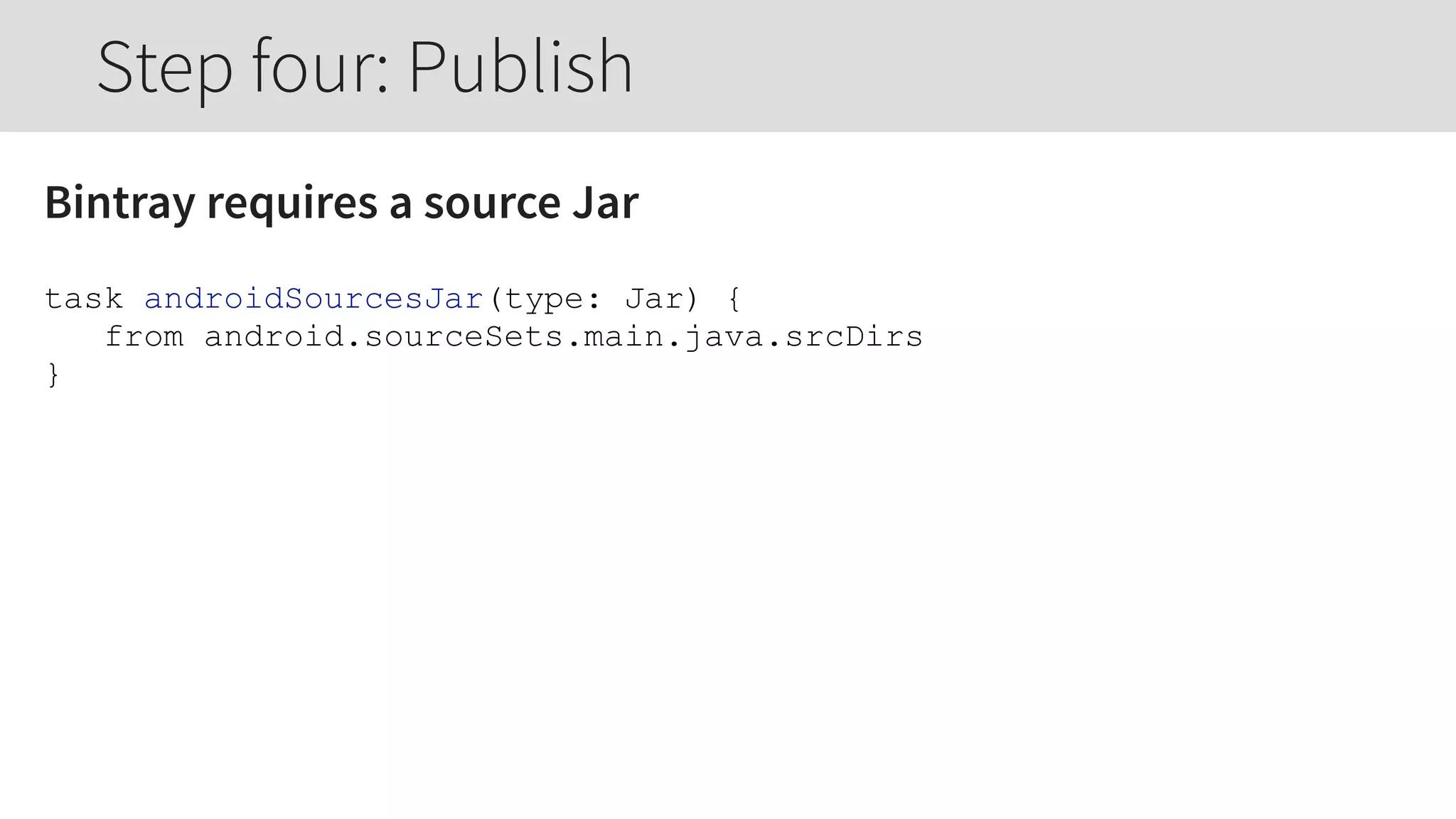

21. Bintray requires a source Jar
task androidSourcesJar(type: Jar) {
from android.sourceSets.main.java.srcDirs
}
Step four: Publish

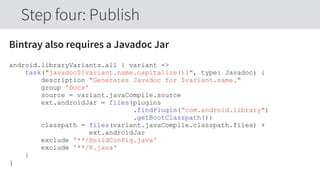

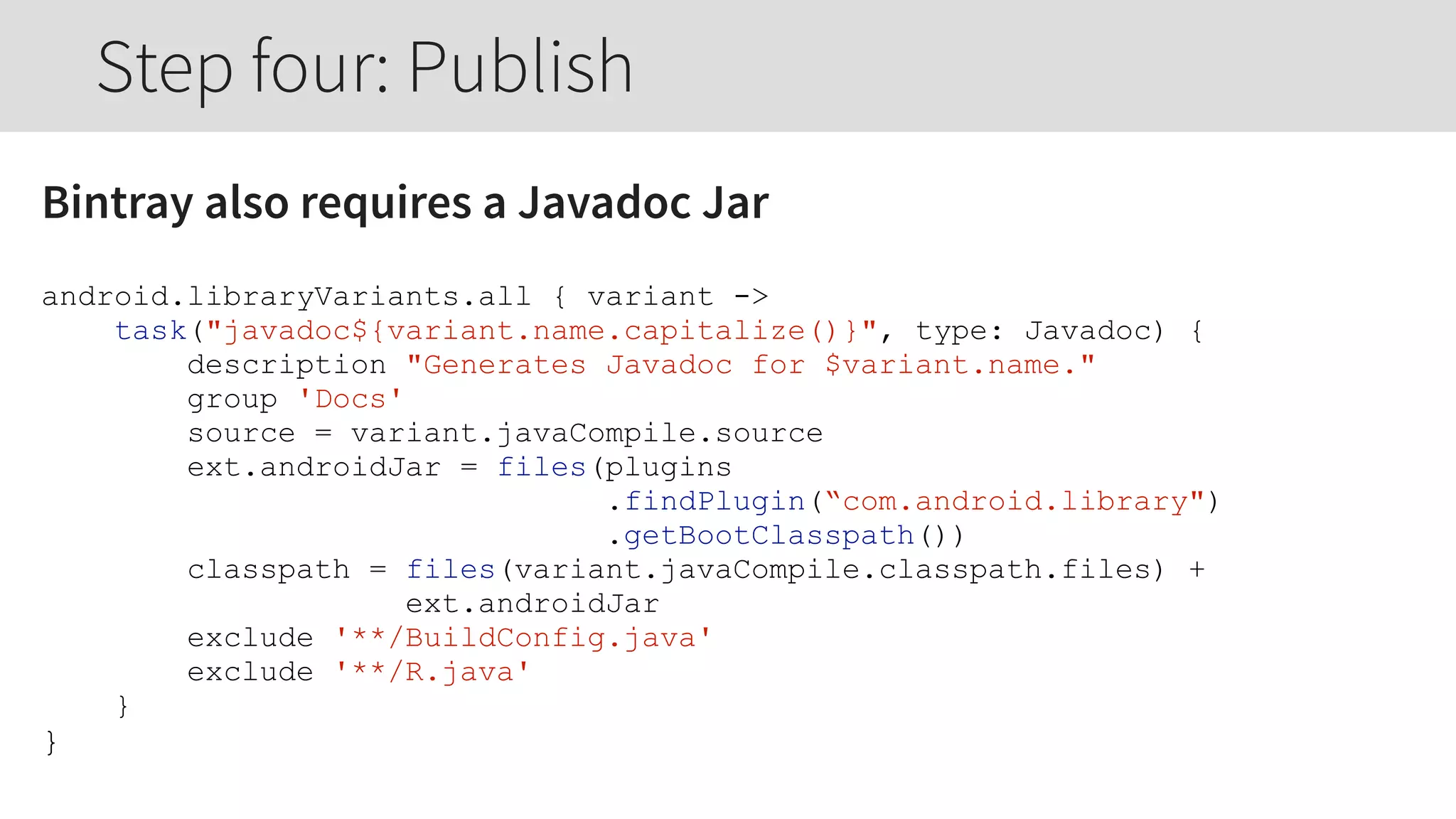

22. Bintray also requires a Javadoc Jar
android.libraryVariants.all { variant ->
task("javadoc${variant.name.capitalize()}", type: Javadoc) {
description "Generates Javadoc for $variant.name."
group 'Docs'
source = variant.javaCompile.source
ext.androidJar = files(plugins
.findPlugin(“com.android.library")
.getBootClasspath())
classpath = files(variant.javaCompile.classpath.files) +
ext.androidJar
exclude '**/BuildConfig.java'
exclude '**/R.java'
}
}
Step four: Publish

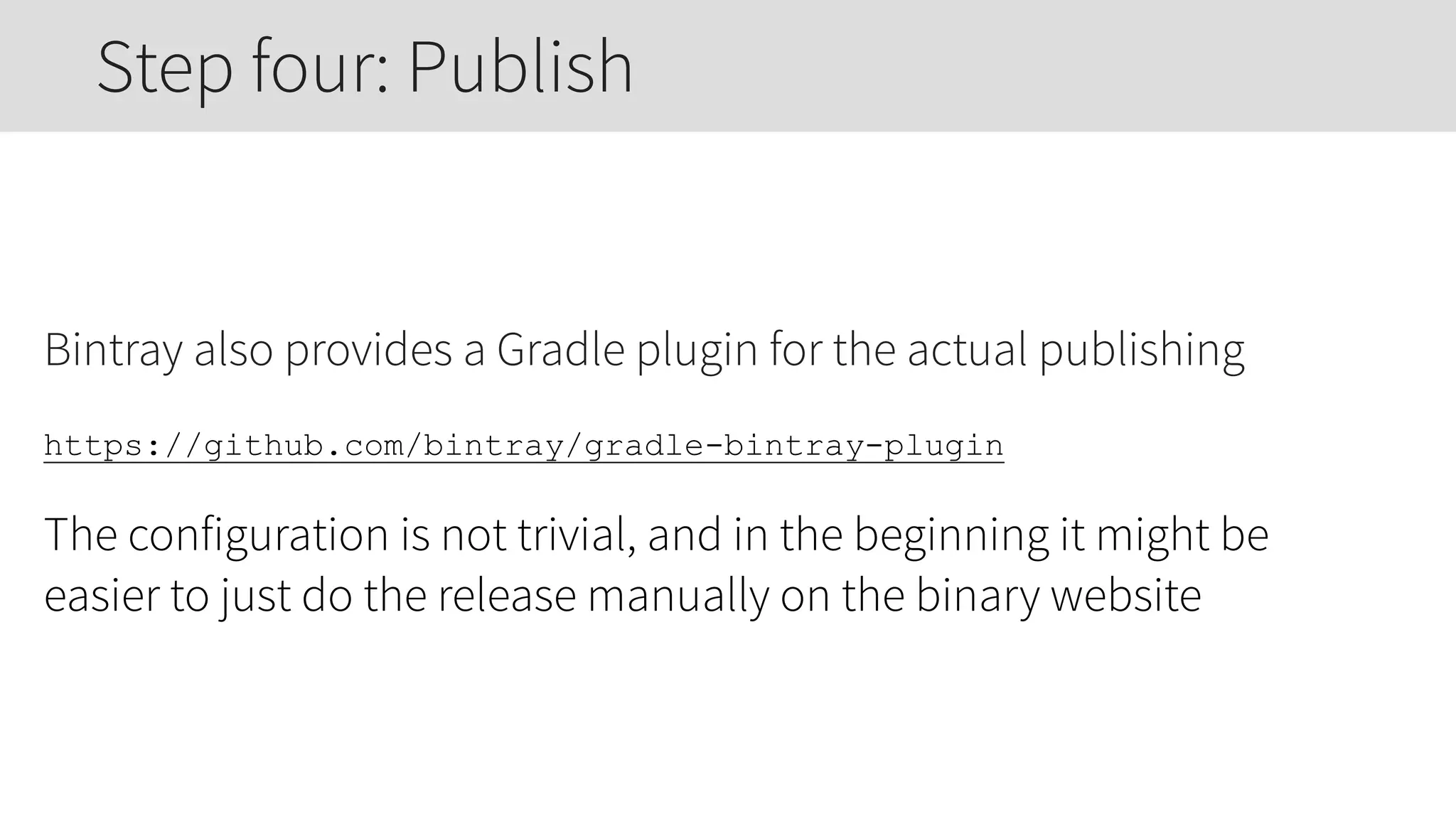

23. Bintray also provides a Gradle plugin for the actual publishing
https://github.com/bintray/gradle-bintray-plugin
The configuration is not trivial, and in the beginning it might be
easier to just do the release manually on the binary website
Step four: Publish

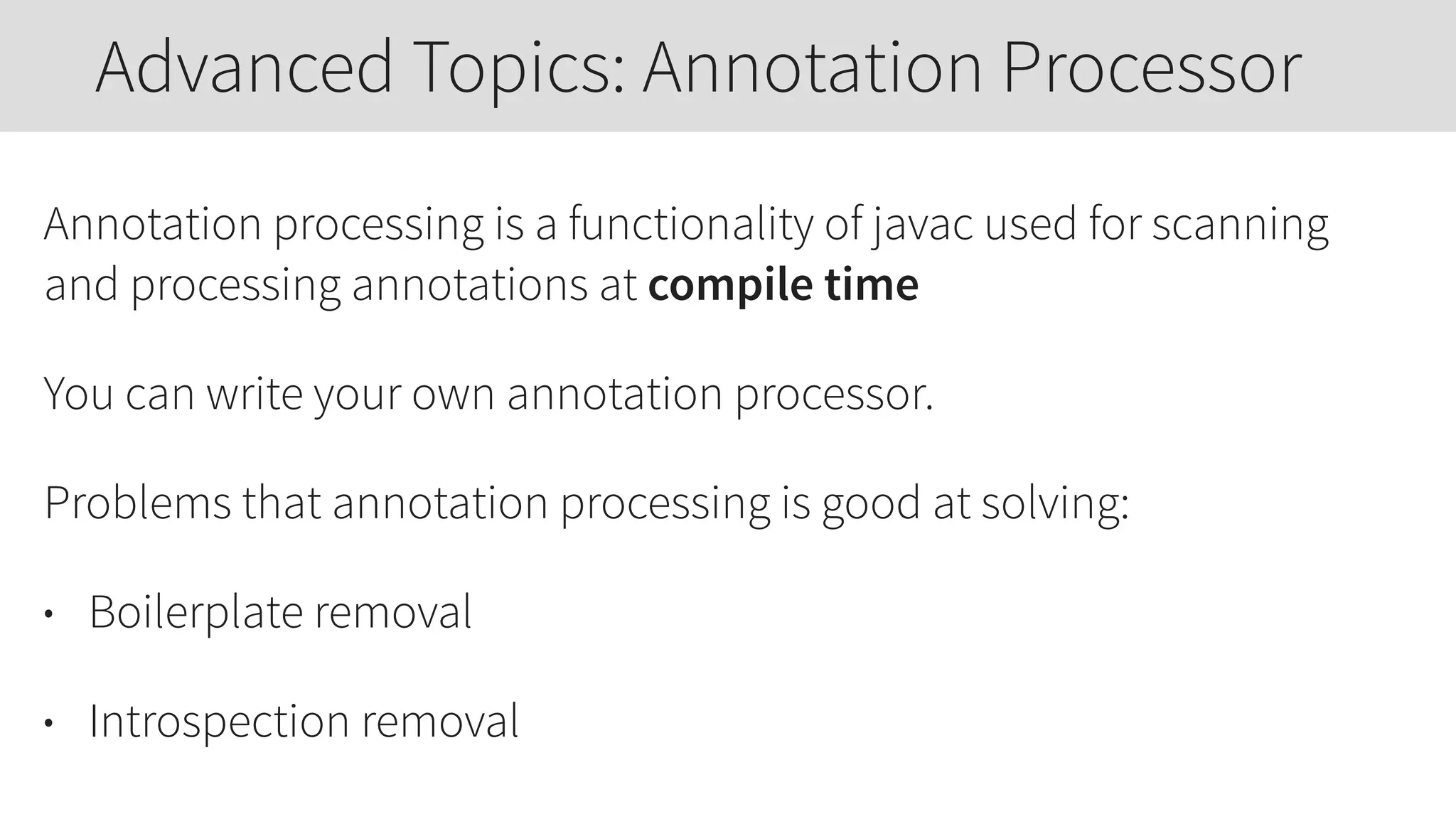

24. Annotation processing is a functionality of javac used for scanning
and processing annotations at compile time
You can write your own annotation processor.
Problems that annotation processing is good at solving:
• Boilerplate removal
• Introspection removal
Advanced Topics: Annotation Processor

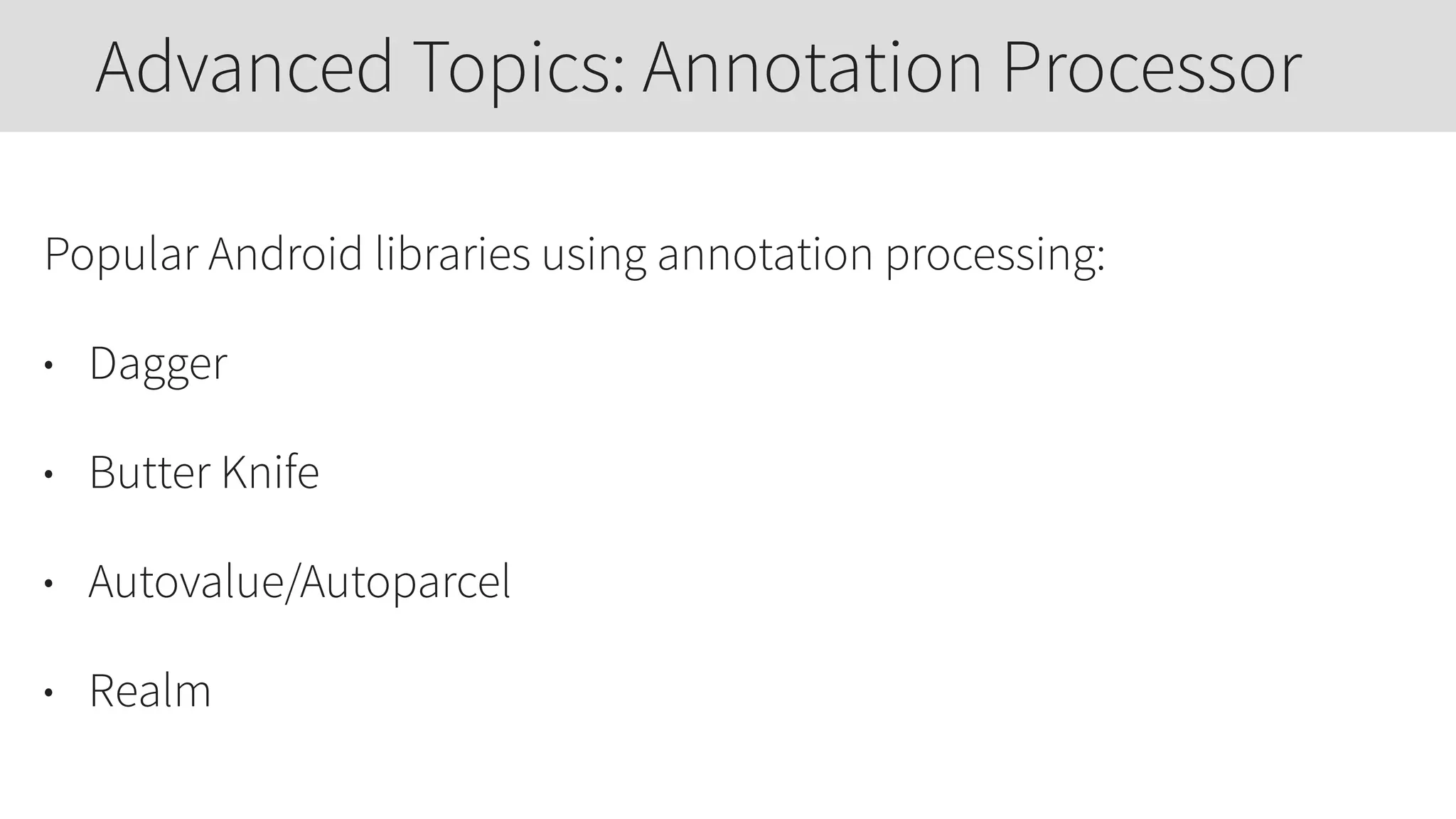

25. Popular Android libraries using annotation processing:
• Dagger
• Butter Knife
• Autovalue/Autoparcel
• Realm
Advanced Topics: Annotation Processor

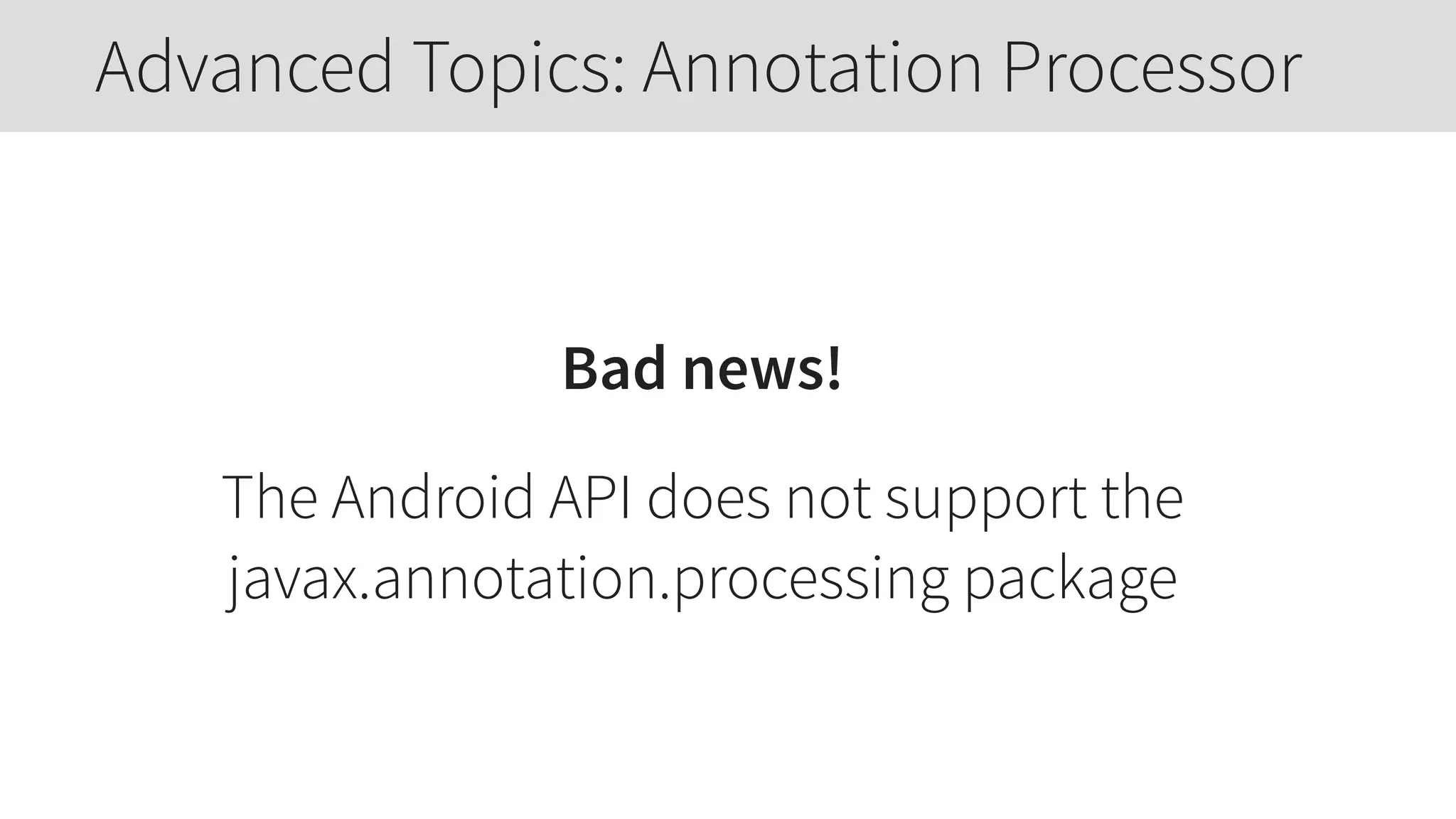

26. Bad news!
The Android API does not support the
javax.annotation.processing package
Advanced Topics: Annotation Processor

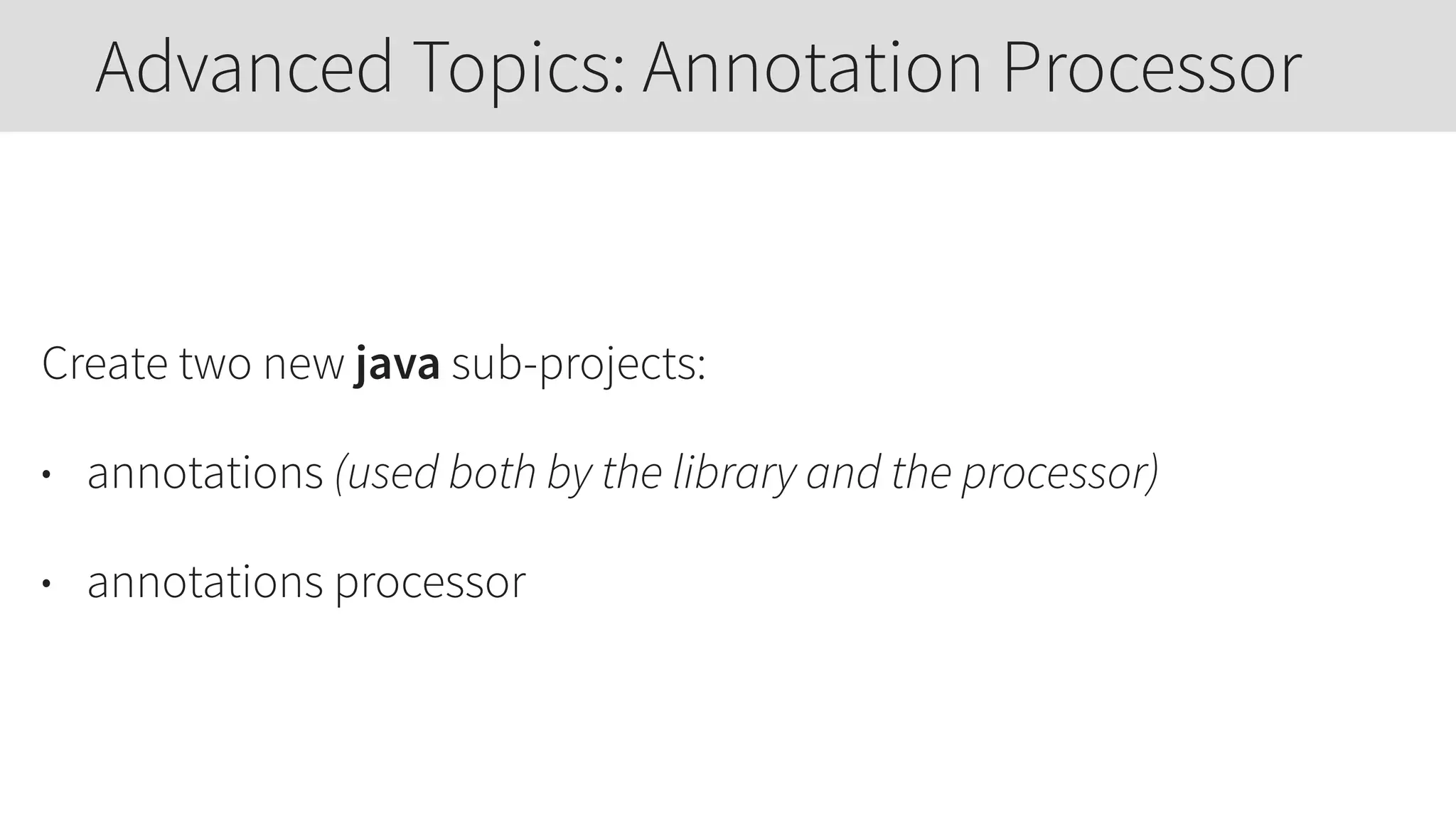

27. Create two new java sub-projects:
• annotations (used both by the library and the processor)
• annotations processor
Advanced Topics: Annotation Processor

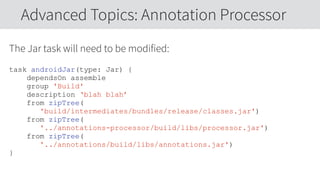

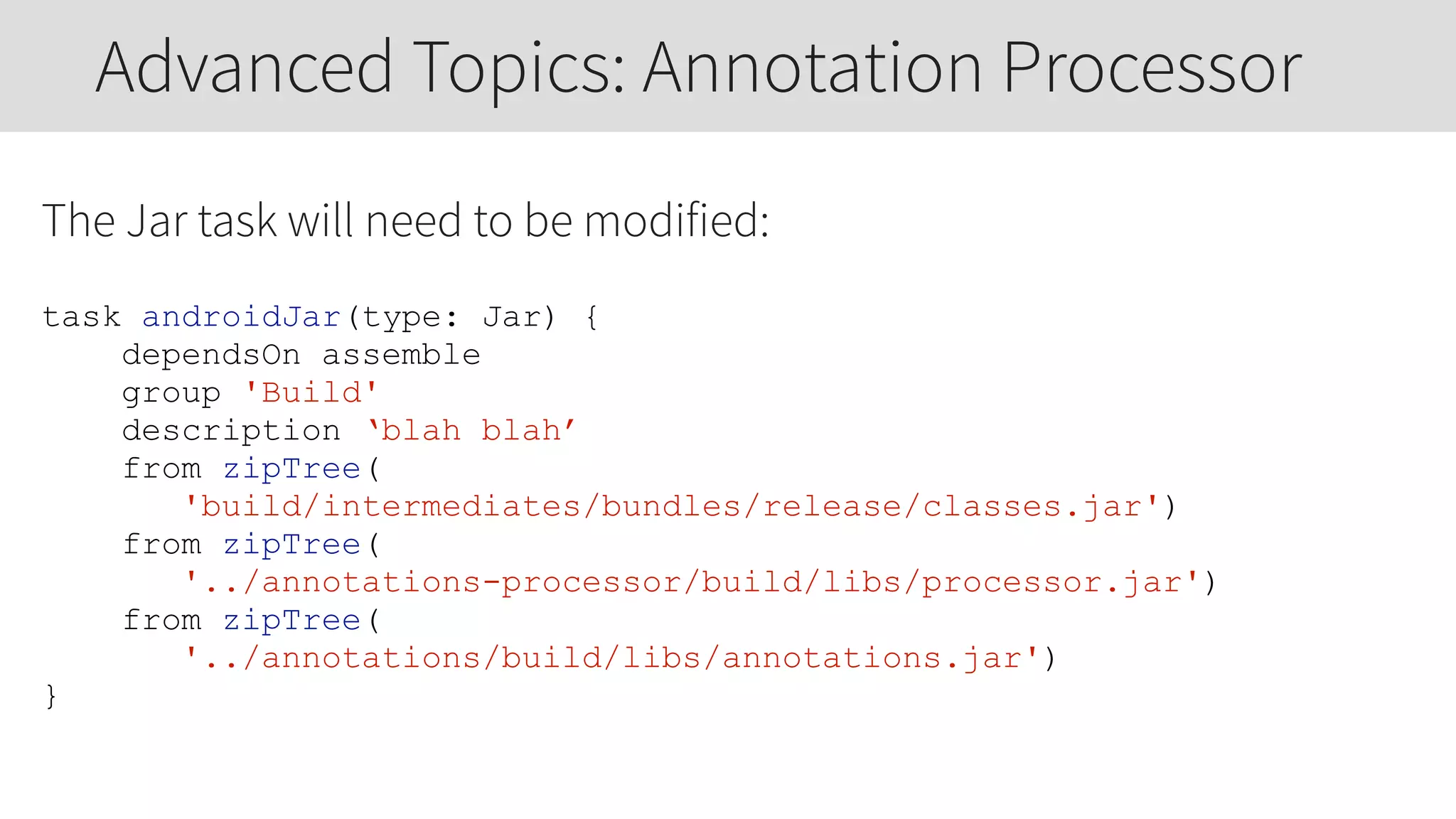

28. The Jar task will need to be modified:
task androidJar(type: Jar) {
dependsOn assemble
group 'Build'
description ‘blah blah’
from zipTree(
'build/intermediates/bundles/release/classes.jar')
from zipTree(
'../annotations-processor/build/libs/processor.jar')
from zipTree(
'../annotations/build/libs/annotations.jar')
}
Advanced Topics: Annotation Processor

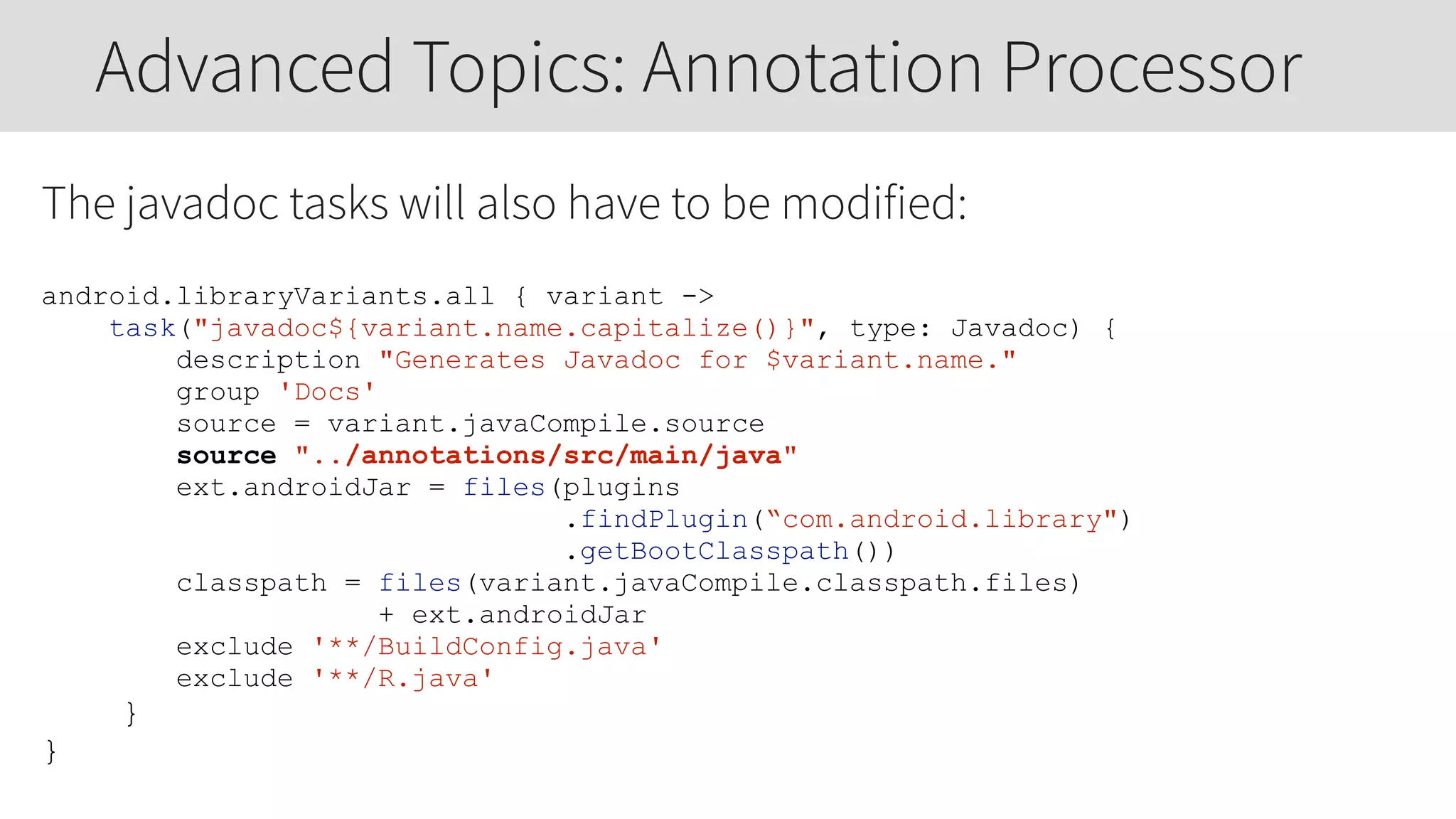

29. The javadoc tasks will also have to be modified:
android.libraryVariants.all { variant ->
task("javadoc${variant.name.capitalize()}", type: Javadoc) {
description "Generates Javadoc for $variant.name."
group 'Docs'
source = variant.javaCompile.source
source "../annotations/src/main/java"
ext.androidJar = files(plugins
.findPlugin(“com.android.library")
.getBootClasspath())
classpath = files(variant.javaCompile.classpath.files)
+ ext.androidJar
exclude '**/BuildConfig.java'
exclude '**/R.java'
}
}
Advanced Topics: Annotation Processor

30. NDK
Advanced Topics: Native code

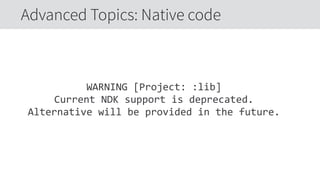

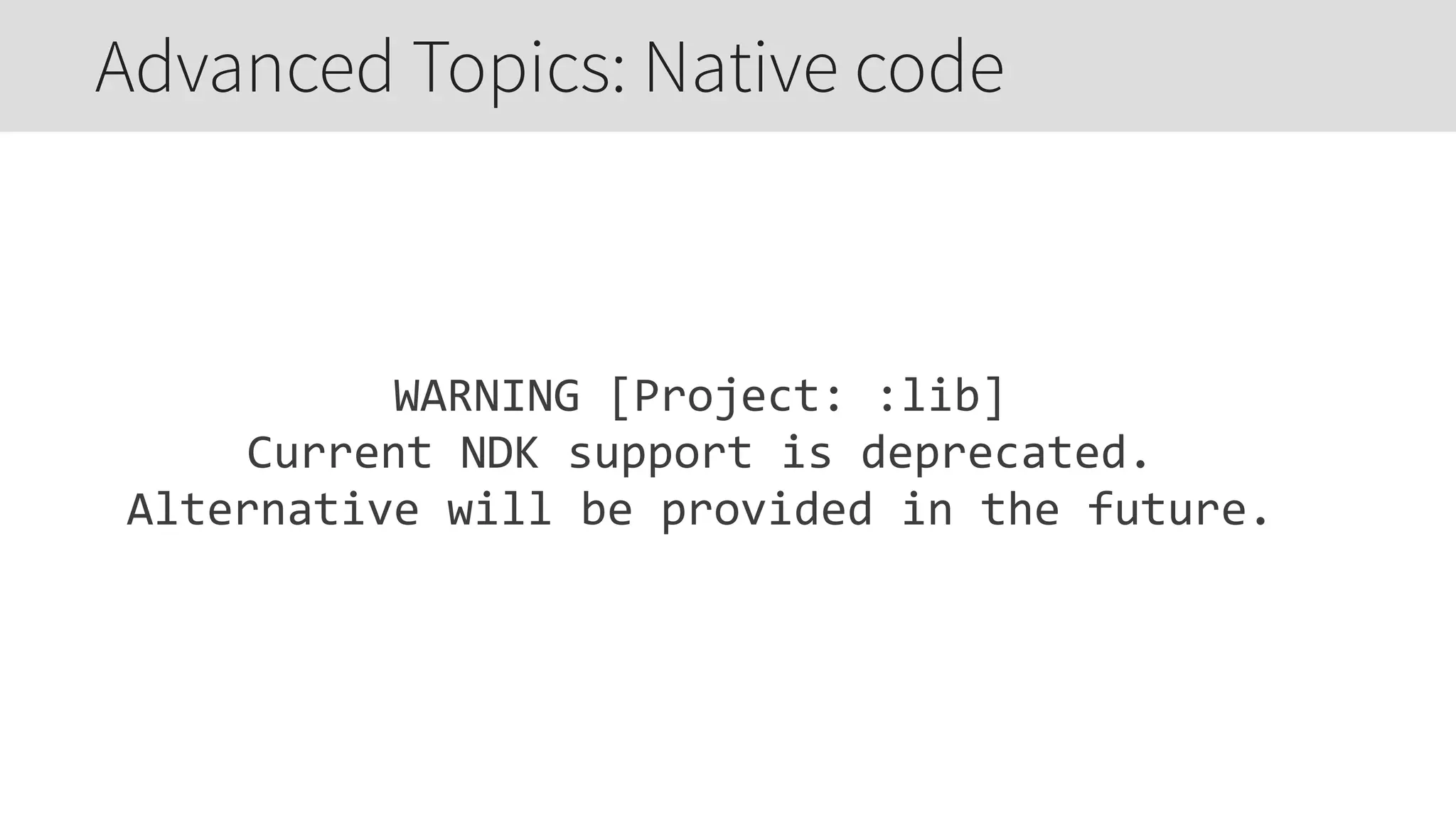

31. WARNING [Project: :lib]
Current NDK support is deprecated.
Alternative will be provided in the future.
Advanced Topics: Native code

32. Advanced Topics: Native code

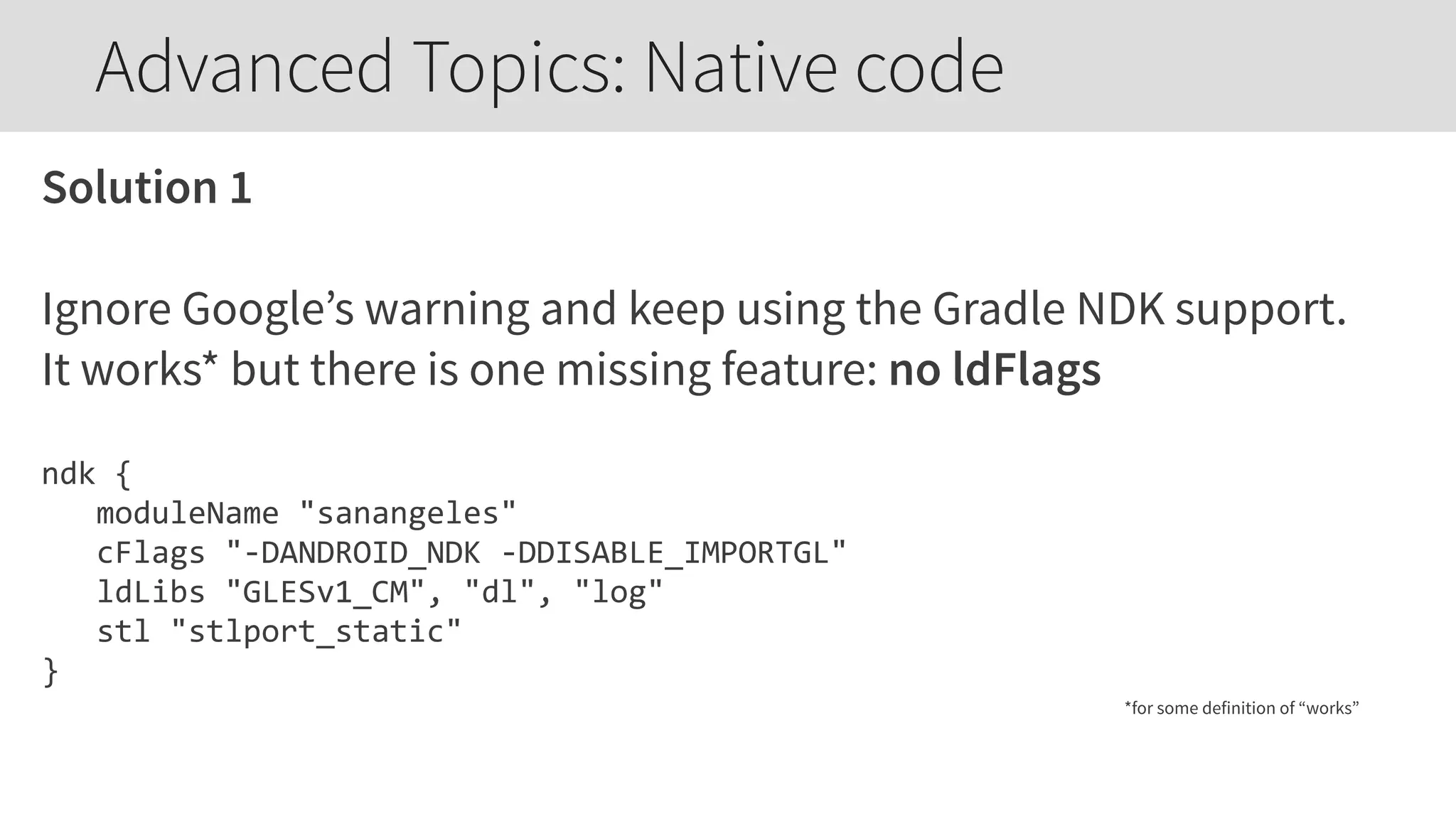

33. Solution 1
Ignore Google’s warning and keep using the Gradle NDK support.
It works* but there is one missing feature: no ldFlags
ndk {
moduleName "sanangeles"
cFlags "-­‐DANDROID_NDK -­‐DDISABLE_IMPORTGL"
ldLibs "GLESv1_CM", "dl", "log"
stl "stlport_static"
}
*for some definition of “works”
Advanced Topics: Native code

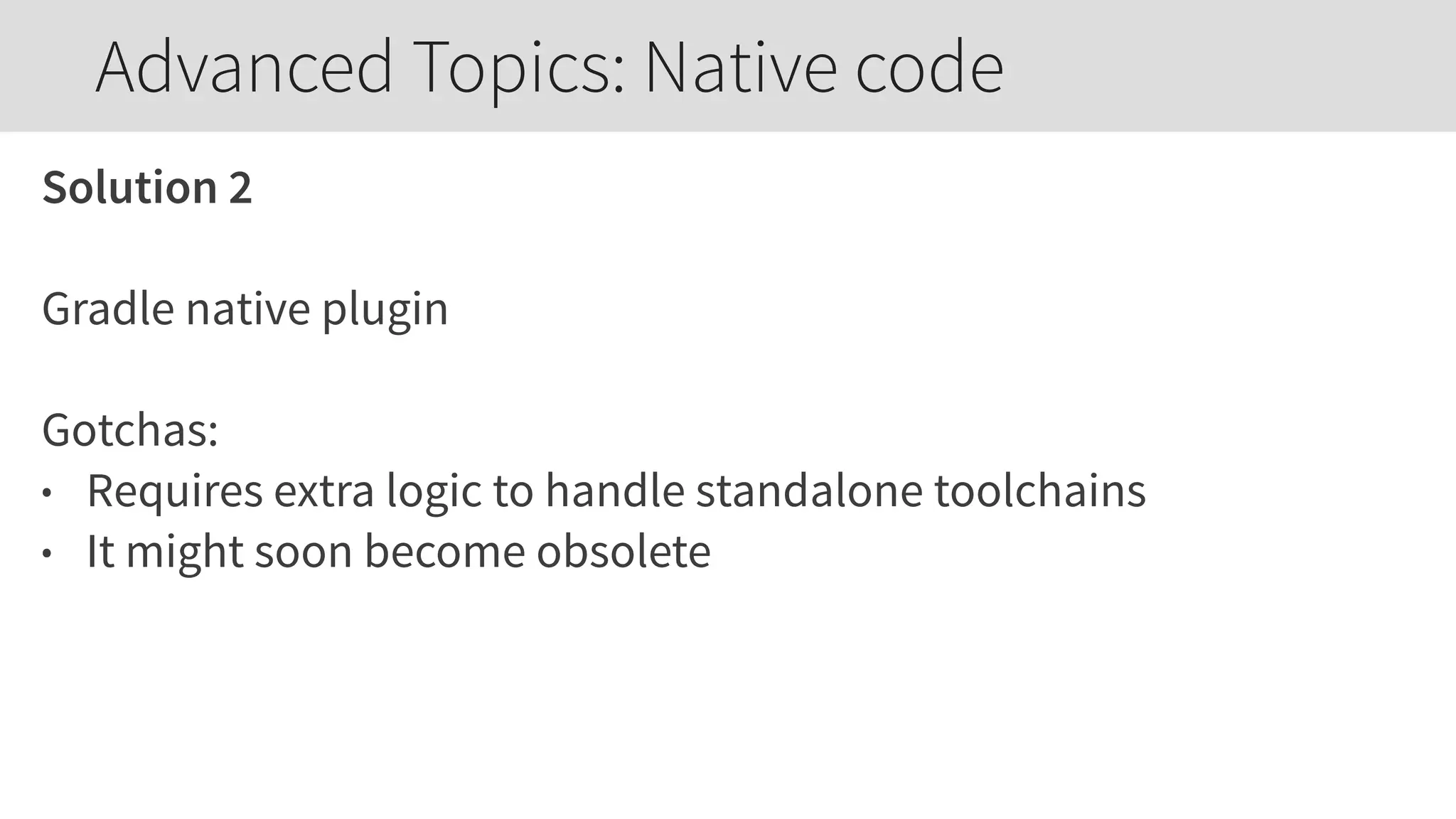

34. Solution 2
Gradle native plugin
Gotchas:
• Requires extra logic to handle standalone toolchains
• It might soon become obsolete
Advanced Topics: Native code

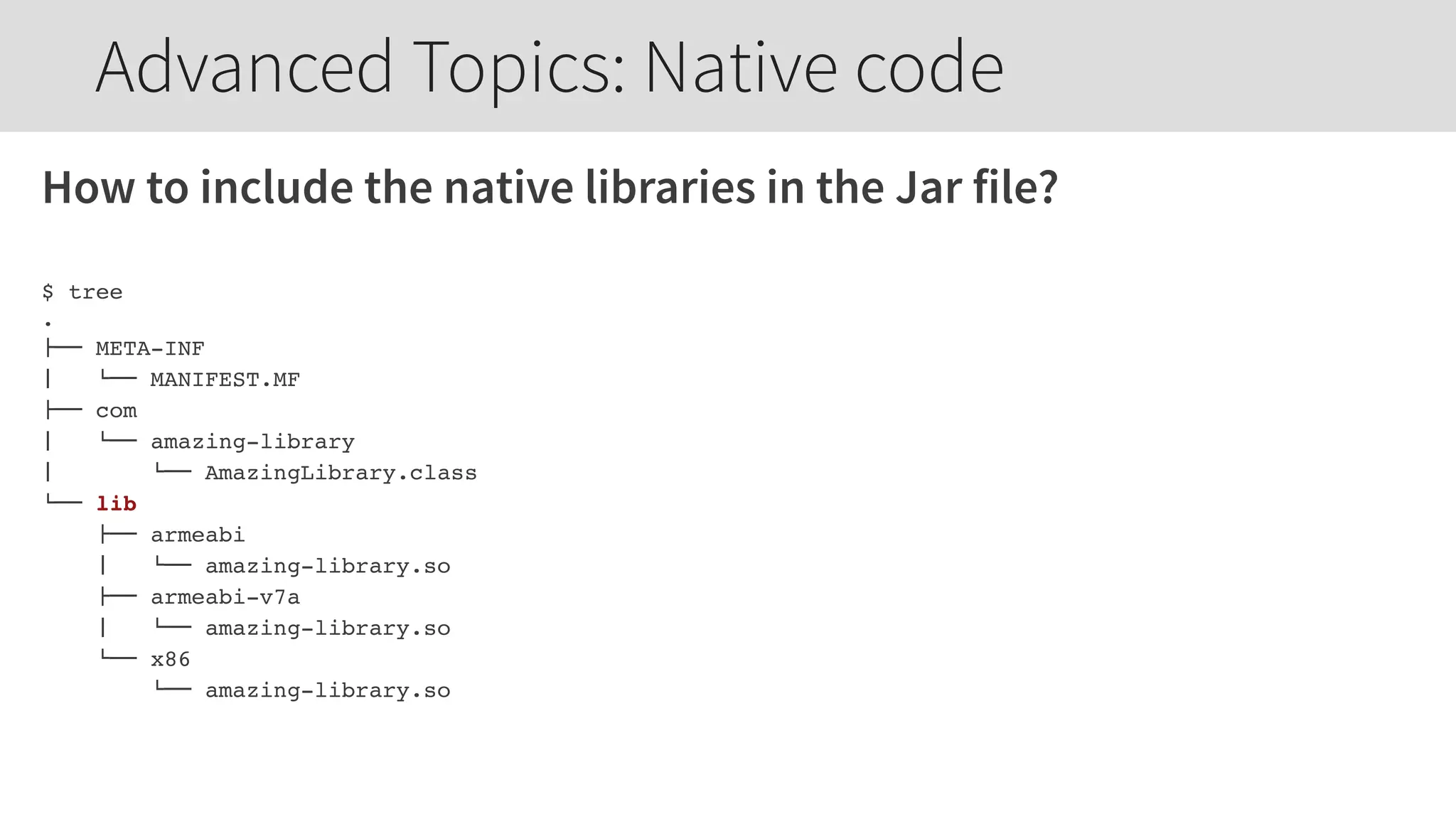

35. How to include the native libraries in the Jar file?
$ tree
.
!"" META-INF
# $"" MANIFEST.MF
!"" com
# $"" amazing-library
# $"" AmazingLibrary.class
$"" lib
!"" armeabi
# $"" amazing-library.so
!"" armeabi-v7a
# $"" amazing-library.so
$"" x86
$"" amazing-library.so
Advanced Topics: Native code

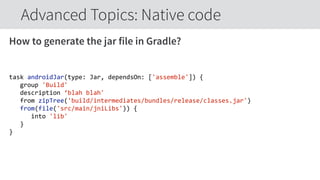

36. How to generate the jar file in Gradle?
task androidJar(type: Jar, dependsOn: ['assemble']) {
group 'Build'
description ‘blah blah'
from zipTree('build/intermediates/bundles/release/classes.jar')
from(file('src/main/jniLibs')) {
into 'lib'
}
}
Advanced Topics: Native code

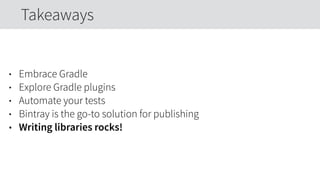

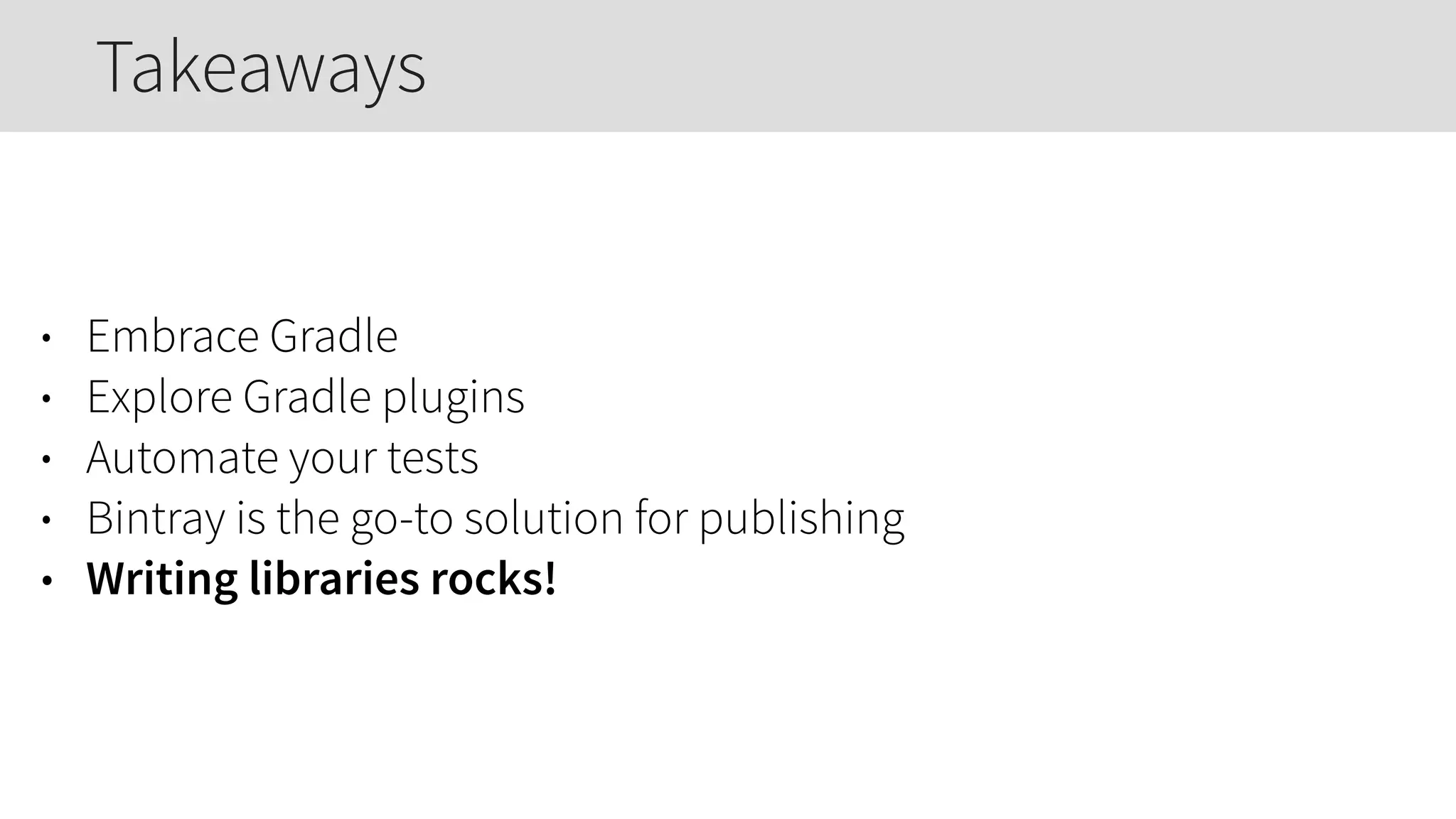

37. • Embrace Gradle
• Explore Gradle plugins
• Automate your tests
• Bintray is the go-to solution for publishing
• Writing libraries rocks!
Takeaways

38. Questions?
