1. Discovering the p2 APIPascal RapicaultSonatype, p2 Lead© Sonatype, inc. All right reserved. Made available under Creative Commons Att. Nc Nd 2.5.license1

2. Who are the p2 committers?© Sonatype, inc. All right reserved. Made available under Creative Commons Att. Nc Nd 2.5.license2

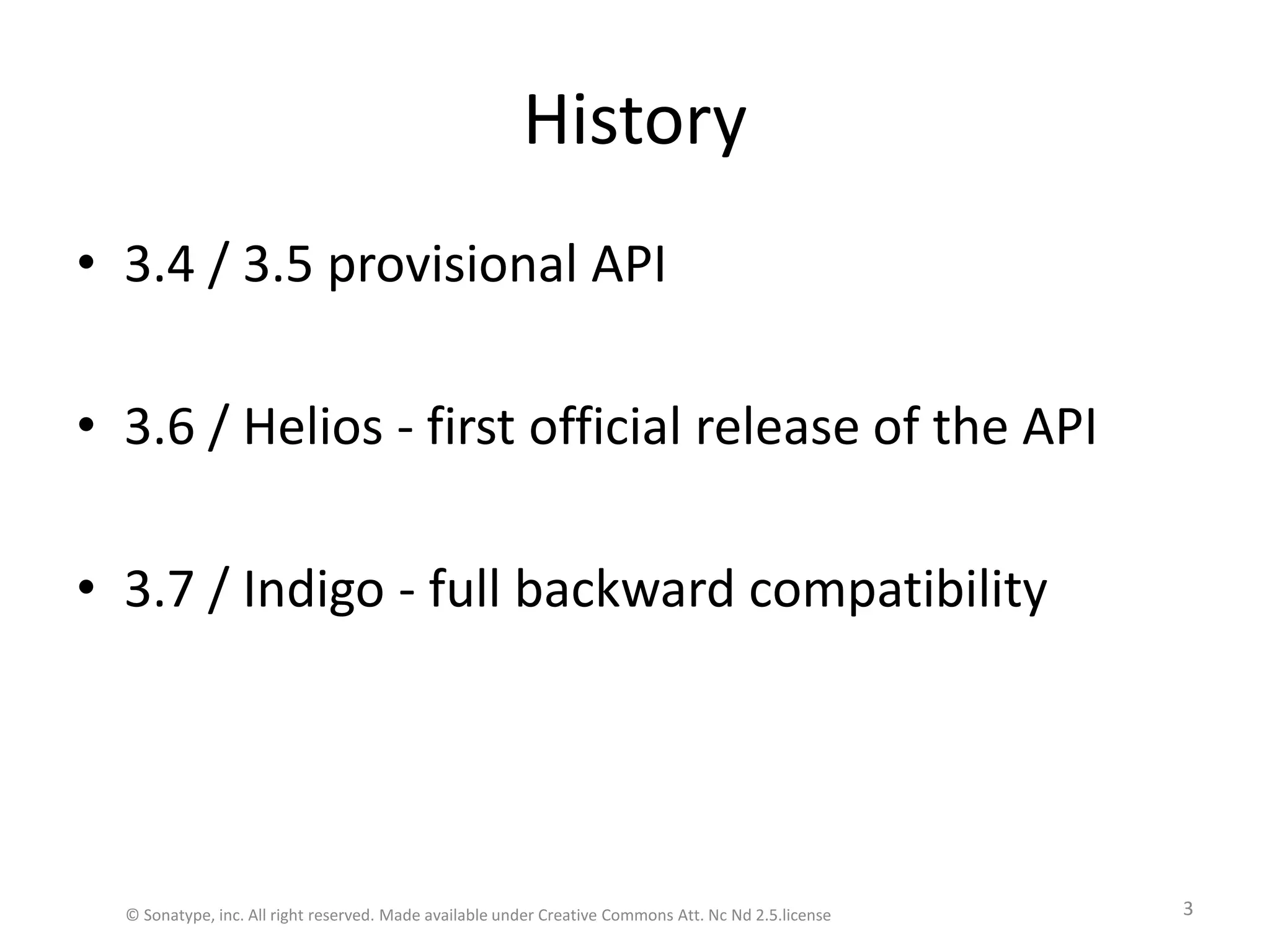

3. History3.4 / 3.5 provisional API3.6 / Helios - first official release of the API3.7 / Indigo - full backward compatibility© Sonatype, inc. All right reserved. Made available under Creative Commons Att. Nc Nd 2.5.license3

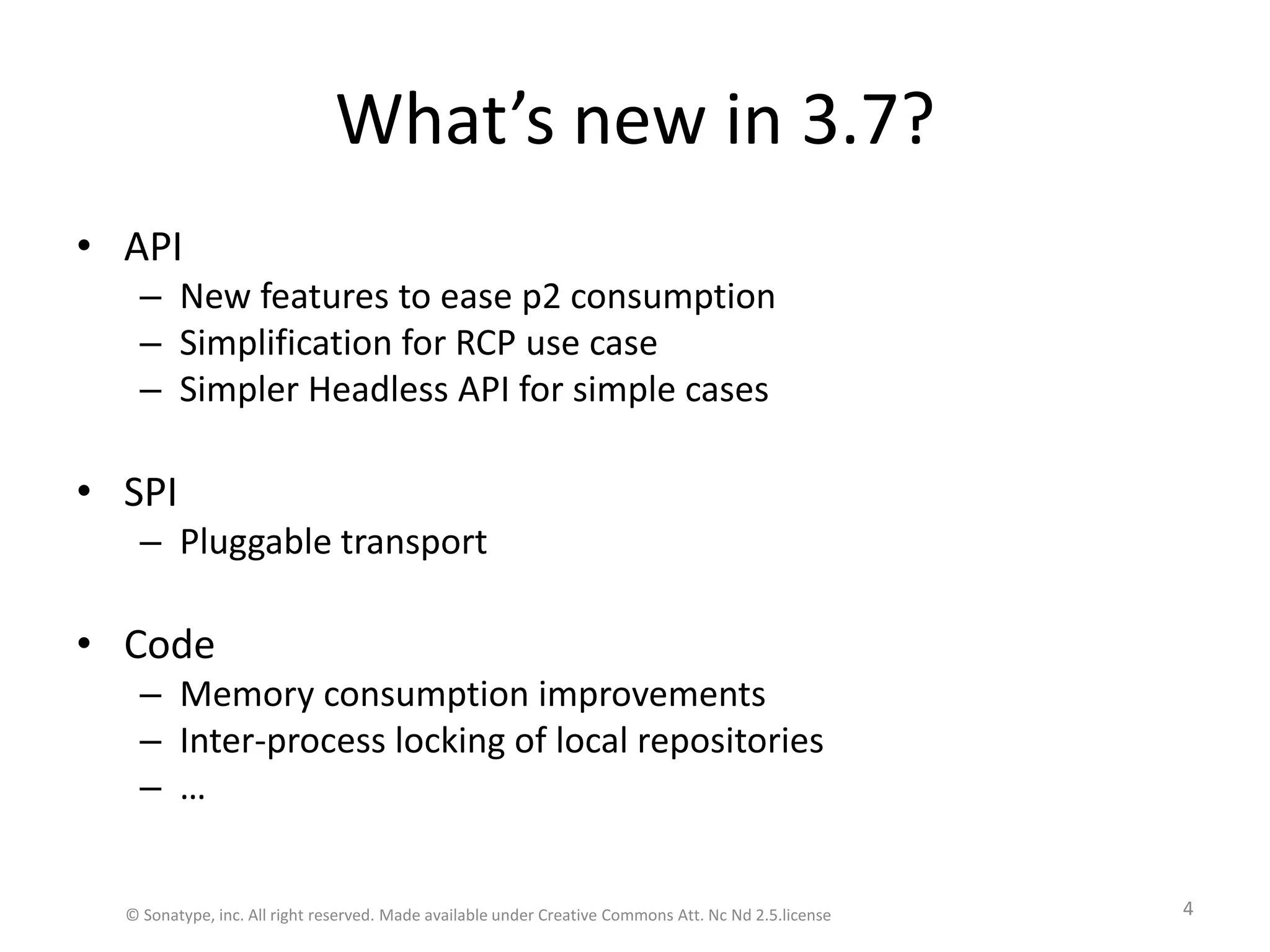

4. What’s new in 3.7?APINew features to ease p2 consumptionSimplification for RCP use caseSimpler Headless API for simple casesSPIPluggable transportCodeMemory consumption improvementsInter-process locking of local repositories…© Sonatype, inc. All right reserved. Made available under Creative Commons Att. Nc Nd 2.5.license4

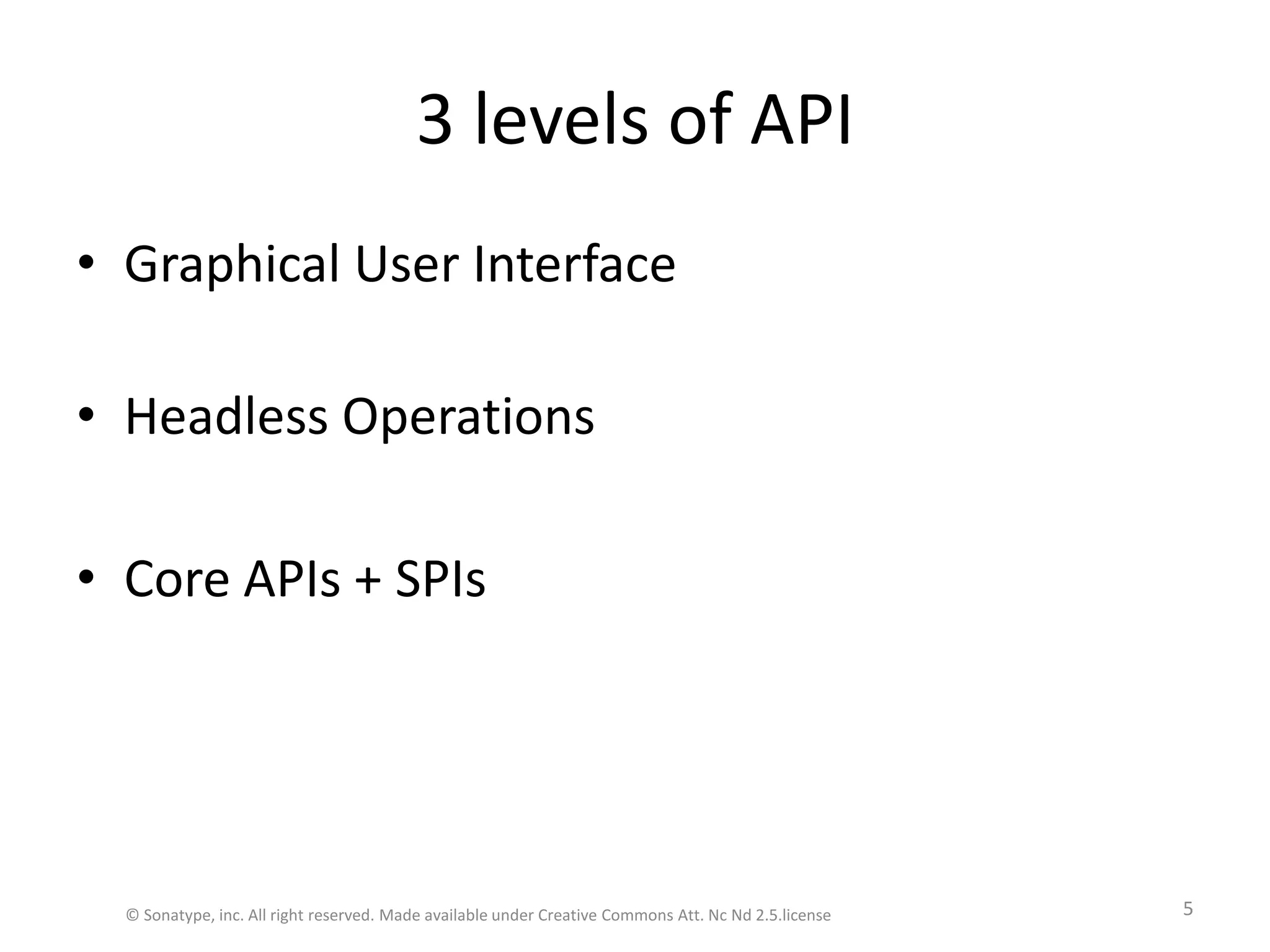

5. 3 levels of APIGraphical User InterfaceHeadless OperationsCore APIs + SPIs© Sonatype, inc. All right reserved. Made available under Creative Commons Att. Nc Nd 2.5.license5

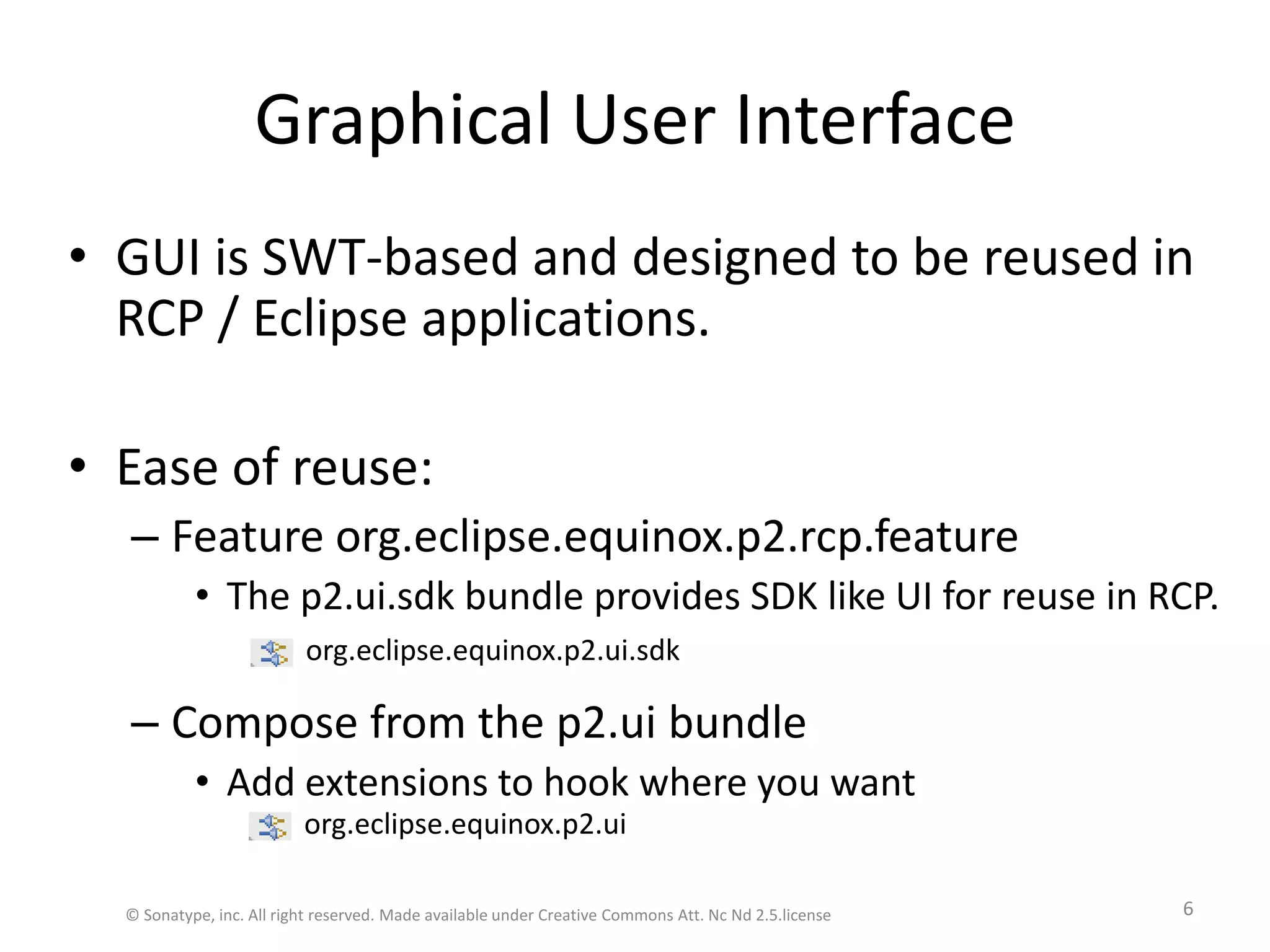

6. Graphical User InterfaceGUI is SWT-based and designed to be reused in RCP / Eclipse applications. Ease of reuse:Feature org.eclipse.equinox.p2.rcp.featureThe p2.ui.sdk bundle provides SDK like UI for reuse in RCP.Compose from the p2.ui bundleAdd extensions to hook where you wantorg.eclipse.equinox.p2.uiorg.eclipse.equinox.p2.ui.sdk© Sonatype, inc. All right reserved. Made available under Creative Commons Att. Nc Nd 2.5.license6

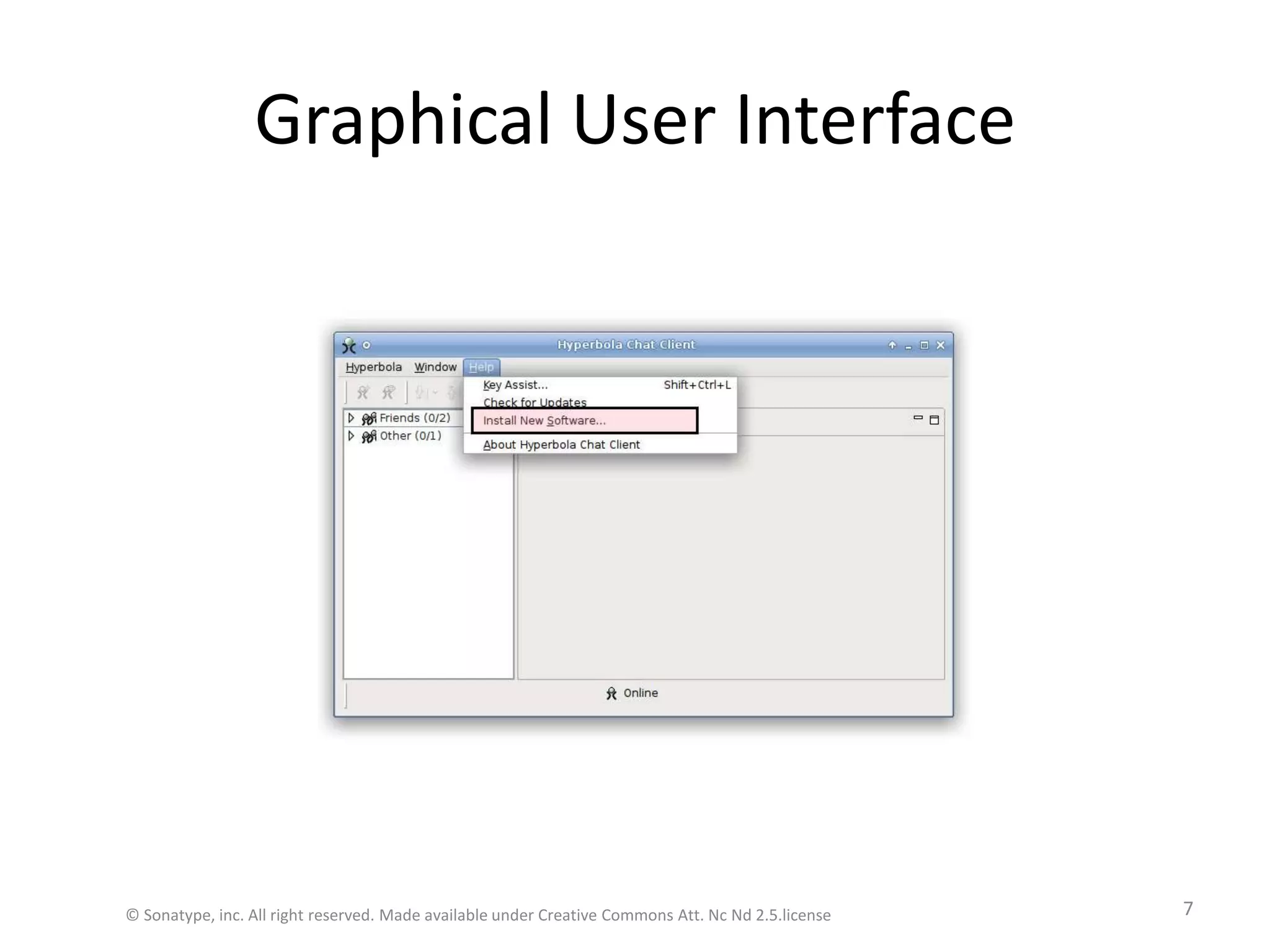

7. Graphical User Interface© Sonatype, inc. All right reserved. Made available under Creative Commons Att. Nc Nd 2.5.license7

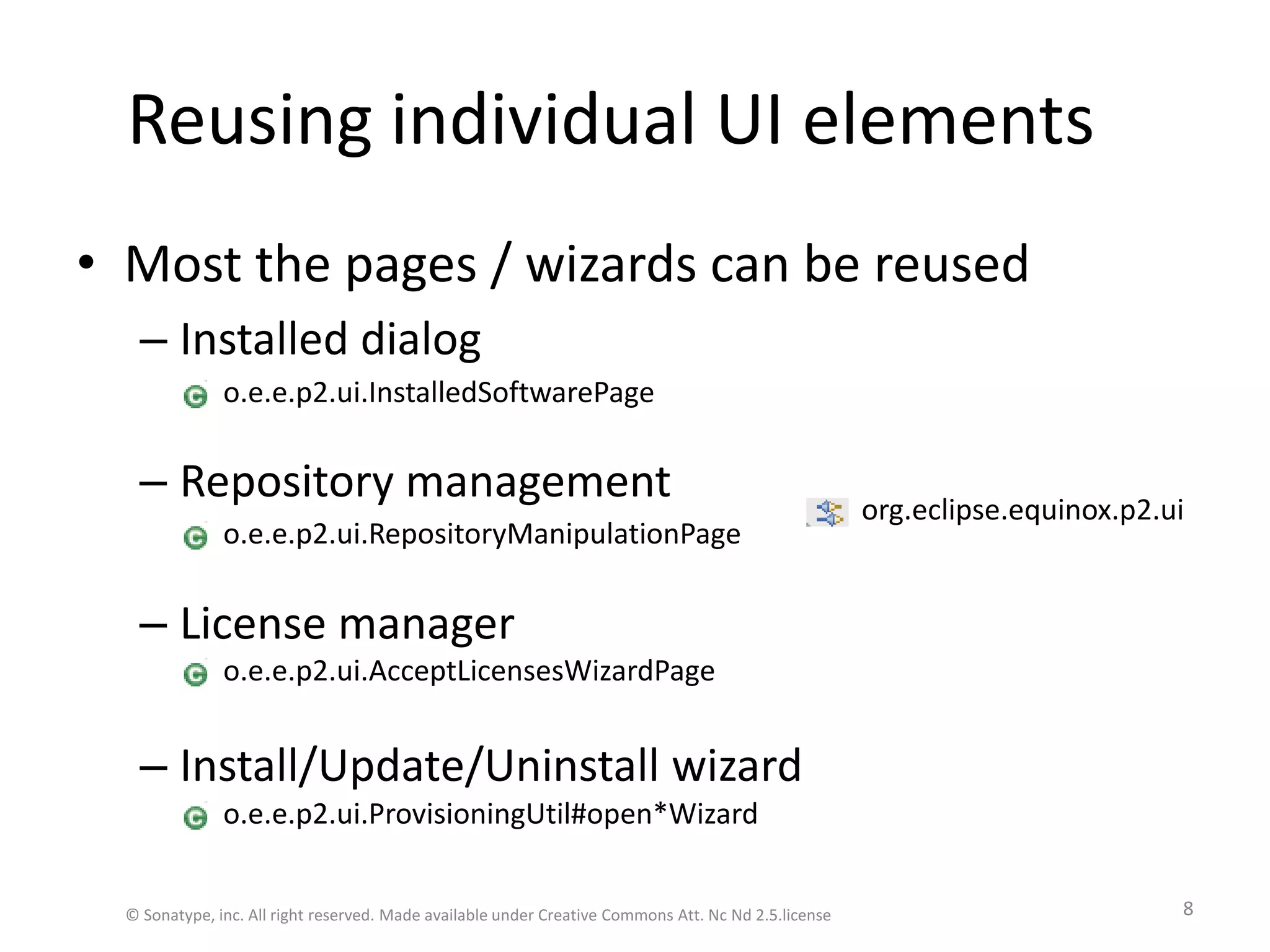

8. Reusing individual UI elements Most the pages / wizards can be reusedInstalled dialog Repository managementLicense managerInstall/Update/Uninstall wizardo.e.e.p2.ui.InstalledSoftwarePageo.e.e.p2.ui.RepositoryManipulationPageo.e.e.p2.ui.AcceptLicensesWizardPageo.e.e.p2.ui.ProvisioningUtil#open*Wizardorg.eclipse.equinox.p2.ui© Sonatype, inc. All right reserved. Made available under Creative Commons Att. Nc Nd 2.5.license8

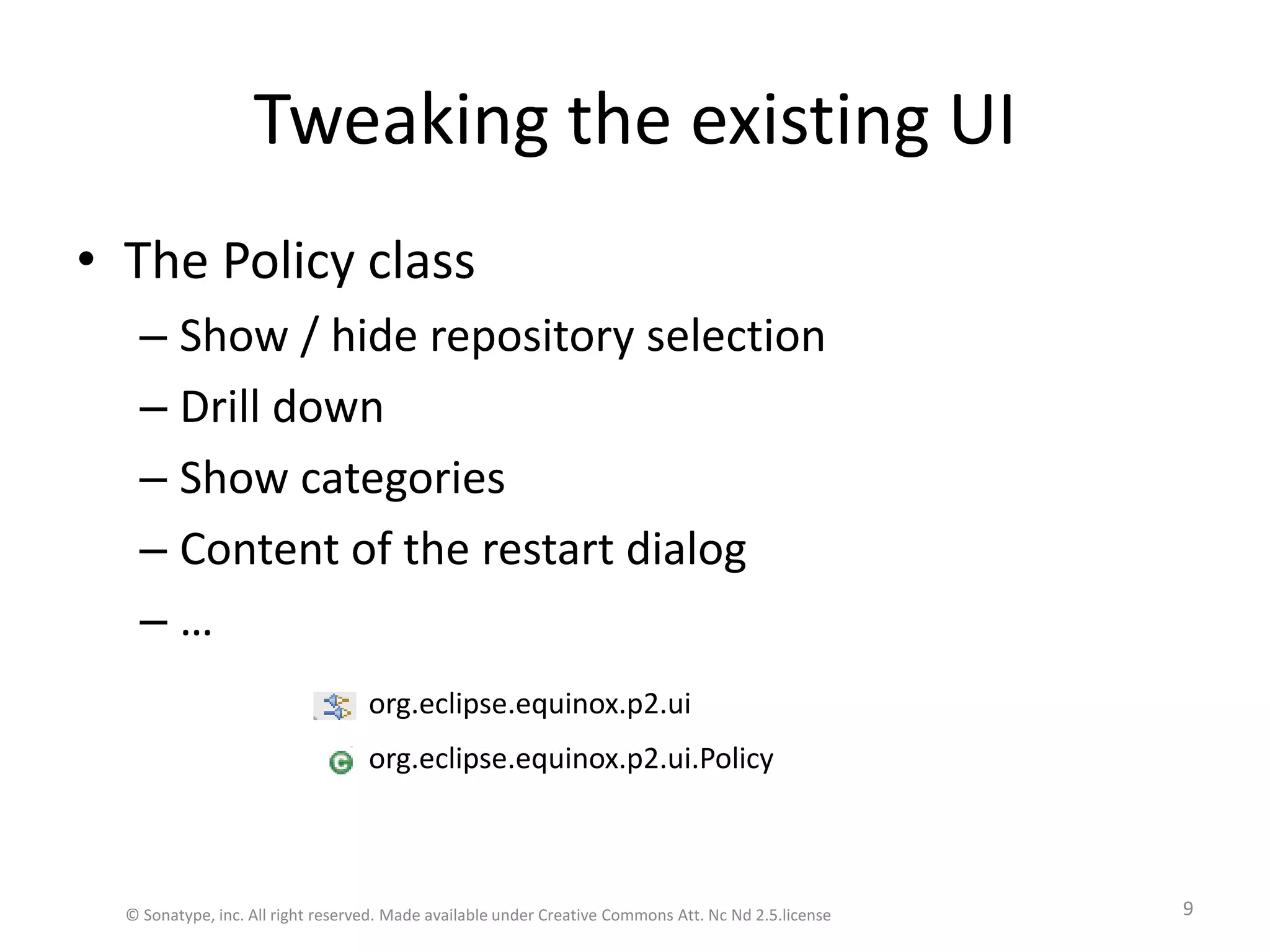

9. Tweaking the existing UIThe Policy classShow / hide repository selectionDrill downShow categoriesContent of the restart dialog …org.eclipse.equinox.p2.ui.Policyorg.eclipse.equinox.p2.ui© Sonatype, inc. All right reserved. Made available under Creative Commons Att. Nc Nd 2.5.license9

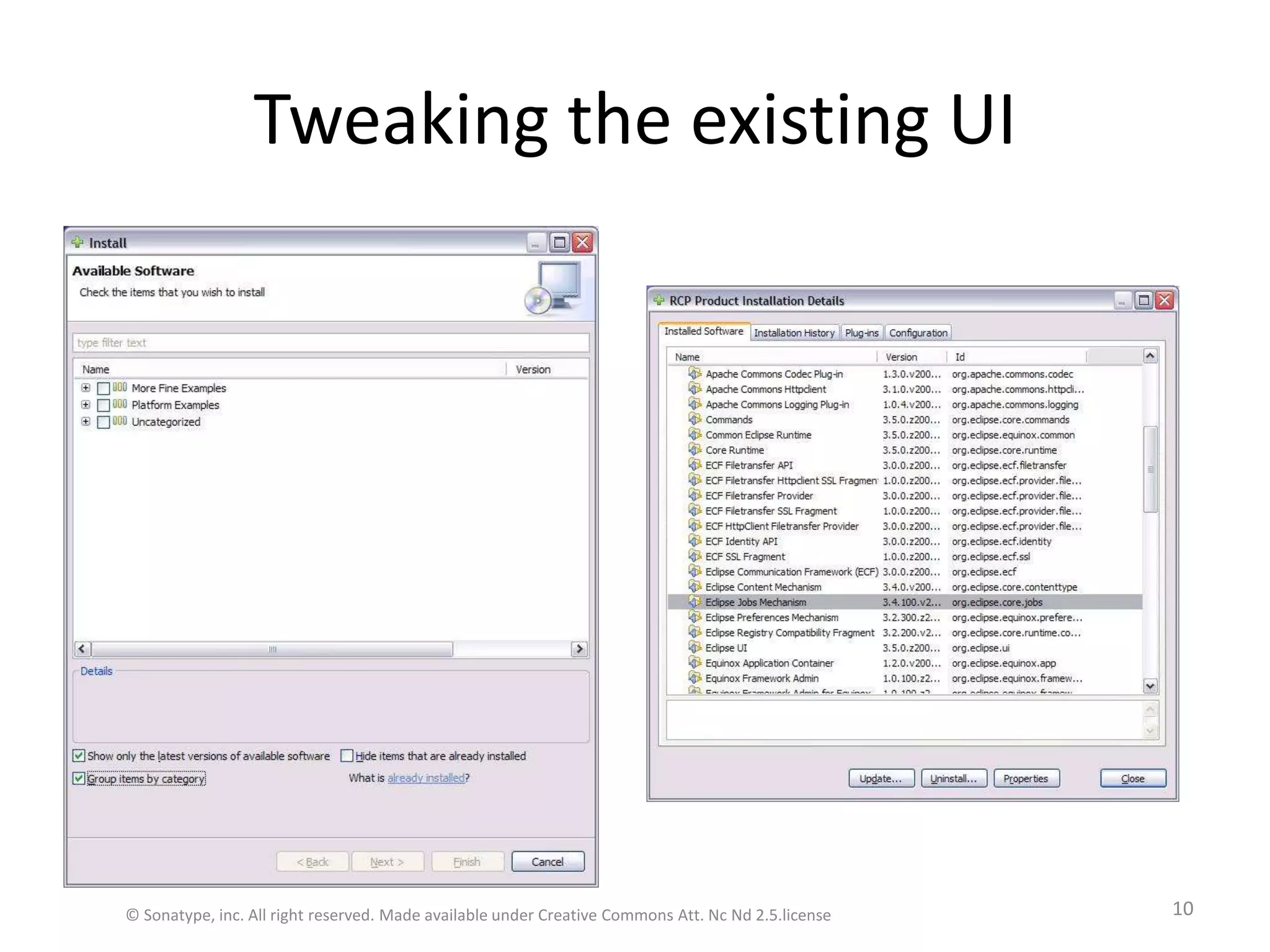

10. Tweaking the existing UI© Sonatype, inc. All right reserved. Made available under Creative Commons Att. Nc Nd 2.5.license10

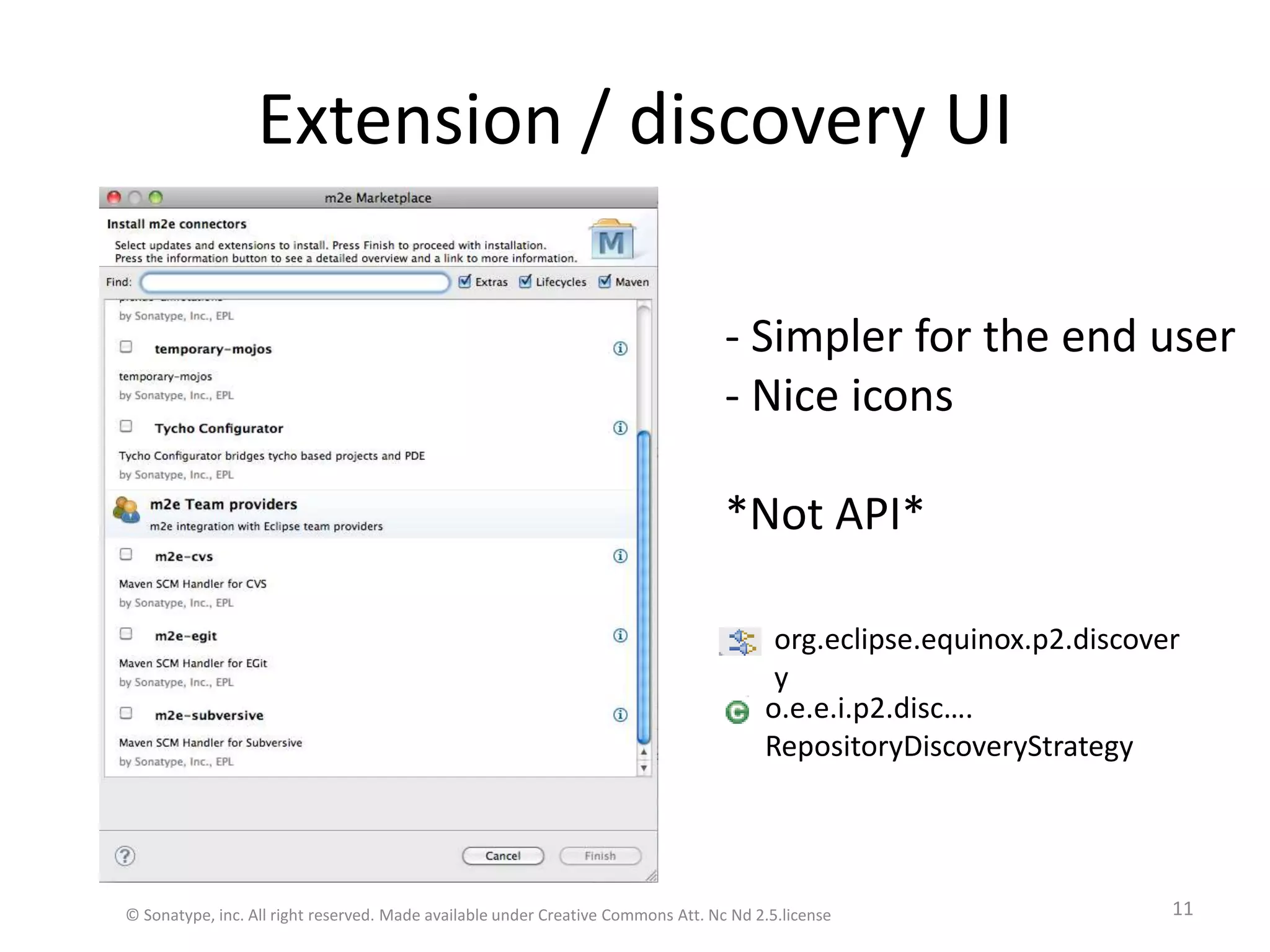

11. Extension / discovery UI© Sonatype, inc. All right reserved. Made available under Creative Commons Att. Nc Nd 2.5.license11- Simpler for the end user Nice icons*Not API*o.e.e.i.p2.disc….RepositoryDiscoveryStrategyorg.eclipse.equinox.p2.discovery

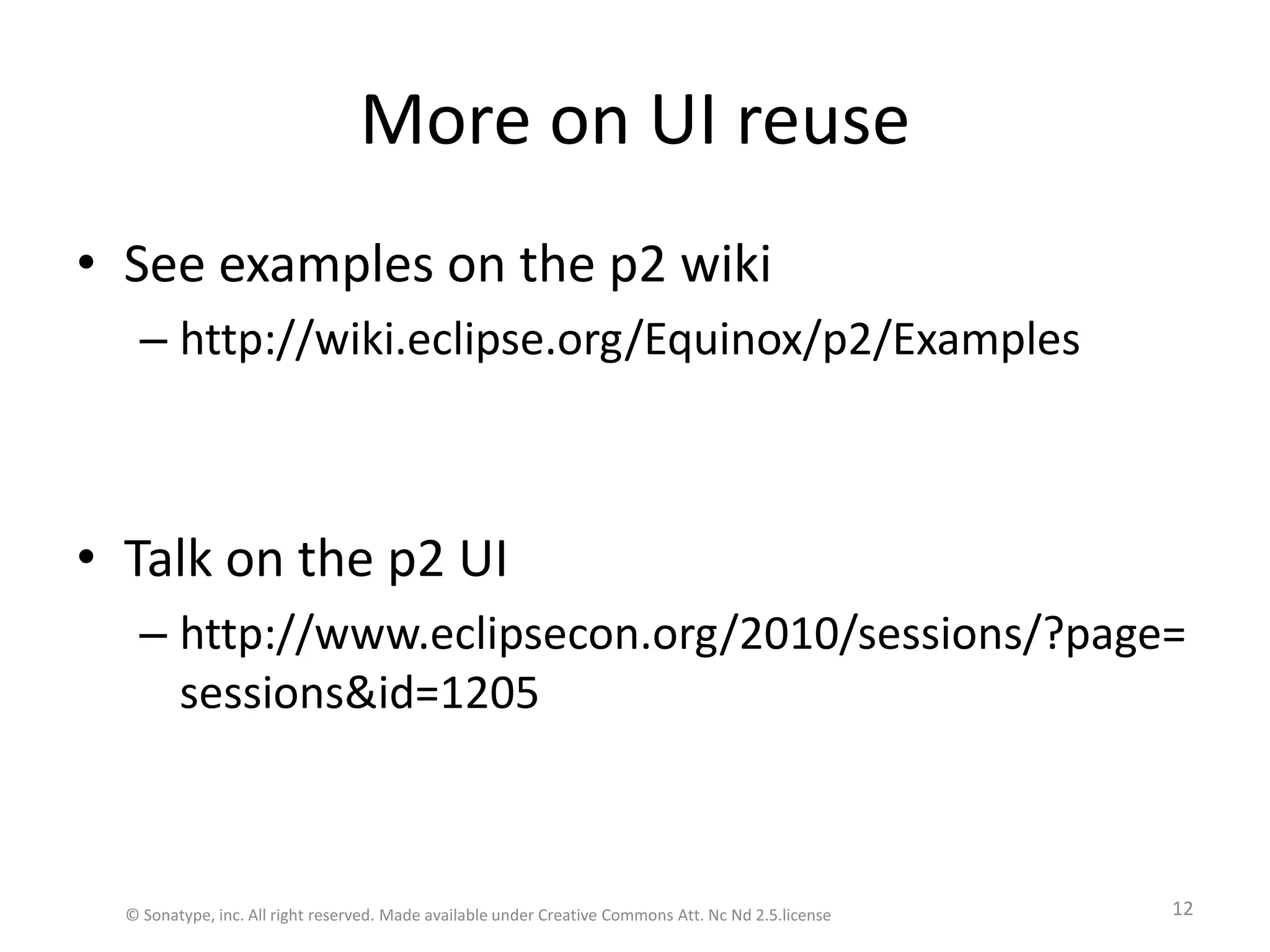

12. More on UI reuseSee examples on the p2 wikihttp://wiki.eclipse.org/Equinox/p2/ExamplesTalk on the p2 UIhttp://www.eclipsecon.org/2010/sessions/?page=sessions&id=1205© Sonatype, inc. All right reserved. Made available under Creative Commons Att. Nc Nd 2.5.license12

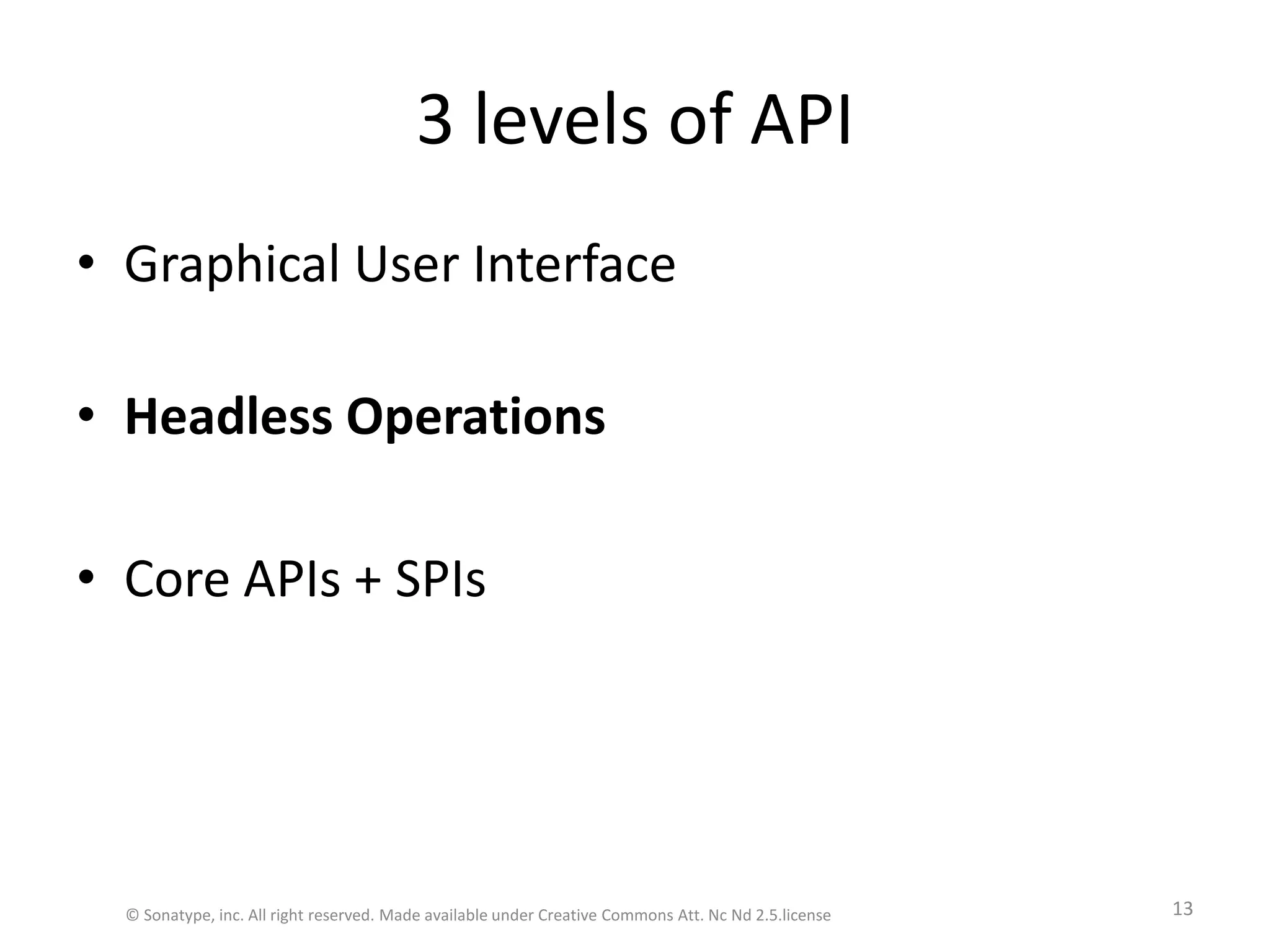

13. 3 levels of APIGraphical User InterfaceHeadless OperationsCore APIs + SPIs© Sonatype, inc. All right reserved. Made available under Creative Commons Att. Nc Nd 2.5.license13

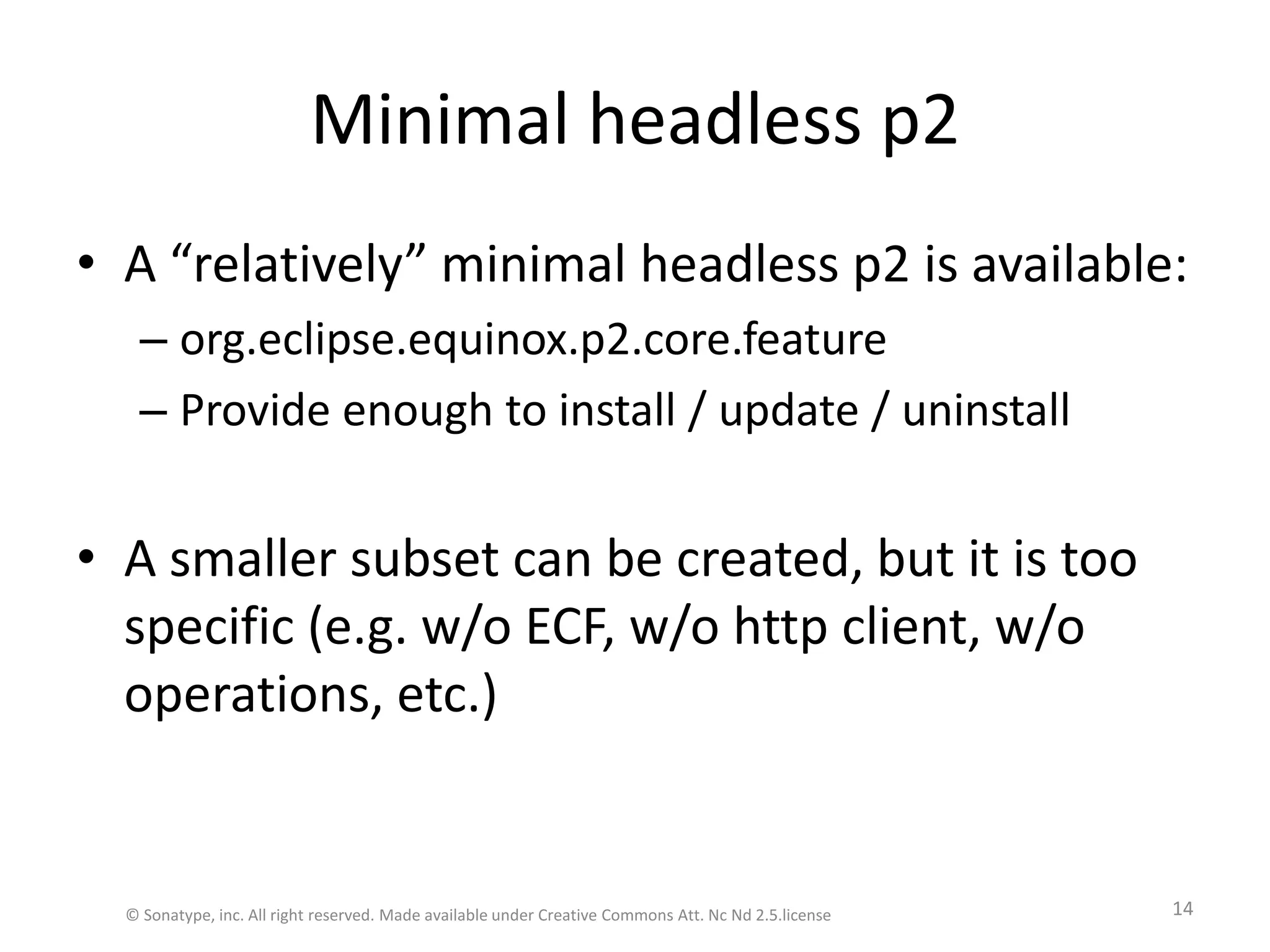

14. Minimal headless p2A “relatively” minimal headless p2 is available:org.eclipse.equinox.p2.core.featureProvide enough to install / update / uninstallA smaller subset can be created, but it is too specific (e.g. w/o ECF, w/o http client, w/o operations, etc.)© Sonatype, inc. All right reserved. Made available under Creative Commons Att. Nc Nd 2.5.license14

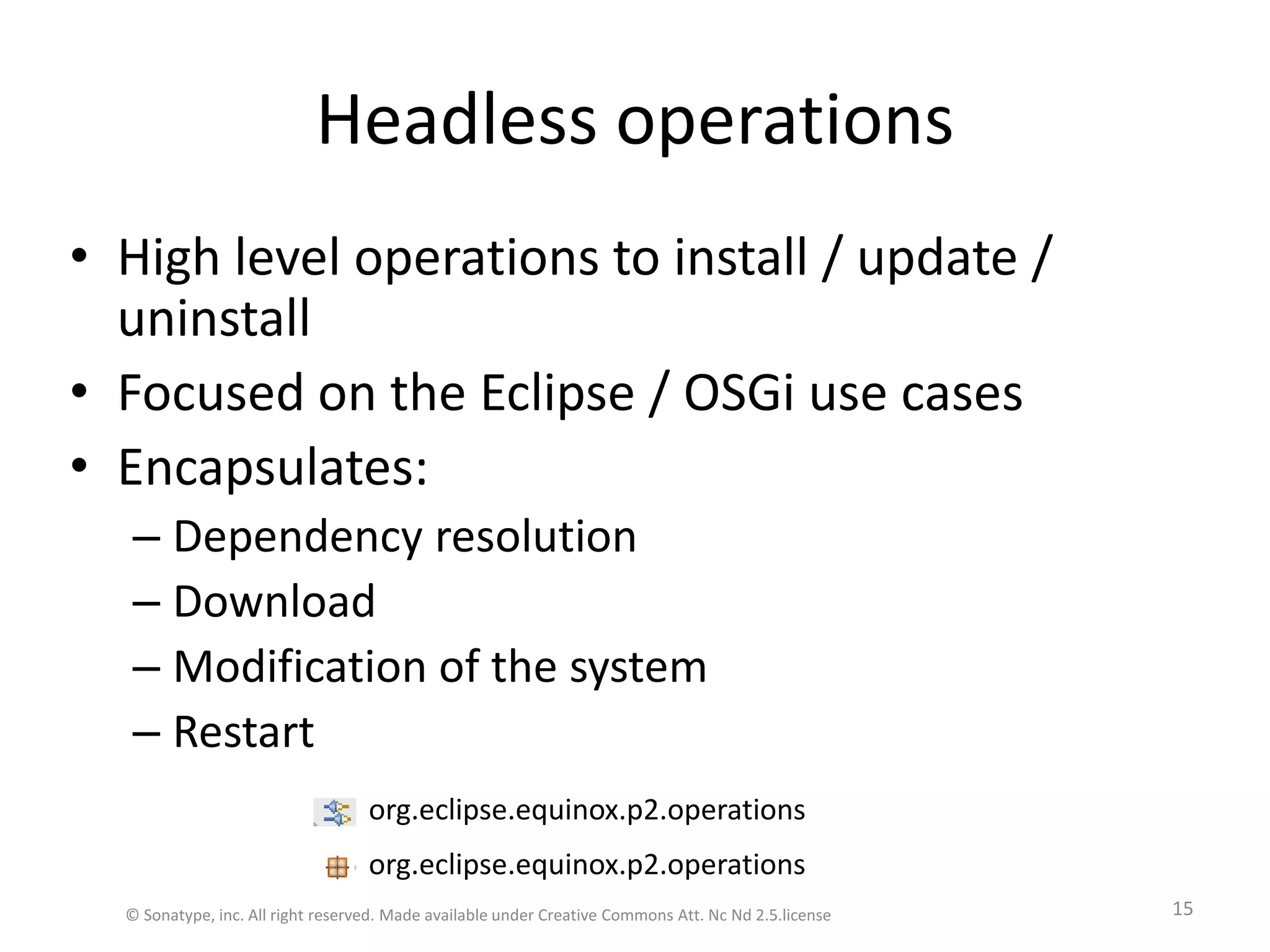

15. Headless operationsHigh level operations to install / update / uninstallFocused on the Eclipse / OSGi use casesEncapsulates:Dependency resolutionDownloadModification of the systemRestartorg.eclipse.equinox.p2.operationsorg.eclipse.equinox.p2.operations© Sonatype, inc. All right reserved. Made available under Creative Commons Att. Nc Nd 2.5.license15

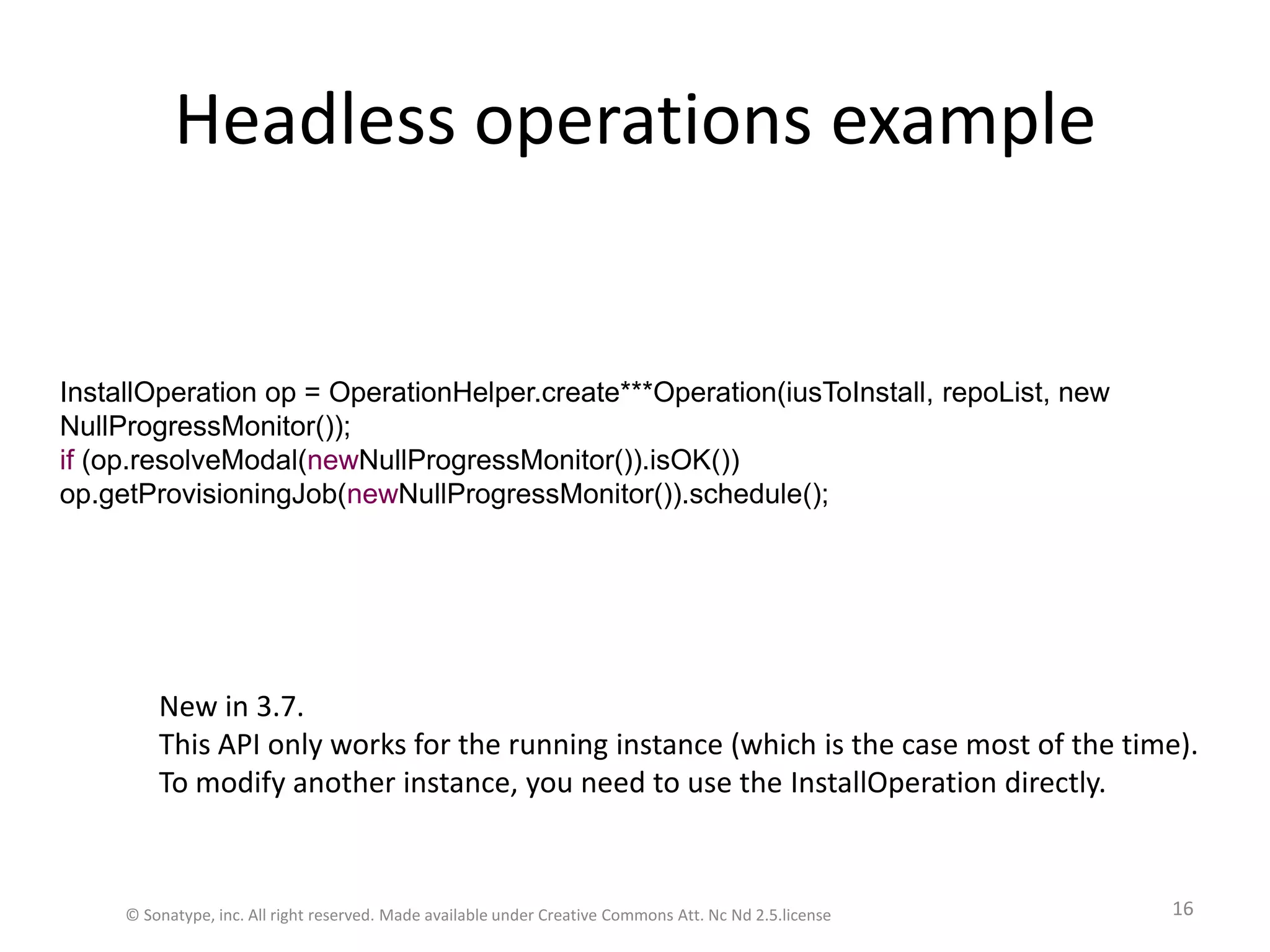

16. Headless operations exampleInstallOperation op = OperationHelper.create***Operation(iusToInstall, repoList, new NullProgressMonitor());if (op.resolveModal(newNullProgressMonitor()).isOK())op.getProvisioningJob(newNullProgressMonitor()).schedule();© Sonatype, inc. All right reserved. Made available under Creative Commons Att. Nc Nd 2.5.license16New in 3.7. This API only works for the running instance (which is the case most of the time).To modify another instance, you need to use the InstallOperation directly.

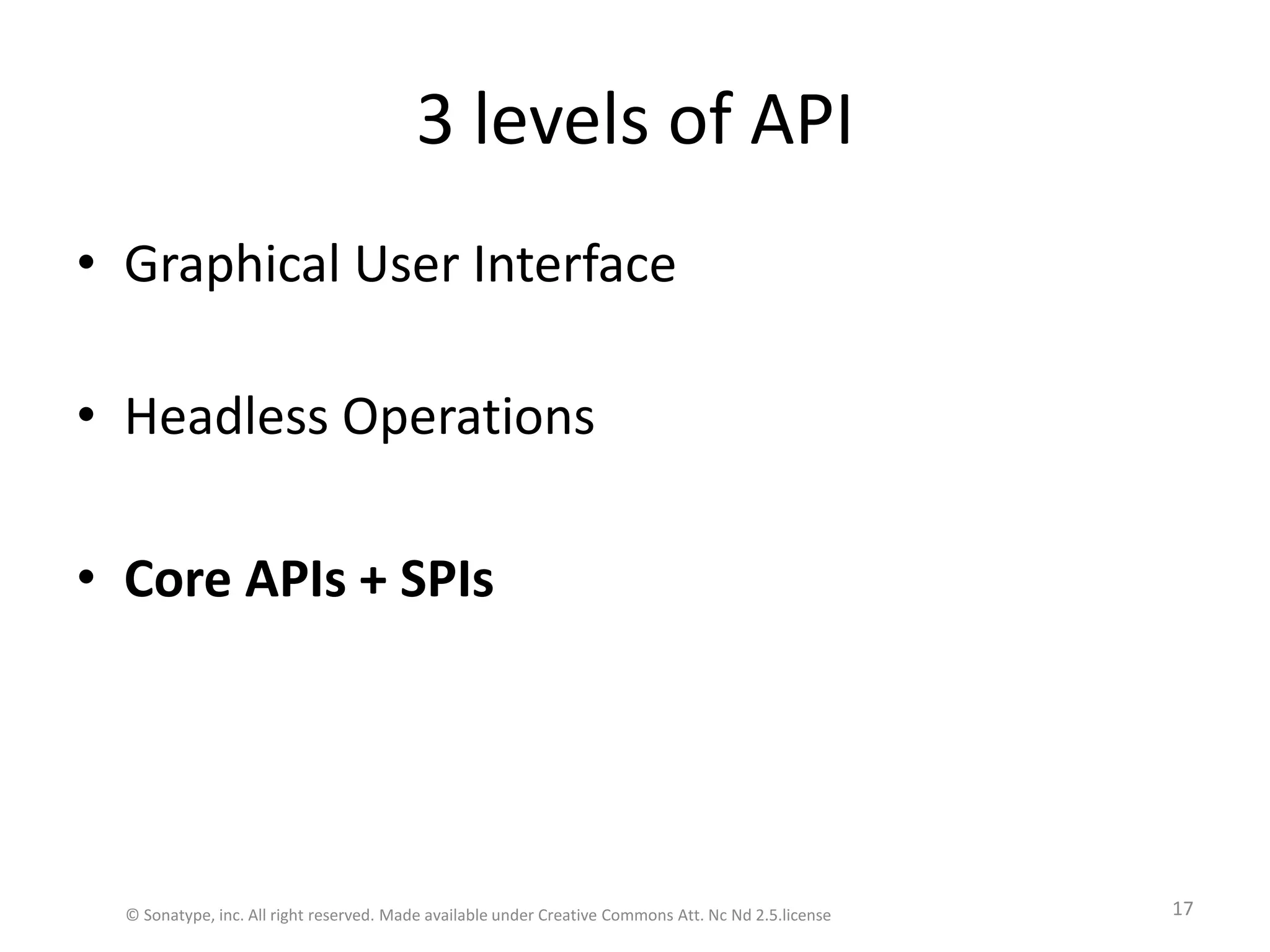

17. 3 levels of APIGraphical User InterfaceHeadless OperationsCore APIs + SPIs© Sonatype, inc. All right reserved. Made available under Creative Commons Att. Nc Nd 2.5.license17

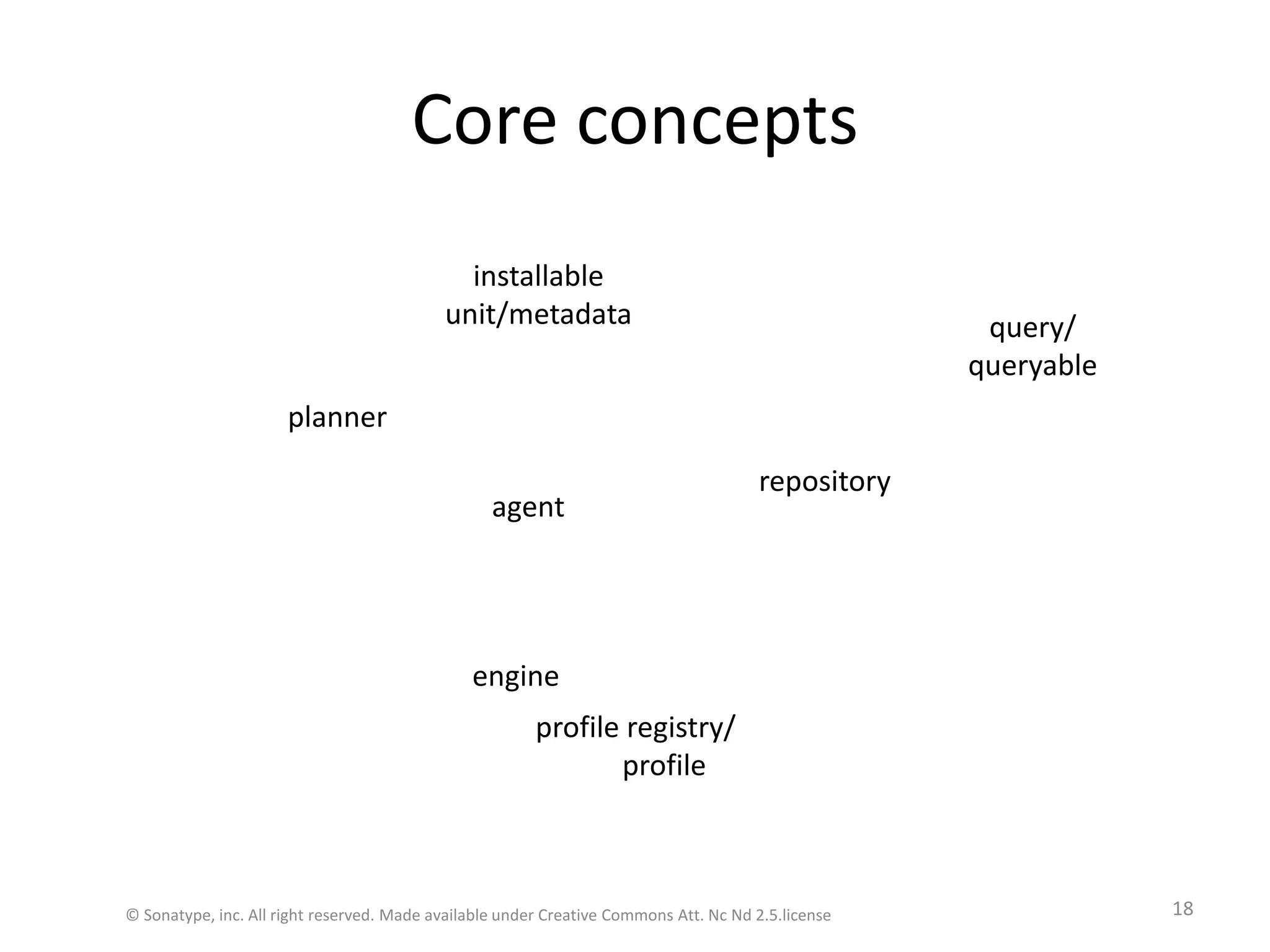

18. Core conceptsinstallable unit/metadataquery/queryableplannerrepositoryagentengineprofile registry/profile© Sonatype, inc. All right reserved. Made available under Creative Commons Att. Nc Nd 2.5.license18

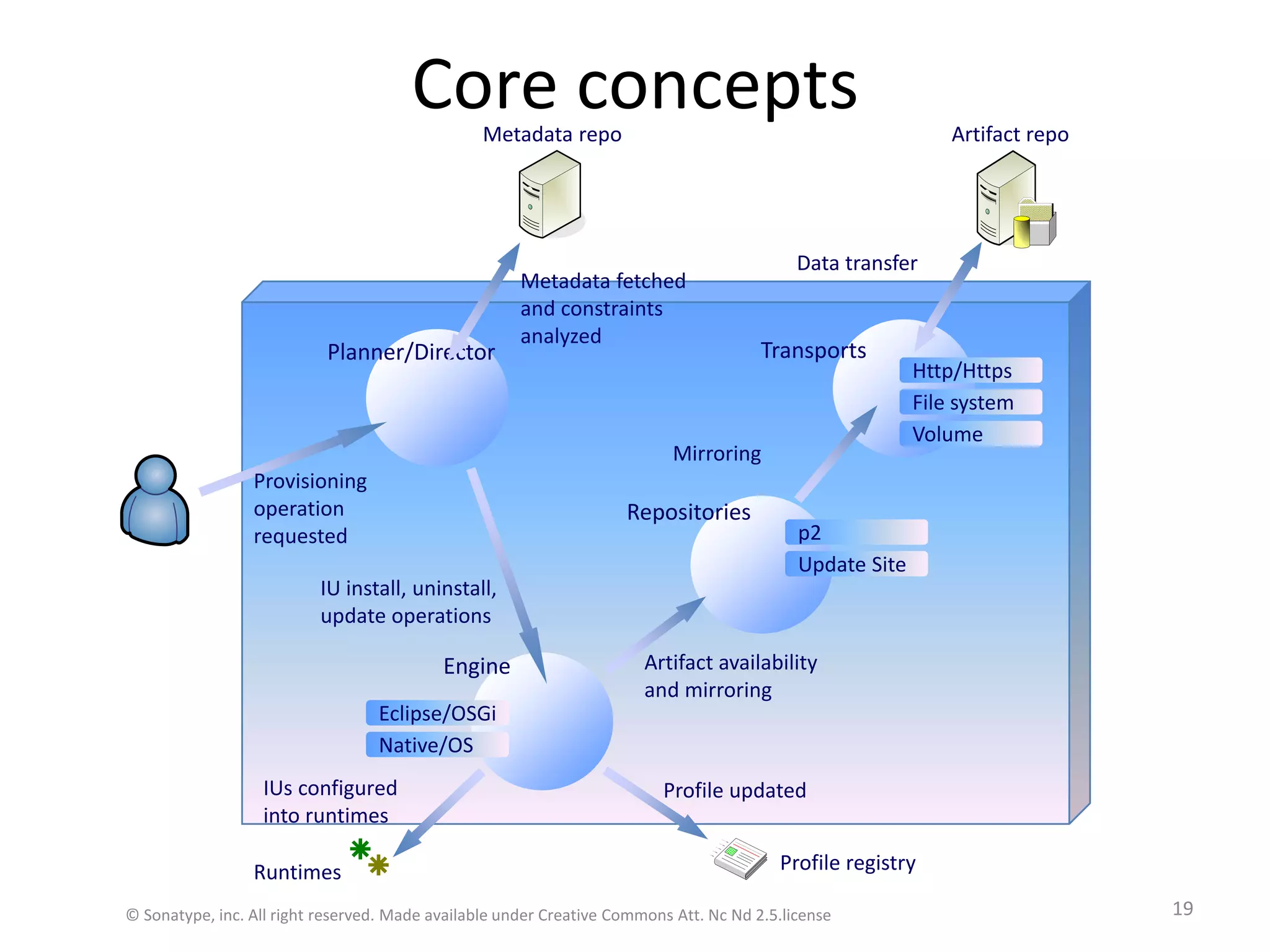

19. Repositoriesp2Update SiteEngineEclipse/OSGiNative/OSCore conceptsMetadata repoArtifact repoData transferMetadata fetched and constraints analyzedTransportsPlanner/DirectorHttp/HttpsFile systemVolumeMirroringProvisioning operation requestedIU install, uninstall, update operationsArtifact availability and mirroringIUs configured into runtimesProfile updatedProfile registryRuntimes© Sonatype, inc. All right reserved. Made available under Creative Commons Att. Nc Nd 2.5.license19

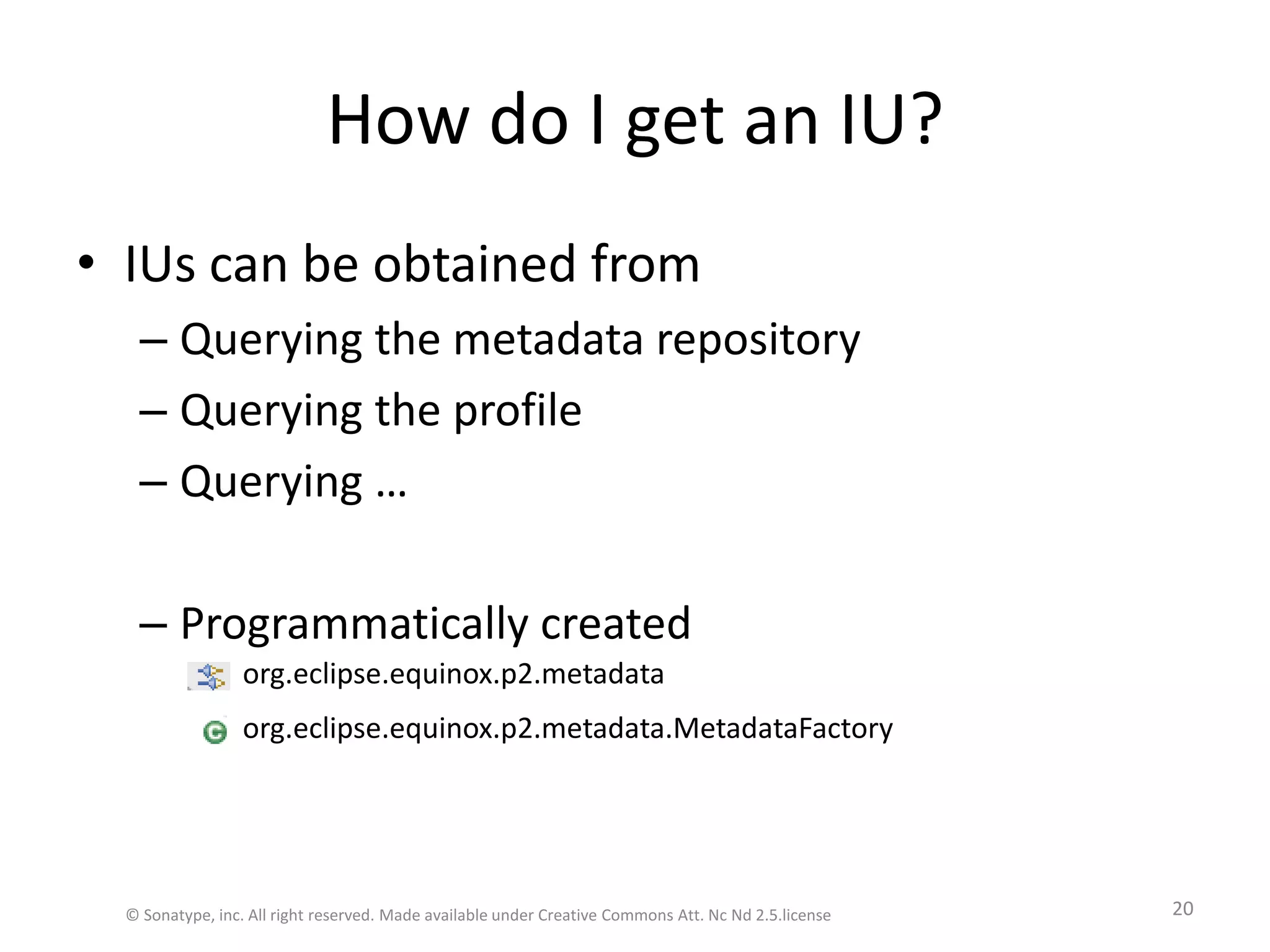

20. How do I get an IU?IUs can be obtained fromQuerying the metadata repository Querying the profileQuerying …Programmatically createdorg.eclipse.equinox.p2.metadata.MetadataFactoryorg.eclipse.equinox.p2.metadata© Sonatype, inc. All right reserved. Made available under Creative Commons Att. Nc Nd 2.5.license20

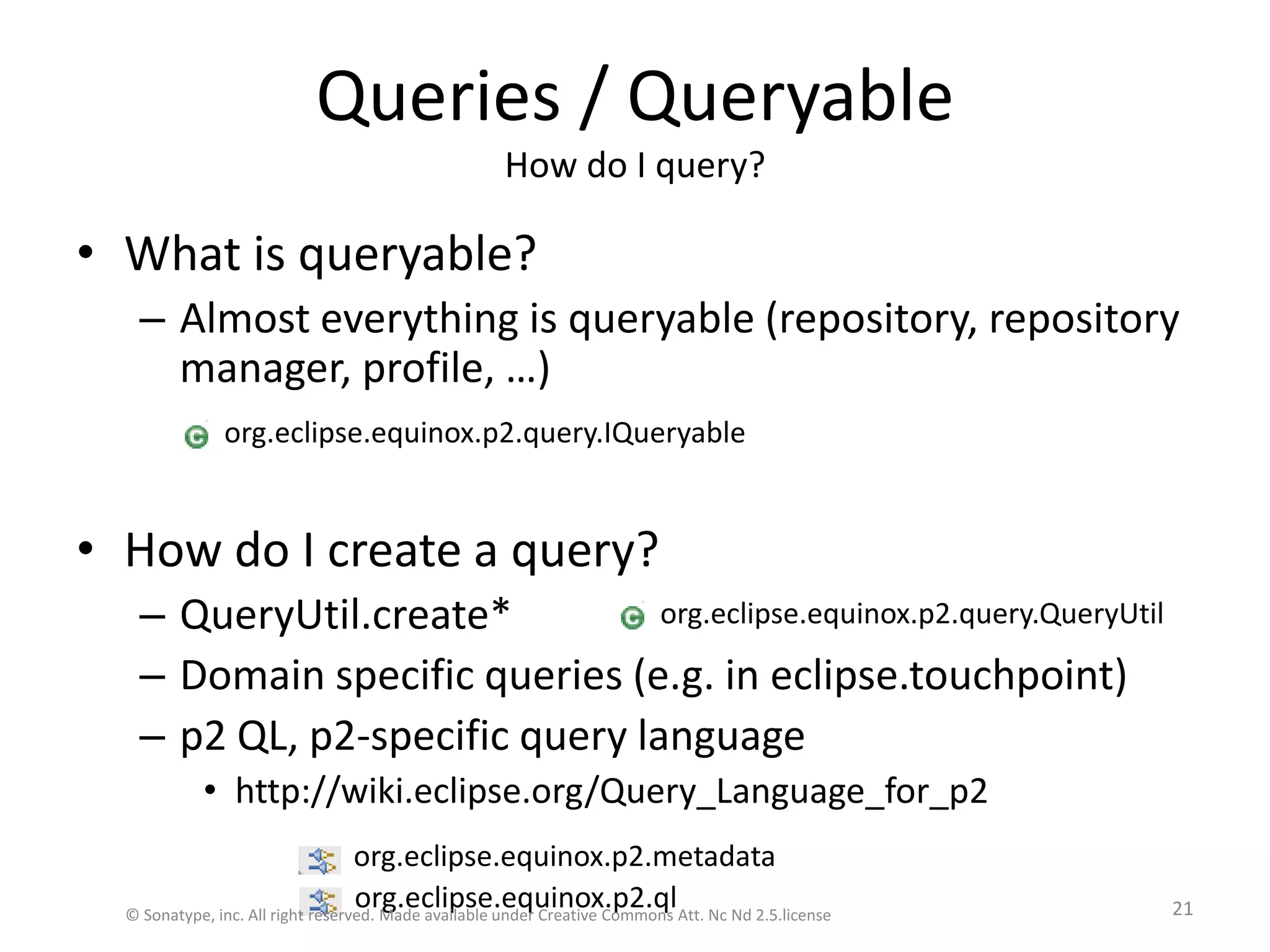

21. Queries / QueryableHow do I query?What is queryable?Almost everything is queryable (repository, repository manager, profile, …)How do I create a query?QueryUtil.create*Domain specific queries (e.g. in eclipse.touchpoint)p2 QL, p2-specific query languagehttp://wiki.eclipse.org/Query_Language_for_p2org.eclipse.equinox.p2.query.IQueryableorg.eclipse.equinox.p2.query.QueryUtilorg.eclipse.equinox.p2.metadataorg.eclipse.equinox.p2.ql© Sonatype, inc. All right reserved. Made available under Creative Commons Att. Nc Nd 2.5.license21

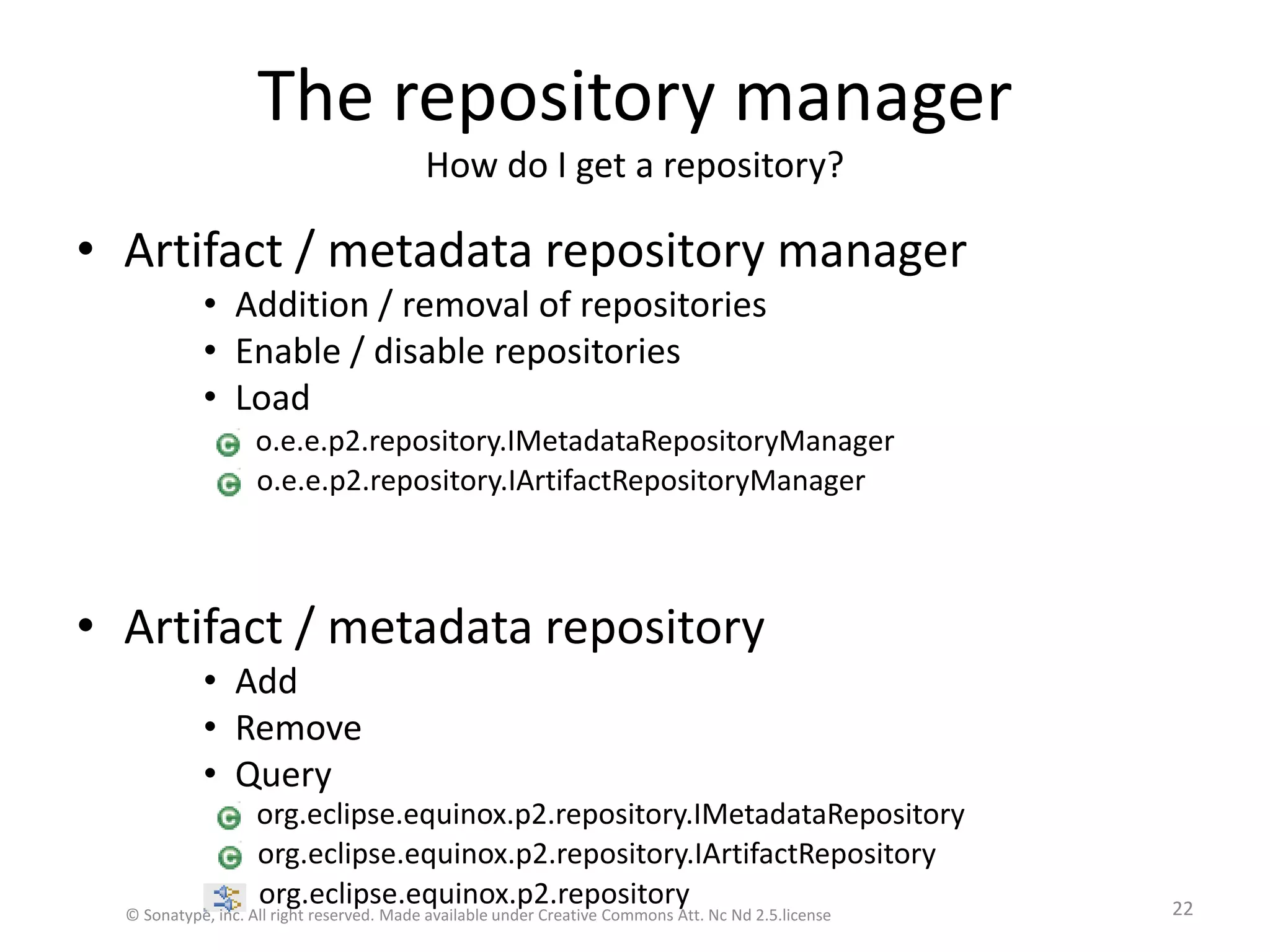

22. The repository managerHow do I get a repository?Artifact / metadata repository managerAddition / removal of repositoriesEnable / disable repositoriesLoadArtifact / metadata repositoryAddRemoveQueryorg.eclipse.equinox.p2.repository.IMetadataRepositoryorg.eclipse.equinox.p2.repository.IArtifactRepositoryo.e.e.p2.repository.IMetadataRepositoryManagero.e.e.p2.repository.IArtifactRepositoryManagerorg.eclipse.equinox.p2.repository© Sonatype, inc. All right reserved. Made available under Creative Commons Att. Nc Nd 2.5.license22

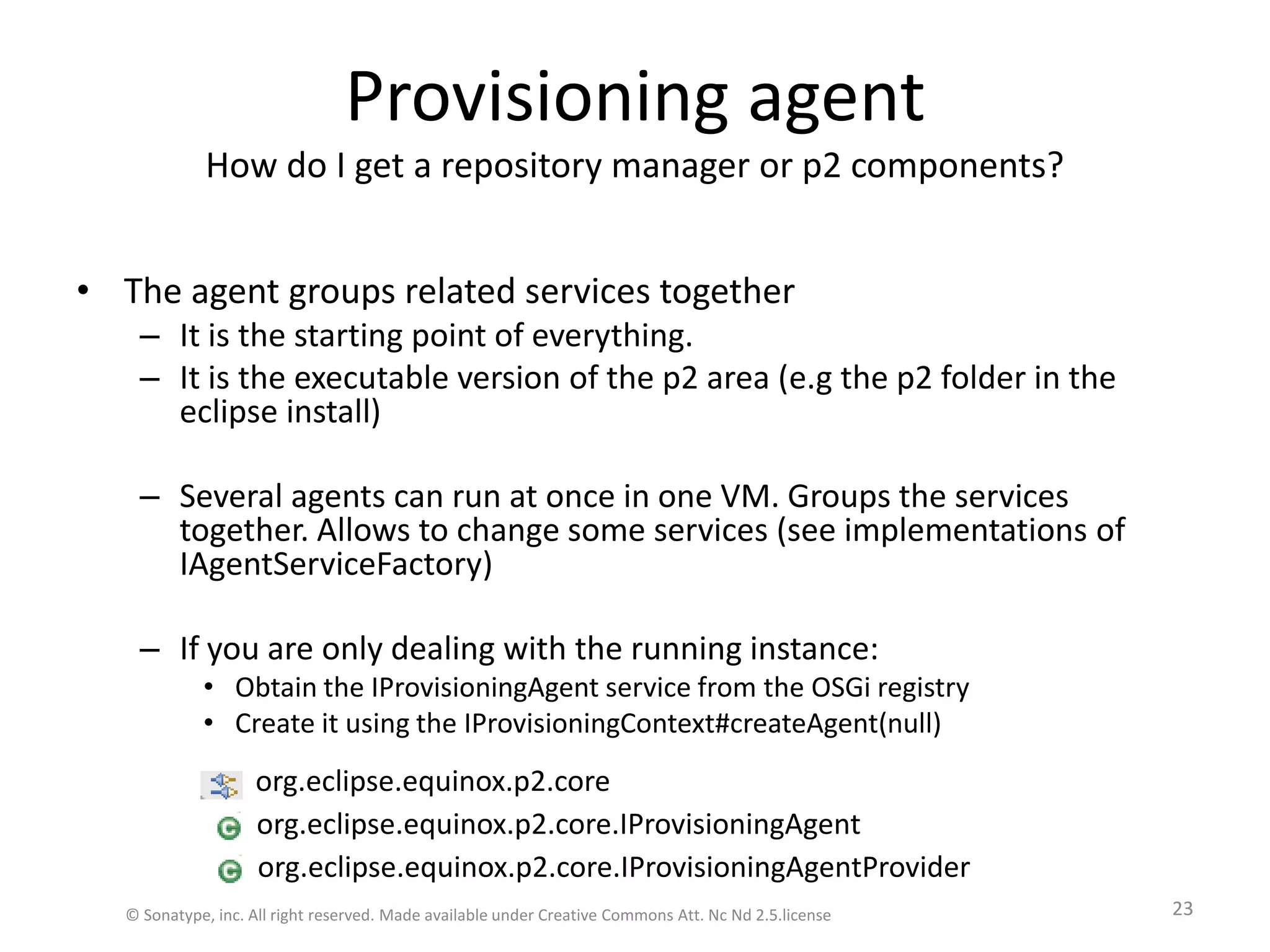

23. Provisioning agentHow do I get a repository manager or p2 components?The agent groups related services togetherIt is the starting point of everything.It is the executable version of the p2 area (e.g the p2 folder in the eclipse install)Several agents can run at once in one VM. Groups the services together. Allows to change some services (see implementations of IAgentServiceFactory)If you are only dealing with the running instance:Obtain the IProvisioningAgent service from the OSGi registryCreate it using the IProvisioningContext#createAgent(null)org.eclipse.equinox.p2.core.IProvisioningAgentorg.eclipse.equinox.p2.core.IProvisioningAgentProviderorg.eclipse.equinox.p2.core© Sonatype, inc. All right reserved. Made available under Creative Commons Att. Nc Nd 2.5.license23

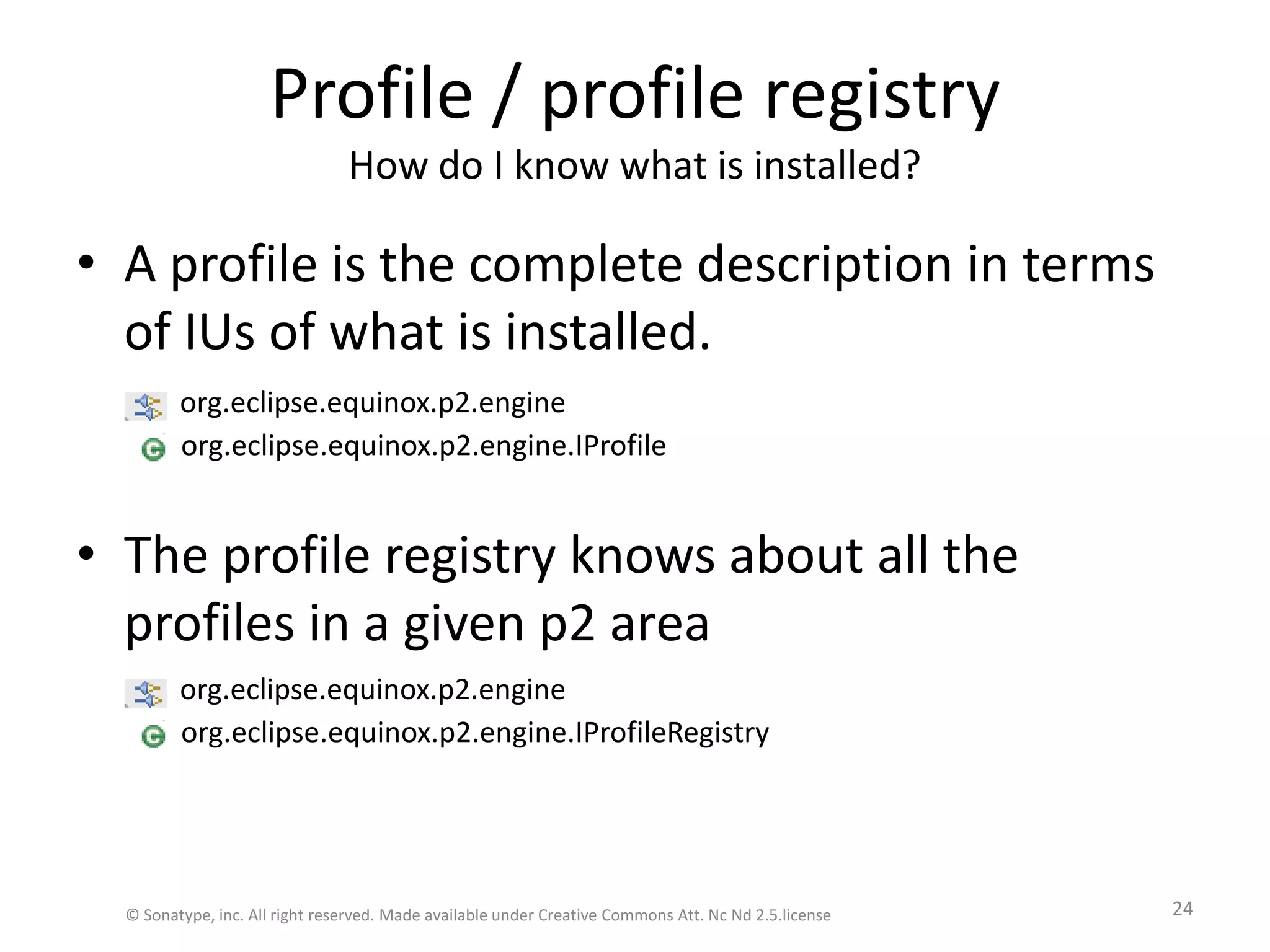

24. Profile / profile registryHow do I know what is installed?A profile is the complete description in terms of IUs of what is installed.The profile registry knows about all the profiles in a given p2 areaorg.eclipse.equinox.p2.engine.IProfileorg.eclipse.equinox.p2.engine.IProfileRegistryorg.eclipse.equinox.p2.engineorg.eclipse.equinox.p2.engine© Sonatype, inc. All right reserved. Made available under Creative Commons Att. Nc Nd 2.5.license24

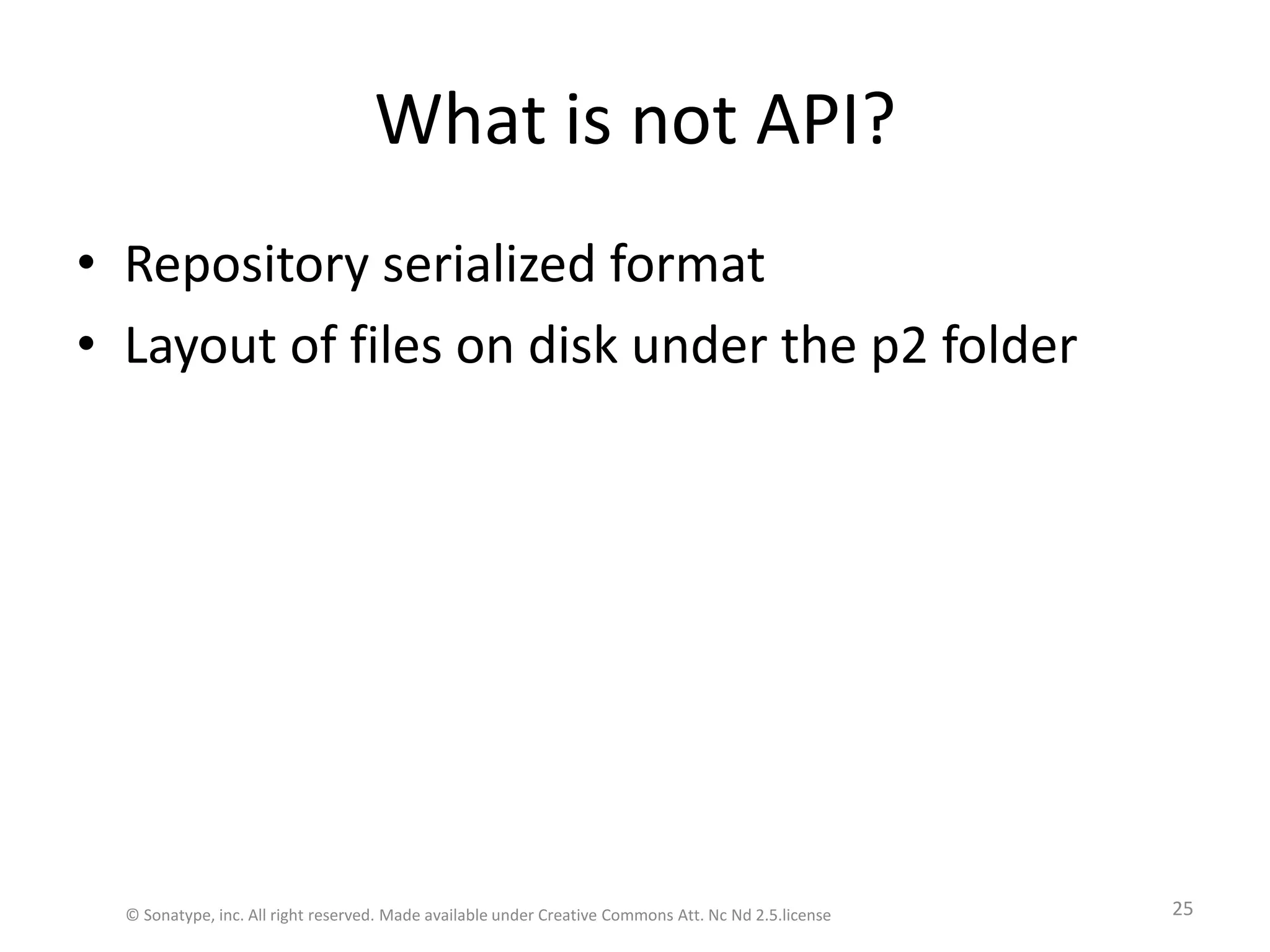

25. What is not API?Repository serialized formatLayout of files on disk under the p2 folder© Sonatype, inc. All right reserved. Made available under Creative Commons Att. Nc Nd 2.5.license25

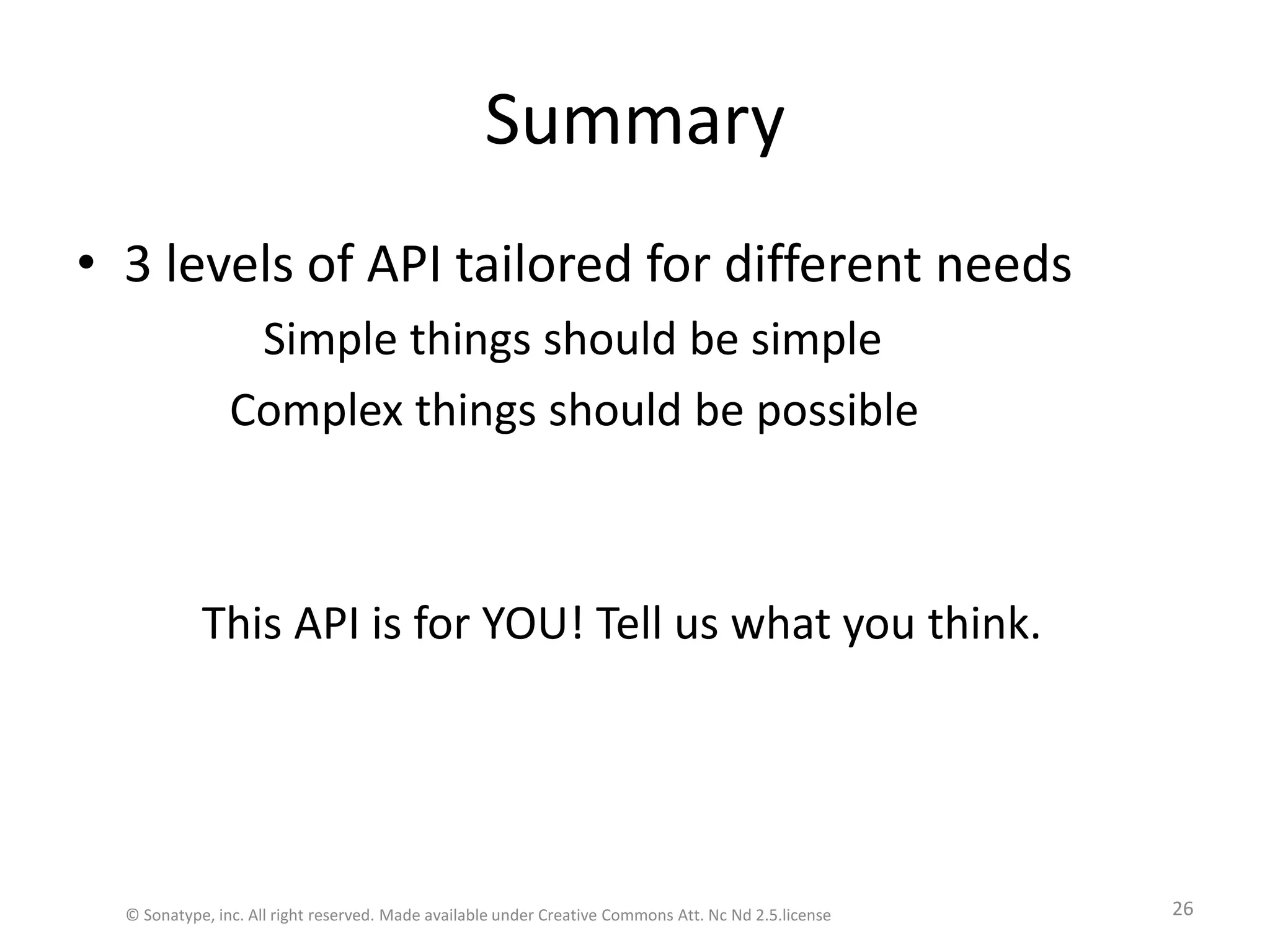

26. Summary3 levels of API tailored for different needs Simple things should be simple Complex things should be possible This API is for YOU! Tell us what you think.© Sonatype, inc. All right reserved. Made available under Creative Commons Att. Nc Nd 2.5.license26

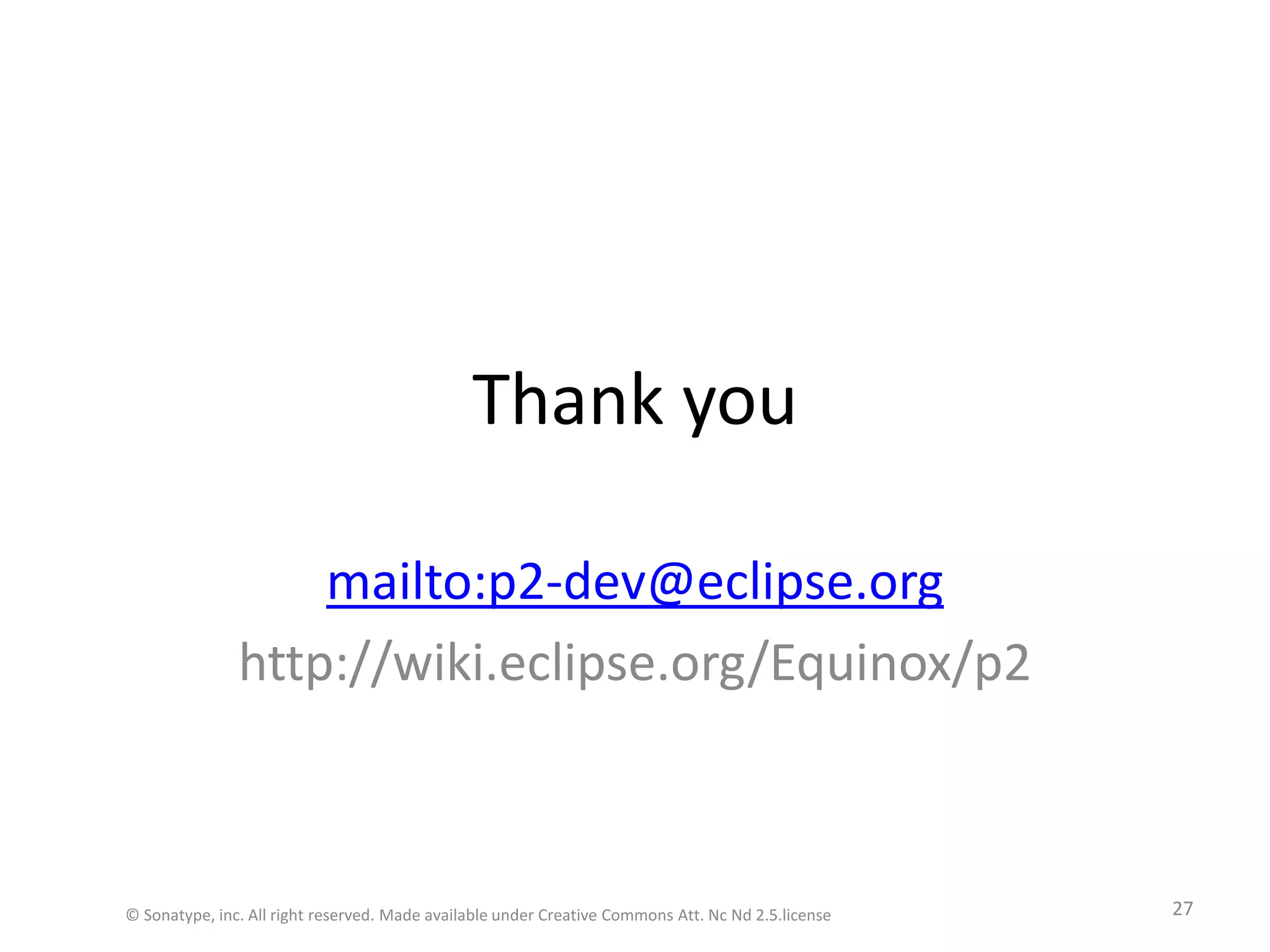

27. Thank youmailto:p2-dev@eclipse.orghttp://wiki.eclipse.org/Equinox/p2© Sonatype, inc. All right reserved. Made available under Creative Commons Att. Nc Nd 2.5.license27

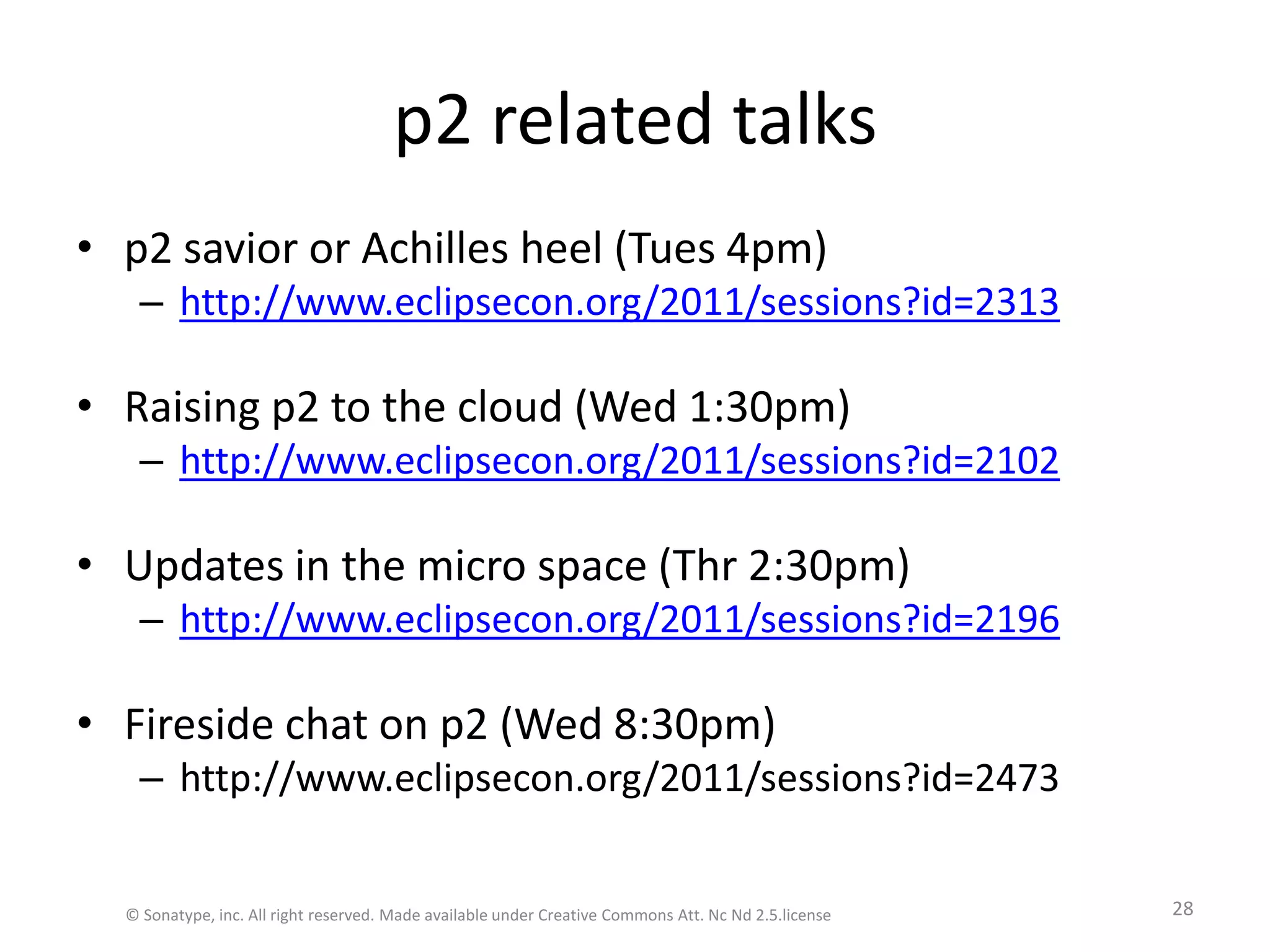

28. p2 related talksp2 savior or Achilles heel (Tues 4pm)http://www.eclipsecon.org/2011/sessions?id=2313Raising p2 to the cloud (Wed 1:30pm)http://www.eclipsecon.org/2011/sessions?id=2102Updates in the micro space (Thr 2:30pm)http://www.eclipsecon.org/2011/sessions?id=2196Fireside chat on p2 (Wed 8:30pm)http://www.eclipsecon.org/2011/sessions?id=2473© Sonatype, inc. All right reserved. Made available under Creative Commons Att. Nc Nd 2.5.license28
